DMX709S
DMX7709S
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
This instruction manual is used to describe the models listed above. Model availability and features (functions) may differ depending on the country and
sales area.
B5A-4042-00 (KN)
ENGLISH
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and
serial numbers whenever you call upon your Kenwood dealer for information or service on the product.
Model DMX709S/DMX7709S Serial number
US Residents Only
Register Online
Register your Kenwood product at https://www.kenwood.com/usa/
© 2022 JVCKENWOOD Corporation
00DMX709SKN.indb100DMX709SKN.indb1 2022/06/2414:142022/06/2414:14
Important NoticeImportant Notice
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual.
Please keep the manual in a safe and accessible
place for future reference.
WARNINGS
To prevent accidents and damages
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices such
as air bags.
– it may obstruct visibility.
• DO NOT raise the volume level too much, as this will
make driving dangerous by blocking outside sounds,
and may cause hearing loss.
• DO NOT operate the unit while driving. If you need
to operate the unit while driving, be sure to look
around carefully.
• Stop the car before performing any complicated
operations.
• The driver must not watch the monitor while driving.
CAUTIONS
To care for the unit
• If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
To care for the monitor
• The monitor built into this unit has been produced
with high precision, but it may have some ineffective
dots. This is inevitable and is not considered
defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the keys on the touch panel with your finger
directly (if you are wearing a glove, take it off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
On the volume setting
• Digital devices produce very little noise compared
with other sources. Lower the volume before playing
these digital sources to avoid damaging the speakers
by sudden increase of the output level.
FCC CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
ENGLISHi
00DMX709SKN.indbi00DMX709SKN.indbi 2022/06/2414:142022/06/2414:14
Important NoticeImportant Notice
About GPS
When you turn on this unit for the first time, you
must wait while the system acquires GPS signals
from satellites. This process could take up to
several minutes. Make sure your vehicle is outdoors
in an open area away from tall buildings and trees
for fastest acquisition. Once the system acquires
GPS signals, this unit will acquire them quickly each
time you turn on this unit.
Supplier’s Declaration of Conformity
Trade Name: KENWOOD
Products: MONITOR WITH RECEIVER
Model Name: DMX709S/DMX7709S
Responsible Party:
JVCKENWOOD USA CORPORATION
4001 Worsham Avenue, Long Beach,
CA 90808, U.S.A.
PHONE: 1-800-252-5722
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
• Contains Transmitter Module
FCC ID: ZWY88112
• Contains Transmitter Module
IC: 12033A-88112
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
ISED Caution
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
CAUTION
This equipment complies with FCC/ISED radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the ISED radio
frequency (RF) Exposure rules. This equipment should
be installed and operated keeping the radiator at least
20 cm or more away from person’s body.
About this manual
The displays and panels shown in this manual are
examples used to provide clear explanations of the
operations. For this reason, they may be different
from the actual displays or panels.
This manual mainly explains operations using the
buttons on the monitor panel and keys on the

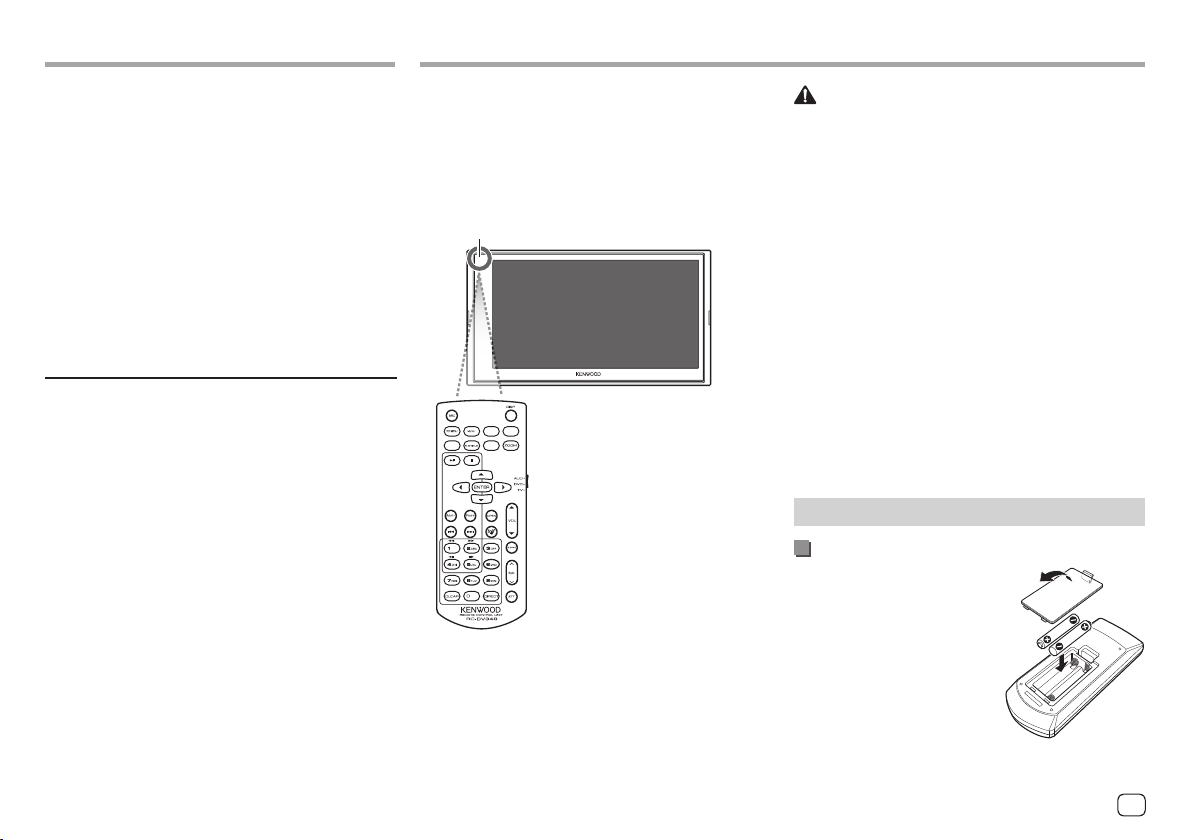

touch panel. For operations using the remote
controller, see page 52.
< > indicates the various screens/menus/
operations/settings that appear on the touch
panel.
[ ] indicates the keys and source names on the
touch panel.
Indication language: English indications are used
for the purpose of explanation. You can select
the indication language from the <Setup> menu
(page 49).
This symbol on the product means there
are important operating and maintenance
instructions in this manual.
Be sure to carefully read instructions in this
manual.
ENGLISH ii
00DMX709SKN.indbii00DMX709SKN.indbii 2022/06/2414:142022/06/2414:14
ContentsContents
Component Names and Basic Operations .....3
Monitor panel ....................................................................................3
Home screen ......................................................................................3
Turning on the power ..................................................................3
Turning off the power ..................................................................3
Putting the unit in standby .......................................................4
Turning off the screen ..................................................................4
Adjusting the volume ...................................................................4
Attenuating the sound ................................................................4
Initial settings .....................................................................................4
Date and clock settings ...............................................................5
In-Car Connections .............................................6
USB connection ................................................................................6
Bluetooth® connection ................................................................6
Connections setting ................................................................... 10
Various Screens and Operations ...................11
Source/option selection screen ..........................................11
Source control screen ................................................................12
List/setting screen........................................................................13
Apps ....................................................................14

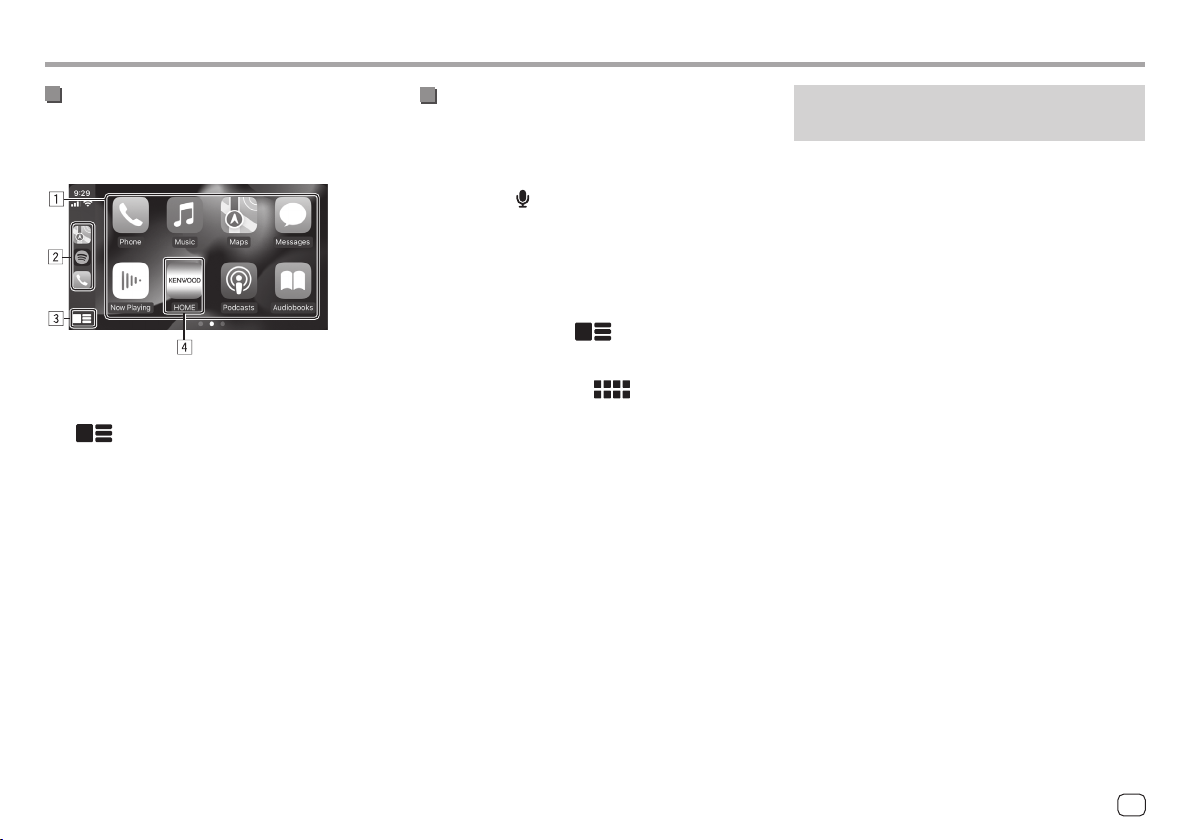

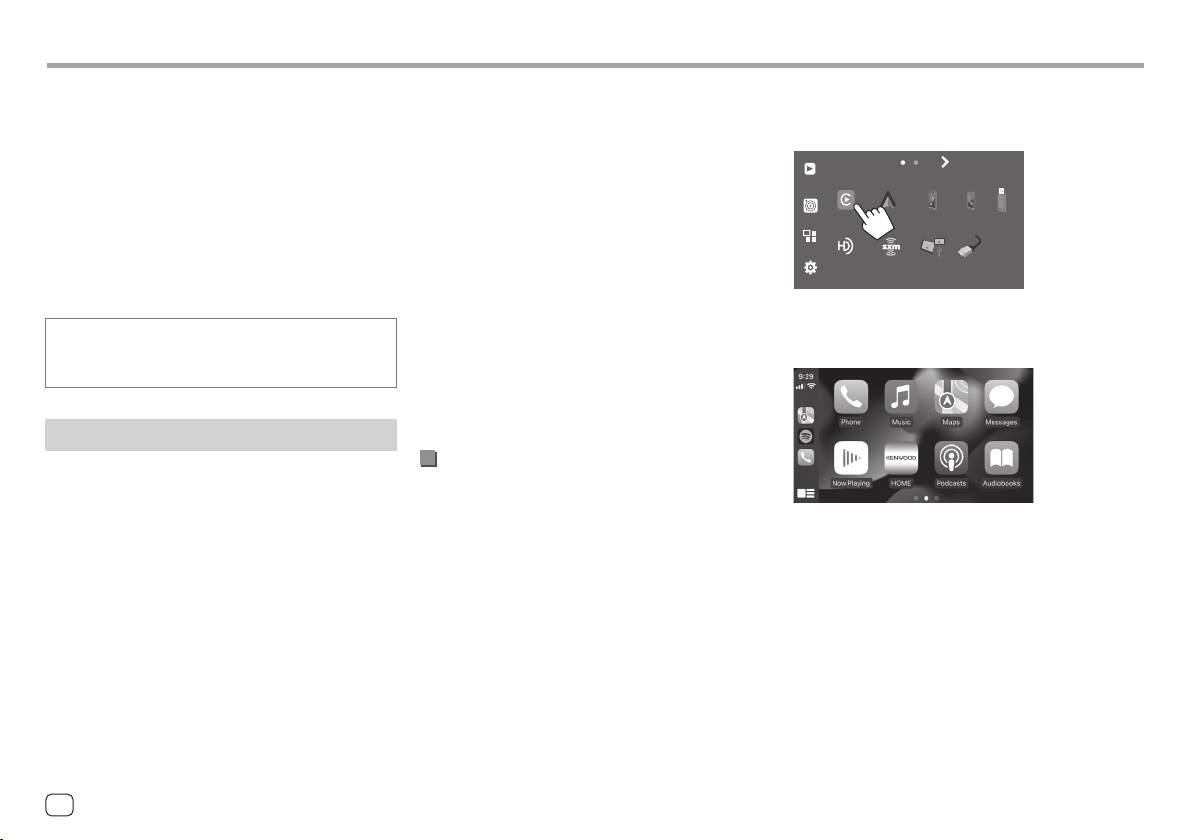

Using Apps of iPhone — Apple CarPlay ........................ 14
Using the Apps of an Android™ device Android
Auto™ ...................................................................................................15
Using the Apps of an Android device
USB Mirroring ..................................................................................16
USB ......................................................................17
Playback operations ....................................................................17
Video playback operations ..................................................... 18
Search operations ........................................................................ 19
Settings for USB playback .......................................................20
HD Radio™ (for DMX709S) ..............................21
About HD Radio™ Technology ............................................21
Listening to the radio.................................................................21
Changing the receive mode .................................................22
Presetting stations in the memory .................................... 23
Selecting a preset station ........................................................ 23
Using Emergency Alert .............................................................24
Radio (for DMX7709S) .....................................25
Listening to the radio.................................................................25
Presetting stations in the memory .................................... 26
Selecting a preset station ........................................................ 26
SiriusXM® Satellite Radio ........................... 27
Listening to the SiriusXM® Satellite Radio ..................... 27
Selecting a channel ..................................................................... 28
Presetting channels in the memory ................................. 29
Selecting a preset channel .....................................................29
Replaying content ....................................................................... 29
SiriusXM Satellite Radio features .........................................30
Content Alert...................................................................................30
Setting reception restrictions ............................................... 32
Resetting the SiriusXM Satellite Radio settings .........34
Other External Components ..........................34
HDMI/AV-IN devices ...................................................................34
Cameras ..............................................................................................35
Using an external component via ADS adapter
OEM Features .................................................................................. 36
Bluetooth® Device ............................................36

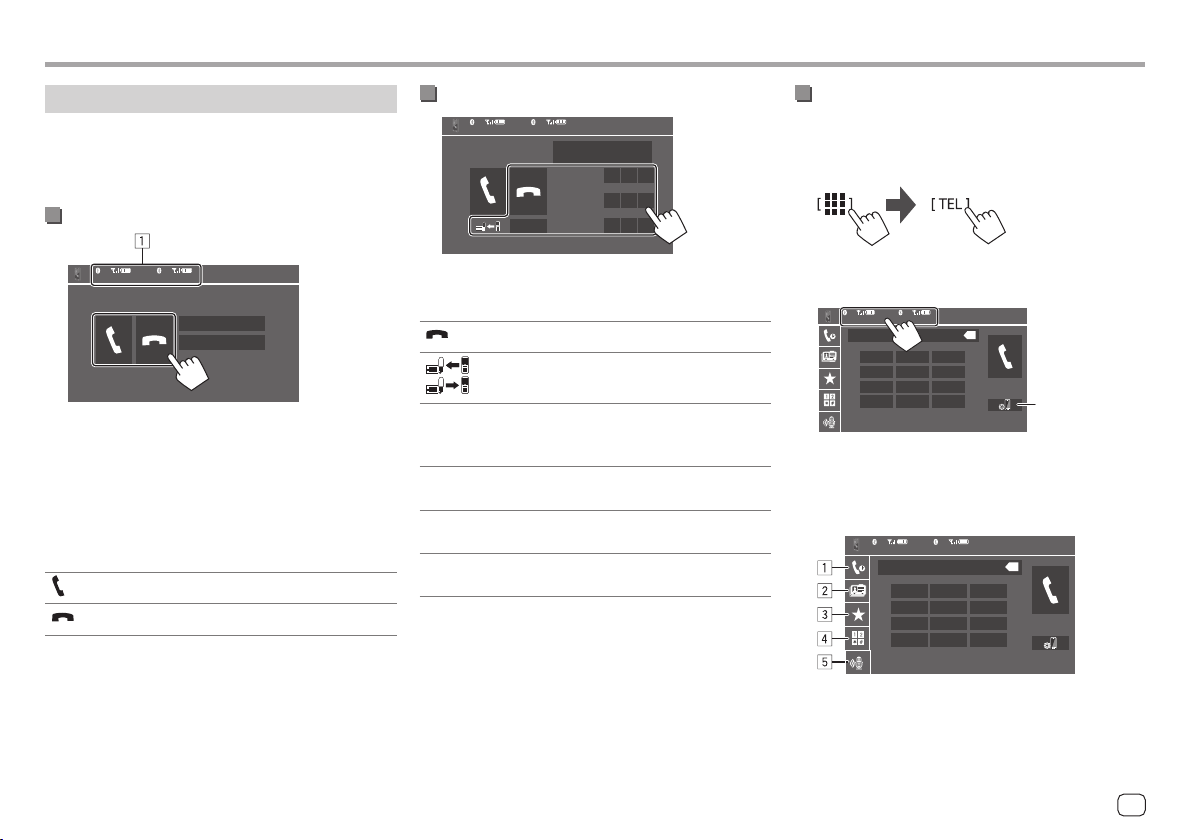

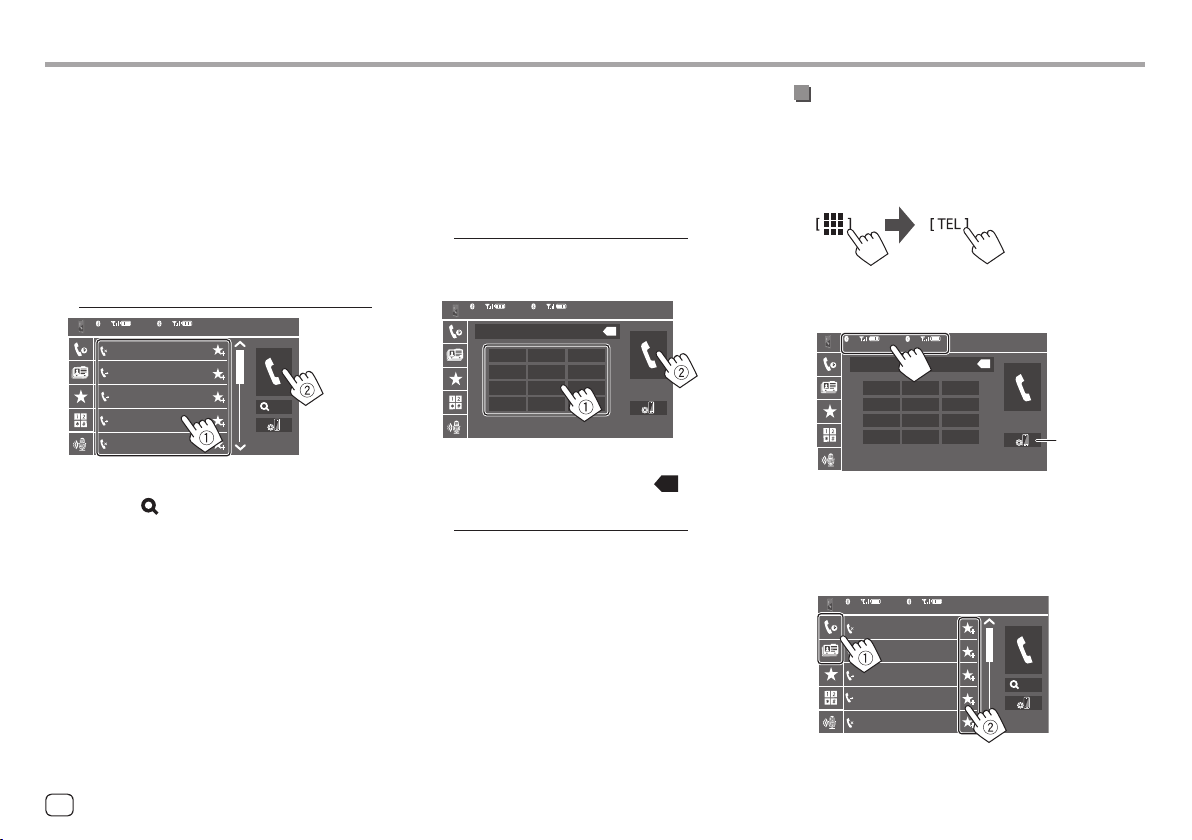

Bluetooth mobile phone ......................................................... 37
Bluetooth mobile phone settings ......................................39
Bluetooth audio player ............................................................. 39
Settings ..............................................................41
Audio settings ................................................................................41
Display settings ..............................................................................46
Input settings .................................................................................. 48
System settings..............................................................................49
Remote Controller ............................................51
Preparation .......................................................................................51
Basic operations for KCA-RCDV340 ................................... 52
Installation and Connection ...........................53
Before installation ........................................................................ 53
Installing the unit..........................................................................55
Removing the unit ..........................................................55
Installing the supplied GPS antenna ................................56
Connecting external components ....................................57
Wiring connection ....................................................................... 58
References .........................................................59
Maintenance ...................................................................................59
More information ......................................................................... 59
Troubleshooting ............................................... 61
Specifications ....................................................65
Trademarks and Licenses ................................67
Important Notice on Software ............................................. 68
EULA ..................................................................................................... 69
2
ENGLISH
00DMX709SKN.indb200DMX709SKN.indb2 2022/06/2414:142022/06/2414:14
Component Names and Basic OperationsComponent Names and Basic Operations
Monitor panel
1 32
4
5
7
6
8
(USB1)5V 1.5A
1 Remote sensor
2 Screen (touch panel)
3 Monitor panel
4 HOME button
•
(Press): Turns on the power.
•
(Hold): Turns off the power.
• HOME (Press): Displays the Home screen (see
the following) while the power is on.
5 MENU/DISP OFF button
• MENU (Press): Pops up the function menu
(page 13).
• DISP OFF (Hold): Turns off the screen.
Touching the operation keys performs the following
actions:
1 Displays the control screen of current source.
2 Displays the source/option selection screen.
3 Short-cut playback source icons
4 Displays the Hands Free screen when a Bluetooth
phone is connected.
• When connected as Apple CarPlay or Android
Auto, it works as a phone provided in Apple
CarPlay or Android Auto.
Turning on the power
• When you turn on this unit for the first time, you
must wait while the system acquires GPS signals
from satellites. This process could take up to several
minutes.
Turning off the power
(Hold)
6 VOICE button: (Press) Activates the voice
recognition.
– When no device for Apple CarPlay, Android
Auto, and Bluetooth phone is connected,
pressing and holding this button displays
Bluetooth pairing waiting dialog (page 7).
7 VOL J/K buttons
8 USB terminal from the rear panel
The buttons on the monitor illuminate and change
the color periodically with the unit turned on.
• To change the color, see page 46.
Home screen
• You can customize the Home screen (page 47).
• To display the Home screen from other screens, press
the HOME button.
Apple CarPlay
HD Radio TEL
Android Auto
98.3 MHz
Jan.
Jan.
Eg. Home screen for DMX709S
3
ENGLISH
00DMX709SKN.indb300DMX709SKN.indb3 2022/06/2414:142022/06/2414:14
Adjusting the volume
You can adjust the volume (00 to 40)
by pressing VOL J to increase and
pressing VOL
K to decrease.
• When volume level is below 15,
holding VOL J increases the
volume continuously to level 15.
Attenuating the sound
On the source control screen:
To cancel attenuation:
Initial settings
When you power on the unit for the first time or
initialized, the <Initial Setup> screen appears.
Perform the initial settings.
Initial Setup
Finish
Language
English
Front Camera
Enter
Rear Camera
Enter
Enter
Demonstration ON OFF
User Customize
Enter
Enter
Viewing Angle
Once completed, Home screen appears.
<Demonstration> (page 47)
• ON (Initial): Activates the display demonstration.
• OFF: Deactivates the display demonstration.
<Language> (page 49)
Select the text language used for on-screen
information.
• English (Initial)/Español/Français
• GUI Language (Local (the language selected above)
(Initial)/English): Selects the language used for
displaying operation keys and menu items.
<Front Camera> (page 48)
Make the settings to display the picture from the
connected front view camera.

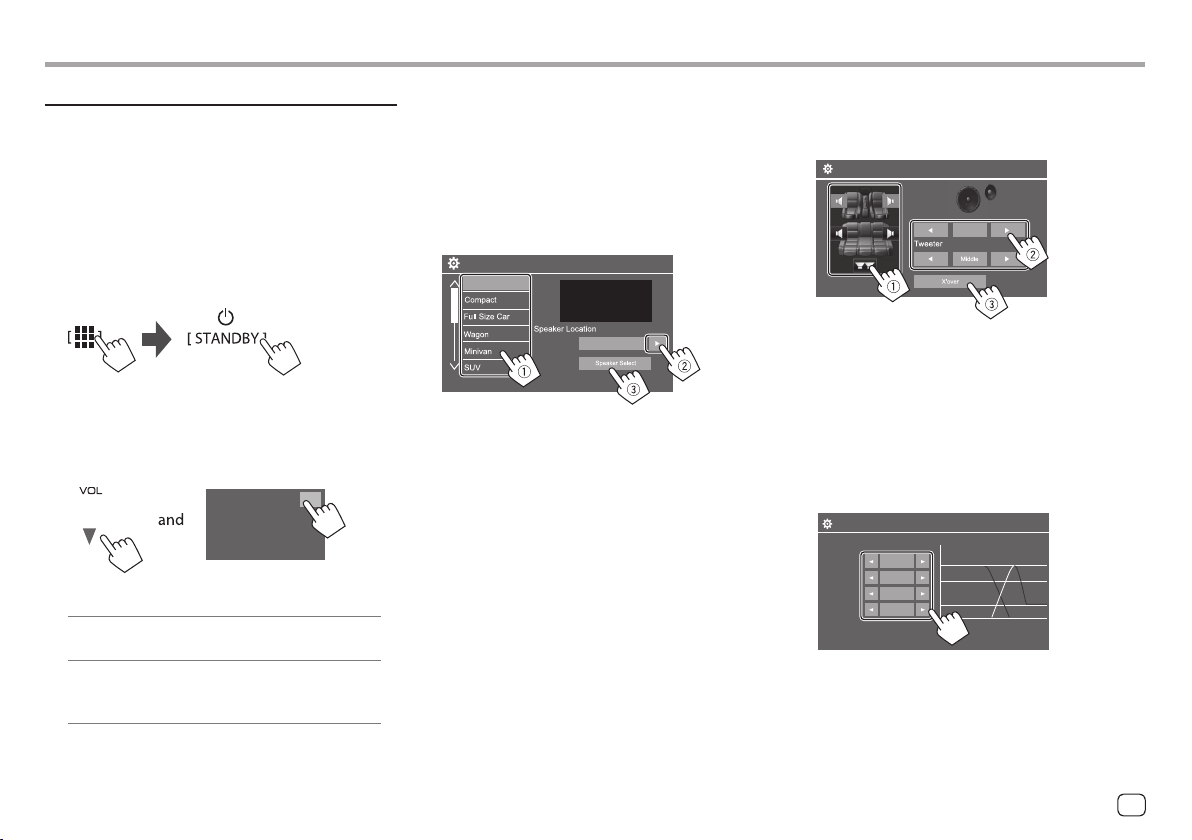

Putting the unit in standby
1 Display the source/option selection
screen.
From the Home screen (page 3), touch as
follows:
2 Put the unit in standby.
On the source/option selection screen (page 11):
Turning off the screen
On the monitor panel
To turn on the screen: Press
the DISP OFF button on the
monitor panel or touch the
screen.
On the pop-up menu
To turn on the screen: Touch the screen.
(Hold)
Components Name and Basic OperationsComponents Name and Basic Operations
4
ENGLISH
00DMX709SKN.indb400DMX709SKN.indb4 2022/06/2414:142022/06/2414:14
<Rear Camera> (page 48)
Make the settings to display the picture from the
connected rear view camera.
<User Customize> (page 46)
Change the display design.
<Viewing Angle> (page 47)
Select the viewing angle in relation to the monitor to
make the image on the screen easier to see.
• Under 0° (Initial)/5°/10°/15°/20°

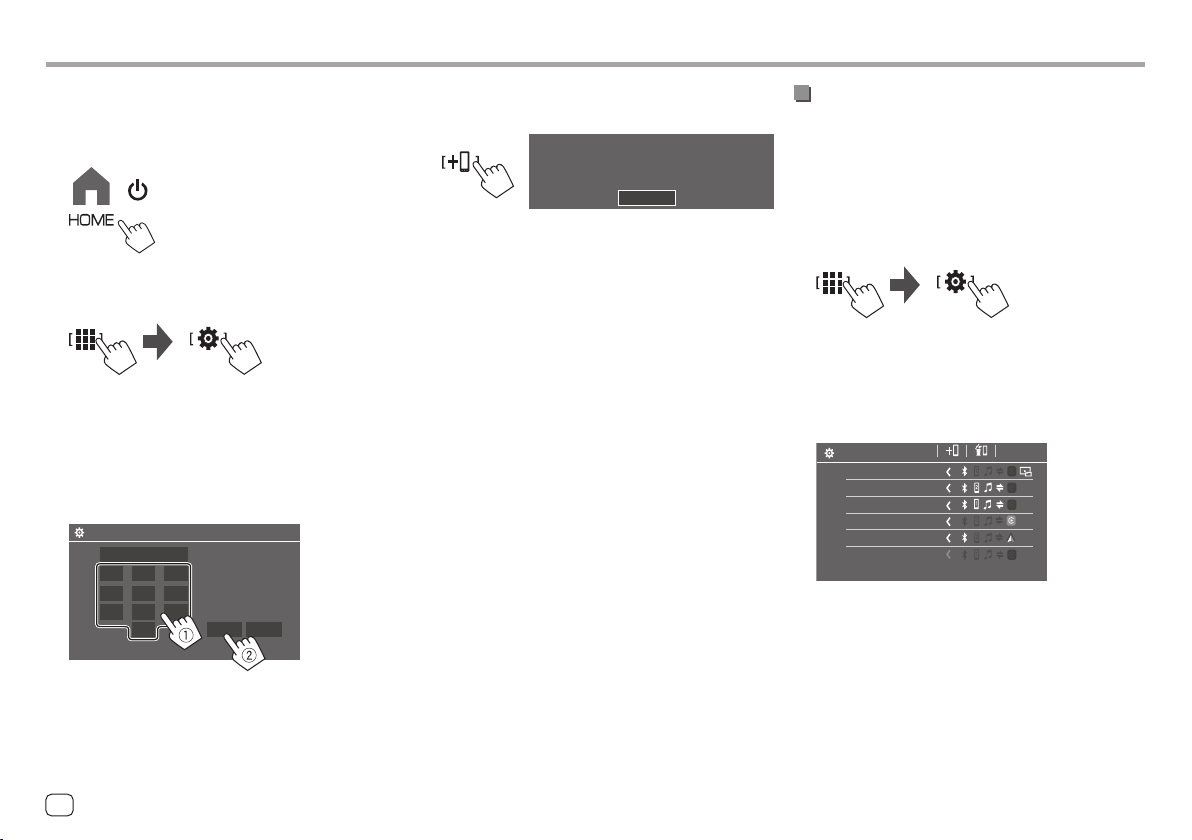

Date and clock settings
1 Display the Home screen.
2 Display the <Setup> screen.
From the Home screen (page 3), touch as
follows:
3 Display the <System> screen (1), and
then enter the item-setting screen you
want to change (
2).
Setup
Language
Clock
Time Format
Time Zone
Clock Adjust
Enter
English
Enter
Enter
Enter
Audio
Display
Input
System
Eg. When selecting <Clock>
4 Set or adjust the date and clock items.
<Clock>*
Select the method to set the date and clock.
• GPS-SYNC (Initial): Synchronizes the clock time
with GPS.
• Manual: Sets the clock manually using <Clock
Adjust>. See the following.
<Time Format>
Select the time display format.
• [12-Hour] (Initial)/[24-Hour]
<Time Zone>
Select the time zone for your residential area.
• Pacific Time (Initial)/Central Time/Mountain
Time/Eastern Time, etc.
Components Name and Basic OperationsComponents Name and Basic Operations
<Clock Adjust>
Touch [J]/[K] (1) to adjust the date (year/month/
date), and adjust the hour/minute. Touch [SET] (2)
to finish setting the clock.
Year Month Date Hour Minute
/ /
1
:
Clock Adjust
2022
1 AM4
1
SET
<Daylight Saving Time>
(Not used when the clock is set manually)
Activate this by selecting the additional time for
Daylight Saving Time (if available in your residential
area).
• OFF (Initial)/30min/1Hr
* You can also display the
<Clock>
screen by touching the clock
area if shown on the Home screen.
5ENGLISH
00DMX709SKN.indb500DMX709SKN.indb5 2022/06/2414:142022/06/2414:14
Bluetooth® connection
Information for using Bluetooth devices
Bluetooth is a short-range wireless radio
communication technology for mobile devices such as
mobile phones (smartphones), portable PCs, and other
devices. Bluetooth devices can be connected without
cables and communicate with each other.
• Some Bluetooth devices may not be used with this
unit depending on the Bluetooth version of the
device.
Pairing a Bluetooth device
When you connect a Bluetooth device to the unit for
the first time, register the device to this unit (pairing).
Pairing allows Bluetooth devices to communicate with
each other.
• The pairing method differs depending on the
Bluetooth version of the device.
– For devices with Bluetooth 2.1:
You can pair the device and the unit using SSP
(Secure Simple Pairing) which only requires
confirmation.
– For devices with Bluetooth 2.0:
You need to enter a PIN code both on the device
and the unit for pairing.
USB connection
Connect your smartphone (iPhone or Android device)
for using Apps on the screen of this unit.
• You can also connect a USB mass storage class
device such as a USB memory, digital audio player,
etc. to the unit. But you cannot connect a PC,
portable HDD and USB hub.
AB
(USB1)5V 1.5A
USB terminal from the rear panel
iPhone/Android device
USB device
A For connecting your Android device, use the USB
cable (commecially available)
B For connecting your iPhone, use the USB cable for
iPhone KCA-iP103 (optional accessory)
To operate your smartphone hands-free, and Apps of
the smartphone (Apple CarPlay, Android Auto, and
USB Mirroring), USB and/or Bluetooth® connections are
required.
• For Hands-Free Phone (page 37), and Bluetooth
audio player (page 39), connect your device with
Bluetooth.
• For Apple CarPlay (page 14), connect iPhone
with USB.
• For Android Auto (page 15) and USB Mirroring
(page 16), connect the Android device with both
USB and Bluetooth.
• For SiriusXM Connect Vehicle Tuner connection
and its usage, see pages 27 and 57.
• For ADS adapter connection and its usage, see
pages 36 and 57.
• For HDMI device connection and its usage, see
pages 34 and 57.
• For AV-IN device connection and its usage, see
pages 34 and 57.
In-Car Connections In-Car Connections
6
ENGLISH
00DMX709SKN.indb600DMX709SKN.indb6 2022/06/2414:142022/06/2414:14
Pairing a Bluetooth device using SSP
(for Bluetooth 2.1)
1 Display the Home screen.
2 Display the <Device List> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter]
On the <Connections SETUP> screen, touch as
follows:
<Device List> : [Enter]
• You can also use the pop-up function menu to
display the <Device List> screen (page 13).
3 Make the unit ready for pairing.
On the <Device List> screen:
Please open Bluetooth settings on your device and
select the device name below
DMXXXXXXX
Cancel
In-Car ConnectionsIn-Car Connections
4
Search for the unit (“DMX709S” or
“DMX7709S”) from your Bluetooth device.
5 Confirm the request both on the device
and the unit.
On the device:
Confirmation method varies for the device.
On the unit:
BT Pairing request
To perform BT Pairing
Please confirm the device display
DMXXXXXX (device name)
012345 (PIN code)
Pair
Cancel
Pairing is complete.
To reject the request: Touch [Cancel].
6 Register the usage of the Bluetooth
device.
• See “Registering the usage of the devices” on
page 8.
• Once the connection is established, it is registered
in the unit until you initialize the Bluetooth settings
(page 50) or the unit itself (page 50). Up to five
devices can be registered in total.
• To use the Bluetooth function, you need to turn on
the Bluetooth function of the device.
Auto pairing
When <Auto Pairing> is set to [ON] (page 39),
Android devices with Android Auto are automatically
paired when connected via USB. (Not available
depending on Android OS versions.)
7
ENGLISH
00DMX709SKN.indb700DMX709SKN.indb7 2022/06/2414:142022/06/2414:14
In-Car ConnectionsIn-Car Connections
Registering the usage of the devices
You can confirm and change the usage (profile) of the
registered devices on the <Device List> screen.
• You can also connect/disconnect and delete
unwanted devices on the device list.
1 Display the <Device List> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter]
On the <Connections SETUP> screen, touch as
follows:
<Device List> : [Enter]
Device Name 1
Device Name 2
Device Name 3
Device Name 4
Device Name 5
Device Name 6
Device List
The currently activated (connected) devices are
highlighted on the list.
• Six devices can be displayed on the list; five
devices connected by Bluetooth and one by USB.
• You can also use the pop-up function menu to
display the <Device List> screen (page 13).
Pairing a Bluetooth device using a PIN code
(for Bluetooth 2.0)
1 Display the Home screen.
2 Display the <PIN Code Set> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter]
On the <Connections SETUP> screen, touch as
follows:
<PIN Code> : [Enter]
3 Enter the PIN code.
0000
123
456
78
0 Enter Clear
9
PIN Code Set
• Initial PIN Code: [0000]
• If you do not need to change the PIN code [0000],
just touch [Enter].
• To change the PIN code, see page 10.
4 Make the unit ready for pairing.
On the <Device List> screen:
Please open Bluetooth settings on your device and
select the device name below
DMXXXXXXX
Cancel
5 Search for the unit (“DMX709S” or
“DMX7709S”) from your Bluetooth device.
6 Select the unit (“DMX709S” or
“DMX7709S”) on your Bluetooth device.
Pairing is complete.
7 Register the usage of the Bluetooth
device.
• See “Registering the usage of the devices” that
follows.
8
ENGLISH
00DMX709SKN.indb800DMX709SKN.indb8 2022/06/2414:142022/06/2414:14
• Touch [ < ] scrolls the text if not all of the text is
shown.
• For list/setting screen operations, see also
page 13.
2 Select the device you want to use.
Device Name 1
Device Name 2
Device Name 3
Device Name 4
Device Name 5
Device Name 6
Device List
• When Apple CarPlay or Android Auto is activated
for the selected device, it will be disconnected.
A warning message appears. Touch [Yes] to
continue.
3 Select the profile for the selected device.
Please Select a profile
Close
TEL(HFP)1
TEL(HFP)2
Audio(A2DP) / APP(SPP)
USB Mirroring
• [TEL(HFP)1]/[TEL(HFP)2]: To use the device as
hands-free phone 1 and 2.
• [Audio(A2DP)/APP(SPP)]: To use the device as
Bluetooth audio or Apps (Apple CarPlay/Android
Auto).
• [USB Mirroring]: To use the device as USB
Mirroring.
4 Touch [Close] to finish.
The <Device List> screen is displayed again. This
unit searches for the device you have just set the
usage (profile) for, and activates the device if it is
connected.
About the profile icons
• Available profile for the listed devices are in white.
When the profile is active for the devices, it becomes
blue. Unavailable device and profile are in gray.
• Bluetooth icon is displayed only when the device is
connected by Bluetooth.
• Apple CarPlay and Android Auto icons illuminate
when they are active.
• Mirroring icon is displayed when the device is
selected as Mirroring in profile setting.
Icon Profile Status (on/off/unavailable)
Bluetooth Bluetooth connection
HFP1 Hands-Free phone 1
HFP2 Hands-Free phone 2
A2DP Bluetooth audio player
SPP Apps
Apple
CarPlay
Apple CarPlay
Android
Auto
Android Auto
Mirroring USB Mirroring
Adding the registered devices
1 Display the <Device List> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter]
On the <Connections SETUP> screen, touch as
follows:
<Device List> : [Enter]
2 Activate registration.
On the <Device List> screen:
3 Follow the procedure previously
explained.
• Pairing a Bluetooth device using SSP
(for Bluetooth 2.1), see page 7.
• Pairing a Bluetooth device using a PIN code
(for Bluetooth 2.0), see page 8.
In-Car ConnectionsIn-Car Connections
9ENGLISH
00DMX709SKN.indb900DMX709SKN.indb9 2022/06/2414:142022/06/2414:14
In-Car ConnectionsIn-Car Connections
<Device List>
Devices connected for Apple CarPlay, Android
Auto, USB Mirroring, Bluetooth phone, and
Bluetooth audio are listed. You can check their
names and their status on the list (page 9).
<PIN Code>
• To change the PIN code, enter a new PIN code
and touch [Enter] to finish.
• To correct the PIN code input, touch and hold
[Clear], and re-enter the PIN code.
<Device Name>
Shows the device name of this unit to be shown
on the Bluetooth device —
DMX709S or
DMX7709S
.
<Bluetooth Device Address>
Shows the Bluetooth device address of this unit.
<Initialize>
Initialize the Bluetooth settings (page 50).
<TEL SETUP>
See step 2 on page 39.
Deleting the registered devices
1 Display the <Device List> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter]
On the <Connections SETUP> screen, touch as
follows:
<Device List> : [Enter]
2 Display the <Device Remove> screen.
On the <Device List> screen:
3 Select the device you want to delete.
All
All
CP Device 1
Delete
Device 2
Device 3
AAP Device 1
BT Device 1
Device Remove
• To select all devices, touch [ ].
• To deselect all devices, touch [
].
4 Touch [Delete].
A warning message appears. Touch [Yes] to delete.
Connections setting
You can change various settings for the connected
devices.
1 Display the <Connections SETUP> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter]
On the <Connections SETUP> screen, you can
change and confirm the following item settings.
• For list/setting screen operations, see also
page 13.
Connections SETUP
Device List
PIN Code
Device Name
Bluetooth Device Address
TEL SETUP
Initialize
Enter
Enter
00:00:00:00:00:00:00
(Model name)
0000
Enter
10
ENGLISH
00DMX709SKN.indb1000DMX709SKN.indb10 2022/06/2414:142022/06/2414:14
Various Screens and OperationsVarious Screens and Operations
You can display or change to other screens at any time
to show information, change the playback source,
change the settings, etc.
Source/option selection screen
Touch [ ] on the Home screen to display the source/
option selection screen.
• Only the available icons at that time are shown on
the screen.
Now
Playing
Apps
Camera
Apple
CarPlay
USB
Bluetooth
Audio
TEL
USB
Mirroring
HD Radio
SiriusXM
HDMI
1
2
Android
Auto
SETUP
Eg. Source/option selection screen for DMX709S
Touching the operation keys performs the following
actions:
1 Left-side keys
[Now Playing] Displays the control screen of
current source.
[Camera] Switches to the camera view
(page 35).
[Apps] Switches to the currently available
Apps–[Apple CarPlay] or
[Android Auto].
[SETUP] Displays the <Setup> screen
(page 41).
Connections SETUP
Device Audio Control
Driving Position
Android Mode Select
Enter
Enter
Left Right
<Device Audio Control>
Go to step 2.
<Driving Position>
Set your driver’s seat portion of your car — [LEFT]
(initial) or [RIGHT].
• This setting changes the sidebar/button
position of Apple CarPlay/Android Auto screens
accordingly with the driver seat position.
<Android Mode Select>
Select Android device usage for Apps — either
[Android Auto] (initial) (page 15) or [Mirroring
for Android] (page 16).
• This setting is available only in Standby Mode
with no device connected via USB.
2 Touch [ENTER] to display the selected
item screen.
On the <Device Audio Control> screen:
Device Audio Control
Guidance/Voice Recognition Volume
Phone Incoming Volume
Phone Calling/Talking Volume
Media Volume
Enter
Speech Quality Adjust
Enter
Enter
Enter
15
• <Guidance/Voice Recognition Volume> can
be set separately for <Apple CarPlay> and
<Android Auto> within the range of 00 to 40
(Initial: 19).
• <Phone Incoming Volume>, <Phone Calling/
Talking Volume> can be set separately for
<Apple CarPlay> and <Android Auto/
Bluetooth> within the range of 00 to 40 (Initial:
15).
• <Speech Quality Adjust>:
<Microphone Level> can be set within the
range of –10 to +10 (Initial: –4).
<Echo Cancel Level>, <Noise Reduction
Level> can be set within the range of –5 to +5
(Initial: 0).
• <Media Volume> can be set within the range of
00 to 40 (Initial: 15).
In-Car ConnectionsIn-Car Connections
11ENGLISH
00DMX709SKN.indb1100DMX709SKN.indb11 2022/06/2414:142022/06/2414:14
2 Source/option keys
[Apple CarPlay] Displays the home screen of Apple
CarPlay.
[Android Auto] Displays the home screen of
Android Auto.
[Bluetooth
Audio]
Plays a connected Bluetooth audio
player.
[TEL] Displays the phone control screen.
[USB] Plays files on a USB device.
[HD Radio] (For DMX709S) Switches to the HD
Radio broadcast.
[Radio] (For DMX7709S) Switches to the
radio broadcast.
[SiriusXM] Switches to the SiriusXM® radio
broadcast.
[USB Mirroring] Displays the screen of USB
Mirroring.
[HDMI] Switches to the HDMI device.
[AV-IN] Switches to the external AV
component connected to the AV-
IN input terminal.
[STANDBY] Puts the unit in standby.
[OEM Features] Switches to the source connected
via ADS adapter.
To change the page: Touch [ > ] / [ < ]. Current page is
shown by the page indication on the top of the screen.
To return to the Home screen: Press the HOME
button on the monitor panel.
Source control screen
You can operate the playback source using the source
control screen.
• The operation keys and information displayed vary
for each source. Here the common operation keys
are explained. For more about the other operation
keys, see the respective page of each source section.
1 Current playback source icon and name
• Touch [ > ] to show the source icons on the Home
screen. Then touch [ < ] to hide the other icons.
2 Content information area
Various Screens and OperationsVarious Screens and Operations
• Touch [] to scroll the text if not all of the text is
shown.
• Touch [ < ] to widen the window to show more
detailed information. Then touch [ > ] to close the
window.
3 Phone control screen indicator
• Touch to display the phone control screen
(page 37).
4 Sound attenuating key (page 4)
5 TEL indicator is shown when a hands-free phone is
connected.
6 Clock display
7 Operation window tab
• Touch [ > ] to widen the operation window to
show more operation keys besides those shown
on the operation key area (q). Then touch [ < ] to
close the window.
8 For DMX709S: EA indicator (page 24)
9 For DMX7709S: TI indicator (page 25)
p SiriusXM signal strength indicator (page 28)
q Operation key area
12
ENGLISH
00DMX709SKN.indb1200DMX709SKN.indb12 2022/06/2414:142022/06/2414:14
Various Screens and OperationsVarious Screens and Operations
Using the pop-up function menu
You can easily access the frequently used features.
1 Display the pop-up function menu.
2 Touch one of the following items you
want to use.
Standby
[ Device List] Displays the <Device List>
screen (page 8).
[
Screen
Adjustment]
Displays the <Screen
Adjustment> screen
(page 47).
[
Display
OFF]
Turns off the screen.
• To turn on the display, touch
anywhere on the screen.
[
Camera] Displays the view from the
connected camera (page 35).
[
SETUP]
Displays the <Setup> screen
(page 41).
[
Standby]
Icon varies depending on
current playing source.
To close the pop-up function menu: Touch the
screen anywhere other than the pop-up function
menu.
List/setting screen
Below are the common operation keys which appear
on the list/setting screen.
• The appearance or location of the operation keys
may differ, however the similar operation keys have
the same operations.
• Available operation keys differ depending on the
setting screens. Not all these operation keys are
shown on every screen.
Play
A-Z
Top
Up
Touching the operation keys performs the following
actions:
1 Return to the upper layer.
*1
2 Finishes the setting and closes the current screen.
3 Plays all files in the folder containing the current
file.
4 (Not displayed for folder list) Enters alphabet search
to list the items in alphabetical order.
*2
When a key pad is displayed, follow the procedure
below.
1 Touch the first letter you want to search for.
• To search by a number, touch [1,2,3...].
• To search by a symbol, touch [#].
2 Select your desired item on the search result
list.
5 Returns to the root folder.
*2
6 Returns to the upper layer.
*2
7 Changes the page to display more items.
8 Returns to the previous screen.
*1 0nly for Bluetooth Audio
*2 0nly for USB
13ENGLISH
00DMX709SKN.indb1300DMX709SKN.indb13 2022/06/2414:142022/06/2414:14
Compatible iPhone devices
You can use Apple CarPlay with the following iPhone
models.
iPhone 6S, 6S Plus, 7, 7 Plus, 8, 8 Plus, X, XS, XS Max, XR,
11, 11 Pro, 11 Pro Max, SE (1st/2nd generation), 12, 12
mini, 12 Pro, 12 Pro Max, 13, 13 mini, 13 Pro, 13 Pro Max
Connecting iPhone compatible with Apple
CarPlay
• USB connection (page 6): Connect iPhone
compatible with wired Apple CarPlay to the USB
terminal using Lightning to USB cable (accessory of
iPhone).
If another Bluetooth device is connected through
Bluetooth, it is disconnected. In this case, you can use
the phone and audio player function using the Apple
CarPlay screen.
Starting Apple CarPlay
Once the USB connection is done for the first time, the
source is automatically changed, and you can use of
the Apps of the connected iPhone.
• Unlock your iPhone beforehand.
• You cannot use Apple CarPlay when the screen
recording function is enabled on the iPhone.
You can use the Apps installed in your iPhone and
Android device by using “Apple CarPlay,” “Android
Auto,” and “USB Mirroring.”
• For iPhone: You can use Apple CarPlay (see the
following).
– Connect the iPhone with USB connection
(page 6).
• For Android device: You can use Android Auto
(page 15) and USB Mirroring (page 16).
– Connect the Android device with both Bluetooth
and USB connection (page 6).
Preparation:
Make sure that the microphone is connected
(page 58).
Using Apps of iPhone — Apple CarPlay
About Apple CarPlay
Apple CarPlay is a smarter, safer way to use your
iPhone in the car. Apple CarPlay takes the things you
want to do with iPhone while driving and displays
them on the screen of this unit. You can get directions,
make calls, send and receive messages, and listen to
the music from iPhone while driving. You can also use
Siri voice control to make it easier to operate iPhone.
• For details about Apple CarPlay, visit
<https://apple.com/ios/carplay/>.
AppsApps
To change the source from the others
Touch [Apple CarPlay] on the source/option selection
screen (page 11).
Now
Playing
Apps
Camera
Apple
CarPlay
USB
Bluetooth
Audio
TEL
USB
Mirroring
HD Radio
SiriusXM
HDMI
Android
Auto
SETUP
Eg. Source/option selection screen for DMX709S
The Apple CarPlay screen is displayed.
14
ENGLISH
00DMX709SKN.indb1400DMX709SKN.indb14 2022/06/2414:142022/06/2414:14
Using Siri
You can activate Siri while the Apple CarPlay screen is
displayed.
On the monitor panel:
1 Press the button on the monitor panel.
2 Talk to Siri through the microphone.
To deactivate Siri, press the button again.
On the Apple CarPlay screen:
1 Touch and hold [ ].
2 Talk to Siri through the microphone.
To deactivate Siri, touch [ ].
Using the Apps of an Android™ device
Android Auto™
About Android Auto
Android Auto enables you to use features of your
Android device convenient for driving. You can easily
access route guidance, make calls, listen to music, and
access convenient features on the Android device
while driving.
• For details about Android Auto, visit <https://www.
android.com/auto/> and <https://support.google.
com/androidauto>.
Compatible Android devices
You can use Android Auto with Android devices
compatible with Android Auto of Android version 6.0
or later.
Connecting an Android device compatible with
Android Auto
Connect an Android device compatible with Android
Auto to the USB terminal using a USB 2.0 cable
(commercially available) (page 6).
• Bluetooth connection is automatically done, and
the Bluetoothmobilephone currently connected is
disconnected.
AppsApps
Apple CarPlay screen operation
You can use the Apps of the connected iPhone.
The items displayed and the language used on the
screen differ among the connected devices.
1 Application buttons
Starts the application.
2 Short cut buttons
3 [ ] button
• (Touch) Displays the home screen of Apple
CarPlay.
• (Hold) Activates Siri.
4 [HOME] button*
Exits the Apple CarPlay screen and displays the
Home screen.
* This icon design may change depending on the iOS version.
To exit the Apple CarPlay screen
Touch [HOME] on the Apple CarPlay screen, or press
HOME button on the monitor panel.
15
ENGLISH
00DMX709SKN.indb1500DMX709SKN.indb15 2022/06/2414:142022/06/2414:14
AppsApps
To cancel the voice guidance, press the button.
Each time you press the button, the voice guidance
turns on and off.
Using the Apps of an Android device
USB Mirroring
This feature is only used with Android device.
By installing KENWOOD’s Mirroring OA App into your
Android device, the screen of the Android device is
displayed on the monitor panel of this unit, and you
can operate the Android device using the touch panel
of this unit.
• For details about KENWOOD’s Mirroring, visit
<https://www.kenwood.com/cs/ce/>.
Compatible Android device
Android version 7.0 or later
Installing KENWOOD’s Mirroring OA App
You can obtain “Mirroring OA for KENWOOD” in
Google Play.
• Make sure to install the most recent version into your
Android device.
• When you use “Mirroring OA for KENWOOD” for
the first time, the terms of service are displayed. It is
necessary to agree to the terms of service to use this
feature.
Starting Android Auto
Selecting [Android Auto] on the screen displays the
Android Auto screen and enable use of the Apps of the
connected Android device.
• Unlock your Android device beforehand.
Preparation:
Select [Android Auto] for the <Android Mode
Select> setting (page 11).
To change the source from the others
Touch [Android Auto] on the source/option selection
screen (page 11).
Now
Playing
Apps
Camera
Apple
CarPlay
USB
Bluetooth
Audio
TEL
USB
Mirroring
HD Radio
SiriusXM
HDMI
Android
Auto
SETUP
Eg. Source/option selection screen for DMX709S
The Android Auto screen is displayed.

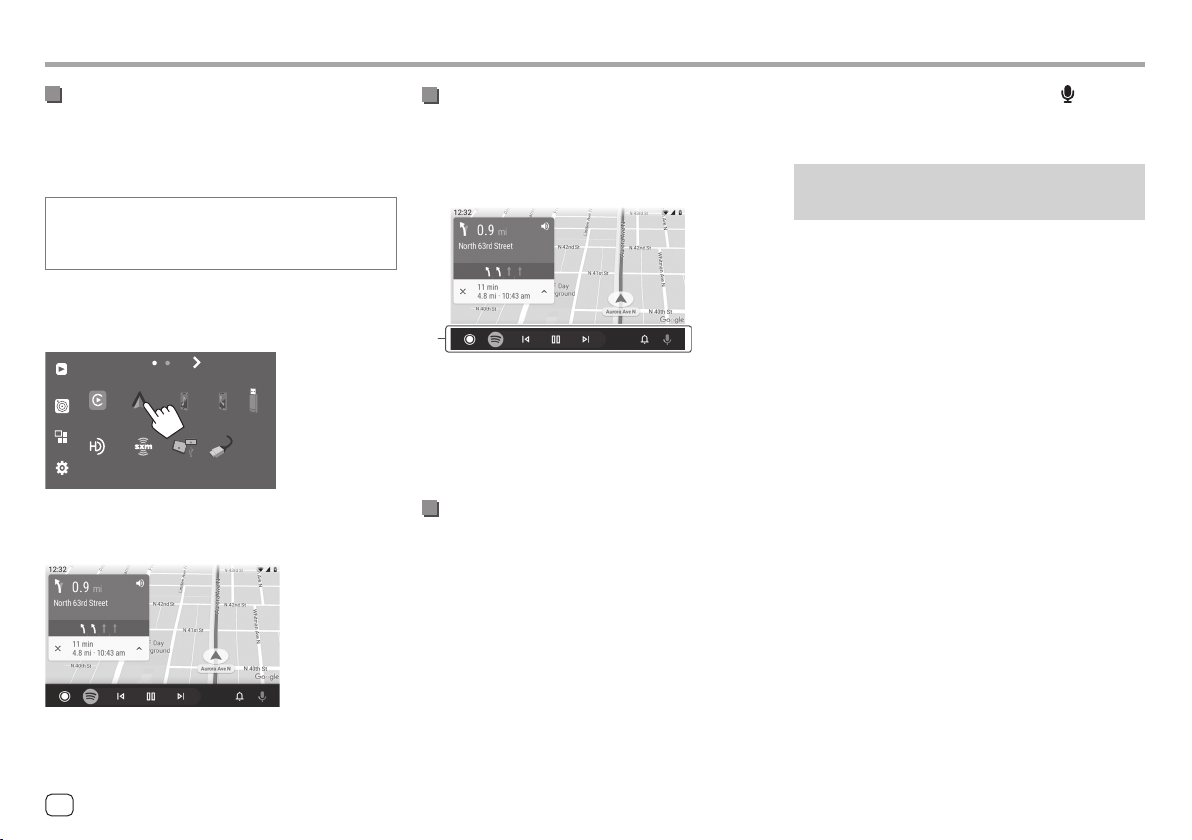

Operation buttons on the Android Auto
screen
You can perform the operations of the Apps of the
connected Android device. The items displayed on the
screen differ among the connected Android device.
1
1 Application/information buttons
Starts the application or displays information.
To exit the Android Auto screen
Press the HOME button on the monitor panel.
Using voice guidance of the Android device
You can activate the voice guidance of the Android
device while the Android Auto screen is displayed.
1 Press the VOICE button on the monitor
panel.
The voice guidance is activated.
2 Speak to the microphone to operate the
Android device.
16
ENGLISH
00DMX709SKN.indb1600DMX709SKN.indb16 2022/06/2414:142022/06/2414:14
Connecting an Android device with KENWOOD’s
Mirroring OA App installed
Connect an Android device with KENWOOD’s
Mirroring OA App installed via both USB and Bluetooth
connection (page 6).
Starting USB Mirroring
Preparation:
• Unlock your Android device beforehand.
• Make sure that the KENWOOD’s Mirroring OA App
is installed.
• Select [Mirroring for Android] for the <Android
Mode Select> setting (page 11).
1 Connect the Android device.
1 Connect the device with Bluetooth.
– Pair the device with the unit via Bluetooth.
See “Pairing a Bluetooth device” on page 6.
– Select [USB Mirroring] on the profile setting
of the <Device List> screen (page 8).
2 Then, connect the device with USB.
Then follow steps 2 to 4 below on the Android device
screen:
2 Touch the icon of KENWOOD’s Mirroring
OA App.
3 Touch [OK] to start KENWOOD’s Mirroring
OA App.
4 Touch [Start now] to capture the Android
device screen to the screen of this unit.
5 Touch [USB Mirroring].
On the source/option selection screen (page 11):
Now
Playing
Apps
Camera
Apple
CarPlay
USB
Bluetooth
Audio
TEL
USB
Mirroring
HD Radio
SiriusXM
HDMI
Android
Auto
SETUP
Eg. Source/option selection screen for DMX709S
The Android device screen is displayed on the
monitor screen of this unit. You can access your
Android device from this unit.
To exit the Android device screen
Press the HOME button on the monitor panel.
USBUSB
Playback operations
Start playing the USB
All files in the USB device will be played repeatedly
until you change the source or disconnect the USB
device.
• When no USB device is connected:
Connect a USB device to the USB terminal.
The playback source changes to [USB] and playback
starts.
• When a USB device is already connected:
Select [USB] as the source.
From the Home screen (page 3), touch as follows:
Playback information and key operation
USB
AppsApps
17ENGLISH
00DMX709SKN.indb1700DMX709SKN.indb17 2022/06/2414:142022/06/2414:14
Video playback operations
While watching a video, you can use the following
features.
Touch screen operations
Touching the numbered areas above performs the
following actions:
1 Displays the video menu control.
2 Displays the video source control screen.
3 Goes to the previous file.
4 Goes to the next file.
1 Displays/hides the following operation keys
[ ][ ]
Selects a folder.
[
]
Selects repeat playback mode by
touching repeatedly.*
[MODE]
Displays the <USB MODE> screen.
2 Jacket picture (artwork) is shown if any
3 Playing time/playback status
4 Content information
• Touching [< ] scrolls the text if not all of the text
is shown.
5 Operation keys
[ ]
Displays the <Equalizer> screen
(page 41).
[
]
Displays the search method selection
window.
[
S]/[T]
• (Touch) Selects a file.
• (Hold) Reverses/forwards search.
[
IW]
Starts/pauses playback.
[ ]
Selects random playback mode.*
6 Repeat/Random mode indicator
7 File type indicator (MUSIC/MOVIE/PICTURE)
8 Current playback file information
(file type/folder no./file no.)
* You cannot activate repeat playback mode and random playback
mode at the same time.
Selecting the file type to play
You can specify the file type to play.
USB
File type Audio
Select the file type as follows:
[Audio] Plays back audio files.
[Video] Plays back video files.
[Photo] Plays back still picture files (Slide
Show). You can select the picture to
use for display background (see <User
Customize> on page 46).
• If the USB contains no files of the selected type, the
message "No File" appears. In this case, select the
correct file type.
USBUSB
18
ENGLISH
00DMX709SKN.indb1800DMX709SKN.indb18 2022/06/2414:142022/06/2414:14
USBUSB
Video menu control
Menu Control
Touching the operation keys performs the following
actions:
1
[ Aspect] Displays the <Aspect> screen.
• Touch [ Aspect] to select the aspect
ratio.
<Full>: For 16:9 original pictures
4:3 signal 16:9 signal
<Normal>: For 4:3 original pictures
4:3 signal 16:9 signal
<Auto>: The aspect ratio is
automatically selected to match the
incoming signals.
[ Picture
Adjust]
Displays the <Screen Adjustment>
screen.
1 Touch [DIM ON] or [DIM OFF] to
turn on or off the dimmer.
2 Touch [+]/[–] to adjust the other
items.
• <Contrast>: Adjusts the contrast
(–10 to +10).
• <Bright>: Adjusts the brightness
(–15 to +15).
• <Color>: Adjusts the color
(–10 to +10).
• <Tint>: Adjusts the tint (–10 to +10).
Video source control screen
USB
1 File type
2 Playback status
3 Current playback folder no./file no.
4 Playing time
5 Playback mode indicator (Repeat/Random)
Search operations
You can search files to play.
1 Display the search method selection
screen.
On the source control screen:
2 Select the search method.
Folder List
Category Search
Link Search
Folder List
Play
Top
Up
[Category List] Search a file by its category (only
for audio files).
[Link Search] Search a file of the same artist/
album/genre with the audio file
currently selected.
[Folder List] Select a file in the folder list.
3 Follow the following procedure for
<Category List>, <Link Search> and
<Folder List>.
• For list screen operations, see also page 13.
19
ENGLISH
00DMX709SKN.indb1900DMX709SKN.indb19 2022/06/2414:142022/06/2414:14
USBUSB
<Category Search>
This is only used for audio files.
• To change the file type, see page 18.
1 Select your desired category.
Category Search
Artists
Albums
Genres
Songs
Play
A-Z
Top
Up
List of the selected category appears.
2 Select your desired file on the list.
<Link Search>
This is only used for audio files.
• To change the file type, see page 18.
1 Select the tag information.
Artist name
Album title
Genre
Link Search
Play
A-Z
Top
Up
List of the contents containing the same tag with
the file currently playing file is displayed.
2 Select your desired file on the list.
<Folder List>
Select the folder, and then the item in the
selected folder.
Play
Top
Folder name 1
Folder name 2
Audio file 1
Audio file 2
Video file 1
Folder List
Up
• Touching [ < ] scrolls the text if not all of the text
is shown.
Settings for USB playback
1 Display the <USB Mode> screen.
On the source control screen:
2 Make the settings.
Drive Select
4:3LB
Next
USB Mode
<Drive Select>
• Next: Switch between internal memory and the
memory source of the connected device (such as
mass storage device).
20
ENGLISH
00DMX709SKN.indb2000DMX709SKN.indb20 2022/06/2414:142022/06/2414:14
HD RadioHD Radio™ (for DMX709S) (for DMX709S)
You can tune in to both HD Radio and conventional
FM/AM radio programs.
To find HD Radio stations in your area, visit
<http://www.hdradio.com>.
About HD Radio™ Technology
Adjacent to traditional main stations are HD2/HD3
Channels, providing new original formats on the FM
dial.
HD Radio broadcasts deliver crystal-clear, CD-like
digital audio quality to consumers.
Provides song name, artist, station ID, and other
relevant data to enrich the listening experience.
Delivers critical and life-saving messages to the public
during emergency situation.
Listening to the radio
This unit alarms you emergency when receiving the
alarm signals (page 24).
Select [HD Radio] as the source.
From the Home screen (page 3), touch as follows:
The last channel you selected is tuned in, and the
source control screen for the channel is displayed.
Playback information on the source control
screen
Radio
• When receiving the analog signal broadcast, the
information on the screen is different from above.
See page 25 for the information displayed while
receiving analog signals.
1 Selects the band (AM/FM1/FM2/FM3)
• Each time you touch [FM], FM band changes in
order of FM1, FM2, and FM3.
2 HD Radio sub-channel indicator
3 Station (channel) information area
Call letter/Slogan/Artist/PTY/Message
• Touching [ < ] scrolls the text if not all of the text
is shown.
• Touching [PTY] switches between [PTY], [PS],
[Radio Text] and [Message].
4 Current station frequency
5 Displays the preset stations window (page 23)
• To hide the window, touch [ > ].
21ENGLISH
00DMX709SKN.indb2100DMX709SKN.indb21 2022/06/2414:142022/06/2414:14
HD RadioHD Radio™ (for DMX709S) (for DMX709S)
Changing the receive mode
You can change HD Radio receive mode.
1 Display the <Radio Mode> screen.
On the source control screen:
2 Select receive mode.
Radio Mode
Receive Mode
Auto
[Auto] Switches the receiving signal
automatically – digital or analog.
[Digital] Select this to tune in to the digital
audio signals.
[Analog] Select this to tune in to the analog
audio signals.
6 [P1] – [P5]
• (Touch) Selects a preset channel.
• (Hold) Presets the current channel.
7 Displays/hides the following operation keys
[PTY] (For FM stations) Enters PTY search
mode.
1 Touch [PTY].
2 Touch and hold a PTY code to
search for.
If there is a station broadcasting a
program of the same PTY code as
you have selected, that station is
tuned in.
[SEEK]
Selects the seek mode for [
S]/
[T].
• AUTO1*: (Initial): Auto search
• AUTO2*: Tunes in preset stations
one after another
• MANU*: Manual search
* This setting also affects the [CH
J/CHK]
operation.
[AME ]
(Hold) Starts auto-memory presetting
of the stations.
[MODE] Displays the <Radio Mode> screen.
[Emergency
Alert]
Activates or deactivates Emergency
Alert.
[Alert
Message
Log]
Displays the received alert message
log.
8 EA indicator (page 24)
9 Operation keys
[
[ ]
Displays the <Equalizer> screen
(page 41).
[CH
J]/
[CH
K]
Selects a sub-channel when
receiving an HD Radio multicast
channel.
[
S]/[T]
Searches for a station.
• The search method differs
according to the selected setting
for [SEEK].
p ST indicator
• Lights up when receiving a FM broadcast with
sufficient strength.
q Seek mode indicator
w HD indicator
• Lights up when receiving an HD Radio broadcast.
e MC indicator
• Lights up when receiving an HD Radio multi-
channel broadcast.
r HD Radio reception mode indicator
• Received signal is indicated “DIGITAL” or
“ANALOG”.
22
ENGLISH
00DMX709SKN.indb2200DMX709SKN.indb22 2022/06/2414:142022/06/2414:14
Presetting stations in the memory
You can preset five stations each for AM and FM1/
FM2/FM3.
Automatic presetting — AME (Auto
Memory)
1 Select the band.
On the source control screen:
FM1 FM3
2 Start AME.
(Hold)
The preset stations differ depending on the <Receive
Mode> setting.
• When [Digital] is selected, main channels (HD1) of
digital broadcasting stations are preset.
• When [Analog] is selected, analog broadcasting
stations are preset.
• When [Auto] is selected, both digital and analog
broadcasting are preset.
Manual presetting
You can store either main channel (HD1) or sub-
channel (HD2 – HD8) for digital broadcasting stations.
1 Select the band, andthen tune in to a
station you want to preset.
On the source control screen:
FM1 FM3
2 Select a desired channel if available.
3 Select a preset number to store into.
AM FM1
FM1
P1
FM1
P2
FM1
P3
FM1
P4
FM1
P5
Radio
(Hold)
The station selected in step 1 is stored into the
preset number [P1] to [P5] you have selected.
HD RadioHD Radio™ (for DMX709S) (for DMX709S)
Selecting a preset station
1 Select the band, then display the preset
station window.
On the source control screen:
FM1 FM3
2 Select a preset station.
AM FM1
FM1
P1
FM1
P2
FM1
P3
FM1
P4
FM1
P5
Radio
• To show the details of the item, touch [< ].
• You can also select a preset channel by touching
[P1] – [P5].
To hide the window: Touch [ > ].
23
ENGLISH
00DMX709SKN.indb2300DMX709SKN.indb23 2022/06/2414:142022/06/2414:14
HD RadioHD Radio™ (for DMX709S) (for DMX709S)
Checking Alert Message Log
You can confirm the details of the alert messages
received.
1 Display the <Alert Message Log> screen.
On the source control screen:
2 Select the emergency alert message to
confirm.
• Touching [ < ] scrolls the text if not all of the text
is shown.
• For list screen operations, see also page 13.
Alert Message log
yy-mm-dd_hh:mm P
yy-mm-dd_hh:mm P
yy-mm-dd_hh:mm P
yy-mm-dd_hh:mm P
yy-mm-dd_hh:mm P
The selected message is displayed. Touch [Close]
to close the message window.
To deactivate, touch [Emergency Alert] again.
Using Emergency Alert
You can activate Emergency Alert and check Alert
Message log.
Activating Emergency Alert
On the source control screen:
Emergency Alert is activated, and the EA indicator
lights up as follows.
• White: When the current station supports
Emergency Alert.
• Orange: When Emergency Alert is not available.
• Red: When Emergency Alert is received or snoozed.
To deactivate, touch [Emergency Alert] again.
When an alert message is received:
The following alert message screen appears.
05:00PM / Category Name / Call Sign
Snooze
Ignore
(Message)
After checking the message, touch [Snooze] or
[Ignore].
[Snooze] The same alert message does not
interrupt again for 10 minutes.
[Ignore] The same alert message does not
interrupt again for next 12 hours.
The alert message screen goes off.
24
ENGLISH
00DMX709SKN.indb2400DMX709SKN.indb24 2022/06/2414:142022/06/2414:14
2 Station information area
• Touching [<] scrolls the text if not all of the text
is shown.
• Touching [Radio Text] switches between [Radio
Text], [Radio Text Plus] and [PTY].
3 Current station frequency
4 Displays the preset stations window (page 26)
• To hide the window, touch [ > ].
5 [P1] – [P5]
• (Touch) Selects a preset station.
• (Hold) Presets the current station.
6 Displays/hides the following operation keys
[AME ]
(Hold) Preset the stations
automatically.
[MONO] (For FM stations) Activates monaural
mode for better FM reception (stereo
effect will be lost). The MONO indicator
lights up.
• To deactivate, touch [MONO] again.
[TI] (For FM RBDS stations)
Activates TI standby reception mode.
• When TI is activated, the unit is ready
to switch to Traffic Information if
available. The TI indicator lights up
in white.
• If the TI indicator lights up in orange,
tune in to another station providing
Radio Broadcast Data System signals.
• The volume adjustment made for
Traffic Information is automatically
memorized and used.
• To deactivate, touch [TI] again.
Radio Radio (for DMX7709S)(for DMX7709S)
Listening to the radio
This unit alarms you emergency when receiving an
alarm signal from FM broadcast.
Select [Radio] as the source.
From the Home screen (page 3), touch as follows:
The last station you selected is tuned in, and the
source control screen for the station is displayed.
Playback information on the source control
screen
Radio
1 Selects the band (AM/FM1/FM2/FM3)
• Each time you touch [FM], FM band changes in
order of FM1, FM2, and FM3.
7 TI indicator
8 ST/MONO indicator
The ST indicator lights up when receiving an FM
stereo broadcast with sufficient signal strength.
9 Seek mode indicator
p Operation keys
[ ]
Displays the <Equalizer> screen
(page 41).
[PTY] (For FM RBDS stations)
Enters PTY search mode.
1 Touch [PTY].
2 Touch and hold a PTY code to
search for.
If there is a station broadcasting a
program of the same PTY code as
you have selected, that station is
tuned in.
[SEEK]
Selects the seek mode for [
S]/
[T].
• AUTO1 (Initial): Auto search
• AUTO2: Tunes in preset stations
one after another
• MANU: Manual search
[S]/[T]
Searches for a station.
• The search method differs
according to the selected setting
for [SEEK] (see above).
25
ENGLISH
00DMX709SKN.indb2500DMX709SKN.indb25 2022/06/2414:142022/06/2414:14
Radio (for DMX7709S)Radio (for DMX7709S)
Presetting stations in the memory
You can preset five stations each for AM and FM1/
FM2/FM3.
Automatic presetting — AME (Auto
Memory)
1 Select the band
On the source control screen:
FM1 FM3
2 Start AME.
(Hold)
The local stations with the strongest signals are found
and stored automatically.
Manual presetting
1 Select the band, and then tune in to a
station you want to preset.
On the source control screen:
FM1 FM3
2 Select a preset number to store into.
AM FM1
FM1
P1
FM1
P2
FM1
P3
FM1
P4
FM1
P5
Radio
(Hold)
The station selected in step 1 is stored into the
preset number [P1] to [P5] you have selected.
Selecting a preset station
1 Select the band, and then display the
preset station window.
On the source control screen:
FM1 FM3
2 Select a preset station.
AM FM1
FM1
P1
FM1
P2
FM1
P3
FM1
P4
FM1
P5
Radio
• To show the details of the item, touch [< ].
• You can also select a preset channel by touching
[P1] – [P5].
To hide the window: Touch [ > ].
26
ENGLISH
00DMX709SKN.indb2600DMX709SKN.indb26 2022/06/2414:142022/06/2414:14
Only SiriusXM® brings you more of what you love
to listen to, all in one place. Get over 140 channels,
including commercial-free music plus the best sports,
news, talk, comedy and entertainment. Welcome to
the world of satellite radio. A SiriusXM Connect Vehicle
Tuner and subscription are required.
For more information, visit <www.siriusxm.com>.
Connecting SiriusXM Connect Vehicle Tuner
See page 57.
Activating subscription
1 Check your Radio ID.
The SiriusXM Satellite Radio ID is required
for activation and can be found by tuning to
Channel 0 as well as on the label found on the
SiriusXM Connect Vehicle Tuner and its packaging.
• The Radio ID does not include the letters I, O, S or
F.
2 Activate the subscription.
For users in the U.S.A.:
• Online:
Visit <www.siriusxm.com/activatenow>
• Phone: Call SiriusXM Listener Care at
1-866-635-2349
For users in Canada:
• Online: Visit <www.siriusxm.ca/activate>
• Phone: Call XM Customer Care at 1-888-539-7474
3 Confirm the activation.
A confirmation message appears. Touch [Return].
SiriusXM® Satellite Radio SiriusXM® Satellite Radio
[ ]
Activates or deactivates the content
alert for traffic and weather.
[SEEK]
Changes the seek mode for [CH
J]/
[CHK].
• SEEK1 (Initial): Skips to another
available channel.
• SEEK2: Skips to another preset
channel.
[S]/[T]
Controls playback during content
replay.
[SCAN] Starts TuneScan™.
[Live] Switches between replay mode and
live broadcast.
[Direct
Channel]
Enter the channel number to select
a channel.
[•••]
Changes the page in the window to
display other operation keys.
2 Displays album artwork for most SiriusXM music
channels (cache real-time images for current
channel only)
3 Station (channel) information area
a Channel name
Touching [
]changes the displayed
contents in b, c, and d as follows.
b Artist ←→ Category
c Song title ←→ Channel description
d Information ←→ Related channel
• Touching [<] scrolls the text if not all of the text
is shown.
Listening to the SiriusXM® Satellite Radio
Select [SiriusXM] as the source.
From the Home screen (page 3), touch as follows:
The last channel you selected is tuned in, and the
source control screen for the channel is displayed.
Playback information on the source control
screen
SriusXM
1 Displays/hides the following operation keys
[MODE] Displays the <SiriusXM Mode>
screen.
[
]
(Hold) Registers the current artist to
the alert contents.
[
]
(Hold) Registers the current song to
the alert contents.
27
ENGLISH
00DMX709SKN.indb2700DMX709SKN.indb27 2022/06/2414:142022/06/2414:14
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
Selecting a channel on the list
1 Display the <Channel List> screen.
On the source control screen:
2 Select a category (1), and then select a
channel (
2).
All Channels
Category Name 1
Category Name 2
Category Name 3
Category Name 4
100Ch Channel Name
105Ch Channel Name
110Ch Channel Name
115Ch Channel Name
120Ch Channel Name
Channel
Channel List
• To list all the channels, touch [All Channels].
• Touch the info change key above the list
([Channel]/[Artist]/[Song Title]/[Info]) to
change the list.
Selecting a channel
You can select the channel by directly entering
channel number or by selecting it on the channel list.
Selecting a channel directly
• When you enter the channel number of parental-
locked channel (page 32), the <Parental Code
Check> screen appears. Enter the correct parental
code to access the channel.
1 Display the <Direct Channel> entry
screen.
On the source control screen:
2 Enter the channel number (1), and then
confirm (
2).
Direct Channel
****
Clear
Enter
• To correct misentry, touch [Clear].
4 Displays the preset channel window (page 29)
• To hide the window, touch [ > ].
5 [P1] – [P5]
• (Touch) Selects a preset channel.
• (Hold) Presets the current channel.
6 Selects the band (SXM1/SXM2/SXM3/SXM4)
• The channel no. currently selected is displayed.
7 Playback status and time code for the buffered data
and replay mode
• The time code shows you the point in the replay
buffer you are listening to. (Eg. “–5:00” means
that you are listening to audio that is 5 minutes
behind the current broadcast.)
8 SiriusXM signal strength indicator
9 Seek mode indicator
p Replay time bar for replay mode
• Gray: The remaining capacity
• Blue: The amount of buffered contents
q Operation keys
[ ]
Displays the <Equalizer> screen
(page 41).
[ ]
Displays the <Channel List> screen.
[
IW]
Starts/pauses the content replay.
[CH
J]/
[CH
K]
Selects the channel.
• To select all Channels, make sure
[SEEK1] is selected as the seek
mode.
• To select only preset channels,
make sure [SEEK2] is selected as
the seek mode.
28 ENGLISH
00DMX709SKN.indb2800DMX709SKN.indb28 2022/06/2414:142022/06/2414:14
Presetting channels in the memory
You can preset five channels for each band.
1 Select the band, and then tune in to a
channel you want to preset.
On the source control screen:
2 Select a preset number to store into.
P1
P2
P3
P4
P5
SiriusXM
(Hold)
The channel selected in step 1 is stored into the
preset number [P1] to [P5] you have selected.
Replaying content
You can pause, rewind and replay the contents of the
currently tuned channel.
• The SiriusXM Connect Vehicle Tuner continually
buffers up to 60 minutes of audio.
• If you change to another channel during replay, the
buffered contents will be lost.
• The time code is updated every second.
1 Display the operation keys for replay.
On the source control screen:
2 Perform the replay operations.
SiriusXM
•••
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
Selecting a preset channel
1 Select the band, and then display the
preset channel window.
On the source control screen:
2 Select a preset channel.
SiriusXM
100Ch
P1
105Ch
P2
110Ch
P3
115Ch
P4
120Ch
P5
Channel Name
Channel Name
Channel Name
Channel Name
Channel Name
• To show the details of the item, touch [< ].
• You can also select a preset channel by touching
[P1] – [P5].
To hide the window: Touch [ > ].
• You can also select the preset channels by touching
[CH
J]/[CHK] (page 28).
29
ENGLISH
00DMX709SKN.indb2900DMX709SKN.indb29 2022/06/2414:142022/06/2414:14
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
TuneStart™
When you select a SmartFavorites channel, you can
listen to the current song from the beginning.
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Activate TuneStart.
On the <SiriusXM Mode> screen, touch as follows:
<TuneStart> : [ON]
To deactivate TuneStart: Touch [OFF] in step 2.
TuneScan™
You can get a short preview of the songs you have
missed on each of your SmartFavorites music channels
and the currently tuned music channel.
Activate TuneScan to start scanning the first 6 seconds
of the recorded music contents.
Start TuneScan.
On the source control screen:
The unit starts scanning.
• The
I
icon is displayed on the screen when
TuneScan is activated.
• To select the previous/next music content, touch
[S] or [T].
• To end scanning and continue listening to the
current music content, touch [SCAN].
• To exit scanning, touch and hold [SCAN].
Content Alert
The unit informs you when receiving the content you
are interested in, such as music, information about a
sports team, weather and traffic information.
• For list screen operations, see also page 13.
Registering items for Contents Alert
You can register your favorite artists, songs or teams.
Up to 50 contents can be registered.
• For artists/songs
While listening to your favorite artist/song:
On the source control screen:
(Hold)
Touching the operation keys performs the following
actions:
[ ]
(Hold) Registers the artist of the current
song.
[
]
(Hold) Registers the current song.
[IW]
Starts/pauses playback.
[
S]/[T]
Skips the current track.
• Touching [
S] within 2 seconds
of the beginning of the current
track returns to the previous track.
• Touching [S] after 2 seconds or
more of the current track returns
to the beginning of the track.
(Hold) Reverses/forwards search.
[Live] Returns to the live (current
broadcast) position.
SiriusXM Satellite Radio features
SmartFavorites
(Available for SXV200 or later)
User stored channels (P1 to P5) are recognized as
SmartFavorites channels. SiriusXM Connect Vehicle
Tuner automatically buffers their broadcast content.
When you select a SmartFavorites channel, you can
rewind and replay up to 30 minutes of any of the
missed news, talk, sports or music content.
• While SmartFavorites channel is tuned in, the album
artwork of the playback song is displayed on the
screen if any. If not available, station logo, channel
logo, etc. will be displayed.
• If you change to another band, the buffered content
is cleared.
30
ENGLISH
00DMX709SKN.indb3000DMX709SKN.indb30 2022/06/2414:142022/06/2414:14

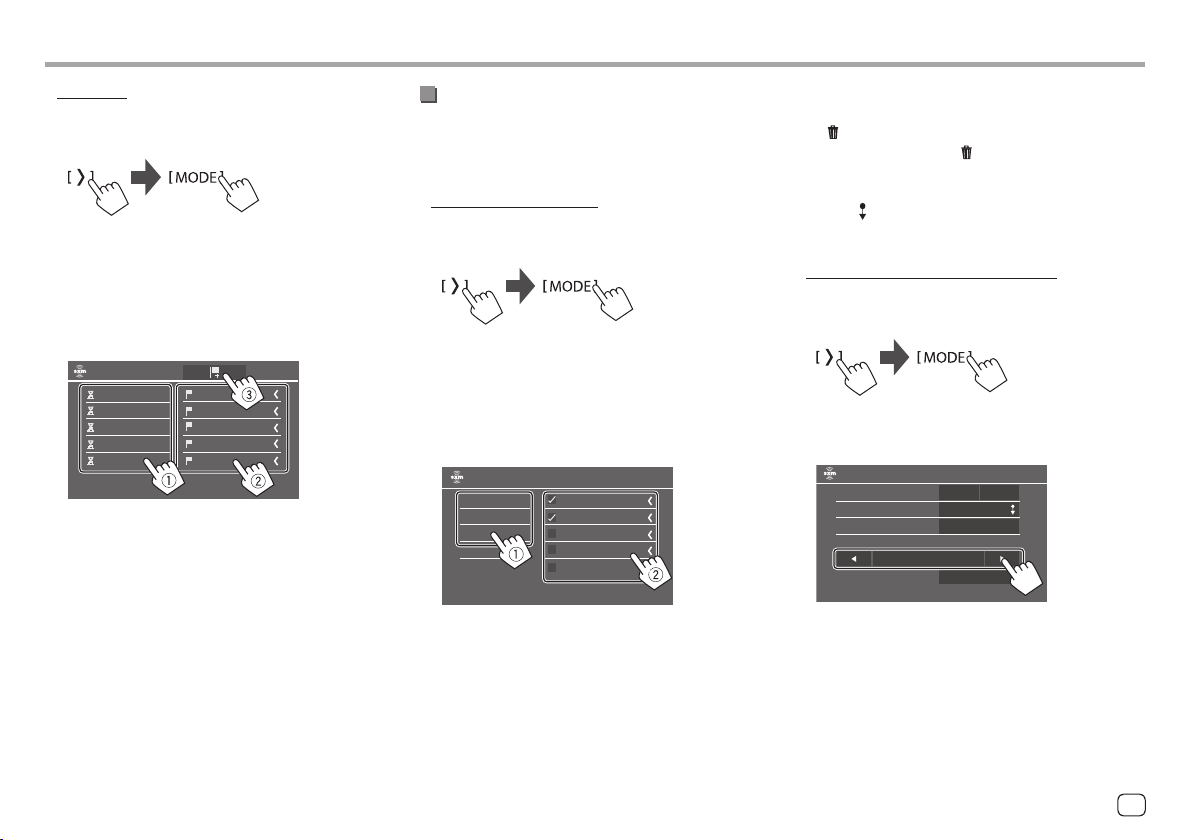

• For teams
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Display the <Alert Team Select> screen.
On the <SiriusXM Mode> screen, touch as follows:
<Alert Team Select> : [Enter]
3 Select the league (1) and the team (2),
then register into the content alert (
3).
League1
League2
League3
League4
League5
Tea m1
Tea m2
Tea m3
Tea m4
Tea m5
Alert Team Select
• To show the details of the item, touch [< ].
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
Selecting items for Content Alert
You can select items (artists/songs/teams) on the list,
so that this unit informs you once the selected item
starts being broadcast.
• For artists/songs/teams
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Display the <Content Alerts Contents Set>
screen.
On the <SiriusXM Mode> screen, touch as follows:
<Content Alerts Contents Set> : [SET]
3 Select the category (1), then the item (2).
Artist
Title
Team
000Ch Ch Name
000Ch Ch Name
000Ch Ch Name
000Ch Ch Name
000Ch Ch Name
Content Alerts Contents Set
A check mark appears beside the selected item.
• To show the details of the item, touch [<].
To delete the registered items: Touch and hold the
item you want to delete in step 2.
The [ ] icon and a check mark appear beside the
selected item. Touch the [ ] icon to delete.
To delete all registered contents: Touch and hold
[All Clear ] for <Content Alerts Contents Set> in
step 2.
• For traffic and weather information
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Select the city you desire traffic and
weather information for.
Content Alerts
Content Alerts Contents Set
Alert Team Select
Traffic Weather Jump City Select
OFF
SiriusXM Reset
ON
All Clear
SET
Enter
Los Angeles
Reset
SiriusXM Mode
• When traffic and weather starts being broadcast, this
unit automatically switches the channel broadcasting
the information.
31ENGLISH
00DMX709SKN.indb3100DMX709SKN.indb31 2022/06/2414:142022/06/2414:14
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
Switching to your favorite content
• For artists/songs/teams
When the contents of artist/song/team registered for
Content Alert is being broadcast, an alert appears on
the screen.
Touch [Jump], and then select the item to jump to on
the <Content Alerts> screen.
Content Alerts
Artist 1/ Channel Name
Artist 2/ Channel Name
Song 1/ Channel Name
Song 2/ Channel Name
Team 1/ Channel Name
Team 2/ Channel Name
• To show the details of the item, touch [<].
• For traffic and weather information
When a traffic and weather information for the
selected city status being broadcast, the unit
automatically switches the channel.
Setting reception restrictions
You can limit access to SiriusXM channels, such as
those with mature content.
Changing the parental code
• The initial setting is “0000”.
• Changing the code does not change the
<ParentalControl>/<Parental Lock Channel
Selection> settings.
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Display the <Parental Code Check>
screen.
On the <SiriusXM Mode> screen, touch as follows:
<Parental Code> : [Change]
3 Enter the four-digit code (initial: 0000)
(
1), and then touch [Enter] (2) to confirm.
****
Enter
Clear
Enter Old Code
123
456
78
0
9
Cancel
Parental Code Check
• To clear the last entry, touch [Clear].
• To cancel setting the code, touch [Cancel].
Activating Content Alert
• For artists/songs/teams
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Activate Content Alert.
On the <SiriusXM Mode> screen:
<Content Alerts> : [ON]
To deactivate Content Alert: Touch [OFF] in step 2.
• For traffic and weather information
Make sure <Content Alerts> is set to [ON].
On the source control screen:
To deactivate the Content Alert: Touch [ ] again.
32
ENGLISH
00DMX709SKN.indb3200DMX709SKN.indb32 2022/06/2414:142022/06/2414:14
4 Enter a new four-digit code, and then
touch [Enter] to confirm.
5 Repeat step 4 to confirm the new code.

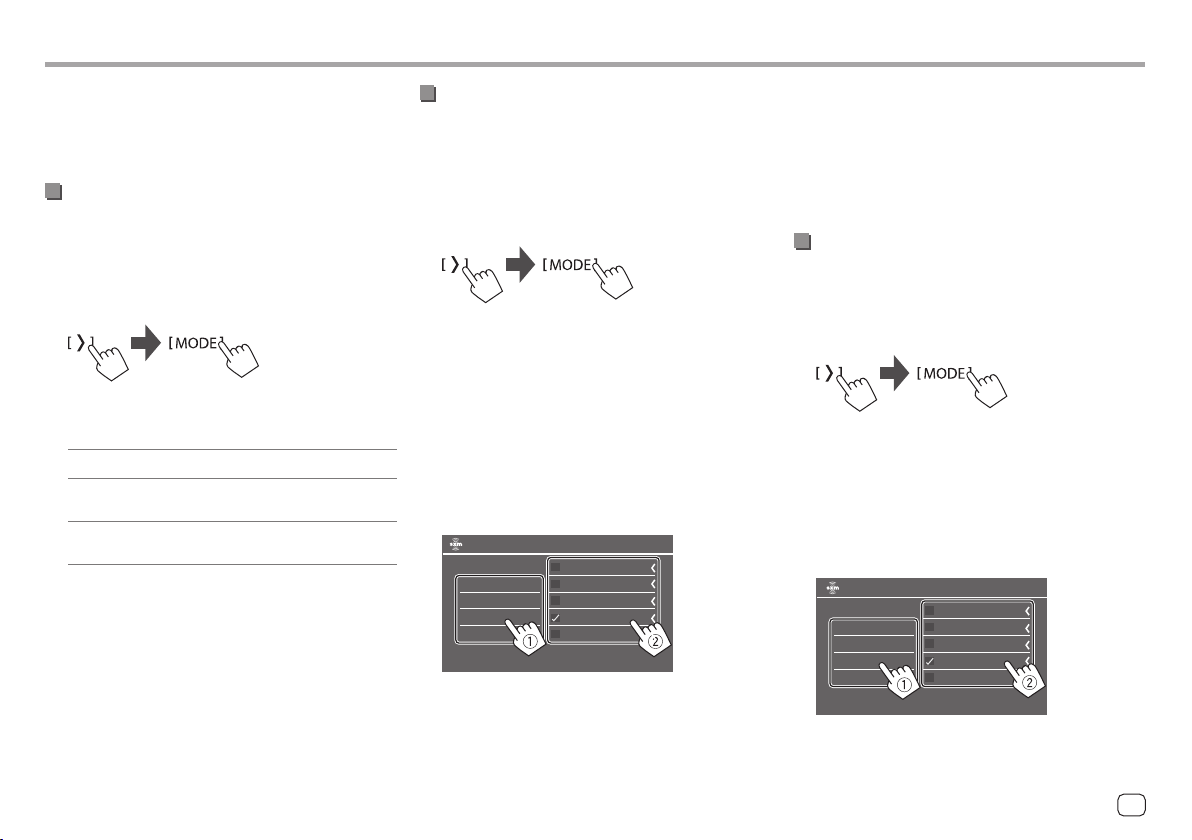

Activating parental control
You can set the parental control feature to lock any
SiriusXM channels or automatically lock all channels
classified as “mature” by SiriusXM.
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Select the desired mode for <Parental
Control>.
[OFF] Deactivates parental control.
[Mature] Locks channels classified as “mature”
by SiriusXM.
[User]
Locks selected channels.
• To lock channels, see the following.
3 Enter the parental code to confirm your
selection.
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
5
Repeat step 4 to set the parental lock on
multiple channels.
To deactivate parental lock for all locked channels:
Select [All Clear] for <Parental Lock Channel
Selection> in step 1, then enter the parental code.
Skipping unwanted channels
If you do not want to receive some channels, you can
skip them.
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Display the <Skip Channel Selection>
screen.
On the <SiriusXM Mode> screen, touch as follows:
<Skip Channel Selection> : [SET]
3 Select a category (1), and then a channel
(
2).
All Channels
Category Name 1
Category Name 2
Category Name 3
Category Name 4
100Ch Channel Name
105Ch Channel Name
110Ch Channel Name
115Ch Channel Name
120Ch Channel Name
Skip Channel Selection
A check mark appears beside the selected channel.
Parental Lock channel selection
This option allows you to manually select the channels
to be locked by the parental control feature.
• You can only change the setting if
<ParentalControl> is set to [User].
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Display the <Parental Lock Channel
Selection> screen.
On the <SiriusXM Mode> screen, touch as follows:
<Parental Lock Channel Selection> : [SET]
3 Enter the parental code.
The <Parental Lock Channel Selection> screen
appears.
4 Select a category (1), and then a channel
(
2).
All Channels
Category Name 1
Category Name 2
Category Name 3
Category Name 4
100Ch Channel Name
105Ch Channel Name
110Ch Channel Name
115Ch Channel Name
120Ch Channel Name
Parental Lock Channel Selection
A check mark appears beside the selected channel.
• To show the details of the item, touch [<].
• To list all the channels, select [All Channels].
33
ENGLISH
00DMX709SKN.indb3300DMX709SKN.indb33 2022/06/2414:142022/06/2414:14
Other External ComponentsOther External Components
HDMI/AV-IN devices
Connecting external components
See page 57.
Using the HDMI device
1 Select [HDMI] as the source.
From the Home screen (page 3), touch as
follows:
2 Turn on the connected HDMI device and
start playing the source.
Using the AV-IN component
Preparation:
• Select [AV-IN] for the <AV Input> setting when
connecting the external AV device to the AV-IN
terminals (page 49).
1 Select [AV-IN] as the source.
From the Home screen (page 3), touch as
follows:
• When selecting [Camera] for the <AV Input>
setting (page 49), you cannot select [AV-IN].
2 Turn on the connected component and
start playing the source.
Video menu control
You can display the video menu control while
watching the video from the external components.
Touch the upper portion of the screen.
The <Menu Control> screen appears.
[Aspect] Only for [AV-IN]: Displays the <Aspect>
setting screen.
• Touch [Aspect] to select the aspect
ratio.
<Full>: For 16:9 original pictures
4:3 signal 16:9 signal
<Normal>: For 4:3 original pictures
4:3 signal 16:9 signal
[Picture
Adjust]
Displays the <Screen Adjustment>
screen (page 47).
• To show the details of the item, touch [<]
• To list all the channels, select [All Channels].
4 Repeat step 3 to skip multiple channels.
To clear the channel skipping for all skipped
channels: Touch and hold [All Clear ] for <Skip
Channel Selection> in step 2.
Resetting the SiriusXM Satellite Radio
settings
You can reset all the SiriusXM settings you made and
restore the initial settings.
1 Display the <SiriusXM Mode> screen.
On the source control screen:
2 Reset the settings.
On the <SiriusXM Mode> screen, touch and hold
as follows:
<SiriusXM Reset> : [Reset
]
SiriusXM® Satellite RadioSiriusXM® Satellite Radio
34
ENGLISH
00DMX709SKN.indb3400DMX709SKN.indb34 2022/06/2414:142022/06/2414:14
Cameras
Install the cameras (separately purchased) in the
appropriate position according to the instructions
supplied with the cameras.
Connecting a front/rear view camera
See page 57.
• To use the rear view camera, a reverse lead (REVERSE)
connection is required (page 58).
• When connecting the front/rear view camera, set
the <Front Camera> and <Rear Camera> settings
correctly (page 48).
Connecting a camera to the AV-IN
terminals
See page 57.
• When connecting the external camera to the AV-IN
terminals, select [Camera] for the <AV Input>
setting (page 49).
For the rear view camera: The rear view screen
is displayed by shifting the gear to the reverse (R)
position when <Rear Camera Interruption> is set to
[ON] (page 48).
• A caution message appears on the screen. To
remove the caution message, touch the screen.
For the front view camera: The front view screen is
displayed by releasing the gear from the reverse (R)
position when <Front Camera Interruption> is set to
other than [OFF] (page 48).
Other External ComponentsOther External Components
To display parking guide line
(Only for the rear view camera)
Touch the area shown below, or set <Parking
Guidelines> to [ON] (page 48).
• To close the parking guidelines, touch the same area
again.
To exit the camera screen
Press the HOME button on the monitor panel or touch
the area shown below.
• When the gear is released from the reverse (R)
position, the screen also returns to the previous
playback source screen.
Watching camera view
1 Display the camera view.
From the Home screen (page 3), touch as
follows:
The camera view screen of one of the connected
camera is displayed.
2 Change the camera view.
Touch the upper portion of the screen shown
below.
• Each time you touch, camera view changes
among front view camera, rear view camera, and
AV-IN camera.
35
ENGLISH
00DMX709SKN.indb3500DMX709SKN.indb35 2022/06/2414:142022/06/2414:14
[Satellite
Radio]
Displays the control screen of the
satellite radio source provided for the
vehicle.
[Media
Player]
Displays the control screen of the
media player source provided for the
vehicle.
[TEL] Displays the control screen of the
Bluetooth hands-free function
provided for the vehicle.
[BT
Streaming]
Displays the control screen of the
Bluetooth streaming function
provided for the vehicle.
[Gauges] Displays the information about the
instruments such as a speedometer.
[Climate] Displays the information about the air
conditioner of the vehicle.
[Parking
Assist]
Displays the information about
the Parking Distance Sensor of the
vehicle.
[Vehicle Info] Displays the information about the
tire pressures of the vehicle.
[Radar
Detector]
Displays the information about the
Radar Detector.
2 Select the information you want or the
playback source to play.
• When you select the playback source, turn on
the connected component and start playing the
source.
Other External ComponentsOther External Components
You can use the mobile phone and portable audio
player connected through Bluetooth.
• While using Apple CarPlay, Android Auto, or USB
Mirroring, use their features for hands-free phones
and audio playback.
Note
• While driving, do not perform complicated
operations such as dialing numbers, using the phone
book, etc. When you perform these operations, stop
your car in a safe place.
• To use the Bluetooth function, you need to turn on
the Bluetooth function of the device.
• Some Bluetooth devices may not be used with this
unit depending on the Bluetooth version of the
device.
• When a Bluetooth mobile phone is connected, the
signal strength and battery level are displayed when
the information is acquired from the device.
• If your mobile phone supports PBAP (Phone Book
Access Profile), you can display the following items
on the touch panel when the mobile phone is
connected.
– Phone book
– Dialed calls, received calls, and missed calls (up to
10 entries in total)
• Two devices for Bluetooth mobile phone and one for
Bluetooth audio can be connected at a time.
However, when [Bluetooth Audio] is selected as the
source, you can connect up to five Bluetooth audio
devices and switch between these five devices.
Bluetooth® DeviceBluetooth® Device
Using an external component via ADS
adapter OEM Features
By connecting this unit to the bus system of the
vehicle using iDatalink (commercially available), this
unit can access the satellite radio source provided for
the vehicle and vehicle information can be displayed
on this unit.
• Displayable screens, key names, and screen names
vary depending on the type of the connected
iDatalink and the model of the vehicle.
• For details, visit <www.idatalink.com/>.
Connecting an ADS adapter
See page 57.
Using an external component via an ADS
adapter
• For settings to use an ADS adapter, see page 50.
1 Select “OEM Features” as the source.
From the Home screen (page 3), touch as
follows:
36
ENGLISH
00DMX709SKN.indb3600DMX709SKN.indb36 2022/06/2414:142022/06/2414:14
Bluetooth mobile phone
When a call comes in, this unit automatically enters
[TEL], and when it ends, go back to the previous
source.
When a call comes in...
Incoming Call
Name
1234XXXXXX
Device Name 1
1
Device Name 2
2
1 Phone device information
• Either hands-free phone 1 or 2 is highlighted
to indicate which phone is ringing when a call
comes in.
Touching the operation keys performs the following
actions:
[ ]
Answers a call.
[
]
Rejects a call.
• Call information is displayed if acquired.
• Phone operation is not available while the picture
from any camera is displayed.
During a call...
Talking...
Name
1234XXXXXX
NR LEVEL
–
++1
EC LEVEL
MIC LEVEL
–
++1
–
++1
DTMF
Phone Name 1
1
Phone Name 2
2
Touching the operation keys performs the following
actions:
[ ]
Ends a call.
[
]/
[ ]
Switches between hands-free mode
and phone mode.
[DTMF] Enters DTMF (Dual Tone Multi
Frequency). You can send a text using
the keypad.
NR LEVEL
[–] / [+]
Adjusts the noise reduction level.
(–5 to 5)
EC LEVEL
[–] / [+]
Adjusts the echo volume level.
(–5 to 5)
MIC LEVEL
[–] / [+]
Adjusts the volume level of the
microphone. (–10 to 10)
• Press the VOL
J/K buttons on the monitor panel to
adjust the volume of the call or earpiece.
Making a call
1 Display the phone control screen.
From the Home screen (page 3), touch as
follows:
2 Select which phone to use if two mobile
phones are connected.
Device Name 1
1
Device Name 2
2
1234XXXXXX
12 3
45 6
78 9
*
0/+ #
X
*
The active device is highlighted.
* Displays the <Connections SETUP> screen (page10).
3 Select a method to make a call (1 – 5).
Device Name 1
1
Device Name 2
2
1234XXXXXX
12 3
45 6
78 9
*
0/+ #
X
Bluetooth® DeviceBluetooth® Device
37ENGLISH
00DMX709SKN.indb3700DMX709SKN.indb37 2022/06/2414:142022/06/2414:14
Bluetooth® DeviceBluetooth® Device
To display other phone numbers in the same
contact
You can store up to ten phone numbers per
contact.
1 Touch [> ].
2 Select a contact you want to call from the list.
• When item 4 is selected in step 3:
Enter the phone number (1), then make a
call (
2).
Device Name 1
1
Device Name 2
2
1234XXXXXX
12 3
45 6
78 9
*
0/+ #
X
• To enter “+”, touch and hold [0/+].
• To delete the last entry, touch [
X
].
• When item 5 is selected in step 3:
Say the name of the person you want to
call.
• Available only when the connected mobile
phone has a voice recognition system.
• If the unit cannot find the target, “Please speak
into the microphone” appears. Touch [Start], and
then say the name again.
• To cancel voice dialling, touch [Cancel].
Presetting phone numbers
You can preset up to five phone numbers.
1 Display the phone control screen.
From the Home screen (page 3), touch as
follows:
2 Select which phone to use if two mobile
phones are connected.
Device Name 1
1
Device Name 2
2
1234XXXXXX
12 3
45 6
78 9
*
0/+ #
X
*
The active device is highlighted.
* Displays the <Connections SETUP> screen (page10).
3 Select call history or phone book (1), and
then select a contact (
2) to preset.
Device Name 1
1
Device Name 2
2
Name 1
1234XXXXXX
Name 2
2345XXXXXX
Name 3
3456XXXXXX
Name 4
4567XXXXXX
Name 5
8901XXXXXX
A-Z
1 From the call history* (missed calls/received
calls/dialed calls)
2 From the phone book*
3 From the preset list
4 Use direct number entry
5 Use voice dialling
* Applicable only for mobile phone compatible with PBAP (Phone
Book Access Profile).
4 Select a contact (1), then make a call (2).
• When item 1, 2 or 3 is selected in step 2:
Device Name 1
1
Device Name 2
2
Name 1
1234XXXXXX
Name 2
2345XXXXXX
Name 3
3456XXXXXX
Name 4
4567XXXXXX
Name 5
8901XXXXXX
A-Z
To use alphabet search in the phone book
1 Touch [ A-Z].
2 Touch the first letter you want to search for on
the keypad.
To search for a number, touch [1,2,3...].
3 Select a contact you want to call from the list.
Phone book search results:
“Sort order”, “display order” or any other equivalent
settings of the phone may affect and show
different search results (page display).
38
ENGLISH
00DMX709SKN.indb3800DMX709SKN.indb38 2022/06/2414:142022/06/2414:14
4 Select a preset number to store into.
Device Name 1
1
Device Name 2
2
1234XXXXXX
2345XXXXXX
3456XXXXXX
No preset
No preset
(Hold)
To delete the contact in the preset number: Touch
[ ] besides the contact on the preset list.
Bluetooth mobile phone settings
You can change various settings for using Bluetooth
devices on the <TEL SETUP> screen.
1 Display the <TEL SETUP> screen.
From the Home screen (page 3), touch as
follows:
Then, on the <Setup> screen, touch as follows:
[System] → <Connections SETUP> : [Enter] →
<TEL SETUP> : [Enter].
On the <TEL SETUP> screen, you can change and
confirm the following items.
Bluetooth® DeviceBluetooth® Device
2
Make the settings.
TEL SETUP
Auto Response
Auto Pairing
Auto Connect
Bluetooth HF/Audio
Front Only
All
ON OFF
ON OFF
ON OFF
<Auto Response>
• ON: The unit answers the incoming calls
automatically in 5 seconds.
• OFF (Initial): The unit does not answer the calls
automatically. Answer the calls manually.
<Auto Pairing>
• ON (Initial):
Establishes pairing automatically with
the
Android devices with Android Auto
connected
via USB.
(Not available depending on Android OS
versions.)
• OFF: Cancels (not available).
<Auto Connect>
• ON (Initial): Automatically establishes a
connection with the already registered Bluetooth
device when the unit is turned on.
• OFF: Cancels.
<Bluetooth HF/Audio>
Select the speakers used for Bluetooth mobile
phones and Bluetooth audio players.
• Front Only: Front speakers only.
• All (Initial): All speakers.
Bluetooth audio player
Select [Bluetooth Audio] as the source.
From the Home screen (page 3), touch as follows:
The <Bluetooth Audio> screen is displayed.
1 Jacket picture (artwork) is shown if any
2 Playing time/playback status
3 Tag data* (current file title/artist name/album title)
• Pressing [< ] scrolls the text if not all of the text is
shown.
4 Signal strength and battery level
(Appears only when the information is acquired
from the device.)
5 Device name
• Touching the device name shows the
<KENWOOD Music Mix> screen (page 40).
39
ENGLISH
00DMX709SKN.indb3900DMX709SKN.indb39 2022/06/2414:142022/06/2414:14

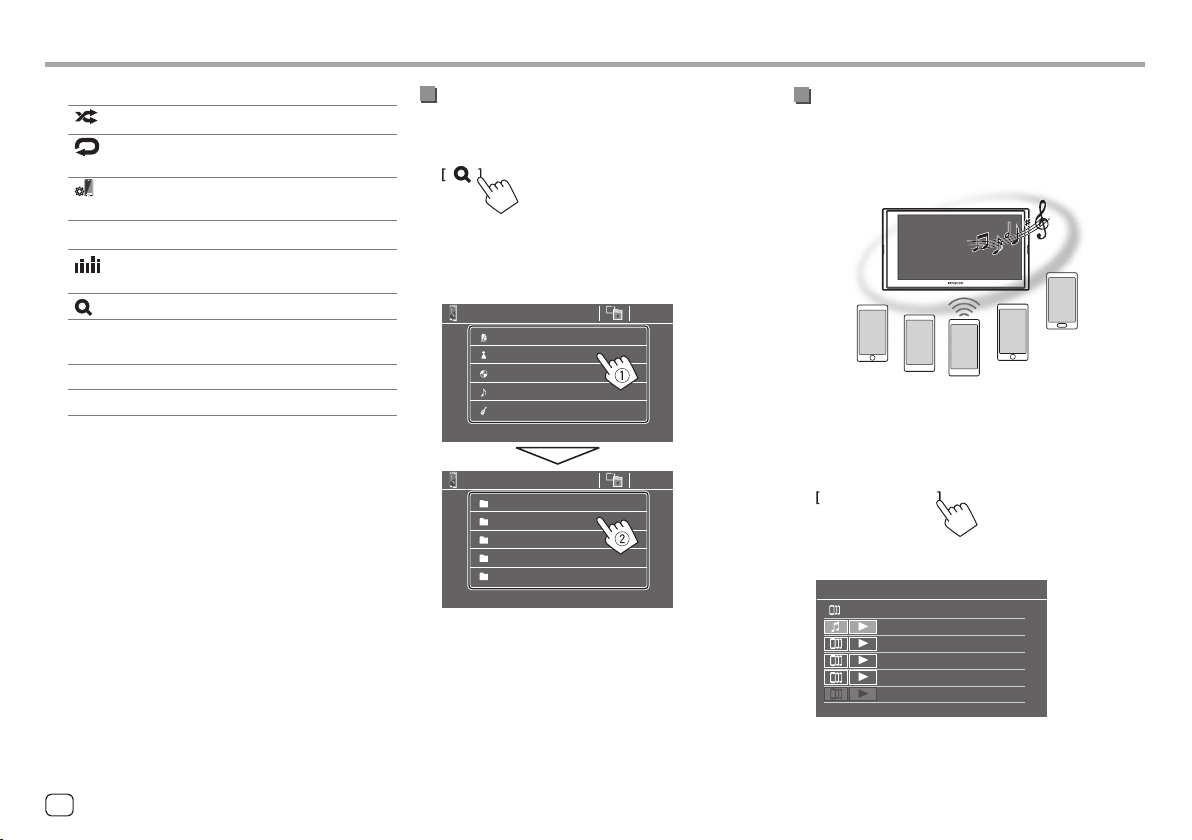

Bluetooth® DeviceBluetooth® Device
Selecting an audio file from the menu
1 Display the audio menu.
On the source control screen:
2 Select a category (1), and then select a
desired item (
2).
• For list screen operations, see also page 13.
Artist 1
Bluetooth Audio
Artist 2
Artist 3
Artist 4
Artist 5
Bluetooth Audio
Playlists
Artist
Album
Songs
Genre
Select an item in each layer until you reach and
select the desired file.
KENWOOD Music Mix
You can connect up to five Bluetooth audio devices at
the same time. You can easily switch between these
five devices by playing music from the device.
1 Display the device list for KENWOOD
Music Mix.
On the source control screen:
(Device name)
List of the registered devices is displayed.
Device Name
Play
KENWOOD Music Mix
Bluetooth Audio 1
Bluetooth Audio 2
Bluetooth Audio 3
Bluetooth Audio 4
Bluetooth Audio 5
6 Displays/hides other available operation keys
[ ]
Selects random playback mode.
[
]
Selects repeat playback mode by
touching repeatedly.
[
]
Displays the <Connections SETUP>
screen (page 10).
7 Operation keys
[ ]
Displays the <Equalizer> screen
(page 41).
[
]
Displays the category list.
[
S]/[T]
• (Touch) Selects a file.
• (Hold) Reverses/forwards search.
[
I]
Starts playback.
[
W]
Pauses playback.
8 Repeat mode indicator
9 Random mode indicator
* Available only for devices compatible with AVRCP 1.3.
40 ENGLISH
00DMX709SKN.indb4000DMX709SKN.indb40 2022/06/2414:142022/06/2414:14
Settings Settings
Audio settings
1 Display the <Audio> screen.
On the source/option selection screen (page 11):
Then, on the <Setup> screen, touch as follows:
[Audio] (1) → [Enter] for the item you adjust (2).
Setup
Equalizer
Sound Effect
Fader / Balance
Speaker / X’over
Time Alignment
Enter
Enter
Enter
Enter
Enter
Display
Input
System
Audio
2 Adjust the item.
The <Audio> settings are not adjustable;
• When the unit is in standby (STANDBY).
• When the Bluetooth phone is used (making or
receiving a call, during a call, or while voice dialling).
• When Apple CarPlay or Android Auto is used for
phone calling.
<Equalizer>
The following adjustments are memorized for each
source until you adjust the sound again.
Selecting a preset sound mode
Select a preset sound mode on the <Equalizer>
screen (1).
• Pops/Easy/Top40/Jazz/Powerful/Rock/Flat
(Initial)/Bass Boost/User1/User2/User3/User4
Equalizer SRC Name
Preset
[dB]
0
+3
+5
+7
+9
-9
62.5 100 160 250 400 630 1k 1.6k 2.5k 4k 6.3k 10k 16k [Hz]
-7
-5
-3
Flat
Bass EXT
SW Level
0
ON OFF EQ INIT
ALL SRC
<SW Level>
Adjusts the subwoofer level (2).
• Not adjustable when <None> is selected for
subwoofer on the <Speaker Select> screen
(page 43).
• –50 to +10 (Initial: 0)
To apply the adjusted equalizer to all playback
sources, touch [ALL SRC], and then touch [OK] to
confirm.
2 Select the device (1) and start playback
(
2).
Device Name
Play
KENWOOD Music Mix
Bluetooth Audio 1
Bluetooth Audio 2
Bluetooth Audio 3
Bluetooth Audio 4
Bluetooth Audio 5
The selected device starts playback.
The meaning of the icons and their colors:
Icon Meaning
Device used currently for <Bluetooth
Audio>.
• Touch to display the <Device List>
screen (page 9).
*
Devices ready for KENWOOD Music Mix.
• Touch to select the playback device.
*
Touch to start playing back the selected
device.
• When the playback starts, the
background of the icon becomes blue.
* When the icon and background color are gray, the device is not
available.
Bluetooth® DeviceBluetooth® Device
41ENGLISH
00DMX709SKN.indb4100DMX709SKN.indb41 2022/06/2414:142022/06/2414:14
<Sound Effect>
Adjust the sound effect.
<Loudness>
Adjusts loudness.
• OFF (Initial)/Low/High
<Bass Boost>
Selects the bass boost level.
• OFF (Initial)/Level 1/Level 2/Level 3
<Drive Equalizer>
Reduces the driving noise by raising the bandwidth.
• OFF (Initial)/ON
<Space Enhancer>
Virtually enhances the sound space using the Digital
Signal Processor (DSP) system (except for analog
broadcast stations). Select the enhance level.
• OFF (Initial)/Small/Medium/Large
<Supreme>
Compensates the sound lost while audio compression
process (except for analog broadcast stations).
• OFF/ON (Initial)
<Realizer>
Virtually makes the sound more realistic using the
Digital Signal Processor (DSP) system. Select the sound
level.
• OFF (Initial)/Level 1/Level 2/Level 3
SettingsSettings
<Stage EQ>
Moves the center of the sound to the lower or higher
point. Select the height.
• OFF (Initial)/Low/Middle/High
<Fader/Balance>
Touch [J]/[K]/[H]/[I] or drag the mark to adjust.
<Fader>
When <X'over Network> is set to [2 way], you can
adjust the front and rear speaker output balance.
• F15 to R15 (Initial: 0)
<Balance>
Adjusts the left and right speaker output balance.
• L15 to R15 (Initial: 0)
To clear the adjustment: Touch [Center].
Store your own sound adjustments
1 Select one of the User mode (User1 –
User4) to store your adjustment into.
2 Select a band (1), adjust the level (2), and
then adjust the sound (
3).
Equalizer SRC Name
Preset
[dB]
0
+3
+5
+7
+9
-9
62.5 100 160 250 400 630 1k 1.6k 2.5k 4k 6.3k 10k 16k [Hz]
-7
-5
-3
User1
Bass EXT
SW Level
0
ON OFF EQ INIT
ALL SRC
• Repeat 1 and 2 to adjust the level of other
bands. Finally adjust the following items.
<Bass EXT>
Activates/deactivates bass.
• ON/OFF (Initial)
To clear the adjustment, touch [EQ INIT].
• Once the adjustment screen is closed, your
adjustment is memorized.
42
ENGLISH
00DMX709SKN.indb4200DMX709SKN.indb42 2022/06/2414:142022/06/2414:14
SettingsSettings
<Speaker/X’over>
Preparation:
Before making the adjustment for <Speaker/X'over>,
select the appropriate crossover network mode
according to the speaker system (2-way speaker
system or 3-way speaker system).
1 Put the unit in standby.
From the Home screen (page 3), touch as
follows:
2 Display the <X’over Network> screen.
Press the VOL K button on the monitor panel and
touch the upper right portion on the touch panel
at the same time:
3 Select the crossover network mode.
[2 way] Select this when 2-way system
speakers are used (front/rear).
[3 way] Select this when 3-way system
speakers are used (tweeter/mid
range/woofer).
A confirmation message appears. Touch [Yes].
Now, you can adjust the <Speaker/X'over>
settings.
1 Display the <Setup> → <Audio> →
<Speaker/X'over> screens (page41).
2 Select a car type (1), select the location
of the speakers (
2)*, and then display the
<Speaker Select> screen (
3).
Car Setting
Front
OFF
Door
OFF
* <Speaker Location> is available only when <X’over
Network> is set to [2 way].
<Speaker Location> for rear speakers is only available when
the rear speakers are selected for <Speaker Select>.
3 Select the speaker type (1), select the
size of the selected speaker (
2), and then
display the <X’over> screen (
3).
Speaker Select
6 1/2 inch
• If a speaker is not connected, select [None].
• When setting the front speakers, select the
speaker size for <Tweeter>.
4 Adjust the crossover frequency of the
selected speaker.
• Adjustable items vary depending on the selected
speaker type/speaker size/crossover settings.
0dB
Front
TW Gain
[dB]
8dB
Gain
30Hz
HPF FREQ
-24dB/Oct
Slope
[Hz]
X'over
Eg. when adjusting <X'over> for front speakers
43
ENGLISH
00DMX709SKN.indb4300DMX709SKN.indb43 2022/06/2414:142022/06/2414:14

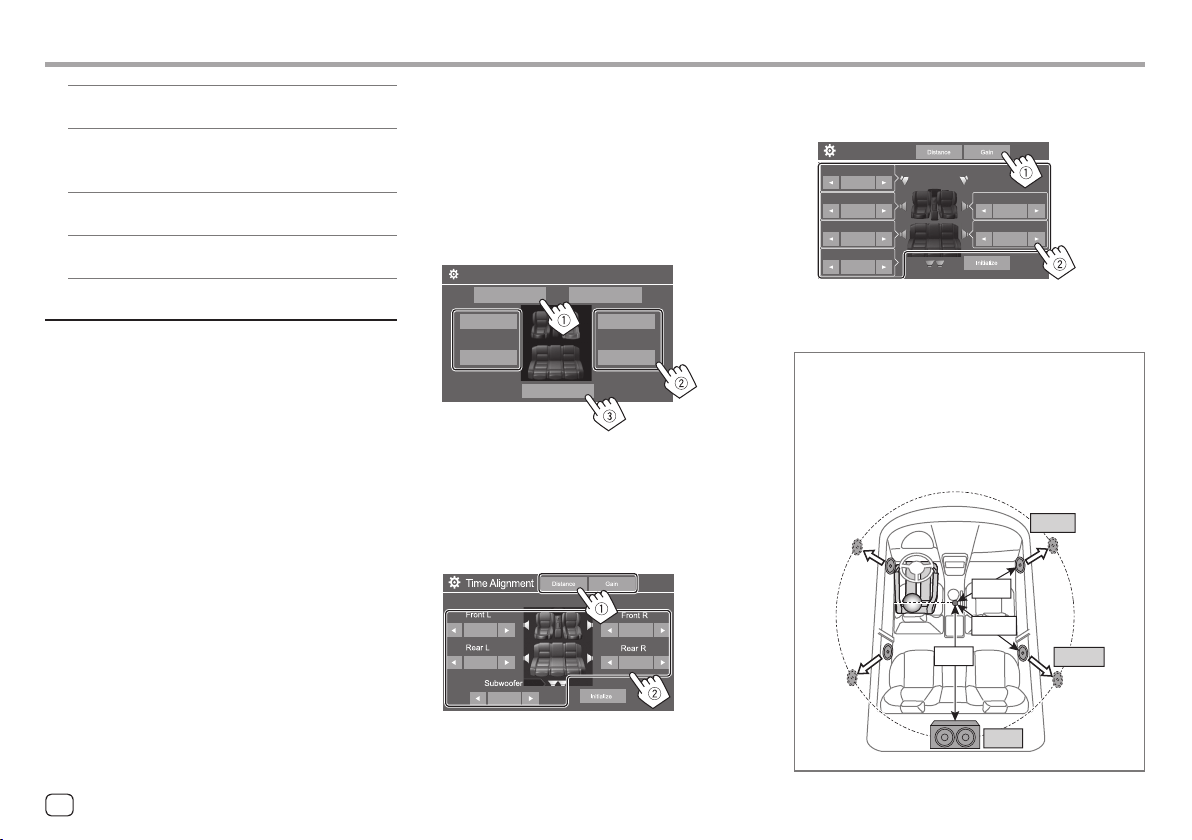

3 Touch [Gain] (1), and then adjust the
sound level of each speaker (2).
Time Alignment
Tweeter
0.0 dB
Front L
0.0 dB
Rear L
0.0 dB
Subwoofer
0.0 dB
Front R
0.0 dB
Rear R
0.0 dB
To initialize the setting value: Touch [Initialize].
Determining the delay time adjustment
If you specify the distance from the center of your
listening position to every speaker, the delay time is
automatically computed and set.
Eg. When [Front All] is selected as the listening
position
+3.5 ft
1.4 ft
2.45 ft
+2.45 ft
4.9 ft
+0 ft
<Gain>/<TW Gain>
Adjusts the output volume of respective speaker.
<HPF FREQ>/<LPF FREQ>
Adjusts the crossover frequency for respective
speaker.
<Slope>
Adjusts the crossover slope for respective speaker.
<Phase>
Selects the phase for the speaker.
<Time Alignment>
This setting improves the sound field for the seats you
select.
<Position>
You can select either <Listening Position> or <Front
Focus> on the screen. You cannot use both setting at
the same time.
<Listening Position>
This setting is used for both 2-way speaker system and
3-way speaker system.
1 Specify your favorite listening position.
1 Touch [Listening Position].
2 Select the listening position – [All] (Initial),
[FrontL], [Front R] or [Front All]*.
3 Touch [Adjust].
Listening Position Front Focus
Front L
All
Front R
Front All
Adjust
Position
* [Front All] is selectable only when <X'over Network> is set
to [2 way].
2 Touch [Distance] (1), and then enter the
distance from your listening position to
each speaker (2).
3.48ft
0.00ms
3.48ft
0.00ms
3.48ft
0.00ms
3.48ft
0.00ms
3.48ft
0.00ms
SettingsSettings
44 ENGLISH
00DMX709SKN.indb4400DMX709SKN.indb44 2022/06/2414:142022/06/2414:14
2 Touch [Distance] (1), and then adjust the
following parameters (2).
Sound Image LR(Front)
Sound Image LR(Rear)
Size of the Virtual Sound Field
Subwoofer Delay
Distance Gain
Initialize
0.94ms
0.94ms
0.94ms
0.94ms
0.94ms
Front Focus Adjust
[Sound Image
LR (Front)]
Locates the sound image in
front of the front seats, and
adjust the balance.
• You can mute the sounds
of the rear speakers and
subwoofer.
[Sound Image
LR (Rear)]
Locates the sound image in
front of the rear seats, and
adjust the balance.
[Size of the
Virtual Sound
Field]
Adjusts the virtual sound field to
the desired field size.
• If the sound image moves out
of the front position, adjust
[Sound Image LR (Front)]/
[Sound Image LR (Rear)].
[Subwoofer
Delay]
Adjusts the delay time of
subwoofer sound.
• To close and finish the parameter setting, touch
[Close].
SettingsSettings

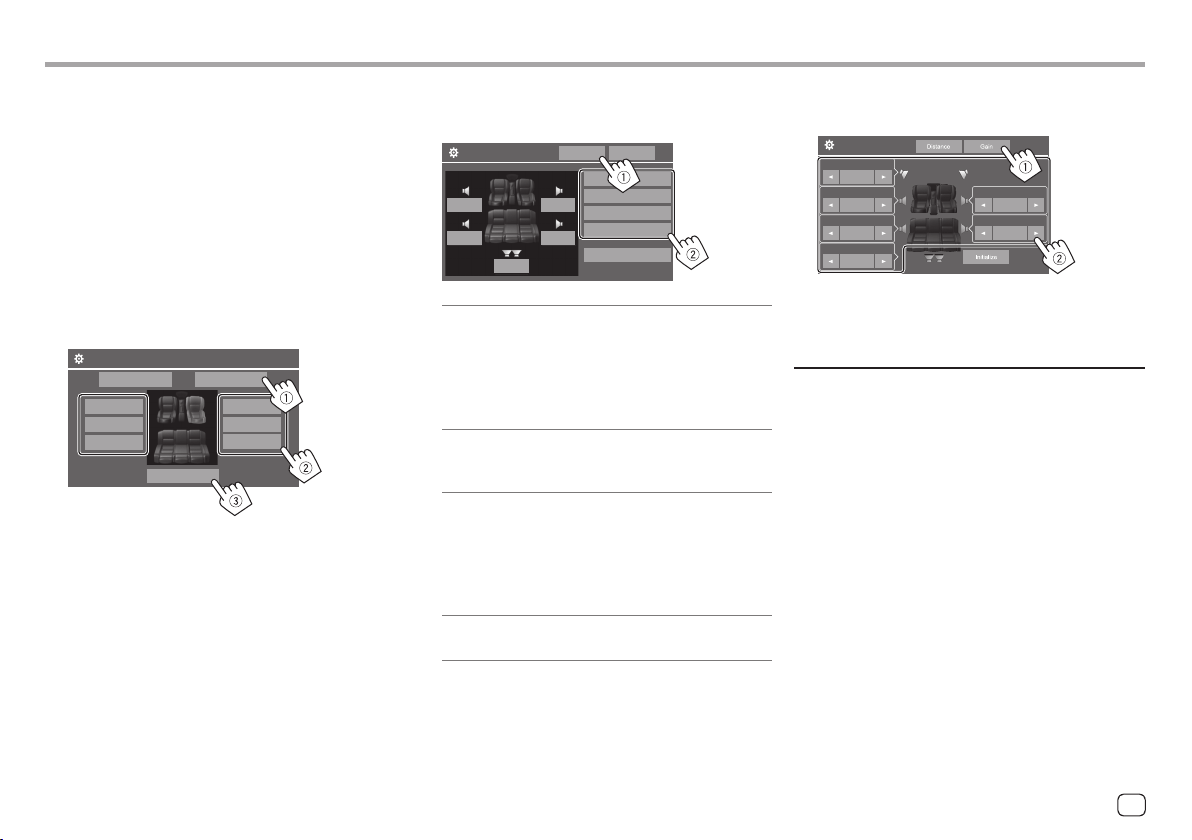

<Front Focus>
When you select 2-way speaker system, you can use
this setting, enabling you to focus the imaginary sound
localization for the seat you select.
1 Select the listening position.
1 Touch [Front Focus].
2 Select from [FrontL], [Front R], [Front All
(Priority L)], [Front All (Priority R)], [All
(Priority L)], or [All (Priority R)].
• “Priority” means to which seats (left or right)
the sound localization tends to be shifted.
3 Touch [Adjust].
Listening Position Front Focus
Front L
Front All
Priority L
All
Priority L
Front R
All
Priority R
Front All
Priority R
Adjust
Position
3 Touch [Gain] (1), and then adjust the
sound level of each speaker (2).
Front Focus Adjust
Tweeter
0.0 dB
Front L
0.0 dB
Rear L
0.0 dB
Subwoofer
0.0 dB
Front R
0.0 dB
Rear R
0.0 dB
To initialize the setting value: Touch [Initialize].
<Volume Offset>
Adjust and store the auto-adjustment volume level for
each source.
The volume level will automatically increase or
decrease when you change the source.
• –5 to +5 (Initial: 0)
45
ENGLISH
00DMX709SKN.indb4500DMX709SKN.indb45 2022/06/2414:142022/06/2414:14
Display settings
1 Display the <Display> screen.
On the source/option selection screen (page 11):
Then, on the <Setup> screen, touch as follows:
[Display] (1) → [Enter] for the item you adjust or
the appropriate setting for the item (2).
Setup
Dimmer
User Customize
OSD Clock
Demonstration
Scroll
Enter
Auto
ON
OFF
ON OFF
Once
ON
OFF
Input
System
Audio
Display
2 Adjust the item if more steps are required.
See the respective explanation that follows.
<Dimmer>
• Auto (Initial): Dims the screen and button
illumination when you turn on the headlights.
– The ILLUMI lead connection is required
(page 58).
• ON: Activates dimmer.
• OFF: Deactivates dimmer.
SettingsSettings
<User Customize>
You can change the following items.
• Background image of the Home screen
• Display background by using your desired still image
file (JPEG/BMP/PNG)
• Illumination color of the buttons on the monitor
panel
• Home screen display pattern
<Background>: Changes the background image of
the Home screen.
To store your own image into <User>.
<Panel Color>: Changes the illumination color of the
buttons on the monitor panel.
To store your own illumination color
setting into the white-colored box.
a
• You can also adjust the illumination color yourself.
Touch the white-colored box, and then [Edit] to
display the illumination color adjustment screen,
then select the dimmer setting and adjust the color.
The adjustment is saved in the white-colored box.
• Selecting a changes the illumination color gradually.
<Home Design>: Changes the display pattern of the
Home screen.
To store your own scene for <Background>
When using an image file, make sure that the
resolution is 800 x 480 pixels.
• You cannot capture copyrighted content and
images.
• The color of the captured image may look different
from that of the actual scene.
46
ENGLISH
00DMX709SKN.indb4600DMX709SKN.indb46 2022/06/2414:142022/06/2414:14
<Demonstration>
• ON (Initial): Activates the display demonstration.
• OFF: Deactivates the display demonstration.
<Scroll>
• ON (Initial): Scrolls the displayed information
repeatedly.
• Once: Scrolls the displayed information once.
• OFF: Cancels.
Touching [ < ] scrolls the text regardless of this setting.
<Home Customize>
Changes the playback sources to display on the Home
screen (page 3).
1 Select the source to replace (1), and then
select a new source (
2) to display on the
Home screen.
Eg. Home Customize screen for DMX709S
2 Repeat step 1 to replace the other
playback sources.
SettingsSettings
1 While playing Slide Show, display the
<User Customize> screen.
1 Press the HOME button on the monitor panel.
The Home screen is displayed.
2 Touch [ ], and then [ ].
The <Setup> screen is displayed.
3 Then, on the <Setup> screen, touch as follows:
[Display] → <User Customize>: [Enter]
2 Display the <Background> screen, and
then touch, and then touch [
Capture].
The current still picture is displayed on the screen.
[ ]
Moves to the following still picture.
3 Touch [ Capture] to capture the image.
A confirmation message appears. Touch [Yes] to
store the captured image into [User]. (The existing
image is replaced with the new one.)
• To return to the previous screen, touch [No].
• To cancel the capture, touch [Cancel].
<OSD Clock>
• ON (Initial): Displays the clock while the screen is off,
or while a video source is playing.
• OFF: Cancels.
<Screen Adjustment>
Adjust the following items related to the screen.
Select [DIM ON] (dimmer on) or [DIM OFF] (dimmer
off), then change the following settings:
<Contrast>
Adjusts the contrast.
• –10 to +10 (Initial: 0 for both dimmer on and off)
<Bright>
Adjusts brightness.
• –15 to +15 (Initial: 0 for dimmer on, and +15 for
dimmer off)
<Color>
Adjusts the color.
• –10 to +10 (Initial: 0 for both dimmer on and off)
<Tint>
Adjusts the tint.
• –10 to +10 (Initial: 0 for both dimmer on and off)
<Viewing Angle>
Select the viewing angle in relation to the monitor to
make the image on the screen easier to see.
• Under 0° (Initial)/5°/10°/15°/20°
47
ENGLISH
00DMX709SKN.indb4700DMX709SKN.indb47 2022/06/2414:142022/06/2414:14
SettingsSettings
Input settings
1 Display the <Input> screen.
On the source/option selection screen (page 11):
Then, on the <Setup> screen, touch as follows:
[Input] (1) → [Enter] for the item you adjust or
the appropriate setting for the item (2).
Setup
Front Camera
Rear Camera
Enter
Parking Assist
Enter
AV Input
Camera
AV-IN
Enter
System
Audio
Display
Input
2 Adjust the item if more steps are required.
See the respective explanation that follows.
<Front Camera>
Configure the front view camera settings.
<Front Camera>
• ON: Select this when the front view camera is
connected.
• OFF (Initial): Select this when no front view camera
is connected.
<Front Camera Interruption>
When you shift the gear from the reverse position (R)
to another position, the view screen changes to the
front view screen automatically and remains for the
preset period of time.
• Selectable when <Front Camera> and <Rear
Camera Interruption> are set to [ON].
• 5 Sec/10 Sec/15 Sec/20 Sec.
• OFF (Initial): Not used.
<Rear Camera>
Configure the rear view camera settings.
<Rear Camera Interruption>
• ON (Initial): Displays the picture from the rear view
camera when you shift the gear to the reverse (R)
position.
– A caution message appears on the screen. To
remove the caution message, touch the screen.
• OFF: Select this when no rear view camera is
connected.
<Parking Guidelines>
• ON (Initial): Displays the parking guidelines.
• OFF: Hides the parking guidelines.
<Guidelines Setup>
Adjust the parking guidelines according to the size of
the car, parking space and so on.
When adjusting the parking guidelines, make sure to
use the parking brake to prevent the car from moving.
Select the
mark (1), and then adjust the position of
the selected mark (2).
Initialize
Make sure that A and B are horizontally parallel, and
that C and D are the same length.
• Touch and hold [Initialize
] for 2 seconds to set all
the marks to the initial default position.
<Reverse with ATT>
• ON (Initial): The sound is attenuated while the gear is
shifted to the reverse (R) position.
• OFF: Not used.
48
ENGLISH
00DMX709SKN.indb4800DMX709SKN.indb48 2022/06/2414:142022/06/2414:14
System settings
1 Display the <System> screen.
On the source/option selection screen (page 11):
Then, on the <Setup> screen, touch as follows:
[System] (1) → [Enter] for the item you adjust or
the appropriate setting for the item (2).
Setup
Language
Clock
Time Format
Time Zone
Clock Adjust
Enter
English
Enter
Enter
Enter
Audio
Display
Input
System
2 Adjust the item if more steps are required.
See the respective explanation that follows.
<Language>
Select the text language used for on-screen
information. For details, see page 4.
“Please Ignition Off” appears when the setting is
changed. Turn the ignition switch off then on to
enable the change.
<Clock>
Set the date and clock adjustment method. For details,
see page 5.
SettingsSettings
<Parking Assist>
Configure settings for using the ADS adapter.
<Parking Assist Display>
When an ADS adapter is connected, you can display
information about obstacles around the car.
• ON: Always displays information.
• Dyn. (Initial): Displays information when the sensor
detects obstacles.
• OFF: Cancels.
<Parking Assist Position>
Select where information about obstacles is displayed
on the screen.
• Left/Right (Initial)
<AV Input>
Select the usage of the AV-IN input terminal
(adjustable only in Standby Mode (page 4)).
• AV-IN (Initial): Select this when an external AV device
is connected.
To watch the connected device, select [AV-IN] on
the source/option selection screen.
• Camera: Select this to watch the view from the
connected camera.
To watch the camera view, select [Camera] on the
source/option selection screen.
<Time Format>
Select the time display format—either [12-Hour]
(Initial) or [24-Hour].
<Time Zone>
Select the time zone for your residential area. For
details, see page 5.
<Clock Adjust>
Adjust the date and clock manually. For details, see
page 5.
<Daylight Saving Time>
(Not used when the clock is set manually)
Activate this by selecting the additional time for
Daylight Saving Time (if available in your residential
area). For details, see page 5.
<Connections SETUP>
Specify or confirm the connected devices information.
<Device List>
Shows the list of the connected (registered) devices.
For details, see page 8.
<PIN Code>
Shows the current PIN code for this unit.
<Device Name>
Shows the device name of this unit—DMX709S or
DMX7709S.
<Bluetooth Device Address>
Shows the Bluetooth device address of this unit.
49
ENGLISH
00DMX709SKN.indb4900DMX709SKN.indb49 2022/06/2414:142022/06/2414:14
SettingsSettings
<Initialize>
Touch and hold [Enter] to reset all settings you
have made for using Bluetooth mobile phones and
Bluetooth audio players.
<TEL SETUP>
Configure settings for using Bluetooth mobile phones.
For details, see page 39.
<Device Audio Control>
Adjust the device sounds. For details, see page 11.
<Driving Position>
Set your driver’s seat position of your car — [LEFT]
(initial) or [RIGHT].
• This setting changes the sidebar/button position
of Apple CarPlay/Android Auto screens accordingly
with the driver seat position.
<Android Mode Select>
Select your Android usage — either [Android Auto]
(initial) or [Mirroring for Android].
• This setting is available only in Standby Mode with
no device connected via USB.
<Beep>
This setting is available only when 2-way speaker
system is selected (page 43).
• ON (Initial): Activates the key-touch tone.
• OFF: Deactivates the key-touch tone.
<SETUP Memory>
Memorize, recall, or clear the settings you have made.
• The memorized settings are kept even when the unit
is reset.
• Available only when <SETUP Memory> is set to
[Unlock] (selected initially).
Touch [Yes] to display the setting screen, then select
an operation:
• Recall: Recalls the memorized settings.
• Memory: Memorizes the current settings.
• Clear: Clears the currently memorized settings and
return to the factory (initial) settings.
• Cancel: Cancels.
A confirmation message appears. Touch [Yes].
You can also set to lock the <SETUP Memory> from
being changed. Touch [Lock] to lock the settings.
• Some items in <Setup> menu, eg. <Speaker/
X’over>, cannot be adjusted when [Lock] is
selected.
<OEM Setup>
Get information, and change the settings for using the
ADS adapter.
<Initialize>
Initialize all settings you have made. Touch and hold
[Enter] to initialize the settings.
• After initializing the settings, adjust the settings on
the <Initial Setup> screen.
<Serial Number>
Displays the serial number.
<System Information>
Update the system by connecting a USB device
containing an update file.
• To obtain the update file, visit
<https://www.kenwood.com/cs/ce/>.
Connect a USB device with the update file to the unit.
System Information
GNSS Version
HD Radio Version
Application Version
Update
Update
System Version
Update
Update
Vxxx
Vxxx
Vxxx
Vxxx
Update starts. It may take a while. If the update has
been completed successfully, “Update Completed.
Please Ignition OFF” appears.
50 ENGLISH
00DMX709SKN.indb5000DMX709SKN.indb50 2022/06/2414:142022/06/2414:14
CAUTION
• Do not leave the remote controller in hot places such
as on the dashboard.
• Risk of the fire of explosion if the battery is replaced
by an incorrect type. Ensure to replace only with the
same type.
• Risk of fire, explosion or the leakage of flammable
liquid or gas if the battery is left in an extremely
high temperature surrounding environment and/
or subjected extremely low air pressure. The battery
pack or batteries shall not be exposed to excessive
heat such as sunshine, fire or the like
• Risk of fire, explosion or the leakage of flammable
liquid or gas if the battery is disposed into fire or a
hot oven, recharged, shorted, mechanically crushed
or cut of the battery.
• If spilled fluid comes in contact with your eyes or on
clothing, immediately rinse with water and consult
a physician.
Preparation
Battery installation
Use two “AAA”/“R03”-size
batteries.
Insert the batteries with the +
and – poles aligned properly,
following the illustration inside
the case.
• Always insert batteries from
– poles to avoid bending the
springs.
SettingsSettings Remote Controller Remote Controller
To use the remote controller, purchase optional
remote controller, KCA-RCDV340.
• When using the remote controller, refer also to
the instruction manual supplied with the remote
controller.
V.SEL
RETURN
DVD SETUP
AUDIO
ANGLE
MODE
FNC/PBC
KCA-RCDV340
* DO NOT expose the remote sensor to bright
light (direct sunlight or artificial lighting).
Remote sensor*
<Application Version>
Updates the system application.
<System Version>
Updates the system.
<GNSS Version>
Updates the Global Navigation Satellite firmware.
<HD Radio Version> (Only for DMX709S)
Updates the HD Radio firmware.
• Do not disconnect the USB device while updating.
• If the update has failed, turn the ignition switch off
then on, and retry the update.
<Open Source Licenses>
Shows the Open Source Licenses.
51
ENGLISH
00DMX709SKN.indb5100DMX709SKN.indb51 2022/06/2414:142022/06/2414:14
• If the Remote Controller operates only over shorter
distances or does not operate at all, it is possible that
the batteries are depleted. In such instances, replace
both batteries with new ones.
Remote Controller mode switch
The functions operated from the remote controller
differ depending on the position of the mode switch.
DVD
•
TV
•
AUD
•
• AUD mode: Switch to this mode when controlling a
selected source or tuner source, etc.
• DVD mode: Not used.
• TV mode: Not used.
Basic operations for KCA-RCDV340
V.SEL
RETURN
DVD SETUP
AUDIO
ANGLE
MODE
FNC/PBC
Common operations
SRC • Selects the source.
• Hangs up the incoming/current
call.
VOL
J/K
Adjusts the volume level.
ATT Attenuates/restores the sound.
Answers incoming calls.
FNC/PBC/MENU Switches the control screen of
source.
MODE/
TOP MENU
Changes the aspect ratio.
• The aspect ratio changes each
time you press this key.
V.SEL Not used for this unit.
Remote ControllerRemote Controller
ENTER Not used for this unit.
DVDSETUP Not used for this unit.
RETURN Not used for this unit.
AUDIO Not used for this unit.
SUBTITLE Not used for this unit.
ANGLE Not used for this unit.
ZOOM Not used for this unit.
OPEN Not used for this unit.
2 ZONE Not used for this unit.
R.VOL
Not used for this unit.
CLEAR Not used for this unit.
Audio file/Video file/Picture file
FM+ / AM− Selects a folder.
S / T
Selects a file.
IW
Starts/pauses playback.
HD Radio*1/Radio*2/SiriusXM
FM+ / AM− Selects the band.
S / T
Searches for stations/channels.*3
IW
Switches the seek mode.
52
ENGLISH
00DMX709SKN.indb5200DMX709SKN.indb52 2022/06/2414:142022/06/2414:14
Installation and ConnectionInstallation and Connection
This section is for the professional installer.
For safety’s sake, leave wiring and mounting to
professionals. Consult the car audio dealer.
WARNINGS
• DO NOT connect the ignition wire (red) and the
battery wire (yellow) to the car chassis (ground), you
may cause a short circuit, that in turn may start a fire.
• DO NOT cut out the fuse from the ignition wire (red)
and the battery wire (yellow). The power supply must
be connected to the wires via the fuse.
• Always connect the ignition wire (red) and the
battery wire (yellow) to the power source running
through the fuse box.
CAUTIONS
• Install this unit in the console of your car.
• Do not touch the metal parts of this unit during and
shortly after the use of the unit. Metal parts such as
the heat sink and enclosure become hot.
• When parking at a low ceiling area, turn off the unit
to store the antenna. As when the unit is installed in
the car with the function of auto antenna; the radio
antenna extends automatically when you turn on
the unit with the antenna control wire (ANT. CONT)
connected (page 58).
Before installation
Precautions on installation and connection
• Mounting and wiring this product requires skills and
experience. For best safety, leave the mounting and
wiring work to professionals.
• Mount the unit so that the mounting angle is 30° or
less.
• Make sure to ground the unit to a negative 12 V DC
power supply.
• Do not install the unit in a location exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of water
splashing.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
• After the unit is installed, check whether the brake
lamps, blinkers, wipers, etc. on the car are working
properly.
• Do not press hard on the panel surface when
installing the unit to the car. Otherwise scratches,
damage, or failure may result.
• If the power is not turned on (“Miswiring DC Offset
Error”, “Warning DC Offset Error” is displayed),
the speaker wire may have a short circuit or have
touched the chassis of the car and the protection
function may have been activated. In this case, the
speaker wire should be checked.
• Keep all cables away from heat dissipating metal
parts.
0 – 9 • Specifies preset number. (1-5)
• Specifies the frequency of the
station to receive to search for in
direct search.
DIRECT Enters direct search mode.
*1 Only for DMX709S.
*2 Only for DMX7709S.
*3 The search method differs according to the selected seek mode.
USB
FM+ / AM− Selects a folder.
S / T
Selects a file.
IW
Starts/pauses playback.
Searching for station frequency/channel
number directly
While listening to the radio, you can search for a
channel or station frequency directly using the number
buttons.
1 Press DIRECT to enter the search mode.
2 Press a number button to select a desired
item (channel or station frequency).
• To confirm the selection, press S / T.
To exit the search mode: Press DIRECT.
Remote ControllerRemote Controller
53ENGLISH
00DMX709SKN.indb5300DMX709SKN.indb53 2022/06/2414:142022/06/2414:14
Installation and ConnectionInstallation and Connection
Installation procedure
1 Remove the key from the ignition and
disconnect the
· battery.
2 Make the proper input and output wire
connections for each unit.
3 Connect the speaker wires of the wiring
harness.
4 Connect the wires of the wiring harness
in the following order: ground, battery,
ignition.
5 Connect the wiring harness to the unit.
6 Install the unit in your car.
Make sure that the unit is installed securely in place.
If the unit is unstable, it may malfunction (eg., the
sound may skip).
7 Reconnect the · battery.
8 Initialize the unit (page50).
9 Configure <Initial Setup> (page4).
Parts list for installation
Note: This parts list does not include all the package
contents.
¥ Wiring harness (× 1)
ø Extension wire, 2 m (× 1)
π Flat head screws, M5 × 8 mm (× 6)
[ Round head screws, M5 x 8 mm (× 6)
“ Microphone, 3 m (× 1)
] Trim plate (× 1)
‘ Mounting sleeve (× 1)
\ Extraction keys (× 2)
« GPS antenna, 3.5 m (× 1)
Å Metal plate (× 1)
• If your car’s ignition does not have an ACC position,
connect the ignition wires to a power source that
can be turned on and off with the ignition key. If you
connect the ignition wire to a power source with a
constant voltage supply, such as with battery wires,
the battery may be drained.
• If the fuse blows, first make sure the wires are not
touching to cause a short circuit, then replace the old
fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other
similar material. To prevent a short circuit, do not
remove the caps and do not let the cable out at the
ends of the unconnected wires or the terminals.
• Secure the wires with cable clamps and wrap vinyl
tape around the wires that comes into contact with
metal parts to protect the wires and to prevent short
circuit.
• Connect the speaker wires correctly to the terminals
to which they correspond. The unit may be damaged
or fail to work if you share the
· wires or ground
them to any metal part in the car.
• When only two speakers are being connected to the
system, connect both connectors either to the front
output terminals or to the rear output terminals (do
not mix front and rear). For example, if you connect
the ª connector of the left speaker to a front output
terminal, do not connect the · connector to a rear
output terminal.
54 ENGLISH
00DMX709SKN.indb5400DMX709SKN.indb54 2022/06/2414:142022/06/2414:14
Installation and ConnectionInstallation and Connection

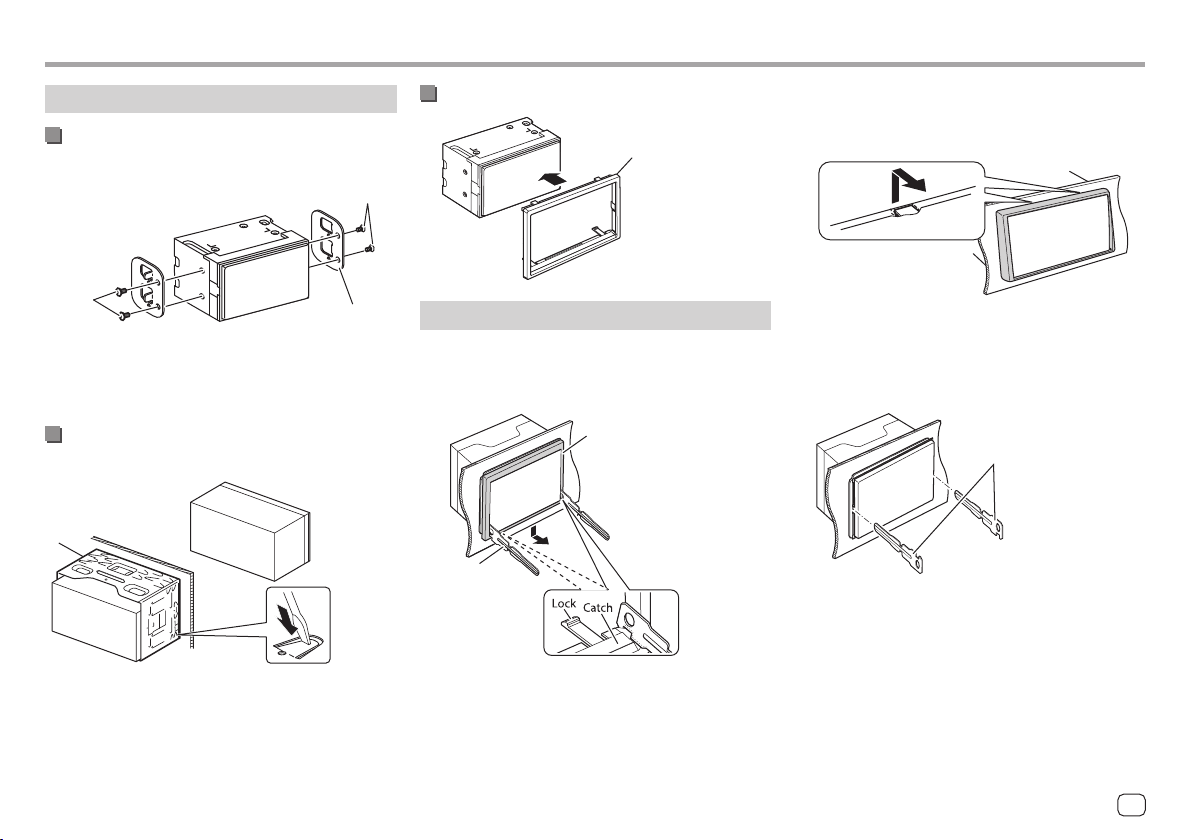

Installing the unit
Installing the unit using the mounting
bracket removed from the car
π / [
π / [
Car bracket*
Note: Select the appropriate screws (supplied) for the
mounting bracket.
* Shape of your car brackets may differ.
Installing the unit using the mounting
sleeve
‘
Bend the tabs of the mounting sleeve with a
screwdriver or similar utensil and attach it in place.
Installing the trim plate
]
Removing the unit
1 Remove the trim plate (]) by inserting the
two extraction keys (
\) as illustrated.
]
\
2 When the lower level is removed, remove
from the upper two catches of the trim
plate (
]).
The frame can be removed from the top side in the
same manner.
3 Insert the extraction keys (\) deeply into
the slots on each side.
\
55ENGLISH
00DMX709SKN.indb5500DMX709SKN.indb55 2022/06/2414:142022/06/2414:14

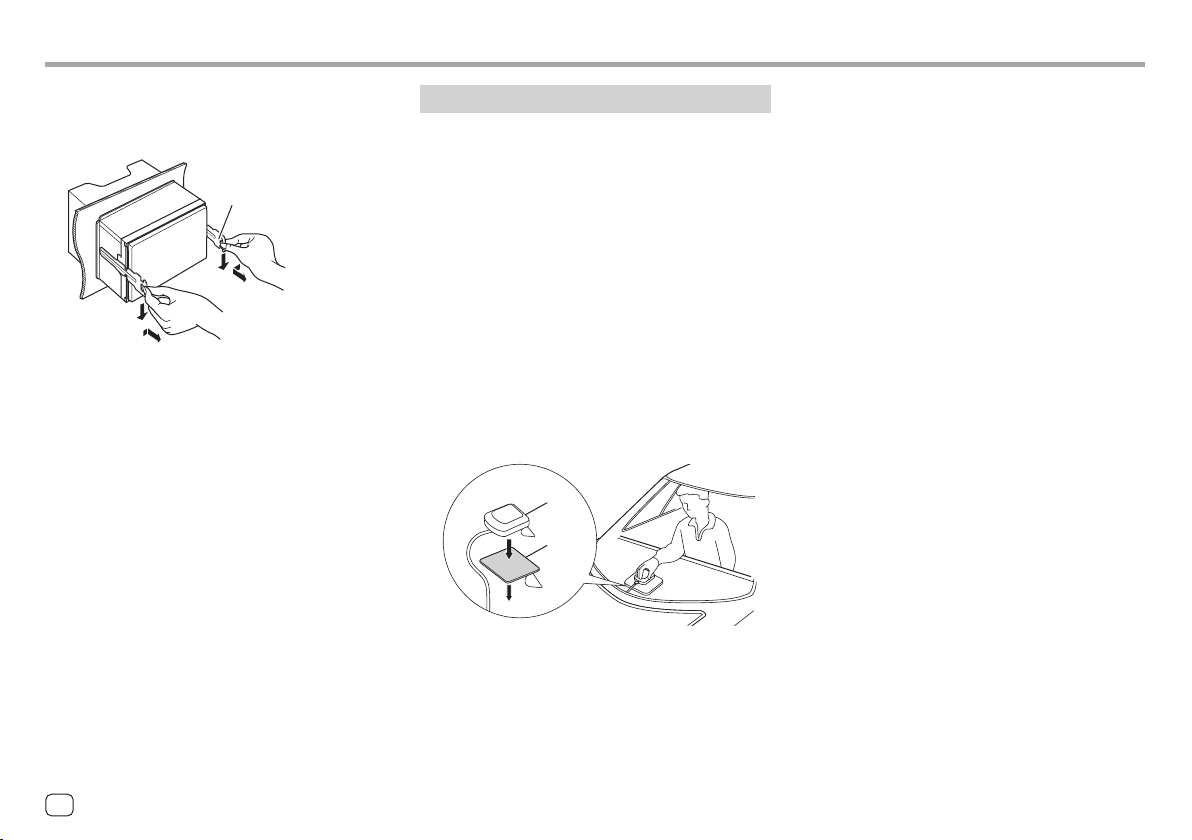

Installation and ConnectionInstallation and Connection
Notes on using the supplied GPS antenna («)
• Use the supplied GPS antenna («). Using the GPS
antenna other than the supplied one may cause a
drop in positioning accuracy.
• Depending on the type of car, reception of the GPS
satellite signals might not be possible with an inside
installation.
• Please install the supplied GPS antenna («) in an
area away from any antennas that are used with CB
radios or satellite televisions.
• The supplied GPS antenna («) should be installed
at a position that is spaced at least 30 cm (12 inch)
from cellular phone or other transmitting antenna.
Signals from the GPS satellite may be interfered with
by these types of communication.
• Painting the supplied GPS antenna («) with
(metallic) paint may cause a drop in performance.
Installing the supplied GPS antenna
GPS antenna is installed inside of the car. It should
be installed as horizontally as possible to allow easy
reception of the GPS satellite signals.
1 Clean your dashboard or other surface.
2 Remove the separator of the metal plate
(
Å).
3 Press the metal plate (Å) down firmly
on your dashboard or other mounting
surface.
You can bend the metal plate (Å) to conform to a
curved surface, if necessary.
4 Remove the separator of the GPS antenna
(
«), and stick the antenna to the metal
plate (
Å).
«
Å
4 Lower the extraction keys (\) toward the
bottom, and pull out the unit halfway
while pressing towards the inside.
\
Be careful to avoid injury from the catch pins on
the extraction key.
5 Pull the unit all the way out with your
hands, being careful not to drop it.
56
ENGLISH
00DMX709SKN.indb5600DMX709SKN.indb56 2022/06/2414:142022/06/2414:14

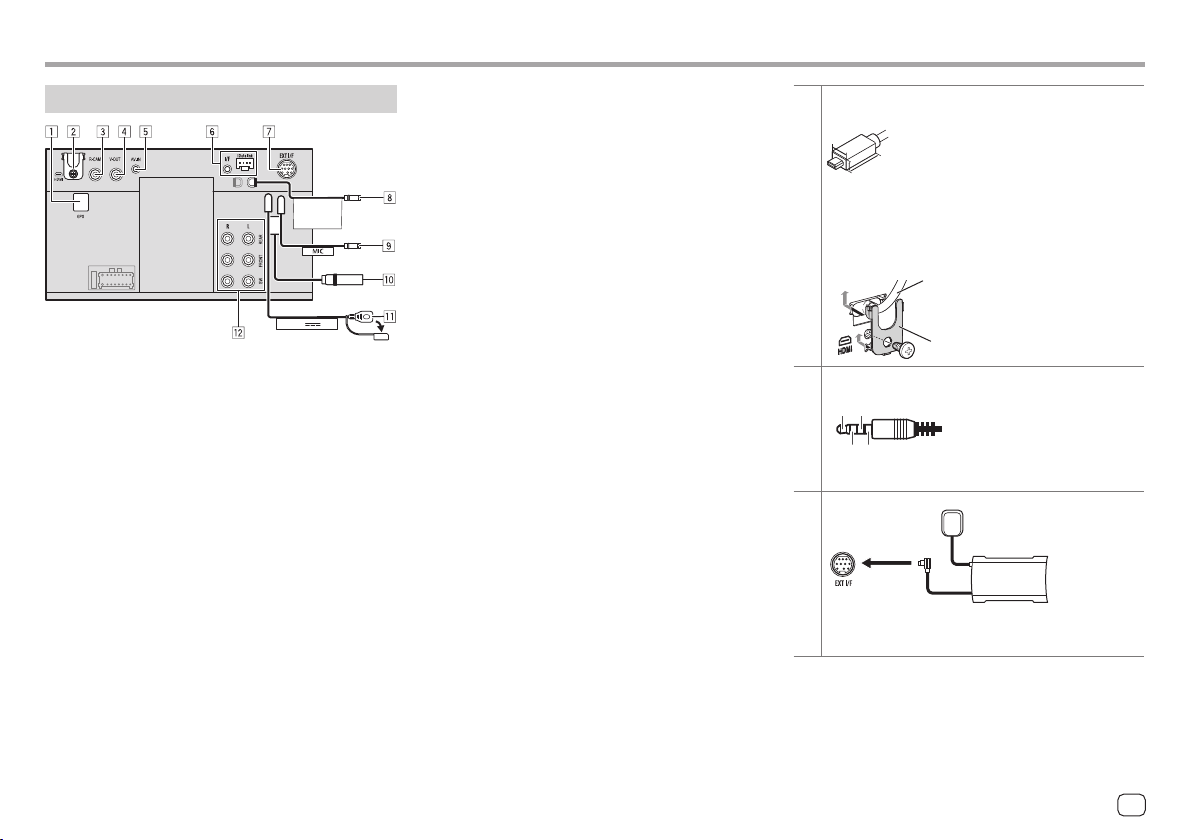

2
Use HDMI cable KCA-HD200 (optional
accessory).
W
H
D
W: 11.1 mm or less
H: 7.7 mm or less
D: 21.5 mm or less
When you connect the cable to HDMI terminal,
detach the fixture. After connecting the cable,
attach the fixture back using the screw.
Fixture
HDMI cable
5
Connect the following type of 4-pole mini plug:
1
24
3
1
Left audio
2
Right audio
3
Ground
4
Composite video
7
Antenna
SiriusXM Connect Vehicle Tuner
(Commercially available)
1 GPS antenna input (GPS) (page 56)
2 HDMI terminal
3 Rear view camera input (R-CAM)
4 Video output (V-OUT)
5 Audio video input (AV-IN)
6 iDatalink input for connecting an ADS adapter
(commercially available)
7 Expansion port for connecting SiriusXM Connect
Vehicle Tuner (EXT I/F) (commercially available)
8 Front view camera input
9 Microphone input (MIC) (page 58)
p Antenna terminal
q USB terminal
w Output terminals*
• Left output (White)
• Right output (Red)
REAR: Rear speaker preouts
FRONT: Front speaker preouts
SW: Subwoofer preouts
For 3-way crossover:
REAR: Tweeter preouts
FRONT: Mid range speaker preouts
SW: Subwoofer preouts
* When connecting an external amplifier, connect its ground wire
to the chassis of the car; otherwise the unit may be damaged.
Installation and ConnectionInstallation and Connection
Connecting external components
FRONT
VIEW
CAMERA
(USB1)5V 1.5A
57ENGLISH
00DMX709SKN.indb5700DMX709SKN.indb57 2022/06/2414:142022/06/2414:14

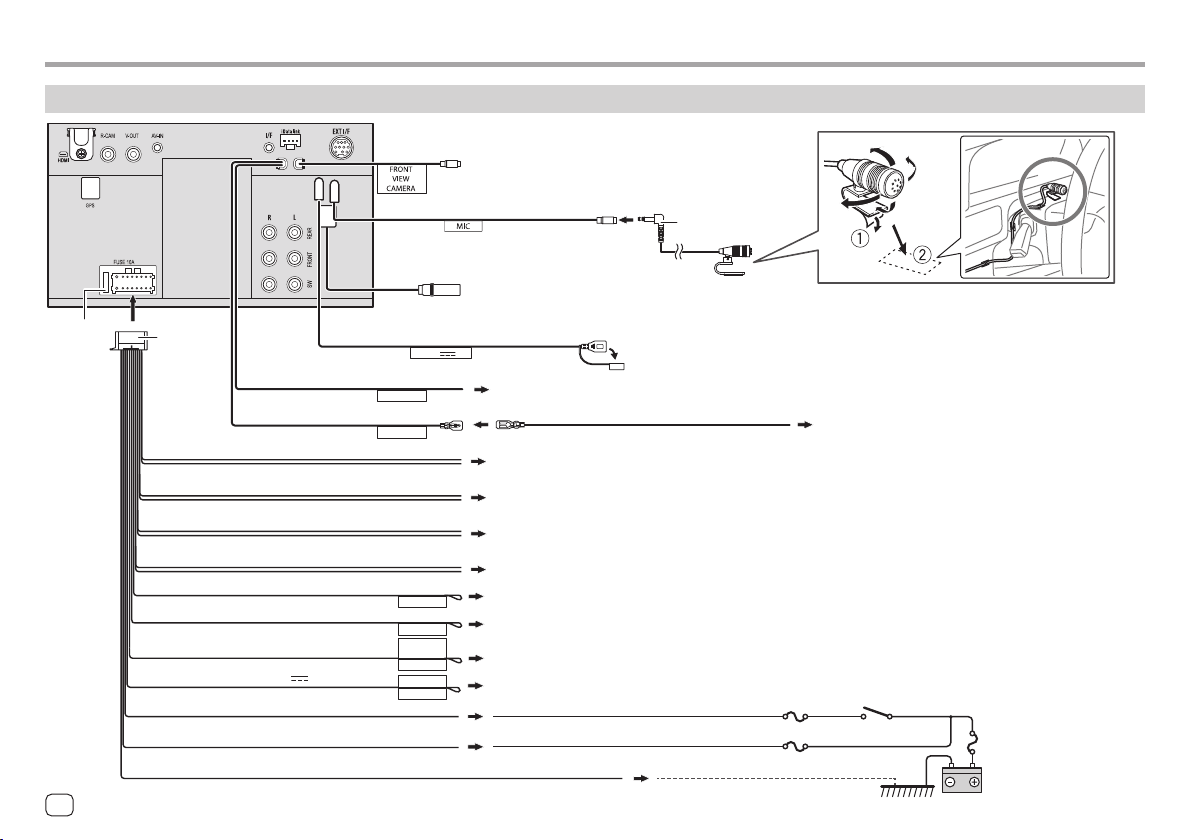

Wiring connection
Installation and ConnectionInstallation and Connection
P.CONT
ANT.CONT
REMOTE CONT
REMOTO INPUT
STEERING WHEEL
¥
MUTE
ILLUMI
REVERSE
PRK SW
“
(USB1)5V 1.5A
To the car chassis
10 A fuse
Connect the antenna cord to the antenna terminal
USB terminal (1 m)
Purple with white stripe
White
]
/ White with black stripe
[
Green
]
/ Green with black stripe
[
Gray
]
/ Gray with black stripe
[
Purple
]
/ Purple with black stripe
[
Orange with white stripe
Blue with white stripe (12 V
350 mA)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
Light green
To the car’s reverse lamp harness when using the optional rear view camera
To the car light control switch
To rear speakers (right) / Tweeters (right) for 3-way crossover
To front speakers (right) / Mid-range speakers (right) for 3-way crossover
To rear speakers (left) / Tweeters (left) for 3-way crossover
To front speakers (left) / Mid-range speakers (left) for 3-way crossover
Car battery
Car fuse
To the power control terminal when using the optional power amplifier (Or)
To the control terminal of the motor antenna or to the power terminal for the booster amplifier of film-type antenna
Extension wire (
ø
)
To the car’s parking brake detection switch harness
(For best safety, be sure to connect the parking sensor.)
Ignition key switch
Connect to the video out terminal of the front camera
(Not used for this unit)
Light blue with yellow stripe
Brown
To the steering wheel remote control adapter (not supplied)
Connect a USB device
58
ENGLISH
00DMX709SKN.indb5800DMX709SKN.indb58 2022/06/2414:142022/06/2414:14
ReferencesReferences
Maintenance
Cleaning the unit
• Do not use any solvent (for example, thinner,
benzine, etc.), detergent, or insecticide. This may
damage the monitor or the unit.
• Gently wipe the panel with a soft, dry cloth.
More information
About USB playback
Important
Make sure all important data has been backed up to
avoid losing the data. We bear no responsibility for any
loss of data stored in the devices while using this unit.
Notes on using a USB device
• Avoid using the USB device if it might affect driving
safety.
• When connecting with a USB cable, use a USB 2.0
cable.
• Electrostatic shock at connecting a USB device may
cause abnormal playback of the device. In this case,
disconnect the USB device, and turn off then on this
unit.
• Do not pull out and connect the USB device
repeatedly while “Reading” is shown on the screen.
• Operation and power supply may not work as
intended for some USB devices.
• Do not leave a USB device in the car, or expose to
direct sunlight or high temperatures to prevent
deformation or damage to the device.
Playable files
• This unit can play back the following files with
following codec and extension code:
– Audio files: MP3 (.mp3), WMA (.wma), WAV (.wav),
AAC (.m4a), FLAC (.flac)
– Picture files: JPEG (.jpg, .jpeg)/PNG (.png)/BMP
(.bmp)
– Video files: MPEG1, 2 (.mpg, .mpeg)/MPEG4
(.mp4)/H.264 (.h264)/MWV(.mwv)/MKV (.mkv)
Audio file conditions
• This unit can play back files that meet the conditions
below:
– Bit rate:
MP3: MPEG1 Audio Layer 3: 32 kbps – 448 kbps
MPEG2 Audio LSF Layer: 32 kbps – 384 kbps
WMA: Up to 320 kbps
AAC: Max 288 kbps per channel/48 kHz
– Bit number:
WAV: 4 bit – 32 bit
FLAC: 4 bit – 32 bit
– Sampling frequency:
MP3: MPEG1 Audio Layer 3: 32 kHz – 48 kHz
MPEG2 Audio LSF Layer: 16 kHz – 24 kHz
WMA: 8 kHz– 48 kHz
AAC: 8 kHz – 96 kHz
WAV: 44.1 kHz – 192 kHz
FLAC: 8 kHz – 192 kHz
– Files recorded in VBR (variable bit rate), and have a
discrepancy in elapsed time indication.
• This unit can show or display the following Tag:
MP3: ID3 Tag (version 1.0/1.1/2.2/2.3/2.4)
WMA Tag
WAV Tag
AAC Tag
FLAC Tag
– Jacket picture (artwork):
Picture size: 32 × 32 to 1 232 × 672 resolution
Data size: less than 500 KB
File type: JPEG, PNG, BMP
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and MP3 PRO format.
– MP3 files encoded with Layer 1/2.
– WMA files encoded with lossless, professional, and
voice format.
– WMA files which are not based upon Windows
Media® Audio.
– WMA/AAC files copy-protected with DRM
59
ENGLISH
00DMX709SKN.indb5900DMX709SKN.indb59 2022/06/2414:142022/06/2414:14
ReferencesReferences
About Apple CarPlay
• The following iPhone devices can be used
– iPhone 6S, 6S Plus, 7, 7 Plus, 8, 8 Plus, X, XS, XS Max,
XR, 11, 11 Pro, 11 Pro Max, SE (1st/2nd generation),
12, 12 mini, 12 Pro, 12 Pro Max, 13, 13 mini, 13 Pro,
13 Pro Max
• Although the service area is expanding, Apple
CarPlay service is NOT available in some markets.
Please check the latest information concerning
availability in your region from the below website.
– http://www.apple.com/ios/feature-
availability/#applecarplay-applecarplay
AboutAndroid Auto
• You can use the Android 6.0 or later.
• When an Android phone compatible withAndroid
Auto is connected to the USB terminal, the device
is connected viaBluetooth automatically, and the
Bluetoothmobilephone currently connected is
disconnected.
• Although the service area is expanding, Android
Auto service is NOT available in some markets. Please
check the latest information concerning availability
in your region from the below website.
– https://support.google.com/androidauto/
Video file conditions
• Streams that conform to:
– MPEG1/MPEG2:
Audio: MP1, MP2, MP3, AAC-LC, AC3, LPCM
Video: MPEG1, MPEG2
– MPEG4:
Audio: MP3, AAC
Video: MPEG4
– H.264:
Audio: MP3, AAC
Video: H.264
– MKV:
Audio: MP3, AC3, LPCM, AAC-LC/HE, AAC, Cook
Video: H.264, MPEG-4 AVC, MPEG4, WMV
– WMV:
Audio: WMA
Video: Windows Media Video 9
• Maximum bit rate:
– MPEG1: Max 4 Mbps
– MPEG4/H.264/WMV: Max 8 Mbps
• Picture size
– MPEG1: 176 x 144 , 352 x 240 , 720 x 480 (30fps)
– MPEG2: 176 x 144, 352 x 288, 320 x 240, 720 x 480,
720 x 576, 1 440 x 1 080, 1 280 x 720, 1 920 x 1 080,
1 280 x 720
– H.264: 1 920 x1 080 (30fps)
– WMV: 1 280 x 720 (60fps), 1 920 x 1 080 (30fps)
– MPEG4: 1 920 x 1 080 (30fps)
• Other playable conditions:
– Video file size: Less than 2 GB
– MPEG1/MPEG2: File format: SP@LL, SP@ML, MP@
LL, MP@ML, MP@H-14 , MP@HL, HP@LL, HP@ML,
HP@H-14, HP@HL
Folder/file limitations
This unit can recognize:
– A total of 5 000 files
– 250 folders each for video files/photo files and a
maximum of 999 files per folder
• The maximum number of characters is 260
characters for folder name plus file name (when the
characters are 1 byte):
Unplayable USB device
• This unit may not play back files in a USB device
properly when using a USB extension cable.
• USB devices equipped with special functions such as
data security functions cannot be used with the unit.
• Do not use a USB device with nine or more partitions.
• Depending on the shape of the USB devices and
connection ports, some USB devices may not be
attached properly or the connection might be loose.
• This unit may not recognize a memory card inserted
into a USB card reader.
60
ENGLISH
00DMX709SKN.indb6000DMX709SKN.indb60 2022/06/2414:142022/06/2414:14
ReferencesReferences
About USB Mirroring
• Depending on the connected Android device, you
may need to enable virtual keyboard setting on your
smartphone to display software keyboard on the
screen of this unit and on your Android device.
• The audio may be of poor quality, interrupted or
skipped, depending on several conditions such as
network condition, the application and etc.
• If you perform pairing with another device during
mirroring, mirroring (audio and/or video) will be
disturbed or paused.
• Some Apps may not support audio sharing (no
sound from the background playback source).
• Some operations may not work depending on the
compatibility between this unit, “Mirroring OA for
KENWOOD App” and your Android device.
What appears to be trouble is not always serious.
Check the following points before calling a service
center.
• For operations with external components, refer also
to the instructions supplied with the adapters used
for connection (as well as the instructions supplied
with the external components).
General
No sound comes out of the speakers.
→ Adjust the volume to the optimum level.
→ Check the cords and connections.
No picture is displayed on the screen.
→ Turn on the screen (page 4).
The unit does not work at all.
→ Initialize the unit (page 50).
The remote controller does not work.
→ Replace the battery.
“No Signal”/“No Video Signal” appears.
→ Start playback on the external component
connected to this unit.
→ Check the cords and connections.
→ Signal input is too weak.
“Miswiring DC Offset Error”/“Warning DC Offset
Error” appears.
→ A speaker cord has shorted or it has come into
contact with the car chassis. Wire or insulate the
speaker cord as appropriate, turn the ignition
switch off then on.
TroubleshootingTroubleshooting
“Parking off” appears.
→ No playback picture is shown when the parking
brake is not engaged.
Bluetooth connection
The Bluetooth device does not detect this unit.
→ Turn off, then turn on the Bluetooth device.
→ Turn off, then turn on this unit.
This unit does not pair with the Bluetooth device.
→ If the device is connected via USB cable, disconnect
it, and retry.
→ Turn off, then turn on the Bluetooth device.
The device is disconnected automatically or the
device cannot be connected.
→ When iPhone compatible with Apple CarPlay
is connected to the USB terminal, it cannot be
connected via Bluetooth. Use the phone and audio
player function on the Apple CarPlay screen.
→ When an Android device compatible with Android
Auto is connected to the USB terminal, the device
is connected via Bluetooth automatically, and the
Bluetooth mobile phone currently connected is
disconnected.
61
ENGLISH
00DMX709SKN.indb6100DMX709SKN.indb61 2022/06/2414:142022/06/2414:14
TroubleshootingTroubleshooting
The Bluetooth connection between the Bluetooth
device and the unit is unstable.
→ Delete the unused registered Bluetooth device
from the unit (page 10).
“Connection Error” appears.
→ The device is registered but the connection has
failed. Connect the registered device using the
<Device List> screen (page 8).
“Please Wait...” appears.
→ The unit is preparing to use the Bluetooth function.
If the message does not disappear, turn off and
turn on the unit, then connect the device again.
“Initialize Error” appears.
→ The unit has failed to initialize the Bluetooth
module. Try the operation again.
Apps
Apple CarPlay:
[Apple CarPlay] is not highlighted on the source/
option selection screen.
→ Check the version of the connected iPhone–
whether it is compatible with Apple CarPlay.
→ Check the iPhone is connected properly for Apple
CarPlay. You can check the connection referring to
the <Device List> screen.
Sound is too loud or small while using Apple
CarPlay.
→ Adjust <Guidance/Voice Recognition Volume>,
<Phone Incoming Volume>, <Phone Calling/
Talking Volume> or <Media Volume> for
<Apple CarPlay> (page 11).
Android Auto:
[Android Auto] is not highlighted on the source/
option selection screen.
→ Check whether [Android Auto] is selected in the
<Android Mode Select> (page 50).
→ Check the version of the connected Android device
whether it is compatible with Android Auto.
→ Check the Android device is connected properly
for Android Auto. You can check the connection
referring to the <Device List> screen.
Sound is too loud or small while using Android
Auto.
→ Adjust <Guidance/Voice Recognition Volume>,
<Phone Incoming Volume>, <Phone Calling/
Talking Volume> or <Media Volume> for
<Android Auto> (page 11).
USB Mirroring:
[USB Mirroring] is not highlighted on the source/
option selection screen.
→ Check whether [Mirroring for Android] is selected
in the <Android Mode Select> (page 50).
→ Check the version of the connected Android
device–whether it is compatible with USB
Mirroring.
→ Check the Android device is connected properly
for USB Mirroring. You can check the connection
refering to the <Device List> screen.
→ Check KENWOOD's Mirroring OA App is activated
on Android device.
USB Mirroring is deactivated.
→ When you start Apple CarPlay, USB Mirroring is
deactivated.
No sounds from Android device come out of the
speakers.
→ Check the Android device is connected properly
with Bluetooth.
62
ENGLISH
00DMX709SKN.indb6200DMX709SKN.indb62 2022/06/2414:142022/06/2414:14
USB
“No File” appears.
→ The loaded USB does not contains any file of the
selected type (audio/video/photo). Select the
correct file type or replace the USB.
“Reading” does not disappear from the screen.
→ Turn the power off and on again.
While playing a file, sound is sometimes
interrupted.
→ The tracks are not properly copied into the USB
device. Copy the files again, and try again.
Files are not played back as you have intended
them to play.
→ Playback order may differ from the one played back
using other players.
The source does not change to [USB] when you
connect a USB device while listening to another
source or “USB Device Error” appears when you
connect a USB device.
→ The USB port is drawing more power than the
design limit.
→ Turn the power off and unplug the USB device.
Then, turn on the power and reattach the USB
device.
→ If the above does not solve the problem, turn the
power off and on before replacing with another
USB device.
TroubleshootingTroubleshooting
HD Radio (for DMX709S)
Sound quality changes when receiving HD Radio
stations.
→ Fix the <Receive Mode> setting either [Digital] or
[Analog] (page 22).
No sound can be heard.
→ The <Receive Mode> setting is not appropriate.
Select the appropriate mode – [Digital], [Analog].
or [Auto] (page 22).
Radio (for DMX7709S)
AME automatic presetting does not work.
→ Store stations manually (page 26).
Static noise while listening to the radio.
→ Connect the antenna firmly.
HDMI
No picture appears on the screen.
While driving, no video is shown. You can only listen to
the sounds.
→ Turn on the HDMI device if it is not on.
→ Connect the HDMI device correctly.
AV-IN
No picture appears on the screen.
While driving, no video is shown. You can only listen to
the sounds.
→ Select [AV-IN] for <AV Input> setting (page 49).
→ Turn on the external component if it is not on.
→ Connect the external component correctly.
Cameras
No picture appears on the screen.
→ Connect the camera correctly.
Picture from the camera connected to the AV-IN
terminal is not displayed on the screen.
→ Select [Camera] for <AV Input> setting
(page 49).
SiriusXM Satellite Radio
“SXM No Signal” appears.
→ Make sure the antenna of the SiriusXM Connect
Vehicle Tuner is mounted outside the car. Move the
car to an area with a clear view of the sky.
“SXM Check Antenna” appears.
→ Check the antenna connection of the SiriusXM
Connect Vehicle Tuner, and make sure the antenna
is firmly attached to the tuner.
→ Check whether the antenna cable of the SiriusXM
Connect Vehicle Tuner is bent or broken. If it is
damaged, replace the whole antenna unit.
63ENGLISH
00DMX709SKN.indb6300DMX709SKN.indb63 2022/06/2414:142022/06/2414:14
TroubleshootingTroubleshooting
Bluetooth hands-free phone
Phone is disconnected.
→ When iPhone for Apple CarPlay or Android Auto
device is connected, the currently connected
Bluetooth device is disconnected. Use Apple
CarPlay or Android Auto screen for phone.
Phone sound quality is poor. Echo or noise occurs.
→ Reduce the distance between the unit and the
Bluetooth mobile phone.
→ Move the car to a place where you can get a better
signal reception.
→ Adjust the sound quality using <Microphone
Level>, <Echo Cancel Level>, <Noise Reduction
Level> (page 11).
The unit does not respond when you try to copy
the phone book to the unit.
→ You may have tried to copy the same entries (as
stored) to the unit.
“No Data” appears.
→ No phone book data is contained in the connected
Bluetooth phone.
“SXM Check Tuner” appears.
→ Make sure the SiriusXM Connect Vehicle Tuner is
connected to the unit.
“SXM Chan Unavailable” appears.
(Appears on the screen for about 5 seconds, then
returns to the previous channel):
→ The selected channel is no longer available. Select
another channel or continue listening to the
previous channel.
“SXM Ch Unsubscribed” appears.
(Appears on the screen for about 5 seconds, then
returns to the previous channel)
→ The selected channel is not part of your current
subscription plan. Call 1-866-635-2349 (USA) or
1-888-539-7474 (Canada) to subscribe.
“SXM Subscription Updated – Press Return to
Continue” appears.
→ Your subscription has been updated. Press the
appropriate button to continue.
“SXM Channel Locked” appears.
→ The selected channel has been locked by the
parental controls. Enter the parental lock code
when you are asked.
“SXM Incorrect Lock Code” appears.
→ You have entered an incorrect lock code. Enter the
correct parental lock code.
“Dial Error” appears.
→ Dialing has failed. Try the operation again.
“Hung Up Error” appears.
→ The call has not ended yet. Park your car, and use
the connected mobile phone to end the call.
“Pick Up Error” appears.
→ The unit has failed to receive a call.
Bluetooth audio
Bluetooth audio played is disconnected.
→ When iPhone for Apple CarPlay or Android Auto
device is connected, the currently connected
Bluetooth device is disconnected.
The sound is interrupted or skipped while using a
Bluetooth audio player.
→ Reduce the distance between the unit and the
Bluetooth audio player. Disconnect the device
connected for Bluetooth phone if any.
→ Turn off, then turn on the unit.
(When the sound is not yet restored) connect the
player again.
The connected audio player cannot be controlled.
→ Check whether the connected audio player
supports AVRCP (Audio/Video Remote Control
Profile).
64
ENGLISH
00DMX709SKN.indb6400DMX709SKN.indb64 2022/06/2414:142022/06/2414:14
SpecificationsSpecifications
Monitor section
Picture Size (W × H) 6.75 inches (diagonal) wide
151.8 mm × 79.7 mm
(6" × 3-1/7")
Display System TN LCD panel
Drive System TFT active matrix system
Number of Pixels 1 152 000
(800H × 480V × RGB)
Effective Pixels 99.99%
Pixel Arrangement RGB striped arrangement
Back Lighting LED
USB I/F section
Connector Type Type-A
USB Standard USB 2.0 Full Speed/High
Speed
File System FAT 16/32, exFAT
Maximum Power
Supply Current
DC 5 V
1.5 A
D/A Converter 24 bit
Audio Decoder MP3/WMA/AAC/WAV/FLAC
Video Decoder MPEG1/MPEG2/MPEG4/
WMV/H.264/MKV
Frequency Response 192 kHz Sampling:
20 Hz to 20 000 Hz
96 kHz Sampling:
20 Hz to 20 000 Hz
48 kHz Sampling:
20 Hz to 20 000 Hz
44.1 kHz Sampling:
20 Hz to 20 000 Hz
Total Harmonic
Distortion
0.010% (1 kHz)
Signal to Noise Ratio 98.5 dB
Dynamic Range 89 dB
Bluetooth section
Technology Bluetooth V4.2
Frequency 2.402 GHz to 2.480 GHz
Maximum
Communication
Range
Line of sight approx. 10 m
(32.8 ft)
Audio Codec SBC/AAC
Multi Profile Support Multi Profile
Profile HFP (Hands Free Profile) V1.8
SPP (Serial Port Profile)
A2DP (Advanced Audio
Distribution Profile) V1.3.2
AVRCP (Audio/Video Remote
Control Profile) V1.6.2
PBAP (PhoneBook Access
Profile)
65
ENGLISH
00DMX709SKN.indb6500DMX709SKN.indb65 2022/06/2414:142022/06/2414:14
SpecificationsSpecifications
DSP section
Equalizer
Band
13 Band
Frequency (Hz):
62.5/100/160/250/400/630/
1k/1.6k/2.5k/4k/6.3k/10k/
16k
Gain (dB):
–9/−8/−7/−6/−5/−4/−3/−2/
−1/0/1/2/3/4/5/6/7/8/9
Tweeter: Gain (dB):
–8/–7/–6/–5/–4/–3/–2/–1/0
HPF: Frequency (Hz):
Through/30/40/50/60/70/
80/90/100/120/150/180/
220/250
Slope (dB/Oct.):
−6/−12/−18/−24
Gain (dB):
–8/–7/–6/–5/–4/–3/–2/–1/0
LPF: Frequency (Hz):
30/40/50/60/70/80/90/100/
120/150/180/220/250/
Through
Slope (dB/Oct.):
−6/−12/−18/−24
Gain (dB):
–8/–7/–6/–5/–4/–3/–2/–1/0
Phase: Normal/Reverse
Tweeter HPF: Frequency (Hz):
1k/1.6k/2.5k/4k/5k/6.3k/8k/
10k/12.5k
Slope (dB/Oct.):
−6/−12
Gain (dB):
–8/–7/–6/–5/–4/–3/–2/–1/0
Phase: Normal/Reverse
Mid Range HPF: Frequency (Hz):
Through/30/40/50/60/70/
80/90/100/120/150/180/
220/250
Slope (dB/Oct.):
−6/−12
Mid Range LPF: Frequency (Hz):
1k/1.6k/2.5k/4k/5k/6.3k/8k/
10k/12.5k/Through
Slope (dB/Oct.):
−6/−12
Gain (dB):
–8/–7/–6/–5/–4/–3/–2/–1/0
Phase: Normal/Reverse
Subwoofer LPF: Frequency (Hz):
30/40/50/60/70/80/90/100/
120/150/180/220/250/
Through
Slope (dB/Oct.):
−6/−12
Gain (dB):
–8/–7/–6/–5/–4/–3/–2/–1/0
Phase: Normal/Reverse
Digital FM radio section
(for DMX709S)
Frequency Range
(Frequency Step)
87.9 MHz to 107.9 MHz
(200 kHz)
Frequency Response
(±3.0 dB)
20 Hz to 20 kHz
Signal to Noise Ratio 75 dB (STEREO)
FM radio section
Frequency Range
(Frequency Step)
87.9 MHz to 107.9 MHz
(200 kHz)
Usable Sensitivity
(S/N: 30 dB)
7.2 dBf (0.63 μV/75 Ω)
Quieting Sensitivity
(DIN S/N: 46 dB)
15.2 dBf (1.58 μV/75 Ω)
Frequency Response
(±3.0 dB)
30 Hz to 15 kHz
Signal to Noise Ratio 68 dB (MONO)
Selectivity (±400 kHz) > 80 dB
Stereo Separation 40 dB (1 kHz)
Digital AM radio section
(for DMX709S)
Frequency Range
(Frequency Step)
530 kHz to 1 700 kHz (10 kHz)
Frequency Response
(±3.0 dB)
40 Hz to 15 kHz
Signal to Noise Ratio 70 dB (STEREO)
66
ENGLISH
00DMX709SKN.indb6600DMX709SKN.indb66 2022/06/2414:142022/06/2414:14
• Windows Media is a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft. Use or distribution of
such technology outside of this product is prohibited
without a license from Microsoft.
• Use of the Made for Apple badge means that an
accessory has been designed to connect specifically
to the Apple product(s) identified in the badge and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with an Apple product may
affect wireless performance.
• Apple, iPhone, and Lightning are trademarks of
Apple Inc., registered in the U.S. and other countries.
• Apple, Siri, Apple CarPlay and Apple CarPlay logo are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• App Store is a service mark of Apple Inc., registered in
the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco
in the U.S. and other countries and is used under
license.
• Google, Android, Android Auto, Google Maps and
other marks are trademarks of Google LLC.
• To use Android Auto on your car display, you’ll need
an Android Auto compatible vehicle or aftermarket
stereo, an Android phone running Android 6.0 or
higher, an active data plan, and the Android Auto
app.
Trademarks and LicensesTrademarks and Licenses
AM radio section
Frequency Range
(Frequency Step)
530 kHz to 1 700 kHz (10 kHz)
Usable Sensitivity 29 dBμ (28.2 μV)
Video section
Color System of
External Video Input
NTSC/PAL
External Video Input
Level (RCA jack)/
(mini jack)
1 Vp-p/75 Ω
1 Vp-p/75 Ω
External Audio Max
Input Level (mini
jack)
2 V/25 kΩ
Video Input Level
(RCA jack)
1 Vp-p/75 Ω
Video Output Level
(RCA jack)
1 Vp-p/75 Ω
Audio section
Maximum Power
Output (Front & Rear)
50 W × 4
Typical Power
Output (Front & Rear)
Full Bandwidth Power (at less
than 1% THD) 22 W × 4
Output Frequency
Band
20 Hz to 88 000 Hz
Preout Level DMX709S: 5V/10 kΩ
DMX7709S: 4V/10 kΩ
Preout Impedance ≤ 600 Ω
Speaker Impedance 4 Ω to 8 Ω
HDMI I/F section
Connector Type Type-D
Input Resolution VGA
(640 x 480p @ 59.94 Hz/60 Hz)
480p
(720 x 480p @ 59.94 Hz/60 Hz)
Input Audio Type 32 kHz/44.1 kHz/48 kHz/
88.2 kHz/96 kHz/176.2 kHz/
192 kHz
16 bit/20 bit/24 bit Linear
PCM
General
Operating Voltage 12 V DC car battery
Installation
Dimensions
(W × H × D)
Main unit:
180 mm × 100 mm × 75 mm
(7-1/16" × 3-15/16" ×
2-15/16")
With sleeve:
182 mm × 111 mm × 74 mm
(7-3/16" × 4-3/8" × 2-15/16")
Weight (Main Unit) 1.2 kg (2.7 lbs) (including trim
plate and sleeve)
Design and specifications are subject to change
without notice.
SpecificationsSpecifications
67ENGLISH
00DMX709SKN.indb6700DMX709SKN.indb67 2022/06/2414:142022/06/2414:14
Trademarks and LicensesTrademarks and Licenses
Important Notice on Software
The software embedded in this product comprises a
number of independent software components, each
of which is copyrighted by JVCKENWOOD Corporation
or by a third party.
This product uses software components that are based
on an End-User License Agreement (hereinafter called
“EULA”) stipulated by JVCKENWOOD Corporation and
by third parties.
The EULA dictates the availability of the source codes
of free-software components as a prerequisite to
distributing them in executable form under the terms
of the GNU General Public License or the Lesser
General Public License (hereinafter called “GPL/LGPL”).
To get information about the software components
that are subject to the terms of the GPL/LGPL, please
visit the following Website:
Website URL https://www2.jvckenwood.com/gpl/
Queries concerning the contents of the source code or
the like will not be accepted.
Please note that software components based on a
EULA that is not subject to the terms of the GPL/LGPL
or those that have been developed or created by
JVCKENWOOD Corporation will be excluded from the
scope of source code disclosure.
Because licenses to use software components
distributed under the GPL/LGPL are offered to the
customers for free of charge, no warranty is granted to
the customers, whether explicitly or implicitly, to the
extent of the applicable laws.
• The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by JVCKENWOOD Corporation is under
license. Other trademarks and trade names are those
of their respective owners.
• SiriusXM and all related marks and logos are
trademarks of Sirius XM Radio, Inc. All rights reserved.
• HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. For patents see http://dts.com/patents.
HD Radio™ and the HD, HD Radio, and “ARC” logos
are registered trademarks or trademarks of iBiquity
Digital Corporation in the United States and/or other
countries.
• The terms HDMI, HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing
Administrator, Inc.
• Font for the this product is RT Font designed and
sold by Ricoh Industrial Solutions Inc.
• Linux® is the registered trademark of Linus Torvalds
in the U.S. and other countries.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT
PORTFOLIO LICENSE FOR THE PERSONAL USE OF A
CONSUMER OR OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC
STANDARD ("AVC VIDEO") AND/OR (ii) DECODE
AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LICENSED TO
PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER FOR
(¡) ENCODING VIDEO IN COMPLIANCE WITH THE
MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”)
AND/OR (¡¡) DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN
A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING
MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://
WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE VC-1
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
AND NON-COMMERCIAL USE OF A CONSUMER TO
( i ) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1
STANDARD (“VC-1 VIDEO”) AND/OR ( ii ) DECODE
VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO
LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION MAY BE
OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.
MPEGLA.COM
68
ENGLISH
00DMX709SKN.indb6800DMX709SKN.indb68 2022/06/2414:142022/06/2414:14
Unless otherwise stipulated by the applicable laws
or agreed upon in writing, the copyright holders or
those who are entitled to modify and redistribute the
software components are not held responsible for
any and all damages resulting from their use or from
inability to use them. For more information about the
terms of use of the software components, required
items of compliance and so on, please refer to the
GPL/LGPL.
Customers wishing themselves to use a software
component that is subject to the GPL/LGPL embedded
in this product are encouraged to read the terms of
the corresponding license before use. Because each
individual license is prescribed by a third party other
than JVCKENWOOD Corporation, the original (English)
of the license is presented.
EULA
Software License Agreement
JVCKENWOOD Corporation (hereinafter called
“Licensor”) holds either the copyright to the
embedded software or the right to sublicense it. This
agreement establishes the conditions under which the
customer uses this “Licensed Software.”
The customer shall agree to the terms of this license
agreement before proceeding to use Licensed
Software.
This agreement is deemed to have taken effect when
the customer (hereinafter called “User”) has used a
product implementation of Licensed Software.
The Licensed Software may contain software Licensor
has been licensed to use by third parties directly or
indirectly. Some third parties may have terms of use
prescribed for their customers, apart from this Software
License Agreement. This agreement does not apply to
such software. Be sure to consult “Important Notice on
Software” as presented separately.
Article 1 (General)
Licensor grants to User a non-exclusive, non-assignable
right of use Licensed Software within the country
where the User purchases the Product (hereinafter the
"Country") (except for the exception provided for in
Paragraph 1, Article 3).
Article 2 (Right of Use)
1. The rise of use granted under this agreement is the
right to use Licensed Software in this product.
2. User may not duplicate, copy, modify, add to,
translate or otherwise alter, or loan licensed
Software and the associated literature in whole or in
part.
3. Use of Licensed Software is limited to a private
extent , and Licensed Software may not be
distributed, licensed or sublicensed for any purposes
whatsoever, including commercial use.
4. User shall use Licensed Software as per the
instruction manual or instructions given in the help
file and may not use or duplicate data in violations
of the regulations of the Copyright Law or other
governing laws by using Licensed Software in whole
or in part.
Article 3 (Terms of License)
1. In assigning this product, User may not retain
the original copy of the embedded Licensed
Software (including associated literature, updates
and upgrades) and any duplicates and associated
literature with regard to the license to use Licensed
Software. User may transfer Licensed Software only
to the condition of binding the assignee to abide by
the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble,
decompile or otherwise analyze the source code of
Licensed Software.
Trademarks and LicensesTrademarks and Licenses
69ENGLISH
00DMX709SKN.indb6900DMX709SKN.indb69 2022/06/2414:142022/06/2414:14
3. User agrees to comply with all the international
and domestic laws that apply to this software (U.S.
Export Administration Regulations and regulations
established by the U.S., the Country and their
governmental agencies regarding usage by end
users and export destinations).
Article 12 (Miscellaneous)
1. Even if this agreement is invalidated in part by law,
all other provisions shall remain in effect.
2. Licensor and User shall consult each other in
good faith to resolve any matters not provided for
in this agreement or questions arising from the
interpretation of this agreement.
3. Licensor and User agree that this agreement is
governed by the law of Japan and that all dispute
involving claims and obligations that may arise out
of this agreement will be settled by arbitration at
the Tokyo District Court as the court of first instance.
Trademarks and LicensesTrademarks and Licenses
Article 8 (Cancellation of the Agreement)
Licensor reserves the right to cancel this agreement
forthwith and claim compensation from User for the
damages caused by such cancellation when User:
(1) Breaches any of the provisions of this agreement, or
(2) Has received a petition for seizure, provisional
seizure, provisional disposition or any other kind of
compulsory execution.
Article 9 (Destruction of Licensed Software)
If this agreement is terminated under the provision of
the foregoing paragraph, User shall destroy Licensed
Software, along with all associated literature and its
duplicates, within two (2) weeks from the date of
termination.
Article 10 (Copyright Protection)
1. Copyrights and all other intellectual property
rights relating to Licensed Software shall reside
with Licensor and Original Right Holder and in no
circumstances with User.
2. User shall abide by the laws relating to copyrights
and intellectual property rights in using Licensed
Software.
Article 11 (Export Control)
1. Licensed Software and the associated literature or
the like may not be exported to places outside the
Country (including transmission outside the Country
over the Internet or the like).
2. User agrees that Licensed Software is subject to
export controls imposed by the Country and the
United States of America.
Article 4 (Rights to Licensed Software)
All rights to Licensed Software and the associated
literature, including copyrights, shall reside with
Licensor or the original right holder who has granted
the Right of Use and right to sublicense to Licensor
(hereinafter referred to as “Original Right Holder”), and
User does not have any rights other than Right of Use
granted hereunder with regard to Licensed Software
and the associated literature.
Article 5 (Exemption Granted to Licensor)
1. Licensor and Original Right Holder do not assume
any responsibility for damages caused to User or
third parties resulting from the exercise by User of
the license granted hereunder, unless otherwise
provided by any law to the contrary.
2. Licensor does not warrant Licensed Software to
be merchantable, compatible and fit for specific
purposes.
Article 6 (Responsibility for Third Parties)
If disputes over the infringement of third parties’
intellectual property rights, such as copyrights and
patent rights, arise out of the use of Licensed Software
by User, User shall resolve these disputes at User’s
own expenses while keep Licensor and Original Right
Holder harmless.
Article 7 (Secrecy Obligation)
User shall keep confidential Licensed Software
provided hereunder, information contained in the
associated literature or the like and those provisions of
this agreement not yet in public knowledge and may
not disclose or leak these to third parties without prior
written consent from Licensor.
70 ENGLISH
00DMX709SKN.indb7000DMX709SKN.indb70 2022/06/2414:142022/06/2414:14
00DMX709SKN.indb7100DMX709SKN.indb71 2022/06/2414:142022/06/2414:14
00DMX709SKN.indb7200DMX709SKN.indb72 2022/06/2414:142022/06/2414:14
00DMX709SKN.indb7300DMX709SKN.indb73 2022/06/2414:142022/06/2414:14
For updated information (the latest Instruction Manual, system updates, new functions, etc.),
please visit the following website:
<https://www.kenwood.com/cs/ce/>
00DMX709SKN.indb100DMX709SKN.indb1 2022/06/2414:142022/06/2414:14
