IM406_ref_K_En_00 (K)© 2020 JVCKENWOOD Corporation
DMX1057XR
DMX1037S
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new
receiver.
For your records
Record the serial number, found on the top of the unit, in the spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or
service on the product.
Model DMX1057XR / DMX1037S Serial number
US Residence Only
Register Online
Register your KENWOOD product at www.kenwood.com/usa/
• Updated information (the latest Instruction Manual, system updates, new
functions, etc.) is available from
<https://www.kenwood.com/cs/ce/>.
• The Instruction manual is subject to change for modification of
specifications and so forth. Be sure to download the latest edition of the
Instruction manual for reference.
<https://manual.kenwood.com/edition/im406/>
2
Contents
Before Use 4
Precautions ................................................................... 4
How to read this manual .........................................4
Basic Operations 5
Functions of the Buttons on the Front Panel ... 5
Turning on the Unit ................................................... 6
Initial Settings .............................................................. 6
Adjusting the volume ............................................... 8
Touch screen operations ......................................... 8
HOME screen descriptions ...................................... 8
Popup menu ................................................................9
Source selection screen description .................... 9
Source control screen descriptions ...................11
List screen ...................................................................12
Alert Message ............................................................13
Widget 14
Widget ..........................................................................14
Drive Widget Panel ..................................................14
Importing Image Files.............................................15
APPS 16
Wireless Mirroring Operation ...............................16
Apple CarPlay Operation .......................................16
Android Auto Operation ........................................18
KENWOOD Traffic Powered By INRIX .................20
USB 21
Connecting a USB device ......................................21
USB Basic Operation ................................................21
Search Operation ......................................................23
iPod/iPhone 24
Preparation .................................................................24
iPod/iPhone Basic Operation ...............................25
Search Operation ......................................................26
HD Radio™ Tuner 27
HD Radio Tuner Basic Operation ......................... 27
Receive Mode ............................................................29
Memory Operation ..................................................29
Selecting Operation ................................................29
Bookmark ....................................................................31
SiriusXM® 32
SiriusXM® Basic Operation ....................................32
Storing Channels in Preset Memory ..................34
Preset select ...............................................................34
Direct search ..............................................................34
Category/Channel search ...................................... 35
Replay ...........................................................................35
TuneMix™ ....................................................................36
SmartFavorites, TuneStart™ ..................................36
TuneScan™ ..................................................................36
Traffic & Weather Now™ .........................................37
Content Alerts............................................................37
SportsFlash™ ..............................................................38
SiriusXM SETUP .........................................................38
3English
Bluetooth Control 44
Information for using Bluetooth® devices .......44
Register the Bluetooth device .............................45
Bluetooth Setup ........................................................ 47
Playing the Bluetooth Audio Device .................48
Using the Hands-Free Unit .................................... 50
Hands-Free Setup ..................................................... 55
Other External Components 56
View Camera ..............................................................56
Use Dashboard Camera..........................................58
External audio/video players (AV-IN).................59
HDMI source ...............................................................59
OEM Features Operation .......................................60
Setup 61
Monitor Screen Setup ............................................. 61
Connections & AV Setup ........................................61
Display & Button Setup ..........................................63
User Interface Setup ................................................ 64
System Setup .............................................................65
Controlling Audio 67
3-way speaker system setup ................................67
Speaker / X’over setup ............................................68
Equalizer Control ......................................................69
Listening Position / DTA ......................................... 70
Fader / Balance / Zone Control ............................72
Volume Offset ............................................................74
Sound Effect ...............................................................74
Parametric Equalizer ................................................75
Audio Setup memory .............................................78
Remote control 79
Battery Installation ...................................................79
Functions of the Remote control Buttons .......79
Connection/Installation 82
Before Installation ....................................................82
Installing the unit .....................................................85
Troubleshooting 95
Problems and Solutions .........................................95
Error Messages ..........................................................95
Appendix 97
Playable Media and Files........................................97
Specifications ............................................................. 99
About this Unit ....................................................... 102
Before Use
4
Before Use
Precautions
# WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metallic
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your KENWOOD dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your KENWOOD dealer to make
sure that they work with your model and in
your area.
• You can select a language to display menus,
audio file tags, etc. See System Setup
(P.65).
• The Radio Broadcast Data System feature
won’t work in areas where the service is not
supported by any broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with a sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe it with
a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit
may damage its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch the
surface or erase the screened print.
Ñ Acquiring GPS signal
The first time you turn on this unit, you must
wait while the system acquires satellite signals
for the first time. This process could take up
to several minutes. Make sure your vehicle
is outdoors in an open area away from tall
buildings and trees for fastest acquisition.
After the system acquires satellites for the first
time, it will acquire satellites quickly each time
thereafter.
Ñ About GLONASS
This unit uses Global Navigation Satellite System
(GLONASS) in addition to GPS.
Combining GPS and GLONASS can refine
positioning accuracy than using GPS only.
Ñ Caution for Smartphone Users
Simultaneously running multiple applications
on your smartphone while screen sharing places
heavy demand on the microprocessor of the
phone, potentially affecting communication and
performance.
For best results while pairing with your
KENWOOD receiver, please be sure to close any
unused applications.
How to read this manual
• The screens and panels shown in this manual are
examples used to provide a clear explanation of
operations.
For this reason, they may be different from the actual
screens or panels, or some display patterns may be
different from the actual ones.
• Display language: English is used for the purpose of
explanation. You can select a display language from
the [SETUP] menu. See System Setup (P.65).
Basic Operations
5English
Basic Operations

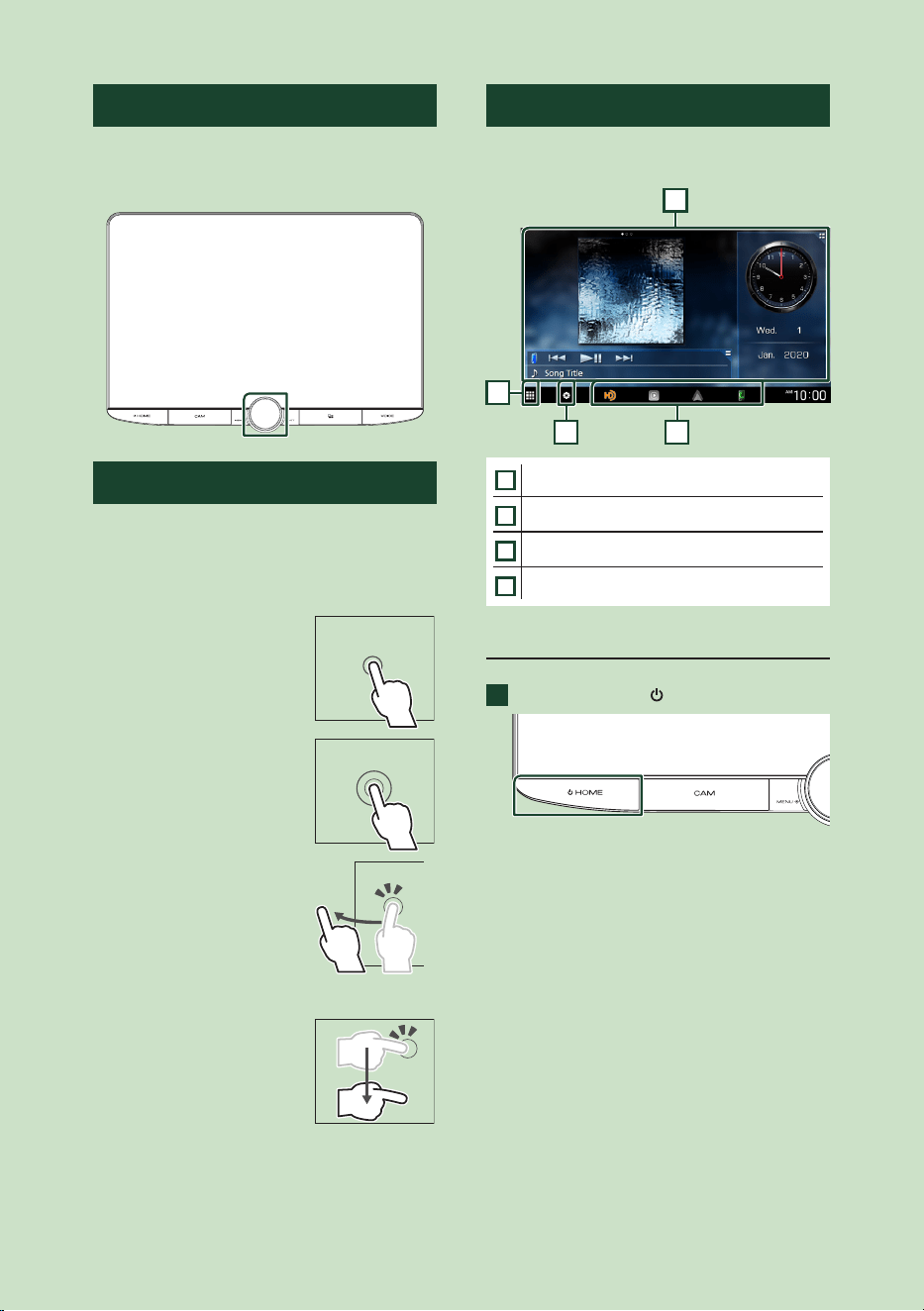

Functions of the Buttons on the Front Panel
2 3 4
5
6 71
Number Name Motion
1
Remote
Sensor
• Receives the remote control signal.
2
HOME/[ ]
• Displays the HOME screen (P. 8).
• Pressing for 1 second turns the power off.
• When the power is off, turns the power on.
3
CAM • Switches view camera display on/off.
The camera whose view is displayed first changes according to the Camera
Assignment Settings (P.56) and the shift lever position in the shift gate. The
camera whose view was displayed last is kept and the same camera view will be
displayed the next time. If its assignment setting is changed, the rear camera view is
displayed.
4
MENU/ATT • Displays the popup menu screen.
• Pressing for 1 second switches attenuation of the volume on/off.
5
Volume
knob
• Adjusts the volume. (P.8)
6
• Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen.
• While the APP screen is displayed, switches to the control screen of current source.
7
VOICE • Switches the voice recognition function on/off. See (P.18, 20, 52).
• When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is
connected, pressing and holding displays Bluetooth pairing waiting dialog. (P.45)
Basic Operations
6
Turning on the Unit
1
Press the [HOME]/[ ] button.
hh The unit is turned on.
● To turn off the unit:
1
Press the [HOME]/[ ] button for 1 second.
NOTE
• If it is your first time to turn the unit on after
installation, it will be necessary to perform Initial
SETUP (P.6).
Initial Settings

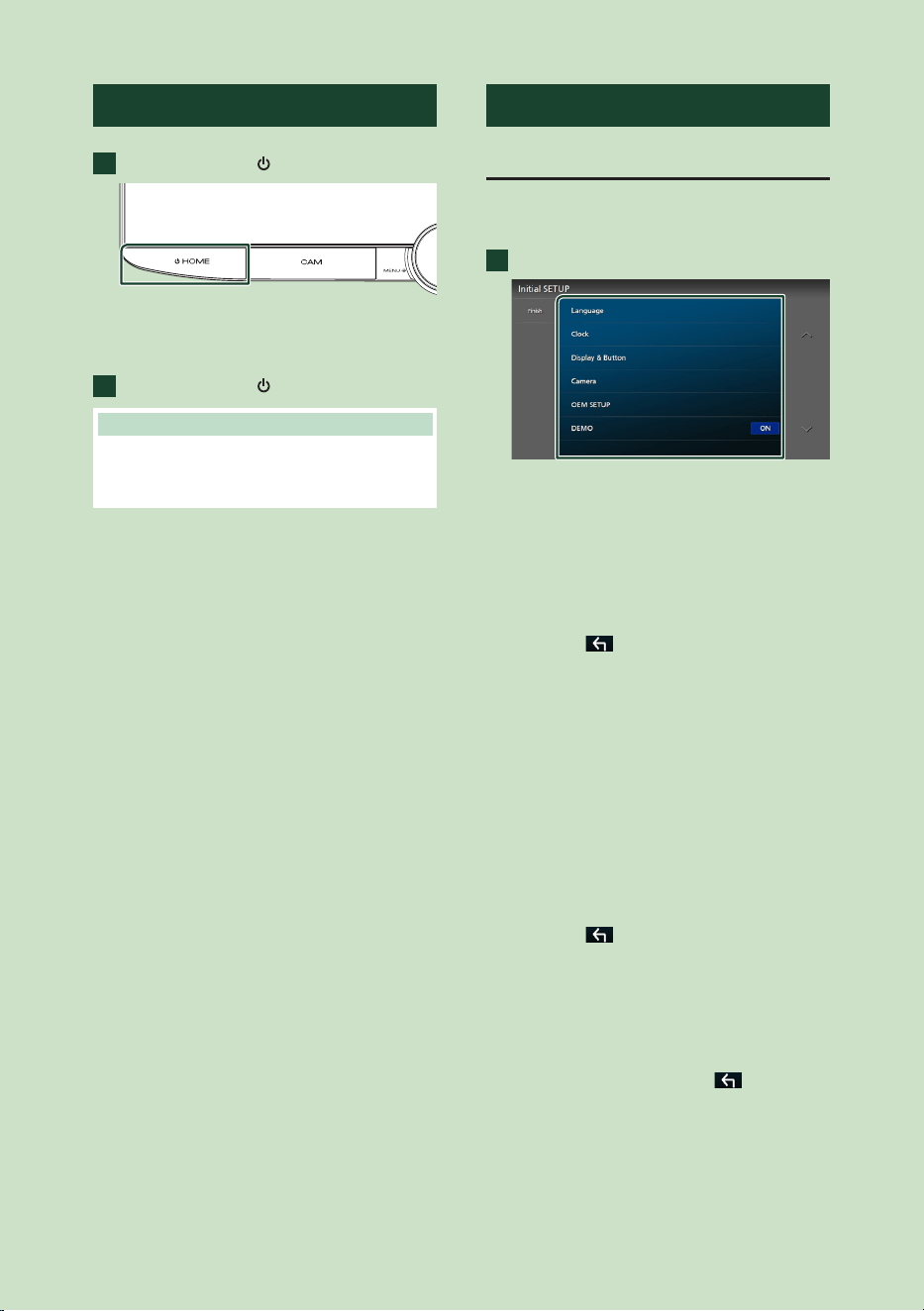

Initial SETUP
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■ [Language]
Select the language used for the control
screen and setting items. Default is “American
English(en)”.
1 Touch [Language].
2 Touch [Language Select].
3 Select the desired language.
4 Touch [
].
For details, see System Setup (P.65).
■ [Clock]
Sets the synchronization of the clock and
adjusts it.
For details, see Calendar/clock settings
(P.7).
■ [Display & Button]

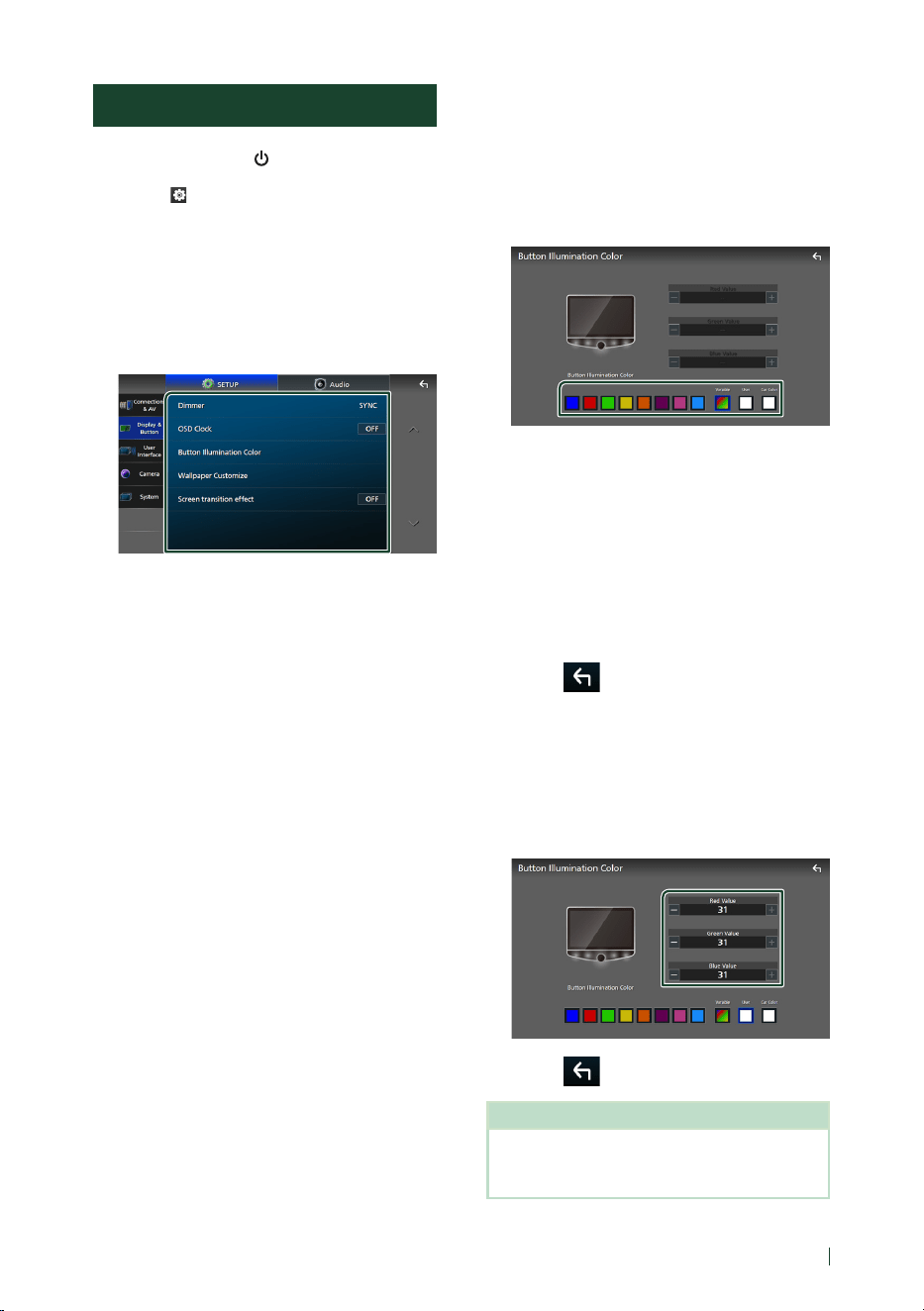

Set the button illumination color.
1 Touch [Display & Button].
2 Touch [Button Illumination Color].
3 Select the desired color.
4 Touch [
].
For details, see Display & Button Setup
(P.63).
■ [Camera]
Set the parameters for the camera.
1 Touch [Camera].
2 Set each item and touch [
].
For details, see Camera Setup (P.56).
■ [OEM SETUP]
This function requires a commercial adaptor.
Consult your KENWOOD dealer for details.
Basic Operations
7English
■ [DEMO]
Set the demonstration mode. Default is “ON”.
2
Touch [Finish].
NOTE
• These settings can be made from the SETUP
menu. See Setup (P.61).
Calendar/clock settings
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [System].
hh System setting menu appears.
5
Set each item as follows.
Scroll the page to show hidden items.
■ [Time Format]
Select the time display format.
[12-Hour] (Default)/[24-Hour]
■ [Clock]
[GPS-SYNC] (Default): Synchronizes the clock
time with the GPS.
[Manual]: Set the clock manually.
■ [Time Zone]
Select the time zone.
■ [Clock Adjust]
If you select [Manual] for Clock, adjust the
date and time manually. (P.7)
NOTE
• Please set the date and time. If they are not set,
some functions may not work.

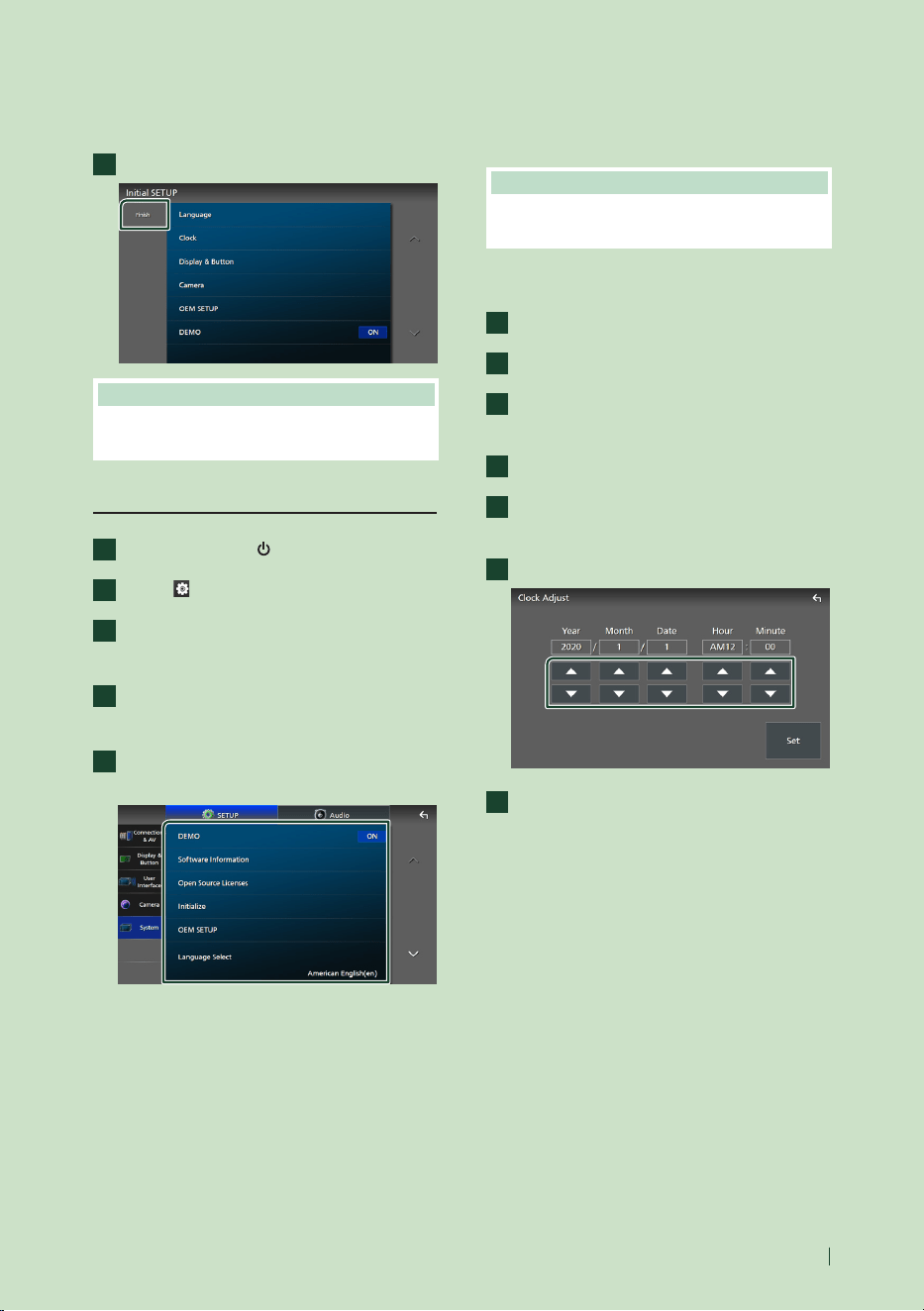

Adjust the date and time manually
1
Touch [Clock] in the System setting menu.
2
Select [Manual].
3
Touch [Time Zone] in the System setting
menu.
4
Select the time zone.
5
Touch [Clock Adjust] in the System
setting menu.
6
Adjust the date, then adjust the time.
7
Touch [Set].
Basic Operations
8
Adjusting the volume
You can adjust the volume (0 to 40).
Turn the knob clockwise to increase, and
counter-clockwise to decrease.
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display a setting menu screen
or change pages.
● Touch
Touch the screen gently to
select an item on the screen.
● Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
● Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll a list screen
by flicking up/down on the
screen.
● Swipe
Slide your finger up or down
on the screen to scroll the
screen.
HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
4
2
3
1
• Widget (P.14)
2
• Displays the source selection screen. (P. 10)
3
• Displays the SETUP Menu screen. (P.61)
4
• Short-cut playback source icons (P.11)
Display the HOME screen
1
Press the [HOME]/[ ] button.
hh HOME screen appears.
Basic Operations
9English

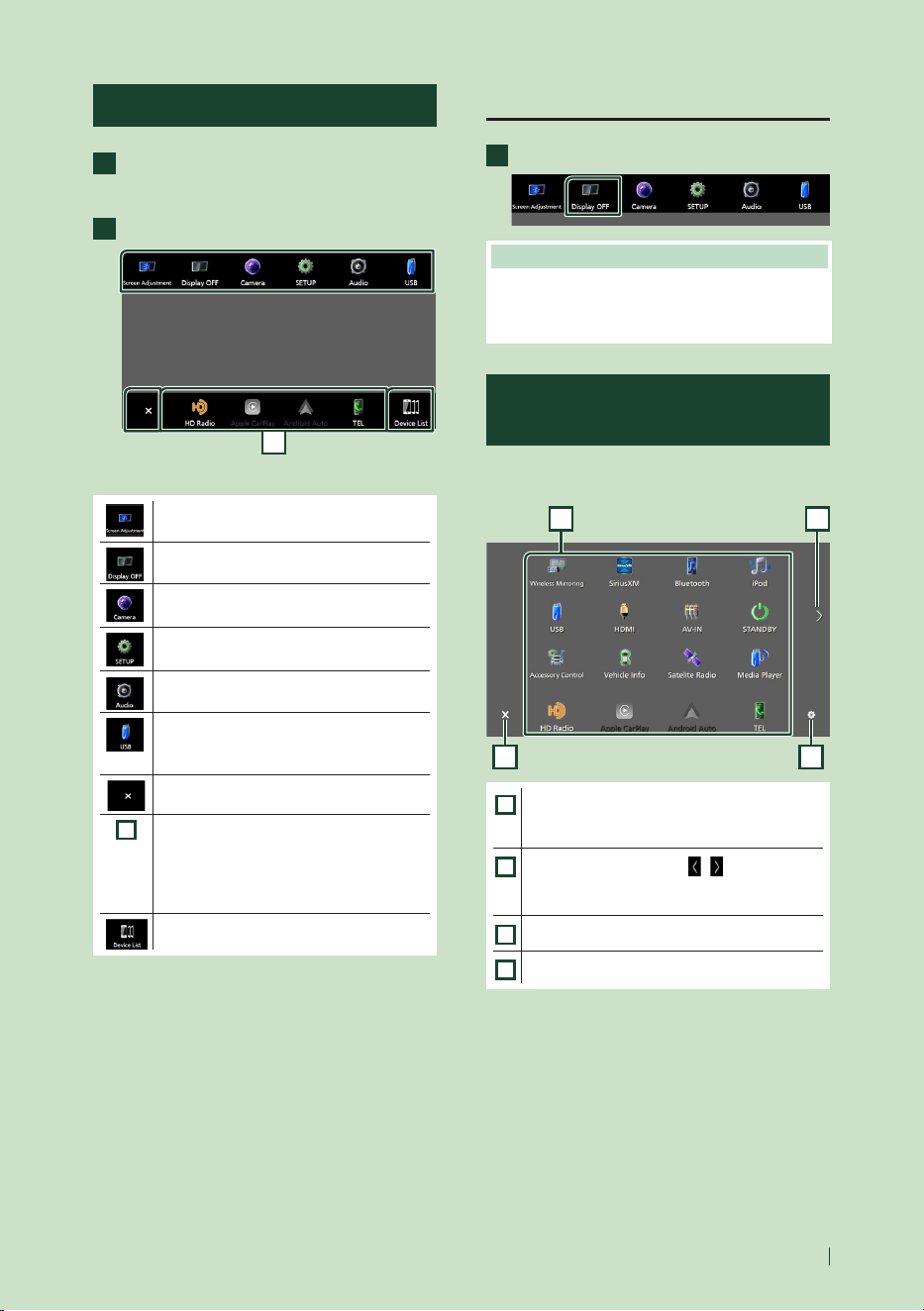

Popup menu
1
Press the [MENU]/[ATT] button.
hh Popup menu appears.
2
Touch to display the popup menu.
1
The contents of the menu are as follows.
• Displays the Screen Adjustment screen.
(P.61)
• Turns the display off. (P.9)
• Displays the view camera screen.
(P.56)
• Displays the SETUP Menu screen.
(P.61)
• Displays the Audio screen. (P.67)
• Displays the control screen of current
source. Icon feature differs depending on
the source. This icon is for USB source.
• Close the popup menu.
1
• Short-cut source icons: The source
changes to the one you have set with a
short-cut. For the short-cut setting, refer
to Customize Short-cut source icons
(P.11).
• Displays the Device List screen. (P.45)
Turn off the screen
1
Select [Display OFF] on the popup menu.
NOTE
• Touch the display to turn on the screen.
• To display the clock while the screen is off, it is
necessary to set "OSD Clock" to "ON". (P.63)
Source selection screen
description
You can display icons of all playback sources
and options on the source selection screen.
3 4
21
1
• Changes playback sources.
For playback sources, see Select the
playback source (P.10).
2
• Changes pages. (Touch [ ]/[ ].)
You can also change pages by flicking left or
right on the screen.
3
• Returns to the previous screen.
4
• Displays the SETUP Menu screen. (P.61)
Basic Operations
10
Select the playback source
1
Press the [HOME]/[ ] button.
hh HOME screen appears.
2
Touch [ ].
From the screen, you can select the

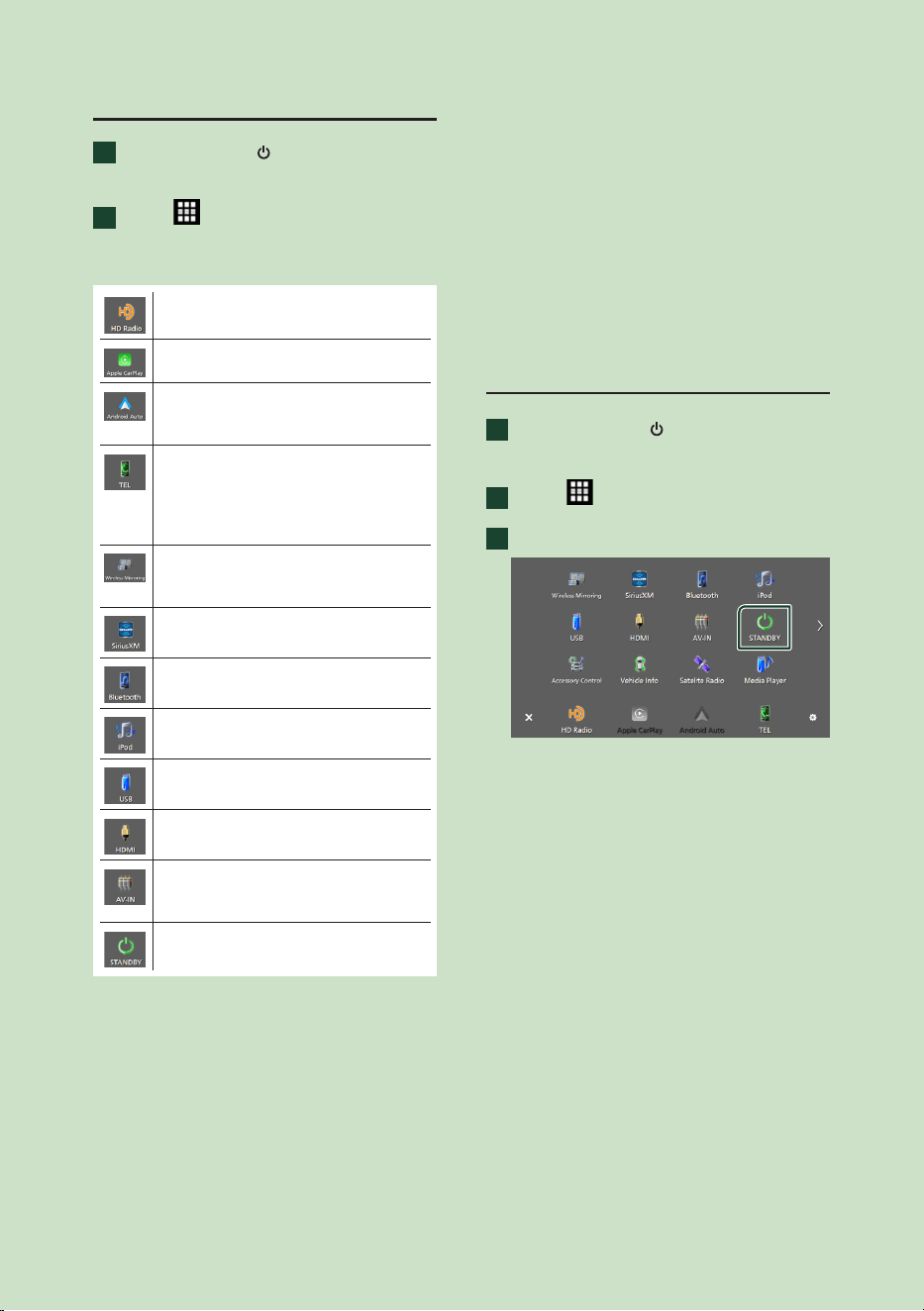

following sources and functions.
• Switches to the HD Radio broadcast.
(P.27)
• Switches to the Apple CarPlay screen
from the connected iPhone. (P.16)
• Switches to the Android Auto
screen from the connected Android
smartphone. (P.18)
• Displays the Hands-Free screen. (P.50)
When neither Apple CarPlay, Android
Auto, nor a Bluetooth Hands-Free phone
is connected, displays Bluetooth pairing
waiting dialog.*
1
(P.45)
• Switches to the Wireless Mirroring
screen from the connected Android
smartphone. (P.16)
• Switches to the SiriusXM® satellite radio
broadcast. (P.32)
• Plays a Bluetooth audio player. (P.48)
• Plays an iPod/iPhone. (P.24)
• Plays files on a USB device. (P.21)
• Plays a device connected to the HDMI
input terminal. (P.59)
• Switches to an external component
connected to the AV Audio input and the
Video input terminal.*
2
*
3
(P.59)
• Puts the unit in standby. (P.10)
• For sources and information displayed when an
iDatalink is connected, see OEM Features Operation
(P.60).
*1 When connecting as Apple CarPlay or Android Auto,
it works as a phone provided in Apple CarPlay or
Android Auto. If Apple CarPlay or Android Auto are
connected during talking by the Bluetooth device or
iDatalink phone, the current call will be continued.
*2 You can use the [AV-IN] source when a cable from a
visual source except a camera is connected to the
Video input terminal, and a cable is connected to the
AV Audio input terminal. (P.91)
*3 Set “VIDEO IN” to “None” in Camera Assignment
Settings. (P.57)
Put the unit in standby
1
Press the [HOME]/[ ] button.
hh HOME screen appears.
2
Touch [ ].
3
Touch [STANDBY].
Basic Operations
11English
Customize Short-cut source icons
You can arrange the positions of the source
icons as you like.
The 4 items placed in bottom line will appear
on the bottom bar in various screens, as the
short-cut playback source icons.
1
Press the [HOME]/[ ] button.
hh HOME screen appears.
2
Touch [ ].
3
Touch and hold the icon which you want
to move in the customizing mode.
4
Drag the icon to the desired position.
Changes the page

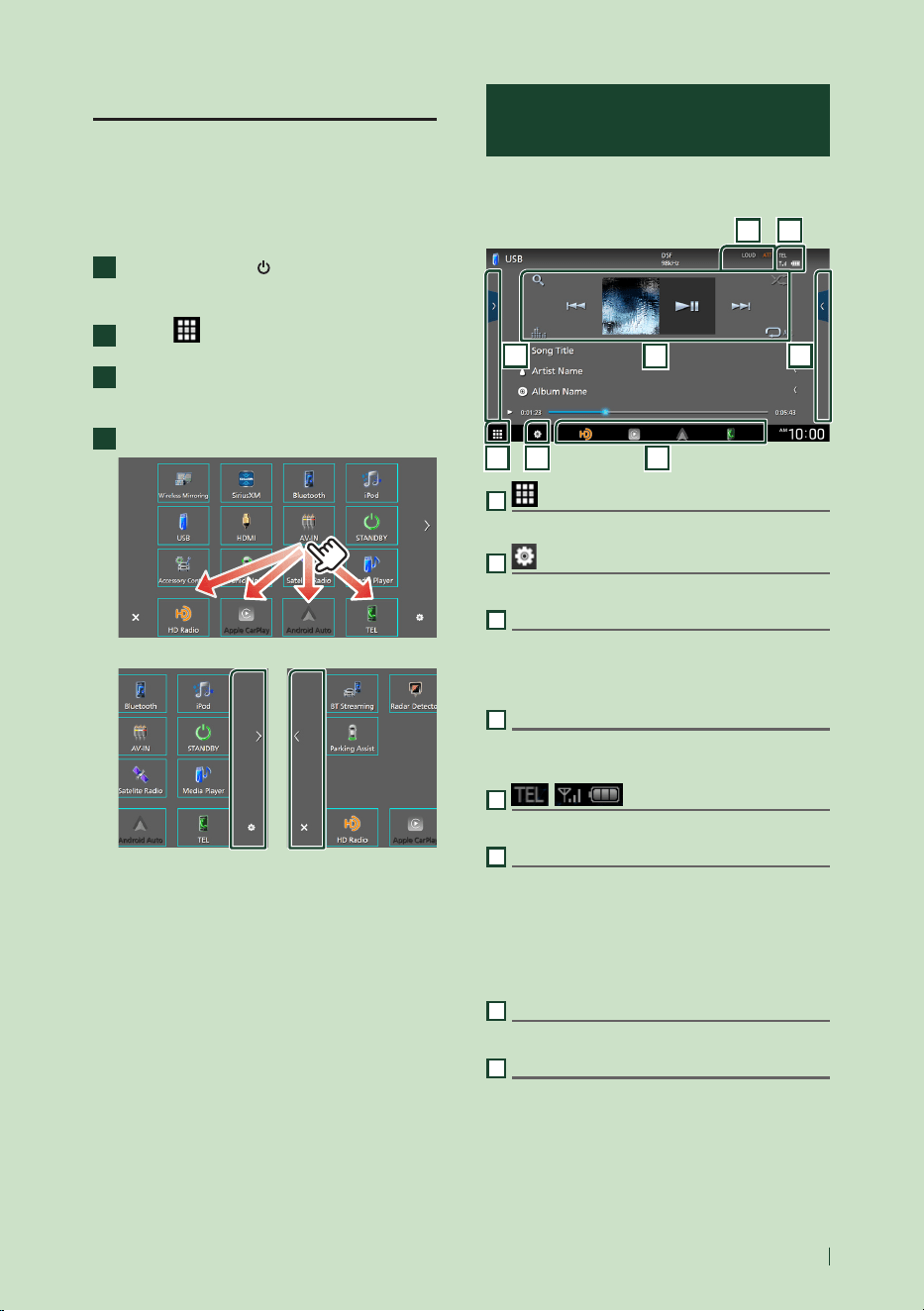

Source control screen
descriptions
There are some functions which can be
performed from most screens.
1 2 3
4
6 5
7
8
1
Displays the source selection screen. (P.9)
2
Displays the SETUP Menu screen. (P.61)
3
Short-cut source icons
The source changes to the one you have set
with a short-cut. For the short-cut setting, refer
to Customize Short-cut source icons (P.11).
4
Function panel *
Touch the right side of the screen to display the
function panel. Touch again to close the panel.
5
Connected Bluetooth device information.
6
Indicator items
Displays the current source condition and so on.
• [AT T]: The attenuator is active.
• [DUAL]: The dual zone function is active.
• [MUTE]: The mute function is active.
• [LOUD]: The loudness control function is active.
7
Content list *
Displays the track/file/station/channel list.
8
Operation keys
You can operate the current source with these
operation keys. The available functions are
different depending on the source type.
Basic Operations
12
* For right hand drive vehicles, the left and right
drawers are swapped. For how to set up the
driving position, see User Interface Setup
(P.64).

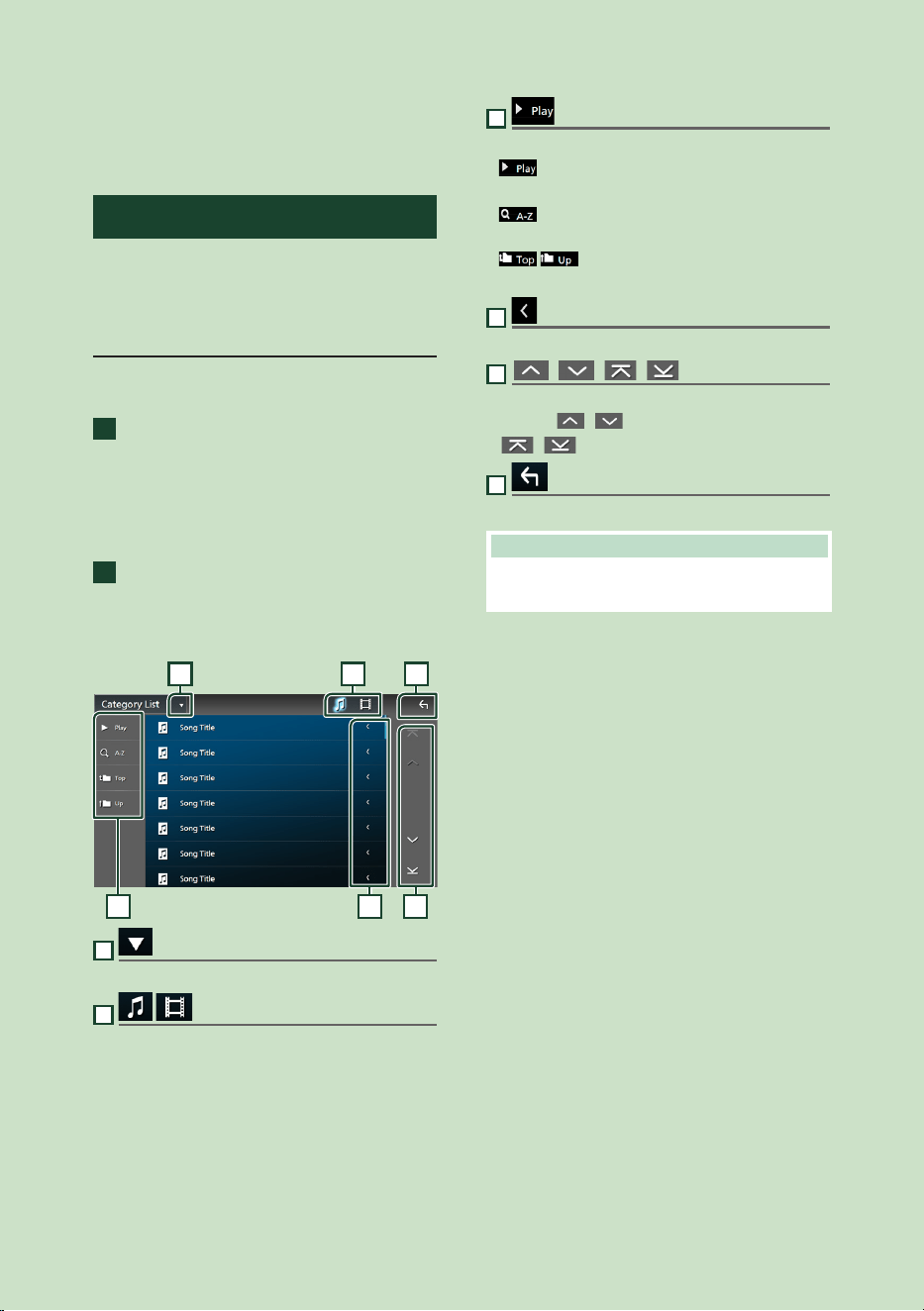

List screen
There are some common function keys in the
list screens of most sources.
See (P.23, 26, 49).
Display the list screen
For USB/iPod:
1
Touch [1] or the item listed on the
information area in the source control
screen.
hh The list screen appears.
For Bluetooth audio:
1
Touch [1].
hh The list screen appears.
You can use following operation keys from this
screen.
6
3
4 5
1 2
1
Displays the list type selection window.
2
Displays a music/movie file list.
3
etc.
Keys with various functions are displayed here.
•
: Plays all tracks in the folder containing
the current track.
•
: Jumps to the letter you entered
(alphabetical search).
•
: Moves to the upper hierarchy
level.
4
Text scroll
Scrolls the displayed text.
5
[ ]/[ ]/[ ]/[ ] Page scroll
You can change pages to display more items by
touching [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to the previous screen.
NOTE
• Depending on the current source or mode, some
function key may not appear.
Basic Operations
13English
Alert Message
This function is to receive alert messages. First,
you need to turn on the “Emergency Alerts” on
the HD Radio source control screen. (P.28)
When an Alert Message comes
1 32
1
• The alert message is erased. Same alert
message cannot be displayed for next 10
minutes.
2
• The alert message is erased. Same alert
message cannot be displayed for next 12
hours.
3
• Touch to tune to that channel of HD Radio
source.

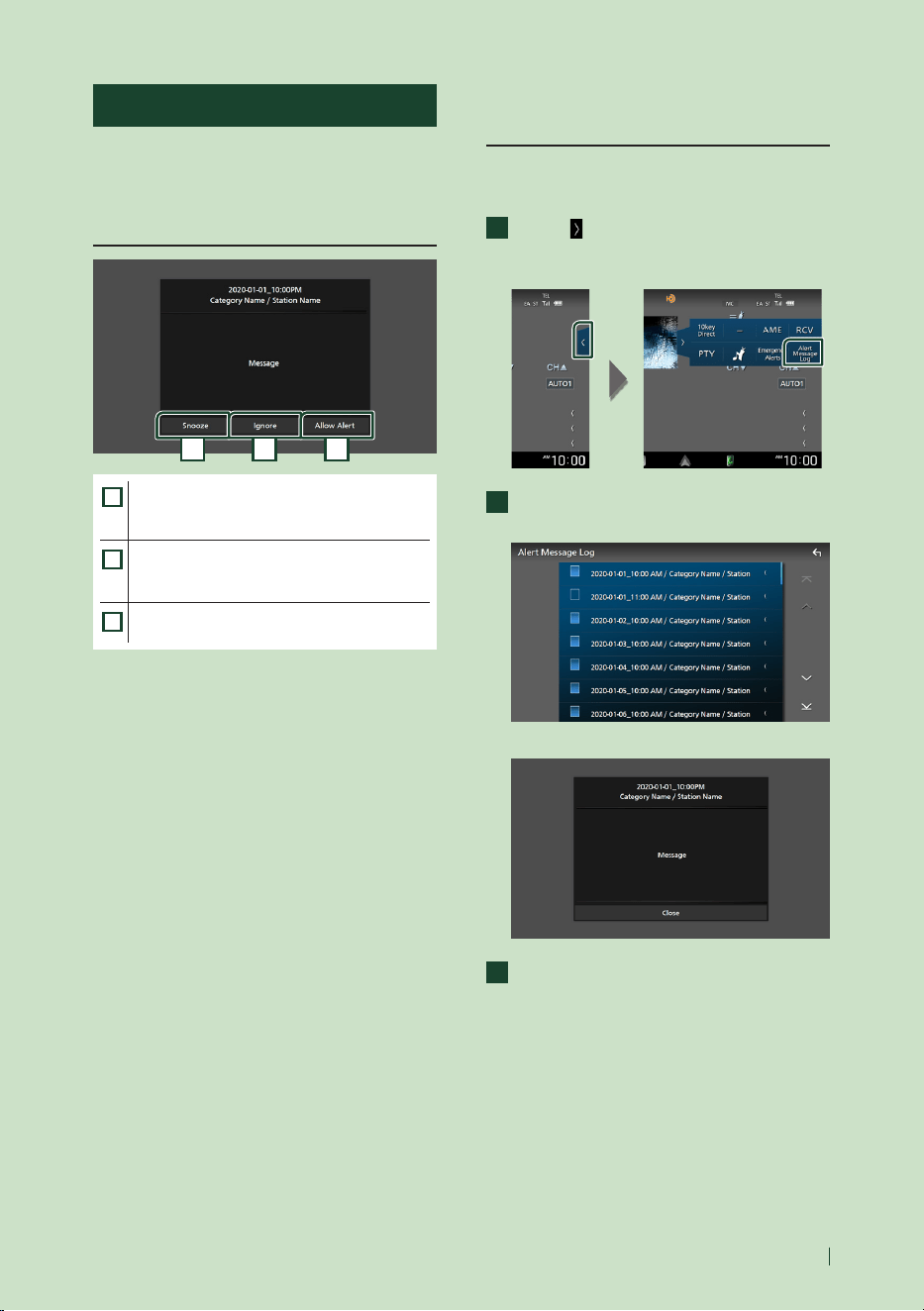

Display of the received Alert
Message
You can read the received alert message
afterward.
1
Touch [ ] on the right side of the HD
Radio source control screen.
Touch [Alert Message Log].
2
Select the desired Alert Message from
the list.
hh The Alert Message appears.
3
Touch [Close].
Widget
14

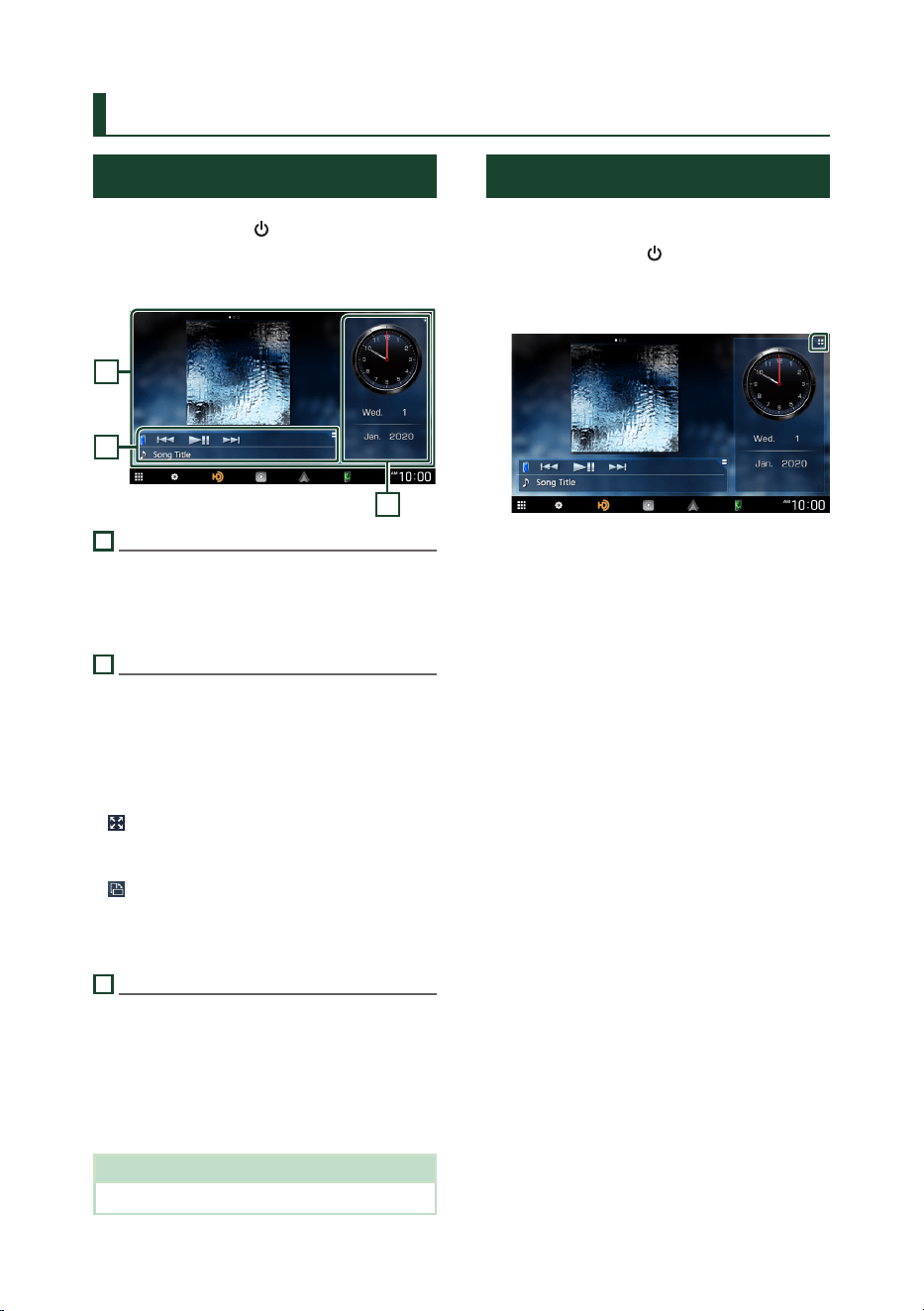

Widget
Widget
1
Press the [HOME]/[ ] button.
2
You can change the widget or customize
the widget area.
1
2
3
1
Full screen widget panel
You can change the full screen panel widget by
flicking left or right on the widget panel. The
widget is switched in the following sequence:
Album Art, Visualizer, Photo Frame.
2
Flexible source widget panel
• Displays the current source information and
operation keys.
• While playing an audio source, you can switch
the widget panel size between 2-line and
4-line by touching the right top corner of the
widget panel.
• [
] (USB/HDMI/AV-IN/Wireless Mirroring source
only):
Displays the source control screen.
• [
] (HDMI/AV-IN/Wireless Mirroring source
only):
Switches the widget panel orientation
between horizontal and vertical.
3
Drive widget panel
You can change the drive panel widget by
touching the right top corner of the widget
panel. (P.14)
Photo Frame Widget
You can display a slideshow of the image files
stored in your iPhone or Android smartphone.
Preparation
• See Importing Image Files (P.15).
Drive Widget Panel
You can change the widget.
1
Press the [HOME]/[ ] button.
2
Touch the right top corner of the drive
widget panel.
hh The drive widget list appears.
3
Touch the desired widget.
You can select from the following widgets.
• Clock Widget
• Weather Widget *
1
• Compass Widget
• EQ Setting Widget
• Camera Widget
• Climate/TPMS/Radar Widget *
2
• ADAS Widget *
2
*1 You can receive INRIX weather forecast by
connecting your iPhone or Android smartphone
in which the “KENWOOD Traffic Powered By INRIX”
application is installed.
*2 Displayable widgets vary depending on the type of
the connected iDatalink (commercially available) and
the model of the vehicle.
● To change the widget position
You can change the widget panel position to
right or left. If the drive widget panel position
is changed, the full screen widget panel
position and flexible source widget panel
position are also changed.
Widget
15English

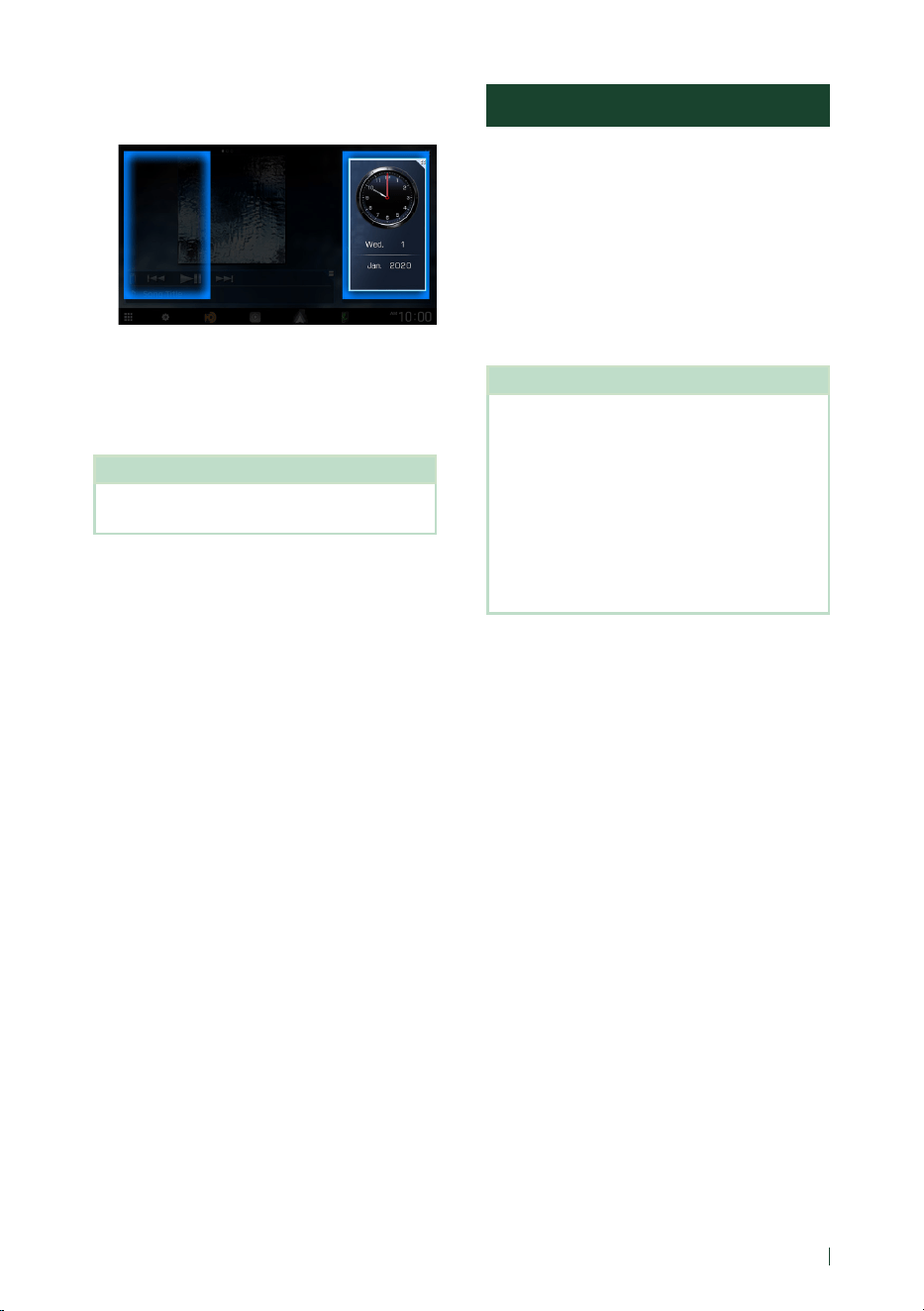

1
Touch and hold the drive widget panel.
hh Widget customize mode is activated.
2
Drag the drive widget to right or left.
Weather Widget
You can display the weather forecast of the
present location.
Preparation
• See KENWOOD Traffic Powered By INRIX
(P.20).
Importing Image Files
You can display image files stored in your
iPhone or Android smartphone by connecting
your iPhone or Android smartphone in which
the “KENWOOD Portal APP” application is
installed to this unit.
The image files are displayed on the photo
frame widget. Also, you can set an image as
the wallpaper.
See Photo Frame Widget (P.14) and To
register an original image (P.64).
Preparation
• Install the latest version of the “KENWOOD Portal
APP” application on your iPhone or Android
smartphone.
– iPhone: Search for “KENWOOD Portal APP” in
the Apple App Store to find and install the
most current version.
– Android smartphone: Search for “KENWOOD
Portal APP” in Google play to find and install
the most current version.
• For details, see “KENWOOD Portal APP”
application.
1
Connect the device.
• To connect a device via Bluetooth,
register it as the Bluetooth device and
do the App (SPP) profile setting of the
connection beforehand. See Register the
Bluetooth device (P.45) and Switch
the connected device (P.46).
• Connect an iPhone using KCA-iP103 via
the USB terminal. (P.93)
2
Unlock your device.
APPS
16
APPS
Wireless Mirroring Operation
You can display the same screen of the
Android smartphone on the monitor of the
unit using the Wireless Mirroring function of
the Android smartphone.
Preparation
• You can use the Wireless Mirroring function
with Android smartphones compatible with this
function.
• This function may be called Wireless Display,
Screen Mirroring, AllShare Cast, etc., depending
on the manufacturer.
• The settings on the Android smartphone differ
depending on the device type. For details, refer
to the instruction manual supplied with your
Android smartphone.
• If your Android smartphone is locked, Mirroring
screen may not appear.
• If the Android smartphone is not ready for UIBC,
you cannot perform touch operation.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Wireless Mirroring]. (P.10)
hh The App screen is displayed.
4
Operate your Android smartphone to
activate the Wireless Mirroring function,
then connect to this unit.
5
Select (”DMX****”) as the network to use.
hh When the connection is established,
then the same screen displayed on the
Android smartphone is displayed.
NOTE
• Apps is discontinued when the power is turned
ON/OFF or you leave the vehicle. To restart Apps,
operate the Android smartphone.
• When the Apps source is displayed, you cannot
register or reconnect a Bluetooth device. Switch
the Apps source to another source, and then
operate the Bluetooth device.
Apple CarPlay Operation
Apple CarPlay is a smarter, safer way to use
your iPhone in the car. Apple CarPlay takes
the things you want to do with iPhone while
driving and displays them on the screen of
the product. You can get directions, make
calls, send and receive messages, and listen to
the music from iPhone while driving. You can
also use Siri voice control to make it easier to
operate iPhone.
For details about Apple CarPlay, visit https://
www.apple.com/ios/carplay/.
Compatible iPhone devices
You can use Apple CarPlay with the following
iPhone models.
• iPhone XS Max
• iPhone XS
• iPhone XR
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
Ñ Connecting an iPhone
Wired connection
1
Connect your iPhone using KCA-iP103 via
the USB terminal. (P.93)
When an iPhone compatible with Apple
CarPlay is connected to the USB terminal,
the Bluetooth Hands-Free phone currently
connected is disconnected. If another
Bluetooth Hands-Free phone is being used,
disconnection will occur after ending the
call.
2
Unlock your iPhone.

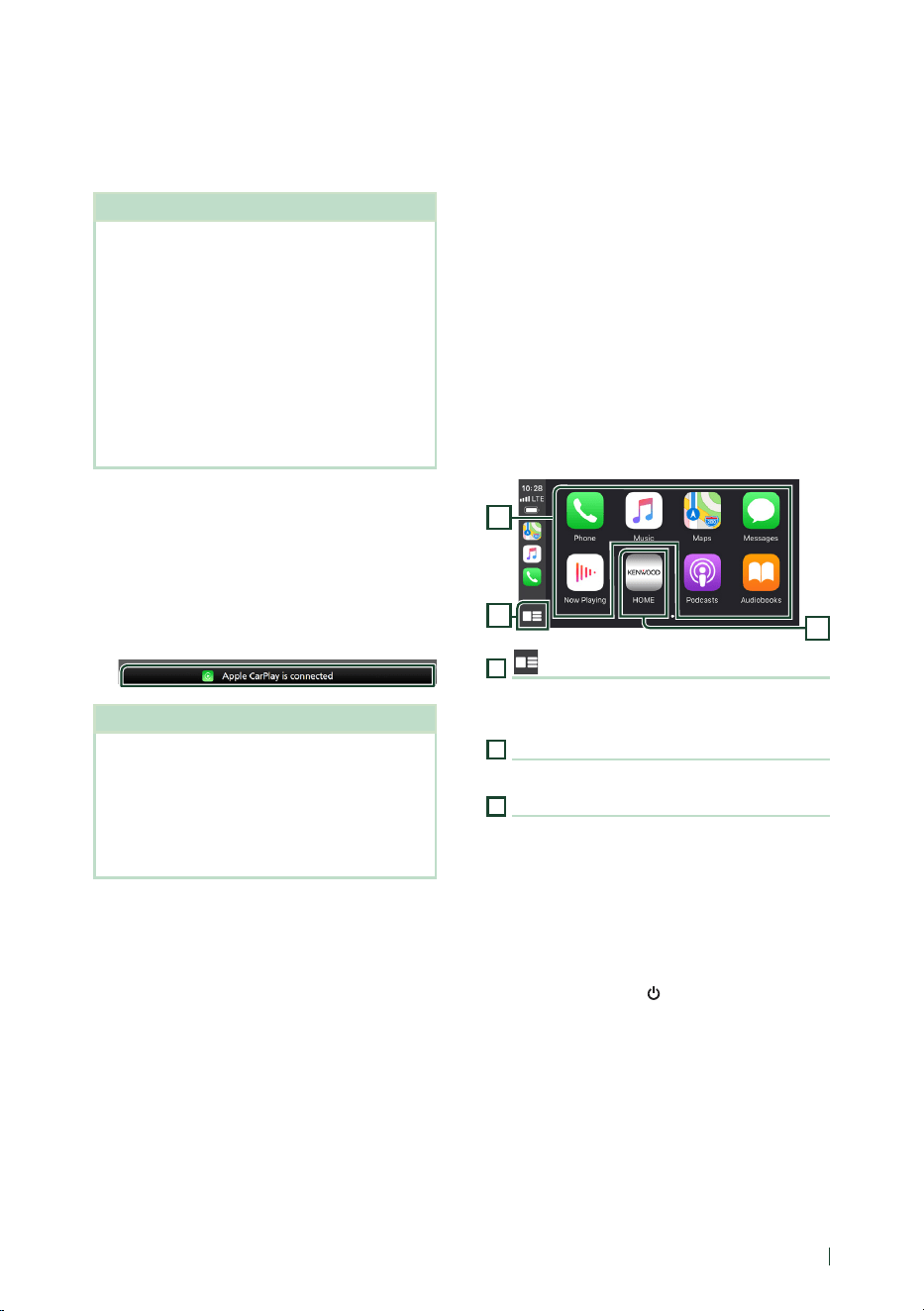

APPS
17English
Wireless connection
You can select the iPhone registered in [Device
List] and use it as the Apple CarPlay device.
See Register the Bluetooth device (P.45).
NOTE
• Turn on the Bluetooth function and Wi-Fi function
of an iPhone.
• If two or more iPhone have been registered,
select the iPhone to be used as the [Apple
CarPlay] source. (P.17)
• It is necessary to connect the GPS antenna in
order to use a wireless Apple CarPlay.
• When the Wi-Fi connection becomes unavailable,
the HOME screen is displayed.
• You cannot use Apple CarPlay if the function is
turned off by operating the iPhone at functional
setup.
To switch the Current Screen to the
Apple CarPlay Screen When Connecting
Your iPhone
• Touch [Apple CarPlay] icon on the source
selection screen. (P.10)
• Touch the following connection message if the
message appears.
NOTE
• The connection message appears when;
– The iPhone you used previously is connected
again.
– The screen other than HOME and the source
selection screen is displayed.
• The connection message is displayed for about
5 seconds.
Ñ Select an Apple CarPlay device
If two or more iPhone compatible with Apple
CarPlay have been registered, select the
iPhone to be used as the Apple CarPlay source.
See Switch the connected device (P.46).
Ñ Operation keys and available
Apps on the home screen of
Apple CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used
on the screen differ among the connected
devices.
To enter the Apple CarPlay mode, touch
[Apple CarPlay] icon on the source selection
screen. (P.10)
3
1
2
1
[ ]
*
• Displays the home screen of Apple CarPlay.
• Touch and hold to activate Siri.
2
Application keys
Starts the application.
3
[HOME]
Exits the Apple CarPlay screen and displays the
Home screen.
* The icon design may change depending on
the iOS version.
To exit the Apple CarPlay screen
1
Press the [HOME]/[ ] button.
APPS
18
Ñ Use Siri
You can activate Siri.
1
Press the [VOICE] button.
2
Talk to Siri.
To deactivate
1
Press the [VOICE] button.
Ñ Switch to the Apple CarPlay
screen while listening to
another source
1
Press the [ ] button.
NOTE
• When listening to another source with the Apple
CarPlay screen displayed, playing music in the
Apple CarPlay mode will switch the current
source to the Apple CarPlay source.
Android Auto™ Operation
Android Auto enables you to use the functions
of your Android smartphone convenient
for driving. You can easily access route
guidance, make calls, listen to music, and
access convenient functions on the Android
smartphone while driving.
For details about Android Auto, visit https://
www.android.com/auto/ and https://support.
google.com/androidauto.
Compatible Android smartphones
You can use Android Auto with Android
smartphones of Android version 5.0 or later.
For Wi-Fi connection, Android 8.0 or later.
NOTE
• Android Auto may not be available on all devices
and may not be available in all countries or
regions.
● About the placement of smartphone
Install the smartphone connected as Android
Auto device in the place where it can receive
the GPS signals.
When using Google Assistant, install
the smartphone in the place where the
smartphone easily catch a voice by the
microphone.
NOTE
• Do not put the smartphone in a spot exposed
to direct sunlight or near an air blowing out
port of an air conditioner. The placement of
the smartphone in such places can lead to
malfunction or damage of your smartphone.
• Do not leave the smartphone in the vehicle.
APPS
19English
Ñ Connect Android smartphone
Wired connection
1
Connect an Android smartphone via the
USB terminal. (P.93)
To use the Hands-Free function, connect
the Android smartphone via Bluetooth.
When an Android smartphone compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
Hands-Free phone currently connected is
disconnected.
2
Unlock your Android smartphone.
3
Press the [HOME]/[ ] button.
4
Touch [ ].
5
Touch [Android Auto]. (P.10)
Wireless connection
You can select the Android smartphone
registered in [Device List] and use it as
the Android Auto device. See Register the
Bluetooth device (P.45).
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Android Auto]. (P.10)
NOTE
• Turn on the Bluetooth function and Wi-Fi function
of Android smartphone.
• If two or more Android smartphones have been
registered, select the Android smartphone to be
used as the Android Auto source. (P.19)
• To change the password for wireless connection
manually, refer to [Reset Android Auto Wireless
Connection] (P.62).
• When the Wi-Fi connection becomes unavailable,
the HOME screen is displayed.
Ñ Select an Android smartphone
If two or more Android smartphones
have been registered, select the Android
smartphone to be used as the Android Auto
source. See Switch the connected device
(P.46).
Ñ Operation keys and available
Apps on the Android Auto
screen
You can perform the operations of the Apps of
the connected Android smartphone.
The items displayed on the screen differ
among the connected Android smartphones.
To enter the Android Auto mode, touch the
[Android Auto] icon on the source selection
screen. (P.10)

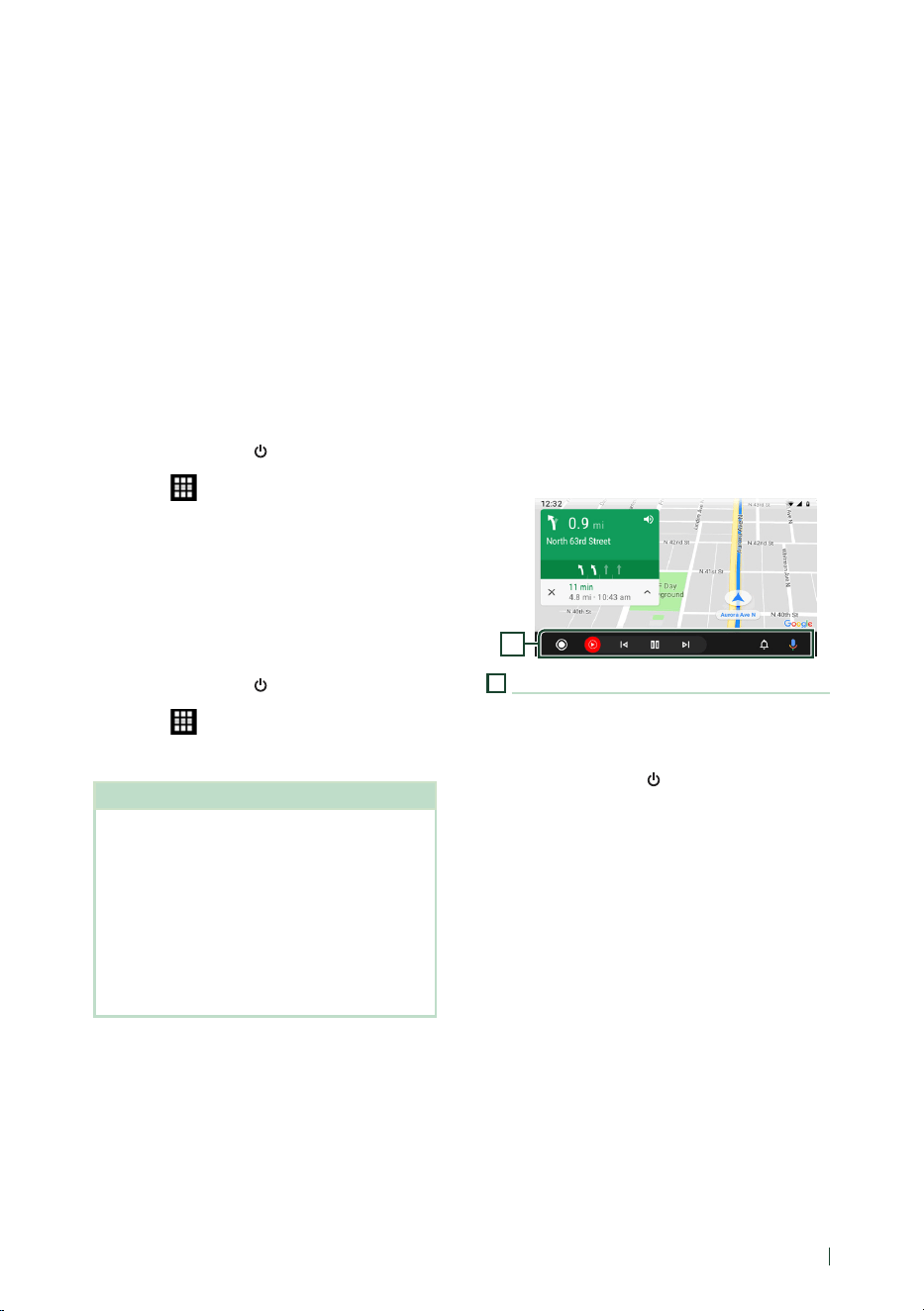

1
1
Navigation bar
Starts the application or displays information.
To exit the Android Auto screen
1
Press the [HOME]/[ ] button.
APPS
20
Ñ Using voice control
1
Press the [VOICE] button.
2
Start speaking.
NOTE
• When you press and hold the [VOICE] button
while inputting voice, you can start over from the
beginning.
To cancel
1
Press the [VOICE] button.
Ñ Switch to the Android Auto
screen while listening to
another source
1
Press the [ ] button.
NOTE
• When listening to another source with the
Android Auto screen displayed, playing music in
the Android Auto mode will switch the current
source to the Android Auto source.
KENWOOD Traffic Powered By
INRIX
You can receive INRIX weather forecast
by connecting your iPhone or Android
smartphone in which the “KENWOOD Traffic
Powered By INRIX” application is installed to
this unit.
Preparation
• Install the latest version of the KENWOOD Traffic
Powered By INRIX application on your iPhone or
Android smartphone.
– iPhone: Search for "KENWOOD Traffic Powered
By INRIX" in the Apple App Store to find and
install the most current version.
– Android smartphone: Search for "KENWOOD
Traffic Powered By INRIX" in Google play to find
and install the most current version.
• For details, see “KENWOOD Traffic Powered By
INRIX” application.
1
Connect the device.
• To connect a device via Bluetooth,
register it as the Bluetooth device and
do the App (SPP) profile setting of the
connection beforehand. See Register the
Bluetooth device (P.45) and Switch
the connected device (P.46).
• Connect an iPhone using KCA-iP103 via
the USB terminal. (P.93)
NOTE
• When an Apple CarPlay is connected, you can
receive INRIX traffic information and weather
forecast.
USB
21English
USB
Connecting a USB device
1
Connect the USB device with the USB
cable. (P.92)
2
Press the [HOME]/[ ] button.
3
Touch [ ].
4
Touch [USB]. (P.10)
Ñ Disconnect the USB device
1
Press the [HOME]/[ ] button.
2
Touch a source other than [USB].
3
Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device
with this unit.
The word “USB device” appearing in this manual
indicates a flash memory device.
● About the file system
The file system should be the one of the
following.
• FAT16 • FAT32 • exFAT • NTFS
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.

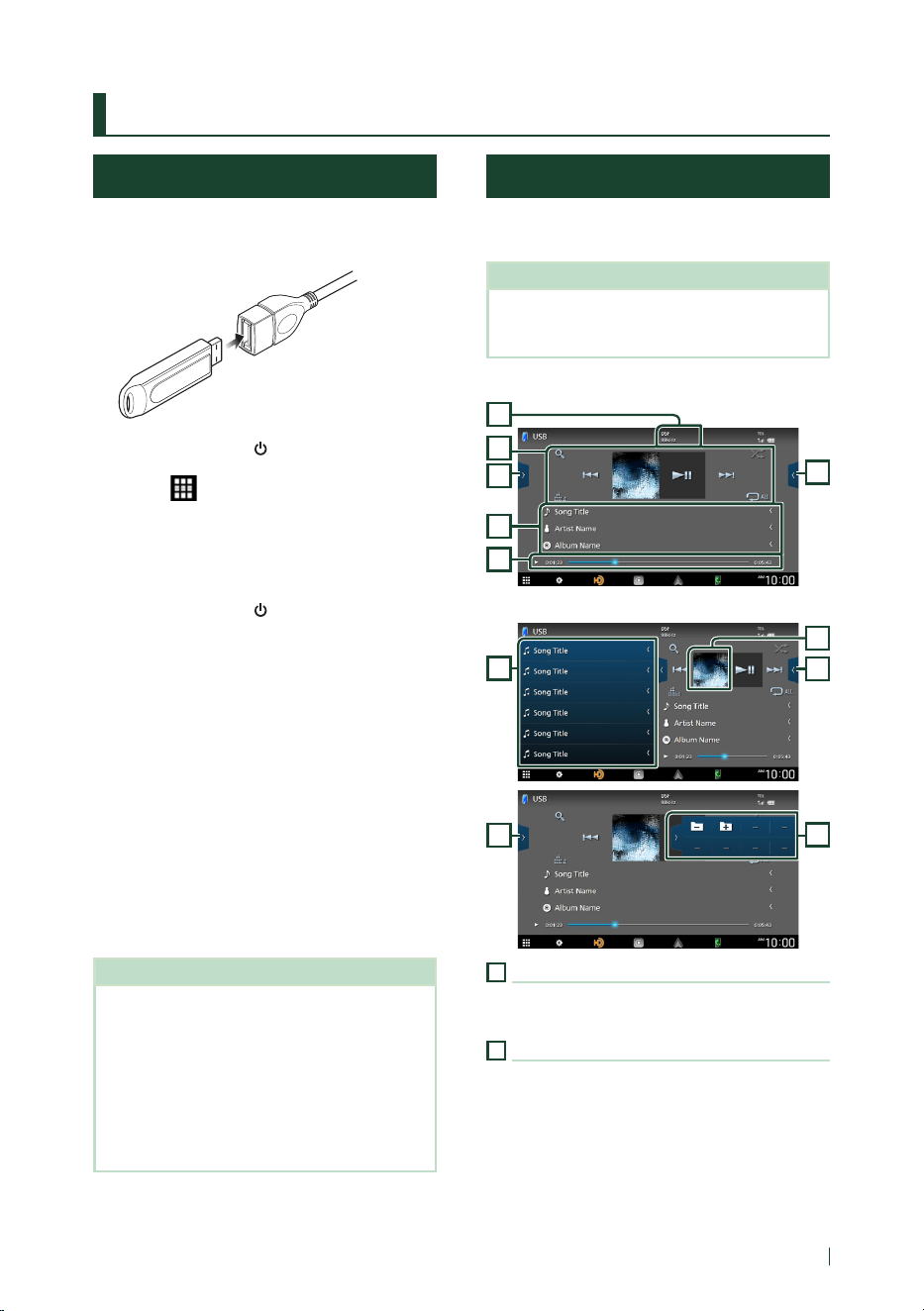

USB Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.79).
Control screen
5
6
4
3
1
2
Open the drawer
7
6
3
6
3
1
[CODEC]
When a high-resolution source is played, its
format information is displayed.
2
Operation keys
• [1] : Searches track/file. For details on search
operation, see Search Operation (P.23).
• [E] [F] : Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)

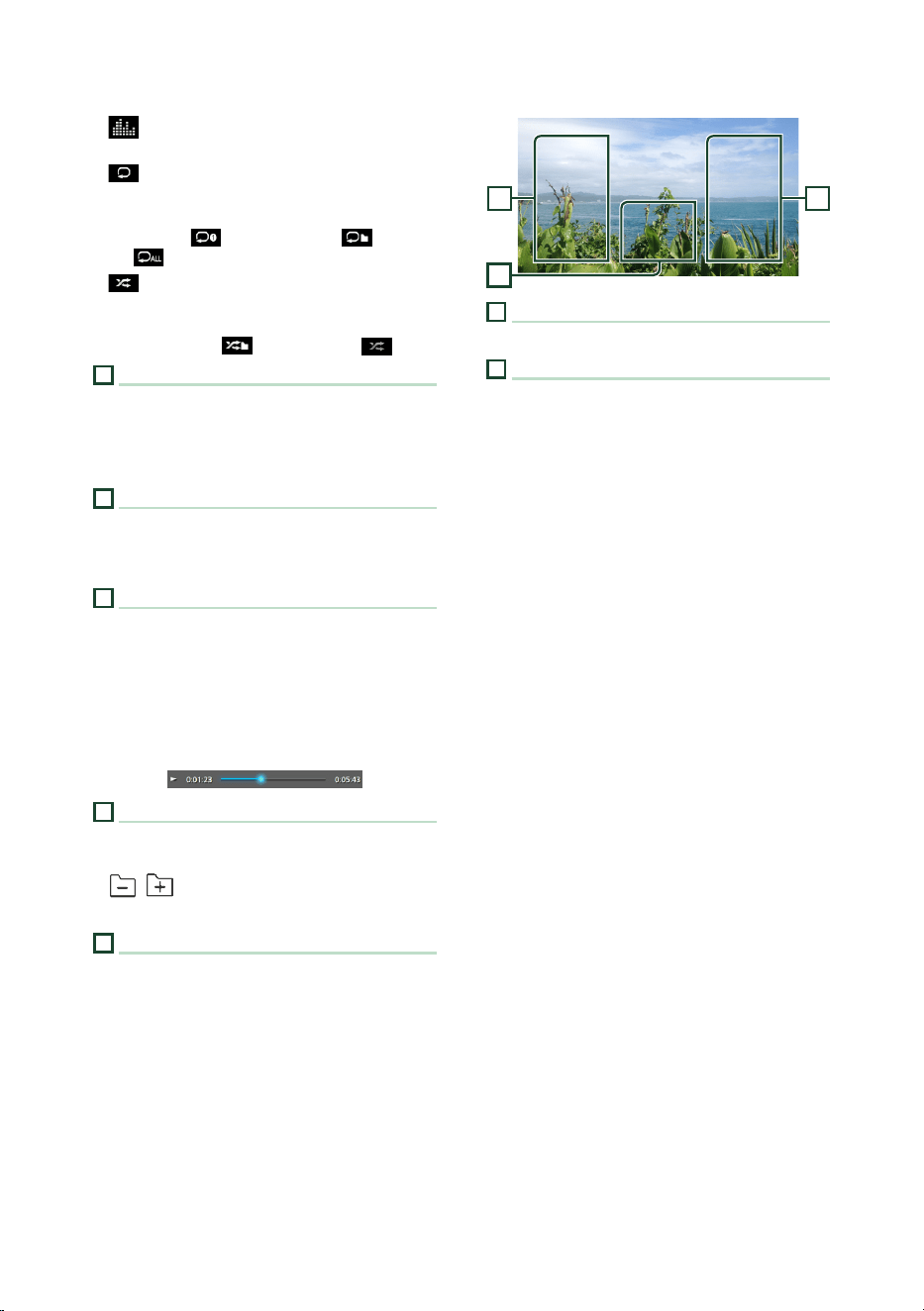

USB
22
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.69)
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat modes are
switched in the following sequence:
File repeat ( ), Folder repeat ( ), Repeat
all ( )
• [
] : Randomly plays all tracks in the current
folder. Each time you touch the key, random
modes are switched in the following sequence:
Folder random (
), Random off ( )
3
Content list
• Touch the left side of the screen to display the
Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
4
Track information
Displays the information on the current file.
Only a file name and a folder name are displayed
if there is no tag information.
5
Play mode indicator/Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast
backward), H (pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
6
Function panel
Touch the right side of the screen to display the
function panel. Touch again to close the panel.
• [
] [ ] : Searches for the previous/next
folder.
7
Artwork
The jacket of the currently playing file is
displayed.
Video screen
9
88
8
File search area (Video file only)
Touch to search for the next/previous file.
9
Key display area (Video file only)
Touch to display the control screen.
USB
23English
Search Operation
You can search music or video files by the
following operations.
1
Touch [1].
2
Touch [S].
3
Select a list type.
NOTE
• For operations on the list screen, see List screen
(P.12).

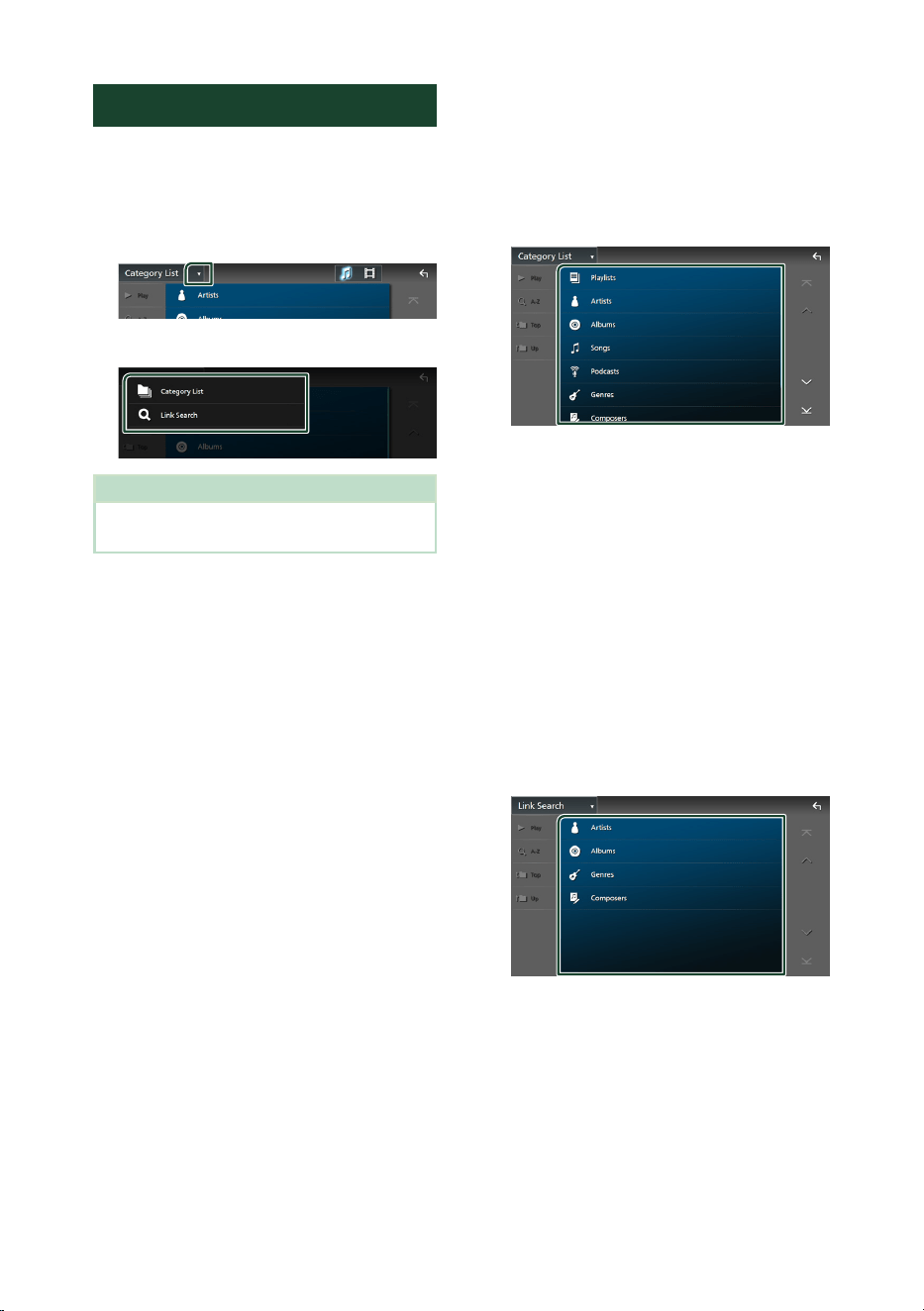

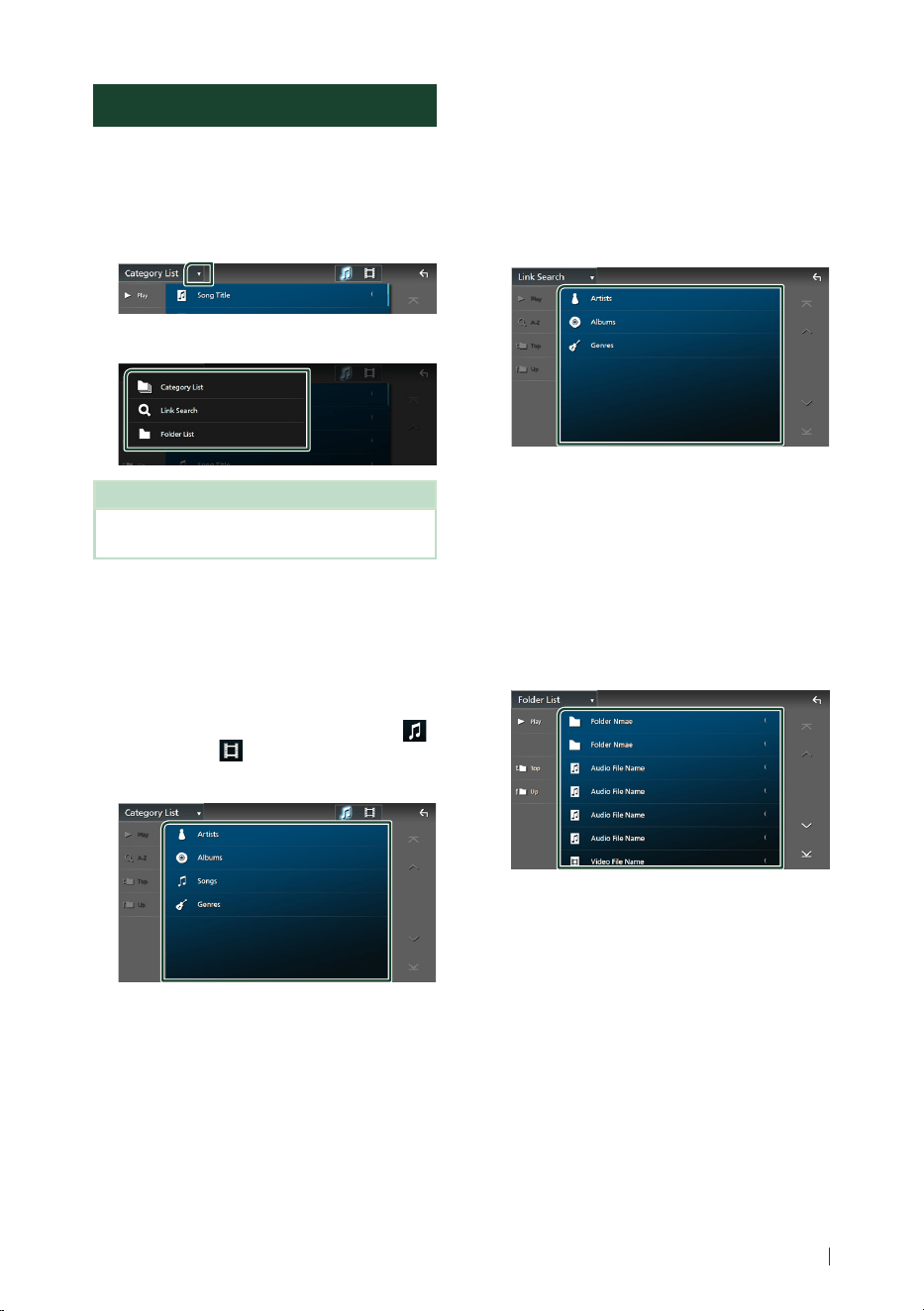

Ñ Category search
You can search for a file by selecting a
category.
1
Touch [Category List].
2
Select whether you search audio files
or video files .
3
Touch the desired category.
hh The list corresponding to your selection
appears.
4
Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Ñ Link search (Audio file only)
You can search for a file of the same artist/
album/genre as that in the current track.
1
Touch [Link Search].
2
Touch the desired tag type. You can select
from artists, albums and genres.
hh The list corresponding to your selection
appears.
3
Touch the desired item in the content list.
Ñ Folder search
You can search for a file according to hierarchy.
1
Touch [Folder List].
2
Touch the desired folder.
When you touch a folder its contents are
displayed.
3
Touch to select your desired item in the
list. Repeat this step until you find the
desired file.
iPod/iPhone
24
iPod/iPhone
Preparation
Ñ Connectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone XS Max
• iPhone XS
• iPhone XR
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPod touch (6th
generation)
NOTE
• Latest compatible list of iPod/iPhone. For details,
see www.kenwood.com/cs/ce/ipod/.
• By connecting your iPod/iPhone to this unit with
the iPod connection cable KCA-iP103 (optional
accessory), you can supply power to your iPod/
iPhone as well as charge it while playing music.
Note that the power of this unit must be held on.
• If you restart playback after connecting the iPod,
the music that has been played by the iPod is
played first.
Ñ Connect iPod/iPhone
Wired connection
Preparation
• Connect an iPod/iPhone with the KCA-iP103
(optional accessory) while Apple CarPlay is not
connected.
• With an iPhone compatible with Apple CarPlay,
turn off Apple CarPlay by operating the iPhone
at functional setup before connecting iPhone.
For details of the setup method, contact the
manufacturer of the terminal.
• Plug the iPod/iPhone into the USB terminal with
the KCA-iP103 (optional accessory).
• Only one iPod/iPhone can be connected.
1
Connect the iPod/iPhone using the KCA-
iP103. (P.93)
2
Press the [HOME]/[ ] button.
3
Touch [ ].
4
Touch [iPod]. (P.10)
● To disconnect the iPod/iPhone connected
with the cable:
1
Detach the iPod/iPhone.
Bluetooth connection
Pair the iPhone through Bluetooth.
Preparation
• To connect an iPhone via Bluetooth, register it
as a Bluetooth device and do the profile setting
for the connection beforehand. See Register
the Bluetooth device (P.45) and Switch the
connected device (P.46).
• Connect an iPhone via Bluetooth while Apple
CarPlay and an iPod/iPhone are not connected
via USB.
• With an iPhone compatible with Apple CarPlay,
turn off Apple CarPlay by operating the iPhone
at functional setup before connecting iPhone.
For details of the setup method, contact the
manufacturer of the terminal.
● Select the method of making connections
for outputting sound from the iPod
source
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Connections & AV].
hh Connections & AV setting menu appears.
5
Touch [iPod Bluetooth Connection].
[Bluetooth] (Default): Output sound using a
Bluetooth device.
[Bluetooth+HDMI]: Output sound using an
HDMI device and perform music selection,
etc. using a Bluetooth device.
iPod/iPhone
25English

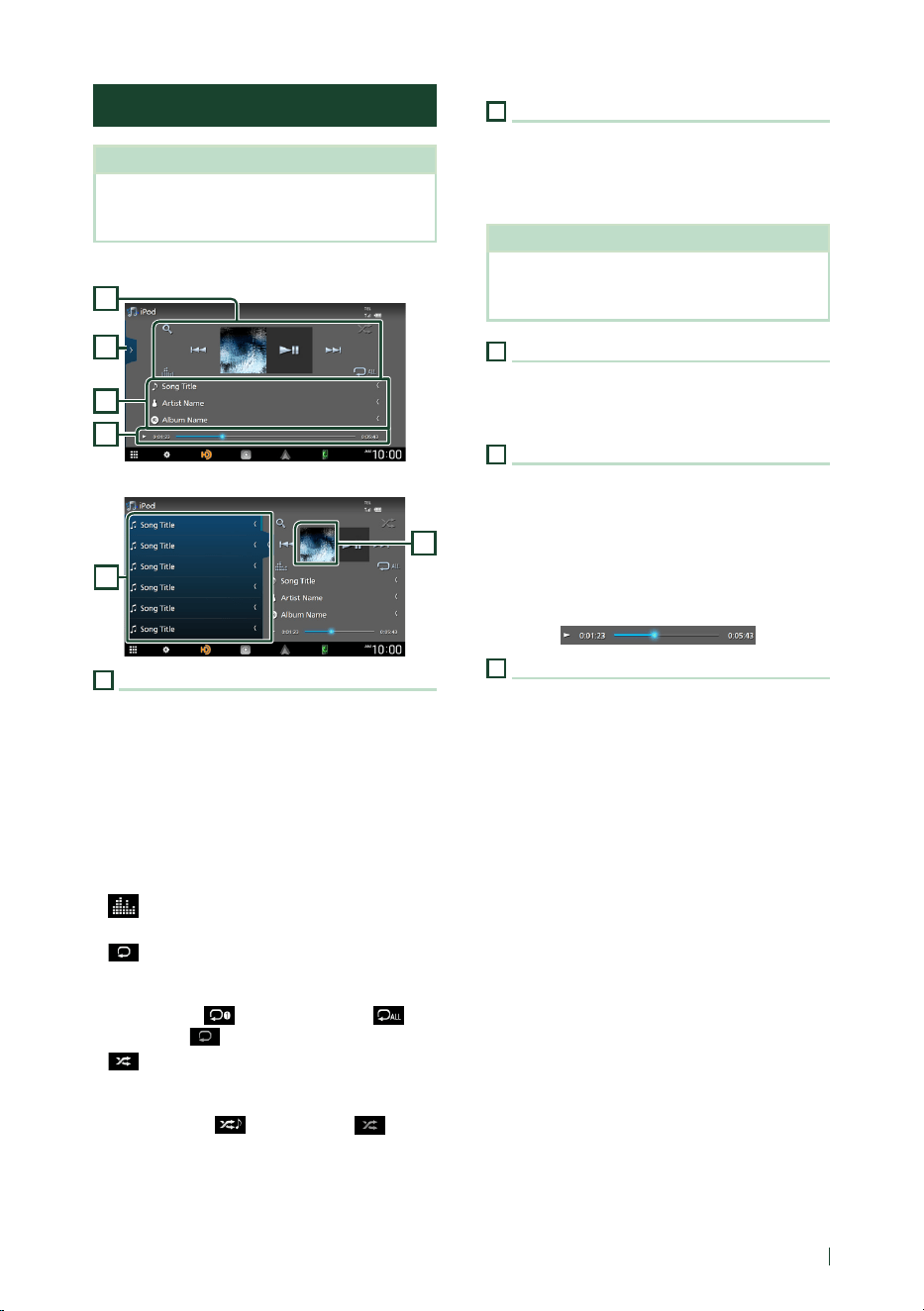

iPod/iPhone Basic Operation
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.79).
Control screen
4
2
3
1
Open the drawer
2
5
1
Operation keys
• [1] : Searches for a track/file. For details on
search operation, see Search Operation
(P.26).
• [E] [F] : Searches for the previous/next
track/file.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.69)
• [
] : Repeats the current track/album. Each
time you touch the key, repeat modes are
switched in the following sequence:
Song repeat ( ), All songs repeat ( ),
Repeat off ( )
• [
] : Randomly plays all tracks in the current
album. Each time you touch the key, random
modes are switched in the following sequence:
Song random ( ), Random off ( )
2
Content list
• Touch the left side of the screen to display the
Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
NOTE
• The Content list is not displayed unless you select
a file from the category list and play it. To use the
category list, see Search Operation (P.26).
3
Track information
• Displays the information on the current file.
• Touch to display the category list screen. See
Category search (P.26).
4
Play mode indicator/Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast
backward), H (pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
5
Artwork
The jacket of the currently being played file is
displayed.
iPod/iPhone
26
Search Operation
You can search music files by the following
operations.
1
Touch [1].
2
Touch [S].
3
Select a list type.
NOTE
• For operations on the list screen, see List screen
(P.12).
Ñ Category search
You can search for a file by selecting a
category.
1
Touch [Category List].
2
Touch the desired category.
hh The list corresponding to your selection
appears.
3
Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Ñ Link search
You can search for a file of the same artist/
album/genre/composer as that in the current
track.
1
Touch [Link Search].
2
Touch the desired tag type. You can
select from artists, albums, genres and
composers.
hh The list corresponding to your selection
appears.
3
Touch the desired item in the content list.
HD Radio™ Tuner
27English
HD Radio™ Tuner
HD Radio Tuner Basic
Operation
Most functions can be controlled from the
source control screen.
To listen to the HD Radio source, touch [HD
Radio] icon on the source selection screen.
(P.10)
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.79).
• HD Radio broadcasting is for North American
sales area only.

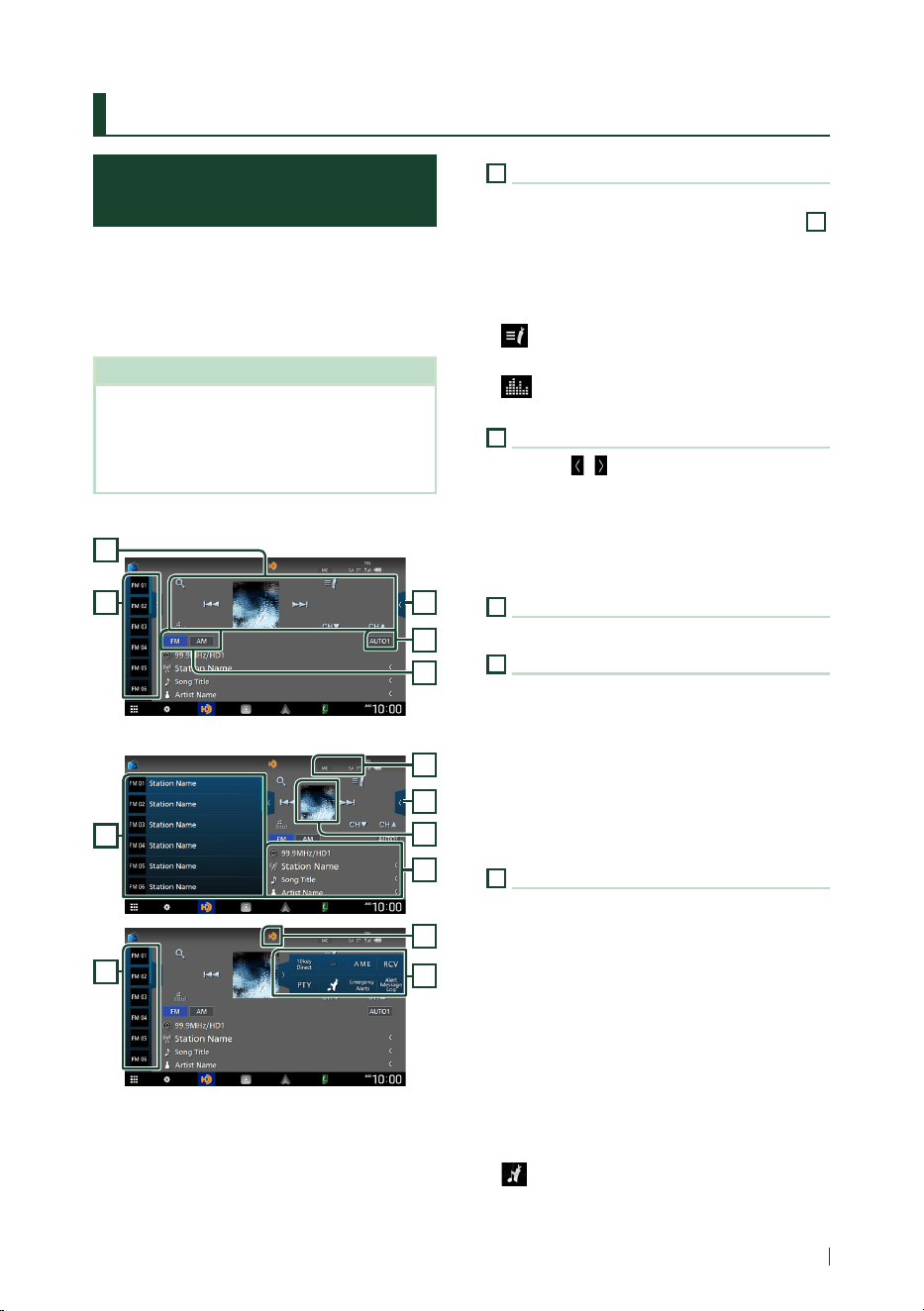

Control screen
4
2
5
1
3
Open the drawer
7
5
2
6
8
9
5
2
1
Operation keys
• [E] [F] : Tunes in a station. The method of
switching frequencies can be changed (see
4
Seek mode).
• [CHS] [CHR] : Selects a channel.
• [1] : Display the Channel List screen. See
Channel search (P.30).
• [
] : Display a list of registered bookmarks.
See Bookmark list (P.31).
• [
] : Displays the Graphic Equalizer screen.
(P.69)
2
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized station or channel.
• When touched for 2 seconds, stores the
currently being received station or channel in
the memory.
3
Band keys
Switches bands (between FM and AM).
4
Seek mode
Touch to switch seek mode in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in the memorized stations one
after another.
• [MANUAL]: Switches to the next frequency
manually.
5
Function panel
Touch the right side of the screen to display the
function panel. Touch again to close the panel.
• [10key Direct]: Display the direct station/
channel search screen. For details, see Direct
search (P.30).
• [AME]: Presets stations automatically. For
details, see Auto memory (P.29).
• [RCV]: Change the HD Radio reception mode.
For details, see Receive Mode (P.29).
• [PTY] (FM only): Searches for a program by
program type. For details, see Search by
program type (P.30).
• [
] : Stores the information about the song
being received. See Bookmark (P.31).

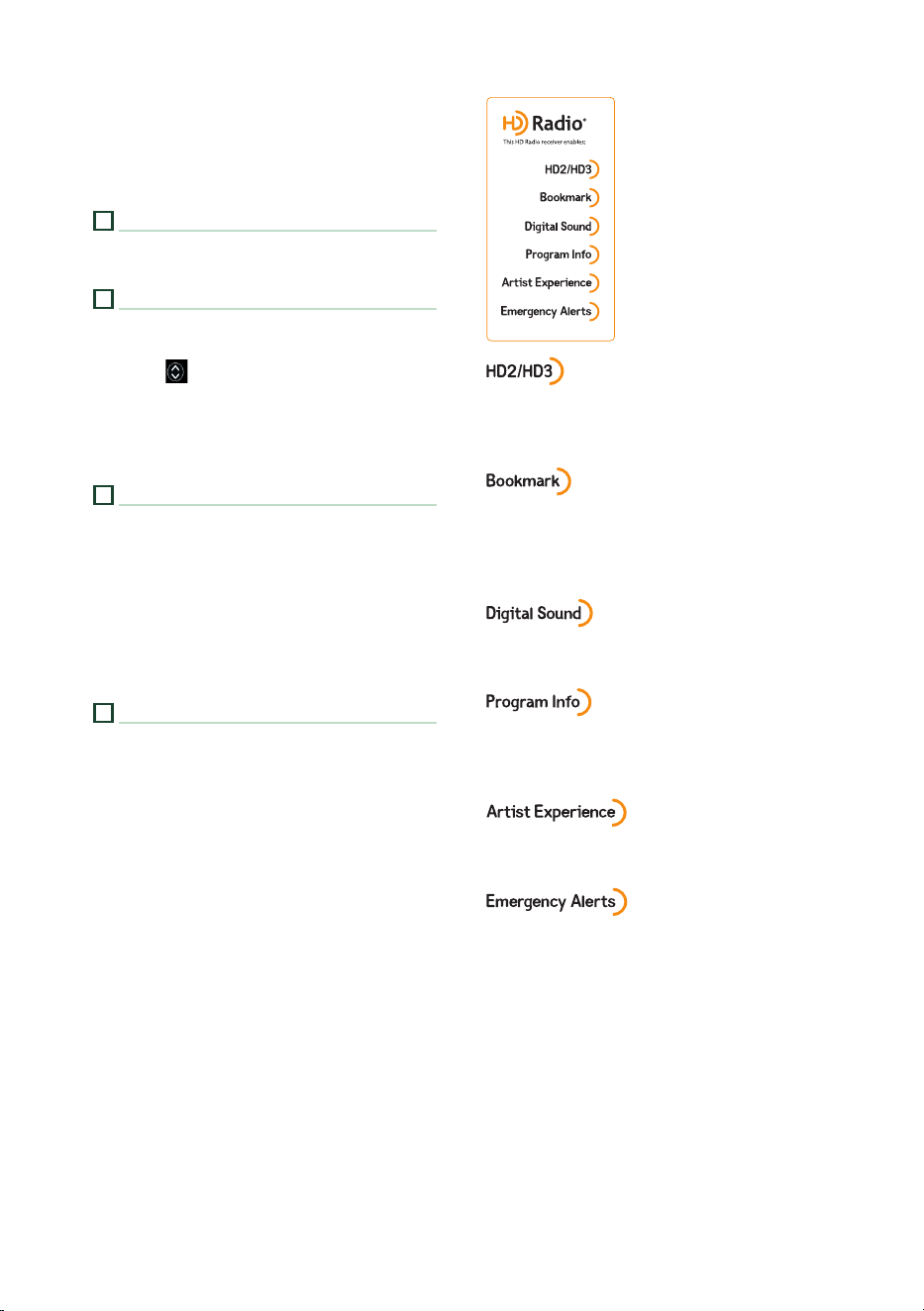

HD Radio™ Tuner
28
• [Emergency Alerts] : Turn on or off the alert
message. See Alert Message (P.13).
• [Alert Message Log] : Displays the alert
message received. See Alert Message
(P.13).
6
The picture data or station Logo data is
displayed if available from current content.
7
Information display
Displays the information on the current station:
Frequency and Channel
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Station name, Song Title, Artist Name
Content B: Station Message, Radio Text
Content C: PTY Genre, Album Name
8
Indicator Items
• [MC]: A multicast digital broadcast is being
received.
• [EA]:
White: Emergency Alert is on.
No light: Emergency Alert is off.
Orange: Interrupting or in snooze/ignore
state.
• [ST]: A stereo broadcast is being received.
9
Indicator display
While receiving an HD Radio station, it lights
with orange when the audio is digital and lights
with gray when it is analog. While receiving an
analog station, it is off.
• Adjacent to traditional main stations are
HD2/HD3 Channels, providing new original
programming on the FM dial
• A music & product discovery feature that
enables users to store information about
content on the radio, and can deliver
interactive information via QR codes
• Crystal clear, CD-like digital audio quality to
consumers; eliminates background noise
• Provides song name, artist, station ID, and
other relevant data to enrich the listening
experience
• Visual images, such as album art of over-the-air
broadcasts from HD Radio stations
• Delivers critical and life-saving messages to the
public during emergency situations
HD Radio™ Tuner
29English

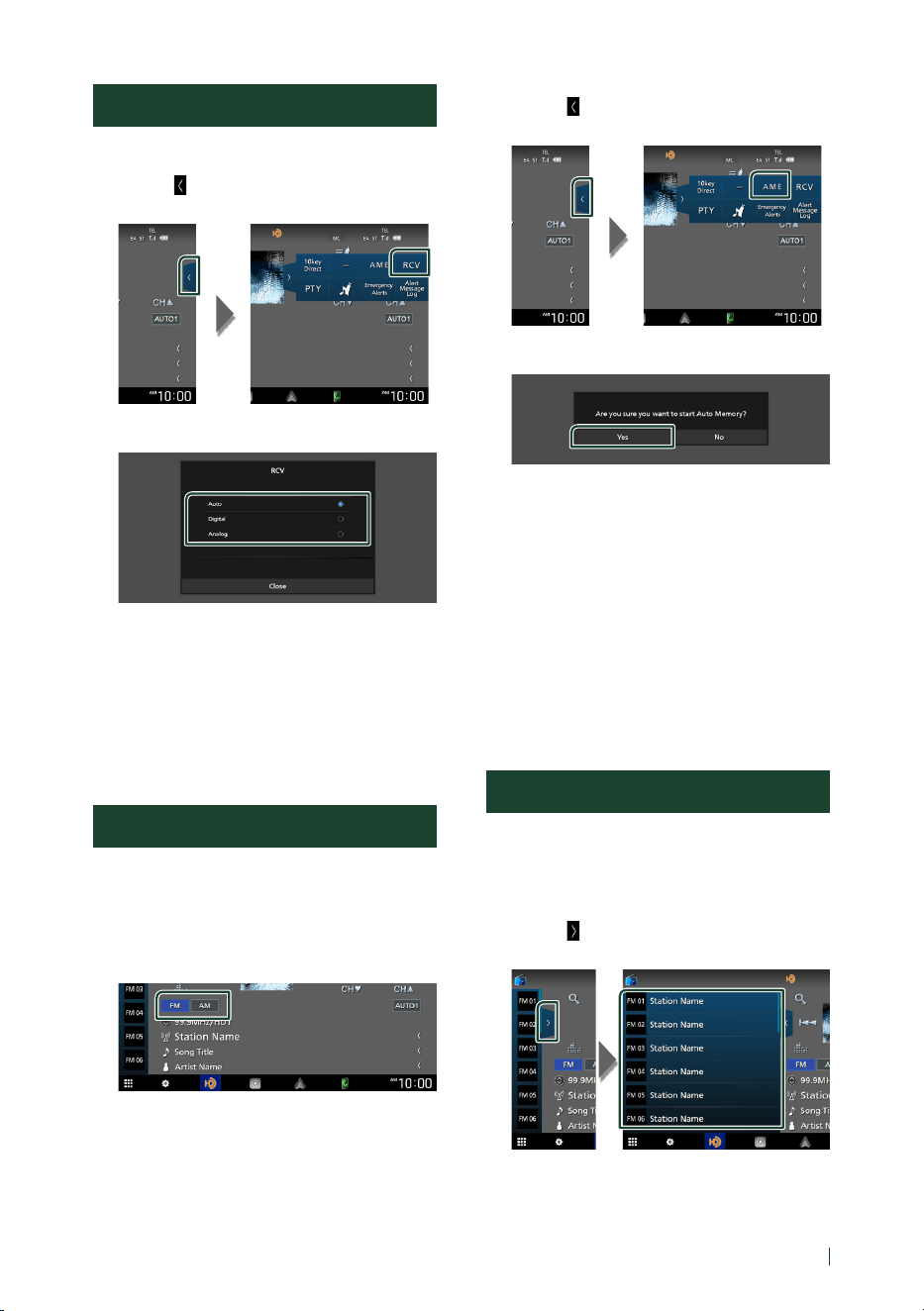

Receive Mode
You can set the radio broadcasts receive mode.
1
Touch [ ] on the right side of the screen.
Touch [RCV].
2
Select a receive mode.
■ [Auto]
Switch between digital and analog audio
automatically.
■ [Digital]
Select this to tune to digital audio only.
■ [Analog]
Select this to tune to analog audio only.
Memory Operation
Ñ Auto memory
You can store stations with good reception in
the memory automatically.
1
Touch desired band key.
2
Touch [ ] on the right side of the screen.
Touch [AME].
3
Touch [Ye s ].
hh Auto memory starts.
Ñ Manual memory
You can store the currently being received
station or channel in the memory.
1
Select the station or channel you wish to
store in the memory.
2
Touch [FM#] (#:1-15) or [AM#] (#:1-5)
in which you want to store the station
or channel for 2 seconds until a beep
sounds.
Selecting Operation
Ñ Preset select
You can list and select memorized stations or
channels.
1
Touch [ ] on the left side of the screen.
Select a station or channel from the list.
HD Radio™ Tuner
30

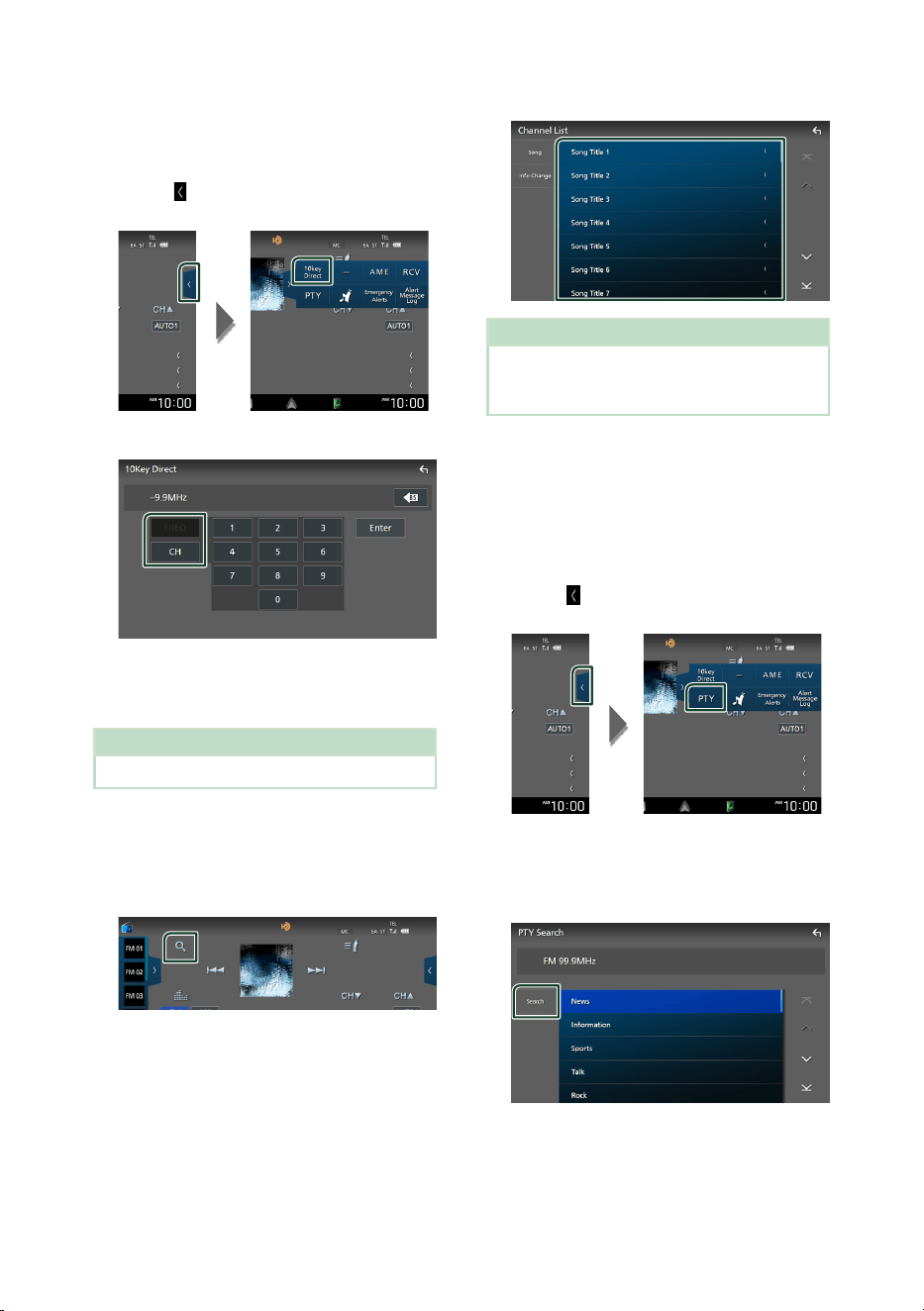

Ñ Direct search
You can tune in by entering the desired
frequency or channel number.
1
Touch [ ] on the right side of the screen.
Touch [10key Direct].
2
Select the search method.
3
Enter the frequency or channel number.
4
Touch [Enter].
NOTE
• To clear the number you entered, touch [BS].
Ñ Channel search
You can specify the desired channel.
1
Touch [1].
2
Select the desired content from the list.
NOTE
• Touch [Info Change] in the channel list. Select
the sequence of the list (Song title, artist name,
album name).
Ñ Search by program type
(FM only)
You can tune in the station broadcasting the
specified type of program when listening to
FM.
1
Touch [ ] on the right side of the screen.
Touch [PTY].
hh TUNER PTY Mode screen appears.
2
Select a program type from the list.
3
Touch [Search].
You can search for the station broadcasting
the selected type of program.
HD Radio™ Tuner
31English

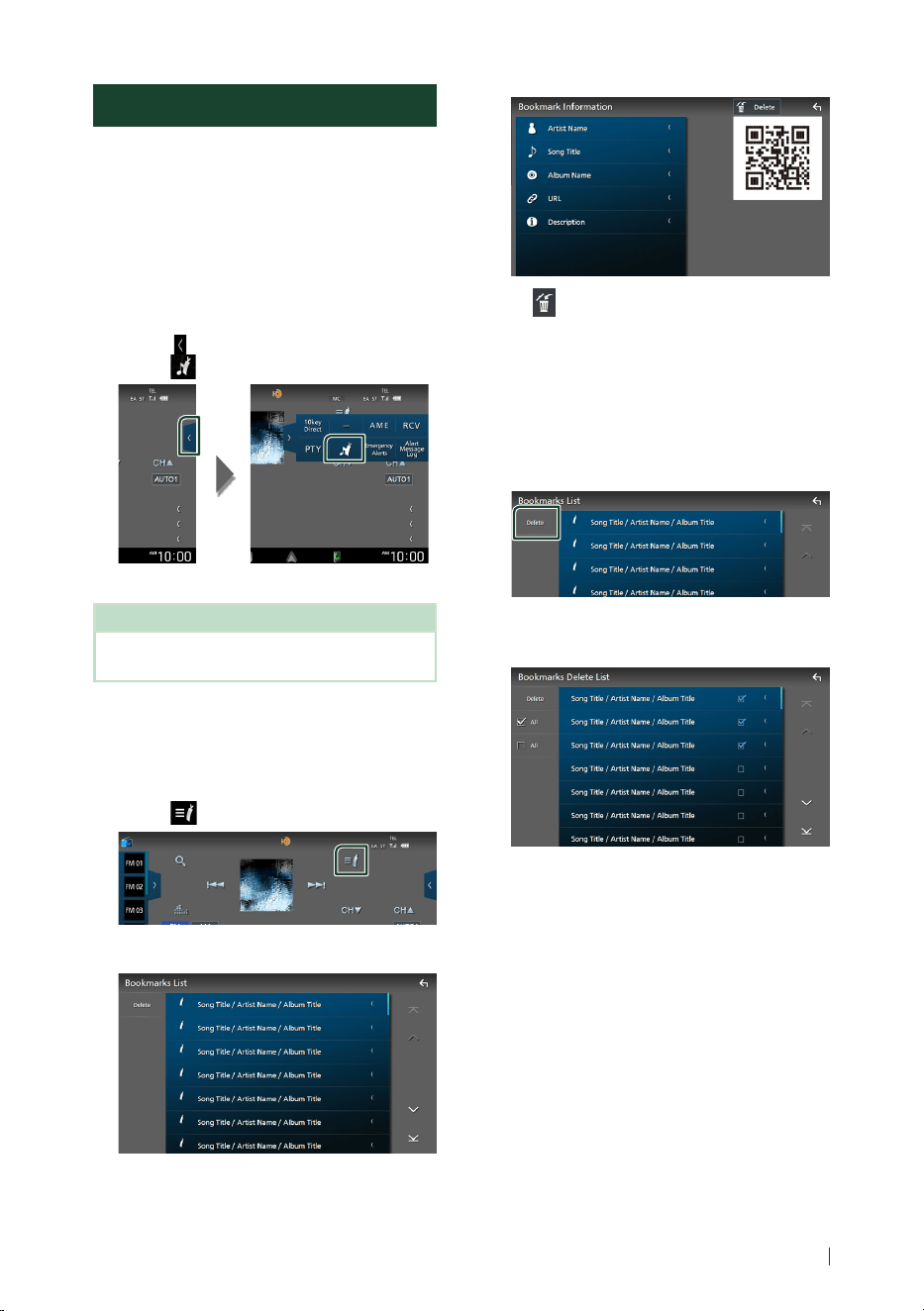

Bookmark
Stores tag information (title, artist, album,
URL, and description) about the song you are
listening to now.
Detailed information and QR codes can
be displayed according to the stored tag
information.
Ñ Bookmark registration
1
Touch [ ] on the right side of the screen.
Touch [
].
hh Registers a bookmark.
NOTE
• Up to 100 bookmarks can be registered to this
unit.
Ñ Bookmark list
Displaying a list of registered bookmarks and
detailed information and QR code of the song.
1
Touch [ ].
2
Select the desired bookmark from the list.
hh The bookmark information appears.
■ [ Delete]
Deletes the bookmarks being displayed.
Touch [Delete] and then touch [YES] on the
confirmation screen.
Bookmark delete
Deleting a bookmark.
1
Touch [Delete].
2
Select the bookmark to delete from the
list.
■ [þ All]
Select all bookmarks.
■ [¨ All]
Erases all check marks.
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s ].
hh All the selected bookmark(s) is deleted.
SiriusXM®
32
SiriusXM®
SiriusXM® Basic Operation
Only SiriusXM® brings you more of what you
love to listen to, all in one place. Get over 140
channels, including commercial-free music
plus the best sports, news, talk, comedy
and entertainment. Welcome to the world
of satellite radio. A SiriusXM Vehicle Tuner
and Subscription are required. For more
information, visit www.siriusxm.com.
To listen to the SiriusXM source, touch the
[SiriusXM] icon on the source selection screen.
(P.10)
Activating subscription
• Check your Radio ID.
The SiriusXM Satellite Radio ID is required for
activation and can be found by tuning in Channel
0 as well as on the label found on the SiriusXM
Connect tuner and its package.
The Radio ID does not include the letters I, O, S
or F.
• Activate the SiriusXM Connect Vehicle Tuner
using either one of the two methods below:
– For users in U.S.A.
Online: Visit www.siriusxm.com/activatenow
Phone: Call SiriusXM Listener Care at 1-866-
635-2349
– For users in Canada:
Online: Visit https://www.siriusxm.ca/help/
activation-help/
Phone: Call XM customer Care at 1-877-438-
9677
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.79).
• To use SiriusXM® Satellite Radio, the optional
accessory is necessary.

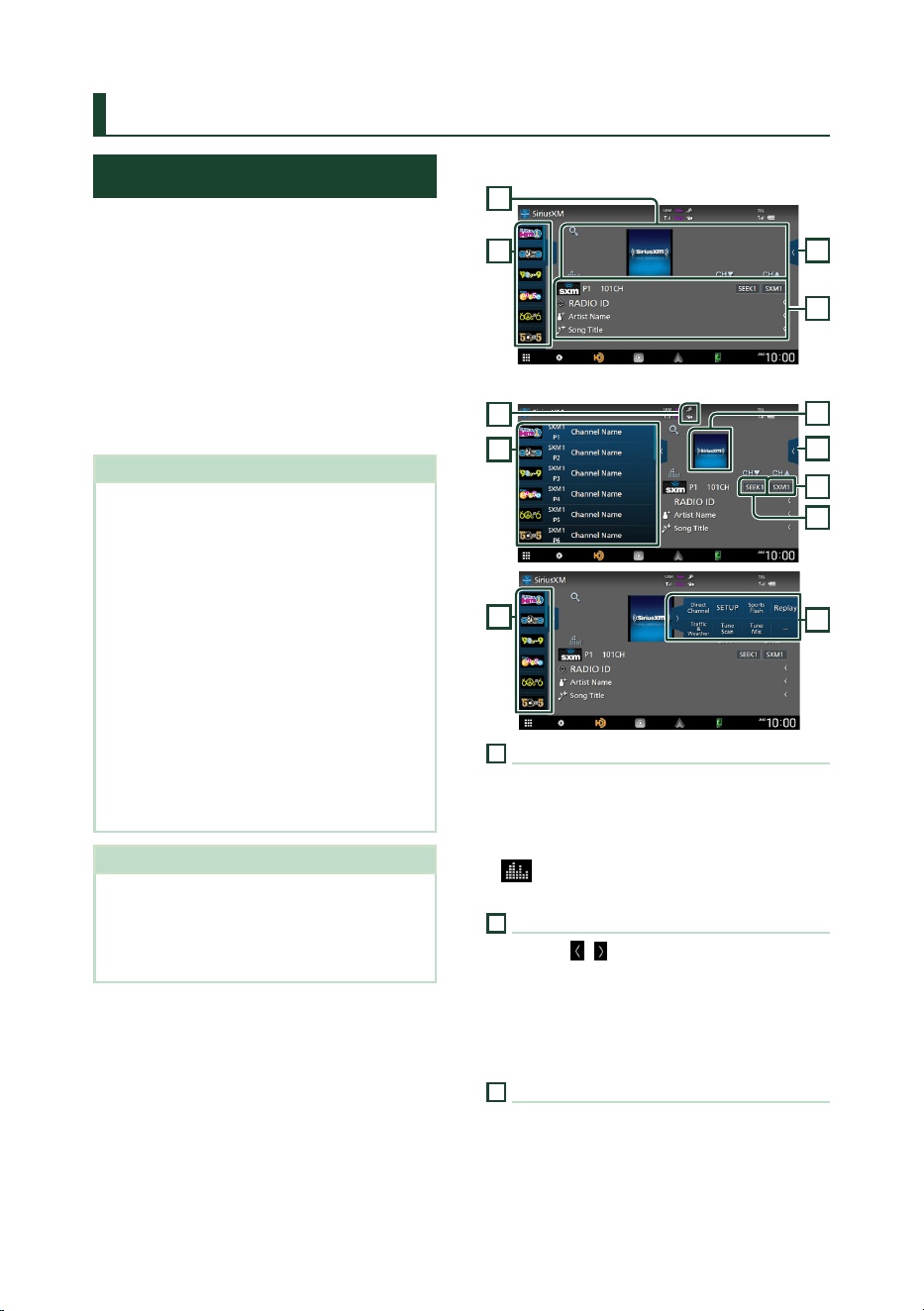

Control screen
3
2
4
1
Open the drawer
6
4
2
7
5
8
4
2
1
Operation keys
• [1] : Display the Category search screen. For
details on search operation, see Category/
Channel search (P.35).
• [CHS] [CHR] : Selects a channel.
• [
] : Displays the Graphic Equalizer screen.
(P.69)
2
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized channel.
• When touched for 2 seconds, stores the
currently being received channel in the
memory.
3
Information display
Displays the information on the current channel:
Channel Name
P#: Preset number
#CH: Channel number
SiriusXM®
33English
Logo: Channel logo
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Artist Name, Song Title
Content B: Content Info, Category Name
Content C: Channel Description, Similar
Channels
[
] : Touch for 2 seconds to register the artist of
the current song as a Content Alert.
[
] : Touch for 2 seconds to register the current
song as a Content Alert.
For details, see Content Alerts (P.37).
NOTE
• While getting contents, "Waiting" is showing on
the display.
4
Function panel
Touch the right side of the screen to display the
function panel. Touch again to close the panel.
• [Direct Channel]: Touch and enter the
desired number. For details, see Direct search
(P.34).
• [SETUP]: Touch to display the SiriusXM SETUP
screen. For details, see SiriusXM SETUP
(P.38).
• [Replay/Live]: Touch to turn on or off the
replay mode. See Replay (P.35).
• [Traffic & Weather]
For SXV300 *
1
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. Select your city from the set up menu
(see Select a City for Traffic & Weather
(P.43)) and touch [Traffic & Weather] to
check the latest report. It will start from the
beginning.
•
(White) : Played already.
•
(Green) : New information arrived.
•
(Purple) : Playing.
•
(Gray) : No information.
For SXV200 or SXV100 *
2
Turns the Traffic & Weather Jump function
on or off.
•
(White) : Function on.
•
(Purple) : Playing.
•
(Gray) : Function off.
• [TuneScan]*
3
: Allows you to hear a
few seconds of songs from each of the
SmartFavorite music channels on the current
preset band. See TuneScan™ (P.36).
• [TuneMix]*
4
: When turned ON, shuffles the
preset channels on P1-P6 to play a blend
of songs from your favorite channels. See
TuneMix™ (P.36).
• [SportsFlash]*
4
: Displays during SportsFlash™.
Touch to cancel the SportsFlash™ function
and return to the previous channel. See
SportsFlash™ (P.38) and SportsFlash™
setup (P.42).
*
1
Compatible with SXV300 or later tuner
models. It may take a few minutes after power
on to get the first full report on your city.
Traffic channels are not available in Canada.
*
2
When SXV200 or SXV100 is connected with
this unit.
*
3
Compatible with SXV200 or later tuner models.
*
4
Compatible with SXV300 or later tuner models.
5
Indicator display
Displays the “Mix” (TuneMix™), “Scan”
(TuneScan™),
(Traffic&Weather), or
(SportsFlash™) indicator and the received
signal strength of the SiriusXM tuner.
6
Seek mode
Touch to switch seek mode.
• [SEEK1]: Tunes in a station with good
reception automatically.
• [SEEK2]: Tunes in the memorized stations one
after another.
7
Band key
Switches among bands. (SXM1/SXM2/SXM3/
SXM4)
8
Artwork
Displays the album artwork for most SiriusXM
music channels
SiriusXM®
34

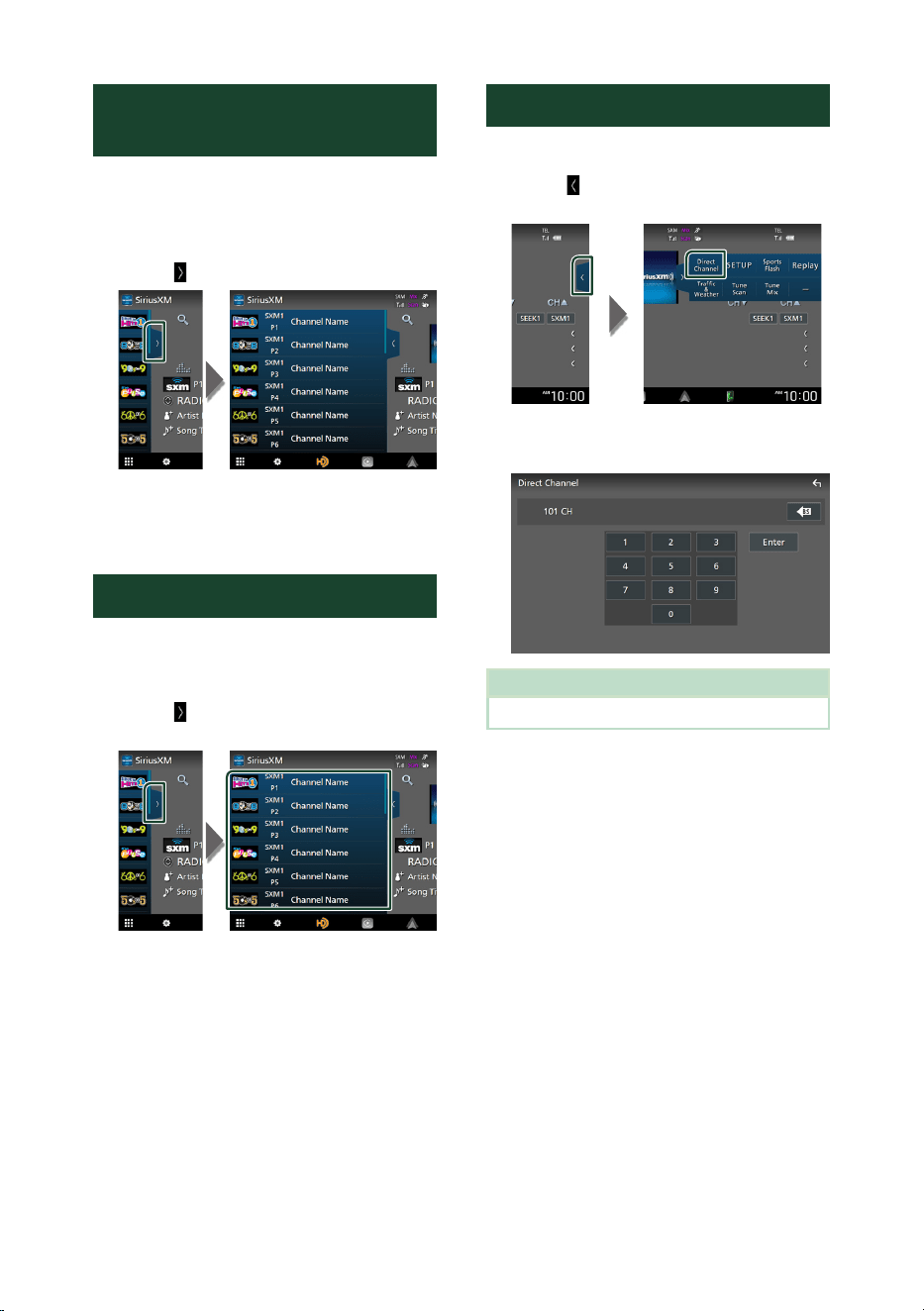

Storing Channels in Preset
Memory
You can store the current channel in memory.
1
Tune in the channel you wish to store in
the memory.
2
Touch [ ] on the left side of the screen.
3
Touch [SXM(1-4) P(1-6)] in which you
want to store the channel for 2 seconds
until a beep sounds.
Preset select
You can list and select memorized channels.
To select from the preset list
1
Touch [ ] on the left side of the screen.
Select a channel from the list.
Direct search
You can tune in a channel directly.
1
Touch [ ] on the right side of the screen.
Touch [Direct Channel].
2
Enter the channel number and touch
[Enter].
NOTE
• To clear the number you entered, touch [BS].
SiriusXM®
35English

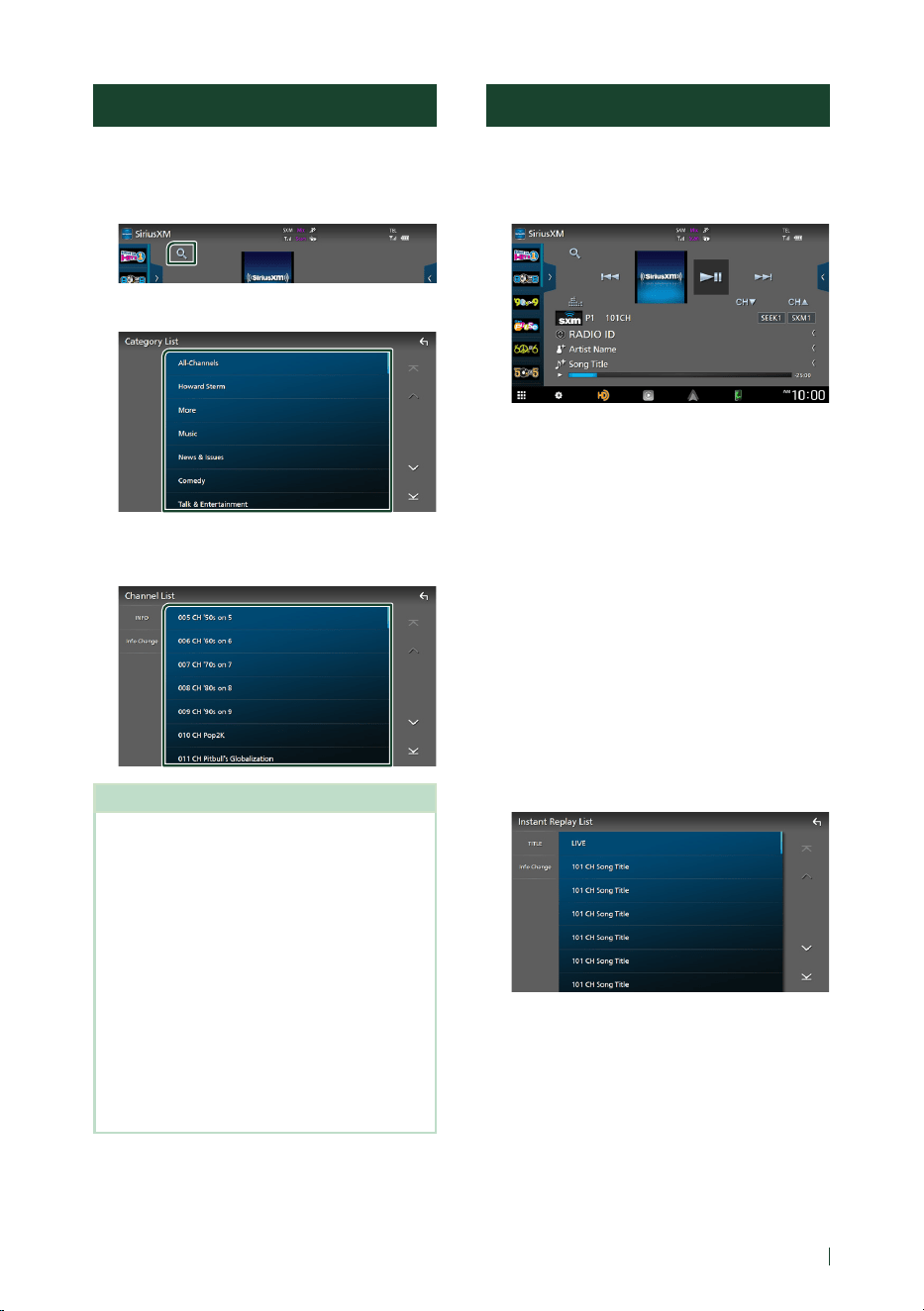

Category/Channel search
You can specify the desired category and
select a channel.
1
Touch [1].
2
Select a category.
hh Channel list appears.
3
Select the desired content from the list.
NOTE
• All channels in the selected category appear.
• Touching [All-Channels] displays all channels.
• Touch [Info Change] in the channel list. Select a
desired item:
content info, channel name, artist name, song
title, category name.
• Categories which have the prefix “Featured - “ are
Featured Favorites.
• Featured Favorites are groups of channels that
are created by the SiriusXM Programming
department allowing you to discover new
channels. Featured Favorite channels are dynamic
and can change often, allowing you to discover
new channels.
– You can set whether to be notified when the
featured seasonal theme is updated. (P.43)
Replay
You can replay the last 60 minutes of the
program from the current channel.
1
Touch [Replay] on the function panel.
■ [E] [F]
Press to skip to the previous/next track.
Press and hold to rewind or fast forward. (It
will be cancelled automatically after about
50 seconds.)
■ [DH]
Plays or pauses.
■ Replay time bar/Play mode indicator
Displays the recorded data capacity and
playback position.
D, B, etc.: Current play mode indicator
■ [1]
Displays a list of recorded data on a program
basis.
2
Touch [1] to display an Instant Replay List
screen.
■ Instant Replay List
Touching this plays back the displayed
program.
[LIVE]: Touch to return to the live music/
content.
■ [Info Change]
Touch [Info Change]. Select a desired item:
content info, channel name, artist name,
song title, category name.
SiriusXM®
36

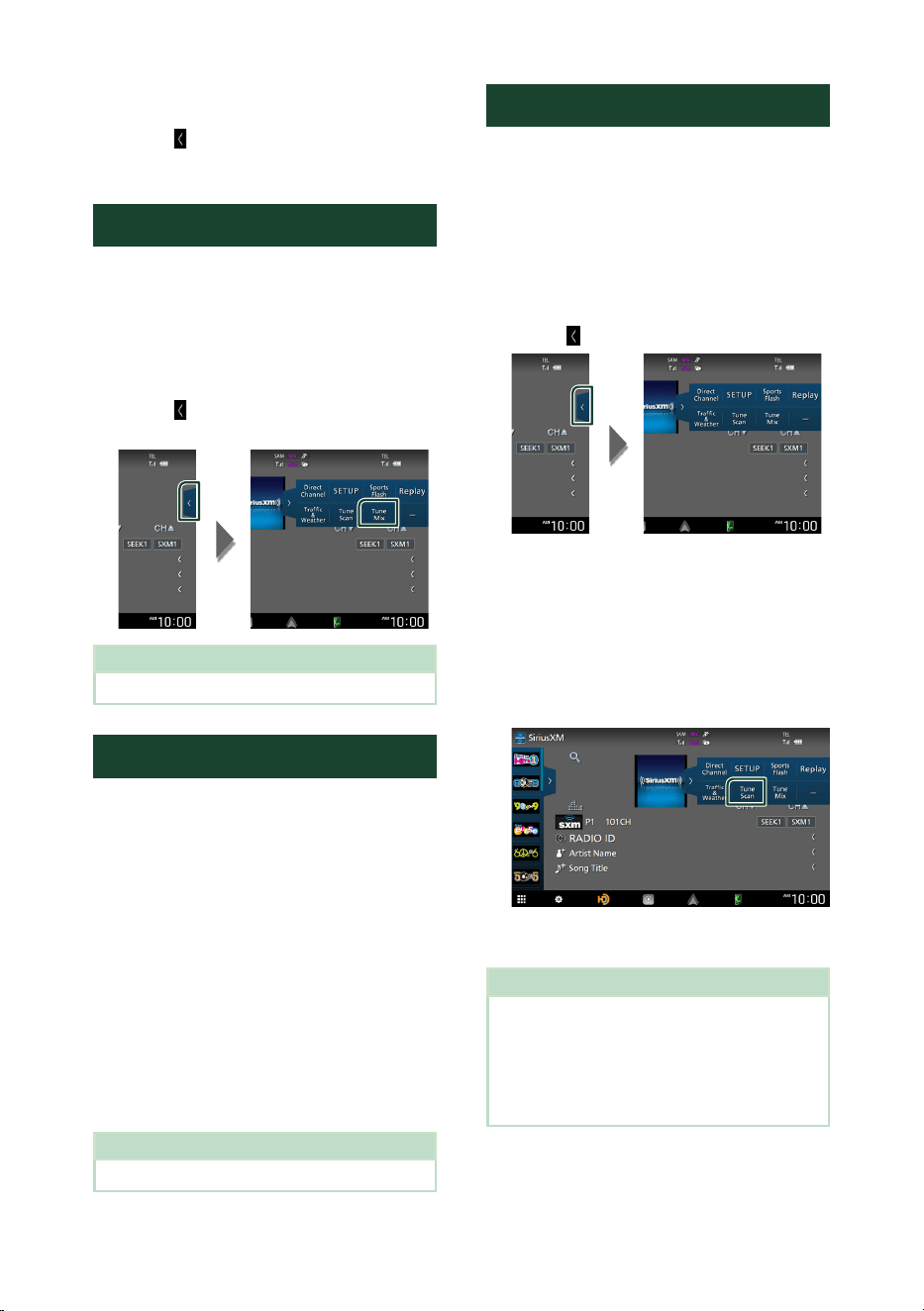

To return to live music/content
1
Touch [ ] on the right side of the screen.
2
Touch [Live].
TuneMix™
TuneMix™ plays a unique blend of songs from
your Preset music channels of the current
SiriusXM Preset Band, allowing you to build a
custom channel from as few as two to as many
as 6 music channels. You can even skip songs
you don’t want to hear.
1
Touch [ ] on the right side of the screen.
Touch [TuneMix] to set ON or OFF.
NOTE
• Compatible with SXV300 or later tuner models.
SmartFavorites, TuneStart™
Preset channels 1 through 6 of the current
band are SmartFavorites channels.
The SiriusXM Vehicle Tuner automatically
buffers the broadcast audio content of the
SmartFavorites channels in the background.
You can rewind and replay up to 30 minutes of
any of the missed news, talk, sports or music
content on SmartFavorites channels. (See
Replay (P.35).)
When tuning in a SmartFavorites channel,
songs will be played from the beginning of
each track (TuneStart™). You can enable/
disable TuneStart. (See TuneStart™ (P.43).)
NOTE
• Compatible with SXV200 or later tuner models.
TuneScan™
TuneScan™ is a feature that plays samples
from the starts of multiple buffered songs
from each of the SmartFavorites channels that
predominantly play music selections.
You have easy access to a large sampling
of music content and can enjoy hearing a
full song by stopping the scan on a song of
interest.
1
Touch [ ] on the right side of the screen.
2
Touch [TuneScan] to begin scanning your
SmartFavorites channels.
You will hear a few seconds of the songs
from each of the SmartFavorite channels.
3
While your favorite song is being played,
touch [TuneScan] again to start listening
to that song.
hh Scan finishes and the song is played
continuously.
NOTE
• To cancel TuneScan™, touch the right side of the
screen. Touch [TuneScan].
• Touch and hold [TuneScan] to cancel TuneScan,
and the music/content which was present on the
channel before starting TuneScan will be played.
• Compatible with SXV200 or later tuner models.
SiriusXM®
37English

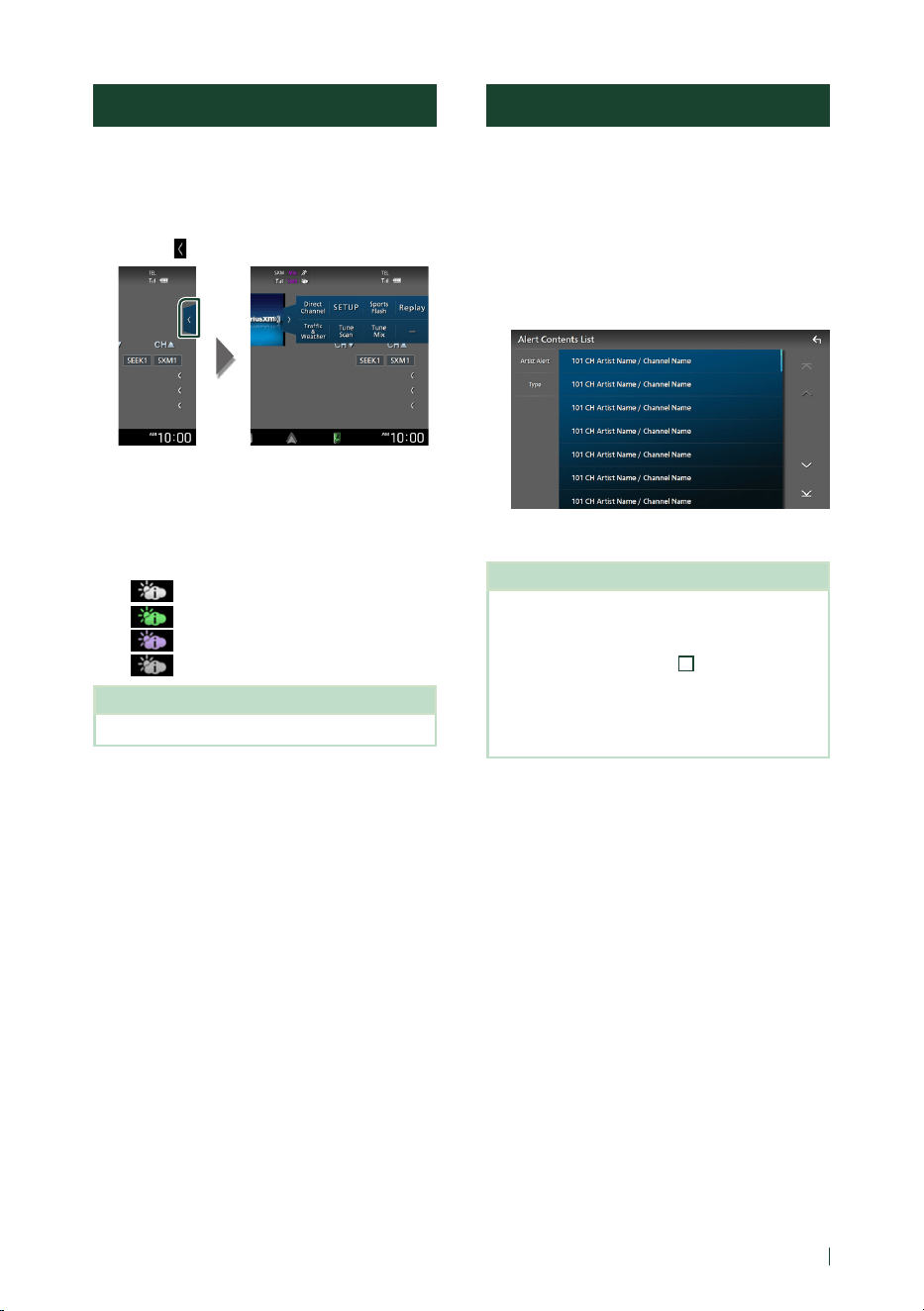

Traffic & Weather Now™
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. First select your city in the set up menu. See
Select a City for Traffic & Weather (P.43).
1
Touch [ ] on the right side of the screen.
2
Touch [Traffic & Weather].
The report starts from the beginning. To stop
and return to the previous channel, touch it
again.
Indicator display
•
(White) : Played already.
•
(Green) : New information arrived.
•
(Purple) : Playing.
•
(Gray) : No information.
NOTE
• Compatible with SXV300 or later tuner models.
Content Alerts
When a broadcast program related to the
registered artist, song or team starts, an Alert
Content List screen appears to allow you to
switch the current channel to the relevant
channel.
1
When the broadcast of the registered
content starts, an Alert Content List
screen appears.
2
Select a content from the list.
NOTE
• Touch [Type]. Select a desired item.
Artist Alert, Song Alert, GameAlert™
• To learn how to register artists and songs for the
Content Alert function, see
3
Information display
in SiriusXM® Basic Operation (P.32).
• To learn how to set up the Content Alerts
function and select Teams for alerts, see Content
Alerts setup (P.40).
SiriusXM®
38

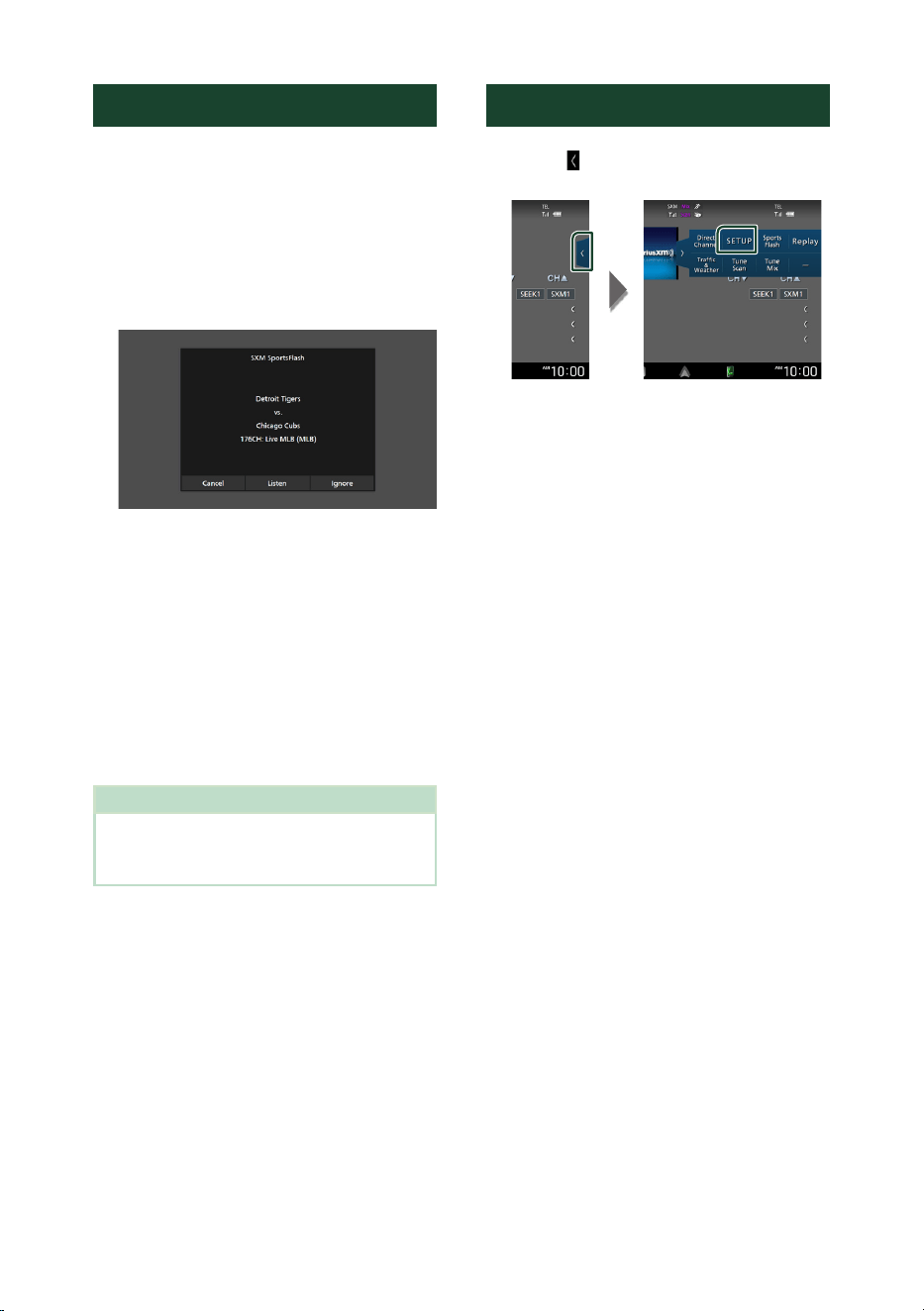

SportsFlash™
SportsFlash™ will notify you when a big play
happens during a game with one of your
favorite sports teams. Choose to tune in and
hear the play unfold like it was live. Continue
listening to the game or return to your
previous channel.
1
When a big play happens during one of
the games, an Alert screen appears.
■ [Listen]
Touch to tune in that channel and play back
the big play.
■ [Ignore]
Touch to cancel this specific SportsFlash
alert. Touching [Ignore] will ignore this
specific alert but will allow future alerts for
this game.
■ [Cancel]
Touch to cancel SportsFlash alert. No alerts
for this game will be displayed afterward.
NOTE
• Compatible with SXV300 or later tuner models.
• To learn how to set up the SportsFlash alert
function, see SportsFlash™ setup (P.42).
SiriusXM SETUP
1
Touch [ ] on the right side of the screen.
Touch [SETUP].
hh SiriusXM SETUP screen appears.
See the following sections for each
setting.
• Set up the parental code (P.39)
• Set up the Parental Control (P.39)
• Set up the skip channel select (P.40)
• Set up the Content Alerts (P.40)
• Set up the teams for SportsFlash™
(P.42)
• Select the city for Traffic & Weather Jump
or Traffic & Weather Now™ (P.43)
• Select the Featured Bands Update
Messages (P.43)
• Set up the TuneStart™ (P.43)
• Reset to the default settings (P.43)
SiriusXM®
39English

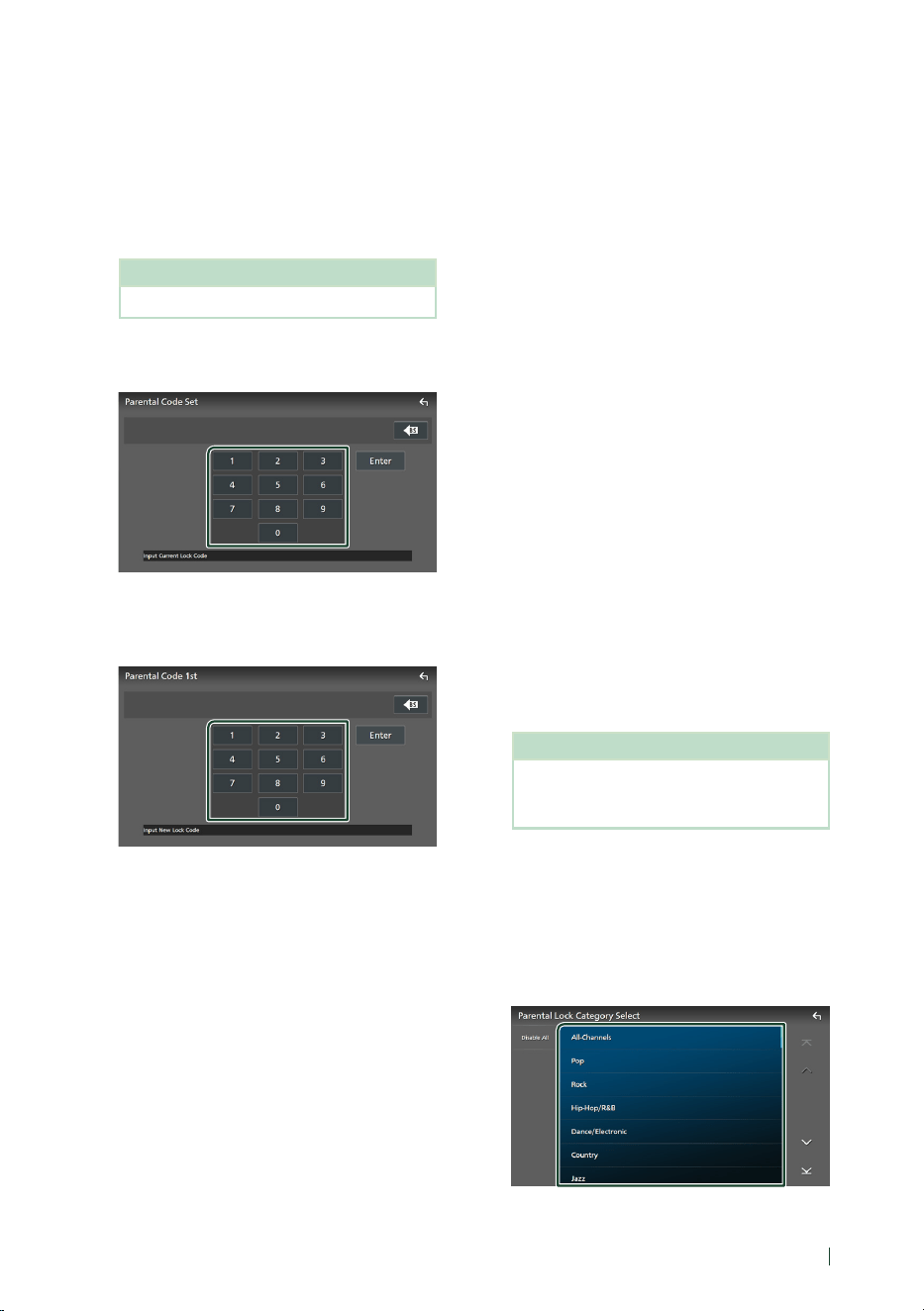

Ñ Parental code
You can set a SiriusXM parental code for
Parental Control.
1
Touch [Parental Code] on the SiriusXM
SETUP screen.
hh Parental Pass Check screen appears.
NOTE
• The code number is set to “0000” as default.
2
Enter the current code number and touch
[Enter].
hh Parental Pass 1st screen appears.
3
Enter the new code number and touch
[Enter].
hh Parental Pass 2nd screen appears.
4
Enter the same code number as that you
entered in step 3 and touch [Enter].
hh The code number is confirmed and the
SiriusXM parental code is now set.
Ñ Parental Control
Parental Control is a feature that provides the
user with the ability to prevent unauthorized
access to mature content and user selected
channels.
1
Touch [Parental Control] on the SiriusXM
SETUP screen.
2
Touch [User], [Mature] or [OFF].
■ [User]
Locks only the selected channels.
■ [Mature]
Locks channels classified as “mature” only.
■ [OFF]
Deactivates the parental mature and user
locks.
3
Enter the parental code you originally
input in as stated in Parental code
(P.39) and touch [Enter].
When selecting [User]
This allows you to limit access to any SiriusXM
channel (Parental Lock Channel).
1
Touch [Parental Lock Channel Selection]
on the SiriusXM SETUP screen.
hh Parental Pass Check screen appears.
NOTE
• You need to set up a parental code
beforehand as stated in Parental code
(P.39).
2
Enter the parental code you originally
input as stated in Parental code (P.39)
and touch [Enter].
hh Parental Lock Category Select screen
appears.
3
Touch the desired category in the list.
hh Displays all channels in the selected
category.
SiriusXM®

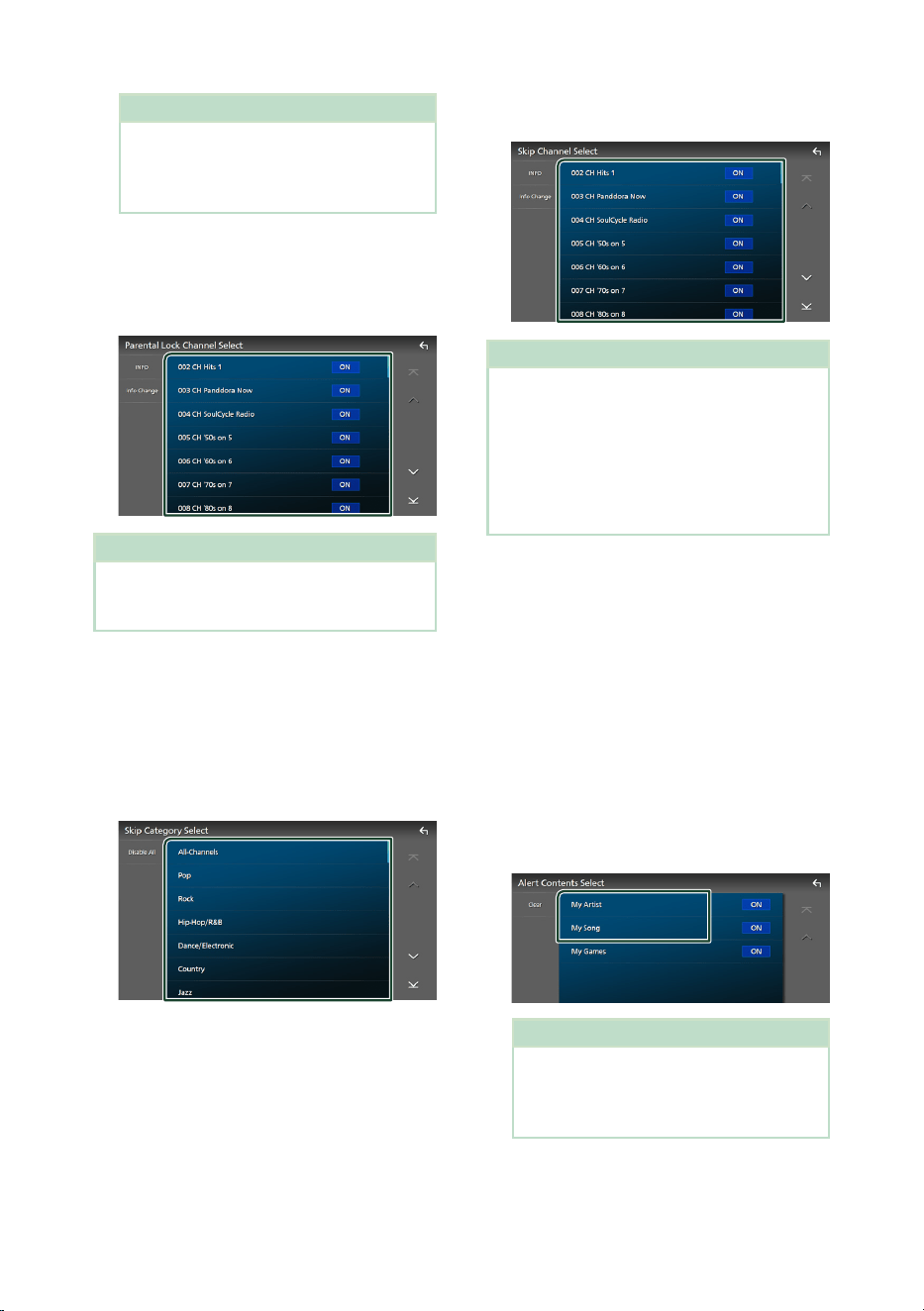

40
NOTE
• Touch [All-Channels] to display all channels.
• To delete the parental lock channel setting,
touch [Disable All] and then touch [YES] on
the confirmation screen.
4
Touch each channel on the list and set to
ON or OFF.
[ON]: Locks the channel.
[OFF]: Unlocks the channel.
NOTE
• Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
Ñ Skip channel select
You can set the undesired channels to skip.
1
Touch [Skip Channel Select].
hh Skip Category Select screen appears.
2
Touch the desired category from the list.
hh Displays all channels in the selected
category.
3
Touch each channel in the list and set to
ON or OFF.
NOTE
• To delete the skip channel setting, touch
[Disable All] and then touch [YES] on the
confirmation screen.
• Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
• Direct Channel and Preset Memory functions
allow you to select channels.
Ñ Content Alerts setup
Activating content alert
1
Touch [Content Alerts] on the SiriusXM
SETUP screen.
hh Content Alerts is turned on or off.
Default is “ON”.
Selecting the content for Content Alerts
1
Touch [Content Alerts Contents Set] on
the SiriusXM SETUP screen.
2
Select the content you want to set up.
NOTE
• To cancel all alert contents, touch [Clear] and
then touch [YES] on the confirmation screen.
• Select [OFF] for the content you want to
deactivate the content alert for.
SiriusXM®
41English

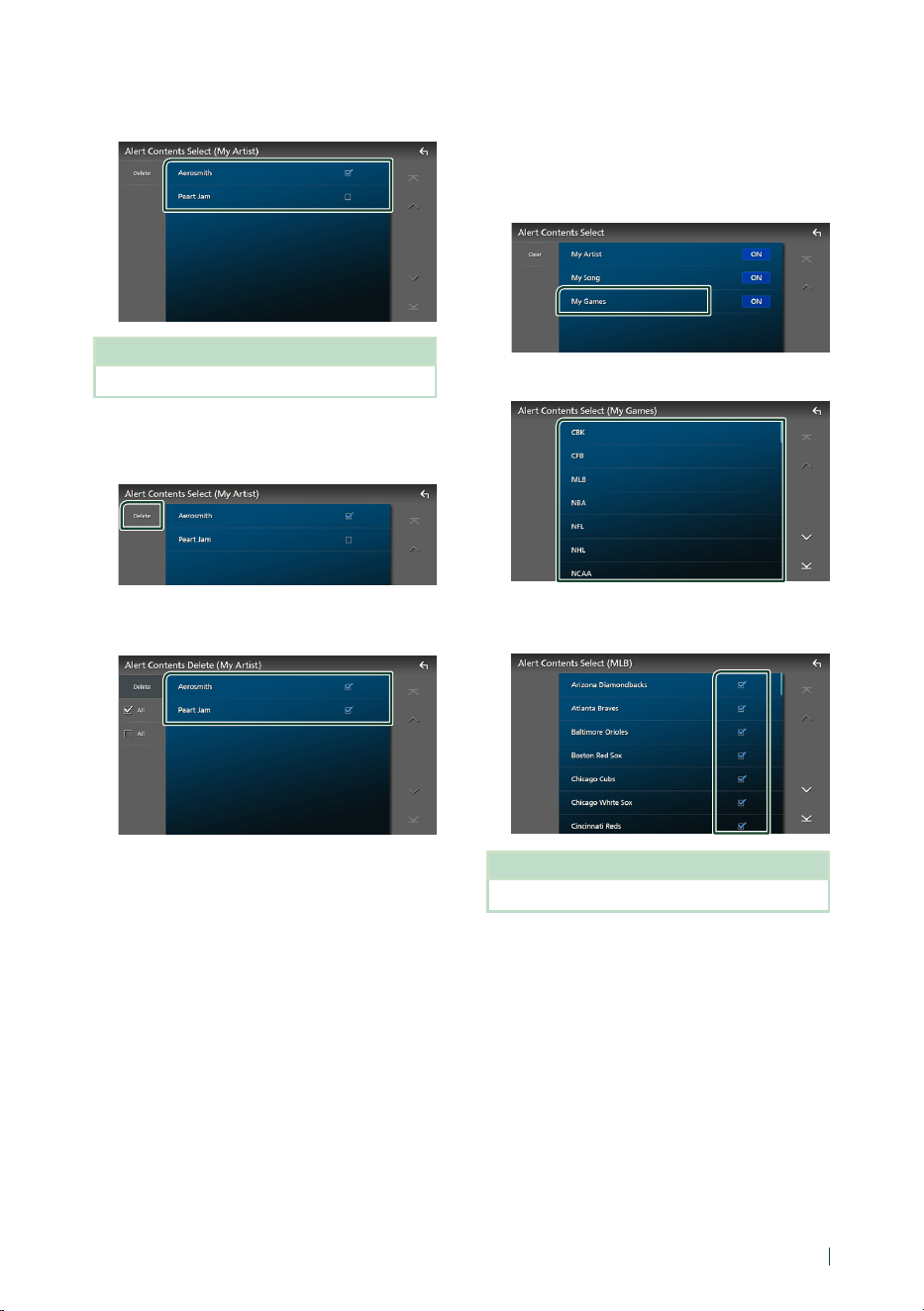

3
Touch each content list item you want to
check or uncheck.
NOTE
• You can select (þ) up to 60 artists or songs.
● To delete the Artist and Song
1
Touch [Delete].
2
Touch the content(s) in the list you want
to select.
■ [þ All]
Selects all contents.
■ [¨ All]
Clears all check marks.
3
Touch [Delete] and then touch [YES] on the
confirmation screen.
To select a Team
Get alerted when your favorite sports team
is playing on another SiriusXM channel with
GameAlert™
1
Touch [My Games].
2
Touch the desired league in the list.
3
Touch the team(s) in the list you want to
select.
NOTE
• You can select (þ) up to 30 teams.
SiriusXM®
42
Ñ SportsFlash™ setup
Activating SportsFlash
1
Touch [SportsFlash] on the SiriusXM
SETUP screen.
hh SportsFlash is turned on or off.
Default is “ON”.
Selecting SportsFlash Beep
1
Touch [SportsFlash Beep] on the SiriusXM
SETUP screen.
hh SportsFlash Beep is turned on or off.
Default is “ON”.

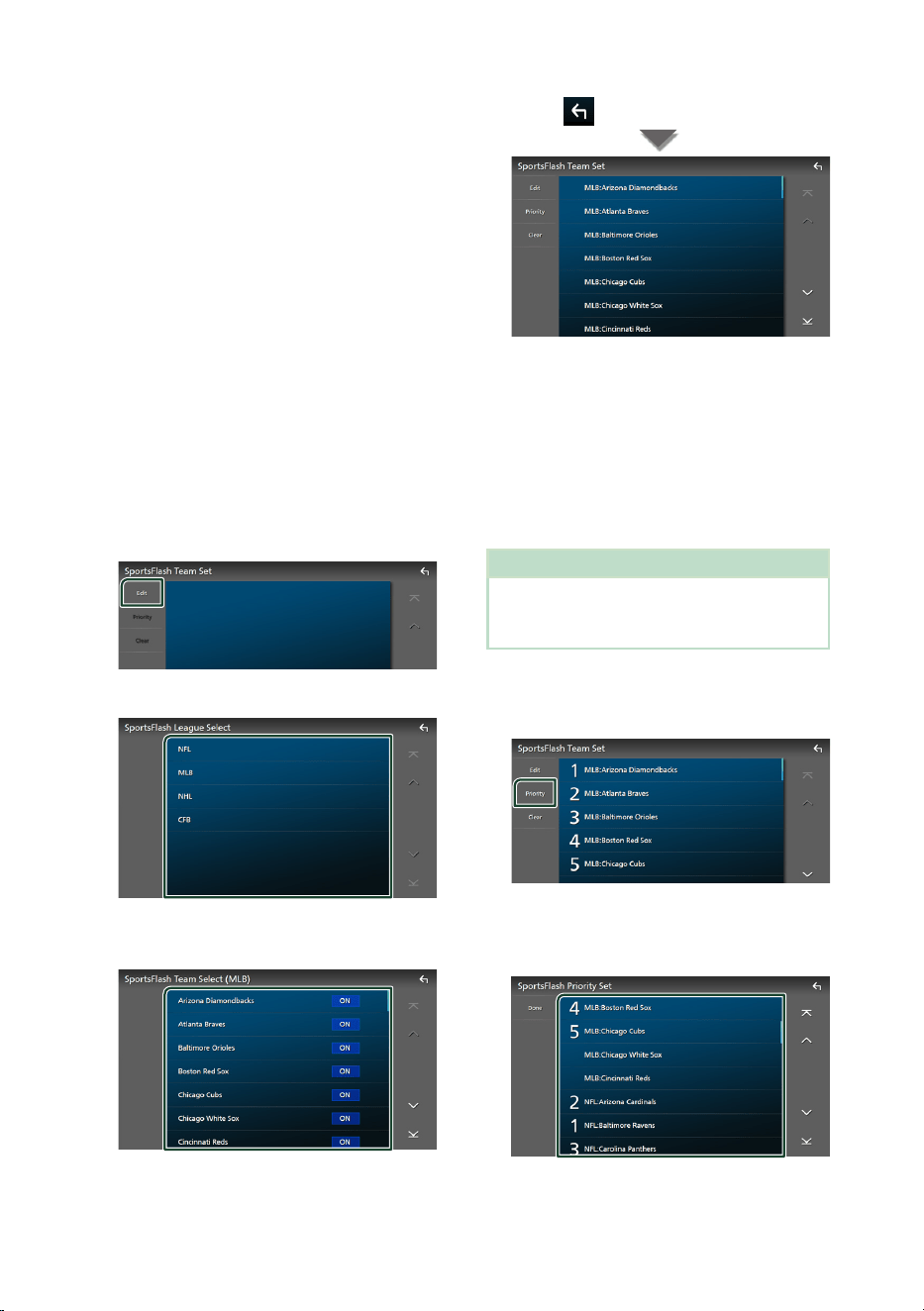

Selecting the teams for SportsFlash
1
Touch [SportsFlash Team Set] on the
SiriusXM SETUP screen.
hh Team Set screen appears.
2
Touch [Edit].
3
Touch the desired league in the list.
4
Touch each team(s) in the list you want
to select.
5
Touch [ ] twice.
■ [Edit]
Sets and removes teams.
■ [Priority]
Sets the priority of a team.
■ [Clear]
Removes all teams that have been set.
Touch [Clear]. When the confirmation screen
appears, touch [YES].
NOTE
• SportsFlash™ is available on SXV300 or later tuner
models.
• Up to 50 teams can be added.
Set the SportsFlash™ Team Priority
1
Touch [Priority].
2
Set the priority of a team.
Each time you touch a Team, the priority is
set of reset.
SiriusXM®
43English

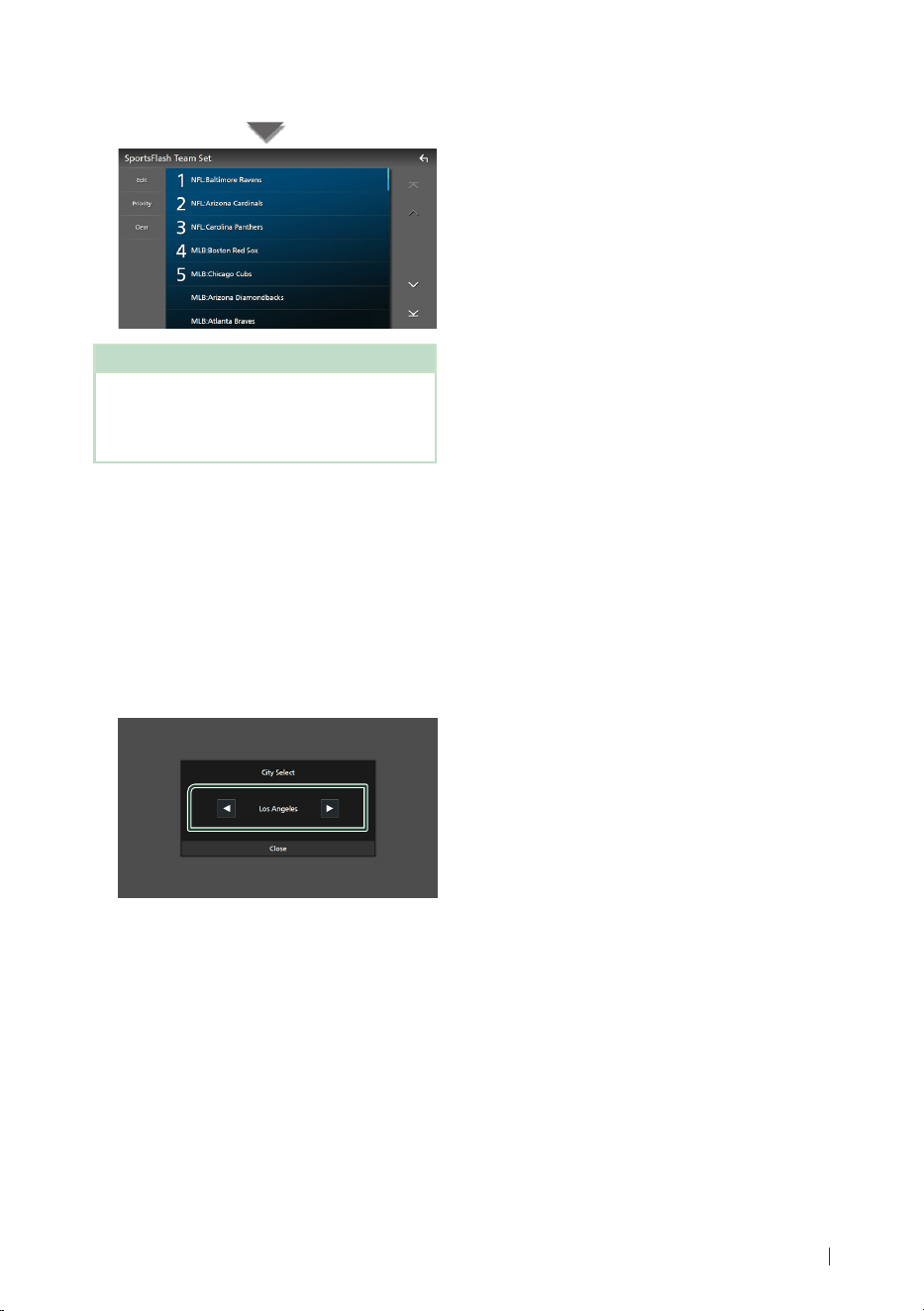

3
Touch [Done].
NOTE
• Priority can be set on up to 5 teams.
• When priority has already been set for 5 teams,
it cannot be set for any other team. Delete an
unnecessary team.
Ñ Select a City for Traffic &
Weather
You can select a city for which you wish to
receive SiriusXM Traffic & Weather broadcasts
and hear them from the beginning.
1
Touch [Traffic & Weather City Select] on
the SiriusXM SETUP screen.
2
Touch [T] and [U] to select a city.
3
Touch [Close].
Ñ Selecting Featured Bands
Update Messages
You can set whether to be notified when the
featured seasonal theme is updated.
1
Touch [Featured Bands Update
Messages] on the SiriusXM SETUP screen.
Featured Bands Update Messages is turned
on or off.
Ñ TuneStart™
1
Touch [Tune Start] on the SiriusXM SETUP
screen.
The TuneStart is turned on or off.
Default is “ON”.
Ñ Reset
1
Touch [SiriusXM Reset] on the SiriusXM
SETUP screen.
hh Confirmation screen appears.
2
Touch [YES].
hh All SiriusXM settings are reset to defaults.
Bluetooth Control
44
Bluetooth Control
Using the Bluetooth function allows you to use
various functions such as listening to the audio
file and making/receiving a call.
Information for using
Bluetooth® devices
Bluetooth is a short-range wireless radio
communication technology for mobile devices
such as smartphones/cell-phones, portable
PCs, and other devices.
Bluetooth devices can be connected without
cables and communication with each other.
NOTE
• While driving, do not perform complicated
operations such as dialing numbers, using
the phonebook, etc. When you perform these
operations, stop your car in a safe place.
• Some Bluetooth devices may not be connected
to this unit depending on the Bluetooth version
of the device.
• This unit may not work for some Bluetooth
devices.
• Connecting conditions may vary depending on
your environment.
• Some Bluetooth devices are disconnected when
this unit is turned off.
• The Bluetooth devices cannot be used while
using Apple CarPlay.
• The Bluetooth currently connected with
other device is disconnected when an iPhone
compatible with Apple CarPlay is connected.
Ñ About the smartphone/cell-
phone and Bluetooth audio
player
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver. 5.0
Profiles
Smartphone/cell-phone:
HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control
Profile)
Sound codec
LDAC (DMX1057XR), SBC, AAC
NOTE
• The units supporting the Bluetooth function have
been certified for conformity with the Bluetooth
Standard according to the procedure prescribed
by Bluetooth SIG.
• However, it may be impossible for such units to
communicate with your smartphone/cell-phone
depending on its type.
Bluetooth Control
45English

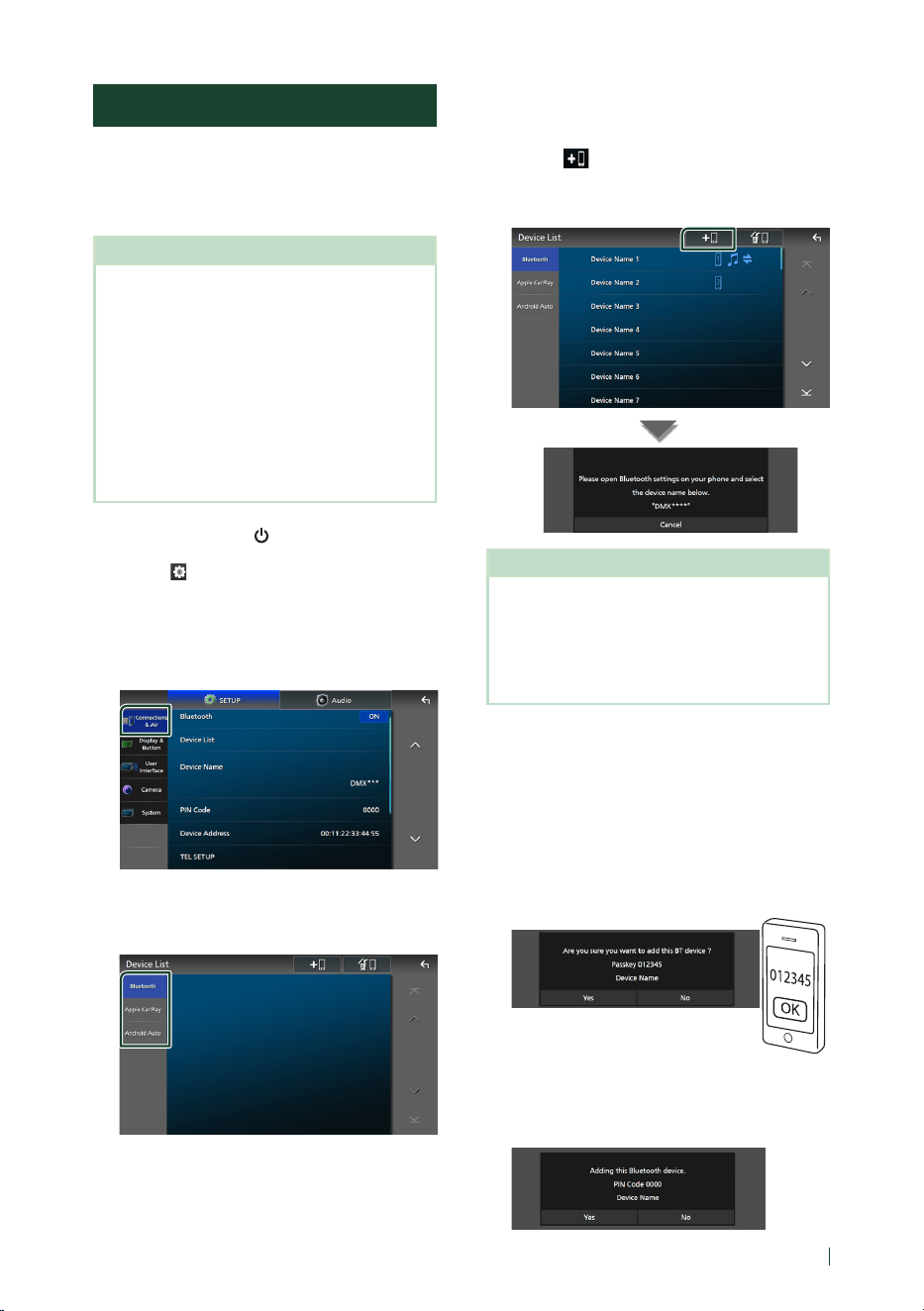

Register the Bluetooth device
It is necessary to register the Bluetooth audio
player or smartphone/cell-phone in this unit
before using the Bluetooth function.
You can register up to 10 Bluetooth devices.
NOTE
• Up to 10 Bluetooth devices can be registered. If
an attempt is made to register the 11th Bluetooth
device, the Bluetooth device connected on the
earliest date will be deleted to register the 11th
one.
• This unit is compatible with the Apple Easy
Pairing function. When an iPod touch or
iPhone connected via USB terminal previously
is connected again, an authentication dialog
appears. Performing operation for authentication
on this unit, or iPod touch or iPhone registers the
smartphone as a Bluetooth device.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Connections & AV].
5
Touch [Device List].
6
Select a device type.
■ [Bluetooth]
To connect as Bluetooth Hands-Free and
Bluetooth audio source.
■ [Apple CarPlay]
To connect as Apple CarPlay source.
■ [Android Auto]
To connect as Android Auto source.
7
Touch [ ].
hh Bluetooth pairing waiting dialog
appears.
NOTE
• If an Apple CarPlay device is currently connected,
the Apple CarPlay device will be disconnected.
• When neither Apple CarPlay, Android Auto, nor
a Bluetooth Hands-Free phone is connected,
pressing and holding the [VOICE] button displays
Bluetooth pairing waiting dialog.
8
Search for the unit (”DMX****”) from your
smartphone/cell-phone.
Complete steps 8 to 10 within 30 seconds.
9
Operate your smartphone/cell-phone
according to the displayed messages.
● Confirm the request both on the
smartphone/cell-phone.
● Input the PIN Code in your
smartphone/cell-phone.
PIN Code is set to “0000” as the default.
Bluetooth Control
46
10
Touch [Ye s ].
When data transmission and connection
have completed, the Bluetooth connection
icon appears on the screen.
NOTE
• When registering the iPhone that is available for
Apple CarPlay wirelessly, a confirmation message
appears.
– [Ye s ]: Displays the Apple CarPlay screen for
wireless connection.
– [No]: Apple CarPlay is not connected. When
using Apple CarPlay, see Select an Apple
CarPlay device (P.17).

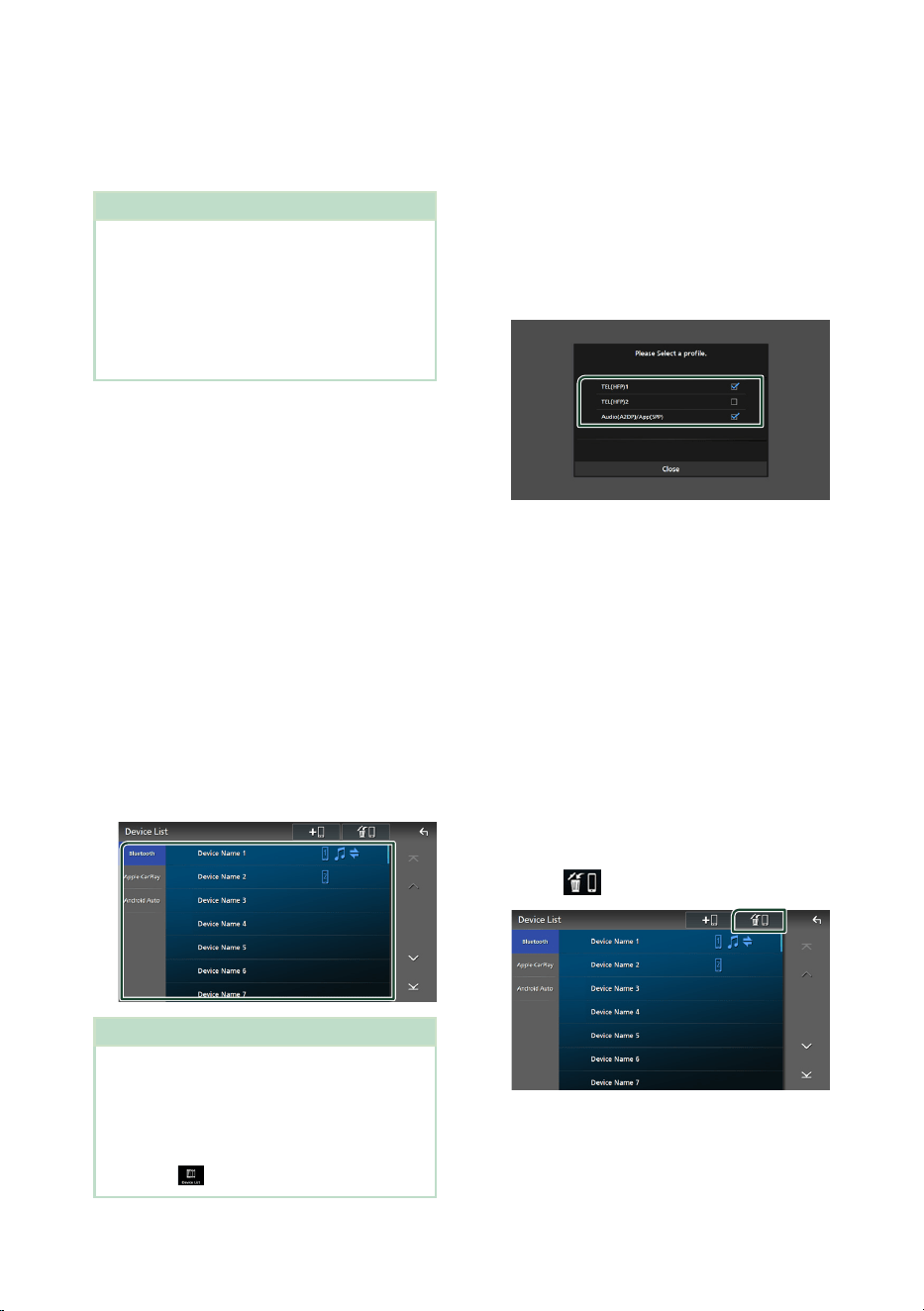

Ñ Switch the connected device
If two or more Bluetooth devices have been
registered, select the device to be used.
1
Touch [Device List] in the Connections &
AV setting menu.
2
Select the device type.
■ [Bluetooth]
To connect as Bluetooth Hands-Free and
Bluetooth audio source.
■ [Apple CarPlay]
To connect as Apple CarPlay source.
■ [Android Auto]
To connect as Android Auto source.
3
Touch the name of the device you want
to connect.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
• If you touch the device name with the icon
on the list of Apple CarPlay devices, it will be
disconnected.
• You can quickly display the Device List screen by
touching [
] in the popup menu. (P.9)
To switch the connected device to a
Bluetooth device
1
Touch [Bluetooth] on the Device List
screen.
hh Bluetooth device list appears.
2
Touch the name of the Bluetooth device
you want to connect.
3
Set each profile as follows.
■ [TEL (HFP) 1], [TEL (HFP) 2]
Select when the device is connected with
the unit as Hands-Free phone 1 or 2.
■ [Audio (A2DP)/App (SPP)]
Select to use as an audio player or to
interwork with an application installed in a
smartphone.
4
Touch [Close].
To delete the registered device
You can delete the device that is registered as
Bluetooth source or Apple CarPlay source.
When you delete a Bluetooth device which
supports Android Auto, the device is also
deleted from the Android Auto device list.
1
Touch [ ] on the Device List screen.
Bluetooth Control
47English

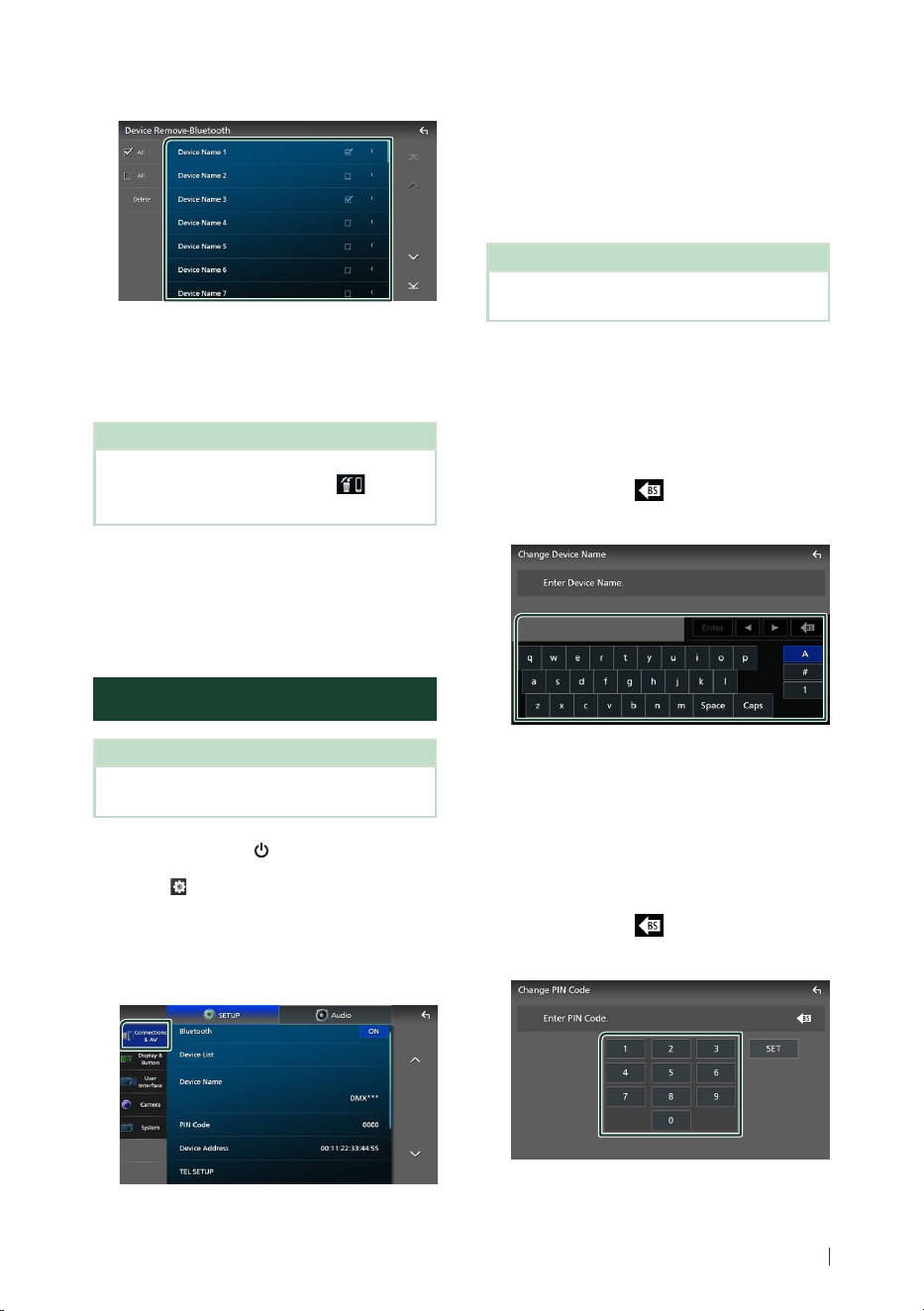

2
Touch the device name to check.
■ [þ All]
Selects all Bluetooth devices.
■ [¨ All]
Clears all check marks.
NOTE
• You cannot select a device currently connected.
• When you select Android Auto tab, [
] is not
displayed.
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s ].
hh All the selected device(s) is deleted.
Bluetooth Setup
NOTE
• The Bluetooth Setup is disabled while using
Apple CarPlay.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Connections & AV].
hh Connections & AV setting menu appears.
5
Touch [Bluetooth] and set to [ON].
See the following section for each setting.
• Change the PIN Code (P.47)
• Change the device name (P.47)
• Change the settings for Hands-Free
function, see Hands-Free Setup (P.55).
NOTE
• For the other setting items on this screen, see
Connections & AV Setup (P.61).
Ñ Change the device name
1
Touch [Device Name] in the Connections
& AV setting menu.
hh Change Device Name screen appears.
2
Touch and hold [ ].
3
Input the device name.
4
Touch [Enter].
Ñ Change the PIN Code
1
Touch [PIN Code] in the Connections & AV
setting menu.
hh Change PIN Code screen appears.
2
Touch and hold [ ].
3
Input the PIN Code.
4
Touch [SET].
Bluetooth Control
48

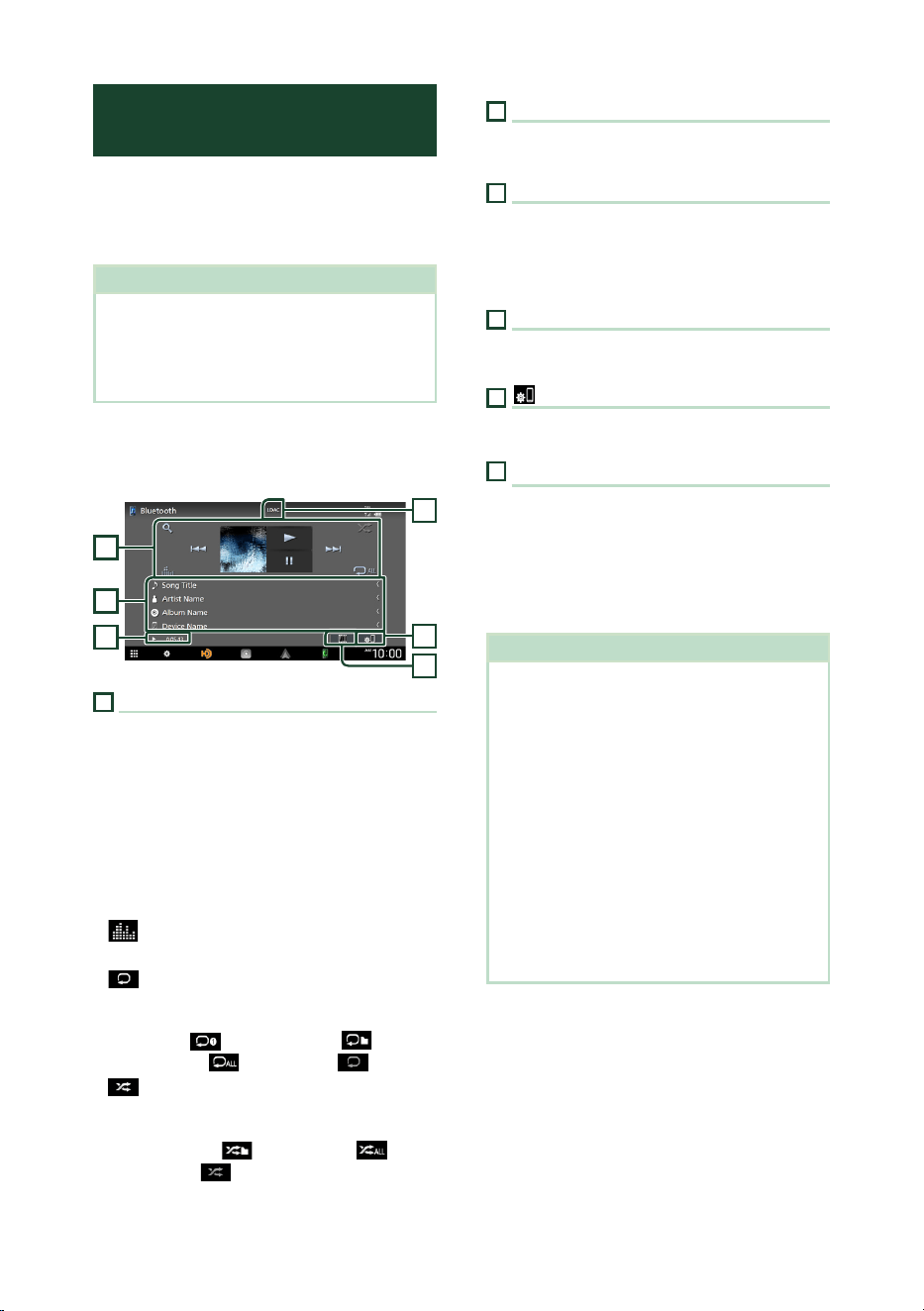

Playing the Bluetooth Audio
Device
Most function can be controlled from the
source control screen.
To select Bluetooth source, touch [Bluetooth]
icon on the source selection screen. (P.10)
NOTE
• The Bluetooth audio source is disabled while
using Apple CarPlay.
• The Bluetooth audio source is disabled when
the device set as Audio(A2DP)/App(SPP) is using
Android Auto.
Ñ Bluetooth basic operation
Control screen
2
3
5
1
6
4
1
Operation keys *
• [1]: Searches for a file. See File search
(P.49).
• [E] [F]: Searches for the previous/next
content.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [D]: Plays.
• [H]: Pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.69)
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat modes are
switched in the following sequence:
File repeat ( ), Folder repeat ( ), All
songs repeat ( ), Repeat off ( )
• [
] : Randomly plays all tracks in the current
folder. Each time you touch the key, random
modes are switched in the following sequence:
Folder random ( ), All random ( ),
Random off ( )
2
Information display *
• Displays the name of track information.
• Connected device name.
3
Play mode indicator/Playing time
D, H: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast backward),
H (pause), I (stop).
4
CODEC (DMX1057XR)
When an LDAC-compatible device is connected,
“LDAC” is displayed.
5
[ ]
Displays the Connections & AV setting menu.
(P.47)
6
KENWOOD Music Mix
Bluetooth audio devices can be switched easily
to play music. See KENWOOD Music Mix
(P.49).
* These items appear only when the audio player
which supports AVRCP profile is connected.
NOTE
• The operation keys, indications and information
displayed on the screen differ depending on the
connected device.
• If the operation keys do not appear, operate from
the player.
• Depending on your smartphone/cell-phone or
audio player, sound may be heard and controlled
but text information may not appear.
• If the volume is too low, raise it on your
smartphone/cell-phone or audio player.
• It is recommended that you change the playback
quality from "priority on sound quality" to
"priority on stable connection" in the settings
of your LDAC-compatible device so that the
intermittent sound problem is less likely to occur.
(DMX1057XR)
Bluetooth Control
49English

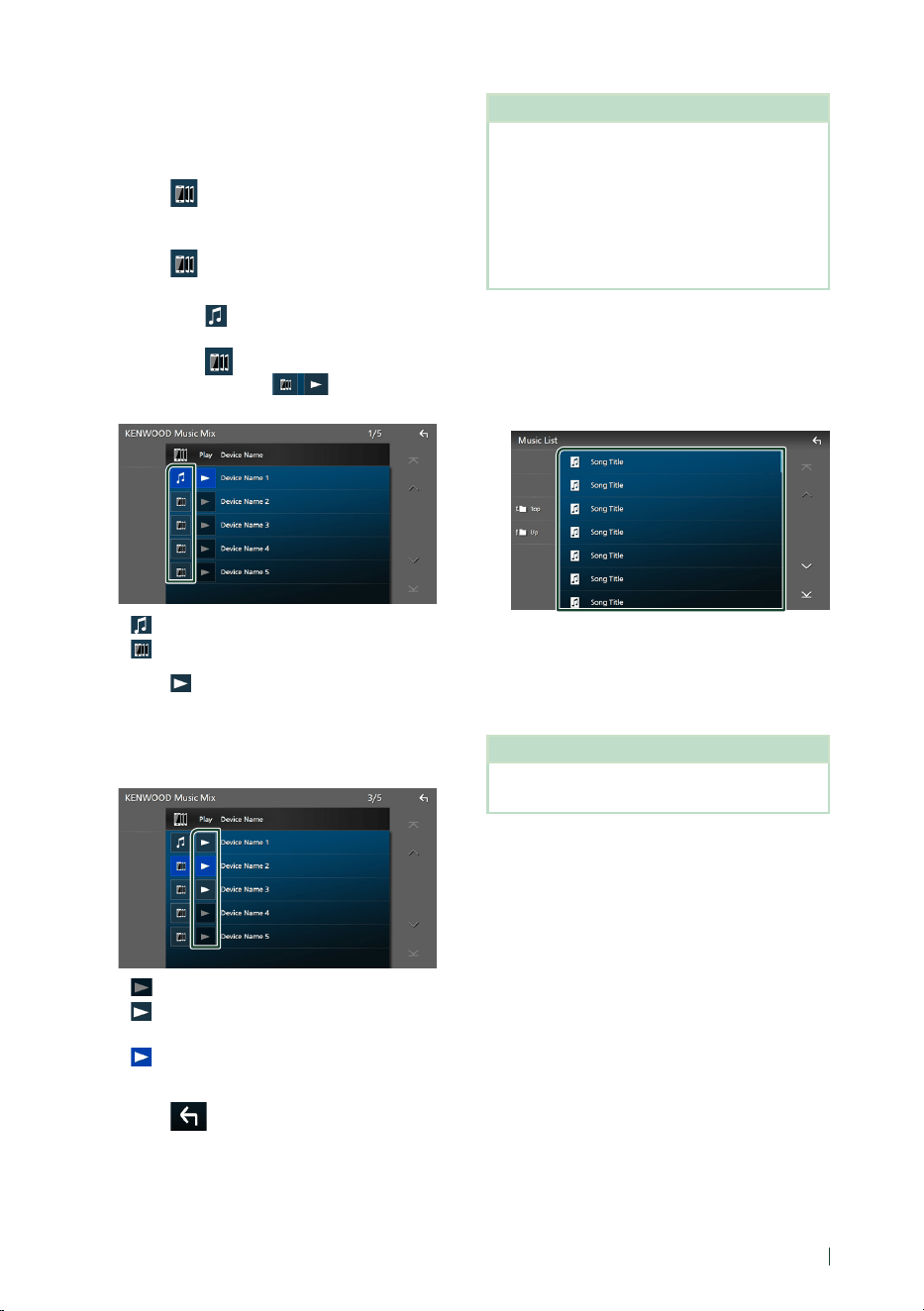

Ñ KENWOOD Music Mix
Up to 5 Bluetooth audio device can be
connected and switched easily to play music.
1
Touch [ ].
hh A list of registered devices is displayed.
2
Touch [ ] of device name you want to
connect.
• Touching [
] displays the Device List
screen. (P.46)
• Touching [
] on the left of the
connected device ([ ]) disconnects
this device.
• : Device used normally.
•
: Device used for KENWOOD Music Mix
3
Touch [ ] (White/dark blue background)
on the left of the name of the device to
be played.
The background changes from dark to light
blue and starts playback.
• (Gray) : Not connected.
•
(White/dark blue background) :
Connected.
•
(White/light blue background) : During
playback.
4
Touch [ ].
NOTE
• If a connected Bluetooth audio device is operated
to play music, connections are switched.
• When a Bluetooth source is switched to another
one, its settings are deleted and the connection
is restored to the connection before source
switching.
• You cannot select an Android smartphone
connected as an Android Auto device.
Ñ File search
1
Touch [1].
2
Touch the desired file or folder.
When you touch a folder its contents are
displayed.
3
Touch the desired item in the content list.
hh Playback starts.
NOTE
• For operations in the list screen, see List screen
(P.12).
Bluetooth Control
50

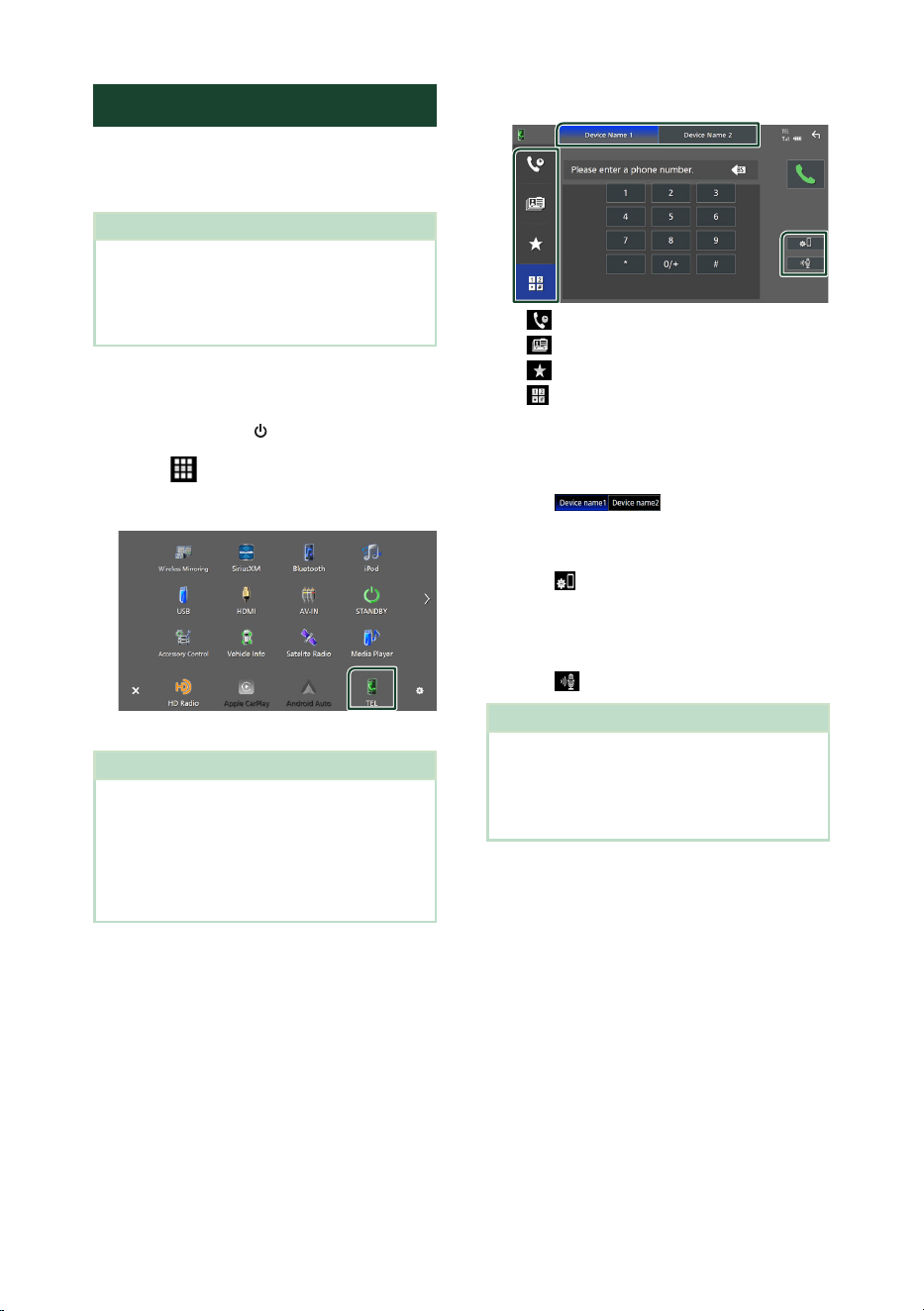

Using the Hands-Free Unit
You can use the telephone function by
connecting the Bluetooth telephone to this
unit.
NOTE
• While Apple CarPlay or Android Auto is
connected, the Bluetooth Hands-Free function
and two Bluetooth devices connections cannot
be used. Only the Apple CarPlay or Android Auto
Hands-Free function can be used.
Ñ Make a call
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [TEL].
hh Hands-Free screen appears.
NOTE
• If your smartphone/cell-phone supports PBAP,
you can display the phonebook and call lists onto
the touch panel screen when the smartphone/
cell-phone is connected.
– Phonebook: up to 1000 entries
– Up to 50 entries including dialed calls, received
calls, and missed calls
4
Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
● Select the smartphone/cell-phone to use
When you connect two smartphones/cell-
phones
1) Touch [
] to select the phone
you want to use.
● Bluetooth Setup
1) Touch [
].
Connections & AV setting menu appears.
(P.47)
● Voice Recognition
1) Touch [
]. (P.52)
NOTE
• Status icons such as battery and antenna
icons may differ from those displayed on the
smartphone/cell-phone.
• Setting the smartphone/cell-phone in the private
mode can disable the Hands-Free function.
Bluetooth Control
51English

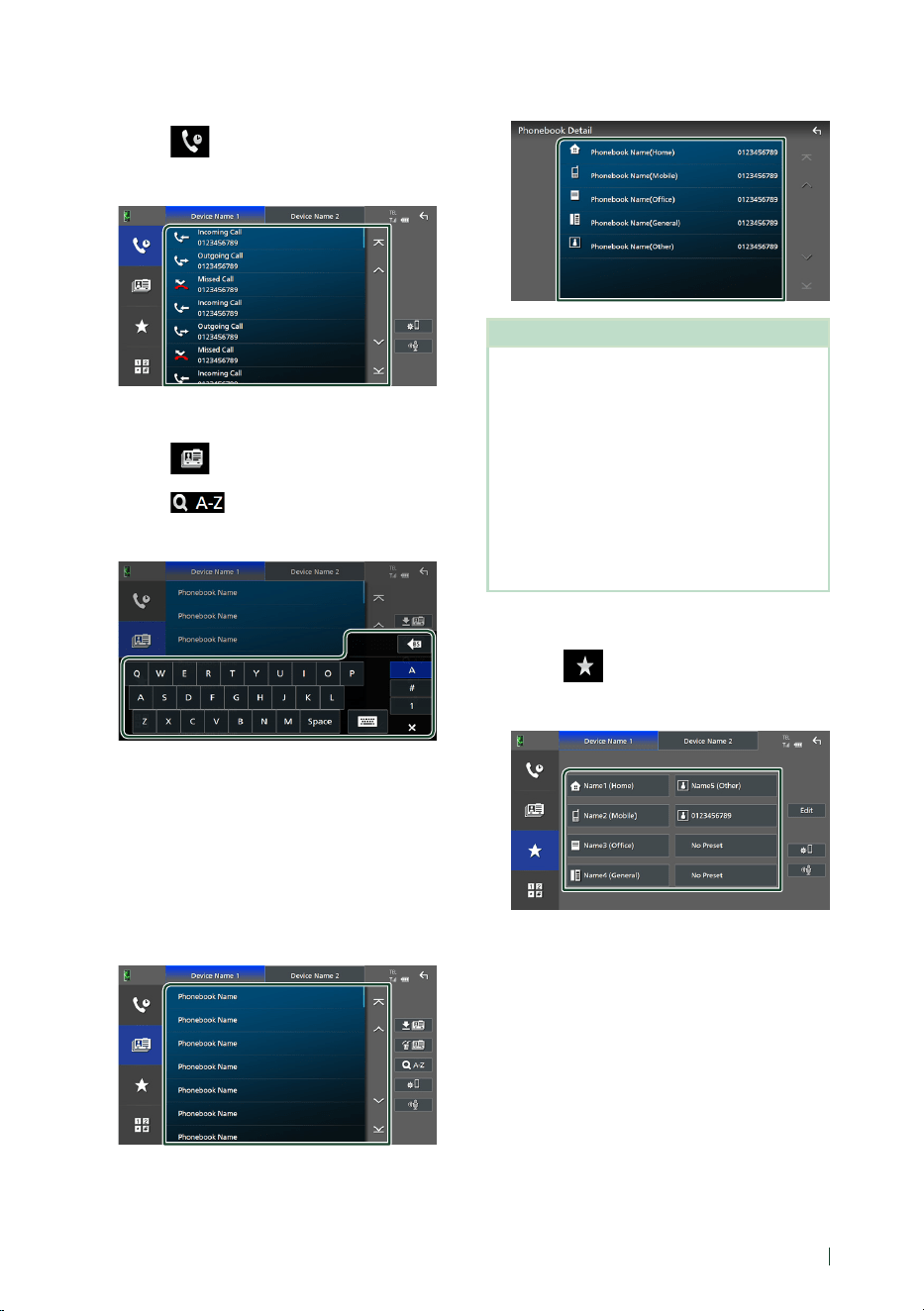

Call using call records
1
Touch [ ].
2
Select the phone number from the list.
Call using the phonebook
1
Touch [ ].
2
Touch [ ].
3
Select the initial.
• Characters with no corresponding name
will not appear.
• A first character with an accent character
such as “ü” can be searched for with a
non-accent character “u” . A character
with an accent character in a sentence
cannot be searched for.
4
Select the person you want to call from
the list.
5
Select the phone number from the list.
NOTE
• You can sort the phone numbers in the list by last
name or first name. For details, see Hands-Free
Setup (P.55).
• When Russian is selected in “Language Select”
(P.65), you can switch between English
keyboard and Russian keyboard.
• When Hebrew is selected in “Language Select”
(P.65), you can switch between English
keyboard and Hebrew keyboard.
• You can search with 3 initial letters on the English
keyboard and 1 initial letter on the Russian /
Hebrew keyboard.
Call using the preset number
1
Touch [ ].
2
Touch the name or phone number.
Bluetooth Control
52

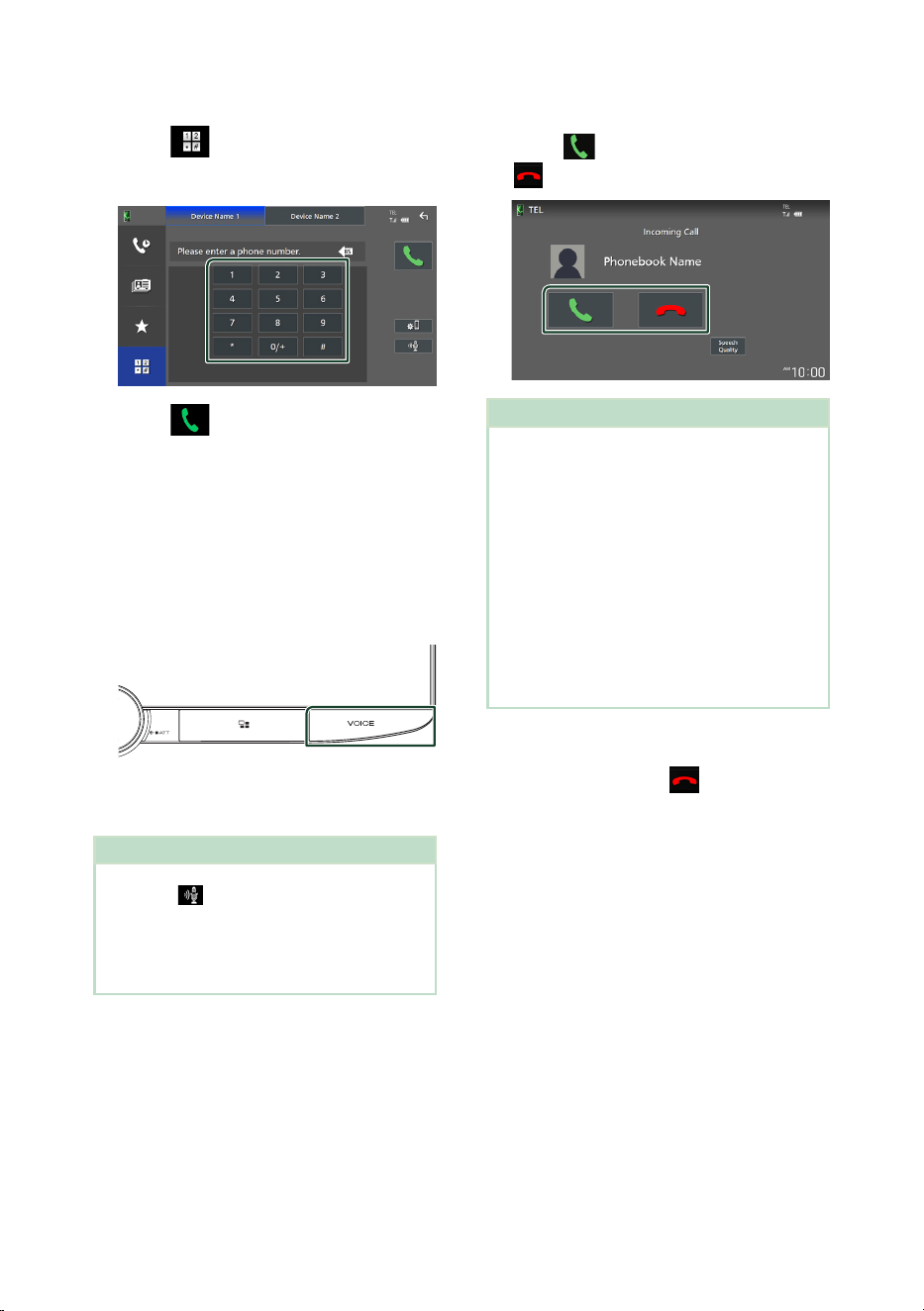

Call by entering a phone number
1
Touch [ ].
2
Enter a phone number with number keys.
3
Touch [ ].
Ñ Voice Recognition
You can access the voice recognition function
of the smartphone/cell-phone connected to
this unit. You can search the smartphone/cell-
phone phonebook by voice. (The functionality
depends on the smartphone/cell-phone.)
1
Press the [VOICE] button.
hh Voice Recognition screen appears.
2
Start speaking.
NOTE
• You can use the voice recognition function by
touching [ ] on the Hands-Free screen.
• You can use the voice recognition function for
the connected smartphone/cell-phone if you
selected [TEL (HFP) 1] or [TEL (HFP) 2] for HFP
when registered.
Ñ Receive a call
1
Touch [ ] to answer a phone call or
[
] to reject an incoming call.
NOTE
• When shifting the gear to the reverse (R) position
and monitoring the picture from the rear view
camera, this screen does not appear even if a call
comes in.
• The portrait registered in the phonebook is
displayed while making/receiving calls and
during a call.
• If you edit the phonebook on the connected
device side after downloading the phonebook,
the portrait may not be displayed depending on
the edited content. It is recommended that you
download the phonebook whenever you edit it.
• The image quality of a displayed portrait may
depends on a connected device.
To end call
1
While talking, touch [ ].
Bluetooth Control
53English

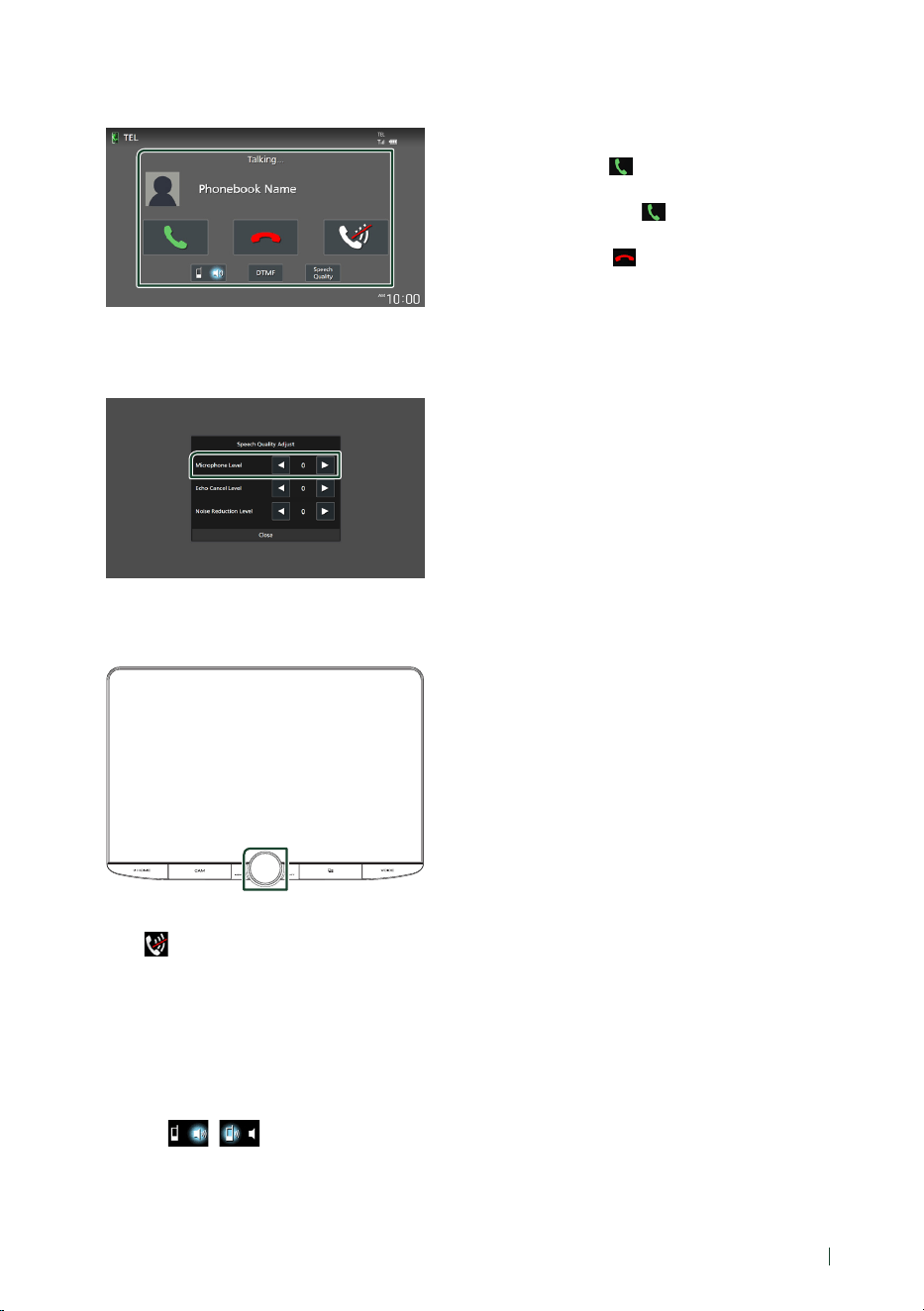

Ñ Operations during a call
● Adjust the volume of your voice
1) Touch [Speech Quality].
2) Touch [T] or [U] for [Microphone Level].
● Adjust the receiver volume
Turn the volume knob clockwise to increase,
and counter-clockwise to decrease.
● Mute your voice
Touch [
] to mute or not to mute your voice.
● Output the dial tone
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys
on the screen.
● Switching between speaking voice
output destinations
Touching [
]/[ ] each time switches
speaking voice output destinations between
the smartphone/cell-phone and the speaker.
● Call-waiting
When you receive a new call while talking on
the phone, you can answer the newly received
call by touching [
]. The current call is put on
hold.
Each time you touch [
], the caller will change
to the other one.
When you touch [
], the current call will end
to be switched to the call waiting on hold.
Bluetooth Control
54

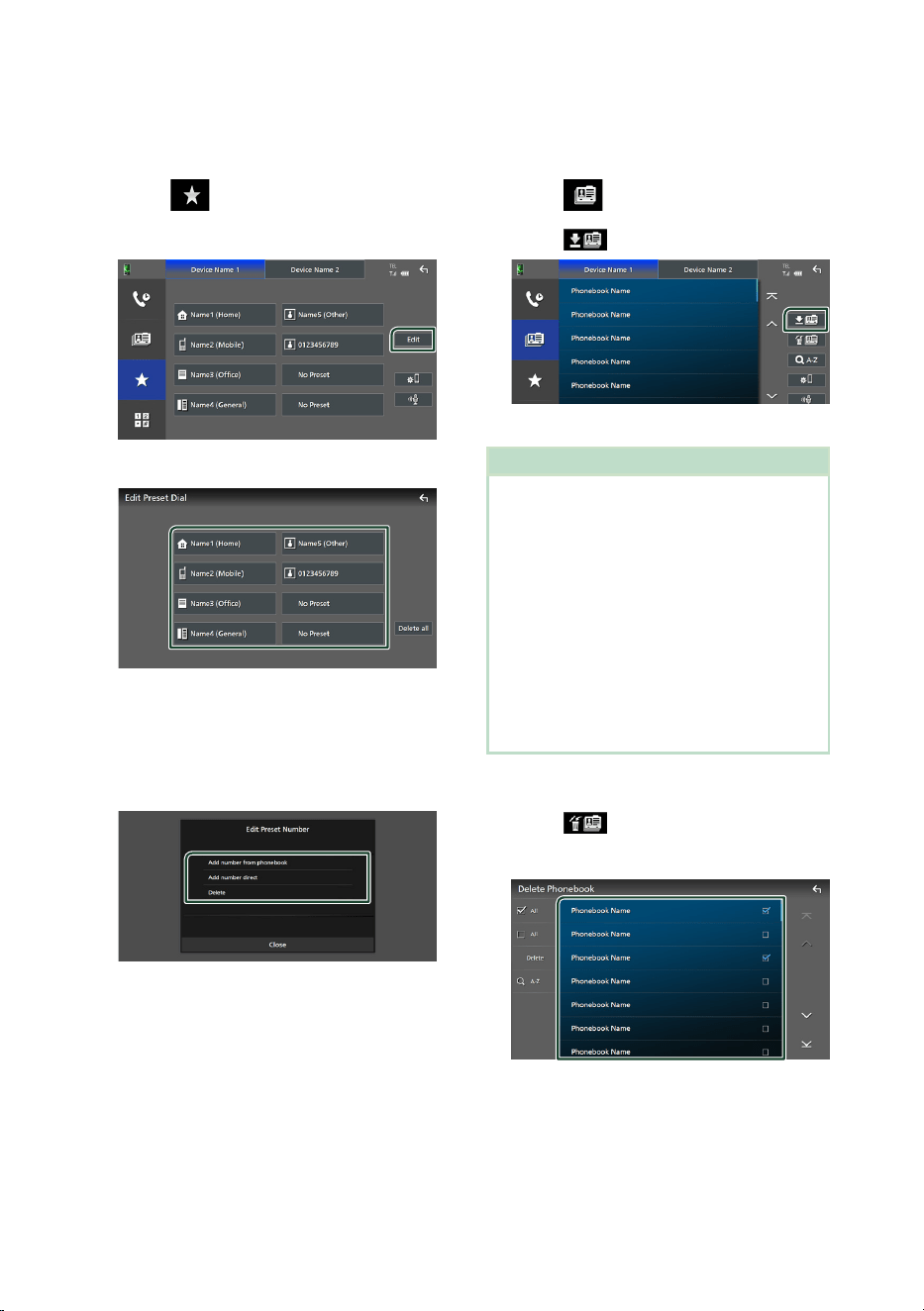

Ñ Phone number preset
You can register frequently used phone
numbers in this unit.
1
Touch [ ].
2
Touch [Edit].
3
Select where to preset.
■ [Delete all]
To delete all preset numbers, touch [Delete
all] and then touch [Ye s ] on the confirmation
screen.
4
Select how to preset.
■ [Add number from phonebook]
Select the number to preset from the
phonebook.
■ [Add number direct]
Enter the telephone number directly and
touch [SET].
■ [Delete]
To delete a preset number, touch [Delete]
and then touch [OK] on the confirmation
screen.
Ñ Phonebook transfer
You can transfer phonebook data from your
Bluetooth smartphone using PBAP.
1
Touch [ ].
2
Touch [ ].
hh Phonebook data transfer starts.
NOTE
• If the Phonebook contains more than 1000
entries, only 1000 entries are transferred. The
1001st and later entries are not transferred.
• If no Phonebook has been downloaded, touching
[Download Phonebook Now] will start
downloading the Phonebook.
• The portrait registered in the phonebook is
displayed while making/receiving calls and
during a call.
If you edit the phonebook on the connected
device side after downloading the phonebook,
the portrait may not be displayed depending on
the edited content. It is recommended that you
download the phonebook whenever you edit it.
Phonebook deletion
1
Touch [ ].
2
Touch the name to check.
■ [þ All]
Checks all boxes.
■ [¨ All]
Clears all check marks.
Bluetooth Control
55English
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s ].

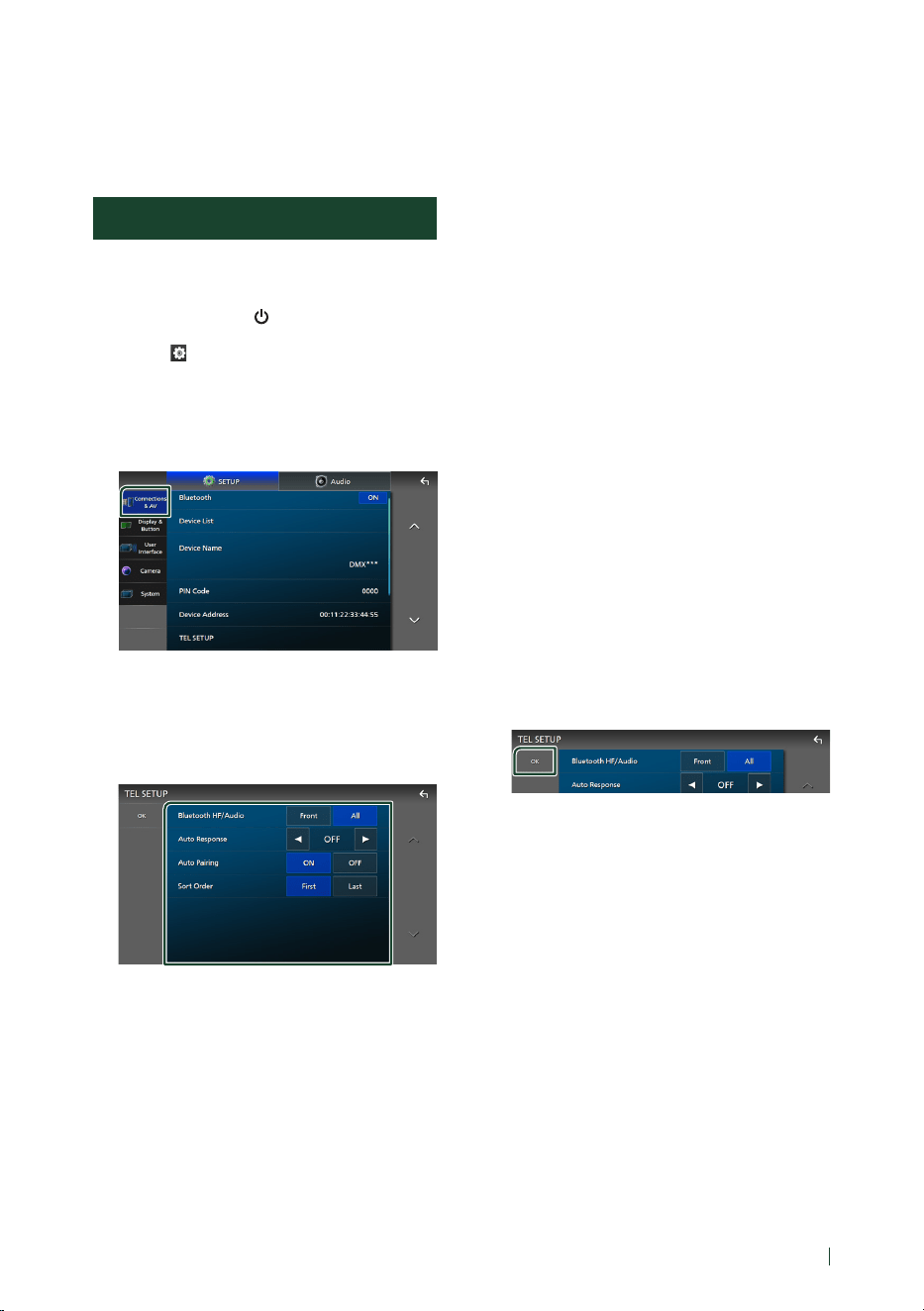

Hands-Free Setup
You can make various settings for the Hands-
Free function.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Connections & AV].
hh Connections & AV setting menu appears.
5
Touch [TEL SETUP].
hh TEL SETUP screen appears.
6
Set each function as follows.
■ [Bluetooth HF/Audio]
Select the speakers to output the sound from
the smartphone/cell-phone (such as phone
call voice and ringing tone) and Bluetooth
audio player.
[Front]: Outputs sound from the front
speakers.
[All] (Default): Outputs sound from all
speakers.
■ [Auto Response]*
Set the automatic response time to pick-up
an incoming call.
[OFF] (Default): Turns off the Automatic
response function.
[1/5/10/15/20/25/30]: Sets the ringing time
(second).
■ [Auto Pairing]
When set to “ON”, the Apple Auto Pairing
function is turned on to automatically
register the iPod touch or iPhone connected
to this unit.
[ON] (Default): Turns on the Apple Auto
Pairing function.
[OFF]: Turns off the Apple Auto Pairing
function.
■ [Sort Order]
Set how to sort the data in the smartphone/
cell-phone phonebook.
[First] (Default): Sorts data by the first name.
[Last]: Sorts data by the last name.
* Either the auto response time set on this
unit or the time set on the smartphone/
cell-phone, whichever is shorter takes
effect.
7
Touch [OK].
Other External Components
56

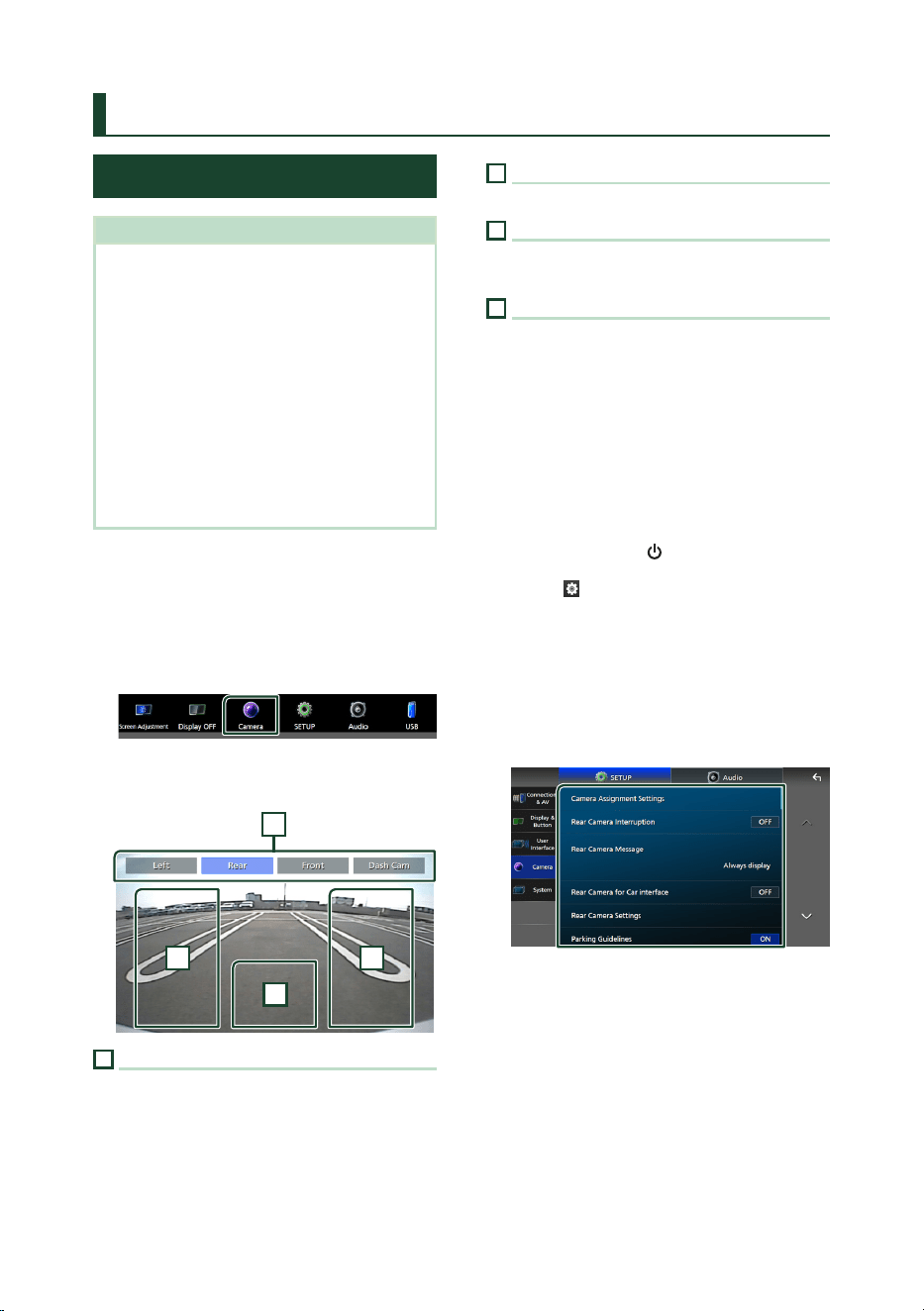

Other External Components
View Camera
NOTE
• To connect a camera, see Connecting the
camera (P.94).
• To use a rear view camera, a REVERSE lead
connection is required. (P.90)
• If [Rear Camera Interruption] is active the
camera screen is displayed when you shift the
gear to the reverse (R) position.
• The camera whose view was displayed last is kept
and the same camera view will be displayed the
next time. If its assignment setting is changed, the
rear camera view is displayed.
• Rear/front camera interruption screen is not kept
as the camera screen which will be displayed the
next time.
Ñ Display the camera screen
1
Press the [MENU]/[ATT] button.
hh Popup menu appears.
2
Touch [Camera].
hh View camera screen appears.
3
Adjust each item as follows.
2
3 4
1
1
Camera Switching Keys *
1
Touch to switch the view camera. It is
necessary to set “Camera Assignment
Settings” beforehand except “Rear”. See To
set up the camera assignment settings
(P.57).
2
Camera off
Touch to exit the camera screen.
3
Switching the Guideline *
2
Touching each time turns on or off the
guideline.
4
Switching the Angle *
2
Touching each time changes camera angles.
*1 When two or more cameras of rear, front,
dashboard, left, right, and 3rd are connected
with this unit.
*2 Only when the rear camera screen is
displayed and CMOS-3xx series is connected
with this unit as the rear camera.
Ñ Camera Setup
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Camera].
hh Camera setting menu appears.
5
Set each item as follows.
■ Camera Assignment Settings
Set up the camera assignment. See To set up
the camera assignment settings (P.57).
■ [Rear Camera Interruption]
[ON] (Default): Displays the picture from the
rear view camera when you shift the gear
to the reverse (R) position.
[OFF]: Select this when no camera is
connected.
Other External Components
57English
■ [Rear Camera Message] *
1
[Always display] (Default): Always displays
the caution message on the rear camera
interruption screen.
[Clear after 5 seconds]: Displays the
caution message for about 5 seconds on
the rear camera interruption screen.
■ [Rear Camera Settings] *
2
Adjusts the CMOS-3xx series with ID 1 ("Rear
Camera") set. For details, see the instruction
manual of your camera.
■ [Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■ [Guidelines SETUP]
If you select [ON] for [Parking Guidelines],
you can adjust the parking guidelines. See To
adjust the parking guidelines (P.58).
■ [Front Camera Settings] *
3
Adjusts the CMOS-3xx series with ID 2 ("Front
Camera") set. For details, see the instruction
manual of your camera.
■ [Front Camera Interruption] *
4
[10 sec]/[15 sec] (Default)/[20 sec]: The front
camera screen is displayed when return the
gear from the reverse (R) position.
[OFF]: Cancel.
*1 To use the function, it is necessary to set [Rear
Camera Interruption] to [ON].
*2 When CMOS-3xx series is connected with
this unit.
*3 To use the function, it is necessary to connect
CMOS-3xx series and to set [Camera
Assignment Settings] to [Front]. (P.57)
*4 To use the function, it is necessary to set [Rear
Camera Interruption] to [ON] and to set
[Camera Assignment Settings] to [Front].
(P.57)
Ñ To set up the camera
assignment settings
1
Touch [Camera Assignment Settings] in
the Camera setting menu. (P.56)
2
Select the item to set up.
■ [REAR VIEW CAMERA]
Set the camera assignment from view
camera connected to Rear view camera
input terminal.
■ [FRONT VIEW CAMERA / DASH CAM]
Set the camera assignment from view
camera connected to Front view camera/
Dashboard camera input terminal.
■ [3rd VIEW CAMERA]
Set the camera assignment from view
camera connected to 3rd view camera input
terminal.
■ [VIDEO IN]
Set the camera assignment from view
camera connected to Video input terminal.

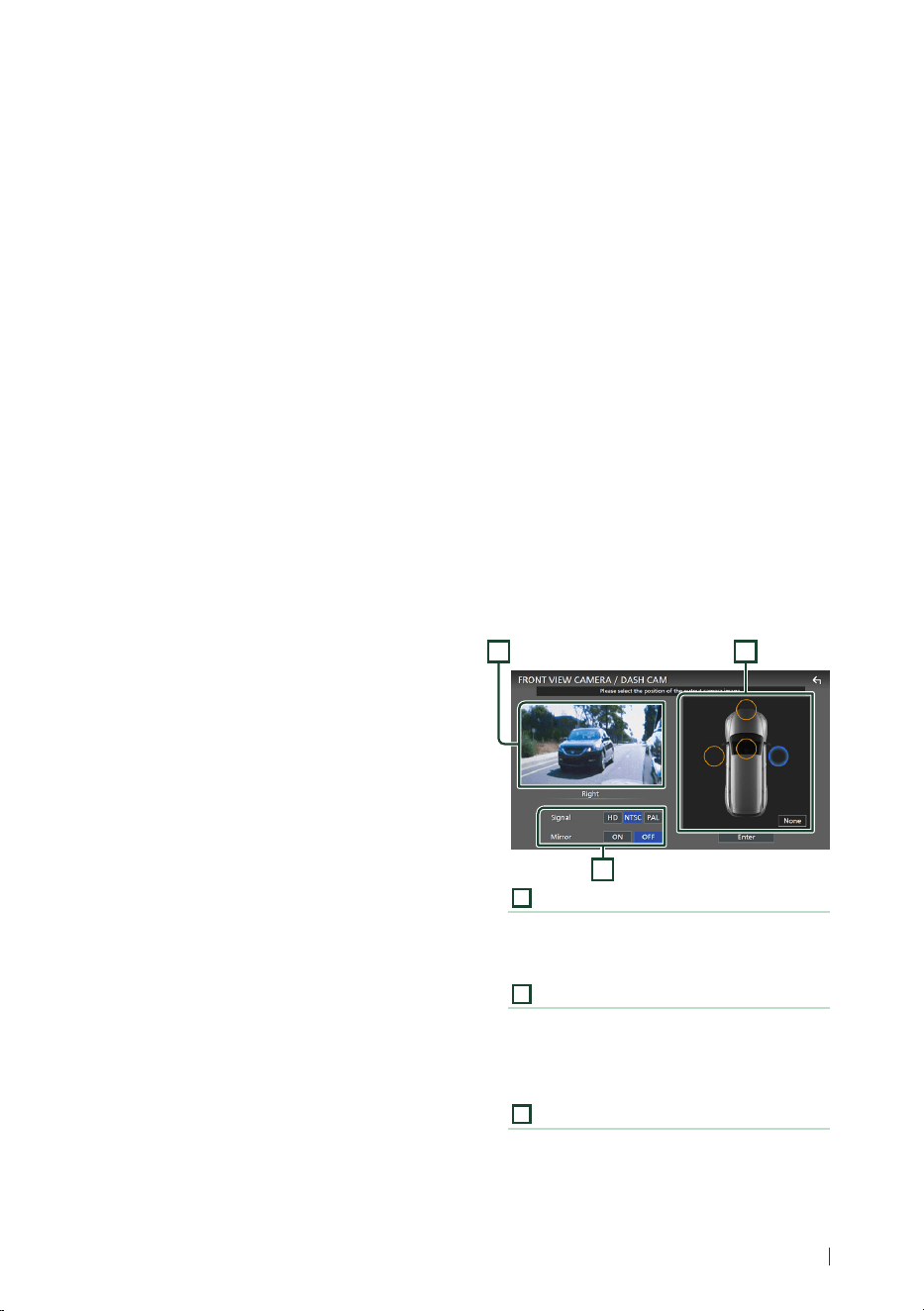

3
Select the view camera to set up.
3
21
1
Picture from view camera
Displays the picture from the view camera
connected to the input terminal to be set.
(P.94)
2
Camera position
Assign each position to the view camera
connected to the selected input terminal.
Front *
1
/Left *
1
/Right *
1
/Dashboard
Camera *
1
/Rear *
2
/[None]*
1
3
Picture quality settings
Switch the picture quality setting.
[Signal] *
3
: “HD”/“NTSC” (Default)/“PAL”
[Mirror] *
4
: “ON”/“OFF” (Default)
Other External Components
58
*1 Except the [REAR VIEW CAMERA] setting
screen.
*2 The [REAR VIEW CAMERA] setting
screen only.
*3 The [REAR VIEW CAMERA] and [FRONT
VIEW CAMERA / DASH CAM] setting
screens only.
*4 The [FRONT VIEW CAMERA / DASH
CAM] and [3rd VIEW CAMERA] setting
screens only.
4
Touch [Enter].
NOTE
• The screen shot above is for the [FRONT VIEW
CAMERA / DASH CAM] setting screen. It may
be different from the ones for [REAR VIEW
CAMERA], [3rd VIEW CAMERA] and [VIDEO IN].
• The Dashboard Camera can be selected when it is
connected. (P.94)

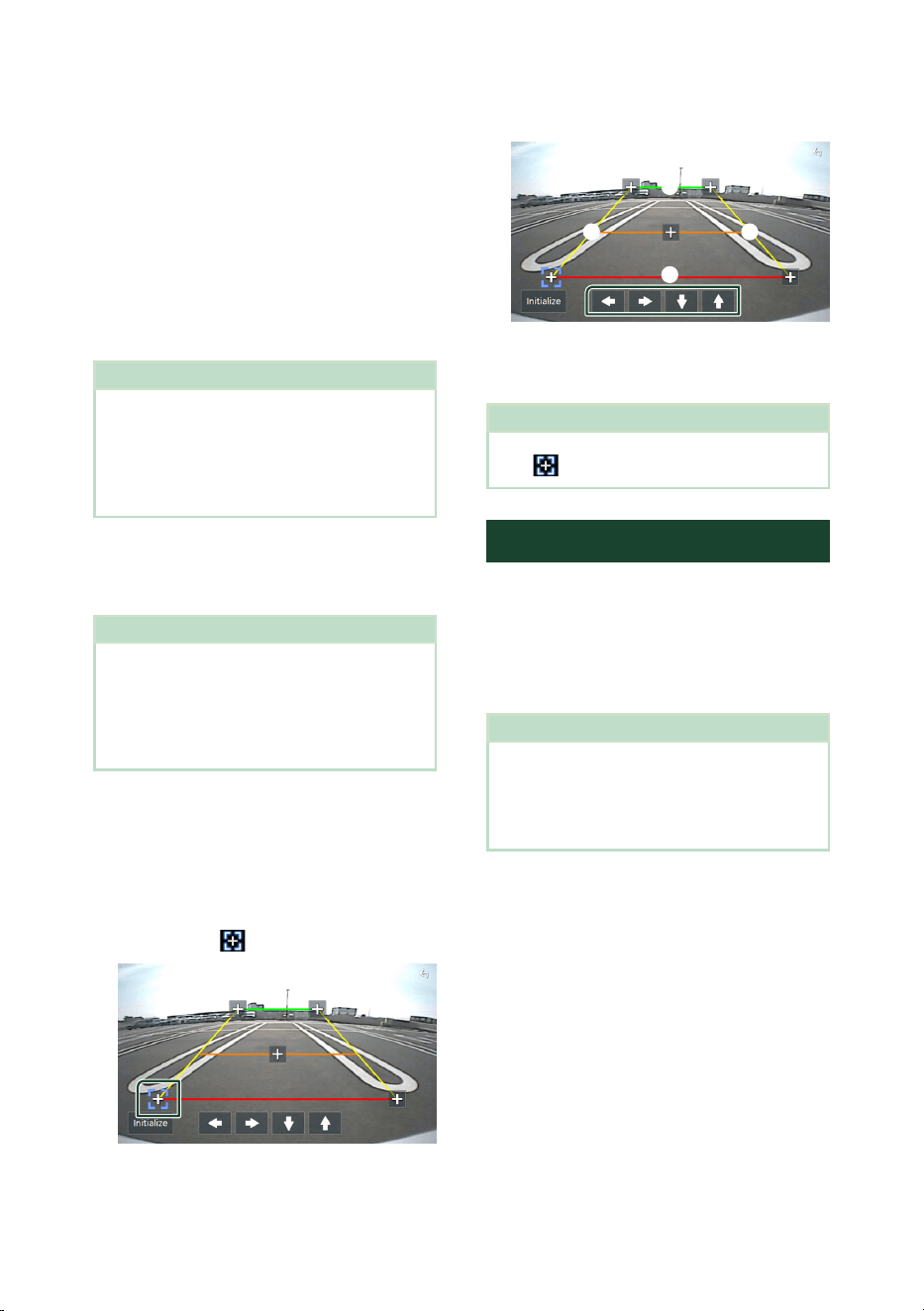

Ñ To adjust the parking
guidelines
NOTE
• Install the rear view camera in the appropriate
position according to the instruction manual
supplied with the rear view camera.
• When adjusting the parking guidelines, make
sure to apply the parking brake to prevent the car
from moving.
1
Touch [Parking Guidelines] in the Camera
screen and set to [ON]. (P.56)
2
Touch [Guidelines SETUP] on the Camera
screen.
3
Adjust the parking guidelines by
selecting the
mark.
4
Adjusting the position of the selected
mark.
A
B
C
D
Make sure that lines A and B are
horizontally parallel, and that lines C and
D are of the same length.
NOTE
• Touch [Initialize] and then touch [Ye s ] to set all
the
marks to their initial default position.
Use Dashboard Camera
A Dashboard Camera, DRV-N520 (optional
accessory), connected to this unit lets you play
video-recorded data and so on.
For details, see the instruction manual of
the Dashboard Camera DRV-N520 (optional
accessory).
NOTE
• To connect a dashboard camera, see Connecting
the camera (P.94).
• To use the dashboard camera function, it is
necessary to set “Camera Assignment Settings” to
“Dashboard Camera”. (P.57)
Other External Components
59English

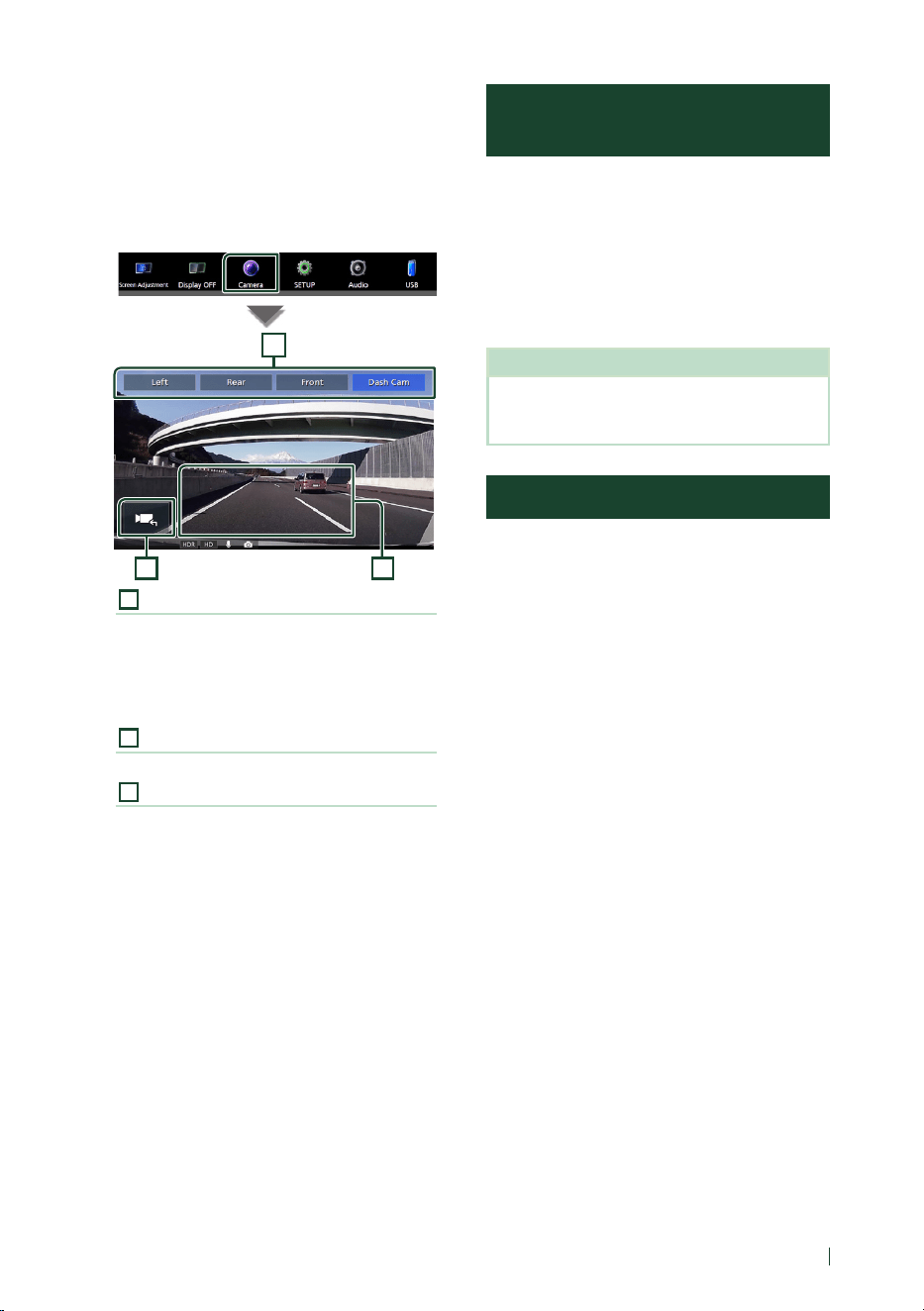

Ñ Display the dashboard camera
screen
1
Press the [MENU]/[ATT] button.
hh Popup menu appears.
2
Touch [Camera].
3
1
2
1
Camera Switching Keys
Touch to switch the view camera. It is
necessary to set “Camera Assignment
Settings” beforehand except “Rear”. See To
set up the camera assignment settings
(P.57).
2
Camera off
Touch to exit the camera screen.
3
Key display
Touch to display the dashboard camera
control keys.
External audio/video players
(AV-IN)
1
Connect an external component to the AV
Audio input and the Video input terminal.
(P.91)
2
Select [AV-IN] as the source. (P.10)
3
Turn on the connected component and
start playing the source.
NOTE
• To select the AV-IN source, it is necessary to set
“VIDEO IN” to “None” in [Camera Assignment
Settings]. (P.57)
HDMI source
1
Connect your smartphone to the HDMI
input terminal. (P.91)
Use HDMI cable KCA-HD100 (optional
accessory).
2
Select [HDMI] as the source. (P.10)
3
Start an application or playback on your
smartphone.
Other External Components
60

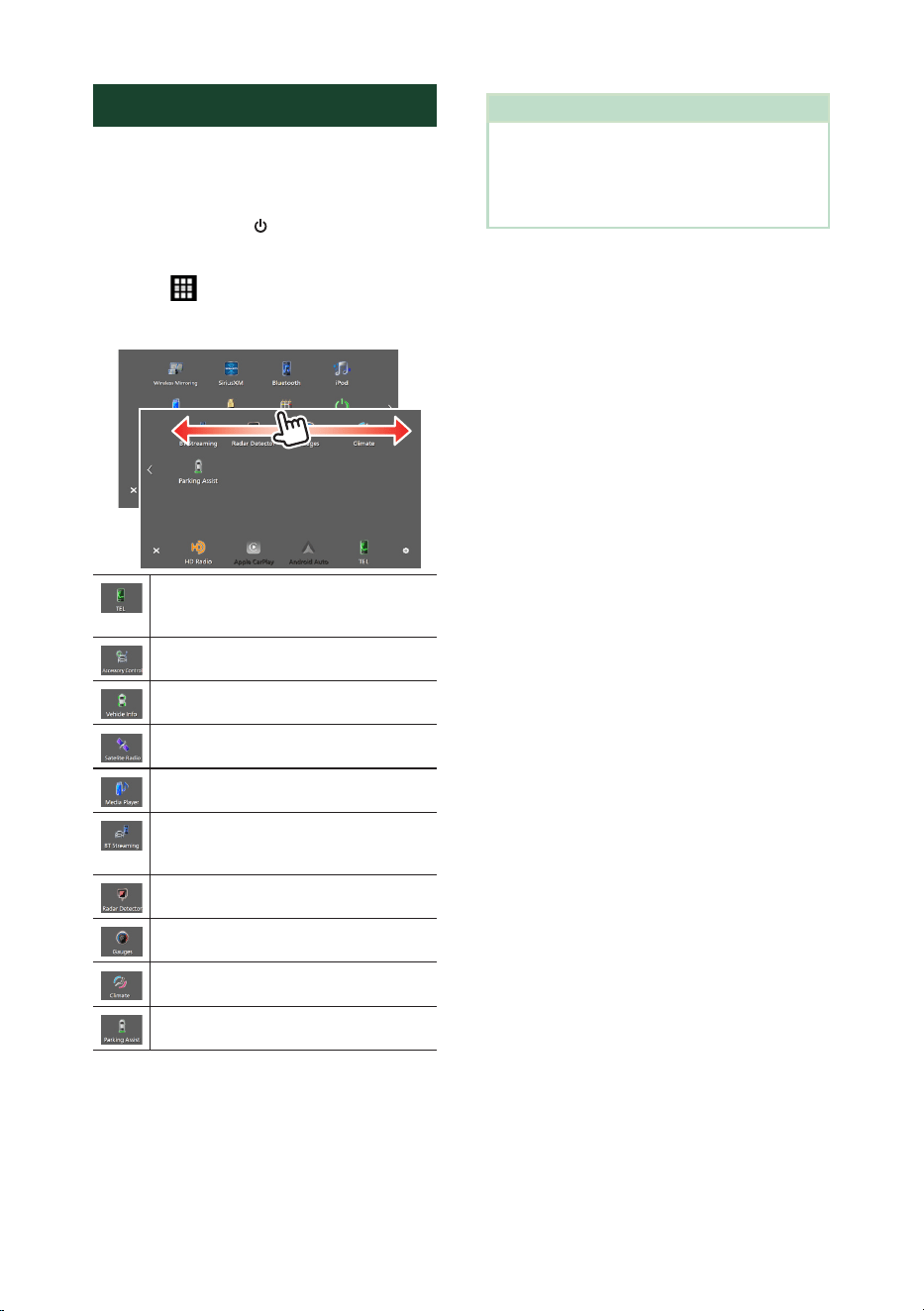

OEM Features Operation
This unit can display vehicle information when
connected to the bus system of the vehicle
using an iDatalink (commercially available).
1
Press the [HOME]/[ ] button.
hh HOME screen appears.
2
Touch [ ] on the HOME screen.
3
Touch icon.
• Displays the control screen of the
Bluetooth Hands-Free function provided
for the vehicle.
• Displays the control screen of the
accessories in the vehicle.
• Displays information about the tire
pressures of the vehicle. *
• Displays the control screen of the satellite
radio source provided for the vehicle.
• Displays the control screen of the media
player source provided for the vehicle.
• Displays the control screen of the
Bluetooth streaming source provided for
the vehicle.
• Displays information about the Radar
Detector. *
• Displays information about the
instruments such as a speedometer.
• Displays information about the air
conditioner of the vehicle. *
• Displays information about the Parking
Distance Sensor of the vehicle.
* These iDatalink features are displayed as the widget
on the Home screen. (P.8) You can display the
relevant screens by touching the widget.
NOTE
• Displayable screens, key names, and screen
names vary depending on the type of the
connected iDatalink and the model of the vehicle.
For more details, access the following URL:
www.idatalink.com/
Setup
61English
Setup
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
See the following section for each
setting.
• Set up connections and AV (P.61)
• Set up display and button (P.63)
• Set up the user interface (P.64)
• Set up camera (P.56)
• Set up systems (P.65)

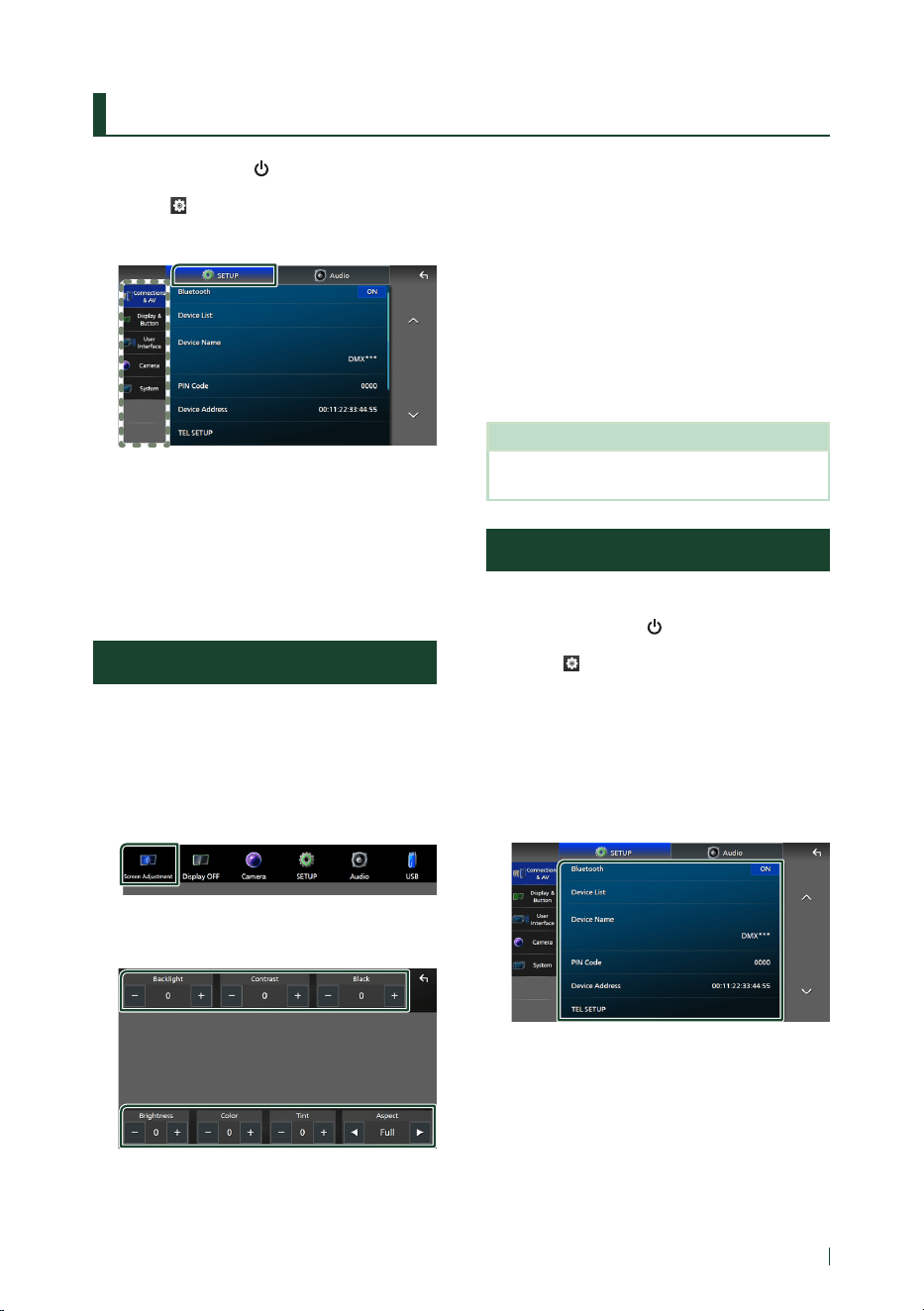

Monitor Screen Setup
You can adjust the image quality of video,
menu screen, etc.
1
Press the [MENU]/[ATT] button.
hh Popup menu appears.
2
Touch [Screen Adjustment].
hh Screen Adjustment screen appears.
3
Adjust each setting as follows.
■ [Backlight]/[Contrast]/[Black]/
[Brightness]/[Color]/[Tint]
Adjust each setting.
■ [Aspect]
Select a screen mode.
[Full]: Changes the aspect ratio of video and
displays video fully on the screen.
[Normal]: Displays video at the ratio of 4:3.
[Auto]:
USB device: Displays video fully (vertically
or horizontally) with no ratio change.
NOTE
• Settings to adjust vary depending on the current
source.
Connections & AV Setup
You can set connections and AV parameters.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Connections & AV].
hh Connections & AV setting menu appears.
5
Set each parameter as follows.
■ [Bluetooth]
Turns the Bluetooth function on or off.
■ [Device List]
Select the connected device to be used.
(P.46)
Setup
62
■ [Device Name]
If you select [ON] for [Bluetooth], you can
change the Bluetooth device name.
See Change the device name (P.47).
■ [PIN Code]
If you select [ON] for [Bluetooth], you can
change the PIN code.
See Change the PIN Code (P.47).
■ [Device address]
Display the Bluetooth device address.
■ [TEL SETUP]
You can make various settings for the Hands-
Free function.
See Hands-Free Setup (P.55).
■ [Wi-Fi SETUP]
You can change the device name and display
the device address, password. See Change
the device name (P.62).
■ [Speech Quality Adjust]
Adjust the speech quality.
[Microphone Level] : Adjust the level of
microphone gain. Default is “0”.
[Echo Cancel Level] : Adjust the level of
echo cancellation. Default is “0”.
[Noise Reduction Level] : Reduce the noise
generated in the surrounding environment
without changing the microphone volume.
Use this function when the voice of caller is
not clear. Default is “0”.
■ [iPod Bluetooth Connection]
See Select the method of making
connections for outputting sound from
the iPod source (P.24).
■ [AV-OUT]
You can select an AV source to be output
from the AV OUTPUT port.
OFF, iPod, USB, or AV-IN
• You cannot select AV-IN if the Video input
terminal is used for camera.
• You cannot select iPod if it is connected via
Bluetooth or Apple CarPlay is connected.
• If you select iPod as the main source, you
cannot select USB as the AV output source.
• If you select USB as the main source, you
cannot select iPod as the AV output source.
• If you select HDMI as the main source, files
with sampling rates higher than 96 kHz in
USB selected as the AV output source are
skipped.
• If you select Bluetooth audio, HD Radio,
Wireless Mirroring, Apple CarPlay or
Android Auto as the main source, you
cannot select USB or iPod as the AV output
source.
■ [Reset Android Auto Wireless
Connection]
You can change the password for wireless
Android Auto.
The system of the unit is rebooted after
selecting [YES].

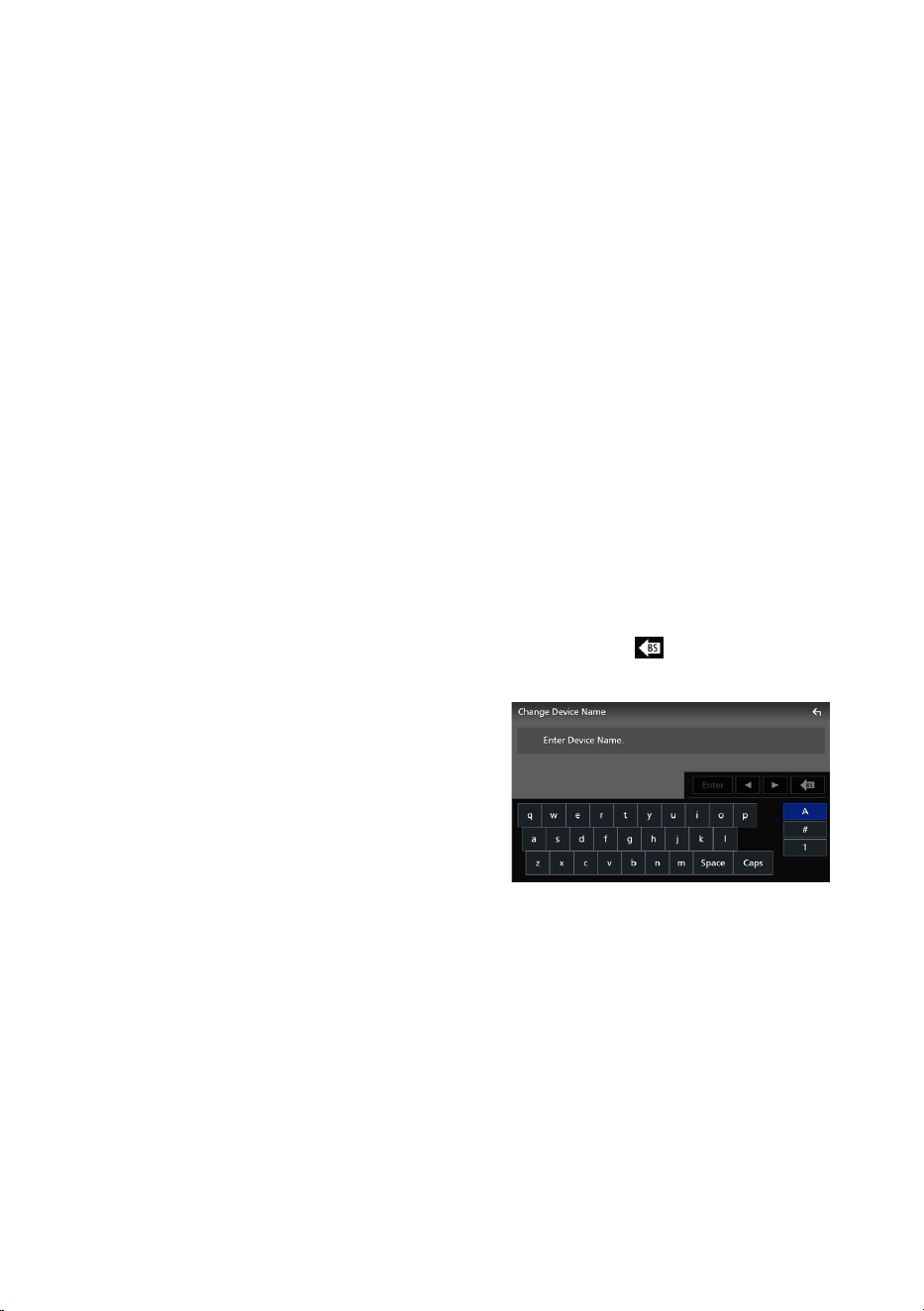

Ñ Change the device name
1
Touch [Device Name] in the Connections
& AV setting menu.
or
Touch [Wi-Fi SETUP] and then touch
[Device Name].
hh Change Device Name screen appears.
2
Touch and hold [ ].
3
Input the device name.
4
Touch [Enter].
Setup
63English
Display & Button Setup
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [Display & Button].
hh Display & Button setting menu appears.
5
Set each parameter as follows.
■ [Dimmer]
Select the dimmer mode.
[OFF]: Does not dim the display and buttons.
[ON]: Dims the display and buttons.
[SYNC] (Default): Turns the dimmer function
on or off when the vehicle light control
switch is turned on or off.
■ [OSD Clock]
Select if you want to display the clock while
the screen is off, or while watching video files
on USB, etc.
"ON" (Default)/"OFF"
■ [Button Illumination Color]
You can set the button illumination color.
(P.63)
■ [Wallpaper Customize]
You can change the wallpaper image or
color. (P.64)
■ [Screen transition effect]
Select whether to use the screen transition
effect when the source control screen is
switched to the Home screen.
"ON" (Default)/"OFF"
Ñ Customizing the button color
You can set the button illumination color.
1
Touch [Button Illumination Color] in the
Display & Button setting menu.
2
Touch the desired color.
■ [Variable]
You can set the button color to continuously
scan through the color spectrum.
■ [User]
You can set the color created with the RGB
color mixer.
■ [Car Color]
This can be selected when the iDatalink
(commercially available) is connected.
3
Touch [ ].
To register an original color
You can register your original color.
1
Touch [User] on the Button Illumination
Color screen.
2
Use [-] and [+] to adjust each color value.
3
Touch [ ].
NOTE
• You can create a color based on a preset color.
Touch the preset color instead of [User], and
adjust the color value.
Setup
64

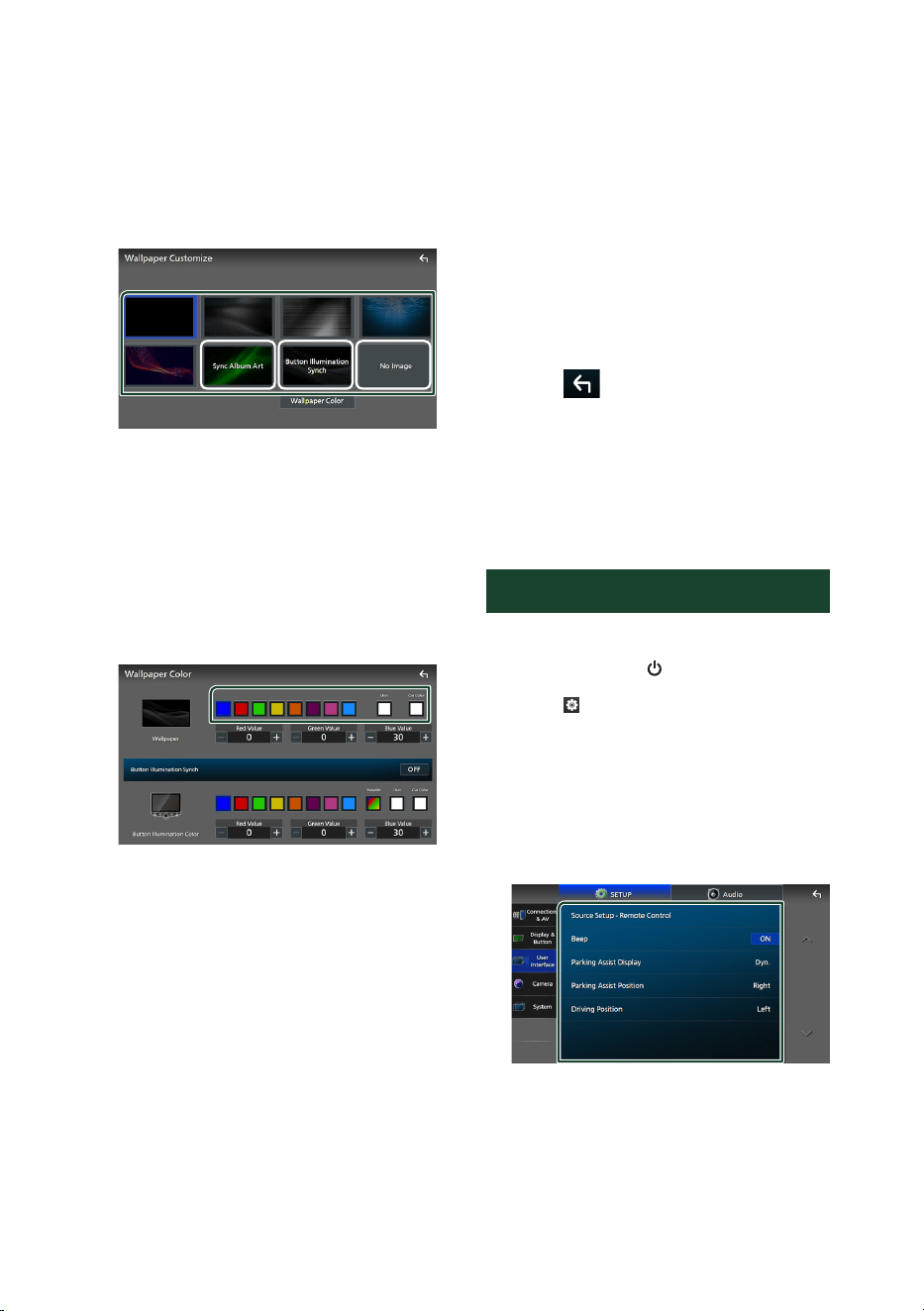

Ñ Change the wallpaper image or
color
1
Touch [Wallpaper Customize] in the
Display & Button setting menu.
2
Select an image.
*
2
*
1
*
3
*
1
The album art currently being displayed is
used as a wallpaper.
*
2
Select a wallpaper color in advance.
*
3
Select an original image in advance.
To select wallpaper color
1
Touch [Wallpaper Color] on the Wallpaper
Customize screen.
2
Select a wallpaper color.
■ [User]
You can set the color created with the RGB
color mixer. For how to create an original
color, see To register an original color
(P.63).
■ [Car Color]
This can be selected when the iDatalink
(commercially available) is connected.
■ [Button Illumination Synch] *
1
The color you have selected at [Button
Illumination Color] can be set. If you adjust
the color value with the following RGB color
mixer, the adjusted color will be applied to
the wallpaper and the button illumination.
For how to set the button illumination
color and create an original color, see
Customizing the button color (P.63).
“ON”/“OFF” (default)
*1 When [Button Illumination Color] is
“Variable”, this option is fixed to OFF.
3
Touch [ ].
To register an original image
With “KENWOOD Portal APP” application
installed on your iPhone or Android
smartphone, you can upload image files to this
unit and set an image as the wallpaper image.
See Importing Image Files (P.15).
User Interface Setup
You can setup user interface parameters.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [User Interface].
hh User Interface setting menu appears.
5
Set each parameter as follows.
■ [Source Setup - Remote Control]
Select the sources to be switched with the
remote controller. For how to operate the
remote controller, see Basic Operation
(P.80).
Setup
65English
■ [Beep]
Turn the key touch tone on or off.
Default is “ON”.
■ [Parking Assist Display]
When the iDatalink (commercially available)
is connected, you can display information
about obstacles around the car.
[ON]: Always displays information.
[Dyn.] (Default): Displays information when
the sensor detects obstacles.
[OFF]: Cancels this function.
This can be set when the iDatalink
(commercially available) is connected.
■ [Parking Assist Position]
Select where to display information about
obstacles on the screen (left or right).
“Left”/“Right” (Default)
This can be set when the iDatalink
(commercially available) is connected.
■ [Driving Position]
Select the driving position (left or right).
“Left” (Default)/“Right”

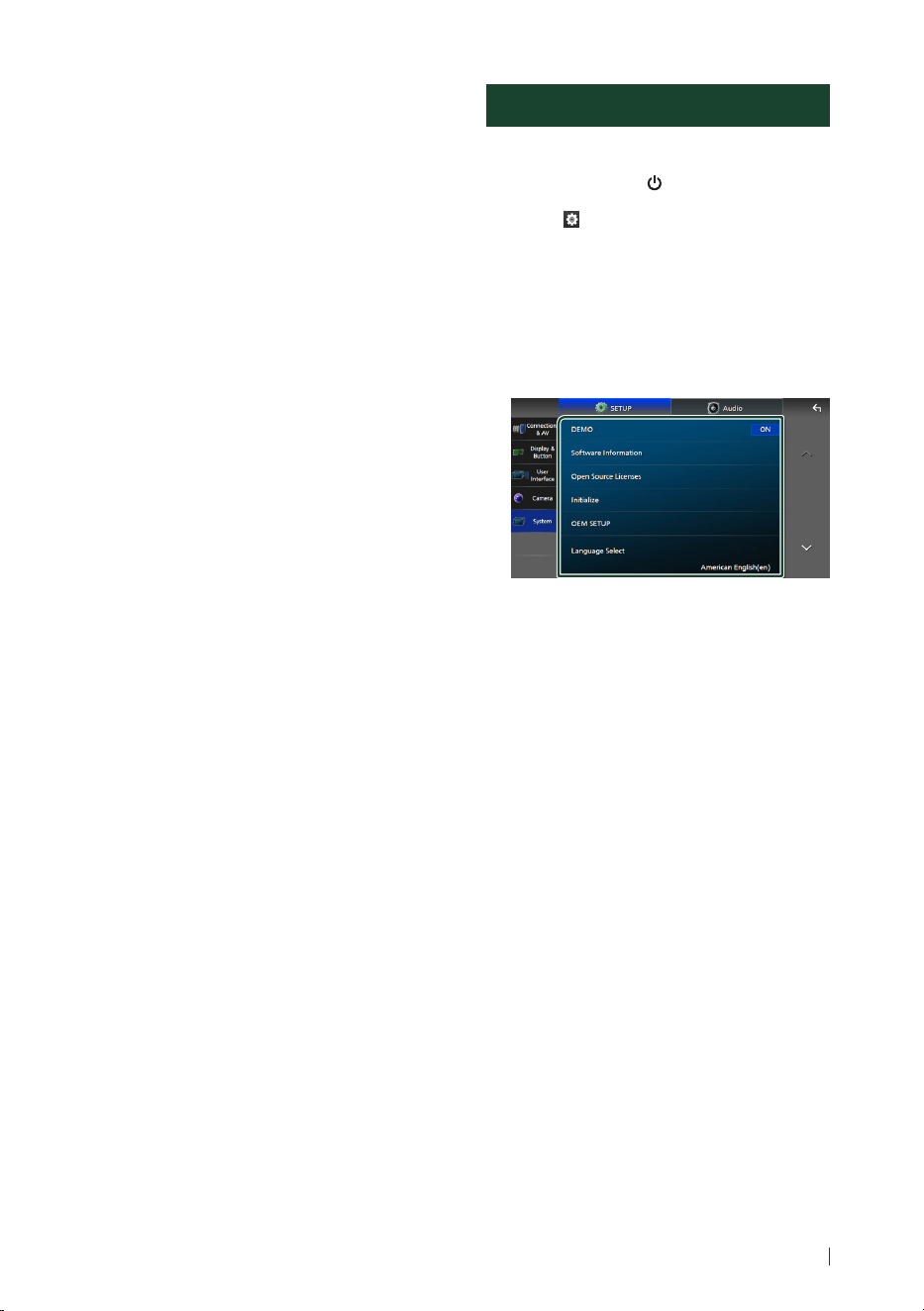

System Setup
You can setup system parameters.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
hh SETUP Menu screen appears.
4
Touch [System].
hh System setting menu appears.
5
Set each parameter as follows.
■ [DEMO]
Select the demonstration mode. Default is
“ON”.
■ [Software Information]
Confirm the software version of this unit.
(P.66)
■ [Open Source Licenses]
Display the open source licenses.
■ [Initialize]
Touch [Initialize] and then touch [Ye s ] to set
all the settings to the initial default settings.
• Audio SETUP Memory is not initialized.
■ [OEM SETUP]
Confirm the information about or change the
settings for using the iDatalink (commercially
available).
■ [Language Select]
Select a language.
■ [Time Format]
■ [Clock]
■ [Time Zone]
■ [Clock Adjust]
You can set the date and time. See
Calendar/clock settings (P.7).
Setup
66

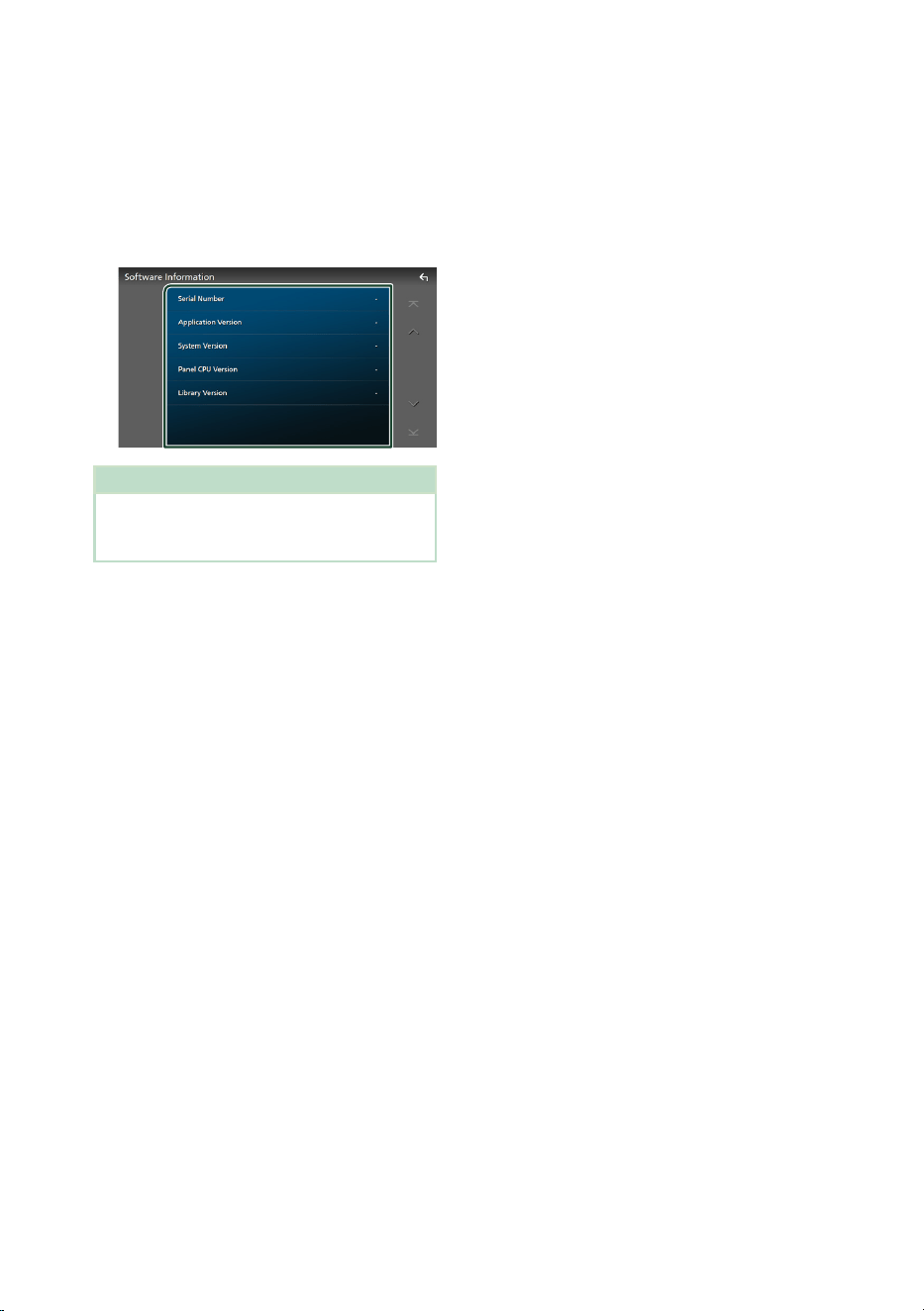

Ñ Software Information
You can confirm the software version of this
unit.
1
Touch [Software Information] in the
System setting menu.
2
Confirm the software version.
NOTE
• For how to update the software, see the relevant
update procedure manual which comes with the
software.
Controlling Audio
67English

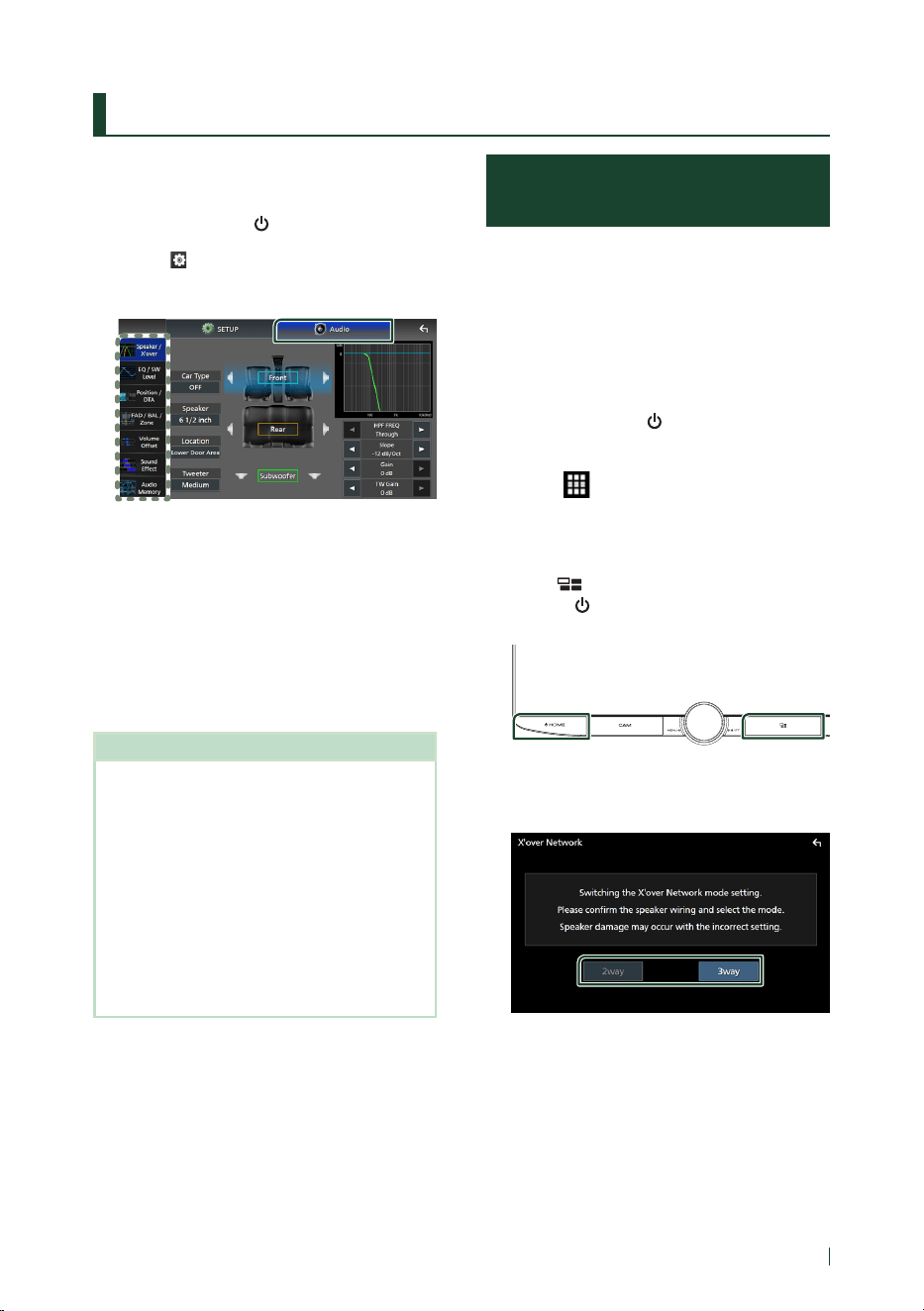

Controlling Audio
You can adjust various settings such as audio
balance or subwoofer level.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
See the following section for each
setting.
• Set up Speaker / X’over (P.68)
• Controlling EQ / SW Level (P.69)
• Set Position / DTA (P.70)
• Controlling FAD / BAL / Zone (P.72)
• Set Volume Offset (P.74)
• Set Sound Effect (P.74)
• Use Audio Memory (P.78)
NOTE
• When the iDatalink (commercially available)
is connected, the best audio settings are set
automatically.
Each parameter as follows are set.
– Speaker / X’over
– EQ / SW Level
– Position / DTA
– FAD / BAL / Zone
– Sound Effect
• To recall the settings automatically adjusted by
the iDatalink connection when the settings are
changed manually, touch [Audio SETUP Clear]
in the Audio Memory setting menu. (P.78)
3-way speaker system setup
(DMX1057XR)
Select the appropriate crossover network
mode for the speaker system used (2-way or
3-way speaker system).
# CAUTION
• Connecting 3-way speakers with the 2-way
mode selected can break the speakers.
1
Press the [HOME]/[ ] button.
hh HOME screen appears.
2
Touch [ ].
hh Source selection screen appears.
3
Touch [STANDBY].
4
Press [ ] button 1 followed by the
[HOME]/[
] button 2 for 1 second at the
same time.
2 1
hh Speaker system select screen appears.
5
Select the crossover network mode.
hh A confirmation screen appears.
6
Touch [Ye s ].
Controlling Audio
68
NOTE
• When the 3-way speaker system is selected, the
following functions are disabled.
– Front focus of Listening Position / DTA
– Fader for Controlling General Audio
– Zone Control
– Selection of the speakers to output sound from
the smartphone/cell-phone of Bluetooth HF/
Audio
– Beep for User Interface Setup
• While talking on the paired phone or using the
voice recognition function, the speaker system
cannot be switched.
• When the dual zone is selected and audio source
other than "OFF" is selected as Rear Source, the
speaker system cannot be switched to the 3-way
mode.

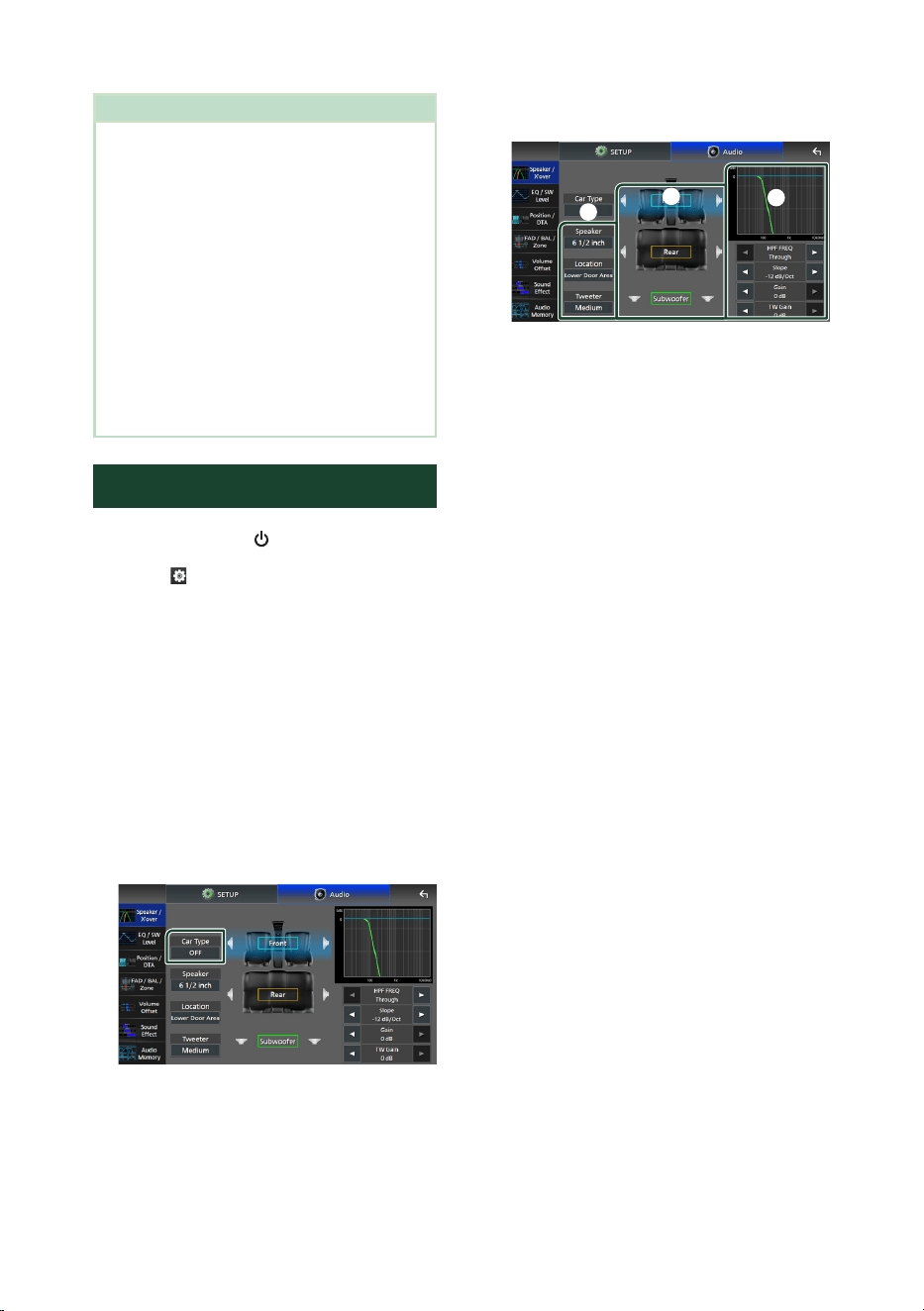

Speaker / X’over setup
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [Speaker / Xʼover].
5
Select a car type.
You can select the car type and speaker
network, etc.
When you select your car type, the Delay
Time Alignment is activated automatically
(for timing adjustment of sound output for
each channel) to have the highest surround
effects.
6
Touch the speaker (1) you wish to adjust
and set each parameter (2) as follows.
2
2
1
■ [Speaker]
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are selected,
the speaker crossover network is set
automatically.
■ [Location] (Only for Front, Rear)
Select the speaker position you have
installed.
■ [Tweeter] (Only for Front)
You can set up the tweeter when you are
selecting front speakers.
None, Small, Medium, Large
■ [HPF FREQ] (Only for Front, Rear)
High Pass Filter adjustment.
■ [LPF FREQ] (Only for Subwoofer)
Low Pass Filter adjustment.
■ [Slope]
Set a crossover slope.
■ [Gain]
Adjust the gain of the front speaker, rear
speaker, or subwoofer.
■ [TW Gain] (Only for Front)
Adjust the tweeter level.
■ [Phase Inversion] (Only for Subwoofer)
Set the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees.
Controlling Audio
69English

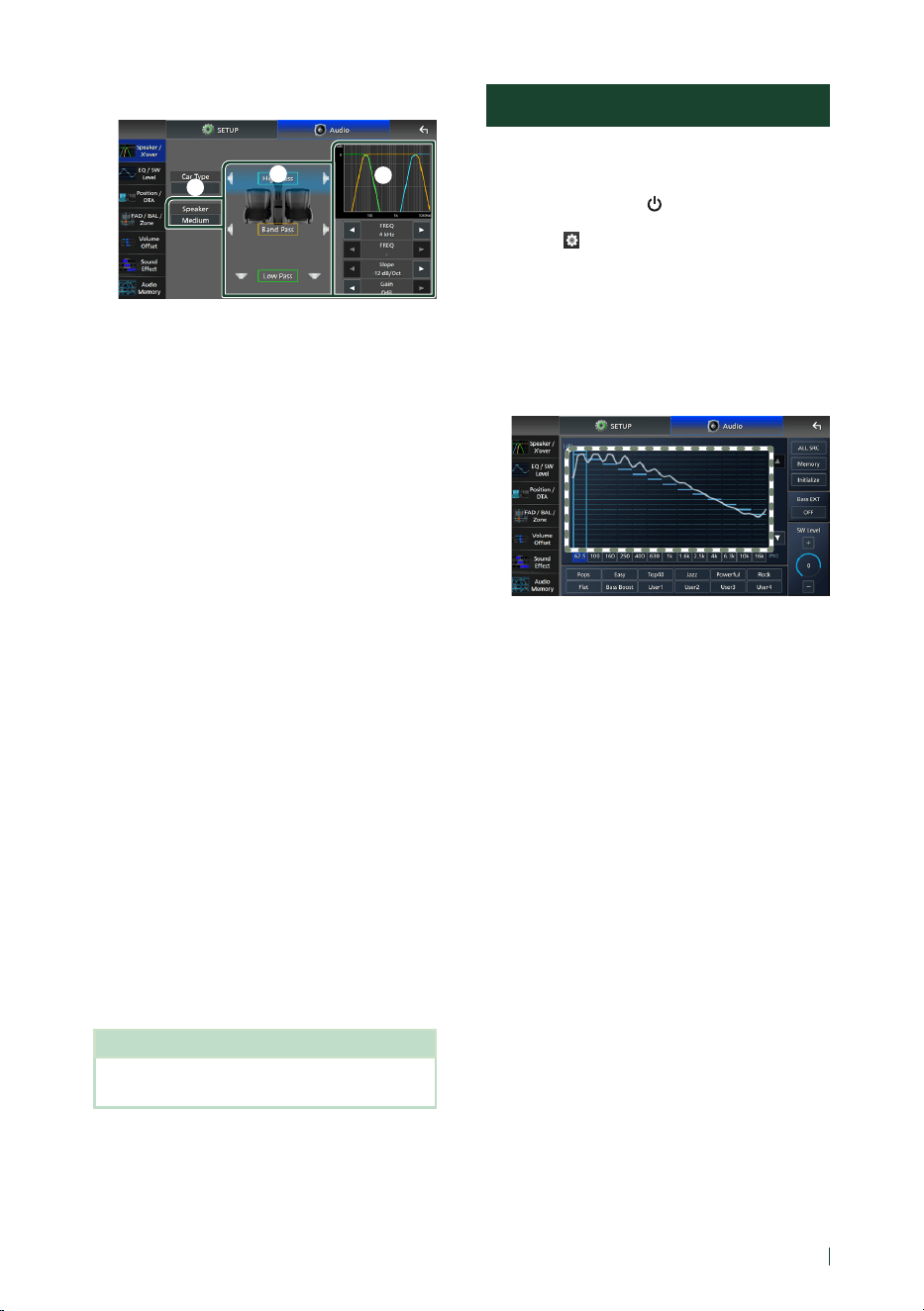

When Speaker network is set to 3-way:
2
2
1
■ [Speaker]
You can select a speaker type and its size to
get the best sound effects. If you have no
speakers, select “None”.
When the speaker type and size are selected,
the speaker crossover network is set
automatically.
■ [FREQ] (High Pass)
High Pass Filter adjustment. (Only for High
Pass)
■ [FREQ] (Low Pass)
Low Pass Filter adjustment. (Only for Low
Pass)
■ [HPF FREQ], [LPF FREQ] (Only for Band
Pass)
Band Pass Filter adjustment.
■ [Slope]*
1
*
2
Set a crossover slope.
■ [Gain]
Set the gain of each speaker.
■ [Phase Inversion]
Set the phase of tweeter, mid range, and
woofer output.
Check [Phase Inversion] to shift the phase
180 degrees.
*
1
Only when “LPF FREQ”/“HPF FREQ” (Band
Pass) is set to a mode other than “Through”.
*
2
Only when “FREQ” (Low Pass) is set to a
mode other than “Through”.
NOTE
• For how to switch to the 3-way speaker system,
see 3-way speaker system setup (P.67).
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [EQ / SW Level].
5
Touch the screen and set the Graphic
Equalizer as desired.
■ Gain level (area in dotted frame)
Adjust the gain level by touching each
frequency bar.
You can select a frequency bar and adjust its
level by [R], [S].
■ [ALL SRC]
Apply the adjusted equalizer curve to all
sources. Touch [ALL SRC] and then touch
[OK] on the confirmation screen.
■ [Memory]
Saves the adjusted equalizer curve as “User1”
to “User4”. (P.70)
■ [Initialize]
Initialize (flatten) the current EQ curve.
■ [Bass EXT] (Bass Extend Settings)
When turned on, the frequencies lower than
62.5 Hz is set to the same gain level (62.5 Hz).
■ [SW Level]
Adjust the subwoofer volume. This setting
is not available when Subwoofer is set to
“None”. See Speaker / X’over setup (P.68).
■ [Pops]/[Easy]/[Top40]/[Jazz]/[Powerful]/
[Rock]/[Flat]/[Bass Boost]/[User1]/
[User2]/[User3]/[User4]
Recall the preset EQ curve.
Controlling Audio
70

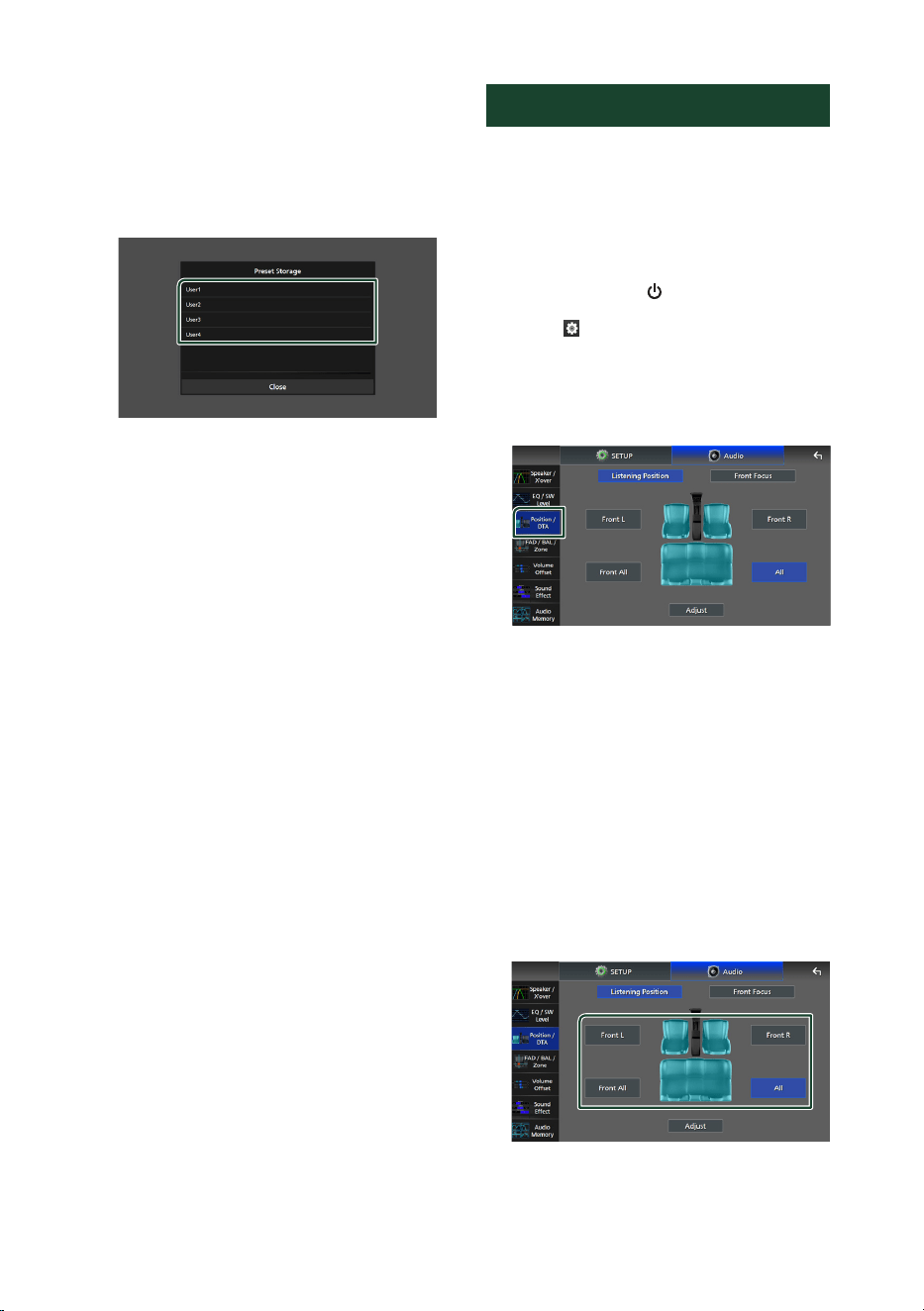

Ñ Save the EQ curve
1
Adjust the EQ curve.
2
Touch [Memory].
3
Select where to save.
Listening Position / DTA
Listening Position / DTA allows you to improve
the sound field depending on the position of
the seat you sit.
Listening Position / DTA allows you to set
“Listening Position” and “Front Focus”. You
cannot set both at the same time.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [Position / DTA].
• Set up Listening Position (P.70)
• Set up Front Focus (P.71)
Ñ Listening Position
Adjust the sound delay time so that the
sounds from different speakers arrive at the
listener sitting on the selected seat at the
same time.
1
Touch [Listening Position] on the Position
/ DTA screen.
2
Select a listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All].
Controlling Audio
71English

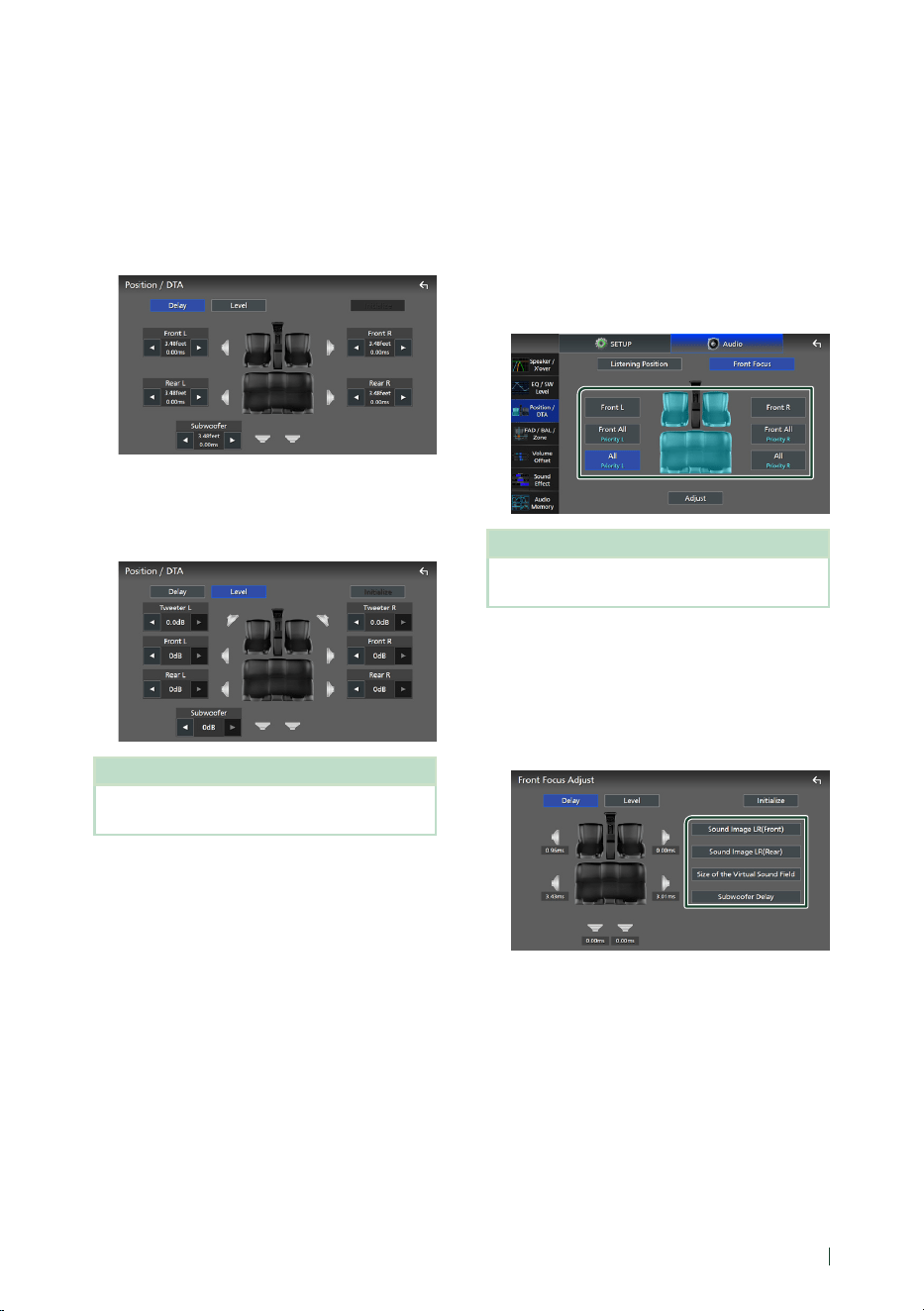

Position DTA control
You can fine-adjust your listening position.
1
Touch [Adjust].
2
Touch [Delay].
3
Touch [T] or [U] to adjust the delay time of
the selected speaker.
4
Touch [Level].
5
Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To initialize the Delay and Level settings, touch
[Initialize] and [YES] on the confirmation screen.
Ñ Front Focus
You can focus the imaginary sound image on
the front of the selected seat.
1
Touch [Front Focus] in the Position / DTA
screen.
2
Select a front focus position.
For [Front All] and [All], select Priority L or R
depending on which side you want to put
the imaginary sound image.
NOTE
• When the 3-way speaker system is selected, front
focus feature is disabled.
Front Focus fine adjustment
1
Touch [Adjust].
2
Touch [Delay].
3
Set each parameter as follows.
■ [Sound Image LR (Front)]
Focus the sound image on the front of front
seats.
■ [Sound Image LR (Rear)]
Focus the sound image on the front of rear
seats.
Controlling Audio
72

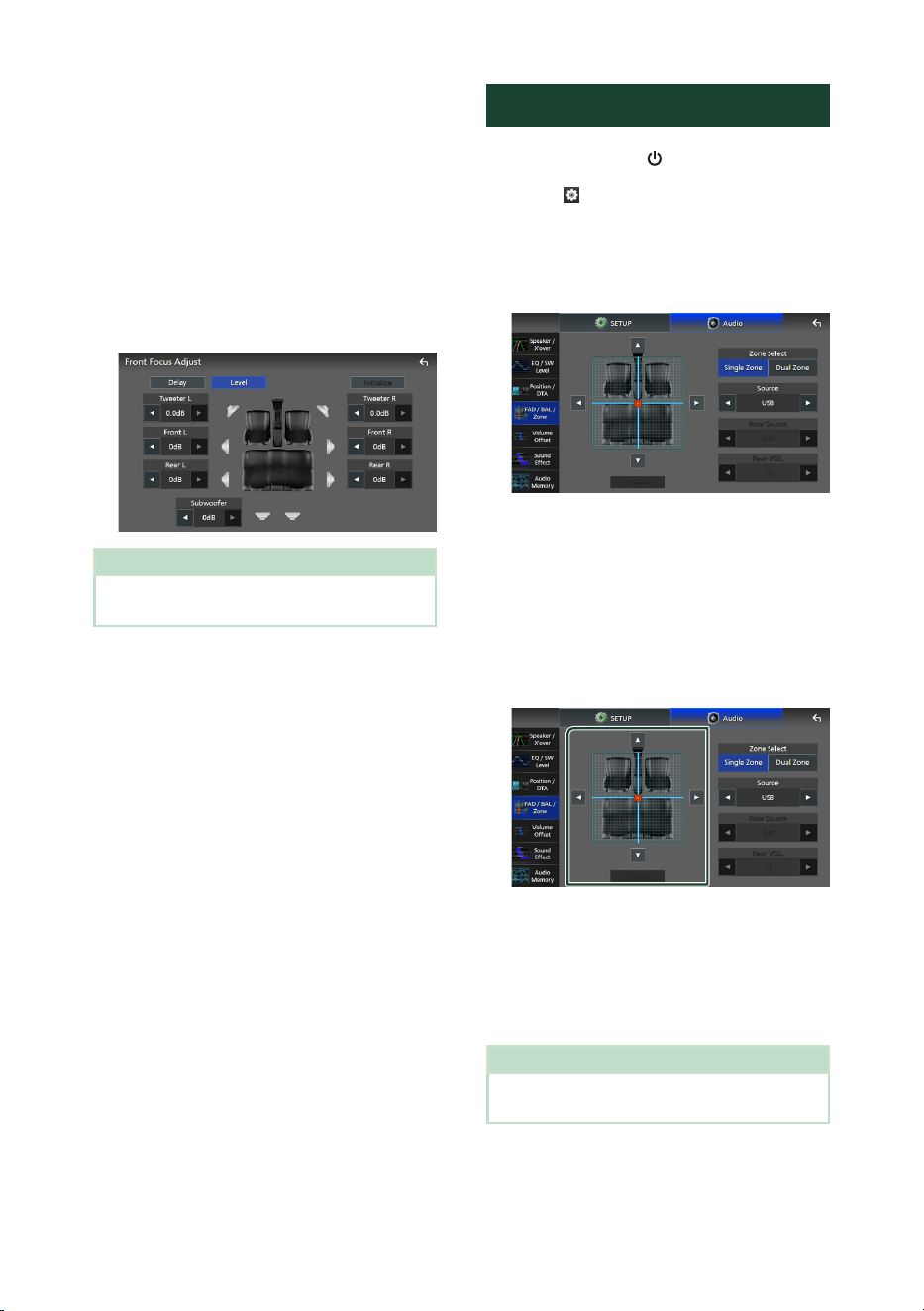

■ [Size of the Virtual Sound Field]
Adjust the size of sound image to meet your
taste. If the sound image is shifted from the
front, move it back by [Sound Image LR
(Front)] or [Sound Image LR (Rear)].
■ [Subwoofer Delay]
Adjust the delay time of subwoofer sound.
4
Touch [Level].
5
Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To initialize the Delay and Level settings, touch
[Initialize] and [YES] on the confirmation screen.
Fader / Balance / Zone Control
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [FAD / BAL / Zone].
• Fader / Balance Control (P.72)
• Set up Zone Control (P.73)
Ñ Fader / Balance Control
You can adjust the volume balance among the
speakers.
1
Touch [C], [D], [R], and [S] to adjust the
volume balance.
[C] and [D] adjust the left and right volume
balance.
[R] and [S] adjust the front and rear volume
balance.
■ [Center]
Clear the adjustment.
NOTE
• When the 3-way speaker system is selected,
“Fader” adjustment is disabled.
Controlling Audio
73English

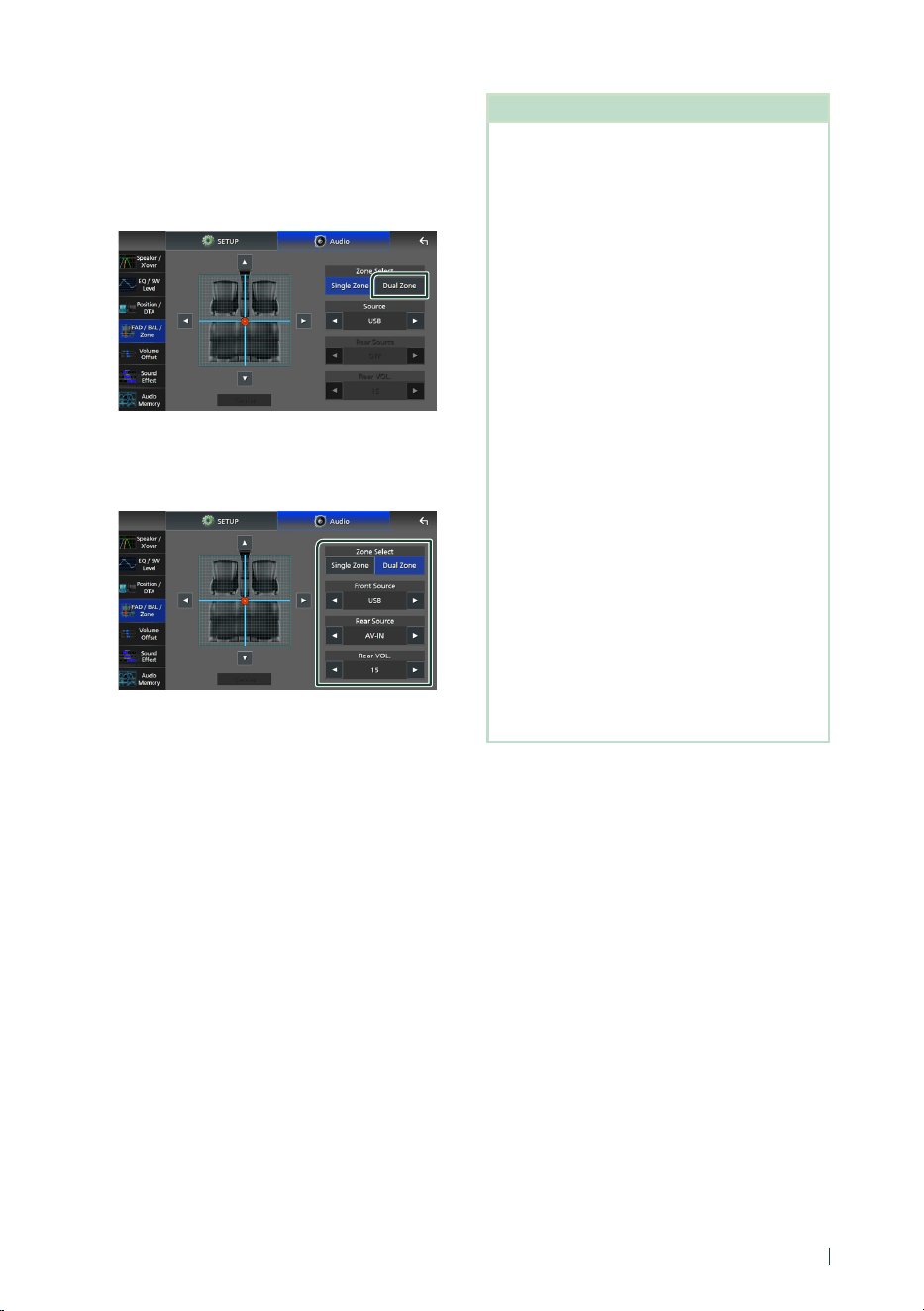

Ñ Zone Control
You can select different sources for front and
rear positions in the vehicle.
1
Touch [Dual Zone] on the FAD / BAL /
Zone screen.
■ [Source]
You can switch the current source.
2
Set each source as follows.
■ [Zone Select]
Touch [Single Zone] to turn off the dual
zone function.
■ [Front Source], [Rear Source]
Select an audio source for each.
Rear Source;
“AV-IN”/“iPod”/“USB”/“OFF”
■ [Rear VOL.]
Adjust the rear source volume.
NOTE
• When the rear source is switched, the audio
source that is output at the AV OUTPUT terminal
is also switched to the same source.
• When the dual zone function is set to on, the
following functions are not available.
– Output from the subwoofer
– Subwoofer Level/Bass Boost (P.74)
– Equalizer Control/Sound Effect/Listening
Position (P.69, 74, 70)
– Speaker Setup (P.68)
– Fader for Controlling General Audio
– High-resolution Sound Source File Playback
• When the dual zone is selected and audio source
other than "OFF" is selected as Rear Source, the
speaker system cannot be switched.
• You cannot select AV-IN if the Video input
terminal is used for camera.
Rear Source
• You cannot select iPod if it is connected via
Bluetooth or Apple CarPlay is connected.
• If you select iPod as the Front Source, you cannot
select USB as the Rear Source.
• If you select USB as the Front Source, you cannot
select iPod as the Rear Source.
• If you select HDMI as the Front Source, files with
sampling rates higher than 96 kHz in USB selected
as the Rear Source are skipped.
• If you select Bluetooth audio, HD Radio, Wireless
Mirroring, Apple CarPlay or Android Auto as the
Front Source, you cannot select USB or iPod as
the Rear Source.
Controlling Audio
74

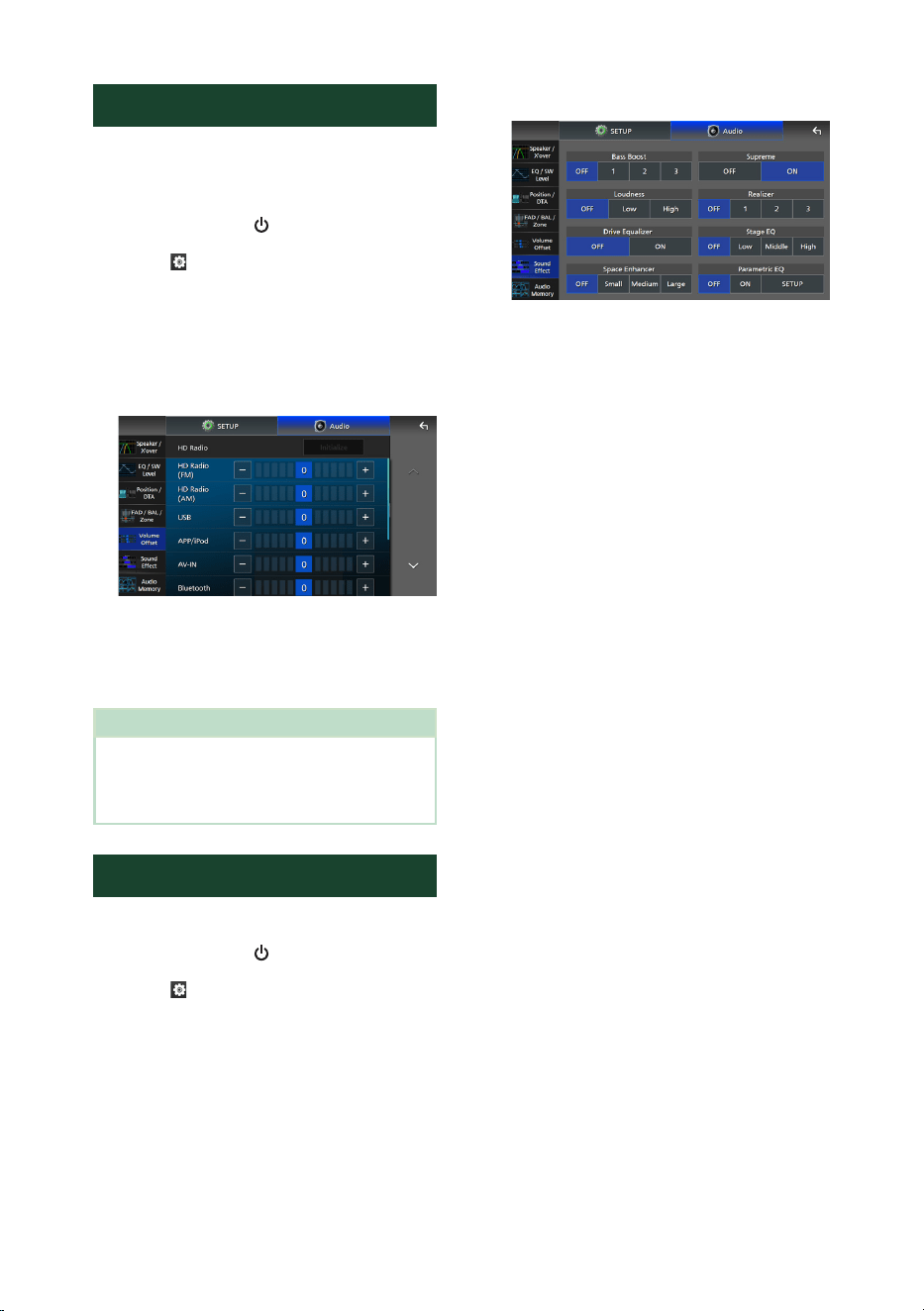

Volume Offset
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [Volume Offset].
5
Touch [+] or [-] to adjust the level.
■ [Initialize]
Returns to the initial settings.
Touch [Initialize] and then touch [YES] on
the confirmation screen.
NOTE
• If you have increased the volume first, then
reduce the volume using “Volume Offset”.
Switching the current source to another source
suddenly may output extremely loud sound.
Sound Effect
You can set sound effects.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [Sound Effect].
5
Set each parameter as follows.
■ [Bass Boost]
Set the amount of bass boost
“OFF”/“1”/“2”/“3”.
■ [Loudness]
Set the amount of boost of low and high
tones.
“OFF”, “Low”, “High”
■ [Drive Equalizer]
Reduces the driving noise by raising the
bandwidth.
“OFF”, “ON”
■ [Space Enhancer]
Select the feeling of sound space
enhancement.
“OFF”/“Small”/“Medium”/“Large”.
This setting is not available for the HD Radio
tuner source.
■ [Supreme]
Turn ON/OFF the Supreme function.
Technology to extrapolate and supplement
with proprietary algorithm, the high-
frequency range that is cut off when
encoding.
■ [Realizer]
Virtually make the sound more realistic using
the Digital Signal Processor (DSP) system.
Select the level from “OFF”/“1”/“2”/“3”.
■ [Stage EQ]
You can adjust the height of speakers
virtually to suit your listening position.
“OFF”/“Low”/“Middle”/“High”.
■ [Parametric EQ] (DMX1057XR)
When set to “ON”, you can use the parametric
equalizer. For details, see Parametric
Equalizer (P.75).
Controlling Audio
75English
Parametric Equalizer
(DMX1057XR)
In addition to the conventional Graphic
Equalizer, this unit has a parametric equalizer,
which allows you more precise adjustments.
By using each equalizer properly, you can
calibrate the unit more thoroughly.
Adjustment using this function requires
expertise.
When to Use Each Function
● Parametric Equalizer
Use this to finely correct or improve the
frequency characteristics of the acoustics
of the car in order to establish a basis for
adjustments.
Practiced ears or a measuring equipment
may be required to apprehend the
problems of the sound field inside the car.
● Graphic Equalizer
Use this to actively create an attractive
sound as conventionally.
Everybody can easily get the result through
trial and error of intuitive operations.
Even more effective adjustments are
possible when the basis is established by
using the Parametric Equalizer.
Ñ About the Parametric Equalizer
This system allows you to freely control the
filter, frequency, Q factor (acuteness) and
slope gain at 14 points consisting of 9 points
common for front/rear/subwoofer, 2 points for
front only, 2 points for rear only, and one point
for subwoofer only.
NOTE
• Configure the Parametric Equalizer to establish
the basis for adjustments before making
adjustments using the Graphic Equalizer.
• The changes made using the Parametric Equalizer
are not shown on the Graphic Equalizer screen.
• You can check the effects using the Parametric
Equalizer ON/OFF key.
About Adjustments
If there are unpleasant peaks, you can slide the
peaking filter to the left or right and search
the frequencies by ear. Studio engineers use
this method to make adjustments quickly and
efficiently.
However, in order to identify peaks and dips
of a car audio system, you have to capture
the pink noise outputted from the speaker
using a microphone and analyze it using a real
time analyzer (RTA). From the analysis result,
identify the peaks and/or dips that need to be
corrected and configure the filters to cancel
them.
About the Filters of Parametric Equalizer
Filters allow you to remove or extract specific
sound through signal processing.
Filter
NOTE
• Cutoff frequency is the boundary between the
passband and the stopband. The definition of
cutoff frequency is a frequency for which the
output is -3 dB of the nominal passband value.
Controlling Audio
76
● High-Pass Filter
Passes signals with frequencies higher than
a certain frequency (fc: cutoff frequency)
and attenuates signals with frequencies
lower than the cutoff frequency. Use this to
pass only high-frequency signals. Use this in
the following cases for example:
– For extracting the frequency band for
separate tweeters. By extracting the
specific frequency band, level adjustment
can be made to the frequency band
individually.
– The sound may be muddy when you play
back low frequency sound. This occurs
when frequencies below the speaker
capacity is inputted. To cancel this, use the
high-pass filter to cut off the frequencies
below the speaker capacity.
［dB］
［Hz］fc
● High-Shelving Filter/Low-Shelving Filter
These filters reduce or increase signals
above or below a certain frequency (fc:
cutoff frequency), which create shelves in
the frequency spectrums. A high-shelving
filter reduces or increases the frequencies
above the target frequency and a low-
shelving filter reduces or increases the
frequencies below the target frequency. The
low shelf controls the lower frequencies and
the high shelf controls the high frequencies.
Use these in the following cases for
example:
– When you want to change the volume of
the tweeters, for example when they are
close to your ears and are sounding too
loud.
– When you want to change the subwoofer
volume at hand.
［dB］
［Hz］fc
● Peaking Filter
The frequencies in the vicinity of a certain
frequency (f0: center frequency) are
boosted or attenuated. Use this in the
following cases for example:
– When you want to control a narrow range
of frequencies to correct the frequency
abnormality in the car.
– To diminish a chattering noise from the
speaker by attenuating the frequency
range of the noise.
– To adjust of the sound balance of the
whole range between the low end and the
high end.
［dB］
［Hz］f0
● Low-Pass Filter
Passes signals with frequencies lower than a
certain frequency (fc: cutoff frequency) and
attenuates signals with frequencies higher
than the cutoff frequency. Use this to pass
only low-frequency signals. Use this in the
following cases for example:
– For extracting the low frequencies band
for a subwoofer.
– For extracting middle/low frequencies
when you are using speakers with
separate tweeters and you want to output
the high frequencies to the tweeters and
output the middle/low frequencies to the
woofers.
– To cut the high frequencies when they are
too loud.
［dB］
［Hz］fc
Controlling Audio
77English

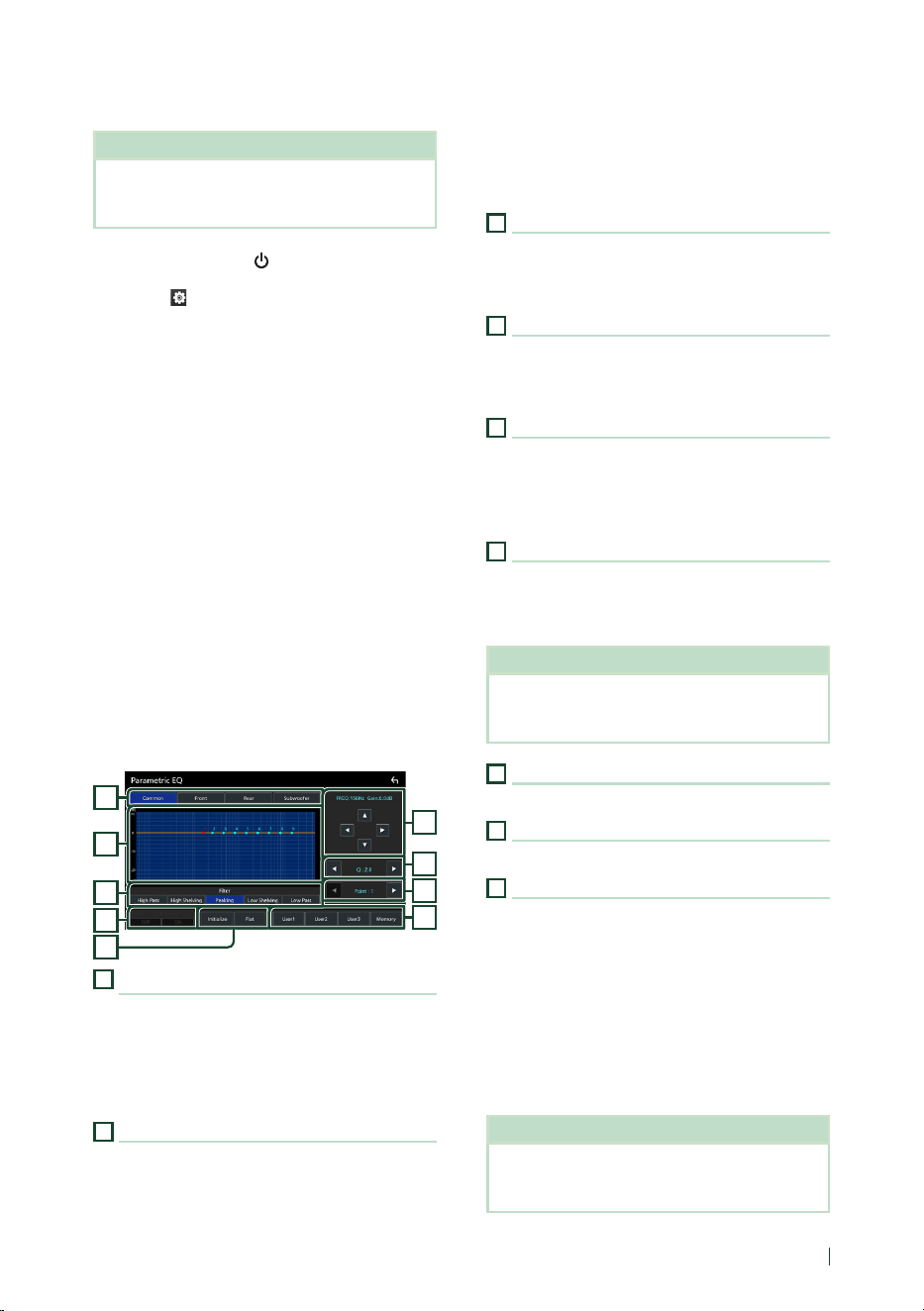

Ñ Adjust the Parametric Equalizer
Preparation
• Correct the value in “Listening Position” and “Front
Focus” before adjusting the parametric equalizer.
See Listening Position / DTA (P.70).
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
4
Touch [Sound Effect].
5
Set the Parametric EQ to [ON] and touch
[Ye s ].
6
Touch [SETUP].
hh Parametric EQ screen appears.
7
While auditioning music, move the
peaking filter to the left and right to
search for unpleasant peaks and suppress
them.
8
Use pink noise and an analyzer to identify
dips, as dips are difficult to find.
Correct steep (10 dB or greater) peaks and
dips as these are generally regarded as
obstructions to sound quality.
9
Set each parameter as follows.
1
2
3
4
6
7
8
9
5
1
Speaker
Select the speaker.
When Speaker network is set to 2-way:
“Common” / “Front” / “Rear” / “Subwoofer”
When Speaker network is set to 3-way:
“Common” / “Tweeter” / “Middle” / “Woofer”
2
EQ points/curve
Displays the EQ point and the curve. Adjust the
EQ points by touching.
EQ point (red): The EQ point currently being
adjusted.
EQ point (blue/yellow): EQ points that are not
currently being adjusted.
Curve (orange): EQ curve of the speaker
currently being adjusted.
Curve (blue): Overall EQ curve.
3
Filter
Select the filter.
“High Pass” / “High Shelving” / “Peaking” / “Low
Shelving” / “Low Pass”
4
Affects All Speakers
*1
• [ON]: Outputs sound from all speakers.
• [OFF]: Outputs sound from the currently
selected speaker only.
5
[Initialize] / [Flat]
• [Initialize]: Initialize (flatten) the adjustment of
all the speakers.
• [Flat]: Initialize (flatten) the adjustment of the
current speaker.
6
Frequency / Gain
Set the frequency and gain.
[T] and [U] adjust the frequency.
[R] and [S] adjust the gain.
NOTE
• Touch the EQ point to roughly determine the
frequency and gain, then use this key to make
fine adjustments.
7
Q / Slope
*2
Set the Q factor and slope.
8
Point
Select the EQ point to adjust.
9
Preset
• [User1] / [User2] / [User3]: Recalls the preset
EQ.
• [Memory]: Stores the current EQ settings.
*1 Only when the speaker other than “Common”
is selected.
*2 When “Peaking” filter is selected, you can
adjust the Q factor. When “High Pass”or “Low
Pass” filter is selected, you can adjust the slope.
NOTE
• You can adjust the EQ points and curve based on
a preset EQ. Recall the preset EQ and touch the
preset key again to unselect it before adjustment.
Controlling Audio
78
10
When you have finished adjustments,
save the results as a preset, and check the
effects by switching presets or turning
the Parametric EQ [ON] and [OFF].
11
Use the Graphic Equalizer to make final
adjustments. (P.69)

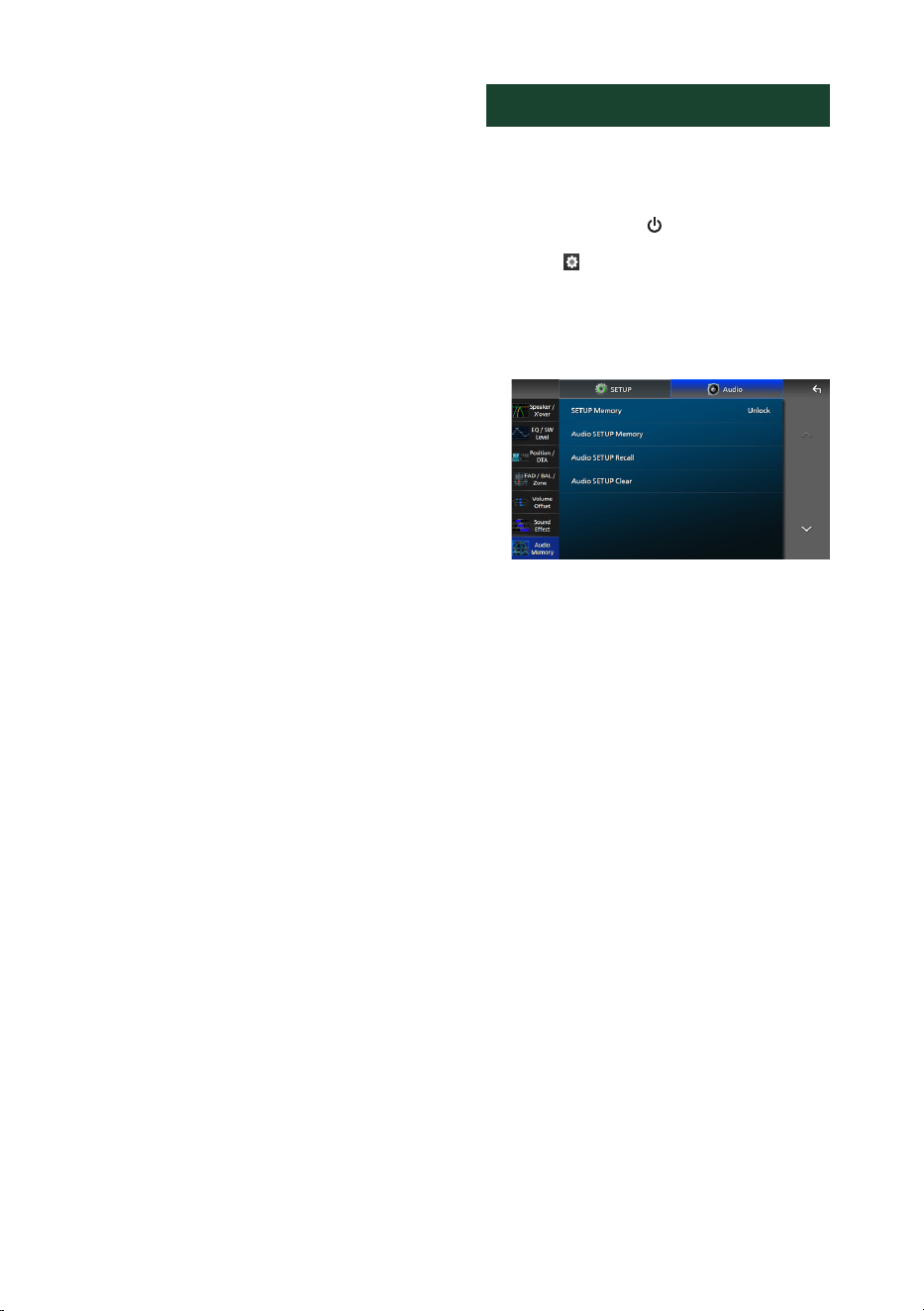

Audio Setup memory
Audio Control settings can be memorized.
The memorized settings can be recalled at any
time.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
hh Audio screen appears.
4
Touch [Audio Memory].
■ [SETUP Memory]
Lock or unlock the Audio SETUP Memory/
Recall/Clear.
■ [Audio SETUP Memory]
Memorize the current audio settings.
• FAD / BAL / Zone, Speaker / X’over,
Equalizer (User Preset, SW Level), Position /
DTA, Sound Effect (P.67)
■ [Audio SETUP Recall]
Recall the memorized audio setting.
■ [Audio SETUP Clear]
Clear the Audio SETUP Memory and the
currently memorized audio settings.
If the iDatalink (commercially available) is
connected, the audio settings revert to the
values set by the iDatalink.
Remote control
79English

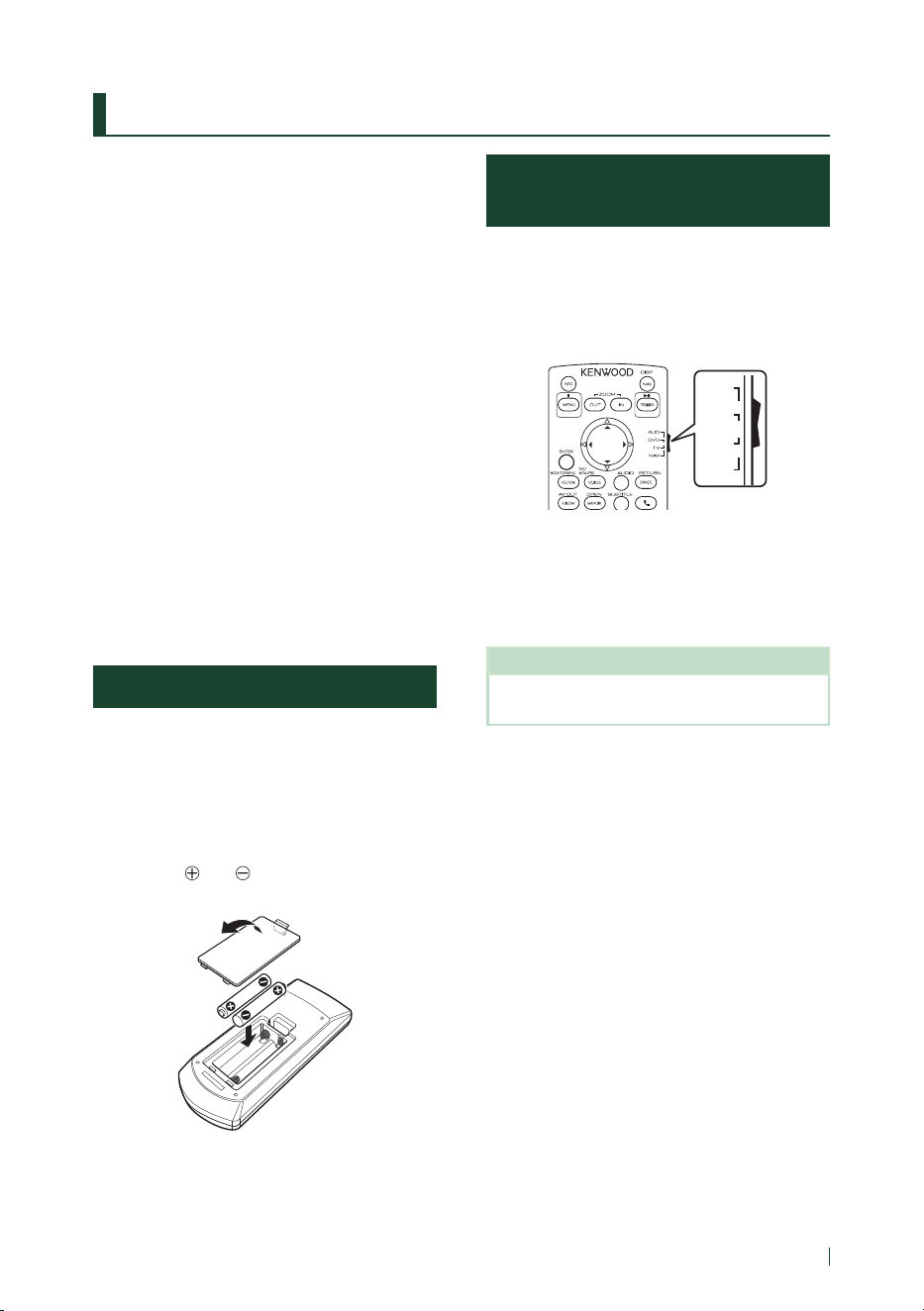

Remote control
This unit can be operated using the remote
control KNA-RCDV331 (optional accessory).
# CAUTION
• Risk of fire or explosion if the battery is
replaced by an incorrect type. Ensure to
replace only with the same type.
• Risk of fire, explosion or the leakage of
flammable liquid or gas if the battery is left in
an extremely high temperature surrounding
environment and/or subjected extremely
low air pressure. The battery pack or batteries
shall not be exposed to excessive heat such as
sunshine, fire or the like.
• Risk of fire, explosion or the leakage of
flammable liquid or gas if the battery is
disposed into fire or a hot oven, recharged,
shorted, mechanically crushed or cut of the
battery.
• If spilled fluid comes in contact with your eyes
or on clothing, immediately rinse with water
and consult a physician.
Battery Installation
If the remote control operates only over
shorter distances or does not operate at all, it
is possible that the batteries are depleted.
In such instances, replace the both batteries
with new ones.
1
Insert two “AAA”/“R03”-size batteries
with the and poles aligned properly,
following the illustration inside the case.
Functions of the Remote
control Buttons
Ñ Switch the operation mode
The functions operated from the remote
control differ depending on the position of the
mode switch.
DVD
T V
NAV
AUD
•
•
•
•
■ AUD mode
Switch to this mode when controlling a
selected source or tuner source, etc.
■ DVD mode/TV mode/NAV mode
Not used.
NOTE
• When controlling a player that is not integrated in
the unit, select “AUD” mode.

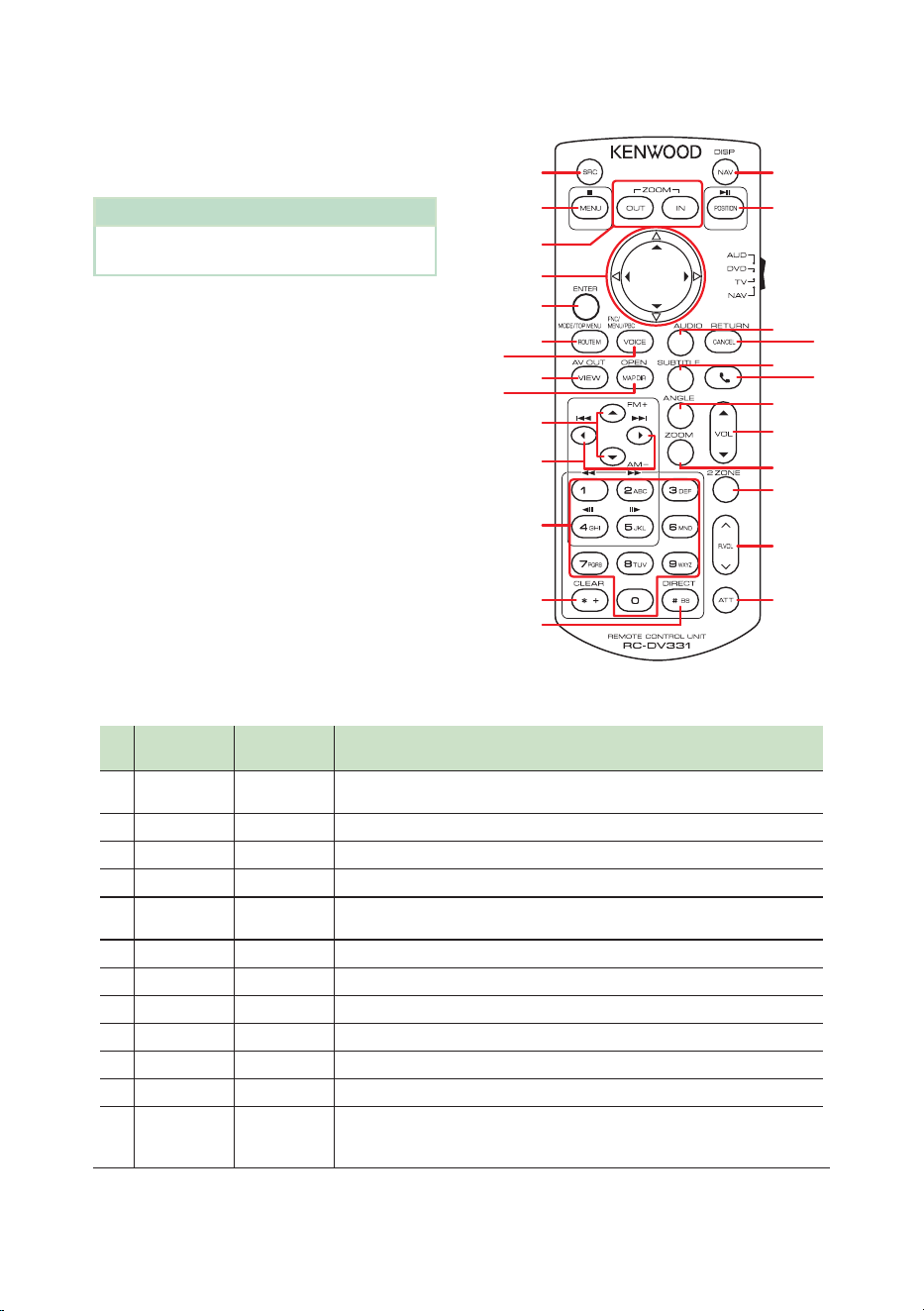

Remote control
80
Ñ Direct search mode
Using the remote control, you can jump
directly to the desired channel by entering the
number corresponding to the content.
NOTE
• This operation cannot be performed for the USB
device and iPod.
1
Press the [#BS] button several times until
the desired content appears.
The available contents are different
depending on the source type.
■ HD Radio tuner
Frequency value/Channel number
■ SiriusXM
Channel number
2
Enter the number of the content you want
to play using the numeric keypad.
3
Press the [C] or [D]/[E] or [F] button.
hh The content corresponding to the
number you entered is played.
Ñ Basic Operation
1
2
5
17
19
21
22
23
24
25
26
18
20
3
6
7
8
10
12
13
14
15
16
9
11
4
Key Name Mode
switch
Function
1
SRC AUD Switches to the source to be played. (P.64)
In Hands-Free mode, hangs up the phone.
2
NAV − Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen.
3
MENU − Not used.
4
OUT, IN − Not used.
5
POSITION AUD Pauses the track or file, and resumes playing by pressing twice.
For the HD Radio source switches the seek mode.
6
Cursor Key − Not used.
7
ENTER − Not used.
8
ROUTE M AUD Screen mode changes each time you press this key during video playback.
9
VOICE AUD Displays the control screen of current source. (USB)
10
VIEW AUD Switches the AV source to be output.
11
MAP DIR − Not used.
12
R/S
AUD Selects the folder to be played.
For the HD Radio source selects FM/AM band to be received.
For the SiriusXM source selects the band to be received.
Remote control
81English
Key Name Mode
switch
Function
13
C/D
AUD Selects the track or file to be played.
For the HD Radio, and SiriusXM sources, switches to broadcast stations
received by the unit.
14
Numeric
Keypad
AUD Allows you to enter the number to search in the direct search mode.
For details on the direct search mode, see Direct search mode (P.80).
For the HD Radio and SiriusXM sources, allows you to enter the preset number.
• If the preset number is one digit, press the number.
• If the preset number is two digits, press continuously the numbers within
3 seconds.
• Pressing [C][D] within 3 seconds allows you to determine the preset number
of one digit.
15
* + − Not used.
16
# BS AUD Switches to the direct search mode.
For details on the direct search mode, see Direct search mode (P.80).
17
AUDIO − Not used.
18
CANCEL − Not used.
19
SUBTITLE − Not used.
20
− When a call comes in, answers the call.
21
ANGLE − Not used.
22
VOL RS
− Adjusts the volume.
23
ZOOM − Not used.
24
2 ZONE AUD Switches the Dual Zone function on and off.
25
R.VOL − Adjusts volume at rear when the Dual Zone function is on.
26
AT T − Lowers the volume when pressed once.
Restores the previous volume when pressed twice.
Connection/Installation
82
Connection/Installation
This section is for the professional installer.
For safety’s sake, leave wiring and mounting to
professionals. Consult the car audio dealer.
Before Installation
Before installation of this unit, please note the
following precautions.
# WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
# CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Do not install the unit if it becomes an obstacle
to driver performance.
• Adjust the panel position not to become an
obstacle to driver performance.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check the
connections.” is displayed), the speaker wire
may have a short-circuit or touched the chassis
of the vehicle and the protection function may
have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.
• If the console has a lid, the lid will not be
closed even when the unit is installed correctly.
• If the fuse blows, first make sure the wires are
not touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤ wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤ connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• Mount the unit so that the mounting angle is
30° or less.
• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will inhibit
the cooling of the internal temperature and
result in malfunction.
Connection/Installation
83English

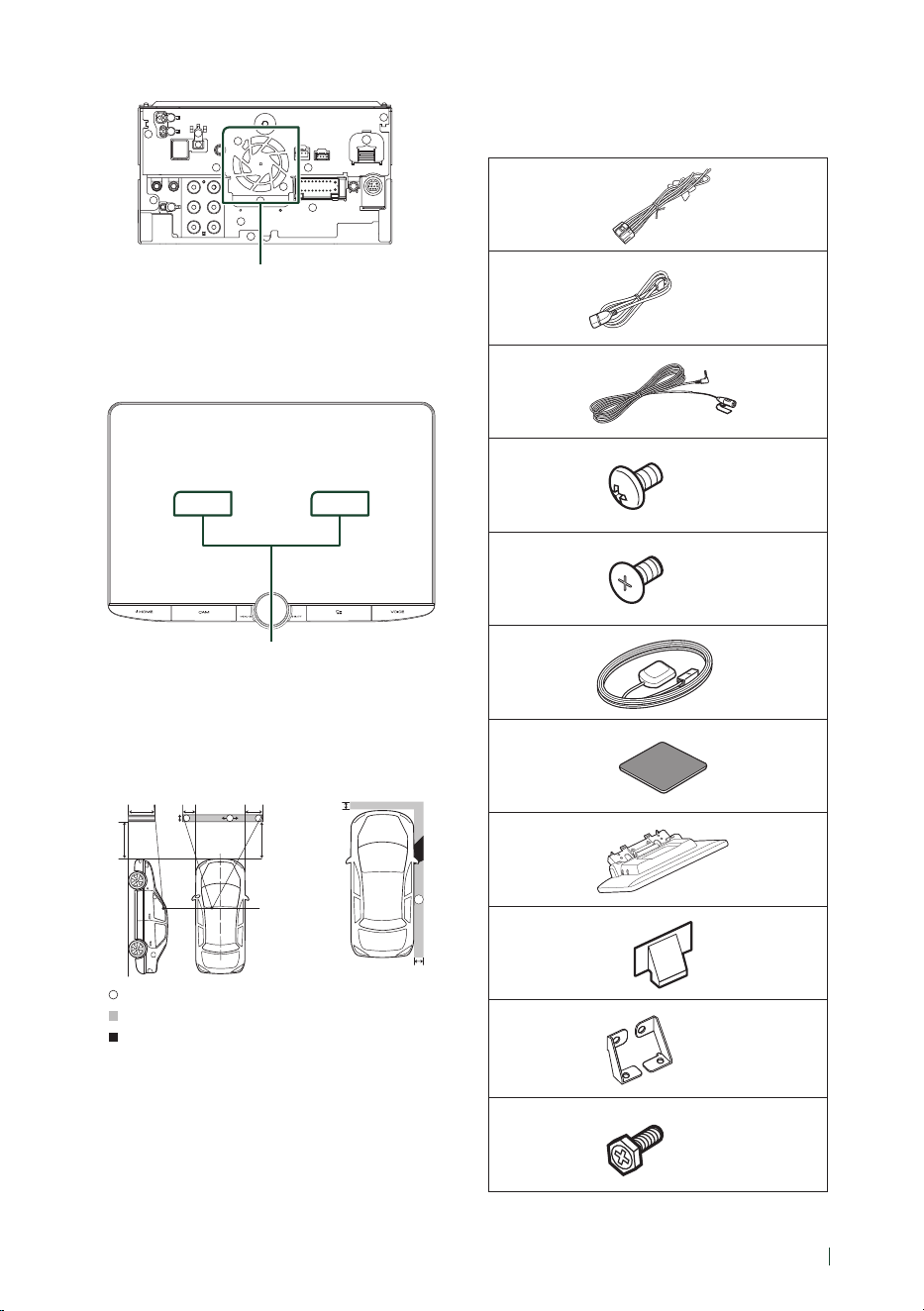

Cooling fan
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth/Wi-Fi antenna.
Bluetooth/Wi-Fi antenna unit
● Forward and Lateral Fields of Vision
• To determine driver’s forward and lateral fields
of vision under normal conditions, place a
pole (directly visible from the front or visible
through the car rear-view mirror) as shown.
*
1
*
2
0.3 m
0.3 m
0.3 m
2 m
2 m
1 m 0.7 m 0.9 m
[ ]: Pole (height: 1m, diameter: 0.3m)
[
]: Field of vision from steering position
[ ]: Exempted area (pole size is subject to
regulation)
• For right hand drive vehicles, standards are
reversed.
*1 The pole must be visible from the driver's position as
direct forward field of vision.
*2 The pole must be directly visible or indirectly visible
through the mirror, etc. from the driver's position.
Ñ Supplied accessories for
installation
1
x1
2
(1 m)
x1
3
(3 m)
x1
4
(M5 x 8 mm)
x6
5
(M5 x 8 mm)
x6
6
(3.5 m)
x1
7
x1
8
x1
9
x2
0
Left/Right
x1
-
(M5 x 8 mm)
x6
Connection/Installation
84
=
x1
~
(Ø3 x 6 mm)
(Black)
x2
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Remove the vehicle parts for installing the
unit and connecting wires to terminal.
3) Make the proper input and output wire
connections for each unit.
4) Connect the speaker wires of the wiring
harness.
5) Connect the wiring harness wires in the
following order; ground, battery, ignition.
6) Determine the height of the display unit and
position of the slider. See Distance between
the display unit and the main unit (P.85).
7) Connect the wiring harness connector to the
unit.
8) Install the main unit to the vehicle.
9) Reinstall the vehicle parts.
10) Install the display unit.
11) Reconnect the ¤ terminal of the battery.
12) Perform the Initial Setup.
See Initial SETUP (P.6).
Connection/Installation
85English

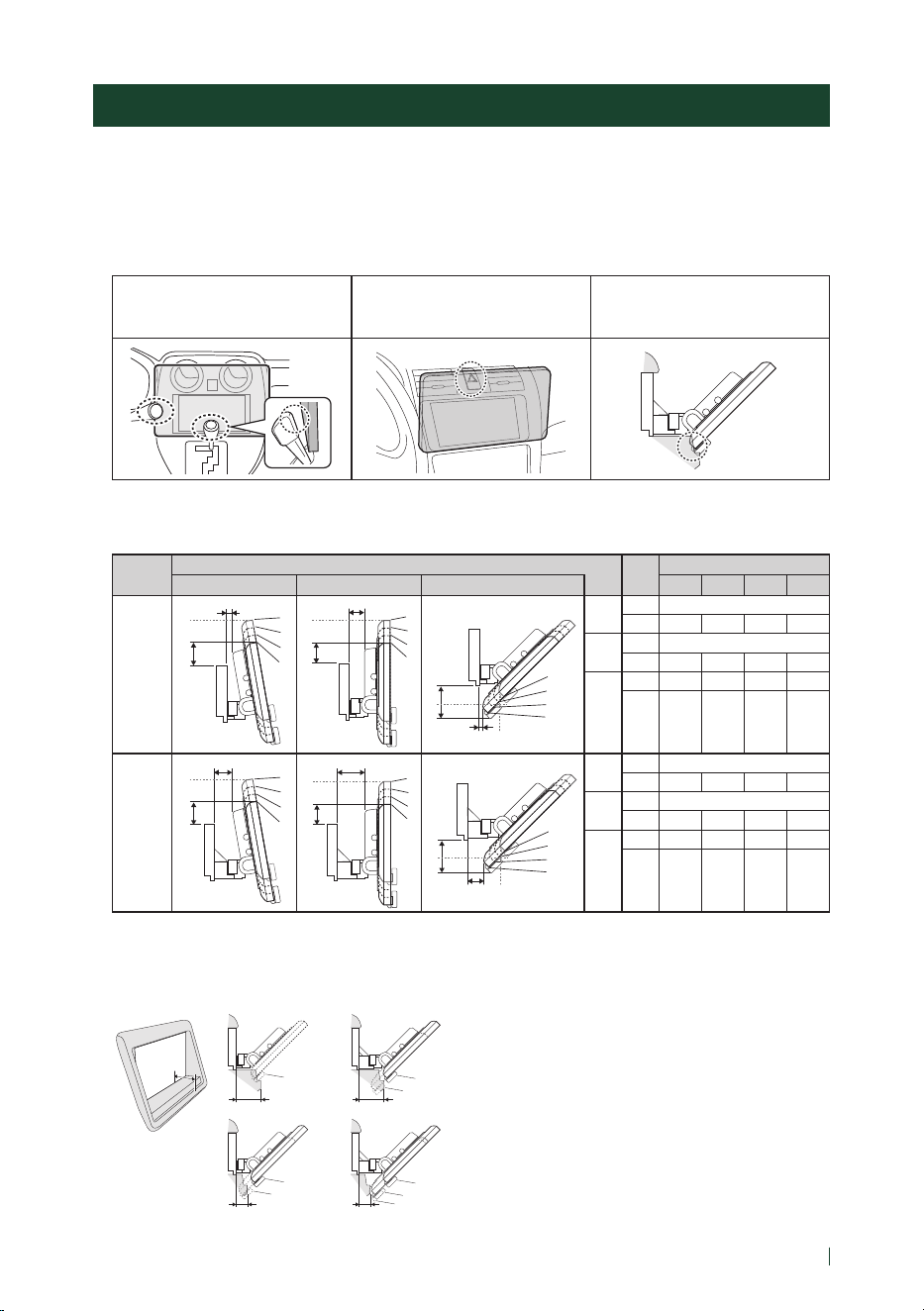

Installing the unit
Ñ Confirm the installing position of the display unit
● Vehicles cannot be installed
It may be possible to install if it can avoid the following by adjustment for slider position and
display height.
Lever operations are interfered
such as shift lever, wiper lever,
winker lever when install the unit.
A hazard switch is hidden from a
driver seat.
The display unit hits a panel on the
vehicle.
● Distance between the display unit and the main unit
Adjust slider position and display height so that it does not interfere with display movement.
Slider
position
Display angle Display height
-10° 0° 45° 1 2 3 4
Back
position
4
3
2
1
a
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
b
a
c
a
a
b
b
d
d
b
c
4
3
2
1
a
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
b
a
c
a
a
b
b
d
d
b
c
4
3
2
1
a
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
b
a
c
a
a
b
b
d
d
b
c
-10°
a 10
b 38.1 50.9 63.8 76.5
0°
a 26.7
b 34.7 47.7 60.7 73.7
45°
c 5.7 14.4 24.1 33.4
d 55.4 46.3 37.1 27.8
Forward
position
4
3
2
1
a
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
b
a
c
a
a
b
b
d
d
b
c
4
3
2
1
a
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
b
a
c
a
a
b
b
d
d
b
c
4
3
2
1
a
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
b
a
c
a
a
b
b
d
d
b
c
-10°
a 30.1
b 38.1 50.9 63.8 76.5
0°
a 46.7
b 34.7 47.7 60.7 73.7
45°
c 25.7 34.9 44.1 53.3
d 55.4 46.3 37.1 27.8
Unit: mm
Examples
Cluster panel
on the vehicle
Slider in back
position
Slider in forward
position
C’
4
1
4
1
4
2
1
4
C’ =30mm C’ =30mm
C’ =50mm C’ =50mm
• C'=50mm;
Slider position: Forward position
Display height: Set only "4"
• C'=30mm;
Slider position: Back position
Display height: Set only "4"
Slider position: Forward position
Display height: Set "2"~"4"
Connection/Installation
86

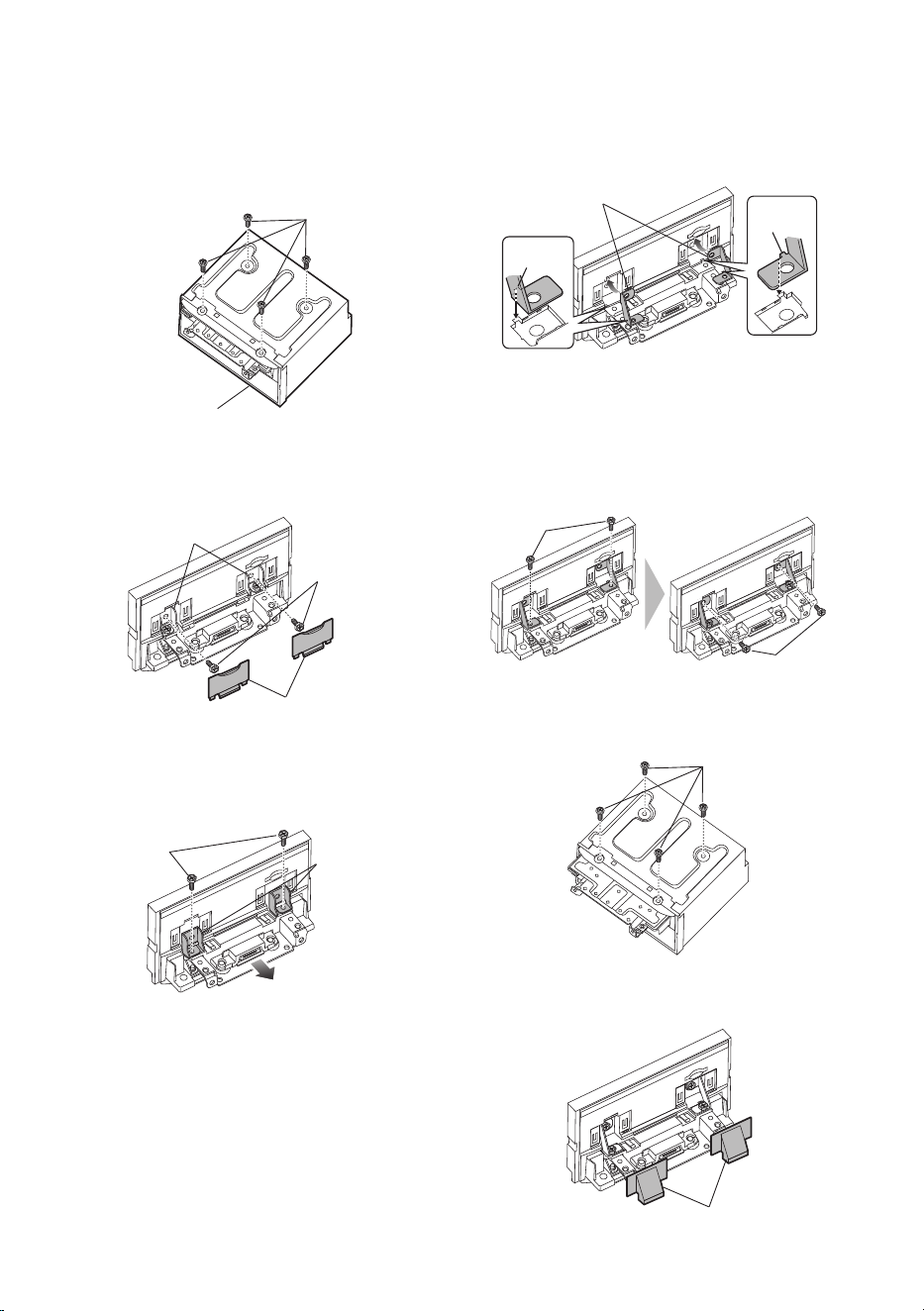

Ñ Positioning the slider in
forward
1
Remove the four screws from the bottom
of the main unit.
Main unit
Screw
2
Remove the two cover for back position,
and then remove the two hexagon head
screws from the bracket for back position.
Hexagon head
screw
Bracket for back
position
Cover for back
position
3
Pull the slider block forward and remove
the two hexagon head screws to remove
the bracket for back position.
Bracket for back
position
Hexagon head
screw
4
Install the bracket for forward position
(accessory 0) each side so that its
projections are aligned with the slots on
the main unit.
Projection
Projection
0
5
Fix the bracket for forward position to
the slider block with the two hexagon
head screws. Push the slider block until it
stops and then fix the bracket for forward
position to the main unit with the two
hexagon head screws.
Hexagon
head screw
Hexagon head
screw
6
Reinstall the four screws to the bottom of
the main unit.
Screw
7
Install the cover for forward position
(accessory 9) to two locations, as shown.
9
Connection/Installation
87English

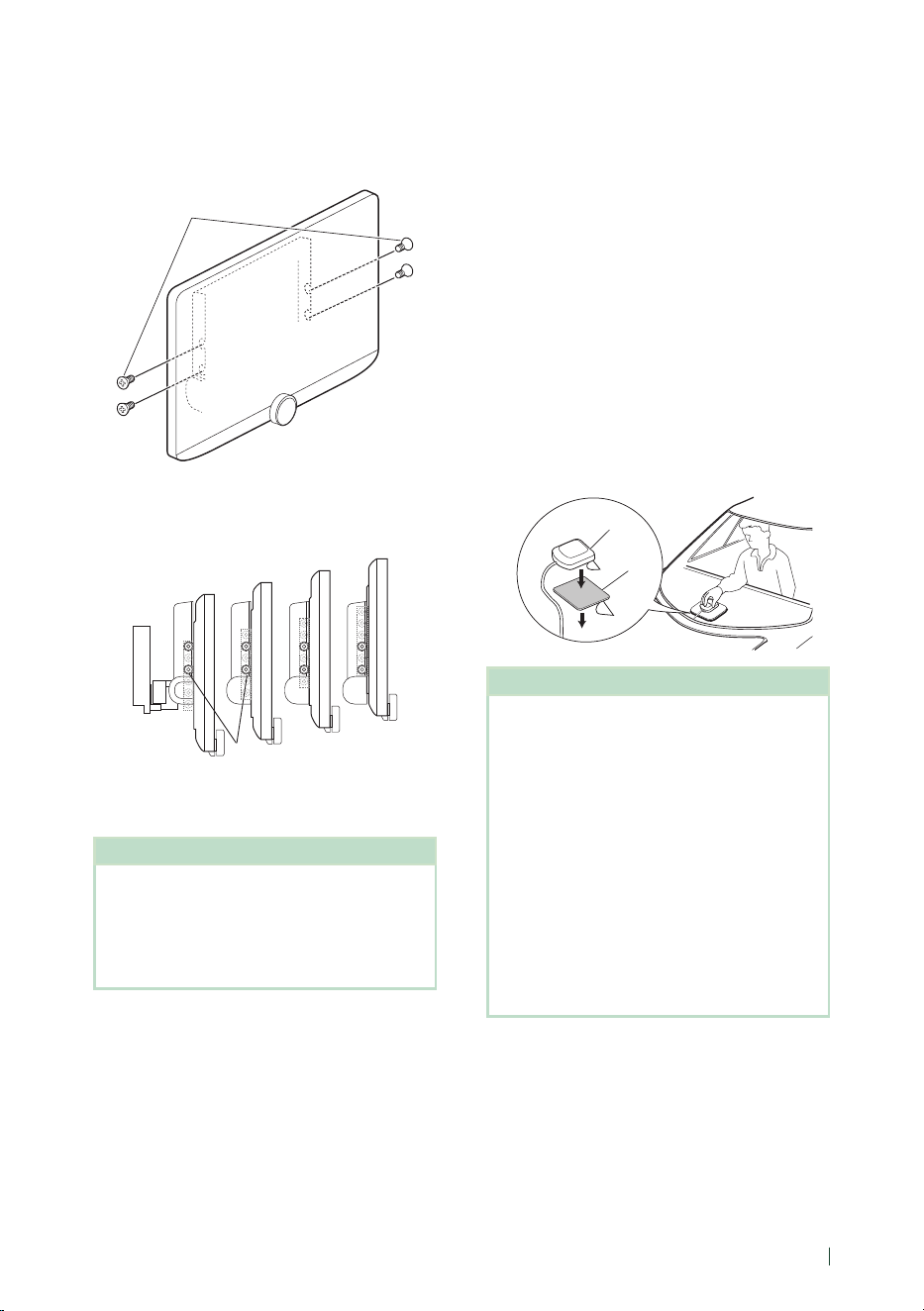

Ñ Adjusting the display height
1
Remove the four flat head screws from
both sides.
Flat head screw
2
Adjust the display height according to the
screw hole position.
Default is "1".
1
2
3
4
Screw hole position
3
Reinstall the four flat head screws on both
sides and fix the display.
NOTE
• Fix with flat head screws correctly. After installing
the display unit (accessory 8) to the main unit,
tilt the display forward until it stops and confirm
that the display unit (accessory 8) does not hit
vehicle parts. If the display unit hits vehicle parts,
adjust the display height again.
Ñ GPS antenna
GPS antenna is installed inside of the car. It
should be installed as horizontally as possible
to allow easy reception of the GPS satellite
signals.
To mount the GPS antenna inside your vehicle:
1) Clean your dashboard or other surface.
2) Remove the separator of the metal plate
(accessory 7).
3) Press the metal plate (accessory 7) down
firmly on your dashboard or other mounting
surface. You can bend the metal plate
(accessory 7) to conform to a curved surface,
if necessary.
4) Remove the separator of the GPS antenna
(accessory 6), and stick the antenna to the
metal plate (accessory 7).
7
6
NOTE
• Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may cause a
drop in positioning accuracy.
• Depending on the type of car, reception of the
GPS satellite signals might not be possible with
an inside installation.
• Please install this GPS antenna in an area away
from any antennas that are used with CB radios or
satellite televisions.
• The GPS antenna should be installed at a position
that is spaced at least 12 inch (30 cm) from
smartphone/cell-phone or other transmitting
antennas. Signals from the GPS satellite may be
interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint
may cause a drop in performance.
Connection/Installation
88

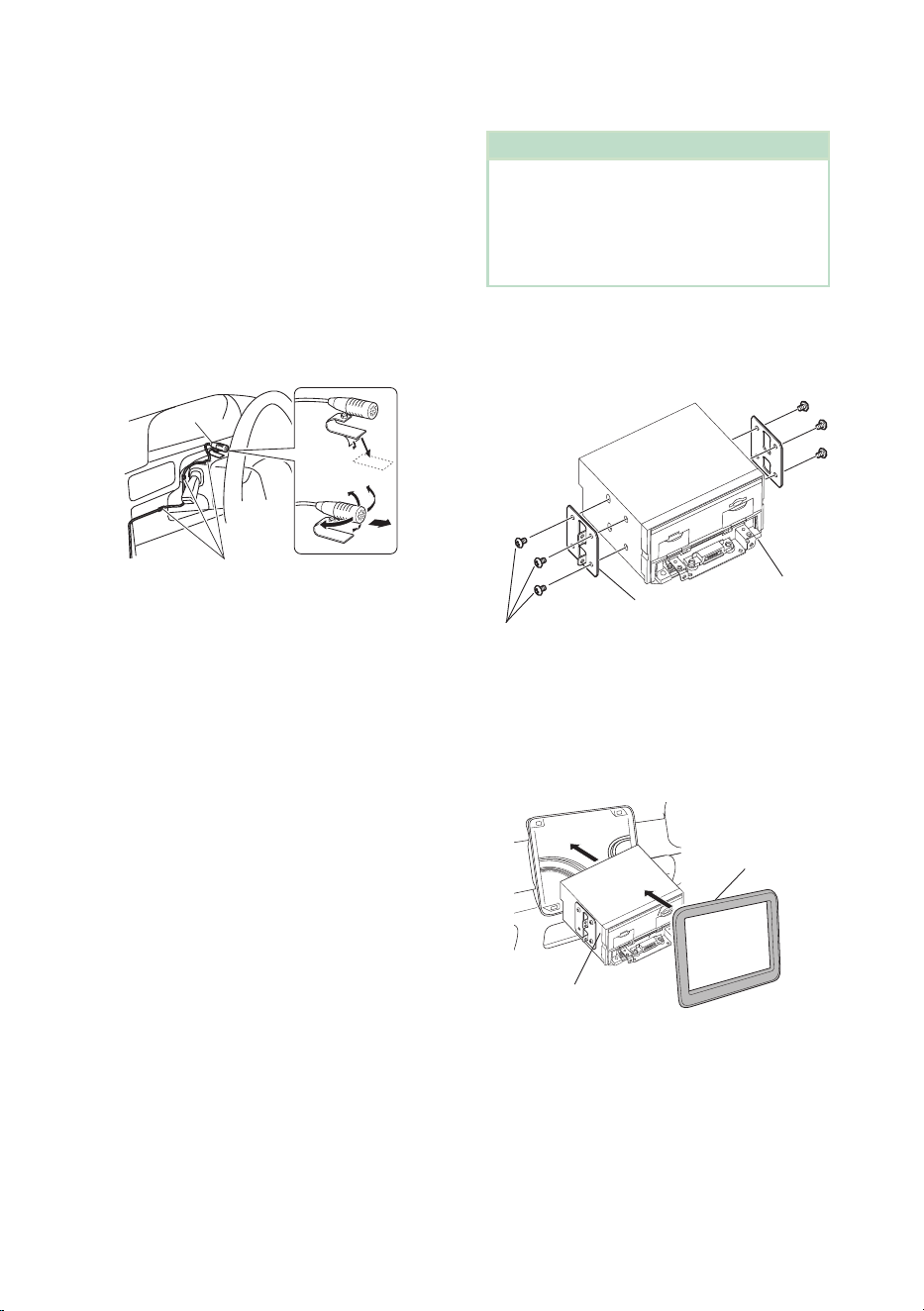

Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 3).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 3), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 3) to the driver.
3
Fix a cable with a commercial item of tape.
Ñ Installing the main unit
NOTE
• Determine the slider position before installing the
main unit. (P.86) The slider position cannot be
changed after installing to the vehicle.
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
1
Remove parts that interfere with
installing such as a panel on the vehicle.
2
Install the car bracket to the main unit.
Car bracket
4 or 5
Main unit
3
Connect the wiring harness wires and
peripheral equipment.
4
Install the main unit to the vehicle.
5
Reinstall the removed parts such as a
panel on the vehicle.
Panel on the
vehicle
Main unit
Connection/Installation
89English

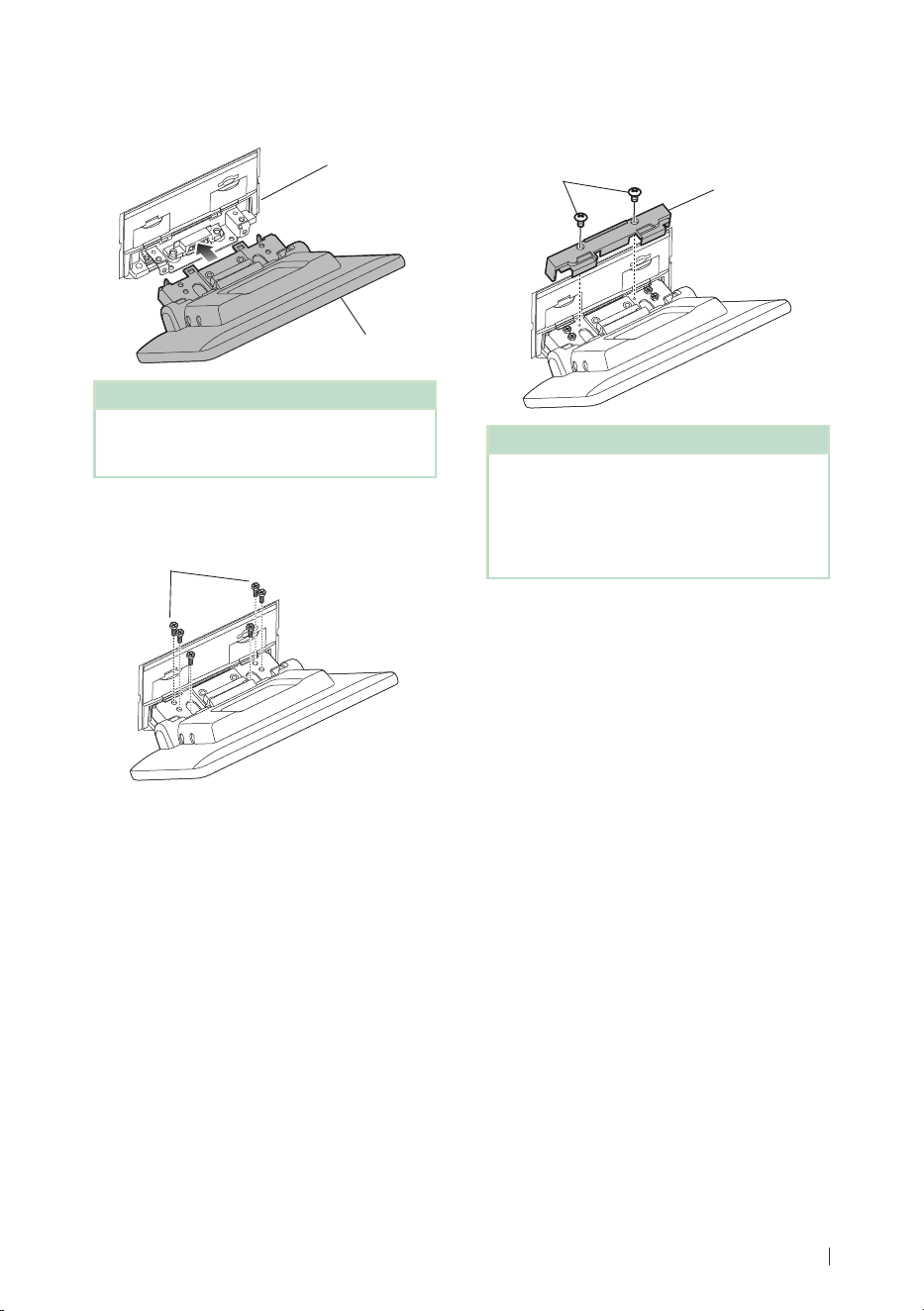

6
Install the display unit (accessory 8) to
the main unit.
Main unit
8
NOTE
• If the display unit hits a panel on the vehicle,
adjust the display height by referring to
Adjusting the display height (P.87).
7
Fix the display unit with six hexagon head
screws (accessory -).
-
8
Attach the protective cover (accessory =)
to coupling part, and then fix it with two
binding head screws (accessory ~).
~
=
NOTE
• If the protective cover (accessory =) is not
attached, this unit will not turn on. Even if the
unit is turned on, the power may be turned off
halfway.
Be sure to attach the protective cover (accessory
=).
9
Raise the display manually.
Connection/Installation
90

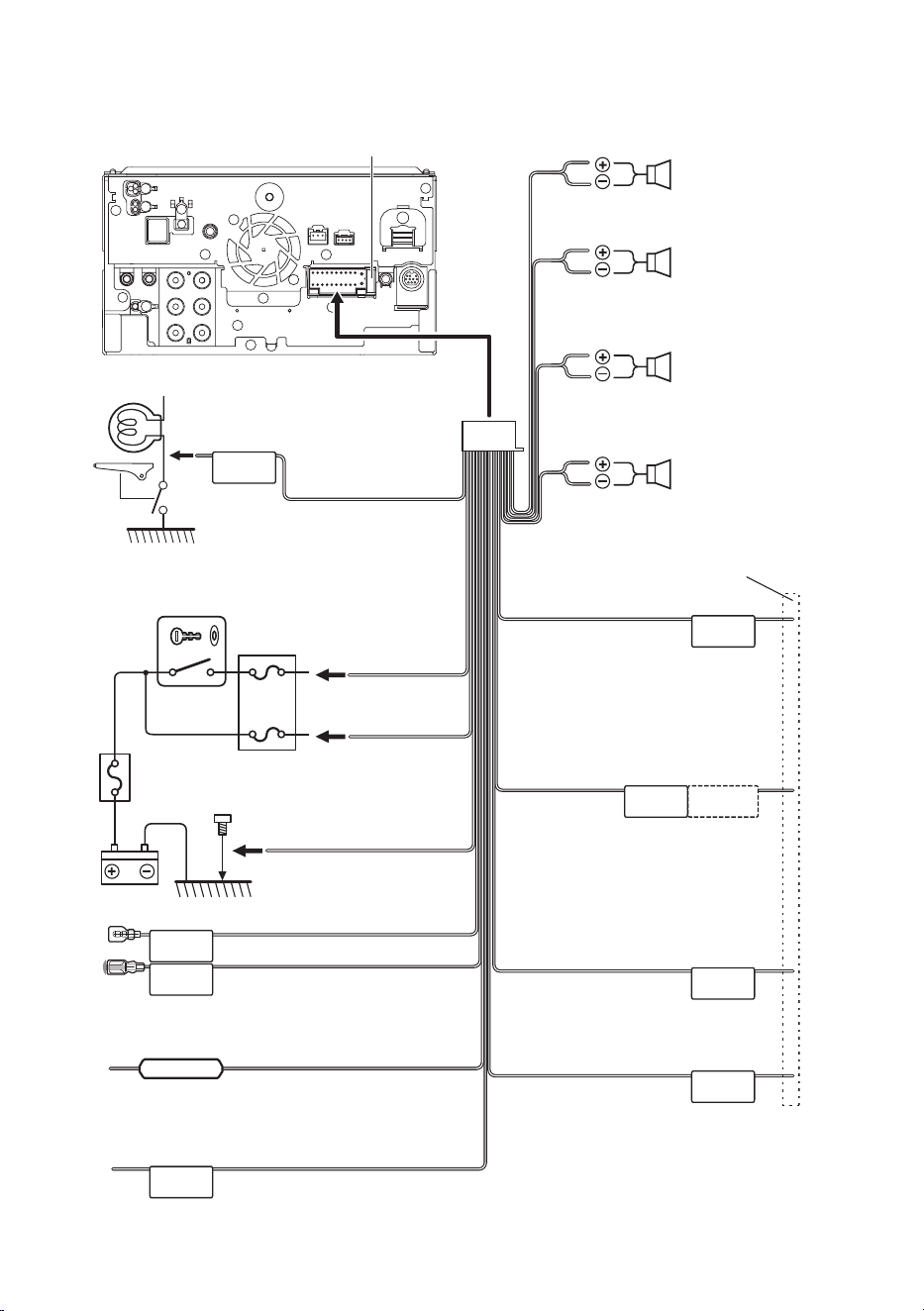

Ñ Connecting wires to terminals
ILLUMI
ANT CONT
STEERING WHEEL
REMOTE INPUT
REMOTE CONT
PRK SW
REVERSE
P. CONT
CAM+
CAM–
S SENS
Fuse (15A)
When using the optional power amplifier,
connect to its power control terminal.
(Max. 200mA, 12V)
Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for
the booster amplifier of the film-type antenna.
(Max. 300mA, 12V)
Blue/White
(Power control wire)
Green/White
Green/Red
To CMOS-3xx series (optional accessory) camera
control terminal
Pink (Speed Pulse Input) (2m)
Blue
(Antenna control wire)
To car light control switch
Orange/White
(Dimmer control wire)
Connect to the vehicle’s speed pulse harness.
Do not cut the "S SENS" tag or failure may result.
Purple/White (Reverse sensor wire) (2 m)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when
using the optional rear view camera.
To steering remote
To use the steering wheel remote control
feature, you need an exclusive remote
adapter (not supplied) matched to your car.
If no connections are made, do not let
the cable come out from the tab.
Purple/Black
To rear right speaker
To rear left speaker
To front right speaker
To front left speaker
Speaker impedance: 4-8 Ω
Purple
Green/Black
Green
Gray/Black
Gray
White/Black
White
Accessory 1
Connect to the vehicle’s
parking brake detection switch
harness.
Light Green
(Parking sensor wire)
(2 m)
For best safety, be sure to
connect the parking sensor.
Ignition key switch
Red
(Ignition wire)
Yellow
(Battery wire)
Car fuse box
Battery
Black
(Ground wire) ¤
(To car chassis)
Connection/Installation
91English
+
+
+
+

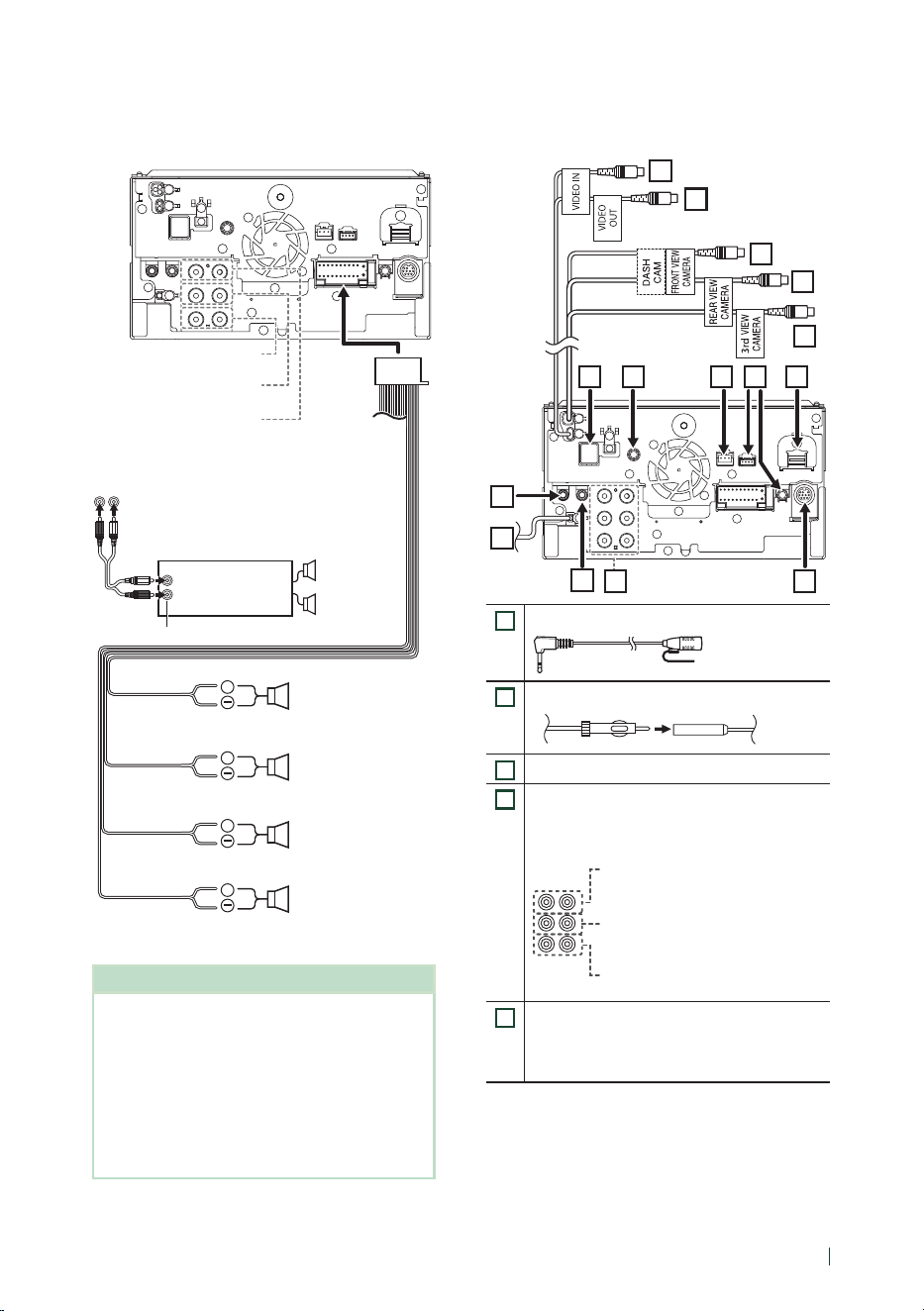

When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To mid range left
speaker
Subwoofer Preout
To mid range right
speaker
Mid Range Preout
To tweeter left speaker
Tweeter Preout
To tweeter right
speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.67).
• For speaker setup and crossover setup, see
Speaker / X’over setup (P.68).
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.91) and Connecting
wires to terminals (P.90).
Ñ 3-way speaker system setup
● DMX1057XR
Ñ Connecting the system and
external components
12
13
14
15
678910
2
1
4 5
11
3
1
Accessory 3: Bluetooth Microphone
2
FM/AM antenna input
3
AV Audio output (ø3.5 mini jack)
4
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
5
SiriusXM Connect Vehicle Tuner connector
For more information on how to install the
SiriusXM Connect Vehicle tuner, consult the
installation guide included with the tuner.
Connection/Installation
92

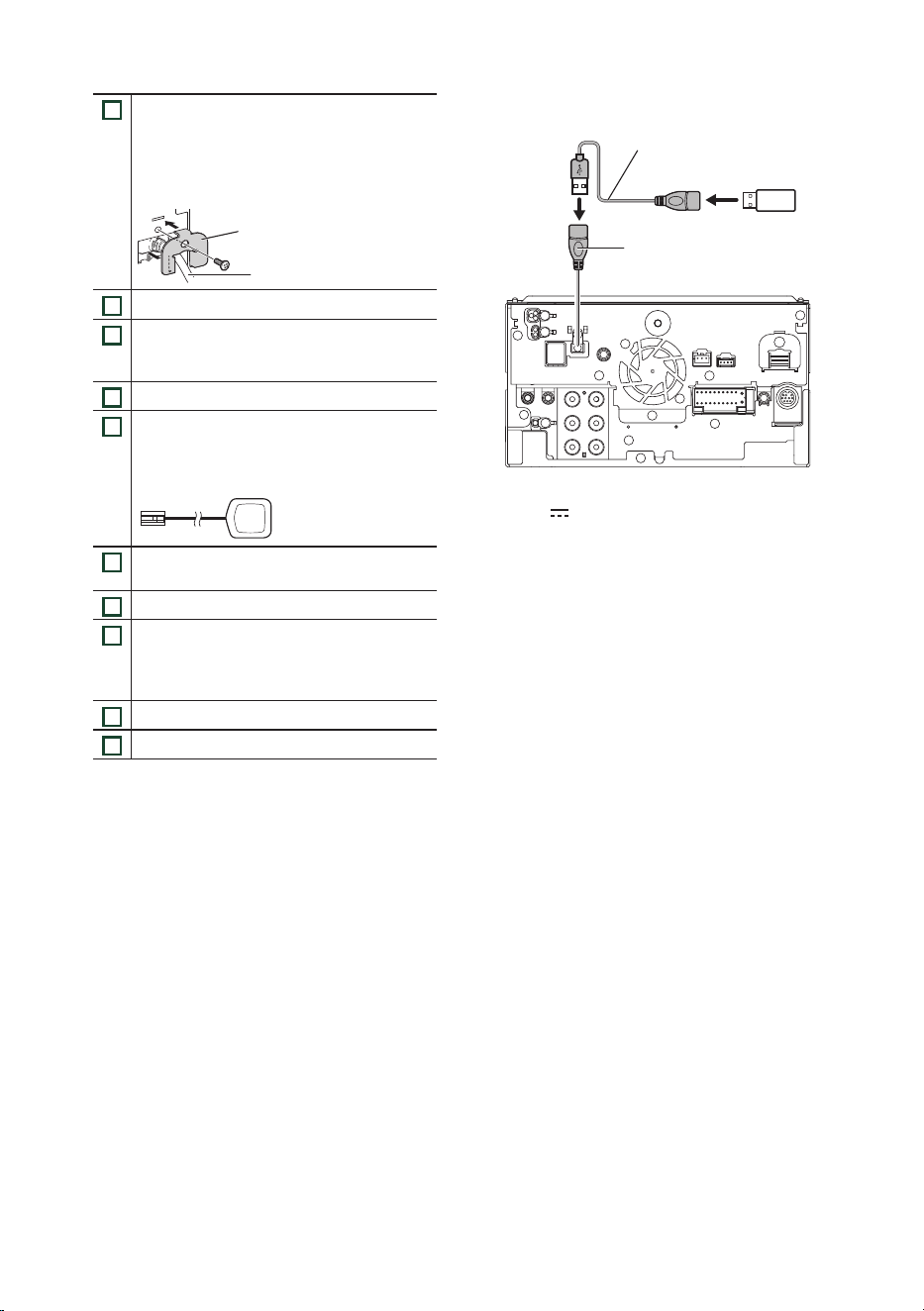

6
HDMI input
Use HDMI cable KCA-HD100 (optional
accessory).
When you connect the cable to HDMI terminal,
remove the fixture. After connecting the cable,
put the fixture again.
HDMI connector
Fixture
7
iDatalink connector
8
Dashboard camera interface
Connect a Dashboard Camera DRV-N520
(optional accessory). (P.94)
9
AV Audio input (ø3.5 mini jack)
10
Accessory 6: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
11
3rd view camera input (Yellow). See To set up
the camera assignment settings (P.57).
12
Rear view camera input (Yellow) *
1
13
Front view camera/Dashboard camera input
(Yellow).
See To set up the camera assignment
settings (P.57). *
2
14
Video output (Yellow)
15
Video input (Yellow)
*1 Connect an HD camera to Rear view camera
input terminal to use HD video.
*2 Connect an HD camera to Front view camera/
Dashboard camera input terminal to use HD
video.
Ñ Connecting a USB device
USB device
[2]
USB terminal
[1]
Accessory 2 (1 m)
[3]
[1]
USB maximum power supply current :
DC 5 V 1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.93).
Connection/Installation
93English

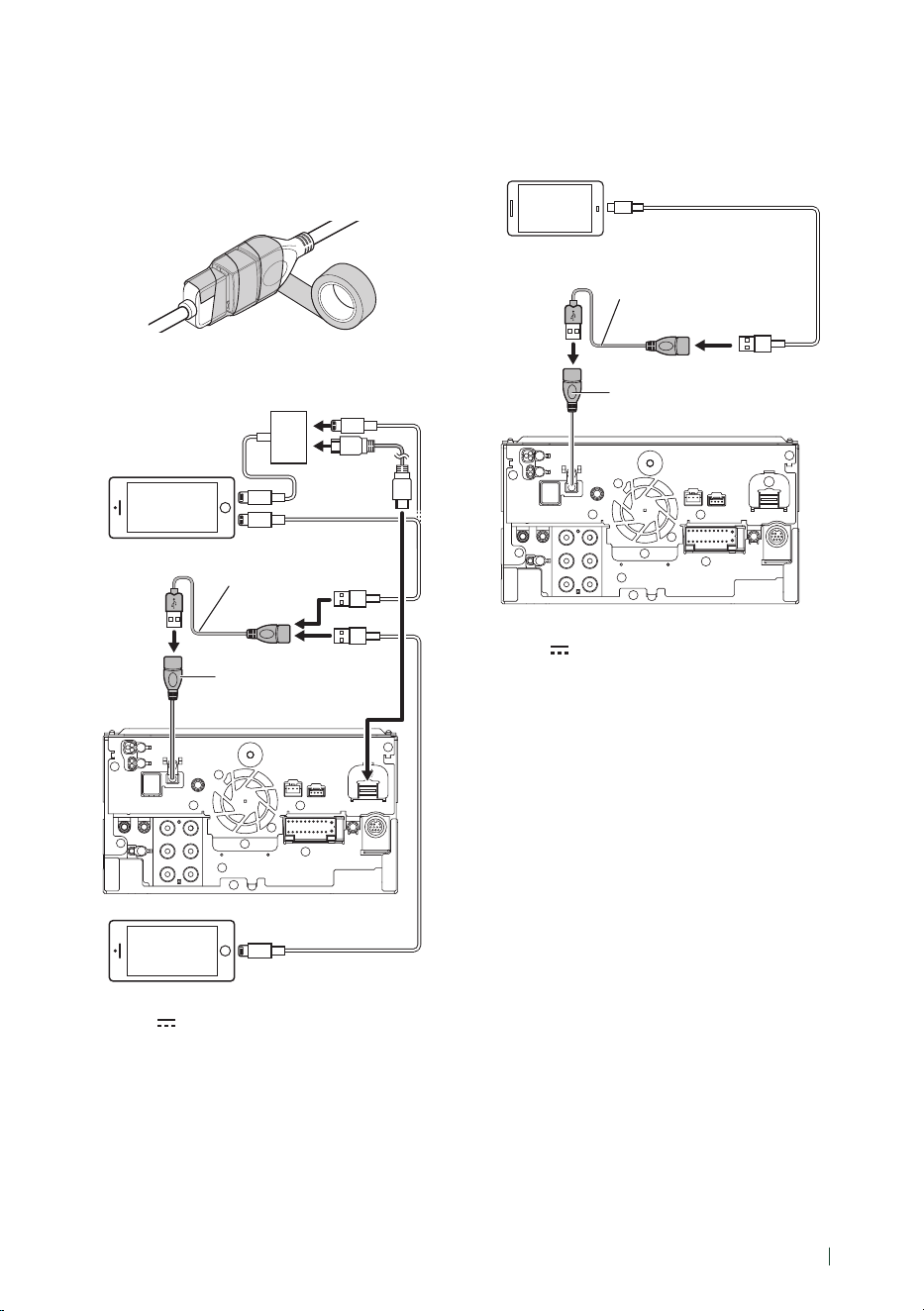

Ñ Securing the USB extension
cable
Secure the USB extension cable with insulating
tape or the like so that its connectors are not
disconnected.
Ñ Connecting an iPod/iPhone
KCA-iP103 (0.8 m)
[3]
iPod/iPhone
[2]
KCA-HD100
(1.8 m)
[3]
KCA-iP103 (0.8 m)
[3]
KCA-iP103 (0.8 m)
[3]
Lightning Digital AV
Adapter
[2]
iPhone (with Apple CarPlay)
[2]
USB terminal
[1]
Accessory 2 (1 m)
[4]
[1]
USB maximum power supply current :
DC 5 V 1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable
(P.93).
Ñ Connecting an Android
smartphone
USB terminal
[1]
Accessory 2 (1 m)
[3]
USB cable
[2]
Android smartphone
[2]
[1]
USB maximum power supply current :
DC 5 V
1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.93).
Connection/Installation
94

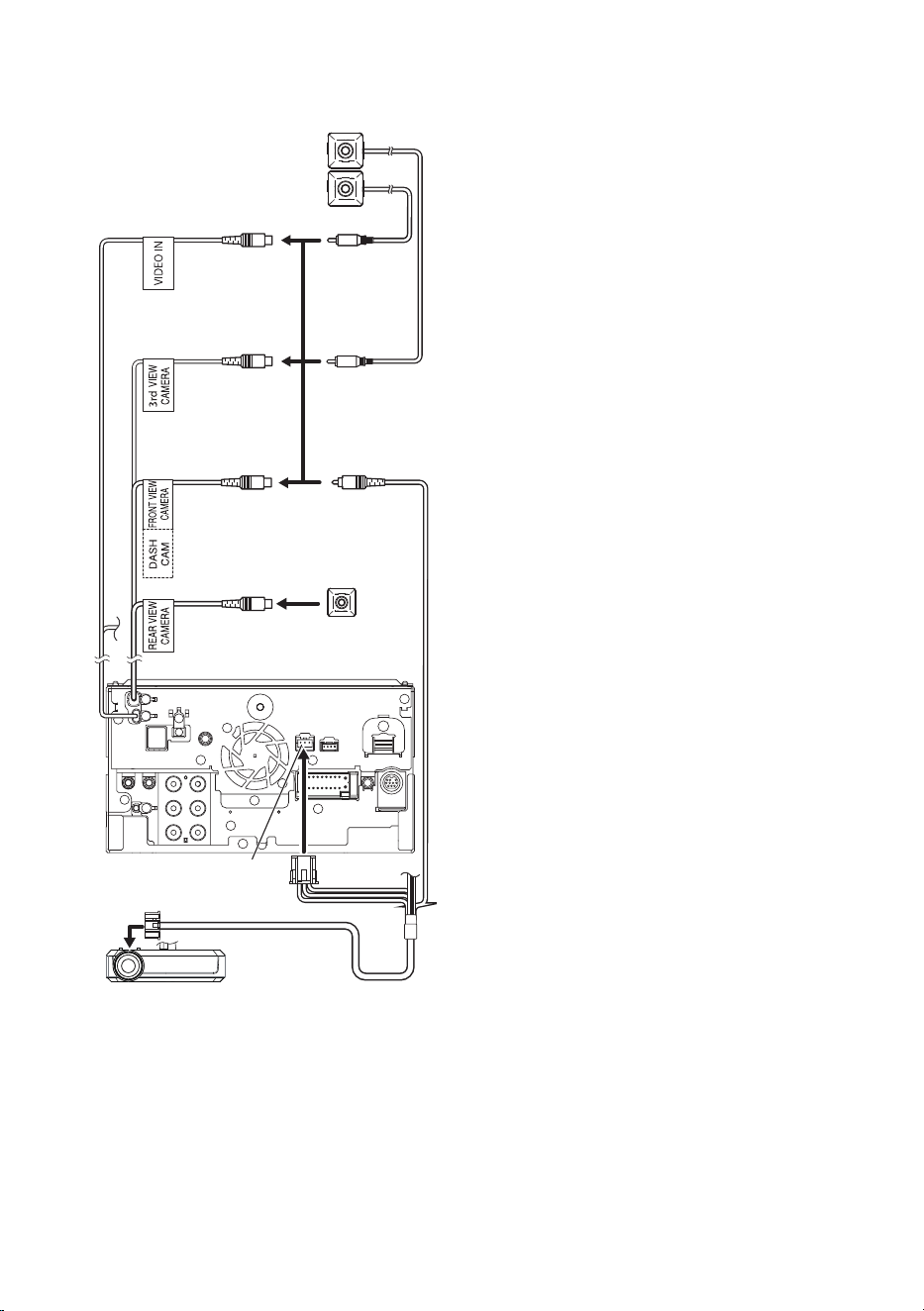

Ñ Connecting the camera
DRV-N520
[1]
3rd view camera
input (Yellow)
Front view camera/
Dashboard camera
input (Yellow)
Front view camera
[4] [6]
Left side view camera and
Right side view camera
[2]
Video input
(Yellow)
Rear view camera
input (Yellow)
Dashboard camera interface
Rear view camera
[4] [5]
[3]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
more information, see To set up the camera
assignment settings (P.57).
[4]
CMOS-3xx series (optional accessory) or
commercially available camera.
[5]
For HD video, an HD camera is also used as
Rear view camera.
[6]
For HD video, an HD camera is also used as
Front view camera.
Troubleshooting
95English
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following
table for possible problems.
NOTE
• Some functions of this unit may be disabled by
some settings made on this unit.
• What might seem to be a malfunction in your
unit may just be the result of slight misoperation
or miswiring.
Ñ About settings
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.
Subwoofer is not set to on.
Set the subwoofer to on. See Speaker / X’over
setup (P.68).
The dual zone function is enabled.
Set the dual zone function to off. See Zone Control
(P.73).
• Cannot select the output destination of the
subsource in the dual zone.
• Cannot adjust the volume of the rear speakers.
The dual zone function is disabled.
Set the dual zone function to on. See Zone Control
(P.73).
• Cannot set up the equalizer.
• Cannot set up the crossover network.
The dual zone function is enabled.
Set the dual zone function to off. See Zone Control
(P.73).
Ñ About audio operations
Radio reception is poor.
The car antenna is not extended.
Pull out the antenna all the way.
The antenna control wire is not connected.
Connect the wire correctly. See Connecting the
system and external components (P.91).
Cannot select a folder.
The random play function is enabled.
Turn off the random function.
The unit does not respond when you try to
perform a operation during USB mirroring.
Unplug the smartphone from the USB terminal,
then reattach the smartphone again.
Ñ Others
The Touch Sensor Tone doesn’t sound.
The preout jack is being used.
The Touch Sensor Tone cannot be output from the
preout jack.
Error Messages
When you fail to operate the unit correctly, the
cause of the failure appears as the message on
the screen.
There is an error in the speaker wiring. Please
check the connections.
Protective circuit has been activated because a speaker
cord has shorted or it has come in contact with the car
chassis.
Wire or insulate the speaker cord as appropriate and
turn the power off and on again.
Hot Error
When the internal temperature of this unit rises to 60°C
or more, the protection circuit is activated and you may
not be able to operate the unit.
Use the unit again after reducing the temperature
of the unit.
Error 07–67
The unit is not operating correctly due to some reason
or other.
Turn the power off and on again. If the “Error 07−67”
message does not disappear, contact your nearest
KENWOOD dealer.
No Device (USB device)
The USB device is selected as a source although no USB
device is connected.
Change the source to any source other than USB/
iPod. Connect a USB device, and change the source
to USB again.
Disconnected (iPod, Bluetooth audio player)
The iPod/Bluetooth audio player is selected as a source
although no iPod/Bluetooth audio player is connected.
Change the source to any source other than iPod/
Bluetooth. Connect an iPod/Bluetooth audio player,
and change the source to iPod/Bluetooth again.
No Media file
The connected USB device contains no playable audio
file. Media was played that does not have data recorded
that the unit can play.
See Playable Media and Files (P.97) and try
another USB device.
Troubleshooting
96
USB device over current status detected.
The connected USB device is rated a current capacity
higher than the allowable limit.
Check the USB device. Some trouble may have
occurred to the connected USB device.
Change the source to any source other than USB.
Remove the USB device.
The speed sense wire is not connected. Please
check the connection.
The speed pulse disconnection is detected. By default,
it is treated as connected.
To improve precision of a vehicle position
recognition, check the connection of the speed
pulse.
Starting tuner failed.
The tuner unit is not operating correctly due to some
reason or other.
Turn the power off and on again. If the “Starting
tuner failed.” message does not disappear, contact
your nearest KENWOOD dealer.
Ñ SiriusXM
Check Tuner
A SiriusXM tuner is not connected to this unit.
Verify that the SiriusXM Connect Vehicle Tuner cable
is securely connected to the radio.
Subscription Updated - Press Return To Continue
The SiriusXM subscription has been renewed.
Touching [Return] on the popup screen will clear
the message.
SXM Chan Unavailable
The currently selected channel is unavailable.
Visit www.siriusxm.com for more information about
the SiriusXM channel lineup.
SXM Ch Unsubscribed
The currently selected channel is not subscribed to.
In the U.S.A., visit www.siriusxm.com or call
1-866-635-2349 if you have questions about your
subscription package or would like to subscribe to
this channel.
In Canada, visit www.siriusxm.ca or call 1-877-438-
9677.
SXM Check Antenna
No antenna is connected to the SiriusXM tuner.
Check that an antenna is connected to the SiriusXM
tuner. Check antenna for damages.
SXM No Signal
No SiriusXM radio signal is received.
Verify that your vehicle is outdoors with a clear view
of the sky.
Channel Locked
The selected channel has been locked by the parental
controls.
Enter the unlock code when you are asked. See
Parental Control (P.39).
Incorrect Pass Code entered
The selected channel is a mature or parental lock
channel, and locked by the parental lock or user lock
code.
Enter the correct lock code.
Ñ Apple CarPlay
The GPS antenna must be connected to use
Apple CarPlay wirelessly. Please verify the proper
connections or plug in by USB to use Apple
CarPlay.
The GPS antenna is not connected when the Apple
CarPlay is started by connecting wirelessly or when
the iPhone compatible with wireless Apple CarPlay is
registered in [Device List].
Check the connection of the GPS antenna or plug in
over USB to use Apple CarPlay.
Appendix
97English
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
Ñ About files
The following audio and video files are supported.
■ Playable Audio files
Format Bit rate Sampling frequency Bit count
AAC-LC (.m4a) MPEG-2/MPEG-4 AAC LC
HE-AAC(V1,V2)
8 – 320kbps, VBR 16 – 48 kHz 16 bit
MP3 (.mp3) MPEG-1/MPEG-2 Audio
Layer 3
8 – 320kbps, VBR 16 – 48 kHz 16 bit
WMA (.wma) Windows Media Audio
Standard L3 profile
(Version 7,8,9)
8 – 320kbps 16 – 48 kHz 16 bit
Linear PCM
(WAVE) (.wav)
RIFF waveform Audio
Format
–
16 – 192 kHz 16 bit/24 bit
FLAC (.flac) flac – 16 – 192 kHz 16 bit/24 bit
Vorbis (.ogg) vorbis – 16 – 48 kHz 16 bit
DSD (.dsf, .dff) DSF, DSDIFF – 2.8 MHz, 5.6 MHz, 11.2 MHz 1 bit
• WMA and AAC files with DRM cannot be played.
• DSD sound is converted to PCM sound before playback.
• The EmChinks tag of DSDIFF is not supported.
• Although the audio files complies with the standards listed above, they may not be played depending on the types or
conditions of media or device.
• This unit supports playback of High-Resolution Audio files.
It is recommended that a car audio system should be configured with all High-Resolution Audio compatible products
from player to speaker to enjoy its high quality sound.
■ Acceptable Video files
Profile Max. Picture size Max. bit rate Audio format
MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2
H.264/MPEG-4 AVC
(.mp4, .m4v, .avi, .flv, .f4v)
Baseline Profile,
Main Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
MPEG-4 (.mp4, .avi) Advanced Simple
Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA
MKV (.mkv)
Video format follows H.264/MPEG-4 AVC, MPEG-4, WMV
MP3, AAC, WMA, Vorbis,
FLAC
• This unit can only play back files which are smaller than 4 GB.
Appendix
98
■ Limitation on structure of file and folder
USB device
Maximum number of folder layers 8
Maximum number of files (per folder) 999
Maximum number of folders (per folder) 9999
Maximum number of folders (per device) Unlimited
• You can enter a folder name and file name with 255 or fewer single-byte characters.
• Files in the folder whose folder name begins with a dot (.) cannot be played.
Appendix
99English
Specifications
■ Monitor section
Picture Size
: 10.1 inches (diagonal) wide
: 223.7 mm (W) × 125.8 mm (H)
8-13/16 × 4-15/16 inch
Display System
: AAS LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 2,764,800 (1280H × 720V × RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
■ USB interface section
USB Standard
: USB 2.0 High Speed
File System
: FAT16, FAT32, exFAT, NTFS
Maximum Power Supply Current
: DC 5 V
1.5 A
D/A Converter
: 24 bit/32 bit
Audio Decoder
: MP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis
Video Decoder
: MPEG-1 / MPEG-2 / MPEG-4 / WMV / H.264 / MKV
Frequency Response
• 192 kHz: 20 – 88,000 Hz
• 96 kHz: 20 – 44,000 Hz
• 48 kHz: 20 – 22,000 Hz
• 44.1 kHz: 20 – 20,000 Hz
Total Harmonic Distortion
: 0.010 % (1 kHz)
S/N Ratio (dB)
: 98.5 dB
Dynamic Range
: 89 dB
■ Wireless Mirroring Section
Mode
: Sink
Copyright protection
: HDCP2.2
Touch Control
: UIBC
■ Wi-Fi section
IEEE Standard
: 802.11 a/b/g/n/ac
Frequency Range
: Dual Band (2.4GHz/5GHz)
Channels
: Auto(1-11ch)/Auto(149,153,157,161ch)
Transfer rates (MAX)
: 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps /
11n: 300 Mbps / 11ac: 867 Mbps
Output Power
2.4 GHz/SISO
: 11b: 12 dBm ± 2 dB / 11g: 4 dBm ± 2 dB /
11n (20MHz): 2 dBm ± 2 dB
5 GHz/SISO
: 11a: 6 dBm ± 2 dB /
11n (20 MHz)/11ac (20 MHz): 6 dBm ± 2 dB /
11n (40 MHz)/11ac (40 MHz): 5 dBm ± 2 dB /
11ac (80 MHz): 5 dBm ± 2 dB
5 GHz/MIMO
: 11n (20 MHz)/11ac (20 MHz): 9 dBm ± 2 dB /
11n (40 MHz)/11ac (40 MHz): 8 dBm ± 2 dB /
11ac (80 MHz): 8 dBm ± 2 dB
■ Bluetooth section
Technology
: Bluetooth Ver.5.0
Frequency
: 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.)
: +4 dBm (MAX), Power Class 2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Audio Codec
: LDAC (DMX1057XR) / SBC / AAC
Profile (Multi Profile support)
• HFP (V1.7) (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.6) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
Appendix
100
■ HDMI section
HDMI
: Type-A
Input Resolution
• VGA (640x480p @59.94Hz/60Hz)
• 480p (720x480p @59.94Hz/60Hz)
• 720p (1280x720p @59.94Hz/60Hz)
Input Audio Type
: 32K/44.1K/48K/88.2K/96K/176.2K/192K Hz
16 bit/20 bit/24 bit Linerar PCM
■ DSP section
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/
10k/16k Hz
Gain
: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB
2-way X'Over
High pass filter
Frequency: Through, 30/40/50/60/70/80/90/100/
120/150/180/220/250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Low pass filter
Frequency: 30/40/50/60/70/80/90/100/120/150/
180/220/250 Hz, Through
Slope: -6/-12/-18/-24 dB/Oct.
3-way X'Over (DMX1057XR)
High pass filter
Frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/
10k/12.5k Hz
Slope: -12/-18/-24 dB/Oct.
Band pass filter
Frequency: Through, 50/60/70/80/90/100/120/150/
180/220/250/300 Hz
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k Hz,
Through
Slope: -12/-18/-24 dB/Oct.
Low pass filter
Frequency: 30/40/50/60/70/80/90/100/120/150 Hz,
Through
Slope: -12/-18/-24 dB/Oct.
Position
Front/Rear/Subwoofer Delay
: 0 – 20.01 ft (0.03 or 0.04 ft Step)
Gain
: -8 – 0 dB
Subwoofer level
: -50 – +10 dB
■ Digital FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Frequency Response (± 3.0 dB)
: 20 Hz – 20 kHz
S/N Ratio
: 80 dB (STEREO)
■ Digital AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Frequency Response (± 3.0 dB)
: 40 Hz – 15 kHz
S/N Ratio (dB)
: 80 dB (STEREO)
■ FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Usable Sensitivity (S/N : 30 dB)
: 7.3 dBf (0.7 μV/75 Ω)
Frequency Response
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 70 dB (MONO)
Selectivity (± 400 kHz)
: 80 dB
Stereo Separation
: 45 dB (1 kHz)
■ AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Usable Sensitivity
: 30 dBμ (31 μV)
Appendix
101English
■ Video section
Color System of External Video Input
: NTSC/PAL
External Audio Max Input Level (mini jack)
: 2 V/25 kΩ
Video Input Level (RCA jacks)
: 1 Vp-p/75 Ω
Video Output Level (RCA jacks)
: 1 Vp-p/75 Ω
Audio Output Level (mini jack)
: 0.9 V/10 kΩ
■ Audio section
Maximum Power Output (Front & Rear)
: 50 W × 4
Typical Power Output (Front & Rear)
Full Bandwidth Power (at less than 1% THD)
: 22 W × 4
Output frequency band
: 20 – 88,000 Hz
Preout Level (V)
DMX1057XR : 5 V/10 kΩ
DMX1037S : 4 V/10 kΩ
Preout Impedance
: ≤ 300 Ω
Speaker Impedance
: 4 – 8 Ω
■ General
Operating Voltage
: 12V DC car battery
Installation Dimensions (W × H × D)
: 178 × 100 × 155 mm
7 × 3-15/16 × 6-1/8 inch
Weight
: 3.25 kg (7.28 lbs)
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
Specifications are subject to change without
prior notice.
Appendix
102
About this Unit
Ñ Important Notice on Software
■ Software License on This Product
The software embedded in this product comprises a
number of independent software components, each of
which is copyrighted by JVCKENWOOD Corporation or
by a third party.
This product uses software components that are based
on an End-User License Agreement (hereinafter called
“EULA”) stipulated by JVCKENWOOD Corporation and
by third parties.
The EULA dictates the availability of the source codes
of free-software components as a prerequisite to
distributing them in executable form under the terms
of the GNU General Public License or the Lesser
General Public License (hereinafter called “GPL/LGPL”).
To get information about the software components
that are subject to the terms of the GPL/LGPL, please
visit the following Website:
Website URL https://www2.jvckenwood.com/gpl/
Queries concerning the contents of the source code or
the like will not be accepted.
Please note that software components based on a
EULA that is not subject to the terms of the GPL/LGPL
or those that have been developed or created by
JVCKENWOOD Corporation will be excluded from the
scope of source code disclosure.
Because licenses to use software components
distributed under the GPL/LGPL are offered to the
customers for free of charge, no warranty is granted to
the customers, whether explicitly or implicitly, to the
extent of the applicable laws.
Unless otherwise stipulated by the applicable laws
or agreed upon in writing, the copyright holders or
those who are entitled to modify and redistribute the
software components are not held responsible for
any and all damages resulting from their use or from
inability to use them. For more information about the
terms of use of the software components, required
items of compliance and so on, please refer to the GPL/
LGPL.
Customers wishing themselves to use a software
component that is subject to the GPL/LGPL embedded
in this product are encouraged to read the terms of
the corresponding license before use. Because each
individual license is prescribed by a third party other
than JVCKENWOOD Corporation, the original (English)
of the license is presented.
Ñ EULA
■ Software License Agreement
JVCKENWOOD Corporation (hereinafter called
“Licensor”) holds either the copyright to the embedded
software or the right to sublicense it. This agreement
establishes the conditions under which the customer
uses this “Licensed Software.”
The customer shall agree to the terms of this license
agreement before proceeding to use Licensed
Software.
This agreement is deemed to have taken effect when
the customer (hereinafter called “User”) has used a
product implementation of Licensed Software.
The Licensed Software may contain software Licensor
has been licensed to use by third parties directly or
indirectly. Some third parties may have terms of use
prescribed for their customers, apart from this Software
License Agreement. This agreement does not apply to
such software. Be sure to consult “Important Notice on
Software” as presented separately.
Article 1 (General)
Licensor grants to User a non-exclusive, non-
assignable right of use Licensed Software within
the country where the User purchases the Product
(hereinafter the "Country") (except for the exception
provided for in Paragraph 1, Article 3).
Article 2 (Right of Use)
1. The rise of use granted under this agreement is the
right to use Licensed Software in this product.
2. User may not duplicate, copy, modify, add to,
translate or otherwise alter, or loan licensed Software
and the associated literature in whole or in part.
3. Use of Licensed Software is limited to a private
extent , and Licensed Software may not be
distributed, licensed or sublicensed for any purposes
whatsoever, including commercial use.
4. User shall use Licensed Software as per the
instruction manual or instructions given in the help
file and may not use or duplicate data in violations
of the regulations of the Copyright Law or other
governing laws by using Licensed Software in whole
or in part.
Article 3 (Terms of License)
1. In assigning this product, User may not retain
the original copy of the embedded Licensed
Software (including associated literature, updates
and upgrades) and any duplicates and associated
literature with regard to the license to use Licensed
Software. User may transfer Licensed Software only
to the condition of binding the assignee to abide by
the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble,
decompile or otherwise analyze the source code of
Licensed Software.
Appendix
103English
Article 4 (Rights to Licensed Software)
All rights to Licensed Software and the associated
literature, including copyrights, shall reside with
Licensor or
the original right holder who has granted the Right
of Use and right to sublicense to Licensor (hereinafter
referred to as “Original Right Holder”), and User does
not have any rights other than Right of Use granted
hereunder with regard to Licensed Software and the
associated literature.
Article 5 (Exemption Granted to Licensor)
1. Licensor and Original Right Holder do not assume
any responsibility for damages caused to User or
third parties resulting from the exercise by User of
the license granted hereunder, unless otherwise
provided by any law to the contrary.
2. Licensor does not warrant Licensed Software to
be merchantable, compatible and fit for specific
purposes.
Article 6 (Responsibility for Third Parties)
If disputes over the infringement of third parties’
intellectual property rights, such as copyrights
and patent rights, arise out of the use of Licensed
Software by User, User shall resolve these disputes
at User’s own expenses while keep Licensor and
Original Right Holder harmless.
Article 7 (Secrecy Obligation)
User shall keep confidential Licensed Software
provided hereunder, information contained in the
associated literature or the like and those provisions
of this agreement not yet in public knowledge
and may not disclose or leak these to third parties
without prior written consent from Licensor.
Article 8 (Cancellation of the Agreement)
Licensor reserves the right to cancel this agreement
forthwith and claim compensation from User for the
damages caused by such cancellation when User:
(1) Breaches any of the provisions of this agreement, or
(2) Has received a petition for seizure, provisional
seizure, provisional disposition or any other kind of
compulsory execution.
Article 9 (Destruction of Licensed Software)
If this agreement is terminated under the provision of
the foregoing paragraph, User shall destroy Licensed
Software, along with all associated literature and its
duplicates, within two (2) weeks from the date of
termination.
Article 10 (Copyright Protection)
1. Copyrights and all other intellectual property
rights relating to Licensed Software shall reside
with Licensor and Original Right Holder and in no
circumstances with User.
2. User shall abide by the laws relating to copyrights
and intellectual property rights in using Licensed
Software.
Article 11 (Export Control)
1. Licensed Software and the associated literature or
the like may not be exported to places outside the
Country (including transmission outside the Country
over the Internet or the like).
2. User agrees that Licensed Software is subject to
export controls imposed by the Country and the
United States of America.
3. User agrees to comply with all the international
and domestic laws that apply to this software (U.S.
Export Administration Regulations and regulations
established by the U.S., the Country and their
governmental agencies regarding usage by end
users and export destinations).
Article 12 (Miscellaneous)
1. Even if this agreement is invalidated in part by law, all
other provisions shall remain in effect.
2. Licensor and User shall consult each other in
good faith to resolve any matters not provided for
in this agreement or questions arising from the
interpretation of this agreement.
3. Licensor and User agree that this agreement is
governed by the law of Japan and that all disputes
involving claims and obligations that may arise out
of this agreement will be settled by arbitration at the
Tokyo District Court as the court of first instance.
Appendix
104
■ Copyrights
• The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by JVCKENWOOD Corporation is under
license. Other trademarks and trade names are those
of their respective owners.
• DSD, LDAC and LDAC logo are trademarks of Sony
Corporation.
• Hi-Res Audio logo and Hi-Res Audio Wireless logo are
used under license from Japan Audio Society.
• Windows Media is a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft. Use or distribution of
such technology outside of this product is prohibited
without a license from Microsoft.
• This software is based in part on the work of the
independent JPEG Group.
• Use of the Made for Apple badge means that an
accessory has been designed to connect specifically
to the Apple product(s) identified in the badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with an Apple product may
affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• Apple, Siri, Apple CarPlay, Apple Music and Apple
CarPlay logo are trademarks of Apple Inc., registered
in the U.S. and other countries.
• App Store is a service mark of Apple Inc., registered in
the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco
in the U.S. and other countries and is used under
license.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. For patents see https://dts.com/patents.
HD Radio and the HD, HD Radio, and "ARC" logos
are registered trademarks or trademarks of iBiquity
Digital Corporation in the United States and/or other
countries.
• INRIX is a registered trademark of INRIX, Inc.
• Google, Android, Google Play and Android Auto are
trademarks of Google LLC.
To use Android Auto on your car display, you’ll need
an Android Auto compatible vehicle or aftermarket
stereo, an Android phone running Android 5.0 or
higher, and the Android Auto app.
• Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of
Wi-Fi Alliance®.
• Copyright© 2018 Techpoint, Inc. All rights reserved.
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and
other countries.
• This product includes FontAvenue® fonts licenced
by NEC Corporation.FontAvenue is a registered
trademark of NEC Corporation.
• This product includes "Ubiquitous QuickBoot
TM" technology developed by Ubiquitous Corp.
Ubiquitous QuickBoot TM is a trademark of
Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp.
All rights reserved.
• THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE
VIDEO IN COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTPS://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER FOR (¡) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-
4 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTPS://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE
VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
Appendix
105English
LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE HTTPS://WWW.MPEGLA.
COM
• libFLAC
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libvorbis
Copyright (c) 2002-2008 Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libogg
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Appendix
106
■ FCC CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
• This equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
■ ISED CAUTION
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
# CAUTION
This equipment complies with FCC/ISED radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the ISED radio
frequency (RF) Exposure rules. This equipment should
be installed and operated keeping the radiator at least
20cm or more away from person’s body.
Supplier’s Declaration of Conformity
Trade Name: KENWOOD
Products: MONITOR WITH RECEIVER
Model Name: DMX1057XR / DMX1037S
Responsible Party: JVCKENWOOD USA
CORPORATION
2201 East Dominguez Street,
Long Beach, CA 90810, U.S.A.
PHONE: 310 639-9000
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
Appendix
107English
■ Información acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
■ Informação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
■ Para cumplimiento de la IFT:
“La operación de este equipo esta sujeta a las
siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no
cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar
cualquier interferencia,
incluyendo la que pueda causar su operación no
deseada.”
Hi-Res Audio logo and Hi-Res Audio
Wireless logo are used under license
from Japan Audio Society.
