Craftsman 917273763 tractor User Manual

Owner's Manual

ICRRFTSMRN'I

LAWN TRACTOR

18.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273763

[_ This product has a low emission engine which operates I

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

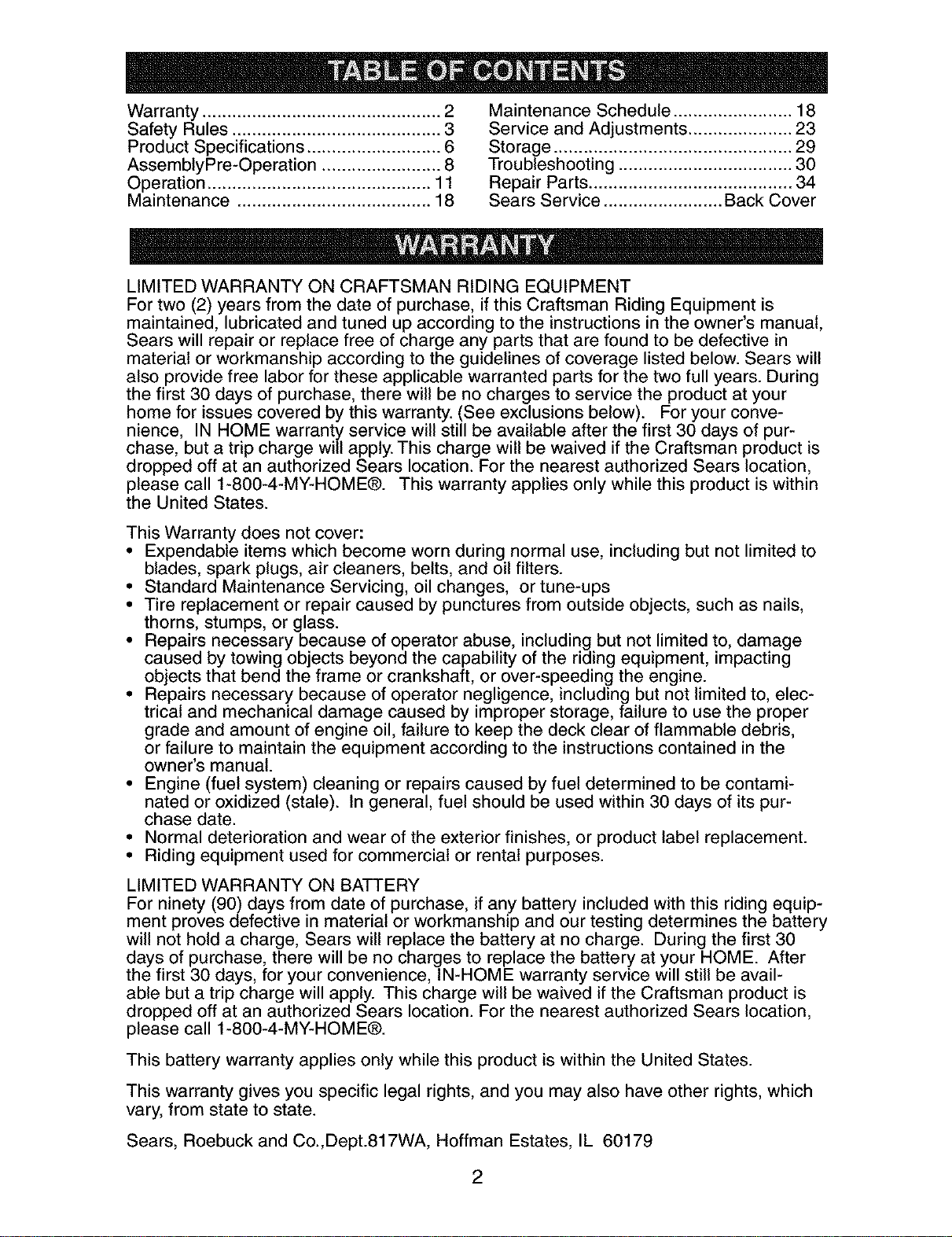

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

AssemblyP re-Operation ........................ 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 23

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

,_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_ILWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

,_WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I, GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

° Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur ifthe operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

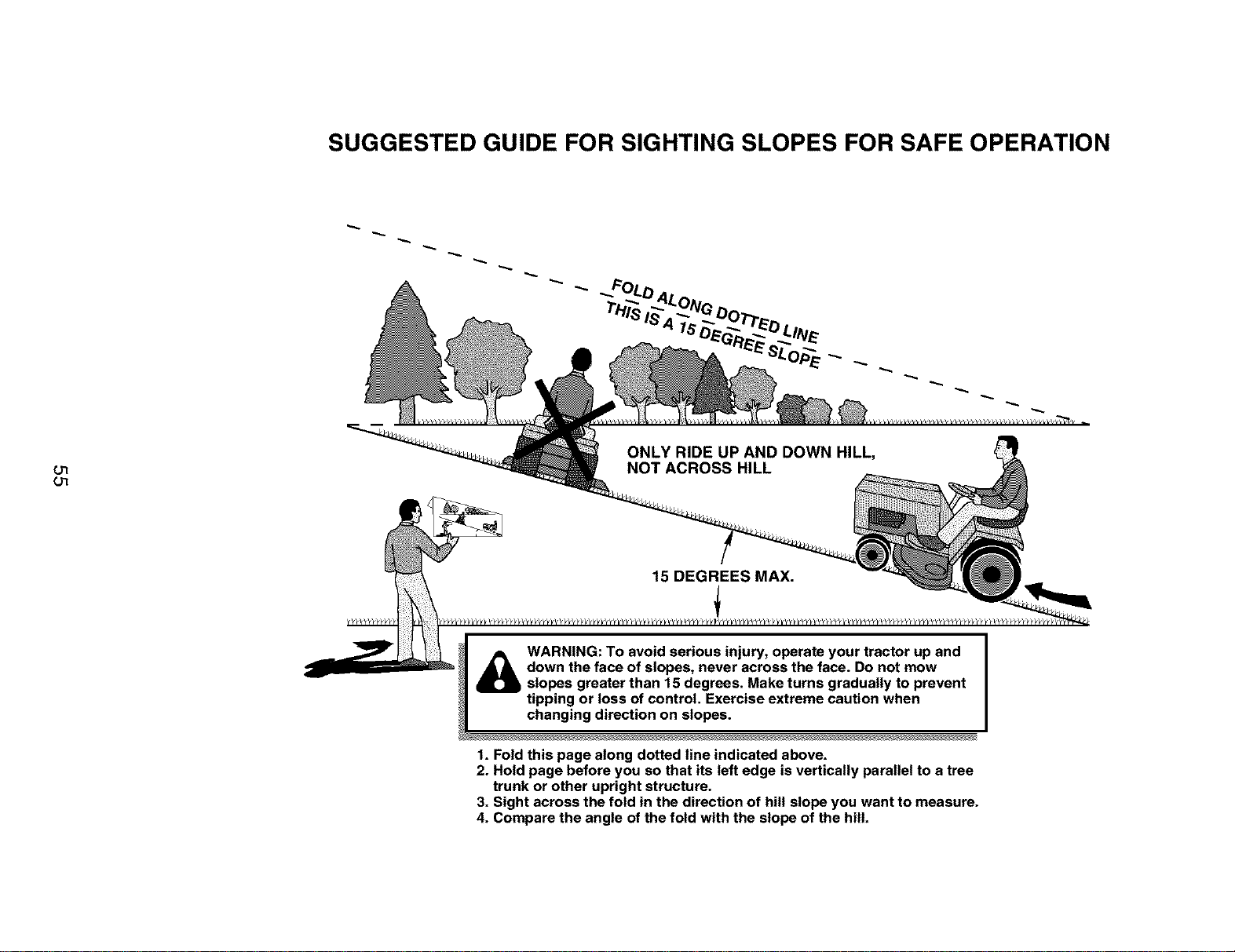

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE 5W-30

(Below 32°F)

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: UIR

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

,_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that ittakes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel Insert

Steering Wheel

(1) Locknut

1/4-28

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 x 1-1/4

Steering

Wheel Adapter

Steering

Extension

Shaft

Seat

(1) Washer

17/32 x 1-3/16 x 12

Gauge

_(1) Knob

For Future Use

Slope Sheet

Keys

Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16"wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

_ Insert

_- 1/2 Hex Nut

Large Flat

Washer

Steering

Wheel

Boot

7Tabs

Adapter_

Shaft

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOWTO SET UP YOUR TRACTOR

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob secu rely.

Seat

Shoulder

Bolts

Adj

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in '"trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

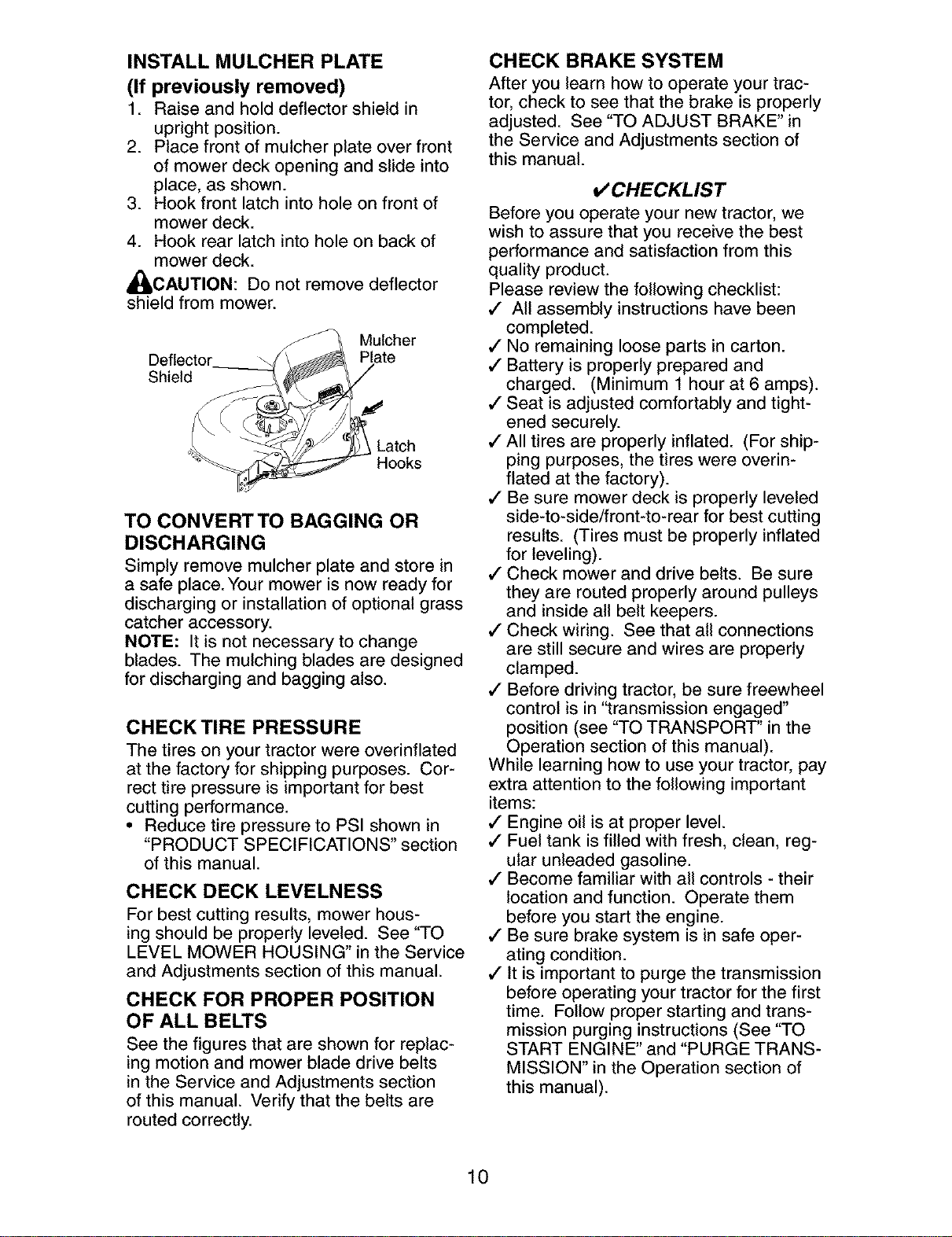

INSTALL MULCHER PLATE

(If previously removed)

f. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

v"CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in '"transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I',,I

REVERSE NEUTRAL HiGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF UGHTS ON ENGINE OH ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, ifnot avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, ifnot avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

;_ HOT SURFACES indicates a hazard which,

,,_v,_ if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

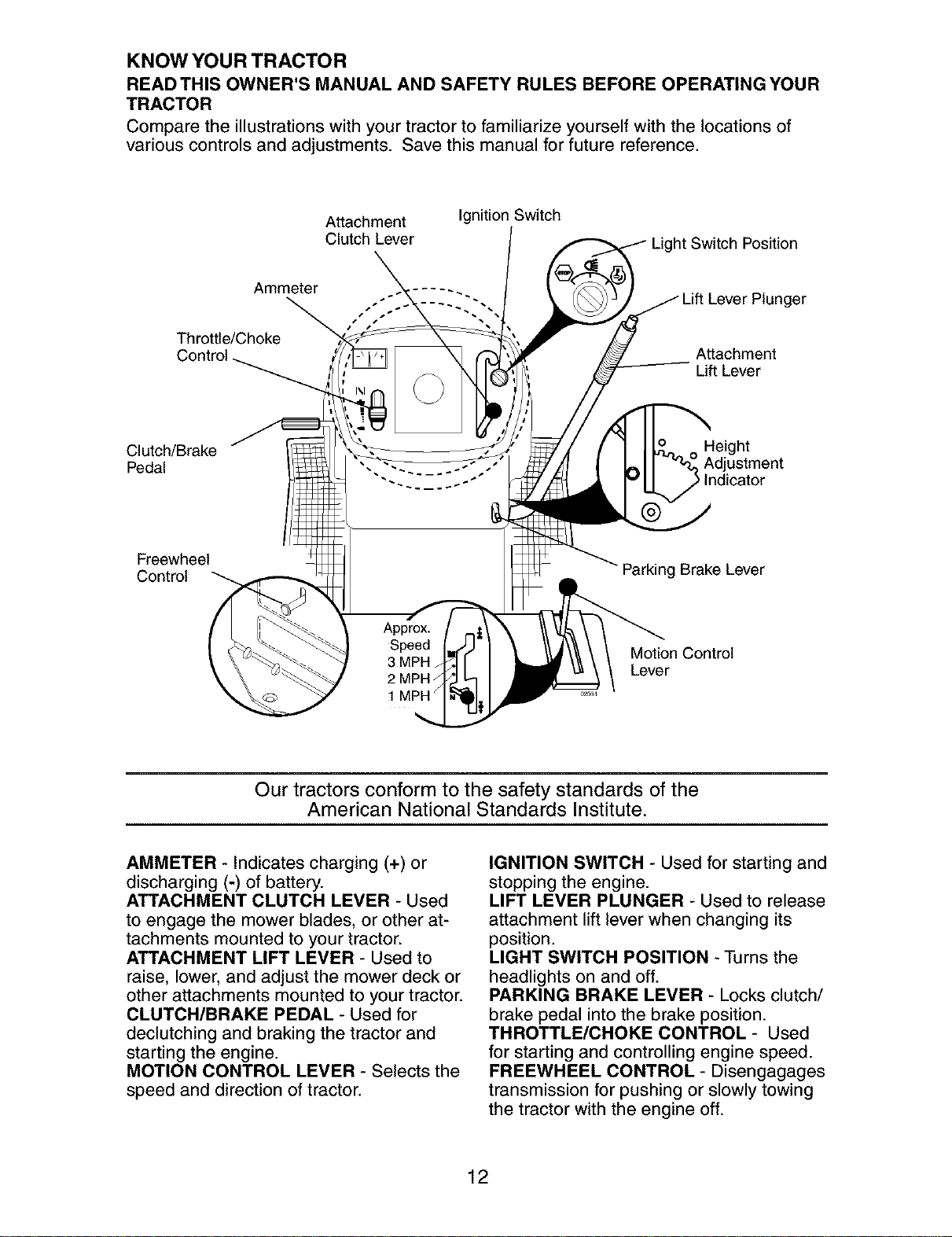

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment Ignition Switch

Clutch Lever / Light Switch Position

Ammeter ..... "'- Plunger

Throttle/Choke

Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Adjustment

Indicator

Freewheel

Control

Parking Brake Lever

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION -Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

The operation of any tractor can result in foreign objects thrown into the I

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectac es.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/

Attachment Clutch Lever

"Engaged" Position

Choke \ /_

Brake (X\ ,'_

"Disengaged"

Position

STOPPING

)_!_Ignition Key

"Disengaged"

Position

Motion Control

Parking Brake Position

"Engaged"

Position

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may cause

"browning" of grass. To eliminate this pos-

sibility, always stop engine when stopping

tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mounting _

Bracket ,,<

Locknut

Gauge Wheel

Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_,CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment _ -_. Attachemnt

Clutch Lever '"/_ _)_ / Lift Lever

"Engaged" _ _ _/_High.

Position _ _ Pos,t,on

Pos t on

"pD°isi_ingaged"_ _ _ Deflector

Shie,d

TO OPERATE ON HILLS

_,WARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If necessary,

add oil until "FULL' mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

A(_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage. Acid-

ic gas can damage the fuel system of an

engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50° F and

above)

7. When engine starts, move the throttle

control to the fast position.

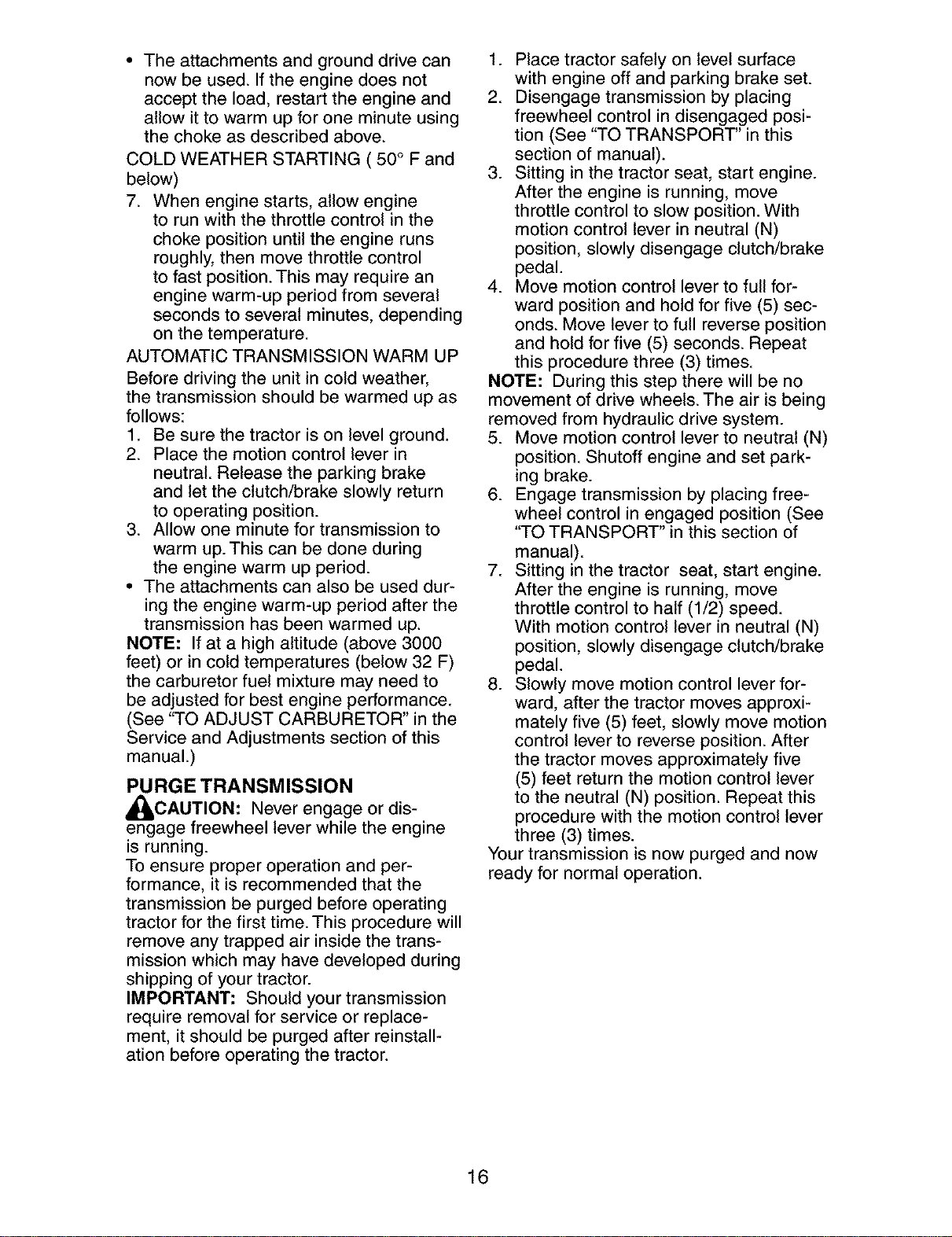

• The attachmentsandgrounddrivecan

nowbe used.Iftheenginedoesnot

accepttheload, restartthe engineand

allowit to warmup foroneminuteusing

thechokeasdescribedabove.

COLDWEATHERSTARTING( 50° F and

below)

7. Whenenginestarts,allowengine

to runwiththethrottlecontrolinthe

chokepositionuntiltheengineruns

roughly,then movethrottlecontrol

tofast position.Thismayrequirean

enginewarm-upperiodfromseveral

secondsto severalminutes,depending

on thetemperature.

AUTOMATICTRANSMISSIONWARMUP

Beforedrivingthe unitincoldweather,

thetransmissionshouldbewarmedupas

follows:

1. Besurethe tractoris on levelground.

2. Placethe motioncontrolleverin

neutral.Releasetheparkingbrake

andlettheclutch/brakeslowlyreturn

to operatingposition.

3. Allowone minutefor transmissionto

warmup.Thiscan bedoneduring

theenginewarm upperiod.

• The attachmentscanalsobe useddur-

ingthe enginewarm-upperiodafterthe

transmissionhasbeenwarmedup.

NOTE: Ifat ahighaltitude(above3000

feet)or in coldtemperatures(below32 F)

thecarburetorfuelmixturemayneedto

be adjustedforbestengineperformance.

(See"TOADJUSTCARBURETOR"inthe

Serviceand Adjustmentssectionofthis

manual.)

PURGE TRANSMISSION

_,CAUTION: Never engage or dis-

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged posi-

tion (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

4. Move motion control lever to full for-

ward position and hold for five (5) sec-

onds. Move lever to full reverse position

and hold for five (5) seconds. Repeat

this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral (N)

position. Shutoff engine and set park-

ing brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

With motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

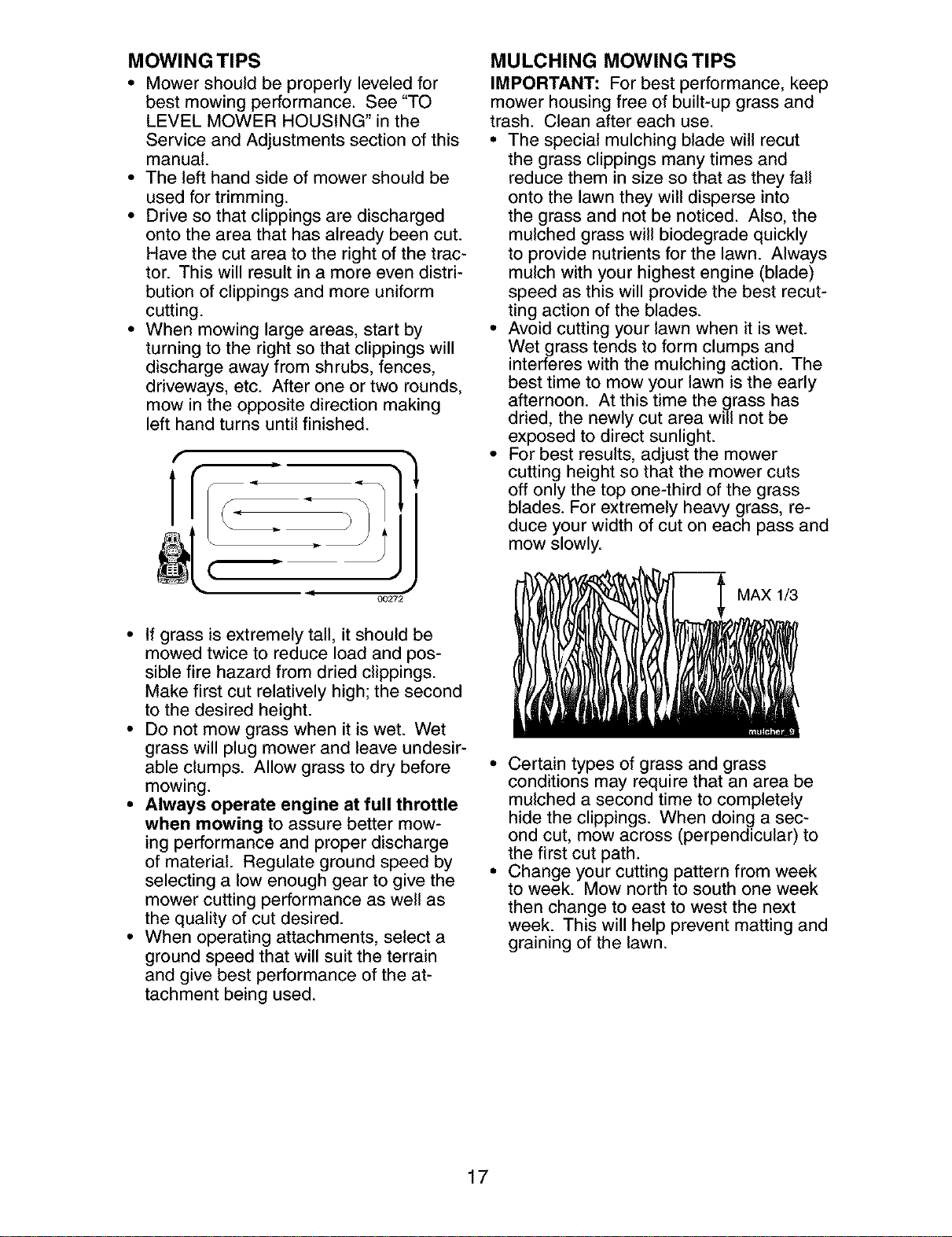

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been cut.

Have the cut area to the right of the trac-

tor. This will result in a more even distri-

bution of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn isthe early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave undesir-

able clumps. Allow grass to dry before

mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MAX 1/3

° Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

° Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

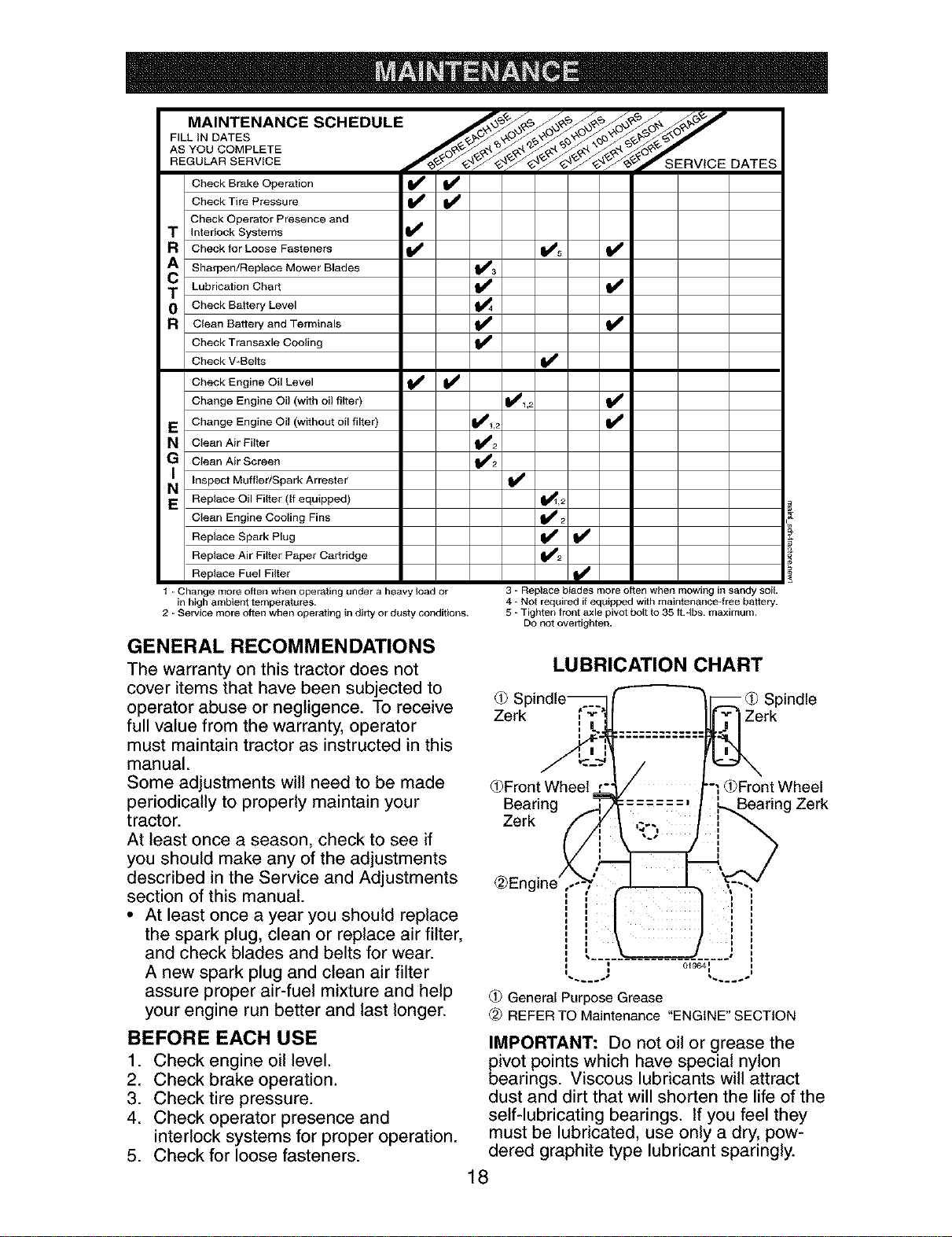

MAINTENANCE SCHEDULE ._f_ ,_-_ _ _ o-_ ,_/_,

AS YOU COMPLETE

REGULAR SERVICE _'__'S E RVIC E DATES

Check Brake Operation

Check Tire Pressure _

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners _ _1_5

_ Sharpen/Replace Mower Blades _3

T Lubrication Chart

0 Check Battery Level _4

a Clean Battery and Terminals _

Check Transaxle Cooling

Check V-Belts I1_

Check Engine Oil Level I_ I_

Change Engine Oil (with oil filter) _1,2

Change Engine Oil (without oil filter) _1_1,_

N Clean Air Filter _2

G Clean Air Screen _2

_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) _2

Clean Engine Cooling Fins _2

Replace Spark Plug _2

Replace Air Filter Paper Cartridge

Replace Fuel Filter

t - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace btades more often when mowing in sandy soil

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bog to 35 ft.qbs, maximum.

DO not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

LUBRICATION CHART

(# Sp -_ Spindle

Zerk Zerk

(#Front Wheel dbFront Wheel

Bearing Zerk

Zerk

! !

i i

, _ o_9_I i

General Purpose Grease

REFER TO Maintenance "ENGINE" SECTION

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

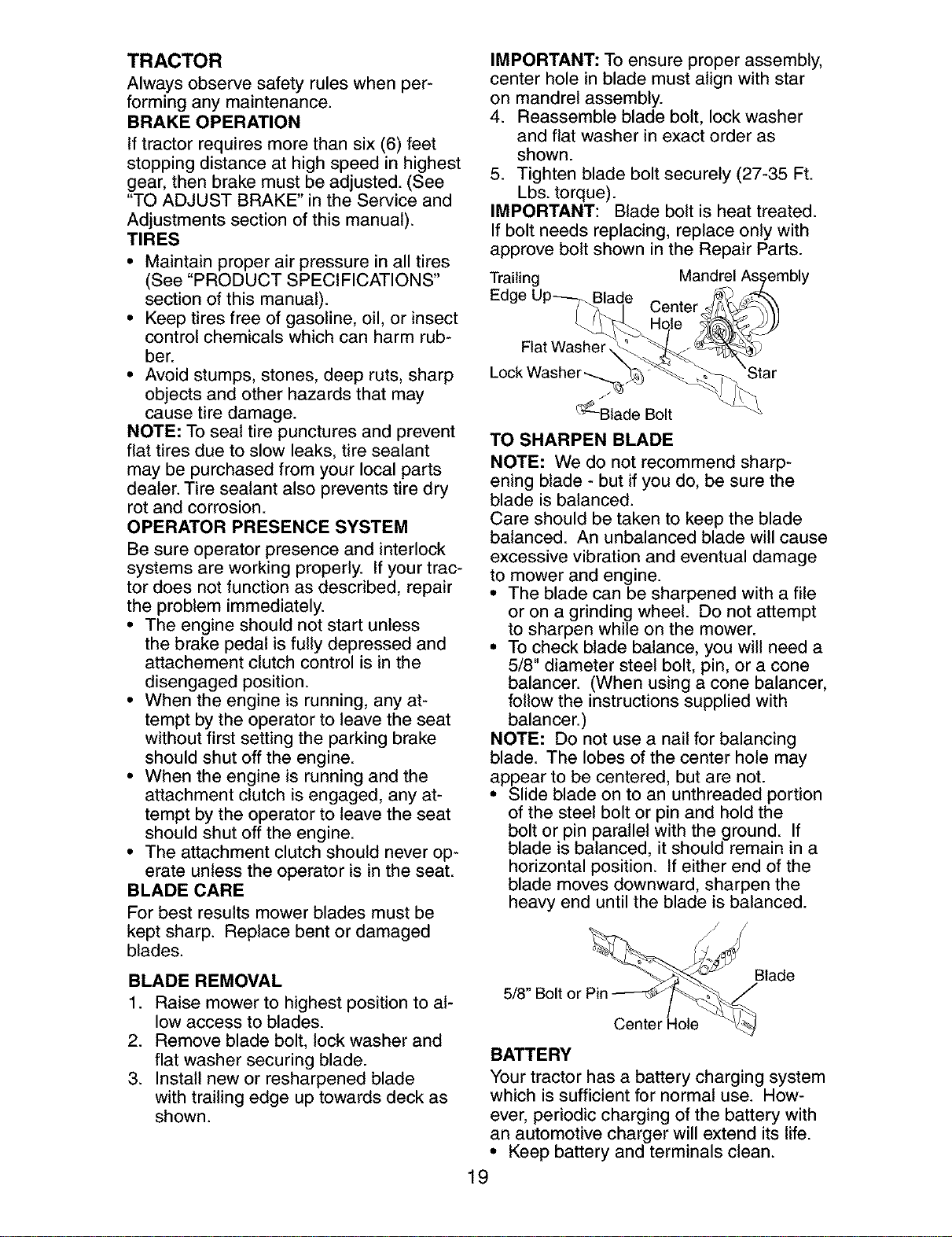

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Trailing Mandrel Assembly

Edge Up_Blade Center

Flat Washer_ _

Lock Washer--.__ \Star

__-Blade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or Pin

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

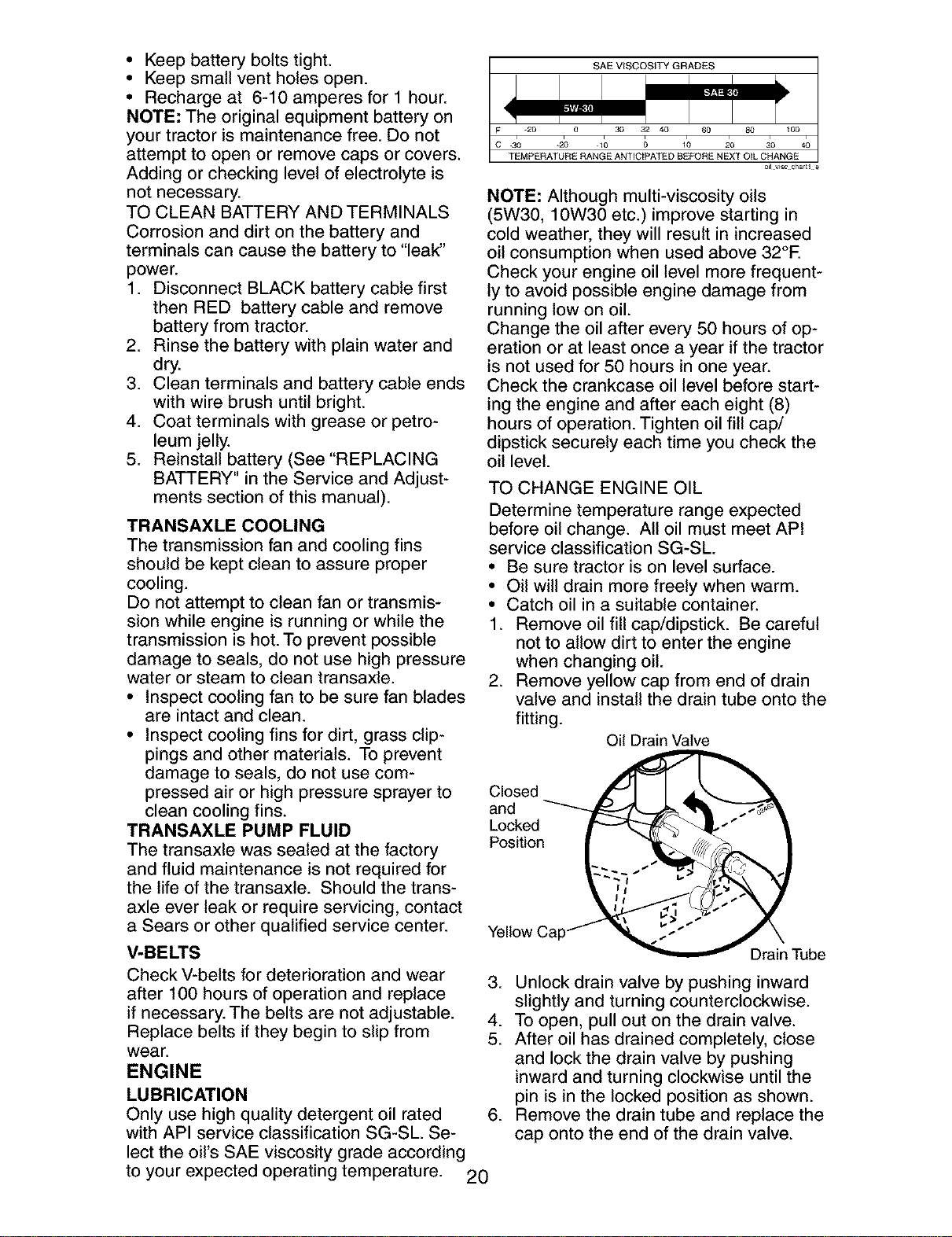

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2. Rinse the battery with plain water and

dry.

3. Clean terminals and battery cable ends

with wire brush until bright.

4. Coat terminals with grease or petro-

leum jelly.

5. Reinstall battery (See "REPLACING

BATTERY" in the Service and Adjust-

ments section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear 3.

after 100 hours of operation and replace

if necessary. The belts are not adjustable. 4.

Replace belts if they begin to slip from 5.

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated 6.

with API service classification SG-SL Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature. 20

SAE V{SCOS_TY GRADES

oH vise chmrll e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°E

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed

and

Locked

Position

Drain Tube

Unlock drain valve by pushing inward

slightly and turning counterclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refillenginewithoil throughoilfill dip-

sticktube. Pourslowly. Do notoverfill.

Forapproximatecapacitysee "PROD-

UCTSPECIFICATIONS"sectionof this

manual.

8. Usegaugeon oil fill cap/dipstickfor

checkinglevel. Foraccuratereading,

tightendipstickcap securelyontothe

tube beforeremovingdipstick. Keepoil

at"FULE'lineon dipstick.Tightencap

ontothetube securelywhenfinished.

ENGINEOIL FILTER

Replacetheengineoilfiltereveryseason

oreveryotheroil changeifthetractoris

usedmorethan100hoursinoneyear.

AIR FILTER

Yourenginewillnotrun properlyusinga

dirtyair filter. Replacepre-cleanerafter

every25 hoursof operationor every

season. Servicepapercartridgeevery

100hoursofoperationor everyseason,

whicheveroccursfirst.

Serviceaircleanermoreoftenunderdusty

conditions.

1. Pullup on air filtercoverhandleand

rotatetowardsengine.

2. Removecover.

3. Carefullyremoveair filtercartridgeand

pre-cleanerfrombase.

4. Cleanbasecarefullyto preventdebris

fromfallingintocarburetor.

NOTE:Ifverydirtyor damaged,replace

cartridge.

5. Placenewpre-cleanerand cartridge

firmlyin base.

6. Aligntabson coverwithslots in blower

housingand replacecover.

7. Hookhandleon coverandpushdown

on handleto close.

IMPORTANT:Petroleumsolvents,such

askerosene,arenotto be usedto clean

thecartridge. Theymaycausedeterio-

rationofthecartridge. Do notoilcar-

tridge. Donotuse pressurizedairto clean

cartridge.

Cartridge

Tabs

Base

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen

Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automotive

type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion covered to keep water out. Water

in engine or transmission will shorten the

usful life of your tractor. Use compressed

air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

Fuel

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out of

bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

Small

Clutch S

Small Retainer

Clutch

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

line

Pulley

Retainer

Anti-Sway

Bar

iprings

(Both Sides)

3eflector

Housing

Guide

Retainer Spring

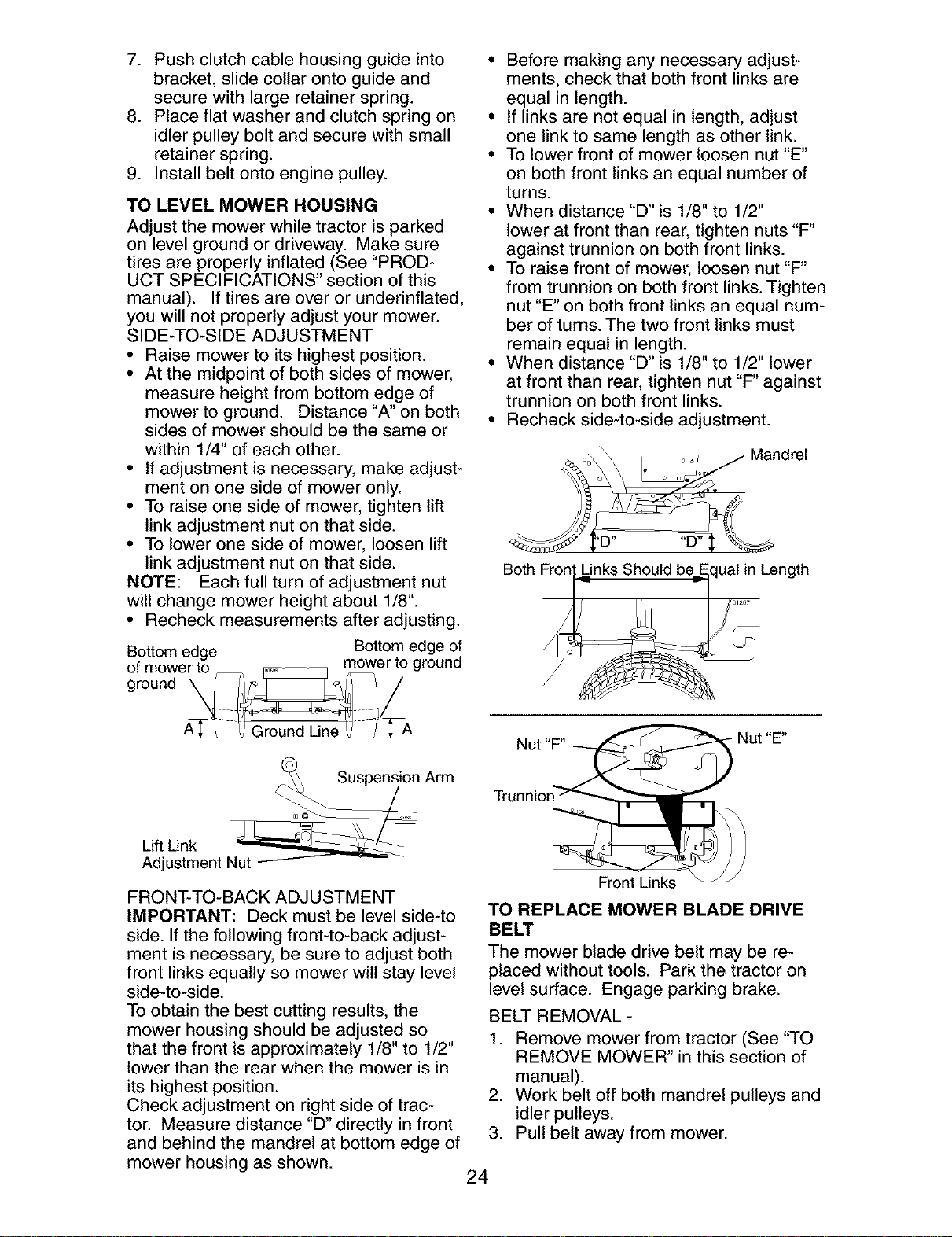

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

mower to ground

of mower to _

ground _l_l/

Arm

kidf_uLstrkent Nut_

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Fron_Links Should be E_qualin Length

t _E _

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged'position.

Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

Nut

Arm

Do not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulley_

Clutching Idler

Stationary

Center Span

Keeper

Transmission

Input Pulley

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

TRANSAXLE MOTION CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neutral

(N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, ifthe

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves in

rear wheel hub and axle. Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining Ring

Axle Cover

Square Key ........._ '

(Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

Lock and smoking materials away from bat-

Gate teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

Adjustment TERY" in the MAINTENANCE section of

Bolt this manual).

If"jumpercables"are usedforemergency

starting,followthisprocedure:

IMPORTANT:Yourtractorisequipped

with a 12voltsystem.Theothervehicle

mustalsobe a 12voltsystem.Do not use

yourtractorbatteryto start othervehicles.

TOATTACHJUMPERCABLES-

1. Connectoneendof theREDcable

to the POSITIVE(+)terminalof each

battery(A-B),takingcare notto short

againsttractorchassis.

2. Connectoneendof theBLACKcable

to the NEGATIVE(-)terminal(C)of

fully chargedbattery.

3. Connecttheotherendof the BLACK

cable(D)to goodchassisground,

awayfromfuel tankandbattery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Battery Fully Charged Battery

REPLACING BATTERY

_,WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining hex

bolt and keps nut. Tighten securely.

Terminal

Keps

Hex

Bolt

Positive (Red) Cable Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

adlight Wire

nnector

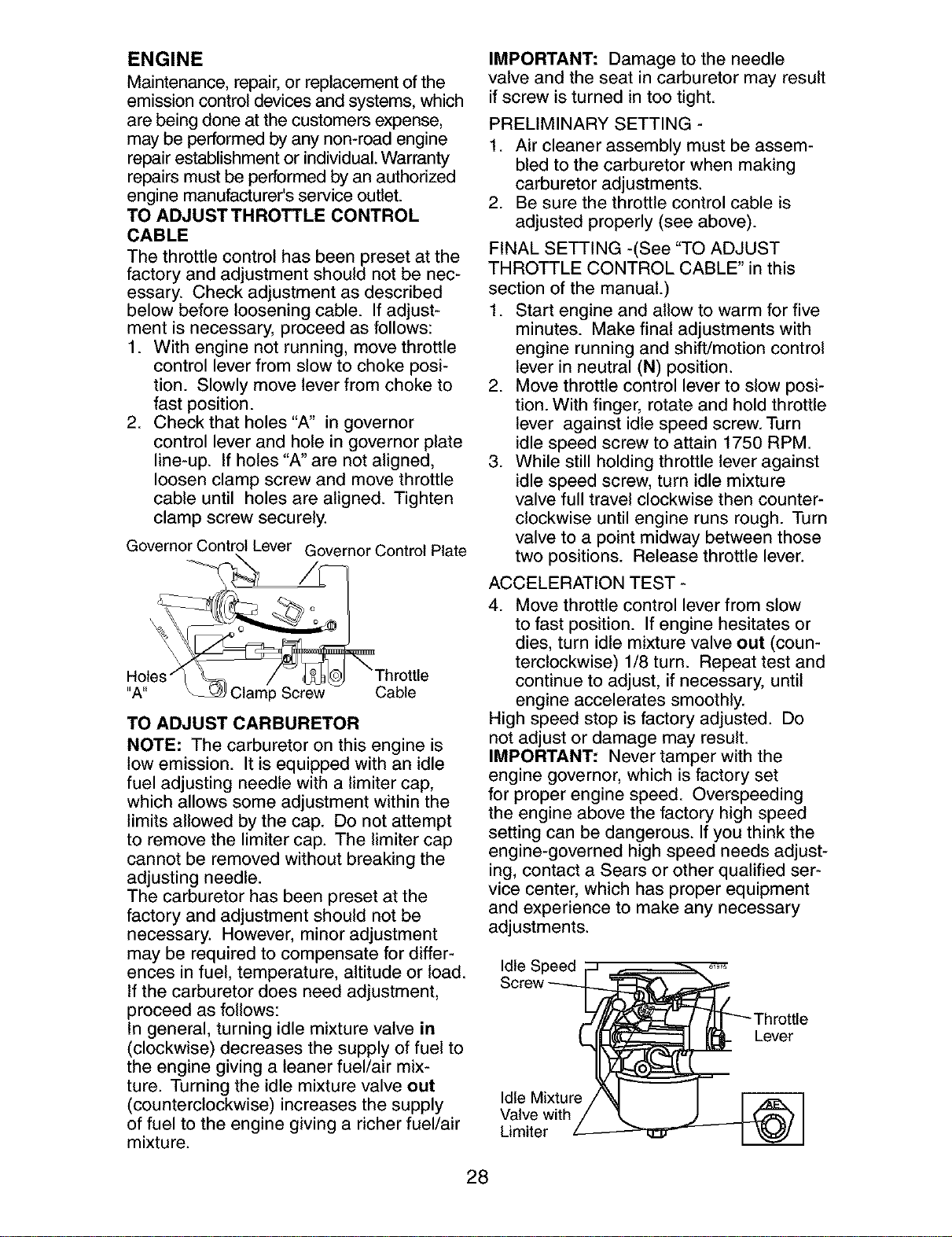

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Control Lever Governor Control Plate

Holes

"A" Clamp Screw Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for differ-

ences in fuel, temperature, altitude or load.

If the carburetor does need adjustment,

proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -(See "TO ADJUST

THROTTLE CONTROL CABLE" in this

section of the manual.)

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then counter-

clockwise until engine runs rough. Turn

valve to a point midway between those

two positions. Release throttle lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs adjust-

ing, contact a Sears or other qualified ser-

vice center, which has proper equipment

and experience to make any necessary

adjustments.

Idle Speed r_ _ .....

Screw _

FT/_ /,/["'_ Throttle

_ Lever

Idle Mixture / _ I

Valve with / _ I

Limiter _

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_,CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) intocylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

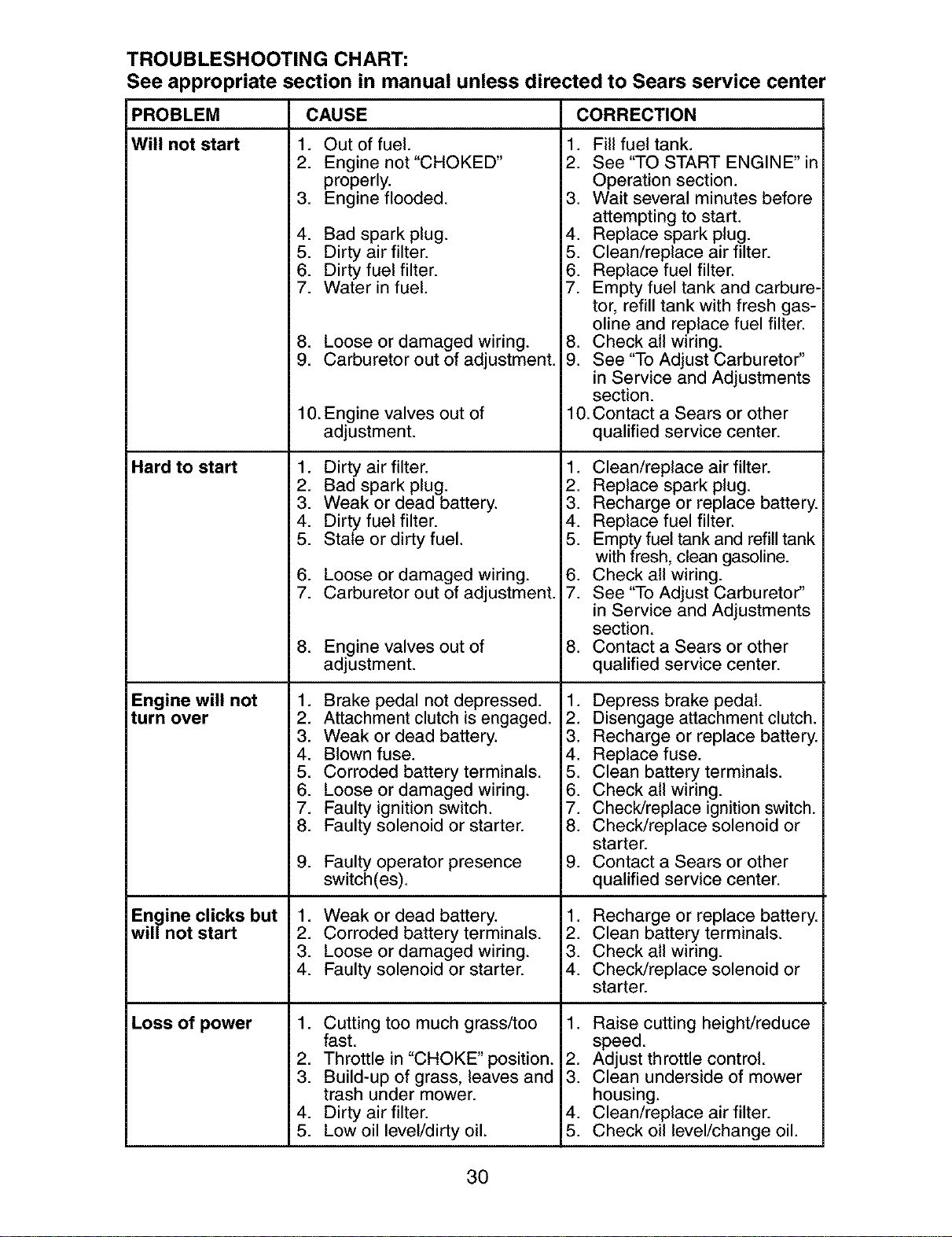

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

CAUSE CORRECTION

1. Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded.

Bad spark plug.

Dirty air filter.

Dirty fuel filter.

Water in fuel.

Loose or damaged wiring.

Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch isengaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

1. Fill fuel tank.

2. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

LOSS of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attach ment

clutch engaged

Poor cut - uneven

Mower blades will

not rotate

Poor grass

discharge

CAUSE

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and

trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

CORRECTION

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST' position.

2. Shift to slower speed.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Poor grass

discharge

(continued)

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

when turning

engine "OFF"

Wet grass.

Mower deck not level.

Low/uneven tire air pressure.

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

Bad battery cell(s). 1.

Poor cable connections. 2.

Faulty regulator 3.

(if so equipped).

Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

Engine throttle control not set

at "SLOW" position for 30

30 seconds before stopping

engine.

Replace battery.

Check/clean all connections.

Replace regulator.

Replace alternator.

Place freewheel control in

"engaged" position.

Replace motion drive belt.

Purge transmission.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

TRACTOR - - MODEL NUMBER 917.273763

SCHEMATIC

,,Ik

o111 °LACK

BATTERY

RE°

AMMETER

(OPTIONAL)

WHITE

_ _G A_/_

IGNITION

SWITCH

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+AI A2+L

RUN B+AI NONE

START B + S + A1 NONE

FUSE

L ]

CLUTCH / BRAKE

(PEDAL UP)

BLACK

(OPTIONAL)

LINE

_HUT-OFFSOLENOID

ORANGE

STARTER

SOLENOID

WHITE

WHITE SEAT SWITCH

(NOT OCCUPIED)

i ] I_

i I

i i i I

I i

LACK I I BLACK

_ _A'_MENT CLUTCH "_

BLACK (CLUTCH OFF) GROUNDING

CONNECTOR

BLACK •

1_ SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

)

IGNITION

UNIT

BLACK

CHARGENG SYSTEM OUtpUT 28 VOLTS AC MIN @ 3600 RPM

3AMP DO @ 3600 RpM (CHARGING SYSTEM DESCONNECTE D)

LEPrCENREI TEM_ _j_ _J_

' ,

\ 14 VOLTS AC MEN @ 3600 RpM {UGHTS OFF I

HEADLIGHTS

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

NON-REMOVABLE

CONNECTIONS

BRQWN

WIRING INSULATED CLIPS

NOTE: IFWIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

REMOVABLE

CONNECTIONS

//,

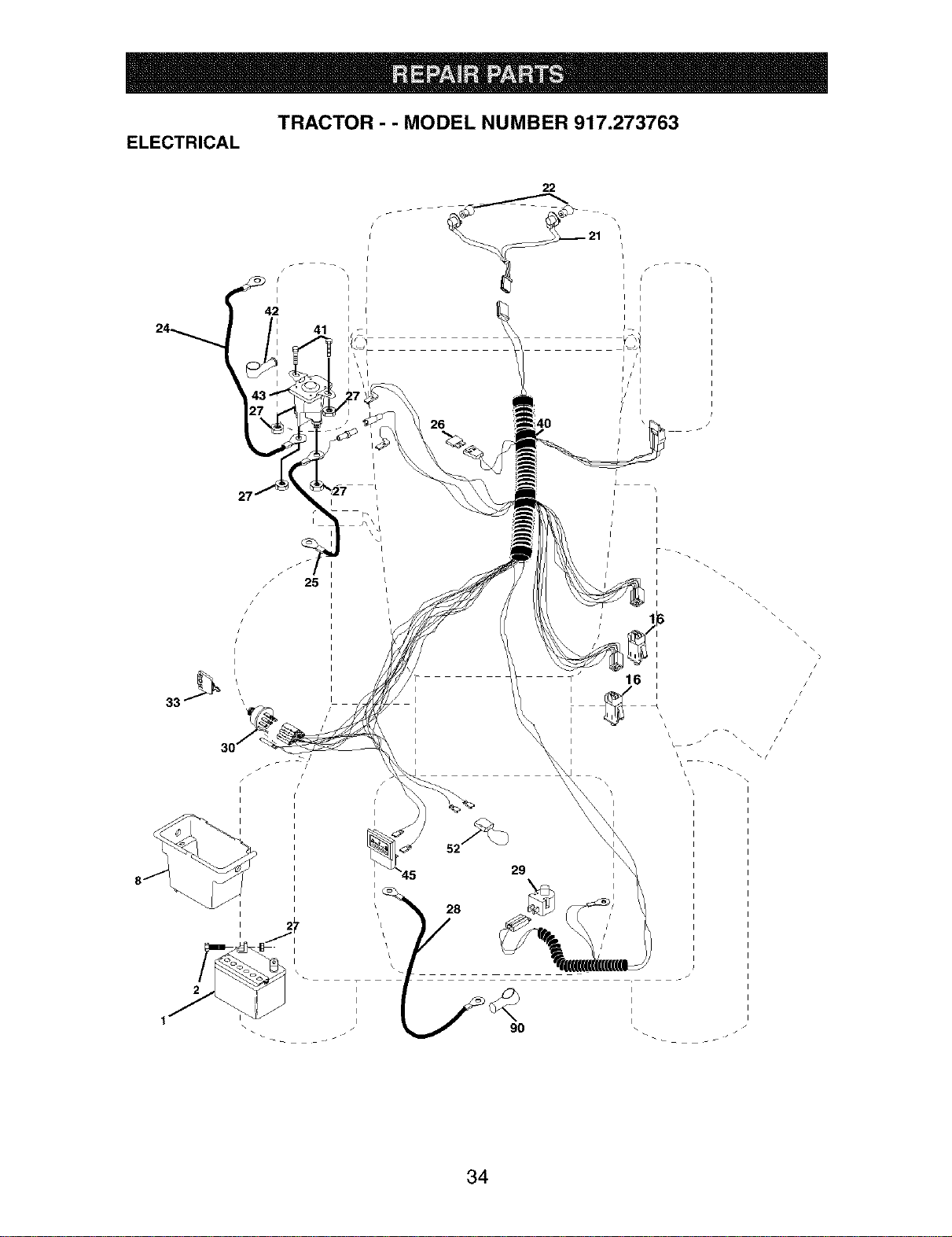

TRACTOR - - MODEL NUMBER 917.273763

ELECTRICAL

I I I

52'

i _ 28

2 I

16 /

I /

F m !

_ \ I I

TRACTOR - - MODEL NUMBER 917.273763

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4

8 176689 Box Battery

16 176138 Switch, Interlock

21 183759 Harness Asm Light W/4152j

22 4152J Bulb Light #1156

24 4799J Cable Battery 6 Ga. 11" red

25 146147 Cable Battery 6 Ga. w/16 wire red

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 4207J Cable Ground 6 Ga. 12" black

29 121305X Switch Plunger Normal NC Gray

30 175566 Switch Ign

33 140403 Key lgn

40 179720 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4-20 unc x 1/2

42 131563 Cover Terminal Red

43 178861 Solenoid

45 122822X Ammeter Rectangular

52 141940 Protection Wire Loop

90 180449 Cover Terminal

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

CHASSIS AND ENCLOSURES

259

260

258

261

j30

278

2O8 209

208

2O9

209 14

-145

208

chassis-Laser-It.stlt 33

TRACTOR -- MODEL NUMBER 917.273763

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 Bumper Hood/Dash

9 187846X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 3/4

11 174996 Panel, Dash, L.H.

13 172105X010 Panel, Dash, R.H.

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 185682X613 Hood Assembly

18 184921 Bumper Hood

26 STD541437 Nut

28 184247 Grille/Lens Asm.

30 188570X613 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 Screw Thdrol 5/16-18xl/2

38 175710 Pivot Bracket Assembly, Rear

39 174714 Bracket Pivot Laser Lt

60 72140606 Bolt Rdhd Sqnk 3/8-16 unc x 1

64 154798 Dash Lower STLT

74 STD541437 Nut Crownlock 3/8-16 unc

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cupholder Stlt Black

166 171875 Screw Hwhd Hi-Lo #13-16 x 3/4

206 170165 Bolt Shoulder 5/16-18TT

207 17670508 ScrewThdrol 5/16-18x 1/2Tytt

208 17670608 ScrewThdrol 3/8-16 x 1/2

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

212 184248 Insert Lens Reflective

258 184245X599 Lens Laser RH

259 184246X599 Lens Laser LH

260 184250X428 Cover Lens Laser

261 184258X428 Insert Grille Laser

278 191611 Screw 10 x 3/4 Single Lead-Hex

- - 5479J Plug, Button

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

GROUND DRIVE

16 3_ 52

62 12_

_34

_37 36

15 _

96f

26 16

22 @.

25 / 200

263

_77

.78

263

drive-hydro.stlt 60

TRACTOR -- MODEL NUMBER 917.273763

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transmission (See Breakdown) 69 142432

Hydro Gear Model 314-0510

8 165866 Red, Shift 70 134683

10 STD561210 Pin, Cotter 1/8 x 1 71 169183

14 STB551125 Washer Lock 1/4 73 169182

15 74490544 Bolt Hex FIghd 5/16-18 Gr. 5 74 137057

16 73800500 Nut, Lock Hex w/Ins 5/16-18 unc 75 121749X

19 73800600 Nut Lock Hex w/Ins 3/8-16 76 12000001

21 130564 Knob 77 123583X

22 169498 Rod, Brake 78 121748X

24 73350600 Nut 81 165596

25 106888X Spring, Red, Brake 82 165711

26 19131316 Washer 13/32 x 13/16 x 16 Ga. 83 19171216

27 STD561210 Pin, Cotter 1/8 x 3/4 84 169594

28 175765 Red, Parking Brake 89 188308X428

29 71673 Cap, Parking Brake 95 170201

30 169592 Bracket, Transmission 96 STD624003

32 74760512 Bolt Hex 5/16-18 unc x 3/4 116 72140608

34 175578 Shaft, Foot Pedal 120 73900600

35 120183X Bearing, Nylon 150 175456

36 19211616 Washer 151 19133210

37 1572H Pin, Roll 156 166002

38 179114 Pulley, Composite 158 165589

39 74760648 Bolt 159 183900

41 175556 Keeper, Belt, Idler 161 72140406

47 127783 Pulley, Idler, V-Belt 162 73680400

48 154407 Bellcrank Clutch Grnd Drustl 163 74780416

49 123205X Retainer, Belt 164 19091210

50 72110612 Bolt Cart. Sh 3/8-16 x 1-1/2 Gr. 5 165 165623

51 STB541437 Nut 166 17490510

52 STD541431 NutCrownlock 5/16-18 168 165492

53 105710X Link, Clutch 169 165580

55 105709X Spring, Return, Clutch 197 169613

56 17060620 Screw 3/8-16 x 1-1/4 198 169593

57 140294 V-Belt, Drive 199 169612

59 169691 Keeper, Belt, Center 200 72140508

61 17120614 Screw 3/8-16 x .875 202 72110614

62 8883R Cover, Pedal 212 145212

63 175410 Pulley, Engine 271 17000612

64 173937 Bolt Hex 7/16 x 4 Gr. 5

65 10040700 Washer

66 154778 Keeper, Belt Engine Hydro

Screw Hex Wsh Hi-Lo

1/4 x 1/2 unc

Guide, Belt, Mower Drive RH

Strap, Torque, Lh

Strap, Torque, Rh

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

Ring, E

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Shaft Asm Cross

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Console, Shift

Control Asm Bypass Hydro

Spring, Retainer 1"

Belt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10

Washer 5/16 x 1.0 x 1.25

Bracket Shift Mount

Hub Shift

Belt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 unc

Belt Hex Fin 1/4-20 x 1

Washer 9/32 x 3/4 x 10 Ga.

Bracket Pivot Lever

Screw 5/16 x 18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastener Cross Shaft

Nyliner Snap-in

Washer Nyliner

Belt Shoulder 5/16-18 unc

Belt RdHd Sqnk 5/16-18 unc x 1

Belt Carr. Sh 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

STEERING ASSEMBLY

__39

P'-"--42

steering_pl,It47

67 67

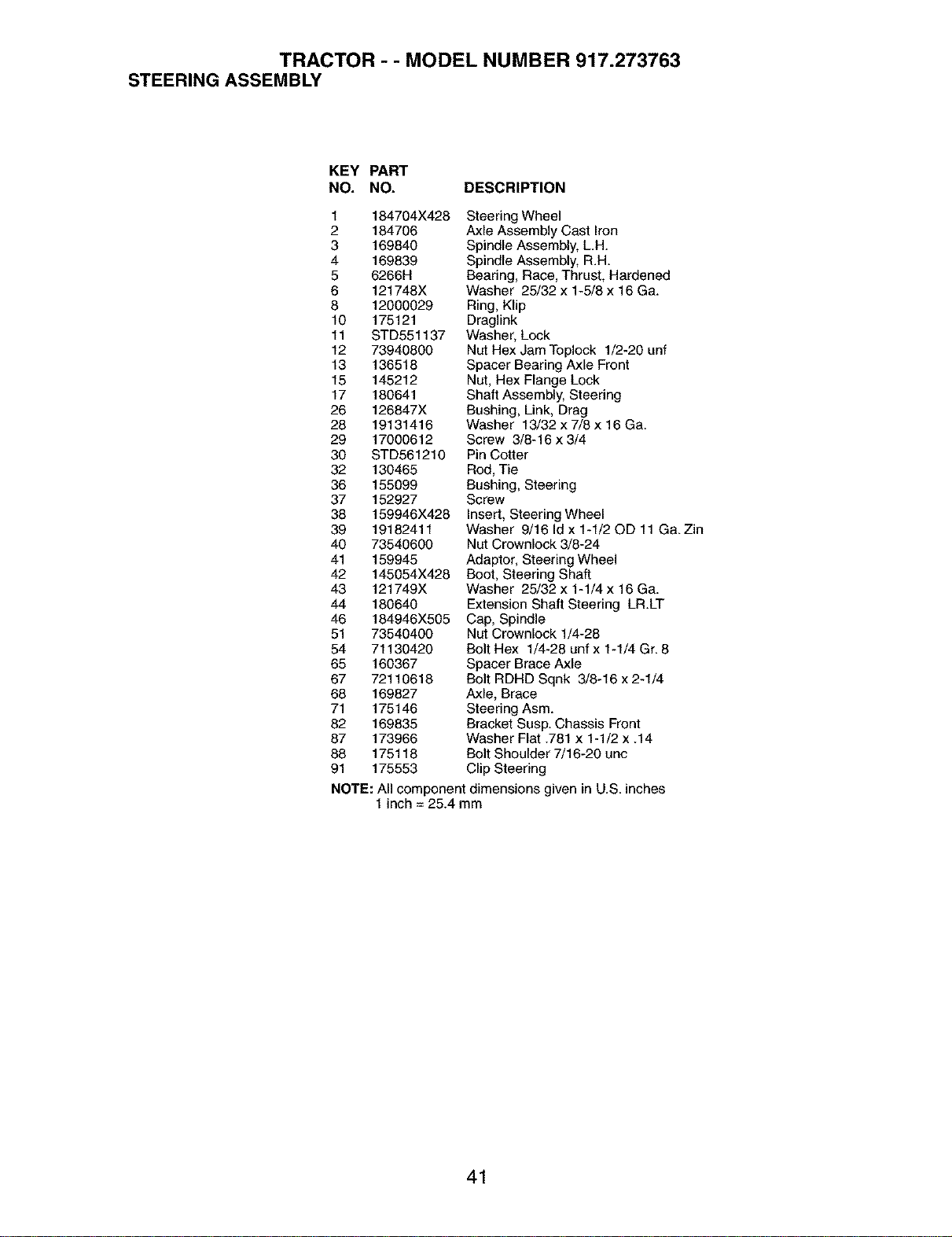

TRACTOR - - MODEL NUMBER 917.273763

STEERINGASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 184704X428

2 184706

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 175121

11 STD551137

12 73940800

13 136518

15 145212

17 180641

26 126847X

28 19131416

29 17000612

30 STD561210

32 130465

36 155099

37 152927

38 159946X428

39 19182411

40 73540600

41 159945

42 145054X428

43 121749X

44 180640

46 184946X505

51 73540400

54 71130420

65 160367

67 72110618

68 169827

71 175146

82 169835

87 173966

88 175118

91 175553

Steering Wheel

Axle Assembly Cast Iron

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip

Draglink

Washer, Lock

Nut Hex Jam Toplock 1/2-20 unf

Spacer Bearing Axle Front

Nut, Hex Flange Lock

Shaft Assembly, Steering

Bushing, Link, Drag

Washer 13/32 x 7/8 x 16 Ga.

Screw 3/8-16 x 3/4

Pin Cotter

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 9/16 Idx 1-1/20D 11 Ga. Zin

Nut Crownlock 3/8-24

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Ga.

Extension Shaft Steering LR.LT

Cap, Spindle

Nut Crownlock 1/4-28

Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8

Spacer Brace Axle

Bolt RDHD Sqnk 3/8-16 x 2-1/4

Axle, Brace

Steering Asm.

Bracket Susp. Chassis Front

Washer Flat .781 x 1-1/2 x .14

Bolt Shoulder 7/16-20 unc

Clip Steering

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

ENGINE

32_

\\\\\\ I

37 23

_- 33 29

OPTIONAL EQUIPMENT

Spark Arrester

81 13

engine_bs,lcy[ 49

KEY PART

NO. NO.

1 170545X505

2 17720408

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 184900

32 140527

DESCRIPTION

Control, Throttle/Choke

Screw, Hex Head, Thread

Cutting 1/4-20 x 1/2

Engine, (See Breakdown)

Briggs Model 31H777-0112-E1

Muffler

Gasket

Tube Drain Oil Easy

Washer

Shield Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Sears,

Vented

KEY PART

NO. NO.

33 123487X

37 137040

38 181654

40 124028X

44 17670412

45 17000612

46 19091416

62 10O405O0

72 183906

78 17060620

81 73510400

DESCRIPTION

Clamp, Hose

Line, Fuel

Plug Drain Oil Easy

Bushing, Snap, Fuel Line

Screw, Hex Washer Head,

Thd., Roll. 1/4-20 x 3/4

Screw Hxwsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Washer Lock Hvy Hlcl Spr 5/16

Screw Socket Head 5/16-18 x 1

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

SEAT ASSEMBLY

J i

z_ / 2

i I

I i

...--- 16

seat/t.knob 9

/ / _

I /_ _ r_Z /

/ 1 / /

_ _ _ I_ /f _

/ /./ _ _ |_

"[_ / _ t//

I J

KEY PART

NO. NO.

1 180597

2 180166

3 71110616

4 19131610

5 145O06

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

DESCRIPTION

Seat

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16 uric x 1

Washer 13/32 x 3/4 x 10 Ga.

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1

Washer 13/32 x 1 x 14 Ga.

Pan Pnt Seat (blk)

Knob Seat Adj Wingnut

KEY PART

NO. NO. DESCRIPTION

12 121246X

13 121248X

14 72050412

15 1343O0

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

Bracket Pnt Mounting Switch

Bushing Snap BIk Ny150 td

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr. 5Zinc

Bolt Shoulder 5/16-18 unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

DECALS

13 6 3 4 13

KEY PART

NO. NO.

1 156811

2 188959

3 186280

4 186281

5 138047

6 133644

7 183794

8 172331

9 186282

10 156439

11 186283

12 146046

13 183827

KEY PART

DESCRIPTION NO. NO.

Decal, Oper. Instr. 14 160396

Decal, Replacement 15 179128

Decal, Hood, R.H. 16 164065

Decal, Hood, L.H. 17 184842

Decal, Battery 18 184843

Decal, Customer Maintenance 20 149516

Decal, HP Engine - - 138311

Decal, Mower Srs - - 166960

Decal, Fender, Craftsman - - 184310X428

Decal, Fender Danger - - 184311X428

Decal, Panel Side - - 192780

Decal, V-Belt Drive Schematic - - 192781

Decal, Dash Panel

DESCRIPTION

Decal, V-Belt Schematic

Decal, Deck B 42"

Decal, Strong WhL

Decal, Grille RH

Decal, Grille LH

Decal Battery Dngr/Psn Eng

Decal, Lift Handle

Decal, By pass

Pad, Footrest LH STLT

Pad, Footrest RH STLT

Manual, Owner's, English

Manual, Owner's, Spanish

WHEELS & TIRES

5,8

4,10

wheeL1

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X624

6 278H

7 9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Value Tire

Stem Value

Tire FTs 15 x 6 0 - 6 Service

Tube Inner Front #35060

Rim Asm 6" front White Service

Fitting Grease

Bearing Flange

Rim Asm 8" rear White Service

Tire R Ts 20 x 10-8 Service

Tube Rear 9 5 x 8 Service

Cap Axle BIk 1 50 x 100

Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

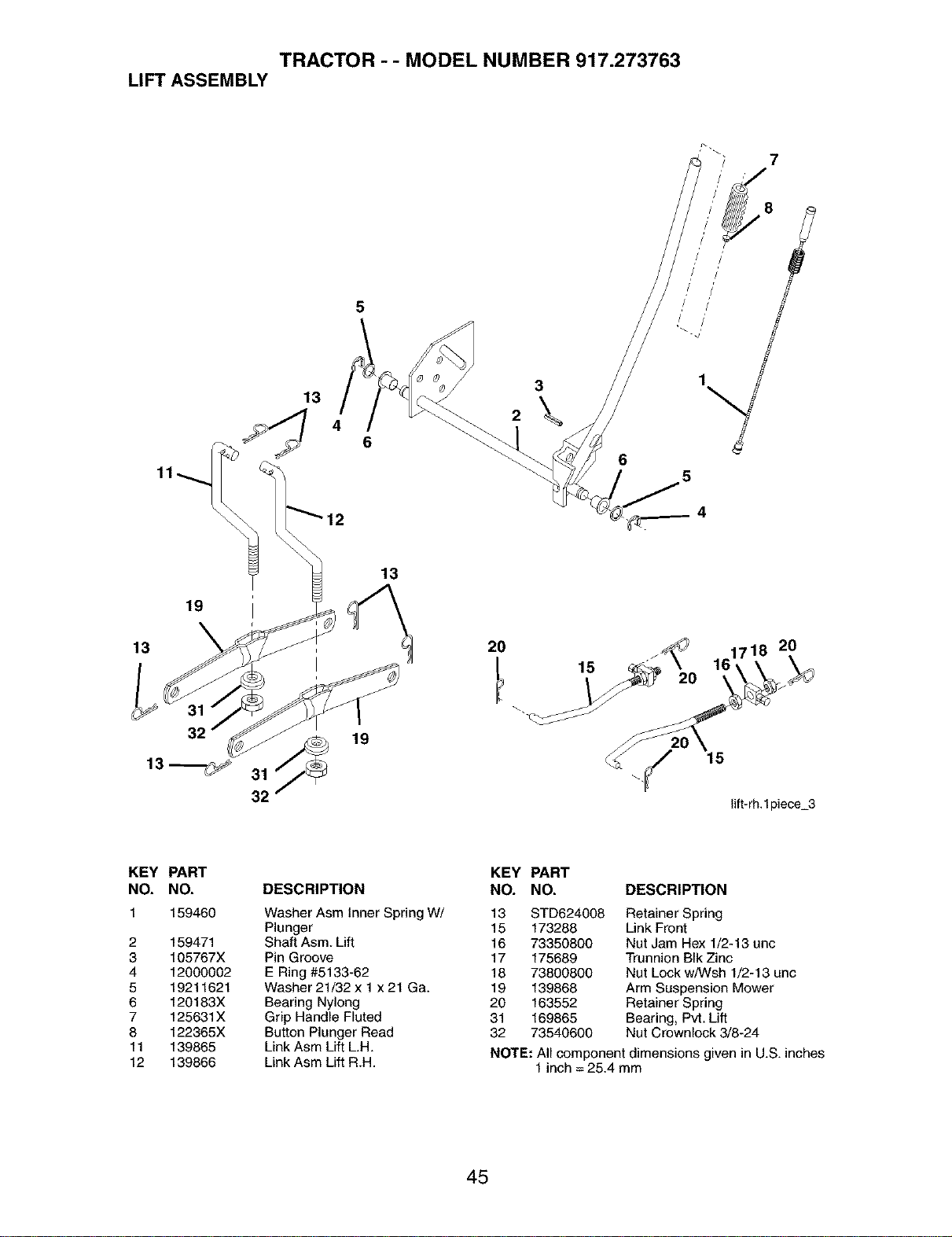

TRACTOR - - MODEL NUMBER 917.273763

LIFT ASSEMBLY

13 20

13 ,,-.-,_ 31 .

32 j

rift-rh,1piece 3

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 159460 Washer Asm Inner Spring W/ 13 STD624008

Plunger 15 173288

2 159471 Shaft Asm. Lift 16 73350800

3 105767X Pin Groove 17 175689

4 12000002 E Ring #5133-62 18 73800800

5 19211621 Washer21/32x1 x21 Ga. 19 139868

6 120183X Bearing Nylong 20 163552

7 125631X Grip Handle Fluted 31 169865

8 122365X Button Plunger Read 32 73540600

11 139865 Link Asm Lift L.H.

12 139866 Link Asm Lift R.H.

DESCRIPTION

Retainer Spring

LinkFront

Nut Jam Hex 1/2-13 unc

Trunnion BIk Zinc

Nut Lock w/Wsh 1/2-13 unc

Arm Suspension Mower

Retainer Spring

Bearing, Pvt. Lift

Nut Crownlock 3/6-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273763

MOWER DECK

113

_116 \

119 118_

19F 21

42 D man-t-path stlt 3

13_

117

_116

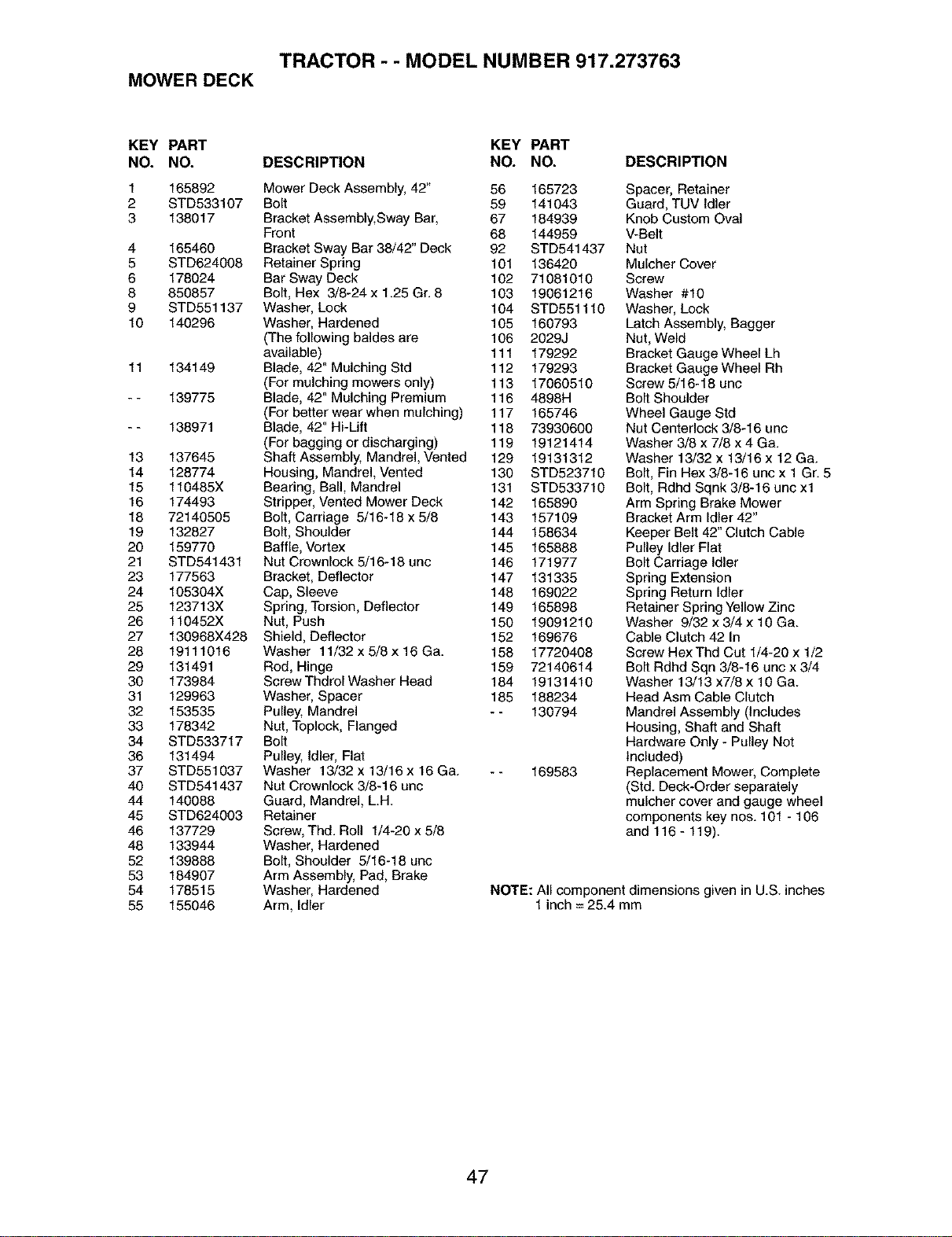

TRACTOR - - MODEL NUMBER 917.273763

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 56 165723

2 STD533107 Bolt 59 141043

3 138017 Bracket Assembly, Sway Bar, 67 184939

Front 68 144959

4 165460 Bracket Sway Bar 38/42" Deck 92 STD541437

5 STD624008 Retainer Spring 101 136420

6 178024 Bar Sway Deck 102 71081010

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 103 19061216

9 STD551137 Washer, Lock 104 STD551110

10 140296 Washer, Hardened 105 160793

(The following baldes are 106 2029J

available) 111 179292

11 134149 Blade, 42" Mulching Std 112 179293

(For mulching mowers only) 113 17060510

-- 139775 Blade, 42" Mulching Premium 116 4898H

(For better wear when mulching) 117 165746

-- 138971 Blade, 42" Hi-Lift 118 73930600

(For bagging or discharging) 119 19121414

13 137645 Shaft Assembly, Mandrel, Vented 129 19131312

14 128774 Housing, Mandrel, Vented 130 STD523710

15 110485X Bearing, Ball, Mandrel 131 STD533710

16 174493 Stripper, Vented Mower Deck 142 165890

18 72140505 Bolt, Carriage 5/16-18 x 5/8 143 157109

19 132827 Bolt, Shoulder 144 158634

20 159770 Baffle, Vortex 145 165888

21 STD541431 Nut Crownlock 5/16-18 unc 146 171977

23 177563 Bracket, Deflector 147 131335

24 105304X Cap, Sleeve 148 169022

25 123713X Spring, Torsion, Deflector 149 165898

26 110452X Nut, Push 150 19091210

27 130968X428 Shield, Deflector 152 169676

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 158 17720408

29 131491 Rod, Hinge 159 72140614

30 173984 Screw Thdrol Washer Head 184 19131410

31 129963 Washer, Spacer 185 188234

32 153535 Pulley, Mandrel - - 130794

33 178342 Nut, Toplock, Flanged

34 STD533717 Bolt

36 131494 Pulley, Idler, Flat

37 STD551037 Washer 13/32 x 13/16 x 16 Ga. - - 169583

40 STD541437 Nut Crownlock 3/8-16 unc

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16-18 unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket Gauge Wheel Lh

Bracket Gauge Wheel Rh

Screw 5/16-18 unc

Bolt Shoulder

Wheel Gauge Std

Nut Centerlock 3/8-16 unc

Washer 3/8 x 7/8 x 4 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc xl

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 3/4

Washer 13/13 x7/8 x 10 Ga.

Head Asm Cable Clutch

Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only - Pulley Not

Included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulcher cover and gauge wheel

components key nos. 101 - 106

and 116 - 119).

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

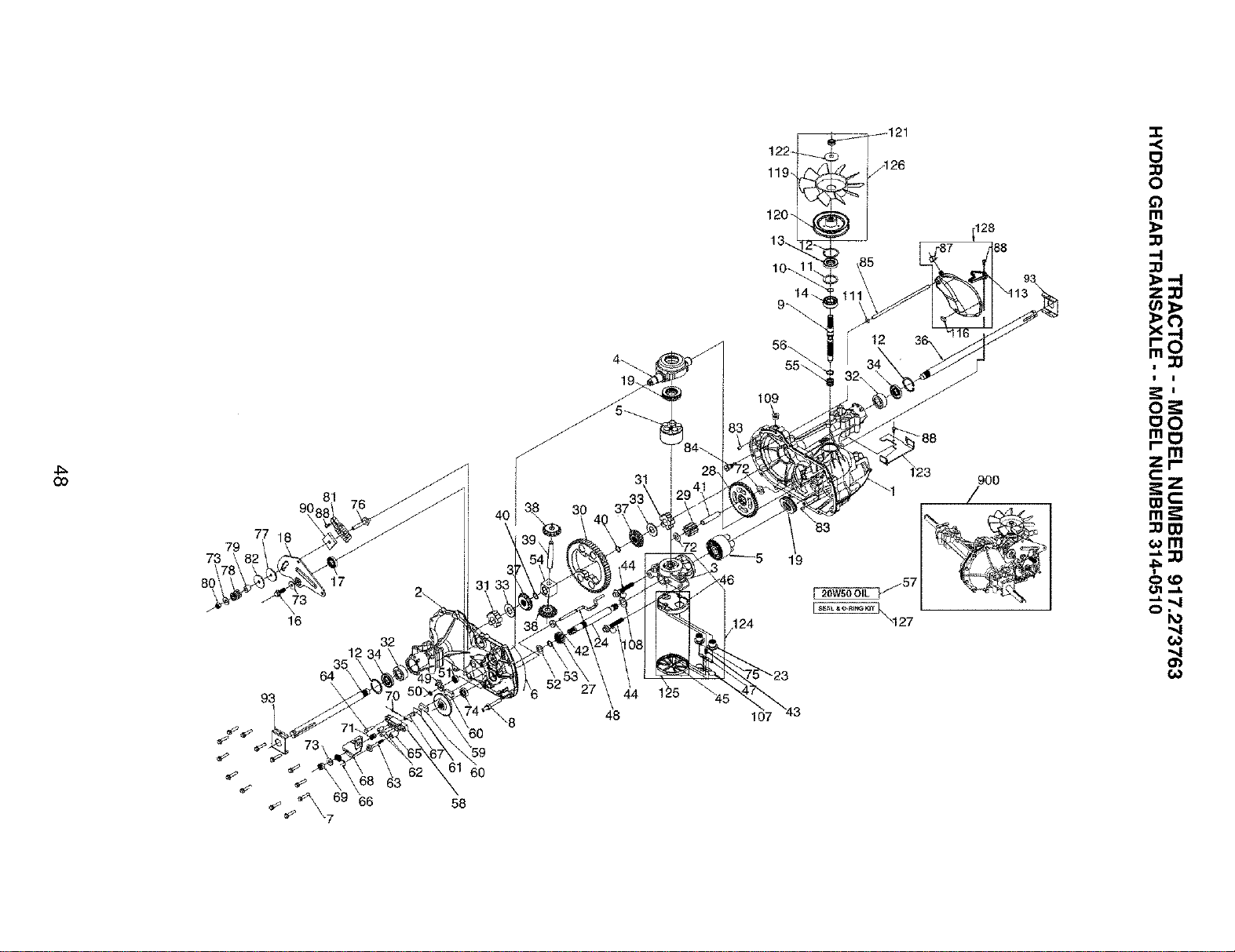

(]o

125

120-

109

124

107 "43

[128

900

\127

6')

:I=,,

-,I

! |

r- m

zr-

TRACTOR -- MODEL NUMBER 917.273763

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 59 170408

2 170352 Side Housing, Assembly 60 142883

3 170353 Center Section, Assembly 61 142882

4 170354 Swashplate, Trunion Machined 62 142887

5 169898 Block-Assembly 63 170410

6 170355 Sealant 10.50z 64 142892

7 170356 Hex Flange Screw 1/4-20 x 1.25 65 170411

8 170357 Stud, 5/16-24 Hex Double End 66 189386

9 170358 Shaft, Input 67 170413

10 170359 Ring - Retaining 68 170414

11 170360 Spacer 69 170415

12 169870 Ring - Retaining 70 170416

13 170361 Seal, Lip .67 X 1.58 X .276 71 170417

14 169869 Ball Brg 17mm Id X 40mm Od X 12mm 72 170418

16 170362 Hex Flange Head Screw 5/16-24X0.75 73 142884

17 170363 Lip Seal 18 X 32 X 7 74 170419

18 170364 Arm, Control 75 170420

19 150771 Bearing, 30x52x13 Thrust 76 170421

23 170365 Check Plug Assembly, Washer 77 170422

24 170366 Shaft, Motor 78 142969

27 170367 Gear- Pinion, 13t 79 142980

28 170368 10t/48t Gear 80 150778

29 170369 Gear, 10t Jackshaft

30 170370 60t Bull Gear 81 170423

31 170371 Sleeve Bearing .75 X 1.575 X .625 82 170424

32 170389 Sleeve Bearing(Outboard) .75 x 1.750 83 161168

x. 625 84 170425

33 142991 Washer, 3/4 Id X 1-1/20d X .13 Thk 85 170426

34 170390 Lip Seal Axle Seal 87 142917

35 170391 Shaft, Axle .75 X 11.39 (Key, R.H.) 88 170429

36 170392 Shaft, Axle .75 X 16.99 (Key, LH.) 90 170430

37 150792 Miter Gear (Splined) 93 170431

38 150793 Miter Gear 15t (0.5 ld) 107 170432

39 150809 Shaft 108 170433

40 170393 Ring, Spiral Retaining

41 170394 Pin, Jackshaft 109 170434

42 170395 Magnet, Ring 111 170435

43 170396 Spring, Bypass 113 170437

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 Long 116 170438

45 170397 Filter 119 170439

46 170398 Base, Filter 120 170440

47 170399 Actuator, Bypass 121 170441

48 170400 Rod, Bypass Actuator 122 170442

49 170401 Arm, Bypass 123 170443

50 170402 Retaining Ring .250 External 124 170444

51 170403 Seal, Lip .741 X .250 X .250Tc 125 170445

52 170404 Flat Washer, 5/8 Id X 1.00d X .05 Thk 126 170446

53 170405 Retaining Ring 127 170447

54 170406 Bearing, Center Block 128 173165

55 142977 Spring - Helical Compression 900 166768

56 142978 Washer

57 150798 20w-50 Oil

58 170407 Brake Yoke

Rotor, Brake

Brake Puck

Puck Plate

Brake Actuating Pin

Hfhcs 1/4-20x2 W/Ptch,Special Flange

Bolt, 1/4-20 X 1 W/Patch

Spacer

Spring, Brake Arm Bias

Sq. Hd. Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

Compression Spring Brake Anti-Drag

Washer, Ht .5 I.D. X 10.D. x .032

Flat - Washer 11/32 I.D. X 7/80.D

Oil Seal .625 X 1.0 X .25

Check Plug Assembly, .027, Washer

Stud, 5/16-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical Cemp

Spacer

Hex Lock Nut 5/16-24 unf (Nylon

Insert)

Wedge, Friction Pack

Clip, Washer .316xl .50x.1046 (Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap - Poppet Valve

Bolt, Self Tapping 10-32X1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Deflector

Washer, Motor Shaft 7lid x 1.15od x

.030thk

Plug, Sae #6

O-Ring .07 X .301 I.D.

Bracket, Support Expansion Tank

Silicon Sponge

Fan, 7 In.

Pulley

Hex Lock Nut 1/2-20 (Nylon Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass Asm.

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, Expansion Tank

Transaxle Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

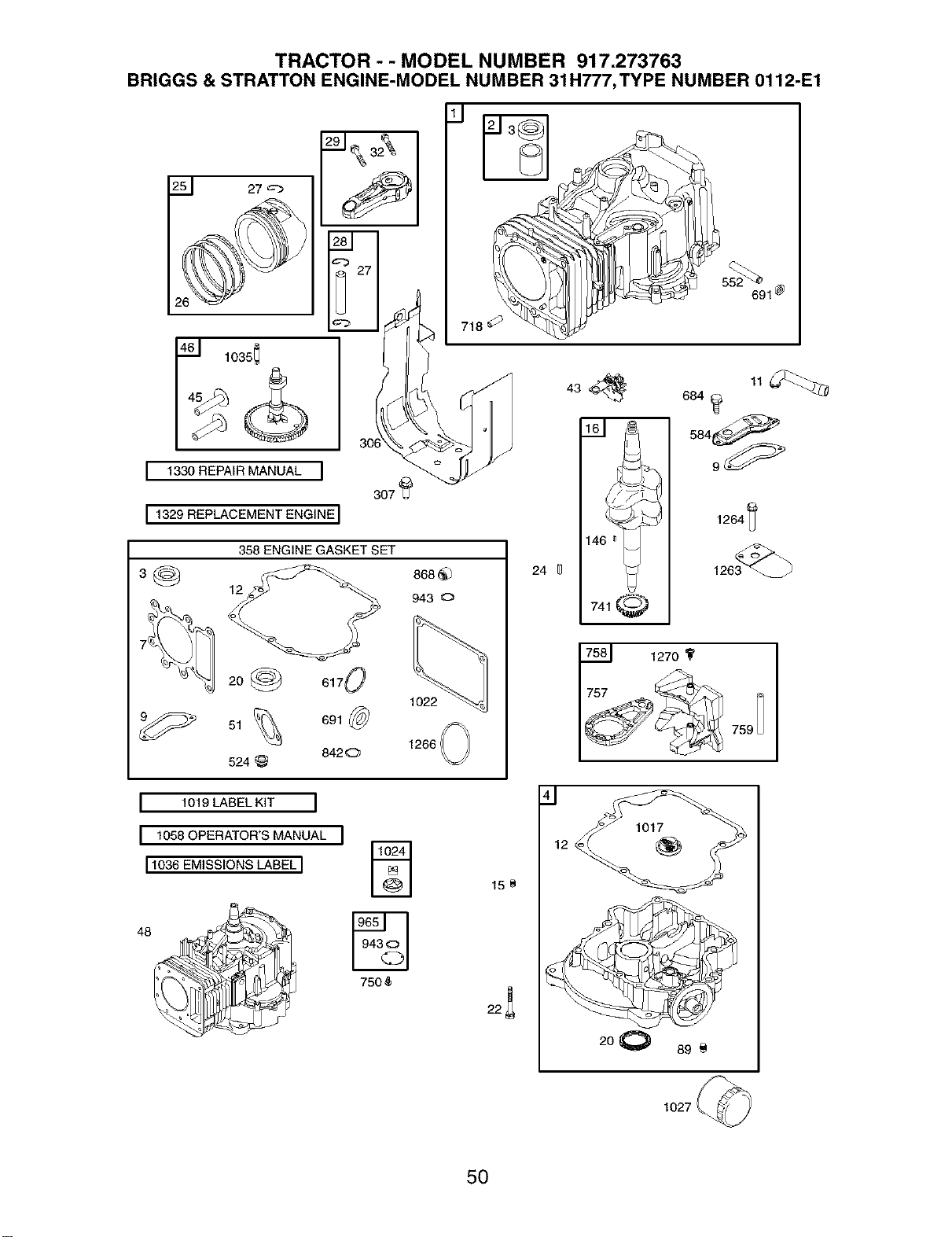

TRACTOR - - MODEL NUMBER 917.273763

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0112-E1

I 1330 REPAIR MANUAL I

307

I 1329 REPLACEMENT ENGINE I

358 ENGINE GASKET SET

20@ 6170

51 691 (_

842 O

524

868_ 24 0

943 O

1022

437 084_

584_

1264_

7591

I 1019 LABEL KIT I

I 1058 OPERATOR'S MANUAL

11036 EMISSIONS LABEL I

750

15@

20_ 89 @

TRACTOR - - MODEL NUMBER 917.273763

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0112-E1

238 0

1029

t022

1022

914

1023

1119_

404@

614_

54'_llb

654(_

977 CARBURETOR GASKET SET

137 276 @

2,of

93_

95e

\WZIo1_olo=_ ql/

842 _

24o,_

118

130 _1

93_

142_

105

276@

950_

634_ 231 '@

127

TRACTOR - - MODEL NUMBER 917.273763

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0112-E1

305A

643

3o_ _

1265

_01

783 _ 544

_13®o03_

311

802 _

697 _

729

31oi 7_,,9'

823 _)

_ 81 J6_

1070

1005 _ 1044_

676

526

501

TRACTOR - - MODEL NUMBER 917.273763

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0112-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 130 691750 Valve-Throttle

2 399265 Kit-Bushing/Seal (Magneto Side) 131 494379 Kit-Throttle Shaft

3 391086 • Seal-Oil (Magneto Side) 133 494381 Float-Carburetor

4 697188 Sump-Engine 137 281165 QI: Gasket-FIoatBowl

5 698147 Head-Cylinder 141 495097 Kit-Choke Shaft

7 699168 .+ Gasket-Cylinder Head 142 697140 Q Nozzle-Carburetor

9 697109 • Gasket-Breather 146 691639 Key-Timing

11 697113 Tube-Breather 187 697098 Line-Fuel

12 697110 • Gasket-Crankcase 188 691693 Screw (Control Bracket)

13 690360 Screw (Cylinder Head) 192 691986 Adjuster-Rocker Arm

15 690946 Plug-Oil Drain 202 691841 Link-Mechanical Governor

16 697127 Crankshaft 209 692208 Spring-Governor

20 690947 • Seal-Oil (PTO Side) 216 691840 Link-Choke

22 692125 Screw (Crankcase Cover/Sump) 222 694042 Bracket-Control

23 693556 Flywheel 227 691374 Lever-Governor Control

24 222698 Key-Flywheel 231 691636 Screw (Choke Valve)

25 699052 Piston Assembly (Standard) 232 691842 Spring-Governor Link

699054 Piston Assembly (.020" Oversize) 238 691843 Cap-Valve

26 699051 Ring Set (Standard) 240 394358 Filter-Fuel

697559 Ring Set (.020" Oversize) 265 691024 Clamp-Casing

27 698469 Lock-Piston Pin 267 695134 Screw (Casing Clamp)

28 697099 Pin-Piston 276 692255 Q_: Washer-Sealing

29 697126 Rod-Connecting (Standard) 300 698356 Muffler

697263 Rod-Connecting (.020" 304 698804 Housing-Blower

Undersize) 305 697102 Screw (Blower Housing)

32 692852 Screw (Connecting Rod) 305A 697103 Screw (Blower Housing)

33 695760 Valve-Exhaust 306 697107 Shield-Cylinder

34 695761 Valve-Intake 307 691003 Screw (Cylinder Shield)

35 691279 Spring-Valve (Intake) 309 693551 Motor-Starter

36 691279 Spring-Valve (Exhaust) 310 690323 Bolt (Starter Motor)

37 697108 Guard-Flywheel 311 497608 Brush Set

42 499586 Keeper-Valve 333 495859 Armature-Magneto

43 691968 Slinger-Governor/Oil 334 691061 Screw (Magneto Armature)

45 690564 Tappet-Valve 337 491055 Plug-Spark

46 698492 Camshaft 358 697191 Gasket Set-Engine

48 697762 Short Block 363 19203 Puller-Flywheel

50 690193 Manifold-Intake 383 89838 Wrench-Spark Plug

51 692137 ,Q_:+ Gasket-Intake 404 691691 Washer (Governor Crank)

53 690227 Stud (Carburetor) 431 697122 Elbow-Intake

54 691148 Screw (Intake Manifold) 445 698083 Filter-Air Cleaner Cartridge

73 697133 Screen-Rotating 462 691261 Washer (Starter Cable)

74 697897 Screw (Rotating Screen) 474 696457 Alternator

78 691003 Screw (Flywheel Guard) 501 691188 Regulator

81 691178 Lock-Muffler Screw 503 691532 Strap-Starter

89 690283 Plug-Oil 505 691251 Nut (Governor Control Lever)

93 690602 O Bushing-Throttle Shaft 510 693699 Drive-Starter

94 498030 Kit-Idle Mixture 513 692024 Clutch-Drive

95 691636 Screw (Throttle Valve) 523 697086 Dipstick

98 495800 Kit-Idle Speed

104 690525 O Pin-Float Hinge Engine Gasket Set, Key. No. 358

105 231855 O Valve-Float Needle O Carburetor Overhaul Kit, Key. No. 121

106 690577 O Seat-Inlet :l: Carburetor Gasket Set, Key. No. 977

108 690464 Valve-Choke + Valve Gasket Set, Key. No. 1095

117 694352 O Jet-Main (Standard)

118 697228 Jet-Main (High Altitude) NOTE: All component dimensions given in U.S. inches

121 697241 Kit-Carburetor Overhaul 1 inch = 25.4 mm

125 698445 Carburetor

127 695005 Plug-Welch

TRACTOR - - MODEL NUMBER 917.273763

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31 H777, TYPE NUMBER 0112-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

524 691032 • SeaI-DipstickTube 950 691657 Screw-Float Bowl

525 697184 Tube-Dipstick 965 499613 Cover-Oil Pump

526 697088 Screw (Regulator) 967 697015 Filter-Pre Cleaner

544 692034 Starter-Armature 968 697084 Cover-Air Cleaner

552 697144 Bushing-Governor Crank 975 495933 Bowl-Float

562 691119 Bolt (Governor Control Lever) 977 690192 Gasket Set-Carburetor

579 691029 Nut (Starter Cable) 987 691326 Q SeaI-Throffle Shaft

584 697112 Cover-Breather Passage 1005 697111 Fan-Flywheel

601 95162 Clamp-Hose 1017 690770 Screen-Oil Pump

613 691416 Screw (Muffler) 1019 698814 Kit-Label

613A 691678 Screw(Muffler) 1022 272475 o+ Gasket-RockerCover

614 691620 Pin-Cotter 1023 692492 Cover-Rocker Arm

616 692012 Crank-Governor 1024 499054 Pump-Oil

617 692138 O * SeaI-O Ring (Intake Manifold) 1026 692003 Rod-Push (Intake)

634 690801 O Spring/Seal Assembly 692011 Rod-Push (Exhaust)

635 691909 Boot-Spark Plug 1027 492932 Filter-Oil

643 698401 Retainer-Air Filter 1029 691751 Arm-Rocker

654 690958 Nut (Carburetor) 1034 690822 Guide-Push Rod

676 393761 Deflector-Muffler 1035 693784 Shaft-Pump

677 690661 Screw (Muffler Deflector) 1036 695700 Label-Emissions

684 697157 Screw (Breather Passage Cover) 1044 698139 Screw (Flywheel)

691 692407 * Seal-Governor Shaft 1051 691265 Ring-Retaining

692 690572 Spring-Detent 1058 275935 Operator's Manual

697 690372 Screw (Drive Cap) 1059 698516 Kit-Screw/Washer

718 690959 Pin-Locating 1070 690372 Screw (Flywheel Fan)

729 691224 Clip-Wire 1090 691293 Retainer-Brush

729A 691223 Clip-Wire 1091 691333 Cap-Limiter

741 697128 Gear-Timing 1095 690190 Gasket Set-Valve

750 691033 Screw (Oil Pump Cover) 1119 691183 Screw (Alternator)

757 697607 Link-Counterweight 1263 697124 Reed-Breather

758 697134 Counterweight 1264 697104 Screw (Breather Reed)

759 697392 Pin-Counterweight 1265 697125 Support-Blower Housing

783 693713 Gear-Pinion 1266 691917 oQ SeaI-O Ring (Intake Elbow)

789 698329 Harness-Wiring 1266A 697123 Q SeaI-O Ring (Intake Elbow)

797 693167 Nut (Brush Retainer) 1267 697135 Latch-Blower Housing

801 691283 Cap-Drive 1270 697156 Plug-AVS Counterweight

802 691286 Cap-End 1279 691108 Screw (Blower Housing Support)

803 693757 Housing-Starter 1329 31H777-0202 Replacement Engine

823 690363 Screw (Muffler Adapter) 1330 272147 Repair Manual

830 691095 Stud-Rocker Arm

842 691031 * SeaI-O Ring (Dipstick Tube) Engine Gasket Set, Key. No. 358

847 697611 Dipstick!Tube Assembly O Carburetor Overhaul Kit, Key. No. 121

851 692424 Terminal-Spark Plug $ Carburetor Gasket Set, Key. No. 977

864 697346 Adapter-Muffler + Valve Gasket Set, Key. No. 1095

868 690968 *+ Seal-Valve

883 692236 Gasket-Exhaust NOTE: All component dimensions given in U.S. inches

914 691108 Screw (Rocker Cover) 1 inch = 25.4 mm

943 690589 * SeaI-O Ring (Oil Pump Cover)

947 694393 Solenoid-Fuel

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

, slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3, Sight across the fold in the direction of hill slope you want to measure,

4, Compare the angle of the fold with the slope of the hill,

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www,sears,com www, sears,ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR _

(1-888-784_427)

Au Canada pour service en franq.ais:

1-800-LE-FOYER Mc

(14_533-6937)

www.sears.ca

6E/ R,

TM SM

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de F#,brica / SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque d_pos_e de Sears, Roebuck and Co.

192780 5.4.04 MH Printed in U.S.A.

Craftsman 917273763 tractor

Product's Documents

User Manual

Specifications

Craftsman 917273763 Questions and Answers
