HDMI over Cat6 Extender Kits,
Repeater and Receivers, 4K/60 Hz
Extender Kit Models: B127A-1A1-BHBH, B127A-1A1-BHPH,
B127A-2A1-BHBH, B127A-111-BHTH, B127A-111-BDTH
Receivers: B127A-1A0-BH, B127A-2A0-BH,
B127A-1P0-PH, B127A-110-BH
Repeater: B127A-010-H
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
Este manual está disponible en español en la página de Tripp Lite:
tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website
verfügbar: tripplite.com
21-03-127-933CC9-EN.indd 121-03-127-933CC9-EN.indd 1 3/24/2021 9:38:13 AM3/24/2021 9:38:13 AM
2
B127A-1A1-BHBH
B127A-2A1-BHBH
B127A-1A1-BHPH
B127A-111-BHTH
B127A-111-BDTH
B127A-110-BH
B127A-1A0-BH
B127A-2A0-BH
B127A-1P0-PH
B127A-010-H
Local and Remote
Units (LR),
Remote Unit (R),
Repeater Unit (RT)
LR LR LR LR LR R R R R RT
External Power
Supplies (0 or 1)
1 1 1 1 1 1 0 0 0 0
Mounting
Hardware
Y Y Y Y Y Y Y Y Y N
Package Contents
Product Features
B127A-1A1-BHBH
• HDMI over Cat6 Power over Cable (PoC) Extender Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as
specified in HDMI 2.0, up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ)
control and auto EDID image adjustment
• Supports up to 7.1-channel surround sound audio
•
Receiver features built-in Toslink port for audio extraction function
21-03-127-933CC9-EN.indd 221-03-127-933CC9-EN.indd 2 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
3
Product Features
• Real-time video compression and decompression technology
• Receiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR)
and 36-bit color depth
• Plug and play—no software or drivers required
• Support bi-directional IR and USB 1.1 function by dip
switch selection
• Includes mounting hardware that enables both the local
transmitter and remote receiver units to be wall-mounted,
rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged in at either transmitter or receiver side and
provide power to both units
B127A-2A1-BHBH
• HDMI over Cat6 Power over Cable (PoC) Dual Output
Extender Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as
specified in HDMI 2.0, up to 230 ft. (70m) from the source
to two displays
• Built-in local HDMI port supports 4K x 2K signal
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment
• Supports up to 7.1-channel surround sound audio
• Real-time video compression and decompression technology
21-03-127-933CC9-EN.indd 321-03-127-933CC9-EN.indd 3 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
4
Product Features
• Receiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables both the local
transmitter and remote receiver units to be wall-mounted,
rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged in at either transmitter or receiver side and
provide power to both units
B127A-1A1-BHPH
• HDMI over Cat6 Power over Cable (PoC) Extender Kit with
Pigtail Receiver
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified
in HDMI 2.0, up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment with 1 ft. HDMI male cable
• Supports up to 7.1-channel surround sound audio
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables the local transmitter
to be wall-mounted, rack-mounted or pole-mounted
21-03-127-933CC9-EN.indd 421-03-127-933CC9-EN.indd 4 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
5
Product Features
• Power over Cable (PoC) function allows external power supply
to be plugged into transmitter and provide power to both units
B127A-111-BHTH
• HDMI over Cat6 Power over Cable (PoC) daisy-chainable
Extender Kit
• Remote transceiver unit features built-in equalization (EQ)
control, auto EDID image adjustment and RJ45 expanding
port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio
extraction function
• Real-time video compression and decompression technology
• Extends and expands a 4K x 2K (3840 x 2160) @ 60 Hz
signal, as specified in HDMI 2.0, in an over Cat6 installation,
allowing multiple monitors to be located at different points in
a chain by adding up to four B127A-110-BH units
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to an
additional 230 ft. or a 1080p @ 60 Hz signal up to an
additional 230 ft. from each remote/repeater unit to the next
unit in the chain (in a full four-level daisy-chain installation), a
4K (3840 x 216) @ 60 Hz signal up to 920 ft. or a 1080p @
60 Hz signal up to 920 ft. from the source to the last remote
unit in the chain
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
daisy-chain installation
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
21-03-127-933CC9-EN.indd 521-03-127-933CC9-EN.indd 5 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
6
Product Features
• Supports up to 7.1-channel surround sound audio
• Transceiver features built-in Toslink port for audio
extraction function
• Compatible with HDCP 2.2, High Dynamic Range (HDR)
and 36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables the transmitter
and transceiver units to be wall-mounted, rack-mounted
or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged into either transmitter or receiver side and
provide power to connected units
B127A-110-BH
• HDMI over Cat6 Power over Cable (PoC) transceiver unit
• Works with the B127A-111-BHTH to extend a 4K x 2K
(3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0,
up to 230 ft. (70 m)
• This transceiver unit features built-in equalization (EQ) control
and auto EDID image adjustment and one RJ-45 expanding
port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio
extraction function
• Compatible with HDCP 2.2, High Dynamic Range (HDR)
and 36-bit color depth
• Plug and play—no software or drivers required
• Bi-directional IR function
21-03-127-933CC9-EN.indd 621-03-127-933CC9-EN.indd 6 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
7
Product Features
• Real-time video compression and decompression technology
• Add a B127A-010-H signal booster for increased maximum
transmission distance. See B127A-111-BHTH for details.
B127A-111-BDTH
• DisplayPort to HDMI over Cat6 with Power over Cable (PoC)
daisy-chainable Extender Kit
• Extends audio/video signal from a DisplayPort source to an
HDMI display
• Remote transceiver unit features built-in equalization (EQ)
control, auto EDID image adjustment and RJ45 expanding
port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio
extraction function
• Real-time video compression and decompression technology
• Extends and expands a 4K x 2K (3840 x 2160) @ 60 Hz
signal, as specified in HDMI 2.0, in an over Cat6 installation,
allowing multiple monitors to be located at different points in
a chain by adding up to four B127A-110-BH units
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to an
additional 230 ft. or a 1080p @ 60 Hz signal up to an
additional 230 ft. from each remote/repeater unit to the next
unit in the chain (in a full four-level daisy-chain installation), a
4K (3840 x 216) @ 60 Hz signal up to 920 ft. or a 1080p @
60 Hz signal up to 920 ft. from the source to the last remote
unit in the chain
21-03-127-933CC9-EN.indd 721-03-127-933CC9-EN.indd 7 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
8
Product Features
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
daisy-chain installation
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
• Supports up to 7.1-channel surround sound audio
• Transceiver features built-in Toslink port for audio
extraction function
• Compatible with DisplayPort 1.2a, HDCP 2.2, High Dynamic
Range (HDR) and 36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables the transmitter
and transceiver units to be wall-mounted, rack-mounted or
pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged into either transmitter or receiver side and
provide power to connected units
B127A-1A0-BH
• HDMI over Cat6 Power over Cable (PoC)-Compatible Receiver
• Connects to a B127A-Series transmitter, switch or splitter
unit to extend a 4K x 2K (3840 x 2160) @ 60 Hz signal, as
specified in HDMI 2.0, up to 230 ft. (70m) from the source
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment
• Real-time video compression and decompression technology
21-03-127-933CC9-EN.indd 821-03-127-933CC9-EN.indd 8 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
9
Product Features
• Features built-in Toslink port for audio extraction function
• Supports up to 7.1-channel surround sound audio
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables the local transmitter
to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows receiver unit to be
powered by a connected transmitter, switch or splitter unit
B127A-2A0-BH
• HDMI over Cat6 Power over Cable (PoC)-Compatible Dual
Output Receiver
• Connects to a B127A-Series transmitter, switch or splitter
unit to extend a 4K x 2K (3840 x 2160) @ 60 Hz signal, as
specified in HDMI 2.0, to two displays up to 230 ft. (70m)
from the source
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment
• Real-time video compression and decompression technology
• Features built-in Toslink port for audio extraction function
• Supports up to 7.1-channel surround sound audio
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
21-03-127-933CC9-EN.indd 921-03-127-933CC9-EN.indd 9 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
10
Product Features
• Includes mounting hardware that enables the local transmitter
to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows receiver unit to be
powered by a connected transmitter, switch or splitter unit
B127A-1P0-PH
• HDMI over Cat6 Power over Cable (PoC)-Compatible
Pigtail Receiver
• Connects to a B127A-Series transmitter, switch or splitter
unit to extend a 4K x 2K (3840 x 2160) @ 60 Hz signal, as
specified in HDMI 2.0, up to 230 ft. (70m) from the source
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment
• Real-time video compression and decompression technology
• Supports up to 7.1-channel surround sound audio
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Power over Cable (PoC) function allows receiver unit to be
powered by a connected transmitter, switch or splitter unit
21-03-127-933CC9-EN.indd 1021-03-127-933CC9-EN.indd 10 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
11
B127A-010-H
• Over Cat6 signal repeater for B127A extenders
• Repeater unit extends the transmission of a 4K x 2K
(3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0,
up to a total of 400 ft. (120 m)
• Power over Cable (PoC) technology means no external
power is required to power the unit
• HCDP 2.2- and HDR-compliant
• Supports up to 7.1-channel surround sound audio
• Compatible with all B127A-Series products, including HDMI,
DisplayPort and USB-C models
• Plug and play—no software or drivers required
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
B127A-111-BHTH and B127A-110-BH daisy-chain installation
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
Optional Accessories:
• N202-Series Cat6 24 AWG Solid Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed
HDMI 2.0 Cables
Product Features
21-03-127-933CC9-EN.indd 1121-03-127-933CC9-EN.indd 11 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
12
Disclaimer
Before installation, please check the following settings of your
source(s) and TV/monitor(s):
1. Set display to 60 Hz. Double-check factory settings, as
default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0.
Some displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some
displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on
your TV/monitor. Confirm with your TV/monitor manufacturer
which HDMI ports support UHD Deep Color.
Note: Check USB/IR DIP switch, as the default setting is set to IR.
This only applies to the B127A-1A1-BHBH.
Note: To connect a local monitor to your installation, the UHD Deep
Color setting may need to be disabled on your local TV/monitor
(depending make/mode) to achieve 4K @ 60 Hz resolution.
21-03-127-933CC9-EN.indd 1221-03-127-933CC9-EN.indd 12 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
13
Mounting Instructions (select models only)
The B127A-1A1-BHBH, B127A-2A1-BHBH,
B127A-1A1-BHPH, B127A-111-BHTH, B127A-111-BDTH,
B127A-1A0-BH, B127A-2A0-BH and B127A-110-BH include
mounting hardware that allows for a variety of mounting methods.

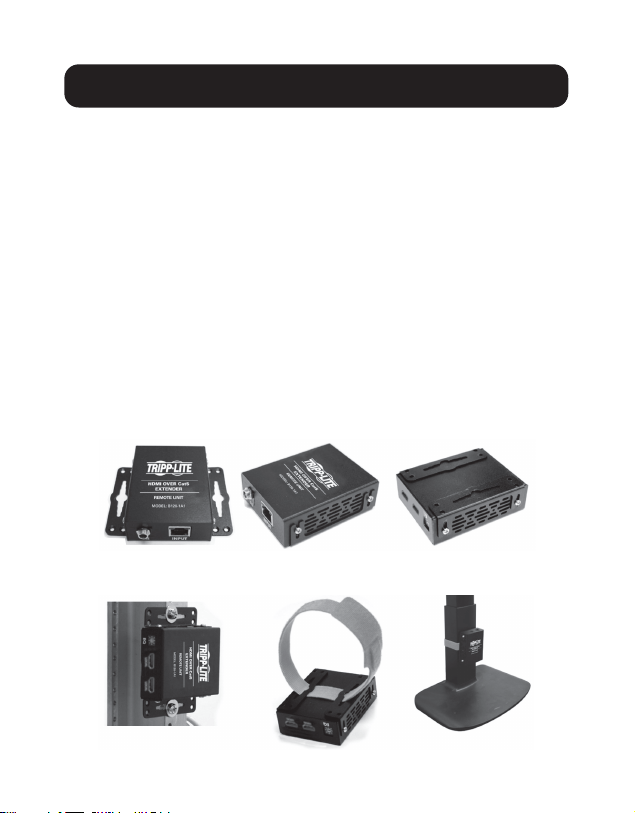

The following images illustrate how the included mounting
brackets can be attached for different installations.
Notes:
• The model shown in the below images is for illustrative purposes only.
Your product may vary by model number, size or port orientation. The
mounting options for all over IP units are the same.
• Only the transmitter unit in the B127A-1A1-BHPH can be mounted.
The receiver is a pigtail-type unit that cannot be mounted.
Wall-Mount
19” Rack-Mount Pole-Mount
21-03-127-933CC9-EN.indd 1321-03-127-933CC9-EN.indd 13 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
14
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-1A1-BHBH unit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
B127A-1A1-BHBH
extender kit
IR Control
Pad
IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV
USB Keyboard
USB Mouse
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Micro-USB cable
Toslink cable
IR Control
Pad
IR
Sensor
21-03-127-933CC9-EN.indd 1421-03-127-933CC9-EN.indd 14 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
15
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray™ players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-1A1-BHBH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-1A1-BHBH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H
signal repeater unit to the transmitter and receiver via
Cat6 cabling. See B127A-010-H product features for
more information.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
7. Turn on the power to your connected TVs/monitors.
21-03-127-933CC9-EN.indd 1521-03-127-933CC9-EN.indd 15 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
16
Standard Extender Kit Installation
8. Connect the external power supply to either the transmitter
or receiver unit. Plug it into an available wall outlet or a
Tripp Lite surge protector, power distribution unit (PDU) or
uninterruptible power supply (UPS). The POWER (green)
LED on the local transmitter unit will illuminate to indicate
the unit is receiving power from the external power supply.
The POWER (green) LED on the remote receiver unit will
illuminate to indicate the unit is receiving power from the
local transmitter unit through PoC technology.
9. Turn on the power to the HDMI source.
10. The orange RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor(s).
21-03-127-933CC9-EN.indd 1621-03-127-933CC9-EN.indd 16 3/24/2021 9:38:14 AM3/24/2021 9:38:14 AM
17
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite N202-
Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-2A1-BHBH unit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
INPUTOUTPUT 2OUTPUT 1
DC 24V, 1A
DC 24V, 1A
OUTPUTINPUTLOCAL
Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz
Toslink cable
Up to 230 ft. (70 m) at 4K/60Hz
LOCAL / TRANSMITTER REMOTE / RECEIVER
B127A-2A1-BHBH
extender kit
HDR Player
Monitor
TV
TV
21-03-127-933CC9-EN.indd 1721-03-127-933CC9-EN.indd 17 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
18
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-2A1-BHBH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-2A1-BHBH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H
signal repeater unit to the transmitter and receiver via
Cat6 cabling. See B127A-010-H product features for more
information.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Using HDMI 2.0 cables (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s dual HDMI ports to the monitor(s).
7. Turn on the power to your connected TVs/monitors.
21-03-127-933CC9-EN.indd 1821-03-127-933CC9-EN.indd 18 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
19
Standard Extender Kit Installation
8. Connect the external power supply to either the transmitter
or receiver unit. Plug it into an available wall outlet or a
Tripp Lite surge protector, power distribution unit (PDU) or
uninterruptible power supply (UPS). The POWER (green)
LED on the local transmitter unit will illuminate to indicate
the unit is receiving power from the external power supply.
The POWER (green) LED on the remote receiver unit will
illuminate to indicate the unit is receiving power from the
local transmitter unit through PoC technology.
9. Turn on the power to the HDMI source.
10. The orange RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor(s).
21-03-127-933CC9-EN.indd 1921-03-127-933CC9-EN.indd 19 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
20
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-1A1-BHPH unit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
B127A-1A1-BHPH
extender kit
IR Control
Pad
IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Micro-USB cable
21-03-127-933CC9-EN.indd 2021-03-127-933CC9-EN.indd 20 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
21
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-1A1-BHPH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-1A1-BHPH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H
signal repeater unit to the transmitter and receiver via
Cat6 cabling. See B127A-010-H product features for more
information.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
7. Turn on the power to your connected TVs/monitors.
21-03-127-933CC9-EN.indd 2121-03-127-933CC9-EN.indd 21 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
22
Standard Extender Kit Installation
8. Connect the external power supply to either the transmitter
or receiver unit. Plug it into an available wall outlet or a
Tripp Lite surge protector, power distribution unit (PDU) or
uninterruptible power supply (UPS). The POWER (green) LED
on the local transmitter unit will illuminate to indicate the
unit is receiving power from the external power supply.
9. Turn on the power to the HDMI source.
10. The orange RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor(s).
21-03-127-933CC9-EN.indd 2221-03-127-933CC9-EN.indd 22 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
23
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-002-BH splitter unit (sold
separately) with B127A-1A0-PH and B127A-1A0-BH receiver units.
The B127A-1A0-BH, B127A-2A0-BH and B127A-1P0-PH receiver
units can be used with a variety of B127A-Series transmitter and
splitter units. See tripplite.com for details.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz
B127A-002-BH
DC 24V, 1A
OUTPUT 2INPUT
OUTPUT 1
B127A-002-BH
B127A-1A0-BH
B127A-1P0-PH
OUTPUT INPUT
HDR Player
Monitor
extender kit
21-03-127-933CC9-EN.indd 2321-03-127-933CC9-EN.indd 23 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
24
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-Series Transmitter/Splitter Units:
Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect a local monitor to
the LOCALOUT port on the local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H
signal repeater unit to the transmitter or splitter and receiver
via Cat6 cabling. See B127A-010-H product features for
more information.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter, splitter or switch unit to the RJ45 port on the
remote receiver unit.
6. Connect the remote receiver unit’s HDMI cable to a monitor/
TV (B127A-1P0-PH only), or using HDMI 2.0 cable (such
as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables)
connect the receiver unit’s HDMI output port to a monitor/TV.
7. Turn on the power to your connected TVs/monitors.
21-03-127-933CC9-EN.indd 2421-03-127-933CC9-EN.indd 24 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
25
Standard Extender Kit Installation
8. Connect the external power supply to the transmitter
unit. Plug it into an available wall outlet or a Tripp Lite
surge protector, power distribution unit or uninterruptible
power supply (UPS). The POWER (green) LED on the local
transmitter/splitter unit will illuminate to indicate the unit is
receiving power from the external power supply. The POWER
(green) LED on the remote receiver unit will illuminate to
indicate the unit is receiving power from the local transmitter
unit through PoC technology (B127A-1A0-BH and
B127A-2A0-BH only).
9. Turn on the power to the HDMI source.
10. The orange RJ45 LED will illuminate on both local transmitter
and remote receiver units to indicate a signal is being
received from source to display. The screen should now
display on the connected monitor(s).
21-03-127-933CC9-EN.indd 2521-03-127-933CC9-EN.indd 25 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
26
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable, or cable with a
gauge (AWG) size higher than 24 AWG, will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-111-BHTH transmitter and
transceiver with an additional transceiver attached to demonstrate the
kit’s daisy-chain capabilities.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
21-03-127-933CC9-EN.indd 2621-03-127-933CC9-EN.indd 26 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
27
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-111-BHTH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-111-BHTH local transmitter unit.
B127A-111-BHTH
extender kit
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Sensor
IR Sensor IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV TV
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Toslink cable
Standard Extender Kit Installation
21-03-127-933CC9-EN.indd 2721-03-127-933CC9-EN.indd 27 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
28
Standard Extender Kit Installation
4. Optional: To extend the transmission distance up to 400
ft. connect a B127A-010-H signal booster between the
transmitter and receiver unit using Cat6 cable.
Note: In a daisy-chain installation the B127A-010-H signal
booster unit must be placed between the transmitter and
first transceiver unit in the chain or else the signal booster
will not function.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
or transceiver unit’s HDMI port to a monitor.
7. Turn on the power to your connected TVs/monitors.
8. Connect the external power supply to the transmitter. Plug
it into an available wall outlet or a Tripp Lite surge protector,
power distribution or uninterruptible power supply (UPS).
The POWER (green) LED on the local transmitter unit will
illuminate to indicate the unit is receiving power from the
external power supply. The POWER (green) LED on the
remote receiver unit will illuminate to indicate the unit is
receiving power from the local transmitter unit through PoC
technology.
9. Turn on the power to the HDMI source.
10. The orange RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor.
21-03-127-933CC9-EN.indd 2821-03-127-933CC9-EN.indd 28 3/24/2021 9:38:15 AM3/24/2021 9:38:15 AM
29
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable, or cable with a
gauge (AWG) size higher than 24 AWG, will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite N202-
Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-111-BDTH transmitter and
transceiver with an additional transceiver attached to demonstrate the
kit’s daisy-chain capabilities.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
DC 24V, 1A
OUTPUTLOCAL INPUT
DC 24V, 1A
OUTPUTOUTPUT
INPUT
DC 24V, 1A
OUTPUTOUTPUT
INPUT
Up to 230 ft. (70 m)
at 4K/60Hz
Up to 230 ft. (70 m)
at 4K/60Hz
Up to 230 ft. (70 m)
at 4K/60Hz
Up to 230 ft. (70 m)
at 4K/60Hz
DisplayPort
Source
B127A-111-BDTH
extender kit
Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz
Toslink cable
Up to 15 ft. (4.5 m) DisplayPort cable at 4K/60Hz
LOCAL / TRANSMITTER REMOTE / RECEIVER
TV TV
Monitor
21-03-127-933CC9-EN.indd 2921-03-127-933CC9-EN.indd 29 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
30
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using a DisplayPort cable (such as Tripp Lite P580-Series
cables), connect the DisplayPort source to the INPUT port on
the local transmitter unit.
3. Optional for B127A-111-BDTH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-111-BHTH local transmitter unit.
4. Optional: To extend the transmission distance up to 400
ft. connect a B127A-010-H signal booster between the
transmitter and receiver unit using Cat6 cable.
Note: In a daisy-chain installation the B127A-010-H signal
booster unit must be placed between the transmitter and
first transceiver unit in the chain or else the signal booster
will not function.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-
CERT or P568-XXX-2A Series cables), connect the remote
transceiver unit’s HDMI port to a monitor.
7. Turn on the power to your connected TVs/monitors.
21-03-127-933CC9-EN.indd 3021-03-127-933CC9-EN.indd 30 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
31
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat5e/6 cable. Using stranded wire Cat5e/6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows the B127A-111-BHTH and
B127A-110-BH installation.
8. Connect the external power supply to the transmitter. Plug
it into an available wall outlet or a Tripp Lite surge protector,
power distribution or uninterruptible power supply (UPS).
The POWER (green) LED on the local transmitter unit will
illuminate to indicate the unit is receiving power from the
external power supply. The POWER (green) LED on the
remote receiver unit will illuminate to indicate the unit is
receiving power from the local transmitter unit through
PoC technology.
9. Turn on the power to the HDMI source.
10. The orange RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor.
21-03-127-933CC9-EN.indd 3121-03-127-933CC9-EN.indd 31 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM

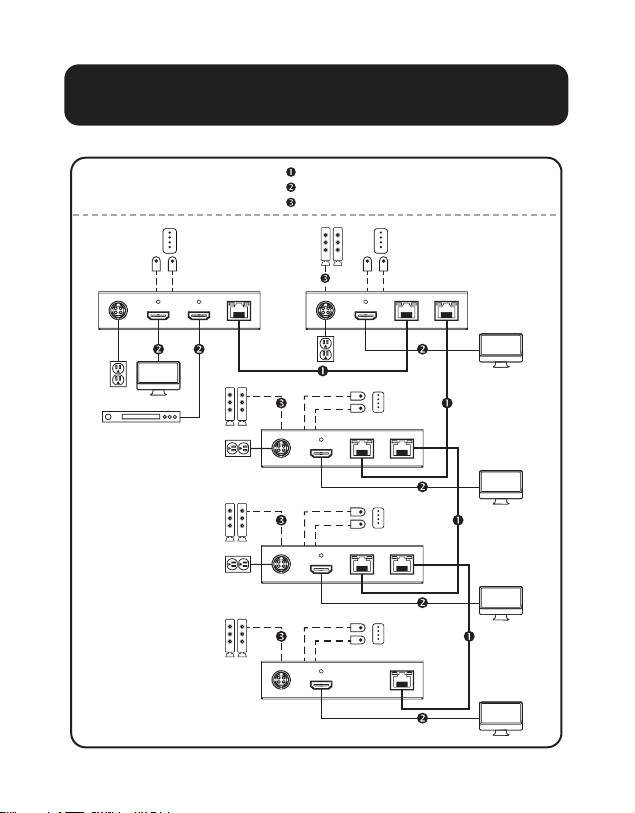

32
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
B127A-110-BH
transceiver
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Sensor
IR Sensor
IR Sensor
IR Sensor
IR Sensor
Level 1
Level 2
Level 3
Level 4
HDR Player
Monitor
TV
TV
TV
TV
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Toslink cable
21-03-127-933CC9-EN.indd 3221-03-127-933CC9-EN.indd 32 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
33
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Connect the HDMI source to the INPUT port on the
B127A-111-BHTH using a Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series HDMI Cable.
3. Connect a local monitor to the LOCAL HDMI port using
a Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
HDMI Cable.
4. Connect the external power supply to the local unit and plug
it into a Tripp Lite surge protector, power distribution unit
(PDU) or uninterruptible power supply (UPS). The green RJ45
LEDs will illuminate to indicate power is being received from
the external power supply.
5. Using Cat5e/6 cable, connect one of the RJ45 output ports
on the local unit to the RJ45 input port on the
B127A-110-BH transceiver unit.
6. Connect a monitor to the HDMI OUTPUT port on the
transceiver unit using a Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series HDMI Cable.
7. The green power LED and the green RJ45 LEDs on the
transceiver will illuminate to indicate the unit is receiving
power. Up to four units can be daisy-chained (three
transceivers and one receiver). To connect additional
transceiver units, proceed to step 8. To finish your
installation with a B127A-110-BH unit, proceed to step 12.
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
21-03-127-933CC9-EN.indd 3321-03-127-933CC9-EN.indd 33 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
34
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
8. Using Cat5e/6 cable, connect the RJ45 OUTPUT port on the
B127A-111-BHTH receiver unit to the RJ45 INPUT port on
B127A-110-BH.
9. Connect a monitor to the HDMI OUTPUT port on the
B127A-110-BH that you just added using a Tripp Lite
P569-XXX-CERT or P568-XXX-2A Series HDMI Cable
10. Connect the external power supply to the B127A-110-BH
and plug it into a Tripp Lite surge protector, power
distribution unit (PDU) or uninterruptible power supply
(UPS). The green power LED and the green RJ45 LEDs will
illuminate to indicate the unit is receiving power.
11. To add a second B127A-110-BH, repeat steps 8 through
10. To finish your installation with a B127A-110-BH,
proceed to step 12.
12. Using Cat5e/6 cable, connect the RJ45 OUTPUT port on the
last B127A-110-BH to the RJ45 INPUT port.
13. Connect a monitor to the HDMI OUTPUT port on the
B127A-110-BH using a Tripp Lite P568-Series HDMI Cable.
14. The green LED on the B127A-110-BH will illuminate to
indicate the unit is receiving power from the previous
transceiver. The orange LED will illuminate to indicate the
unit is connected to a powered ON remote/repeater unit.
15. Turn on the power to the HDMI source. The orange RJ45
LEDs on the local unit will illuminate to indicate a signal is
being received from the source.
21-03-127-933CC9-EN.indd 3421-03-127-933CC9-EN.indd 34 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
35
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
16. If necessary, use the Equalization control on the remote/
repeater unit(s) and remote receiver unit to adjust the
video image.
17. The maximum number of daisy-chain layers is four for a
total distance of 920 ft., but the distance can be extended
to 1,090 ft. when a B127A-010-H signal booster is used.
See the B127A-010-H product features for details.
Note: An improper Equalization setting can cause the monitor not
to display a picture at all. Try each Equalization setting until an
acceptable picture is displayed.
21-03-127-933CC9-EN.indd 3521-03-127-933CC9-EN.indd 35 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
36
USB/IR Controls and Toslink Installation
Select extender kits provide the following functional controls:
• USB 1.1 – One Micro-USB input at transmitter, dual USB-A
outputs at receiver
• Bi-Directional IR – Dual 3.5 mm jacks at both the transmitter
and receiver
• Toslink output at receiver and transceiver
(Optional) Connect the included IR-OUT cable to the transmitter
unit’s IR-OUT port. Place the sensor on the IR-OUT cable in
an unobstructed area within clear view of the device being
controlled. Then connect the included IR-IN cable to the receiver
unit’s IR-IN port. The IR-IN cable will communicate the desired
command via the transmitter’s IR-OUT cable.
Note: The IR-OUT cable receives the signal from the remote control and
sends it to the device being controlled (e.g. Blu-ray player, etc.).
(Optional for B127A-1A1-BHBH only) With a user-supplied
USB Micro-B cable (such as Tripp Lite U050-XXX Series USB
cable), connect to the transmitter’s Micro-B port. Then connect a
keyboard and mouse to the available USB-A ports on the receiver
unit. The USB and IR functions can be selected via DIP switch on
the front of the transmitter unit.
(Optional) Using a Toslink cable (such as Tripp Lite A102-XXM
Series cables), connect the Toslink cable to a set of speakers,
an audio receiver or other audio system equipped with Toslink
digital outputs.
21-03-127-933CC9-EN.indd 3621-03-127-933CC9-EN.indd 36 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
37
Warranty and Product Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and
workmanship for a period of one (1) year from the date of initial purchase.
TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its
sole option) any such defective products. To obtain service under this warranty, you
must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an
authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an
authorized TRIPP LITE service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered and proof of date
and place of purchase. This warranty does not apply to equipment which has been
damaged by accident, negligence or misapplication or has been altered or modified
in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied
warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to
the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or
revenue, loss of equipment, loss of use of equipment, loss of software, loss of data,
costs of substitutes, claims by third parties, or otherwise.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be
automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
21-03-127-933CC9-EN.indd 3721-03-127-933CC9-EN.indd 37 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
38
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and
implementing regulations, when customers buy new electrical and electronic
equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis
(this varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste
WARNING
Use of this equipment in life support applications where failure of this equipment
can reasonably be expected to cause the failure of the life support equipment or
to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to
change without notice. Photos and illustrations may differ slightly from actual products.
21-03-127-933CC9-EN.indd 3821-03-127-933CC9-EN.indd 38 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
39
21-03-127-933CC9-EN.indd 3921-03-127-933CC9-EN.indd 39 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
40
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-03-127 93-3CC9_RevC
21-03-127-933CC9-EN.indd 4021-03-127-933CC9-EN.indd 40 3/24/2021 9:38:16 AM3/24/2021 9:38:16 AM
