HDMI Over Cat6 Pigtail
Extender Kits and Receiver
with Repeater, 4K/60 Hz
Extender Kit: B127U-111-PHPH
2-Port Splitter Kit: B127U-002-PHPH2
Receiver with Repeater: B127U-110-PH
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2023 Tripp Lite. All rights reserved.
Owner's Manual
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2
B127U-111-PHPH
• HDMI over Cat6 Pigtail Transmitter and Receiver with
Repeater Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal up to
230 ft. (70 m) from the source over 24 AWG Cat6 cabling
• Transmitter and receiver units can be powered by the built-
in 1 ft. USB-A cables for connecting to the USB port on a
display or to a USB power adapter, or by the Micro-USB
ports on each unit
• 1 ft. HDMI connectors on transmitter and receiver units
connect to the source and display
• View the transmitted video content on a local display via the
4K/60 Hz HDMI port on the transmitter unit
• Compatible with DisplayPort (B127U-110-PD) and HDMI
(B127U-110-PH) receivers to create exible daisychain
installations with multiple video outputs
• Daisychainable up to 4 layers, with each additional
B127U-110-PH receiver unit (sold separately) providing an
additional 230 ft., up to a total of 920 ft. (280 m)
• Supports passthrough audio formats up to 7.1-channel
surround sound
• Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic
Range (HDR)
Product Features
3
Product Features
B127U-002-PHPH2
• 2-Port HDMI over Cat6 Pigtail Splitter and Receivers Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal to two
displays up to 230 ft. (70 m) from the source over 24 AWG
Cat6 cabling
• Transmitter and receiver units are powered by built-in 1 ft.
USB-A cables for connecting to the USB port on a display or
to a USB power adapter
• Multi-Resolution technology allows the receivers to connect
to any 1080p, 4K/30 Hz or 4K/60 Hz display without aecting
the resolution of the other displays connected to the splitter
• Optionally, power transmitter and receiver units via Micro-
USB ports on each unit
• 1 ft. HDMI connectors on transmitter and receiver units
connect to the source and display
• Supports passthrough audio formats up to 7.1-channel
surround sound
• Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic
Range (HDR)
• Compatible with DisplayPort (B127U-110-PD) and HDMI
(B127U-110-PH) receivers to create exible daisychain
installations with multiple video outputs. Each port on the
splitter can extend up to four connected receivers, for a total
of eight receivers and 920 ft. (280 m) per daisychain (sold
separately).
4
Product Features
B127U-110-PH
• HDMI over Cat6 Pigtail Receiver with Repeater
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal up to
230 ft. (70 m) from the source when connected to a
B127U-Series transmitter or splitter unit over 24 AWG Cat6
cabling
• Powered by built-in 1 ft. USB-A cable for connecting to the
USB port on a display or to a USB power adapter
• Optionally, power the unit via the Micro-USB port
• 1 ft. HDMI pigtail connector is used to connect to the display
• Supports passthrough audio formats up to 7.1-channel
surround sound
• Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic
Range (HDR)
• Compatible with any B127U-Series transmitter or splitter to
create exible DisplayPort and HDMI video installations
• Daisychainable up to 4 layers, with each additional
B127U-110-PH receiver unit (sold separately) providing an
additional 230 ft., up to a total of 920 ft. (280 m)
5
Installation
Optional Accessories
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG
solid wire Cat6 cable. Using stranded wire Cat6 cable or cable
with a gauge (AWG) size higher than 24 AWG will result in shorter
extension distance. Higher-gauge cabling, such as 26 AWG, has a
more limited transmission capability than lower-gauge cabling. All
Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid
wire cabling.
• The installation diagram shows a B127U-111-PHPH extender kit.
• The diagram shows additional B127U-110-PH receiver units (sold
separately, see tripplite.com) in a daisy-chain installation.
• The B127U-Series of transmitter/receiver units can be mixed and
matched as desired with either HDMI or DisplayPort video outputs
within one installation. The B127U-Series HDMI transmitter products
can be used with the B127U-110-PD DisplayPort receiver (and vice-
versa) with the B127U-Series DisplayPort transmitter and
B127U-110-PH HDMI receiver. Up to four receivers can be
daisychained at once.
• N202-Series Cat6 24 AWG Solid Wire Patch Cables
• U280-W01-QC3-1 USB-A Wall Adapter, 18 Watts
• B127U-110-PD DisplayPort over Cat6 Receiver with
Repeater
6
Installation
1. Make sure all equipment in the installation – such as TVs,
Blu-ray players and the transmitter – is powered o.
2. Connect the pigtail HDMI connector on the transmitter unit
to the HDMI input on the source.
Optional: Using an HDMI 2.0 cable (such as Tripp Lite’s
P569-XXX-CERT or P568-XXX-2A Series cables), connect a
display to the LOCAL port on the transmitter unit.
3. Using 24 AWG solid wire Cat6 cable, connect the RJ45 port
on the local transmitter unit to the RJ45 input port on the
remote receiver unit.
4. Connect the pigtail HDMI connector on the remote receiver
unit to the HDMI port on the display.
5. Connect the pigtail USB-A connector on the local
transmitter unit to a USB 3.0 port or a USB power adapter
(5V/1A) and into a wall power outlet. The LED next to the
RJ45 port will illuminate solid green to indicate the unit is
receiving power.
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
USB Power
Adapter
4K/60Hz Only
HDMI Local Port
4K/60Hz Source
up to 230ft
up to 230ft
up to 230ft
up to 230ft
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
HDMI 2.0 Cable
B127U-111-PHPH
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
7
Installation
6. Connect the pigtail USB-A connector on the remote receiver
unit to a USB power adapter (5V/1A) or a USB 3.0 port
on the display. The LEDs next to the RJ45 connectors will
illuminate orange to indicate the ports are receiving power.
Optional: The transmitter and receiver units can be charged
via the Micro-USB ports on each unit by connecting a Micro-
USB to USB-A cable between each unit and a USB power
adapter.
7. Turn on the power to your connected TVs/monitors.
8. Turn on the power to the HDMI source. The LEDs on both
the transmitter and receiver units should begin to ash to
indicate video is being transmitted and the video should
now display on the connected monitor(s).
Note: If a daisy-chain installation is desired, repeat steps 4-7 with
up to 3 additional B127U-110-PH or B127U-110-PD units (sold
separately).
8
Installation
Standard Splitter Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG
solid wire Cat6 cable. Using stranded wire Cat6 cable or cable
with a gauge (AWG) size higher than 24 AWG will result in shorter
extension distance. Higher-gauge cabling, such as 26 AWG, has a
more limited transmission capability than lower-gauge cabling. All
Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid
wire cabling.

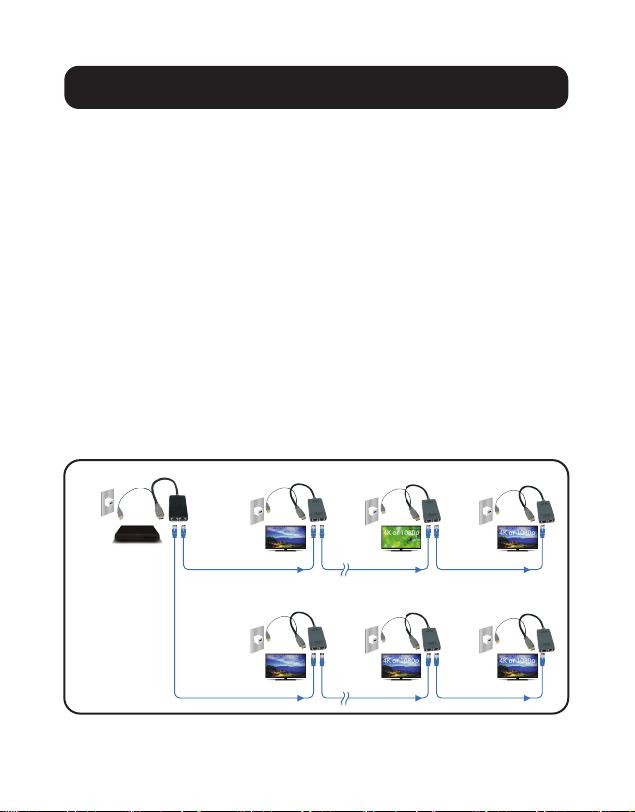

• The installation diagram shows a B127U-002-PHPH2 splitter kit.
• The diagram shows additional B127U-110-PH and B127U-110-PD
receiver units (sold separately, see tripplite.com) in a daisy-chain
installation.
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
USB Power
Adapter
4K/60Hz Source
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
up to 230ft
up to 230ft
up to 230ft
up to 230ft
up to 230ft
up to 230ft
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
DisplayPort Transceiver
(B127U-110-PD)
DisplayPort Transceiver
(B127U-110-PD)
HDMI Transceiver
(B127U-110-PH)
B127U-002-PHPH2
9
Installation
1. Make sure all equipment in the installation – such as TVs,
Blu-ray players and the transmitter – is powered o.
2. Connect the pigtail HDMI connector on the transmitter unit
to the HDMI input on the source.
3. Using Cat6 cable, connect the RJ45 ports on the local
transmitter unit to the RJ45 input ports of each remote
receiver unit.
4. Connect the pigtail HDMI connector on the remote receiver
units to the HDMI input ports of each display.
5. Connect the pigtail USB-A connector on the local
transmitter unit to a USB power adapter and into a wall
power outlet. The LED next to the RJ45 port should
illuminate to indicate the unit is receiving power.
6. Connect the pigtail USB-A connector on the remote receiver
units to USB power adapters or a USB port on the displays.
The LEDs next to the RJ45 ports should illuminate to
indicate the units are receiving power.
Optional: The transmitter and receiver units can be charged
via the Micro-USB ports on each unit by connecting a Micro-
USB to USB-A cable between each unit and a USB power
adapter.
7. Turn on the power to your connected TVs/monitors.
10
Installation
8. Turn on the power to the HDMI source. The LEDs on the
transmitter and receiver units should begin to ash to
indicate video is being transmitted and the video should
now display on the connected monitor(s).
Note: If a daisy-chain installation is desired, repeat steps 4-7 with
up to 3 additional B127U-110-PH or B127U-110-PD units (sold
separately).
11
Warranty and Product Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and
workmanship for a period of one (1) year from the date of initial purchase.
TRIPP LITE’s obligation under this warranty is limited to repairing or replacing
(at its sole option) any such defective products. To obtain service under this
warranty, you must obtain a Returned Material Authorization (RMA) number
from TRIPP LITE or an authorized TRIPP LITE service center. Products must
be returned to TRIPP LITE or an authorized TRIPP LITE service center with
transportation charges prepaid and must be accompanied by a brief description
of the problem encountered and proof of date and place of purchase. This
warranty does not apply to equipment which has been damaged by accident,
negligence or misapplication or has been altered or modied in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit
limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s)
or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specically, TRIPP LITE
is not liable for any costs, such as lost prots or revenue, loss of equipment, loss
of use of equipment, loss of software, loss of data, costs of substitutes, claims by
third parties, or otherwise.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll
be automatically entered into a drawing for a chance to win a FREE Tripp Lite
product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See
website for details.
12
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive
and implementing regulations, when customers buy new electrical and
electronic equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis
(this varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste
WARNING
Use of this equipment in life support applications where failure of this equipment
can reasonably be expected to cause the failure of the life support equipment or
to signicantly aect its safety or eectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specications are subject
to change without notice. Photos and illustrations may dier slightly from actual
products.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
23-04-257 9345ED_RevB
