2-Port DisplayPort to HDMI
Over Cat6 Pigtail Splitter/
Extender Kit, 4K/60 Hz
Model: B127U-002-PDPH2
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2023 Tripp Lite. All rights reserved.
Owner's Manual
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz A/V signal from a
DisplayPort source to two HDMI displays up to 230 ft. (70 m)
from the source over 24 AWG Cat6 cabling
• Transmitter and receiver units can be powered by the built-
in 1 ft. USB-A cables for connecting to the USB port on a
display or to a USB power adapter, or by the Micro-USB
ports on each unit
• Multi-resolution technology allows the receivers to connect
to any 1080p, 4K/30 Hz or 4K/60 Hz display without aecting
the resolution of the other displays connected to the splitter
• 1 ft. HDMI connectors on transmitter and receiver units
connect to the source and display
• Supports passthrough audio formats up to 7.1-channel
surround sound
• Real-time video compression and decompression technology
• Compatible with HDCP 2.2 and 1.4 and High Dynamic
Range (HDR)
• Compatible with any B127U-Series transmitter or splitter to
create exible DisplayPort and HDMI video installations
• Compatible with DisplayPort (B127U-110-PD) and HDMI
(B127U-110-PH) receivers to create exible daisychain
installations with multiple video outputs. Each port on the
splitter can extend up to four connected receivers, for a
total of eight receivers and 920 feet per daisychain (sold
separately).
Product Features
3
Optional Accessories
• N202-Series Cat6 24 AWG Solid Wire Patch Cables
• B127U-110-PD DisplayPort over Cat6 Receiver with
Repeater
• B127U-110-PH HDMI over Cat6 Receiver with Repeater
• U280-W01-QC3-1 USB-A Wall Adapter, 18 Watts
4
Installation
Standard Splitter/Extender Kit
Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG
solid wire Cat6 cable. Using stranded wire Cat6 cable or cable
with a gauge (AWG) size higher than 24 AWG will result in shorter
extension distance. Higher-gauge cabling, such as 26 AWG, has a
more limited transmission capability than lower-gauge cabling. All
Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid
wire cabling.

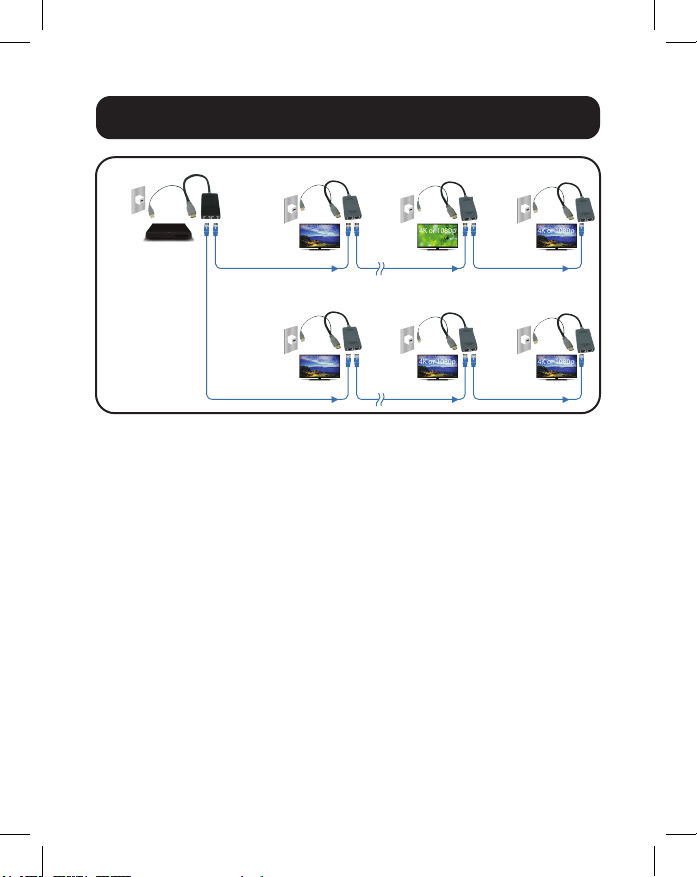

• The installation diagram shows a B127U-002-PDPH2 splitter/
extender kit.
• The B127U-Series of transmitter/receiver units can be mixed and
matched as desired with either HDMI or DisplayPort video outputs
within one installation. The B127U-Series HDMI transmitter products
can be used with the B127U-110-PD DisplayPort receiver (and vice-
versa) with the B127U-Series DisplayPort transmitter and
B127U-110-PH HDMI receiver. Up to four receivers can be
daisychained at once, per splitter output, for a total of eight
receivers.
5
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
4K or 1080p
TV
Installation
1. Make sure all equipment in the installation – such as TVs,
Blu-ray players and the transmitter – is powered o.
2. Connect the pigtail DisplayPort connector on the transmitter
unit to the DisplayPort input on the source.
3. Using 24 AWG solid wire Cat6 cable, connect the RJ45 port
on the local transmitter unit to the RJ45 input port on the
remote receiver unit.
4. Connect the pigtail HDMI connector on the remote receiver
units to the HDMI port on each display.
5. Connect the pigtail USB-A connector on the local
transmitter unit to a USB 3.0 port or a USB power adapter
(5V/1A) and into a wall power outlet. The LED next to the
RJ45 port will illuminate solid green to indicate the unit is
receiving power.
USB Power
Adapter
B127U-002-PDPH2
DisplayPort
4K/60Hz Source
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
USB Power
Adapter
up to 230ft
up to 230ft
up to 230ft
up to 230ft
up to 230ft
up to 230ft
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
24AWG Cat6 Cable
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
HDMI Transceiver
(B127U-110-PH)
DisplayPort Transceiver
(B127U-110-PD)
DisplayPort Transceiver
(B127U-110-PD)
HDMI Transceiver
(B127U-110-PH)
B127U-002-PHPH2
6
Installation
6. Connect the pigtail USB-A connector on the remote receiver
unit to a USB power adapter (5V/1A) or a USB 3.0 port
on the display. The LEDs next to the RJ45 connectors will
illuminate orange to indicate the ports are receiving power.
Optional: The transmitter and receiver units can be charged
via the Micro-USB ports on each unit by connecting a Micro-
USB to USB-A cable between each unit and a USB power
adapter.
7. Turn on the power to your connected TVs/monitors.
8. Turn on the power to the DisplayPort source. The LEDs on
both the transmitter and receiver units should begin to ash
to indicate video is being transmitted and the video should
now display on the connected monitor(s).
7
Warranty and Product Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and
workmanship for a period of one (1) year from the date of initial purchase.
TRIPP LITE’s obligation under this warranty is limited to repairing or replacing
(at its sole option) any such defective products. To obtain service under this
warranty, you must obtain a Returned Material Authorization (RMA) number
from TRIPP LITE or an authorized TRIPP LITE service center. Products must
be returned to TRIPP LITE or an authorized TRIPP LITE service center with
transportation charges prepaid and must be accompanied by a brief description
of the problem encountered and proof of date and place of purchase. This
warranty does not apply to equipment which has been damaged by accident,
negligence or misapplication or has been altered or modied in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit
limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s)
or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specically, TRIPP LITE
is not liable for any costs, such as lost prots or revenue, loss of equipment, loss
of use of equipment, loss of software, loss of data, costs of substitutes, claims by
third parties, or otherwise.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll
be automatically entered into a drawing for a chance to win a FREE Tripp Lite
product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See
website for details.
8
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive
and implementing regulations, when customers buy new electrical and
electronic equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis
(this varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste
WARNING
Use of this equipment in life support applications where failure of this equipment
can reasonably be expected to cause the failure of the life support equipment or
to signicantly aect its safety or eectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specications are subject
to change without notice. Photos and illustrations may dier slightly from actual
products.
