846-083
ASSEMBLY & INSTRUCTION MANUAL
INb1b001_US
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
5
2
Ref Part Quantity Ref Part Quantity
1 Chimney 1 6 Body 1
2 Window Cover 1 7 Stone Tile 1
3 Handle 3 8 Door 1
9
Lsolation plate 1
4 Hopper 1
A M5 Bolt
5 Wood box 1
6
3
1
7
9
8
4
3
3
TABEL OF CONTENTS
-2-
13+1(spare)
Step 1. Attach the handles to door, hopper and wood box.
-3-

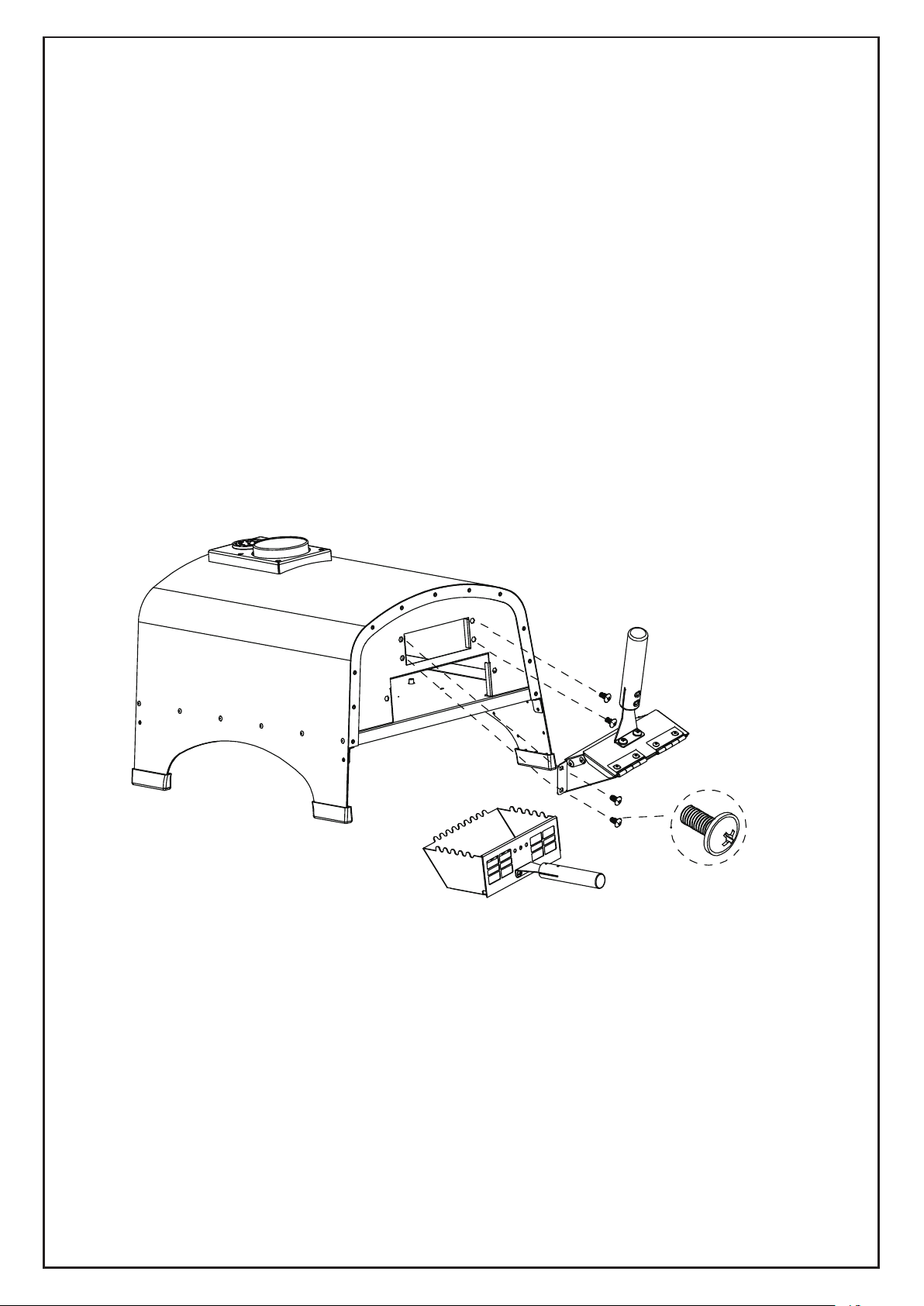

Step 2. Attach the hopper and wood box to the back of
the body.
-4-

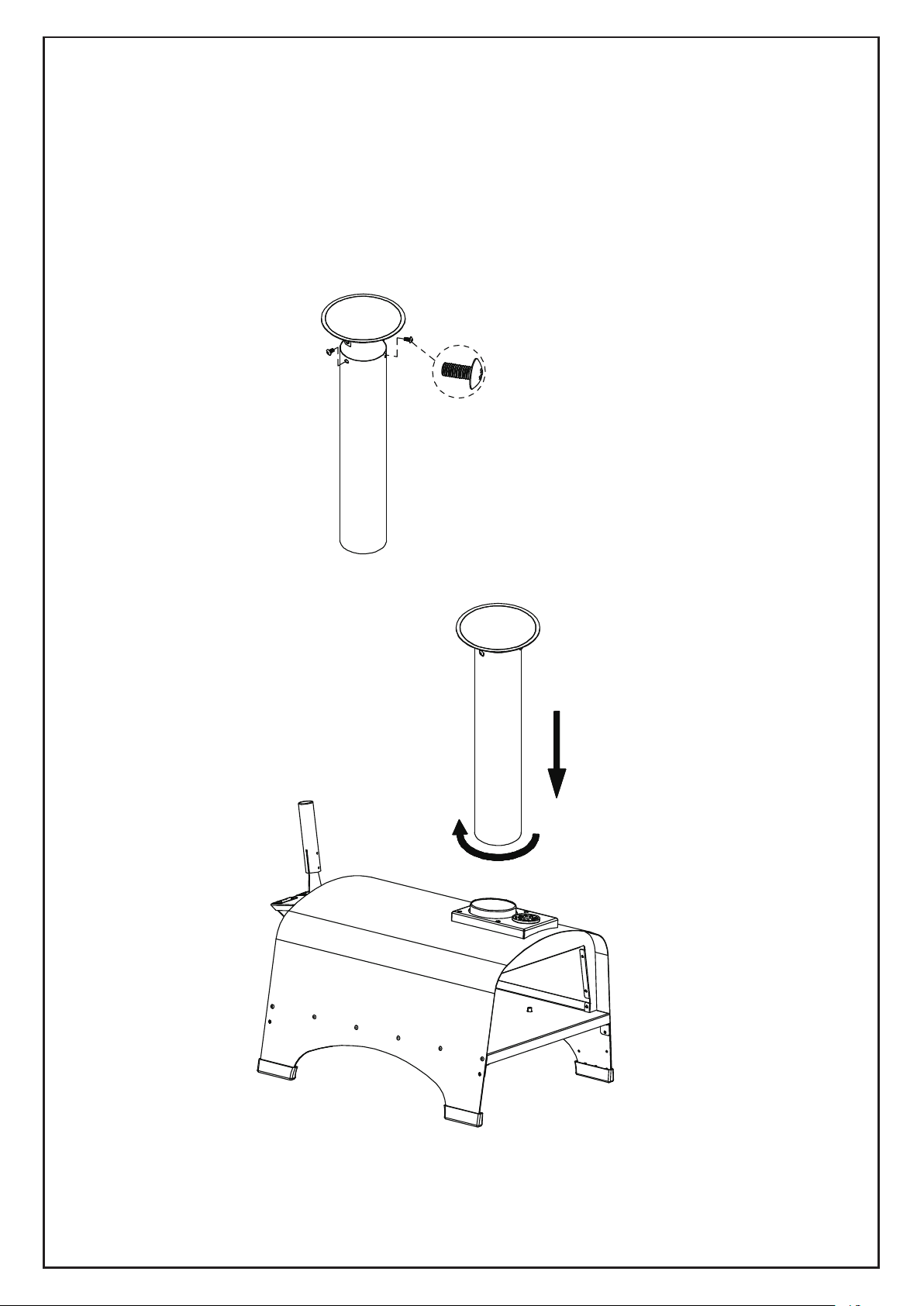

Step 3. Attach the chimney cap onto the top of the chimney pipe.
Once attached, slide the chimney onto the oven.
-5-
Step 4. Slide the oven stone into the body.
Assembling finished and now enjoy your time.
-6-
