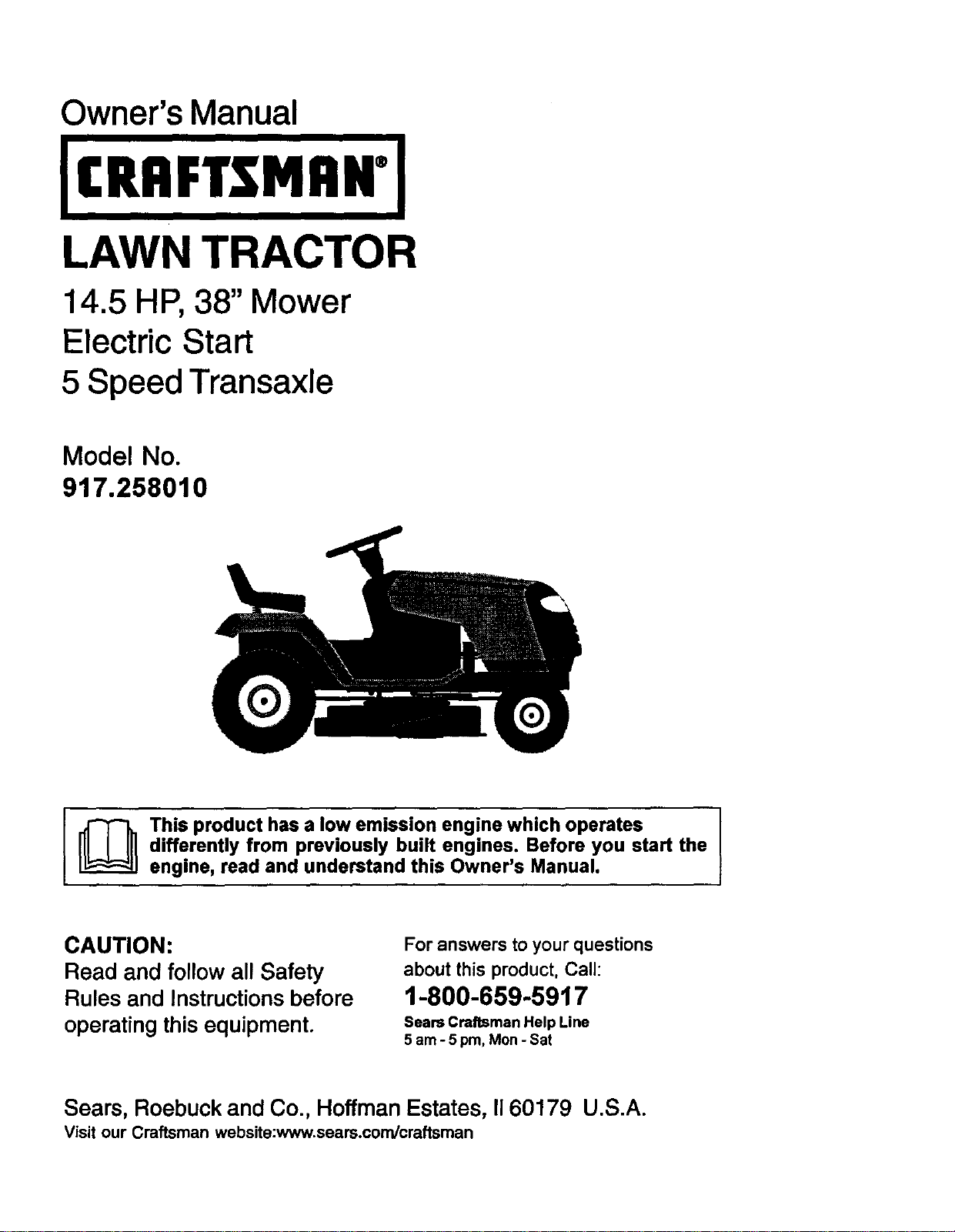

Owner's Manual

iCRRFTSMRW I

LAWN TRACTOR

14.5 HP, 38" Mower

Electric Start

5 Speed Transaxle

Model No.

917.258010

I_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-859-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A.

Visit our Craftsman website:www.sears.condcraftsman

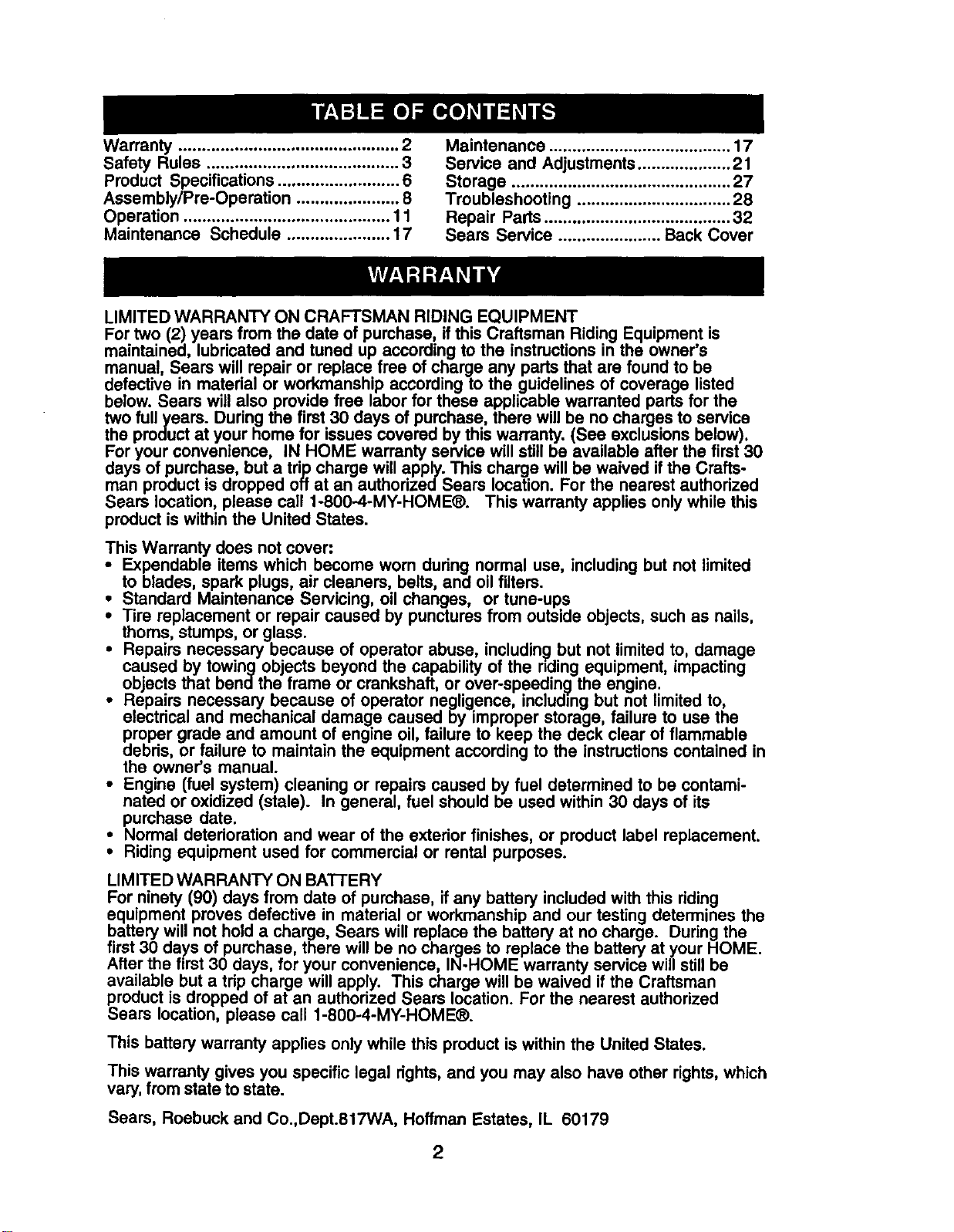

Warranty ............................................... 2

Safety Rules ......................................... 3

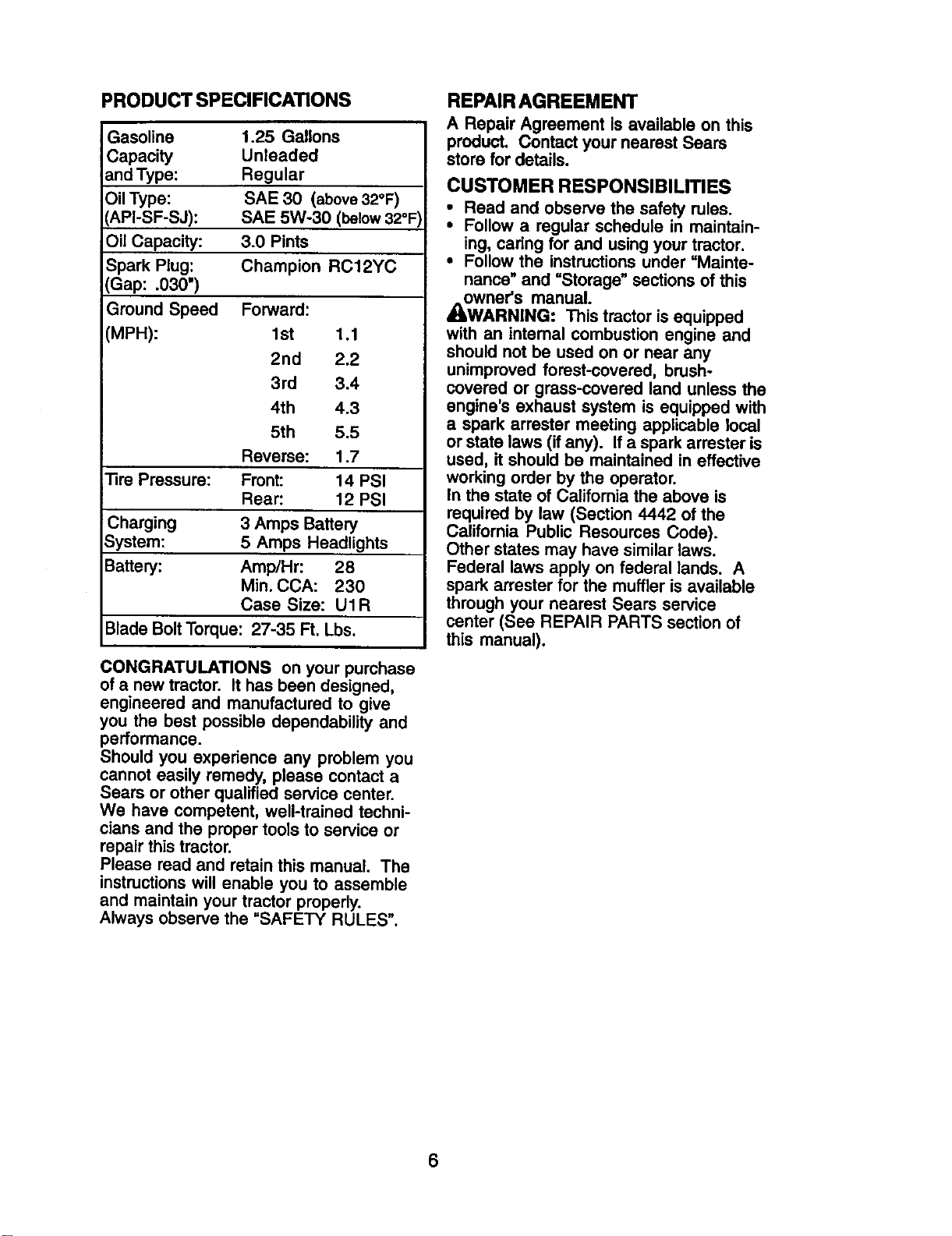

Product Specifications .......................... 6

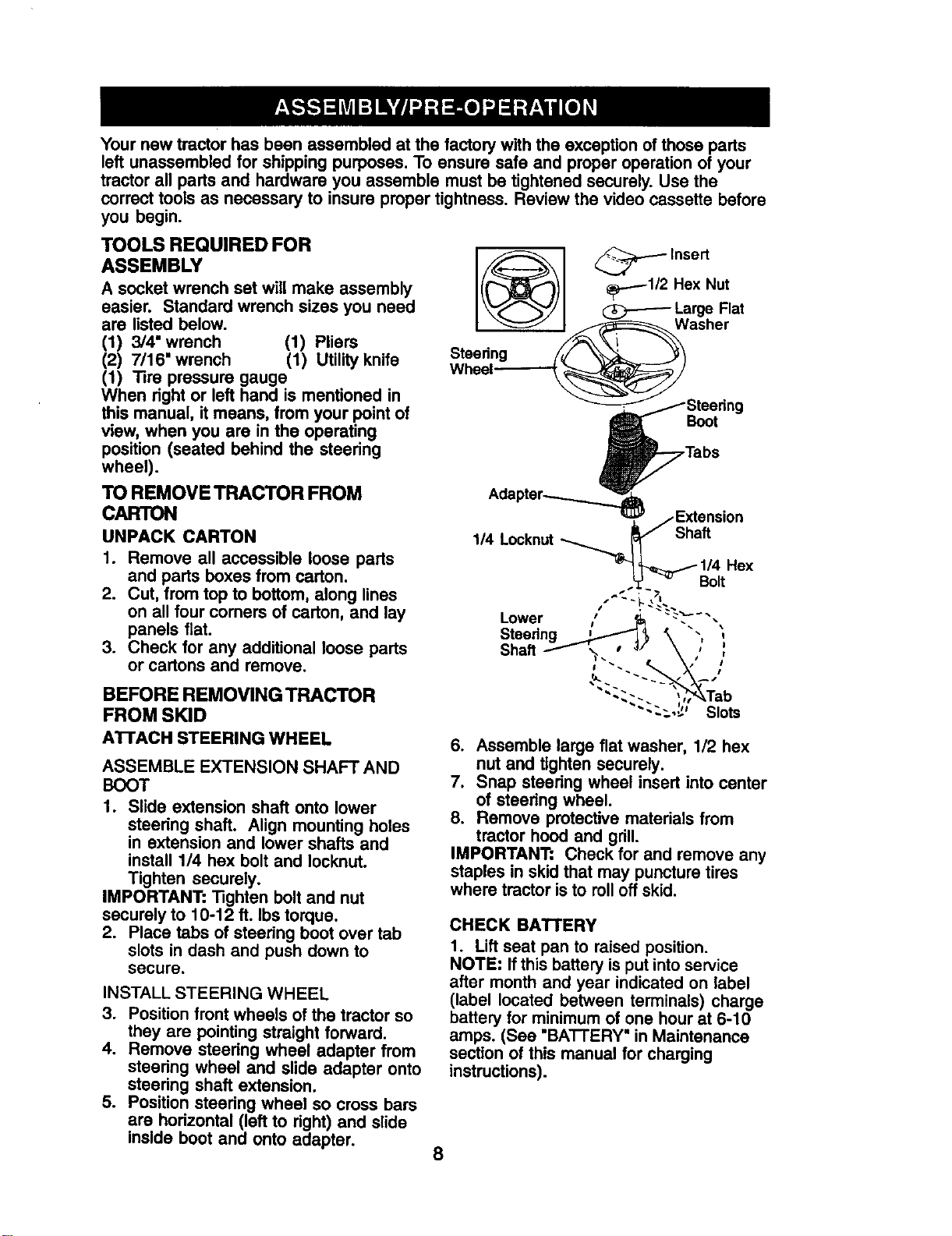

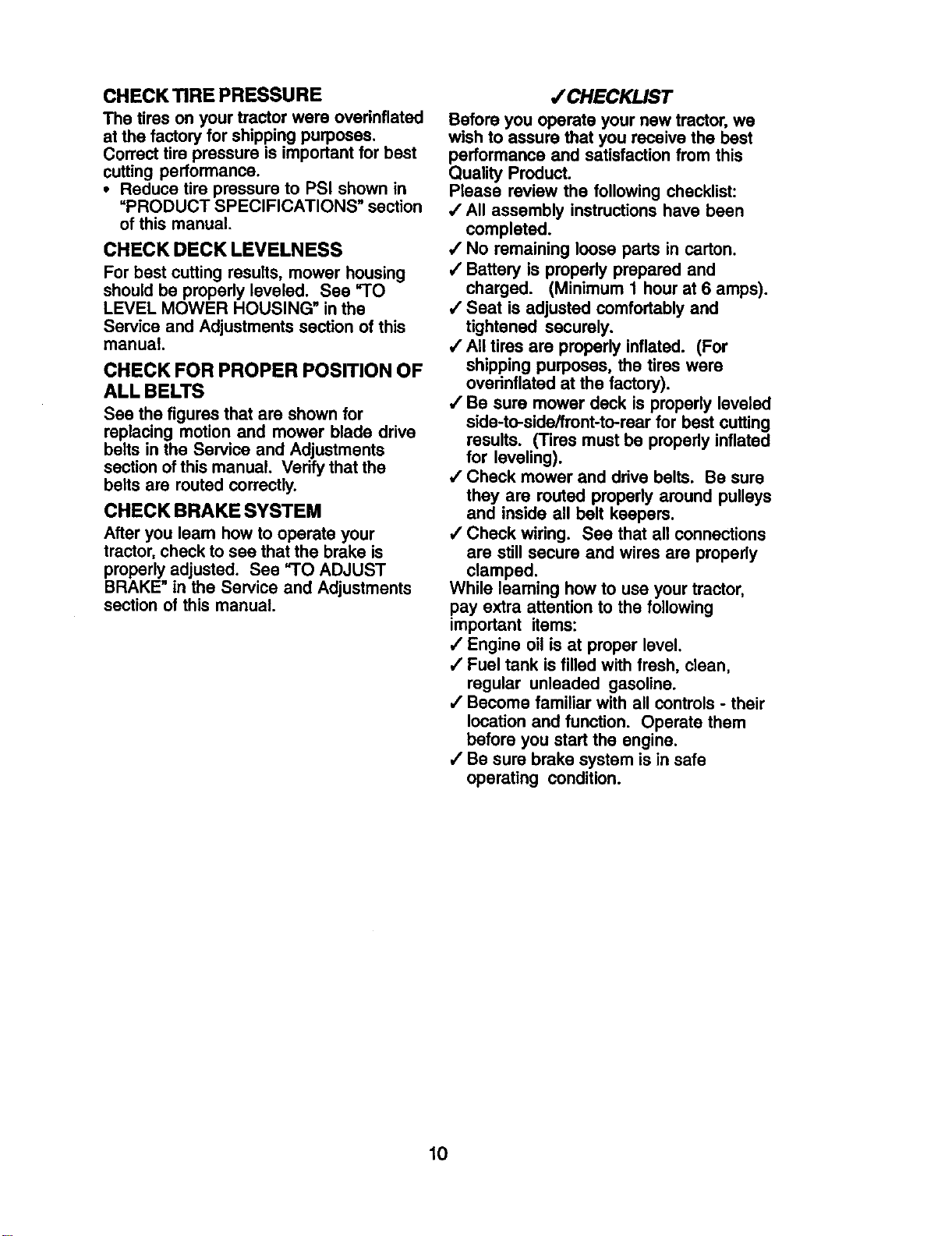

Assembly/Pre-Operation ...................... 8

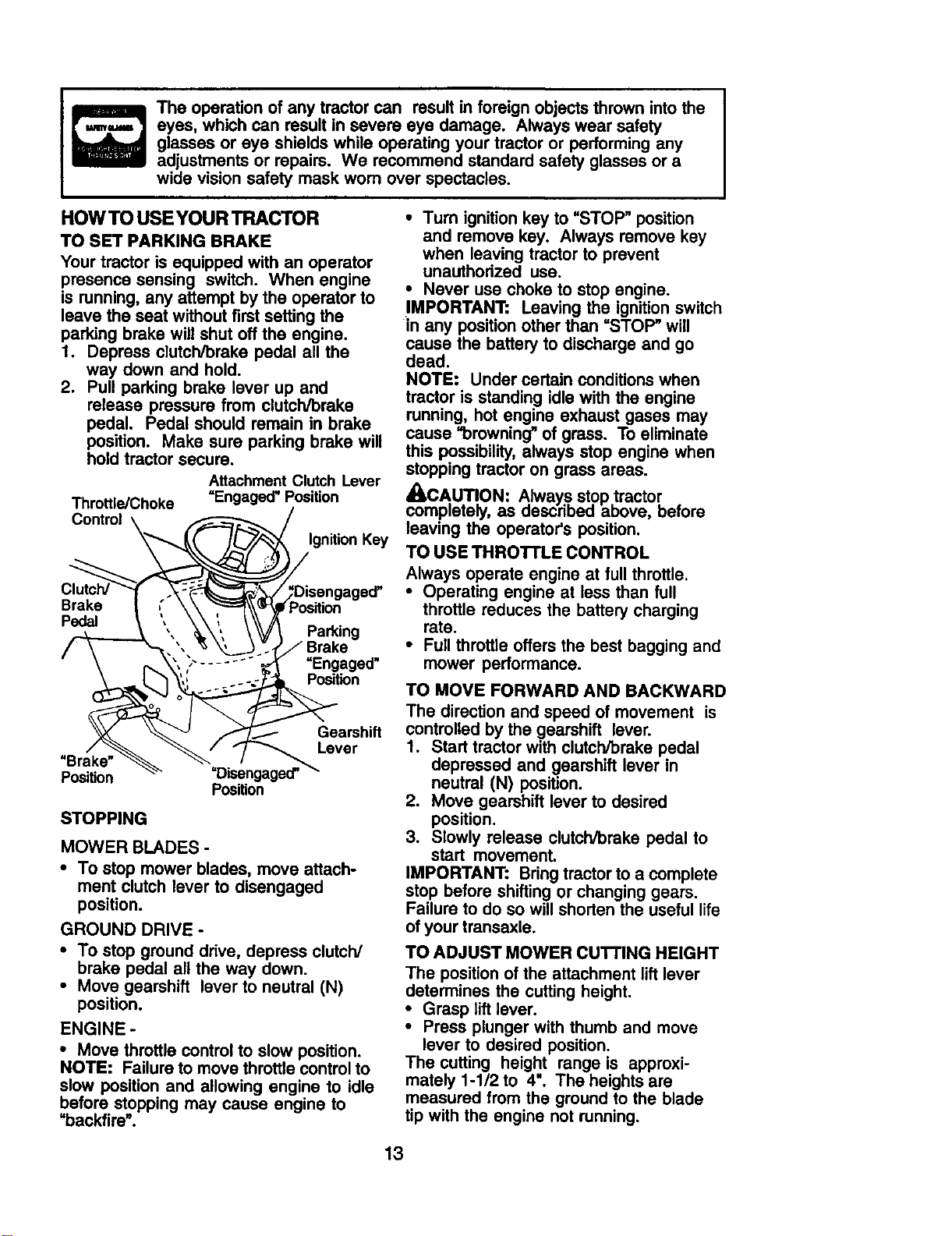

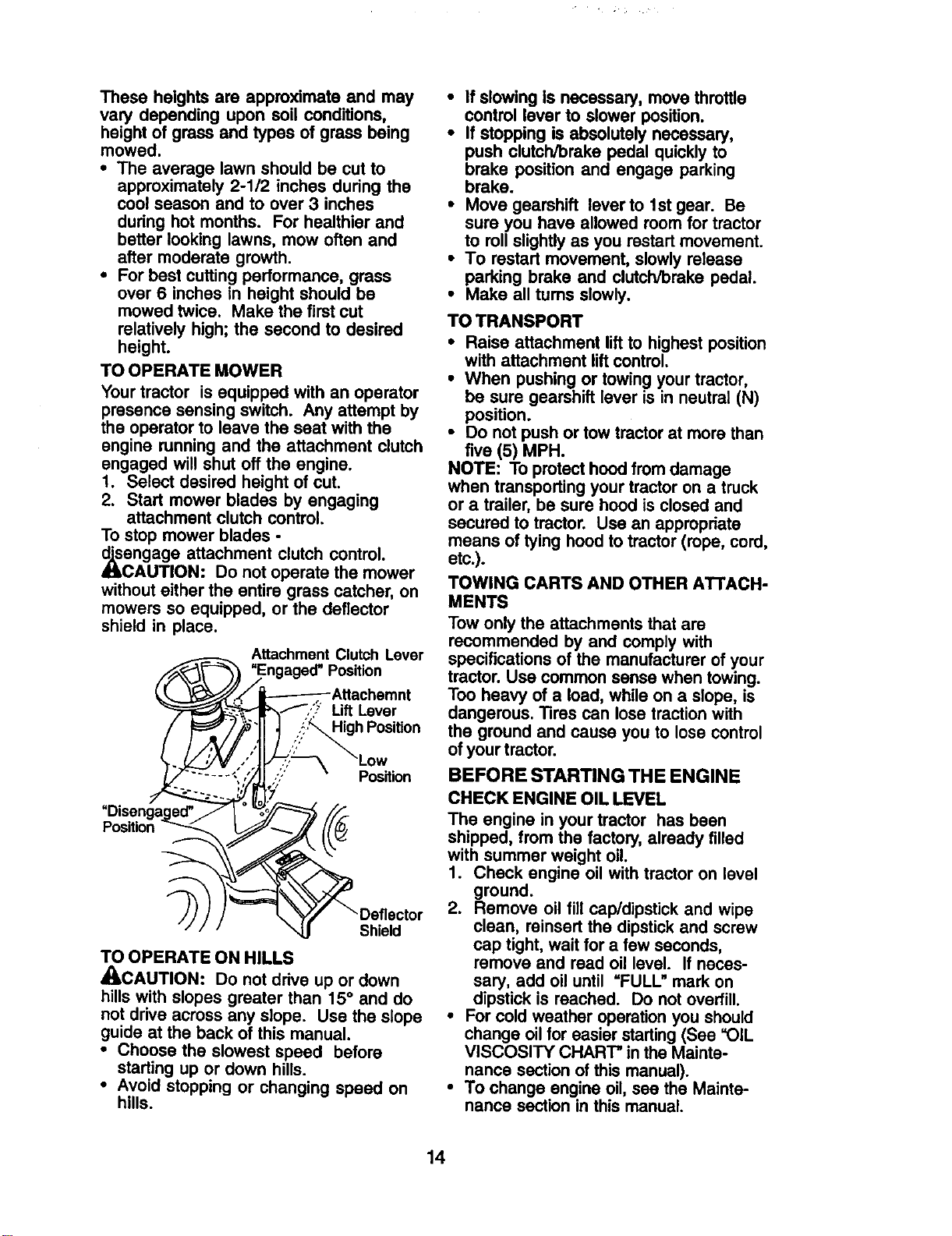

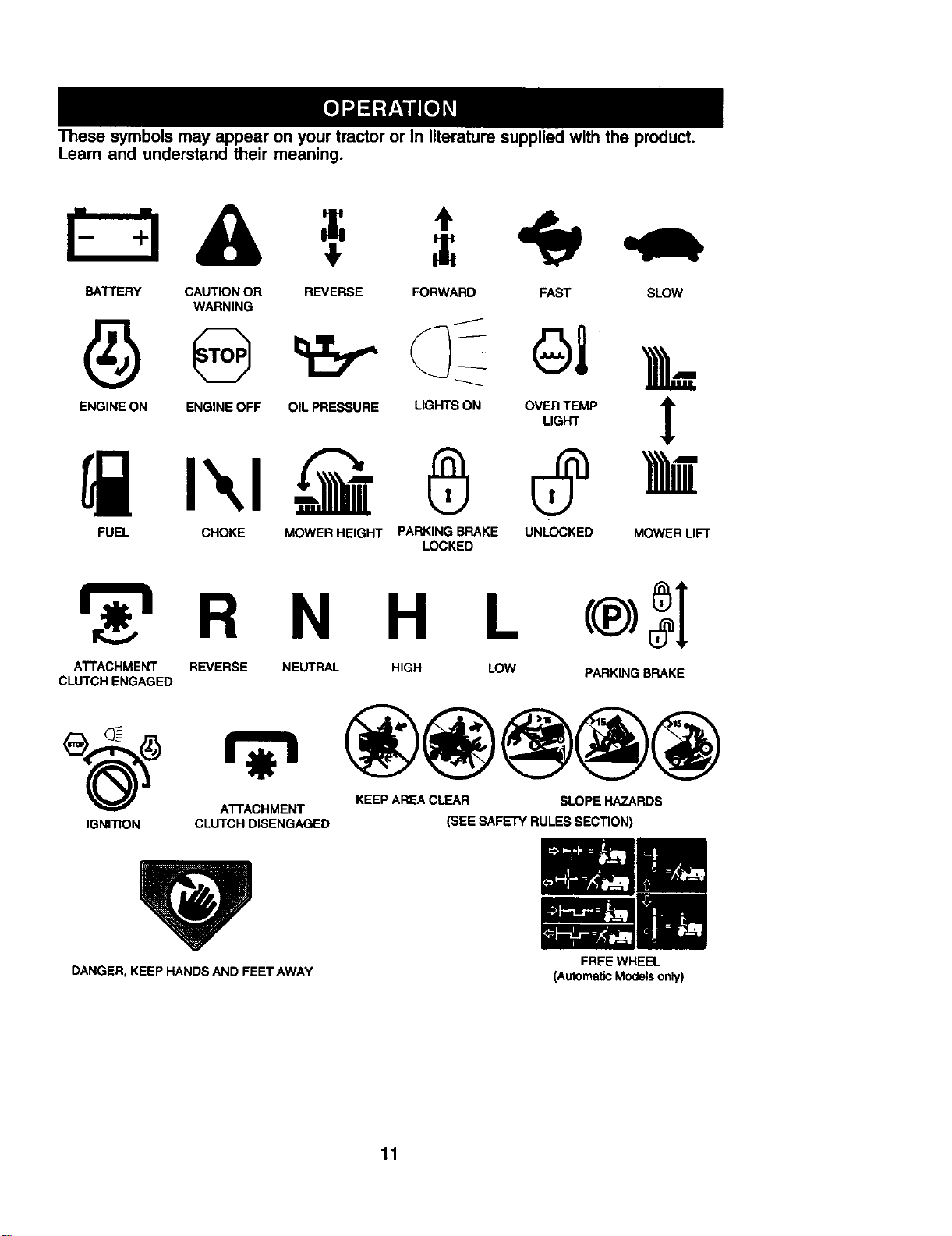

Operation ............................................ 11

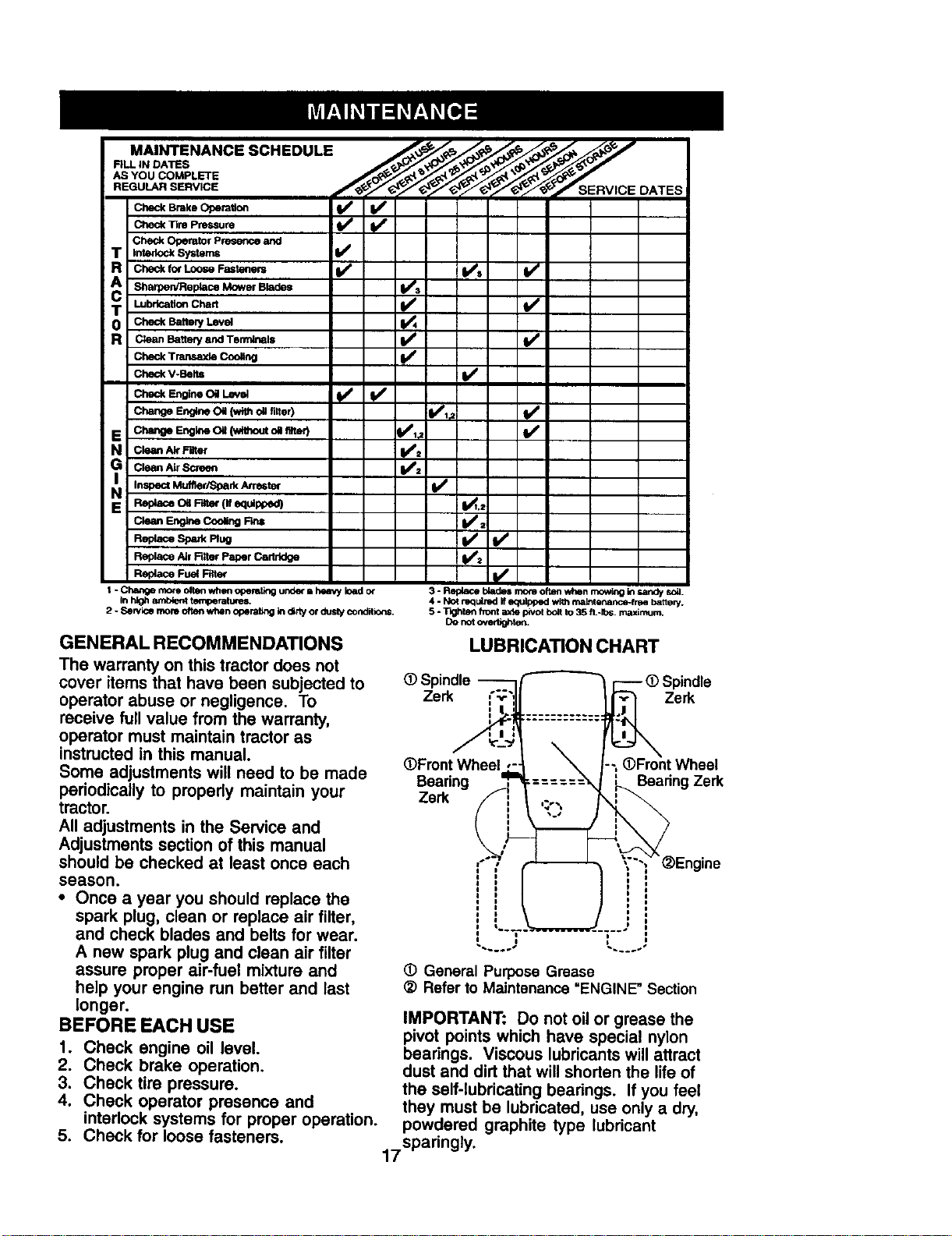

Maintenance Schedule ...................... 17

Maintenance ....................................... 17

Service and Adjustments.................... 21

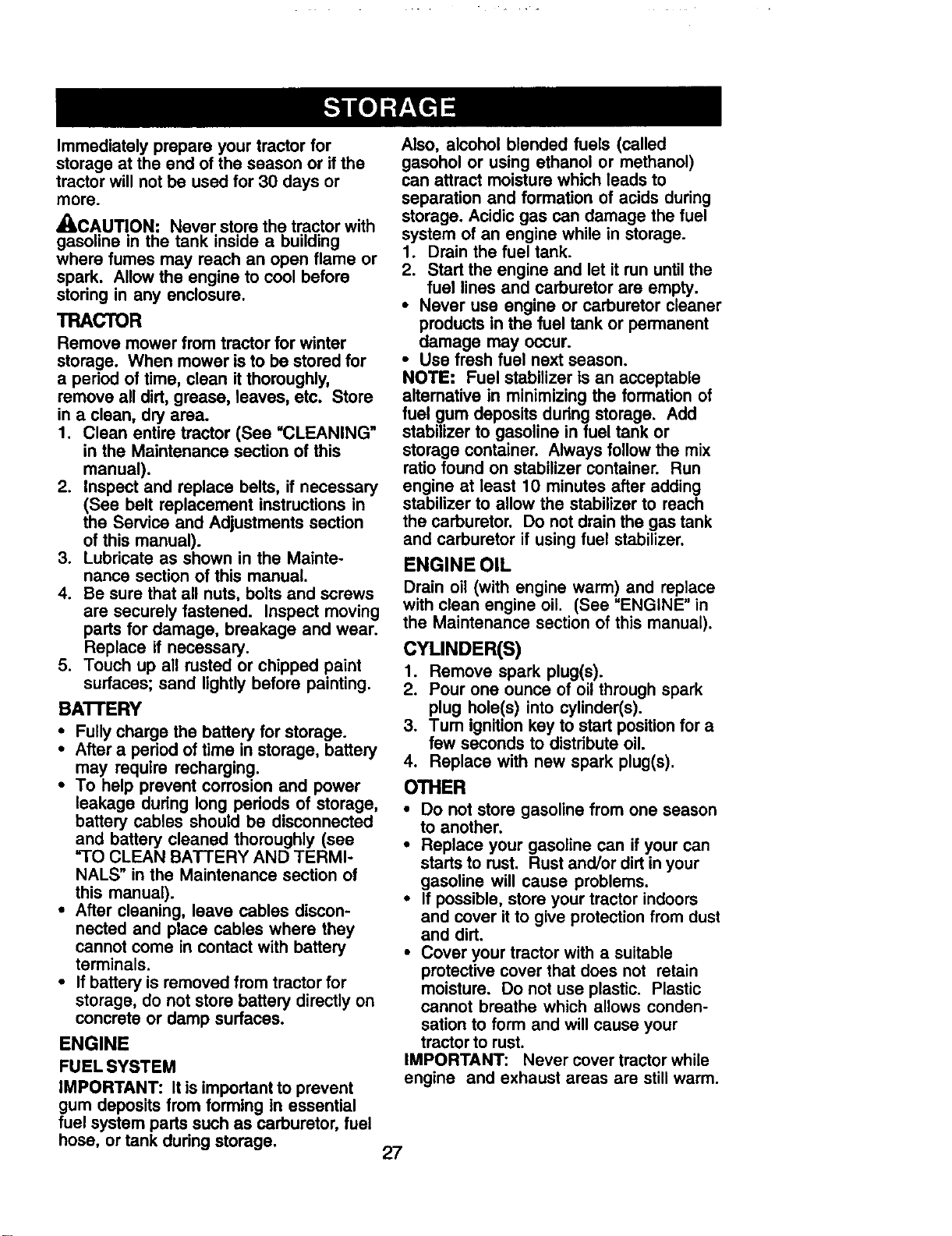

Storage ............................................... 27

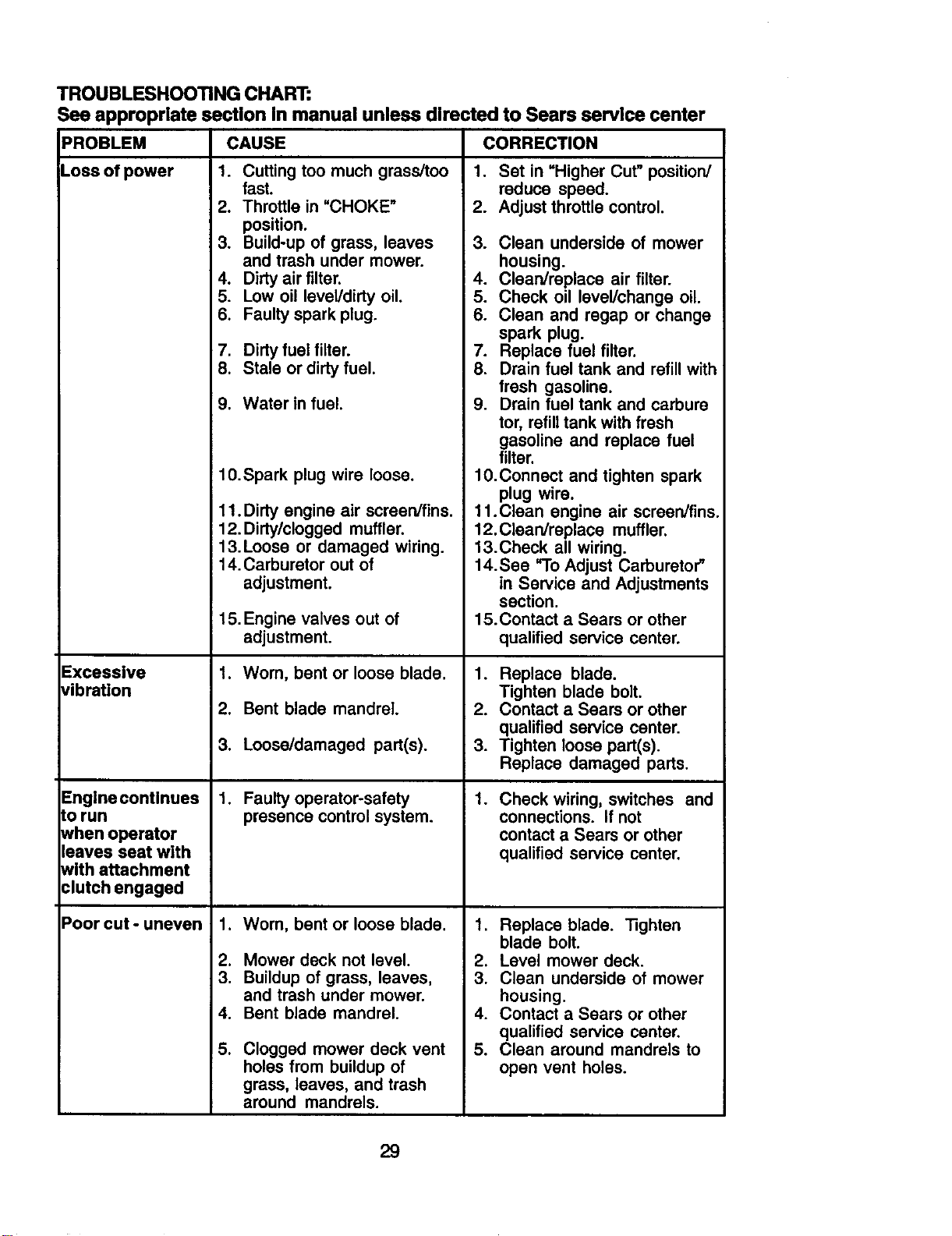

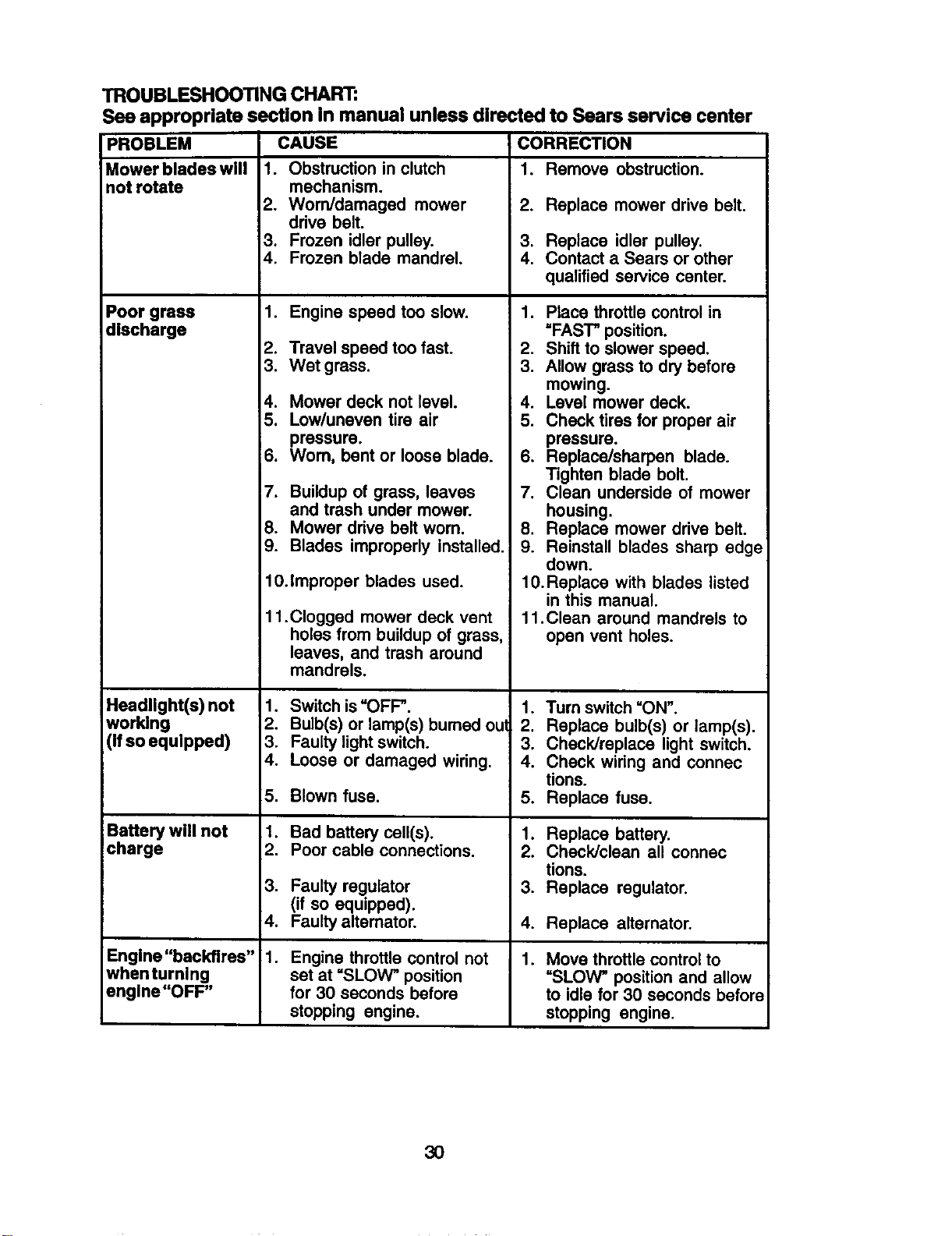

Troubleshooting ................................. 28

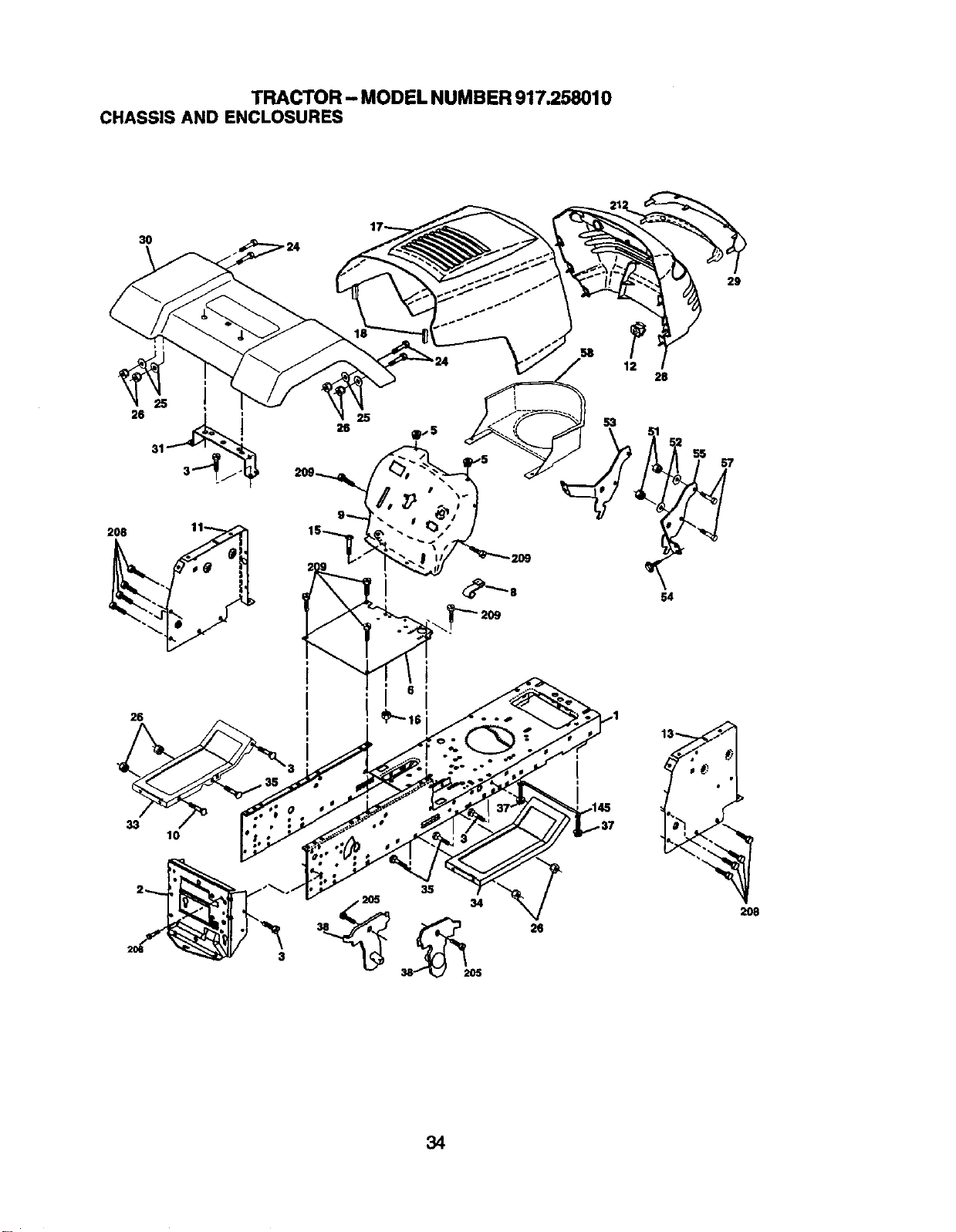

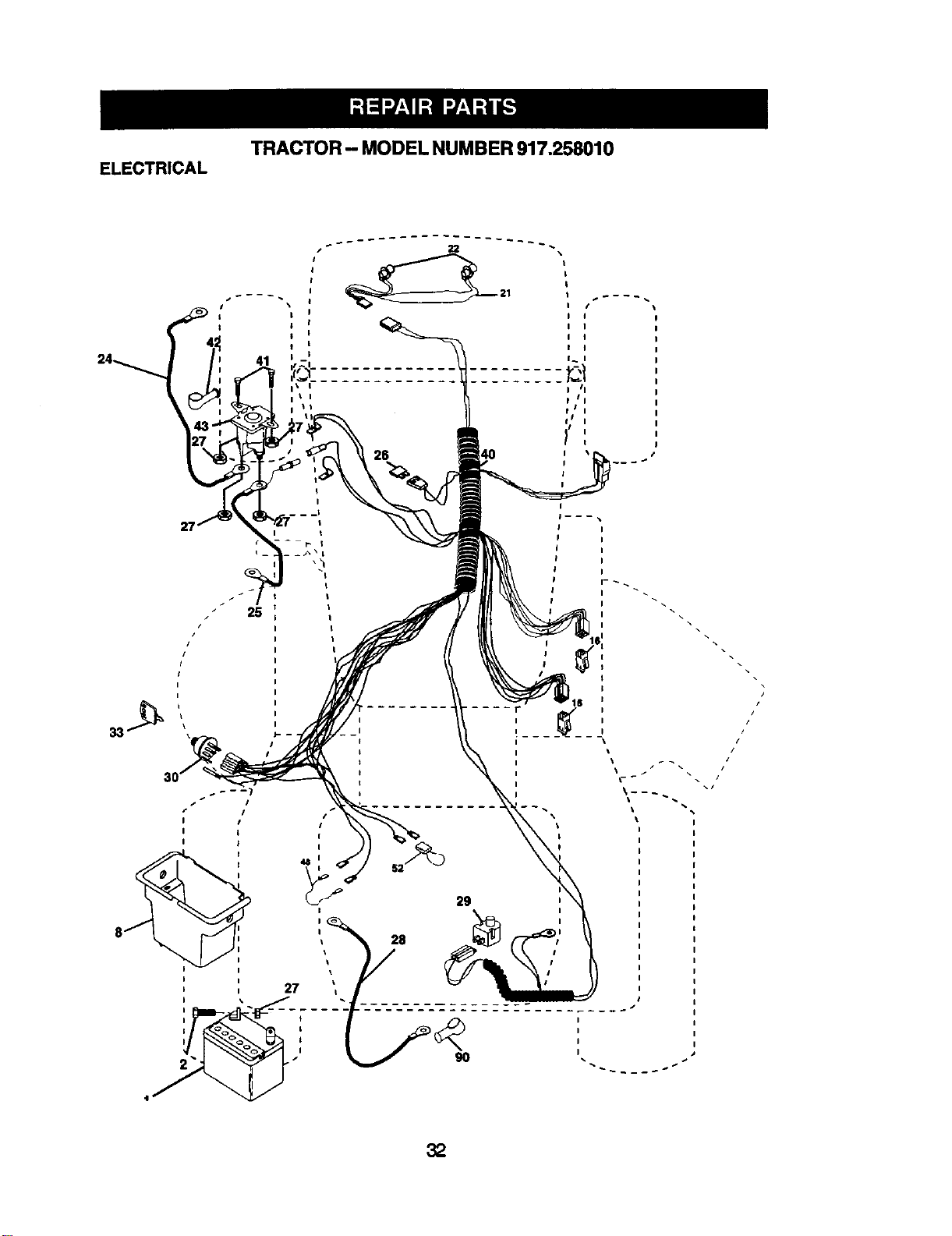

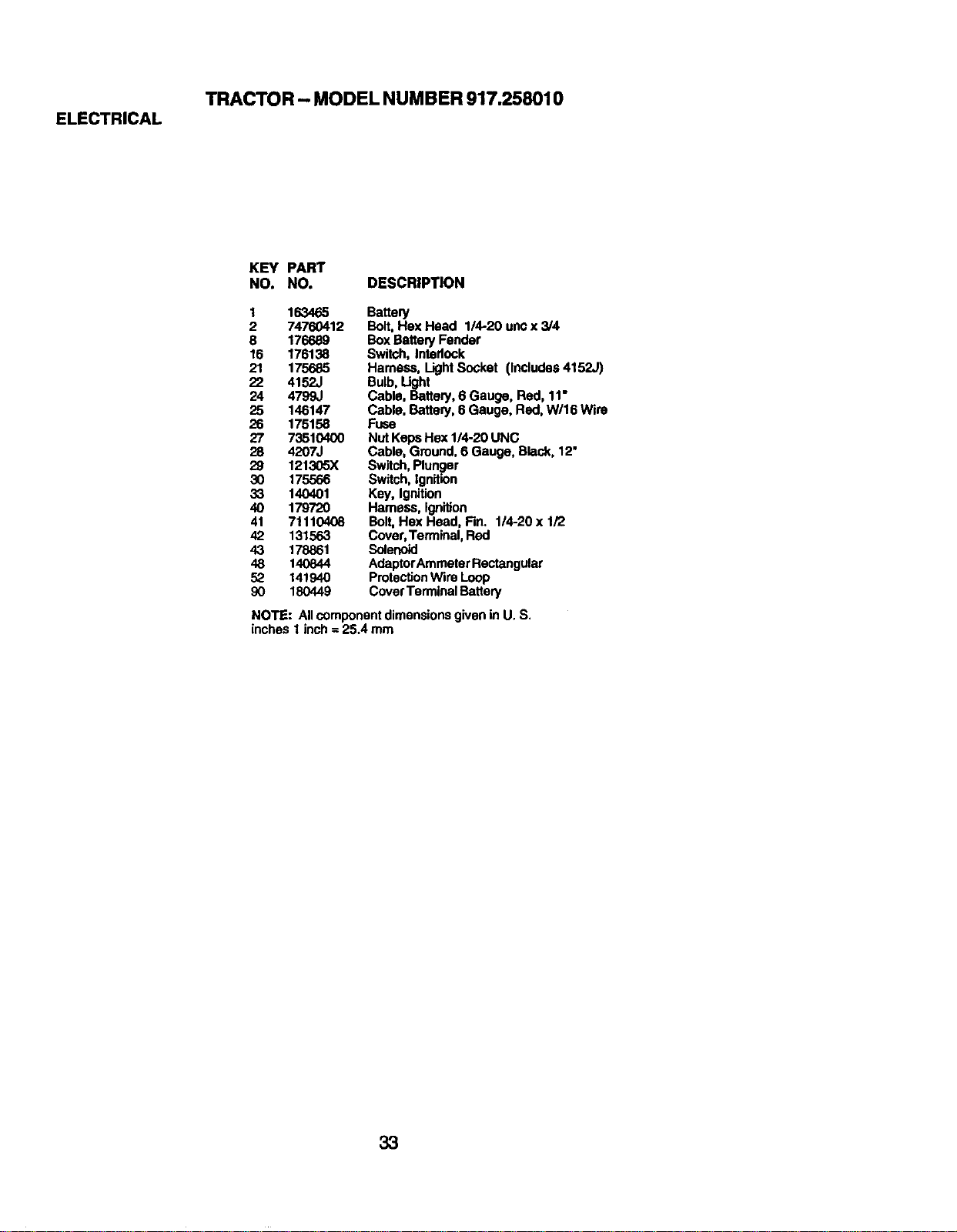

Repair Pads ........................................ 32

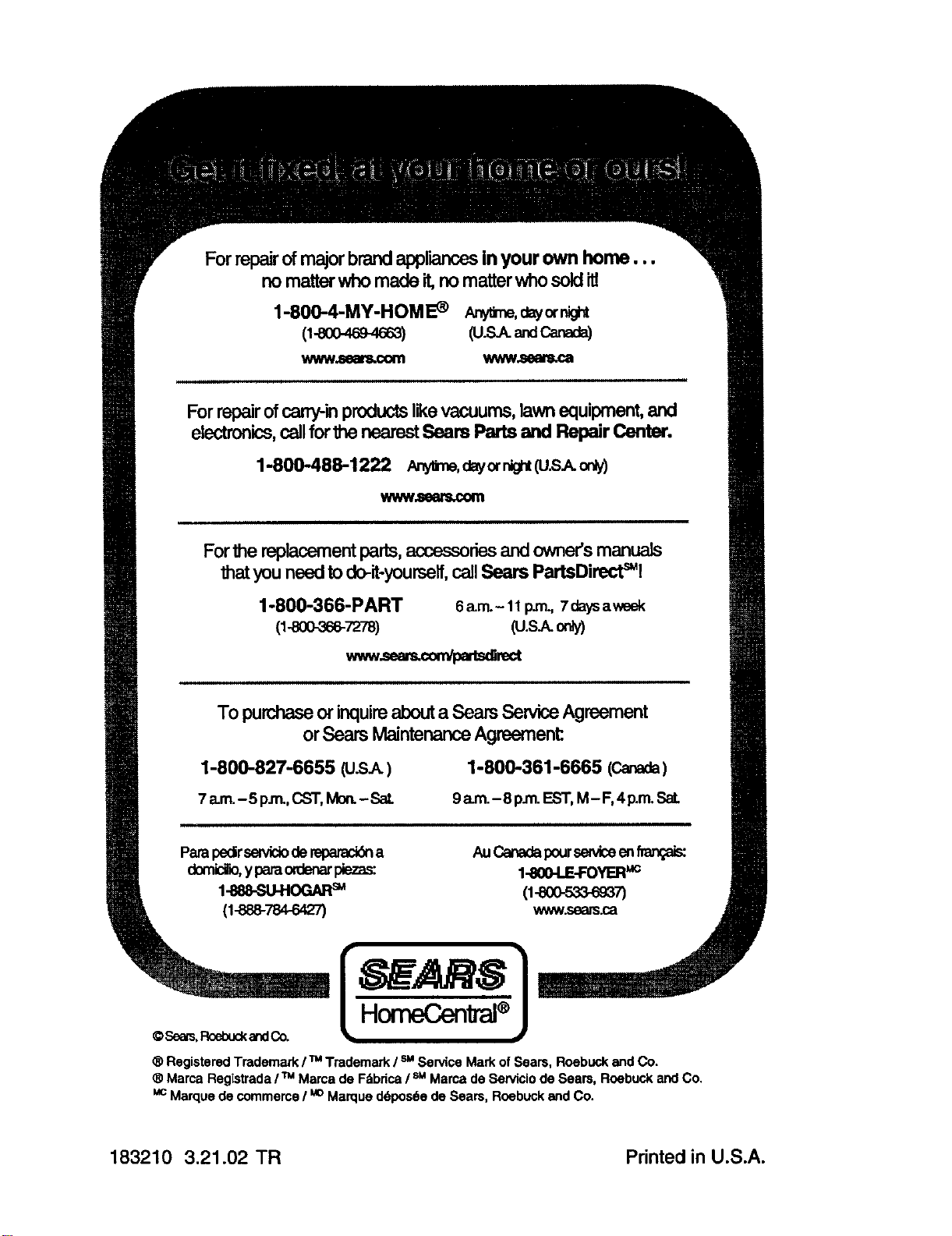

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

Fortwo (2) years from the date of purchase, ifthis Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted pads for the

two fullyears. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will stillbe available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped offat an authorizedSears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Repairs necessary because of operator abuse, including]but not limited to, damage

caused by towing objects beyond the capability of the nding equipment, impacting

objects that bend the frame or crankshaft, or over-speedin._ the engine.

Repairs necessary because of operator negligence, including but not limited to,

electdcal and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debds, or failure to maintain the equipment according to the instructionscontained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal detedoration and wear of the extedor finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BA'I-rERY

For ninety (90) days from date of purchase, ifany battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be nocharges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will stillbe

available but a tdp charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal dghts,and you may also have other rights,which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

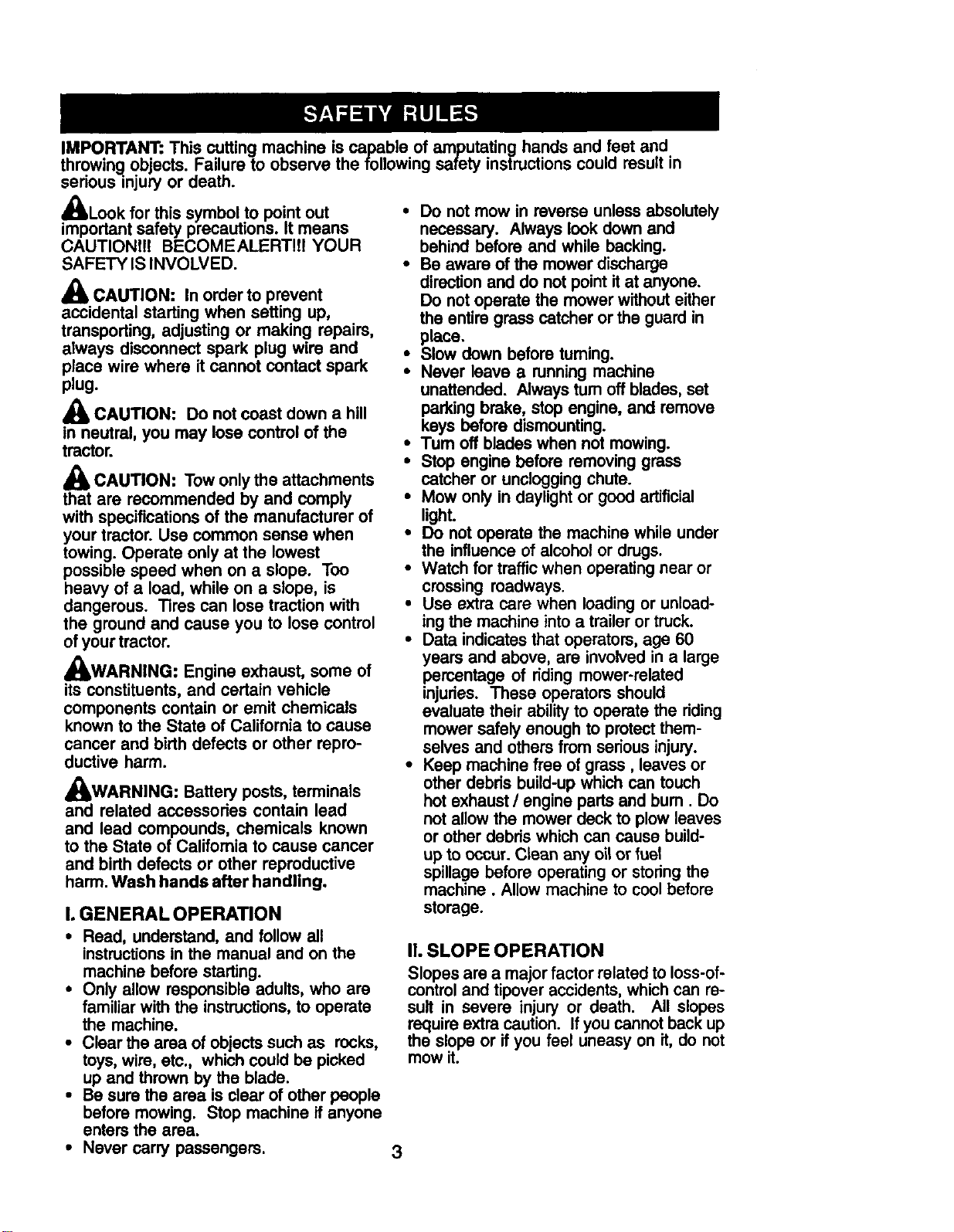

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructionscould resultin

serious injury or death.

Look for this symbol to point out • Do not mow in reverse unlessabsolutely

important safety precautions. It means necessary. Always lookdown and

CAUTIONI!I BECOMEALERT!I! YOUR

SAFETY IS INVOLVED.

_, CAUTION: In orderto prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

_IbWARNING: Engine exhaust, some of

its constituents,and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related accessodes contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

behind before and while backing.

Be aware of the mower discharge

directionand do not point itat anyone.

Do notoperate the mower withouteither

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a runningmachine

unattended. Always turnoff blades, set

parkingbrake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or uncloggingchute.

Mow only in daylightor good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch fortrafficwhen operatingnear or

crossing roadways.

Use extra care when loading or unload-

ing the machine into a trailer or truck.

Data indicatesthat operators,age 60

years and above, are involvedin a large

percentage of riding mower-related

injuries. These operators should

evaluate their abilityto operate the riding

mower safely enough to protectthem-

selves and others fromserious injury.

Keep machine free of grass, leaves or

other debris build-upwhich can touch

hot exhaust / engine pads and bum. Do

not allowthe mowerdeck to plow leaves

or other debds which can cause build-

up to occur. Clean any oil orfuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

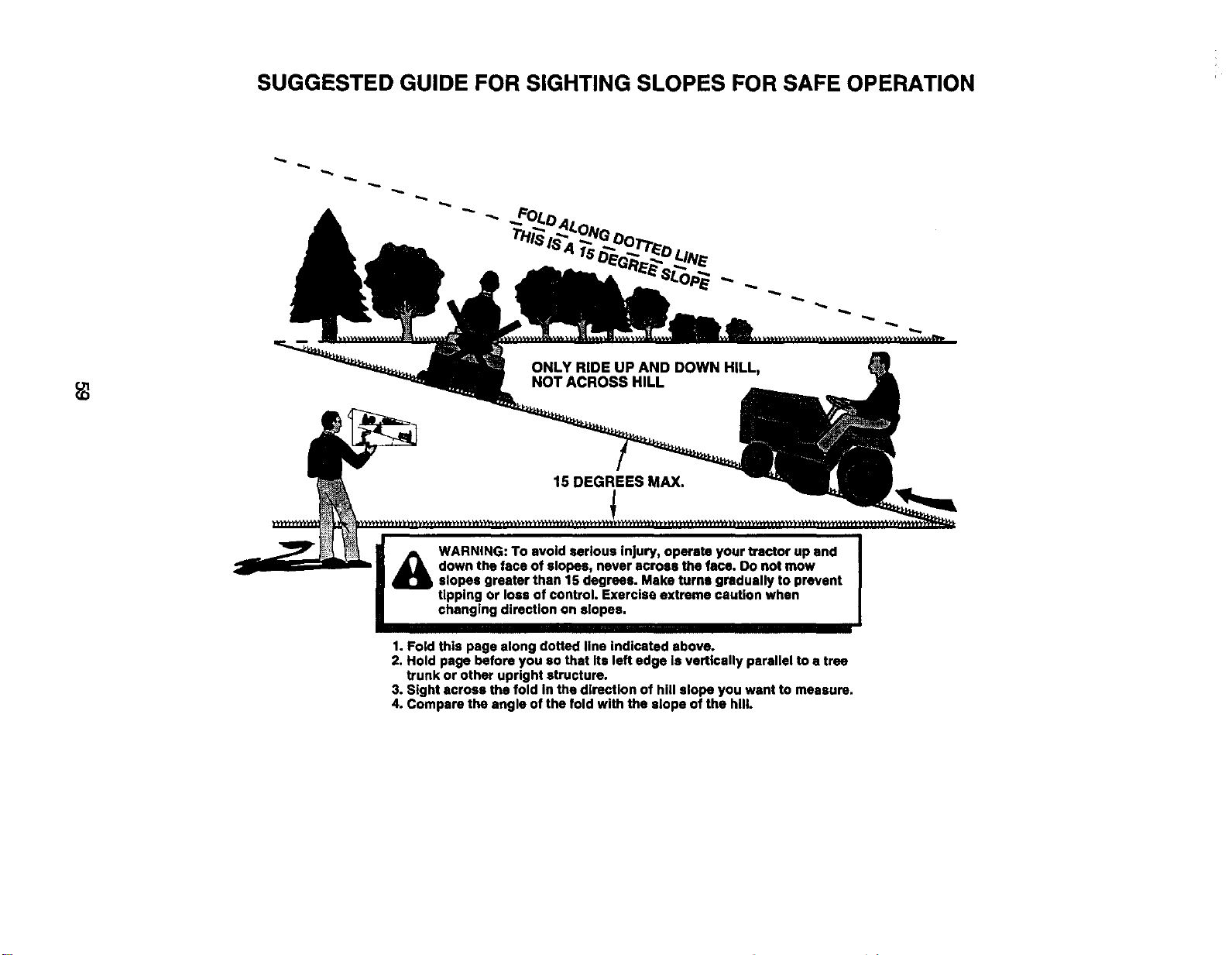

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

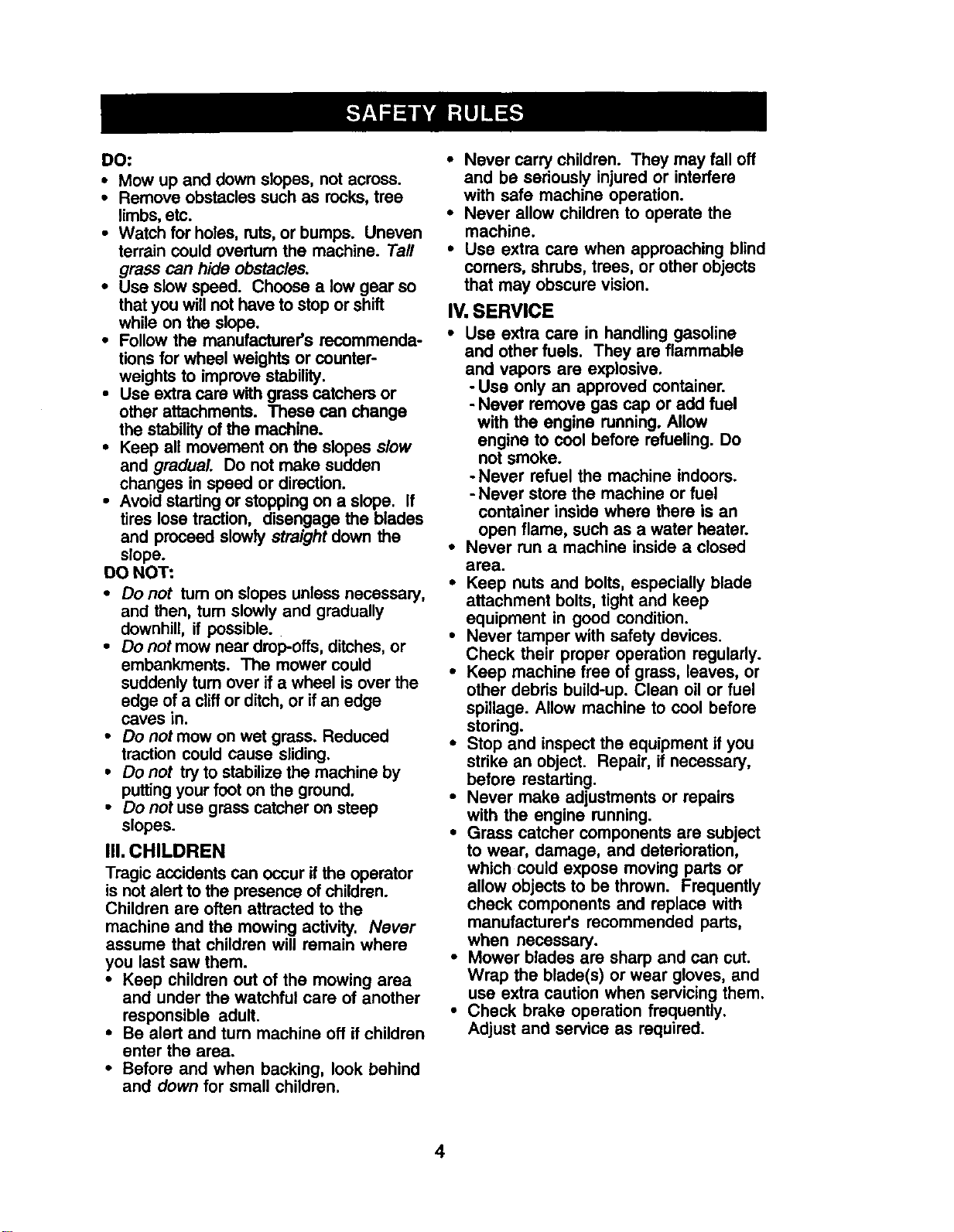

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks,tree

limbs,etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturnthe machine. Tall

gress can hide obstacles.

• Use slowspeed. Choose a low gear so

that you will not have to stopor shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stabilityof the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid startingor stoppingon a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

00 NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliffor ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

puttingyour foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is notalert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running, Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioreUon,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

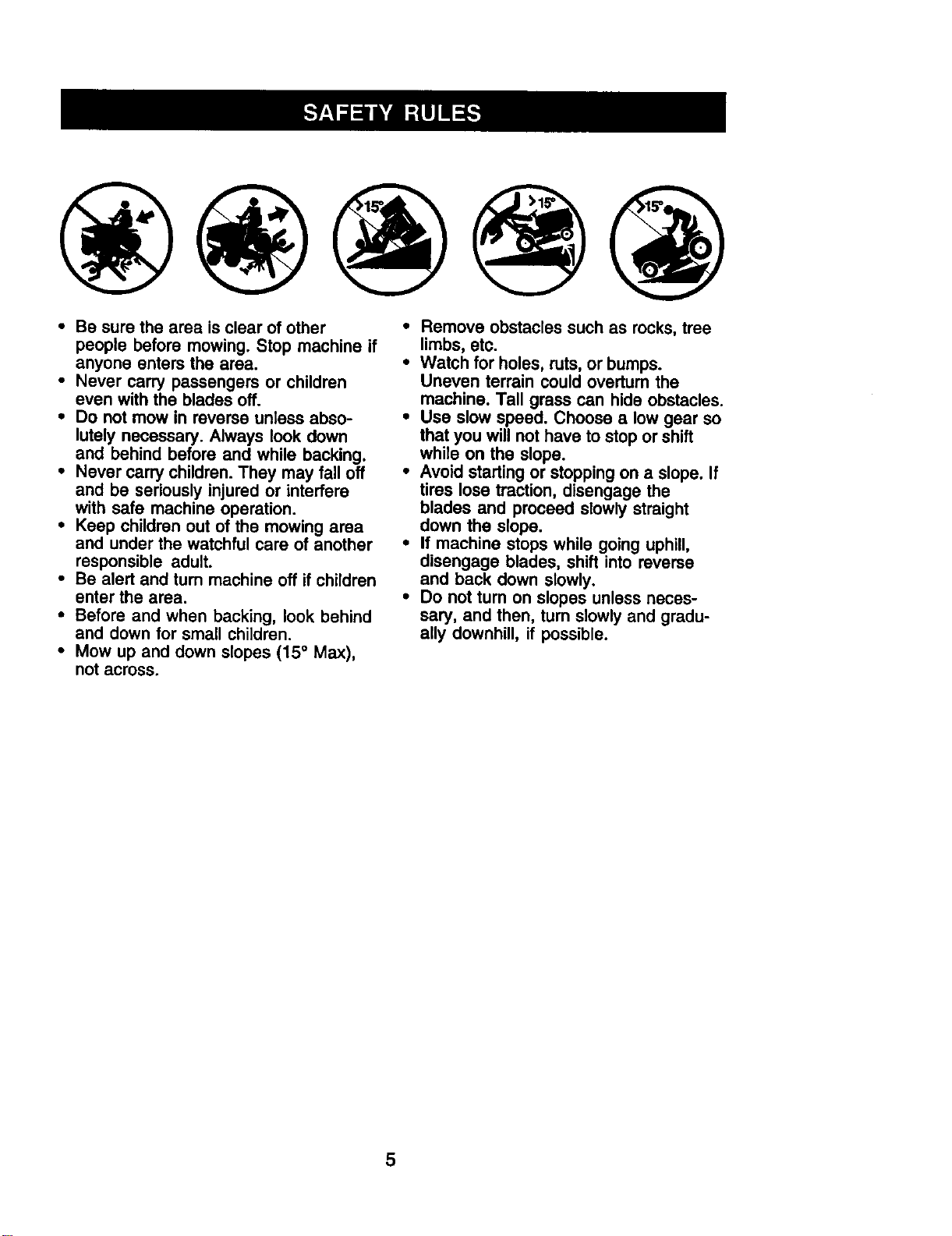

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles such as recks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop orshift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCTSPECIFICA_ONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type: SAE 30 (above 32°F)

'API-SF-SJ): SAE 5W-30 (below32°FI

Oil Capacity: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward:

(MPH): 1st 1.1

2nd 2.2

3rd 3.4

4th 4.3

5th 5.5

Reverse: 1.7

Tire Pressure: Front: 14 PSI

Rear: 12 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair thistractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement Is available on this

product, Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructionsunder "Mainte-

nance" and =Storage" sections of this

_owner's manual.

WARNING: This tractor is equipped

with an intemal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (ifany). Ifa spark arrestar is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

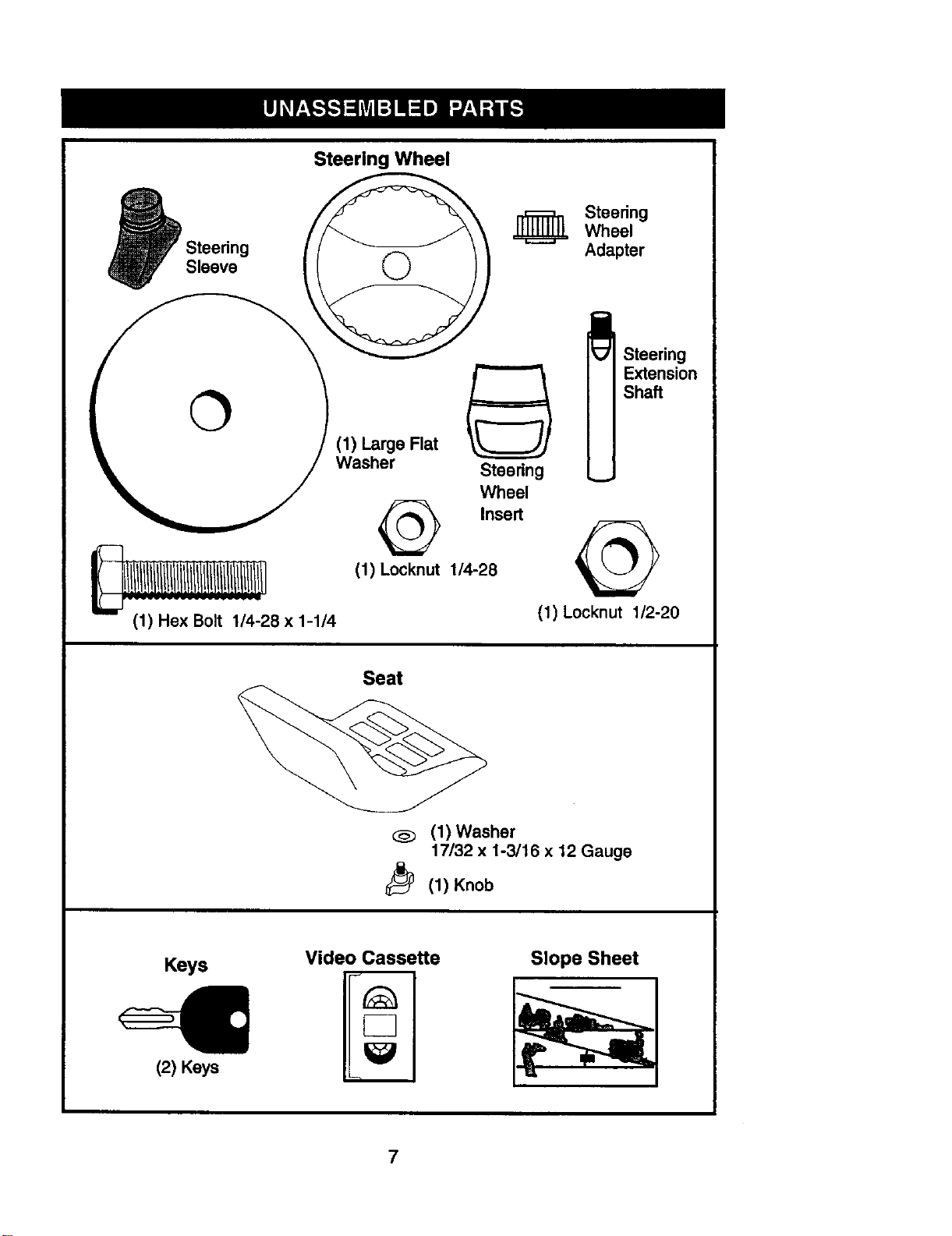

Steering Wheel

Steering

Extension

Shaft

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Keys

(2) Keys

Video Cassette

Slope Sheet

Yournewtractorhasbeenassembled at the factory with the exception of those parts

left unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utilityknife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TOREMOVETRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines

on all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

A'FrACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 114 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steedng wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor isto rolloff skid.

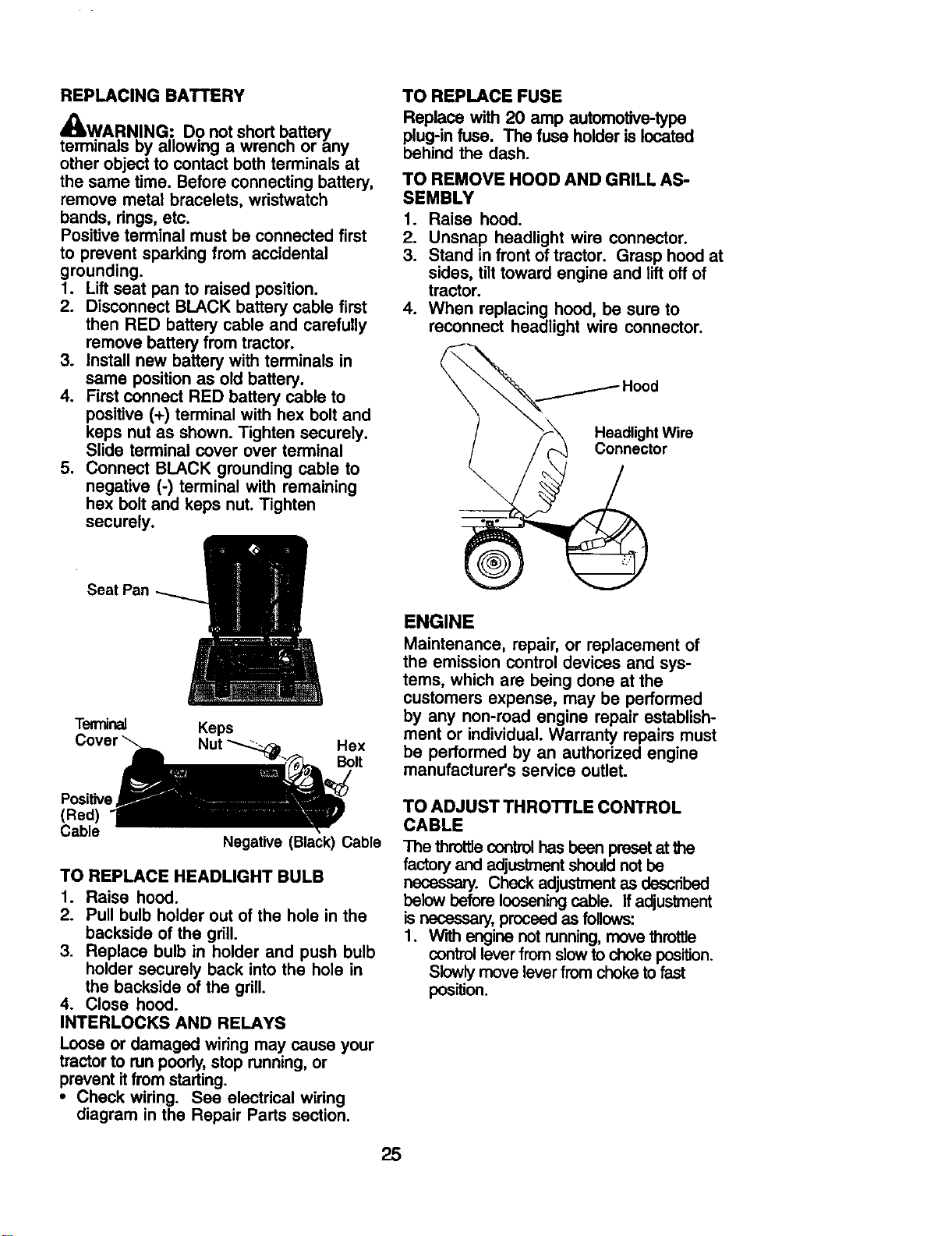

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATI'ERY" in Maintenance

section of this manual for charging

instructions).

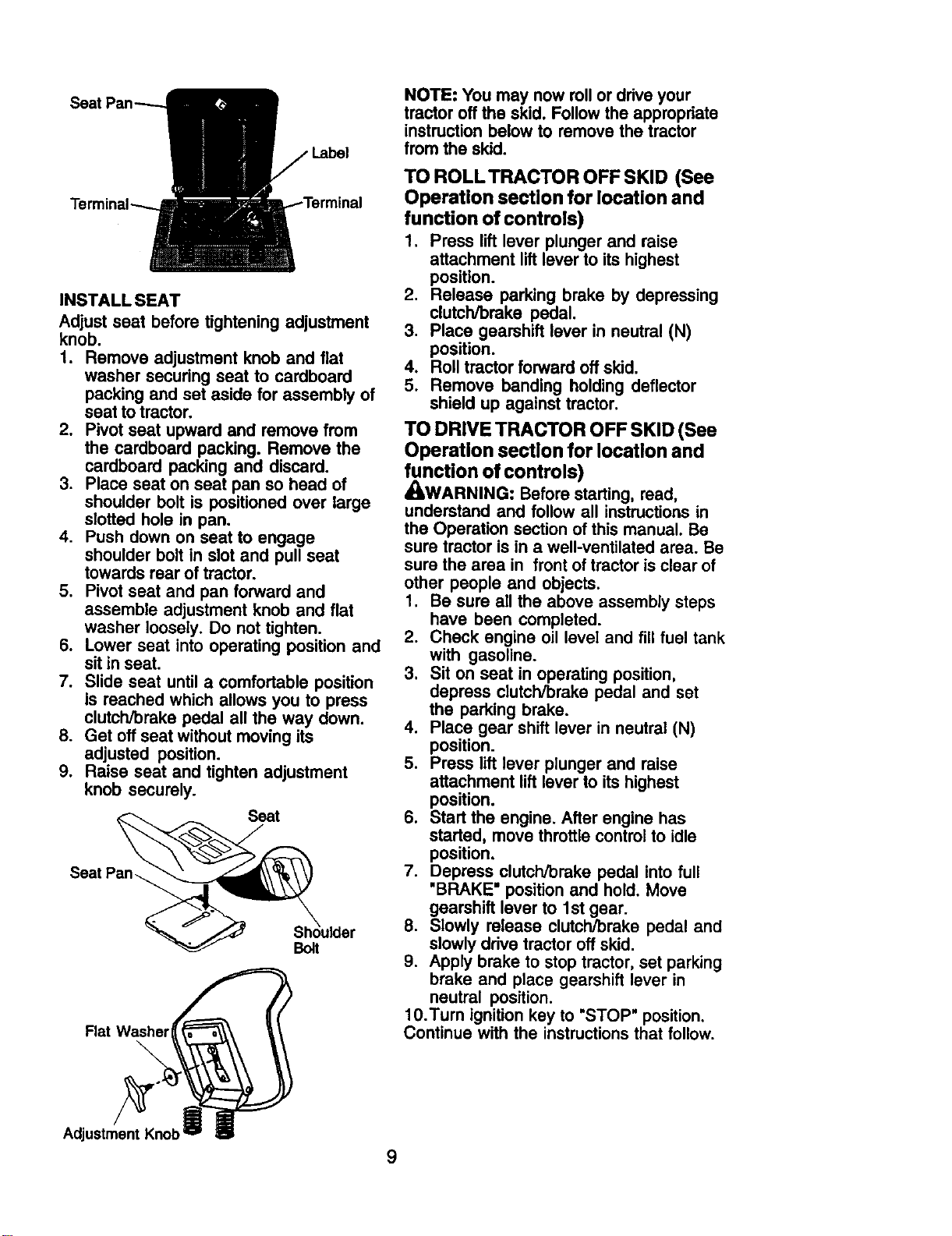

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat untila comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Flat Wi% _

NOTE: You may now rollor drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1, Press lift lever plunger and raise

attachment lift lever to its highest

position.

2, Release parking brake by depressing

clutch/brake pedal.

3, Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5, Remove banding holding deflector

shield up against tractor,

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

A(_WARNING: Before starting, read,

understand and follow all instructionsin

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in frontof tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3, Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttlecontrol to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stoptractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignitionkey to "STOP" position.

Continue with the instructionsthat follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes,

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" section

of this manual.

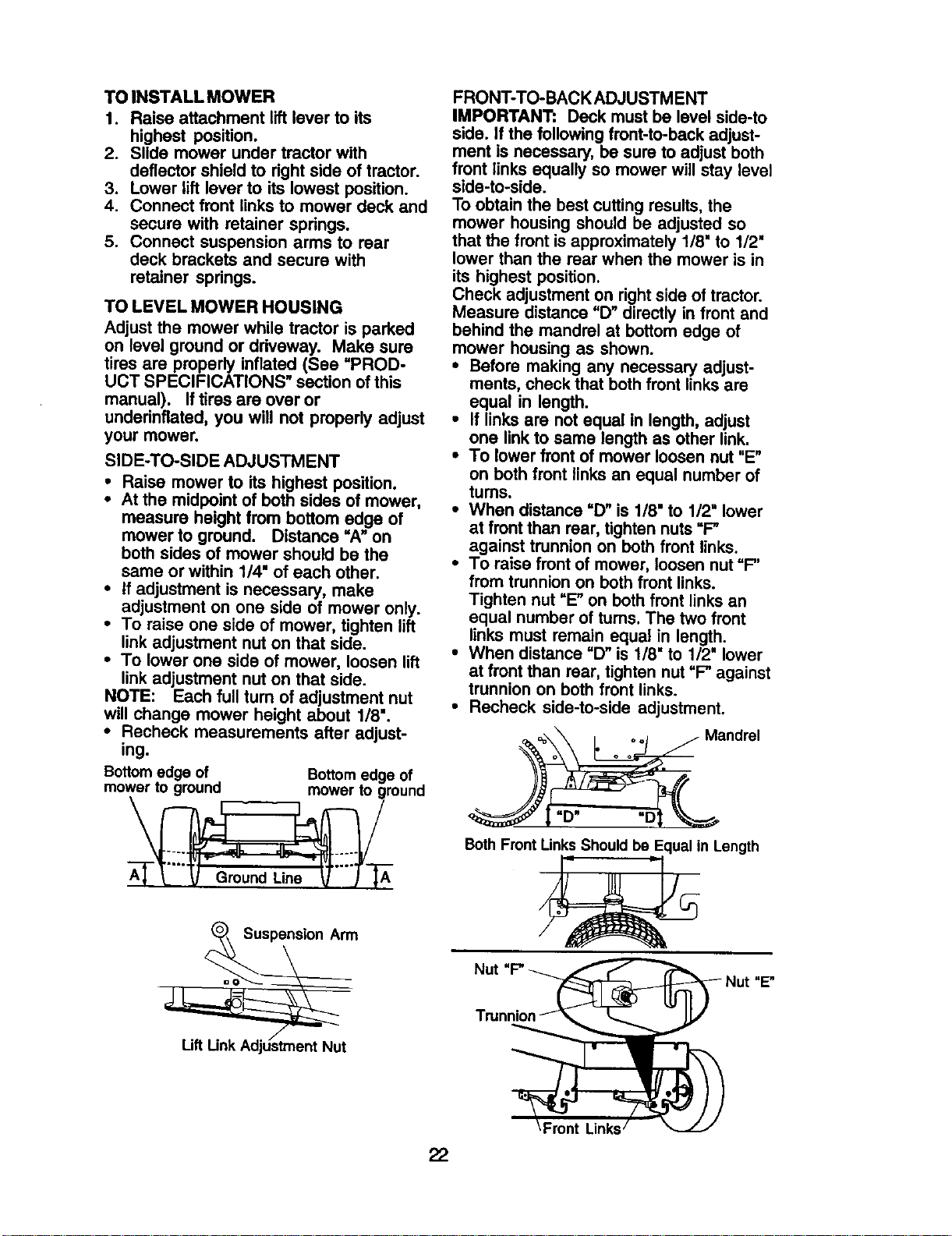

CHECKDECKLEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

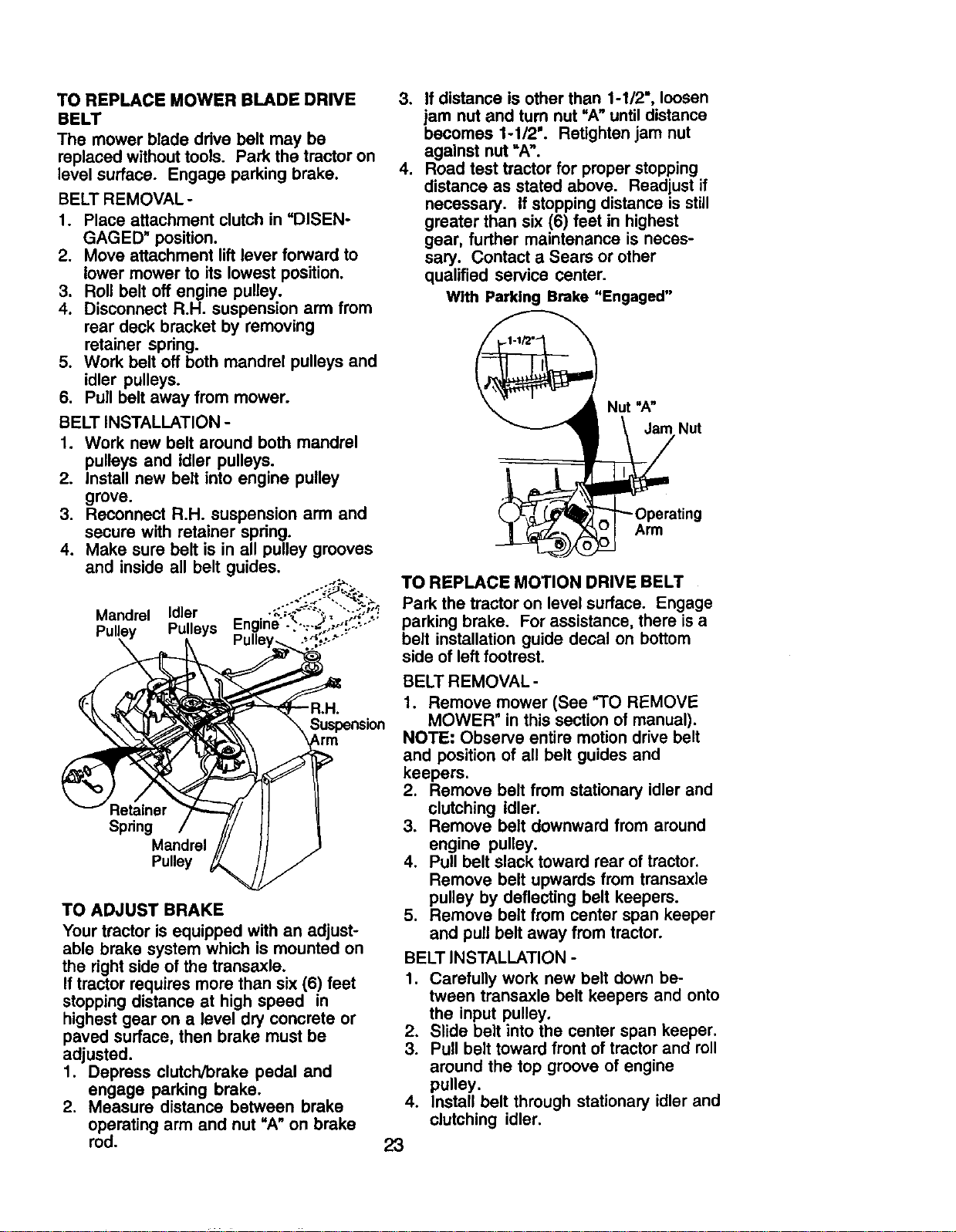

CHECK FOR PROPER POSITION OF

ALLBELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section ofthis manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you leam how to operate your

tractor,check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

/All assembly instructionshave been

completed.

/ No remaining loose parts in carton.

/ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

/ All tires are properly inflated. (For

shipping purposes, the tires were

ovednflated at the factory).

/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properlyinflated

for leveling).

/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

/ Check wiring. See that all connections

are still secure and wires are propedy

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

/ Engine oil is at proper level.

/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

4 Be sure brake system is in safe

operating condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENG,N=ONENG,NEOFFO,LPRE_OREL,GHTSONOVI_T_..

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER. KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

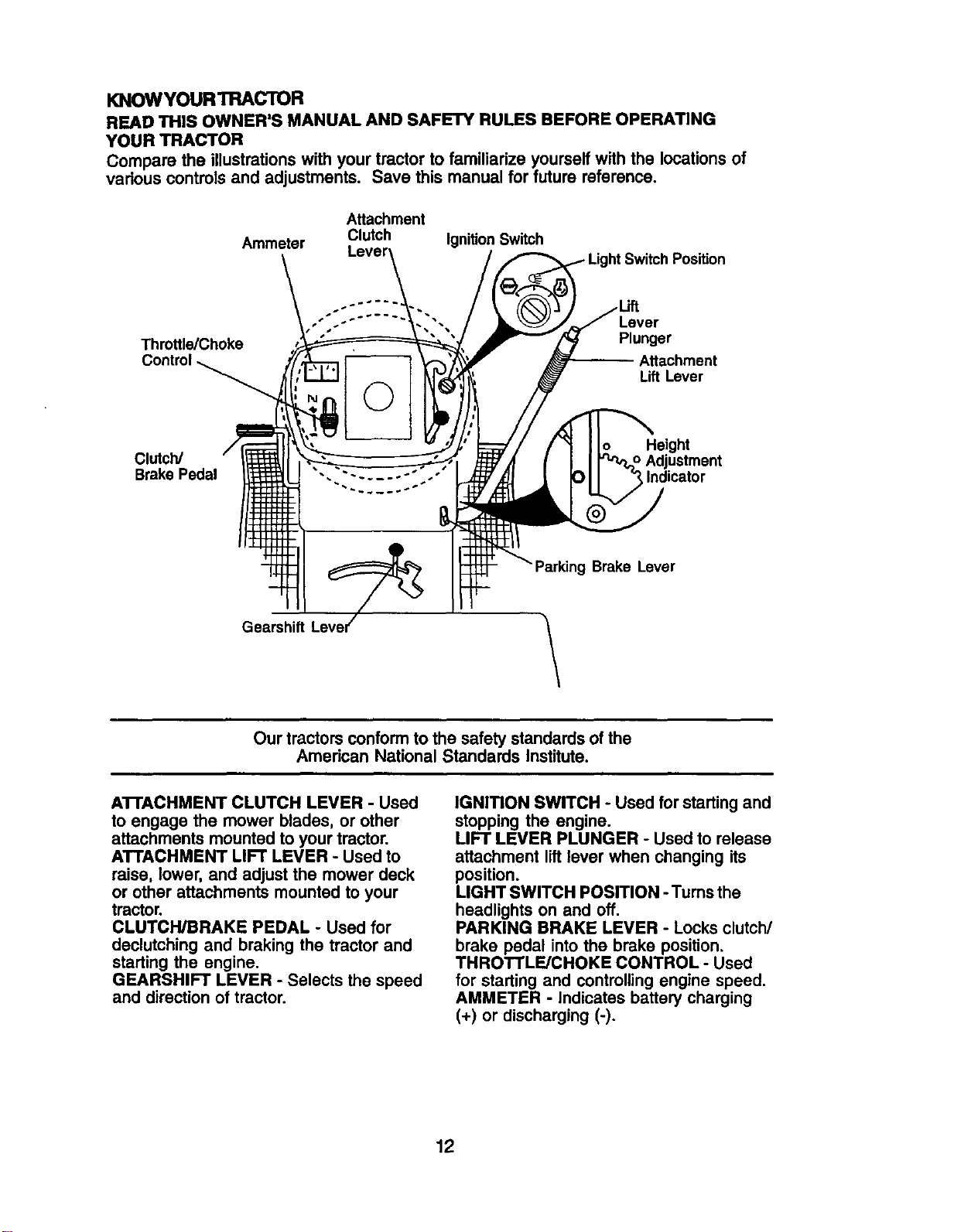

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrationswith your tractor to familiadze yourself with the locations of

vadous controls and adjustments. Save this manual for future reference.

Attachment

Ammeter Clutch IgnitionSwitch

Lever

Throffie/Choke Plunger

Control Attachment

Lift Lever

Height

Clutch/ _Adjustment

Brake Pedal Indicator

Brake Lever

Our tractorsconform to the safety standards of the

Amedcan National Standards Institute.

ATrACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

AMMETER - Indicates battery charging

(+) or discharging (-).

The operation of any tractor can result in foreign objectsthrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without firstsetting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Throttle/Choke

Control

Attachment Clutch Lever

=Engaged" Position

IgnitionKey

Brake

Pedal

Parking

"Engaged"

Position

Gearshift

Lever

"Brake"

Position =Disengaged"_'_

Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to disengaged

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle controlto

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignitionkey to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditionswhen

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. Toeliminate

this possibility,always stop engine when

stopping tractor on grass areas.

_I=CA.UT!ON: A.Iwaysstop.tractor .

completed/, as oesciioea above, eerore

leaving the operator's position.

TO USE THRO'rrLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CU'I-I'ING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

To stop mower blades -

,_engage attachment clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch Lever

Position

-Attachemnt

Uft Lever

High Position

Position

Shield

TO OPERATE ON HILLS

•(_CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quicklyto

brake position and engage parking

brake.

• Move gearshift leverto lstgear. Be

sure you have allowed room for tractor

to roll slightlyas you restartmovement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment liftto highest position

with attachment liftcontrol.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hoodfrom damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until =FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See =OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Pumhase

fuel in quantities that can be used

within 30 days to assure fuel freshness.

_1=CAUTION: Wipe off any spilled oil or

fuel Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather staring.

_1_ CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When staring the engine for the firsttime

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disen-

gaged position.

4. Move throttlecontrol to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into Ignitionand tum key

clockwise to start position and release

key as soon as engine starts. Do not

run starer continuously for more than

fifteen seconds par minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not staR,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50° F and

above)

6. When engine stars, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow itto warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50° F and

below)

6. When engine starts, allow engine to

run with the throttle controlin the

choke position until the engine runs

roughly, then move throttle control to

fast position. This may require an

engine warm-up period from several

seconds to several minutes, depend-

ing on the temperature.

• The attachments can also be used

during the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See 'q'O ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

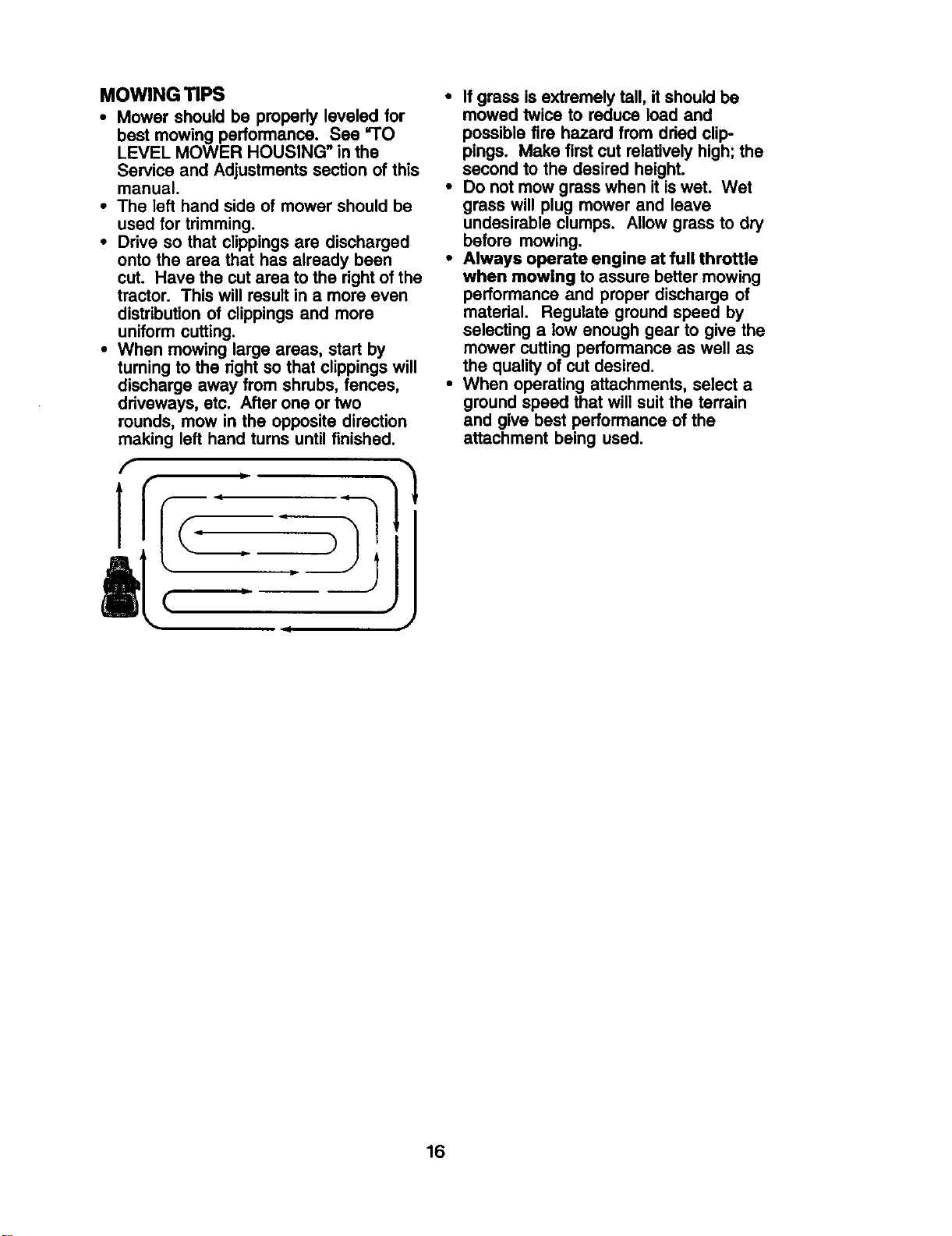

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. Sea =TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of the

tractor. This willresult in a more even

distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the rightso that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

AS YOU COMPLETE

REGULAR SERVICE DATES

CheckBrakeOperation _

Check Tim P_um

Check Operator P_ aml

T =_ sy==_ I_

R Ch_k_ Loo_F=_,_ V'_ V'

T Lub_Uo.Ch=rt

0 CheckBattmyLevel

R Clean BaniMyand Temdnals V _

ce_,kTra_ax_CooRr_

Check V-Belts I_

Change Engine Oil (with oil finer) V'l,= If

E ChangeF.ng_neOU(*_outoardter) I/,_ I,/

N C_nA_Fat_ _V':G Clean Air Screen

NI inspect Arrester i

Muffler/_park

E Rop_eO_F_. (. eq_pp_) Vf.=

Ckmn_ CooangRr_ _

Replace Spark Plug If

Replace Nr Riter Paper Cartridge

Replace Fuel R]tel"

1 - Che_le more olten when operatingunde_i heavy loador

Inhlg_ ='nb_e_ temperature=.

2 - Sewice more often when opera,rig in d_ty or dustyconditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To

receive fullvalue from the warranty,

operator must maintain tractor as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and

help your engine run better and last

longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

3 - Replace blades rnomoften when mowing insandy soil.

4 - NOlrequired ffequipped withmalnte_h_e battery.

S- T_len flontaxte pivotboltto35 fl.40_. maximurn.

Do not o_ghten.

LUBRICATION CHART

Spindle

Zerk Zerk

_Fmnt Wheel

Bearing Beadng Zerk

Zerk

(_Engine

d) General Purpose Grease

_) Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

17 sparingly'

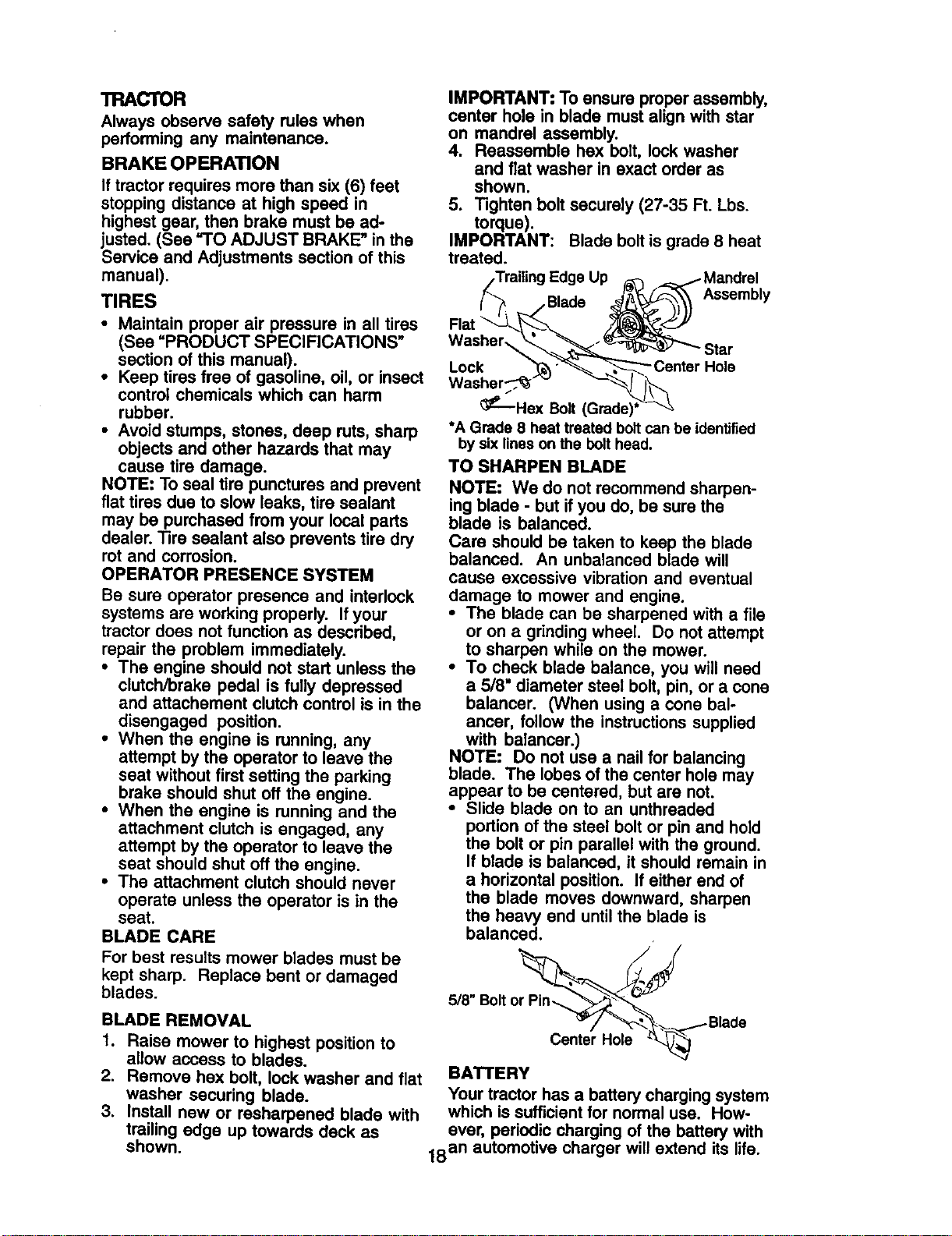

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

Iftractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" inthe

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

I. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or rasharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade boltis grade 8 heat

treated.

Blade Assembly

Washer,

Star

Lock Hole

_----Hex Bolt (Grade)

*A Grads 8 heat treated boltcan be identified

by six lines on the bolthead.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but ifyou do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancar, follow the instructions supplied

with balancar.)

NOTE- Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

^ maae

Centel" Hole -_]

BATTERY

Your tractor has a battery charging system

which is sufficientfor normal usa. How-

ever, periodic charging of the battery with

18an automotive charger will extend its life.

• Keepbatteryand terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for I hour.

NOTE: The originalequipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BA'I-I'ERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Open battery box door.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5, Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BA'I-rERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

C .30 .I 0 0 t0 20 30

"I'EMPERA'i'IJRE RANGE ANTIOPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. _ghten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed ,___

and _ _r_ L .'"

Locked ['_----_j _ _ _

Pos_on . _

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and tuming clockwise until the

pin is in the locked position as shown,

6. Remove the drain tube and replace

the cap onto the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

=PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep

oil at =FULL" line on dipstick. Tighten

cap onto the tube securely when

finished.

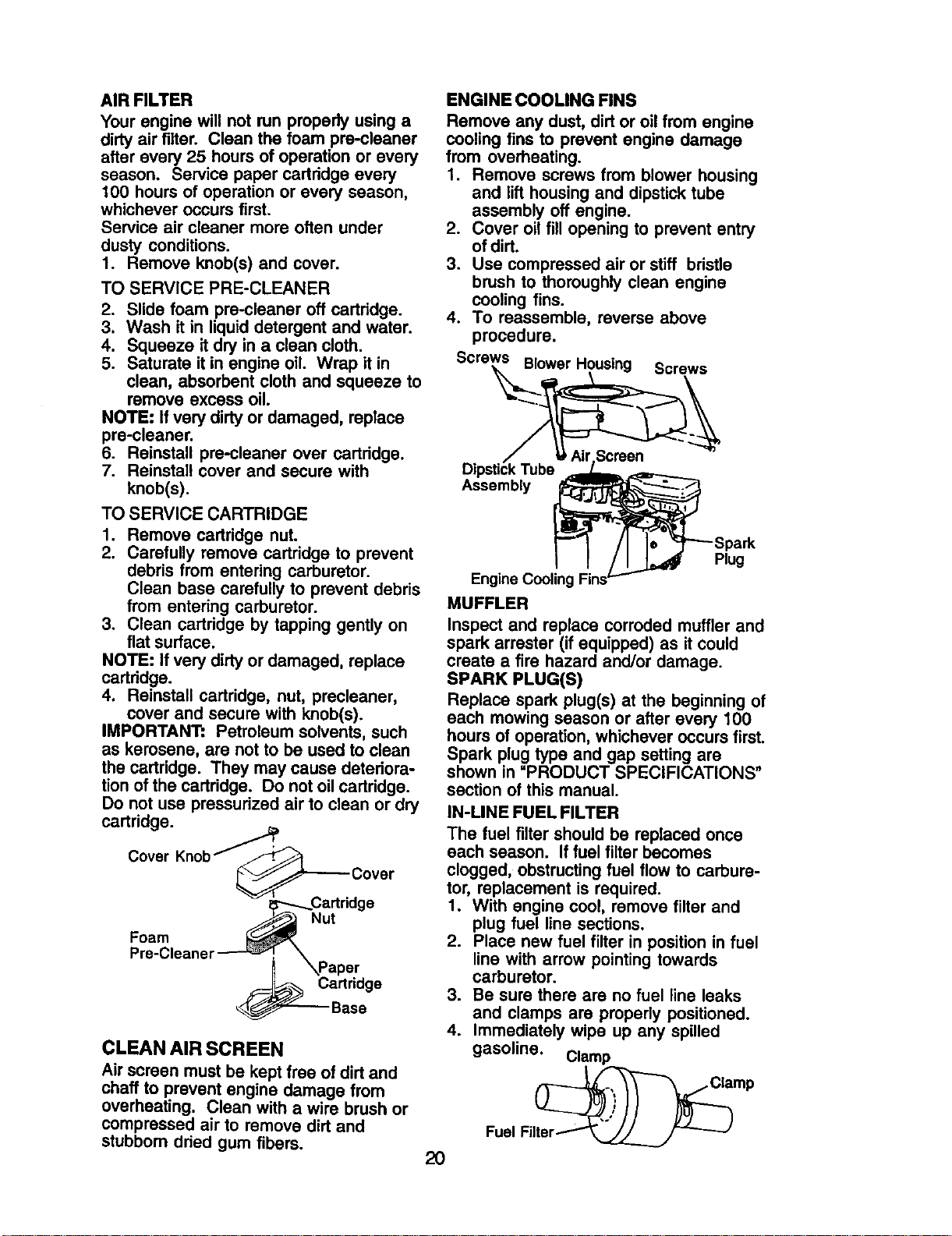

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pro-cleaner

after every 25 hours of operation or every

season. Service paper cartddge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3, Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove cartddge nut.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

Clean base carefully to prevent debris

from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge, nut, precleaner,

cover and secure with knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion ofthe cartridge. Do not oil cartddge.

Do not use pressurized air to clean or dry

cartridge.

Cover

Foam

Pre-Cleane_

Nut

Cartridge

CLEAN AIR SCREEN

Air screen must be kept free of dirtand

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING RNS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

1. Remove screws from blower housing

and lifthousing and dipstick tube

assembly off engine.

2. Cover oil fill opening to prevent entry

of dirt.

3. Use compressed air or stiff bdstle

brush to thoroughly clean engine

cooling fins.

To reassemble, reverse above

procedure.

Screws Blower Housing

Screws

Assembly

Plug

Engine Cooling

MUFFLER

Inspect and replace corroded muffler and

spark arroster (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline. Clamp

Fuel Filter-,__ _J

CLEANING

i Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electdcal system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

_b WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignitionkey to =STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

rightside of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

Small Retainer Suspension

Clutch Spdn_ Arms

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment otherthan

the mower deck is to be mounted on the

tractor, remove the front linksand hook

the clutch spring Into square hole in

frame.

Engine

Hole

Retainer

Sprin!

Anti-Sway

Bar

Front Link

prings

(Both Sides)

Housing

Guide

Retainer

Spring

Shield

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tiros are properly inflated (See =PROD-

UCT SPECIFICATIONS" section of this

manual). Iftires are over or

underinflated, you will not properly adjust

your mower,

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance =A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to ground mower to ground

_= Suspension Arm

FRONT-TO-BACK ADJUSTMENT

IMPORTANT:. Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8 =to 1/2"

lower than the roar when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance UD" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance =D" is 1/8" to 1/2" lower

at front than roar, tighten nuts =P

against trunnion on both front links.

• To raise front of mower, loosen nut =F"

from trunnion on both front links.

Tighten nut =E" on both front links an

equal number of turns, The two front

links must remain equal in length.

• When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nut up against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front LinksShould be Equal in Length

Nut

Front

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Disconnect R.H. suspension arm from

rear deck bracket by removing

retainer spring.

5. Work belt off both mandrel pulleys and

idler pulleys.

6. Pull belt away from mower.

BELT INSTALLATION -

1. Work new belt around both mandrel

pulleys and idler pulleys.

2. Install new belt into engine pulley

grove.

3. Reconnect R.H. suspension arm and

secure with retainer spdng.

4. Make sure belt is in all pulley grooves

and inside all belt guides.

Mandrel Idler

Pulleys

-R,H.

Suspension

Retainer

Spring

Mandrel

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2'. Retighten jam nut

against nut "A".

Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake "Engaged"

Nut "A"

Jam Nut

Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down be-

tween transaxle belt keepers and onto

the input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley.

Install belt through stationary idler and

clutching idler.

5. Makesurebeltis in allpulleygrooves

andinsideall belt guidesand keep-

ers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine

Pulley_

Clutching_

Idler

Stationary /

Center Span _

Keeper Transaxle--.

Pulley I

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steedng wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steedng wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

TO START ENGINE WITH A WEAK

_'_'A ERY

RNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BA'I-I'ERY" inthe MAINTENANCE

section of this manual).

If =jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

Square Key

(Rear Wheel Only) / 24

REPLACING BATTERY

_LWARNING,:, Do not short battery

terminals Dy a,owing a wrencn or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefutly

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

Seat Pan

Ten'nina] Keps

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-infuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to

reconnect headlight wire connector.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or reptacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

Positive

(Red)

Cable

Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent itfrom starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO ADJUST THROTTLE CONTROL

CABLE

The throffie control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as dascnbed

below before loosening cable. If adjustment

is necessary, proceed as follows:

1. W'_h engine not running, move throStle

control lever from slow to choke position.

Slowly move lever from choke to fast

position.

2. Chsckthat holes=A" ingovemorconbol

leverand hole ingovernorplate line-up.

Ifholes=A"are notaligned,loosendamp

screwand move throttlecableuntil holes

are aligned. Tightenclamp screw

securely.

Governor

GovernorControlLever ControlPlate

Holes

"A"

Clamp Screw Throttle

Cable

TO ADJUST CARBURETOR

NOTE: The carburetoronthis engineislow

emissidn.Itis equippedwithan idlefuel

adjustingneedle witha limitercap, which

allowssomeadjustment withinthe limits

allowedbythecap. Do notattemptto rernove

the limitercap. The limltercap cannotbe

removedwithoutbreakingthe adjusting

needle.

The carburetor has been preset at the factory

and adjustment ,shouldnotbe necessa.,y.

However,minoradjustmentmay be required

tocompensatefor differencesinfuel,

temperature,altitudeor load. If thecarburetor

does need adjustment,proceedas follows:

In general,tumingidle mixturevalvein

(clockwise)decreasesthe supplyoffuel to

the enginegMng a leanerfueVairmixture.

Tumingthe idle mixturevalveout (counter-

_) increasesthe supplyof fuel tothe

enginegMng a richerfueVairmixture.

IMPORTANT: Damage tothe needlevalve

and the seat incarburetormayresultif screw

istumed intootight.

PREUMINARY SETTING -

1. Aircleaner assemblymustbe assembled

tothe carburetorwhen makingcarburetor

adjustments.

2. Be sure the throttle control cable is

adjustedproperly(see above).

FINALSE'n'ING-

1. Startengineand allowtowarmfor five

minutes. Make final adjustmentswith

enginerunningand shiff/matJoncontrol

leverin neutral (N) pos'_on.

2. Move throttlecontrollevertoslew

position.Withfinger, rotateand hold

throttle lever againstidlespeed screw.

Tum idlespeed screwtoattain1750

RPM.

3. While stillholdingthrottle leveragainst

idlespeed screw,tum idle mixture valve

full travelclockwisethencounterclock-

wiseuntilenginerunsrough. Tum valve

toa pointmidwaybetween thosetwo

positions.Release throttlelever.

ACCELERATION TEST-

4. Move throttle control lever from slow to

fast position. If engine hesitates or dies,

tum idle mixture valve out (counterclock-

wise) 1/8 tum. Repeat test and continue

to adjust, if necessary, until engine

accelerates smoothly.

High speed stop is factory adjusted. Do not

adjust or damage may result.

IMPORTANT: Never temper with the engine

gevemor, which isfacto,'y set for proper

engine speed. Overspeeding the engine

above the factory high speed seUJngcan be

dangerous, ff you think the engine-gevemed

high speed needs adjusting, contact a

Sears or other qualified service center,

wh'K_ has proper equipment and experience

to make any necessary adjustments.

Idle Speed Screw

Lever

Idle Mixture

Valve with

Limiter

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructionsin

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'I'rERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It iS important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run untilthe

fuel lines and carburetor are empty.

• Never usa engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Usa fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits duringstorage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Tum ignition key to start positionfor a

few seconds to distributeoil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust, Rust and/or dirt in your

gasoline will cause problems.

* If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Wlll not start

Hard to start

Englnewlll not

turn over

Engine clicks but

wlll not start

CAUSE

1. Out of fuel.

2. Engine not =CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignitionswitch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all widng.

9. See "ToAdjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Drain fuel tank and refill

with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTINGCHART:

See appropriate section In manual unless directed to Sears service center

CAUSE CORRECTIONPROBLEM

Loss of power

Excessive

vibration

Engine continues

torun

•hen operator

leaves seat wlth

_vlthattachment

_lutch engaged

Poorcut-uneven

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

Cutting too much grass/too

fast.

Throttle in =CHOKE"

position.

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter. 4.

Low oil level/dirty oil. 5.

Faulty spark plug. 6.

10.Spark plug wire loose.

1. Set in "Higher Cut" position/

reduce speed,

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure

tor, refilltank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

11.Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

17.

Mower deck not level.

Low/uneven tire air

pressure.

Wom, bent or loose blade.

Buildup of grass, leaves

and trash under mower.

Mower drive belt worn.

Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Headlight(s) not I.

working 2.

(If so equlpped) 3.

Battery will not 1.

charge 2.

1.Engine "backfires"

whenturnlng

engine"OFF"

Switch is=OFF".

Bulb(s) or lamp(s) burned out

Faulty lightswitch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at =SLOW" position

for 30 seconds before

stopping engine.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

=FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch"ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec

tions.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

TRACTOR - MODEL NUMBER 917.258010

SCHEMATIC

BATtERy

BLACK

FUSE __D _

I-_ -_ , _ STARTER e_x.

*tr_ ' C) : D(_ ' J

CLUTCH/ BRAKE

(PEDALUP)

]

I I / SEATSWn'CH

I ( .... ____ _, ! (NOTOCCUPIED)

H ,o _T_r._,

II "_ ! __ ;-_,"_::_-'

GROUNDING

I' ,---:-_,_._ q '°_" I---o "&_ e---

=.u_ _ "'" _ _ J (2 PLUGSON

3 DC41NO0RpI.I 1C_¢_10 S_STEU Dq_ONNECTED)

FUELSHUT-OFF

,,___-,_,_-E_'_I...._'_'_"_- ' --'- __'-"-"__'4_'°°E'i_i'

s,w_Ace _o Rp= DIODE _ALTERNATOR

NOTE l

YOUR TRACTOR IS I _

EQUIPPED WiTH A SPECIAL _ _

ALTERNATOR SYSTEM. ]- _/ T v .

"R-IELIGHTS ARE NOT _ _ I

CONNECTED TO THE _

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE. HEADUGHTS

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE /-_

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS NON-REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

IGNmON SWITCH

RUN 8+A1 NONE

START +$ +A1 NONE

TRACTOR - MODELNUMBER917.258010

ELECTRICAL

i !

i ¢

I \

TRACTOR - MODEL NUMBER 917.258010

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt,Hex Head 1/4-20 unc x 3/4

8 176689 BoxBattery Fender

16 176138 Switch, Interlock

21 175685 Harness, LightSocket (Includes 4152J)

22 4152J Bulb,Ught

24 4799J Cable, Battery,6 Gauge, Red, 11"

25 146147 Cable, Battery,6 Gauge, Red, W/16 Wire

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 UNC

28 4207J Cable, Ground, 6 Gauge, Black, 12"

29 121305X Switch,Plunger

30 175566 Switch, Ignition

33 140401 Key, Ignition

40 179720 Harness, Ignition

41 71110408 Bolt, Hex Head, Fin. 1/4-20 x 1/2

42 131563 Cover,Terminal,Red

43 178861 Solenoid

48 140844 AdaptorAmmeterRectangular

52 141940 ProtectionWire Loop

90 180449 CoverTerminal Bottery

NOTE: All componentdimensions givenin U. S.

inches 1 inch = 25.4 mm

TRACTOR - MODELNUMBER917.258010

CHASSISAND ENCLOSURES

26 31

2O8

TRACTOR - MODEL NUMBER 917.258010

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174620 Chassis

2 176554 Drewbar

3 17060612 Screw3/8-16 x 3/4

5 155272 BumperHood/Dash

6 174643X014 Saddle Slkscr FitLT

8 155138 ClipRetainerSlide-On

9 168347X011 Dash

10 72140608 BoltRdhd Sqnk 3/3-16unc X 1

11 174996 Panel Dash LH

12 145660 Clip"rinnennanGdlleP/L

13 172105X010 PanelSlkscr Dash RH

15 74180512 Screw Mash TRHD 5/16-18 uncx 3/4

16 7351G500 Nut Keps 5/16-18 Unc

17 15..o639X558 HoodAsm

18 126938)( BumperHood

24 74780616 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5

25 19131312 Washer 13/32 X 13/16 x 12 Ga

26 73800600 Nut Hex Lock W/Ins. 3/8-16 Unc

28 179777 GdlleP..ensAsm

29 150209X599 LensHeadlightBar Clear

30 169465X558 Fender

31 136619 BracketFender Rep1109873x

33 179716X558 FootrestPnt Lh

34 179717X558 FootrestPnt Rh

35 72110606 Bolt Rdhd Sht Sqnk3/8-16 x 3/4

37 17490508 ScrewThdrol 5/16-18 x 1/2

38 175710 BracketAsm PivotMower Rear

51 73800400 Nut LockHex w/Ins 1/4-20

52 19091416 Washer 9/32 x 7/8 x 16 Ga.

53 144697 Bracket,Grille LH

54 161464 Screw

55 144696 Bracket,Grille RH

57 74780412 BoltHex 1/4-20 x 3/4

58 150127 Air Duct P/L

145 156524 Rod PivotChassis/Hood

205 17490608 Screw Thdrol3/8-16 x 1/2

206 170165 BoltShoulder5/16-18

208 17670608 Screw thdrol3/8-16 x 1/2

209 17000612 Screw HexWsh Thdrol3/8-16

212 156494 Insert Lens Reflective

- - 5479J Plug ButtonBIk359 Dia Choke

NOTE: All componentdimensionsgiven in U. S.

inches I inch= 25.4 mm

TRACTOR- MODEL NUMBER 917.258010

GROUND DRIVE

18 113

119

TRACTOR - MODEL NUMBER 917.258010

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ...... TransasleDana D4360-139 48 154407

(Order partsfromtransaxla 49 123205X

Manufacturer) 50 74760624

Spring Retum Brake T/a Zinc 51 73680600

PulleyTransaxla 18/20" tires 52 73680500

RingRetaioer # 5100-62 53 105710X

StrapTorque30 Degrees 55 105709X

Screw 5/16-18 x 3/4 56 1706o0620

Bracket Saddle ShiftT/a 57 160855

Rod Shf Sdl LY/YT Str BIk 59 169691

Pin Cotter 1/8 x 1 Cad 61 17120614

Washer Plate 388 Sq Hole 62 888_R

Washer 15/32 x 3/4 x 16ga 63 175410

Bolt 1/4-28unf Gr8 W/Patch 64 71170764

Washer LockI-IvyHelical 1/4 65 10040700

BoltHex Flghd5/16-18 x Gr. 5 66 154778

Bolt Fin Hex 3/8-16 UNC x I Gr. 70 134683

2 146682

3 123666X

4 12O00028

5 121520X

6 17000512

7 162240

8 131679

10 76020416

11 105701X

12 19151216

13 74550412

14 10040400

15 74490544

18 74780616

19 738O0600

21 l(To933X

22 13O8O4

24 73350600

25 106888X

27 76020412

28 175765

29 71673

30 174973

32 74760512

34 175578

35 120183X

36 19211616

37 1572H

38 179114

39 74760648

41 175556

47 127783

Nut LockHex W/Ins. 3/8-16 Unc

Knob Rd 1/2-13 PlstcThds

Rod Brake BIkZinc 26 840

Nut HexJam 3/8-16 Uric

Spdng Rod Brake2 00 Zinc

PinCotter 1/8 x 3/4 Cad

RodBrake Parking Lt/Yt

Cap Brake Parking

Bracket Mtg Transaxla

BoltHex Hd 5/t6-18unc x 3/4

Shaft AsmPedal FootNibbod

Beadng Nylon BIk629 Id

Washer 21/32 x 1 x 16 Ga

PinRoll 3/16x 1"

PulleyComposite Rat

Bolt Fin Hex 3/8-16 UNC x 3 Gr.

74 10950P_X

75 121749X

76 12000001

77 123583X

78 121748X

79 2228M

96 4497H

112 19091210

113 127285X

116 72140608

119 19131016

120 73900600

150 175456

151 19133210

170 178394

202 72110614

212 145212

250 17O60612

Keeper Belt Idler

PulleyIdler V Groove Plastic

BellcrankAsm. Clutch

Retainer BeltStyle Spdng

BoltHex Hd3/6-16unc x1-1/2

NutCrowniock 3/8-16 UNC

NutCrown Lock5/16-18

LinkClutch 7 66

SpdngReturnClutch6 75

Screw3/8-16 x 1-1/4

V-Belt Gd Drive 9530

KeeperBeltCentarspan

Screw3/8-16 x .875

Cover Pedal BIk Round

PulleyEng CI Cable

BoltHex 7/16-20 x 4 Gr 5

Washer LockHIclSpr 7/16

Keeper BeltEngineFP

GuideBolt Mower DriveRH

SpacerAxle

Washer 25/32 x 1-1/4 x16 Ga

E-dng#5133-75

Key Squere 2 0 x 1845/1865

Washer 25/32 xl-5/8 x 16 Ga

Key Woodruff#9 3/16 x 3/4

RetainerSpdng 1

Washer 9/32 x 3/4 x 10 Ga

StrapTorque LH LT

Bolt3/8-16 x 1

Washer 13/32 x 5/8 x 16 Ga

Nut Lock Fig3/8-16

SpacerRetainer

Washer 13/32 x 2 x 10 Ga.

Keeper BeltTransaxle Gear

BoltCan'. Sh 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensionsgivenin U. S.

inches 1 inch = 25.4 mm

STEERING

TRACTOR - MODEL NUMBER 917.258010

s-.

~l"

IrT J _ \t 't....,.,.,._. 1

i ..... -1____.J I

I _42

/ r

\'\ ,°

\._

I / z! i I II 8

STEERING

TRACTOR - MODEL NUMBER 917.258010

KEY PART

NO. NO. DESCRIPTION

1 140044X428 SteedngWheel

2 175131 Axle Assembly

3 169840 SpindleAssembly, LH.

4 169839 SpindleAssembly, R.H.

5 f_6H Bearing,Race, Thrust,Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring,Klip

9 3366R _)t_dng, SteeringCo|umn

10 175121 Draglink

11 10040600 Washer, Lock

12 73940800 Nut Hex Jam TOplock1/2-20

13 136518 Spacer BearingAxle Front

15 145212 Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing,Link,Drag

28 19131416 " Washer 13/'32x7/Sx16Ge'_ge

29 17060612 Sorew, 3/8-16 x 3/4

30 76020412 Pin

32 130465 Rod,Tie

36 155099 Bushing,Steering

37 152927 Screw

38 140045X428 Cap, SteeringWheel

39 18183812 Washer 9/16 x 2-3/8

40 "/810H G_pco Nut

41 100711L Adaptor,SteeringWheel

42 145054X428 Boot, Steering

43 121749)( Washer 25/32 x 1-114x 16 Gasge

44 180460 Shaft Extension Steedng

46 121232X Cap, Spindle

47 6855M Fitting,Grease

51 73540400 Nut 1/4-28

54 71130420 Belt Hex 11428 x 1-1/4

65 160367 Spacer Brace Axle

67 72140618 Bolt, Rdhd Sq 3/8-16 UNC x 2-1/4

68 169827 Ax|e, Brace

71 175146 SteeringAsm

82 169835 Bracket Susp Chassis Front

85 133835 Fastener ChdstmasTme

88 175118 ShoulderBolt

91 175553 ClipSteedng

NOTE: All componentdimensionsgiven inU. S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NUMBER 917.258010

ENGINE

'33

.-._:....._,.....

_;_._* S _ i lllpi_# Ii .z_

OPTIONAL EQUIPMENT

Spark Arrester

TRACTOR - MODEL NUMBER 917.258010

ENGINE

KEY PART

NO. NO. DESCRIPTION

170551

1772O4O8

4 137352

13 165291

14 148456

16 11O5O60O

23 169837

29 137180

31 1(_J202X

32 15899O

33 123487X

37 137040

38 148315

40 124028X

44 17670412

45 17000612

46 19091416

62 10O4O500

72 71079512

78 17060620

81 7351O4OO

Contr_TWch

Screw Hex Thd Cut 1/4-20 x 1/2

EngineBriggsModel287707-1259-E1

(Orderpartsfrom EngineManufacturer)

Muffler

Gasket Eng 1 313 IdTin Plated

Tube Drain Oil Easy

Washer LockExt Tooth 3/8

ShieldBrowning

Kit Spark Arrestor(Flat Scrn)

Tank Fuel Front 1 25

CapAsm Fuel

ClampHose BIk

LineFuel20"

PlugDrain OilEasy

BushingSnap Nyl BIkFuel Una

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex WshThdrol 3/8-16

Washer 9/32 x 7/8 x 16 ga

Washer Lock Hvy HIclSpr 5/16

ScrewHexhd Cap 5/16-18 x3/4

Screw 5/8-16 x %1/4

Nut KepsHex 1/4-20 UNC

NOTE: Allcomponent dimensionsgivenin U. S.

inches 1 inch = 25.4 mm

TRACTOR- MODELNUMBER 917.258010

SEATASSEMBLY

_15

6 22

KEY PART

NO. NO. DESCRIPTION

1 127427 Seat

2 140551 Bracket Pvt St

3 71110616 BoltFin Hsx 3/8-16unc x 1

4 19131610 Washer Fiat 13/32 xl xl0Ga

5 145006 Clip Push-inHinged

6 73800600 Locknut Hax W/Wsh 3/6-16

7 124181X Spring Seat Cprsn 2 250 BIk

8 17000616 Screw 3/8-16 x 1

9 19131614 Washer 13/32 x 1x 14 Ga

10 182493 Pan Seat

11 166369 Knob Seat Adj. Wingnut

12 121246X Bracket MountingSwitch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 738O050O

24 19171912

25 127018X

BushingSnap BIk Ny150 Id

BoltRdhd Sht 1/4-20xl-1/2

Spacer Split28x 96 Yel Zinc

Spring Cprsn I 27 BIk Pnt

Nut Lock 1/4 Lga Fig Gr5

BoltShld 5/16-18 Unc

Nut LockHexW/Ins 5/16-18

Washer 17/32 x1-3/16x12 Ga

BoltShoulder5/16-18 x 62

NOTE: All componentdimensionsgiven in U. S.

inches 1 inch-- 25.4 mm

TRACTOR - MODEL NUMBER 917.258010

DECALS

KEY PART

NO. NO.

I 177097

2 176675

3 171704

4 163204

5 145005

6 182166

7 172275

8 140837

9 159736

KEY PART

DESCRIPTION NO. NO.

Decal LowerDash 11 145498

Decal Engine 12 159737

DecalHood 13 146046

DecalFender 15 136832

Decal BatteryDanger - - 138311

Decal CutfingerCE .02

DeoalStearing - - 162598

Decal Brake ParkingSaddle - - 183210

Decal Chassis Hot Muffler - - 183211

DESCRIPTION

Dscal Fender Danger

Decal, Clutch/BrakeEng

Decal V-Belt Dr Sch tractor

Decal V-Belt sch

Decal Handle LftHeight

Adjust (LiftHandle)

Decal DrawBar Load Limit

Owner's Manual,English

Owner's Manual,Spanish

WHEELS AND TIRES

2_ 5,8

4,10

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 124635X

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Valve Tire

SternValve

Tire F Ts 15 X 6 0 - 6 Service

Tube Front(Service ItemOnly)

Rim Asro6"frontWhite Service

FittingGrease (FrontWheelOnly)

BearingFlange(frontWheel

Only)

RimAsm 8"roarWhiteService

Tire Rear

Tube Rear (Service Item Only)

Cap Axle BIkI 50 X I 00

Sealant, Tire ( 10 oz. Tube)

NOTE: All componentdimensionsgiven in U. S.

inches 1 inch = 25.4 mm

TRACTOR - MODEL NUMBER917.258010

LIFTASSEMBLY

// /

/ /

/' I

TRACTOR - MODEL NUMBER 917.258010

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Wire Asm InnerW/plunger

2 159471 Shaft Asm Lift

3 105767)( Pin Groove 1500 Zinc

4 120000(_ E Ring#5133-62

5 19211621 Washer Pltd 21/32 X 1X 21ga

6 120183X Bearing Nylon BIk629 Id

7 125631X Grip Handle FlutedBIk

8 122365X ButtonPlungerRed

11 139865 Link Lift LH

12 139866 Link Lift RH

13 4939M RetainerSpdng

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 Une

17 175689 TrunnionBIkZinc

18 73800800 Nut Lock w,_Nsh1/2-13 UNC

19 139868 ArmSuspensionRear

20 163,552 Retainer SpringZinc

31 169865 Bearing Pvt Lift

32 73540600 Nut Crownlock 318-24

NOTE: Allcomponentdimensionsgiven in U. S.

inches 1 inch = 25.4 mm

TRACTOR - MODEL NUMBER 917.258010

MOWER DECK

TRACTOR - MODEL NUMBER 917.258010

MOWER DECK

KEY PART

NO. NO.

1 170__80

2 72140506

3 138017

4 169970

5 4939M

6 178024

8 85O857

9 10030600

10 14(Y296

11 134148

13 137645

14 128774

15 110485X

16 174493

19 132827

21 73680500

23 137607

24 105304X

25 123713X

26 110452X

27 106736X428

28 19111016

29 106735X

30 173984

31 129963

32 153532

33 178342

36 131494

4O 7368O60O

45 4497H

53 13O840

54 133943

55 13384O

56 165723

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

MowerHousingAssembly 67 149846

Bolt,Carriage 5/16-18 x3/4 68 144200

BracketAsm. Fram Sway Bar 69 76020312

Bracket,Asm. Deck Sway 86 7631J

Bar 87 128772

Retainer,Spdng 88 19111216

Bar Sway Deck 89 19131612

Bolt,Hex 3/8-24 x 1-1/4 Gr 8 96 74930620

Washer, Lock, HlclSprg 3/8 97 73930600

Washer, Hard BladeMower 107 133502

Vented 108 133503

Blade, Mower,Mulching38" 109 74760640

Shaft and BeadngAasembly 110 142587

(Includas KeyNumber 15) 113 17060512

MandrelHousing,Vented 122 131289

BallBeadng,Mandrel 123 169971

Stdppar,Mower,Vented 146 165891

Bolt, Shoulder 148 169022

Nut, Crownlock 5/16-18 149 165898

Bracket,Mower Deflector 150 19091216

Cap, Sleeve 151 169670

Spring,Deflector 152 172758

Nut, Push 153 169674

Shield, Deflector 154 169675

Washer 11/32 x 3/4 x 16 Ga 155 169671

Rod,Hinge 156 169672

Scraw,Thdm 157 169669

Washer, Spacer 158 17720408

Pulley,Mandrel

Nut, Flangelock 9/16 - - 130794

Pulley, Idler, Flat

NutCrownlock3/6-16

Retainer,Spdng

BrakeAssembly - - 171665

Washer Hardened

IdlerArmAssembly

Spacer,Retainer

Knob

Belt

Pin, Cotter 3/32 x 3/4

Runner,LH

Runner,RH

Washer 11/32 x 3/4 x 16 Ga

Washer 13/32 x 1 x 12 Ga

Bolt3/8-16 x 1-1/4

Nut Centedock 3/8-16

Spacer, Retainer

Stiffener, IdlerArm

Bolt, Hex Head 3/6-16 x2-1/2

UpstopDeck Front38"

Screw 5/16-18 x 3/4

Rod, Brake, LH

ROd,Brake, RH

BOltCardage Idler

Spdng ReturnIdler

RetainerSpdngYellowZinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch38 In

Washer Flat 3/8" Type B

Spdng Retainer

SpdngRetentionLever

Spacer

ROdClutch

ScrewHex ThdCut

1/4-20 x 1/2

MandrelAssembly(Includes

Housing, Shaft and Shaft

HardwareOnly-PulleyNot

Included)

ReplacementMower,Complete

NOTE: All componentdimensionsgiven inU. S.

inches 1 inch = 25.4 mm

TRACTOR - MODEL NUMBER 917.258010

DANA TRANSAXLE-MODEL NUMBER D4360-139

11.

TRACTOR - MODEL NUMBER 917.258010

DANA TRANSAXLE-MODEL NUMBER D4360-139

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170981 Housing, Upper 41 105928X Sprocket, 9T

2 2274J Screw, Tapping, 1/4-20 X 42 170988 Gear, Bevel, 36T

.734 43 134394 * Assy, Kit, Shim, .750 Shaft

3 134400 Ball, Detent 44 120473X Shaft, Ddve

4 105904X Spdng, Detent 45 142678 Gear, Spur, 12T

5 160940 Screw, Tapping, No. 10-24 X 46 124641 X Gear, Spur, 20T

.482 47 106589X Gear, Spur, 25T

6 138235 As_, Kit, Shifter 48 120408X Gear, Spur, 28T

7 108727X V-Ring 49 105937X Gear, Spur, 31T

8 148266 Beadng, Flange 50 105936X Spacer, .781 X 1.00 X .375

9 148269 Seal, Oil 51 2226J Washer, Plain, .632 X 1.00

10 2225J Ring, Retaining X .060

11 134793 * Assy, Kit, Shim, .625 Shaft 52 134401 Washer, Neoprene

12 148268 Beadng, Flange 53 2264J Washer, Plain, .758 X 1.25

13 120415X Washer, Plain, .632 X 1.38 X .031

X .046 54 160946 Axle, LH

14 142674 Key, Woodruff, No. 9 55 170990 Gear, Miter, 1",Splined

15 170983 Assy, Kit, Input Shaft 56 160948 Ring, Retaining

16 170986 Pinion, Bevel, 12T 57 110071X Gear, Spur, 32T

17 105909X Rinq, Retaining 58 120952X Shaft, Cross

18 105910X Chain, 24 Pitches 59 170991 Gear, Miter, 1 2T, Idler

19 160942 Cover, Detent 60 160950 Axle, RH

20 160943 Gear, Spur, 1 2T 61 170992 Housing, Lower

21 148267 Collar, Clutch 62 7294J Disc, Brake

22 138236 Assy, Kit, Clutch Keys 63 108989X Spacer, Brake Puck

23 73810500 Nut, Lock, 5/16-24 64 160952 Jaw, Brake

24 142676 Shaft, Intermediate 65 120954X Pin, Dowel

25 2244J Key, Woodruff, No. 61 66 160953 Screw, Tapping, 5/16-18 X

26 105916X Ring, Retaining 2.35

27 12047OX Sprocket, 1 8T 67 138244 Lever, Actuating

28 110070X Spacer, 1. 131 X 1.45 X 68 108996X Washer, Plain, .321 X 1.00

.494 X .055

29 142677 Gear, Spur, 373" 69 160954 Bracket, Anti-Rotation

30 124644X Gear, Spur, 30T 70 120951X Puck, Friction

31 108980X Gear, Spur, 25"1" 71 174256 Washer, Anti Rotation

32 120406X Gear, Spur, 22T 72 120416X Grease

33 134796 Gear, Spur, 1 9T

34 134797 Spacer, 1. 133 X 1.50 X NOTE: All component dimensions given in U.S.

.375 inches 1 inch = 25.4 mm

35 105925X Washer, Plain, .640 X 1.37

X .061 * Usa in various combinations to maintain

36 2228J Washer, Plain, .632 X 1.00 proper clearances.

X .046

37 170987 Washer, Plain, .632 X 1.00 * * Order Key No. 15.

X .031

38 174255 Ass,j, Gear, Comb., 12T & * * * Silicone Sealant to be applied between

30T

Upper and Lower Housings (use Loctito Ultra

39 124639X Shaft, Idler Gray Silicone 5699 or equivalent).

40 120472X Spacer, .633 X .87 X .755

TRACTOR - MODELNUMBER917.258010

BRIGGS&STRATTONENGINE-MODELNUMBER287707,TYPENUMBER1259-E1

* REQUIRES SPECIALTOOLS _3_9

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL

1022 6_ "-

1023_J 383_

13J

307_

10*o

552

391

TRACTOR - MODEL NUMBER 917.258010

BRIGGS & STRATFON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

467_ 971

968 /

"_J'_'J ,.0

t 1019 LABEL KIT I -Jt¢_

I 1058 OWNER'S MANUAL I

_" 202

875_ 711_

127 (_

TRACTOR- MODEL NUMBER 917.258010

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

803

[ 1036 LABEL-EMISSIONS I

729A_ 304

524_

789A_2. 733_ 75_

1051

TRACTOR - MODEL NUMBER 917.258010

BRIGGS & STRA'R'ON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1259-E1

977 CARBURETOR GASKET SET

_137 O51 276 _)

NIKKI

125A1 141B I_1 Y_I

I130A(._ .I 231A_'Ul

217" ___

127A01'_ I eTjAJ

lO6.€ .7...

121 CARBURETOR OVERHAUL KIT

I0_ 1270276_ _87@es,_

634A_ s_ 1170 231_142LI

1°66

358 ENGINE GASKET SET

121A CARBURETOR OVERHAUL KIT

51 _ 95A _ 276A (_)

104A_ 127A

lO6A_987A®_

137A O 231A_

977A CARBURETOR GASKET SET

_"'_'_ 137A O

51 _'_ 276A (_

TRACTOR - MODELNUMBER917.258010

BRIGGS& STRATTONENGINE-MODELNUMBER287707,TYPENUMBER1259-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 496412

2 399265

3 391086

4 494238

5 691165

7 273280

8 495735

9 27803

10 691666

11 691328

12 692226

692406

692405

13 690360

15 690946

16 690136

20 291675

22 692125

23 693557

24 222698

25 499284

499288

499292

495979

26 495854

495852

495851

495855

27 691299

28 498319

498320

29 692419

499940

32 692852

33 495856

34 495857

35 691279

36 691279

37 690456

40 691752

43 691968

45 690564

46 692421

48 496050

__.linderAssembly

KJt-Bushing/Seel

_ Seal-Oil (Magneto Side)

Sump-Engine

Head-Cylinder

• Gasket-CylinderHead

Breather Assembly

• Gasket-Breather

Screw (BreatherAssembly)

Tube-Breather

• Gasket-Crankcase (.015

Thick, Std)

• Gasket-Crankcase (.005

Thick)

• Gasket-Crankcase (.009

Thick)

Screw (CylinderHead)

Plug-OilDrain

Crankshaft

• Seal-Oil

Screw (CrankcaseCover)

Flywheel

Key-Flywheel

PistonAssembly(Standard)

PistonAssembly(.010 O.S.I

PistonAssembly(.020 O.S.I

PistonAssembly(.030 O.S.;

Ring Set-Piston(Standard)

Ring Set-Piston(.010 O.S,)

Ring Set-Piston(.020 O,S.)

Ring Set-Piston(.030 O.S.)

Lock-PistonPin

Pin-Piston(Standard)

Pin-Piston(,020 O.S.)

Rod-Connecting(Standard)

Rod-Connecting(.020 U.S.)

Screw (ConnectingRod)

Valve-Exhaust

Valve-Intake

Spring-Valve (Intake)

Spring-Valve (Exhaust)

Guard-Flywheel

Retainer-Valve

Slinger-Govemor/Oil

Tappet-Valve

Camshaft

Short Block (311707-0028-

E1 Replacement Engine)

50 690193 Manifold-Intake

51 692137• _€+ Gasket-Intake

53 690227 Stud (Carburetor)

54 691148 Screw (Intake Manifold)

73 690492 Screen-Rotating

74 691655 Screw (Rotating Screen)

75 690582 Washer(Flywheel)

78 690661 Screw (Flywheel Guard)

93 690602 Bushing-Throttle Shaft

94 498030 Kit-Idle Mixture

94A 695425 Kit-Idle Mixture

95 691636 (_ Screw ('rhrottie Valve)

95A 690718 O Screw (Throttle Valve)

96 495800 Kit-Idle Speed

98A 695408 Kit-Idle Speed

104 690525 _ Pin-Float Hinge

104A 694918 _ Pin-Float Hinge

105 231855 _ Valve-Float Needle

105A 694922 _ Valve-Float Needle

106 691780 _ Seat-Inlet

108 690464 Valve-Choke

(Manual Choke)

108A 692344 Valve-Choke

(Choke-A-Matic)

108B 695419 Valve-Choke

117 692408 _ Jet-Main (Standard)

692411 Jet-Main (High Altitude)

117A 695415 _ Jet-Main (Standard)

695416 _ Jet-Main (High Altitude)

121 690191 Kit-Carburetor Overhaul

(Walbro)

121A 695427 Kit-Carburetor Overhaul

(Nikki)

125 690194 Carburetor

125A Carburetor (Nikki) (Service

with Walbro Carburetor)

127 695005 _ Plug-Welch

127A 690727 _ Plug-Welch

130 691750 Valve-Throttle

130A 695416 Valve-ThrotUe

131 494379 Kit-ThrotUe Shaft

131A 695421 Kit-Throttle Shaft

133 494381 Roat-Carburetor

133A 695914 Roat-Carburetor

137 281165 _: Gasket-Float Bowl

137A 695426 O:_ Gasket-Float Bowl

141 495097 Kit-Choke Shaft (Manual

Choke)

141A 495931 Kit-Choke Shaft (Choke-A-

Matic)

141 B 695420 Kit-Choke Shaft

142 692412 _ Nozzle-Carburetor

146 691639 Key-Timing

167 692297 Air Cleaner Stud Seal

176 691917 • O-Ring Seal (Air Cleaner)

186 692317 Connector-Hose

187 691050 Line-Fuel (Cut to Required

Length)

188 691693 Screw (Control Bracket)

192 691986 Ad ustar-Rocker Arm

202 691841 Lnk-Mechanical Governor

209 692206 Spring-Governor

216 691840 Link-Choke

217 695409 Spring-Choke Return

222 694042 Bracket-Control

227 691374 Control Lever-Governor

231 691636 _ Screw (Choke Valve)

231A 690718 O Screw (Choke Valve)

232 691842 Spring-Governor Link

238 691843 Cap-Valve

240 394358 FUter-Fual

265 691024 Clamp-Casing

267 695134 Screw (Casing Clamp)

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

• Included in Engine Gasket Set, Key. No.

358

O Included in Carburetor Overhaul Kit, Key.

No. 121 and 121A

:l: Included in Carburetor Gasket Set, Key.

No. 977 and 977A

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All componentdimensionsgivenin U.S.

inches1 inch= 25.4 mm.

TRACTOR - MODEL NUMBER 917.258010

BRIGGS &STRATTONENGINE-MODEL NUMBER 287707,TYPE NUMBER 1259-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

276 692255 _:1: Sealing Washer 797 693167

276A 695410 O:1: Sealing Washer 801 691429

287 691002 Screw (Dipstick Tube) 802 691286

304 690844 Housing-Blower 803 693757

305 690960 Screw (Blower Housing) 830 691095

306 690499 Shield-Cylinder 842 691870

307 691003 Screw (Cylinder Shield) 847 496415

309 693551 Motor-StaRer 851 692424

310 690323 Screw (StaRer Motor) 868 690968

311 497608 Brush Set 871 690969

333 495859 Armatura-Magneto 875 694942

334 691061 Screw (Armature Magneto) 877 393456

337 491055 Spark Plug 883 692236

344 693675 Screw (Cable Clamp) 914 690960

358 691580 Engine Gasket Set 934 691058

363 19203 Flywheel Puller 947 497672

369 695422 Spring-Ftoat Bowl 947A 695423

383 89838 Wranch-Spark Plug 967 272043

404 691691 Washer (Governor Crank) 968 691916

445 496894 Filter-Air Cleaner Cadddge 971 692129

455 691173 Cup-Flywheel 975 495933

462 691261 Washer (StaRer Cable) 975A 695417

467 691668 Knob-Air Cleaner 977 690192

474 691063 Alternator

503 691532 Strap-StaRer 977A 695428

505 691251 Nut (Governor Control

Lever) 987 691326

510 693699 Drive-Starter 987A 690998

513 692024 Clutch-Ddve 996 690678

523 692014 Dipstick 1005 695056

524 281370 • Seal-Dipstick Tube 1006 690452

525 691398 Tube-Dipstick 1019 496758

544 692034 Armatura-Stadsr 1022 272475

552 491986 Bushing-Governor Lever 1023 691192

562 691119 Bolt (Govemor Control 1026 692003

Lever) 692011

579 691029 Nut (Starter Cable) 1029 691751

601 95162 Clamp-Hose 1034 690822

614 691620 Pin-Cotter 1036 695700

616 692012 Crank-Governor 1051 691265

617 692138 • O-Ring Seal (Intake 1058 274789

Manifold) 1090 691293

633 695414 Seal-Choke/Throttle Shaft 1091 691333

634 690801 I_ Seal-Spring Assembly 1095 691581

(Manual Choke) 1119 691183

634A 690802 I_ Seal-Spring Assembly 1127 691657

(Choks-A-Matic) 1127A695407

635 691909 Boot-Spark Plug

668 691323 Spacer

691 692407 • Seal-Governor Shaft

692 690572 Swing-Detent

697 690372 Screw (Drive Cap)

711 690703 Screw (Carburetor Shield)

718 690959 Pin-Locating

727 490324 Cover-StaRer Ddve

729 691335 Clip-Wire

729A 691224 Clip-Wira

732 691002 Screw (StaRer Drive Cover)

733 691658 Screw (Flu/wheel)

741 691284 Gear-Timing

757 691714 Link-Counterweight

758 692423 Counterweight

759 691239 Pin-Counterweight

761 691096 Screw (Counterweight)

783 693713 Gear-Pinion

789 692037 Hamass-Widng

789A 695050 Hamass-Wiring

Nut (BrushRetainer)

Cap-Drive

Cap-End

Housing-Starter

Stud (RockerArm)

• Dipstick/TubeSeal

Dipstick/TubeAssembly

Terminal-SparkPlug

•+ Seal-Valve

Bushing-Guide

Base-Air Cleaner

Wire-Connector/Alternator

Gasket-Exhaust

Screw(RockerCover)

ScrewIFan Retainer)

Solenoid-Fuel

Rlter-Pre Cleaner

Cover-AirCleaner

Screw (AirCleaner Base)

Bowl-Float

Set-CarburetorGasket

_e/ealbre)

t-CarburetorGasket

(Nikld)

• Seal-Throttle Shaft

• SeaI-Threttle Shaft

Carburetor Shield

Fan-Flywheel

Retainer-Fan

Kit-Label

•+ Gasket-RockerCover

Cover-Rocker

Rod-Push (Intake)

Rod-Push (Exhaust)

Arm-Rocker

Guide-Push Rod

Label-Emissions

Retainer-Brush

Owner's Manual

Retainer-Brush

Cap-Limiter

Valve Gasket Set

Screw (Alternator)

Screw(Roat Bowl)

Screw(FloatBowl)

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

• Included in Engine Gasket Set, Key. No.

358

Q Included in Carburetor Overhaul Kit, Key.

No. 121 and 121A

-1: Included in Carburetor Gasket Set, Key.

No. 977 and 977A

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1, Fold this page along dotted line indicated above.

2. Hold page before you so that Its left edge is vertically parallel to e tree

trunk or other upright structure.

3. Sight across the fold In the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Forrepairofmajorbrandappliancesin your own home...

nomatterwhomade it,no matterwhosold

1-800-4-MY-HOME _ _, dayornight

(1_) (U.SAandCanada)

I_€_N.SOW_ltl WWW,_q6Ek'I_I

For repair ofcany-in products likevacuums, lawn equipment, and

electronics,call for the nearest Sears Parts and Repair Center.

1-800-488-1222 AnyUme,dayorn_ (U.SJ_o_y)

WWWM

Forthereplacementparts,accessoriesandowner'smanuals

that youneedto de-it-yourself,callSears PartsDirectS_!

1-800-366-PART 6 a.m.- 11p.m., 7daysaweek

(14_o_6_72-/8) (u.s.__y)

www_ear&com/parts_rect

To purchase orinquireabouta SearsServiceAgreement

orSears MaintenanceAgreement

1-800-827-6655 (U.SA) 1-800-361-6665 (Canada)

7 a.m.- 5 p.m.,CST,Mort.- Sat. 9 a.m.-8 p.m.EST, M- F,4 p.m.S,_

Parapedrserviciode repamci_a

domici'_o,y paraordenarpiezas:

1.888-SU.HOGARsu

(1-8_-_

AuCanadapoursenseenfm_;ai_

1-800-LE-FOYERuc

(1-e(x)-_._7)

WWW.S_IIs.ca

® Registered Trademark / "ruTrademark / saService Mark of Seam, Roebuck and Co.

® Mama Ragistrada/"rM Mama de Fdbdca/su Mama de Serviciode Searsm,Roebuck and Co.

MCMarque de commerce / MOMarque d6pos6e de Sears, Roebuck and Co.

183210 3.21.02 TR Printed in U.S.A.

Craftsman 917258010 tractor

Product's Documents

User Manual

Specifications

Craftsman 917258010 Questions and Answers
