2
Table of Contents
Table of Contents
Introduction ...................................................................................................................3
B
efore You Begin....................................................................................................................................... 3
For Your Safety........................................................................................................................................... 4
Using the Lens ............................................................................................................... 6
Parts of the Lens: Names and Functions...........................................................................................6
Attachment and Removal....................................................................................................................11
Attaching and Removing the Lens Hood.......................................................................................14
Precautions for Use................................................................................................................................ 16
Lens Maintenance.................................................................................................................................. 17
Technical Notes ........................................................................................................... 18
Cameras with AF-Assist Illuminators............................................................................................... 18
Using the Lens on Cameras with a Built-in Flash.........................................................................19
Accessories................................................................................................................................................20
Specications........................................................................................................................................... 22
Notices........................................................................................................................................................24
3
Before You Begin
Introduction
Before You Begin
Before using this product, please read these instructions carefully. You will also need to
c
onsult the documentation provided with the camera.
･ This lens is intended exclusively for use with mirrorless cameras featuring a Nikon Z
mount.
･ Update the camera firmware to the latest version. With earlier versions, the camera
may fail to detect the lens correctly and some features may not be available. The
latest version of the camera firmware can be downloaded from the Nikon Download
Center at the URL below.
https://downloadcenter.nikonimglib.com/
No reproduction in any form of this document, in whole or in part (except for brief
quotation in cr
itical articles or reviews), may be made without written authorization
from NIKON CORPORATION.
4
For Your Safety
For Your Safety
To prevent damage to property or injury to yourself or to others, read “For Your Safety”
in its en
tirety before using this product.
After reading these safety instructions, keep them readily accessible for future
reference.
W
ARNING: Failure to observe the precautions marked with this icon could result in
death or severe injury.
C
AUTION: Failure to observe the precautions marked with this icon could result in
injury or property damage.
WARNING
Do not disassemble or modify this product. Do not touch internal parts that
b
ecome exposed as the result of a fall or other accident.
Failure to observe these precautions could result in electric shock or other injury.
Should you notice any abnormalities such as the product producing smoke,
heat
, or unusual odors, immediately disconnect the camera power source.
Continued operation could result in re, burns or other injury.
Keep dry. Do not handle with wet hands.
Failure to observe these precautions could result in re or electric shock.
Do not use this product in the presence of ammable dust or gas such as
propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or re.
Do not directly view the sun or other bright light source through the lens.
Failure to observe this precaution could result in visual impairment.
Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product malfunction. In
addition, note that small parts constitute a choking hazard. Should a child swallow
any part of this product, seek immediate medical attention.
Do not entangle, wrap or twist the straps around your neck.
Failure to observe this precaution could result in accidents.
5
For Your Safety
Do not handle with bare hands in locations exposed to extremely high or low
t
emperatures.
Failure to observe this precaution could result in burns or frostbite.
CAUTION
Do not leave the lens pointed at the sun or other strong light sources.
Ligh
t focused by the lens could cause re or damage to product’s internal parts.
When shooting backlit subjects, keep the sun well out of the frame. Sunlight focused
into the camera when the sun is close to the frame could cause re.
Do not leave the product where it will be exposed to extremely high
t
emperatures, for an extended period such as in an enclosed automobile or in
direct sunlight.
Failure to observe this precaution could result in re or product malfunction.
Do not transport cameras or lenses with tripods or similar accessories attached.
F
ailure to observe this precaution could result in injury or product malfunction.
7

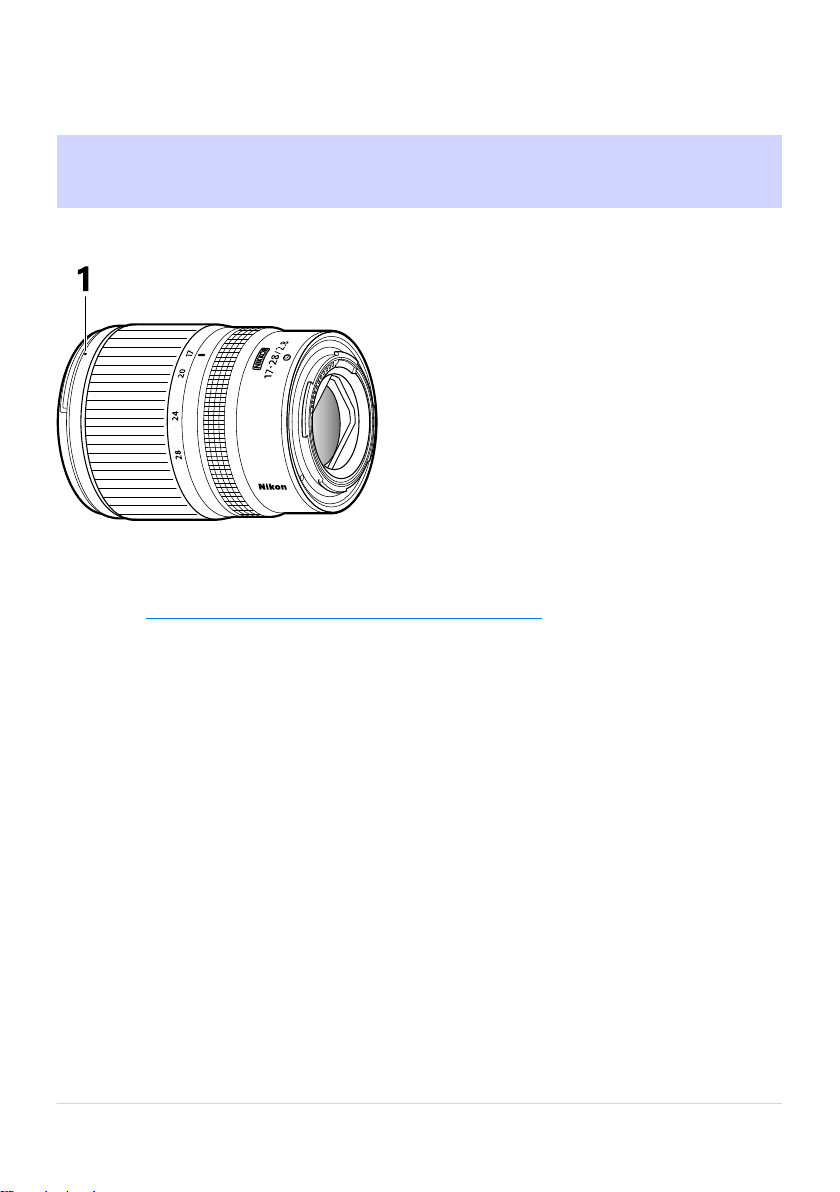

Parts of the Lens: Names and Functions
2
Zoom ring
R
otate the ring to zoom in or out.
3
Focal length scale
Determine the approximate focal length when zooming the lens in or out.
4
Focal length mark
Determine the approximate focal length when zooming the lens in or out.
5
Control ring
･ Autofocus mode selected:
Rotate the ring to adjust a setting such as [Focus (M/A)] or [Aperture]
assigned using the camera. For more information, see the description of
[Custom control assignment], [Custom controls], or [Custom controls
(shooting)] in the documentation provided with the camera.
･ Manual focus mode selected:
Rotate the ring to focus.
8
Parts of the Lens: Names and Functions

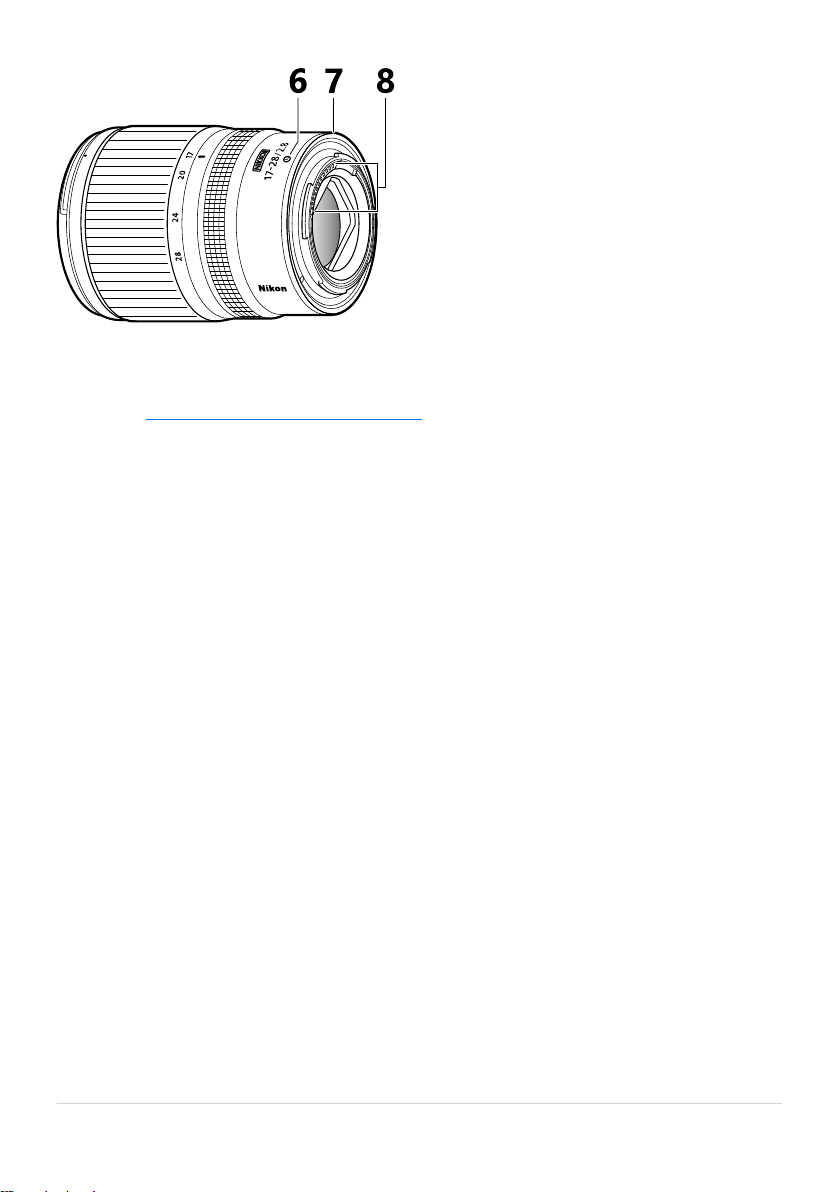

6
Lens mounting mark
U
se when mounting the lens on the camera.
0
“Attachment and Removal” (p.11)
7
Rubber lens-mount gasket
Helps pr
event the ingress of water droplets or dust along the surfaces where
the lens and camera meet when the lens is mounted on the camera.*
* There is no guarantee that the gasket is completely proof against the ingress
of water droplets or dust in all circumstances.
8
CPU contacts
Used to transfer data to and from the camera.
9
Parts of the Lens: Names and Functions
9
Lens hood
L
ens hoods block stray light that would otherwise cause are or ghosting. They
also serve to protect the lens.
0
“Attaching and Removing the Lens Hood” (p.14)
10
Lens hood lock mark
U
se when attaching the lens hood.
0
“Attaching and Removing the Lens Hood” (p.14)
11
Lens hood alignment mark
U
se when attaching the lens hood.
0
“Attaching and Removing the Lens Hood” (p.14)
10
Parts of the Lens: Names and Functions

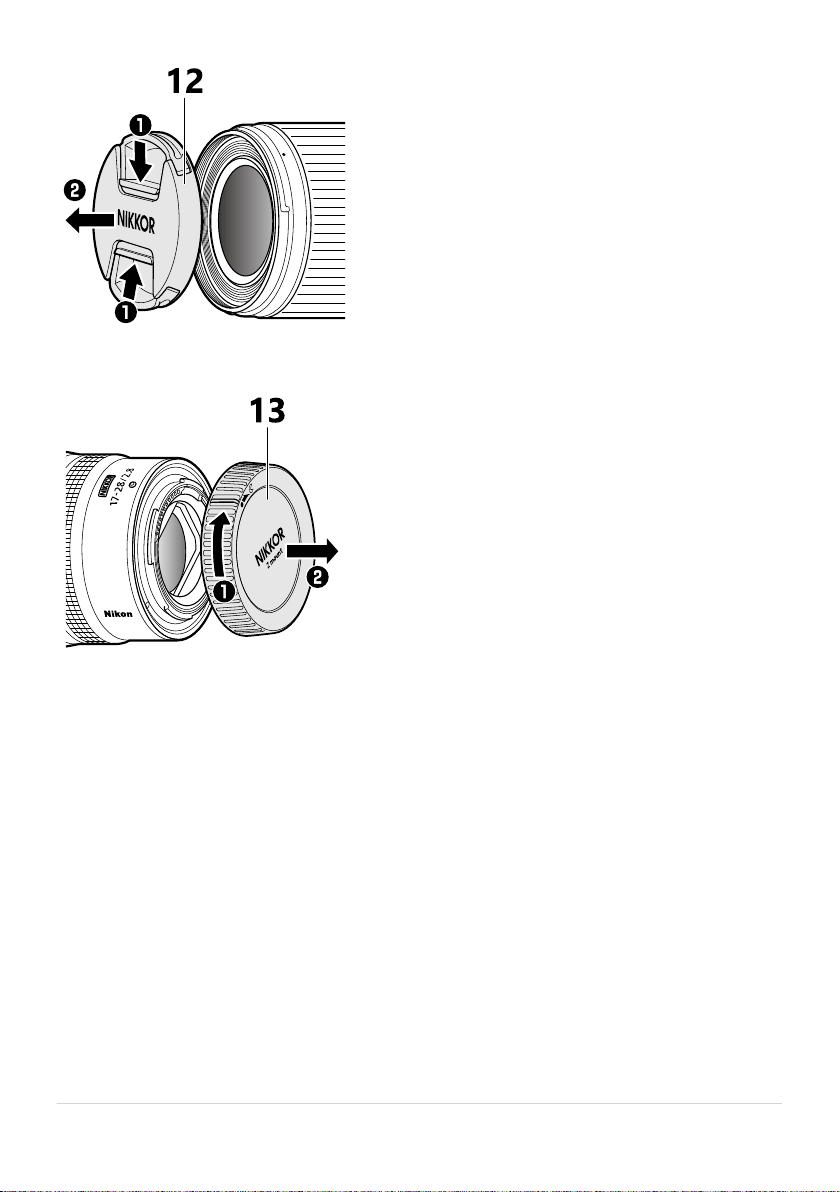

12
Lens cap (front cap)
13
Lens cap (rear cap)
11
Attachment and Removal
Attachment and Removal
Attaching the Lens

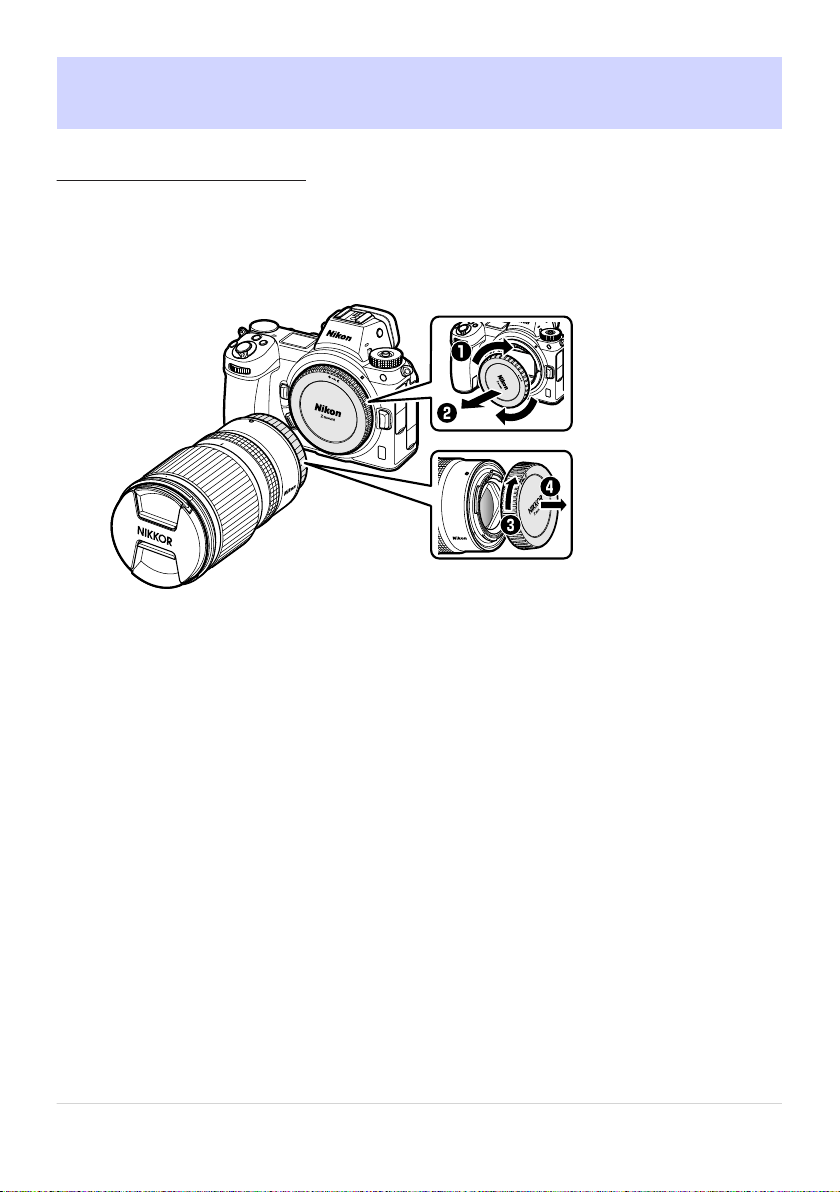

1.
Turn the camera o, remove the body cap, and detach the
rear lens cap.
12
Attachment and Removal

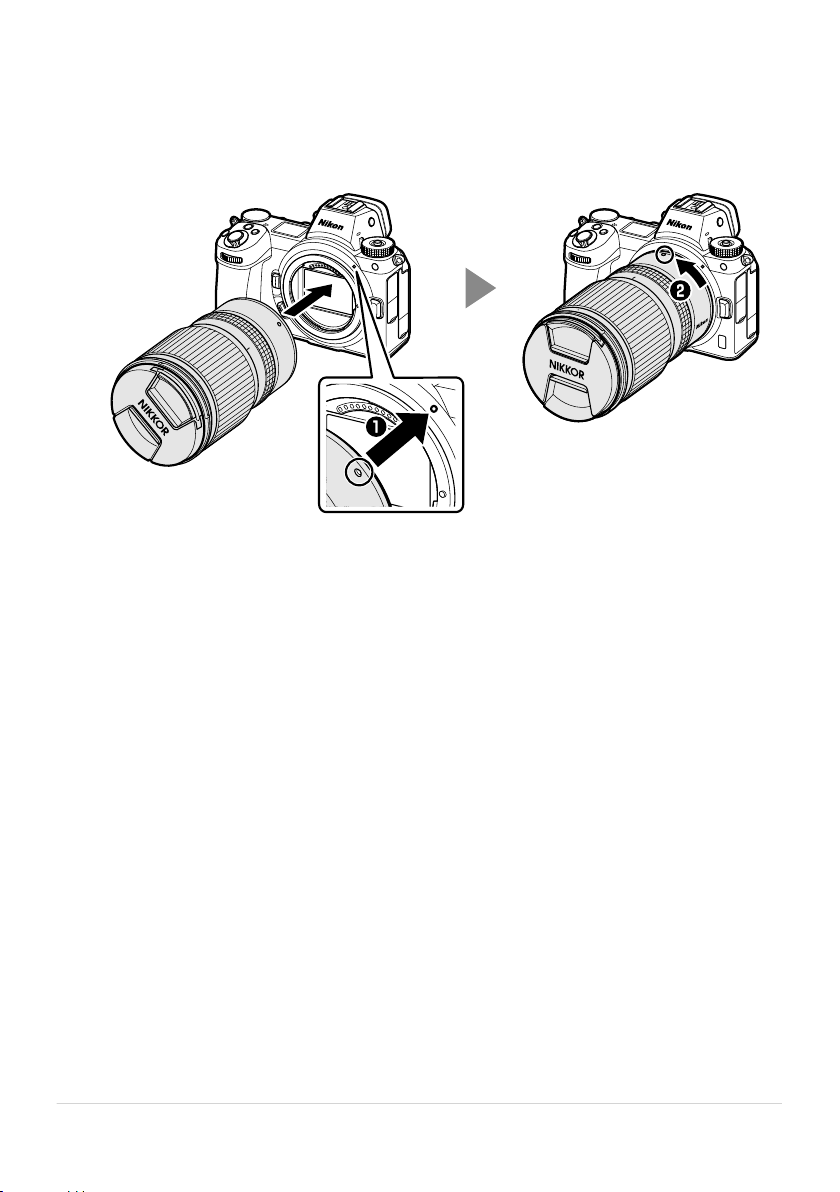

2.
Position the lens on the camera body, keeping the mounting
mark on the lens aligned with the mounting mark on the
camera body (
q
), and then rotate the lens in the direction of
the arrow (
w
) until it clicks into place.
13
Attachment and Removal
Removing the Lens
1.
Turn the camera o.
2.
Press and hold the lens release button (
q
) while turning the
lens in the direction of the arrow (
w
).
14

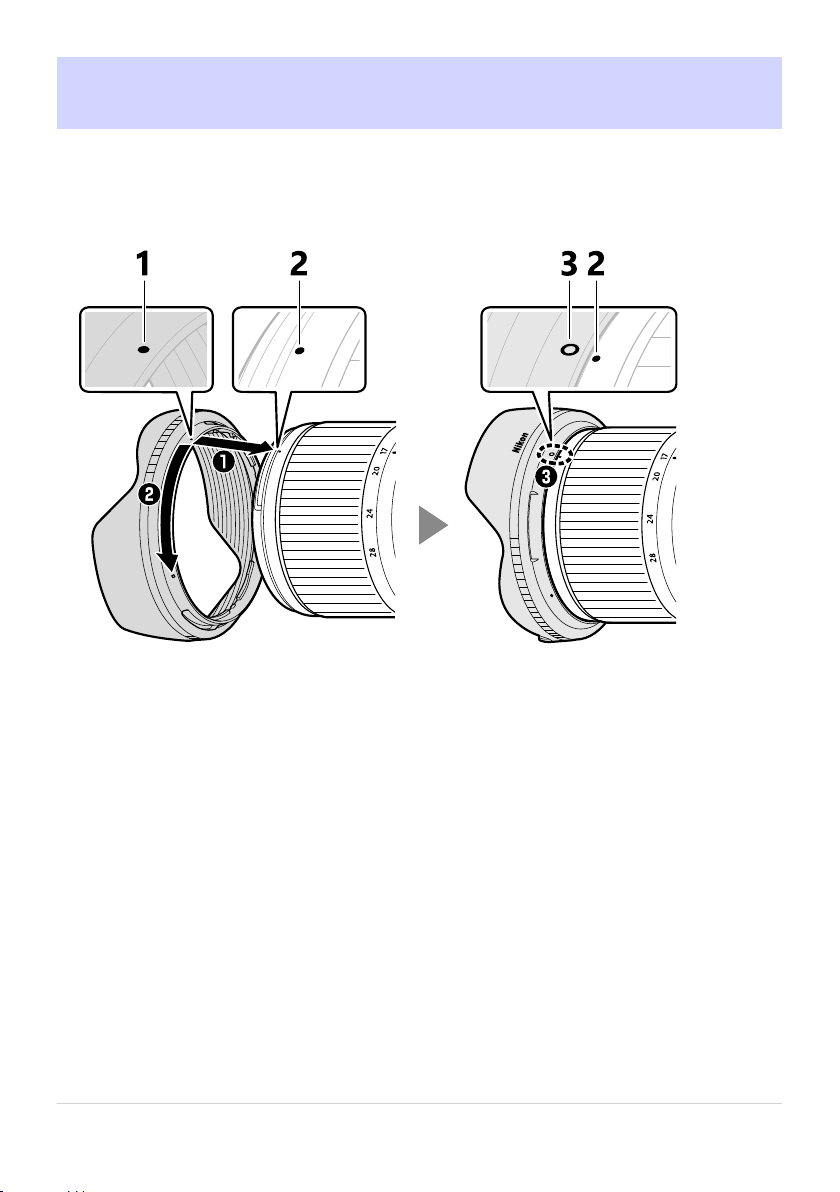

Attaching and Removing the Lens Hood
Attaching and Removing the Lens Hood
･ A
lign the lens hood mounting mark with the lens hood alignment mark (
q
) and
then rotate the lens hood (
w
) until the mounting mark is aligned with the lens hood
lock mark (
e
).
1
Lens hood alignment mark
2
Lens hood mounting mark
3
Lens hood lock mark
･ Gripping the front too tightly makes the lens hood dicult to attach or remove.
When attaching the lens hood, hold it near the lens hood alignment mark (
D
) and
rotate until it clicks into place.
･ To remove the lens hood, reverse the above steps.
15
Attaching and Removing the Lens Hood
･ T
he lens hood can be reversed and mounted on the lens when not in use.
D Holding the Lens Hood
When the lens hood is not in use, lightly hold it with your ngers along the non-slip
par
t and rotate until it clicks into place.
16
Precautions for Use
Precautions for Use
･ D
o not pick up or hold the lens or camera using only the lens caps or lens hood.
･ Keep the CPU contacts clean.
･ Should the rubber lens-mount gasket be damaged, cease use immediately and take
the lens to a Nikon-authorized service center for repair.
･ Reattach the lens caps when the lens is not in use.
･ Do not leave the lens in humid locations or in locations in which it may be exposed
to moisture. Rusting of the internal mechanism can cause irreparable damage.
･ Do not leave the lens next to open ames or in other extremely hot locations.
Extreme heat could damage or warp the lens.
･ Taking the lens from a warm to a cold environment or vice versa may cause
damaging condensation inside and outside the lens. Place the lens in a sealed bag or
plastic case before taking it across a temperature boundary. The lens can be taken
from the bag or case once it has had time to adjust to the new temperature.
･ We recommend that you place the lens in its case to protect it from scratches during
transport.
･ Keep credit cards and other such magnetic storage devices away from the camera
and lens. The data stored on the device could be corrupted.
17
Lens Maintenance
Lens Maintenance
･ R
emoving dust is normally sucient to clean the glass surfaces of the lens.
･ Smudges, ngerprints, and other oily stains can be removed using a soft, clean
cotton cloth or third-party lens cleaning tissue lightly dampened with a small
amount of ethanol or third-party lens cleaner; clean from the center outwards in a
circular motion. Be sure to clean evenly and thoroughly without leaving smears.
･ Never use organic solvents such as paint thinner or benzene to clean the lens.
･ Neutral Color (NC) lters (available separately) and the like can be used to protect the
front lens element.
･ Do not store the lens in direct sunlight or with naphtha or camphor moth balls. If the
lens will not be used for an extended period, store it in a cool, dry location to prevent
mold and rust.
18
Cameras with AF-Assist Illuminators
Technical Notes
Cameras with AF-Assist Illuminators
The lens or lens hood may block the light from the camera AF-assist illuminator.
･ F
or the information on using the lens with cameras that have built-in AF-assist
illuminators, visit the site below.
https://downloadcenter.nikonimglib.com/
19
Using the Lens on Cameras with a Built-in Flash
Using the Lens on Cameras with a Built-in
F
lash
Shadows will be visible in photos where light from the built-in ash is obscured by the
lens or lens hood. Remove the lens hood before shooting. Note, however, that
depending on the distance to the subject and lens focal length, shadows may appear
even when the lens hood is removed.
･ For the information on subject distances and focal lengths at which shadows will not
appear in photos taken with a built-in ash, visit the site below.
https://downloadcenter.nikonimglib.com/
20
Accessories
Accessories
Supplied Accessories
･ L
C-67B Lens Cap (front cap)
･ LF-N1 Lens Cap (rear cap)
･ HB-107 Lens Hood
･ CL-C1 Lens Case
D Using the Lens Case
･ T
he case is intended to protect the lens from scratches, not from falls or other
physical shocks.
･ The case is not water resistant.
･ The material used in the case may fade, bleed, stretch, shrink, or change color
when rubbed or wet.
･ Remove dust with a soft brush.
･ Water and stains can be removed from the surface with a soft, dry cloth. Do not
use alcohol, benzene, thinner, or other volatile chemicals.
･ Do not store in locations exposed to direct sunlight or to high temperatures or
humidity.
･ Do not use the case to clean the monitor or lens elements.
･ Be careful that the lens does not fall from the case during transport.
Material: Polyester
21
Accessories
Other Compatible Accessories
67 mm lt
ers
D Filters
･ U
se only one lter at a time.
･ Remove the lens hood before attaching lters. You will also need to remove the
lens hood before rotating circular polarizing lters.
22
Specications
Specications
Mount Nikon Z mount
Focal length 17 – 28 mm
Maximum aperture f/2.8
Lens construction
13 elements in 11 groups (including 2 ED elements,
1 super
-ED element, 3 aspherical elements)
Angle of view
FX format: 104° – 75°
DX format: 79° – 53°
Focal length scale Graduated in millimeters (17, 20, 24, 28)
Focusing system Internal focusing system
Minimum focus distance
(measured from focal
plane)
･ 17 mm zoom position: 0.19 m (0.63 ft)
･ 20 mm zoom position: 0.23 m (0.76 ft)
･ 24 mm zoom position: 0.26 m (0.86 ft)
･ 28 mm zoom position: 0.26 m (0.86 ft)
Maximum reproduction
ratio
0.19×
Diaphragm blades 9 (rounded diaphragm opening)
Aperture range f/2.8 – 22
Filter-attachment size 67 mm (P = 0.75 mm)
Dimensions (maximum
diameter × distance to
end of lens from camera
lens mount ange)
Approx. 75 mm × 101 mm (3 in. × 4 in.)
Weight Approx. 450 g (15.9 oz)
･ T
hroughout this document, “FX format” and “FX” are used in reference to an angle of
view equivalent to that of a 35 mm format (“full frame”) camera and “DX format” and
“DX” to an angle of view equivalent to that of an APS-C camera.
23
Specications
･ N
ikon reserves the right to change the appearance, specications, and performance
of this product at any time and without prior notice.
24
Notices
Notices
Notices for Customers in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject to the
f
ollowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Federal Communications Commission (FCC) Radio Frequency
Interference Statement
❚❚
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
･ Reorient or relocate the receiving antenna.
･ Increase the separation between the equipment and receiver.
･ Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
･ Consult the dealer or an experienced radio/TV technician for help.
CAUTIONS
❚❚
●
Modications
The FCC requires the user to be notied that any changes or modications made to this
device that are not expressly approved by Nikon Corporation may void the user’s
authority to operate the equipment.
Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
25
Notices
Notices for Customers in Canada
CAN ICES-003 (B) / NMB-003 (B)
N
otices for Customers in Europe
This symbol indicates that electrical and electronic equipment is to be collected
separ
ately.
The following apply only to users in European countries:
･ This product is designated for separate collection at an appropriate collection point.
Do not dispose of as household waste.
･ Separate collection and recycling helps conserve natural resources and prevent
negative consequences for human health and the environment that might result
from incorrect disposal.
･ For more information, contact the retailer or the local authorities in charge of waste
management.
