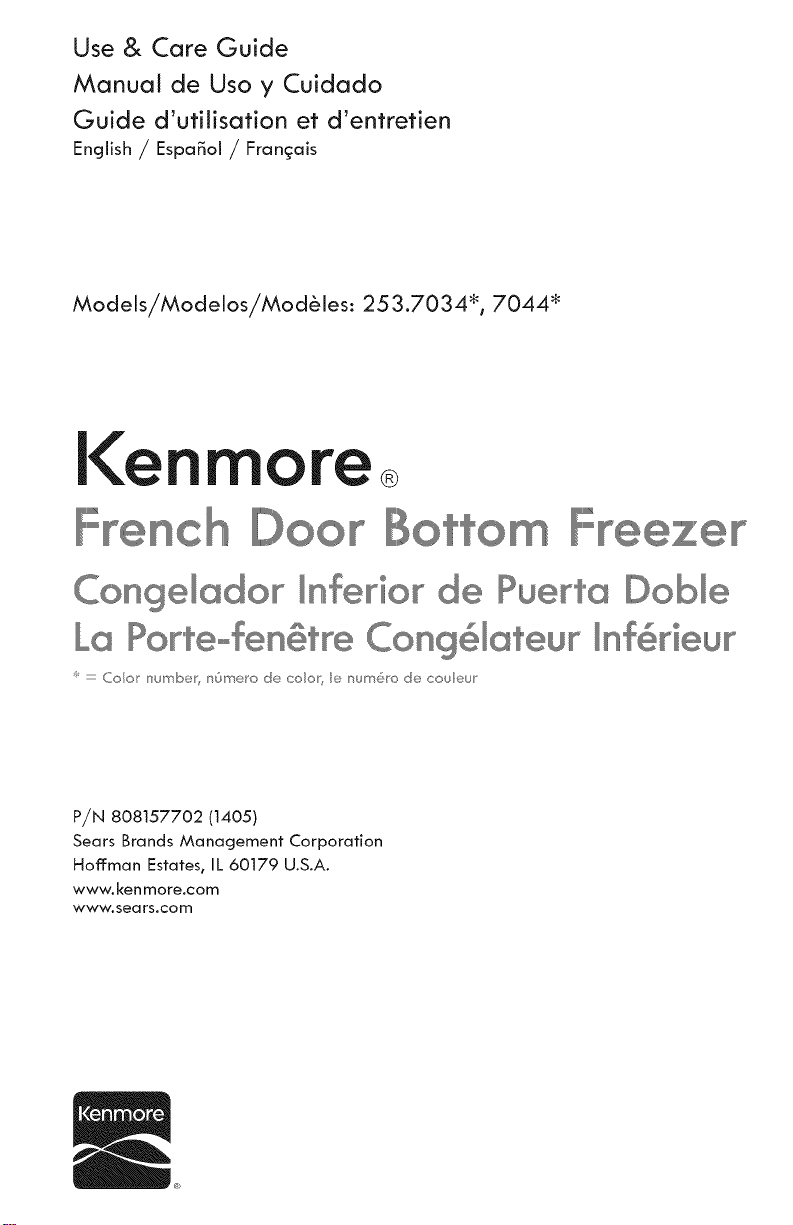

Use & Care Guide
Manual de Uso y Cuidado
Guide d%tilisafion et d%ntrefien
English / Espa_ol / Fran_ais
Models/Modelos/Mod_les: 253.7034:% 7044 :_
F ncn
Congelador Inferior de Puer"_"aDoble
La Por't'eofe Con eur Inf eur
::::::::::Coot i_urnli>e_sn6rnero de co/oFoHeI_urr_n6rode couleur
r ezer
P/N 808157702 (1405)
Sears Brands Management Corporation
HofFman Estates, IL 60179 U.S.A.
www. ken more.corn
www.sears.com

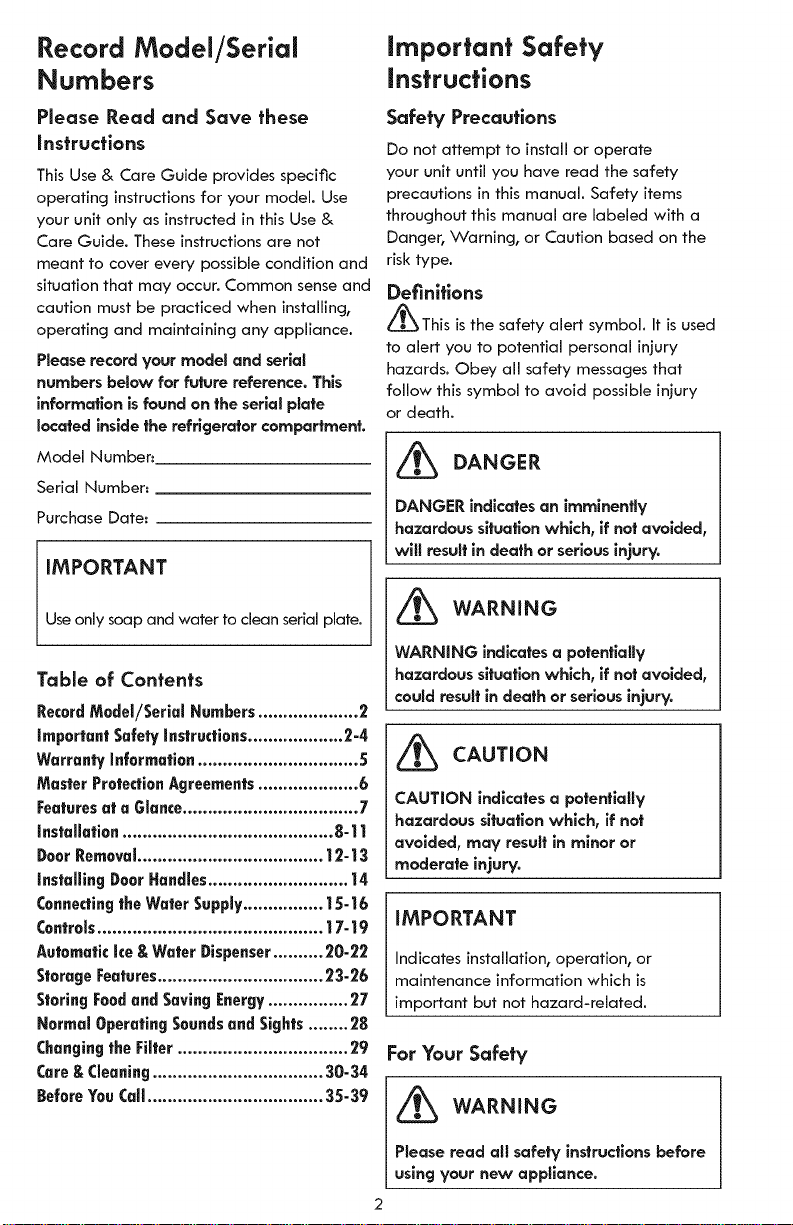

Record Model/Serial
Numbers
Please Read and Save these
Instructions
This Use & Care Guide provides specific
operating instructions for your model. Use
your unit only as instructed in this Use &
Care Guide. These instructions are not
meant to cover every possible condition and
situation that may occur. Common sense and
caution must be practiced when installing,
operating and maintaining any appliance.
Please record your model and serial
numbers below for future reference. This
information is found on the serial plate
located inside the refrigerator compartment.
Model Number:
Serial Number:
Purchase Date:
IMPORTANT
Use only soap and water to clean serial plate.
Table of Contents
RecordModel/Serial Numbers.................... 2
Important SafetyInstructions................... 2-4
WarrantyInformation................................ 5
Master Protection Agreements.................... 6

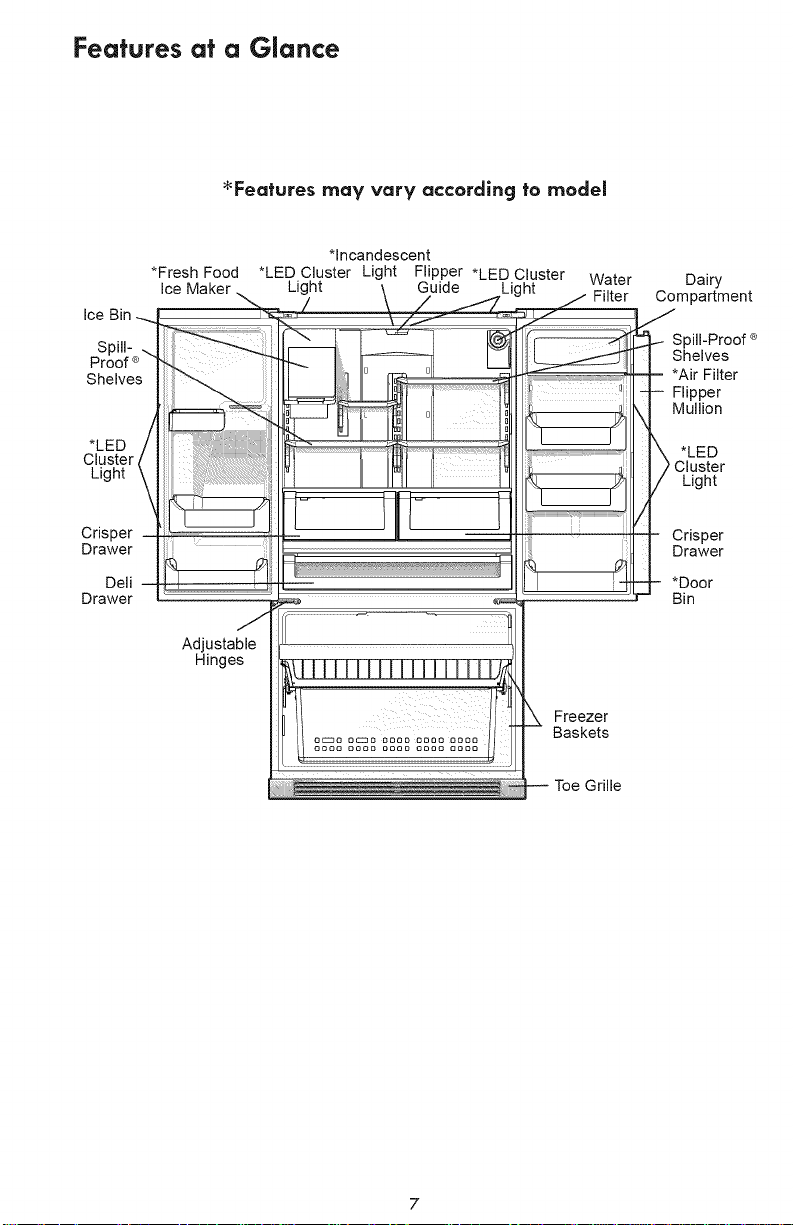

Featuresat a Glance................................... 7

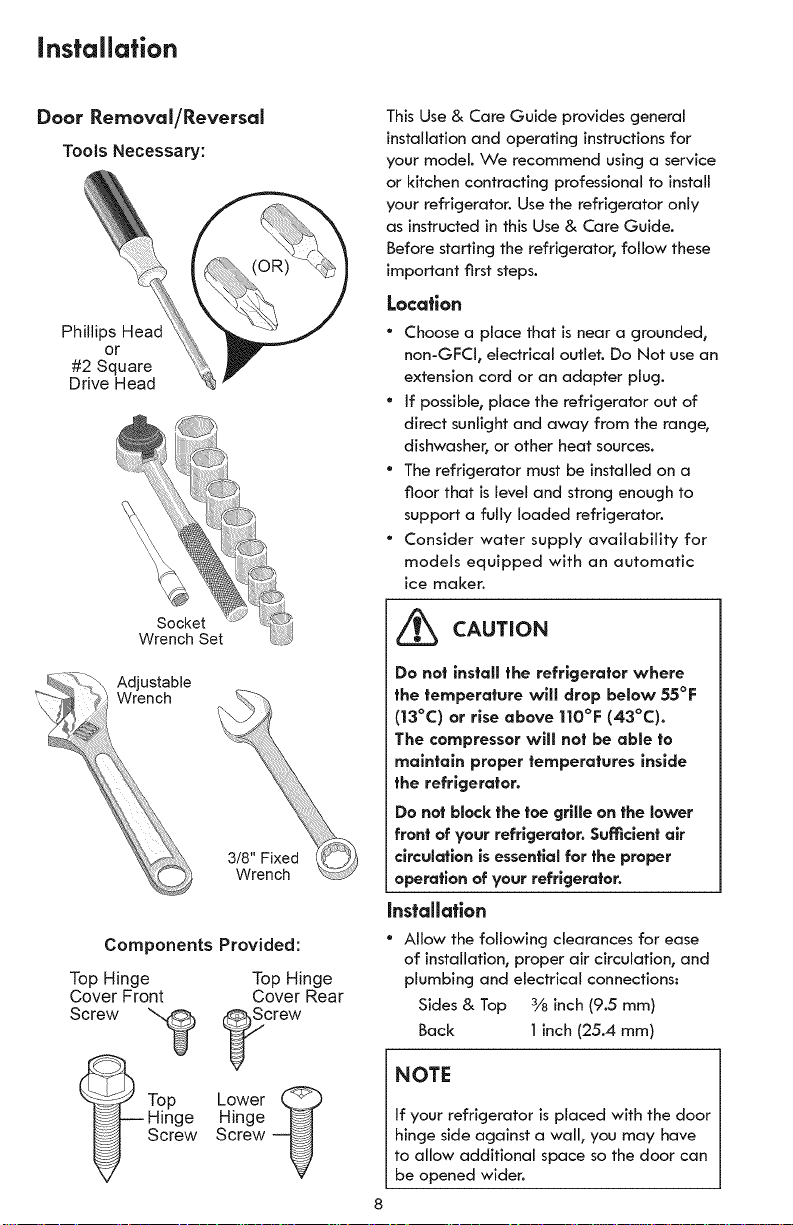

Installation.......................................... 8-| |

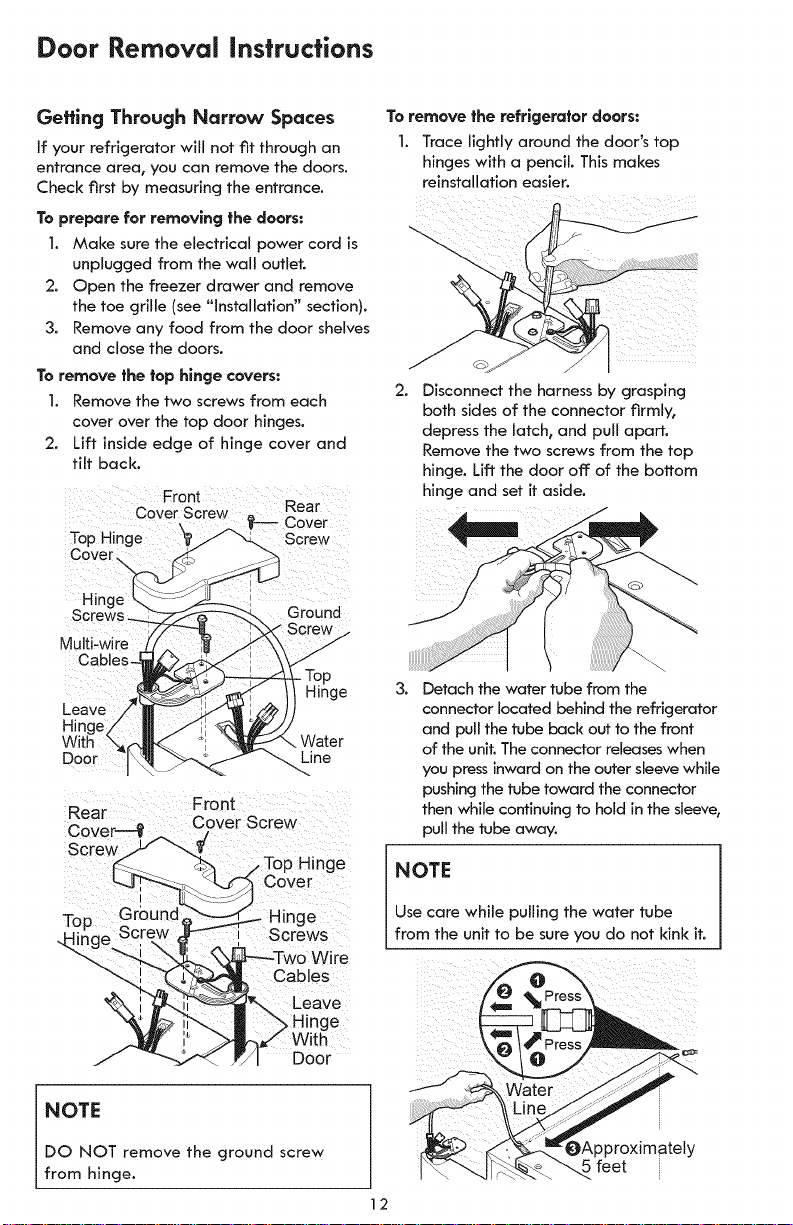

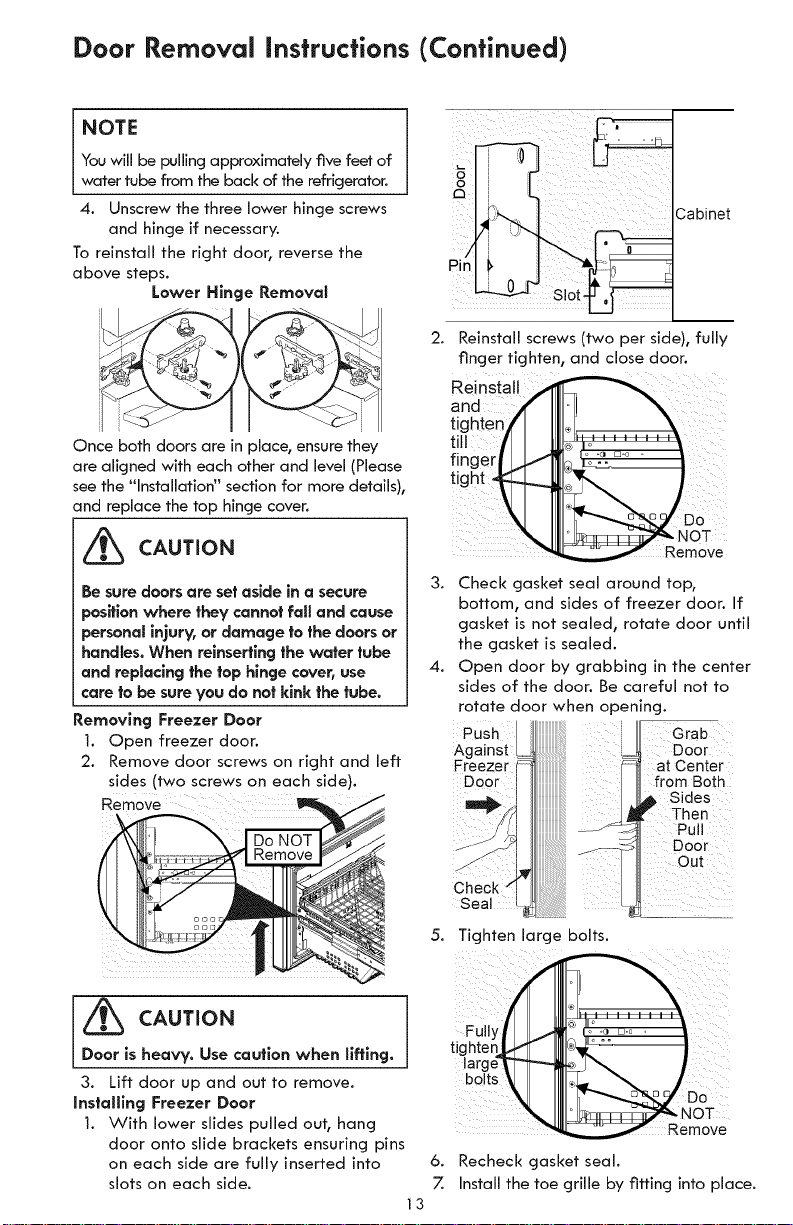

DoorRemoval..................................... 12-| 3

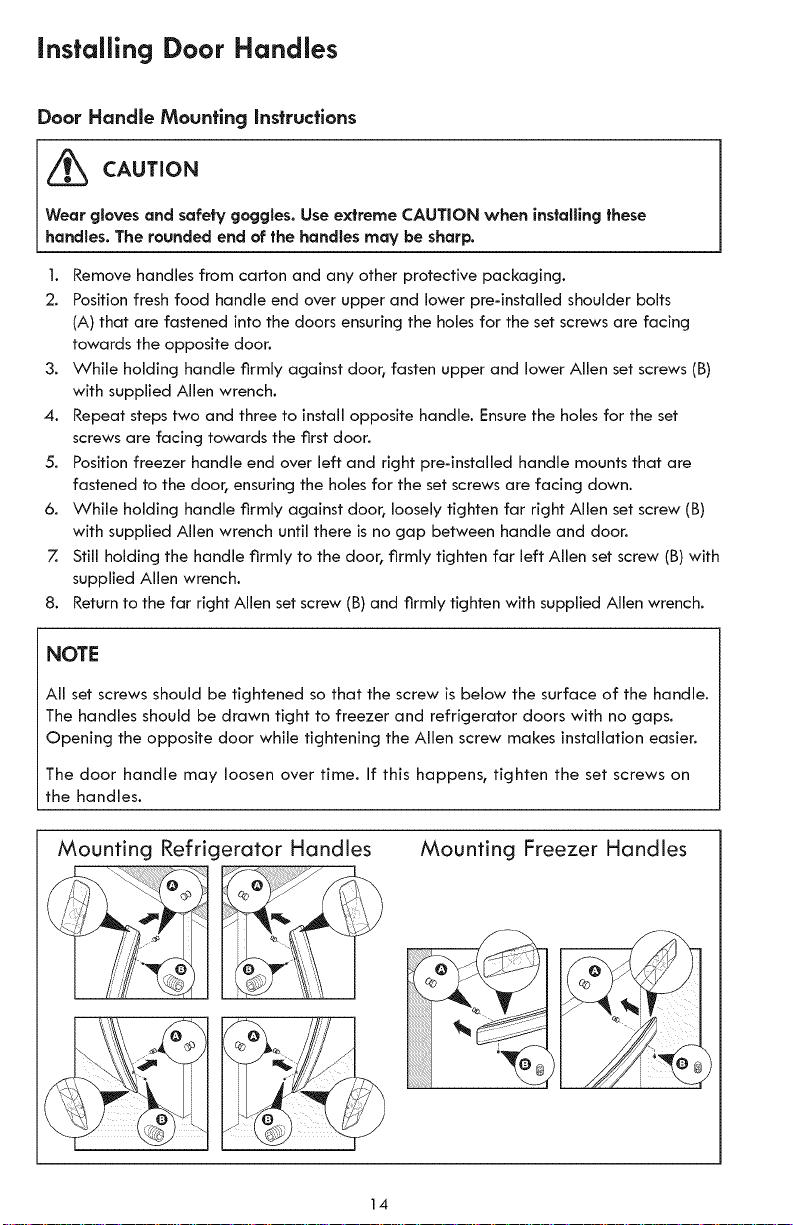

Installing DoorHandles............................ 14

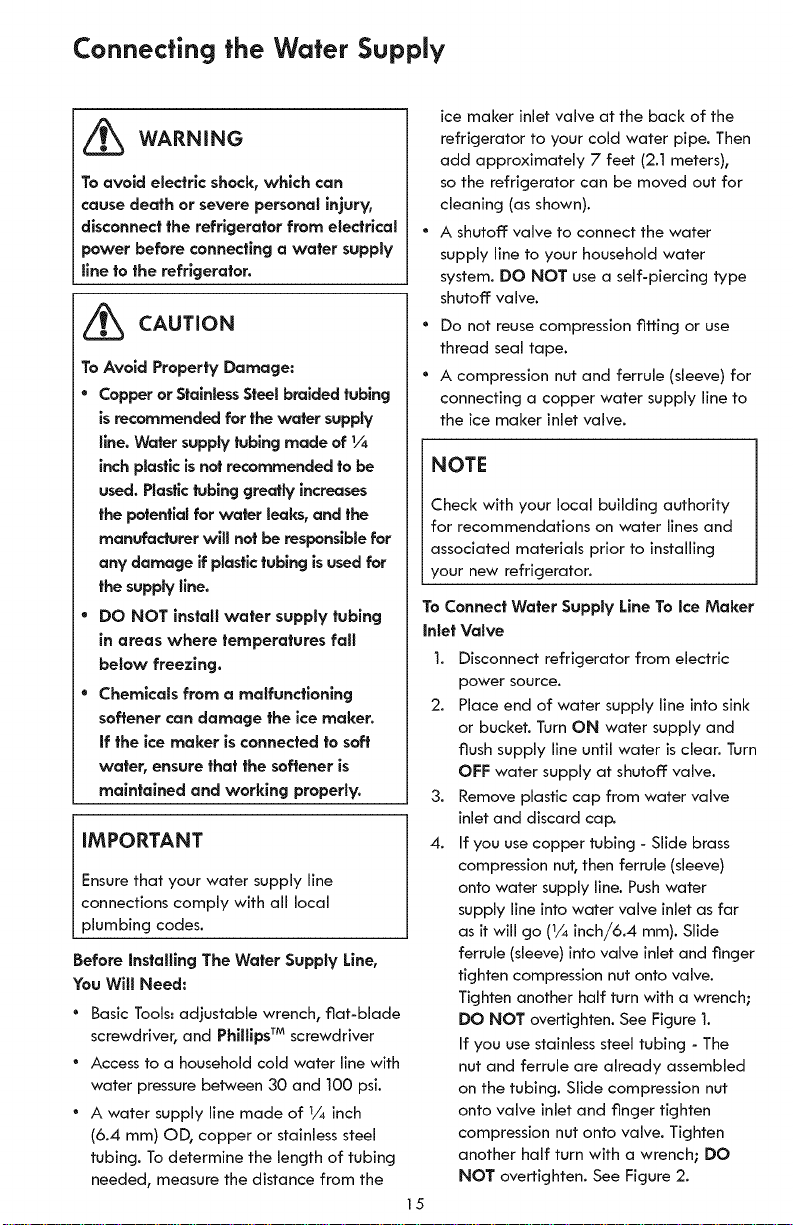

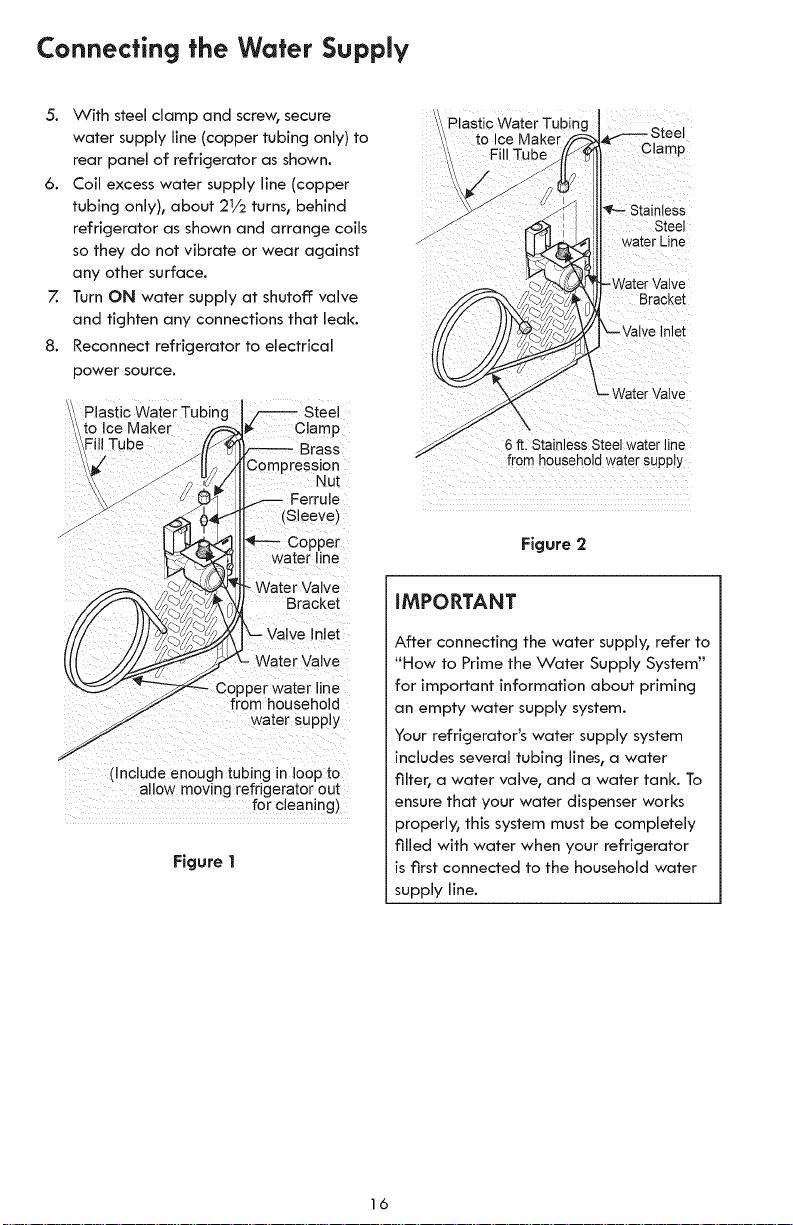

Connectingthe Water Supply................ 15-16

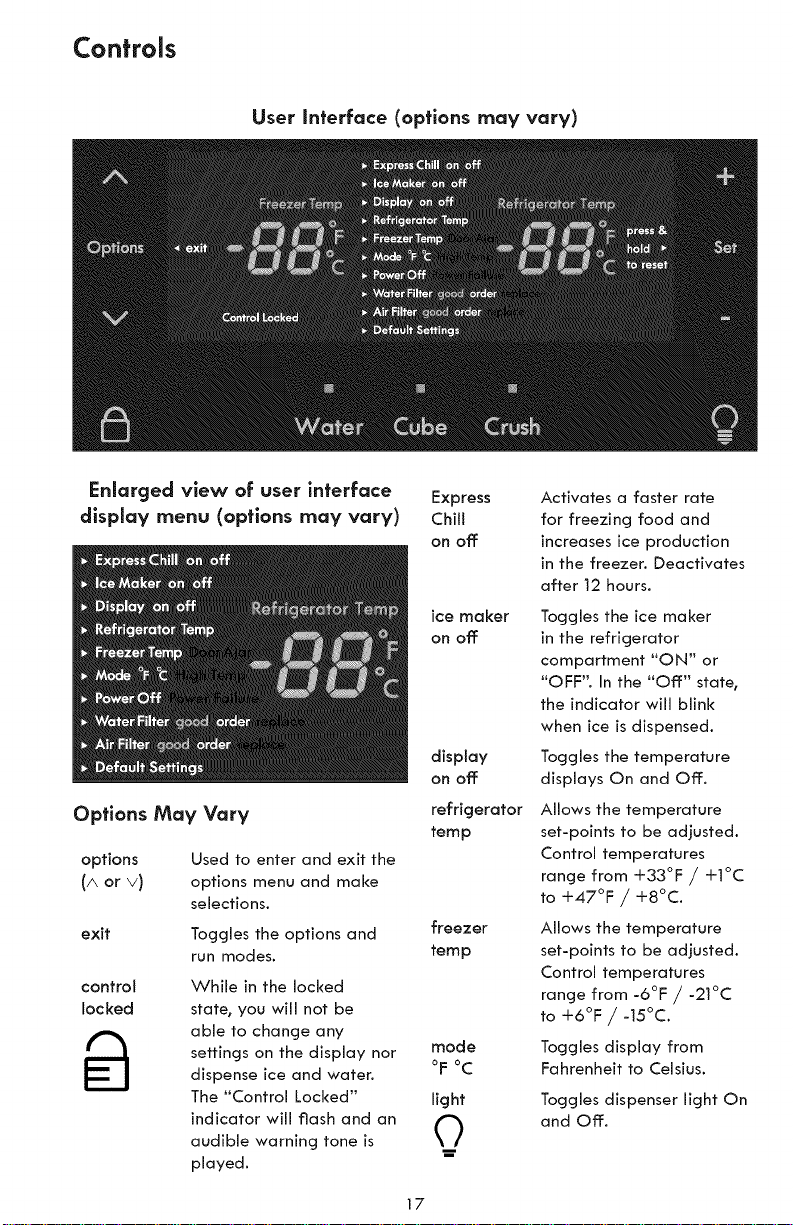

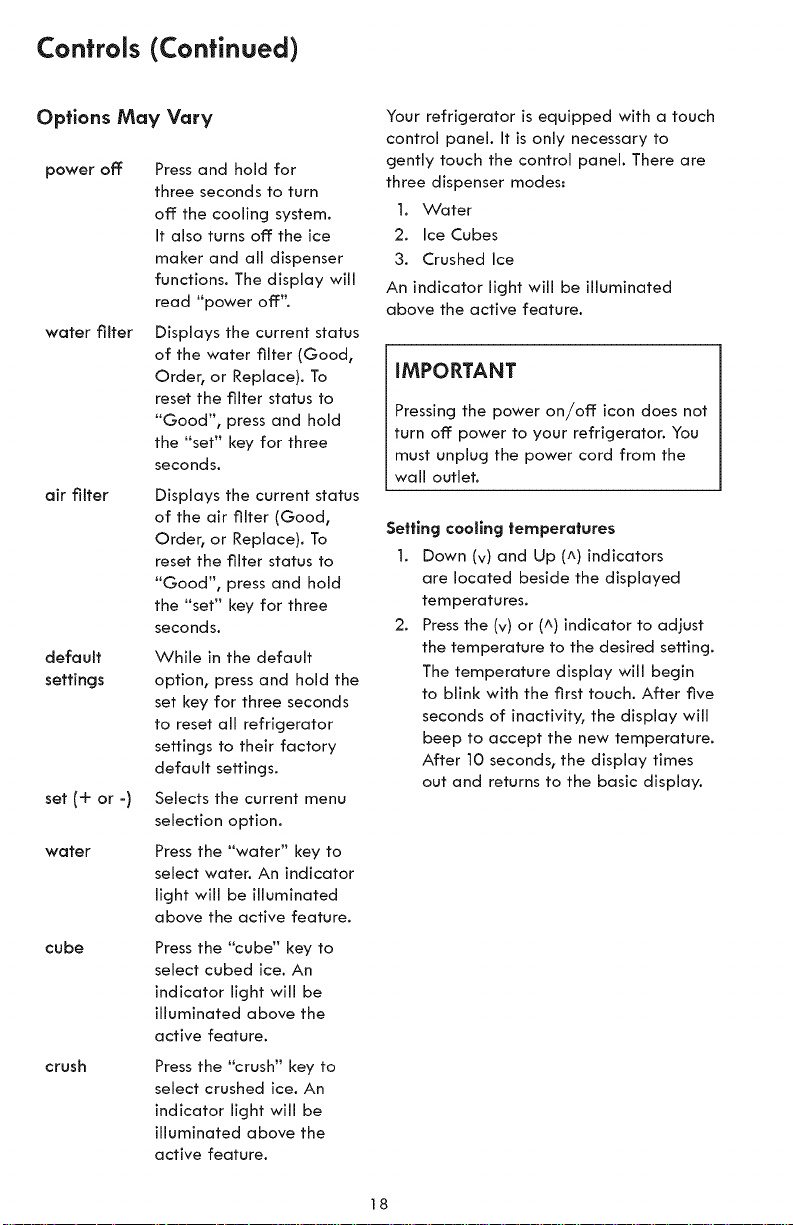

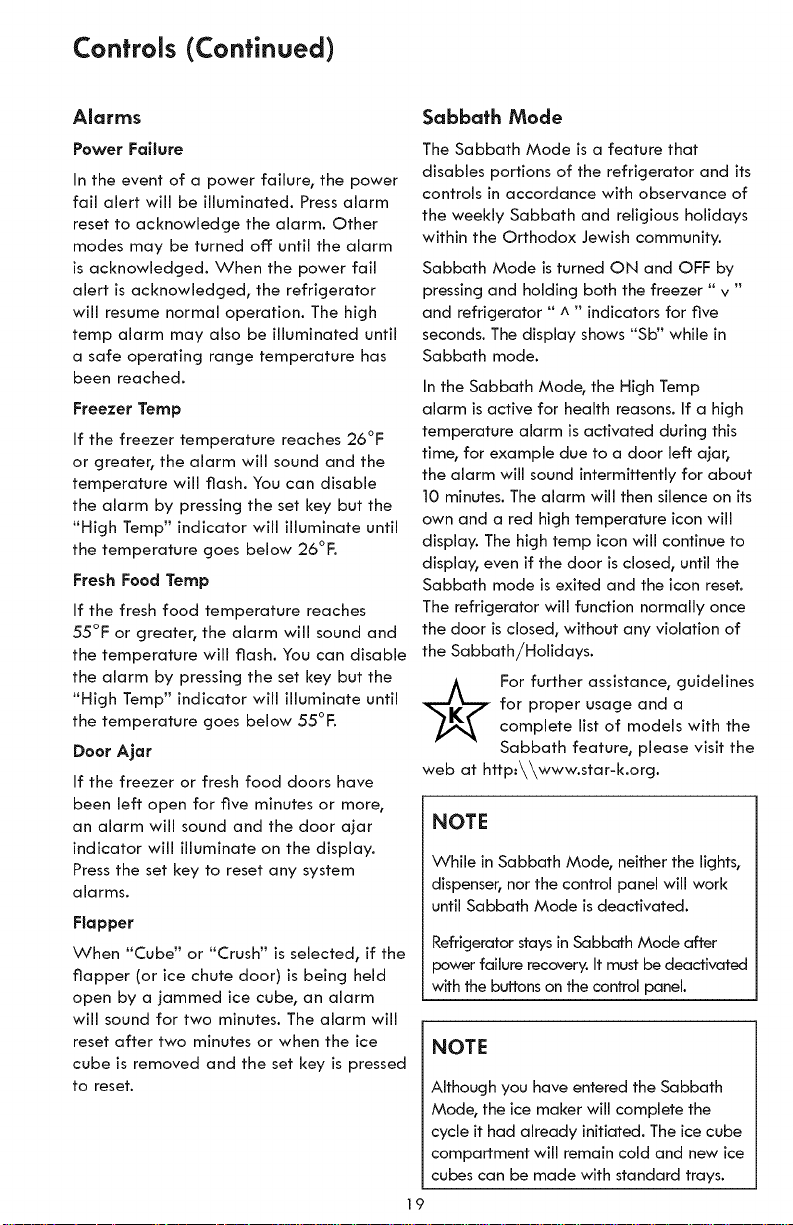

Controls............................................. | 7-| 9

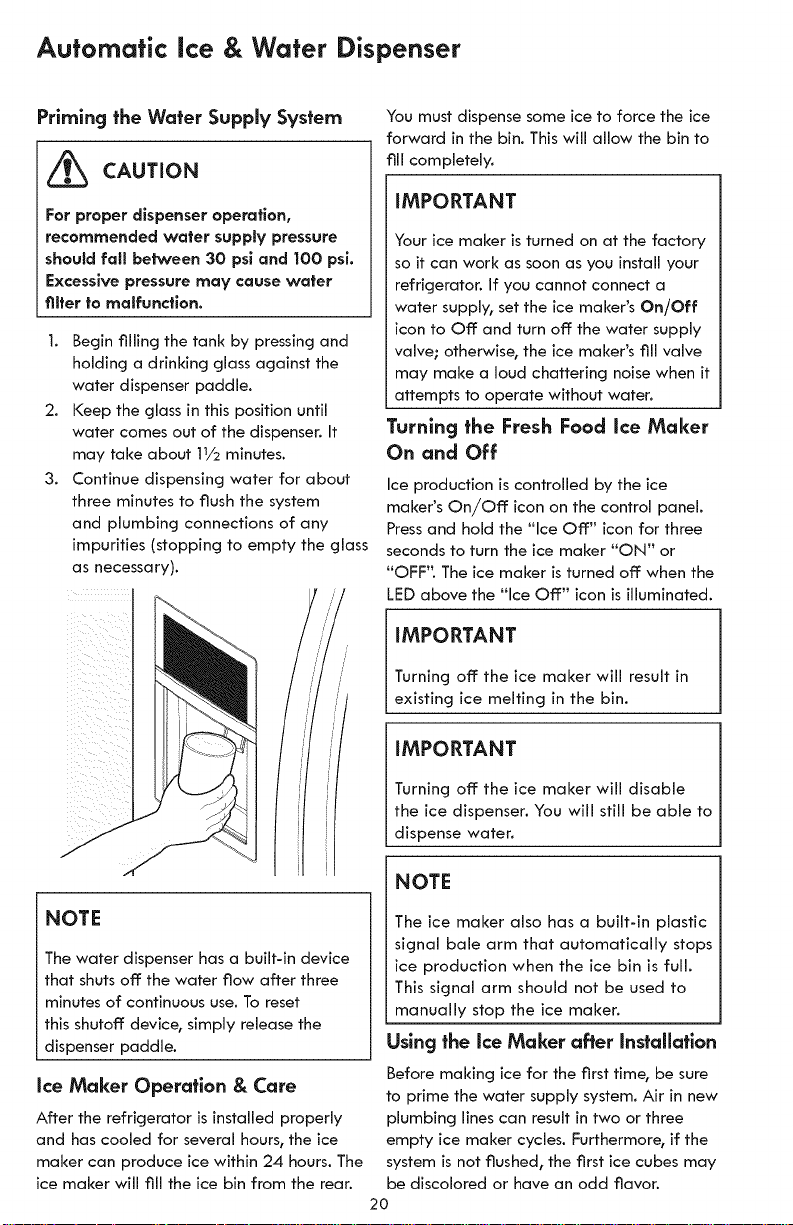

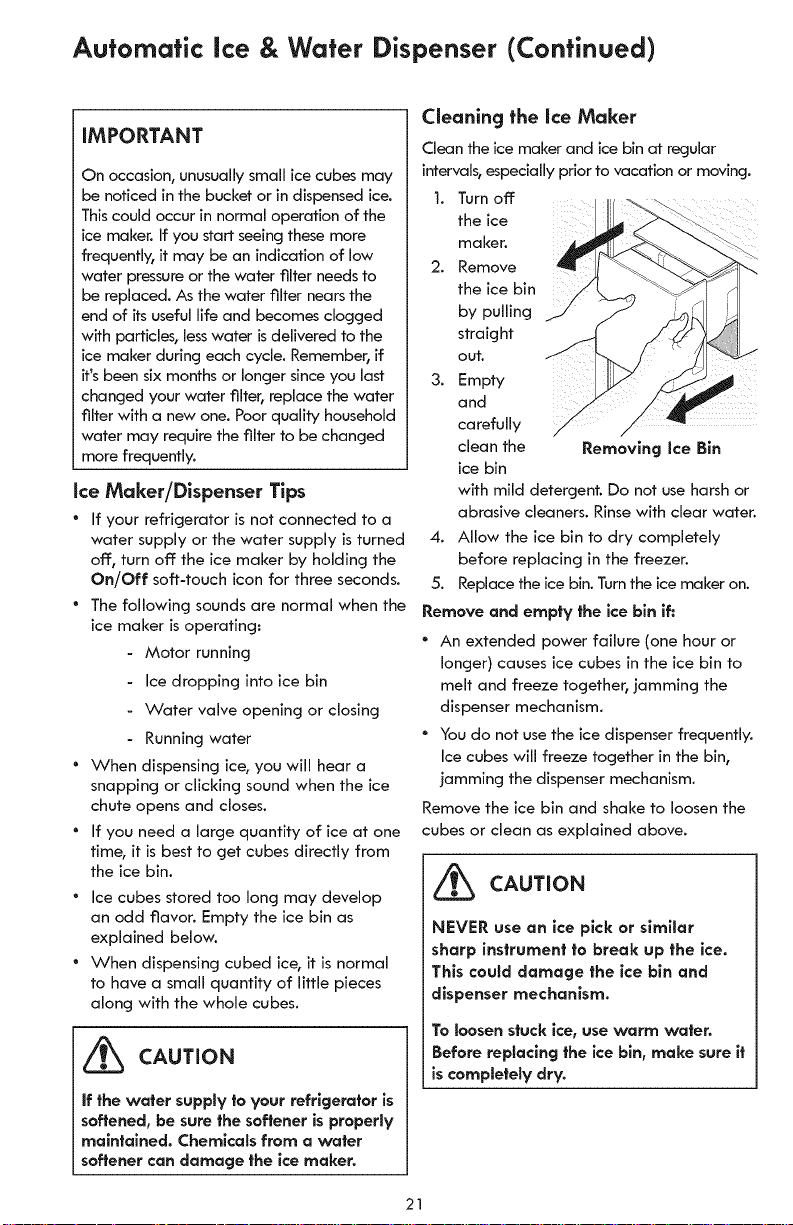

Automatic Ice& Water Dispenser.......... 20-22

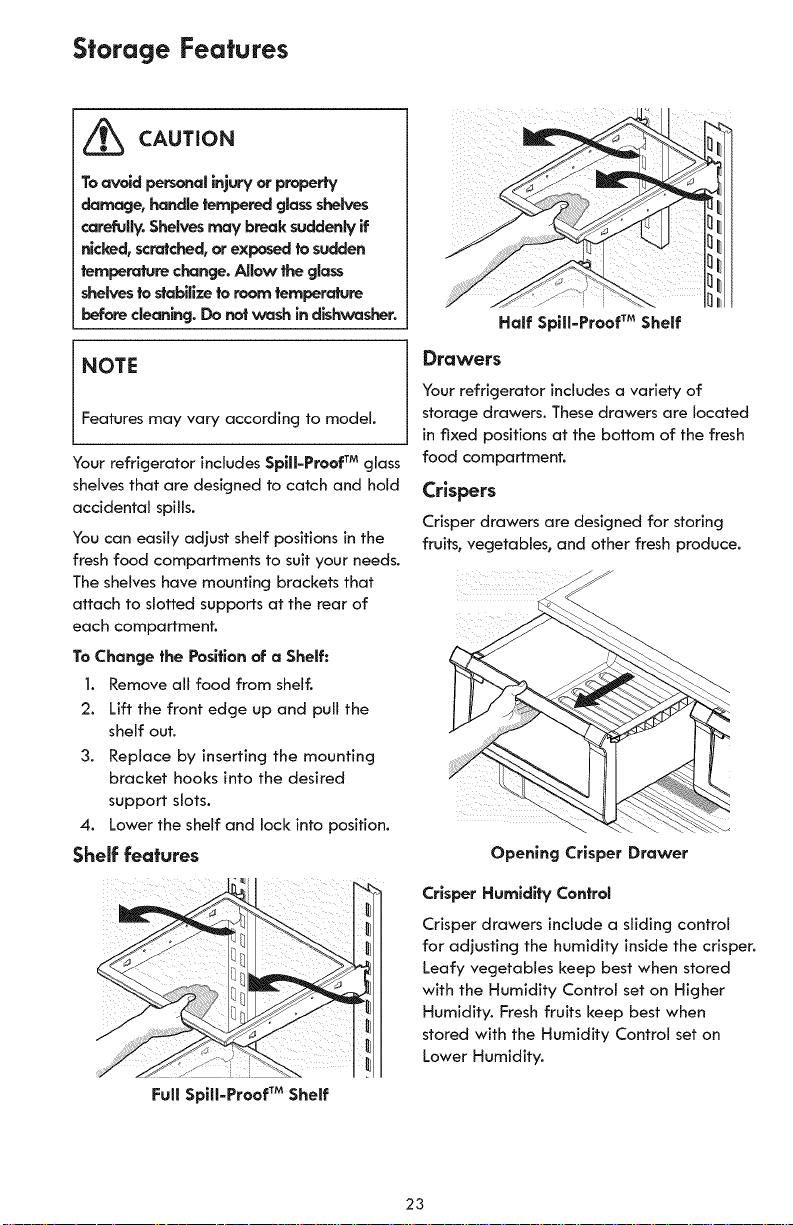

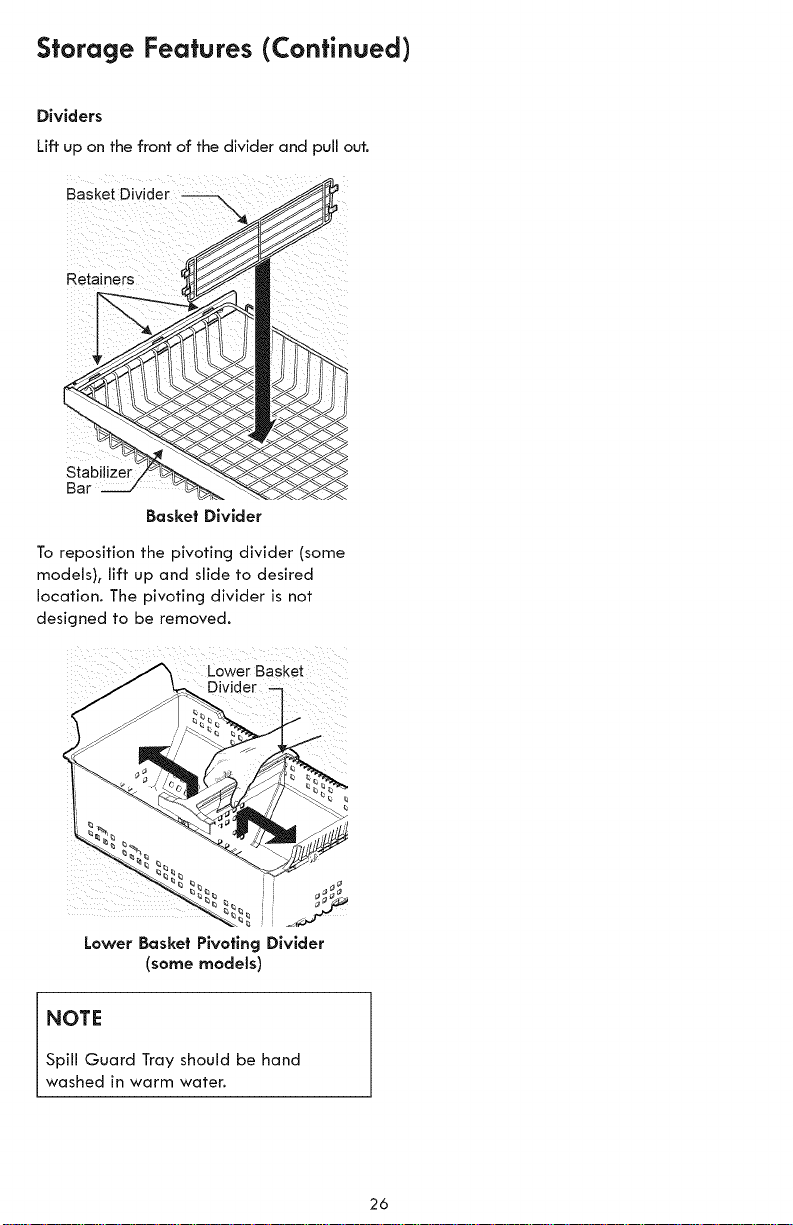

Storage Features................................. 23-26

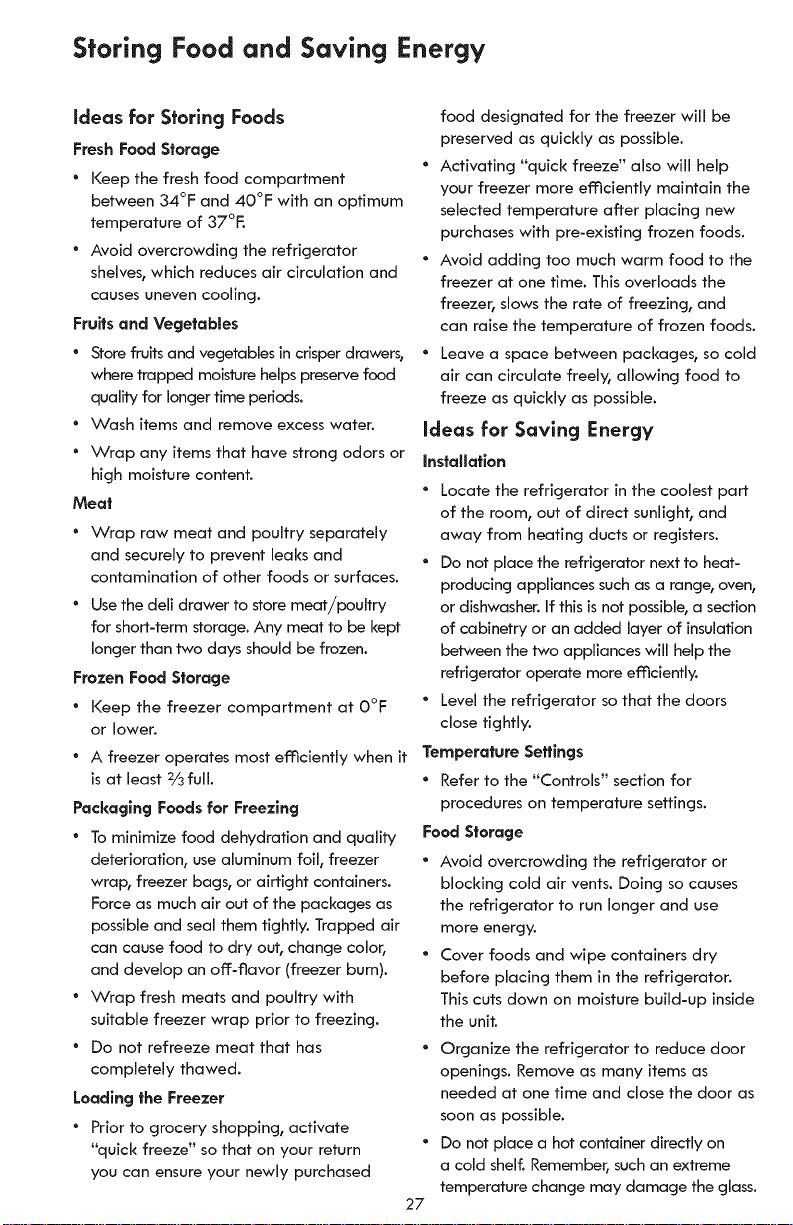

Storing Foadand Saving Energy................ 27

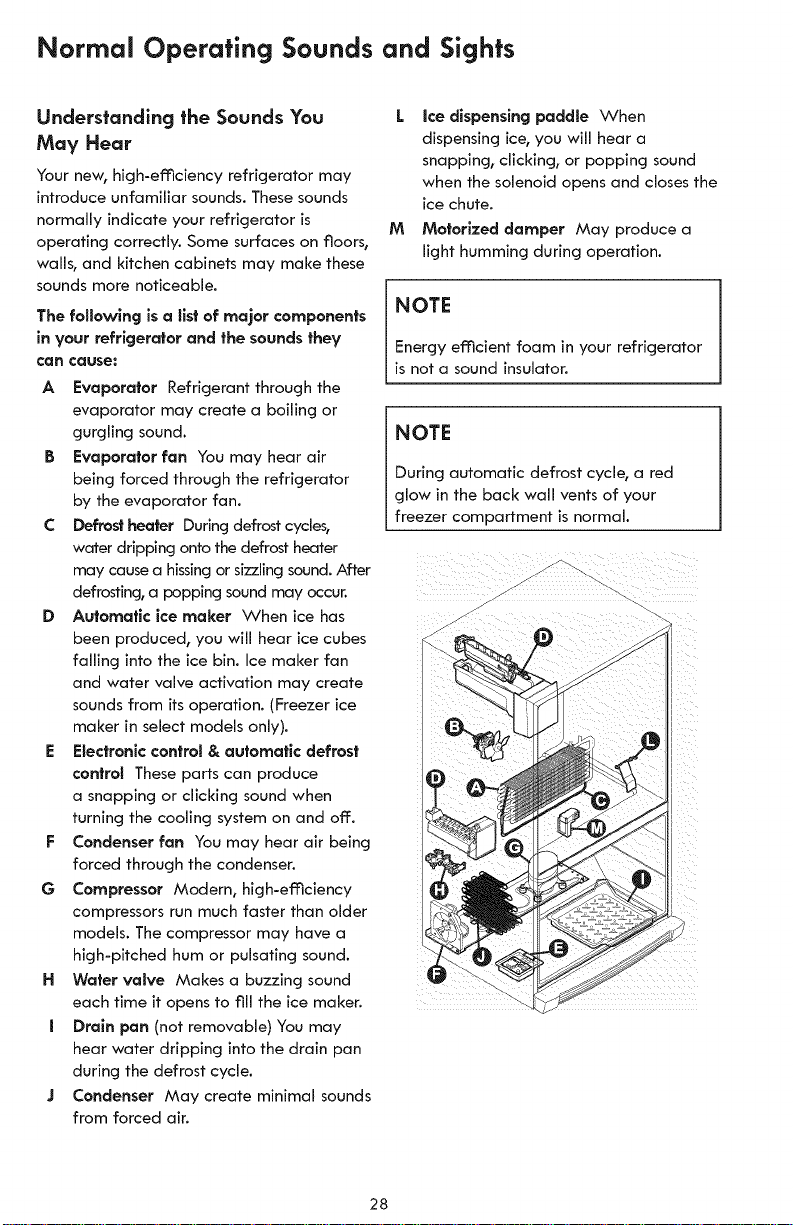

Normal OperatingSoundsand Sights ........ 28

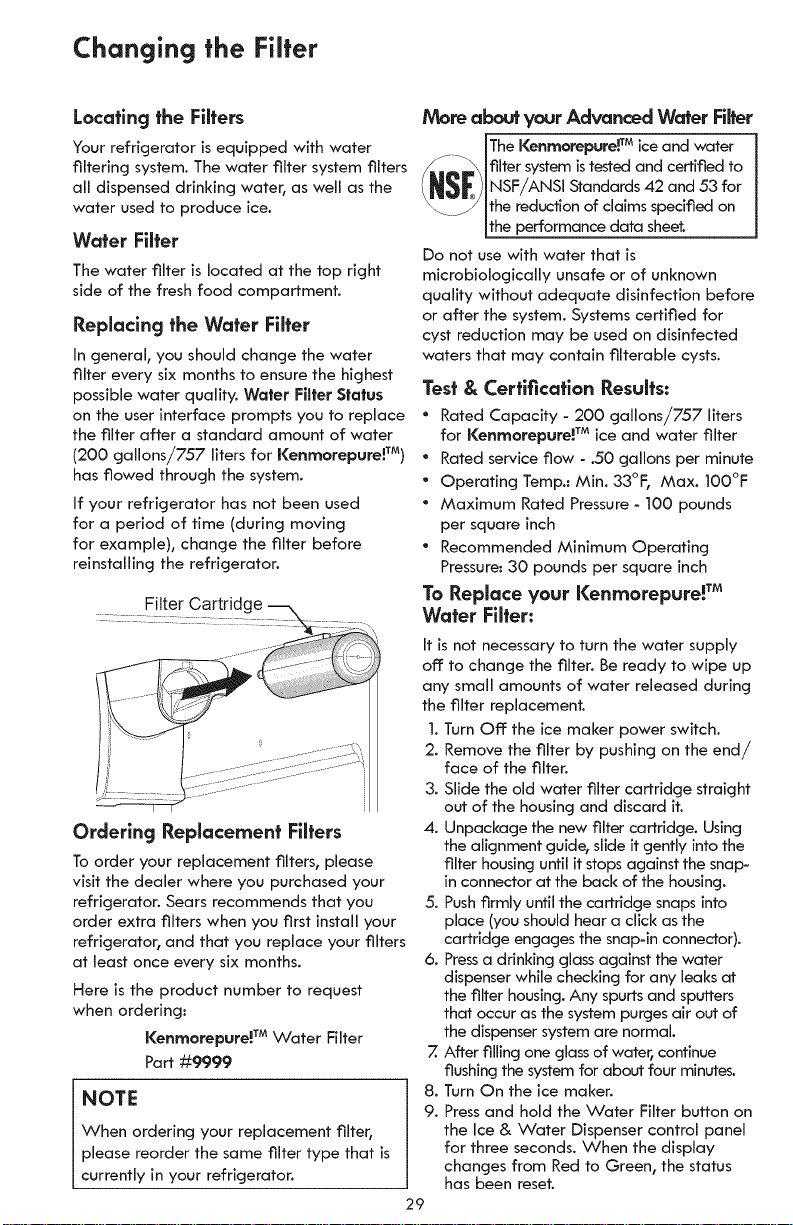

Changing the Filter.................................. 29

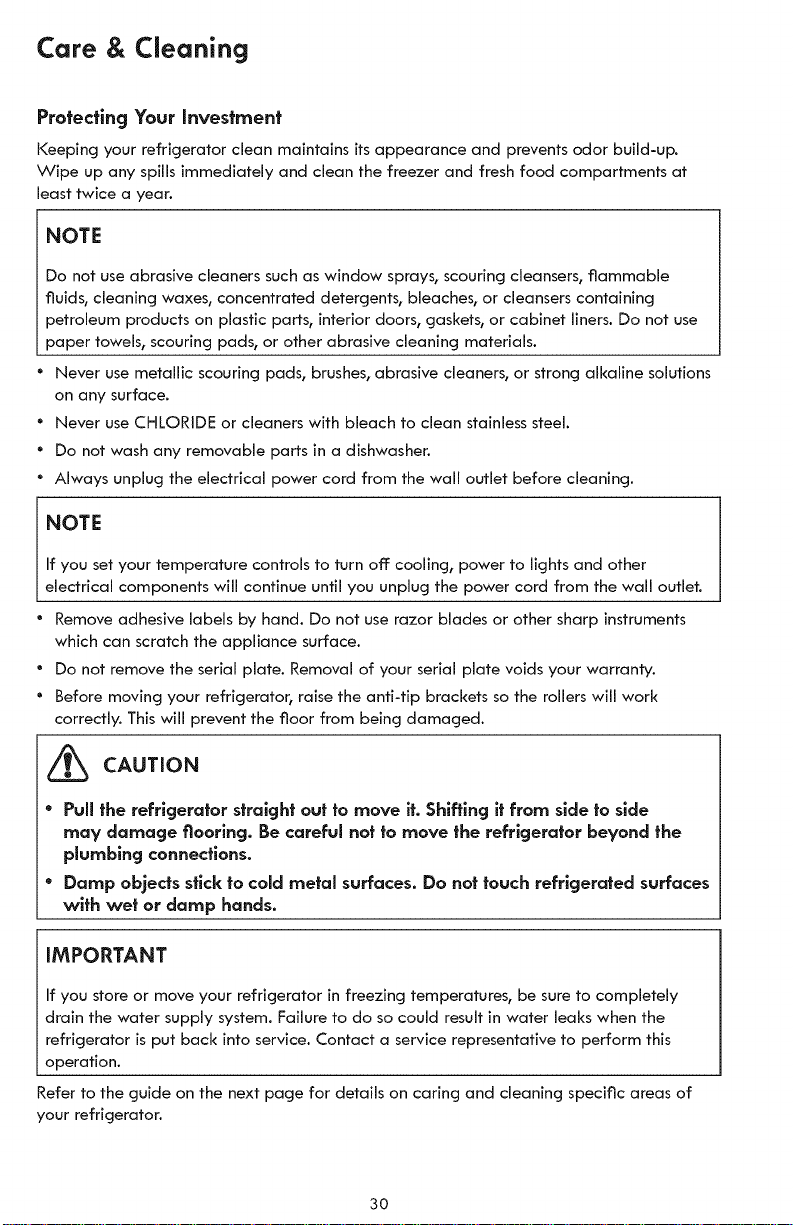

Careg Cleaning.................................. 30-34
BeforeYouCall................................... 35-39
Important Safety
Instructions
Safety Precautlons
Do not attempt to install or operate
your unit until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
Danger_ Warning, or Caution based on the
risk type.
Definitions
_This isthe safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
_ WARNING
WARNING indicatesa potentially
hazardous situationwhich, if notavoided,
could resultin death or seriousinjury.
CAUTION
CAUTION indicatesa potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard=related.
For Your Safety
_ WARNING
Please read all safety instructions before
using your new appliance.

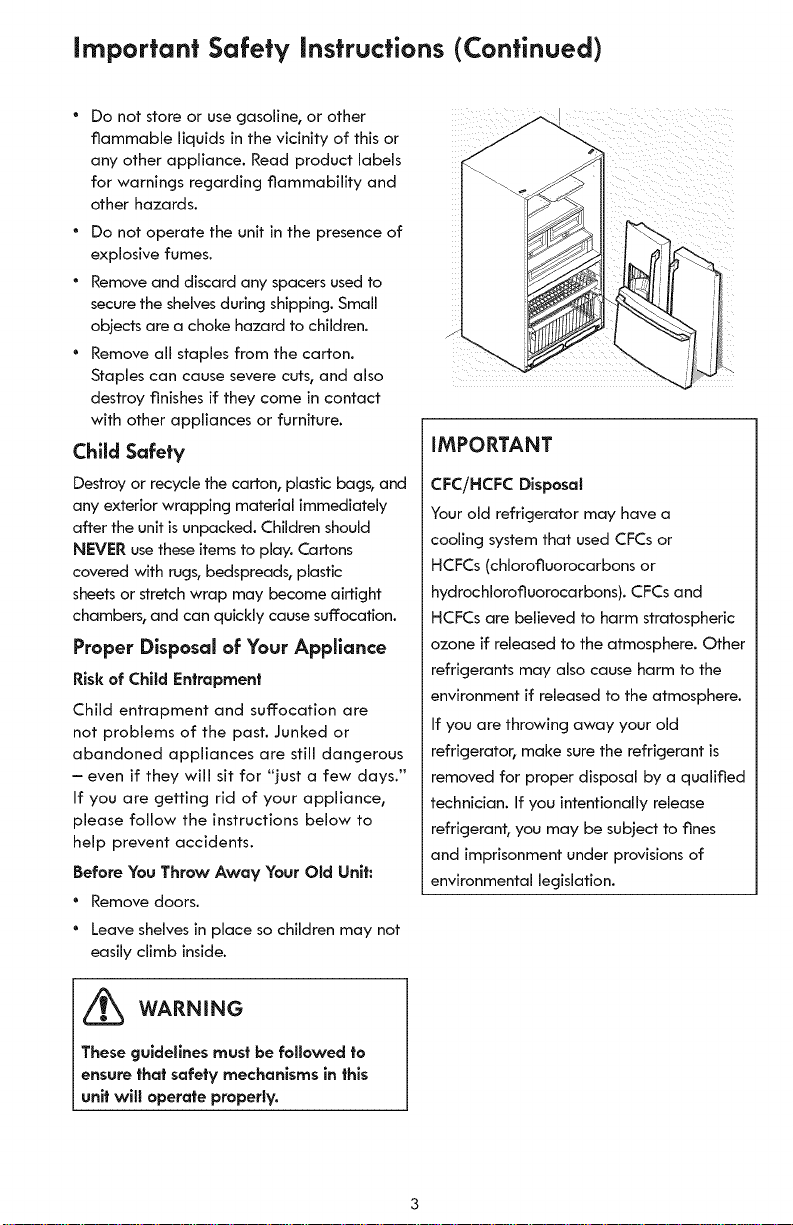

important Safety Instructions (Continued)
* Do not store or use gasoline, or other
flammable liquids in the vicinity of this or
any other appliance. Read product labels
for warnings regarding flammability and
other hazards.
* Do not operate the unit in the presence of
explosive fumes.
* Remove and discard any spacers used to
secure the shelves during shipping. Small
objects are a choke hazard to children.
* Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy finishes if they come in contact
with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the unit is unpacked. Children should
NEVER use these items to play. Cartons
covered with rugs, bedspreads, plastic
sheets or stretch wrap may become airtight
chambers, and can quickly cause suffocation.
Proper Disposal of Your Appliance
Risk of Child Entrapment
Child entrapment and suffocation are
not problems of the past. Junked or
abandoned appliances are still dangerous
- even if they will sit for "just a few days."
If you are getting rid of your appliance,
please follow the instructions below to
help prevent accidents.
Before You Throw Away Your Old Unit:
* Remove doors.
* Leave shelves in place so children may not
easily climb inside.
_ WARNING
These guidelines must be followed to
ensure that safety mechanisms in this
unit will operate properly.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs or
HCFCs(chlorofiuorocarbons or
hydrochlorofiuorocarbons). CFCs and
HCFCs are believed to harm stratospheric
ozone if released to the atmosphere. Other
refrigerants may also cause harm to the
environment if released to the atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant is
removed for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines
and imprisonment under provisions of
environmental legislation.
Important Safety Instructions (Continued)

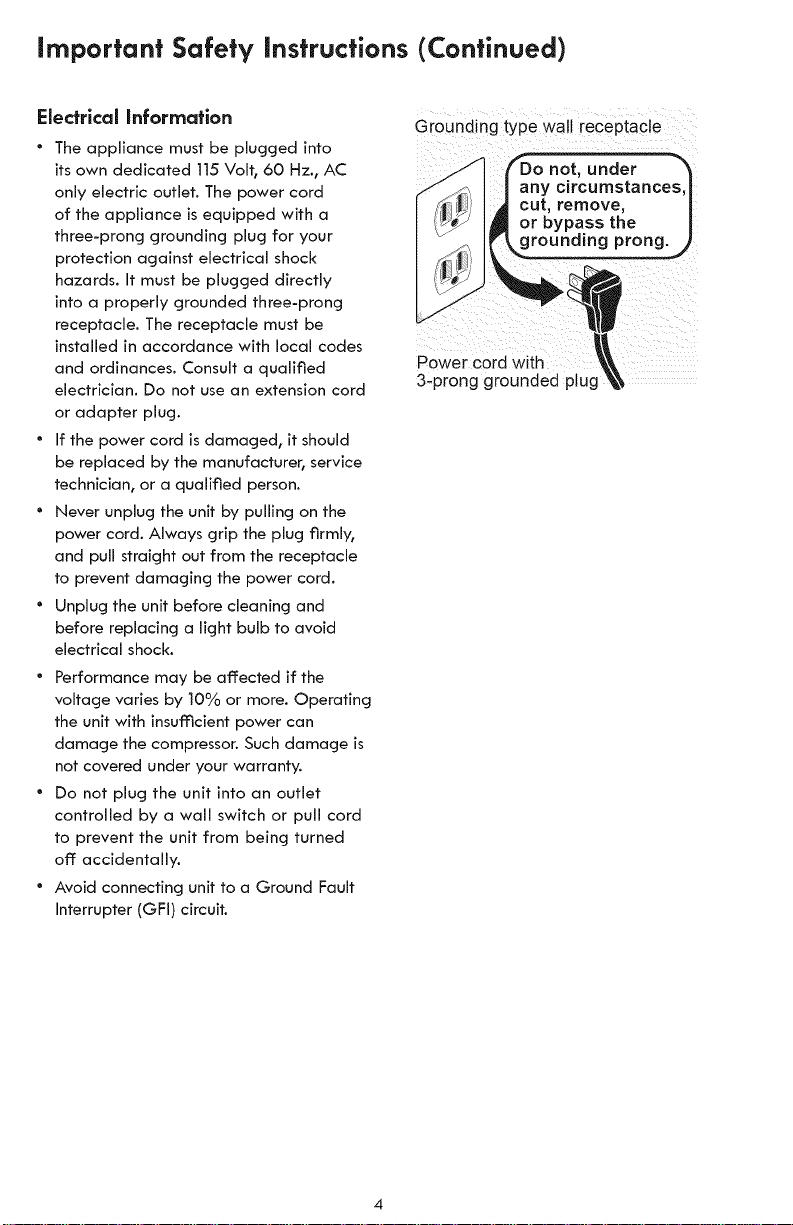

Electrical information
* The appliance must be plugged into
its own dedicated 115 Volt, 60 Hz., AC
only electric outlet. The power cord
of the appliance is equipped with a
three-prong grounding plug for your
protection against electrical shock
hazards. It must be plugged directly
into a properly grounded three-prong
receptacle.Thereceptaclemustbe
installed_naccordancewithlocalcodes
and ordinances. Consult a qualified Power cord with
electrician. Do not use an extension cord 3-prong grounded plug
or adapter plug.
" If the power cord is damaged, it should
be replaced by the manufacturer, service
technician, or a qualified person.
" Never unplug the unit by pulling on the
power cord. Always grip the plug firmly,
and pull straight out from the receptacle
to prevent damaging the power cord.
" Unplug the unit before cleaning and
before replacing a light bulb to avoid
electrical shock.
Grounding type wa!l receptacle
Do not, under
any circumstances, I
cut, remove, |
or bypass the |
grounding prong.j)
* Performance may be affected if the
voltage varies by 10% or more. Operating
the unit with insufficient power can
damage the compressor. Such damage is
not covered under your warranty.
" Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the unit from being turned
off accidentally.
" Avoid connecting unit to a Ground Fault
Interrupter (GFI) circuit.

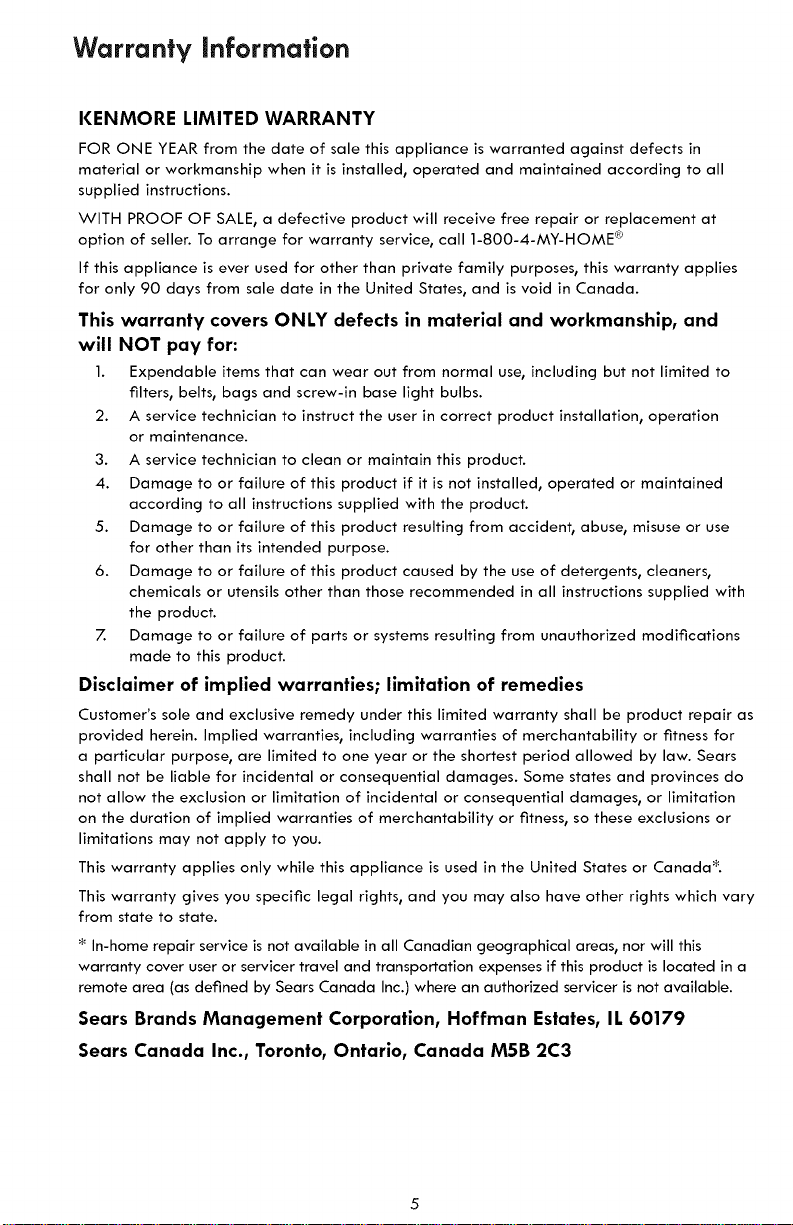

Warranty Information
I(ENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in
material or workmanship when it is installed, operated and maintained according to all
supplied instructions.
WITH PROOF OF SALE, a defective product will receive free repair or replacement at
option of seller. To arrange for warranty service, call 1-800-4-MY-HOME _
If this appliance is ever used for other than private family purposes, this warranty applies
for only 90 days from sale date in the United States, and is void in Canada.
This warranty covers ONLY defects in material and workmanship, and
will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to
filters, belts, bags and screw-in base light bulbs.
2. A service technician to instruct the user in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained
according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use
for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with
the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications
made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as
provided herein. Implied warranties, including warranties of merchantability or fitness for
a particular purpose, are limited to one year or the shortest period allowed by law. Sears
shall not be liable for incidental or consequential damages. Some states and provinces do
not allow the exclusion or limitation of incidental or consequential damages, or limitation
on the duration of implied warranties of merchantability or fitness, so these exclusions or
limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada _.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
In-home repair service is not available in all Canadian geographical areas, nor will this
warranty cover user or servicer travel and transportation expenses if this product is located in a
remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3

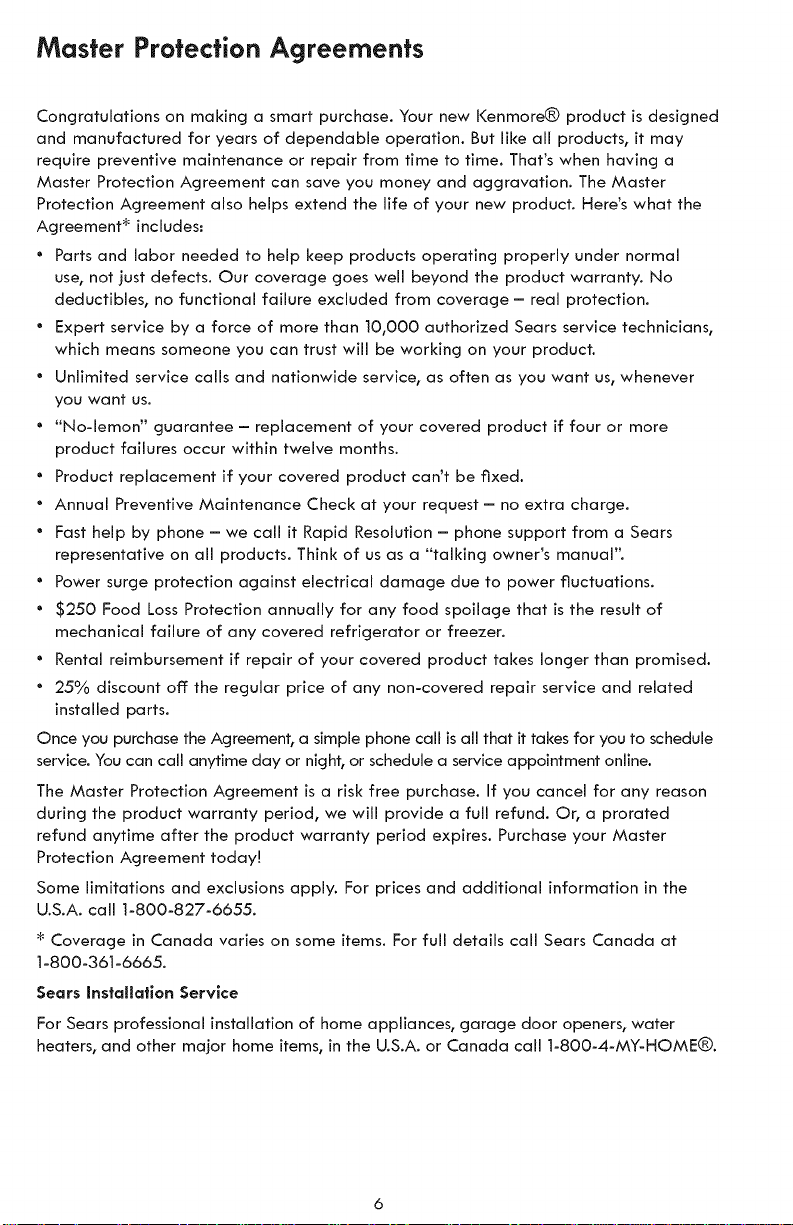

Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore® product is designed
and manufactured for years of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time. That's when having a
Master Protection Agreement can save you money and aggravation. The Master
Protection Agreement also helps extend the life of your new product. Here's what the
Agreement _ includes:
* Parts and labor needed to help keep products operating properly under normal
use, not just defects. Our coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from coverage - real protection.
* Expert service by a force of more than 10,000 authorized Sears service technicians,
which means someone you can trust will be working on your product.
* Unlimited service calls and nationwide service, as often as you want us, whenever
you want us.
* "No-lemon" guarantee - replacement of your covered product if four or more
product failures occur within twelve months.
* Product replacement if your covered product can't be fixed.
* Annual Preventive Maintenance Check at your request - no extra charge.
* Fast help by phone - we call it Rapid Resolution - phone support from a Sears
representative on all products. Think of us as a °'talking owner's manual".
* Power surge protection against electrical damage due to power fluctuations.
* $250 Food Loss Protection annually for any food spoilage that is the result of
mechanical failure of any covered refrigerator or freezer.
* Rental reimbursement if repair of your covered product takes longer than promised.
* 25% discount off: the regular price of any non-covered repair service and related
installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule
service. You can call anytime day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel for any reason
during the product warranty period, we will provide a full refund. Or, a prorated
refund anytime after the product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information in the
U.S.A. call 1-800-827-6655.
Coverage in Canada varies on some items. For full details call Sears Canada at
1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water
heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.
Features at a Glance
_Features may vary according to model
*Fresh Food
Ice Maker
Ice Bin -...
Spill- ..
Proof ®
Shelves
*LED /
Cluster t'
Light \
Crisper
Drawer
Deli --
Drawer
*Incandescent
*LED Cluster Light Flipper *LED Cluster Water
Light Guide
Filter
J
Adjustable
Hinges
Freezer
Baskets
Dairy
Compartment
Spill-Proof ®
Shelves
*Air Filter
Flipper
Mullion
*LED
) Cluster
Light
Crisper
Drawer
*Door
Bin
Installation
Door Removal/Reversal
Tools Necessary:
Phillips Head
or
#2 Square
Drive Head
__ Awd_UStc_ble
Components Provided:
Top Hinge Top Hinge
Cover Front Cover Rear
Screw "-.._ _crew
_Top Lower
Hinge Hinge _
Screw Screw
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only
as instructed in this Use & Care Guide.
Before starting the refrigerator, follow these
important first steps.
Location
* Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
" If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher, or other heat sources.
" The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
" Consider water supply availability for
models equipped with an automatic
ice maker.
CAUTION
Do not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
Do not block the toe grille on the lower
front of your refrigerator. Sumcient air
circulation is essential for the proper
operation of your refrigerator.
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top 3/8inch (9.5 mm)
Back 1inch (25.4 mm)
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have
to allow additional space so the door can
be opened wider.
Installation

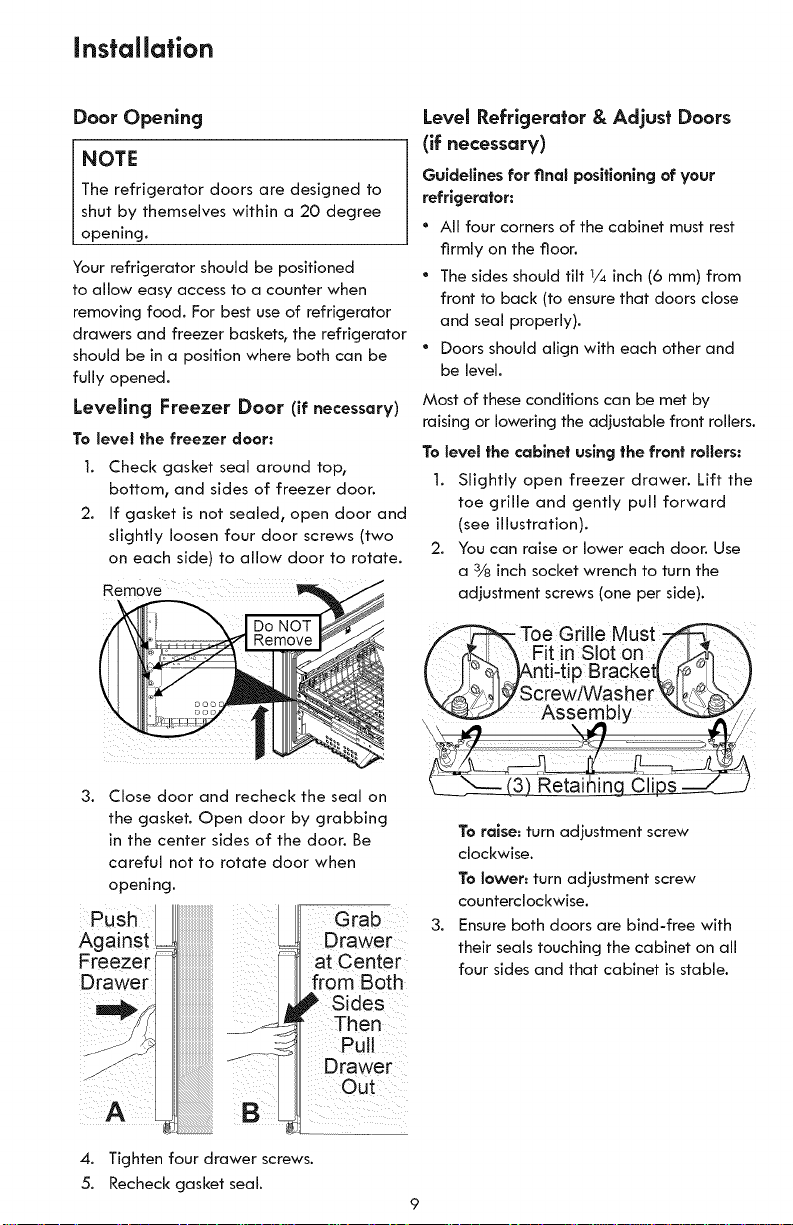

Door Opening
NOTE
The refrigerator doors are designed to
shut by themselves within a 20 degree
opening.
Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of refrigerator
drawers and freezer baskets, the refrigerator
should be in a position where both can be
fully opened.
Levellng Freezer Door (if necessary)
To level the freezer door:
1. Check gasket seal around top,
bottom, and sides of freezer door.
2. If gasket is not sealed, open door and
slightly loosen four door screws (two
on each side) to allow door to rotate.
Remove
3.
Push
Against
Freezer
Drawer
/
A
4.
5.
Close door and recheck the seal on
the gasket. Open door by grabbing
in the center sides of the door. Be
careful not to rotate door when
opening.
Grab
Drawer
at Center
from Both
iI_ Sides
Then
Pult
Drawer
Out
Tighten four drawer screws.
Recheck gasket seal.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your
refrigerator:
* All four corners of the cabinet must rest
firmly on the floor.
* The sides should tilt t/4 inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
* Doors should align with each other and
be level.
Most of these conditions can be met by
raising or lowering the adjustable front rollers.
TO level the cabinet using the front rollers:
1. Slightly open freezer drawer. Lift the
toe grille and gently pull forward
(see illustration).
2. You can raise or lower each door. Use
a 3/8 inch socket wrench to turn the
adjustment screws (one per side).
_Toe Grille Must_
/ _ "_ Fit inSloton / _ \
\\__4 I_yScrew/Washer __
%
L__ (3) Retaithin_
3.
To raise= turn adjustment screw
clockwise.
To lower= turn adjustment screw
counterclockwise,
Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
Installation (Continued)

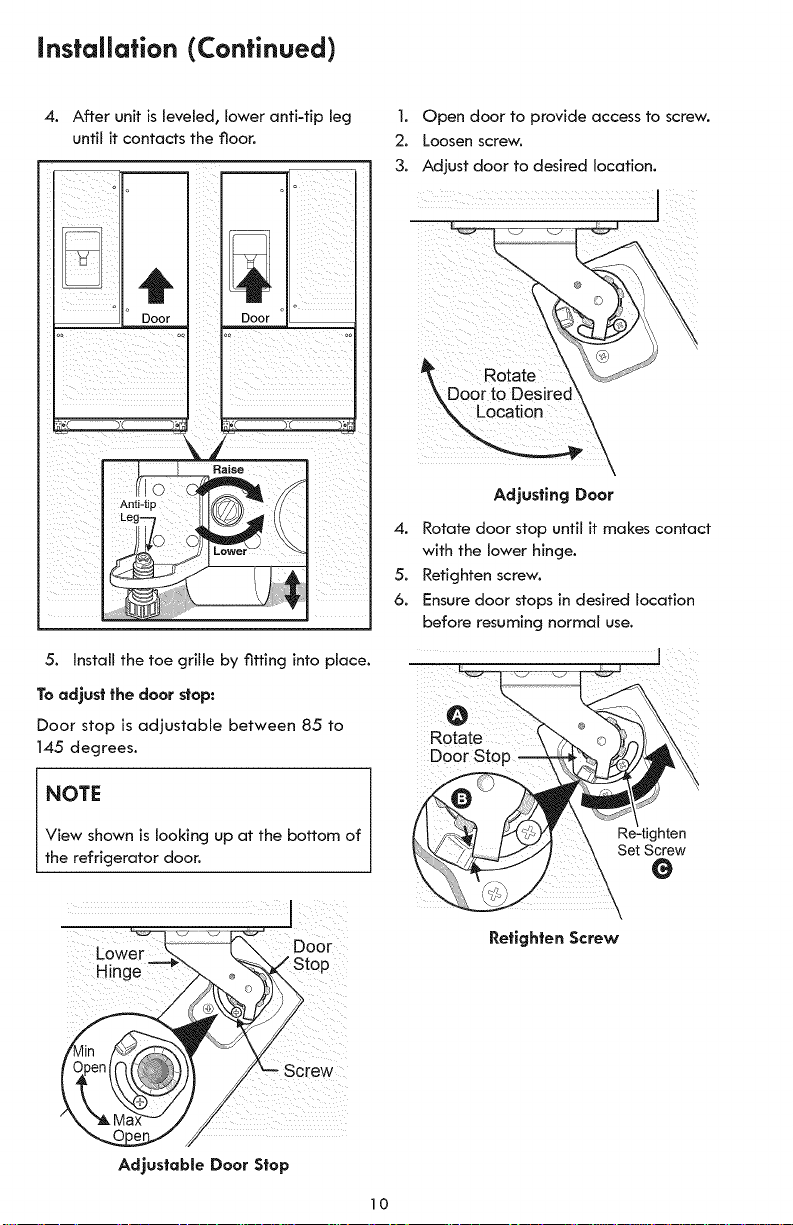

4. After unit is leveled, lower anti-tip leg
until it contacts the floor.
Anti-tip
5. install the toe grille by fitting into place.
To adjust the door stop=
Door stop is adjustable between 85 to
145 degrees.
NOTE
View shown is looking up at the bottom of
the refrigerator door.
Hinge
D00r
top
Adjustable Door Stop
1. Open door to provide access to screw.
2. Loosen screw.
3. Adjust door to desired location.
4.
5.
6.
"_ Rotate
\Door to Desired \
\
Adjusting Door
Rotate door stop until it makes contact
with the lower hinge.
Retighten screw.
Ensure door stops in desired location
before resuming normal use.
Door St(
Re-tighten
Set Screw
0
Retighten Screw
I0
Installation (Continued)

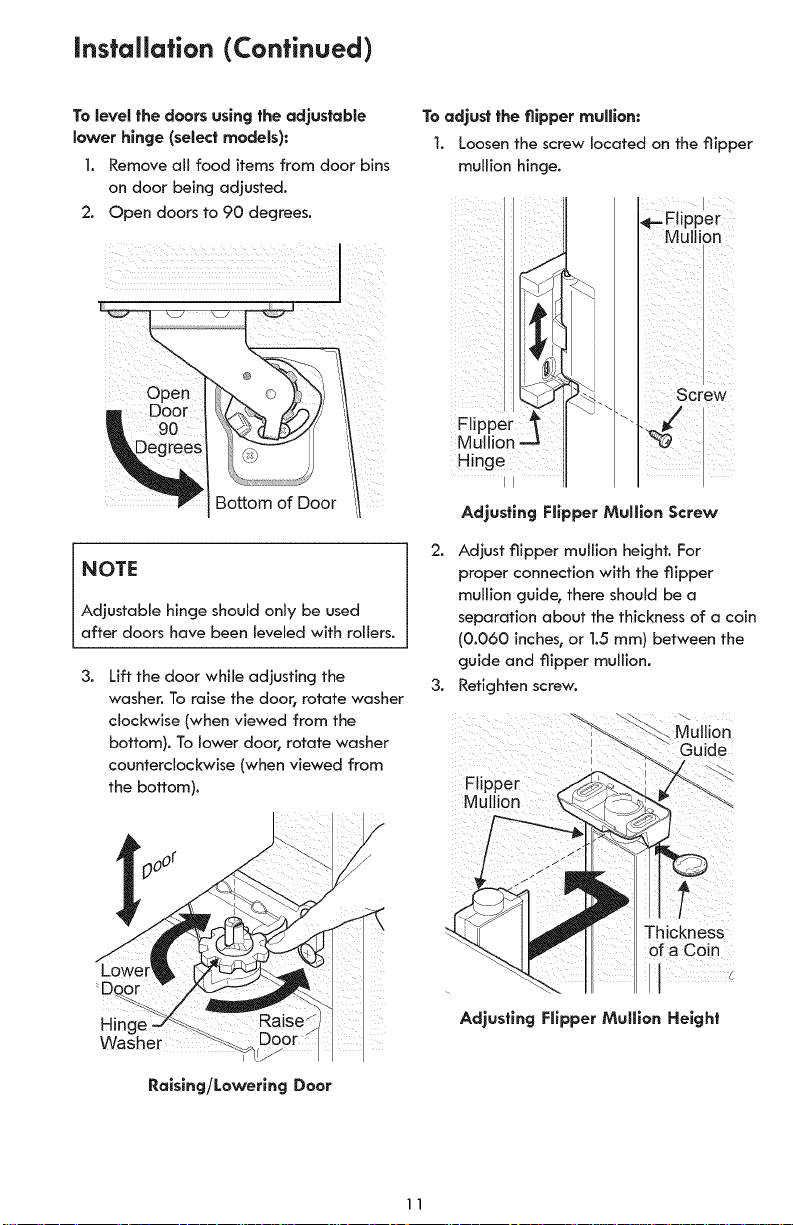

To level the doors using the adjustable
lower hinge (select models):
1. Remove all food items from door bins
on door being adjusted.
2. Open doors to 90 degrees.
I
Bottom of Door
NOTE
Adjustable hinge should only be used
after doors have been leveled with rollers.
3.
Lift the door while adjusting the
washer. To raise the door_ rotate washer
clockwise (when viewed from the
bottom). To lower door, rotate washer
counterclockwise (when viewed from
the bottom).
Lower
Raising/Lowering Door
To adjust the flipper mullion:
I. Loosen the screw located on the flipper
mullion hinge.
Flipper
MullJ
Hinge
II
I
Adjusting Flipper Mullion Screw
2. Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of a coin
(0.060 inches, or 1.5 mm) between the
guide and flipper mullion.
3. Retighten screw.
Thickness
of a Coin
!1
Adjusting Flipper Mullion Height
11
Door Removal Instructions
Gefflng Through Narrow Spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord is
unplugged from the wall outlet.
2. Open the freezer drawer and remove
the toe grille (see "installation" section).
3. Remove any food from the door shelves
and close the doors.
To remove the tap hinge covers:
1. Remove the two screws from each
cover over the top door hinges.
2. Lift inside edge of hinge cover and
tilt back.
Front
Cover :_crew _, _ear
\ T-- uover
Top Hinge _J "-,-.. Screw
Cover,_ _ _ ......
/_:,j; .......
Screws-_-'_ -_----,,,_'-,, G round
"4_ r'x,b_ Screw /
Multi'wire f/ _' //\\ J
Cables -._/'_. _.¢_x// \_/
__-_, _Top
4_Y_( L I/ Hinge
Leave /'_ /-_._ ]]
Hinge/ Ill // _J' ....
With \_,¢',_IK _ _L_:T _'_-water
Front
ev%r_ Cave'Screw
screw__ /
_Top Hinge
._ Cover
Top Hinge
_]r_ge Screw I _ Screws
,._%g- Tw0w re
"."--.L Cab!as
_X, l,"_ _v,,,,,. Leave
_ "---_ _ ">Hinge
___ _ _,-.4_, / With
/ "---_ "_-<._/I Door
To remove the refrigerator doors:
1. Trace lightly around the door's top
hinges with a pencil This makes
reinstallation easier.
2. Disconnect the harness by grasping
both sides of the connector firml%
depress the latch, and puJJapart.
Remove the two screws from the top
hinge. Lift the door off of the boffom
hinge and set it aside.
3. Detach the water tube from the
connector located behind the refrigerator
and pull the tube back out to the front
of the unit. The connector releases when
you press inward on the outer sleeve while
pushing the tube toward the connector
then while continuing to hold in the sleeve,
pull the tube away.
NOTE
Use care while pulling the water tube
from the unit to be sure you do not kink it.
NOTE
DO NOT remove the ground screw
from hinge.
12
)roximately
feet
Door Removal Instructions (Continued)
NOTE
You will be pulling approximately five feet of
water tube from the back of the refrigerator.
4. Unscrew the three lower hinge screws
and hinge if necessary.
To reinstall the right door, reverse the
above steps.
Lower Hinge Removal
Once both doors are in place, ensure they
are aligned with each other and level (Please
see the °'Installation" section for more details),
and replace the top hinge cover.
_ CAUTION
Be sure dG,0rsare set aside in a secure
posffion where they cannot fall and cause
personal injury, or damage to the doors or
handles. When reinserting the water tube
and replacing the top hinge cover, use
care to be sure you do not kink the tube.
Removing Freezer Door
1. Open freezer door.
2. Remove door screws on right and left
sides (two screws on each side).
Remove
2.
Pin
Cabinet
Reinstall screws (two per side), fully
finger tighten, and close door.
Reinstall
and i_" IIq
tighten_./" I1_,_
finger| _LI_ t._
tight "1_1"_,,,__ _ _]
Do
Remove
3. Check gasket seal around top,
bottom, and sides of freezer door. If
gasket is not sealed, rotate door until
the gasket is sealed.
4. Open door by grabbing in the center
sides of the door. Be careful not to
rotate door when opening.
5.
_ CAUTION
Door is heavy. Use caution when lifting.
3. Lift door up and out to remove.
Installing Freezer Door
1. With lower slides pulled out, hang
door onto slide brackets ensuring pins
on each side are fully inserted into 6.
slots on each side. 7.
13
Push /
Against [
Freezer
Door
Check /
Seal
Tighten large bolts.
Grab
Door
at Center
from Both
6 Sides
,P" Then
Pull
Door
Out
Fully_
tighten_ III_'_U=_i
large__ I
\ II1
Remove
Recheck gasket seal.
Install the toe grille by fitting into place.
Installing Door Handles
Door Handle Mounting instructions
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these
handles. The rounded end of the handles may be sharp.
1. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-installed shoulder bolts
(A) that are fastened into the doors ensuring the holes for the set screws are facing
towards the opposite door.
3. While holding handle firmly against door, fasten upper and lower Allen set screws (B)
with supplied Allen wrench.
4. Repeat steps two and three to install opposite handle. Ensure the holes for the set
screws are facing towards the first door.
5. Position freezer handle end over left and right pre-installed handle mounts that are
fastened to the door, ensuring the holes for the set screws are facing down.
6. While holding handle firmly against door, loosely tighten far right Allen set screw (B)
with supplied Allen wrench until there is no gap between handle and door.
7. Still holding the handle firmly to the door, firmly tighten far left Allen set screw (B) with
supplied Allen wrench.
8. Return to the far right Allen set screw (B) and firmly tighten with supplied Allen wrench.
NOTE
All set screws should be tightened so that the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time. If this happens, tighten the set screws on
the handles.
Mounting Refrigerator Handles Mounting Freezer Handles
////
14
Connecting the Water Supply
_ WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from electrical
power before connecting a water supply
line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of 1¼
inch plastic isnat recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible far
any damage if plastic tubing is used far
the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
softener can damage the ice maker.
if the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.
iMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes,
Before installingThe Water Supply Line,
YouWill Need:
* Basic Tools: adjustable wrench, fiat-blade
screwdriver, and Phillips TM screwdriver
* Access to a household cold water line with
water pressure between 30 and 100 psi.
* A water supply line made of t/4 inch
(6.4 ram) OD_ copper or stainless steel
tubing. To determine the length of tubing
needed, measure the distance from the
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
A shutoff valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing type
shutoff valve.
* Do not reuse compression fitting or use
thread seal tape.
* A compression nut and ferrule (sleeve) for
connecting a copper water supply line to
the ice maker inlet valve.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator.
To Connect Water Supply Line To ice Maker
inlet Valve
1.
2.
3.
4.
Disconnect refrigerator from electric
power source.
Place end of water supply line into sink
or bucket. Turn ON water supply and
flush supply line until water is clear. Turn
OFF water supply at shutoff valve.
Remove plastic cap from water valve
inlet and discard cap.
If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (1/4inch/6.4 ram). Slide
ferrule (sleeve) into valve inlet and finger
tighten compression nut onto valve.
Tighten another half turn with a wrench;
DO NO]" overtighten, See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled
on the tubing. Slide compression nut
onto valve inlet and finger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO
NO]" overtighten. See Figure 2.
15
Connecting the Water Supply
5. With steel clamp and screw, secure Plastic Water Tubing Stee
water supply line (copper tubing only) to \ to Ice Maker_ t_/-'-'^, 1
rear panel of refrigerator as shown. \ Fill Tube /f_{ ulamp
6. Coil excess water supply line (copper \
tubing only), about 21/2 turns, behind _-- Stainless
refrigerator as shown and arrange coils _ wateSiteneeI
so they do not vibrate or wear against
any other surface. _ -Water Vave
7. Turn ON water supply at shuto_ valve __L_b_ Bracket
and tighten any connections that leak. X--Valve Inlet
Z2 2 :
8. Reconnect refrigerator to eiectdcal c,-
power source.
Plastic Water Tubing /_ Steel
to Ice Maker _ Clamp
Tube
)ression from householdwater supply
Nut
waterline
Bracket
ive Inlet
water line
(Include enough tubing in loop to
allow moving refrigerator out
for cleaning)
Figure I
Figure 2
IMPORTANT
After connecting the water supply, refer to
"How to Prime the Water Supply System"
for important information about priming
an empty water supply system.
Your refrigerator's water supply system
includes several tubing lines, a water
filter, a water valve, and a water tank. To
ensure that your water dispenser works
properly, this system must be completely
filled with water when your refrigerator
is first connected to the household water
supply line.
16
Controls
User interface (options may vary)
Enlarged view of user interface Express
dlspJay menu (options may vary) Chili
on off
Options May Vary
options
(A or v)
exit
control
locked
Used to enter and exit the
options menu and make
selections.
Toggles the options and
run modes.
While in the locked
state, you will not be
able to change any
settings on the display nor
dispense ice and water.
The "Control Locked"
indicator will flash and an
audible warning tone is
played.
ice maker
on off
display
on OfF
refrigerator
temp
freezer
temp
mode
oF oC
light
©
Activates a faster rate
for freezing food and
increases ice production
in the freezer. Deactivates
after 12 hours.
Toggles the ice maker
in the refrigerator
compartment "ON" or
"OFF". In the "Off:" state,
the indicator will blink
when ice is dispensed.
Toggles the temperature
displays On and Off:.
Allows the temperature
set-points to be adjusted.
Control temperatures
range from +33°F / +1°C
to +47°F / +8°C.
Allows the temperature
set-points to be adjusted.
Control temperatures
range from -6°F / -21°C
to +6°F / -15°C.
Toggles display from
Fahrenheit to Celsius,
Toggles dispenser light On
and Off:.
17
Controls (Continued)
Options May Vary
power off
water filter
air filter
default
settings
set(+ or -)
water
cube
crush
Press and hold for
three seconds to turn
off the cooling system.
It also turns off the ice
maker and all dispenser
functions. The display will
read "power off".
Displays the current status
of the water filter (Good,
Order, or Replace). To
reset the filter status to
"Good", press and hold
the %et" key for three
seconds.
Displays the current status
of the air filter (Good,
Order, or Replace). To
reset the filter status to
"Good", press and hold
the "set" key for three
seconds.
While in the default
option, press and hold the
set key for three seconds
to reset all refrigerator
settings to their factory
default settings.
Selects the current menu
selection option.
Press the "water" key to
select water. An indicator
light will be illuminated
above the active feature.
Press the "cube" key to
select cubed ice. An
indicator light will be
illuminated above the
active feature.
Press the "crush" key to
select crushed ice. An
indicator light will be
illuminated above the
active feature.
Your refrigerator is equipped with a touch
control panel. It is only necessary to
gently touch the control panel. There are
three dispenser modes:
1. Water
2. Ice Cubes
3. Crushed Ice
An indicator light will be illuminated
above the active feature.
IMPORTANT
Pressing the power on/off icon does not
turn off power to your refrigerator. You
must unplug the power cord from the
wall outlet.
Setting cooling temperatures
1. Down (v) and Up (A) indicators
are located beside the displayed
temperatures.
2. Press the (v) or (^) indicator to adjust
the temperature to the desired setting.
The temperature display will begin
to blink with the first touch. After five
seconds of inactivity, the display will
beep to accept the new temperature.
After 10 seconds, the display times
out and returns to the basic display.
18
Confro& (Continued)
A_arrns
Power Failure
In the event of a power failure, the power
fail alert will be illuminated. Press alarm
reset to acknowledge the alarm. Other
modes may be turned off until the alarm
is acknowledged. When the power fail
alert is acknowledged, the refrigerator
will resume normal operation. The high
tamp alarm may also be illuminated until
a safe operating range temperature has
been reached.
Freezer Temp
If the freezer temperature reaches 26°F
or greater, the alarm will sound and the
temperature will flash. You can disable
the alarm by pressing the set key but the
"High Tamp" indicator will illuminate until
the temperature goes below 26°F.
Fresh Food Temp
If the fresh food temperature reaches
55°F or greater, the alarm will sound and
the temperature will flash. You can disable
the alarm by pressing the set key but the
"High Temp" indicator will illuminate until
the temperature goes below 55°F.
Door Ajar
If the freezer or fresh food doors have
been left open for five minutes or more,
an alarm will sound and the door ajar
indicator will illuminate on the display.
Press the set key to reset any system
alarms.
Flapper
When "Cube" or "Crush" is selected, if the
flapper (or ice chute door) is being held
open by a jammed ice cube, an alarm
will sound for two minutes. The alarm will
reset after two minutes or when the ice
cube is removed and the set key is pressed
to reset.
19
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator and its
controls in accordance with observance of
the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
pressing and holding both the freezer " v "
and refrigerator " ^ " indicators for five
seconds. The display shows "Sb" while in
Sabbath mode.
In the Sabbath Mode, the High Tamp
alarm is active for health reasons. If a high
temperature alarm is activated during this
time, for example due to a door left ajar,
the alarm will sound intermittently for about
10 minutes. The alarm will then silence on its
own and a red high temperature icon will
display. The high tamp icon will continue to
display, even if the door is closed, until the
Sabbath mode is exited and the icon reset.
The refrigerator will function normally once
the door is closed, without any violation of
the Sabbath/Holidays.
,_For further assistance, guidelines
for proper usage and a
complete list of models with the
Sabbath feature, please visit the
web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work
until Sabbath Mode isdeactivated.
Refrigerator stays in Sabbath Mode after
power failure recovery. It must be deactivated
with the buttons on the control panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.
Automatic Ice 8=Water Dispenser
Priming the Water Supply System
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall be_veen 30 psi and 100 psi.
Excessive pressure may cause water
filter to malfunction.
1. Begin filling the tank by pressing and
holding a drinking glass against the
water dispenser paddle.
2. Keep the glass in this position until
water comes out of the dispenser. It
may take about 11/2minutes.
3. Continue dispensing water for about
three minutes to flush the system
and plumbing connections of any
impurities (stopping to empty the glass
as necessary).
NOTE
The water dispenser has a built-in device
that shuts off the water flow after three
minutes of continuous use. To reset
this shutoff device, simply release the
dispenser paddle.
ice Maker Operation & Care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24 hours. The
ice maker will fill the ice bin from the rear.
You must dispense some ice to force the ice
forward in the bin. This will allow the bin to
fill completely.
IMPORTANT
Your ice maker isturned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a
water supply, set the ice maker's On/Off
icon to Off and turn off the water supply
valve; otherwise, the ice maker's fill valve
may make a loud chattering noise when it
attempts to operate without water.
Turning the Fresh Food ice Maker
On and Off
Ice production iscontrolled by the ice
maker's On/Off icon on the control panel.
Press and hold the °rice Off:" icon for three
seconds to turn the ice maker "ON" or
"OFF". The ice maker is turned off when the
LED above the °rice Off:" icon isilluminated.
iMPORTANT
Turning off the ice maker will result in
existing ice melting in the bin.
IMPORTANT
Turning off the ice maker will disable
the ice dispenser. You will still be able to
dispense water.
NOTE
The ice maker also has a built-in plastic
signal bale arm that automatically stops
ice production when the ice bin is full.
This signal arm should not be used to
manually stop the ice maker.
Using the Ice Maker after Installation
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three
empty ice maker cycles. Furthermore, if the
system is not flushed, the first ice cubes may
be discolored or have an odd flavor.
2O
Automatic Ice & Water Dispenser (Continued)
IMPORTANT
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed ice.
This could occur in normal operation of the
ice maker. If you start seeing these more
frequently, it may be an indication of low
water pressure or the water filter needs to
be replaced. As the water filter nears the
end of its useful life and becomes clogged
with particles, less water is delivered to the
ice maker during each cycle. Remember, if
it'sbeen six months or longer since you last
changed your water filter, replace the water
filter with a new one. Poor quality household
water may require the filter to be changed
more frequently.
Ice Maker/Dispenser Tips
* If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker by holding the
On/Off soft-touch icon for three seconds.
* The following sounds are normal when the
ice maker is operating:
- Motor running
Ice dropping into ice bin
- Water valve opening or closing
- Running water
* When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
* If you need a large quantity of ice at one
time, it is best to get cubes directly from
the ice bin.
* Ice cubes stored too long may develop
an odd flavor. Empty the ice bin as
explained below.
* When dispensing cubed ice, it is normal
to have a small quantity of little pieces
along with the whole cubes.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
Cleaning the Ice Maker
Clean the ice maker and ice bin at regular
intervals,especially prior to vacation or moving.
1. Turn off
the ice
maker.
2. Remove
the ice bin
by pulling
straight
out.
3. Empty
and
carefully
clean the Removing Ice Bin
ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clear water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
* An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and freeze together, jamming the
dispenser mechanism.
* You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
CAUTION
NEVER use an ice pick or similar
sharp instrument to break up the ice.
This could damage the ice bin and
dispenser mechanism.
To IG,0sen stuck ice, use warm water.
Before replacing the ice bin, make sure it
is completely dry.
21

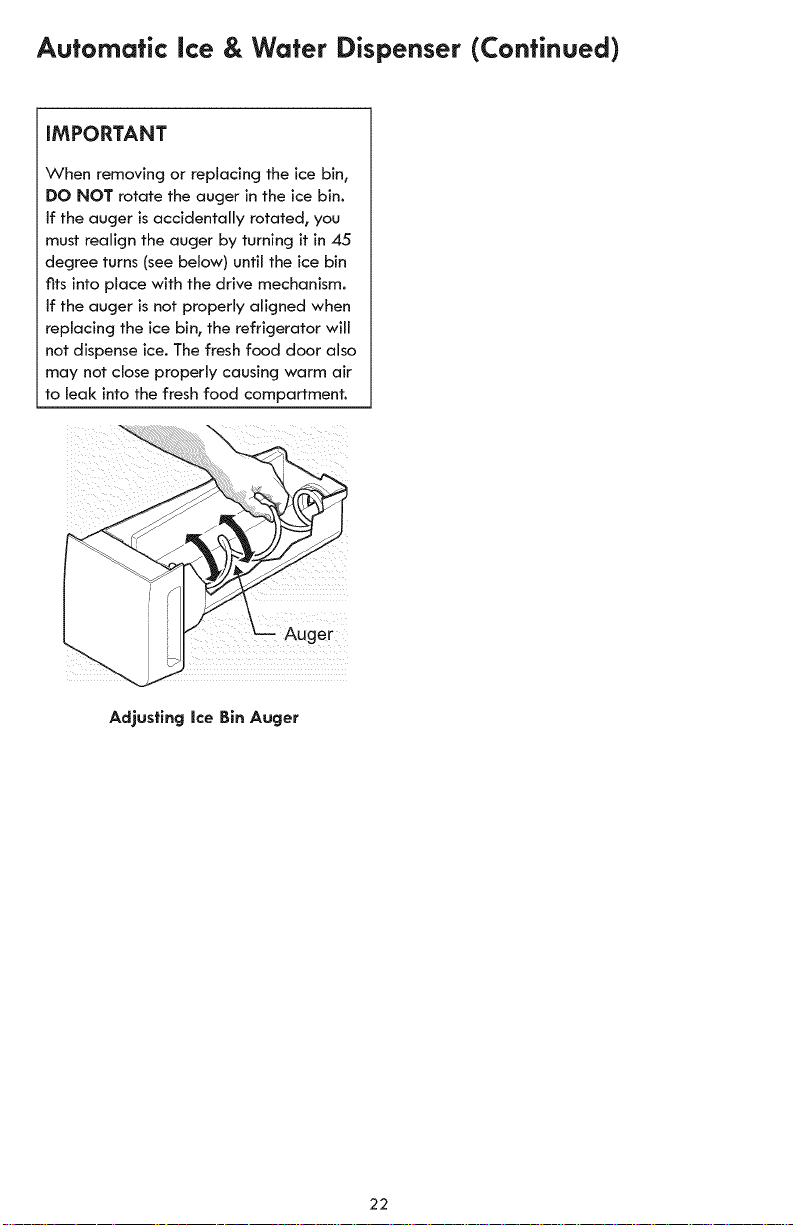

Automatic Ice & Water Dispenser (Continued)
iMPORTANT
When removing or replacing the ice bin,
DO NOT rotate the auger in the ice bin.
If the auger isaccidentally rotated, you
must realign the auger by turning it in 45
degree turns (see below) until the ice bin
fits into place with the drive mechanism.
If the auger isnot properly aligned when
replacing the ice bin, the refrigerator will
not dispense ice. The fresh food door also
may not close properly causing warm air
to leak into the fresh food compartment.
_Auger
Adjusting Ice Bin Auger
22
Storage Features
_ CAUTION
To avoid personal injury or property
damage, handle tempered glassshelves
carefulh/. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass
shelves to stabilize to room temperature
before cleaning. Do not wash in dishwasher.
NOTE
Features may vary according to model.
Your refrigerator includes Spiil-Praof TM glass
shelves that are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
To Change the Position of a Shelf:
l. Remove all food from shelf.
2. Lift the front edge up and pull the
shelf out.
3. Replace by inserting the mounting
bracket hooks into the desired
support slots.
4. Lower the shelf and lock into position.
Shelf features
Full Spill=ProofTM Shelf
Half Spill=Proof TM Shelf
Drawers
Your refrigerator includes a variety of
storage drawers. These drawers are located
in fixed positions at the bottom of the fresh
food compartment.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Opening Crisper Drawer
Crisper Humidity Control
Crisper drawers include a sliding control
for adjusting the humidity inside the crisper.
Leafy vegetables keep best when stored
with the Humidity Control set on Higher
Humidity. Fresh fruits keep best when
stored with the Humidity Control set on
Lower Humidity.
23

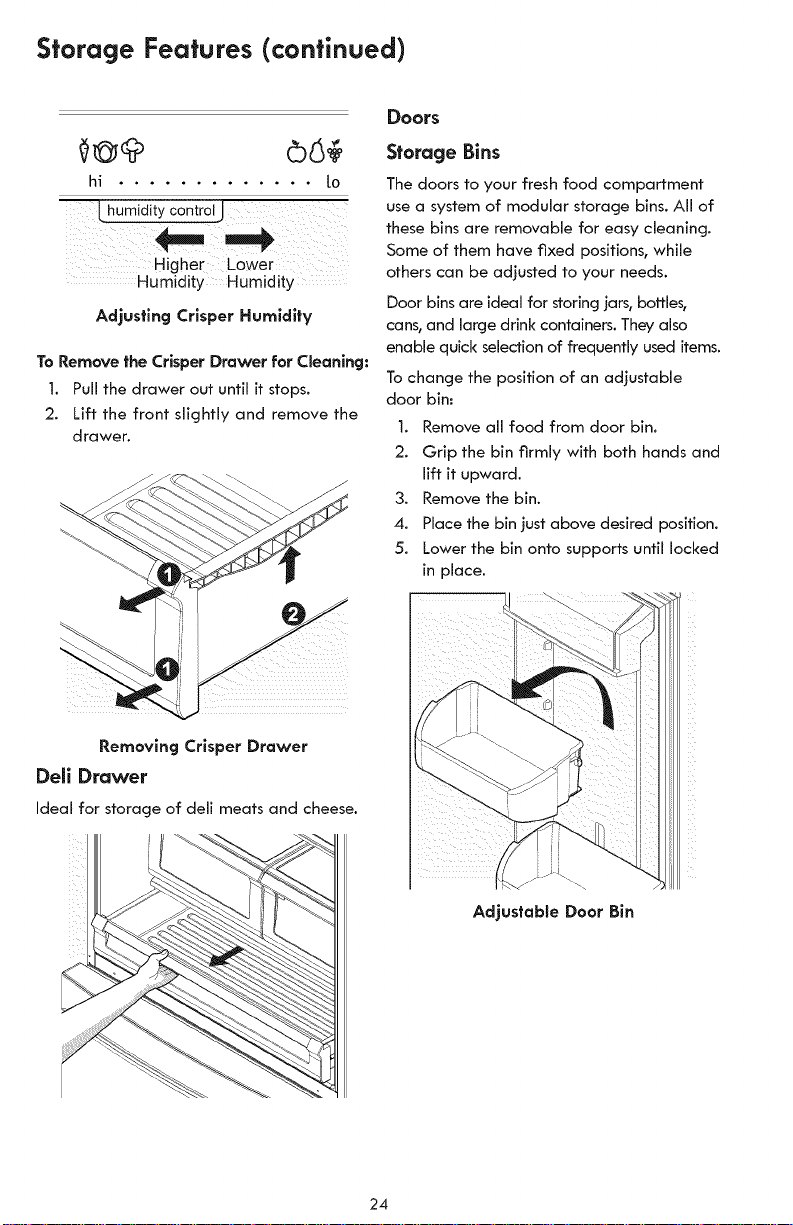

Storage Features (continued)
hi ............. 1o
Lhumidity controlJ
Higher Lower
Humidity Humidity
Adjusting Crisper Humidity
To Remove the Crisper Drawer for Cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the
drawer.
DOORS
Storage Bins
The doors to your fresh food compartment
use a system of modular storage bins. All of
these bins are removable for easy cleaning.
Some of them have fixed positions, while
others can be adjusted to your needs.
Door bins are ideaJ for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used items.
To change the position of an adjustable
door bin:
].
2.
Removing Crisper Drawer
Dell Drawer
Ideal for storage of dell meats and cheese.
Remove all food from door bin.
Grip the bin firmly with both hands and
lift it upward.
Remove the bin.
Place the bin just above desired position.
Lower the bin onto supports until locked
in place.
Adjustable Door Bin
24

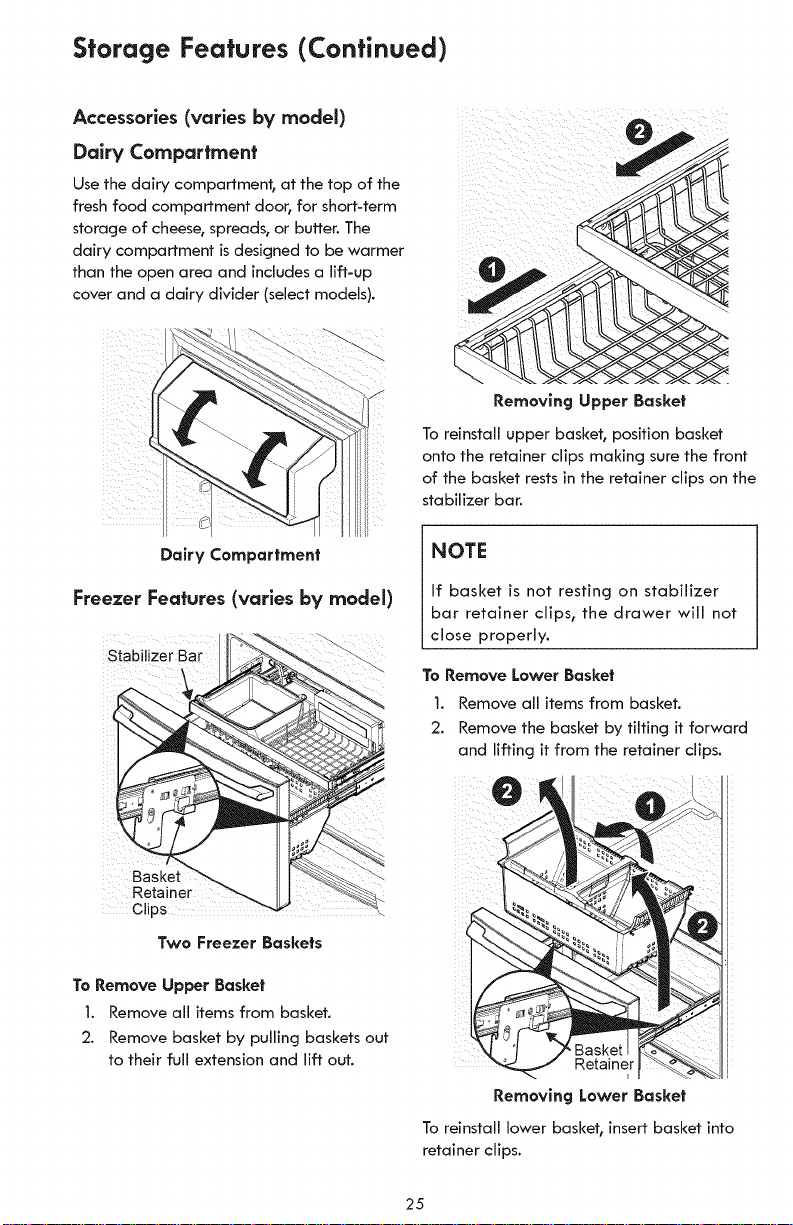

Storage Features (Continued)
Accessories (varies by rnodel)
Dairy Compartment
Use the dairy compartment, at the top of the
fresh food compartment door, for short-term
storage of cheese, spreads, or butter. The
dairy compartment is designed to be warmer
than the open area and includes a lift-up
cover and a dairy divider (select models).
Dairy Comportment
Freezer Features (varies by model)
Basket
Retainer
Clips
Two Freezer Baskets
To reinstall upper basket, position basket
onto the retainer clips making sure the front
of the basket rests in the retainer clips on the
stabilizer bar.
NOTE
If basket is not resting on stabilizer
bar retainer clips, the drawer will not
close properly.
To Remove Lower Basket
1. Remove all items from basket.
2. Remove the basket by tilting it forward
and lifting it from the retainer clips.
To Remove Upper Basket
1. Remove all items from basket.
2. Remove basket by pulling baskets out
to their full extension and lift out.
Removing Lower Basket
To reinstall lower basket, insert basket into
retainer clips.
25
Storage Features (Continued)
Dividers
Lift up on the front of the divider and pull out.
Basket Divider
%
Retainers
Stabilizer
Ba_
Basket Divider
To reposition the pivoting divider (some
models), lift up and slide to desired
location. The pivoting divider is not
designed to be removed.
Lower Basket
Lower Basket Pivoting Divider
(some models)
NOTE
Spill Guard Tray should be hand
washed in warm water.
26
Storing Food and Saving Energy
Ideas for Storing Foods
Fresh Food Storage
* Keep the fresh food compartment
between 34°F and 40°F with an optimum
temperature of 37°F.
* Avoid overcrowding the refrigerator
shelves, which reduces air circulation and
causes uneven cooling.
Fruits and Vegetables
food designated for the freezer will be
preserved as quickly as possible.
Activating "quick freeze" also will help
your freezer more efficiently maintain the
selected temperature after placing new
purchases with pre-existing frozen foods.
Avoid adding too much warm food to the
freezer at one time. This overloads the
freezer, slows the rate of freezing, and
can raise the temperature of frozen foods.
* Store fruits and vegetables in crisper drawers, * Leave a space between packages, so cold
where trapped moisture helps preserve food air can circulate freely, allowing food to
quality for longer time periods, freeze as quickly as possible.
* Wash items and remove excess water.
* Wrap any items that have strong odors or
high moisture content.
Meat
* Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or surfaces.
* Use the deli drawer to store meat/poultry
for short-term storage. Any meat to be kept
longer than two days should be frozen.
Frozen Food Storage
* Keep the freezer compartment at O°F
or lower.
Ideas for Saving Energy
installation
* Locate the refrigerator in the coolest part
of the room, out of direct sunlight, and
away from heating ducts or registers.
* Do not place the refrigerator next to heat-
producing appliances such as a range, oven,
or dishwasher. If this is not possible, a section
of cabinetry or an added layer of insulation
between the two appliances will help the
refrigerator operate more efficiently.
* Level the refrigerator so that the doors
close tightly.
* A freezer operates most efficiently when it Temperature Settings
is at least 2/3full.
Packaging Foods for Freezing
* To minimize food dehydration and quality
deterioration, use aluminum foil, freezer
wrap, freezer bags, or airtight containers.
Force as much air out of the packages as
possible and seal them tightly. Trapped air
can cause food to dry out, change color,
and develop an off-flavor (freezer burn).
* Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
* Refer to the "Controls" section for
procedures on temperature settings.
Food Storage
* Avoid overcrowding the refrigerator or
blocking cold air vents. Doing so causes
the refrigerator to run longer and use
more energy.
* Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up inside
the unit.
* Do not refreeze meat that has
completely thawed.
Loading the Freezer
* Prior to grocery shopping, activate
"quick freeze" so that on your return
you can ensure your newly purchased
* Organize the refrigerator to reduce door
openings. Remove as many items as
needed at one time and close the door as
soon as possible.
* Do not place a hot container directly on
a cold shelf. Remember, such an extreme
temperature change may damage the glass.
27
Normal Operating Sounds and Sights
Understanding the Sounds You
May Hear
Your new, high-efficiency refrigerator may
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is
operating correctly. Some surfaces on floors,
walls, and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components
in your refrigerator and the sounds they
can cause_
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
D Automatic ice maker When ice has
been produced, you will hear ice cubes
falling into the ice bin. Ice maker fan
and water valve activation may create
sounds from its operation. (Freezer ice
maker in select models only).
E Electronic control & automatic defrost
control These parts can produce
a snapping or clicking sound when
turning the cooling system on and off.
F Condenser fan You may hear air being
forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than older
models. The compressor may have a
high-pitched hum or pulsating sound.
H Water valve Makes a buzzing sound
each time it opens to fill the ice maker.
I Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J Condenser May create minimal sounds
from forced air.
L Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound
when the solenoid opens and closes the
ice chute.
M Motorized damper May produce a
light humming during operation.
NOTE
Energy efficient foam in your refrigerator
is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
28
Changing the Filter
Locating the Filters
Your refrigerator is equipped with water
filtering system. The water filter system filters
all dispensed drinking water, as well as the
water used to produce ice.
Water Filter
The water filter is located at the top right
side of the fresh food compartment.
Replaclncj the Water Filter
In general, you should change the water
filter every six months to ensure the highest
possible water quality. Water Filter Status
on the user interface prompts you to replace
the filter after a standard amount of water
(200 gallons/757 liters for Kenmorepure] TM)
has flowed through the system.
If your refrigerator has not been used
for a period of time (during moving
for example), change the filter before
reinstalling the refrigerator.
Ordering Replacement Filters
To order your replacement filters, please
visit the dealer where you purchased your
refrigerator. Sears recommends that you
order extra filters when you first install your
refrigerator, and that you replace your filters
at least once every six months.
Here is the product number to request
when ordering:
Kenmorepure! TM Water Filter
Part #9999
NOTE
When ordering your replacement filter,
please reorder the same filter type that is
currently in your refrigerator.
h%re aboutyour Advanced Water Fii_er
[The Kenmorepure._Mice and water
_ Ifilter system istested and certified to
/ N_®)INSF/ANSI Standards 42 and 53 for
_'_ Jthe reduction of claims specified
on
[the performance data sheet.
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. Systems certified for
cyst reduction may be used on disinfected
waters that may contain filterable cysts.
Test& Certification Results:
* Rated Capacity - 200 gallons/757 liters
for I(enmorepure! TM ice and water filter
* Rated service flow - .50 gallons per minute
* Operating Temp.: Min. 33°F, Max. IO0°F
* Maximum Rated Pressure - 100 pounds
per square inch
* Recommended Minimum Operating
Pressure: 30 pounds per square inch
To Replace your Kenmarepure! TM
Water Filter:
29
It is not necessary to turn the water supply
off to change the filter. Be ready to wipe up
any small amounts of water released during
the filter replacement.
1. Turn Off the ice maker power switch.
2. Remove the filter by pushing on the end/
face of the filter.
3. Slide the old water filter cartridge straight
out of the housing and discard it.
4. Unpackage the new filter cartridge. Using
the alignment guide, slide it gently into the
filter housing until it stops against the snap-
in connector at the back of the housing.
5. Push firmly until the cartridge snaps into
place (you should hear a click as the
cartridge engages the snap-in connector).
6. Pressa drinking glass against the water
dispenser while checking for any leaks at
the filter housing. Any spurts and sputters
that occur as the system purges air out of
the dispenser system are normal.
7. After filling one glass of water, continue
flushing the system for about four minutes.
8. Turn On the ice maker.
9. Press and hold the Water Filter button on
the Ice & Water Dispenser control panel
for three seconds. When the display
changes from Red to Green, the status
has been reset.
Care & Cleaning
Protecting Your Investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use
paper towels, scouring pads, or other abrasive cleaning materials.
Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions
on any surface.
* Never use CHLORIDE or cleaners with bleach to clean stainless steel.
* Do not wash any removable parts in a dishwasher.
* Always unplug the electrical power cord from the wall outlet before cleaning.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.
o
o
Remove adhesive labels by hand. Do not use razor blades or other sharp instruments
which can scratch the appliance surface.
Do not remove the serial plate. Removal of your serial plate voids your warranty.
Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side
may damage flooring. Be careful not to move the refrigerator beyond the
plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces
with wet or damp hands.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely
drain the water supply system. Failure to do so could result in water leaks when the
refrigerator is put back into service. Contact a service representative to perform this
operation.
Refer to the guide on the next page for details on caring and cleaning specific areas of
your refrigerator.
3O
Care & Cleaning (continued)

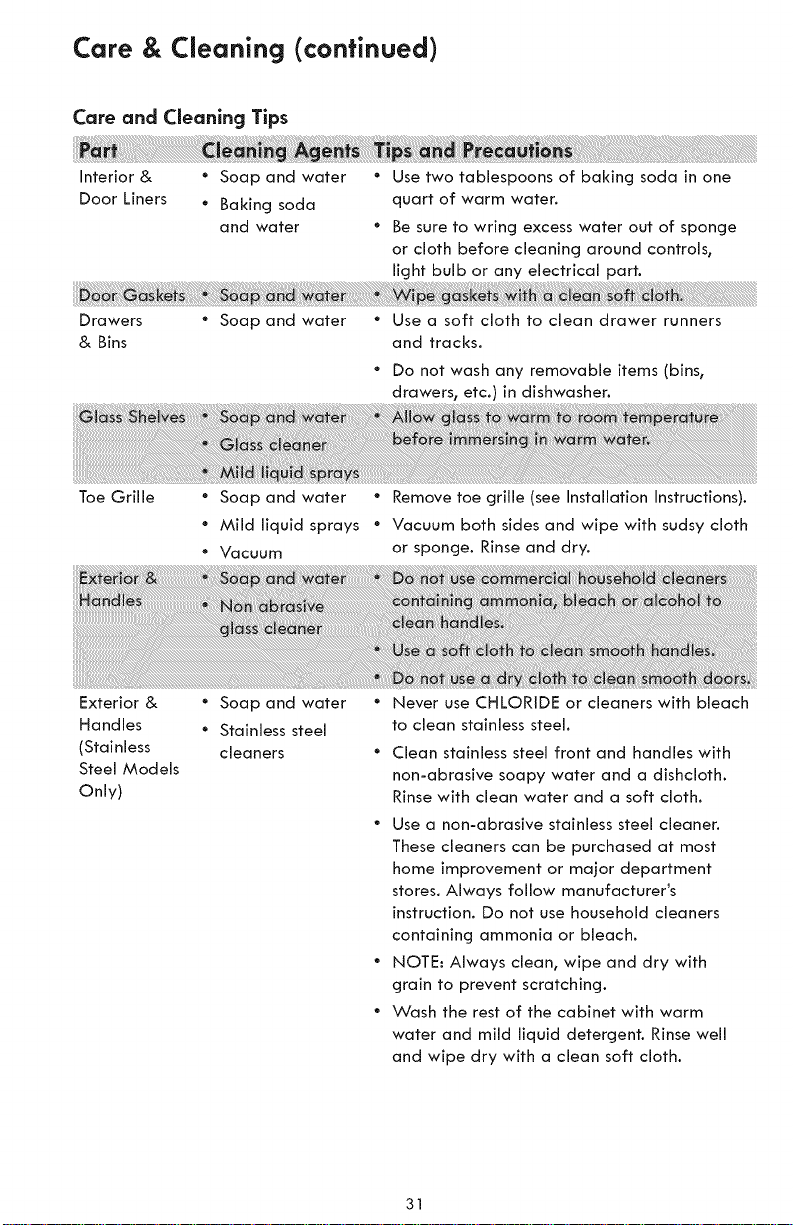

Care and Cleaning Tips
Interior & * Soap and water • Use two tablespoons of baking soda in one
Door Liners ° Baking soda quart of warm water.
and water * Be sure to wring excess water out of sponge
or cloth before cleaning around controls,
light bulb or any electrical part.
_ _e
Drawers ° Soap and water * Use a soft cloth to dean drawer runners
& Bins and tracks.
° Do not wash any removable items (bins,
drawers, etc.) in dishwasher.
Toe Grille
° Soap and water * Remove toe grille (see Installation Instructions).
• Mild liquid sprays * Vacuum both sides and wipe with sudsy cloth
• Vacuum or sponge, Rinse and dry.
Exterior&
Handles
(Stainless
Steel Models
Only)
* Soap and water *
* Stainless steel
cleaners *
Never use CHLORIDE or cleaners with bleach
to clean stainless steel,
Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth.
* Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most
home improvement or major department
stores. Always follow manufacturer's
instruction. Do not use household cleaners
containing ammonia or bleach.
* NOTE: Always clean, wipe and dry with
grain to prevent scratching.
" Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse well
and wipe dry with a clean soft cloth.
31
Care & Cleaning (continued)

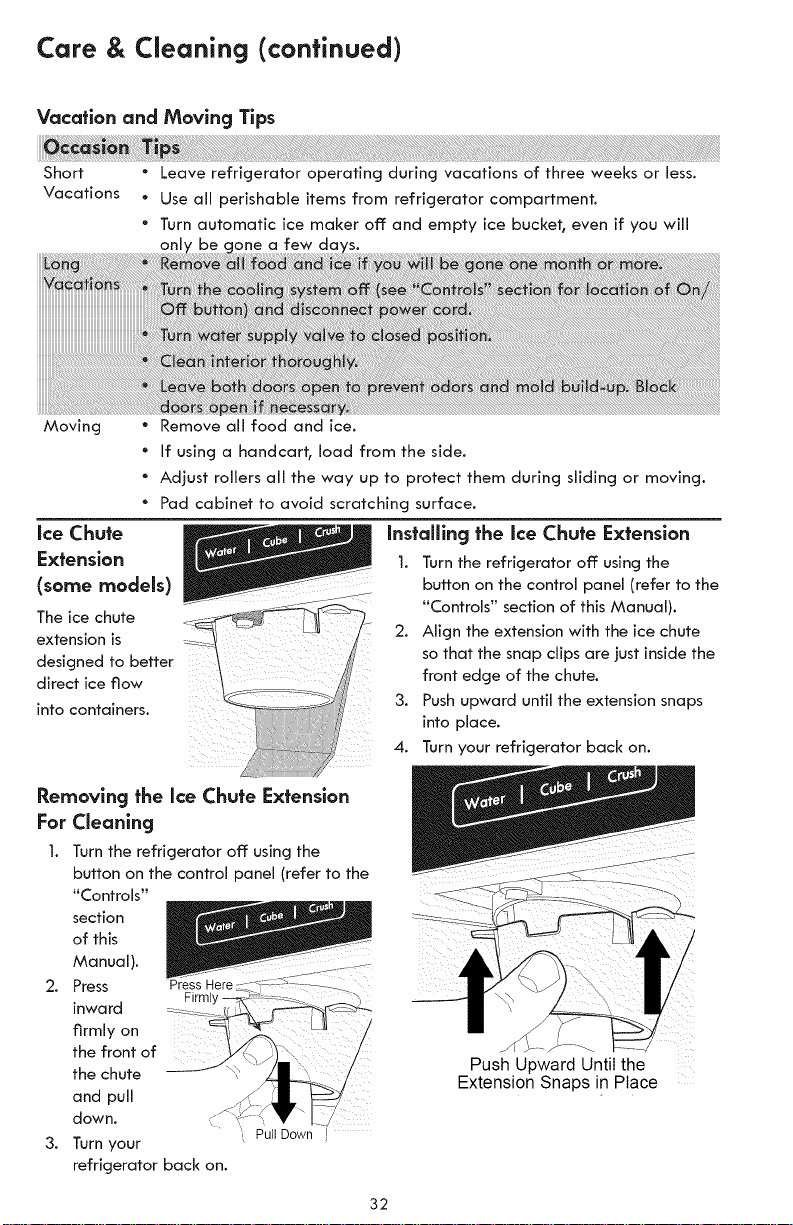

Vacation and Moving Tips
Short
Vacations
° Leave refrigerator operating during vacations of three weeks or less.
° Use all perishable items from refrigerator compartment.
° Turn automatic ice maker off and empty ice bucket, even if you will
onJ one a
Moving
* Remove all food and ice.
* If using a handcart, load from the side.
* Adjust rollers all the way up to protect them during sliding or moving.
* Pad cabinet to avoid scratching surface.
ice Chute
Extension
(some models)
The ice chute
extension is
designed to better
direct ice flow
into containers.
Installlng the ice Chute Extension
1. Turn the refrigerator off using the
button on the control panel (refer to the
"Controls" section of this Manual).
2. Align the extension with the ice chute
so that the snap clips are just inside the
front edge of the chute.
3. Push upward until the extension snaps
into place.
4. Turn your refrigerator back on.
Removing the Ice Chute Extension
For Cleaning
1. Turn the refrigerator off using the
button on the control panel (refer to the
"Controls"
section
of this
Manual).
2. Press PressHere
FJrrnl
inward
firmly on /
the front of /
the chute
and pull
down.
PuttDown
3. Turn your
refrigerator back on.
Push Upward Until the
Extension Snaps in Place
32
Care & Cleaning (continued)

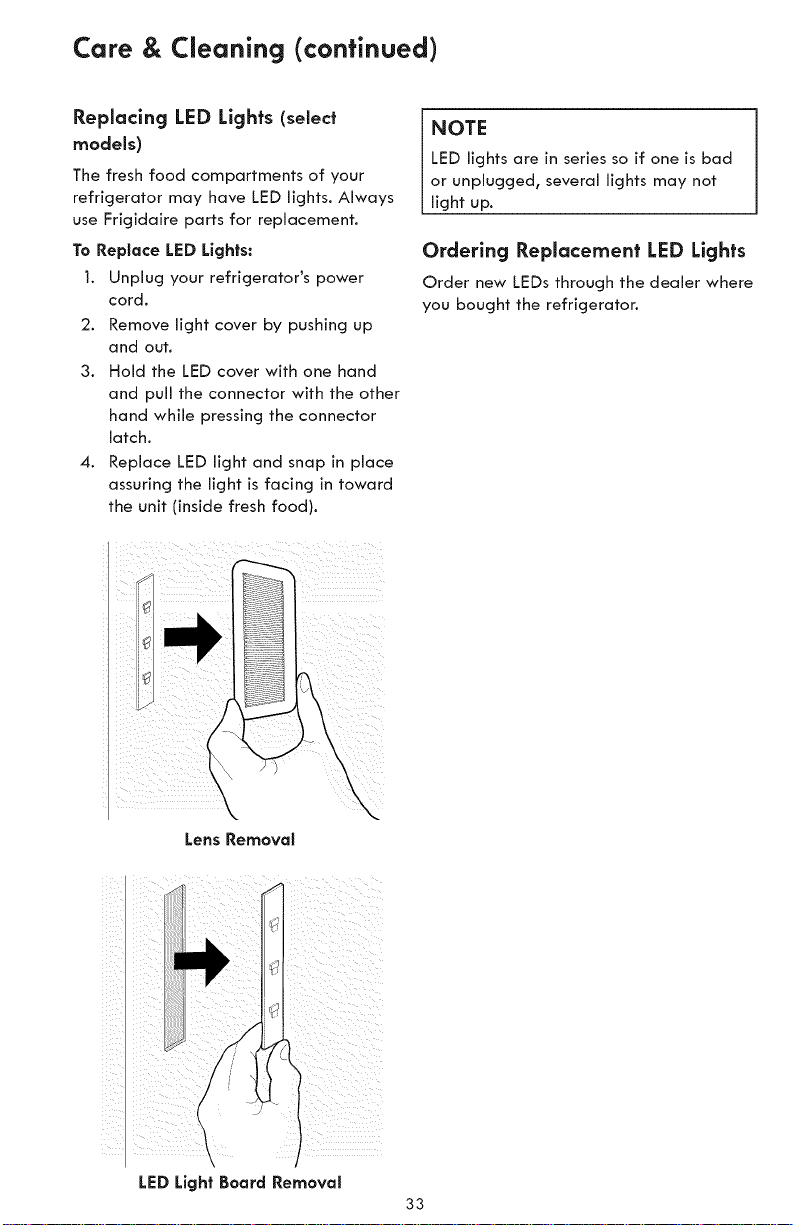

Replacing LED Lights (select
models)
The fresh food compartments of your
refrigerator may have LED lights. Always
use Frigidaire parts for replacement.
To Replace LED Lights:
]. Unplug your refrigerator's power
cord.
2. Remove light cover by pushing up
and out.
3. Hold the LED cover with one hand
and pull the connector with the other
hand while pressing the connector
latch.
4. Replace LED light and snap in place
assuring the light is facing in toward
the unit (inside fresh food).
NOTE
LED lights are in series so if one is bad
or unplugged, several lights may not
light up.
Ordering Replacement LED Lights
Order new LEDs through the dealer where
you bought the refrigerator.
Lens Removal
33
Care & Cleaning (continued)

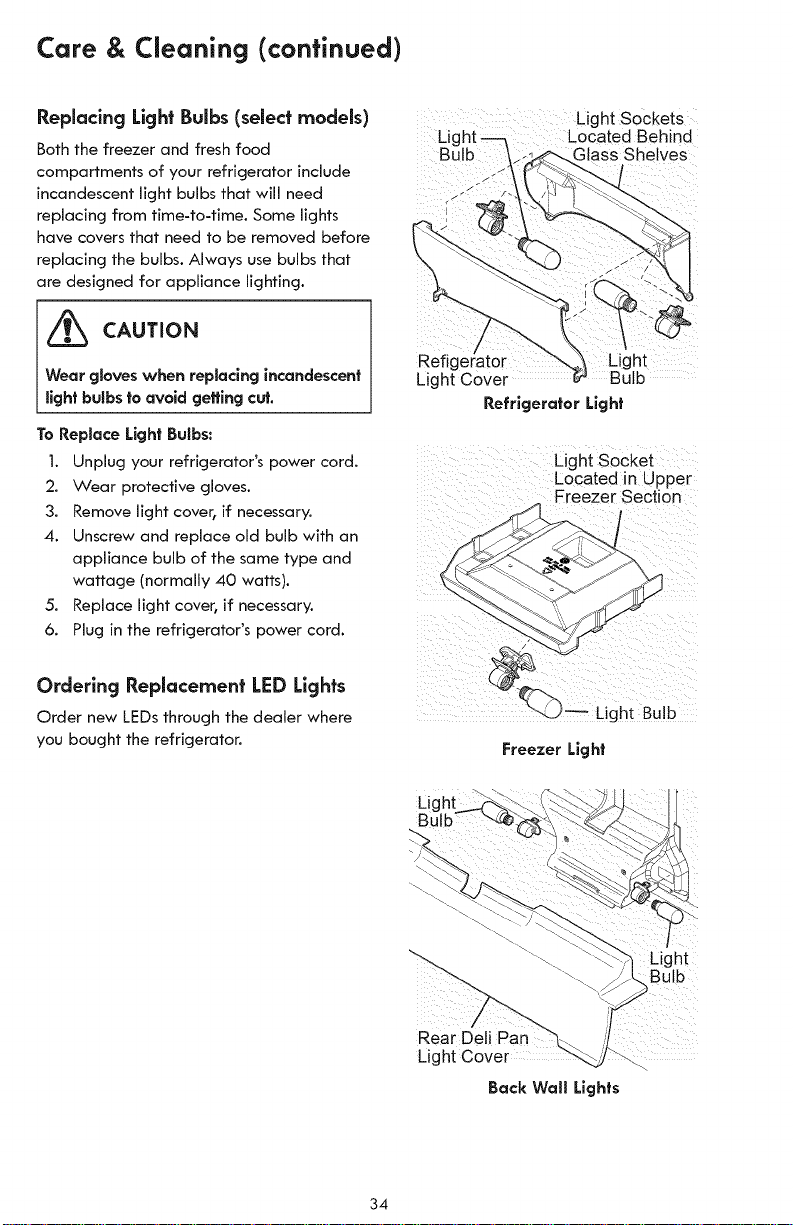

Replacing Light Bulbs (select models)
Both the freezer and fresh food
compartments of your refrigerator include
incandescent light bulbs that will need
replacing from time-to-time. Some lights
have covers that need to be removed before
replacing the bulbs. Always use bulbs that
are designed for appliance lighting.
CAUTION
Wear gloves when replacing incandescent
light bulbs to avoid gefling cut.
To Replace Light Bulbs:
1. Unplug your refrigerator's power cord.
2. Wear protective gloves.
3. Remove light cover r if necessary.
4. Unscrew and replace old bulb with an
appliance bulb of the same type and
wattage (normally 40 watts).
5. Replace light cover, if necessary.
6. Plug in the refrigerator's power cord.
Light Sockets
Light Located Behind
Bulb Glass Shelves
I
Refig_ Light
Light Cover Bulb
Refrigerator Light
Light Socket
Located in Upper
Freezer Section
Ordering Replacement LED Lights
Order new LEDs through the dealer where
you bought the refrigerator.
Freezer Light
Lighl
/
Lig
Light
Bulb
Back Wall Lights
34

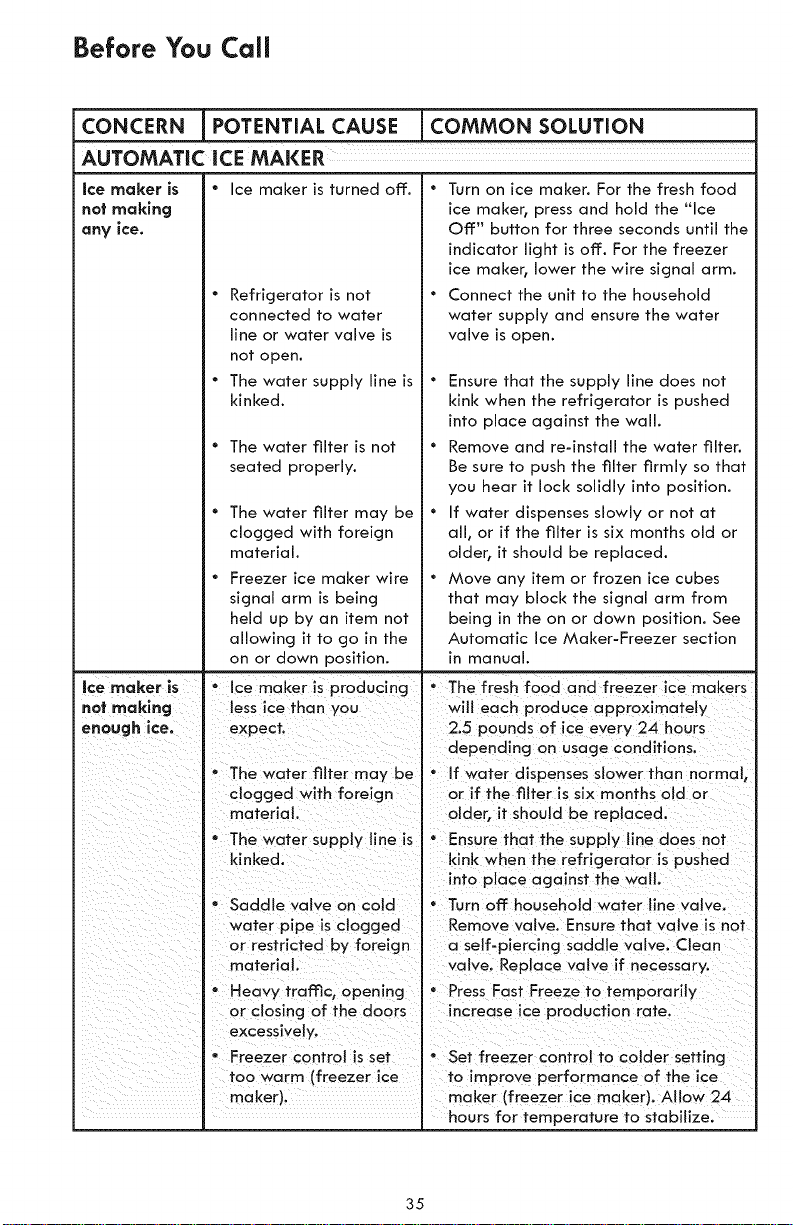

Before You Call
CONCERN POTENTIAL CAUSE COMMON SOLUTION
AUTOMATIC ICE MAKER
* Ice maker is turned off:. *Ice maker is
not making
any ice.
* Refrigerator is not
connected to water
line or water valve is
not open,
* The water supply line is
kinked.
The water filter is not
seated properly.
The water filter may be
clogged with foreign
material.
Freezer ice maker wire
signal arm is being
held up by an item not
allowing it to go in the
on or down position.
Turn on ice maker. For the fresh food
ice maker, press and hold the "Ice
Off:" button for three seconds until the
indicator light is off:. For the freezer
ice maker, lower the wire signal arm.
Connect the unit to the household
water supply and ensure the water
valve is open.
* Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
" Remove and re-install the water filter.
Be sure to push the filter firmly so that
you hear it lock solidly into position.
" If water dispenses slowly or not at
all, or if the filter is six months old or
older, it should be replaced.
" Move any item or frozen ice cubes
that may block the signal arm from
being in the on or down position. See
Automatic Ice Maker-Freezer section
in manual.
Ice maker is • Ice maker is producing I " The fresh food and freezer ice makers
nat making less ice than you I will each produce approximately
enough ice. ' expect. 2.5 pounds of ce every 24 hours
| " The water filter may be " if water dispenses slower than normal,
c ogged w th fore gn or if the filter is six months old or
material, older, it should be replaced.
• The water supply line is • Ensure that the supply line does not
• Saddle valve on cold • Turn off: household water line valve.
I water pipe is clogged Remove valve. Ensure that valve is not
I or restricted by foreign a self-piercing saddle valve. Clean
I material. I valve. Replace valve if necessary.
I " Heavy traffic, opening I " Press Fast Freeze to temporarily
I or closing of the doors I increase ice production rate.
I excessively" I
I " Freezer control is set I " Set freezer control to colder setting
, too warm (freezer ice to improve performance of the ice
I maker). , maker (freezer ice maker). Allow 24
' hours for temperature to stabilize.
35

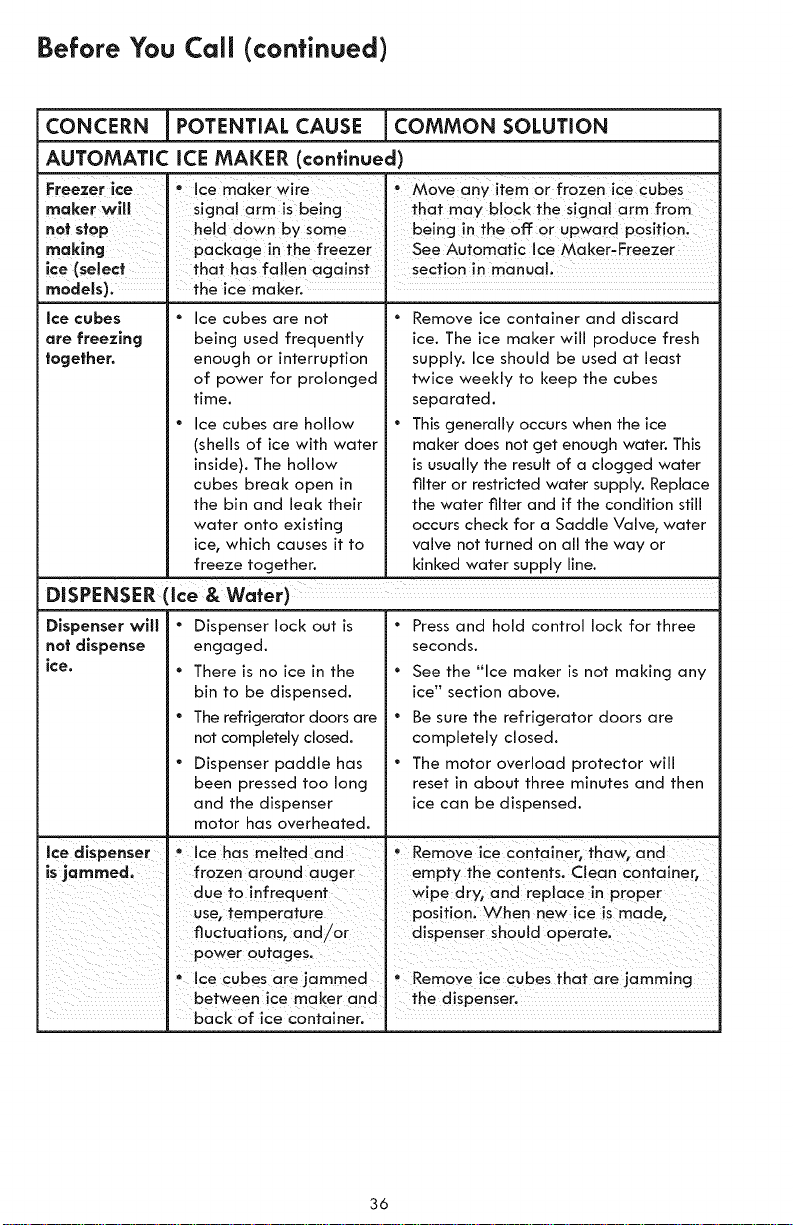

Before You Call (continued)
CONCERN POTENTIAL CAUSE COMMON SOLUTION
AUTOMATIC iCE MAKER (continued)
Freezer Uoemaker MoVeanyitemorfrozen ubes
maker w!ff I arm iSbe!ng that may block the s!gna! arm tram
not st0p he!d down bysom e be!ng !n the off: or upward position.
making I package in the freezer See Automatic Ice Maker, Freezer
ice (select I thathasfa!!enaga!nSt Section in manua!,
models), the ice maker.
ice cubes *
are freezing
together.
o
Ice cubes are not
being used frequently
enough or interruption
of power for prolonged
time.
Ice cubes are hollow
(shells of ice with water
inside). The hollow
cubes break open in
the bin and leak their
water onto existing
ice, which causes it to
freeze together.
Remove ice container and discard
ice. The ice maker will produce fresh
supply. Ice should be used at least
twice weekly to keep the cubes
separated.
This generally occurs when the ice
maker does not get enough water. This
isusually the result of a clogged water
filter or restricted water supply. Replace
the water filter and if the condition still
occurs check for a Saddle Valve, water
valve not turned on all the way or
kinked water supply line.
DISPENSER (ice & Water)
Dispenser will *
not dispense
ice. ,_
o
o
Dispenser lock out is
engaged.
There is no ice in the
bin to be dispensed.
The refrigerator doors are
not completely closed.
Dispenser paddle has
been pressed too long
and the dispenser
motor has overheated.
* Press and hold control lock for three
seconds.
* See the "Ice maker is not making any
ice" section above.
* Be sure the refrigerator doors are
completely closed.
* The motor overload protector will
reset in about three minutes and then
ice can be dispensed.
ice dispenser I" ice has melted and I ® Remove ice container, thaw, and
is jammed. I frozen around auger empty the contents. Clean container,
due to infrequent I wipe dry, and replace in proper
use, temperature position. When new ice is made,
I fluctuations, and/or d spenser should operate.
I power outages.
I " Ice cubes are jammed • Remove ice cubes that are jamm ng
I between ice maker and the dispenser.
I
back of ice container.
36

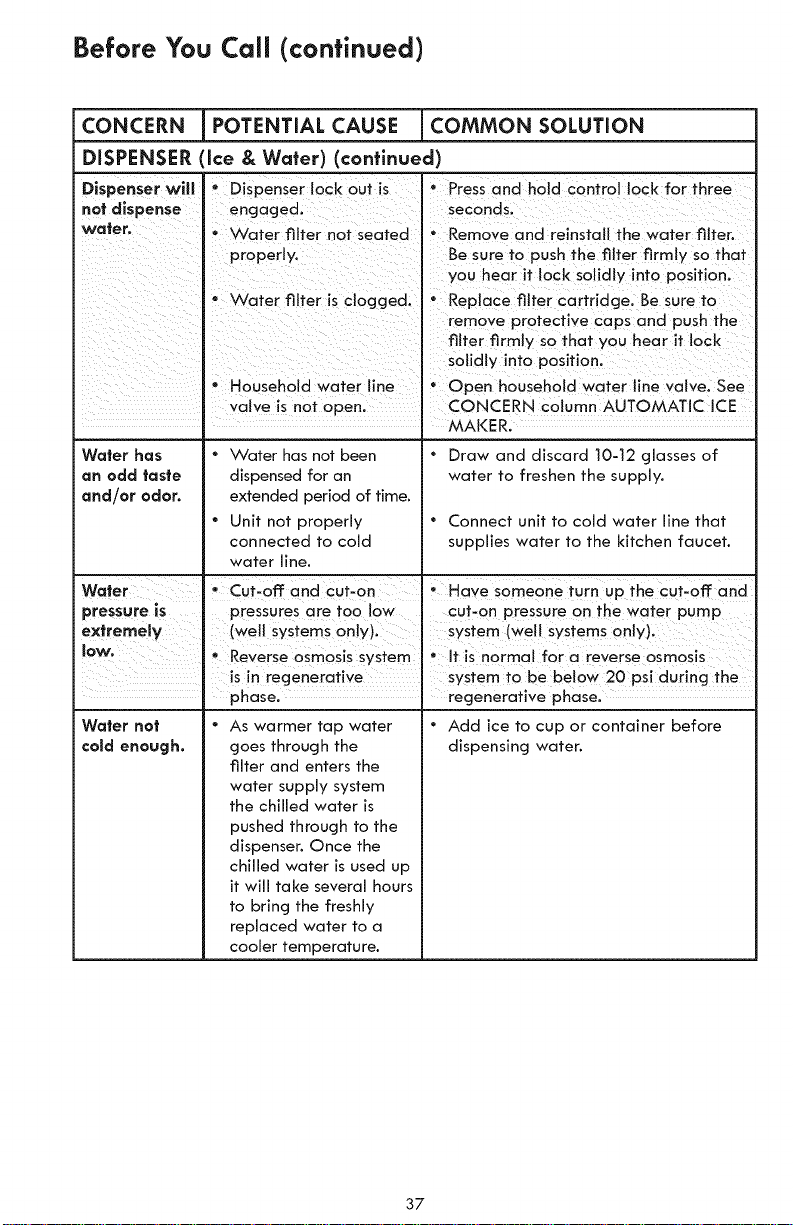

Before You Call (continued)
CONCERN POTENTIAL CAUSE COMMON SOLUTION
DISPENSER (ice & Water) (continued)
Dispenser will * Dispenser lock out s • Press and hold control lock for three
not dispense engaged. I seconds.
water. • Water filter not seated " Remove and reinstall the water filter.
I properly, sure to push firmly so that
Be the filter
I I you hear it loci< solidly into position.
I " Water filter is clogged. I " Replace filter cartridge. Be sure to
I remove protective caps and push the
I filter firmly so that you hear it lock
I I solidly into position.
I " Household water l ne I " Open household water line valve. See
I valve is not open. CONCERN column AUTOMATIC ICE
I I MAKER.
Water has * Water has not been * Draw and discard 10-12 glasses of
an odd taste dispensed for an water to freshen the supply.
and/or odor. extended period of time.
• Unit not properly * Connect unit to cold water line that
connected to cold supplies water to the kitchen faucet.
water line.
Water . - Cut-off and cut-on I " Have someone turn up the cut-off and
ePressure is pressures are too low , cut-on pressure on the water pump
xtrerneiy (well systems only), system (well systems only).
low. " " Reverse osmosis system " " It is normal for a reverse osmosis
J is in regenerative " system to be below 20 psi during the
- phase. • regenerative phase.
Water not * As warmer tap water * Add ice to cup or container before
cold enough, goes through the dispensing water.
filter and enters the
water supply system
the chilled water is
pushed through to the
dispenser. Once the
chilled water is used up
it will take several hours
to bring the freshly
replaced water to a
cooler temperature.
37

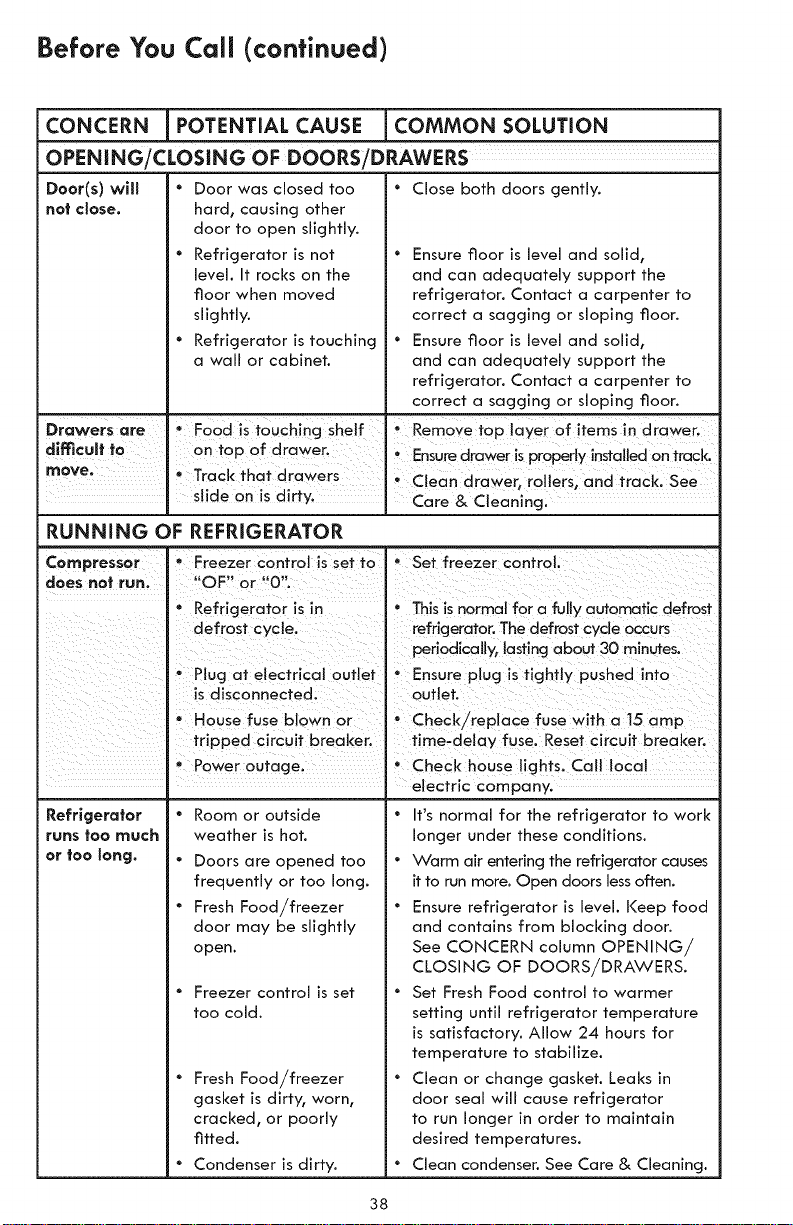

Before You Call (continued)
Door(s) will *
not close.
e
e
Door was closed too
hard, causing other
door to open slightly.
Refrigerator is not
level. It rocks on the
floor when moved
slightly.
Refrigerator is touching
a wall or cabinet.
* Close both doors gently.
* Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
" Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
® •
Drawers are Food iS touching shelf Remove t°P !ayer of items in drawer.
dimcul t to o n to p of drawer., Ensure drawer iSproperly installed on track.
mgve: I_ Track that drawers , Clean drawer, rollers; and track. See
I s!ide on is dirty. Care & Cleaning'
RUNNING OF REFRIGERATOR
,w.
Compressor • Freezer control s set to * Set freezer control.
does not run. "OF" or "0". I
| I
• Refrigerator is in * This is normal for a fully automatic defrost
defrost cycle, refrigerator. The defrost cycle occurs
I periodically, asfing about 30 minutes.
I Plug at electrical outlet " Ensure plug is tightly pushed into
I is disconnected. I outlet.
I " House fuse blown or • Check!replace fuse w tha 15 amp
I tripped circuit breaker. I time-delay fuse. Reset circuit breaker.
I * Power outage. * Check house lights. Call local
I I electric company.
Refrigerator *
runs too much
or too long. .
e
Room or outside
weather is hot.
Doors are opened too
frequently or too long.
Fresh Food/freezer
door may be slightly
open.
Freezer control is set
too cold.
* Fresh Food/freezer
gasket is dirty, worn,
cracked, or poorly
fitted.
" Condenser is dirty.
* It's normal for the refrigerator to work
longer under these conditions.
" Warm air entering the refrigerator causes
it to run more. Open doors less often.
" Ensure refrigerator is level. Keep food
and contains from blocking door.
See CONCERN column OPENING/
CLOSING OF DOORS/DRAWERS.
" Set Fresh Food control to warmer
setting until refrigerator temperature
is satisfactory. Allow 24 hours for
temperature to stabilize.
" Clean or change gasket. Leaks in
door seal will cause refrigerator
to run longer in order to maintain
desired temperatures.
* Clean condenser. See Care & Cleaning.
38

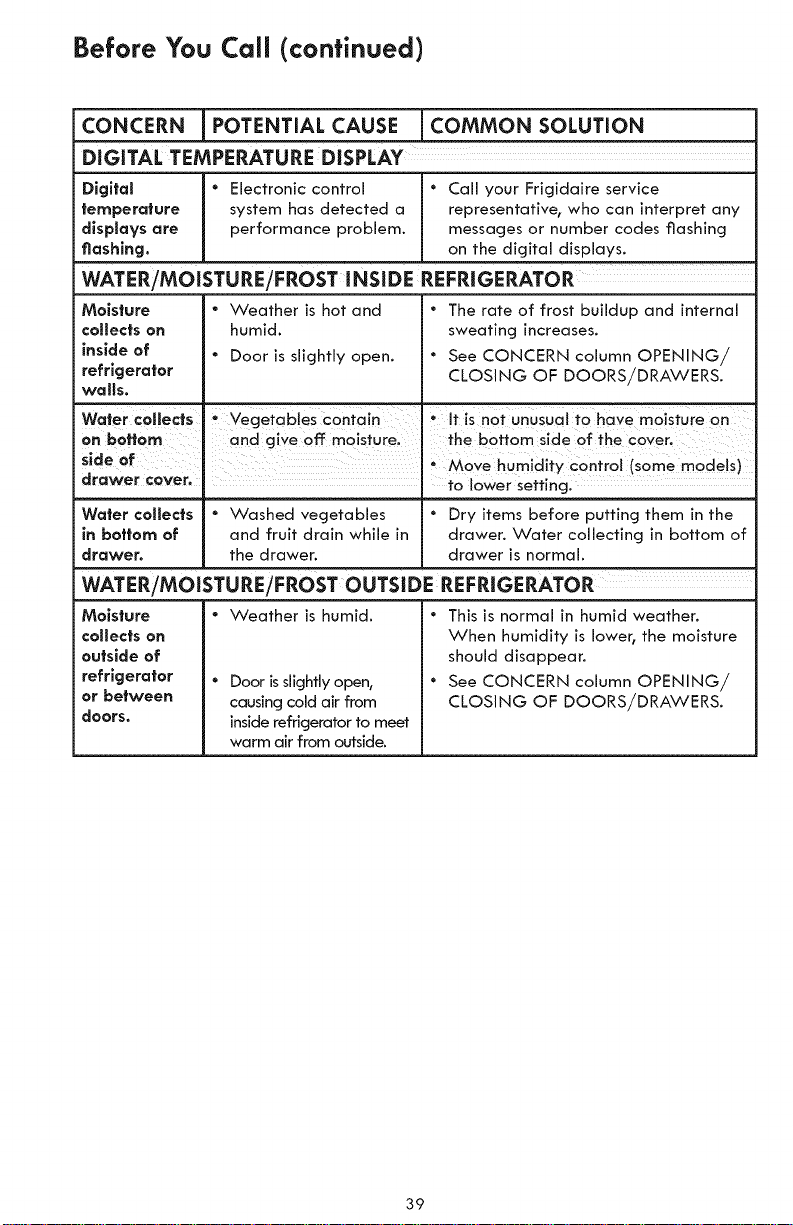

Before You Call (continued)
CONCERN POTENTIAL CAUSE COMMON SOLUTION
DIGITAL TEMPERATURE DISPLAY
Digital * Electronic control * Call your Frigidaire service
temperature system has detected a representative, who can interpret any
displays are performance problem, messages or number codes flashing
flashing, on the digital displays.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture * Weather is hot and * The rate of frost buildup and internal
collects on humid, sweating increases.
inside of " Door is slightly open. * See CONCERN column OPENING/
refrigerator CLOSING OF DOORS/DRAWERS.
walls.
Water collects ' * Vegetables contain • it is not Unusual to have mOisture on
on bottom and give off: moisture the bottom side of the cover.
side of ', Move humidity control (some mode!s)
drawer cover. .... to lower Setting'
Water collects * Washed vegetables * Dry items before putting them in the
in bottom of and fruit drain while in drawer. Water collecting in bottom of
drawer, the drawer, drawer is normal.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture
collects on
outside of
refrigerator
or between
doors.
* Weather is humid.
Door is slightly open,
causing cold air from
inside refrigerator to meet
warm air from outside.
* This is normal in humid weather.
When humidity is lower, the moisture
should disappear.
* See CONCERN column OPENING/
CLOSING OF DOORS/DRAWERS.
39
