ELECTRIC MOTOR HYDRAULIC PUMP
USER MANUAL
MODEL:GYB-630B GYB-630BⅡ GYB-700A GYB-700AⅡ
We continue to be committed to providing you with tools at competitive prices.
"Save Half", "Half Price" or any other similar expressions used by us only represent an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and do not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually
saving half in comparison with the top major brands.
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction. Please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ELECTRIC MOTOR
HYDRAULIC PUMP
READ THESE INSTRUCTIONS CAREFULLY BEFORE
SPECIFICATIONS
Name
Electric High Hydraulic Pump
Model
GYB-630B
GYB-700A
GYB-630BⅡ
GYB-700AⅡ
Rated Pressure
70MPa
Oil Flow
Low Pressure:8L/min High Pressure:0.7L/min
Voltage
110V,60Hz,750W
Oil Capacity
8L
Switch
Hand Switch
Foot switch
Hand Switch
Foot switch
Output
Connection
NPT 3/8
Useable
hydraulic oil
Model
15-32#
Control
Single
Acting
Manual
valve
Single
Acting
Solenoid
valve
Double
Acting
Manual
valve
Double
Acting
Solenoid
valve
SAVE THIS MANUAL
You will need the manual for the safety warnings and precautions,
assembly instructions, operating and maintenance procedures, parts list,
and diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep the manual and invoice in a safe and
dry place for future reference.
HYDRAULIC PUMP WARNINGS AND PRECAUTIONS
WARNING: When using the tool, basic safety precautions should always
be followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep the work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools
in damp or wet locations. Don’t expose to rain. Keep the work area
well-lighted. Do not use electrically powered tools in the presence of
flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area.
Do not let them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry
location to inhibit rust. Always lock up tools and keep them out of reach of
children.
5. Do not force the tool. It will do the job better and more safely at the rate
for which it was intended. Do not use inappropriate attachments in an
attempt to exceed the tool's capacity.
6. Use the right tool for the job. Do not attempt to force a small tool or
attachment to do the work of a larger industrial tool. There are certain
applications for which this tool was designed. Do not modify this tool, and
do not use this tool for a purpose for which it was not intended.
7. Dress properly. Do not wear loose clothing or jewelry, as they can be
caught in moving parts. Protective, electrically non-conductive clothes, and
non-skid footwear are recommended when working. Wear restrictive hair
covering to contain long hair.
8. Use eye and ear protection. Always wear ANSI-approved impact safety
goggles. Wear a full face shield if you are producing metal filings or wood
chips. Wear an ANSI-approved dust mask or respirator when working
around metal, wood, and chemical dust and mists.
9. Do not overreach. Keep proper footing and balance at all times. Do not
reach over or across running machines.
10. Maintain tools with care. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing
accessories. Inspect tool cords periodically and, if damaged, have them
repaired by an authorized technician. The handles must be kept clean, dry,
and free from oil and grease at all times.
11. Disconnect power. Unplug the tool when not in use.
12. Remove adjusting keys and wrenches. Check that keys and
adjusting wrenches are removed from the tool or machine work surface
before plugging it in.
13. Avoid unintentional starting. Be sure the switch is in the Off position
when not in use and before plugging in. Do not carry any tool with your
finger on the trigger, whether it is plugged in or not.
14. Stay alert. Watch what you are doing, and use common sense. Do not
operate any tool when you are tired.
15. Check for damaged parts. Before using any tool, any part that
appears damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for alignment
and binding of moving parts, any broken parts or mounting fixtures, and
any other condition that may affect proper operation. Any part that is
damaged should be properly repaired or replaced by a qualified technician.
Do not use the tool if any switch does not turn On and Off properly.
16. Guard against electric shock. Prevent body contact with grounded
surfaces such as pipes, radiators, ranges, and refrigerator enclosures.
17. Replacement parts and accessories. When servicing, use only
identical replacement parts. Use of any other parts will void the warranty.
Only use accessories intended for use with this tool.
18. Do not operate the tool if under the influence of alcohol or drugs.
Read warning labels on prescriptions to determine if your judgment or
reflexes are impaired while taking drugs. If there is any doubt, do not
operate the tool.
19. Use the proper size and type of extension cord. If an extension cord
is required, it must be of the proper size and type to supply the correct
current to the tool without heating up. Otherwise, the extension cord could
melt and catch fire or cause electrical damage to the tool. This tool requires
the use of an extension cord of 0 to 12 amps capability (up to 50 feet), with
wire size rated at 16 AWG. Longer extension cords require larger size
wires. If you are using the tool outdoors, use an extension cord rated for
outdoor use. (signified by “WA” on the jacket).
20. Maintenance. For your safety, service and maintenance should be
performed regularly by a qualified technician.
21. If you have a heart pacemaker, the operation of electrical equipment
in close proximity to a heart pacemaker could cause interference or failure
of the pacemaker. Note: The performance of this tool (if powered by line
voltage) may vary depending on variations in local line voltage. Extension
cord usage may also affect tool performance. Warning: The warnings,
cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors
that cannot be built into this product but must be supplied by the operator.
UNPACKING
When unpacking, check to make sure that the unit is assembled as shown
in the cover photo. Also, refer to the Parts List and Assembly Drawing at
the end of this manual. If any parts are missing or broken, please call
Harbor Freight Tools at the number on the cover of this manual as soon as
possible. Please contact our customer service as soon as possible.
INSTALLATION

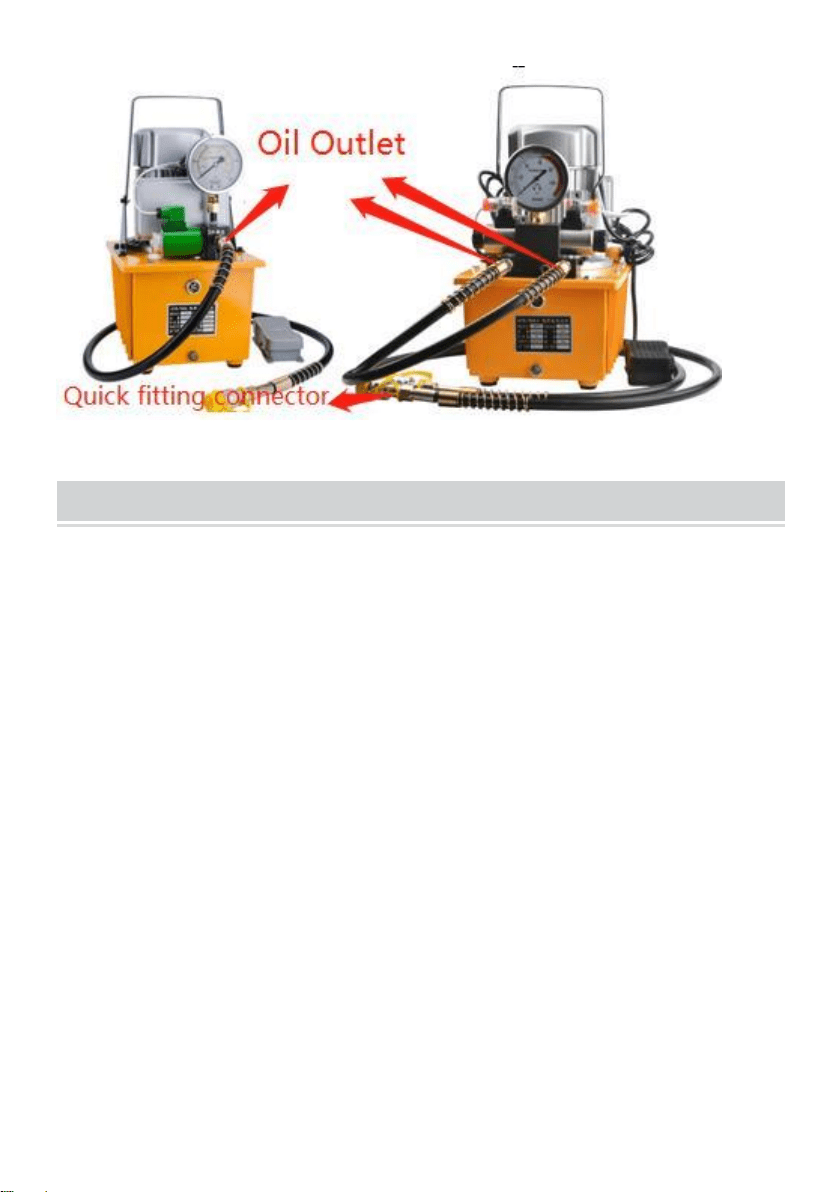

Before use, connect the hydraulic pipe to the hydraulic pump outlet. (As
shown in the figure)
And butt the quick connector with the tool.
HYDRAULIC PUMP WARNINGS AND PRECAUTIONS
Before using this pump unit, check the oil tank of the pump. MAKE SURE
there is enough oil in the oil tank and higher than the oil-window
1) Open the air-out screw before operating the pump.
2) Inspect the oil pressure with the gauge.
3) Change the hydraulic oil every 18 months.
4) Filter the oil before changing the oil; #15-#32 hydraulic oil is
5) recommended.
6) Handle the pump at 10-50℃.
7) Stop working once the motor is hotter and hotter to a higher
temperature to protect the whole pump system.
8) Keep replacing the oil hose once any damage or aging; the standard
rated pressure of the oil hose is 105MPa.
9) Inspect the oil hose on 87.5MPa(recommended).
10) Before each use, check all fittings for tightness.
11) Allow the motor to cool down after extended use.
Replace the bearing parts and lubricate them accordingly every 18 months.
COMMON FAULTS AND SOLUTIONS
Faults Reason Solutions
Motor Abnormal Electric power Check the power
Pressure Abnormal Oil leaking Make inspection and
replace new O-rings
Oil flow insufficient Oil Add oil or change
hydraulic oil
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE
PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY.
NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR
THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO
This device complies with Part 15 of the FCC Rules. Operation
issubject to the following two conditions:(1)This device may not
causeharmful interference, and (2)this device must accept any
interferencereceived, including interference that may cause
undesired operation。

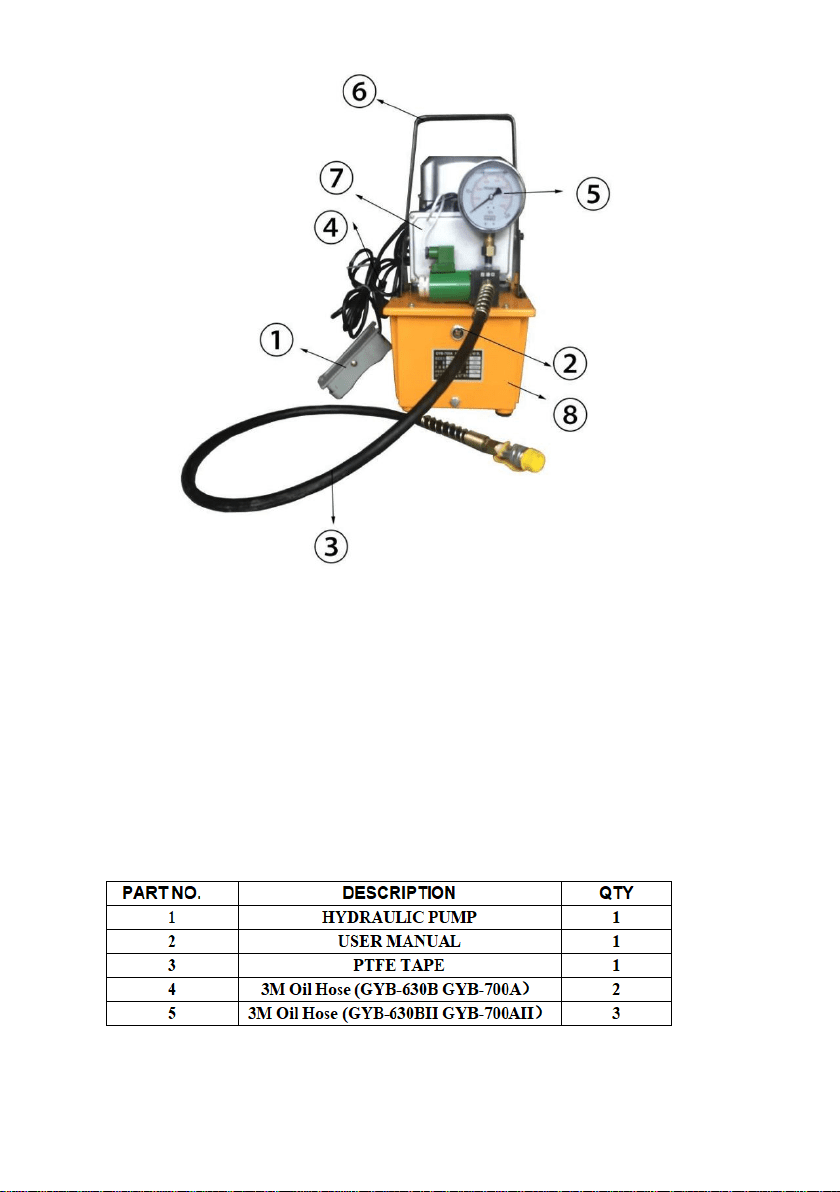

Main Parts:
① Control Pedal
③ Oil Hose
⑤ Pressure Gauge
⑦ Electromagnetic Valve Unit
Standard accessories
② Oil-window
④ AC Power Line
⑥ Carrying Frame
⑧ Oil Tank
：
