User Manual GE - General Electric 36240 2 pages

PLUG-IN RECEIVER

Functional Range �� up to 150ft

Maximum Tungsten Load ��360W

Maximum Resistive Load ��1440W

Rating �� 12A / 120V / 60Hz

REMOTE TRANSMITTER

Functional Range �� up to 150ft

Battery Type ��CR2032

* Functional range may be adversely affected by one or more of the

following factors: weather, radio frequency interference, low transmitter

battery and obstructions between the transmitter and receiver.

FCC STATEMENT

This device complies with Part 15 of the FCC and Industry Canada license-exempt

RSS standard(s)� Operation is subject to the following two conditions: (1 this device

may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation�

FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused

by unauthorized modiﬁcations to this equipment� Such modiﬁcations could void the

user’s authority to operate the equipment� NOTE: This equipment has been tested

and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules� These limits are designed to provide reasonable protection against

harmful interference in a residential installation� This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with

the instructions may cause harmful interference to radio communications� However,

there is no guarantee that interference will not occur in a particular installation� If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna�

• Increase the separation between the equipment and receiver�

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected�

• Consult the dealer or an experienced radio/TV technician for help�

CAN ICES-3(B)/NMB-3(B) | FCC: Q2I16I8278 | IC: 6924A-JP831071L8

INSTALLING BATTERY (REMOTE) [FIG.1]

1� Find the remote and CR2032

battery (included in package)�

2� Remove transmitter from the remote wall

mount — push down and out from the top

of the remote (“I” button is on top)[FIG.5]�

3� Turn remote over and pull out

battery drawer [FIG.1]�

4� Place battery in the drawer with (+)

side of the battery facing up�

5� Push the battery drawer back into remote�

(Red indicator light on the front of remote should light up when a button is pushed.)

INSTALLATION INSTRUCTIONS (ON/OFF RECEIVER)

1� Plug lamp or the device to be controlled into the outlet on the side of

the receiver� Make sure lamp or device is turned to the ON position�

2� Plug the receiver into a standard indoor outlet�

3� Wait 5 seconds for the receiver to activate�

IMPORTANT: It will take 5 seconds from the time the receiver is

plugged into the outlet before the remote will be functional.

MOUNTING REMOTE OPTIONS

OPTION 1: WALL MOUNT WITH OR WITHOUT WALLPLATE

1� Place remote mount with wallplate bracket

where mounting, and mark the remote mount

holes on the wall [FIG.2]� Arrows on the back

of remote mount indicate the top [FIG.3]�

2� If mounting directly to a stud, drill holes using

a 3/32” drill bit (anchors will not be used)�

3� If mounting to drywall, drill holes using

a 1/4” drill bit� Gently tap in anchors�

4� Remove wallplate bracket if mounting

without a wallplate�* Leave the wallplate

bracket on if using a wallplate�

*To separate the remote mount from the wallplate bracket, hold the wallplate

bracket by the wallplate holes. Turn the wallplate bracket so you are looking

at the arrows [FIG.3]. Gently push the remote out of the wallplate bracket.

5� Screw in remote mount using mounting screws� Do not overtighten�

6� Screw on wallplate (not included)�

7� Proceed to INSERTING AND REMOVING REMOTE�

NOTE: If reassembling the wallplate bracket with the remote mount, verify the that

the arrows line up on the back of the remote mount and wallplate bracket [FIG 3].

OPTION 2: WALL MOUNT WITH EXISTING WIRED SWITCH

1� Screw the remote mount with wallplate bracket onto the

wallplate that will be used (not included)� This will now be

the wallplate bracket assembly (B2, B3 & wallplate)�

2� Place the wallplate bracket assembly on the existing

switch box and mark the remote mount holes�

3� If mounting directly to a stud, drill holes using a

3/32” drill bit (anchors will not be used)�

4� If mounting to drywall, drill holes using a 1/4”

drill bit� Gently tap in anchors�

5� Place wallplate bracket assembly into place, and screw in the

wallplate to the existing switch, as well as screwing the wall mount�

INSERTING AND REMOVING REMOTE

FROM WALL MOUNT

INSERTING

1� Place bottom of remote over the spring tab

in the remote bracket, gently press down

and push into the remote bracket� [FIG. 5]

2� Remote should snap in and

be held ﬁrmly in place�

REMOVING

1� Gently push the top of the remote down

and out from the remote mount� [FIG. 5]

NOTE: May not work with screwless wallplates.

PAIRING AND UNPAIRING RECEIVER

(LIGHTING CONTROL COMES PAIRED IN THE PACKAGE� THIS SHOULD

ONLY BE NEEDED IF ADDING REMOTES AND/OR RECEIVERS OR

IF YOUR LIGHTING CONTROL HAS BECOME UNPAIRED)

PAIRING — LINKING REMOTE TO RECEIVER

1� Make sure the receiver is not plugged into the outlet

and the remote is close with battery installed�

2� Plug receiver into the outlet�

3� Within the ﬁrst 5 seconds after plugging in, press and

hold any button on the remote for 2 seconds�

4� After 5 seconds from plugging the receiver into the

outlet, the remote and receiver will be paired�

UNPAIRING — REMOVING ALL PAIRED DEVICES FROM RECEIVER

1� Hold down the ON and the OFF buttons at the same time for 5 seconds�

2� Receiver will delete ALL transmitters programmed in it�

REMOTE FUNCTIONALITY

1� Use “I” and “O” buttons to turn the light ON/OFF�

2� Press the countdown option to keep the light ON for the chosen period of

time� The light will then automatically shut off�

Wireless Remote with Countdown

Lighting Control Manual

Indoor

A B1 B2 B3

C

D

FIG.5

FIG. 1

36240 V1

03/30/17 RT

FIG.4

TROUBLESHOOTING

Problem Corrective Action

Indicator light on remote

does not light up red

when button is pushed

• Battery may be installed incorrectly� Reinstall battery�

• Battery may need to be replaced�

Install new CR2032 battery�

Indicator light on

remote lights up and

light does not turn on

• Make sure light is turned on and light bulb is working

• Receiver may have become un-paired� Pair remote

to receiver — see pairing section of manual�

Wallplate does not ﬁt on

wall mount correctly

• Verify that the arrows on the back of the wallplate

bracket and the remote mount line up�

Wallplate screws are too

long and hit the wall

• Use ¼” drill bit and drill indentations into

drywall where the screws touch the wall�

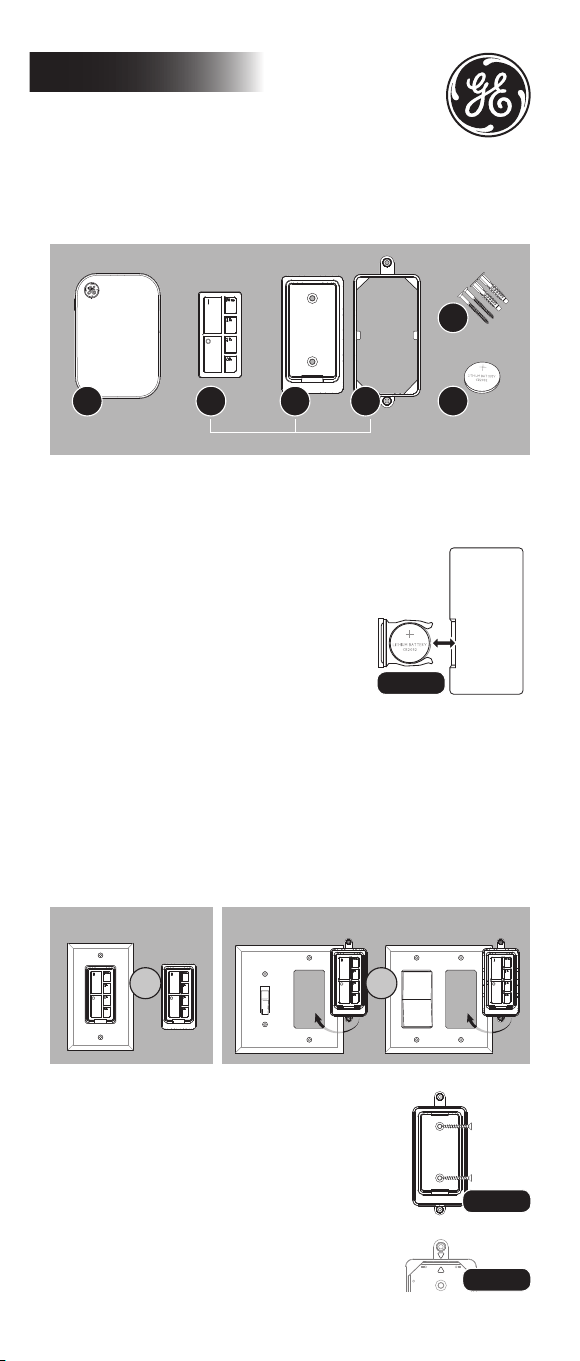

ENCLOSED YOU WILL FIND:

A� Plug-in receiver

B1� Remote transmitter

B2� Remote wall mount

B3� Wallplate bracket

C� Mounting screws and anchors

D� CR2032 battery

assembled in package

OR

OPTION 1 OPTION 2

FIG. 2

FIG. 3

OR

MADE IN CHINA

GE is a trademark of General Electric Company and is under license by

Jasco Products Company LLC, 10 E� Memorial Rd�, Oklahoma City, OK 73114�

This Jasco product comes with a 1-year limited warranty�

Visit www�byjasco�com for warranty details�

Questions? Contact us at 1-800-654-8483 between 7:00AM—8:00PM CST�

BATTERY MAY LEAK HARMFUL LIQUIDS OR IGNITABLE

MATERIALS OR EXPLODE CAUSING INJURY OR PRODUCT

DAMAGE�

• REPLACE FULLY DISCHARGED BATTERY IMMEDIATELY

• REMOVE BATTERY IF PRODUCT IS TO BE UNUSED FOR

EXTENDED PERIOD OF TIME

RISK OF ELECTRIC SHOCK

• FULLY INSERT PLUG

• KEEP CHILDREN AWAY

• USE INDOORS ONLY

• DO NOT USE IN WET LOCATIONS

• UNPLUG BEFORE CLEANING

RISK OF FIRE

• DO NOT EXCEED ELECTRICAL RATINGS

• DO NOT USE TO CONTROL MOTOR-OPERATED

APPLIANCES, TRANSFORMER-SUPPLIED APPLIANCES

OR APPLIANCES THAT CONTAIN HEATING ELEMENTS

(COOKERS, IRONS, HEATERS, ETC�)

WARNING
