LA5034
General safety summary
Understand the following safety precautions to avoid injuries and to prevent
damage to the product or the product of any product link. To avoid possible
dangers, be sure to use the product in accordance with the regulations.
Only qualified personnel to perform maintenance procedures.
Prevent fire and personal injury.
Use the right power cord. Only the country in which the authorized use of
this product for the power line.
Correctly inserted. Probe or test voltage wire connected to the source,
please do not plug.
Products will be grounded. This product through the power of the
grounding wire grounding. To avoid electric shocks, grounding conductor
must be connected to. In this connection the import or export of products
before the end, be sure to correct grounding for this product.
Properly connected probe. Probe the ground with the same potential. Do
not connect high-voltage ground.
See all the terminals rating. To avoid excessive current fire and the
impact, see the product of all the ratings and tags; please connect
products in the product manual inspection prior to understand the detailed
ratings information.
Do not run the product if you open the cover or panel.
Avoid the exposed circuit. Do not connect power after contact with the
exposed joints and components.
Suspected products to failure do not operate. If you suspect that this
product has been a failure, can be qualified maintenance personnel to be
checked.
Maintain proper ventilation.
Do not operate in the humid environment.
Do not flammable and explosive environment operation.
Please keep the product clean and dry surface.
LA5034 USB User’s Manual
I
LA5034
LA5034 USB User’s Manual
II
Introduction
The LA5034 is a sophisticated 500MHz, 34-channel logic analyzer used for
testing, analysis, and troubleshooting of digital circuits. The LA5034 is
equipped with features found only in more expensive bench type instruments
The use of advanced large-scale integrated circuits, integrated USB 2.0, CPLD,
FPGA, high-frequency digital circuitry, embedded systems, and other
advanced technology, make the LA5034 to be portable, and easy-to-use,
making the LA5034 your best choice in pc-based logic analyzers The
LA5034 is very suitable for electronic measurement engineers, college
students in scientific research and development and teaching assistants.
The User’s Manual describes in detail the operation of the LA5034 as well as
installation of the software.
The LA5034 has a sufficient number of input channels and is capable of
simultaneously observing a lot of information or data flow direction control
information, and in some way of capturing narrow pulse interference.
The LA5034 has the feature of delayed ability to capture the required
observation points around the waveform, in a variety of digital information
capture function.
The LA5034 has adequate memory capacity to be both display error
messages and to find faults in the source state.
The LA5034 has intuitive and flexible displays to facilitate dynamic analysis,
can
transform the information, and the user can use the binary, decimal,
hexadecimal or ASCII that information to facilitate the repair process and
debug.
The LA5034 can be triggered in a variety of ways, can display a very long data
stream, on the basis of the analysis of that part of the information to make
accurate positioning, and capture appropriate information for software analysis
by using its tracking function trigger operation procedures. For hardware,
trigger function can be detected in the system and that the interference and
Burr.
The LA5034 has reliable Burr detection ability. As competition in digital circuit,
the signal crosstalk, interference and power coupling factors, often mixed with
irregular signal in the burr, which will run from an incorrect circuit. The LA5034
can detect through special burr technology to capture and display.
LA5034
Chapter 1 Getting started
This chapter focuses on the following topics:
System Requirements
Installing hardware
Installing software
Understanding of the user interface
LA5034 User’s Manual 1
LA5034
System Requirements
z Minimum System Requirements
Operating System
Windows NT/2000/XP/Vista
Memory
128MB
Graphic Card
Microsoft DirectX supported
Screen resolution: 1024x768
Color depth: 16bit
z Recommended System Requirements
Operating System
Windows 2000/XP/Vista/Win 7
Memory
256MB
Graphic Card
Microsoft DirectX supported
Screen resolution: 1024x768
Color depth: 16bit
LA5034 User’s Manual 2
LA5034
Installing Hardware
1. Connect the A-Type Plug of USB cable to your PC’s USB port.
2. Connect the B-Type Plug of USB cable to LA5034’s USB port.

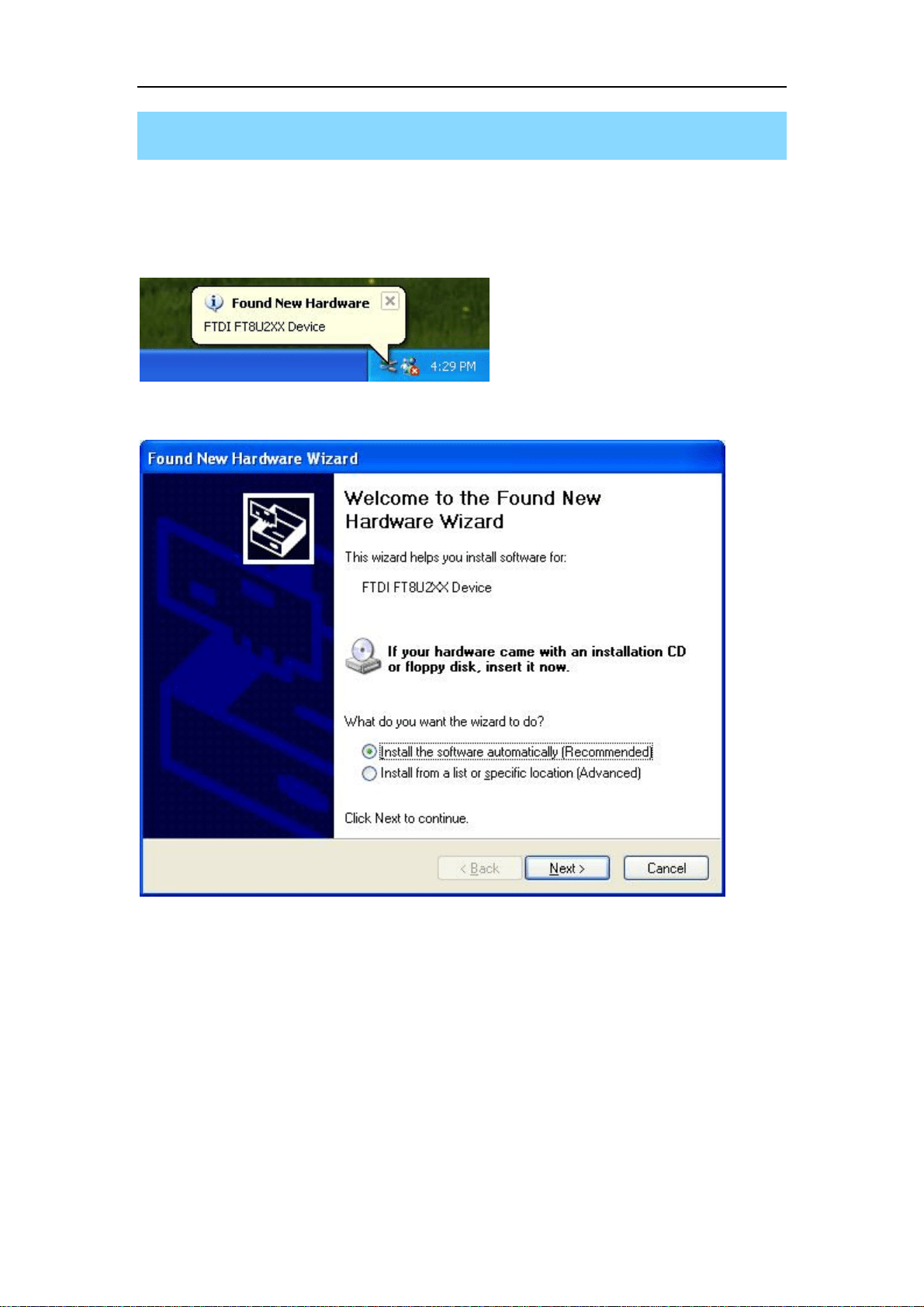

3. New hardware is found.
4. New hardware search wizard starts.
LA5034 User’s Manual 3
LA5034

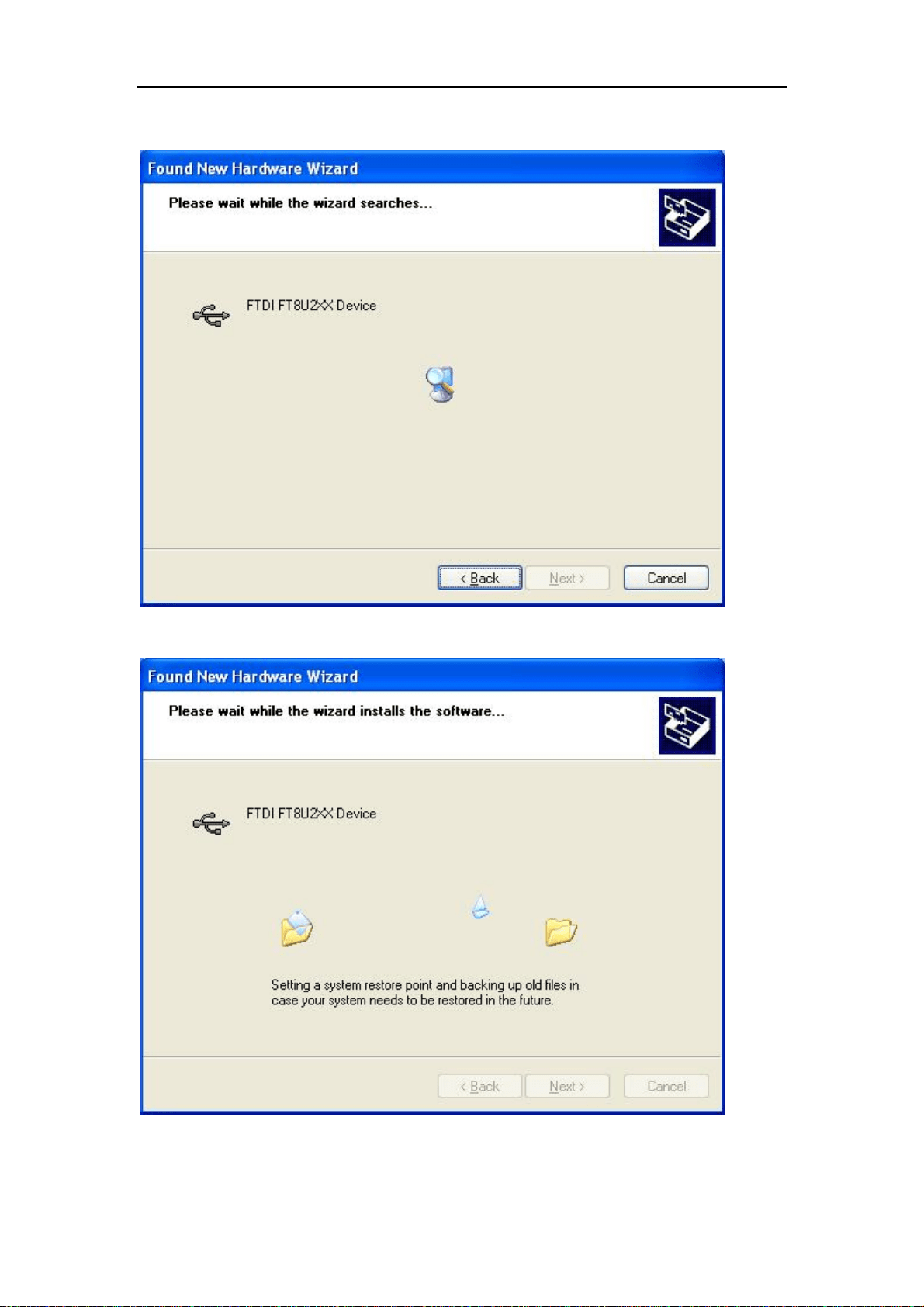

5. New hardware search wizard starts to search
6. New hardware wizard installs software
LA5034 User’s Manual 4
LA5034

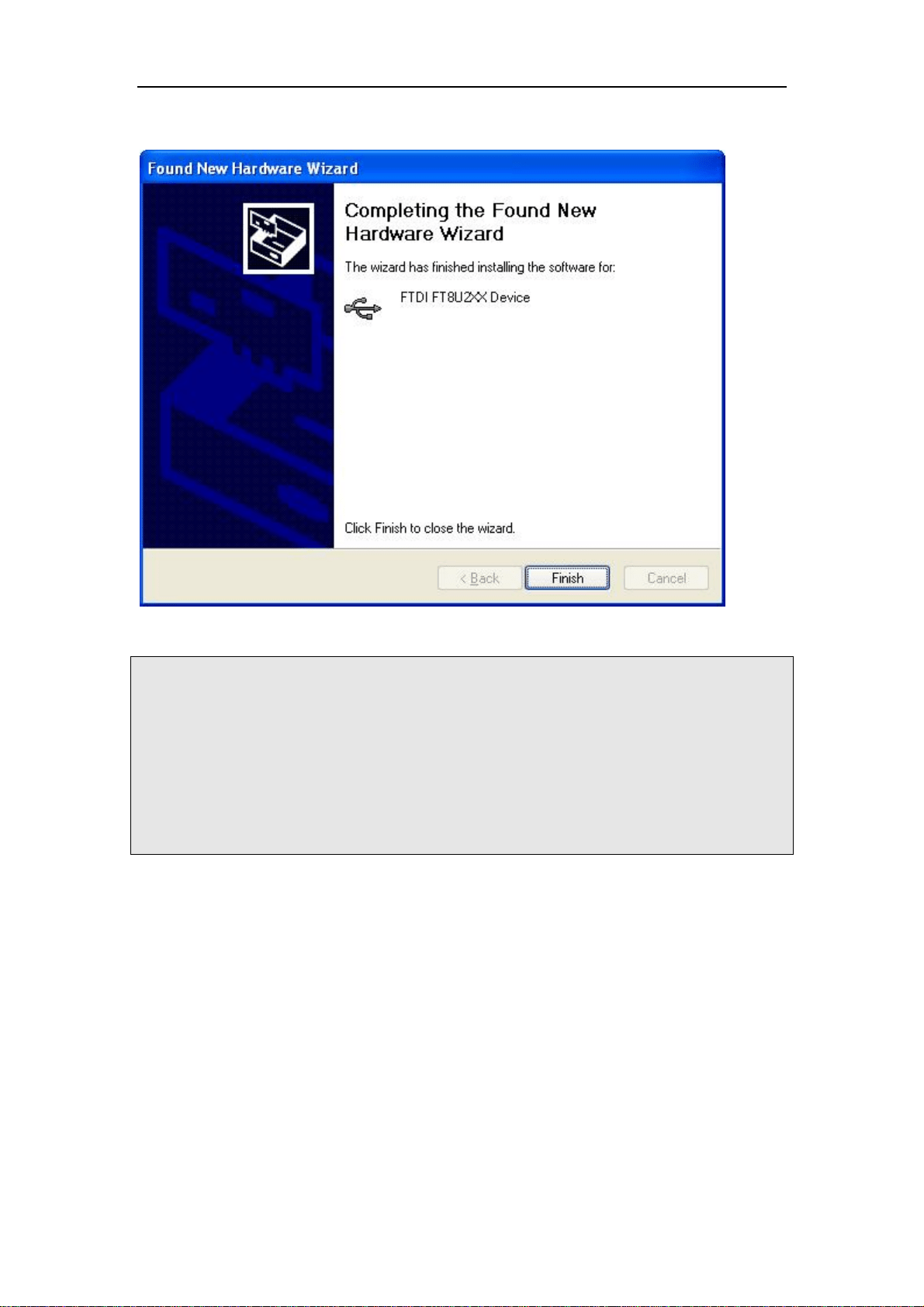

7. Finish new hardware search wizard.
Caution:
Do not disconnect any device from the USB bus while the computer is
communicating with the LA5034, or you may lose data and/or your ability to
communicate with the LA5034.
If the LED is illuminated but the turns off, the computer has lost
communication with the LA5034.To restore communication, disconnect the
USB cable from the computer, and then reconnect is. This should restore
communication, and the LED should turn back on.
LA5034 User’s Manual 5
LA5034
Installing Software
1. While in Windows, insert the installation CD into the CD-ROM drive.
2. The installation should start up automatically. Otherwise in Windows
Explorer, switch to the CD-ROM drive and run "Setup.exe".

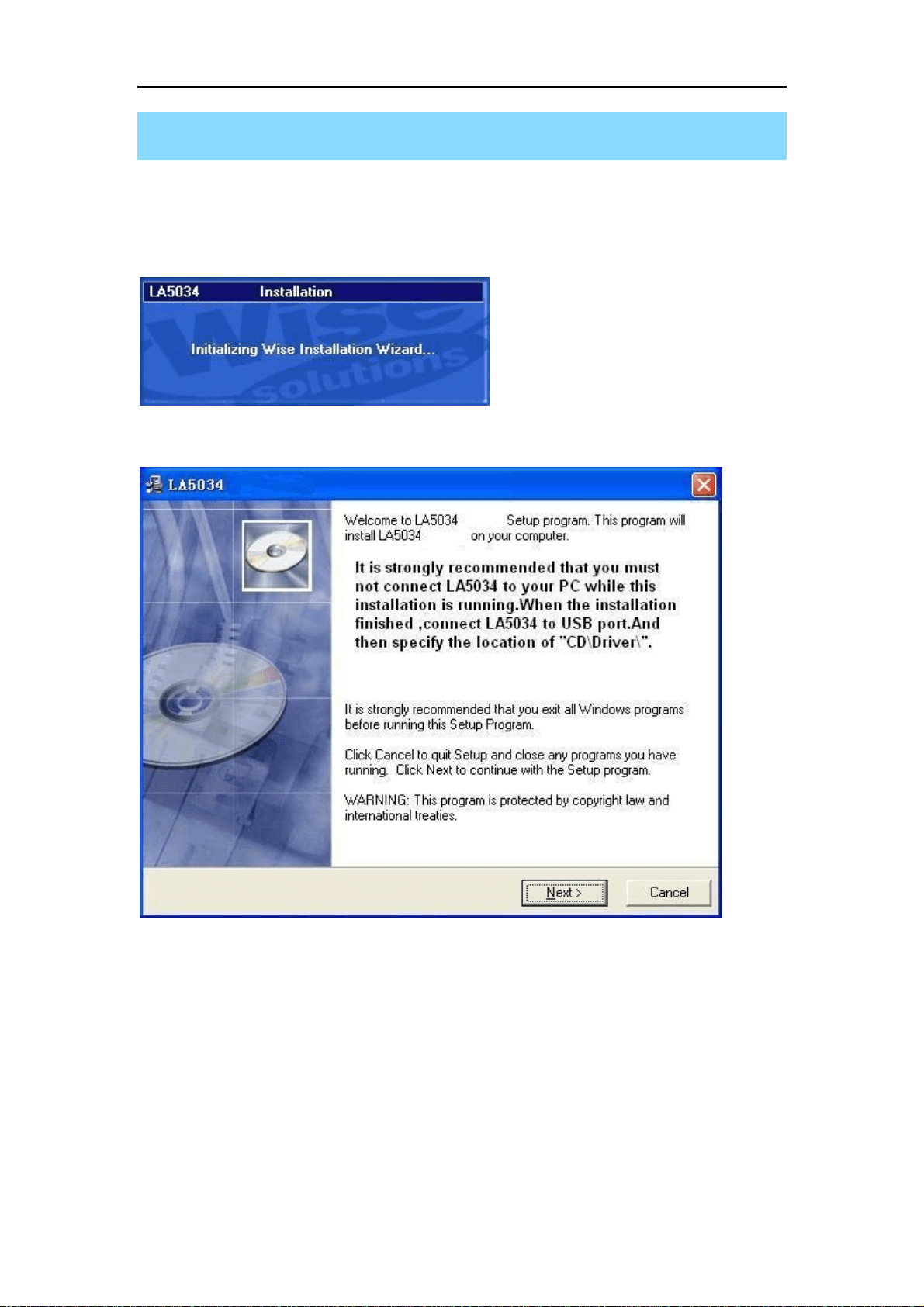

3. The LA5034 Installation is started. Click 'Next' to continue.
LA5034 User’s Manual 6
LA5034

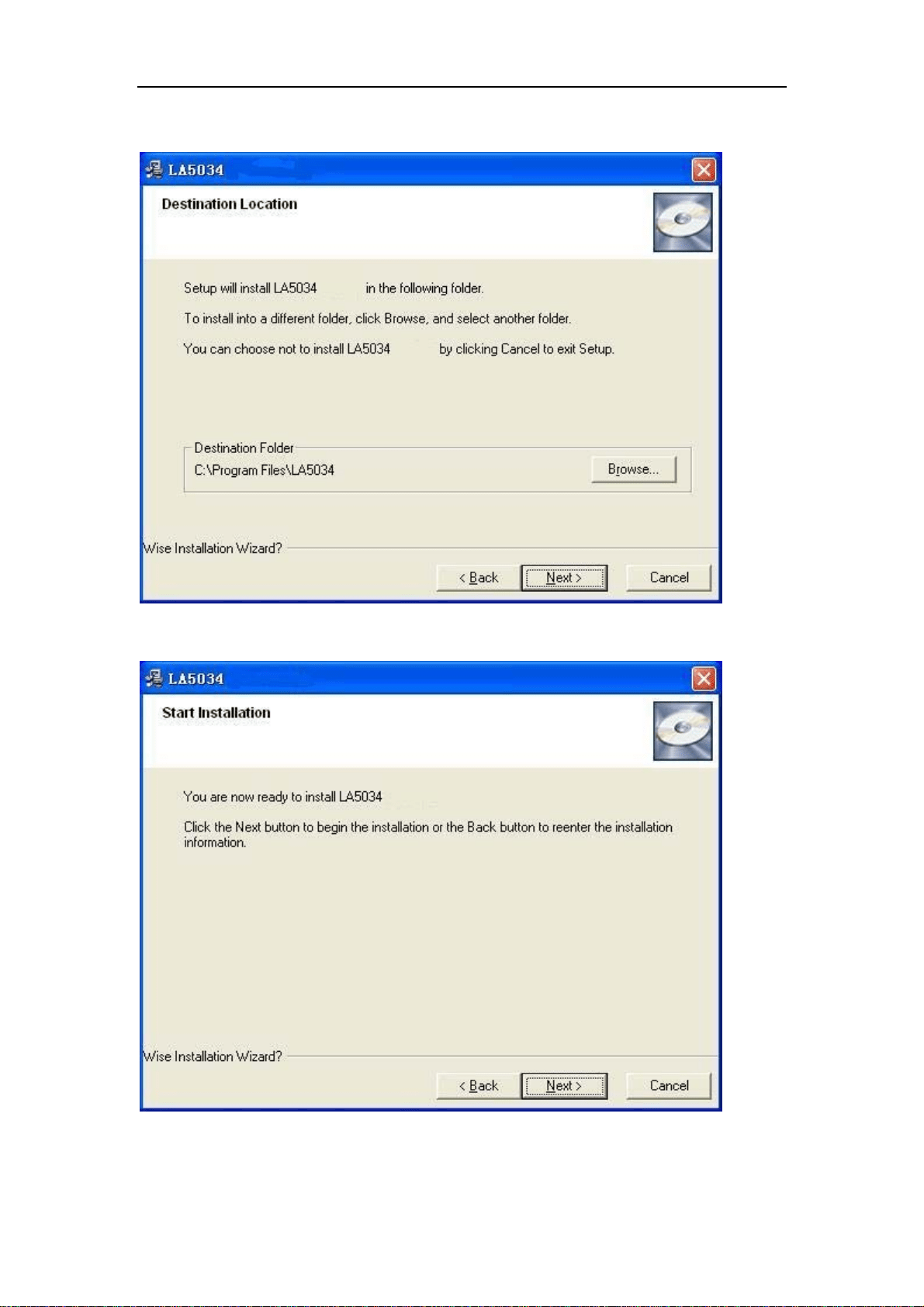

4. Choose a destination directory. Click 'Next' to continue.
5. Check the setup information. Click Next to start copying of files.
LA5034 User’s Manual 7
LA5034

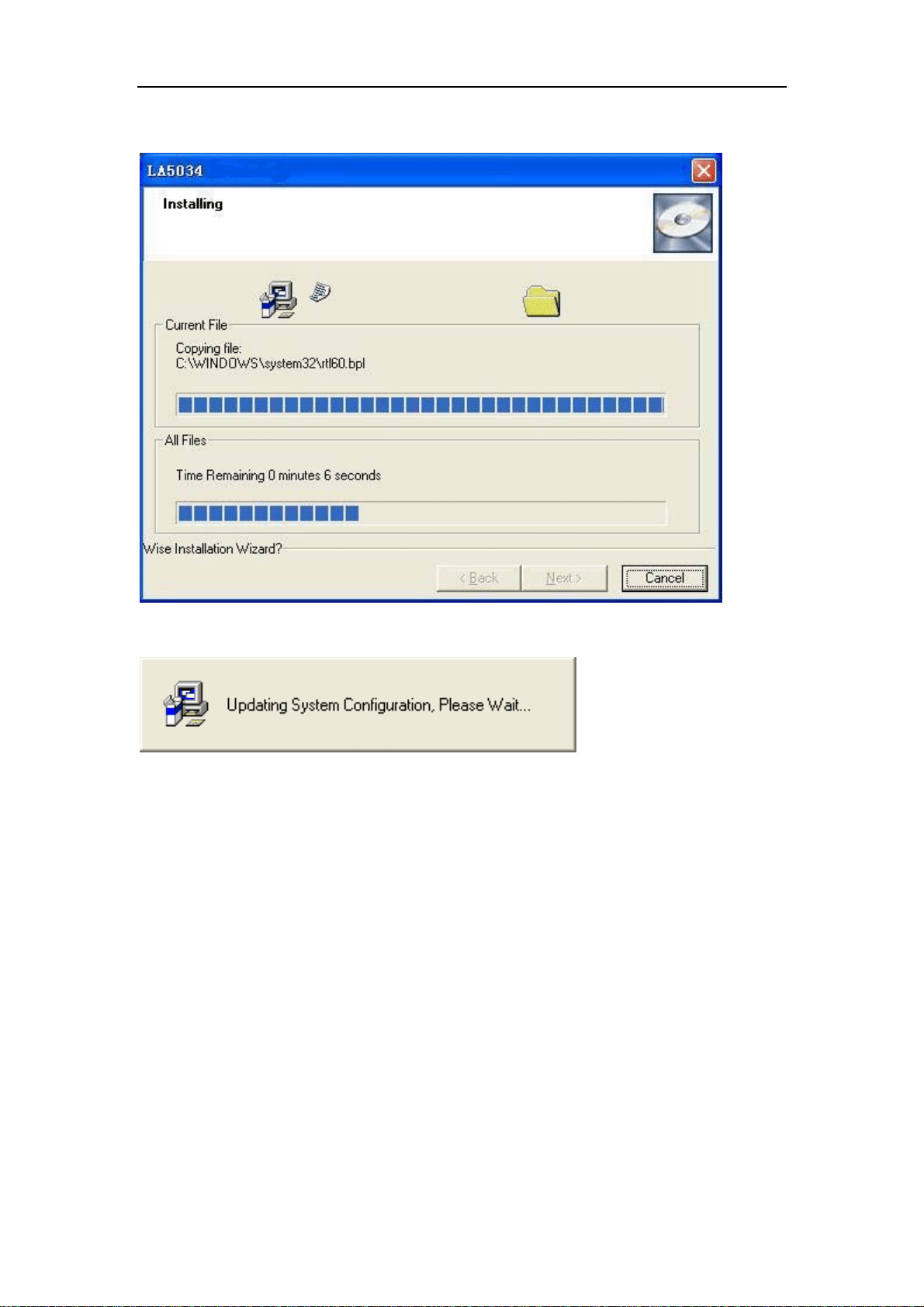

6. This Status dialog is displayed during copying of files.
7. Updating Your System Configuration.
LA5034 User’s Manual 8
LA5034

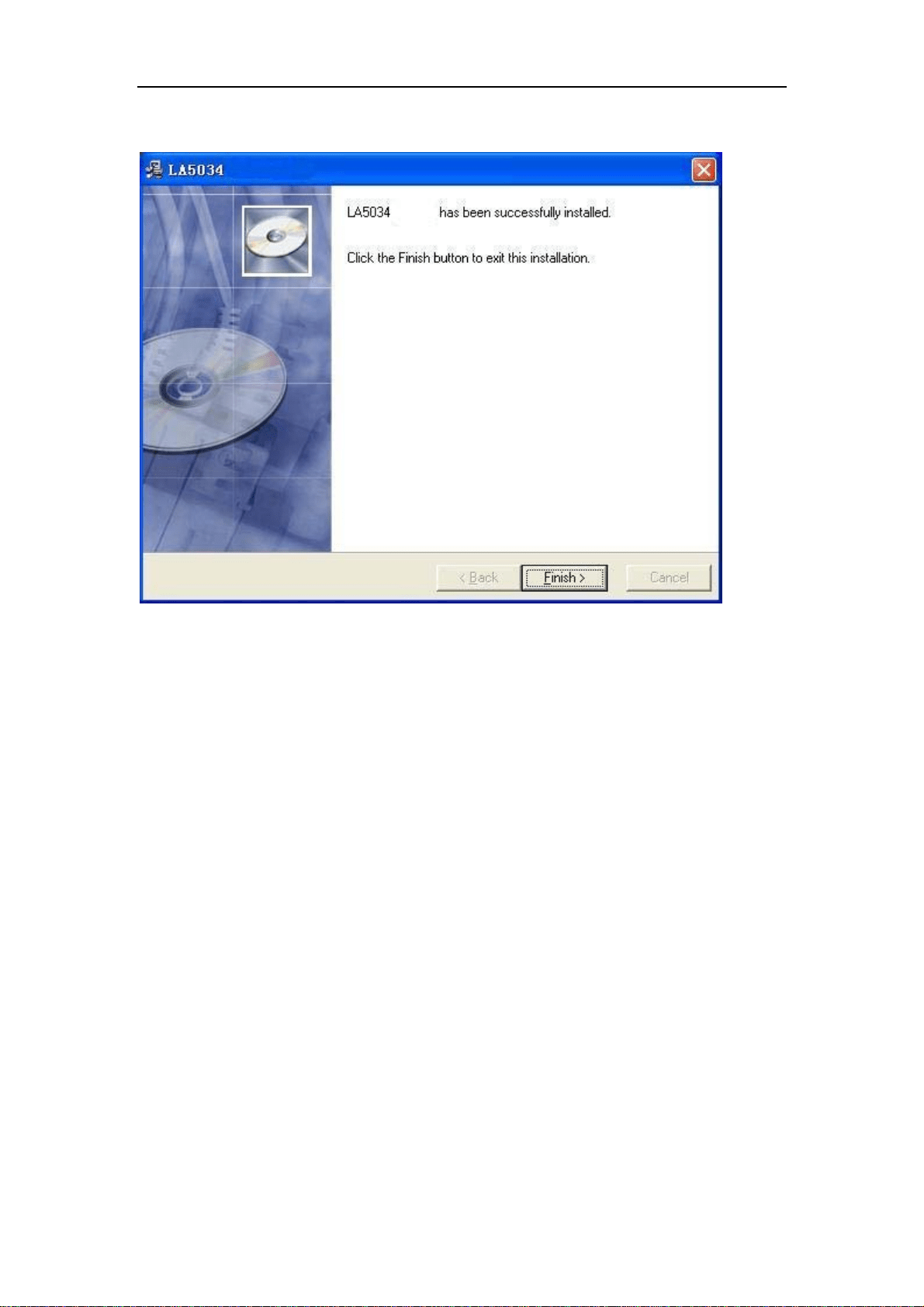

8. The installation is complete.
LA5034 User’s Manual 9
LA5034
User Interface

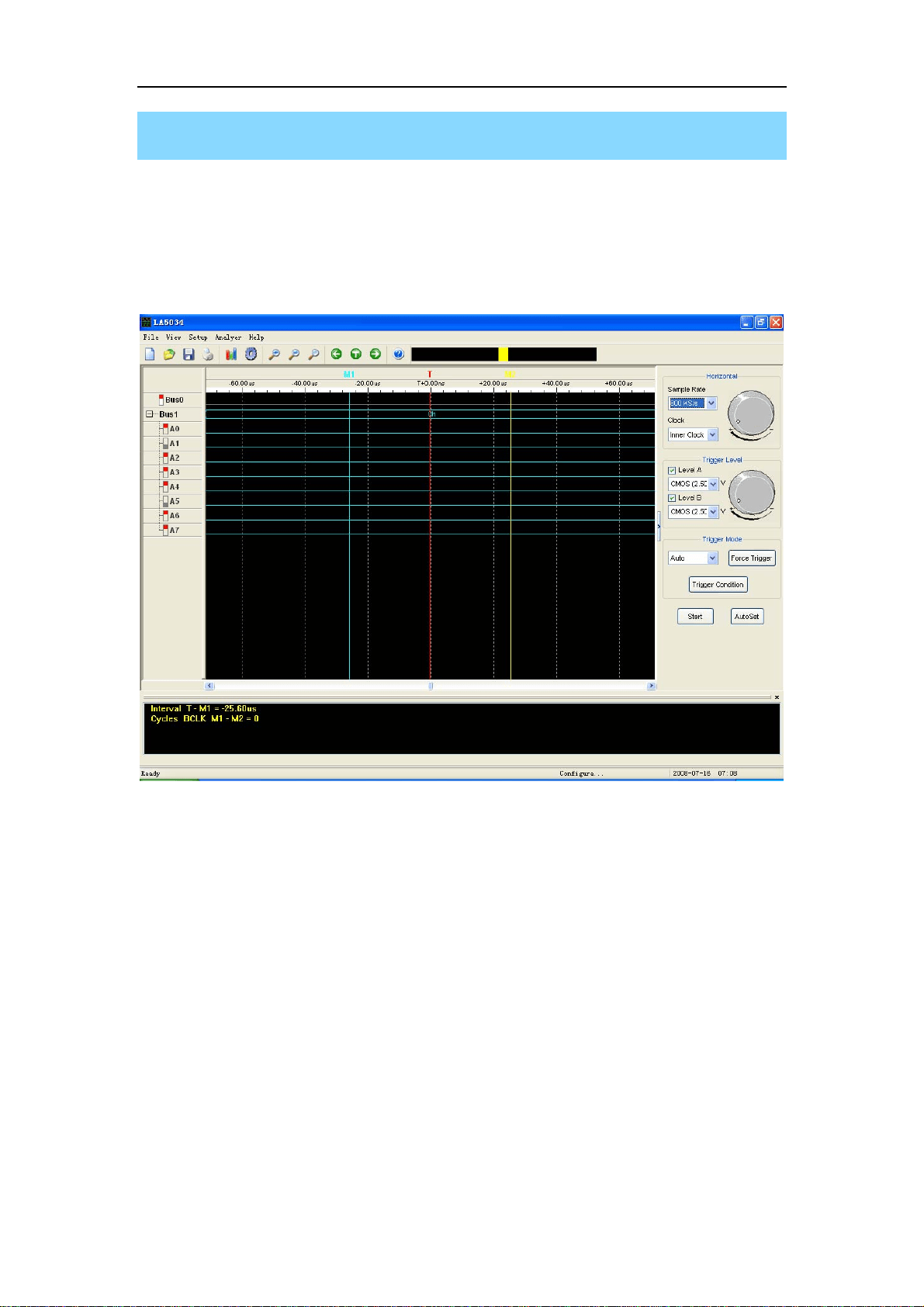

LA5034 provide users a simple and full-featured interface so that users do not
have to spend a lot of time to learn.
LA5034 provide clock panel, waveform panel, bus panel, measurement panel,
trigger panel and plug manager.
LA5034 User’s Manual 10
LA5034
Chapter 2 Menu
This chapter focuses on the following topics:
File
View
Setup
Analyzer
Help
LA5034 User’s Manual 11
LA5034
File

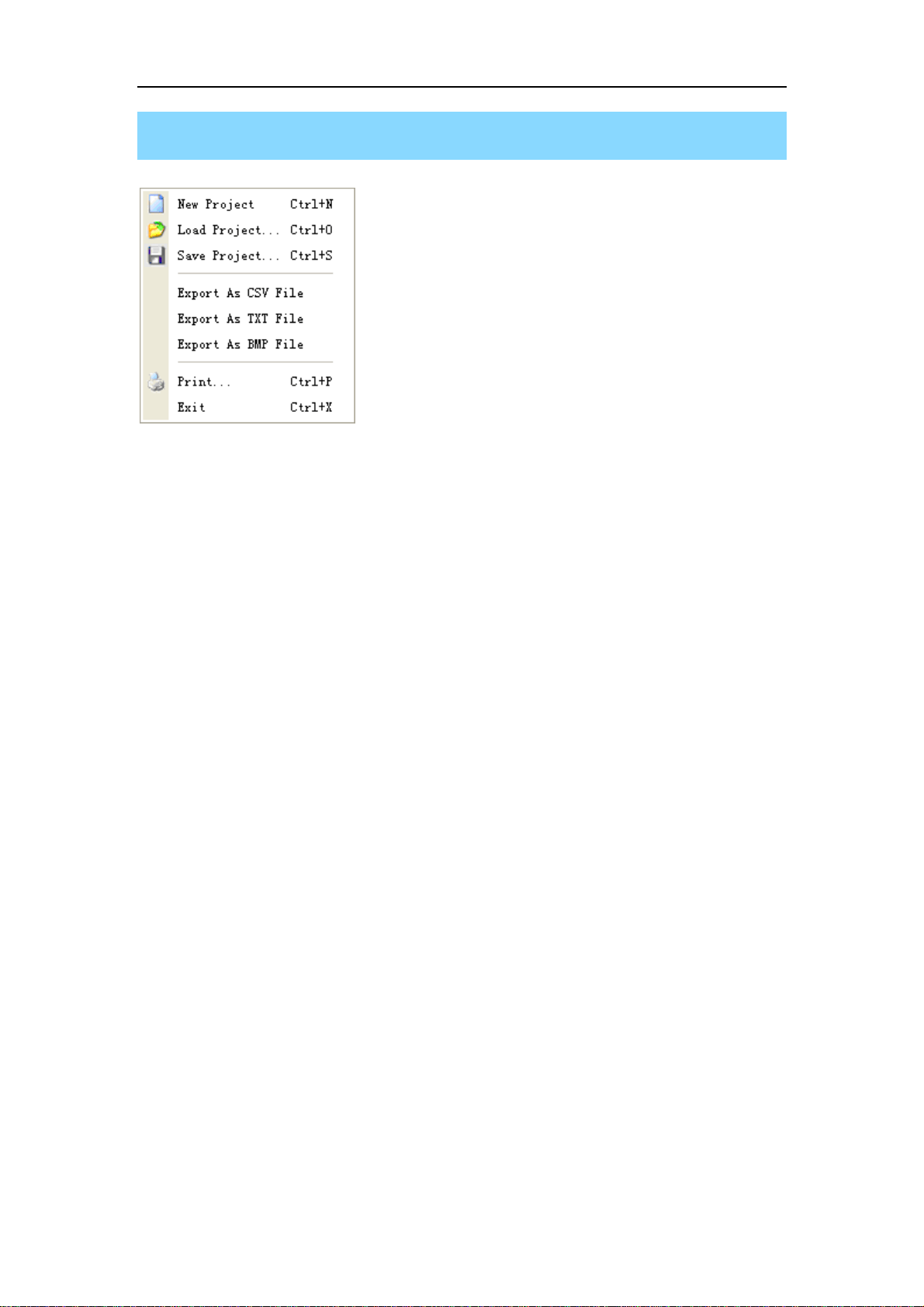

z New Project: Create a new project with default settings
z Load Project: Open an exist project
z Save Project: Save current project to File

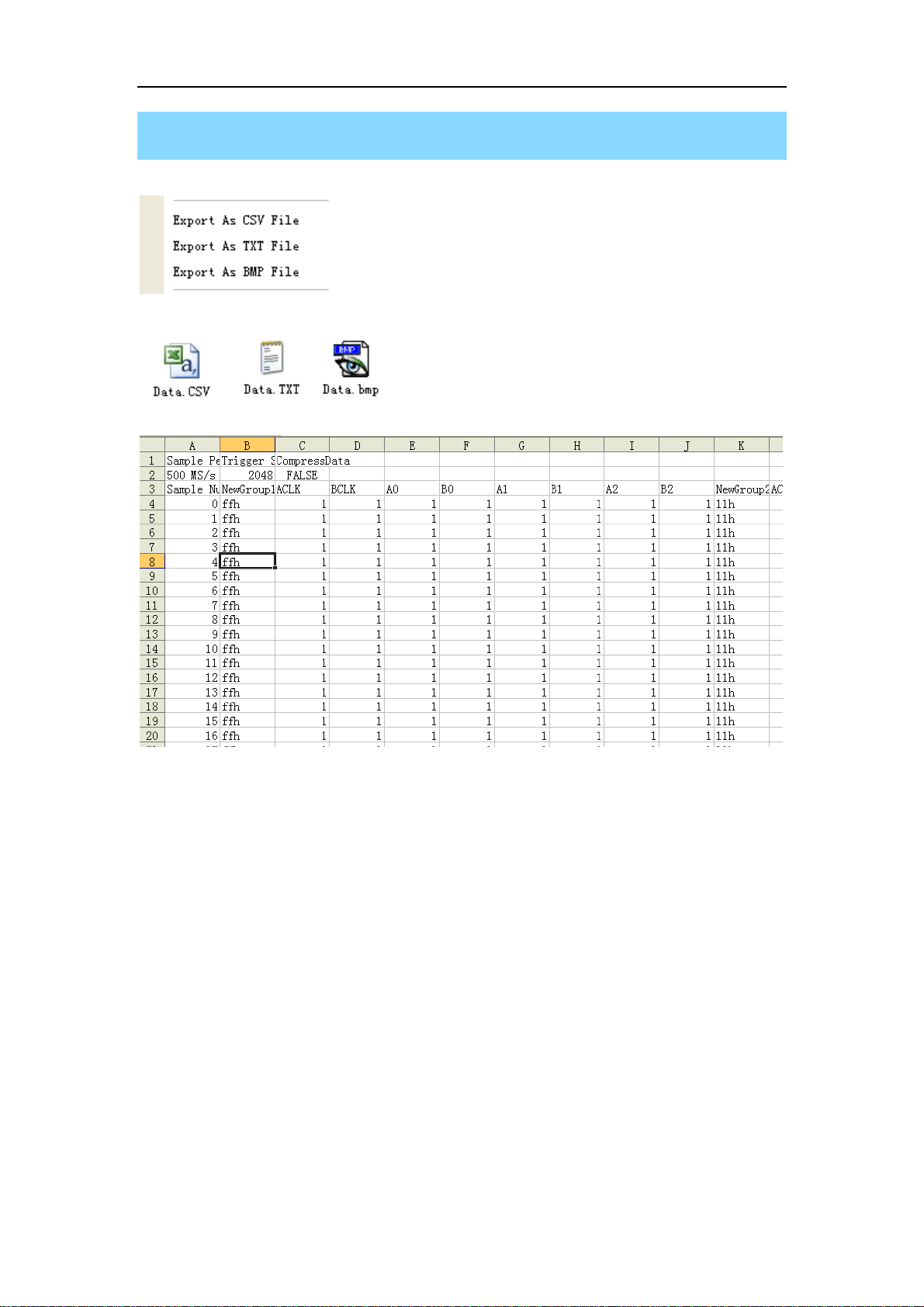

z Export As CSV File: Export data to file as “CSV”
z Export As TXT File: Export data to file as “TXT”
z Export As BMP File: Export data to file as “BMP”
z Print…: Print the current waveform
z Exit: Exit LA5034
LA5034 User’s Manual 12
LA5034

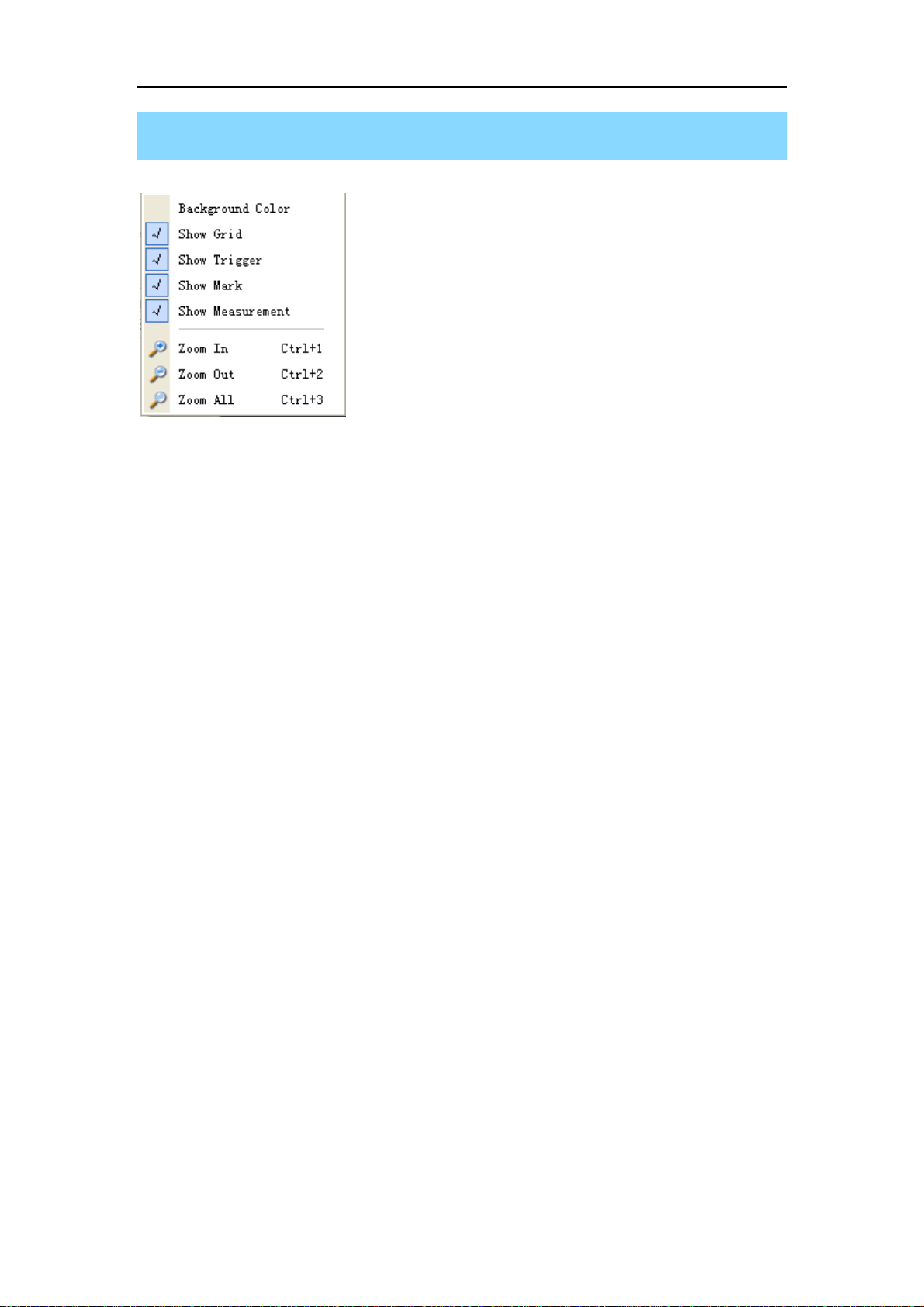

View
z Background Color: Modify the background color of waveform.
z Show Grid: Show or hide the grid of waveform
z Show Trigger: Show or hide the trigger line of waveform
z Show Mark: Show or hide the mark of waveform
z Show Measurement: Show or hide the measurement of waveform
z Zoom In: Enlargement waveform view
z Zoom Out: Reduction waveform view
z Zoom All: Show entire waveform view
LA5034 User’s Manual 13
LA5034
Setup
z Signal Name Setup: Set the signal name.
z Bus Setup: Configure the bus and signals.
z Trigger Setup: Configure the trigger condition.
LA5034 User’s Manual 14
LA5034

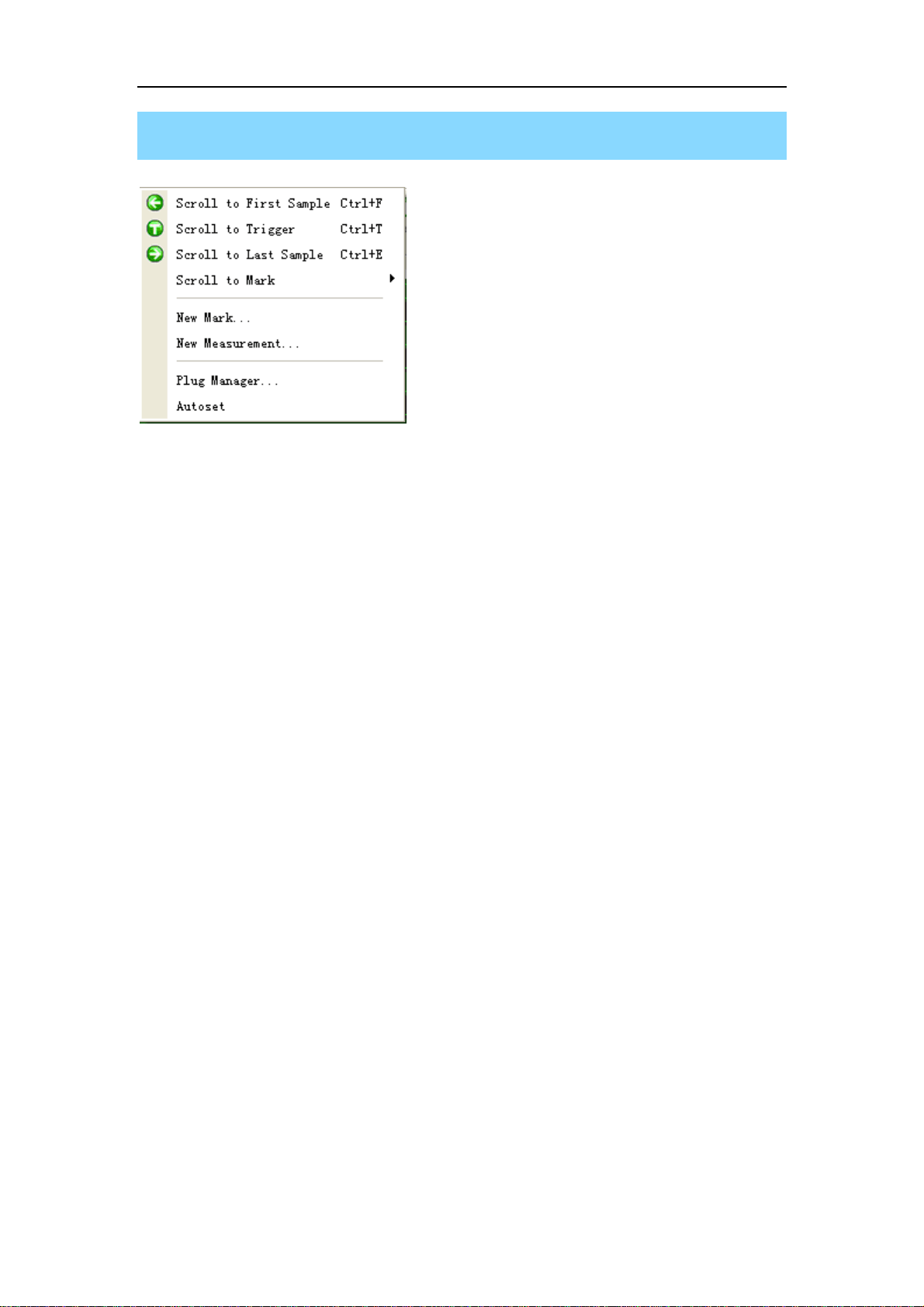

Analyzer
z Scroll to First Sample: Causes the waveform view to roll to the first
sample position
z Scroll to Trigger: Causes the waveform view to roll to trigger
position.
z Scroll to Last Sample: Causes the waveform view to roll to the last
sample position
z Scroll to Mark: Causes the waveform view to roll to the mark
position
z New Mark: Create a new Mark
z New Measurement: Create a new measurement.

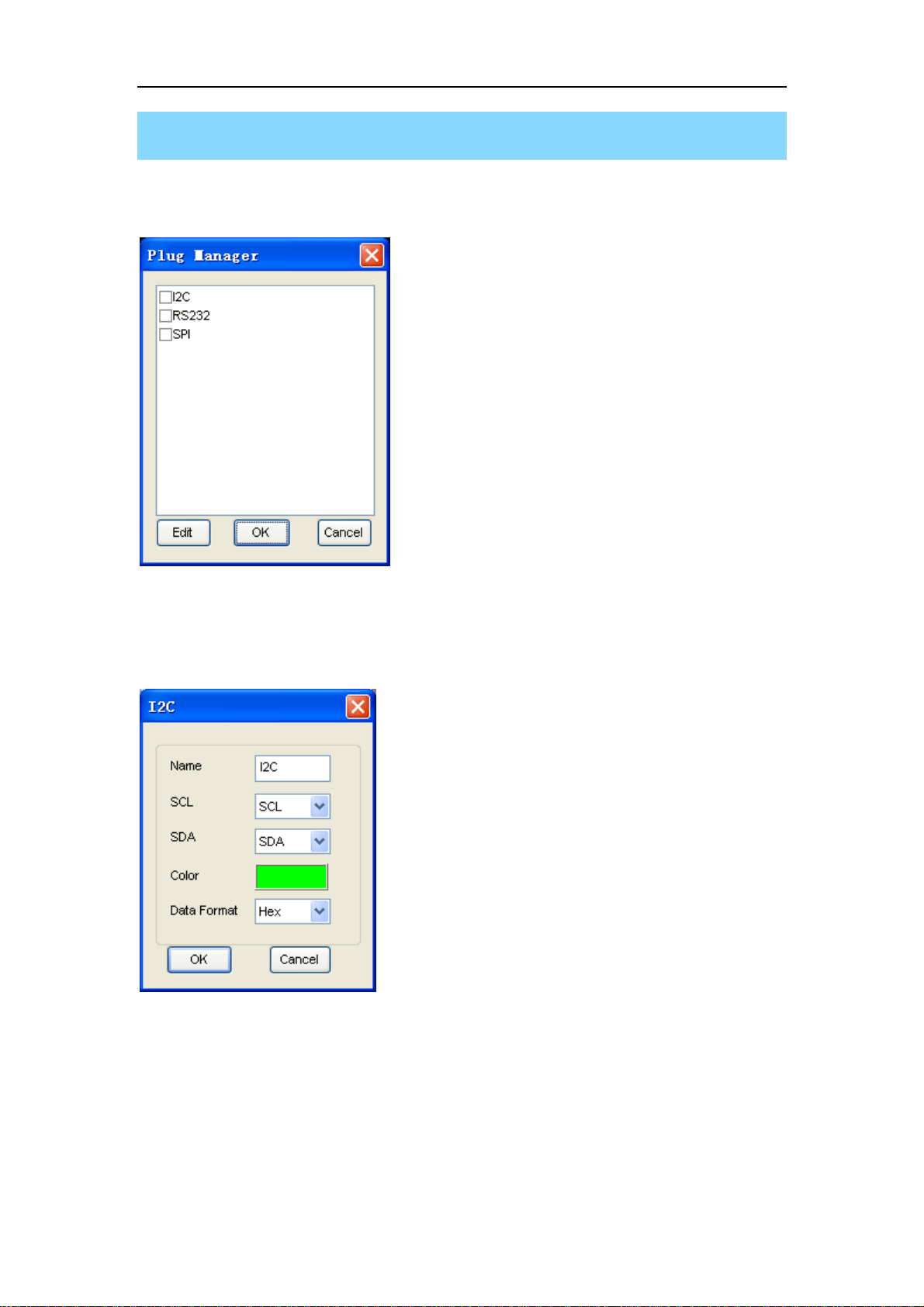

z Plug Manager: Configure the plug of LA5034
z Auto set: Set the waveform optimal.
LA5034 User’s Manual 15
LA5034
Help
z Help Content: Open the User Manual
z About: Show the copyright of LA5034
LA5034 User’s Manual 16
LA5034
Chapter 3 Advanced
This chapter focuses on the following topics:
Clock Panel
Bus Panel
Waveform Panel
Measurement Panel
Export Data
LA5034 User’s Manual 17
LA5034

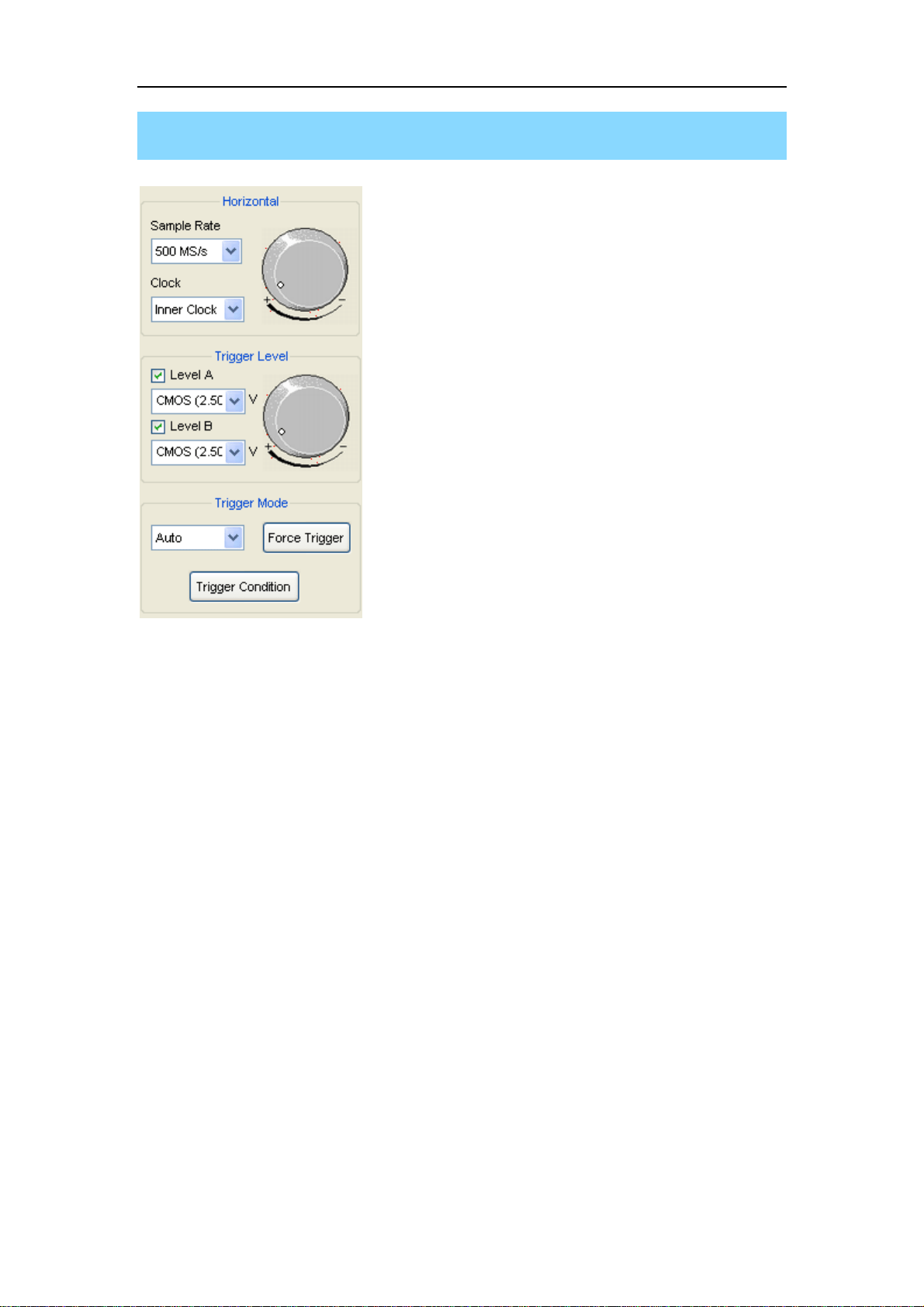

Clock Panel
z Horizontal:
Set the clock and sample rate
Inner Clock: When inner clock is chosen, the LA5034 will sample at a rate
specified by the “Sample Rate” combo box.
Ext Clock: When ext clock is chosen, you can select which clock input will
be used for sampling.

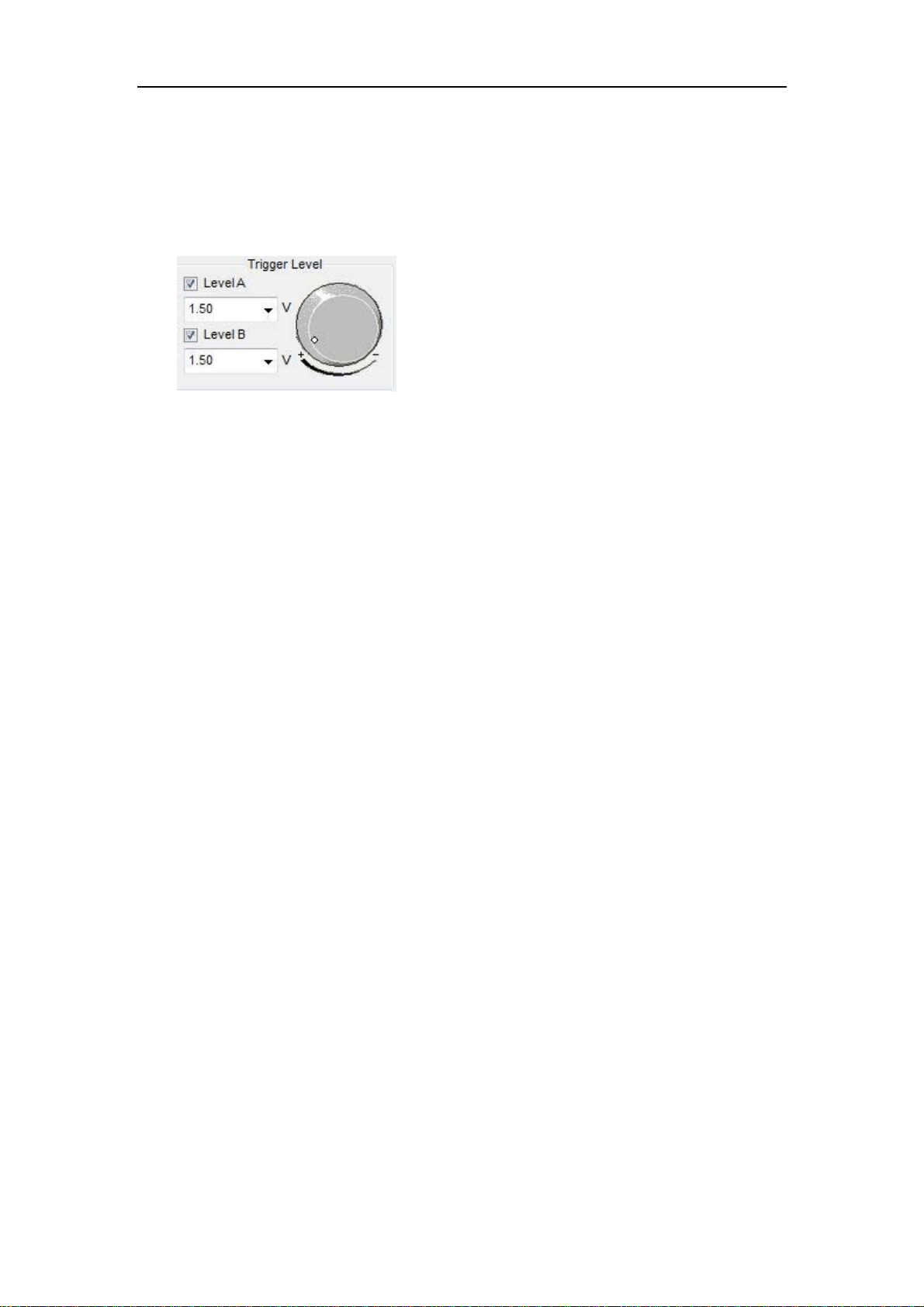

z Trigger Level:

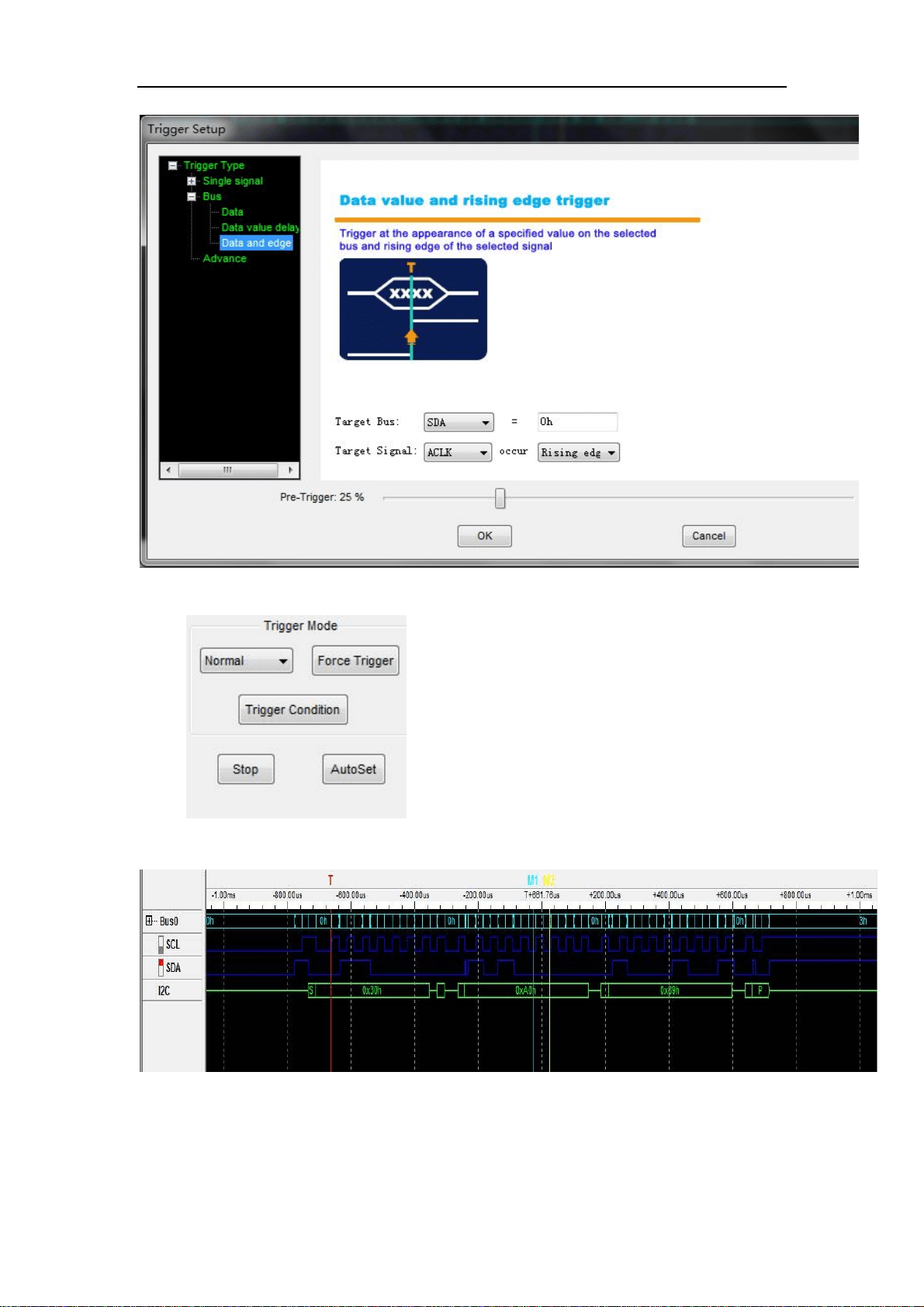

Configure the input trigger level.
z Trigger Mode:
Auto: Trigger continuously ignores trigger condition.
Normal: Trigger continuously under the trigger condition.
Single: Trigger under the trigger condition once.
Force Trigger: Trigger immediately once.
Trigger Condition: Popup the trigger setup dialog.
LA5034 User’s Manual 18
LA5034
Bus Panel

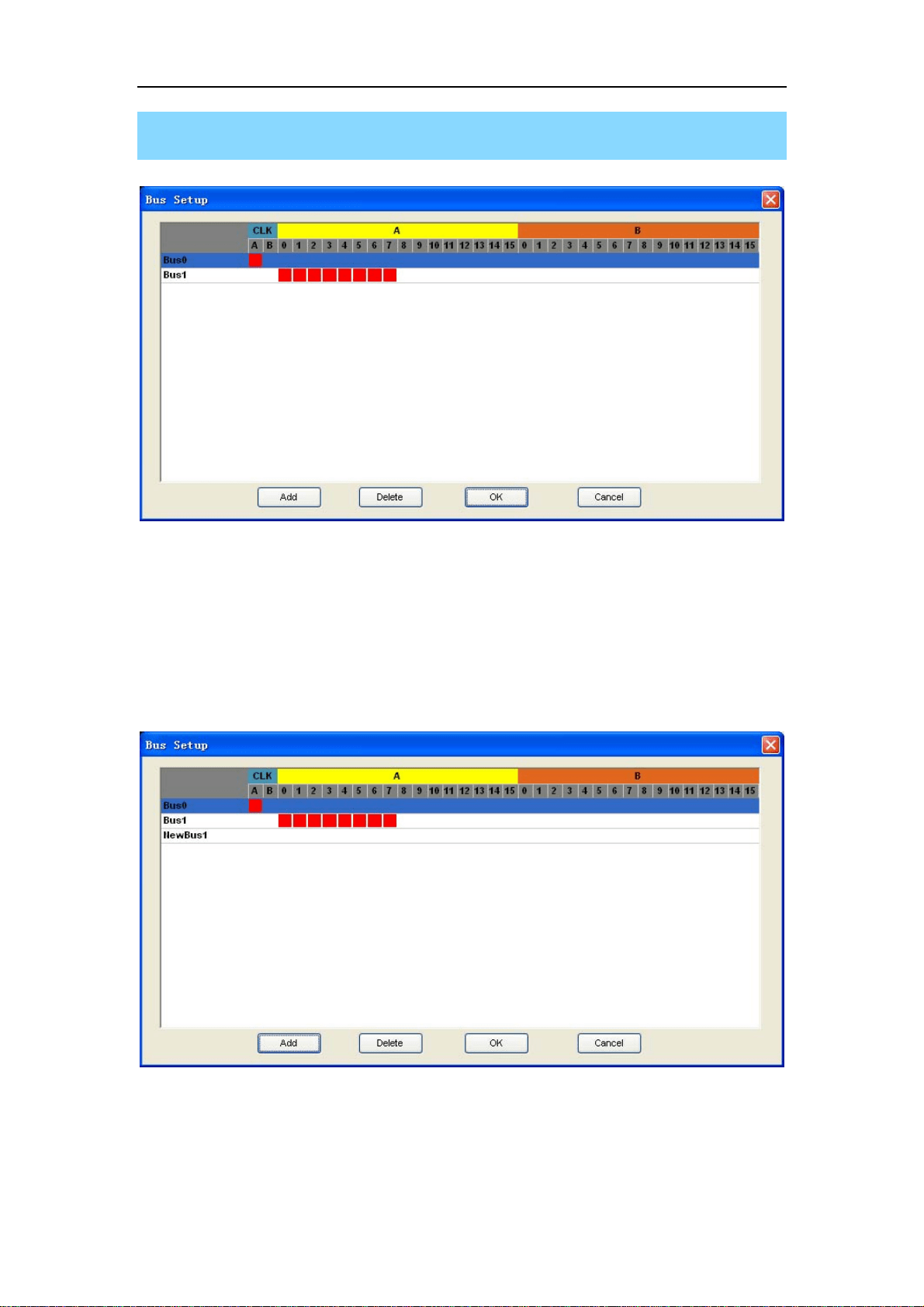

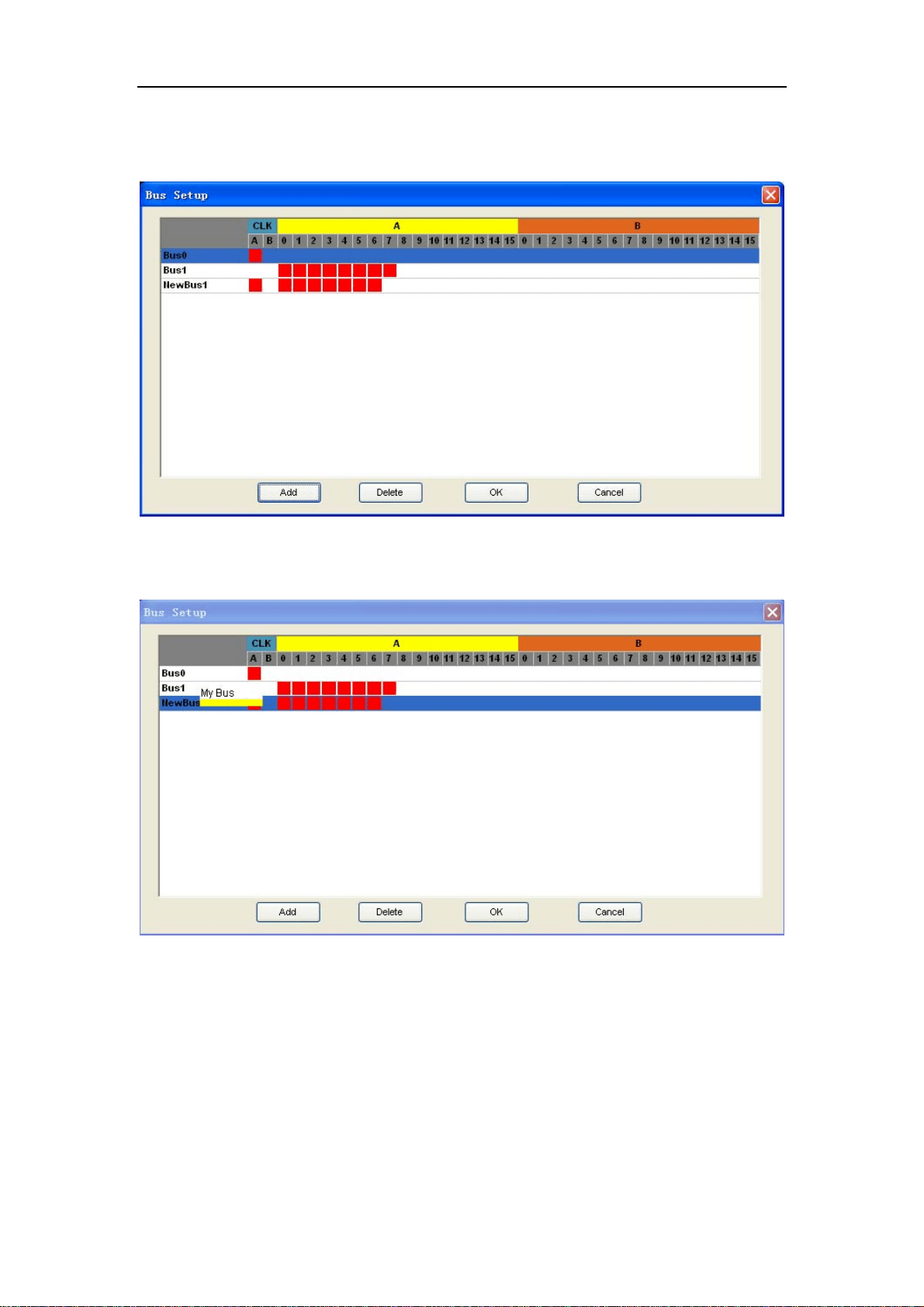

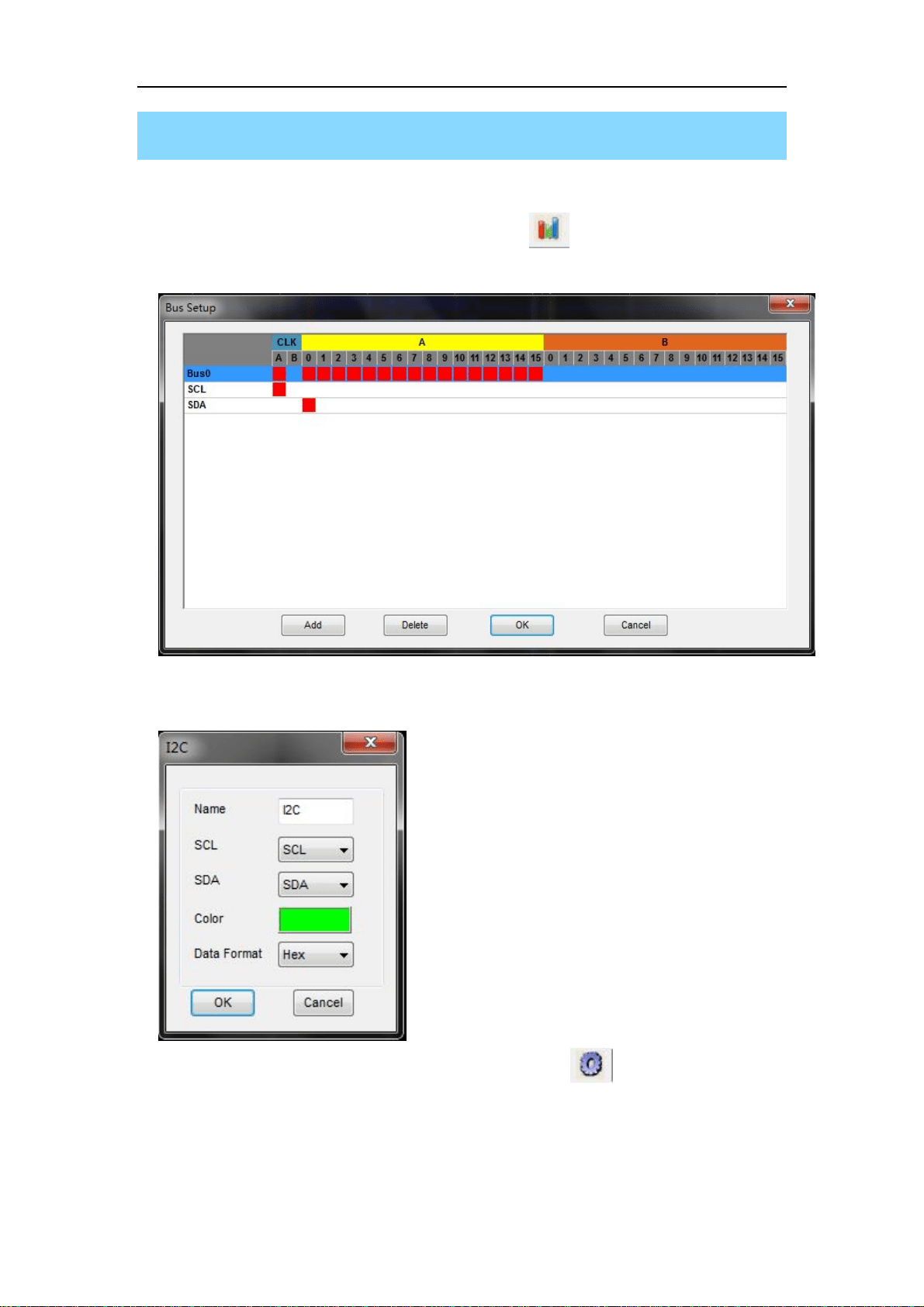

Click the menu “Setup”->”Bus Setup…” to open the dialog.
LA5034 has 34 signals, ACK, BCLK, A0 ~A15, B0~B15. You can assign the
parts of them to some bus.
The list box contains all of the bus; you can add or delete the bus.
For example: Assign a bus “My Bus” which has 8 signals “ACLK, A0, A1, A2,
A3, A4, A5, and A6 “.
1. Click the button “Add”. Then a new bus is added to the list.
LA5034 User’s Manual 19
LA5034
2. Click the pane under the CLKA, A0, A1, A2, A3, A4, A5, and A6. if the pane
is filled of red, is means you have add the signal to the bus.
3. Double-click the name of the bus, which is “NewBus1” in this example.
Then popup an edit box, in which you can input the bus name “My Bus”.
LA5034 User’s Manual 20
LA5034

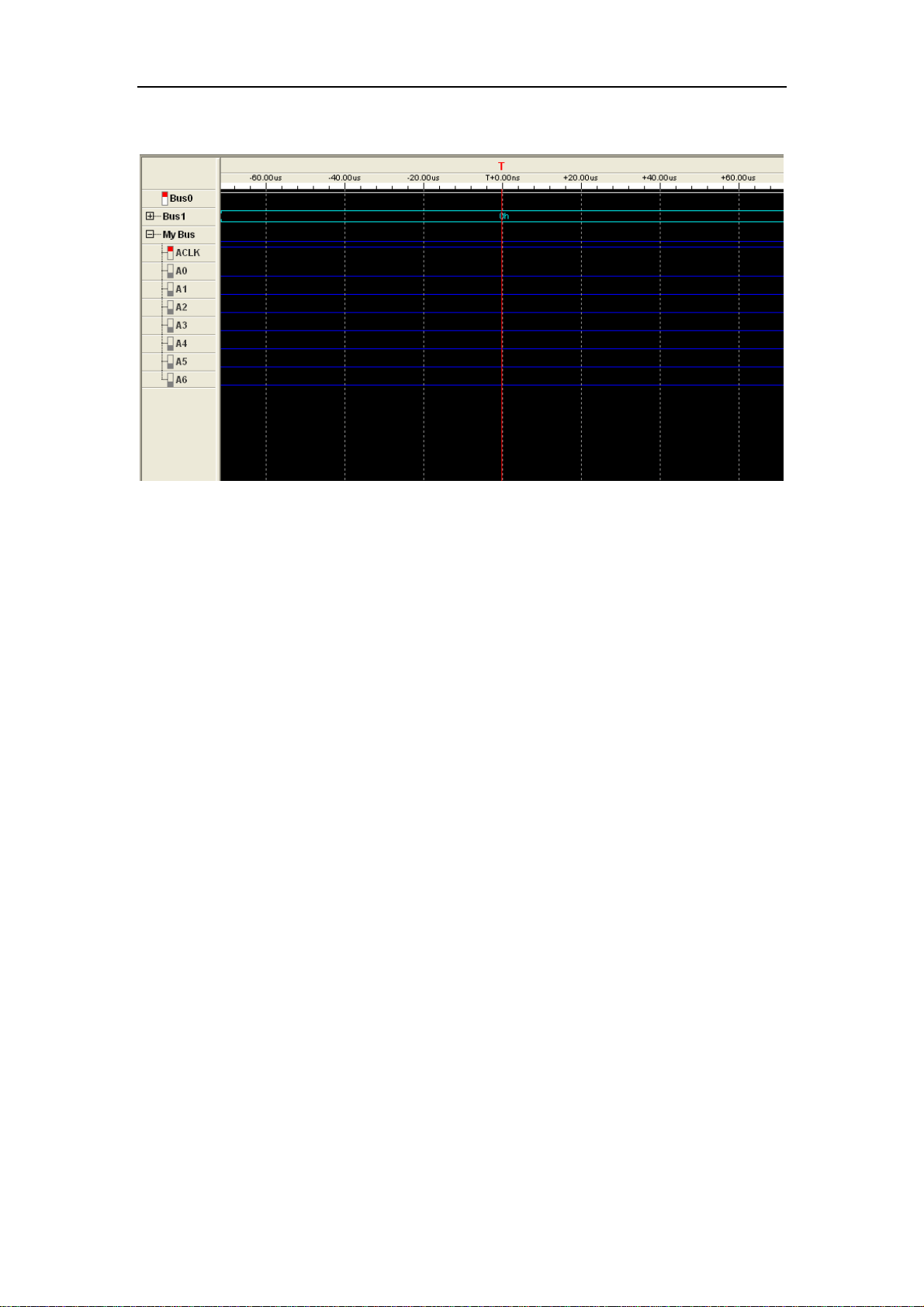

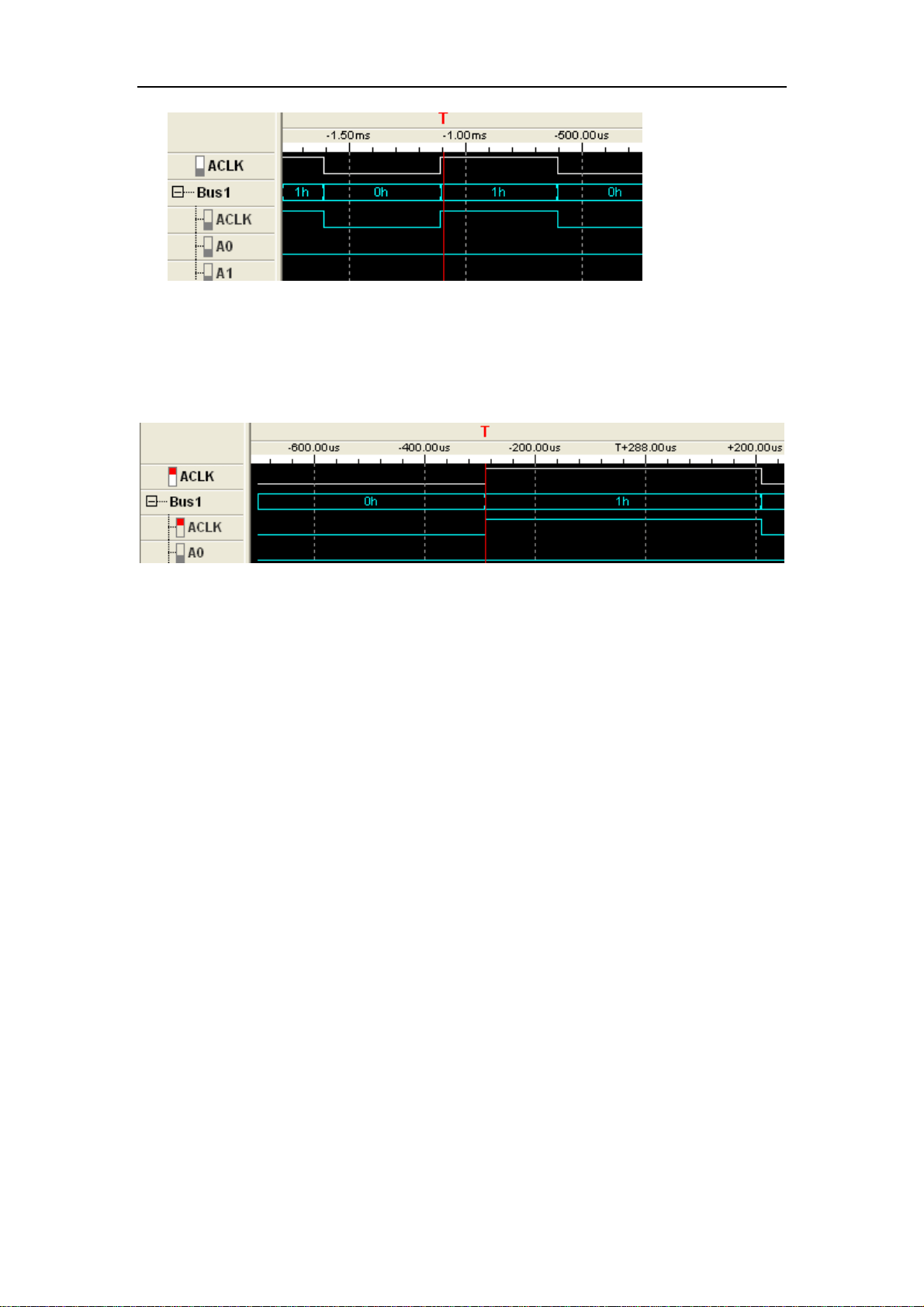

4. Then Click “OK”, the “My bus” has been added to the waveform.
LA5034 User’s Manual 21
LA5034
Waveform Panel
You can observe the waveform by the waveform panel in the main window.
The list contains all of the bus in bus panel in the left part of the waveform
panel.
Click the name of the bus with the right mouse button, you can configure the
bus.

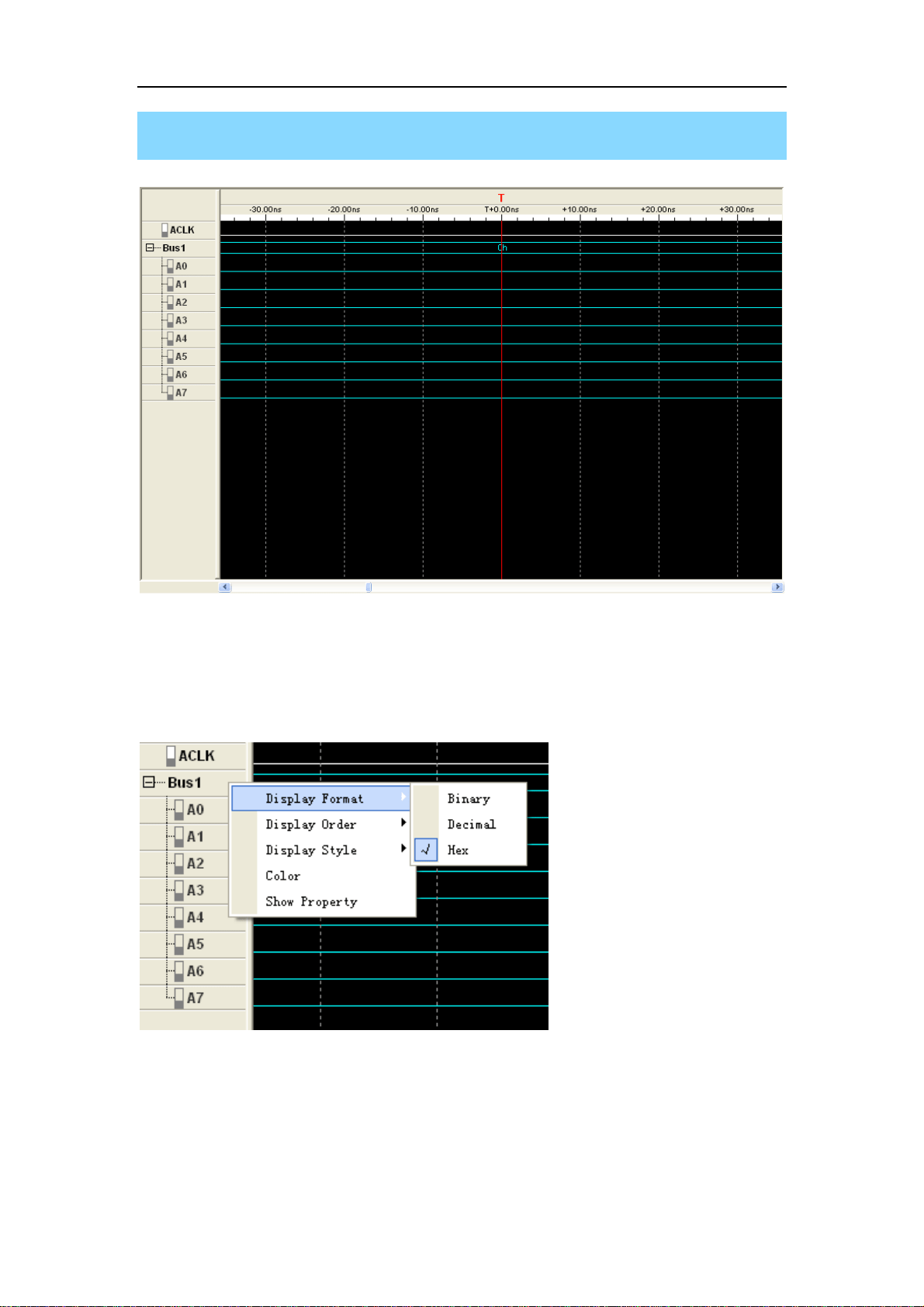

1. Display Format: The format of the bus data displayed on the waveform.
2. Display Order: The order of the signals displayed in the list.
3. Display Style: You can set the display style of the bus in the waveform,
Analog or Digital.
4. Color: You can modify the color of the bus displayed in the
waveform.
LA5034 User’s Manual 22
LA5034
5. Show Property: Open the bus setup panel.
Click the waveform with the right mouse button, the waveform help menu
popup. You can operate the LA5034 by the menu.
LA5034 User’s Manual 23
LA5034
Measurement Panel
Click the measurement panel with the right mouse button, then the menu
popup.

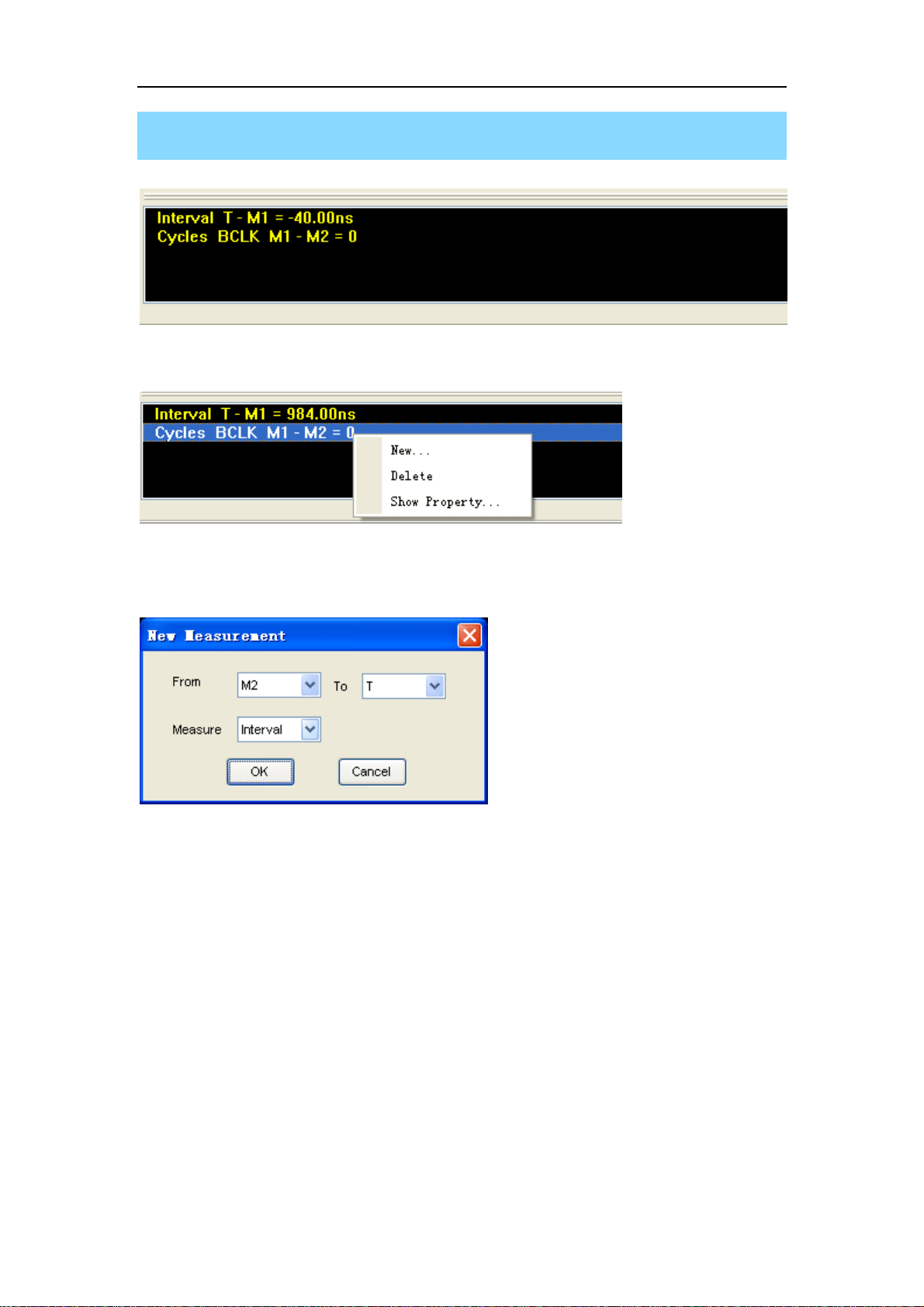

Click the “New” in the popup menu or “Analyzer”->”New Measurement” in the
main menu, you will add a new measurement to the list in the measurement
panel.
Select the “Measure” combo box. You can modify the types of measurement.
There are 4 types for you, such as Interval, rate, transitions and cycles.
Click the “Delete”; you can delete the measurement item selected in the list.
Click the “Show Property”; you can modify the measurement.
Also, you can click the main menu “Analyzer”->”New Mark” to add new mark
for measurement.
LA5034 User’s Manual 24
LA5034
Export Data
Click the menu “File”; you can export the data to file.
If you select the CSV file, you will export the data as the following.
LA5034 User’s Manual 25
LA5034
Chapter 4 Trigger
This chapter focuses on the following topics:
Base Trigger Setup
Advance Trigger Setup
LA5034 User’s Manual 26
LA5034
Base Trigger Setup
Click the menu “Setup”->”Trigger Setup”, you can configure the trigger
condition.
LA5034 provide 6 base triggers for you.
z Single signal: Rising edge; Falling edge; Rising or falling edge.
z Bus: Data, Data value delay, Data and edge

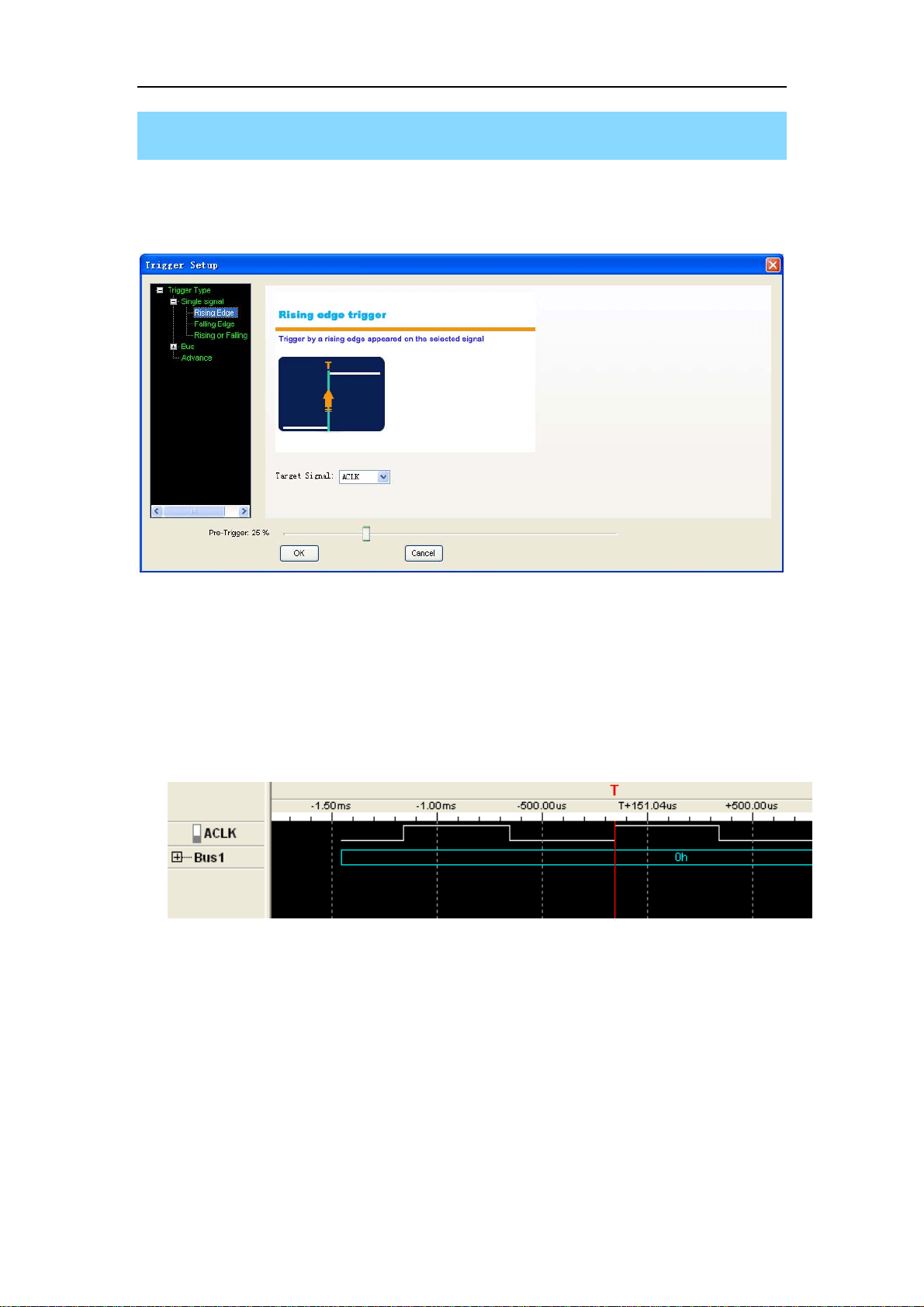

1. Rising edge:
Select the “Rising edge” in the tree; select the signal in the combo box.
Then it will triggered by a rising edge appeared on the selected signal.
2. Falling edge:
Trigger by a falling edge appeared on the selected signal.
3. Rising or falling edge:
Trigger by a rising or falling edge appeared on the selected signal.
4. Data:
Trigger at the appearance of a specified value on the selected bus.
LA5034 User’s Manual 27
LA5034
5. Data value delay:
Trigger at x time after the appearance of a specified value
6. Data and edge:
Trigger at the appearance of a specified value on the selected bus and
rising, falling, or rising or falling edge of the selected signal.
LA5034 User’s Manual 28
LA5034

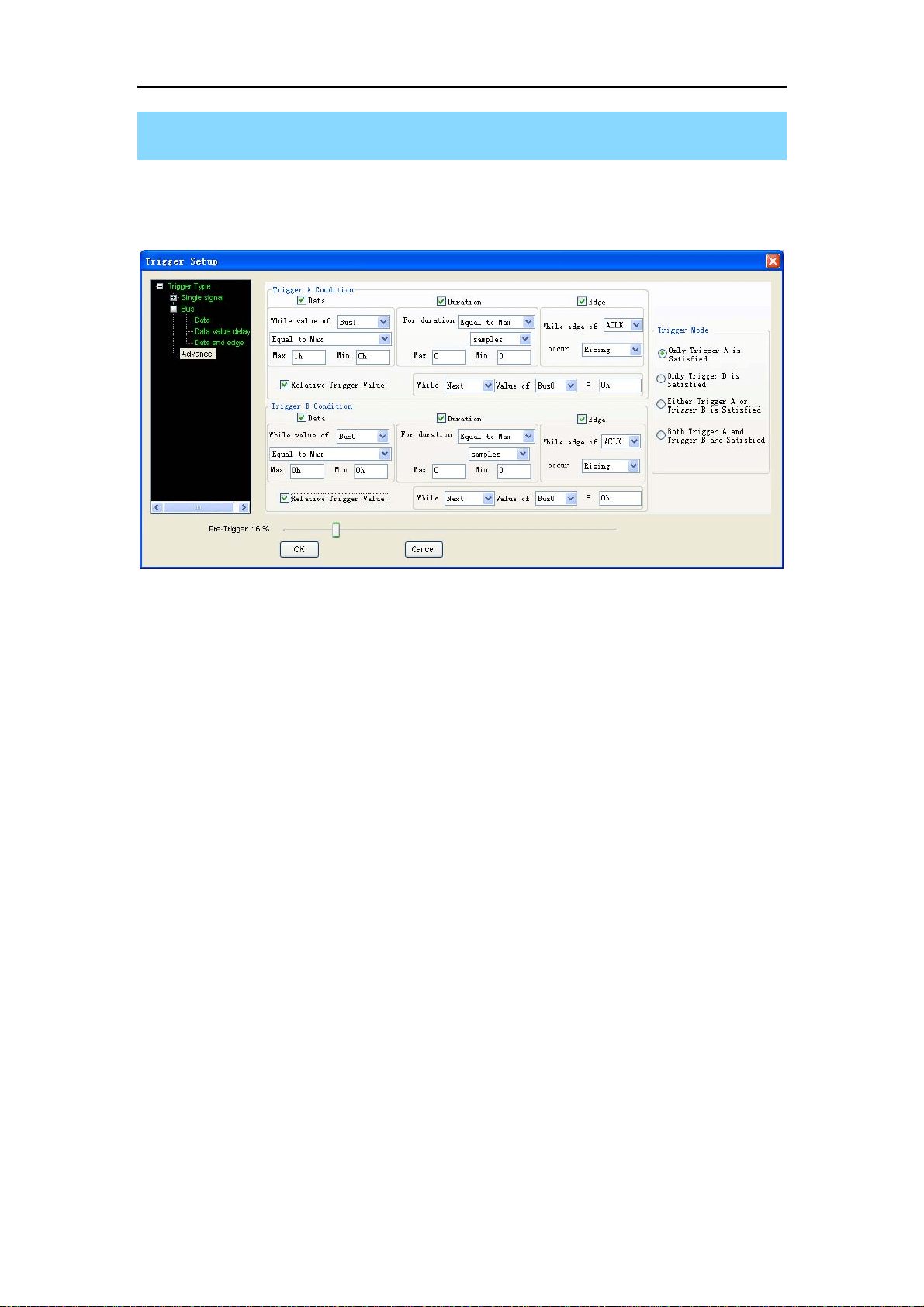

Advance Trigger Setup
If the base trigger can’t satisfies you, may be you want the advance trigger.
Click the “Advance” in the tree, then you can configure the advance trigger.
There are two trigger conditions: trigger A and trigger B. You can set the
trigger mode by clicking the Trigger Mode group box.
There are four parts in each condition, Data, Duration, Edge and Relative
trigger value.
LA5034 User’s Manual 29
LA5034
Chapter 5 Plug Manager
This chapter focuses on the following topics:
Summary
Example
LA5034 User’s Manual 30
LA5034
Summary
Click Menu “Analyzer”-> “Plug Manager”.
The list box contains all of the plugs installed in your computer. You can add
them to waveform by checking them.
Select a plug and click the “Edit” button, you can modify the property of the
plug.
LA5034 User’s Manual 31
LA5034
Example
If you want to analyze the I
2
C bus, you should go with the steps following.
1. Click menu “Setup”->“Bus Setup” or toolbar , open the bus setup
dialog. Then add two buses which only have one signal.
2. Open the plug manager and the I
2
C setup dialog. Click menu
dit” button. “Analyzer”->“Plug-in-Manager”, then select I
2
C and click the “E
3. Click menu “Setup”-> “Trigger Setup” or toolbar , open the bus setup
dialog, do these steps:
LA5034 User’s Manual 32
LA5034
4. Select “Normal” in trigger mode.
5. Then you can see the following.
LA5034 User’s Manual 33
LA5034
6. Usually, after doing the four steps, you can see the stable and sensitive
I2C signals. If there is measuring instrument line interference, user can
adjust the trigger voltage value. Set initial trigger voltage value for SCL and
SDA is 1.5V, try to adjust the value to obtain the stable signal.
LA5034 User’s Manual 34
LA5034
Appendix
Hardware specification
Input connector pin assignments
Block Diagram
Cleaning and Maintenance
LA5034 User’s Manual 35
LA5034
Hardware Specification
LA5034 User’s Manual 36
Sampled channels 34
High input impedance 200K (C=10p)
Input voltage range -60V~60V
Logic threshold Range -6V~6V
Max Sample Rate 500 MHz
Max input Signal bandwidth 150 MHz
Min time resolution 2ns
Sample Depth 2KSample
Trigger’s Max rate 250 MHz
Compatible input
TTL,LVTTL,CMOS,LVCOMS,ECL,PEC
L,EIA
Electrostatic Protected 15KV
Power USB Port
Temperature range -10℃~60℃
LA5034
Channels
LA5034 User’s Manual 37
Level A
Pin Number Wire ID Wire Color Contact Color
1 Ground Black Black
2 ACLK Blue Blue
3 Ground Black Black
4 A0 Black Yellow
5 A1 White Yellow
6 A2 Gray Yellow
7 A3 Blue Yellow
8 A4 Green Yellow
9 A5 Yellow Yellow
10 A6 Orange Yellow
11 A7 Red Yellow
12 A8 Black Yellow
13 A9 White Yellow
14 A10 Gray Yellow
15 A11 Blue Yellow
16 A12 Green Yellow
17 A13 Yellow Yellow
18 A14 Orange Yellow
19 A15 Red Yellow
20 Ground Black Black
Level B
Pin Number Wire ID Wire Color Contact Color
1 Ground Black Black
2 BCLK Blue Blue
3 Ground Black Black
4 B0 Black Orange
5 B1 White Orange
6 B2 Gray Orange
7 B3 Blue Orange
8 B4 Green Orange
9 B5 Yellow Orange
10 B6 Orange Orange
11 B7 Red Orange
12 B8 Black Orange
13 B9 White Orange
14 B10 Gray Orange
LA5034
LA5034 User’s Manual 38
15 B11 Blue Orange
16 B12 Green Orange
17 B13 Yellow Orange
18 B14 Orange Orange
19 B15 Red Orange
20 Ground Black Black
LA5034

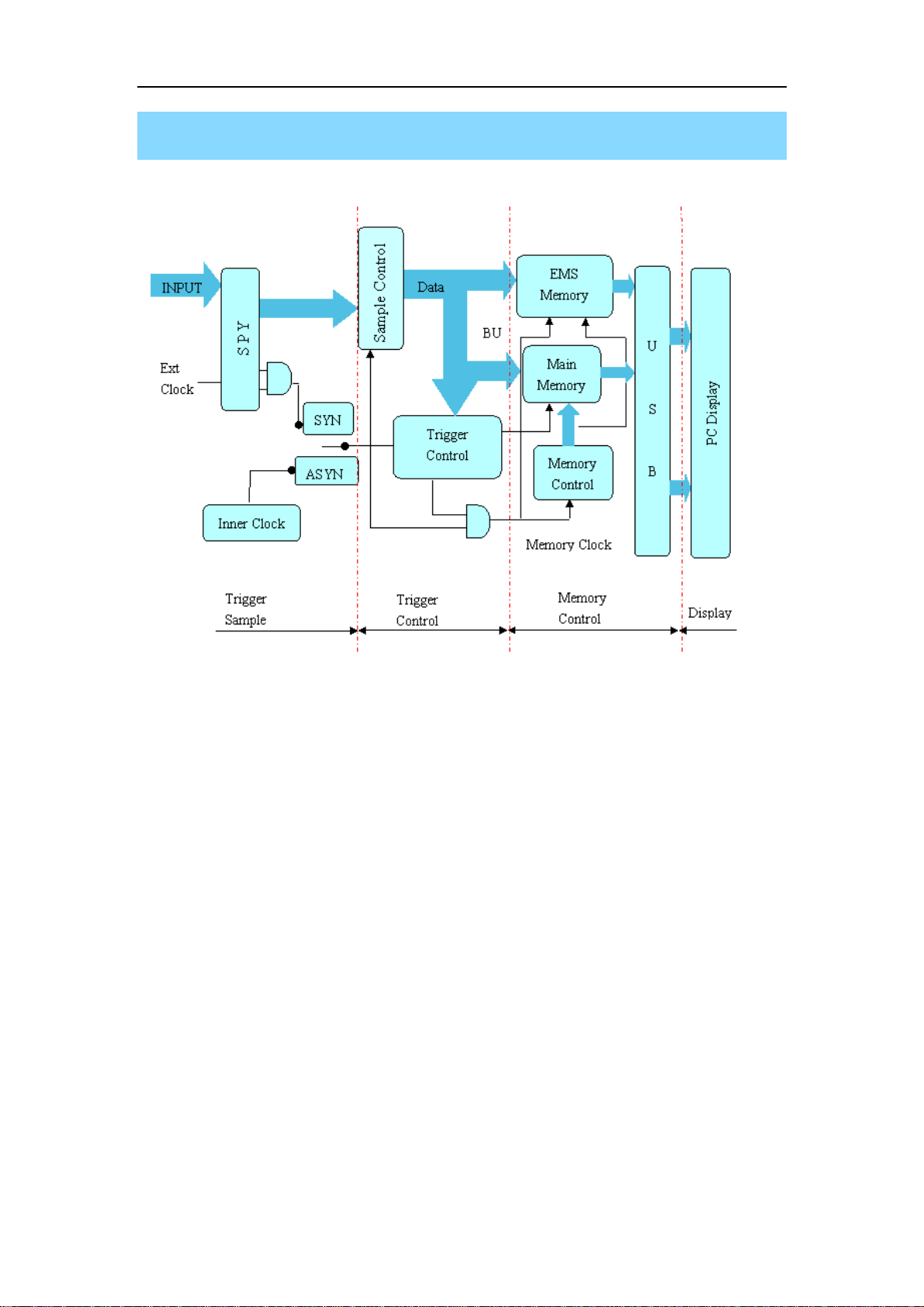

Block Diagram
LA5034 User’s Manual 39
LA5034
LA5034 User’s Manual 40
Cleaning and maintenance
Cleaning
In order to maintain the cleanliness of equipment, you need to check whether
the channels are dusty or not. Please clean the out surface of the equipment
follow these matters.
1. Use velvet cloth contact the surface of the equipment.
2. Pease do not use any corrosive or chemistry.
Caution: Please make sure the equipment is dry enough before going to work.
Avoid mangling the equipment or hurting body because of water!
Maintenance
Don’t put the equipment under the sun for a long time. Put it in wind to the best
of one's abilities
Caution: In order to not mangle the equipment, you should not put it in fog,
water or impregnate.
