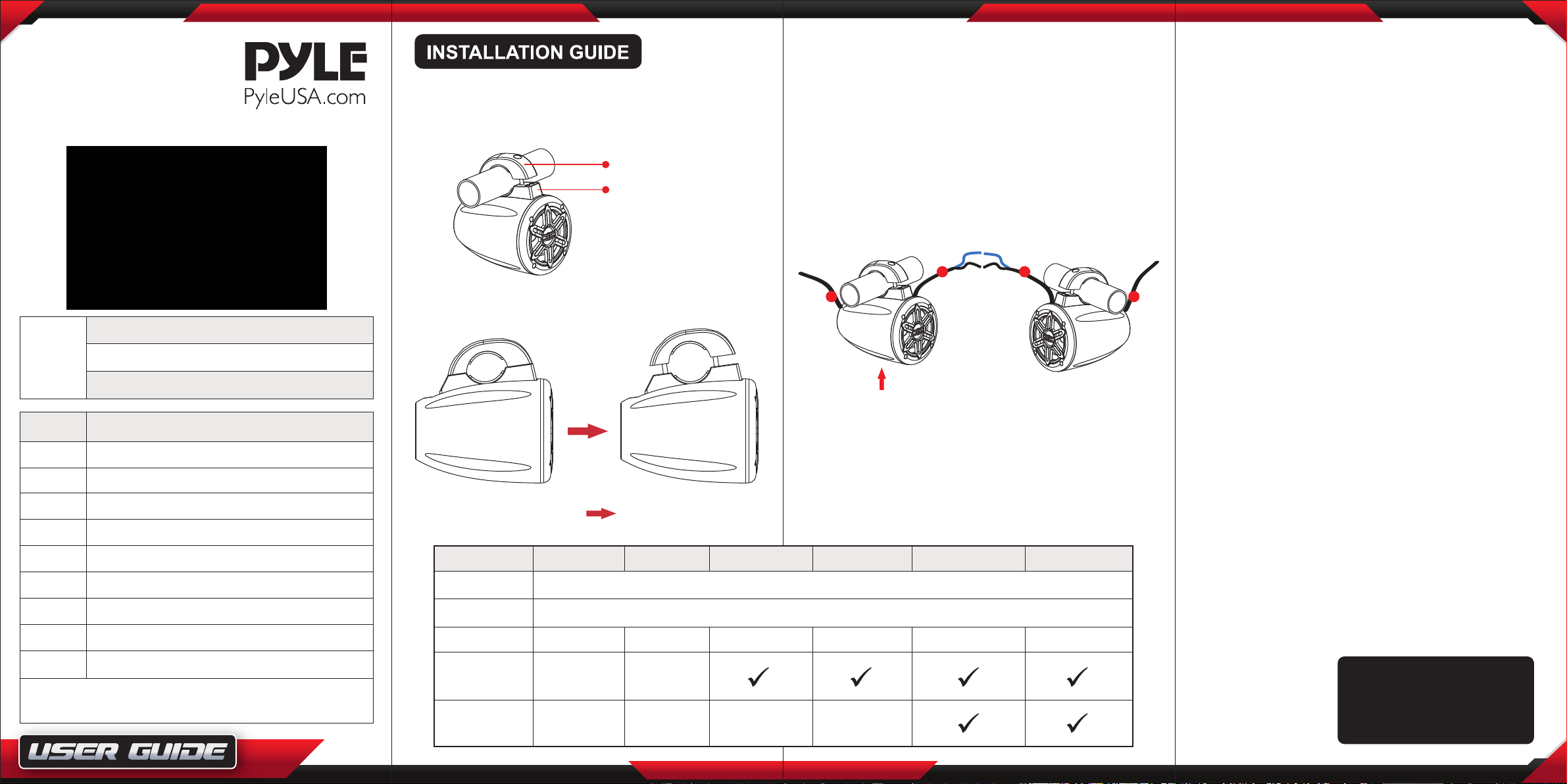

Picture 1.
1. The base of the bracket.
2. The cover of the bracket, is xed by 2 mounting screws.
Remark:
Types of screws: M6x35
1
2
4’' -inch Waterproof
Rated Marine
Tower Speakers
Wakeboard Subwoofer Speaker System
MODEL
PLMRWB45W / PLMRWB45B
PLMRLEWB46W / PLMRLEWB46B
PLMRLEWB47WB / PLMRLEWB47BB
Picture 2.
Mounting hole dimension
1.65” (4.2cm)
MaxMin
1.96” (5cm)
Features:
• Includes (2) Wakeboard Tower Speakers
• Waterproof Marine Grade Rated Construction
• Rugged & Weather-Resistant Housing
• Compact Mountable Design
• 2-Way Full Range Audio Speaker System
• Titanium Dome Tweeters
• Long Excursion Subwoofers
• Anti-Corrosion, UV Resistant Coating
• Integrated Universal Roll Bar Mounting Clamps
Technical Specifications:
• Waterproof Marine Grade Rating: IP-44
• Boat Roll Cage / Roll Bar Support Size: Up to 1.96'' (5cm)
• Tweeter Type: Titanium Dome
• Frequency Response: 70hz-20kHz
• Impedance: 4 Ohms
• Magnet: 10 Oz
• Sensitivity: 90 dB
• Construction Material: Engineered ABS Grills
• Speaker Housing Dimensions (L x W x H):
5.4'' x 5.4'' x 7.0'-inches
• Speaker Housing Size (L x W x H):
5.4'' x 7.6'' x 7.0'-inches (with Mounting Bracket)
What's in the Box:
• (2) Marine LED Speakers
• Integrated Mounting Clamps
ww w.PyleUSA.com ww w.PyleUSA.com
Wiring Diagram
• As shown in pictures, A port is DC12V/LED/BTPOWER,
B port is LED POWER
• A and B Connect to DC12V Power.
As shown in pictures, will be the rst two speakers
docking, C and D is Speaker Wire, Connect C’s
Positive to D’s Positive, C’s Negative to D’s Negative,
Black Wire is Negative, Blue Wire is Positive.
• The connection is complete.
How to connect Wireless BT?
Search the device on your phone\tablet (device name
Pyle), enter the password (0000), when a beep sound
is heard, the connection is successful.
Now you can play music.
Numeral Characterization of Ingress Limit
0 or X Not evaluated
1 Dripping water: vertical
2 Dripping water: 15° tilt
3 Spraying water
4 Splashing water
5 Jetting water
6 Powerful Jetting water
7 Temporary immersion
8 Continuous immersion
Table II. The second numeral in an IP code indicates the
degree of protection from moisture.
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]
C D
BA
Port: DC12V/LED/BT
Speaker with BT
Connect
Speaker Wire
Port: DC12V/LED
Built-in
LED Lights
PLMRWB45B PLMRLEWB46W PLMRLEWB46B PLMRLEWB47WB PLMRLEWB47BB
PLMRWB45W
Power Output
Sound System
Color
Wireless BT
Streaming
300 Watt MAX
4'' Subwoofers 1.0'' Tweeters
White Black White Black White Black
MODEL
