ElectricandGasDryer
DLE2516W / DLG2526W
Thank you for buying an LGDryer.
Pleaseread your manual carefully, as it provides instructions
on safe Installation, useand maintenance.
Record the model and serial numbers,
and retain the manual for future reference.
For more information, visit our website at http:i/us.lge.com
P/No.: 3828EL3004E

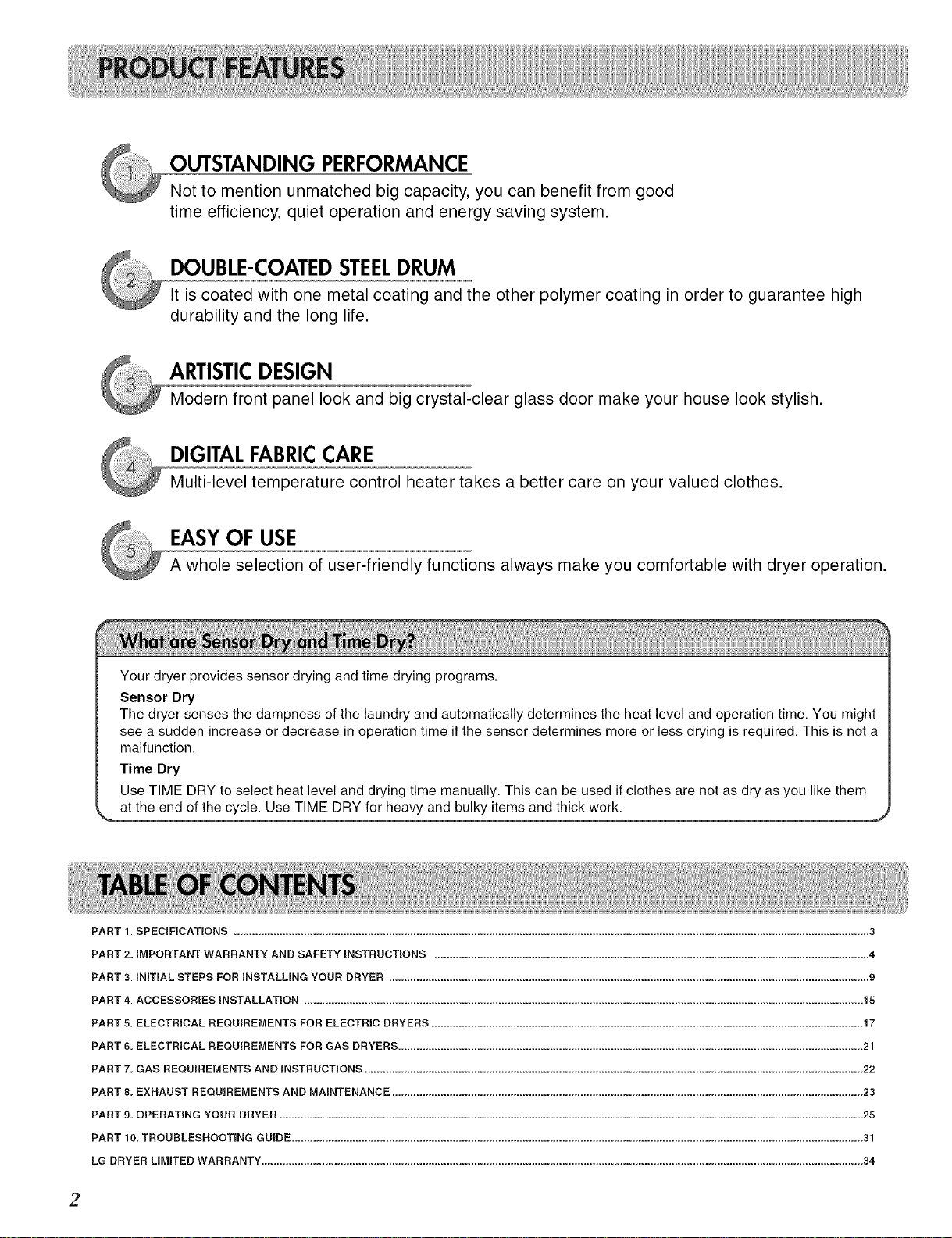

OUTSTANDING PERFORMANCE
Not to mention unmatched big capacity, you can benefit from good
time efficiency, quiet operation and energy saving system.
DOUBLE-COATED STEELDRUM
It is coated with one metal coating and the other polymer coating in order to guarantee high
durability and the long life.
ARTISTICDESIGN
Modern front panel look and big crystal-clear glass door make your house look stylish.
DIGITAL FABRICCARE
Multi-level temperature control heater takes a better care on your valued clothes.
EASYOF USE
A whole selection of user-friendly functions always make you comfortable with dryer operation.
Your dryer provides sensor drying and time drying programs.
Sensor Dry
The dryer senses the dampness of the laundry and automatically determines the heat level and operation time. You might
see a sudden increase or decrease in operation time if the sensor determines more or less drying is required. This is not a
malfunction.
Time Dry
Use TIME DRY to select heat level and drying time manually. This can be used if clothes are not as dry as you like them
at the end of the cycle. Use TIME DRY for heaw and bulky items and thick work.
J
PART 1 SPECiFiCATiONS ................................................................................................................................................................................................................. 3
PART 2. iMPORTANT WARRANTY AND SAFETY iNSTRUCTiONS ............................................................................................................................................... 4
PART 3 INITLAL STEPS FOR INSTALLING YOUR DRYER .............................................................................................................................................................. 9
PART 4 ACCESSORIES iNSTALLATiON ........................................................................................................................................................................................ 15
PART 5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYERS .............................................................................................................................................. 17
PART 6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS ......................................................................................................................................................... 21
PART 7. GAS REQUEREMENTS AND INSTRUCTIONS .................................................................................................................................................................... 22
PART 8. EXHAUST REQUIREMENTS AND MALNTENANCE ........................................................................................................................................................... 23
PART 9. OPERATING YOUR DRYER ................................................................................................................................................................................................ 25
PART 10. TROUBLESHOOTING GUIDE ............................................................................................................................................................................................ 31
LG DRYER LIMITED WARRANTY ...................................................................................................................................................................................................... 34
2

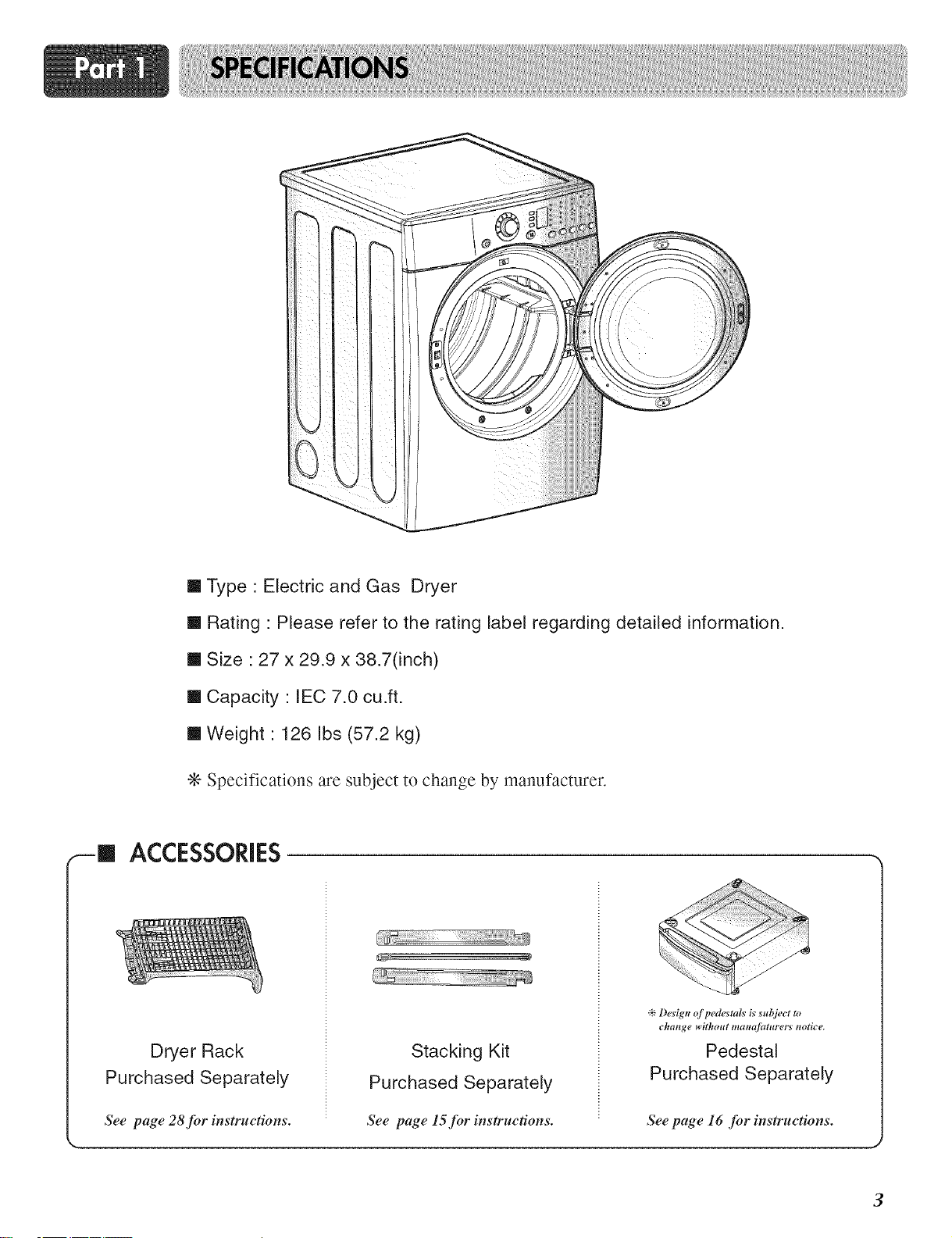

m Type : Electric and Gas Dryer
[] Rating : Please refer to the rating label regarding detailed information.
[] Size : 27 x 29.9 x 38.7(inch)
[] Capacity : IEC 7.0 cu.ft.
[] Weight : 126 Ibs (57,2 kg)
÷ Specifications are subject to change by manufacturer.
ACCESSORIES
Dryer Rack
Purchased Separately
See page 28 Jor instructions.
Stacking Kit
Purchased Separately
See page 15Jor instructions.
:_ Desigu of pede,stals is suhject to
change without ntauaflttttrer_ notice.
Pedestal
Purchased Separately
See page 16 for instructions.
3

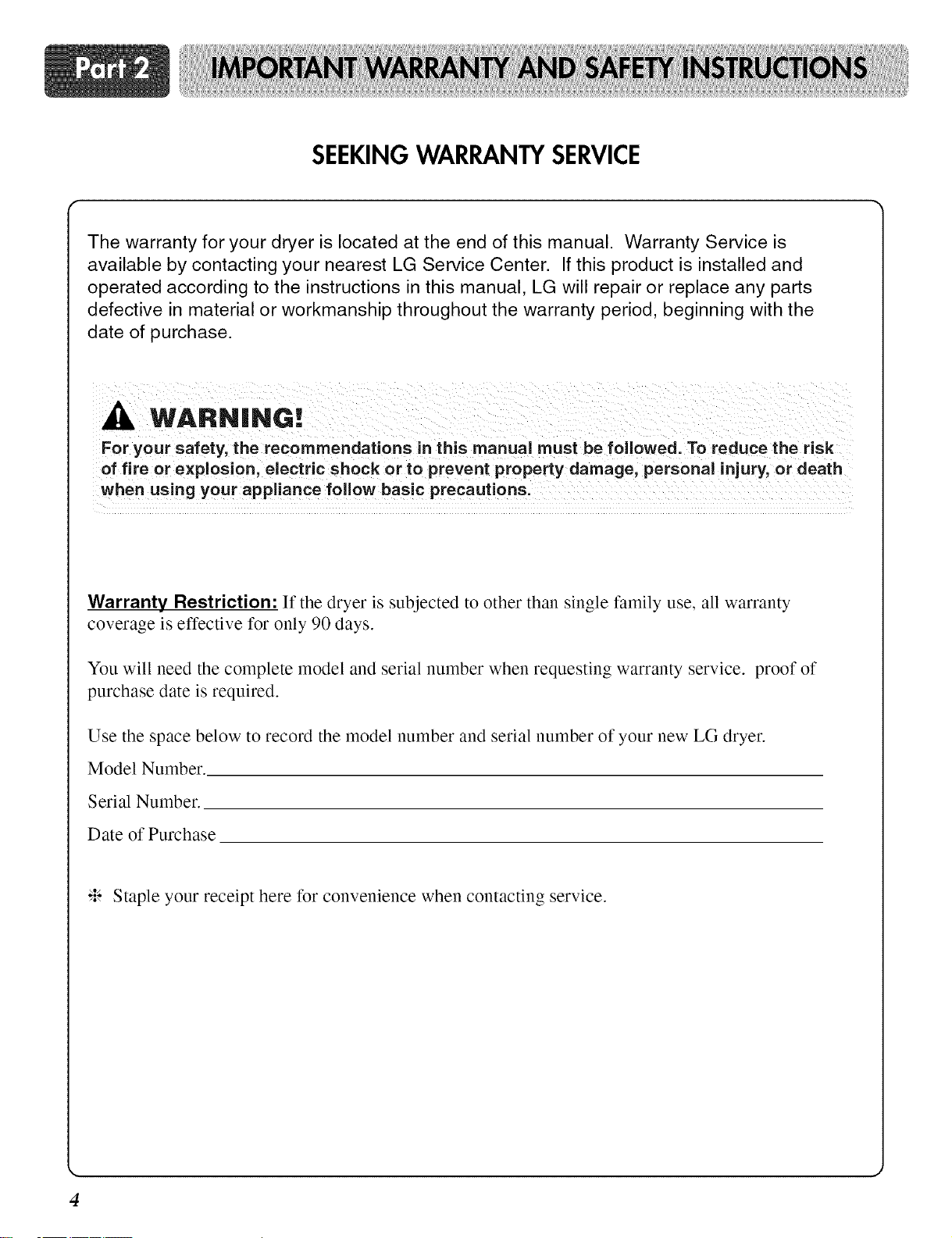

SEEKINGWARRANTYSERVICE
The warranty for your dryer is located at the end of this manual. Warranty Service is
available by contacting your nearest LG Service Center. If this product is installed and
operated according to the instructions in this manual, LG will repair or replace any parts
defective in material or workmanship throughout the warranty period, beginning with the
date of purchase.
WARN|NG!
For your safety, the recom mendations in this manual must be followed. To reduce the risk
of fire or explosion, electric shock or to prevent property damage, personal injury, or death
when using your appliance follow basic precautions.
Warranty Restriction: If the dryer is subjected to other than single family use, all warranty
coverage is effective for only 90 days.
You will need the complete model and serial number when requesting warranty service, proof of
purchase date is required.
Use the space below to record the model number and serial number of your new LG dryer.
Model Number.
Serial Number.
Date of Purchase
-_ Staple your receipt here for convenience when contacting service.

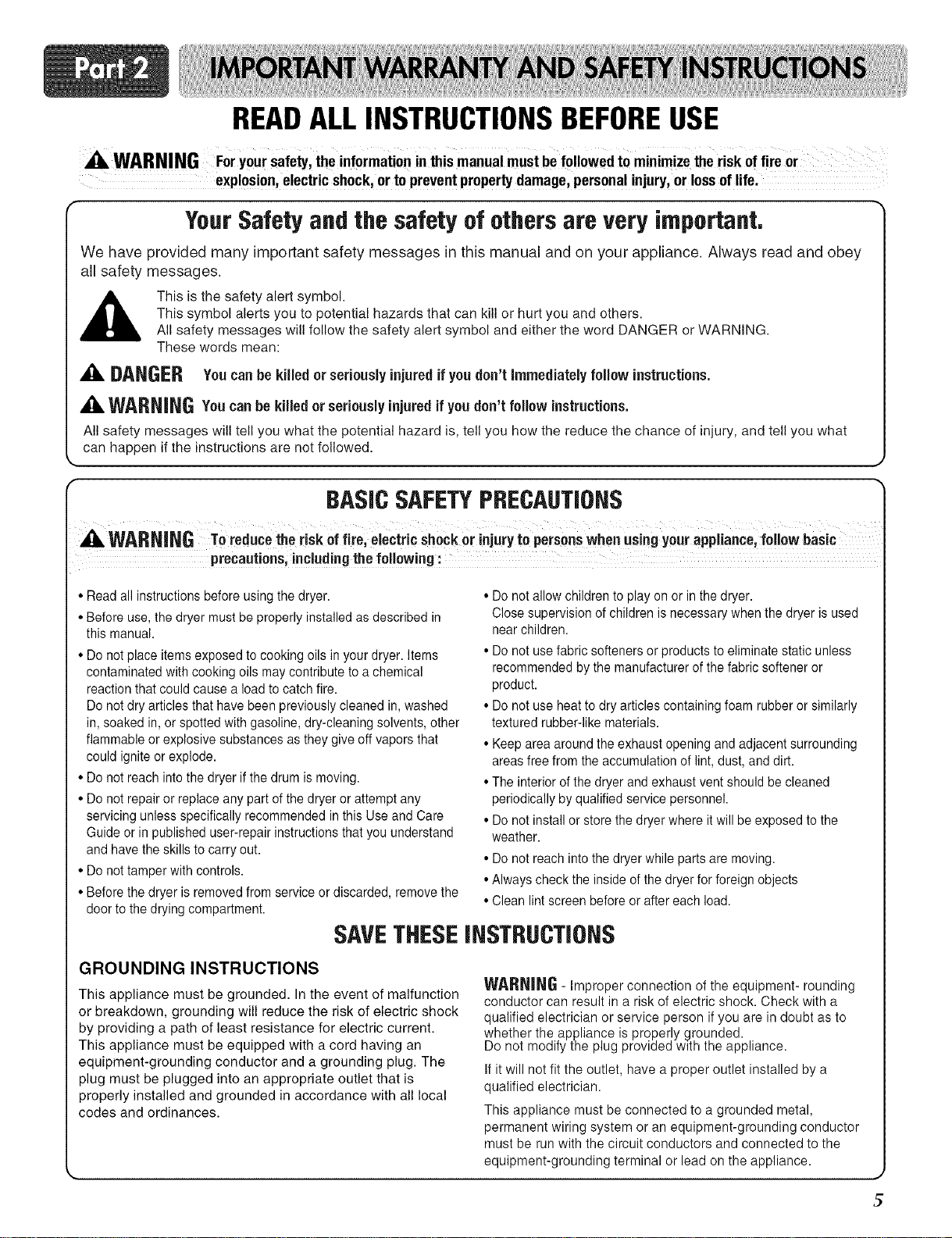

READALLINSTRUCTIONSBEFOREUSE
A WARNING Fory0ursafetylthe information inthismanualmust hefollowed tominimizetheriskof fire Or
explosion, electric shock, orto prevent property damage, personal injury, or loss of life.
YourSafety and the safety of others are very important,
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
A DANGER You can be killed or seriously injured if you don't Immediately follow instructions.
_k. WARNING You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how the reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
BASICSAFETYPRECAUTIONS
&. WARNINGToreducether_skOff_re,e=ectr_cshockOr=njurYtopers0"swheuus_ugy0urappHa.Ce,fo.0wbasic
precautions, including the following :
Read all instructions before using the dryer.
• Before use, the dryer must be properly installedas described in
this manual.
• Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned in,washed
in, soaked in, or spotted with gasoline, dry-cleaning solvents, other
flammable or explosive substances as they giveoff vapors that
could ignite or explode.
• Do not reach into the dryer if the drum is moving.
• Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this Use and Care
Guide or in published user-repair instructions that you understand
and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or discarded, remove the
door to the drying compartment.
• Do notallow children to play on or inthe dryer.
Closesupervision of children is necessary when the dryer is used
near children.
• Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
• Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
• Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust, anddirt.
• The interior ofthe dryer and exhaust vent should be cleaned
periodically by qualified service personnel.
• Do not install or store the dryerwhere it will be exposedto the
weather.
• Do not reach into the dryerwhile parts are moving.
• Always check the inside of the dryer for foreign objects
• Clean lint screen before or after each load.
SAVETHESEiHSTRUCTIOHS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This appliance must be equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment- rounding
conductor can result in a risk of electric shock. Check with a
qualified electrician or service person if you are in doubt as to
whether the appliance is properly grounded.
Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This appliance must be connected to a grounded metal,
permanent wiring system or an equipment-grounding conductor
must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.

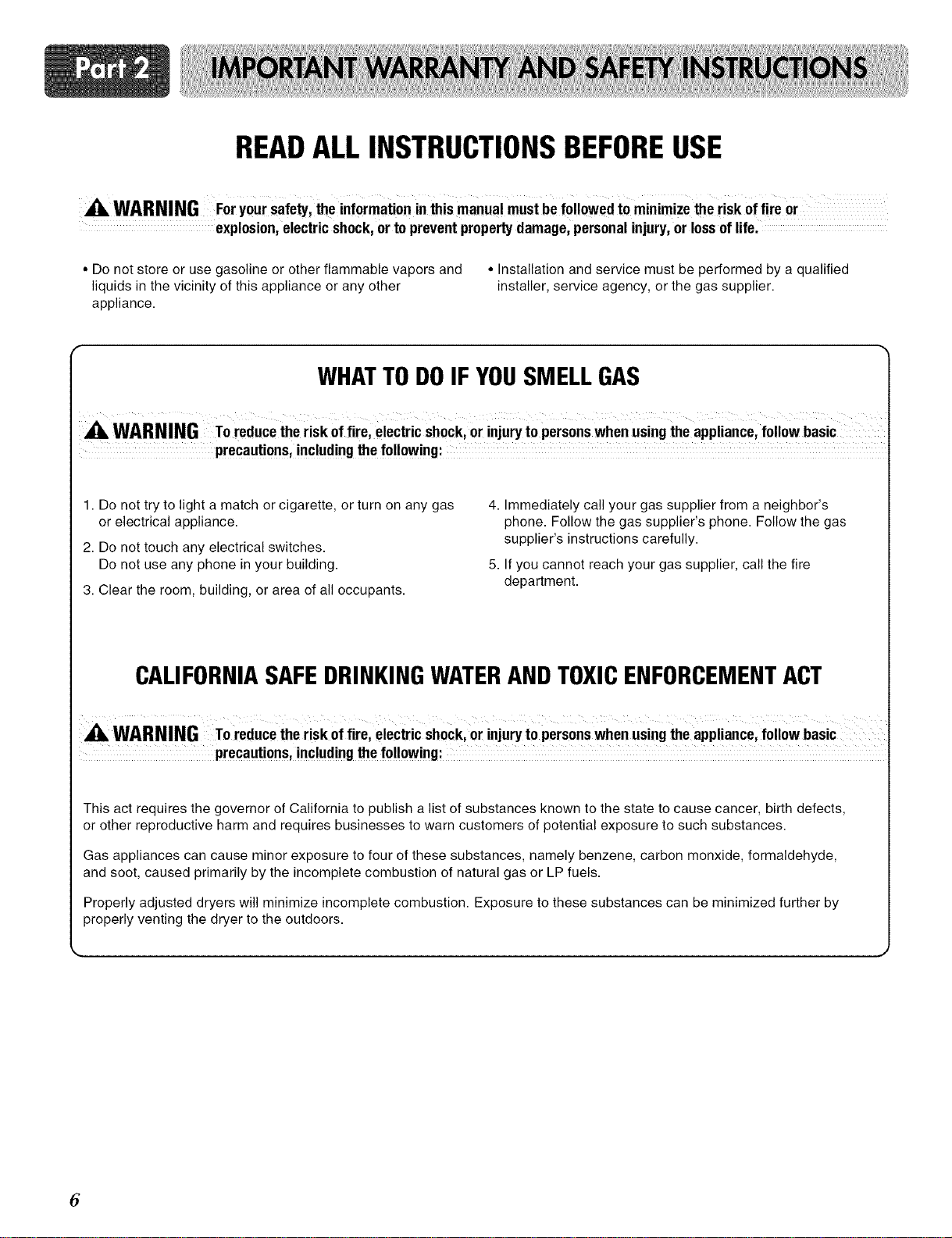

READALLINSTRUCTIONSBEFOREUSE
WARNINGFor Yoursafetyltheinformationinthismanualmustbefollowed tominimizetheriskOffire or
explosion,electricshock,orto preventpropertydamage,personalinjury,or lossoflife,
• Do not store or use gasoline or other flammable vapors and • Installation and service must be performed by a qualified
liquids in the vicinity of this appliance or any other installer, service agency, or the gas supplier.
appliance.
WHATTO DOIF YOUSMELLGAS
!recautions, includingthe following:
1. Do not try to light a match or cigarette, or turn on any gas
or electrical appliance.
2. Do not touch any electrical switches.
Do not use any phone in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighboCs
phone. Follow the gas supplier's phone. Follow the gas
supplier's instructions carefully.
5. If you cannot reach your gas supplier, call the fire
department.
CALIFORNIASAFEDRINKINGWATERANDTOXICENFORCEMENTACT
WARNING To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic
precautions, including the following:
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects,
or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monxide, formaldehyde,
and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by
properly venting the dryer to the outdoors.
6
READALLINSTRUCTIONSBEFOREUSE
WARNING ForYoursafety,theinformationin thismanualmustbefollowed tominimizethe riskoffire or
explosion,electricshock,orto preventpropertydamage,personalinjury,or lossoflife.
SAFETYINSTRUCTIONFORINSTALLATION
A WARNING To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic
precautions, including the following:
• Properly ground dryer to conform with all governing
codes and ordinances. Follow details in the installation
instructions.
Electrical shock can result if the dryer is not properly
grounded.
• Before use, the dryer must be properly installed as
described in this manual.
Electrical shock can result if the dryer is not properly
grounded.
• Install and store the dryer where it will not be exposed
to temperatures below freezing or exposed to the
weather.
All repairs and servicing must be performed by an
authorized servicer unless specifically recommended in this
Owner's Guide. Use only authorized factory parts. Failure
to follow this warning can cause serious injury,fire,
electrical shock or death.
• Do not install the washer in humid spaces to reduce
the risk of electric shock.
Failure to follow this warning can cause serious injury,fire,
electrical shock or death.
• Connect to a properly rated, protected, and sized
power circuit to avoid electrical overload.
Improper power circuit can melt, creating electrical shock
and/or fire hazard.
• Remove all packing items and dispose of all shipping
materials properly.
Failure to do so can result in death, explosion, fire or burns.
• Place dryer at least 18 in. above the floor for a garage
installation.
Failure to do so can result in death, explosion, fire or burns.
Exhaust/Ducting:
• Gas dryers MUST be exhausted to the outside.
Failure to follow these instructions can result in fire or
death.
The dryer exhaust system must be exhausted to the
outside of the dwelling.
The dryer is not exhausted outdoors, some fine lint and
large amounts of moisture will be expelled into the laundry
area. An accumulation of lint in any area of the home can
create a health and fire hazard.
Use only rigid metal or flexible metal 4in. Diameter
ductwork inside the dryer cabinet or for exhausting to
the outside.
Use of plastic or other combustible ductwork can cause a
fire. Punctured ductwork can cause a fire if it collapses or
becomes otherwise restricted in use or during installation.
Ductwork is not provided with the dryer, and you
should obtain the necessary ductwork locally. The end
cap should have hinged dampers to prevent back draft
when the dryer is not in use.
Failure to follow these instructions can result in fire or
death.
The exhaust duct must be 4 in. (10 cm) in diameter with
no obstructions. The exhaust duct should be kept as
short as possible. Make sure to clean any old ducts
before installing your new dryer.
Failure to follow these instructions can result in fire or
death.
7

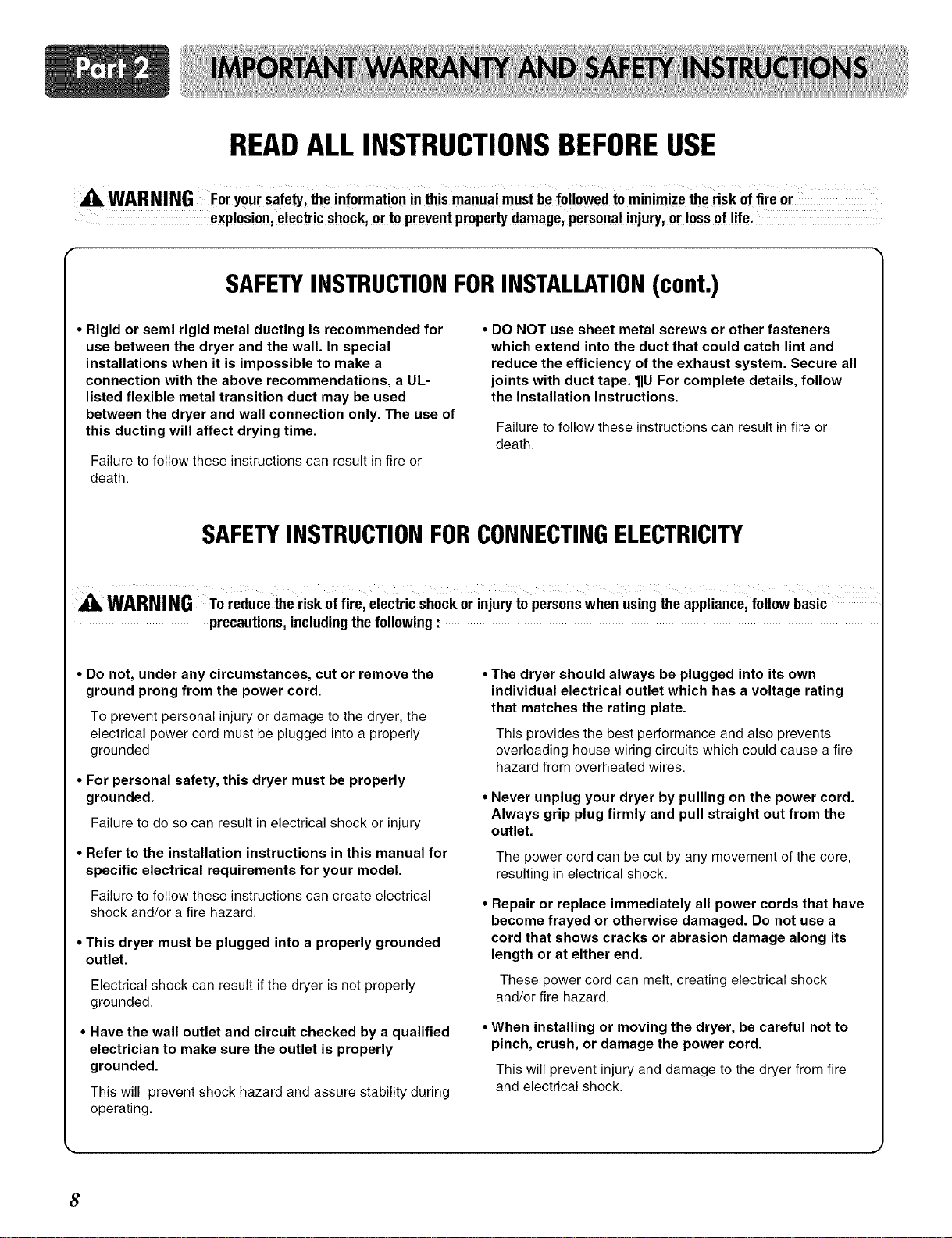

READALLINSTRUCTIONSBEFOREUSE
WARNING ForyourSafety,theinformationinthismanualmustbefollowed to minimizethe riskOfflreor
explosion,electricshock,orto preventpropertydamage,personalinjury,orlossoflife,
SAFETYINSTRUCTIONFORINSTALLATION(cont.)
• Rigid or semi rigid metal ducting is recommended for
use between the dryer and the wall. In special
installations when it is impossible to make a
connection with the above recommendations, a UL-
listed flexible metal transition duct may be used
between the dryer and wall connection only. The use of
this ducting will affect drying time.
Failure to follow these instructions can result in fire or
death.
• DO NOT use sheet metal screws or other fasteners
which extend into the duct that could catch lint and
reduce the efficiency of the exhaust system. Secure all
joints with duct tape. '[]UFor complete details, follow
the Installation Instructions.
Failure to follow these instructions can result in fire or
death.
SAFETYINSTRUCTIONFORCONNECTINGELECTRICITY
A WARNING To reduce the risk Of firel electric shock Or injury to pers0ns when using the appliance; follow basic
precautions, including the following:
• Do not, under any circumstances, cut or remove the
ground prong from the power cord.
To prevent personal injury or damage to the dryer, the
electrical power cord must be plugged into a properly
grounded
• For personal safety, this dryer must be properly
grounded.
Failure to do so can result in electrical shock or injury
• Refer to the installation instructions in this manual for
specific electrical requirements for your model.
Failure to follow these instructions can create electrical
shock and/or a fire hazard.
• This dryer must be plugged into a properly grounded
outlet.
Electrical shock can result if the dryer is not properly
grounded.
• Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
This will prevent shock hazard and assure stability during
operating.
• The dryer should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires.
• Never unplug your dryer by pulling on the power cord.
Always grip plug firmly and pull straight out from the
outlet.
The power cord can be cut by any movement of the core,
resulting in electrical shock.
• Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its
length or at either end.
These power cord can melt, creating electrical shock
and/or fire hazard.
• When installing or moving the dryer, be careful not to
pinch, crush, or damage the power cord.
This will prevent injury and damage to the dryer from fire
and electrical shock.
The following instructions will help guide you through the initial steps of setting up your dryer for use.
Please note that every section of this manual provides important information regarding the preparation and
use of your dryer, and it is important that you review this entire manual before proceeding with any
installation or use. More detailed instructions concerning electrical connections, gas connections, and
exhaust requirements are provided in other parts of this manual.

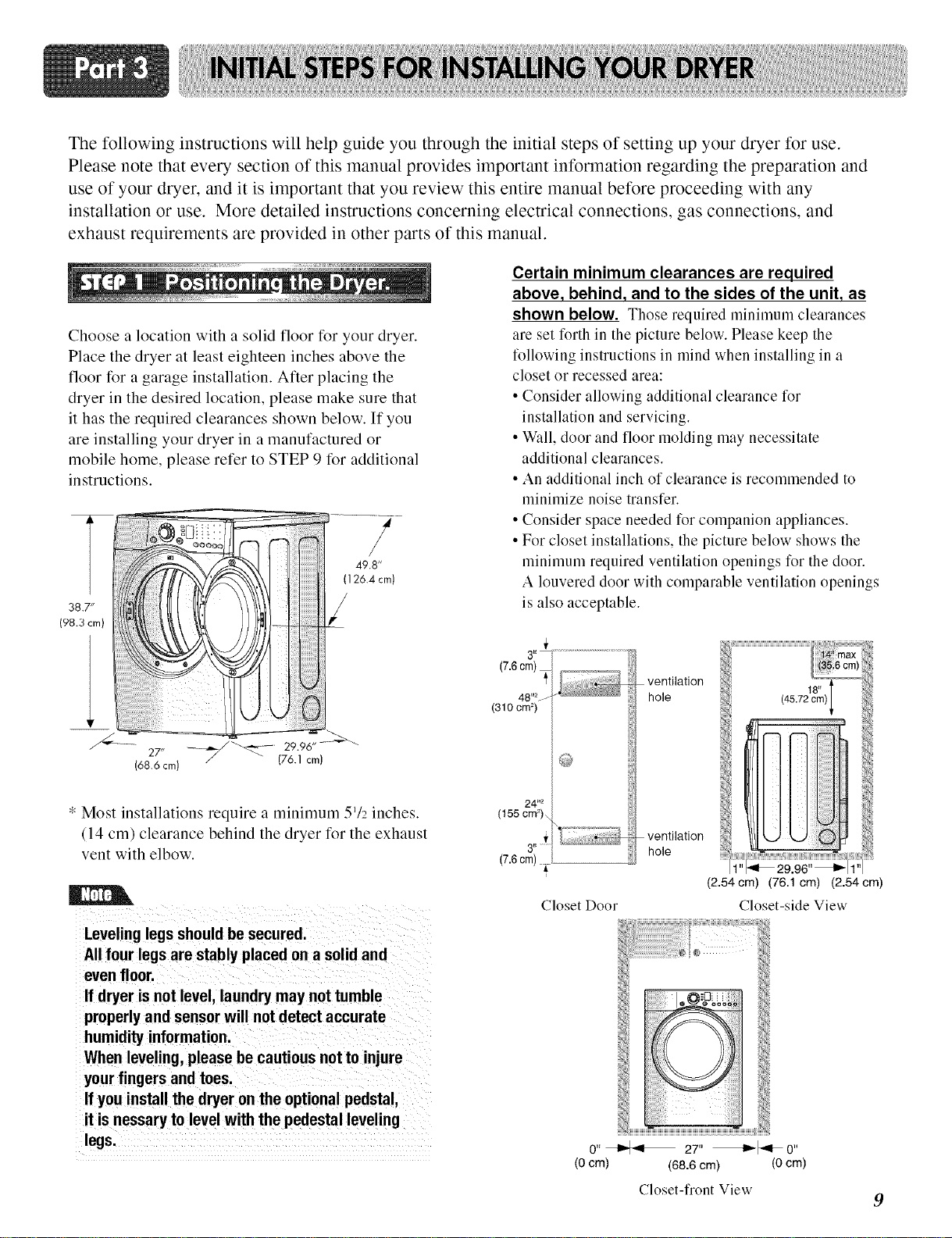

Choose a location with a solid floor for your dryer.
Place the dryer at least eighteen inches above the
floor for a garage installation. After placing the
dryer in the desired location, please make sure that
it has the required clearances shown below. If you
are installing your dryer in a manufactured or
mobile home, please refer to STEP 9 tk_r additional
instructions.
38.7"
(98.3 cm)
/
49.8"
(126.4 cm)
27...... _/_-29"96" ---_
(68.6 cm) (76.1 cm)
* Most installations require a minimum 572 inches.
(14 cm) clearance behind the dryer for the exhaust
vent with elbow.
Leveling legs should be secured.
All four legs are stably placed on a solid and
evenfloor.
If dryer is not level, laundry may not tumble
properly and sensor will not detect accurate
humidity information.
When leveling, please be cautious not to injure
yourfingers and toes.
If you install the dryer on the optional pedstal,
it is nessary to level with the pedestal leveling
legs.
Certain minimum clearances are required
above, behind, and to the sides of the unit, as
shown below. Those required mininmm clearances
are set forth in the picture below. Please keep the
following instructions in mind when installing in a
closet or recessed area:
• Consider allowing additional clearance for
installation and servicing.
• Wall, door and floor molding may necessitate
additional clearances.
• An additional inch of clearance is recommended to
minimize noise transfer.
• Consider space needed for companion appliances.
• For closet installations, the picture below shows the
minimum required ventilation openings t_r the door.
A louvered door with comparable ventilation openings
is also acceptable.
3 B' ..........................................
(7.6cm)
48 t_2.
(310 cm2)
24*'2
(155 cm _)..
(7.6cm)
Closet Door
ventilation
hole
ventilation
i!i_J[iiiiiii
;,_ ax
",_ _ (38.6 cm)
hole
1' 29.96"
(2.54cm) (76.1 cm) (2.54cm)
Closet-side View
0" _ 27" _1_0"
(0 cm) (68.6 cm) (0 cm)
Closet-fl'ont View
9

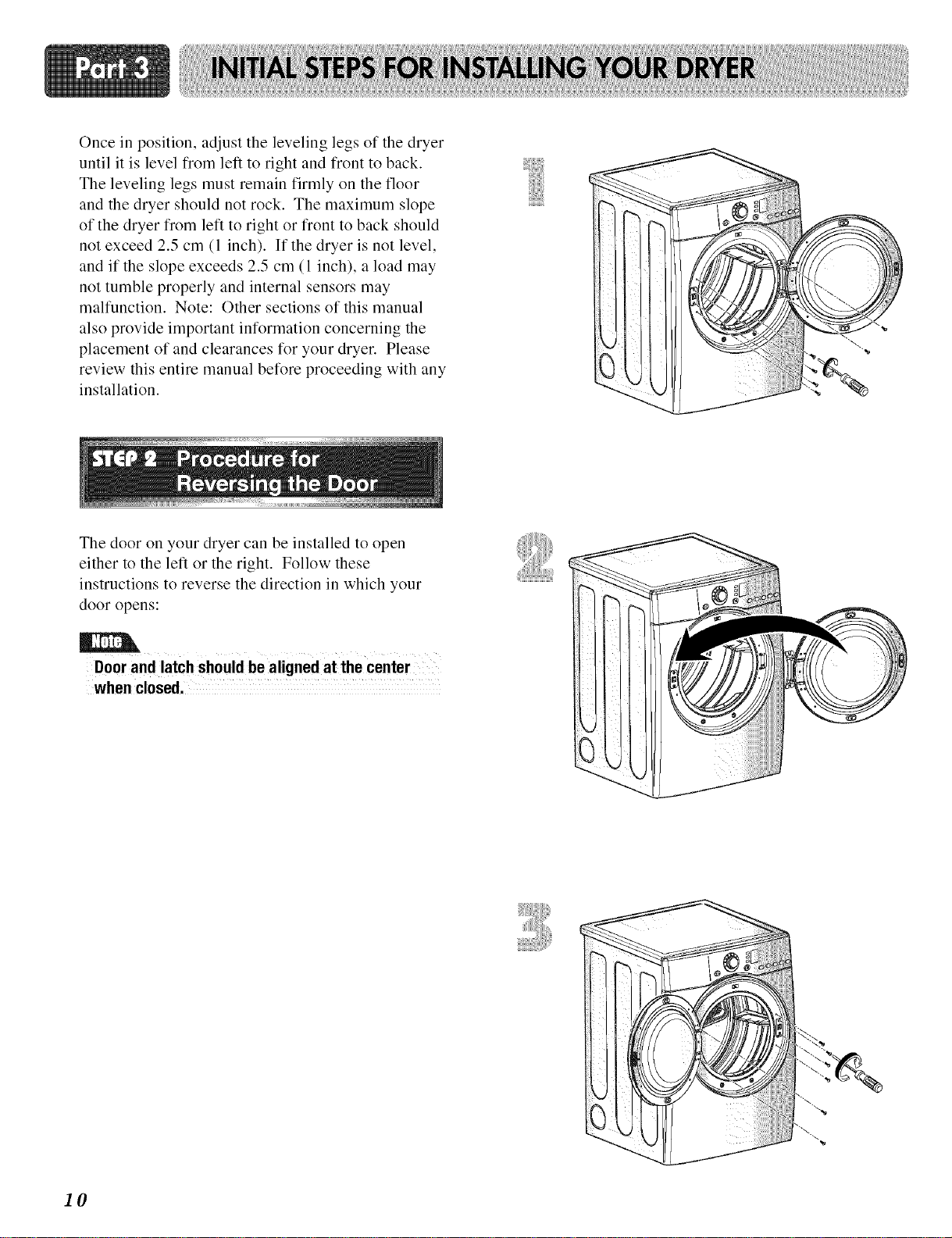

Once in position, adjust the leveling legs of the dryer
until it is level from left to right and front to back.
The leveling legs must remain firmly on the floor
and the dryer should not rock. The maximum slope
of the dryer from left to right or front to back should
not exceed 2.5 cm (1 inch). If the dryer is not level,
and if the slope exceeds 2.5 cm (1 inch), a load may
not tumble properly and internal sensors may
malfunction. Note: Other sections of this manual
also provide important information concerning the
placement of and clearances for your dryer. Please
review this entire manual before proceeding with any
installation.
The door on your dryer can be installed to open
either to the left or the right. Follow these
instructions to reverse the direction in which your
door opens:
Door and latch should be aligned at the center
when closed.
iiiiiiiiiiiiiii .
ii "\ .\_
I0

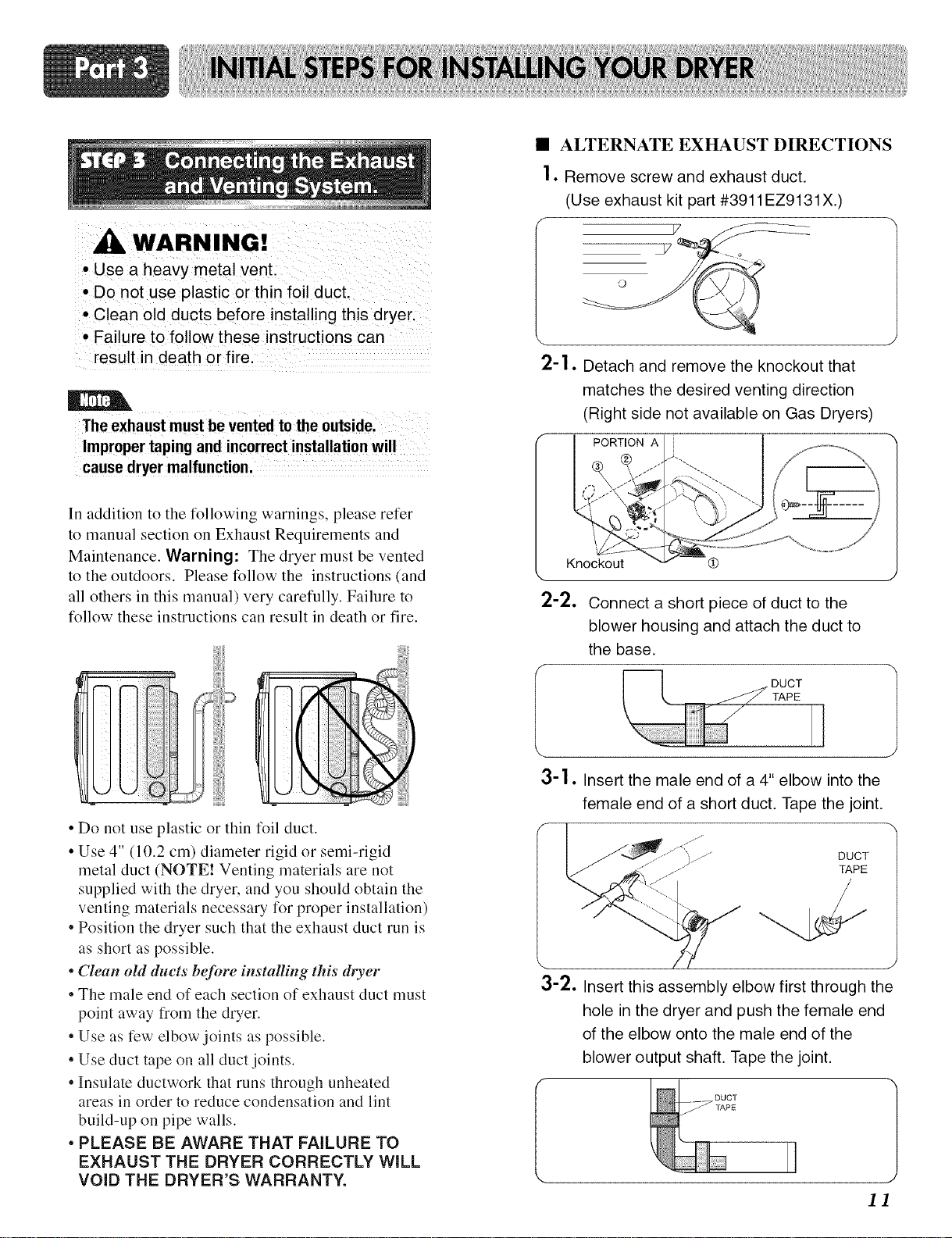

WARNING!
• Use a heavy metal vent.
• Do not use plastic or thin foil duct.
• Clean old ducts before installing this dryer.
• Failure to follow these instructions can
result in death or fire
Improper taping and incorrect installation will
cause dryer malfunction,
In addition to the following warnings, please refer
to manual section on Exhaust Requirements and
Maintenance. Warning: The dryer must be vented
to the outdoors. Please follow the instructions (and
all others in this manual) very carefully. Failure to
follow these instructions can result in death or fire.
• Do not use plastic or thin foil duct.
• Use 4" (10.2 cm) diameter rigid or semi-rigid
metal duct (NOTE! Venting materials are not
supplied with the dryer, and you should obtain the
venting materials necessary for proper installation)
• Position the dryer such that the exhaust duct run is
as short as possible.
• Clean old duets before installing this dryer
• The male end of each section of exhaust duct must
point away from the dryer.
• Use as few elbow joints as possible.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated
areas in order to reduce condensation and lint
build-up on pipe walls.
• PLEASE BE AWARE THAT FAILURE TO
EXHAUST THE DRYER CORRECTLY WILL
VOID THE DRYER'S WARRANTY.
• ALTERNATE EXHAUST DIRECTIONS
] • Remove screw and exhaust duct.
(Use exhaust kit part #3911 EZ9131X.)
\
2- |. Detach and remove the knockout that
matches the desired venting direction
(Right side not available on Gas Dryers)
f PORTION A
Knockout Q
\
2-2.
Connect a short piece of duct to the
blower housing and attach the duct to
the base.
f
\
3-1. Insert the male end of a 4" elbow into the
female end of a short duct. Tape the joint.
DUCT
TAPE
3-2. Insert this assembly elbow first through the
hole in the dryer and push the female end
of the elbow onto the male end of the
blower output shaft. Tape the joint.
f
II

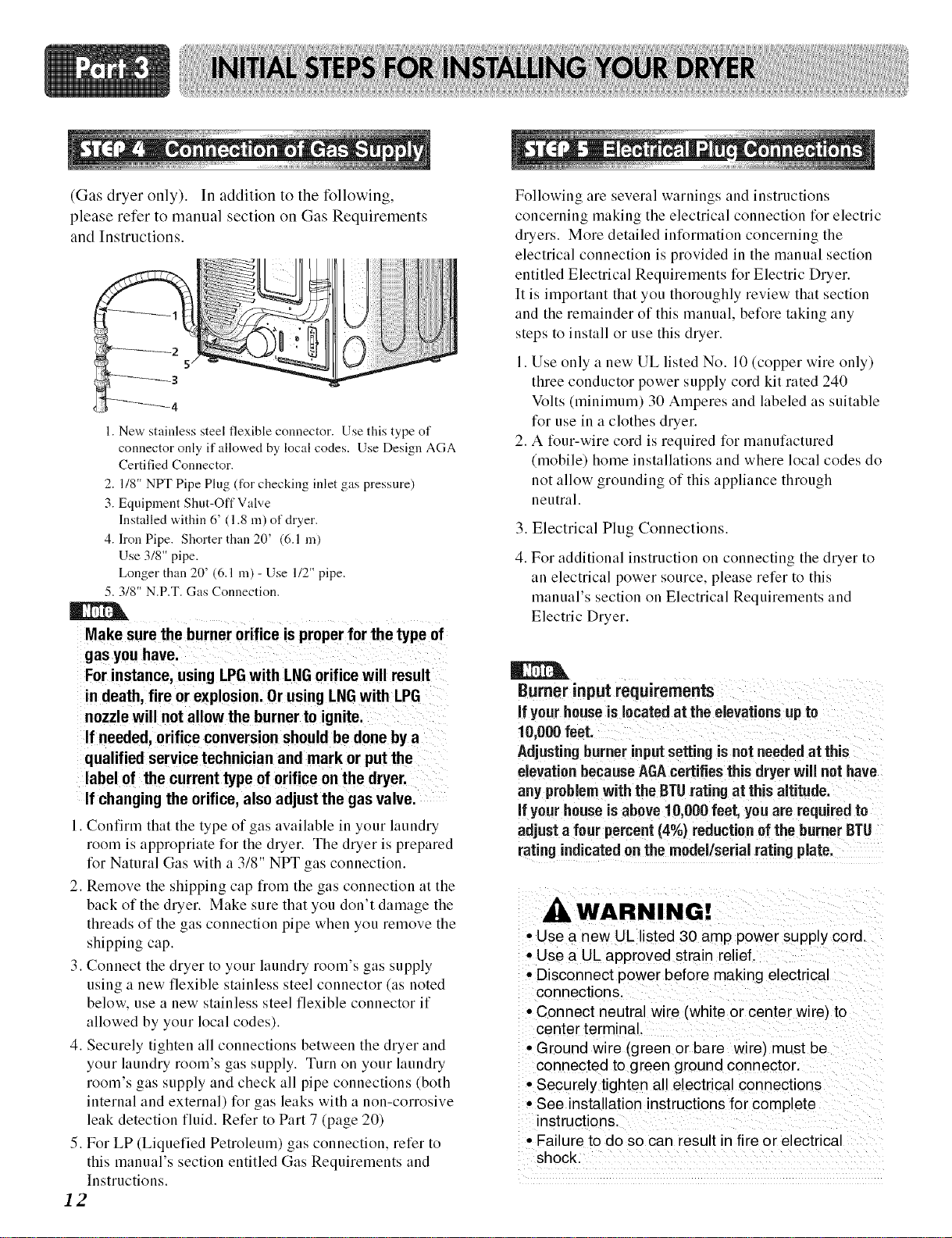

(Gas dryer only). In addition to the following,
please refer to manual section on Gas Requirements
and Instructions.
I. New stainless steel flexible connector. Use this type of
connector only if allowed by local codes. Use Design AGA
Certified Connector.
2. 118" NtYFPipe Plug (for checking inlet gas pressure)
3. Equipment Shut-Off Valve
Installed within 6' (1.8 m) of dryer.
4. Iron Pipe. Shorter than 20' (6.1 in)
Use 318" pipe.
Longer than 20' (6.1 m) - Use 112"pipe.
5.3/8" N.P.T. Gas Connection.
For instance, using LPGwith LNG orifice will result
in death, fire or explosion. Or using LNGwith LPG
nozzle will not allow the burner toignite'
If needed, orific e conversion should be done by a
qualified service technician and mark or put the
label of the current type of orifice onthe dryer.
If changing the orifice, also adjust the gas valve.
1. Confirm that the type of gas awlilable in your laundry
room is appropriate for the dryer. The dryer is prepared
IBr Natural Gas with a 318" NPT gas connection.
2. Remove the shipping cap fiom the gas connection at the
back of the dryer. Make sure that you don't damage the
threads of the gas connection pipe when you remove the
shipping cap.
3. Connect the dryer to your laundry room's gas supply
using a new flexible stainless steel connector (as noted
below, use a new stainless steel flexible connector if
allowed by your local codes).
4. Securely tighten all connections between the dryer and
your laundry room's gas supply. Turn on your laundry
room's gas supply and check all pipe connections (both
internal and external) IBr gas leaks with a non-corrosive
leak detection fluid. Refer m Part 7 (page 20)
5. For LP (Liquefied Petroleum) gas connection, refer m
this manual's section entitled Gas Requirements and
Instructions.
12
Following are several warnings and instructions
concerning making the electrical connection IBr electric
dryers. More detailed information concerning the
electrical connection is provided in the manual section
entitled Electrical Requirements IBr Electric Dryer.
It is important that you thoroughly review that section
and the remainder of this manual, before taking any
steps to install or use this dryer.
1. Use only a new UL listed No. 10 (copper wire only)
three conductor power supply cord kit rated 240
Volts (minimum) 30 Amperes and labeled as suitable
for usein a clothesdryer.
2. A lbur-wire cord is required Ibr manufactured
(mobile) home installations and where local codes do
not allow grounding of this appliance through
neutral.
3. Electrical Plug Connections.
4. For additional instruction on connecting the dryer to
an electrical power source, please refer to this
manual's section on Electrical Requirements and
Electric Dryer.
Burnerinputrequirements
if yourhouseis locatedat the elevationsup tO
1(
Adjustingburner inputsettingis not needed at this
elevationbecauseA6A certifies this dryerwill not have
any problemwith the BTOrating at this altitude.
if yourhouseisabove f0,000 feet, you arerequired to
adjusta four Percent (4%) reductionof the burner BTU
rating indicated 0n the mode!/sedal rating
WARNING!
• Use a new UL listed 30 amp power supply cord
• Use a UL approved strain relief
• Disconnect power before making electrical
connections
• Connect neutral wire (white or center wire) to
center terminal
• Ground wire (green or bare wire) must be
connected to green ground connector
• Securely tighten all electrical connections
• See installation instructions for complete
instructions
• Failure to do so can result in fire or electrical
shock
Prior to the first use of this appliance, use all-
purpose cleaning products or a solution of detergent
and water, with damp cloth to remove from the
inside of the dryer drum/drying compartment any
dust or dirt that may have accumulated inside the
dryer. Plug-in your dryer after reviewing the
fonowing parts on your dryer's Electrical
Requirements.
Effective dryer operation requires appropriate dryer
airflow. The adequacy of the airflow can be
measured by evaluating the static pressure.
Static pressure in the exhaust duct can be measured
with a manometer, placed on the exhaust duct
approximately 2 ft. (60.9 cm) from the dryer.
Static pressure in the exhaust duct should not
exceed 518 inches (1.5 cm). The dryer should be
checked while the dryer is running with no load.

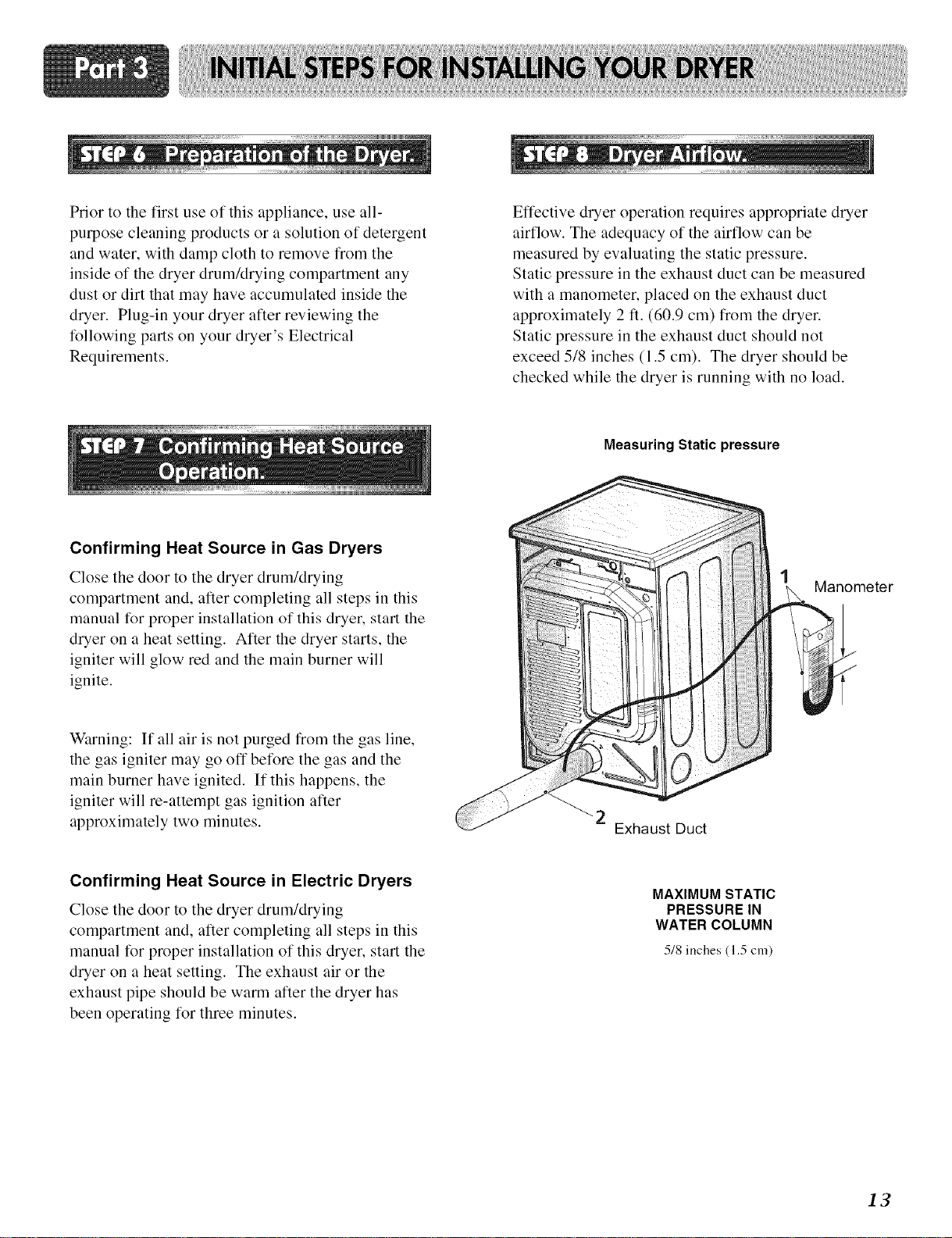

Measuring Static pressure
Confirming Heat Source in Gas Dryers
Close the door to the dryer drum/drying
compartment and, alter completing all steps in this
manual for proper installation of this dryer, start the
dryer on a heat setting. Alter the dryer starts, the
igniter will glow red and the main burner will
ignite.
Manometer
Warning: If all air is not purged from the gas line,
the gas igniter may go off before the gas and the
main burner have ignited. If this happens, the
igniter will re-attempt gas ignition after
approximately two minutes.
Exhaust Duct
Confirming Heat Source in Electric Dryers
Close the door to the dryer drum/drying
compartment and, alter completing all steps in this
manual for proper installation of this dryer, start the
dryer on a heat setting. The exhaust air or the
exhaust pipe should be warm alter the dryer has
been operating for three minutes.
MAXIMUM STATIC
PRESSURE IN
WATER COLUMN
518 inches (1.5 cm)
13

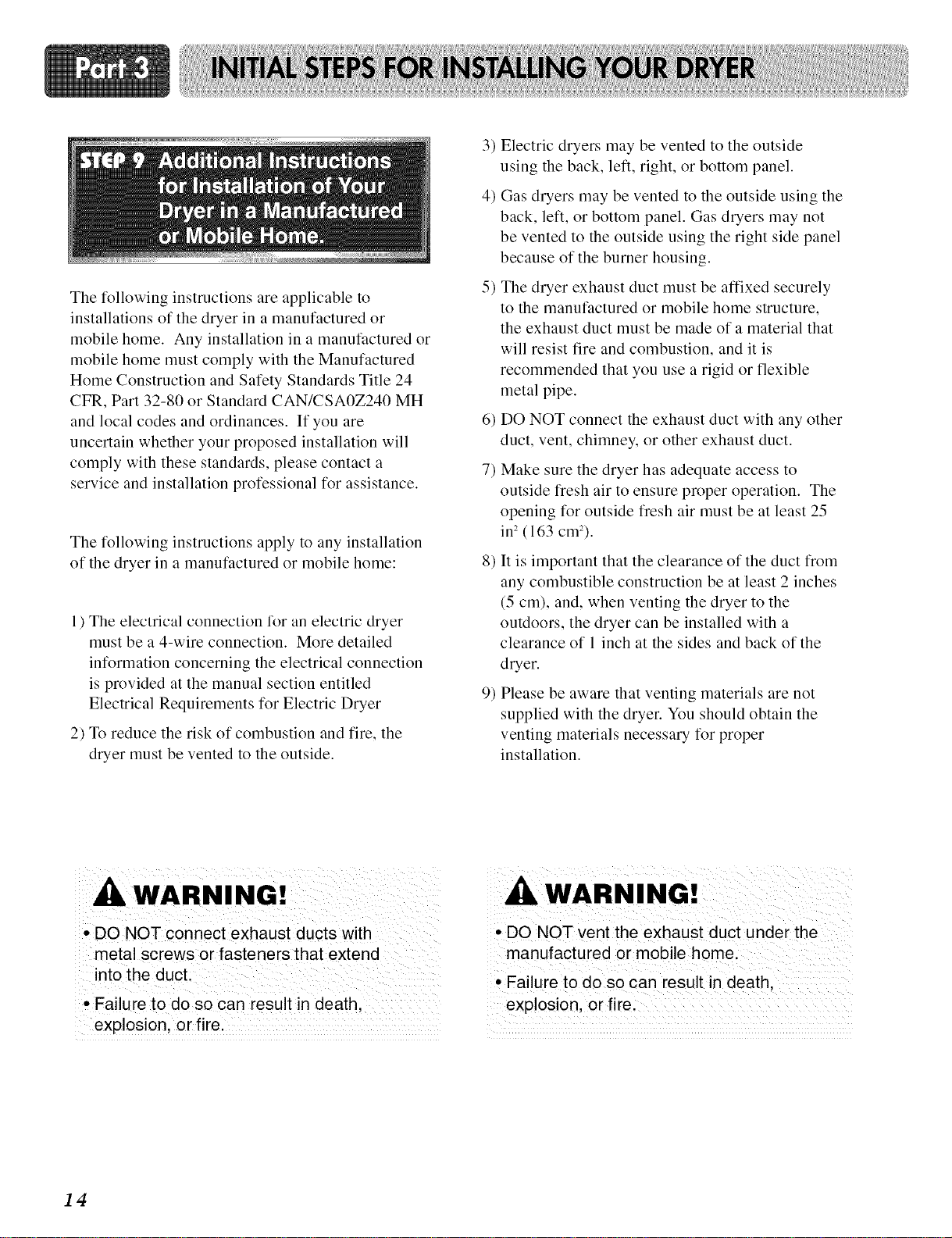

The following instructions are applicable to
installations of the dryer in a manufactured or
mobile home. Any installation in a manufactured or
mobile home must comply with the Manufactured
Home Construction and Safety Standards Title 24
CFR, Part 32-80 or Standard CAN/CSAOZ240 MH
and local codes and ordinances. If you are
uncertain whether your proposed installation will
comply with these standards, please contact a
service and installation professional for assistance.
The following instructions apply to any installation
of the dryer in a manufactured or mobile home:
1) The electrical connection for an electric dryer
must be a 4-wire connection. More detailed
information concerning the electrical connection
is provided at the manual section entitled
Electrical Requirements for Electric Dryer
2) To reduce the risk of combustion and fire, the
dryer must be vented to the outside.
3)
4)
5)
6)
7)
8)
9)
Electric dryers may be vented to the outside
using the back, left, right, or bottom panel.
Gas dryers may be vented to the outside using the
back, left, or bottom panel. Gas dryers may not
be vented to the outside using the right side panel
because of the burner housing.
The dryer exhaust duct must be affixed securely
to the manufactured or mobile home structure,
the exhaust duct must be made of a material that
will resist fire and combustion, and it is
recommended that you use a rigid or flexible
metal pipe.
DO NOT connect the exhaust duct with any other
duct, vent, chimney, or other exhaust duct.
Make sure the dryer has adequate access to
outside fresh air to ensure proper operation. The
opening for outside fresh air must be at least 25
in2(163 cm_).
It is important that the clearance of the duct from
any combustible construction be at least 2 inches
(5 cm), and, when venting the dryer to the
outdoors, the dryer can be installed with a
clearance of 1 inch at the sides and back of the
dryer.
Please be aware that venting materials are not
supplied with the dryer. You should obtain the
venting materials necessary for proper
installation.
• Failure to do so can result in death,
explosion, or fire.
WARNING!
• DO NOT vent the exhaust duct under the
manufactured or mobile home.
• Failure to do so can result in death,
explosion, or fire.
14

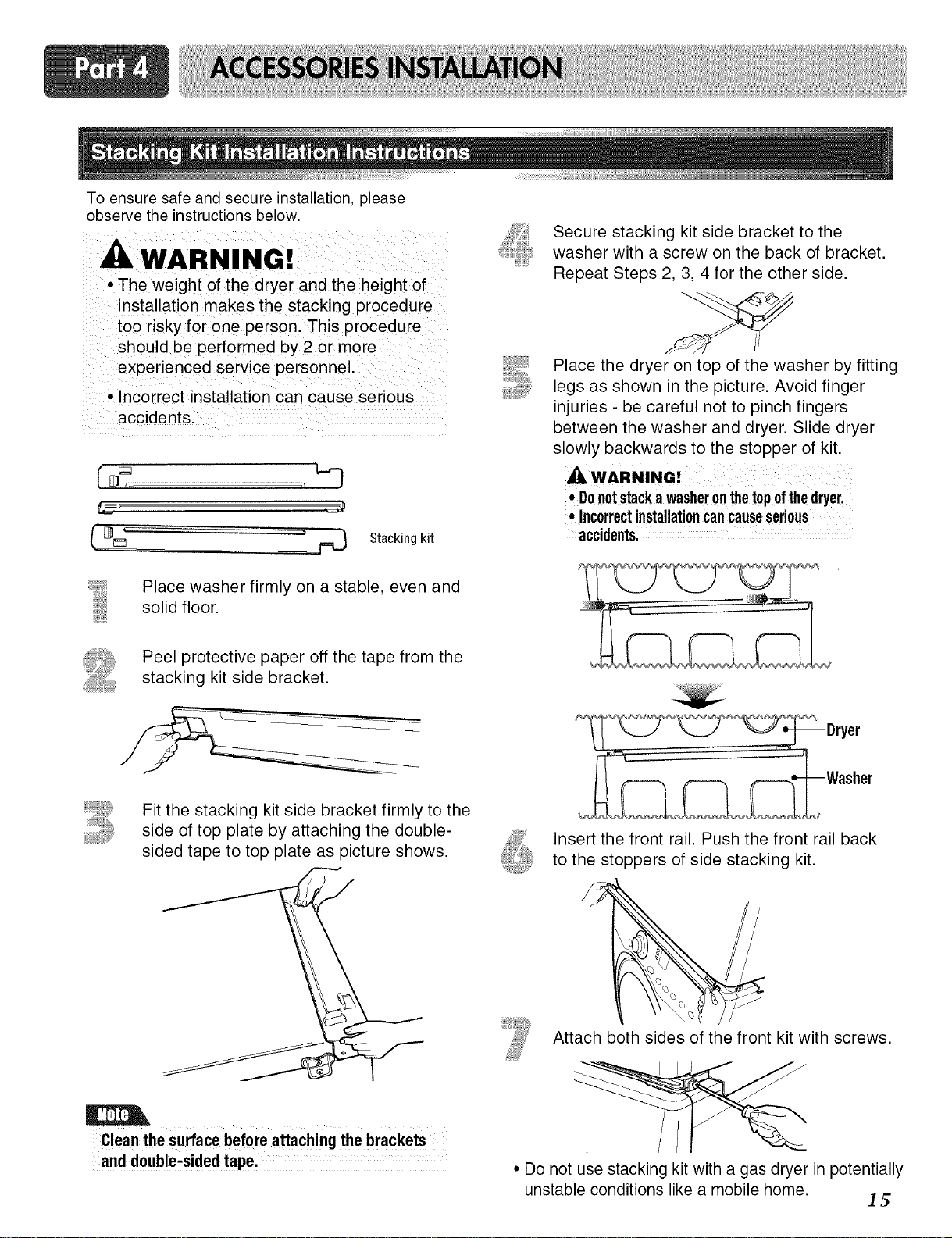

To ensure safe and secure installation, please
observe the instructions below.
WARNI NG!
• The weight of the dryer and the height of
installation makes the stacking procedure
too risky for one person. This procedure
should be performed by 2 or more
experienced service personnel
• Incorrect installation can cause serious
accidents.
Stackingkit
Place washer firmly on a stable, even and
solid floor.
Peel protective paper off the tape from the
stacking kit side bracket.
i t
Secure stacking kit side bracket to the
washer with a screw on the back of bracket.
Repeat Steps 2, 3, 4 for the other side.
Place the dryer on top of the washer by fitting
legs as shown in the picture. Avoid finger
injuries - be careful not to pinch fingers
between the washer and dryer. Slide dryer
slowly backwards to the stopper of kit.
* Donotstacka washeronthetopofthedryer.
oIncorrectinstallationcancauseserious
accidents.
Fit the stacking kit side bracket firmly to the
side of top plate by attaching the double-
sided tape to top plate as picture shows.
Clean the surface before attaching the brackets
Insert the front rail. Push the front rail back
to the stoppers of side stacking kit.
Attach both sides of the front kit with screws.
• Do not use stacking kit with a gas dryer in potentially
unstable conditions like a mobile home.

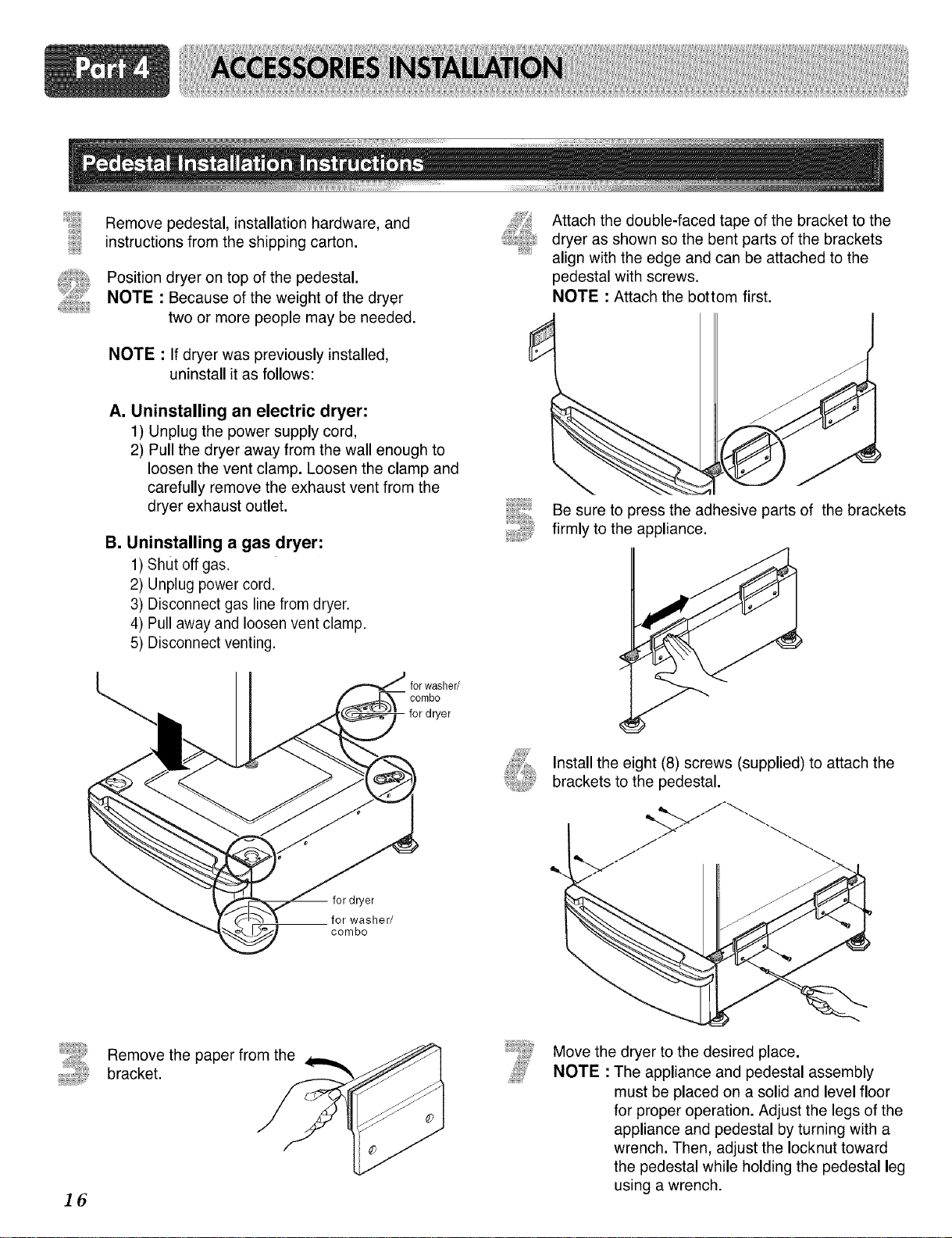

Removepedestal,installationhardware,and
instructionsfromtheshippingcarton.
Position dryer on top of the pedestal.
NOTE • Because of the weight of the dryer
two or more people may be needed.
NOTE : If dryer was previously installed,
uninstall it as follows:
A. Uninstalling an electric dryer:
1) Unplug the power supply cord,
2) Pull the dryer away from the wall enough to
loosen the vent clamp. Loosen the clamp and
carefully remove the exhaust vent from the
dryer exhaust outlet.
B. Uninstalling a gas dryer:
1) Shut off gas.
2) Unplug power cord.
3) Disconnect gas line from dryer.
4) Pull away and loosen vent clamp.
5) Disconnect venting.
Attach the double-faced tape of the bracket to the
dryer as shown so the bent parts of the brackets
align with the edge and can be attached to the
pedestal with screws.
NOTE : Attach the bottom first.
I
Be sure to press the adhesive parts of the brackets
firmly to the appliance.
for dryer
for washer/
combe
combo
Install the eight (8) screws (supplied) to attach the
brackets to the pedestal.
jJJ
Q=.
16
Remove the paper from the
bracket.
Move the dryer to the desired place.
NOTE : The appliance and pedestal assembly
must be placed on a solid and level floor
for proper operation. Adjust the legs of the
appliance and pedestal by turning with a
wrench. Then, adjust the Iocknut toward
the pedestal while holding the pedestal leg
using a wrench.

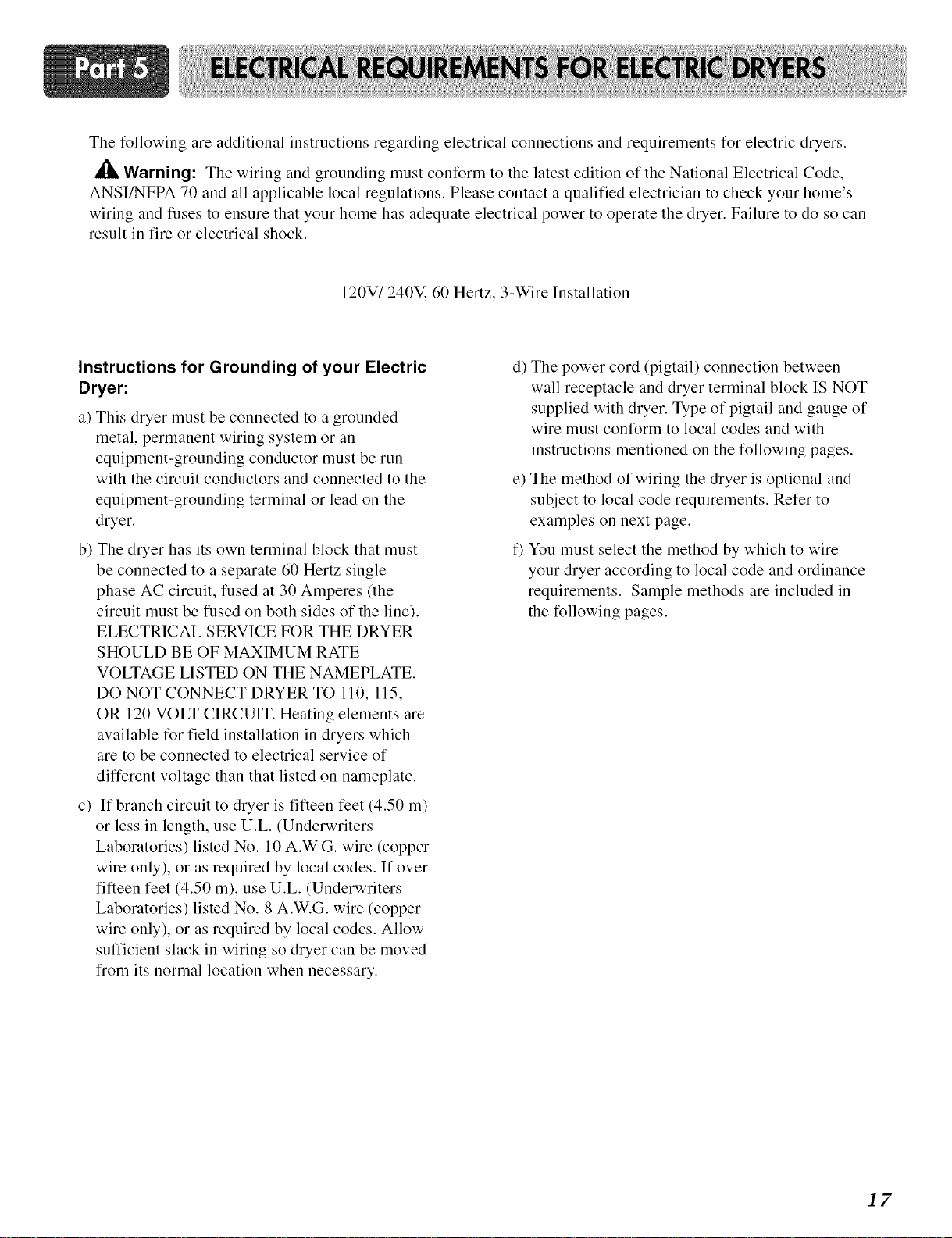

The fonowing are additional instructions regarding electrical connections and requirements for electric dryers.
Warning: The wiring and grounding must conform to the latest edition of the National Electrical Code,
ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home's
wiring and fuses to ensure that your home has adequate electrical power to operate the dryer. Failure to do so can
result in fire or electrical shock.
120V/240V, 60 Hertz, 3-Wire Installation
Instructions for Grounding of your Electric
Dryer:
a) This dryer must be connected to a grounded
metal, permanent wiring system or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
dryer.
b) The dryer has its own terminal block that must
be connected to a separate 60 Hertz single
phase AC circuit, fused at 30 Amperes (the
circuit must be fused on both sides of the line).
ELECTRICAL SERVICE FOR THE DRYER
SHOULD BE OF MAXIMUM RATE
VOLTAGE LISTED ON THE NAMEPLATE.
DO NOT CONNECT DRYER TO 110, 115,
OR 120 VOLT CIRCUIT. Heating elements are
available for field installation in dryers which
are to be connected to electrical service of
different voltage than that listed on nameplate.
c) If branch circuit to dryer is fifteen feet (4.50 m)
or less in length, use U.L. (Underwriters
Laboratories) listed No. 10 A.W.G. wire (copper
wire only), or as required by local codes. If over
fifteen feet (4.50 m), use U.L. (Underwriters
Laboratories) listed No. 8 A.W.G. wire (copper
wire only), or as required by local codes. Allow
sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
d) The power cord (pigtail) connection between
wall receptacle and dryer terminal block IS NOT
supplied with dryer. Type of pigtail and gauge of
wire must conform to local codes and with
instructions mentioned on the following pages.
e) The method of wiring the dryer is optional and
subject to local code requirements. Refer to
examples on next page.
t) You must select the method by which to wire
your dryer according to local code and ordinance
requirements. Sample methods are included in
the fonowing pages.
17

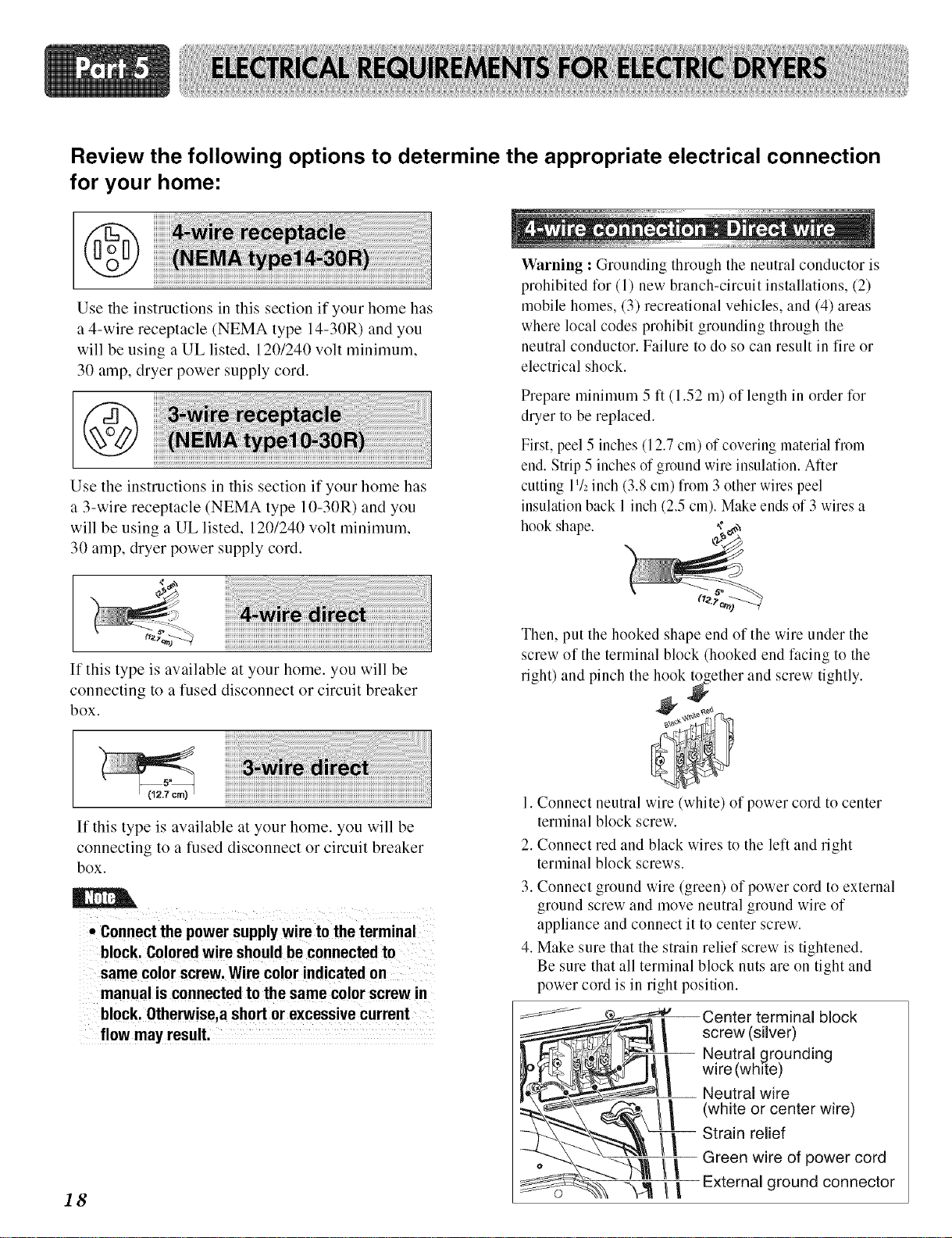

Review the following options to determine the appropriate electrical connection
for your home:
Use the instructions in this section if your home has
a 4-wire receptacle (NEMA type 14-30R) and you
will be using a UL listed, 1201240 volt minimum,
30 amp, dryer power supply cord.
Use the instructions in this section if your home has
a 3-wire receptacle (NEMA type 10-30R) and you
will be using a UL listed, 1201240 volt minimum,
30 amp, dryer power supply cord.
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box.
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box.
• Connect the power supply wire to the terminal
block. Colored wire should be connected to
same color screw. Wire color indicated on
manual is connected to the same color screw in
block. Otherwise,a short or excessive current
flow may result.
18

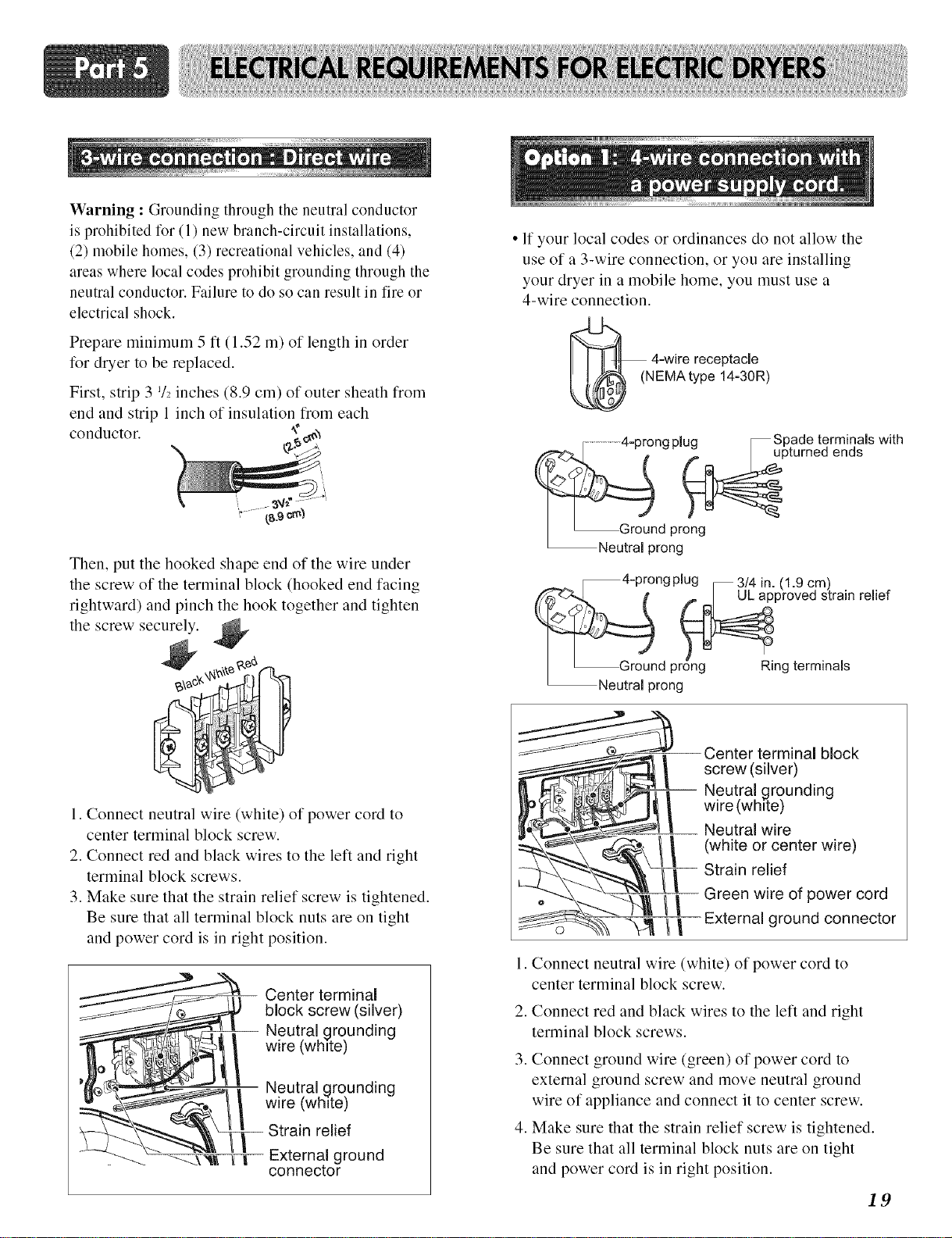

Warning : Grounding through the neutral conductor is
prohibited tk_r(1) new branch-circuit installations, (2)
mobile homes, (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the
neutral conductor. Failure to do so can result in fire or
electrical shock.
Prepare minimum 5 ft (1.52 m) of length in order tk_r
dryer to be replaced.
First, peel 5 inches (12.7 cm) of covering material from
end. Strip 5 inches of ground wire insulation. Alter
cutting 1% inch (3.8 cm) from 3 other wires peel
insulation back 1inch (2.5 cm). Make ends of 3 wires a
hook shape.
r_.;
Then, put the hooked shape end of the wire under the
screw of the terminal block (hooked end facing to the
right) and pinch the hook together and screw tightly.
1. Connect neutral wire (white) of power cord to center
terminal block screw.
2. Connect red and black wires to the left and right
terminal block screws.
3. Connect _round wire (green) of power cord to external
ground screw and move neutral ground wire of
appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight and
power cord is in right position.
Center terminal block
screw (silver)
Neutral 9rounding
wire (white)
Neutral wire
(white or center wire)
Strain relief
Green wire of power cord
External ground connector
Warning : Grounding through the neutral conductor
is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4)
areas where local codes prohibit grounding through the
neutral conductor. Failure to do so can result in fire or
electrical shock.
Prepare minimum 5 ft (1.52 m) of length in order
for dryer to be replaced.
First, strip 3 72 inches (8.9 cm) of outer sheath from
end and strip 1 inch of insulation from each
conductor. ¢
Then, put the hooked shape end of the wire under
the screw of the terminal block (hooked end facing
rightward) and pinch the hook together and tighten
the screw securely.
1. Connect neutral wire (white) of power cord to
center terminal block screw.
2. Connect red and black wires to the left and right
terminal block screws.
3. Make sure that the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight
and power cord is in right position.
Center terminal
block screw (silver)
Neutral grounding
wire (white)
Neutral grounding
wire (white)
Strain relief
ground
connector
• If your local codes or ordinances do not allow the
use of a 3-wire connection, or you are installing
your dryer in a mobile home, you must use a
4-wire connection.
(N4-wirereceptacle
EMA type 14-30R)
r 4-prong plug _ Spade terminals with
_ _pturnedends
_Ground prong
_Neutral prong
do4-prongplug _ 3/4 in. (1.9 cm)
proved strain relief
pgng Ring terminals
Center terminal block
screw (silver)
Neutral 9rounding
wire (white)
Neutral wire
(white or center wire)
Strain relief
Green wire of power cord
External ground connector
1. Connect neutral wire (white) of power cord to
center terminal block screw.
2. Connect red and black wires to the left and right
terminal block screws.
3. Connect ground wire (green) of power cord to
external ground screw and move neutral ground
wire of appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight
and power cord is in right position.
19

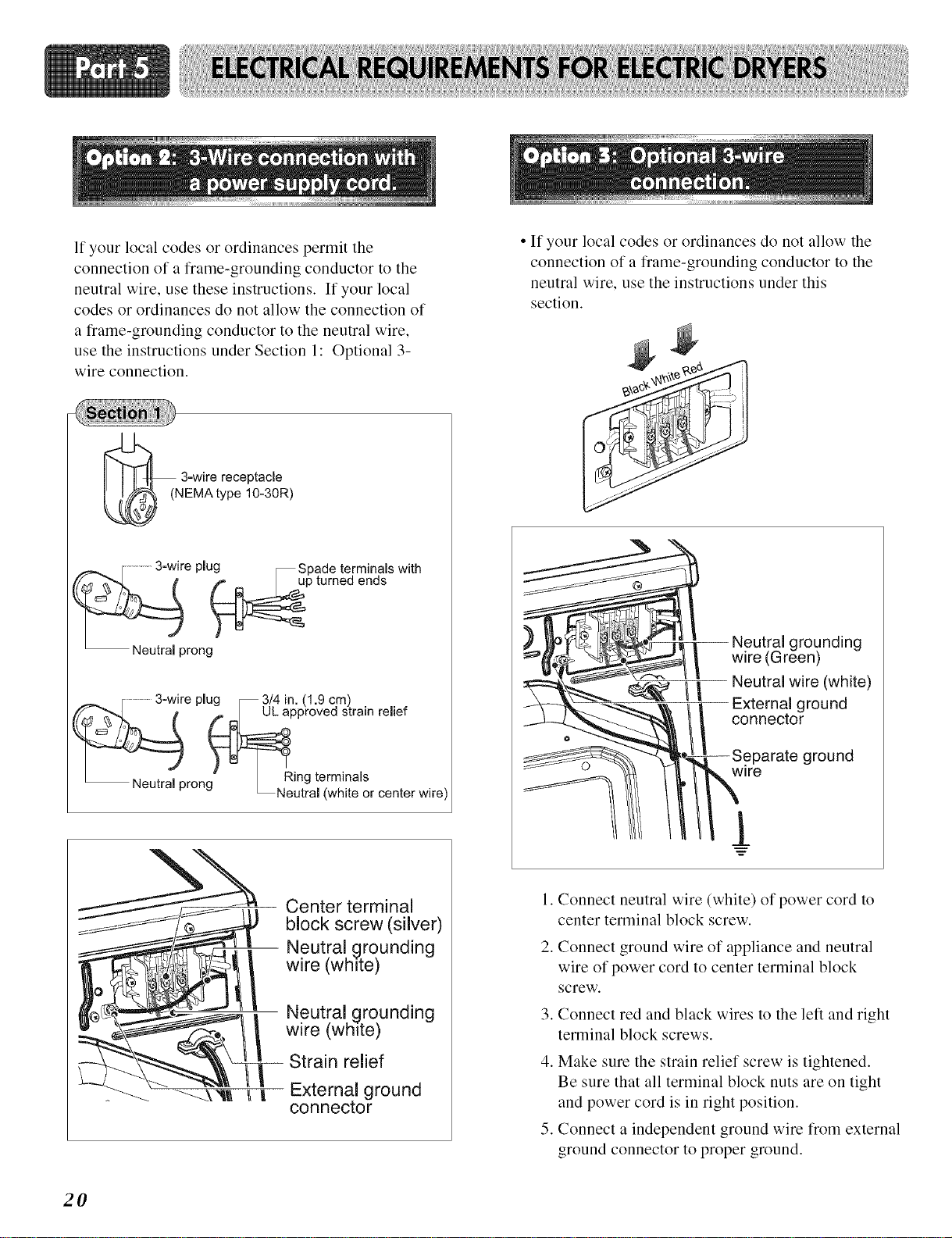

If your local codes or ordinances permit the
connection of a frame-grounding conductor to the
neutral wire, use these instructions. If your local
codes or ordinances do not allow the connection of
a frame-grounding conductor to the neutral wire,
use the instructions under Section 1: Optional 3-
wire connection.
• If your local codes or ordinances do not allow the
connection of a frame-grounding conductor to the
neutral wire, use the instructions under this
section.
3-wire receptacle
EMA type 1O-3OR)
e plump tadrentedrmi_1s with
rong
3-wire plug _ 3/4 in. (1.9 cm)
pproved strain relief
rona" Ring terminals
'- _ _Neutral (white or center wire
mding
Neutral wire (white)
ground
connector
_parate ground
wire
l
Center terminal
block screw (silver)
Neutral grounding
wire (white)
Neutral grounding
wire (white)
Strain relief
External ground
connector
.
2.
.
4.
.
Connect neutral wire (white) of power cord to
center terminal block screw.
Connect ground wire of appliance and neutral
wire of power cord to center terminal block
screw.
Connect red and black wires to the left and right
terminal block screws.
Make sure the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight
and power cord is in right position.
Connect a independent ground wire from external
ground connector to proper ground.
2O

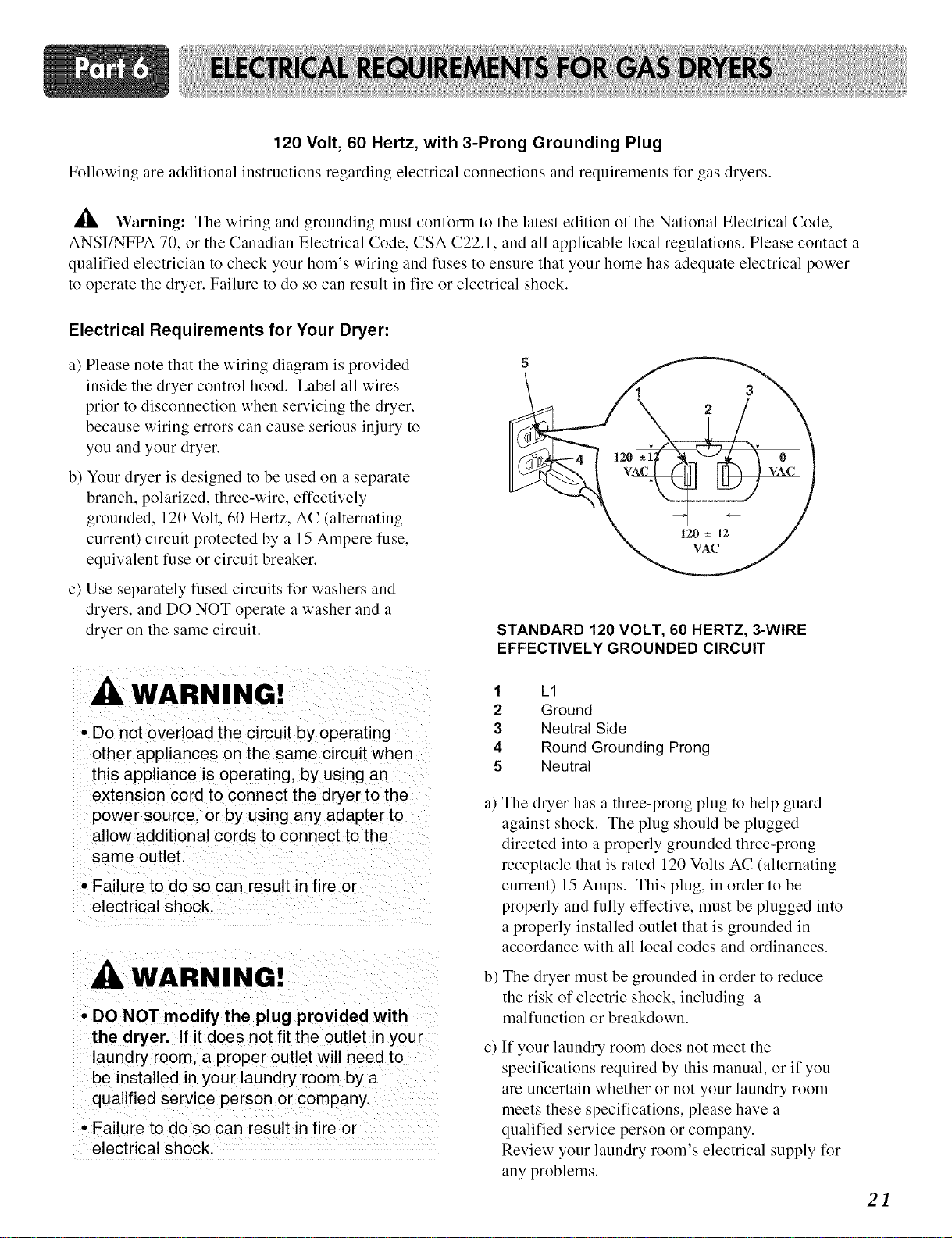

120 Volt, 60 Hertz, with 3-Prong Grounding Plug
Following are additional instructions regarding electrical connections and requirements for gas dryers.
Warning: The wiring and grounding must conform to the latest edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, and all applicable local regulations. Please contact a
qualified electrician to check your horn's wiring and fuses to ensure that your home has adequate electrical power
to operate the dryer. Failure to do so can result in fire or electrical shock.
Electrical Requirements for Your Dryer:
a) Please note that the wiring diagram is provided
inside the dryer control hood. Label all wires
prior to disconnection when servicing the dryer,
because wiring errors can cause serious injury to
you and your dryer.
b) Your dryer is designed to be used on a separate
branch, polarized, three-wire, effectively
grounded, 120 Volt, 60 Hertz, AC (alternating
current) circuit protected by a 15 Ampere fuse,
equivalent fuse or circuit breaker.
c) Use separately fused circuits for washers and
dryers, and DO NOT operate a washer and a
dryer on the same circuit.
WARNING!
• Do not overload the circuit by operating
other appliances on the same circuit when
this appliance is operating, by using an
extension cord to connect the dryer to the
power source, or by using any adapter to
allow additional cords to connect to the
same outlet.
• Failure to do so can result in fire or
electrical shock.
WARNING!
• DO NOT modify the plug provided with
the dryer. If it does not fit the outlet in your
laundry room, a proper outlet will need to
be installed in your laundry room by a
qualified service person or company.
• Failure to do so can result in fire or
electrical shock.
STANDARD 120 VOLT, 60 HERTZ, 3-WIRE
EFFECTIVELY GROUNDED CIRCUIT
1
2
3
4
5
L1
Ground
Neutral Side
Round Grounding Prong
Neutral
a)The dryer has a three-prong plug to help guard
against shock. The plug should be plugged
directed into a properly grounded three-prong
receptacle that is rated 120 Volts AC (alternating
current) 15 Amps. This plug, in order to be
properly and tully effective, must be plugged into
a properly installed outlet that is grounded in
accordance with all local codes and ordinances.
b) The dryer must be grounded in order to reduce
the risk of electric shock, including a
malfunction or breakdown.
c) If your laundry room does not meet the
specifications required by this manual, or if you
are uncertain whether or not your laundry room
meets these specifications, please have a
qualified service person or company.
Review your laundry room's electrical supply for
any problems.
21

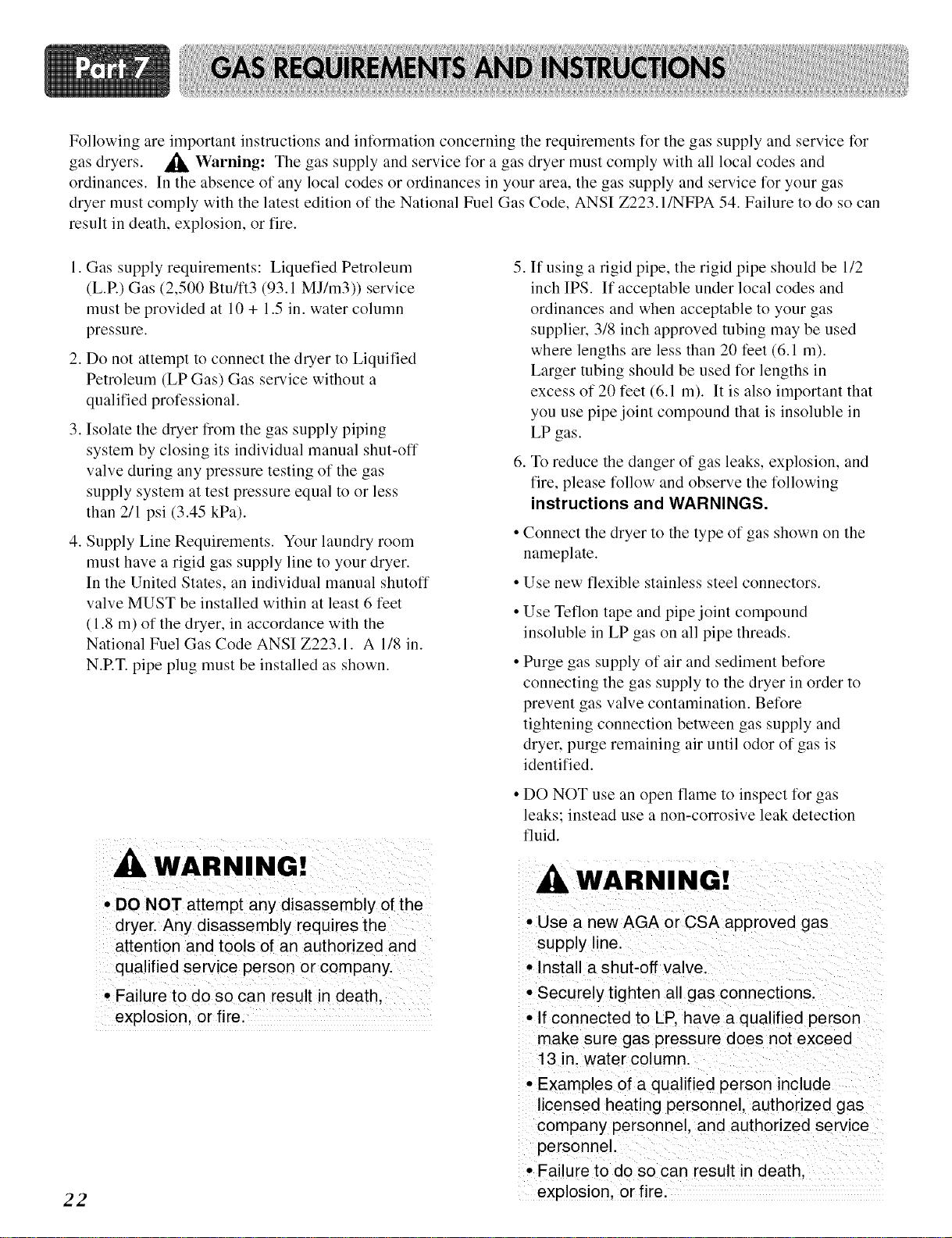

Following are important instructions and information concerning the requirements for the gas supply and service for
gas dryers. _ Warning: The gas supply and service for a gas dryer must comply with all local codes and
ordinances. In the absence of any local codes or ordinances in your area, the gas supply and service for your gas
dryer must comply with the latest edition of the National Fuel Gas Code, ANSI Z223. I/NFPA 54. Failure to do so can
result in death, explosion, or fire.
1. Gas supply requirements: Liquefied Petroleum
(L.P.) Gas (2,500 Btu/ft3 (93.1 MJ/m3)) service
must be provided at 10 + 1.5 in. water column
pressure.
2. Do not attempt to connect the dryer to Liquified
S
Petroleum (LP Ga_ ) Gas service without a
qualified professional.
3. Isolate the dryer from the gas supply piping
system by closing its individual manual shut-off
valve during any pressure testing of the gas
supply system at test pressure equal to or less
than 211 psi (3.45 kPa).
4. Supply Line Requirements. Your laundry room
must have a rigid gas supply line to your dryer.
In the United States, an individual manual shutoff
valve MUST be installed within at least 6 feet
( 1.8 m) of the dryer, in accordance with the
National Fuel Gas Code ANSI Z223.1. A 118in.
N.P.T. pipe plug must be installed as shown.
WARNING!
i i _i i _i I iii i ii! iI i (i _i _ i
• DO NOT attempt any disassembly of the
dryer, Any disassembly requires the
attention and tools of an authorized and
qualified service person or company.
Failure to do so can result in death,
expl0si0n, 0r firel
22
.
.
If using a rigid pipe, the rigid pipe should be 112
inch IPS. If acceptable under local codes and
ordinances and when acceptable to your gas
supplier, 318 inch approved tubing may be used
where lengths are less than 20 feet (6.1 m).
Larger tubing should be used for lengths in
excess of 20 feet (6.1 m). It is also important that
you use pipe,joint compound that is insoluble in
LP gas.
To reduce the danger of gas leaks, explosion, and
fire, please fonow and observe the following
instructions and WARNINGS.
Connect the dryer to the type of gas shown on the
nameplate.
Use new flexible stainless steel connectors.
Use Teflon tape and pipe joint compound
insoluble in LP gas on all pipe threads.
Purge gas supply of air and sediment before
connecting the gas supply to the dryer in order to
prevent gas valve contamination. Before
tightening connection between gas supply and
dryer, purge remaining air until odor of gas is
identified.
DO NOT use an open flame to inspect for gas
leaks; instead use a non-corrosive leak detection
fluid.
WARNI NG!
• Use a new AGA or CSA approved gas
supply line.
• Install a shut-off valve.
• Securely tighten all gas connections.
• If connected to LP, have a qualified person
make sure gas pressure does not exceed
13 in. water column.
• Examples of a qualified person include
licensed heating personnel, authorized gas
company personnel, and authorized service
personnel.
• Failure to do so can result in death
explosion, or fire.

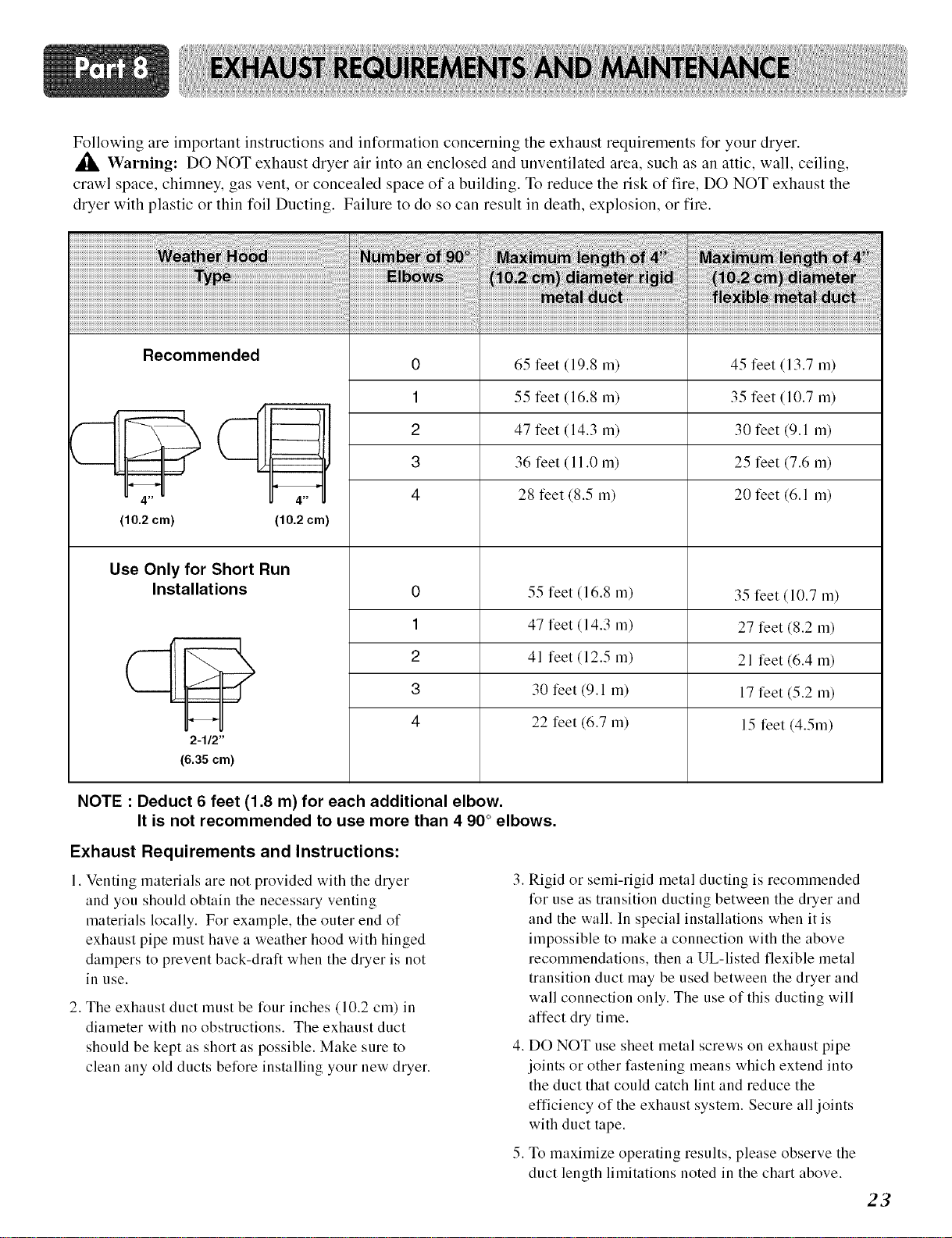

Following are important instructions and information concerning the exhaust requirements for your dryer.
,_ Warning: DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling,
crawl space, chimney, gas vent, or concealed space of a building. To reduce the risk of fire, DO NOT exhaust the
dryer with plastic or thin foil Ducting. Failure to do so can result in death, explosion, or fire.
Recommended
(10.2 cm)
4"
(10.2 cm)
Use Only for Short Run
Installations
2-1/2"
(6.35 cm)
0 65 feet (19.8 m) 45 feet (13.7 m)
1 55 feet (16.8 m) 35 feet (10.7 m)
2 47 feet (14.3 m) 30 feet (9.1 m)
3 36 feet ( 11.0 m) 25 feet (7.6 m)
4 28 feet (8.5 m) 20 feet (6.1 m)
0
1
2
3
4
55 feet (16.8 m)
47 feet (14.3 m)
41 feet (12.5 m)
30 feet (9.1 m)
22 feet (6.7 m)
35 feet (10.7 m)
27 feet (8.2 m)
21 feet (6.4 m)
17 feet (5.2 m)
15 feet (4.51n)
NOTE : Deduct 6 feet (1.8 m) for each additional elbow.
It is not recommended to use more than 4 90 ° elbows.
Exhaust Requirements and Instructions:
1. Venting materials are not provided with the dryer
and you should obtain the necessary venting
materials locally. For example, the outer end of
exhaust pipe must have a weather hood with hinged
dampers to prevent back-draft when the dryer is not
in use.
2. The exhaust duct must be lBur inches (10.2 cm) in
diameter with no obstructions. The exhaust duct
should be kept as short as possible. Make sure m
clean any old ducts belBre installing your new dryer.
3. Rigid or semi-rigid metal ductiug is recommended
IBr use as transition ductiug between the dryer and
and the wall. In special installations when it is
impossible to make a connection with the above
recommendations, then a UL-listed flexible metal
transition duct may be used between the dryer and
wall connection only. The use of this ductiug will
affect dry time.
4. DO NOT use sheet metal screws on exhaust pipe
joints or other fastening means which extend into
the duct that could catch lint and reduce the
efficiency of the exhaust system. Secure all joints
with duct tape.
5. To maximize operating results, please observe the
duct length limitations noted in the chart above.
23

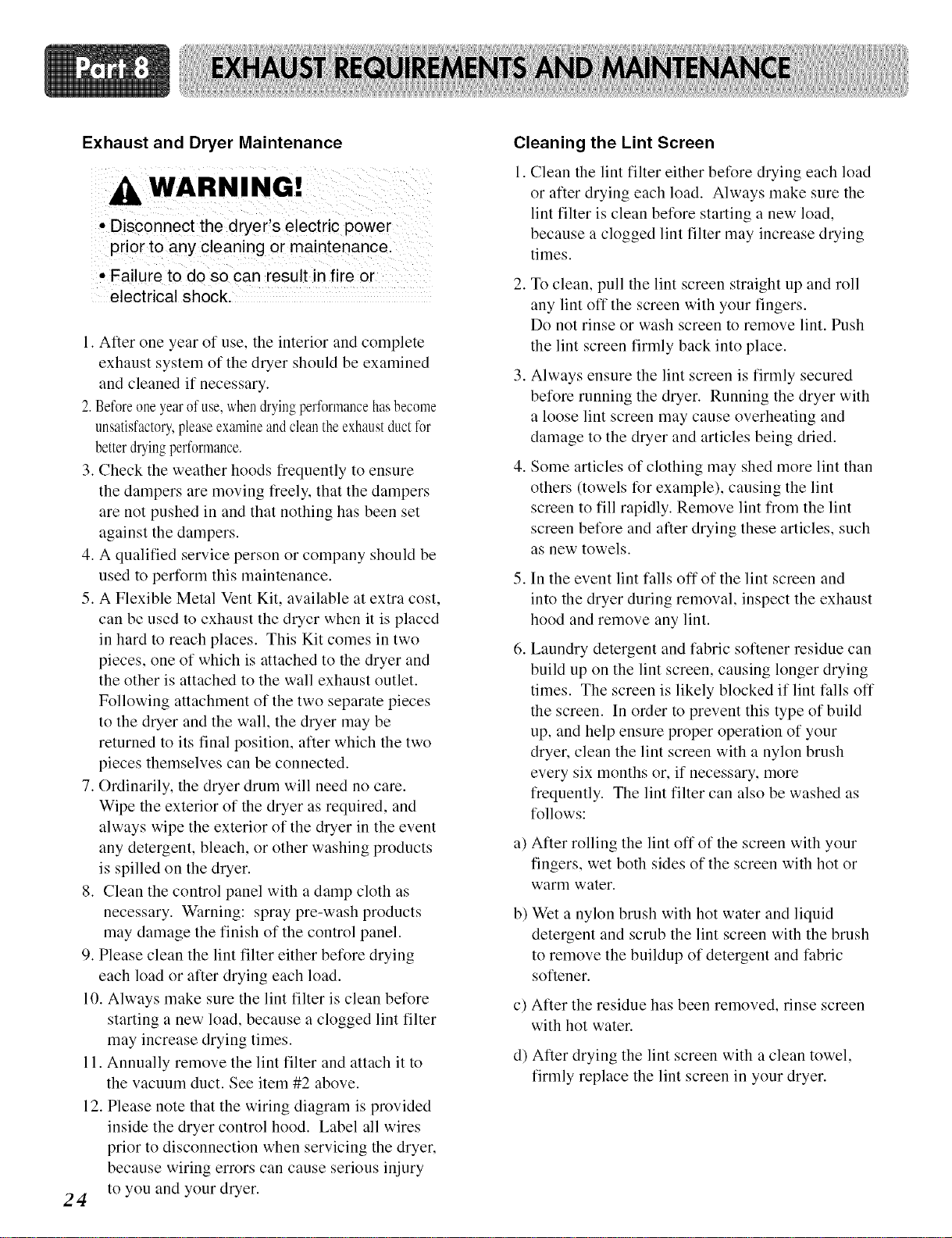

Exhaust and Dryer Maintenance
WARNING!
- Disconnect the dryer's electric power
prior to any cleaning or maintenance
• Failure to do so can result in fire or
electrical shock
1. After one year of use, the interior and complete
exhaust system of the dryer should be examined
and cleaned if necessary.
2. Beforeone yearof use, when dryingperformance hasbecome
unsatisfactory,pleaseexamineand clean the exhaustduct for
betterduing performance.
3. Check the weather hoods frequently to ensure
the dampers are moving freely, that the dampers
are not pushed in and that nothing has been set
against the dampers.
4. A qualified service person or company should be
used to perform this maintenance.
5. A Flexible Metal Vent Kit, available at extra cost,
can be used to exhaust the dryer when it is placed
in hard to reach places. This Kit comes in two
pieces, one of which is attached to the dryer and
the other is attached to the wall exhaust outlet.
Following attachment of the two separate pieces
to the dryer and the wall, the dryer may be
returned to its final position, after which the two
pieces themselves can be connected.
7. Ordinarily, the dryer drum will need no care.
Wipe the exterior of the dryer as required, and
always wipe the exterior of the dryer in the event
any detergent, bleach, or other washing products
is spilled on the dryer.
8. Clean the control panel with a damp cloth as
necessary. Warning: spray pre-wash products
may damage the finish of the control panel.
9. Please clean the lint filter either before drying
each load or after drying each load.
10. Always make sure the lint filter is clean before
starting a new load, because a clogged lint filter
may increase drying times.
11. Annually remove the lint filter and attach it to
the vacuum duct. See item #2 above.
12. Please note that the wiring diagram is provided
inside the dryer control hood. Label all wires
prior to disconnection when servicing the dryer,
because wiring errors can cause serious injury
24 to you and your dryer.
Cleaning the Lint Screen
1. Clean the lint filter either before drying each load
or after drying each load. Always make sure the
lint filter is clean before starting a new load,
because a clogged lint filter may increase drying
times.
.
.
.
To clean, pull the lint screen straight up and roll
any lint off the screen with your fingers.
Do not rinse or wash screen to remove lint. Push
the lint screen firmly back into place.
Always ensure the lint screen is firmly secured
before running the dryer. Running the dryer with
a loose lint screen may cause overheating and
damage to the dryer and articles being dried.
Some articles of clothing may shed more lint than
others (towels for example), causing the lint
screen to fill rapidly. Remove lint from the lint
screen before and after drying these articles, such
as new towels.
.
.
In the event lint falls off of the lint screen and
into the dryer during removal, inspect the exhaust
hood and remove any lint.
Laundry detergent and fabric softener residue can
build up on the lint screen, causing longer drying
times. The screen is likely blocked if lint falls off
the screen. In order to prevent this type of build
up, and help ensure proper operation of your
dryer, clean the lint screen with a nylon brush
every six months or, if necessary, more
frequently. The lint filter can also be washed as
follows:
a) After rolling the lint off of the screen with your
fingers, wet both sides of the screen with hot or
warm water.
b) Wet a nylon brush with hot water and liquid
detergent and scrub the lint screen with the brush
to remove the buildup of detergent and fabric
softener.
c) Alter the residue has been removed, rinse screen
with hot water.
d) After drying the lint screen with a clean towel,
firmly replace the lint screen in your dryer.

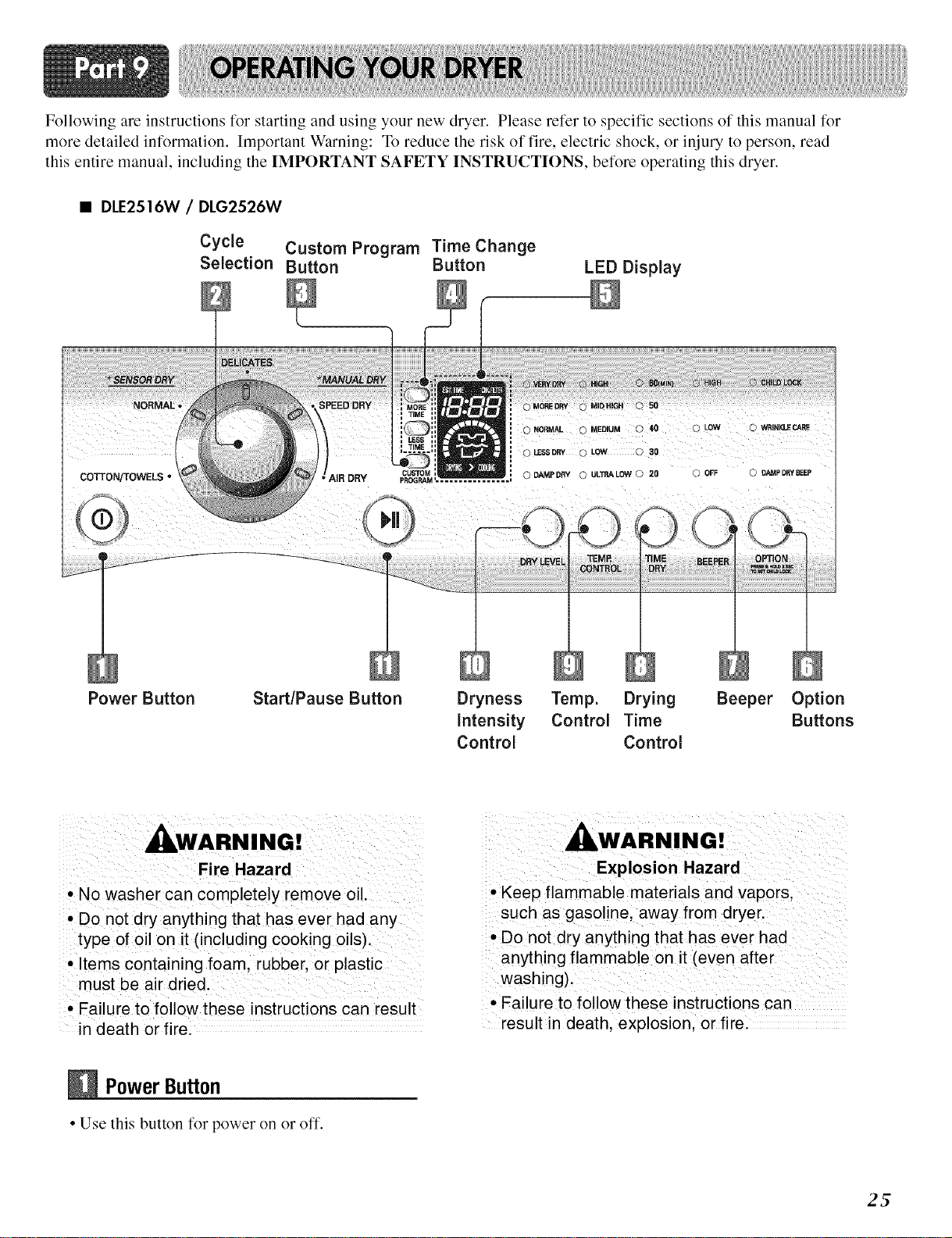

Followingareinstructionsforstartingandusingyournewdryer.Pleaserefertospecificsectionsofthismanualfor
moredetailedinformation.ImportantWarning:Toreducetheriskoffire,electricshock,orinjurytoperson,read
thisentiremanual,includingtheIMPORTANTSAFETYINSTRUCTIONS,beforeoperatingthisdryer.
• DLE2516W / DLG2526W
Cycle Custom Program Time Change
Selection Button Button
LED Display
Power Button Start/Pause Button
O DAMP DRY 0 ULTRA LOW O 20 0 OFF
O!
TEMR
0 DAMP DRYBEEP
Dryness Temp. Drying Beeper Option
Intensity Control Time Buttons
Control Control
_WARN ING !
Fire Hazard
• No washer can completely remove oil.
• Do not dry anything that has ever had any
type of oil on it (including cooking oils).
• Items containing foam, rubber, or plastic
must be air dried.
• Failure to follow these instructions can result
in death or fire.
_WARNIING!
Explosion Hazard
• Keep flammable materials and vapors,
such as gasoline, away from dryer.
• Do not dryanything that has ever had
anything flammable on it (even after
washing).
• Failure to follow these instructions can
result in death, explosion, or fire.
PowerButton
• Use this button for power on or off.
2_

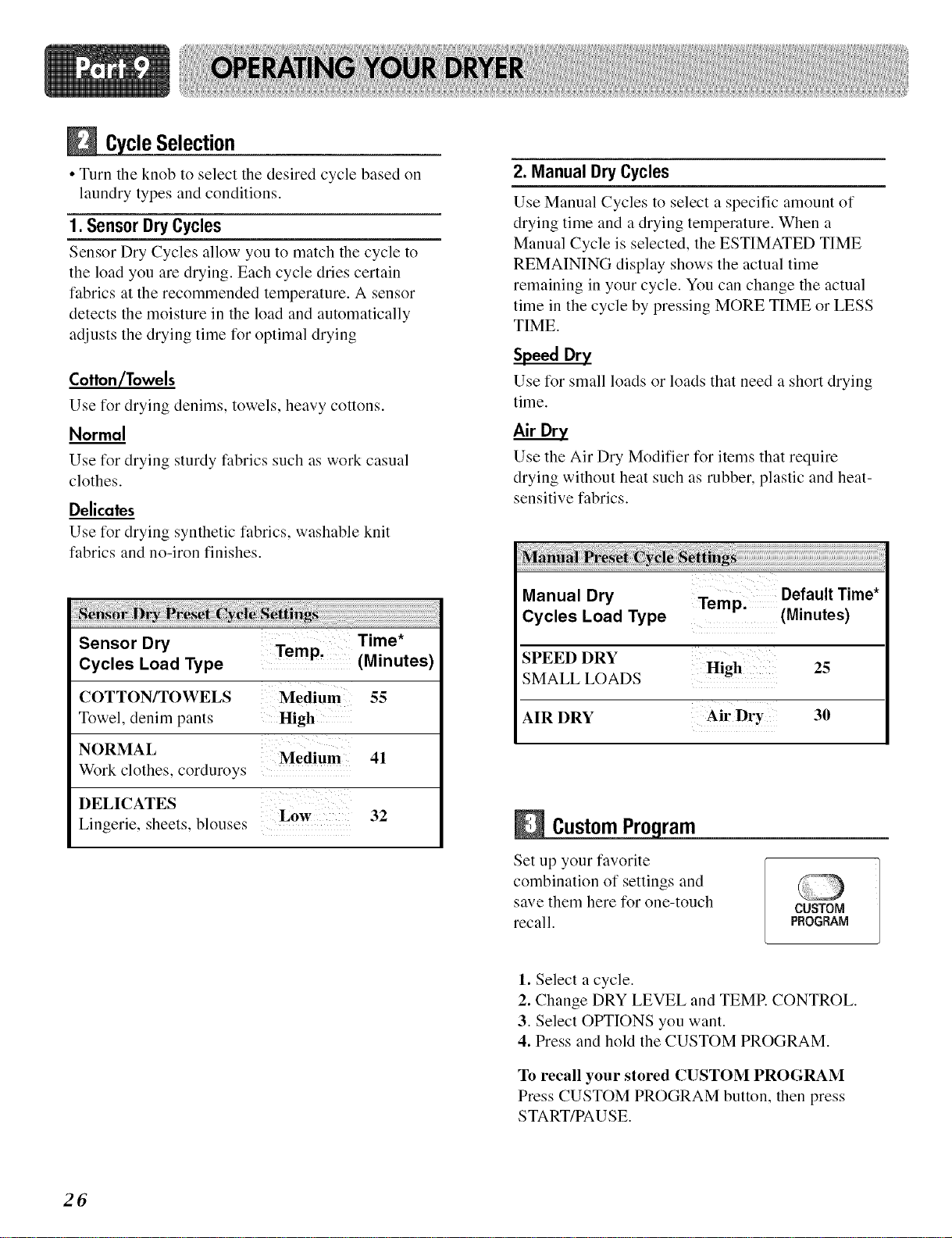

Selection
• Turn the knob to select the desired cycle based on
laundry types and conditions.
1. Sensor Dry Cycles
Sensor Dry Cycles allow you to match the cycle to
the load you are drying. Each cycle dries certain
fabrics at the recommended temperature. A sensor
detects the moisture in the load and automatically
adjusts the drying time for optimal drying
Cotton/Towels
Use for drying denims, towels, heavy cottons.
Normal
Use for drying sturdy fabrics such as work casual
clothes.
Delicates
Use for drying synthetic fabrics, washable knit
fabrics and no-iron finishes.
Sensor Dry
Cycles Load Type
Time*
Temp, (Minutes)
COTTON/TOWELS Medium 55
Towel, denim pants High
NORMAL
Medium 41
Work clothes, corduroys
DELICATES
Lingerie, sheets, blouses Low 32
26
2. Manual Dry Cycles
Use Manual Cycles to select a specific amount of
drying time and a drying temperature. When a
Manual Cycle is selected, the ESTIMATED TIME
REMAINING display shows the actual time
remaining in your cycle. You can change the actual
time in the cycle by pressing MORE TIME or LESS
TIME.
Speed Dry
Use for small loads or loads that need a short drying
time.
Use the Air Dry Modifier for items that require
drying without heat such as robber, plastic and heat-
sensitive fabrics.
Manual Dry Default Time*
Cycles Load Type Temp, (Minutes)
SPEED DRY
SMALL LOADS High 25
AIR DRY 30
Custom ram
Set up your favorite
combination of settings and
save them here for one-touch
recall.
CUSTOM
PROGRAM
1. Select a cycle.
2. Change DRY LEVEL and TEMR CONTROL.
3. Select OPTIONS you want.
4. Press and hold the CUSTOM PROGRAM.
To recall your stored CUSTOM PROGRAM
Press CUSTOM PROGRAM button, then press
START/PAUSE.

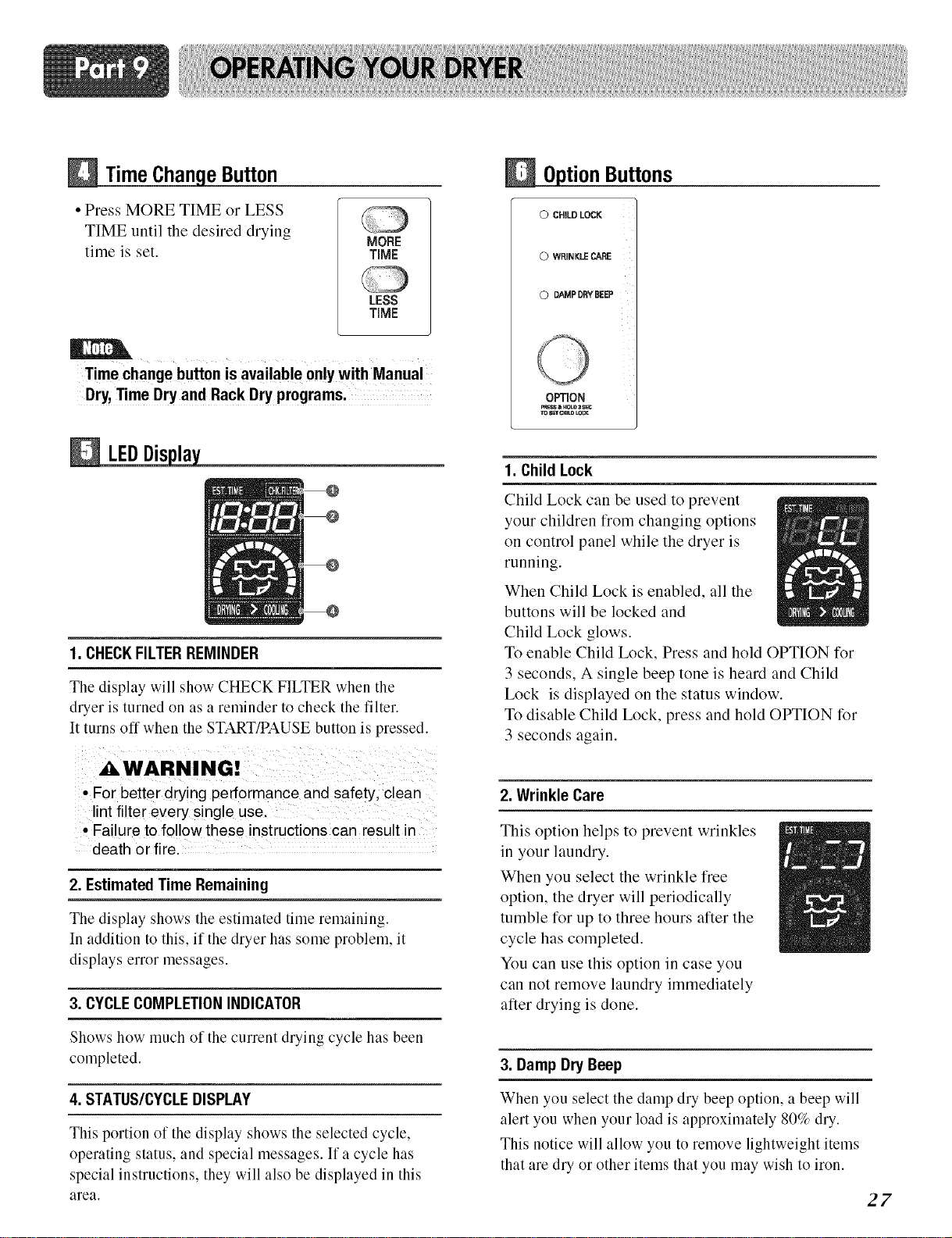

Time e Button
• Press MORE TIME or LESS
TIME until the desired drying
time is set.
MORE
TiME
LESS
TiME
Time change button is available on!ywith Manual
Dry,Time Dry and Rack Dry programs.
LEDDisplay
1. CHECKFILTERREMINDER
The display will show CHECK FILTER when the
dryer is turned on as a reminder to check the filter.
It turns off when the START/PAUSE button is pressed.
• For better drying performance and safetY, clean
lint filter every single use,
° Failure to fellow these instructions can result in
death or fire.
2. Estimated Time Remaining
The display shows the estimated time remaining.
In addition to this, if the dryer has some problem, it
displays error messages.
3. CYCLECOMPLETIONINDICATOR
Shows how much of the current drying cycle has been
completed.
4. STATUS/CYCLEDISPLAY
This portion of the display shows the selected cycle,
operating status, and special messages. If a cycle has
special instructions, they will also be displayed in this
area.
Buttons
0 CHILD LOCK
0 WRINKLECARE
(2) DAMPDRYBEEP
OPTION
P_ss_, HOLD3S_
TO_ErCmLDUaC_
1. Child Lock
Child Lock can be used to prevent
your children from changing options
on control panel while the dryer is
running.
When Child Lock is enabled, all the
buttons will be locked and
Child Lock glows.
To enable Child Lock, Press and hold OPTION for
3 seconds, A single beep tone is heard and Child
Lock is displayed on the status window.
To disable Child Lock, press and hold OPTION for
3 seconds again.
2. Wrinkle Care
This option helps to prevent wrinkles
in your laundry.
When you select the wrinkle free
option, the dryer will periodically
tumble for up to three hours after the
cycle has completed.
You can use this option in case you
can not remove laundry immediately
after drying is done.
3. Damp Dry Beep
When you select the damp dry beep option, a beep will
alert you when your load is approximately 80% dry.
This notice will allow you to remove lightweight items
that are dry or other items that you may wish to iron.
27

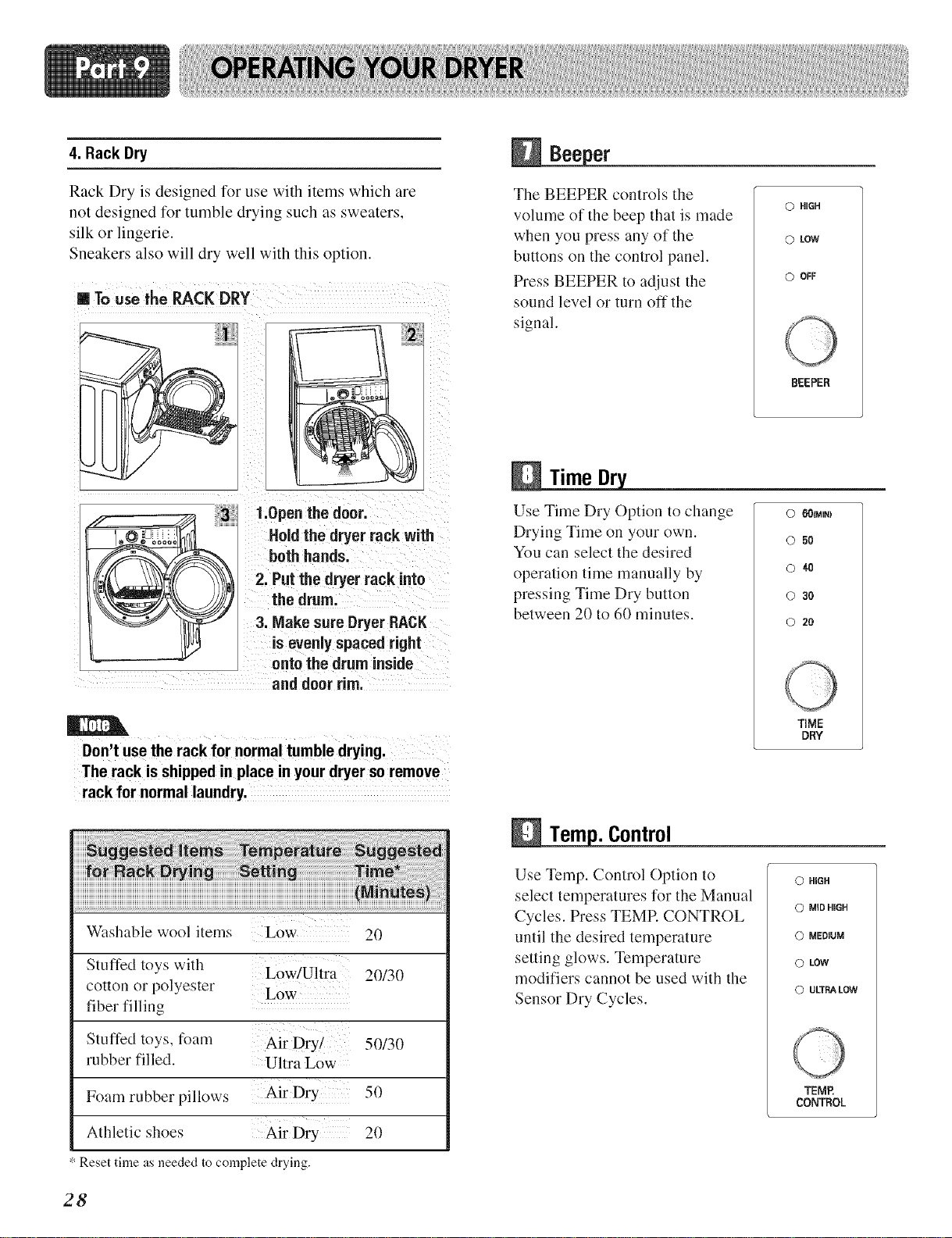

4. Rack Dry
Rack Dry is designed for use with items which are
not designed for tumble drying such as sweaters,
silk or lingerie.
Sneakers also will dry well with this option.
[] Touse the RACKDRY
1.0pen the door.
Hold the dryer rack with
both hands.
2. Put the dryer rack into
the drum,
3. Make sure Dryer RACK
isevenly spaced right
ontothe drum inside
and door rim.
Don't use the rack for normal tumble drying.
The rack is shipped in place in your dryer so remove
rack for normal laundry,
Washable wool items Low 20
The BEEPER controls the
volume of the beep that is made
when you press any of the
buttons on the control panel.
Press BEEPER to adjust the
sound level or turn off the
signal.
0 HiGH
0 LOW
0 OFF
BEEPER
Time
Use Time Dry Option to change
Drying Time on your own.
You can select the desired
operation time manually by
pressing Time Dry button
between 20 to 60 minutes.
0 _(MmNI
0 5O
O4O
0 30
0 2O
TiME
DRY
Stuffed toys with
cotton or polyester
fiber filling
Stuffed toys, foam
rubber filled.
Low/Ultra
Low"
20/30
Foam rubber pillows
Athletic shoes Air Dry 20
Reset time as needed to complete drying.
Air Dry/ 50/30
Ultra Low
Air DrY 50
Control
Use Temp. Control Option to
select temperatures for the Manual
Cycles. Press TEMP. CONTROL
until the desired temperature
setting glows. Temperature
modifiers cannot be used with the
Sensor Dry Cycles.
0 HiGH
0 MID HiGH
0 MEDIUM
0 LOW
0 ULTRA LOW
28
TEMP.
CONTROL

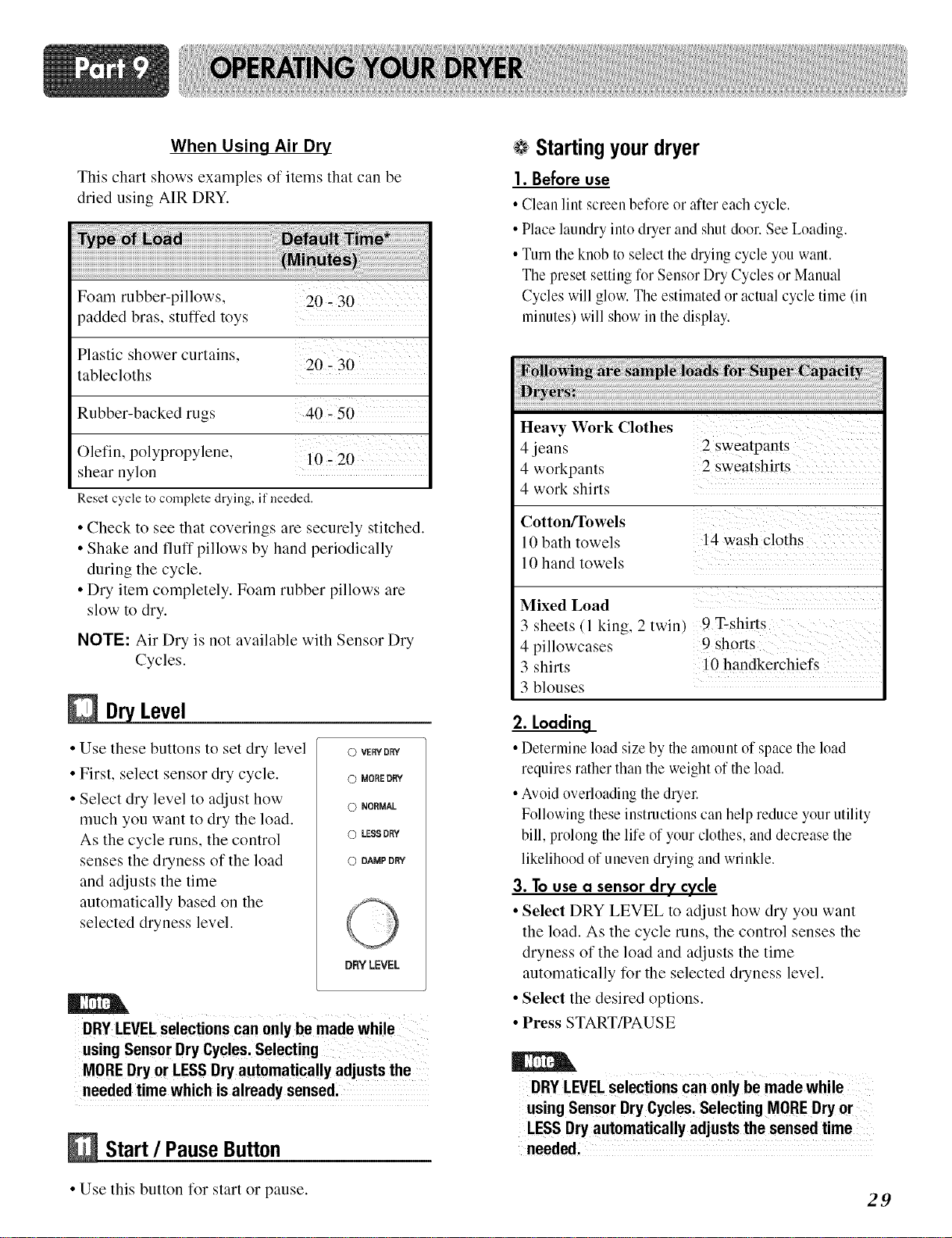

When Using Air Dry
This chart shows examples of items that can be
dried using AIR DRY.
Foam rubber-pillows,
padded bras, stuffed toys
Plastic shower curtains,
20- 30
tablecloths
Rubber-backed rugs 40 - 50
Olefim polypropylene, 10,20
shear nylon
Reset cycle to complete drying, if needed.
• Check to see that coverings are securely stitched.
• Shake and fluff pillows by hand periodically
during the cycle.
• Dry item completely. Foam rubber pillows are
slow to dry.
NOTE: Air Dry is not available with Sensor Dry
Cycles.
Level
• Use these buttons to set dry level
• First, select sensor dry cycle.
• Select dry level to adjust how
much you want to dry the load.
As the cycle runs, the control
senses the dryness of the load
and adjusts the time
automatically based on the
selected dryness level.
Q VERY DRY
Q MORE DRY
@ NORMAL
G LESS DRY
G DAMP DRY
DRYLEVEL
DRY LEVELselections can only be made while
using Sensor Dry Cycles.Selecting
MOREDry or LESS Dry automatically adjusts the
needed time which is already sensed.
Start / Pause Button
• Use this button for start or pause.
Startingyourdryer
1. Before use
• Clean lint screen before or after each cycle.
• Place laundry into dryer and shut door. See Loading.
• Turn the knob to select the drying cycle you want.
The preset setting for Sensor Dry Cycles or Manual
Cycles will glow. The estimated or actual cycle time un
minutes, will show in the display.
Heavy Work Clothes
4 jeans 2 sweatpants
4 workpants 2 sweatshirts
4 work shirts
Cotton/Towels
10 bath towels 14 wash cloths
10 hand towels
Mixed Load
3 sheets ( 1king, 2 twin)
4 pillowcases
3 shirts
3 blouses
9 T-shirts
9 shorts
10 handkerchiefs
2. Loading
• Determine load size by the amount of space the load
requires rather than the weight of the load.
• Avoid overloading the dryer.
Following these instructions can help reduce your utility
bill, prolong the life of your clothes, and decrease the
likelihood of uneven drying and wrinkle.
3. To use a sensor dry cycle
• Select DRY LEVEL to adjust how dry you want
the load. As the cycle runs, the control senses the
dryness of the load and adjusts the time
automatically for the selected dryness level.
• Select the desired options.
• Press START/PAUSE
DRY LEVEL selections can on!y be made while
using Sensor Dry Cycles,Selecting MOREDry or
LESS Dryautomatically adjusts the sensed time
needed.
29

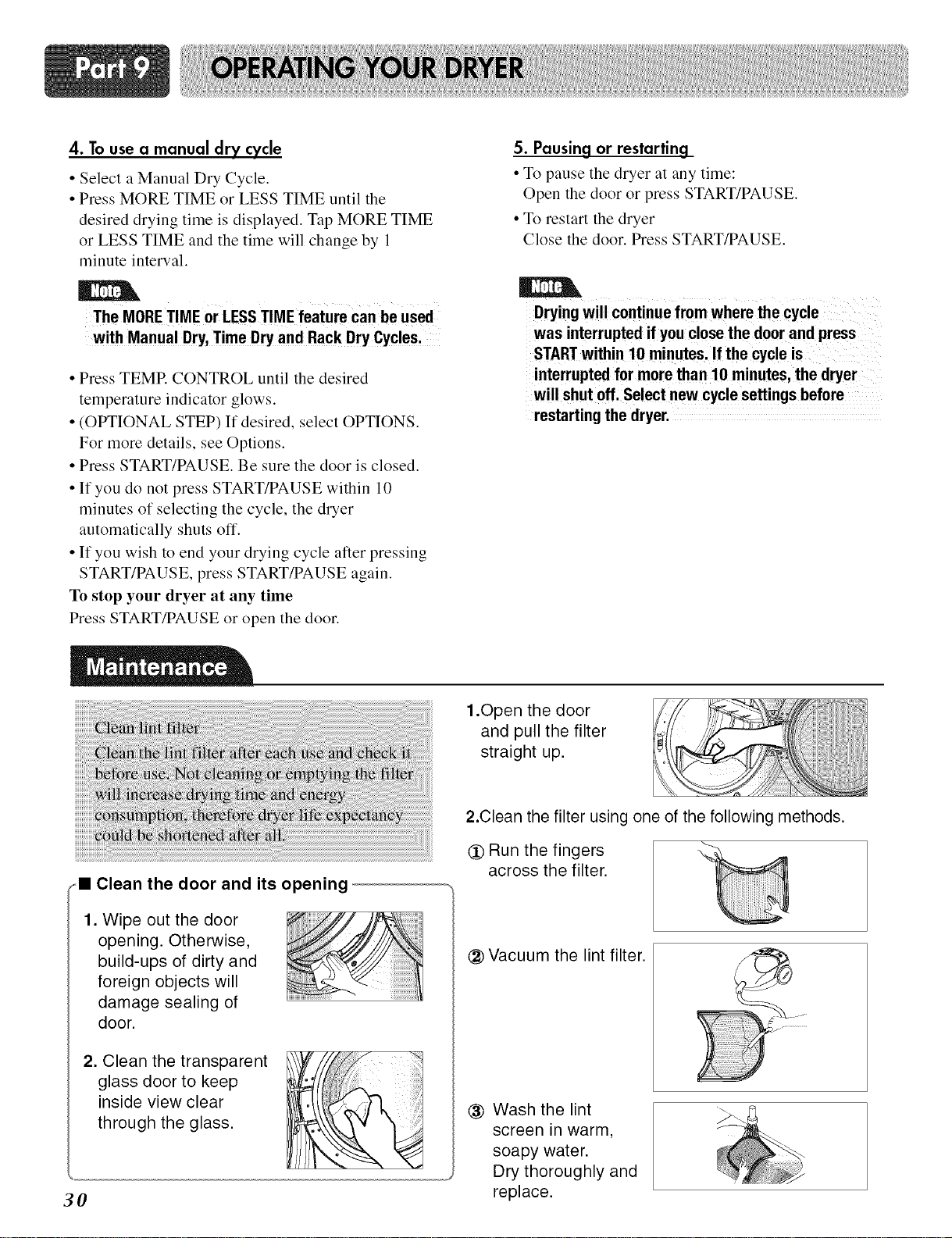

4. To use a manual dry cycle
• Select a Manual Dry Cycle.
• Press MORE TIME or LESS TIME until the
desired drying time is displayed. Tap MORE TIME
or LESS TIME and the time will change by 1
minute interval.
The MORETIME or LESSTIME feature can be used
with Manual Dry,Time Dry and Rack Dry Cycles,
• Press TEMR CONTROL until the desired
temperature indicator glows.
• (OPTIONAL STEP) If desired, select OPTIONS.
For more details, see Options.
• Press START/PAUSE. Be sure the door is closed.
• If you do not press START/PAUSE within 10
minutes of selecting the cycle, the dryer
automatically shuts off.
• If you wish to end your drying cycle alter pressing
START/PAUSE, press START/PAUSE again.
To stop your dryer at any time
Press START/PAUSE or open the door.
5. Pausing or restarting
• To pause the dryer at any time:
Open the door or press START/PAUSE.
• To restart the dryer
Close the door. Press START/PAUSE.
Dryingwill continue from where the cycle
was interrupted if you close the door and press
STARTwithin 10 minutes. Ifthe cycle is
interrupted for more than 10 minutes, the dryer
will shut off. Select new cycle settings before
restarting the dryer.
1.Open the door
and pull the filter
straight up.
30
2.Clean the filter using one of the following methods.
_m Clean the door and its opening
1. Wipe out the door
opening. Otherwise,
build-ups of dirty and
foreign objects will
damage sealing of
door.
2. Clean the transparent
glass door to keep
inside view clear
through the glass.
Run the fingers
across the filter.
Vacuum the lint filter.
Wash the lint
screen in warm,
soapy water.
Dry thoroughly and
replace.

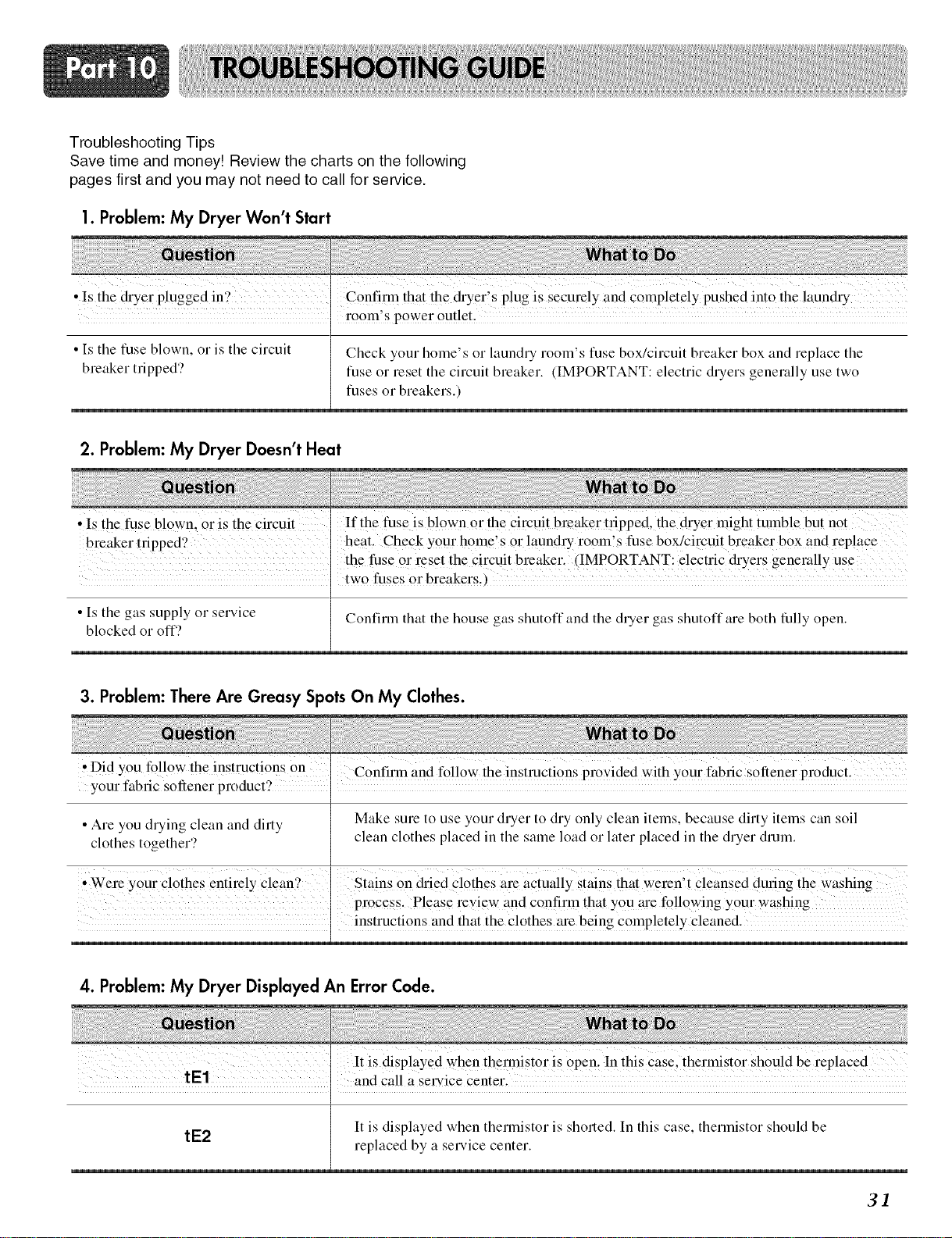

Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
1. Problem:My Dryer Won't Start
• )
!s the dryer plugged inl, , C0nfinn that the dryer s p!ug is securely and completely pushed into the !aunchy ....
. r00m'sp0wer0ut!et,
• is the fuse blown, or is the circuit Check your home's or laundry rooln's fuse box/circuit breaker box and replace the
breaker tripped? fuse or reset the circuit breaker. (IMPORTANT: electric dryers generally use two
fuses or breakers.)
2. Problem:My Dryer Doesn't Heat
, Is the fuse blown, or is the circuit If the fuse is blown or the ci!_cuitbrewer tripped, the dryer might tumble but not
breaker tripped? heat. Check YOUrhome s or laundry room s Iuse box/cl!cu!t breaker box and lep!ace
the fuse or reset the Circuit breaker. (IMPORTANT:electric ch'yersgenerally use
, tw0fuses0rbreakers,)
• Is the gas supply or service Confirm that the house gas shutoff and the dryer gas shutoff are both tully open.
blocked or off'?
3. Problem: There Are Greasy Spots On My Clothes.
• Did you foll0w the instructions on
your fabric softener product?
Confirm and fo!!0w the instructions provided with y0ur fabric s0fiener pr0duct,
• Are you drying clean and dirty Make sure to use your dryer to dry only clean items, because dirty items can soil
clothes together? clean clothes placed in the same load or later placed in the dryer dram.
Were youI_Clothes entire!y C!ean, Stains Onch:iedclothes are actually stains that weren t cleansed during the washing
process. Please reyiew and confirm that yOu are following y0ur washing
instructions and that the clothes me being Completely cleaned.
4. Problem:My Dryer Displayed An ErrorCode.
It is displayed when thennist0r is oPen, !n this case, thermistor should be replaced
and call a Service center.
It is displayed when therlnistor is shorted. In this case, thermistor should be
tE2
replaced by a service center.
31

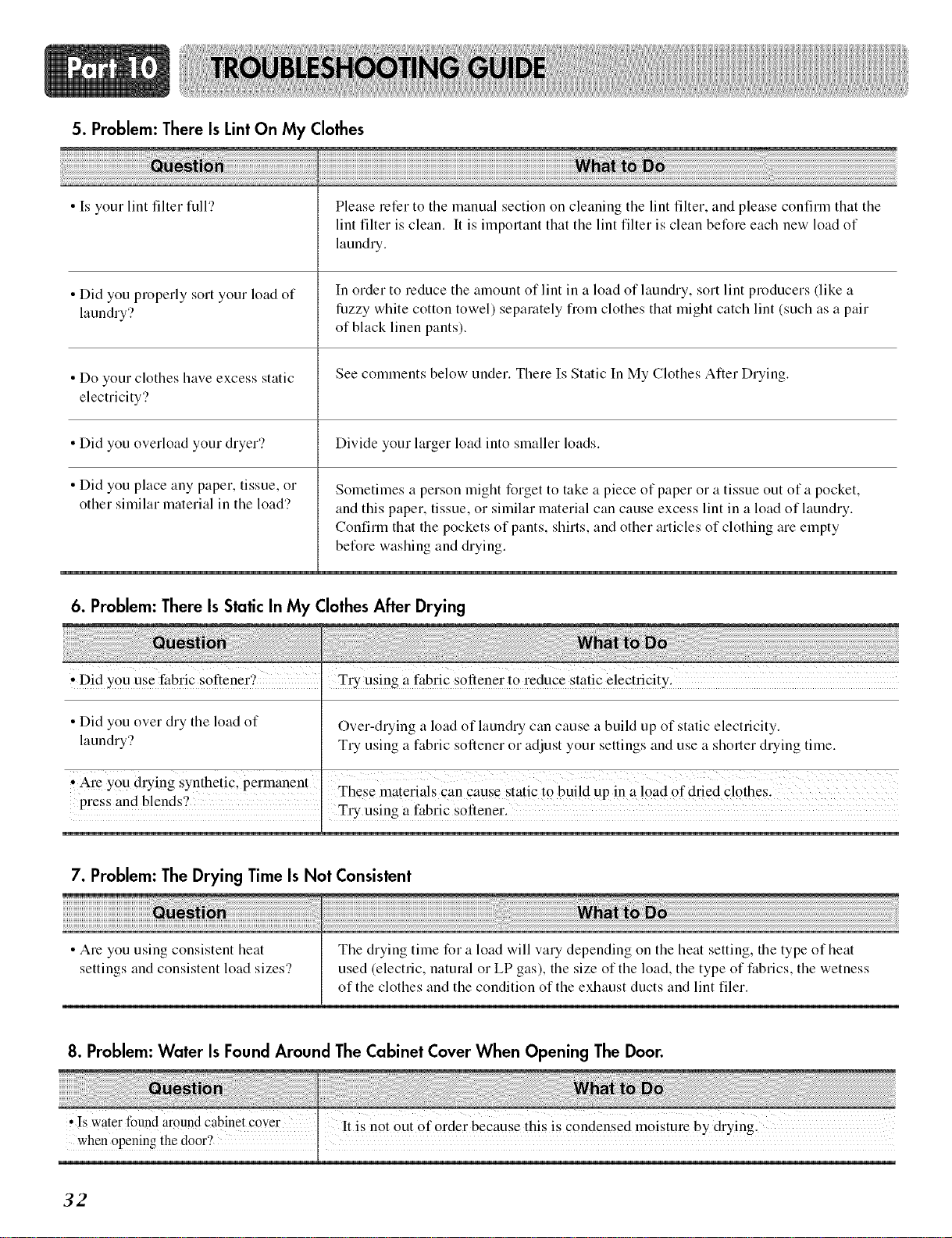

5. Problem:There Is LintOn My Clothes
• Is your lint filter full? Please refer to tile manual section on cleaning tile lint filter, and please confirm that tile
lint filter is clean. It is important that tile lint filter is clean before each new load of
laundry.
• Did you properly sort your load of In order to reduce the amount of lint in a load of laundry, sort lint producers (like a
laundry? fuzzy white cotton towel) separately fi'oln clothes that might catch lint (such as a pair
of black linen pants).
• Do your clothes have excess static See comments below under. There Is Static In My Clothes After Drying.
electricity'?
• Did you overload your dryer'? Divide your larger load into smaller loads.
• Did you place any paper, tissue, or
other similar material in the load'?
Sometimes a person might forget to take a piece of paper or a tissue out of a pocket,
and this paper, tissue, or similar material can cause excess lint in a load of laundry.
Confrm that the pockets of pants, shirts, and other articles of clothing are empty
before washing and drying.
6. Problem: There Is Static In My Clothes After Drying
"Did you use t:abric softener'! Try using a fabric s0flener t0 reduce static electricity:
• Did you over dry the load of Over-drying a load of laundry can cause a build up of static electricity.
laundry? Try using a fabric softener or adjust your settings and use a shorter drying time.
• Areyoudrymgsynthetlc perlnanent _,. _ . _ ¢ _._ . , _ ;_. _ , _,
9 lnese lllaterlalS can cause static to OUlla up m a loaa oi allea ClOthes
press and blends. _ _ . .
Try using a iabrlc softener.
7. Problem:The Drying Time IsNot Consistent
• Are you using consistent heat The drying time for a load will vary depending on the heat setting, the type of heat
settings and consistent load sizes'? used (electric, natural or LP gas), the size of the load, the type of fabrics, the wetness
of tile clothes and tile condition of tile exhaust ducts and lint fler.
8. Problem: Water Is Found Around The Cabinet Cover When Opening The Door.
, Is water found around cabinet coyer !t is not out of order because this is condensed moisture by drying.
when opening the door?
32

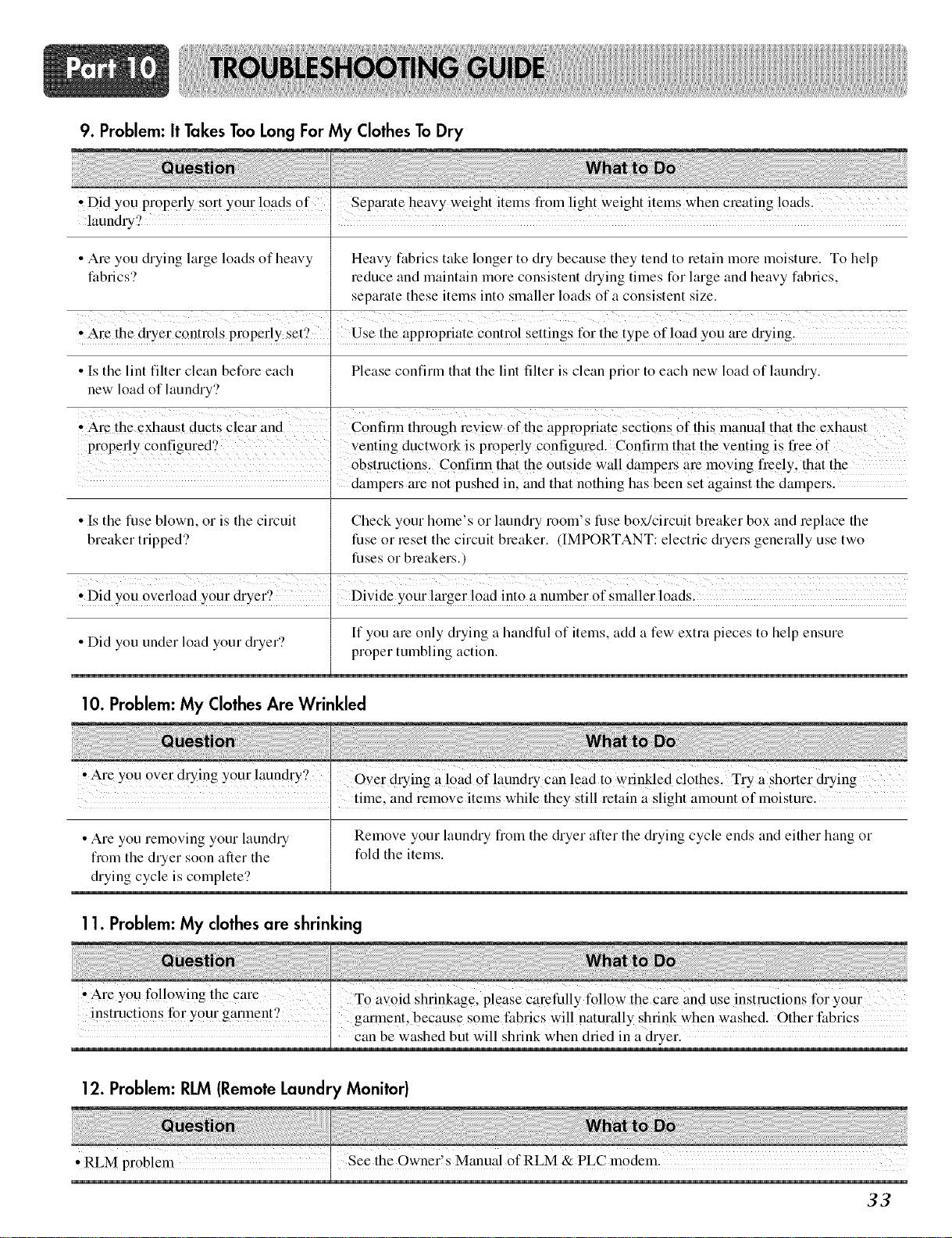

9. Problem:It TakesTooLongForMy ClothesToDry
- Did you properly S0
Your LG Dryer will be will repaired or replaced, at LG's option, if it proves to be defective in material or
workmanship under normal use, during the warranty period ("Warranty Period") set forth below, effective
from the date ("Date of Purchase") of original consumer purchase of the product. This limited warranty is
good only to the original purchaser of the product and effective only when used in the United States,
including Alaska, Hawaii, and U.S. Territories.
34
WARRANTY PERIOD:
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
Replacement Units and Repair Parts may be new or
factory remanufactured.
Replacement Units and Repair Parts are warranted
for the remaining portion of the original unit's
warranty period.
HOW SERVICE IS HANDLED:
In-Home Service: Please retain dealer's dated
bill of sale or delivery ticket as evidence of the
Date of Purchase for proof of warranty, and
submit a copy of the bill of sale to the service
person at the time warranty service is provided.
Please call 1=800=243=0000 and choose the
appropriate option to locate your nearest LG
Authorized Service Center. (Phones are
answered 24 hours a day, 365 days per year.)
Or visit our website at: http://www.lgservice.com
THiS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABiLiTY OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS
LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE
MANUFACTURER NOR iTS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING
WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER
BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of
incidental or consequential damages or limitations on how long an implied warranty lasts, so the above
exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may
also have other rights that vary from state to state.
THIS LiMiTED WARRANTY DOES NOT APPLY TO:
Service trips to your home to deliver, pick up, and/or instamlthe product, instruct, or repmace house fuses or
correct wiring, or correction of unauthorized repairs.
Damages or operating problems that result from misuse, abuse, operation outside environmental
specifications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire,
flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or
voltage, or commercial use, or use for other than intended purpose.
The cost of repair or replacement under these excluded circumstances shah be borne by the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product Infor=
mation, or Dealer or Authorized Service Center
location:
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
ATTN: ClC
Call 1=800=243=0000 (24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: http://www.lgservice.com
