Haier HRF450BS2 Fridge

User Manual

For HRF450BS2.

PDF File Manual, 34 pages, Read Online | Download pdf file

background
HRF450BW2
HRF450BS2
HRF450BHS2
HRF450BHC2
0060529687
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...

Other documents for Haier HRF450BS2

The following documents are available:
User Manual Specification
  • HRF450BS2 - Haier - Specifications Sheet - (English) Download
Warranty
  • HRF450BS2 - Haier - Warranty Booklet - (English) Download
Photos

Specifications

User Manual - Transcript

  • Page 10: Fresh Storage bin cover Fresh Storage bin HRF450BW2HRF450BS2 Air duct cover Adjustable door shelf Fullwidth door shelf My Zone bin
  • Page 11: Fresh Storage Bin Cover Fresh Storage Bin Air duct cover Water tank My Zone Bin Adjustable door shelf Fullwidth door shelf HRF450BHSHRF450BHC
  • Page 12: Voltage Max Power Voltage Max Power HRF450BW2 HRF450BS2 HRF450BHS2 HRF450BHC2 Fridge compartment Freezer compartment 12V Model 2W
  • Page 13 - English - : A Fridge selector B Freezer selector C My Zone selector D Holiday selector E Panel lock selector a 1 Supercool Function a2 Temperature Fridge b1 Superfreeze Function b2 Temperature Freezer c1 Fruit amp Vegetable Cooling c2 Beverage cooling c3 MeatampSeafood Cooling e Panel Lock Function A B C D E a1 a2 b1 b2 c1 c2 c3 e
  • Page 15 - English - : E e My Zone bin and Fresh Storage bin When the refrigerator door is opened for more than 3 minutes the door opening alarm will sound The alarm can be silenced by either closing the door or touching the control panel If the door is left open for more than 7 minutes the light inside the refrigerator and control panel illumina tion will automatically switch off For use and setting of the My Zone bin please check section USE To remove the bin Pull out 1 to the maximum extent Lift 2 to separate the bin from the rail and re move 3 It can be mounted in reverse order Use same process for the Fresh Storage bin
  • Page 17 - English - : Fresh storage binHumidity function My ZoneMeatSeafood function Select the function for My Zone drawer My Zone Storage or My Zone 0 The fridge compartment is equipped with a My Zone drawer In accordance with the foods storage demands the most suitable function can be selected to get the optimal nutritional value of the foods The following functions are available Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice Due to the different water content within different types of meat or seafood on stored at temperature of 0 Notice 1 Unlock the panel if it is locked 2 Press button C to select the My Zone function Furt and Vegetable c1 light Beverage Cooling c2 light Seafood and meat c3 light C C1 C2 C3 Fruit and Vegetable function 24 is suitable to store fruit and vegetable Beverage Cooling function0 is suitable to cool beverages like beer softdrinks yogouts etc Seafood and meat function 3 is suitable to store fresh seafood and meat 3 Press and key except C My Zone to confirm or the setting confirms automatically after 5 seconds Indicator C stops flashing Due to the different water content within different types of meat or seafood on occasions it may occur that some food will experience freezing to a degree when stored at tempera ture of 0 or below Freshly cut meat should be stored in the My Zone drawerPlease do not store fruit and vegetables in the Seafood and Meat function Due to thehigh water content of fruits and vegetables it is likely they will experience some freezing and be damaged It is easy to freeze friut and vegetables
  • Page 20 - English - : Fresh storage binHumidity function My ZoneMeatSeafood function Select the function for My Zone drawer My Zone Storage or My Zone 0 The fridge compartment is equipped with a My Zone drawer In accordance with the foods storage demands the most suitable function can be selected to get the optimal nutritional value of the foods The following functions are available Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice stored at temperature of 0 Notice Due to the different water content within different types of meat or seafood on stored at temperature of 0 Notice 1 Unlock the panel if it is locked 2 Press button C to select the My Zone function Furt and Vegetable c1 light Beverage Cooling c2 light Seafood and meat c3 light C C1 C2 C3 Fruit and Vegetable function 24 is suitable to store fruit and vegetable Beverage Cooling function0 is suitable to cool beverages like beer softdrinks yogouts etc Seafood and meat function 3 is suitable to store fresh seafood and meat 3 Press and key except C My Zone to confirm or the setting confirms automatically after 5 seconds Indicator C stops flashing Due to the different water content within different types of meat or seafood on occasions it may occur that some food will experience freezing to a degree when stored at tempera ture of 0 or below Freshly cut meat should be stored in the My Zone drawerPlease do not store fruit and vegetables in the Seafood and Meat function Due to thehigh water content of fruits and vegetables it is likely they will experience some freezing and be damaged It is easy to freeze friut and vegetables

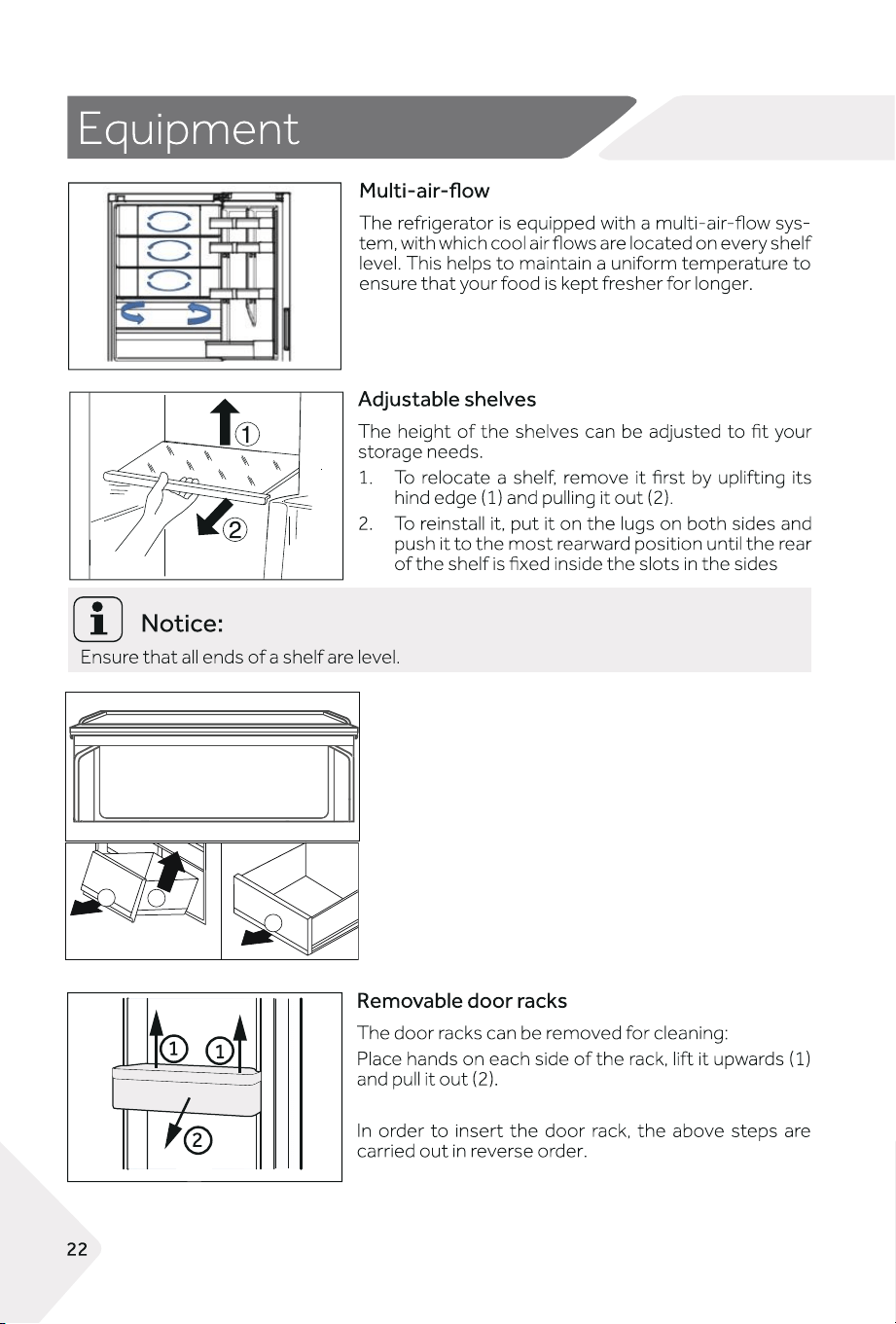

  • Page 22 - English - : E e My Zone bin and Fresh Storage bin When the refrigerator door is opened for more than 3 minutes the door opening alarm will sound The alarm can be silenced by either closing the door or touching the control panel If the door is left open for more than 7 minutes the light inside the refrigerator and control panel illumina tion will automatically switch off For use and setting of the My Zone bin please check section USE To remove the bin Pull out 1 to the maximum extent Lift 2 to separate the bin from the rail and re move 3 It can be mounted in reverse order Use same process for the Fresh Storage bin
  • Page 24 - English - : A Fridge selector B Freezer selector C My Zone selector D Holiday selector E Panel lock selector a 1 Supercool Function a2 Temperature Fridge b1 Superfreeze Function b2 Temperature Freezer c1 Fruit amp Vegetable Cooling c2 Beverage cooling c3 MeatampSeafood Cooling e Panel Lock Function A B C D E a1 a2 b1 b2 c1 c2 c3 e
  • Page 25: Voltage Max Power Voltage Max Power HRF450BW2 HRF450BS2 HRF450BHS2 HRF450BHC2 Fridge compartment Freezer compartment 12V Model 2W
  • Page 26: Fresh Storage Bin Cover Fresh Storage Bin Air duct cover Water tank My Zone Bin Adjustable door shelf Fullwidth door shelf HRF450BHSHRF450BHC
  • Page 27: Fresh Storage bin cover Fresh Storage bin HRF450BW2HRF450BS2 Air duct cover Adjustable door shelf Fullwidth door shelf My Zone bin
