POWER PER CHANNEL
• 6 x 150w RMS into 4 ohms @ 1% THD
• 6 x 200w RMS into 2 ohms @ 1% THD
• 4 x 150w RMS into 4 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD
• 4 x 200w RMS into 2 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD
• Do NOT bridge into 2 ohms.
• All power ratings are at 14.4v DC.

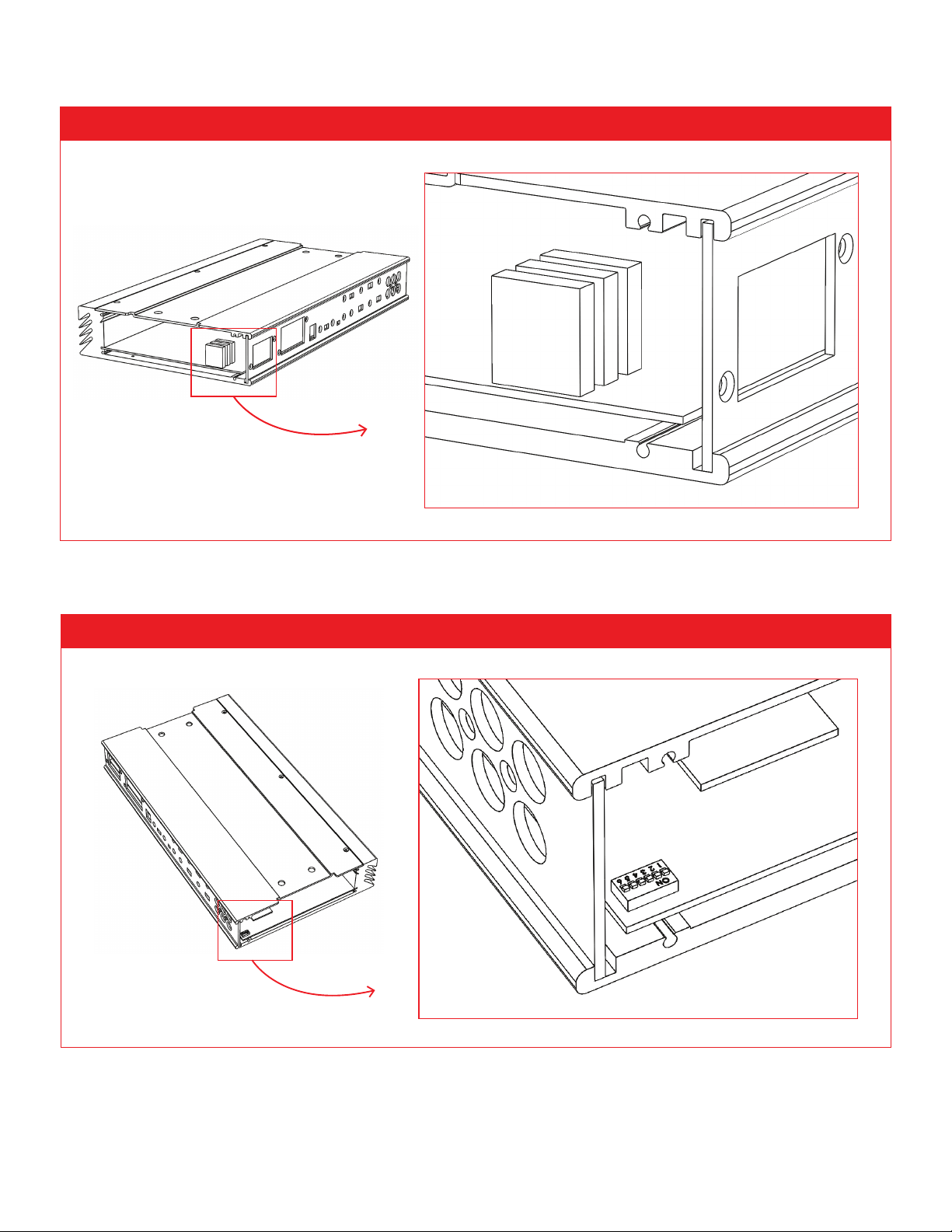

INPUTS SWITCH
• 2 = Use input 1+2 and route them to channels 3+4 and 5+6
• 4 = Use input 1+2 and 3+4
1+2 and 3+4 are attenuated by -6dB and routed to 5+6.
This allows constant bass loudness when you fade between 1+2 and 3+4.
• 6 = Use all six inputs.

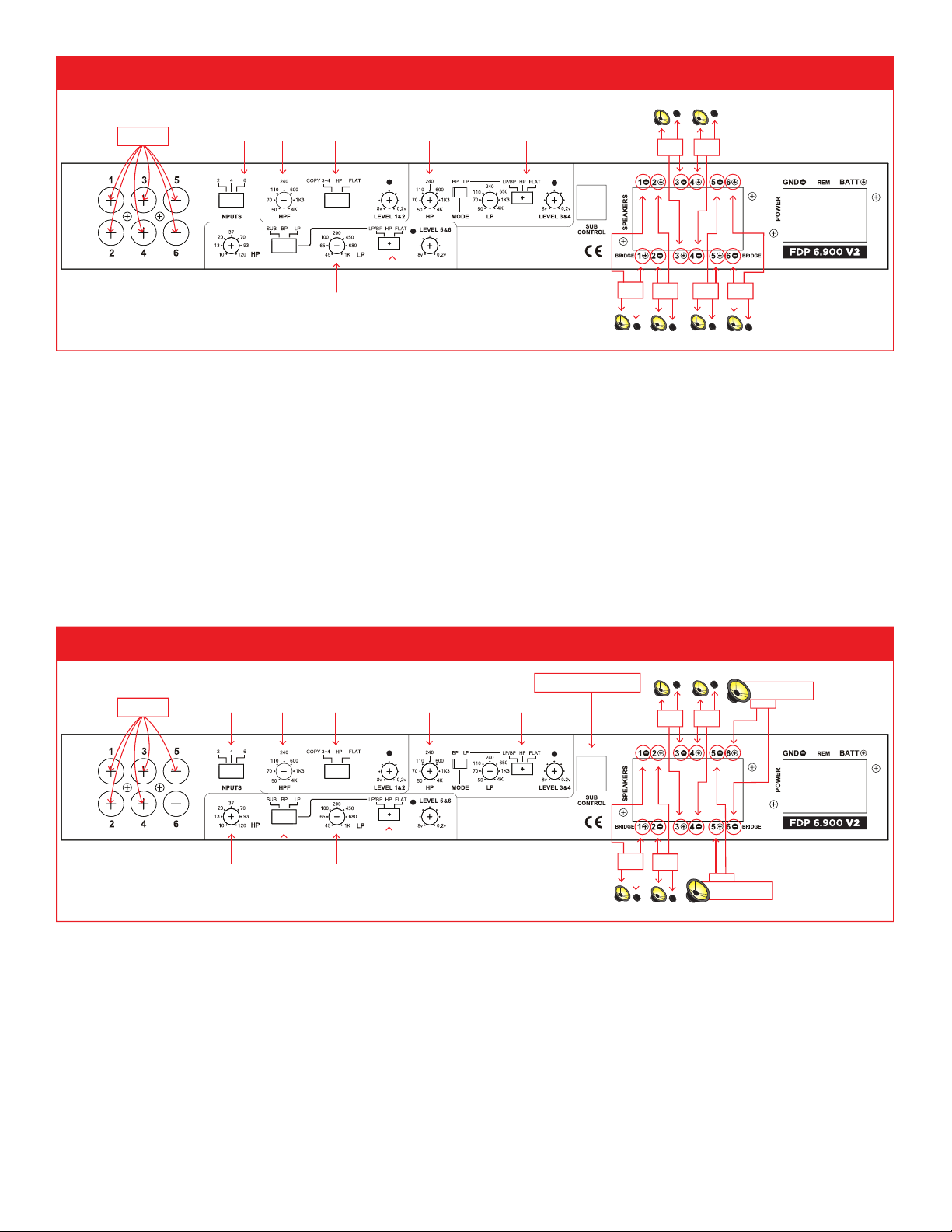

CHANNELS 1 & 2 CROSSOVER CONFIGURATION
• Flat: Full Range Signal. No crossover activated.
• HP: Activates the High Pass Filter for a midbass or tweeter.
• Copy 3 & 4: Copies the signals and filters from channels 3 & 4 to channels 1 & 2. Use this mode when you need
a band pass filter on all four channels. Recommended when bridging channels 1, 2, 3, 4.
CHANNELS 3 & 4 CROSSOVER CONFIGURATION
• Flat: Full Range Signal. No crossover activated.
• HP: Activates the High Pass filter.
• LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.

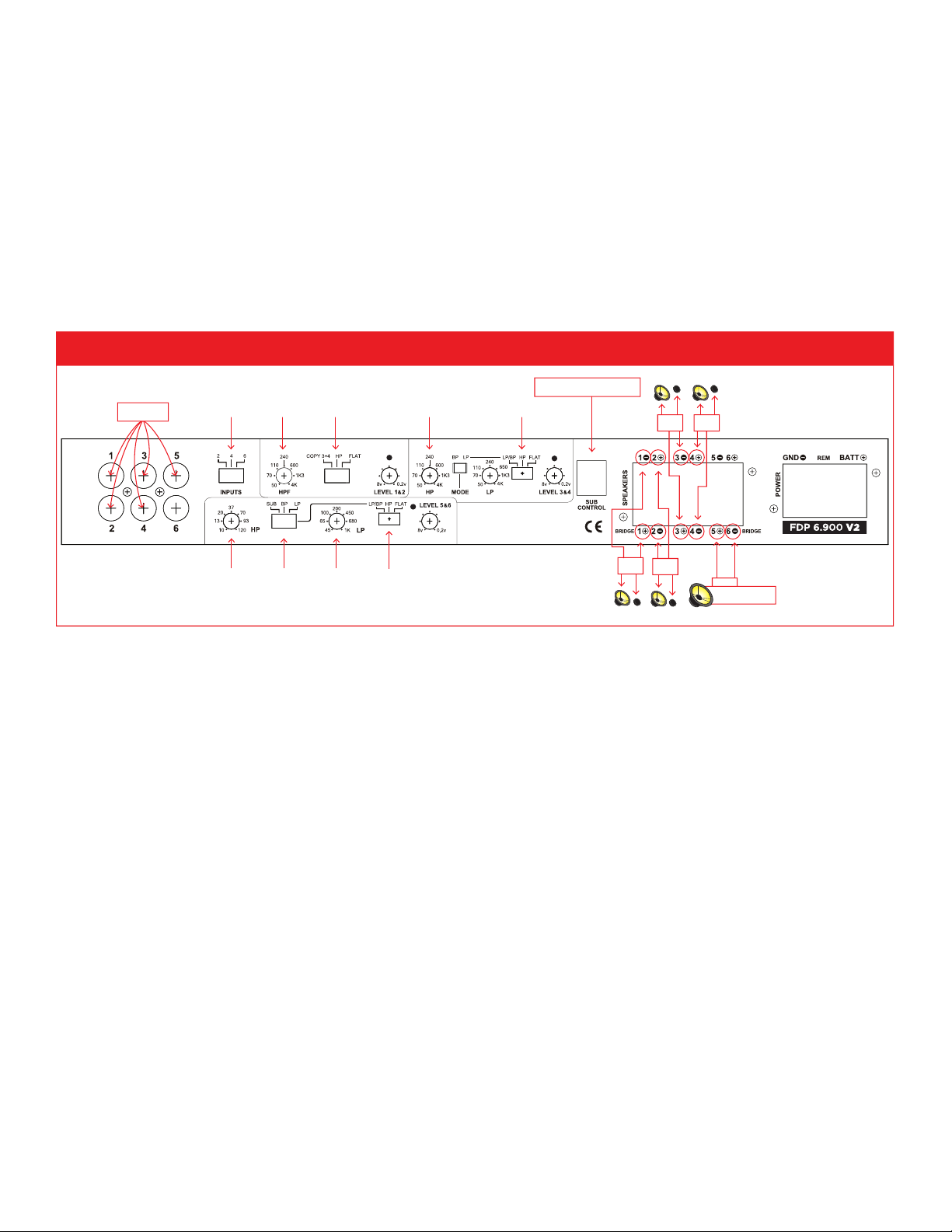

CHANNELS 5 & 6 CROSSOVER CONFIGURATION
• Flat: Full Range Signal. No crossover activated.
• HP: Activates the High Pass filter.
• LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
• Sub Mode: Inputs 5+6 are mixed to mono for bridge mono operation. Crossover slopes become 24dB.
The subwoofer remote volume control is activated. There is a clip distortion light on the remote volume control.
If you see this light is on, reduce volume until the light goes out so that you do not damage your speaker.
AUTOMATIC POWER TURN ON/OFF
1. The best way to automatically turn the amplifier power on and off is to use the REM wire from your source radio
connected to the REM amplifier terminal.
2. If your original equipment stereo or source radio has a BTL amplifier then the RCA inputs have an auto turn
on sensing circuit. When you connect the high level BTL speaker wires to the RCA input the REM wire is not
necessary.
FDP 6.900
V2
: 6-CHANNEL AMPLIFIER
OPERATION / CONFIGURATION MANUAL
