THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING
IC E MAKER
INSTRUCTION MANUAL
Model: ICM1215
1
IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should always
be followed to reduce the risk of fire, electric shock, and/or injury,
including the following:
1. Read all instructions before using.
2. Remove all packing material and care
3. fully check your ice maker to ensure it is in good condition and that
there is no damage to the ice maker or power cord and plug.
4. Before using the Ice maker for the first time, please wait 2 hours after
positioning it, and keep the transparent lid open for at least 2hours
5. Pure water is not allowed to be used on this unit; spring water is
recommended.
6. Ensure the voltage is compliant with the voltage range stated on the
rating label, and ensure the earthing of the socket is in good condition.
7. If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
8. Do not upend this product or incline it over a 45℃ angle.
9. To protect against risk of electric shock, do not pour water on cord,
plug and ventilation, immerse the appliance in water or any other
liquid.
10. Unplug the appliance after using or before cleaning.
11. Keep the appliance 8cm from other objects to ensure the good heat
releasing.
12. Do not use the accessories which are not recommended by
Manufacturer.
13. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision. Children should be supervised to ensure
2
that they do not play with the appliance.
14. Do not use the appliance close by flames, hot plates or stoves.
15. Do not switch on the power button frequently (ensure 5min. interval at
least) to avoid the damage of compressor.
16. Metal sheet or other electric objects are not allowed to be inserted into
the appliance to avoid fire and short circuit.
17. Do not use outdoors.
18. Never clean with scouring powders or hard implements.
19. Please keep the instruction manual.
20. Warning: Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
21. This appliance is intended to be used in household and similar
applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications
3
SPECIFICATIONS
Model Number：ICM1215
Daily Ice Output：26Lbs.(12kg) / 24 hours
Ice Sizes：Small or Large
Ice Storage Capacity：600 g
Refrigerant：R600a
Water Reservoir Capacity：2.1 L
Voltage: AC110-120V
Frequency: 60 Hz
Power Consumption: 120 W
Unit Dimensions： 9.76(W)x14.65(D)x12.40(H) Inches
N.W: 9.5kg
G.W: 11.2kg
4

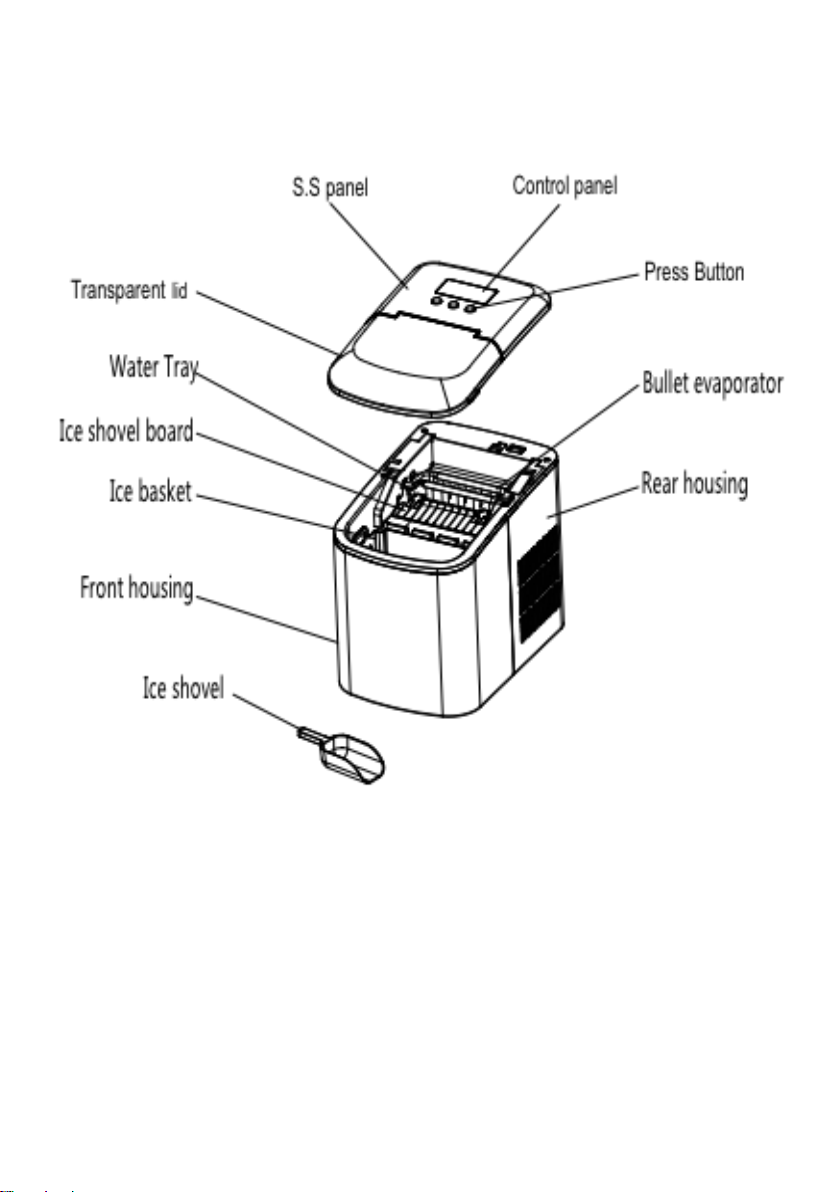

DESCRIPTION
5
FEATURE:
Produce up to 26lbs./12 Kg of bullet ice per 24 hours
Elegant compact design with colorful housing optional
Removable ice basket is included
Big transparent full-view window. ice making process is visible through this
special window
Easy-use control design. Two ice sizes are optional. Self-indicator of full ice &
water shortage is included
Self-clean function is optional.
Professional anti-bacterium material is included
CONTROL PANEL OPERATION
Clean S/L Start/stop
ICE MAKING
STATUS
CLEA
N
LARGE ICE
SMALL ICE
FULL ICE ALARM
WATER
STROAGE
ICE MAKING
TIME
LARGE/SMALL ICE
6
1. Plug in the power, the display will be on, the machine will start the de-icing
function first, and the machine will automatically enter the standby mode after no
operation.
2. Clean Button: cleaning function, press the Clean button, then press the
Start/Stop button, the machine will automatically enter the cleaning function, the
period is about 150 seconds, please do not turn off the power during the cleaning,
the machine automatically enters the standby mode after cleaning.
3. S/L Button: Select the ice size mode. The default is the Large Ice production
mode. The icon of the selected mode is displayed. The small size ice making time
is 7 minutes while Large ice making time is 8 minutes.
4. Start / Stop Button: After plugging in the power, press the Start / Stop button,
the machine starts the ice making function, the default is the Large ice production
mode.
5. Time Display: After the machine starts to make ice, the time starts to count, the
calculation time starts in minutes, the machine display time does not stop during
the machine work, when the display is 99:99, the time is reset from the new zero,
and so on.
6. Water Shortage Alarm: If no water flow is detected during 5 seconds during
pumping, the water shortage icon is displayed and the machine stops working.
7. Ice Full Reminder: When the machine compressor is not working, the infrared
indicator light is blocked for more than 5 seconds, then the ice full icon is
displayed, and the machine stops working. The ice full icon flashes in 1/4 second.
The infrared light continues to be detected, and the machine continues to work
when the detection is not blocked.
7
OPERATING INSTRUCTIONS
Step 1
Open the lid and take out the basket and add water to the reservoir.
Note: There is a maximum scale MAX in the reservoir. The water should not exceed
the MAX position. If the water exceeds the maximum scale MAX, you need to open
the bottom drain plug, release the excess water, and cover with a transparent cover.
Step 2
Plug in the power and press the Start/stop button to start the machine.
Step 3
Select the size of the ice you want to make, default Large ice
Note:
1. When the indoor temperature is lower than 60 °F (15°C), please choose small ice.
When the indoor temperature is higher than 85 °F (30°C), it is recommended to
choose Large ice.
2. The three cycles used for the first time, the ice produced is small and irregular.
3. When the ice basket is full, please take out the ice immediately, do not let the ice
overflow the ice basket
8
CLEANING & USE GUIDANCE
1. Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator
frequently. When cleaning, unplug the unit and remove the ice cubes. Use a
diluted solution of water and vinegar to clean the inside and the outside surface
of the Ice maker. Do not spray Ice maker with chemicals or diluted agents such
as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-in structure,
clear of obstruction. Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may not have enough
water to pump for air retard, in this case, repress “START/STOP” to restart the
ice maker is okay.
4. To ensure the cleanness of ice, please change water for water reservoir at least
once one day. If do not use for a long time, please drain the water out and clean
it up.
5. If the compressor takes a strike action for shortage water, fully water or
interruption of power supply, it will delay for 3mins to start up after restarted.
6. Always use fresh water before starting ice production either at initial installation
or after a long shut-off period.
9
TROUBLESHOOTING
1. Please note, if a power failure occurs due to disconnection of the power cord, or the
power button has been pushed off during an ice making cycle, small ice chips may
form and lodge in the automatic shovel causing it to jam. If this occurs, the ice
chips may be removed by disconnecting the power cord and gently pushing the
shovel to the rear of the cabinet and removing the ice chips, then restarting.
2. Please check if the water reservoir is flat when the ice shovel can not remove the
ice to ice basket. If not, please push the ice shovel gently by finger, then press
POWER button to restart.
PROBLEM
POSSIBLE CAUSE
SUGGESTED SOLUTIONS
The compressor
works abnormally with
a Buzzing
Noise
The voltage is lower
than
recommended
Stop the Ice maker and do not restart
until the voltage is normal.
Water shortage
indicator
light is on
1.There is no water
2.The pump is full of air
1.Add to some water until it reaches
MAX position
2.Press POWER button to restart
Indicator lights on
display are not on
Blown fuse/ No power
Replace fuse / Turn power on
The Ice made is too
large
and with pieces
sticking
together.
1.water temperature is
too low
2.Ice of previous cycles
left in the water tray
1.Select small size
2.Take out the ice under the standby
state
All indicators twinkle
simultaneously
Water tray is blocked by
ice cube
Unplug the power to take out the ice
which blocking the tray, then plug the
power and press the POWER button,
the machine will restart 3mins later.
10
WARNING
1. If the power cord is damaged; it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 160°F to 194°F (70°C to 90°C) during operation
and surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may appear “Cloudy”. This is air trapped
in the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the
appliance.
7. Do not immerse in water
