7-INCH AUDIO/VIDEO RECEIVER
iLX-507
HALO9 9-INCH AUDIO/VIDEO RECEIVER
iLX-F509
HALO11 11-INCH AUDIO/VIDEO RECEIVER
iLX-F511
9-INCH SEPARATE AUDIO/VIDEO RECEIVER
i509
• OWNER’S MANUAL
Please read before using this equipment.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
• MODE D’EMPLOI
Veuillez lire avant d’utiliser cet appareil.
1500 Atlantic Blvd,
Auburn Hills, Michigan 48326, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
161-165 Princes Highway,
Hallam Victoria 3803, Australia
Phone 03-8787-1200
Ohmstrasse 4, 85716 Unterschleissheim, Germany
Phone: +49 (0) 89-32 42 640
For contact information on your respective country,
please visit www.alpine-europe.com.
Aurora House, Deltic Avenue
Rooksley, Milton Keynes, MK13 8LW
United Kingdom
Phone: 0345-313-1640
The 9th Towers, Tower B, 24th Floor, Unit TNB01-03,
33/4 Rama 9 road, Huay Kwang, Bangkok, 10310, Thailand
Phone +66 (2) 090 9596
Designed by ALPS ALPINE Japan
68-41657Z86-A (Y_A5)
Model: Music Halo
2-EN
Thank you for purchasing this Alpine product. Please take a moment to protect your purchase by registering your
product now at the following address: www.alpine-usa.com/registration.
You will be informed of product and software updates (if applicable), special promotions, news about Alpine.
Merci d’avoir acheté ce produit Alpine. Nous vous invitons à consacrer un moment à la protection de votre achat en
enregistrant votre produit dès maintenant à l’adresse suivante : www.alpine-usa.com/registration.
Vous serez tenu informé des mises à jour des produits et des logiciels (le cas échéant), des promotions spéciales et de
l’actualité d’Alpine.
Gracias por adquirir este producto Alpine. Con solo unos pocos pasos podrá proteger su producto, registrándolo a través
de la siguiente dirección: www.alpine-usa.com/registration.
Recibirá información sobre nuevos productos y software, promociones especiales y novedades sobre Alpine.
3-EN
English
CONTENTS
Operating Instructions
PRECAUTIONS
IMPORTANT INFORMATION ..........................................7
WARNING
Points to Observe for Safe Usage ...............................7
WARNING ...........................................................7
CAUTION.............................................................8
NOTICE ................................................................9
Getting Started

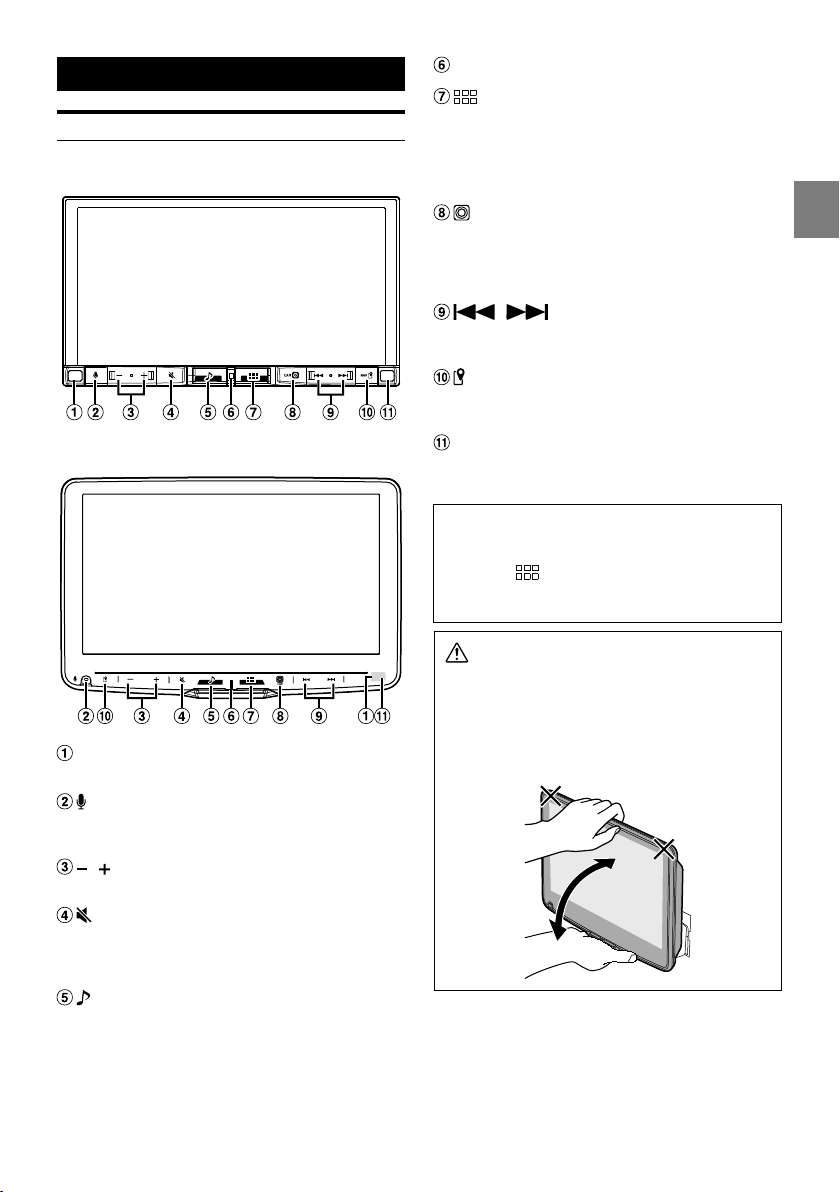

Location of Controls ..................................................... 11

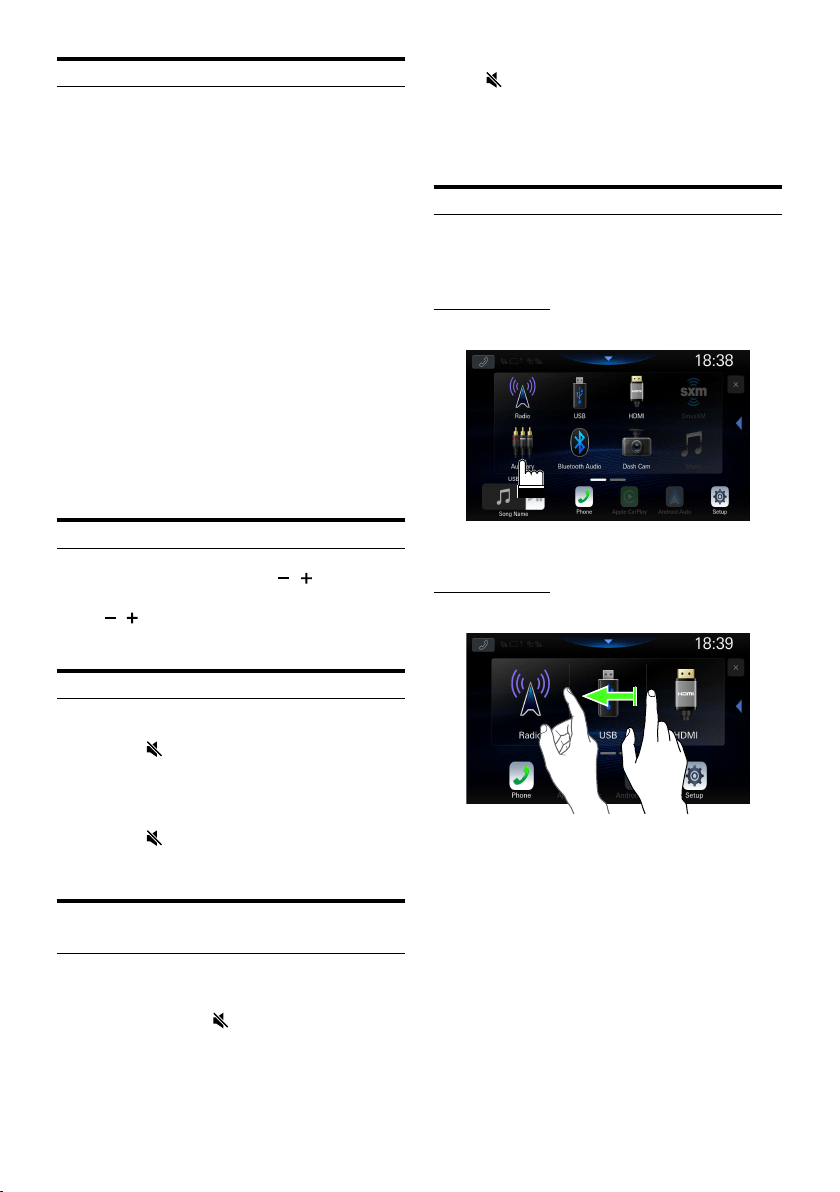

Turning Power On or Off .............................................12
Adjusting the Volume .................................................. 12
Lowering Volume Quickly .......................................... 12
Turning off the screen/button illumination
(Display OFF) ...............................................................12
Touch Screen Operation .............................................12
Switching Sources .........................................................13
Selecting an Item in a List ..........................................13

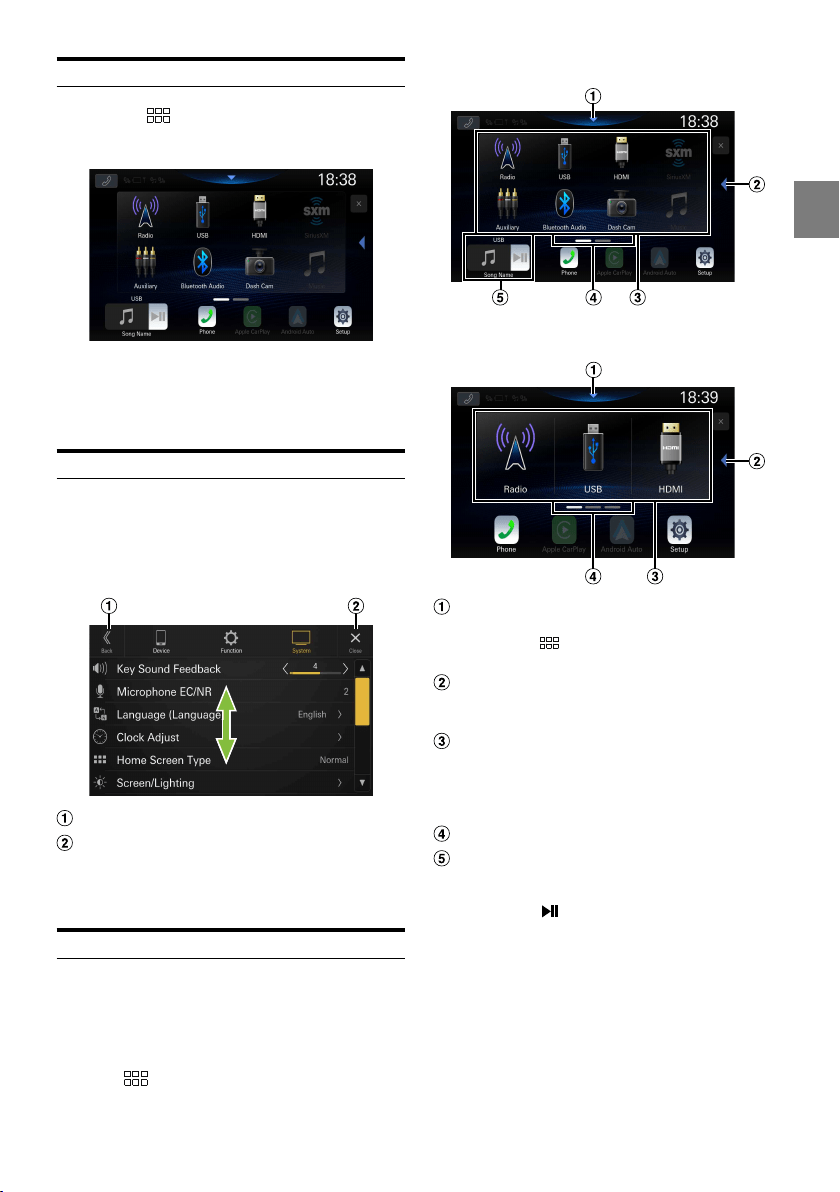

About the HOME Screen .............................................13

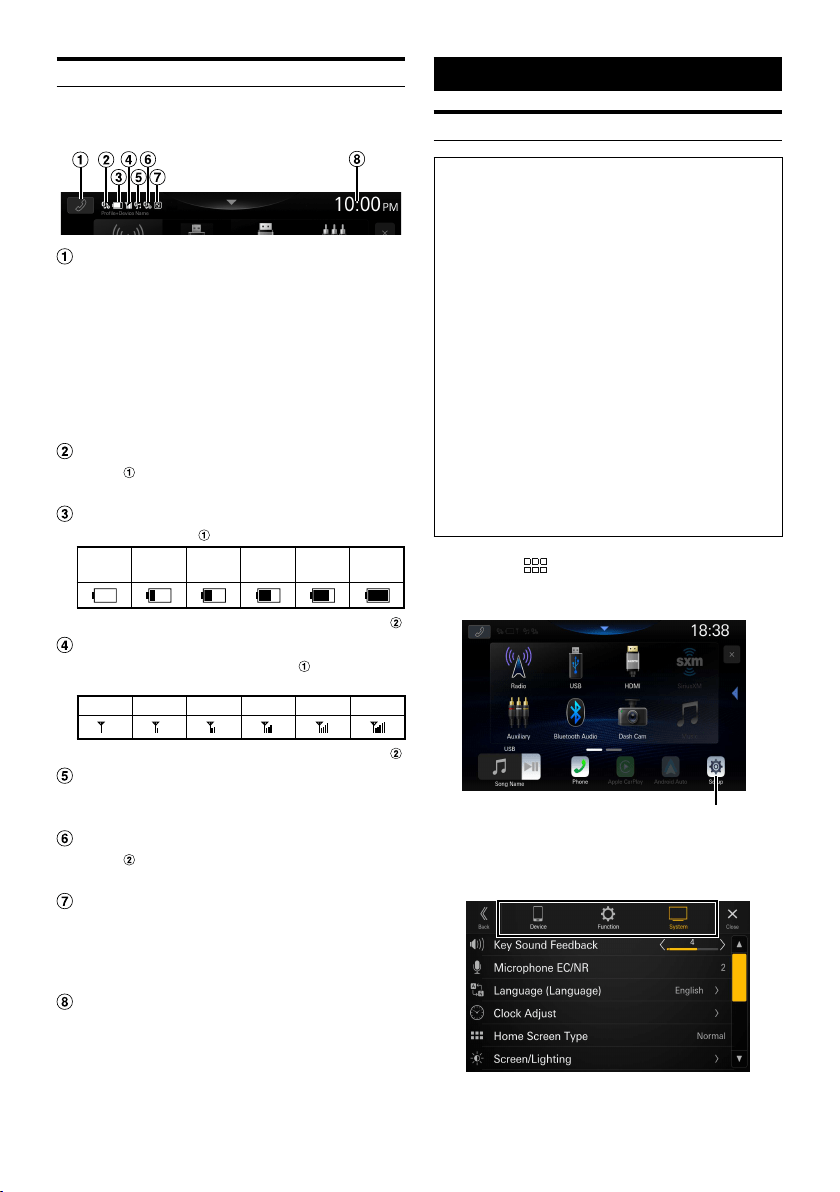

About the Indicator Display ......................................14
Setup
Setup Operation ............................................................ 14
Device Setup

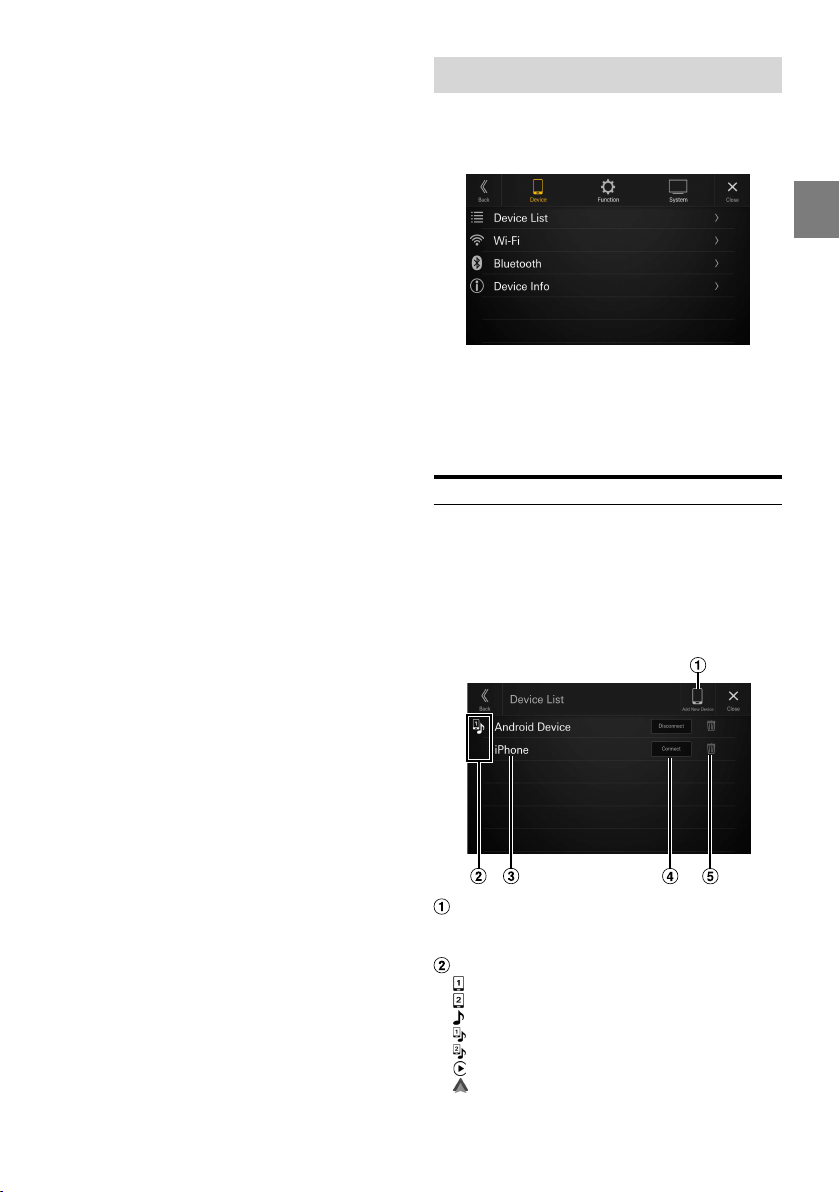

Displaying Device List..................................................15
Pairing the Bluetooth® Device .................................. 16
Connecting the Device Registered in the
Device List ....................................................................16
Disconnecting the Connected Device ...................16
Deleting a Bluetooth Device from the list ............ 16
Wi-Fi Setup .......................................................................17
Setting the Wi-Fi ....................................................... 17
Changing the Wi-Fi password of the unit ........17
Bluetooth Setup .............................................................17
Setting the Bluetooth ............................................. 17
Setting the Auto Connection ...............................17
Setting the PIN Code...............................................17
Displaying Device Information .................................17
Function Setup

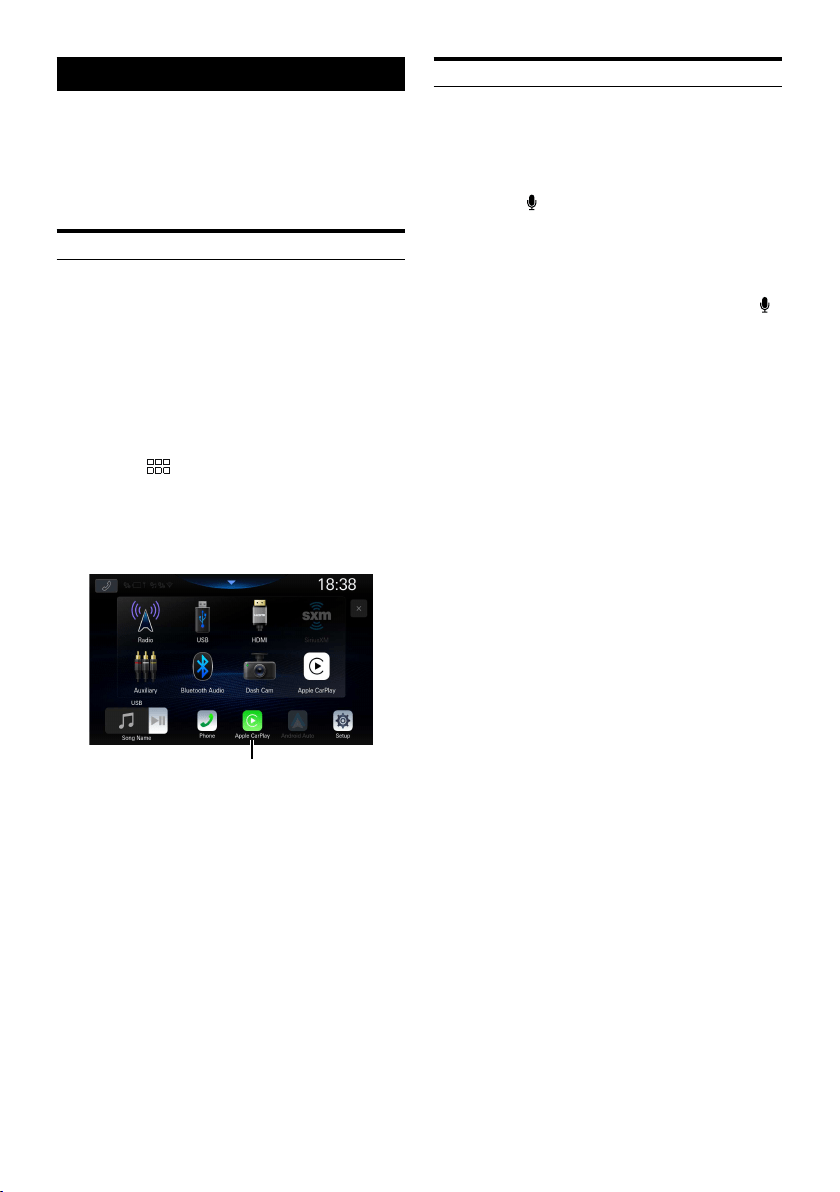

Apple CarPlay Setup .....................................................18
Adjusting the Media Level ....................................18
Adjusting the Phone Call Volume ......................18
Adjusting the Ringtones and Alerts Level .......18
Adjusting the Notifications and Guidance
Level ..........................................................................18
Adjusting the Voice Recognition Level ............18
Adjusting the Microphone Level ........................18

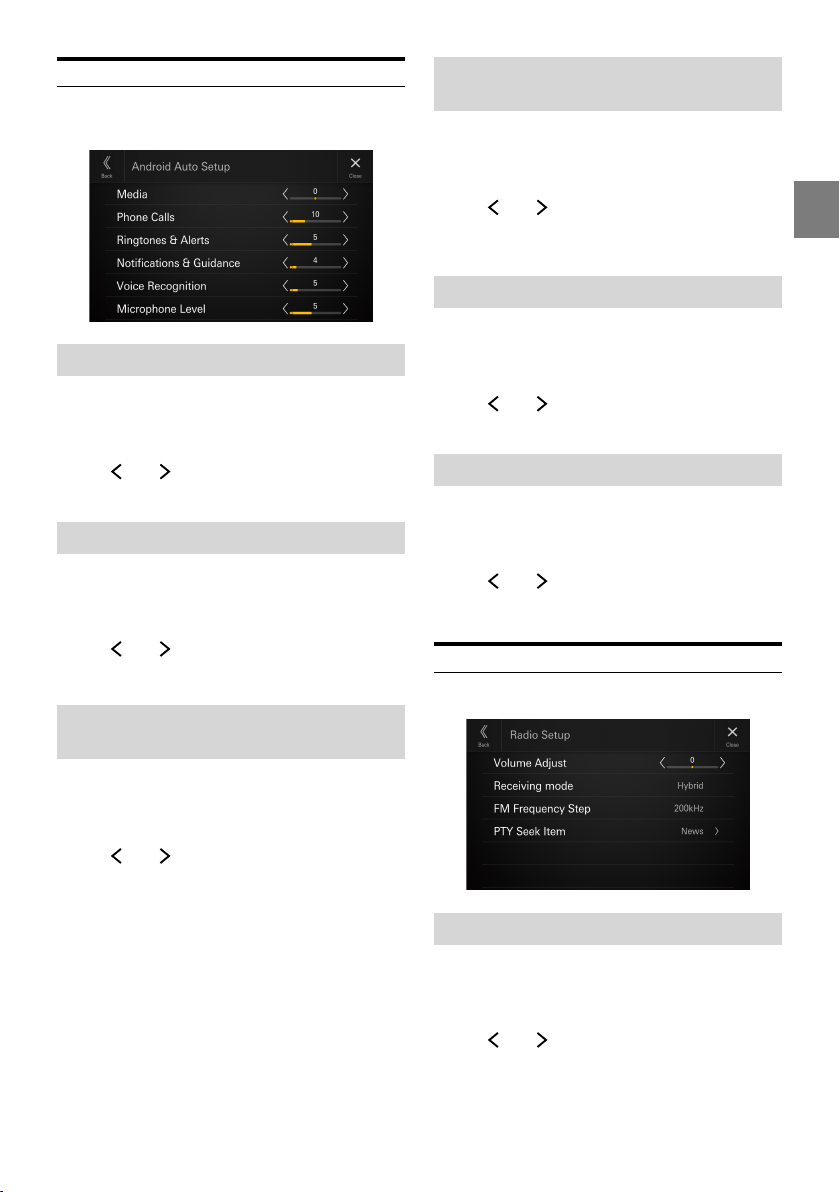

Android Auto Setup .....................................................19
Adjusting the Media Level ....................................19
Adjusting the Phone Call Volume ......................19
Adjusting the Ringtones and Alerts Level .......19
Adjusting the Notifications and Guidance
Level ..........................................................................19
Adjusting the Voice Recognition Level ............19
Adjusting the Microphone Level ........................19
Radio Setup ..................................................................... 19
Adjusting the Radio Volume ................................19
Setting the Receiving mode .................................20
Setting the FM Frequency Step...........................20
Setting the PTY Seek Item ....................................20

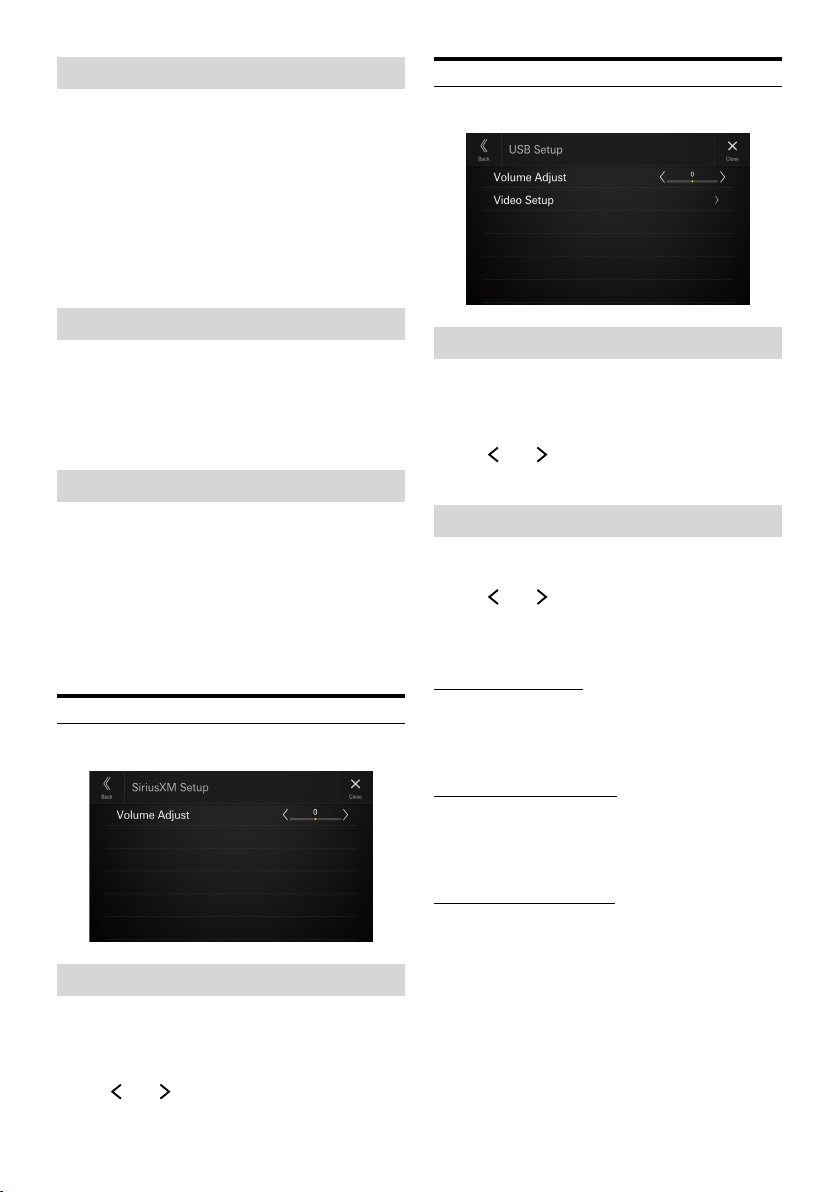

SiriusXM Setup ............................................................... 20
Adjusting the SiriusXM Volume ..........................20
USB Setup ........................................................................20
Adjusting the USB Volume ....................................20
Video Setup ................................................................ 20

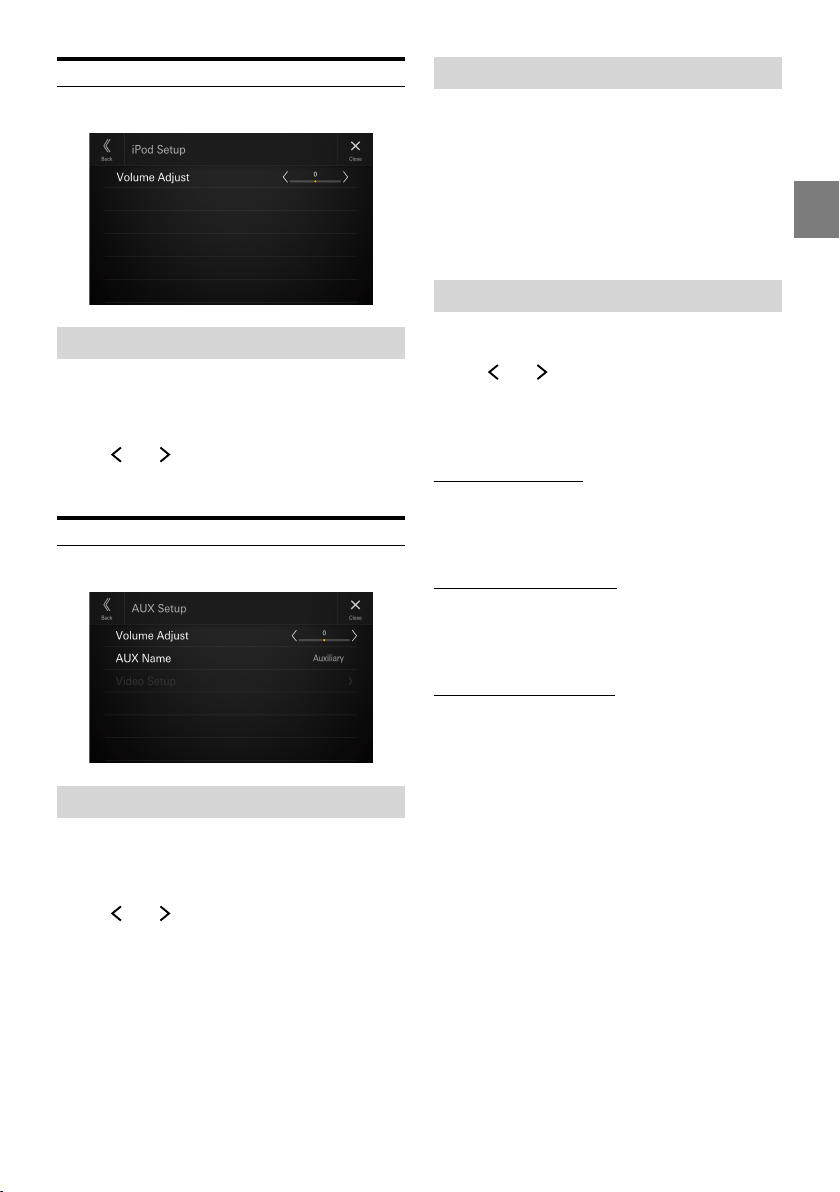

iPod Setup ........................................................................21
Adjusting the iPod Volume ...................................21
AUX (Auxiliary) Setup ...................................................21
Adjusting the AUX Volume ................................... 21
Setting the Auxiliary (AUX) Name ......................21
Video Setup ................................................................ 21
HDMI Setup ..................................................................... 22
Adjusting the HDMI Volume ................................22
Setting the HDMI Name .........................................22
Video Setup ................................................................ 22
Setting the HDMI Selector .................................... 22
Phone Setup ....................................................................22
Adjusting the Ringtone Volume .........................22
Adjusting the Phone Call Volume ......................23
Adjusting the Microphone Level ........................23
Setting the Phonebook Transfer .........................23
4-EN
Setting the Phonebook Name Order ................ 23
Setting the Phonebook Calendar .......................23

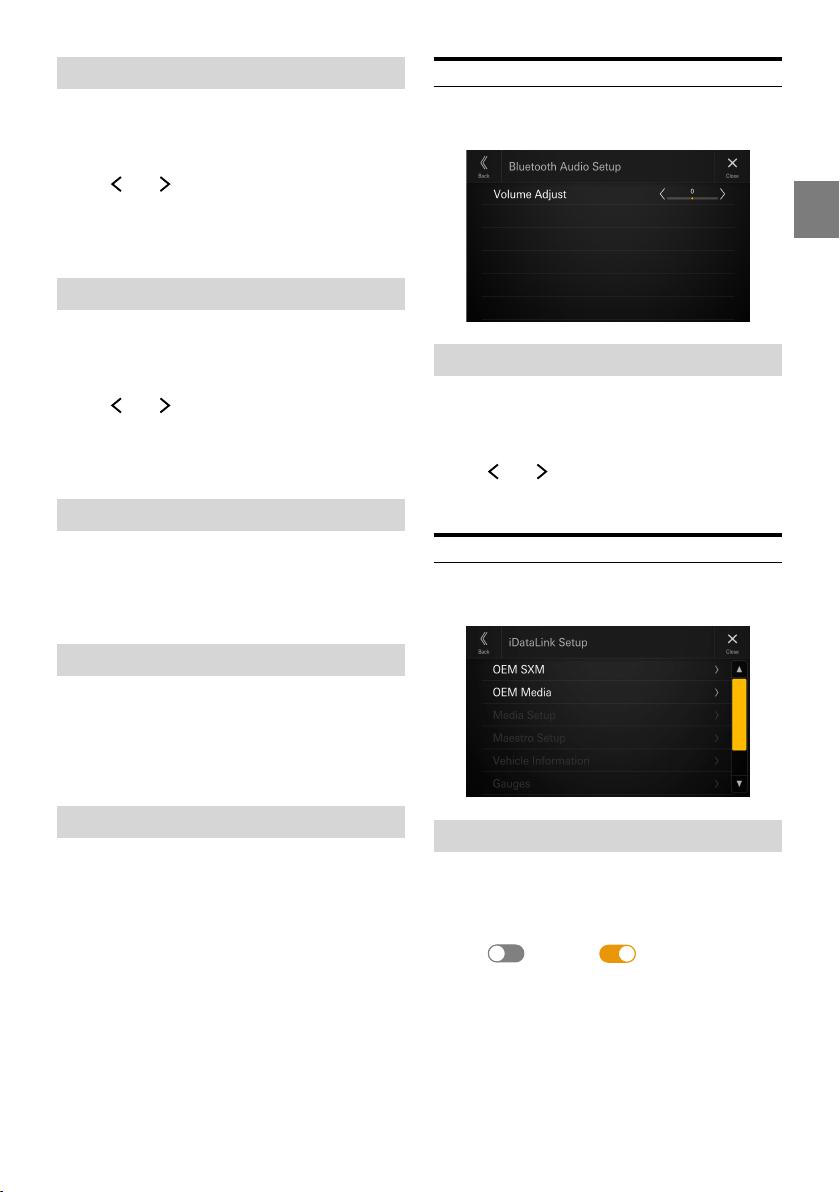

Bluetooth Audio Setup ...............................................23
Adjusting the Bluetooth Audio Volume ...........23
Factory Audio Setting ..................................................23
Setting the OEM SXM .............................................23
Setting the OEM Media ..........................................24
Setting the Media ....................................................24
Setting the Maestro Module ................................ 24
Setting the Vehicle Information ..........................24
Setting the Gauges ..................................................24
Setting the Parking Sensor ................................... 24
Setting the Climate ..................................................24

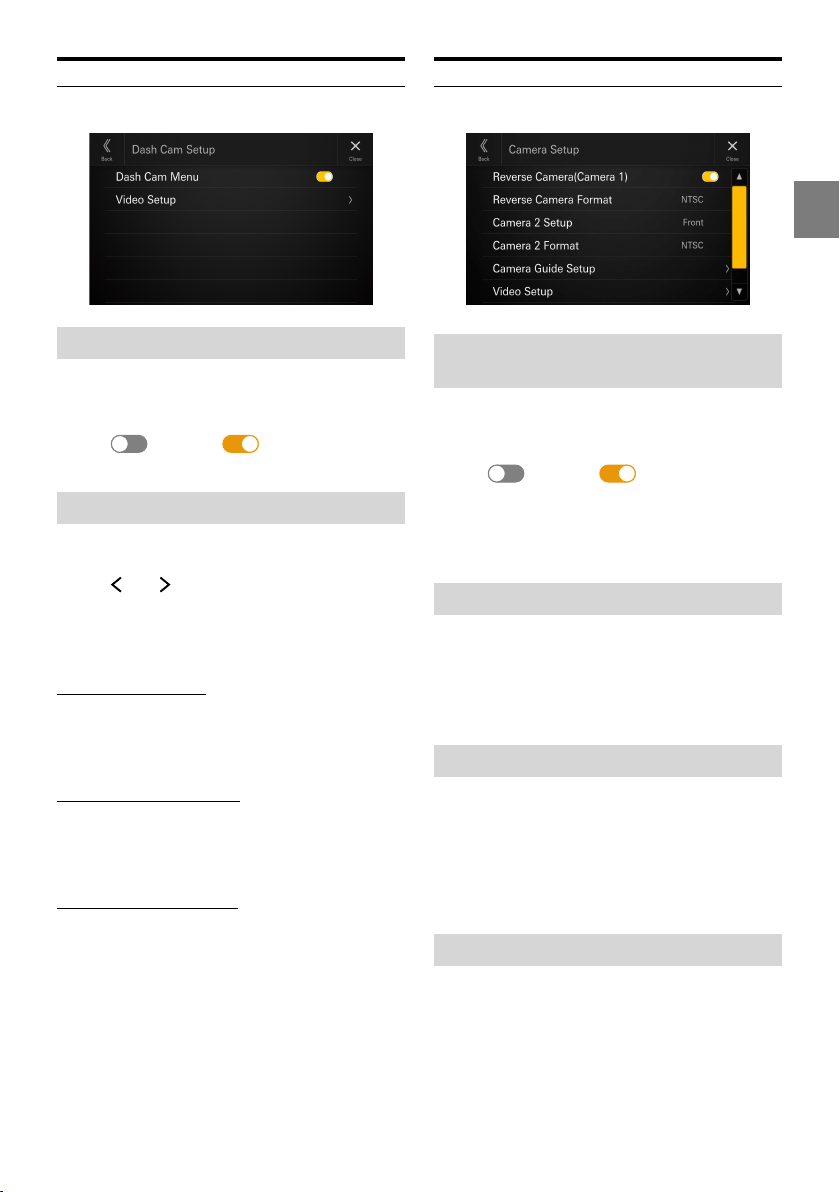

Dash Cam (Drive Recorder) Setup ...........................25
Display the Dash Cam Menu ................................ 25
Video Setup ................................................................ 25

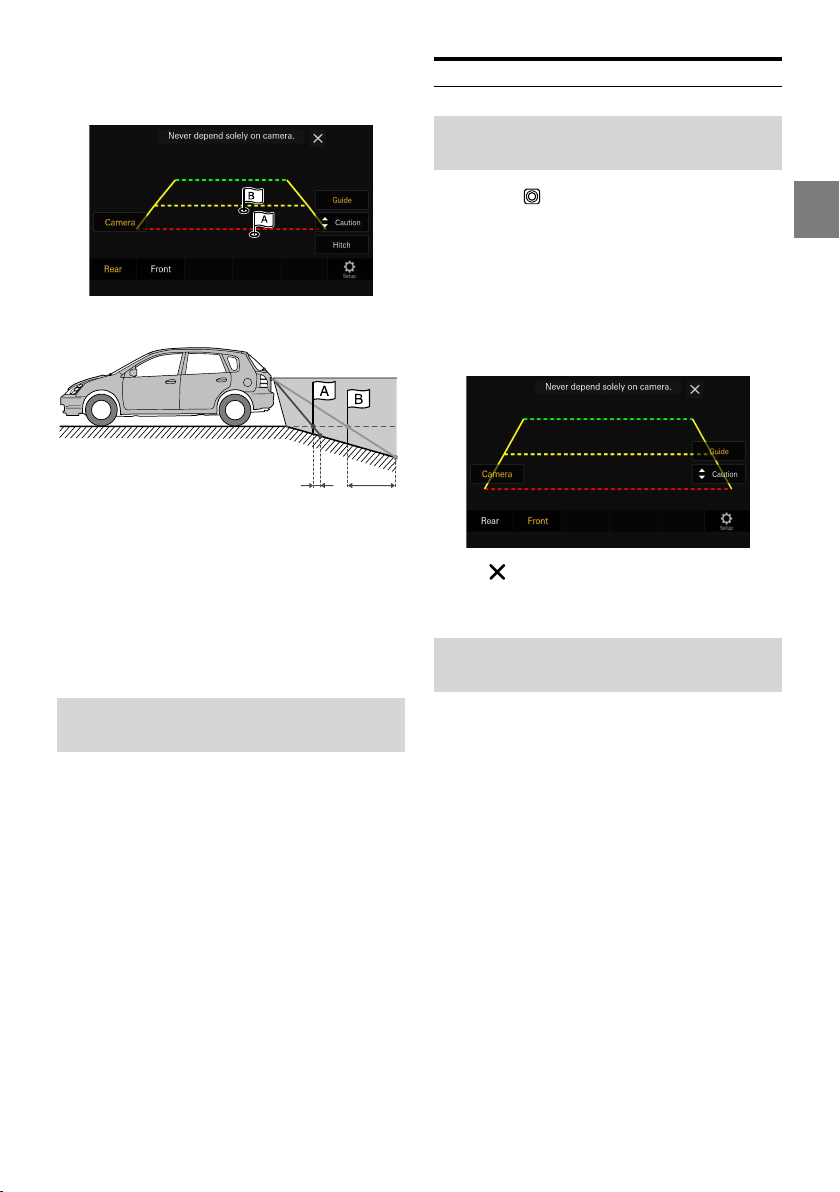

Camera Setup ................................................................. 25
Setting the Reverse Camera
(Camera 1) ...............................................................25
Reverse Camera Format Setting ......................... 25
Camera 2 Setup ........................................................25
Camera 2 Format Setting ......................................25

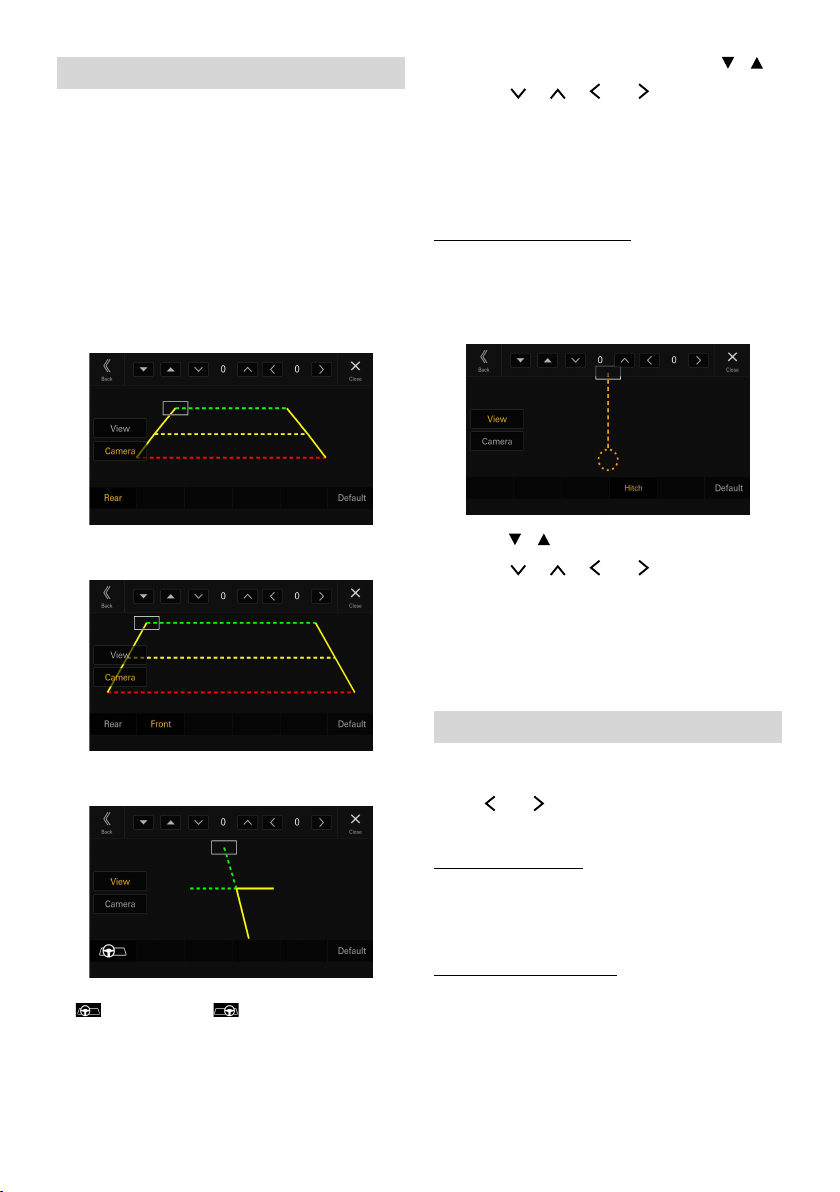

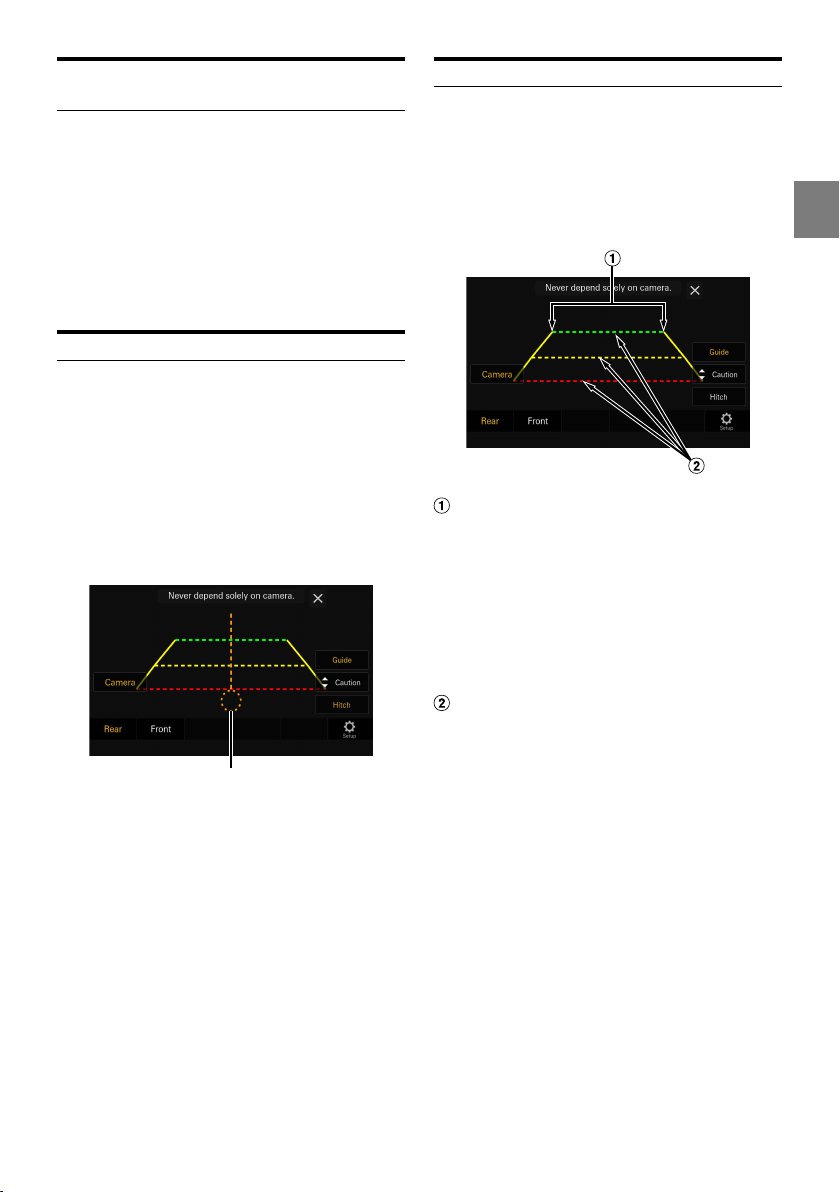

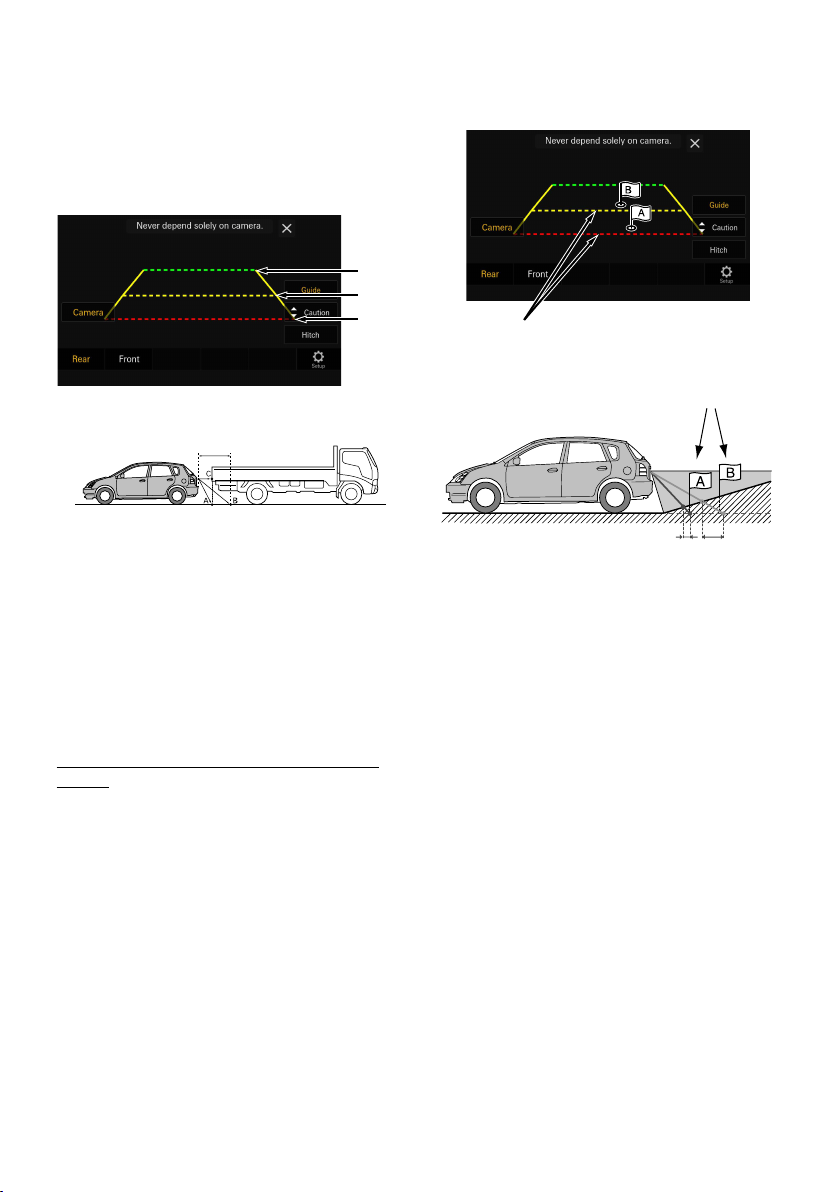

Camera Guide Setup ............................................... 26
Video Setup ................................................................ 26
Setting Audio Mute On/Off while
Backing up ..............................................................27
System Setup
Adjusting the Key Sound Volume ...........................27
Setting the Microphone Effect ................................. 27
Language Setup ............................................................28
Adjusting the Clock ......................................................28
Setting the Time Format ........................................ 28
Setting the Time Zone ............................................28
Setting the Daylight Savings Time .....................28
Setting the Home Screen Type .................................28
Screen/Lighting Setup ................................................28
Setting the Brightness of the Backlighting
(Dimmer) ..................................................................28
Adjusting the Dimmer of Button Lighting at
Night..........................................................................28
Adjusting the Minimum Level of Backlight ....29
Switching the Display Color ...................................... 29
Editing HOME screen ...................................................29
Vehicle Type Setup ........................................................29
Steering wheel Setting ...........................................29
Fuel Type Setting ......................................................29
EV Connector Type Setting ................................... 29

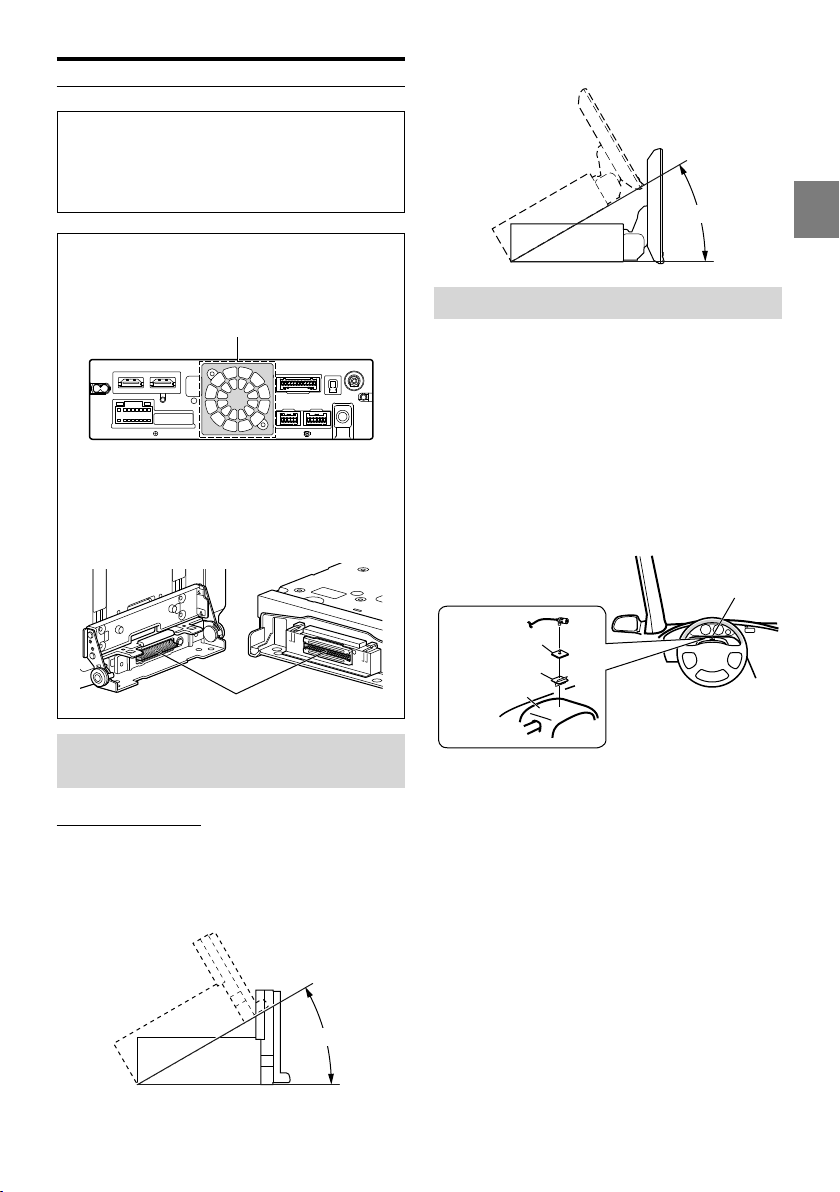

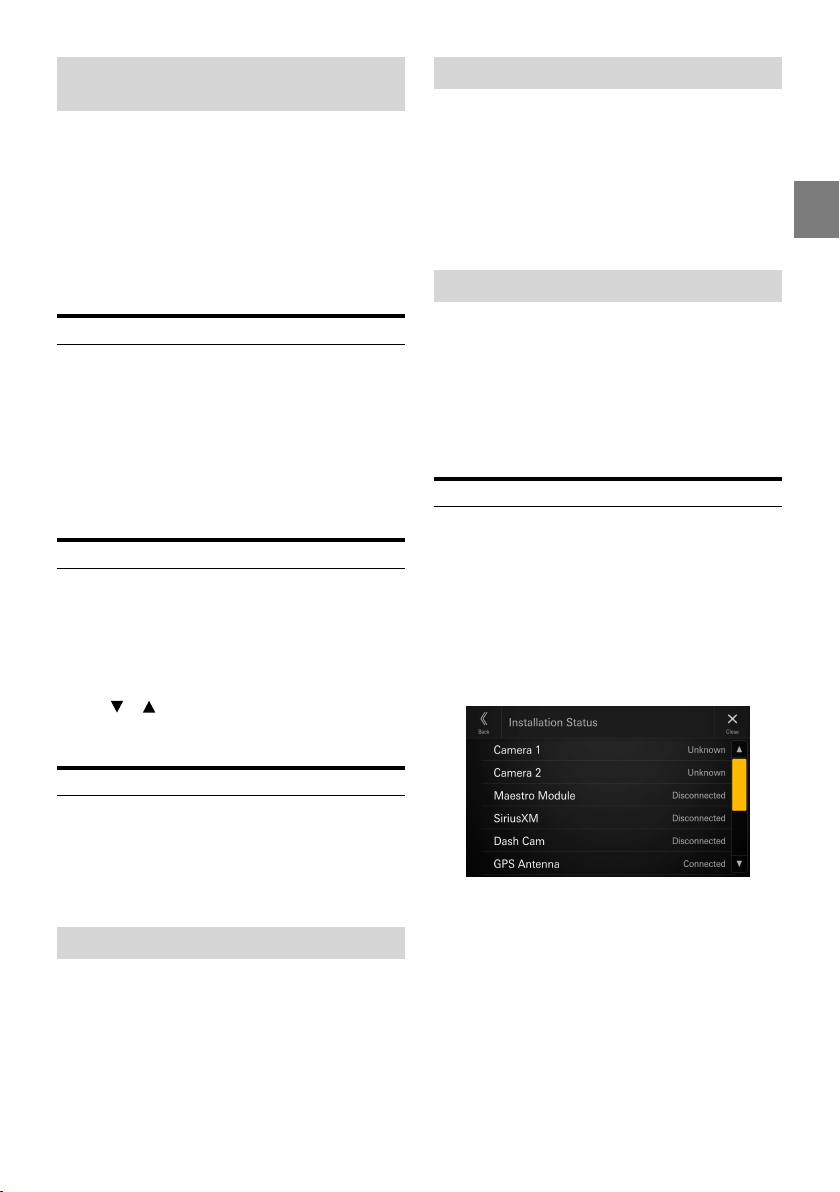

Installation Setup .......................................................... 29
About/Software Update iLX-507/iLX-F509/
iLX-F511/i509 ..............................................................30
Displaying the Product Information..................30
Updating Software Version ..................................30
Dedicated Tuning According to Your Car
(Car by Car Update) ..............................................30
Displaying Software License ................................ 30
Initializing the Sound Settings ............................ 30
Initializing the System ............................................ 30
Sound Setup
Setting the Media Xpander (MX) ............................. 31

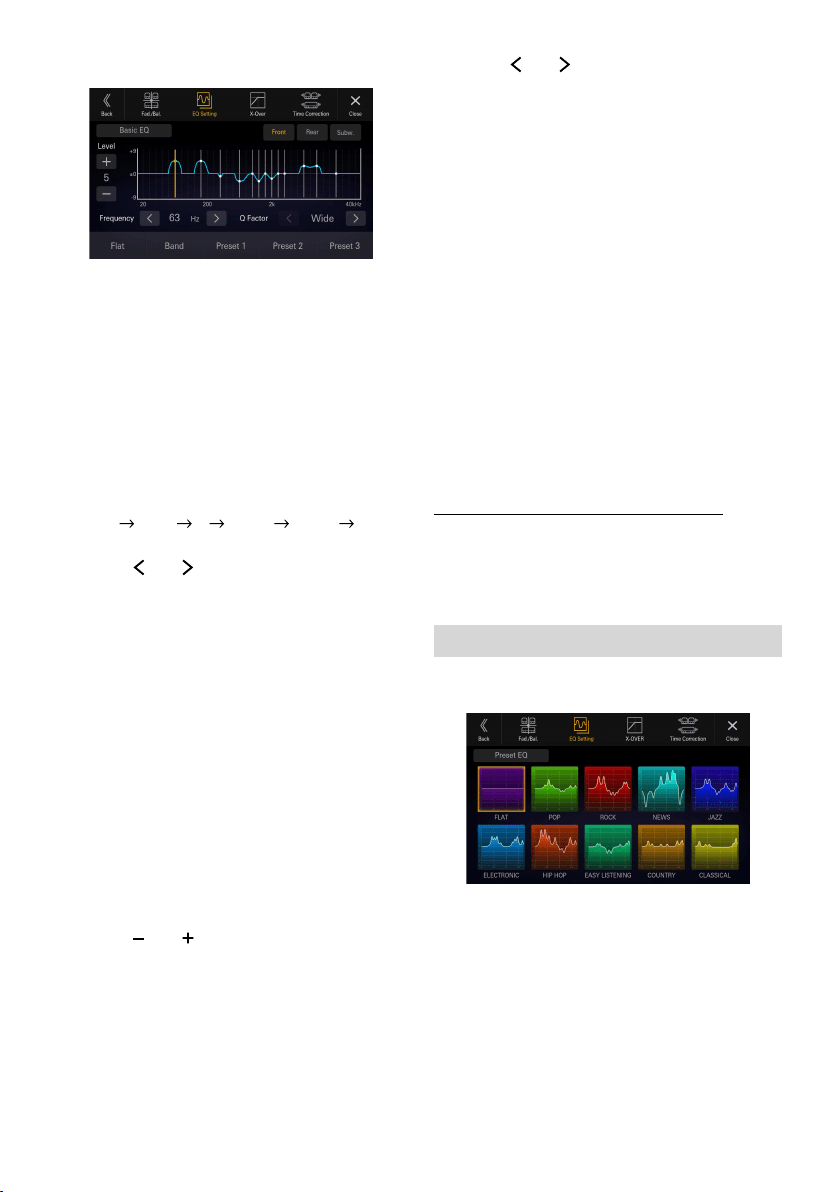

Equalizer Settings ..........................................................31
Adjusting the Parametric Equalizer Curve
(Advanced EQ/Basic EQ) .....................................31
Equalizer Presets (Preset EQ) ................................32

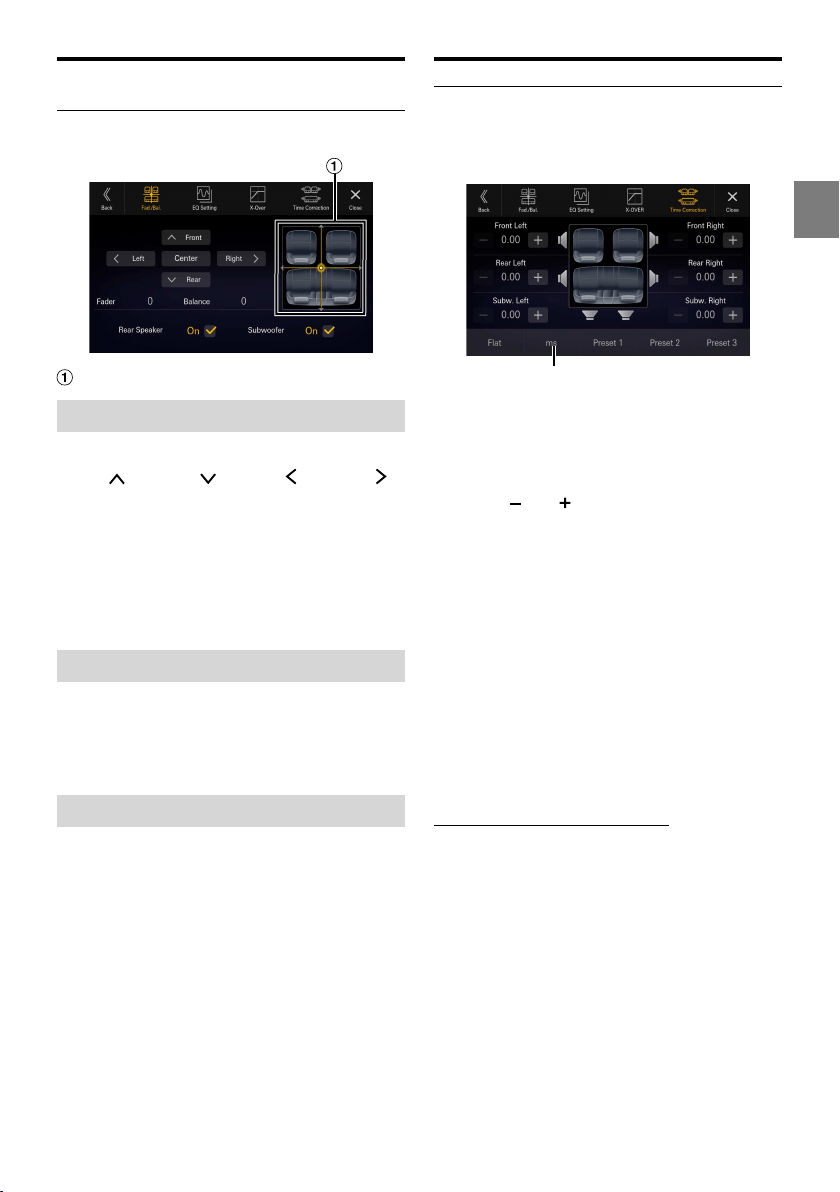

Fader/Balance/Rear Speaker/Subwoofer
Settings..........................................................................33
Setting the Fader/Balance ....................................33
Rear Speaker Setting ...............................................33
Turning Subwoofer ON/OFF ................................33

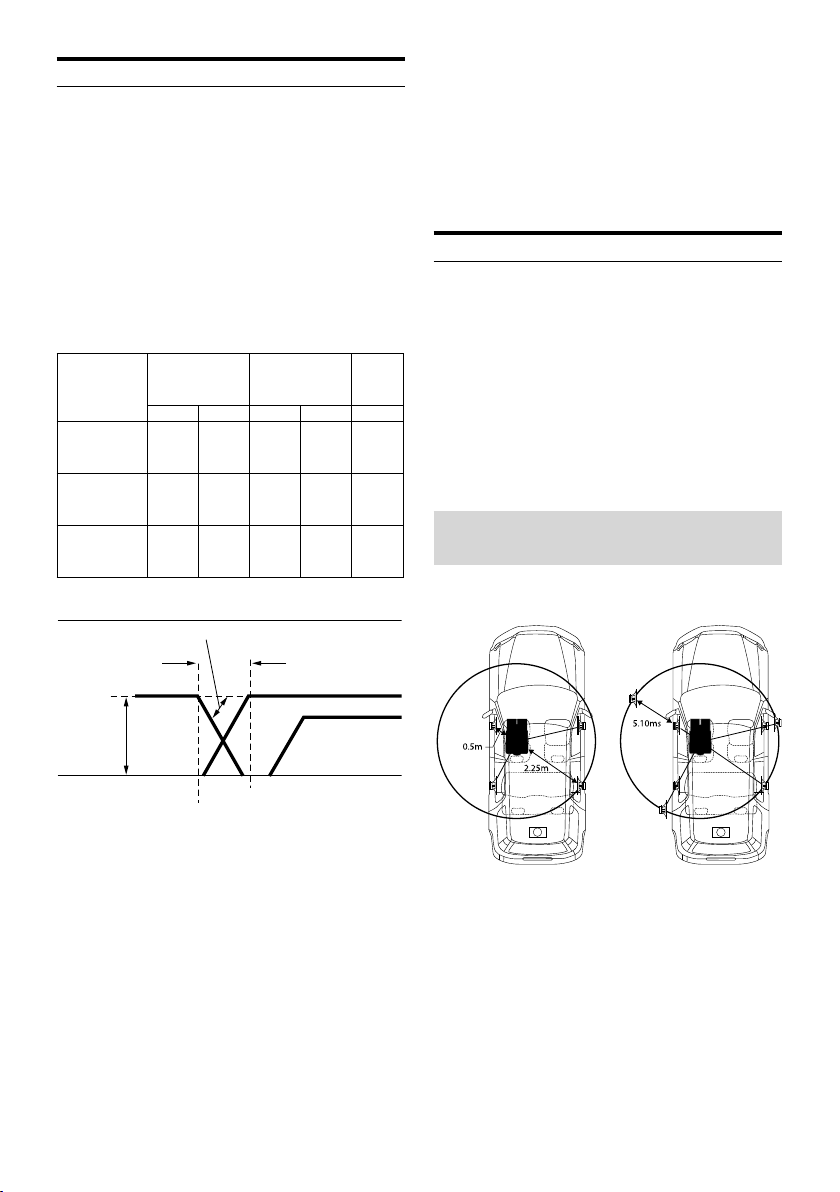

Time Correction Settings ............................................33

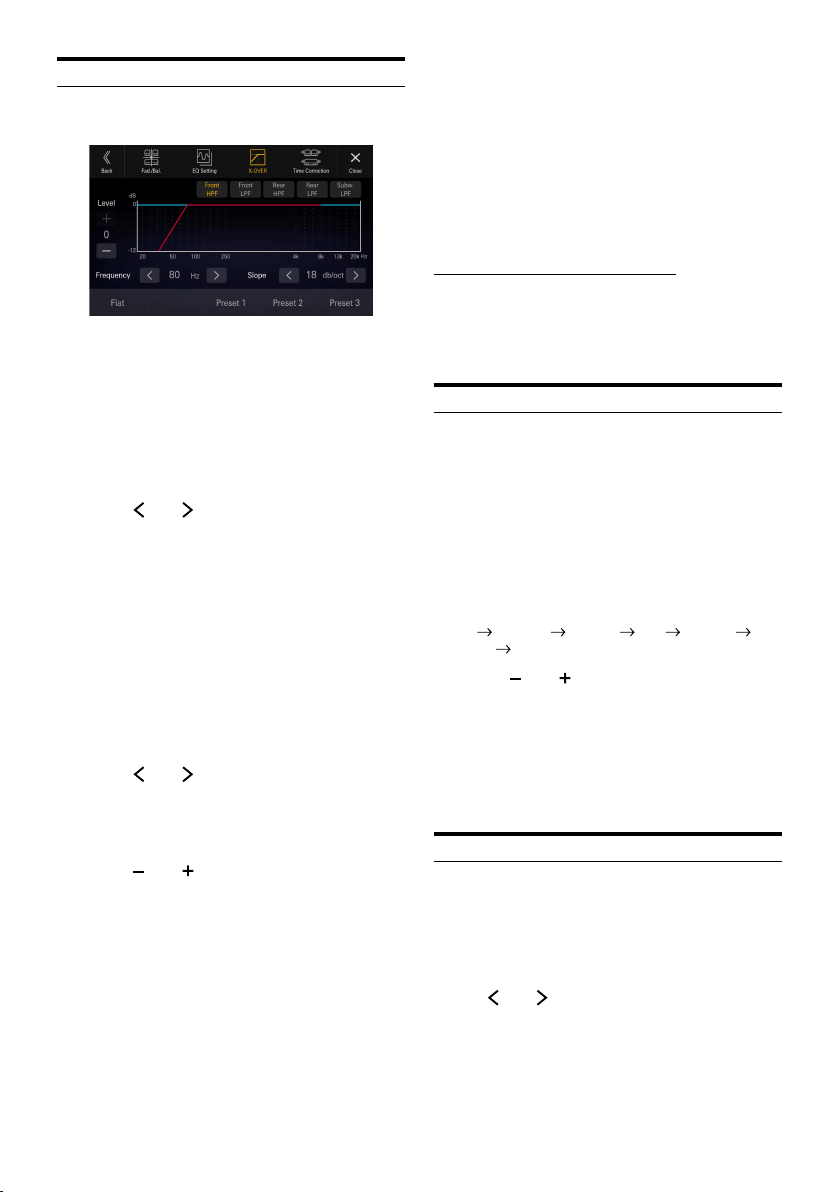

Crossover Settings (X-OVER) .....................................34
Setting the "bass engine" ........................................... 34
Adjusting Bass Level/Treble Level ........................... 34
Setting the Subwoofer ................................................35
Adjusting the Subwoofer Level ...........................35
Setting the Subwoofer Phase ..............................35
Defeat Setting.................................................................35
About the Crossover ....................................................36
About Time Correction ................................................36
Apple CarPlay (Optional)
Access to Apple CarPlay ..............................................38
Using Voice Recognition function ...........................38
Android Auto (Optional)
What is Android Auto ..................................................39
Activate Android Auto .................................................39
Using Voice Recognition function ...........................39
Radio/HD Radio™/RBDS

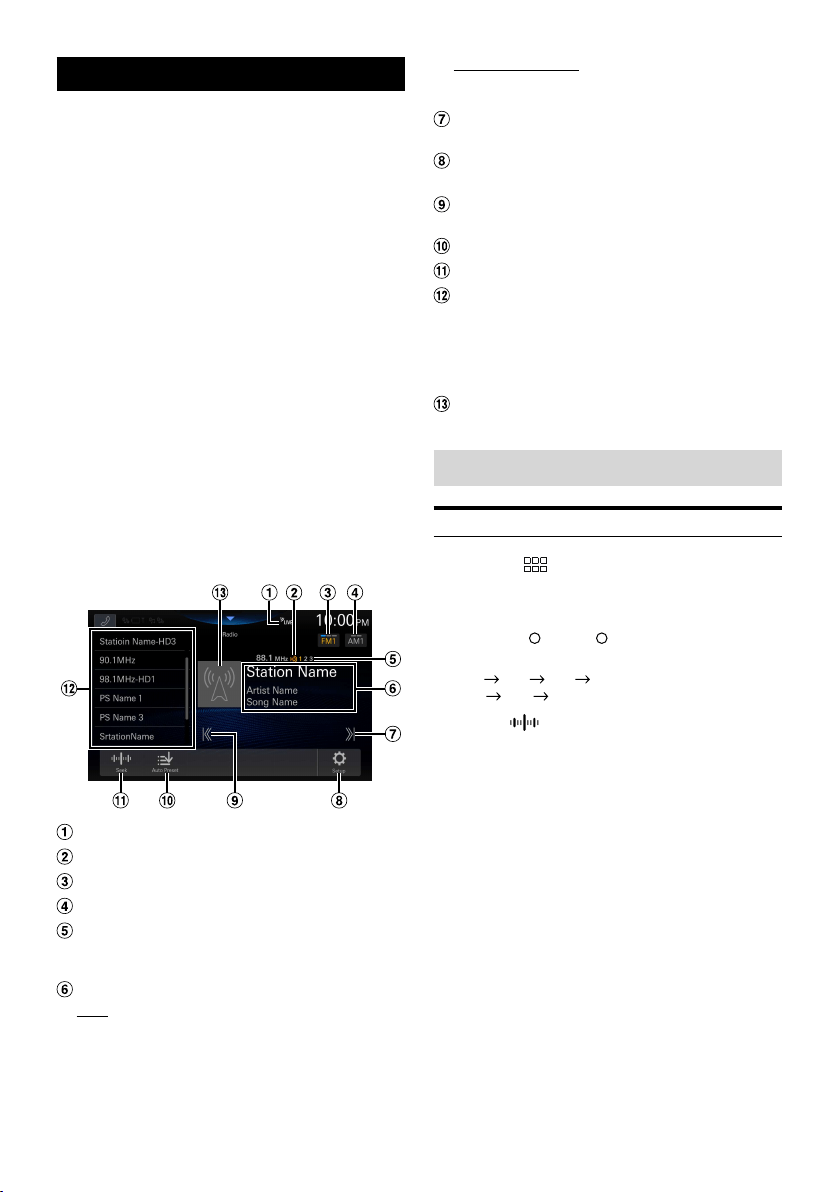

Radio Basic Operation
Listening to the Radio .................................................40
Presetting Stations Manually .................................... 41
Presetting Stations Automatically ...........................41
Tuning to Preset Station .............................................41
Receiving a Multicast (HD Radio™ Mode only) ...41
5-EN
Forced Analog Mode....................................................41
About Ballgame Mode
(HD Radio™ Mode only) ...........................................41
Displaying Radio Text (HD Radio™/
RBDS FM Radio mode only) ...................................42
About the Feature Logos ............................................42

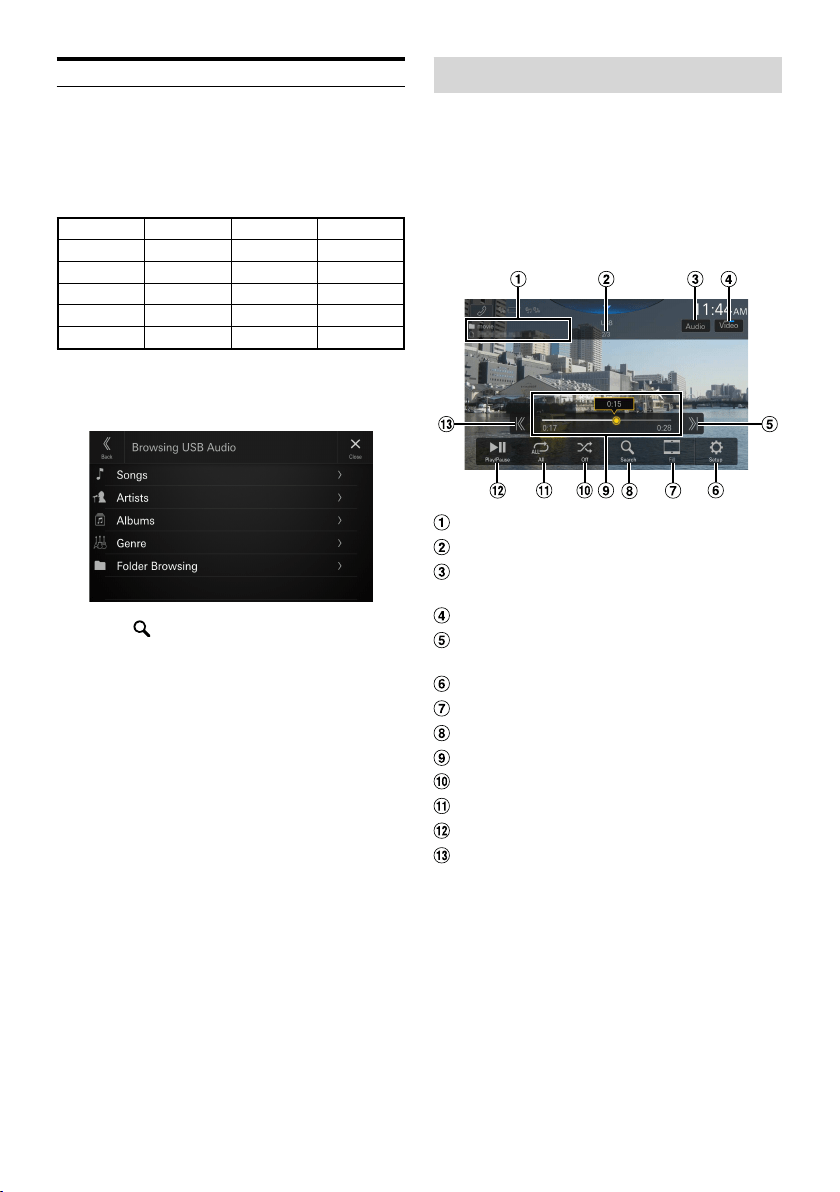

USB Flash drive (Optional)
USB Audio
Playback ............................................................................43
Repeat Play ...................................................................... 43
Shuffle Play ...................................................................... 43
Searching for a Desired Song....................................44
USB Video
Playback ............................................................................45
Fast-forwarding/Fast-reversing ................................ 45
Repeat Play ...................................................................... 45
Shuffle Play ...................................................................... 45
Searching for a Desired file ........................................ 45
Switching Display Modes ........................................... 46
Switching the Audio Tracks .......................................46

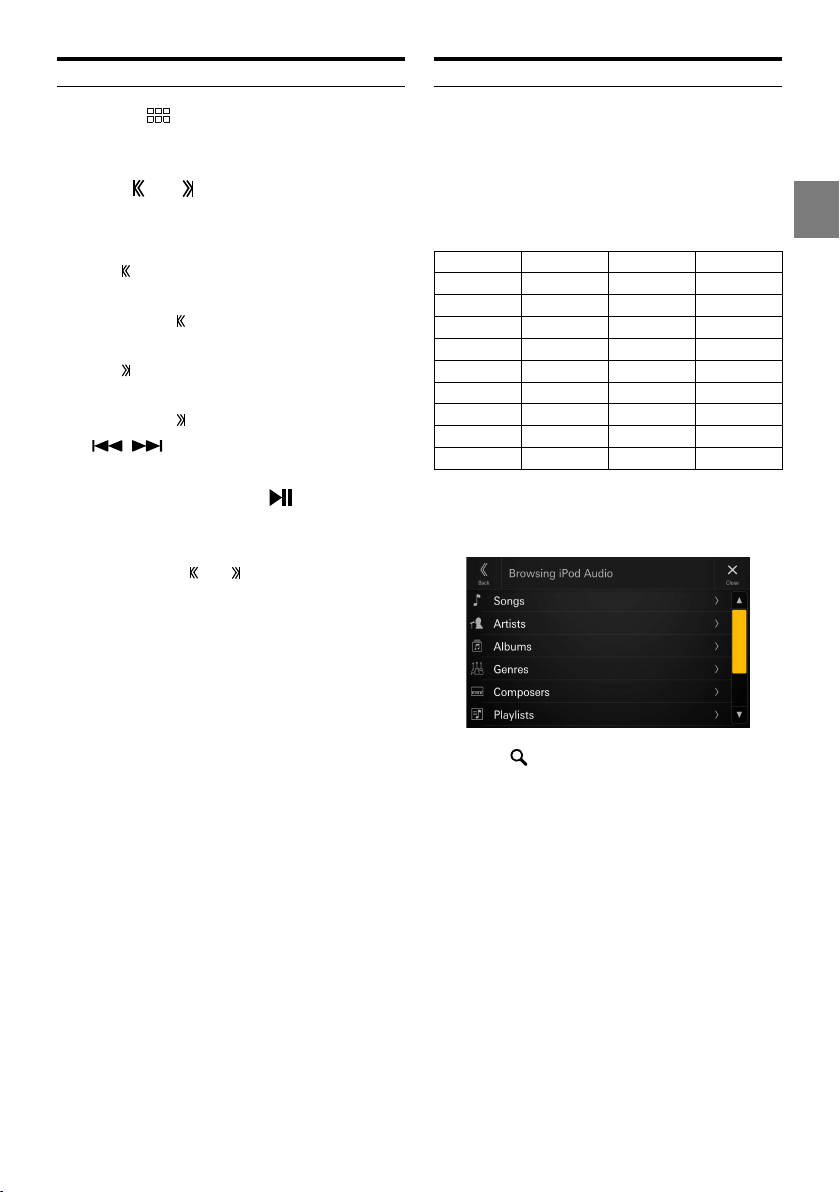

iPod mode on iPhone (Optional)
Playback ............................................................................47
Searching for a Music File ...........................................47
Repeat Play ...................................................................... 48
Shuffle Play ...................................................................... 48

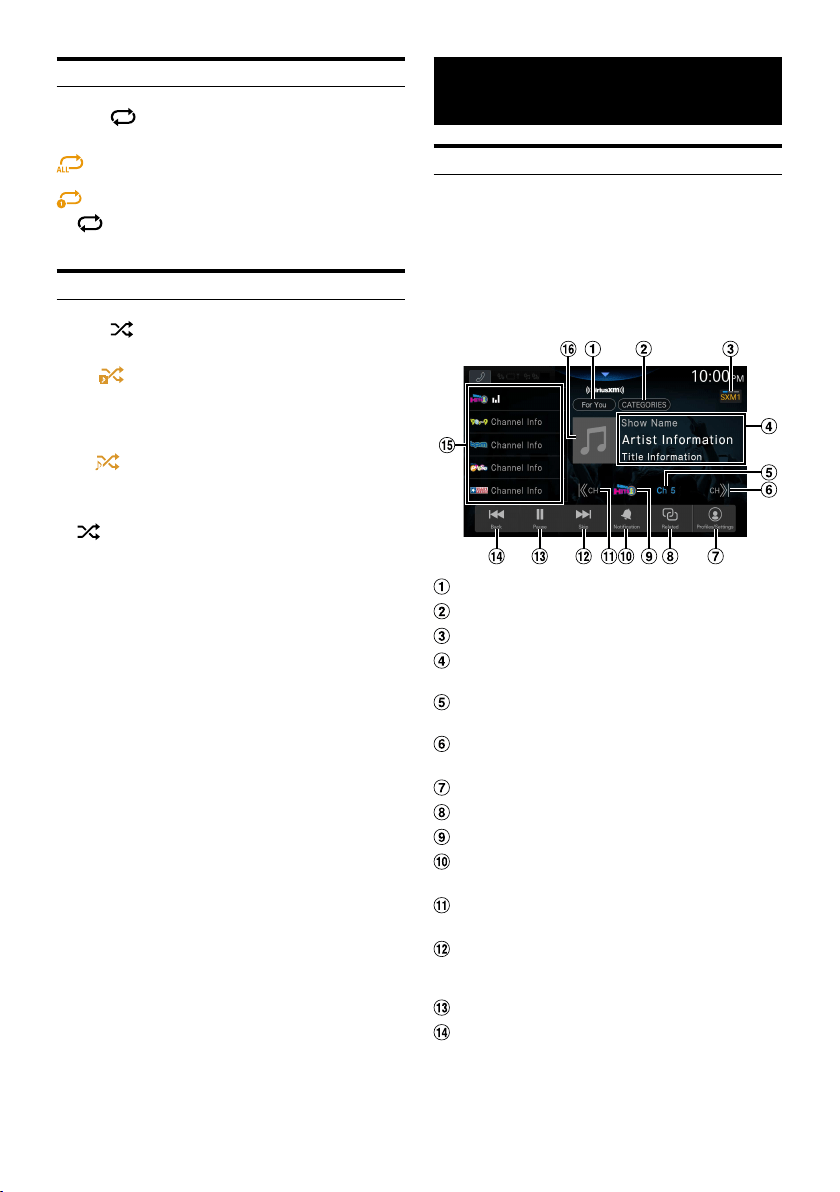

SiriusXM Satellite Radio Operation
(Optional)
SiriusXM Tuner operation: ..........................................48
Receiving Channels with the SiriusXM Tuner ......49

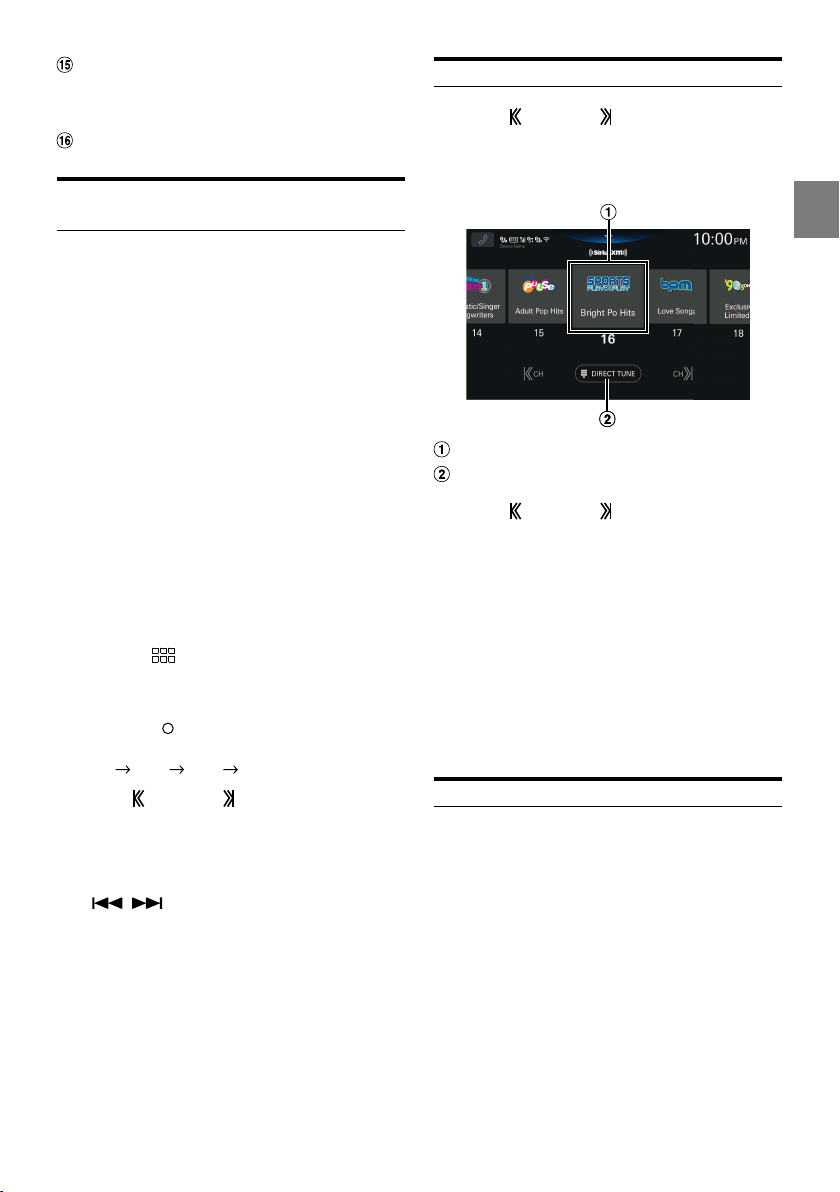

Selecting the Channel ................................................. 49
Selecting the Channel Directly .................................49

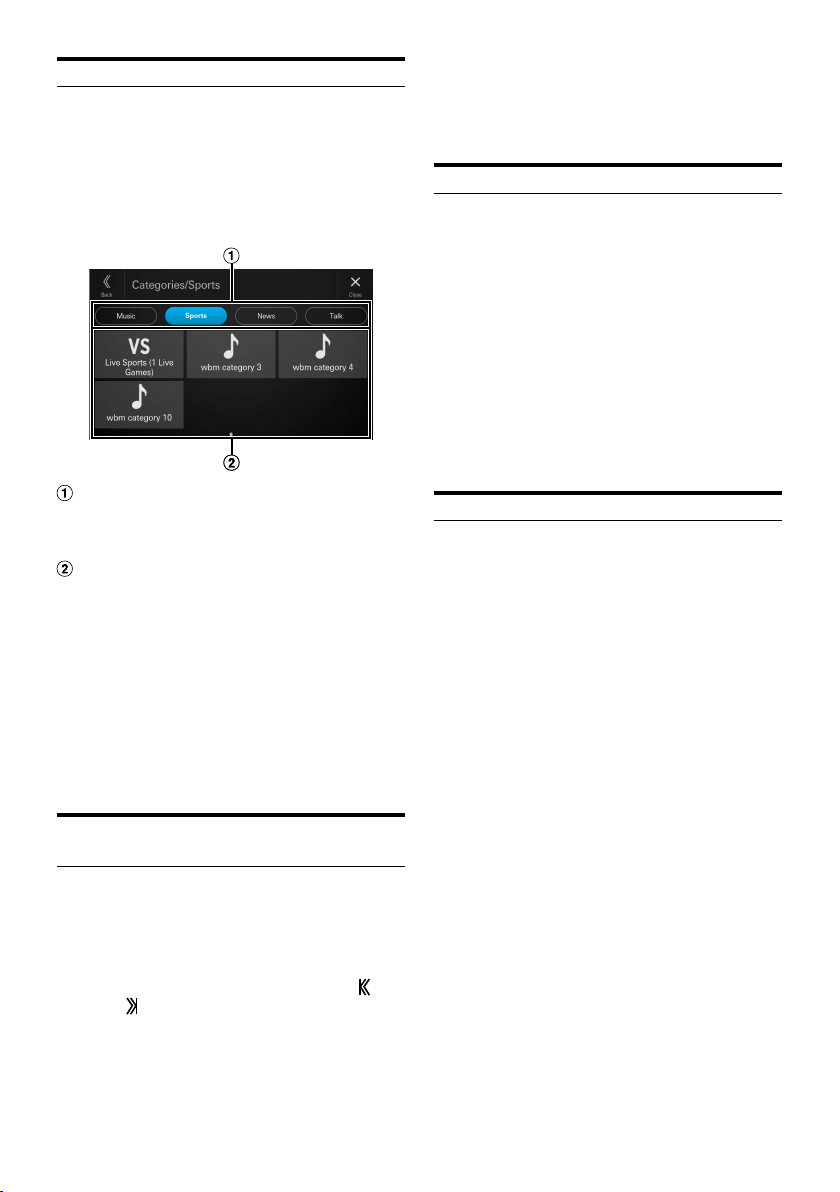

Tuning Channels by Category ..................................50
Checking the SiriusXM Radio ID Number .............50
Storing Channel Presets ..............................................50
Tuning Channels using Presets ................................50
Replay Function ............................................................. 51
Listening to the Recommended Channels
“For You” ........................................................................51
Listening to Related Channels ..................................51
Setting Notifications ....................................................51
Viewing Listening History .......................................... 52
Listener Settings ............................................................ 52
Setting Notifications from SiriusXM .................. 52
Managing Notifications .........................................52
Setting Block Explicit ..............................................52
Setting Tune Start ....................................................52
Resetting History ......................................................52
Subscribing to SiriusXM by Phone ..........................53
Displaying the System Information ........................ 53
Receiving Support by Phone ....................................53
Setting Your Location...................................................53
Banner advisory messages ........................................53

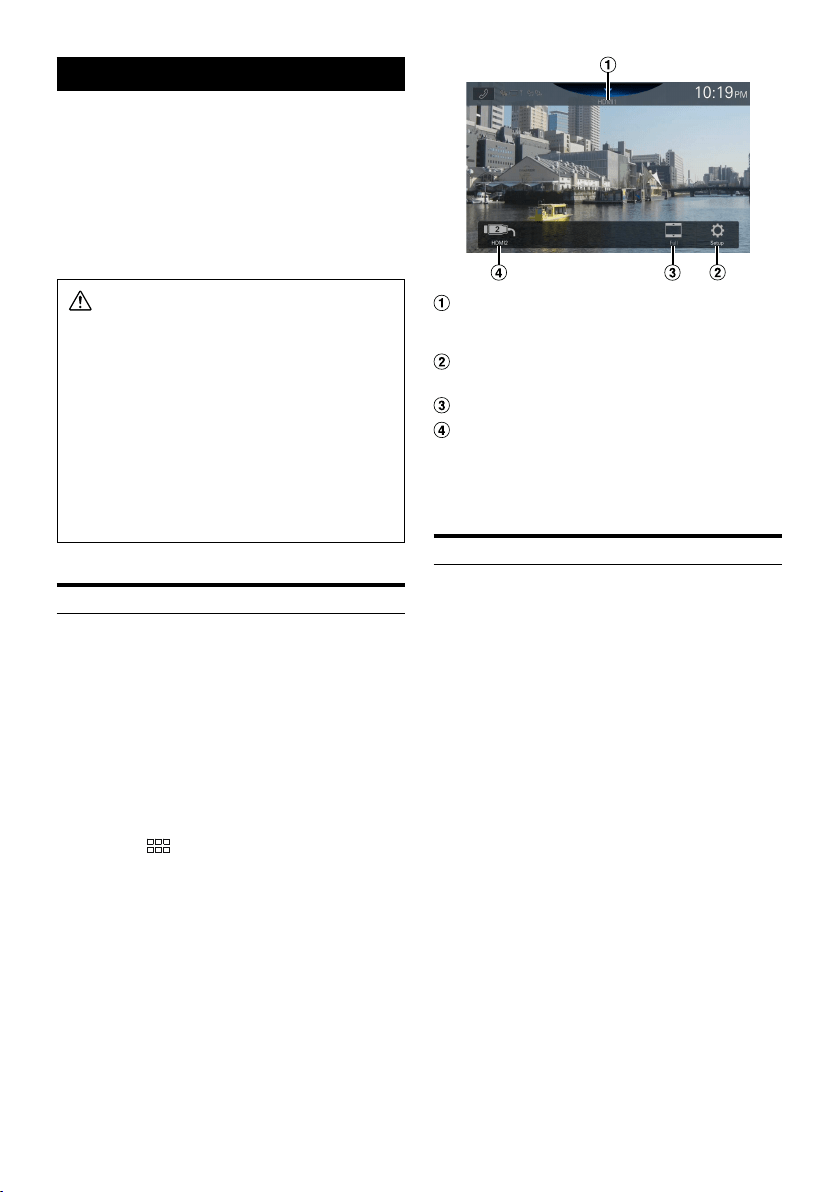

HDMI Device (Optional)
HDMI Operation .............................................................54
Switching the HDMI Input .........................................54
Switching Display Modes ........................................... 55
RSE through HDMI Out ...............................................55
Bluetooth Operation
Setup Before Using ....................................................... 55
About Bluetooth .......................................................55
About the Hands-free Phone ............................... 55
Before Using Bluetooth ..........................................56

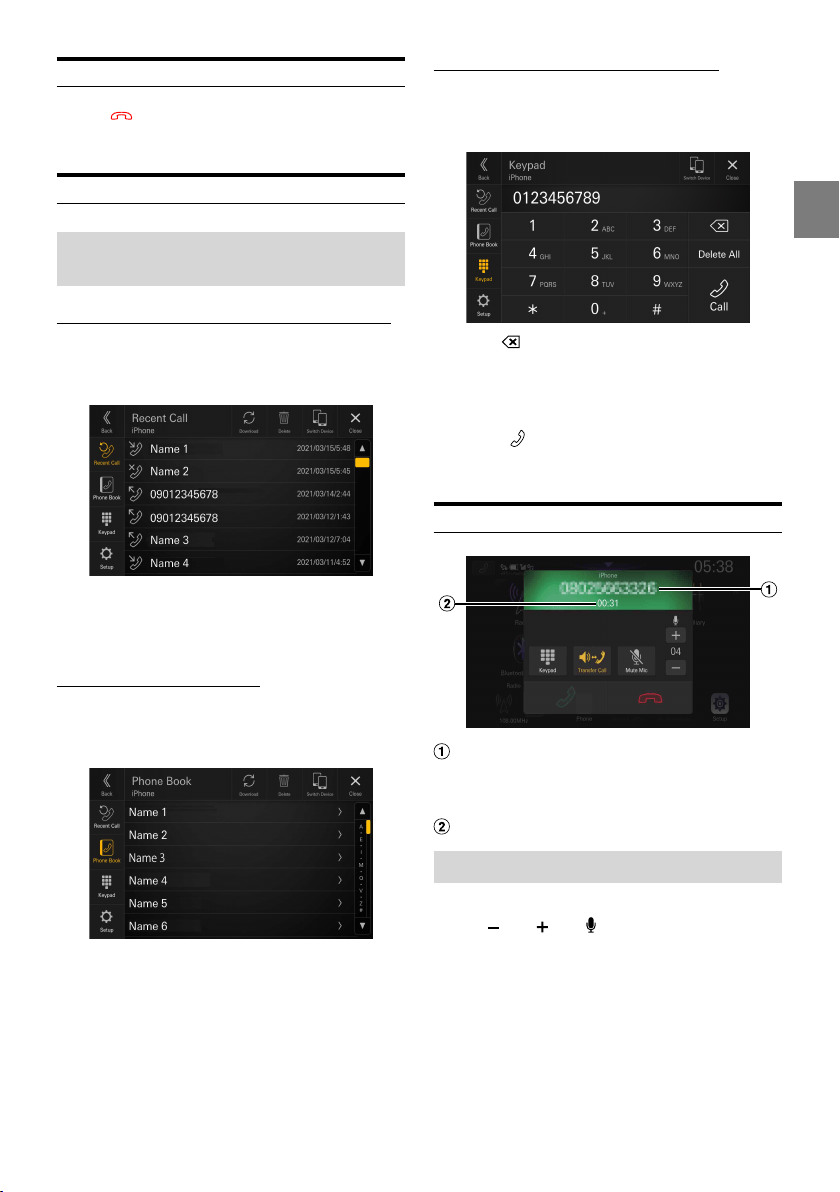

Hands-free Phone Control
Answering a Call ............................................................56
Hanging up the Telephone ........................................57
Calling................................................................................ 57
Making a phone call using the Phone
Menu ......................................................................... 57
Phone Operation Screen ............................................57
Adjusting the Speech Volume ............................. 57
Changing the Voice Output..................................58
Muting the Microphone ........................................58
DTMF (Touch-Tone) Function ..............................58

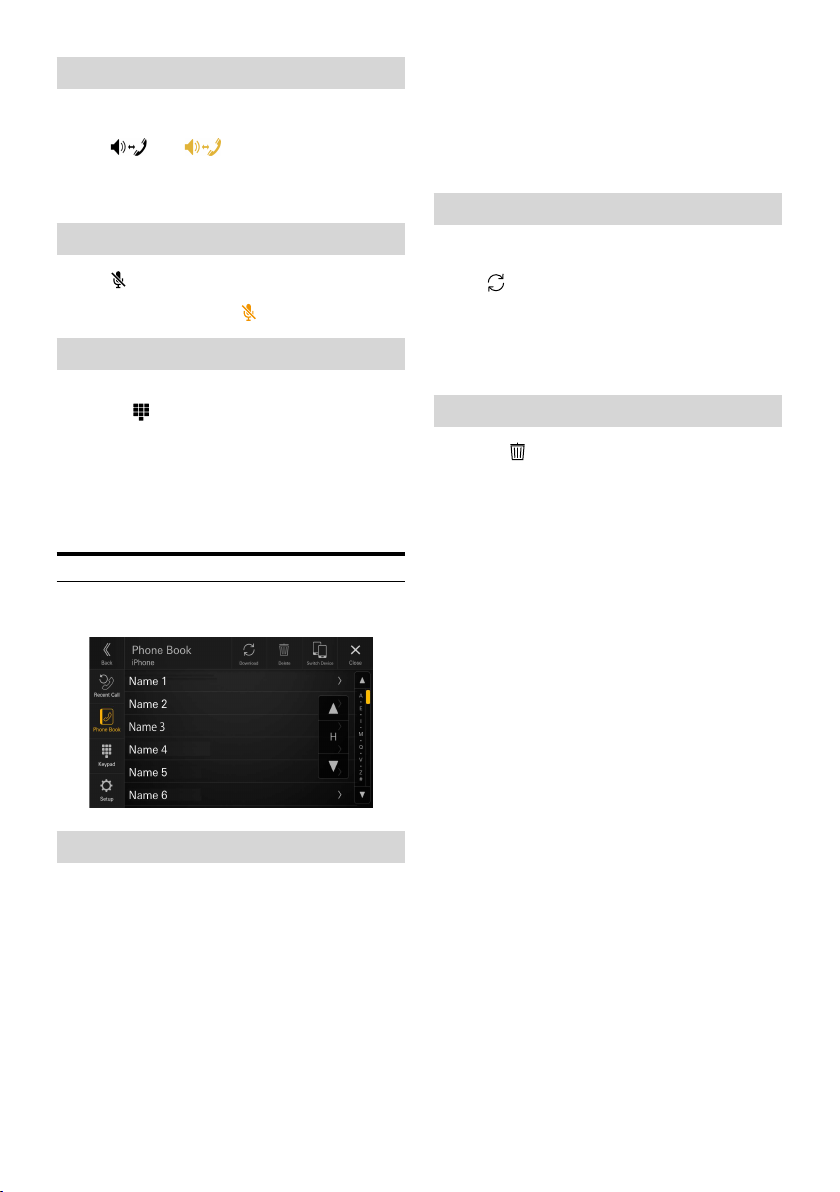

Phone Book Function ..................................................58
Searching in the Phone Book ..............................58
Synchronizing the Phone Book ...........................58
Deleting the Phone Book Entries .......................58
Bluetooth Audio
Playback ............................................................................59
Repeat Play ...................................................................... 59
Shuffle Play ...................................................................... 60
Searching for a Desired file ........................................ 60
Connecting a Bluetooth Device ...............................60
Disconnecting the Bluetooth Connection ......60
Switching the connecting Bluetooth
Device .......................................................................60
Auxiliary Device (Optional)
Operating Auxiliary Devices (Optional) ................61
6-EN
Switching Display Modes ........................................... 61
Camera Operation (Optional)
Rear Camera Operation ...............................................62
Displaying the rear view video while the
car is in reverse ......................................................62
Displaying the Camera Image from the
HOME screen .......................................................... 62
Guide Display ON/OFF Setting .................................62
Adjusting the Caution Display Location ............... 63
Hitch Guide Display ON/OFF Setting ..................... 63
About the Rear Camera Guide ..................................63
Switching the Image Pattern for the Rear
Camera .....................................................................65
Front Camera Operation .............................................65
Displaying the Camera Image from the
HOME screen .......................................................... 65
Switching the Image Pattern for the Front
Camera .....................................................................65
About the adjustment of guide display
ON/OFF setting and adjustment of
Caution display location ....................................66
Side Camera Operation ............................................... 66
About the adjustment of guide display
ON/OFF setting and adjustment of
Caution display location ....................................66

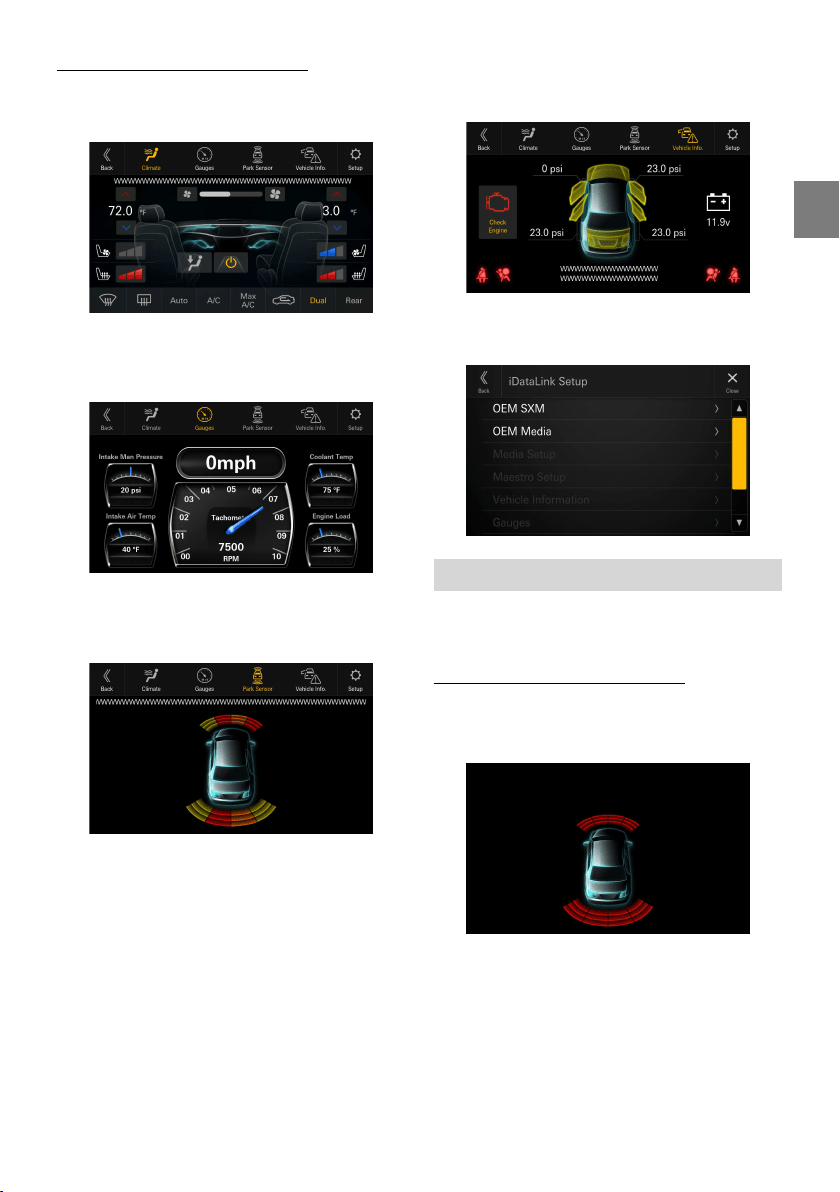

iDataLink Operation
Access to iDataLink Mode .......................................... 66
About Parking Sensor screen ...............................67
Factory Media Operation............................................68
Factory SiriusXM Operation .......................................68
Dash Cam (Drive Recorder) Operation
(Optional)
Operating Dash Cam (Optional) ..............................69
Information
Product Software Update ...........................................69
About the Supported Formats ................................69
About MP3/WMA/AAC/FLAC/WAV/APE ..........69
In Case of Difficulty .......................................................71
If this Message Appears .............................................. 72
Specifications ..................................................................73
Installation and
Connections
WARNING ........................................................ 75
CAUTION.......................................................... 75
Precautions ..................................................... 76
Accessory List ................................................................76
Installation ....................................................................... 77
Caution concerning the installation
location.....................................................................77
Mounting the Microphone ................................... 77
Mounting the GPS Antenna inside the
vehicle .......................................................................78
Note on using HDMI Connection Cables .........78
Position Adjustment and Mounting
Dimensions of the Display
(iLX-F509/iLX-F511 only) .................................... 78

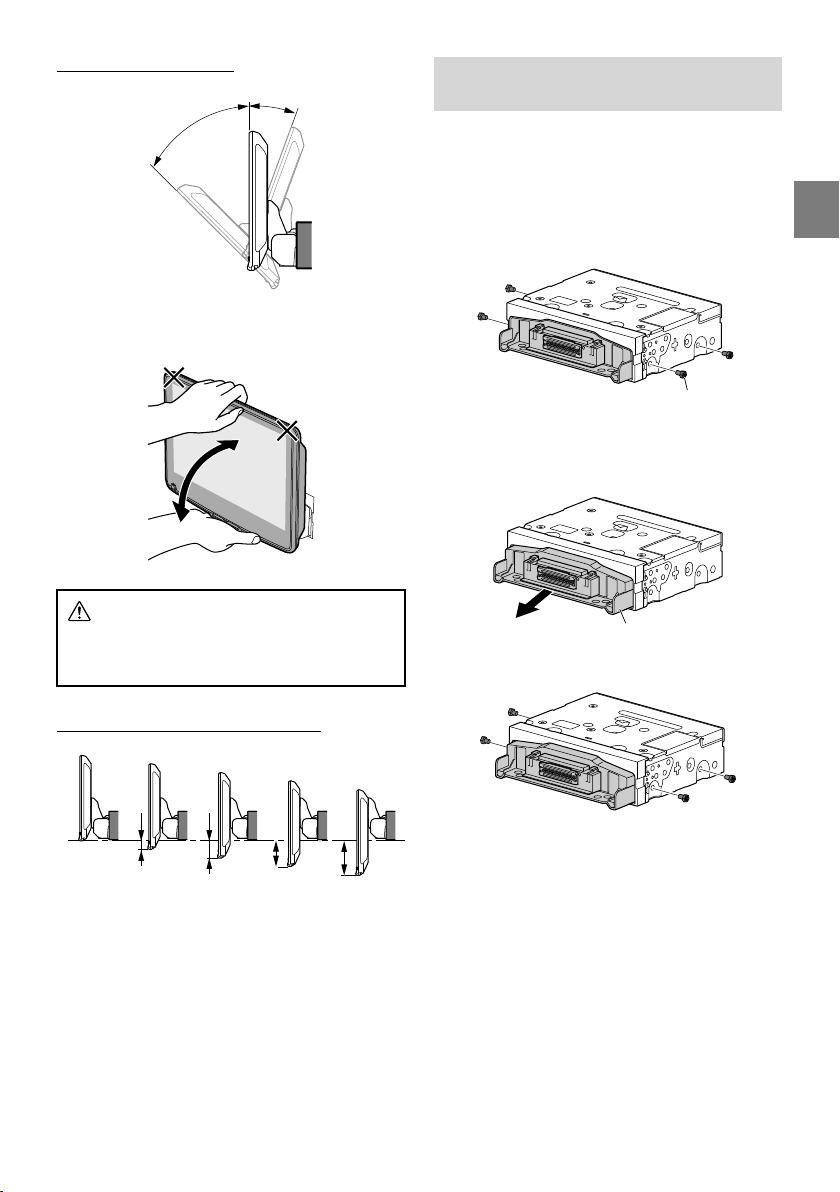

Adjusting the display position
(iLX-F509/iLX-F511) ..............................................79

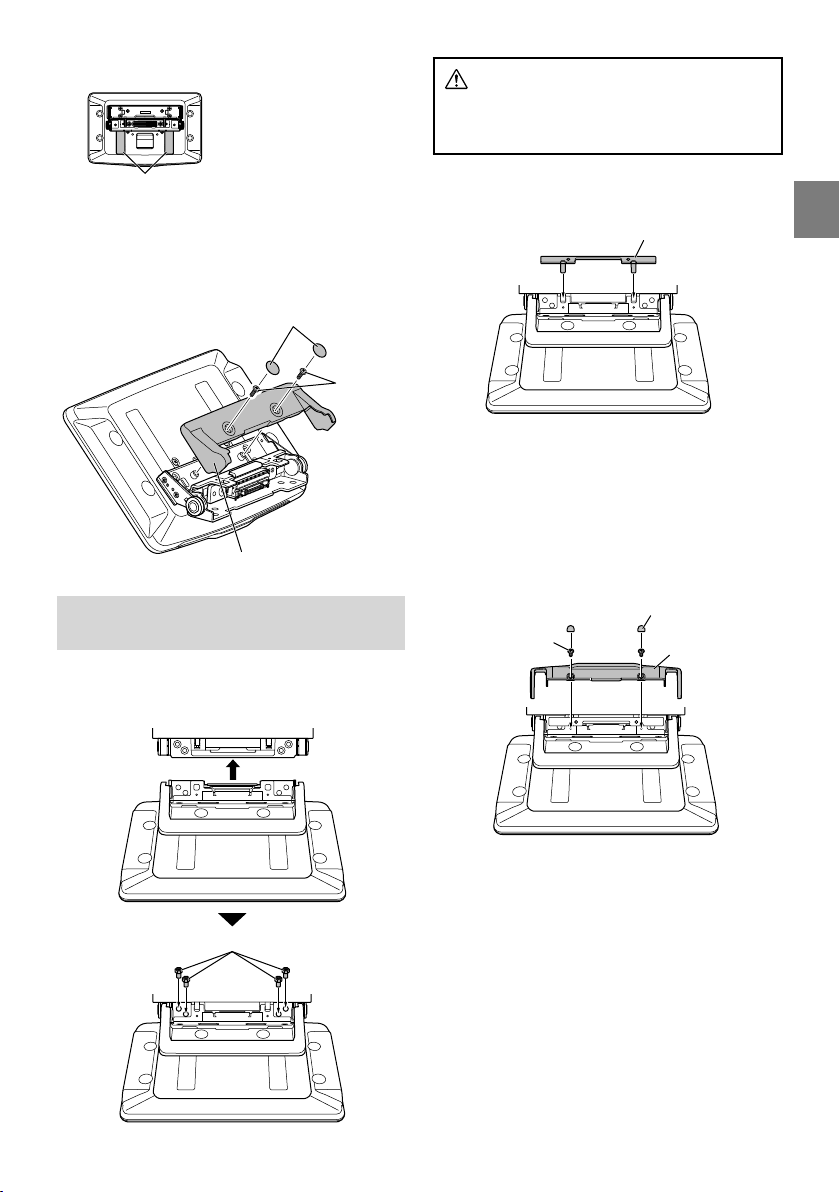

Installation example using the Original
Mounting Bracket ................................................. 80
Adjust the up-down position of the Display
unit (iLX-F509/iLX-F511) .....................................80
Install the display unit (iLX-F509/iLX-F511) .... 81

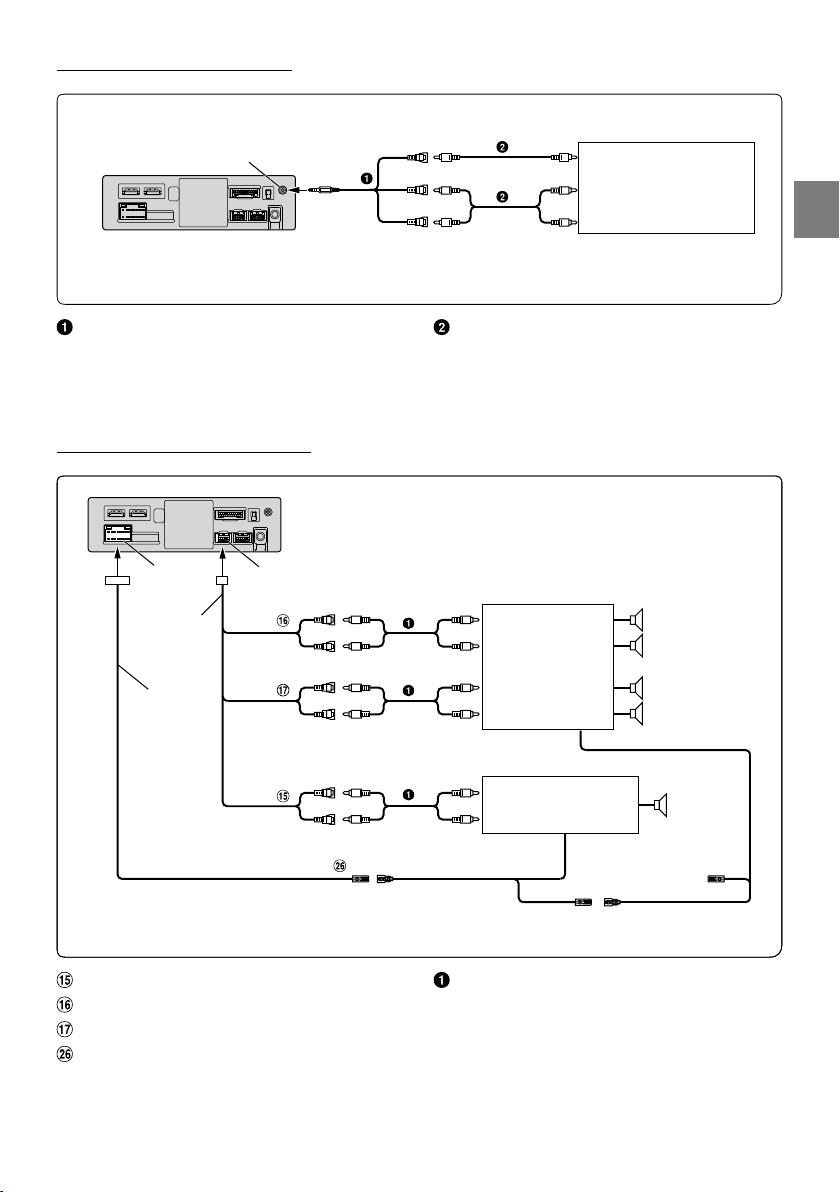

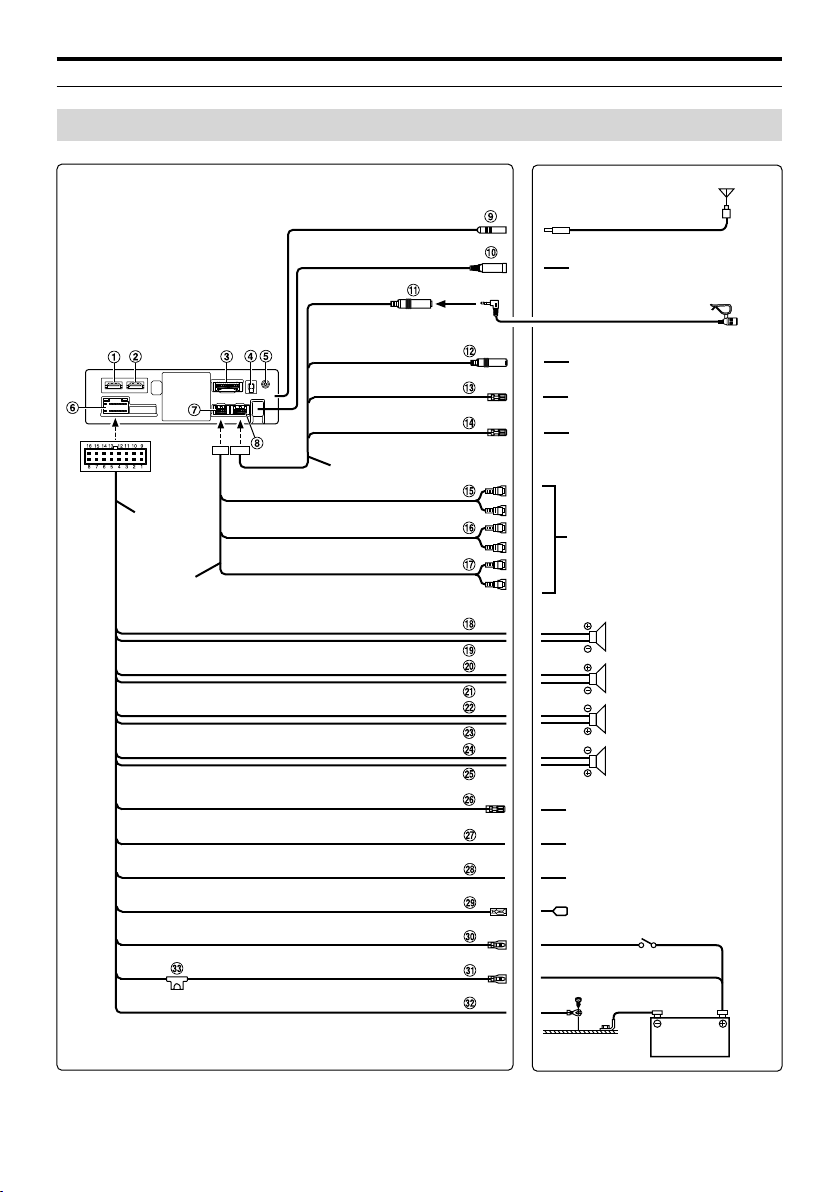

Connections .................................................................... 82
Connection 1 .............................................................82
Connection 2 .............................................................83
If an ACC power supply is not available ........... 85
System Example .............................................................86
LIMITED WARRANTY
7-EN
Operating Instructions
PRECAUTIONS
IMPORTANT INFORMATION
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide more
reasonable protection against harmful interference in a
residential installation, and are more stringent than
“outdoor” requirements.
Operation is subjected to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, you are
encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult an experienced radio/TV technician.
WARNING
Points to Observe for Safe Usage
• Read this manual carefully before using this system
components. They contain instructions on how to use this
product in a safe and effective manner. Alpine cannot be
responsible for problems resulting from failure to observe
the instructions in this manual.
• This manual uses various pictorial displays to show you
how to use this product safely and to alert you to
potential dangers resulting from improper connections
and operation. Following are the meanings of these
pictorial displays. It is important to fully understand the
meanings of these pictorial displays in order to use this
manual and the system properly.
• This product may be used with software applications.
Please follow all usage instructions and warnings when
using this product at all times. Do not use this product or
any software application in a manner which will hinder
safe operation of your vehicle.
WARNING
• Operation of the system while driving is dangerous.
Users should stop vehicle before operating the
software.
• Road conditions and regulations take precedence
over information contained on the map display:
observe actual traffic restrictions and circumstances
while driving.
• This software is designed for use exclusively in the
unit. It cannot and may not be used in conjunction
with other hardware.
WARNING
This symbol means important instructions.
Failure to heed them can result in serious injury
or death.
INSTALL THE PRODUCT CORRECTLY SO THAT THE
DRIVER CANNOT WATCH TV/VIDEO UNLESS THE
VEHICLE IS STOPPED AND THE PARKING BRAKE IS
APPLIED.
It is dangerous for the driver to watch TV/Video while
driving a vehicle. Installing this product incorrectly enables
the driver to watch TV/Video while driving. This may cause a
distraction, preventing the driver from looking ahead, thus
causing an accident. The driver or other people could be
severely injured.
DO NOT WATCH VIDEO WHILE DRIVING.
Watching the video may distract the driver from looking
ahead of the vehicle and cause an accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR
VEHICLE.
Any function that requires your prolonged attention should
only be performed after coming to a complete stop. Always
stop the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISES WHILE DRIVING.
Excessive volume levels that obscure sounds such as
emergency vehicle sirens or road warning signals (train
crossings, etc.) can be dangerous and may result in an
accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR
MAY ALSO CAUSE HEARING DAMAGE.
8-EN
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking
ahead of the vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so
may result in fire, etc.
KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result
in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in
fire, electric shock or other injury.
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire or
product damage.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual
to prevent obstructions when driving. Cables or wiring that
obstruct or hang up on places such as the steering wheel,
gear lever, brake pedals, etc. can be extremely hazardous.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying
capacity of the wire and result in fire or electric shock.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.
When drilling holes in the chassis for installation, take
precautions so as not to contact, damage or obstruct pipes,
fuel lines, tanks or electrical wiring. Failure to take such
precautions may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR
STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any
other safety-related system), or tanks should NEVER be used
for installations or ground connections. Using such parts
could disable control of the vehicle and cause fire etc.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL
OR GEARSHIFT.
Doing so may obstruct forward vision or hamper movement
etc. and results in serious accident.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the
nearest Alpine Service Center for repairing.
HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.
The wiring and installation of this unit requires special
technical skill and experience. To ensure safety, always
contact the dealer where you purchased this product to
have the work done.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of
other than designated parts may damage this unit
internally or may not securely install the unit in place. This
may cause parts to become loose resulting in hazards or
product failure.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like
the seat rails) or sharp or pointed edges. This will prevent
crimping and damage to the wiring. If wiring passes
through a hole in metal, use a rubber grommet to prevent
the wire’s insulation from being cut by the metal edge of
the hole.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE
OR DUST.
Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this
unit may result in product failure.
9-EN
NOTICE
Product Cleaning
Use a soft dry cloth for periodic cleaning of the product. For
more severe stains, please dampen the cloth with water
only. Anything else has the chance of dissolving the paint or
damaging the plastic.
Temperature
Be sure the temperature inside the vehicle is between
+45°C (+113°F) and 0°C (+32°F) before turning your unit on.
Maintenance
If you have problems, do not attempt to repair the unit
yourself. Return it to your Alpine dealer or the nearest
Alpine Service Station for servicing.
Protecting the USB connector
• Only an iPhone or USB flash drive can be connected to
the USB connector on this unit. Correct performance
using other USB products cannot be guaranteed.
• If the USB connector is used, be sure to use only the
supplied connector cable with the unit. A USB hub is not
supported.
• Depending on the connected USB flash drive, the unit
may not function or some functions may not be
performed.
• The audio file formats that can be played on the unit is
MP3/WMA/AAC/FLAC/WAV/APE.
• Artist/song name, etc., can be displayed. Certain, special
characters may not be correctly displayed.
CAUTION
Alpine accepts no responsibility for lost data,
etc., even if data, etc., is lost while using this
product.
On Handling USB Flash drive
• This unit can control a memory storage device that
supports the USB Mass Storage Class (MSC) protocol.
Playable audio file formats are MP3, WMA, AAC, FLAC,
WAV and APE.
• USB Flash drive function is not guaranteed. Use a USB
flash drive according to the terms of agreement. Read the
USB flash drive Owner’s Manual thoroughly.
• Avoid usage or storage in the following locations:
Anywhere in the car exposed to direct sunlight or high
temperatures.
Anywhere the possibility of high humidity or corrosive
substances are present.
• Fix the USB flash drive in a location where driver
operation will not be hindered.
• USB Flash drive may not function correctly at high or low
temperature.
• Use only certified USB flash drive. Note that even certified
USB flash drive, may not function correctly depending on
its type or state.
• Depending on the settings of the USB flash drive type,
memory state or encoding software, the unit may not
play back or display properly.
• USB Flash drive may take time to start playback. If there is
a particular file other than audio in the USB flash drive, it
may take considerable time before the file is played back
or searched.
• The unit can play back “mp3,” “wma,” “m4a,” “flac,” ”fla,”
“wav,” and “ape” file extensions.
• Do not add the above extensions to a file other than
audio data. This non-audio data will not be recognized.
The resulting playback may contain noise that can
damage speakers and/or amplifiers.
• It is recommended to back up important data on a
personal computer.
• Do not remove the USB device while playback is in
progress. Change SOURCE to something other than USB,
then remove the USB device to prevent possible damage
to its memory.
10-EN
• Windows Media, and the Windows logo are trademarks,
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
• Apple, iPhone, iPod, Lightning and Siri are trademarks of
Apple Inc., registered in the U.S. and other countries.
Apple CarPlay is a trademark of Apple Inc.
• Use of the Made for Apple and Works with Apple badges
means that an accessory has been designed to connect
specifically to the Apple product(s) identified in the Made
for Apple badge and to work specifically with the
technology identified in the Works with Apple badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory with an Apple
product may affect wireless performance.
• Use of the Apple CarPlay logo means that a vehicle user
interface meets Apple performance standards. Apple is
not responsible for the operation of this vehicle or its
compliance with safety and regulatory standards. Please
note that the use of this product with iPhone may affect
wireless performance.
• Google, Android, Google Play and Android Auto are
trademarks of Google LLC.
To use Android Auto on your car display, you’ll need an
Android phone running Android 6.0 or higher, an active
data plan, and the Android Auto app.
• HD Radio Technology manufactured under license from
iBiquity Digital Corporation. U.S. and Foreign Patents. For
patents see http://dts.com/patents. HD Radio and the HD,
HD Radio, and “ARC” logos are registered trademarks or
trademarks of iBiquity Digital Corporation in the United
States and/or other countries.
• Sirius, XM and all related marks and logos are trademarks
of Sirius XM Radio Inc. All rights reserved.
• The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator,
Inc. in the United States and other countries.
• The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any use
of such marks by ALPS ALPINE Co., LTD. is under license.
• The Wi-Fi CERTIFIED™ Logo is a registered trademark of
Wi-Fi Alliance®.
• LDAC and LDAC logo are trademarks of Sony Corporation.
• The product with this logo is conformed to High-
Resolution Audio standard defined by Japan Audio
Society. This logo is used under license from Japan Audio
Society.
Made for iPhone SE (2nd generation), iPhone 11 Pro Max,
iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone
XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone
7, iPhone SE, iPhone 6s Plus, iPhone 6s.
11-EN
Getting Started
Location of Controls
■
iLX-507
■
iLX-F509/iLX-F511
Dimmer Sensor
Senses the brightness of the car interior.
button
Activate Siri function or voice recognition mode while
Apple CarPlay or Android Auto is connected.
/ (DOWN/UP) button
Adjusts the volume.
(MUTE) button
Activates/deactivates MUTE mode.
Press and hold this button for at least 2 seconds to turn
off the screen/button illumination.
(Audio) button
Displays the Audio playback screen.
Audio sources can be switched while the Audio playback
screen is displayed.
• When displaying a screen different from the audio
source (such as the map screen for Apple CarPlay or
Android Auto), the audio source is switched without
changing the screen display.
Power indicator
(HOME) button
Displays the HOME screen.
The Sound Setup screen is displayed while the HOME
screen is displayed.
Press and hold this button for at least 2 seconds to turn
the power off.
(CAM) button
Displays the image of Camera2 (Front/Side/Other) or
Camera1 (Rear).
Press for 1 second or more to return to the previous
screen.
/ button
Press to seek up/down a station in radio mode or up/
down a track, etc., in other audio/visual sources.
(MAP) button
Displays the map screen for Apple CarPlay / Android
Auto when Apple CarPlay or Android Auto is connected.
Remote Sensor
Point the remote control transmitter towards the remote
sensor within a range of 2 meters.
About the button descriptions used in this Owner’s
Manual
The buttons found on the face of the unit are expressed
in bold (e.g.
(HOME)). The buttons found on the
touch-screen display are shown in bold within brackets,
[ ] (e.g. [OK]).
CAUTION
■
iLX-F509/iLX-F511 only
To adjust the display angle, hold the center of the
top and bottom of the display to move it. To protect
the display, do not hold the left and right ends to
move it.
12-EN
Turning Power On or Off
When the ignition key is turned to ACC or ON, the opening
screen will be automatically displayed.
1 Turn the ignition key to the ACC or ON
position.
The unit turns on.
• When using the system for the first time, the HOME
screen is displayed.
• When turned on, the unit displays the last screen that
was displayed before the ignition key was turned off.
For example, if the unit is in radio mode when ignition
is turned off, it will remain in radio mode when
ignition is turned back on.
2 To turn the unit to off, turn the ignition key to
the OFF position.
• The unit is a precision device. Careful handling of the unit
should provide you with years of trouble-free operation.
• Some of this unit’s functions cannot be performed while the
vehicle is in motion. Be sure to stop your vehicle in a safe
location and apply the parking brake before attempting these
operations.
Adjusting the Volume
Adjust the volume by touching
/ .
Volume decreases/increases continuously by touching and
holding
/ .
Volume: 0 to 35
Lowering Volume Quickly
Audio Mute function instantly lowers the volume level to 0.
1 Press the
(MUTE) button to activate MUTE
mode.
The audio level will be 0 and the mute indicator will
flash.
2 Press the
(MUTE) button again to bring the
audio back to previous volume level.
Turning off the screen/button
illumination (Display OFF)
You can turn off the screen and button illumination without
changing the audio output.
1 Press and hold the
(MUTE) button for at
least 2 seconds.
The screen/button illumination is turned off.
2 To cancel Display OFF mode, press and hold
the
(MUTE) button for at least 2 seconds or
touch the screen.
• When there is an interrupt such as an incoming hands-free
call, Display OFF is canceled.
Touch Screen Operation
You can operate the unit by using the touch panel display.
• Be sure to touch the onscreen button lightly with the pad of
your finger to avoid scratching the display.
Touch operation
Touch a button or list item on the screen lightly.
• If you touch a button and there is no reaction, lift your finger.
• Onscreen buttons that cannot be operated are dimmed.
Swipe operation
Move your finger lightly with a swipe.
13-EN
Switching Sources
1 Press the
(HOME) button.
The HOME screen is displayed.
2 Touch your desired source icon.
• You can change the audio source icon location on the screen.
For details, see “Editing HOME screen” (page 29).
Selecting an Item in a List
To scroll through a list, perform the following operations.
Touch the screen and slide your finger up and
down.
The screen will scroll along with your finger movement.
Returns to the previous screen.
Closes the window.
• After touching the screen, move your finger away from the
screen before dragging and that item will be selected.
About the HOME Screen
In the HOME screen, select the audio source to perform
various settings and operations of the function.
• The HOME screen can be switched between Normal mode
and Enhanced Text mode. For details, see “Setting the Home
Screen Type” (page 28).
Press the
(HOME) button.
The HOME screen is displayed.
■
Normal mode screen example
■
Enhanced Text mode screen example
Touch to display the Sound Setup screen.
• The Sound Setup screen can also be displayed by
pressing the
(HOME) button while the HOME
screen is displayed.
Touch to change the page.
• Pages can also be changed by swiping the HOME
screen horizontally with your finger.
Audio source select area
Touch your desired source icon to change the audio
source.
• The order of source icons can be changed. For details,
see “Editing HOME screen” (page 29).
HOME screen navigation
Thumbnail window for the current source
Source name, artwork and title information are
displayed. Touch the artwork to display the source
screen. Touch [
] to play/pause a track or video.
14-EN
About the Indicator Display
The Indicator Bar at the top of the screen displays various
types of information, like the current time.

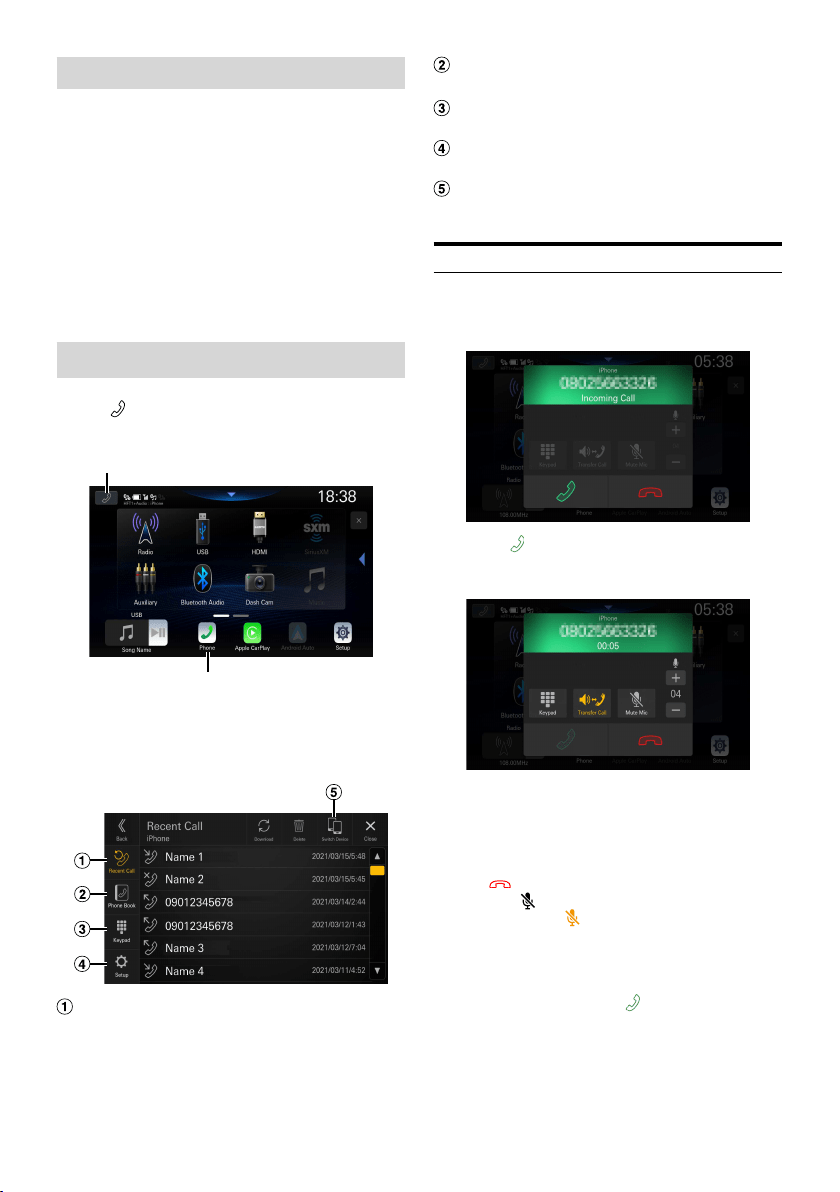

Phone shortcut button
The Device List screen is displayed when a Phone,
CarPlay or Android Auto device is not connected.
The hands-free phone screen (Recent Call, Phone Book,
Keypad) is displayed when the hands-free phone is
connected. The screen of the previous logout is
displayed.
The Apple CarPlay screen is displayed while Apple
CarPlay is connected.
The Android Auto screen is displayed while Android
Auto is connected.
Lights up when connecting the hands-free
phone
via Bluetooth. (Does not display when
connection is set to OFF.)
Indicates the battery level of the connected
hands-free phone
.
No
Battery
Level 1 Level 2 Level 3 Level 4 Level 5
• This may not be displayed for the hands-free phone .
Indicates the Bluetooth signal strength level of
the connected hands-free phone
.
Displayed when Bluetooth setting is ON.
0 1 2 3 4 5
• This may not be displayed for the hands-free phone .
Lights up when connecting the audio device via
Bluetooth. (Does not display when connection is
set to OFF.)
Lights up when connecting the hands-free
phone
via Bluetooth. (Does not display when
connection is set to OFF.)
Lights up when connecting a separately sold
ALPINE KNOB (RUX-H02) via Bluetooth. You can
use the RUX-H02 to adjust the volume level and
sound quality (Bass Level, etc.) of this unit. For
details, refer to the Owner’s Manual of RUX-H02.
Indicates the current time.
Touch to turn ON/OFF the clock display.
You can switch between the 12 hour display and 24 hour
display options (page 28).
Setup
Setup Operation
To display the Setup Menu screen:
Your vehicle must be parked with the ignition key in the
ACC or ON position. To do this, follow the procedures
below.
1 Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2 Release the parking brake. (For safety, release the
parking brake while depressing the foot brake
pedal).
3 Engage the parking brake again.
• For automatic transmission vehicles, place the
transmission lever in the Park position.
Now, the locking system for the Setup operation has
been released. Engaging the parking brake can
reactivate the Setup Menu, as long as the car’s ignition
has not been turned off. It is not necessary to repeat the
above procedure (1 through 3).
Each time the ignition is turned OFF, perform the above
procedure.
1 Press the
(HOME) button.
The HOME screen is displayed.
[Setup] button
2 Touch [Setup].
The Settings menu screen is displayed.
15-EN
3 Touch the required setting category on the
upper part of the Settings menu screen, and
then touch the setting item.
Setting categories:
Device: See “Device Setup” (page 15)
Function: See “Function Setup” (page 18)
System: See “System Setup” (page 27)
Device Setup
[Device] is selected on the Settings menu screen.
■
Device Setup Menu screen
Setting items:
Device List (page 15)
Wi-Fi (page 17)
Bluetooth (page 17)
Device Info. (page 17)
Displaying Device List
[Device List] is selected on the Device Setup menu screen.
The list of devices registered or connected to this unit is
displayed. 10 devices compatible with Bluetooth and Wi-Fi,
and 1 device compatible with Apple CarPlay or Android
Auto connected via USB, can be displayed.
■
Device List screen example
Add New Device
Search for Bluetooth compatible devices. For details, see
“Pairing the Bluetooth Device“ (page 16).
Function icon
: Hands Free1
: Hands Free2
: Bluetooth Audio
: Hands Free1 + Bluetooth Audio
: Hands Free2 + Bluetooth Audio
: Apple CarPlay
: Android Auto
16-EN
Device Name or Device Address
Connect or disconnect the selected device. For
details, see “Connecting the Device Registered in
the Device List”, “Disconnecting the Connected
Device” (page 16).
Delete the selected device information. For
details, see “Deleting a Bluetooth Device from the
list” (page 16).
Pairing the Bluetooth® Device
Search for Bluetooth compatible devices.
Setting item:
Add New Device
1 Touch [Add New Device].
A search for devices to connect wirelessly to the unit
starts.
The Search List is displayed, and the list of searched
devices is displayed.
2 Touch a device to connect in the list.
3 When a code is displayed on the device, check
that the code is the same as the one on the
screen of the unit, and touch [Yes].
When the device connection is complete, a message
appears and the device returns to normal mode.
Connecting the Device Registered in
the Device List
Select one of 10 paired Bluetooth or Wi-Fi compatible
devices that you previously registered.
1 Touch [Connect] of the device you want to
connect from the Paired Device list.
The Function Select screen is displayed.
2 Select the function of the connecting device
on the Select Function screen, and touch [OK].
A check mark is displayed for the selected function.
Hands Free1: The device is used as the first
hands-free phone or Android Auto.
Hands Free2: The device is used as the second
hands-free phone or Android Auto.
Bluetooth Audio: The device is used as a Bluetooth
Audio device.
Apple CarPlay*: The device is used as Apple CarPlay.
Android Auto*: The device is used as Android Auto.
* If you want to use Apple CarPlay or Android Auto
mode without displaying [Apple CarPlay] or [Android
Auto] on the Select Function screen, select [Hands
Free1] or [Hands Free2] to connect your device.
• For example, when the device is used as a hands-free
phone and Bluetooth Audio, select [Hands Free1]
and [Bluetooth Audio].
• If you want to use Apple CarPlay or Android Auto with
a wireless connection, set the Wi-Fi function of your
iPhone or Android Smartphone to “On”.
When the device connection is complete, a message
appears and the device returns to normal mode.
Disconnecting the Connected Device
Touch [Disconnect] of the device you want to
disconnect from the Paired Device list.
The device is disconnected.
Deleting a Bluetooth Device from the
list
You can delete the information of a previously connected
Bluetooth compatible device.
1 Touch [
] (Delete) of the Bluetooth
compatible device to delete from the Paired
Device list.
2 Touch [Yes].
• Touching [No] will cancel the setting.
17-EN
Wi-Fi Setup
[Wi-Fi] is selected on the Device Setup menu screen.
Setting the Wi-Fi
Set to [On] when using Apple CarPlay or Android Auto with
a wireless connection.
Setting item:
Wi-Fi
Touch [
] (Off) or [ ] (On) of “Wi-Fi”.
Changing the Wi-Fi password of the
unit
You can randomly change the Wi-Fi password (PSK) of the
unit.
Setting item:
PSK for Phone Link
Touch [
] of “PSK for Phone Link”.
The Wi-Fi password (PSK) is changed.
Bluetooth Setup
[Bluetooth] is selected on the Device Setup menu screen.
Setting the Bluetooth
Set to [On] when connecting the unit to the Bluetooth
compatible device.
Setting item:
Bluetooth
Touch [
] (Off) or [ ] (On) of
“Bluetooth”.
Setting the Auto Connection
You can connect the last connected device automatically.
Setting item:
Auto Connection
Touch [
] (Off) or [ ] (On) of “Auto
Connection”.
Setting the PIN Code
You can set the PIN code for connecting with a Bluetooth
compatible device.
Setting item:
Bluetooth PIN Code
1 Touch [Bluetooth PIN Code].
A numeric keypad screen is displayed.
2 Touch [Delete All].
The displayed PIN code is cleared, then you can enter
the new PIN code.
3 Enter a 4-digit passcode, and then touch [OK].
• The initial number is 0000.
• Touch [
] to delete an entered number.
• Touch [Delete All] to delete all entered numbers.
Displaying Device Information
You can display the Bluetooth or Wi-Fi device name and
device address of this unit.
Setting item:
Device Info
18-EN

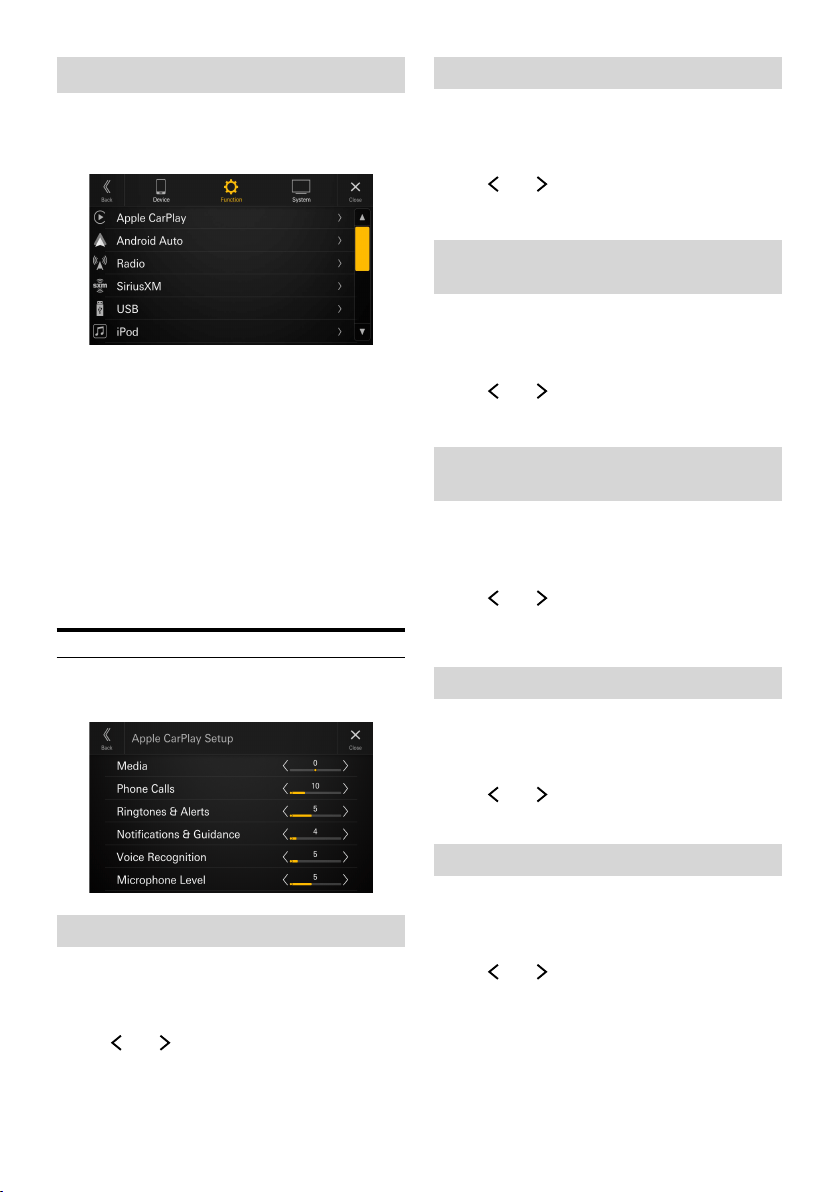

Function Setup
[Function] is selected on the Settings menu screen.
■
Function Setup Menu screen
Setting items:
Apple CarPlay (page 18)
Android Auto (page 19)
Radio (page 19)
SiriusXM (page 20)
USB (page 20)
iPod (page 21)
Auxiliary (page 21)
HDMI (page 22)
Phone (page 22)
Bluetooth Audio (page 23)
Factory Audio (page 23)
Dash Cam (page 25)
Camera (page 25)
Apple CarPlay Setup
[Apple CarPlay] is selected on the Function Setup Menu
screen.
Adjusting the Media Level
Setting item:
Media
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Media” to set the media
volume level for CarPlay playback.
Adjusting the Phone Call Volume
Setting item:
Phone Calls
Setting level:
1 to 35 (Initial setting: 5)
Touch [
] or [ ] of “Phone Calls” to set the call
volume level.
Adjusting the Ringtones and Alerts
Level
Setting item:
Ringtones & Alerts
Setting level:
1 to 11 (Initial setting: 5)
Touch [
] or [ ] of “Ringtones & Alerts” to set
the volume level for ringtones and alerts.
Adjusting the Notifications and
Guidance Level
Setting item:
Notifications & Guidance
Setting level:
1 to 35 (Initial setting: 10)
Touch [
] or [ ] of “Notifications & Guidance”
to set the volume level for notifications and
guidance.
Adjusting the Voice Recognition Level
Setting item:
Voice Recognition
Setting level:
1 to 35 (Initial setting: 10)
Touch [
] or [ ] of “Voice Recognition” to set
the volume level for voice recognition.
Adjusting the Microphone Level
Setting item:
Microphone Level
Setting level:
1 to 11 (Initial setting: 5)
Touch [
] or [ ] of “Microphone Level” to set
the microphone volume level.
19-EN
Android Auto Setup
[Android Auto] is selected on the Function Setup Menu
screen.
Adjusting the Media Level
Setting item:
Media
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Media” to set the media
volume level for Android Auto playback.
Adjusting the Phone Call Volume
Setting item:
Phone Calls
Setting level:
1 to 35 (Initial setting: 5)
Touch [
] or [ ] of “Phone Calls” to set the call
volume level.
Adjusting the Ringtones and Alerts
Level
Setting item:
Ringtones & Alerts
Setting level:
1 to 11 (Initial setting: 5)
Touch [
] or [ ] of “Ringtones & Alerts” to set
the volume level for ringtones and alerts.
Adjusting the Notifications and
Guidance Level
Setting item:
Notifications & Guidance
Setting level:
1 to 35 (Initial setting: 10)
Touch [
] or [ ] of “Notifications & Guidance”
to set the volume level for notifications and
guidance.
Adjusting the Voice Recognition Level
Setting item:
Voice Recognition
Setting level:
1 to 35 (Initial setting: 10)
Touch [
] or [ ] of “Voice Recognition” to set
the volume level for voice recognition.
Adjusting the Microphone Level
Setting item:
Microphone Level
Setting level:
1 to 11 (Initial setting: 5)
Touch [
] or [ ] of “Microphone Level” to set
the microphone volume level.
Radio Setup
[Radio] is selected on the Function Setup Menu screen.
Adjusting the Radio Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
radio volume level.
20-EN
Setting the Receiving mode
Receiving mode can be set for FM radio reception.
Setting item:
Receiving mode
Setting contents:
Hybrid (Initial setting) / Forced Analog
Hybrid: Automatically switches to analog
reception to reduce noise when there is
a large amount of noise due to poor
reception.
Forced Analog: Unit is forced to receive analog signals.
Setting the FM Frequency Step
During manual tuning, you can select the frequency step
for FM analog radio station searching.
Setting item:
FM Frequency Step
Setting contents:
100kHz / 200kHz (Initial setting)
Setting the PTY Seek Item
Set the program item received by PTY Seek.
Setting item:
PTY Seek Item
Setting contents:
News (Initial setting) / Information / Sports / Talk / Rock /
Classic Rock / Adult Hits / Soft Rock / Top 40 / Country /
Oldies / Soft / Nostalgia / Jazz / Classical / Rhythm and
Blues / Soft R & B / Foreign Language / Religious Music /
Religious Talk / Personality / Public / College / Weather
SiriusXM Setup
[SiriusXM] is selected on the Function Setup Menu screen.
Adjusting the SiriusXM Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
SiriusXM volume level.
USB Setup
[USB] is selected on the Function Setup Menu screen.
Adjusting the USB Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
volume level for USB Audio/USB Video playback.
Video Setup
Setting item:
Video Setup
Touch [
] or [ ] of “Brightness, Color, Contrast”
to set the picture quality.
• Available only when the current source is USB Video.
Adjusting Brightness
Setting item:
Brightness
Setting contents:
-15 to +15 (Initial setting: 0)
Adjusting Color of Picture
Setting item:
Color
Setting contents:
0 to 2 (Initial setting: 0)
Adjusting Image Contrast
Setting item:
Contrast
Setting contents:
-15 to +15 (Initial setting: 0)
21-EN
iPod Setup
[iPod] is selected on the Function Setup Menu screen.
Adjusting the iPod Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
volume level for iPod playback.
AUX (Auxiliary) Setup
[Auxiliary] is selected on the Function Setup Menu screen.
Adjusting the AUX Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
volume level for AUX playback.
Setting the Auxiliary (AUX) Name
Set the display name of an external device. This name is
displayed as a source name on the HOME screen or Audio
screen.
Setting item:
AUX Name
Setting contents:
Off / Auxiliary (Initial setting) / Digital TV
• Not available when the current source is Auxiliary (or Digital
TV).
Video Setup
Setting item:
Video Setup
Touch [
] or [ ] of “Brightness, Color, Contrast”
to set the picture quality.
• Available only when the current source is Auxiliary (or Digital
TV).
Adjusting Brightness
Setting item:
Brightness
Setting contents:
-15 to +15 (Initial setting: 0)
Adjusting Color of Picture
Setting item:
Color
Setting contents:
0 to 2 (Initial setting: 0)
Adjusting Image Contrast
Setting item:
Contrast
Setting contents:
-15 to +15 (Initial setting: 0)
22-EN

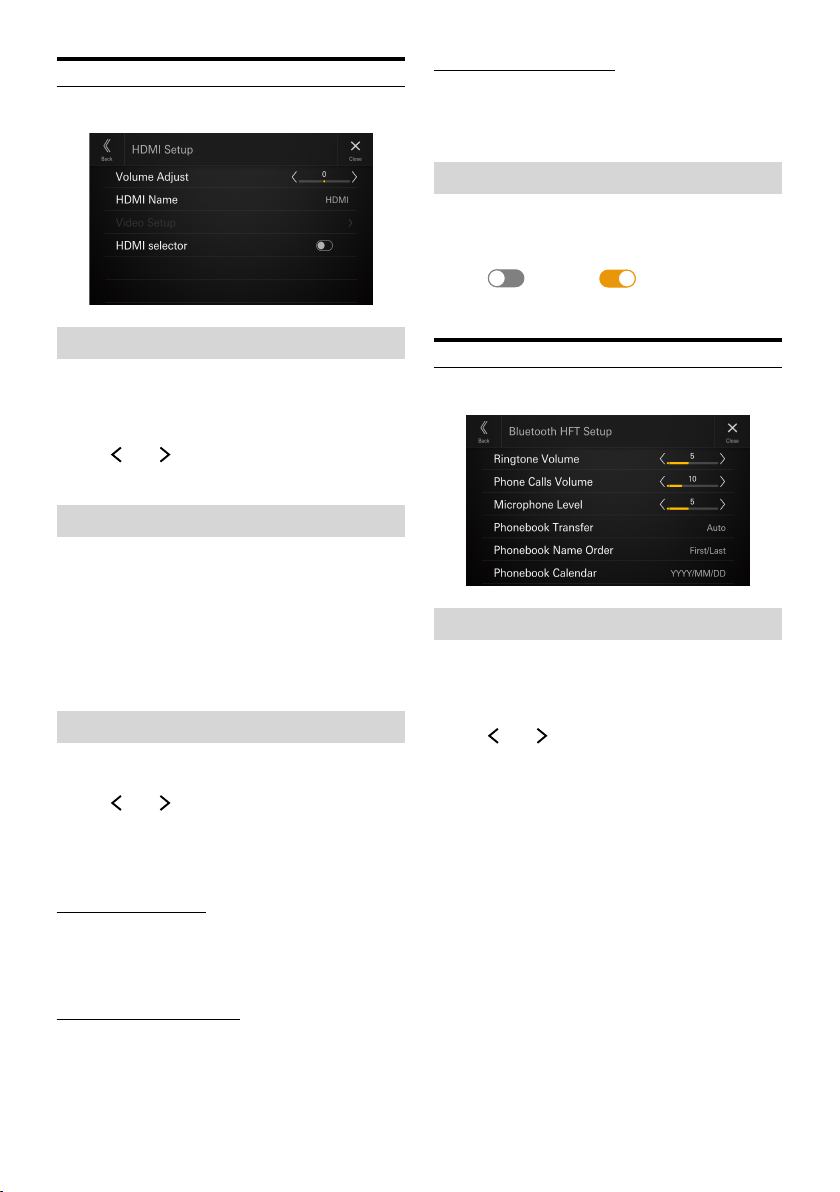

HDMI Setup
[HDMI] is selected on the Function Setup Menu screen.
Adjusting the HDMI Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
volume level for HDMI playback.
Setting the HDMI Name
Set the display name of an external device connected via
HDMI.
Setting item:
HDMI Name
Setting contents:
Off / HDMI (Initial setting) / Digital TV
• Not available when the current source is HDMI (or Digital
TV).
Video Setup
Setting item:
Video Setup
Touch [
] or [ ] of “Brightness, Color, Contrast”
to set the picture quality.
• Available only when the current source is HDMI (or Digital
TV).
Adjusting Brightness
Setting item:
Brightness
Setting contents:
-15 to +15 (Initial setting: 0)
Adjusting Color of Picture
Setting item:
Color
Setting contents:
0 to 2 (Initial setting: 0)
Adjusting Image Contrast
Setting item:
Contrast
Setting contents:
-15 to +15 (Initial setting: 0)
Setting the HDMI Selector
Set to [On] when the optional HDMI Selector is connected.
Setting item:
HDMI selector
Touch [
] (Off) or [ ] (On) of “HDMI
selector”.
Phone Setup
[Phone] is selected on the Function Setup Menu screen.
Adjusting the Ringtone Volume
Setting item:
Ringtone Volume
Setting level:
1 to 11 (Initial setting: 5)
Touch [
] or [ ] of “Ringtone Volume” to set the
Ringtones volume level.
• Not available when Apple CarPlay or Android Auto is
connected.
23-EN
Adjusting the Phone Call Volume
Setting item:
Phone Calls Volume
Setting level:
1 to 35 (Initial setting: 5)
Touch [
] or [ ] of “Phone Calls Volume” to set
the call volume level.
• Not available when Apple CarPlay or Android Auto is
connected.
Adjusting the Microphone Level
Setting item:
Microphone Level
Setting level:
1 to 11 (Initial setting: 5)
Touch [
] or [ ] of “Microphone Level” to set
the microphone volume level.
• Not available when Apple CarPlay or Android Auto is
connected.
Setting the Phonebook Transfer
Set whether to transfer the phonebook automatically.
Setting item:
Phonebook Transfer
Setting contents:
Auto (Initial setting) / Manual
Setting the Phonebook Name Order
Set the order of the last name and first name displayed in
the phonebook.
Setting item:
Phonebook Name Order
Setting contents:
Last/First / First/Last (Initial setting)
Setting the Phonebook Calendar
Set the date format displayed in the phonebook.
Setting item:
Phonebook Calendar
Setting contents:
YYYY/MM/DD (Initial setting) / MM/DD/YYYY /
DD/MM/YYYY
Bluetooth Audio Setup
[Bluetooth Audio] is selected on the Function Setup Menu
screen.
Adjusting the Bluetooth Audio Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
volume level for Bluetooth Audio playback.
Factory Audio Setting
[Factory Audio] is selected on the Function Setup Menu
screen.
Setting the OEM SXM
Set to [On] when operating the factory SiriusXM on the
unit.
Setting item:
OEM SXM
Touch [
] (Off) or [ ] (On) of “OEM SXM”.
24-EN
Adjusting the OEM SiriusXM Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
factory SiriusXM volume level.
Setting the OEM Media
Set to [On] when operating factory media (USB Audio/iPod
Audio) on the unit.
Setting item:
OEM Media
Touch [
] (Off) or [ ] (On) of “OEM
Media”.
Adjusting the OEM Media Volume
Setting item:
Volume Adjust
Setting level:
-14 to +14 (Initial setting: 0)
Touch [
] or [ ] of “Volume Adjust” to set the
factory media volume level.
Setting the Media
The Media setting can be changed for the connected
iDataLink module.
Setting item:
Media Setup
• This setting is only available when the iDataLink Maestro®
module (sold separately) is connected.
• Depending on the iDataLink module, this setting item may
not be displayed or the setting contents may differ.
Setting the Maestro Module
The Maestro Module setting can be changed for the
connected iDataLink module.
Setting item:
Maestro Setup
• This setting is only available when the iDataLink Maestro®
module (sold separately) is connected.
• Depending on the iDataLink module, this setting item may
not be displayed or the setting contents may differ.
Setting the Vehicle Information
The Vehicle Information setting can be changed for the
connected iDataLink module.
Setting item:
Vehicle Information
• This setting is only available when the iDataLink Maestro®
module (sold separately) is connected.
• Depending on the iDataLink module, this setting item may
not be displayed or the setting contents may differ.
Setting the Gauges
The Gauges setting can be changed for the connected
iDataLink module.
Setting item:
Gauges
• This setting is only available when the iDataLink Maestro®
module (sold separately) is connected.
• Depending on the iDataLink module, this setting item may
not be displayed or the setting contents may differ.
Setting the Parking Sensor
The Parking sensor setting can be changed for the
connected iDataLink module.
Setting item:
Park Sensor
• This setting is only available when the iDataLink Maestro®
module (sold separately) is connected.
• Depending on the iDataLink module, this setting item may
not be displayed or the setting contents may differ.
Setting the Climate
The Climate setting can be changed for the connected
iDataLink module.
Setting item:
Climate
• This setting is only available when the iDataLink Maestro®
module (sold separately) is connected.
• Depending on the iDataLink module, this setting item may
not be displayed or the setting contents may differ.
25-EN
Dash Cam (Drive Recorder) Setup
[Dash Cam] is selected on the Function Setup Menu screen.
Display the Dash Cam Menu
Set to [On] when the optional driver recorder is connected.
Setting item:
Dash Cam Menu
Touch [
] (Off) or [ ] (On) of “Dash Cam
Menu”.
Video Setup
Setting item:
Video Setup
Touch [
] or [ ] of “Brightness, Color, Contrast”
to set the picture quality.
• Available only when “Dash Cam Menu” setting is [On] (page
25).
Adjusting Brightness
Setting item:
Brightness
Setting contents:
-15 to +15 (Initial setting: 0)
Adjusting Color of Picture
Setting item:
Color
Setting contents:
0 to 2 (Initial setting: 0)
Adjusting Image Contrast
Setting item:
Contrast
Setting contents:
-15 to +15 (Initial setting: 0)
Camera Setup
[Camera] is selected on the Function Setup Menu screen.
Setting the Reverse Camera
(Camera 1)
Set to [On] when the optional reverse camera is connected.
Setting item:
Reverse Camera (Camera 1)
Touch [
] (Off) or [ ] (On) of “Reverse
Camera (Camera 1)”.
• “Reverse Camera (Camera 1)” is not available when the
Camera Setup screen is displayed using [Setup] of the
Camera screen.
Reverse Camera Format Setting
When “Reverse Camera (Camera 1)” setting is [On], the
video input signal type can be chosen.
Setting item:
Reverse Camera Format
Setting contents:
NTSC (Initial setting) / PAL
Camera 2 Setup
Set how the second camera is used.
Setting item:
Camera 2 Setup
Setting contents:
Off (Initial setting) / Front / Side / Other
• “Camera 2 Setup” is not available when the Camera Setup
screen is displayed using [Setup] of the Camera screen.
Camera 2 Format Setting
When “Camera 2 Setup” setting is not [Off], the video input
signal type can be chosen.
Setting item:
Camera 2 Format
Setting contents:
NTSC (Initial setting) / PAL
26-EN
Camera Guide Setup
You can adjust the camera guide position.
Setting item:
Camera Guide Setup
1 Touch [Camera Guide Setup] on the Camera
Setup menu screen.
The camera guide adjustment screen is displayed.
2 Touch [Camera], and then touch a camera,
[Rear], [Front] or [Side], to adjust.
• The guide line of the Other Camera cannot be adjusted.
■

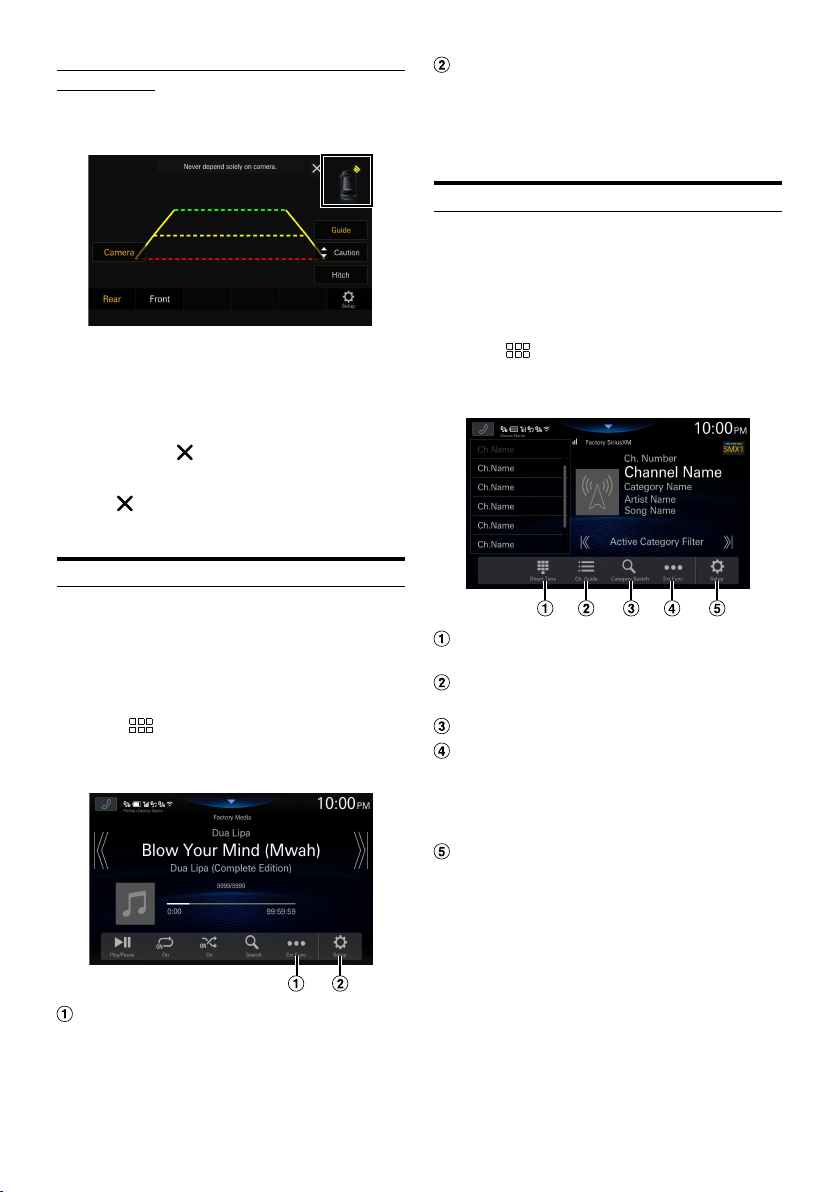

Rear Camera screen example
■
Front Camera screen example
■
Side Camera screen example
• When adjusting the side camera, touch [View], and then
[
] (Left steering) or [ ] (Right steering) to make the
guide line adjustment that matches the position of the steering
wheel in your vehicle.
3 Select a guide to adjust by touching [ ][ ].
4 Touch [
], [ ], [ ] or [ ] to adjust the
position of the guide.
5 Touch [Back] or [Close] to complete the
adjustment.
• The setting can be returned to the default setting by touching
[Default].
Hitch Guideline Adjustment
Adjustment can be made only by Rear Camera.
1 Touch [View], and then touch [Hitch].
The Hitch adjustment screen is displayed.
2 touch [ ][ ]to select the guide to adjust.
3 Touch [
], [ ], [ ] or [ ] to adjust the
position of the guide.
4 Touch [Back] or [Close] to complete the
adjustment.
• The setting can be returned to the default setting by touching
[Default].
Video Setup
Setting item:
Video Setup
Touch[
] or [ ] of “Brightness, Color, Contrast”
to set the picture quality
Adjusting Brightness
Setting item:
Brightness
Setting contents:
-15 to +15 (Initial setting: 0)
Adjusting Color of Picture
Setting item:
Color
Setting contents:
0 to 2 (Initial setting: 0)
27-EN
Adjusting Image Contrast
Setting item:
Contrast
Setting contents:
-15 to +15 (Initial setting: 0)
Setting Audio Mute On/Off while
Backing up
The audio volume can be muted when the shift gear lever is
set to the reverse (R) position.
Setting item:
Mute While Backing Up
Touch [
] (Off) or [ ] (On) of “Mute
While Backing Up”.
System Setup
[System] is selected on the Settings menu screen.
■

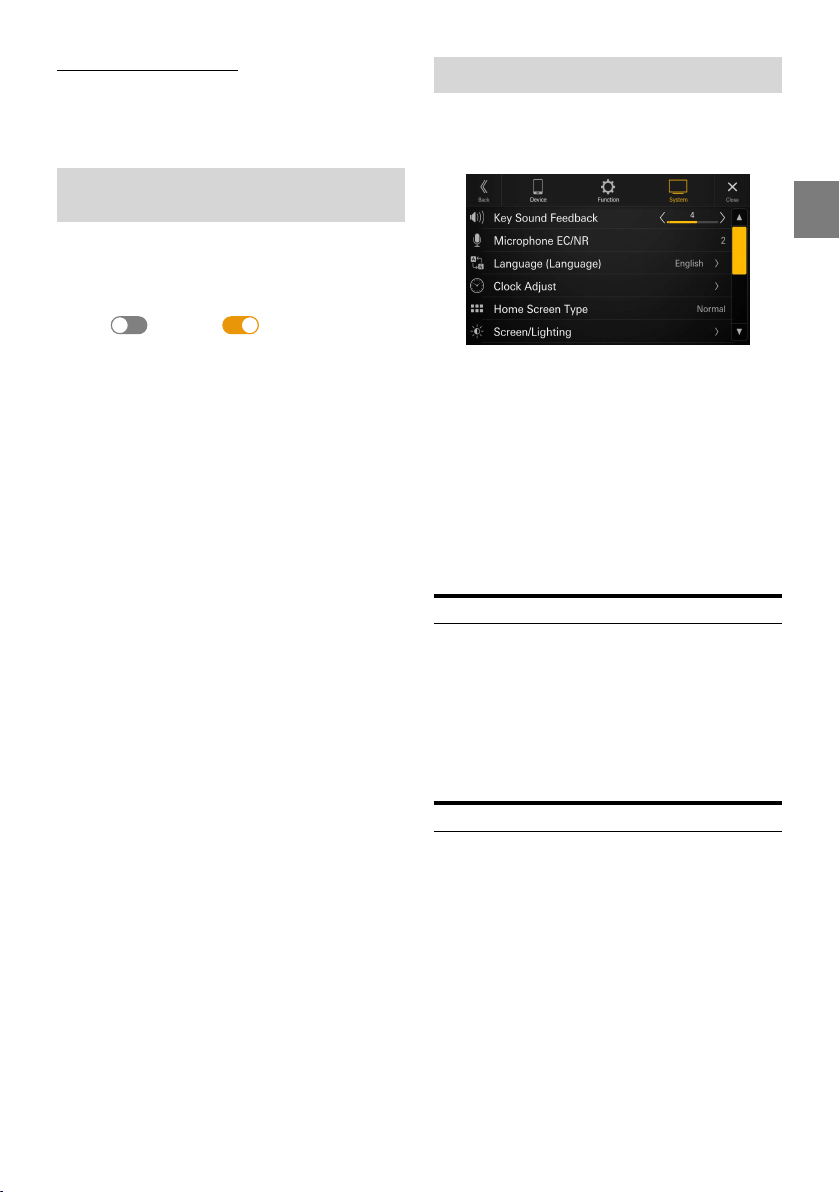

System Setup Menu screen
Setting Items:
Key Sound Feedback (page 27)
Microphone EC/NR (page 27)
Language (Language) (page 28)
Clock Adjust (page 28)
Home Screen Type (page 28)
Screen/Lighting (page 28)
Screen Color (page 29)
Source Priority Setup (page 29)
Vehicle Types for Phone Link (page 29)
Installation Status (page 29)
About/Software Update (page 30)
Adjusting the Key Sound Volume
[Key Sound Feedback] is selected on the System Setup
Menu screen
You can change the volume of the sound heard when a
button is touched.
Setting item:
Key Sound Feedback
Setting contents:
0 to 7 (Initial setting: 4)
Setting the Microphone Effect
[Microphone EC/NR] is selected on the System Setup
Menu screen.
Set this item when using a hands-free call or calling on
Apple CarPlay/Android Auto.
You can adjust the level of the Microphone Effect according
to the space inside the vehicle.
Setting item:
Microphone EC/NR
Setting contents:
1 / 2 (Initial setting) / 3
1: Small space inside the vehicle
2: Middle space inside the vehicle
3: Large space inside the vehicle
• This setting does not apply to Voice Recognition function.
28-EN
Language Setup
[Language (Language)] is selected on the System Setup
Menu screen.
The Setup menu, feedback information, etc. for this unit can
be changed to appear in the selected language.
Setting item:
Language*
1
(Language*
2
)
Setting contents:
English (Initial setting) / Deutsch / Français / Español /
Português / Italiano / Nederlands / Suomi / Norsk /
Svenska / Dansk / русский язык / Slovenčina / Polski /
Český / Magyar / Έλληνικά /
/ Türkçe / / /
/ / Bahasa Indonesia
• The currently selected language is displayed.
*1 Display in the currently selected language.
*2 Always display in English.
Adjusting the Clock
[Clock Adjust] is selected on the System Setup Menu
screen.
Setting item:
Clock Adjust
Setting the Time Format
The time format of the clock display can be set to the
12-hour or 24-hour display according to your preference.
Setting item:
Time Format
Setting contents:
12 Hour / 24 Hour (Initial setting)
Setting the Time Zone
The time zone can be set according to your region.
Setting item:
Time Zone
Initial setting:
UTC
Setting the Daylight Savings Time
To set the daylight saving time (Summer Time mode), set
“Daylight Savings Time” to [On].
Setting item:
Daylight Savings Time
Touch [
] (Off) or [ ] (On) of “Daylight
Savings Time”.
Setting the Home Screen Type
[Home Screen Type] is selected on the System Setup Menu
screen.
The Home screen can be changed to the Enhanced Text
mode. For details, see ”About the HOME Screen” (page
13).
Setting item:
Home Screen Type
Setting contents:
Normal (Initial setting) / Enhanced Text
Screen/Lighting Setup
[Screen/Lighting] is selected on the System Setup Menu
screen.
Setting the Brightness of the
Backlighting (Dimmer)
Backlighting is provided by LEDs light built into the liquid
crystal panel. The illumination control adjusts the
brightness of the backlighting based on the car ambient
lighting for easier viewing.
Setting item:
Dimmer
Setting contents:
Auto (Initial setting) / On / Off
Auto: Changes the brightness of the display
and button lighting according to the
brightness of the car interior.
On: The brightness set with [Key
Illumination Level] (page 28) and
[Screen Dimmer Level] (page 29) is
applied regardless of the brightness of
the car interior.
Off: Keeps the display and button lighting
bright, regardless of the brightness of
the car interior.
Adjusting the Dimmer of Button
Lighting at Night
You can adjust the brightness of the button lighting at
night with the dimmer.
Setting item:
Key Illumination Level
Setting level:
-2 to +2 (Initial setting: 0)
• This setting is only available when “Dimmer” is set to [On] or
[Auto].
29-EN
Adjusting the Minimum Level of
Backlight
You can adjust the brightness of the backlight. This function
could be used, for instance, to change the screen brightness
while traveling at night.
Setting item:
Screen Dimmer Level
Setting contents:
-15 to +15 (Initial setting: 0)
• This setting is only available when “Dimmer” is set to [On] or
[Auto].
Switching the Display Color
[Screen Color] is selected on the System Setup Menu
screen.
You can choose from 8 different display Colors.
Setting item:
Screen Color
Setting contents:
Glass Blue (Initial setting) / Glass Green / Glass Light Blue
/ Glass Red / Glass White / Steel Blue Green / Steel
Amber / Steel Red
Editing HOME screen
[Source Priority Setup] is selected on the System Setup
Menu screen.
In the Widgets editing screen, you can change the audio
source order.
Setting item:
Source Priority Setup
Touch [
] [ ] of the source name to change the
order.
Vehicle Type Setup
[Vehicle Types for Phone Link] is selected on the System
Setup Menu screen.
Apple CarPlay and Android Auto require information about
the vehicle to use all functions in the best possible way.
Setting item:
Vehicle Types for Phone Link
Steering wheel Setting
Set this item when Apple CarPlay is used or Android
smartphone which installed Android Auto App is
connected.
This setting influences Apple CarPlay/Android Auto mode.
Setting item:
Steering wheel
Setting contents:
Left (Initial setting) / Right
Fuel Type Setting
Set the Fuel type of your car.
Setting item:
Fuel Type
Setting contents:
Unknown / Unleaded gasoline (Initial setting) /
Leaded gasoline / Diesel #1 / Diesel #2 / Biodiesel /
85% ethanol/gasoline blend / Liquified petroleum gas /
Compressed natural gas / Liquified natural gas / Electric
/ Hydrogen fuel cell / Other
EV Connector Type Setting
When [Electric] is selected for “Fuel Type Setting” (page
29), set EV Connector Type.
Setting item:
EV Connector Type
Setting contents:
Unknown (Initial setting) / J1772 / Mennekes / Chademo
/ Combo_1 / Combo_2 / Tesla roadster / Tesla HPWC /
Tesla Supercharger / GBT / Other
Installation Setup
[Installation Status] is selected on the System Setup Menu
screen.
Vehicle Setup enables you to check the installation status of
Camera 1, Camera 2, Maestro Module, SiriusXM Tuner, Dash
Cam, GPS Antenna, GPS Information, Park, Vehicle Speed,
Reverse, Battery Voltage.
Setting item:
Installation Status
The Installation check screen is displayed.
• Depending on your vehicle, some installation status may not
be checked via this function.
30-EN
About/Software Update iLX-507/
iLX-F509/iLX-F511/i509
[About/Software Update] is selected on the System Setup
Menu screen.
By using [About/Software Update], the Serial Number and
Model name can be checked, the Software Version can be
updated, and various settings can be initialized.
• "Car by Car Update" is displayed in the setting item, but this
feature is not available.
Displaying the Product Information
You can view the version information of this product. Make
note of this information and refer to it whenever you
contact Alpine Tech Support or an Alpine-authorized dealer.
Setting contents:
Serial No. / Model Name
Updating Software Version
Download the software from the Alpine website and
update the product using the USB flash drive.
1 Plug the USB flash drive with the update file
stored into the unit.
2 Touch [Update] of “Software Version”.
3 After the confirmation message appears,
touch [OK].
Software Update screen is displayed, after finish
checking the update file.
4 After Software Update screen is displayed,
touch [Update].
System will restart automatically when the update is
complete.
• Do not turn on/off the power, change the ignition key position,
until system restart is completed.
Dedicated Tuning According to Your
Car (Car by Car Update)
This setting is not used.
Displaying Software License
Setting contents:
Open-Source Software License
Initializing the Sound Settings
You can restore the EQ Setting*/X-OVER*/Time Correction*/
Media Xpander (MX)/bass engine/Subwoofer to factory
settings.
1 Touch [Set] of “Default Sound Settings”.
2 After the confirmation message appears,
touch [OK].
The system starts initialization.
∗ The setting values that are stored in Preset 1 to
Preset 3 cannot be initialized.
Initializing the System
You can initialize all data, to restore the factory settings.
Remove the USB flash drive, etc. from the system before
operation.
1 Touch [Reset] of “Clear All Settings”.
2 After the confirmation message appears,
touch [OK].
The confirmation screen appears.
3 Touch [OK].
The system starts initialization.
• Do not turn on/off the power, change the ignition key position,
until system restart is completed.
31-EN

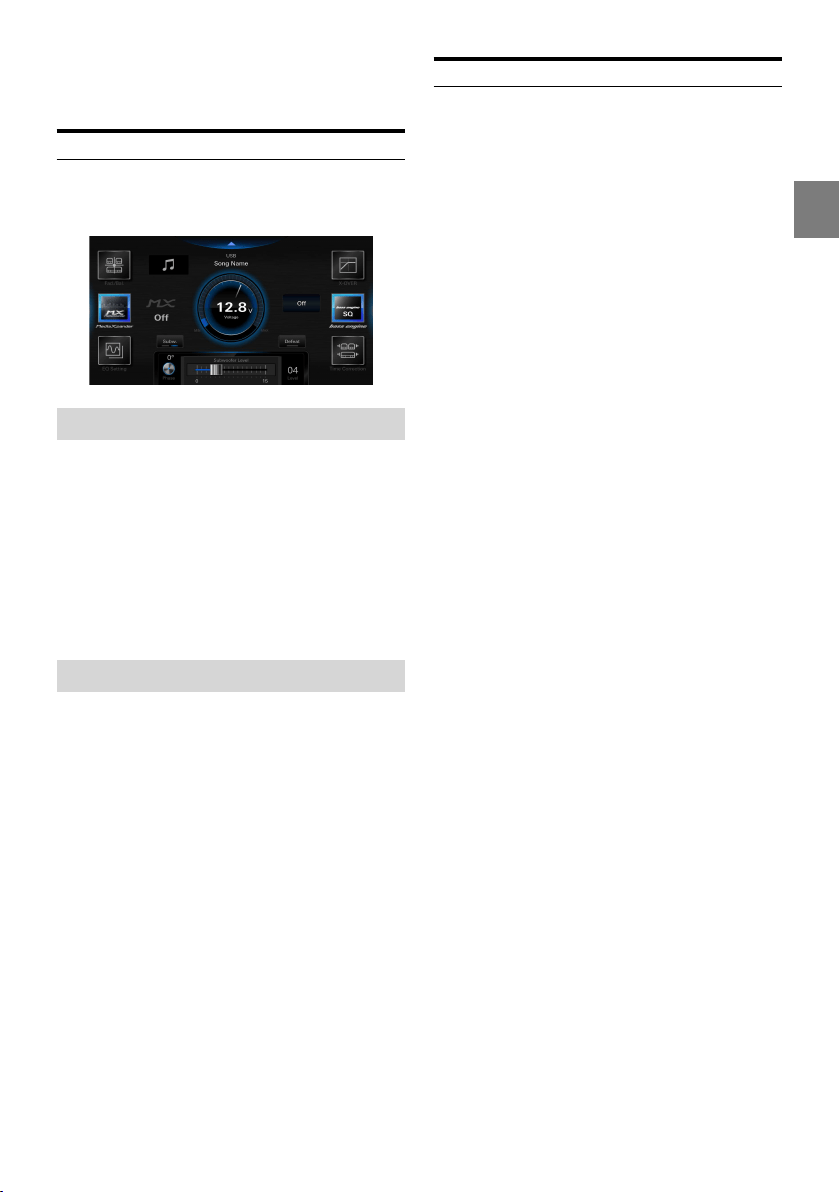

Sound Setup
You can set up items related to the sound quality.
Touch the upper central area [
] of the Home
screen.
The Sound Setup screen is displayed.
• The Sound Setup screen can also be displayed by touching
[
] (HOME) while displaying the Home screen.
■

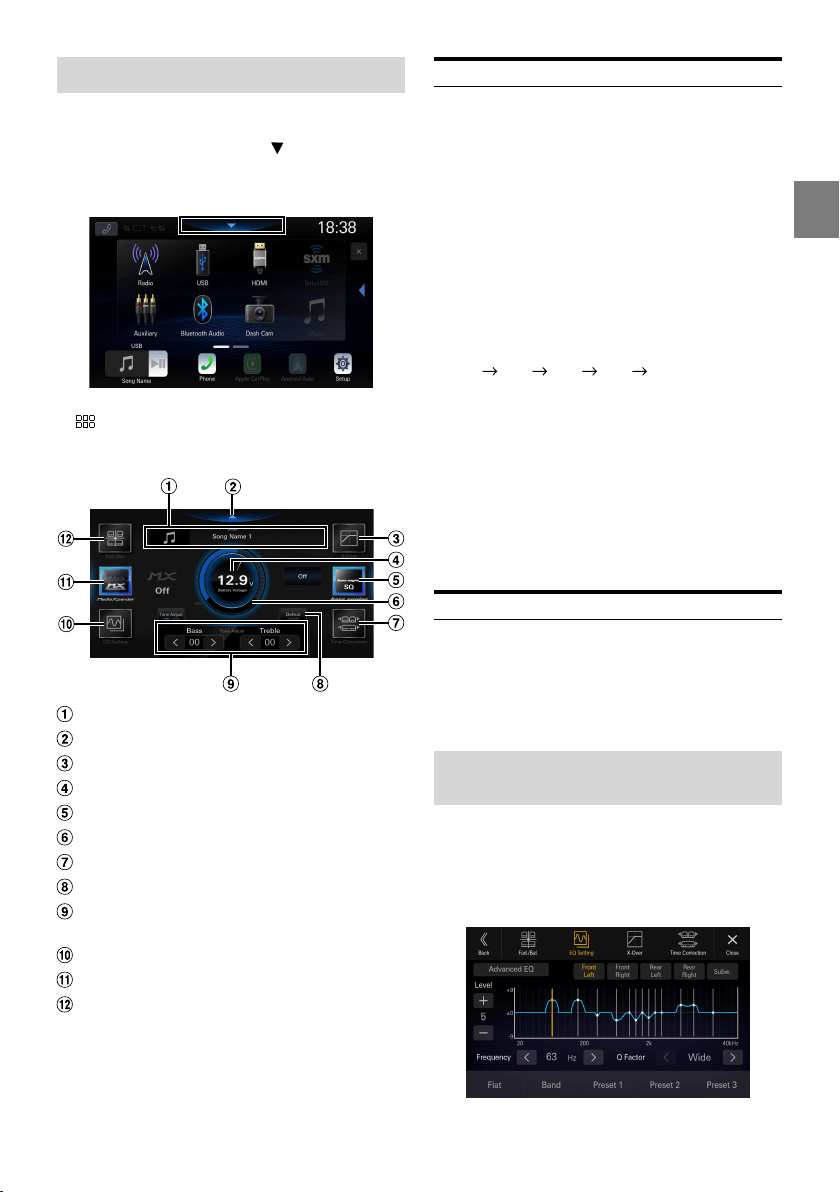

Sound Setup Menu screen
Current source information display.
Touch this to change to the Home screen.
X-OVER (page 34)
Battery Voltage display.
bass engine (page 34)
Volume level indicator
Time Correction (page 33)
Defeat (page 35)
Tone Adjust (Bass/Treble) (page 34), Sub
Woofer Level (page 35)
EQ Setting (page 31)
Media Xpander (page 31)
Fader/Balance/Rear Speaker/Subwoofer (page
33)
Setting the Media Xpander (MX)
[Media Xpander] is selected on the Sound Setup Menu
screen.
Media Xpander (MX) makes vocals or instruments sound
distinct regardless of the music source. The Radio (FM),
USB Flash drive and iPod, will be able to reproduce the
music clearly even in cars with a lot of road noise.
Setting item:
Media Xpander
Setting contents:
OFF (Initial setting) / MX 1 / MX 2/ MX 3
1 Touch [Media Xpander].
The Media Xpander setting screen is displayed.
2 Touch [Media Xpander] to switch the level.
OFF
MX 1 MX 2 MX 3 OFF
• The Media Xpander setting screen is returned to the Sound
Setup Menu screen if no operation has been performed for
more than 3 seconds.
• MP3/WMA/AAC/FLAC/WAV/APE can have its own MX
setting.
• When the Defeat setting is [On], you cannot perform the set
up.
• Not available when “bass engine” is set.
• The MX setting can be performed only when a source is
currently selected.
Equalizer Settings
[EQ Setting] is selected on the Sound Setup Menu screen.
EQ Setting has 3 modes, “Advanced EQ”, “Basic EQ” and
“Preset EQ”.
• When the Defeat setting is [On], you cannot perform the
set up.
• Not available when “bass engine” is set.
Adjusting the Parametric Equalizer
Curve (Advanced EQ/Basic EQ)
You can modify the Equalizer settings to create a response
curve more appealing to your personal taste.
This unit has “Advanced EQ” which can set 4 types of
speakers, and “Basic EQ” which can set 2 types of speakers.
■
Advanced EQ
32-EN
■
Basic EQ
1 Touch [EQ Setting].
2 Touch [Advanced EQ] or [Basic EQ] to select
Equalizer mode.
3 Select a speaker to adjust.
Advanced EQ: Front Left / Front Right / Rear Left /
Rear Right / Subw.
Basic EQ: Front / Rear / Subw.
4 Touch [Band] to select the band to be
adjusted.
Band1
Band2 ••• Band12 Band13 Band1
• You can select a band directly by touching the screen.
5 Touch [
] or [ ] of “Frequency” to adjust the
frequency of the selected band.
Adjustable frequency bands:
20 Hz to 40 kHz (in 1/3 octave steps)
Band1: 20 Hz~100 Hz (63 Hz)
Band2: 63 Hz~315 Hz (125 Hz)
Band3: 100 Hz~500 Hz (200 Hz)
Band4: 160 Hz~800 Hz (315 Hz)
Band5: 250 Hz~1.25 kHz (500 Hz)
Band6: 315 Hz~1.6 kHz (630 Hz)
Band7: 500 Hz~2.5 kHz (1 kHz)
Band8: 1 kHz~5 kHz (2 kHz)
Band9: 1.6 kHz~8 kHz (3.15 kHz)
Band10: 2.5 kHz~12.5 kHz (5 kHz)
Band11: 4 kHz~20 kHz (8 kHz)
Band12: 6.3 kHz~31.5 kHz (12.5 kHz)
Band13: 10 kHz~40 kHz (20 kHz)
6 Touch [
] or [ ] of “Level” to adjust the level
of selected band.
Setting contents:
-9 to +9 (Initial setting: 0)
7 Touch [ ] or [ ] of “Q Factor” to select the
bandwidth.
Setting contents:
Wide (Initial setting) / Medium / Narrow
8 Repeat steps 3 to 7, and adjust all speakers.
9 To store the adjusted setting value, touch and
hold [Preset 1], [Preset 2], or [Preset 3] for at
least 2 seconds.
• Band2 and Band11 are the same as the Bass and Treble
controls. For details on setting Bass and Treble, see “Adjusting
Bass Level/Treble Level” (page 34).
• Settings exceeding the frequency of adjacent bands are not
available.
• While adjusting the Parametric EQ, you should consider the
frequency response of the connected speakers.
• When the Parametric EQ is adjusted, the Preset EQ is
overridden.
• When Preset EQ is set, the linked Parametric EQ settings are
also changed. We recommend storing Parametric EQ settings
in a Preset in advance.
• Touch [Flat] to initialize all values.
Calling the Parametric EQ adjusted value
Calling the pre-set Parametric EQ adjusted value.
Touch [Preset 1], [Preset 2], or [Preset 3] on the
Parametric EQ screen.
The setting stored in the Preset will be recalled.
Equalizer Presets (Preset EQ)
10 typical equalizer settings are preset at the factory for a
variety of musical source material.
Setting item:
Preset EQ
Setting contents:
FLAT / POP / ROCK / NEWS / JAZZ / ELECTRONIC / HIP
HOP / EASY LISTENING / COUNTRY / CLASSICAL
• EQ Presets has no initial setting, there is no typical equalizer
will be selected in the initial status.
• Only one type can be set to On.
• When Preset EQ is set, the linked Parametric EQ settings are
also changed. We recommend storing Parametric EQ settings
in a Preset in advance.
33-EN
Fader/Balance/Rear Speaker/
Subwoofer Settings
[Fad./Bal.] is selected on the Sound Setup Menu screen.
Fader/Balance Image area
Setting the Fader/Balance
Touch the desired point within the image area, or
touch [
] (Front), [ ] (Rear), [ ] (Left) or [ ]
(Right).
Fader:
F15 to R15
Balance:
L15 to R15
• To reset to the initial setting (Balance: 0, Fader: 0), touch
[Center].
Rear Speaker Setting
You can set the rear speaker output to “Off.”
Setting item:
Rear Speaker
Setting contents:
On (Initial setting) / Off
Turning Subwoofer ON/OFF
If an optional subwoofer is connected to the unit, make the
following setting.
Setting item:
Subwoofer
Setting contents:
On / Off (Initial setting)
Time Correction Settings
[Time Correction] is selected on the Sound Setup Menu
screen.
Before performing the following procedures, see “About
Time Correction” (page 36).
Correction mode
Setting item:
Time Correction
1 Touch the Correction mode button, and then
select [ms], [cm] or [inch].
2 Touch [
] or [ ] for each speaker to adjust
the time or distance.
0.00 msec to 20.00 msec (0.02 msec/step)
0.0 cm to 680.0 cm (0.68 cm/step)
0.0 inch to 268.0 inch (0.268 inch/step)
All speaker setting values are adjustable in the range of
20.0 ms, 680.0 cm or 268.0 inch.
3 To store the adjusted setting value, touch and
hold [Preset 1], [Preset 2], or [Preset 3] for at
least 2 seconds.
• Touch [Flat] to set all values to 0.0.
• If the Rear Speaker setting is [Off], the Rear Speaker setting
cannot be edited (page 33).
• If the Subwoofer setting is [Off], the Subwoofer setting cannot
be edited (page 33).
Calling the Time Correction Value
Calling the pre-set time correction value.
Touch [Preset 1], [Preset 2], or [Preset 3] on the time
correction screen.
The setting stored in the Preset will be recalled.
34-EN
Crossover Settings (X-OVER)
Before performing the following procedures, see “About the
Crossover” (page 36).
Setting item:
X-OVER
1 Touch [X-OVER].
The X-OVER setting screen is displayed.
2 Touch [Front HPF], [Front LPF], [Rear HPF],
[Rear LPF] or [Subw. LPF] to select a channel
to adjust.
3 Touch [
] or [ ] of “Frequency,” and then
select the cut-off frequency.
Setting contents:
Front HPF: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial
setting) / 100 / 125 / 160 / 200 / 250 Hz
Front LPF: 4k / 5k / 6.3k / 8k (Initial setting) / 10k /
12.5k / 16k / 20k Hz
Rear HPF: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial
setting) / 100 / 125 / 160 / 200 / 250 Hz
Rear LPF: 4k / 5k / 6.3k / 8k (Initial setting) / 10k /
12.5k / 16k / 20k Hz
Sub.w.LPF: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial
setting) / 100 / 125 / 160 / 200 / 250 Hz
4 Touch [
] or [ ] of “Slope,” and then adjust
the HPF or LPF slope.
Setting contents:
0 (Initial setting) / 6 / 12 / 18 / 24 dB/oct.
5 Touch [
] or [ ] of “Level,” and then adjust
the HPF or LPF level.
Setting contents:
-12 to 0 dB (Initial setting: 0)
6 Repeat steps 2 to 5 to make adjustment to the
other channels.
7 To store the adjusted setting value, touch and
hold [Preset 1], [Preset 2], or [Preset 3] for at
least 2 seconds.
• Touch [Flat] to initialize all values.
• If the Rear Speaker setting is [Off], the Rear Speaker setting
cannot be edited (page 33).
• If the Subwoofer setting is [Off], the Subwoofer setting cannot
be edited (page 33).
• While adjusting the X-OVER you should consider the
frequency response of the connected speakers.
Calling the X-OVER adjusted value
Calling the pre-set X-OVER adjusted value.
Touch [Preset 1], [Preset 2], or [Preset 3].
The setting stored in the Preset will be recalled.
Setting the "bass engine"
You can set your favorite "bass engine" Type.
Setting contents:
Type: Off (Initial setting) / Standard / midbass
/ Rich / Lowbass / Punch
Level: 0 to 6
1 Touch [bass engine].
The "bass engine" setting screen is displayed.
2 Touch [bass engine] to switch the type.
Off
Standard midbass Rich Lowbass
Punch
Off
3 Touch [
] or [ ] of “BASS ENGINE Level,” and
then adjust the level.
• When the Defeat setting is [On], you cannot perform the bass
engine function.
• The “bass engine” setting screen is returned to the Sound
Setup Menu screen if no operation has been performed for
more than 3 seconds.
Adjusting Bass Level/Treble Level
Setting item:
Bass, Treble
Setting contents:
Bass: -18 to 18 (Initial setting: 00)
Treble: -18 to 18 (Initial setting: 00)
Touch [
] or [ ] of the “Bass” or “Treble,” to
adjust the level.
• The Bass level and Treble level are reflected in the settings of
Band2 and Band11 in EQ Setting. Depending on settings of
Band2 and Band11 in EQ Setting, the adjustable Bass level
and Treble level are changed.
35-EN
• When “Bass” and “Treble” are not displayed, touch [Subw.] to
switch to [Tone Adjust] mode.
• Not available when “bass engine” is set.
Setting the Subwoofer
Touch [Tone Adjust].
The "Subwoofer Level" setting screen is displayed.
Adjusting the Subwoofer Level
You can set the Subwoofer level when a Subwoofer is
connected.
Setting item:
Subwoofer Level
Setting contents:
0 to 15 (Initial setting: 0)
Slide the lever left or right to adjust the level.
• This setting is only available when “Subwoofer” is set to [On]
(page 33).
Setting the Subwoofer Phase
The subwoofer output phase is toggled Subwoofer
Normal (0°) or Subwoofer Reverse (180°).
Setting item:
Phase
Setting contents:
0° (Initial setting) / 180°
Touch [Phase] to switch the subwoofer output
phase.
• This setting is only available when “Subwoofer” is set to [On]
(page 33).
Defeat Setting
If Defeat is [On], Media Xpander, EQ Setting and
"bass engine" functions are turned Off. This disables any
settings made for these functions.
Setting item:
Defeat
Touch [Defeat].
The indicator lights up when Defeat is set to On.
36-EN
About the Crossover
Crossover (X-Over):
This unit is equipped with an active crossover. The crossover
limits the frequencies delivered to the outputs. Each
channel is controlled independently. Thus, each speaker
pair can be driven by the frequencies for which they have
been optimally designed.
The crossover adjusts the HPF (high pass filter) or LPF (low
pass filter) of each band, and also the slope (how fast the
filter rolls off the highs or lows).
Adjustments should be made according to the
reproduction characteristics of the speakers. Depending on
the speakers, a passive network may not be necessary. If
you are unsure about this point, please consult your
authorized Alpine dealer.
Cut-off
frequency (1/3
octave steps)
Slope Level
HPF LPF HPF LPF
Subwoofer
(LPF)
----
20 Hz -
250 Hz
----
0, 6, 12,
18, 24
dB/oct.
-12 to
0 dB
Rear speaker
(HPF)
20 Hz -
250 Hz
----
0, 6, 12,
18, 24
dB/oct.
----
-12 to
0 dB
Front
speaker
(HPF)
20 Hz -
250 Hz
----
0, 6, 12,
18, 24
dB/oct.
----
-12 to
0 dB
Slope adjusting
Output frequency
range
Front speaker
Rear speaker
Low range High range
Subwoofer
200 Hz
Output frequency
range
LPF cut-off
frequency
HPF cut-off
frequency
20 Hz
(Different from actual
display)
Level adjusting
(0 to –
12 dB)
Slope
F LAT
• HPF (high pass filter): Cuts the lower frequencies and allows
the higher frequencies to pass.
• LPF (low pass filter): Cuts the higher frequencies and allows
the lower frequencies to pass.
• Slope: The level change (in dB) for a frequency change of one
octave.
• The higher the slope value, the steeper the slope becomes.
• Adjust the slope to FLAT to bypass the HP or LP filters.
• Do not use a tweeter without the HPF on or set to a low
frequency, as it may cause damage to the speaker due to the
low frequency content.
• Adjustment should be made according to the recommended
crossover frequency of the connected speakers. Determine the
recommended crossover frequency of the speakers. Adjusting
to a frequency range outside that recommended may cause
damage to the speakers.
For the recommended crossover frequencies of Alpine
speakers, refer to the respective Owner’s Manual.
We are not responsible for damage or malfunction of speakers
caused by using the crossover outside the recommended value.
About Time Correction
The distance between the listener and the speakers in a car
vary widely due to the complex speaker placement. This
difference in the distances from the speakers to the listener
creates a shift in the sounds image and frequency
characteristics. This is caused by the time delay between the
sound reaching the listener’s right versus the left ear.
To correct this, this unit is able to delay the audio signal to
the speakers closest to the listener. This effectively creates a
perception of increased distance for those speakers. The
listener can be placed at an equal distance between the left
and right speakers for optimum staging.
The adjustment will be made for each speaker in 0.02 ms
steps.
Example 1. Listening Position: Front
Left Seat
Adjust the time correction level of the front left speaker to a
high value and the rear right to zero or a low value.
The sound is not balanced because the distance between
the listening position and the various speakers is different.
The difference in distance between the front left speaker
and the rear right speaker is 1.75 m (68-7/8”).
Here we calculate the time correction value for the front left
speaker in the diagram on the above.
Conditions:
Farthest Speaker – listening position : 2.25 m (88-9/16”)
Front left speaker – listening position : 0.5 m (19-11/16”)
Calculation: L = 2.25 m – 0.5 m = 1.75 m (68-7/8”)
Time correction = 1.75 ÷ 343* × 1,000 = 5.10 (ms)
∗ Speed of sound: 343 m/s (765 mph) at 20°C
37-EN
In other words, giving the front left speaker a time
correction value of 5.1 ms makes it seem as if its distance
from the listener is the same as the distance to the farthest
speaker.
Time correction eliminates the differences in the time
required for the sound to reach the listening position.
The time of the front left speaker is corrected by 5.1 ms so
that its sound reaches the listening position at the same
time as the sound of other speakers.
Example 2. Listening Position: All
Seats
Adjust the time correction level of each speaker to almost
the same level.
1 Sit in the listening position (driver’s seat, etc.)
and measure the distance (in meters)
between your head and the various speakers.
2 Calculate the difference between the distance
correction value to the farthest speaker and
the other speakers.
L = (distance to farthest speaker) – (distance to other
speakers)
These values are the time correction values for the
different speakers. Setting these values to make each
sound reach the listening position at the same time as
the sound of other speakers.
38-EN
Apple CarPlay (Optional)
Apple CarPlay is a smarter, safer way to use your iPhone in
the car. Apple CarPlay takes the things you want to do with
your iPhone while driving and puts them right on the unit.
You can get directions, make calls, send and receive
messages, and listen to music, all in a way that allows you to
stay focused on the road.
Access to Apple CarPlay
To use Apple Carplay, set the Siri setting of your iPhone to
ON.
Before using this function, plug in your iPhone using a
Lightning-USB cable (supplied with iPhone) to the unit, or
make a wireless connection. For wireless connection, see
“Pairing the Bluetooth® Device” (page 16).
• When both Apple CarPlay and Android Auto device are
connected, you cannot use Apple CarPlay and Android Auto
at the same time.
1 Press the
(HOME) button.
The HOME screen is displayed.
2 Touch [Apple CarPlay].
The Apple CarPlay screen is displayed.
[Apple CarPlay] button
• When another iPhone is connected by USB while using
CarPlay with the wireless connection, a message appears.
Touch [Ye s ] to switch the iPhone.
• When the Android Auto compatible smartphone is connected
by USB while in Apple CarPlay mode, a message appears.
Only charging is available on the Android Auto compatible
smartphone. When switching to Android Auto, switch from
the Device List. See “Connecting the Device Registered in the
Device List” (page 16).
• The App must be Apple CarPlay compatible in order to
appear in the Apple CarPlay screen.
• Some functions may not be available while driving.
• The only iPhone models that can be used with this unit is
iPhone 6s or later compatible with Apple CarPlay function.
Using Voice Recognition function
You can use the Siri function of your iPhone. To use this
function, set the Siri setting of your iPhone to ON.
• When using Apple CarPlay, the operation screen may differ
from the screen design in the Owner’s Manual.
1 Press the
button.
The Voice Recognition mode screen is displayed.
2 Speak into the microphone supplied with this
unit.
3 To finish the Voice Control mode, press the
button.
• Depending on the iPhone, the Siri function may finish
automatically.
• For adjusting the volume, see “Adjusting the Voice Recognition
Level” (page 18).
39-EN

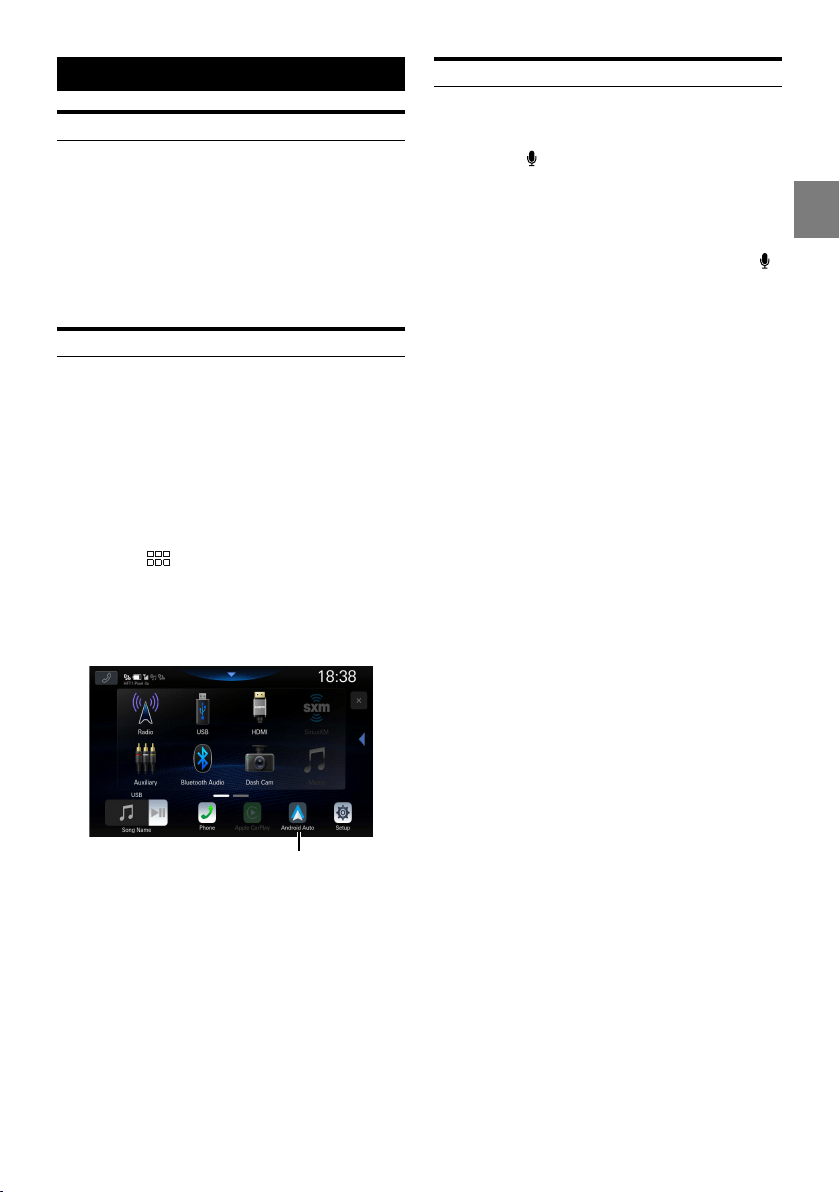

Android Auto (Optional)
What is Android Auto
Android Auto brings your favorite smartphone apps into
one place, making it easier for drivers to access their
favorite navigation, media, and communication apps on the
road while minimizing the distractions. Talk to Google on
Android Auto™ and get things done with your voice so you
can keep your eyes on the road and hands on the wheel.
Easily send messages, get directions, control media and
more. Just short-press or long-press the voice control
button on your steering wheel.
Activate Android Auto
Download the Android Auto App from the Google Play
store before continuing.
Just plug in your smartphone to the unit’s USB connector,
or make a wireless connection.
• The connected smartphone with Android Auto will disconnect
other phone’s Bluetooth connection and pair to the unit.
• When both Apple CarPlay and Android Auto device are
connected, you cannot use Apple CarPlay and Android Auto
at the same time.
1 Press the
(HOME) button.
The HOME screen is displayed.
2 Touch [Android Auto].
The Android Auto screen is displayed.
[Android Auto] button
• When another smartphone is connected by USB while using
Android Auto with the wireless connection, a message
appears. Touch [Ye s ] to switch the smartphone.
• When the iPhone is connected by USB while in Android Auto
mode, a message appears.
Only charging is available on the iPhone. When switching to
Apple CarPlay, switch from the Device List. See “Connecting
the Device Registered in the Device List” (page 16).
• You can make a call, use voice recognition function and
Android Auto’s compatible navigation app, etc.
• Only Google approved apps with necessary driver-safety
measures in place can be used.
Using Voice Recognition function
You can use the Voice Recognition function of the Android
Auto.
1 Press the
button.
The Voice Recognition mode screen is displayed.
2 Speak into the microphone supplied with this
unit.
3 To finish the Voice Control mode, press the
button.
• Depending on the smartphone, the Voice Recognition function
may finish automatically.
• For adjusting the volume, see “Adjusting the Voice Recognition
Level”(page 19).
40-EN
Radio/HD Radio™/RBDS
The unit can receive HD Radio broadcasting signals based
on digital radio broadcast standards, in addition to analog
radio broadcasts using RBDS.
HD Radio broadcasting signals are broadcast in the service
areas of the current AM/ FM broadcasters where they
provide digital audio distribution and data services. This
unit receives the above digital broadcasts for your
high-quality sound enjoyment.
Depending on the signal strength in TUNER mode, the unit
will automatically switch between digital signals if they can
be received, and analog radio using RBDS if digital signals
cannot be received. For details, please see “Forced Analog
Mode.”
• RBDS mode is only available during FM broadcast reception.
This unit is able to receive signals based on the terrestrial
digital radio broadcasting standard.
When current AM/FM broadcasters are transmitting digital
audio and data services, HD Radio broadcasting signals are
on-the-air in their service area. You can receive their digital
broadcast and enjoy high quality sound.
If there is no HD Radio broadcasting signal in the current
area, after 15 seconds, this unit will switch to receive the
RBDS Radio signal automatically. However, the display is still
HD Radio Technology mode screen.
■
HD Radio main screen example
LIVE indicator
HD Radio indicator (HD Radio™ mode only)
Switch the FM band.
Switch the AM band.
Multicast station channels indicator
1: MPS (Main Program Service)
2 -8: SPS (Supplemental Program Service)
Information display
RBDS
Station Info. mode:
Frequency/PS Name/Artist Name/Song Name
Radio Text mode:
Frequency/Radio Text
• For details on switching the display of the Radio text,
see “Displaying Radio Text (HD Radio™/RBDS FM Radio
mode only)” (page 42).
HD Radio Technology
Station Info. mode:
Frequency/Station Name/Artist Name/Song Name
Increases frequency
Touch and hold to change the frequency continuously.
Displays the Radio Setup Menu screen (page
19).
Decreases frequency
Touch and hold to change the frequency continuously.
Memorizes stations automatically.
Switches a Seek mode.
Preset List
Displays the preset stations with a short touch.
Touch for at least 2 seconds to memorize the current
station as a preset station.
• The multicast station channel number is displayed
during multicast reception.
Artwork etc./Station Logo display (HD Radio™
mode only)
Radio Basic Operation
Listening to the Radio
1 Press the
(HOME) button and select radio
mode.
The display shows the radio mode screen.
2 Touch [FM
] or [AM ] to select a band.
Each touch changes the bands as follows:
FM1
FM2 FM3 FM1
AM1
AM2 AM1
3 Touch [
] repeatedly to select the tuning
mode.
The radio frequency up or down button changes
depending on the tuning mode.
Seek mode*: Stations with certain strength
or higher are tuned.
Digital Seek mode: Automatically receives a
receivable digital broadcast.
Manual mode: The frequency is manually
tuned in steps.
Program Type mode:
(RBDS FM Radio Mode
only)
The currently selected
program type station will be
tuned.
Preset mode: You can directly switch preset
stations.
* Depending on the signal, a digital or analog broadcast
is received.
41-EN
4 Touch [ ], [ ] to change the radio frequency
up or down respectively.
In Manual mode, touch and hold to change the
frequency continuously.
• The
, buttons provide the same functions
above.
Presetting Stations Manually
1 Tune in a desired radio station you wish to
store in the preset memory by manual or
automatic seek tuning.
2 Touch and hold the preset button you want to
store for at least 2 seconds.
The selected station is stored.
3 Repeat the procedure to store up to 11 other
stations onto the same band.
To use this procedure for other bands, simply select the
desired band and repeat the procedure.
A total of 60 stations can be stored in the preset
memory
(12 stations for each band; FM1, FM2, FM3, AM1 or
AM2).
Presetting Stations Automatically
The tuner can automatically seek and store 12 strong
stations in the selected band in ascending order of
frequency.
Select the desired band then touch and hold
[Auto Preset].
The tuner automatically seeks and stores 12 strong stations
into the preset list in ascending order of frequency.
When automatic storing has completed, the station stored
in the preset 1 is selected.
• If no stations are stored, the tuner will return to the original
station you were listening to before the automatic storing
procedure began.
• You can cancel this process by touching [Auto Preset] while
the tuner is automatically seeking stations. Canceling will
return the tuner preset to the previous setting.
Tuning to Preset Station
After selecting the desired band, touch the
desired preset button.
The preset station is received.
Receiving a Multicast (HD Radio™
Mode only)
Multicasting is the ability to broadcast multiple program
streams over a single FM frequency. This increases the
amount and diversity of content choices. A maximum of 8
multicast station channels can be selected on this unit.
• Multicast station channels indicator appears when signal
reception is possible.
Touch [ ], [ ].
The sub channel of the received radio station is changed.
• The
, buttons provide the same functions above.
• If reception is lost during SPS broadcasting due to weak or no
signal, the screen will display “HDx Signal loss.”
Forced Analog Mode
Set the Receiving mode to [Forced Analog] to receive only
analog radio signals. For details, see “Setting the Receiving
mode” (page 20).
• During Forced Analog mode, only analog broadcasts will be
received even when digital broadcasts become available.
About Ballgame Mode (HD Radio™
Mode only)
The LIVE indicator will lights up when receiving live
broadcast such as sportscast.
■

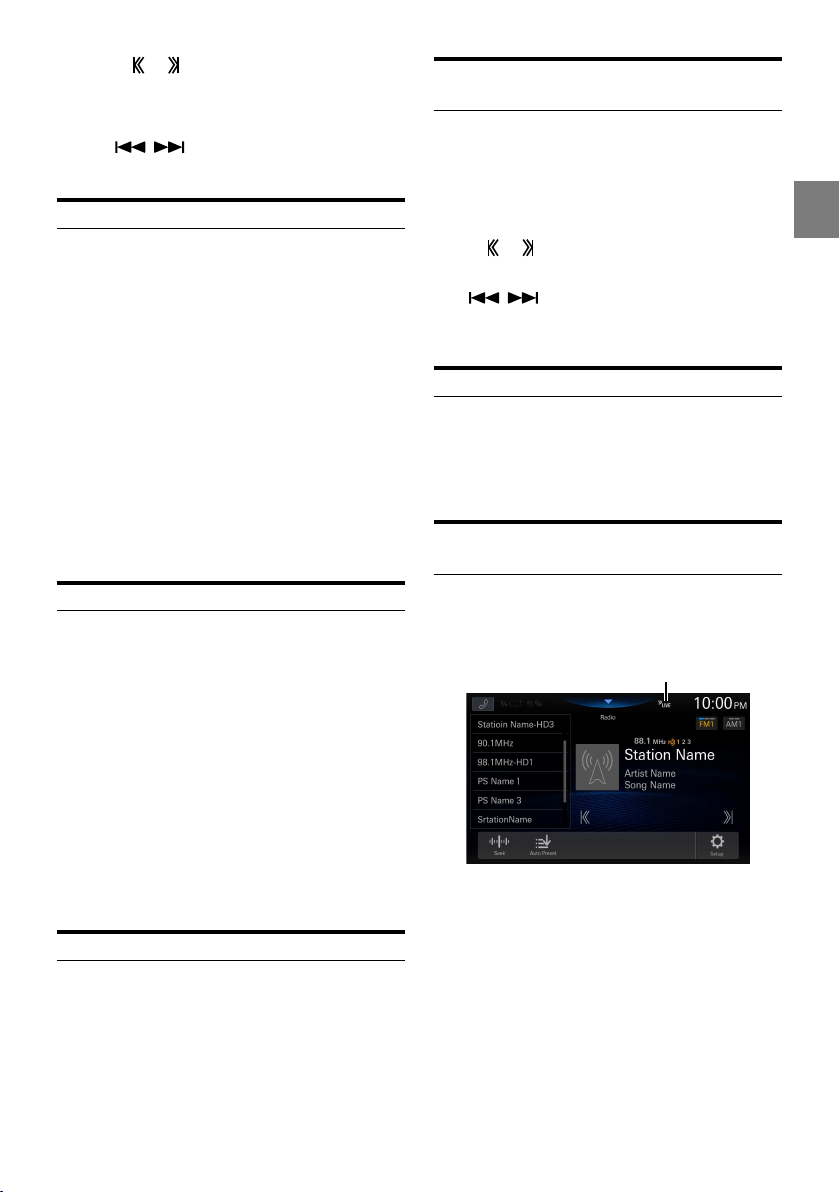

Ballgame mode screen example
LIVE indicator
• In live broadcast, such as sportscasts, etc., a time lag occurs
between digital sound and analog sound. Therefore, when live
broadcasts are received, a time lag between the real broadcast
may occur and the unit can change to analog broadcasting
automatically.
42-EN
Displaying Radio Text (HD Radio™/
RBDS FM Radio mode only)
Text messages from a radio station can be displayed.
1 Tune in a radio station that transmits text
messages.
2 Touch the information display in the FM radio
mode repeatedly to switch to the desired
display.
Station Info. mode
Radio Text Station Info. mode
Station Info. Mode:
Frequency/PS Name/Artist Name/Song Name
Radio Text Mode:
Frequency/Radio Text

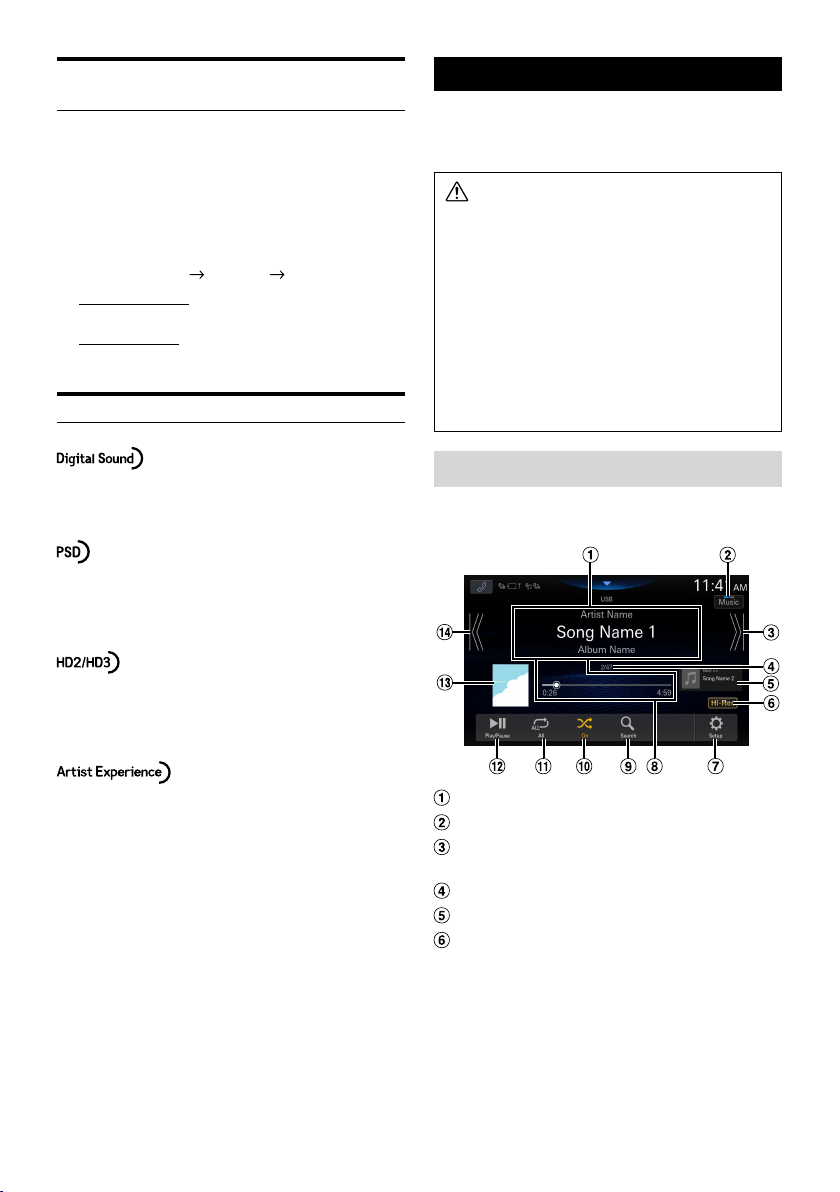

About the Feature Logos
• Digital, CD-quality sound. HD Radio Technology enables
local radio stations to broadcast a clean digital signal. AM
sounds like today’s FM and FM sounds like a CD.
• Program Service Data: Contributes to the superior user
experience of HD Radio Technology. Presents song name,
artist, station IDs, HD2/HD3 Channel Guide, and other
relevant data streams.
• Adjacent to traditional main stations are extra local FM
channels.
These HD2/HD3 Channels provide new, original music as
well as deep cuts into traditional genre.
• Visual information related to content being played on your
HD Radio receiver, such as Album Art, historical photographs,
still art from live broadcasts, among other related content.
USB Flash drive (Optional)
You can play back music files (MP3/WMA/AAC/FLAC/WAV/
APE), video files (MP4/MOV/FLV/MKV) stored in a USB flash
drive on the internal player of this system.
WARNING
It is dangerous for the driver to watch video while
driving the vehicle. The driver may be distracted
from looking ahead and an accident could occur.
Install the unit correctly so that the driver cannot
watch a video unless the car is stopped and the
parking brake is applied.
If the unit is not installed correctly, the driver will be
able to watch a video while driving and may be
distracted from looking ahead and cause an
accident. The driver or other people could be
severely injured.
USB Audio
■
USB Audio mode screen
Information display
Switches to USB Video mode
Finds the beginning of next chapter/Fast-
forwards when touched for at least 1 second
Current track number/Total track number
Next song information display
Hi-Res icon display
• Not displayed if the following conditions are not
satisfied.
– Extension: .flac/.wav
– Sampling frequency: 96 kHz or more
– Quantization bit rate: 24 bit or more
43-EN
Displays the USB Setup Menu screen (page 20)
Time Bar (Elapsed time/Total time for playing)
Displays the search screen
Shuffle mode
Repeat mode
Pause and Play
Artwork display
Finds the beginning of the current file/Finds a
previous file within 3 seconds after playback
starts/Fast-reverses when touched for at least 1
second
Playback
1 Press the
(HOME) button and select USB
mode.
The display shows the USB mode screen.
• When in USB Video mode, touch [Video] to switch to
USB Audio mode.
2 Touch [
] or [ ] to select the desired track
(file).
Returning to the beginning of the current (or previous)
track (file):
Touch [
].
Fast reverse :
Touch and hold [
].
Advancing to the beginning of the next track (file) :
Touch [
].
Fast forward :
Touch and hold [
].
• The
, buttons provide the same functions above.
• Touch or slide the Time Bar to fast-forward or fast-reverse.
3 To pause playback, touch [
].
Touching [
] again will resume playback.
• If there is tag information, artist name/album name/track
name is displayed.
• ID3 tag/WMA tag
If an MP3/WMA/AAC/FLAC/WAV/APE file contains ID3
tag/WMA tag information, the ID3 tag/WMA tag
information is displayed. (e.g., song name, artist name, and
album name)
Repeat Play
Touch [
], [ ] or [ ] to select Repeat
Play mode.
All
:
All files are repeatedly played back.
File
:
Only the file currently playing is repeatedly
played back.
Folder
:
Only files in a folder are repeatedly played
back. Only available when a file is played
back by searching a Folder.
Shuffle Play
Touch [
] to select Shuffle Play mode.
On :
Songs in the selected category (artist, album,
etc.) are played back in random order. Songs
in the category are played back only once
until all songs are played back.
Off
:
Shuffle mode is Off.
44-EN
Searching for a Desired Song
This unit can make various searches using the search
function as shown below.
Using the Song/Artist/Album/Genre/Folder search mode’s
individual hierarchy, you can narrow down your search as
shown in the table below.
<Music Search Menu>
Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4
Songs — — —
Artists Albums Songs —
Albums Songs — —
Genres Artists Albums Songs
Folder File — —
For example: Searching by Artist name
The following example explains how an Artists search is
performed.
1 Touch [ ] (Search) during playback.
2 Touch [Artists].
The Artists search screen is displayed.
3 Touch the desired artist’s name.
4 Touch the desired album’s name.
All songs of the selected album are displayed.
5 Touch the desired song’s name.
The selected song is played back.
USB Video
The video formats (USB Flash drive) supported by the unit
are as follows.
– Supported Container: MP4/MOV/FLV/MKV
– Supported Video Coding: MPEG-4/H.263/H.264 (MPEG-4
/AVC)/MPEG-1/MPEG-2
– Supported Audio Coding: MP3/WMA/AAC/WAV/FLAC/
APE
■

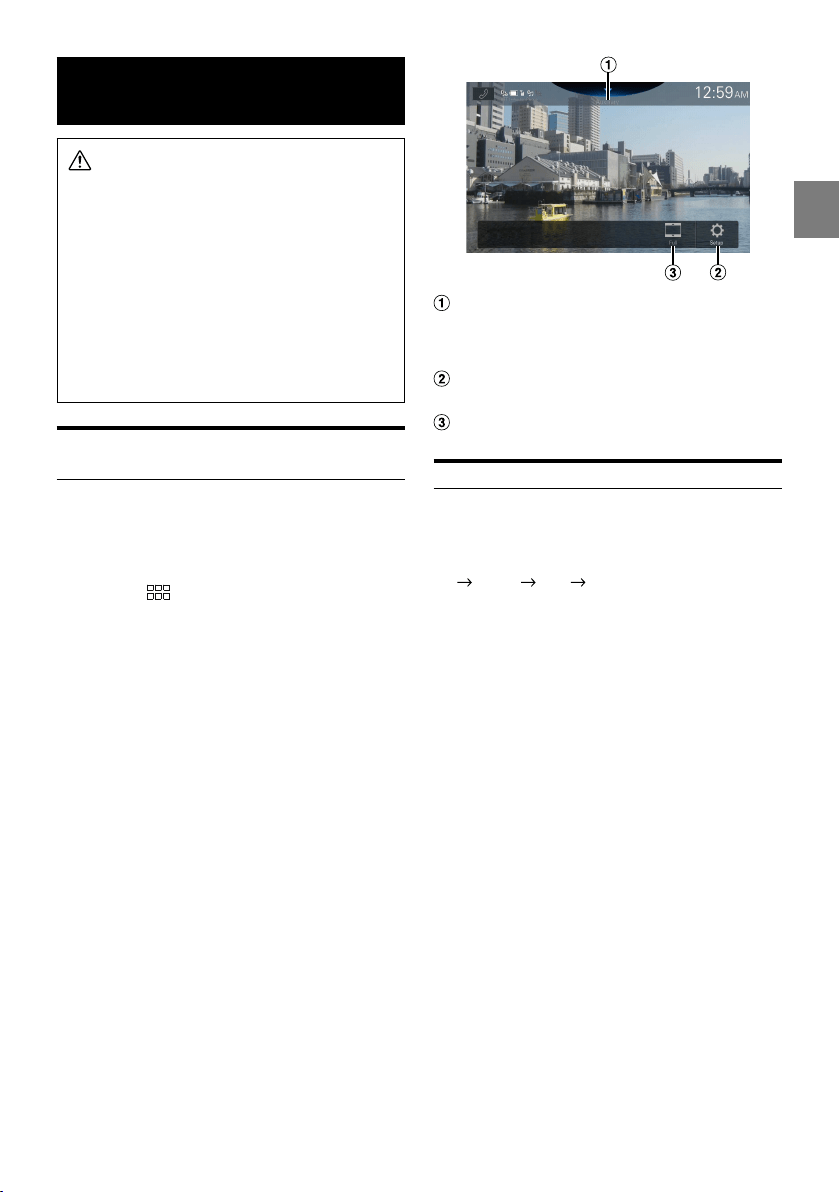

USB Video mode screen
Folder Name/File Name
Current file number/Total file number
Changes the Audio Tracks (Only during MKV file
playback)
Switches to USB Audio mode
Finds the beginning of next file/Fast-forwards
when touched for at least 1 second
Displays the USB Setup Menu screen (page 20)
Switching Display Modes
Displays the search screen
Time Bar (Elapsed time/Total time for playing)
Shuffle mode
Repeat mode
Pause and Play
Finds the beginning of the current file/Finds a
previous file within one second after playback
starts/Fast-reverses when touched for at least 1
second
45-EN
Playback
1 Press the
(HOME) button and select USB
mode.
The display shows the USB mode screen.
• When in USB Audio mode, touch [Music] to switch to
USB Video mode.
2 During the USB Video playback, touch the
screen to display the operation screen.
The USB Video operation screen is displayed for about 5
seconds.
3 Touch [
] or [ ] to select the desired track
(file).
Returning to the beginning of the current (or previous)
track (file):
Touch [
].
Advancing to the beginning of the next track (file) :
Touch [
].
• The
, buttons provide the same functions above.
4 To pause playback, touch [
].
Touching [
] again will resume playback.
• For your safety, video is not displayed and only audio can be
heard while driving.
Fast-forwarding/Fast-reversing
1 During playback, touch and hold [
]
(Fast-reverse) or touch and hold [
]
(Fast-forward).
• Touch and hold for more than 1 second to forward/
reverse at 2x speed. Keep touching to switch the
speed to 3x, 8x,16x and 32x.
2 Release [
] or [ ] to return to normal
playback.
• The
, buttons provide the same functions above.
• Touch or slide the Time Bar to fast-forward or fast-reverse.
Repeat Play
Touch [
], [ ] or [ ] to select Repeat
Play mode.
All
:
All files are repeatedly played back.
File
:
Only the file currently playing is repeatedly
played back.
Folder
:
Only files in a folder are repeatedly played
back.
Shuffle Play
Touch [ ] to select Shuffle Play mode.
On
:
Files in the selected folder are played back in
random order. Files in the category are
played back only once until all files are
played back.
Off
:
Shuffle mode is Off.
Searching for a Desired file
1 Touch [
] (Search).
2 Touch your desired Folder name or File name.
• When you select a Folder name, repeat the same procedure to
select another Folder name or File name.
46-EN

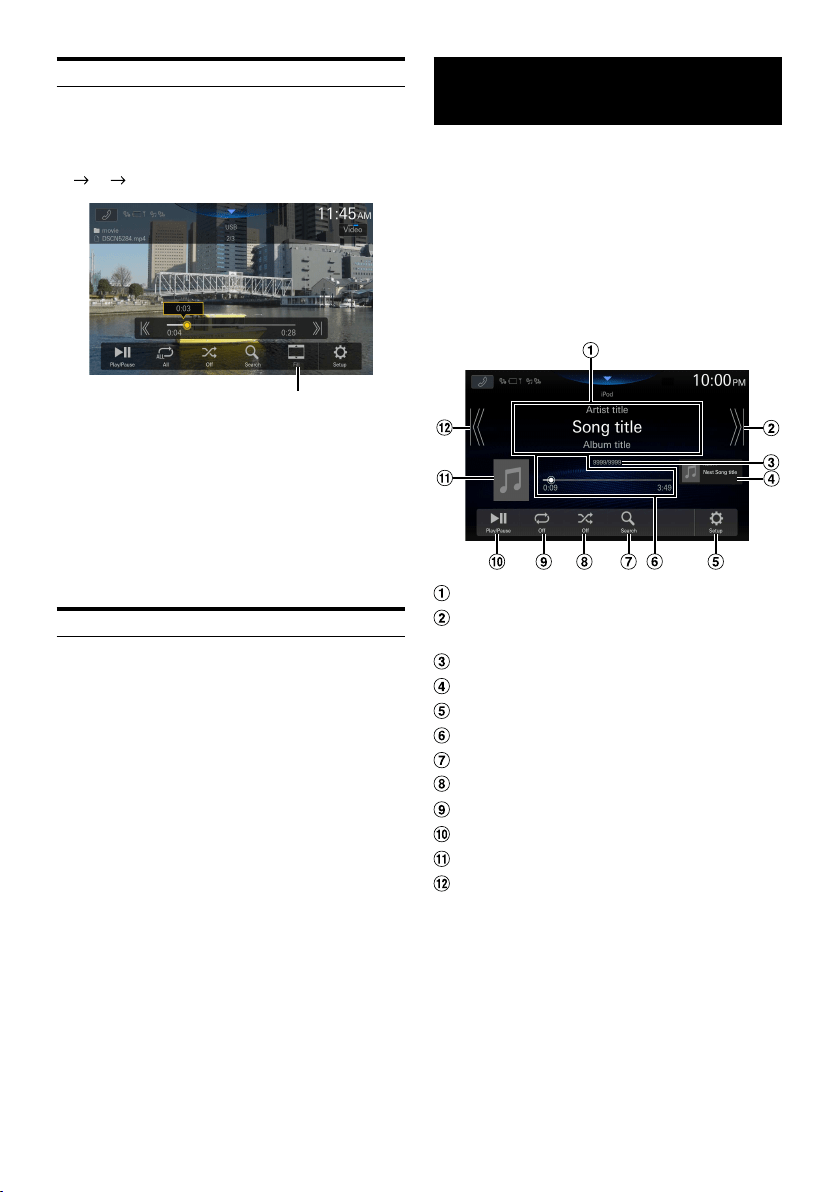

Switching Display Modes
You can switch the Display Mode while playing a Video File.
Touch the Display Mode button.
Each time you touch, the Display Mode is switched.
Fit
Fill Fit
Display Mode button
• The Display Mode button displays the currently selected
mode.
• You cannot operate them while driving.
Fit: The mode displays a picture to fit its size
vertically and horizontally with the monitor
size.
Fill: Cut the top and bottom of the image and
stretch it over the entire screen.
Switching the Audio Tracks
When the image has multiple sound tracks, the sound track
can be switched during playback or pausing.
Touch [Audio].
The sound switches in order each time it is touched. The
format of the sound is displayed on the screen.
• If more than one audio is not recorded in the video, the
[Audio] button will not be displayed.
iPod mode on iPhone
(Optional)
A separately sold Lightning to USB cable, etc., is required.
• This unit does not support video playback from an iPhone
which connected to this unit via the USB Connector.
• Internet or telephone function, etc., of the iPhone is not
controllable from the unit, but these functions can be
controlled using the iPhone itself.
• When an iPhone is connected, Apple CarPlay mode is turned
on. To use you iPhone with iPod mode, turn “On” the CarPlay
setting on the iPhone.
■

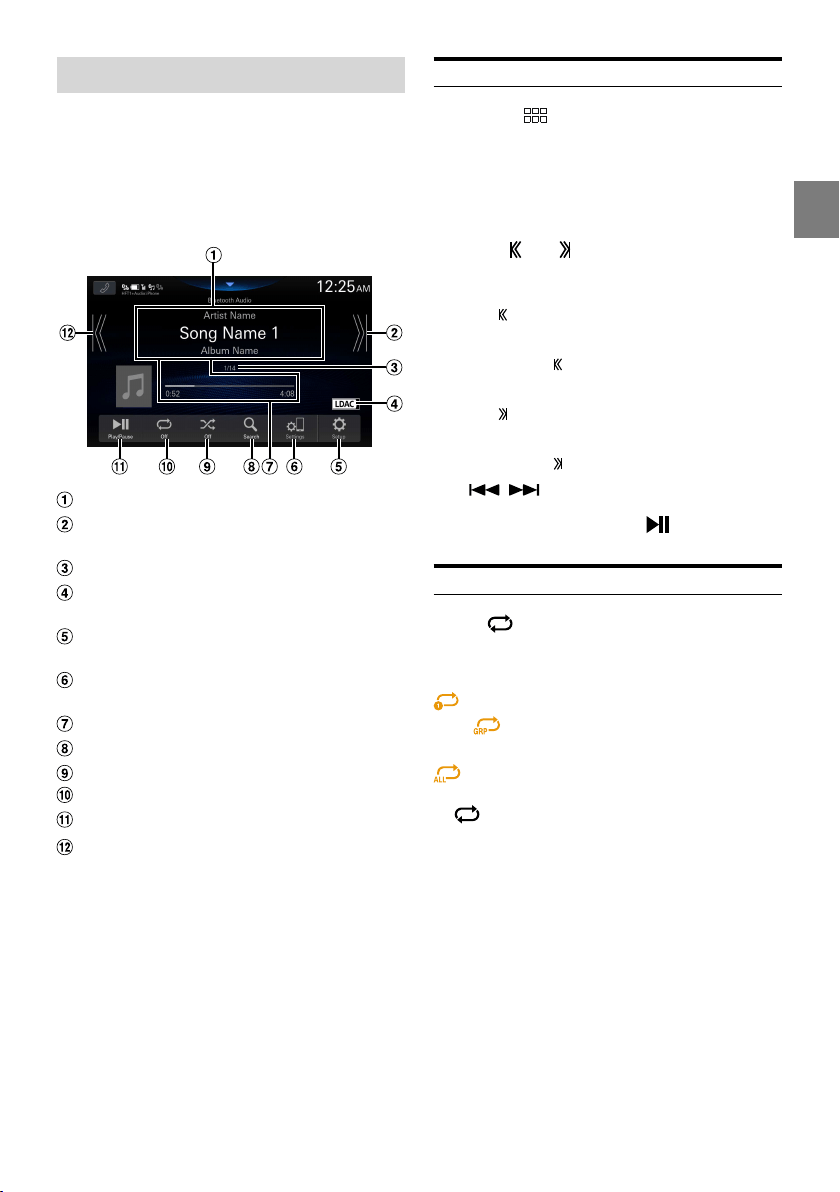

iPod main screen example
Information display*
Finds the beginning of next chapter/Fast-
forwards when touched for at least 1 second
Current song no./Total song no.
Next song information display
Displays the iPod Setup Menu screen (page 21)
Time Bar (Elapsed time/Total time for playing)
Displays the search screen
Shuffle mode
Repeat mode
Pause and Play
Artwork display
Finds the beginning of the current file/Finds a
previous file within 3 seconds after playback
starts/Fast-reverses when touched for at least 1
second
∗ Podcast mode.
47-EN
Playback
1 Press the
(HOME) button and select iPod
mode.
The display shows the iPod mode screen.
2 Touch [
] or [ ] or to select the desired
track (file).
Returning to the beginning of the current (or previous)
track (file):
Touch [
].
Fast reverse the current track :
Touch and hold [
].
Advancing to the beginning of the next track (file) :
Touch [
].
Fast forward the current track :
Touch and hold [
].
• The
, buttons provide the same functions above.
• Touch or slide the Time Bar to fast-forward or fast-reverse.
3 To pause playback, touch [
].
• If a song is playing on the iPhone before it is connected to the
unit, it will continue playing when it is connected.
• Audiobooks may have several chapters. The chapter can be
changed by touching [
] or [ ].
• If the artist, album or song name, created in iTunes, has too
many characters, songs may not be played back when
connected to the unit. Therefore, a maximum of 64 characters
is recommended. The maximum number of characters for the
unit is 64.
• Some characters may not be correctly displayed.
Searching for a Music File
An iPhone can contain thousands of songs. For this reason,
this unit can make various searches using the search
function as shown below.
Using the Playlists/Artists/Albums/Podcasts/Audiobooks/
Genres/Composers/Songs/Radio search mode’s individual
hierarchy, you can narrow down your search as shown in
the table below.
<Music Search Menu>
Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4
Playlists Songs — —
Artists Albums Songs —
Albums Songs — —
Songs — — —
Genres Artists Albums Songs
Composers Albums Songs —
Podcasts Episodes — —
Audiobooks — — —
Radio — — —
For example: Searching by Artist name
The following example explains how an Artists search is
performed.
1 Touch [ ] (Search) during playback.
2 Touch [Artists].
The Artists search screen is displayed.
3 Touch the desired artist’s name.
4 Touch the desired album’s name.
All songs of the selected album are displayed.
5 Touch the desired song’s name.
The selected song is played back.
48-EN
Repeat Play
Touch [
] to select Repeat Play mode.
All Tracks
:
All songs are repeatedly played back.
Single Track
:
Only the song currently playing is
repeatedly played back.
Off
:
Repeat mode is Off.
Shuffle Play
Touch [
] to select Shuffle Play mode.
Album
:
The songs on each album are played back in
proper order. Upon completing of all the
songs on the album, the next album is
selected randomly. This continues until all
albums have been played.
Songs
:
Randomly plays back songs within a
selected category (playlist, album, etc.). The
songs within the category are played just
once until all songs have been played.
Off
:
Shuffle mode is Off.
SiriusXM Satellite Radio
Operation (Optional)
SiriusXM Tuner operation:
When an optional SiriusXM SXV300G2 Connected Vehicle
Tuner (2018-UP) is connected to this unit, the following
operations may be performed.
How to identify compatible SXM tuners. On the back of SXM
tuner (G2) will be next to Radio ID
■
SiriusXM main screen example (Song Info.
Mode)
Displays the “For You” screen (page 51)
Changes to category browsing mode (page 50)
Switch the SiriusXM band.
Information display
Show Name/Artist Name/Track Name
Channel Number display
Touch to select the channel number directly.
Changes to the next channel, and displays the
Linear Tuner screen (page 49)
Displays the profiles/setting screen (page 52)
Displays the related content screen (page 51)
Channel logo display
Displays the artist/song/sports team notification
setting screen (page 51)
Changes to previous channel, and displays the
Linear Tuner screen (page 49)
Skip Forward (by segment/track)
Touch and hold to change to the program currently
being broadcast.
Pause and Play
Skip Backward (by segment/track)
49-EN
Preset list
Displays the preset stations with a short touch.
Touch for at least 2 seconds to memorize the current
station as a preset station.
Album art display
Receiving Channels with the SiriusXM
Tuner
About SiriusXM® Radio
SiriusXM is where moments happen. The widest, deepest
variety of music, ad-free. More games, more sports, more
coverage than anywhere. The most extensive
entertainment, complete news coverage and every kind of
comedy. Listen in your car, on your phone, online and at
home. A SiriusXM Vehicle Tuner and subscription are
required. For more information, visit www.siriusxm.com.
• The SiriusXM Satellite Radio controls on this unit are
available only when a SiriusXM Tuner is connected.
After you have found the SiriusXM Radio ID, you can
activate your radio. See “Checking the SiriusXM Radio ID
Number” (page 50).
In the USA, you can activate online or by calling SiriusXM
Listener care:
• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions, please contact:
• Visit www.siriusxm.ca/activate
• Call SiriusXM Customer Care at 1-888-539-7474
1 Touch the
(HOME) button and select
SiriusXM mode.
The display shows the SiriusXM mode screen.
2 Touch [SXM
] to select a band.
Each touch changes the bands as follows:
SXM1
SXM2 SXM3 SXM1
3 Touch [
CH] or [CH ] to select the desired
channel. Touching and holding either button
will rapidly browse through the channels.
• Refer to the SiriusXM Tuner User Guide for details on how to
install the SiriusXM Tuner.
• The
, buttons provide the same functions above.
Selecting the Channel
1 Touch [
CH] or [CH ] .
Channel is switched to the previous or next channel,
and the channel selection screen is displayed, then the
selected channel is displayed in the focus position.
Focus position
Displays the Direct Tune screen (page 50).
2 Touch [
CH] or [CH ] or swipe left or right
while the channel selection screen is
displayed to move the target channel to the
center position.
When the received channel is in the center position, the
playback screen for the received channel is displayed if
you touch the channel in the center position or if
nothing is operated for about 10 seconds.
• When the channel cannot be received, the screen cannot be
displayed.
• If you touch a channel other than the one in the center
position and it can be received, you can switch the channel. If
the channel cannot be received, only the screen changes.
Selecting the Channel Directly
You can directly select the channel number by using the
numeric keypad.
1 Touch [DIRECT TUNE] on the channel selection
screen.
The numeric keypad input screen is displayed.
2 Touch to input the channel number.
3 Touch [GO].
The selected channel is received.
50-EN
Tuning Channels by Category
Channels are grouped into categories based on the type of
content heard on the channels.
1 Touch [CATEGORIES] on the SiriusXM main
screen to activate the category browsing
mode.
The Categories screen appears.
Super Categories
Up to 16 types of super categories can be displayed. To
switch the super category, swipe the super categories
section left or right.
Categories
Up to 48 categories can be displayed in one super
category. To switch the category, swipe the categories
section left or right.
2 Touch the target super category, then the
target category.
The Categories Channel List screen appears.
• Up to 383 channels can be displayed in one category.
To switch the channel, swipe the screen left or right.
3 Select the desired channel.
Checking the SiriusXM Radio ID
Number
To subscribe to the SiriusXM Satellite Radio service, it is
necessary to locate and identify the Radio ID of your
SiriusXM Tuner. You can check the Radio ID on the bottom
surface of the SiriusXM Tuner box. You can also check it
from this unit by performing the following procedure.
1 While receiving SiriusXM Radio, touch [
CH]
or [CH
] to select channel “0”.
The unit displays the Radio ID number.
2 To cancel the Radio ID number display,
change the channel to a channel other than
“0”.
• The SiriusXM Radio ID does not contain the letters I, O, S, or
F.
• System Information on the Profiles/Setting screen can also be
used to view the Radio ID number. See “Displaying the System
Information” (page 53).
Storing Channel Presets
You can store 36 of your favorite SiriusXM channels for easy
recall with Preset buttons.
1 Touch and hold the Preset number you want
to store for at least 2 seconds to store the
channel.
2 Repeat the procedure to store up to 11 other
channels.
12 presets can be stored in each of the 3 SXM bands for
a total of 36 presets.
• If you store a new channel into a preset which already has a
channel assigned, the current channel will be cleared and
replaced with the new one.
Tuning Channels using Presets
Touch any one of the Preset numbers you have
already stored in the Preset mode screen.
The preset channel is received.
51-EN

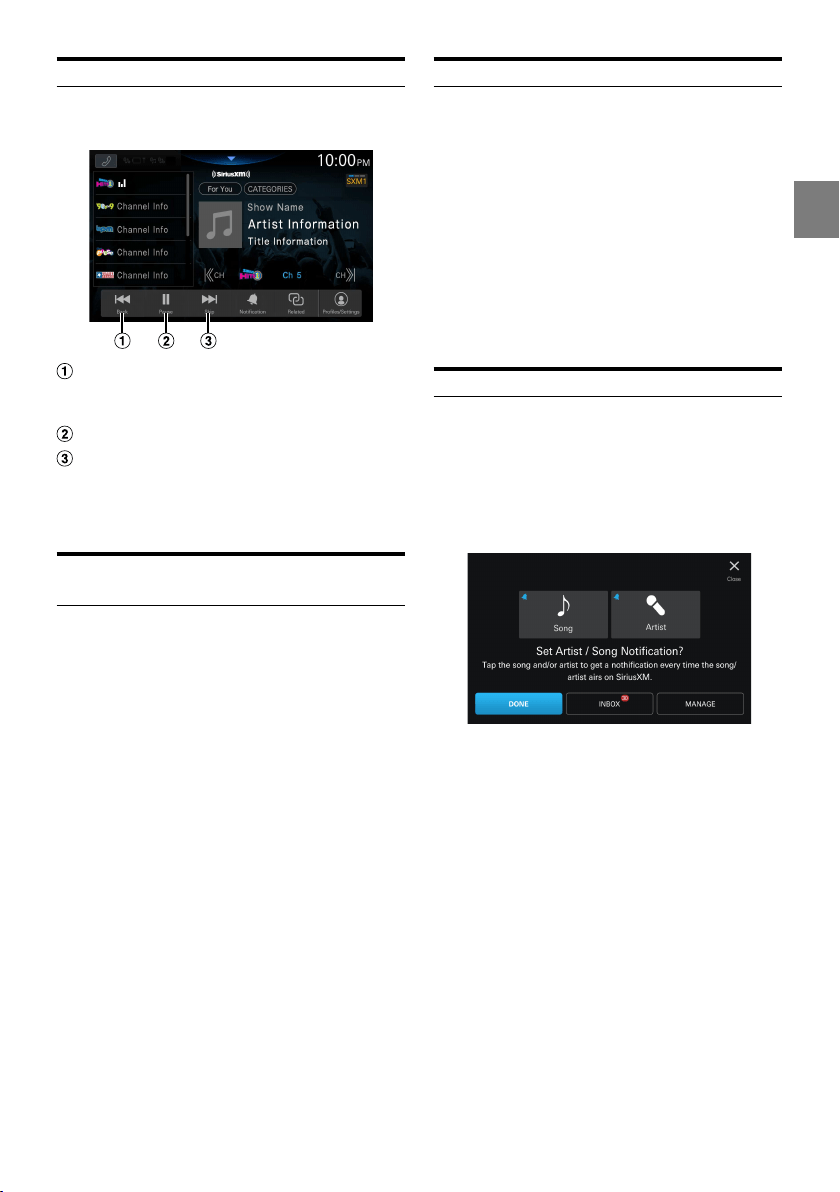

Replay Function
In SiriusXM mode, you can pause, skip track and replay live
Satellite Radio.
Each tap of the Back button will skip to the
beginning of the prior song/talk segment. Press
and hold to rewind through the content.
Pause and Play
Each tap of the Skip button will skip to the
beginning of the next song/talk segment until
you reach live broadcast. Press and hold the Skip
button to fast-forward through the content.
Listening to the Recommended
Channels “For You”
The “For You” list will display up to 8 channels that are
recommended by SiriusXM based on your listening history.
The more you listen, the better the recommendations.
1 Touch [For You].
The “For You” screen appears.
• A message will appear if the “For You” channel list is
not ready. You may need to wait a few minutes and
try again.
2 Touch the desired channel.
The channel you selected is received.
• Swipe left or right to scroll through the screen.
• The channel currently being listened to is not included in the
“For You” channel list.
• When a Contextual Banner appears, touch the title to operate
according to the banner.
Listening to Related Channels
You can quickly discover other channels that are related to
the channel you are listening to.
1 Touch [Related].
The Related Content screen appears.
• A message will appear if the related channel list is not
ready. You may need to wait a few minutes and try
again.
2 Touch the desired channel.
The channel you selected is received.
• Swipe left or right to scroll through the screen.
• A message will be displayed when there is no related content.
Setting Notifications
You can easily set alert notifications for your favorite songs,
artists, or sports teams while listening to them live. Once
stored, you will be notified whenever that song, artist or
sports team is playing on other channels.
1 Touch [Notification].
The Notification screen appears.
2 Touch the artist name, song name, or team
name.
3 Touch [DONE].
Selected item is added to the notifications.
• When you touch [INBOX], the notifications list screen is
displayed.
• When you touch [MANAGE], the Manage Notifications
screen is displayed. For details, see “Managing Notifications”
(page 52).
52-EN
Viewing Listening History
A list of up to the last 18 channels can be accessed easily.
1 Touch [Profiles/Settings].
The Profile screen appears.
2 Touch [HISTORY] of “Listener Items”.
The Listening History screen appears and a history of up
to 18 channels is displayed.
• Swipe left or right to scroll through the screen.
3 Touch the desired channel.
The channel you selected is received.
• The channel currently being listened to is not included in the
history list.
Listener Settings
1 Touch [Profiles/Settings].
The Profile screen appears.
2 Touch [LISTENER SETTINGS] of “Listener
Items”.
The Listener Settings screen appears.
Setting Notifications from SiriusXM
Set to [OFF] to not allow the SiriusXM notifications.
Setting item:
Notifications
Touch [OFF] or [ON] of “Notifications”.
Managing Notifications
You can receive notifications from the channels playing
your favorite artists or songs, or notifications on the start of
games.
Touch [MANAGE] of “Notifications”.
The Manage Notifications screen appears.
Setting the Artist & Songs
Setting item:
ARTISTS & SONGS
Touch [OFF] or [ON] of “ARTISTS & SONGS”.
• The list of artists and songs added to the notifications is
displayed when you touch [ARTISTS & SONGS]. Touch the
tile to turn the notification to on/off. Continue touching to
delete.
Setting the Sports
Setting item:
Sports
Touch [OFF] or [ON] of “Sports”.
• The Team Notifications screen is displayed when you touch
[TEAMS]. Touch the team name to turn notifications ON/
OFF. Continue touching to delete.
• Touch [Add Team] to add a new team.
Setting Block Explicit
Set to [ON] to block channels with explicit content.
Setting item:
Block Explicit
Touch [OFF] or [ON] of “Block Explicit”.
Setting Tune Start
Tune to a Preset that is a music channel and automatically
start a song from the beginning with TuneStart™.
Setting item:
Tune Start
Touch [OFF] or [ON] of “Tune Start”.
Resetting History
Reset Listening History and Recommendations.
1 Touch [RESET HISTORY] of “Reset History”.
2 Touch [RESET].
History is reset.
53-EN
Subscribing to SiriusXM by Phone
You can make a call to SiriusXM to subscribe if a hands-free
phone is connected to the unit.
1 Touch [Profiles/Settings].
The Profile screen appears.
2 Touch [Subscribe] of “Subscription”.
3 Touch [CALL].
• If you have already subscribed, the [Subscribe] button will
not be displayed.
Displaying the System Information
Radio ID and SiriusXM software version information can be
displayed.
Touch [Profiles/Settings].
The Profile screen appears.
See the system information items.
Receiving Support by Phone
You can make a call to SiriusXM to receive support if a
hands-free phone is connected to the unit.
1 Touch [Profiles/Settings].
The Profile screen appears.
2 Touch [CONTACT SIRIUSXM] of “Help &
Support”.
3 Touch [CALL SIRIUSXM].
Setting Your Location
Set the location (US or Canada) for where you will be
subscribing to SiriusXM.
1 Touch [Profiles/Settings].
The Profile screen appears.
2 Select [I live in the US] or [I live in Canada],
then touch [OK].
Banner advisory messages
If the banner below appears on the channel tile, follow the
instructions.
Unavailable:
The channel that you have requested is not a valid
SiriusXM channel or the channel that you were listening
to is no longer available.
Upgrade to Listen:
The current subscription plan does not include these
channels. Upgrade your subscription plan to enjoy all
the SiriusXM content. In the US go to siriusxm/
activatenow or call SiriusXM at 1-866-587-4225 to
subscribe, or in Canada go to siriusxm.ca/activate or call
SiriusXM at 1-888-539-7474 to subscribe.
Subscribe to Listen:
Your SXM tuner is currently unsubscribed. In the US go
to siriusxm/activatenow or call SiriusXM at 1-866-587-
4225 to subscribe, or in Canada go to siriusxm.ca/
activate or call SiriusXM at 1-888-539-7474 to subscribe.
Try Me:
SiriusXM is having a free listening promotion of this
channel and others which are not included in your
subscription plan for you to try. Upgrade your
subscription to continue listening to these channels
after the promotion is over.
54-EN
HDMI Device (Optional)
Devices supporting HDMI can connect and play back
through this unit (for example, iPhone or other
Smartphones).
• HDMI pass-though supports the following.
– USB Video: MP4/MOV/FLV/MKV
• HDMI will also output HDMI input source.
• The HDMI/MHL connecting cable differs depending on the
connected device corresponding to HDMI. Prepare optional
HDMI/MHL connecting cable sets suitable for your device.
WARNING
It is dangerous for the driver to watch video while
driving the vehicle. The driver may be distracted
from looking ahead and an accident could occur.
Install the unit correctly so that the driver cannot
watch video unless the car is stopped and the
parking brake is applied.
If the unit is not installed correctly, the driver will be
able to watch video while driving and may be
distracted from looking ahead and cause an
accident. The driver or other people could be
severely injured.
HDMI Operation
■
iPhone, Smartphone, etc.
The output of your electronic device will be mirrored on this
unit through the HDMI connector. Control from this unit is
not possible.
• In HDMI player mode, the screen of the device displays the
content of electronic equipment by mirror image.
• The electronic device must possess an HDMI output interface.
• Not all devices with an HDMI output interface can be
recognized by this unit.
• Use only the Alpine Special HDMI connection cable.
1 Press the
(HOME) button to select HDMI.
The display shows the HDMI mode screen.
2 During the HDMI playback, touch and hold
the screen to display the operation screen.
The HDMI operation screen is displayed for about 5
seconds.
• For your safety, video is not displayed and only audio can be
heard while driving.
Source Title
• The name which is given as the source name in
“Setting the HDMI Name” (page 22) is displayed.
Displays the HDMI Setup Menu screen (page
22)
Switching Display Modes
HDMI1/HDMI2 switch
• This switch appears when the HDMI Selector setting is
[On]. See “Setting the HDMI Selector” (page 22). The
switch name of HDMI1 becomes the same as the
source title.
Switching the HDMI Input
When the optional HDMI Selector is connected, up to 2
HDMI devices can be connected. The HDMI devices can be
switched during HDMI playback.
• Make sure to set the HDMI Selector setting to [On]. See
“Setting the HDMI Selector” (page 22).
• The displayed name of HDMI1 varies according to the HDMI
Name setting. See “Setting the HDMI Name” (page 22).
Touch [HDMI1 (or Digital TV)] or [HDMI2].
The current HDMI mode can be checked in the Source Title
located in the upper part of the HDMI operation screen.
55-EN
Switching Display Modes
You can switch the Display Mode while playing a Video File.
Touch the Display Mode button.
Each time you touch, the Display Mode is switched.
Full
Normal Wide Full
• The Display Mode button displays the currently selected
mode.
• You cannot operate them while driving.
Wide: Cut the top and bottom of the image and
stretch it over the entire screen.
Full: The mode displays a picture to fit its size
vertically and horizontally with the monitor
size.
Normal: Select when viewing 4:3 images. A black
band appears on both sides of the screen.
RSE through HDMI Out
• HDMI pass-through is automatically on:
There is no setting that needs to be turned on.
• HDMI output is a pass-through only:
Audio output though HDMI is not supported.
• HDMI Output will pass video through when source is on
HDMI In, USB Video and Video content is available.
• To play video from a third party streaming device that
third party manufacturer may require an adapter to do so.
Bluetooth Operation
Setup Before Using
About Bluetooth
Bluetooth is a wireless technology allowing communication
between a mobile device or personal computer over short
distances. This enables a hands-free call or data
transmission between Bluetooth compatible devices.
Bluetooth transmission is available in the unlicensed 2.4
GHz spectrum if the distance between devices is within 10
meters. For details, refer to the Bluetooth website (http://
www.bluetooth.com/).
• Depending on the Bluetooth version, a Bluetooth compatible
device may not be able to communicate with this unit.
• Proper function of this unit with all Bluetooth compatible
devices is not guaranteed. For handling of the Bluetooth
compatible device, consult your Alpine dealer or Alpine
website.
• Depending on the surroundings, Bluetooth wireless connection
may be unstable.
• When you place a call, or perform setup operations, be sure to
stop your car in a safe place.
• Depending on the connected Bluetooth compatible device(s),
the function may differ. Also refer to the Owner’s Manual of
the connected device(s).
About the Hands-free Phone
Hands-free calls are possible when using a HFP (Hands-Free
Profile) compatible mobile phone with this unit.
• Avoid performing a hands-free call in heavy traffic or on
narrow or winding streets.
• Close the windows while calling to reduce background noise.
• If both calling parties are using hands-free devices, or the call
is made in a noisy location, difficulty hearing the other
person’s voice is normal.
• Depending on telephone line conditions or certain mobile
devices used, voices may sound unnatural.
• When using a microphone, speak as directly as you can into
the microphone to obtain the best sound quality.
• Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s network.
Additionally, certain features may not be activated by your
service provider, and/or the provider’s network settings may
limit the feature’s functionality.
Always contact your service provider about feature
availability and functionality.
All features, functionality, and other product specifications, as
well as the information contained in the Owner’s Manual are
based upon the latest available information and are believed
to be accurate at the time of printing.
Alps Alpine reserves the right to change or modify any
information or specifications without notice or obligation.
• Notice that when you connect an iPhone 6s or later/Android
smartphone with installed Android Auto App, the operation
screen may differ from this section.
56-EN
Before Using Bluetooth
Before using the hands-free phone/audio function, the
following settings need to be made.
1 Set “Bluetooth” to [On] (page 17).
2 Register a Bluetooth device in this unit (page
16).
• You can search for this unit using a Bluetooth compatible
device, and then connect that Bluetooth compatible device to
this unit. The device name of this unit is “iLX-507”,
“iLX-F509”, “iLX-F511” or “i509” and the initial number of
the passcode is “0000.” Also refer to the Owner’s Manual of the
connected device(s).
Hands-free Phone Control
Touch [
] (Phone) in the HOME screen or Source
mode screen to display the Phone menu screen.
Phone button
Phone button
• The Device List screen is displayed when a Hands-free Phone,
Apple CarPlay or Android Auto device is not connected.
■
Phone menu screen example
Recent Call
You can display up to 90 items, such as phone numbers
of the most recent incoming calls, missed calls and
outgoing calls, and contact names that are registered in
the Phone Book. When 90 items exist in the list, the
oldest item is deleted when a further item is to be
added.
Phone Book
You can make a phone call from the Phone Book.
Keypad screen
Use to type a phone number.
Setup
Displays the Phone Setup Menu screen (page 22).
Switch Device
You can switch between Hands Free 1 and Hands Free 2.
Answering a Call
1 An incoming call triggers the ringtone and an
incoming call display.
2 Touch [ ].
The call starts.
• During a call, the audio for the current mode on the unit is
muted. After calling, playback will resume.
• When the caller’s number is transmitted to the system, if the
caller’s name is stored in the phone book, the name is
displayed. If the name is not stored, the number is displayed.
• Touch [
] (Decline) to reject an incoming call.
• By touching [
], you can mute the microphone. To cancel
MUTE mode, touch [
]. For details, see “Phone Operation
Screen” (page 57).
• When 2 Bluetooth compatible devices are connected, one is in
a call and the other receives an incoming call, the screen
indicates the incoming call. To answer the second call, hang
up the first call, and then touch [
] on the screen of this
unit. Or you can answer the call directly with your Bluetooth
compatible device.
57-EN
Hanging up the Telephone
Touch [
] (End Call).
The call finishes.
Calling
Making a phone call using the Phone
Menu
Making a phone call from the Recent Events list
1 Touch [Recent Call] on the Phone menu.
The Recent Call screen is displayed.
2 Touch the name of the contact you want to
call.
The phone call is started.
Calling from the Phone Book
1 Touch [Phone Book] on the Phone menu.
The Phone Book screen appears.
2 Touch the name of the contact you want to
call.
The Detail info screen is displayed.
3 Touch the phone number.
The phone call is started.
Entering a Phone Number to Make a Call
1 Touch [Keypad] on the Phone menu.
The number input screen (Keypad) appears.
Touch [ ] to delete an entered number.
Touch [Delete All] to delete all entered numbers.
2 Enter the phone number you wish to call.
• You can enter up to 40 digits.
3 Touch [
] (Call).
The phone call is started.
Phone Operation Screen
Name or phone number
• If it is registered with a Group, the Group Name is also
displayed. Although, depending on the connected
mobile phone, it may not be displayed.
Conversation time
Adjusting the Speech Volume
You can adjust Microphone Level.
Touch [
] or [ ] of “ ”.
You can adjust the volume in 11 levels.
• Microphone Level can also be adjusted in the Phone Setup
screen. “Adjusting the Microphone Level” (page 23).
58-EN
Changing the Voice Output
The voice output for calls is switchable between car
speakers and the mobile phone speaker.
Touch [
] or [ ].
• Depending on the mobile phone, this operation may not be
possible.
Muting the Microphone
Touch [
].
• To cancel MUTE mode, touch [
].
DTMF (Touch-Tone) Function
Transmits a DTMF (Touch-Tone) signals during a call.
1 Touch [
] (Keypad).
The number input screen (Keypad) appears.
2 Input number.
• You can transmit a Touch-Tone signal during a call.
• You cannot hear the DTMF (Touch-Tone) signal.
Phone Book Function
■
Phone Book screen example
Searching in the Phone Book
The unit is provided with an alphabet search function for
effective searching. When you use this function in the
search mode, you can quickly search a name, etc. of the
contact which you want to call.
1 Touch the initial search bar on the Phone
Book screen and slide your finger up and
down to align the bar with the target letter.
2 Touch the name of the contact you want to
call.
The Detail info screen is displayed.
3 Touch the phone number.
The phone call is started.
• If there are no names in the list beginning with that letter, the
next letter of the alphabet is searched. For example: If there
are no names beginning with “R,” the search list begins with
“ S .”
Synchronizing the Phone Book
You can synchronize the system’s phone book with the
mobile phone’s phone book.
Touch [
] (Download) on the Phone Book
screen.
Synchronization of the phone books starts.
• You can store up to 2,000 registered name in the phone book.
• You can store up to 5 phone numbers by one person’s name.
Deleting the Phone Book Entries
1 Touch [
] (Delete) on the Phone Book
screen.
The confirmation screen is displayed.
2 Touch [OK].
All entries of the phone book are deleted.
59-EN
Bluetooth Audio
If a Bluetooth compatible mobile phone, portable player,
etc. is connected by wireless, you can play back a song
(operation is controllable from the unit).
• Operation may vary, depending on the Bluetooth compatible
device.
■
Bluetooth Audio main screen example
Information display
Finds the beginning of next chapter/Fast-
forwards when touched for at least 1 second
Current track number/Total track number
Displays the audio codec information (SBC/AAC/
LDAC)
Displays the BT Audio Setup Menu screen (page
23).
Displays the Device Setup Menu screen (page
15).
Elapsed time/Total time for playing
Displays the search screen
Shuffle mode
Repeat mode
Pause and Play
Finds the beginning of the current file/Finds a
previous file within 3 seconds after playback
starts/Fast-reverses when touched for at least 1
second
• The displayed onscreen buttons may differ depending on the
AVRCP version.
• To play back audio, a mobile phone or a portable player
conforming to A2DP (Advanced Audio Distribution Profile)
or AVRCP (Audio/Video Remote Control Profile) is required.
Not all functions work with all devices.
• During a call, sound on the Bluetooth audio source is paused.
Compatible AVRCP versions: 1.6
• Available functions may differ depending on the AVRCP
version.
Playback
1 Press the
(HOME) button and select
Bluetooth Audio mode.
The display shows the Bluetooth Audio mode screen.
• When the Bluetooth is set to [Off], the Bluetooth
audio source icon will not be displayed. See “Setting
the Bluetooth” (page 17).
2 Touch [
] or [ ] to select the desired track
(file).
Returning to the beginning of the current file:
Touch [
].
Fast backward the current file:
Touch and hold [
].
Advance to the beginning of the next file:
Touch [
].
Fast forward the current file:
Touch and hold [
].
• The
, buttons provide the same functions above.
3 To pause playback, touch [
].
Repeat Play
Touch [
] repeatedly to select Repeat Play
mode.
Single Track
:
Only the track currently playing is repeatedly
played back.
Group
:
Only files in a group are repeatedly played
back.
All Tracks
:
Once all of the songs have finished playing,
play back is repeated, starting with the first
song.
Off
:
Repeat mode is Off.
• Operations may differ depending on the connected Bluetooth
compatible device.
60-EN
Shuffle Play
Touch [
] to select Shuffle Play mode.
Group
:
A Group is selected randomly and songs
in the Group are played back in order.
After all songs are played in the Group,
the next Group is selected randomly.
All Tracks
:
All songs in the Bluetooth compatible
devices are played back in random
sequence. Any one song does not play
back again until all songs have been
played back.
Off
:
Shuffle mode is Off.
• Operations may differ depending on the connected Bluetooth
compatible device.
Searching for a Desired file
1 Touch [
] (Search).
2 Touch your desired Folder name or File name.
• When you select a Folder name, repeat the same procedure to
select another Folder name or File name.
Connecting a Bluetooth Device
Registering a Bluetooth device in the unit enables
automatic connection.
If it does not connect automatically, run through the
connection procedure again.
1 Touch [
] (Settings).
The Device List screen is displayed.
2 Touch [Connect].
Bluetooth connection will start.
• For details, see “Displaying Device List” (page 15).
Disconnecting the Bluetooth
Connection
1 Touch [
] (Settings).
The Device List screen is displayed.
2 Touch [Disconnect].
The Bluetooth connection is disconnected.
• For details, see “Disconnecting the Connected Device”
(page 16).
Switching the connecting Bluetooth
Device
If multiple Bluetooth devices are registered in this device,
you can change the connection among the registered
devices.
1 Touch [
] (Settings).
The Device List screen is displayed.
2 Select the function of the connecting device
on the Function Select screen, and touch [OK].
The Function Select screen is displayed.
3 Select [Bluetooth Audio] in the Function
Select screen, then touch [OK].
A check mark is displayed for the selected function.
The connection will transfer to the selected device.
• For details, see “Connecting the Device Registered in the
Device List” (page 16).
61-EN
Auxiliary Device
(Optional)
WARNING
It is dangerous for the driver to watch video while
driving the vehicle. The driver may be distracted
from looking ahead and an accident could occur.
Install the unit correctly so that the driver cannot
watch video unless the car is stopped and the
parking brake is applied.
If the unit is not installed correctly, the driver will be
able to watch video while driving and may be
distracted from looking ahead and cause an
accident. The driver or other people could be
severely injured.
Operating Auxiliary Devices
(Optional)
To operate devices connected to the AUX terminals of the
unit, follow the procedure described below.
• Set up the “AUX (Auxiliary) Setup” (page 21).
1 Press the
(HOME) button to select
Auxiliary (AUX) mode.
The display shows the Auxiliary (AUX) mode screen.
2 During the Auxiliary (AUX) playback, touch
and hold the screen to display the operation
screen.
The Auxiliary (AUX) operation screen is displayed for
about 5 seconds.
• For your safety, video is not displayed and only audio can be
heard while driving.
• For details on the connected auxiliary device, refer to its
owner’s manual.
Source Title
• The name which is given as the source name in
“Setting the Auxiliary (AUX) Name” (page 21) is
displayed.
Displays the Auxiliary Setup Menu screen (page
21)
Switching Display Modes
Switching Display Modes
You can switch the Display Mode while playing a Video File.
Touch the Display Mode button.
Each time you touch, the Display Mode is switched.
Full
Normal Wide Full
• The Display Mode button displays the currently selected
mode.
• You cannot operate them while driving.
Wide: Cut the top and bottom of the image and
stretch it over the entire screen.
Full: The mode displays a picture to fit its size
vertically and horizontally with the monitor
size.
Normal: Select when viewing 4:3 images. A black
band appears on both sides of the screen.
62-EN
Camera Operation
(Optional)
When an optional camera is connected, the view of camera
video can be output to the monitor.
Rear camera, Front camera (or Side camera, etc.) can be
connected to this unit.
Make the Camera Select setting according to your
connected camera. For details, see “Setting the Reverse
Camera (Camera 1) (page 25)”, “Camera 2 Setup” (page
25).
Rear camera:
If a rear camera is connected, when the vehicle is reversed,
the rear camera view (guide marks for vehicle width and
available distance) is displayed automatically on the screen
of this unit.
Front camera:
If a front camera is connected, it can assist to check the
condition in front of the car, such as when the road visibility
is bad.
Side camera:
If a side camera is connected, it is helpful to check the
condition of the road shoulder.
Other camera:
Set when connecting to a camera other than the Front
camera or Rear camera, such as a room camera.
You can adjust the quality of the camera image.
Setting items: Brightness / Color / Contrast
See “Video Setup” (page 26).
Rear Camera Operation
Displaying the rear view video while
the car is in reverse
1 Shift the gear lever to the reverse (R) position.
The rear view image is displayed while the car remains
in reverse.
2 If you shift the gear lever to a position other
than reverse (R), the monitor returns to the
previous screen.
• Never depend solely on the camera when backing up. Always
turn and look and only use the camera for additional
assistance.
• This function is effective when the reverse wire is properly
connected.
• You can perform a Guide Adjustment for the rear view image.
For details, see “Camera Guide Setup” (page 26).
Displaying the Camera Image from the
HOME screen
1 Press the
(CAM) button.
The Camera view image is displayed.
2 Touch the screen when the image from the
camera is displayed.
The operation screen is displayed on the screen.
3 Touch [Rear].
The Rear Camera view image is displayed.
• Touch [
] to return to the previous screen.
• You can perform a Guide Adjustment for the rear view image.
For details, see “Camera Guide Setup” (page 26).
Guide Display ON/OFF Setting
1 Touch the screen when the image from the
camera is displayed.
The operation screen is displayed on the screen.
• After a 5-second time-out, the operation screen
returns to the camera display screen.
2 Touch [
Guide] on the Rear camera display
screen.
The guide disappears, and then the [
Guide] switch
changes to [Guide].
3 Touch [Guide] to turn on the guide.
63-EN
Adjusting the Caution Display
Location
1 Touch the screen when the image from the
camera is displayed.
The operation screen is displayed on the screen.
• After a 5-second time-out, the operation screen
returns to the camera display screen.
2 Touch [Caution].
• For each touch, the caution location moves to the top or
bottom of the screen.
Hitch Guide Display ON/OFF Setting
1 Touch the screen when the image from the
camera is displayed.
The operation screen is displayed on the screen.
• After a 5-second time-out, the operation screen
returns to the camera display screen.
2 Touch [Hitch] on the Rear camera display
screen.
The hitch guide appears, and then the [Hitch] switch
changes to [
Hitch].
Hitch Guide
3 Touch [
Hitch] to turn off the guide.
About the Rear Camera Guide
To display the guide, set “Guide Display ON/OFF Setting”
(page 62) to On. Also, to adjust the guide, see Camera
Guide Setup” (page 26).
■
Indication mark meaning
When the car is put into reverse gear, the monitor switches
to the rear view camera image. Guides appear to help
visualize the car’s width and distance from the rear bumper.
Car width extension lines (red, yellow and
green in order of distance)
If properly calibrated, the marks indicate the car’s width.
This helps guide the car’s path when backing up in a
straight line.
The marks represent the distance from the rear of the
car (from the rear end of the bumper).
• The marks do not move in synchronization with the
steering wheel.
• Set the marks to suit the car’s width.
Distance guidance lines
The marks represent the distance from the rear of the
car (from the rear end of the bumper).
• The marks do not move in synchronization with the
steering wheel.
• We recommend that you measure the actual distance
to the marks when parked on a level surface.
• Depending on the condition of the car or road surface, the
range of vision may vary.
• The camera has a limited range of vision. Objects at extreme
angles to the camera (e.g. under the bumper or at opposite
ends of the bumper) may not be in the its field-of-vision.
• The rear camera image may have a tint which is different
from the actual surroundings.
• Depending on the car, the guidance may deviate to the right
or left. This is not a malfunction.
64-EN
■
Distance guidance mark
The distance guides represent the ground level distance
from the rear bumper. It is difficult to accurately estimate
the distance to objects above ground level.
In the following example, the distance to A is 0.5 m and the
distance to B is 1 m.
<Screen>
C
B
A
(about
0.5 m)
<Positions of A, B and C>
about 1 m
In the screen, according to the distance guidance marks,
the truck seems to be parked about 1 m away (at the
position B). In actual fact, however, if you reversed to
position A, you would collide with the truck.
In the screen, positions A, B and C seem to be located in
order of proximity. However, in actual fact, the position
A and C are the same distance, and B is farther away
than positions A and C.
• The car width extension mark represents the distance to the
road surface. The distance to an object on the road is not
accurately represented by the guides.
Error between the screen and the actual road
surface
In the following conditions, errors are produced between
the screen guidance and the actual road surface. (The
illustrations represent a case when the camera is installed in
the standard position.)
■
When there is a steep upward slope behind
the car (example)
<Screen>
Distance guidance marks
<Situation of the car>
Actual distances
Error Error
The distance guidance mark represents the distance to a
flat road surface. Therefore in the case of an upward
slope behind the car, the distance guides are displayed
closer to the rear bumper than the actual distance. For
example, if there is an obstacle on the upward slope, it
may appear farther away than its actual position.
Also, an error may occur between the guidance and the
actual path of the car on the road surface.
65-EN
■
When there is a steep downward slope behind
the car (example)
<Screen>
<Situation of the car>
Error Error
In the case of a downward slope behind the car, the
distance guides are displayed farther from the rear
bumper than the actual distance.
If there is an obstacle on the downward slope, it seems
closer than its actual position.
Also, an error may occur between the guidance and the
actual path of the car on the road surface.
Switching the Image Pattern for the
Rear Camera
If the camera has a view switch function, the Direct Change
switch is displayed.
1 Touch the screen when the image from the
rear camera is displayed.
The operation screen is displayed on the screen.
• After a 5-second time-out, the operation screen
returns to the camera display screen.
2 Touch [View].
3 Touch [Back], [Panorama], [Corner] or [Top].
The image pattern changes.
• For detailed information about image patterns, see the
camera Owner’s Manual.
• You can perform a Guide Adjustment. For details, see
“Camera Guide Setup” (page 26).
Front Camera Operation
Displaying the Camera Image from the
HOME screen
1 Press the
(CAM) button.
The Camera view image is displayed.
2 Touch the screen when the image from the
camera is displayed.
The operation screen is displayed on the screen.
3 Touch [Front].
The Front Camera view image is displayed.
• Touch [ ] to return to the previous screen.
• You can perform a Guide Adjustment. For details, see
“Camera Guide Setup” (page 26)
Switching the Image Pattern for the
Front Camera
If the camera has a view switch function, the Direct Change
switch is displayed.
1 Touch the screen when the image from the
front camera is displayed.
The operation screen is displayed on the screen.
• After a 5-second time-out, the operation screen
returns to the camera display screen.
2 Touch [View].
3 Touch [Panorama], [Corner] or [Top].
The image pattern changes.
• For detailed information about image patterns, see the
camera Owner’s Manual.
• You can perform a Guide Adjustment. For details, see
“Camera Guide Setup” (page 26).
66-EN
About the adjustment of guide display
ON/OFF setting and adjustment of
Caution display location
As with the rear camera, the front camera guide display ON/
OFF setting and Caution display location can be adjusted.
See “Guide Display ON/OFF Setting” (page 62) and
“Adjusting the Caution Display Location” (page 63) for the
operations.
Side Camera Operation
Displaying the Side Camera image from the Menu screen
1 Press the
(CAM) button.
The Camera view image is displayed.
2 Touch the screen when the image from the
camera is displayed.
The operation screen is displayed on the screen.
3 Touch [Side].
The Side Camera view image is displayed.
• Touch the screen while the camera image is being displayed,
and touch [
] to return to the previous screen.
• You can perform a Guide Adjustment. For details, see
“Camera Guide Setup” (page 26).
About the adjustment of guide display
ON/OFF setting and adjustment of
Caution display location
As with the rear camera, the side camera guide display ON/
OFF setting and Caution display location can be adjusted.
See “Guide Display ON/OFF Setting” (page 62) and
“Adjusting the Caution Display Location” (page 63) for the
operations.
iDataLink Operation
When the unit is connected to the car’s iDataLink module,
you can transfer and receive data between the car and the
unit to check the car’s status, or to make various operations
from the unit.
• An iDataLink module (sold separately) is required.
• Available functions differ depending on your vehicle. For
details, refer to your vehicle’s instruction manual.
About Audio Interrupt
Audio Interrupt is the function that outputs sound from the
unit when Voice Information (audio reading from the phone
book, etc.)* from the vehicle occurs.
• The Audio Interrupt function of the vehicle differs depending
on the type and grade of the vehicle.
∗ For your safety, when interrupted with Voice Information,
you cannot operate the buttons on the front panel or the
touch buttons on the display, except for some operations.
– The operating restrictions may differ depending on
which mode the unit is in during Voice Information.
– You can use the
/ (DOWN/UP) button to control the
volume of Voice Information.
Access to iDataLink Mode
You can check the car condition, control specific vehicle
functions, etc.
1 Press the
(HOME) button to select Vehicle
info. mode.
• The iDataLink mode screen is displayed.
2 Touch the desired tag on the top of the
screen.
Select item:
Climate / Gauges / Park Sensor / Vehicle Info.
• The displayed tag options differ depending on the
type of vehicle.
3 Adjust or confirm the item/information
accordingly.
• Operable functions and displays may differ depending on the
vehicle.
67-EN
iDataLink Function Screen example
■
Climate screen example
You can control the temperature inside the vehicle, etc.
■
Gauges screen example
You can check the vehicle’s speed, the engine’s rotation
speed, etc.
■
Parking sensor screen example
You can check the distance from the front and rear of the
vehicle to an obstacle.
• If the car sensor detects an obstacle, the screen automatically
changes to the Parking sensor screen. For details, see “About
Parking Sensor screen” (page 67).
■
Vehicle Information screen example
You can check for open doors, check the tire pressure, the
battery life, etc. for the vehicle.
■
iDataLink Setup screen example
Displays the iDataLink Setup Menu screen (page 23).
About Parking Sensor screen
The Parking sensor screen turns on when the front or rear
sensor on your vehicle detects an obstacle within a certain
distance.
Parking Sensor Full screen example
When the front or rear sensor detects an obstacle within a
certain distance, the Parking Sensor screen is displayed, and
the indicator that corresponds with that area lights up.
Indicator colors when an obstacle is detected.
Red: close distance
Orange: medium distance
Yellow: long distance
• Depending on the speed of the vehicle, when moving faster
than a certain speed, the Parking Sensor screen may not be
displayed.
• Vehicles that do not have the obstacle detection sensor cannot
use this function.
68-EN
Parking Sensor Camera interlock screen example
(Rear camera)
You can check for obstacles through an interlocked camera
image by connecting a Camera.
• Touch the car icon to switch to the Parking sensor full screen.
(Tou ch [Back] on the Parking Sensor full screen to return to
the Parking Sensor Camera interlock display.)
• Touch the Camera image area to switch to the Camera full
screen.
(While displaying the Camera full screen, touch the Camera
screen, then touch [
] to return to the Parking Sensor
Camera interlock screen.)
• Touch the car icon to switch to the Parking sensor full screen.
(Touch [
] on the Parking Sensor full screen to return to
the Parking Sensor Camera interlock display.)
Factory Media Operation
You can operate the Factory Audio (USB/iPod) from this
unit.
• The [Factory Media] button appears on the Home screen by
making the OEM Media setting to [On]. For details, see
“Setting the OEM Media” (page 24).
Touch the
(HOME) button to select Factory
Media mode.
The display shows the Factory Media mode screen.
Displays up to 15 labels obtained from iDataLink.
A generic list, popup window, or current source
screen is displayed by touching the Custom1 to
15 buttons. The screen that is displayed is
determined by iDataLink.
Displays the iDataLink Setup Menu screen (page
23).
• For the basic operations on Factory Media mode, refer to
“USB Audio” (page 42), “iPod mode on iPhone (Optional)”
(page 46).
Factory SiriusXM Operation
For certain vehicles equipped with OEM SiriusXM, you can
operate the Factory SiriusXM from this unit.
• The [Factory SiriusXM] button appears on the Home screen
by making the OEM SXM setting to [On]. For details, see
“Setting the OEM SXM” (page 23).
Touch the
(HOME) button to select Factory
SiriusXM mode.
The display shows the Factory SiriusXM mode screen.
You can directly select the channel number by
using the numeric keypad.
Displays the channel guide obtained from
iDataLink.
Changes to category browsing mode
Displays up to 15 labels obtained from iDataLink.
A generic list, popup window, or current source
screen is displayed by touching the Custom1 to
15 buttons. The screen that is displayed is
determined by iDataLink.
Displays the iDataLink Setup Menu screen (page
23).
• For the basic operations on Factory SiriusXM mode, refer to
“SiriusXM Satellite Radio Operation (Optional)” (page 48).
69-EN
Dash Cam (Drive Recorder)
Operation (Optional)
Operating Dash Cam (Optional)
Images from Dash Cam can be output to the monitor by
connecting the optional Dash Cam.
• The [Dash Cam] button appears on the Home screen by
making the Driver Recorder Menu setting to [On]. For details,
see “Dash Cam (Drive Recorder) Setup” (page 25).
1 Press the
(HOME) button, then select
Dash Cam mode.
The display shows the Dash Cam mode screen.
2 Touch and hold the screen when the image
from the Dash Cam is displayed.
The operation screen is displayed on the screen.
Displays the Dash Cam Setup Menu screen (page
25)
• Change the source to close the Dash Cam screen display.
Information
Product Software Update
This product uses software that can be updated through a
USB flash drive. Download the software from the Alpine
website and update the product using the USB flash drive.
Updating this product
Check the Alpine website for details on updating.
https://www.alpine-usa.com
Important information on the software
About the software license of the product
The software installed in the product contains open-source
software.
For details, refer to the “Open source licenses” screen on this
unit. See “Displaying Software License” (page 30).
About the Supported Formats
About MP3/WMA/AAC/FLAC/WAV/APE
CAUTION
Except for private use, duplicating audio data
(including MP3/WMA/AAC/FLAC/WAV/APE data) or
distributing, transferring, or copying it, whether for
free or for a fee, without permission of the copyright
holder is strictly prohibited by the Copyright Act
and by international treaty.
What is MP3?
MP3, whose official name is “MPEG Audio Layer 3,” is a
compression standard prescribed by the ISO, the
International Standardization Organization and MPEG
which is a joint activity institution of the IEC.
MP3 files contain compressed audio data. MP3 encoding
is capable of compressing audio data at extremely high
ratios, reducing the size of music files to as much as
one-tenth their original size. This is achieved while still
maintaining near CD quality. The MP3 format realizes
such high compression ratios by eliminating the sounds
that are either inaudible to the human ear or masked by
other sounds.
What is WMA?
WMA, or “Windows Media™ Audio,” is compressed audio
data.
WMA is similar to MP3 audio data.
70-EN
What is AAC?
AAC is the abbreviation for “Advanced Audio Coding,”
and is a basic format of audio compression used by
MPEG2 or MPEG4.
What is FLAC?
FLAC (Free Lossless Audio Codec) is an audio file codec
for lossless compression, developed and offered as open
source software.
Codecs with lossy compression forms, such as MP3 and
AAC, reduce part of the data to improve compression
efficiency.
However, FLAC can reconstruct compressed data to be
an identical copy of the original data by performing
lossless compression. The compression ratio of FLAC is
about 50%.
What is WAV?
WAV is a standard audio format for Windows. It is the
original format before compression. You can enjoy music
with almost the same sound quality as a CD. WAV is also
known as WAVE.
What is APE?
APE is a format called lossless compression. It can be
restored to its original quality by decoding. Mainly, it is
used in “Monkey’s Audio.”
Method for creating MP3/WMA/AAC/FLAC/WAV/APE
(USB Flash drive) files
Audio data is compressed using software with MP3/
WMA/AAC/FLAC/WAV/APE (USB Flash drive) codecs. For
details on creating MP3/WMA/AAC/FLAC/WAV/APE (USB
Flash drive) files, refer to the user’s manual for that
software.
MP3/WMA/AAC/FLAC/WAV/APE (USB Flash drive) files
that are playable on this device have the file extensions.
MP3: “mp3”
WMA: “wma”
AAC: “m4a”
FLAC: “flac”/”fla”
WAV: “wav ”
APE: “ape”
WMA is not supported for the following files, Windows
Media Audio Professional, Windows Media Audio 10 std
or Windows Media Audio 10 Pro Lossless.
There are many different versions of the AAC format.
Confirm that the software being used conforms to the
acceptable formats listed above. It’s possible that the
format may be unplayable even though the extension is
valid.
Playback of AAC files encoded by iTunes is supported.
Supported playback sampling rates and bit rates
MP3 (USB Flash drive)
Sampling rates: 8 kHz, 11.025 kHz, 12 kHz,
16 kHz, 22.05 kHz, 24 kHz,
32 kHz, 44.1 kHz, 48 kHz
Bit rates: 8 - 320 kbps
WMA (USB Flash drive)
Sampling rates: 8 - 48 kHz
Bit rates: 8 - 385 kbps
AAC (USB Flash drive)
Sampling rates: 16 - 48 kHz
Bit rates: 8 - 320 kbps
FLAC (USB Flash drive)
Sampling rates: 8 - 96 kHz
WAV (USB Flash drive)
Sampling rates: 8 - 96 kHz
APE (USB Flash drive)
Sampling rates: 8 - 48 kHz
This device may not play back correctly depending on
sampling rates.
ID3 tags
This device supports ID3 tag. If tag data is in an MP3/
WMA/AAC/FLAC/WAV/APE file, this device can display
the title (track title), artist name, and album name ID3
tag data.
For non-supported characters, “?” is displayed.
The number of characters may be limited, or not
correctly displayed, depending on the tag information.
Playing back MP3/WMA/AAC/FLAC/WAV/APE
MP3/WMA/AAC/FLAC/WAV/APE files are prepared, then
written to a USB flash drive.
• Maximum numbers of playable files/folders
USB Flash drive: 10,000 files/folders (including Root
Folder)
• Largest playable file size: 512 MB
Playback may not be performed if a USB flash drive
exceeds the limitations described above.
If a file/folder name is long, the maximum possible
number of files may decrease.
• Both Audio and Video files are counted if their formats
are playable on this unit.
Media supported
The media that this device can play back a USB flash
drive.
Corresponding File Systems
This device supports FAT 16/32, exFAT.
The maximum nested folder depth is 8 (including the
root directory). File names are limited to 256 characters
(including the extension).
Valid characters for folder/file names are letters A-Z (all
caps), numbers 0-9, and ‘_’ (underscore).
71-EN
Terminology
Bit rate
This is the “sound” compression rate specified for
encoding. The higher the bit rate, the higher the sound
quality, but also the larger the files.
Sampling rate
This value shows how many times per second the data is
sampled (recorded). For example, music CDs use a
sampling rate of 44.1 kHz, so the sound is sampled
(recorded) 44,100 times per second. The higher the
sampling rate, the higher the sound quality, but also the
larger the volume of data.
Encoding
Converting music CDs, WAVE (AIFF) files, and other
sound files into the specified audio compression format.
Tag
Song information such as track titles, artist names,
album names, etc., written into MP3/WMA/AAC/FLAC/
WAV/APE (USB flash drive) files.
Root folder
The root folder (or root directory) is found at the top of
the file system. The root folder contains all folders and
files. It is created automatically for all USB flash drives.
In Case of Difficulty
If you encounter a problem, please turn the power
off, then on again. If the unit is still not functioning
normally, please review the items in the following
checklist. This guide will help you isolate the
problem if the unit is at fault. Otherwise, make sure
the rest of your system is properly connected, or
then consult your authorized Alpine dealer.
Basic
No function or display.
• Vehicle’s ignition is off.
– If connected according to the instructions, the unit will
not operate with the vehicle’s ignition off.
• Improper power lead connections.
– Check power lead connections.
• Blown fuse.
– Check the fuse on the battery lead of the unit; replace
with the proper value if necessary.
No sound or unnatural sound.
• Incorrect setting of volume/balance/fader controls.
– Readjust the controls.
• Connections are not properly or securely made.
– Check the connections and firmly connect.
Screen not displayed.
• Brightness/Contrast control is set at the minimum
position.
– Adjust the Brightness/Contrast control.
• Temperature in the vehicle is too low.
– Increase the vehicle’s interior temperature to operation
temperature range.
• Connections to the Auxiliary Device are not securely
made.
– Check the connections and firmly connect.
• The Parking Brake Lead is not connected.
• The Parking Brake is not engaged.
– Connect the Parking Brake Lead, then engage the
Parking Brake.
Movement of displayed picture is abnormal.
• Temperature in the vehicle is too high.
– Allow the vehicle’s interior temperature to cool.
Radio
Unable to receive stations.
• No antenna, or open connection in the antenna cable.
– Make sure the antenna is properly connected; replace
the antenna or cable if necessary.
72-EN
Unable to tune stations in the seek mode.
• You are in a weak signal area.
– Make sure the tuner is in Seek mode.
• If the area you are in is a primary signal area, the antenna
may not be grounded and connected properly.
– Check your antenna connections; make sure the
antenna is properly grounded at its mounting location.
• The antenna may not be the proper length.
– Make sure the antenna is fully extended; if broken,
replace the antenna with a new one.
Broadcast is noisy.
• The antenna is not the proper length.
– Extend the antenna fully; replace it if it is broken.
• The antenna is poorly grounded.
– Make sure the antenna is grounded properly at its
mounting location.
• The station signal is weak and noisy.
– If above solution does not work, tune in another station.
USB Audio
Unit does not operate.
• Condensation.
– Wait a while (about 1 hour) for the condensation to dry.
Picture is unclear or noisy.
• Vehicle’s battery power is weak.
– Check the battery power and wiring.
(The unit may malfunction if the battery power is under
11 volts with a load applied.)
Handsfree Phone
Ringtone is small
• Depending on your phone, the ringtone volume may be
small, it is not a failure.
If this Message Appears
Various messages are displayed on the screen during
operation. In addition to the messages telling you the
current status or providing guidance for the next operation,
there are also the following error messages. If one of these
error messages is displayed, carefully follow the instructions
in the solution column.
System
Unable to operate while driving.
• A setup operation, etc., was carried out while the vehicle
was running.
– Move the vehicle to a safe location, stop, and engage
the parking brake, then carry out this operation.
USB Hub Unsupported.
• A USB flash drive with a hub is connected.
– You cannot play back from a USB flash drive with a hub.
USB hub connections are also not supported.
Audio/Visual
Unable to use connected USB device.
• An iPhone that is not supported by the unit is connected.
– Connect an iPhone that is supported by the unit.
• A USB device that is not supported by the unit is
connected.
– Attempt to connect another USB flash drive.
• Communication error.
– Turn the ignition key off, and then set to ON again.
– Check the display by reconnecting between the iPhone
and the unit, using the iPhone cable.
– Check the display by reconnecting between the USB
flash drive and the unit.
• Caused by the iPhone Software Version not being
compatible with this unit.
– Update the iPhone Software Version to be compatible
with this unit.
• The iPhone is not verified.
– Change to another iPhone.
SiriusXM
Channel Not Available
• This message may be shown when a channel is no longer
available.
– Tune to a different channel.
SAT Antenna Error
• The satellite antenna is disconnected or damaged.
– Check the antenna connection to the SXM tuner, and
check the antenna cable for damage.
No Satellite Signal
• SXM Tuner is not receiving a satellite signal.
– Make sure that there are no obstructions to the satellite
antenna, and that the antenna has a clear view of the
southern sky.
SAT Hardware Error
• The radio is having difficulty communicating with the
SiriusXM Connect Vehicle Tuner. The tuner may be
disconnected or damaged.
– Verify that the SiriusXM Connect Vehicle Tuner cable is
securely connected to the radio.
HDMI
HDMI communication Error.
Please check your device and operate it again.
• The HDMI devices are not connected properly.
– Remove the HDMI devices from the unit, and then
reconnect them. Enable the output setting on the HDMI
devices.
HDMI monitor communication error.
Please check the connection or ACC off / on.
• Connection error
– Turn OFF/ON the engine (ACC), or check the HDMI
connection cable of the HDMI compatible monitor.
73-EN
Specifications
MONITOR SECTION
Screen Size 7” (iLX-507)
9” (iLX-F509)
11” (iLX-F511)
9” (i509)
Operation System TFT active matrix
Number of Picture Elements
2,764,800 pcs. (1280 × 720 × RGB)
Effective Number of Picture Elements
99% or more
Color system NTSC / PAL
Illumination System LED
FM TUNER SECTION
Tuning Range 87.7 – 107.9 MHz
Mono Usable Sensitivity
9.3 dBf (0.8 μV/75 ohms)
50 dB Quieting Sensitivity
13.5 dBf (1.3 μV/75 ohms)
Alternate Channel Selectivity
80 dB
Signal-to-Noise Ratio 65 dB
Stereo Separation 35 dB
AM TUNER SECTION
Tuning Range 530 – 1,710 kHz
Usable Sensitivity 25.1 μV/28 dBf
HD Radio SECTION
FM
Tuning Range 87.7 – 107.9 MHz
Usable Sensitivity 19 dB/μV
Stereo Separation 80 dB
Total Harmonic Distortion
0.08 % (at 1kHz)
AM
Tuning Range 530 – 1,710 kHz
Usable Sensitivity 21 dB/μV
Stereo Separation 75 dB
Total Harmonic Distortion
0.08 % (at 1kHz)
USB1 SECTION
USB requirements USB 2.0
Max. Power Consumption
2,400 mA
USB Class USB (Mass Storage Class)
File System FAT16 / 32, exFAT
Number of Channels 2-Channels (Stereo)
Frequency Response*
1
5 – 40,000 Hz (±1 dB)
Total Harmonic Distortion
0.005% (at 1 kHz)
Dynamic Range 95 dB (at 1 kHz)
Signal-to-Noise Ratio 95 dB
Channel Separation 90 dB (at 1 kHz)
*1 Frequency response may differ depending on the
encoder software/bit rate.
USB2 SECTION
Max. Power Consumption
1,500 mA (CDP Support)
USB Class Charge only
HDMI SECTION
Input Format
HDMI: 720p / 480p / VGA
USB Video Files Supported:
MP4 / MOV / FLV / MKV
Output Format
HDMI: 720p / 480p
USB Video Files Supported:
MP4 / MOV / FLV / MKV
(HDMI input pass-though)
Bluetooth SECTION
Bluetooth Specification Bluetooth V4.2 (2,402 - 2,480 MHz)
Output Power +4.0 dBm/2.51 mW Max.
(Power class 2)
Profile HFP (Hands-Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio/Video Remote
Control Profile)
GPS SECTION
Reception Frequency 1575.42 + / - 1.023 MHz
Reception sensitivity (Search)
-136 dB max.
74-EN
Wi-Fi SECTION
Frequency Ranges IEEE 802.11 b/g/n (2.4 GHz)
IEEE 802.11 a/n/ac (5 GHz)
Channels 1 – 11 ch (2.4 GHz)
149 – 165 ch (5 GHz)
Security Protocols WPA3 / WPA2-PSK (TKIP, AES)
GENERAL
Power Requirement 14.4 V DC
(11–16 V allowable)
Operating temperature -4°F to +140°F
(-20°C to + 60°C)
Power Output 18 W RMS × 4 *
2
*2 Primary amplifier ratings per CEA-2006 Standard
• Power output: measured at 4 Ohms and ≤ 1% THD+N
• S/N: 80 dBA (reference: 1 W into 4 Ohms)
Maximum Current Consumption
15 A
Audio output level
Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4V/10k ohms (max.)
Weight 1.4 kg (3 lbs. 2 oz) (iLX-507)
2.3 kg (5 lbs. 2 oz) (iLX-F509)
2.6 kg (5 lbs. 12 oz) (iLX-F511)
1.6 kg (3 lbs. 9 oz) (i509)
CHASSIS SIZE
iLX-507 iLX-F509 iLX-F511 i509
Width 178 mm
(7 1/8”)
178 mm
(7 1/8”)
178 mm
(7 1/8”)
178 mm
(7 1/8”)
Height 50 mm
(2”)
50 mm
(2”)
50 mm
(2”)
50 mm
(2”)
Depth 149.6 mm
(6”)
149.6 mm
(6”)
149.6 mm
(6”)
142 mm
(5 5/8”)
DISPLAY SIZE
iLX-507 iLX-F509 iLX-F511 i509
Width 171 mm
(6 3/4”)
232.5 mm
(9 1/4”)
268.9 mm
(10 5/8”)
215.5 mm
(8 1/2”)
Height 96 mm
(3 7/8”)
151.1 mm
(6”)
178 mm
(7 1/8”)
133.8 mm
(5 3/8”)
Depth 17.7 mm (
23/32”)
54.7 mm
(2 1/4”)
54.7 mm
(2 1/4”)
37.8 mm
(1 1/2”)
• Due to continuous product improvement, specifications and
design are subject to change without notice.
• The LCD panel is manufactured using an extremely high
precision manufacturing technology. Its effective pixel ratio is
over 99.99%. This means that there is a possibility that 0.01%
of the pixels could be either always ON or OFF.
75-EN
Installation and Connections
Before installing or connecting the unit, please read the
following and pages 7 to 9 of this manual
thoroughly for proper use.
WARNING
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result
in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in
fire, electric shock or other injury.
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire or
product damage.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so
may result in fire, etc.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual
to prevent obstructions when driving. Cables or wiring that
obstruct or hang up on places such as the steering wheel,
gear lever, brake pedals, etc. can be extremely hazardous.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying
capacity of the wire and result in fire or electric shock.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.
When drilling holes in the chassis for installation, take
precautions so as not to contact, damage or obstruct pipes,
fuel lines, tanks or electrical wiring. Failure to take such
precautions may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR
STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any
other safety-related system), or tanks should NEVER be used
for installations or ground connections. Using such parts
could disable control of the vehicle and cause fire etc.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL
OR SHIFT LEVER.
Doing so may obstruct forward vision or hamper movement
etc. and results in serious accident.
DO NOT INSTALL THE MONITOR NEAR THE PASSENGER
SEAT AIR BAG.
If the unit is not installed correctly the air bag may not
function correctly and when triggered the air bag may
cause the monitor to spring upwards causing an accident
and injuries.
CAUTION
HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.
The wiring and installation of this unit requires special
technical skill and experience. To ensure safety, always
contact the dealer where you purchased this product to
have the work done.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of
other than designated parts may damage this unit
internally or may not securely install the unit in place. This
may cause parts to become loose resulting in hazards or
product failure.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like
the seat rails) or sharp or pointed edges. This will prevent
crimping and damage to the wiring. If wiring passes
through a hole in metal, use a rubber grommet to prevent
the wire’s insulation from being cut by the metal edge of
the hole.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE
OR DUST.
Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this
unit may result in product failure.
76-EN
Precautions
• Be sure to disconnect the cable from the (–) battery post
before installing your unit. This will reduce any chance of
damage to the unit in case of a short-circuit.
• Be sure to connect the color coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle’s electrical system.
• When making connections to the vehicle’s electrical
system, be aware of the factory installed components (e.g.
on-board computer). Do not tap into these leads to
provide power for this unit. When connecting the unit to
the fuse box, make sure the fuse for the intended circuit
of the unit has the appropriate amperage. When in doubt,
consult your Alpine dealer.
• The unit uses female RCA-type jacks for connection to
other units (e.g. amplifier) having RCA connectors. You
may need an adaptor to connect other units. If so, please
contact your authorized Alpine dealer for assistance.
• Be sure to connect the speaker (–) leads to the speaker (–)
terminal. Never connect left and right channel speaker
cables to each other or to the vehicle body.
Accessory List
■
iLX-507
Main unit ................................................................................................. 1
Quick Reference Guide .................................................................1set
<Cables>
Power cable ............................................................................................ 1
GPS Antenna .......................................................................................... 1
Antenna mounting plate ................................................................... 1
Cable clamp for antenna .............................................................1set
USB extension cable ............................................................................1
PRE OUT cable ....................................................................................... 1
Microphone ............................................................................................1
CAMERA cable ....................................................................................... 1
REMOTE cable ........................................................................................ 1
<Main unit mounting parts>
Face Plate.................................................................................................1
HDMI Bracket ......................................................................................... 1
Flush head screw (M5×8) ...................................................................4
Screw (M5×8) ......................................................................................... 4
■
iLX-F509/iLX-F511
Main unit ................................................................................................. 1
Display unit .............................................................................................1
Quick Reference Guide .................................................................1set
<Cables>
Power cable ............................................................................................ 1
GPS Antenna .......................................................................................... 1
Antenna mounting plate ................................................................... 1
Cable clamp for antenna .............................................................1set
PRE OUT cable ....................................................................................... 1
Microphone ............................................................................................1
CAMERA cable ....................................................................................... 1
REMOTE cable ........................................................................................ 1
<Main unit mounting parts>
HDMI Bracket ......................................................................................... 1
Flush head screw (M5×8) ...................................................................4
Screw (M5×8) ......................................................................................... 4
<Display unit mounting parts>
Cover Rear ............................................................................................... 1
Cover Hinge ............................................................................................1
Power Plate ............................................................................................. 1
Sheet Rear (2×50) .................................................................................2
Sheet Rear (2×35) .................................................................................2
Sheet Rear (2×20) .................................................................................4
Sheet Hinge ............................................................................................ 2
Sheet cap .................................................................................................2
Screw (M5×8) ......................................................................................... 4
Screw (M3×4) ......................................................................................... 2
Screw Bind (M2.6×6) ...........................................................................2
■
i509
Main unit ................................................................................................. 1
Display unit .............................................................................................1
Quick Reference Guide .................................................................1set
<Cables>
Display cable .......................................................................................... 1
GPS Antenna .......................................................................................... 1
Antenna mounting plate ................................................................... 1
Cable clamp for antenna .............................................................1set
PRE OUT cable ....................................................................................... 1
Microphone ............................................................................................1
<Main unit mounting parts>
HDMI Bracket ......................................................................................... 1
Flush head screw (M5×8) ...................................................................4
Screw (M5×8) ......................................................................................... 4
77-EN
Installation
Mounting (iLX-F509/iLX-F511 only)
Consult “Position Adjustment and Mounting
Dimensions of the Display” (page 78) in advance so
that this unit does not obstruct your field of vision or
impair driving when mounted.
Caution
• Do not block the unit’s fan, thus preventing air
circulation. If blocked, heat will accumulate inside the
unit and may cause a fire.
Air ventilation hole
Rear of the Unit
• When installing the display unit and main unit, do not
touch the connectors with your hands. (iLX-F509/
iLX-F511 only)
<Display unit> <Main unit>
Connectors
Caution concerning the installation
location
Angle of installation
Install at an angle between horizontal and 30°. Note that
installing at an angle outside of this range will result in a
loss of performance and possibly damage.
■
iLX-507
0 - 30°
■
iLX-F509/iLX-F511
0 - 30°
Mounting the Microphone
For safe use, make sure of the following:
• Location is stable and firm.
• Does not interfere with safety equipment.
• Driver’s view and operations are not obstructed.
• Microphone is located where the driver’s voice can be
easily picked up.
When you speak into the microphone, you should not have
to change your driving posture. This may cause a
distraction, taking your attention away from safely driving
your vehicle. Carefully consider direction and distance while
mounting the microphone. Confirm that the driver’s voice
can be easily picked up at the selected location.
Microphone
Steering column
Microphone base
Adhesive tape
78-EN

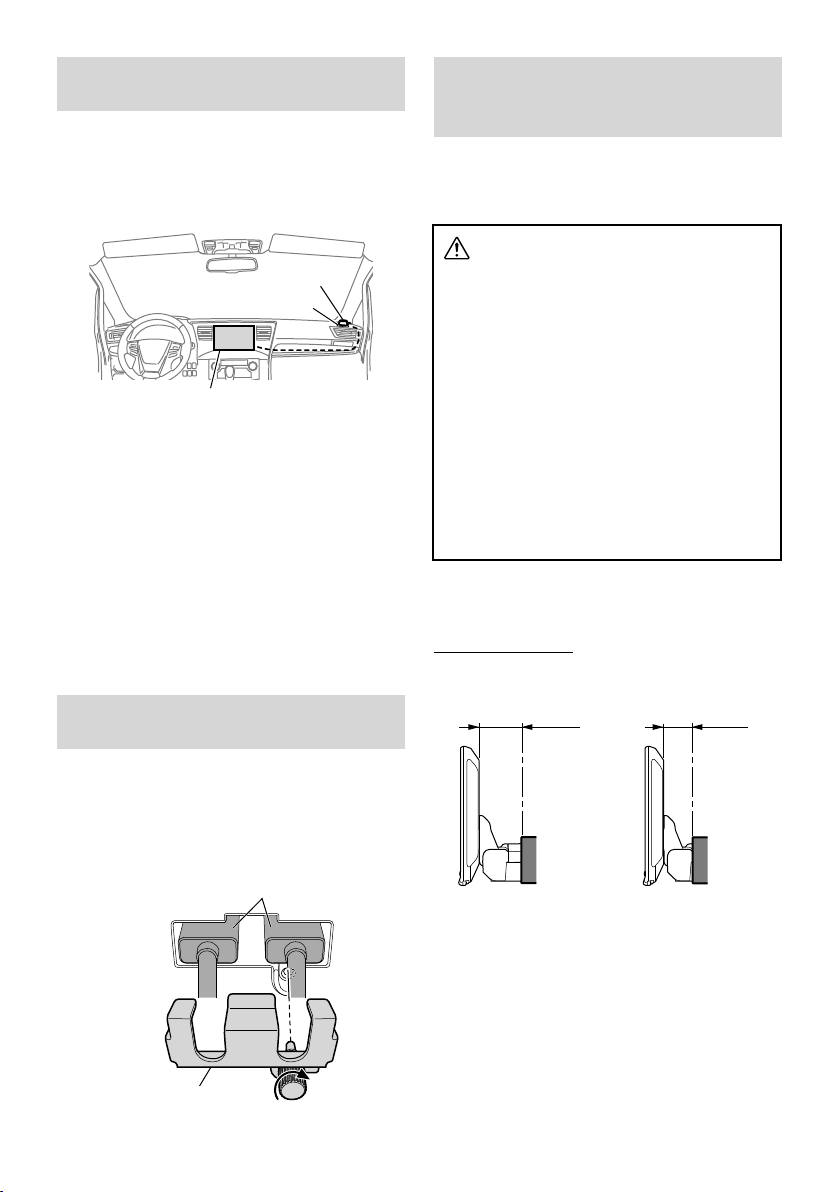

Mounting the GPS Antenna inside the
vehicle
1 Clean the mounting location.
2 Put on the GPS Antenna mounting plate.
3 Mount the GPS Antenna.
GPS Antenna
Antenna mounting plate
This unit
• Do not mount the GPS Antenna inside the center console.
– Mount the GPS Antenna on a flat plane of the dash board
or rear tray.
– Make sure the GPS Antenna is not covered (obstructed) by
any metallic surface or object.
• If the GPS Antenna is mounted near the unit, the reception
becomes poor, and the location of your vehicle may not be
displayed correctly.
– Mount the GPS Antenna far away enough from the unit.
– Bundle the GPS Antenna cable away from the rear of the
unit.
• Some thermal reflection type or thermal absorption type glass
may interrupt high frequency waves. If reception is poor with
the antenna installed inside the car, try to mount the antenna
outside the car.
Note on using HDMI Connection
Cables
When using HDMI connection cables, secure the cables to
the HDMI Terminals with the supplied HDMI Fixation
Bracket.
Secure the HDMI Fixation Bracket with the screw
(A).
HDMI Terminal
HDMI Fixation Bracket
(Included)
(A)
Position Adjustment and Mounting
Dimensions of the Display
(iLX-F509/iLX-F511 only)
The mounting position of this unit’s Display can be adjusted
(front-back/angle). When mounting the Display, confirm the
mounting position and mounting dimensions so that it
does not obstruct your field of vision or impair driving.
WARNING
• In the following cases, the display cannot be
mounted.
– It impairs operation of the steering wheel or various
levers (gearshift, windshield wiper switch, turn
signal switch, etc.)
– It impairs operation of the airbag
– It significantly impairs operation of the hazard
switch
– It impairs identification or operation of any other
control switches
– It impairs confirmation of gauges or warning
indicators
– It interferes with vehicle equipment (switches,
panels, etc.)
∗ Depending on the vehicle, the glove compartment or
cup holders may become inaccessible, or air
conditioner ventilation ducts may be covered.
■
Display mounting dimensions and adjustable
positions
Front-back position
<Forward position>
51.5 mm
(2 1/8”)
31.5 mm
(1 1/4”)
<Back position>
79-EN
Adjustable Display angle
45°
-20°
0°
• To adjust the display angle, hold the center of the top and
bottom of the display to move it. To protect the display, do not
hold the left and right ends to move it.
CAUTION
Do not adjust the display angle when the display
unit is not fixed to the slider of the main unit using
4 screws (M5×8). Doing so may not turn power on.
Adjustable Display up-down position
-15 mm
-30 mm
-45 mm
-60 mm
0
Adjusting the display position
(iLX-F509/iLX-F511)
Depending on the vehicle, the front-back display position
differs. To adjust the front-back position, set the slider to the
forward position.
Default setting: Back position
1 Remove 4 hexagon bolts from both sides of
the unit.
Hexagon bolts ×4
2 Pull out the slider to the forward position. (To
return the slider to the back position, push it
in.)
Slider
3 Install 4 hexagon bolts to secure the slider.
80-EN

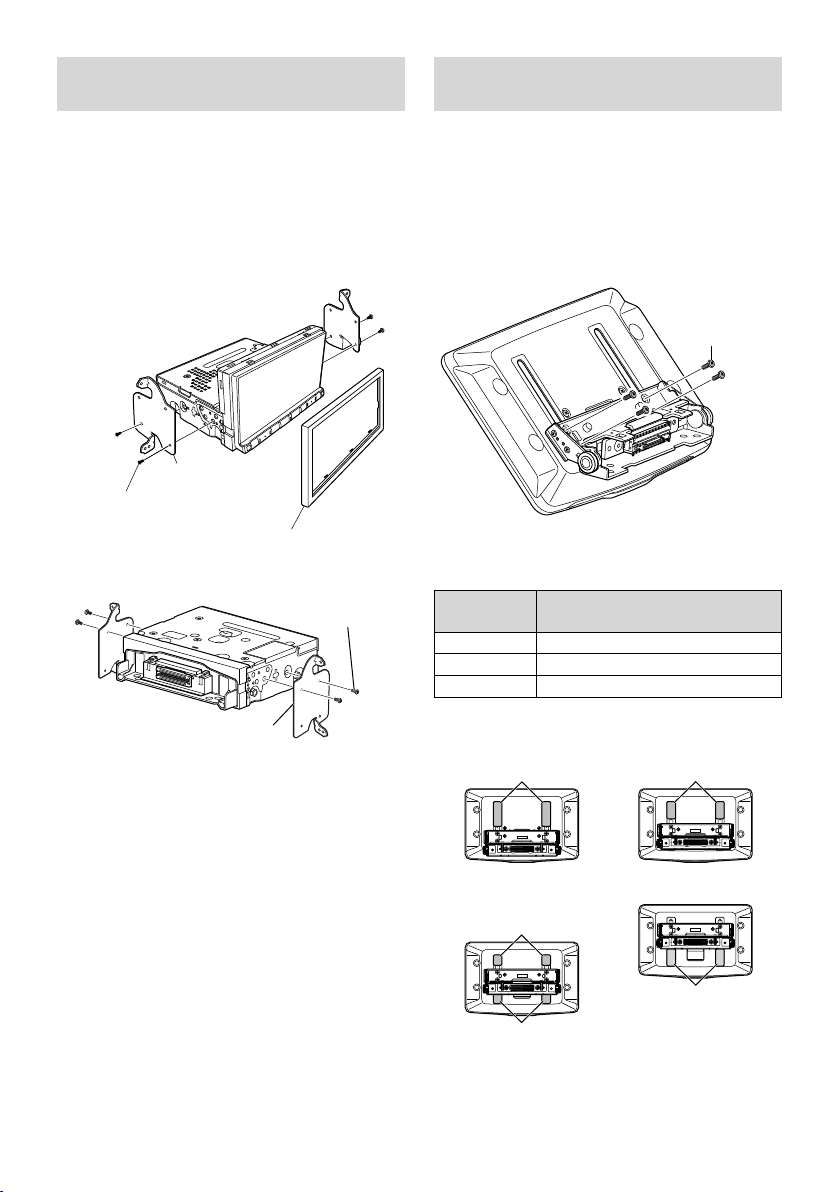

Installation example using the
Original Mounting Bracket
1 Mount the original mounting bracket to the
unit using the supplied screws.
• If you do not have the original mounting bracket,
mount the Double din KIT* (provided with the side
mounting bracket), etc. to the main unit.
* Sold separately.
■
iLX-507
Original Mounting
Bracket
Screws (M5×8)
(included)
Face plate (Included)
■
iLX-F509/iLX-F511
Original Mounting
Bracket
Screws (M5×8)
(included)
2 Connect all other leads of the unit according
to details described in the “Connections”
(page 82).
3 Mount the unit in a car.
• Fix the cables carefully. Do not damage them by
mounting them into movable parts, such as the seat
rail, or by locating them against sharp or pointed
edges.
4 Reattach the removed vehicle parts (panels,
etc.) or other aftermarket dash kit back onto
the vehicle.
Adjust the up-down position of the
Display unit (iLX-F509/iLX-F511)
Adjust the up-down position of the display according to the
mounting position on the vehicle before mounting the
display unit.
Default setting: 0 mm
1 Remove the 4 screws on the rear of the
display unit, then adjust the up-down
position.
Screws (M2.6× 8)
2 Attach the Sheet Rear in a position that aligns
with the up-down position of the display unit.
Sheet Rear
(Included)
up-down position
2×50 mm: for up-down position 0 mm or -60 mm
2×35 mm:
for up-down position -15 mm or -45 mm
2×20 mm: for up-down position -30 mm
0 mm
Sheet Rear
(2×50 mm)
-15 mm
Sheet Rear
(2×35 mm)
-30 mm
Sheet Rear
(2×20 mm)
Sheet Rear
(2×20 mm)
-45 mm
Sheet Rear
(2×35 mm)
81-EN
-60 mm
Sheet Rear
(2×50 mm)
3 Attach the Cover Rear to the rear of the
display unit using 2 screws (M2.6×6).
Secure the screws, then attach the Sheet caps.
Screws
(M2.6× 6)
(Included)
Cover Rear (Included)
Sheet caps
(Included)
Install the display unit (iLX-F509/
iLX-F511)
1 Fix the Display unit to the slider of the main
unit using 4 screws (M5×8).
Screws (M5×8) (Included)
CAUTION
Do not adjust the display angle when the display
unit is not fixed to the slider of the main unit using
4 screws (M5×8). Doing so may not turn power on.
2 Mount the Power Plate.
Power Plate (Included)
• If the Power Plate is not mounted, the display unit
may not be turned power on. Make sure to mount
it.
3 Mount the Cover Hinge using 2 screws
(M3×4).
Secure the screws, then attach the Sheet
Hinge.
Sheet Hinges
(Included)
Screws (M3×4)
(Included)
Cover Hinge
(Included)
82-EN
Connections
Connection 1
Antenna
Microphone (included)
To amplifier or equalizer
To plus side of the back lamp signal
lead of the car
To the parking brake signal lead
Ignition key
Battery
Power cable
PRE OUT cable
Speakers
Rear Left
Front Left
Front Right
Rear Right
To input terminal of amplifier
when adding an external
amplifier
REAR OUT
REMO
(Blue/White)
REVERSE
(Violet/White)
PARKING BRAKE
(Yellow/Blue)
ACC
(Red)
BATT
(Yellow)
GND
(Black)
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
SUBW
FRONT OUT
P. ANT
(Blue)
To power antenna
STEERING REMOTE
HDMI-REMO-OUT
AUX-REMO-OUT
To steering remote control
interface
To HDMI Selector Interface
To AUX device (TV Tuner, etc.)
REMOTE cable
(Brown)
(Gray)
MIC IN
To SiriusXM Tuner
83-EN
Connection 2
To USB flash drive, iPhone or
Android smartphone.
To iPhone or Android smartphone
(For charging only).
To Rear camera
To Front or Side camera
To iDataLink module
To Dash Cam
GPS Antenna (Included)
USB cable 2.4A (Black)
USB cable 1.5A (Gray)
REAR CAMERA
FRONT CAMERA
IDATALINK I/F
LIN
DRIVE RECORDER IN
CAMERA cable
To the vehicle speed pulse line
SPEED SENSOR
(Green/White)
HDMI Input Connector
HDMI Output Connector
CAMERA Connector
GPS Antenna Receptacle
Connect to GPS antenna (Included).
AUX Input Connector
Input lead for AUX audio signal.
Power Supply Connector
PRE OUT Connector
REM Connector
Radio Antenna Receptacle
SiriusXM Tuner Input Connector
To SiriusXM Tuner (sold separately).
• For more information on how to install the SiriusXM
Connect Vehicle tuner, consult the installation guide
included with the tuner.
MIC Input Connector
To microphone (included).
Steering Remote Control Interface Connector
To steering remote control interface.
For details about connections, consult your nearest
Alpine dealer.
HDMI-REM-OUT Lead (Brown)
Connect this lead to the remote input lead of your HDMI
Selector Interface.
AUX-REM-OUT Lead (Gray)
Connect this lead to the remote input lead of your AUX
device.
Subwoofer RCA Connectors
RED is right and WHITE is left.
84-EN
Front Output RCA Connectors
Can be used as Front Output RCA Connectors. RED is
right and WHITE is left.
Rear Output RCA Connectors
Can be used as Rear Output RCA Connectors. RED is
right and WHITE is left.
Left Rear (+) Speaker Output Lead (Green)
Left Rear (–) Speaker Output Lead (Green/Black)
Left Front (+) Speaker Output Lead (White)
Left Front (–) Speaker Output Lead (White/Black)
Right Front (–) Speaker Output Lead (Gray/Black)
Right Front (+) Speaker Output Lead (Gray)
Right Rear (–) Speaker Output Lead (Violet/Black)
Right Rear (+) Speaker Output Lead (Violet)
Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor.
Reverse Lead (Violet/White)
Parking Brake Lead (Yellow/Blue)
Connect this lead to the power supply side of parking
brake switch to transmit the parking brake status signals
to the unit.
Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your power
antenna, if applicable.
* This lead should be used only for controlling the
vehicle’s power antenna. Do not use this lead to turn
on an amplifier or a signal processor, etc.
Switched Power Lead (Ignition) (Red)
Connect this lead to an open terminal on the vehicle’s
fuse box or another unused power source that provides
(+) 12V only when the ignition is turned on or in the
accessory position.
Battery Lead (Yellow)
Connect this lead to the positive (+) post of the vehicle’s
battery.
Ground Lead (Black)
Connect this lead to a good chassis ground on the
vehicle.
Make sure the connection is made to bare metal and is
securely fastened using the sheet metal screw provided.
Fuse Holder (15A)
USB Connector (2.4A)
To USB flash drive, iPhone or Android smartphone.
USB Connector (1.5A)
To iPhone or Android smartphone (For charging only).
REAR CAMERA Input Connector
Use when connecting a rear camera.
FRONT CAMERA Input Connector
Use when connecting a front camera or side camera.
iDataLink Interface Connector
To iDataLink module (sold separately).
LIN Connector
Connect this lead to the LIN connector of the Dash Cam.
Drive Recorder Input Connector
Input lead for Dash Cam video signal.
Speed Sensor Lead (Green/White)
Improper connection of the speed pulse line may cause
important safety features of the vehicle to fail (such as
the brakes or air bags). Such failures may result in an
accident and loss of life. We strongly recommend that
the installation be performed by a trained, authorized
Alpine dealer.
Usable AV/RCA Interface Cable (4-pole mini AV
plug to 3-RCA)
Wiring convention of this system is as follows;
Audio L (White)
Audio R (Red)
Ground
Video (Yellow)
(Yellow)
(Red)
(White)
Video input terminal
Audio input terminal
(R, L)
• Configuration commercially available 4-pole mini AV plugs is
not standardized.
85-EN
If an ACC power supply is not available
Connection Diagram of SPST Switch (sold separately)
BATTERY
iLX-507
iLX-F509
iLX-F511
i509
(Red)
ACC
Battery
(Yellow)
SPST SW (Optional)
FUSE (20A)
(Optional)
FUSE (5A)
(Optional)
• If your vehicle has no ACC power supply, add an SPST (single-pole, single-throw) switch (sold separately) and fuse (sold separately).
• The diagram and the fuse amperage shown above are in the case when the unit is used individually.
• If the switched power (ignition) lead of the unit is connected directly to the positive (+) post of the vehicle’s battery, the unit draws
some current (several hundred milliamperes) even when its switch is placed in the OFF position, and the battery may be discharged.
To prevent external noise from entering the audio system.
• Locate the unit and route the leads at least 10 cm (4”) away from the car harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries
various noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
86-EN
System Example
Connection of an iPhone
■
When connecting to an iPhone with a Lightning connector
USB Connector 2.4A (Black)
iPhone with a Lightning
connector
(sold separately)
Lightning to USB Cable
KCU-471i (sold separately)
• Do not leave an iPhone in a vehicle for a long time. Heat and humidity may damage the iPhone, and you may not be able to play it
again.
Connection of a USB Flash Drive
USB Connector 2.4A (Black)
USB Flash Drive
(sold separately)
• Do not leave a flash drive in a vehicle for a long time. Heat and humidity may damage the flash drive.
87-EN
Connection of an HDMI Device (iPhone with a Lightning connector)
HDMI input connector
USB connector 2.4A (Black)
Lightning to USB Cable
KCU-471i (sold separately)
HDMI extension cable
(sold separately)
iPhone with a Lightning
connector (sold separately)
Lightning Digital AV Adapter
(Apple Inc., products) (sold
separately)
Connection of an HDMI Device (Android device)
HDMI input connector
Android device with
MHL connector
(sold separately)
■
MHL connection kit KCU-610MH
(sold separately)
HDMI connection cable
MHL conversion
adapter
Micro USB conversion cable
USB connector
2.4A (Black)
• A connection kit or adapter kit suitable for the type of terminal on the connecting device is required.
88-EN
Connection of an HDMI Device (using HDMI SELECTOR INTERFACE)
HDMI input connector
MHL device
(sold separately)
■
MHL connection kit KCU-610MH
(sold separately)
HDMI connection cable
(supplied with KCX-630HD)
MHL conversion
adapter
Micro USB conversion cable
HDMI-REMO-OUT
(Brown)
REMOCON IN
(Brown/White)
USB POWER
HDMI IN 2
HDMI IN 1
HDMI OUT
HDMI SELECTOR
INTERFACE
KCX-630HD
(sold separately)
DVD Player
(sold separately)
HDMI connection
cable
REM Connector
HDMI connection cable
(supplied with DVD Player)
HDMI-REM-OUT Lead (Brown)
• A connection kit or adapter kit suitable for the type of terminal on the connecting device is required.
89-EN
Connection of an External Device
AUX Input Connector
(Red)
(White)
To Video Output terminal
To Audio Output terminal
External Device
(sold separately)
(Yellow)
AV/RCA Interface Cable (4-pole mini AV plug to
3-RCA) (sold separately)
RCA Extension Cable (sold separately)
• You can change the name of an external device. For details, refer to “Setting the Auxiliary (AUX) Name” in the OWNER’S
MANUAL.
Connection of an External Amplifier
PRE OUT Connector
Power Supply
Connector
Power cable
PRE OUT
cable
REMO
(Blue/White)
REMOTE ON
(Blue/White)
REMOTE ON
(Blue/White)
SUBW
Amplifier for subwoofer
(sold separately)
To subwoofer input terminal
FRONT OUT
REAR OUT
To front input terminal
Amplifier 4 ch
(sold separately)
To rear input terminal
(Red)
(Red)
(White)
(White)
Subwoofer
Front speaker
Rear speaker
Subwoofer RCA Connectors
Front Output RCA Connectors
Rear Output RCA Connectors
Remote Turn-On Lead (Blue/White)
RCA Extension Cable (sold separately)
90-EN
Connection of a Camera
CAMERA cable
Power Supply Connector
Power cable
CAMERA Connector
Reverse
(Orange/White)
Camera extension cable
(included with direct rearview camera)
Rear Camera (sold separately)
Front or Side Camera
(sold separately)
REAR CAMERA
FRONT CAMERA Camera extension cable
(included with direct frontview camera)
Connect to the plus side of the car’s reverse lamp.
Reverse Lead (Orange/White)
REAR CAMERA Input Connector
FRONT CAMERA Input Connector
Connection of a Dash Cam
CAMERA cable
CAMERA Connector
(Yellow)
Rear Camera
(sold separately)
Dash Cam
(sold separately)
LIN
Drive Recorder IN
LIN Connector
Drive Recorder Input Connector
LIMITED WARRANTY
•
PRODUCTS COVERED:
This Limited Warranty (“Limited Warranty”) covers Alpine Car Audio
Products and· Related Accessories (the “Product”). Products purchased in
Canada are covered only in Canada. Products purchased in the U.S.A. are
covered only in the U.S.A.
•
LENGTH OF WARRANTY:
This Warranty is in effect for one year (1) from the date of the original
retail purchase on the Product.
•
WHO IS COVERED:
This Warranty only covers the original purchaser of the Product, who
must reside in the United States, Puerto Rico or Canada.
•
WHAT IS COVERED:
This Warranty covers defects in materials or workmanship (parts and
labor), under normal use, in the Product.
•
WHAT IS NOT COVERED:
This Limited Warranty does not cover the following:
Damage occurring during shipment of the Product to Alpine for
repair (claims must be presented to the carrier).
Damage caused by normal wear and tear, accidents or abuse,
including burned voice coils caused by over-driving the speaker
(amplifier level is turned up and driven into distortion or
clipping). Speaker mechanical failure (e.g. punctures, tears or
rips). Cracked or damaged LCD panels. Dropped or damaged
hard drives.
Damage caused by negligence, misuse, improper operation or
failure to follow instructions contained in the Owner’s manual.
Damage caused by an act of God, including without limitation,
earthquake, fire, flood, storms or other acts of nature. Any cost
or expense related to the removal or reinstallation of the
Product.
Service performed by an unauthorized person, company or
association.
Any Product which has the serial number defaced, altered or
removed.
Any Product which has been adjusted, disassembled, altered or
modified without Alpine’s consent.
Any Product not distributed by Alpine within the United States,
Puerto Rico or Canada.
Any Product not purchased from an Authorized Alpine Dealer.
•
HOW TO OBTAIN WARRANTY SERVICE:
You are responsible for delivery of the Product to an Authorized
Alpine Service Center or Alpine for repair and for payment of any
initial shipping charges. Alpine will, at its option, repair or
replace the Product with a new or reconditioned product
without charge. If the repairs are covered by this Limited
Warranty, and if the Product was shipped to an Authorized
Alpine Service Center or Alpine, Alpine will pay the return
shipping charges. The repaired or replaced Product will continue
to be covered under the original Limited Warranty period.
You should provide a detailed description of the problem(s) for
which service is required.
You must supply proof of your purchase of the Product.
You must package the Product securely to avoid damage during
shipment. To prevent lost packages, it is recommended to use a
carrier that provides a tracking service.
•
HOW WE LIMIT IMPLIED WARRANTIES:
ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR A PARTICULAR
PURPOSE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE
PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO
PERSON OR THIRD PARTY IS AUTHORIZED TO ADD TO, MODIFY, OR
EXTEND THE TERMS OF THIS LIMITED WARRANTY AND/OR ASSUME FOR
ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE
PRODUCT.
•
HOW WE EXCLUDE CERTAIN DAMAGES:
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ALPINE AND
ITS PARENT COMPANY, AFFILIATES, AND SUBSIDIARIES EXPRESSLY
DISCLAIM LIABILITY TO YOU UNDER ANY THEORY OF LIABILITY FOR ALL
INCIDENTAL, INDIRECT DAMAGES, SPECIAL, PUNITIVE, AND
CONSEQUENTIAL DAMAGES WHICH MAY BE INCURRED BY YOU IN
RELATION TO THE PRODUCT. THE TERM INCIDENTAL DAMAGES
INCLUDES, BUT IS NOT LIMITED TO, COSTS AND EXPENSES OF
TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF
THE ORIGINAL PURCHASER’S TIME, LOSS OF THE USE OF THE PRODUCT,
BUS FARES, CAR RENTALS OR OTHER COSTS RELATING TO THE CARE AND
CUSTODY OF THE PRODUCT. THE TERM CONSEQUENTIAL DAMAGES
INCLUDES, BUT IS NOT LIMITED TO, THE COST OF REPAIRING OR
REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS
PRODUCT DOES NOT WORK PROPERLY. TO THE EXTENT PERMITTED BY
APPLICABLE LAW, THIS LIMITED WARRANTY AND THE REMEDIES
PROVIDED HEREUNDER ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS. TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE TOTAL
LIABILITY OF ALPINE, ITS PARENT COMPANY, AFFILIATIES, AND
SUBSIDIARIES IN CONNECTION WITH THIS LIMITED WARRANTY AND/OR
THE PRODUCT SHALL NOT EXCEED THE AMOUNT YOU ACTUALLY PAID
FOR THE PRODUCT.
•
HOW STATE/PROVINCIAL LAW RELATES TO THE
LIMITED WARRANTY:
This Limited Warranty gives you specific legal rights, and you may also
have other rights which vary from state to state and province to province.
In addition, some states/provinces do not allow limitations on how long
an implied warranty lasts, and some do not allow the exclusion or
limitation of incidental or consequential damages.
Accordingly, limitations as to these matters contained herein may not
apply to you.
If any of the terms of this Limited Warranty are held to be null, void, illegal
or unenforceable for any reason, the remaining terms of this Limited
Warranty will remain in full force and effect.
For warranty service in the Canadian market, contact:
Phone: (905) 513-7733 Fax: (905) 513-7740
Email: [email protected]
Or visit our website at http://www.alpine-canada.com
•
HOW TO CONTACT CUSTOMER SERVICE:
Should the Product require service, please call the following number for
your nearest Authorized Alpine Service Center.
CUSTOMER SERVICE 1-800-421-2284, ext. 860304
TECH SUPPORT 1-800-TECH-101 (1-800-832-4101)
Or visit our website at http://www.alpine-usa.com
This Limited Warranty is provided by ALPINE ELECTRONICS OF AMERICA, INC., whose principal office is at 1500 Atlantic Blvd,
Auburn Hills, MI 48326, U.S.A.
Do not send Products to this address.
