CONTENTS
SAFETY WARNING SIGNS ...............................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTING UP THE REFRIGERATOR ........................................................ 4
MAJOR FEATURES.....................................................................................4
CONTROL PANEL .......................................................................................5
DIGITAL PANEL............................................................................................6
TEMPERATURE CONTROL ......................................................................7
ICE and COLD WATER DISPENSER.........................................................7
SHELVES and BINS.....................................................................................8
FOOD STORAGE GUIDE ...........................................................................9
REMOVING THE FREEZER ACCESSORIES..........................................11
REMOVING THE REFRIGERATOR ACCESSORIES.............................11
CLEANING THE ACCESSORIES .............................................................12
CHANGING THE INTERIOR LIGHT.........................................................12
WATER FILTER..........................................................................................13
DOORS.......................................................................................................13
INSTALLATION INSTRUCTIONS................................................14
INSTALLATION OF THE REFRIGERATOR ............................................14
REMOVING THE REFRIGERATOR DOORS .........................................15
REATTACHING THE REFRIGERATOR DOORS....................................18
ADJUSTING THE HEIGHT BETWEEN THE DOORS.............................21
CHECKING THE WATER DISPENSER LINE ..........................................23
INSTALLING THE WATER DISPENSER LINE ........................................24
BEFORE YOU CALL FOR SERVICE .......................................................27
REFRIGERATOR
RS2630
**
OWNER’S MANUAL AND INSTALLATION
In the CANADA.for questions about features,
operation/performance, parts, accesories or service, call:
1-800-726-7864 (1-800-SAMSUNG)
www.samsung.ca
Write the model and serial number here:
Model #
Serial #
These numbers can be found inside on the left of the
refrigerator.
DA68-01365J REV(0.1)
Register your product at www.samsung.com/global/register
DA68-01365J-EN 3/29/06 10:11 PM Page 1
2
SAFETY WARNING SIGNS
Because these warning signs are to prevent injury from users or other persons, please follow
safety warning signs. After reading the warning signs, keep them in a safe place for future refer-
ence.
CAUTION/WARNING SIGNS USED OTHER SIGNS USED
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
WARNING
CAUTION
Represents
something you must NOT
touch.
Represents
something you must
follow.
Indicates that you must disconnect the
power plug from the socket.
Represents a ground is needed to prevent
electric shock.
It is recommended that this action be
handled by a service person.
Represents something you must NOT
disassemble.
Represents something you must NOT do.
WARNING
•
Before operating the appliance, please read this manual thoroughly and retain it for your reference.
•
Because these following operating instructions cover various models, the characteristics of your
refrigerator may differ slightly from those described in this manual
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
Do not plug several appliances into the same
receptacle.
• This could cause overheating and the risk of fire.
Make sure that the power plug is not squashed or dam-
aged by the back of the refrigerator .
• A damaged power plug may overheat and cause fire.
Do not directly spray water inside or outside the refrig-
erator/freezer.
• There is a risk of electric shock.
Do not use aerosols near the refrigerator .
• There is a risk of explosion or fire.
Do not bend the power cord excessively or place
heavy articles on it .
• This constitutes a fire hazard. If the power cord is dam-
aged, have it replaced immediately by the manufacturer
or its service agent.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the refrigera-
tor.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
• Deteriorated insulation of the electrical parts may cause
electric shock or fire.
Do not store volatile or flammable substances in the
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas
and other such products may cause explosions.
Do not disassemble or repair the refrigerator by your-
self.
• You run the risk of causing a fire, malfunctions and/or
personal injury.
Pull the power plug out of the socket before changing
the interior light of the refrigerator.
• Otherwise, there is a risk of electric shock.
If you wish to dispose of the refrigerator / freezer throw
it away after first removing the doors and seals.
• Do so in a way that it is not possible for a child to remain-
trapped inside.
The refrigerator must be grounded.
• You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage
from the refrigerator.
Never use gas pipes, telephone lines or other potential
lightning rods as ground.
• Improper use of the ground plug can result in a risk of
electric shock. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade
round plug and a 3-slot receptacle that will accept the
plug on the appliance. The marked rating of the exten-
sion cord should be AC 115V~120V, 10A, or more. if a
grounding adapter is used, make sure the receptacle box
is fully grounded.
WARNING SIGNS
DA68-01365J-EN 3/29/06 10:11 PM Page 2
SAFETY WARNING SIGNS
3
SAFETY WARNING SIGNS
If the refrigerator is not to be used for a long period of
time, pull out the power plug.
• Deterioration in the insulation may cause fire.
• The appliance is not intended for use by young children
or infirm persons without supervision.
Young children should be supervised to ensure that they
do not play with the appliance.
• Do not place the equipment directly under the sunlight.
etc
• The appliance must be positioned so that the plug is
accessible after installation.
• If the power cord is damaged, it must be replaced by
manufacturer, a certified service agent or qualified ser-
vice personnel.
Before You Throw Away Your Old Refrigerator or
Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easi-
ly climb inside.
CFC Disposal
• Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed to
harm stratospheric ozone.
• If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant you can be subject to fines and imprisonment
under provisions of environmental legislation.
Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter or dust from the
power plug pins.
• Otherwise there is a risk of fire.
• If the refrigerator is disconnected from the power supply,
you should wait for at least five minutes before plugging it
back.
CAUTION SIGNS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and
cause personal injury or material damage.
Do not put bottles or glass containers in the
freezer
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance .
• When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceutical products, scientific
materials and temperature-sensitive products in the
refrigerator.
• Products with require strict temperature controls must
not be stored in the refrigerator.
Do not let children hang on the door, a serious injury
may occur.
If you sense a strange smell or smoke, pull out the
power plug immediately and contact your SAMSUNG
Electronics service center.
Do not touch the inside walls of the freezer or prod-
ucts stored in the freezer with wet hands.
• It may cause frostbite.
Do not insert your hands into the bottom area under
the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the
dispenser hole and ice chute. It may cause personal
injury or material damage
• In refrigerators with automatic icemakers,avoid con-
tact with moving parts. Do not place fingers or
hands on the automatic icemaking mechanism while
the refrigerator is plugged in.
• Keep fingers out of the “pinch point” areas; clear-
ances between the doors and between the doors
and cabinet are necessarily small. Be careful closing
doors when children are in the area.
• Do not refreeze frozen foods that have thawed com-
pletely.
Service warranty section
• Any changes or modifications performed by a 3rd
party on a finished product is not covered under
Samsung warranty service
Safety Caution section
• Samsung does not recommend 3rd party modifica
tion, therefore Samsung is not responsible for safety
issues that result from 3rd party modifications.
DA68-01365J-EN 3/29/06 10:11 PM Page 3
4
Twin X AirFlow
•
Cool air circulates through side vents on every shelf
level. This provides even distribution of cooling
inside cabinets to keep your food fresh longer.
Xtra Space
TM
• Vertical room next to the ice maker in the freezer
provides space for pizza etc.
Door Alarm
• Beep sound reminds you the door is open.
Vegetable Crisper
• Optimized humidity control keeps vegetables &
fruits fresh.

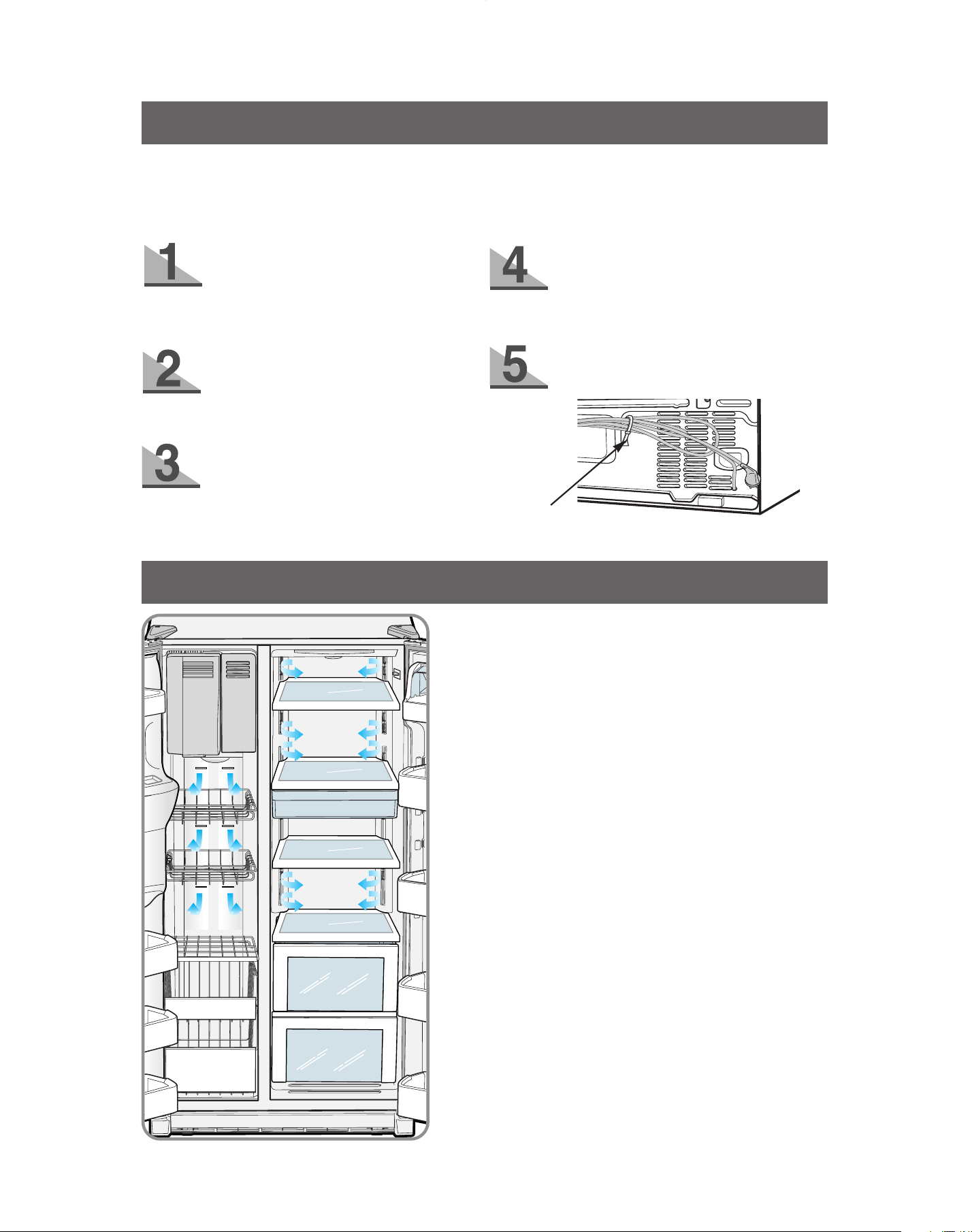

SETTING UP THE
REFRIGERATOR
MAJOR FEATURES
Once you have performed the following steps, your refrigerator should be fully operational. If not, check
the power supply and electricity source. If you have any questions, contact your SAMSUNG
service center.
Place the refrigerator in an appropriate
location with reasonable clearance
between the wall and the refrigerator.
(refer to installation instructions in this
manual)
Set the temperature control to the coldest
temperature and wait for an hour. The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigerator temperature is suffi-
ciently low, you can store food in the
refrigerator. After starting the refrigerator, it
takes a few hours to reach the appropriate
temperature.
You can arrange the Power cable with this
Cable tie, after you plug in the refrigerator.
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
Cable tie
DA68-01365J-EN 3/29/06 10:11 PM Page 4
5
OPERATING INSTRUCTIONS

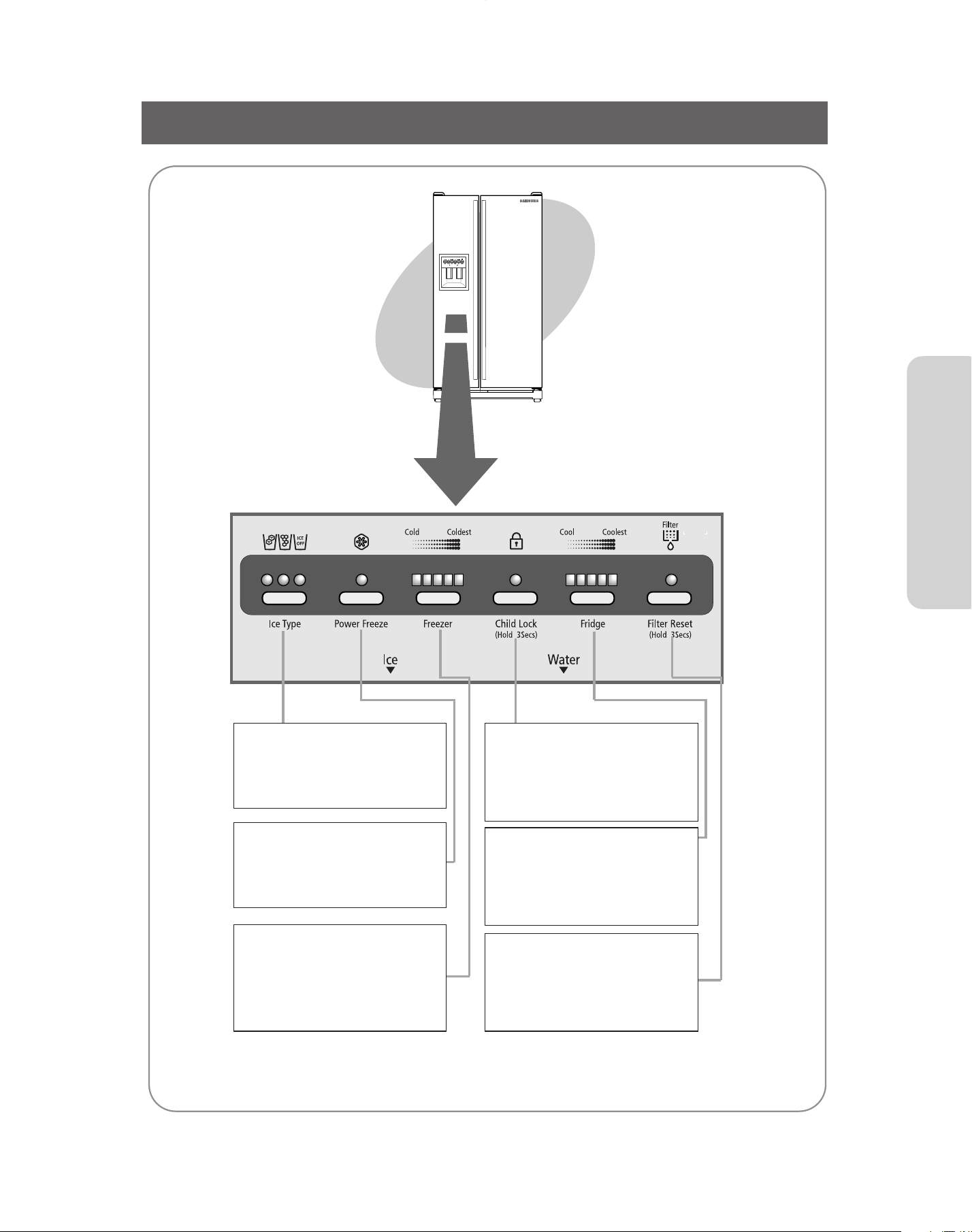

CONTROL PANEL
ICE TYPE BUTTON
Use this button to choose Cubed or
Crushed ice or Ice off.
POWER FREEZE BUTTON
Speeds up the freezing process in the
freezer.
FREEZER TEMP. BUTTON
To set the freezer temperature, press
the button repeatedly to change the
set temperature in sequence between
cold and coldest.
CHILD LOCK BUTTON
When this button is pressed for
3sec.,all functions are locked and can
not be modified. The water and ice
dispenser are locked.
FRIDGE TEMP. BUTTON
To set the fridge temperature, press
the button repeatedly to change the
set temperature in sequence between
cool and coolest.
FILTER RESET BUTTON
When the water filter is replaced, reset
the indicator by pressing the button for
3 seconds.
DA68-01365J-EN 3/29/06 10:11 PM Page 5
6
DIGITAL PANEL
•
This light is will turn on when you press the Power Freezer button. Power
Freeze speeds up the freezing process.
•
If you select Power Freeze, interior temperature of the freezer will decrease for
2 hr.30 min.
•
Press the Power Freeze button again to cancel the Power Freeze function.
If you use this function, energy consumption will increase.
Please turn off when not using this function.
•
Press the Ice Type button in sequence to choose
Cubed Ice, Crushed Ice or Ice Off to stop making ice.
•
An indicator will light to show the ice type currently
chosen.
Cubed Ice, Crushed Ice and Ice Off
•
When the green light changes to orange, it is time to replace the water filter.
If the indicator is red, quick replacement is strongly recommended.
•
When the water filter is replaced, reset the indicator by pressing the filter reset
buttons for 3 seconds.
•
To turn off this indicator off, press the filter reset buttons for 3 seconds.
Filter Indicator
•
When this button is pressed for 3sec., all functions are locked and can
not be modified. The water and ice dispenser are also locked.
Child Lock Button
Power Freeze
DA68-01365J-EN 3/29/06 10:11 PM Page 6
7
OPERATING INSTRUCTIONS
Press the Ice Type button to select the type of ice:
•
Cubed ice
•
Crushed ice
•
No ice
Push the ice dispenser lever with a cup.
•
Place a cup to the dispenser lever line to pre-
vent the ice from dropping out.
ICE and COLD WATER DISPENSER
Ice Dispenser
The ice maker produces 8 cubes at once and about 120
cubes a day automatically.
This quantity may be influ-
enced by factors such as the freezer temperature, Power
Freeze function and the number of door openings. When
your
refrigerator
is plugged in, the Cubed ice mode is
automatically selected .
Water Dispenser
The capacity of the water tank is approximely 0.3 gal.
Cold Water
•
Push the water dispenser lever with a cup.
•
If you have just installed the
refrigerator
, throw
away the first six glassfuls of water to flush out
impurities in the water supply system.
If you have a long vacation or business
trip and won’t use the water or ice dis-
pensers, close the water valve. Otherwise,
water leakage may occur.
Push
Push
CAUTION
CAUTION
Preparing for Vacation
Set the Ice Type to the ICE OFF position
and shut off the water supply to the refrig-
erator.
TEMPERATURE CONTROL
Cool Down Period
•
To ensure safe food storage, allow the refrigerator to operate with the doors closed for 8 to 12 hours before load-
ing it with food.
Temperature Adjustment
•
After 24 hours, adjust the controls as needed. Adjust temperature gradually: push the button in small increments,
allowing the temperature to stabilize.
•
Press the button(Freezer Temp or Fridge Temp) repeatedly until the desired set temper.
•
For lower temperature, press the button(Freezer Temp or Fridge Temp) towards coldest.
•
For higher temperature, press the button(Freezer Temp or Fridge Temp) towards cold.
•
When ice cream is stored at temperature above step 2 in the Freezer, it may melt.
WARNING
No ice
For Cubed ice
For Crushed ice
For ice off
NOTE
Never put fingers or any other objects in
the dispenser opening. It may cause
injury.
NOTE
Even though "No Ice" is selected, if there are ice
cubes in the bucket, you can get the ice cubes.
DA68-01365J-EN 3/29/06 10:11 PM Page 7
Dairy Compartment
Light Switch
Deli Bin Shelf
Spill-proof glass Shelf
Vegetable & Fruit Drawer (upper)
Vegetable & Fruit Drawer (lower)
Gallon Door Bins
Egg Container
8
SHELVES and BINS
Freezer
Xtra Space
TM
Ice Maker
Door Bin
Light
Ice Chute
Wire Shelf
Door Bin
Wire Drawers
Front Leg Cover
Refrigerator
CAUTION
Preparing to Move
Secure all loose items such as shelves and drawers by taping them securely in place to prevent
damage. When using a hand truck to move the refrigerator, do not rest the front or back
of the refrigerator against the hand truck.This could damage the refrigerator. Handle only from the
sides of the refrigerator. Be sure the refrigerator stays in an upright position during moving.
DA68-01365J-EN 3/29/06 10:11 PM Page 8
9
OPERATING INSTRUCTIONS
FOOD STORAGE GUIDE
FROZEN FOOD STORAGE IN FREEZER
Xtra Space
TM
•
Can be used for frozen foods such as pizza, pasta, burritos,
and fajitas.
•
In order to prevent odor penetration to the ice, stored food
should be wrapped securely.
WireShelf
•
Can be used to store all types of frozen food.
Door Bin
•
Can be used for small packages of frozen food.
Wire Drawer
•
Can be used to store meat and dry foods. Stored food should
be wrapped securely using foil or other suitable wrapping
materials or containers.
Ice chute
WARNING
Do not put your fingers, hands or any other insuitable objects in the chute or ice-maker bucket.
This may result in personal injury or material damage.
DA68-01365J-EN 3/29/06 10:11 PM Page 9
10
FOOD STORAGE GUIDE
Tempered Spill Proof Glass Shelf
•
Can be used to store all types of chilled food.
•
Safe and break resistant.
•
Circular marks on the glass surface are a normal phenomenon.
Fruit & Vegetable Drawer (Upper and Lower)
•
Used to store fruits and vegetables.
•
The drawer is airtight. Optimized humidity control design helps to pre-
serve the freshness of stored vegetables and fruits.
•
Adjust the “Optimized humidity control”, as you need.
-In case you want to minimize the evaporative humidity of vegetables
and fruits, put the “Optimized humidity control” on “High”.
-In case you want to reduce the time that put the temperature down in the
drawer, put the “Optimized humidity control” on “Low”.
Dairy Compartment
•
Can be used to store butter, margarine.
Gallon Door Bins
•
Can be used to store foods in small packages, such as milk and
yogurt.
Egg Container
•
Put eggs in the container and place them on the shelf.
CHILLED FOOD STORAGE IN REFRIGERATOR
CAUTION
Bottles should be stored tightly together so that they do not
fall out.
Storage Drawers
Excess water that may accumulate in the bottom of the
drawers should be wiped dry.
NOTE
DA68-01365J-EN 3/29/06 10:11 PM Page 10
11
OPERATING INSTRUCTIONS

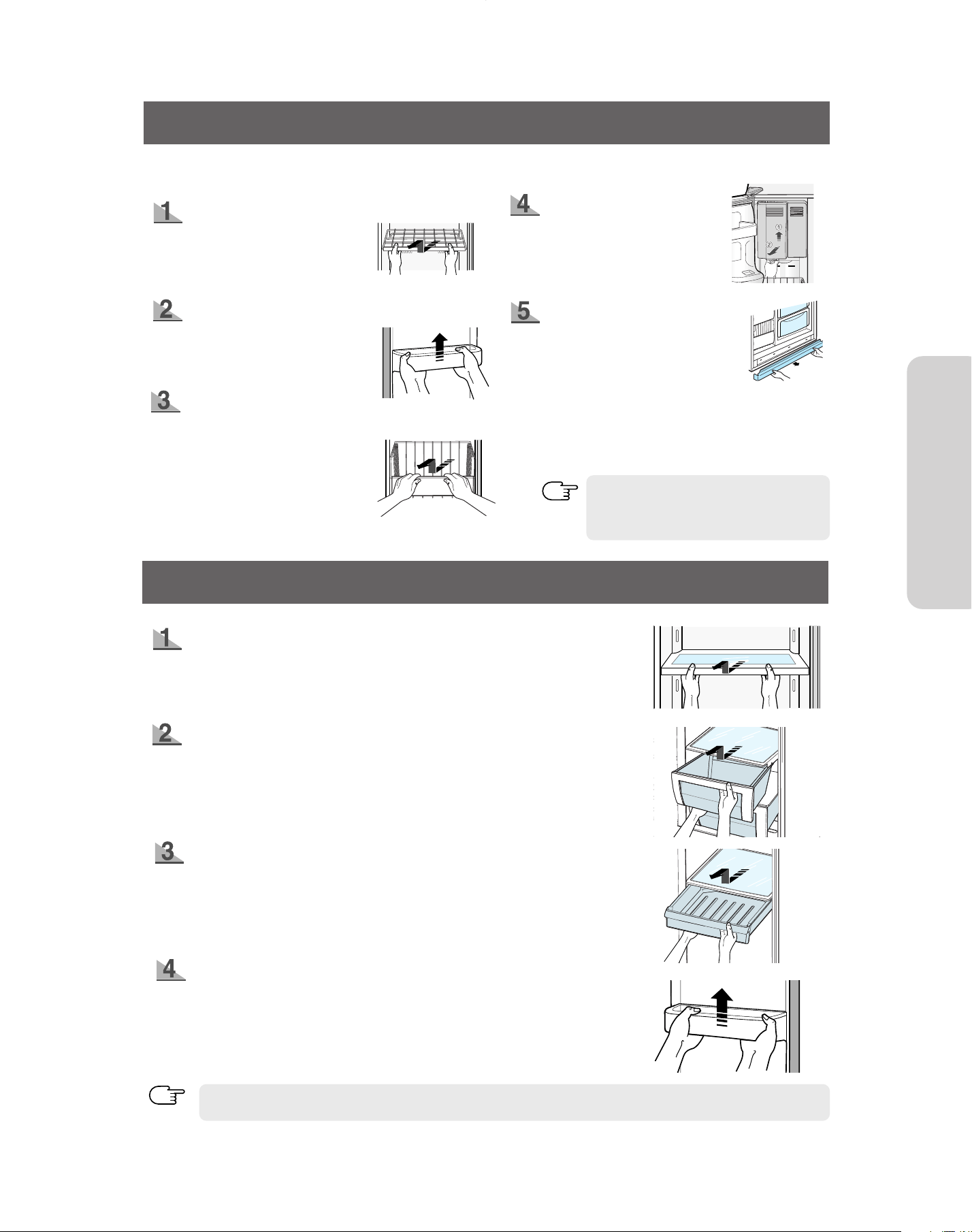

REMOVING THE FREEZER ACCESSORIES
Wire Shelf
•
Pull the shelf out as far as
it goes. Then lift it up and
remove it.
Door Bin
•
Hold the door bin with both
hands and then lift it up.
Wire Drawer
•
Remove the drawer by
pulling it out and lifting it up
slightly.
Ice Maker Bucket
•
Remove the bucket by
lifting up and pulling out.
Front Leg Cover
•
Open the freezer and refriger-
ator doors, lift it up and pull
the cover.
•
Reattach the front leg cover
by attaching it closely to the refrigerator, then
sliding it down.
NOTE
REMOVING THE REFRIGERATOR ACCESSORIES
Spill Proof Glass Shelf
•
Pull the shelf out as far as it will go. Then lift it up and gently remove it.
Vegetable & Fruit Drawer
•
Remove the drawer by holding the handle, pulling the drawer out, and then
lifting up the back side of the drawer bottom smoothly with the other hand.
Deli Bin
•
Remove the drawer by holding the handle, pulling the drawer out, and then
lifting up the back side of the drawer bottom smoothly with the other hand.
Gallon Door Bin
•
Hold the bin with both hands and remove it by lifting it up.
NOTE
•
Before removing the freezer and refrigerator accessories, please move the stored foods.
•
Do not use excessive force when
removing the cover. It may cause an
injury.
DA68-01365J-EN 3/29/06 10:11 PM Page 11
12
CLEANING THE ACCESSORIES
CHANGING THE INTERIOR LIGHT
•
Do not spray the refrigerator with water. It may cause an electric shock.
•
Do not clean it with benzene, thinner or car detergent. It may cause a fire.
Interior
•
Clean the accessories with a mild detergent, then wipe out with a dry cloth.
•
After washing the accessories, make sure that they are dry before using them again.
Exterior
•
Wipe the digital panel and display panel with a clean cloth.
•
The surface of doors, handles and cabinet should be cleaned with a mild detergent and soft
cloth, then wipe off the surface with a dry cloth.
- Do not use Benzene, Thinner and Clorox
TM
for cleaning
- Do not spray water directly on the surface of refrigerator while cleaning.
•
The exterior part of refrigerator should be polished once or twice a year.
Rear
•
Use a vacuum cleaner to remove dust once or twice a year.
Ice and water dispenser(on some model)
•
Before cleaning, lock the dispensor by pressing the button(Child lock). Use a damp cloth to
clean the ice and water dispenser. Then wipe it out with a dry cloth.
•
To keep drainage grid dry, do not touch ice and water dispenser.
Rubber door seals
•
If the rubber door seals are dirty, the door will not close properly, The refrigerator will not be
able to function efficiently. Clean the doors with a mild detergent and damp cloth. Then wipe
with a dry cloth.
WARNING
WARNING
INTERIOR LIGHT IN THE REFRIGERATOR .
Before changing the interior light, unplug the
refrigerator
from the power supply. If you have
difficulty in changing the light, contact your service center.
Pull the tip on the cover. After changing the bulb, reattach
the light cover.
DA68-01365J-EN 3/29/06 10:11 PM Page 12
13
OPERATING INSTRUCTIONS
CHANGING THE INTERIOR LIGHT

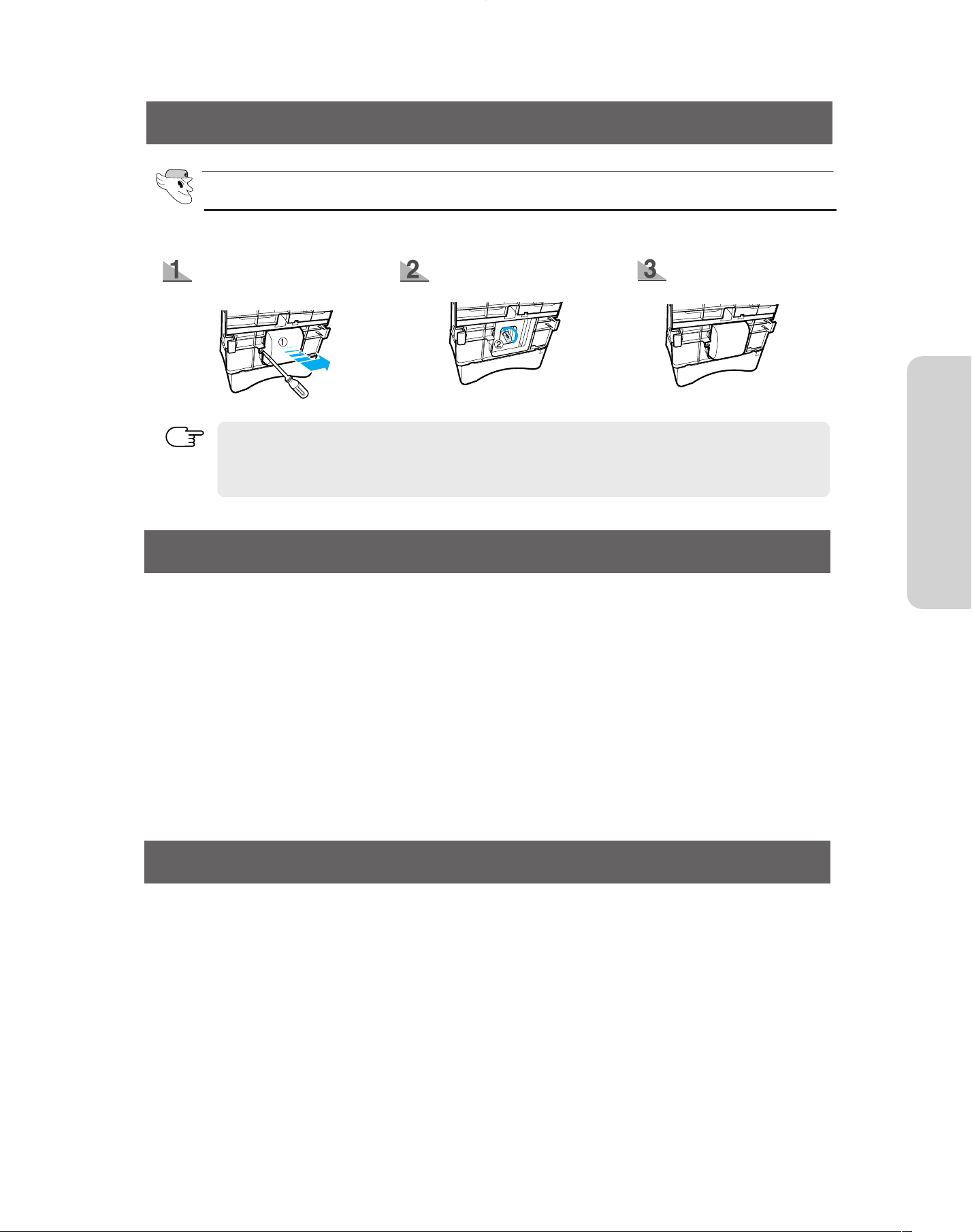

INTERIOR LIGHT IN THE FREEZER
.
NOTE
Use a screwdriver to remove
the light cover (
➀
).
Replace the bulb with a new
one (
➁
)
Reattach the light cover.
Replacement bulbs for both the freezer and refrigerator are at retail outlets such as Wal-mart, The
Home Depot and Lowe's.
Use replacement bulb size only E17, maximum 30 watts.
If you cannot find this bulb, contact SAMSUNG.
WATER FILTER
The water “Filter Indicator” light (on some models)
•
“Filter Indicator” light lets you know when it is time to change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current cartridge.
It is recommended that you replace the cartridge when the light changes to red or every six months.
(see “Install the water filter” section for more informmation)
Using the dispenser without the water filter
•
You cannot use the water and ice dispenser without a water filter cartridge.
Ordering replacement filters
•
To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
00003A or contact your authorized Samsung dealer.
DOORS
The refrigerator doors have a special door opening and closing feature to make sure they close all the
way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
The freezer light is located in the bottom of the auger motor case.
DA68-01365J-EN 3/29/06 10:12 PM Page 13
INSTALLATION OF THE REFRIGERATOR
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
Dimension
(inch)
Width
Capacity (Cu. Ft)
Model
RS25
****
25
35 3/4"
69 3/4"
68 3/4"
34 1/4"
29 1/2"
RS26
****
26
35 3/4"
69 3/4"
68 3/4"
35"
29 1/2"
with door
Case Height
without door
with door
Depth
without door
Checking the Dimensions of your Entrance Door
NOTE
1 inch
1/8 inch
1 inch
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Before disassembling the freezer door, the water supply line needs to be disconnected.
(If not, the water supply line can be damaged.)
• See “Separating the water supply line from the refrigerator” on the next page.
Selecting the Location for the Refrigerator
Allow sufficient space to circulate the air at the internal cooling system.
•
When refrigerator has not enough space, the internal cooling system may not work correctly.
NOTE
•
Allow clearance to the right, left, back and top when installing the refrigerator.
This has the advantage of reducing power consumption.
•
Do not install the refrigerator where the temperature will go below 50°F(10°C).
14
DA68-01365J-EN 3/29/06 10:12 PM Page 14
15
INSTALLATION INSTRUCTIONS
REMOVING THE REFRIGERATOR DOORS
Remove the water tube by pressing the coupler (➁) and pulling the water tube (➀) away.
Take hold of FRONT LEG COVER and lift it up.
FRONT LEG COVER
Removing the Front Leg Cover
Separating the Water Supply Line from the Refrigerator
NOTE
Be careful not to cut the water tube when separating it from the coupler.
DA68-01365J-EN 3/29/06 10:12 PM Page 15
16
REMOVING THE REFRIGERATOR DOORS
1) With the door closed, remove the upper hinge cover (➀) along the arrow (
➂
) using a screwdriver,
and then disconnect the wires (➁).
2) Remove hinge screws (
➃
) and ground screw (➄) counter-clockwise, and take off the upper hinge (➅)
along the arrow (➆). Take care when removing the door to ensure that it does not fall on you.
3) Remove
the door from the lower hinge
(
➇
)
by carefully lifting the door (
➈
).
Removing the Freezer Door
•
Lift the door straight up.
•
Be careful not to pinch the water tubing and wire harness on the door.
•
Place doors on a protected surface.
NOTE
NOTE
Be careful not to pinch the water tubing and the wire harness at the bottom of the door.
DA68-01365J-EN 3/29/06 10:12 PM Page 16
17
INSTALLATION INSTRUCTIONS
REMOVING THE REFRIGERATOR DOORS
3) Remove
the door from the lower hinge
(➅)
by
lifting the door (
➆
).
4) Remove the screw from the bracket lower hinge
(➈) and then remove the lower hinge (
➇
) from
the bracket (➈) by lifting the lower hinge (
➇
) in
the direction of the arrow.
1) With the door closed, remove the upper hinge cover (➀) along the arrow (➁) using a screwdriver.
2) Remove hinge screws (
➂
), and take off the upper hinge (
➃
) in the direction of the arrow (➄). Take
care when removing the door to ensure that it does not fall on you.

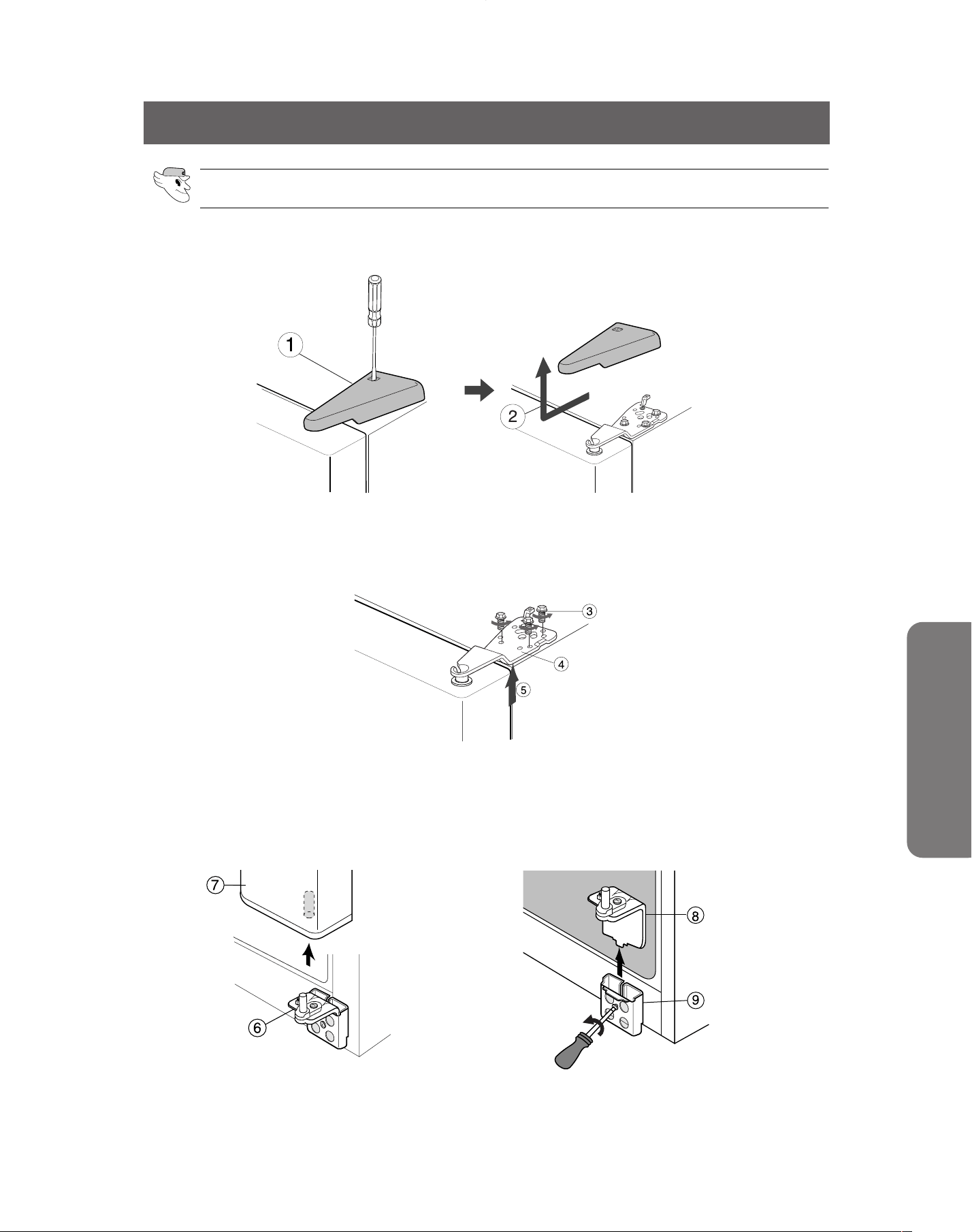

Removing the Refrigerator Door
DA68-01365J-EN 3/29/06 10:12 PM Page 17
18
Reattaching the Freezer Door
REATTACHING THE REFRIGERATOR DOORS
1) Reattach the freezer door by inserting the hose (
➀
) in the lower side of the door into the hole in the
lower hinge (➁) and pull the hose down.
2) Insert the upper hinge shaft (➂) into the hole (➃). After leveling between the upper hinge hole and the
hole of the cabinet, reattach hinge screws (➄) and ground screw (➅) in a clockwise direction.
3) Connect the wires. 4)
Put the front part of the upper hinge cover (
➆
)on
the front part of the upper hinge (➇) and reattach
from the front part of the upper hinge cover first.
7
8
DA68-01365J-EN 3/29/06 10:12 PM Page 18
19
INSTALLATION INSTRUCTIONS
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Refrigerator Door
1) Insert the lower hinge (
➀
) in the bracket lower
hinge (➁).
2) Place the hole in the refrigerator door (➂) over
the lower hinge (➃).
3) Insert the upper hinge shaft (➄) into the hole (➅). After leveling between the upper hinge hole and the
cabinet hole.
Reattach
hinge screws (➆) and gound screw (
➇
) in the clockwise direction.
4)
Put the front part of the upper hinge cover (
➈
) on the front part of the upper hinge (
➉
) and reattach it
from the front part of the upper hinge cover first.
9
DA68-01365J-EN 3/29/06 10:12 PM Page 19
20
REATTACHING THE REFRIGERATOR DOORS
FRONT LEG COVER
While pressing the front face of coupler (➁), insert the water line (➀) in the coupler.
Carefully place front cover and push to snap it into position.
Reattaching the Water Supply Line
Reattaching the Front Leg Cover
DA68-01365J-EN 3/29/06 10:12 PM Page 20
21
INSTALLATION INSTRUCTIONS
21

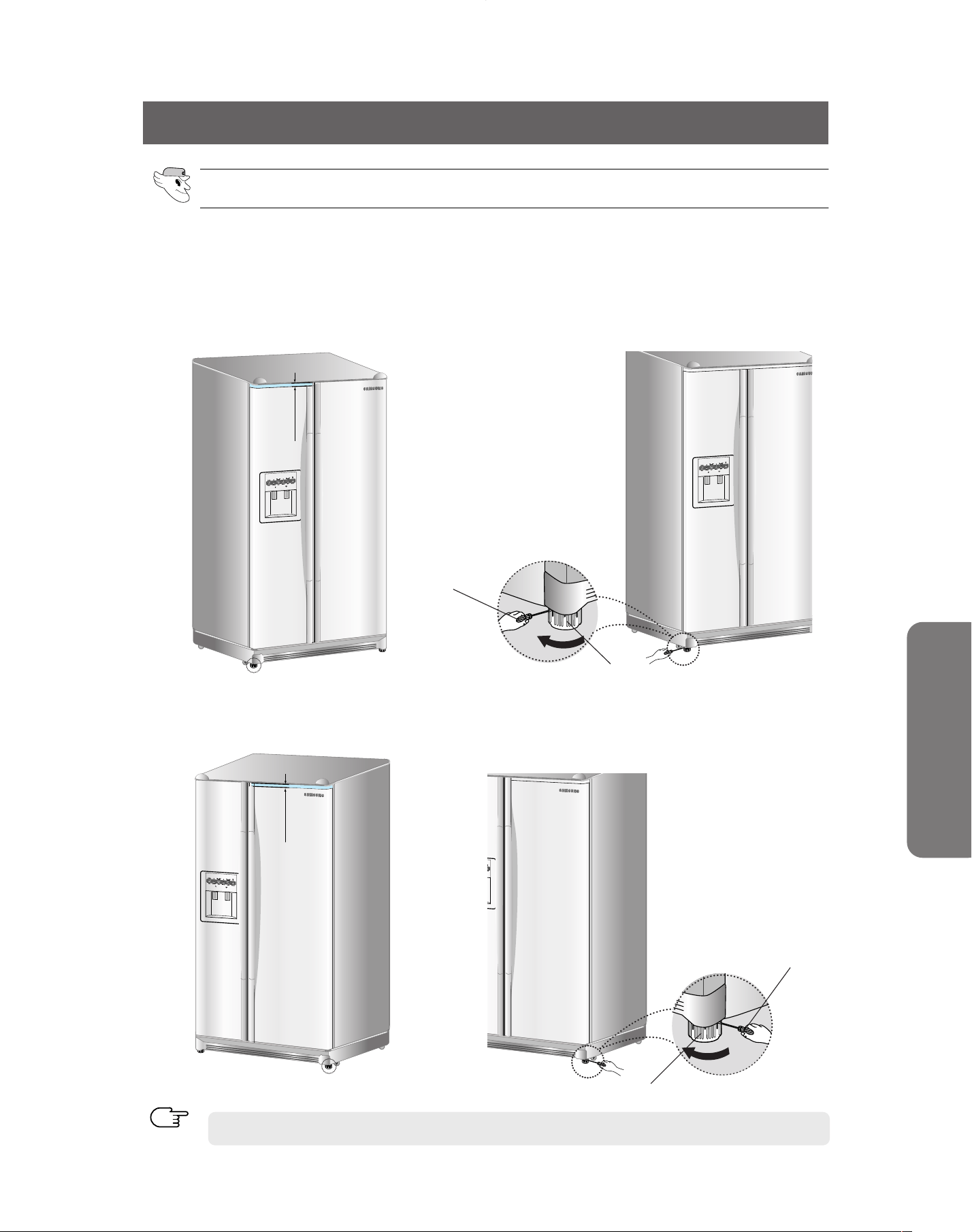

ADJUSTING THE HEIGHT BETWEEN THE DOORS
The doors will be uneven if the refrigerator is not level.
Case 1) Freezer door is lower than
the refrigerator door.
Insert a flat-blade screwdriver (-) (
➀
) into a slot of
the control lever (➁), turn it clockwise and level the
refrigerator.
Case 2) Freezer door is higher than
the refrigerator door
Insert a flat-blade screwdriver (-) (
➀
) into a slot of
the control lever (➁), turn it clockwise and level
the refrigerator.
Do not make small adjustments with the control lever, Please refer to the next page.
DIFFERANCE OF HEIGHT
DIFFERANCE OF HEIGHT
➀
DRIVER(-)
➀
DRIVER(-)
➁ CONTROL LEVER
➁ CONTROL LEVER
Please level the refrigerator first.
NOTE
DA68-01365J-EN 3/29/06 10:12 PM Page 21
2222
ADJUSTING THE HEIGHT BETWEEN THE DOORS
Making small level adjustments between doors.
If the freezer door is lower than the
refrigerator door.
If the freezer door is higher than the
refrigerator door.
3) After adjusting the doors, turn the nut (①) clockwise( ) until the lower end of the bolt, then tighten the
bolt again with the wrench (➂) to fix the nut(①).
If you do not fix the nut (
①
)firmly, the bolt (
➁
) may be released.
2) Please adjust the height difference between the doors turning the bolt (➁) clockwise( ) or
counter
clockwise
( ).
When you turn clockwise ( ), the door goes up.
Adjustment location
Adjustment location
➂ WRENCH
➀ NUT
➁ BOLT
➀ NUT
➁ BOLT
➂ WRENCH
➂ WRENCH
➁ BOLT
Please open the doors and adjust the doors as follows:
1) Release the nut (①) on the lower hinge until the upper end of the bolt (➁).
When you release the nut(①), use enclosed hex wrench (➂) to turn the bolt(➁) a little counter-
clockwise.
Loosen the nut(①) with your finger.
NOTE
NOTE
NOTE
➀ NUT
DA68-01365J-EN 3/29/06 10:12 PM Page 22
23
INSTALLATION INSTRUCTIONS
CHECKING THE WATER DISPENSER LINE
1) In order to operate the ice maker properly, water pressure of 20~125 psi(0.138~0.862 Mpa) is
required. In this range, a 6 oz paper cup can be filled in 10 secs.
2) The water filter removes particles. It does not sterilize or destroy any micro-organisms.
3) If the refrigerator is installed in area with low water pressure (below 20psi), you should install a
booster pump to compensate for the low pressure.
4) Ensure the water storage tank inside the refrigerator is filled. push the water dispenser
lever until the water runs from the outlet.
NOTE
A universal water supply kit is available at extra cost from your dealer. The refrigerator manu-
facturer recommends using a water supply kit containing copper tubing.
DA68-01365J-EN 3/29/06 10:12 PM Page 23
24
INSTALLATION OF THE WATER DISPENSER LINE
Connect the water tube to the refrigerator.
Install the water filter.
• This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive water damage.
• Banging pipes (water banging in the pipes) in house plumbing can cause damage to refrigerator parts
and lead to water leakage or flooding. Call a qualified plumber to correct the problem before installing
the water supply line to the refrigerator.
• To prevent burns and product damage, do not hook up the water line to the hot water line.
• If you use your refrigerator before connecting the water line, make sure the”Ice Type” is set to the ICE
OFF position.
• Do not install the icemaker tubing in areas where temperatures fall below freezing.
• When using any electrical device (such as a power drill) during installation, be sure the device is insu-
lated or wired in a manner to prevent electric shock.
• All installations must be in a accordance with local plumbing code requirements.

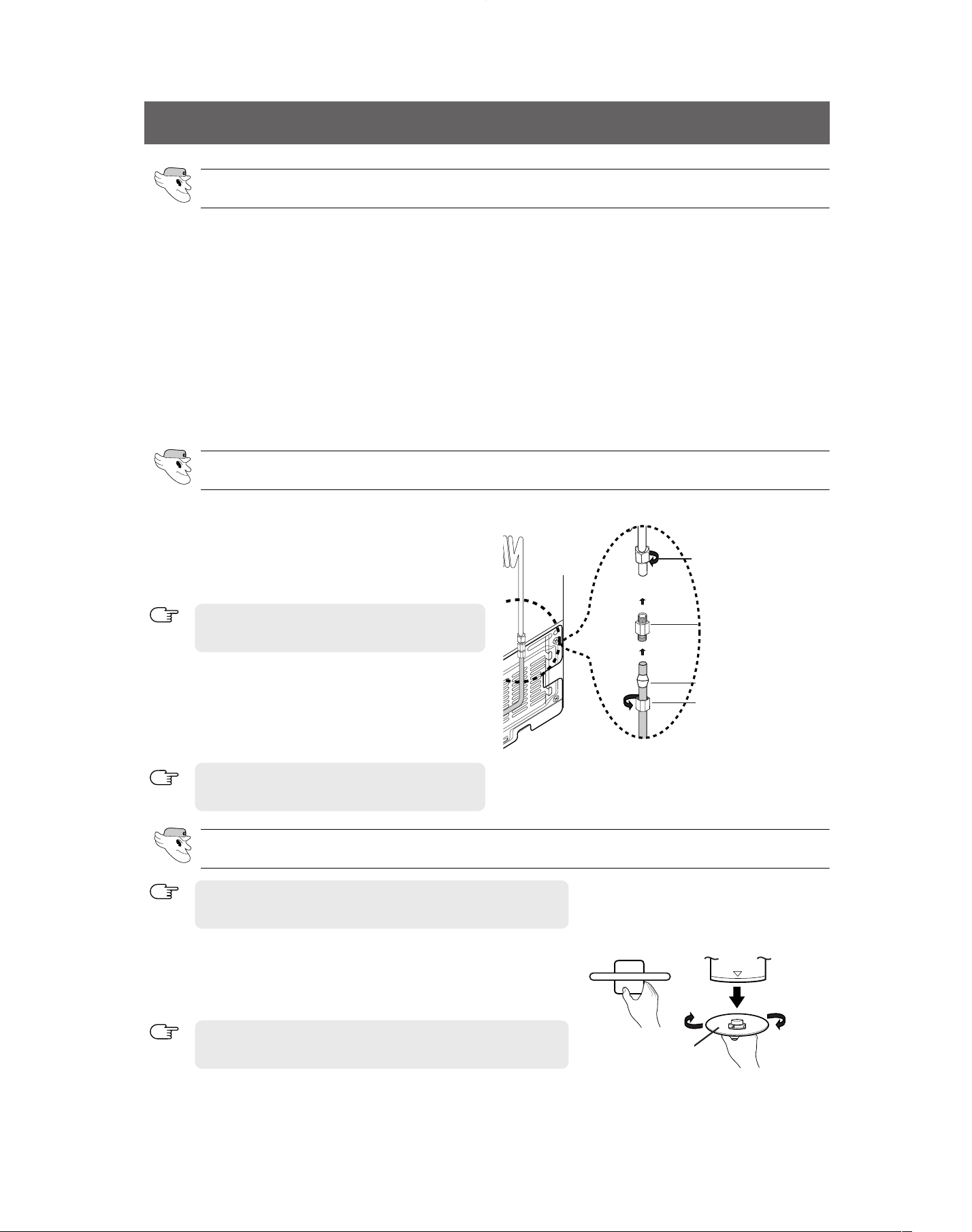

Before You Install the water line
1) Slip the compression nut through and plastic
tube.
2) Tighten the compression nut onto 1/4”
comprression fitting(union).
Water line must be connected to drink-
able water only.
NOTE
Do not overtighten the compression
nut.
NOTE
3) Slip the compression ferrule and nut onto the
copper (or plastic) tubing as shown.
Tighten the compression nut onto the com-
pression fitting(union).
4) Turn water on and check for any leakege.
Compression Nut
Compression fitting
Compression Nut
Ferrule
1) As shown, the fixed cap separates from the refrigerator by
rotating it counterclockwise.
Remove the water filter from the box and put a month indicator
sticker on the filter as shown on the next page.
2) The water filter should be replaced every six months, so if the
filter was installed in March (for example), put on the "SEP"
sticker to remind you to change the filter.
Keep the cap(A) in a safe place for recapping,
when you will not use the filter.
NOTE
The water filter in the extra space behind the
vegetable Bin.
NOTE
(A)
DA68-01365J-EN 3/29/06 10:12 PM Page 24
25
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE WATER DISPENSER LINE
Remove any residual matter inside the water supply line after installing filter.
1) Turn on the main water supply & shut-off valve of the water
supply line.
2) Run water through the dispenser until the water runs clear
(6~7 minutes). This will clean the water supply system and
clear air from the lines.
3) Additional flushing may be required in some households.
4) Open the refrigerator door and check if water leaks around
the water filter.
3) Remove the protective cap, then position and insert the
filter as shown.
4) Slowly turn the water filter clockwise 90º to align
the indication mark on the cover, locking the filter in posi-
tion.
WATER
ICE
•
A newly-installed water filter cartridge may cause water to briefly spurt from the dispenser.
NOTE
SEPARATION
OF RED CAP
STICKER
(MONTH INDICATION)
COVER FILTER
ALIGN THE INDICATION MARK
WITH LOCK POSITION.
• Please check that the indication line aligns with the lock position.
• If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do
not pull down on the cartridge. A small amount of water may drip down.
• If your refrigerator does not have a water filter, we recommend installing one if your water
supply has sand or particles that could clog the screen of the refrigerator’s water valve.
Install it in the water line near the refrigerator.
NOTE
DA68-01365J-EN 3/29/06 10:12 PM Page 25
26
INSTALLATION OF THE WATER DISPENSER LINE

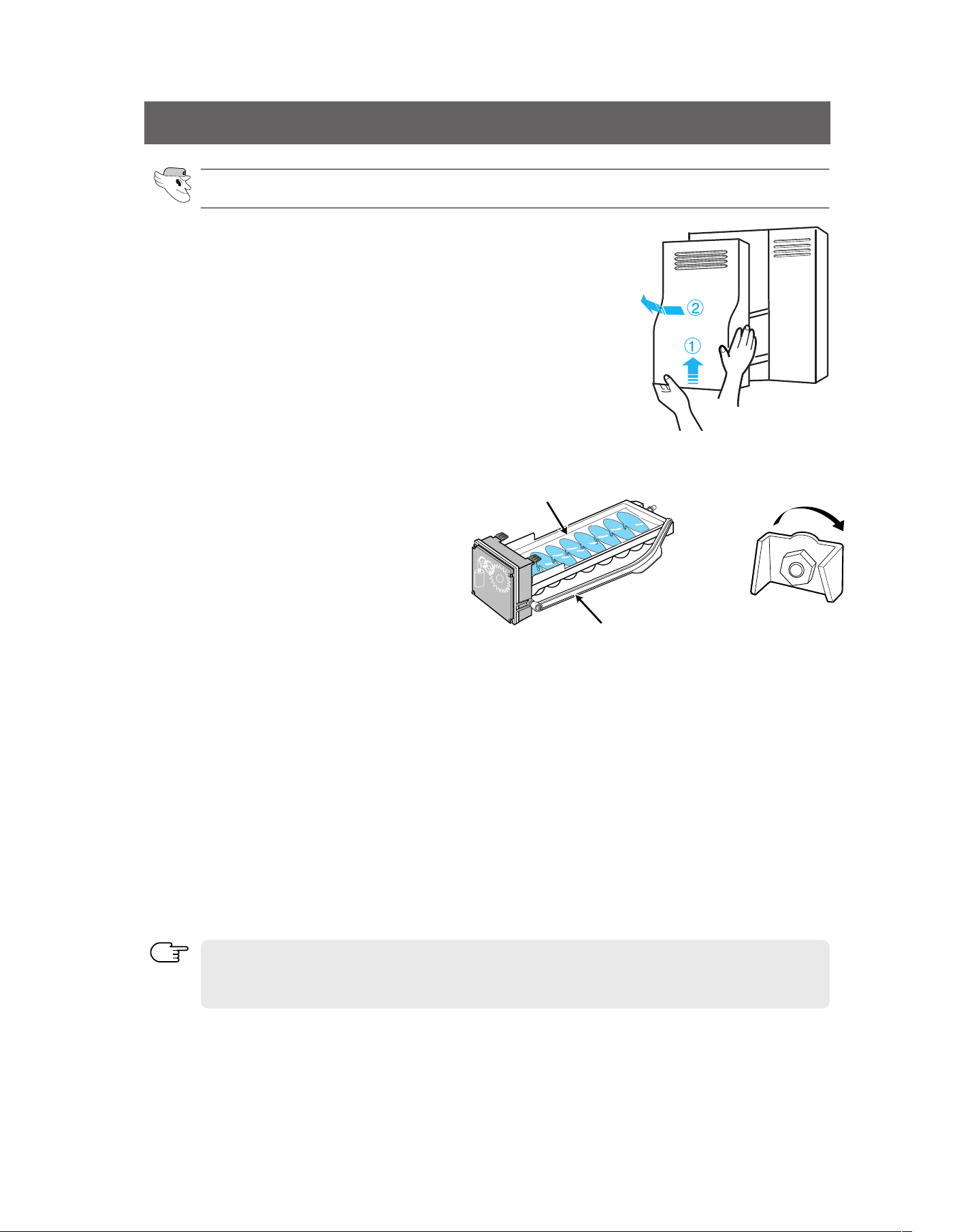

Check the amount of water supplied to the ice tray.
1) To remove : Set the "Ice Type" switch to the Ice off position. Lift
up (①) and pull out (➁) the icemaker bucket in the freezer.
To replace : When replacing the drawer, be sure to press it
firmly into place. If it does not go all the way back, remove it
and rotate the drive mechanism 1/4 turn. Then push the drawer
back again.
2) Throw away the first few batches of ice to allow the water line to
clear.
Be sure nothing interferes with the sweep of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will
stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
3) Important Facts About Your Dispenser :
Do not add ice from trays or bags to the
storage bin. It may not crush or dispense
well.
Avoid overfilling glass with ice and use of
narrow or extra-tall glasses. Backed-up ice
can jam the chute or cause the door in the
chute to freeze shut. If ice is blocking the
chute, poke it through with a wooden spoon.
Beverages and foods should not be quick-chilled in the ice storage bin.
To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser
opening.
Some crushed ice may be dispensed even though you selected CUBES. This happens occasionally
when a few cubes accidentally get directed to the crusher.
After crushed ice is dispensed, some water may drip from the chute.
4) Water Supply to the Icemaker :
The icemaker must be connected to a cold water line.
5) Start the Icemaker :
Set the "Ice Type" to the "Cubed Ice" or "Crushed Ice" position. The icemaker will not begin to oper-
ate until it reachs its operating of 10.4°F( -12°C) or below. It will then begin operation automatically if
the "Ice Type" is in the "Cubed Ice" or "Crushed Ice" position.
CHECK THE WATER LEVEL
Rotate
Drive
Mechanism
Feeler Arm
ICE MAKER
•
If there is no water supply, turn off the icemaker to save energy.
•
In lower water pressure conditions, the water valve may turn on up to 3 times to make sure enough
water reaches the icemaker.
NOTE
DA68-01365J-EN 3/29/06 10:12 PM Page 26
27
BEFORE YOU CALL FOR SERVICE...
INSTALLATION INSTRUCTIONS
Problem
The refrigerator does not
work sufficiently or at all
The food in the refrigera-
tor is frozen
Unusual noises or
sounds are heard
The front corners and
sides of the cabinet are
hot; condensation occurs
Ice is not dispensed
You can hear water bub-
bling in the refrigerator
There is a bad smell in
the refrigerator
Frost forms on the wall of
the freezer
No water is supplied
•
Disconnected power plug
•
Is the temperature control on the display
panel set to the correct temperature?
•
Is the refrigerator in direct sunlight or
located near a heat source?
•
Is the back of the refrigerator too close
to the wall?
•
Is the temperature control on the display
panel set to the correct temperature?
•
Is the temperature in the room too low?
•
Did you store the food with a high
water content in the coldest part of the
refrigerator.
•
Is the back of the refrigerator too near to
the wall?
•
Was anything dropped behind or under
the refrigerator?
•
A “ticking” sound may be heard from
inside the refrigerator. This is normal
and occurs because various accessories
contract or expand.
•
HOT-PIPE is installed in the front cor-
ners of refrigerator. That makes refriger-
ator’s temperature low quickly and save
the power consumption.
•
Condensation can occur when you leave
the door open for a long time.
•
Did you stop the ice making function?
•
Is there any ice in the storage unit?
•
Is the water pipe connected and the
shut-off valve open?
•
Is the freezer temperature too warm?
•
Did you wait for 12 hours after installa-
tion of the water supply line before
making ice?
•
The bubbling comes from the refrigera-
nt circulating in the refrigerator and is
normal.
•
Wrap strong smelling food so that it is
airtight. Throw away any rotten food.
•
Is the air vent blocked?
•
Is the door closed properly?
•
Is the water pipe connected and the
shut-off valve open?
•
Is the water supply pipe crushed?
•
Is the water tank frozen because the
refrigerator temperature is too low?
Select a warmer setting on the display
panel.
•
Check that the power plug is properly connected.
• Try setting it to a lower temperature.
• Move the refrigerator to the proper location.
•
Try setting it to a warmer temperature.
•
Check that the floor is levelled and stable.
• Move the refrigerator to the proper location.
• Remove the foreign thing.
• Normal state
• Normal state
• See the control panel.
• See the ice container.
• See the valve.
• Set the temperature lower.
• Normal state
• Allow sufficient space between stored food
for efficient air circulation.
Possible Causes What To Do
DA68-01365J-EN 3/29/06 10:12 PM Page 27
28
BEFORE YOU CALL FOR SERVICE...
Problem
Small or hollow cubes
Slow ice cube freezing
Orange glow in the freezer
Cube dispenser does not
work(on some models)
Water has poor taste/odor
(on some models)
Water in first glass is
warm (on some models)
Water dispenser does not
work(on some models)
Water spurting from dis-
penser (on some models)
Water is not dispensed
(on some models) but
icemaker is working
Water on kitchen floor or
on bottom of freezer
No water or ice cube
production
Water filter clogged.
Door left open.
Temperature control not set
cold enough.
Defrost heater is on.
Icemaker turned off or water
supply turned off.
Ice cubes are frozen to ice-
maker feeler arm.
Irregular ice clumps in stor-
age container.
Dispenser is LOCKED.
Water dispenser has not
been used for a long time.
Normal when refrigerator is
first installed.
Water dispenser has not
been used for a long time.
Water system has been drained.
Water supply line turned off or
not connected.
Water filter clogged.
Air may be trapped in the
water system.
Dispenser is LOCKED.
Newly-installed filter cartridge.
Water in reservoir is frozen.
Refrigerator control setting is
too cold.
Ice cubes stuck in icemaker.
(Green power light on
icemaker blinking).
Drain in the bottom of the
freezer clogged.
Cubes jammed in chute.
Supply line or shutoff valve is
clogged.
Water filter clogged.
Dispenser is LOCKED.
• Replace filter cartridge with new cartridge or with plug.
• Check to see if package is holding door open.
• See about the controls.
• This is normal.
• Turn on icemaker or water supply.
• Remove cubes and move the feeler arm to the ON position.
• Break up with fingertip pressure and discard remaining
clumps.
• Freezer may be too warm. Adjust the freezer control to a
colder setting, one position at a time, until clumps do not
form.
• Press and hold the CHILD LOCK for 3 seconds.
• Dispense water until all water in system is replenished.
• Wait 24 hours for the refrigerator to completely cool down.
• Dispense water until all water in system is replenished.
• Allow several hours for replenished supply to chill.
• See Installing the water line.
• Replace filter cartridge or remove filter and install plug.
• Press the dispenser arm for at least two minutes.
• Press and hold the CHILD LOCK pad for 3 seconds.
• Run water from the dispenser for 3 minutes (about one and
a half gallons).
• Call for service.
• Set to a warmer setting.
• Turn off the icemaker, remove cubes, and turn the icemaker
back on.
• See Care and cleaning.
• Check the lock of filter.
• Poke ice through with a wooden spoon.
• Call a plumber.
• Replace filter cartridge or remove filter and install plug.
• Press and hold the CHILD LOCK pad for 3 seconds.
Possible Causes What To Do
DA68-01365J-EN 3/29/06 10:12 PM Page 28
29
DA68-01365J-EN 3/29/06 10:12 PM Page 29
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
SAMSUNG ELECTRONICS CANADA, INC.
55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA
TEL : 905-542-3535 FAX : 905-542-3835
1-800-SAMSUNG (7267864)
www.samsung.com/ca
All right reserved. This manual maynot be reproduced in whole or in part in any
form without written permission from the SAMSUNG ELECTRONICS Company
To obtain service, please call our toll-free CAMCO CUSTOMER SERVICE
number at 1-800-361-3400
If further help is needed concerning warranty, contact:
Manager, Consumer Relations
Camco, Inc.
1 Factory Lane
Moncton, New Brunswick
E1C 9M3
You can also contact us on our web site: www.geappliances.ca
DA68-01365J-EN 3/29/06 10:12 PM Page 30
