Owner's Manual
CRrlFTSMRN
6.5 HORSEPOWER,
22" SIDE DISCHARG_I_
POWER PROPELLE_i
ROTARY LAWN MOWI_Ia
Model No.
917.377424
• Safety
• Assembly
• Operation
• Maintenance
• EspaSol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Seam, Roebuck and C_., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/cmftsman
Warranty 2 Product Specifications 10
Safety Rules 2 Service and Adjustments 13
Assembly 4 Storage 14
Operation 5 Troubleshooting 16
Maintenance Schedule 9 Repair Parts 35
Maintenance 9 Parts Ordering Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
Safety standards require operator
presence controls to minimize the risk of
injury. Your unit is equipped with such
controls. Do not attempt to defeat the
function of the operator presence controls
under any circumstances.
TRAINING:
• Read this operator's manual carefully.
Become familiar with the controls and
know how to operate your mower
propedy. Learn how to quickly stop
mower.
• Do not allow children to use your mower.
Never allow adults to use mower without
proper instructions,
• Keep the area of operation clear of all
persons, especially small children and
pets.
• Use mower only as the manufacturer
intended and as described in this
manual.
• Do not operate mower if it has been
dropped or damaged in any manner.
Always have damage repaired before
using your mower.
• Do not use accessory attachments that
are not recommended by the manufac-
turer. Use of such attachments may be
hazardous.
• The blade turns when the engine is
running.
PREPARATION:
• Always thoroughly check the area to be
mowed and clear it of all stones, sticks,
wires, bones, and other foreign objects.
These objects will be thrown by the
blade and can cause severe injury.
• Always wear safety glasses or eye
shields when starting and while using
your mower.
2

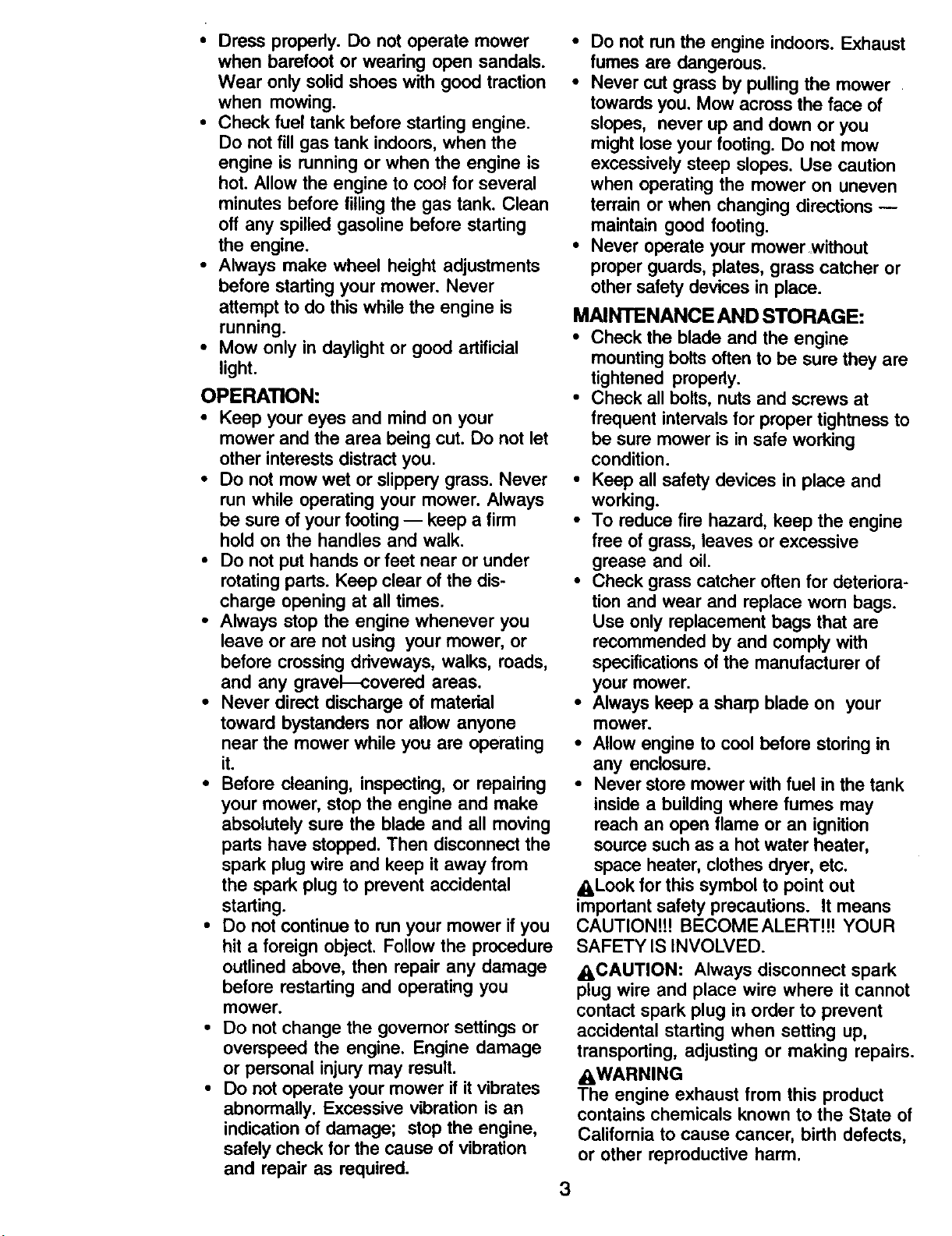

• Dross properly. Do not operate mower
when barefoot or wearing open sandals.
Wear only solid shoes with good traction
when mowing.
• Check fuel tank before starting engine.
Do not fill gas tank indoors, when the
engine is running or when the engine is
hot. Allow the engine to cool for several
minutes before filling the gas tank. Clean
off any spilled gasoline before starting
the engine.
• Always make wheel height adjustments
before starting your mower. Never
attempt to do this while the engine is
running.
• Mow only in daylight or good artificial
light.
OPERATION:
• Keep your eyes and mind on your
mower and the area being cut. Do not let
other interests distract you.
• Do not mow wet or slippery grass. Never
run while operating your mower. Always
be sure of your footing -- keep a firm
hold on the handles and walk.
• Do not put hands or feet near or under
rotating parts. Keep clear of the dis-
charge opening at all times.
• Always stop the engine whenever you
leave or are not using your mower, or
before crossing driveways, walks, roads,
and any gravel--covered areas.
• Never direct discharge of material
toward bystanders nor allow anyone
near the mower while you are operating
it.
• Before cleaning, inspecting, or repairing
your mower, stop the engine and make
absolutely sure the blade and all moving
parts have stopped. Then disconnect the
spark plug wire and keep it away from
the spark plug to prevent accidental
starting.
• Do not continue to run your mower if you
hit a foreign object. Follow the procedure
outlined above, then repair any damage
before restarting and operating you
mower.
• Do not change the govemor settings or
overspeed the engine. Engine damage
or personal injury may result.
• Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration
and repair as required.
• Do not run the engine indoors. Exhaust
fumes are dangerous.
• Never cut grass by pulling the mower
towards you. Mow across the face of
slopes, never up and down or you
might lose your footing. Do not mow
excessively steep slopes. Use caution
when operating the mower on uneven
terrain or when changing directions --
maintain good footing.
• Never operate your mower without
proper guards, plates, grass catcher or
other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine
mounting bolts often to be sure they are
tightened properly.
• Check all bolts, nuts and screws at
frequent intervals for proper tightness to
be sure mower is in safe working
condition.
• Keep all safety devices in place and
working.
• To reduce fire hazard, keep the engine
free of grass, leaves or excessive
grease and oil.
• Check grass catcher often for deteriora-
tion and wear and replace wom bags.
Use only replacement bags that are
recommended by and comply with
specifications of the manufacturer of
your mower.
• Always keep a sharp blade on your
mower.
• Allow engine to cool before storing in
any enclosure.
• Never store mower with fuel in the tank
inside a building where fumes may
reach an open flame or an ignition
source such as a hot water heater,
space heater, clothes dryer, etc.
ALook for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
ACAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
/I, WARNING
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
3

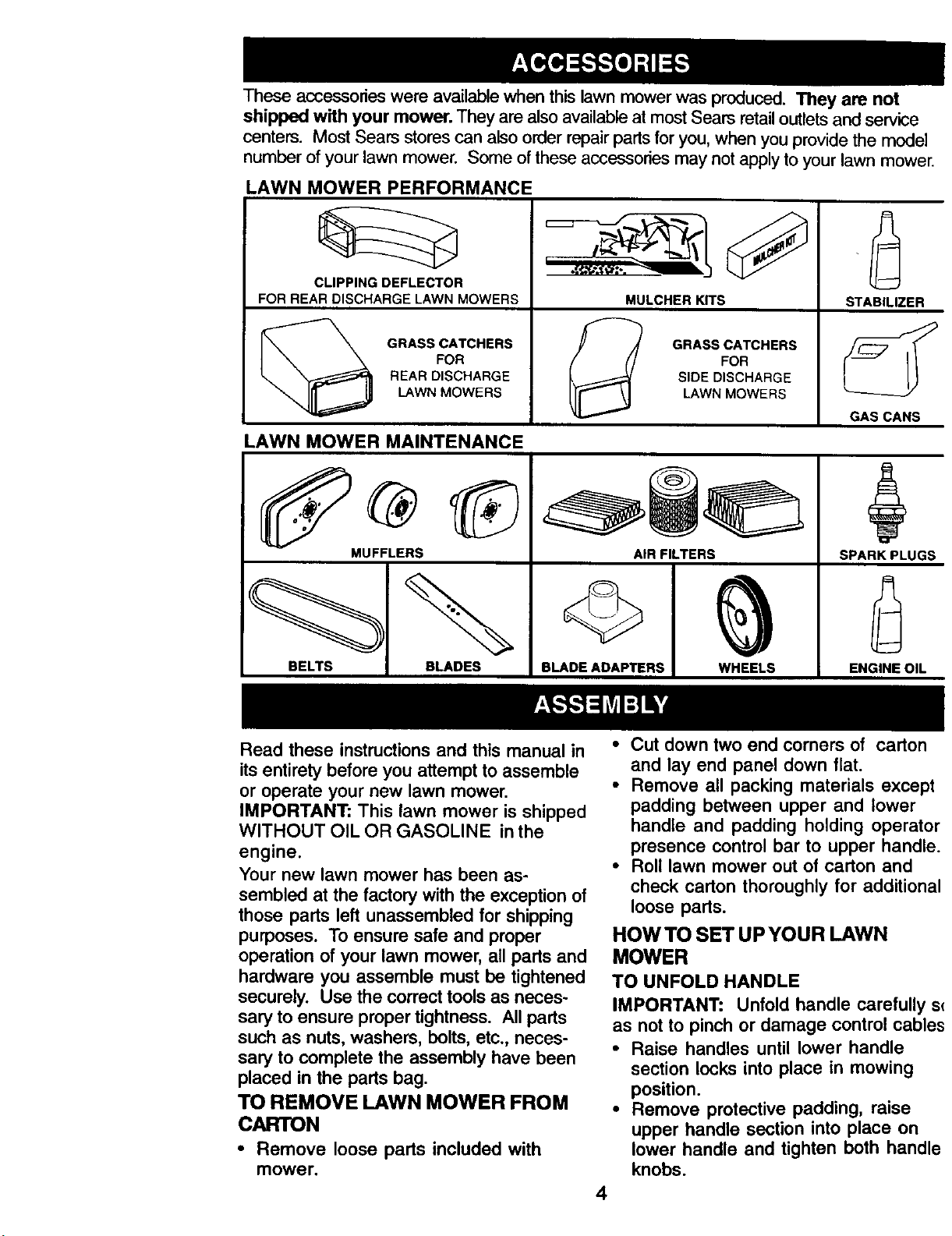

These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and service
centers. Most Sears stores can also order repair parts for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
MULCHER K_S
GRAss CATCHERS
FOR
SIDE DISCHARGE
LAWN MOWERS
STABILIZER
GAS CANS
MUFFLERS
BELTS BLADES
BLADE ADAPTERS
AIR FILTERS
WHEELS
SPARK PLUGS
ENGINE OIL
Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as-
sembled at the factory with the exception of
those parts left unassembled for shipping
purposes. To ensure safe and proper
operation of your lawn mower, all parts and
hardware you assemble must be tightened
securely. Use the correct tools as neces-
sary to ensure proper tightness. All parts
such as nuts, washers, bolts, etc., neces-
sary to complete the assembly have been
placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts included with
mower.
• Cut down two end corners of carton
and lay end panel down flat.
• Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
• Roll lawn mower out of carton and
check carton thoroughly for additional
loose pads.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully s,
as not to pinch or damage control cables
• Raise handles until lower handle
section locks into place in mowing
position.
• Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
4
• Remove handle padding holding
operator presence control bar to upper
handle.
• Your lawn mower handle can be
adjusted for your mowing comfort.
Refer to "Adjust Handle" in the Service
and Adjustment section of this manual.
Operator presence control
bar
Upper handle __ _Lift up//_
u.up I ow,ng
_ _)/'/ position
ow;re
KNOWYOURLAWNMOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN
MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OiL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Operator presence control
Engine zone control cabk
Drive control lever
Starter handle _ control
Handle knob
Engine oil cap with dipstick
Mulcher door
Gasoline filler cap
Primer
Drive cover
IMPORTANT: This lawn mower is
shipped WITHOUT OIL OR GASOLINE
in the engine, tCheel adjuster
(on each wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commis-
sion. The blade turns when the engine is running.
Operator presence control bar - must be
held down to the handle to start the engine.
Release to stop the engine.
Pdmer - pumps add_ fuel from the
carburetor to the cylinderfor use when
starting a cold engine.
Starter handle - used for starlingthe engine.
Drive control lever- used to engage power-
propelled forward motion of lawn mower.
Mulcher- allows conversion to discharge or
begging operation.
5
The operation of any lawn mower
can result in foreign objects thrown
intothe eyes, which can result in
severe eye damage. Always wear safety
glasses or eye shields while operating your
lawn mower or performing any adjustments
or repairs. We recommend a wide vision
safety mask over spectacles or standard
safety glasses.

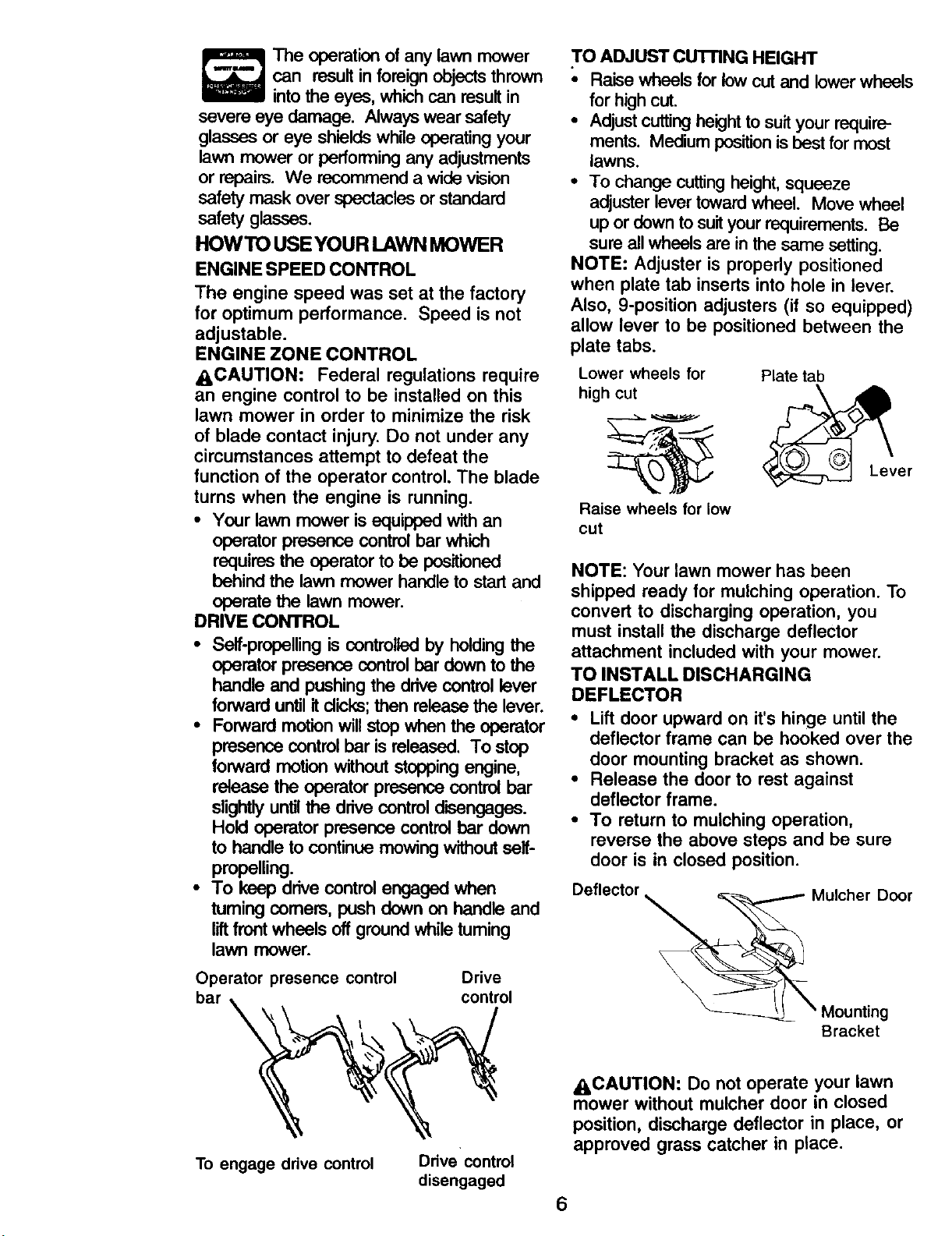

HOWTO USE YOUR LAWN MOWER
ENGINE SPEED CONTROL
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
ACAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start and
operate the lawn mower.
DRIVE CONTROL
• Self-propelling is controlled by holding the
operator presence control bar down to the
handle and pushing the drive control lever
forward untilitdicks; then release the lever.
• Forward motion will stop when the operator
presence control bar is released. To stop
forward motion without stopping engine,
release the operator presence control bar
slightly untilthe drive control disengages.
Hold operator presence control bar down
to handle to continue mowing without self-
propelling.
• To keep drive control engaged when
tuming comers, push down on handle and
liftfront wheels off ground while tuming
lawn mower.
Operator presence control
bar
Drive
control
To engage drive control
Drive control
disengaged
TO ADJUST CUTnNG HEIGHT
• Raise wheels for low cut and lower wheels
for high cut.
• Adjust cuttingheightto suit your require-
ments. Medium positionis bast for most
lawns.
• To change cuttingheight, squeeze
adjuster lever toward wheal. Move wheel
up or down to suityour requirements. Be
sure allwheels are in the same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
Lower wheels for Plate tab
high cut
Lever
Raise wheels for low
cut
NOTE: Your lawn mower has been
shipped ready for mulching operation. To
convert to discharging operation, you
must install the discharge deflector
attachment included with your mower.
TO INSTALL DISCHARGING
DEFLECTOR
• Lift door upward on it's hinge until the
deflector frame can be hooked over the
door mounting bracket as shown.
• Release the door to rest against
deflector frame.
• To return to mulching operation,
reverse the above steps and be sure
door is in closed position.
Deflector
Door
Mounting
Bracket
ACAUTION: Do not operate your lawn
mower without mulcher door in closed
position, discharge deflector in place, or
approved grass catcher in place.
6
BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oilin the
engine.
• Be sure mower is level and area around oil
till is clean.
• Remove engine oil cap and fillto the full
lineon the dipstick.
NOTE: Allow oil to settle down into
engine for accurate dipstick reading.
• Engine holds 20 ozs. of oil. Fortype and
grade of oil to use, see "ENGINE" in
Maintenance section of this manual.
• Pour oilslowly. Do not over till.
• Check oillevel before each use. Add oil if
needed. Fillto full line on dipstick.
• To read proper level, tighten engine oilcap
each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may need
to change the oil more often under dusty,
dirty conditions.
ADD GASOLINE
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. (Use of leaded gasoline
will increase carbon and lead oxide
deposits and reduce valve life). Do not
mix oil with gasoline. Purchase fuel in
quantities that can be used within 30
days to assure fuel freshness.
_cWhAoRNING." Experience indicates that
I blenaed fuels tcallea gasonol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
,.,_.CAUTION: Fill to bosom of gas,tank
filler neck. Do not oveniil. Wipe on any
spilled oil or fuel. Do not store, spill or use
gasoline near an open flame.
TO START ENGINE
• To start a cold engine, push primer five
(5) times before trying to start. Use a
firm push. This step is not usually
necessary when starting an engine
which has already run for a few
minutes.
• Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
• To stop engine, release operator
presence control bar.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
Engine oil cap Gasoline filler
cap
MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• For side discharge lawn mowers,
cutting in a counter-clockwise direction,
starting at the outside of the area to be
cut, spreads grass clippings more
evenly and puts less load on the
engine. To keep clippings off of
walkways, flower beds, etc., make the
first cuts in a clockwise direction.
• Pores in cloth grass catchers can
become filled with dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
7 extend engine life.
MULCHINGMOWINGTIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. See "Cleaning" in MAINTENANCE
section of this manual•
• The special mulching blade will recut the
grass clippings many times and reduce
them insize so that as they fall ontothe
lawn they willdisperse intothe grass and
not be noticed. Also, the mulched grass
will biodegrade quickly to provide nutrients
for the lawn. Always mulch with your
highest engine (blade) speed as this will
provide the best recutting action of the
blades.
• Avoid cutting your lawn when it is wet. Wet
grass tends to form clumps and interferes
with the mulching action. The best time to
mow your lawn is the early aftemoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
• For best results,adjustthe lawn mower
cuttingheight so that the lawn mower cuts
off onlythe top one-thirdof the grass
blades. If the lawn isovergrown it will be
necessary to raisethe height of cut to
reduce pushing effortand to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching,reduce your width of cut
by overlapping previouslycut path and
mow slowly.
• Certain types of grass and grass condition_
may require that an area be mulched a
second time to completely hide the
clippings. When doing a second cut, mow
across or perpendicular to the first cut path
• Change your cuttingpattem from week to
week. Mow northto south one week then
change to east towest the next week. Thi_
will help prevent matting and graining of
the lawn.
8

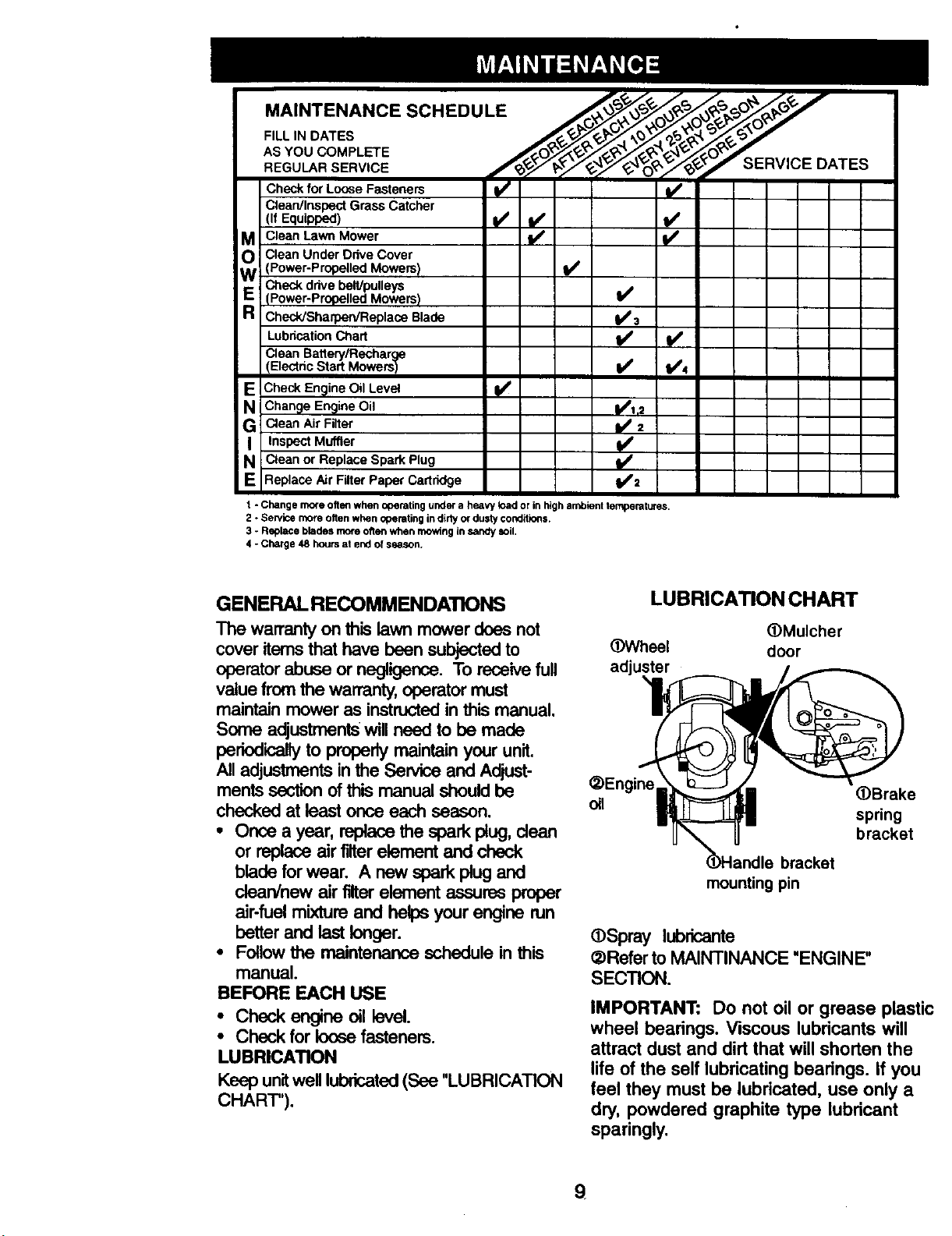

MAINTENANCE _ ILE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check for Lo_se Fasteners
Clean/Inspect Grass Catcher
(If Equipped)
Clean Lawn Mower
Clean Under Onve Cover
(Power-Propelled Mowers)
Check ddve belt/pulleys
(Power-Propelled Mowers)
Check/Shaq_on/Replace Blade
Lubdcetion Chart
Clean Battery/Recharge
Electric Start Mowers)
Check Engine Oil Level
Change Engine Oil
Clean Air Filter
Inspect Muffler
Clean or Replace Spark Plug
Replace Air Filler Paper Cartridge
t/
l/
t/3
V' I/,
v'
1/'1,2
I/=
=/=
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Sen, ice more often when operating in dirty _ dustyconditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
SERVICE DATES
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence. To receive full
value from the warranty, operator must
maintain mower as instructedin this manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
All adjustments in the Service and Adjust-
ments section of this manual should be
checked at least once each season.
• Once a year, replace the spark plug, clean
or replace air filterelement and check
blade for wear. A new spark plug and
clean/new air filter element assures proper
air-fuel mixture and helps your engine run
better and last longer.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unitwell lubricated(See "LUBRICATION
CHART").
LUBRICATION CHART
(DWheel
adjuster
(_Muicher
door
_Engine
oil
OBrake
spring
bracket
mounting pin
_Spray lubricants
_Refer to MAINTINANCE "ENGINE"
SECTION.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will
attract dust and dirt that will shorten the
life of the self lubricating bearings. If you
feel they must be lubricated, use only a
dry, powdered graphite type lubdcant
sparingly.
9

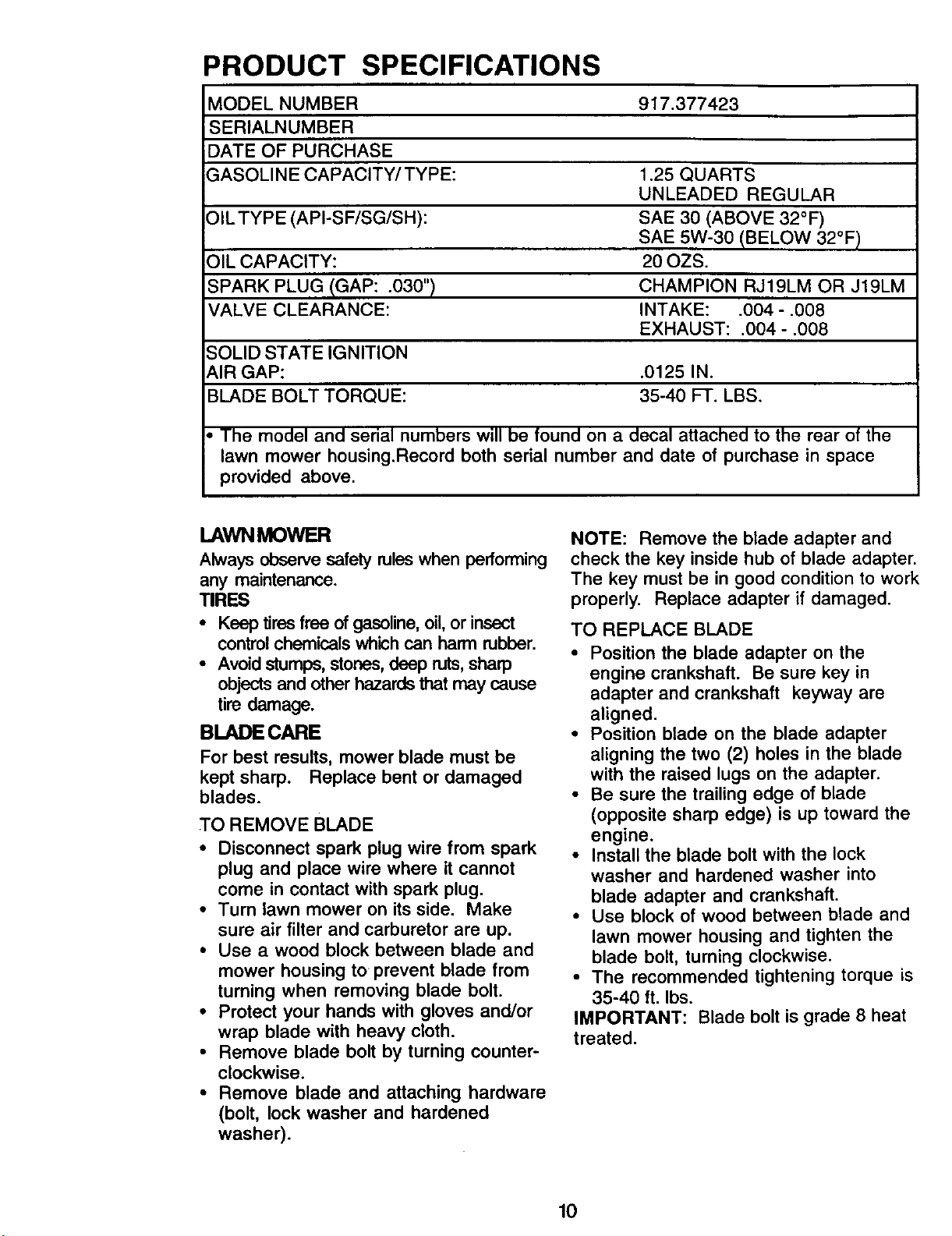

PRODUCT SPECIFICATIONS
MODEL NUMBER 917.377423
SERIALNUMBER
DATE OF PURCHASE
GASOLI NE CAPACITY/TYP E:
)IL TYPE (API-SF/SG/SH):
OIL CAPACITY:
SPARK PLUG (GAP: .030")
VALVE CLEARANCE:
1.25 QUARTS
UNLEADED REGULAR
SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
20 OZS.
CHAMPION RJ19LM OR J19LM
INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
• The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWNMOWER
Always observe safety ruleswhen performing
any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts,sharp
objects and other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
• Remove blade bolt by turning counter-
clockwise.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
• Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.
10
TO SHARPEN BLADE
NOTE: We do not recommend
sharpening blade - but if you do, be sure
the blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
• The blade can be sharpened with a file
or on a grinding wheel.- Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced.
Blade
Key adapter Crankshaft
keyway
Blade
Lockwasher
\
Blade shaft
bolt
Hardened Trailing
washer edge Blade adapter
GRASS CATCHER
(If purchased as an accessory)
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catcher
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
GEAR CASE
• To keep your drive system working
properly, the gear case and area
around the drive should be kept clean
and free of trash build-up. Clean under
the drive cover twice a season.
• The gear case is filled with lubricant to
the proper level at the factory. The only
time the lubricant needs attention is if
service has been performed on the
gear case.
• If lubricant is required, use only Texaco
Starplex Premium Grease, part no.
750369. Do not substitute.
DRIVE WHEELS
Check front drive wheels each time before
you mow to be sure they move freely.
The wheels not turning freely means
trash, grass cuttings, etc. are in the drive
wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels,
check both front wheels.
• Remove hubcaps, hairpin cotters and
washers.
• Remove wheels from wheel adjusters.
• Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
• Put wheels back in place.
• If after cleaning, the drive wheels do not
turn freely, contact your nearest
authorized service center.
ENGINE
LUBRICATION
Use only high quality detergent oil rated with
API service classificationSF, SG or SH. Select
the oil's SAE viscosity grade according to your
expected operating temperature.
SAE VISCOSITY GRADES
o"
-20" -I0" O* t0" 20* SO"
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils will
result in increased oil consumption when
used above 32°F. Check your engine oil
level more frequently to avoid possible
engine damage from running low on oil.
Change the oil after every 25 hours of
operation orat least once a year ifthe lawn
mower is not used for 25 hours in one year.
Check the crankcase oil level before starting
the engine and after each five (5) hours of
continuous use. _ghten oil plug securely
each time you check the oil level.
11

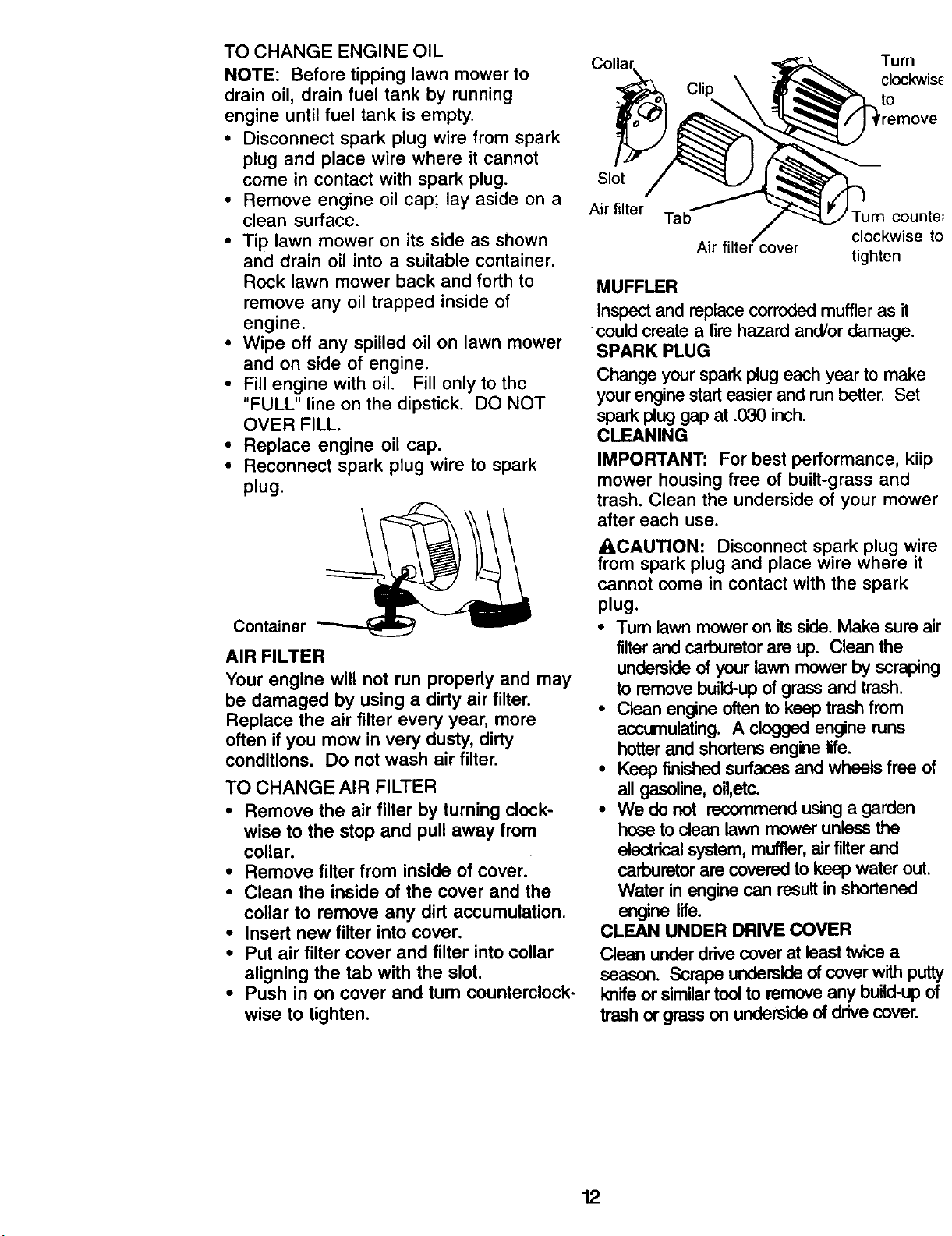

TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Remove engine oil cap; lay aside on a
clean surface.
• Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
• Wipe off any spilled oil on lawn mower
and on side of engine.
• Fill engine with oil. Fill only to the
"FULL" line on the dipstick. DO NOT
OVER FILL.
• Replace engine oil cap.
• Reconnect spark plug wire to spark
plug.
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions. Do not wash air filter.
TO CHANGE AIR FILTER
• Remove the air filter by turning clock-
wise to the stop and pull away from
collar.
• Remove filter from inside of cover.
• Clean the inside of the cover and the
collar to remove any dirt accumulation.
• Insert new filter into cover,
• Put air filter cover and filter into collar
aligning the tab with the slot.
• Push in on cover and tum counterclock-
wise to tighten.
Clip
Turn
clockwis_
to
remove
Slot
Air filter
Tab
Air filter cover
Turn counte=
clockwise to
tighten
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make
your engine start easier and runbetter. Set
spark plug gap at .030 inch.
CLEANING
IMPORTANT: For best performance, kiip
mower housing free of built-grass and
trash. Clean the underside of your mower
after each use.
ACAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Turn lawn mower on itsside. Make sure air
filterand carburetor are up. Clean the
underside of your lawn mower by scraping
to remove build-upof grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotterand shortens engine life.
• Keep finished surfaces and wheels free of
all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electricalsystem, muffler, airfilterand
carburetor are covered to keep water out.
Water in engine can result in shortened
engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a
season. Scrape underside of cover with putty
knife orsimilartool to remove any build-up of
trash or grass on underside of drivecover.
12
ACAUTION: Before performing any
service and adjustments:
• Release control bar and stop engine.
• Make sure the blade and all moving
parts have completely stopped.
• Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
DISCHARGE GUARD
The discharge guard, attached to the
discharge opening of your lawn mower, is
provided to prevent the possibility of injury
resulting from objects being thrown out of
the discharge opening into the operator
mowing position. If the discharge guard
becomes damaged, it should be replaced.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower into
the operator mowing position. If the
deflector becomes damaged, it should be
replaced.
TO REMOVE/REPLACE DRIVE BELT
• Remove drive cover. Remove belt by
pushing down on gear case pulley and
rolling belt off iL
• Turn lawn mower on its side with
carburetor and fuel cap up.
• Remove blade.
• Remove debris shield.
• Remove belt from engine pulley on
crankshaft.
• Install new belt by reversing above
steps.
• Always use factory approved belt to
assure fit and long life.
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
• Remove upper handle and all parts
attached to lower handle.
• Remove hairpin cotters from lower
handle bracket mounting pin.
• Squeeze lower handle in to remove it
from mounting pins.
• Turn lower handle over to raise or
lower handle.
• Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
• Reassemble upper handle and all
parts removed from lower handle.
Mowing Mowing .
position ,-,;"", _oiu'tion ,.(-_
'' 11
Low position High position
¥
o& Lower
handle
Rotate
13
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that engine is running too fast or
too slow, take your mower to an autho-
rized service center for repair and
adjustment.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate properly due to
suspected carburetor problems, take your
lawn mower to an authorized service
center for repair and/or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
the proper engine speed. Overspeeding
the engine above the factory high speed
scan be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest
authorized service center, which has
proper equipment and experience to
make any necessary adjustments.

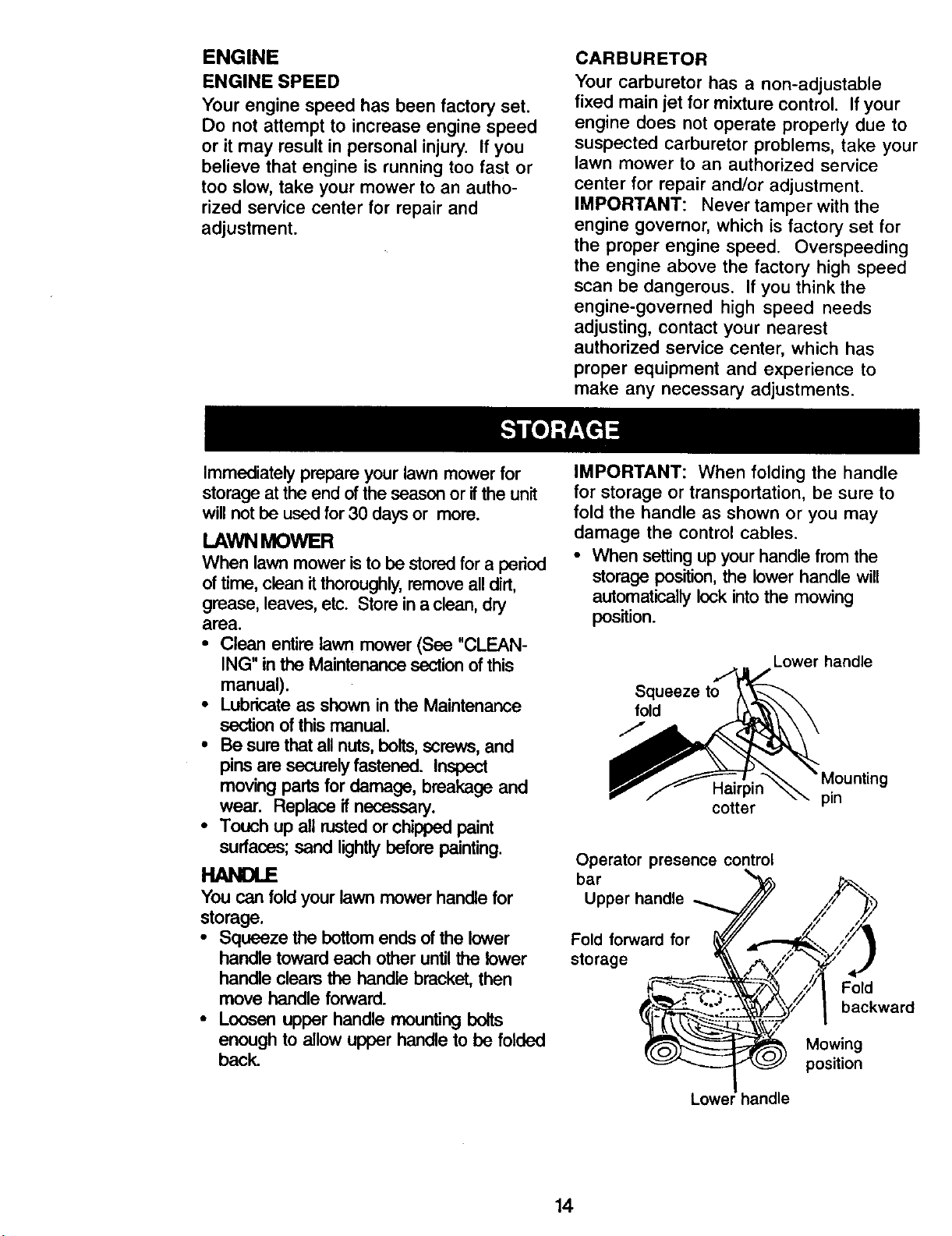

Immediately prepare your lawn mower for
storage at the end ofthe season or ifthe unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower isto be stored for a period
of time, clean it thoroughly,remove alldirt,
grease, leaves, etc. Store in a clean, dry
area.
• Clean entire lawn mower (See "CLEAN-
ING" in the Maintenance section of this
manual).
• Lubricate as shown in the Maintenance
section of this manual.
• Be sure that all nuts, bolts,screws, and
pins are securely fastened. Inspect
moving parts for damage, breakage and
wear. Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightlybefore painting.
HANDLE
You can fold your lawn mower handle for
storage.
• Squeeze the bottom ends ofthe lower
handle toward each other until the lower
handle clears the handle bracket, then
move handle forward.
• Loosen upper handle mounting bolts
enough to allow upper handle to be folded
back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
• When setting up your handle from the
storage position,the lower handle will
automatically lock intothe mowing
position.
Squeeze to
fold
.J
Lower handle
Hairpin pin
cotter
Operator presence control
bar
Upper handle
Fold forward for
storage
Lowel
Fo,d
_f_)'F backward
_ Mowing
position
handle
14

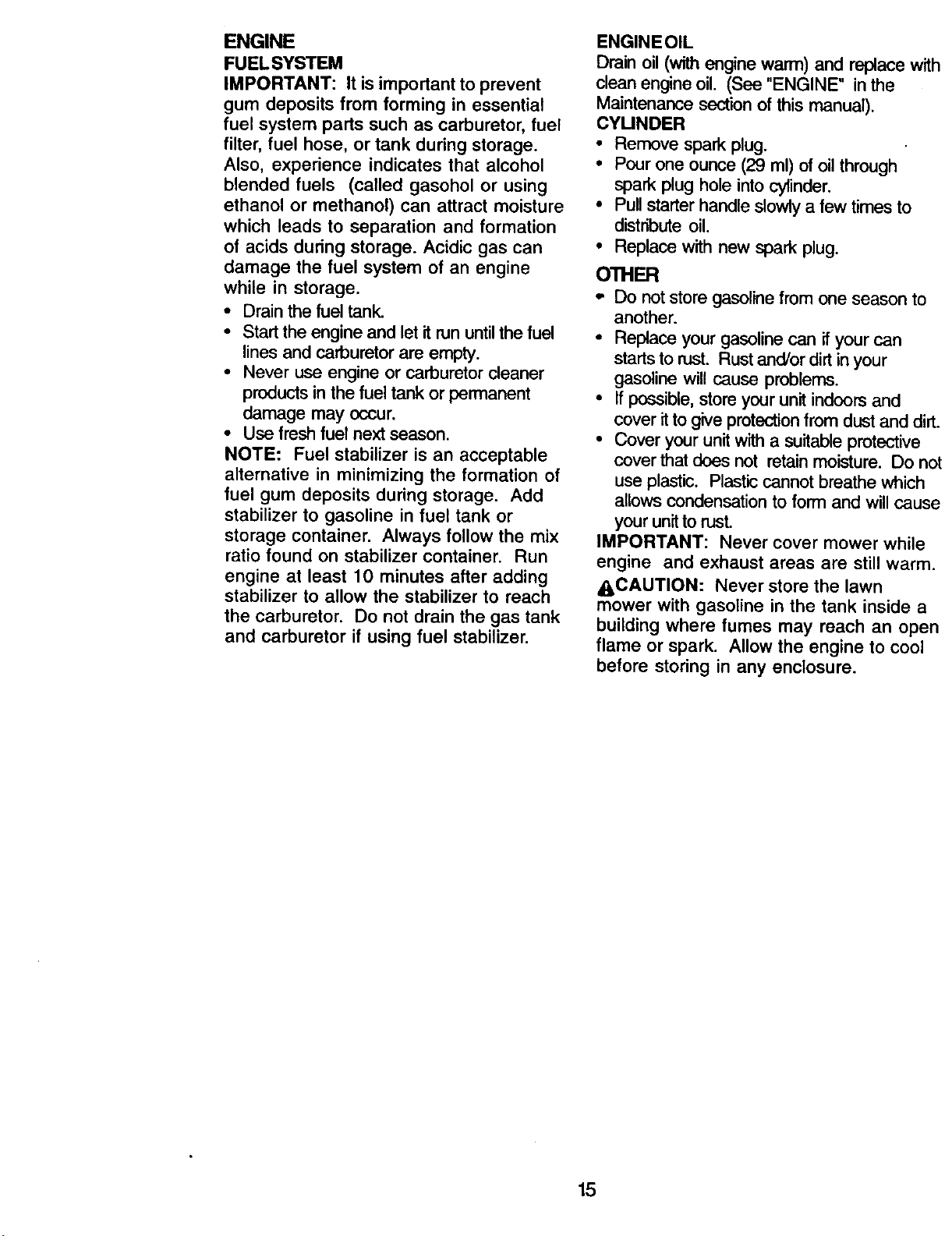

ENGINE
FUELSYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
• Drain the fuel tank.
• Start the engine and let itrun until the fuel
lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINEOIL
Drain oil (with engine warm) and replace with
clean engine oil. (See "ENGINE" in the
Maintenance sectionof this manual).
CYUNDER
• Remove spark plug.
• Pour one ounce (29 ml) of oil through
spark plug hole into cyfinder.
• Pull starter handle slowly a few times to
distribute oil.
• Replace with new spark plug.
OTHER
,, Do not store gasoline from one season to
another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and dirt.
• Cover your unit with a suitable protective
cover that does not retain moisture. Do not
use plastic. Plastic cannot breathe which
allows condensation to form and will cause
your unitto rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
_,CAUTION: Never store the lawn
mower with gasoline in the tank inside a
building where fumes may reach an open
flame or spark. Allow the engine to cool
before storing in any enclosure.
15
TROUBLESHOOTING CHART
CAUSE
PROBLEM
Does notstart
Loss of power
Poor cut - uneven
1. Dirly air filter.
2. Out of fuel.
3. Stale fuel.
4. Water infuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken blade
adapter.
8. Control bar in released
position.
9. Control bar defective.
1.
.
3.
4.
5.
6.
Rear of lawn mower housing
or cutting blade dragging
in heavy grass.
Cutting too much grass.
Dirty air filter.
Buildup of grass, leaves,
and trash under mower.
Too much oil in engine.
Walking speed too fast.
1. Wom, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6.
7.
8.
9.
1.
Replace spark plug.
Tighten blade bolt or
replace blade adapter.
Depress control bar to
handle.
Replace control bar.
Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. "13ghten
blade belt.
2. Set allwheels at same
height
3. Clean underside of
mower housing.
16

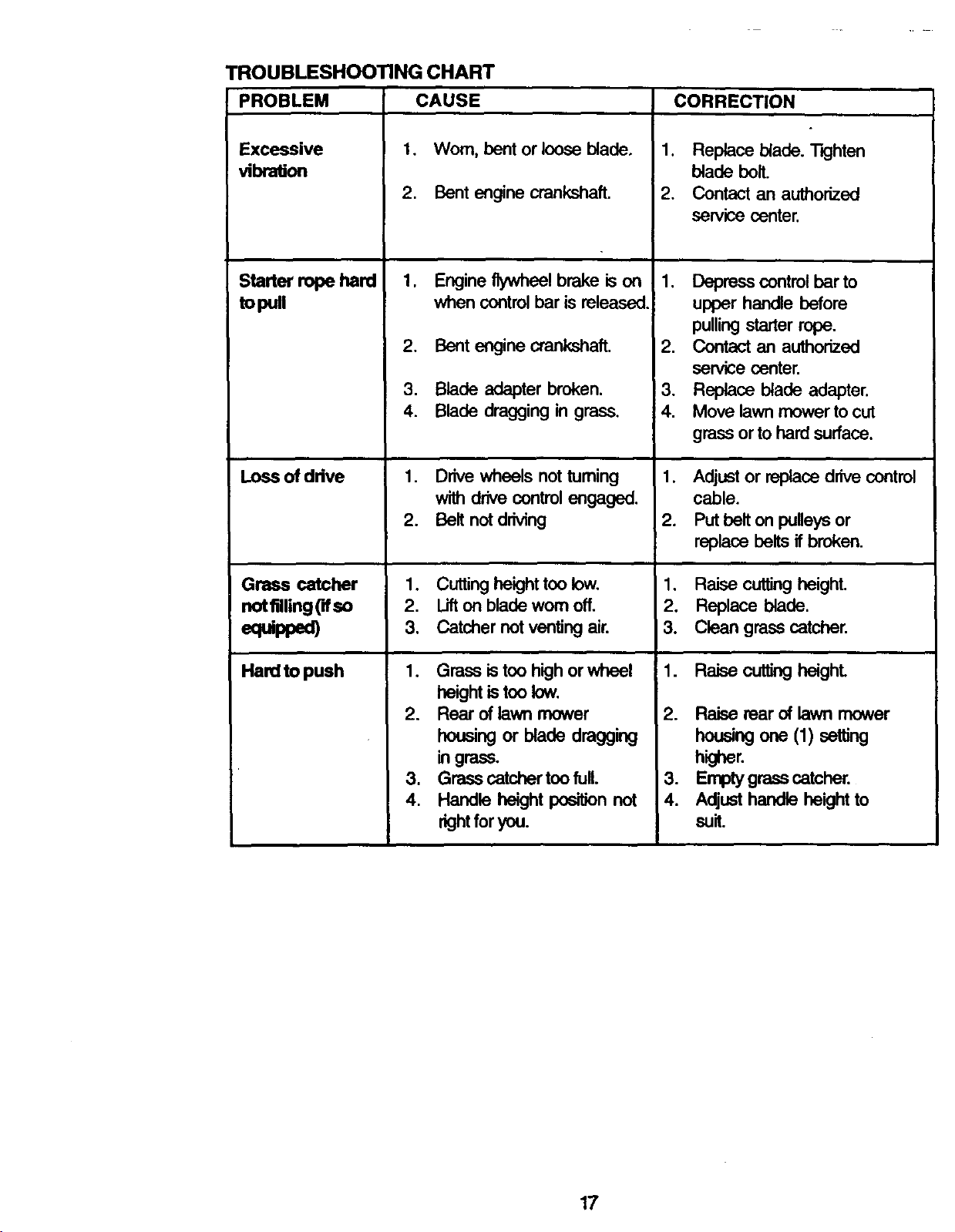

TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
Excessive
vibration
Starterropehard
topu,
Loss of drive
Grass catcher
not filling ('dso
equipped)
Hard to push
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
,
.
3.
4.
Engineflywheelbrake ison
whencontrolbar isreleased.
Bent engine crankshaft.
Blade adapter broken.
Blade dragging in grass.
1. Drive wheels not turning
with drive control engaged.
2, Belt not driving
1. Cutting height too low.
2. Lift on blade worn off.
3. Catcher not venting air.
1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height pos_n not
right for you.
1. Replace blade. Tkjhten
blade bolt.
2. Contact an authorized
service center.
1. Depress control bar to
upper handle before
pullingstarter rope.
2. Contact an authorized
service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass orto hard surface.
1. Adjust or replace drive control
cable.
2. Put belt on pulleysor
replace belts if broken.
1. Raise cutting heighL
2. Replace blade.
3. Clean grass catcher.
1. Raise cuttingheighL
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
17
SERVICE NOTES
34

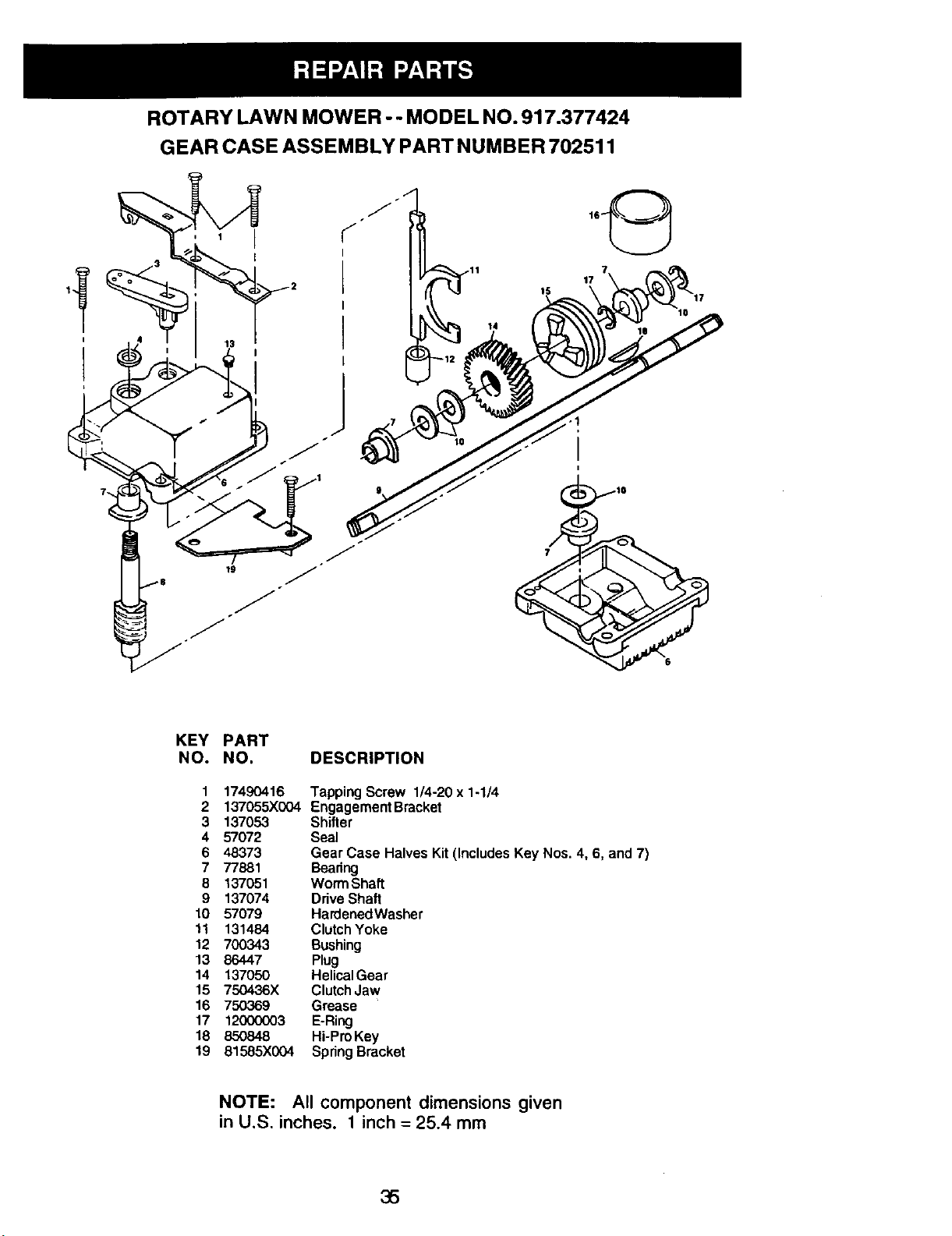

ROTARY LAWN MOWER -- MODEL NO. 917.377424
GEAR CASE ASSEMBLY PART NUMBER 702511
14
KEY PART
NO. NO. DESCRIPTION
1 17490416 Tapping Screw 1/4-20 x 1-1/4
2 137055X004 EngagementBracket
3 137053 Shifter
4 57072 Seal
6 48373 Gear Case Halves Kit (Incluries Key Nos. 4, 6, and 7)
7 77881 Bearing
8 137051 Worm Shaft
9 137074 Drive Shaft
10 57079 HarcleneriWasher
11 131484 Clutch Yoke
12 700343 Bushing
13 86447 Plug
14 137050 Helical Gear
15 750436X Clutch Jaw
16 750369 Grease
17 12000003 E-Ring
18 850848 Hi-Pro Key
19 81585X004 Spring Bracket
NOTE: All component dimensions given
in U.S. inches. 1 inch = 25.4 mm
35

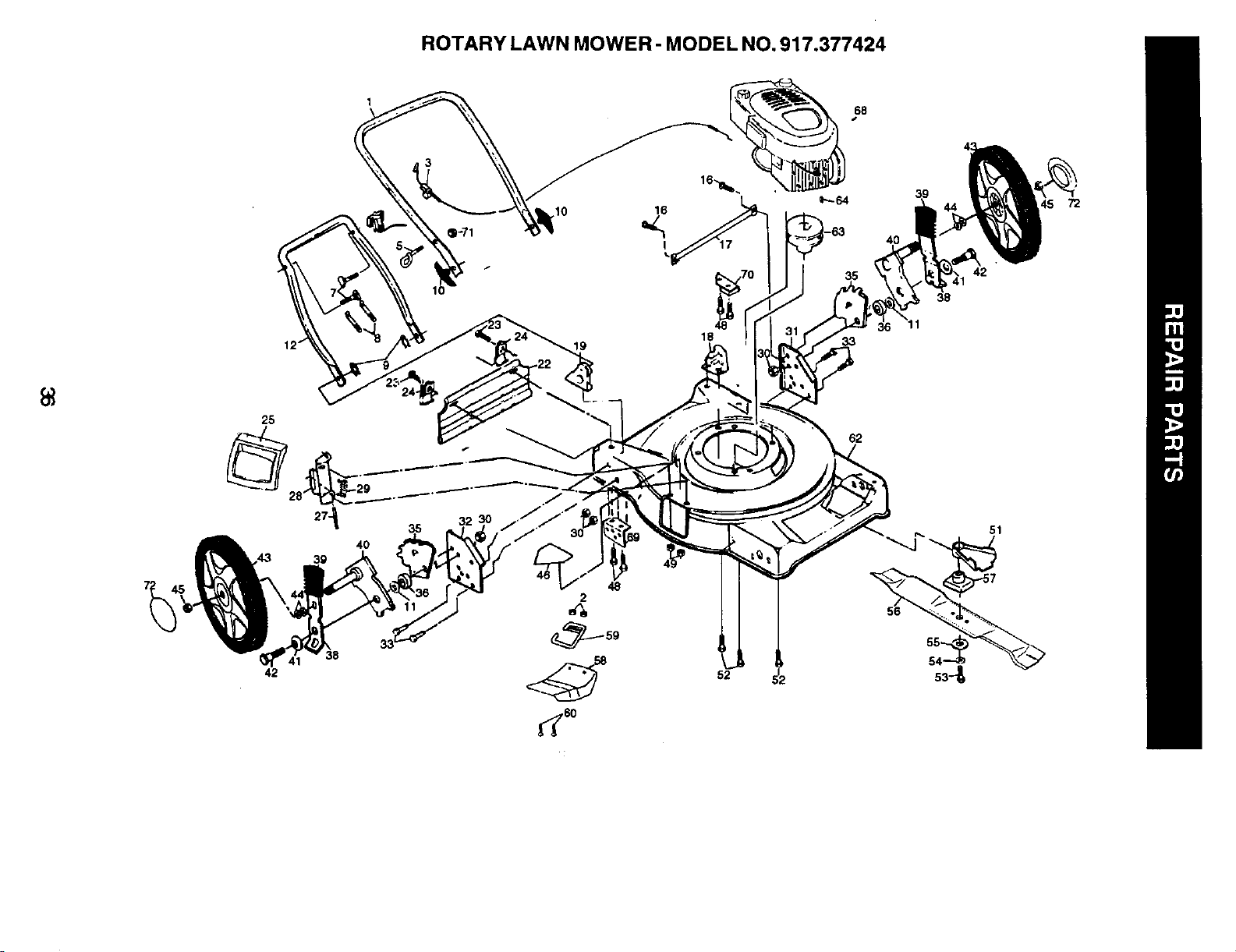

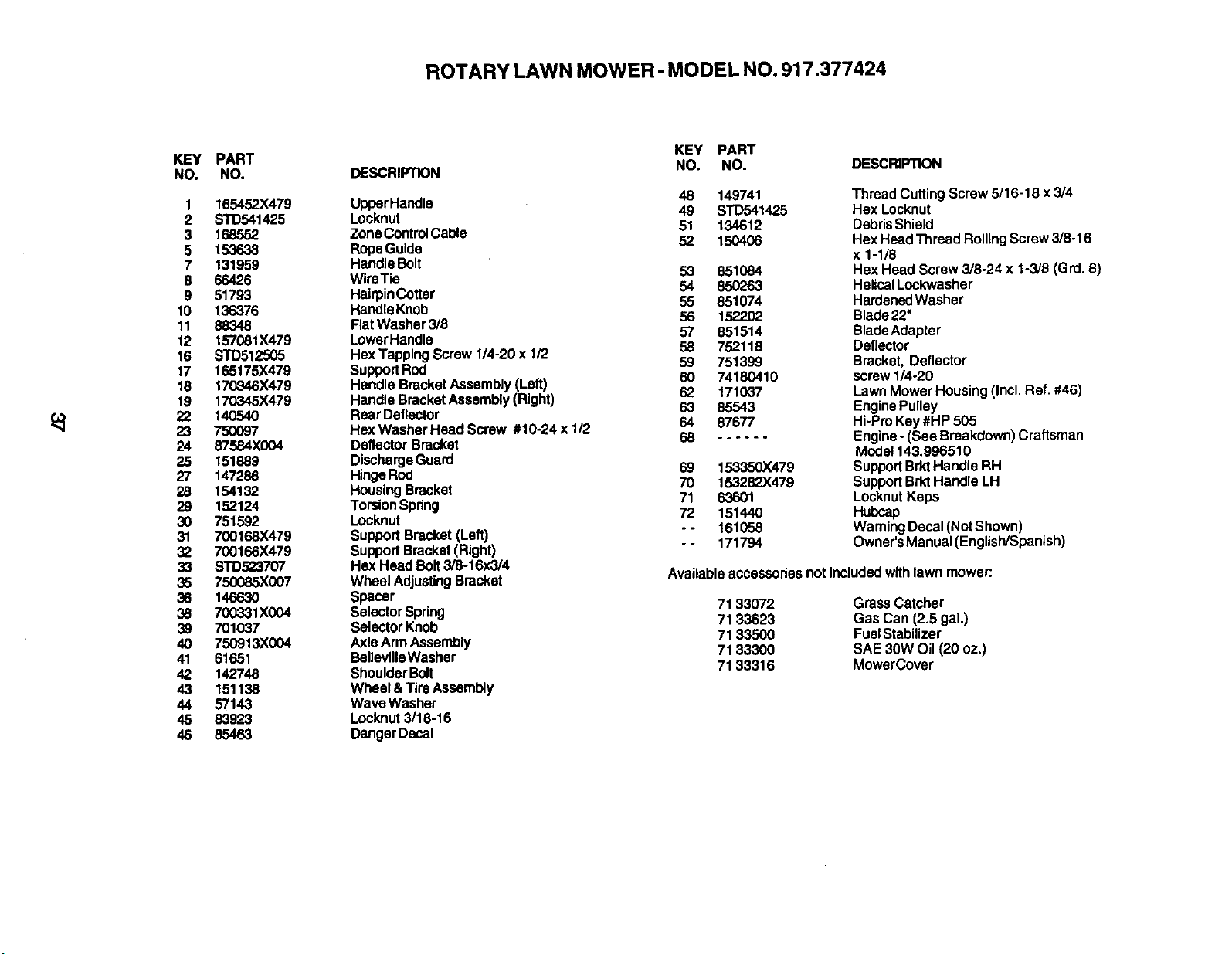

ROTARY LAWN MOWER -MODEL NO. 917.377424
68
16
48
18
35
33
39
4O
b 41
38
11
42
72
25
62
42
35
40
39
32
52
ROTARY LAWN MOWER- MODEL NO. 917.377424
fd
KEY
NO.
1
2
3
5
7
8
9
10
11
12
16
17
18
19
22
23
24
25
27
28
29
3O
31
32
33
35
36
38
39
4O
41
42
43
44
45
46
PART
NO.
165452X479
STD541425
168552
153638
131959
66426
51793
136376
88348
157081X479
STD512505
165175X479
170346X479
170345X479
14054O
750097
87584X004
151889
147286
154132
152124
751'592
700168X479
700166X479
STD523707
750085X007
146630
700331X004
701037
750913X004
61651
142748
151138
57143
83923
85463
DESCRIPTION
UpperHandle
Locknut
ZoneControlCable
RopeGuide
HandleBoit
WiraTie
HairpinCotter
HandleKnob
Rat Washer3/8
LowerHandle
HexTappingScrew1/4-20 x 1/2
SupportRod
HandleBracketAssembly(Left)
HandleBracketAssembly(Right)
RearDeflector
HexWasherHead Screw #10-24 x 1/2
DeflectorBracket
DischargeGuard
HingeRod
Housing Bracket
TorsionSpring
Locknut
SupportBracket(Left)
SupportBracket(Right)
HexHead Bott3/8-16x3/4
WheelAdjustingBracket
Spacer
SelectorSpdng
SelectorKnob
AxleArm Assembly
BellevilleWasher
ShoulderBolt
Wheel&TireAssembly
WaveWasher
Locknut3/18-16
DangerDecal
KEY PART
NO. NO. DESCRIPTION
48 149741 Thread Cutting Screw 5/16-18 x3/4
49 STD541425 Hex Locknut
51 134612 Debris Shield
52 150406 Hex Head Thread Rolltng Screw 3/8-16
x 1-1/8
53 851084 Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8)
54 850263 Helical Lockwasher
55 851074 Hardened Washer
56 152.202 Blade22"
57 851514 Bla_eAdapter
58 752118 Deflector
59 751399 Bracket, Deflector
60 74180410 screw 1/4-20
62 171037 Lawn Mower Housing (Incl. Ref. #46)
63 85543 Engine Pulley
64 87677 Hi-Pro Key #HP 505
68 ...... Engine - (See Breakdown) Craftsman
Model 143.996510
69 153350X479 Support Brkt Handle RH
70 153282X479 Support Btkt Handle LH
71 63601 Locknut Keps
72 151440 Hubcap
- - 161058 Warning Decal (Not Shown)
- - 171794 Owner's Manual (EnglisWSpanish)
Availableaccessoriesnotincludedwithlawn mower:
7133072 GrassCatcher
7133623 Gas Can (2.5 gal.)
7133500 FueIStabilizer
71 33300 SAE 3OWOil (20 oz.)
71 33316 MowerCover

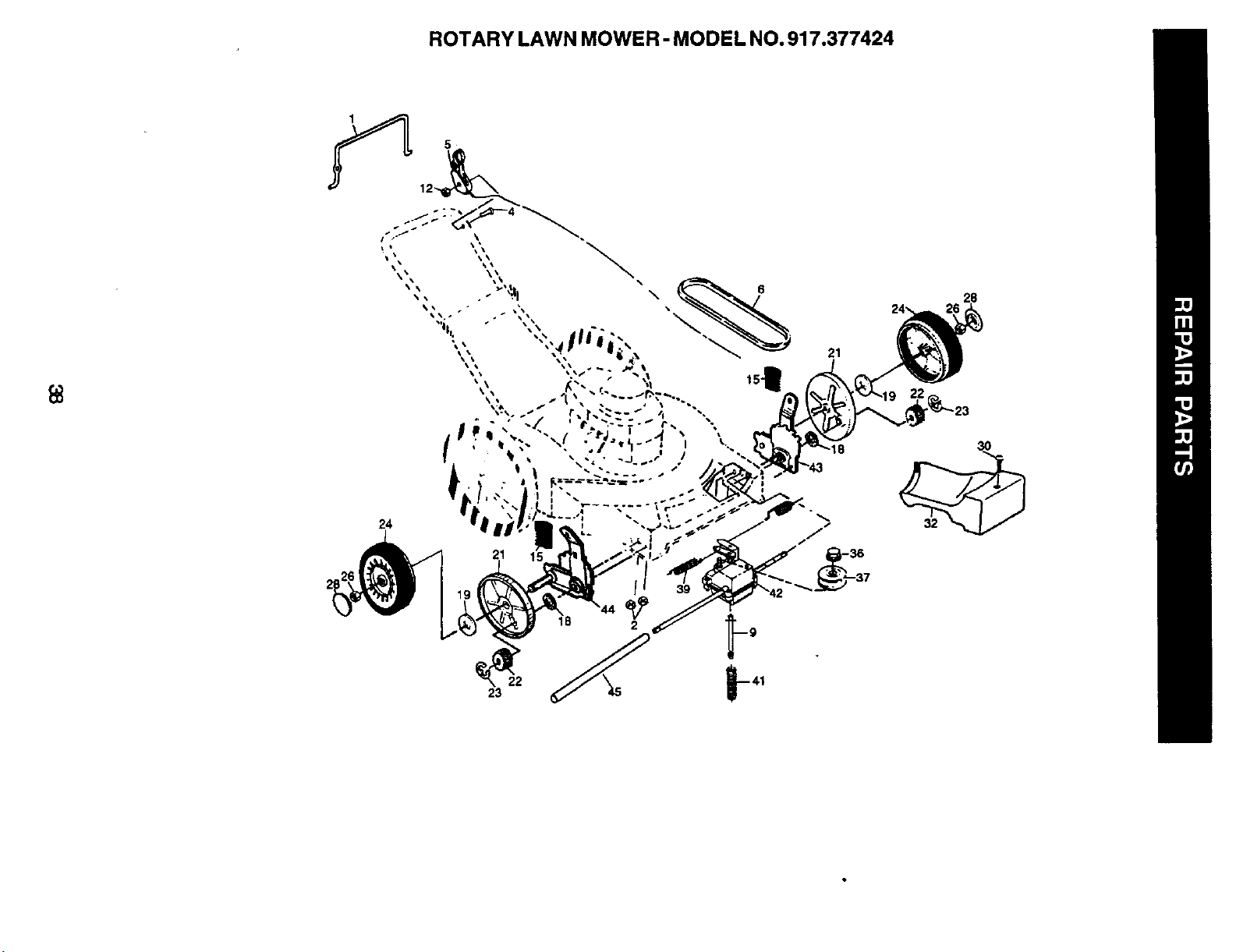

ROTARY LAWN MOWER- MODEL NO. 917.377424
24
21
28
3O
22
23
ROTARY LAWN MOWER- MODEL NO. 917.377424
KEY PART
NO. NO.
1 145793
2 STD541425
4 158755
5 145755
6 146527
9 150495
12 751152
15 701037
18 88118
19 67725
21 88O8O
22 137054
DESCRIPTION
ControlBar
Locknut 1/4-20
HexWasher HeadScrew 1/4 x 2.0
ControlCableAssembly
V-Belt
SpringRetainer
Locknut1/4-20
SelectorKnob
FeltWasher
Washer 1/2 x 1-1/2 x .134
DustCover
Pinion
KEY PART
NO. NO.
23 1200O058
24 15034O
26 145212
28 150182
30 143603
32 154990
36 132010
37 137052
39 75192
41 137090
42 702511
43 152018
44 152019
45 86012
DESCRIPTION
E-Ring
Wheel&TireAssembly
HexFlangeLocknut
Hubcap
PanHeadTappingScrew#10-24 x 2-3/4
DriveCovsr
Locknut
DrivePulley
Spring
Spring
GearCase Assembly
WheelAdjusterAssembly(Left)
WheelAdjusterAssembly (Right)
DdveshaftCover
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.996510
125
<
/_ 245
238 250
4O
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 1_ .996510
KEY PART
NO. NO. DESCRIPTION
1 37266
2 26727
6 33734
7 36557
12 36775
12A 36558
12B 36694
14 28277
15 30589
16 34839A
17 31335
18 651018
19 36281
2O 326OO
30 35801
40 40027
40028
41 40025
4OO26
42 40OO6
4OOO7
43 20381
45 36777
46 32610A
48 27241
50 36778
52 29914
69 35261
70 34311E
72 30572
73 288,33
75 27897
80 30574A
81 30590A
82 30591
83 3O588A
86 65O488
89 611004
90 611112
92 650815
93 650816
100 34443B
101 610118
103 651O07
110 37047
119 36787
120 36825
125 37288
126 37289
130 6021A
135 35395
150 31672
KEY
NO.
PART
NO.
Cytinder([ncl.2,20 & 151 31673
150) 151A 4O017
DowelPin 169 36783
BreatherElement 172 36784
BreatherAss'y. (Incl.6 & 174 30200
12A) 178 29752
BreatherTube
BreatherCover&Tube 182 6201
(IncL12B) 184 26756
BreatherTubeElbow
Washer 185 36785
GovernorRod(IncL14) 186 32653
GovernorLever 189 650839
GovernorLeverClamp 191 36559A
Screw,TorxT-15, 8-32 x
19/64' 195 610973
ExtensionSpring 207 34336
Oil Seal 216 33086
Crankshaft 223 650451
Piston,Pin& RingSet 224 36786
(Std.) 238 650932
Piston,Pin &RingSet 239 34338
(.010"OS) 241 36919
Piston& PinAss'y. 245 36905
(Std.) (incl. 43) 250 36920
Piston& PinAss'y. 260 36980
(.010"OS) (Incl.43) 261 30200
RingSet (Std.) 262 650831
RingSet (.010"OS) 263A 36921
Piston Pin Retaining Ring 275 36790A
ConnectingRod Ass'y. 277 650988
(Incl. 46) 285 35000A
Connecting Rod Bolt 287 650926
Valve Lifter 290 29774
Camshaft(MCR) 292 26460
Oil Pump Ass'y. 298 28763
* MountingFlangeGasket 300 36916
MountingFlange(Incl.72
thru83,306) 301 36246
Oil DrainPlug(Incl.73) 305 35647
DrainPlugGasket 306 36996
OilSeat 307 35499
GovernorShaft 309 650562
Washer 310 35648
GovernorGearAss'y. 313 34080
(Incl. 81) 326 37152
GovernorSpool 347 651038
Screw, 1/4-20 x 1-1/4' 370A 36261
FlywheelKey 370C 37199
Rywhael 380 640174
BollevtlleWasher 390 590739
FlywheelNut 400 36792B
SolidState Ignition
SparkPlugCover 416 36085
Screw, TorxT-15, 10-24
x 15/16" 417 650821
GrouodWira
* CylinderHeadGasket 900 ---
CylinderHeed
ExhaustValve (Std.) 900 ---
(Incl. 151)
Intake Valve (Std.) (Incl.
151) ---
Screw, 5/16-18 x 1-1/2"
ResistorSparkPlug
(P.Jl_M)
ValveSpdng
DESCRIPTION
ValveSpringCap
IntakeValve Seal
* ValveCoverGasket
ValveCover
Screw,10-24 x 9116"
Nut& LockWasher,1/4- :
28
Screw,1/4-28 x7/8"
* CarburetorTo Intake
PipeGasket
IntakePipe
GovemorLink
Screw,1/4-20 x 3/8"
S.E, Brake Bracket(Incl.
195)
Ten-nical
ThrottleLink
R.P.M.AdjustingLever
Screw,1/4-20x 1"
*tntake Pipe Gasket
Screw,10-32 x 49/64"
* Air CleanerGasket
AirCleanerOollar
Air CleanerFilter
AirCleanerCover
BlowerHousing
Screw, 10-24 x9/16"
Screw,114-20x 1/2"
StarterGdll
Muffler
Screw,1/4-20x 2-5/16"
StarterCup
Screw, 8-32 x 21164"
FuelLine
FuelLineClamp
Screw,10-32x 35/64"
FuelTank(Incl.292 &
301)
FuelCap
OilFillTube
* "O'-Ring
"O'-Rbg
Screw, 10-32 x 1/2"
Dipstick
Spacer
SpringClip
Screw, 10-32 x 51/64"
LubricationDecal
PdmerDecal
Carburetor(Incl.184)
RewindStarter
Gasket Set (Incl. Items
Marked*)
SparkAn'estorKit(IneJ.
417)(Optional)
Screw, 10-32 x 1/2"
(FOeppti°nal)
lacamentEngine
NONE
ReplacementS/B
750832A,orderfrom71-
999
RPM High2900to3200
NOTE: ThisenginecOuldhavebeenbuiltwith59070_
starter).
NOTE: Allcomponentdimensionsgk,enInU.S. Inches
1 inch= 25.4mm
41

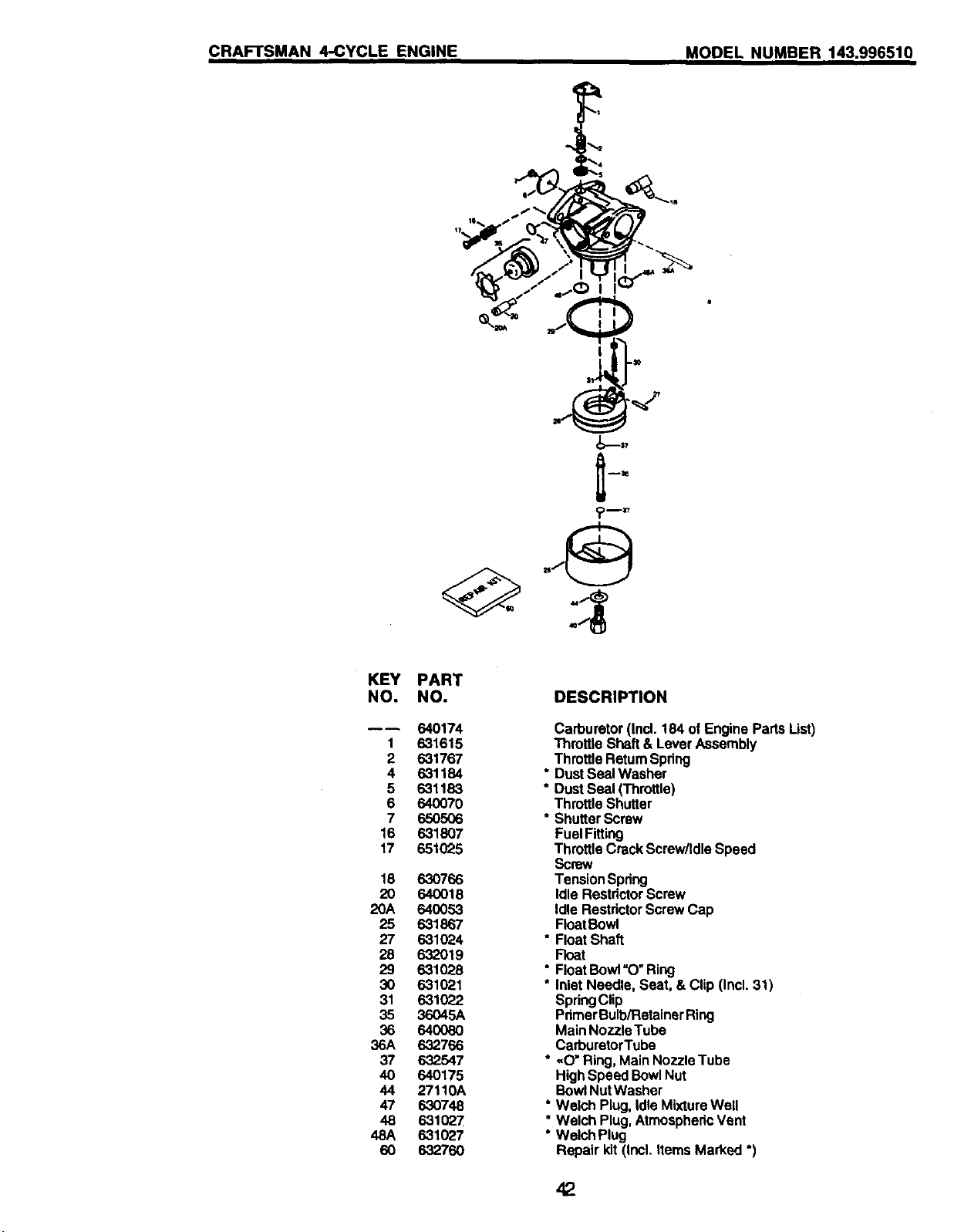

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.996510
I
KEY PART
NO, NO.
---- 640174
1 631615
2 631767
4 631184
5 631183
6 640070
7 650506
16 631807
17 651025
18 630766
20 640018
20A 640053
25 631867
27 631024
28 632019
29 631028
30 631021
31 631022
35 36O45A
36 64O08O
36A 632766
37 632547
40 640175
44 27110A
47 630748
48 631027
48A 631027
6O 63276O
DESCRIPTION
Carburetor(Incl.184 ofEnginePartsList)
Thmffie Shaft& LeverAssembly
ThrottleReturnSpdng
* DustSealWasher
* DustSeal(ThrotUe)
ThrottleShutter
* ShutterScrew
FuelFitting
ThrottleCrackScrew/IdleSpeed
Screw
TensionSpdng
IdleRestdctorScrew
IdleRestrictorScrewCap
FloatBowl
* FloatShaft
Float
• FloatBowl=O"Ring
* InletNeedle, Seat, &Clip (Incl.31)
SpringClip
PnmerBulb/RetainerRing
MainNozzleTube
CarburetorTube
* ,,O"Ring,MainNozzleTube
HighSpeed BowlNut
BowlNutWasher
° WelchPlug,IdleMixtureWell
* WelchPlug,AtmosphericVent
* WelchPlug
Repair kit(Incl. ItemsMarked*)
42

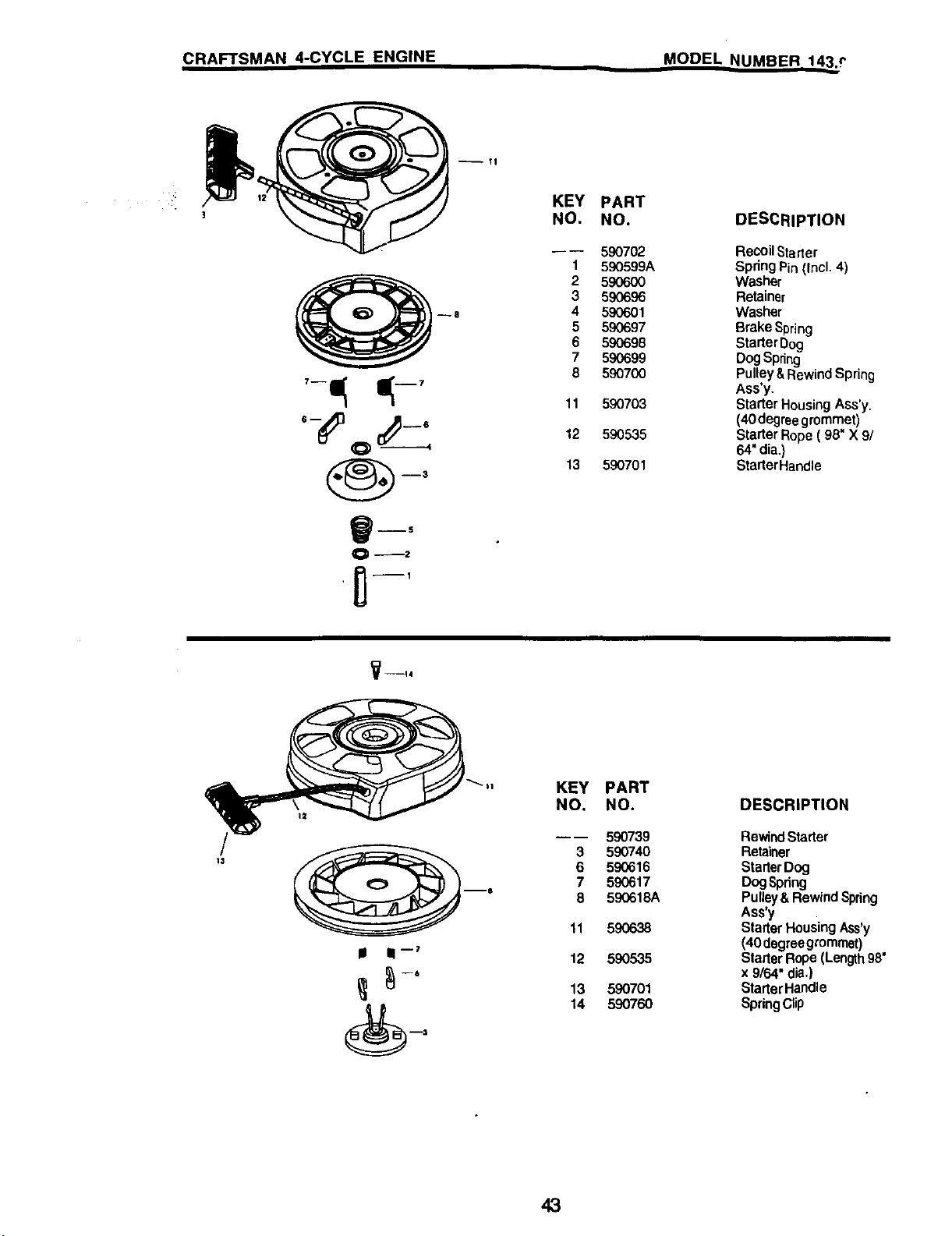

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER, 143._"
O--z
KEY
NO.
1
2
3
4
5
6
7
8
11
12
13
PART
NO.
5907O2
590599A
59060O
590696
590601
590697
59O698
590699
590700
590703
590535
590701
DESCRIPTION
RecOilStarter
SpringPin(Incl.4)
Washer
Retainer
Washer
BrakeSpring
StaderDog
DogSpring
Pulley&RewindSpring
Ass'y,
StarterHousingAss'y.
(40degreegrommet)
StarterRope( 98" X 9/
64"dia.)
StarterHandle
V--14
Jl m-_
KEY
NO.
3
6
7
8
11
12
13
14
PART
NO.
590739
590740
590616
590617
590618A
590638
590535
590701
590760
DESCRIPTION
RewindStarter
Retainer
StarterDog
DogSpring
Pulley& RewindSpring
Ass'y
Starter HousingAss'y
(40degreegrommet)
StarterRope(Length98"
x 9/64"dia.)
StarterHandle
SpringClip
43
For in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-Home sM(1-800-469-4663)
Para pedir servicio de reparaci6n a domicilio
1-800-676-5811
In Canada for all your service and parts needs call
Au Canada pour tout le service ou les pibces
1-800-665-4455
For the repair or replacement parts you need:
Call 6 am-11pm CST, 7 days a week
PartsDirect sM
1-800-366-PART (1-800-366-7278)
Para ordenar piezas con entrega a domicilio
1-800-659-7084
For the location of a Sears Parts and Repair Center
in your area:
Call 24 Hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears Maintenance
Agreement or to inquire about an existing Agreement:
Call 9 am-5 pm, Monday - Saturday
1-800-827-6655
,SEARS
171794 Rev.1 11.19.99 VB Printed in U.S.A.
i I
