TABLEOFCONTENTS

WASHER SAFETY .......................................................................... 3

INSTALLATION REQUIREMENTS ................................................ 4

Tools and Parts ............................................................................ 4

Options ......................................................................................... 4

Location Requirements ................................................................ 5

Electrical Requirements ............................................................... 6

INSTALLATION INSTRUCTIONS .................................................. 6

Before You Start ........................................................................... 6

Remove Transport System .......................................................... 6

Drain System ................................................................................ 7

Connect Drain Hose ..................................................................... 8

Connect the Inlet Hoses ............................................................... 8

Secure Drain Hose ....................................................................... 9

Level the Washer .......................................................................... 9

Complete Installation ................................................................... 9

WASHER USE............................................................................... 10

Starting Your Washer ................................................................. 10

Using the Proper Detergent ....................................................... 10

Using the Dispenser ................................................................... 11

Controls ...................................................................................... 12

Cycles ......................................................................................... 13

LAUNDRY TIPS ............................................................................ 14

Loading ....................................................................................... 14

WASHER CARE ............................................................................ 15

Cleaning Your Washer ............................................................... 15

Water Inlet Hoses ....................................................................... 16

Vacation, Storage, and Moving Care ......................................... 16

TROUBLESHOOTING .................................................................. 16

ASSISTANCE OR SERVICE ......................................................... 18

WAR RAN TY .................................................................................. 1g

TABLEDESMATIERES

SI_CURITE DE LA LAVEUSE ........................................................ 20

EXIGENCES D'INSTALLATION ................................................... 21

Outillage et pieces ...................................................................... 21

Options ....................................................................................... 22

Exigences d'emplacement ......................................................... 22

Specifications electriques .......................................................... 23

INSTRUCTIONS D'INSTALLATION ............................................. 24

Avant de commencer ................................................................. 24

Elimination des accessoires de transport .................................. 24

Syst_me de vidange ................................................................... 25

Raccordement du tuyau d'evacuation ....................................... 25

Raccordement des tuyaux d'alimentation ................................. 26

Immobilisation du tuyau de vidange .......................................... 26

Reglage de I'aplomb de la laveuse ............................................ 27

Achever I'installation .................................................................. 27

UTILISATION BE LA LAVEUSE ................................................... 28

Mise en marche de la laveuse .................................................... 28

Utilisation du detergent approprie ............................................. 28

Utilisation du distributeur ........................................................... 29

Commandes ............................................................................... 30

Programmes ............................................................................... 32

CONSEILS DE LESSIVAGE .......................................................... 33

Chargement ................................................................................ 33

ENTRETIEN DE LA LAVEUSE ..................................................... 34

Nettoyage de la laveuse ............................................................. 34

Robinets d'arrivee d'eau ............................................................ 35

Precautions a prendre avant les vacances,

un entreposage ou un dem6nagement ...................................... 35

DI:!:PANNAGE................................................................................. 36

ASSISTANCE OU SERVICE ......................................................... 38

GARANTIE ..................................................................................... 39

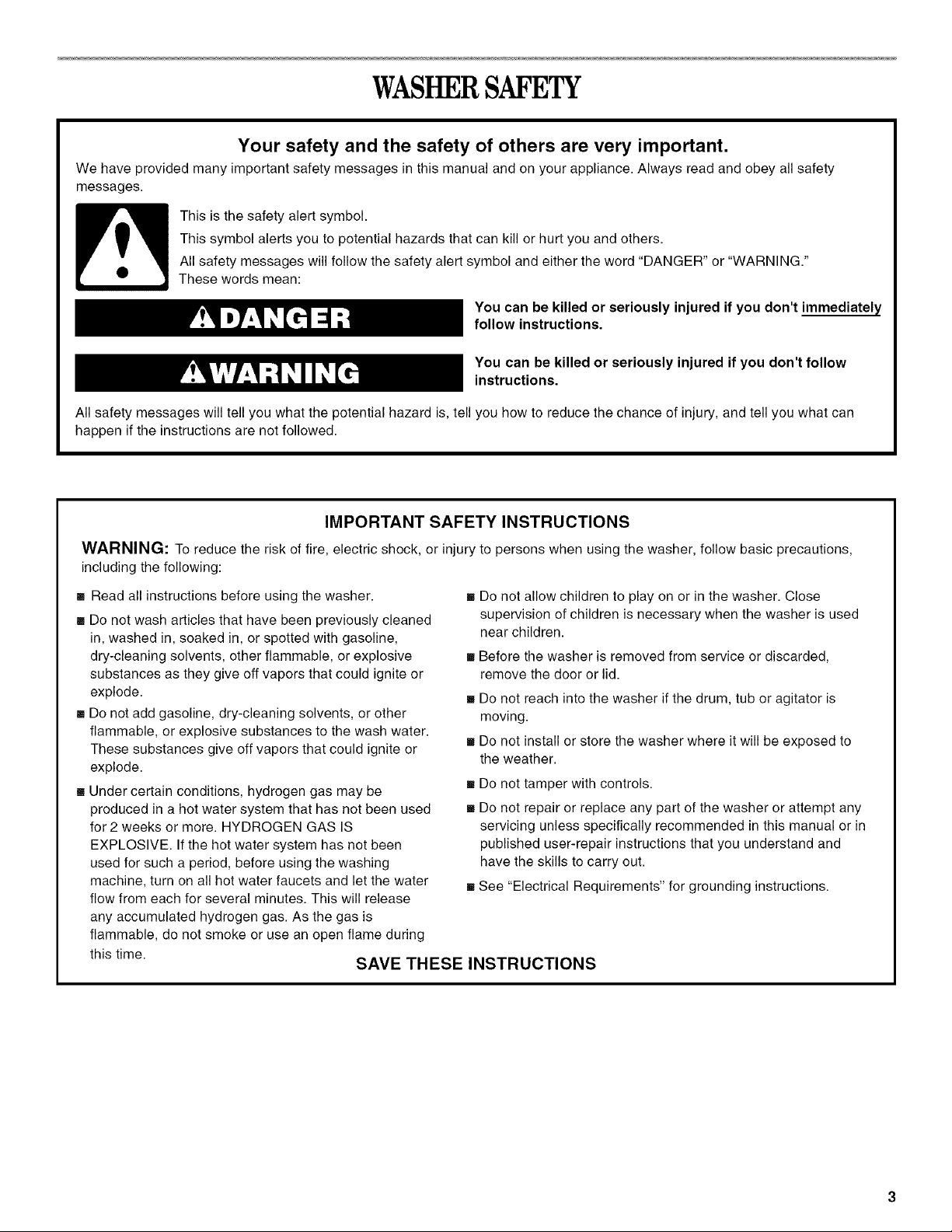

WASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer follow basic precautions,

including the following:

[] Read all instructions before using the washer.

[] Do not wash articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, other flammable, or explosive

substances as they give off vapors that could ignite or

explode.

[] Do not add gasoline, dry-cleaning solvents, or other

flammable, or explosive substances to the wash water.

These substances give off vapors that could ignite or

explode.

[] Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used

for 2 weeks or more. HYDROGEN GAS IS

EXPLOSIVE. Ifthe hot water system has not been

used for such a period, before using the washing

machine, turn on all hot water faucets and let the water

flow from each for several minutes. This will release

any accumulated hydrogen gas. As the gas is

flammable, do not smoke or use an open flame during

[] Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is used

near children.

[] Before the washer is removed from service or discarded,

remove the door or lid.

[] Do not reach into the washer if the drum, tub or agitator is

moving.

[] Do not install or store the washer where it will be exposed to

the weather.

[] Do not tamper with controls.

[] Do not repair or replace any part of the washer or attempt any

servicing unless specifically recommended in this manual or in

published user-repair instructions that you understand and

have the skills to carry out.

[] See "Electrical Requirements" for grounding instructions.

this time.

SAVE THESE INSTRUCTIONS

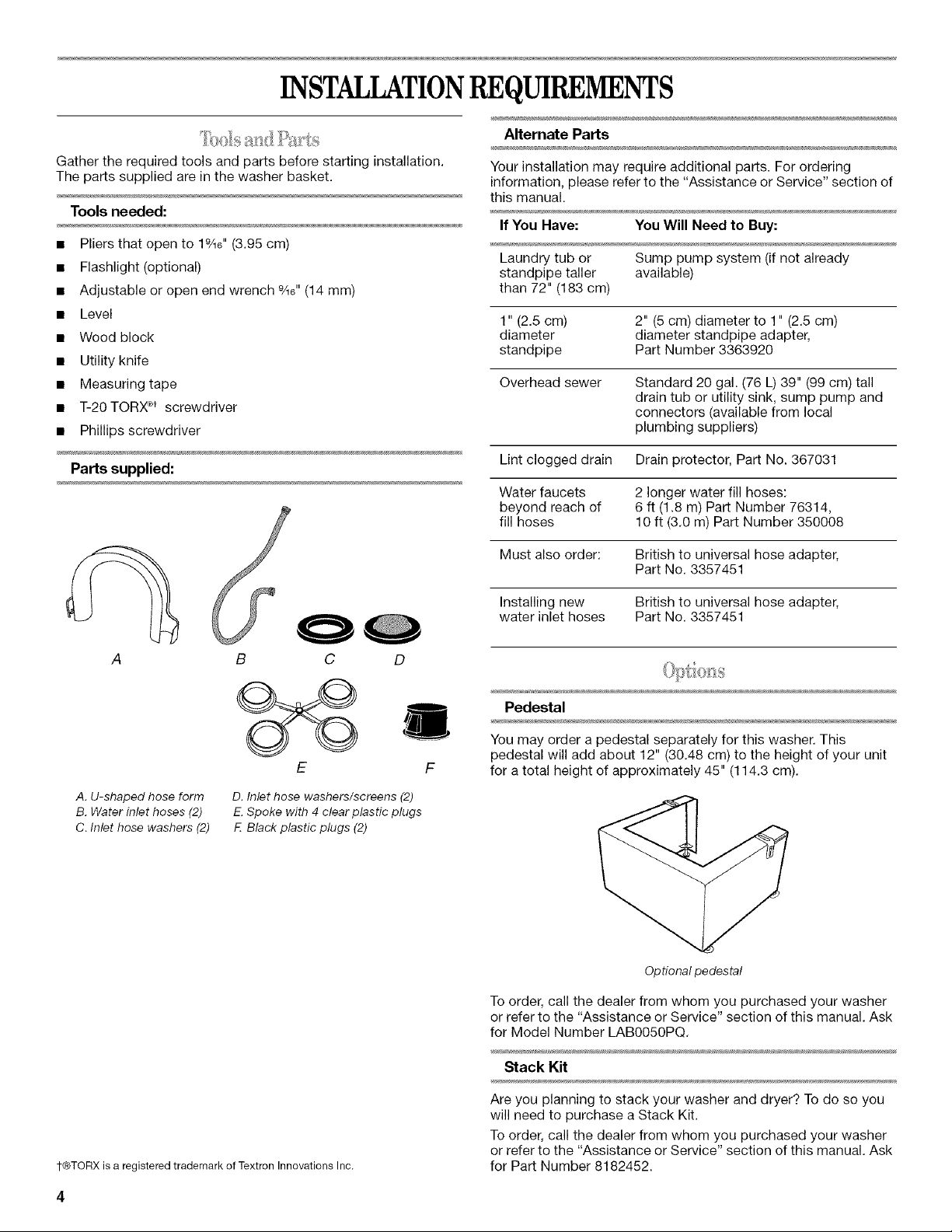

INSTALLATIONREQUIREMENTS

Gather the required tools and parts before starting installation.

The parts supplied are in the washer basket.

Tools needed:

• Pliers that open to 1%6" (3.95 cm)

• Flashlight (optional)

• Adjustable or open end wrench %6" (14 mm)

• Level

• Wood block

• Utility knife

• Measuring tape

• T-20 TORX®t screwdriver

• Phillips screwdriver

Parts supplied:

Alternate Parts

Your installation may require additional parts. For ordering

information, please refer to the "Assistance or Service" section of

this manual.

If You Have: You Will Need to Buy:

Laundry tub or Sump pump system (if not already

standpipe taller available)

than 72" (183 cm)

1" (2.5 cm) 2" (5 cm) diameter to 1" (2.5 cm)

diameter diameter standpipe adapter,

standpipe Part Number 3363920

Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall

drain tub or utility sink, sump pump and

connectors (available from local

plumbing suppliers)

Lint clogged drain Drain protector, Part No. 367031

Water faucets 2 longer water fill hoses:

beyond reach of 6 ft (1.8 m) Part Number 76314,

fill hoses 10 ft (3.0 m) Part Number 350008

Must also order: British to universal hose adapter,

Part No. 3357451

Installing new British to universal hose adapter,

water inlet hoses Part No. 3357451

A. U-shaped hose form

B. Water inlet hoses (2)

C. Inlet hose washers (2)

B C

D. Inlet hose washers/screens (2)

E.Spoke with 4 clear plastic plugs

F. Black plastic plugs (2)

Pedestal

You may order a pedestal separately for this washer. This

pedestal will add about 12" (30.48 cm) to the height of your unit

for a total height of approximately 45" (114.3 cm).

1-®TORX is a registered trademark of Textron Innovations Inc.

Optional pedestal

To order, call the dealer from whom you purchased your washer

or refer to the "Assistance or Service" section of this manual. Ask

for Model Number LAB0050PQ.

Stack Kit

Are you planning to stack your washer and dryer? To do so you

will need to purchase a Stack Kit.

To order, call the dealer from whom you purchased your washer

or refer to the "Assistance or Service" section of this manual. Ask

for Part Number 8182452.

Selectingtheproperlocationforyourwasherimproves

performanceandminimizesnoiseandpossiblewasher"walk."

Yourwashercanbeinstalledinabasement,laundryroom,

closet,orrecessedarea.See"DrainSystem."

IMPORTANT:Donotinstallorstorethewasherwhereitwillbe

exposedtotheweather.

Properinstallationisyourresponsibility.

You will need:

• A water heater set to deliver 120°F (49°C) water to the

washer.

• A grounded electrical outlet located within 5 ft (1.5 m) of

where the power cord is attached to the back of the washer.

See "Electrical Requirements."

• Hot and cold water faucets located within 31/2ft (1.1 m) of the

hot and cold water fill valves, and water pressure of

20-100 psi (137.9-690 kPa).

• A level floor with a maximum slope of 3A"(1.9 cm) under

entire washer. Installing the washer on carpeting is not

recommended.

• A sturdy floor to support the washer weight (washer, water

and load) of 260 Ibs (118 kg).

Do not store or operate your washer in temperatures at or below

38°F (3.33°C). Some water can remain in the washer and can

cause damage in low temperatures. See "Washer Care" for

winterizing information.

Installation Clearances

The location must be large enough to allow the washer door to

open fully.

Washer Dimensions

*Most installations require a minimum of 4" (10.16 cm) clearance

behind the washer for drain hose clearance. See "Drain

System."

Minimum installation spacing for recessed area and closet

installation

The following dimensions shown are for the minimum spacing

allowed when the washer is to be operated with, or without, the

Stack Kit. To purchase a Stack Kit, see "Assistance or Service."

• Additional spacing should be considered for ease of

installation and servicing.

Additional clearances might be required for wall, door, and

floor moldings.

Additional spacing of 1" (2.5 cm) on all sides of the washer is

recommended to reduce noise transfer.

For closet installation with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

• Companion appliance spacing should also be considered.

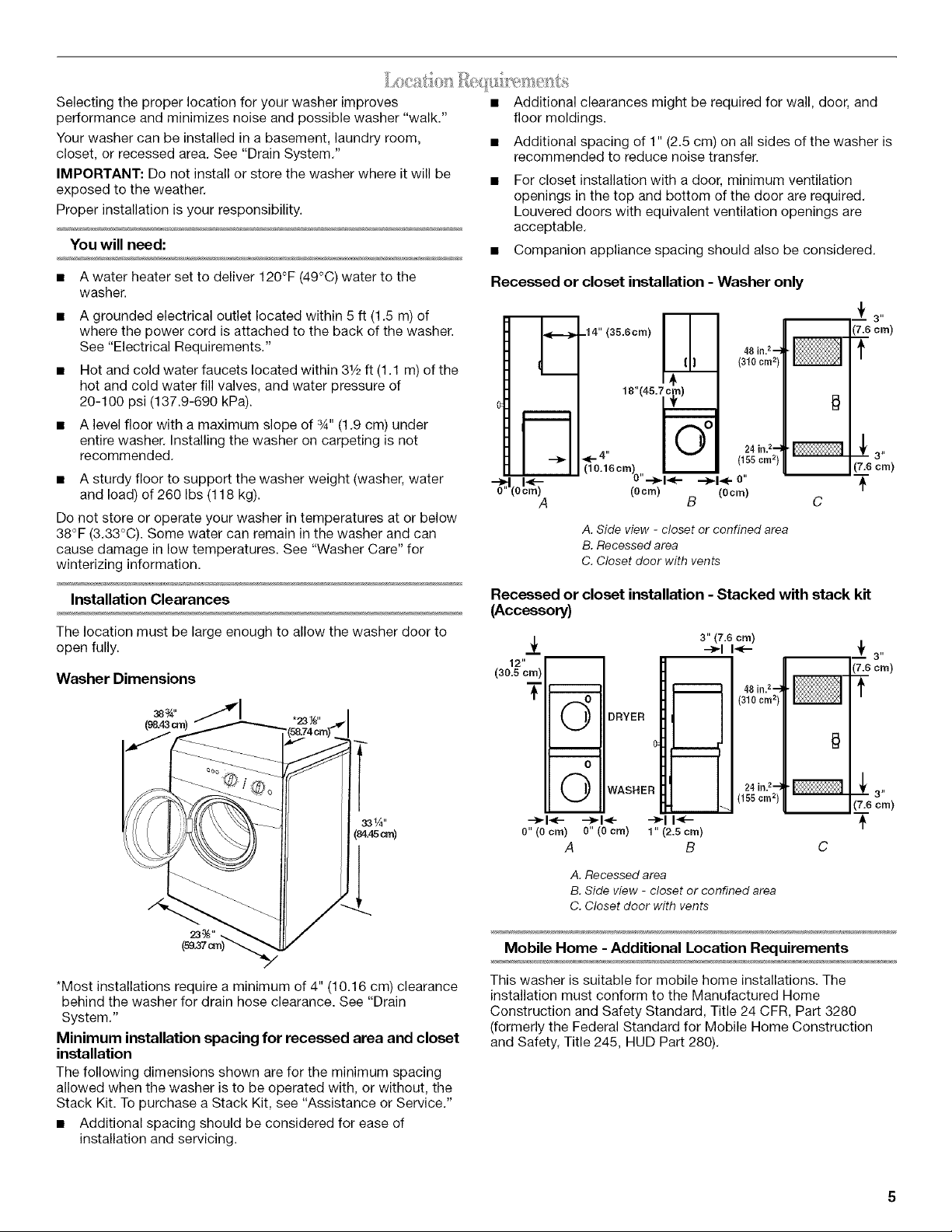

Recessed or closet installation - Washer only

A C

N--

ml _ mm

(35.5cm)

m I 48 in?._

(310 crn 2)

18" (45.7 cin)

4. Io°l 24 in?'_

*- I - I

(10.16cm)

0"-_l_- "-'_l-<'-0"

(0cm) (0cm)

_ --_-_3"

(7.6 cm)

_ +3"

_ (7.6cm)

A. Side view - closet or confined area

B. Recessed area

C. Closet door with vents

Recessed or closet installation - Stacked with stack kit

(Accessory)

12"

(30.5 cm)

3" (7.6 crn)

"-'_l I_--

DRYER

WASHER

--_1_- --_1_-- ---_-II_--

0" (0 cm) 0" (0 cm) 1" (2.5 cm)

A B

48 in.2H

(310cm2)

24 in.2-_

C155crn_)

-- .! 3"

(7.6 cm)

(7.6cm)

A, Recessed area

B. Side view - closet or confined area

C. Closet door with vents

Mobile Home - Additional Location Requirements

This washer is suitable for mobile home installations. The

installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280

(formerly the Federal Standard for Mobile Home Construction

and Safety, Title 245, HUD Part 280).

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter,

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

A 120-volt, 60-Hz., AC-only, 15- or 20-amp, fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is recommended that a separate circuit

serving only this appliance be provided.

This washer is equipped with a power supply cord having a

3 prong grounding plug.

To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, grounding-type outlet,

grounded in accordance with local codes and ordinances. If a

mating outlet is not available, it is the personal responsibility

and obligation of the customer to have the properly grounded

outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

• Do not ground to a gas pipe.

• Check with a qualified electrician if you are not sure the

washer is properly grounded.

• Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded, in the event of a malfunction

or breakdown, grounding will reduce the risk of electrical

shock by providing a path of least resistance for electric

current. This washer is equipped with a cord having an

equipment-grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet that is

properly installed and grounded in accordance with all local

codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or serviceman if you are in

doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance - if it will

not fit the outlet, have a proper outlet installed by a qualified

electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal,

permanent wiring system, or an equipment grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on

the appliance.

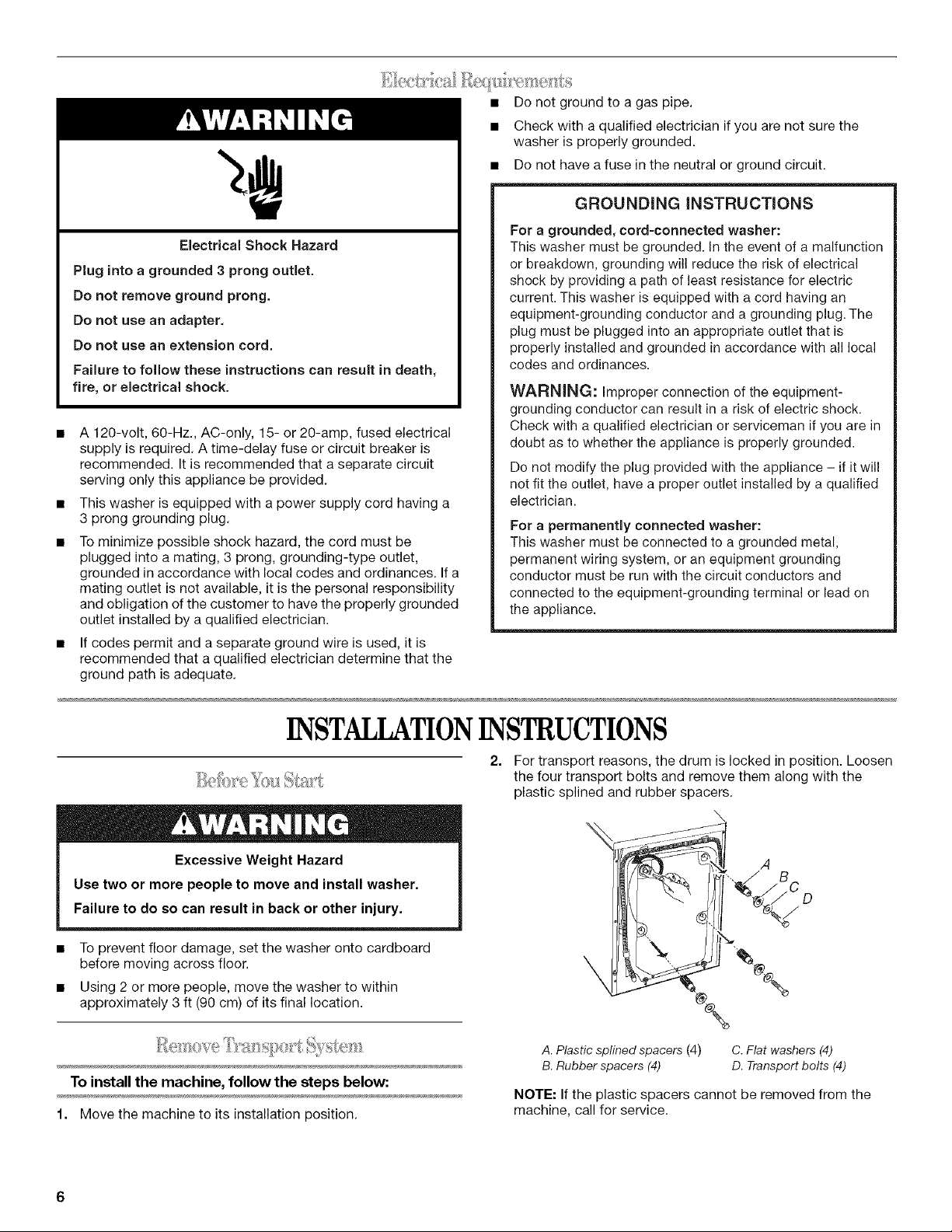

INSTALLATIONINSTRUCTIONS

Excessive Weight Hazard

Use two or more people to move and install washer.

Failure to do so can result in back or other injury.

• To prevent floor damage, set the washer onto cardboard

before moving across floor.

• Using 2 or more people, move the washer to within

approximately 3 ft (90 cm) of its final location.

For transport reasons, the drum is locked in position. Loosen

the four transport bolts and remove them along with the

plastic splined and rubber spacers.

\ %%

To install the machine, follow the steps below:

1. Move the machine to its installation position.

A. Plastic splined spacers (4)

B. Rubber spacers (4)

C. Flat washers (4)

D. Transport bolts (4)

NOTE: If the plastic spacers cannot be removed from the

machine, call for service.

Next, loosen the two locking screws "A" and remove the two

bars "B," as illustrated below. Keep the transport bolts,

screws, spacers and bars for future use.

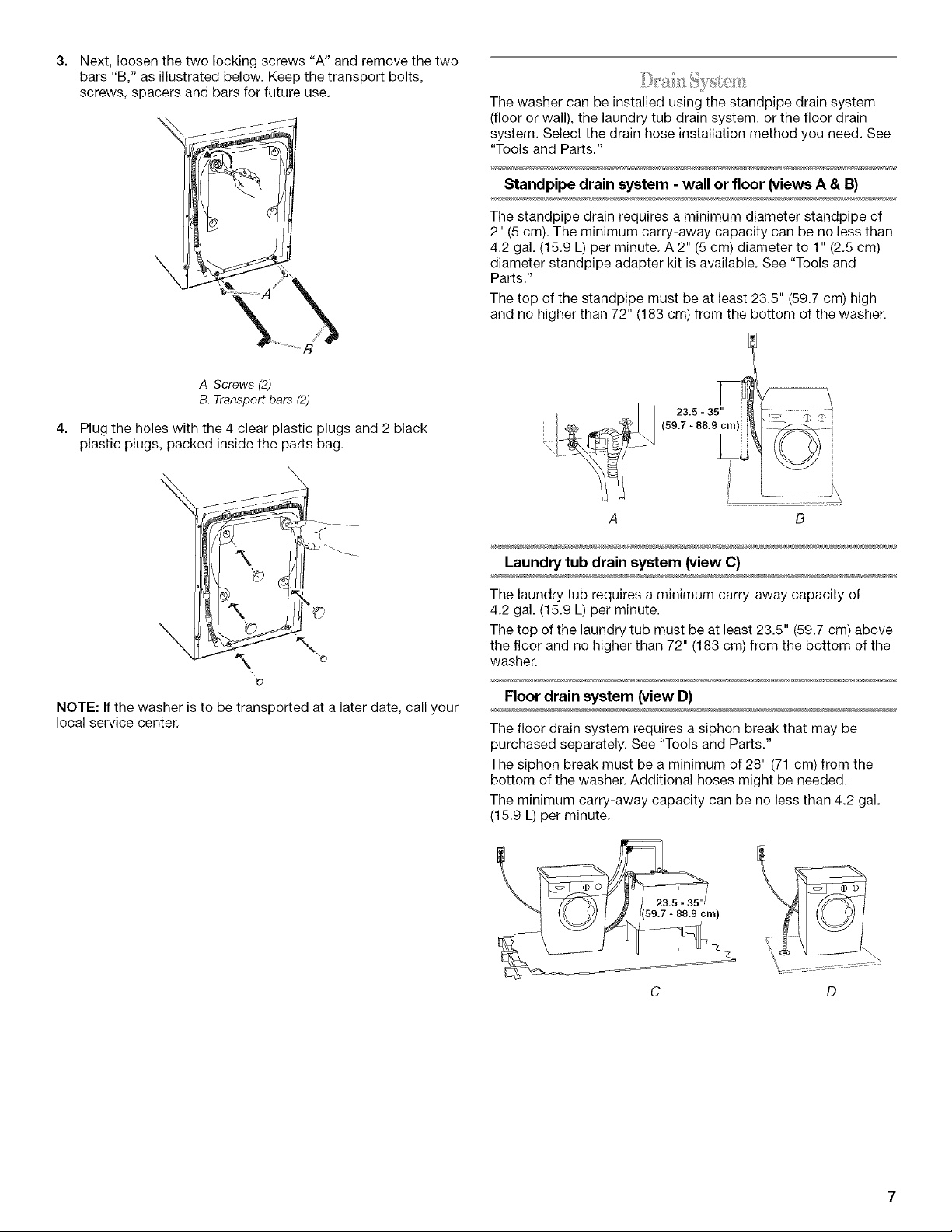

The washer can be installed using the standpipe drain system

(floor or wall), the laundry tub drain system, or the floor drain

system. Select the drain hose installation method you need. See

"Tools and Parts."

Standpipe drain system - wall or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of

2" (5 cm). The minimum carry-away capacity can be no less than

4.2 gal. (15.9 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm)

diameter standpipe adapter kit is available. See "Tools and

Parts."

The top of the standpipe must be at least 23.5" (59.7 cm) high

and no higher than 72" (183 cm) from the bottom of the washer.

A Screws (2)

B.Transportbars (2)

Plug the holes with the 4 clear plastic plugs and 2 black

plastic plugs, packed inside the parts bag.

"_)

NOTE: If the washer is to be transported at a later date, call your

local service center.

23.5 = 35"

(s9.7-88.9om)

Laundry tub drain system (view C)

The laundry tub requires a minimum carry-away capacity of

4.2 gal. (15.9 L) per minute.

The top of the laundry tub must be at least 23.5" (59.7 cm) above

the floor and no higher than 72" (183 cm) from the bottom of the

washer.

Floor drain system (view D)

The floor drain system requires a siphon break that may be

purchased separately. See "Tools and Parts."

The siphon break must be a minimum of 28" (71 cm) from the

bottom of the washer. Additional hoses might be needed.

The minimum carry-away capacity can be no less than 4.2 gal.

(15.9 L) per minute.

C D

Proper connection of the drain hose will help protect your floors

from damage due to water leakage. To prevent the drain hose

from coming off or leaking, it must be installed according to the

following instructions.

IMPORTANT: To ensure proper installation, this procedure must

be followed exactly.

For standpipe or laundry tub drain systems:

1. Check the drain hose to see that it is the proper length.

2. Install the U-shaped hose form to end of the drain hose to

create a hook-shaped end as shown.

A B

A. Snap either end of the U-shaped hose form to the drain hose at the

point where the corrugation begins.

B. Bend drain hose over the form and snap into place.

Put hooked end of drain hose into laundry tub or standpipe.

To prevent drain water from going back into the washer:

• Do not straighten hooked end of drain hose. Do not force

excess drain hose into standpipe. Hose should be secure,

but loose enough to provide a gap of air.

NOTE: To prevent siphoning, do not seal the drain hose to the

standpipe.

• Do not lay excess drain hose in bottom of laundry tub.

• For floor drain installation, see kit number required under

"Tools and Parts."

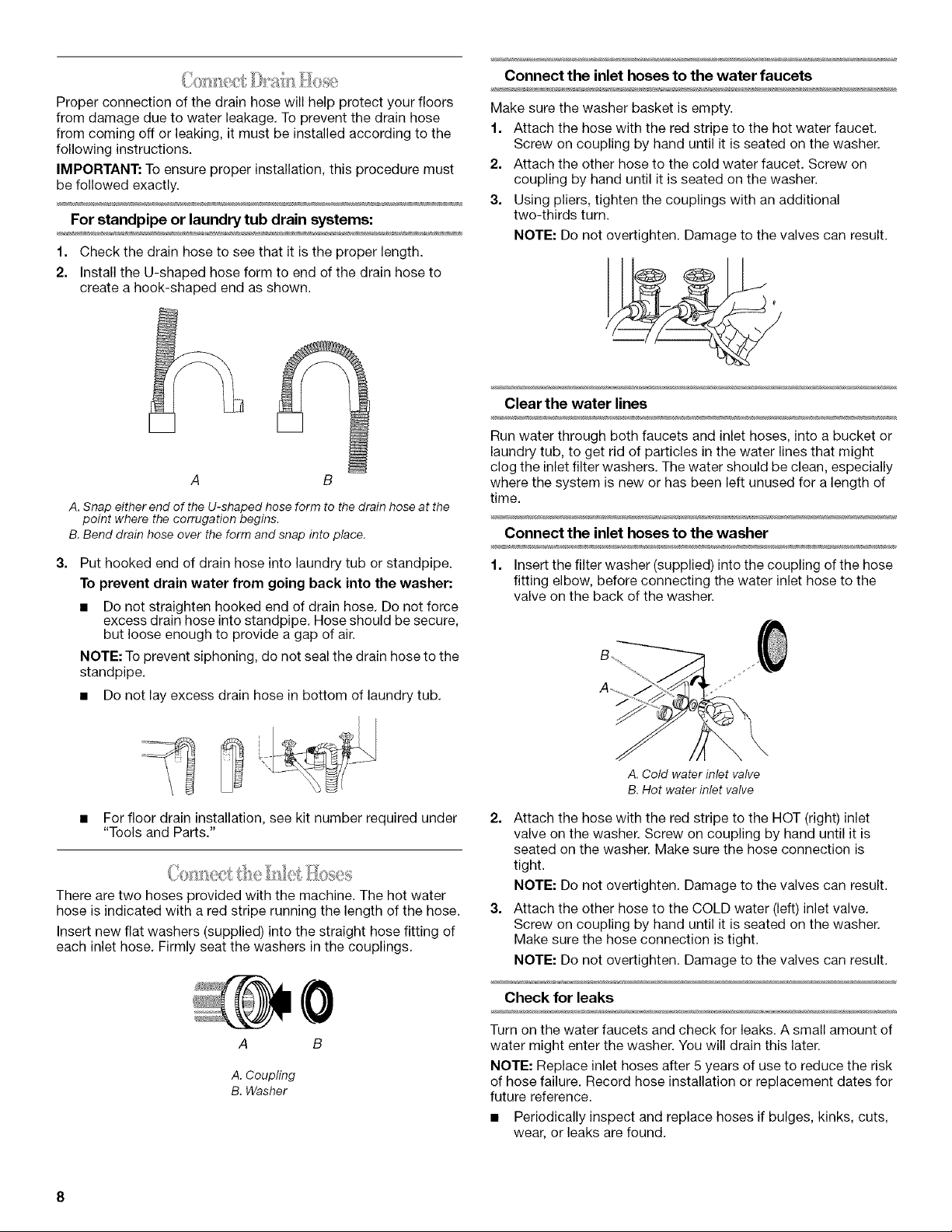

There are two hoses provided with the machine. The hot water

hose is indicated with a red stripe running the length of the hose.

Insert new flat washers (supplied) into the straight hose fitting of

each inlet hose. Firmly seat the washers in the couplings.

A B

A. Coupling

B. Washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

1. Attach the hose with the red stripe to the hot water faucet.

Screw on coupling by hand until it is seated on the washer.

2. Attach the other hose to the cold water faucet. Screw on

coupling by hand until it is seated on the washer.

3. Using pliers, tighten the couplings with an additional

two-thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

Clear the water lines

Run water through both faucets and inlet hoses, into a bucket or

laundry tub, to get rid of particles in the water lines that might

clog the inlet filter washers. The water should be clean, especially

where the system is new or has been left unused for a length of

time.

Connect the inlet hoses to the washer

1. Insert the filter washer (supplied) into the coupling of the hose

fitting elbow, before connecting the water inlet hose to the

valve on the back of the washer.

A. Cold water inlet valve

B. Hot water inlet valve

Attach the hose with the red stripe to the HOT (right) inlet

valve on the washer. Screw on coupling by hand until it is

seated on the washer. Make sure the hose connection is

tight.

NOTE: Do not overtighten. Damage to the valves can result.

Attach the other hose to the COLD water (left) inlet valve.

Screw on coupling by hand until it is seated on the washer.

Make sure the hose connection is tight.

NOTE: Do not overtighten. Damage to the valves can result.

Check for leaks

Turn on the water faucets and check for leaks. A small amount of

water might enter the washer. You will drain this later.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk

of hose failure. Record hose installation or replacement dates for

future reference.

• Periodically inspect and replace hoses if bulges, kinks, cuts,

wear, or leaks are found.

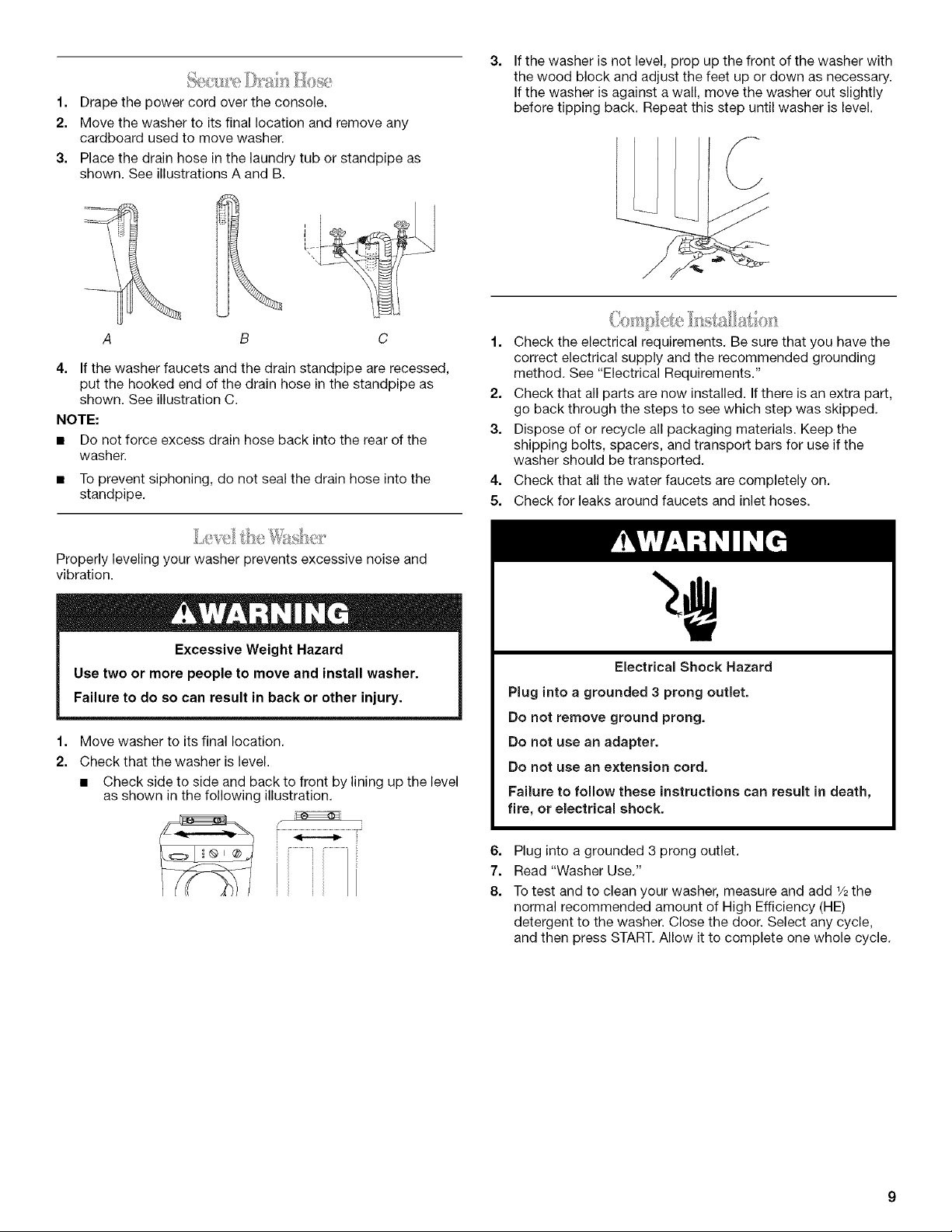

1. Drapethepowercordovertheconsole.

2. Movethewashertoitsfinallocationandremoveany

cardboardusedtomovewasher•

3. Placethedrainhoseinthelaundrytuborstandpipeas

shown•SeeillustrationsAandB.

4. If the washer faucets and the drain standpipe are recessed,

put the hooked end of the drain hose in the standpipe as

shown• See illustration C.

NOTE:

• Do not force excess drain hose back into the rear of the

washer•

• To prevent siphoning, do not seal the drain hose into the

standpipe.

If the washer is not level, prop up the front of the washer with

the wood block and adjust the feet up or down as necessary.

If the washer is against a wall, move the washer out slightly

before tipping back. Repeat this step until washer is level.

1. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding

method. See "Electrical Requirements•"

2. Check that all parts are now installed• If there is an extra part,

go back through the steps to see which step was skipped.

3. Dispose of or recycle all packaging materials. Keep the

shipping bolts, spacers, and transport bars for use if the

washer should be transported.

4. Check that all the water faucets are completely on.

5. Check for leaks around faucets and inlet hoses.

Properly leveling your washer prevents excessive noise and

vibration•

Excessive Weight Hazard

Use two or more people to move and install washer.

Failure to do so can result in back or other injury.

Move washer to its final location.

Check that the washer is level•

• Check side to side and back to front by lining up the level

as shown in the following illustration.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,

fire, or electrical shock.

6. Plug into a grounded 3 prong outlet.

7. Read "Washer Use."

8. Totest and to clean your washer, measure and add 1/2the

normal recommended amount of High Efficiency (HE)

detergent to the washer. Close the door. Select any cycle,

and then press START• Allow it to complete one whole cycle.

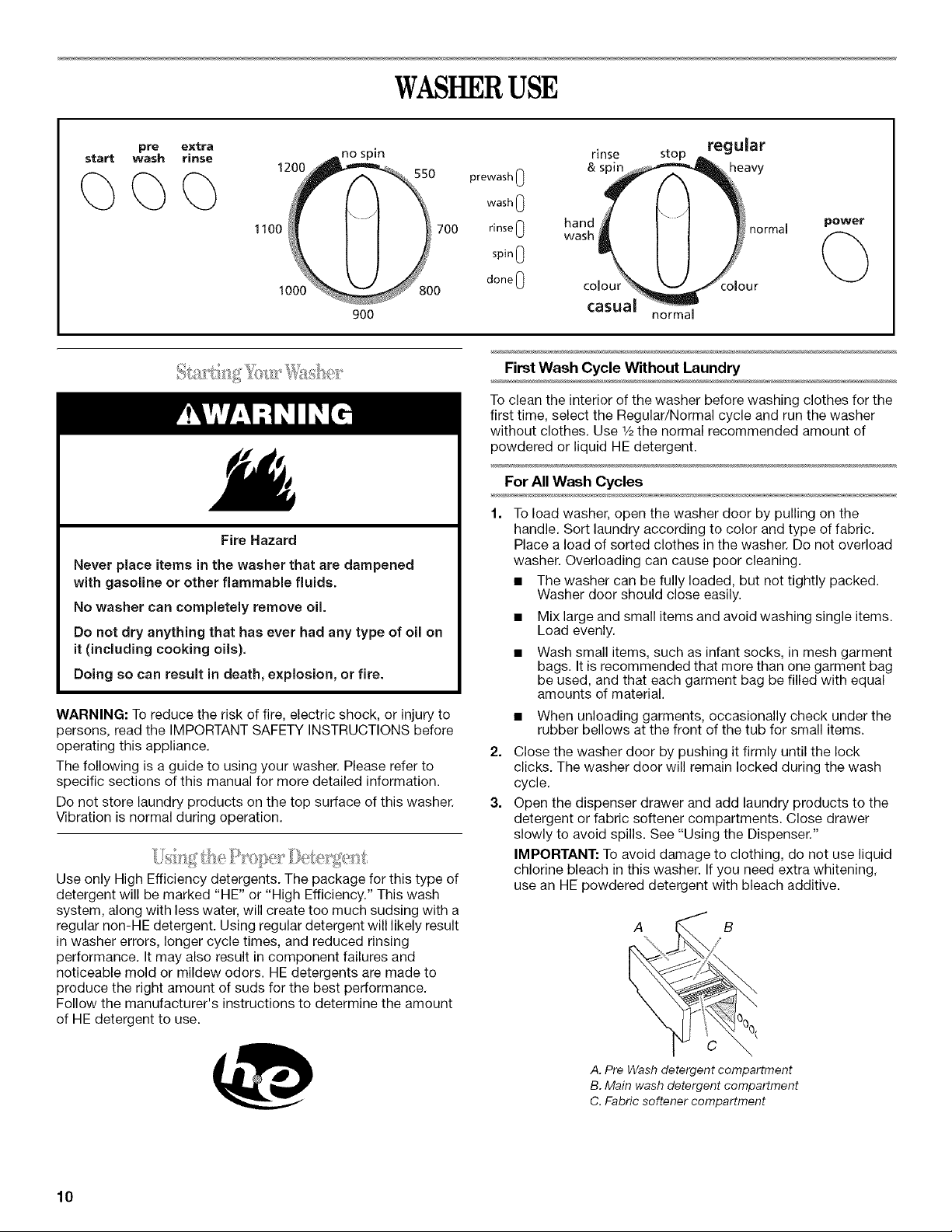

WASHERUSE

start

pre regular

wash no spin rinse stop

& spin heavy

extra

rinse

1100 k

1ooo"_

prewash 0

wash 0

rinse 0

spin 0

done 0

hand normal power

wash

casual

900 normal

colour

Fire Hazard

Never place items in the washer that are dampened

with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on

it (including cooking oils),

Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before

operating this appliance.

The following is a guide to using your washer. Please refer to

specific sections of this manual for more detailed information.

Do not store laundry products on the top surface of this washer.

Vibration is normal during operation.

Use only High Efficiency detergents. The package for this type of

detergent will be marked "HE" or "High Efficiency." This wash

system, along with less water, will create too much sudsing with a

regular non-HE detergent. Using regular detergent will likely result

in washer errors, longer cycle times, and reduced rinsing

performance. It may also result in component failures and

noticeable mold or mildew odors. HE detergents are made to

produce the right amount of suds for the best performance.

Follow the manufacturer's instructions to determine the amount

of HE detergent to use.

First Wash Cycle Without Laundry

To clean the interior of the washer before washing clothes for the

first time, select the Regular/Normal cycle and run the washer

without clothes. Use 1/2the normal recommended amount of

powdered or liquid HE detergent.

For All Wash Cycles

To load washer, open the washer door by pulling on the

handle. Sort laundry according to color and type of fabric.

Place a load of sorted clothes in the washer. Do not overload

washer. Overloading can cause poor cleaning.

• The washer can be fully loaded, but not tightly packed.

Washer door should close easily.

• Mix large and small items and avoid washing single items.

Load evenly.

• Wash small items, such as infant socks, in mesh garment

bags. It is recommended that more than one garment bag

be used, and that each garment bag be filled with equal

amounts of material.

• When unloading garments, occasionally check under the

rubber bellows at the front of the tub for small items.

Close the washer door by pushing it firmly until the lock

clicks. The washer door will remain locked during the wash

cycle.

Open the dispenser drawer and add laundry products to the

detergent or fabric softener compartments. Close drawer

slowly to avoid spills. See "Using the Dispenser."

IMPORTANT: To avoid damage to clothing, do not use liquid

chlorine bleach in this washer. If you need extra whitening,

use an HE powdered detergent with bleach additive.

A B

A. Pre Wash detergent compartment

B. Main wash detergent compartment

C. Fabric softener compartment

NOTES:

Use only HE detergents and follow label instructions.

Do not add detergent to the Pre Wash compartment

unless you have selected the Pre Wash option. If you

have detergent in both the Pre Wash and Main Wash

compartments, and have not selected a Pre Wash option,

the washer could oversuds. Suds could spill onto the

floor.

• Ifyou select the Pre Wash option, use powdered HE

detergent in the Main Wash compartment. If you use

liquid HE detergent in the Main Wash compartment, it will

dispense immediately.

• Close the detergent drawer securely.

IMPORTANT: To avoid a water spill, do not open the

detergent drawer while the machine is operating.

Turn on the washer by selecting POWER.

Select one of the cycles by turning the cycle selector. The

preset settings provide the recommended fabric care for the

selected cycle. See "Cycles."

Select the desired options. Not all options are available with

all cycles. See "Cycles."

To begin the wash cycle, select START.

• When the wash cycle is complete, the DONE status light

glows, the door unlocks, and the wash load can be

removed from the washer. To power down the washer

manually after the wash cycle is complete, press POWER

once.

Your new washer has a dispenser drawer with three separate

compartments for your laundry products--two are for detergent,

and one is for liquid fabric softener. Laundry products are diluted

and dispensed automatically at the proper time during the wash

cycle, making it unnecessary for you to return to the washer

during the cycle to add them.

It is normal for small amounts of water to remain in the

dispensers when the wash cycle is complete.

Do not put laundry additives directly into the wash tub. Always

use the proper dispensers when adding laundry products.

Choosing the Right Detergent

Use only High Efficiency detergents. The package for this type of

detergent will be marked "HE" or "High Efficiency." This wash

system, along with less water, will create too much sudsing with a

regular non-HE detergent. Using regular detergent will likely result

in washer errors, longer cycle times, reduced rinsing

performance, and may result in component failures and

noticeable mold or mildew odors. HE detergents are made to

produce the right amount of suds for the best performance.

Follow the manufacturer's instructions to determine the amount

of HE detergent to use.

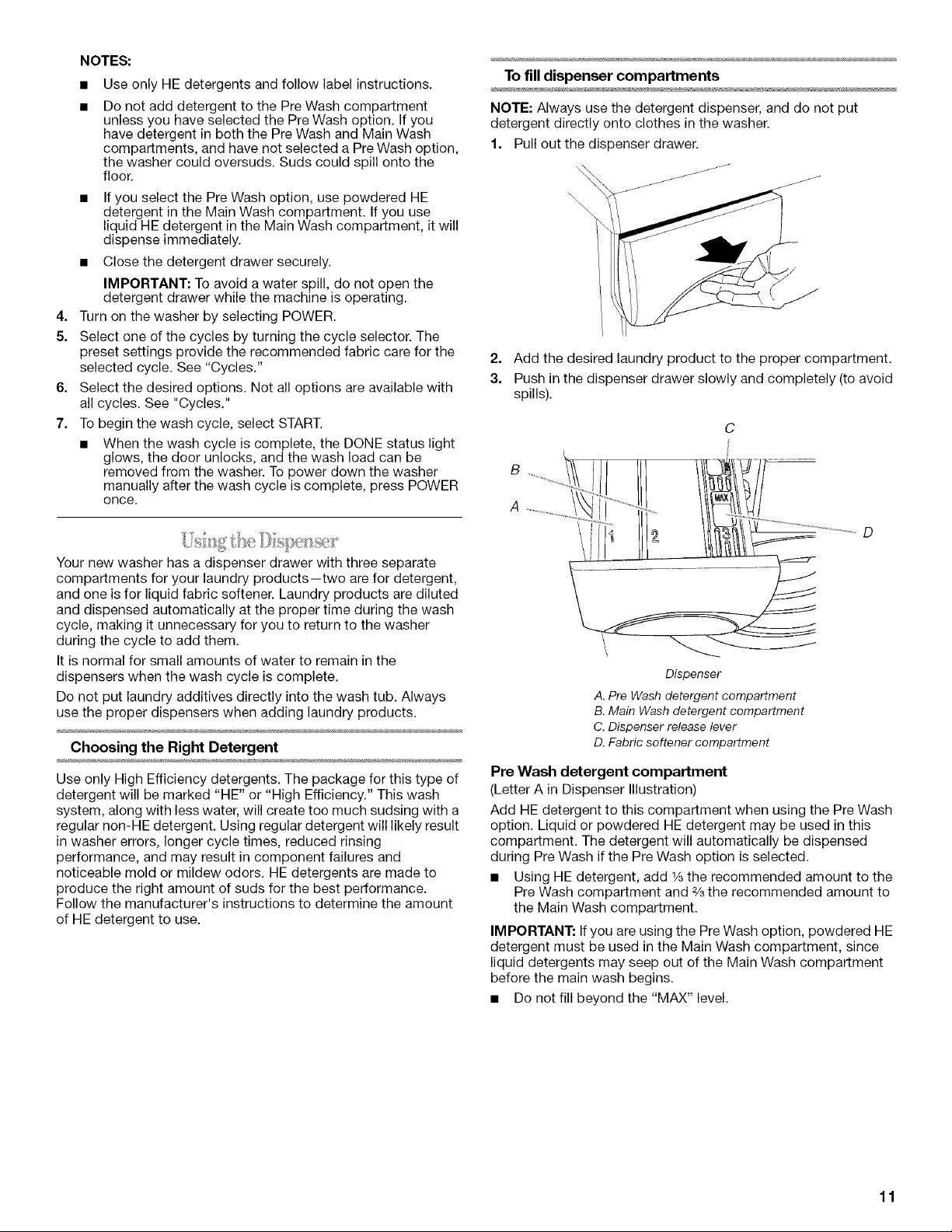

To fill dispenser compartments

NOTE: Always use the detergent dispenser, and do not put

detergent directly onto clothes in the washer.

1. Pull out the dispenser drawer.

2. Add the desired laundry product to the proper compartment.

3. Push in the dispenser drawer slowly and completely (to avoid

spills).

Dispenser

A. Pre Wash detergent compartment

B. Main Wash detergent compartment

C. Dispenser release lever

D. Fabric softener compartment

Pre Wash detergent compartment

(Letter A in Dispenser Illustration)

Add HE detergent to this compartment when using the Pre Wash

option. Liquid or powdered HE detergent may be used in this

compartment. The detergent will automatically be dispensed

during Pre Wash if the Pre Wash option is selected.

• Using HE detergent, add 1/3the recommended amount to the

Pre Wash compartment and ¾ the recommended amount to

the Main Wash compartment.

IMPORTANT: If you are using the Pre Wash option, powdered HE

detergent must be used in the Main Wash compartment, since

liquid detergents may seep out of the Main Wash compartment

before the main wash begins.

• Do not fill beyond the "MAX" level.

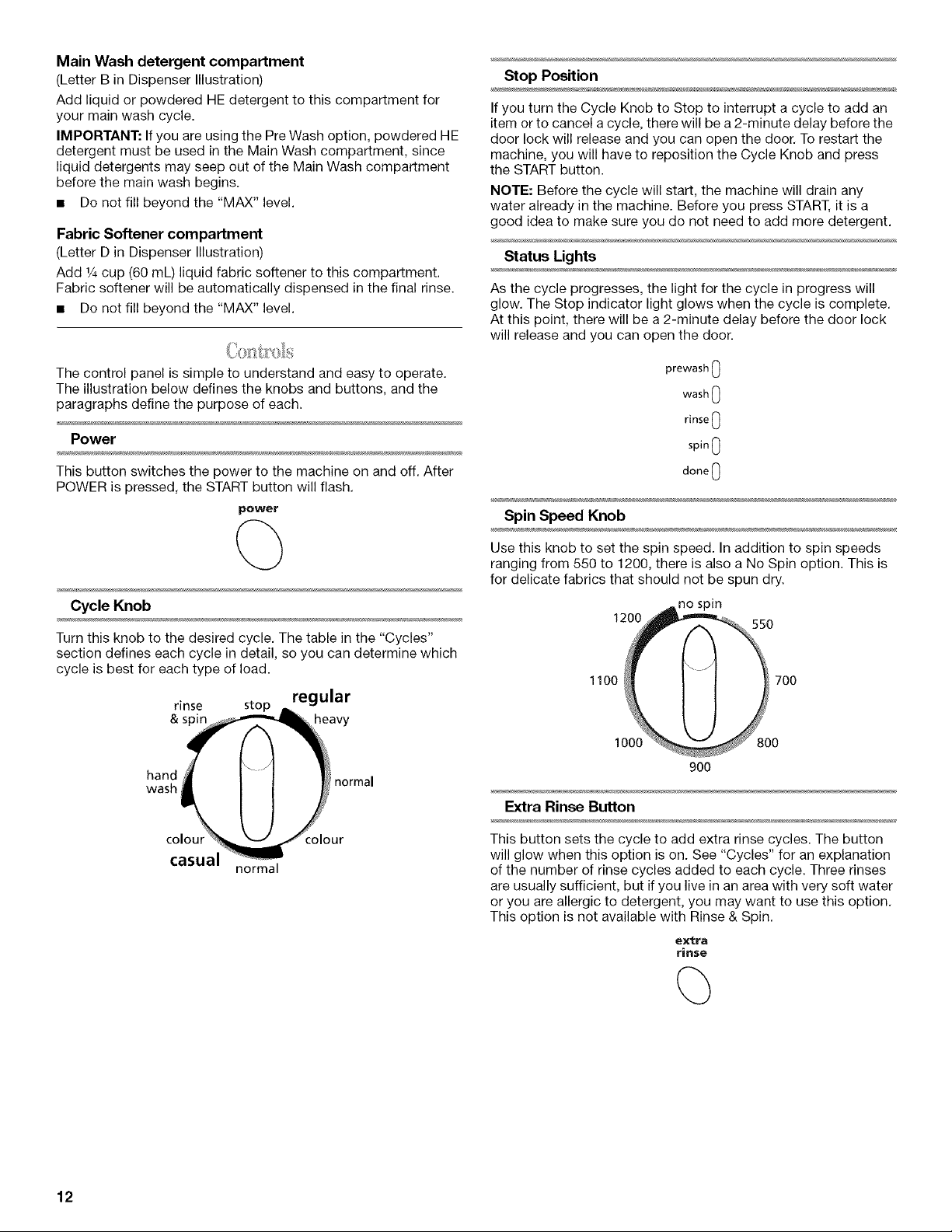

Main Wash detergent compartment

(Letter B in Dispenser Illustration)

Add liquid or powdered HE detergent to this compartment for

your main wash cycle.

IMPORTANT: If you are using the Pre Wash option, powdered HE

detergent must be used in the Main Wash compartment, since

liquid detergents may seep out of the Main Wash compartment

before the main wash begins.

• Do not fill beyond the "MAX" level.

Fabric Softener compartment

(Letter D in Dispenser Illustration)

Add 1/4cup (60 mL) liquid fabric softener to this compartment.

Fabric softener will be automatically dispensed in the final rinse.

• Do not fill beyond the "MAX" level.

The control panel is simple to understand and easy to operate.

The illustration below defines the knobs and buttons, and the

paragraphs define the purpose of each.

Power

This button switches the power to the machine on and off. After

POWER is pressed, the START button will flash.

power

Cycle Knob

Turn this knob to the desired cycle. The table in the "Cycles"

section defines each cycle in detail, so you can determine which

cycle is best for each type of load.

rinse stop regular

& spin heavy

Stop Position

If you turn the Cycle Knob to Stop to interrupt a cycle to add an

item or to cancel a cycle, there will be a 2-minute delay before the

door lock will release and you can open the door. To restart the

machine, you will have to reposition the Cycle Knob and press

the START button.

NOTE: Before the cycle will start, the machine will drain any

water already in the machine. Before you press START, it is a

good idea to make sure you do not need to add more detergent.

Status Lights

As the cycle progresses, the light for the cycle in progress will

glow. The Stop indicator light glows when the cycle is complete.

At this point, there will be a 2-minute delay before the door lock

will release and you can open the door.

prewash 0

wash 0

rinse 0

spin 0

done 0

Spin Speed Knob

Use this knob to set the spin speed. In addition to spin speeds

ranging from 550 to 1200, there is also a No Spin option. This is

for delicate fabrics that should not be spun dry.

no spin

hand

wash

casual

normal

900

Extra Rinse Button

This button sets the cycle to add extra rinse cycles. The button

will glow when this option is on. See "Cycles" for an explanation

of the number of rinse cycles added to each cycle. Three rinses

are usually sufficient, but if you live in an area with very soft water

or you are allergic to detergent, you may want to use this option.

This option is not available with Rinse & Spin.

extra

rinse

Pre Wash

Press this button to select a Pre Wash. This is recommended only

for heavily soiled items. The button will glow when this option is

on. If you use Pre Wash, be sure to put detergent in the Pre Wash

compartment of the detergent drawer.

PRE

WASH

Start Button

After you have selected a cycle and options (Pre Wash or Extra

Rinse), press this button to start the cycle. The button will glow.

NOTE: A short time delay, up to a few minutes, may occur before

the wash cycle begins. This is a normal function of this washer.

start

NOTE: Pre Wash cannot be selected for the Hand Wash or

Rinse & Spin cycles.

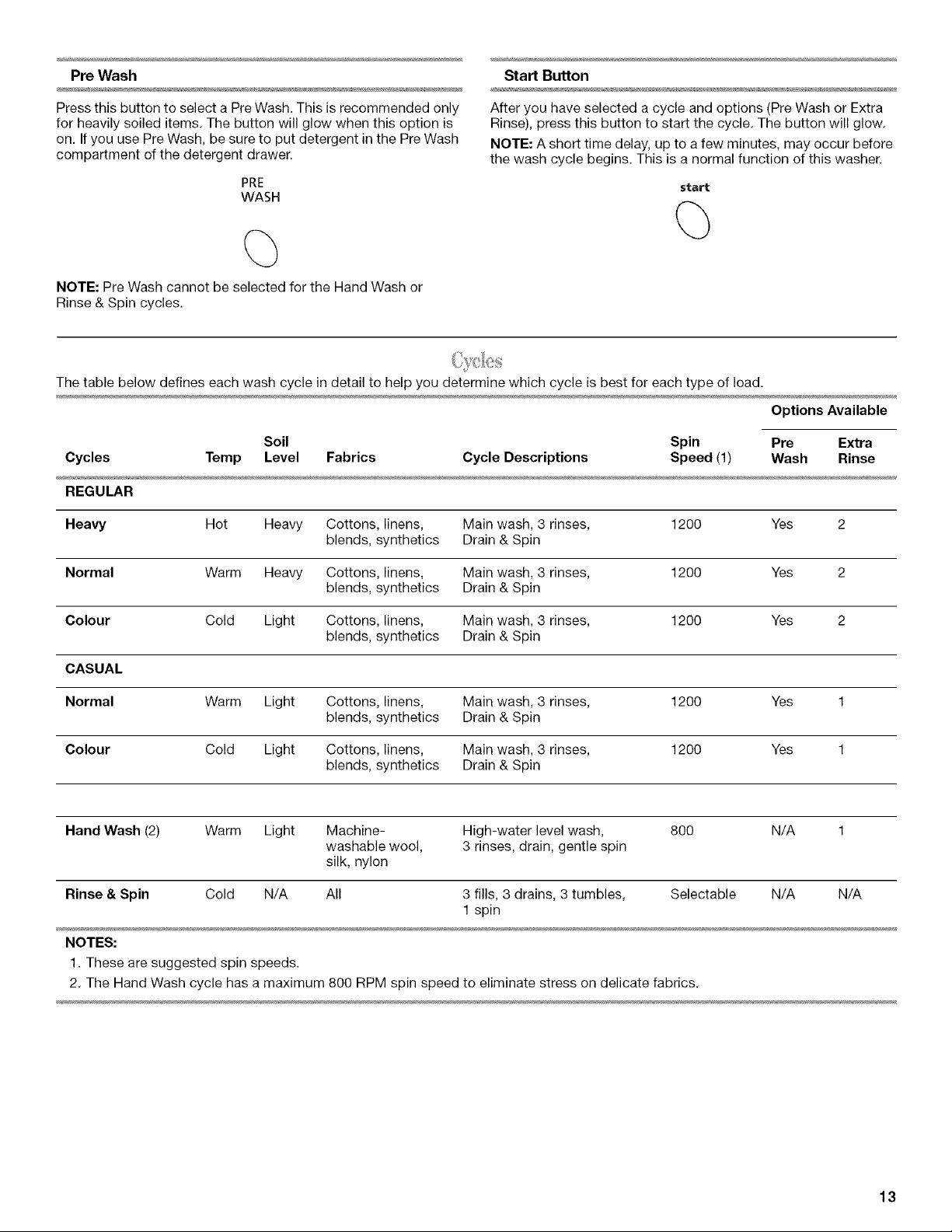

The table below defines each wash cycle in detail to help you determine which cycle is best for each type of load.

Options Available

Soil Spin Pre Extra

Cycles Temp Level Fabrics Cycle Descriptions Speed (1) Wash Rinse

REGULAR

Heavy Hot Heavy Cottons, linens, Main wash, 3 rinses, 1200 Yes 2

blends, synthetics Drain & Spin

Normal Warm Heavy Cottons, linens, Main wash, 3 rinses, 1200 Yes 2

blends, synthetics Drain & Spin

Colour Cold Light Cottons, linens, Main wash, 3 rinses, 1200 Yes 2

blends, synthetics Drain & Spin

CASUAL

Normal Warm Light Cottons, linens, Main wash, 3 rinses, 1200 Yes 1

blends, synthetics Drain & Spin

Colour Cold Light Cottons, linens, Main wash, 3 rinses, 1200 Yes 1

blends, synthetics Drain & Spin

Hand Wash (2) Warm Light Machine- High-water level wash, 800 N/A 1

washable wool, 3 rinses, drain, gentle spin

silk, nylon

Rinse & Spin Cold N/A All 3 fills, 3 drains, 3 tumbles, Selectable N/A N/A

1 spin

NOTES:

1. These are suggested spin speeds.

2. The Hand Wash cycle has a maximum 800 RPM spin speed to eliminate stress on delicate fabrics.

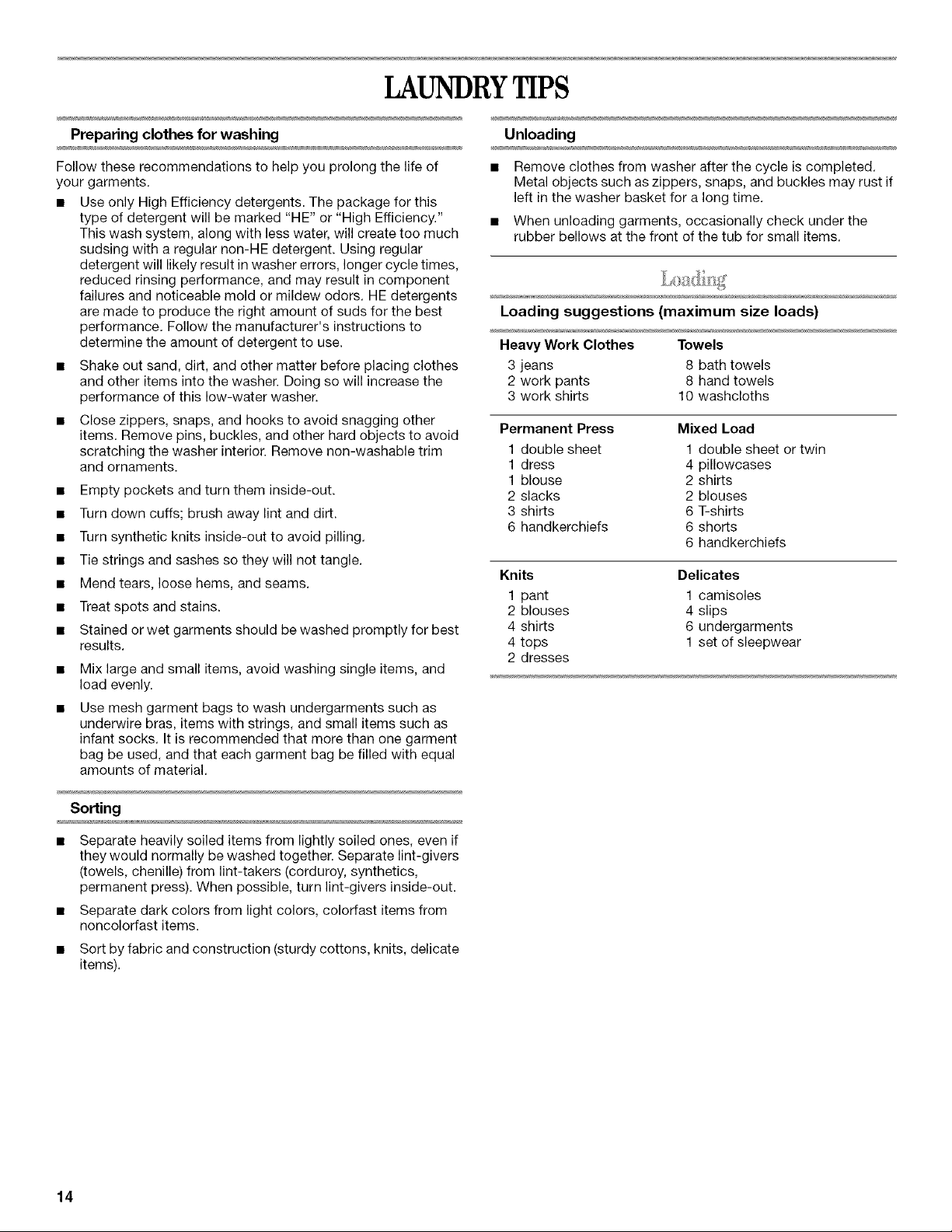

LAUNDRYTIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of

your garments.

• Use only High Efficiency detergents. The package for this

type of detergent will be marked "HE" or "High Efficiency."

This wash system, along with less water, will create too much

sudsing with a regular non-HE detergent. Using regular

detergent will likely result in washer errors, longer cycle times,

reduced rinsing performance, and may result in component

failures and noticeable mold or mildew odors. HE detergents

are made to produce the right amount of suds for the best

performance. Follow the manufacturer's instructions to

determine the amount of detergent to use.

• Shake out sand, dirt, and other matter before placing clothes

and other items into the washer. Doing so will increase the

performance of this low-water washer.

Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid

scratching the washer interior. Remove non-washable trim

and ornaments.

• Empty pockets and turn them inside-out.

• Turn down cuffs; brush away lint and dirt.

• Turn synthetic knits inside-out to avoid pilling.

• Tie strings and sashes so they will not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be washed promptly for best

results.

• Mix large and small items, avoid washing single items, and

load evenly.

Use mesh garment bags to wash undergarments such as

underwire bras, items with strings, and small items such as

infant socks. It is recommended that more than one garment

bag be used, and that each garment bag be filled with equal

amounts of material.

Unloading

• Remove clothes from washer after the cycle is completed.

Metal objects such as zippers, snaps, and buckles may rust if

left in the washer basket for a long time.

• When unloading garments, occasionally check under the

rubber bellows at the front of the tub for small items.

Loading suggestions (maximum size loads)

Heavy Work Clothes Towels

3 jeans 8 bath towels

2 work pants 8 hand towels

3 work shirts 10 washcloths

Permanent Press Mixed Load

1 double sheet 1 double sheet or twin

1 dress 4 pillowcases

1 blouse 2 shirts

2 slacks 2 blouses

3 shirts 6 T-shirts

6 handkerchiefs 6 shorts

6 handkerchiefs

Knits Delicates

1 pant 1 camisoles

2 blouses 4 slips

4 shirts 6 undergarments

4 tops 1 set of sleepwear

2 dresses

Sorting

Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint-givers

(towels, chenille) from lint-takers (corduroy, synthetics,

permanent press). When possible, turn lint-givers inside-out.

• Separate dark colors from light colors, colorfast items from

noncolorfast items.

• Sort by fabric and construction (sturdy cottons, knits, delicate

items).

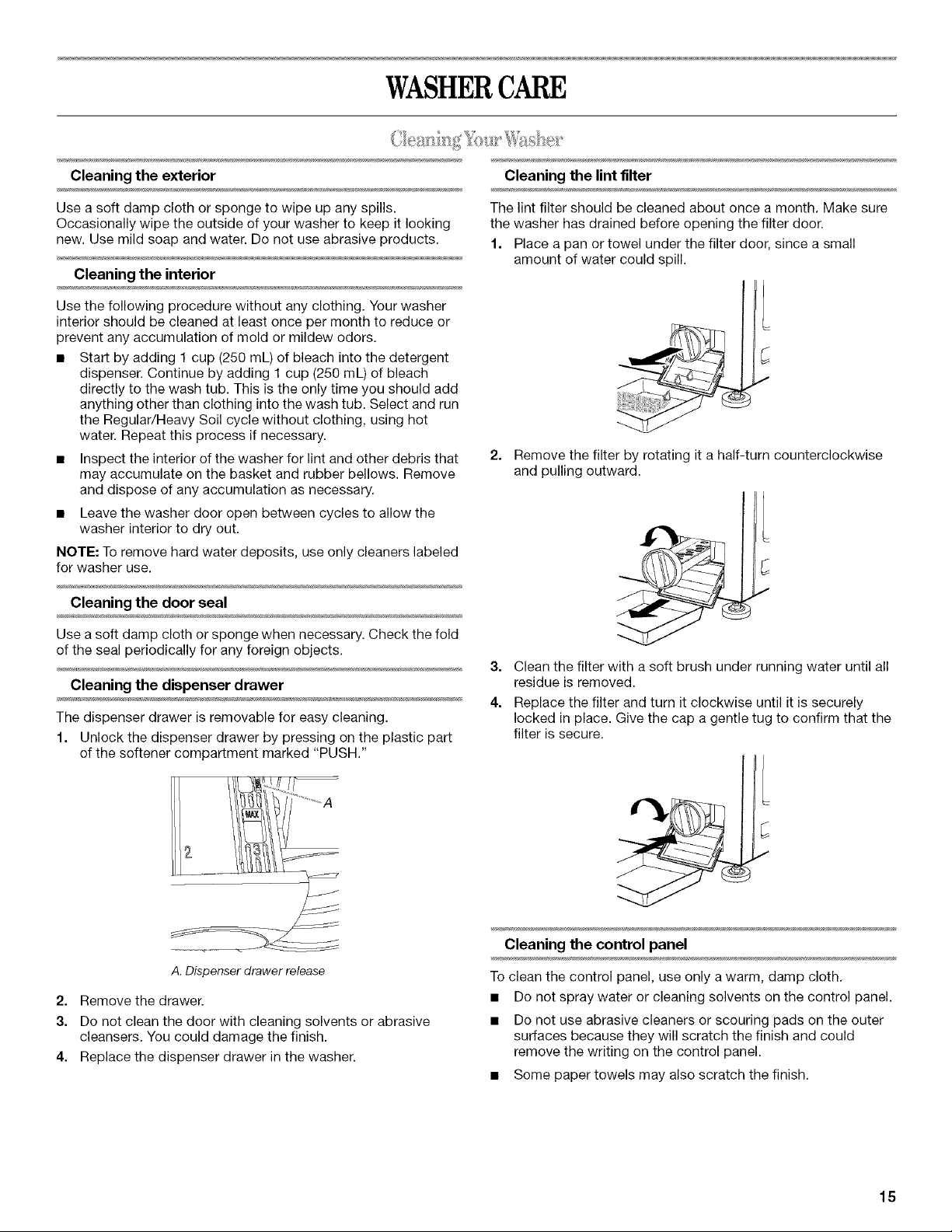

WASHERCARE

Cleaning the exterior

Use a soft damp cloth or sponge to wipe up any spills.

Occasionally wipe the outside of your washer to keep it looking

new. Use mild soap and water. Do not use abrasive products.

Cleaning the interior

Use the following procedure without any clothing. Your washer

interior should be cleaned at least once per month to reduce or

prevent any accumulation of mold or mildew odors.

• Start by adding 1 cup (250 mL) of bleach into the detergent

dispenser. Continue by adding 1 cup (250 mL) of bleach

directly to the wash tub. This is the only time you should add

anything other than clothing into the wash tub. Select and run

the Regular/Heavy Soil cycle without clothing, using hot

water. Repeat this process if necessary.

• Inspect the interior of the washer for lint and other debris that

may accumulate on the basket and rubber bellows. Remove

and dispose of any accumulation as necessary.

• Leave the washer door open between cycles to allow the

washer interior to dry out.

NOTE: To remove hard water deposits, use only cleaners labeled

for washer use.

Cleaning the door seal

Use a soft damp cloth or sponge when necessary. Check the fold

of the seal periodically for any foreign objects.

Cleaning the dispenser drawer

The dispenser drawer is removable for easy cleaning.

1. Unlock the dispenser drawer by pressing on the plastic part

of the softener compartment marked "PUSH."

Cleaning the lint filter

The lint filter should be cleaned about once a month. Make sure

the washer has drained before opening the filter door.

1. Place a pan or towel under the filter door, since a small

amount of water could spill.

2. Remove the filter by rotating it a half-turn counterclockwise

and pulling outward.

3. Clean the filter with a soft brush under running water until all

residue is removed.

4. Replace the filter and turn it clockwise until it is securely

locked in place. Give the cap a gentle tug to confirm that the

filter is secure.

A. Dispenserdrawer release

2. Remove the drawer.

3. Do not clean the door with cleaning solvents or abrasive

cleansers. You could damage the finish.

4. Replace the dispenser drawer in the washer.

Cleaning the control panel

To clean the control panel, use only a warm, damp cloth.

• Do not spray water or cleaning solvents on the control panel.

• Do not use abrasive cleaners or scouring pads on the outer

surfaces because they will scratch the finish and could

remove the writing on the control panel.

• Some paper towels may also scratch the finish.

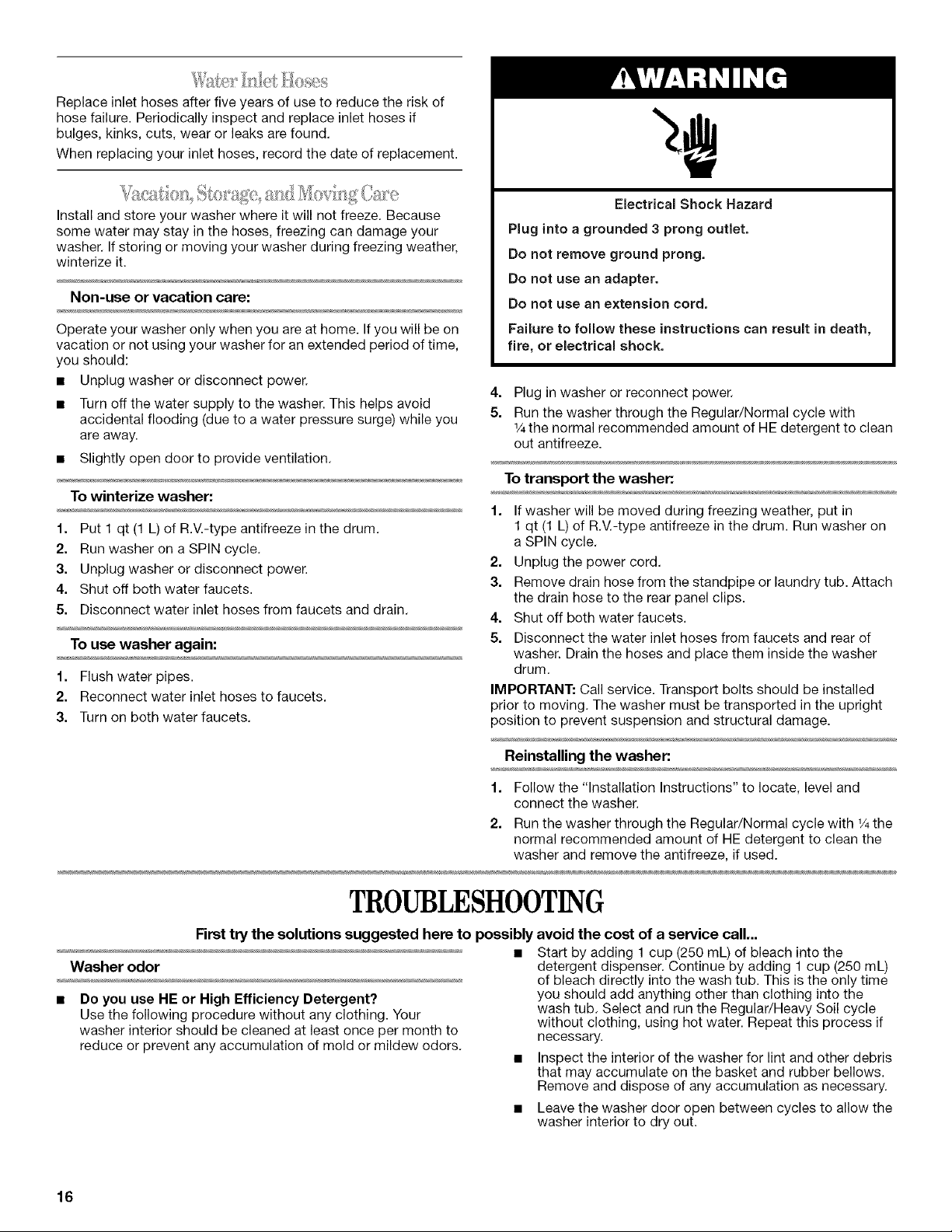

Replace inlet hoses after five years of use to reduce the risk of

hose failure. Periodically inspect and replace inlet hoses if

bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, record the date of replacement.

_Y, :'<......... ,, U

Install and store your washer where it will not freeze, Because

some water may stay in the hoses, freezing can damage your

washer. If storing or moving your washer during freezing weather,

winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on

vacation or not using your washer for an extended period of time,

you should:

• Unplug washer or disconnect power.

• Turn off the water supply to the washer. This helps avoid

accidental flooding (due to a water pressure surge) while you

are away.

• Slightly open door to provide ventilation.

To winterize washer:

1. Put 1 qt (1 L) of R.V.-type antifreeze in the drum.

2. Run washer on a SPIN cycle.

3. Unplug washer or disconnect power.

4. Shut off both water faucets.

5. Disconnect water inlet hoses from faucets and drain.

To use washer again:

1. Flush water pipes.

2. Reconnect water inlet hoses to faucets.

3. Turn on both water faucets.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,

fire, or electrical shock.

Plug in washer or reconnect power.

Run the washer through the Regular/Normal cycle with

1/4the normal recommended amount of HE detergent to clean

out antifreeze.

Totransport the washer:.

1. If washer will be moved during freezing weather, put in

1 qt (1 L) of R.V.-type antifreeze in the drum. Run washer on

a SPIN cycle.

2. Unplug the power cord.

3. Remove drain hose from the standpipe or laundry tub. Attach

the drain hose to the rear panel clips.

4. Shut off both water faucets.

5. Disconnect the water inlet hoses from faucets and rear of

washer. Drain the hoses and place them inside the washer

drum.

IMPORTANT: Call service. Transport bolts should be installed

prior to moving. The washer must be transported in the upright

position to prevent suspension and structural damage.

Reinstalling the washer:

1. Follow the "Installation Instructions" to locate, level and

connect the washer.

2. Run the washer through the Regular/Normal cycle with 1/4the

normal recommended amount of HE detergent to clean the

washer and remove the antifreeze, if used.

TROUBLESHOOTING

Firsttry the solutions suggested here to possibly avoid the cost of a service call...

Washer odor

• Start by adding 1 cup (250 mL) of bleach into the

detergent dispenser. Continue by adding 1 cup (250 mL)

of bleach directly into the wash tub. This is the only time

you should add anything other than clothing into the

wash tub. Select and run the Regular/Heavy Soil cycle

without clothing, using hot water. Repeat this process if

necessary.

• Inspect the interior of the washer for lint and other debris

that may accumulate on the basket and rubber bellows.

Remove and dispose of any accumulation as necessary.

• Leave the washer door open between cycles to allow the

washer interior to dry out.

Do you use HE or High Efficiency Detergent?

Use the following procedure without any clothing. Your

washer interior should be cleaned at least once per month to

reduce or prevent any accumulation of mold or mildew odors.

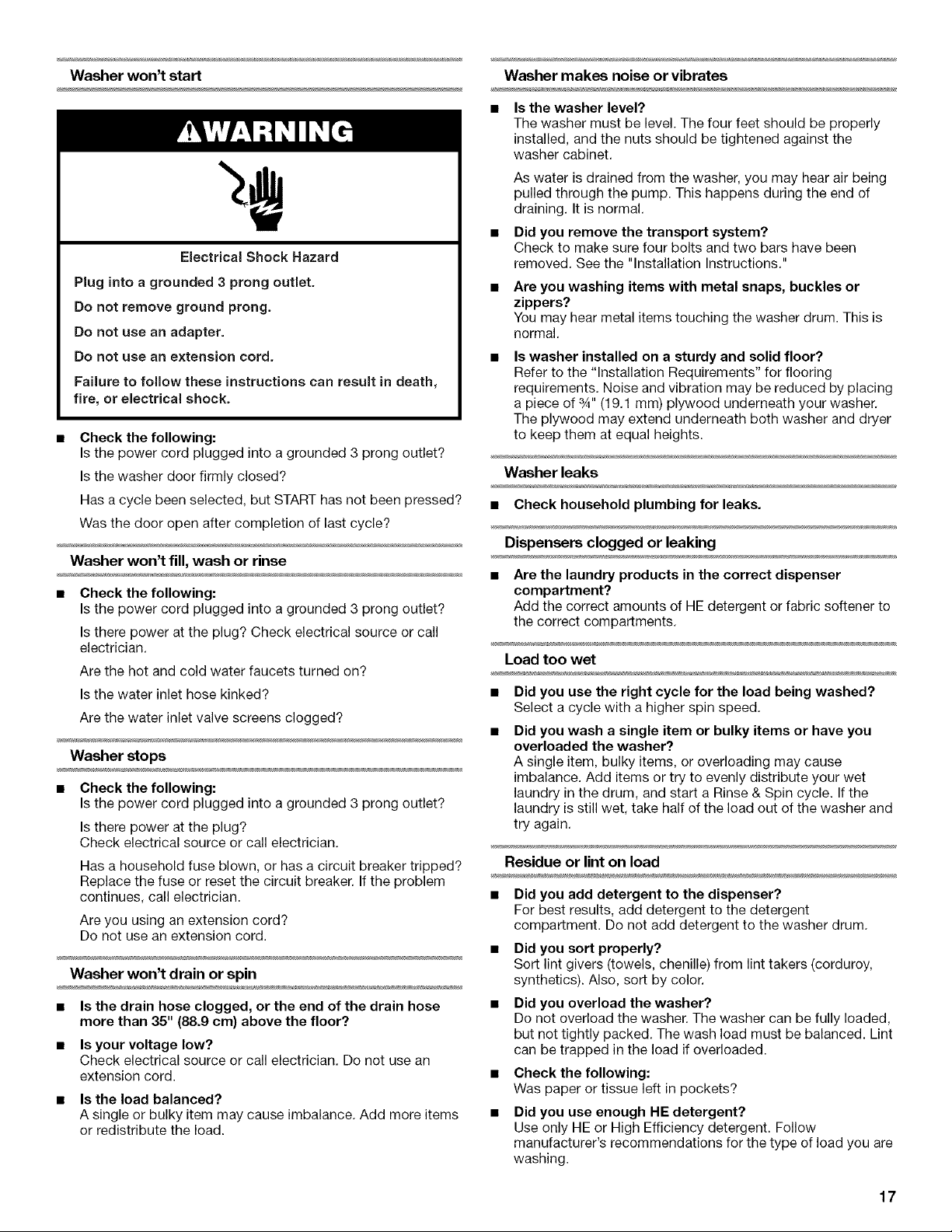

Washer won't start

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

• Check the following:

Is the power cord plugged into a grounded 3 prong outlet?

Is the washer door firmly closed?

Has a cycle been selected, but START has not been pressed?

Was the door open after completion of last cycle?

Washer won't fill, wash or rinse

• Checkthe following:

Is the power cord plugged into a grounded 3 prong outlet?

Is there power at the plug? Check electrical source or call

electrician.

Are the hot and cold water faucets turned on?

Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

Washer stops

• Check the following:

Is the power cord plugged into a grounded 3 prong outlet?

Is there power at the plug?

Check electrical source or call electrician.

Has a household fuse blown, or has a circuit breaker tripped?

Replace the fuse or reset the circuit breaker. Ifthe problem

continues, call electrician.

Are you using an extension cord?

Do not use an extension cord.

Washer won't drain or spin

• Is the drain hose clogged, or the end of the drain hose •

more than 35" (88.9 cm) above the floor?

• Is your voltage low?

Check electrical source or call electrician. Do not use an

extension cord.

• Is the load balanced?

A single or bulky item may cause imbalance. Add more items •

or redistribute the load.

Washer makes noise or vibrates

Is the washer level?

The washer must be level. The four feet should be properly

installed, and the nuts should be tightened against the

washer cabinet.

As water is drained from the washer, you may hear air being

pulled through the pump. This happens during the end of

draining. It is normal.

• Did you remove the transport system?

Check to make sure four bolts and two bars have been

removed. See the "Installation Instructions."

Are you washing items with metal snaps, buckles or

zippers?

You may hear metal items touching the washer drum. This is

normal.

Is washer installed on a sturdy and solid floor?

Refer to the "Installation Requirements" for flooring

requirements. Noise and vibration may be reduced by placing

a piece of 3A"(19.1 mm) plywood underneath your washer.

The plywood may extend underneath both washer and dryer

to keep them at equal heights.

Washerleaks

• Check household plumbing for leaks.

Dispensers clogged or leaking

Are the laundry products in the correct dispenser

compartment?

Add the correct amounts of HE detergent or fabric softener to

the correct compartments.

Load too wet

• Did you use the right cycle for the load being washed?

Select a cycle with a higher spin speed.

Did you wash a single item or bulky items or have you

overloaded the washer?

A single item, bulky items, or overloading may cause

imbalance. Add items or try to evenly distribute your wet

laundry in the drum, and start a Rinse & Spin cycle. If the

laundry is still wet, take half of the load out of the washer and

try again.

Residue or lint on load

• Did you add detergent to the dispenser?

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.

• Did you sort properly?

Sort lint givers (towels, chenille) from lint takers (corduroy,

synthetics). Also, sort by color.

Did you overload the washer?

Do not overload the washer. The washer can be fully loaded,

but not tightly packed. The wash load must be balanced. Lint

can be trapped in the load if overloaded.

• Checkthe following:

Was paper or tissue left in pockets?

Did you use enough HE detergent?

Use only HE or High Efficiency detergent. Follow

manufacturer's recommendations for the type of load you are

washing.

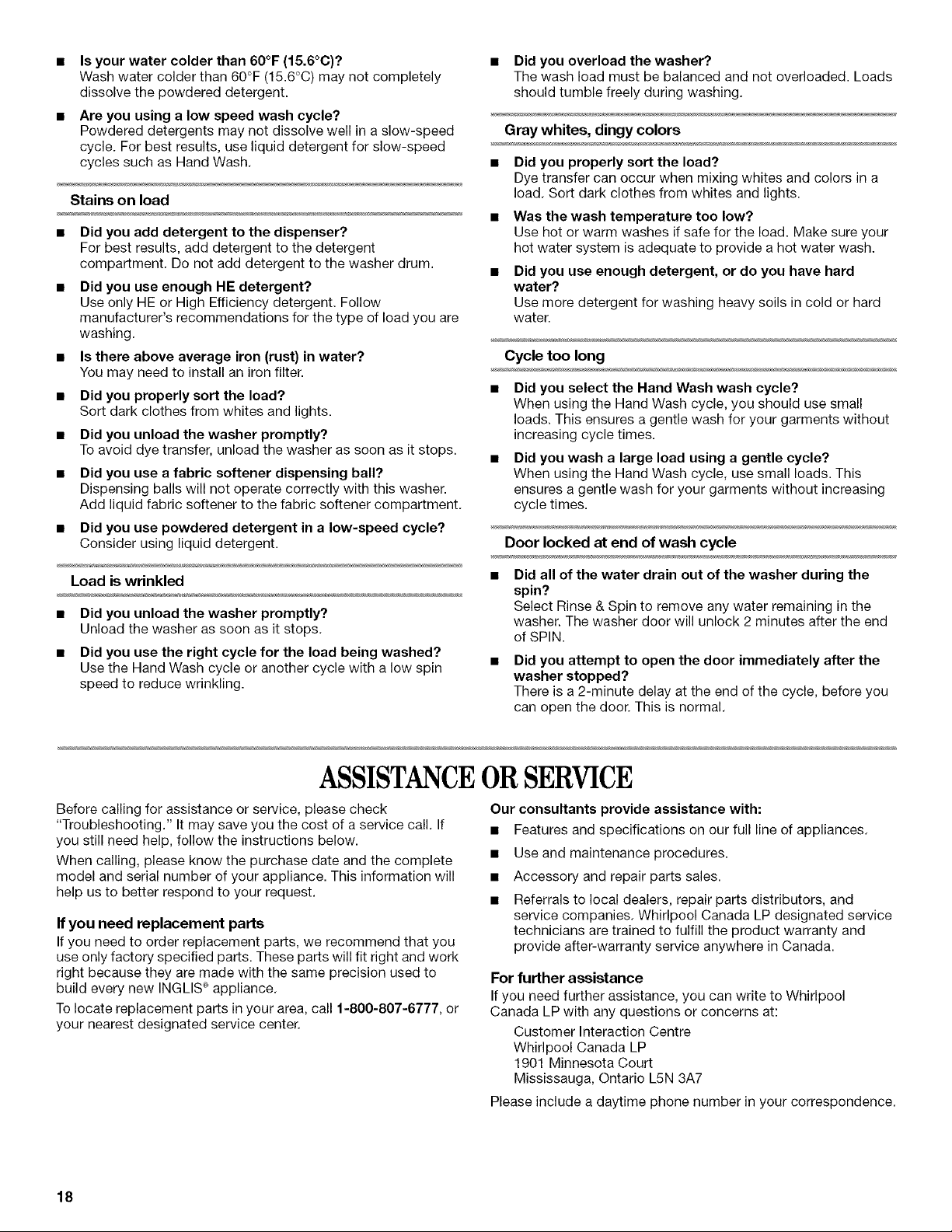

• Is your water colder than 60°F (15.6°C)?

Wash water colder than 60°F (15.6°C) may not completely

dissolve the powdered detergent.

Are you using a low speed wash cycle?

Powdered detergents may not dissolve well in a slow-speed

cycle. For best results, use liquid detergent for slow-speed

cycles such as Hand Wash.

Stains on load

• Did you add detergent to the dispenser?

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.

Did you use enough HE detergent?

Use only HE or High Efficiency detergent. Follow

manufacturer's recommendations for the type of load you are

washing.

• Is there above average iron (rust) in water?

You may need to install an iron filter.

• Did you properly sort the load?

Sort dark clothes from whites and lights.

• Did you unload the washer promptly?

To avoid dye transfer, unload the washer as soon as it stops.

• Did you use a fabric softener dispensing ball?

Dispensing balls will not operate correctly with this washer.

Add liquid fabric softener to the fabric softener compartment.

• Did you use powdered detergent in a low-speed cycle?

Consider using liquid detergent.

Load is wrinkled

• Did you unload the washer promptly?

Unload the washer as soon as it stops.

• Did you use the right cycle for the load being washed?

Use the Hand Wash cycle or another cycle with a low spin

speed to reduce wrinkling.

• Did you overload the washer?

The wash load must be balanced and not overloaded. Loads

should tumble freely during washing.

Gray whites, dingy colors

• Did you properly sort the load?

Dye transfer can occur when mixing whites and colors in a

load. Sort dark clothes from whites and lights.

Was the wash temperature too low?

Use hot or warm washes if safe for the load. Make sure your

hot water system is adequate to provide a hot water wash.

Did you use enough detergent, or do you have hard

water?

Use more detergent for washing heavy soils in cold or hard

water.

Cycle too long

Did you select the Hand Wash wash cycle?

When using the Hand Wash cycle, you should use small

loads. This ensures a gentle wash for your garments without

increasing cycle times.

Did you wash a large load using a gentle cycle?

When using the Hand Wash cycle, use small loads. This

ensures a gentle wash for your garments without increasing

cycle times.

Door locked at end of wash cycle

Did all of the water drain out of the washer during the

spin?

Select Rinse & Spin to remove any water remaining in the

washer. The washer door will unlock 2 minutes after the end

of SPIN.

Did you attempt to open the door immediately after the

washer stopped?

There is a 2-minute delay at the end of the cycle, before you

can open the door. This is normal.

ASSISTANCEORSERVICE

Before calling for assistance or service, please check

"Troubleshooting." It may save you the cost of a service call. If

you still need help, follow the instructions below.

When calling, please know the purchase date and the complete

model and serial number of your appliance. This information will

help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you

use only factory specified parts. These parts will fit right and work

right because they are made with the same precision used to

build every new INGLIS ®appliance.

To locate replacement parts in your area, call 1-800-807-6777, or

your nearest designated service center.

Our consultants provide assistance with:

• Features and specifications on our full line of appliances.

• Use and maintenance procedures.

• Accessory and repair parts sales.

• Referrals to local dealers, repair parts distributors, and

service companies. Whirlpool Canada LP designated service

technicians are trained to fulfill the product warranty and

provide after-warranty service anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Customer Interaction Centre

Whirlpool Canada LP

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

INGLIS®WASHERWARRANTY

ONE-YEAR FULL WARRANTY

For one year from the date of purchase, when this washer is operated and maintained according to instructions attached to or furnished

with the product, Whirlpool Canada LP will pay for replacement parts and repair labor costs to correct defects in materials or

workmanship. Service must be provided by a Whirlpool designated service company.

SECOND YEAR LIMITED WARRANTY ON ALL ELECTRONIC CONTROL BOARDS

For the second year from the date of purchase, when this washer is operated and maintained according to instructions attached to or

furnished with the product, Whirlpool Canada LP will pay for replacement parts for all electronic control boards.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON DRIVE SYSTEM BELTAND PULLEYS

In the second through fifth years from the date of purchase, when this washer is operated and maintained according to instructions

attached to or furnished with the product, Whirlpool Canada LP will pay for replacement parts for the following, if defective in materials

or workmanship: drive system belt and pulleys.

SECOND THROUGH TENTH YEAR LIMITED WARRANTY ON OUTER TUB

In the second through tenth years from the date of purchase, when this washer is operated and maintained according to instructions

attached to or furnished with the product, Whirlpool Canada LP will pay for replacement parts for the outer tub should it crack or fail to

contain water, if defective in materials or workmanship.

LIFETIME LIMITED WARRANTY ON STAINLESS STEEL WASH DRUM

For the lifetime of the washer, when this washer is operated and maintained according to instructions attached to or furnished with the

product, Whirlpool Canada LP will pay for replacement parts for the Stainless Steel wash drum if defective in materials or workmanship.

Whirlpool Canada LP will not pay for:

1. Service calls to correct the installation of your washer, to instruct you how to use your washer, or to replace household fuses or

correct house wiring or plumbing.

2. Repairs when your washer is used in other than normal, single-family household use.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in

accordance with local electrical and plumbing codes, or use of products not approved by Whirlpool Canada LR

4. Any labor costs during the limited warranty periods.

5. Replacement parts or repair labor costs for units operated outside of Canada.

6. Pickup and delivery. This product is designed to be repaired in the home.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Travel or transportation expenses for customers who reside in remote areas.

WHIRLPOOL CANADA LP SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not

apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from province to province.

Outside Canada, this warranty does not apply. Contact your authorized Whirlpool Canada LP dealer to determine if another

warranty applies.

If you need service, first see "Troubleshooting." Additional help can be found by checking "Assistance or Service," or you may call

Whirlpool Canada LP at f-800-807-6777.

4/05

Keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

Write down the following information about your washer to better

help you obtain assistance or service if you ever need it. You will

need to know your complete model number and serial number.

You can find this information on the model and serial number

label/plate, located on your appliance.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

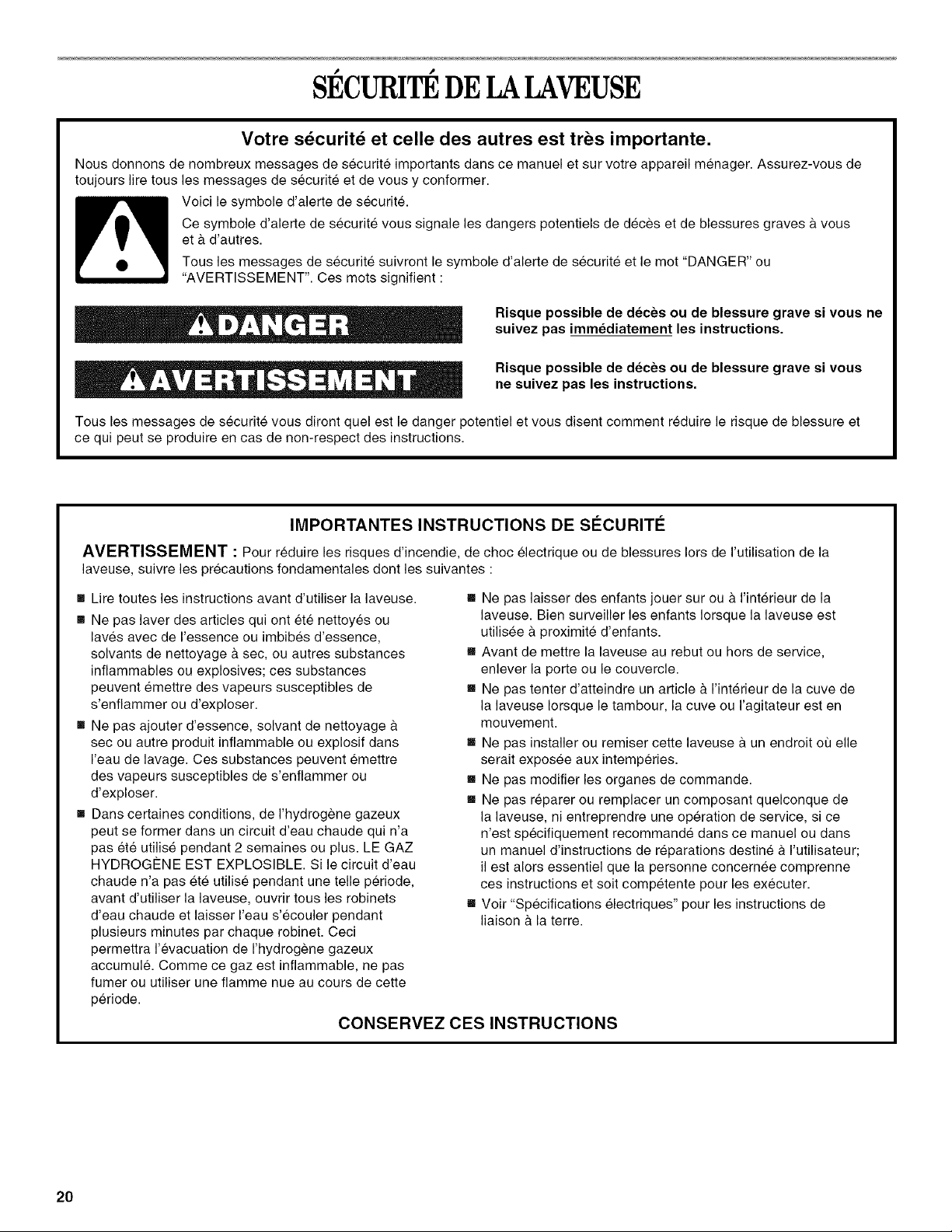

SECURITEDELALAVEUSE

Votre s_curit_ et celle des autres est tres importante.

Nous donnons de nombreux messages de securite importants dans ce manuel et sur votre appareil menager. Assurez-vous de

toujours lire tousles messages de securite et de vous y conformer.

Voici le symbole d'alerte de securit6.

Ce symbole d'alerte de securite vous signale les dangers potentiels de deces et de blessures graves h vous

et h d'autres.

Tousles messages de securite suivront le symbole d'alerte de securite et le mot "DANGER" ou

"AVERTISSEMENT". Ces roots signifient :

Risque possible de deces ou de blessure grave si vous ne

euivez pas immediatement lee instructions.

Risque possible de deces ou de blessure grave si vous

ne euivez pas lee instructions.

Tousles messages de securite vous diront quel est le danger potentiel et vous disent comment reduire le risque de blessure et

ce qui peut se produire en cas de non-respect des instructions.

IMPORTANTES INSTRUCTIONS DE SleCURITle

AVERTISSEMENT : Pour reduire les risques d'incendie, de choc electrique ou de blessures Iors de I'utilisation de la

laveuse, suivre les precautions fondamentales dent les suivantes :

[] Lire toutes les instructions avant d'utiliser la laveuse.

[] Ne pas laver des articles qui ont et6 nettoyes ou

laves avec de I'essence ou imbibes d'essence,

solvants de nettoyage a sec, ou autres substances

inflammables ou explosives; ces substances

peuvent emettre des vapeurs susceptibles de

s'enflammer ou d'exploser.

[] Ne pas ajouter d'essence, solvant de nettoyage

sec ou autre produit inflammable ou explosif dans

I'eau de lavage. Ces substances peuvent emettre

des vapeurs susceptibles de s'enflammer ou

d'exploser.

[] Dans certaines conditions, de I'hydrogene gazeux

peut se former dans un circuit d'eau chaude qui n'a

pas et6 utilise pendant 2 semaines ou plus. LE GAZ

HYDROGENE EST EXPLOSlBLE. Si le circuit d'eau

chaude n'a pas ete utilise pendant une telle periode,

avant d'utiliser la laveuse, ouvrir tous les robinets

d'eau chaude et laisser I'eau s'ecouler pendant

plusieurs minutes par chaque robinet. Ceci

permettra I'evacuation de I'hydrogene gazeux

accumule. Comme ce gaz est inflammable, ne pas

fumer ou utiliser une flamme nue au cours de cette

periode.

[] Ne pas laisser des enfants jouer sur ou h I'interieur de la

laveuse. Bien surveiller les enfants Iorsque la laveuse est

utilisee h proximite d'enfants.

[] Avant de mettre la laveuse au rebut ou hers de service,

enlever la porte ou le couvercle.

[] Ne pas tenter d'atteindre un article a I'interieur de la cuve de

la laveuse Iorsque le tambour, la cuve ou I'agitateur est en

mouvement.

[] Ne pas installer ou remiser cette laveuse a un endroit ou elle

serait exposee aux intemperies.

[] Ne pas modifier les organes de commande.

[] Ne pas reparer ou remplacer un composant quelconque de

la laveuse, ni entreprendre une operation de service, si ce

n'est specifiquement recommande dans ce manuel ou dans

un manuel d'instructions de reparations destine a I'utilisateur;

il est alors essentiel que la personne concernee comprenne

ces instructions et soit competente pour les executer.

[] Voir "Specifications electriques" pour les instructions de

liaison a la terre.

CONSERVEZ CES INSTRUCTIONS

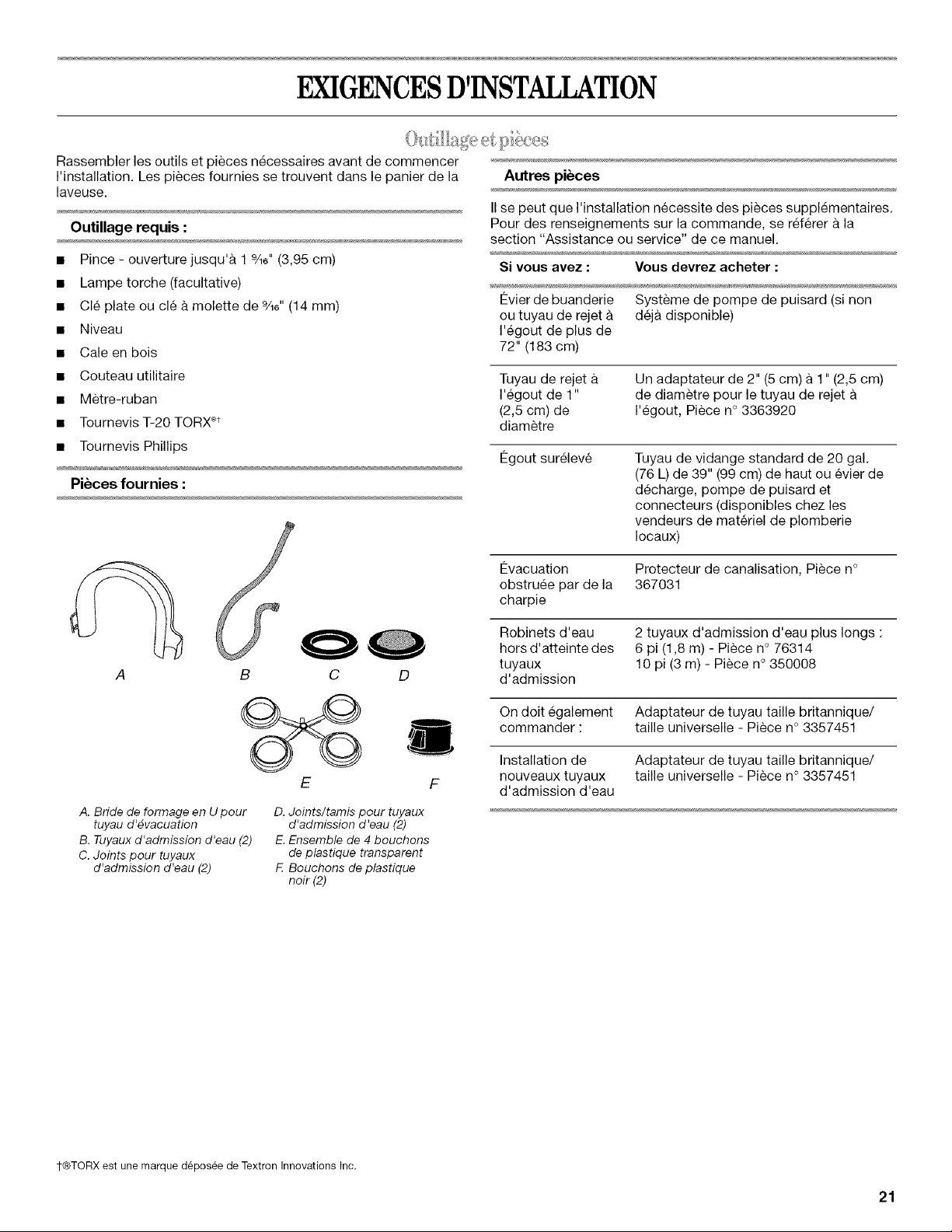

EKIGENCESD'INSTALLATION

Rassembler les outils et pieces necessaires avant de commencer

I'installation. Les pieces fournies se trouvent dans le panier de la Autres pi_ces

laveuse.

IIse peut que I'installation necessite des pieces supplementaires.

Outillage requis : Pour des renseignements sur la commande, se referer a la

section "Assistance ou service" de ce manuel.

• Pince - ouverture jusqu'a 1 9A6"(3,95 cm)

• Lampetorche (facultative)

• Cle plate ou cle a molette de 9/16"(14 mm)

• Niveau

• Cale en bois

Si vous avez : Vous devrez acheter :

Evier de buanderie Systeme de pompe de puisard (si non

ou tuyau de rejet a deja disponible)

I'egout de plus de

72" (183 cm)

• Couteau utilitaire

• Metre-ruban

• TournevisT-20 TORX®t

• Tournevis Phillips

Pi_ces fournies :

Tuyau de rejet

I'egout de 1"

(2,5 cm) de

diam_tre

12goutsureleve

Un adaptateur de 2" (5 cm) a 1" (2,5 cm)

de diametre pour le tuyau de rejet

I'egout, Piece n° 3363920

Tuyau de vidange standard de 20 gal.

(76 L) de 39" (99 cm) de haut ou evier de

decharge, pompe de puisard et

connecteurs (disponibles chez les

vendeurs de materiel de plomberie

Iocaux)

Evacuation Protecteur de canalisation, Piece n°

obstruee par de la 367031

charpie

Robinets d'eau 2 tuyaux d'admission d'eau plus longs :

hors d'atteinte des 6 pi (1,8 m) - Piece n° 76314

tuyaux 10 pi (3 m) - Piece n° 350008

d'admission

On dolt egalement Adaptateur de tuyau taille britannique/

commander : taille universelle - Piece n° 3357451

B C

A. Bride de formage en U pour

tuyau d'_vacuation

B. Tuyaux d'admission d'eau (2)

C. Joints pour tuyaux

d'admission d'eau (2)

D. Joints/tamis pour tuyaux

d'admission d'eau (2)

E.Ensemble de 4 bouchons

de plastique transparent

F. Bouchons de plastique

noir (2)

Installation de Adaptateur de tuyau taille britannique/

nouveaux tuyaux taille universelle - Piece n° 3357451

d'admission d'eau

1-®TORX est une marque depos6e de Textron Innovations Inc.

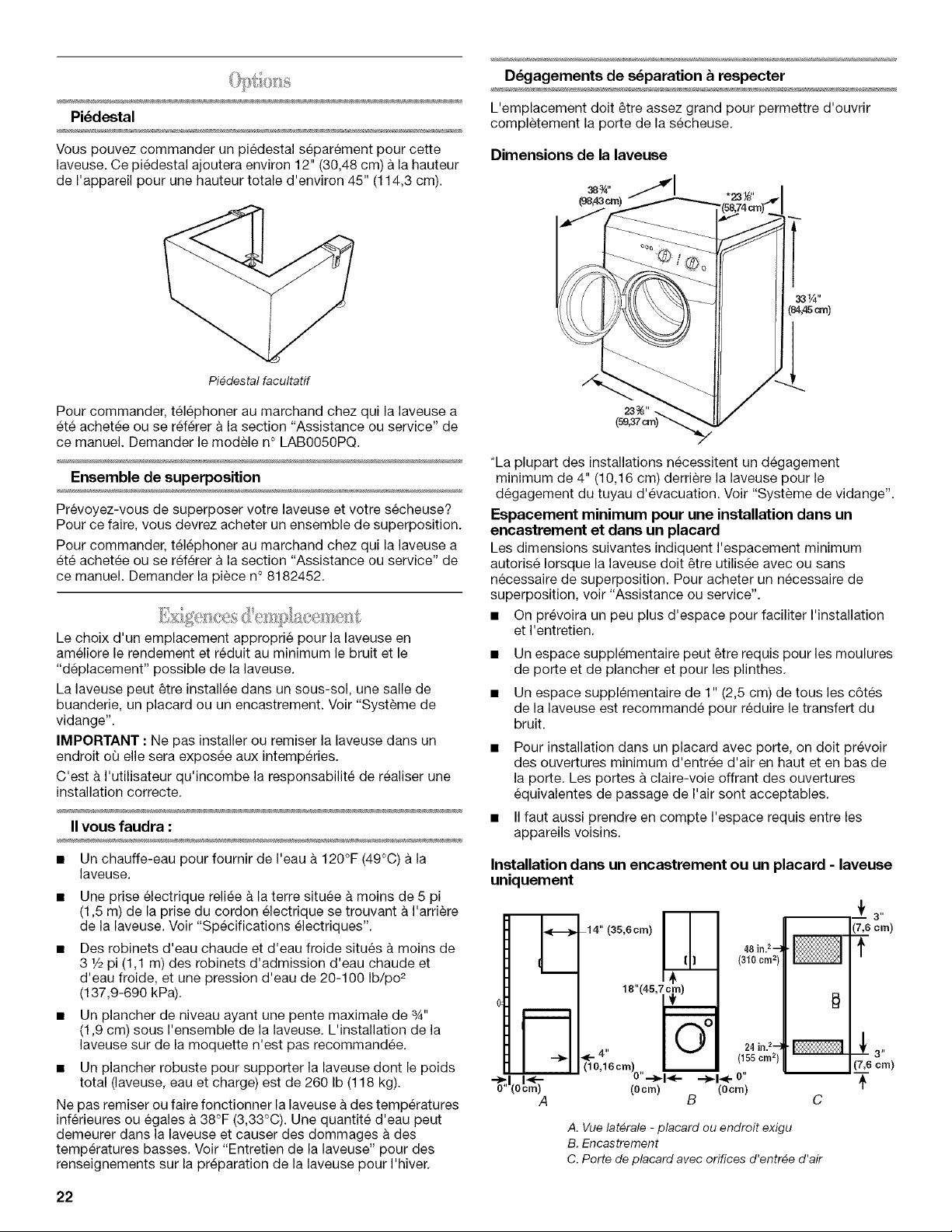

Pi6destal

Vous pouvez commander un piedestal s6parement pour cette

laveuse. Ce piedestal ajoutera environ 12" (30,48 cm) a la hauteur

de I'appareil pour une hauteur totale d'environ 45" (114,3 cm).

DL_jagements de s_paration a respecter

L'emplacement dolt 6tre assez grand pour permettre d'ouvrir

completement la porte de la secheuse.

Dimensions de la laveuse

38%"

(9&43crn) "23_"

33¼"

(e4,4scm)

Pi_destal facultatif

Pour commander, telephoner au marchand chez qui la laveuse a

ete achetee ou se referer a la section "Assistance ou service" de

ce manuel. Demander le modele n° LAB0050PQ.

Ensemble de superposition

Prevoyez-vous de superposer votre laveuse et votre secheuse?

Pour ce faire, vous devrez acheter un ensemble de superposition.

Pour commander, telephoner au marchand chez qui la laveuse a

ete achet6e ou se referer a la section "Assistance ou service" de

ce manuel. Demander la piece n° 8182452.

Le choix d'un emplacement approprie pour la laveuse en

ameliore le rendement et reduit au minimum le bruit et le

"deplacement" possible de la laveuse.

La laveuse peut _tre installee dans un sous-sol, une salle de

buanderie, un placard ou un encastrement. Voir "Systeme de

vidange'.

IMPORTANT : Ne pas installer ou remiser la laveuse dans un

endroit ou elle sera exposee aux intemperies.

C'est & I'utilisateur qu'incombe la responsabilite de realiser une

installation correcte.

II vous faudra :

• Un chauffe-eau pour fournir de I'eau a 120°F (49°C) a la

laveuse.

• Une prise electrique reliee & la terre situee & moins de 5 pi

(1,5 m) de la prise du cordon electrique se trouvant a I'arriere

de la laveuse. Voir "Specifications electriques".

• Des robinets d'eau chaude et d'eau froide situes a moins de

3 1/2pi (1,1 m) des robinets d'admission d'eau chaude et

d'eau froide, et une pression d'eau de 20-100 Ib/po 2

(137,9-690 kPa).

• Un plancher de niveau ayant une pente maximale de 3A"

(1,9 cm) sous I'ensemble de la laveuse. L'installation de la

laveuse sur de la moquette n'est pas recommandee.

• Un plancher robuste pour supporter la laveuse dont le poids

total (laveuse, eau et charge) est de 260 Ib (118 kg).

Ne pas remiser ou faire fonctionner la laveuse & des temperatures

inferieures ou egales a 38°F (3,33°C). Une quantite d'eau peut

demeurer dans la laveuse et causer des dommages & des

temperatures basses. Voir "Entretien de la laveuse" pour des

renseignements sur la preparation de la laveuse pour I'hiver.

*La plupart des installations necessitent un degagement

minimum de 4" (10,16 cm) derriere la laveuse pour le

degagement du tuyau d'evacuation. Voir "Systeme de vidange".

Espacement minimum pour une installation dans un

encastrement et darts un placard

Les dimensions suivantes indiquent I'espacement minimum

autorise Iorsque la laveuse dolt _tre utilisee avec ou sans

necessaire de superposition. Pour acheter un necessaire de

superposition, voir "Assistance ou service".

• On prevoira un peu plus d'espace pour faciliter I'installation

et I'entretien.

• Un espace supplementaire peut _tre requis pour les moulures

de porte et de plancher et pour les plinthes.

• Un espace supplementaire de 1" (2,5 cm) de tousles c6tes

de la laveuse est recommande pour reduire le transfert du

bruit.

Pour installation dans un placard avec porte, on dolt prevoir

des ouvertures minimum d'entree d'air en haut et en bas de

la porte. Les portes & claire-vole offrant des ouvertures

equivalentes de passage de I'air sont acceptables.

• IIfaut aussi prendre en compte I'espace requis entre les

appareils voisins.

Installation dans un encastrement ou un placard - laveuse

uniquement

0" (0cm}

14"

(35,6cm)

| I 48 in._"_

(310crn2)

18" (45,7 c[n)

4" I 001 24 irl.2'-_

*- I - I (lss0m2)

(1016cm)

0""-'_1_i'- _I-<-0

(Ocm) (Ocm)

-- .-_-.._3"

(7,6 ore)

_ (7,6era)

A. Vue lat_rale - placard ou endroit exigu

B. Encastrement

C. Porte de placard avec orifices d'entr_e d'air

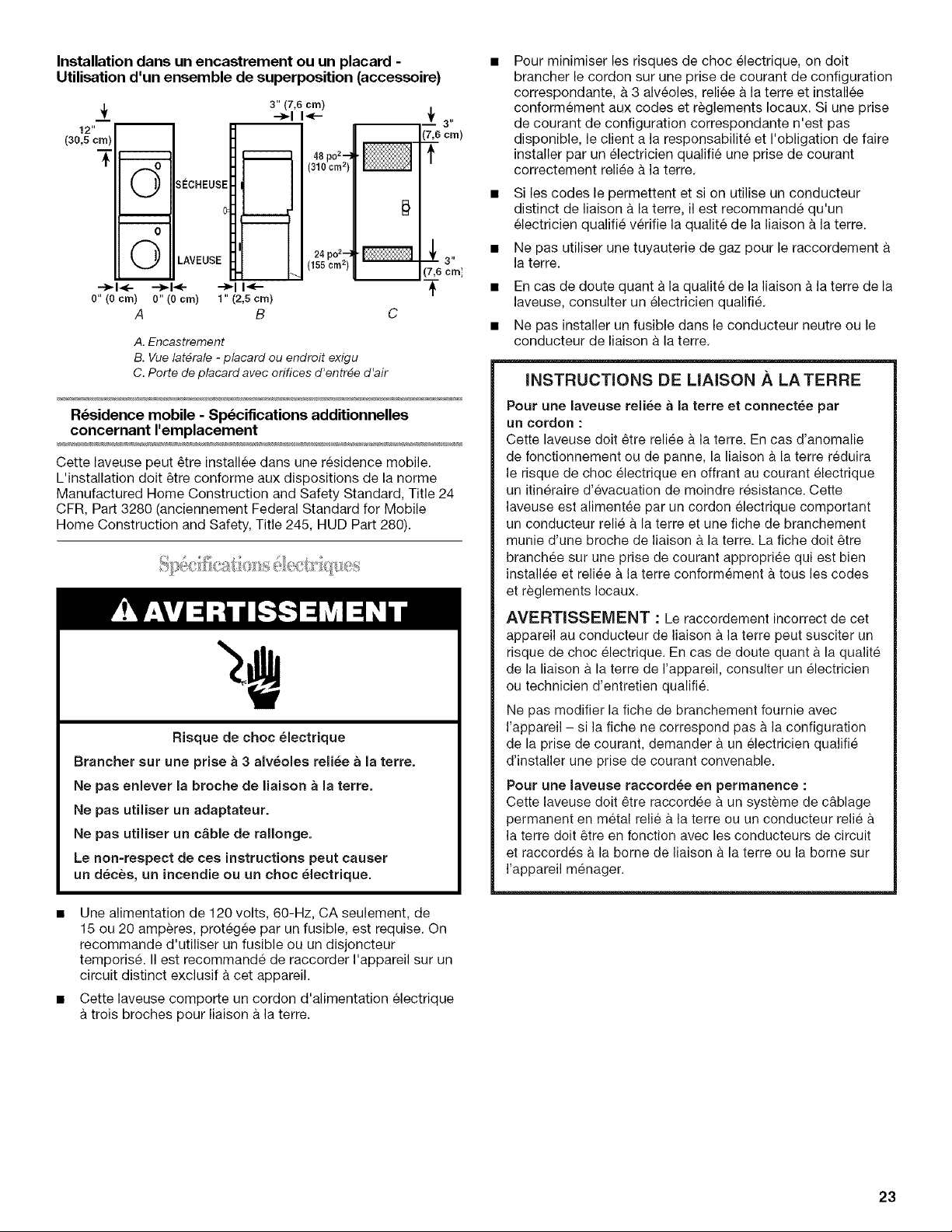

Installationdansunencastrementouunplacard-

Utilisation d'un ensemble de superposition (accessoire)

.L 31' (7,6 cm)

__• ---_1I_-

12"

(30,5 cm)

SECHEUSE

LAVEUSE

--_ I_.- --_ I_- ---_1I_-

0" (0 cm) 0" (0 cm) 1" (2,5 cm)

A B

48poz

(310 cm 2)

24 po2-}

(155crn2)

A. Encastrement

B. Vue lat_rale - placard ou endroit exigu

C. Porte de placard avec orifices d'entr_e d'air

R_sidence mobile - Specifications additionnelles

concernant I'emplacement

Cette laveuse peut _tre installee dans une residence mobile.

L'installation dolt _tre conforme aux dispositions de la norme

Manufactured Home Construction and Safety Standard, Title 24

CFR, Part 3280 (anciennement Federal Standard for Mobile

Home Construction and Safety, Title 245, HUD Part 280).

Risque de choc electrique

Brancher sur une prise a 3 alveoies reii_e a la terre.

Ne pas enlever la broche de liaison a la terre.

Ne pas utiliser un adaptateur.

Ne pas utiliser un cable de railonge,

Le non-respect de ces instructions peut causer

un deces, un incendie ou un choc eiectrique.

Une alimentation de 120 volts, 60-Hz, CA seulement, de

15 ou 20 amperes, protegee par un fusible, est requise. On

recommande d'utiliser un fusible ou un disjoncteur

temporise. IIest recommande de raccorder I'appareil sur un

circuit distinct exclusif a cet appareil.

Cette laveuse comporte un cordon d'alimentation electrique

trois broches pour liaison a la terre.

Pour minimiser les risques de choc electrique, on dolt

brancher le cordon sur une prise de courant de configuration

correspondante, & 3 alveoles, reliee a la terre et installee

conformement aux codes et reglements Iocaux. Si une prise

de courant de configuration correspondante n'est pas

disponible, le client a la responsabilite et I'obligation de faire

installer par un electricien qualifie une prise de courant

correctement reliee a la terre.

Si les codes le permettent et si on utilise un conducteur

distinct de liaison a la terre, il est recommande qu'un

electricien qualifie v@ifie la qualite de la liaison a la terre.

Ne pas utiliser une tuyauterie de gaz pour le raccordement

la terre.

En cas de doute quant a la qualite de la liaison & la terre de la

laveuse, consulter un electricien qualifie.

Ne pas installer un fusible dans le conducteur neutre ou le

conducteur de liaison a la terre.

INSTRUCTIONS DE LIAISON A LATERRE

Pour une laveuse reli_e a la terre et connectee par

un cordon :

Cette laveuse dolt _tre reliee a.la terre. En cas d'anomalie

de fonctionnement ou de panne, la liaison & la terre reduira

le risque de choc electrique en offrant au courant electrique

un itin@aire d'evacuation de moindre resistance. Cette

laveuse est alimentee par un cordon electrique comportant

un conducteur relie & la terre et une fiche de branchement

munie d'une broche de liaison & la terre. La fiche dolt _tre

branchee sur une prise de courant appropriee qui est bien

installee et reliee b,la terre conformement & tousles codes

et reglements Iocaux.

AVERTISSEIVIENT : Le raccordement incorrect de cet

appareil au conducteur de liaison b,la terre peut susciter un

risque de choc electrique. En cas de doute quant & la qualite

de la liaison & la terre de I'appareil, consulter un electricien

ou technicien d'entretien qualifie.

Ne pas modifier la fiche de branchement fournie avec

I'appareil - si la fiche ne correspond pas & la configuration

de la prise de courant, demander & un electricien qualifie

d'installer une prise de courant convenable.

Pour une laveuse raccordee en permanence :

Cette laveuse dolt _tre raccordee a.un systeme de cb,blage

permanent en metal relie & la terre ou un conducteur relie &

la terre dolt _tre en fonction avec les conducteurs de circuit

et raccordes & la borne de liaison & la terre ou la borne sur

I'appareil menager.

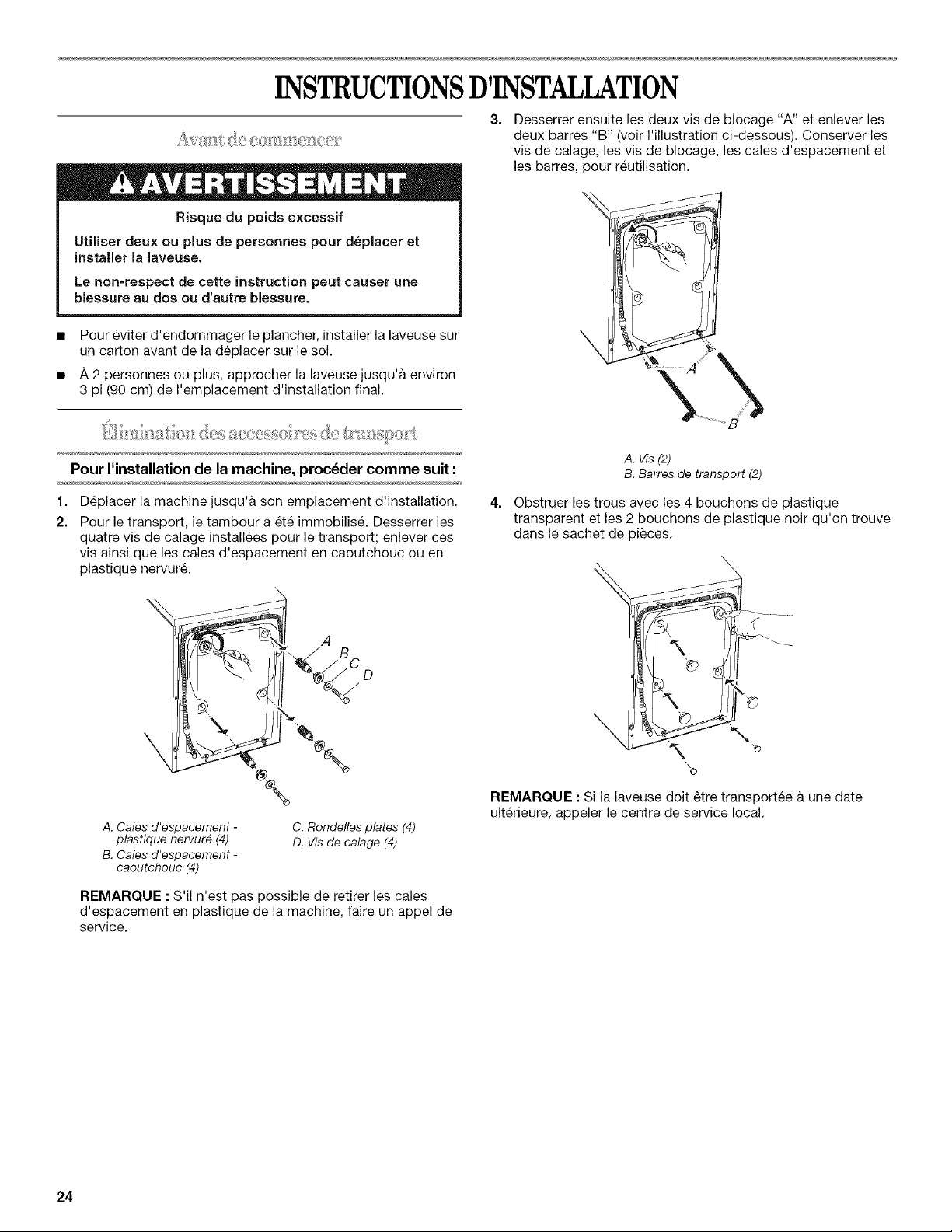

INSTRUCTIONSD'INSTALLATION

Risque du poids excessif

Utiliser deux ou plus de personnes pour d_placer et

installer la laveuse.

Le non-respect de cette instruction peut causer une

blessure au dos ou d'autre biessure.

• Pour eviter d'endommager le plancher, installer la laveuse sur

un carton avant de la deplacer sur le sol.

• A 2 personnes ou plus, approcher la laveuse jusqu'a environ

3 pi (90 cm) de I'emplacement d'installation final.

Desserrer ensuite les deux vis de blocage "A" et enlever les

deux barres "B" (voir I'illustration ci-dessous). Conserver les

vis de calage, les vis de blocage, les cales d'espacement et

les barres, pour reutilisation.

Pour I'installation de la machine, proc_der comme suit :

Deplacer la machine jusqu'a son emplacement d'installation.

Pour le transport, le tambour a ete immobilis& Desserrer les

quatre vis de calage installees pour le transport; enlever ces

vis ainsi que les cales d'espacement en caoutchouc ou en

plastique nervur&

A. Vis (2)

B. Barres de transport (2)

Obstruer les trous avec les 4 bouchons de plastique

transparent et les 2 bouchons de plastique noir qu'on trouve

dans le sachet de pieces.

A. Cales d'espacement -

plastique nervur# (4)

B. Cales d'espacement -

caoutchouc (4)

C. Rondelles plates (4)

D. Vis de calage (4)

REMARQUE : S'il n'est pas possible de retirer les cales

d'espacement en plastique de la machine, faire un appel de

service.

REMARQUE : Si la laveuse dolt _tre transportee a une date

ulterieure, appeler le centre de service local.

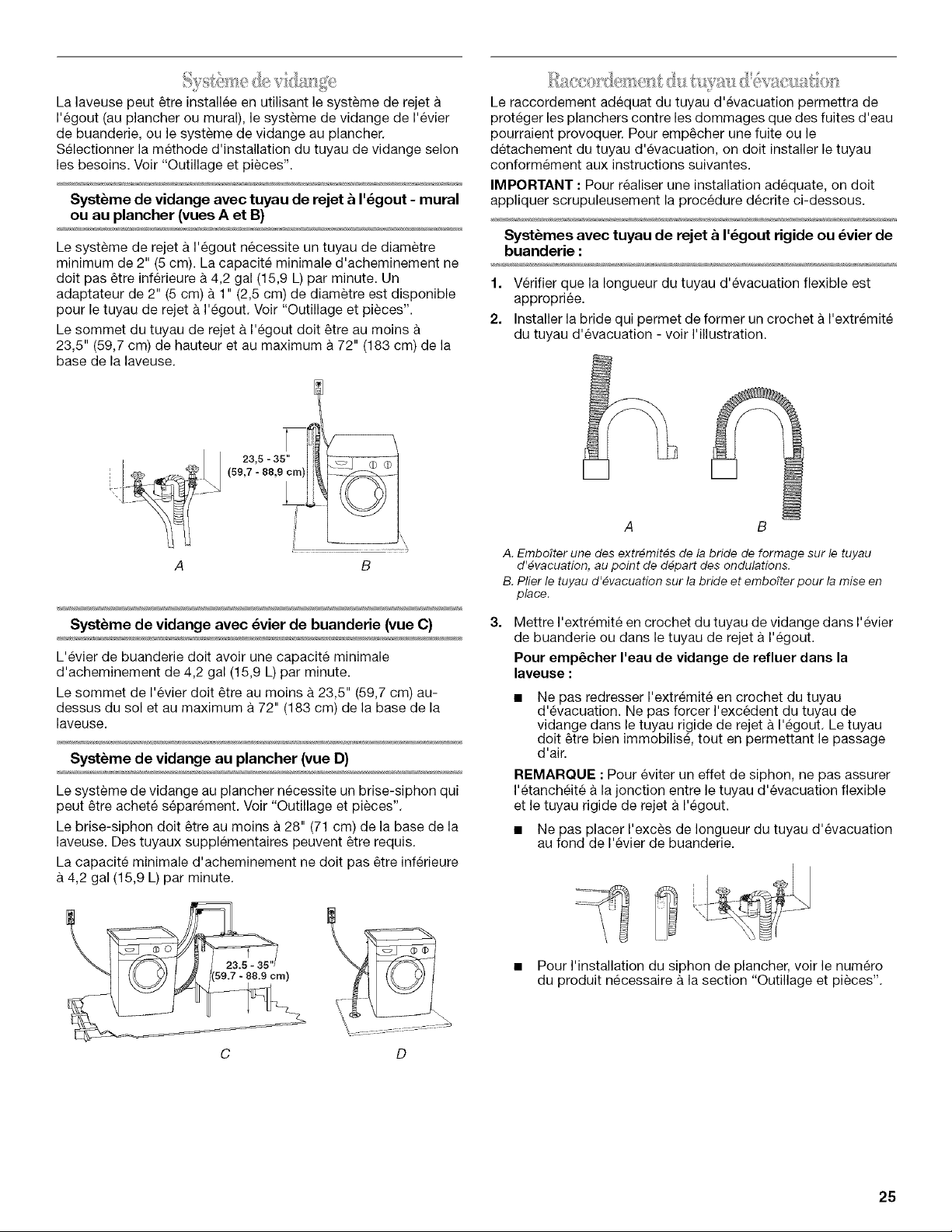

La laveuse peut _tre installee en utilisant le syst_me de rejet

I'egout (au plancher ou mural), le syst_me de vidange de I'evier

de buanderie, ou le syst_me de vidange au plancher.

Selectionner la methode d'installation du tuyau de vidange selon

les besoins. Voir "Outillage et pieces".

Syst_me de vidange avec tuyau de rejet _ I'_gout - mural

ou au plancher (vues A et B)

Le syst_me de rejet a I'egout necessite un tuyau de diametre

minimum de 2" (5 cm). La capacite minimale d'acheminement ne

dolt pas _tre inferieure a 4,2 gal (15,9 L) par minute. Un

adaptateur de 2" (5 cm) a 1" (2,5 cm) de diametre est disponible

pour le tuyau de rejet a I'egout. Voir "Outillage et pieces".

Le sommet du tuyau de rejet a I'egout dolt _tre au moins

23,5" (59,7 cm) de hauteur et au maximum a 72" (183 cm) de la

base de la laveuse.

Le raccordement adequat du tuyau d'evacuation permettra de

proteger les planchers centre les dommages que des fuites d'eau

pourraient provoquer. Pour emp6cher une fuite ou le

detachement du tuyau d'evacuation, on dolt installer le tuyau

conformement aux instructions suivantes.

IMPORTANT : Pour realiser une installation adequate, on dolt

appliquer scrupuleusement la procedure decrite ci-dessous.

Syst_mes avec tuyau de rejet & I'_gout rigide ou _vier de

buanderie :

1. Verifier que la Iongueur du tuyau d'evacuation flexible est

appropriee.

2. Installer labride qui permet de former un crochet a I'extremit6

du tuyau d'evacuation - voir I'illustration.

23,5 - 35"

(59,7 - 88,9 cm)

Syst_me de vidange avec _vier de buanderie (vue C)

L'evier de buanderie dolt avoir une capacite minimale

d'acheminement de 4,2 gal (15,9 L) par minute.

Le sommet de I'evier dolt _tre au moins a 23,5" (59,7 cm) au-

dessus du sol et au maximum a 72" (183 cm) de la base de la

laveuse.

Syst_me de vidange au plancher (vue D)

Le systeme de vidange au plancher n_cessite un brise-siphon qui

peut _tre achete separement. Voir "Outillage et pieces".

Le brise-siphon dolt _tre au moins a 28" (71 cm) de la base de la

laveuse. Des tuyaux supplementaires peuvent _tre requis.

La capacite minimale d'acheminement ne dolt pas _tre inferieure

4,2 gal (15,9 L) par minute.

C D

A B

A. Embo_ter une des extr#mit#s de la bride de fermage sur le tuyau

d'_vacuation, au point de d_part des ondulations.

B. Plier le tuyau d'_vacuation sur la bride et ernbo_ter pour la rnise en

place.

Mettre I'extremite en crochet du tuyau de vidange dans I'evier

de buanderie ou dans le tuyau de rejet a I'egout.

Pour emp_cher I'eau de vidange de refluer darts la

laveuse :

Ne pas redresser I'extremite en crochet du tuyau

d'evacuation. Ne pas forcer I'excedent du tuyau de

vidange dans le tuyau rigide de rejet & I'egout. Le tuyau

dolt _tre bien immobilise, tout en permettant le passage

d'air.

REMARQUE : Pour eviter un effet de siphon, ne pas assurer

I'etancheite a la jonction entre le tuyau d'evacuation flexible

et le tuyau rigide de rejet a I'egout.

• Ne pas placer I'exc_s de Iongueur du tuyau d'evacuation

au fond de I'evier de buanderie.

• Pour I'installation du siphon de plancher, voir le numero

du produit necessaire a la section "Outillage et pieces".

_ / *_ , _ _i_, _ %:, _ _'i.%_ ........ _...... _ _ ..... _, _,_, . _

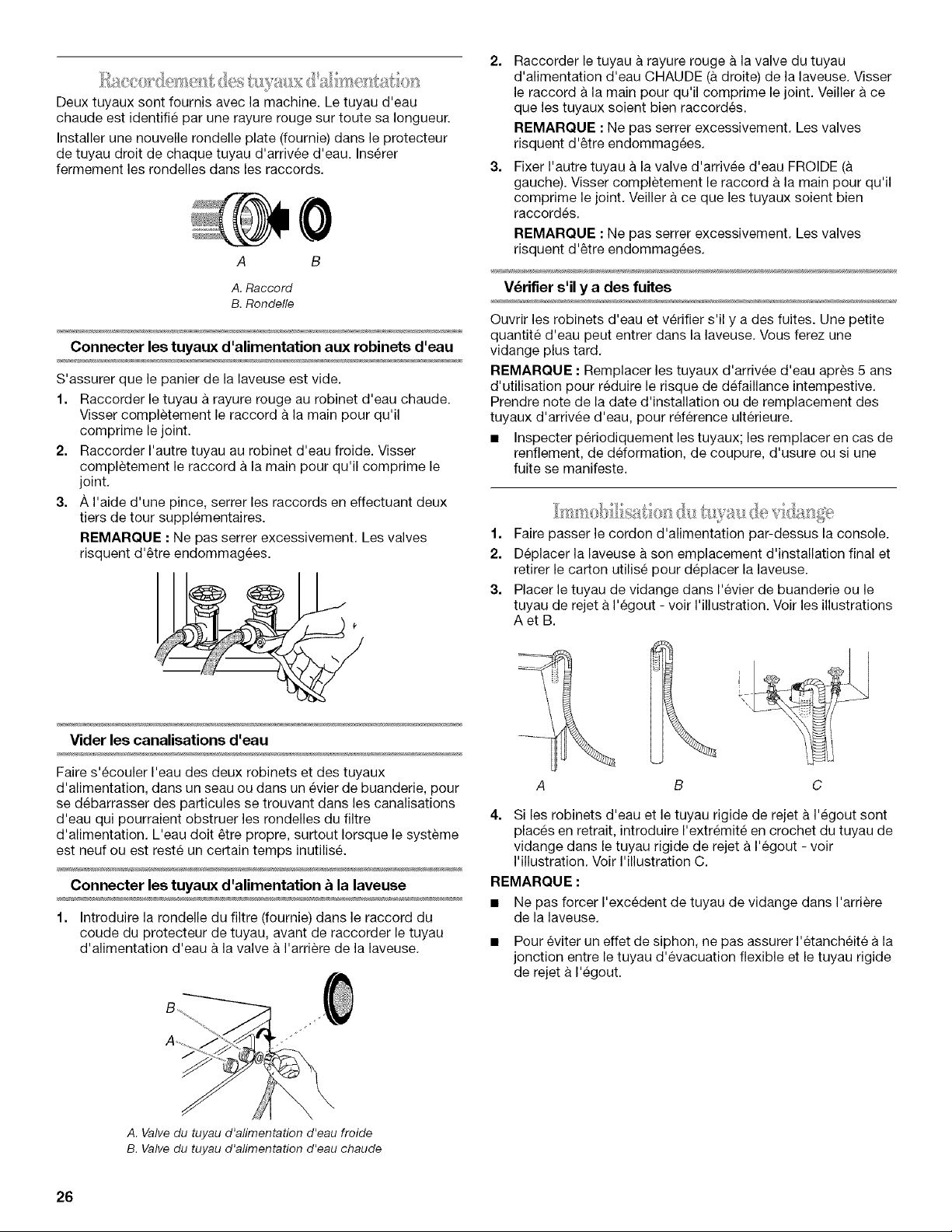

Deux tuyaux sent fournis avec la machine. Le tuyau d'eau

chaude est identifie par une rayure rouge sur toute sa Iongueur.

Installer une nouvelle rondelle plate (fournie) dans le protecteur

de tuyau droit de chaque tuyau d'arrivee d'eau. Inserer

fermement les rondelles dans les raccords.

A B

A. Raccord

B. Rondelle

Connecter les tuyaux d'alimentation aux robinets d'eau

S'assurer que le panier de la laveuse est vide.

1. Raccorder le tuyau a rayure rouge au robinet d'eau chaude.

Visser completement le raccord a la main pour qu'il

comprime le joint.

2. Raccorder I'autre tuyau au robinet d'eau froide. Visser

completement le raccord a la main pour qu'il comprime le

joint.

3. A I'aide d'une pince, serrer les raccords en effectuant deux

tiers de tour supplementaires.

REMARQUE : Ne pas serrer excessivement. Les valves

risquent d'etre endommagees.

Vider les canalisations d'eau

Faire s'ecouler I'eau des deux robinets et des tuyaux

d'alimentation, dans un seau ou dans un evier de buanderie, pour

se debarrasser des particules se trouvant dans les canalisations

d'eau qui pourraient obstruer les rondelles du filtre

d'alimentation. L'eau doit _tre propre, surtout Iorsque le systeme

est neuf ou est reste un certain temps inutilise.

Connecter les tuyaux d'alimentation a la laveuse

1. Introduire la rondelle du filtre (fournie) dans le raccord du

coude du protecteur de tuyau, avant de raccorder le tuyau

d'alimentation d'eau a la valve a I'arriere de la laveuse.

Raccorder le tuyau a rayure rouge a la valve du tuyau

d'alimentation d'eau CHAUDE (&droite) de la laveuse. Visser

le raccord a la main pour qu'il comprime le joint. Veiller a ce

que les tuyaux soient bien raccordes.

REMARQUE : Ne pas serrer excessivement. Les valves

risquent d %tre endommagees.

Fixer I'autre tuyau a la valve d'arrivee d'eau FROIDE (a

gauche). Visser completement le raccord a la main pour qu'il

comprime le joint. Veiller ace que les tuyaux soient bien

raccordes.

REMARQUE : Ne pas serrer excessivement. Les valves

risquent d %tre endommagees.

V_rifier s'il y a des fuites

Ouvrir les robinets d'eau et verifier s'il y a des fuites. Une petite

quantite d'eau peut entrer dans la laveuse. Vous ferez une

vidange plus tard.

REMARQUE : Remplacer les tuyaux d'arrivee d'eau apres 5 ans

d'utilisation pour reduire le risque de defaillance intempestive.

Prendre note de la date d'installation ou de remplacement des

tuyaux d'arrivee d'eau, pour ref6rence ulterieure.

• Inspecter periodiquement les tuyaux; les remplacer en cas de

renflement, de deformation, de coupure, d'usure ou si une

fuite se manifeste.

1. Faire passer le cordon d'alimentation par-dessus la console.

2. Deplacer la laveuse a son emplacement d'installation final et

retirer le carton utilise pour deplacer la laveuse.

3. Placer le tuyau de vidange dans I'evier de buanderie ou le

tuyau de rejet a I'egout - voir I'illustration. Voir les illustrations

Aet B.

4. Si les robinets d'eau et le tuyau rigide de rejet & I'egout sent

places en retrait, introduire I'extremite en crochet du tuyau de

vidange dans le tuyau rigide de rejet a I'egout - voir

I'illustration. Voir I'illustration C.

REMARQUE :

• Ne pas forcer I'excedent de tuyau de vidange dans I'arriere

de la laveuse.

• Pour eviter un effet de siphon, ne pas assurer I'etancheite a la

jonction entre le tuyau d'evacuation flexible et le tuyau rigide

de rejet a I'egout.

A. Valve du tuyau d'alimentation d'eau froide

B. Valve du tuyau d'alimentation d'eau chaude

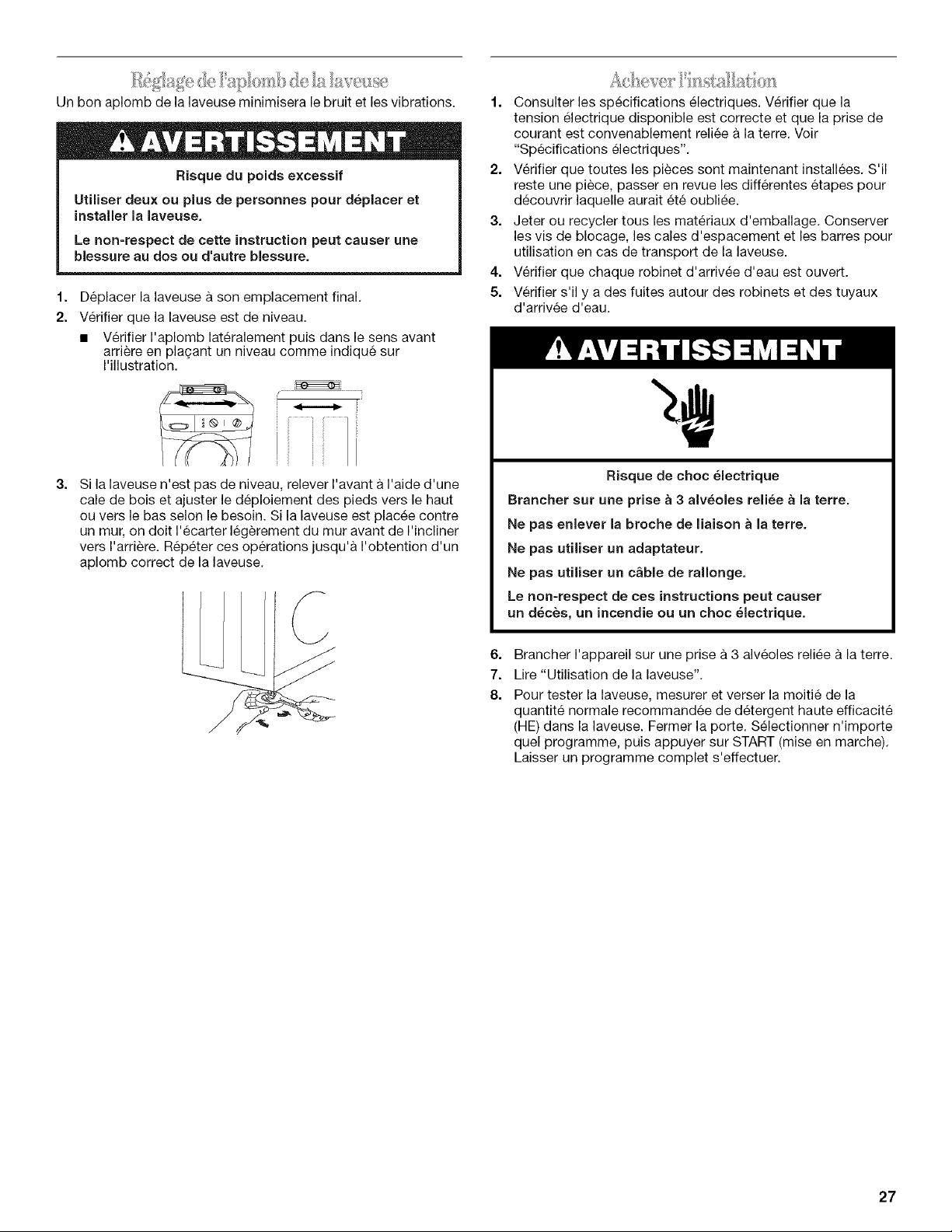

Un ben aplomb de la laveuse minimisera le bruit et les vibrations.

Risque du poide exceesif

Utilieer deux ou plus de personnee pour deplacer et

installer la laveuse.

Le non-respect de cette instruction peut causer une

blessure au dos ou d'autre bleesure.

Deplacer la laveuse a son emplacement final.

Verifier que la laveuse est de niveau.

• Verifier I'aplomb lateralement puis dans le sens avant

arriere en pla(;ant un niveau comme indique sur

I'illustration.

Si la laveuse n'est pas de niveau, relever I'avant a I'aide d'une

cale de bois et ajuster le deploiement des pieds vers le haut

ou vers le bas selon le besoin. Si la laveuse est placee contre

un mur, on dolt I'ecarter legerement du mur avant de I'incliner

vers I'arriere. Repeter ces operations jusqu'a I'obtention d'un

aplomb correct de la laveuse.

1. Consulter les specifications electriques. Verifier que la

tension electrique disponible est correcte et que la prise de

courant est convenablement reliee a la terre. Voir

"Specifications electriques".

2. Verifier que toutes les pieces sont maintenant installees. S'il

reste une piece, passer en revue les differentes etapes pour

decouvrir laquelle aurait ete oubliee.

3. Jeter ou recycler tousles materiaux d'emballage. Conserver

les vis de blocage, les cales d'espacement et les barres pour

utilisation en cas de transport de la laveuse.

4. Verifier que chaque robinet d'arrivee d'eau est ouvert.

5. Verifier s'il y a des fuites autour des robinets et des tuyaux

d'arrivee d'eau.

Risque de choc _lectrique

Brancher cur une prise a 3 alveoles reli_e a la terre.

Ne pas enlever la broche de liaison a la terre.

Ne pas utiliser un adaptateur.

Ne pas utiliser un c&ble de rallonge.

Le non=respect de cee instructions peut causer

un deces, un incendie ou un choc electrique.

Brancher I'appareil sur une prise a 3 alveoles reliee a la terre.

Lire "Utilisation de la laveuse".

Pour tester la laveuse, mesurer et verser la moitie de la

quantite normale recommandee de detergent haute efficacite

(HE) dans la laveuse. Fermer la porte. Selectionner n'importe

quel programme, puis appuyer sur START (mise en marche).

Laisser un programme complet s'effectuer.

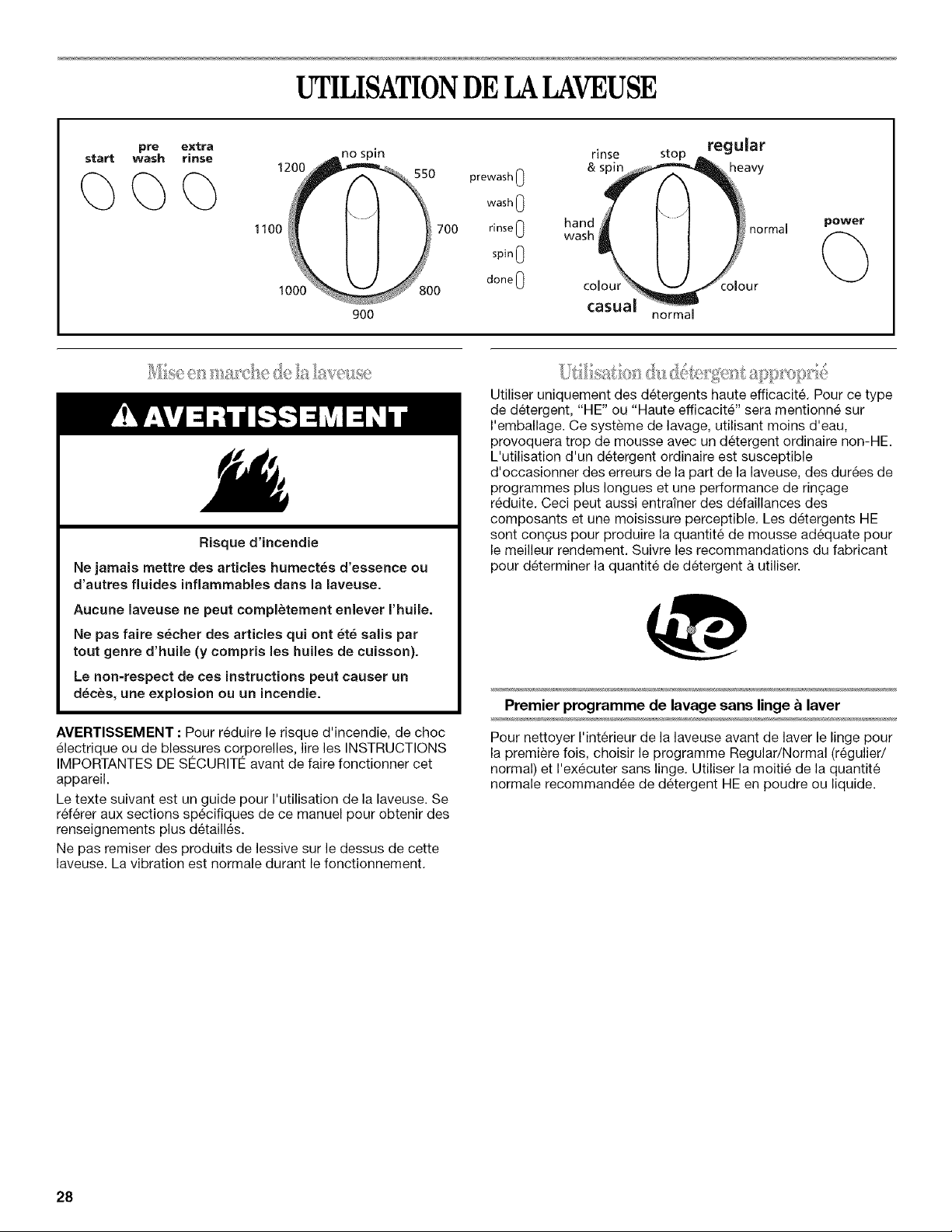

UTILISATIONDELALAVEUSE

start

pre regular

wash no spin rinse stop

& spin heavy

extra

rinse

1100 k

1ooo_

prewash 0

wash 0

rinse 0

spin 0

done 0

hand normal power

wash

casual

900 normal

colour

Risque d'incendie

Ne jamais mettre des articles humect_s d'essence ou

d'autres fluides inflammables clans la laveuse.

Aucune laveuse ne peut completement enlever rhuile.

Ne pas faire secher des articles qui ont ere sails par

tout genre d'huile (y compris les huiles de cuisson).

Le non=respect de ces instructions peut causer un

deces_ une explosion ou un incendie.

AVERTISSEMENT : Pour reduire le risque d'incendie, de choc

electrique ou de blessures corporelles, lire les INSTRUCTIONS

IMPORTANTES DE SI2CURIT¢ avant de faire fonctionner cet

appareil.

Le texte suivant est un guide pour I'utilisation de la laveuse. Se

ref6rer aux sections specifiques de ce manuel pour obtenir des

renseignements plus detailles.

Ne pas remiser des produits de lessive sur le dessus de cette

laveuse. La vibration est normale durant le fonctionnement.

Utiliser uniquement des detergents haute efficacit& Pour ce type

de detergent, **HE"ou "Haute efficacite" sera mentionne sur

I'emballage. Ce systeme de lavage, utilisant moins d'eau,

provoquera trop de mousse avec un detergent ordinaire non-HE.

L'utilisation d'un detergent ordinaire est susceptible

d'occasionner des erreurs de la part de la laveuse, des durees de

programmes plus Iongues et une performance de rin(_age

reduite. Ceci peut aussi entrainer des defaillances des

composants et une moisissure perceptible. Les detergents HE

sont con(_us pour produire la quantite de mousse adequate pour

le meilleur rendement. Suivre les recommandations du fabricant

pour determiner la quantite de detergent a utiliser.

Premier programme de lavage sans linge h laver

Pour nettoyer I'interieur de la laveuse avant de laver le linge pour

la premiere fois, choisir le programme Regular/Normal (regulieri

normal) et I'executer sans linge. Utiliser la moitie de la quantite

normale recommandee de detergent HE en poudre ou liquide.

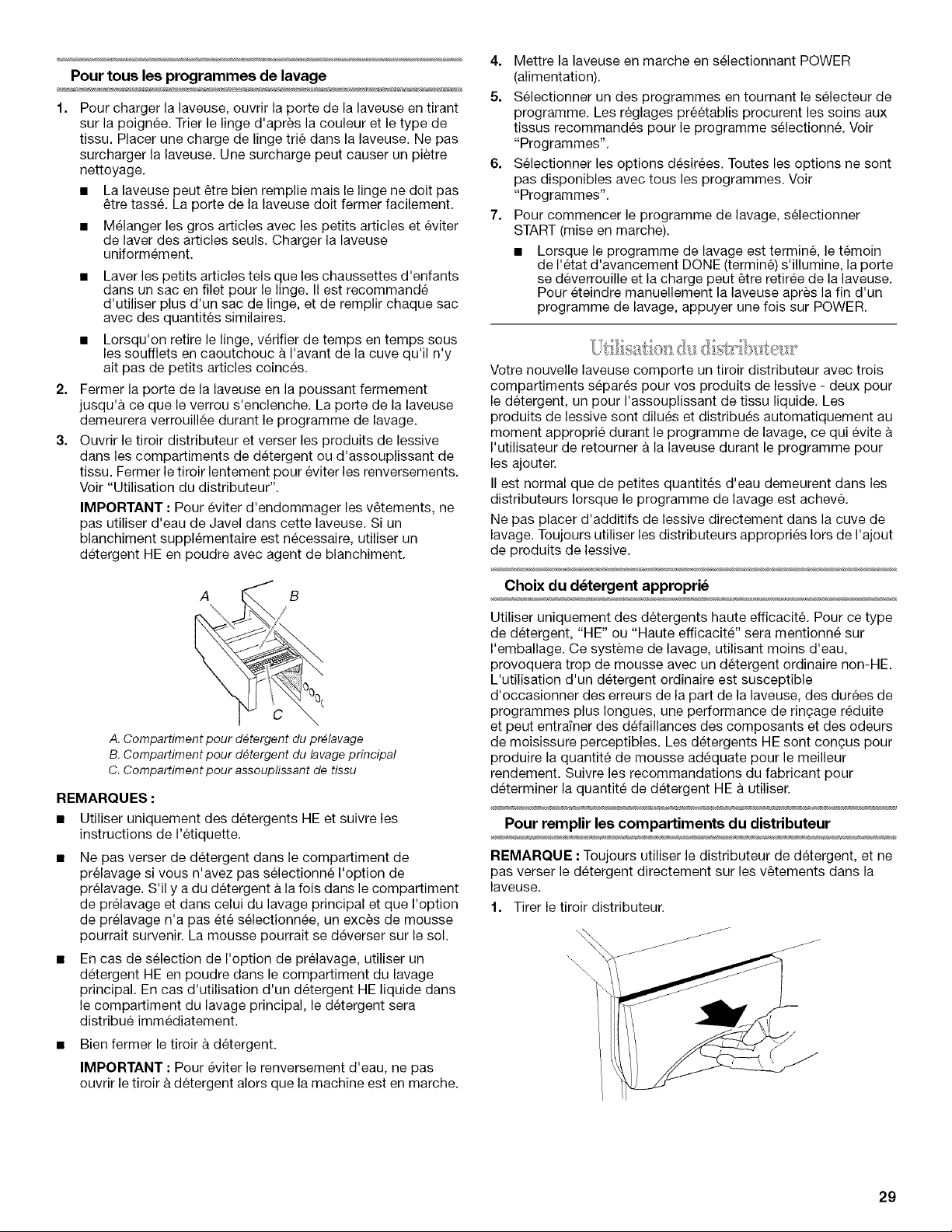

Pour tous les programmes de lavage

Pour charger la laveuse, ouvrir la porte de la laveuse en tirant

sur la poignee. Trier le linge d'apres la couleur et le type de

tissu. Placer une charge de linge trie dans la laveuse. Ne pas

surcharger la laveuse. Une surcharge peut causer un pietre

nettoyage.

• La laveuse peut 6tre bien remplie mais le linge ne dolt pas

@re tass& La porte de la laveuse dolt fermer facilement.

• Melanger les gros articles avec les petits articles et eviter

de laver des articles seuls. Charger la laveuse

uniformement.

• Laver les petits articles tels que les chaussettes d'enfants

dans un sac en filet pour le linge. II est recommande

d'utiliser plus d'un sac de linge, et de remplir chaque sac

avec des quantites similaires.

• Lorsqu'on retire le linge, v@ifier de temps en temps sous

les soufflets en caoutchouc &I'avant de la cuve qu'il n'y

ait pas de petits articles coinces.

Fermer la porte de la laveuse en la poussant fermement

jusqu'a ce que le verrou s'enclenche. La porte de la laveuse

demeurera verrouillee durant le programme de lavage.

Ouvrir le tiroir distributeur et verser les produits de lessive

dans les compartiments de detergent ou d'assouplissant de

tissu. Fermer le tiroir lentement pour eviter les renversements.

Voir "Utilisation du distributeur".

IMPORTANT : Pour eviter d'endommager les v_tements, ne

pas utiliser d'eau de Javel dans cette laveuse. Si un

blanchiment supplementaire est necessaire, utiliser un

detergent HE en poudre avec agent de blanchiment.

A B

A. Compartiment pour d_tergent du pr_lavage

B. Compartiment pour d_tergent du lavage principal

C. Cornpartiment pour assouplissant de tissu

REMARQUES :

• Utiliser uniquement des detergents HE et suivre les

instructions de I'etiquette.

Ne pas verser de detergent dans le compartiment de

prelavage si vous n'avez pas selectionne I'option de

prelavage. S'il y a du detergent a la fois dans le compartiment

de prelavage et dans celui du lavage principal et que I'option

de prelavage n'a pas 6te s61ectionn_e, un exc_s de mousse

pourrait survenir. La mousse pourrait se deverser sur le sol.

En cas de selection de I'option de prelavage, utiliser un

detergent HE en poudre dans le compartiment du lavage

principal. En cas d'utilisation d'un detergent HE liquide dans

le compartiment du lavage principal, le detergent sera

distribue immediatement.

• Bien fermer le tiroir a detergent.

IMPORTANT : Pour eviter le renversement d'eau, ne pas

ouvrir le tiroir a detergent alors que la machine est en marche.

4. Mettre la laveuse en marche en selectionnant POWER

(alimentation).

5. Selectionner un des programmes en tournant le selecteur de

programme. Les reglages pre6tablis procurent les soins aux

tissus recommandes pour le programme selectionn& Voir

"Programmes".

6. Selectionner les options desirees. Toutes les options ne sont

pas disponibles avec tousles programmes. Voir

"Programmes".

7. Pour commencer le programme de lavage, selectionner

START (mise en marche).

• Lorsque le programme de lavage est termine, le t_moin

de I'etat d'avancement DONE (termine) s'illumine, la porte

se deverrouille et la charge peut 6tre retiree de la laveuse.

Pour eteindre manuellement la laveuse apres la fin d'un

programme de lavage, appuyer une fois sur POWER.

Votre nouvelle laveuse comporte un tiroir distributeur avec trois

compartiments separes pour vos produits de lessive - deux pour

le detergent, un pour I'assouplissant de tissu liquide. Les

produits de lessive sont dilues et distribues automatiquement au

moment approprie durant le programme de lavage, ce qui evite

I'utilisateur de retourner a la laveuse durant le programme pour

les ajouter.

II est normal que de petites quantites d'eau demeurent dans les

distributeurs Iorsque le programme de lavage est achev&

Ne pas placer d'additifs de lessive directement dans la cuve de

lavage. Toujours utiliser les distributeurs appropries Iors de I'ajout

de produits de lessive.

Choix du d_tergent appropri_

Utiliser uniquement des detergents haute efficacit& Pour ce type

de detergent, "HE" ou "Haute efficacite" sera mentionne sur

I'emballage. Ce systeme de lavage, utilisant moins d'eau,

provoquera trop de mousse avec un detergent ordinaire non-HE.

L'utilisation d'un detergent ordinaire est susceptible

d'occasionner des erreurs de la part de la laveuse, des durees de

programmes plus Iongues, une performance de ringage reduite

et peut entrafner des defaillances des composants et des odeurs

de moisissure perceptibles. Les detergents HE sont congus pour

produire la quantite de mousse adequate pour le meilleur

rendement. Suivre les recommandations du fabricant pour

determiner la quantite de detergent HE a utiliser.

Pour remplir les compartiments du distributeur

REMARQUE :Toujours utiliser le distributeur de detergent, et ne

pas verser le detergent directement sur les v_tements dans la

laveuse.

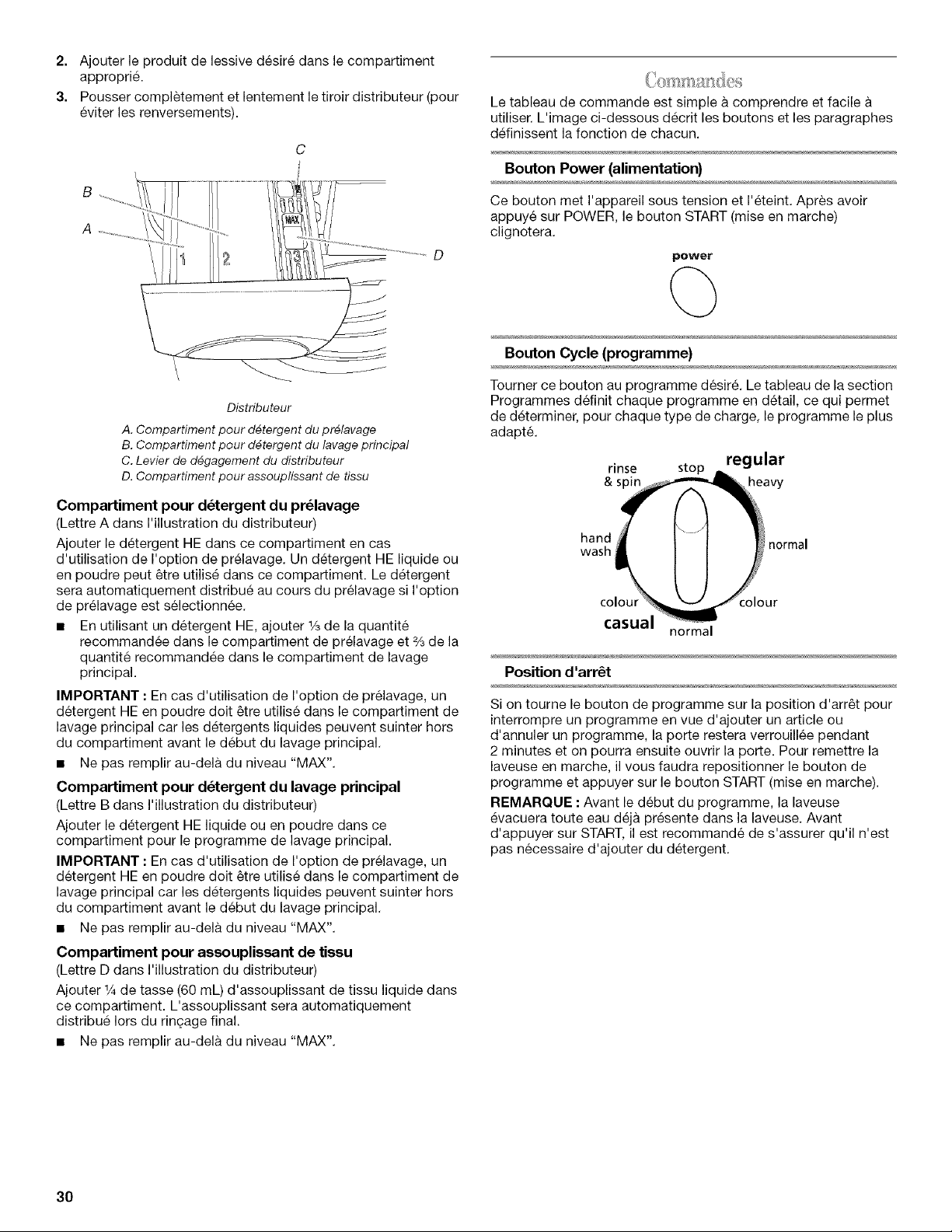

1. Tirer le tiroir distributeur.

2. Ajouter le produit de lessive desir6 dans le compartiment

approprie.

3. Pousser completement et lentement le tiroir distributeur (pour

eviter les renversements).

Le tableau de commande est simple a comprendre et facile

utiliser. L'image ci-dessous decrit les boutons et les paragraphes

definissent la fonction de chacun.

Bouton Power (alimentation)

Ce bouton met I'appareil sous tension et I'eteint. Apres avoir

appuye sur POWER, le bouton START (mise en marche)

clignotera.

power

Distributeur

A. Compartirnent pour d_tergent du pr_lavage

B. Compartirnent pour d_tergent du lavage principal

C. Levier de d_gagement du distributeur

D. Cornpartirnent pour assouplissant de tissu

Compartiment pour d6tergent du pr_lavage

(Lettre A dans I'illustration du distributeur)

Ajouter le detergent HE dans ce compartiment en cas

d'utilisation de I'option de prelavage. Un detergent HE liquide ou

en poudre peut _tre utilise dans ce compartiment. Le detergent

sera automatiquement distribue au cours du prelavage si I'option

de prelavage est selectionn6e.

• En utilisant un detergent HE, ajouter 1/3de la quantite

recommandee dans le compartiment de prelavage et ¾ de la

quantite recommandee dans le compartiment de lavage

principal.

IMPORTANT : En cas d'utilisation de I'option de prelavage, un

detergent HE en poudre dolt _tre utilise darts le compartiment de

lavage principal car les detergents liquides peuvent suinter hors

du compartiment avant le debut du lavage principal.

• Ne pas remplir au-dela du niveau "MAX".

Compartiment pour d_tergent du lavage principal

(Lettre B dans I'illustration du distributeur)

Ajouter le detergent HE liquide ou en poudre dans ce

compartiment pour le programme de lavage principal.

IMPORTANT : En cas d'utilisation de I'option de prelavage, un

detergent HE en poudre dolt _tre utilise dans le compartiment de

lavage principal car les detergents liquides peuvent suinter hors

du compartiment avant le debut du lavage principal.

• Ne pas remplir au-dela du niveau "MAX".

Compartiment pour assouplissant de tissu

(Lettre D dans I'illustration du distributeur)

Ajouter 1/4de tasse (60 mL) d'assouplissant de tissu liquide dans

ce compartiment. L'assouplissant sera automatiquement

distribue Iors du rint_age final.

• Ne pas remplir au-dela du niveau "MAX".

Bouton Cycle (programme)

Tourner ce bouton au programme desire. Le tableau de la section

Programmes ddinit chaque programme en detail, ce qui permet

de determiner, pour chaque type de charge, le programme le plus

adapte.

Position d'arr_t

Si on tourne le bouton de programme sur la position d'arr_t pour

interrompre un programme en vue d'ajouter un article ou

d'annuler un programme, la porte restera verrouillee pendant

2 minutes et on pourra ensuite ouvrir la porte. Pour remettre la

laveuse en marche, il vous faudra repositionner le bouton de

programme et appuyer sur le bouton START (mise en marche).

REMARQUE : Avant le debut du programme, la laveuse

evacuera toute eau deja presente dans la laveuse. Avant

d'appuyer sur START, il est recommande de s'assurer qu'il n'est

pas necessaire d'ajouter du detergent.

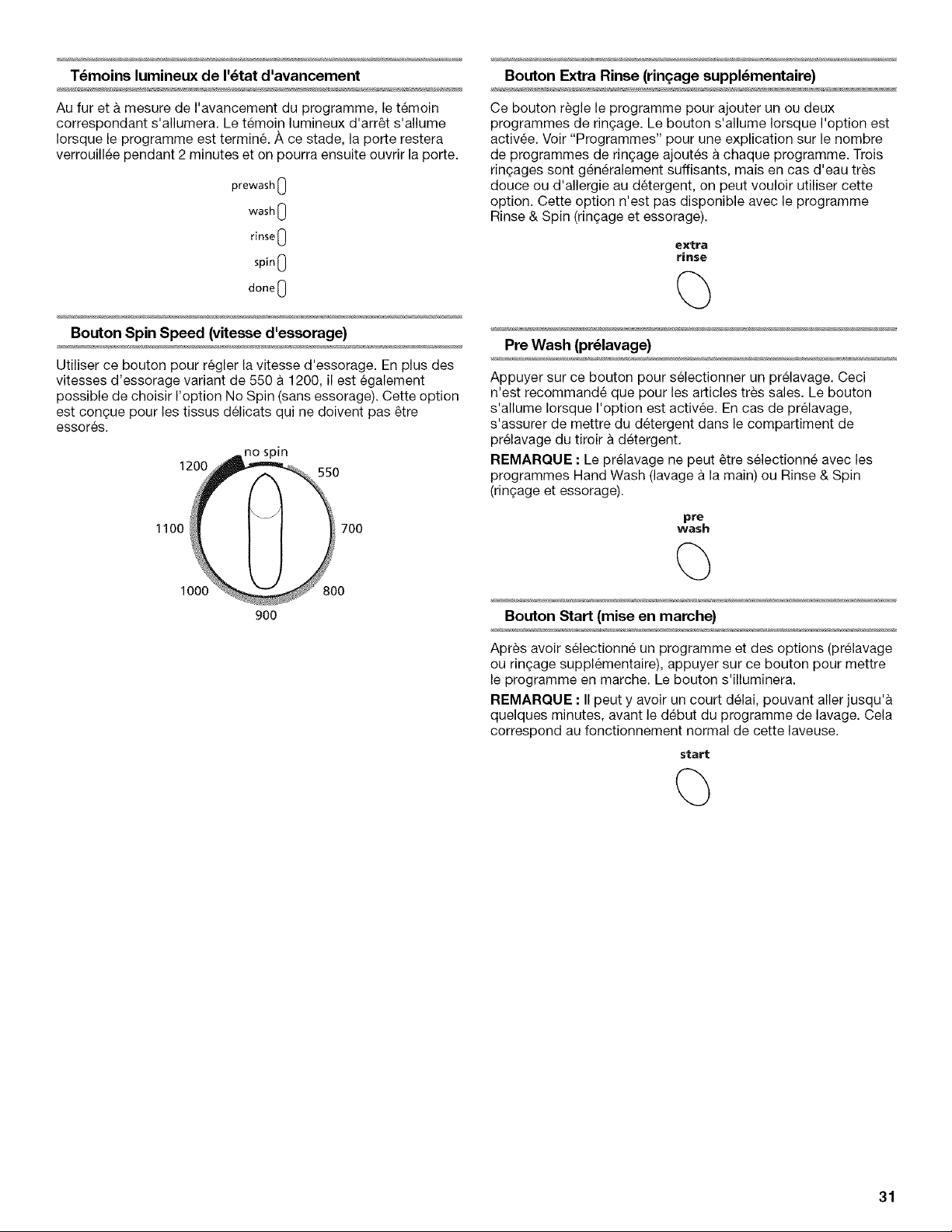

T_moins lumineux de I'_tat d'avancement

Au fur et & mesure de I'avancement du programme, le temoin

correspondant s'allumera. Le temoin lumineux d'arr6t s'allume

Iorsque le programme est termine./_, ce stade, la porte restera

verrouillee pendant 2 minutes et on pourra ensuite ouvrir la porte.

prewash 0

wash 0

rinse 0

spin 0

done 0

Bouton Spin Speed (vitesse d'essorage)

Utiliser ce bouton pour regler la vitesse d'essorage. En plus des

vitesses d'essorage variant de 550 a 1200, il est egalement

possible de choisir I'option No Spin (sans essorage). Cette option

est con(_ue pour les tissus delicats qui ne doivent pas 6tre

essores.

no spin

Bouton Extra Rinse (rinqage suppl_mentaire)

Ce bouton regle le programme pour ajouter un ou deux

programmes de ringage. Le bouton s'allume Iorsque I'option est

activee. Voir "Programmes" pour une explication sur le nombre

de programmes de rin(_age ajoutes a chaque programme. Trois

ringages sent generalement suffisants, mais en cas d'eau tr6s

douce ou d'allergie au detergent, on peut vouloir utiliser cette

option. Cette option n'est pas disponible avec le programme

Rinse & Spin (ringage et essorage).

extra

rinse

Pre Wash (pr_lavage)

Appuyer sur ce bouton pour selectionner un pr61avage. Ceci

n'est recommande que pour les articles tres sales. Le bouton

s'allume Iorsque I'option est activee. En cas de prelavage,

s'assurer de mettre du detergent dans le compartiment de

prelavage du tiroir a detergent.

REMARQUE : Le prelavage ne peut _tre selectionne avec les

programmes Hand Wash (lavage a la main) ou Rinse & Spin

(ringage et essorage).

pre

wash

900

Bouton Start (mise en marche)

Apres avoir selectionn6 un programme et des options (prelavage

ou ringage supplementaire), appuyer sur ce bouton pour mettre

le programme en marche. Le bouton s'illuminera.

REMARQUE : II peut y avoir un court delai, pouvant aller jusqu'a

quelques minutes, avant le debut du programme de lavage. Cela

correspond au fonctionnement normal de cette laveuse.

start

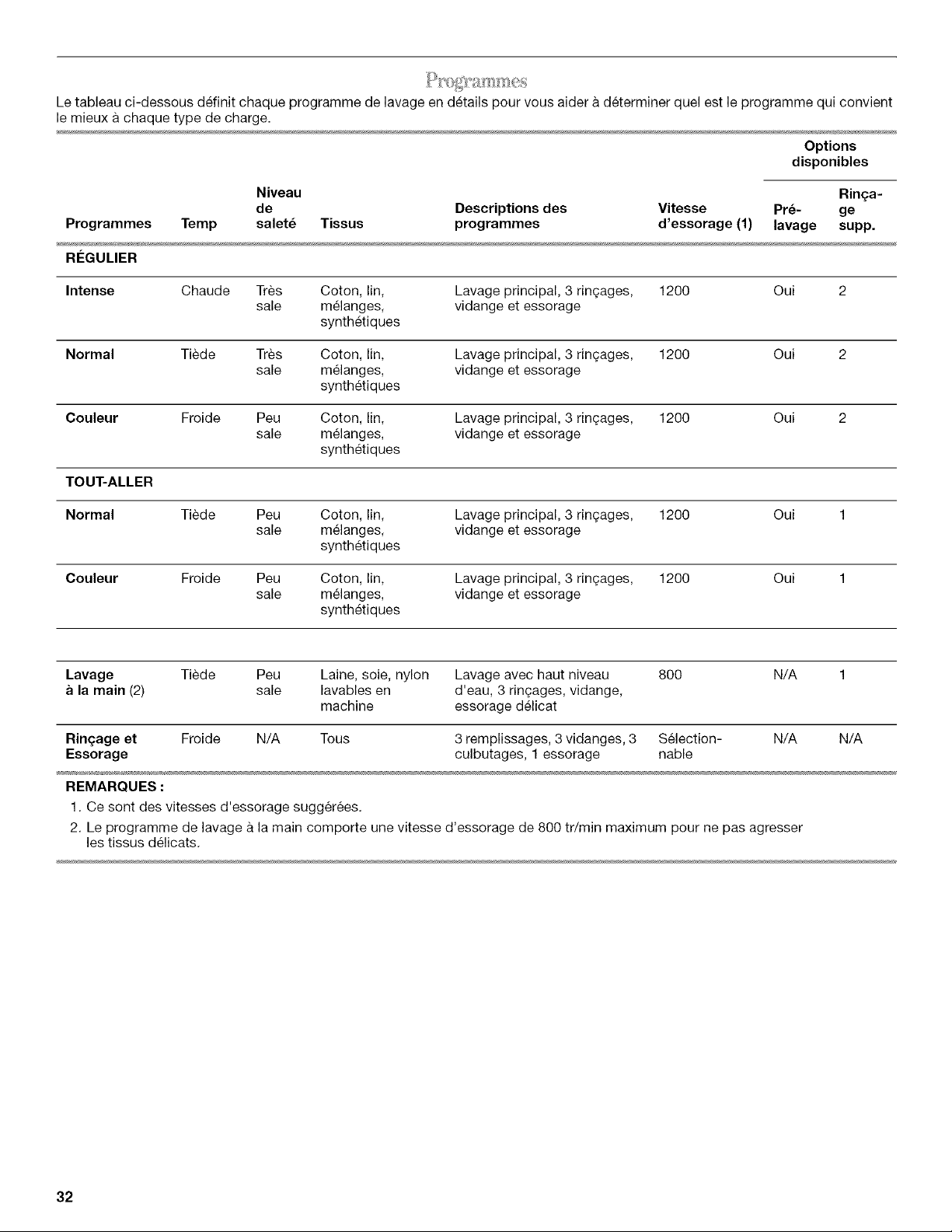

Le tableau ci-dessous definit chaque programme de lavage en details pour vous aider & determiner quel est le programme qui convient

le mieux a chaque type de charge.

Options

disponibles

Niveau Rinqa-

de Descriptions des Vitesse Pre- ge

Programmes Temp salet_ Tissus programmes d'essorage (1) lavage supp.

REGULIER

Intense Chaude Tres Coton, lin, Lavage principal, 3 ringages, 1200 Oui 2
