Cod:0103086674-00.02
INSTALLATION INSTRUCTIONS
USER GUIDE
Built-in Slideout Rangehood
HSH60RSX1
NZ AU
2
4
10
11
13
IMPORTANT!
SAVE THESE INSTRUCTIONS
Registration
The models shown in this user guide may not
be available in all markets and are subject
to change at any time. For current details
about model and specification availability in
your country, please go to our local website
listed on the back cover or contact your local
Haier dealer.
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
https://www.haier.co.nz/ or
https://www.haier.com.au.
Safety and warnings
Installation instructions
Operating instructions
Cleaning and maintenance
Parts and accessories
CONTENTS
1
SAFETY AND WARNINGS
2
!

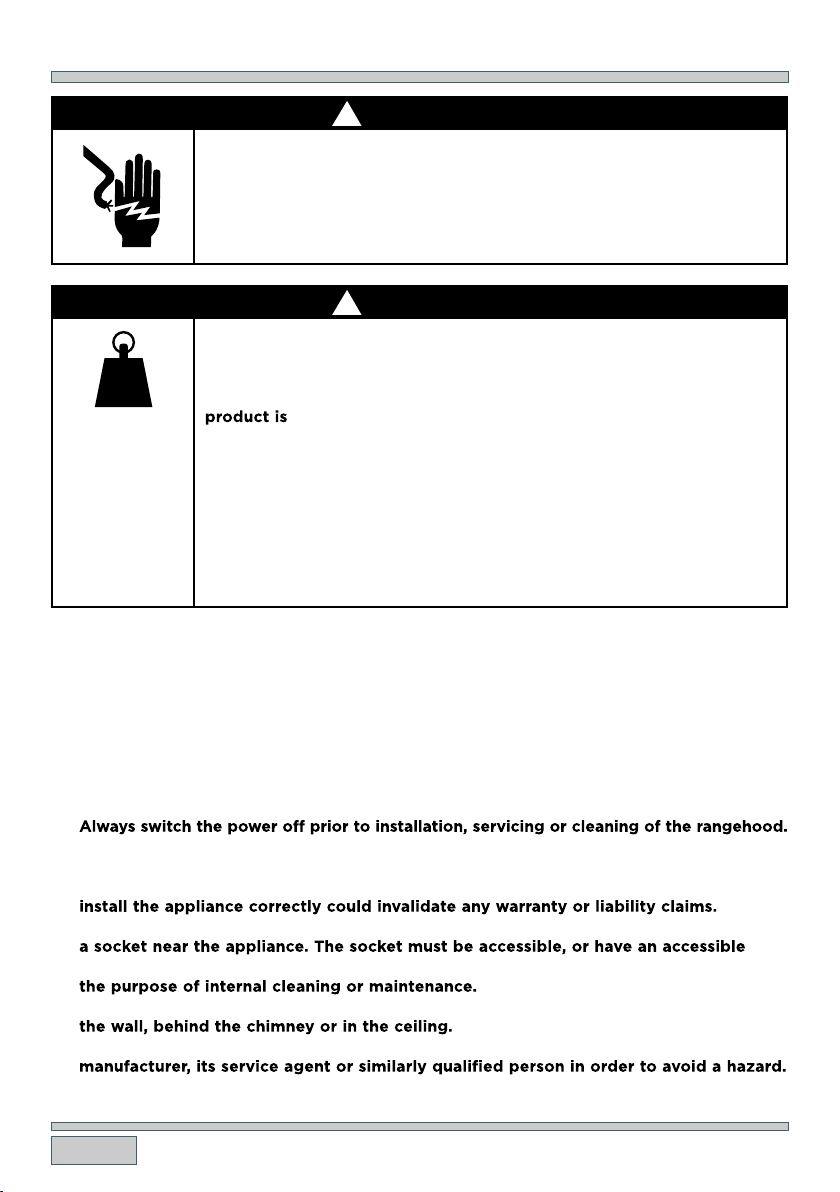

WARNING!
Electric Shock Hazard
All electrical work must be done in accordance with local and/or
national electrical codes as applicable. If you are unfamiliar with
methods of installing electrical wiring, employ the services of a
qualified electrician. Turn off power at service entrance before
installing wiring or servicing this product.
!
WARNING!
Net Weight：
6.5 kg
Gross Weight：
7.5 kg
Weight Hazard
The rangehood is heavy. Please ensure adequate care is taken when
installing the rangehood to prevent personal injury. The rangehood
must be installed onto a solid wall, stud, beam or truss. Weight of the
net weight：6.5 kg, gross weight：7.5 kg.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
●
Please read the entire set of instructions before installing or using this appliance.
●
Please make this information available to the person installing the appliance –
doing so could reduce your installation costs.
●
●
This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure to
●
To comply with electrical safety regulations, the rangehood must be plugged into
isolating switch, to enable the end user to isolate the rangehood from the power for
●
A power outlet should be within 750 mm of the motor assembly and can either be on
●
If the supply cord of this equipment is damaged, it must only be replaced by the
●
Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.

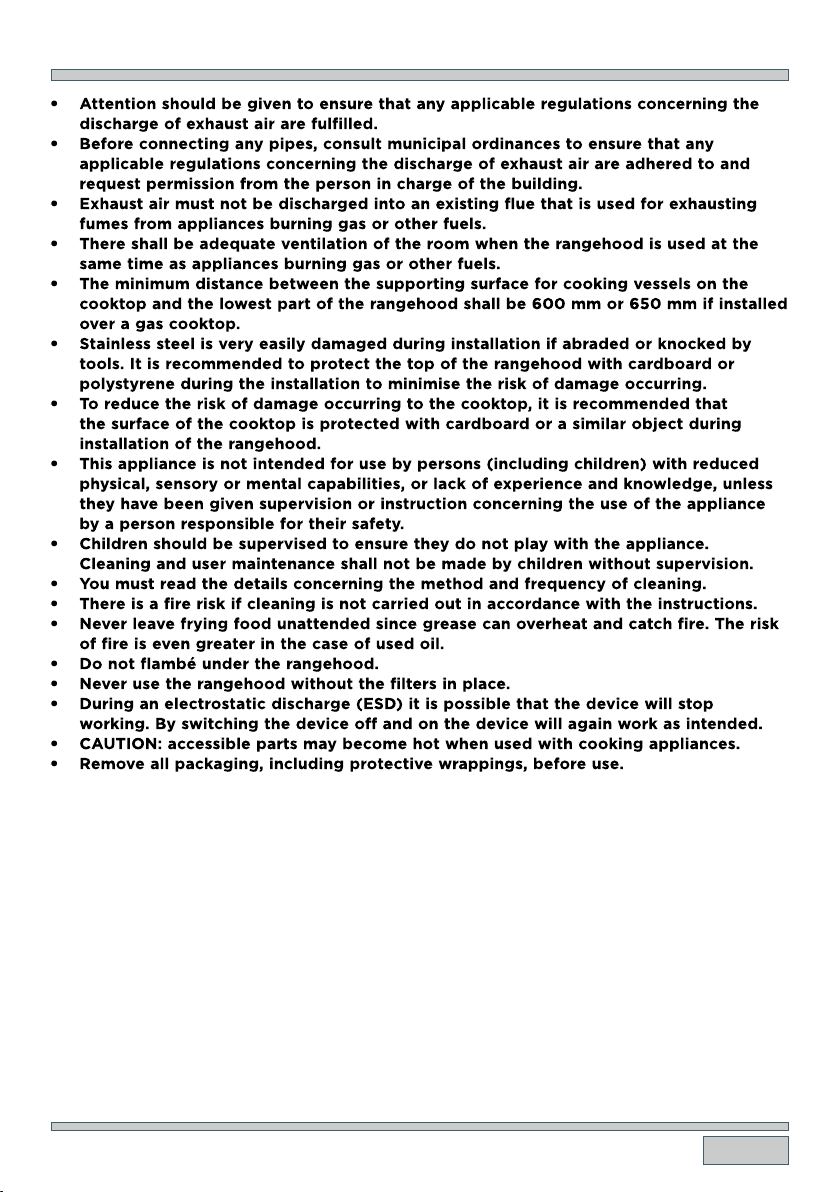

SAFETY AND WARNINGS
3
INSTALLATION INSTRUCTIONS
4
INSTALLATION INSTRUCTIONS
5
INSTALLATION INSTRUCTIONS
6

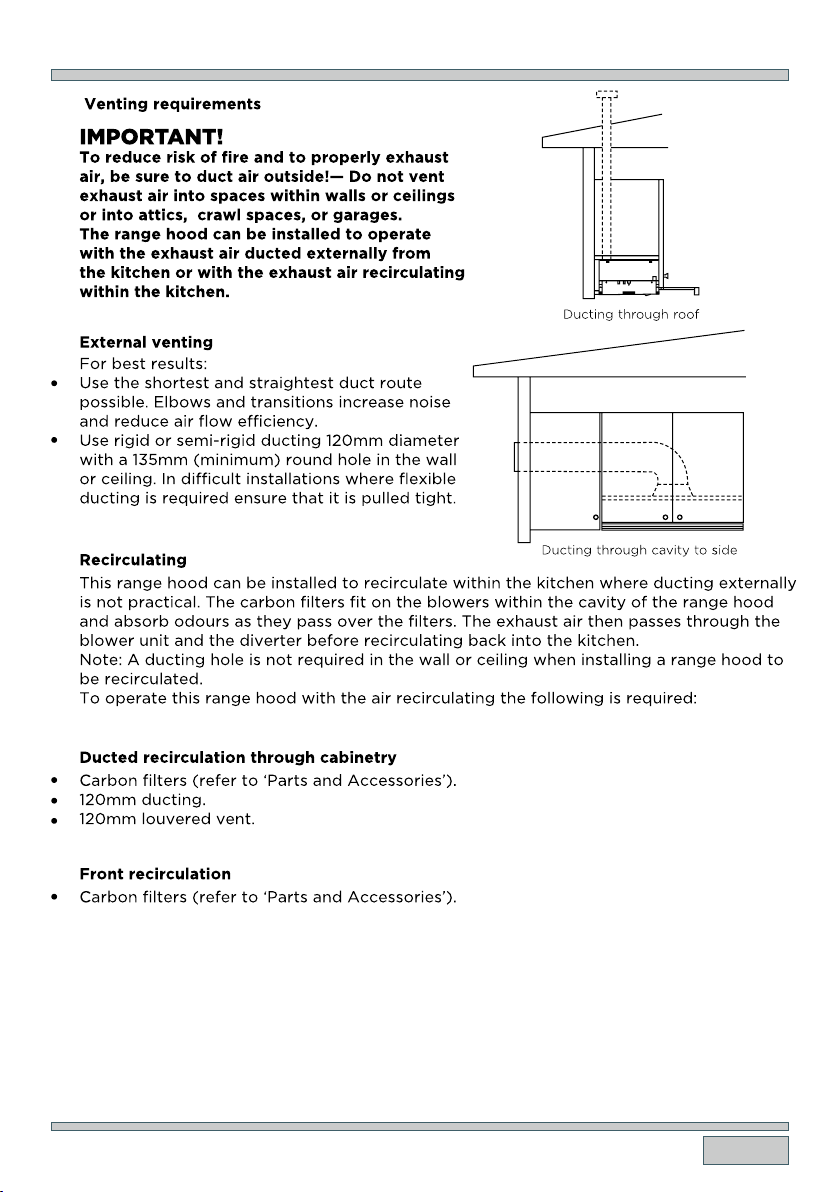

INSTALLATION INSTRUCTIONS
7

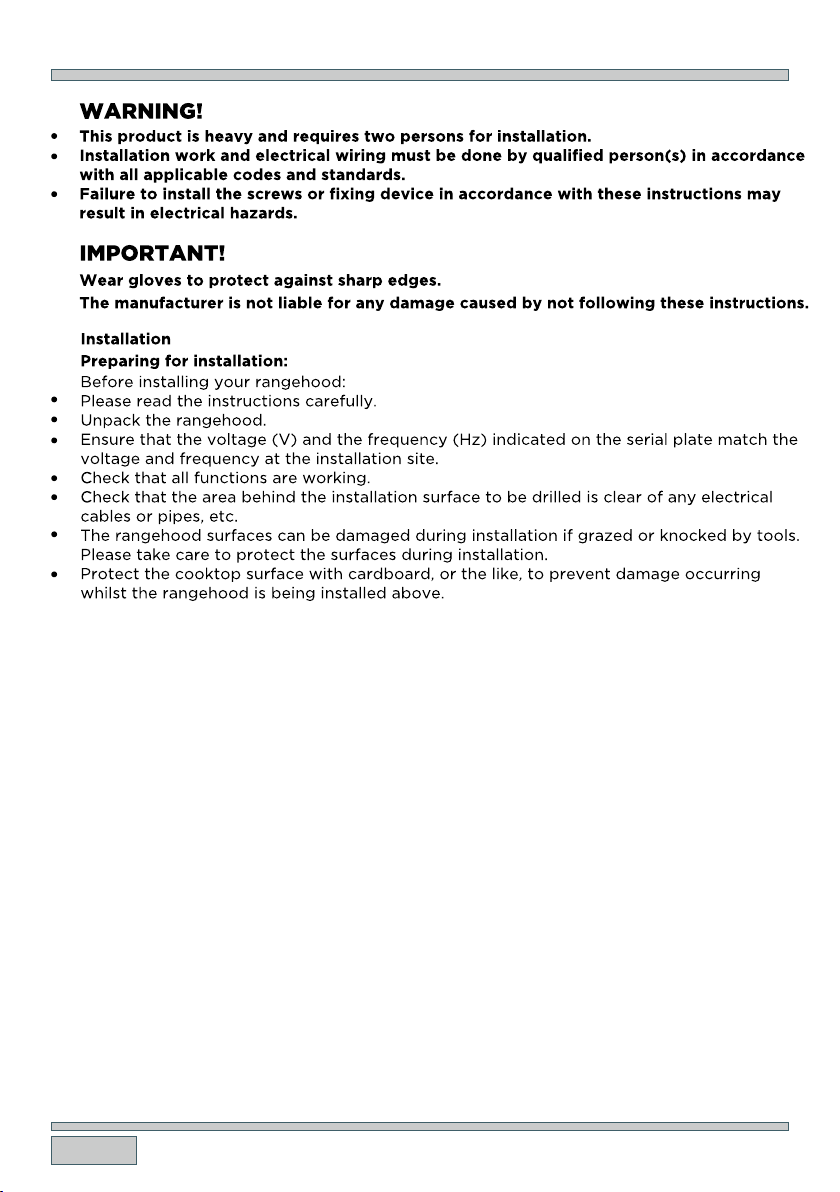

INSTALLATION INSTRUCTIONS
8
INSTALLATION INSTRUCTIONS
9
OPERATING INSTRUCTIONS
10
CLEANING AND MAINTENANCE
11

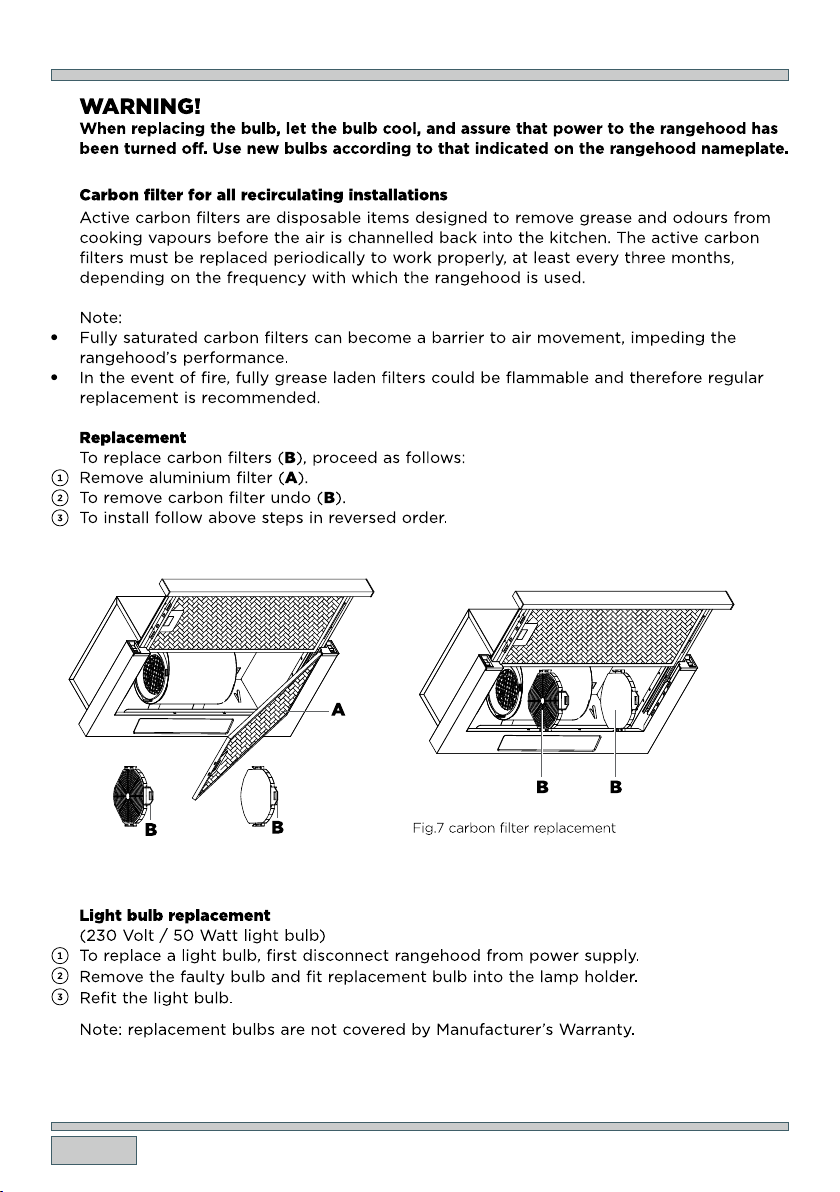

CLEANING AND MAINTENANCE
12
ACCESSORY PART NUMBER
Light bulb
Aluminium Filter
Carbon Filter Recirculation Kit
0010900858
0011000223
61796
PARTS AND ACCESSORIES
13
