Prettycare W200 Vacuum Cleaner Instruction Manual
Overview
Parameter Specification
Product Parts List
1. Crevice Nozzle ; 2. 2 in 1 brush; 3. Main Engine; 4. Electric Floor Brush; 5. Well Bracket; 6. Power Adapter; 7.Filter * 2; 8. Adjustable Metal Tube

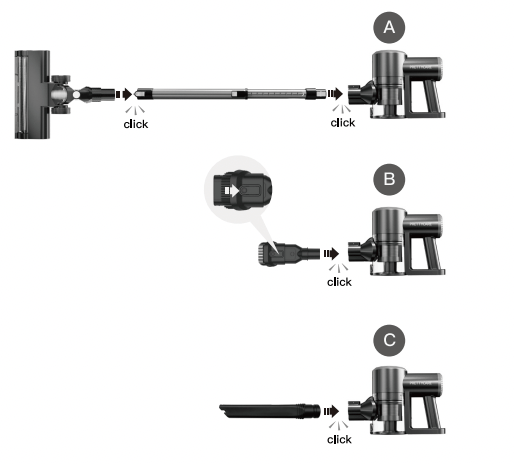

Assembling
- Attach different accessories for different tasks as illustrated.
- Install vaccum cleaner in the right direction to avoid airflow issues or not working
Using
Before use, make sure that
- the power supply is sufficient.
- the dust collector and filters are cleaned, dried, and fixed in place.
Press the power button.
Press suction strength button to switch suction level.
Turn hand vacuum 180°as shown. for better reach under furniture.
Adjust the metal tube for different uses.
Insert the 2 in 1 brush to clean sofa or curtain.
Insert the crevice nozzle to clean according to your needs.
Cleaning & Maintaining
1.Unload the dust box
Peel off the security sticker
Press the button
Rotate the "
” rotation corresponds to“
”
Hold the vacuum cleaner while rotating the dust cup. nd align the vacuum cleaner “” with*”. finally take off the dust cup.
- Please make sure the dust collector is aligned.
- Do not tilt the filter while it is in operation.
2. Dust Cup Cleaning
Press the dust collector release button to empty.
First. hold the vacuum cleaner. then press the dust cup unloading button while rotating the dust cup. and ali the vacuum cleaner “ ” with finally take off the dust cup.
Take over the HEPA filter and metal filter from dust cup.
Clean the dust cup by using a damp cloth with a mild detergent.
Air dry before placing back in the vacuum cleaner.
- Never operate vacuum without all filters.
- Wash filter with cold water at least every month.
3. HEPA Cleaning
Take over the HEPA filter and metal filter from dust cup.
Indeed. clean with water and a mild detergent.
Air dry the cotton filter and metal filter until completely dry before placing back in the vacuum cleaner.
Put the filters to dust collector after cleaning. Rotate dust collector and align “
” with "”. then fix it in place.
- Make sure the power is off. Do not use sharp tools when cleaning the rolling brush to avoid damage.
4.Clean the Rolling Brushes
Press the rolling brush release button and open it up.
Take out the rolling brush.
Remove the cords and hairs on it.
Putting the brush back and fix it in position
Wall Mounting
Measure the distance between the bracket holes first.
Drill two holes as measured width. secure the backplate using the appropriate fixings.
Align the vacuum cleaner at the raised point of the bracket and hang it
The package contains adhesive pads that can be used to install the bracket. but it is recommended to use screws to fix it more firmly.

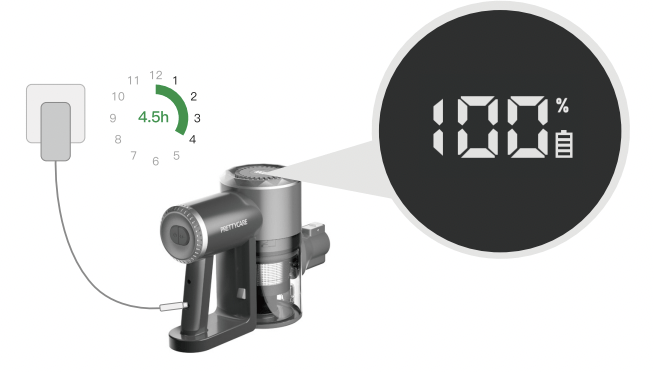

Charging
1. Whole Machine Charging
Troubleshooting
If it still doesn’t work with the following solutions. please contact us.
Vacuum cleaner doesn’t work
- Make sure cleaner is fully powered.
- Push charger securely into electrical outlet. try another outlet or check circuit breaker.
- Product suction is blocked. clean up the suction inlet.
Charging indicator lights are not lit while charging
- Make sure charger is securely inserted into electrical outlet.
- Make sure charging plug is securely inserted into handle.
- Indicator lights stop blinking when fully charged.
Not enough suction power
- Empty dust cup and clean or change filters. Refer to maintenance instructions.
- Make sure cleaner is fully powered.
- Remove clogs that restrict the airflow.
Motor has strange sound when working
- Clean up the blockage.
- If it doesn’t work. please contact us via us@prettycarelife
Brushroll will not turn
- Clean up all hair on the brush.
