Use & Care Guide
Manual de Uso y Cuidado
English / Español
Kenmore®
Liquid Propane Gas Grill
Parrilla a gas de propano líquido
Model/Modelo: 146.22124910
Item / Artículo: 640-01998717-1
P/N 40600050Z
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
www.kmart.com
®
Call Grill Service Center For Help And Parts
If you have questions or need assistance during assembly,
please call
1-888-287-0735. You will be speaking to a
representative of the grill manufacturer and not a Sears
employee. To order new parts call Sears at
1-844-553-6667.
Product Record
IMPORTANT: Fill out the product record information below.
Installation Safety Precautions
• Please read this User’s Manual in its entirety before using
the grill.
• Failure to follow the provided instruction can result in
seriously bodily injury and/or property damage.
• Some parts of this grill may have sharp edges. Please
wear suitable protective gloves.
• Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.
• Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV
Series, Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords
and/or fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States
and/or Canada only. Do not modify for use in any other
location. Modification will result in a safety hazard.
IMPORTANT: This grill is intended for outdoor use only and is
not intended to be installed in or on recreational vehicles or
boats.
NOTE TO INSTALLER: Leave this User’s Manual with the
customer after delivery and/or installation.
NOTE TO CONSUMER: Leave this User’s Manual in a
convenient place for future reference.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
Model Number
Serial Number
See rating label on grill for serial number.
Date Purchased
CAUTION
For residential use only. Do not use for commercial
cooking.
DANGER
WARNING
CAUTION
DANGER: Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
2 • 146.22124910
TABLE OF CONTENTS
For Your Safety . . .
Grill Service Center. . .
Product Record Information . . .
Installation Safety Precautions . . .
Safety Symbols . . .
Kenmore Grill Warranty . . .
Use and Care . . .
Parts List . . .

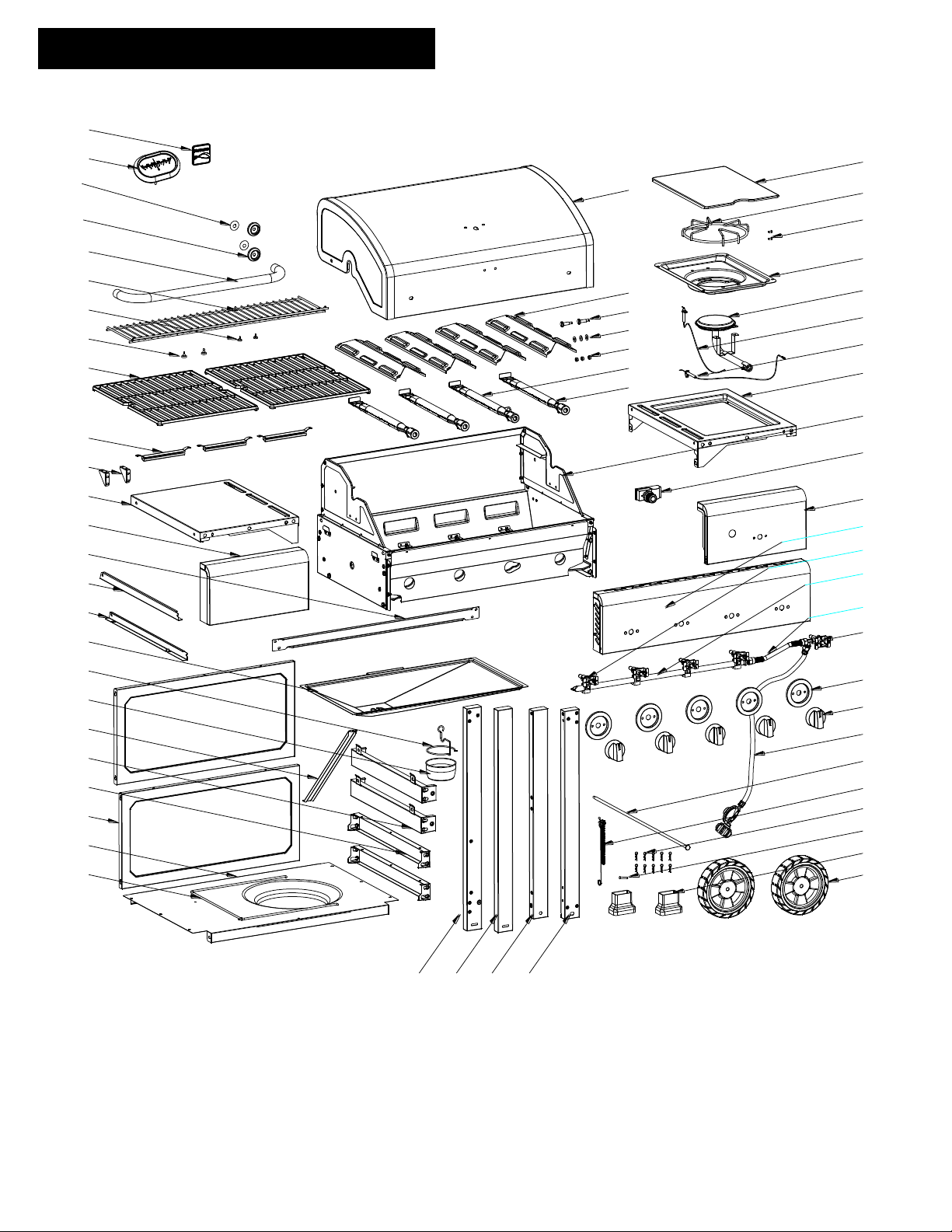

Parts Diagram . . .
Before Assembly . . .
Assembly . . .
Troubleshooting . . .
. . . . 2
. . . . 2
. . . . 2
. . . . 2
. . . . 2
. . . . 4
. . 5-11
. . . 12
. . . 13
. 14-17
. 18-28
. 29-31
WARNING
Combustion byproducts produced when
using this product include carbon monoxide,
a chemical known to the State of California
to cause birth defects or other reproductive
harm. For more information go to
www.P65Warnings.ca.gov
146.22124910 • 3
4 • 146.22124910
WARRANTY
KENMORE GRILL WARRANTY
KENMORE LIMITED WARRANTY
WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and
maintained according to all supplied instructions.
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective
appliance will receive free repair. If the appliance cannot be repaired it will be replaced free of charge.
FOR FIVE YEARS from the date of sale, any stainless steel burner that rusts through or burns through will be replaced free of
charge.* If rust through or burn through occurs within the first year, a new burner will be installed at no charge. If rust
through or burn through occurs after the first year, a new burner will be supplied but not installed at no charge. You are
responsible for the labor cost of burner installation after the first year from the date of sale. *Rust-through or burn-through
must be verified by a Sears authorized service representative.
For warranty coverage details to obtain free repair or replacement, visit the web page:
www.kenmore.com/warranty
All warranty coverage excludes ignitor batteries and grill part paint loss, discoloration or surface rusting, which are either
expendable parts that can wear out from normal use within the warranty period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage is void if this appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use within the warranty period, including but not limited to
batteries, screw-in base light bulbs and surface coatings or finishes.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation,
operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair
problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such
installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service
agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and
maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration,
abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents,
cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of this appliance resulting from natural or other catastrophe, such as flood, fire or storm.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
10. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the
appropriate certification logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided
herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one
year on the appliance and five years on the burners, or the shortest period allowed by law. Seller shall not be liable for
incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions
or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
146.22124910 • 5
USE AND CARE

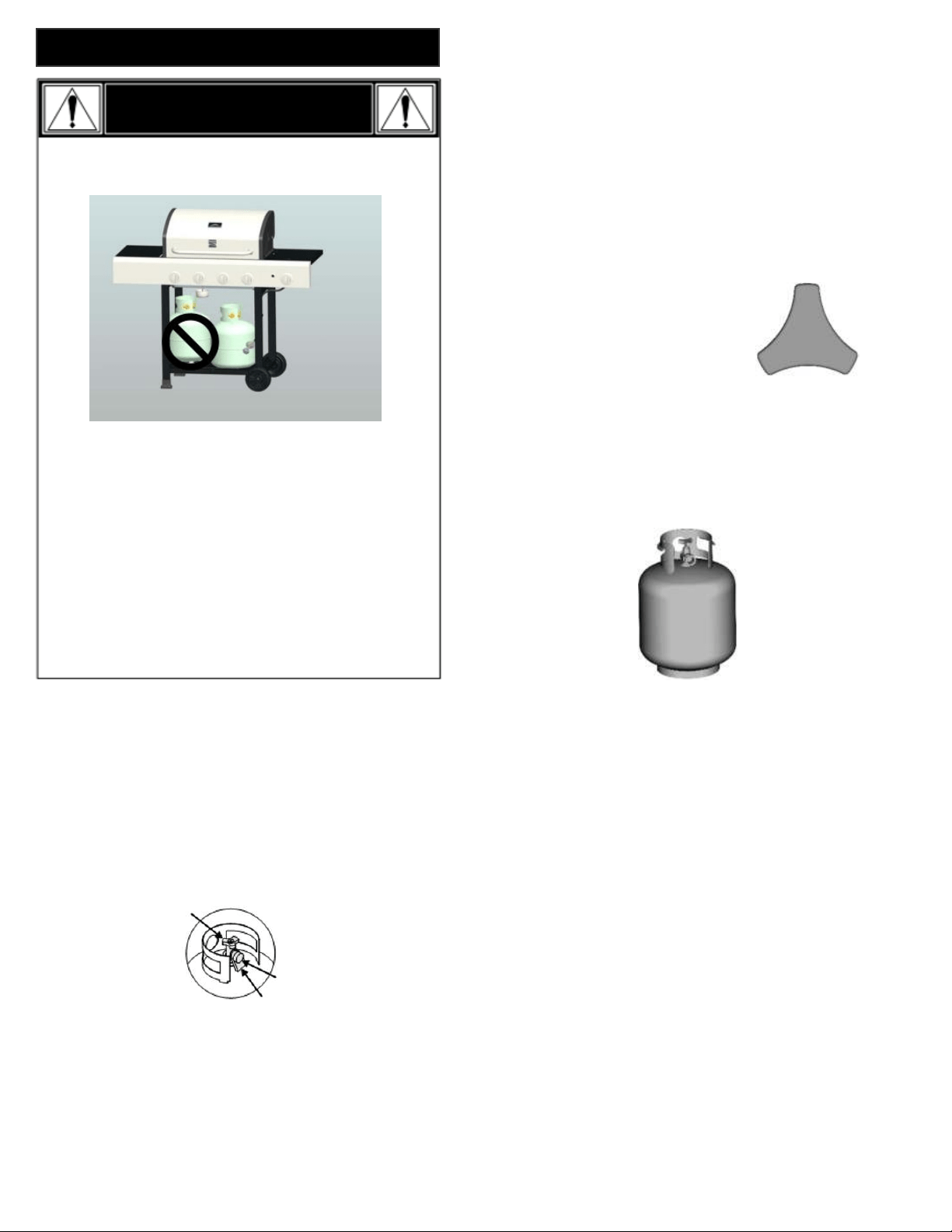

• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• If the information in the two points above is not
followed exactly, a fire causing death or serious
injury may occur.
• An overfilled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder and appliance and
call your fire department.
DANGER
LP Tank Removal, Transport And Storage
• Turn OFF all control knobs and LP tank valve. Turn coupling nut
counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar, then
lift LP tank up and off of support bracket. Install safety cap
onto LP tank valve. Always use cap and strap supplied with
valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
• A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP tank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle
which may become overheated by the sun.
• Do not store an LP tank in an area where children play.
LP Tank Valve
Safety Cap
Retainer Strap
LP Cylinder
•
The LP cylinder used with your grill must meet the following
requirements:
• Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
Capacity maximum.
• LP cylinders must be constructed and marked in accordance with
specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339, cylinders,
spheres and tubes for transportation of dangerous goods. Transport
Canada (TC). See LP cylinder collar for marking.
• LP cylinder valve must have:
• Type 1 outlet compatible with
regulator or grill.
• Safety relief valve.
• UL listed Overfill Protection
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel.
Use only LP
cylinders equipped with this type of valve.
• LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve. Always keep LP cylinders in
upright position during use, transit or storage.
LP (Liquefied Petroleum Gas)
• LP gas is nontoxic, odorless and colorless when produced.
For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
• Use only licensed and experienced dealers.
• LP dealer
must purge new cylinder before filling.
• Dealer should
NEVER fill LP cylinder more than 80% of LP cylinder
volume. Volume of propane in cylinder will vary by temperature.
• A frosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere. This is
a hazardous practice.
• To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone directory
under “Gas Companies” for nearest certified LP dealers.
OPD Hand Wheel
LP cylinder in upright position for vapor withdrawal
6 • 146.22124910
▲Do not use household cleaning agents. Damage to the gas
train components (valve/hose/regulator) can result.
LP Tank Exchange
• Many retailers that sell grills offer you the option of replacing
your empty LP tank through an exchange service. Use only those
reputable exchange companies that inspect, precision fill, test and
certify their cylinders.
Exchange your tank only for an OPD safety
feature-equipped tank as described in the "LP Tank" section of this
manual.
• Always keep new and exchanged LP tanks in upright position
during use, transit or storage.
•
Leak test new and exchanged LP tanks BEFORE connecting to grill.
LP Tank Leak Test
For your safety
• Leak test must be repeated each time LP tank is exchanged or
refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area, away
from ignition sources such as gas fired or electrical appliances.
During leak test, keep grill away from open flames or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water solution.

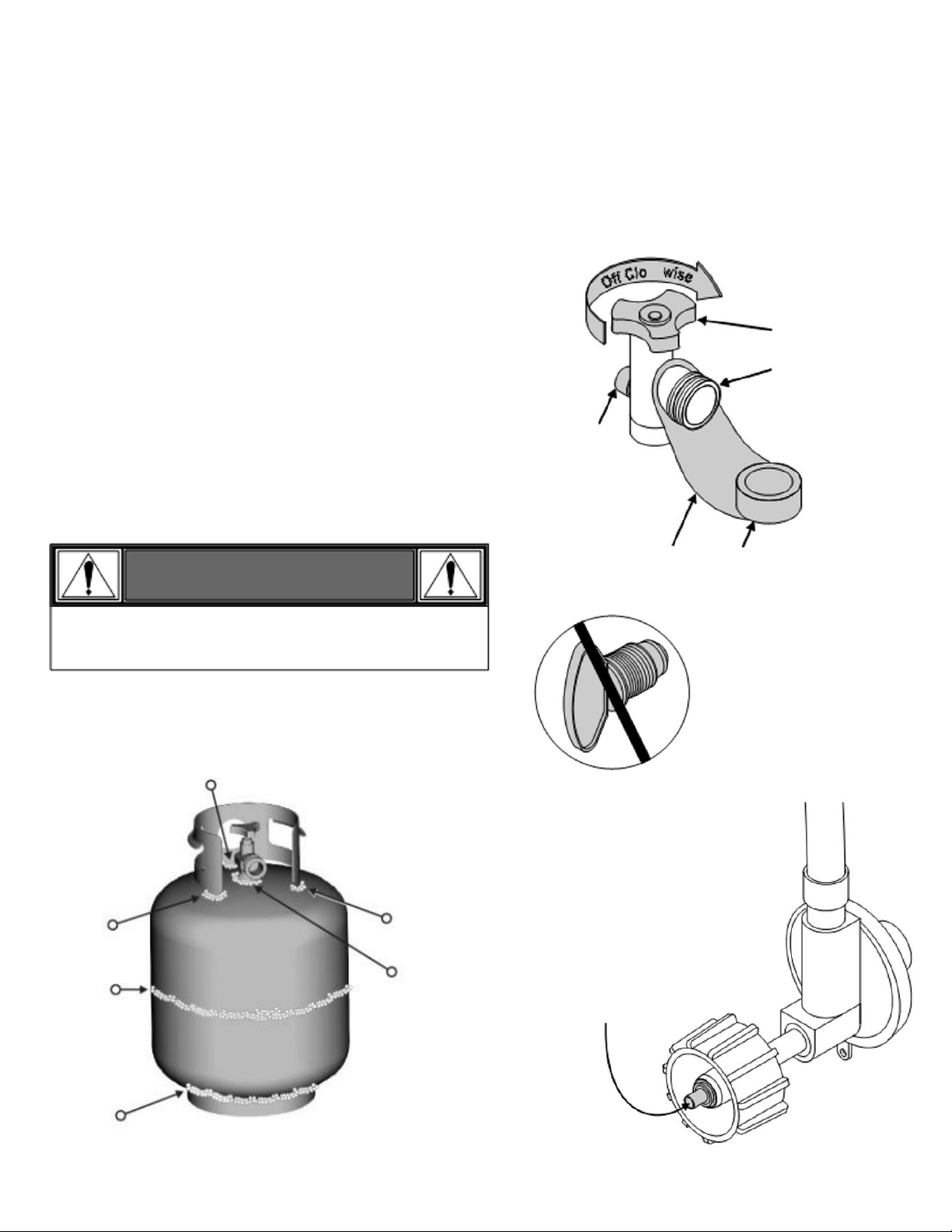

Brush soapy solution onto areas indicated by arrows in figure
below. Leaks are indicated by growing bubbles.
Connecting Regulator To The LP Tank
1. LP tank must be properly secured onto grill. (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP tank OFF by turning OPD hand wheel clockwise to
a
full stop.
4. Remove the protective cap from LP tank valve. Always use
cap and strap supplied with valve.
Safety Relief Valve
OPD Hand Wheel
Type 1 outlet with
thread on outside
Strap and Cap
5. Hold regulator and insert nipple into LP
tank valve. Hand-tighten the coupling
nut, holding regulator in a straight line
with LP tank valve so as not to crossth-
thread the connection.
Do not insert a POL transport
plug (plastic part with
external threads) into the type
1 valve outlet. It will defeat
the Safety Relief Valve
feature.
Nipple has to be
centered into the LP
tank valve.
WARNING
If “growing” bubbles appear do not use or move the LP
tank. Contact an LP gas supplier or your fire department!
146.22124910 • 7
Hold coupling nut and regulator
as shown for proper connection
to LP tank valve
.
Leak Testing Valves, Hose and Regulator
1.
Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP tank.
3. Completely open LP tank valve by turning OPD hand
wheel counterclockwise. If you hear a rushing sound, turn
gas off immediately. There is a major leak at the
connection.
Correct before proceeding by calling Sears
for replacement parts at
1-844-553-6667.

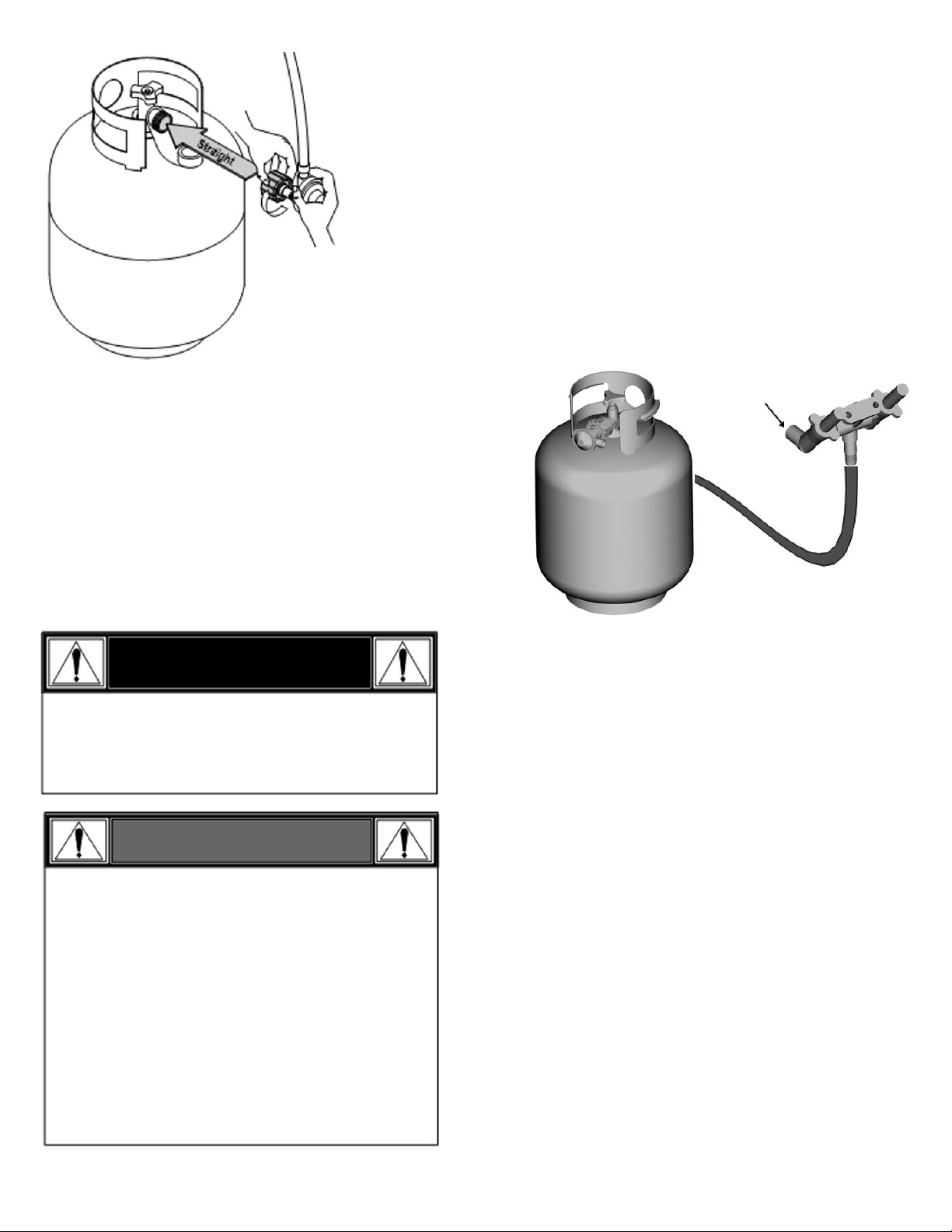

4 .Brush soapy solution onto areas where bubbles are shown
in picture below:
6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP tank valve,
resulting in some resistance.
An additional one-half to three-quarters
turn is required to complete the connection. Tighten by hand only -
do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the connection,
do not use this regulator!
Call
1-844-553-6667 for an identical replacement part.
DANGER
• Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the
valve and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
WARNING
• Outdoor gas appliance is not intended to be installed
in or on a boat.
• Outdoor gas appliance is not intended to be installed
in or on an RV.
• Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP and call the
fire department.
• If you cannot stop a gas leak, immediately close
LP cylinder valve and call LP gas supplier or your fire
department!
▲Never remove threaded
orifice at end of valve.
5. If “growing” bubbles appear, there is a leak. Close LP tank
valve immediately and retighten connections. If leaks
cannot be stopped do not try to repair. Call for
replacement parts at 1-844-553-6667.
6. Always close LP tank valve after performing leak test by
turning hand wheel clockwise.
8 • 146.22124910
WARNING
For Safe Use of Your Grill and to Avoid Serious
Injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that
burn.
• Do not block holes in sides or back of grill.

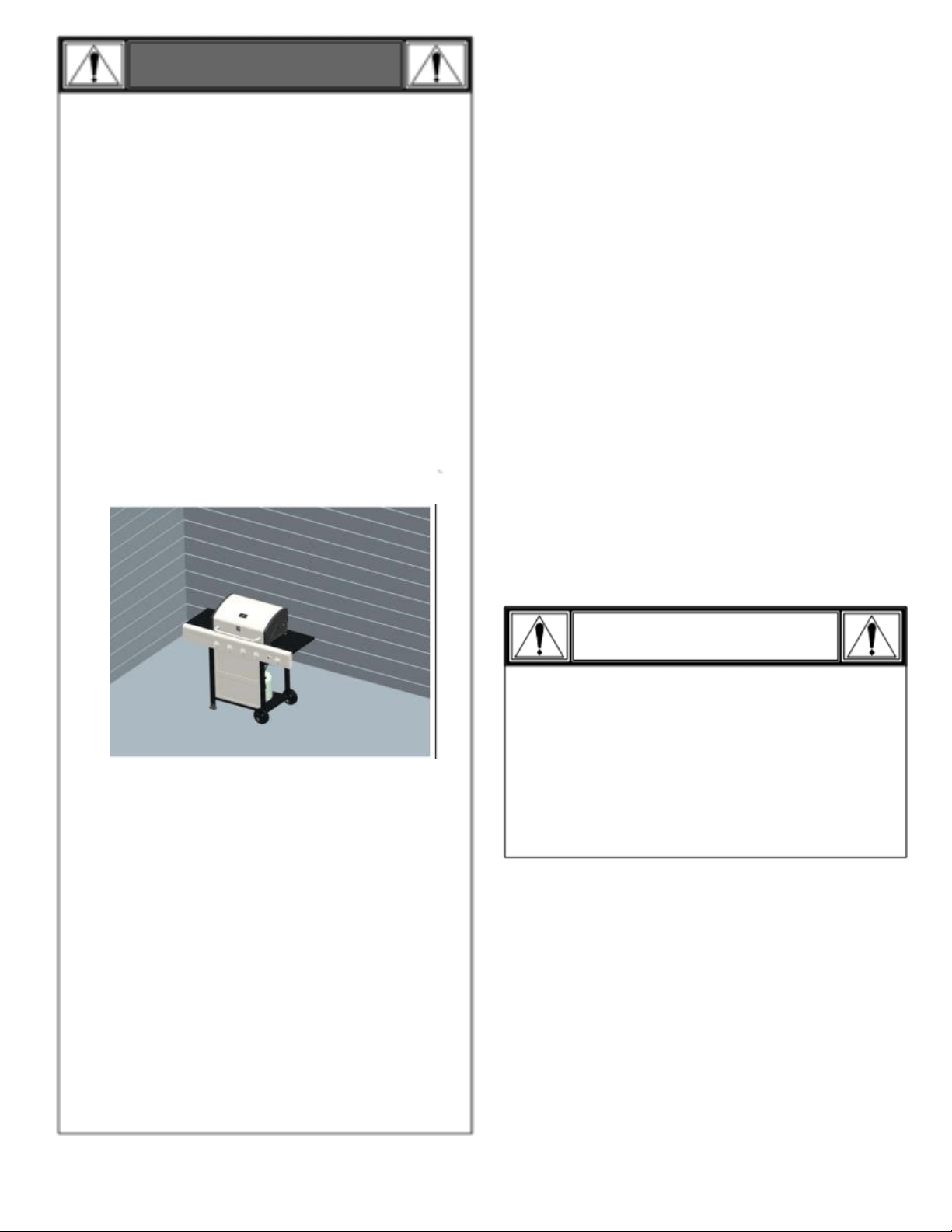

• Use grill only in well-ventilated space. NEVER use
in enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of
any kind.
• Do not use charcoal or ceramic briquets in a gas
grill.
•
Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch
fire, or to sources of ignition etc.
•
Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from
walls or rails. Do not use on or under balconies.
•
NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
▲ Before opening LP cylinder valve, check the coupling nut for
tightness.
▲ When grill is not in use, turn off all control knobs and LP cylinder
valve.
▲ Never move grill while in operation or still hot.
▲ Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
▲ Maximum load for side burner and side shelf is 10 lbs.
▲ The drip tray must be inserted into grill and emptied after each
use. Do not remove drip tray until grill has completely cooled.
▲ Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces, ensure
no loose bristles remain on cooking surfaces prior to grilling. It
is not recommended to clean cooking surfaces while grill is hot.
▲ If you notice drip or other hot material dripping from grill,
determine the cause, correct it, then clean and inspect valve.
Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
▲ Do not store objects or materials inside the grill cart enclosure
that would block the flow of combustion air to the underside of
either the control panel or the firebox bowl.
▲ The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
▲ If you have a grill problem see the "Troubleshooting Section".
▲ If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
CAUTION
• Putting out drip fires by closing the lid is not
possible. Grills are well ventilated for safety reasons.
• Do not use water on a drip fire. Personal injury may
result. If a drip fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or
burning off food residue on HI. If grill has not been
regularly cleaned, a drip fire can occur that may
damage the product.
Main Burner Igniter Lighting
▲Do not lean over grill while lighting.
1. Open lid during lighting.
2. Turn on valve from source or tank.
3. To ignite, turn Ignition Burner knob to HI.
4. Push and hold electronic ignition button.
5. If ignition does not occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes, and repeat the lighting
procedure.
6. To ignite other main burners after Ignition Burner is lit, turn
a control knob that is adjacent to a lit burner to HI. Ignite far
left burner last.
7. Once burners are lit, adjust knobs to desired flame
setting. To extinguish an individual burner, turn its knob to OFF.
8. To ignite the Side Burner, follow steps 3-5 using the Side
Burner knob.
If igniter does not work, follow Match Lighting instructions
146.22124910 •9
CAUTION
WARNING
Turn controls and gas source or tank OFF
when not in use.
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Match Lighting Instructions
▲Do not lean over grill while lighting.
1. Open lid during lighting.
2. Place match into match holder (hanging on the left front leg
inside cabinet.
3. Light match and insert match holder through lighting hole in left
side of firebox. Align lit match with first burner on left.
4. Turn knob of first left burner to HI position. Be sure burner
lights and stays lit. Withdraw match holder from firebox and
extinguish match.
5. To light other burners, turn each knob in succession to HI.
6. Once burners are lit, adjust knobs to desired flame setting. To
extinguish an individual burner, turn its knob to OFF.
Sideburner Match Lighting
1. Open sideburner lid. Turn on gas at LP cylinder.
2. Place lit match near burner.
3. Turn sideburner knob to HI. Be sure burner lights and stays lit.、

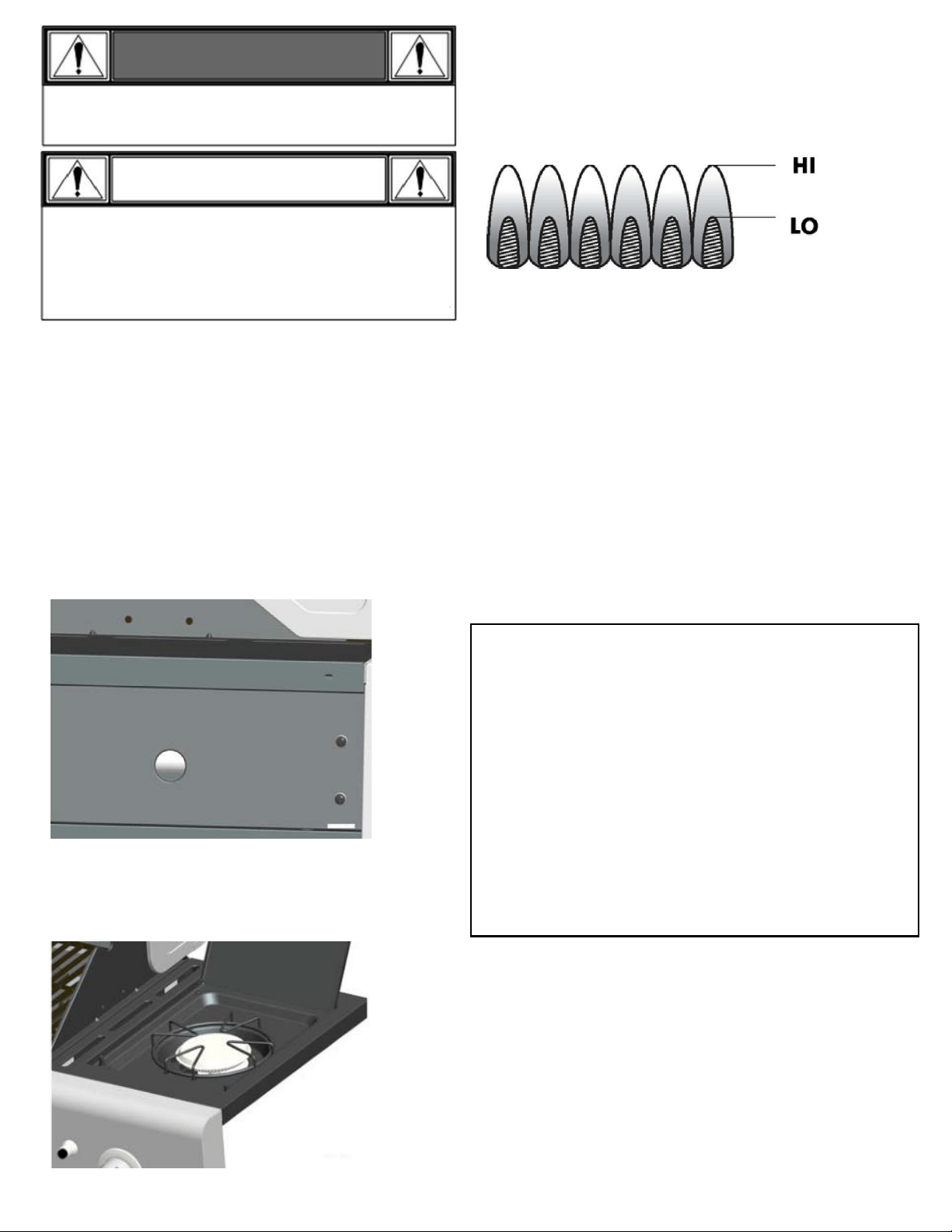

Burner Flame Check
• Remove cooking grates and heat diffusers. Light burners, turn
knobs from HI to LO. You should see a smaller flame in
LO position than seen on HI. Perform burner flame check
on searing burner, also. Always check flame prior to each use. If
only low flame is seen refer to "Sudden flame drop or low flame" in
the Troubleshooting Section.
Turning Grill Off
• Turn all knobs to OFF position. Turn LP cylinder off.
When you are finished grilling, raise the grill lid while allowing the grill to
fully cool. If the grill lid is closed during grill cooling, condensation may
occur on interior grill surfaces and possibly cause them to rust.
Igniter Check
• Turn gas off at LP cylinder. Press and hold electronic igniter button.
"Click" should be heard and spark seen each time between collector
box or burner and electrode. See "Troubleshooting" if no click or spark.
Valve Check
• Important: Make sure gas is off at LP cylinder before checking valves.
Knobs lock in OFF position. To check valves, first push in knobs and
release, knobs should spring back. If knobs do not spring back, replace
valve assembly before using grill. Turn knobs to LOW position then turn
back to OFF position. Valves should turn smoothly.
Hose Check
• Before each use, check to see if hoses are cut or worn. Replace
damaged hoses before using grill. Use only valve/hose/regulator as
specified in the parts list of this Use & Care Guide.
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and smoke for
paint. Interiors of gas grills are not painted at the factory (and should
never be painted). Apply a strong solution of detergent and water or
use a grill cleaner with scrub brush on insides of grill lid and bottom.
Rinse and allow to completely air dry.
Do not apply a caustic grill/oven
cleaner to painted surfaces.
•
Porcelain surfaces: Because of glass-like composition, most residue can
be wiped away with baking soda/water solution or specially
formulated cleaner. Use nonabrasive scouring powder for stubborn
stains.
•
Painted surfaces: Wash with mild detergent or nonabrasive cleaner and
warm soapy water. Wipe dry with a soft nonabrasive cloth.
Cast Iron Grate Seasoning (if applicable)
First Use –Before first use, season cast iron grates as follows: Rinse
cast iron grates with hot water. Do not use soap. Dry grates thoroughly
with a cloth towel. Coat grates with vegetable oil or non-stick cooking
spray. Place grates in grill. Start grill and slowly raise temperature
to 350° - 400° F. Heat grates for one hour. Turn off grill and allow
grates to cool completely before using to cook.
Cleaning – Do not use soap when cleaning grates. Clean grates with
a stiff brush and hot water. Dry grates thoroughly with a cloth towel.
Re-seasoning – Re-season grates when rust spots appear on
grate surface. When re-seasoning grates, soap may be used with
hot water to clean grates. After cleaning, dry grates thoroughly with
a cloth towel. Coat grates with vegetable oil or non-stick
cooking spray. Place grates in grill. Start grill and slowly
raise temperature to 350° - 400° F. Heat grates for one hour.
Turn off grill and allow grates to cool completely before using again.
10•146.22124910
• Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on drip
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage. Do
not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the grill
cooking surfaces, ensure no loose bristles remain on cooking
surfaces prior to grilling. It is not recommended to clean cooking
surfaces while grill is hot.
•Drip Tray and Cup: Regularly clean the drip drippings from the
Drip Tray and Drip Cup. When the grill has completely cooled
down after use, remove the cup from the tray and slide the tray
out of the grill. Clean the drip drippings from the cup and tray
surfaces by washing with mild detergent or nonabrasive cleaner
and warm soapy water. Wipe dry with a soft nonabrasive cloth.
Slide the tray back into the grill and replace the cup back into
the tray before using the grill again.
CAUTION
SPIDER ALERT!
IMPORTANT: Always ensure that the venturi burner tubes
are clean. A venturi burner tube has a narrow area in
which spiders tend to build nests.
If you notice that your grill is getting hard to light or that the
flame isn’t as strong as it should be, take the time to check
and clean the venturi’s.
Spiders or small insects have been known to create “flashback”
problems. The spiders spin webs, build nests and lay eggs in the grill’s
venturi tube(s) obstructing the flow of gas to the burner. The backed-
up gas can ignite in the venturi behind the control panel. This is known
as a flashback and it can damage your grill and even cause injury.
To prevent flashbacks and ensure good performance the burner and
venturi assembly should be removed from the grill and cleaned
before use whenever the grill has been idle for an extended period.
Storing Your Grill
•Clean cooking grates.
•Store in dry location.
•When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
•Cover grill if stored outdoors. Choose from a variety of grill covers
offered by manufacturer once available.
•Store grill indoors ONLY if LP cylinder is turned off and
Disconnected, remove from grill and stored outdoors.
• When removing grill from storage, follow “Cleaning the Burner
A
s
sembl
y
” instructions before starting grill.

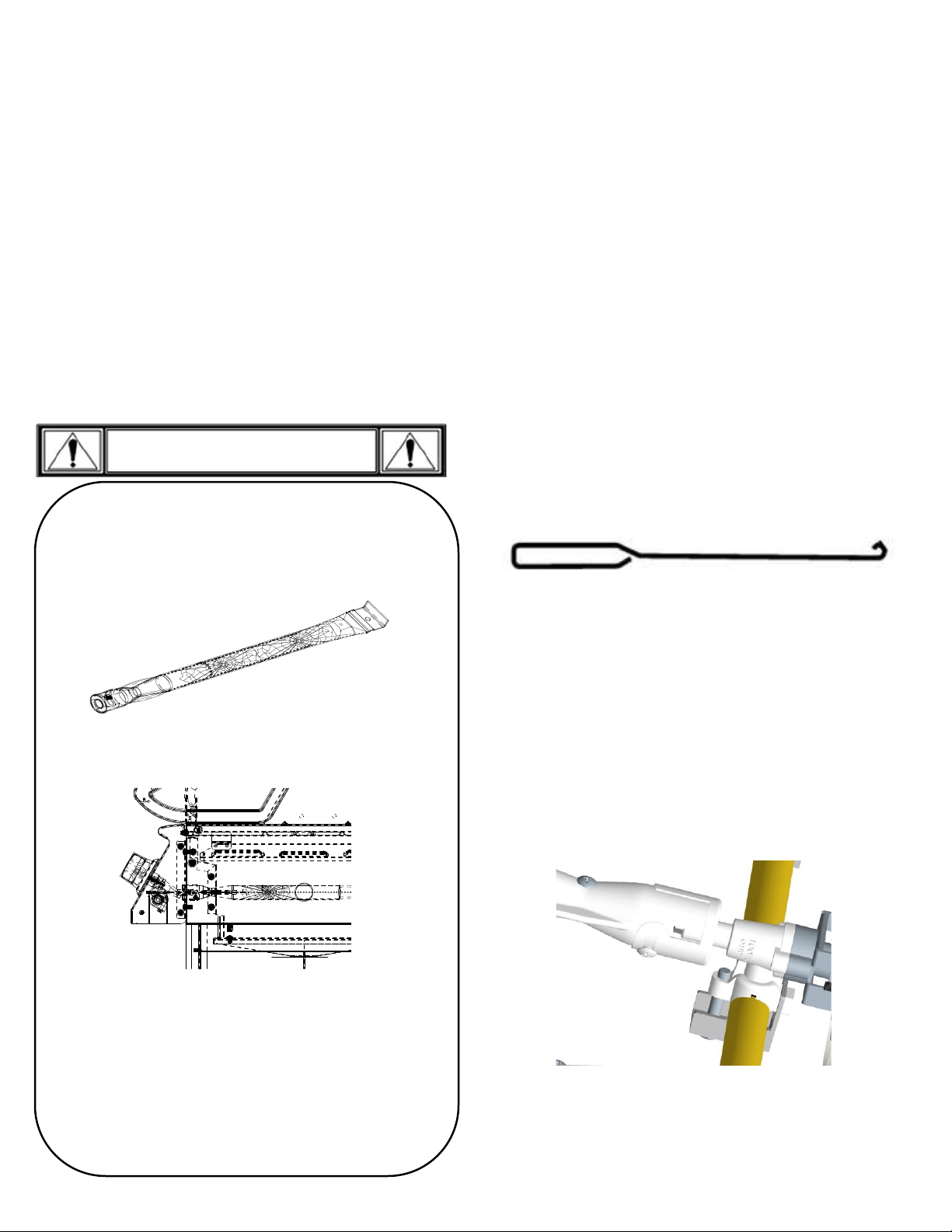

Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1.
Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat diffusers.

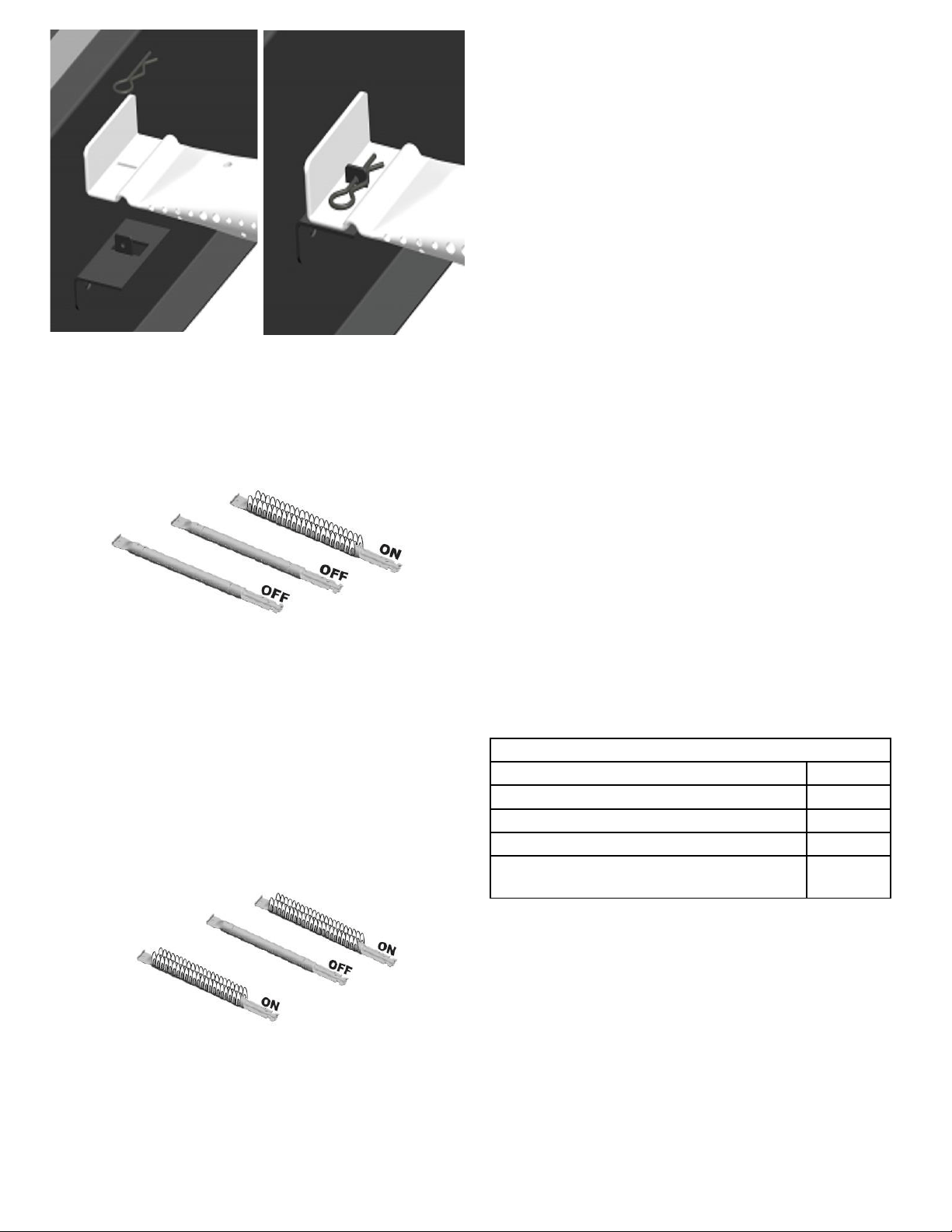

3. Remove cotter pin from rear of burners. See Fig. A next page.
4. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one easiest
for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner
tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each burner
tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
5. Wire brush entire outer surface of burner to remove
food residue and dirt.
6. Clean any blocked ports with a stiff wire such as an
open paper clip.
7. Check burner for damage, due to normal wear and
corrosion some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve openings. See
illustrations below.
8. Carefully replace burners.
9. Attach burners to brackets with cotter pin. See Fig. B next page.
10. Replace heat diffusers and cooking grates
146.22124910 • 11
A
B
Indirect Cooking
Poultry and large cuts of meat cook slowly to perfection on the grill
by indirect heat. Place food over unlit burner(s); the heat from lit
burners circulates gently throughout the grill, cooking meat or
poultry without the touch of a direct flame. This method greatly
reduces flare-ups when cooking extra fatty cuts because there is no
direct flame to ignite the fats and juices that drip during cooking.
1 Burner Cooking
Cook with direct or indirect heat.
Best for smaller meals or foods.
Consumes less fuel.
Indirect Cooking Instructions
• Always cook with the lid closed.
• Once burners are lit, extinguish an individual burner by turning its
knob to OFF.
• Due to weather conditions, cooking times may vary. During cold
and windy conditions the temperature setting may need to be
increased to insure sufficient cooking heat.
• Place food over unlit burner(s).
2 Burner Cooking
Great indirect cooking on low.
Produces slow, even heating.
Ideal for slow roasting and
baking.
Food Safety
Food safety is a very important part of enjoying the outdoor
cooking experience. To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat and poultry.
Separate: Separate raw meats and poultry from ready-to-eat
foods to avoid cross contamination. Use a clean platter and
utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly. For
more information call: USDA Meat and Poultry Hotline at 1-800-
535-4555 (In Washington, DC (202) 720-3333, 10:00 am
4:00 pm EST).
How To Tell If Meat Is Grilled Thoroughly
• Meat and poultry cooked on a grill often browns very fast on
the outside. Use a meat thermometer to be sure food has
reached a safe internal temperature, and cut into food to
check for visual signs of doneness.
• Whole poultry should reach 180° F; breasts, 170° F. Juices
should run clear and flesh should not be pink.
• Hamburgers made of any ground meat or poultry should
reach 160° F, and be brown in the middle with no pink juices.
Beef, veal and lamb steaks, roasts and chops can be cooked to
145° F. All cuts of pork should reach 160° F.
• NEVER partially grill meat or poultry and finish cooking later.
Cook food completely to destroy harmful bacteria.
• When reheating takeout foods or fully cooked meats like hot
dogs, grill to 165° F, or until steaming hot.
WARNING: To ensure that it is safe to eat, food must be
cooked to the minimum internal temperatures listed in the table
below.
USDA* Recommended Safe Minimum Internal Temperatures
Beef, Veal, Lamb and Pork – Whole Cuts**
145° F
Fish
145° F
Beef, Veal, Lamb and Pork – Ground
160° F
Egg Dishes
160° F
Turkey, Chicken & Duck – Whole, Pieces &
Ground
165° F
* United States Department of Agriculture
**Allow meat to rest three minutes before carving or consuming.
12 • 146.22124910
PARTS LIST
Key
Description
Qty
Part Number
Key
Description
Qty
Part Number
1
Side Burner Lid
1
40800065
31
Bottom Shelf
1
52200073
2
Side Burner Grid
1
40800119
32
Front Panel
2
40600028Z
3
Rotate Rod, Side Burner Lid
2
40800118
33
Side Lower Rail
2
52200064
4
Side Burner Base
1
52200052
34
Side Upper Rail
2
52200061
5
Side Burner
1
40600031
35
Tank Baffle
1
40800090
6
Igniter Wire, Side Burner
1
52200054
36
Drip Cup
1
40800026
7
Igniter Wire, Main Burner
1
52200035
37
Drip Cup Clip
1
40800131
8
Right Side Shelf
1
40900145
38
Drip Tray
1
40600014
9
Fire Box
1
40600004
39
Right Drip Tray Support
1
40600027
10
Electronic Ignition Module
1
40600030Z
40
Left Drip Tray Support
1
40600026
11
Fascia, Right Shelf
1
41100023Z
41
Back Rail
1
52200074
12
Control Panel
1
40100022Z
42
Fascia, Left Side Shelf
1
40900040Z
13
Gas Valve, Main Burner
4
40900205
43
Left Side Shelf
1
40900143
14
Manifold, Main Burner
1
40300037
44
Side Shelf Support Angle Bar
2
40900109
15
Side Burner Hose
1
40900210
45
Flame Carry Over Tube
3
40300019
16
Gas Valve, Side Burner
1
40900209
46
Cooking Grate
2
40100101
17
Bezel, Control Knob
5
40900036Z
47
Silicone Rubber Bumper, Firebox
2
50300205
18
Control Knob
5
40900206Z
48
Silicone Rubber Bumper, Lid
2
40700103
19
Regulator
1
408D00115
49
Warming Rack
1
40300104
20
Alex Rod
1
408D00125
50
Lid Handle
1
40900012Z
21
Match Holder Chain
1
120006
51
Bezel, Lid Handle
2
40900013Z
22
Cotter Pin
10
110050
52
Lid Handle Spacers
2
40700022
23
Hose Fixed Pin
1
40800134
53
Temperature Gauge
1
41100101Z
24
Leg Extender
2
40800127
54
Logo
1
40800106Z
25
Caster
2
40800124
55
Lid
1
50500004Z
26
Right Back Leg
1
40600025
56
Heat Diffuser
4
40800023
27
Right Front Leg
1
40600024
57
Rotated Rod, Lid
2
50300207
28
Left Front Leg
1
40600021
58
Flat Washer
3
110018
29
Left Back Leg
1
40600022
59
Hex Nut
3
110011
30
Tank Holder
1
40800130
60
Burner
1
40600013
61
Main Burner
3
40600012
Not Pictured
Hardware Pack
1
40600049
Manual
1
40600050Z
If you are missing hardware or have
damaged parts after unpacking grill,
call 1-888-287-0735 for replacement.
To order replacement parts after using grill,
call 1-844-553-6667.
NOTES: Some grill parts shown in the assembly steps may differ slightly in appearance
from those on your particular grill. However, the method of assembly remains the same.
146.22124910 • 13
PARTS DIAGRAM
1
2
3
4
5
6
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
31
26272829
30
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
53
54
55
56
57
58
59
60
61
7
9
52
14 • 146.22124910
BEFORE ASSEMBLY
NOTICE: Once you have unpacked the grill according to the STOP SHEET
instructions, check all grill parts against the pictures on this and the following
two pages. If any parts are missing or damaged, call 1-888-287-0735.
146.22124910• 15
BEFORE ASSEMBLY
16• 146.22124910
BEFORE ASSEMBLY
146.22124910 • 17
ASSEMBLY
CAREFULLY READ AND PERFORM ALL ASSEMBLY INSTRUCTIONS ON THE FOLLOWING PAGES.
Tools Required:
Adjustable wrench (not provided)
Screwdriver (not provided)
7/16” Combination wrench (not provided)

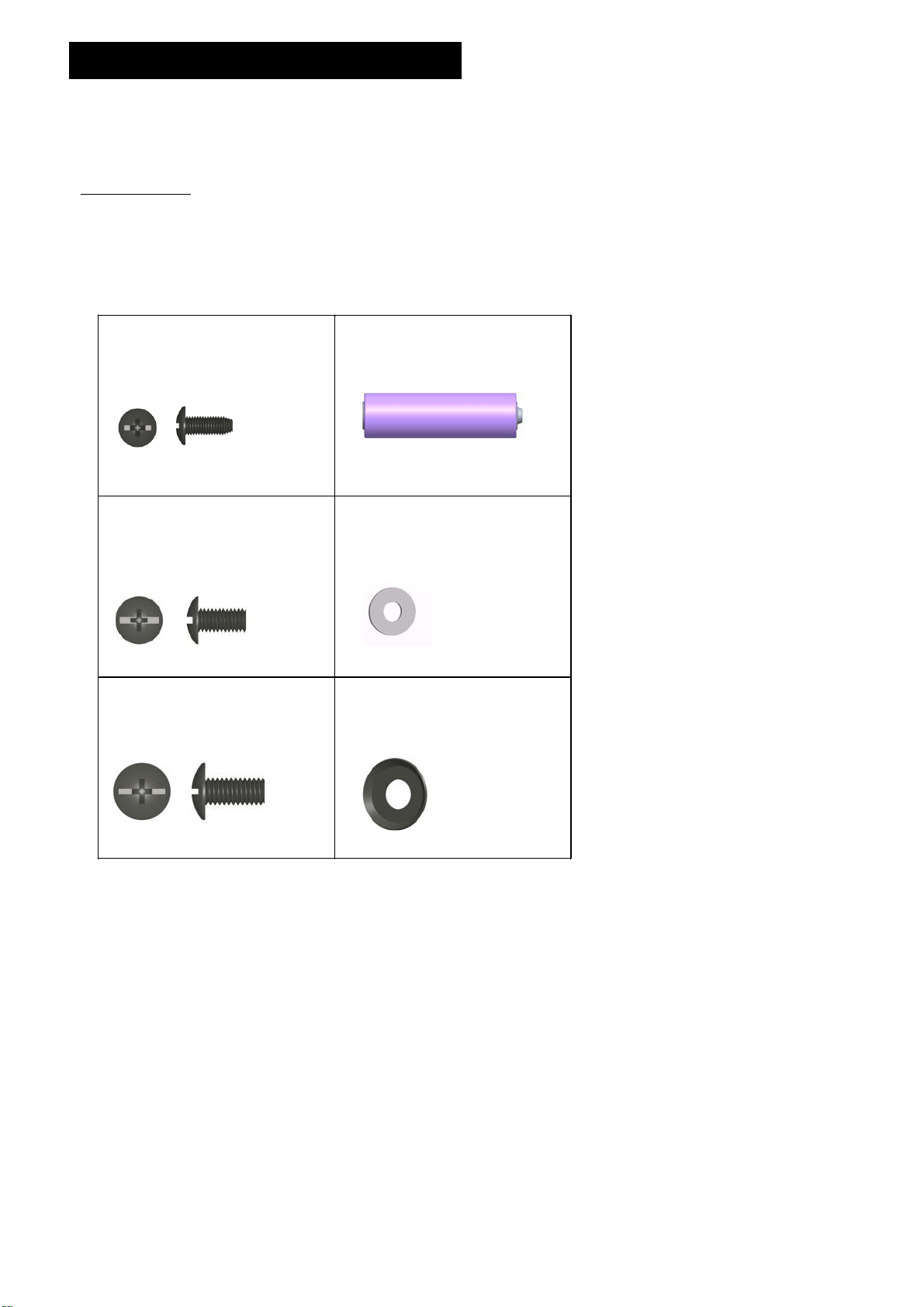

The following hardware is provided in blister pack for convenient use.
M4X10 screw
Qty: 54 pcs
AA Battery
Qty: 1 pc
M5X10 screw
Qty: 4 pcs
M5 flat washer
Qty: 4 pcs
M6X13 screw
Qty: 16 pcs
M6 compression washer
Qty: 4 pcs
18 • 146.22124910

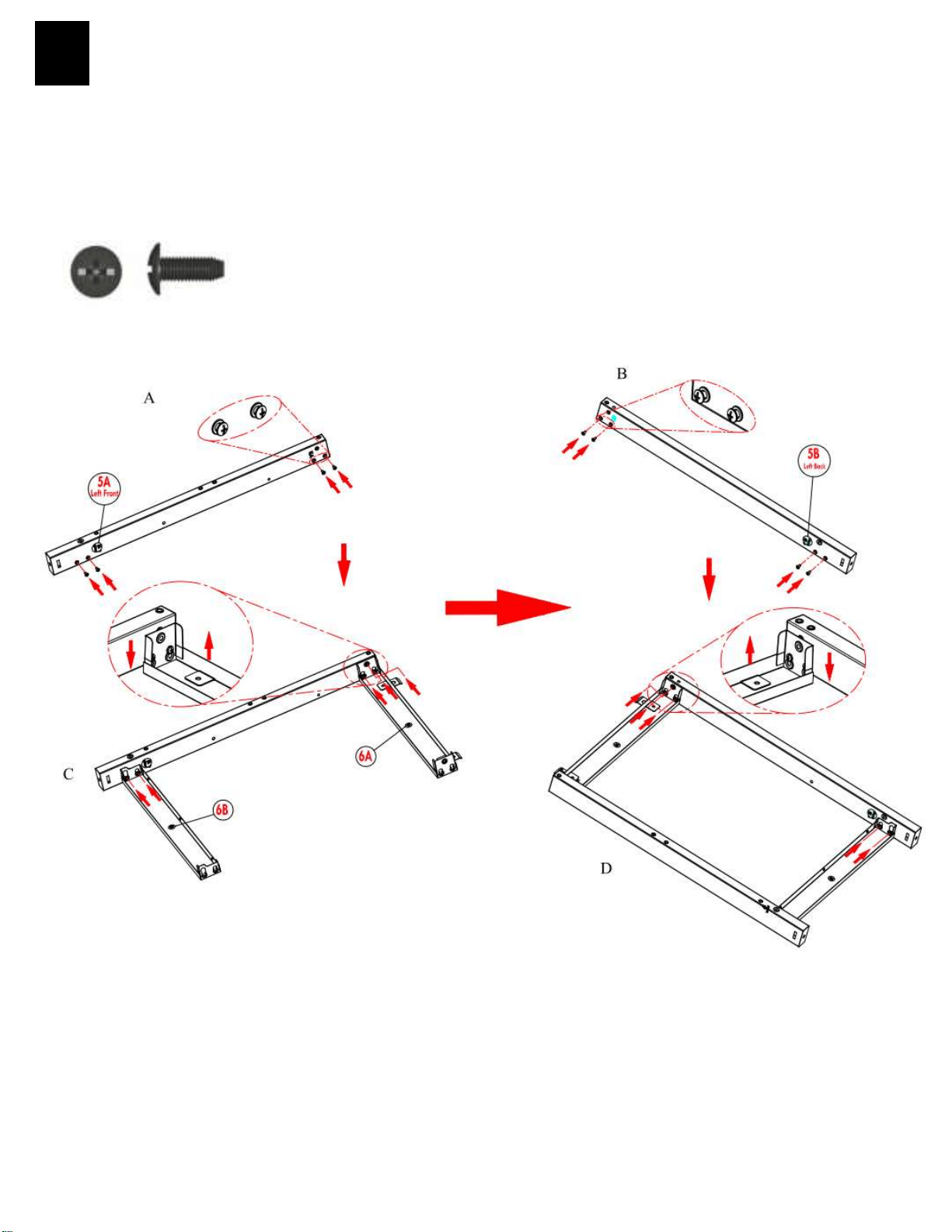

1
Left Frame
□ Install (4)M4 × 10 Screws as shown to the leg marked “5A”. Do not fully tighten the screws at this
time. Leave 1/8-inch gap below screw head for rail attachment. (A)
□ Attach one end of a Side Upper Rail “6A” to the leg, tighten the screws and install and tighten
another (1)M4 × 10 Screw.(C)
□ Attach one end of a Side Lower Rail “6B” to the leg and tighten the screws. (C)
□ Install (4)M4 × 10 Screws as shown to the leg marked “5B”. Do not fully tighten the screws at this
time. Leave 1/8-inch gap below screw head for rail attachment. (B)
□ Attach the other end of Side Upper Rail and Side Lower Rail to the “5B” Leg and tighten the
screws. Install and tighten another (1)M4X10 Screw to the Side Upper Rail. (D)
M4x10 screws Qty: 10 pcs
146.22124910 • 19

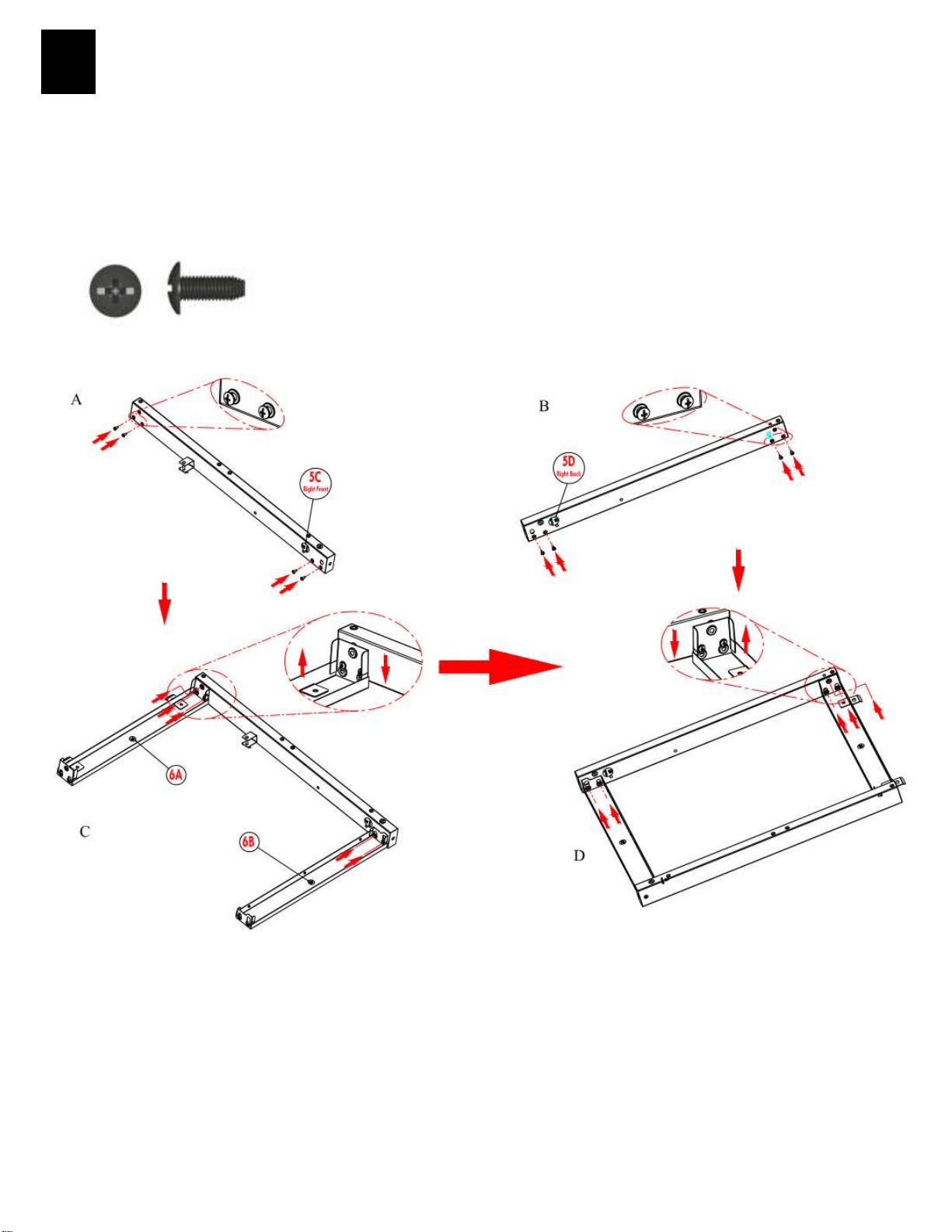

2
Right Frame
□ Install (4)M4 × 10 Screws as shown to the leg marked “5C”. Do not fully tighten the screws at this
time. Leave 1/8-inch gap below screw head for rail attachment. (A)
□ Attach one end of a Side Upper Rail “6A” to the leg, tighten the screws and install and tighten another
(1)M4 × 10 Screw.(C)
□ Attach one end of a Side Lower Rail “6B” to the leg and tighten the screws. (C)
□ Install (4)M4 × 10 Screws as shown to the leg marked “5D”. Do not fully tighten the screws at this
time. Leave 1/8-inch gap below screw head for rail attachment. (B)
□ Attach the other end of Side Upper Rail and Side Lower Rail to the “5D” Leg and tighten the screws.
Install and tighten another (1)M4X10 Screw to the Side Upper Rail. (D)
M4x10 screws Qty: 10 pcs
20 • 146.22124910

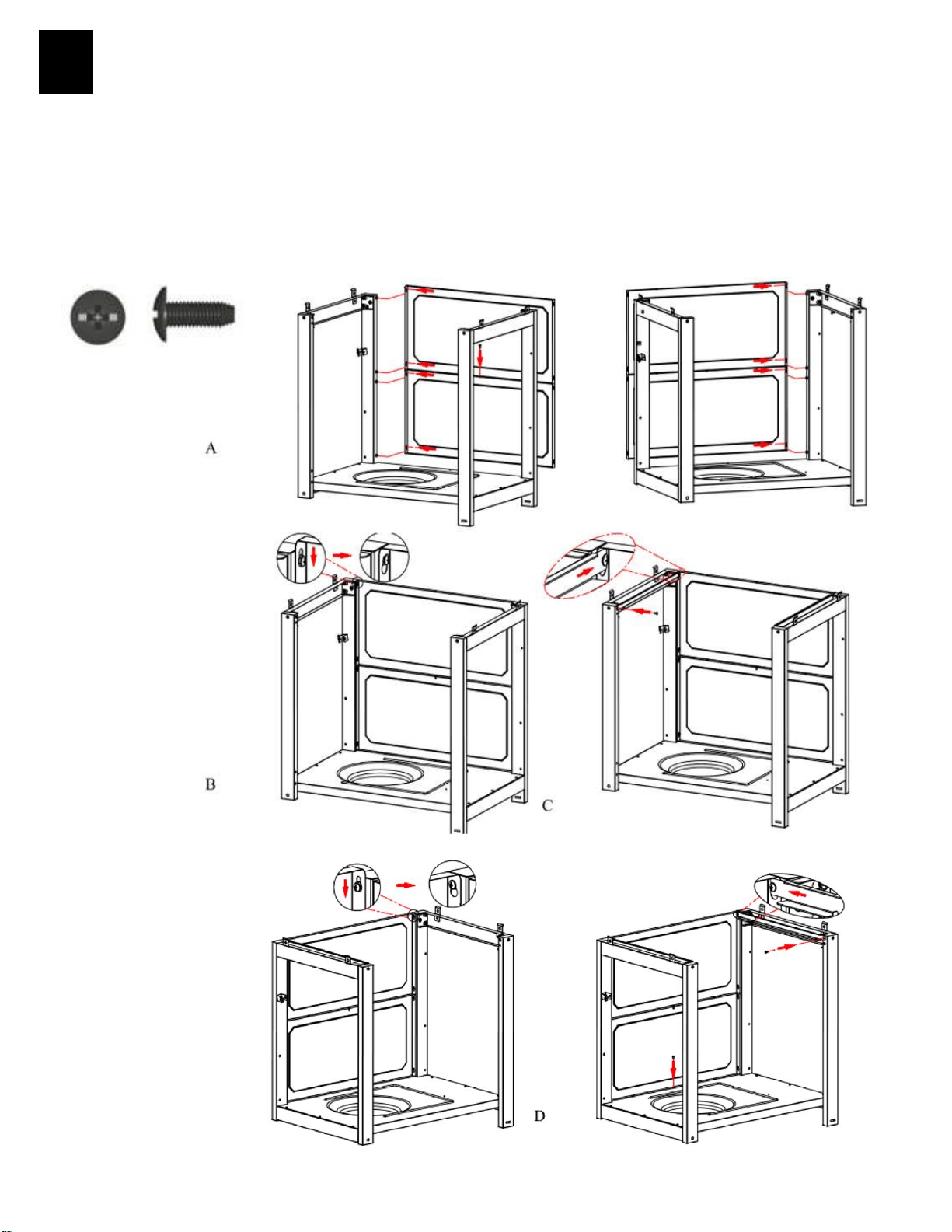

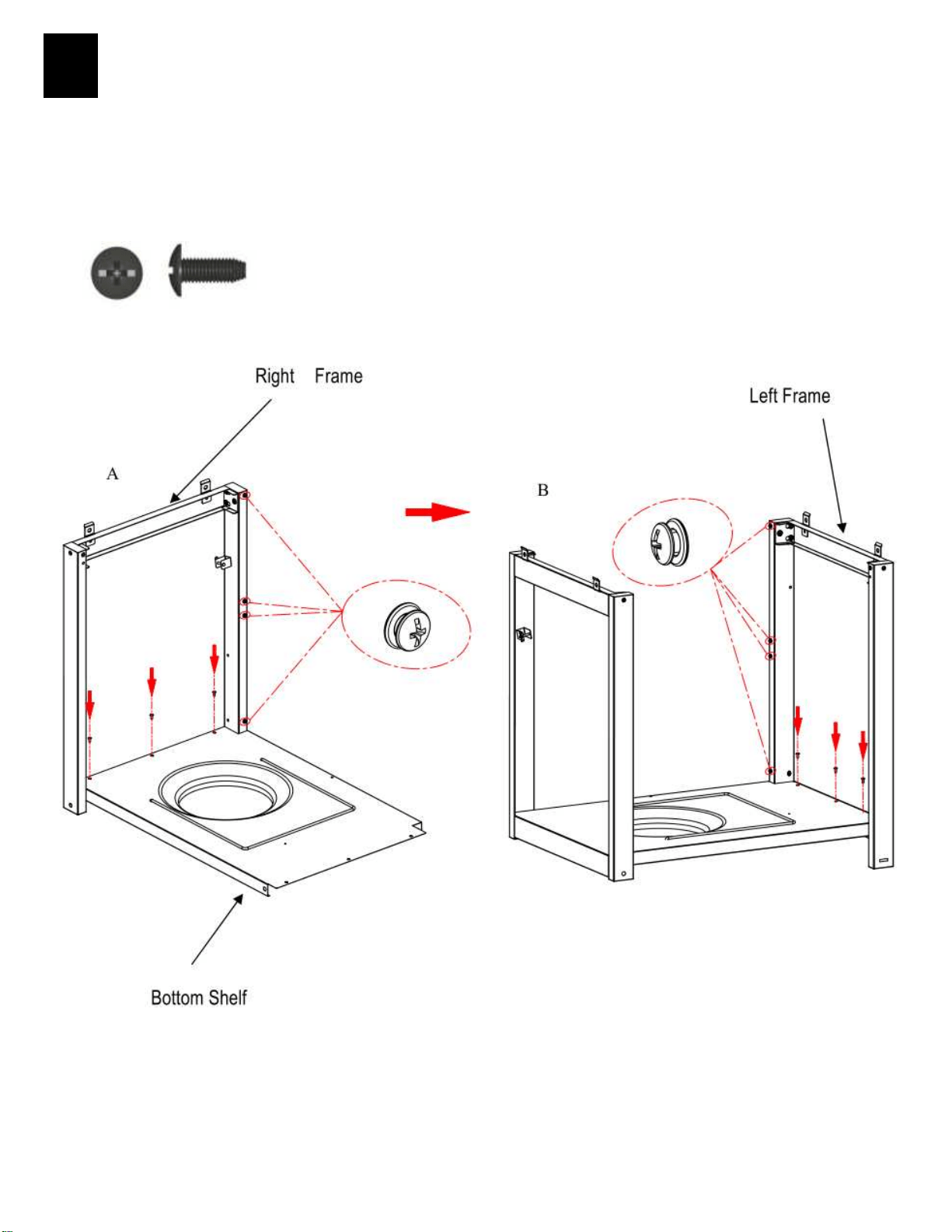

3
Bottom Shelf
□ Install (4)M4 × 10 Screws as shown to Right Frame. Do not fully tighten the screws at this time.
Leave 1/8-inch gap below screw head for panel attachment. (A)
□ Install (4) M4X10 screws as shown to Left Frame. Do not fully tighten screws at this time. Leave
1/8-inch gap below screw head for panel attachment. (B)
□ Attach Bottom Shelf to Right Frame with (3) M4X10 screws. Do not yet fully tighten these screws.
(A)
□ Attach Bottom Shelf to Left Frame with (3) M4X10 screws. Do not yet fully tighten these screws. (B)
M4x10 screws Qty: 14 pcs
146.22124910 • 21
4
Front Panel
□ Attach the two front panel sections together into a single front panel with (1) M4X10 screw as shown.
□ Attach the front panel to the cart by slipping the four panel holes on each side over and down onto the
four protruding screw heads on the left and right frames. Leave the top screw loose on each side, and
fully tighten the other three screws on each side.
□ Slide one end of the Right Drip Tray Support Bar “7A” under the front Right Frame top screw. Fully
tighten the screw. Fully tighten other end of bar to the rear Right Frame with (1)M4 ×0 10 Screw. (C)
□ Slide one end of the Left Drip Tray Support Bar “7B” under the front Left Frame top screw. Fully tighten
the screw. Fully tighten other end of bar to the rear Left Frame with (1)M4 × 10 Screws as shown. Install
and fully tighten (1) M4X10 screw through the middle screw hole on the bottom of the front panel into
the bottom shelf. (D
M4x10 screws Qty: 4 pcs
22• 146.22124910

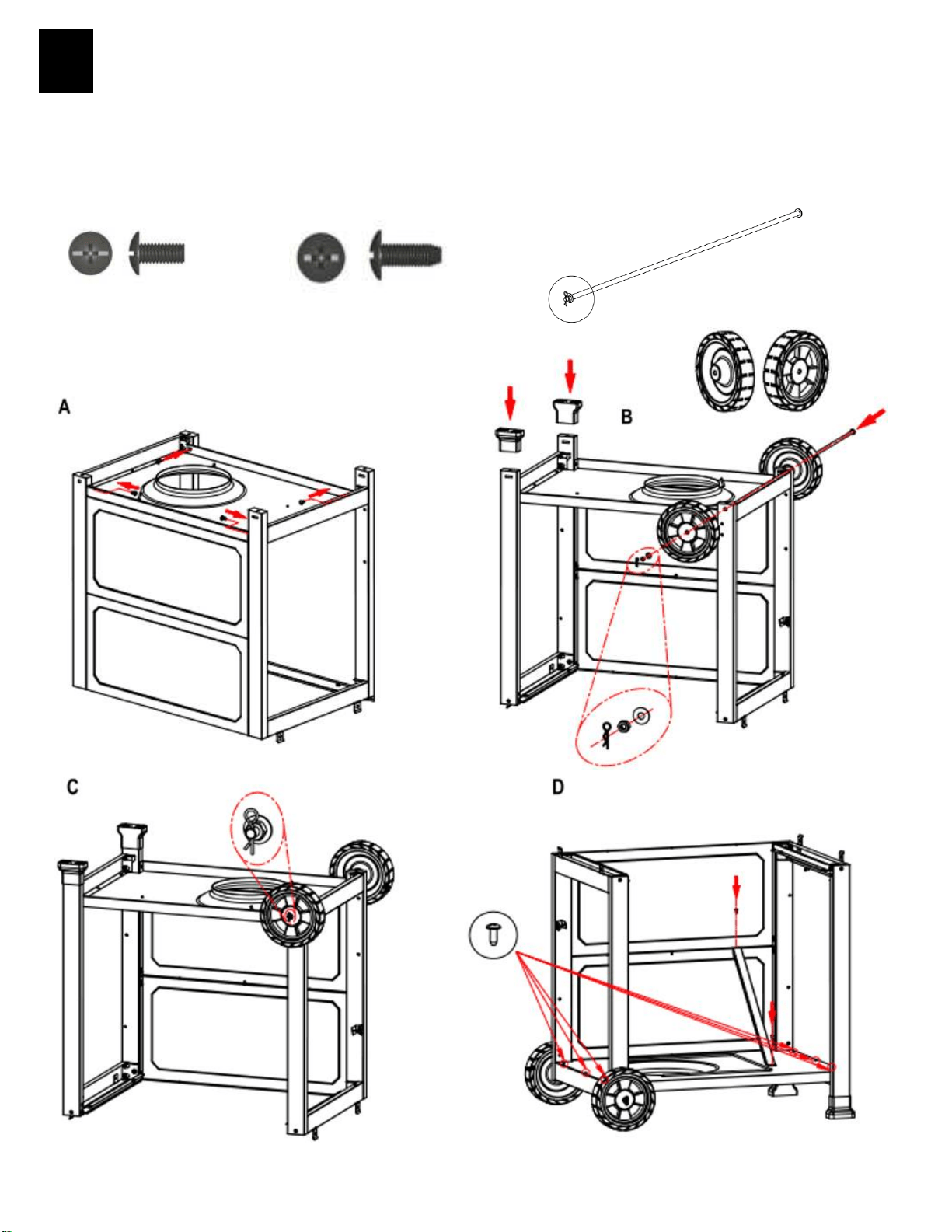

5
Wheels to Cart
□ Turn cart upside down and attach Legs to Bottom Shelf with (4) M6X13 screws as shown. (A)
□ Tap both Leg Extenders onto Left Legs. (B)
□ Remove hitch pin, nut and washer from axle rod. Insert axle rod through Wheels and Right Leg Frame.
Reattach washer, nut and hitch pin. (C)
Note: The convex side of the wheel must face to the cart, and the concave side must face outward.
□Stand cart right side up and fully tighten the (6) M4X10 bottom shelf screws. (D) Attach Tank Baffle as
shown with (2) M4X10 screws. (D)
M6X13 screw Qty: 4 pcs
M4X10 screw Qty: 2 pcs
146.22124910 • 23

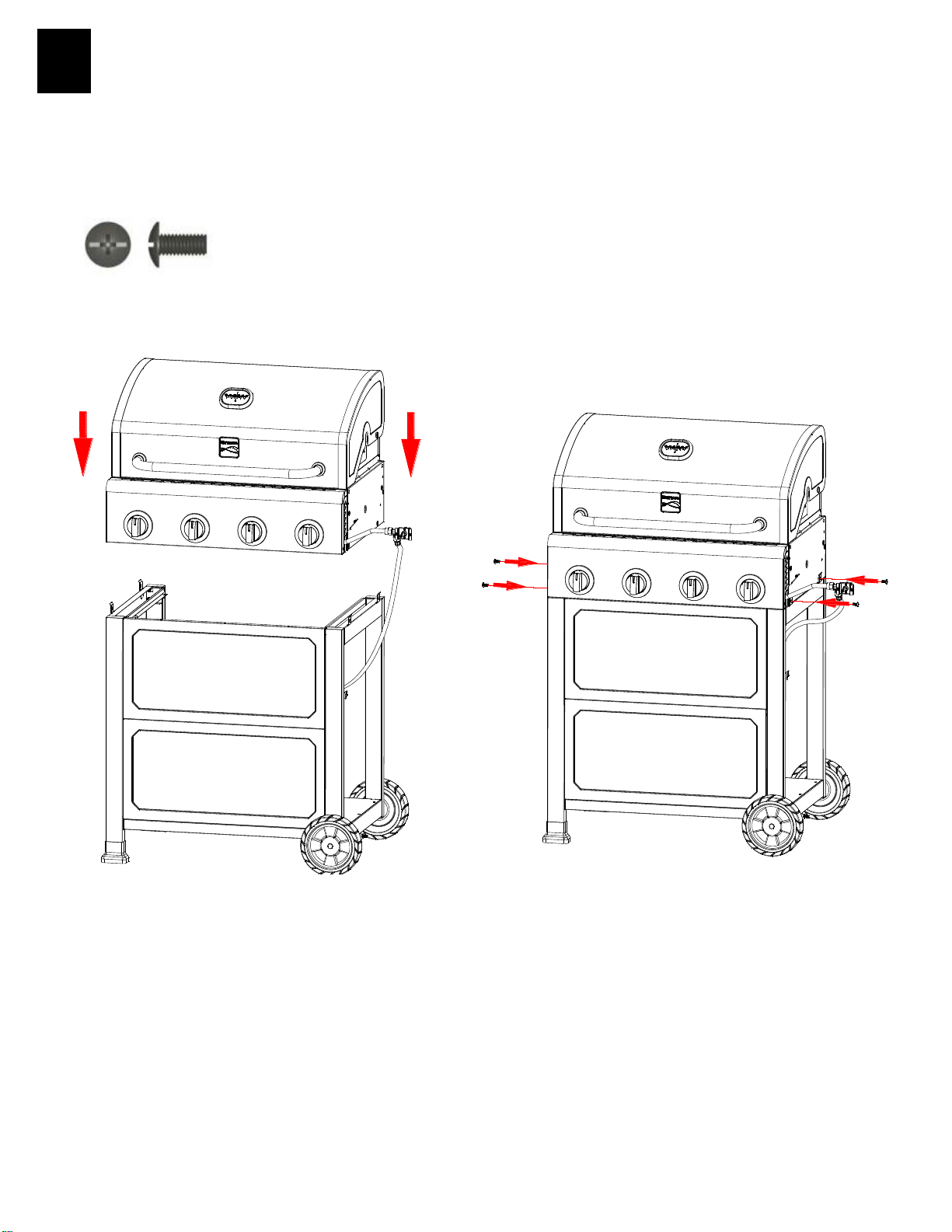

6
Grill Head to Cart
□ This step requires two people to lift and position grill head onto cart.
□ Remove the tie wraps and packaging material from regulator hose, side burner valve and igniter
wire. Pull hose and igniter wire out to side of grill head.
□ Carefully lower the grill head onto the cart. Make sure the regulator hose and igniter wire are
hanging outside the cart.
□ Line up control panel so that it is flush with front panels. Attach head to cart with (4) M6X13 screws.
M6X13 screw Qty: 4 pcs
24• 146.22124910

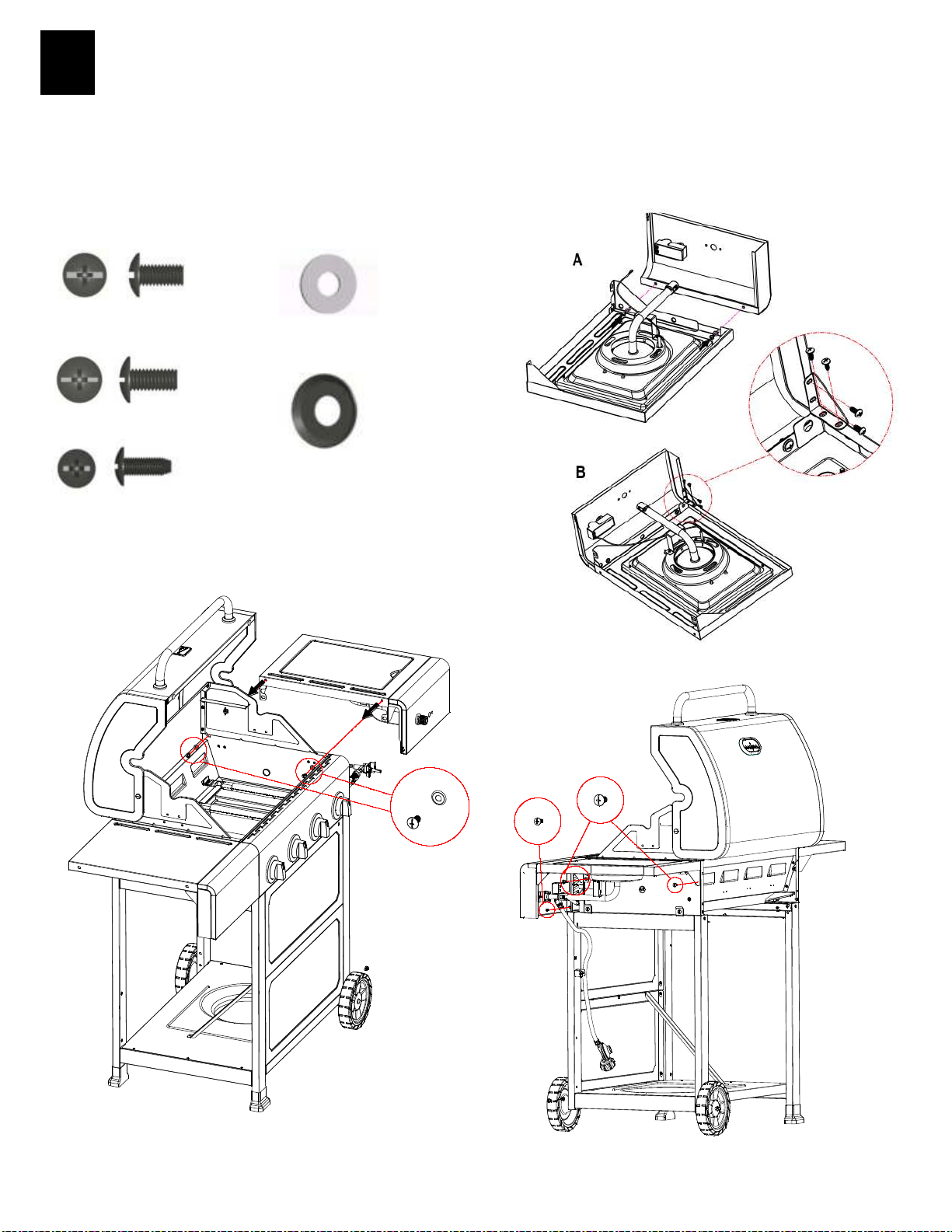

7

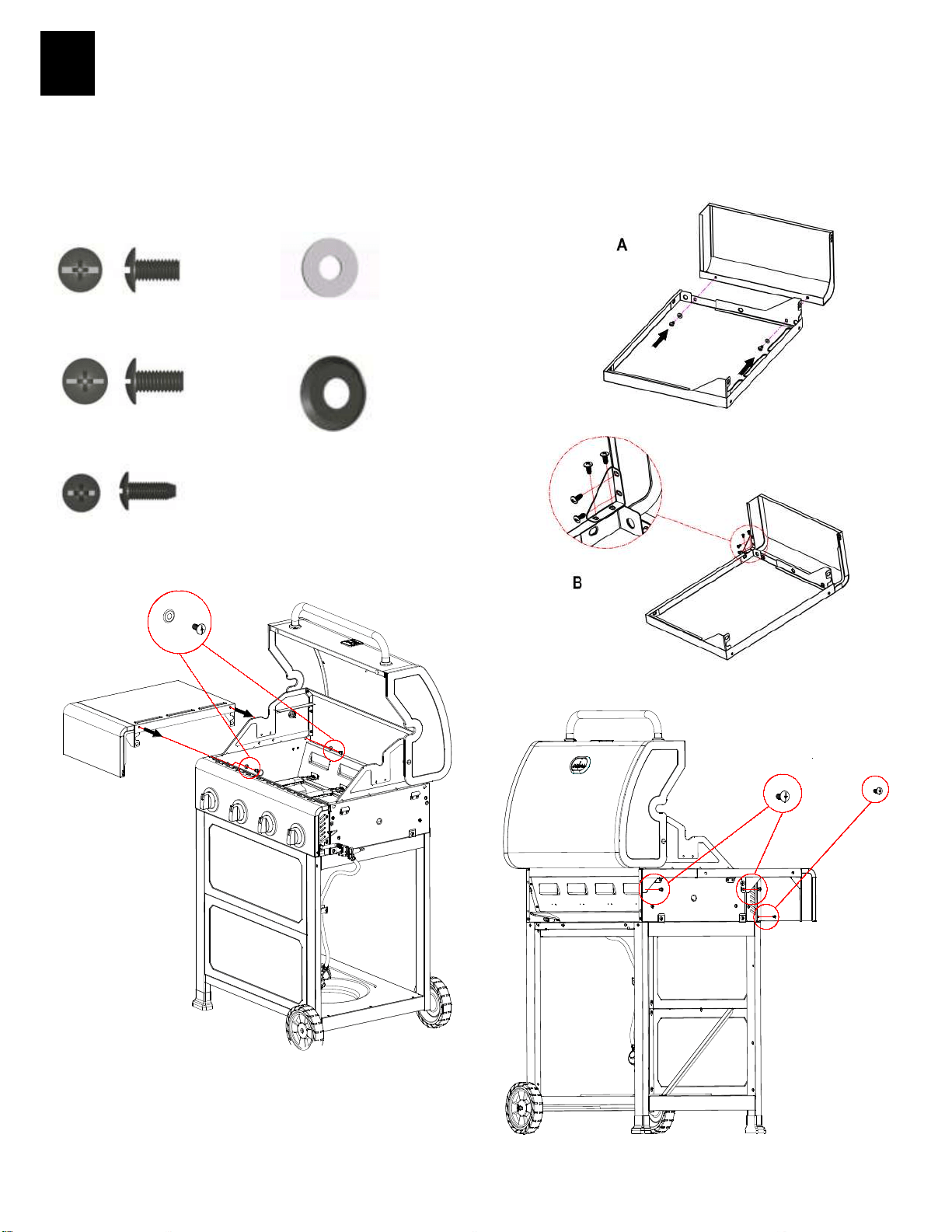

Left Side Shelf
□ Attach fascia to left side shelf with (2) M5x10 screws and M5 flat washers. (A)
□ Attach Side Shelf Support Angle Bar with (4) M4x10 screws.(B)
□ Hang shelf onto brackets on left side of firebox.
□ Attach shelf to firebox as follows:
- From inside to outside of firebox with (2) M6x13 screws and M6 compression washers. (C)
- From outside to inside of firebox with (2) M6x13 screws. (D)
□ Attach fascia to control panel with (1) M4x10 screw. (D)
M5X10 screw Qty: 2 pcs
M6X13 screws Qty: 4 pcs
M4X10 screw Qty: 5 pcs
M5 flat washer
Qty: 2 pcs
M6 compression washer
Qty: 2 pcs
C
D
146.22124910 • 25
8
Right Side Shelf
□ Remove side burner grate from side burner before assembling and attaching the right side shelf,
□ Attach fascia to right side shelf with (2) M5x10 screws and M5 flat washers.(A)
□ Attach Side Shelf Support Angle Bar with (4) M4x10 screws.(B)
□ Hang right side shelf onto the brackets on right side of firebox.
□ Attach shelf to firebox as follows:
- From inside to outside of firebox with (2) M6x13 screws and M6 compression washers.(C)
- From outside to inside of firebox with (2) M6x13 screws. (D)
□ Attach fascia to control panel with M4x10 screw. (D)
M5X10 screw Qty: 2 pcs
M6X13 screws Qty: 4 pcs
M4X10 screw Qty: 5 pcs
M5 flat washer
Qty: 2 pcs
M6 compression washer
Qty: 2 pcs
C
D
26• 146.22124910
9

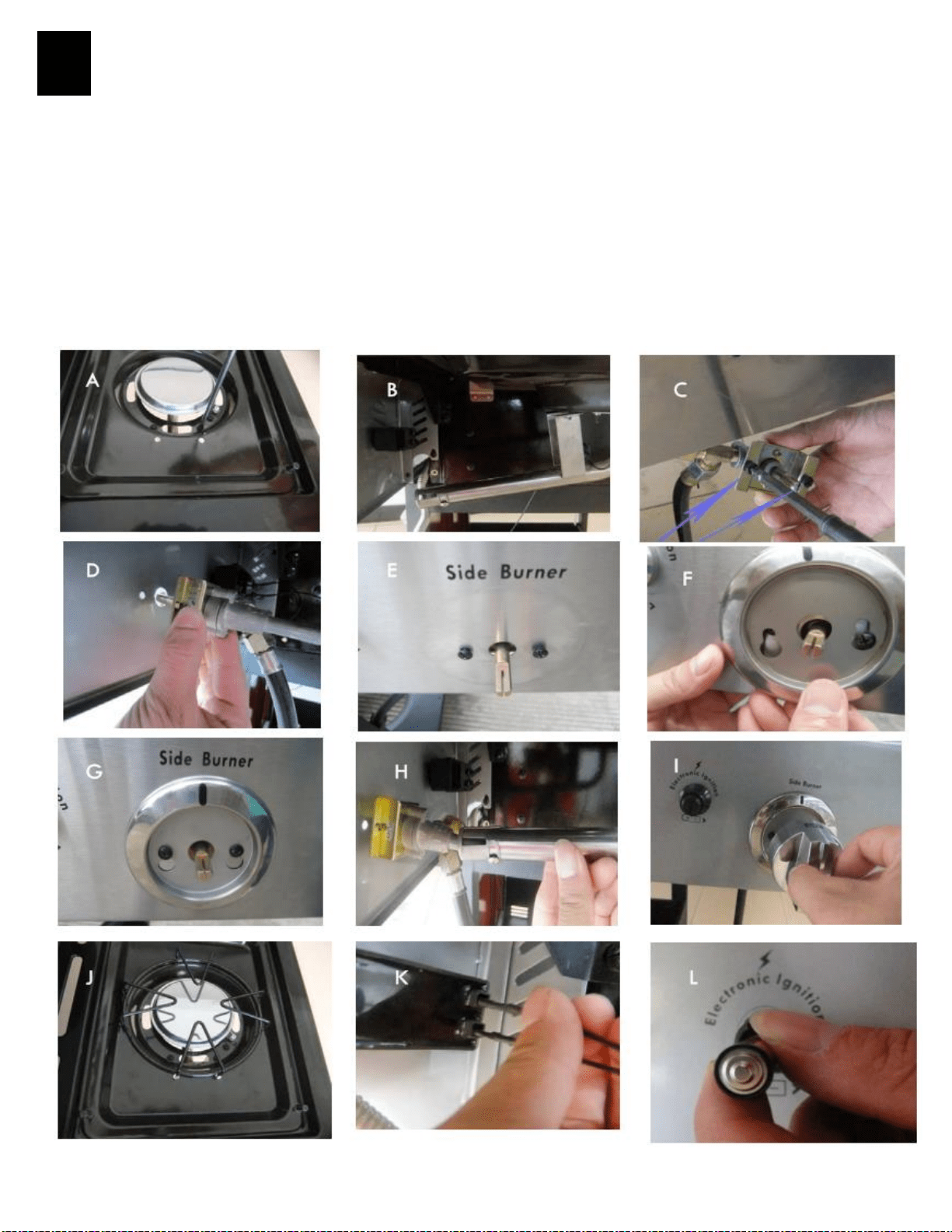

Side burner
□ Loosen side burner in side shelf. (B ). To loosen, unscrew and remove two front screws and washers
holding sideburner in place. (A). Note: Do not loosen electrode screw.
□ Remove the 2 pre-installed screws from the valve stem and set them aside. (C)
□ Insert valve stem through hole in fascia. (D). Install previously removed 2 screws .Note: Leave a
1/8-inch gap below the screw heads for bezel attachment. (E).
□ Attach bezel to fascia and valve face with the installed screws. Make sure the white mark is facing
up.(F). Tighten the 2 screws.(G)
□ Place sideburner tube over the valve, making sure that valve is inside sideburner tube. (H)
□ Push control knob onto sideburner valve stem. (I)
□ Reattach sideburner to sideburner shelf with the 2 previously removed screws. Replace sideburner grate. (J)
□ Connect both igniter wires to the igniter module on the inside of the right fascia. To connect, push
igniter wire tips onto pins in igniter module.(K)
□ Unscrew igniter cap from control panel. Insert (1) AA battery (provided in blister pack) into battery
slot with positive end (+) facing outward. Screw igniter cap back onto panel. (L)
146.22124910 • 27
10

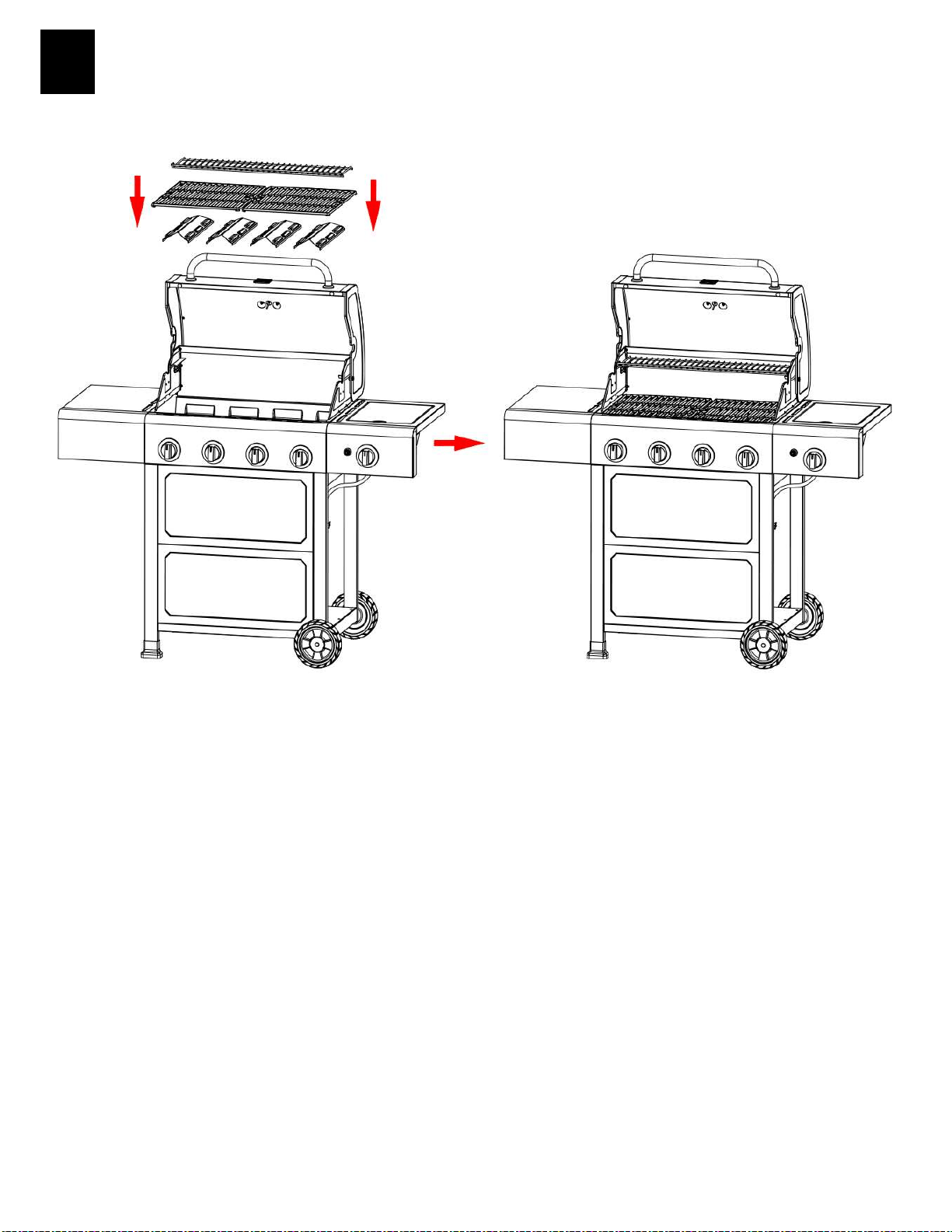

Heat Diffusers, Cooking Grates and Warming Rack
□ Place Heat Diffusers over burners. Diffusers will fit in firebox in either direction.
□ Place Cooking Grates onto grate rests at front and rear of Firebox.
□ Insert warming rack into brackets at top of Firebox with Curved edge to front as shown.
28 • 146.22124910
Drip Tray, Drip Cup and LP Tank

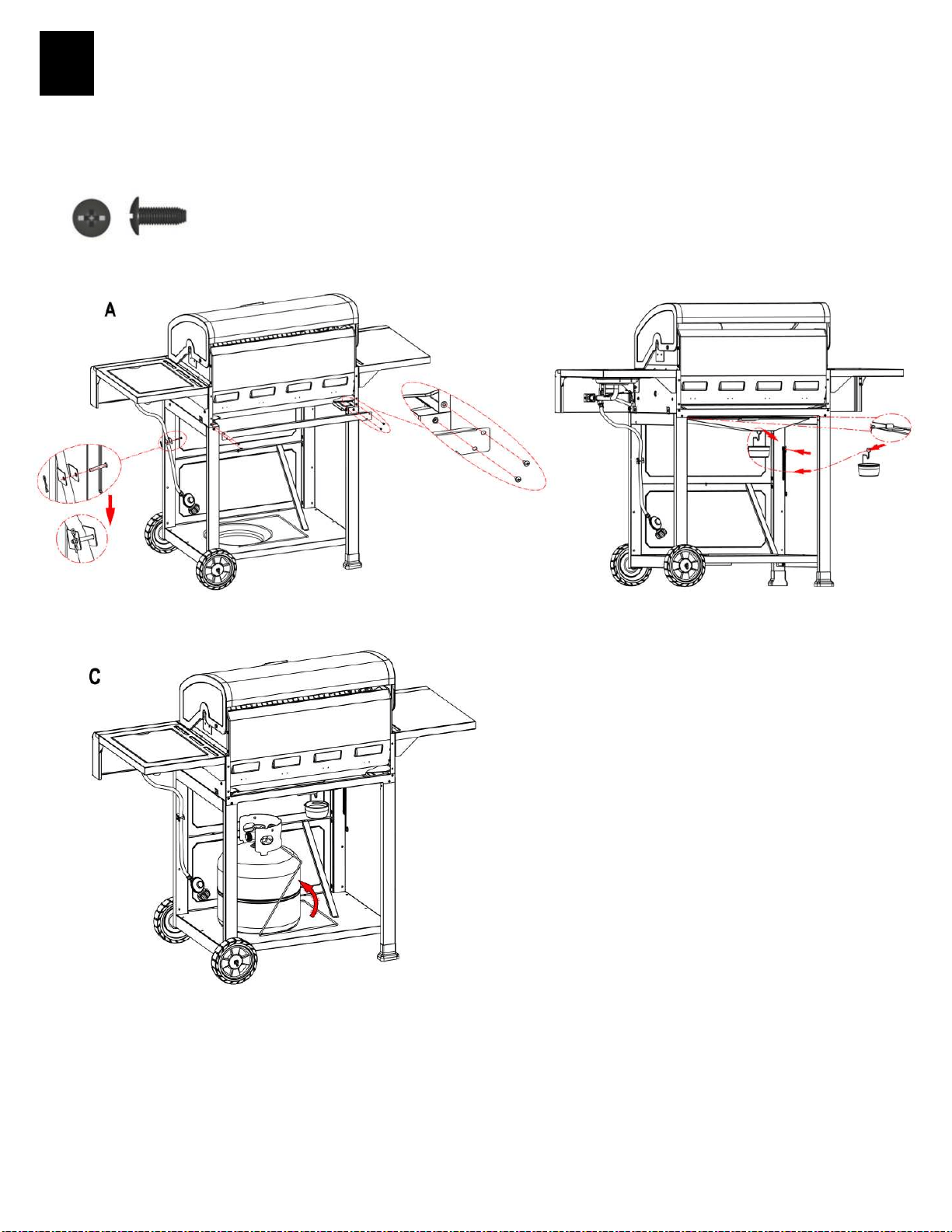

□ Attach Back Rail to the Cart and Grill Head with (4)M4 × 10 Screws as shown.(A)
□ Remove the cotter key and retention pin from the hose bracket on cart right leg. Insert hose into bracket
and replace cotter and pin.
□ Hang Drip Cup Clip from bottom of drip tray, and insert Drip Tray into bottom of Firebox from
back of cart. Fit Drip Cup into Drip Cup Clip. Insert Match Holder Chain into hole in Front Left Leg. (B)
□ Place LP tank into hole in bottom shelf with tank collar opening facing to side as shown.(C
11
M4X10 screw Qty: 4 pcs
B
146.22124910 • 29
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
Troubleshooting
Problem
Possible Cause
Prevention/Solution
Gas leaking from
cracked/cut/burned
hose.
Gas leaking from LP
cylinder.
Gas leaking from LP
cylinder valve.
Gas leaking between
LP cylinder and
regulator connection.
Fire coming through
control panel.
Drip fire or continuous
excessive flames
above cooking surface.
• Damaged hose.
• Mechanical failure due to rusting or
mishandling.
• Failure of cylinder valve from
mishandling or mechanical failure.
• Improper installation, connection not
tight, failure of rubber seal.
• Fire in burner tube section of burner
due to blockage.
• Too much drip buildup in burner
area.
•Turn off gas at LP cylinder or at source on natural gas systems. If the
hose is cracked or cut but not burned, simply replace valve / hose /
regulator. If the hose is burned, the cause could be other than a
faulty valve/hose/regulator. Discontinue use of grill until a plumber
or gas technician has investigated and corrected the problem.
• Replace LP cylinder.
• Turn off LP cylinder valve. Return LP cylinder to gas supplier.
•Turn off LP cylinder valve. Remove regulator from cylinder and
visually inspect rubber seal for damage. See LP Cylinder Leak Test
and Connecting Regulator to the LP Cylinder.
•Turn off control knobs and LP cylinder valve. Leave lid open to allow
flames to die down. After fire is out and grill is cold, remove burner
and inspect for spider nests or rust. See Spider Alert and Cleaning
the Burner Assembly sections of this Use & Care Guide.
• Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After cooling, clean food particles and
excess drip from inside firebox area, drip tray, and other surfaces.
Problem
Possible Cause
Prevention/Solution
Burner(s) will not
light using igniter.
(See Electronic
Ignition
Troubleshooting
also)
Continued on next
page.
GAS ISSUES:
• Trying to light wrong burner.
• Burner not engaged with control valve.
• Obstruction in burner.
• No gas flow.
• Vapor lock at coupling nut to LP
cylinder.
• Coupling nut and LP cylinder valve not
fully connected.
ELECTRICAL ISSUES:
• Electrode cracked or broken; “sparks at
crack.
• Electrode tip not in proper position.
• Wire and/or electrode covered with
cooking residue.
• Wires are loose or disconnected.
• Wires are shorting (sparking) between
igniter and electrode.
• Dead battery.
• See instructions on control panel and in Use and Care section.
• Make sure valves are positioned inside of burner tubes.
• Ensure burner tubes are not obstructed with spider webs or
other matter. See cleaning section of Use and Care.
• Make sure LP cylinder is not empty. If LP cylinder is not empty,
refer to “Sudden drop in gas flow.”
• Turn off knobs and disconnect coupling nut from LP cylinder.
Reconnect and retry.
• Turn the coupling nut approximately one-half to three-quarters
additional turn until solid stop. Tighten by hand only - do not use
tools.
• Replace electrode(s).
Main Burners:
• Tip of electrode should be pointing toward gas port opening
on burner. The distance should be 1/8” to 1/4”. Adjust if
necessary.
Sideburner
• Tip of electrode should be pointing toward gas port opening
on burner. the distance should be 1/8” to 3/16”. Adjust if
necessary.
• Clean wire and/or electrode with rubbing alcohol and clean
swab.
• Reconnect wires or replace electrode/wire assembly.
• Replace igniter wire/electrode assembly.
• Replace with a new AA-size alkaline battery.
30• 146.22124910
Troubleshooting (continued)
Problem
Possible Cause
Prevention/Solution
Burner(s) will not
light using igniter.
(See Electronic
Ignition
Troubleshooting
also)
ELECTRONIC IGNITION:
• No spark, no ignition noise.
• No spark, some ignition noise.
• Sparks, but not at electrode or at full
strength.
• See Section I of Electronic Ignition System.
• See Section II of Electronic Ignition System.
• See Section III of Electronic Ignition System.
Burner(s) will not
match light.
• See “GAS ISSUES:” on previous page.
• Match will not reach.
• Improper method of match-lighting.
• Use long-stem match (fireplace match).
• See “Match-Lighting” section of Use and Care.
Sudden drop in gas
flow or low flame.
• Out of gas.
• Excess flow valve tripped.
• Vapor lock at coupling nut/LP
cylinder connection.
• Check for gas in LP cylinder.
•Turn off knobs, wait 30 seconds and light grill. If flames are
still low, turn off knobs and LP cylinder valve. Disconnect
regulator. Reconnect regulator and leak-test. Turn on LP
cylinder valve, wait 30 seconds and then light grill.
•Turn off knobs and LP cylinder valve. Disconnect coupling nut
from cylinder. Reconnect and retry.
Flames blow out.
• High or gusting winds.
• Low on LP gas.
• Excess flow valve tripped.
• Turn front of grill to face wind or increase flame height.
• Refill LP cylinder.
• Refer to “Sudden drop in gas flow” above.
Flare-up.
• Drip buildup.
• Excessive fat in meat.
• Excessive cooking temperature.
• Clean burners and inside of grill/firebox.
• Trim fat from meat before grilling.
• Adjust (lower) temperature accordingly.
Persistent drip fire
• Drip trapped by food buildup
around burner system.
•Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in position
and let fire burn out. After grill cools, remove and clean all parts.
Flashback…
(fire in burner
tube(s))
Unable to fill LP
cylinder.
One burner does not
light from other
burner(s).
• Burner and/or burner tubes are
blocked.
• Some dealers have older fill nozzles
with worn threads.
• Drip buildup or food particles in
end(s) of carryover tube(s).
• Clean carry-over tube(s) with wire brush.
• The worn nozzles don’t have enough “bite” to engage the
valve. Try a second LP dealer.
• Turn knobs to OFF. Clean burner and/or burner tubes. See
burner cleaning section of Use and Care.
146.22124910 • 31
Troubleshooting - Electronic Ignition
Problem (Ignition)
Possible Cause
Check Item
Prevention/Solution
SECTION I
No sparks appear
at any electrodes
when control knob
turned to HI: no
noise can be heard
from spark module.
• Battery not
installed properly.
• Dead battery.
• Button assembly
not installed
properly.
• Faulty spark
module
• Check battery orientation.
• Has battery been used
previously?
• Check to insure threads
are properly engaged.
Button should travel up and
down without binding.
• If no sparks are
generated
with new battery and
good wire connections,
module is faulty.
• Install battery (make sure that “+” and “-”
connectors are oriented correctly, with “+”
end up and “-” end down.)
• Replace battery with new AA-size alkaline
battery.
• Unscrew button cap assembly and reinstall,
making sure threads are aligned and engaged
fully.
• Replace spark module assembly.
SECTION II
No sparks appear
at any electrodes
when control knob
turned to HI; noise
can be heard from
spark module.
• Output lead
connections not
connected.
• Are output connections
on and tight?
• Remove and reconnect all output
connections at module and electrodes.
SECTION III
Sparks are present
but not at all
electrodes and/or
not at full strength
• Output lead
connections not
connected.
• Electrical arc
between output
wires and grill
frame.
• Weak battery.
• Electrodes are wet.
• Electrode(s)
cracked or broken;
sparks appear
where cracked.
• Are output connections
on and tight?
• If possible, observe grill in
dark location. Operate
ignition system and look
for arcing between output
wires and grill frame.
• All sparks present but
weak or at slow rate.
• Has moisture
accumulated on electrode
and/or in burner ports?
• Inspect electrodes for
cracks.
• Remove and reconnect all output
connections at module and electrodes.
• If sparks are observed other than from
burner(s), wire insulation may be damaged.
Replace wires.
• Replace battery with a new AAA-size
alkaline battery.
• Use paper towel to remove moisture.
• Replace cracked or broken electrodes.
Kenmore ®
Customer Care Hotline
To schedule in-home repair service
or order replacement parts
Para pedir servicio de reparación
a domicilio, y ordenar piezas
1-844-553-6667
www. kenmore. com
®
