DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
DANGER
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open lid.
4.
If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
1.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Call Grill Service Center For Help And Parts
If you have questions or need assistance during assembly,
please call 1-888-287-0735. You will be speaking to a
representative of the grill manufacturer and not a Sears
Safety Symbols
employee. To order new parts call Sears at
1-844-553-6667.
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
Product Record
IMPORTANT: Fill out the product record information below.
DANGER
Model Number
Serial Number
See rating label on grill for serial number.
WARNING
Date Purchased
CAUTION
CAUTION
For residential use only. Do not use for commercial
cooking.
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor or
moderate injury.
Installation Safety Precautions
• Please read this User’s Manual in its entirety before using
the grill.
• Failure to follow the provided instruction can result in
seriously bodily injury and/or property damage.
• Some parts of this grill may have sharp edges. Please
wear suitable protective gloves.
• Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.
• Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV
Series, Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords
and/or fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States
and/or Canada only. Do not modify for use in any other
location. Modification will result in a safety hazard.
IMPORTANT: This grill is intended for outdoor use only and is
not intended to be installed in or on recreational vehicles or
boats.
NOTE TO INSTALLER: Leave this User’s Manual with the
customer after delivery and/or installation.
NOTE TO CONSUMER: Leave this User’s Manual in a
convenient place for future reference.
2
3
TABLE OF CONTENTS
For Your Safety……………………………………………………………………….2
Grill Service Center…………………………………………………………………...2
Product Record Information………………………………………………………...…..2
Installation Safety Precautions…………………………………………………….....…2
Safety Symbols…………………………………………………………………....…..2
Kenmore Grill Warranty……………………………………………………..……..…4
Use and Care……………………………………………………………..………...5-11
Parts List………………………………………………………………………….......12
Parts Diagram………………………………………………………………...…..…..13
Before Assembly……………………………………………………………...…....14-16
Assembly………………………………………………………………….……...17-29
Troubleshooting…………………………………………………………...……....30-32
Combustion byproducts produced
when using this product include
carbon monoxide, a chemical known
to the State of California to cause
birth defects or other reproductive
harm. For more information go to
www.P65Warnings.ca.gov
WARNING
. . 2
KENMORE GRILL WARRANTY
. . 2
. 2
One Year Full Warranty on Kenmore Grill
. . 2
. . 2
. 3
. . . 4-10
. . . 11
. . 12
. . . 13-15
. 27-29
WARRANTY
4
KENMORE GRILL WARRANTY
KENMORE LIMITED WARRANTY
WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and
maintained according to all supplied instructions.
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective
appliance will receive free repair. If the appliance cannot be repaired it will be replaced free of charge.
FOR TEN YEARS from the date of sale, any stainless steel burner that rusts through or burns through will be replaced free of
charge.* If rust through or burn through occurs within the first year, a new burner will be installed at no charge. If rust
through or burn through occurs after the first year, a new burner will be supplied but not installed at no charge. You are
responsible for the labor cost of burner installation after the first year from the date of sale. *Rust-through or burn-through
must be verified by a Sears authorized service representative.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
All warranty coverage excludes igniter batteries and grill part paint loss, discoloration or surface rusting, which are either
expendable parts that can wear out from normal use within the warranty period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage is void if this appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use within the warranty period, including but not limited to batteries,
screw-in base light bulbs and surface coatings or finishes.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation,
operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems
with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents,
including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and
maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse,
misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents,
cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of this appliance resulting from natural or other catastrophe, such as flood, fire or storm.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
10. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the
appropriate certification logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided
herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one
year on the appliance and ten years on the burners, or the shortest period allowed by law. Seller shall not be liable for
incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions
or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
WARRANTY

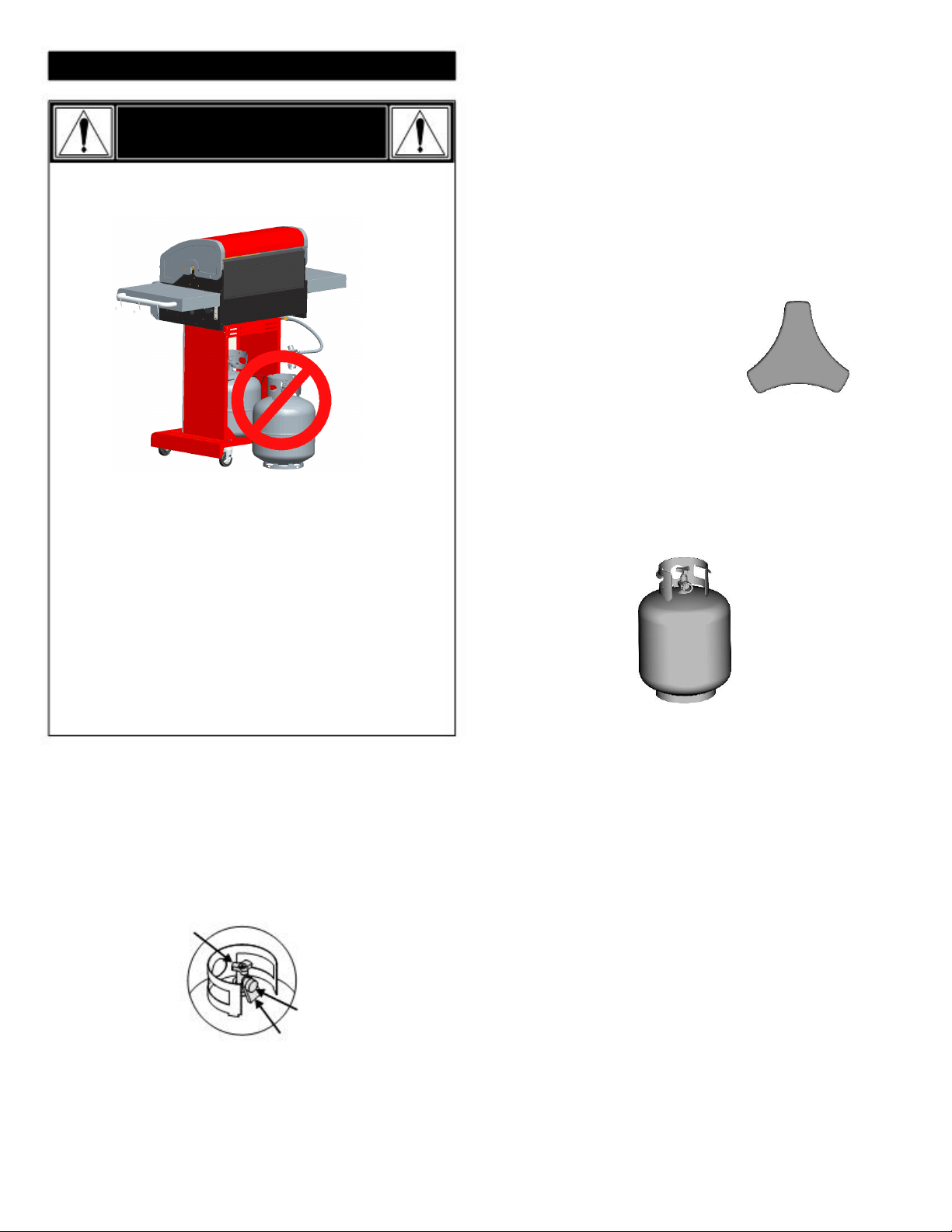

LP Cylinder
USE AND CARE
• The LP cylinder used with your grill must meet the following
requirements:
• Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
Capacity maximum.
• LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
• LP cylinder valve must have:
• Type 1 outlet compatible with
regulator or grill.
• Safety relief valve.
• UL listed Overfill Protection
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
• LP cylinder must be arranged for vapor withdrawal and
include collar to protect LP cylinder valve. Always keep LP
cylinders in upright position during use, transit or storage.

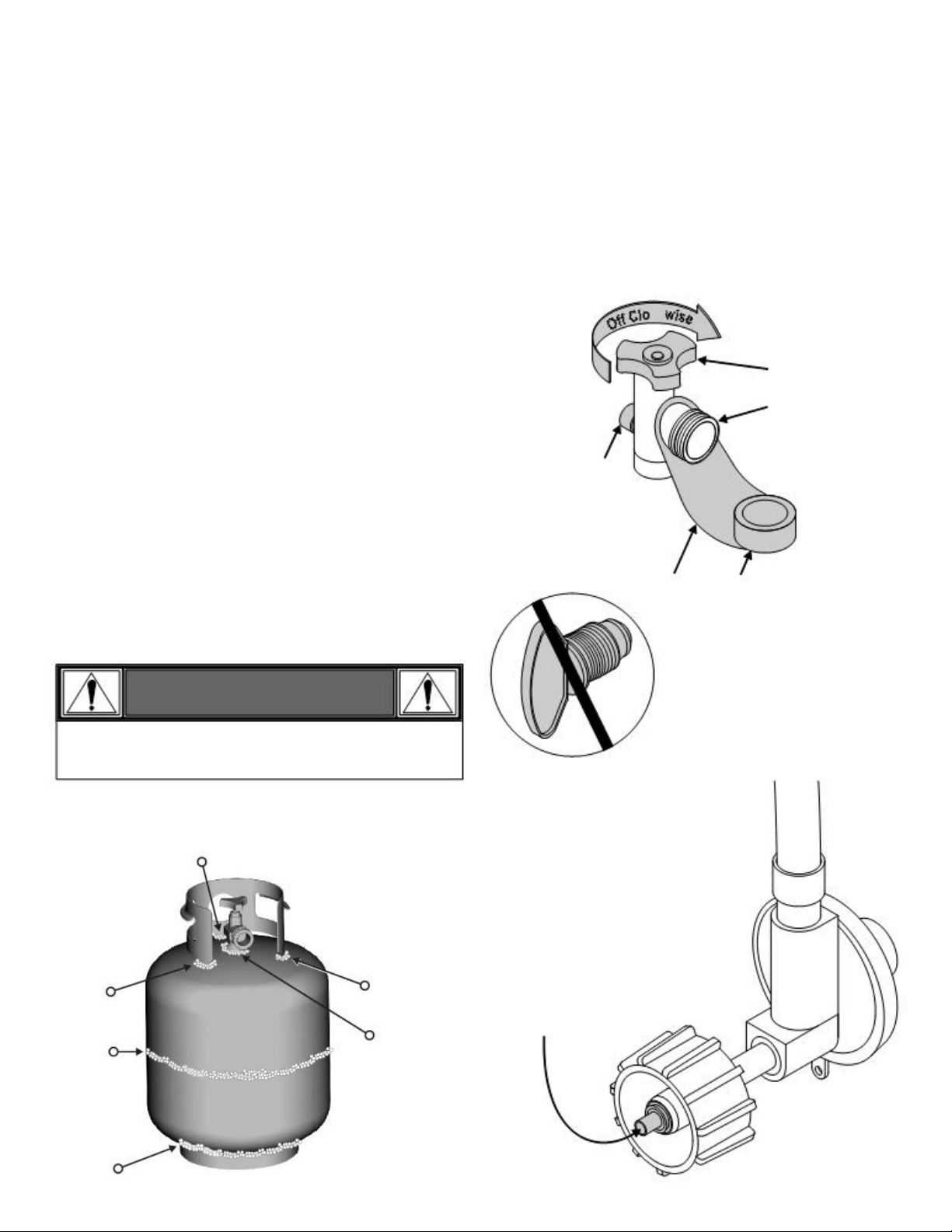

OPD Hand Wheel
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
LP cylinder in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
LP Tank Removal, Transport And Storage
• Turn OFF all control knobs and LP tank valve. Turn coupling nut
counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar, then lift
LP tank up and off of support bracket. Install safety cap onto LP
tank valve. Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LP Tank Valve
• LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
• Use only licensed and experienced dealers.
• LP dealer must purge new cylinder before filling.
• Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
• A frosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere. This
is a hazardous practice.
• To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.
Safety Cap
Retainer Strap
• A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP tank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle
which may become overheated by the sun.
• Do not store an LP tank in an area where children play.
DANGER
5
• Never fill a cylinder beyond 80% full.
• If the information in the two points above is not
followed exactly, a fire causing death or serious
injury may occur.
• An overfilled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with risk
of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder and appliance and
call your fire department.
LP Tank Exchange
• Many retailers that sell grills offer you the option of replacing
your empty LP tank through an exchange service. Use only those
reputable exchange companies that inspect, precision fill, test
and certify their cylinders. Exchange your tank only for an OPD
safety feature-equipped tank as described in the "LP Tank"
section of this manual.
• Always keep new and exchanged LP tanks in upright position
during use, transit or storage.
• Leak test new and exchanged LP tanks BEFORE connecting to
grill.
Connecting Regulator To The LP Tank
1. LP tank must be properly secured onto grill. (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP tank OFF by turning OPD hand wheel clockwise to a
full stop.
4. Remove the protective cap from LP tank valve. Always use
cap and strap supplied with valve.
ck
LP Tank Leak Test
For your safety
OPD Hand Wheel
Type 1 outlet with
thread on outside
Safety Relief Valve
Strap and Cap
• Leak test must be repeated each time LP tank is exchanged or
refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by arrows
in figure below. Leaks are indicated by growing bubbles.
Do not insert a POL transport plug
(plastic part with external threads)
into the type 1 valve outlet. It will
defeat the Safety Relief Valve
feature.
WARNING
If “growing” bubbles appear do not use or move the LP
tank. Contact an LP gas supplier or your fire department!

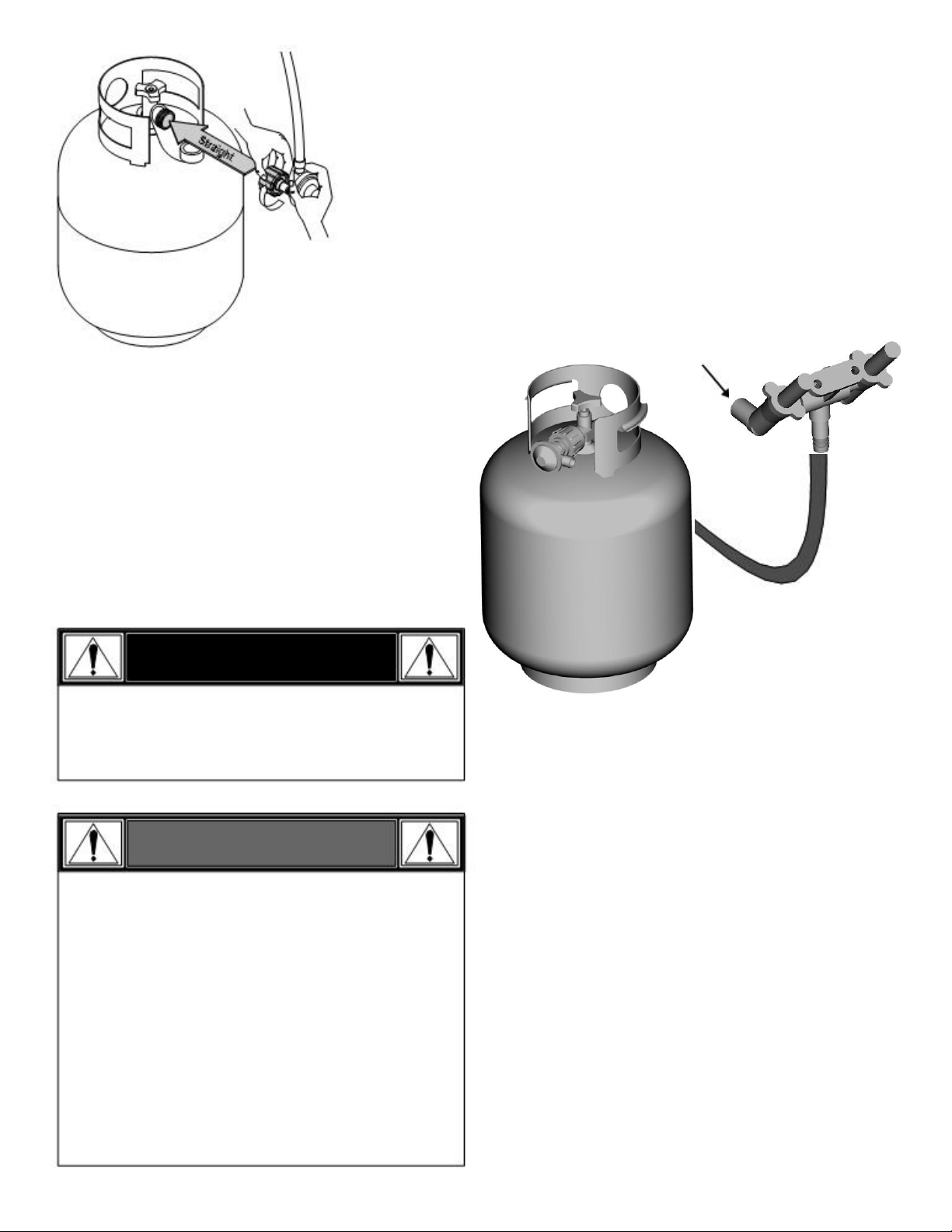

5. Hold regulator and insert nipple into LP
tank valve. Hand-tighten the coupling
nut, holding regulator in a straight line
with LP tank valve so as not to crossth-
thread the connection.
Nipple has to be
centered into the LP
tank valve.
6
▲Do not use household cleaning agents. Damage to the gas
train components (valve/hose/regulator) can result.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP tank.
3. Completely open LP tank valve by turning OPD hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding by calling Sears for replacement parts at
1-844-553-6667.
4. Brush soapy solution onto areas where bubbles are shown in
picture below:
Hold coupling nut and regulator
as shown for proper connection
▲
to LP tank valve.
Never remove threaded
orifice at end of valve.
6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP tank
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the connection.
Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator
and repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
Call 1-844-553-6667 for an identical replacement part.
DANGER
• Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
5. If “growing” bubbles appear, there is a leak. Close LP tank
valve immediately and retighten connections. If leaks cannot be
stopped do not try to repair. Call Sears for replacement
parts at 1-844-553-6667.
6. Always close LP tank valve after performing leak test by
turning hand wheel clockwise.
WARNING
•
Outdoor gas appliance is not intended to be installed
in or on a boat.
•
Outdoor gas appliance is not intended to be installed
in or on an RV.
•
Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
•
Do not use grill until leak-tested.
•
If a leak is detected at any time, STOP and call the fire
department.
• If you cannot stop a gas leak, immediately close
LP cylinder valve and call LP gas supplier or your fire
department !
7
8
WARNING
For Safe Use of Your Grill and to Avoid Serious
Injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that
burn.
• Do not block holes in sides or back of grill.
• Use grill only in well-ventilated space. NEVER use
in enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of
any kind.
• Do not use charcoal or ceramic briquets in a gas
grill.
• Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch
fire or sources of ignition such as pilot lights on
water heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from
walls or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
▲ Before opening LP cylinder valve, check the coupling nut for
tightness.
▲ When grill is not in use, turn off all control knobs and LP cylinder
valve.
▲ Never move grill while in operation or still hot.
▲ Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
▲ Maximum load for side shelf is 10 lbs.
▲ The Drip tray must be inserted into grill and emptied after each
use. Do not remove Drip tray until grill has completely cooled.
▲ Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces, ensure
no loose bristles remain on cooking surfaces prior to grilling. It
is not recommended to clean cooking surfaces while grill is hot.
▲ If you notice Drip or other hot material dripping from grill
Determine the cause, correct it, then clean and inspect valve,
Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
▲ Do not store objects or materials inside the grill cart enclosure
that would block the flow of combustion air to the underside of
either the control panel or the firebox bowl.
▲ The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
▲ If you have a grill problem see the "Troubleshooting Section".
If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and it should
not be used on any product. Return to supplier!
CAUTION
• Putting out drip fires by closing the lid is not
possible. Grills are well ventilated for safety reasons.
• Do not use water on a drip fire. Personal injury may
result. If a drip fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or
burning off food residue on HI. If grill has not been
regularly cleaned, a drip fire can occur that may
damage the product.
Electronic Ignition Lighting Instructions
▲Do not lean over grill while lighting.
1. Open lid during lighting.
2. Turn ON gas valve on tank.
3. Push and turn any main burner control knob to HI and
hold in. You will hear a clicking sound from the electrodes of
all burners.
4. If ignition does NOT occur in 5 seconds, turn the burner
control knob to OFF, wait 5 minutes, and repeat the lighting
procedure.
5. To ignite another burner, repeat step 3.
6. Once burners are lit, adjust knobs to desired flame
setting. To extinguish an individual burner, turn its knob to OFF.
If the igniter does not work, follow Match Lighting instructions
9
CAUTION
WARNING
Turn controls and gas source or tank OFF
when not in use.
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Match Lighting Instructions
▲Do not lean over grill while lighting.
1. Open lid during lighting.
2. Place match into match holder (hanging on left
side panel).
3. Light match and insert match holder through
lighting hole in side of firebox.
4. Place lighted match next to a burner. Turn
burner knob to HI position. Be sure burner lights
and stays lit.
5. To light the other burners repeat step 4.
6. Once burners are lit, adjust knobs to desired
flame setting. To extinguish an individual burner, turn
its knob to OFF.

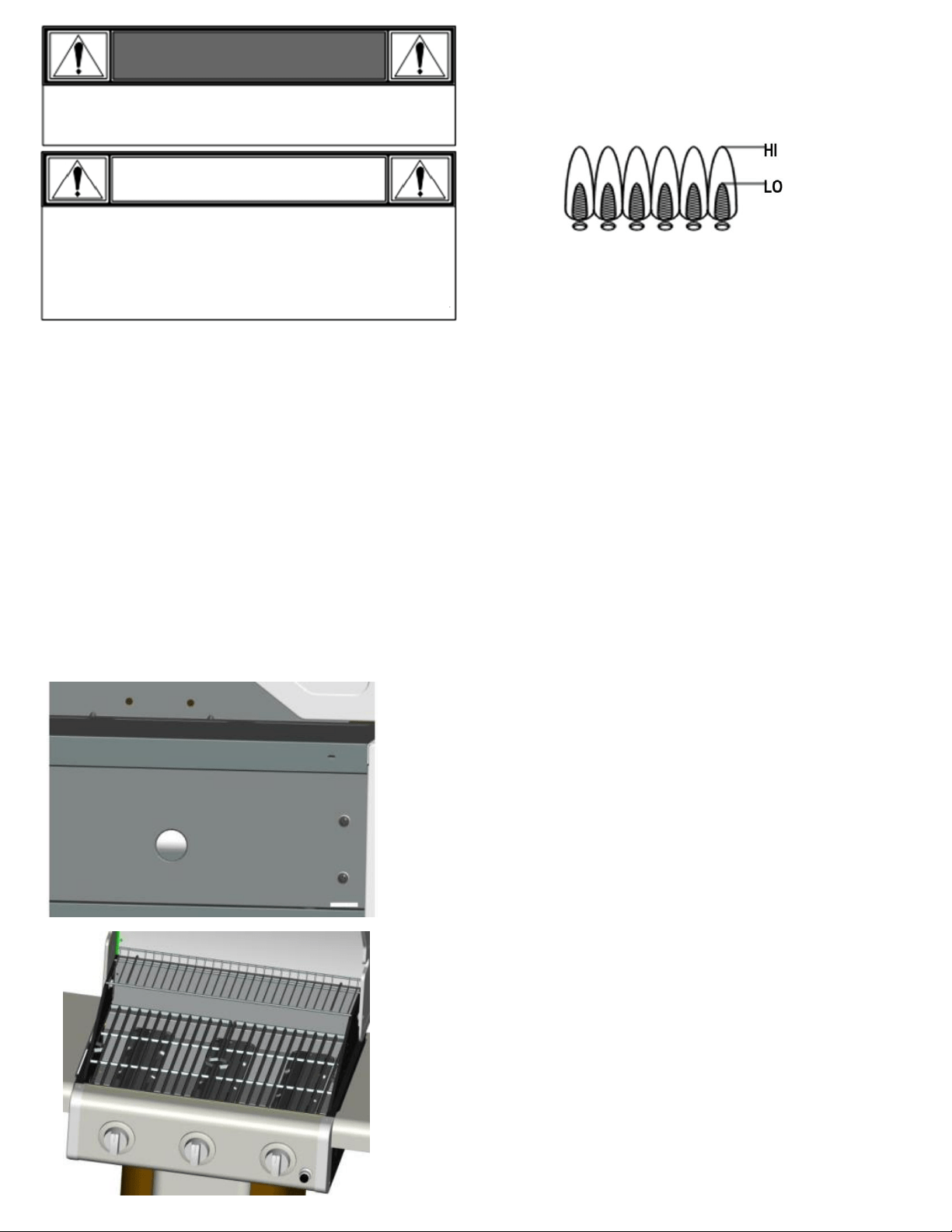

Burner Flame Check
• Remove cooking grates and flame tamers. Light burners, rotate knobs
from HIGH to LOW. You should see a smaller flame in LOW position
than seen on HI. Always check flame prior to each use. If only low flame
is seen refer to "Sudden drop or low flame" in the Troubleshooting
Section.
Turning Grill Off
• Turn all knobs to OFF position. Turn LP cylinder off.
When you are finished grilling, raise the grill lid while allowing the grill to
fully cool. If the grill lid is closed during grill cooling, condensation may
occur on interior grill surfaces and possibly cause them to rust.
Igniter Check
• Turn gas off at LP cylinder. Press and hold electronic ignitor button.
"Clicking" should be heard and spark seen each time between collector
box or burner and electrode. See "Troubleshooting" if no click or spark.
Valve Check
• Important: Make sure gas is off at LP cylinder before checking valves.
Knobs lock in OFF position. To check valves, first push in knobs and
release, knobs should spring back. If knobs do not spring back, replace
valve assembly before using grill. Turn knobs to LOW position then turn
back to OFF position. Valves should turn smoothly.
Hose Check
• Before each use, check to see if hoses are cut or worn. Replace
damaged hoses before using grill. Use only valve/hose/regulator as
specified in the parts list of this Use & Care Guide.
General Grill Cleaning
• Do not mistake brown or black accumulation of Drip and smoke for
paint. Interiors of gas grills are not painted at the factory (and should
never be painted). Apply a strong solution of detergent and water or use
a grill cleaner with scrub brush on insides of grill lid and bottom. Rinse
and allow to completely air dry. Do not apply a caustic grill/oven
cleaner to painted surfaces.
• Porcelain surfaces: Because of glass-like composition, most residue can
be wiped away with baking soda/water solution or specially formulated
cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner
and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water and wipe
dry with a soft cloth after each use. Baked-on Drip deposits may require
the use of an abrasive plastic cleaning pad. Use only in direction of
brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the grill
cooking surfaces, ensure no loose bristles remain on cooking surfaces
prior to grilling. It is not recommended to clean cooking surfaces while
grill is hot.
Drip Tray and Cup: When the grill has completely cooled down after
use, remove the Drip cup from the bottom of the Drip Tray. The Drip Tray
in this grill is not removable. You will have to remove the burners to
properly access the drip tray for cleaning. See the Cleaning the Burner
Assembly section for instruction to remove and reinstall burners.
Reinstall the burners and reattach the drip cup to the bottom of the drip
tray before using the grill again.

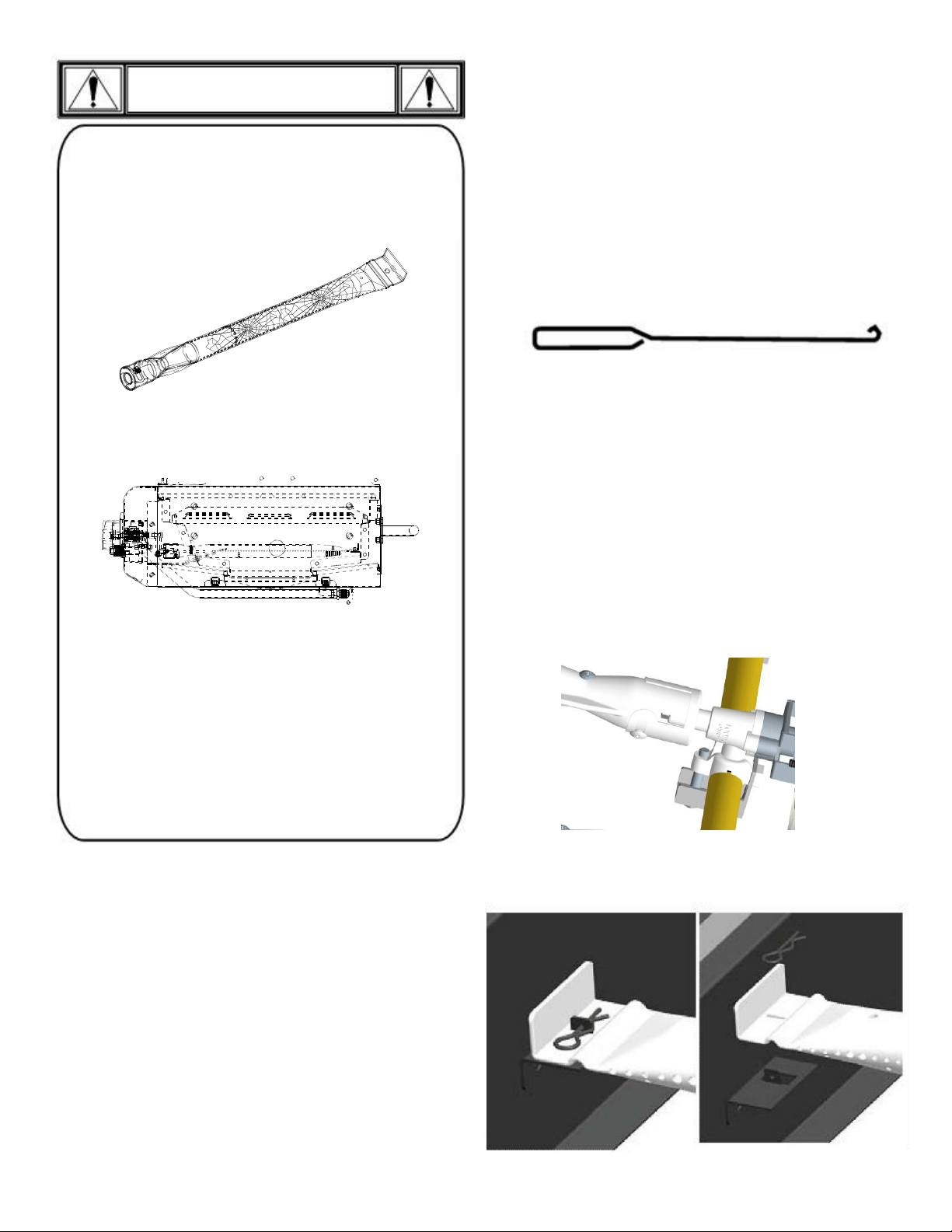

We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner
tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not use
a brass wire brush), run the brush through each burner tube
several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
5. Wire brush entire outer surface of burner to remove
food residue and dirt.
6. Clean any blocked ports with a stiff wire such as an
open paper clip.
7. Check burner for damage, due to normal wear and
corrosion some holes may become enlarged. If any large
cracks or holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve
openings. See illustrations below.
8. Carefully replace burners.
9. Attach burners to brackets with cotter pin.
10. Reposition carryover tubes and attach to burners. Replace
heat diffusers and cooking grates.
Cleaning the Burner Assembly
CAUTION
SPIDER ALERT!
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas off at control knobs and LP cylinder
2. Remove cooking grates and heat diffusers.
3. Remove cotter pin from rear of burners.
4. Carefully lift each burner up and away from valve openings.
SPIDER ALERT!
.
.
Spiders or small insects have been known to create “flashback”
problems. The spiders spin webs, build nests and lay eggs in the grill’s
venturi tube(s) obstructing the flow of gas to the burner. The
backed-up gas can ignite in the venturi behind the control panel. This
is known as a flashback and it can damage your grill and even cause
injury.
To prevent flashbacks and ensure good performance the burner and
venturi assembly should be removed from the grill and cleaned
before use whenever the grill has been idle for an extended period.
.
Storing Your Grill
•Clean cooking grates.
•Store in dry location.
•When LP cylinder is connected to grill, store outdoors in a
well-ventilated space and out of reach of children.
•Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer once available.
•Store grill indoors ONLY if LP cylinder is turned off and
Disconnected, remove from grill and stored outdoors.
• When removing grill from storage, follow “Cleaning the Burner
Assembly
” instructions before starting grill.
10
SPIDER ALERT!
If you notice that your grill is getting hard to light or that the
flame isn’t as strong as it should be, take the time to check and
clean the venturi’s.
IMPORTANT: Always ensure that the venturi burner tubes
are clean. A venturi burner tube has a narrow area in
which spiders tend to build nests.
11

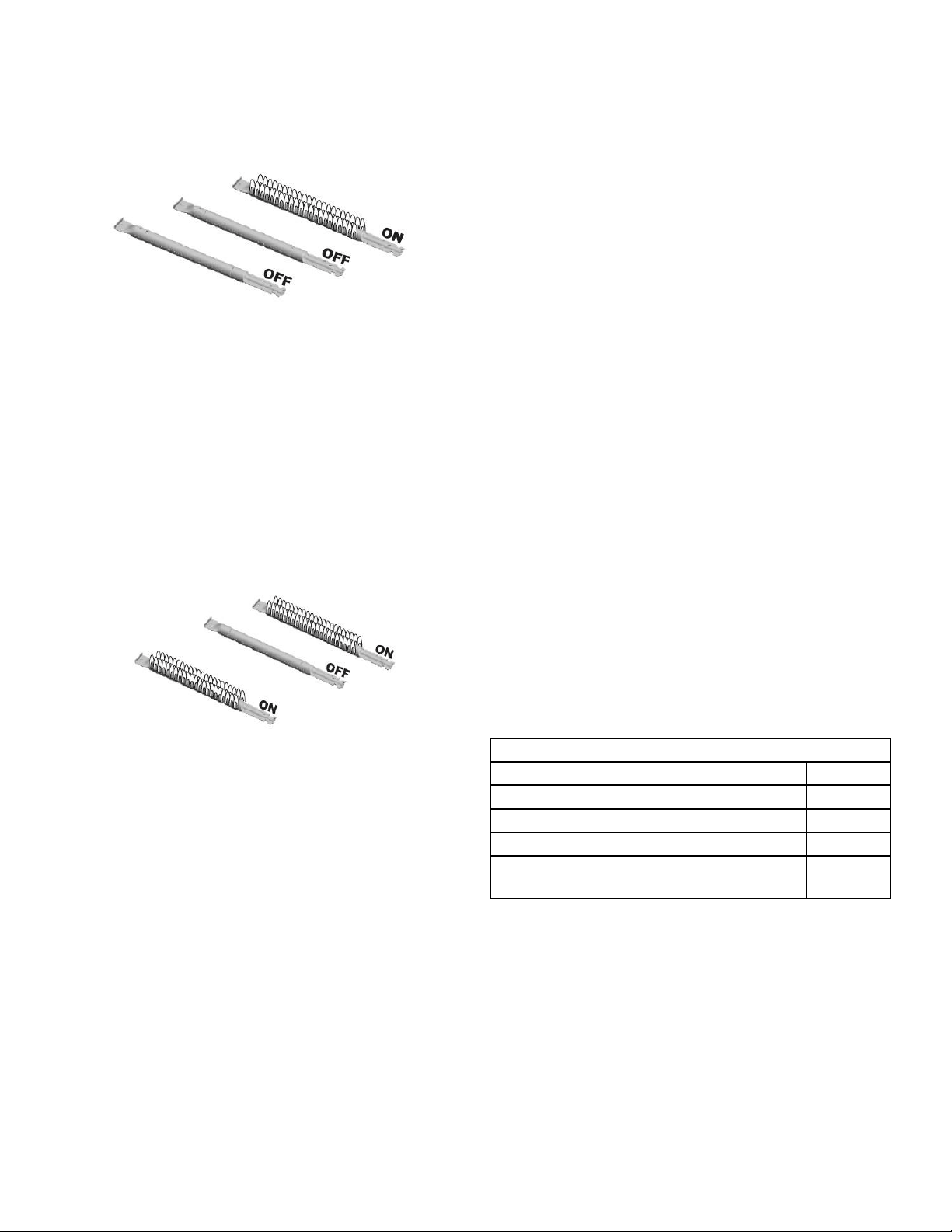

Indirect Cooking
Poultry and large cuts of meat cook slowly to perfection on the grill
by indirect heat. Place food over unlit burner(s); the heat from lit
burners circulates gently throughout the grill, cooking meat or
poultry without the touch of a direct flame. This method greatly
reduces flare-ups when cooking extra fatty cuts because there is no
direct flame to ignite the fats and juices that drip during cooking.
1 Burner Cooking
Cook with direct or indirect heat.
Best for smaller meals or foods.
Consumes less fuel.
Indirect Cooking Instructions
• Always cook with the lid closed.
• Once burners are lit, extinguish an individual burner by turning its
knob to OFF.
• Due to weather conditions, cooking times may vary. During cold
and windy conditions the temperature setting may need to be
increased to insure sufficient cooking heat.
• Place food over unlit burner(s).
2 Burner Cooking
Great indirect cooking on low.
Produces slow, even heating.
Ideal for slow roasting and
baking.
Food Safety
Food safety is a very important part of enjoying the outdoor
cooking experience. To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat and poultry.
Separate: Separate raw meats and poultry from ready-to-eat
foods to avoid cross contamination. Use a clean platter and
utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly. For
more information call: USDA Meat and Poultry Hotline at 1-800-
535-4555 (In Washington, DC (202) 720-3333, 10:00 am
4:00 pm EST).
How To Tell If Meat Is Grilled Thoroughly
• Meat and poultry cooked on a grill often browns very fast on
the outside. Use a meat thermometer to be sure food has
reached a safe internal temperature, and cut into food to
check for visual signs of doneness.
• Whole poultry should reach 180° F; breasts, 170° F. Juices
should run clear and flesh should not be pink.
• Hamburgers made of any ground meat or poultry should
reach 160° F, and be brown in the middle with no pink juices.
Beef, veal and lamb steaks, roasts and chops can be cooked to
145° F. All cuts of pork should reach 160° F.
• NEVER partially grill meat or poultry and finish cooking later.
Cook food completely to destroy harmful bacteria.
• When reheating takeout foods or fully cooked meats like hot
dogs, grill to 165° F, or until steaming hot.
WARNING: To ensure that it is safe to eat, food must be
cooked to the minimum internal temperatures listed in the table
below.
USDA* Recommended Safe Minimum Internal Temperatures
Beef, Veal, Lamb and Pork – Whole Cuts**
145° F
Fish
145° F
Beef, Veal, Lamb and Pork – Ground
160° F
Egg Dishes
160° F
Turkey, Chicken & Duck – Whole, Pieces &
Ground
165° F
* United States Department of Agriculture
**Allow meat to rest three minutes before carving or consuming.
Key
Description
Qty
Part Number
Key
Description
Qty
Part Number
A01-A
Lid(Black)
1
30400004A
C12
Hook
6
40800123
A01-B
Lid (Red)
1
30400004B
C13
Side Shelf Handle
2
40800099
A01-C
Lid (Teal)
1
30400004C
D01
Tank holder
1
20700049
A01-D
Lid (Pearl)
1
30400004D
D02
Cotter pin
7
110050
A01-E
Lid (Azure)
1
30400004E
D03-A
Grill Base (Black)
1
30400404A
A02
Temperature Gauge
1
40900218
D03-B
Grill Base (Red)
1
30400404B
A03
Logo
1
40800106
D03-C
Grill Base (Teal)
1
30400404C
A04
Lid Rubber Bumper, Front
2
40700103
D03-D
Grill Base (Pearl)
1
30400404D
A05
Insulation spacer handle
2
40700022
D03-E
Grill Base (Azure)
1
30400404E
A06
Lid Handle Bezel
2
40900013
D04
Swivel Caster with Brake
2
20700048
A07
Lid handle
1
30400014
D05
Swivel Caster
1
40900213
B01
Firebox
1
30400401
D06
Standard Caster
1
40900214
B02
Rotate Rod, Lid
2
50300207
D07-A
Back Rail (Black)
1
30400409A
B03
Lid Rubber Bumper, rear
2
50300205
D07-B
Back Rail (Red)
1
30400409B
B04
Left Back (Right Front) Side Shelf Bracket
2
30400061
D07-C
Back Rail (Teal)
1
30400409C
B05
Left Front (Right Back) Side Shelf Bracket
2
30400063
D07-D
Back Rail (Pearl)
1
30400409D
B06
Main Burner Electrode L320
1
30400053
D07-E
Back Rail (Azure)
1
30400409E
B07
Main Burner Electrode L480
1
30400052
D08-D
Back Rail (Pearl)
1
30400405D
B08
Main Burner Electrode L150
1
30400054
D08-E
Back Rail (Azure)
1
30400405E
B09
Back Support bar
1
30400035
D08-A
Left Panel (Black)
1
30400405A
B10
Manifold Bracket
1
30400049
D08-B
Left Panel (Red)
1
30400405B
B11
Drip Tray
1
30400019
D08-C
Left Panel (Teal)
1
30400405C
B12
Front Support bar
1
30400033
D09
Right-Front & Left-Front panel
2
30400406
B13
Drip cup
1
40800026
D10-A
Panel Support Angle Bar (Black)
2
40900060
B14
Drip Cup Clip
1
40800131
D10-B
Panel Support Angle Bar (Red)
2
40900060B
B15
Back Panel, Firebox
1
30400402
D10-C
Panel Support Angle Bar (Teal)
2
40900060C
B16
Warming Rack
1
30400029
D10-D
Panel Support Angle Bar (Pearl)
2
40900060D
B17
Cooking Grate
2
30400030
D10-E
Panel Support Angle Bar (Azure)
2
40900060E
B18
Heat Diffuser
3
40800023
D11-A
Front Panel (Black)
1
30400407A
B19
Main burner
3
30400037
D11-B
Front Panel (Red)
1
30400407B
C01
Gas Valve
3
30400050
D11-C
Front Panel (Teal)
1
30400407C
C02
Manifold
1
30400047
D11-D
Front Panel (Pearl)
1
30400407D
C03
Hose retaining Pin
1
30400117
D11-E
Front Panel (Azure)
1
30400407E
C04
Regulator
1
30400051
D12-A
Right Panel(Black)
1
30400408A
C05
Control Panel
1
30400040
D12-B
Right Panel(Red)
1
30400408B
C06
Bezel, Control Knob
3
30400114
D12-C
Right Panel(Teal)
1
30400408C
C07
Side shelf front bracket
2
30400120
D12-D
Right Panel (Pearl)
1
30400408D
C08
Electronic ignition module
1
30400403
D12-E
Right Panel (Azure)
1
30400408E
C09
Control Knob
3
40900206
D13
Match Holder Bracket
1
40800129
C10
Left Side Shelf
1
30400057
D14
Match Holder Chain
1
120003
C11
Right Side Shelf
1
30400065
D15
Match Holder
1
40800128
Hardware Pack
1
30400410
Manual
1
30400412Z
12
PARTS LIST
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
Those on your particular grill model. However, the method of assembly remains the same.:
If you are missing hardware or have damaged parts after
unpacking grill, call 1-888-287-0735 for replacement.
To order replacement parts after using grill, call 1-844-553-6667
Not Pictured
13

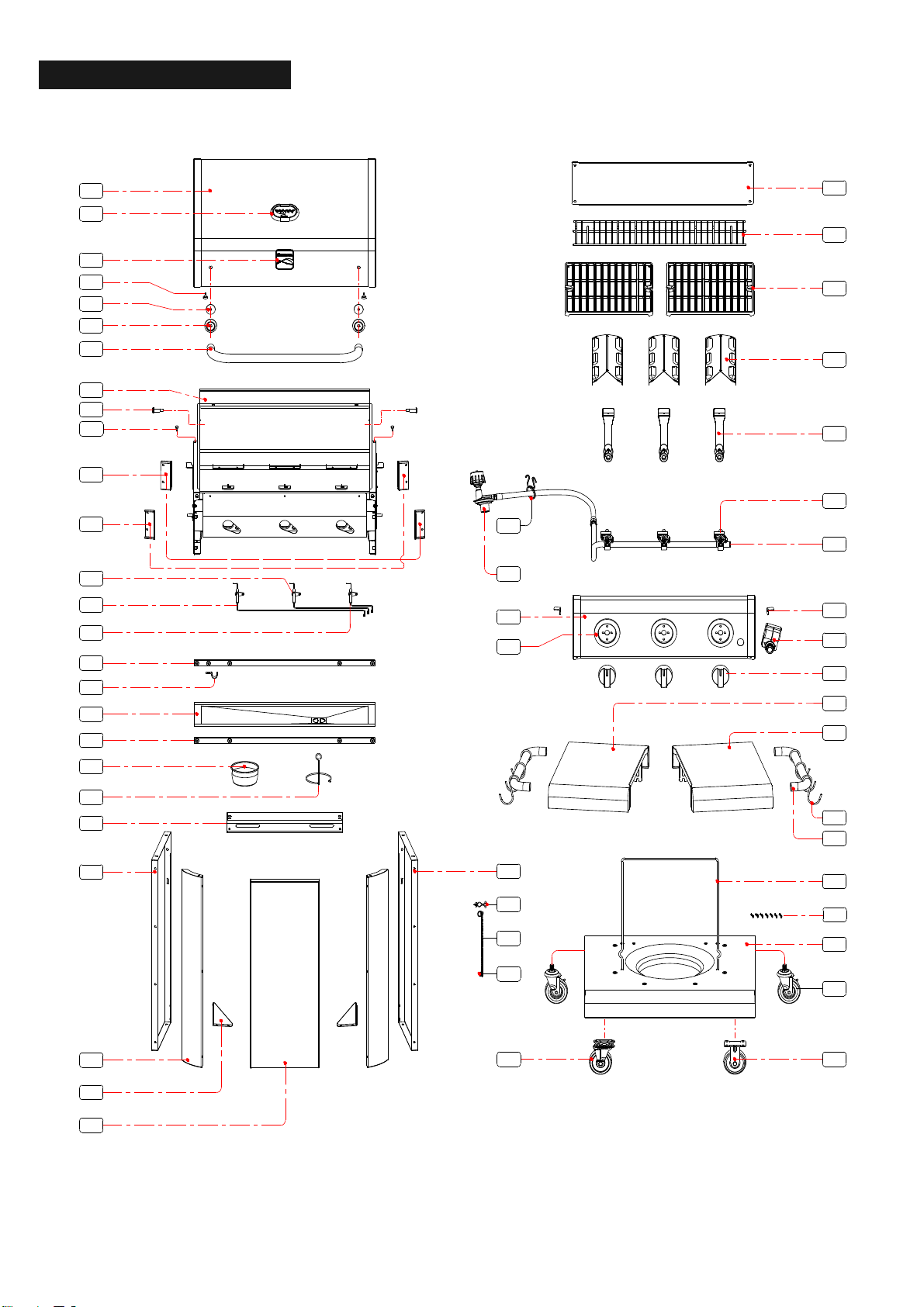

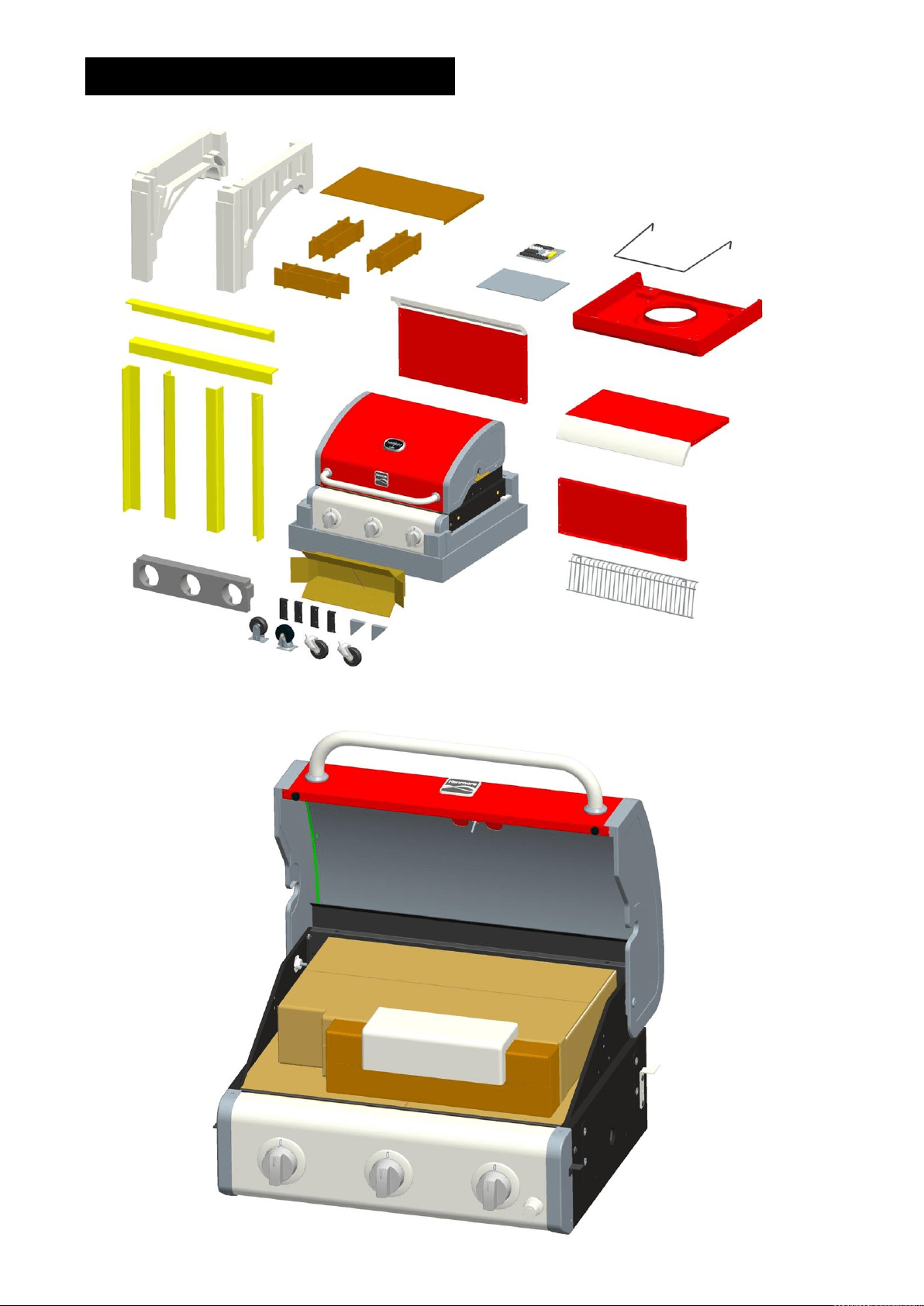

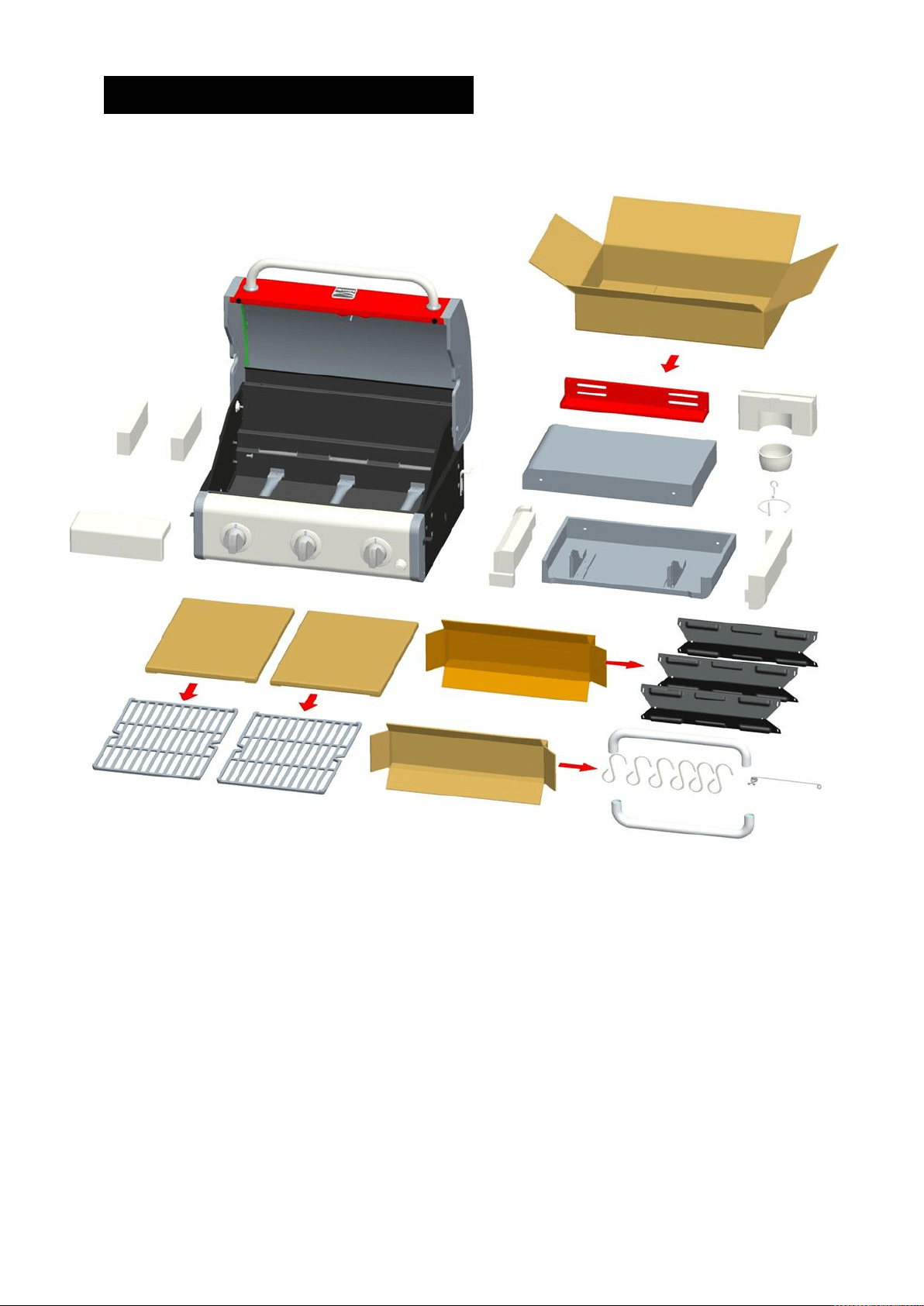

DIAGRAM
PARTS LIST
B05
B04
B02
B03
A01
A02
A03
A04
A06
A07
A05
B10
B09
B11
B12
D04
D06
D03
D05
C05
C06
C03
C02
C04
C07
C08
B07
B06
B08
B16
B17
B18
B19
C10
C11
C09
C13
C12
D01
B01
B13
B14
D07
D08
D09
D10
D11
D12
D02
D13
D14
D15
B15
C01
BEFORE ASSEMBLY
14
NOTICE: Once you have unpacked the grill, check all the grill parts against the pictures
on this and the following two pages. If any parts are missing or damaged, please call
1-888-287-0735.
15
BEFORE ASSEMBLY
16
BEFORE ASSEMBLY

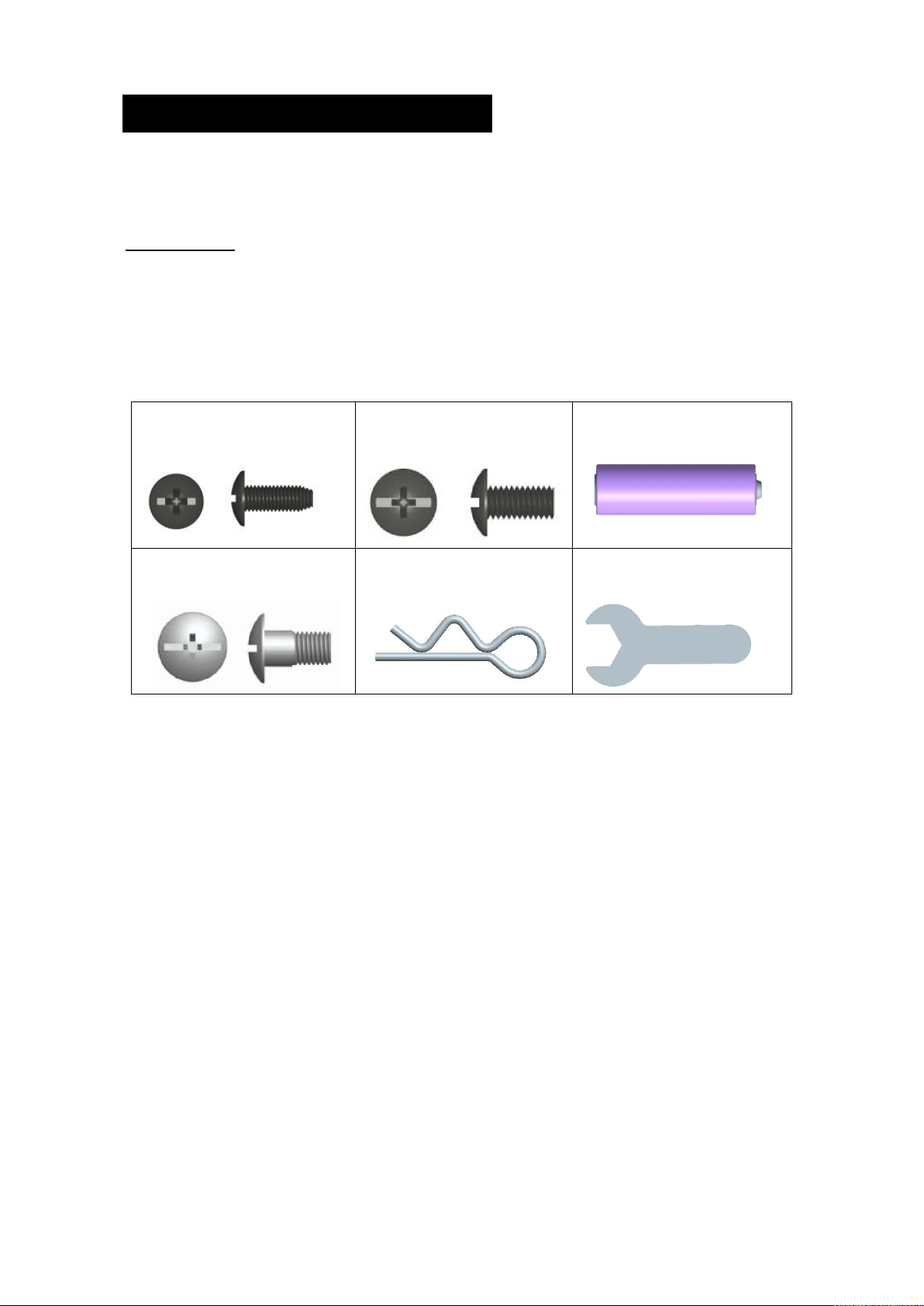

M4X10 screw
Qty: 20 pcs
M6X13 screw
Qty:26 pcs
AA Battery
Qty: 1 pc
M6X12 shoulder screw
Qty: 8 pcs
Cotter Pins
Qty: 2 pcs
Hexagon Wrench
Qty: 1 pc
17
ASSEMBLY
CAREFULLY READ AND PERFORM ALL ASSEMBLY INSTRUCTIONS ON THE FOLLOWING PAGES.
Tools Required:
Adjustable wrench (not provided)
Screwdriver (not provided)
7/16” Combination wrench (not provided)
The following hardware is provided in a blister pack for convenient use.
18

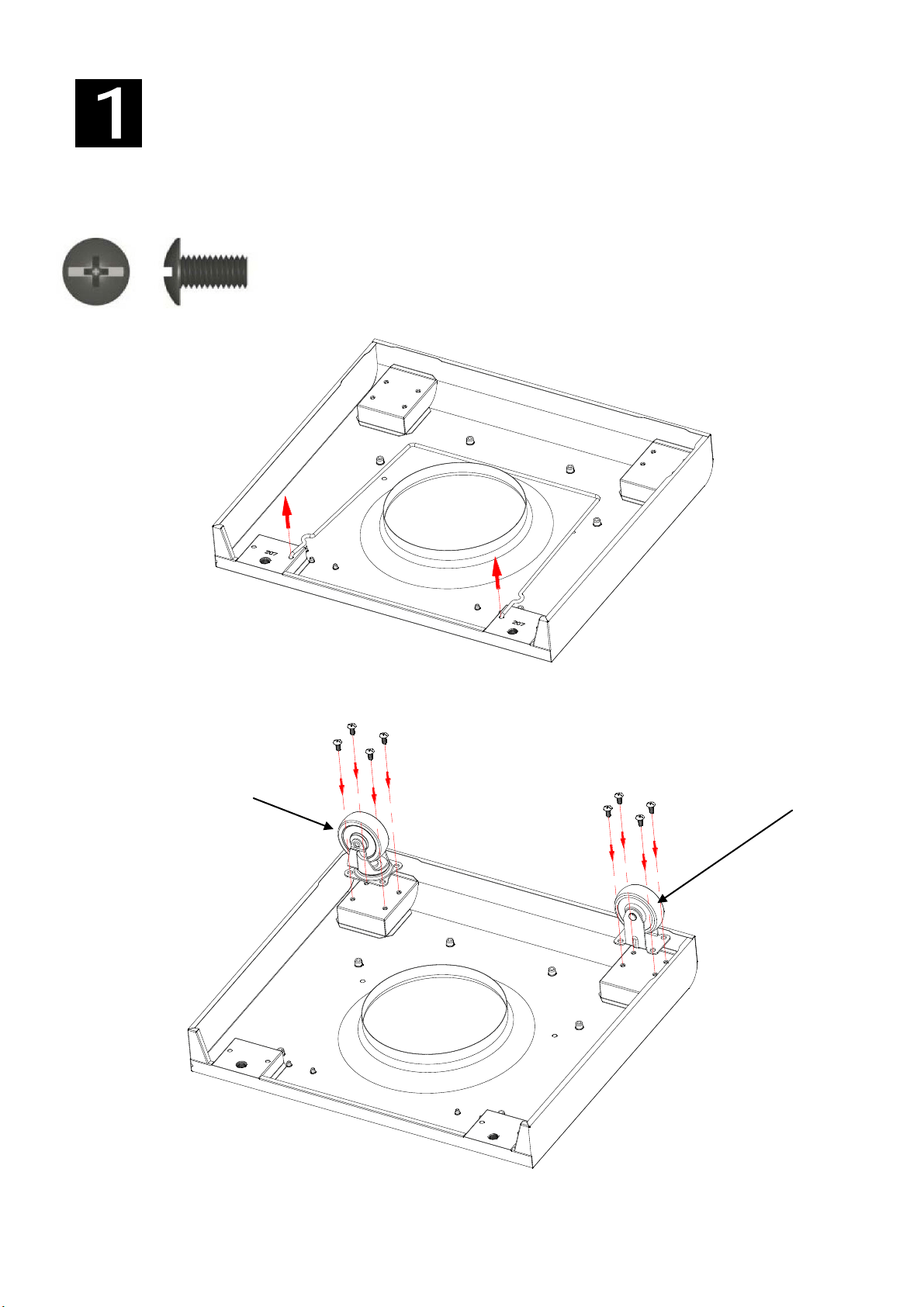

Grill Base
Turn the Grill Base upside down. Remove the Tank Holder from the underside of the base. Set
tank holder aside.
Use (4) M6x13 screws each to attach the Swivel Caster to the corner on your left and the
Standard Caster to the corner on your right.
M6X13 screw Qty: 8 pcs
Swivel Caster
Standard Caster
1
2
19

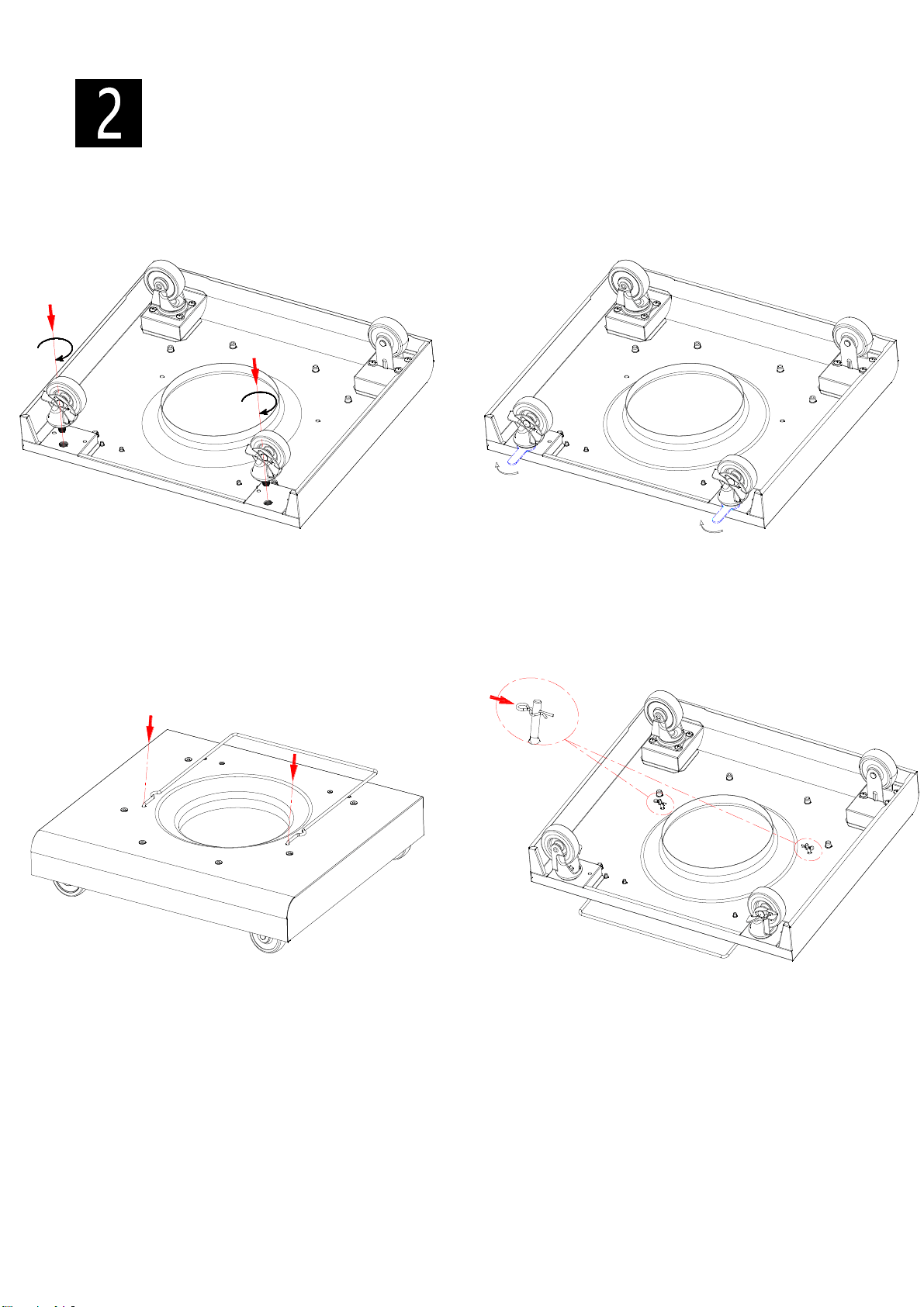

Grill Base
Twist each Swivel Caster with Brake into the other two corners of the grill base. Use the
wrench provided to firmly tighten the casters in place.
Turn the grill base right side up. Insert the ends of the tank holder into the two holes as shown.
Turn the grill base upside down. Insert a cotter pin into each end of the tank holder to secure
in place.
20
Pedestal

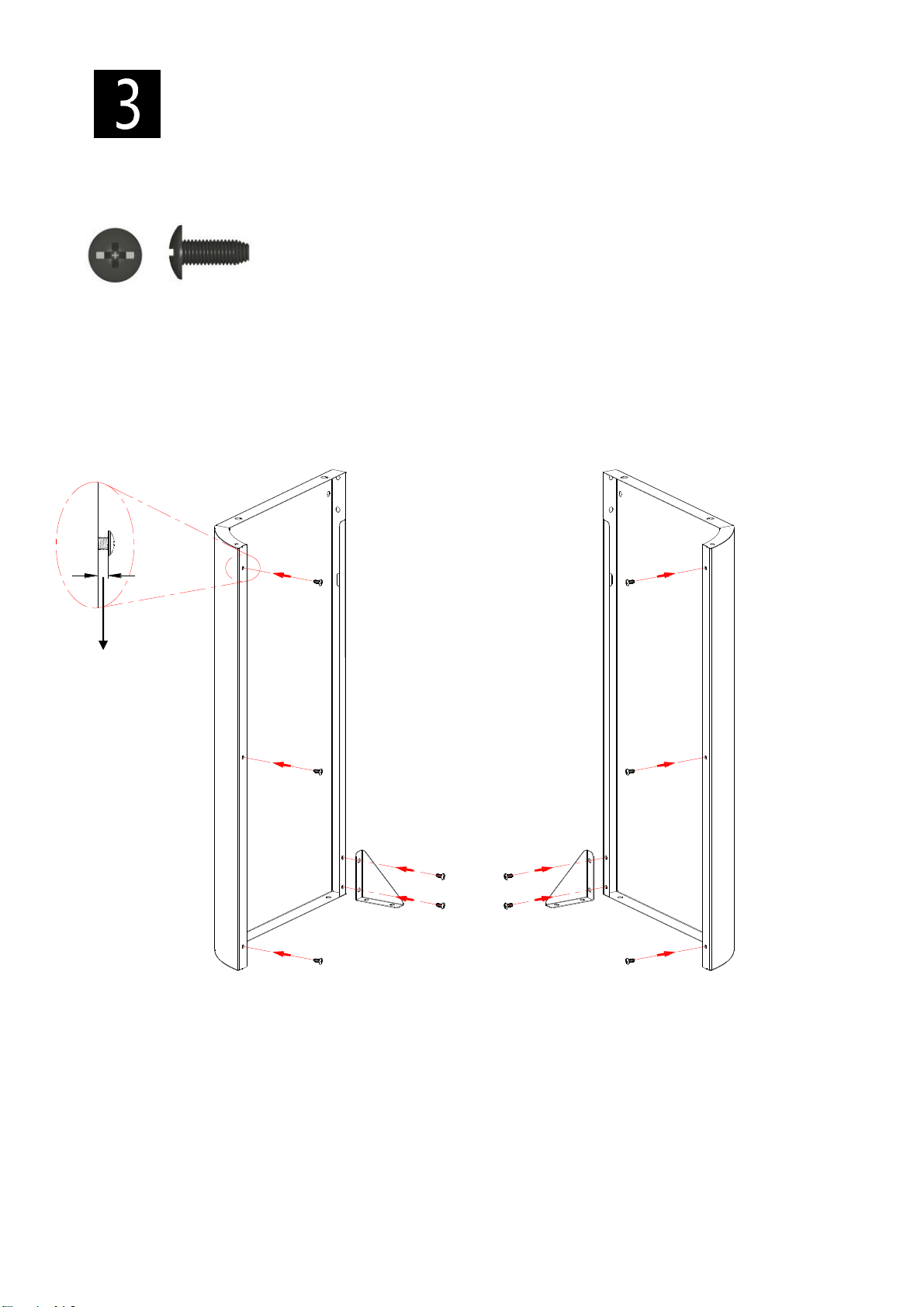

Attach but do not fully tighten the panel support angle bars to left and right side panels with
(2) M4x10 screws.
Attach (3) M4x10 screws to left and right side panels as shown, leaving a 1/8" - 5/32" gap
between panel and head of screw.
M4X10 screw Qty: 10 pcs
1/8" - 5/32"
21
Pedestal

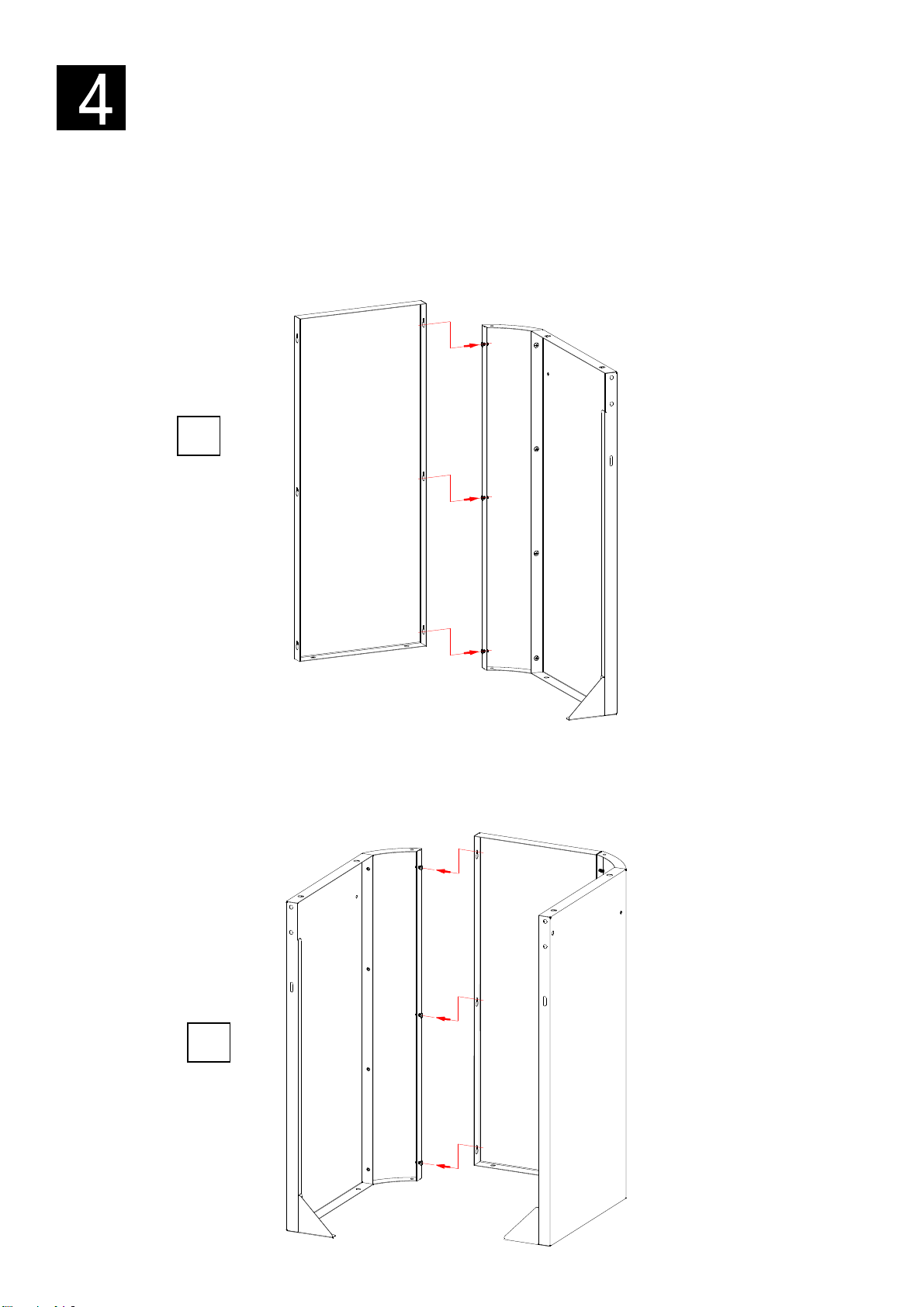

A- Attach front panel to left side panel. Push wide ends of key holes over screw heads and slide
front panel down. Fully tighten screws.
B- Attach front panel to right side panel. Push wide ends of key holes over screw heads and slide
front panel down. Fully tighten screws.
A
B
22
M6X13 screw Qty: 6 pcs
M4 X10 screw Qty: 4 pcs
Pedestal

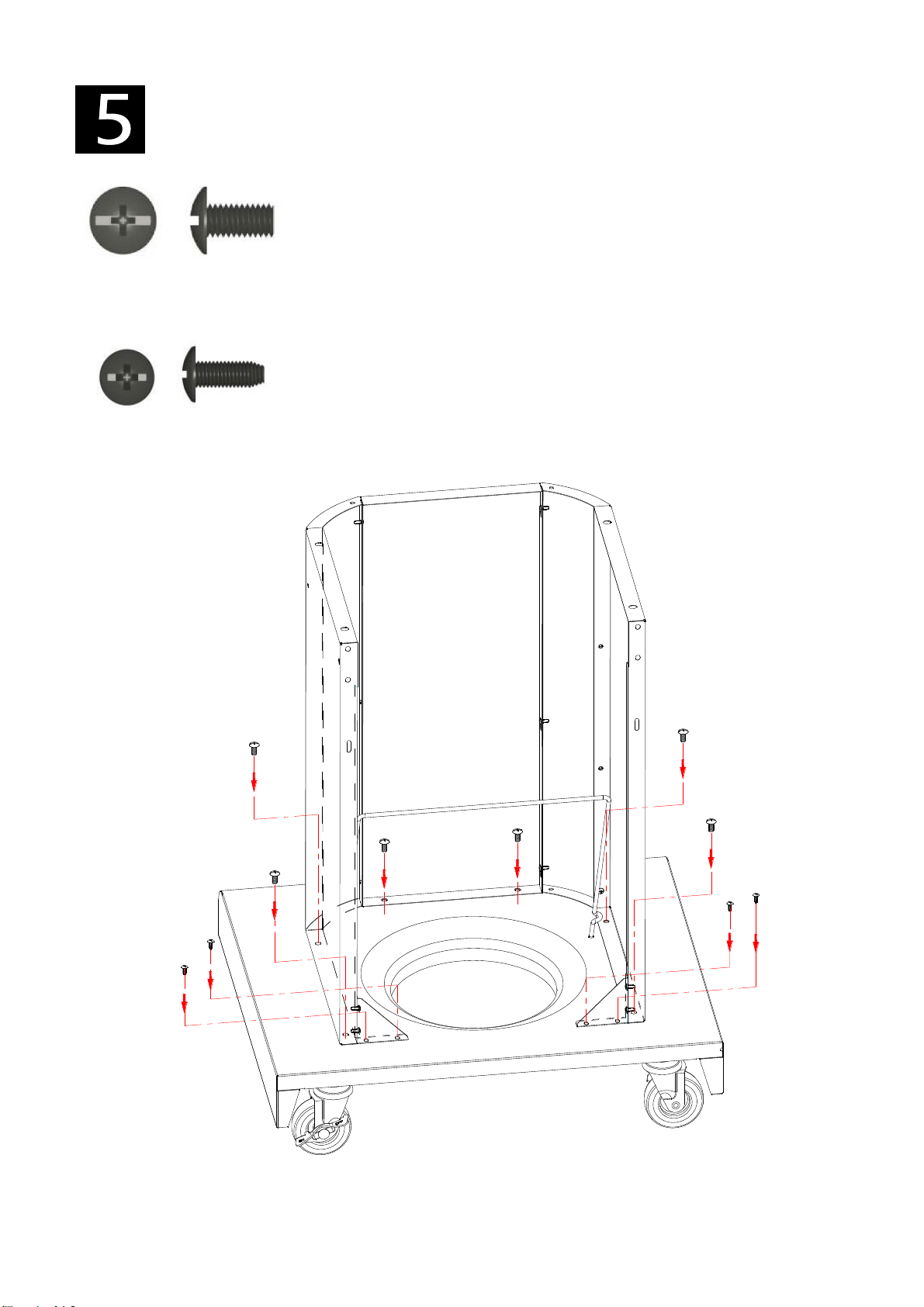

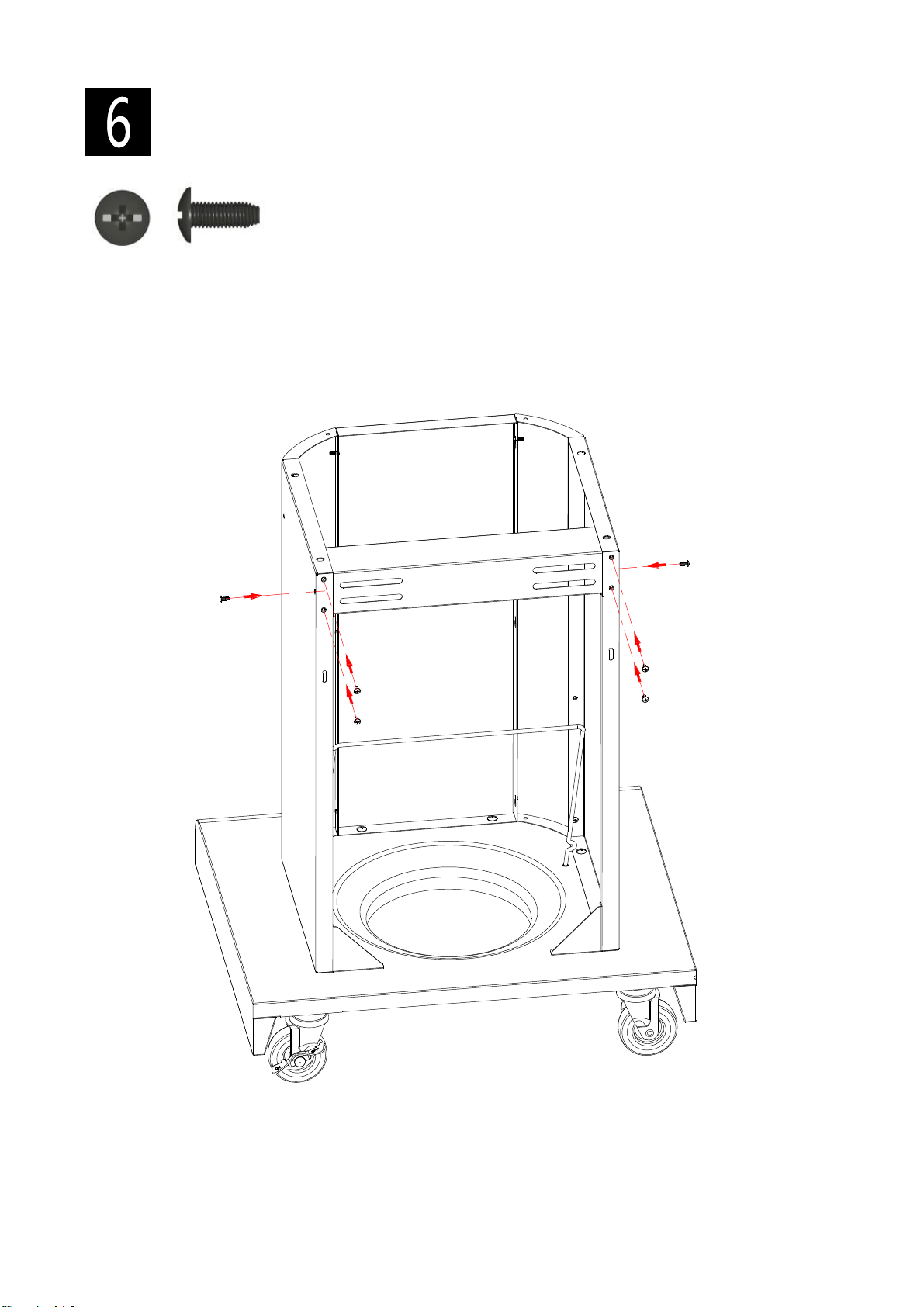

Use (6) M6x13 screws as shown to attach pedestal panels to grill base.
Use (2) M4x10 screws as shown to attach each panel support angle bar to grill base.
Fully tighten screws left partially tightened in step 3.
9
B
A
C
Pedestal
Use (6) M4x10 screws to attach the Back Rail to the rear of the pedestal as shown.
M4x10 screw Qty: 6 pcs
23
24
A
C
D
M6X13 screw Qty: 4 pcs

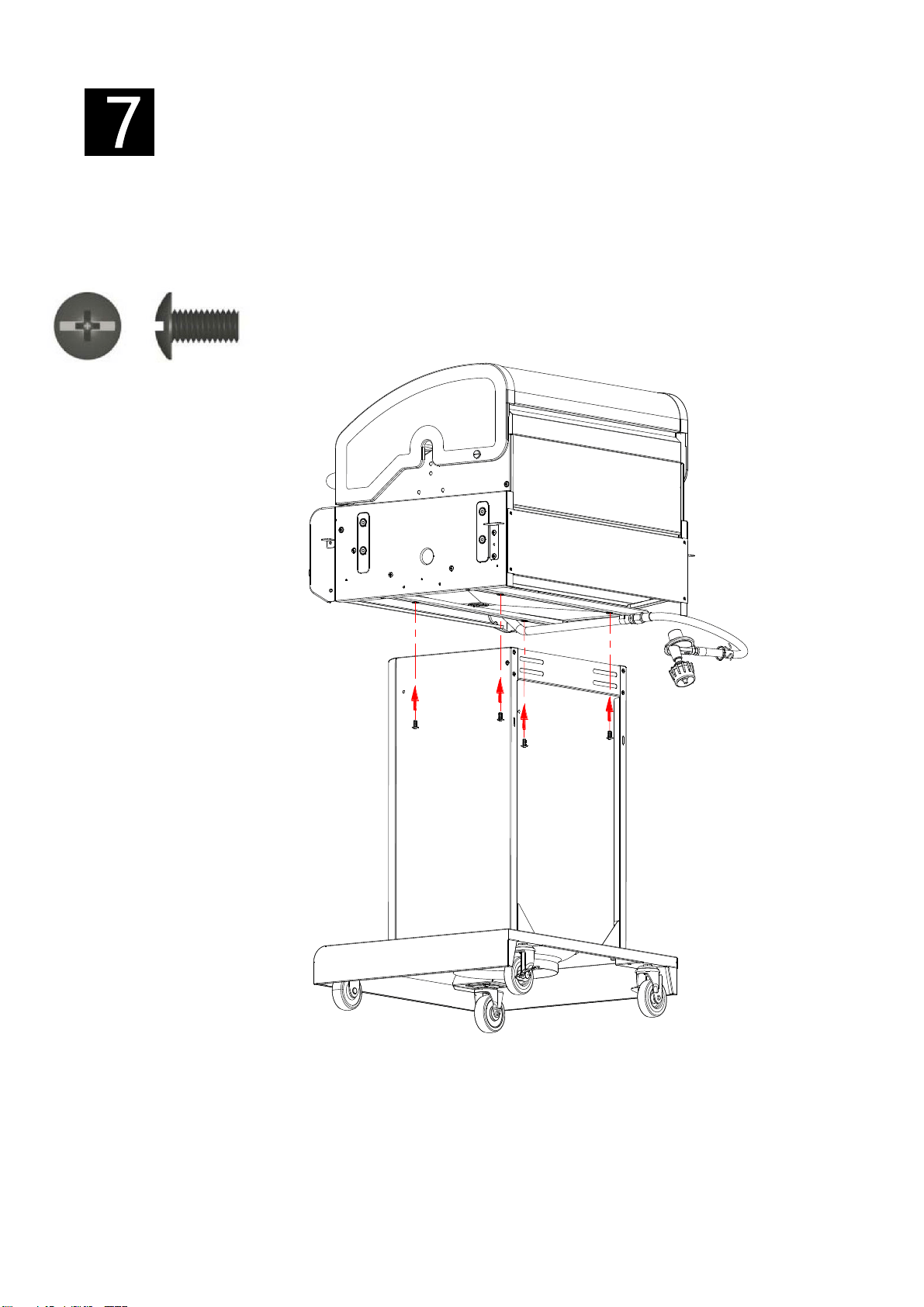

Grill Head to Pedestal
CAUTION: To avoid possible injury, two people are required to perform this step.
Remove any wire ties holding the regulator and gas hose under the grill head, making sure the
hose hangs freely.
With the aid of an assistant, carefully lower the grill head onto the pedestal.
While your assistant steadies the grill head on the pedestal, use (4) M6x13 screws from
underneath grill head to attach head to pedestal.
25

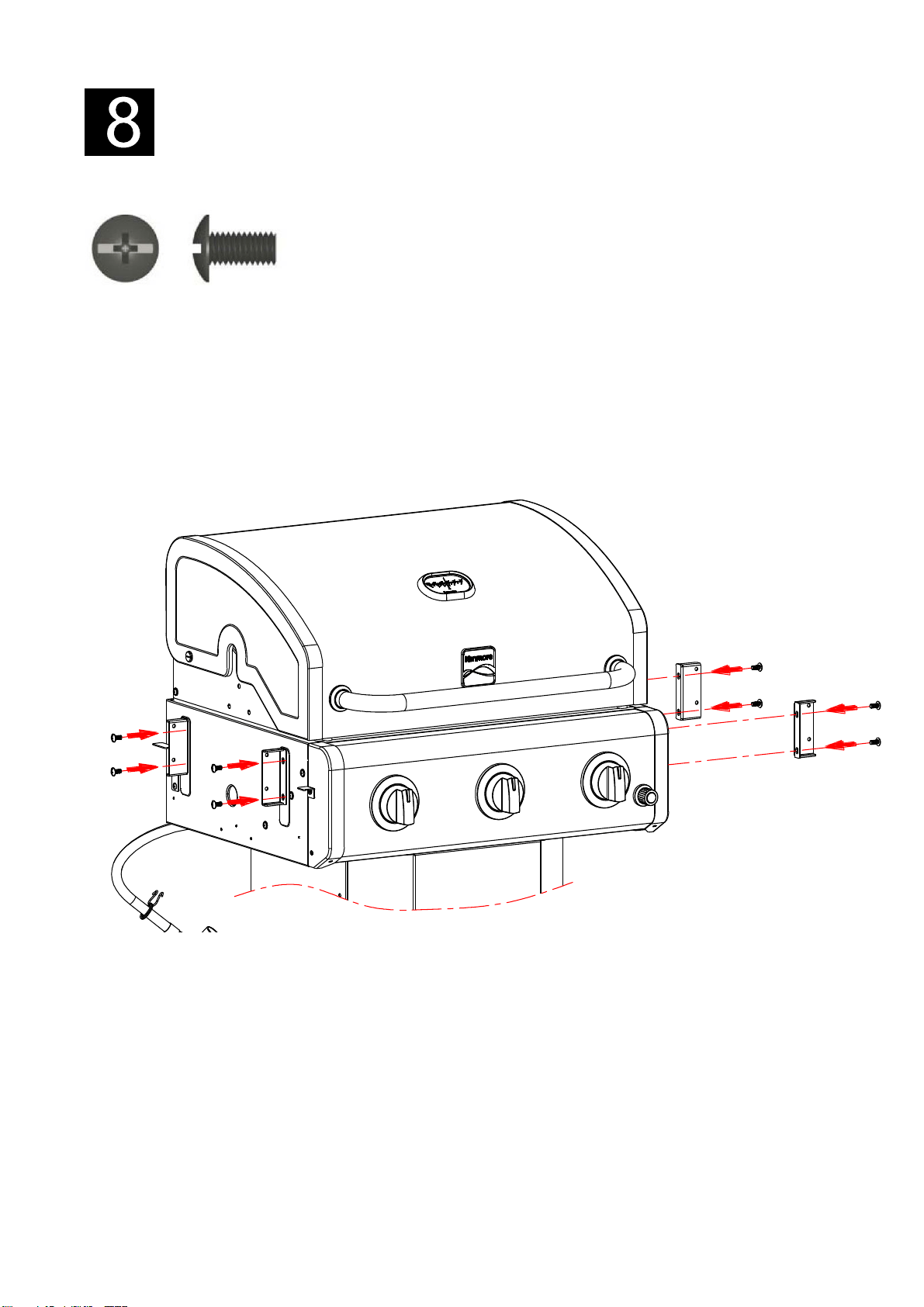

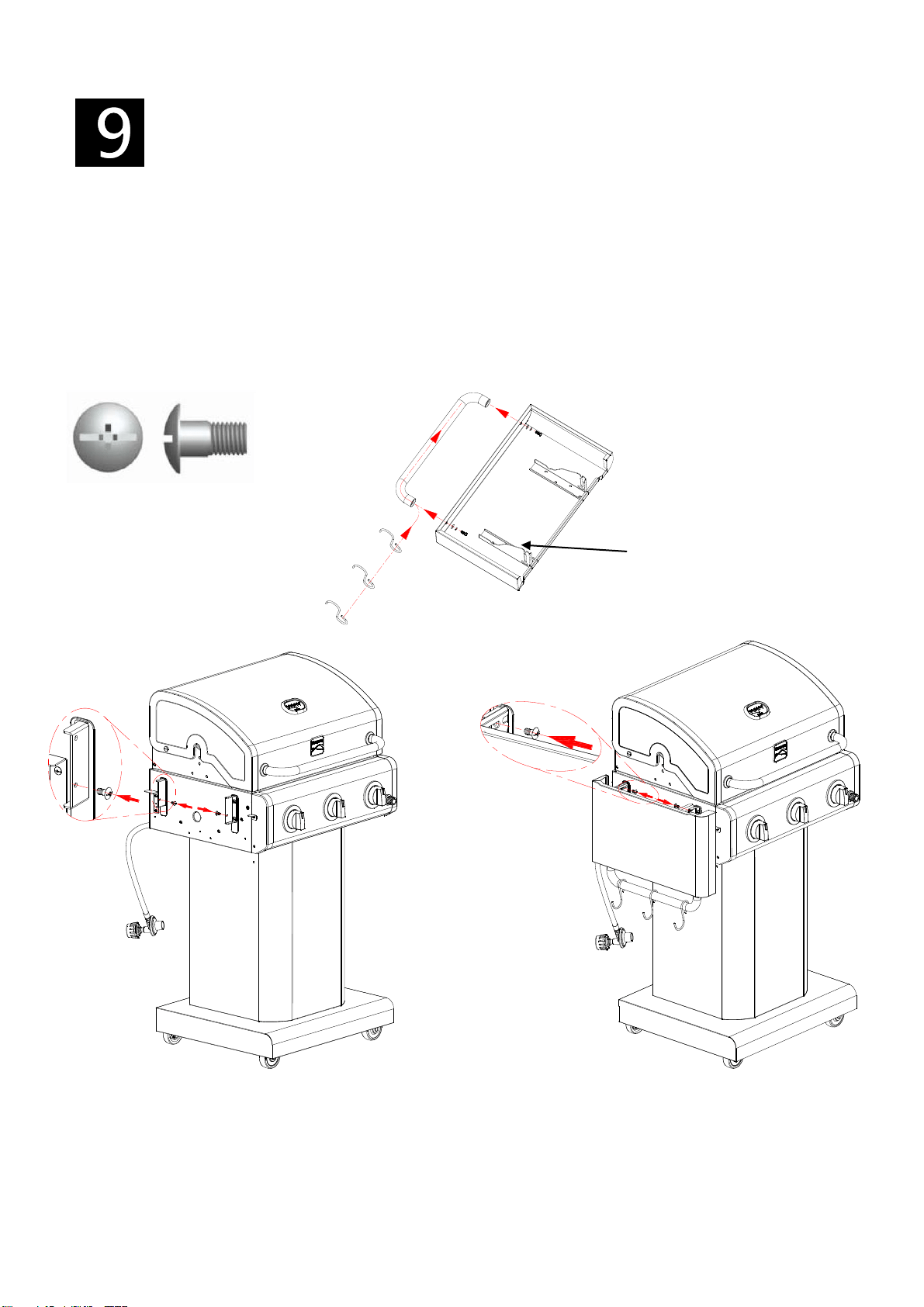

Attach the 4 side shelf support brackets to firebox with (8) M6x13 screws, as shown.
There is a location label on each bracket.
M6X13 screw Qty: 8 pcs
26

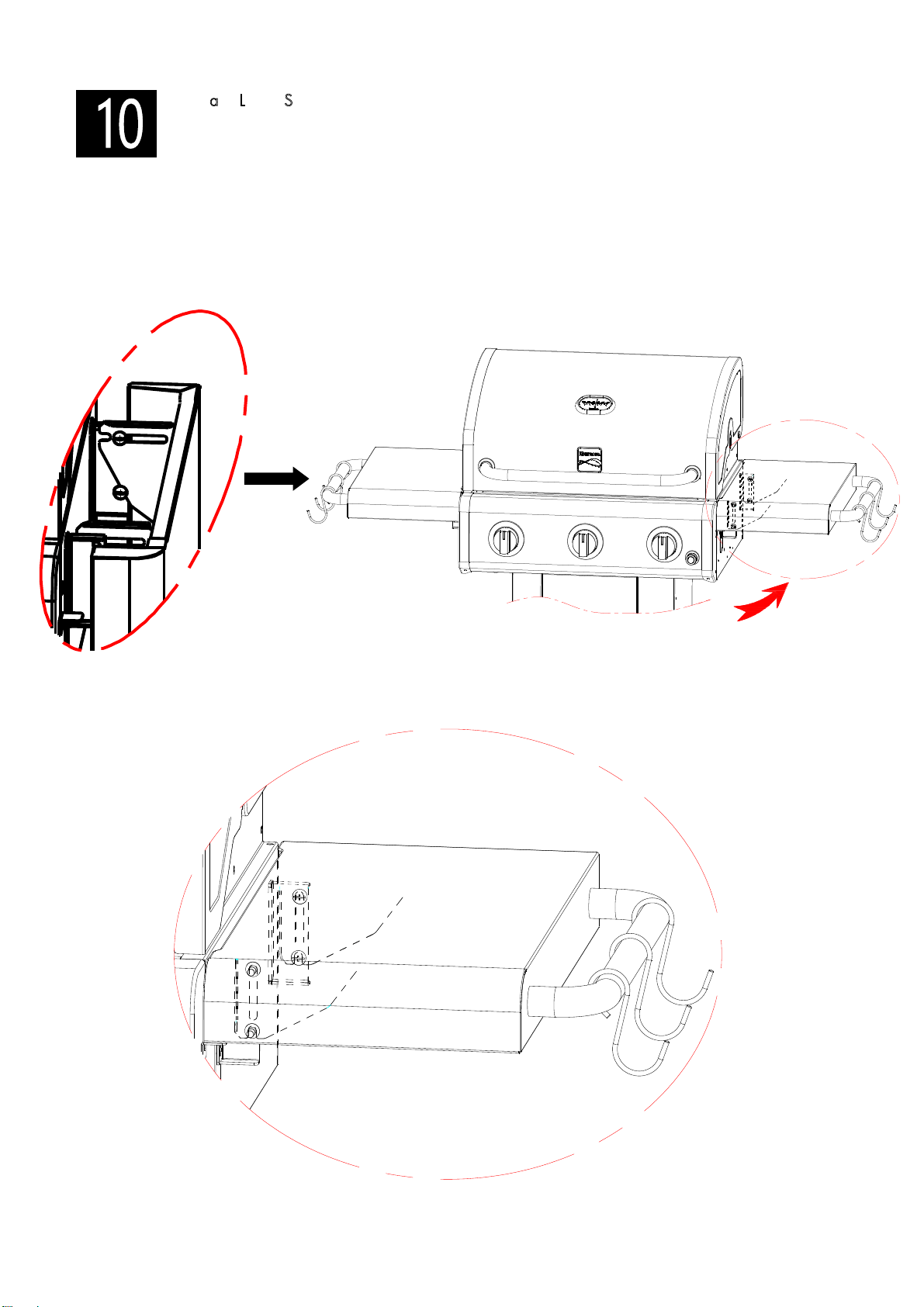

Folding Side Shelves
Perform the procedure below for both the Left and Right Side Shelf. Left side is shown below.
Slide 3 accessory hooks onto the shelf handle in the orientation shown below. Hook ends must
face away from grill body.
Remove the screws, lock washers and flat washers preattached to the handle ends, and use
them to attach the handle to the shelf.
Screw (1) M6x12 shoulder screws into the lower hole of each shelf support bracket.
Hang back of shelf onto front of support brackets as shown. Hold shelf in position while
performing the next step.
Screw (1) M6x12 shoulder screw through the upper slot in each shelf support brace into the
upper hole of each shelf support bracket.
M6X12 shoulder screw Qty: 4 pcs
Shelf Brace
Raise and Lower Shelves
To raise the shelves, grasp shelf by sides and lift up until slots at bottom of shelf braces clear
lower shoulder screws in shelf support brackets. Lower shelf slightly for slots to secure onto
screws.
To lower the shelves, grasp shelf by sides and lift up to raise brace slots from bracket shoulder
screws. Fold shelf down into position at side of pedestal.
27

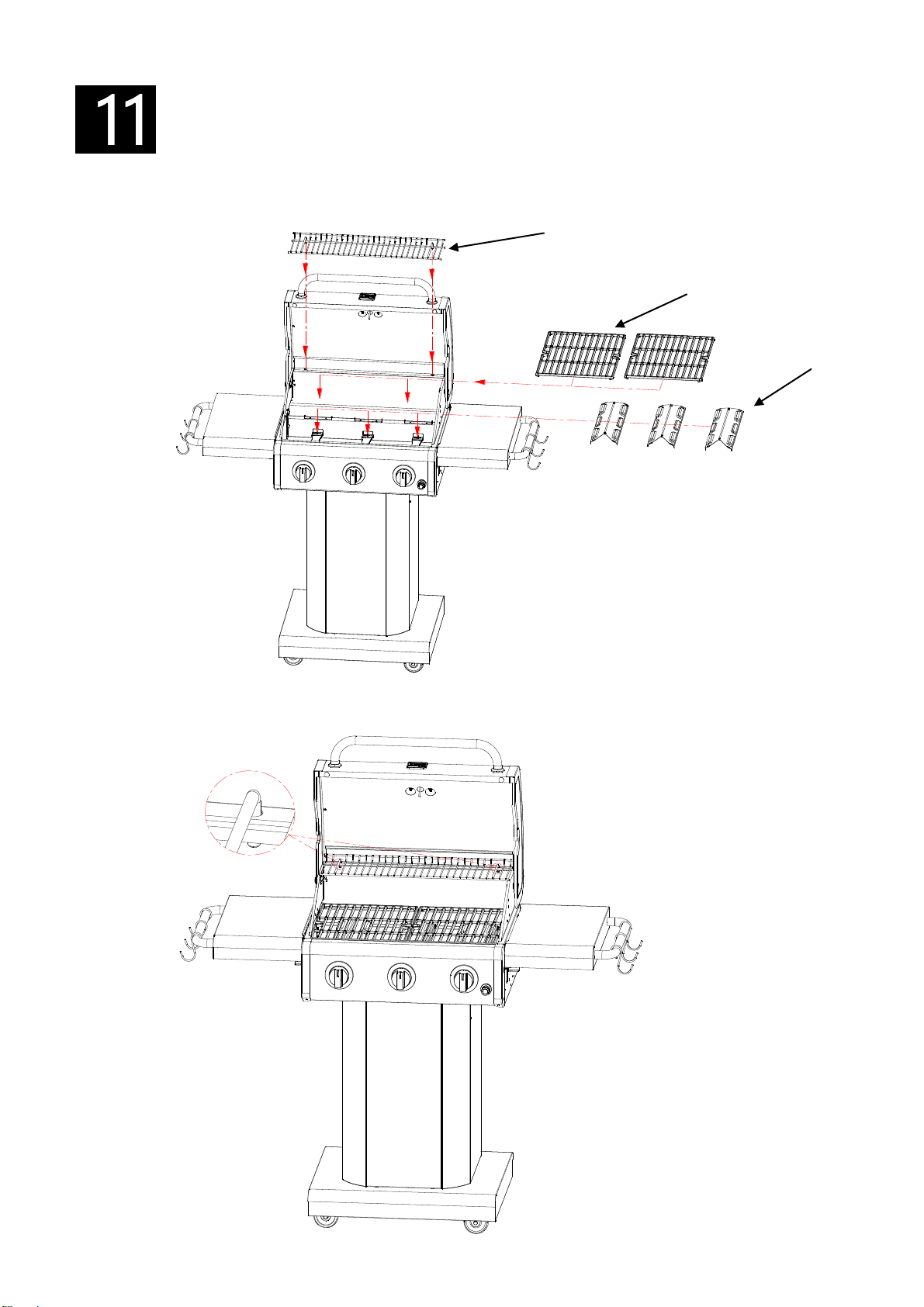

Heat Diffusers, Cooking Grids, Warming Rack:
Place heat diffusers over burners. Diffusers will fit in firebox in either direction. Fit tabs in firebox
front through slots in diffuser tips. Fit diffuser tips beside tabs in firebox rear.
Place cooking grates onto grate rests.
Insert the tabs at the back of the warming rack into the holes in the rear panel.
Warming Rack
Cooking Grates
Heat Diffusers
28
Failure to install Drip cup clip and cup will cause hot Drip to
drip from bottom of grill with risk of fire or property damage.
Failure to install tank correctly may allow gas hose to be
damaged in operation.
Drip Cup

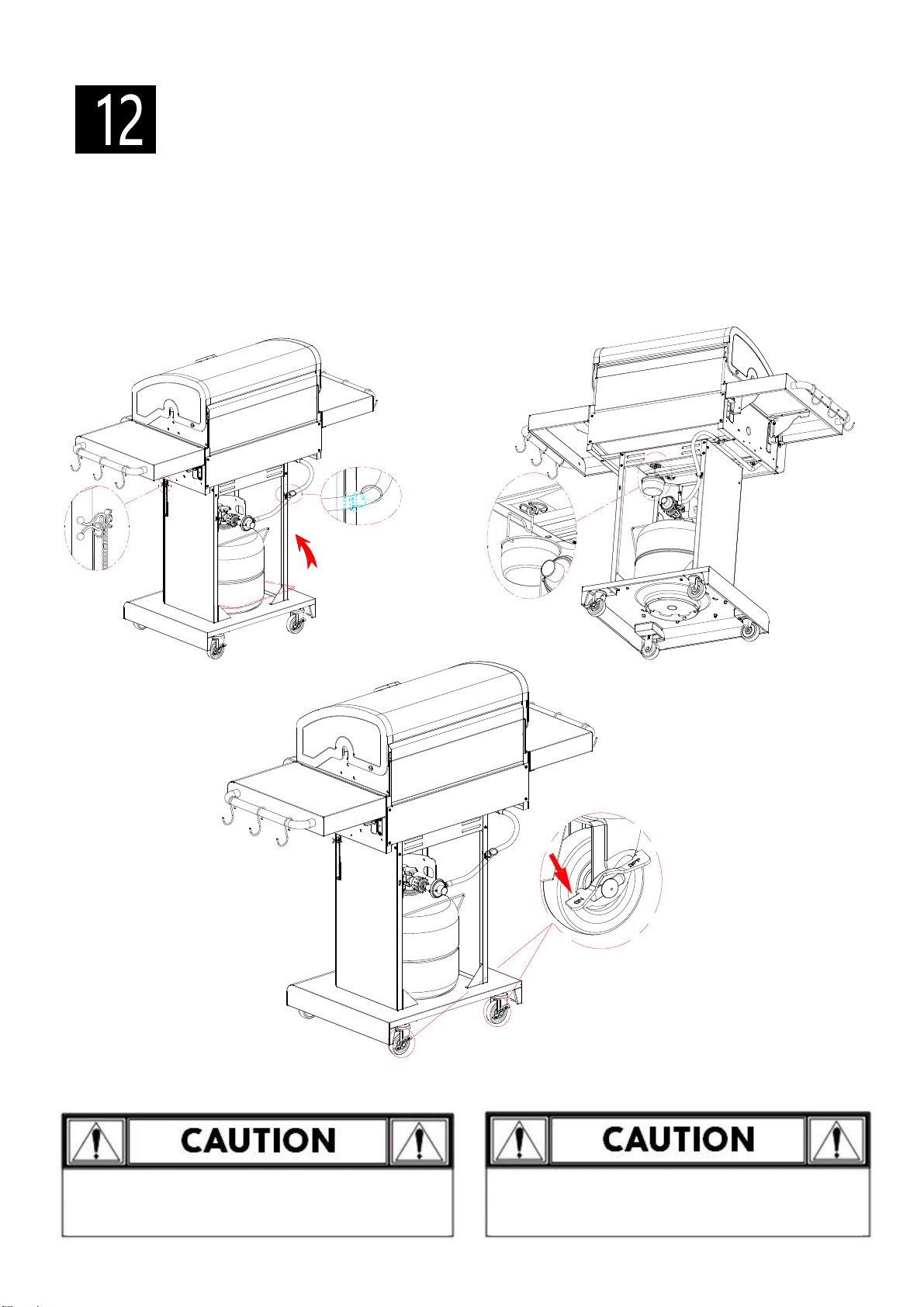

LP tank is sold separately. Use only with an OPD (over-fill protection device) equipped LP tank.
Fill and leak check before attaching to grill and regulator. Place LP tank into hole in grill base
with tank collar opening facing to back as shown. Raise tank holder to hold LP tank securely in
place. Secure the regulator hose to the slot hole of right side panel with hose retaining pin.
Hang drip cup clip from bottom of firebox and place Drip cup into Drip cup clip.
Unscrew igniter cap from control panel. Insert one AA battery (provided) into battery slot with
positive end (+) facing outward. Screw cap back onto panel.
Roll grill into place of operation. Once in place, press down on the locking levers of both Swivel
Casters with Brake to lock casters in place, preventing grill from moving during grill operation.
See bottom figure below.
29
30
Gas leaking from
cracked/cut/burned
hose.
Gas leaking from LP
cylinder.
Gas leaking from LP
cylinder valve.
Gas leaking between LP
cylinder and regulator
connection.
Fire coming through
control panel.
Drip fire or continuous
excessive flames above
cooking surface.
• Trying to light wrong burner.
• Burner not engaged with control
valve.
• Obstruction in burner.
• No gas flow.
• Vapor lock at coupling nut to LP
cylinder.
• Coupling nut and LP cylinder valve not
fully connected.
• Electrode cracked or broken; “sparks
at crack.
• Electrode tip not in proper position.
• Wire and/or electrode covered with
cooking residue.
• Wires are loose or disconnected.
• Wires are shorting (sparking)
between igniter and electrode.
• Dead battery.
GAS ISSUES:
• See instructions on control panel and in Use and Care section.
• Make sure valves are positioned inside of burner tubes.
• Ensure burner tubes are not obstructed with spider webs or
other matter. See cleaning section of Use and Care.
• Make sure LP cylinder is not empty. If LP cylinder is not empty,
refer to “Sudden drop in gas flow.”
• Turn off knobs and disconnect coupling nut from LP cylinder.
Reconnect and retry.
• Turn the coupling nut approximately one-half to three-quarters
additional turn until solid stop. Tighten by hand only - do not use
tools.
• Replace electrode(s).
Main Burners:
• Tip of electrode should be pointing toward gas port opening
on burner. The distance should be 1/8” to 1/4”. Adjust if
necessary.
• Clean wire and/or electrode with rubbing alcohol and clean
swab.
• Reconnect wires or replace electrode/wire assembly.
• Replace igniter wire/electrode assembly.
• Replace with a new AA-size alkaline battery.
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
• Damaged hose.
• Mechanical failure due to rusting or
mishandling.
• Failure of cylinder valve from
mishandling or mechanical failure.
• Improper installation, connection not
tight, failure of rubber seal.
• Fire in burner tube section of burner
due to blockage.
• Too much Drip buildup in burner area.
•Turn off gas at LP cylinder or at source on natural gas systems.
If the hose is cracked or cut but not burned, simply replace
valve / hose / regulator. If the hose is burned, the cause could
be other than a faulty valve/hose/regulator. Discontinue use of
grill until a plumber or gas technician has investigated and
corrected the problem.
• Replace LP cylinder.
• Turn off LP cylinder valve. Return LP cylinder to gas supplier.
•Turn off LP cylinder valve. Remove regulator from cylinder and
visually inspect rubber seal for damage. See LP Cylinder Leak
Test and Connecting Regulator to the LP Cylinder.
•Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After fire is out and grill is cold,
remove burner and inspect for spider nests or rust. See Spider
Alert and Cleaning the Burner Assembly sections of this Use &
Care Guide.
• Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After cooling, clean food particles
and excess Drip from inside firebox area, Drip tray, and other
surfaces.
Troubleshooting
Problem
Possible Cause
Prevention/Solution
Burner(s) will not light
using igniter.
(See Electronic
Ignition
Troubleshooting also)
Continued on next
page.
Problem
Possible Cause
Prevention / Solution
Problem
Burner(s) will not light
using igniter.
(See Electronic
Ignition
Troubleshooting also)
Pro
Burner(s) will not
match light.
Sudden drop in gas
flow or low flame.
Flames blow out.
Flare-up.
Persistent Drip fire.
• See “GAS ISSUES:” on previous
page.
• Match will not reach.
• Improper method of match-lighting.
• High or gusting winds.
• Low on LP gas.
• Excess flow valve tripped.
• Drip buildup.
• Excessive fat in meat.
• Excessive cooking temperature.
• Drip trapped by food buildup around
burner system.
• Burner and/or burner tubes are
blocked.
Prevention/Solution
• See Section I of Electronic Ignition System.
• See Section II of Electronic Ignition System.
• See Section III of Electronic Ignition System.
• Check for gas in LP cylinder.
•Turn off knobs, wait 30 seconds and light grill. If flames are
still low, turn off knobs and LP cylinder valve. Disconnect
regulator. Reconnect regulator and leak-test. Turn on LP
cylinder valve, wait 30 seconds and then light grill.
•Turn off knobs and LP cylinder valve. Disconnect coupling nut
from cylinder. Reconnect and retry.
•Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in
position and let fire burn out. After grill cools, remove and
clean all parts.
• Turn knobs to OFF. Clean burner and/or burner tubes. See
burner cleaning section of Use and Care.
Troubleshooting (continued)
Possible Cause
ELECTRONIC IGNITION:
• No spark, no ignition noise.
• No spark, some ignition noise.
• Sparks, but not at electrode or at full
strength.
• Clean burners and inside of grill/firebox.
• Trim fat from meat before grilling.
• Adjust (lower) temperature accordingly.
• Clean carry-over tube(s) with wire brush.
One burner does
not light from
other burner(s).
• Drip buildup or food particles in end(s)
of carryover tube(s).
Flashback…
(fire in burner tube(s)).
Unable to fill LP
cylinder.
• Out of gas.
• Excess flow valve tripped.
• Vapor lock at coupling nut/LP
cylinder connection.
• Some dealers have older fill nozzles
with worn threads.
• Turn front of grill to face wind or increase flame height.
• Refill LP cylinder.
• Refer to “Sudden drop in gas flow” above.
31
• Use long-stem match (fireplace match).
• See “Match-Lighting” section of Use and Care.
• The worn nozzles don’t have enough “bite” to engage the
valve. Try a second LP dealer.
Prevention / Solution
• Output lead
connections not
connected.
Problem
Troubleshooting - Electronic Ignition
SECTION I
No sparks appear at
any electrodes when
control knob turned
to HI: no noise can
be heard from spark
module.
Possible Cause
• Battery not installed
properly.
• Dead battery.
• Button assembly not
installed properly.
• Faulty spark module.
• Check battery orientation.
• Has battery been used
previously?
• Check to insure threads are
properly engaged. Button
should travel up and down
without binding.
• If no sparks are generated
with new battery and good
wire connections, module is
faulty.
• Install battery (make sure that “+” and “-”
connectors are oriented correctly, with “+” end
up and “-” end down.)
• Replace battery with new AA-size alkaline
battery.
• Unscrew button cap assembly and reinstall,
making sure threads are aligned and engaged
fully.
• Replace spark module assembly.
SECTION II
No sparks appear at
any electrodes when
control knob turned
to HI; noise can be
heard from spark
module.
• Are output connections
on and tight?
• Remove and reconnect all output
connections at module and electrodes.
SECTION III
Sparks are present
but not at all
electrodes and/or
not at full strength
• Output lead
connections not
connected.
• Electrical arc
between output wires
and grill frame.
• Weak battery.
• Electrodes are wet.
• Electrode(s) cracked
or broken; sparks
appear where
cracked.
• Are output connections on
and tight?
• If possible, observe grill in
dark location. Operate
ignition system and look for
arcing between output
wires and grill frame.
• All sparks present but
weak or at slow rate.
• Has moisture accumulated
on electrode and/or in
burner ports?
• Inspect electrodes for
cracks.
• Remove and reconnect all output connections
at module and electrodes.
• If sparks are observed other than from
burner(s), wire insulation may be damaged.
Replace wires.
• Replace battery with a new AA-size alkaline
battery.
• Use paper towel to remove moisture.
• Replace cracked or broken electrodes.
32
Prevention / Solution
Check Item
Kenmore ®
Customer Care Hotline
To schedule in-home repair service
or order replacement parts
Para pedir servicio de reparación
a domicilio, y ordenar piezas
1-844-553-6667
www. kenmore. com
®
