Introduction of the new multi - functional 5 in 1
combo heat press machine
P8200
CONTENTS PAGE
01
02
03
Combo heat press machine profile
Patent and appearance
Function introduction
04
Details introduction
Combo heat press machine profile
PART ONE
1
Introduction
Under the premise of adopting the design scheme of
home appliances and reflecting the beauty of the
machine, we have developed a multifunctional
combined hot press.It can transfer hats, cups, plates
(in various sizes), T-shirts, etc. It can meet the
various needs of customers, equivalent to buying
several machines.
P8200（Multi-Function 5-in-1 combo heat press machine）
Patent introduction
2
PART TWO
Patent and appearance
Front view
Rear view
Left view
Right view
China Patent No.：201930166300.0
The United States Patent No.：252521-1020
The European Union Patent No.: 005804952
Other countries are applying for approval
Top view
Bottom view
Patent application countries: China, the United States, the European Union, Japan, South Korea, Russia, India,
Thailand, Philippines, Indonesia, Mexico, Brazil and other countries.
Function introduction
3
PART THREE
Heat Press Machine
1. The screen display of the heat press
machine is simple and intuitive, making it easy
for customers to operate.
2. The machine is easy to assemble, suitable
for business, home, education, etc.
3. Attractive appearance, generous modeling
makes a higher grade than the traditional heat
press machine.

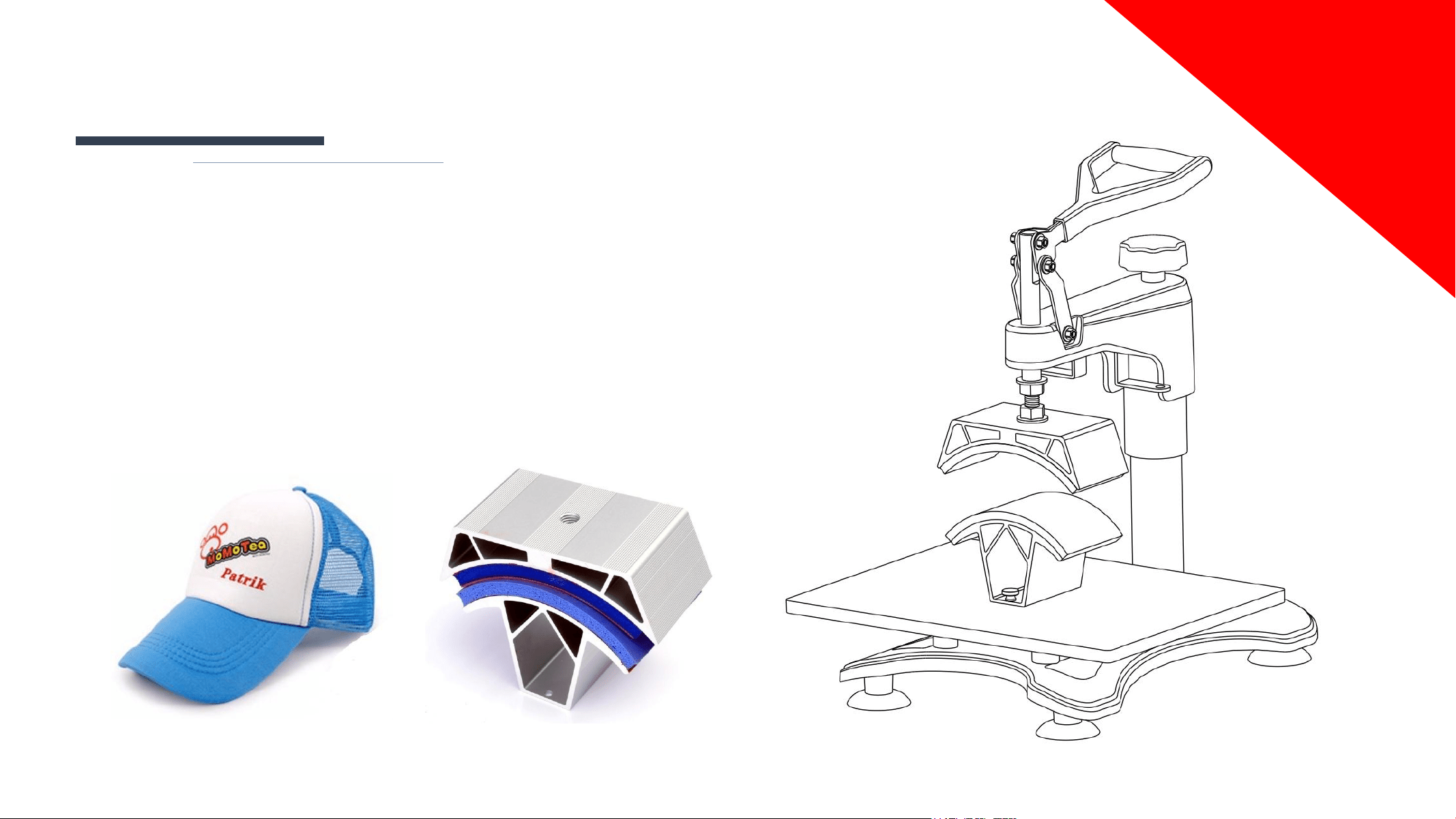

Cap heat press machine
The cap press is simple to operate,
stable in structure and easy to use. It
adopts an aluminum profile structure for
more reliable quality.
Aluminum alloy cap heater
Plate heat press machine
The plate heat press machine adopts an aluminum mold heat conduction
method. 8-inch and 10-inch silicon heaters are installed on the front and
back. Large transfer area, good effect, no need to be disassembled and
assembled, and simple use.
Mug heat press machine
1. The mug press frame is made of 2.5mm thick iron plate.
2. High quality mug press with automatic timing switch, no
manual operation required.
3. The mug press is connected and disassembled only by
the knob, no tools are required, quick disassembly and
simple installation.
Automatic time switch
Configuration Plan
Multi-functional heat press machine comes with various type
elements, can make different types of sublimation products
accordingly
5 in 1
6 in 1
8 in 1
10 in 1
11 in 1
Main machine with flat
board :29*38CM
Main machine with flat
board :29*38CM
Main machine with flat
board :29*38CM
Main machine with flat
board :29*38CM
Main machine with flat
board :29*38CM
Mug holder comes with 11oz
mug heating pad
Mug holder comes with 11oz
mug heating pad
Mug holder comes with 11oz
mug heating pad
Mug holder comes with 11oz
mug heating pad
Mug holder comes with 11oz
mug heating pad
8 inch plate heating pad
8 inch plate heating pad
8 inch plate heating pad
8 inch plate heating pad
8 inch plate heating pad
10 inch plate heating pad
10 inch plate heating pad
10 inch plate heating pad
10 inch plate heating pad
10 inch plate heating pad
Cap heating pad
Cap heating pad
Cap heating pad
Cap heating pad
Cap heating pad
Lengthened Aluminum bottle
heating pad
Lengthened Aluminum bottle
heating pad
Lengthened Aluminum bottle
heating pad
Lengthened Aluminum bottle
heating pad
9oz mug heating pad
6oz mug heating pad
6oz mug heating pad
12oz mug heating pad(conic
shape)
9oz mug heating pad
9oz mug heating pad
12oz mug heating pad(conic
shape)
12oz mug heating pad(conic
shape)
12 in 1（pen heating pad）
17 oz mug heating pad
12 in 1（pen heating pad）
Details Description
4
PART FOUR
Safety & Anti-Scalding
This new machine uses four-layer insulation
technology. When its working temperature reaches
210 degrees, the surface temperature is only
about 40 degrees, which is safer than the
traditional model surface temperature of 70-100
degrees, and it will not burn your hands.
41 degrees on surface 71 degrees on surface

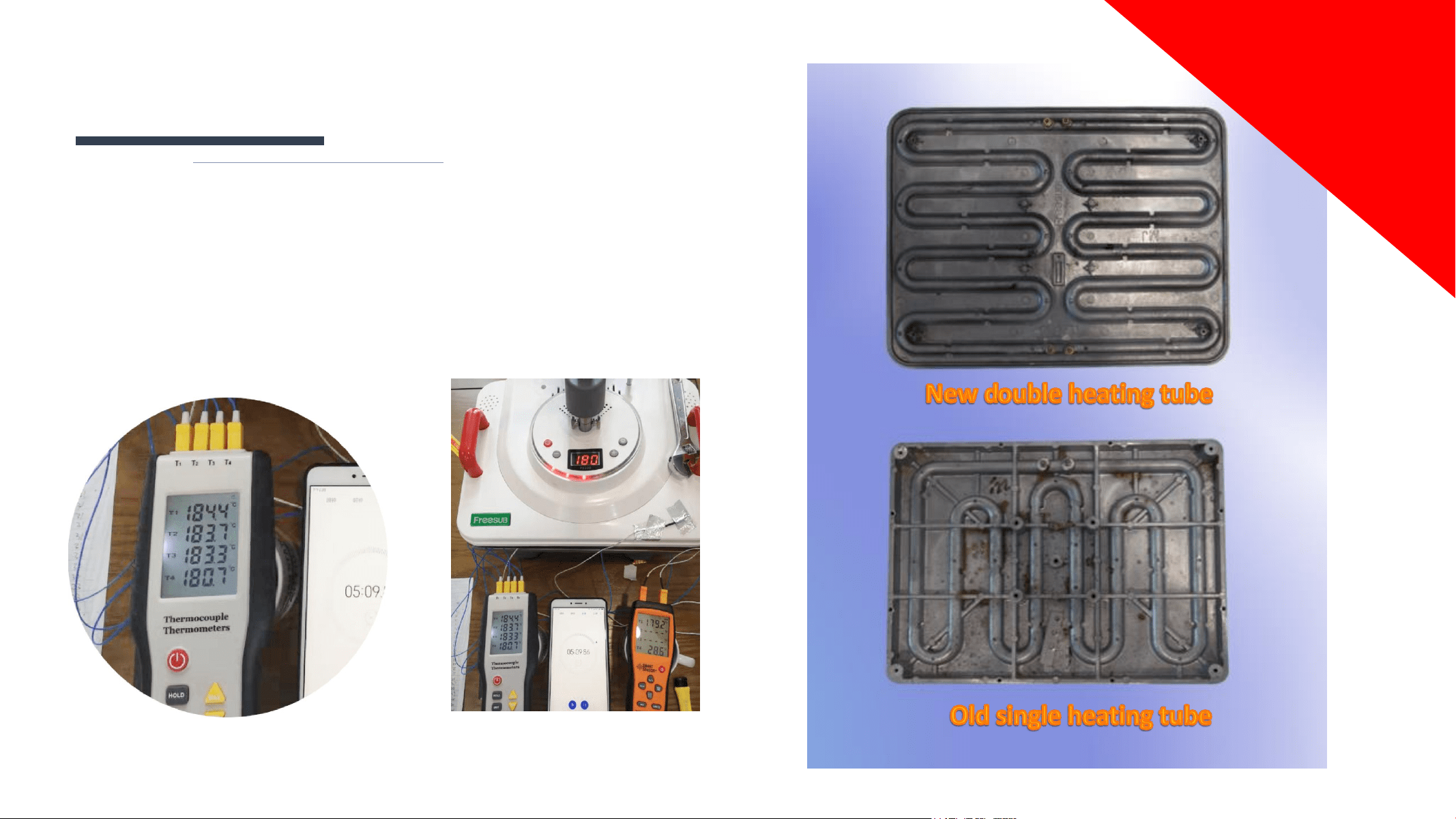

Double heating tube
The new heat press machine has more uniform
heating, and the double heating tube design can make
the printing effect better, because the temperature
difference between the center and the edge is only
about 5 degrees, while the temperature difference of
the old machine design can reach 10 degrees.
Professional temperature measurement equipment detection: 4 angles
and center temperature difference is only 5 degrees.

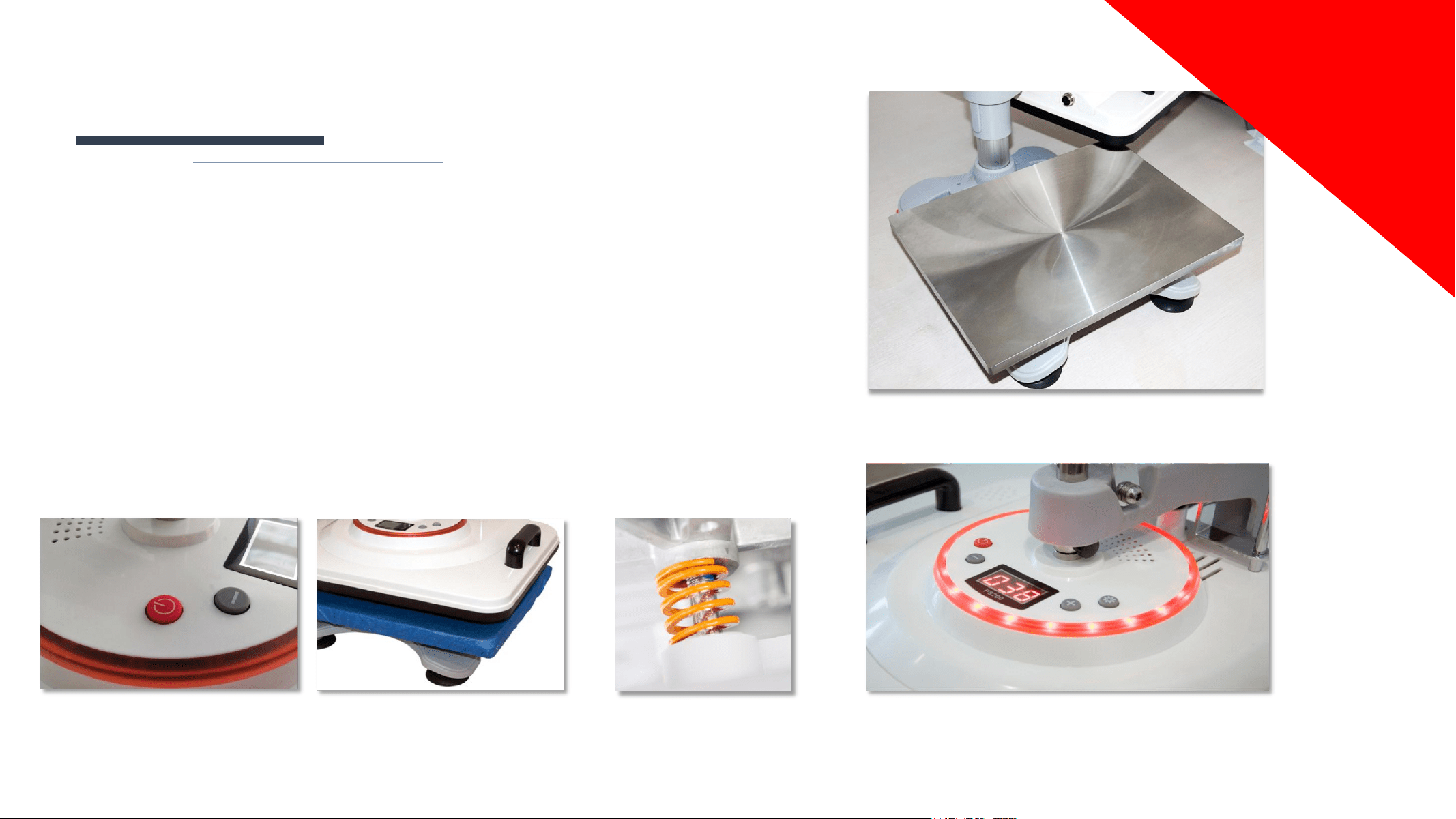

More details
1、The aluminum alloy is used in the down plate, which
is flat and not deformed
2、Use the sensitive silicone button
3、Suction feet keep the machine stable
4、The lower board is covered with high temperature
cloth
5、The rear main beam uses aluminum alloy
6、Marquee display design, stylish and practical
Silicon button
Aluminum down plate
Suction foot
Marquee display
Mold spring

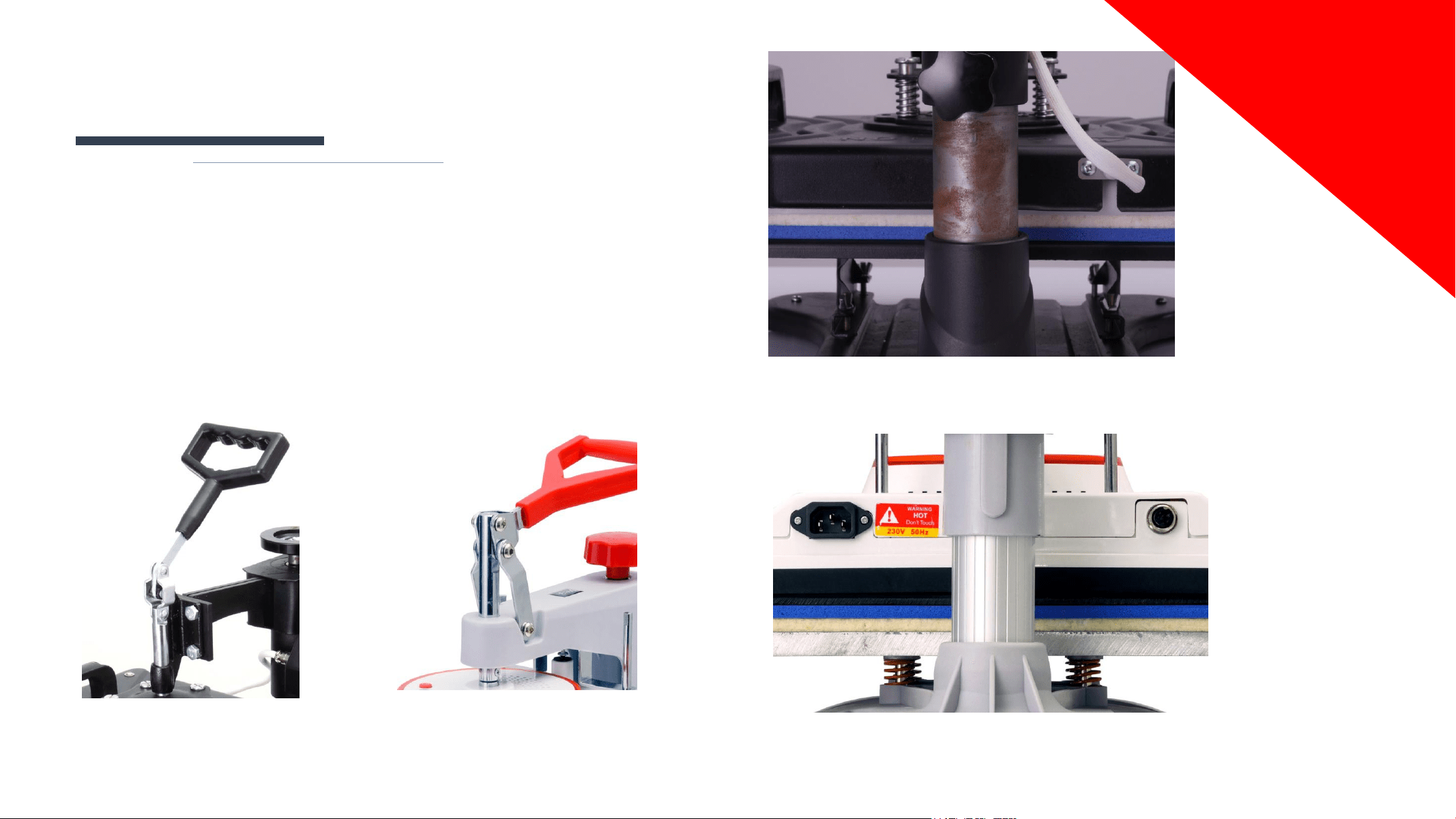

More details
1、Under the same pressure, the new handle is more
labor-saving and smooth
2、Aluminum posts won't rust and rotate more flexibly
The old handle is easy
rust and stuck
Iron main beam is easy rust
The new handle does not rust,
and labor-saving
Aluminum main beam will not rust
More details
1,The plate heating pad adopts the latest design, w
hich uses a solid aluminum mold to conduct heat t
o the silicone pad. The plate is better in color and th
e pattern size is larger.
2，Six-line mug heater with automatic timing
function, the outlet is sleeved with shrink tube,
more durable, with stainless steel patch, easy to
replace
Optional with a variety of mug heater
New mug heater Old mug heater
New plate heater
Old plate heater
Core accessories
1. Dual main board design, strong and weak electrical
separation to ensure safety
2. Two SCR temperature control, the accuracy reaches
within 5 degrees.。
3.According to UL safety standards, the heat press has a relay insurance control.
4.Triple insurance. Failure of one fuse will automatically switch to the other without
affecting customer use and avoiding maintenance.
Packing
Two 5-layer carton packs with foam protection, most of the mainframes are made of plastic fittings,
and the whole machine is light in weight.
Instruction manual
Double outer box, inner box for neutral printing, a total
of ten thick cardboard boxes
Machine details
Product
name
5 in 1 combo heat press
machine
Rated power
1200W
Rated voltage
220V (110V)
Rated frequency
60Hz 50Hz-60Hz
MEAS:
690x460x435
CBM.:
0.138CBM
N.W:
21.5KG
Transfer size
290x380mm
MULTI FUNCTION COMBO HEAT PRESS MACHINE
Main parameter

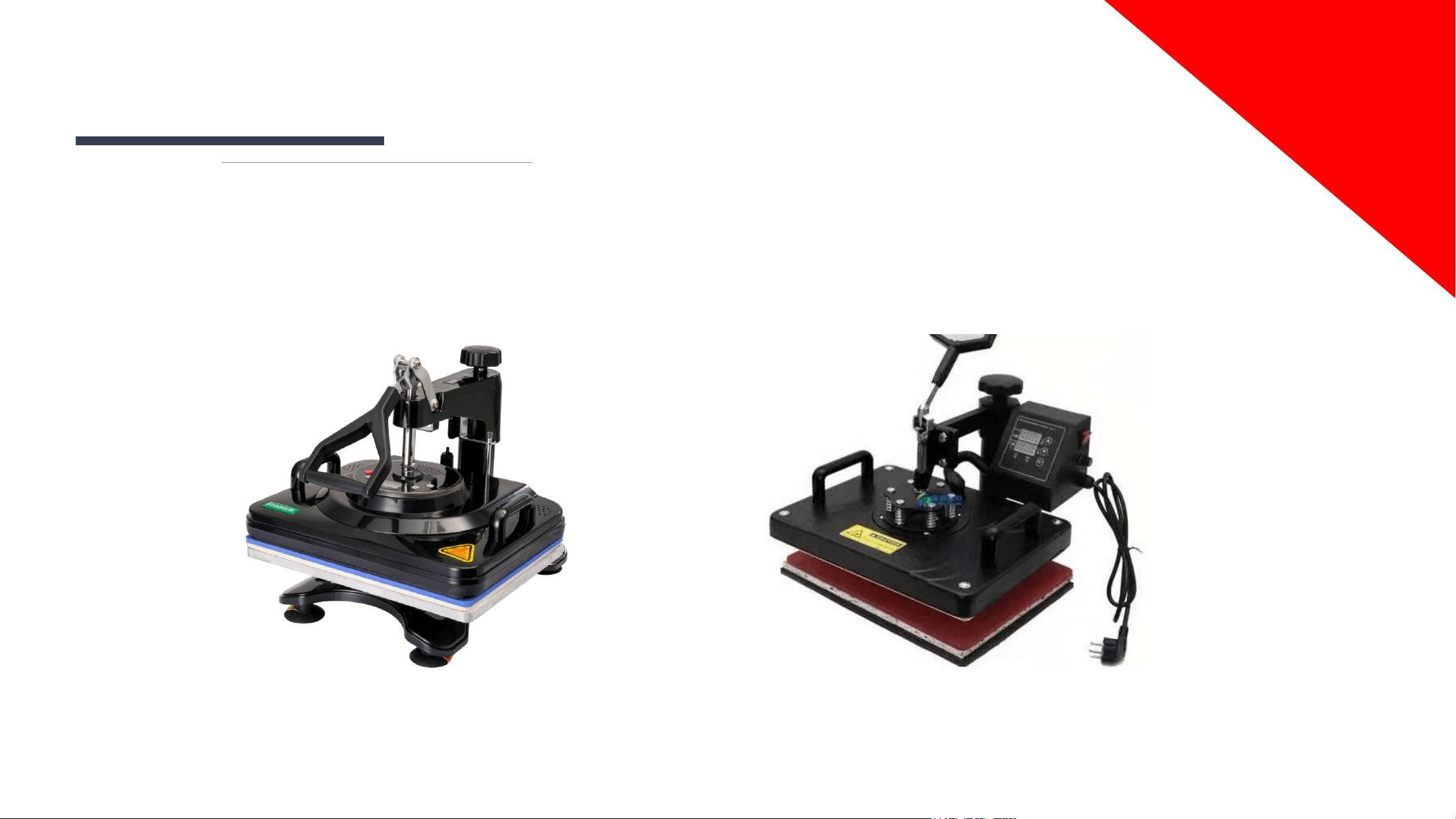

New and old machine picture comparison
Compared with the appearance, function and quality of the heat press machine, the new heat
press machine is obviously better than the old one, and the price is more affordable.
New P8200 combo heat
press machine
Old combo heat
press machine
