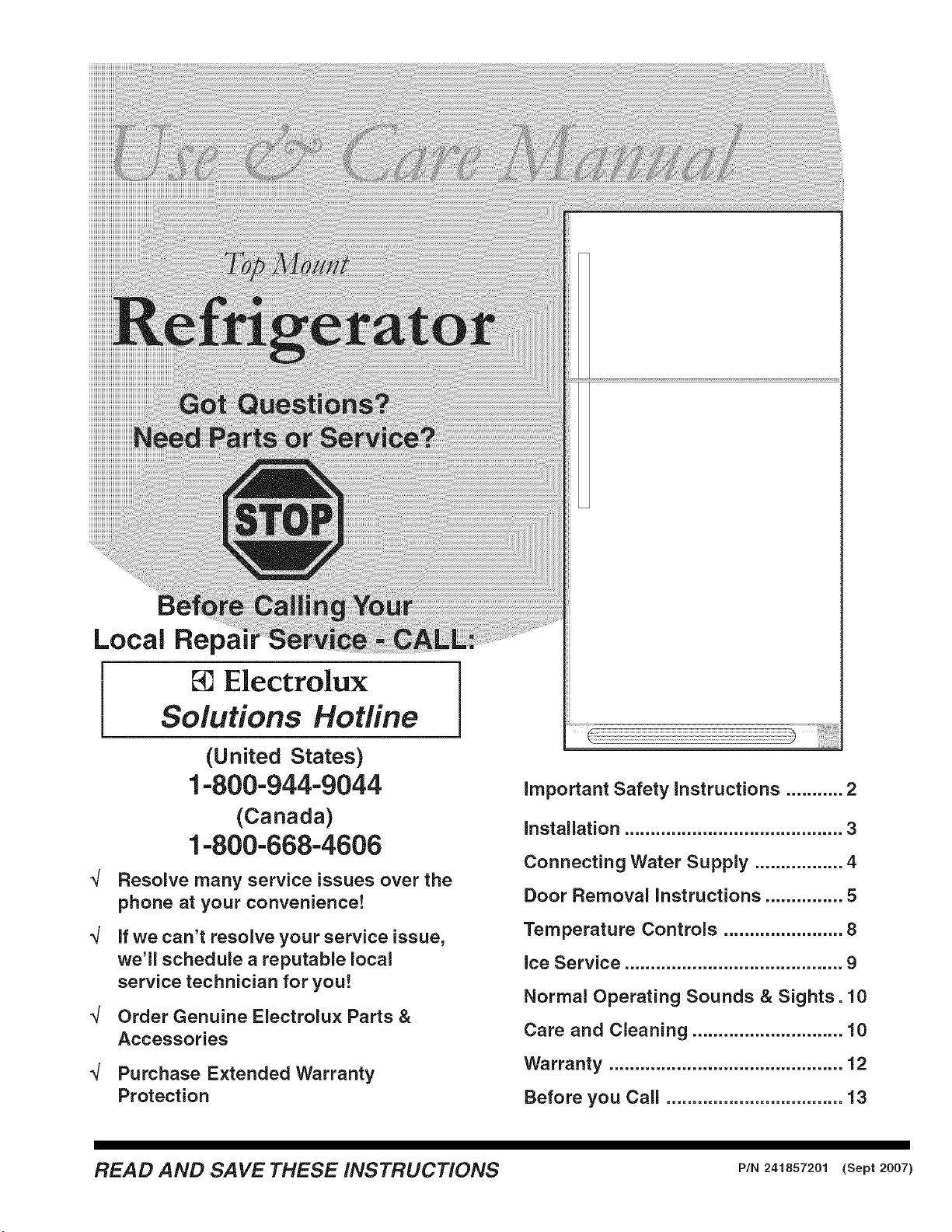

User manual of Frigidaire FRT18S6JW6 (13 pages)
file thumbnail

Local Repal

[] Electrolux Solutions Hotline

(United States) 1-800-944-9044

(Canada) 1-800-668-4606

Resolve many service issues over the phone at your convenience!

If we can't resolve your service issue. we'll schedule a reputable local service technician for you!

Order Genuine Electrolux Parts & Accessories

Purchase Extended Warranty Protection

Installation

Connecting Water Supply

Door Removal Instructions

Temperature Controls

Ice Service

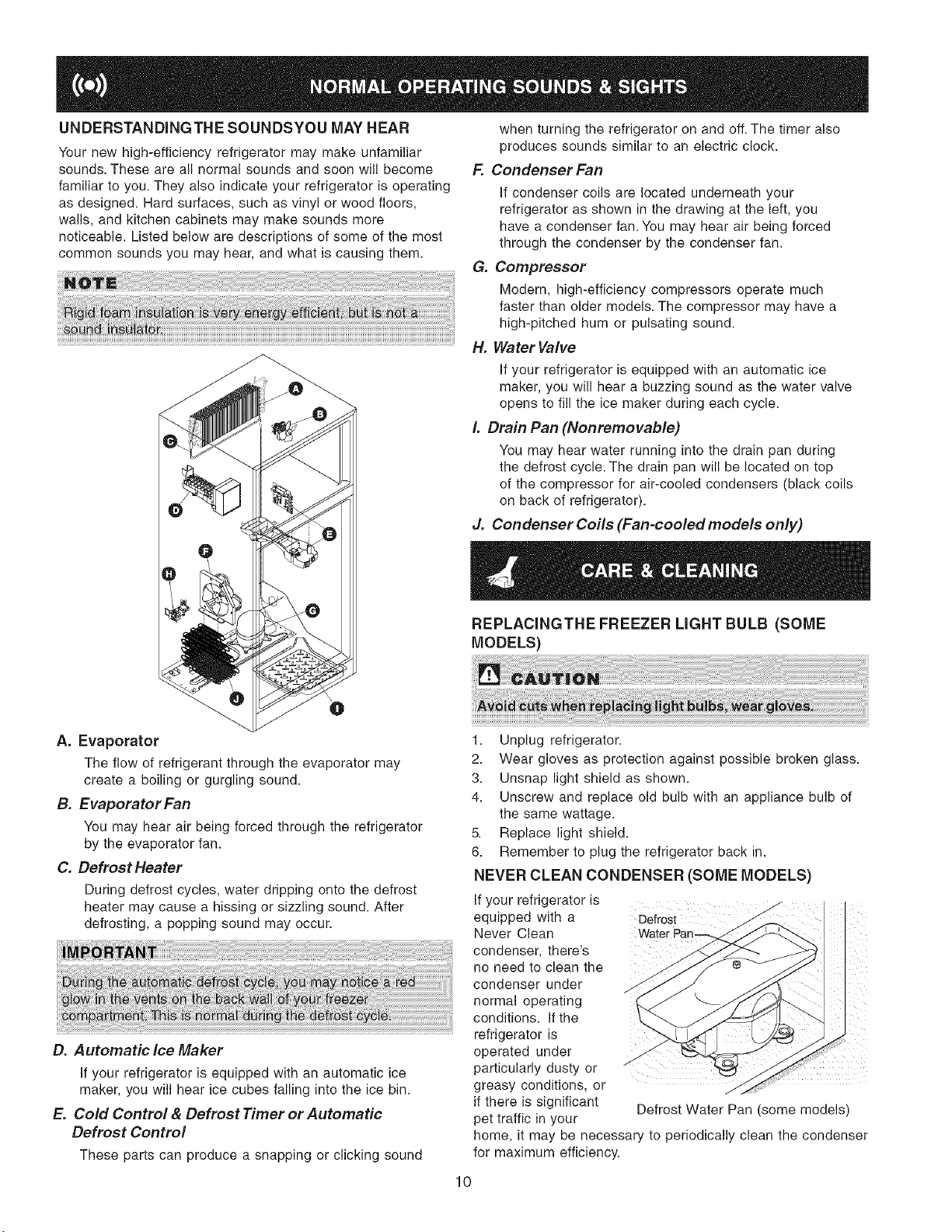

Normal Operating Sounds & Sights.

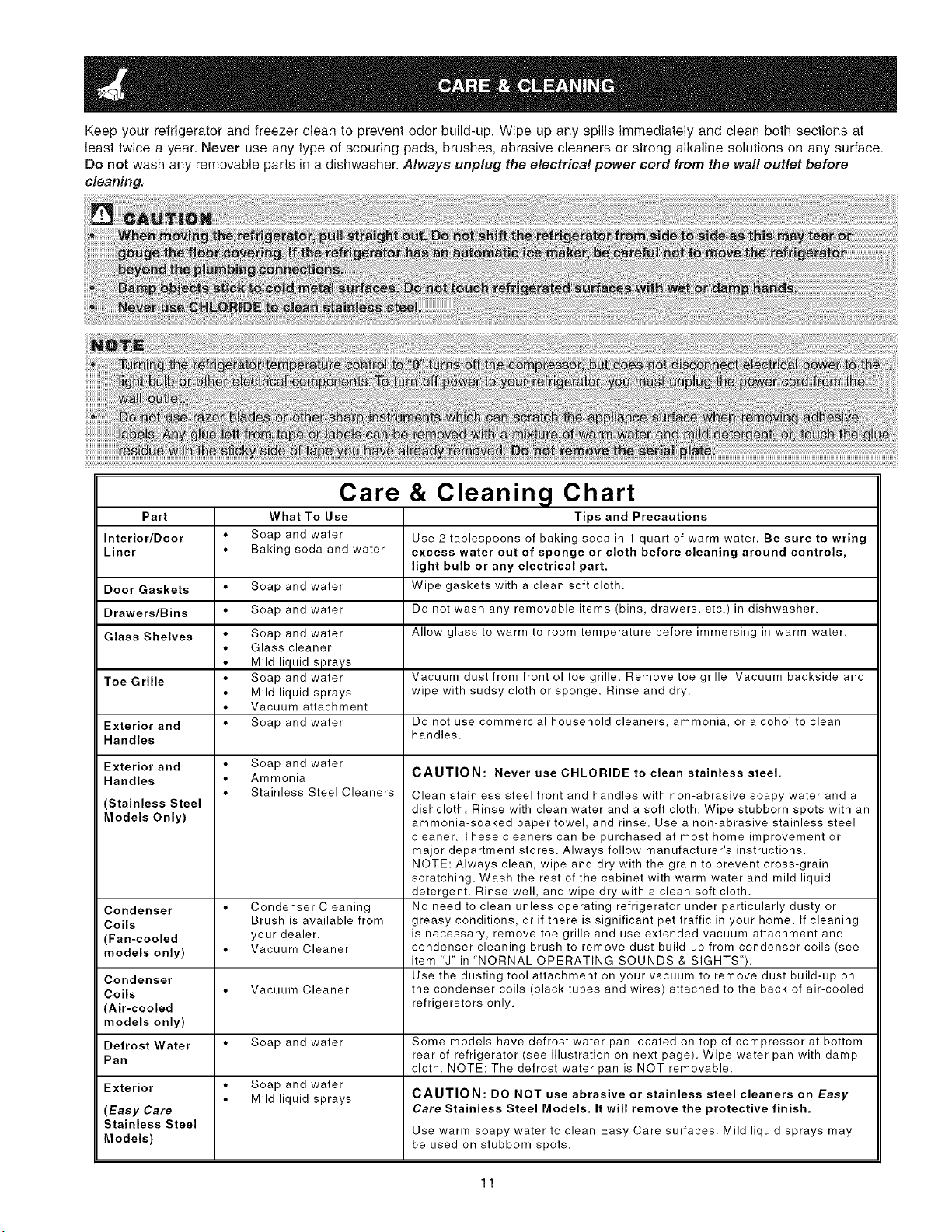

Care and Cleaning

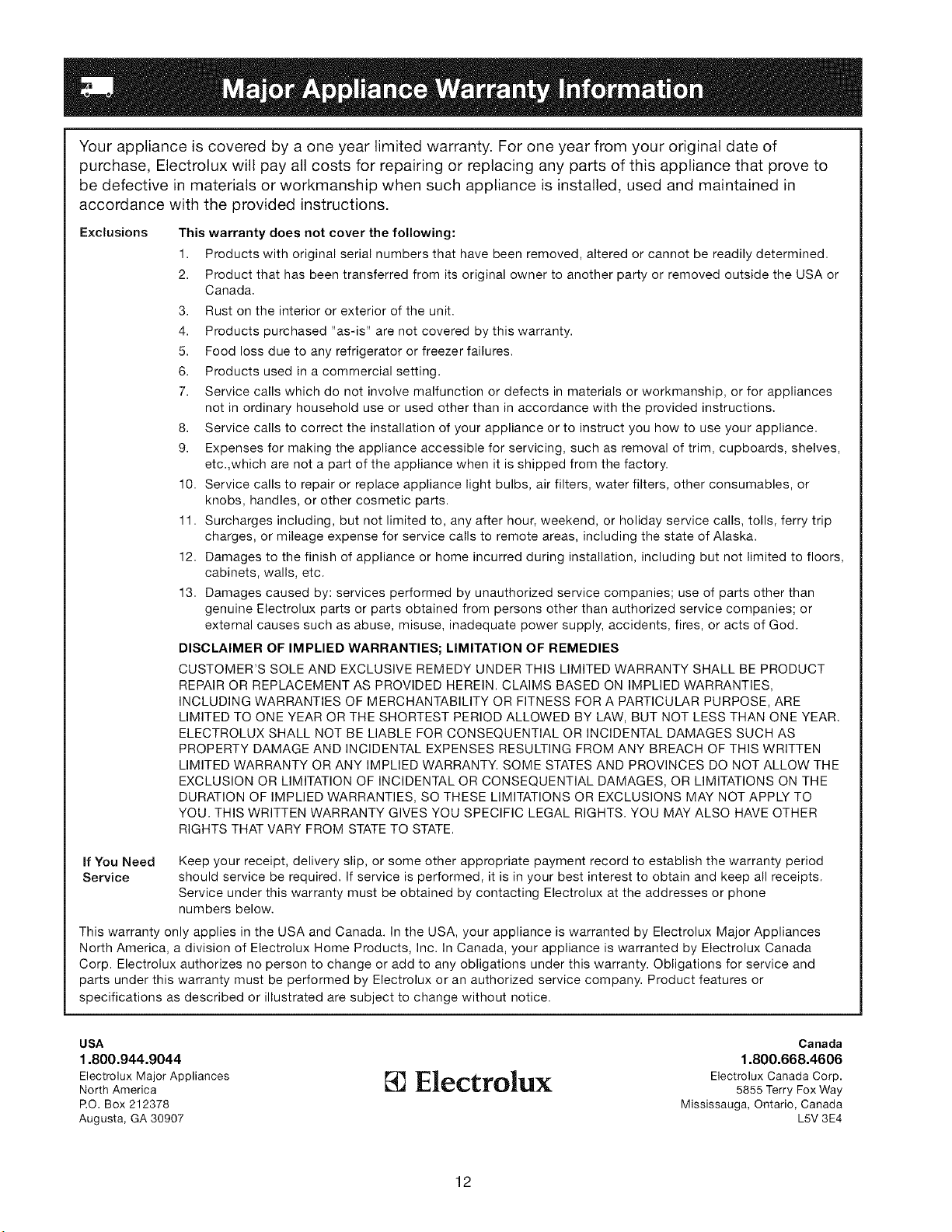

Warranty

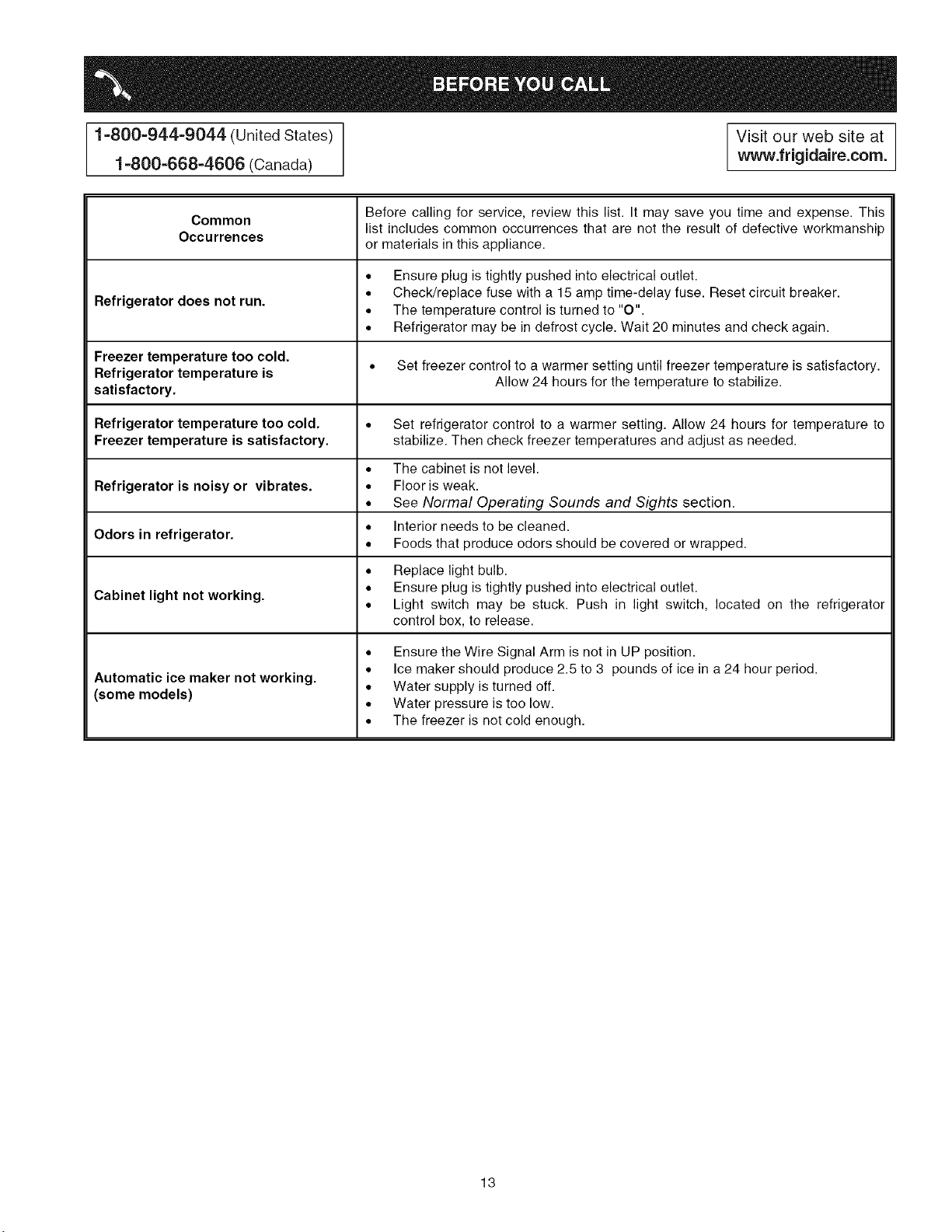

Before you Call

READ AND SAVE THESE INSTRUCTIONS P/N2418s72ol (sept200z)

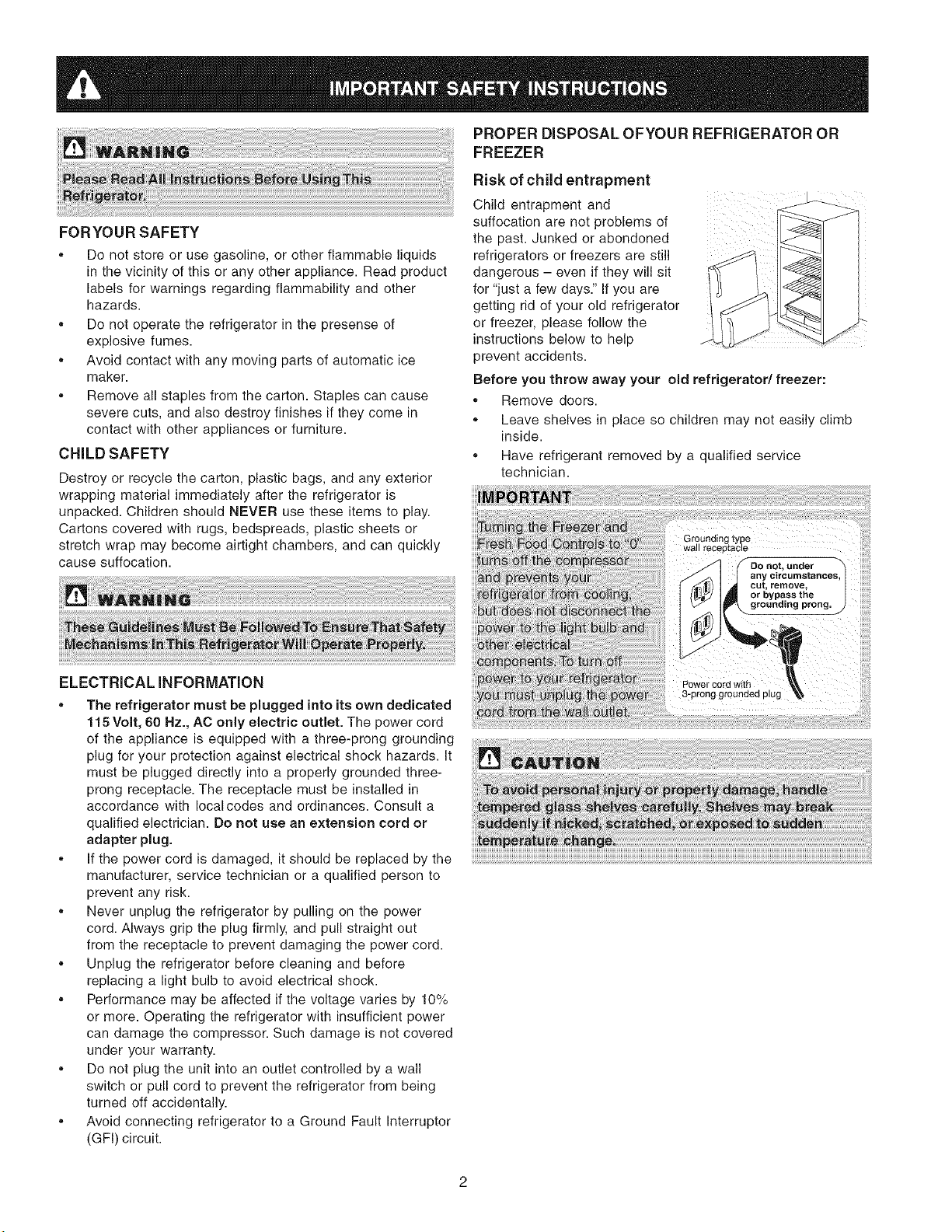

PROPER DISPOSAL OFYOUR REFRIGERATOR OR FREEZER

FORYOUR SAFETY

Do not store or use gasoline. or other flammable liquids in the vicinity of this or any other appliance.

Read product labels for warnings regarding flammability and other hazards.

Do not operate the refrigerator in the presense of explosive fumes.

Avoid contact with any moving parts of automatic ice maker.

Remove all staples from the carton. Staples can cause severe cuts. and also destroy finishes if they come in contact with other appliances or furniture.

CHILD SAFETY

Destroy or recycle the carton. plastic bags. and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play.

Cartons covered with rugs. bedspreads. plastic sheets or stretch wrap may become airtight chambers. and can quickly cause suffocation.

ELECTRICAL iNFORMATiON

The refrigerator must be plugged into its own dedicated 115 Volt. 60 Nz. AC only electric outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle must be installed in accordance with Iocalcodes and ordinances.

Consult qualified electrician.

Do not use an extension cord or adapter plug.

If the power cord is damaged. it should be replaced by the manufacturer. service technician or a qualified person to prevent any risk.

Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly. and pull straight out from the receptacle to prevent damaging the power cord.

Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor.

Such damage is not covered under your warranty.

Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit.

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abondoned refrigerators or freezers are still dangerous even if they will sit for "just a few days." If you are getting rid of your old refrigerator or freezer. please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator/freezer: Remove doors.

Leave shelves in place so children may not easily climb inside.

Have refrigerant removed by a qualified service technician.

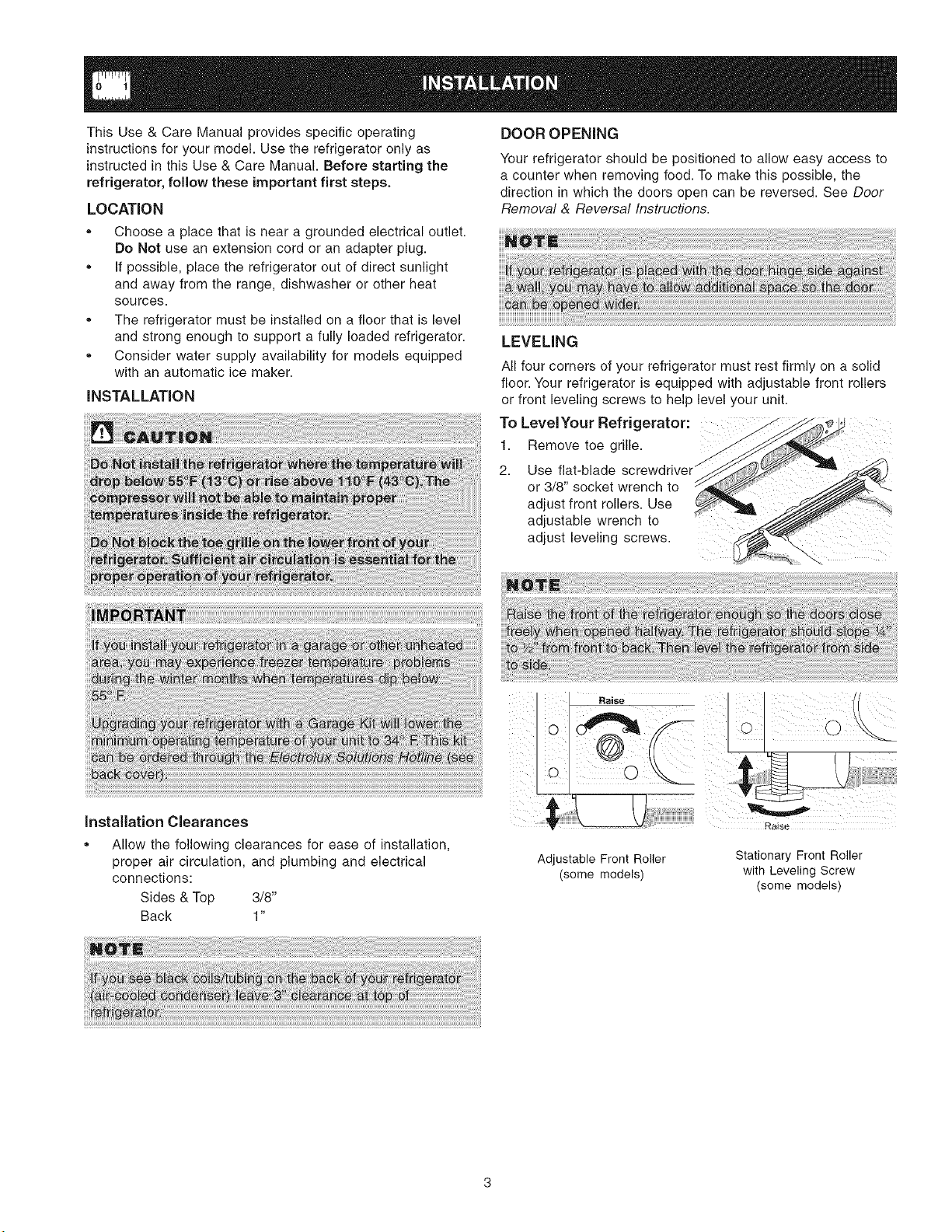

This Use & Care Manual provides specific operating instructions for your model• Use the refrigerator only as instructed in this Use & Care Manual• Before starting the refrigerator. follow these important first steps.

LOCATION

Choose a place that is near a grounded electrical outlet• Do Not use an extension cord or an adapter plug. If possible. place the refrigerator out of direct sunlight and away from the range. dishwasher or other heat sources•

The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator•

Consider water supply availability for models equipped with an automatic ice maker•

DOOR OPENING

Your refrigerator should be positioned to allow easy access to a counter when removing food. To make this possible. the direction in which the doors open can be reversed• See Door Removal & Reversal Instructions.

LEVELING

All four corners of your refrigerator must rest firmly on a solid floor• Your refrigerator is equipped with adjustable front rollers or front leveling screws to help level your unit.

To LevelYour Refrigerator:

Remove toe grille•

Use flat-blade screwdriver or 3/8" socket wrench to adjust front rollers• Use adjustable wrench [o adjust leveling screws•

Allow the following clearances for ease of installation. proper air circulation. and plumbing and electrical connections:

Sides & Top 3/8" Back

Raise

Raise

Adjustable Front Roller (some models)

Stationary Front Roller with Leveling Screw (some models)

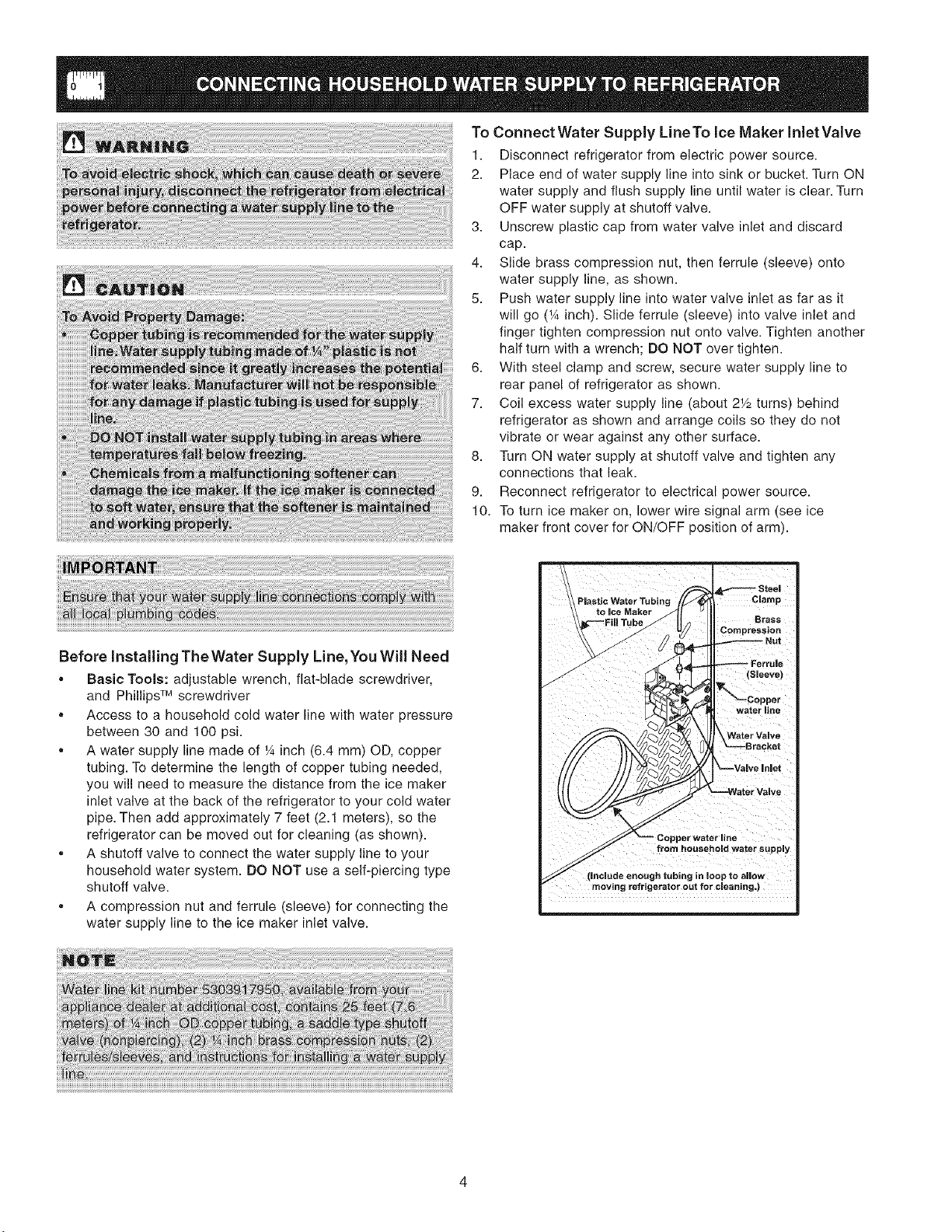

To Connect Water Supply LineTo ice Maker Inlet Valve

Disconnect refrigerator from electric power source.

Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve.

Unscrew plastic cap from water valve inlet and discard cap.

Slide brass compression nut. then ferrule (sleeve) onto water supply line. as shown.

Push water supply line into water valve inlet as far as it will go (¼ inch). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

With steel clamp and screw. secure water supply line to rear panel of refrigerator as shown.

Coil excess water supply line (about 2V2 turns) behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface.

Turn ON water supply at shutoff valve and tighten any connections that leak.

Reconnect refrigerator to electrical power source.

To turn ice maker on. lower wire signal arm (see ice maker front cover for ON/OFF position of arm).

Before Installing The Water Supply Line.

You Will Need

Basic Tools: adjustable wrench. flat-blade screwdriver. and Phillips TM screwdriver

Access to a household cold water line with water pressure between 30 and 100 psi.

A water supply line made of ¼ inch (6.4 mm) OD. copper tubing. To determine the length of copper tubing needed. you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters). so the refrigerator can be moved out for cleaning (as shown).

A shutoff valve to connect the water supply line to your household water system.

DO NOT use a self-piercing type shutoff valve.

A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

Copper water line from household water supply

(Include enough tubing in loop to allow g refrigerator out for cleaning.)

Door Stop Handle

Boom Scr Center ge Hinge Screw Scre

Tools Necessary:

Phillips rMhead

Quadrex" head

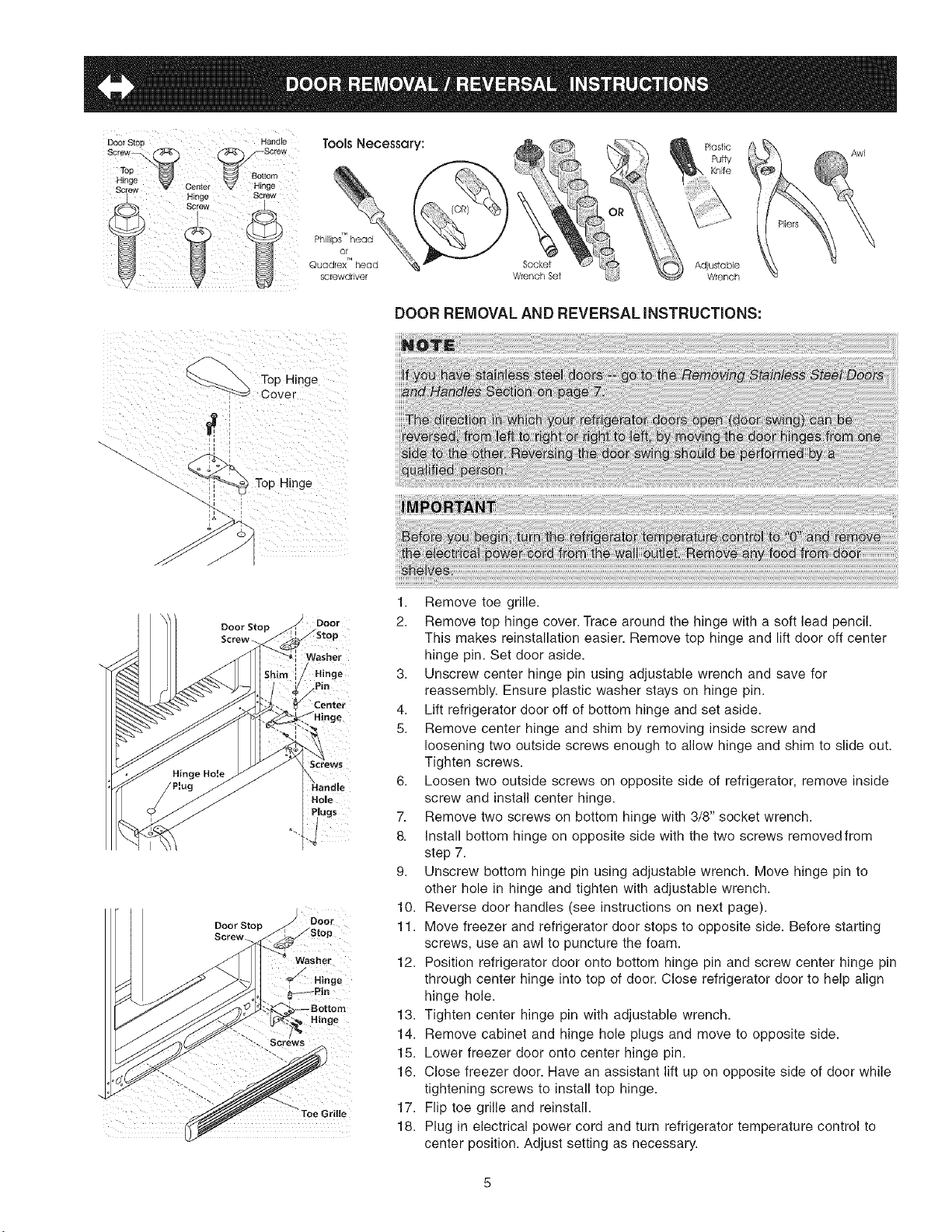

DOOR REMOVAL AND REVERSAL INSTRUCTIONS:

Top Hinge

3vet

Top Hinge

Door Stop Screw.

Remove toe grille.

Remove top hinge cover. Trace around the hinge with a soft lead pencil.

This makes reinstallation easier. Remove top hinge and lift door off center hinge pin. Set door aside.

Unscrew center hinge pin using adjustable wrench and save for reassembly.

Ensure plastic washer stays on hinge pin.

Lift refrigerator door off of bottom hinge and set aside.

Remove center hinge and shim by removing inside screw and loosening two outside screws enough to allow hinge and shim to slide out.

Tighten screws.

Loosen two outside screws on opposite side of refrigerator. remove inside screw and install center hinge.

Remove two screws on bottom hinge with 3/8" socket wrench.

Install bottom hinge on opposite side with the two screws removed from step 7.

Unscrew bottom hinge pin using adjustable wrench.

Move hinge pin to other hole in hinge and tighten with adjustable wrench.

Reverse door handles (see instructions on next page).

Move freezer and refrigerator door stops to opposite side. Before starting screws. use an awl to puncture the foam.

Position refrigerator door onto bottom hinge pin and screw center hinge pin through center hinge into top of door. Close refrigerator door to help align hinge hole.

Tighten center hinge pin with adjustable wrench.

Remove cabinet and hinge hole plugs and move to opposite side.

Lower freezer door onto center hinge pin.

Close freezer door. Have an assistant lift up on opposite side of door while tightening screws to install top hinge.

Flip toe grille and reinstall.

Plug in electrical power cord and turn refrigerator temperature control to center position. Adjust setting as necessary.

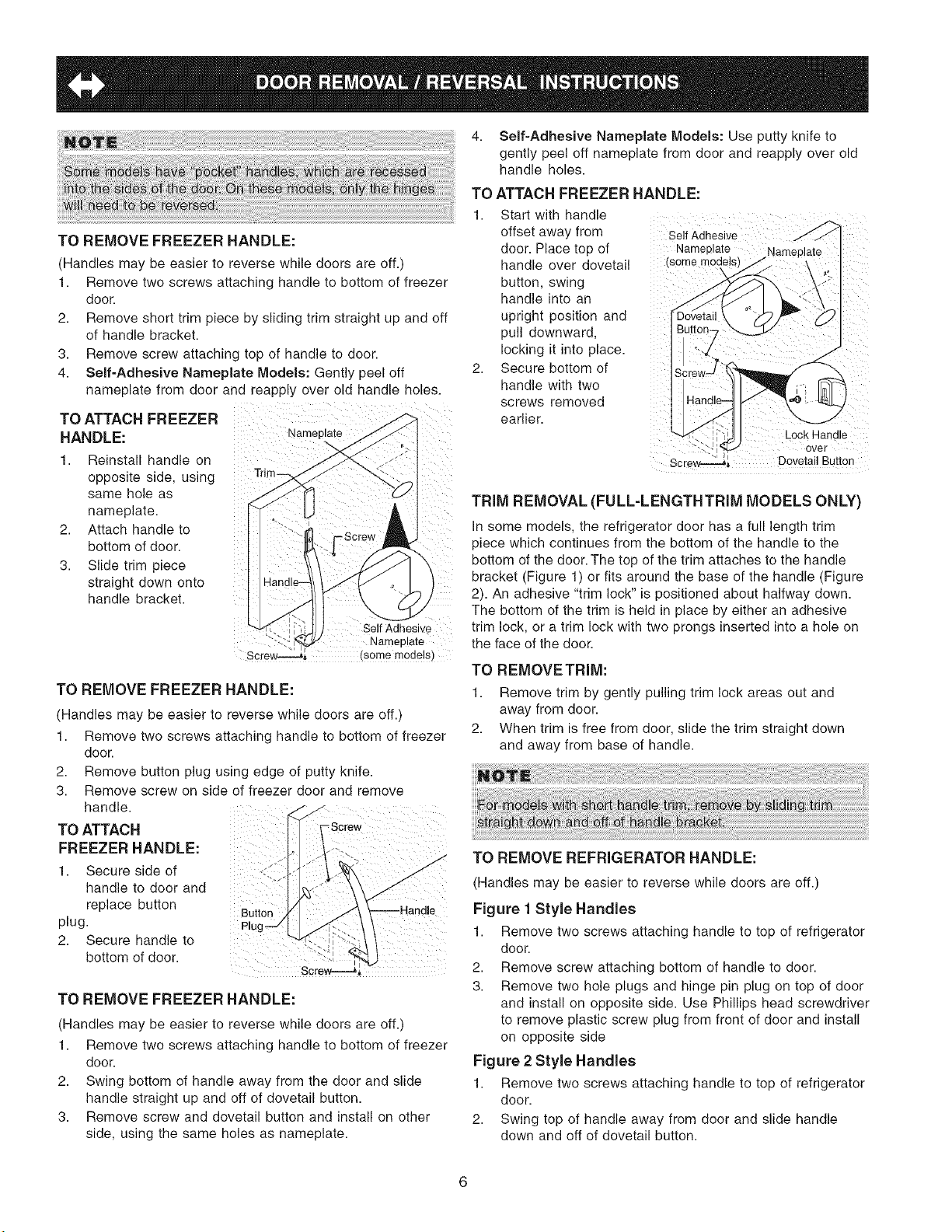

TO REMOVE FREEZER HANDLE:

(Handles may be easier to reverse wMe doors are off..

Remove two screws attaching qandle to bottom of freezer door.

Remove short trim piece by sliding tnm straight up and off of handle bracket.

Remove screw attaching top of handle to door

Self-Adhesive Nameplate Models: Gently peel off nameplate from door and reapply over old handle holes.

TO ATTACH FREEZER HANDLE:

Reinstall handle on opposite side. using same hole as nameplate.

Attach handle to bottom of door.

Slide trim piece straight down onto handle bracket.

Self Adhesive Name.ola[e

TO REMOVE FREEZER HANDLE:

(Handles may be easier to reverse while doors are off.)

Remove two screws attaching handle to bottom of freezer door.

Remove button plug using edge of putty knife.

Remove screw on side of freezer door and remove handle.

TO ATTACH FREEZER HANDLE:

Secure handle to bottom of door.

TO REMOVE FREEZER HANDLE:

(Handles may be easier to reverse while doors are off.)

Remove two screws attaching handle to bottom of freezer door.

Swing bottom of handle away from the door and slide handle straight up and off of dovetail button.

Remove screw and dovetail button and install on other side. using the same holes as nameplate.

Self-Adhesive Nameplate Models: Use putty knife to gently peel off nameplate from door and reapply over old handle holes.

TO ATTACH FREEZER HANDLE:

Start with handle offset away from self Adhesive door. Place top of Nameplate NamePlate handle over dovetail button. swing handle into an

TRIM REMOVAL (FULL-LENGTHTRIM MODELS ONLY)

In some models. the refrigerator door has a full length trim piece which continues from the bottom of the handle to the bottom of the door. The top of the trim attaches to the handle bracket (Figure 1) or fits around the base of the handle (Figure 2). An adhesive "trim lock" is positioned about halfway down.

The bottom of the trim is held in place by either an adhesive trim lock. or a trim lock with two prongs inserted into a hole on the face of the door.

TO REMOVETRIM:

TO REMOVE REFRIGERATOR HANDLE:

(Handles may be easier to reverse while doors are off.)

Figure 1 Style Handles

Remove two screws attaching handle to top of refrigerator door.

Remove screw attaching bottom of handle to door.

Remove two hole plugs and hinge pin plug on top of door and install on opposite side. Use Phillips head screwdriver to remove plastic screw plug from front of door and install on opposite side

Figure 2 Style Handles

Remove two screws attaching handle to top of refrigerator door.

Swing top of handle away from door and slide handle down and off of dovetail button.

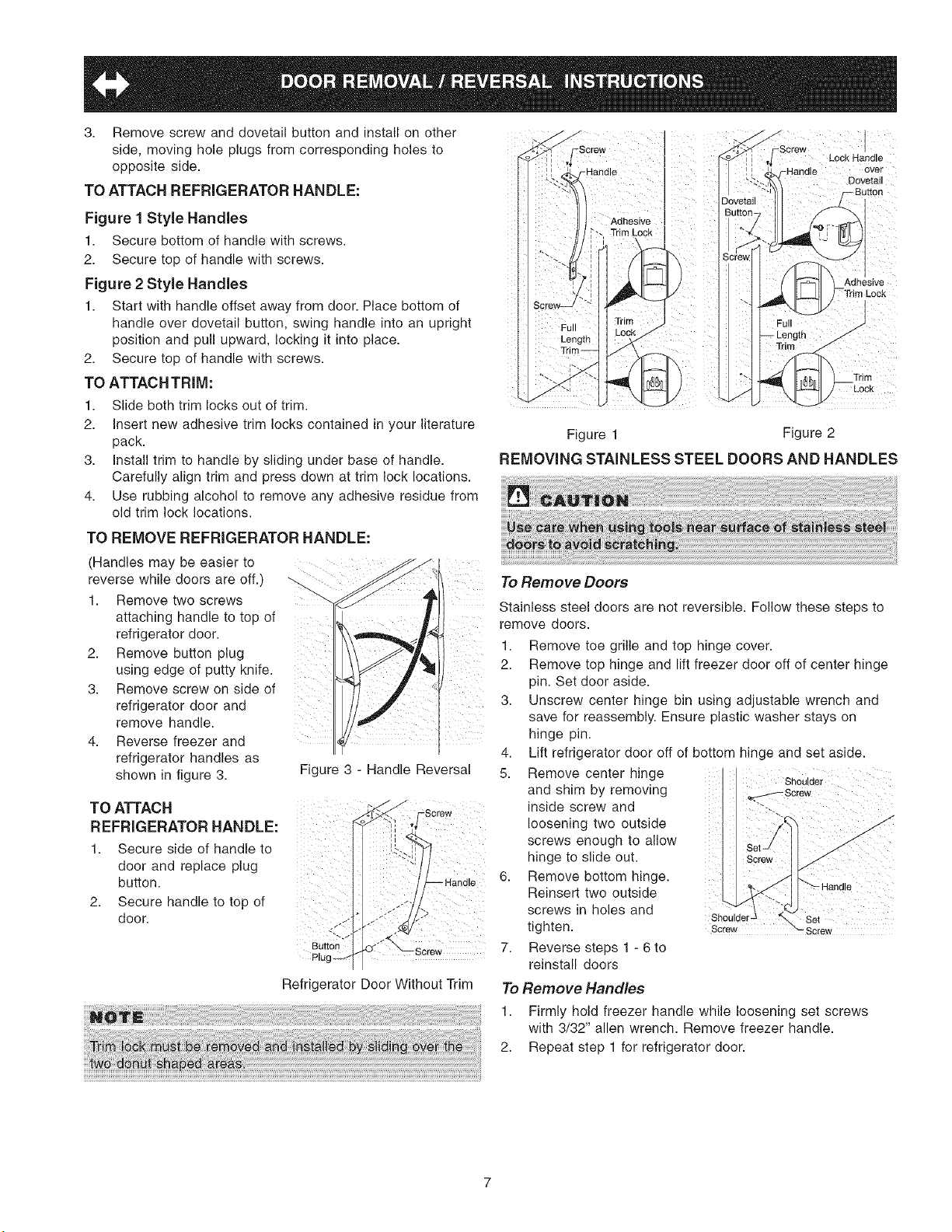

3. Removescrewanddovetailbuttonandinstallonother side. ovingholeplugsfromcorresponding holesto oppositeside.

TO ATTACH REFRIGERATOR HANDLE:

Figure 1 Style Handles

Secure bottom of handle with screws.

Secure top of handle with screws.

Figure 2 Style Handles

Start with handle offset away from door. Place bottom of handle over dovetail button. swing handle into an upright position and pull upward. locking it into place.

Secure top of handle with screws.

TO ATTACHTRIM:

Slide both trim locks out of trim.

Insert new adhesive trim locks contained in your literature pack.

Install trim to handle by sliding under base of handle.

Carefully align trim and press down at trim lock locations.

Use rubbing alcohol to remove any adhesive residue from old trim lock locations.

Lock Handle

Adhesive

Full

Figure 1 Figure 2

REMOVING STAINLESS STEEL DOORS AND HANDLES

TO REMOVE REFRIGERATOR HANDLE:

(Handles may be easier to reverse while doors are off.)

Remove two screws attaching handle to top of refrigerator door.

Remove button plug using edge of putty knife.

Remove screw on side of

Reverse freezer and refrigerator handles as shown in figure 3.

Figure 3 - Handle Reversal

TO ATTACH REFRIGERATOR HANDLE:

Secure side of handle to door and replace plug button. tie

Secure handle to top of door.

Buttofl

Refrigerator Door Without Trim

To Remove Doors

Stainless steel doors are not reversible.

Follow these steps to remove doors.

Remove toe grille and top hinge cover.

Remove top hinge and lift freezer door off of center hinge pin. Set door aside.

Unscrew center hinge bin using adjustable wrench and save for reassembly.

Ensure plastic washer stays on hinge pin.

Lift refrigerator door off of bottom hinge and set aside.

Remove center hinge Shoulder and shim by removing inside screw and loosening two outside screws enough to allow hinge to slide out.

Remove bottom hinge.

Reinsert two outside

Reverse steps 1 - 6to reinstall doors

To Remove Handles

Firmly hold freezer handle while loosening set screws with 3/32" allen wrench.

Remove freezer handle.

Repeat step 1 for refrigerator door.

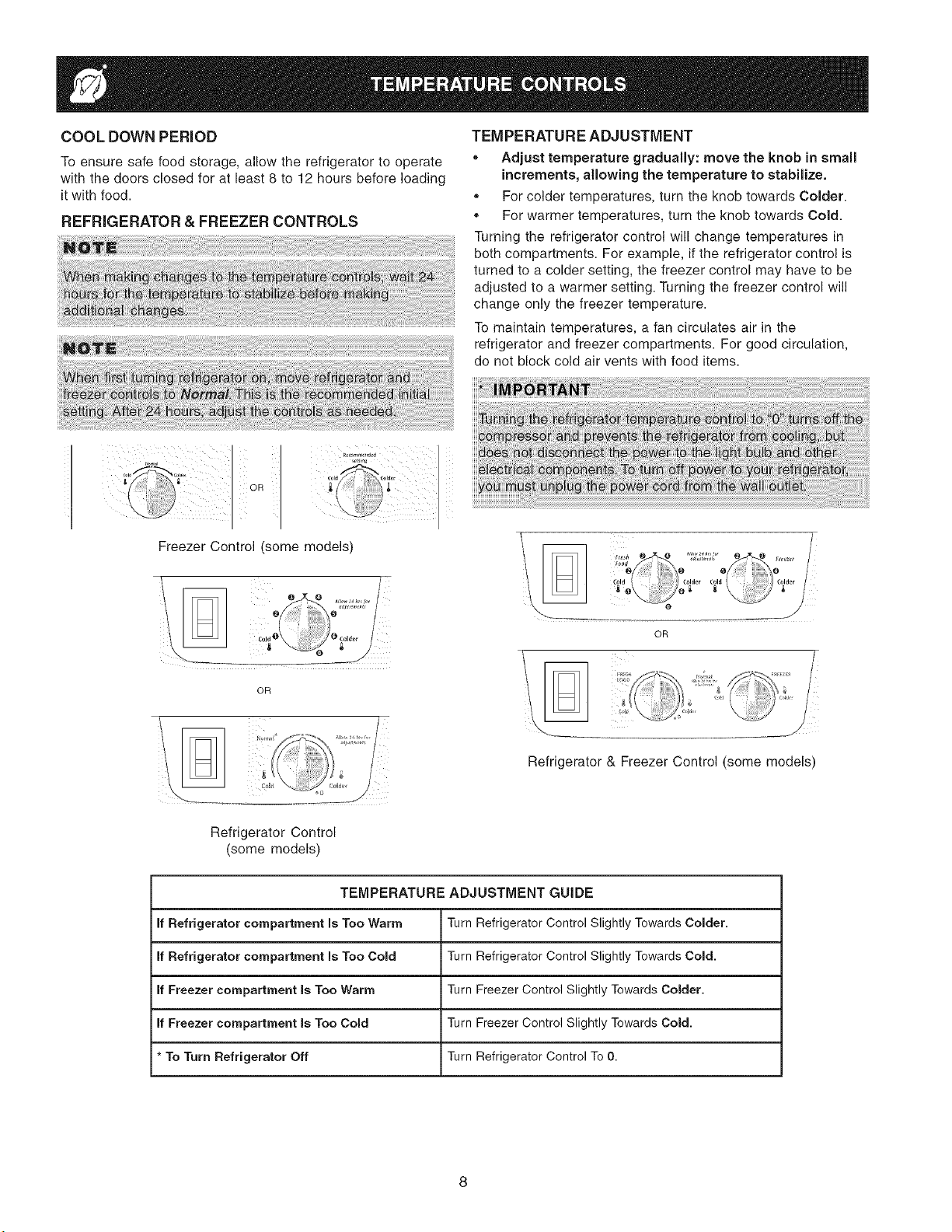

COOL DOWN PERIOD

To ensure safe food storage. allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food.

REFRIGERATOR & FREEZER CONTROLS

TEMPERATURE ADJUSTMENT

Adjust temperature gradually: move the knob in small increments. allowing the temperature to stabilize.

For colder temperatures. turn the knob towards Colder.

For warmer temperatures. turn the knob towards Cold.

Turning the refrigerator control will change temperatures in both compartments.

For example. if the refrigerator control is turned to a colder setting. the freezer control may have to be adjusted to a warmer setting. Turning the freezer control will change only the freezer temperature.

To maintain temperatures. a fan circulates air in the refrigerator and freezer compartments.

For good circulation. do not block cold air vents with food items.

Freezer Control (some models)

Refrigerator Control (some models)

Refrigerator & Freezer Control (some models)

TEMPERATURE ADJUSTMENT GUIDE

If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder.

+ To Turn Refrigerator Off Turn Refrigerator Control To 0.

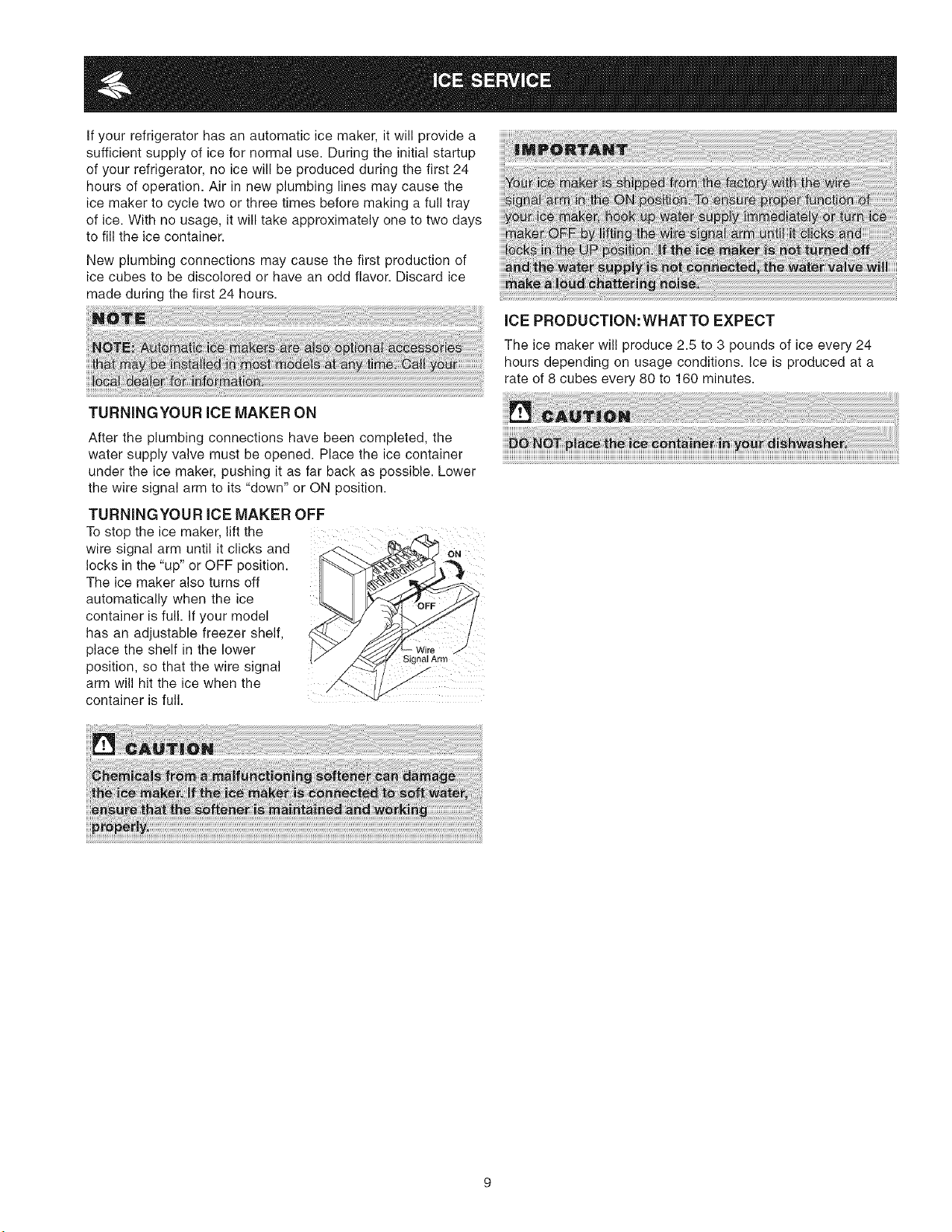

If your refrigerator has an automatic ice maker. it will provide sufficient supply of ice for normal use. During the initial startup of your refrigerator. no ice will be produced during the first 24 hours of operation.

Air in new plumbing lines may cause the ice maker to cycle two or three times before making a full tray of ice. With no usage. it will take approximately one to two days to fill the ice container.

New plumbing connections may cause the first production of ice cubes to be discolored or have an odd flavor. Discard ice made during the first 24 hours.

TURNINGYOUR iCE MAKER ON

ICE PRODUCTION:WHATTO EXPECT

The ice maker will produce 2.5 to 3 pounds of ice every 24 hours depending on usage conditions.

Ice is produced at a rate of 8 cubes every 80 to 160 minutes.

After the plumbing connections have been completed. the water supply valve must be opened.

Place the ice container under the ice maker. pushing it as far back as possible. Lower the wire signal arm to its "down" or ON position.

TURNINGYOUR ICE MAKER OFF To stop the ice maker. lift the wire signal arm until it clicks and locks in the "up" or OFF position.

The ice maker also turns off automatically when the ice container is full. If your model has an adjustable freezer shelf. place the shelf in the lower position. so that the wire signal arm will hit the ice when the container is full.

Wire Signal Arm

UNDERSTANDINGTHE SOUNDSYOU MAY HEAR

Your new high-efficiency refrigerator may make unfamiliar sounds. These are all normal sounds and soon will become familiar to you. They also indicate your refrigerator is operating as designed.

Hard surfaces. such as vinyl or wood floors. walls. and kitchen cabinets may make sounds more noticeable.

Listed below are descriptions of some of the most common sounds you may hear. and what is causing them.

F. Condenser Fan

If condenser coils are located underneath your refrigerator as shown in the drawing at the left. you have a condenser fan. You may hear air being forced through the condenser by the condenser fan.

G. Compressor

Modern. high-efficiency compressors operate much faster than older models. The compressor may have a high-pitched hum or pulsating sound.

14. Water Valve

If your refrigerator is equipped with an automatic ice maker. you will hear a buzzing sound as the water valve opens to fill the ice maker during each cycle.

L Drain Pan (Nonremovable)

You may hear water running into the drain pan during the defrost cycle. The drain pan will be located on top of the compressor for air-cooled condensers (black coils on back of refrigerator).

J. Condenser Coils (Fan-cooled models only)

REPLACINGTHE FREEZER LIGHT BULB (SOME MODELS)

A. Evaporator

The flow of refrigerant through the evaporator may create a boiling or gurgling sound.

B.

Evaporator Fan

You may hear air being forced through the refrigerator by the evaporator fan.

C. Defrost Neater

During defrost cycles. water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting. a popping sound may occur.

D. Automatic Ice Maker

If your refrigerator is equipped with an automatic ice maker. you will hear ice cubes falling into the ice bin.

E. Cold Control & Defrost Timer or Automatic Defrost Control

These parts can produce a snapping or clicking sound

Unplug refrigerator.

Wear gloves as protection against possible broken glass.

Unsnap light shield as shown.

Unscrew and replace old bulb with an appliance bulb of the same wattage.

Replace light shield.

Remember to plug the refrigerator back in.

NEVER CLEAN CONDENSER (SOME MODELS)

If your refrigerator is equipped with a Defrost Never Clean WaterPan condenser. there's no need to clean the condenser under normal operating conditions.

If the refrigerator is operated under particularly dusty or greasy conditions. or

Keep your refrigerator and freezer clean to prevent odor build-up.

Wipe up any spills immediately and clean both sections at least twice a year. Never use any type of scouring pads. brushes. abrasive cleaners or strong alkaline solutions on any surface.

Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before cleaning.

Care & Cleaning Chart

Part What To Use Tips and Precautions

Interior/Door Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water.

Be sure to wring Liner Baking soda and water excess water out of sponge or cloth before cleaning around controls. light bulb or any electrical part.

Door Gaskets Soap and water Wipe gaskets with a clean soft cloth.

Drawers/Bins Soap and water Do not wash any removable items (bins. drawers. etc.) in dishwasher.

Glass Shelves Soap and water Allow glass to warm to room temperature before immersing in warm water. Glass cleaner Mild liquid sprays

Toe Grille Soap and water Vacuum dust from front of toe grille.

Remove toe grille Vacuum backside and Mild liquid sprays wipe with sudsy cloth or sponge.

Rinse and dry. Vacuum attachment

Exterior and Soap and water Do not use commercial household cleaners. ammonia. or alcohol to clean Handles handles.

CAUTION: Never use CHLORIDE to clean stainless steel. Soap and water Ammonia Stainless Steel Cleaners

Exterior and Handles

(Stainless Steel Models Only)

Condenser Condenser Cleaning Coils Brush is available from (Fan-cooled your dealer. models only) Vacuum Cleaner

Condenser Coils Vacuum Cleaner

(Air-cooled models only)

Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth.

Rinse with clean water and a soft cloth. Wipe stubborn spots with an ammonia-soaked paper towel. and rinse.

Use a non-abrasive stainless steel cleaner.

These cleaners can be purchased at most home improvement or major department stores.

Always follow manufacturer's instructions.

NOTE: Always clean. wipe and dry with the grain to prevent cross-grain scratching.

Wash the rest of the cabinet with warm water and mild liquid detergent.

Rinse well. and wipe dry with a clean soft cloth.

No need to clean unless operating refrigerator under particularly dusty or greasy conditions. or if there is significant pet traffic in your home.

If cleaning is necessary. remove toe grille and use extended vacuum attachment and condenser cleaning brush to remove dust build-up from condenser coils (see item "J" in "NORNAL OPERATING SOUNDS & SIGHTS").

Use the dusting tool attachment on your vacuum to remove dust build-up on the condenser coils (black tubes and wires) attached to the back of air-cooled refrigerators only.

Defrost Water Soap and water Some models have defrost water pan located on top of compressor at bottom rear of refrigerator (see illustration on next page).

Wipe water pan with damp Pan cloth.

NOTE: The defrost water pan is NOT removable.

Exterior Soap and water CAUTION: DO NOT use abrasive or stainless steel cleaners on Easy Mild liquid sprays (Easy Care Stainless Steel Models.

It will remove the protective finish.

Stainless Steel Use warm soapy water to clean Easy Care surfaces.

Mild liquid sprays may Models) be used on stubborn spots.

Your appliance is covered by a one year limited warranty.

For one year from your original date of purchase.

Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed. used and maintained in accordance with the provided instructions.

Exclusions This warranty does not cover the following:

Products with original serial numbers that have been removed. altered or cannot be readily determined.

Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

Rust on the interior or exterior of the unit.

Products purchased "as-is" are not covered by this warranty.

Food loss due to any refrigerator or freezer failures.

Products used in a commercial setting.

Service calls which do not involve malfunction or defects in materials or workmanship. or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

Expenses for making the appliance accessible for servicing. such as removal of trim. cupboards. shelves. etc. which are not a part of the appliance when it is shipped from the factory.

Service calls to repair or replace appliance light bulbs. air filters. water filters. other consumables. or

Surcharges including. but not limited to. any after hour. weekend. or holiday service calls. tolls. ferry trip

Damages to the finish of appliance or home incurred during installation. including but not limited to floors. cabinets. walls. etc.

Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN.

CLAIMS BASED ON IMPLIED WARRANTIES.

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW.

BUT NOT LESS THAN ONE YEAR.

ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN

LIMITED WARRANTY OR ANY IMPLIED WARRANTY.

SOME STATES AND PROVINCES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES.

SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.

YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

This warranty only applies in the USA and Canada.

In the USA. your appliance is warranted by Electrolux Major Appliances North America. a division of Electrolux Home Products.

Inc.

In Canada. your appliance is warranted by Electrolux Canada

Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty.

Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company.

Product features or

USA 1.800.944.9044

Electrolux Major Appliances North America RO. Box 212378 Augusta.

GA 30907 Electrolux

Canada 1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way Mississauga. Ontario. Canada L5V 3E4

1=800-944-9044 (United States) Visit our web site at

1-800=668-4606 (Canada) www.frigidaire.com.

Common Occurrences

Before calling for service. review this list. It may save you time and expense.

This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Ensure plug is tightly pushed into electrical outlet. Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.

Refrigerator does not run. The temperature control is turned to "O". Refrigerator may be in defrost cycle. Wait 20 minutes and check again.

Freezer temperature too cold.

Refrigerator temperature is Set freezer control to a warmer setting until freezer temperature is satisfactory. satisfactory.

Allow 24 hours for the temperature to stabilize.

Refrigerator temperature too cold. Set refrigerator control to a warmer setting. Allow 24 hours for temperature to Freezer temperature is satisfactory. stabilize.

Then check freezer temperatures and adjust as needed.

The cabinet is not level.

Refrigerator is noisy or vibrates. Floor is weak. See Normal Operating Sounds and Sights section.

Interior needs to be cleaned.

Odors in refrigerator. Foods that produce odors should be covered or wrapped.

Replace light bulb. Ensure plug is tightly pushed into electrical outlet.

Cabinet light not working. Light switch may be stuck.

Push in light switch. located on the refrigerator control box. to release.

Automatic ice maker not working. (some models)

Ensure the Wire Signal Arm is not in UP position. Ice maker should produce 2.5 to 3 pounds of ice in a 24 hour period. Water supply is turned off. Water pressure is too low. The freezer is not cold enough.



Newest Added: PLGC30S9ECA GHSC39ETES2 FRT18L4JW6 FRT18HS6DB2 FAA060P7A1

Frigidaire FRT18S6JW6 | Pages: 13 | File type: PDF | Filename: 18264210_frt18s6jw6.pdf | Size: 4.34 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

Frigidaire in United States

1-800-374-4432 Mon-Fri, 8:30am - 8pm (EST)
