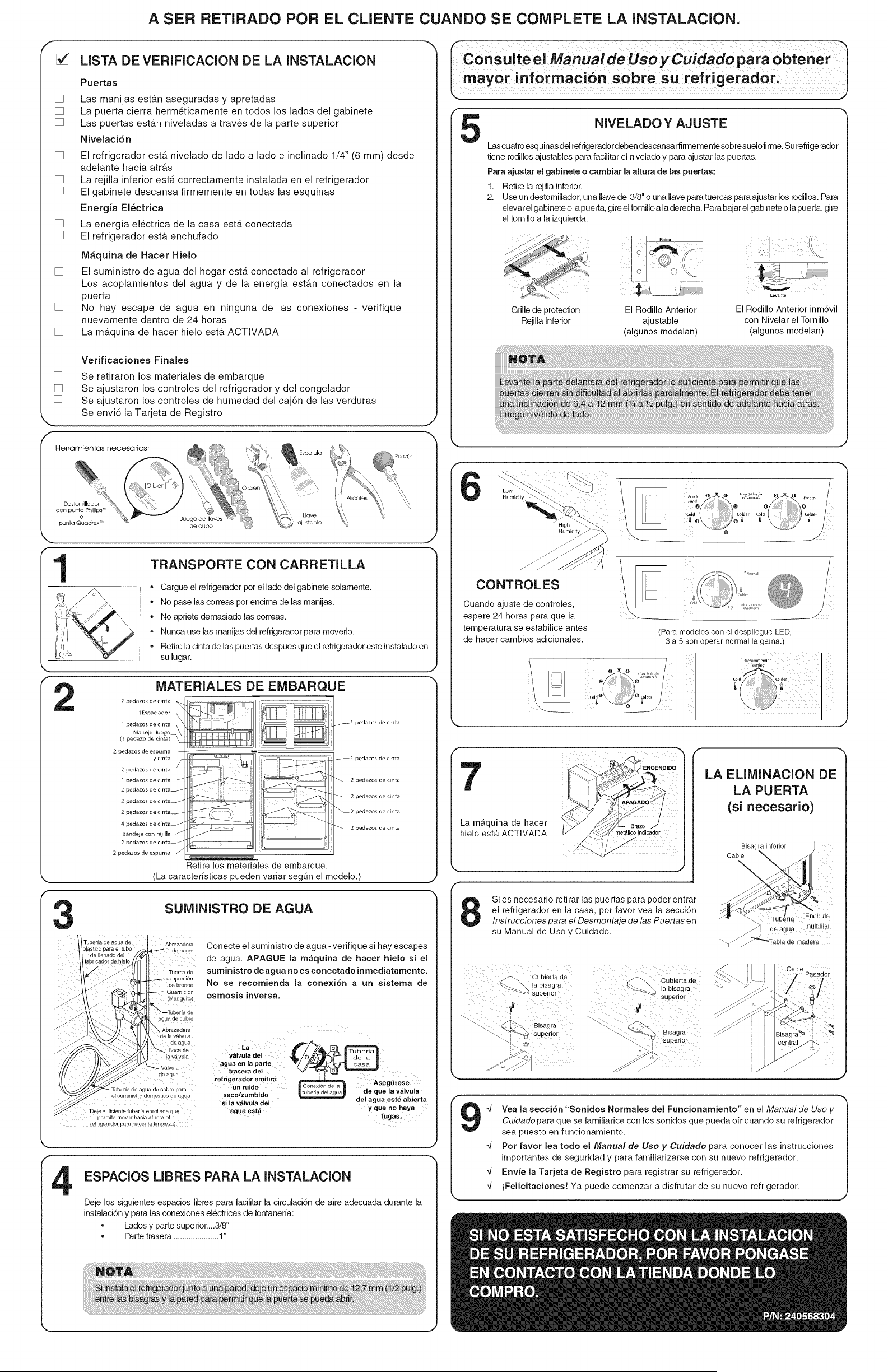

To be removed by the customer after installation is complete
I_ iNSTALLATiON CHECKOFF LiST
Doors
[] Handles are secure and tight
[] Door seals completely to cabinet on all sides
[] Freezer door is level across the top
Leveling
[] Refrigerator is level, side to side and tilted 1/4" (6mm) front to back
[] Toe grille is properly attached to refrigerator
[] Cabinet is setting solid on all corners
Electrical Power
[] House power turned on
[] Refrigerator plugged in
Ice Maker
[] House water supply connected to refrigerator
[] No water leaks present at all connections - recheck in 24 hours
[] Ice Maker is turned ON.
Final Checks
[] Shipping material removed
[] Fresh Food and Freezer controls set
[] Crisper Humidity controls set
[] Registration Card sent in
ToolsNecessary:
Put_
Knife
Phillips head
or
Quadrex head Socket
screwdriver Wrench Set
Adjustable
Wrench
,, j
1 .A.oT.ooK,.G
• Load refrigerator from side of cabinet only.
Do not run retaining straps over handles.
Do not over-tighten retaining straps.
Never use refrigerator handles to move the
refrigerator.
Remove tape from doors only after unit is in
place.
J
f
SHIPPING MATERIAL
2 2 Pieces of Tape _
r Shelf Spacer_
1 Piece ofTap_
(1 Pie cHar}riTe pFet)_
2 Pieces of Foam .....
1 Piece of Tape _
2 Pieces of Tape J
2 Pieces of Tape _
2 Pieces of Tape ...........
4 Pieces of Tape _
Toe Grille j
2 Pieces of Tap_
.................. Z,
1
/
2 Pieces of Foam j
_1 Piece of Tape
_1 Piece of Tape
_2 Pieces of Tape
_-2 Pieces ofT ape
_2 Pieces ofT ape
_2 P_eces ofT ape
Remove Shipping material. (Features may vary per model.)
f -,
WATER SUPPLY
water line
Water Valve
,=rwater line
f_om household water supply
(Include enough tubing in loop to allow
mo_iag refrigerator out [or cleaning.)
Connect water supply - check for water
leaks. Turn icemaker OFF if water supply
is not connected immediately.
Connecting to a reverse osmosis system
is not recommended.
INSTALLATION CLEARANCES
Allow the following clearances for ease of installation, proper air circulation, and
plumbing and electrical connections:
Sides &Top.......... 3/8"
Back ....................... 1"
additional information about your refrigerator,
LEVELING AND ADJUSTING
All four corners of your refrigerator must rest firmly on a solid floor. Your refrigerator
is equipped with adjustable front rollers or front leveling screws to help level your
unit.
To level cabinet or change door height:
1. Remove toe grille.
2. Use flat-blade screwdriver or 3/8" socket wrench to adjust front rollers.Use
adjustable wrench to adjust levelingscrews.
Toe Grille
Adjustable Front Roller
(some models)
Stationary Front Roller
with Leveling Screw
(some models)
CONTROLS
6
When changing controls, wait 24
hours before making additional
adjustments.
(For models with LED display, 3 to 5 is normal operating range.)
ICEMAKER
Ensure icemaker
is turned ON.
Signal Arm
J
Ifyou need to remove the doors to get your refrigerator
into the house please see "Door Removal and Reversal
Instructions" in your Use & Care Manual.
_Top Hiig _ ToPHinge
i Cover i CoVer
)TopHinge i TopHinge
DOOR
REMOVAL
(IF NECESSARY)
Cable
Botto m
Shim
4
4
4
4
See "Normal Operating Sights & Sounds" in the Use & Care Manual
so you understand the sounds you may hear once your refrigerator is
running.
Please read entire Use & Care Manualto become aware of important
safety instructions and to become familiar witrh your new refrigerator.
Send in Registration card to register your refrigerator.
Congratulations! You are ready to enjoy your new refrigerator.
