Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is es-
sential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 103 140
Contents
2
Warning and Safety instructions...................................................................... 4
Caring for the environment .............................................................................. 12
Modes of operation ........................................................................................... 13
Fragrance............................................................................................................. 13
Operating the appliance with the Miele@mobile app.......................................... 13

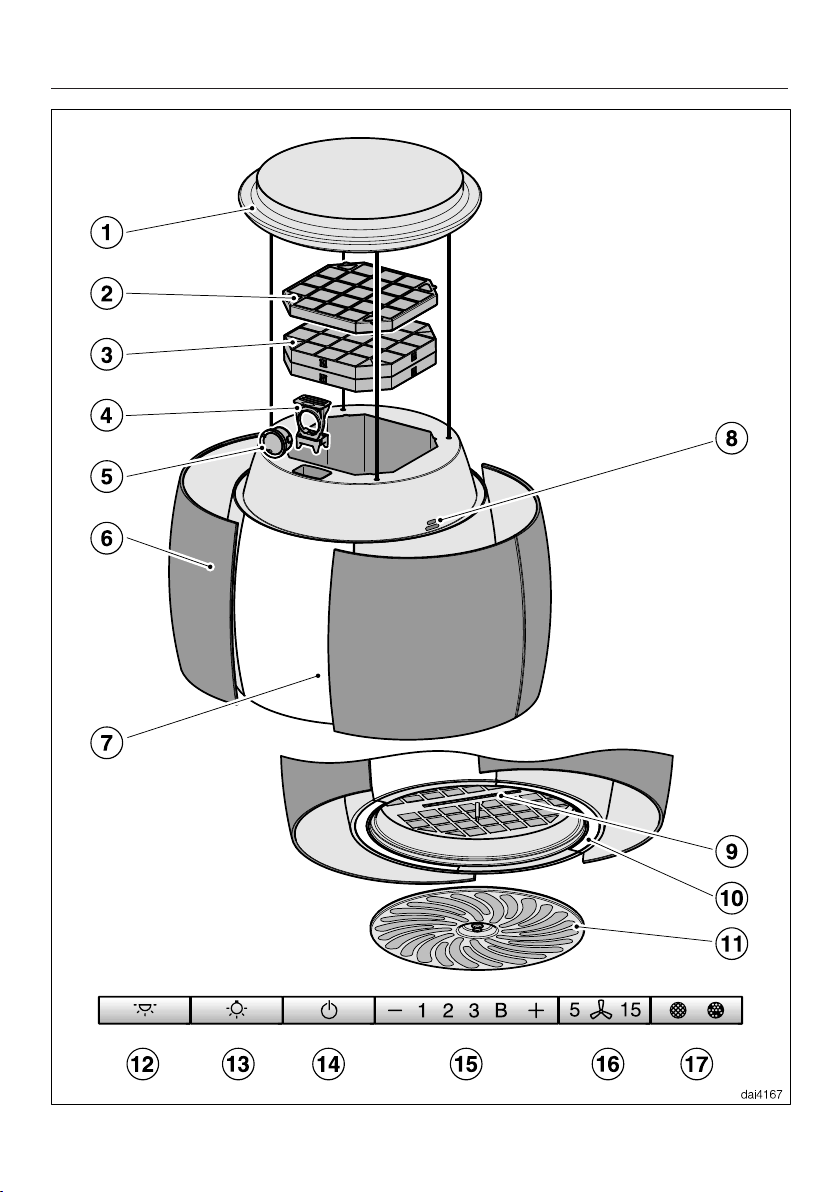

Guide to the cooker hood................................................................................. 14
Before using for the first time .......................................................................... 16
Setting up Miele@home ...................................................................................... 16
Connecting via the app .................................................................................. 17
Connecting via WPS ...................................................................................... 18
Sign out of WiFi (reset to factory settings) ..................................................... 19
Setting up Con@ctivity ........................................................................................ 20
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 20
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) ........................... 21
Reattempting the connection......................................................................... 21
Operation (Automatic mode) ............................................................................ 22
Cooking with Con@ctivity (Automatic mode) ...................................................... 22
Cooking process ................................................................................................. 23
Leaving automatic mode temporarily.................................................................. 24
Returning to automatic mode......................................................................... 24
Operation (Manual mode) ................................................................................. 25
Cooking without Con@ctivity (Manual mode) ..................................................... 25
Switching the fan on and off .......................................................................... 25
Selecting the power level .................................................................................... 25
Selecting the run-on time .............................................................................
25
Dimming/switching the hob lighting on/off .................................................... 25
Power management ............................................................................................ 26
Safety switch-off ................................................................................................. 26
Ambient lighting............................................................................................. 26
Energy saving tips ............................................................................................. 27
Changing settings ............................................................................................. 28
Altering the operating hours counter for the grease filter(s) ................................ 28
Altering or deactivating the charcoal filter operating hours counter ................... 29
Deactivating power management ....................................................................... 29
Contents
3
Moisture removal............................................................................................... 30
Moisture removal function................................................................................... 30
Replacing the dehumidifying filter.................................................................. 30
Fragrance ........................................................................................................... 31
Fragrance function............................................................................................... 31
Removing the fragrance flacon mount ........................................................... 31
Removing the fragrance flacon ...................................................................... 31
Storing fragrance flacons when not in use..................................................... 32
Opening the new fragrance flacon ................................................................. 32
Inserting a fragrance flacon............................................................................ 32
When to change the fragrance flacon ............................................................ 32
Cleaning and care ............................................................................................. 33
Housing ............................................................................................................... 33
Operating hours counter............................................................................. 33
Grease filter(s) ..................................................................................................... 33
Resetting the grease filter operating hours counter ....................................... 35
Replacing the grease filter.............................................................................. 35
Charcoal filter ...................................................................................................... 36
Reactivating the charcoal filter ....................................................................... 36
Resetting the charcoal filter operating hours counter .................................... 37
Service life ...................................................................................................... 37
Disposing of charcoal filters ........................................................................... 37
Problem solving guide ...................................................................................... 38
Installation.......................................................................................................... 39
Before installation................................................................................................ 39
Installation instructions........................................................................................ 39

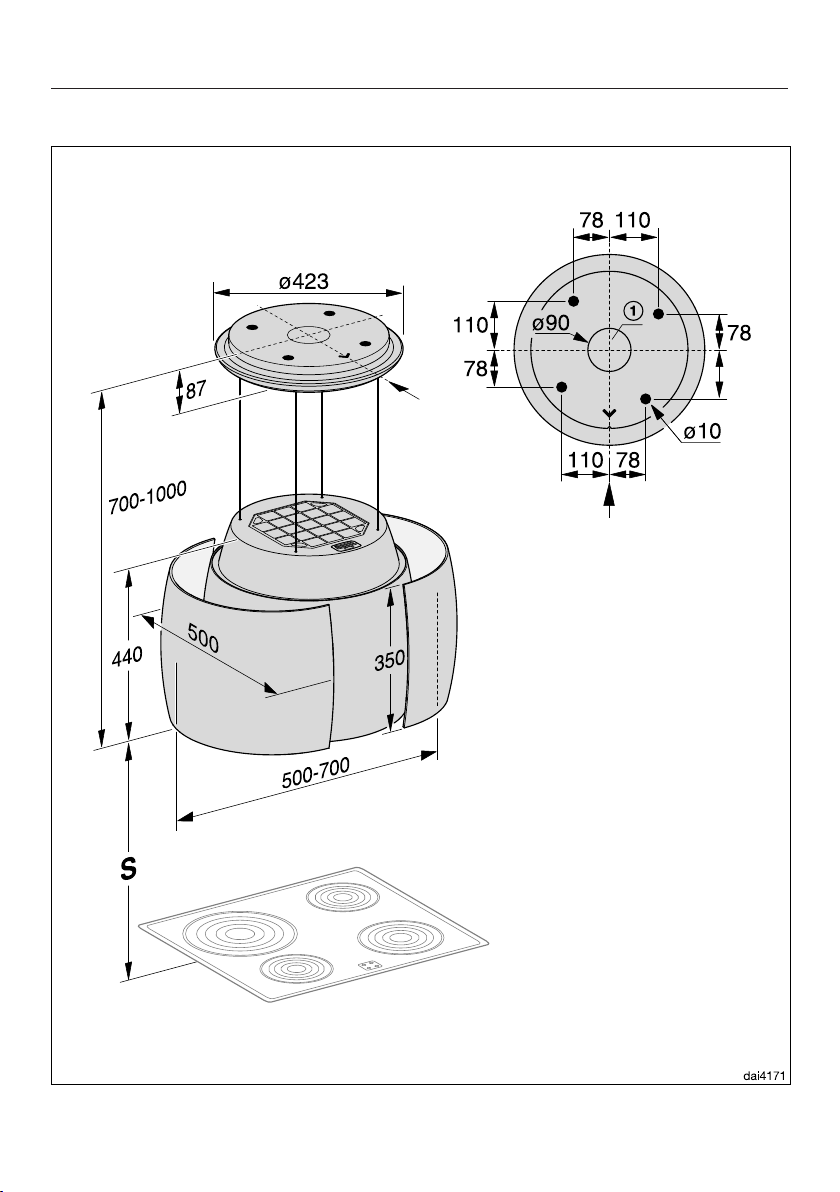

Appliance dimensions ......................................................................................... 40
Installation distance between cooking appliance and cooker hood (S).............. 41
Installation recommendations ............................................................................. 42
Electrical connection ........................................................................................... 42
Service................................................................................................................ 43
Contact in the event of a fault ............................................................................. 43
Position of the data plate .................................................................................... 43
Warranty .............................................................................................................. 43
Technical data.................................................................................................... 44
Special accessories for recirculation mode ........................................................ 44
EU Conformity declaration .................................................................................. 44
UK Conformity declaration.................................................................................. 44
Warning and Safety instructions
4
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to per-
sonal injury and material damage.
Read the operating and installation instructions carefully before us-
ing the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both per-
sonal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety instruc-
tions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
The cooker hood can only be used by people with reduced phys-
ical, sensory or mental capabilities, or lack of experience and know-
ledge, if they are supervised whilst using it, or have been shown how
to use it in a safe way and recognise and understand the con-
sequences of incorrect operation.
Warning and Safety instructions
5
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and recog-
nise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become en-
tangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
6
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and re-
pairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with the specifications of EN50160 or an equivalent
standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
7
The support cables also carry the power supply. They must not be
kinked or shortened. The support cables must not be used for secur-
ing other components such as a shelf.
If a support cable is damaged, the cooker hood must not be oper-
ated. The support cables must only be replaced by a Miele author-
ised service technician to protect the user from danger.
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause op-
erational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this book-
let. Under no circumstances should any other parts of the housing
be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
8
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
This cooker hood is not suitable for placing objects on.
The support cables could become damaged if the load is too
heavy. Do not allow the canopy to swing excessively and do not
twist the canopy. Do not pull on the support cables.
Warning and Safety instructions
9
Using a fragrance flacon (optional accessory)
Only use genuine Miele original fragrance flacons intended for use
in the cooker hood .
The fragrance flacon must be stored in its packaging so please
make sure you retain this.
Caution: The fragrance can leak out of the flacon. Make sure that
you always keep the fragrance flacon or mount with the flacon inser-
ted in it in an upright position when carrying and do not tip or place it
down on any surface.
Use an absorbent cloth to wipe up any fragrance which has
leaked out of the flacon.
If fragrance which has leaked out of a flacon: comes into contact
with the skin - wash the skin thoroughly with soap and water; comes
in contact with the eyes - rinse the eyes with clean water for at least
15minutes; is swallowed - rinse out the mouth thoroughly with
clean water. Seek medical advice in the case of contact with the
eyes or if fragrance has been swallowed.
If fragrance which has leaked out of a flacon comes in contact
with clothing, change the clothing immediately. Wash the clothing or
any cloths used for mopping up fragrance thoroughly with plenty of
water and detergent.
There is the risk of fire or damage if the following instructions are
not observed:
- Never refill a flacon with fragrance.
- Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
Warning and Safety instructions
10
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
Safety regulations prohibit the fitting of a cooker hood over a gas
hob.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the cooker or hob
and the bottom of the cooker hood given in the “Installation” section
of this booklet must be maintained, unless the hob manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
The cooker hood is delivered pre-assembled. The support cables
must not be dismantled for the purpose of installation.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as de-
scribed in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short cir-
cuit.
Warning and Safety instructions
11
The charcoal filters must not be cleaned in a dishwasher.
High oven temperatures used in subsequent reactivation in an oven
can cause detergent residues to self-ignite.
Please observe the instructions given in this manual with regards to
reactivating the charcoal filters.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other manu-
facturers will invalidate the warranty and Miele cannot accept liabil-
ity.
Miele can only guarantee the safety of the appliance when genu-
ine original Miele replacement parts are used. Faulty components
must only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your vapour extraction unit.
Caring for the environment
12
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appli-
ance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials, com-
pounds and components which were
essential for their correct functioning
and safety. These could be hazardous
to human health and to the environment
if disposed of with household waste or
if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Modes of operation
13
Recirculation mode
This cooker hood operates solely in re-
circulation mode.
The air is drawn in and cleaned first by
the grease filter and must then go
through a dehumidifying filter.
The cleaned air then goes through a
charcoal filter before being recirculated
back into the kitchen via the top of the
cooker hood.
The dehumidifying filter draws in some
of the moisture from the vapours pro-
duced during cooking. After cooking,
the moisture collected by the filter is re-
leased back into the ambient air based
on information from sensors.
Fragrance
The cooker hood is equipped with a fra-
grance module with a fragrance flacon.
The fragrance module emits a fragrance
into the room, regardless of whether the
cooker hood is operating. The fragrance
feature is controlled exclusively via the
Miele@mobile app.
Operating the appliance with
the Miele@mobile app
The cooker hood is operated exclus-
ively with the Miele@mobile app or
automatically in conjunction with the
hob with the Con@ctivity function.
In exceptional cases, the cooker hood
can be operated using the control panel
on the lower side, e.g. if the WiFi con-
nection has been interrupted.
Guide to the cooker hood
14
Guide to the cooker hood
15
a
Suspension element
b
Reactivatable charcoal filter
c
Dehumidifying filter
d
Fragrance flacon mount
e
Fragrance flacon
f
Canopy
g
Ambient lighting
h
Moisture sensor
i
Control elements
j
Hob lighting
k
Grease filter
l
Button for switching the ambient lighting on and off
m
Control for switching the lighting on and off
n
Control for switching the fan on and off
o
Controls for setting the fan power level
p
Control for the run-on function
q
Control for the operating hours counter
Before using for the first time
16
The settings described in this chapter
are made on the cooker hood control
panel. The control panel is located be-
hind the grease filter.
Remove the grease filter.
Setting up Miele@home
Requirements:
- A WiFi network
- The Miele app
- A Miele user account. The user ac-
count can be created via the Miele
app.
Your cooker hood is equipped with an
integrated WiFi module. Connect the
cooker hood to your household WiFi
network. You will then be able to oper-
ate the cooker hood via the Miele app.
If your Miele hob is connected to a
home WiFi network, you can control the
cooker hood automatically via the
Con@ctivity function.
Before installing the cooker hood in
its final location, ensure that the sig-
nal of your WiFi network is strong
enough.
You can connect to the household WiFi
network via the Miele app or via WPS.
Miele@home availability
The ability to use the Miele app de-
pends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Before using for the first time
17
Connecting via the app
The Miele app can be used to connect
to your network.
Install the Miele app on your mobile
device.
For the registration, you will need:
1. Your WiFi network password
2. Your cooker hood password
The password for your cooker hood
consists of the last 9 digits of the serial
number. This can be found on the appli-
ance's data plate.
The data plate is visible after removing
the grease filter(s).
Start signing the appliance on in the
app. Follow the signing-on instruc-
tions.
If requested to activate WiFi on the
cooker hood, proceed as follows:
Switch the cooker hood off.
Press and hold the control.
Press the lighting control at the same
time.
2 will light up constantly, 3 will flash on
and off.
The cooker hood will be ready for con-
nection in the next 2minutes.
Follow the instructions in the app.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the cooker
hood by pressing the run-on con-
trol.
The cooker hood can now be operated
via the app.
Before using for the first time
18
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Switch the cooker hood off.
Press and hold the control.
Press the lighting control at the same
time.
2 will light up constantly, 3 will flash on
and off.
The WiFi connection must be started on
the cooker hood at the same time as on
the WiFi router.
Press the control on the cooker
hood after a few seconds.
After a short while the 2 will light up
constantly, and the 3 and the B will
flash on and off.
The cooker hood is ready for connec-
tion in the next two minutes.
Start the WiFi connection on your
WiFi router.
When successfully connected the 2 and
3 will light up constantly.
Quit connection mode on the cooker
hood by pressing the Run-on con-
trol.
The cooker hood can now be operated
via the app.
If the connection fails, you have prob-
ably not connected WPS on your router
quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the Miele app.
Before using for the first time
19
Sign out of WiFi (reset to factory set-
tings)
To set up a new WiFi connection, the
existing WiFi connection must be dis-
connected.
Switch the cooker hood off.
Press and hold the control.
Touch the lighting control at the same
time.
With an existing WiFi connection, 2 and
3 will light up constantly.
The cooker hood will be ready for dis-
connection in the next 2minutes.
Touch the control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Quit signing-off mode on the cooker
hood by pressing the run-on con-
trol.
The WiFi connection has now been dis-
connected. A new connection can now
be set up.
Before using for the first time
20
Setting up Con@ctivity
Con@ctivity is the direct communication
system between an electric Miele hob
and a Miele cooker hood. It enables the
cooker hood to operate automatically
depending on the operational state of a
Miele hob with onset controls.
- When the hob is switched on, the
cooker hood lighting comes on auto-
matically and then after a short time
the fan also comes on.
- The cooker hood selects the power
level automatically during cooking.
The power level selected by the
cooker hood depends on the number
of cooking zones being used and
their power levels.
- After switching the hob off the fan
and the hob lighting will switch off
automatically after a specified period
of time.
See “Operation” for detailed information
about this function.
Con@ctivity via the home WiFi net-
work (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be activ-
ated automatically.
Before using for the first time
21
Con@ctivity via a direct WiFi connec-
tion (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele hob
If you do not have a home network, you
can establish a direct connection
between the hob and the cooker hood.
Switch the cooker hood off.
Press and hold the control.
Press the control at the same time.
2 will light up constantly, 3 will flash on
and off.
The cooker hood will be ready for con-
nection in the next 2minutes.
Start WiFi connection on the hob. For
further details, see the hob operating
instructions.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the cooker
hood by pressing the run-on con-
trol.
Con@ctivity has now been activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network.
Should this be required at a later date,
the WiFi connection between the hob
and the cooker hood must be discon-
nected (see “Sign out of WiFi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the cooker hood cancels the
process.
Disconnect the connection to the
cooker hood (see “Signing out of
WiFi”) and to the hob.
Attempt to make the connection
again.
Operation (Automatic mode)
22
When Con@ctivity is active, the
cooker hood always operates in auto-
matic mode (see “Before using for the
first time” – “Setting up Con@ctivity”).
If you wish to manually operate the
cooker hood, see “Operation (Manual
mode)” – “Cooking without Con@ctiv-
ity”.
Cooking with Con@ctivity
(Automatic mode)
Switch a cooking zone on at the de-
sired power level.
The hob lighting will come on.
After a few seconds, the fan will come
on, first at power level 2, then it will
switch immediately to power level 1.
The deflector plate will open.
The cooker hood selects the fan power
level automatically during cooking.
This is determined by the total output of
the hob, i.e. the number of cooking
zones in operation and the power levels
selected.
If you select a higher power level or
are using several cooking zones, the
cooker hood will switch to a higher
fan power level.
When you reduce the power level or
the number of cooking zones on the
hob, the fan power level is also re-
duced.
Examples for power levels 1 to B
Reaction time
The cooker hood reacts with a slight
delay because altering the power level
on the hob does not immediately result
in a reduction or increase in cooking va-
pours.
Because the hob transmits the informa-
tion to the cooker hood at intervals, this
can also cause delays.
The reaction can vary from a few
seconds to a couple of minutes.
Operation (Automatic mode)
23
Cooking process
For example, you switch on a cooking
zone at the highest power level to
heat a pan for frying. You reduce the
power level after approx. 10seconds
to 4minutes (60seconds to
5minutes for a for a HiLight hob).
The cooker hood recognises a cooking
process.
The cooker hood switches itself on and
when the hob power level has been re-
duced, the hood switches to fan power
level 3 and remains at that level for ap-
prox. 5minutes.
After that, the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Switching off
Switch off all cooking zones.
The cooker hood fan will reduce its
power level in stages over the next few
minutes and will then switch itself off.
This helps to neutralise any lingering va-
pours and odours in the air.
- From the Booster setting, the fan
switches immediately to level 3.
- From level 3, it will switch to level 2
after approx. 1minute.
- From level 2, it will switch to level 1
after 2minutes.
- After 2minutes at level 1, the fan
switches itself off. The deflector plate
closes.
- After another 30seconds, the lighting
switches off.
The cooking process is then finished.
Operation (Automatic mode)
24
Leaving automatic mode tem-
porarily
To leave automatic mode temporarily
during cooking:
Manually select a different fan power
level, or
Manually switch the cooker hood off,
or
Activate the run-on function on
the cooker hood. The fan will switch
itself off after the selected run-on
time, and the lighting will remain on.
The cooker hood functions are now op-
erated manually (see “Operation
(Manual mode)”).
Returning to automatic mode
The cooker hood will resume automatic
mode:
- If the cooker hood has not been used
for approx. 5minutes after selecting
a fan power level manually, or
- If the manually selected fan power
level corresponds to the automatic
one again, or
- The cooker hood fan and the hob
have been switched off for at least
30seconds.
Automatic mode will resume next
time the hob is switched on.
You can also operate the cooker hood
manually for a complete cooking pro-
cess.
Switch the cooker hood fan on be-
fore the hob.
If the cooker hood fan and the hob have
been switched off for at least
30seconds after cooking, automatic
mode will resume next time the hob is
switched on.
Operation (Manual mode)
25
Cooking without Con@ctivity
(Manual mode)
The cooker hood can be operated
manually if:
- The Con@ctivity function is not activ-
ated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Manual operation)” – “Leaving auto-
matic mode temporarily”).
You can operate the cooker hood
manually via the Miele app exclusively.
You must have Miele@home set up in
order to use the Miele app (see “Be-
fore using for the first time” – “Setting
up Miele@home”).
In exceptional cases, the cooker hood
can be operated using the control
panel on the lower side, e.g. if the WiFi
connection has been interrupted. For
this, remove the grease filter.
Switching the fan on and off
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
The fan will start running at power level
2. The deflector plate will open.
Selecting the power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Reducing power down from the
Booster setting
If power management is activated (de-
fault setting), the fan automatically
switches back to level 3 after 5minutes.
Selecting the run-on time
It is advisable to run the fan for a few
minutes after cooking has finished. This
helps to remove any lingering vapours
and odours from the air.
It also reduces the risk of residues ac-
cumulating in the cooker hood and any
resultant odours.
The run-on function enables the fan to
continue running for a pre-determined
time before switching itself off automat-
ically.
Dimming/switching the hob
lighting on/off
The hob lighting can be switched on
and off and dimmed independently of
the fan.
Operation (Manual mode)
26
Power management
The cooker hood is fitted with a power
management system. Power manage-
ment helps to save energy. It ensures
that the fan power level is reduced
automatically and that the lighting is
switched off.
- If the Booster setting has been selec-
ted, the fan will automatically switch
to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off auto-
matically after 12hours.
Safety switch-off
If Power management has been deac-
tivated, the cooker hood will switch it-
self off automatically after 12hours if it
has been left on (fan and hob lighting).
To switch it on again press the On/
Off control or the lighting con-
trol.
Ambient lighting
The ambient lighting is switched on and
off at the same time as the fan. How-
ever, you can also switch the ambient
lighting on and off independently of the
fan.
The deflector plate opens and closes
when the ambient lighting is switched
on and off.
You can change the brightness and
light colour using the Miele app.
You can choose different light colours
for operation with the fan off and opera-
tion with the fan on.
When you switch the appliance on, the
lighting will come on at the brightness
level and light colour used previously.
Energy saving tips
27
This cooker hood operates very effi-
ciently and economically. The following
will help you to save even more energy
when using it:
- It is important to ensure that the kit-
chen is well ventilated during opera-
tion.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and there-
fore benefit from reduced energy
consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy consump-
tion.
- If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power
level is usually sufficient. Only use
the Booster setting when neces-
sary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the kit-
chen air after cooking, use the run-
on function. The fan will switch off
automatically after the selected
run-on time.
Changing settings
28
You can adjust the cooker hood set-
tings using the buttons on the cooker
hood.
The settings described in this chapter
cannot be adjusted via the Miele app.
Remove the grease filter.
Altering the operating hours
counter for the grease filter(s)
You can set the operating hours counter
to suit the type of cooking you do.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter time of 20hours if
you fry a lot.
- If you only cook occasionally, we re-
commend that you still select a short
time. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult.
- Select a longer time of 40 or 50hours
if you use very little fat for cooking.
Switch off the fan and the lighting.
Press the run-on control and the
operating hours control at the
same time.
The Grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
1............................................... 20 hours
2............................................... 30 hours
3............................................... 40 hours
B .............................................. 50 hours
Press the control for a shorter dur-
ation, or for a longer duration.
Confirm your choice with the operat-
ing hours control .
All the indicator lights will go out.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original set-
ting.
Changing settings
29
Altering or deactivating the
charcoal filter operating hours
counter
You can set the operating hours counter
to suit the type of cooking you do.
The factory default setting is a reactiva-
tion interval of 180hours.
Switch off the fan and the lighting.
Press the control and the operating
hours control at the same time.
The charcoal filter symbol and one of
the fan power levels will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1 ............................. 120hours
Indicator 2 ............................. 180hours
Indicator 3 ............................. 240hours
Indicator B.......................... deactivated
Select the duration you want with
the or control.
Confirm your choice with the operat-
ing hours control.
All the indicator lights will go out.
If you do not confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original set-
ting.
Deactivating power manage-
ment
Keep in mind that deactivating this
function may increase energy con-
sumption.
Activating/deactivating Power Man-
agement
Switch off the fan and the lighting.
Press the fan run-on control for
approx. 10seconds until the indicator
for fan power level 1 lights up.
Then press in turn:
- the lighting control,
- the control, and then
- the lighting control.
If Power Management is activated, the
1 and B indicators light up constantly.
When it is deactivated, the 1 and B in-
dicators flash.
Press the control to deactivate
Power Management.
The 1 and B indicators will flash.
Press the control to activate Power
Management.
The 1 and B indicators will light up con-
stantly.
Confirm the setting with the run-on
option control.
All the indicator lights will go out.
If you do not confirm your choice of set-
ting within 4minutes, the cooker hood
will revert to the old setting.
Moisture removal
30
Moisture removal function
The dehumidifying filter draws in some
of the moisture from the vapours pro-
duced during cooking. After cooking,
the dehumidifying filter is dried in a con-
trolled manner using sensors. The
moisture collected by the filter is re-
leased back into the ambient air. The
cooker hood fan will come on for this at
a low speed.
When the dehumidifying filter is inser-
ted, activate the moisture removal func-
tion via the Miele@mobile app.
Drying is activated between 8:00a.m.
and 10:00p.m. Over this period, a
sensor records the indoor climate and
switches the drying function on at a
suitable time.
You can change the following settings
using the Miele@mobile app:
- You can change the possible time-
frame for drying.
Replacing the dehumidifying filter
Damage due to incorrect clean-
ing
The dehumidifying filter cannot be
cleaned or reactivated. This can
cause damage to the dehumidifying
filter.
Replace the dehumidifying filter for a
new one once it has reached the end
of its life.
The dehumidifying filter must be re-
placed after 3years.
Remove the charcoal filter from the
cooker hood.
Remove the dehumidifying filter from
the cooker hood and insert a new
one.
Refit the charcoal filter.
Dehumidifying filters are available to or-
der via the Miele online shop, the Miele
Customer Service Department (see end
of these operating instructions for con-
tact details) or from your Miele dealer.
The model designation required is listed
under “Technical data”.
Disposing of the dehumidifying filter
Used dehumidifying filters can be dis-
posed of with normal household
waste.
Fragrance
31
Fragrance function
The fragrance flacon emits a fragrance
burst into the room, regardless of
whether the cooker hood is operating.
You can control the function with the
Miele@mobile app.
You can trigger a one-off fragrance
burst or specify times at which fra-
grance bursts are to be emitted regu-
larly.
Risk of fire and damage to the
health if fragrance flacons are used
incorrectly.
The leaked fragrance can damage
your health if it comes into contact
with your body. Leaked fragrance
can cause fire.
Before using a fragrance flacon,
please read “Warning and safety in-
structions”, “Using the fragrance
flacon (optional accessory)”.
Removing the fragrance flacon
mount
The holder for the fragrance flacon
mount is located on the top of the
cooker hood.
Press on the fragrance flacon mount.
The fragrance flacon mount will move
out of the casing a little.
Pull out the fragrance flacon mount.
Removing the fragrance flacon
If you wish to replace the fragrance
flacon, first remove the used fragrance
flacon.
Turn the outer ring to the left as far as
it will go and pull out the fragrance
flacon.
Fragrance
32
Storing fragrance flacons when not in
use
If you wish to temporarily store unused
fragrance flacons while they are not in
use, use the original packaging.
The fragrance can leak out of the
flacon.
Do not hold opened fragrance flac-
ons at an angle, tilt them or place
them on their back.
If you are keeping the fragrance
flacon in its original packaging, do
not store the packaging upright on
its edge or upside down.
Put the fragrance flacon in its original
packaging and store it in a cool, dry
place away from direct sunlight.
Opening the new fragrance flacon
The fragrance can leak out of the
flacon.
Only hold the fragrance flacon as il-
lustrated. Do not hold opened fra-
grance flacons at an angle, tilt them
or place them on their back.
Grip the fragrance flacon firmly.
Pull off the protective seal.
Inserting a fragrance flacon
Insert the fragrance flacon into the
opening of the mount as far as it will
go.
Turn the outer ring to the right as far
as it will go.
The fragrance flacon is now ready to
use.
Insert the fragrance flacon mount in
the cooker hood and push it in as far
as it will go.
When to change the fragrance flacon
Replace the fragrance flacon when a
message appears in the Miele@mobile
app or when the intensity of the fra-
grance is no longer sufficient.
Reset the message after replacing the
flacon.
Cleaning and care
33
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
Unsuitable cleaning agents can dam-
age the surfaces and control ele-
ments.
Do not use any cleaning agents con-
taining soda, acid, chloride or
solvent.
Do not use any abrasive cleaning
agents, e.g. powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used pre-
viously with abrasive cleaning
agents.
Moisture in the cooker hood can
cause damage.
Make sure that water does not get
into the cooker hood.
All external surfaces and control ele-
ments can be cleaned using hot wa-
ter with a small amount of washing-
up liquid applied with a well wrung-
out soft sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Operating hours counter
The cooker hood registers the length of
time for which it has been operated.
The Miele app communicates the num-
ber of elapsed operating hours and in-
forms you when the grease filter needs
to be cleaned or the charcoal filter
needs to be reactivated.
At the same time, the grease filter or
charcoal filter symbol lights up on
the cooker hood control elements.
You can set the interval on the operat-
ing hours counters to suit the type of
cooking you do (see “Changing set-
tings”).
Grease filter(s)
Fire hazard
An oversaturated grease filter is a fire
hazard.
Clean the grease filter at regular in-
tervals.
The re-usable metal grease filter in the
appliance remove solid particles from
the kitchen vapours (grease, dust, etc.),
preventing soiling of the cooker hood.
The grease filter must be cleaned at
regular intervals.
A heavily soiled grease filter hinders
air extraction and will lead to in-
creased levels of soiling in the cooker
hood and in the kitchen.
Cleaning and care
34
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes clean-
ing more difficult. The grease filter(s)
should therefore be cleaned at least
every 3 to 4 weeks.
The operating hours counter reminds
you to clean the grease filter regularly
(see “Cleaning and care” – “Operating
hours counter”).
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.
Pull the grease filter lock downwards.
This will release the grease filter. It is
held in position by a safety cord.
Release the safety cord and remove
the grease filter downwards.
Cleaning the grease filter by hand
Clean the filter with a soft nylon brush
in a mild solution of hot water and a
small amount of washing-up liquid.
Do not use “neat” washing up liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning and care
35
Cleaning the grease filter in a dish-
washer
Place the grease filter flat or slightly
inclined in the upper or lower basket.
Ensure the spray arm is not obstruc-
ted.
Use a standard household dish-
washer detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the grease filter in a dish-
washer can cause permanent discol-
ouration to the internal surfaces of the
filter. However, this will not affect the
functioning of the grease filter in any
way.
After cleaning
After cleaning, leave the filter to dry
on an absorbent surface before repla-
cing it.
When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible casing to
prevent the risk of these catching fire.
When you reinsert the grease filter,
hook the safety cord into the grease
filter.
Insert the grease filter and push it up-
wards in the middle until it locks into
place.
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset via the but-
tons on the cooker hood.
With the fan switched on, press the
operating hours button for ap-
proximately 3seconds until only 1 is
flashing.
The grease filter symbol goes out.
If you want to clean the grease filter be-
fore the operating hours counter has
reached its maximum:
Press the operating hours but-
ton for approximately 6seconds
until only 1 is flashing.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filter.
Grease filters are available to order via
the Miele Customer Service Department
(see end of these operating instructions
for contact details) or from your Miele
dealer.
Cleaning and care
36
Charcoal filter
A charcoal filter is designed to absorb
cooking odours. It is used in addition to
a grease filter.
The charcoal filter is fitted in the top of
the cooker hood.
This charcoal filter can be reused sev-
eral times by reactivating it in an oven
or in a combination steam oven.
Reactivation interval
Reactivate the charcoal filter when it no
longer absorbs kitchen odours effect-
ively, and at least every 6months.
The operating hours counter reminds
you to reactivate the charcoal filter reg-
ularly (see “Cleaning and care” – “Oper-
ating hours counter”).
Remove the charcoal filter from the
cooker hood.
Reactivating the charcoal filter
The charcoal filter can be reactivated to
restore its functionality. It must be re-
activated in an oven or in a combination
steam oven using the oven function
only.
Fire hazard
If the charcoal filter is cleaned in a
dishwasher, detergent residues may
self-ignite during subsequent reactiv-
ation in an oven.
Do not clean the charcoal filter in a
dishwasher.
Cleaning the charcoal filter by hand
may cause it to become damaged.
Do not wash the charcoal filter by
hand.
The charcoal filter is breakable.
When handling it, be careful not to
drop it. Do not press against the
webbing either.
If there is a removable grease filter in
the back of the oven compartment,
please remove it. Further information
is provided in the relevant operating
instructions.
Do not pre-heat the oven. Place the
charcoal filter on the rack in the
centre of the oven.
Switch the oven or the oven function
of your combination steam oven on
and select: Fan plus(recircula-
tion) 200°C.
Odours may arise during reactiva-
tion.
Reactivation should be carried out in
a well-ventilated room. Open a win-
dow if necessary.
Reactivation takes 60minutes.
Switch the oven or the oven function
on your combination steam oven off
once this process has finished.
Cleaning and care
37
Danger of burning
You could burn yourself on the hot
charcoal filter.
Do not take the charcoal filter out of
the oven while it is still hot and do
not place it on heat-sensitive sur-
faces while it is hot.
Do not refit the charcoal filter in your
cooker hood whilst still hot.
Leave it in the oven compartment un-
til it has cooled down.
Refit the charcoal filter once it has
cooled.
Resetting the charcoal filter operat-
ing hours counter
After the charcoal filter has been react-
ivated, the operating hours counter
needs to be reset on the cooker hood
control panel.
Remove the grease filter.
With the fan switched on, press the
operating hours button twice,
then hold it for approximately
3seconds until only 1 is flashing.
The charcoal filter symbol will go
out.
If you want to reactivate the charcoal fil-
ters before the operating hours counter
has reached its maximum:
Press the operating hours but-
ton twice and hold it for approx-
imately 6seconds until only 1 is
flashing.
Replace the grease filter.
Service life
The charcoal filter should be replaced
every 3 years.
Charcoal filters are available to order via
the Miele online shop, the Miele Cus-
tomer Service Department (see end of
these operating instructions for contact
details) or from your Miele dealer.
The model designation required is listed
under “Technical data”.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Problem solving guide
38
Many malfunctions and faults that can occur in daily operation can be easily
remedied. Time and money will be saved because a service call will not be
needed.
The following guide may help you to find the reason for a malfunction or a fault,
and to correct it.
Problem Cause and remedy
The deflector place is
not opening or closing
correctly, e.g. after a
power failure.
There is a fault with the controls.
Remove the grease filter.
Press “”, “”, “” and “” in succession on the
control panel.
The deflector plate will open and close once or sev-
eral times.
Installation
*INSTALLATION*
39
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation instructions
See enclosed Installation sheet for in-
structions on how to install this appli-
ance.
Installation
*INSTALLATION*
40
Appliance dimensions
Installation
*INSTALLATION*
41
a
Cut-out for mains cable
Installation distance between cooking appliance and cooker
hood (S)
Risk of heat damage.
The rising heat generated by a gas hob may damage the cooker hood.
Fitting this cooker hood over a gas hob is not permitted.
When planning the installation distance between the cooking appliance and the
bottom of the cooker hood, the information provided by the cooking appliance
manufacturer must be taken into account.
Unless a greater distance is specified by the cooking appliance manufacturer,
the minimum safety distances indicated below must be ensured.
Please also observe the information given under “Warning and safety instruc-
tions”.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, electric fryer 650mm
Installation
*INSTALLATION*
42
Installation recommendations
- When deciding on the safety distance
between the hob and cooker hood,
please note that a distance of
650mm above electric cookers/hobs
may be preferable to give more work-
ing space under the hood.
- Account should also be taken of the
height of the person who will be us-
ing the hood most often. They should
have sufficient space to work com-
fortably at the hob, and be able to
reach the cooker hood controls with
ease.
- Please be aware that if positioned too
high, extraction will be inefficient.
- To achieve optimum vapour extrac-
tion, the cooker hood must be
centred over the hob, not to the side
or behind it.
- The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to dis-
mantle in the event that service is re-
quired. This should be taken into
consideration when planning the pos-
ition of cupboards, shelves, ceilings
or features in the vicinity of the
cooker hood.
Electrical connection
Installation, maintenance or re-
pair work by unqualified persons
could be extremely dangerous. The
manufacturer cannot be held liable
for unauthorised work.
All electrical work should only be un-
dertaken by a suitably qualified and
competent electrician in strict ac-
cordance with current national and
local safety and building code regu-
lations.
This cooker hood must only be connec-
ted to a properly installed power supply.
The electrical installation must be in
compliance with current local and na-
tional safety regulations, (e.g. VDE0100
in Germany/BS7671 in the UK).
For increased safety we recommend the
use of a residual current device with a
trip current of 30mA (DINVDE0664).
A suitable means of disconnection must
be provided on site for each pole. Suit-
able means of disconnection include
switches with an all-pole contact gap of
at least 3mm. These include circuit
breakers, fuses and contactors
(EN60335).
The relevant connection data can be
found on the data plate (see “After
Sales/Warranty”). Ensure that this data
matches the voltage and frequency of
your household power supply.
Service
43
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele Customer
Service Department.
You can book a Miele Customer Ser-
vice Department call-out online at
www.miele.com/service.
Contact information for the Miele Cus-
tomer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele Cus-
tomer Service Department. This inform-
ation can be found on the data plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate is visible after removing
the grease filter.
Warranty
For information on the appliance war-
ranty specific to your country please
contact Miele. See back cover for ad-
dress.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
Technical data
44
Fan motor 105W
Hob lighting 10W
Ambient lighting 15.4W
Total rated load 130.4W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 10A
Weight 24.6kg
WiFi module
Frequency band 2.400–2.4835GHz
Maximum transmission power <100mW
Special accessories for recirculation mode
Charcoal filter DKF28-R (reactivatable)
Dehumidifying filter DAEF28
EU Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to www.miele.ie/do-
mestic/customer-information-385.htm and enter the name of the product or the
serial number
UK Conformity declaration
Miele hereby declares that this cooker hood complies with UK Radio Equipment
Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to www.miele.co.uk and
enter the name of the product or the serial number
Technical data
45
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DA 7378 D Aura4.0 Ambient
Annual Energy Consumption (AEC
hood
) 31,6 kWh/year
Energy efficiency class A+
Energy efficiency index (EEI
hood
) 44,8
Fluid Dynamic Efficiency (FDE
hood
) 35,1
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 35,0 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,1%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
328,7 m
3
/h
Air flow (min. speed)
240 m
3
/h
Air flow (max. speed)
440 m
3
/h
Air flow (intensive or boost setting)
600 m
3
/h
Max. air flow (Q
max
)
600 m
3
/h
Air pressure at best efficiency point 348 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 53 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 66 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
73 dB
Electrical power input at best efficiency point 90,3 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 10,0 W
Average illumination of the lighting system on the cooking surface 350 Ix
Time increase factor 0,7
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
sTel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place
Bryanston 2194
P.O. Box 69434
Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1
Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
M.-Nr. 12 103 140 / 00en-GB
DA 7378 D
