ITEM #4057326
CHANDLER LED
CEILING FAN
Español p. 20
MODEL #CHA52MBK5LR
ATTACH YOUR RECEIPT HERE
Purchase Date
1
HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
AS21439
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected] or visit www.lowespartsplus.com.
4007498
2
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
. 4
Hardware Contents
...........................................................................................................................
5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 5
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
.
.. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 12
Operating Instructions ......................................................................................................... 15
Care and Maintenance ...................................................................................................
.
.... 17
Troubleshooting ..................................................................................................................
Limited Lifetime Warranty ...................................................................................................
Replacement Parts List .......................................................................................................
TABLE OF CONTENTS
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might exceed the
initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and
ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are
unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the floor
and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 22.93 lbs.
FCC Compliance Notice
Modifications not approved by the party responsible for compliance could void the user's authority to
operate the equipment. [The equipment refers to the remote control transmittor and/or LED light kit.]
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Lowe’s Home Centers LLC, 1000 Lowe’s Blvd., Mooresville, NC 28117; 1-888-251-1026
18
19
19
SAFETY INFORMATION
3
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
DO NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
CAUTION
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
4
4
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.

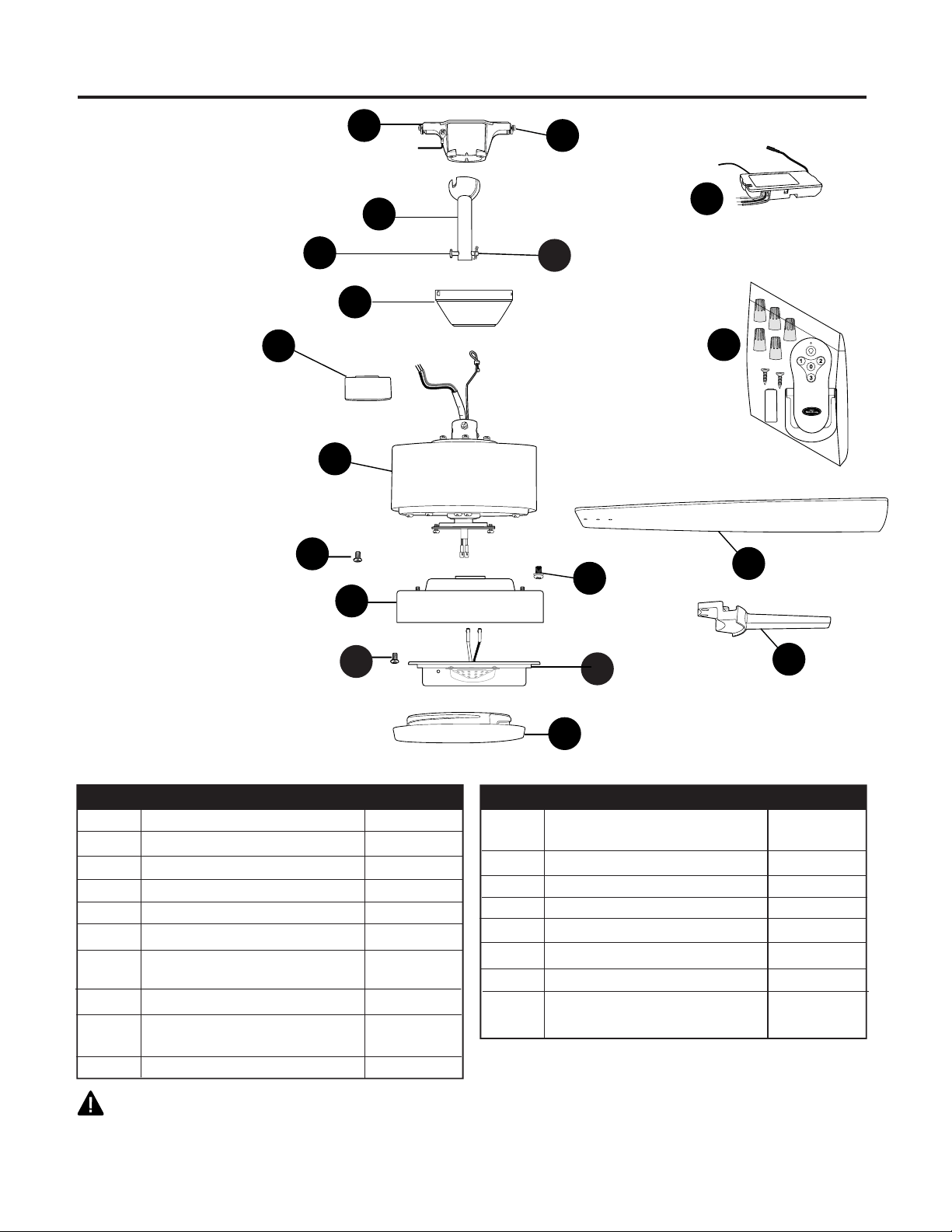

PACKAGE CONTENTS
A
Downrod 1
B
Canopy
1
C Mounting Bracket 1
D Motor Housing 1
E
Yoke Cover 1
F LED Light Kit 1
G
Canopy Mounting Screw 4
(preassembled)
H
Fitter Plate 1
I Fitter Plate Screw 3
(preassembled)
J Blade 5
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
K
Motor Plate Screw 3
(preassembled)
L Blade Arm 5
M Shade 1
N Pin (preassembled) 1
O Clip (preassembled) 1
P
Remote Control Receiver
1
Q
Remote Pack
1
R
Motor Screw/Washer 10
(preassembled) + 1 extra
A
D
B
C
N
M
J
E
P
G
Q
K
F
O
H
I
L
R
5

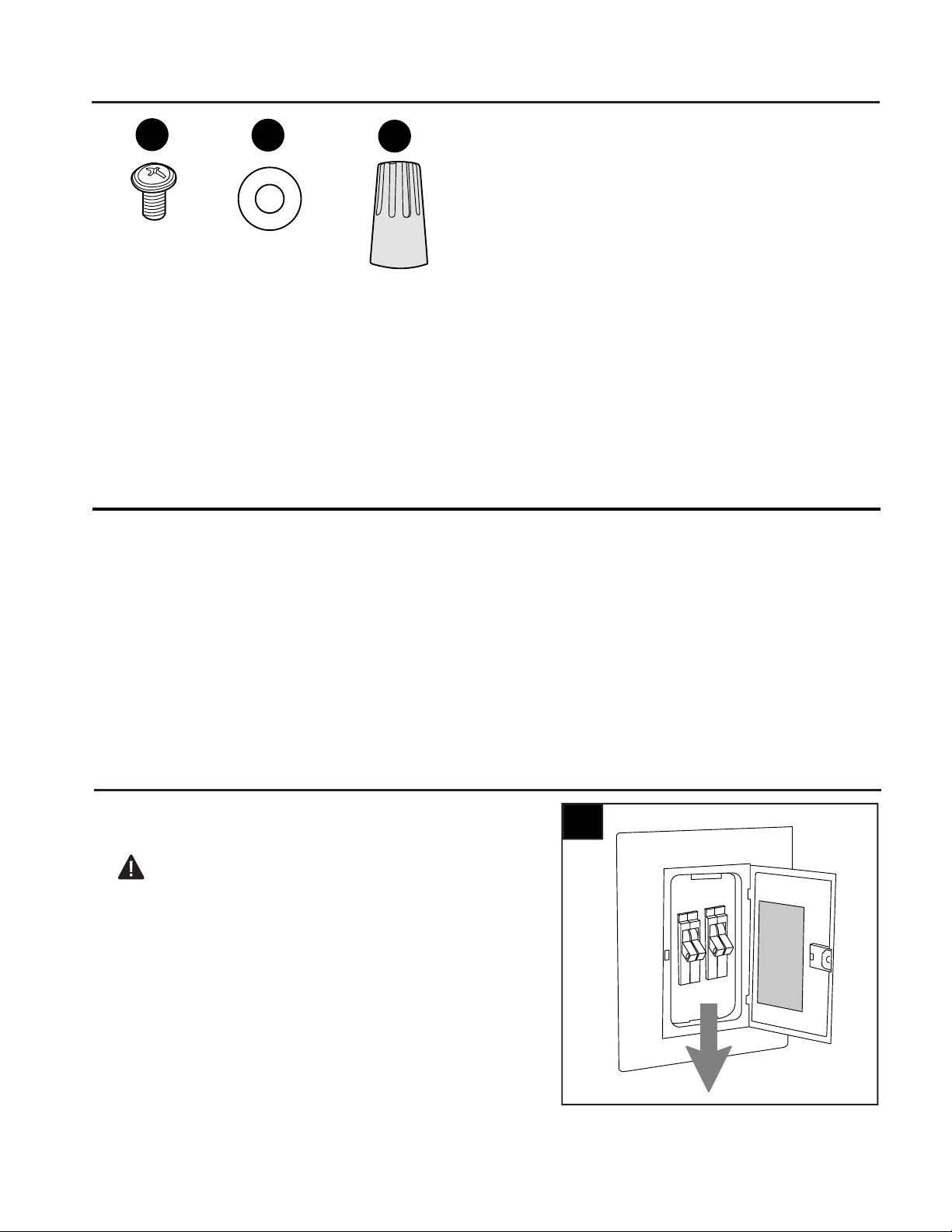

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
PREPARATION
Fiber
Blade
Washer
Qty. 15
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
AA
BB
CC
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
6
A
B
2
19° max.
2.

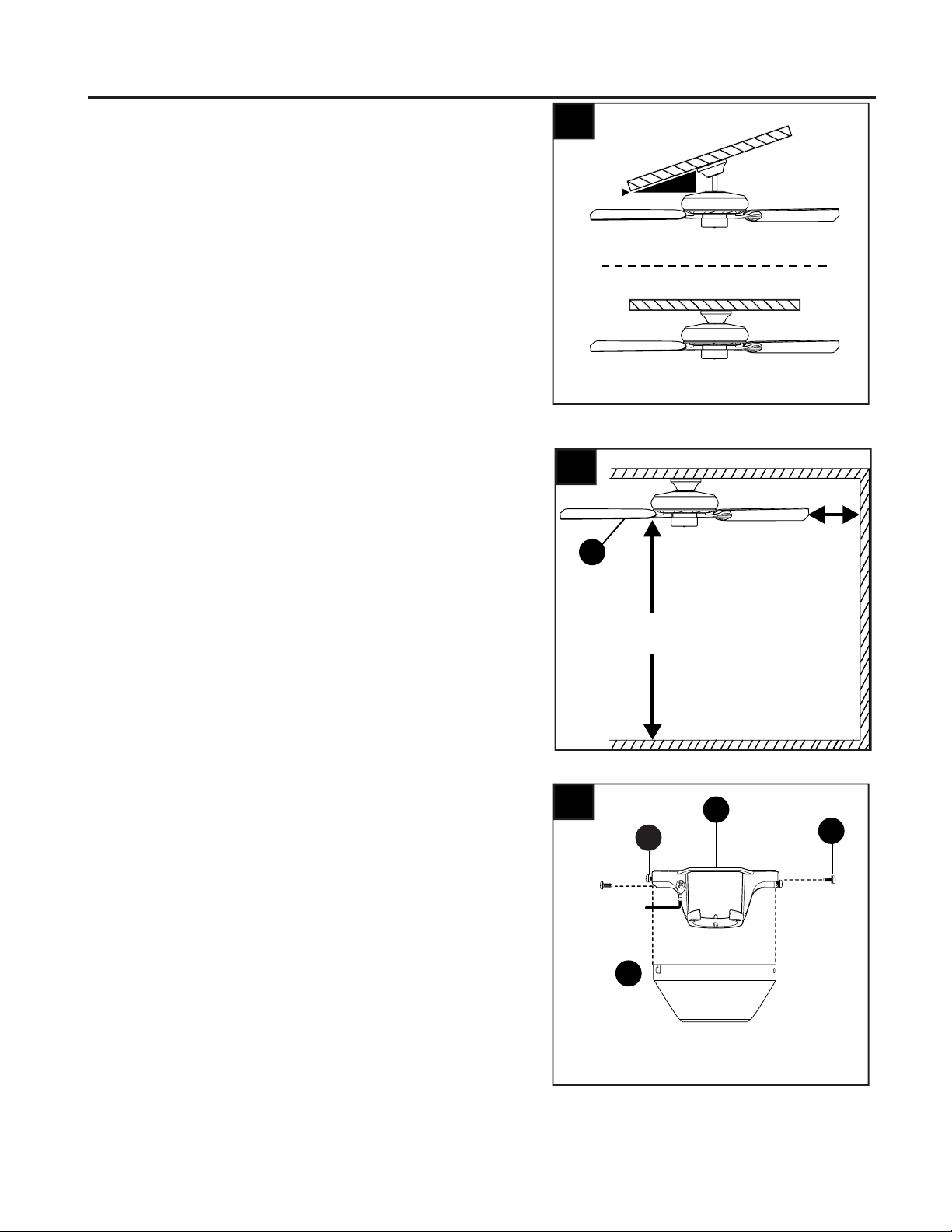

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (J) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
4.
Temporarily raise canopy (B) to mounting
bracket (C) and determine which 2 canopy
mounting screws (G) align with slotted holes in
canopy (B). Partially loosen these 2 canopy
mounting screws (G) and remove the other two;
save for later use.
7 ft.
min.
30 in.
min.
J
3
C
B
G
G
4
INITIAL INSTALLATION
7
DOWNROD-STYLE FAN MOUNTING
Open End
C
C
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 19°.
Remove pin (N) and clip (O) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D).
1a.
1b.
ANGLE
MOUNT
STANDARD
MOUNT
5.
5
D
1b
Yoke
Set Screw
& Nut
Sideview
1a
O
N
A
6.
6
D
Motor
Block
R
Remove preassembled motor blocks from
underside of motor housing (D). Discard the
motor blocks.
Remove motor screws/washers (R) from
underside of motor housing (D), and save for
blade arm (L) attachment later on.
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
A
4.
2.
3.
3
A
O
N
Set Screw
and Nut
2
B
Insert downrod (A) through canopy (B), and yoke
cover (E). Thread wires from motor housing (D) up
through downrod (A).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
E
Slip downrod (A) into yoke, align holes and
re-install pin (N) and clip (O). Tighten set screws
and then tighten nuts. Slide yoke cover (E) down
until it rests on top of motor housing (D).
D
E
4
Hanging
Ball
8 in.
8
INITIAL INSTALLATION
9
DOWNROD-STYLE FAN MOUNTING
5.
6.

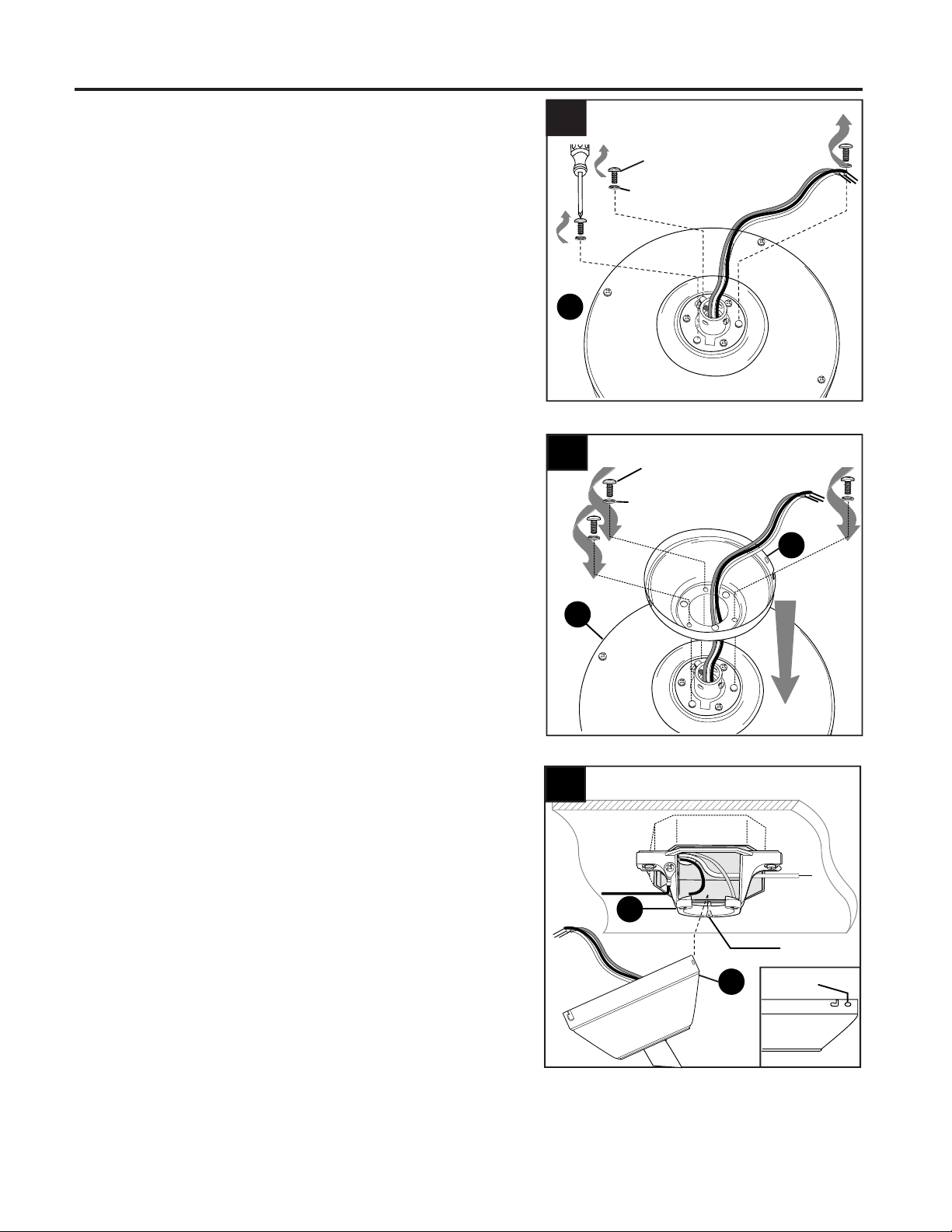

CLOSEMOUNT-STYLE FAN MOUNTING
1.
Canopy
Cover
B
1
B

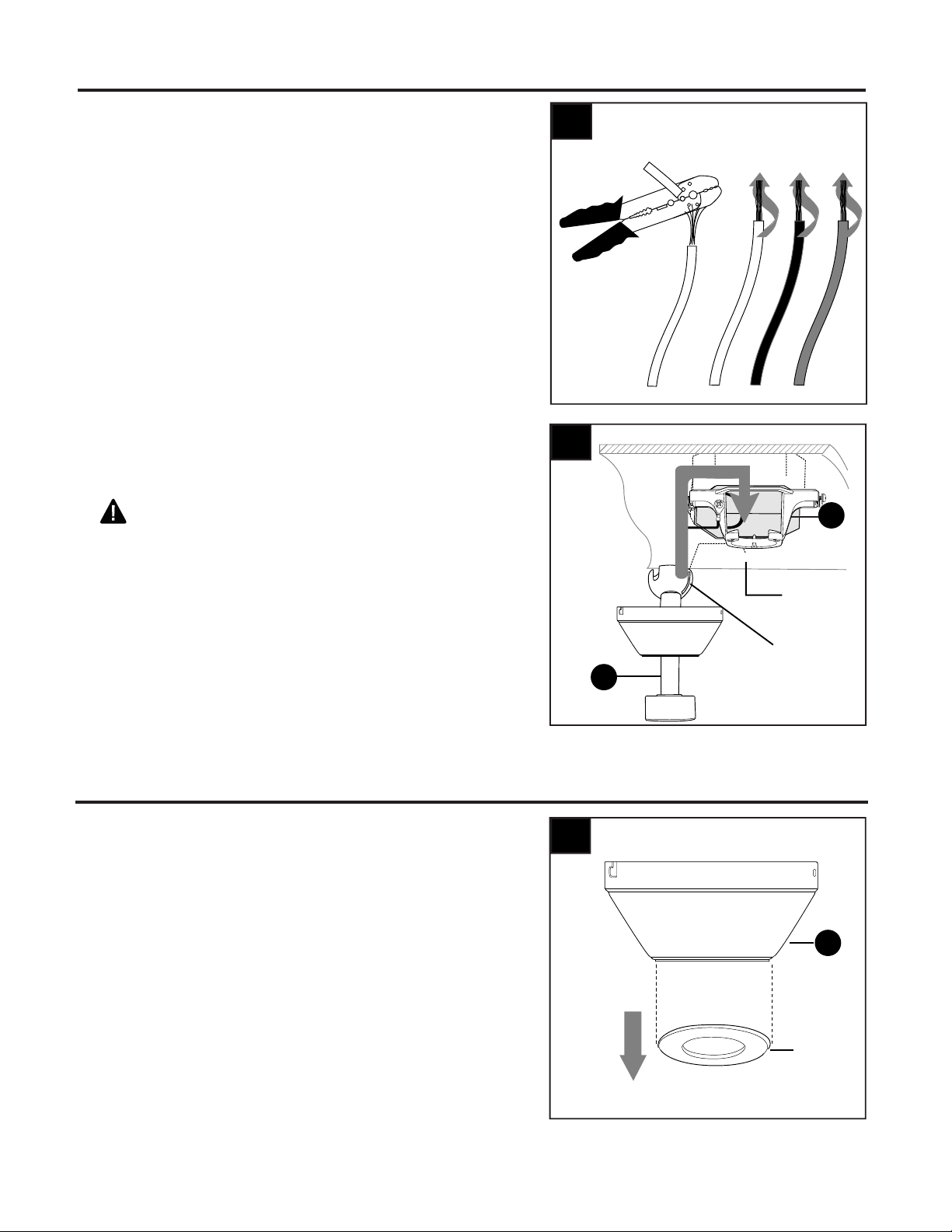

If you cut back the lead wires in Step 4, strip 1/2 in.
of insulation from end of each wire -- WHITE,
BLACK, GREEN and BLUE. Twist stripped ends of
each strand of wire within the insulation with pliers
(not included).
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align slot in hanging ball
with the tab in mounting bracket (C).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (C) may result in
serious injury or death.
Continue to WIRING on page 11.
5
C
Tab
6
A
Slot
Remove preassembled canopy cover from bottom
of canopy (B). NOTE: Twist canopy cover to the
left (counterclockwise) to remove from canopy (B).
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT-STYLE FAN MOUNTING
10
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
2.
Non-Slotted
Tab
C
4
B
2
D
Screw
Lock Washer
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
3
B
D
Screw
Lock
Washer
Remove every other preassembled screw and lock
washer from top of motor housing (D).

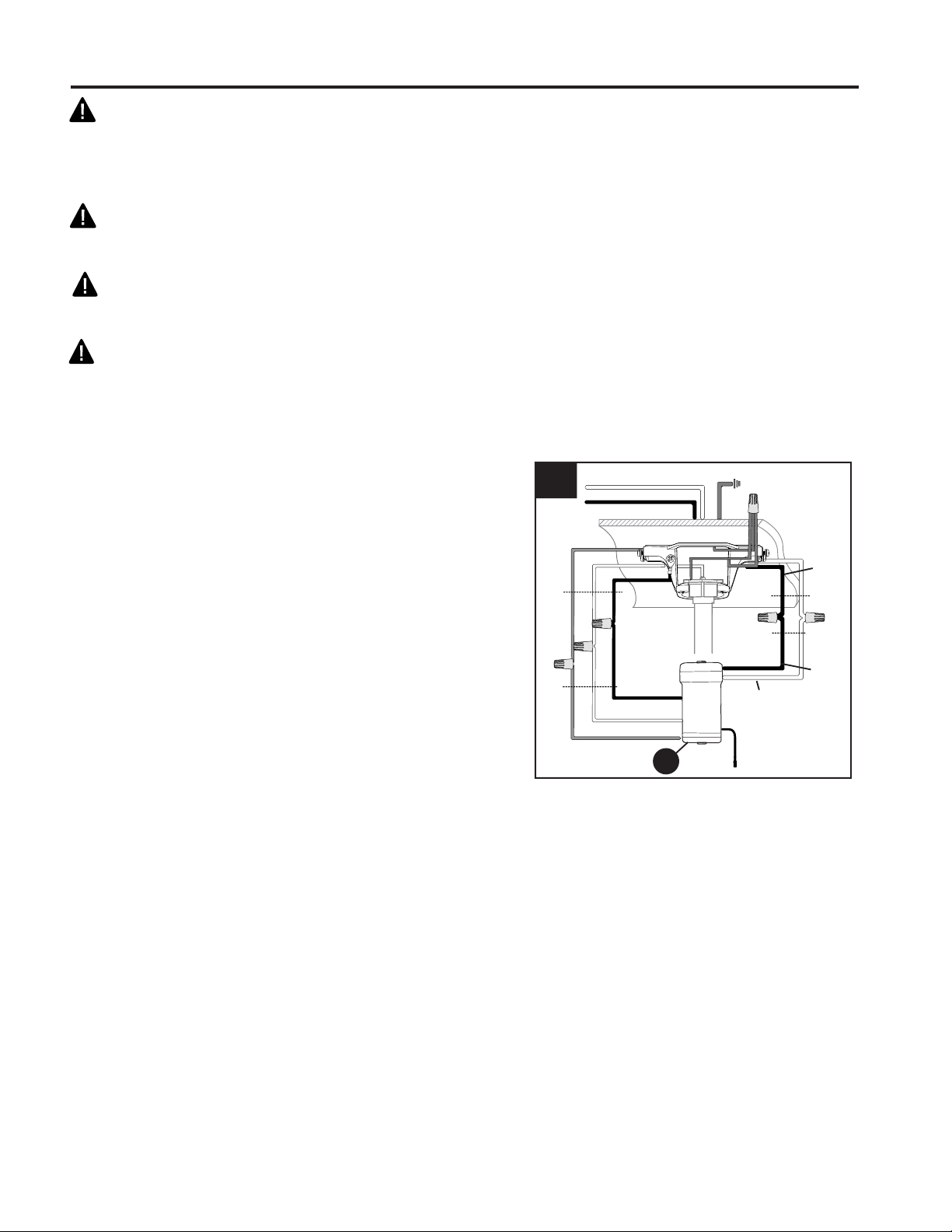

WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
1.
Make the necessary wiring connections for
remote control operation as detailed below and
in the figure. For each wire connection, use one
of the wire connectors (CC), making sure to
screw wire connector (CC) on in a clockwise
direction.
CAUTION: Assistance from another person is
recommended for this step.
Connect all GROUND (GREEN) wires from fan
(on downrod (A), if applicable, and mounting
bracket (C)) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (P) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (P) to WHITE supply
wire from ceiling.
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (P) to WHITE wire
from motor housing (D).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (P) to BLACK wire
from motor housing (D).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (P) to BLUE wire from
motor housing (D).
P
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
11
12

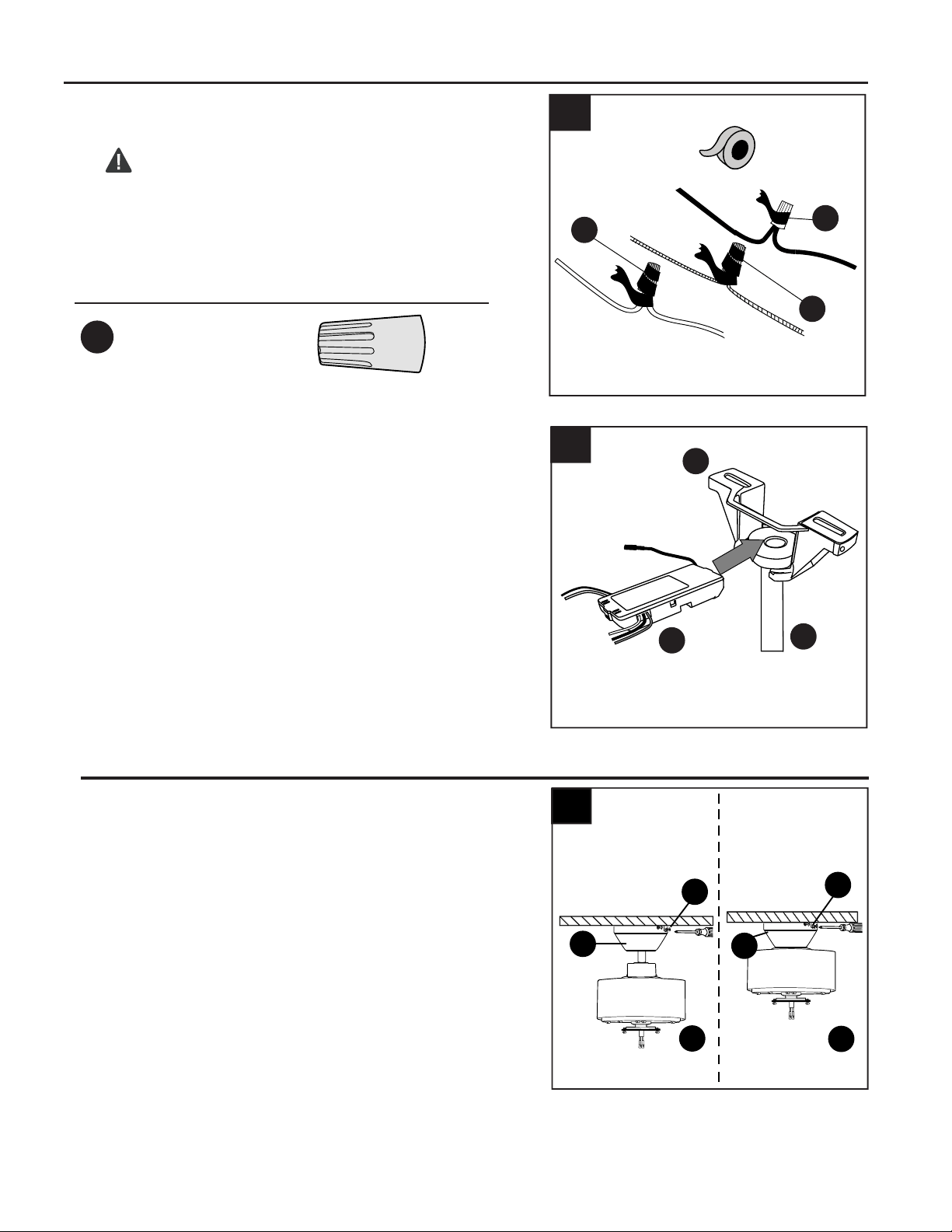

Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side of
the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
CC
2
CC
CC
Hardware Used
Wire Connector
x 4
CC
3
Gently slide remote control receiver (P) flat-side up
into mounting bracket (C). Turn spliced/taped wires
upward and gently push wires and wire connectors
(CC) into outlet box. Let antenna from remote control
receiver (P) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
A
O
C
WIRING
FINAL INSTALLATION
1.
Lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws (G) in mounting bracket (C).
Twist canopy (B) clockwise to lock. Re-insert the two
canopy mounting screws (G) previously removed
(Step 4, page 6) and tighten all canopy mounting
screws (G) securely.
1
Downrod
Option
Closemount
Option
B
G
D
G
D
B
13
FINAL INSTALLATION
2.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (J). If screws are overtightened, blades (J)
may crack and break.
Partially insert three blade screws (AA) along with
three fiber blade washers (BB) into holes in blade (J)
to attach blade arm (L) to blade (J). Then, tighten
each blade screw (CC) starting with the one in the
middle. Repeat with remaining blades (J).
Hardware Used
Fiber Blade Washer x 15
BB
3.
4.
Partially loosen two motor plate screws (K) in motor
plate on underside of motor housing (D) and
remove the other motor plate screw (K). Align
slotted holes in fitter plate (H) with loosened motor
plate screws (K), allowing molex connections from
motor housing (D) to come through hole in fitter
plate (H). Twist fitter plate (H) to lock. Re-insert the
motor plate screw (K) that was removed and
securely tighten all three motor plate screws (K).
Locate motor screws/washers (R) that were
previously removed (Step 6, page 7).
Insert two motor screws/washers (R) through one
blade arm (L) to attach blade arm (L) to motor
housing (D). Tighten motor screws/washers (R)
securely. Repeat with remaining blade arms (L),
making sure to completely secure each blade
arm (L) before proceeding with the next.
2
AA
BB
L
J
3
H
R
D
4
Motor
Plate
Molex
Connections
I
H
D
I
K
I
K
I
K
Blade Screw x 15
AA
14
FINAL INSTALLATION
5.

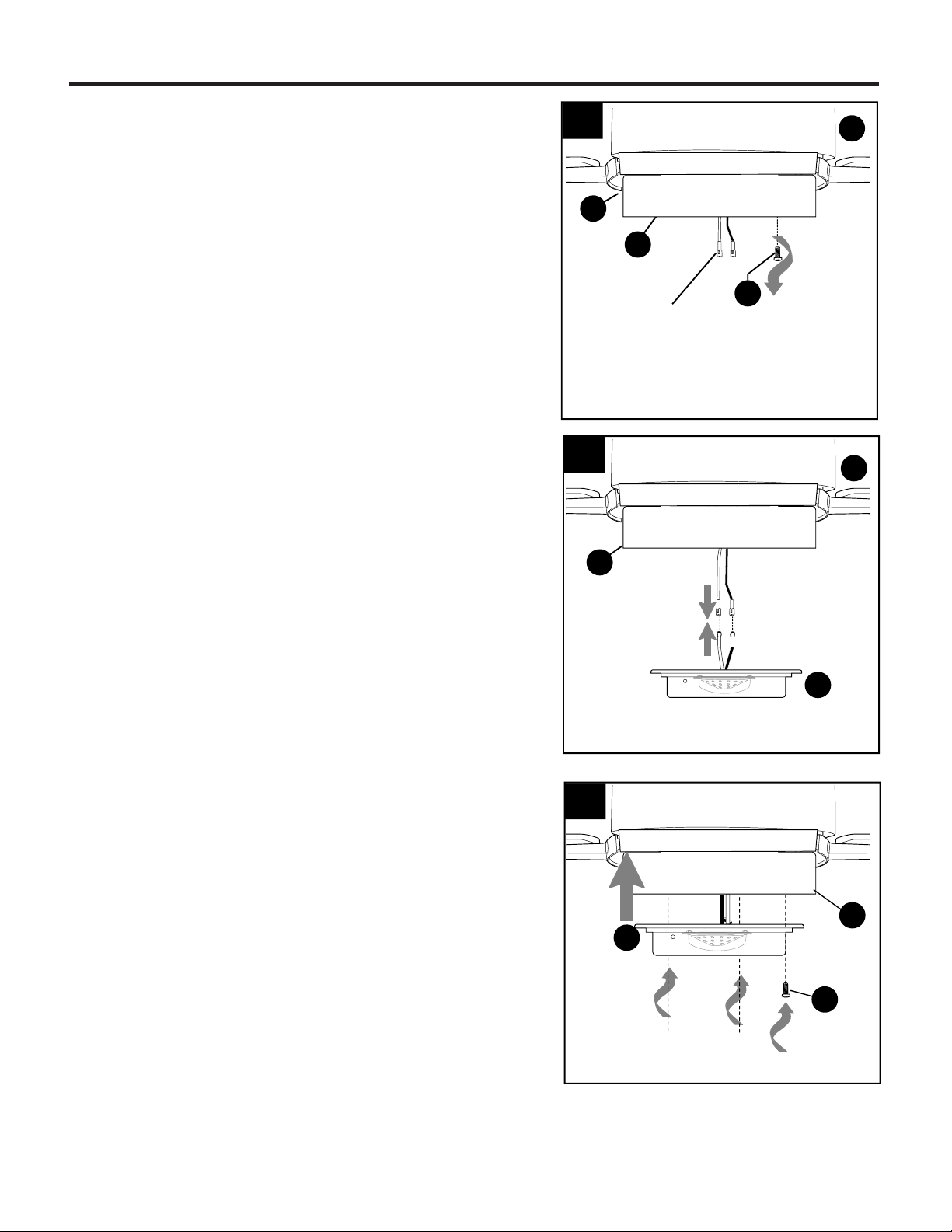

Partially loosen two fitter plate screws (I) on the
underside of the fitter plate (H) and remove the
other fitter plate screw (I).
H
5
Molex
Connections
I
D
I
6.
Connect WHITE wire from LED light kit (F) to
WHITE wire from motor housing (D). Connect BLUE
wire from LED light kit (F) to BLUE (or BLACK) wire
from motor housing (D). Make sure molex
connections are secure.
F
6
WHITE
BLUE (or BLACK)
WHITE
BLUE
D
H
7.
Carefully arrange wiring within the fitter plate (H) to
ensure wires do not get pinched when attaching the
LED light kit (F).
Align slotted holes in LED light kit (F) with loosened
fitter plate screws (I) on fitter plate (H). Twist LED
light kit (F) to lock in place. Re-insert the previously
removed fitter plate screw (I) and securely tighten
all fitter plate screws (I).
H
I
7
F
15
FINAL INSTALLATION
8.
Align slots on shade (M) with protrusions on
underside of fitter plate (K). Turn shade (M)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (M) to make
sure it is secured completely.
8
Slot
Protrusion
M
H
9
Remote Control
Bracket
Wall
9.
If you wish to use the remote control bracket from
remote pack (O), install screws from remote pack
(O) through bracket and into the desired installation
site. The remote control transmitter from remote
pack (O) rests inside the bracket.
Bracket
Screws
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans.
If this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
Remove battery cover from back of remote
control transmitter in remote pack (Q). Install
battery from remote pack (Q) with positive (+)
end toward top of remote control transmitter.
Replace battery cover on remote control
transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
NOTE: Battery is NOT rechargeable. Remove
battery with low or no charge and dispose of
properly.
1.
(back
side)
1
Battery
Cover
Q
Remote
Control
Transmitter
Battery
16
OPERATING INSTRUCTIONS
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or
visit www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
2.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the “0”
button on the remote control transmitter for 5 seconds
or until light on the fan blinks twice. Use the remote
control transmitter to test the light and fan functions to
confirm the learning process is complete.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
2
Remote Control Transmitter
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch, located on the top of the
motor housing (D), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (J) come to a complete stop before manually
activating the reverse switch.
4
Reverse Switch
D
J
CARE AND MAINTENANCE
17
4a
4b
4c

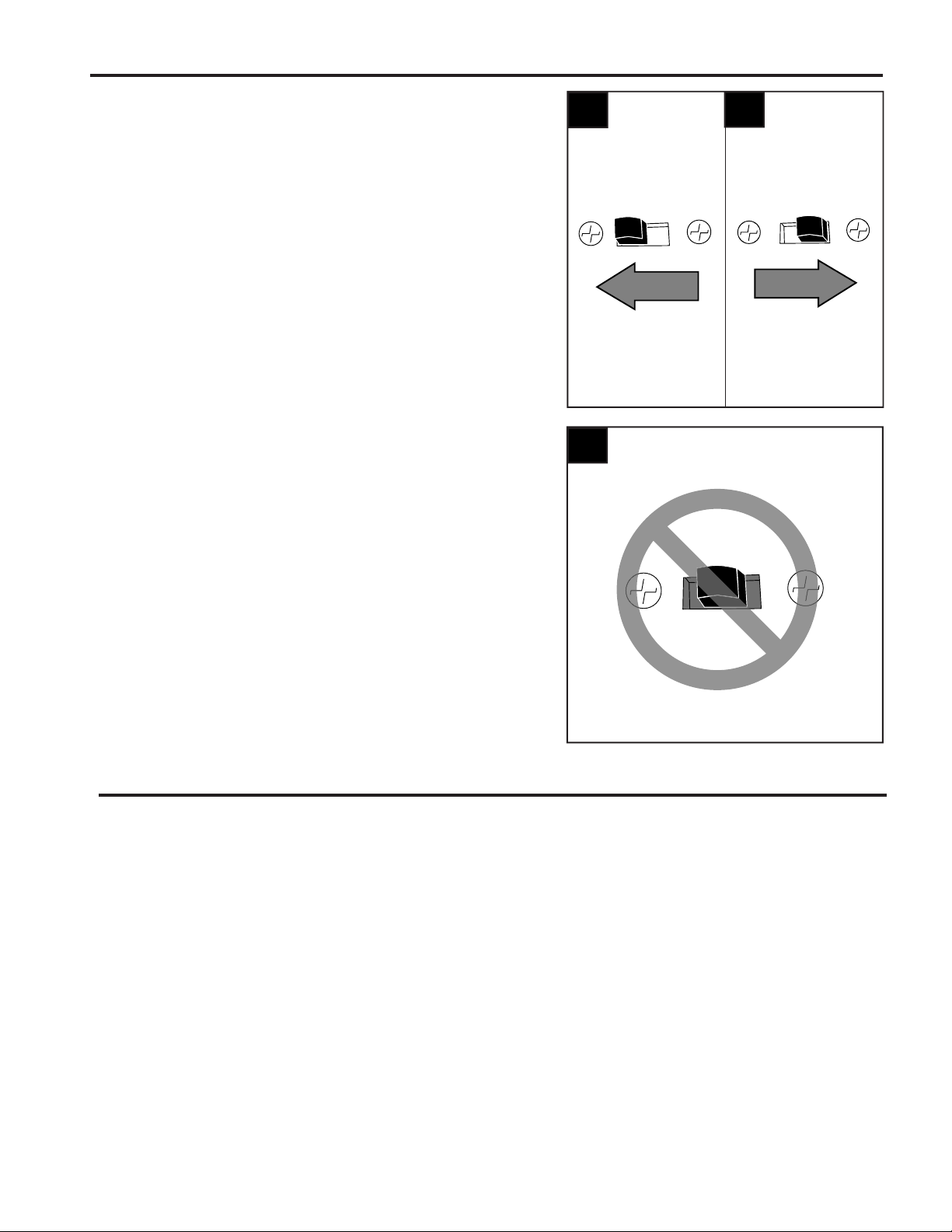

4c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
4a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
4b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (J) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this fan is 18 watts; do not attempt to replace the LEDs.
OPERATING INSTRUCTIONS
18
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Turn off power and repeat
instructions in Step 2 on page
16.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw(s)
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails.
1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
3. Wires in LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
2. Make sure that wall switch to
fan is on.
3. Check that molex connections
in LED light kit are connected
properly according to
instructions on page 14.
19
A
B
C
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
JMLI2107
The distributor warrants this fan to be free from defects in workmanship and materials present at time of
shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to
the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling fan
by accident, misuse or improper installation, or by using parts not produced by the manufacturer of this
fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the limited
lifetime warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the date
of purchase. For the balance of the warranty, call our customer service department (at 1-888-251-1003)
for return authorization and shipping instructions so that we may repair or replace the ceiling fan. Any
fan or parts returned improperly packaged is/are the sole responsibility of the purchaser. There is no
further express warranty. The distributor disclaims any and all implied warranties. The duration of any
implied warranty which cannot be disclaimed is limited to the limited lifetime period as specified in our
warranty. The distributor shall not be liable for incidental, consequential or special damages arising at or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives you specific legal rights and you may also have other rights which vary from state to
state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
J
PART DESCRIPTION
A
Downrod
B
Canopy
C
Mounting Bracket
J Blade
L Blade Arm
4057326-A
4057326-B
4057326-C
4057326-J
4057326-L
PART #
L
