OPERATING INSTRUCTIONS
R600a
Refrigerator-Freezer
MODEL
MR-WX743C
2
About
0
°C
to
6
°C
Foods that are used
daily
Foods you do not
want to freeze
Place food and drinks in the compartments suitable for preserving them.
Convenient functions can be easily set by simply touching icons on the operation panel.
Pages 10 - 11
Store food in the best way for consumption
!
Operation Panel
If you touch the left button,
icons will be displayed. You
can select the setting that you
prefer.
Pages 8 - 9
Refrigerator Compartment
Pages 12 - 13
Ice is made automatically.
Ice Making Compartment
About
-22
°C
to
-16
°C
Frozen food
Ice cream
Food frozen at home
Bread
If you store food that is Supercool Frozen in the freezer
compartment, it can be stored for a long time without losing its
taste and texture.
Page 18
Freezer Compartment
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has stabilized when the
surrounding temperature is 32°C and the doors are closed without any food inside. The temperature fluctuates with factors such as food
storage conditions and how often the doors are opened and closed.
Notice
Supercool
Chilling
To preserve meat
or fish below
freezing
Dairy products: Yogurt, cheese, etc.
Fish paste products: Steamed
fish paste, fish cake, etc.
Processed food: Ham, sausages,
etc.
Meat
Fish
Pages 10 - 11
The lower case can be set with .
Upper Case
Lower Case
Recommended!
Preserves flavor below 0°C for a long time
without freezing!
About
-3
°C
to 3
°C
Sliding Cases
This refrigerator is manufactured for refrigerating and freezing
foods in general households. For industrial use, please use a
commercial refrigerator.
The material names are indicated on the main plastic parts to
facilitate recycling.
This refrigerator uses non-freon refrigerant (isobutane) and
non-freon foam insulation material (cyclopentane).
About
3
°C
to
9
°C
The water that evaporates from the food is
kept inside the compartment to maintain
the moisture. Storing fruits and vegetables
in plastic wrap keeps them even fresher.

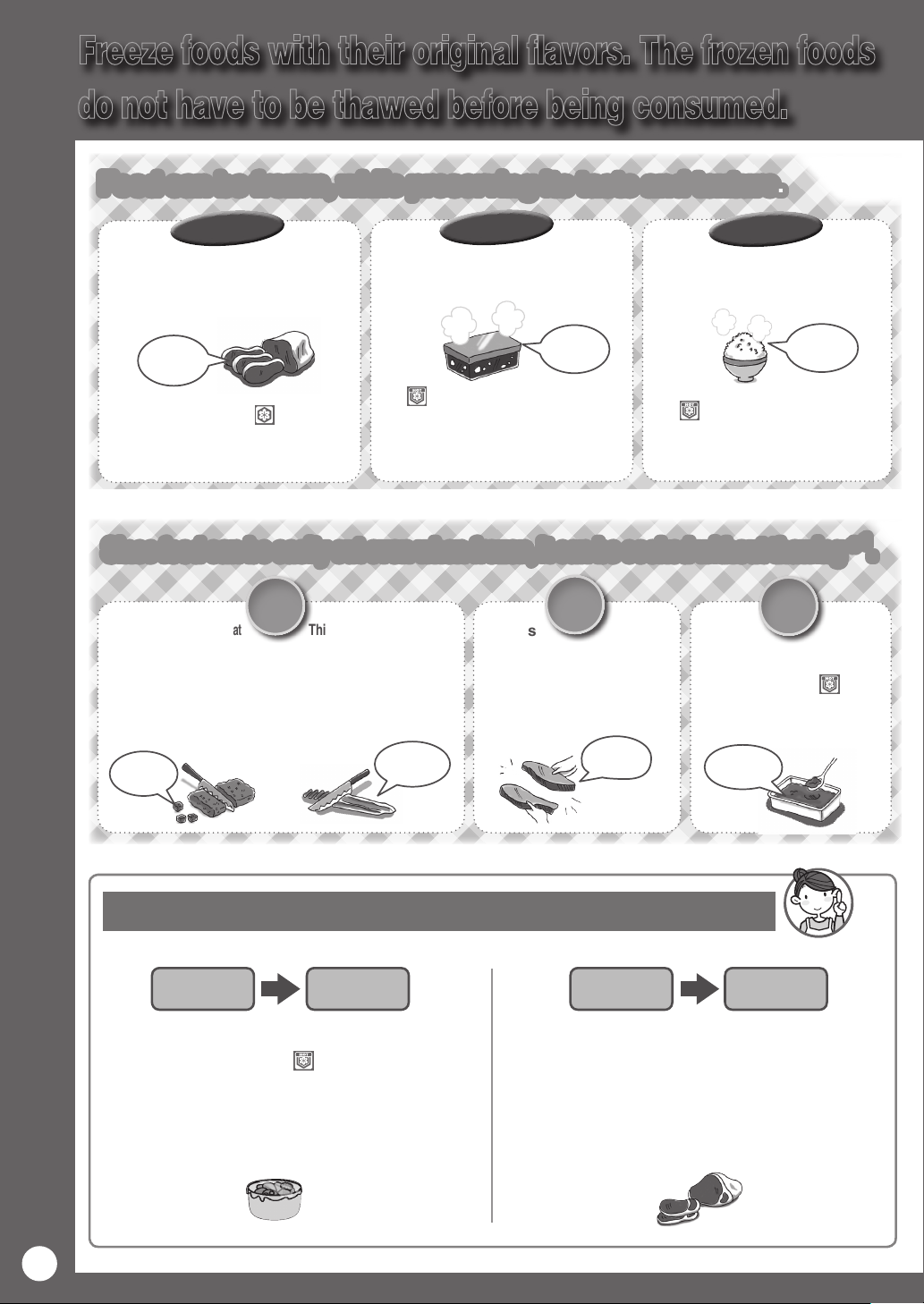

Soft-Freezing / Supercool Freezing
Pages 16 - 18
Vegetables
Fruits
Drinks
Soft-Freezing
:
About
-9
°C
to
-5
°C
(Can also switch to freezer)
Contents
Page 19
Pages 14 - 15
(Pages)
Safety Precautions …………………… 4-5
From Installation to Operation
…… 6-7
How to Use the Operation Panel
… 8-9
Refrigerator Compartment / Sliding Cases
… 10-11
Ice Making Compartment
… 12-13
Versa Compartment
… 14-15
Soft-Freezing / Supercool Freezing
… 16-18
Freezer Compartment
…… 18
Vegetable Compartment
… 19
Energy Saving Mode ……………… 20
Performing Temperature Adjustment
… 21-22
Rapid Cool
…………………………… 23
Power Save Mode
…………… 24-25
Cleaning
…………………………… 26-30
Other Issues
……………………… 31-34
Power Outages ………………………………… 31
To Prevent Accidental Button Operation
(Child Safety Lock)
………………………… 31
To Reset Settings
……………………………… 31
Alarm Sounds
…………………………………… 32
When Not Using the Refrigerator for a
Long Time
…………………………………… 32
To Move or Transport the Refrigerator
……… 33
To Control the Temperature More Precisely
… 34
etc.
Troubleshooting ………………… 35-38
Specifications
………………………… 39

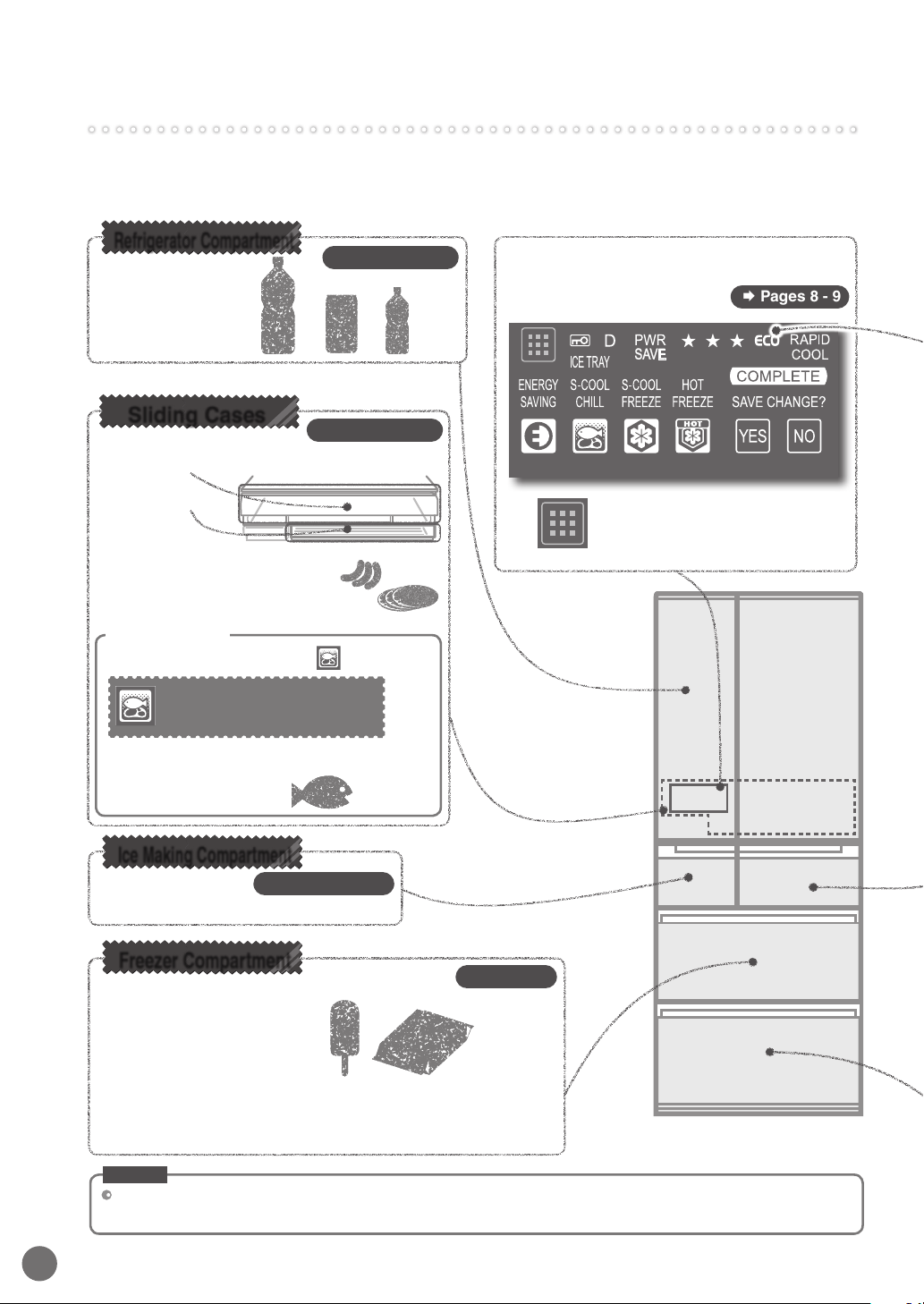

Compartment Introduction

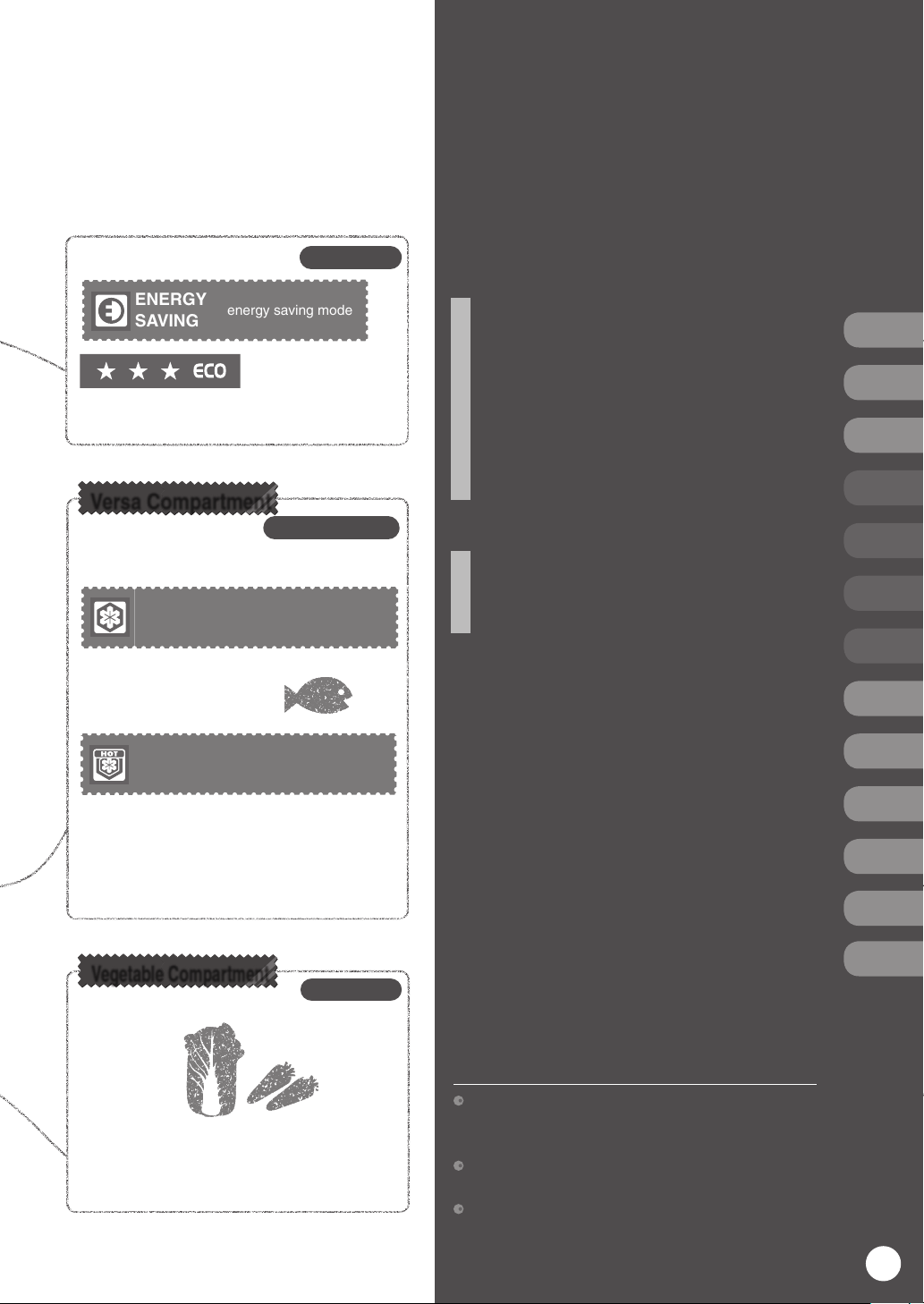

3
ENERGY
SAVING
energy saving mode
Detail setting
With the ECO guide, you can check
your refrigerator's ECO level.
Page 20
Freshly cooked rice
Curry
Sauces
Blocks of meat
Ground meat
Fillets
Supercool
Freezing
Hot
Freezing
To use Supercool Freezing
on hot cooked foods such
as freshly cooked rice,
curry, and sauces
To supercool freeze foods
such as meat, fish, and
dessert
Energy Saving Mode
Versa Compartment
Vegetable Compartment
Safety
Installation
Operation
Panel
REF
Sliding Cases
Ice
S-COOL
FRZ
VEG
ENERGY
SAVING
Rapid
Cool
PWR
SAVE
Cleaning
Temperature
Adjustment
Trouble-
shooting
4
When Installing the Refrigerator
Do not install the refrigerator
outdoors or in places exposed
to water or excessive humidity.
Water may cause insulation failure,
resulting in an electric shock or fire.
Page 6
Leave space around the refrigerator.
If refrigerant leaks, it may accumulate and
catch fire or explode.
Page 6
Prepare for earthquakes by taking fall
prevention measures
Otherwise an injury may result.
Page 7
Power and Power Plug
Do not crush the power plug with the
rear of the refrigerator.
Do not damage the power cord.
Pressing, folding, bundling, or
placing heavy objects on the power
cord may cause an electric shock or fire.
Do not use damaged cords or plugs, or loose sockets.
Doing so may cause an electric shock or fire.
Do not pull the cord when unplugging the power plug.
The cord may be damaged, resulting in an electric
shock or fire.
Do not plug in or out the power plug
with wet hands.
Doing so may cause an electric shock.
Use a dedicated outlet for the power supply that
meets the rating specified on the rating label.
(The rating label is located on the
refrigerator compartment.)
Using extension cords and plugging too many leads into a
single socket can cause heat build-up or fire.
Page 6
Insert the power plug with the cord
facing down, and fully insert the prongs.
Inserting the plug upside-down
places stress on the cord and may
cause heat generation or fire.
If the power cord is damaged, contact
MITSUBISHI ELECTRIC SERVICE CENTRE
or its service agent for the replacement.
If the power cord is damaged, purchase a new
cord from MITSUBISHI ELECTRIC SERVICE
CENTRE or its service agent. Make sure that the
power cord is designed for this model.
Water
prohibited
Follow the
instructions
Power and Power Plug
Remove dust periodically
from the power plug.
Dust may cause insulation failure,
resulting in fire.
Remove the power plug before cleaning.
Otherwise an electric shock or injury may result.
When Using
Follow the
instructions
Prohibited
Remove plug
Follow the
instructions
Do not damage or drive screws into the
refrigerator's refrigerant circuit (pipes).
Because combustible refrigerant is used, this may
result in fire or an explosion.
Do not use electrical appliances inside
the refrigerator.
The refrigerant gas leaking into the compartment with sparks
from an electrical contact may cause fire and explosion.
Do not place volatile, inflammable
objects inside the refrigerator.
Benzene, cosmetics and hair dressing products
may catch fire or explode.
Do not store chemicals or scientific
specimens in the refrigerator.
Substances that require strict control must not be
stored in household refrigerators.
Do not place objects on top
of the refrigerator.
Objects may fall when the doors
are opened or closed and cause injury.
Do not hang from the door or handle.
Do not climb on an open door.
Do not apply a heavy load.
The refrigerator may tip over and cause injury.
Do not apply excessive force to glass
doors or shelves.
An impact can cause the glass to crack and may
result in injury.
Do not touch the mechanical area of the automatic
ice maker (area above the ice storage box).
Doing so may result in injury.
Do not use combustible sprays near the refrigerator.
Sparks from an electrical contact may cause an
ignition and fire.
Prohibited
Warning
The following describes the safety precautions to follow in order to
prevent injury to the user and others, as well as to prevent damage to
property.
Meaning of symbols.
Improper handling that can result in grave
consequences such as death or serious injury.
Improper handling that can result in personal injury or
damage to your house, household furnishings, etc.
Prohibited
Warning
Caution
Water
prohibited
Caution
Remove the
power plug.
Follow the
instructions
Safety Precautions
5
Follow the
instructions
Follow the
instructions
Follow the
instructions
Prohibited
Prohibited
Remove plug
Follow the
instructions
Prohibited
Water
prohibited
Warning
Caution
When Installing/Transporting the Refrigerator
Anchor the refrigerator to a strong and level
floor by adjusting the adjustable supports.
Otherwise, the refrigerator may move and cause injury.
Pages 6 - 7
Use the transportation hand-holds or the parts
instructed when transporting the refrigerator.
Holding other parts may result in injury.
Page 33
When moving the refrigerator, lay a
protective sheet on the floor and
move the refrigerator slowly.
Failing to do so may result in floor
damage or injury.
When Using
Do not pack in excessive amounts of food.
Do not pull the shelves with excessive force.
Food may fall and cause an injury.
Do not place glass bottles in the freezer,
ice making, and versa compartments.
The bottle may break if the liquid inside freezes,
causing an injury.
Do not put your hands or feet
under the refrigerator.
The steel plates or other parts may cause injury.
Do not eat food that is
discolored or has a bad odor.
It may result in food poisoning or illness.
Observe the following when opening
and closing the doors.
• Do not open or close the doors when another
person is touching the refrigerator.
• Do not put your fingers on the top edge of a
drawer-type door while closing it.
•
Do not open or close the doors with excessive force.
(Food may fall out.)
• Be careful not to trap your fingers or any other
part of your body.
• Be careful not to hit a part of your body.
• Do not trap your feet with the bottom drawer.
(Danger of your toes caught by the
drawer.)
Failing to follow the precautions
above may result in injury.
Do not touch food or containers in the
freezer compartment with wet hands.
It may cause a cold injury.
Be careful when attaching and removing
the glass shelf and pocket.
If it is attached improperly, it could come loose
and fall, causing injury.
Be careful not to hit your hand against
or get your finger caught in the freezer
compartment door or partition.
There is a risk of injury.
Be careful when breaking apart ice
stuck in the ice storage box.
There is a risk of injury.
When Using
Do not use in a shed or garage.
Small animals may damage the electrical wiring
and cause an electric shock or fire.
Do not place water containers on top of
the refrigerator.
Exposing electrical parts to water may cause an
electric shock or fire.
Do not wash with water or spill soup or
juice onto the refrigerator.
Water or other liquid may cause an electric shock
or fire. Wipe off any liquid immediately.
If you notice a gas leak, do not touch the
refrigerator. Open windows to ventilate.
Sparks from an electrical contact may cause an
explosion or fire.
When the doors are opened or closed,
beware not to hit any furniture.
The door or furniture may be damaged and cause
injury.
Malfunctions and Long-Term Storage
Do not disassemble, repair, or alter.
Do not use while parts are damaged.
Doing so may cause injury, electric shock or fire.
If the refrigerant circuit (pipe) is
damaged, do not touch the refrigerator
and avoid using flames.
Open windows to ventilate.
If the refrigerant circuit is damaged,
contact the retail store.
Failing to do so may cause a fire.
When not using the refrigerator for a
long time, unplug the power plug and
open the doors to dry the refrigerator.
If the refrigerator is not dried sufficiently,
refrigerant may leak due to condenser corrosion
and cause a fire or explosion.
If an abnormality occurs (such as a
burning odor), unplug the power plug
and stop refrigerator operation.
Continuing to operate with an abnormality may
cause an electric shock or fire.
When Recycling
For storage, make sure to pull out and
remove the door seal.
There is a possibility of a child getting
trapped in the refrigerator during storage.
Contact the retail store or municipal
government for details about correct
refrigerator disposal.
Improper disposal may cause refrigerant leaks,
resulting in a fire or explosion if exposed to a
flame.
If an abnormality or malfunction occurs, stop operation immediately
and contact the retail store where you purchased the refrigerator or
MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent.
Follow the
instructions
Caution
Safety
6

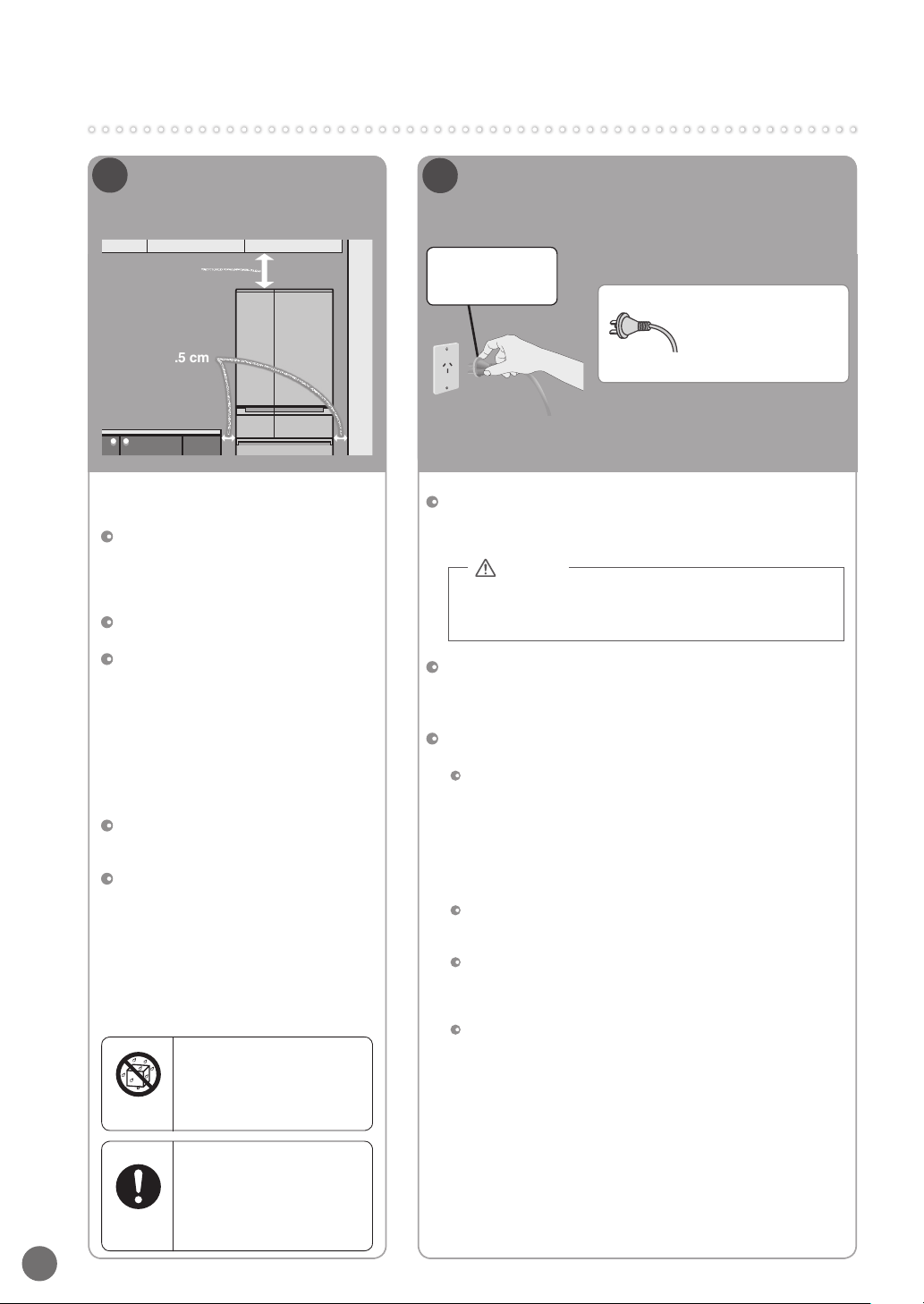

Space of 5 cm
or more
Space of 0.5 cm
or more
Install the refrigerator in the
following kind of location.
A place with good ventilation and
not exposed to direct sunlight or
hot air
To keep good cooling performance and
reduce power costs.
A place with low humidity
To prevent it from rusting.
A strong and level place
To prevent vibration, noise, and ajar or
tilting doors.
To prevent deformation or discoloration
of the floor materials due to the weight
or heat.
*If the floor materials are carpets, tatami
mats, wooden floors, PVC floors, etc.
and may deform or discolor, lay a
strong plate or board underneath.
A place away from other devices
To prevent noise or video interference
with devices such as televisions.
There should be at least 0.5 cm of
space on both the left and right
sides, and at least 5 cm of space
above.
To allow heat to dissipate from the top
and the sides of the refrigerator.
*The rear can be placed directly against
the wall. Leave some space if sound or
stain is a concern.
Installation
Leave space around the
refrigerator.
If refrigerant leaks, it may
accumulate and catch fire or
explode.
Follow the
instructions
Do not install the refrigerator
outdoors or in places exposed
to water or excessive humidity.
Water may cause insulation failure,
resulting in an electric shock or fire.
Water
prohibited
1
From Installation to Operation
Connect the Power Supply
* Connect power supply soon after installing the
refrigerator
Use a dedicated outlet
Use a dedicated outlet for the power supply that meets the rating
specified on the rating label. (The rating label is located on the
refrigerator compartment.)
Warning
Using outlets that do not meet the specified rating or
plugging in too many leads into a single socket can cause
heat buildup or fire.
The refrigerator will not be damaged even if the power is
supplied soon after installation.
It takes a while for the refrigerator to cool, therefore supply
power as soon as possible.
Electrical Connections
Make sure this unit is properly grounded.
The refrigerator should always be plugged into its
dedicated electrical outlet.
This will provide the best performance and prevent
electrical circuits from being overloaded and causing a
fire.
Make sure that the electrical outlet provides the proper
voltage.
Extension cords are not recommended.
If your refrigerator is installed in the high humidity
location, not only ground connection but also installation
of the earth leakage breaker is recommended.
If the power cord is damaged, purchase a new cord from
MITSUBISHI ELECTRIC SERVICE CENTRE or its
service agent. Make sure that the power cord is designed
for this model, in order to avoid a hazard.
If the power cord is damaged, contact MITSUBISHI
ELECTRIC SERVICE CENTRE or its service agent for
the replacement, in order to avoid a hazard.
2
Turn on the power of the
refrigerator as soon as
possible.
Dedicated
outlet that meets
the specified rating.
7
After adjustment, attach the adjustable support cover.
(The adjustable support
cover is stored inside the
refrigerator compartment
at shipment)
Bottom front of refrigerator
3
Adjustment and Anchoring
Adjust the tilt with the adjustable supports.
Caster
(To prevent vibration, noise,
movement, and doors left ajar)
Turn the adjustable supports to the floor and anchor
them so that the refrigerator will not move.
Right
Right
Left
Left
The right door tilts down The left door tilts down
Fully insert the adjustable support cover
horizontally until it touches the rear side.
Anchor the refrigerator
to a strong and level
floor by adjusting the
adjustable supports.
Otherwise, the refrigerator may
move and cause injury.
Follow the
instructions
Turn the adjustable supports in the
arrow direction until they touch the
floor.
Adjustable
support
cover
Adjustable
support
cover
Adjustable
support
Caster
Adjustable support
Turn the right adjustable support
in the direction of the arrow to
lower the refrigerator.
If the door is still tilted after
adjusting the adjustable support,
place a strong board*
1
under the
adjustable support on the left
rear side to make it level.
Turn the adjustable support in the direction of
the arrow to lower the refrigerator, and insert
a felt sheet between the support and the floor.
Insert the tool as far as it goes into the
indentation of the adjustable support.
Turn the tool to adjust the tilt of the refrigerator.
Turn the left adjustable support
in the direction of the arrow to
lower the refrigerator.
If the door is still tilted after
adjusting the adjustable support,
place a strong board*
1
under the
adjustable support on the right
rear side to make it level.
Adjust the supports to
make the refrigerator level.
If the front of the
refrigerator is slightly
raised, the doors are
easier to close.
If you find it difficult to turn the adjustable supports,
use the supplied adjustable support tool kit.
The adjustable support tool kit is stored inside the refrigerator compartment at shipment.
* The figure shows the left adjustable support as an example. The right adjustable support looks the same.
A few days after installation, the floor may sink due to the refrigerator's
weight. Readjust the tilt with the adjustable supports.
*
1
Normally, use a board with a thickness of 2 to 3 mm.
Adjustable support
(lower front
section)
Felt sheet
Adjustable support tool
Prepare for Earthquakes
It is recommended to
pass 2 strong belts
through the hand-holds
on the top rear of the
refrigerator and anchor
them to a strong location,
such as a wall or post.
Strong Belts
Prohibited
Use in hot spring and geothermal areas
Corrosion control treatment may be required for the refrigerant circuit
(pipe) due to generation of corrosive gases.
Contact the retail store where you purchased the refrigerator.
Do not damage the refrigerant circuit (pipes) or
drive screws into it.
Because combustible refrigerant is used, this may result in fire
or an explosion.
Indentation
Installation
8
Touching
will cause the operable icons to light up.
To save power, all displays other than are usually turned off (it turns
off if there is no operation for about 30 seconds).
How to Use the Operation Panel
When operating, be sure to touch the buttons with your fingers.
Touch to go to
compartment selection;
Touch
to go to various
settings.
Pages 21 - 25
Detail Setting
Example:
When setting the
refrigerator compartment to "M"
The refrigerator's ECO level is
indicated with the number of
marks.
Page 20
ECO GUIDE
Child Safety Lock
Page 31
If you touch the operation panel, icons will be displayed. You can
select the setting that you prefer.
Supercool Freezing
To supercool freeze foods such as meat, fish, and dessert
Hot Freezing
To use Supercool Freezing on hot cooked foods such as freshly cooked rice,
curry, and sauces
Touch an icon to display its setting details.
Supercool Chilling
To preserve meat or fish below freezing
Energy Saving Mode
To successfully save power
The refrigerator takes time to cool completely.
• Wait until the refrigerator has sufficiently cooled before
storing ice cream and foods cooler than room temperature.
• Do not open the doors more than necessary, and close them
as soon as possible.
• In summertime, it may take more than 24 hours to make ice
immediately after installation.
There may be a plastic odor.
This odor will gradually disappear.
Ventilate the room to prevent any odors from being trapped.
The refrigerator will be powerfully cooled
(this is the same for summertime).
• Because heat will radiate out of the refrigerator in order to
cool its contents, the sides will become hot.
• Because the compressor will enter high-speed operation,
the operation sound will grow loud.
Beginning Use
When setting or cancelling settings (or cancelling
in the middle), touch one of these.
9
Operation Example
(When Setting Supercool Chilling)
To Cancel the Setting/Cancel in the Middle
In
2
and
3
, touching
returns the display to the previous state.
In the following cases, the display may not change even when you touch it.
Wipe the moisture and dirt off your fingers.
Perform operations with your hands. After you have touched an icon, confirm that the display has changed before touching again.
The response may vary, depending on the surrounding temperature, humidity, the health condition of the person who operates it,
and the operating condition of neighboring electric appliances.
Detail Setting
Pages 21 - 25
When you keep the door of the refrigerator open,
touch for about 1 second. (until the buzzer
sounds once)
1
Touch
Touch
Operable icons light
up.
The operation
panel or your
fingers are wet
or dirty.
The interval between
touches is too short.
(Pressing repeatedly
may cause a
misdetection)
It lights up for 5
seconds after
setting.
3
The text above the
touched icon lights up.
The text above the
icon will disappear.
Touch the icon
to cancel
2
Touch
1
The
compartment
being set
brightly lights
up.
You are wearing gloves or
have sticking plaster on your
finger.
Touch the icon to set
Here touch .
2
3
Confirm the setting details
and compartment, then
touch
.
Operation
Panel
10
When a door is open,
you will be informed
with the door alarm.
Page 32
Bottle Pocket (Small)
Bottle Pocket (Large)
Store plastic
or glass bottles.
Adjustable Pocket (Large)
Adjustable Pocket
(Large) (Small)
The height of the
adjustable pockets can
be changed.

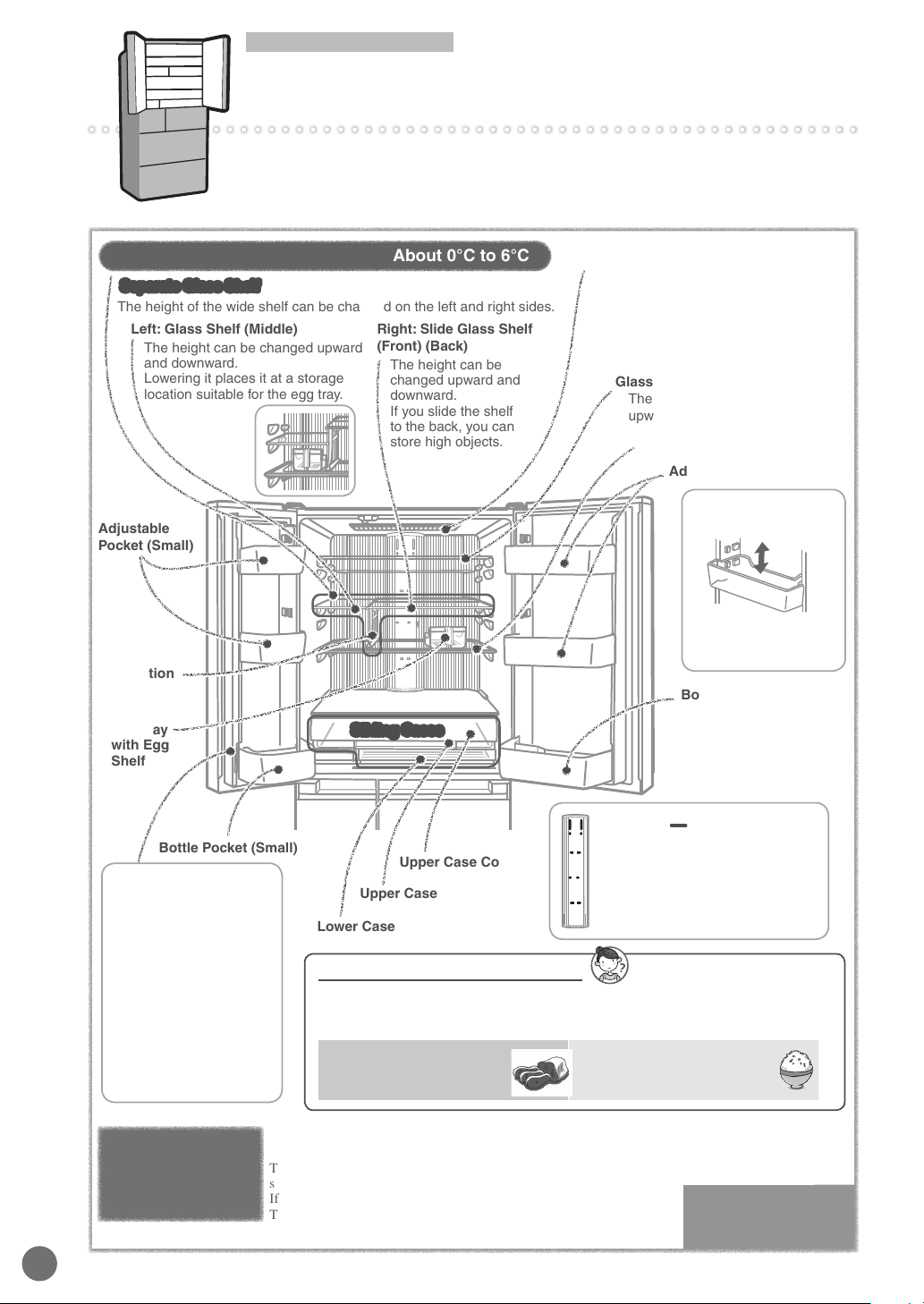

Refrigerator Compartment
About 0°C to 6°C
Lower Case
Use the refrigerator compartment when storing foods that will be consumed soon.
Foods such as meat, fish, dairy products, and processed food can be kept
fresh longer in the sliding cases at a temperature lower than the refrigerator
compartment.
Preventing the Transfer of Odors
Kimchi, pot stickers,
sardines (seafood), beef, etc.
Food that transfers odors easily
Rice, potato salad, etc.
Food that may easily absorb
odors
It is recommended that foods that have strong odors or easily absorb odor are either
wrapped thoroughly or stored in an airtight container
.
Upper Case
The height of the wide shelf can be changed on the left and right sides.
Glass Shelf (Upper)
The height can be changed
upward and downward.
The door may stop before closing completely if you swing the door too
softly.
If the door stops (ajar), it will not close automatically.
The speed of the closing door may change according to the amount of food
stored.
The door will
automatically close
from halfway with
the Auto closer
Upper Case Cover
Compartment Introduction
With the door of the refrigerator compartment open at an angle of about 20 degrees or
less, the door will close automatically.
Right: Slide Glass Shelf
(Front) (Back)
The height can be
changed upward and
downward.
If you slide the shelf
to the back, you can
store high objects.
Left: Glass Shelf (Middle)
The height can be changed upward
and downward.
Lowering it places it at a storage
location suitable for the egg tray.
Adjustable
Pocket (Small)
Egg Tray
with Egg
Shelf
Partition
Rotating Partition
Open and close the
doors slowly.
If you open or close the
doors with force, the
rotating partition may
open to the front.
Return the partition
to its regular position
before closing the door.
(Otherwise it may be
damaged.)
Air Outlet
If food with a high water content
is placed near the air outlets, it
may freeze.
(Cans of beer and soft drink, etc., in
particular, may burst when frozen.)
Separate Glass Shelf
Sliding Cases
If the interior light is damaged, contact
MITSUBISHI ELECTRIC SERVICE
CENTRE or its service agent for the
replacement, in order to avoid a hazard.
Interior Light
Uses 6 LEDs.
Glass Shelf (Lower)
Refrigerator Compartment / Sliding Cases
11
Do not leave food hanging over shelves or pockets.
Do not place bottles that cannot fit all the way to the bottom of the bottle pocket.
Do not attach a case that you purchased separately onto the outside of a pocket.
Do not heat the glass surfaces of the glass shelves or place hot objects on them.
Do not close the door while food is in front of the upper case or the lower case.
Fully stow away the cases. Otherwise they may keep a door ajar and reduce the cooling performance, or food may fall and cause damage to a case.
Do not pile food to the top. Leave a gap so that cold air can flow to the ceiling and between food.

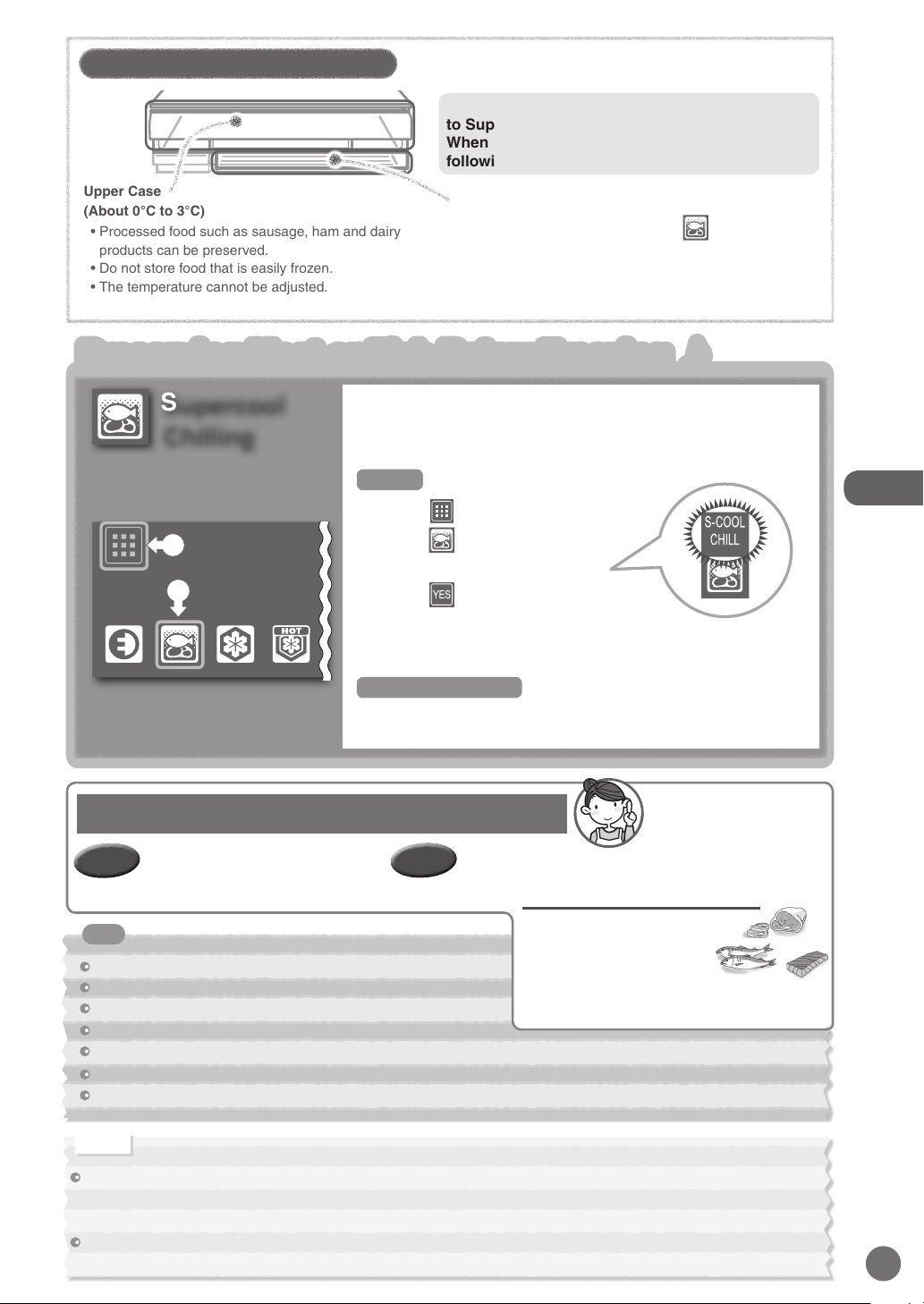

Preserving Meat or Fish Below Freezing
♪
Supercool
Chilling
Supercool Chilling stores and preserves meat or fish for a longer
time at a temperature lower than the refrigerator compartment or
upper case without freezing them.
Once it has been set, Supercool Chilling will be the default
setting until it is disabled.
1
Touch on the operation panel
2
Touch
The text above the icon will light up.
3
Touch
The settings are finished.
It doesn't matter whether you put food in before or after the
settings.
To cancel the setting
Page 9
* If you disable the setting, the lower case can be used in the same way as
the upper case.
1
2
To Set
Meat and fish last longer and are fresher than in
the refrigerator compartment or upper case!
Supercool Chilling Is Very Useful
Estimated Preservation Period
Meat ········ Up to about 7 days
Fish
········· Up to about 5 days
Sashimi (Block)
······ Up to about
3 days
Because the food doesn't
freeze, the fresh flavor lasts
longer!
Keep
fresh
Tastes
good
* The preservation period will differ according to the
freshness of food before storing it and the using condition
of the refrigerator.
Notice
Because sliding cases cannot guarantee the quality of foods that easily freeze (such as tofu, konjac, raw eggs, vegetables, etc.),
storing such foods is not suitable. Depending on the type and amount of food, as well as its condition at the time it is placed in the
refrigerator, food may freeze.
The temperature of the lower case (when Supercool Chilling is set) may exceed 0°C depending on the time of door opening/closing
and the amount of food.
Upper Case
(About 0°C to 3°C)
• Processed food such as sausage, ham and dairy
products can be preserved.
• Do not store food that is easily frozen.
• The temperature cannot be adjusted.
At the time of purchase, the lower case is not set
to Supercool Chilling.
When setting Supercool Chilling, use the
following settings.
• Food will not freeze, even below the freezing point (about
-3°C to 0°C)
• The freshness of meat and fish can be prolonged without
freezing.
Sliding Cases
About -3°C to 3°C
Lower Case
Supercool Chilling can be set with .
REF
Sliding Cases
Tips
12
Ice
Server
Ice Tray
Reference Line
Sensor Lever
(Detects the
ice storage
level)
Ice Storage
Box
Door
Lay flat
Remove the water tank from the refrigerator compartment,
remove the tank cap
by twisting it,
and supply water.
Do not pour water above the full position (
).
Water will easily spill when you carry the tank.
Further, it may cause the ice to join together or form a
protrusion.
*WARNING-Fill with potable water only.
Push in the water tank until it touches the rear side.
Setting the water tank incorrectly may prevent ice from forming.
Tilting the tank will cause the water to spill.
Hold the tank with
both hands.
Push the tank until it
touches the rear side.
Close the water tank cap and return the water tank to its
original position.
Making Ice
Water
Supply
Port
When a door is open,
you will be informed
with the door alarm.
Page 32
Lid
Tank Cap
Ice Tray
Water Tank
(About 1.2L)
Ice Storage
Box
Ice Tray Lock Lever
Push in the water tank until it touches
the rear side and confirm that the handle
is aligned with the front of the lower
case.
If water is put into the refrigerator compartment's water tank, ice will be
made in the ice making compartment.
Clean the ice maker periodically to ensure that the ice is pure and
delicious.
Pages 26 - 27
Wash the water tank, water supply pipe, and ice tray before making ice for the first time, or if you have
not made ice for more than a week.
Ice Making Compartment
Ice
Server
Ice Storage
Box
Compartment Introduction
Lower Case
Full position (
)
1
2
Soundproof Mat
Reduces the sound of dropping
ice. Do not dispose of it.
Do not place food inside when making ice.
Stop the ice making and then place the food below the reference line on
the side. (Not doing so may result in a half-shut door or malfunction and
damage)
Pages 21 - 22
Do not pour anything other than cold water into the water tank, such as warm water,
juice, tea, soft drinks, or other liquids (the tank can resist heat up to 60°C).
Pouring anything other than cold water into the tank may cause damage.
Do not pour water directly into the ice tray to make ice. Unfrozen water in the ice
tray may fall into the ice storage box, and the ice may not form cubes.
The level of the ice storage is checked automatically by the sensor lever, and ice making
is stopped when the ice reaches a certain level (about 70 to 140 ice cubes). To detect the
ice storage level correctly, make sure that the ice is flat and that the ice server is kept in its
storage position in the front of the ice storage box as shown in the left diagram.
Open and shut the door of the ice making compartment slowly. There is a
risk of the ice spilling.
Tips
13
About 10 to 12 ice cubes can be made each time. The
ice cube size and the number of ice cubes in one batch
depend on various factors, such as the amount of water
in the water tank. When few ice cubes are being made,
pour water into the water tank.
When ice is made using water with a high mineral content,
such as mineral water, white deposits (white crystals) may
form in the ice. This is the crystallized mineral content
and is not harmful.
If the ice is stored inside the ice storage box for a long
time, ice cubes may join together or shrink (due to a
phenomenon called sublimation).

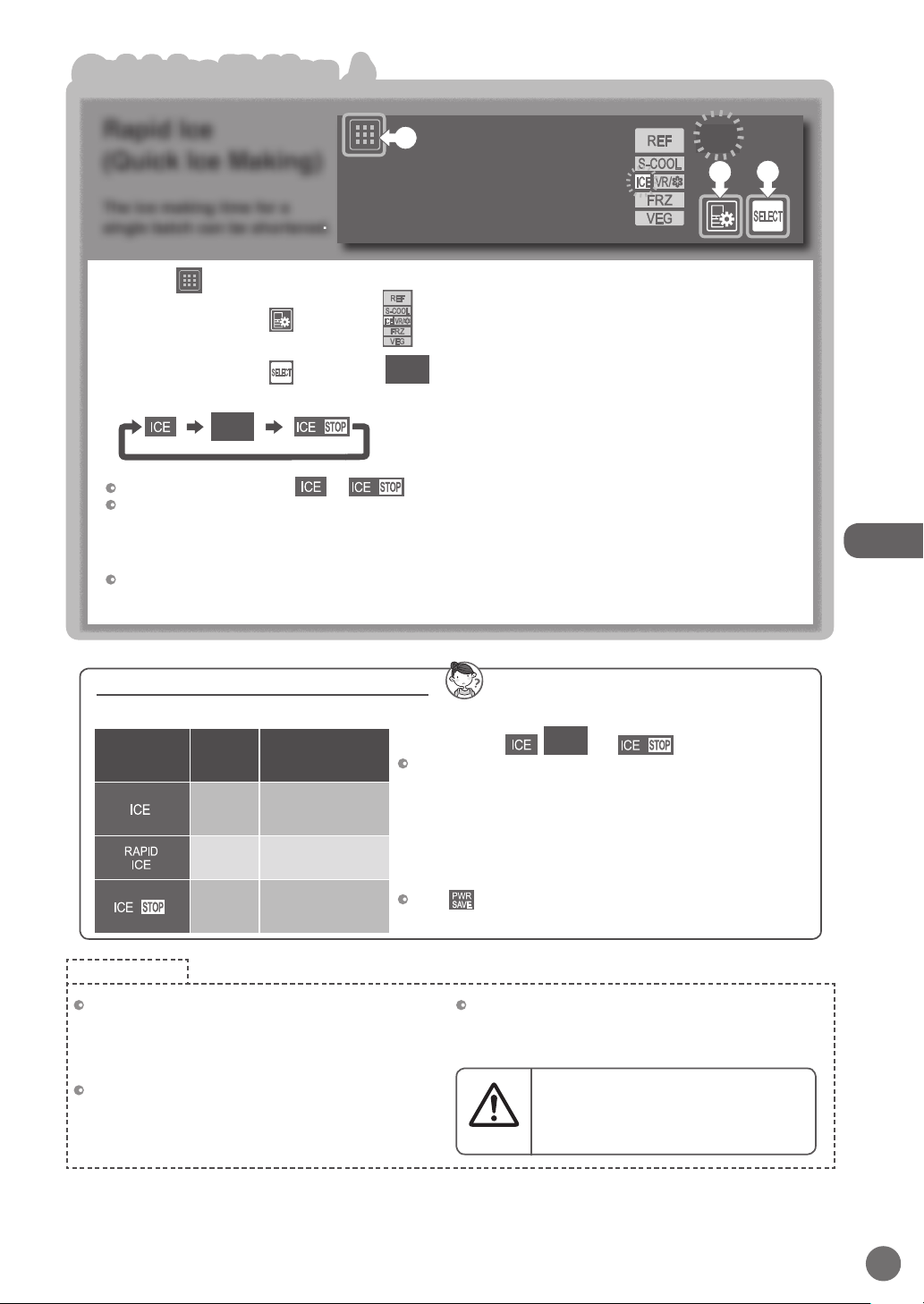

Quick Ice Making
♪
Rapid Ice
(Quick Ice Making)
The ice making time for a
single batch can be shortened.
How much time does it take to make Ice?
Ice making time will differ according to ice making compartment settings. Regular ice making is set at the time of purchase.
Operation
Panel
Display
Setting
Ice Making Time
for 1 Batch
Regular
Ice
Making
About 2 hours
Quick Ice
Making
75 to 95 minutes
Ice
Making
Stopped
Ice will not be
made.
To switch between
,
RAPID
ICE
, and
Page 22.
In addition to the surrounding temperature, water type, and water
volume and temperature in the water tank, ice making times may vary
with the following conditions, and be longer than those in the table.
•In winter or at other times when the surrounding temperature is low
•When the door is often opened and closed
•When the freezer compartment is set to "L"
•When Energy Saving Mode is set
Page 20
•When the ice tray is pulled out and reinserted during ice making
When is displayed, ice cannot be made. Cancel the setting.
Page 24
2
1
3
1
Touch on the operation panel
2
Repeatedly touch to display
Pages 21 - 22
3
Repeatedly touch to light up
RAPID
ICE
.
The display changes each time the button is touched.
RAPID
ICE
To cancel Rapid Ice, select
or
.
In the following cases, quick ice making is stopped automatically, and regular ice making will begin.
•When about 10 hours have passed since the quick ice making is set.
•When the ice storage box is full (about 70 to 140 ice cubes)
•When there is no water in the water tank
The sound of the refrigerator running gets louder during Rapid Ice, because it is operating at high speed.
Also, the ice may split or crack because it freezes in a short time.
About the Ice
The settings are finished.
Be careful when breaking apart ice
stuck in the ice storage box.
There is a risk of injury.
Caution
RAPID
ICE
Ice
14
Compartment Introduction
To supercool freeze such as meat, fish, and dessert
♪
When a door is open, you
will be informed with the
door alarm.
Page 32
Versa Compartment Case
Do not stack food higher than
the case. Doing so may result in
the door being unable to close,
food melting, or food being
damaged.
Aluminum
Tray
The cold tray
quickly cools the
food.
The versa compartment can be switched between “Soft-Freezing” and “Freezer.”
Placing food in the versa compartment and using “S-COOL FREEZE” or
“HOT FREEZE” mode allows food to be frozen without losing its taste
and texture.
Soft-Freezing / Supercool Freezing
Pages 16 - 18
Supercool
Freezing
Foods such as meat, fish, and dessert can be deliciously frozen.
Place food in the versa compartment before setting.
Reset if placing new food inside even it was already set.
1
Touch
on the operation panel
2
Touch
The letters above the icon will light up.
3
Touch
The settings are finished.
This ends automatically after about 8 hours.
After it ends, the food will be stored in Soft-Freezing mode.
Selecting will cancel .
To cancel in the middle
Page 9
1
2
What can the versa compartment do?
The temperature in the versa
compartment can be adjusted
by switching between
Soft-Freezing and Freezing.
With Soft-Freezing, to freeze
food, use
. For freshly
cooked rice or other warm food,
use
.
Operation Panel Display Versa Compartment Condition
Soft-Freezing
Food can be cooked immediately after being taken out.
Meat, fish, etc. can be stored for 2 to 3 weeks*
1
.
This is set at the time of purchase.
With
and , food can be frozen even more
deliciously.
Freezing
Meat, fish, etc. can be stored for about 1 month.
For storing ice cream and frozen foods, use “FRZ•H”.
Performing temperature
adjustment
Pages 21 - 22
To Set
When Soft-Freezing is set
*1 The preservation period varies depending on the types of food and the condition when food was placed inside.
Versa Compartment
15
To Use Supercool Freezing on Hot Cooked Foods such as Freshly Cooked Rice, Curry, and Sauces
♪
Hot Freezing
With “Supercool Freezing” and “Hot Freezing” (both referred to as “Supercool Freezing”)...
•
At times such as storing new food, please set or again, and reduce the opening and closing of the doors as much as
possible.
•
If you want to store food frozen with Supercool Freezing for a long time, move it to the freezer compartment quickly. Because
food moved to the freezer compartment will freeze and harden, please thaw out food before using it.
•
Please do not store food that is hotter than 80°C.
With Soft-Freezing...
•
When you have frozen a food too hard, leave it at room temperature for about 5 to 15 minutes. It will become easy to cut.
•
Adjust the temperature according to how the food is frozen.
Pages 21 - 22
•
If the temperature setting of food is switched from freezing to Soft-Freezing, the food should be consumed as soon as possible
(within 1 to 2 weeks).
•
Even if fruit is thawed, it does not return to its original condition. Eat frozen fruit without thawing it.
•
If fruit is stored for more than a week with Soft-Freezing, its taste may change. We recommend eating within 2 to 3 days.
1
Touch on the operation panel
2
Touch
The text above the icon will light up.
3
Touch
The settings are finished.
This ends automatically after about 9 hours.
The letters above the icon will light up until it ends.
After it ends, the food will be stored in Soft-Freezing mode.
Selecting
will cancel
.
To Cancel
Page 9
1
2
To Set
When Soft-Freezing is set
Notice
Supercool Freezing cannot be performed during Power Save Mode.
When performing operations with or in
2
, if a continuous beeping sound occurs and the setting cannot be performed,
the temperature setting is set to “Freezing.”
It can be set when Soft-Freezing.
You can use Supercool Freezing even when other foods are still inside.
Even after Supercool Freezing has finished, the food may not be completely frozen. (When the temperature is set to Supercool
Freezing or Soft-Freezing, because food is frozen at about -7°C, it may take about 24 hours for the food to freeze completely.)
The degree of freezing or freezer burn may vary depending on the food type, cooking method, storage arrangement (stacking,
storage location), the amount of food, and the storage time.
Depending on how much sugar, salt, moisture, or fat the food contains, freezing may not be possible or the food may harden when
frozen (cannot be cut immediately with a kitchen knife).
Use for food that is warmer than body temperature.
Hot or warm cooked foods such as freshly cooked rice, curry, and
sauces can be deliciously frozen.
It can also be used to cool the food just after cooking.
Place food in the versa compartment before setting.
Reset if placing new food inside even it was already set.
S-COOL
Tips
16
You can easily
slice them.
It can be cut with a kitchen
knife easily without thawing.
Because it can be cut while
frozen, whatever you will not
use can be returned to the
versa compartment. Food can
be used without being wasteful.
Cutlets
You can easily separate them.
No need for dividing them by the
amount per serving before freezing.
Purchased packs can be frozen as
it is. Bake them at low heat without
thawing and there is no trouble.
Thinly sliced meat / Bacon
Ground meat / Blocks of meat
Meat sauce
If there is sauce left over, place it in a
storage container and use "Hot
Freezing" Scoop out only the necessary
amount and dress the pasta with it to
easily make a meat sauce pasta.
Scoop the
amount you need
You can easily
separate them.
You can easily separate
them one by one and slice
them finely without thawing.
They will thaw while basting.
Meat
Fish
Since food can be easily cut even when frozen, it can be cooked without thawing
*
1
.
Only the
necessary amount
Sauces
Freeze foods with their original flavors. The frozen foods
do not have to be thawed before being consumed.
Significantly reduces dripping
during thawing and the loss
of nutrients, preserving flavor
Cut steak meat and blocks of meat into
100 to 200 grams and use "Supercool
Freezing" prevent dripping and preserve the
taste and nutrients of food through Supercool
Freezing.
Use
"Hot Freezing"
to keep potatoes
in curry fresh. Just thaw the curry out for
that fresh-cooked potato texture. There
is none of the bother to remove potatoes
before freezing them.
Things unsuitable for freezing such as
potatoes and bamboo shoots can be
frozen
You can
batch cook
Prevents
meat drip
Food can be frozen, while preserving its taste and texture.
Freshly cooked rice can
also be frozen while hot
Hot Freezing
Supercool Freezing
Use "Hot Freezing" to preserve the
flavor of freshly cooked rice. Thaw it to
enjoy its glutinous texture.
keep savory
taste
Versa Compartment
(Soft-Freezing setting)
Freezer
Compartment
Versa Compartment
(Soft-Freezing setting)
Freezer
Compartment
Freezer Compartment and Versa Compartment: Using them properly
Make a large batch of simmered foods that are delicious when
cooked in a large batch, then use
"Hot Freezing" on the
excess amount. Move the supercool frozen food to the freezer
compartment to preserve for a long period of time. This can also
save the time and labor of cooking every day.
This is recommended for when you would like to consume food
without thawing.
Food that has been moved to the versa compartment (set to
Soft-Freezing) can be cut to just the portions necessary, so food
is not wasted.
Although this differs depending on the size of the food, most
food can be cut in about 2 to 5 hours.
* Meat and fish can be preserved in a freezer compartment for
about 1 month, but the preservation period will differ according
to the freshness of food before storing it.
* Use food within a short period of time (about 1 to 2 weeks).
*
1
Depending on the size or type of the food and how it is frozen, some time for defrosting may be necessary.
Hot Freezing
17

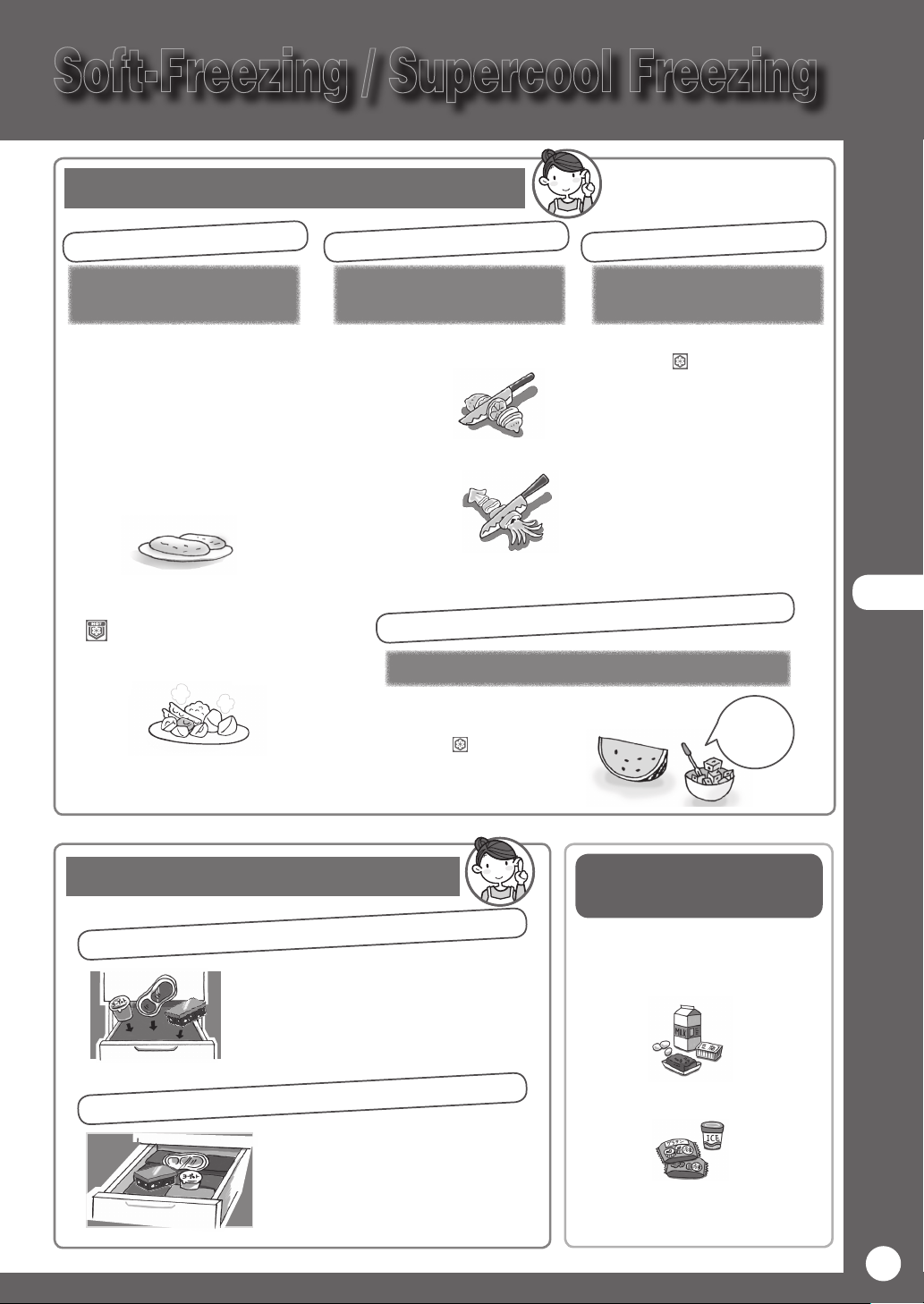

Foods that cannot be frozen
(Konjac (devil's tongue), tofu, milk, raw eggs, etc.)
Preservation of the pre-freezing texture
and quality cannot be guaranteed.
Foods Unsuitable for
Supercool Freezing
Soft-Freezing / Supercool Freezing
Convenient Preservation
Whitebait
Because it is frozen in a crumbly
state, you can scoop out just as
much as you need with a spoon.
Cod Roe / Squid Salted Fish-guts
At -7°C, food containing a large
amount of salt will not freeze. It can
be eaten right out of the refrigerator.
Boiled vegetables
Keep boiled vegetables together with
“Hot Freezing.” The vitamins of
the boiled vegetables will keep even
after thawing, making for a tasty
meal.
Lemon Slices
Slicing extremely thin lemons is
very easy!
Squid
Even slippery difficult-to-cut squid
can be cut easily.
Carpaccio
Red sea bream and Tuna can very thinly
be sliced. It can be prepared deliciously.
Karaage / Teriyaki
If you use "Supercool Freezing"
on meat marinated in seasoning
liquid such as karaage or teriyaki
chicken meat, you can use just as
much as you want whenever you
want.
Make meals quickly when you are busy
in the morning
Raw food that is difficult to cut
can be easily cut
Frozen fruits
Cut fruits into bite-size pieces
and use "Supercool
Freezing" on them for fruit
sorbet. Try it out on a variety
of fruits.
Enjoy fruit with a new texture
* The preservation period will differ according
to the food type and the condition of the food
when it is placed in the freezer compartment.
Put Foods at the Same Time.
If more food is added in the middle, the Supercool
Freezing may not work.
Do not store in a glass container. It may break.
Lay the Food out Flat on Top in the Versa Compartment.
Place food level and side by side.
Separate hot food from frozen food. The hot
food may touch and thaw the frozen food.
Sweet fruits
are
recommended
Food that has already thawed once
The texture and quality cannot be
guaranteed.
Groceries like frozen foods and ice
cream.
Easy Desserts
Easy to Cut
Easy to Make Meals
Can preserve for 2 to 3 weeks
Plus it is easy to use
Handy Tricks for
Supercool
Freezing
Tips for Supercool Freezing
S-COOL
18
Soft-Freezing / Supercool Freezing
(Continued)
Easy Dessert Recipes with Supercool Freezing
Ingredients
(1 serving)
Frozen with "Supercool Freezing"
Boiled cabbage About 1 leaf (About 50g)
Boiled spinach About 1 root clump (About 30g)
Peeled apple 1/2 apple
Yogurt (no sugar) 1/3 cup
Honey 1 tablespoon
Procedure
1
Cut the frozen cabbage, spinach, and
apples while still crunchy, and put in a
mixer together with all other ingredients.
Procedure
1 Remove strawberry stems and peel off kiwi skin.
2 Place the ingredients from 1 in separate bowls and carefully
mash them.
3
Add sugar according to the desired sweetness, then use
"Supercool Freezing"
4
After leaving it overnight, it's ready. Scoop out the amount
you'd like to use.
Strawberry and Kiwi Fresh Jam Green Smoothie
Ingredients
(For an easy-to-make amount)
Strawberries
1 Pack (About 300g)
Kiwis 4 to 5
(About 300g)
Sugar 60g to 100g
(Respectively for the strawberries
and for the kiwis)
When a door is open,
you will be informed
with the door alarm.
Page 32
Freezer Case (Lower)
Freezer Case (Upper)
Store frozen food and ice cream. Store bread, meat, and fish through
freezing.
Compartment Introduction
Important Point!
Because no heat is used, it is very easy to make and
produces beautiful colors. Also, because it can be
made with a small amount of sugar, it is very healthy.
It can even be casually made in small amounts when
you have left-over fruit.
Important Point!
Vegetables and fruits frozen with Supercool Freezing
are broken up by the mixer very quickly.
Freezer Compartment
Do not place tall objects in the freezer case (lower).
Food or the freezer case (upper) may become damaged or the door may not close, causing the accumulation of frost or lowering
the cooling performance.
Do not put in plastic drink bottles other than those meant for freezing.
The frozen contents may break the bottle.
Tips
19
Place vegetables, fruits, and beverages in this compartment. It preserves
food, maintaining the moisture that would normally go away over time.
Storing fruits and vegetables in plastic wrap keeps them even fresher.
The clean tray is provided for easy cleaning of the vegetable compartment♪
Vegetable Compartment
Vegetable Case
(Upper)
Clean tray
Vegetable Case
(Lower)
Door side
Keep Vegetables Moist
Pages 21-22
When a door is open,
you will be informed
with the door alarm.
Page 32
Compartment Introduction
• Vegetables stay alive even after harvest. Being
bathed in light, their nutrients are boosted up.
• There is almost no vegetable, fruit, drink or seasoning that
cannot be preserved or stored being exposed to light.
• The vegetable nutrients are increased even with a weak light,
so packaging does not need to be removed (except when the
packaging completely blocks off the light).
• The vegetable nutrients are not increased forever. The
preservation also depends on the freshness at the time of
purchase. Eat vegetables when they are as fresh as possible.
The orange LED is always on.
Bathed in light to increase the nutrients!
Vitamins boosted up
The orange LED
About the clean tray
When vegetable scraps accumulate on the clean tray or the tray becomes dirty, you can remove the
tray from the refrigerator and clean it.
The clean tray is treated with a coating, which makes it easy to wipe and clean even when it is
stained.
(Before you clean it, remove foodstuff from the tray.)
When the clean tray is stained
Page 28
The coating may peel off in the event of following.
• If the clean tray comes into contact with a bottle, can, or solid foodstuff or when the surface of the tray is rubbed with force.
• If the clean tray is soaked in water for a while to clean it or if the tray is wiped with alcohol.
Side view (cross-section)
If the orange LED is damaged,
contact MITSUBISHI ELECTRIC
SERVICE CENTRE or its service
agent for the replacement, in
order to avoid a hazard.
S-COOL
FRZ
VEG
Do not pile food higher than the height of the vegetable case (lower) or vegetable case (upper).
Food or the vegetable case (upper) may become damaged or the door may not close, causing the accumulation of condensation or
lowering the cooling performance.
Because the vegetable compartment has a high humidity depending on the amount or types of vegetables, frost or condensation may
form on the roof of the vegetable compartment or the surface of the cases. When condensation forms, wipe it off with a dry cloth.
Tips
20

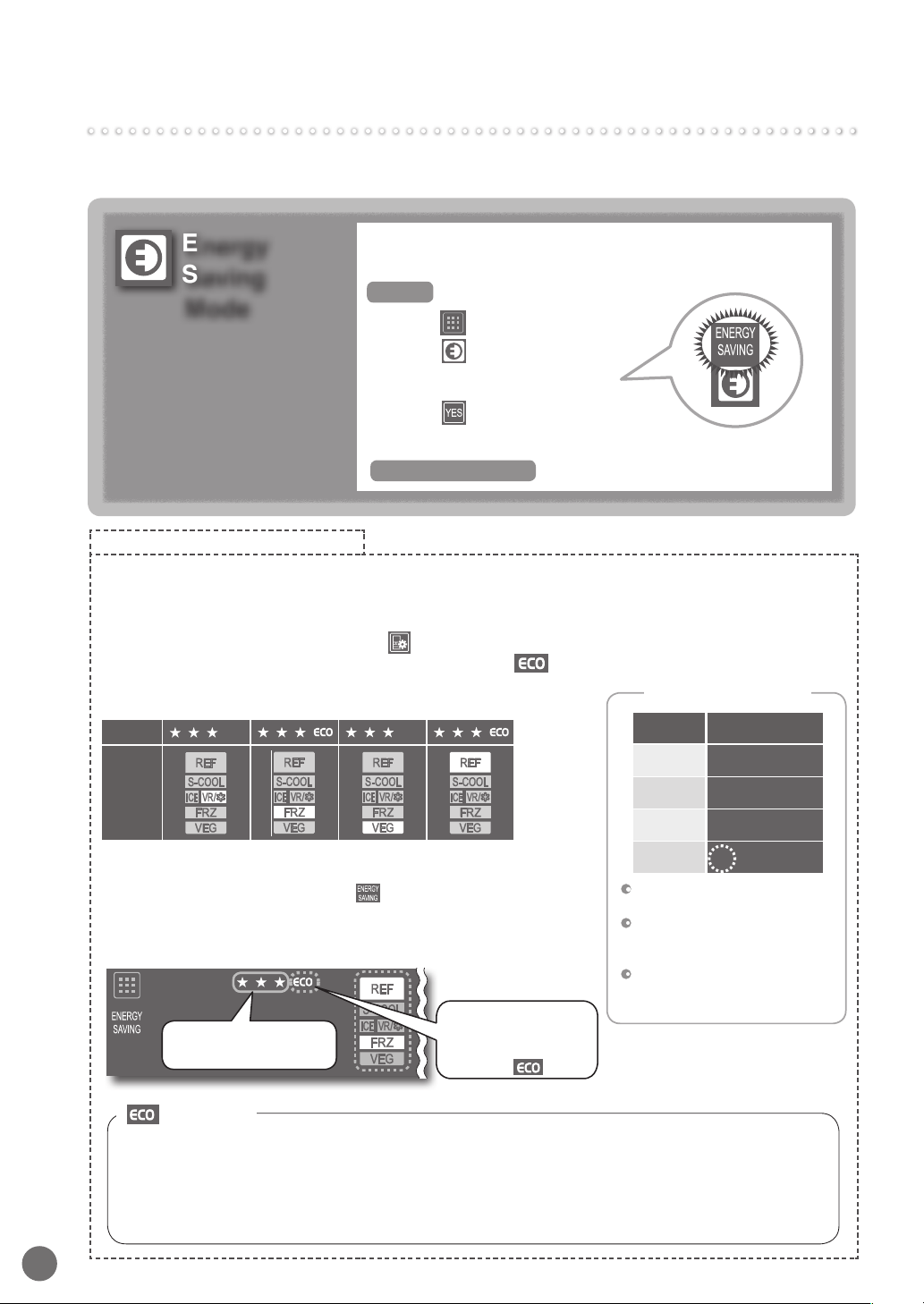

This mode learns each family's method of use and operates with the optimal state for each
compartment.
To Confirm with the ECO GUIDE
Operate the Operation Panel
The compartment display switches each time
is touched.
You can confirm which compartments are in energy saving mode with the
display.
The refrigerator's ECO level for the last 24 hours is indicated by the number of
★
marks judged from such things as the
temperature settings in each compartment and the frequency of opening and closing the doors in "how to use, etc."
Example: When the freezer compartment and the refrigerator
compartment are in energy saving mode (ECO level 3)
ECO level
Operation Panel
Display
Level 3
★★★
Level 2
★★
Level 1
★
Level 0
★
←
blinking
How to View the ECO GUIDE
At the time of purchase, level 1 is
displayed.
If energy is being saved, the ECO
level will increase (it is updated
about once every hour).
The ECO GUIDE is displayed even
when Energy Saving Mode is not
set.
After a door is closed, the ECO GUIDE and
will light up
(after about 30 seconds it will turn off).
The ECO level is indicated
on the ECO GUIDE.
Display example
Compartment
display
Close the Door
Energy Saving Mode
Energy
Saving
Mode
An appropriate timing is selected for each compartment and
the energy saving mode is performed automatically with a
slightly high temperature setting.
1
Touch on the operation panel
2
Touch
The text above the icon will light up.
3
Touch
The settings are finished.
To Cancel the Setting
Page 9
To Set
Lights-Out
In the following cases, energy saving mode will be cancelled and the light will turn off.
When the doors are frequently opened and closed
When Rapid Cool is operating
After defrosting
When set to Supercool Chilling.
( After the freezer compartment is sufficiently cold and stable, energy saving mode will automatically restart.)
Example: When the refrigerator compartment and the freezer
compartment are in energy saving mode
When Energy Saving Mode
is set, the compartment in
energy saving mode will
light up with
.
21

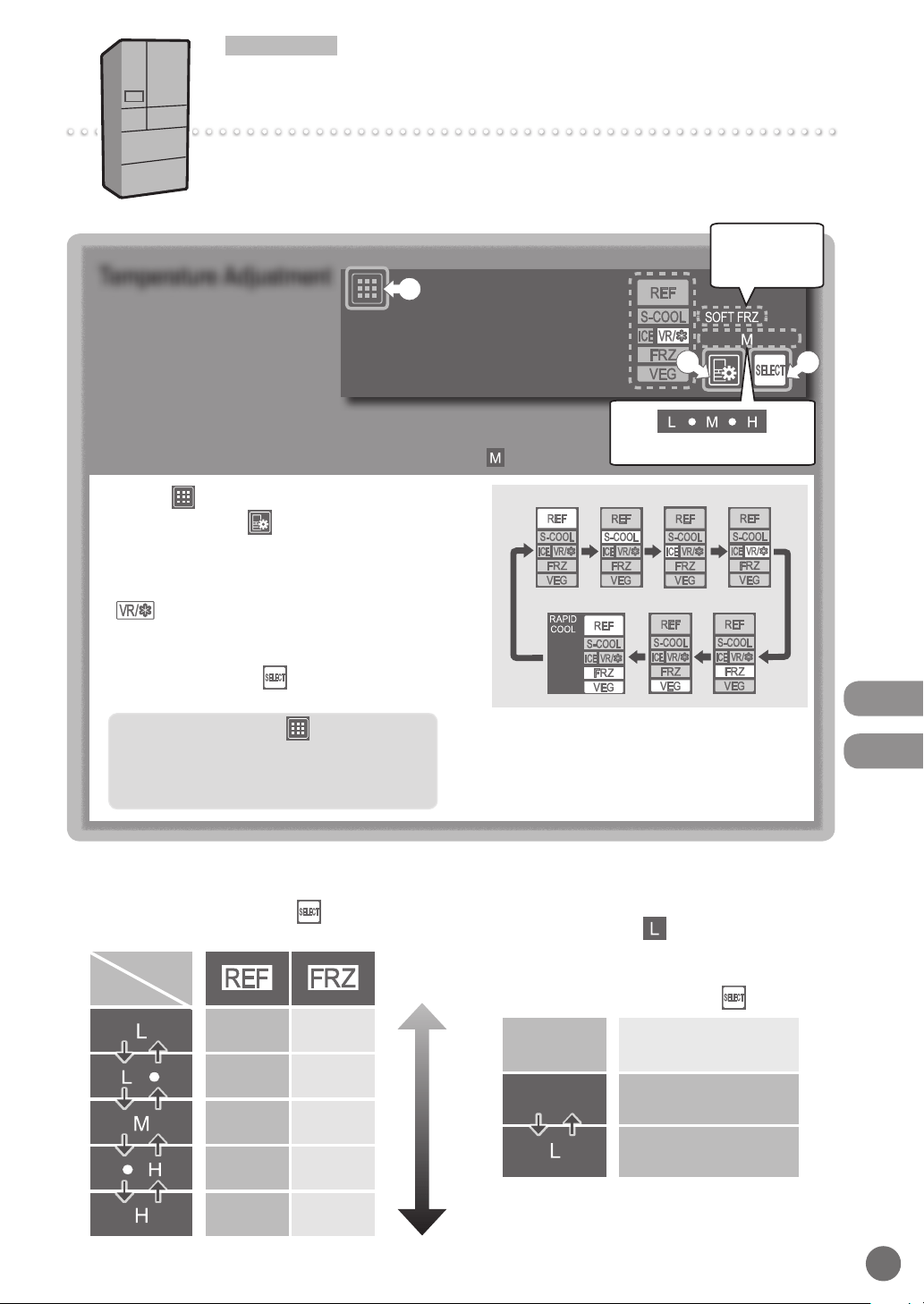

Refrigerator/Freezer Compartment Temperature
The display changes each time
is touched
and the temperature can be set to 5 different levels.
The freezer compartment temperature is different from the freezing temperature of the versa compartment.
High
Average
Low
2 to 3°C higher
than “M” level
2 to 3°C higher
than “M” level
1 to 2°C higher
than “M” level
1 to 2°C higher
than “M” level
Around
0 to 6°C
Around
-16 to -22°C
1 to 2°C lower
than “M” level
1 to 2°C lower
than “M” level
2 to 3°C lower
than “M” level
2 to 3°C lower
than “M” level
Lower Case (When Supercool Chilling is set)
Temperature
Can be adjusted to only when Supercool
Chilling is set.
Page 11
Make this setting when food freezes.
Operation
Panel Display
Compartment
Operation
Panel
Display
Application
Normally
When food freezes
When the surrounding
temperature is 5°C or less
The temperature of each compartment can be adjusted.
Use the refrigerator, freezer, and vegetable compartments set to "M"
usually.
Use the versa compartment in your preferred setting.
Temperature Adjustment
At the time of purchase, the
settings are as follows.
Refrigerator, Freezer, and
Vegetable Compartments
……"M"
Versa Compartment
……"SOFT FRZ M"
This is a display example of
when the versa compartment
is
set to "SOFT FRZ ."
1
Touch on the operation panel
2
Repeatedly touch to light up the compartment
that you want to set the temperature for.
The display changes in the order shown in the right each
time the button is touched.
is displayed at the time of purchase.
When a compartment is displayed, that compartment's
temperature setting will also be displayed.
3
Repeatedly touch
to set the temperature.
This is displayed when
setting the temperature of
the versa compartment.
3
2
1
The set temperature lights up.
Detail Setting
The display changes each time is touched.
In
2
and
3
, touching or not
performing any operations for about 30
seconds will return the display to its
initial state.
Page 8
Performing Temperature Adjustment
* 1 Can only be selected when Supercool Chilling is set.
Page 11
* 2 When set to Rapid Cool
Page 23
*2
*1
ENERGY
SAVING
Temperature
Adjustment
22

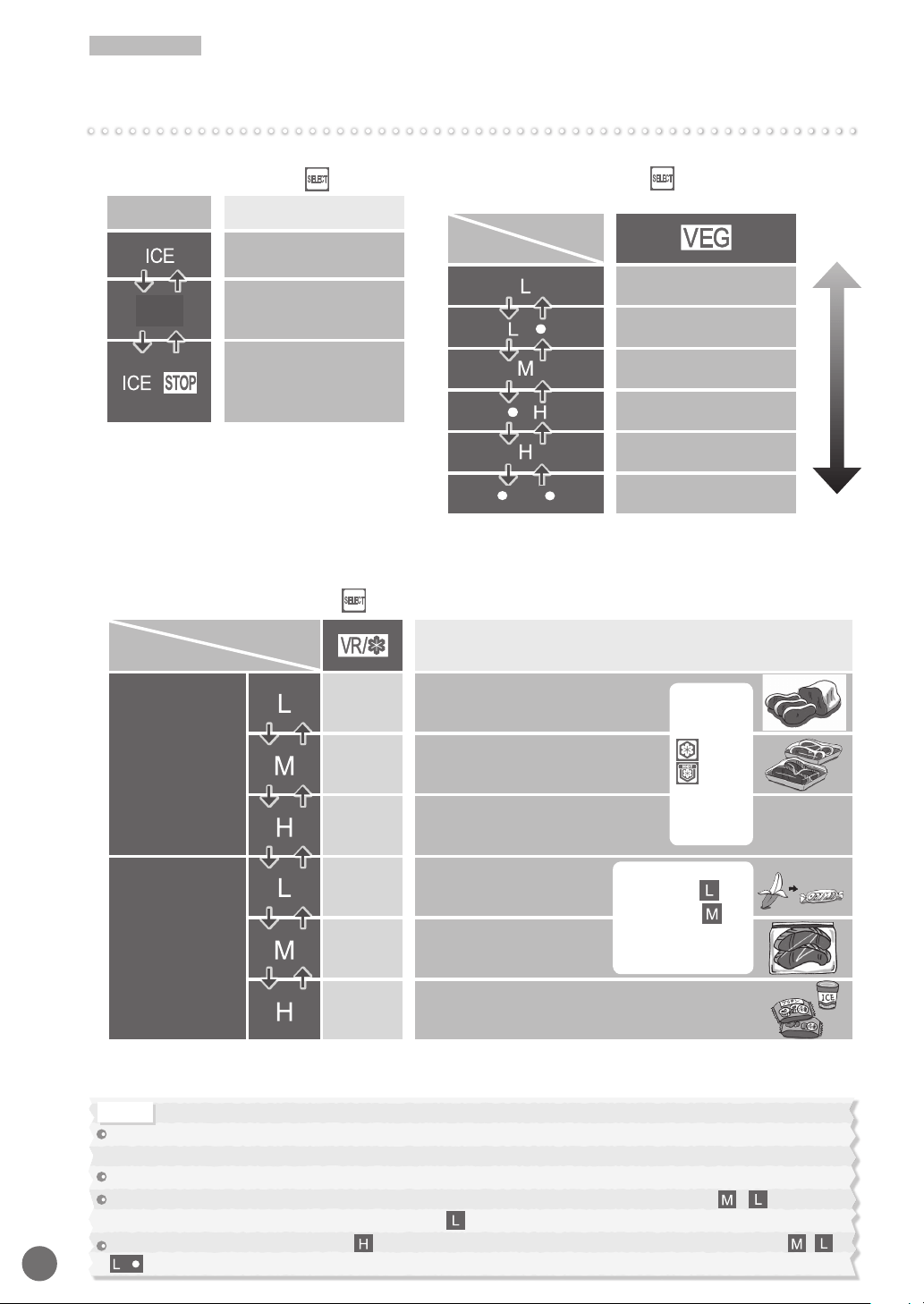

Application
SOFT FRZ
About
-5°C
For preserving food containing a lot of moisture
Large blocks of low-fat meat
For food that is frozen too hard and difficult to cut
About
-7°C
The optimum temperature for Supercool Freezing
The food is easy to cut even when frozen.
Packs can be frozen as-is.
About
-9°C
For preserving food containing a lot
of salt or sugar
For food that is difficult to freeze
FRZ
About
-12°C
For preserving food containing
a lot of salt or sugar
About
-15°C
For preserving food
that was frozen at home
About
-18°C
For preserving frozen food and ice cream that
were purchased
Versa Compartment Temperature
The display changes each time
is
touched and the temperature can be set to 6 different levels.
In Versa Compartment
Freezing mode
or
Freezing mode
, ice
cream or frozen food that
was purchased cannot
be stored.
The freezer compartment temperature is different from the freezing temperature of the versa compartment.
After changing from freezing to Soft-Freezing, it takes some time for the temperature inside the refrigerator to stabilize (about 2 hours).
Ice Making Compartment Settings
The display changes each time is touched.
Operation
Panel Display
Compartment
Vegetable Compartment Temperature Settings
The display changes each time is touched and temperature
can be set to 5 different levels to keep vegetables moist.
2 to 3°C higher than
“M” level
1 to 2°C higher than
“M” level
Around 3 to 9°C
0 to 1°C lower than
“M” level
1 to 2°C lower than
“M” level
Keep Vegetables Moist
Operation
Panel Display
Compartment
High
Average
Low
and
can be
used.
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has stabilized when the surrounding temperature is 32°C and
the doors are closed without any food inside. The temperature fluctuates with factors such as food storage conditions and how often the doors are opened and closed.
Before and after defrosting, the temperature inside the refrigerator may drop or rise temporarily.
When food freezes in the refrigerator compartment or lower case, set the refrigerator temperature setting to - and the lower
case temperature setting (when Supercool Chilling is set) to
.
If Versa compartment is set as Freezing mode
, then the temperature in the Freezer compartment will be automatically set as ( or
settings will not be available).
When you want to make ice quickly (Rapid Ice)
Page 13
* Clean in the same manner as in
3
of “When Not
Using the Refrigerator for a Long Time (When the
Power Plug Is Unplugged)” (
Page 32
).
When keeping vegetables moist, the vegetables can be freshly kept
for a long time in the temperature suitable for cooling leaf vegetables.
Notice
Detail Setting
Performing Temperature Adjustment
(Continued)
For short term storage of frozen food. Not to be used for
long term storage of frozen food or ice cream.
Operation Panel
Display
Application
When you want to make
ice
When you want to make
ice quickly
When not using the
refrigerator for a long time*
For cleaning
When you want to use as a
freezer compartment
RAPID
ICE
23
The sound of the refrigerator running gets louder during Rapid Cool, because it is operating at high speed.
When storing a large amount of food, protect the food's freshness by rapidly cooling it.
1
Touch on the operation panel
2
Repeatedly touch
to display
Page 21
will blink.
3
Touch
will change from blinking to staying lit, and then the setting is finished.
Rapid Cool
This ends automatically about 2 hours after setting.
It doesn't matter whether you put food in before or after the settings.
Rapid Cool
2
1
3
1
Touch on the operation panel
2
Repeatedly touch
to display
Page 21
will light up.
3
Touch
will change from lit to blinking, then will be cancelled.
To Cancel in the Middle
Detail Setting
Swiftly cool compartments
(Refrigerator, Freezer, and
Vegetable Compartments).
when their doors are opened
and closed
To Set
When set: Blinking
Light on
When cancelled: Light on
Blinking
Notice
Rapid
Cool
Temperature
Adjustment
24

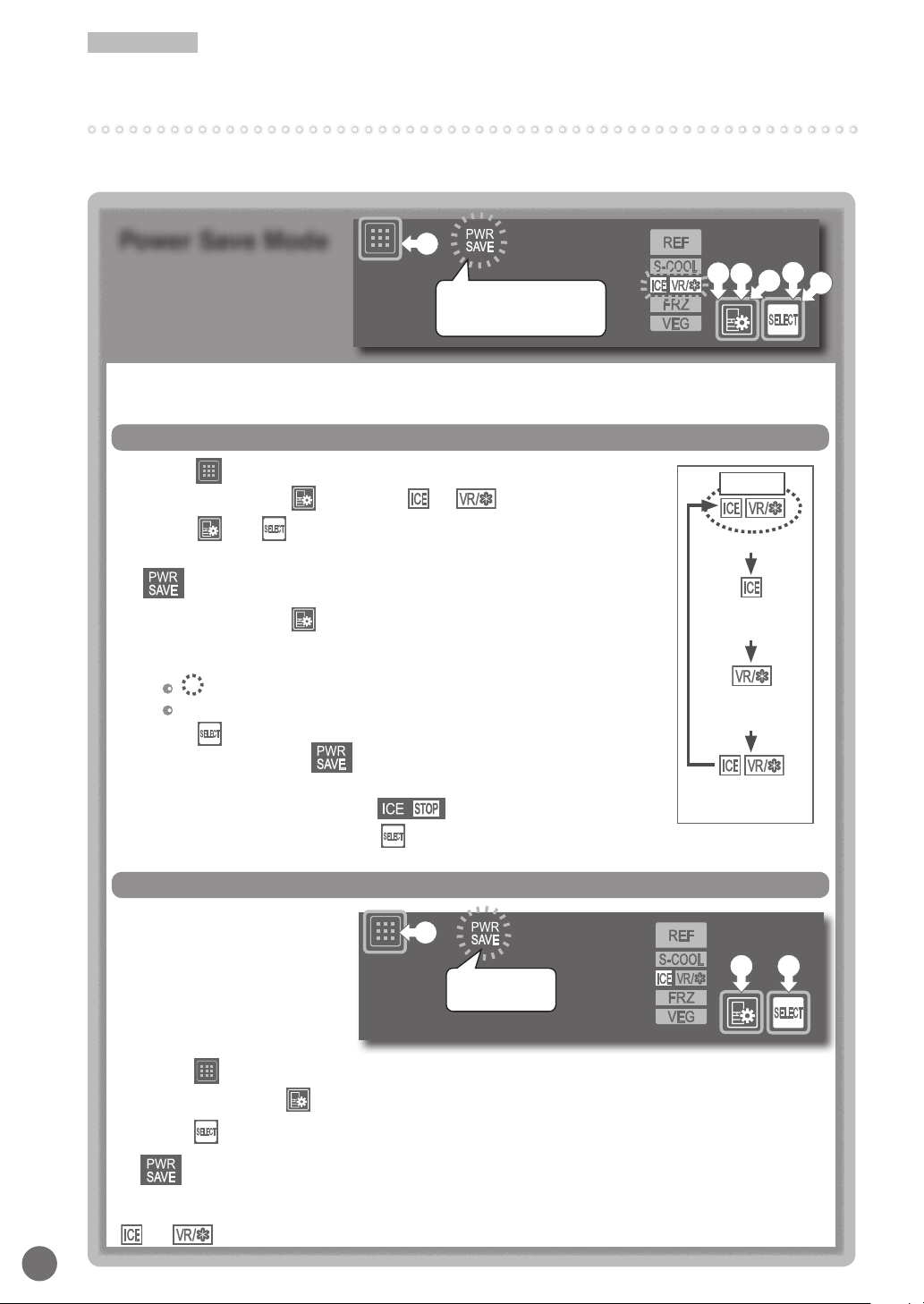

The cold air in unused compartments is saved, allowing energy to be positively saved.
Power Save Mode
1
Touch on the operation panel
2
Repeatedly touch to light up the compartment to cancel
3
Touch
goes off when the setting is cancelled.
The setting will also be cancelled during the procedure to enable the setting if the step
5
is performed while
and are blinking in the step
4
.
1
Touch
on the operation panel
2
Repeatedly touch
to light up or .
3
Touch
and at the same time for at least 3 seconds until
the buzzer sounds.
will blink.
4
Repeatedly touch
to light up the compartment to set
The lit compartment is set to Power Save Mode.
The display changes in the order shown in the right each time the button is touched.
represents a blinking display.
Power Save Mode is disabled at the time of purchase.
5
Touch
The buzzer will sound and will change from blinking to staying lit, and then
the setting is finished.
If the ice making compartment is set,
is displayed.
* If 30 seconds pass without touching , the display will return to
2
without
performing any settings.
To Cancel the Setting
If the ice making compartment is set to Power Save Mode, ice making will stop and ice will no longer be able to
be stored. Empty the water from the water tank as well as the water and ice from the ice tray and the ice storage
box.
Pages 26 - 27
2
▍
▍
▍
▍
▍
▍
▍
▍
▍
▍
▍
▍
▍
1
Example of when cancelling
Power Save Mode for the ice
making compartment
Detail Setting
Blinks while being set.
After setting is completed,
it lights up.
1
2
3
4
3
5
This function reduces
freezing capability of the ice
making compartment and
versa compartment for the
purpose of power saving.
To Set
3
It will disappear
if cancelled.
Power Save Mode
Blinking
Cancel
Set to ice making
compartment
Set to versa
compartment
Set to ice making compartment
and versa compartment
25
Food that Can be Stored in Power Save Mode
In Power Save Mode, food will be preserved between about -10°C and 0°C, so it is well suited to the
preservation of foods such as dry goods and grains.
Dry goods…….........................Coffee beans, seaweeds, nuts, dry noodles (pasta, vermicelli, fine noodles, etc.) etc.
Seasonings……........................Salt, sugar, spice powder, etc.
Grains………...........................
.
Rice, wheat, potato starch, etc.
Confectioneries and cakes……Dry confectioneries, chocolates, cookies, etc.
Compartment set
to Power Save
Mode
Versa Compartment
Functions that
Cannot be Used
Operation Panel
Display
indicates that it
is not lit. Icons that
are not lit cannot be
used.
Functions that Cannot be Used in Power Save Mode
There are functions that cannot be used when the refrigerator is set to Power Save Mode.
Unusable functions will not light up on the operation panel and will not be operational. To use these functions, cancel
Power Save Mode before operation.
Page 24
Supercool Freezing
Hot Freezing
Successfully Saving Power
Open and close doors as quickly as
possible
If doors are opened frequently or are kept open for
a long time, cold air escapes and more power is
consumed.
Leave space
Don't cram too much food into
the fridge
If too much food is crammed into the
refrigerator, the flow of cold air can
deteriorate, making it difficult for food to
cool down.
Do not cover up air outlets or air
inlets
Blocking the flow of cold air can make it difficult for
food in the refrigerator to cool down. The temperature
around the air outlets can drop, making foods with
significant moisture freeze easily.
Cool hot foods before placing
them inside
Placing hot foods in the refrigerator will lower
the temperature, also affecting the freshness of
other foods.
(excluding Hot Freezing)
Temperature may be lower when the ambient temperature is low, such as during winter, or when the freezer compartment is set to high.
Notice
PWR
SAVE
In Power Save Mode, it is not suitable to store ice, fresh food, frozen food, ice cream, and food frozen at home. Move food from
the versa compartment to the freezer compartment in advance.
Check the items in the compartment before setting.
When placing food in the ice making compartment, store food below the reference line of the ice storage box (because it may
cause an ajar door, malfunction, or damage).
Tips
26
Water Tank / Water Supply Pump
Once a week
Disassemble the
water supply pump
and wash it.
Chlorine-Cleaning filter
Wash by lightly rubbing.
* Do not use cleaners such as
kitchen detergents (neutral),
benzene, or bleach. Doing so may
result in odors of the ice.
Pull out the tank packing
from the water tank.
Pull out the tank pipe
and rotate and remove the
water supply pump.
Wash the water tank.
Remove the water tank,
remove the lid, and wash it.
Water Tank
When using bleaching agents to clean the
water tank and lid, follow the instructions
of the agents.
Tank
Packing
Water Supply Pump
Tank Pipe
If mold forms easily in certain types of water, clean
about 2 or 3 times a week.
* When not making ice, remove the water.
Tank Holder
Water Supply Pipe
Ice Tray
Water Tank
Lid
Tank Pipe
Water Supply Pump
Remove the tank
cap by twisting it.
Impeller
Holder
Cap
Impeller
The impeller is made
from a magnet. Wash
it thoroughly to remove
any foreign objects.
Remove the cap lid
while opening the
tab.
Cap Lid
Assemble the water supply pump.
Rotate
Rotate and set the water
supply pump onto the
water tank.
Align the triangle mark on the
bottom of the water tank with the
triangle mark on the cap lid and
push in while making sure that
there is no gap.
After Assembly
Fit the cap lid onto
the cap.
After Assembly
Attach the impeller
to the impeller
holder.
After Assembly
Rotate and fix the tab (
1
) of the cap into the
projection (
2
) on the impeller holder.
Make sure that the impeller is inside.
Rotate
2
1
Fit the filter
onto the cap.
After Assembly
Lid
Cleaning
the Automatic Ice Maker
Do not use a dishwashing machine, because it may deform the parts.
Do not use the following for cleaning
.
To prevent the growth of limescale and mold, clean periodically.
・
Items such as sponges or scrubbers that may
damage surfaces
・
Cleaners such as alkaline detergents, scouring
powder, boiling water, petroleum, or acid
Tank Cap
1
2
3
4
5
1
2
3
4
5
27
When making ice, set the ice making compartment's setting to .
Pages 21 - 22
Water Supply Pipe and Tank Holder
Once a month
Ice Tray
1 to 2 times a year
Open the door of the ice
making compartment
and unlock the ice tray
lock lever.
Pull the ice tray towards the
front and then remove it.
Empty the ice tray and wash it.
Attach the ice tray.
Push in the ice tray until it makes a clicking sound, and
then lock the ice tray lock lever.
Pull out the water supply
pipe and wipe the tank
holder with a clean cloth.
Disassemble and wash the parts.
Follow the procedure in
reverse to return the parts
to their original positions.
Check whether there are
any foreign objects between
the water supply pipe, tank
packing, and tank holder.
Tank Holder
Ice Tray Lock Lever
Water
Supply Pipe
There is a risk of the water
spilling. Pull out the tray slowly.
Do not use a sponge or scrubber. A damage may cause
malfunction.
After washing the tray, dry off any moisture.
Do not pour water into the tank
holder. Doing so may cause a
malfunction.
Twist and remove the water supply
pipe.
White minerals or chlorine
accumulation may adhere to the parts,
this is not abnormal. Wash off such
substances and reuse the parts.
Push in the water supply pipe firmly
so there are no gaps.
If there are gaps or looseness, it may
cause a malfunction.
Insert it horizontally so that
there are no gaps.
Failing to do so may cause noises to
occur, ice to not freeze, and may also
cause the water in the water tank or food
in the refrigerator compartment to freeze.
Water Supply
Pipe
Tank Holder
will appear on the operation panel.
If the alarm sounds continuously when the ice tray lock
lever is unlocked, lock the lever, close the door, wait for the
blinking
to turn off, and then try again.
will disappear. If the lamp does not disappear, check
the position of the ice tray lock lever and the up and down
orientation of the ice tray.
1
Easier to disassemble/assemble when wetted
3
Install the tank packing
Tank Pipe
Water Tank
1
Insert the tank pipe into the water
tank.
2
Connect the tank pipe to the
water supply pump.
Check that there are no foreign objects
between the tank pipe and the water
supply pump.
Tank Pipe
Water
Supply
Pump
Caution
Do not let
foreign objects
block the hole.
Install the tank pipe.
Unlocked
Tank Packing
Tank
Packing
Water Supply Pipe
Horizontally
So that foreign
objects do not
get inside
Before cleaning, make sure to set "Stop Ice
Making."
Pages 21 - 22
2
3
3
4
4
6
1
2
Locked
If the water supply pipe and tank packing are not installed, they may cause the water in the water tank or food in the refrigerator compartment and sliding cases to freeze.
Replacement is not usually required for the Chlorine-Cleaning filter. However, it may require replacement in the following cases.
•
When it clogs because something other than water was put in the tank
•
When it has broken
•
When mold has grown
To purchase a new filter, contact the retail store where you purchased the refrigerator.
* If mold forms easily in certain types of water, clean about 2 or 3 times a week.
Notice
Cleaning
28

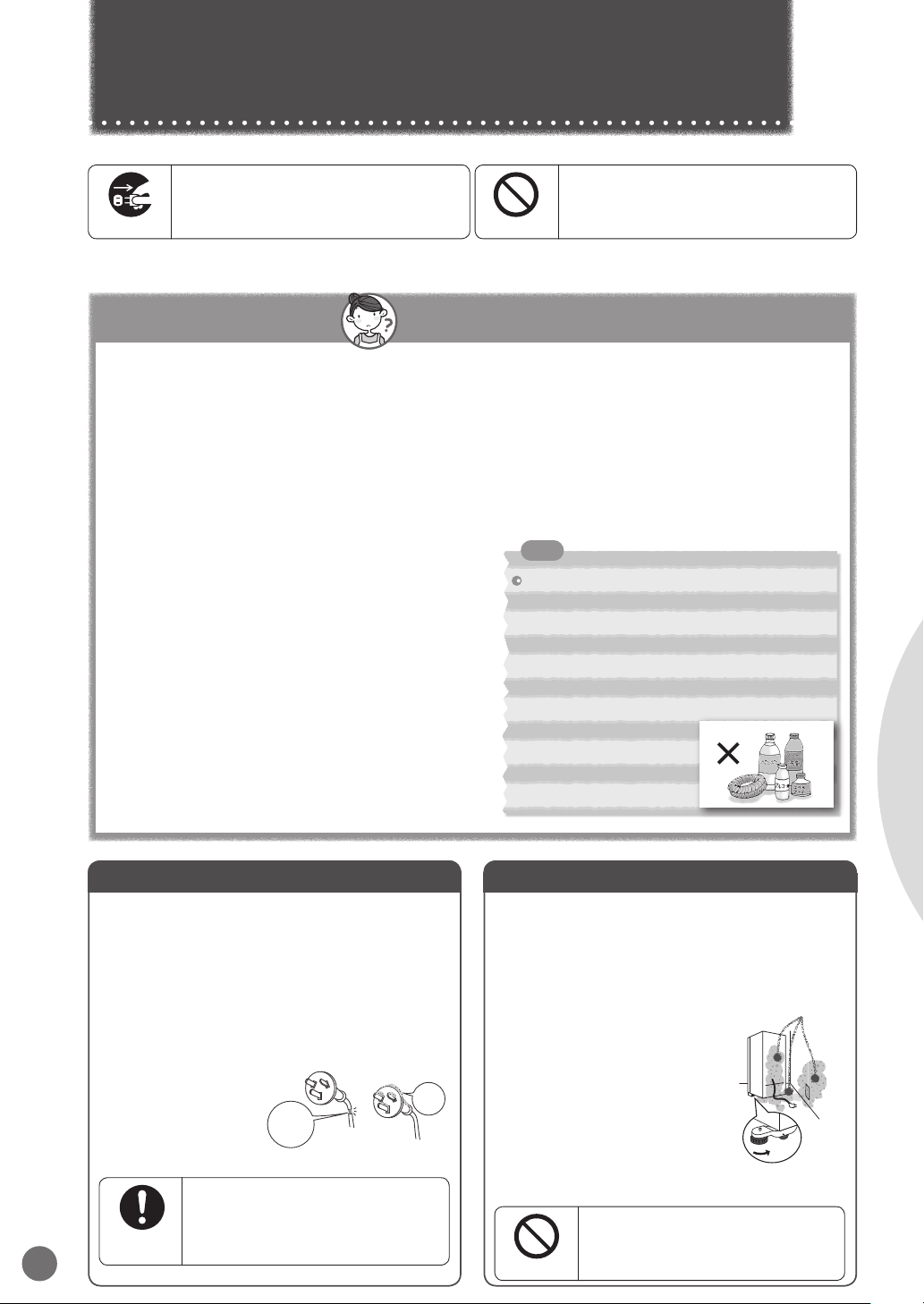

1
Remove the adjustable support cover.
2
Turn the adjustable supports to
raise them from the floor, and pull
out the refrigerator.
We recommend laying out protective
material on the floor to prevent the
floor from being damaged. Also, be
careful not to injure yourself.
3
Remove dust from the refrigerator's
rear side, the wall, and floor, and
wipe off all dirt.
4
Check for water dripping on the
floor.
Refrigerator Rear Side and Floor
* After cleaning, wait at least 10 minutes before reinserting the power plug into the socket.
If you insert the plug immediately, there will be an overload on the machine.
For safety, clean the power plug and cord
periodically.
Power Plug
1
Remove the power plug from the socket.
2
Check for damage or abnormal heating on the power
plug and cord.
3
Remove any dust from the power plug and
surrounding area, and then
wipe with a dry cloth.
4
Firmly insert the power
plug into the socket.
Dust, etc.
Remove the power plug before cleaning.
Otherwise an electric shock or injury may result.
Remove plug
Do not disassemble, repair, or alter.
Do not use while parts are damaged.
Doing so may cause injury, electric shock, or fire.
Prohibited
Q. What should I do if I notice the refrigerator is dirty?
A.
Before the dirt becomes hard, wipe it off.
Wipe with a soft cloth soaked in warm water.
For stubborn dirt, wipe using water mixed with a weak concentration of kitchen detergent (neutral).
Especially in the case of oil stains and citric fruit juice, wipe it off immediately.
If dirty door packing is ignored, it can be damaged and cause cold air to leak. After wiping with a soft wet cloth, if there
is still moisture, finish wiping with a dry cloth.
If the clean tray is soaked in water for a while to clean it or if the tray is rubbed with force, the coating will peel off.
Wipe the tray with a soft cloth soaked in warm water.
Q. Can the shelves, cases, and pockets be
removed?
A. For information on which parts can be
removed,
refer to
Pages 29 - 30 .
Q. What should I do with doors and shelves
made of glass?
A. Wipe with a soft cloth soaked
in warm water.
If a door or shelf made of glass has cracked or shattered,
do not touch the broken glass, but contact the retail store
where you purchased the refrigerator immediately.
Magnets will not adhere to a glass door.
Wipe any leftover moisture with a dry cloth.
How to Clean Q&A
Remove dust periodically from
the power plug.
Dust may cause insulation failure, resulting
in fire.
Follow the
instructions
Do not put your hands under the
refrigerator.
It may cause injury.
Prohibited
This is a place where, because of the
convection current of the air, dust tends to
gather and can easily turn black. Also for the
purpose of saving energy, clean periodically.
Do not use the following items.
Alkaline or low alkaline kitchen detergents,
scouring powder, powdered soap, alcohol,
benzene, thinner, petroleum, acid, scrubbers,
boiling water, or similar substances.
Doing so may cause the plastic parts (such as the door
handles, caps, cases, etc.) to split, or damage or rust
the glass doors, shelves, or
painted surfaces.
Replace
Clean
Dust
Damaged
cord
Cleaning
Removing and Cleaning the Parts
Tips
29
When attaching parts, use the backward procedures of removal.
Partition
1
Remove the glass shelf (lower) and place it on a
surface such as a stand.
2
Press the glass shelf (lower) down with one hand.
* The shelves are firmly installed.
3
Pull in the direction indicated by the arrow.
Be careful when attaching and
removing the glass shelf.
If it is attached improperly, it could come
loose and fall, causing injury.
Follow the
instructions
1
Remove the slide glass shelf (front) using the protruding
parts in the front and back along with the grooved parts.
Slide Glass Shelf (Front) (Back)
2
Pull the slide glass shelf (back) out to the front
while holding the front with both hands.
Grooved
Part
Protruding
Part
Glass Shelf (Upper) (Middle) (Lower)
1
Lift up the left and right of the pocket alternately.
* The pockets are firmly installed.
2
Pull out to the front.
Adjustable Pocket Bottle Pocket
Be careful when attaching and
removing the pocket.
If it is attached improperly, it could come
loose and fall, causing injury.
Follow the
instructions
Adjustable Pocket (Large) (Small) /
Bottle Pocket (Large) (Small)
1
1
2
2
1
2
2
3
* Swiftly pulling out the part to the front can damage the
side of the door. Pull out the part slowly to remove it.
1
Pull out to the front using both hands
until making contact with the tabs.
Lift the front of the shelf to remove the tabs.
2
Hold the front and back of the glass
shelf (lower) and pull the back out to
the front of the rail. Lift the front to
make the glass shelf upright.
3
Pull out the right side or left side of
the glass shelf (lower) (in the upright
position of
2
) to remove from the
refrigerator.
Pull out until making
contact
* Remove with the partition attached after
you have removed the glass shelves
(upper) and (middle) and slide glass shelf.
Rail
Tab
Backside (in the upright
position)
1
2
3
Lower Case
1
2
1
Fully pull out the lower case.
2
Lift the lower case out to the front.
Cleaning
30

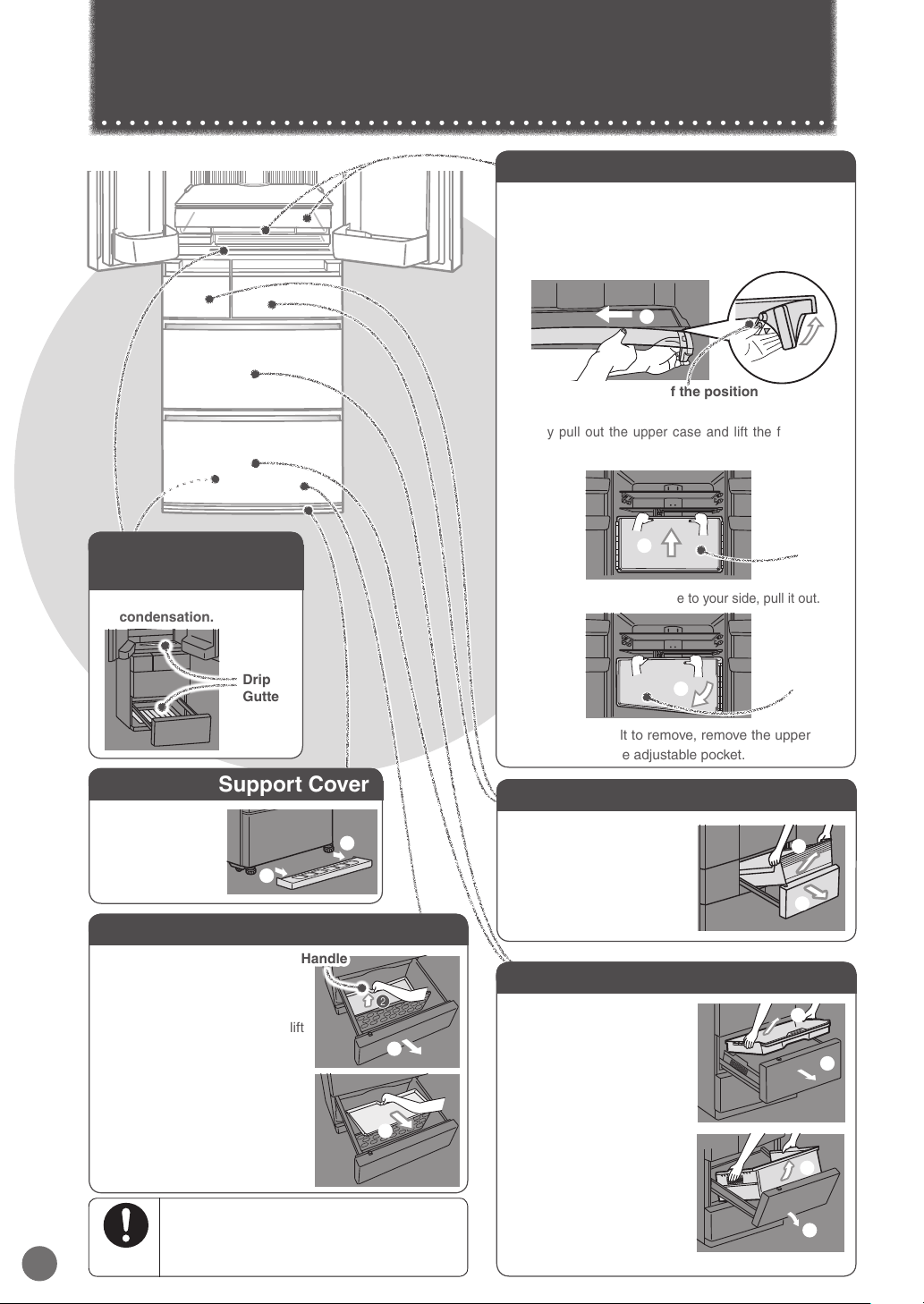

1
Pull the left and
right sides of the
support covers
to the front to
remove them.
Adjustable Support Cover
1
Fully pull out the door.
2
Lift the upper case out to
the front.
Freezer Compartment and Vegetable Compartment Case
* The illustration
represents the freezer
compartment.
Remove the vegetable
compartment in the
same manner.
1
Fully pull out the door.
2
Lift the case out to the front.
Ice Making Compartment and Versa Compartment Case
* The illustration represents the
versa compartment. Remove
the ice making compartment
in the same manner.
Wipe off any dirt, dripping
or condensation.
Recessed Portion
of the Drip Gutters
Drip
Gutters
3
Pull out while slightly lifting
up the door, and then tilt.
4
Lift the lower case out to the front.
1
Lift the upper case cover.
2
While pressing the end of the position indicated
with
on the right, press the upper case cover to
the left and warp it to remove.
Upper Case /Upper Case Cover
3
Fully pull out the upper case and lift the front of the
upper case until the bottom can be seen.
4
While tilting the upper case to your side, pull it out.
* When it is difficult to remove, remove the upper case
after removing the adjustable pocket.
Bottom
Press the end of the position
indicated with
Bottom
1
1
2
1
1
1
3
4
4
3
2
2
1
Pull the vegetable
compartment door all the
way out.
2
Hold the handle at the rear
center of the clean tray and lift
the tray straight up.
* Do not tilt the clean tray
too far. If you do, vegetable
scraps may fall inside the
vegetable compartment.
3
Pull the clean tray toward the
front without hitting the tray
against the partition.
About the clean tray Page 19
Clean Tray
2
1
3
Handle
Be careful not to hit your hand against or
get your finger caught in the freezer
compartment door or partition.
There is a risk of injury.
Follow the
instructions
Cleaning
Removing and Cleaning the Parts
(Continued)
31

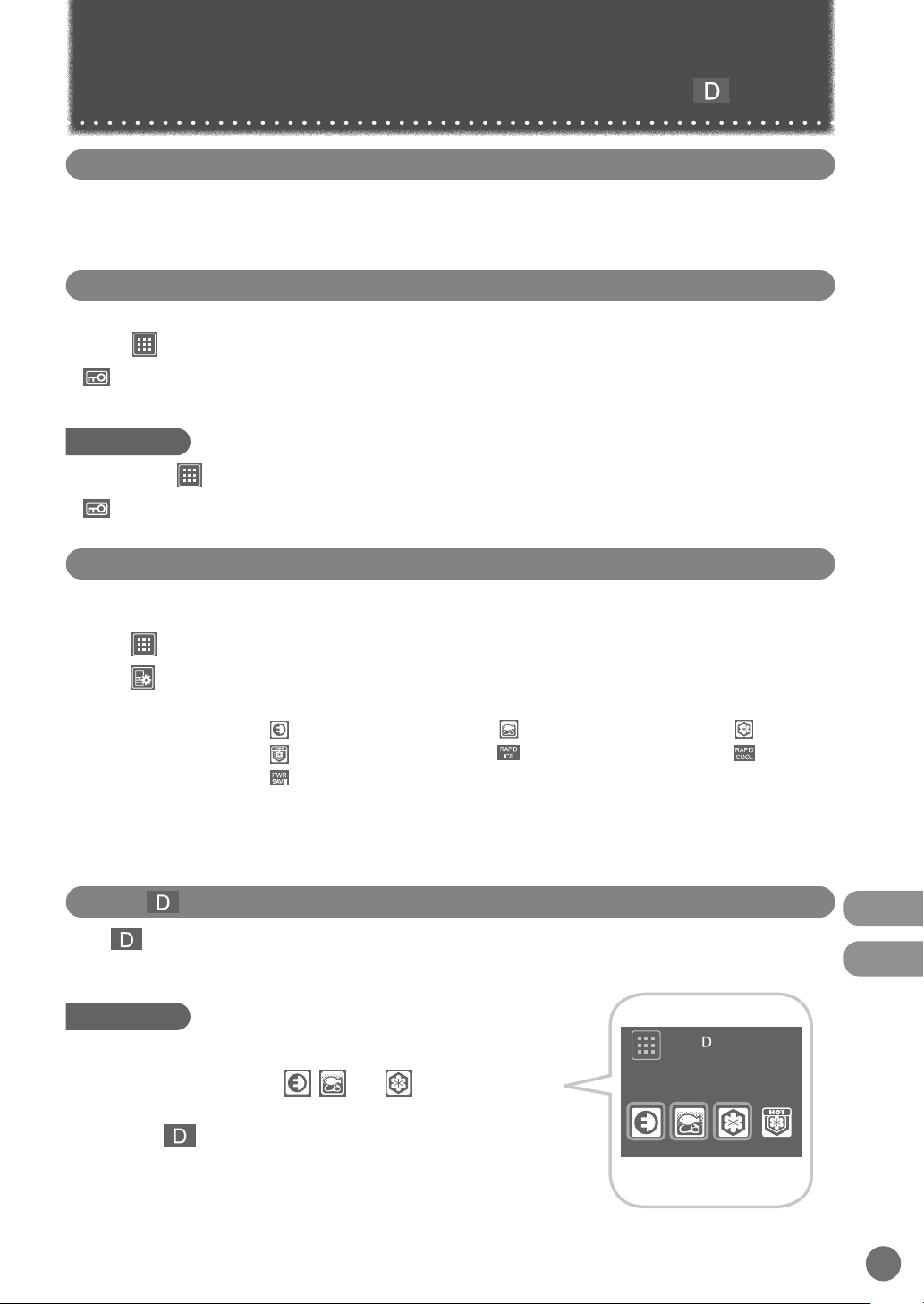

Minimize the frequency of opening the doors, and avoid adding more food.
Operation panel settings other than the temperature settings may change. Check the settings. (Child Safety
Lock, etc.)
Locks the operation panel to prevent accidental icon operation by children.
1
Touch for about 5 seconds or more when the door is closed (until the buzzer sounds).
lights up when the setting is finished.
Setting cannot be changed during Child Safety Lock.
To Cancel
1
Again, touch for about 5 seconds or more when the door is closed (until the buzzer sounds).
goes off when the setting is cancelled.
Returns the settings to their initial conditions (at the time of purchase), for example if you have forgotten the
settings.
1
Touch
to light up an icon.
2
Touch
for about 10 seconds (until the buzzer sounds twice).
The following settings will be reset.
The temperature setting of the versa compartment (Freezing and Soft-Freezing) does not change.
The “ICE STOP” setting for ice making will not be reset.
•
Energy Saving Mode
•
Hot Freezing
•
Power Save Mode
•
Supercool Chilling
• Rapid Ice
•
Supercool Freezing
• Rapid Cool
Power Outages
To Prevent Accidental Button Operation
(Child Safety Lock)
To Reset Settings
When
Lights Up
To Cancel
When lights up, the refrigerator is in demonstration mode. The refrigerator does not cool in this mode.
Contact the retail store where you purchased the refrigerator, or cancel the demonstration operation with the
following procedure.
1
Keep the doors of the versa compartment open.
2
Light up the icons and press , , and at the same time for
at least 5 seconds.
3
Check that is turned off.
The demonstration mode was not cancelled if it lights up.
Touch until the buzzer
sounds
Cleaning
Trouble-
shooting
Other Issues
(Power Outages, Child Safety Lock, Setting Reset, When
Lights Up)
32
The door alarm (with alarm sound, interior light, and compartment display) is activated when a door is open for 1 minute or
longer.
The pattern of the door alarm sound and the action of the interior light and compartment display area are as follows
depending on how long the door has been left open.
Time for which the
door left open
1 minute 2 minutes 3 minutes 4 minutes
5 minutes
or longer
60 minutes
or longer
Alarm sound
4 short beeps,
then
2 beeps
4 short beeps,
then 3 long
beeps
4 short beeps,
then 4 long
beeps
After 4 short beeps,
Continuous long
beeps
Continuous short beeps
Interior light
On Blinks twice per minute Off
Compartment display area
The compartment display area will blink in synchronization with the alarm sound
Check that the doors are not left ajar or do not have any food trapped (the
packing, the back of the drawer cases). (Check at least once a month.)
All doors have an opening and closing sensor.
Check the refrigerator compartment door rotating partition.
Page 10
Example: When the doors of the ice
making compartment and
freezer compartment are
open
When the refrigerator will not cool, there may be a malfunction and an inspection is required.
Contact the retail store where you purchased the refrigerator.
Check that there are no gaps between the door.
When the alarm cannot be turned off, there may be a malfunction and an inspection is required.
Contact the retail store where you purchased the refrigerator.
1
Set to the “STOP” ice making mode.
Pages 21 - 22
Check that is lit.
2
Empty any water or ice from the water tank, ice tray, and ice storage box and clean.
Wash the water tank, water supply pump, tank pipe, tank cap, lid, water supply pipe, ice storage box,
soundproof mat, ice tray and ice server, dry them completely, and then return them to their original positions.
Pages 26 - 27
Do not dispose of the soundproof mat.
3
Remove the power plug.
4
Clean the interior of the refrigerator and open the doors for 2 to 3 days to dry the inside.
* If the refrigerator is not dried sufficiently, it may cause mold, odors, or refrigerant (gas) leaks due to condenser
corrosion.
When the Door Alarm Sounds and the Interior Light of the Refrigerator Compartment Blinks (Door Alarm)
When the Alarm Cannot be Turned Off
When Not Using the Refrigerator for a Long Time (When the Power Plug Is Unplugged)
When the Mark Blinks Rapidly (About 5 Times per Second)
Compartment
display area
(Operation panel)
Blinks in
synchronization
with the alarm
sound.
To Stop the Alarm (Continuous Short Beeps)
The alarm can be temporarily stopped in the time before the refrigerator is repaired.
Press
for at least 5 seconds.
* If performing the above operation does not turn off the alarm, or the alarm periodically sounds, check
peripheral machinery as well.
Wash the water tank, water supply pipe, and ice tray before making ice for the first time, or if you have not made ice for more than
a week. Odors or dust may be adhering to the parts.
Notice
Other Issues
(Door Alarm, Mark, When Not Using the Refrigerator for a Long Time)
33
1
Wear protective gear (gloves).
2
Remove the adjustable support cover, and then rotate and raise the adjustable supports.
Page 7
3
Lay protective material under the casters and rear supports to prevent damaging the floor.
4
Move the refrigerator in the forward and backward directions.
* Moving in any direction other than forward and backward may damage the floor. Please make sure to lay
protective material such as a plate or board on the floor.
To Transport the Refrigerator
To Move the Refrigerator in Forward and Backward Directions
When the Transportation Time Is Long, for Example When Moving House
Frost from the condenser inside the freezer compartment will melt, and
may spill water when the refrigerator is transported.
It may take 1 day to defrost after unplugging the power plug.
1
Empty any water or ice from the water tank, ice tray, and ice storage
box.
Pages 26 - 27
2
Wear protective gear (gloves).
3
Remove the adjustable support cover, and then rotate and raise the
adjustable supports.
Page 7
4
Remove the power plug.
5
Lay towels under the drainage port and the lower rear edge of the
refrigerator, and position a container or tray with a height of about
3 cm on the towels to collect the water.
*
The towels prevent floor damage, and water from being spilled on
the floor.
6
Tilt the refrigerator slowly to the rear by about 30 degrees, and drain
the water from the evaporation tray via the drainage port on the lower
rear side. (The evaporation tray is not visible from the outside.)
* Because the refrigerator is heavy, the work must be performed by at
least 4 people.
* The work must not be performed by small children or people who
are not capable of doing heavy work. Ask a specialist transportation
company.
7
4 or more people should hold the hand-holds on the bottom and the
upper part of the rear side and the hand-holds on the lower inside
part of the front side and the upper side of the rear, and carry the
refrigerator slowly.
Do not lay down the refrigerator on its side. (The compressor may
be damaged.)
Bottom handles
Drainage
port
Hand-holds on the
rear upper side
Front lower
inside
Do not damage the refrigerator's
refrigerant circuit (pipes).
Because combustible refrigerant is used, this may
result in fire or an explosion.
Wear protective gear when you install
the refrigerator.
Do not use any tools other than the
adjustable support tool kit.
Not following these instructions may result in floor
damage or injury.
Prohibited Follow the
instructions
Trouble-
shooting
Other Issues
(To Move or Transport the Refrigerator)
34

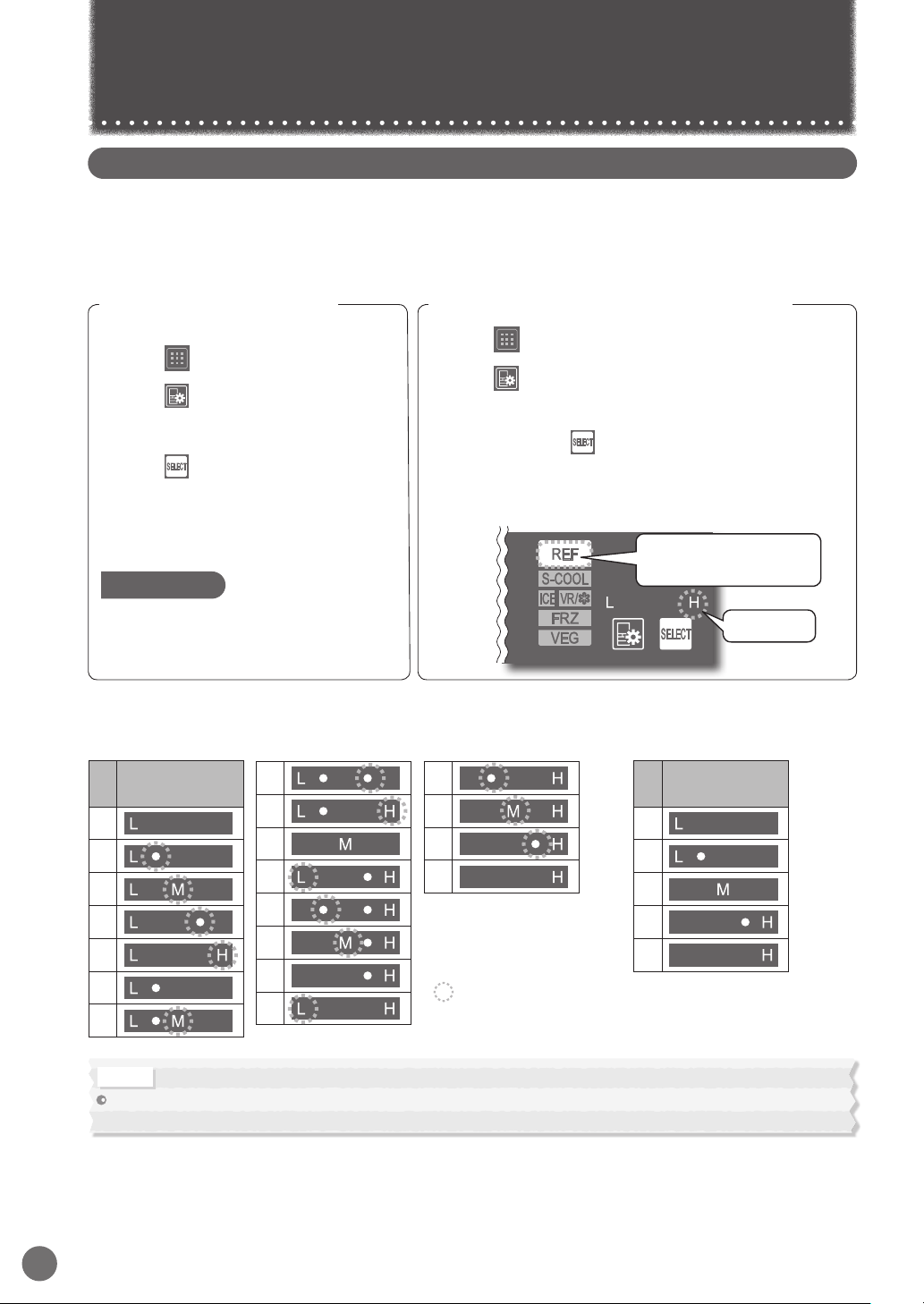

Setting the Temperature Fine
Adjustment Mode
1
Touch
to light up icons.
2
Touch
and select the compartment
you would like to set to temperature fine
adjustment mode.
3
Touch for at least 5 seconds
(until the
buzzer sounds).
The refrigerator compartment, freezer
compartment, and versa compartment
can all be set with a single operation.
To Cancel
The same operation as above.
If the setting is reset, it will be cancelled.
Performing the Temperature Fine Adjustment
1
Touch
to light up icons.
2
Touch
to select the compartment to perform
temperature fine adjustment.
3
Repeatedly touch
to perform temperature fine
adjustment.
The temperature can be set to 19 different levels for the refrigerator compartment and freezer compartment,
while it can be set to 24 different levels for the versa compartment (5 levels when set to Soft-Freezing and
19 different levels for Freezing).
When temperature fine adjustment mode is set, the compartment display blinks about every 10 seconds.
To Control the Temperature More Precisely
(Temperature Fine Adjustment Mode)
*
The versa compartment can be consecutively set to the Soft-Freezing setting
and the Freezing Setting.
Temperature
setting
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Temperature
setting
1
2
3
4
5
Refrigerator Compartment / Freezer
Compartment / Versa Compartment
(Freezer Setting)
Versa Compartment
(Soft-Freezing Setting)
* represents a blinking display.
Display Example: When the refrigerator compartment is
set to Temperature Setting 5.
Refrigerator blinks about
every 10 seconds
“H” blinks
If Versa compartment is set as “19” of freezer setting, then the temperature in the Freezer compartment will be automatically set as
“10” (“1” to “9” setting will not be available).
Notice
Other Issues
(Temperature Fine Adjustment Mode)
35

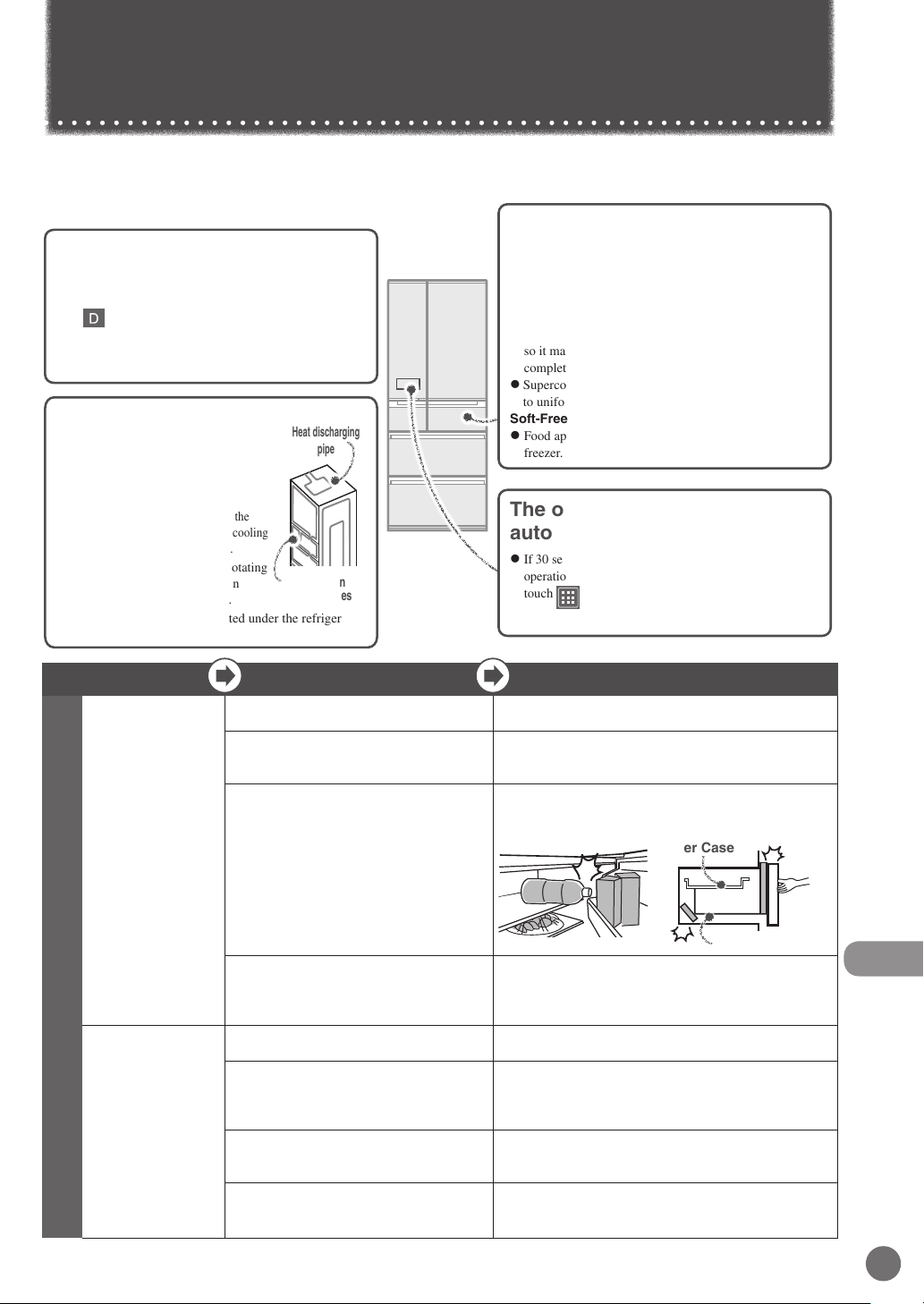

Before contacting MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent or making a
repair request, check the following.
If the problem persists, contact the retail store where you purchased the refrigerator as soon as possible.
The refrigerator does not cool at all!
The operation panel turns off
automatically!
In Versa Compartment...
The refrigerator takes time to cool when you first
start using it. In summer, it may take up to 24 hours
for the inside to be fully cooled.
Page 8
If is shown on the operation panel, cancel
demonstration mode.
Page 31
Check if the power plug is disconnected or the
circuit breaker has tripped.
If 30 seconds pass without any operation panel button
operations, the display turns off.
When lighting,
touch
.
Page 8
Ice cream melts
For storing ice cream and frozen foods, set to “FRZ”
“H”.
Pages 21 - 22
Soft-Freezing is set at the time of purchase.
Food does not quickly freeze
With Soft-Freezing, food freezes at about -7°C,
so it may take up to about 24 hours for food to
completely freeze.
Supercool Freezing takes time (about 8 to 9 hours)
to uniformly freeze food from the core.
Soft-Freezing freezes food
Food appears to freeze just as when it freezes in the
freezer.
The outer walls heat up significantly
(to about 50 to 60°C) immediately
after installation and in summer. This
is because the heat discharging and
condensation prevention pipes are
located on the sides and the top of the
refrigerator. They are required for cooling
and the heat is not an abnormality.
The refrigerator compartment rotating
partition also has a condensation
prevention heater that heats up.
A heat discharging fan is located under the refrigerator.
Warm air may be discharged from here.
Frequently asked questions in the initial period and in summer
Heat discharging
pipe
The outer walls heat up!
Problem
Check
Explanation and Action
Cooling Performance
Does not cool
well
Ice melts
1
1
Has enough time passed after
installation?
It takes 4 to 5 hours for the refrigerator to cool, and may
take 24 hours in summer to fully cool.
2
2
Is the temperature setting set to “L”?
Is the compartment set to Power Save
Mode?
Set to “M
”
or “H
”
, or set the versa compartment to “FRZ
•
H” or
to the setting of your liking.
Pages 21 - 22
Cancel Power Save Mode.
Page 24
3
3
Is the flow of cold air being blocked?
Are the doors being opened frequently,
or left ajar? Is food blocking them?
Make space between foods and remove any food that
is sticking out of shelves or touching the ceiling of the
drawers. Avoid opening and shutting the door for a while.
Upper Case
Lower Case
4
4
Is heat discharging being blocked?
Check if there is no gap around the
refrigerator and the refrigerator is
exposed to direct sunlight.
Check that there is enough space around the refrigerator
and that it is properly installed.
Page 6
Food freezes in
the refrigerator
and vegetable
compartments
1
1
Is the temperature on the operation
panel set to “H”?
Set the temperature to “M”. Also, the temperature with each
setting may temporarily decrease.
2
2
Is food with a lot of moisture stored at
the rear of the shelf?
Place drinks and food containing a lot of water, such as
tofu, vegetables and fruits, at the front of the shelf or in
a door pocket. Low-fat and low-sugar foods are likely to
freeze easily when they are stored at the rear of the shelf.
3
3
Is the surrounding temperature 5°C or
less?
Food in the refrigerator compartment or vegetable compartment
may freeze. Freezing is less likely when the temperature
settings are set to “L
”
.
Pages 21 - 22
4
4
Is the water supply pipe installed
correctly without any gaps or
looseness?
If there are foreign objects loosening the pipe or if there
is a gap, strong cold air can flow into the refrigerator
compartment. Make sure that it is securely set.
Page 27
Condensation
Prevention Pipes
Trouble-
shooting
Troubleshooting
36
Problem
Check
Explanation and Action
Cooling Performance
Overcooling
in the freezer
compartment,
though the
temperature
setting of freezer
compartment
is set to “ ” or
“ ”.
1
1
Is the temperature setting of versa
compartment set to “FRZ•H”?
Set the temperature of versa compartment to “FRZ•L” or
“FRZ•M”.
Page 22
Supercool Chilling
Food in the
lower case
freezes
1
1
Is the lower case set to Supercool
Chilling?
Perform the Supercool Chilling setting.
At the time of purchase, the lower case is not set to
Supercool Chilling.
Page 11
2
1
Is the surrounding temperature 5°C or
less?
Set the temperature of the lower case (when Supercool
Chilling is set) to
“L
”
.
Page 21
3
1
Is the refrigerator compartment's
temperature set to “H”?
Set the temperature of the refrigerator compartment to
“
M” or
“L
”
,
or set the temperature of the lower case (when
Supercool Chilling is set) to
“L
”
.
Page 21
4
1
Have you placed easily frozen food
containing a considerable amount of
moisture in the compartment?
Place food containing a lot of water at the front of the
refrigerator compartment or in a door pocket.
Low-fat and low-sugar foods are likely to freeze easily
when they are stored at the rear of the shelf.
5
1
Are you piling frozen food onto other
food?
Food that touches frozen food may freeze.
The lower case
does not cool
1
1
Is a high temperature set for the
refrigerator compartment?
Set the temperature of refrigerator compartment to “M” or
“H”.
Page 21
2
1
Is the flow of cold air being blocked?
Do not block the area near the air outlet with food. Also, do
not stack items higher than the case.
3
1
Has the Supercool Chilling been set?
Set the Supercool Chilling.
At the time of purchase, the lower case is not set to
Supercool Chilling.
Page 11
4
1
Set the lower case compartment
temperature?
In order to store the food at Supercool Chilling without
freezing it, the compartment temperature may rise
temporarily.
Versa Compartment
Food in the versa
compartment
melts
1
1
When storing ice cream and frozen foods,
did you set the refrigerator to “FRZ•H”?
“SOFT FRZ”, “FRZ•L”, and “FRZ•M” are higher
temperature settings. Set to “FRZ•H”.
Pages 21 - 22
2
2
Did you set
Hot Freezing
after placing hot food inside?
When placing hot food in the compartment, use
Hot Freezing.
Page 15
3
3
Is the versa compartment set to Power
Save Mode?
Cancel Power Save Mode.
Page 24
4
3
When placing hot food in the
compartment, did you place it away
from other food?
Frozen food may thaw if it makes contact with hot food.
Leave space.
5
5
Is food piled up in the upper area?
Leave a gap so that cold air can flow to the ceiling and
between food.
6
6
Has enough time passed after
installation?
The refrigerator takes time to cool completely.
Soft-Freezing
freezes food too
hard
1
1
Is the versa compartment set to “FRZ”?
Set the versa compartment to “SOFT FRZ”.
Pages 21 - 22
2
2
Does the food contain a lot of
moisture?
Foods containing a considerable amount of moisture may
freeze too hard. We recommend leaving the food for about 5
to 15 minutes, placing the other hand on the back of a knife,
and cutting the food by pushing on it. Also, use the setting
“SOFT FRZ•L”.
3
3
Is food freezing the same way as with
“Freezing”?
Food appears to freeze in the same way as with “Freezing”.
Troubleshooting
(Continued)
37
Problem
Check
Explanation and Action
Automatic Ice Making
Cannot make ice
Water in the tank
stays at the
same level
1
1
Has enough time passed after
installation?
It takes 4 to 5 hours for the refrigerator to cool, and
24 hours or more in summer to make ice.
2
2
Has food, the ice server, or another
object been left in the ice storage box?
Also, has the ice been leveled?
Remove food or other objects from the ice storage box. The
ice storage box is judged to be full of ice. Also, spread the
ice out flat all the way to the front.
3
2
Is the ice making setting for the ice
making compartment set to “ICE STOP”?
Set the ice making compartment's setting to .
Pages 21 - 22
4
4
Are the ice tray and ice tray lock lever
installed correctly?
Set the ice tray lock lever to the correct position and check
the installation status of the ice tray.
Page 27
5
5
Is the water supply pipe installed
correctly in the tank holder area?
Remove any foreign objects creating gaps and install the
pipe so that it is not loose.
Page 27
6
6
Are the water supply pump and tank
pipe installed correctly onto the water
tank?
Check that they are correctly installed. In particular, ensure
that the opening of the tank pipe inside the tank is installed
firmly to the tank.
Pages 26 - 27
Makes only a small
amount of ice
Making ice takes
a long time
1
7
Is the door opened or the ice tray
removed frequently?
Ice making takes longer. Do not open and close the door or
remove the ice tray frequently.
Page 13
2
2
Is the temperature of the freezer
compartment set to “L”? Is the energy
saving mode set for the freezer
compartment?
Making ice may take longer. Set the temperature of the
freezer compartment to “M”, and cancel energy saving mode.
Page 21
Water tank
or water supply
pipe freezes
1
1
Are the water supply pipe and water
tank installed to the refrigerator without
any gaps?
Additionally, is the tank pipe installed to
the water tank without any internal gaps?
Check the installation around the
water tank. If there are gaps, the
cold air may escape and water
may freeze.
Pages 26 - 27
Ice is small or
joined together
1
1
Has ice been stored inside the ice
storage box for a long time?
Ice stored inside the ice storage box for a long time may shrink
or join together (due to a phenomenon called sublimation).
When not using ice, it is recommended that you remove the
water and stop the ice making.
2
2
Does it occur when the water in the
water tank is decreasing?
As the water in the water tank decreases, the amount of
supply water is slightly reduced.
Sound
There is a
rattling sound
1
1
Are any nearby objects in contact with
the refrigerator?
Leave space around the refrigerator. When objects or walls are in
contact with the refrigerator, sounds may be heard.
2
2
Make sure that the water tank and
water supply pipe are properly
installed.
Push in the water tank until it touches the rear side. If it is out of
position, the sound of the water supply pipe can grow loud.
If there are any gaps or looseness, the water may freeze,
causing sounds to be heard.
Loud noises
Worrisome
noises (Noises
described on the
right are normal)
1
1
The noise gets louder suddenly
or the tone changes.
Immediately after beginning use, when the weather is hot,
when the doors are frequently opened and closed, and in
similar situations, the refrigerator switches to high-speed
operation and cools with high power.
2
2
A whistling sound is made after closing a door.
This is the sound of the cooling fan motor starting.
3
3
A whipping or dripping sound is
sometimes heard from inside the
refrigerator after a door is opened.
This is the creaking sound as warm air enters and expands
the plastic.
4
4
Sometimes the sound of flowing or
boiling water can be heard.
This is the sound of the refrigerant (gas) flowing.
5
5
A rattling or squeaking sound is made
sometimes (every 1 to 2 hours).
This is the sound of the automatic ice maker. Even when there
is no water in the water tank, the automatic ice maker and pump
make a sound about every 100 minutes.
6
6
After turning on the power, a thumping or
creaking sound may be heard in the ice
making “ICE STOP” mode (every 1 to 2 hours).
This is the sound of the operation check. The check is
performed even in the “ICE STOP” ice making mode.
Door
Doors do not
close
Doors open
easily
1
1
Is a door making contact with food or a
case? Is too much food packed inside?
Store food so that the door does not make contact with the
food when closed. In the refrigerator compartment, store
food on the shelves and in the drawer doors store food
so that it does not make contact with the ceiling when
doors are shut and opened. Do not attach a case that you
purchased separately onto the outside of a pocket.
2
2
Has food fallen behind a case in a drawer
door, or is the power cord or another object
trapped between the refrigerator and a door?
Remove any objects. Make sure that the door does not trap
objects such as food, power cords or plastic bags.
3
3
Is the refrigerator installed stably?
Are the adjustable supports making
contact with the floor?
Lower the adjustable supports to raise the front side slightly
and make the doors easier to close.
Page 7
The alarm
will sound
1
1
Check if the doors are closed.
Refer to “When the door alarm sounds” and “When the
alarm cannot be turned off”.
Page 32
Water tank
Tank pipe
Trouble-
shooting
38
Problem
Check
Explanation and Action
The operation
panel does not
respond
1
1
Is lit?
Cancel the Child Safety Lock.
Page 31
2
2
Are the user's fingers or the operation
panel wet or dirty?
Wipe off the moisture and dirt on the operation panel and
fingers.
3
4
Are you repeatedly touching it?
Let your finger off the operation panel once and then touch
it again. It will respond when you let you finger off.
4
5
Are seals and tapes put on the
operation panel?
Remove the seals and tapes.
Reacts without a
touch
1
1
Are there any towels, plastic bags,
papers, etc. over the operation panel?
Remove the towel, plastic bag, paper, etc.
Some icons do
not light up
1
1
Is it set to Power Save Mode?
The icons that cannot be set during Power Save Mode are
off.
Page 25
is blinking
and won't go off
1
1
Is the ice tray lock lever not locked?
If you release the ice tray lock lever while the ice tray is
operating,
will blink. Lock the ice tray lock lever and
close the ice making compartment's door.
There are no
longer 3
★
marks lighted on
the power saving
monitor.
1
1
Has the temperature setting been
modified?
Setting each compartment to "H" will lower the power
saving level.
2
1
Is there any increase in the time the
door is left open or the amount of
food, or a rise in the compartment
temperature?
More energy is used in cooling, resulting in a lowered
power saving level.
Condensation
forms on the
outer walls
and inside the
refrigerator
Frost forms
in the freezer
compartment
Water drips onto
the floor
1
1
Are the doors being opened frequently,
or are there any gaps?
Close the doors so that there are no gaps.
When moisture in the air cools, it forms frost or
condensation.
When there is high humidity, condensation or frost will
form even in very small gaps.
Regarding the Vegetable Compartment
Page 19
2
2
Is the humidity high, for example is it
raining?
Condensation may form temporarily. Wipe off with a dry
cloth. Condensation may cause frost to form in the freezer
compartment. Please minimize the time when doors are
kept open.
There are lines
like scratches on
the clear parts
1
1
Is it a thin line without level difference
on its both sides?
This is a mark created at the time the plastic is molded. It is
created at the joint where resin flows. This is not a flaw.
There are holes
in the door and
the refrigerator
walls
1
1
Are there small holes in the door or in
the refrigerator walls?
These are holes that let air escape for the injection of foam
heat insulating materials in the manufacturing process.
These are not flaws or abnormalities.
The surface of
the sides or
doors is warped
1
1
Does the light reflected on the surface
appear distorted?
Warping and surface waviness occurs in the manufacturing
process. When light hits the surface, it may appear warped,
but this is not an abnormality.
Noise interferes
with televisions
or other devices
1
1
Is the refrigerator installed near an
electronic device such as a television?
Install the refrigerator away from electronic devices such as
televisions.
2
2
Is the power to the refrigerator
supplied from a socket near the entry
hole of the antenna cable?
Use separate power. When using a 2 pin plug, use
grounding.
There is a
bothersome
smell (Food / Ice)
1
1
Have you placed food with strong odor
inside the refrigerator without sealing it
in a container?
Store food with strong odor in packaging.
The odor may not be removed with a deodorizing apparatus.
2
2
Do you periodically clean the water
tank?
Clean periodically.
Pages 26 - 27
The adjustable
support cover
comes off.
1
1
Are the adjustable supports touching
the floor?
When the adjustable supports are raised, the adjustable
support cover cannot be inserted fully. Turn the adjustable
supports to lower the refrigerator until the supports touch
the floor.
Page 7
2
2
Is the adjustable support cover fully
inserted?
Open the door of the vegetable compartment and insert the
adjustable support cover into the refrigerator while checking
it from above.
Others Operation Panel
Condensation/ Frost
Troubleshooting
(Continued)
39
Model MR-WX743C
Parts Quantity
Refrigerator compartment
Glass Shelf (Upper)
Glass Shelf (Middle)
Glass Shelf (Lower)
Partition
Slide Glass Shelf (Front)
Slide Glass Shelf (Back)
Upper Case Cover
Upper Case
Lower Case
Water tank
(with Chlorine-Cleaning filter)
Adjustable Pocket (Large)
Adjustable Pocket (Small)
Egg Tray
Egg Shelf
Bottle Pocket (Large)
Bottle Pocket (Small)
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
Ice making
compartment
Ice Tray
Ice Storage Box
Soundproof Mat
Ice Server
1
1
1
1
Versa
compartment
Versa compartment case
Aluminium Tray
1
1
Vegetable
compartment
Vegetable Case (Upper)
Vegetable Case (Lower)
Clean Tray
1
1
1
Freezer
compartment
Freezer Case (Upper)
Freezer Case (Lower)
1
1
Adjustable support cover
Adjustable support tool kit
1
1
Model MR-WX743C
Food storage
compartment
type
Gross volume
(litres)
Storage volume
(litres)
Refrigerator
compartment
Fresh food
377 370
Ice making
compartment
Short term
frozen food
25 4
Versa
compartment
Short term
frozen food
56 28
Freezer
compartment
Freezer
151 81
Vegetable
compartment
Special
(unfrozen food)
134 93
Total volume
743 576
Trouble-
shooting
Specifications
This appliance is designed for use in
Australia and New Zealand only and
cannot be used in any other country. No
servicing is available outside of Australia
and New Zealand.
AZ79L355H02
Printed in Japan
■
This refrigerator uses flammable foaming gas for
insulation.
Please deliver the unit to specialized industrial
waste dealer when you do away it.
Please follow the rules in your country.
■
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
■
WARNING - Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
■
WARNING - Just in case of having damaged the
refrigerant circuit, do not use electric items or
fire equipments near by, and open the window
to ventilate the room. And contact the retail
store where you purchased it or MITSUBISHI
ELECTRIC SERVICE CENTRE or its service
agent.
■
The refrigerator contains flammable refrigerant
(R600a: isobutane).
■
The refrigeration system behind and inside the
refrigerator contains refrigerant.
Do not allow any sharp objects to come into
contact with the refrigeration system.
■
Do not block the openings on the circumstances
of the refrigerator.
■
The user manual should be handed over to any
person who would use or handle the refrigerator
whenever the refrigerator would be transferred to
another location and delivered to a recycling plant.
■
The appliance is not intended for use by young
children or infirm persons without supervision.
■
Young children should be supervised to ensure
that they do not play with the appliance.
■
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
■
This appliance is intended to be used in household
application only.
R600a Refrigerant Warning
• This appliance contains a small quantity of R600a refrigerant which is flammable.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device which creates a spark.
Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant.
The refrigerant quantity contained in this appliance is noted on the Rating Label of the appliance.
• If your Mitsubishi Electric Refrigerator should require service, please contact MITSUBISHI ELECTRIC
SERVICE CENTRE or its service agent.
NOTE: THIS REFRIGERATOR CONTAINS FLAMMABLE HYDROCARBON REFRIGERANT.
ONLY SUITABLY QUALIFIED TECHNICIANS SHOULD ATTEMPT ANY SERVICE TO
THE REFRIGERATION CIRCUIT OF THIS APPLIANCE. SOME JURISDICTIONS REQUIRE
A SPECIFIC HYDROCARBON HANDLING LICENCE FOR SERVICING. PLEASE CONTACT
MITSUBISHI ELECTRIC SERVICE CENTRE OR ITS SERVICE AGENT FOR ASSISTANCE.
SOLE AGENT in Australia
MITSUBISHI ELECTRIC AUSTRALIA PTY LTD.
(Incorporated in New South Wales) ABN 58 001 215 792
348 Victoria Road, Rydalmere NSW 2116
For more information and support contact
www.mitsubishielectric.com.au
Call 1300 651 808
SOLE AGENT in New Zealand
BLACK DIAMOND TECHNOLOGIES LIMITED (BDT)
Wellington Office (Head Office)
1 Parliament Street, Lower Hutt, PO Box 30772, Lower Hutt 5040 Ph: (04) 560 9147, Fax: (04) 560 9133
Auckland Office
Unit 1, 4 Walls Road, Penrose, PO Box 12726, Penrose, Auckland 1642 Ph: (09) 526 9347, Fax: (09) 526 9348
Christchurch Office
44 Halwyn Drive, Hornby, PO Box 16904, Hornby, Christchurch 8441 Ph: (03) 341 2837, Fax: (03) 341 2838
If an abnormality or malfunction occurs, stop operation immediately and contact the retail store where
you purchased the refrigerator or MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent.
