Fire/Flammable refrigerant
No Touch Except Service Specialist
Maintenance work shall only be carried out at workshop by well-trained maintenance worker.
Please read this manual carefully and follow the information contained within. In particular, be sure to read the safety precautions before using this refrigerator.
Be sure to receive your copy of the warranty from the retailer and confirm that the purchase date and retailer name are written on the warranty.
Store this operating instructions manual and the warranty in a safe place.
This refrigerator was manufactured for refrigerating and freezing of foods in general households. For commercial use, please use a commercial refrigerator-freezer.
The photographs and illustrations contained in this manual are for the MR-LA635ER. While the capacity and dimensions of the MR-LA635ER are different
from the MR-LA580ER, the operation is the same.
The principal plastic components indicate the material name to facilitate recycling.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
This appliance is intended to be used in household application only.
WARNING - When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING - Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING - Just in case of having damaged the refrigerant circuit, do not use electric items or fire equipments near by, and open the window to ventilate
the room. And contact the retail store at which you purchased it or the following MITSUBISHI SERVICE CENTRE.
WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
The user manual should be handed over to any person who would use or handle the refrigerator whenever the refrigerator would be transferred to another
location and delivered to a recycling plant.
This refrigerator uses flammable foaming gas for insulation. Please deliver the unit to specialized industrial waste dealer when you do away it.
Please follow the rules in your country.
R600a Refrigerant Warning
This appliance contains a small quantity of R600a refrigerant which is flammable.
During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any device which creates a spark. Disconnect the appliance from the mains power.
Thoroughly ventilate the room in which the appliance is located for several minutes.
The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant.
The refrigerant quantity contained in this appliance is noted on the Rating Label of the appliance.
●
●
●
●
●
●
It is strongly recommended to use only lukewarm water
and a soft cloth when cleaning. Cleaning agents can cause
cracking to the plastic components of your refrigerator.
Cleaning Instruction - Important!
Refrigerator-Freezer
OPERATING INSTRUCTIONS
Contents
Page
2-3
4-5
6-7
8-9
10
11-12
13
14
15
16
17-18
19-20
21-24
25-26
27
For your safety, please be sure to
follow these instructions
From Installation to Operation
Refrigerator Compartment
Freezer Compartment
How to Use the Operation Panel
Automatic Ice-Maker
Rapid Cool
Rapid Freeze
Energy Saving Mode
Performing Temperature Adjustment
How to remove and clean accessories
How to maintain your automatic ice-maker
Other Issues
Troubleshooting
Accessories
Before use
OperationCleaning
SERIES MODEL
MR-LA580ER
MR-LA635ER
2
For your safety, please be sure to follow
these instructions
For your safety, please be sure to follow
these instructions
The types of danger that can result from improper
handling are explained in the sections below.
ٹ
The symbols illustrated below have
the following meanings.
Mishandling can lead to serious injury
or death.
Mishandling can lead to bodily injury or
loss of home and household contents.
Do not do
Do not get
wet
CAUTION
Always connect
an earth wire
Always unplug
electrical plug
from socket
Always follow
instructions
Do not install in an outdoor area
where water can get on it or
where there is a lot of moisture.
➡ Page 4
Due to insulation failure, it may cause
an electric shock or fire.
Remove dust from the electrical
plug.
Not doing so can cause a fire
from insulation failure.
Allow some space around the refrigerator.
If the refrigerant (gas) leaks, it can remain in
the area and there’s a risk that it may cause
a fire or explosion.
➡ Page 4
To be prepared for an earthquake, affix to
a strong wall or column.
Not doing so may cause injuries from
the refrigerator toppling over.
➡ Page 5
Attach ground wire and earth leakage breakers
when used in a humid or moist area.
It may cause electric shock and the following
ground connection may cause electric shock,
explosion and fire.
・
・
Water pipe/gas pipe.
Telephone ground lines and lightning rod.
(Please consult with the shop).
➡ Page 4
When installing your unit
About the electrical outlet and electrical plug
About the electrical outlet and electrical plug
Do not push the electrical plug with
the back of the refrigerator.
Do not damage the electrical cord.
If the plug is pressed by the refrigerator,
or if the cord is bent, bundled, or a
heavy object is placed on it, it can
cause an electric shock or a fire.
Using them can result in an electric shock or injury.
Do not use damaged cords or plugs or loose outlets.
Do not remove the electrical plug by pulling the cord.
The cord can become damaged and can cause
an electric shock or a fire.
Do not plug or unplug the electrical plug with wet hands.
It can cause an electric shock.
Using an extension cord or plugging in too many power cords
into the outlet can cause heat buildup or a fire.
➡ Page 4
Use a dedicated outlet for the power supply that meets
the rating specified on the rating label. (The rating label is
located on the door-liner of the refrigerator compartment.)
If it is plugged with the cord facing upward, extra pressure
gets exerted on it which can cause it to heat up or ignite.
Keep the electrical plug cord facing
downwards and insert the plug in fully.
If the power cord is damaged call Mitsubishi Electric
Service Centre for a technician to replace power cord.
The power cord should be designed for this model.
If the power cord is damaged.
WARNING
When replacing the interior refrigerator
light or when taking care of the unit,
pull out the electrical plug.
Not doing so can result in an electric shock
or injury.
About using your refrigerator
Do not damage the refrigerant circuit (piping)
of the refrigerator; do not drive in screws.
Because a flammable refrigerant (gas) is used,
there is the danger of igniting or explosion.
Do not use electrical products inside
the refrigerator unit.
If the refrigerant (gas) is leaking inside the unit,
there is a risk that a spark from the electrical product’s
contact can be a source for ignition or explosion.
Do not store volatile products that can easily ignite.
Benzine, cosmetics and hair styling products can
be the cause for igniting fires and explosion.
Do not store pharmaceuticals or scientific test material.
Anything that needs strict supervision must not
be stored in a home-use refrigerator.
Do not place items on top of the refrigerator.
Items may drop from opening and
closing the door and can cause injury.
Do not hang on the door or door handle and do
not stand on the compartment drawer-type doors.
The refrigerator can topple over causing injury.
Do not forcefully place items on the
glass shelf.
The glass can break and may cause injury.
Do not put your hands in the mechanical part of the
automatic ice-maker (the upper part of the ice storage box).
Doing so will cause injury.
Do not use flammable sprays nearby.
A spark from the electrical contact can ignite and cause a fire.
Do not do
Always follow
instructions
Always follow
instructions
Do not get wet
Always connect
an earth wire
Do not do
Always follow
instructions
WARNING
CAUTION
This appliance is not intended for use by young children or infirm
persons unless they have been adequately supervised by a responsible
person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they
do not play with the appliance.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
Always unplug electrical
plug from socket
3
Before use Operation Cleaning When in trouble
CAUTION
WARNING
When something abnormal or unusual
occurs, turn off immediately and consult with
“the store where you purchased the unit” or
with a “Mitsubishi Electric repair counter.”
Do not use in a shed or a garage.
If small animals damage the wiring,
it can cause an electric shock or a fire.
Do not put any vessels, jars, etc. that
contain water on top of the refrigerator.
If water gets onto electrical parts, it will cause
an electric shock or a fire.
If you sense a gas leakage, do not touch the refrigerator.
Open the window and ventilate the room.
About using your refrigerator
About Malfunctions / Long Term Care
Do not take apart, repair or convert.
Do not continue to use with damaged parts.
This can cause injury, an electric shock or
a fire.
If the refrigerant circuit (piping) is
damaged, do not touch the refrigerator,
open the window and ventilate the room.
If you will not be using the refrigerator for a long
period of time, after pulling out the electrical
plug, open the door and let the interior dry out.
If it is not dried adequately, the cooling unit may
corrode causing the refrigerant (gas) to leak which
can then cause the danger of ignition or explosion.
If it continues to run in an abnormal state,
it can cause an electrical shock or a fire.
If something abnormal occurs (such as a
burning smell), pull out the electrical plug
and stop the refrigerator from running.
It is dangerous if the child gets shut inside.
If there is a possible danger of a child
getting trapped inside while the refrigerator
is not in use, please pull off the door seal.
Always follow
instructions
Do not do
Install on a strong level floor and adjust
the adjustable legs to fix firmly.
The refrigerator may move and cause injury.
➡ Page 4〜5
When carrying, use the handles made for
carrying.
If other parts are held while carrying,
it can cause injury.
Be careful not to damage the floor
or injure yourself when moving
the refrigerator.
Lay a protective sheet on the floor
and move the refrigerator slowly.
➡ Page 23
Installing and Transporting
About using your refrigerator
If insufficiently attached, it may fall out
and may cause injury.
Make sure that glass shelves or
pockets are attached properly.
Always follow
instructions
Do not do
Do not charge with any refrigerant other
than our specification.
It may cause rupture, explosion, fire, etc.
when using, repairing, disposal, etc.
Do not do
Do not get wet
Do not wash with water or spill liquid
food items on the unit.
If water and food liquids get on the unit, it can cause an
electric shock or a fire. If that happens, dry off immediately.
A spark from the electrical contact can cause
an explosion or a fire.
The door or furniture may be damaged and
cause any injury.
When the doors are opened or closed,
beware not to hit any furniture.
When the refrigerant circuit is damaged,
please consult the store in which the unit
was purchased.
Always follow
instructions
Always unplug
electrical plug
from socket
When Recycling
If it is neglected and refrigerant (gas) leaks, ignition or
an explosion may be caused due to heat from a fire.
When disposing of the unit, transfer it to the
store that you purchased it or to the municipality.
Do not force food items into the refrigerator.
Do not use force to pull out shelves.
Food items may fall out, causing injury.
Do not store bottles in the freezer
compartment.
If the center freezes and bottles crack,
it will cause injury.
Do not place your hands or feet
under the refrigerator.
You can get injured from something
such as the steel plate.
Do not eat food that has a bad smell
or is discoloured.
Doing so may cause food poisoning or other
illnesses.
Observe the following when opening and
closing the doors.
another person is touching the refrigerator.
of a drawer type door while closing it.
Do not open or close the doors with excessive
force. (Food may fall out and cause injury.)
any other part of your body.
bottom drawer. (Danger of your
toes caught by the drawer.)
Not doing this may cause injury.
Do not touch foods or containers
in the freezer compartment
with wet hands.
Doing so can cause freezer burn.
It may cause injury.
Please pay enough attention when crushed
the ice cube in ice storage corner.
CAUTION
Always follow
instructions
Always follow
instructions
4

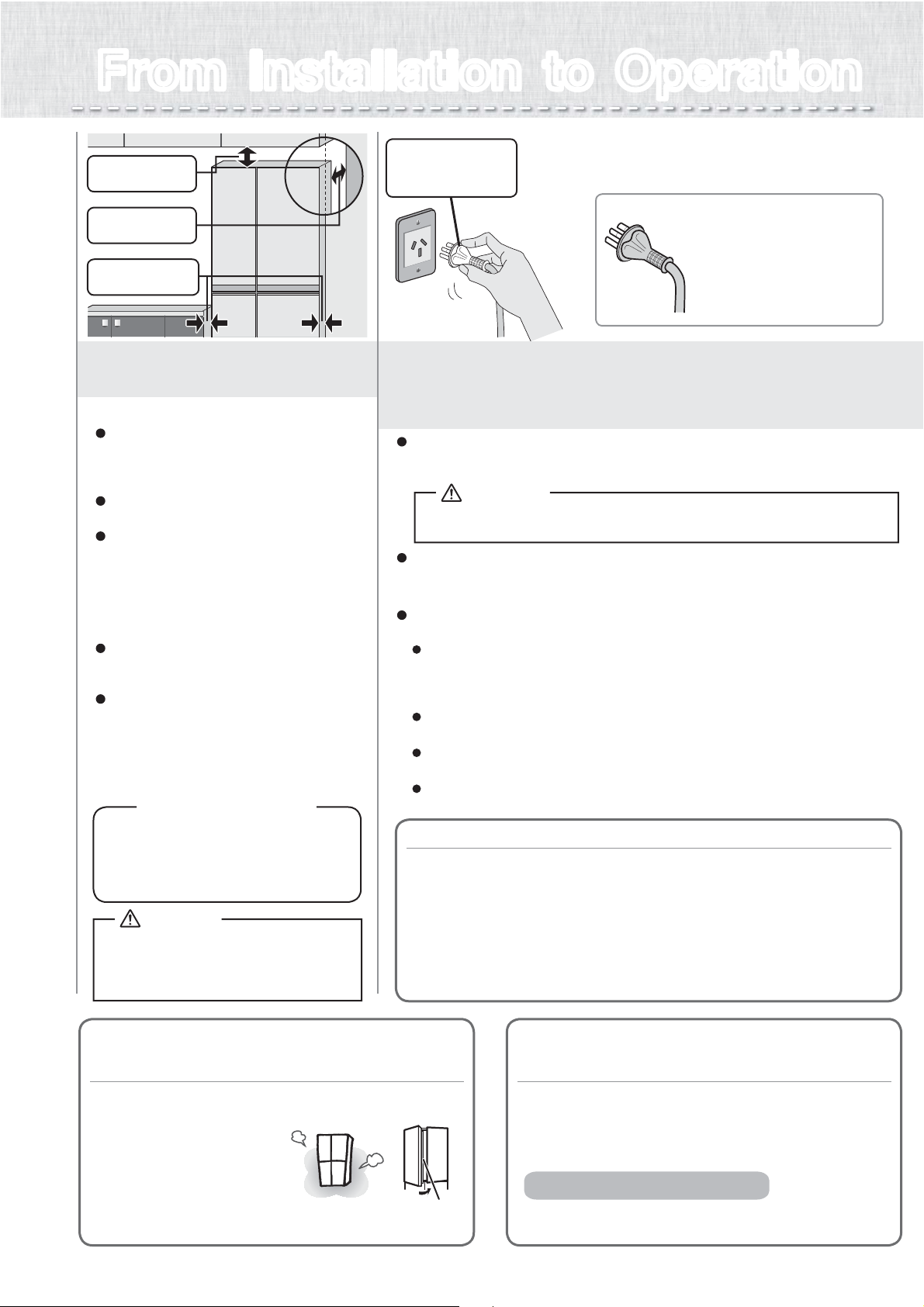

From Installation to OperationFrom Installation to Operation
Use a dedicated outlet
Use a dedicated outlet for the power supply that meets the rating specified on the
rating label. (The rating label is located on the door-liner of the refrigerator compartment.)
The refrigerator will not be damaged even if the power
is supplied soon after installation. It takes a while for the
refrigerator to cool, therefore supply power as soon as possible.
Electrical Connections
Make sure this unit is properly grounded.
The refrigerator should always be plugged into its dedicated electrical outlet.
This will provide the best performance and prevent electrical circuits
from being overloaded and causing a fire. Make sure that the electrical outlet
provides the proper voltage. Extension cords are not recommended.
If your refrigerator is installed in a high humidity location, not only ground
connection but also installation of the earth leakage breaker is recommended.
If the power cord is damaged, purchase a new cord from MITSUBISHI ELECTRIC
SERVICE CENTRE. Make sure that the power cord is designed for this model.
If the power cord is damaged, call our MITSUBISHI ELECTRIC SERVICE CENTRE
for the replacement, in order to avoid a hazard.
The outside of the refrigerator and the
rotating partition get hot.
Cooling takes time after turning
on the refrigerator.
Connect the power supply
*Connect power supply soon after installing the refrigerator
2
WARNING
Using outlets that do not meet the specified rating or plugging in
too many leads into a single socket can cause heat buildup or fire.
Rotating
partition
non-cooled food or ice cream.
them as soon as possible.
In summer it may take more than 24 hours before the first
batch of ice is made.
Heat radiation causes
the temperature to rise to
about 50
o
C to 60
o
C when
operation is first started,
and during the summer. The
rotating partition may get hot
when heated by the heater.
A gap of
at least 10 cm
A gap of
at least 6 cm
Dedicated
outlet that meets
the specified rating.
A gap of
at least 3 cm
Turn on the power of the
refrigerator as soon as
possible.
The refrigerator will not be
damaged even if you turn on
the power immediately after
the installation.
Install the refrigerator in:
A place with good ventilation that is not
exposed to direct sunlight of hot air
To prevent a diminishing in cooling
performance and to reduce power costs.
A place with low humidity
To prevent rusting, electric shock and fire.
A strong and level place
To prevent vibration and noise, and ajar
or tilting doors.
If the refrigerator supports sink easily into the floor
material, lay a strong plate or board underneath.
(To prevent deformation or discoloration
due to the weight or heat.)
A place away from other devices
To prevent noise or video interference
with devices such as televisions.
A place with at least 3 cm of
space beside the left and right of
the refrigerator, 10 cm of space from
the top and 6 cm from the back.
To allow heat to dissipate from the sides,
top and the back of the refrigerator.
Installation
1
WARNING
or the space around the refrigerator.
If refrigerant leaks, it may accumulate
and catch fire or explode.
Corrosion control treatment may be
required for the refrigerant circuit (pipe)
due to generation of corrosive gases.
Contact the retail store where you
purchased the refrigerator.
Use in hot spring areas
How to remove the energy label
Remove the energy label carefully. A glue residue may remain, particularly if
the label has been in place for a long period of time.
Apply either Eucalyptus or Tea Tree oil directly on any residue.
to degrade and potentially crack over time.
Allow the oil to sit for approximately 1-2 minutes, or until the glue residue has softened.
If any residue remains, repeat the above process.
Rinse with clear water.
●
●
●
●
●
●
●
●
5
Before use Operation Cleaning When in trouble
Prepare for earthquakes.
Strong belts
WARNING
Thread 2 strong belts through the hand-holds on the top rear
of the refrigerator and anchor them to a strong location, such
as wall or post.
The refrigerator may tip
over and cause injury.
The operation noise gets
louder immediately after
installation.
Immediately after instillation, when:
the weather is hot, the doors are
frequently opened or closed, or
any similar situation; the operation
noise will get louder because the
refrigerator will switch to high-speed
operation to cool with high power.
Although R600a refrigerants are combustible, the refrigerant
circuit is hermetically sealed and normally leaks will not occur.
WARNING
Should the refrigerant circuit be damaged:
1. Do not use flames or electrical appliances nearby.
2. Open the windows to fully ventilate the room.
Then, contact the retail store where you purchased the refrigerator.
Do not damage the refrigerant
circuit (pipes) or drive screws into it.

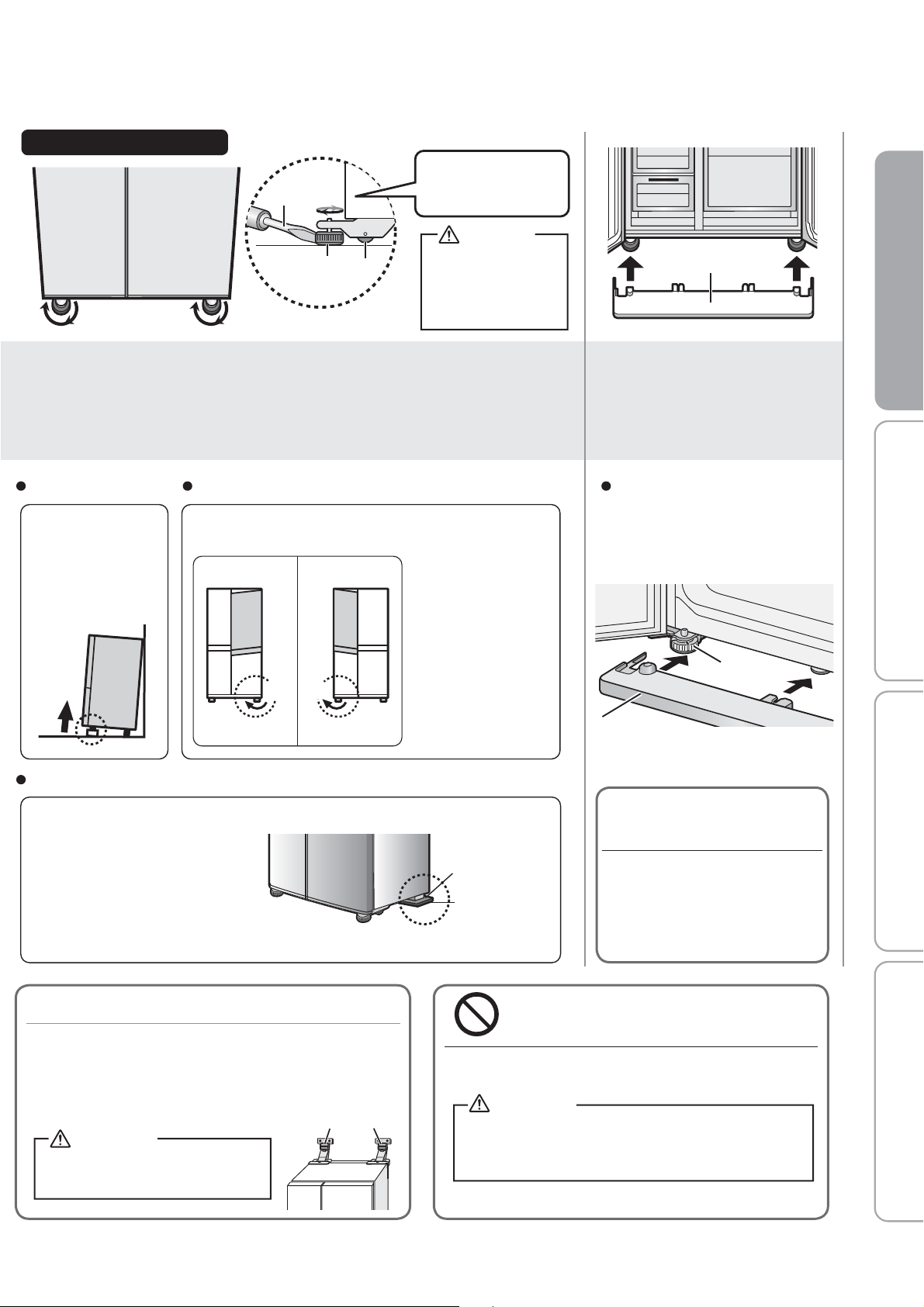

Preventing ajar doors
Adjusting a tilted door or unevenness Installing the support cover
While the freezer door is open
Insert the support cover horizontally
and fully, until it makes contact with
the rear side.
Support cover
The support cover is stored inside
the refrigerator compartment
at shipment.
4
Adjustment and anchoring
Turn the adjustable supports until they touch the floor and
the front casters are raised from the floor.
3
Adjust the supports to
make the refrigerator
level.
If the front of the
refrigerator is slightly
raised, the doors are
easier to close.
Readjust the adjustable supports as
shown in the figures below.
The right door tilts down
Raise the right side
Right Left
The left door tilts down
The support covers are designed for the
left and right adjustable supports respectively.
Raise the left side
If the installation
location is not level or
the supports sink after
a few days due to the
weight of the food,
the doors may appear
tilted.
Readjust the supports.
Adjustable
support
Flat-blade
screwdriver
Caster
Insert the blade of the screwdriver
Turn the adjustable supports
in the arrow direction until
they touch the floor.
Support cover
(To prevent vibration, noise, movement, and ajar doors)
Bottom front of refrigerator
If the supports are not
adjusted properly, the
refrigerator may move
and cause injury.
CAUTION
Support cover
Adjustable
support
If the door is still tilted after adjustment of the supports
When installing the refrigerator in
the corner of a room, one of the
rear supports may sink, causing the
refrigerator to tilt. If this happens,
use a caster support or strong board
for adjustment. (Normally, use a
board with a thickness of about 2 to 3 mm.)
Rear support
Caster support
or strong board
6
How to Use the Operation PanelHow to Use the Operation Panel
Touching will cause the operable icons to light up.
To save power, all displays other than are usually turned off (it turns
off if there is no operation after 30 seconds).
When operating, be sure to touch the buttons with your fingers.
Touch to go to
compartment selection;
Touch to go to temperature
settings.
Detail Setting
Example: When setting the
refrigerator compartment to "MID"
When ENERGY SAVING is set, and the
refrigerator is running efficiently,
ECO icon mark will light up. Page 15
ECO icon mark
Child Safety Lock Page 21
If you touch the operation panel, icons will be displayed.
You can select the setting that you prefer.
Touch an icon to display its setting details.
Rapid Cool
To cool a large amount of food quickly in refrigerator compartment.
Energy Saving Mode
To save power.
Rapid Freeze
To freeze a large amount of food quickly in freezer compartment.
Ice making
To start or stop ice making.
When turning ON or OFF settings,
touch one of these.
7
Before use Operation Cleaning When in trouble
In the following cases, the display may not change even when you touch it.
Wipe the moisture and dirt off your fingers.
Perform operations with your hands. After you have touched an icon, confirm that the display has changed before touching again.
The response may vary, depending on the surrounding temperature, humidity, the health condition of the person who operates it,
and the operating condition of neighboring electric appliances.
The operation
panel or your
fingers are wet
or dirty.
The interval between
touches is too short.
(Pressing repeatedly
may cause a
misdetection)
You are wearing gloves or
have sticking plaster on your
finger.
To Cancel the Setting
Touch
3
The text above the
icon will disappear.
[OFF MODE]
will light up.
Touch the icon
to cancel
2
Touch
1

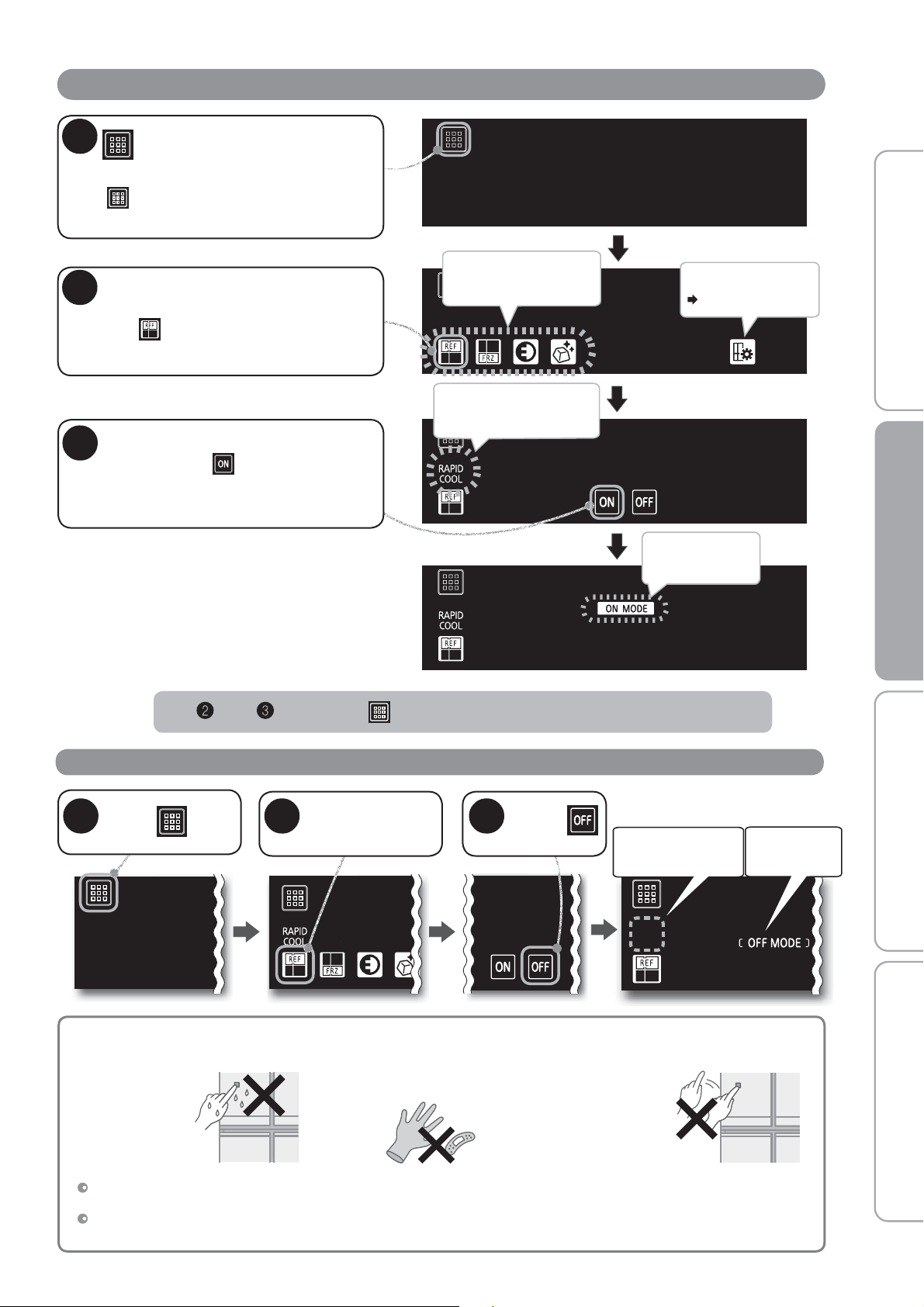

Operation Example (When Setting RAPID COOL)
In and , touching
returns the display to the previous state.
Detail Setting
Pages 16
When you keep the door of the refrigerator open,
touch for about 1 second. (until the buzzer
sounds once)
1
Touch
Operable icons light
up.
It lights up for 5
seconds after
setting.
The text above the
touched icon lights up.
Touch the icon to set
Here touch .
2
3
Confirm the setting details
then touch .
8

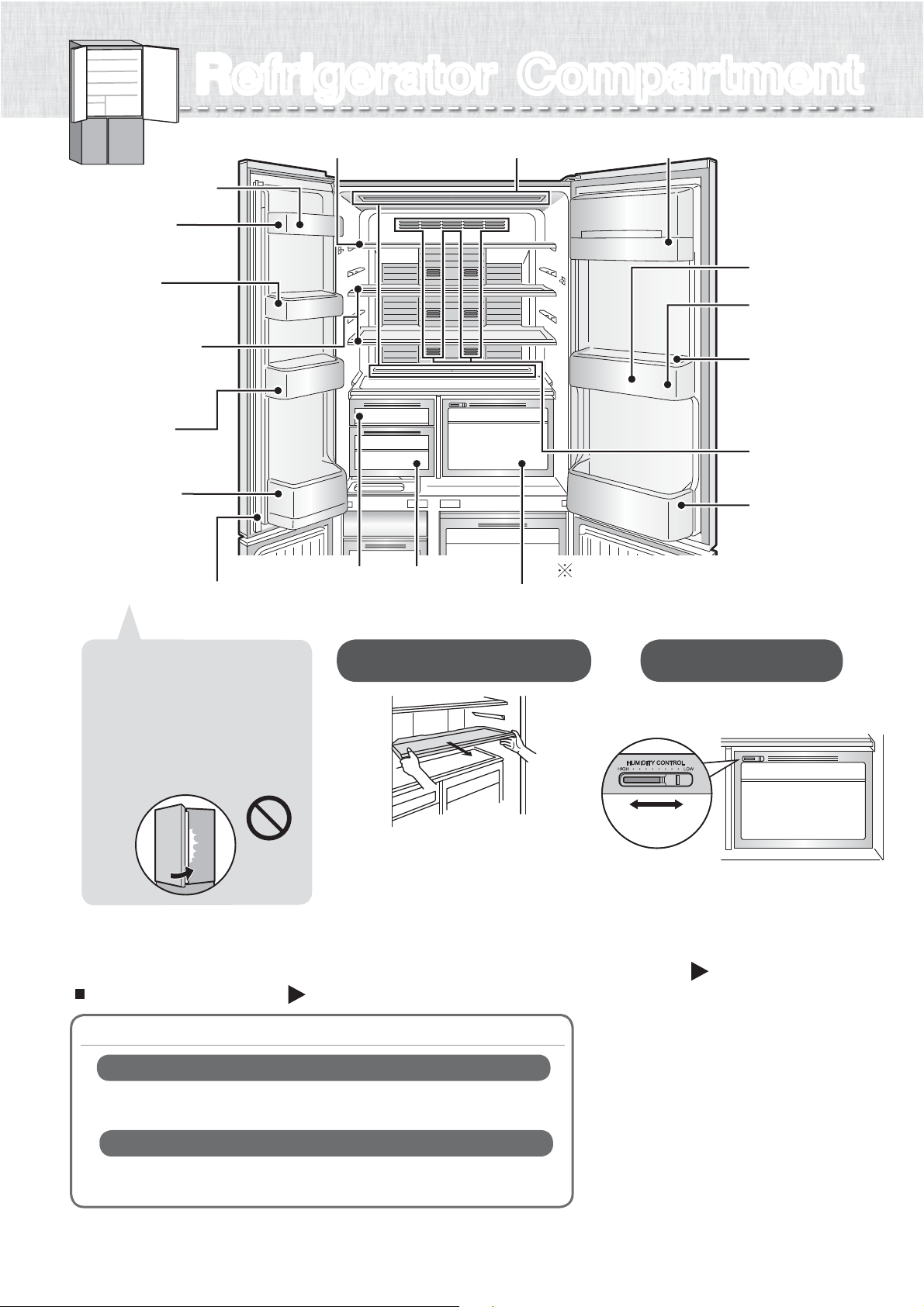

Refrigerator CompartmentRefrigerator Compartment
Shallot, dried fish, fermented foods, beef, sardines, kimchi, etc.
Puddings, ice cream, potato salad, rice, bread, milk, cake, ice, etc.
A slight odor may remain.
Wrap food that have strong odors thoroughly before storage
A slight odor may remain.
Food that transfers odors easily
Food to which odors are easily transferred
Do not close the door
while the rotating partition
is turned up to the front.
If you open or close the doors
rapidly with force, the rotating
partition may open to the front.
Open and close the doors slowly.
(Otherwise damage may result.)
* If food with a high level of moisture is placed near the air outlets, it may freeze.
Page 25
If the door alarm sounds
Page 22
Higher
humidity
Lower
humidity
While cleaning the refrigerator, be sure to
remove the shelves (made of tempered
glass) and put them back properly.
Or else, the falling or smashed shelf could
cause personal injuries.
Humidity of vegetable compartment
can be adjusted.
Tempered glass shelf
Vegetable case
Illustration of the MR-LA635ER
Door pocket
(small)
(Only with MR-LA635ER)
Door pocket
Adjustable
pocket (small)
(Only with MR-LA635ER)
Tempered glass
shelf (large)
(MR-LA580ER : 1 PC.
)
(MR-LA635ER : 2 PCS.)
Bottle pocket
(small)
Utility case
(small)
Utility case
(large)
Bottle pocket
(large)
Adjustable
pocket (large)
(Only with MR-LA635ER)
Air outlets
Egg shelf
Tempered glass shelf (small)
Capsule door pocket
Vegetable case
Rotating partition
Interior light
Door pocket (large)
(Only with MR-LA580ER)
Adjustable pocket
(Only with MR-LA580ER)
9
Before use Operation Cleaning When in trouble

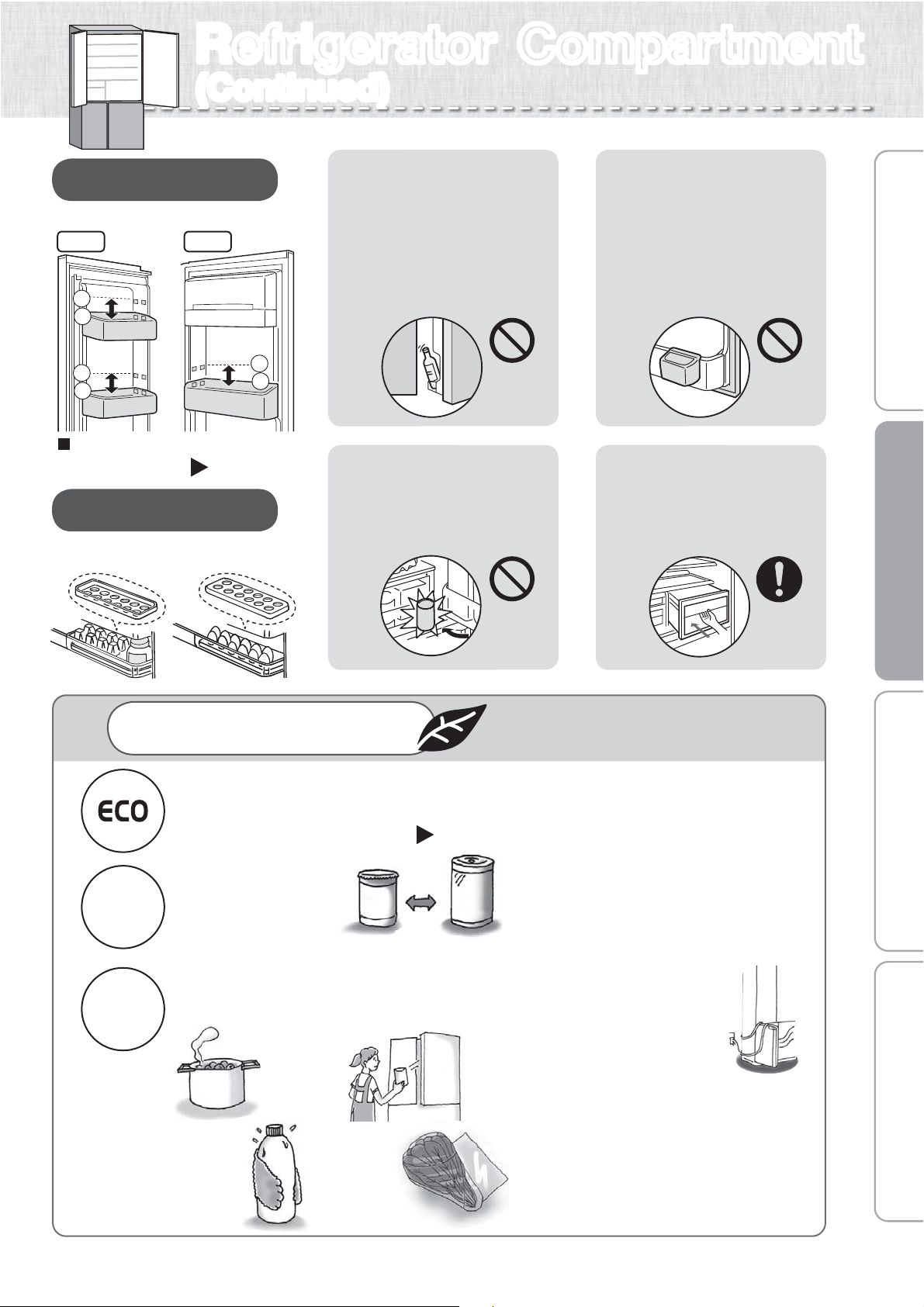

Refrigerator CompartmentRefrigerator Compartment
(Continued)(Continued)
Do not leave food hanging
over shelves or pockets.
Do not place glass bottles
that cannot fit all the way
to the bottom at the front
of the bottle pocket.
The bottle may keep a door ajar,
or the bottle may break.
Do not close the door
while food is in front of
the Vegetable case or
Utility cases.
Fully stow away the
cases.
Do not attach a case that
you purchased separately
onto the outside of a pocket.
It may keep a door ajar and reduce
the cooling performance, or food
may fall and cause an injury or
damage to a case or lid.
Tips for Energy Saving
Idea for
energy
saving
Helpful
storage
hints
Set Energy Saving Mode for automatic
energy saving operation.
Page 15
Keep space
between items in
the refrigerator.
Be sure not to catch
food items, plastic
bags, power cord,
etc. in the door
when you close it.
Frost or dew build-up
that may cause decline in
cooling ability as a result
of even the slightest door
opening.
Water may also drip off.
Allow hot food
to cool before
storing.
Wipe wrap
Avoid opening the door
frequently or leaving the
door open for a long time.
Put items on the top shelf if you wish to cool sufficiently.
Egg holder or small organizing compartments.
By turning it over it can be used either way.
Egg shelf
1
2
2
1
1
2
Only with
MR-LA580ER
Only with
MR-LA635ER
Only with
MR-LA635ER
Relocate the pockets
Page 16
Adjustable to 2 positions
Small Large
Adjustable pockets
10

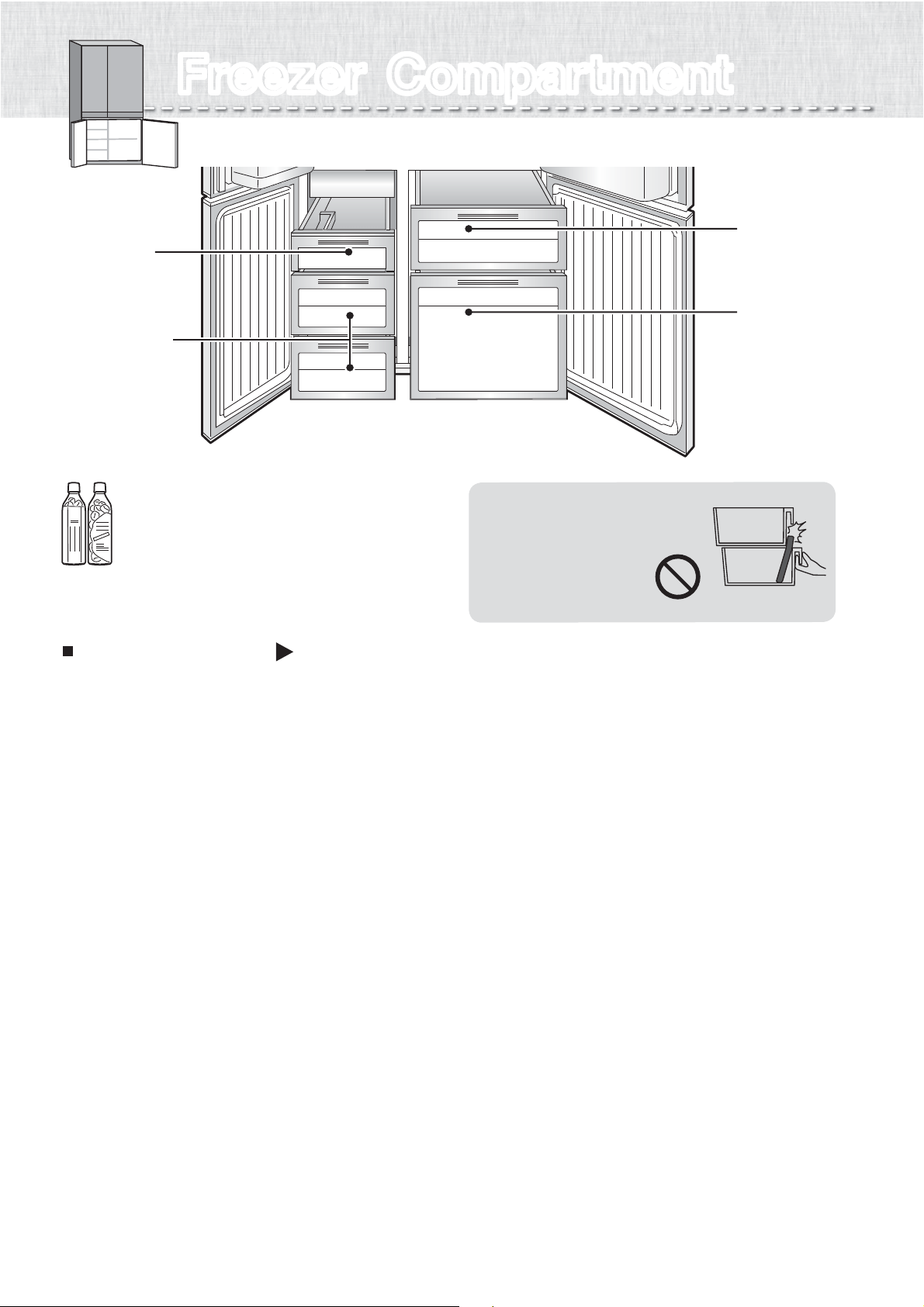

Freezer CompartmentFreezer Compartment
Ice storage
box
Freezing case
(small)
Freezing case
(middle)
Freezing case
(large)
Do not place tall objects
in the lower freezing case.
Food or the slide case may
be damaged.
The door may not close.
15 cm height of plastic bottles for
freezing can be placed standing up
in the Freezing case (large).
Ensure the bottles used are capable of
being frozen without damage or leaking.
If the door alarm sounds
Page 22
11
Before use Operation Cleaning When in trouble

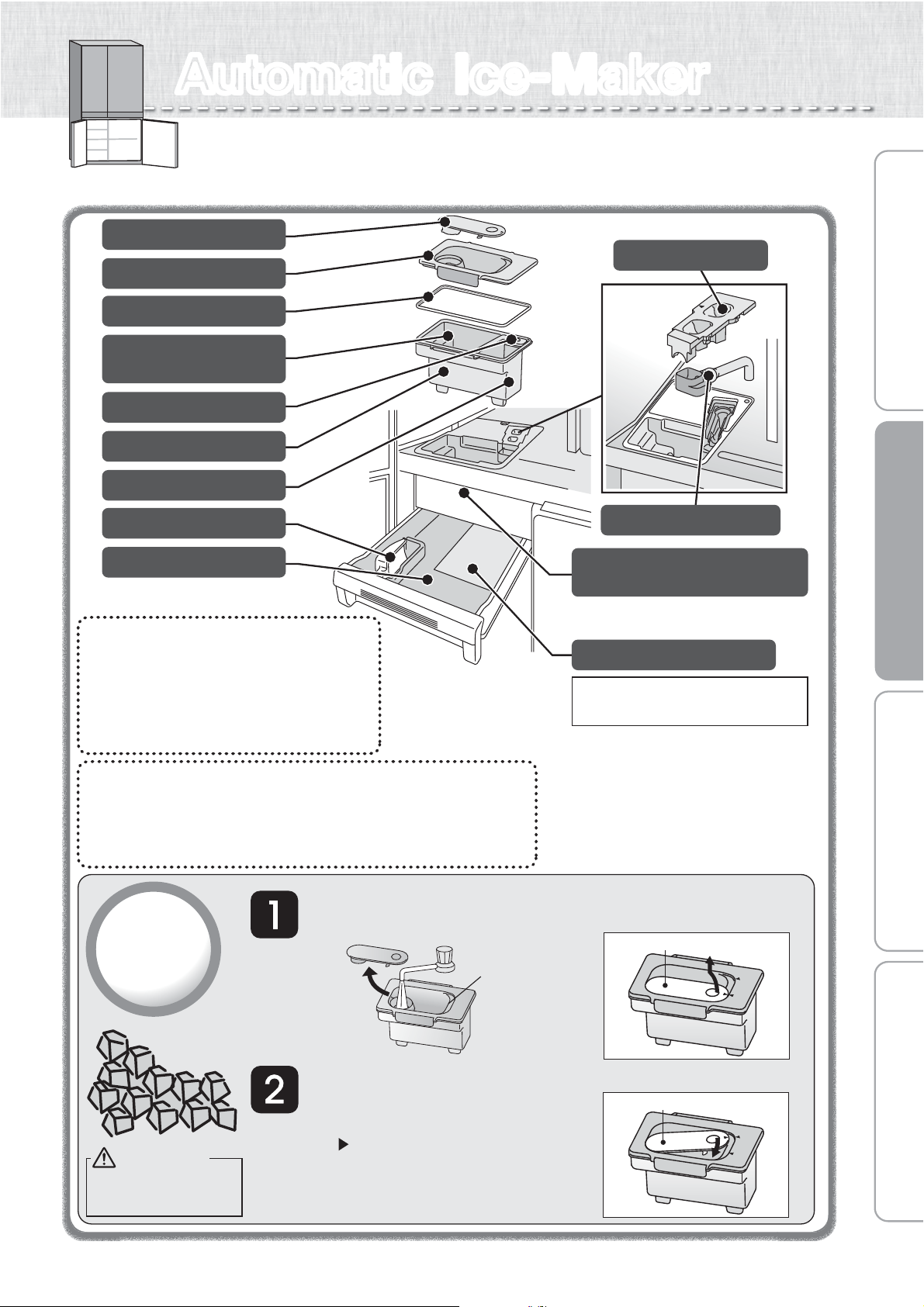

Automatic Ice-MakerAutomatic Ice-Maker
OPEN
CLOSE
OPEN
CLOSE
OPEN
CLOSE
You can make ice cubes by puting water in the water supply tank of the refrigerator
compartment. Please do periodically maintain to make a good ice cube by cleaning.
Please drain the water in the water supply tank when you do not make ice.
About the first batches of ice.
Please discard the first 2 - 3 batches
of ice (approx. 30 cubes) made at
the very beginning. Also, discard ice
that isn’t used in over 1 week.
There may be times when there may be
dust or an odor on them.
Water to Use for Your Auto Ice-Maker.
We recommend that you use water such as tap
water which contains less bacteria.
If you use mineral water or water from a filtering machine,
please increase the number of cleaning times, and be sure
to clean it thoroughly.
➡ Page 19〜20
Take out the water supply
tank, remove the tank plug,
and fill with water.
Put the tank plug on the water supply
tank, carry carefully without tilting it,
and return to its original position.
●
●
●
When carrying the water supply tank, make sure
that the “ ” symbol is in the closed position.
If the tank is tilted, water will spill out.
If the water supply tank is not properly in position,
ice cannot be made. Make sure that there is
nothing blocking the tank receiving area.
How to
make ice
Tank Plug
Pipe Cover
Water Supply Pipe
Pipe
Water supply Tank
Approx. 1 L.
Purification Filter
Water Supply Pump
Ice Storage Box
Ice Server
Ice-Maker Tray
(in freezer compartment)
Noise Reduction Mat
Reduces noise of dropping ice
Do not remove.
(Do not remove.)
Tank Lid
Packing (Tank Lid)
Fill water to the
“full line” mark.
Tank plug
Tank plug
How to remove the tank plug.
Turn to the “Open” position and lift off.
How to put in the tank plug.
WARNING
Fill with potable
water only.
12

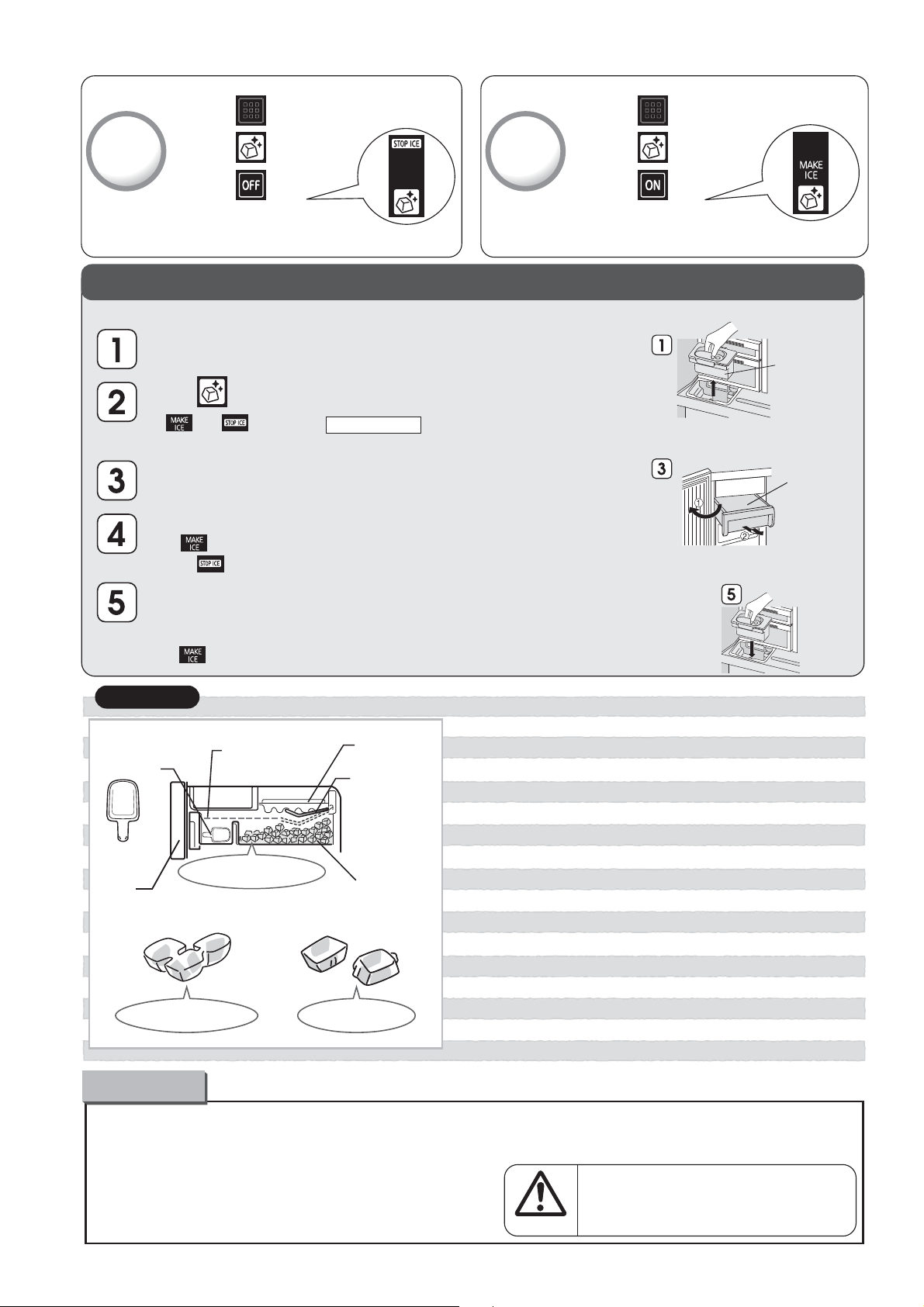

To stop
ice-making
To restart
ice-making
Water supply
tank
Put the water
supply tank
back in place.
Take out the ice storage box.
And discard water or ice.
● Do not put the food items when making ice.
Please gently close the door of freezing compartment.
Ice cube may get dirty.
Do not insert water over full water mark in water supply tank.
Water channel in the ice tray may freeze, ice cube may
connect together, and convex may come out, if insert
water over the mark or pour water by kettle.
● Please do not store anything above the level on the side
of the ice storage box.
(The door may half-open and it may cause failure/damage).
●
Do not insert any drinks such as hot water, juice, tea, soft drink, etc.
other than water in water supply tank (heatproof temperature 60
o
C).
It may cause failure.
●
Ice-making will stop when the amount of storage ice is given quantity.
Ice cube will flat when it thick some, please insert ice server
horizontally in front side of ice storage corner as the left figure.
●
●
Maximum level for
storing foods
Ice tray
Detection Lever
(Detects volume
of ice stored.)
Ice server
Door
Ice storage box
Take out the water supply tank,
close the freezer door.
●
Ice made with water containing a lot of mineral substances
such as mineral water, can cause to ice to form with a white
sediment (white crystals). These are only mineral substances
that have become crystallized. It is harmless.
●
If ice is stored for a long period of time, the
ice cubes may cling together or become smaller.
(This is known as the phenomenon of sublimation.)
About the ice
●
Ice-making may take longer with frequent
opening/closing of the door, or depending
on the ambient temperature.
It may cause injuries.
Please pay enough attention
when crush the ice which stuck
in ice storage corner.
CAUTION
① Touch on the operation panel
Touch
Touch
②
③
①
Touch on the operation panel
Touch
Touch
②
③
STOP ICE will light up
The setting is finished
When you will not make ice for a long time
※
Also do this when moving or transporting unit.
Empty the ice-making tray by taking out the ice or by forcing water to go into the ice storage box.
Press for about 5 seconds.
(Press until it makes a beeping sound.)
●
●
and will blink for about 1 minute.
(It drops down the ice-making tray's water or ice.)
When the light stops blinking, it will return to the previous indication.
Stop making ice.
● If light is on, to do ice-making stop proceedure and check to confirm
that light is on.
Wash with water, dry, and put back in place: the water supply tank (water supply
pump, pipe, water filter), ice storage box and the noise reduction mat.
➡
Page 19
〜
20
To restart ice-making, to do ice-making restart proceedure and check to confirm
that light is on.
Ice storage
box
Keep ice at an even level
The ice cubes connected Protrusion on the ice
Please note
MAKE ICE will light up
The setting is finished
13
Before use Operation Cleaning When in trouble
The sound of the refrigerator running gets louder during Rapid Cool, because it is operating at high speed.

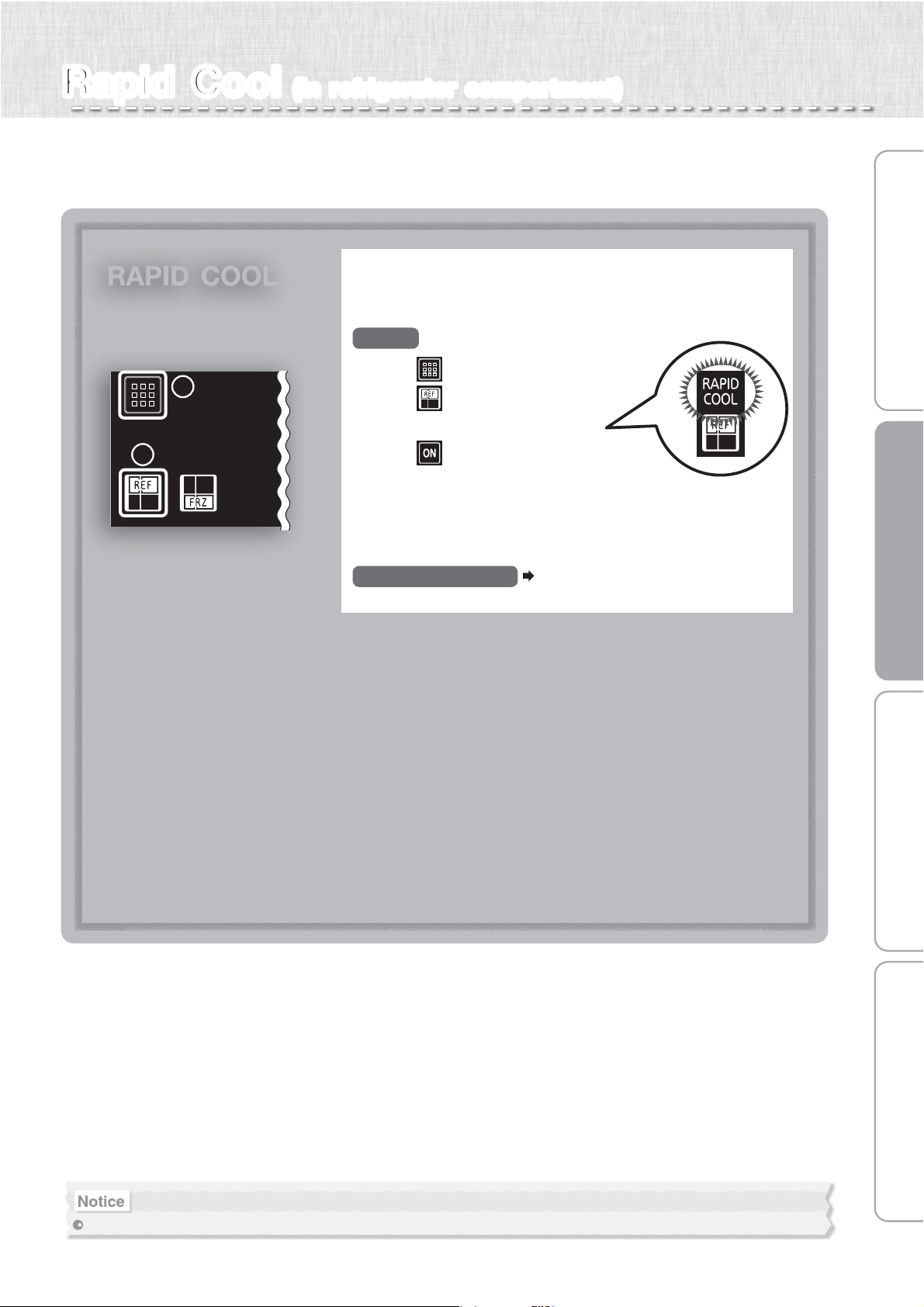

Rapid CoolRapid Cool (in refrigerator compartment)(in refrigerator compartment)
When storing a large amount of food, protect the food's freshness by rapidly cooling it.
RAPID COOL
1
2
Swiftly cool refrigerator compartment
when their doors are opened and closed
1 Touch on the operation panel
2 Touch
The text above the icon will light up.
3
Touch
The settings are finished.
This ends automatically about 2 hours after setting.
It doesn't matter whether you put food in before or after
turning on the settings.
To cancel the setting
Page 7
To Set
14
The sound of the refrigerator running gets louder during Rapid Freeze, because it is operating at high speed.
Rapid FreezeRapid Freeze (in freezer compartment)(in freezer compartment)
When storing a large amount of food, protect the food's freshness by rapidly freezing it.
RAPID FREEZE
1
2
Swiftly cool freezer compartment
when their doors are opened and closed
1 Touch on the operation panel
2 Touch
The text above the icon will light up.
3
Touch
The settings are finished.
This ends automatically about 2 hours after setting.
It doesn't matter whether you put food in before or after
turning on the settings.
To cancel the setting
Page 7
To Set
Before use Operation Cleaning When in trouble
15

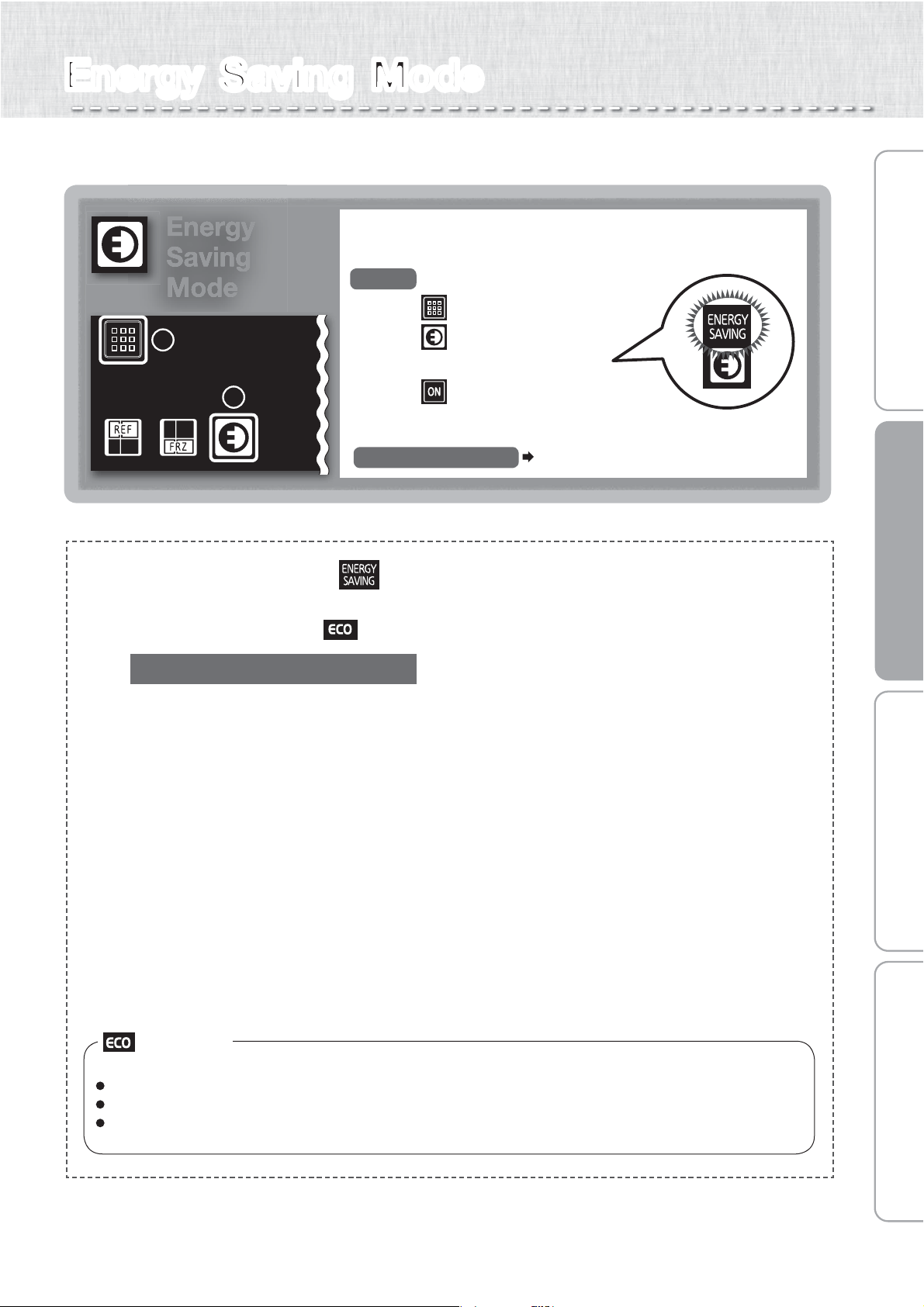

Energy
Saving
Mode
An appropriate timing is selected for each compartment and
the energy saving mode is performed automatically with a
slightly high temperature setting.
To Set
1 Touch on the operation panel
2 Touch
The text above the icon will light up.
3
Touch
The settings are finished.
To cancel the setting
Page 7
1
2
Energy Saving ModeEnergy Saving Mode
This mode learns each family's method of use and operates with the optimal state for each
compartment.
Lights-Out
In the following cases, energy saving mode will be cancelled and the light will turn off.
When the doors are frequently opened and closed
When Rapid Cool or Rapid Freeze is operating
After defrosting
(After the freezer compartment is sufficiently cold and stable, energy saving mode will automatically restart.)
Tips for using the refrigerator wisely
Temperature settings
Setting each compartment to a relatively low
If Energy Saving Mode is set, is displayed.
If switched to power saving operation while
Energy Saving Mode is set, is displayed.
operation reduces the consumption of electricity.
Opening and closing compartment doors
The refrigerator consumes more electricity if you
open and close the compartment doors frequently
or leave the doors open for a long time.
Energy Saving Mode
In this mode, the refrigerator automatically operates
in an energy saving fashion when the temperatures
are stable in the compartments. The refrigerator is
not set in this mode when newly installed.
Storing foods
Do not fill any fridge compartments with too much
food, or place food in a manner that blocks the cold
air outlets. Blocking the cold air outlets will compromise
the airflow which can cause some areas of the fridge
to take longer to cool to the optimum temperature and
reduce energy efficiency.
16
Temperature Adjustment
At the time of purchase,
the settings are as follows.
Refrigerator and Freezer
Compartments
……"COLD"
The set temperature
and compartment
lights up.
1
Touch
on the operation panel
2
Repeatedly touch to light up the compartment
that you want to set the temperature for.
The display changes in the order shown in the right
each time the button is touched.
When a compartment is displayed, that compartment's
temperature setting will also be displayed.
3
Repeatedly touch to set the temperature.
In 2 and 3, touching or not
performing any operations for about 30
seconds will return the display to its
initial state.
Page 7

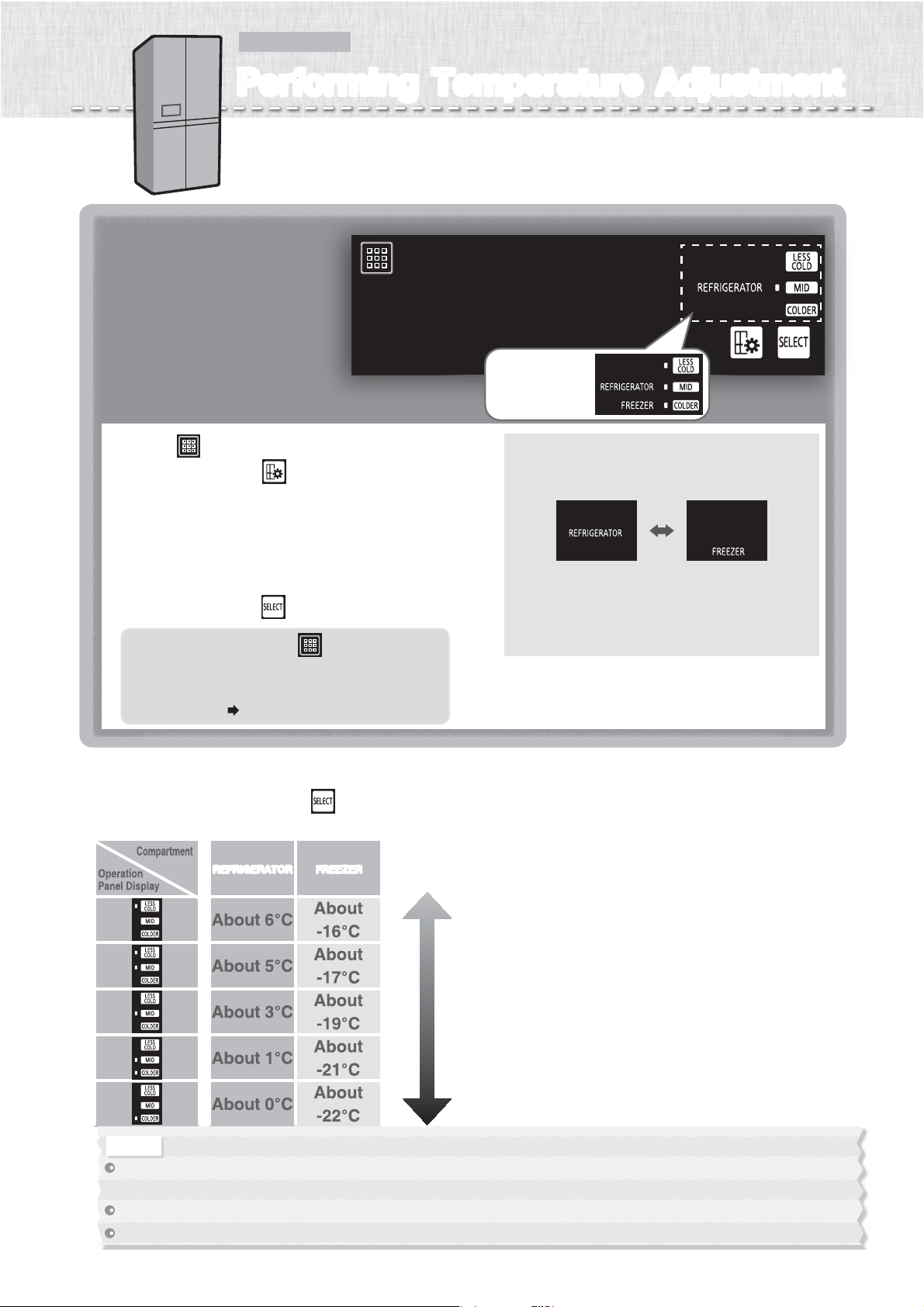

Refrigerator/Freezer Compartment Temperature
The display changes each time is touched
and the temperature can be set to 5 different levels.
High Average Low
REFRIGERATOR FREEZER
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has stabilized when the surrounding temperature is 30
™C
and
the doors are closed without any food inside. The temperature fiuctuates with factors such as food storage conditions and how often the doors are opened and closed.
Before and after defrosting, the temperature inside the refrigerator may drop or rise temporarily.
When food freezes in the refrigerator compartment or lower case, set the refrigerator temperature setting to COLD - LESS COLD.
Notice
Detail Setting
Performing Temperature AdjustmentPerforming Temperature Adjustment
The temperature of each compartment can be adjusted.
Use the refrigerator and freezer to "COLD" usually.
Before use Operation Cleaning When in trouble
17
Dust
How to remove and clean accessoriesHow to remove and clean accessories
This can cause injury, an electric shock
or a fire.
Do not take apart, repair or convert.
Do not continue to use with damaged parts.
Do not do
If it is not unplugged, it will
cause an electric shock.
Unplug the electrical plug.
Always unplug electrical
plug from socket
※ Wait 10 minutes or more before you replug the electrical plug into the outlet. If you plug it in
immediately after unplugging it, the refrigerator will not run.
How to maintain Q&A
Q. If dirt is noticed.
A.
Please wipe as soon as possible.
●
●
●
●
Wipe with a soft towel soaked in warm water.
For hard to remove dirt, please use a kitchen
detergent (neutral type) and wipe off with water.
In particular, oil may lead to cracks and citrus
fruit juices to discoloration, so be sure to wipe
them off right away.
Door packing may cause damage or cold air
leakage if you leave the dirt. Please wipe off
the moisture with dry towel after wipe off with
soft and soak towel.
Q.
Can the shelf, case and pocket be removed?
A. For removable parts,
please see
➡Page 18
● Do not use the following items.
Alkalinity or alkalescent kitchen detergent, undiluted
neutral kitchen detergents, polishing powder, soap
powder, alcohol, benzine, thinner, petroleum, acid,
scrub brush, hot water, etc.
Plastic parts (door handle, cap, case, etc.)
will crack, and glass shelf or painted surface may
damage or rust.
Power Plug
For safety, please periodically check
the power plug and cords.
Unplug the electrical plug from
the outlet and inspect.
Is there any damage or abnormal
heat coming from the plug or cord?
Wipe away dust from the plug
and around the plug area with
a dry cloth.
Insert the electrical plug fully
into the outlet.
Change
Maintain
Wipe out the dust in power plug
periodically.
It may cause fire or insulation failure.
Refrigerator rear side and floor
Dust and dirt can accumulate in the ventilation
space behind the refrigerator. Please clean
periodically for energy saving purposes.
Remove the toe grille.
We recommend laying out protective
material on the floor to prevent
the floor from being damaged.
Also, be careful not to injure yourself.
Turn the adjustable supports to raise them
from the floor,and pull out the refrigerator.
Remove the dust from the rear panels,
walls and floor, and wipe off any dirt.
Check for water dripping on the floor.
Do not put your hands or feet
under the refrigerator.
It may cause injury.
Do not do
Always follow
instructions
Soot and dust
Please take heed
Replacing lamps in compartments
LEDs in the refrigerator compartments and behind
of Vegetable case.
Contact the retail store at which you purchased this refrigerator
from or MITSUBISHI ELECTRIC SERVICE CENTRE.
18

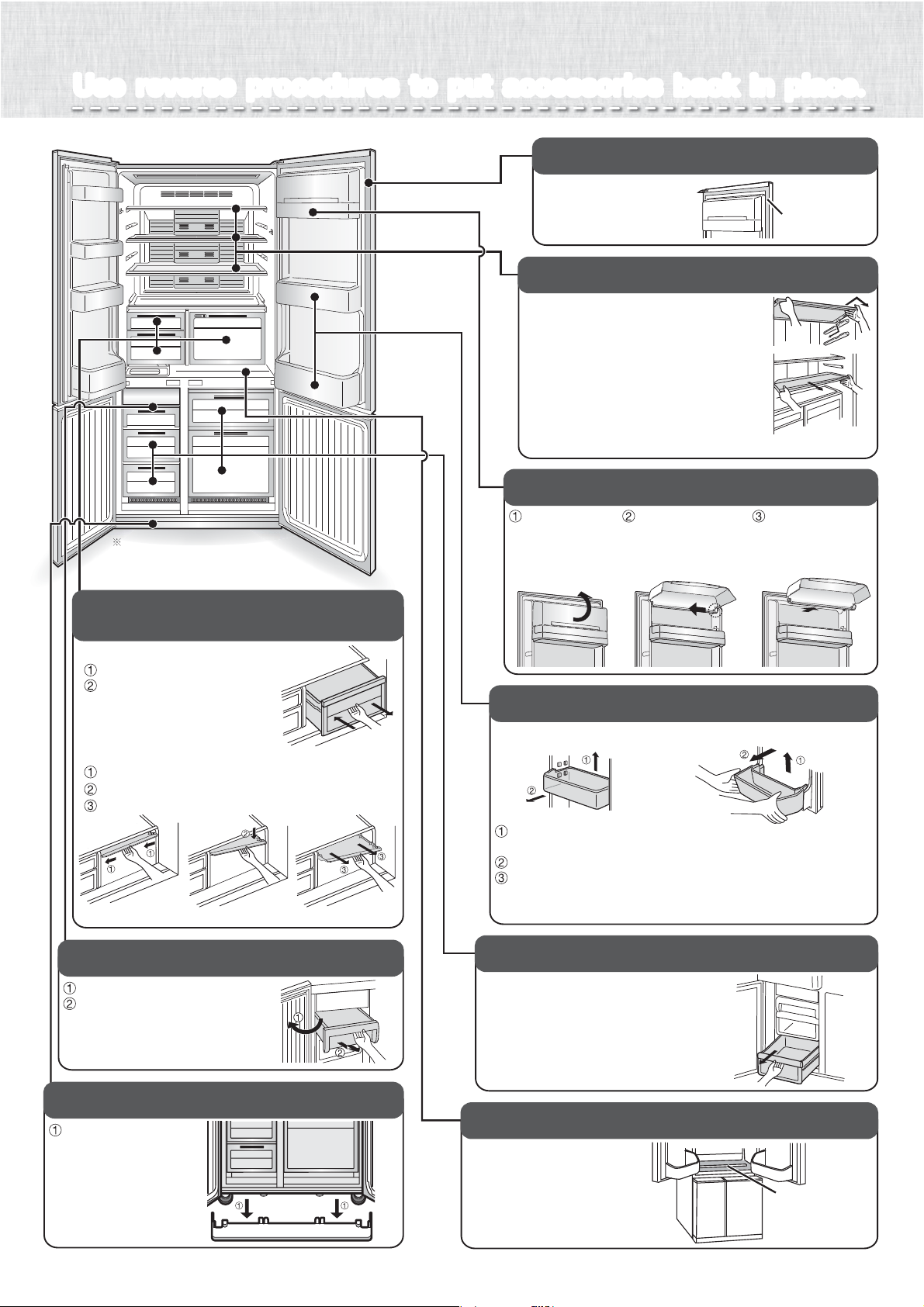

Use reverse procedures to put accessories back in place.Use reverse procedures to put accessories back in place.
Illustration of the MR-LA635ER
Utility case
Fully pull out the slide case.
Lift the end on your side.
Vegetable case
Lift the end on your side to pull out
the Vegetable case.
*The ceiling shelf on the upper side of cases cannot be removed.
Utility case / Vegetable case /
Vegetable case cover
Open the door.
Draw the ice storage case
towards you and remove.
Ice storage box
Alternately lift up the left and right sides (the pockets are securely
installed).
Pull towards you.
Be sure to install the Adjustable pocket and the bottle pocket
securely and correctly.
(Or else, the pocket may fall off, causing a personal injury.)
Adjustable pocket Bottle pocket
Adjustable pocket / Bottle pocket
Pull the case towards you.
Hold the end on your side
and lift the case.
Cases in the Freezer compartment
Wipe away any dirt,
liquid or condensation.
Liquid catchers
Liquid-Catching indentations
How to remove the upper shelf
Lift the upper shelf with both hands to
take it out.
How to remove the middle and
lower shelves
Remove the middle and lower shelves
with both hands.
Reverse the steps to put back the shelves.
Tempered glass shelves
Lift the cover
by 100 degrees.
Push the cover to one
side and remove it while
pushing in the rib of the
hinge cover with your finger.
Remove the cover
towards you.
Capsule door pocket
Remove by pulling
forward on
both sides.
Support cover
Dirty packing is easily
damaged and can cause
refrigerated air to leak.
Door packing
Door packing
Slide the left side of cover to end.
Push down the right side of cover.
Pull towards your side.
Vegetable case cover
Before use Operation Cleaning When in trouble
19

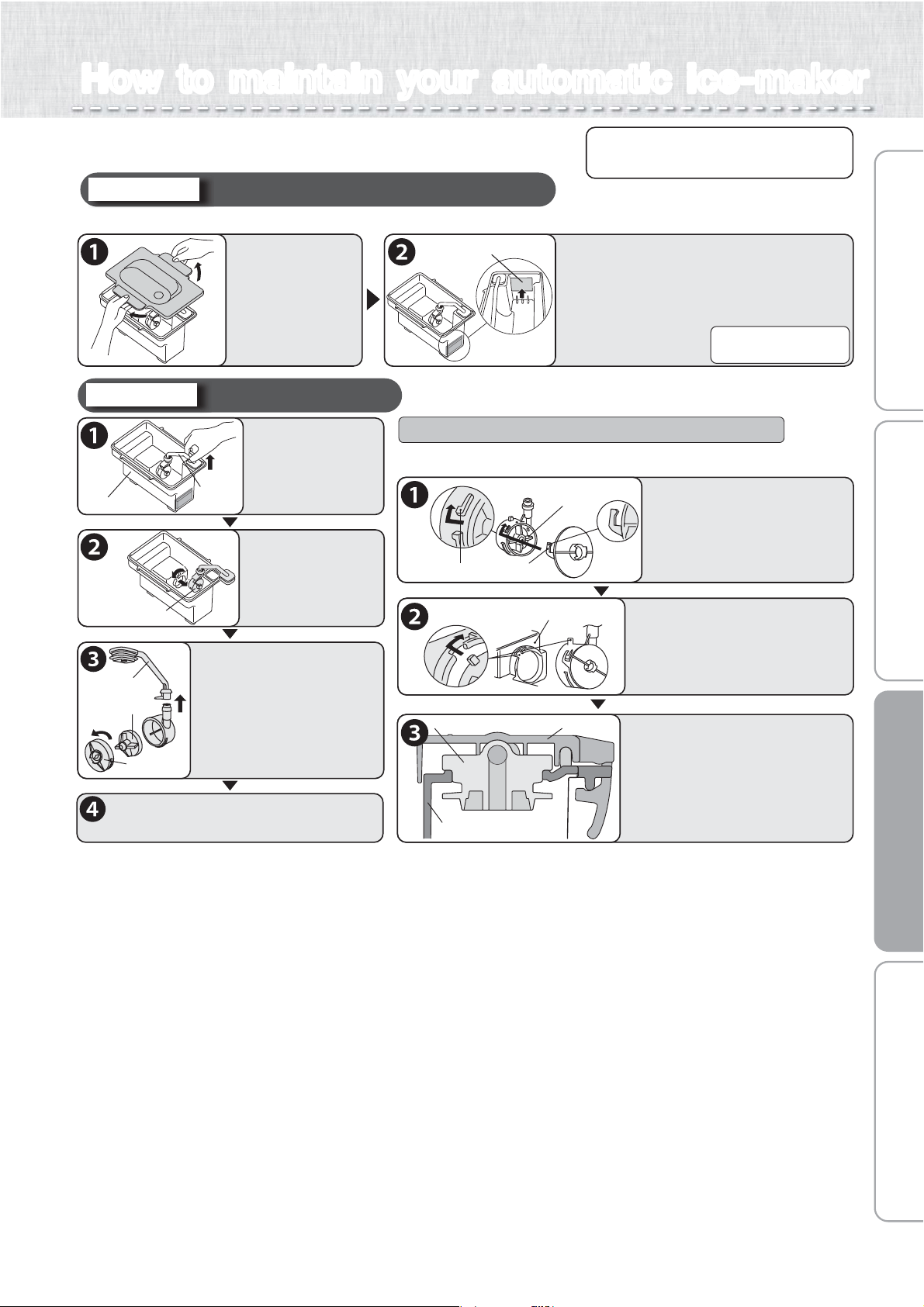

How to maintain your automatic ice-makerHow to maintain your automatic ice-maker
Please periodically clean to prevent the occurrence of water
scale, mold, etc. Please remove water when not making ice.
※
Do not use a dishwasher or dryer
because it may cause deformation.
For once-a-week
If mold forms easily in the certain types of water, clean about 2 or 3 times a week.
Water supply tank / Purification filter
Take off the lid
and wash with
water.
(Temperature
tolerance
approx 60
o
C)
Purification filter
Remove and wash with water.
Normally, it does not need replacing.
Please replace for the following reasons:
●
●
●
If something other than water was put in
and the opening got blocked.
If it is damaged.
If mold, etc. is forming.
Water supply pump
For once-a-month
Turn the pump
and take out.
Take out the pipe,
Turn the cap and remove,
Take out the impeller
and wash with water.
Water tank
Pipe
Water
supply pump
Impeller
※
Pipe
Cap
If it is not assembled properly, it may not make ice or it may make
a loud sound. Please check on the following.
The claw on the cap ( )
is turned to put onto the
protruding part ( ) of
the water supply pump.
①
②
②
①
Impeller
Turn
Turn
Water supply tank
※Check to make sure that
the impeller is inside.
Attach the water supply
pump properly to the
water supply tank by
turning and attaching.
Insert the water supply pipe
into the water supply tank
opening, Connect the pipe
to the water supply pump.
※ Check to make sure that there
are no substances at the
connection point of the two pipes.
Water supply tank
Water supply pipe
Tank lid
Remove it from
tank.
※
The impeller is made with a
magnetic material. Clean thoroughly
with water, making sure there
are no substances on it.
Pointers for assembling the water supply pump
To buy another filter, please
inquire at the store where
you bought your unit.
Return parts by following the
reverse procedure.
20
OPEN
CLOSE
OPEN
CLOSE
OPEN
CLOSE

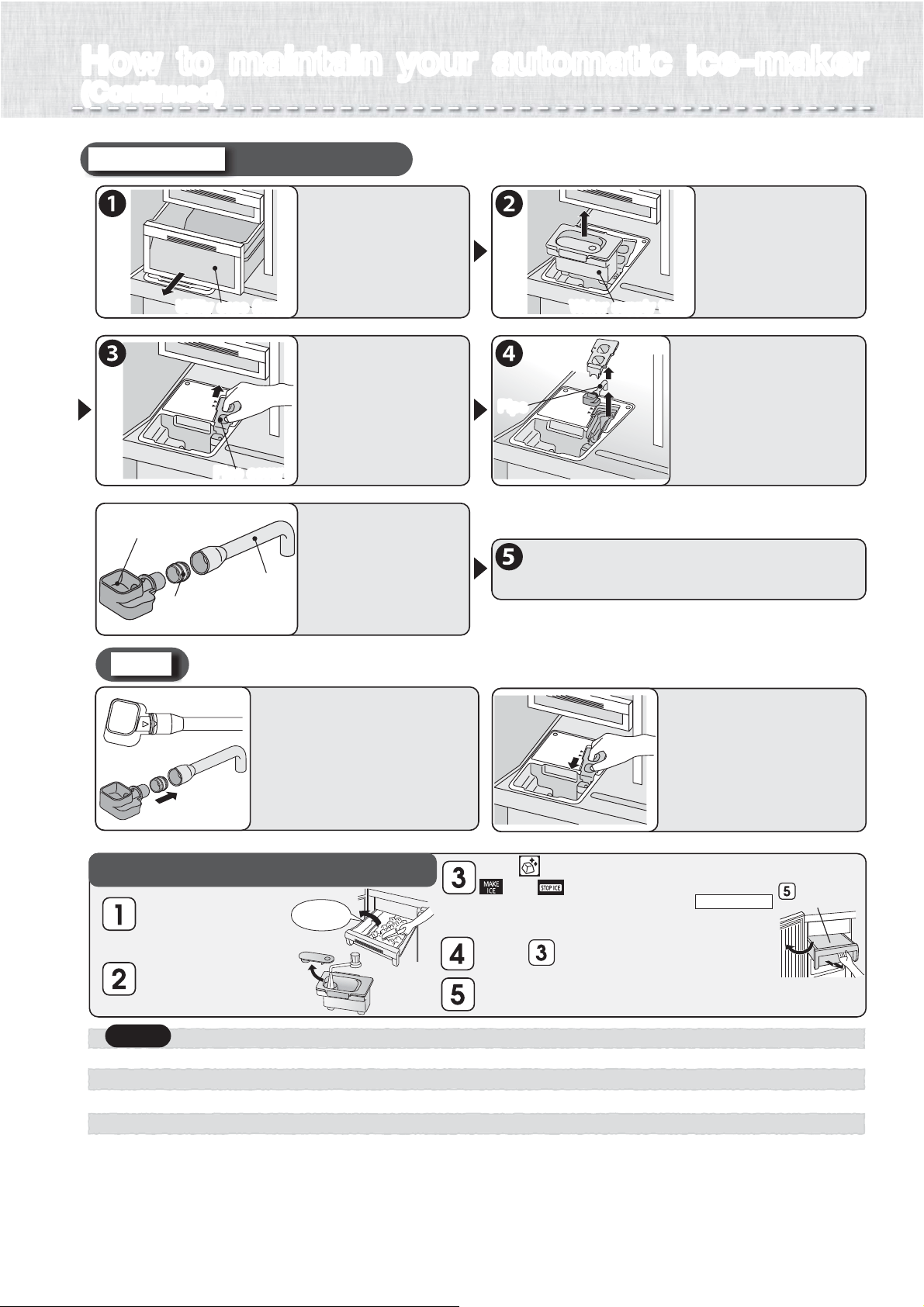

How to maintain your automatic ice-makerHow to maintain your automatic ice-maker
(Continued)(Continued)
For once-a-month
Water supply pipe
Fully pull out the
slide case.
Lift forward to
remove.
Water supply tankWater supply tankUtility case (large)Utility case (large)
Take out the water
supply tank.
NOTE
When assembling the water tray
and the pipe, align the arrow
on the water tray, the packing
(Water supply pipe) with the
convex shape of the pipe.
If removal or assembly are not
done correctly, a problem such
as a water leakage will occur.
Slide the pipe cover
to the "OPEN"
position.
PipePipe
Pipe cover
Pipe cover
Remove the pipe cover
Remove the pipe.
※
The water tray and
pipe can be removed
for cleaning.
Pipe
Paking
(Water supply pipe)
Water tray
After cleaning, return parts by following
the reverse procedure.
When installing the pipe
cover, be sure to slide it
to the "CLOSE" position.
The pipe may come off.
※
Take out
ice cubes.
●
●
●
●
Do not use washing agents such as kitchen detergents, benzene or bleach to clean the water filter. It will cause ice to have an odor.
If you use a bleach to clean your water supply tank or lid, please follow product directions carefully.
Assemble the water supply pump properly and firmly. If it is not assembled properly, it may not make ice or it may make a loud sound.
Please attach the lid of water supply tank securely. If the lid is not attached properly, the lid may be out and the water supply tank will fall.
Take ice out of the
ice storage container,
close the freezer door.
Fill water supply tank
with water, put back
in original position.
Touch for about 5 seconds.
and will blink for about 1 minute.
●
●
The stop ice-maker light (red) will blink for about 1 minute.
(It rinses the ice-maker tray with water from the water supply tank.)
When light stops blinking, it will return to the previous indication.
Repeat 2 or 3 times.
Remove the Freezing Case (upper) discard water and ice.
Do not throw out noise reduction mat (same as p.11)
Ice storage
box
Cleaning the ice-making tray (rinsing)
Notice
Before use Operation Cleaning When in trouble
21

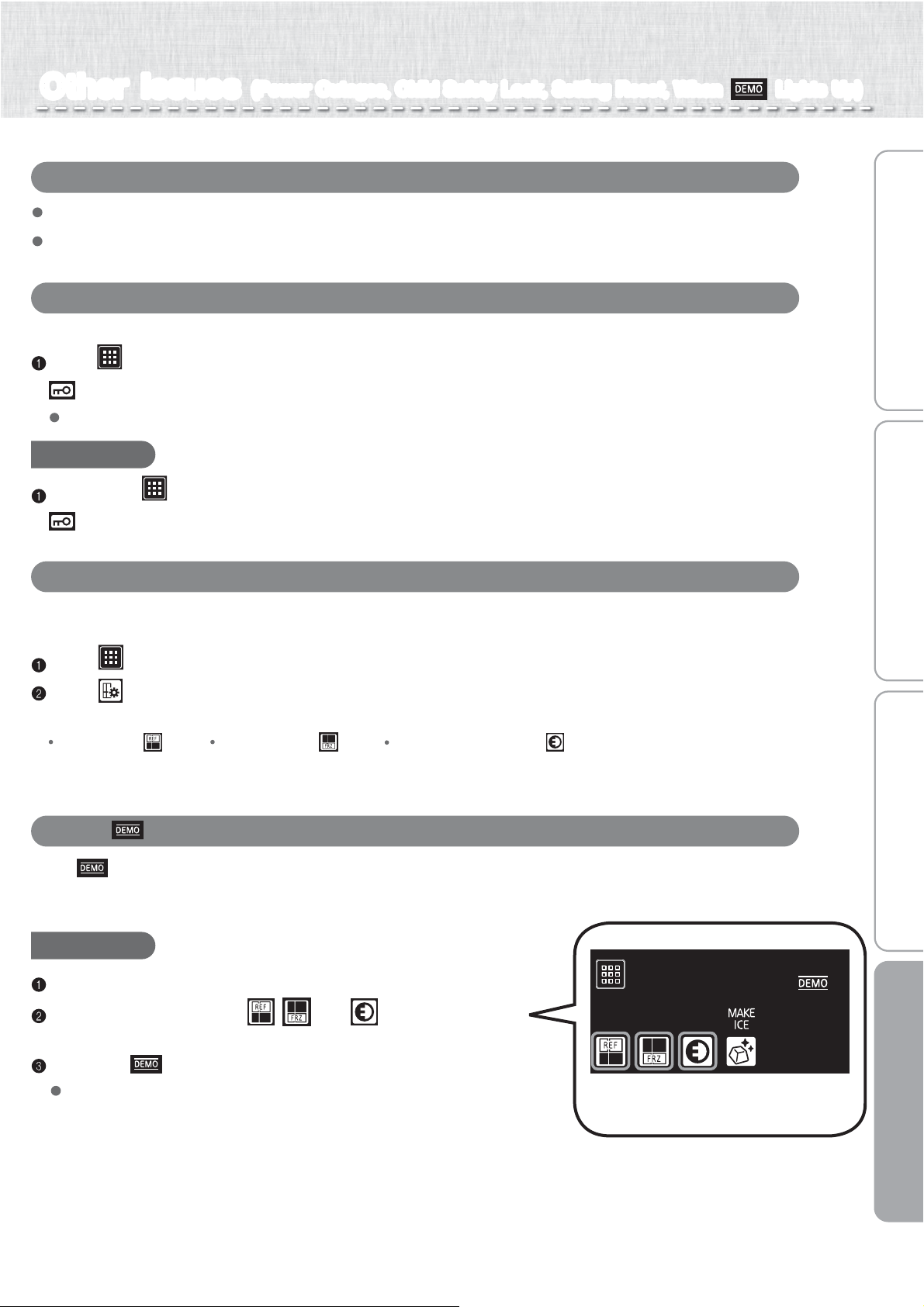

Other Issues Other Issues
(Power Outages, Child Safety Lock, Setting Reset, When Lights Up) (Power Outages, Child Safety Lock, Setting Reset, When Lights Up)
Power Outages
Minimize the frequency of opening the doors, and avoid adding more food.
Operation panel settings other than the temperature settings may change. Check the settings.
(Child Safety Lock, etc.)
To Prevent Accidental Button Operation
(Child Safety Lock)
Locks the operation panel to prevent accidental icon operation by children.
Touch for about 5 seconds or more when the door is closed (until the buzzer sounds).
lights up when the setting is finished.
Setting cannot be changed during Child Safety Lock.
To Cancel
Again, touch for about 5 seconds or more when the door is closed (until the buzzer sounds).
goes off when the setting is cancelled.
To Reset Settings
Returns the settings to their initial conditions (at the time of purchase), for example if you have forgotten the
settings.
Touch to light up an icon.
Touch for about 10 seconds (until the buzzer sounds twice).
The following settings will be reset.
When Lights Up
When lights up, the refrigerator is in demonstration mode. The refrigerator does not cool in this mode.
Contact the retail store where you purchased the refrigerator, or cancel the demonstration operation with the
following procedure.
To Cancel
Keep the doors of the freezer compartment open.
s
,serp dna snoci eht pu thgiL , and at the same time for
at least 5 seconds.
Check that is turned off.
The demonstration mode was not cancelled if it lights up.
Rapid Cool
Rapid Freeze
Energy Saving Mode
Touch until the buzzer sounds
22

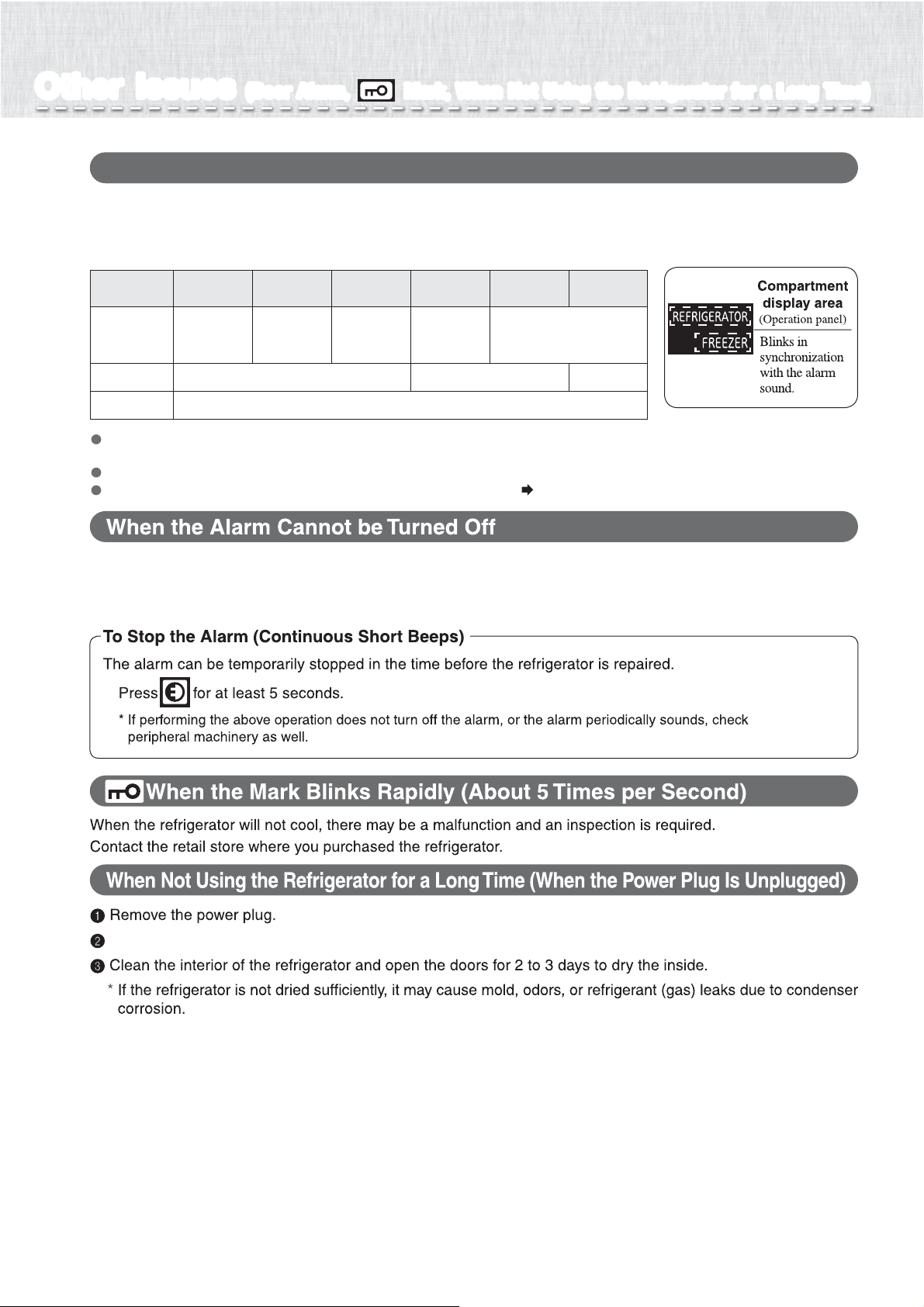

When the Door Alarm Sounds and the Interior Light of the Refrigerator Compartment Blinks
(Door Alarm)
The door alarm (with alarm sound, interior light, and compartment display) is activated when a door is open
for 1 minute or longer.
The pattern of the door alarm sound and the action of the interior light and compartment display area are as follows
depending on how long the door has been left open.
Time for which the
door left open
1 minute 2 minutes 3 minutes 4 minutes
5 minutes
or longer
60 minutes
or longer
Alarm sound
Interior light
Compartment display area
4 short beeps,
then
2 beeps
4 short beeps,
then 3 long
beeps
4 short beeps,
then 4 long
beeps
After 4 short beeps,
Continuous long
beeps
Continuous short beeps
On
Blinks twice per minute Off
The compartment display area will blink in synchronization with the alarm sound
Check that the doors are not left ajar or do not have any food trapped
(the packing, the back of the drawer cases). (Check at least once a month.)
Refrigerator and Freezer doors have an opening and closing sensor.
Check the refrigerator compartment door rotating partition.
Page 8
Check that there are no gaps between the door.
When the alarm cannot be turned off, there may be a malfunction and an inspection is required.
Contact the retail store where you purchased the refrigerator.
Other Issues
(Door Alarm, Mark, When Not Using the Refrigerator for a Long Time)
Other Issues
(Door Alarm, Mark, When Not Using the Refrigerator for a Long Time)
Empty any water or ice from the ice storage box and clean.
Before use Operation Cleaning When in trouble
23
Other Issues Other Issues
(To Move or Transport the Refrigerator)
18
5
5
Drainage port
Front Lower
inside
Hand-holds on the
rear upper side
Bottom handles
Empty any water or ice from the water supply tank and
ice storage box.
24

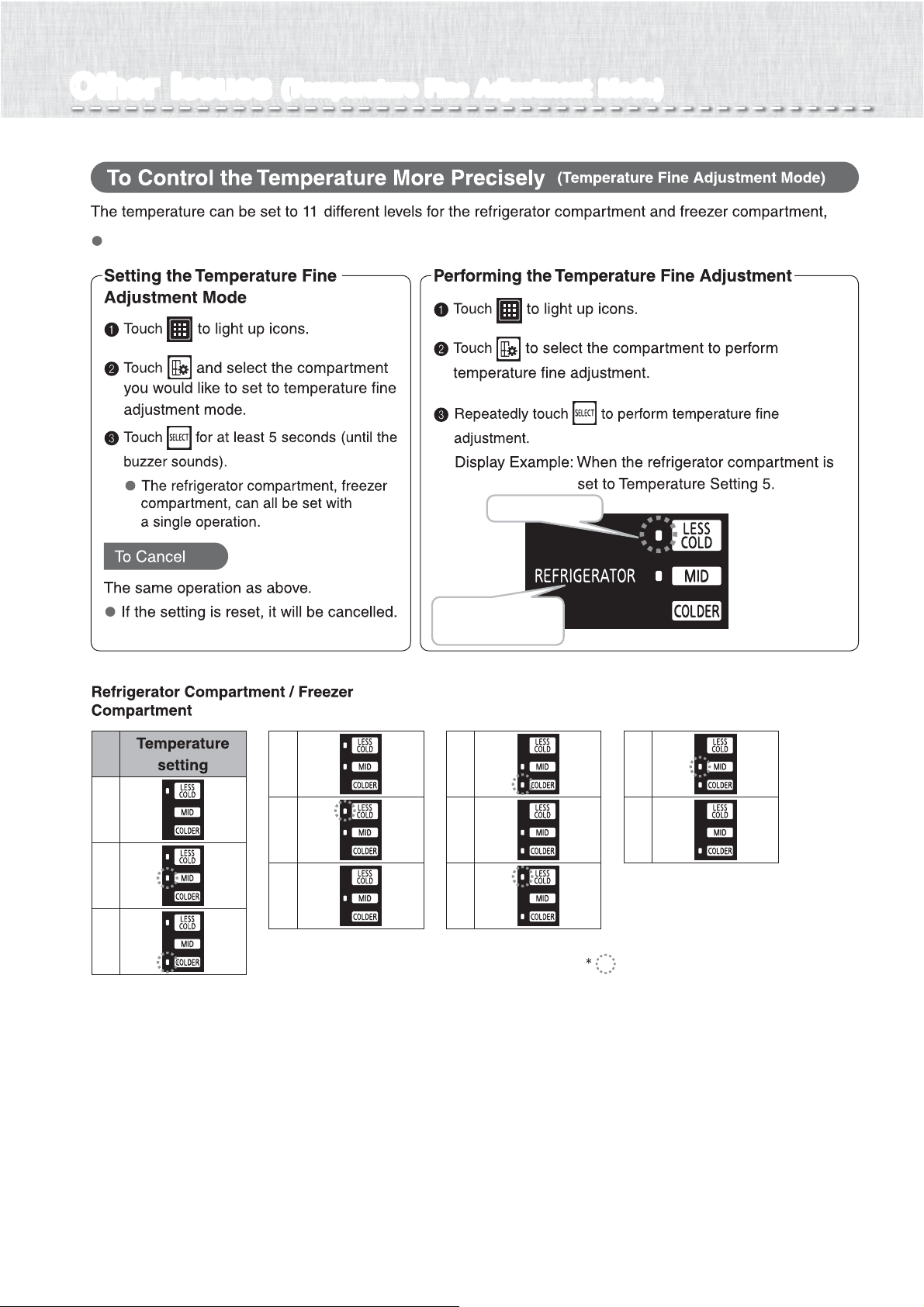

Other Issues Other Issues
(Temperature Fine Adjustment Mode)
1
2
3
4
5
6
7
8
9
10
11
“LESS COLD” blinks
REFRIGERATOR blinks
about every 10 seconds
When temperature fine adjustment mode is set, the compartment display blinks about every 10 seconds.
represents a blinking display.
Before use Operation Cleaning When in trouble
25

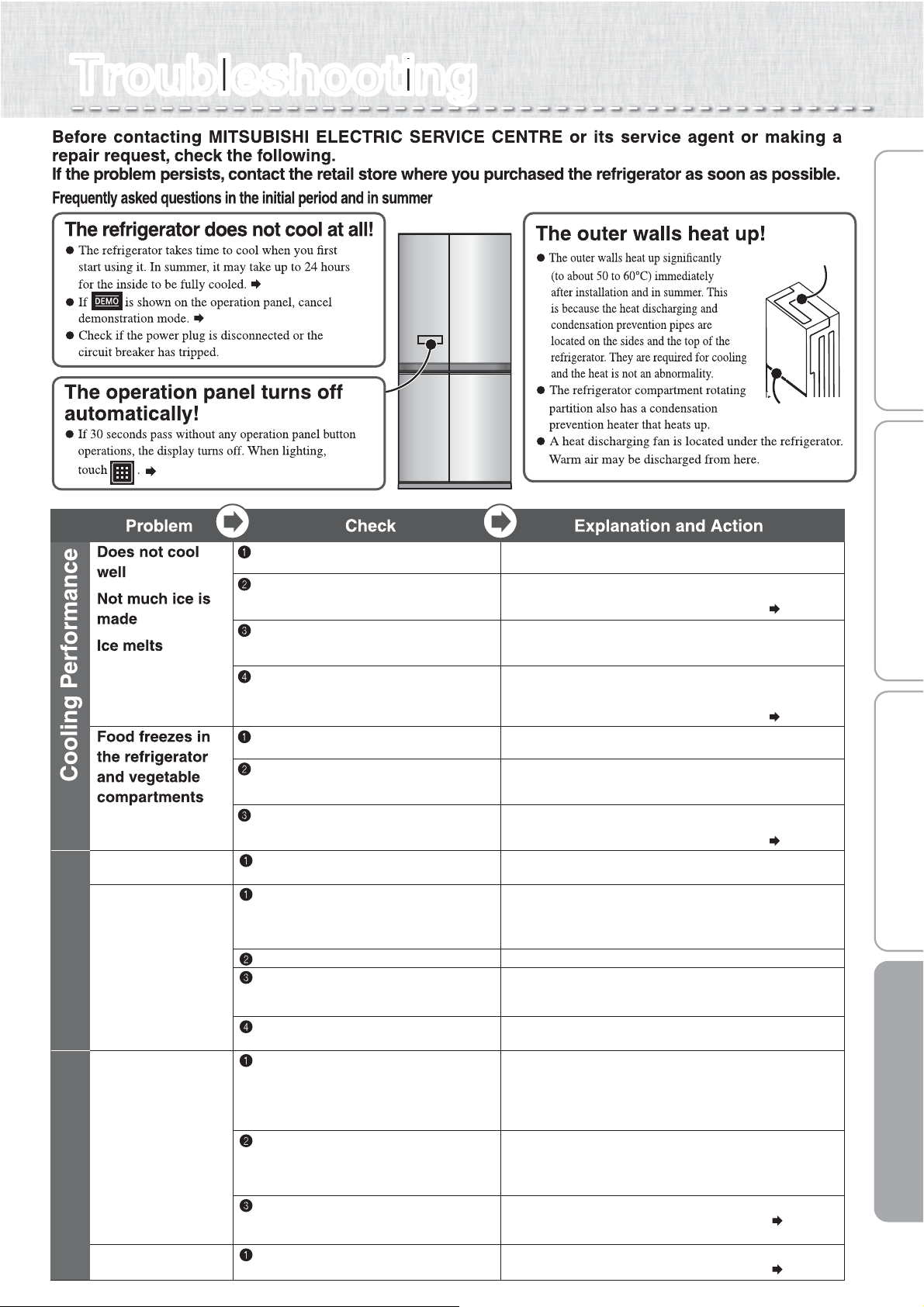

TroubleshootingTroubleshooting
Page 6
Page 4
Page 21
Heat discharging
pipe
Condensation
Prevention Pipes
Page 16
Page 16
Page 4
Set to “COLD or COLDER” or
tothesettingofyourliking.
Is the flow of cold air being blocked?
Are the doors being opened frequently,
or left ajar? Is food blocking them?
Make space between foods and remove any food that
is sticking out of shelves or touching the ceiling of the
drawers. Avoid opening and shutting the door for a while.
Is heat discharging being blocked?
Check if there is no gap around the
refrigerator and the refrigerator is
exposed to direct sunlight.
Is the temperature on the operation
panel set to “COLDER”?
Check that there is enough space around the refrigerator
and that it is properly installed.
Set the temperature to “COLD”. Also, the temperature with
each setting may temporarily decrease.
Food in the refrigerator compartment or vegetable compartment
may freeze. Freezing is less likely when the temperature
settings are set to "LESS COLD".
Has enough time passed after
installation?
It takes 4 to 5 hours for the refrigerator to cool, and may
take 24 hours in summer to fully cool.
Is the temperature setting set to “LESS COLD”?
Place drinks and food containing a lot of water,
such as tofu, vegetables and fruits, at the front of
the shelf or in a door pocket.
Is food with a lot of moisture stored at
the rear of the shelf?
Is the surrounding temperature 5 ™C or
less?
There is a
rattling sound
Are any nearby objects in contact with
the refrigerator?
Leave space around the refrigerator. When objects or walls
are in contact with the refrigerator, sounds may be heard.
Loud noises
Worrisome
noises (Noises
described on the
right are normal)
The noise gets louder suddenly
or the tone changes.
Immediately after beginning use, when the weather is hot,
when the doors are frequently opened and closed, and in
similar situations, the refrigerator switches to high-speed
operation and cools with high power.
A whistling sound is made after closing a door.
This is the sound of the cooling fan motor starting.
A whipping or dripping sound is sometimes
heard from inside the refrigerator after
a door is opened.
This is the creaking sound as warm air enters and expands
the plastic.
Sometimes the sound of flowing or boiling
water can be heard.
This is the sound of the refrigerant (gas) flowing.
Sound
Doors do not
close
Doors open
easily
Is a door making contact with food or a
case? Is too much food packed inside?
Store food so that the door does not make contact with the
food when closed. In the refrigerator compartment, store food
on the shelves and in the drawer doors store food so that it
does not make contact with the ceiling when doors are shut
and opened.
Has food fallen behind a case in a drawer
door, or is the power cord or another object
trapped between the refrigerator and
a door?
Remove any objects. Make sure that the door does not trap
objects such as food, power cords or plastic bags.
Is the refrigerator installed stably?
Are the adjustable supports making contact
with the floor?
Lower the adjustable supports to raise the front side slightly
and make the doors easier to close.
The alarm
will sound
Check if the doors are closed.
Refer to “When the door alarm sounds” and “When the
alarm cannot be turned off”.
Page 5
Page 22
Door
26
TroubleshootingTroubleshooting
(Continued)(Continued)
1
There are lines
like scratches on
the clear parts
1
Is it a thin line without level difference on
its both sides?
This is a mark created at the time the plastic is molded.
It is created at the joint where resin flows.
This is not a flaw.
There are holes in
the door and the
refrigerator walls
1
Are there small holes in the door or in the
refrigerator walls?
These are holes that let air escape for the injection of foam
heat insulating materials in the manufacturing process.
These are not flaws or abnormalities.
The surface of
the sides or
doors is warped
1
Does the light reflected on the surface
appear distorted?
Warping and surface waviness occurs in the manufacturing
process. When light hits the surface, it may appear warped,
but this is not an abnormality.
Noise interferes
with televisions
or other devices
1
Is the refrigerator installed near an
electronic device such as a television?
Install the refrigerator away from electronic devices such as
televisions.
2
Is the power to the refrigerator supplied from
a socket near the entry hole of the antenna cable?
Use separate power.
When using a 2 pin plug, use grounding.
There is a
bothersome
smell (Food / Ice)
1
Have you placed food with strong odor
inside the refrigerator without sealing it
in a container?
Store food with strong odor in packaging.
The odor may not be removed with a deodorizing apparatus.
Others
Problem Check Explanation and Action
The operation panel
does not
respond
Is lit?
Cancel the Child Safety Lock.
Page 21
Are the user's fingers or the operation panel
wet or dirty?
Wipe off the moisture and dirt on the operation panel and
fingers.
Are you repeatedly touching it?
Let your flnger off the operation panel once and then touch
it again. It will respond when you let you finger off.
Are seals and tapes put on the operation
panel?
Remove the seals and tapes.
Reacts without a
touch
Are there any towels, plastic bags,
papers, etc. over the operation panel?
Remove the towel, plastic bag, paper, etc.
Condensation
forms on the
outer walls
and inside the
refrigerator
Frost forms
in the freezer
compartment
Water drips onto
the floor
Are the doors being opened frequently,
or are there any gaps?
Close the doors so that there are no gaps.
When moisture in the air cools, it forms frost or condensation.
When there is high humidity, condensation or frost will form
even in very small gaps.
Regarding the Vegetable Compartment.
Page 8
Is the humidity high, for example is it
raining?
Condensation may form temporarily. Wipe off with a dry cloth.
Condensation may cause frost to form in the freezer
compartment. Please minimize the time when doors are kept
open.
Operation Panel
Condensation/ Frost
Cannot make ice
Water in the tank
stays at the
same level
Has enough time passed after installation?
It takes 4 to 5 hours for the refrigerator to cool, and 24 hours
or more in summer to make ice.
Has food, the ice server, or another object
been left in the ice storage box?
Also, has the ice been leveled?
Remove food or other objects from the ice storage box.
The ice storage box is judged to be full of ice. Also,
spread the ice out flat all the way to the front.
Is the ice making setting for the ice
making compartment set to “STOP ICE”?
Set the ice making compartment's setting to .
Page 12
Is the water supply pipe installed correctly
in the tank holder area?
Remove any foreign objects creating gaps and install the pipe
so that it is not loose.
Page 19〜20
Are the water supply pump and tank pipe
installed correctly onto the water tank?
Check that they are correctly installed. In particular, ensure
that the opening of the tank pipe inside the tank is installed
firmly to the tank.
Page 19〜20
Automatic Ice Making
Water tank
or water supply
pipe freezes
Are the water supply pipe and water tank
installed to the refrigerator without any gaps?
Additionally, is the tank pipe installed to the
water tank without any internal gaps?
Check the installation around the water tank. If there are gaps,
the cold air may escape and water may freeze.
Page 19〜20
Ice is small or
joined together
Has ice been stored inside the ice storage
box for a long time?
Ice stored inside the ice storage box for a long time may
shrink or join together (due to a phenomenon called sublimation).
When not using ice, it is recommended that you remove the
water and stop the ice making.
Before use Operation Cleaning When in trouble
27
AccessoriesAccessories
MODEL NAME COUNTRY NAME
AUSTRALIA / NEW ZEALAND
MR-LA580ER/LA635ER-A
This appliance is designed for use in Australia and New Zealand only and cannot be used in any other country.
No service is available outside of Australia and New Zealand."
CAUTION
1. This appliance is designed for use in ambient temperature listed below.
The internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient
temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature
control device might have to be varied to allow for these factors.
2. A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
3. Food to be frozen is not to be placed in direct contact with food in storage and, if appropriate, that it could be necessary
to reduce the quantity to be frozen if freezing every day is anticipated.
4. The electrical power failure for 1-2 hour will only slightly affect the inside temperature. However, opening and closing the
door results in temperature loss. In case there is more than 24 hours electrical power failure, the food should be taken
out from the fridge.
5. In case you are leaving or there is no food in the fridge for more than 3 weeks, The fridge should be unplugged and
cleaned.
MODEL NAME AMBIENT TEMPERATURE RANGE CLIMATIC CLASS
MR-LA580ER, LA635ER-A 16
o
C ~ 43
o
CT
Model
Accesories
MR-LA580ER
Quantity
MR-LA635ER
Quantity
Refrigerator Compartment
1
1
1
1
1
1
-
-
1
1
1
1
-
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
-
1
1
1
1
1
-
1
1
1
1
1
1
1
2
1
1
1
Tempered glass shelf (small)
Tempered glass shelf (large)
Utility case (small)
Utility case (large)
Vegetable case
Adjustable pocket
Door pocket (small)
Adjustable pocket (small)
Door pocket
Bottle pocket (small)
Capsule door pocket
Door pocket (large)
Adjustable pocket (large)
Egg shelf
Bottle pocket (large)
Water supply tank
(including purification filter)
Ice storage box
Noise reduction mat
Ice server
Freezing case (small)
Freezing case (middle)
Freezing case (large)
Support cover
Freezer
Compartment
NZ79C925H01
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING - Do not use electrical appliances
inside the food storage compartments of
the appliance, unless they are of the type
recommended by the manufacturer.
WARNING - Just in case of having damaged the
refrigerant circuit, do not use electric items or fire
equipments near by, and open the window to
ventilate the room. And contact the retail store
at which you purchased it or the following
MITSUBISHI SERVICE CENTRE.
WARNING - When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING -
Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
The refrigerator contains flammable refrigerant
(R600a: iso-butane).
The refrigeration system behind and inside the
refrigerator contains refrigerant.
Do not allow any sharp objects to come into
contact with the refrigeration system.
Do not block the openings on the circumstances
of the refrigerator.
The user manual should be handed over to any
person who would use or handle the refrigerator
whenever the refrigerator would be transferred to
another location and delivered to a recycling plant.
This refrigerator uses flammable foaming gas for
insulation.
Please deliver the unit to specialized industrial
waste dealer when you do away it.
Please follow the rules in your country.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
This appliance is intended to be used in
household application only.
348 Victoria Road, Rydalmere NSW 2116
For more information and support contact
www.mitsubishielectric.com.au
Call 1300 651 808
SOLE AGENT in Australia
MITSUBISHI ELECTRIC AUSTRALIA PTY LTD.
(Incorporated in New South Wales) ABN 58 001 215 792
Wellington Office (Head Office)
1 Parliament Street Lower Hutt PO Box 30772 Phone: (04) 560 9147, Fax: (04) 560 9133
Auckland Office
Unit 1, 4 Walls Road Penrose PO Box 12726 Phone: (09) 526 9347, Fax: (09) 526 9348
Christchurch Office
44 Halwyn Drive Hornby PO Box 16904 Phone: (03) 341 2837, Fax: (03) 341 2838
SOLE AGENT in New Zealand
BLACK DIAMOND TECHNOLOGIES LIMITED (BDT)
If an abnormality or malfunction occurs, stop operation immediately and contact the retail store where
you purchased the refrigerator or MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent.
R600a Refrigerant Warning
NOTE: MITSUBISHI ELECTRIC AUSTRALIA PTY LTD. DO NOT ALLOW SERVICE
TO THE REFRIGERATION CIRCUIT OF THIS APPLIANCE.
This appliance contains a small quantity of R600a refrigerant which is flammable.
During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any device which creates a spark.
Disconnect the appliance from the mains power.
Thoroughly ventilate the room in which the appliance is located for several minutes.
Notify Mitsubishi Electric Australia Pty Ltd. for necessary action and advice.
The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant.
The refrigerant quantity contained in this appliance is noted on the Rating Label of the appliance.
If your Mitsubishi Electric Refrigerator should require service, please contact Mitsubishi Electric Australia
Pty Ltd see back page of this user manual for contact details.
●
●
●
●
●
●
●
●
