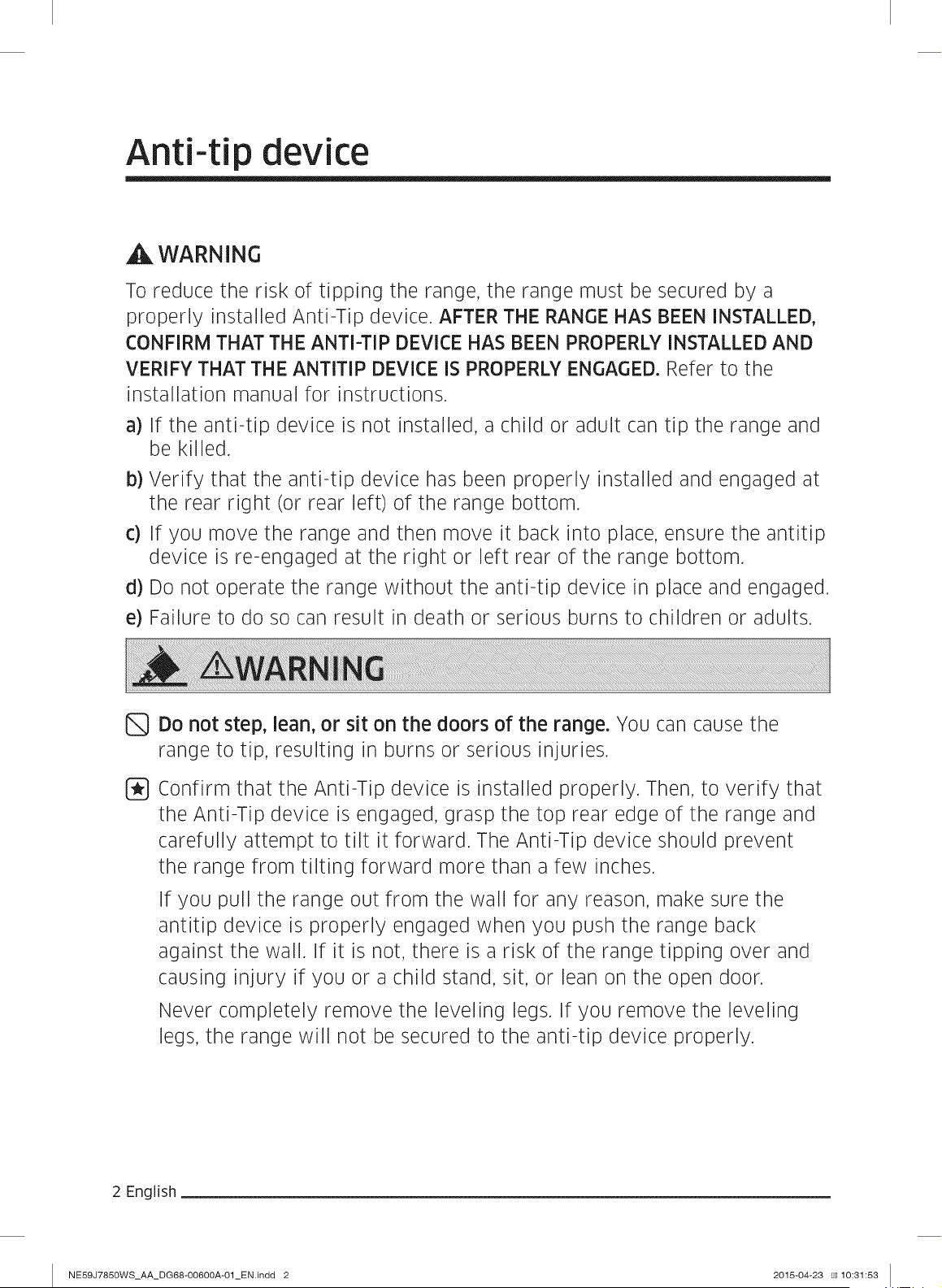

Anti-tip device
_WARNING
To reduce the risk of tipping the range, the range must be secured by a
properly installed Anti-Tip device. AFTER THE RANGE HAS BEEN INSTALLED,
CONFIRM THAT THE ANTI-TIP DEVICE HAS BEEN PROPERLY INSTALLED AND
VERIFY THAT THE ANTI'rIP DEVICE IS PROPERLY ENGAGED. Refer to the
installation manual for instructions.
a) I1:the anti-tip device is not installed, a child or adult can tip the range and
be killed.
b) Verify that the anti-tip device has been properly installed and engaged at
the rear right (or rear left) of the range bottom.
c) I1:you move the range and then move it back into place, ensure the antitip
device is re-engaged at the right or left rear of the range bottom.
d) Do not operate the range without the anti-tip device in place and engaged.
e) Failure to do so can result in death or serious burns to children or adults.
Q Do not step, lean, or sit on the doors of the range. You can cause the
range to tip, resulting in burns or serious injuries.
®
Confirm that the Anti-Tip device is installed properly. Then, to verify that
the Anti-Tip device is engaged, grasp the top rear edge of the range and
carefully attempt to tilt it forward. The Anti-Tip device should prevent
the range from tilting forward more than a few inches.
I1:you pull the range out from the wall for any reason, make sure the
antitip device is properly engaged when you push the range back
against the wall. I1:it is not, there is a risk of the range tipping over and
causing injury if you or a child stand, sit, or lean on the open door.
Never completely remove the leveling legs. I1:you remove the leveling
legs, the range will not be secured to the anti-tip device properly.
2 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 2 2015-04-23 _u10:31:53
Contents
Important safety instructions
Introducing your new range
Overview
What's included with your range
Dual Door _M(NE59J7850** only)
How to use the upper door
How to use the full door
Before you begin
Energy saving tips
Cooktop cooking
About cooktop cooking
How to set the appliance for cooktop cooking
Using the proper cookware
Choosing the proper cookware
Protecting the smoothtop
Operating the oven
The oven control panel
Setting the clock
Setting the kitchen timer
Timed cooking
Delay start
Turning the oven light on and off
Minimum and maximum settings
Twin cooking mode temperature setting ranges
Using the oven racks
Using the partition
Baking
Convection baking
Convection roasting
Broiling
Using the easy cook feature
Using the favorite cook feature
Using the keep warm feature
Using the sabbath feature
Extra features
5
22
22
23
24
24
24
26
26
27
27
30
32
33
33
35
35
37
37
38
39
39
40
41
42
44
45
46
47
48
5O
51
51
52
54
English 3
NE59J7850WS_AA_DG68-00600A-01_EN.indd 3 2015-04-23 _u10:31:53
Contents
Using the warming drawer 57
About the warming drawer 57
Turning the warming drawer on or off 58
Maintaining your appliance 59
Self-cleaning 59
Steam-cleaning 62
Care and cleaning of the oven 63
Care and cleaning of the glass cooktop 65
Removing and replacing the oven door 68
Removing and replacing the warming drawer 70
Changing the oven light 71
Troubleshooting 72
Troubleshooting 72
Information codes 78
Warranty (U.S.A) 79
Warranty (CANADA) 81
4 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 4 2015-04-23 _u10:31:53

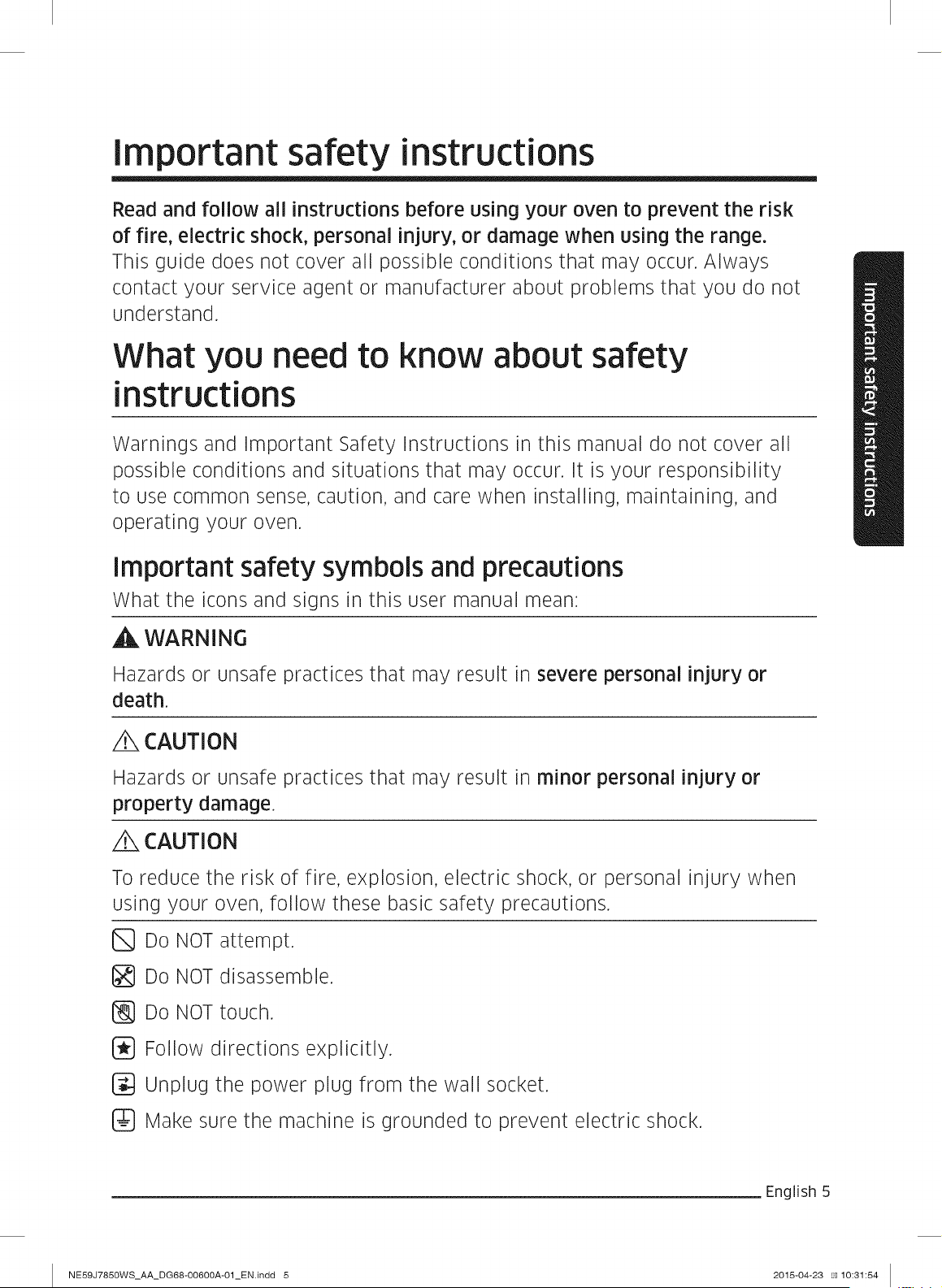

Important safety instructions
Read and follow all instructions before using your oven to prevent the risk
of fire, electric shock, personal injury, or damage when using the range.
This guide does not cover all possible conditions that may occur. Always
contact your service agent or manufacturer about problems that you do not
understand.
What you need to know about safety
instructions
Warnings and Important Safety Instructions in this manual do not cover all
possible conditions and situations that may occur. It is your responsibility
to use common sense, caution, and care when installing, maintaining, and
operating your oven.
Important safety symbols and precautions
What the icons and signs in this user manua mean:
WARNING
Hazards or unsafe practices that may result
death.
n severe personal injury or
/!k CAUTION
Hazards or unsafe practices that may result n minor personal injury or
property damage.
A CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your oven, follow these basic safety precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
!_] Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
English 5
NE59J7850WS_AA_DG68-00600A-01_EN.indd 5 2015-04-23 d]10:31:54
Important safety instructions
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others. Please
follow them explicitly.
After reading this section, keep it in a safe place for future reference.

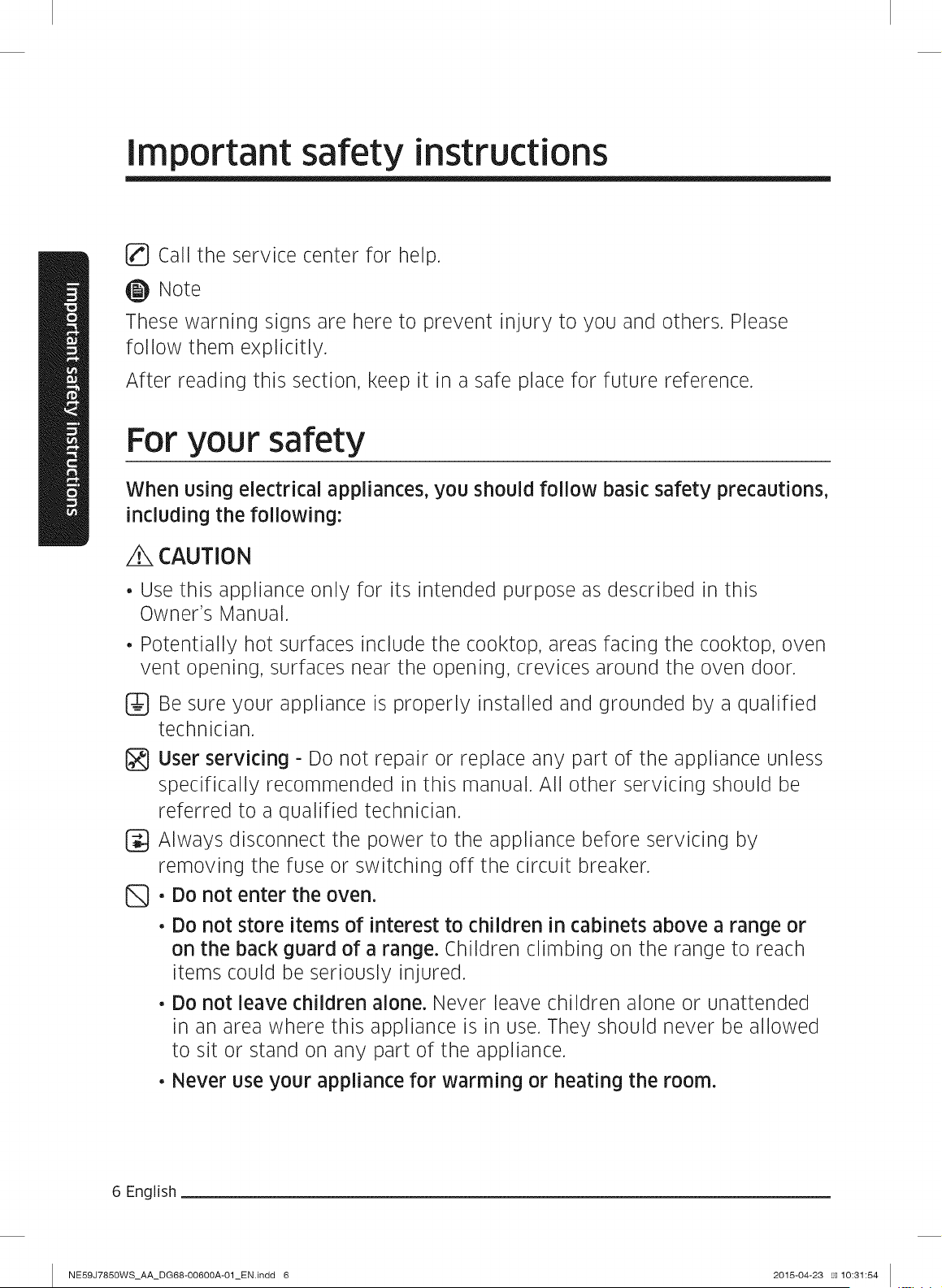

For your safety
When using electrical appliances, you should follow basic safety precautions,
including the following:
,4',,CAUTION
, Use this appliance only for its intended purpose as described in this
Owner's Manual.
. Potentially hot surfaces include the cooktop, areas facing the cooktop, oven
vent opening, surfaces near the opening, crevices around the oven door.
Be sure your appliance is properly installed and grounded by a qualified
technician.
_} User servicing - Do not repair or replace any part of the appliance unless
specifically recommended in this manual. All other servicing should be
referred to a qualified technician.
[]_ Always disconnect the power to the appliance before servicing by
removing the fuse or switching off the circuit breaker.
Q, Do not enter the oven.
, Do not store items of interest to children in cabinets above a range or
on the back guard of a range. Children climbing on the range to reach
items could be seriously injured.
. Do not leave children alone. Never leave children alone or unattended
in an area where this appliance is in use. They should never be allowed
to sit or stand on any part of the appliance.
. Never use your appliance for warming or heating the room.
6 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 6 2015-04-23 _u10:31:54
o

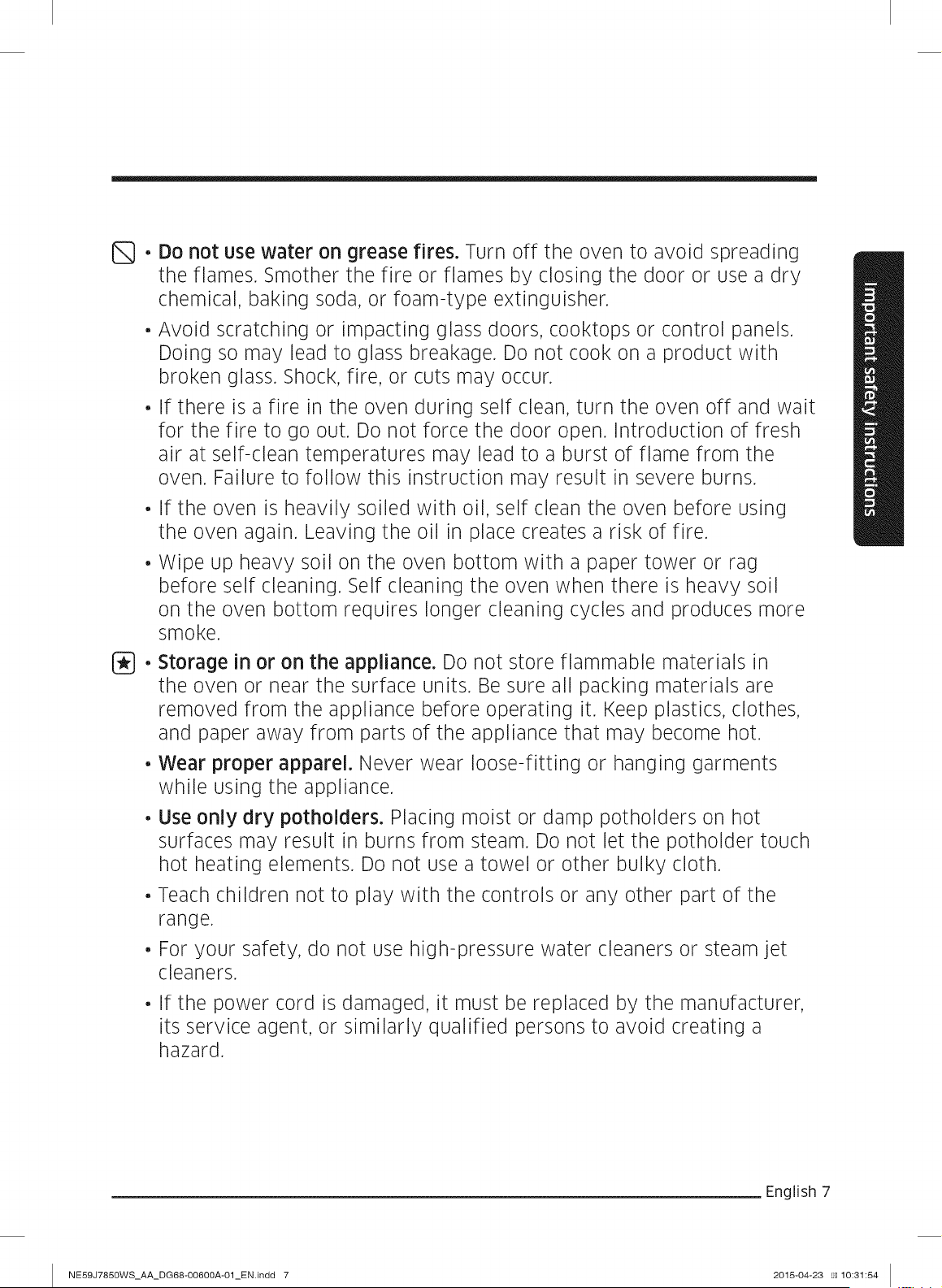

Do not use water on grease fires. Turn off the oven to avoid spreading
the flames. Smother the fire or flames by closing the door or use a dry
chemical, baking soda, or foam-type extinguisher.
, Avoid scratching or impacting glass doors, cooktops or control panels.
Doing so may lead to glass breakage. Do not cook on a product with
broken glass. Shock, fire, or cuts may occur.
, If there is a fire in the oven during self clean, turn the oven off and wait
for the fire to go out. Do not force the door open. Introduction of fresh
air at self-clean temperatures may lead to a burst of flame from the
oven. Failure to follow this instruction may result in severe burns.
, If the oven is heavily soiled with oil, self clean the oven before using
the oven again. Leaving the oil in place creates a risk of fire.
, Wipe up heavy soil on the oven bottom with a paper tower or rag
before self cleaning. Self cleaning the oven when there is heavy soil
on the oven bottom requires longer cleaning cycles and produces more
smoke.
o Storage in or on the appliance. Do not store flammable materials in
the oven or near the surface units. Be sure all packing materials are
removed from the appliance before operating it. Keep plastics, clothes,
and paper away from parts of the appliance that may become hot.
, Wear proper apparel. Never wear loose-fitting or hanging garments
while using the appliance.
, Use only dry potholders. Placing moist or damp potholders on hot
surfaces may result in burns from steam. Do not let the potholder touch
hot heating elements. Do not use a towel or other bulky cloth.
, Teach children not to play with the controls or any other part of the
range.
, For your safety, do not use high-pressure water cleaners or steam jet
cleaners.
If the power cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified persons to avoid creating a
hazard.
English 7
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 7 2015-04-23 _u10:31:54

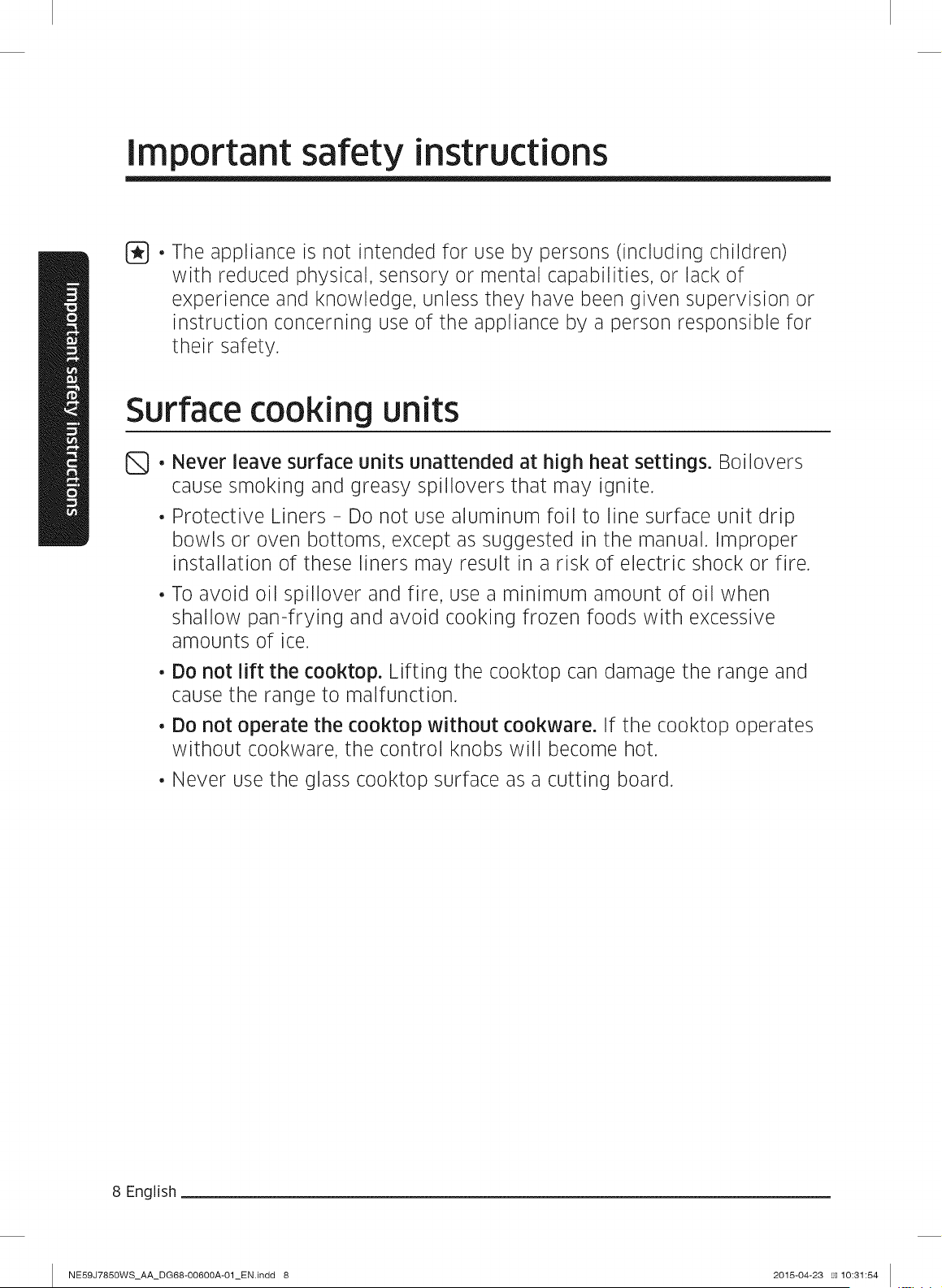

Important safety instructions
• The appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
Surface cooking units
Never leave surface units unattended at high heat settings. Boilovers
cause smoking and greasy spillovers that may ignite.
Protective Liners - Do not use aluminum foil to line surface unit drip
bowls or oven bottoms, except as suggested in the manual. Improper
installation of these liners may result in a risk of electric shock or fire.
To avoid oil spillover and fire, use a minimum amount of oil when
shallow pan-frying and avoid cooking frozen foods with excessive
amounts of ice.
, Do not lift the cooktop. Lifting the cooktop can damage the range and
cause the range to malfunction.
, Do not operate the cooktop without cookware. If the cooktop operates
without cookware, the control knobs will become hot.
Never use the glass cooktop surface as a cutting board.
8 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 8 2015-04-23 d]10:31:54
o
o

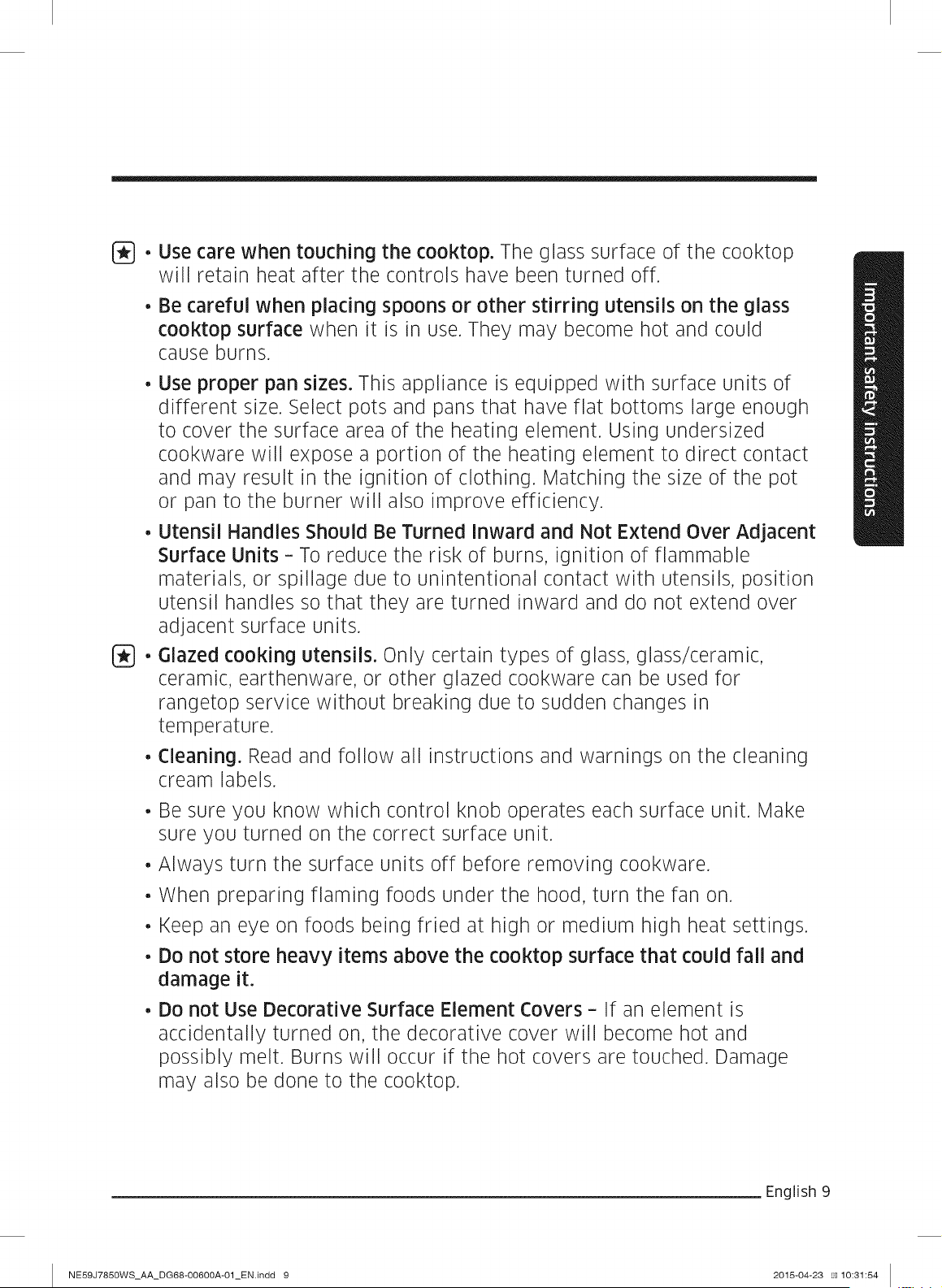

Use care when touching the cooktop. The glass surface of the cooktop
will retain heat after the controls have been turned off.
Be careful when placing spoons or other stirring utensils on the glass
cooktop surface when it is in use. They may become hot and could
cause burns.
Use proper pan sizes. This appliance is equipped with surface units of
different size. Select pots and pans that have flat bottoms large enough
to cover the surface area of the heating element. Using undersized
cookware will expose a portion of the heating element to direct contact
and may result in the ignition of clothing. Matching the size of the pot
or pan to the burner will also improve efficiency.
. Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent
Surface Units - To reduce the risk of burns, ignition of flammable
materials, or spillage due to unintentional contact with utensils, position
utensil handles so that they are turned inward and do not extend over
adjacent surface units.
(:;lazed cooking utensils. Only certain types of glass, glass/ceramic,
ceramic, earthenware, or other glazed cookware can be used for
rangetop service without breaking due to sudden changes in
temperature.
, Cleaning. Read and follow all instructions and warnings on the cleaning
cream labels.
, Be sure you know which control knob operates each surface unit. Make
sure you turned on the correct surface unit.
, Always turn the surface units off before removing cookware.
, When preparing flaming foods under the hood, turn the fan on.
, Keep an eye on foods being fried at high or medium high heat settings.
. Do not store heavy items above the cooktop surface that could fall and
damage it.
. Do not Use Decorative Surface Element Covers - If an element is
accidentally turned on, the decorative cover will become hot and
possibly melt. Burns will occur if the hot covers are touched. Damage
may also be done to the cooktop.
English 9
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 9 2015-04-23 d]10:31:54
Important safety instructions

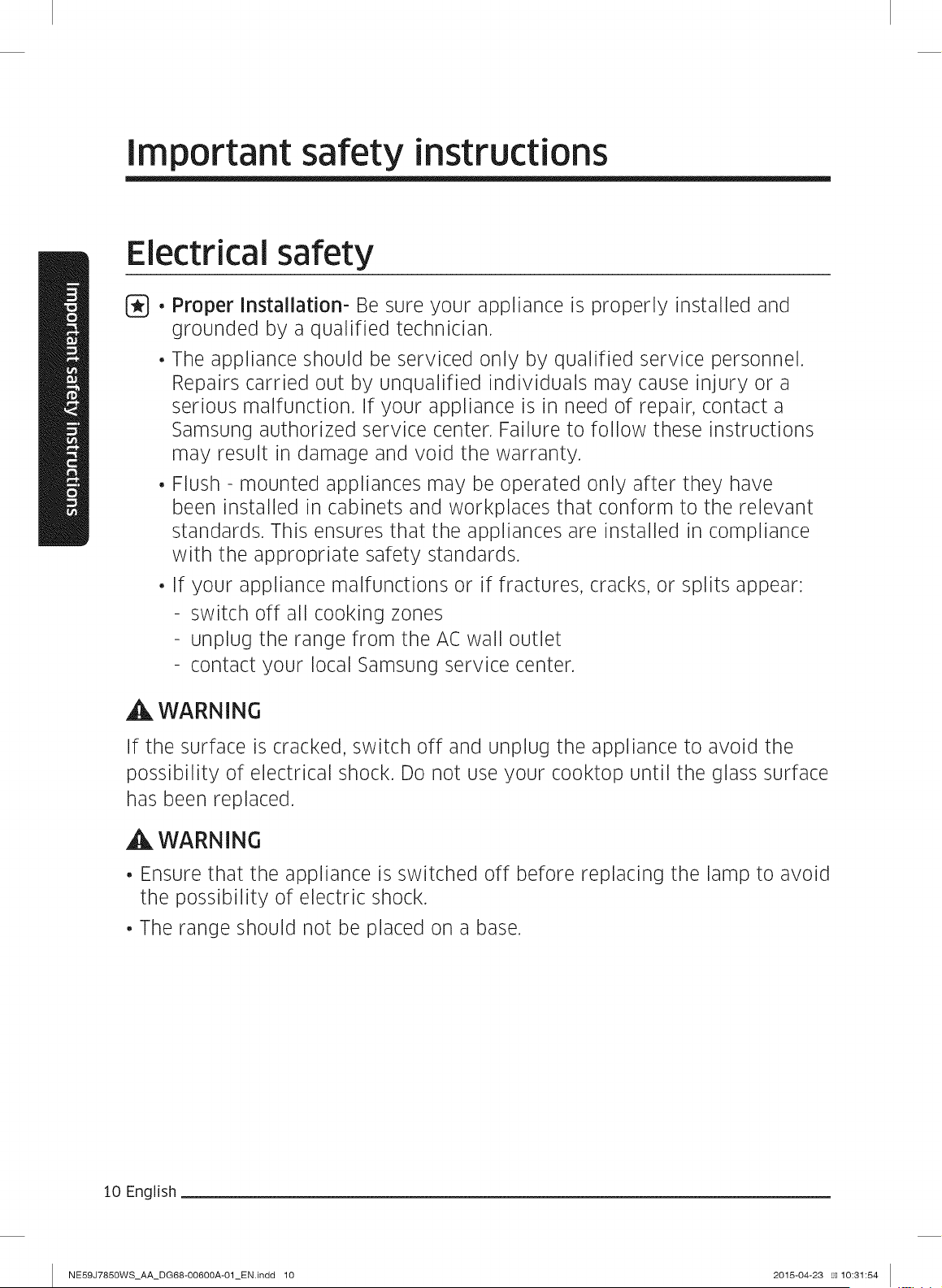

Electrical safety
o
Proper Installation- Be sure your appliance is properly installed and
grounded by a qualified technician.
. The appliance should be serviced only by qualified service personnel.
Repairs carried out by unqualified individuals may cause injury or a
serious malfunction. If your appliance is in need of repair, contact a
Samsung authorized service center. Failure to follow these instructions
may result in damage and void the warranty.
. Flush - mounted appliances may be operated only after they have
been installed in cabinets and workplaces that conform to the relevant
standards. This ensures that the appliances are installed in compliance
with the appropriate safety standards.
. If your appliance malfunctions or if fractures, cracks, or splits appear:
switch off all cooking zones
unplug the range from the AC wall outlet
contact your local Samsung service center.
_WARNING
If the surface is cracked, switch off and unplug the appliance to avoid the
possibility of electrical shock. Do not use your cooktop until the glass surface
has been replaced.
_1_WARNING
. Ensure that the appliance is switched off before replacing the lamp to avoid
the possibility of electric shock.
. The range should not be placed on a base.
10 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 10 2015-04-23 _u10:31:54

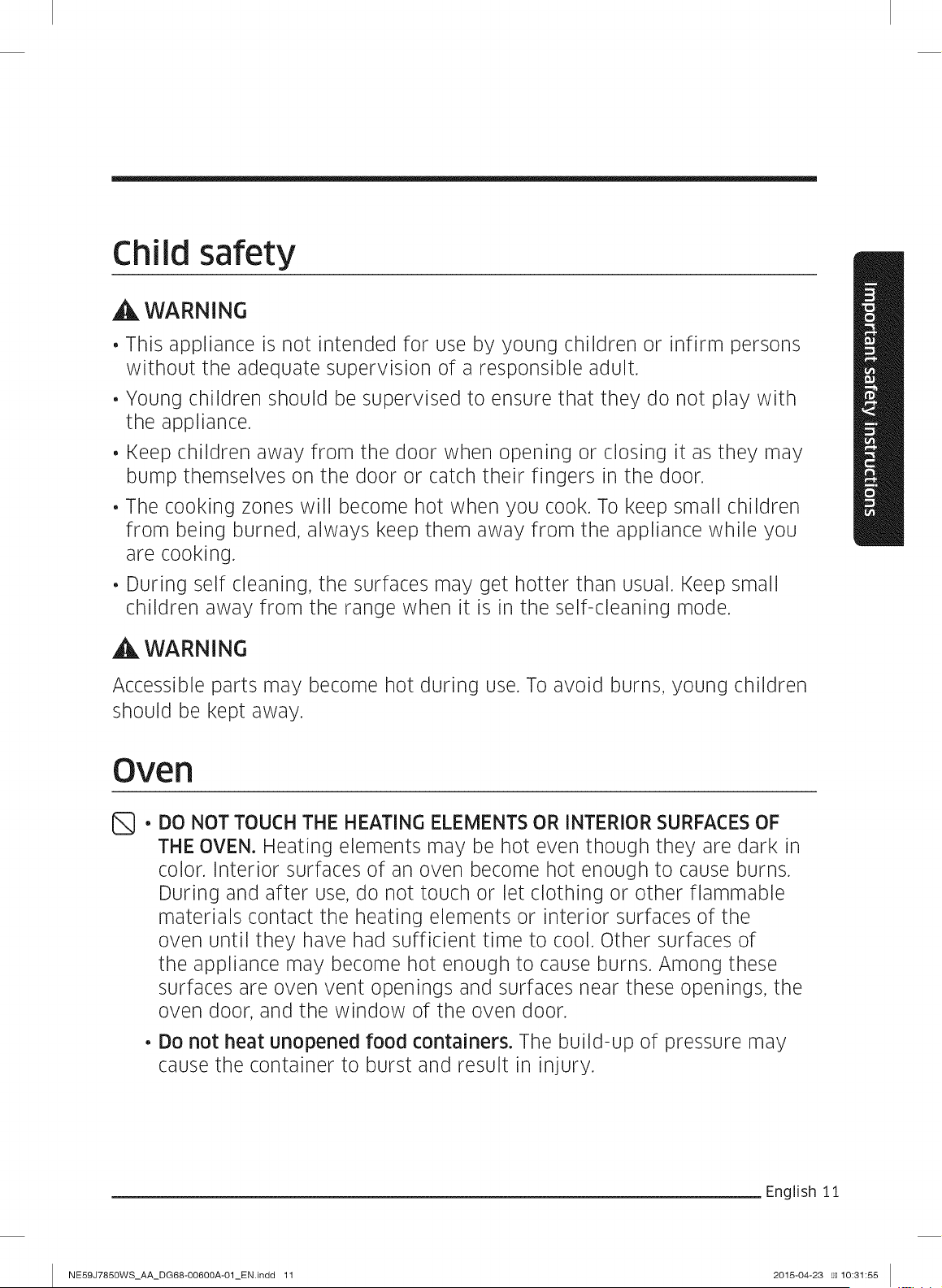

Child safety
,A WARNING
, This appliance is not intended for use by young children or infirm persons
without the adequate supervision of a responsible adult.
, Young children should be supervised to ensure that they do not play with
the appliance.
, Keep children away from the door when opening or closing it as they may
bump themselves on the door or catch their fingers in the door.
, The cooking zones will become hot when you cook. To keep small children
from being burned, always keep them away from the appliance while you
are cooking.
, During self cleaning, the surfaces may get hotter than usual. Keep small
children away from the range when it is in the self-cleaning mode.
,A WARNING
Accessible parts may become hot during use. To avoid burns, young children
should be kept away.
Oven
o
DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACESOF
THE OVEN. Heating elements may be hot even though they are dark in
color. Interior surfaces of an oven become hot enough to cause burns.
During and after use, do not touch or let clothing or other flammable
materials contact the heating elements or interior surfaces of the
oven until they have had sufficient time to cool. Other surfaces of
the appliance may become hot enough to cause burns. Among these
surfaces are oven vent openings and surfaces near these openings, the
oven door, and the window of the oven door.
Do not heat unopened food containers. The build-up of pressure may
cause the container to burst and result in injury.
English 11
NE59J7850WS_AA_DG68-00600A-01_EN.indd 11 2015-04-23 _u10:31:55 I
Important safety instructions
G o
o
o

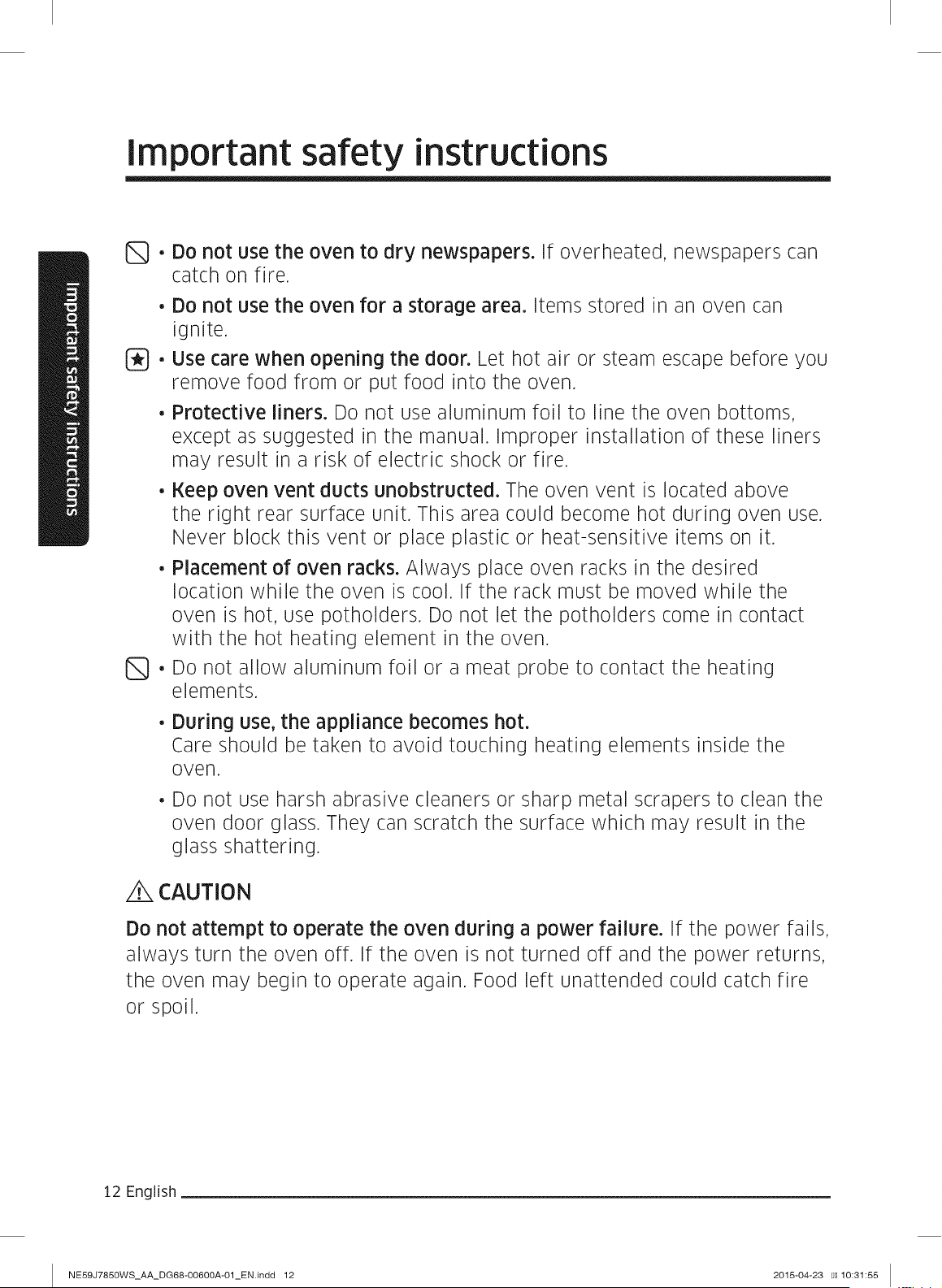

Do not use the oven to dry newspapers. If overheated, newspapers can
catch on fire.
, Do not use the oven for a storage area. Items stored in an oven can
ignite.
Use care when opening the door. Let hot air or steam escape before you
remove food from or put food into the oven.
, Protective liners. Do not use aluminum foil to line the oven bottoms,
except as suggested in the manual. Improper installation of these liners
may result in a risk of electric shock or fire.
, Keep oven vent ducts unobstructed. The oven vent is located above
the right rear surface unit. This area could become hot during oven use.
Never block this vent or place plastic or heat-sensitive items on it.
, Placement of oven racks. Always place oven racks in the desired
location while the oven is cool. If the rack must be moved while the
oven is hot, use potholders. Do not let the potholders come in contact
with the hot heating element in the oven.
Do not allow aluminum foil or a meat probe to contact the heating
elements.
During use, the appliance becomes hot.
Care should be taken to avoid touching heating elements inside the
oven.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass. They can scratch the surface which may result in the
glass shattering.
A CAUTION
Do not attempt to operate the oven during a power failure. If the power fails,
always turn the oven off. If the oven is not turned off and the power returns,
the oven may begin to operate again. Food left unattended could catch fire
or spoil.
12 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 12 2015-04-23 _u10:31:55
Warming drawer
{_ , DO NOT TOUCH THE HEATING ELEMENT OR THE INTERIOR SURFACE
OF THE DRAWER. These surfaces may be hot enough to burn.
, REMEMBER: The inside surface of the drawer may be hot when the
drawer is opened.
(_) The purpose of the warming drawer is to hold hot cooked foods at
serving temperature. Always start with hot food. Cold food cannot be
heated or cooked in the warming drawer.
Use care when opening the drawer. Open the drawer a crack and let
hot air or steam escape before removing or replacing food. Hot air or
steam which escapes can cause burns to hands, face, and/or eyes.
[_}, Do not use the drawer to dry newspapers. If overheated, newspapers
can catch on fire.
, Do not use aluminum foil to line the drawer. Foil is an excellent
heat insulator and will trap heat beneath it. This will upset the
performance of the drawer and it could damage the interior finish.
, Do not leave paper products, plastics, canned food, or combustible
materials in the drawer.
, Never leave jars or cans of fat drippings in or near the drawer.
, Do not warm food in the drawer for more than three hours.
Self-cleaning ovens
Do not clean the door gasket. The door gasket is essential for a good seal. Care
should be taken not to rub, damage, or move the gasket.
, Never keep pet birds in the kitchen. Birds are extremely sensitive to the
fumes released during an oven self-clean cycle. Fumes may be harmful
or fatal to birds. Move birds to a well-ventilated room.
, Clean only the parts listed in this manual in the self-clean cycle. Before
self-cleaning the oven, remove the partition, rack, utensils, and any
food.
English 13
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 13 2015-04-23 _u10:31:55
Important safety instructions
o
Before operating the self-clean cycle, wipe grease and food soils from
the oven. Excessive amounts of grease may ignite, leading to smoke
damage to your home.
. Do not use any commercial oven cleaner or oven liner protective
coating of any kind in or on the outside of the oven.
. Remove the nickel oven shelves from the oven before you begin the
self cleaning cycle or they may discolor.
. If the self-clean mode malfunctions, turn the oven off and disconnect
the power supply. Have it serviced by a qualified technician.
. Excess spillage must be removed before you run the self cleaning cycle.
Ventilating hood
[_. Clean ventilating hoods frequently. Do not let grease accumulate on the
hood or filter.
. When flaming foods under the hood, turn the fan on.
Glass/Ceramic cooking surfaces
G " DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.
Surface units may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During and after
use, do not touch, or let clothing or other flammable materials contact
the surface units or areas near the units until they have had sufficient
time to cool. Among these areas are the cook-top and the facing of the
cook-top.
. Do not cook on a broken cooktop. If the cooktop should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create
a risk of electric shock. Contact a qualified technician immediately.
Clean the cooktop with caution. If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burns. Some
cleaners can produce noxious fumes if applied to a hot surface.
14 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 14 2015-04-23 _u10:31:55

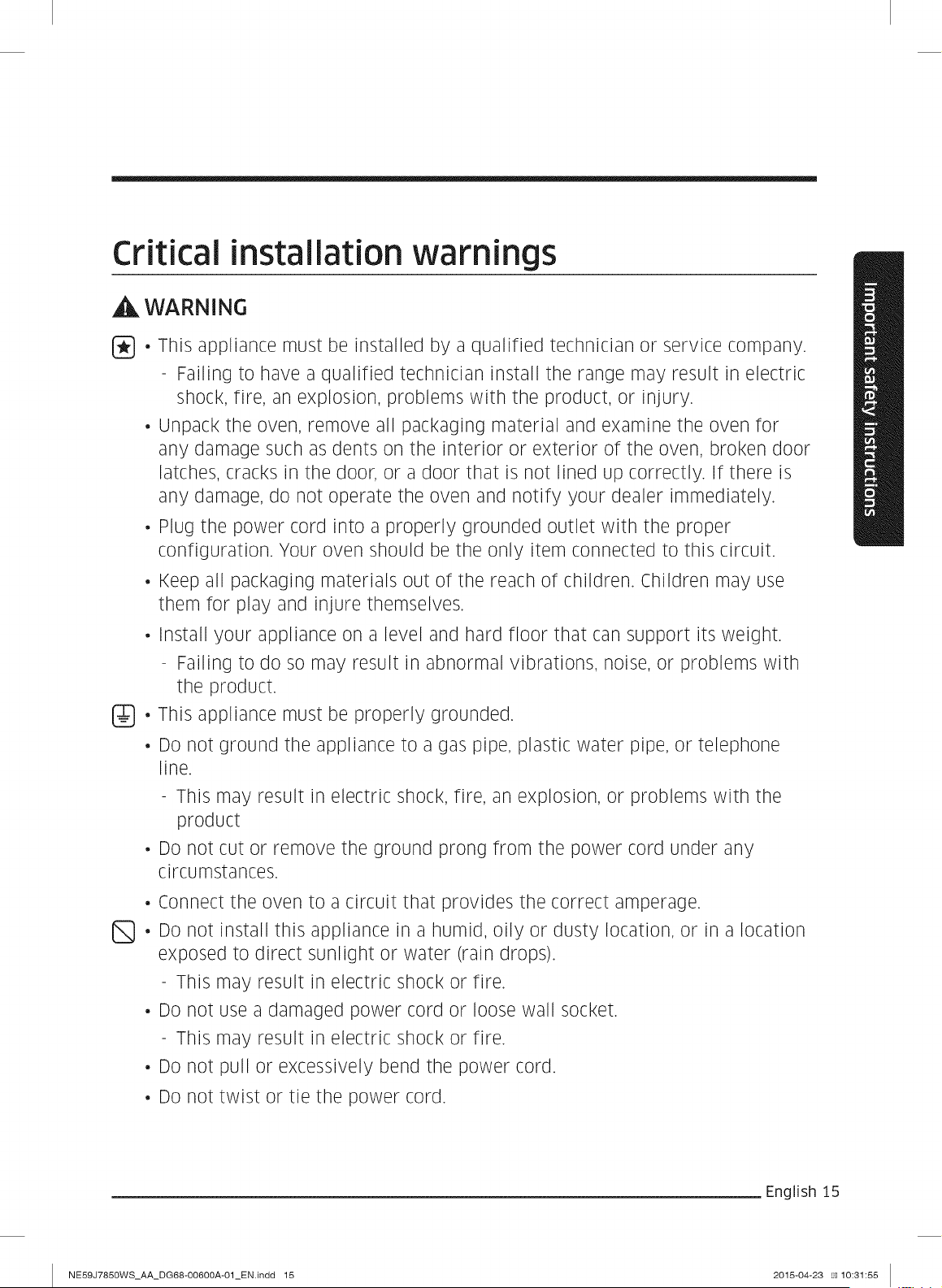

Critical installation warnings
_i_ WARNING
. This appliance must be installed by a qualified technician or service company.
- Falling to have a qualified technician install the range may result in electric
shock, fire, an explosion, problems with the product, or injury.
. Unpack the oven, remove all packaging material and examine the oven for
any damage such as dents on the interior or exterior of the oven, broken door
latches, cracks in the door, or a door that is not lined up correctly. If there is
any damage, do not operate the oven and notify your dealer immediately.
. Plug the power cord into a properly grounded outlet with the proper
configuration. Your oven should be the only item connected to this circuit.
. Keep all packaging materials out of the reach of children. Children may use
them for play and injure themselves.
. Install your appliance on a level and hard floor that can support its weight.
- Falling to do so may result in abnormal vibrations, noise, or problems with
the product.
. This appliance must be properly grounded.
. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone
line.
- This may result in electric shock, fire, an explosion, or problems with the
product
. Do not cut or remove the ground prong from the power cord under any
circumstances.
@
. Connect the oven to a circuit that provides the correct amperage.
. Do not install this appliance in a humid, oily or dusty location, or in a location
exposed to direct sunlight or water (rain drops).
- This may result in electric shock or fire.
. Do not use a damaged power cord or loose wall socket.
- This may result in electric shock or fire.
. Do not pull or excessively bend the power cord.
. Do not twist or tie the power cord.
English 15
NE59J7850WS_AA_DG68-00600A-01_EN.indd 15 2015-04-23 d] 10:31:55
Important safety instructions
G " Do not hook the power cord over a metal object, place a heavy object on the
power cord, or insert the power cord between objects.
This may result in electric shock or fire.
If the power cord is damaged, contact your nearest Samsung service center.
Critical usage warning
\ CAUTION
®
, If the appliance is flooded by any liquid, please contact your nearest service
center. Falling to do so may result in electric shock or fire.
, If the appliance produces a strange noise, a burning smell, or smoke, unplug
the power plug immediately and contact your nearest service center.
Falling to do so may result in electric shock or fire
, In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area
immediately. Do not touch the power cord. Do not touch the appliance.
A spark may result in an explosion or fire.
, Take care not to contact the oven door, heating elements, or any of the other
hot parts with your body while cooking or just after cooking.
Falling to do so may result in burns.
, If materials inside the oven should ignite, keep the oven door closed, turn
the oven off and disconnect the power cord, or shut off power at the fuse or
circuit breaker panel. If the door is opened, the fire may spread.
, Always observe safety precautions when using your oven. Never try to repair
the oven on your own - there is dangerous voltage inside. If the oven needs to
be repaired, contact an authorized service center near you.
, If you use the appliance when it is contaminated by foreign substances such
as food waste, it may result in a problem with the appliance.
, Take care when removing the wrapping from food taken out of the appliance.
If the food is hot, hot steam may be emitted abruptly when you remove the
wrapping and this may result in burns.
16 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 16 2015-04-23 d] 10:31:55
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Since a high voltage current enters the product chassis, it may result in
electric shock or fire.
- When a repair is needed, contact your nearest service center.
If any foreign substance such as water has entered the appliance, contact your
nearest service center.
- Falling to do so may result in electric shock or fire.
. Do not touch the power cord with wet hands.
- This may result in electric shock.
. Do not turn the appliance off while an operation is in progress.
- This may cause a spark and result in electric shock or fire.
. Keep all packaging materials well out of the reach of children, as packaging
materials can be dangerous to children.
- If a child places a plastic bag over its head, the child can suffocate.
. Do not let children or any person with reduced physical, sensory, or mental
capabilities use this appliance unsupervised.
. Make sure that the appliance's controls and cooking areas are out of the reach
of children.
- Falling to do so may result in electric shock, burns, or injury.
. Do not touch the inside of the appliance immediately after cooking. The inside
of the appliance will be hot.
- Falling to do so may result in burns.
. Do not use or place flammable sprays or objects near the oven.
- Flammable items or sprays can cause fires or an explosion.
. Do not insert fingers, foreign substances, or metal objects such as pins or
needles into inlets, outlets, or holes. If foreign substances are inserted into any
of these holes, contact your product provider or nearest service center.
. Do not tamper with or make any adjustments or repairs to the door. Under no
circumstances should you remove the door or outer shell of the oven.
. Do not store or use the oven outdoors.
. Never use this appliance for purposes other than cooking.
- Using the appliance for any purpose other than cooking may result in fire.
English 17
NE59J7850WS_AA_DG68-00600A-01_EN.indd 17 2015-04-23 d] 10:31:55

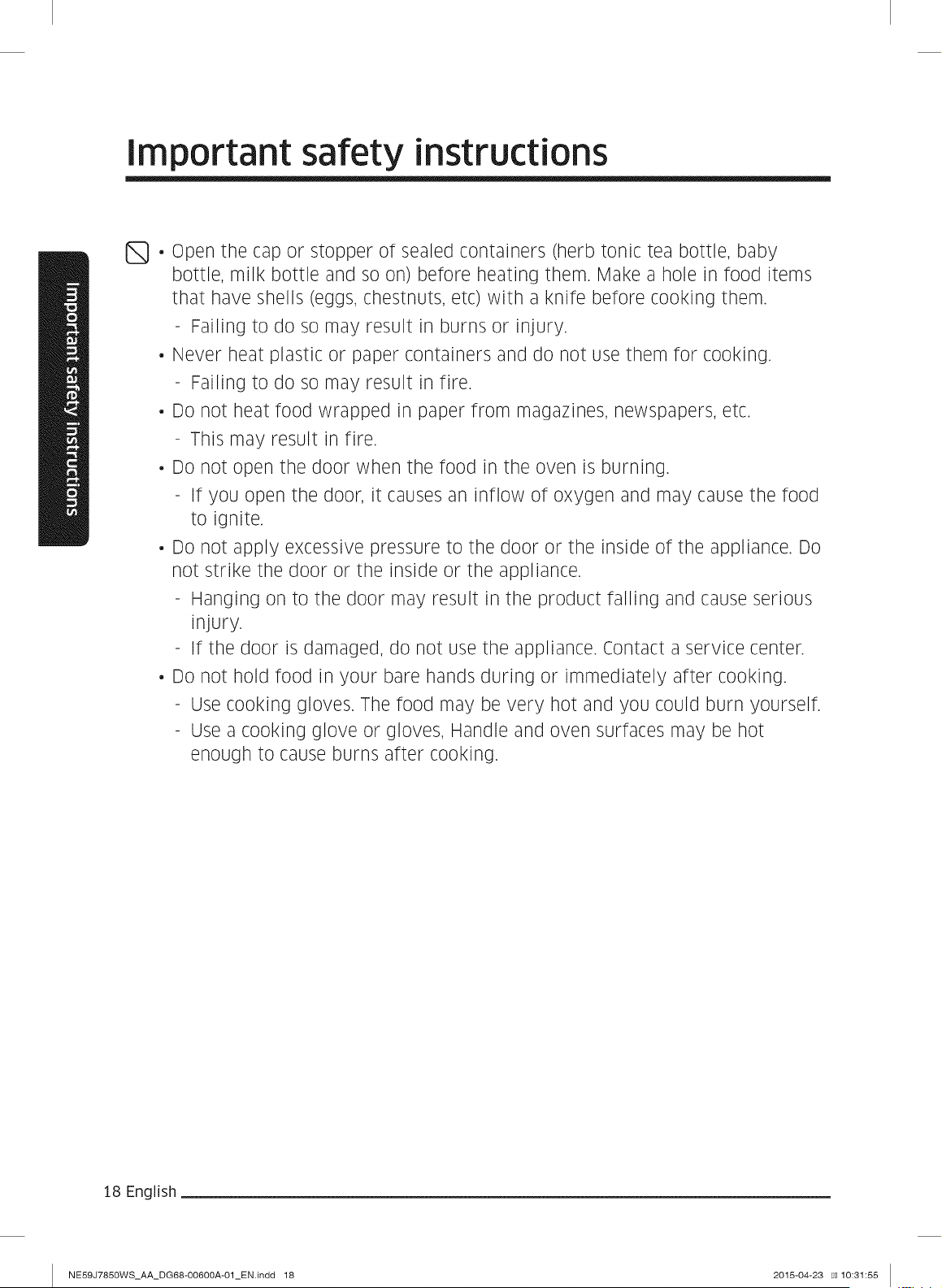

Important safety instructions
G
. Open the cap or stopper of sealed containers (herb tonic tea bottle, baby
bottle, milk bottle and so on) before heating them. Make a hole in food items
that have shells (eggs, chestnuts, etc) with a knife before cooking them.
Falling to do so may result in burns or injury.
. Never heat plastic or paper containers and do not use them for cooking.
Falling to do so may result in fire.
. Do not heat food wrapped in paper from magazines, newspapers, etc.
This may result in fire.
. Do not open the door when the food in the oven is burning.
If you open the door, it causes an inflow of oxygen and may cause the food
to ignite.
. Do not apply excessive pressure to the door or the inside of the appliance. Do
not strike the door or the inside or the appliance.
Hanging on to the door may result in the product falling and cause serious
injury.
If the door is damaged, do not use the appliance. Contact a service center.
. Do not hold food in your bare hands during or immediately after cooking.
Use cooking gloves. The food may be very hot and you could burn yourself.
Use a cooking glove or gloves, Handle and oven surfaces may be hot
enough to cause burns after cooking.
18 English
NE59J7850WS_AA_DG68-00600A-01_ENJndd 18 2015-04-23 d] 10:31:55
Usage cautions
/i',, CAUTION
®
@
. If the surface is cracked, turn the appliance off.
- Falling to do so may result in electric shock.
. Dishes and containers can become hot. Handle with care.
. Hot foods and steam can cause burns. Carefully remove container coverings,
directing the steam away your hands and face.
. Remove lids from baby food jars before heating. After heating baby food,
stir well to distribute the heat evenly. Always test the temperature by tasting
before feeding the baby. The glass jar or the surface of the food may appear
to be cooler than the interior, which can be hot enough to burn an infant's
mouth.
. Take care as beverages or food may be very hot after heating.
- Especially when feeding a child. Check that it has cooled sufficiently.
. Take care when heating liquids such as water or other beverages.
- Make sure to stir during or after cooking.
- Avoid using a slippery container with a narrow neck.
- Wait at least 30 seconds after heating before removing the heated liquid.
- Falling to do so may result in an abrupt overflow of the contents and cause
burns.
. Do not stand on top of the appliance or place objects (such as laundry, oven
cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)
on the appliance.
- Items, such as a cloth, may get caught in the door.
- This may result in electric shock, fire, problems with the product, or injury.
. Do not operate the appliance with wet hands.
- This may result in electric shock.
. Do not spray volatile substances such as insecticide onto the surface of the
appliance.
- As well as being harmful to humans, it may also result in electric shock, fire,
or problems with the product.
English 19
NE59J7850WS_AA_DG68-00600A-01_EN.indd 19 2015-04-23 d] 10:31:55
Important safety instructions
G
. Do not put your face or body close to the appliance while cooking or when
opening the door just after cooking.
Take care that children do not come too close to the appliance.
Falling to do so may result in children burning themselves.
. Do not place food or heavy objects over the edge of the oven door.
If you open the door, the food or object may fall and this may result in
burns or injury.
. Do not abruptly cool the door, the inside of the appliance, or a dish by pouring
water over it during or just after cooking.
This may result in damage to the appliance. The steam or water spray may
result in burns or injury.
. Do not operate while empty except for self-cleaning.
. Do not defrost frozen beverages in narrow-necked bottles. The bottles can
break.
. Do not scratch the glass of the oven door with a sharp object.
This may result in the glass being damaged or broken.
. Do not store anything directly on top of the appliance when it is in operation.
. Do not use sealed containers. Remove seals and lids before cooking. Sealed
containers can explode due to the build up of pressure even after the oven has
been turned off.
. Take care that food you are cooking in the oven does not come into contact
with the heating element.
This may result in fire.
. Do not over-heat food.
Overheating food may result in fire.
20 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 20 2015-04-23 d]10:31:55

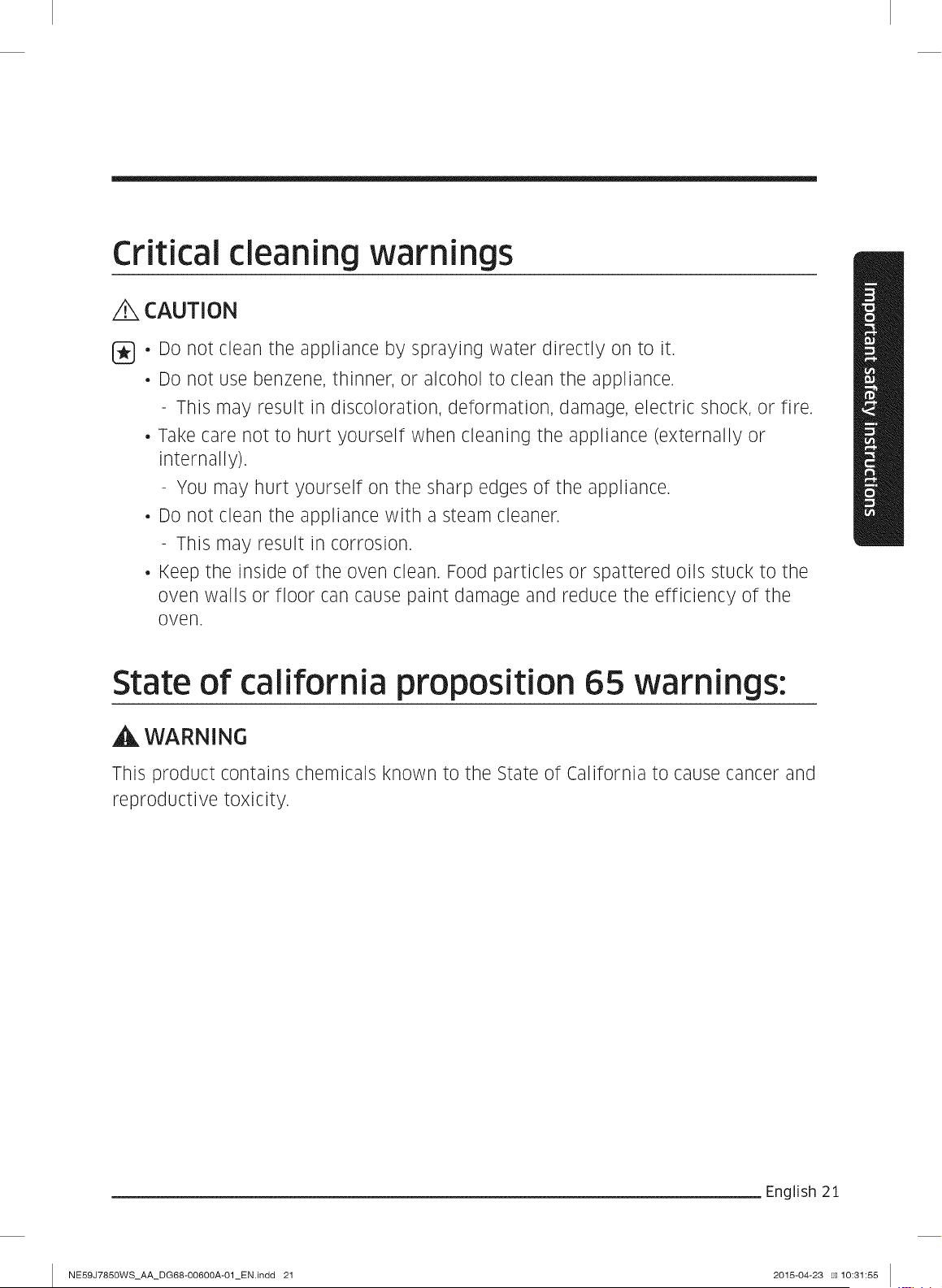

Critical cleaning warnings
A CAUTION
, Do not clean the appliance by spraying water directly on to it.
, Do not use benzene, thinner, or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock, or fire.
, Take care not to hurt yourself when cleaning the appliance (externally or
internally).
- You may hurt yourself on the sharp edges of the appliance.
, Do not clean the appliance with a steam cleaner.
- This may result in corrosion.
, Keep the inside of the oven clean. Food particles or spattered oils stuck to the
oven walls or floor can cause paint damage and reduce the efficiency of the
oven.
State of california proposition 65 warnings:
_, WARNINC
This product contains chemicals known to the State or California to cause cancer and
reproductive toxicity.
English 21
NE59J7850WS_AA_DG68-00600A-01_EN.indd 21 2015-04-23 d]10:31:55

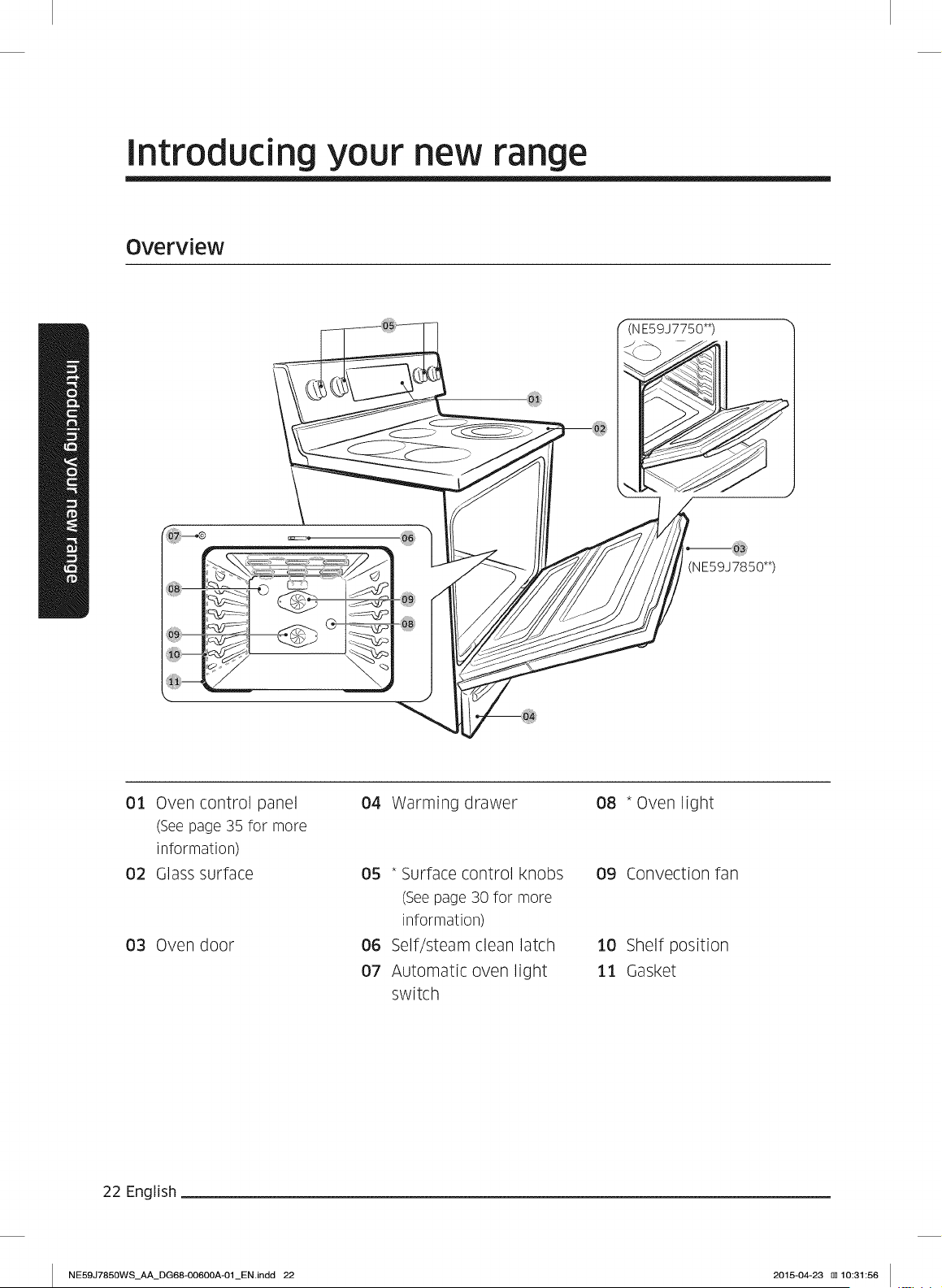

Introducing your new range
Overview
IN E59J7750**)
NE59J7850**)
01 Oven control panel
(Seepage 35 for more
information)
02 Glass surface
03 Oven door
04 Warming drawer
05 * Surface control knobs
(Seepage 30 for more
information)
06 Self/steam clean latch
07 Automatic oven light
switch
08 * Oven light
09 Convection fan
10 Shelf position
11 Gasket
22 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 22 2015-04-28 DI]10:31:56

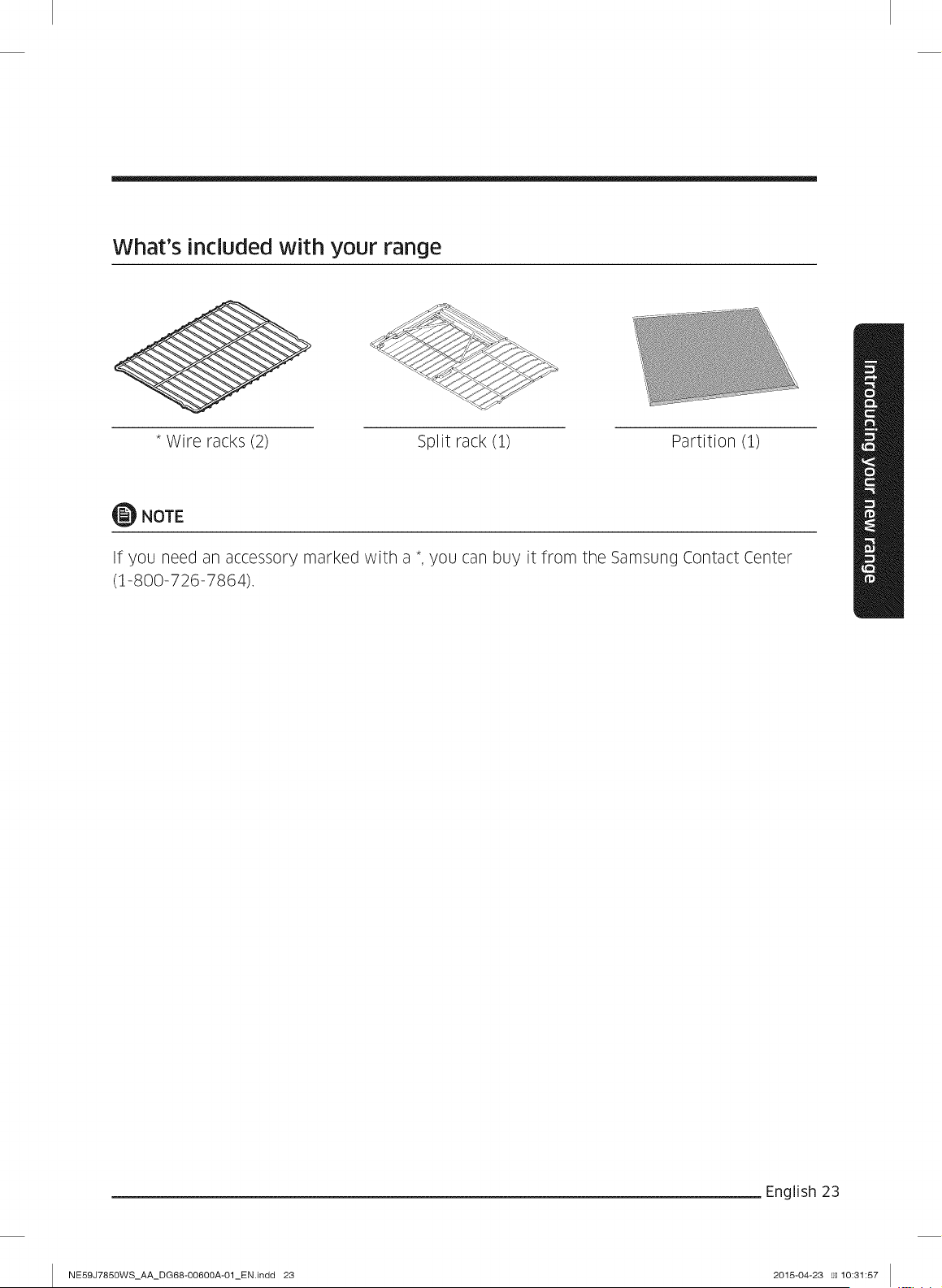

What's included with your range
_Wire racks (2) Split rack (!) Partition (!)
@ NOTE
If you need an accessory marked with a _,you can buy it from the Samsung Contact Center
(!-800-726-7864).
English 23
NE59J7850WS_AA_DG68-00600A-01_EN.indd 23 2015-04-23 _u10:31:57
Dual Door (NE59J7850** only)
This oven has a unique Dual Door TM that is hinged in the middle, so you only need to open
the top half to access the upper cavity. When you're using the Flex Duo TM capability, you can
access the top oven space much more easily and with greater energy efficiency.
How to use the upper door
1. Hold the handle and the lever, press the
lever to release the door latch, and then
pull the handle.
2. This will open only the upper door as
shown.
How to use the full door
1. Hold the lever-less area of the handle,
and then pull.
2. This will open the whole door as shown.
24 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 24 2015-04-23 _u10:31:58

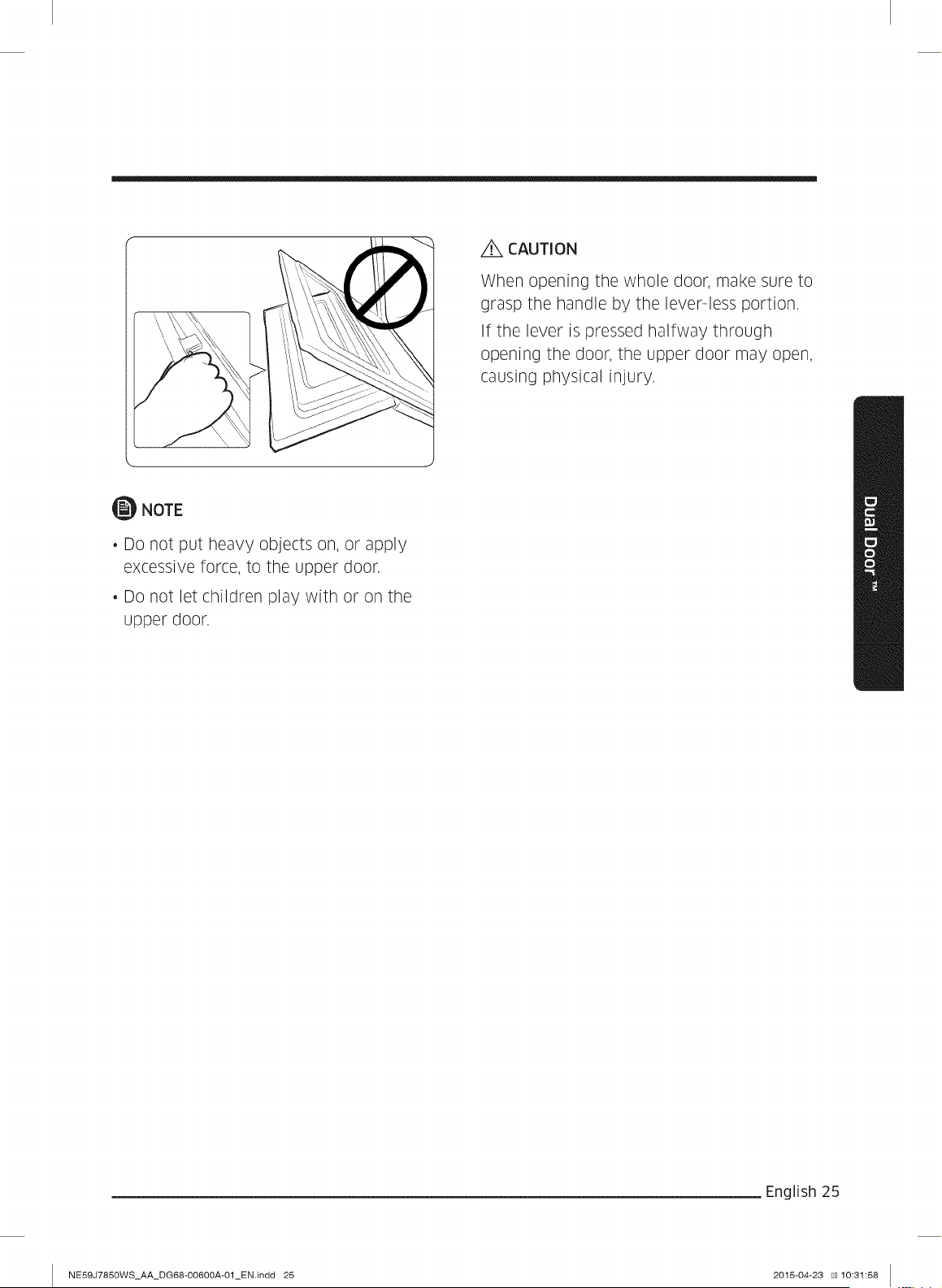

A CAUTION
When opening the whole door, make sure to
grasp the handle by the lever-less portion.
If the lever is pressed halfway through
opening the door, the upper door may open,
causing physical injury.
NOTE
• Do not put heavy objects on, or apply
excessive force, to the upper door.
• Do not let children play with or on the
upper door.
English 25
NE59J7850WS_AA_DG68-00600A-01_EN.indd 25 2015-04-23 _u10:31:58
Before you begin
Clean the oven thoroughly before using it for the first time. Then, remove the accessories, set
the oven to bake, and then run the oven at 400 °F for ! hour. There will be a distinctive odor.
This is normal.
Ensure your kitchen is well ventilated during this conditioning period.
Energy saving tips
• During cooking, the oven door should
remain closed except when you turn food
over. To maintain the oven temperature
and to save energy, do not open the door
frequently during cooking.
• If cooking time is more than 30 minutes,
you can switch the oven off 5-!0 minutes
before the end of the cooking time to save
energy. The residual heat will complete the
cooking process.
• To save energy and reduce the time
needed for re-heating the oven, plan oven
use to avoid turning the oven off between
cooking one item and the next.
• Whenever possible, cook more than one
item at a time.
26 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 26 2015-04-23 _u10:31:59
Cooktop cooking
About cooktop cooking
/_ CAUTION
BEFORE COOKING
• Do not use the glass cool<top surface as a
cutting board.
• Do not place or store items that can melt
or catch fire on the glass cooktop, even
when it is not being used.
• Turn the surface units on only after placing
cookware on them.
• Do not store heavy items above the
cooktop surface. They could fall and
damage it.
A CAUTION
DURING COOKING
• Do not place aluminum foil or plastic items
such as salt and pepper shakers, spoon
holders, or plastic wrappings on the range
when it is in use. The hot air from the vent
could melt plastics or ignite flammable
items.
• Make sure the correct surface unit is
turned on.
• Never cool< directly on the glass. Always
use cool<ware.
• Always place the pan in the center of the
surface unit you are cooking on.
• Never leave surface units unattended
while using a high heat setting. Boilovers
cause smoking and greasy spillovers that
may catch on fire.
• Turn the surface units off before removing
cool<ware.
• Do not use plastic wrap to cover food.
Plastic may melt onto the surface and be
very difficult to remove.
A CAUTION
AFTER COOKING
• Do not touch the surface units until they
have cooled down.
• The surface may be still be hot and burns
may occur if you touch the glass surface
before it has cooled down sufficiently.
• Immediately clean spills on the cooking
area to prevent a tough cleaning chore
later.
If cabinet storage is provided directly
above the cooking surface, make sure that
the items are infrequently used and can be
safely stored in an area subjected to heat.
Temperatures may be unsafe for items
such as volatile liquids, cleaners, or aerosol
sprays.
English 27
NE59J7850WS_AA_DG68-00600A-01_EN.indd 27 2015-04-23 _u10:31:59
Cooktop cooking
About the radiant surface elements
The temperature rises gradually and evenly.
As the temperature rises, the radiant
element will glow red. To maintain the
selected setting, the element will cycle on
and off. The heating element retains enough
heat to provide a uniform and consistent
heat during the off cycle. For efficient
cooking, turn off the element several
minutes before cooking is complete. This will
allow residual heat to complete the cooking
process.
NOTE
Radiant elements have a Iimiter that allows
the element to cycle ON and OFF, even
at the HI setting. This helps to prevent
damage to the ceramic cooktop. Cycling at
the HI setting is normal and can occur if
the cookware is too small for the radiant
element or if the cookware bottom is not
flat.

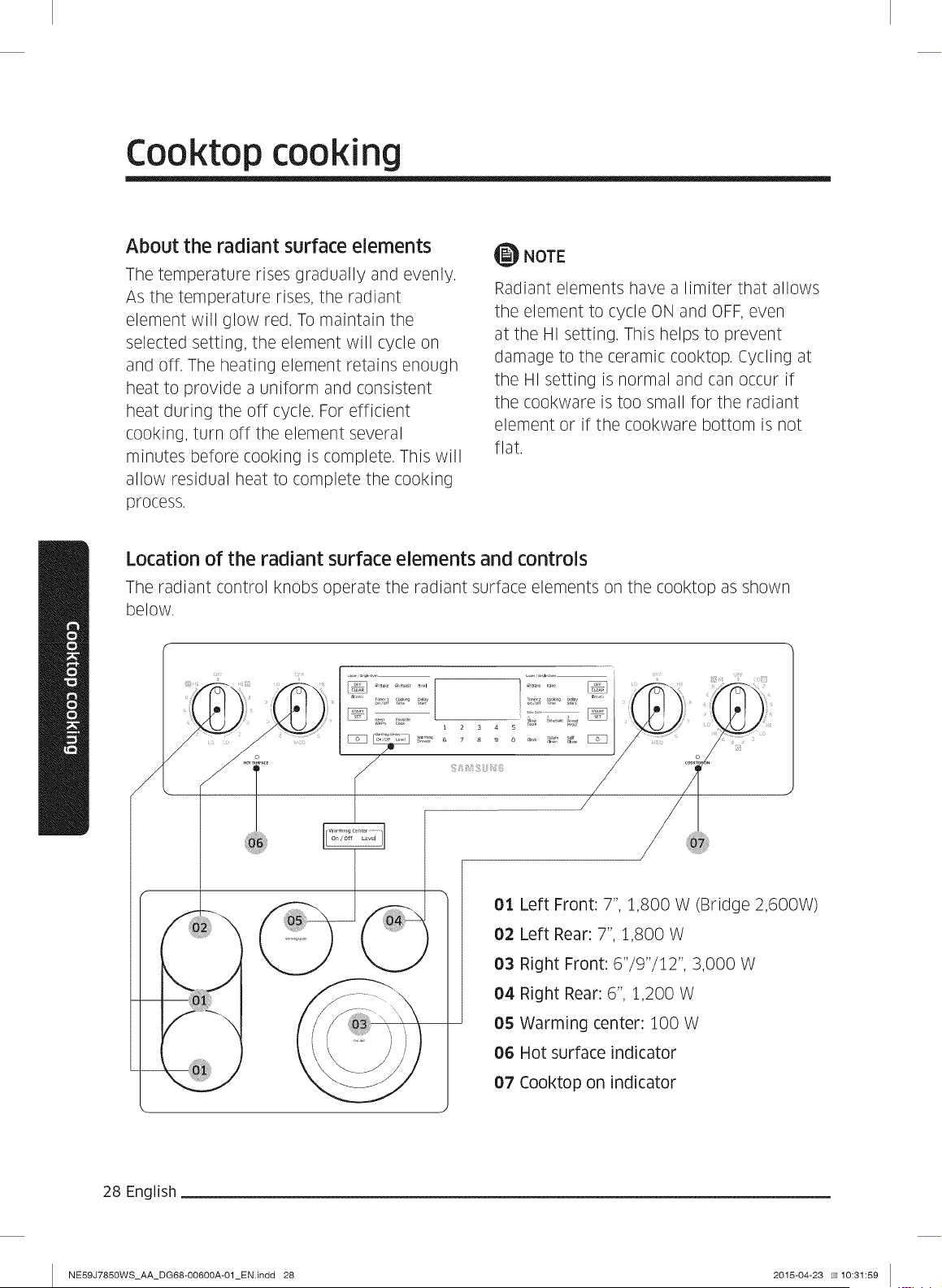

Location of the radiant surface elements and controls
The radiant control knobs operate the radiant surface elements on the cooktop as shown
below.
2 3 4
7 8 9
i
01 Left Front: 7", !,800 W (Bridge 2,600W)
02 Left Rear: 7", !,800 W
03 Right Front: 6"/9"/!2", 3,000 W
04 Right Rear: 6", 1,200 W
05 Warming center: !00 W
06 Hot surface indicator
07 Cooktop on indicator
28 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 28 2015-04-23 _u10:31:59

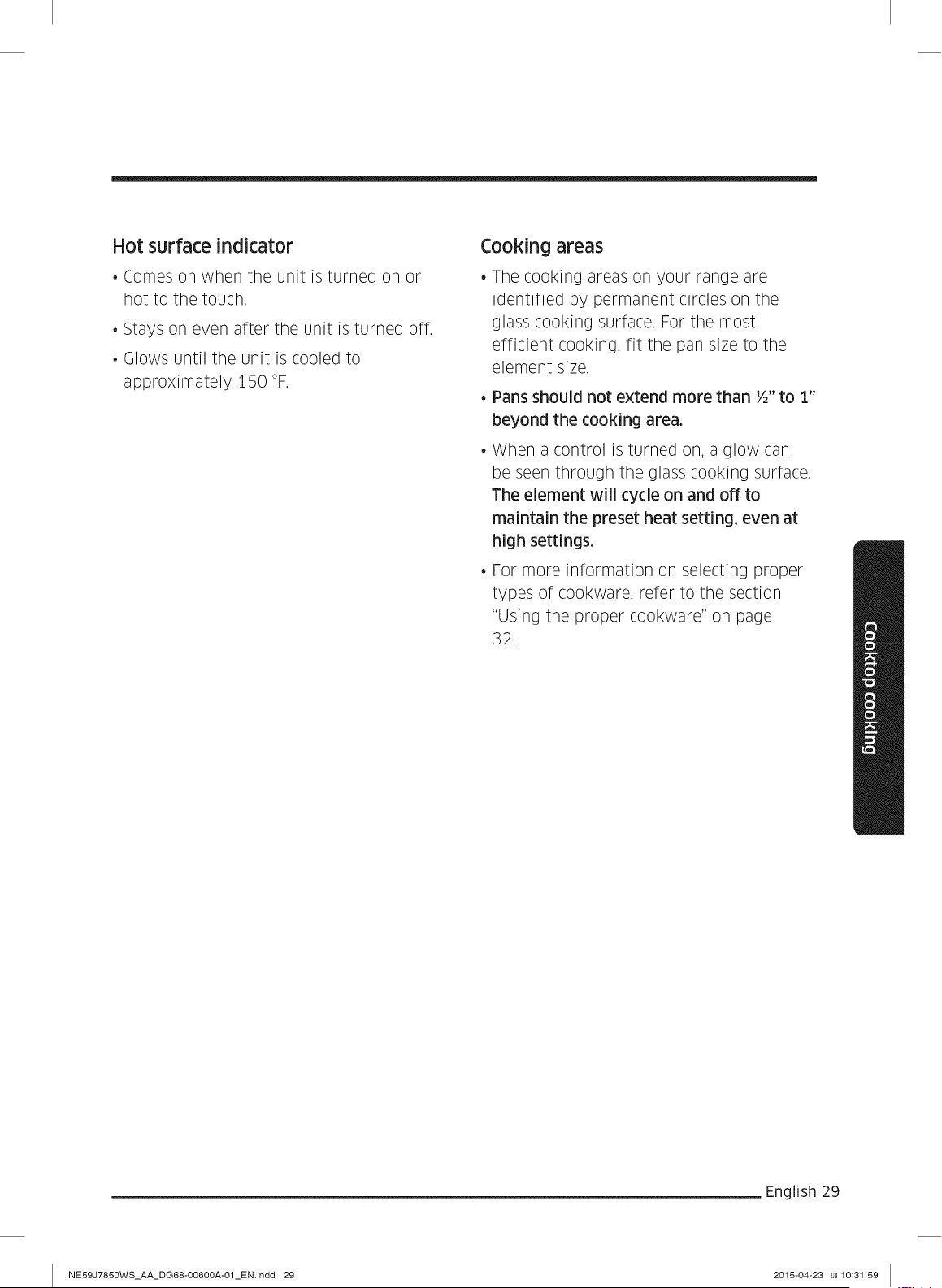

Hot surface indicator
• Comes on when the unit is turned on or
hot to the touch.
• Stays on even after the unit is turned off.
• Glows until the unit is cooled to
approximately !50 °F.
Cooking areas
• The cooking areas on your range are
identified by permanent circles on the
glass cooking surface. For the most
efficient cooking, fit the pan size to the
element size.
• Pans should not extend more than ½" to 1"
beyond the cooking area.
• When a control is turned on, a glow can
be seen through the glass cooking surface.
The element will cycle on and off to
maintain the preset heat setting, even at
high settings.
• For more information on selecting proper
types of cookware, refer to the section
"Using the proper cookware" on page
32.
English 29
NE59J7850WS_AA_DG68-00600A-01_EN.indd 29 2015-04-23 _u10:31:59

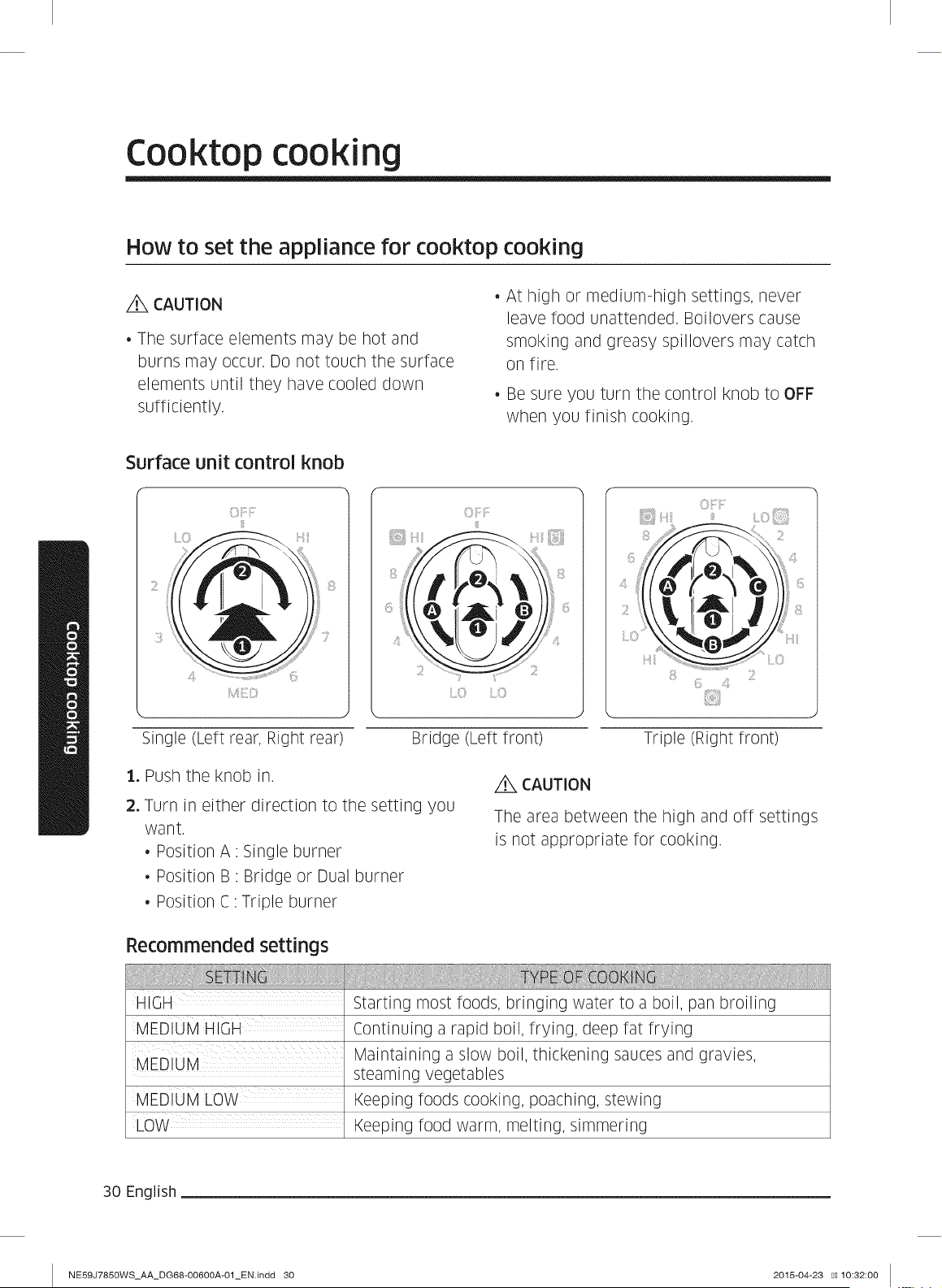

Cooktop cooking
How to set the appliance for cooktop cooking
A CAUTION
• The surface elements may be hot and
burns may occur. Do not touch the surface
elements until they have cooled down
sufficiently.
• At high or medium-high settings, never
leave food unattended. Boilovers cause
smoking and greasy spillovers may catch
on fire.
• Be sure you turn the control knob to OFF
when you finish cooking.
Surface unit control knob
iLC]_ iLO
Bridge (Left front)
ii!!!ii 4
Triple (Right front)
1. Push the knob in.
2. Turn in either direction to the setting you
want.
• Position A: Single burner
• Position B : Bridge or Dual burner
,4',, CAUTION
The area between the high and off settings
is not appropriate for cooking.
• Position CTriple burner
Recommended settings
HIGH Starting most foods, bringing water to a boil, pan broiling
MEDIUM HIGH ...... Continuing a rapid boil, frying, deep fat frying
.......................... Maintaining a slow boil, thickening sauces and gravies,
MEDIUM steaming vegetables
MEDIUM LOW Keeping foods cooking, poaching, stewing
Keeping food warm, melting, simmering
30 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 30 2015-04-23 d]10:32:00
Using the warming center
The warming center, located in the back center of the glass surface, will keep hot, cooked
food at serving temperature.
NOTE
The surface warmer will not glow red like
the cooking elements.
Z_ CAUTION
• Do not warm food on the warming center
for more than two hours.
• Use only cookware and dishes
recommended as safe for oven and
cooktop use.
• Always use potholders or oven mitts when
removing food from the warming center as
cookware and plates will be hot.
• When warming pastries and breads, the
cover should have an opening to allow
moisture to escape.
• Always start with hot food. Eating
uncooked or cold food placed on the
warming center could result in illness.
1, Turn the warming center on.
Press the Warming Center On/Off pad.
2, Select the power setting you want.
Pressing the Warming Center Level pad
once will set it to the Lo setting. Press the
pad twice for the Med setting, 3 times for
Hi.
3, Turn the warming center off.
Press the Warming Center On/Off pad.
NOTE
• Pressing the CLEAR/OFF pad does not turn
the warming center off.
• For best results, all foods on the warming
center should be covered with a lid or
aluminum foil. When warming pastries
or breads, the cover should be vented to
allow moisture to escape.
Recommended settings
Breads/Pastries, Casseroles,
Lo
Gravies, Eggs
Dinner plate with food, Soups
Meal (cream), Vegetables, Sauces,
Stews, Meats
Fried foods, Soups (liquid), Hot
Hi
beverages
English 31
NE59J7850WS_AA_DG68-00600A-01_EN.indd 31 2015-04-23 _u10:32:00
Cooktop cooking

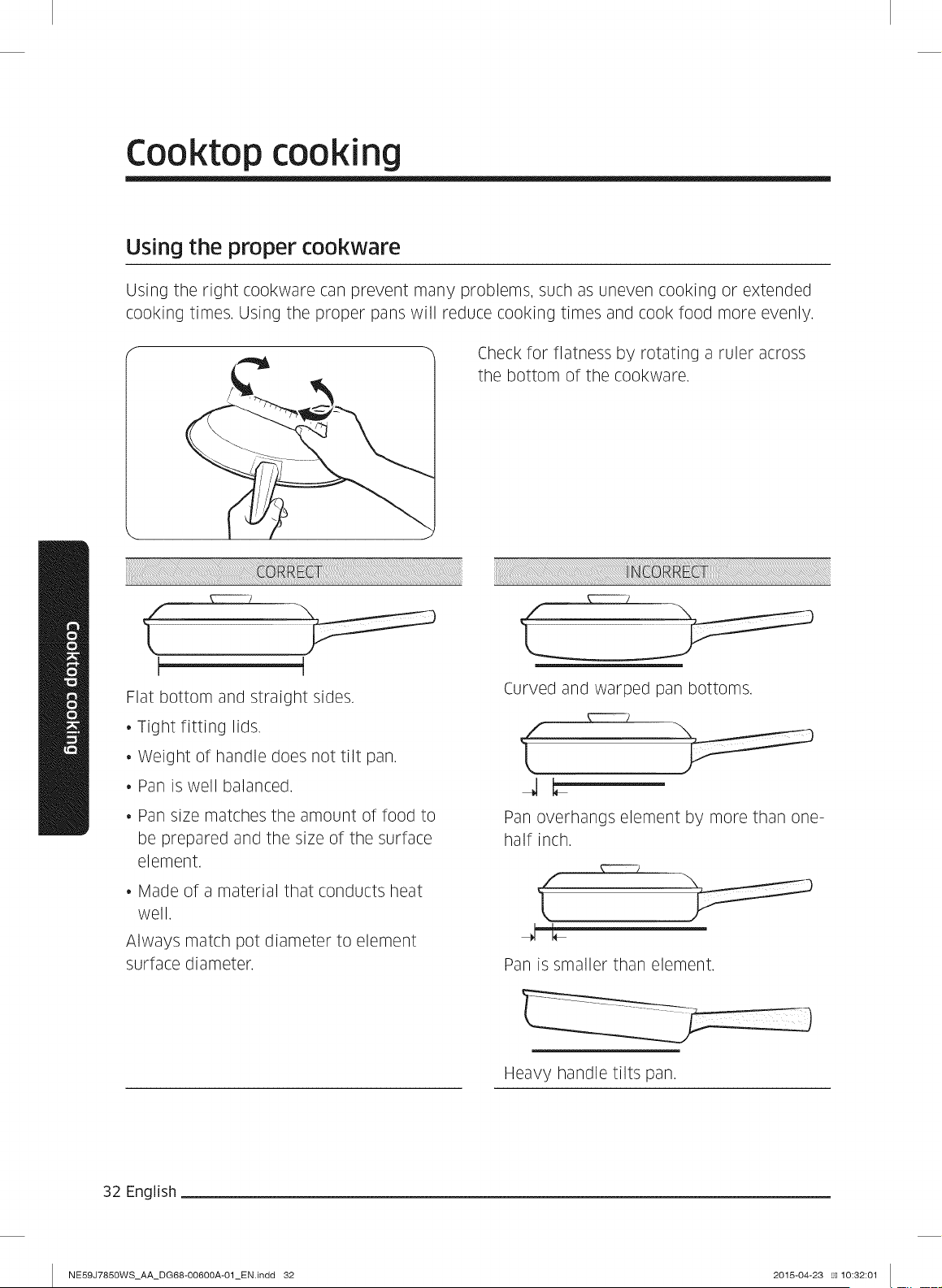

Using the proper cookware
Using the right cookware can prevent many problems, such as uneven cooking or extended
cooking times. Using the proper pans will reduce cooking times and cook food more evenly.
Check for flatness by rotating a ruler across
the bottom of the cookware.
¸
I I
Flat bottom and straight sides.
• Tight fitting lids. ,,/_--- £----_
• Weight of handle does not tilt pan.
• Pan is well balanced. _ L
• Pan size matches the amount of food to
be prepared and the size of the surface
element.
• Made of a material that conducts heat 1
kwell.
Always match pot diameter to element _ _
surface diameter.
Curved and warped pan bottoms.
Pan overhangs element by more than one-
half inch.
Pan is smaller than element.
Heavy handle tilts pan.
32 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 32 2015-04-23 _u10:32:01
Choosing the proper cookware
What your cookware is made of determines
how evenly and quickly heat is transferred
from the surface element to the pan bottom.
• ALUMINUM - Excellent heat conductor.
Some types of food will cause the
aluminum to darken. (Anodized aluminum
cookware resists staining & pitting.). If
aluminum pans are slid across the ceramic
cooktop, they may leave metal marks that
resemble scratches. Remove these marks
as soon as the cooktop cools down.
• COPPER - Excellent heat conductor but
discolors easily. May leave metal marks on
ceramic glass (see above).
• STAINLESS STEEL - Slow heat conductor
with uneven cooking results. Is durable,
easy to clean and resists staining.
• CAST IRON - A poor conductor; retains
heat very well. Cooks evenly once cooking
temperature is reached. Not recommended
for use on ceramic cooktops.
• ENAMELWARE - Heating characteristics
will vary depending on the base material.
Porcelain enamel coating must be smooth
to avoid scratching ceramic cooktops.
• GLASS - Slow heat conductor. Not
recommended for ceramic cooktop
surfaces because it may scratch the glass.
Protecting the smoothtop
Cleaning
• Clean the cooktop before using
first time.
it for the
• Clean your cooktop daily or after each use.
This will keep your cooktop looking good
and can prevent damage.
• If a spillover occurs while you are cooking,
immediately clean the spill from the
cooking area while it is hot to prevent a
tough cleaning chore later. Using extreme
care, wipe the spill with a clean dry towel.
• Do not allow spills to remain on the
cooking area or the cooktop trim for a long
period of time.
• Do not use abrasive cleansing powders
or scouring pads which will scratch the
cooktop.
• Do not use chlorine bleach, ammonia,
or other cleansers not specifically
recommended for use on a glass-ceramic
surface.
English 33
NE59J7850WS_AA_DG68-00600A-01_EN.indd 33 2015-04-23 _u10:32:01
Cooktop cooking

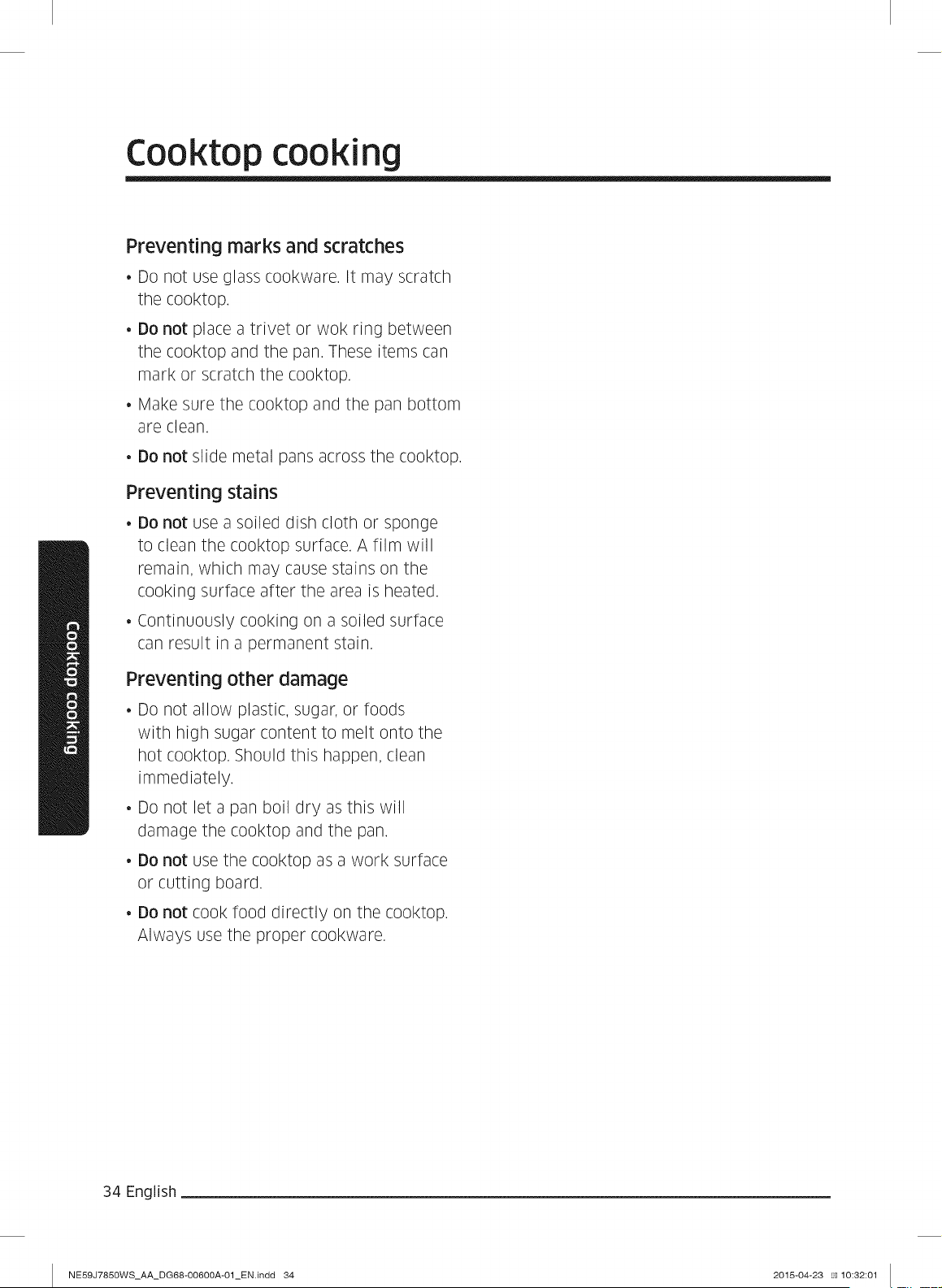

Preventing marks and scratches
• Do not use glass cookware. It may scratch
the cooktop.
• Do not place a trivet or wok ring between
the cooktop and the pan. These items can
mark or scratch the cooktop.
• Make sure the cooktop and the pan bottom
are clean.
• Do not slide metal pans across the cooktop.
Preventing stains
• DO not use a soiled dish cloth or sponge
to clean the cooktop surface. A film will
remain, which may cause stains on the
cooking surface after the area is heated.
• Continuously cooking on a soiled surface
can result in a permanent stain.
Preventing other damage
• Do not allow plastic, sugar, or foods
with high sugar content to melt onto the
hot cooktop. Should this happen, clean
immediately.
• Do not let a pan boil dry as this will
damage the cooktop and the pan.
• Do not use the cooktop as a work surface
or cutting board.
• Do not cook food directly on the cooktop.
Always use the proper cookware.
34 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 34 2015-04-23 d]10:32:01

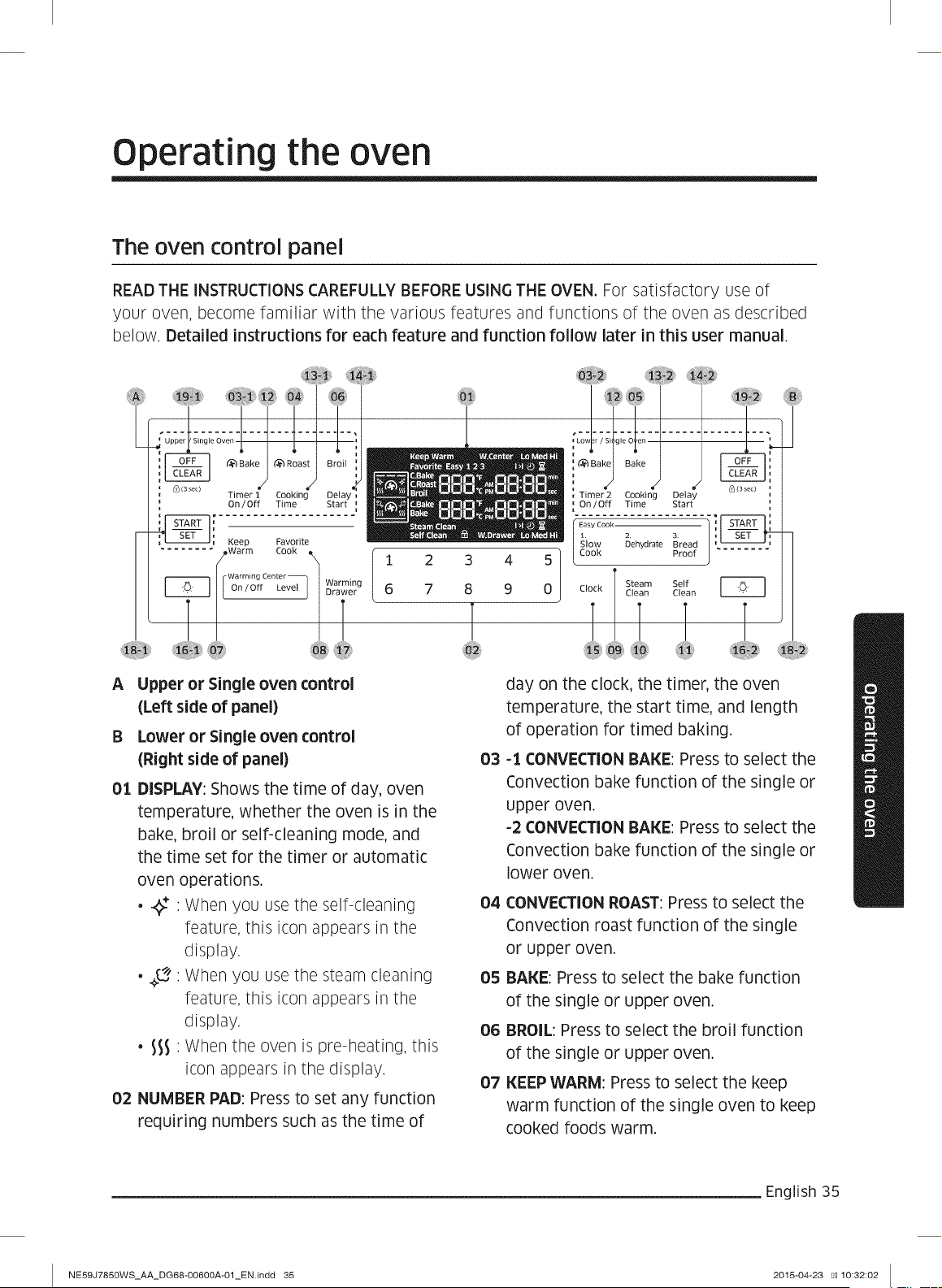

Operating the oven
The oven control panel
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of
your oven, become familiar with the various features and functions of the oven as described
below. Detailed instructions for each feature and function follow later in this user manual.
l [_ (3 sec)
J
Timer 1 Cooking Delay
On/Off Time Start
',
_:i _/eaerpm Favorite
i
I
i
_Bak_ Bake
Timer 2 Cookinc Delay
On/Off Time Start
Easy Cook
1 2 3
Slow Dehydrate Bread
Clock Steam Self
Clean Clean
1 2 3 4 5
6 7 8 9 0
.......!................. r..........
A Upper or Single oven control
(Left side of panel)
B Lower or Single oven control
(Right side of panel)
01 DISPLAY: Shows the time of day, oven
temperature, whether the oven is in the
bake, broil or self-cleaning mode, and
the time set for the timer or automatic
oven operations.
• 4_t : When you use the self-cleaning
feature, this icon appears in the
display.
• +t2 : When you use the steam cleaning
feature, this icon appears in the
display.
• SSS: When the oven is pre-heating, this
icon appears in the display.
02 NUMBER PAD: Press to set any function
requiring numbers such as the time of
day on the clock, the timer, the oven
temperature, the start time, and length
of operation for timed baking.
03 -1 CONVECTION BAKE: Press to select the
Convection bake function of the single or
upper oven.
-2 CONVECTION BAKE: Press to select the
Convection bake function of the single or
lower oven.
04 CONVECTION ROAST: Press to select the
Convection roast function of the single
or upper oven.
05 BAKE: Press to select the bake function
of the single or upper oven.
06 BROIL: Press to select the broil function
of the single or upper oven.
07 KEEP WARM: Press to select the keep
warm function of the single oven to keep
cooked foods warm.
English 35
NE59J7850WS_AA_DG68-00600A-01_EN.indd 35 2015-04-23 _u10:32:02

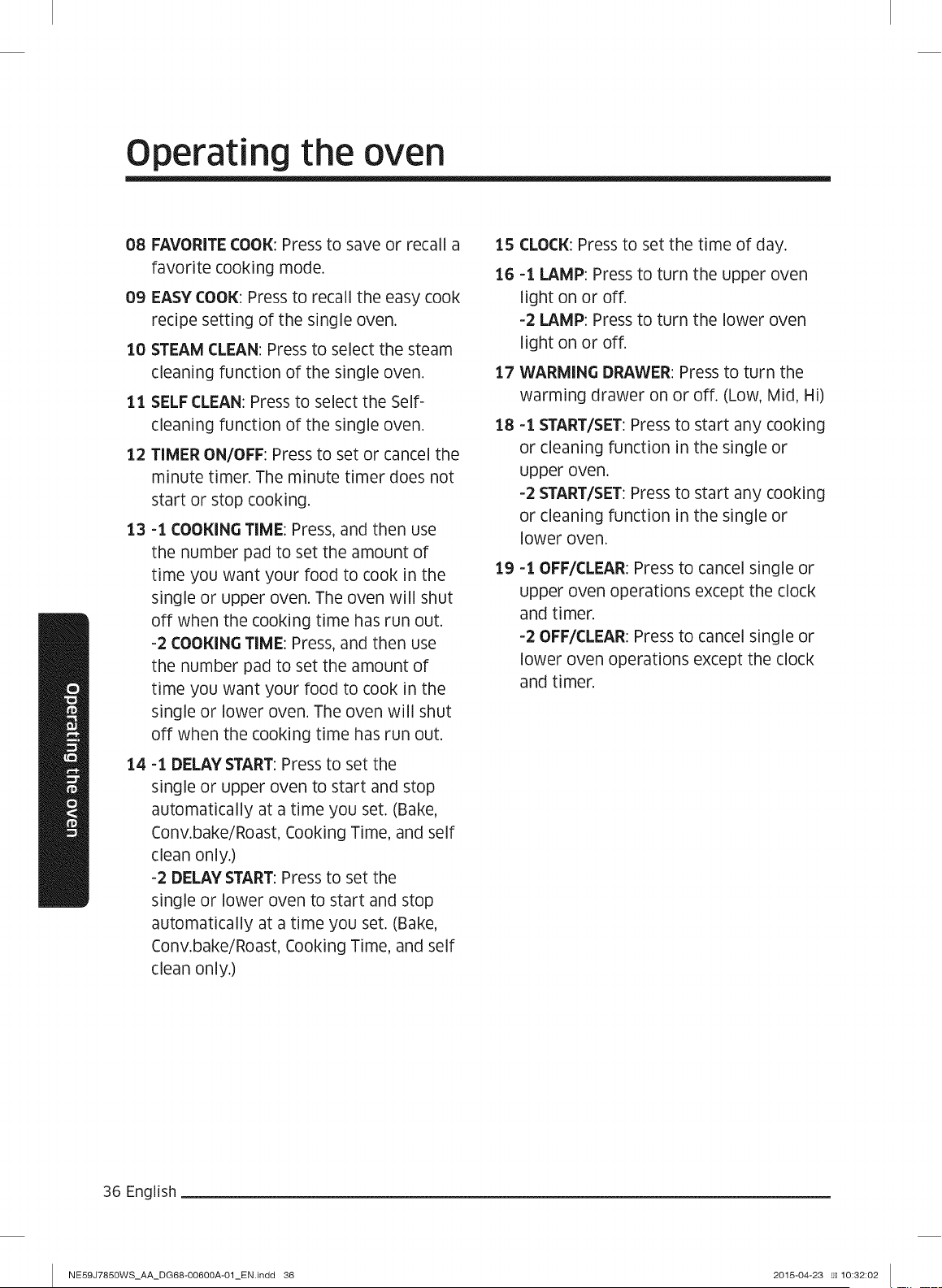

Operating the oven
08 FAVORITE COOK: Press to save or recall a
favorite cooking mode.
09 EASY COOK: Press to recall the easy cook
recipe setting of the single oven.
10 STEAM CLEAN: Press to select the steam
cleaning function of the single oven.
11 SELF CLEAN: Press to select the Self-
cleaning function of the single oven.
12 TIMER ON/OFF: Press to set or cancel the
minute timer. The minute timer does not
start or stop cooking.
13 -1 COOKING TIME: Press, and then use
the number pad to set the amount of
time you want your food to cook in the
single or upper oven. The oven will shut
off when the cooking time has run out.
-2 COOKING TIME: Press, and then use
the number pad to set the amount of
time you want your food to cook in the
single or lower oven. The oven will shut
off when the cooking time has run out.
14 -1 DELAY START: Press to set the
single or upper oven to start and stop
automatically at a time you set. (Bake,
Conv.bake/Roast, Cooking Time, and self
clean only.)
-2 DELAY START: Press to set the
single or lower oven to start and stop
automatically at a time you set. (Bake,
Conv.bake/Roast, Cooking Time, and self
clean only.)
15 CLOCK: Press to set the time of day.
16 -1 LAMP: Press to turn the upper oven
light on or off.
-2 LAMP: Press to turn the lower oven
light on or off.
17 WARMING DRAWER: Press to turn the
warming drawer on or off. (Low, Mid, Hi)
18 -1 START/SET: Press to start any cooking
or cleaning function in the single or
upper oven.
-2 START/SET: Press to start any cooking
or cleaning function in the single or
lower oven.
19
-1 OFF/CLEAR: Press to cancel single or
upper oven operations except the clock
and timer.
-2 OFF/CLEAR: Press to cancel single or
lower oven operations except the clock
and timer.
36 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 36 2015-04-23 d]10:32:02
Setting the clock
The clock must be set to the correct time of day for the automatic oven timing functions to
work properly.
• The time of day cannot be changed during a timed cooking, a delay-timed cooking, or a
self-cleaning cycle.
• You can choose between a 12-hour or 24-hour display. The default is 12-hour.
How to set the clock
1, Start the setup.
Press Clock.
2, Enter the current time in hours and
minutes on the number pad, eg. 1, 3, 0,
for 1:30.
3, Press Clock or START/SET to save the
changes.
How to change between a 12-hour
and 24-hour display
1, Press Broil and 4 on the number pad at
the same time for 3 seconds.
The display will show the present mode
(eg. 12 hour).
2, Select the display mode you want.
Press 0 on the number pad to select
12 hour or 24 hour.
3.Press START/SET to save changes.
Setting the kitchen timer
The kitchen timer serves as an extra timer that will beep when the set time has elapsed. It
does not start or stop cooking functions. You can use the kitchen timer with any of the other
oven functions.
How to set the timer
1, Turn the timer on.
Press Timer 1 On/Off (Timer 2 On/Off).
2. Enter the amount of time you want.
Enter the amount of time you want using
the number pad, eg. 1, 5. The timer can be
set for any amount of time from 1 minute
to 9 hours and 99 minutes. I1:you make
a mistake, press Timer 1 On/Off (Timer
2 On/Off) and enter the amount o1:time
again.
3_
4_
Start the timer.
Press Timer 1 On/Off filmer 2 On/Off) or
START/SET,
When the set time has elapsed, the oven
will beep and the display will show End
until you press the pad. You can cancel
the timer at any time by pressing Timer 1
On/Off (Timer 2 On/Off) or START/SET.
English 37
NE59J7850WS_AA_DG68-00600A-01_EN.indd 37 2015-04-23 _u10:32:02
Operating the oven

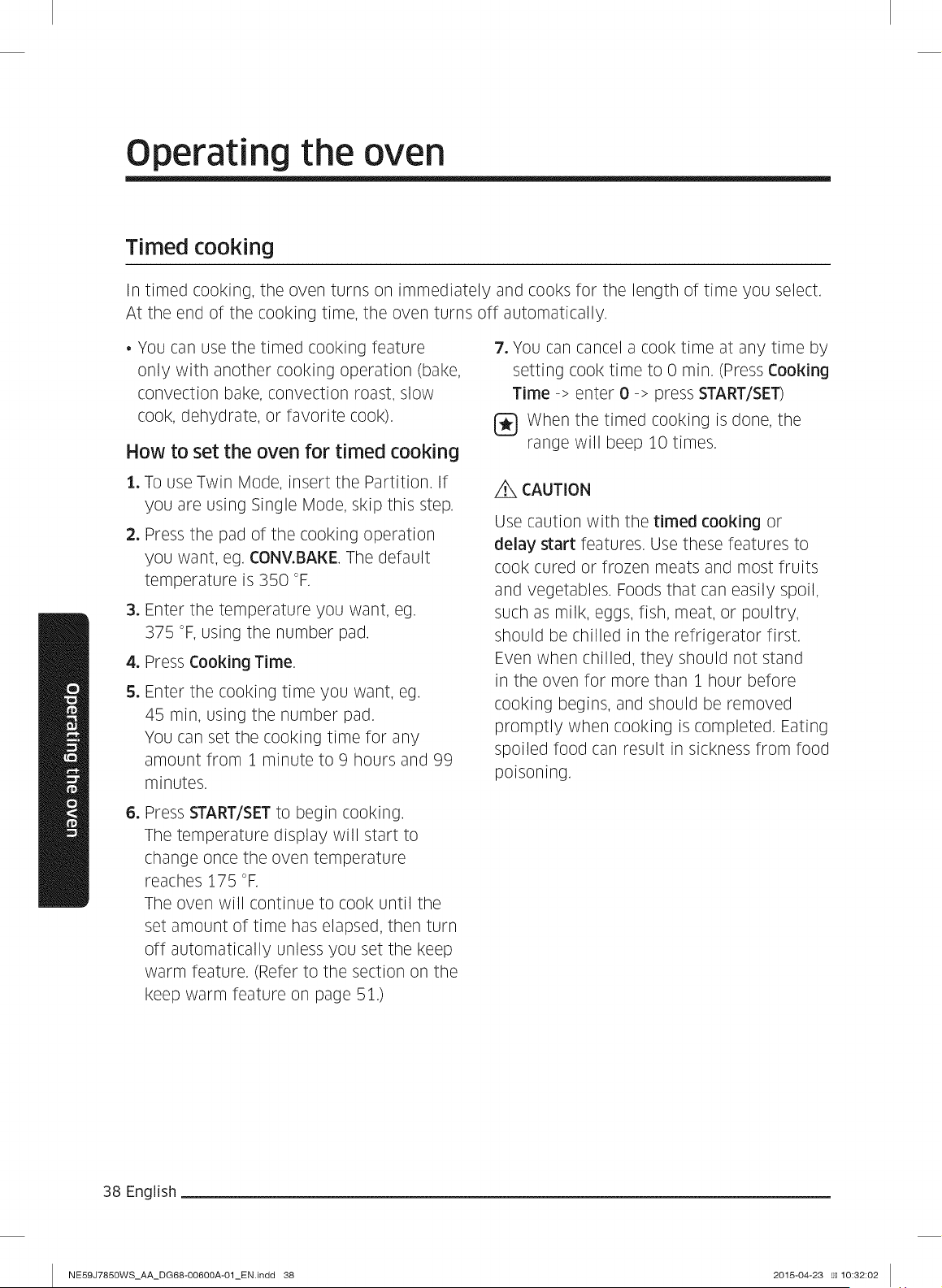

Timed cooking
In timed cooking, the oven turns on immediately and cooks for the length of time you select.
At the end of the cooking time, the oven turns off automatically.
° You can use the timed cooking feature
only with another cooking operation (bake,
convection bake, convection roast, slow
cook, dehydrate, or favorite cook).
How to set the oven for timed cooking
1. To use Twin Mode, insert the Partition. If
you are using Single Mode, skip this step.
2. Press the pad of the cooking operation
you want, eg. CONV.BAKE The default
temperature is 350 °F.
3. Enter the temperature you want, eg.
375 °F, using the number pad.
4. Press Cooking Time.
5. Enter the cooking time you want, eg.
45 min, using the number pad.
You can set the cooking time for any
amount from ! minute to 9 hours and 99
minutes.
7. You can cancel a cook time at any time by
setting cook time to 0 min. (Press Cooking
Time -> enter 0 -> press START/SET)
_] When the timed cooking is done, the
range will beep !0 times.
A CAUTION
Use caution with the timed cooking or
delay start features. Use these features to
cook cured or frozen meats and most fruits
and vegetables. Foods that can easily spoil,
such as milk, eggs, fish, meat, or poultry,
should be chilled in the refrigerator first.
Even when chilled, they should not stand
in the oven for more than 1_hour before
cooking begins, and should be removed
promptly when cooking is completed. Eating
spoiled food can result in sickness from food
poisoning.
6_
Press START/SET to begin cooking.
The temperature display will start to
change once the oven temperature
reaches !75 °F.
The oven will continue to cook until the
set amount of time has elapsed, then turn
off automatically unless you set the keep
warm feature. (Refer to the section on the
keep warm feature on page 5!.)
38 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 38 2015-04-23 0010:32:02
Delay start
In a delay timed cooking, the oven's timer turns the oven on and off at times you select in
advance.
• You can use the delay start feature only
with another cooking operation (bake,
convection bake, convection roast, slow
cook, dehydrate, or favorite cook).
• You can set the oven for a delay start
before setting other cooking operations.
• The clock must be set to the current time.
Flow to set the oven for delay start
1, To use Twin mode, insert the partition. If
you are using Single mode, skip this step.
2, Press the pad of the cooking operation
you want, eg. CONV.BAKE. The default
temperature is 350 °F.
:3.Enter the temperature you want, eg.
375 °F, using the number pad.
4, Set the cooking time If you want. (Refer to
the section on the timed cooking feature
on page 38.). If you are not using timed
cooking feature, skip Step 4.
S. Press Delay start.
6, Enter the time you want the oven to turn
on, eg. 4:30, using the number pad.
7. Press START/SET.
At the set time, a short Deep will sound. The
oven will begin to bake.
Turning the oven light on and off
• The oven light turns on automatically
when the door is opened.
• The oven light turns off automatically
when the door is closed.
• You can turn the oven light on and off
manually by pressing the_ pad.
English 39
NE59J7850WS_AA_DG68-00600A-01_EN.indd 39 2015-04-23 d]10:32:02

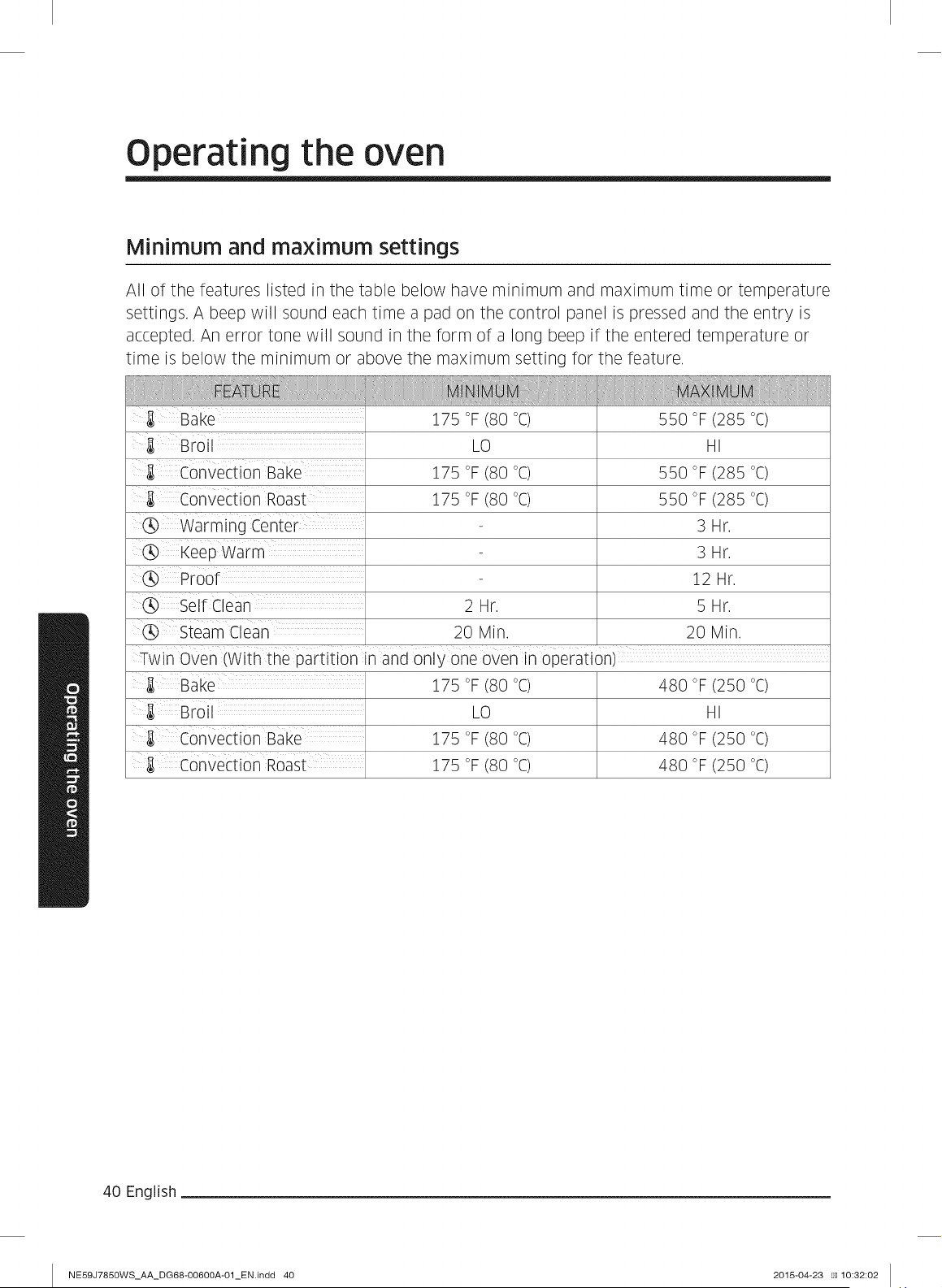

Operating the oven
Minimum and maximum settings
All of the features listed in the table below have minimum and maximum time or temperature
settings. A beep will sound each time a pad on the control panel is pressed and the entry is
accepted. An error tone will sound in the form of a long beep if the entered temperature or
time is below the minimum or above the maximum setting for the feature.
Convection Bake
Convection Roast
(_ Warming Center
Keep Warm
(_ Self Clean
Steam Clean
175 °F (80 °C)
LO
175 °F (80 °C)
175 °F (80 °C)
2 Hr.
20 Min.
550 °F (285 °C)
HI
550 °F (285 °C)
550 °F (285 °C)
3Hr.
3Hr.
12 Hr.
5Hr.
20 Min.
Twin Oven (With the partition in and only one oven in operation)
Bake !75 °F (80 °C) 480 °F (250 °C)
LO HI
Convection Bake !75 °F (80 °C) 480 °F (250 °C)
Convection Roast !75 °F (80 °C) 480 °F (250 °C)
40 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 40 2015-04-23 _u10:32:02

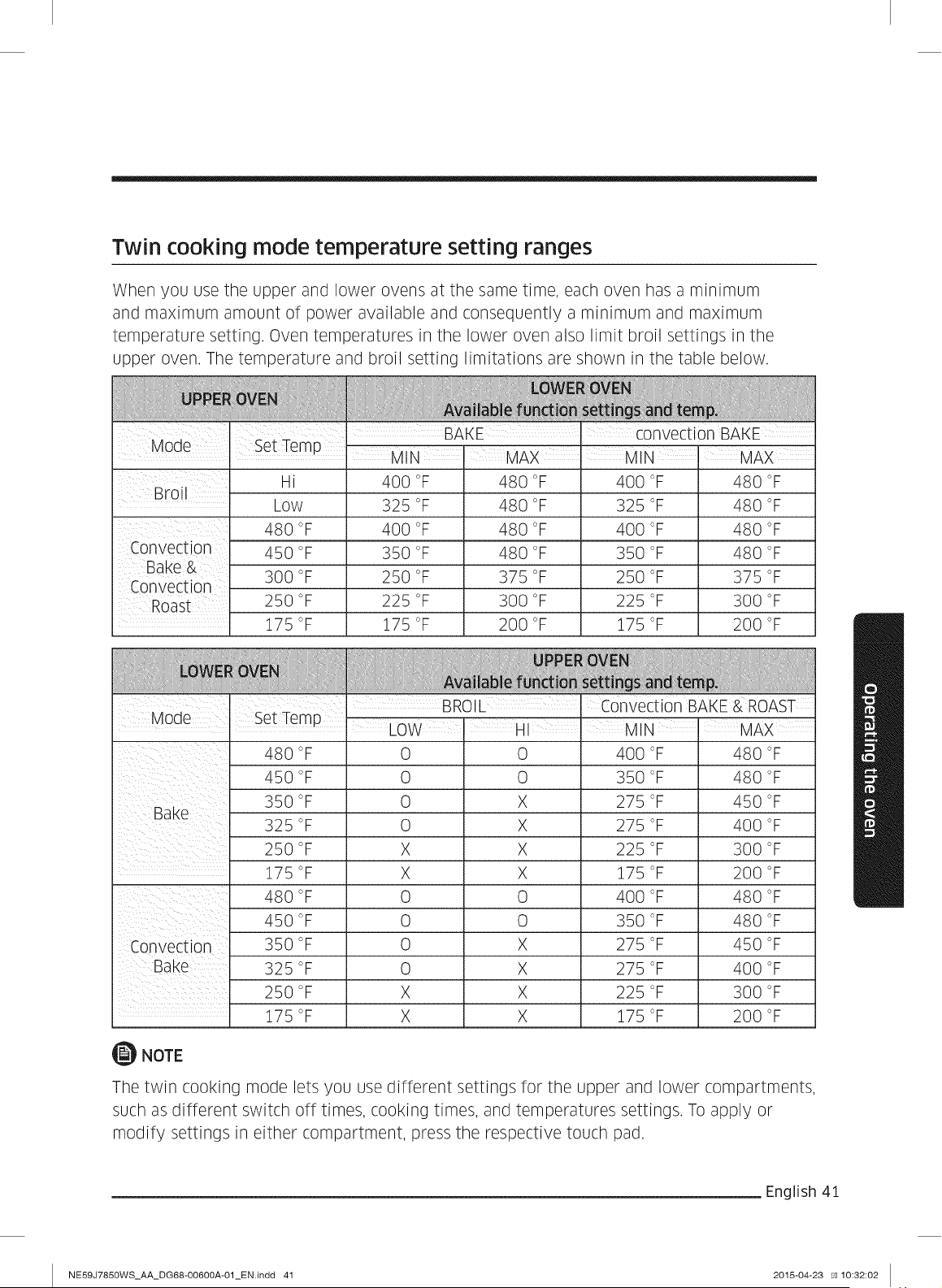

Twin cooking mode temperature setting ranges
When you use the upper and lower ovens at the same time, each oven has a minimum
and maximum amount of power available and consequently a minimum and maximum
temperature setting. Oven temperatures in the lower oven also limit broil settings in the
upper oven. The temperature and broil setting limitations are shown in the table below.
I BAKE convecti0n BAKE
Mode. SetTemp, MIN, MAX I MIN, MAX
Hi 400 °F 480 °F 400 °F 480 °F
Broil Low 325 °F 480 °F 325 °F 480 °F
480 °F 400 °F 480 °F 400 °F 480 °F
Convection 450 °F 350 °F 480 °F 350 °F 480 °F
Bake & 300 °F 250 °F 375 °F 250 °F 375 °F
Convection
Roast 250 °F 225 °F 300 °F 225 °F 300 °F
175 °F 175 °F 200 °F 175 °F 200 °F
I BROIL Convection BAKE & ROAST
Mode Set Temp I
' . LOW HI I MIN MAX
480 °F 0 0 400 °F 480 °F
450 °F 0 0 350 °F 480 °F
350 °F 450
Bake 0 X 275 °F °F
325 °F 0 X 275 °F 400 °F
250 °F X X 225 °F 300 °F
175 °F X X 175 °F 200 °F
480 °F 0 0 400 °F 480 °F
450 °F 0 0 350 °F 480 °F
Convection 350 °F 0 X 275 °F 450 °F
Bake 325 °F 0 X 275 °F 400 °F
250 °F 300
X X 225 °F °F
175 °F X X 175 °F 200 °F
NOTE
The twin cooking mode lets you use different settings for the upper and lower compartments,
such as different switch off times, cooking times, and temperatures settings. To apply or
modify settings in either compartment, press the respective touch pad.
English 41
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 41 2015-04-23 _u10:32:02
Operating the oven

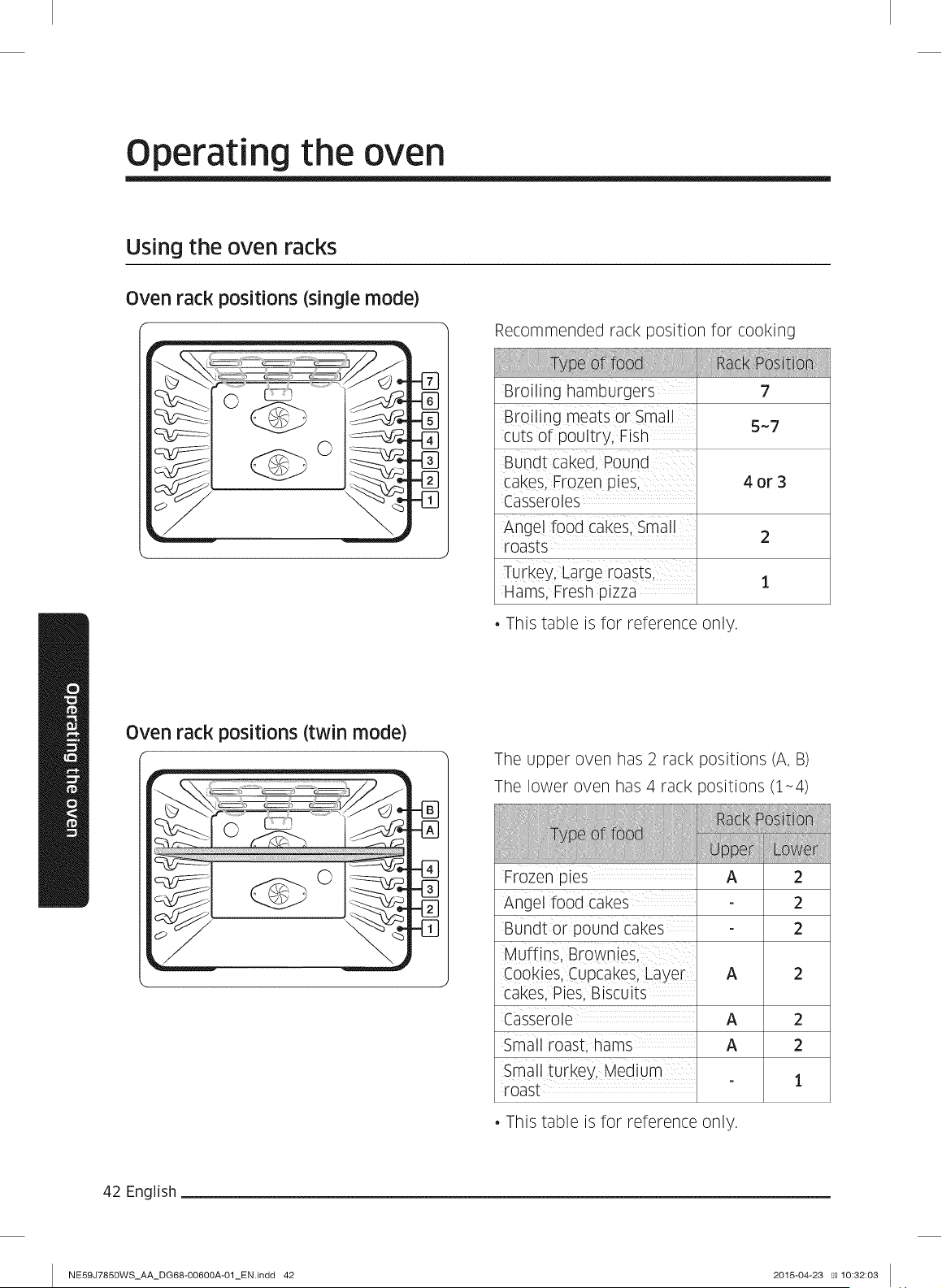

Using the oven racks
Oven rack positions (single mode)
Recommended rack position for cooking
Broiling hamburgers
Bi0iling meats or small
cuts of poultry, Fish
Bundt caked, Pound
cakes, Frozen pies;
casseroles
Angel food cakes; Small
roasts
TurkeY, Large roasts,
Hams, Fresh pizza
7
5~7
4or3
2
1
• This table is for reference only.
Oven rack positions (twin mode)
O
The upper oven has 2 rack positions (A, B)
The lower oven has 4 rack positions (1_-4)
:l y lu_ I u_u
Frozen pies A 2
Angel food cakes - 2
Bundt or pound cakes - 2
Muffins, Brownies,
Cookies, Cupcakes, Layer A 2
cakes, Pies, Biscuits
Casserole A 2
Small roast, hams A 2
Small turkey, Medium _ 1
roast
• This table is for reference only.
42 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 42 2015-04-23 _u10:32:03

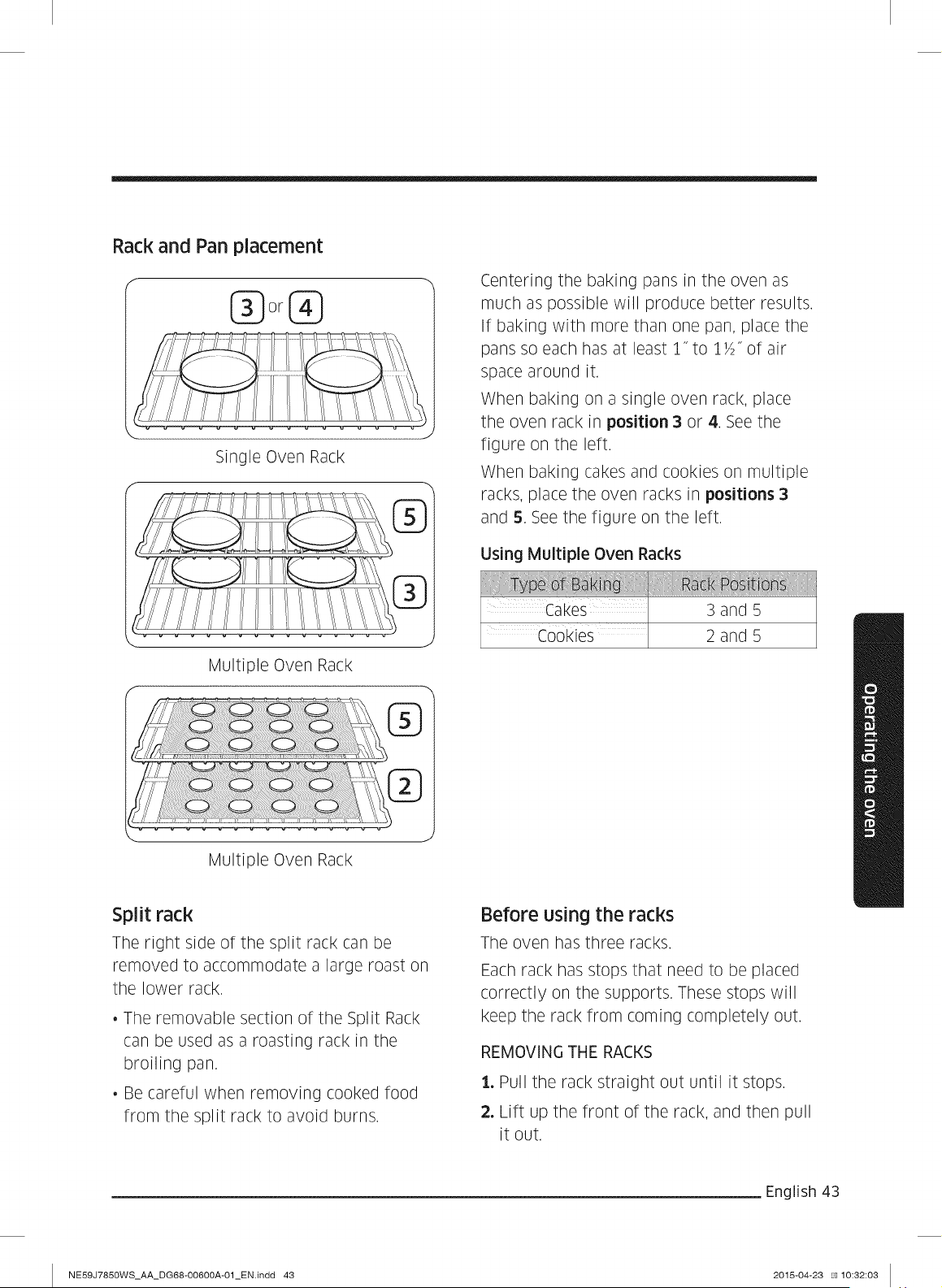

Rack and Pan placement
Single Oven Rack
Multiple Oven Rack
Multiple Oven Rack
Centering the baking pans in the oven as
much as possible will produce better results.
If baking with more than one pan, place the
pans so each has at least !" to !_"of air
space around it.
When baking on a single oven rack, place
the oven rack in position3 or 4. See the
figure on the left.
When baking cakes and cookies on multiple
racks, place the oven racks in positions 3
and 5. See the figure on the left.
Using Multiple Oven Racks
Cakes 3 and 5
cookies 2 and 5
Split rack
The right side of the split rack can be
removed to accommodate a large roast on
the lower rack.
• The removable section of the Split Rack
can be used as a roasting rack in the
broiling pan.
• Be careful when removing cooked food
from the split rack to avoid burns.
Before using the racks
The oven has three racks.
Each rack has stops that need to be placed
correctly on the supports. These stops will
keep the rack from coming completely out.
REMOVING THE RACKS
1. Pull the rack straight out until it stops.
2. Lift up the front of the rack, and then pull
it out.
English 43
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 43 2015-04-23 _u10:32:03

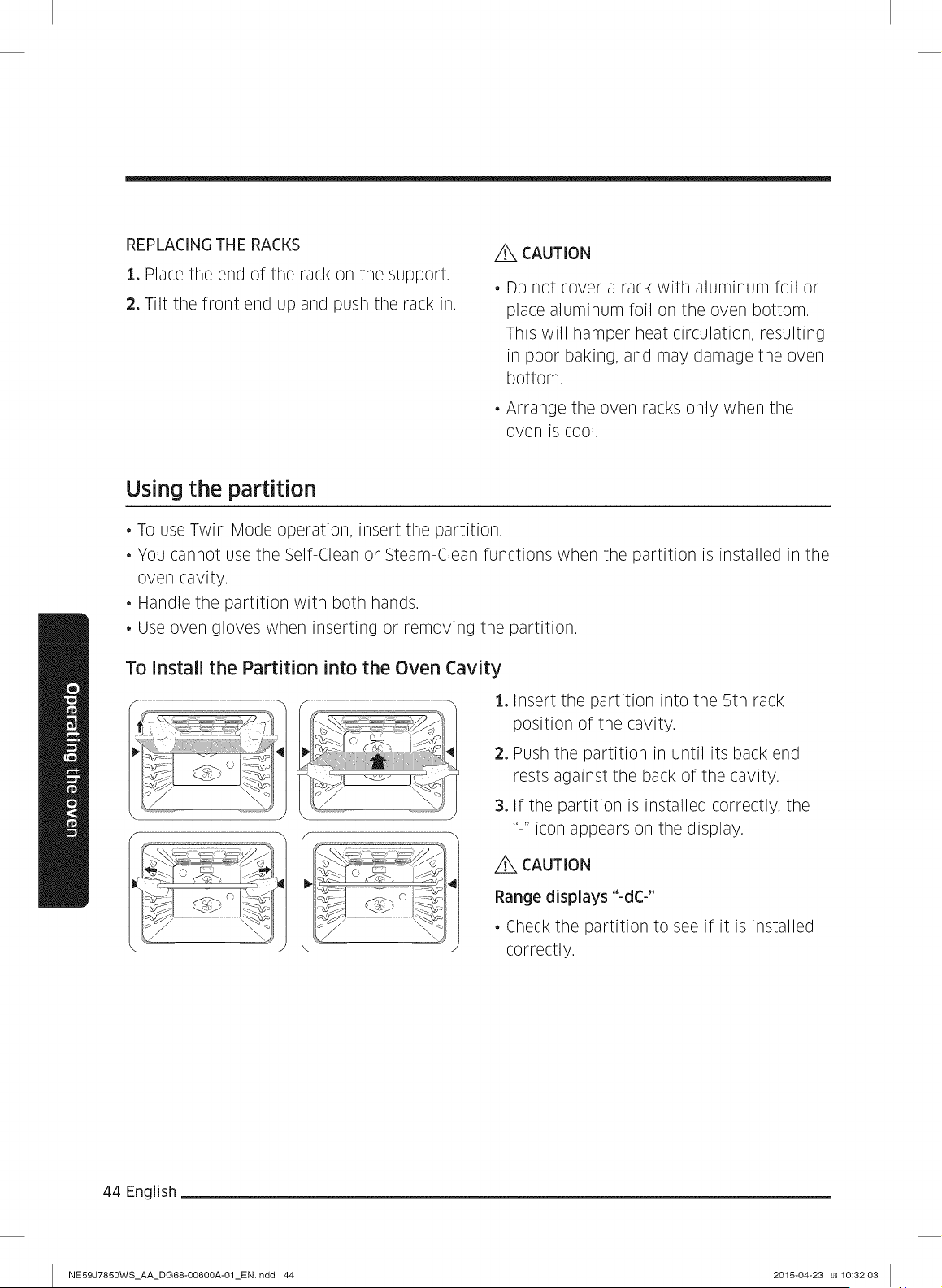

REPLACING THE RACKS
1, Place the end of the rack on the support.
2, Tilt the front end up and push the rack in.
A CAUTION
• Do not cover a rack with aluminum foil or
place aluminum foil on the oven bottom.
This will hamper heat circulation, resulting
in poor baking, and may damage the oven
bottom.
• Arrange the oven racks only when the
oven is cool.
Using the partition
• To use Twin Mode operation, insert the partition.
• You cannot use the Self-Clean or Steam-Clean functions when the partition is
oven cavity.
• Handle the partition with both hands.
• Use oven gloves when inserting or removing the partition.
installed in the
To Install the Partition into the Oven Cavity
1, Insert the partition into the 5th rack
position of the cavity.
2, Push the partition in until its back end
rests against the back of the cavity.
3, If the partition is installed correctly, the
"-" icon appears on the display.
A CAUTION
Range displays "-dC-"
• Check the partition to see if it is installed
correctly.
44 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 44 2015-04-23 d]10:32:03

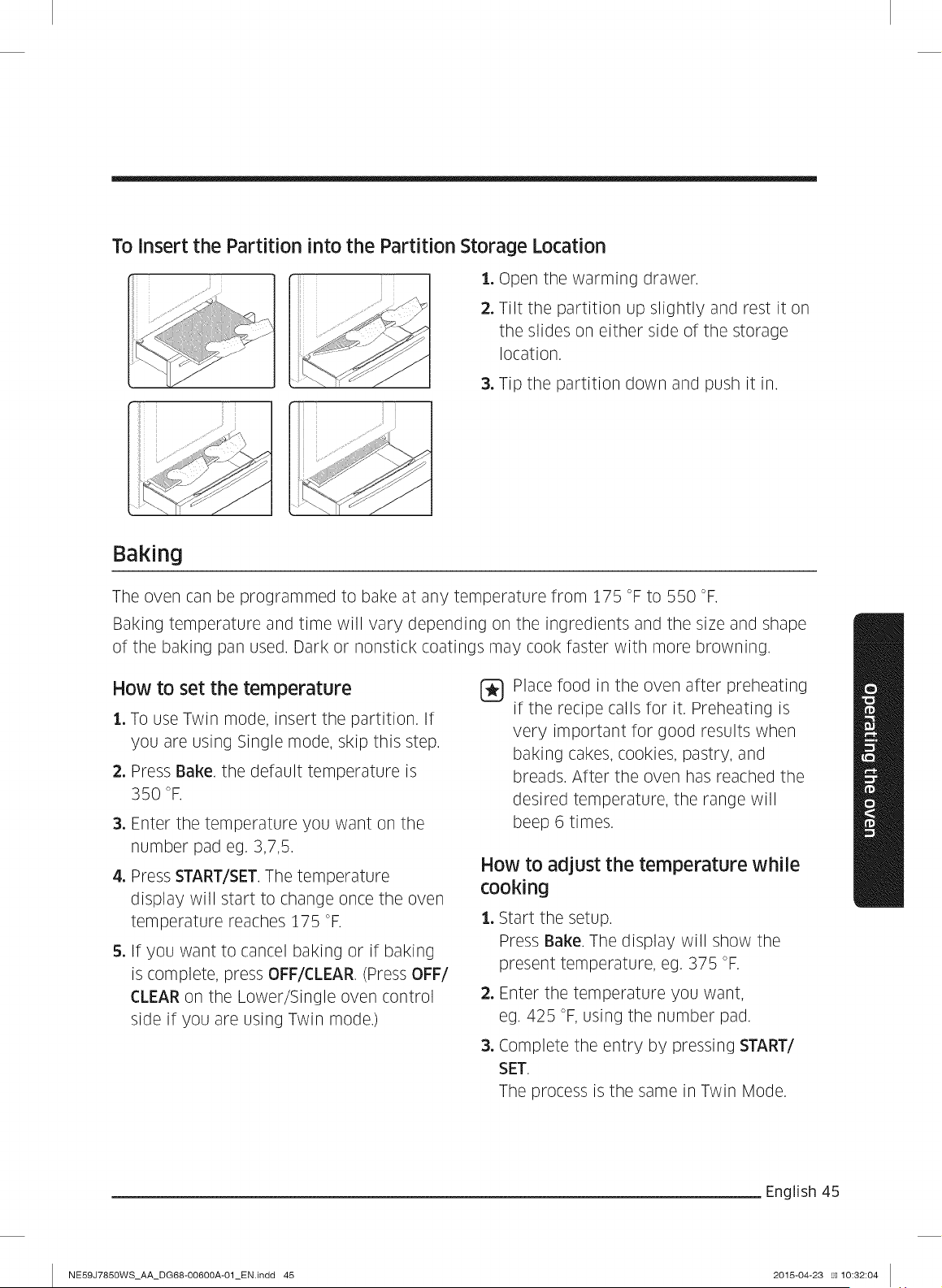

To Insert the Partition into the Partition Storage Location
s
f/
1, Open the warming drawer.
2. Tilt the partition up slightly and rest it on
the slides on either side of the storage
location.
3, Tip the partition down and push it in.
Baking
The oven can be programmed to bake at any temperature from 1_75°F to 550 °F.
Baking temperature and time will vary depending on the ingredients and the size and shape
of the baking pan used. Dark or nonstick coatings may cook faster with more browning.
How to set the temperature
1, To use Twin mode, insert the partition. If
you are using Single mode, skip this step.
2, Press Bake. the default temperature is
350 °F.
3. Enter the temperature you want on the
number pad eg. 3,7,5.
4, Press START/SET. The temperature
display will start to change once the oven
temperature reaches 1_75°F.
S, If you want to cancel baking or if baking
is complete, press OFF/CLEAR (Press OFF/
CLEAR on the Lower/Single oven control
side if you are using Twin mode.)
Place food in the oven after preheating
if the recipe calls for it. Preheating is
very important for good results when
baking cakes, cookies, pastry, and
breads. After the oven has reached the
desired temperature, the range will
beep 6 times.
How to adjust the temperature while
cooking
1, Start the setup.
Press Bake. The display will show the
present temperature, eg. 375 °F.
2, Enter the temperature you want,
eg. 425 °F, using the number pad.
3. Complete the entry by pressing START/
SET.
The process is the same in Twin Mode.
English 45
NE59J7850WS_AA_DG68-00600A-01_EN.indd 45 2015-04-23 d]10:32:04
Operating the oven
Convection baking
By using the convection bake feature, you
will be able to cook faster. You can program
the oven for convection baking at any
temperature between !75 °F and 550 °F,
except in Twin mode when you are using
both ovens. (See page 39.) Convection
baking uses a fan to circulate the oven's
heat evenly and continuously within the
oven. This improved heat distribution
allows for even cooking and excellent
results using multiple racks at the same
time. Foods cooked on a single oven rack
will generally cook faster and more evenly
with convection baking. Multiple oven rack
cooking may slightly increase cook times
for some foods, but the overall result is time
saved. Breads and pastries brown more
evenly.
Tips for convection baking
The amount of time you save will vary
depending on the amount and type of food
you are cooking. When baking cookies or
biscuits, you should use pans with no sides
or very low sides to allow the heated air to
circulate around the food. Using a pan with
a dark finish will allow faster cooking times.
When using convection baking with a single
rack, place the oven rack in position 3 or 4.
If cooking on multiple racks, place the oven
racks in position 3 and 5 (Cakes), position 2
and 5 (Cookies).
When baking a cake, using the bake mode
will produce better results.
46 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 46 2015-04-23 _u10:32:04
How to set the oven for convection
baking
1, To use Twin mode, insert the partition. If
you are using Single mode, skip this step.
2, Press _ Bake on the Upper/Single oven
control side if you are using the upper
oven. Press _'_ Bake on the Lower/Single
oven control side if you are using the
lower oven. You can select _ Bake on
either side if you are using a single oven.
The default temperature is 350 °F.
3, Enter the temperature you want, eg.
400 °F, using on the number pad.
4, Press START/SET. The temperature
display will start to change once the oven
temperature reaches 1_75°F.
The range will beep 6 times when
the oven reaches the adjusted oven
temperature.
5, If you want to cancel convection baking
or if baking is complete, press OFF/
CLEAR.
• Press OFF/CLEAR on the Upper/Single
oven control side if you are using the
upper oven.
• Press OFF/CLEAR on the Lower/Single
oven control side if you are using the
lower oven.
The convection oven fan shuts off when
the oven door is opened.
DO NOT leave the door open for long
periods of time while using convection
cooking or you may shorten the life of
the convection heating element.
Convection roasting
Convection roasting is good for cooking
large tender cuts of meat, uncovered.
Heat comes from the top heating element.
The convection fan circulates the heated air
evenly over and around the food. Meat and
poultry are browned on all sides as if they
were cooked on a rotisserie. The heated air
seals in juices quickly for a moist and tender
product while, at the same time, creating a
rich golden brown exterior.
How to set the oven for convection
roasting
1, To use Twin mode, insert the partition. If
you are using Single mode, skip this step.
2, Press cony.Roast. The default temperature
is 350 °F.
3, Enter the temperature you want, eg.
400 °F, using on the number pad.
4, Press START/SET. The temperature
display will start to change once the oven
temperature reaches 1_75°F. The range
will beep 6 times when the oven reaches
the adjusted oven temperature.
5, If you want to cancel convection roasting
or if roasting is complete, press OFF/
CLEAR.
• Press OFF/CLEAR on the Upper/Single
oven control side if you are using the
upper oven.
The convection oven fan shuts off when
the oven door is opened.
DO NOT leave the door open for long
periods of time while using convection
cooking or you may shorten the life of
the convection heating element.
English 47
NE59J7850WS_AA_DG68-00600A-01_EN.indd 47 2015-04-23 d]10:32:04

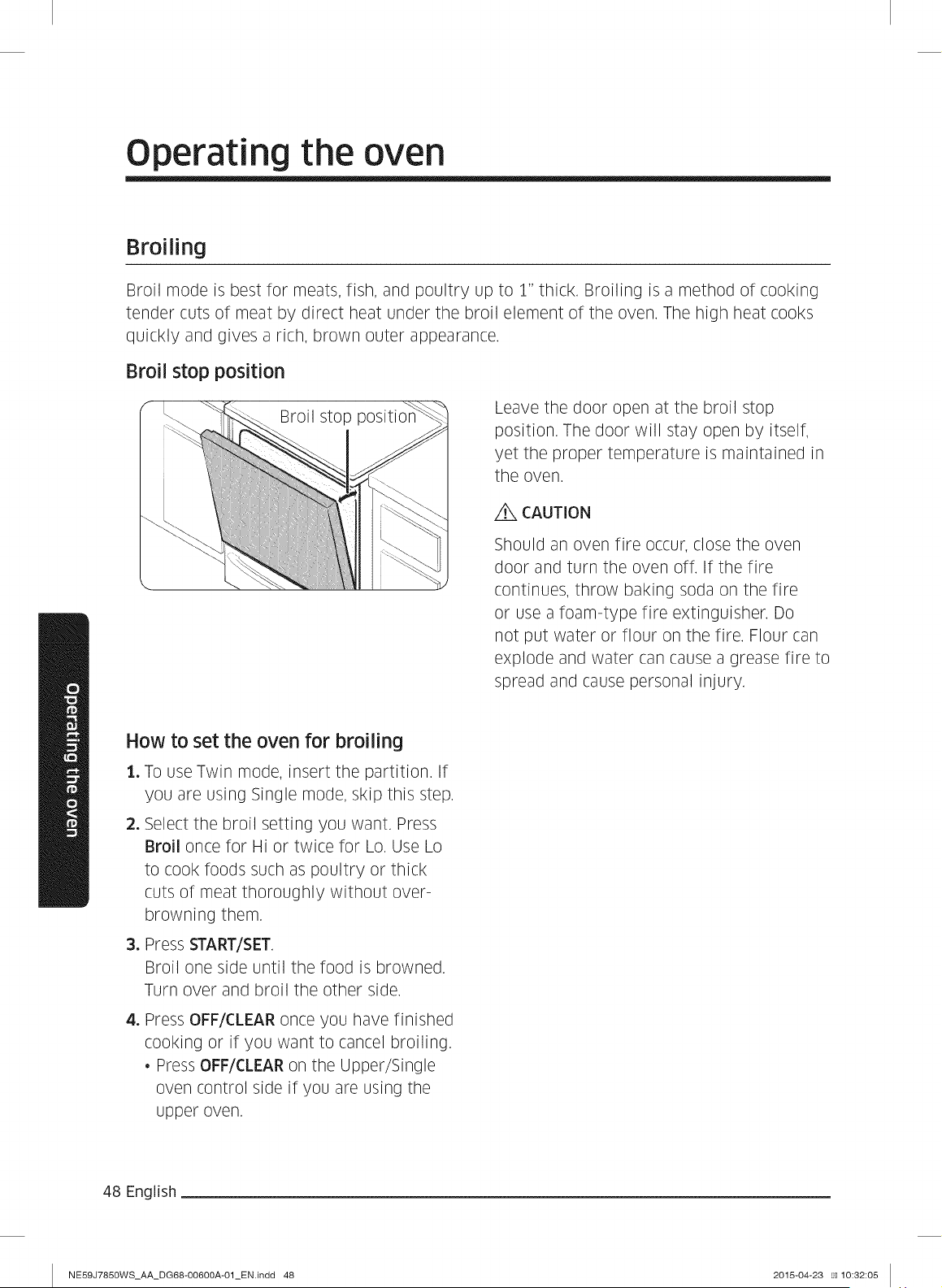

Operating the oven
Broiling
Broil mode is best for meats, fish, and poultry up to i" thick. Broiling is a method of cooking
tender cuts of meat by direct heat under the broil element of the oven. The high heat cooks
quickly and gives a rich, brown outer appearance.
Broil stop position
Broil stop
Leave the door open at the broil stop
position. The door will stay open by itself,
yet the proper temperature is maintained in
the oven.
A CAUTION
Should an oven fire occur, close the oven
door and turn the oven off. If the fire
continues, throw baking soda on the fire
or use a foam-type fire extinguisher. Do
not put water or flour on the fire. Flour can
explode and water can cause a grease fire to
spread and cause personal injury.
How to set the oven for broiling
1, To use Twin mode, insert the partition. If
you are using Single mode, skip this step.
2, Select the broil setting you want. Press
Broil once for Hi or twice for Lo. Use Lo
to cook foods such as poultry or thick
cuts of meat thoroughly without over-
browning them.
3.PressSTART/SET.
Broil one side until the food is browned.
Turn over and broil the other side.
4_
Press OFF/CLEAR once you have finished
cooking or if you want to cancel broiling.
• Press OFF/CLEAR on the Upper/Single
oven control side if you are using the
upper oven.
48 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 48 2015-04-23 _u10:32:05
Broiling Recommendation Guide
The size, weight, thickness, starting temperature, and your doneness preference will affect
broiling times.
This guide is based on meats at refrigerator temperature.
Always use a broiler pan and its grid when broiling.
Always preheat the oven for 5 minutes before broiling.
Hamburgeis Medium
Medium
Toast
Rare
Medium
Well done
Beefsteaks
Rare
Medium
Well done
Well done
Chickenpieces
Well done
Pork chops Well done
Medium
Lambchops
Well done
Fishfillets Well done
Hamslices
(precooked)
9 patties
9 patties
9 slices
9 slices
4.5 Ibs.
2-2½ Ibs.
lib.
10 oz,
lib.
1"
1"
!½"
!½"
1½"
¾"-!"
¾"-!"
½"
1"
1½"
¼_½"
½_
HI
HI
HI
HI
HI
HI
HI
HI
HI
HI
LO
LO
HI
LO
LO
LO
HI
7 I B
7 I B
7 I B
6 I B
7 I A
6 I A
5 I A
7 I A
6 I A
5 I A
4 I A
4 I A
5 I A
4 I A
4 I A
5 I A
4 I A
3:40 2:40
3:20 2:20
0:32 0:30
1:00 0:45
3:00-3:30 2:00-2:30
4:30-5:00 3:30-4:00
8:00-9:00 6:00-7:00
3:30-4:00 2:30-3:00
5:30-6:00 4:30-5:00
12:00-14:00 10:00-12:00
18:00-20:00 16:00-18:00
15:00-18:00 13:00-16:00
8:00-8:30 6:30-7:00
5:00-6:00 4:00-5:00
7:00-8:00 6:00-7:00
5:00-7:00 4:00-5:00
4:00-5:00 3:00-4:00
English 49
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 49 2015-04-23 _u10:32:05

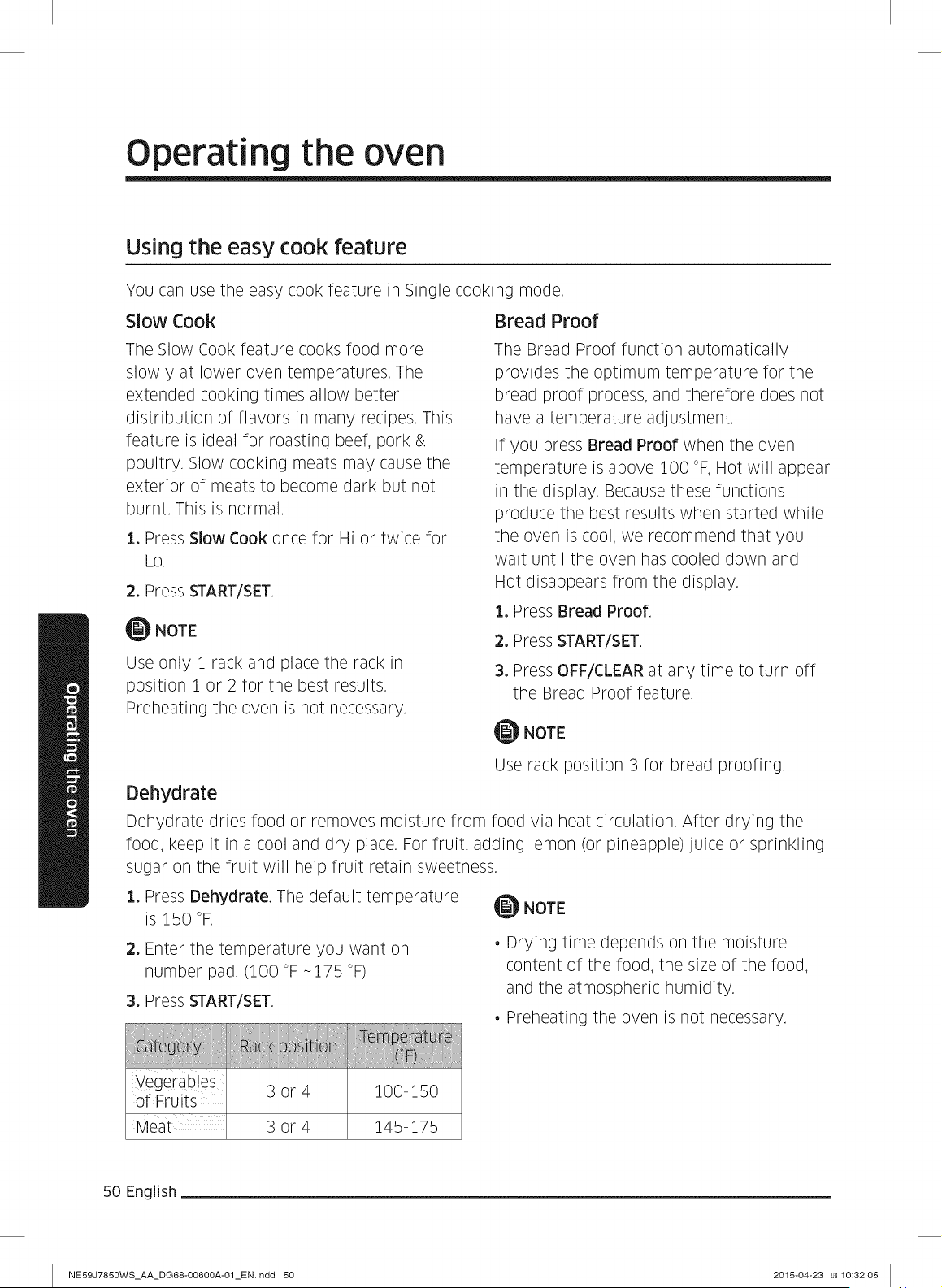

Operating the oven
Using the easy cook feature
You can use the easy cook feature in Single cooking mode.
Slow Cook Bread Proof
The Slow Cook feature cooks food more
slowly at lower oven temperatures. The
extended cooking times allow better
distribution of flavors in many recipes. This
feature is ideal for roasting beef, pork &
poultry. Slow cooking meats may cause the
exterior of meats to become dark but not
burnt. This is normal.
1. Press SIowCook once for Hi or twice for
Lo.
2. Press START/SET.
NOTE
Use only ! rack and place the rack in
position ! or 2 for the best results.
Preheating the oven is not necessary.
The Bread Proof function automatically
provides the optimum temperature for the
bread proof process, and therefore does not
have a temperature adjustment.
If you press Bread Proof when the oven
temperature is above 100 °F, Hot will appear
in the display. Because these functions
produce the best results when started while
the oven is cool, we recommend that you
wait until the oven has cooled down and
Hot disappears from the display.
1. Press Bread Proof.
2. Press START/SET.
3. Press OFF/CLEAR at any time to turn off
the Bread Proof feature.
NOTE
Use rack position 3 for bread proofing.
Dehydrate
Dehydrate dries food or removes moisture from food via heat circulation. After drying the
food, keep it in a cool and dry place. For fruit, adding lemon (or pineapple)juice or sprinkling
sugar on the fruit will help fruit retain sweetness.
1, Press Dehydrate. The default temperature
is 150 °F.
2. Enter the temperature you want on
number pad. (!00 °F -!75 °F)
3. Press START/SET.
yegerab!es 3 or 4
of Fruits
Meat 3 or 4
100-150
!45-!75
NOTE
• Drying time depends on the moisture
content of the food, the size of the food,
and the atmospheric humidity.
• Preheating the oven is not necessary.
50 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 50 2015-04-23 _u10:32:05

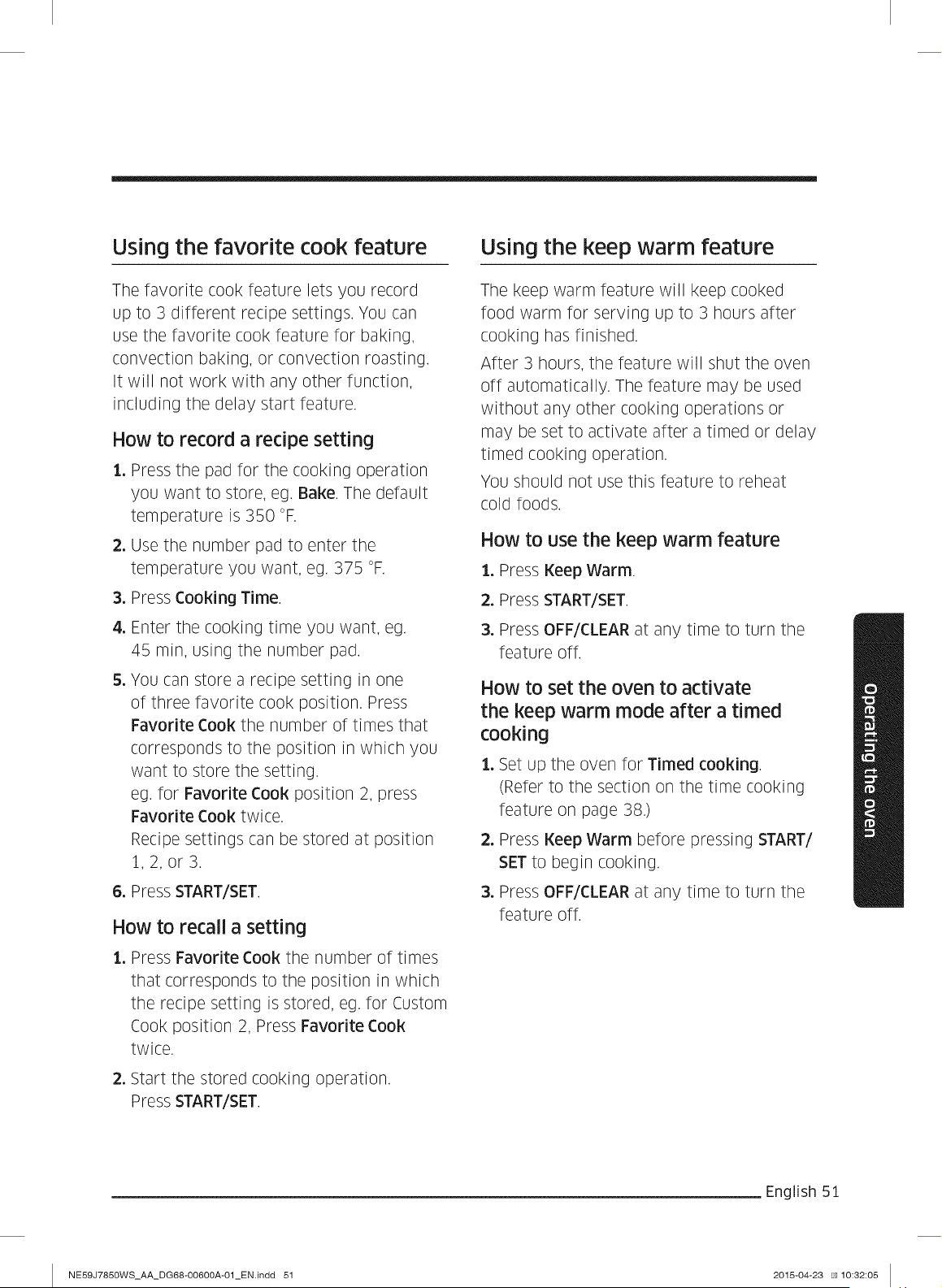

Using the favorite cook feature
The favorite cook feature lets you record
up to 3 different recipe settings. You can
use the favorite cook feature for baking,
convection baking, or convection roasting.
It will not work with any other function,
including the delay start feature.
How to record a recipe setting
1. Press the pad for the cooking operation
you want to store, eg. Bake. The default
temperature is 350 °F.
2. Use the number pad to enter the
temperature you want, eg. 375 °F.
3. Press Cooking Time.
4. Enter the cooking time you want, eg.
45 min, using the number pad.
5. You can store a recipe setting in one
of three favorite cook position. Press
Favorite Cook the number of times that
corresponds to the position in which you
want to store the setting.
eg. for Favorite Cook position 2, press
Favorite Cook twice.
Recipe settings can be stored at position
1_,2, or 3.
6. Press START/SET.
How to recall a setting
1. Press Favorite Cook the number of times
that corresponds to the position in which
the recipe setting is stored, eg. for Custom
Cook position 2, Press Favorite Cook
twice.
2. Start the stored cooking operation.
Press START/SET.
Using the keep warm feature
The keep warm feature will keep cooked
food warm for serving up to 3 hours after
cooking has finished.
After 3 hours, the feature will shut the oven
off automatically. The feature may be used
without any other cooking operations or
may be set to activate after a timed or delay
timed cooking operation.
You should not use this feature to reheat
cold foods.
How to use the keep warm feature
1. Press Keep Warm.
2. Press START/SET.
3. Press OFF/CLEAR at any time to turn the
feature off.
How to set the oven to activate
the keep warm mode after a timed
cooking
1. Set up the oven for Timed cooking.
(Refer to the section on the time cooking
feature on page 38.)
2. Press Keep Warm before pressing START/
SET to begin cooking.
3. Press OFF/CLEAR at any time to turn the
feature off.
English 51
NE59J7850WS_AA_DG68-00600A-01_EN.indd 51 2015-04-23 _u10:32:05

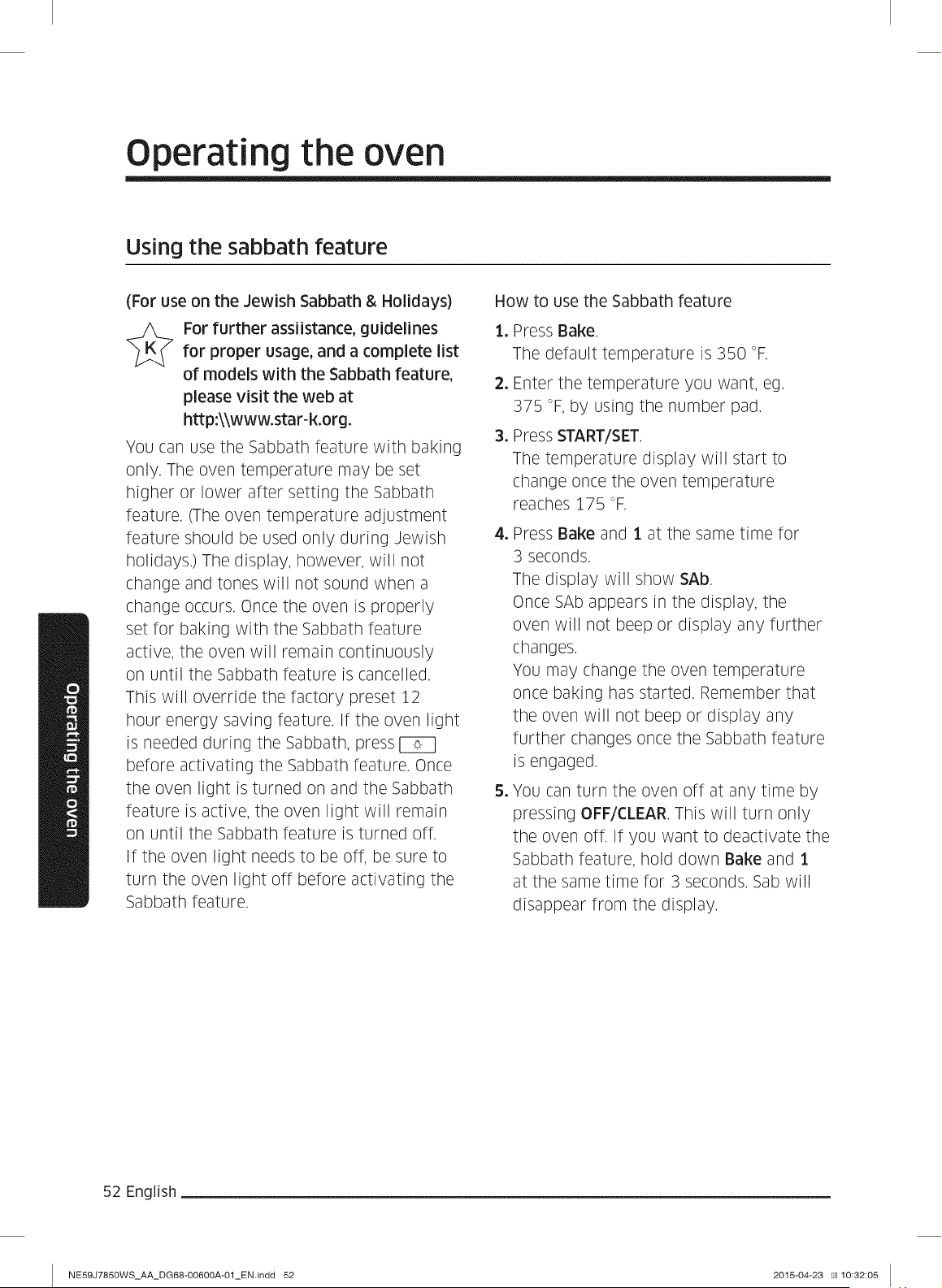

Operating the oven
Using the sabbath feature
(For use on the Jewish Sabbath & Holidays)
For further assiistance, guidelinesfor proper usage, and a complete list
of models with the Sabbath feature,
please visit the web at
http:\\www.star-k.org.
You can use the Sabbath feature with baking
only. The oven temperature may be set
higher or lower after setting the Sabbath
feature. (The oven temperature adjustment
feature should be used only during Jewish
holidays.) The display, however, will not
change and tones will not sound when a
change occurs. Once the oven is properly
set for baking with the Sabbath feature
active, the oven will remain continuously
on until the Sabbath feature is cancelled.
This will override the factory preset i2
hour energy saving feature. If the oven light
is needed during the Sabbath, press
before activating the Sabbath feature. Once
the oven light is turned on and the Sabbath
feature is active, the oven light will remain
on until the Sabbath feature is turned off.
If the oven light needs to be off, be sure to
turn the oven light off before activating the
Sabbath feature.
How to use the Sabbath feature
1. Press Bake.
The default temperature is 350 °F.
2, Enter the temperature you want, eg.
375 °F, by using the number pad.
3. PressSTART/SET.
The temperature display will start to
change once the oven temperature
reaches i75 °F.
4, Press Bake and 1 at the same time for
3 seconds.
The display will show SAb
Once SAb appears in the display, the
oven will not beep or display any further
changes.
You may change the oven temperature
once baking has started. Remember that
the oven will not beep or display any
further changes once the Sabbath feature
is engaged.
5, You can turn the oven off at any time by
pressing OFF/CLEAR This will turn only
the oven off. If you want to deactivate the
Sabbath feature, hold down Bake and t
at the same time for 3 seconds. Sab will
disappear from the display.
52 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 52 2015-04-23 d]10:32:05

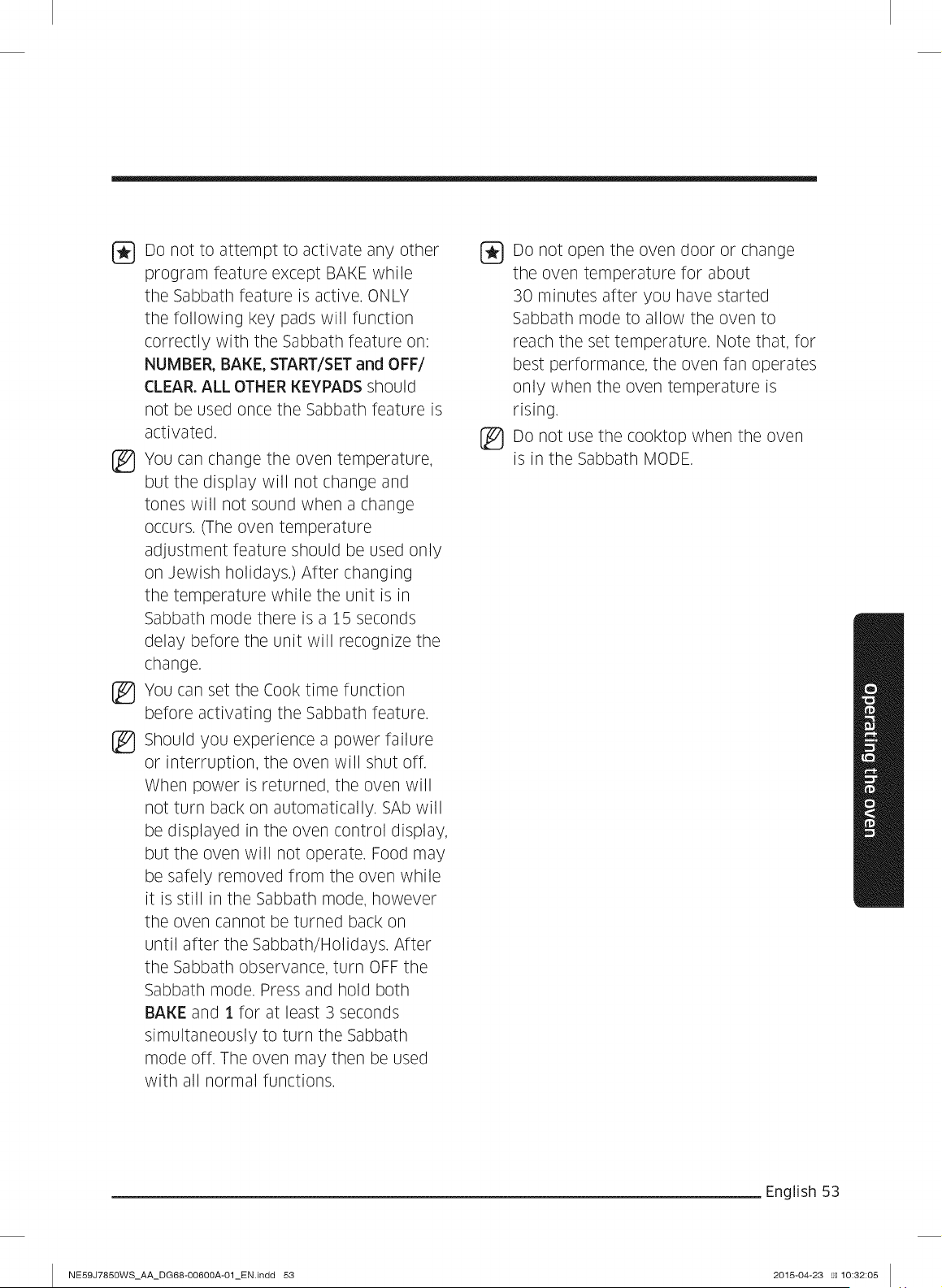

Do not to attempt to activate any other
program feature except BAKE while
the Sabbath feature is active. ONLY
the following key pads will function
correctly with the Sabbath feature on:
NUMBER, BAKE, START/SET and OFF/
CLEAR. ALL OTHER KEYPADS should
not be used once the Sabbath feature is
activated.
You can change the oven temperature,
but the display will not change and
tones will not sound when a change
occurs. (The oven temperature
adjustment feature should be used only
on Jewish holidays.) After changing
the temperature while the unit is in
Sabbath mode there is a !5 seconds
delay before the unit will recognize the
change.
F_ You can set the Cook time function
before activating the Sabbath feature.
Should you experience a power failure
or interruption, the oven will shut off.
When power is returned, the oven will
not turn back on automatically. SAb will
be displayed in the oven control display,
but the oven will not operate. Food may
be safely removed from the oven while
it is still in the Sabbath mode, however
the oven cannot be turned back on
until after the Sabbath/Holidays. After
the Sabbath observance, turn OFF the
Sabbath mode. Press and hold both
BAKE and 1 for at least 3 seconds
simultaneously to turn the Sabbath
mode off. The oven may then be used
with all normal functions.
Do not open the oven door or change
the oven temperature for about
30 minutes after you have started
Sabbath mode to allow the oven to
reach the set temperature. Note that, for
best performance, the oven fan operates
only when the oven temperature is
rising.
Do not use the cooktop when the oven
is in the Sabbath MODE.
English 53
NE59J7850WS_AA_DG68-00600A-01_EN.indd 53 2015-04-23 d]10:32:05
Operating the oven
Extra features
Thermostat adjustment
The temperature in the oven has been
preset at the factory. When first using the
oven, be sure to follow recipe times and
temperatures. If you think the oven is too
hot or too cool, the temperature in the oven
can be adjusted. Before adjusting, test a
recipe by using a temperature setting that
is higher or lower than the recommended
temperature. The baking results should help
you to decide how much of an adjustment is
needed.
The oven temperature can be adjusted
+35 °F (-+1_9°C).
How to adjust the oven temperature
1. Press Broil and 1 at the same time for
3 seconds.
The display will show AdJ 0.
2. Enter the adjustment you want, eg. 20 °F,
using the number pad.
You can adjust the temperature so that
it is lower than the factory setting by
pressing Broil.
3. Press START/SET.
NOTE
This adjustment will not affect the broiling
or the self-cleaning temperatures. The
adjustment will be retained in memory after
a power failure.
Fahrenheit or Celsius temperature
selection
The oven control can be programmed to
display temperatures in Fahrenheit or
Centigrade. The oven has been preset at the
factory to display in Fahrenheit.
How to change the display from Fahrenheit
to Centigrade or from Centigrade to
Fahrenheit
1, Press Broil and 2 at the same time for
3 seconds.
The display shows F (Fahrenheit) or C
(Centigrade).
The default is F.
2_ Press 0 to select F or C.
Pressing 0 changes the display between
Fand C.
3. Press START/SET.
Convection auto conversion feature
When you use the auto conversion feature,
the convection auto conversion feature
will automatically convert entered regular
baking temperatures to convection baking
temperatures.
If this feature is activated, the display
will show the actual converted (reduced)
temperature. For example, if you enter a
regular recipe temperature of 350 °F and
press START/SET, the display will show the
converted temperature of 325 °F.
54 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 54 2015-04-23 _u10:32:06

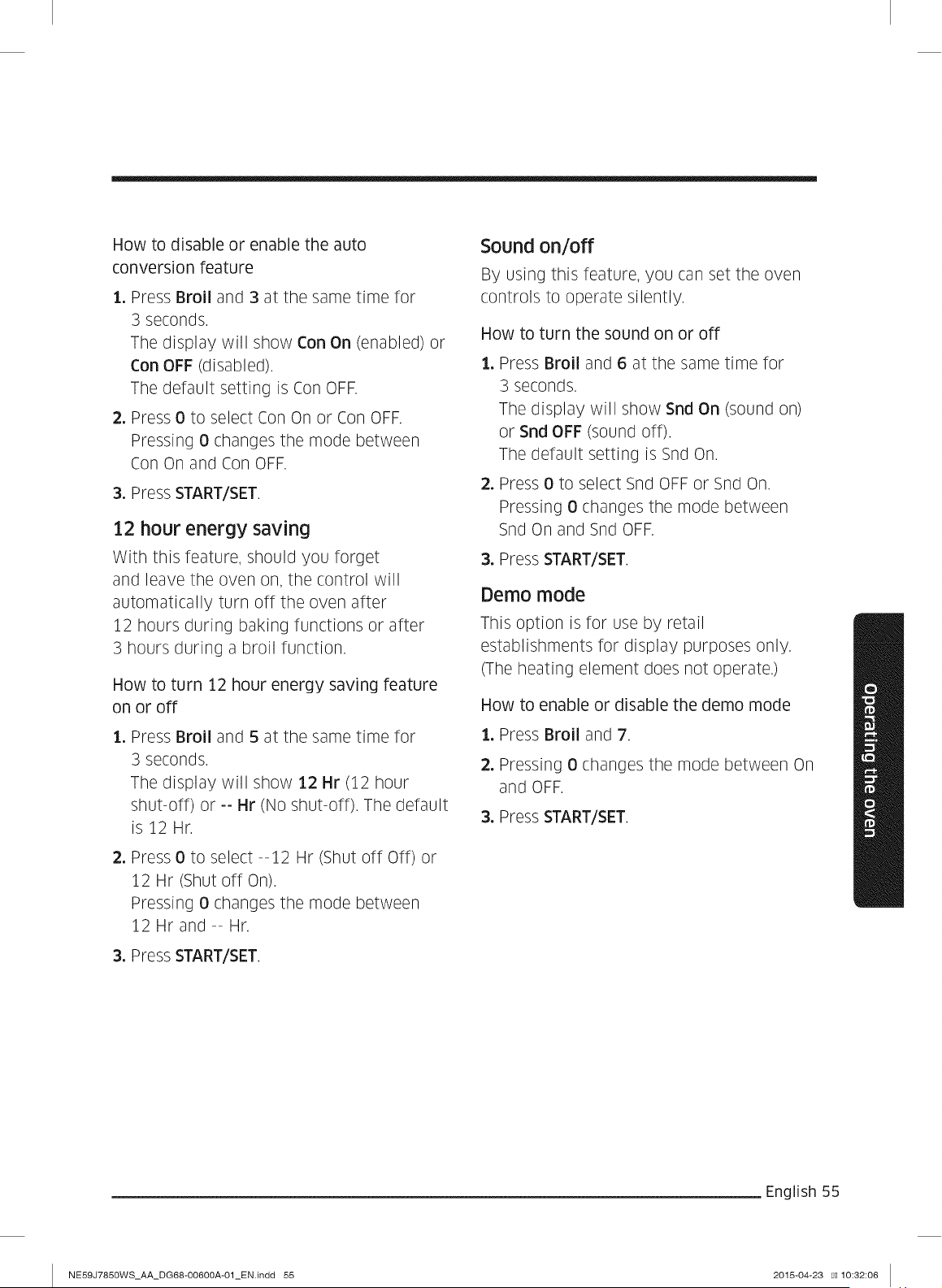

How to disable or enable the auto
conversion feature
1. Press Broil and 3 at the same time for
3 seconds.
The display will show Con On (enabled) or
Con OFF (disabled).
The default setting is Con OFF.
2, Press @to select Con On or Con OFF.
Pressing 0 changes the mode between
Con On and Con OFF.
3, PressSTART/SET.
12 hour energy saving
With this feature, should you forget
and leave the oven on, the control will
automatically turn off the oven after
1_2hours during baking functions or after
3 hours during a broil function.
How to turn 12 hour energy saving feature
on or off
1,Press Broiland 5 at the same time for
3 seconds.
The display will show 12 Hr (1_2hour
shut-off) or -- Hr (No shut-off). The default
is 1_2Hr.
2,
Press 0 to select--!2 Hr (Shut off Off) or
!2 Hr (Shut off On).
Pressing 0 changes the mode between
1_2Hr and -- Hr.
3, PressSTART/SET.
Sound on/off
By using this feature, you can set the oven
controls to operate silently.
How to turn the sound on or off
1. Press Broil and 6 at the same time for
3 seconds.
The display will show Snd On (sound on)
or Snd OFF (sound off).
The default setting is Snd On.
2, Press 0 to select Snd OFF or Snd On.
Pressing 0 changes the mode between
Snd On and Snd OFF.
3.Press START/SET.
Demo mode
This option is for use by retail
establishments for display purposes only.
(The heating element does not operate.)
How to enable or disable the demo mode
1. Press Broil and 7.
:2.Pressing 0 changes the mode between On
and OFF.
3,Press START/SET.
English 55
NE59J7850WS_AA_DG68-00600A-01_ENJndd 55 2015-04-23 d]10:32:06

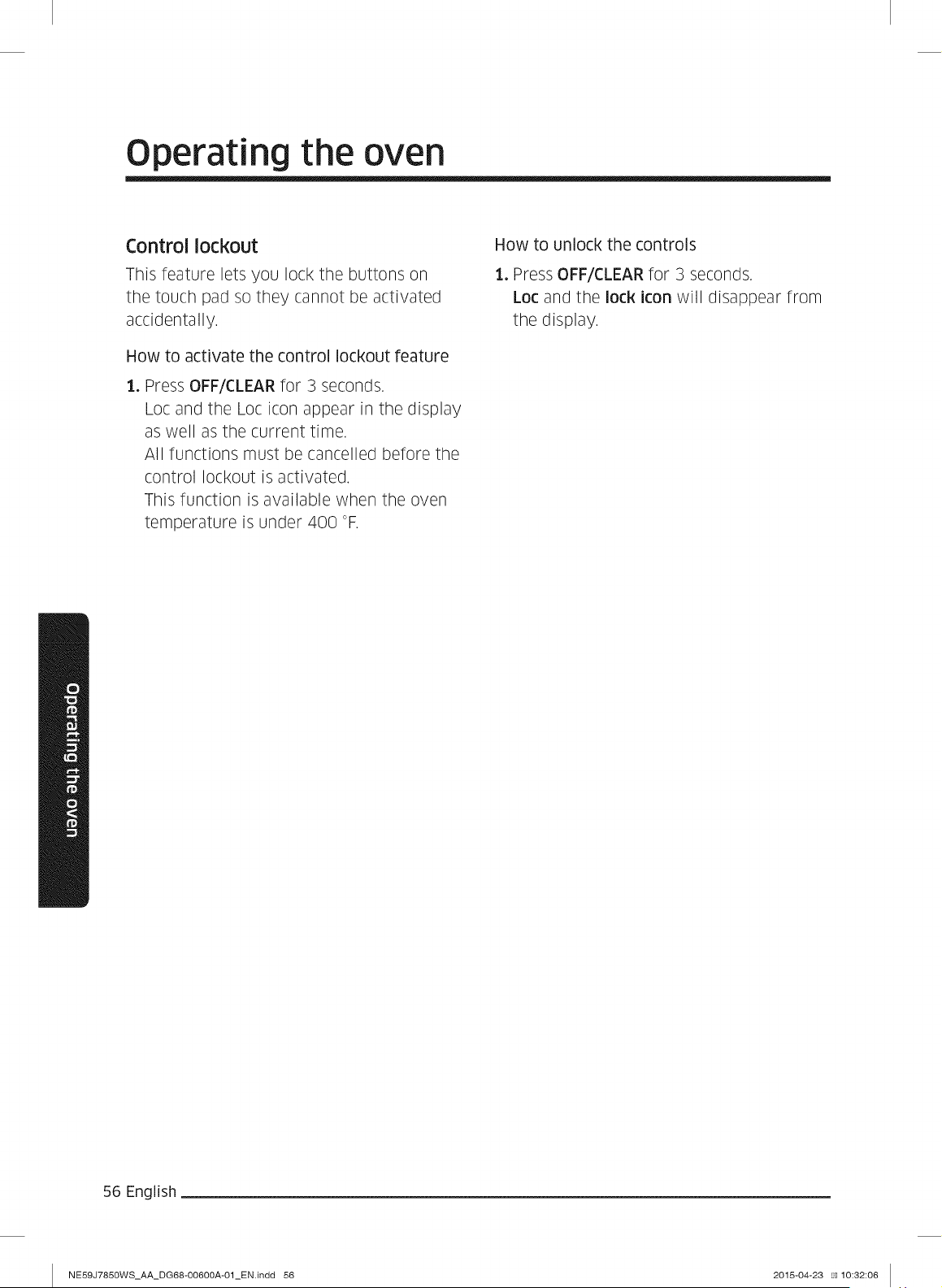

Operating the oven
Control lockout
This feature lets you lock the buttons on
the touch pad so they cannot be activated
accidentally.
How to activate the control lockout feature
1. Press OFF/CLEAR for 3 seconds.
Loc and the Loc icon appear in the display
as well as the current time.
All functions must be cancelled before the
control lockout is activated.
This function is available when the oven
temperature is under 400 °F.
How to unlock the controls
1. Press OFF/CLEAR for 3 seconds.
Loc and the lock icon will disappear from
the display.
56 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 56 2015-04-23 _u10:32:06
Using the warming drawer
About the warming drawer
The warming drawer will keep hot, cooked
food warm. Always start with hot food. Do
not use to warm cold food other than bread,
crackers, chips, or dry cereal.
Allow approximately 25 minutes for the
warming drawer to preheat.
• Do not line the warming drawer or pan
with aluminum foil. Foil is an excellent
heat insulator and will trap heat beneath
it. This will impede the performance oi'
the drawer and could damage the interior
finish.
• Do not put liquid or water in the warming
drawer.
• All foods placed in the warming drawer
should be covered with a lid. When
warming pastries or breads, the cover
should be vented to allow moisture to
escape.
• Remove serving spoons, etc. before
placing containers in the warming drawer.
• Food should be kept hot in its cooking
container or transferred to a heat-safe
serving dish.
A CAUTION
Plastic containers or plastic wrap will melt
if in direct contact with the drawer, pan,
or a hot utensil. Melted plastic may not be
removable and is not covered under your
warranty.
English 57
NE59J7850WS_AA_DG68-00600A-01_EN.indd 57 2015-04-23 d]10:32:06

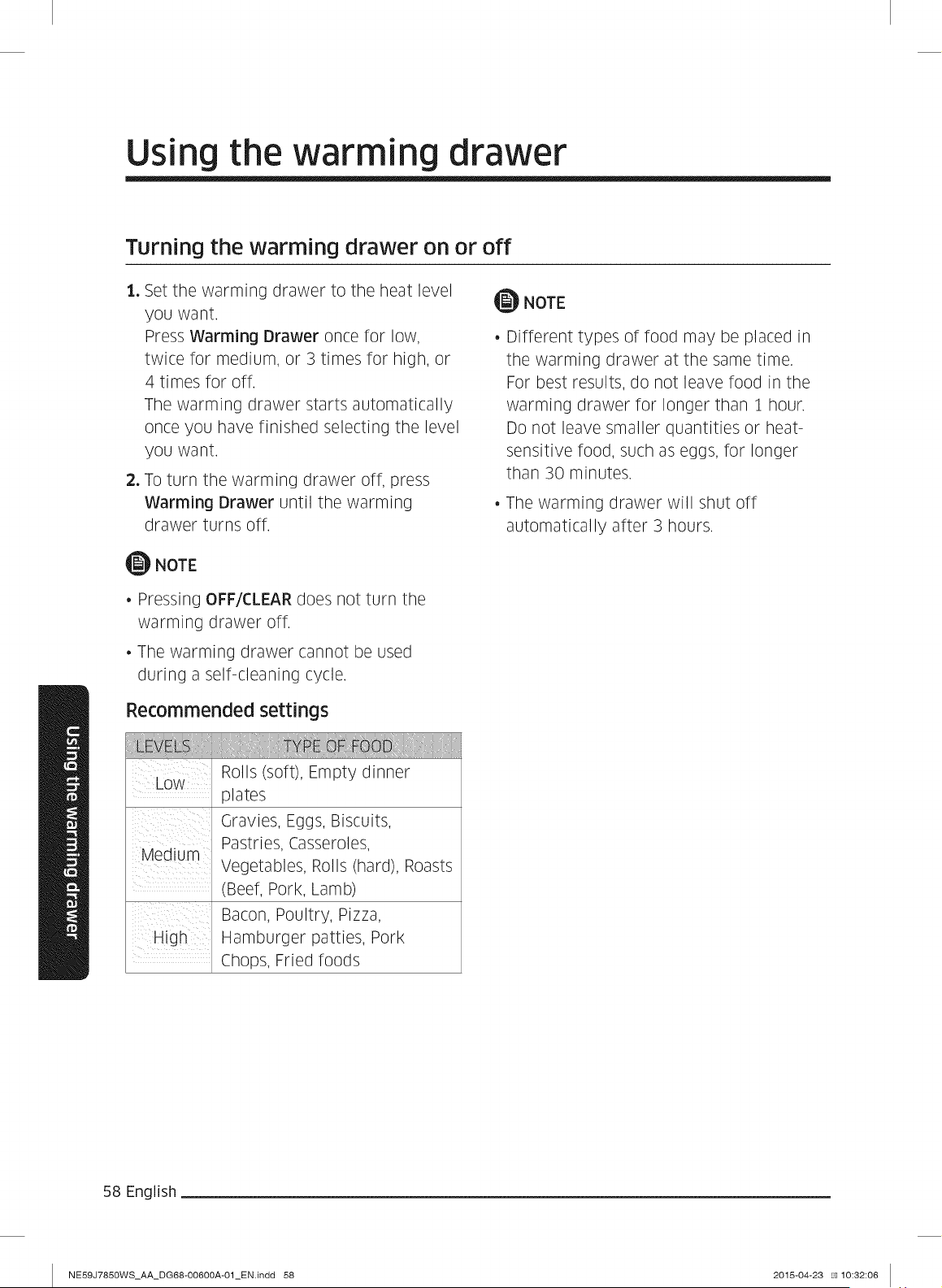

Using the warming drawer
Turning the warming drawer on or off
1, Set the warming drawer to the heat level
you want.
Press Warming Drawer once for low,
twice for medium, or 3 times for high, or
4 times for off.
The warming drawer starts automatically
once you have finished selecting the level
you want.
2, To turn the warming drawer off, press
Warming Drawer until the warming
drawer turns off.
NOTE
• Pressing OFF/CLEAR does not turn the
warming drawer off.
• The warming drawer cannot be used
during a self-cleaning cycle.
NOTE
• Different types of food may be placed in
the warming drawer at the same time.
For best results, do not leave food in the
warming drawer for longer than 1 hour.
Do not leave smaller quantities or heat-
sensitive food, such as eggs, for longer
than 30 minutes.
• The warming drawer will shut off
automatically after 3 hours.
Recommended settings
Rolls (soft), Empty dinner
LOW
plates
Gravies, Eggs, Biscuits,
Pastries, Casseroles,
Medium
...... Vegetables, Rolls (hard), Roasts
(Beef, Pork, Lamb)
.... Bacon, Poultry, Pizza,
High Hamburger patties, Pork
Chops, Fried foods
58 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 58 2015-04-23 d]10:32:06
Maintaining your appliance
Self-cleaning
This self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off
leftover grease and residue completely or reduce them to a finely powdered ash that you can
wipe away with a damp cloth.
A CAUTION
• During the self-cleaning cycle, the outside
of the range will become very hot to
the touch. Do not leave small children
unattended near the appliance.
• Some birds are extremely sensitive to the
fumes given off during the self-cleaning
cycle of any range. Move birds to another
well-ventilated room.
• Do not force the oven door open. This
can damage the automatic door locking
system. Use care when opening the
oven door after the self-cleaning cycle is
complete. Stand to the side of the oven
when opening the door to allow hot air
or steam to escape. The oven may still be
VERY HOT.
Do not line the oven walls, racks, bottom,
or any other part of the range with
aluminum foil. Doing so will result in poor
heat distribution, poor baking results,
and cause permanent damage to the
oven interior. Aluminum foil will melt and
adhere to the interior surface of the oven.
English 59
NE59J7850WS_AA_DG68-00600A-01_EN.indd 59 2015-04-23 d]10:32:06

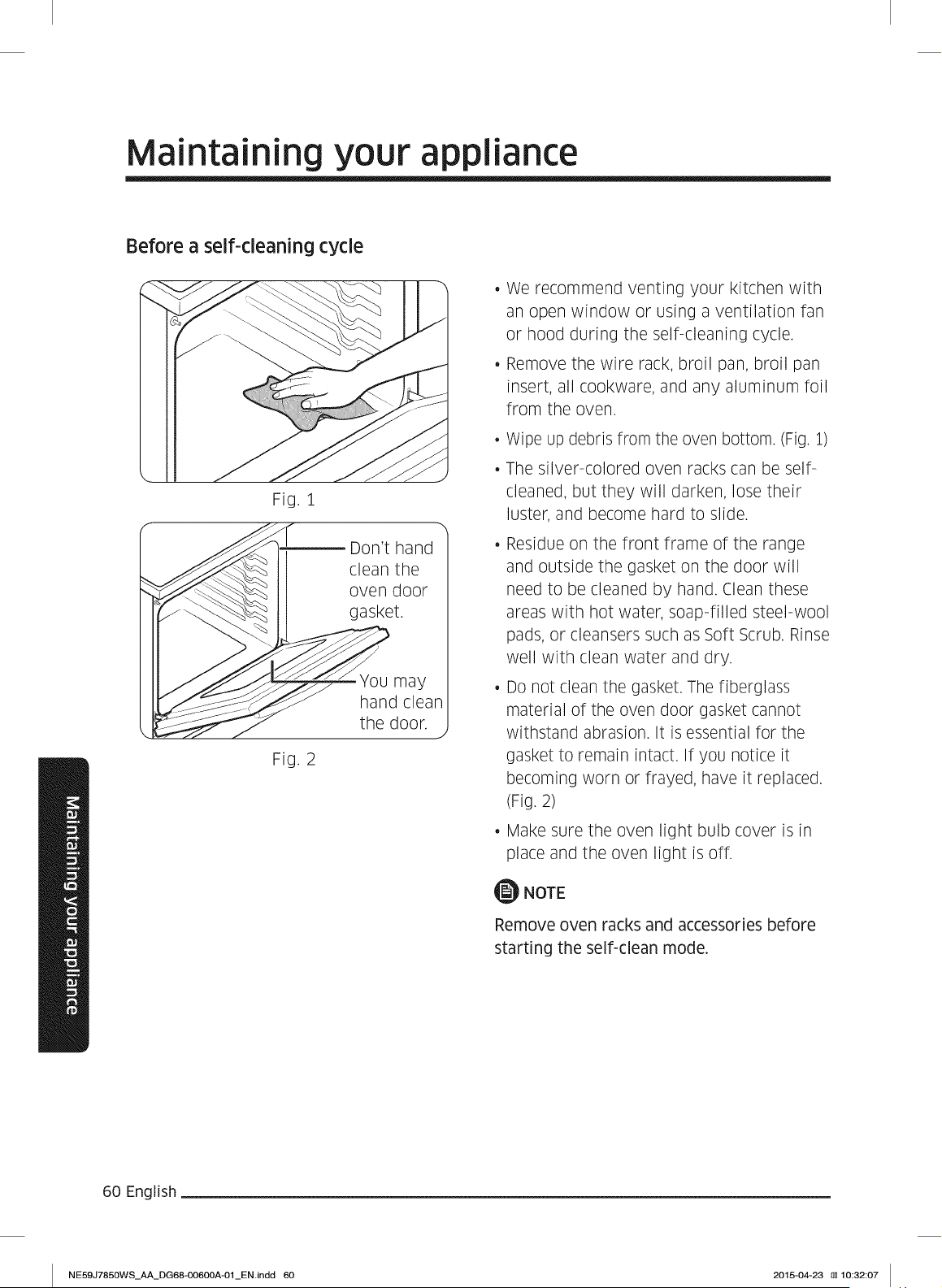

Maintaining your appliance
Before a self-deaning cyde
Fig. 1
Fig. 2
clean the
oven door
gasket.
• We recommend venting your kitchen with
an open window or using a ventilation fan
or hood during the sel?cleaning cycle.
• Remove the wire rack, broil pan, broil pan
insert, all cookware, and any aluminum foil
from the oven.
• Wipe up debris from the oven bottom. (Fig. 1)
• The silver-colored oven racks can be sel?
cleaned, but they will darken, lose their
luster, and become hard to slide.
• Residue on the front frame of the range
and outside the gasket on the door will
need to be cleaned by hand. Clean these
areas with hot water, soap-filled steel-wool
pads, or cleansers such as Soft Scrub. Rinse
well with clean water and dry.
• Do not clean the gasket. The fiberglass
material of the oven door gasket cannot
withstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, have it replaced.
(Fig. 2)
• Make sure the oven light bulb cover is in
place and the oven light is off.
NOTE
Remove oven racks and accessories before
starting the seIFclean mode.
60 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 60 2015-04-28 DI]10:32:07
How to run a self-cleaning cycle
1, Select the length of time for the self-
cleaning operation, eg. 3 hours.
Press Self Clean once for a 3 hour clean
time, twice for a 5 hour clean time, or
3 times for a 2 hour clean time.
The default setting is 3 hours.
2, Start the self-cleaning cycle.
Press START/SET. The motor-driven door
lock will engage automatically.
You will not be able to start a self-
cleaning cycle if the control lockout
feature is activated or if the oven's
temperature is too hot.
The oven door locks automatically.
The display will show the clean time
remaining. It is not be possible to open
the oven door until the temperature
drops to a safe/cool temperature.
The self-cleaning feature will not
operate when the warming center is
on,
3oWhen the self-cleaning cycle is done, End
will appear in the display and the range
will beep 6 times.
How to delay the start of self-cleaning
I, Press Self Clean.
Select the desired self-clean time by
pressing Self Clean.
2. Press Delay Start.
3. Enter the time you want the clean cycle
to start.
4, Press START/SET.
The display will show Delay, Self clean,
and the Lock icon. The motor-driven door
lock will engage automatically.
S, The Self-Cleaning cycle will turn on
automatically at the set time.
How to turn off the self-cleaning
feature
You may find it necessary to stop or
interrupt a self-cleaning cycle due to smoke
in the oven.
I. Press OFF/CLEAR
2. You will be able to open the oven door
once the oven has cooled down for
approximately ! hour.
After a self-cleaning cycle
• You may notice some white ash in the
oven. Wipe it up with a damp cloth after
the oven cools. (If white spots remain,
remove them with a soap-filled steel wool
pad and rinse thoroughly with a vinegar
and water mixture.)
• If the oven is not clean after one cycle,
repeat the cycle.
• You cannot set the oven for cooking until
the oven is cool enough for the door to
unlock.
English 61
NE59J7850WS_AA_DG68-00600A-01_EN.indd 61 2015-04-23 d]10:32:07

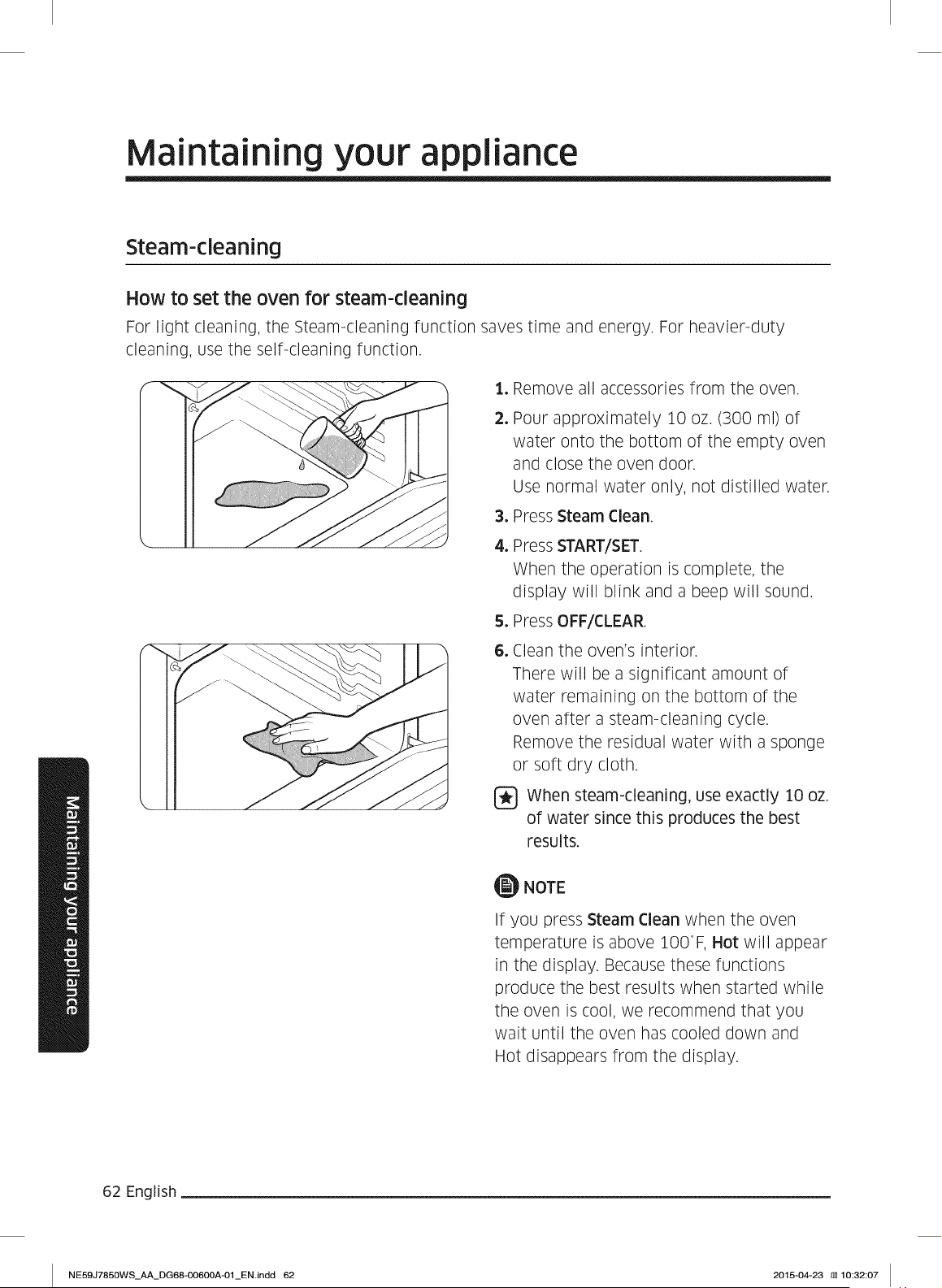

Maintaining your appliance
Steam-cleaning
How to set the oven for steam-cleaning
For light cleaning, the Steam-cleaning 1=unction saves time and energy. For heavier-duty
cleaning, use the serf-cleaning 1=unction.
L__
1. Remove all accessories 1=tomthe oven.
2. Pour approximately !0 oz. (300 ml) ol=
water onto the bottom o1=the empty oven
and close the oven door.
Use normal water only, not distilled water.
3. Press Steam Clean.
4. Press START/SET.
When the operation is complete, the
display will blink and a beep will sound.
5. Press OFF/CLEAR
6. Clean the oven's interior.
There will be a significant amount o1=
water remaining on the bottom o1=the
oven a1=tera steam-cleaning cycle.
Remove the residual water with a sponge
or so1=tdry cloth.
®
When steam-cleaning, use exactly 10 oz.
of water since this produces the best
results.
NOTE
I1=you press Steam Clean when the oven
temperature is above !O0°F, Hot will appear
in the display. Because these 1=unctions
produce the best results when started while
the oven is cool, we recommend that you
wait until the oven has cooled down and
Hot disappears 1=romthe display.
62 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 62 2015-04-28 DI]10:32:07
After a steam-cleaning cycle
• Take care when opening the door before a
steam-cleaning procedure has ended. The
water on the bottom is hot.
• Open the oven door and remove the
remaining water with a sponge. Do not
leave the residual water in the oven for
any length of time. Wipe the oven clean
and dry with a soft cloth. Do not forget to
wipe under the oven door seal.
• Use a detergent-soaked sponge, a soft
brush, or a nylon scrubber to wipe the
oven interior. Remove stubborn residue
with a nylon scourer. You can remove lime
deposits with a cloth soaked in vinegar.
• If the oven remains dirty, you can repeat
the procedure once the oven has cooled.
• For heavy residue, such as grease left
over from roasting, we recommend that
you rub detergent into the residue before
activating the steam-cleaning function.
• After cleaning, leave the oven door ajar at
a !5 ° angle to allow the interior enamel
surface to dry thoroughly.
Care and cleaning of the oven
WARNING
• Be sure all controls are OFF and all
surfaces are COOL before cleaning any
part of the range.
Oven vent
• If your range is removed
for cleaning, servicing, or
any reason, be sure the
®®
Anti-Tip device is re-engaged properly
when the range is replaced. If you fail to
reengage the Anti-Tip device, the range
could tip and cause serous injury.
• The oven vent is located above the right
rear surface unit.
• This area could become hot during oven
use,
• It is normal for steam to come out of the
vent.
• The vent is important for proper air
circulation. Never block this vent.
English 63
NE59J7850WS_AA_DG68-00600A-01_EN.indd 63 2015-04-23 d]10:32:07

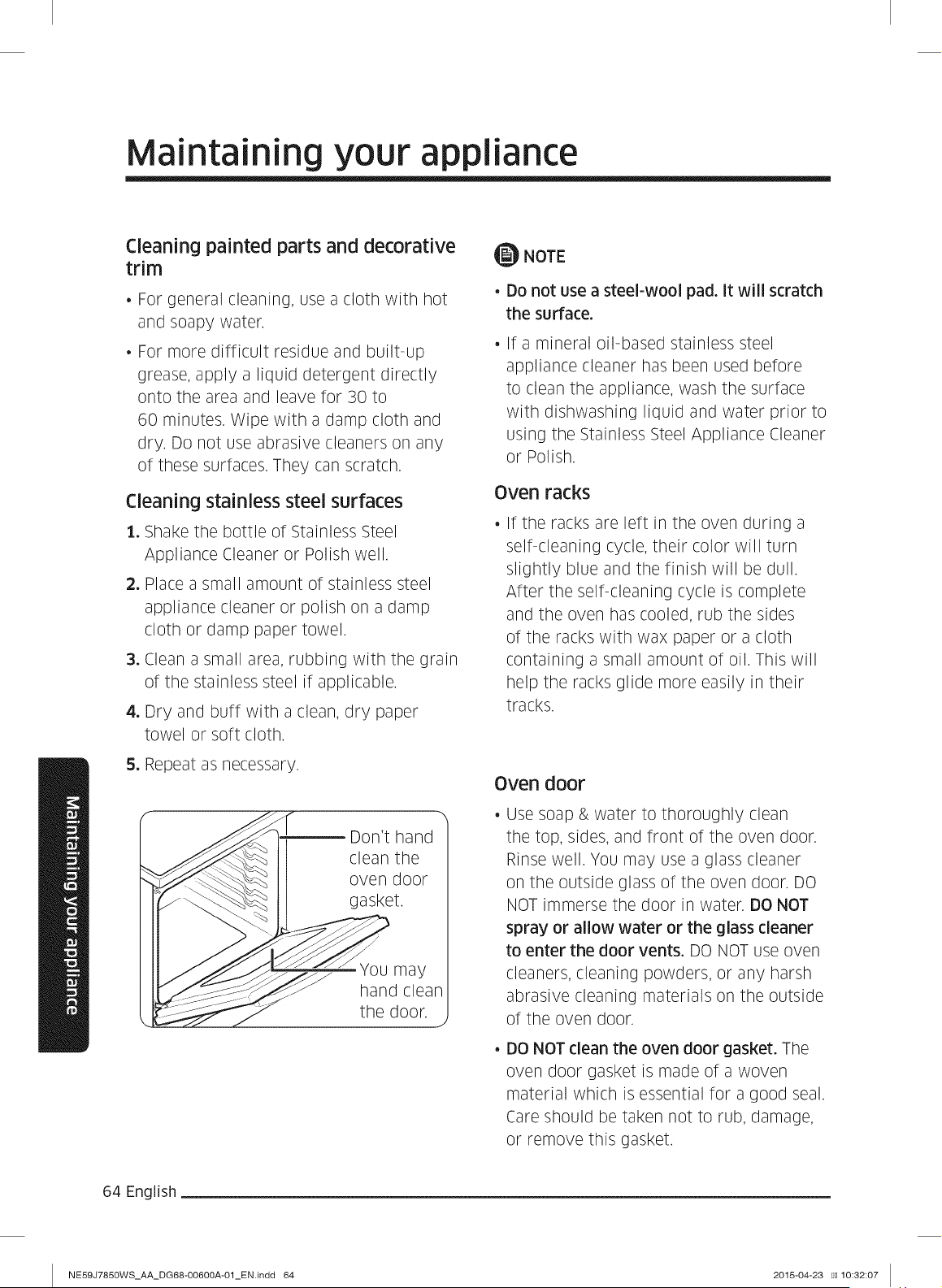

Maintaining your appliance
Cleaning painted parts and decorative
trim
• For general cleaning, use a cloth with hot
and soapy water.
• For more difficult residue and built-up
grease, apply a liquid detergent directly
onto the area and leave for 30 to
60 minutes. Wipe with a damp cloth and
dry. Do not use abrasive cleaners on any
of these surfaces. They can scratch.
Cleaning stainless steel surfaces
1, Shake the bottle of Stainless Steel
Appliance Cleaner or Polish well.
2, Place a small amount of stainless steel
appliance cleaner or polish on a damp
cloth or damp paper towel.
3, Clean a small area, rubbing with the grain
of the stainless steel if applicable.
4, Dry and buff with a clean, dry paper
towel or soft cloth.
5, Repeat as necessary.
_Don't hand
clean the
oven door
gasket.
_NOTE
• Do not use a steel-wool pad. It will scratch
the surface.
If a mineral oil-based stainless steel
appliance cleaner has been used before
to clean the appliance, wash the surface
with dishwashing liquid and water prior to
using the Stainless Steel Appliance Cleaner
or Polish.
Oven racks
If the racks are left in the oven during a
self-cleaning cycle, their color will turn
slightly blue and the finish will be dull.
After the self-cleaning cycle is complete
and the oven has cooled, rub the sides
of the racks with wax paper or a cloth
containing a small amount of oil. This will
help the racks glide more easily in their
tracks.
Oven door
Use soap & water to thoroughly clean
the top, sides, and front of the oven door.
Rinse well. You may use a glass cleaner
on the outside glass of the oven door. DO
NOT immerse the door in water. DO NOT
spray or allow water or the glass cleaner
to enter the door vents. DO NOT use oven
cleaners, cleaning powders, or any harsh
abrasive cleaning materials on the outside
of the oven door
DO NOT clean the oven door gasket. The
oven door gasket is made of a woven
material which is essential for a good seal
Care should be taken not to rub, damage,
or remove this gasket
64 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 64 2015-04-23 _u10:32:07

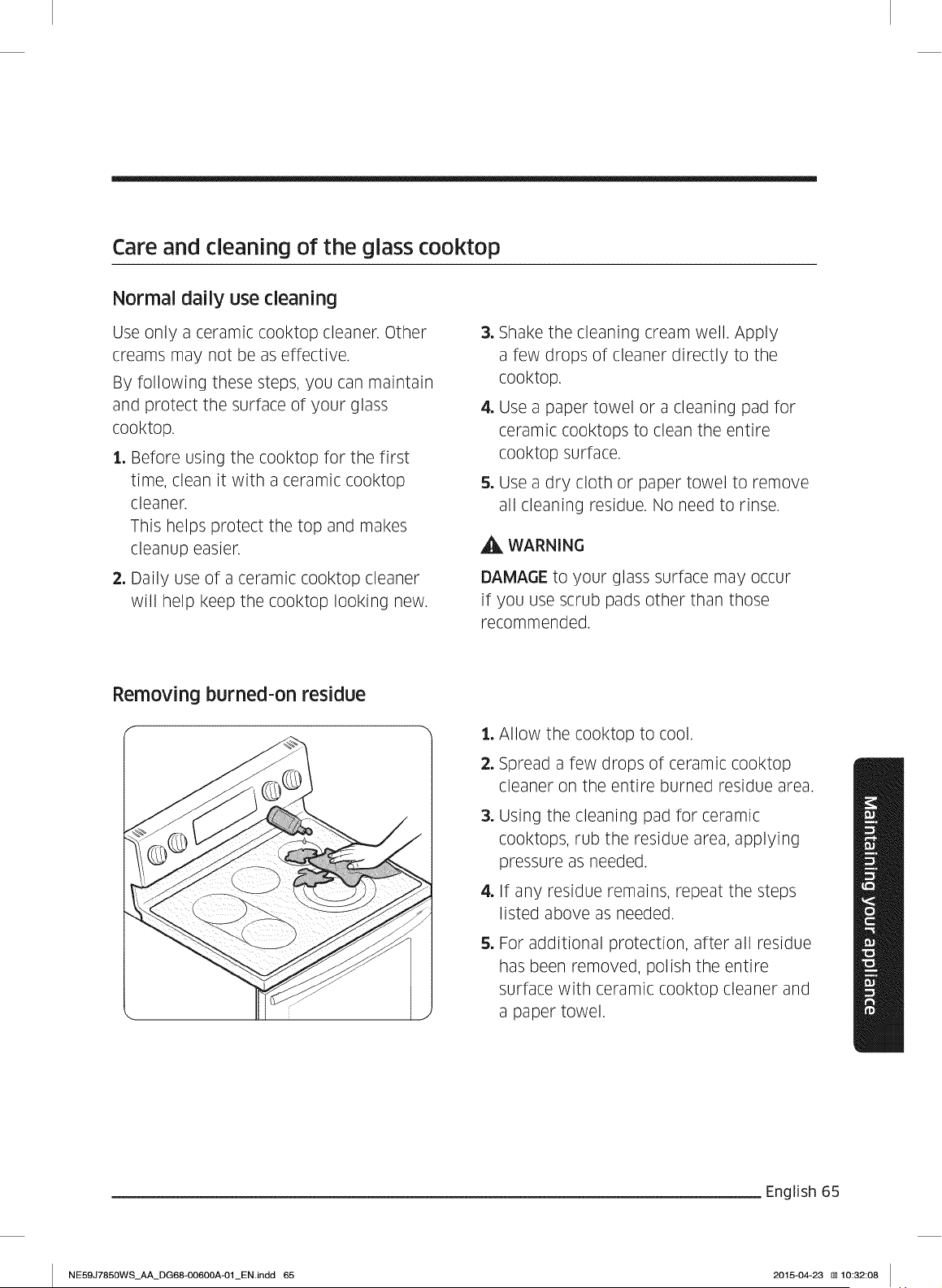

Care and cleaning of the glass cooktop
Normal daily use cleaning
Use only a ceramic cool(top cleaner. Other
creams may not be as effective.
By following these steps, you can maintain
and protect the surface of your glass
cool(top.
1. Before using the coot(top for the first
time, clean it with a ceramic coot(top
cleaner.
This helps protect the top and makes
cleanup easier.
2. Daily use of a ceramic coot(top cleaner
will help keep the cool(top looking new.
3. Shake the cleaning cream well. Apply
a few drops of cleaner directly to the
cool(top.
4. Use a paper towel or a cleaning pad for
ceramic coot(tops to clean the entire
coot(top surface.
5. Use a dry cloth or paper towel to remove
all cleaning residue. No need to rinse.
WARNING
DAMAGE to your glass surface may occur
if you use scrub pads other than those
recommended.
Removing burned-on residue
1. Allow the cool(top to cool.
2. Spread a few drops of ceramic cooktop
cleaner on the entire burned residue area.
3. Using the cleaning pad for ceramic
cool(tops, rub the residue area, applying
pressure as needed.
4. If any residue remains, repeat the steps
listed above as needed.
o
For additional protection, after all residue
has been removed, polish the entire
surface with ceramic coot(top cleaner and
a paper towel.
English 65
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 65 2015-04-28 DI]10:32:08

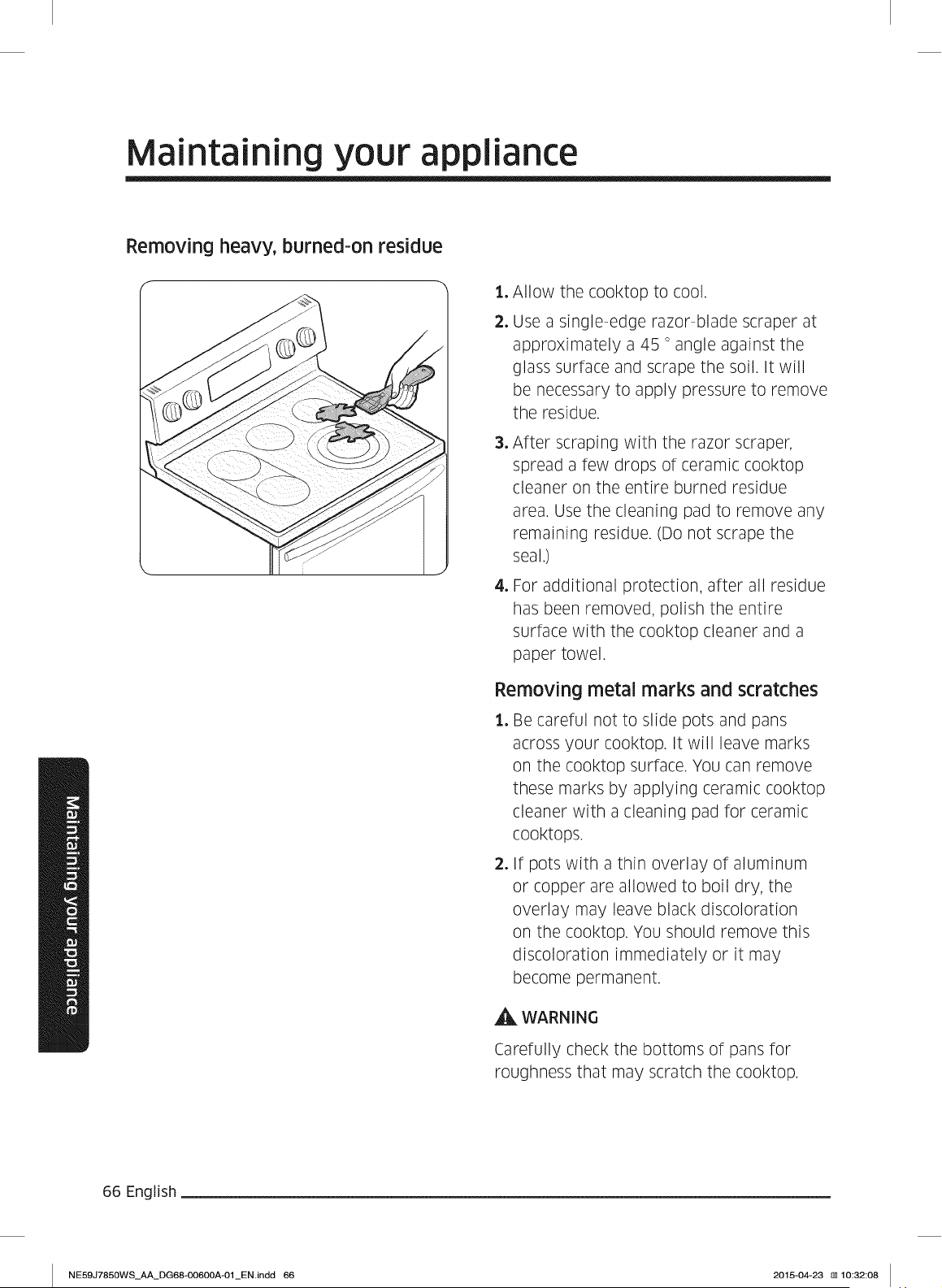

Maintaining your appliance
Removing heavy, burned-on residue
2.
Allow the cool<top to cool.
Use a single-edge razor-blade scraper at
approximately a 45 o angle against the
glass surface and scrape the soil. It will
be necessary to apply pressure to remove
the residue.
3. After scraping with the razor scraper,
spread a few drops of ceramic cool<top
cleaner on the entire burned residue
area. Use the cleaning pad to remove any
remaining residue. (Do not scrape the
seal.)
4. For additional protection, after all residue
has been removed, polish the entire
surface with the cool<top cleaner and a
paper towel.
Removing metal marks and scratches
1. Be careful not to slide pots and pans
across your cool<top. It will leave marks
on the cool<top surface. You can remove
these marks by applying ceramic cool<top
cleaner with a cleaning pad for ceramic
cool<tops.
2. If pots with a thin overlay of aluminum
or copper are allowed to boil dry, the
overlay may leave blacl< discoloration
on the cooktop. You should remove this
discoloration immediately or it may
become permanent.
,_ WARNING
Carefully check the bottoms of pans for
roughness that may scratch the cool<top.
66 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 66 2015-04-28 DI]10:32:08

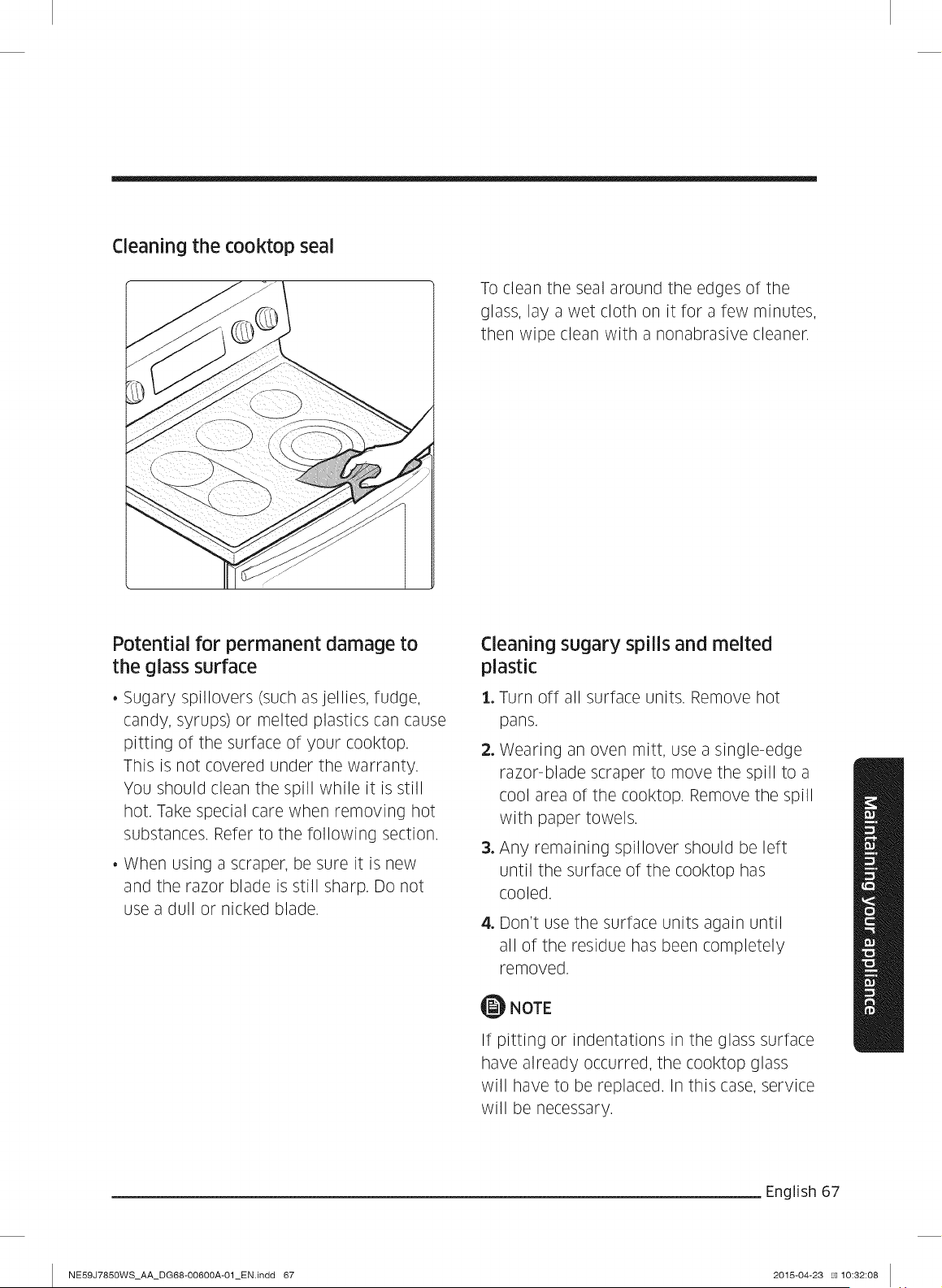

Cleaning the cooktop seal
To clean the seal around the edges of the
glass, lay a wet cloth on it for a few minutes
then wipe clean with a nonabrasive cleaner.
Potential for permanent damage to
the glass surface
• Sugary spillovers (such as jellies, fudge,
candy, syrups) or melted plastics can cause
pitting of the surface of your cooktop.
This is not covered under the warranty.
You should clean the spill while it is still
hot. Take special care when removing hot
substances. Refer to the following section.
• When using a scraper, be sure it is new
and the razor blade is still sharp. Do not
use a dull or nicked blade.
Cleaning sugary spills and melted
plastic
1, Turn off all surface units. Remove hot
pans.
2, Wearing an oven mitt, use a single-edge
razor-blade scraper to move the spill to a
cool area of the cooktop. Remove the spil
with paper towels.
3, Any remaining spillover should be left
until the surface of the cooktop has
cooled.
4_
Don't use the surface units again until
all of the residue has been completely
removed.
NOTE
If pitting or indentations in the glass surface
have already occurred, the cooktop glass
will have to be replaced. In this case, service
will be necessary.
English 67
NE59J7850WS_AA_DG68-00600A-01_EN.indd 67 2015-04-23 _u10:32:08

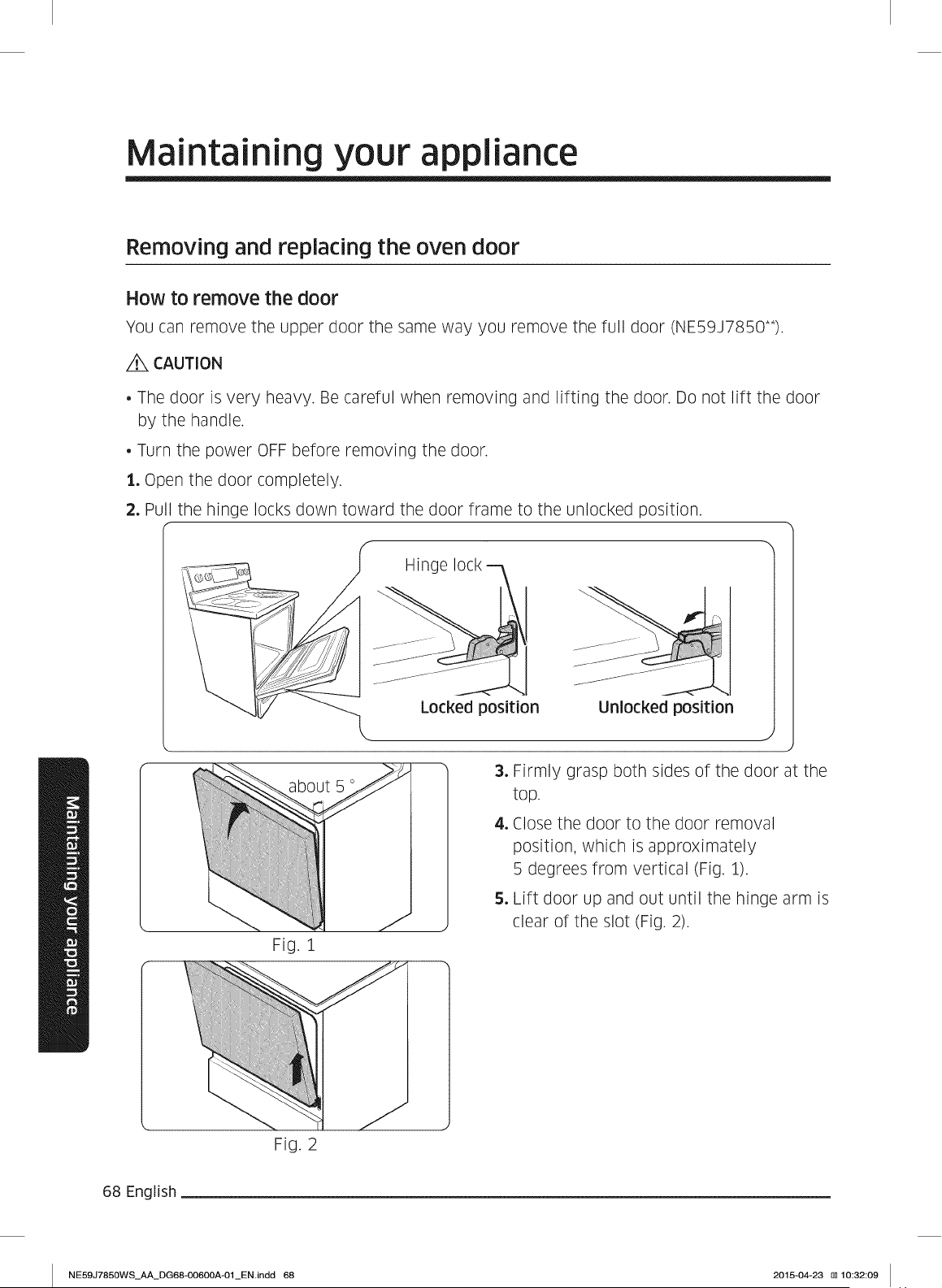

Maintaining your appliance
Removing and replacing the oven door
How to remove the door
You can remove the upper door the same way you remove the full door (NE59J7850**).
A CAUTION
• The door is very heavy. Be careful when removing and lifting the door. Do not lift the door
by the handle.
• Turn the power OFF before removing the door.
1. Open the door completely.
2. Pull the hinge locks down toward the door frame to the unlocked position.
Hinge
Locked position Unlocked position
about 5
Fig. 1
,J
:3. Firmly grasp both sides of the door at the
top.
4. Close the door to the door removal
position, which is approximately
5 degrees from vertical (Fig. !).
5o Lift door up and out until the hinge arm is
clear of the slot (Fig. 2).
68 English
Fig. 2
NE59J7850WS_AA_DG68-00600A-01_EN.indd 68 2015-04-23 DI]10:32:09

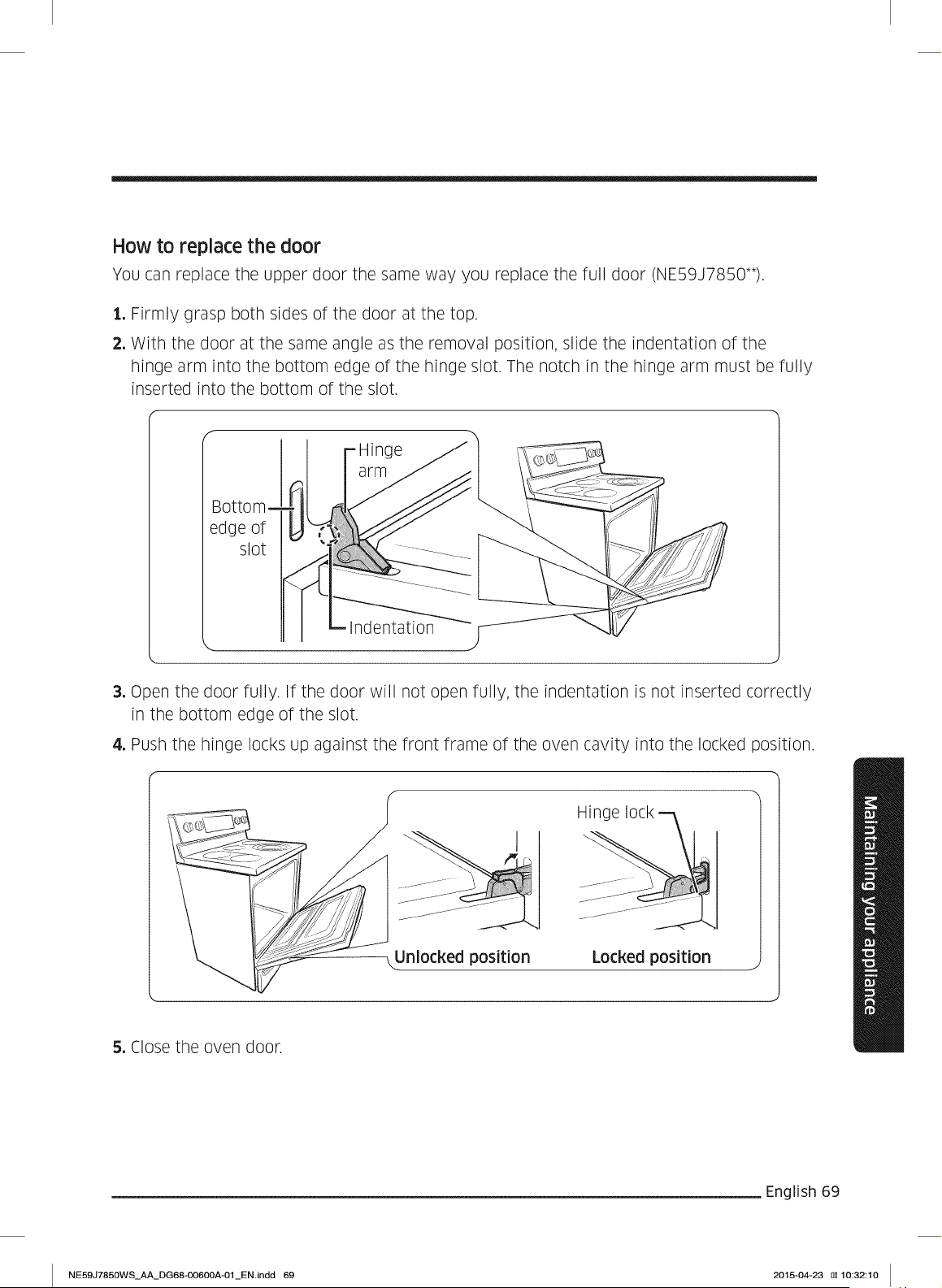

How to replace the door
You can replace the upper door the same way you replace the full door (NE59J7850**).
1. Firmly grasp both sides of the door at the top.
2. With the door at the same angle as the removal position, slide the indentation of the
hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully
inserted into the bottom of the slot.
Hinge
edge of
slot ..............................
Indentation
k
3. Open the door fully. I1:the door will not open fully, the indentation is not inserted correctly
in the bottom edge o1:the slot.
4. Push the hinge locks up against the front frame o1:the oven cavity into the locked position.
Hinge lock
\Unlocked position Locked position 1
5. Close the oven door.
English 69
NE59J7850WS_AA_DG68-00600A-01_EN.indd 69 2015-04-23 01]10:32:10

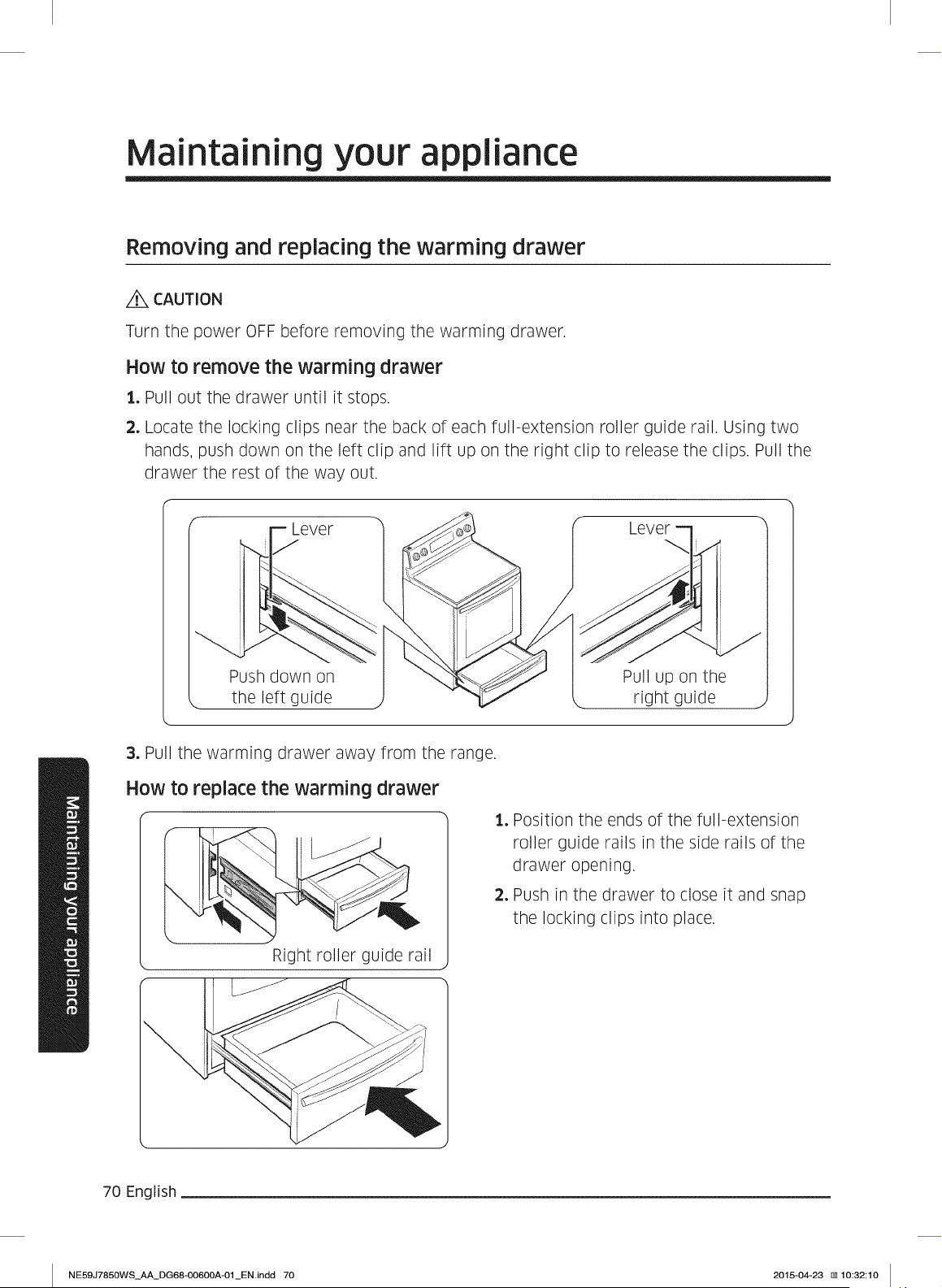

Maintaining your appliance
Removing and replacing the warming drawer
A CAUTION
Turn the power OFF before removing the warming drawer.
How to remove the warming drawer
1. Pull out the drawer until it stops.
2. Locate the locking clips near the back of each full-extension roller guide rail. Using two
hands, push down on the left clip and lift up on the right clip to release the clips. Pull the
drawer the rest of the way out.
Lever
Push down on
the left guide
Lever
Pull up on the
right guide
3. Pull the warming drawer away from the range.
How to replace the warming drawer
Right roller guide rail
-- J
1. Position the ends of the full-extension
roller guide rails in the side rails of the
drawer opening.
2. Push in the drawer to close it and snap
the locking clips into place.
70 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 70 2015-04-23 0010:32:10

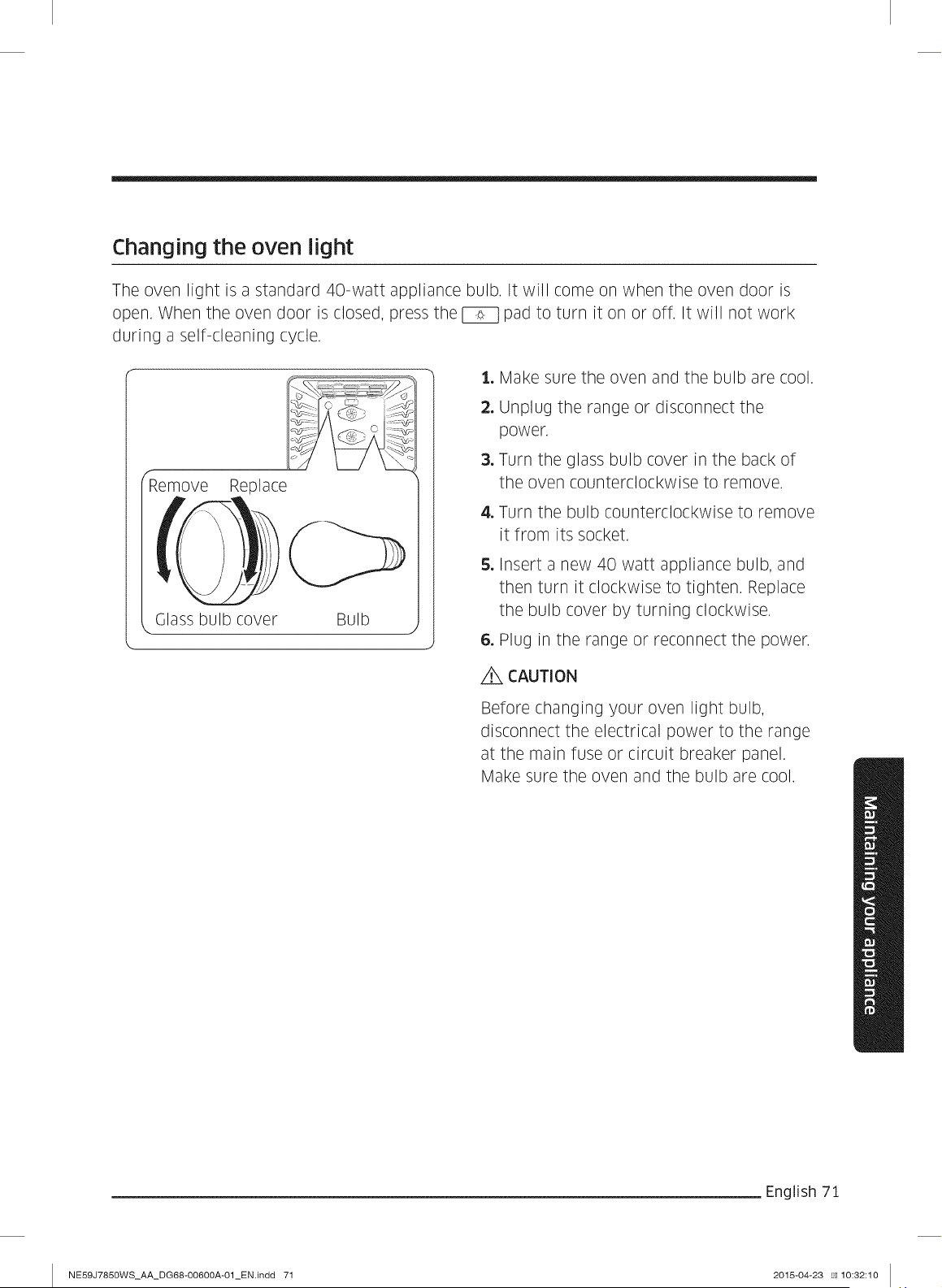

Changing the oven light
The oven light is a standard 40-watt appliance bulb. It will come on when the oven door is
open. When the oven door is closed, press the_ pad to turn it on or off. It will not work
during a self-cleaning cycle.
f
Remove
Glass bulb cover
Replace
Bulb
1. Make sure the oven and the bulb are cool.
2. Unplug the range or disconnect the
power.
3. Turn the glass bulb cover in the back of
the oven counterclockwise to remove.
4. Turn the bulb counterclockwise to remove
it from its socket.
5. Insert a new 40 watt appliance bulb, and
then turn it clockwise to tighten. Replace
the bulb cover by turning clockwise.
6. Plug in the range or reconnect the power.
A CAUTION
Before changing your oven light bulb,
disconnect the electrical power to the range
at the main fuse or circuit breaker panel.
Make sure the oven and the bulb are cool.
English 71
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 71 2015-04-23 _u10:32:10

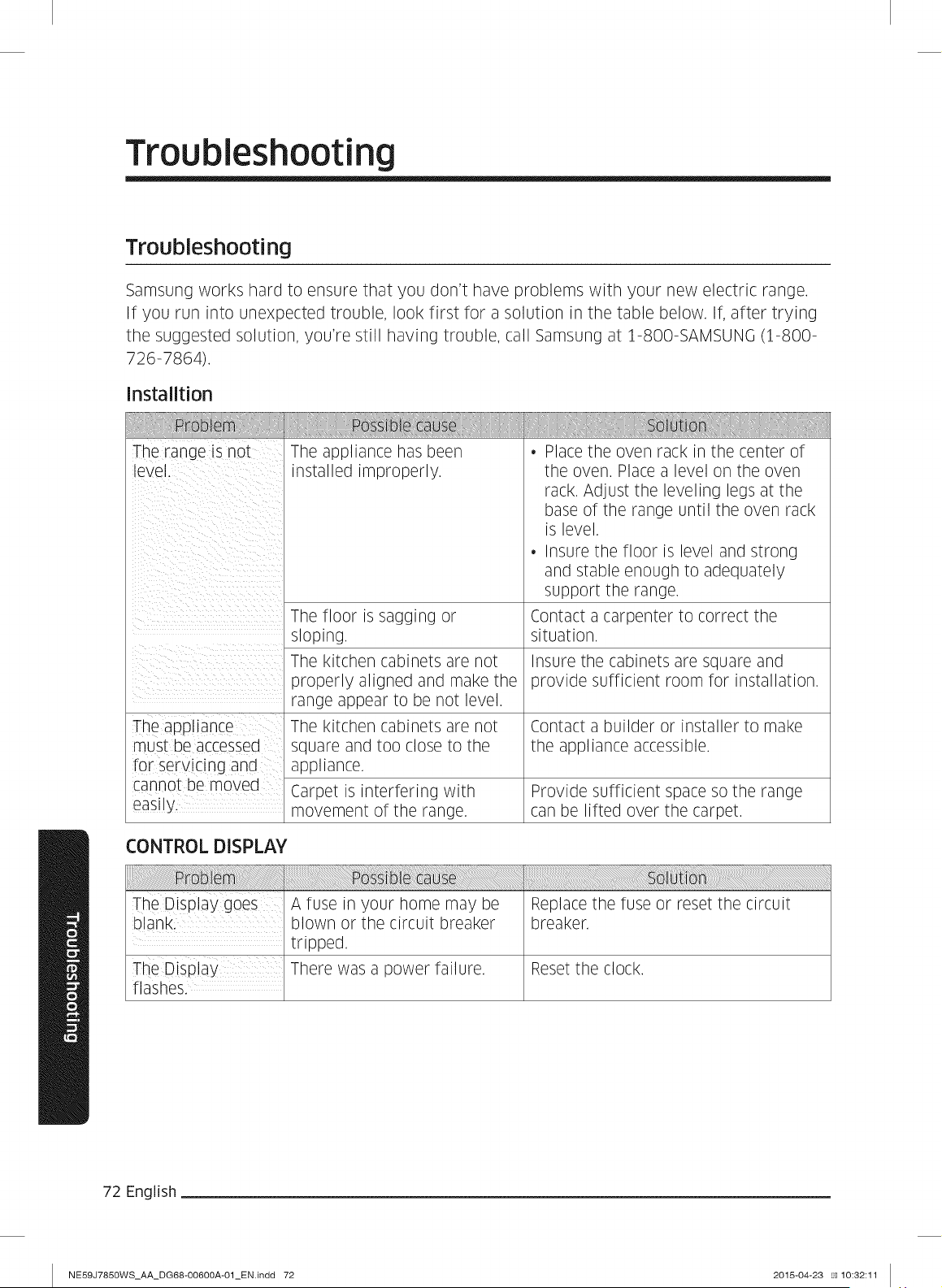

Troubleshooting
Troubleshooting
Samsung works hard to ensure that you don't have problems with your new electric range.
If you run into unexpected trouble, look first for a solution in the table below. If, after trying
the suggested solution, you're still having trouble, call Samsung at I_-800-SAMSUNG (1_-800-
726-7864).
Installtion
The range is not The appl
level, installed
lance has been
improperly.
• Place the oven rack in the center of
the oven. Place a level on the oven
rack. Adjust the leveling legs at the
base of the range until the oven rack
is level.
• Insure the floor is level and strong
and stable enough to adequately
support the range.
The floor is sagging or Contact a carpenter to correct the
sloping, situation.
The kitchen cabinets are not Insure the cabinets are square and
properly aligned and make the provide sufficient room for installation.
range appear to be not level.
The appliance The kitchen cabinets are not Contact a builder or installer to make
must be accessed square and too close to the the appliance accessible.
for servicing and appliance.
cannot be moved Carpet is interfering with Provide sufficient space so the range
easily, movement of the range, can be lifted over the carpet.
CONTROL DISPLAY
The Display goes A fuse in your home may be Replace the fuse or reset the circuit
blank, blown or the circuit breaker breaker.
tripped.
The Display There was a power failure. Reset the clock.
flashes.
72 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 72 2015-04-23 _u10:32:11

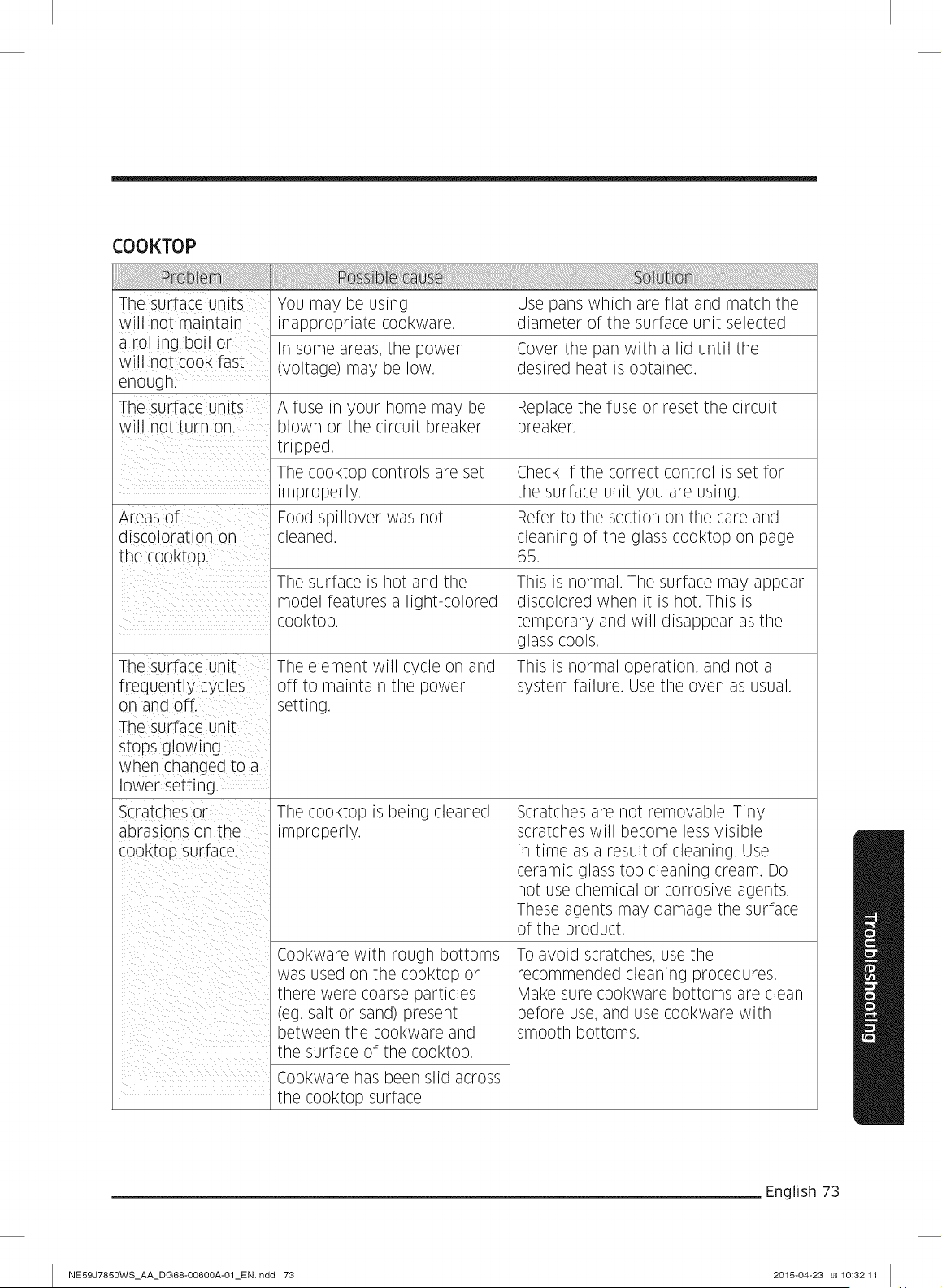

COOKTOP
The surface Units You may be using Use pans which are flat and match the
will not maintain inappropriate cool<ware, diameter of the surface unit selected.
a rolling boi! or In some areas, the power Cover the pan with a lid until the
will not cook fast (voltage) may be low. desired heat is obtained.
enough;
The surface Units A fuse in your home may be Replace the fuse or reset the circuit
will not turn on. blown or the circuit breaker breaker.
tripped.
........................ The cool<top controls are set Check if the correct control is set for
improperly, the surface unit you are using.
Areas of Food spillover was not Refer to the section on the care and
discoloration on cleaned, cleaning of the glass cool<top on page
the cooktop. 65.
The surface is hot and the
model features a lighbcolored
cooktop.
The surface Unit
frequently cycles
on and off.
The surface unit
stops glowing
when changed to a
lower setting.
Scratches or The cool<top
abrasions on the improperly.
cooktop surface.
The element will cycle on and
off to maintain the power
setting.
is being cleaned
Cool<ware with rough bottoms
was used on the cool<top or
there were coarse particles
(eg. salt or sand) present
between the cool<ware and
the surface of the cool<top.
Cool<ware has been slid across
the cool<top surface.
This is normal. The surface may appear
discolored when it is hot. This is
temporary and will disappear as the
glass cools.
This is normal operation, and not a
system failure. Use the oven as usual.
Scratches are not removable. Tiny
scratches will become less visible
in time as a result of cleaning. Use
ceramic glass top cleaning cream. Do
not use chemical or corrosive agents.
These agents may damage the surface
of the product.
To avoid scratches, use the
recommended cleaning procedures.
Make sure cool<ware bottoms are clean
before use, and use cookware with
smooth bottoms.
English 73
NE59J7850WS_AA_DG68-00600A-01_EN.indd 73 2015-04-23 _u10:32:11

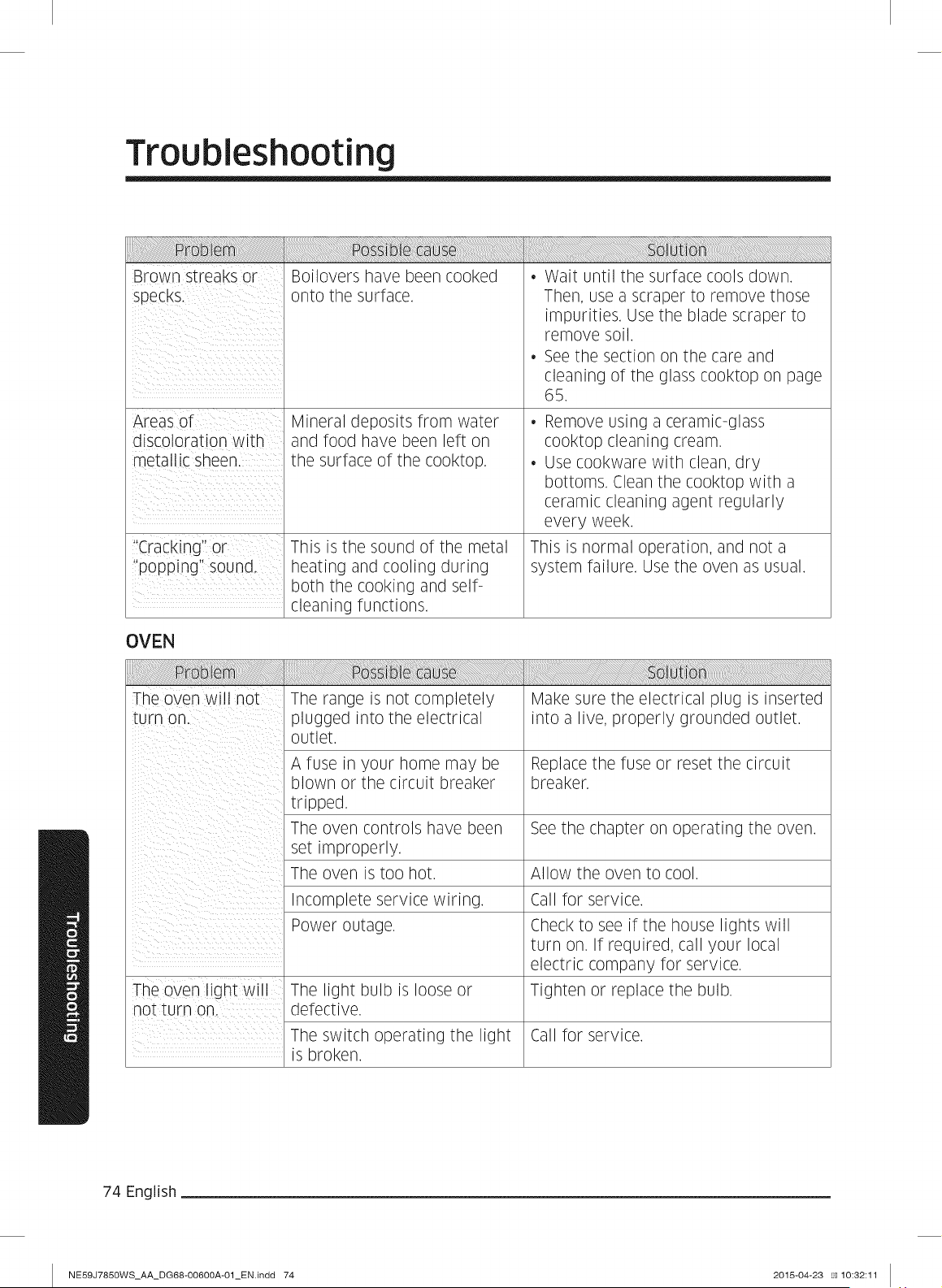

Troubleshooting
Brown streaks or
i i i i i i i i i i i
Boilovers have been cooked
onto the surface.
discoloration with
metall ic sheen.
il i__ _iiiiiiiiiiiiiiiiiiiiiiiiiiii
Mineral deposits from water
and food have been left on
the surface of the cooktop.
• Wait until the surface cools down.
Then, use a scraper to remove those
impurities. Use the blade scraper to
remove soil.
• See the section on the care and
cleaning of the glass cooktop on page
65.
• Remove using a ceramic-glass
cooktop cleaning cream.
• Use cookware with clean, dry
bottoms. Clean the cooktop with a
ceramic cleaning agent regularly
every week.
This is normal operation, and not a
system failure. Use the oven as usual.
"Cracking" or This is the sound of the metal
"popping" sound, heating and cooling during
both the cooking and sel?
cleaning functions.
OVEN
The oven will not The range is not completely Make sure the electrical plug is inserted
plugged into the electrical into a live, properly grounded outlet.
outlet.
A fuse in your home may be Replace the fuse or reset the circuit
blown or the circuit breaker breaker.
tripped.
The oven controls have been See the chapter on operating the oven.
set improperly.
The oven is too hot. Allow the oven to cool.
Incomplete service wiring. Call for service.
Power outage. Check to see if the house lights will
turn on. If required, call your local
electric company for service.
The oven light will The light bulb is loose or Tighten or replace the bulb.
not turn on. defective.
The switch operating the light Call for service.
is broken.
74 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 74 2015-04-23 _u10:32:11

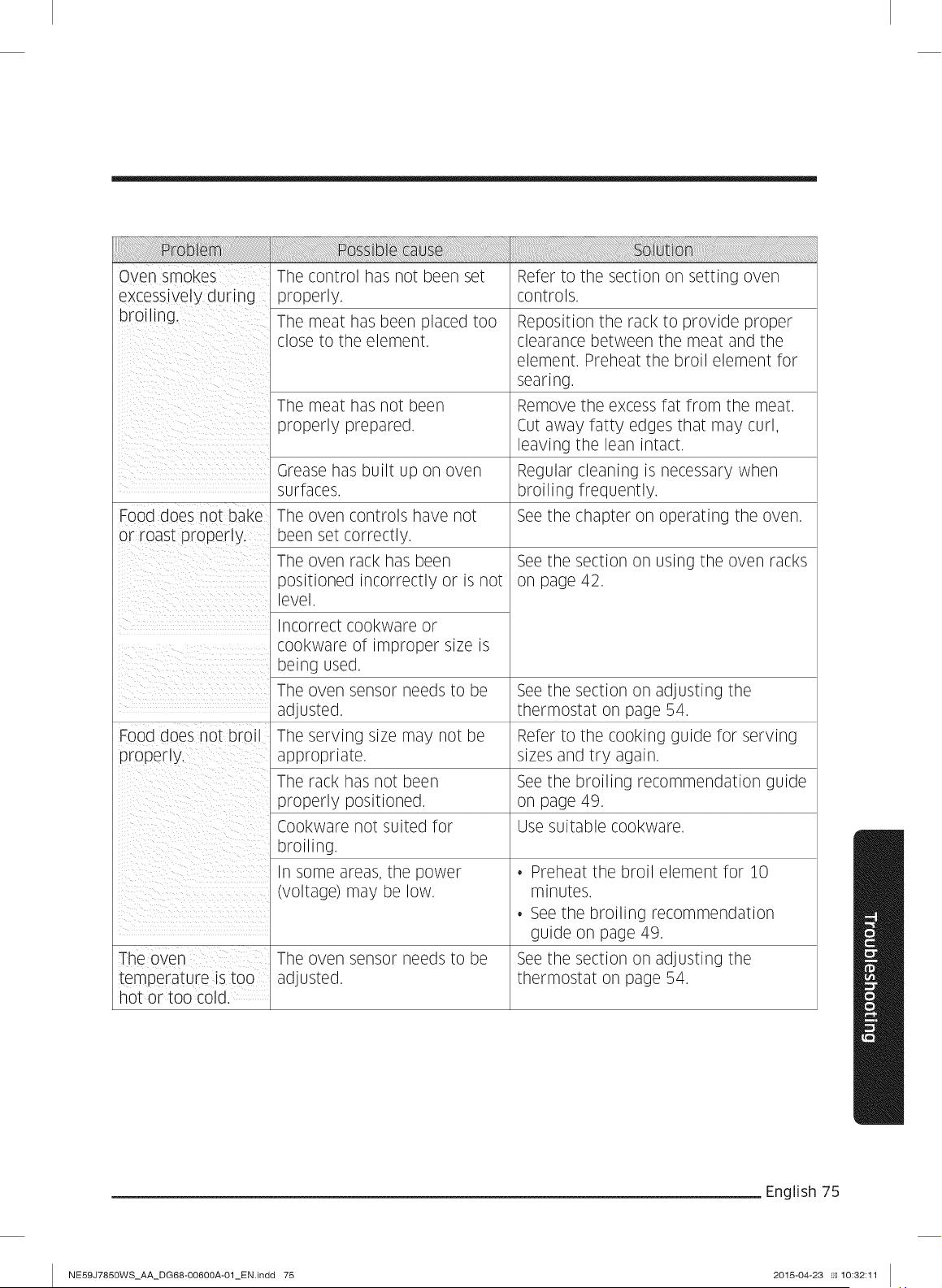

Oven smokes The control has not been set Refer to the section on setting oven
excessively during properly, controls.
broiling. The meat has been placed too Reposition the rack to provide proper
close to the element, clearance between the meat and the
element. Preheat the broil element for
searing.
The meat has not been Remove the excess fat from the meat.
properly prepared. Cut away fatty edges that may curl,
leaving the lean intact.
Regular cleaning is necessary when
broiling frequently.
Food does not bake See the chapter on operating the oven.
or roast properly.
Grease has built up on oven
surfaces.
The oven controls have not
been set correctly.
The oven rack has been
positioned incorrectly or is not
level.
Incorrect cookware or
cookware of improper size is
being used.
See the section on using the oven racks
on page 42.
The oven sensor needs to be See the section on adjusting the
adjusted, thermostat on page 54.
Food does not broil The serving size may not be Refer to the cooking guide for serving
properly, appropriate, sizes and try again.
The rack has not been See the broiling recommendation guide
properly positioned, on page 49.
Cookware not suited for Use suitable cookware.
broiling.
In some areas, the power • Preheat the broil element for 10
(voltage) may be low. minutes.
• See the broiling recommendation
guide on page 49.
The oven The oven sensor needs to be See the section on adjusting the
temperature is too adjusted, thermostat on page 54.
hot or too cold.
English 75
NE59J7850WS_AA_DG68-00600A-01_EN.indd 75 2015-04-23 d]10:32:11

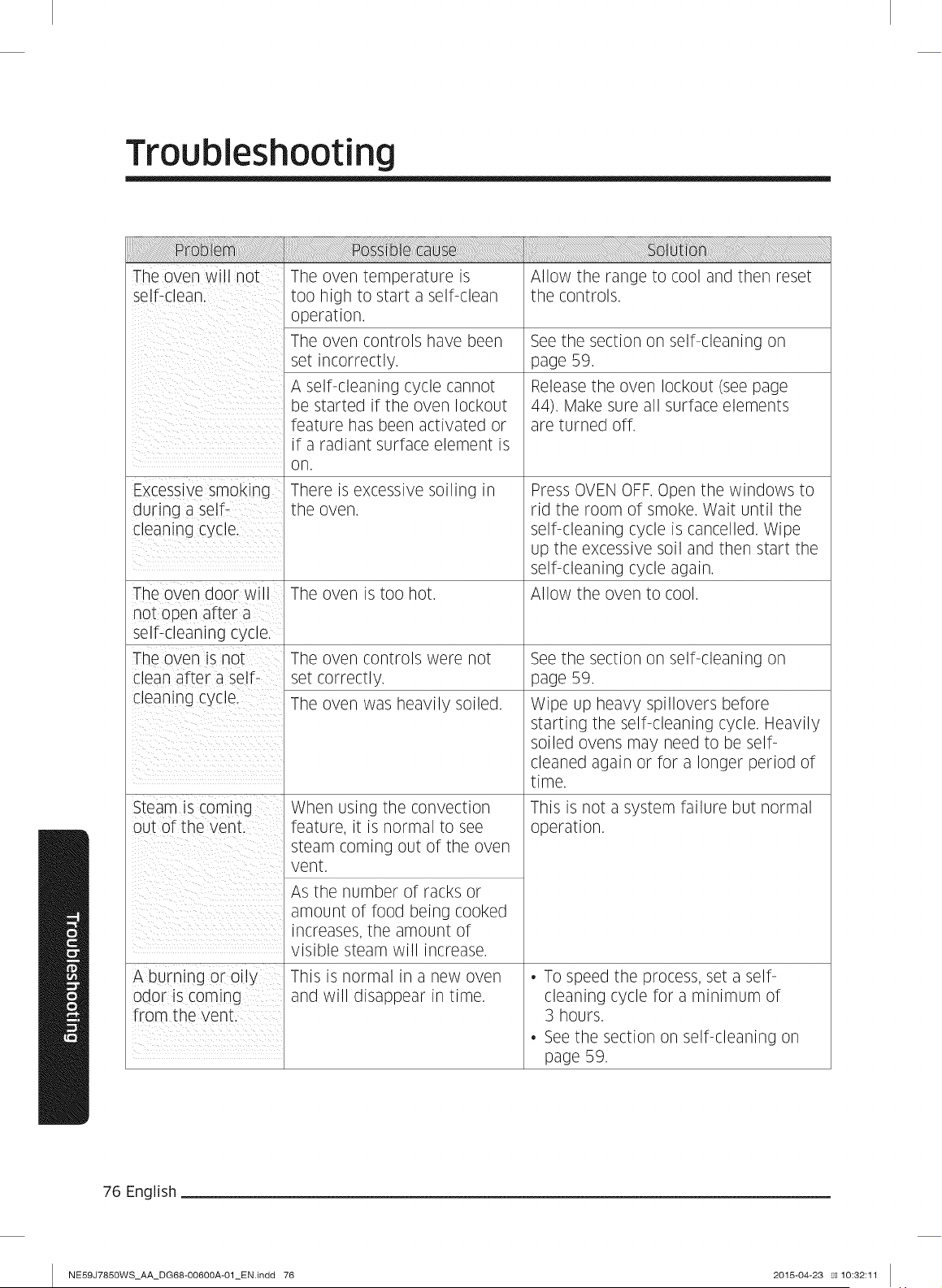

Troubleshooting
The oven will not The oven temperature is Allow the range to cool and then reset
self-clean, too high to start a self-clean the controls.
operation.
The oven controls have been
set incorrectly.
A self-cleaning cycle cannot
be started if the oven lockout
feature has been activated or
if a radiant surface element is
on,
Excessive smoking There is excessive soiling in
during a self- the oven.
cleaning cycle.
The oven door will The oven is too hot.
not open after a
self-cleaning cycle.
The oven is not The oven controls were not
clean after a self- set correctly.
cleaning cycle. The oven was heavily soiled.
Steam is coming
out of the vent.
When using the convection
feature, it is normal to see
steam coming out of the oven
vent.
As the number of racks or
amount of food being cooked
increases, the amount of
visible steam will increase.
A burning or oily This is normal in a new oven
odor is coming and will disappear in time.
from the vent.
See the section on self-cleaning on
page 59.
Release the oven lockout (see page
44). Make sure all surface elements
are turned off.
Press OVEN OFF. Open the windows to
rid the room of smoke. Wait until the
self-cleaning cycle is cancelled. Wipe
up the excessive soil and then start the
self-cleaning cycle again.
Allow the oven to cool.
See the section on self-cleaning on
page 59.
Wipe up heavy spillovers before
starting the self-cleaning cycle. Heavily
soiled ovens may need to be self-
cleaned again or for a longer period of
time.
This is not a system failure but normal
operation.
• To speed the process, set a self-
cleaning cycle for a minimum of
3 hours.
• See the section on self-cleaning on
page 59.
76 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 76 2015-04-23 _u10:32:11

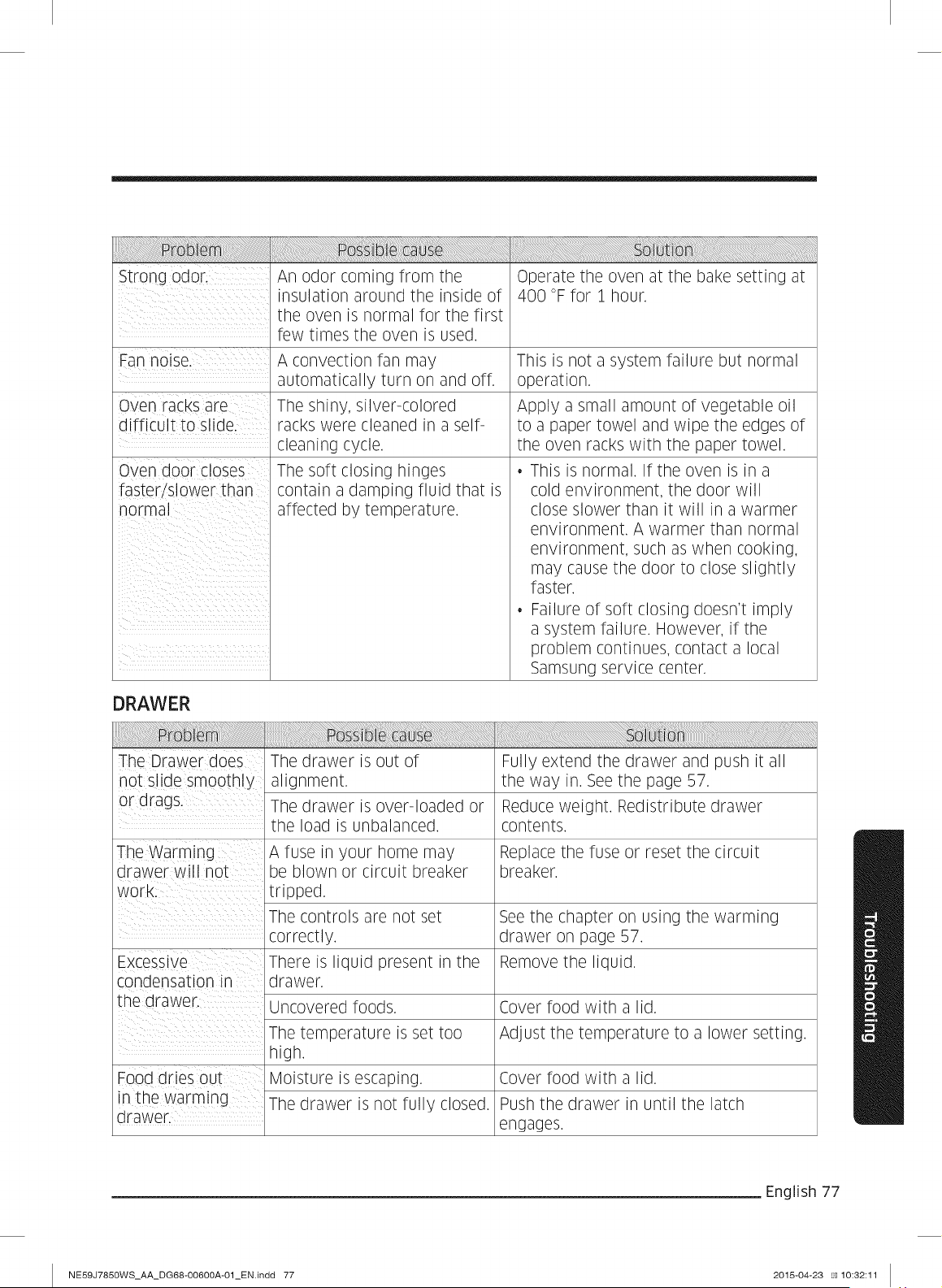

Strong odor. An odor coming from the Operate the oven at the bake setting at
insulation around the inside of 400 °F for i hour.
the oven is normal for the first
few times the oven is used.
Fan noise.
Oven racks are
difficult to slide.
Oven door closes
faster/slower than
normal
A convection fan may
automatically turn on and off.
The shiny, silver-colored
racks were cleaned in a sel?
cleaning cycle.
The soft closing hinges
contain a damping fluid that is
affected by temperature.
This is not a system failure but normal
operation.
Apply a small amount of vegetable oil
to a paper towel and wipe the edges of
the oven racks with the paper towel.
• This is normal. If the oven is in a
cold environment, the door will
close slower than it will in a warmer
environment. A warmer than normal
environment, such as when cooking,
may cause the door to close slightly
faster.
• Failure of soft closing doesn't imply
a system failure. However, if the
problem continues, contact a local
Samsung service center.
DRAWER
The Drawer does The drawer is out of Fully extend the drawer and push it all
not s!!de smoothly alignment, the way in. See the page 57.
or drags. The drawer is over-loaded or Reduce weight. Redistribute drawer
the load is unbalanced, contents.
The Warming A fuse in your home may Replace the fuse or reset the circuit
drawer will not be blown or circuit breaker breaker.
WOrk: tripped.
........... The controls are not set See the chapter on using the warming
correctly, drawer on page 57.
ExcesSive There is liquid present in the Remove the liquid.
condensation in drawer.
the drawer. Uncovered foods. Cover food with a lid.
The temperature is set too Adjust the temperature to a lower setting.
high.
Food dries out Moisture is escaping. Cover food with a lid.
in the warming The drawer is not fully closed. Push the drawer in until the latch
drawer, engages.
English 77
NE59J7850WS_AA_DG68-00600A-01_EN.indd 77 2015-04-23 _u10:32:11
Troubleshooting
Information codes
OVEN
The oven sensor is open when the
oven is operating.
........ The oven sensor is short when the
oven is operating.
C_21 ...... This code occurs if the internal
temperature rises abnormally high.
C:dl ..... This code occurs if the door lock is
mispositioned.
C:dO ........ This code occurs if the Control key
is short for ! minute.
GFO This code occurs if communication
between the Main and Sub PBA is
interrupted.
_dC_ This code appears if the partition is
inserted or removed while the oven
operating.
Press OVEN OFF and restart the oven. If the
problem persists, disconnect all power to
the range for at least 30 seconds and then
reconnect the power. If this does not solve
the problem, call for service.
Make sure the partition is inserted
properly, and restart the oven.
If the problem persists, disconnect all
power to the range for at least 30 seconds
and then reconnect the power. If this does
not solve the problem, call for service.
78 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 78 2015-04-23 _u10:32:11
Warranty (U.S.A)
PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN THE
USE
& CARE GUIDE
SAMSUNG ELECTRIC RANGE
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC. (SAMSUNO) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNO against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor, One (5) Year Parts Warranty
For Glass Cooktop and Radiant Heater
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the United States. To receive warranty service, the purchaser must
contact SAMSUNO for problem determination and service procedures. Warranty service
can only be performed by a SAMSUNO authorized service center. The original dated bill
of sale must be presented upon request as proof of purchase to SAMSUNO or SAMSUNO's
authorized service center. Samsung will provide in-home service during the warranty period
at no charge subject to availability within the contiguous United States. In home service
is not available in all areas. To receive in home service product must be unobstructed and
accessible to the service agent. If service is not available Samsung may elect to provide
transportation of the product to and from an authorized service center. SAMSUNO will repair
or replace this product, at our option and at no charge as stipulated herein, with new or
reconditioned parts or products if found to be defective during the limited warranty period
specified above. All replaced parts and products become the property of SAMSUNO and must
be returned to SAMSUNO. Replacement parts and products assume the remaining original
warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage which occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of
nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories,
applications, installations, repairs, external wiring or connectors not supplied or authorized
by SAMSUNO which damage this product or result in service problems; incorrect electrical
line voltage, fluctuations and surges; customer adjustments and failure to follow operating
instructions, maintenance and environmental instructions that are covered and prescribed
in the instruction book; product removal and reinstallation; problems caused by pest
infestations, and overheating or overcooking by user. This limited warranty shall not cover
English 79
NE59J7850WS_AA_DG68-00600A-01_EN.indd 79 2015-04-23 d]10:32:11
Warranty (U.S.A)
cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring,
cost of a service call for instructions, or fixing installation errors. Furthermore, damage to the
glass cooktop caused by the use of cleaners other than the recommended cleaners and pads,
damage to the glass cook top caused by hardened spills of sugary materials or melted plastic
that are not cleaned according to the directions in the use and care guide are not covered.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS
FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM
OR CORPORATION WITH RESPECTTO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSSOF REVENUE OR PROFITS, FAILURE TO REALIZE
SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS
OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY
KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE
PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY
TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT.THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some provinces or territories may or may not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state. User Replaceable
Parts may be sent to the customer for unit repair. If necessary, a Service Engineer can be
dispatched to perform service.
To obtain warranty service, please contact SAMSUNG at:
80 English
NE59J7850WS_AA_DG68-00600A-01_EN.indd 80 2015-04-23 d]10:32:11
Warranty (CANADA)
PLEASE DO NOT DISCARD.THIS PAGE REPLACES THE WARRANTY PAGE INTHE
USE & CARE GUIDE
SAMSUNG ELECTRIC RANGE
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNO) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNO against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor, Five (5) Years Parts Warranty
For Glass Cooktop and Radiant Heater
During this limited additional four-year warranty, you will responsible for any labor or in-
home service.
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the CANADA. To receive warranty service, the purchaser must contact
SAMSUNO for problem determination and service procedures. Warranty service can only be
performed by a SAMSUNO authorized service center. The original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNO or SAMSUNO's authorized service
center. Samsung will provide in-home service during the warranty period at no charge
subject to availability within the contiguous CANADA. In home service is not available in all
areas. To receive in home service product must be unobstructed and accessible to the service
agent. If service is not available Samsung may elect to provide transportation of the product
to and from an authorized service center.
SAMSUNO will repair or replace this product, at our option and at no charge as stipulated
herein, with new or reconditioned parts or products if found to be defective during the
limited warranty period specified above. All replaced parts and products become the
property of SAMSUNO and must be returned to SAMSUNO. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer. This
limited warranty covers manufacturing defects in materials and workmanship encountered
in normal, noncommercial use of this product and shall not apply to the following: damage
which occurs in shipment; delivery and installation; applications and uses for which this
product was not intended; altered product or serial numbers; cosmetic damage or exterior
finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products,
equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by SAMSUNO which damage
this product or result in service problems; incorrect electrical line voltage, fluctuations and
surges; customer adjustments and failure to follow operating instructions, maintenance
and environmental instructions that are covered and prescribed in the instruction book;
English 81
NE59J7850WS_AA_DG68-00600A-01_EN.indd 81 2015-04-23 d]10:32:11
Warranty (CANADA)
product removal and reinstallation; problems caused by pest infestations, and overheating
or overcooking by user. This limited warranty shall not cover cases of incorrect electric
current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for
instructions, or fixing installation errors. Furthermore, damage to the glass cooktop caused
by the use of cleaners other than the recommended cleaners and pads, damage to the glass
cook top caused by hardened spills of sugary materials or melted plastic that are not cleaned
according to the directions in the use and care guide are not covered. SAMSUNG does not
warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS
FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM
OR CORPORATION WITH RESPECTTO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSSOF REVENUE OR PROFITS, FAILURE TO REALIZE
SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS
OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY
KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE
PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY
TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT.THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG at:
82 English
NE59J7850WS_AA_DG68-OO600A-O1_EN.indd 82 2015-04-23 _u10:32:11
Memo
NE59J7850WS_AA_DG68-00600A-01_EN.indd 83 2015-04-23 d]10:32:11
Scan th_s with your sma_tphone
Scannezle codeOR"ou rendez-voussur le site
www.samsung.com/spsn
pour voir nos
videos et demonstrations en direct d'utilisation.
*Requiert I'installation d'un lecteur sur votre smartphone
Veuillez noter que la garantie Samsung n'inclut pas les d6placements du service ap@s-vente pour
expliquer le fonctionnement de I'appareil, corriger une installation non correcte ou ex6cuter des
travaux de nettoyage ou d'entretien @guliers.
UNE QUESTION ? UN COMMENTAIRE?
U.S.A
!-800-SAMSUNG (726-7864) www.samsung.com/us/support
Consumer Electronics
www.samsung.com/ca/support (English)
CANADA !-800-SAMSUNG (726-7864)
www.sa msung.com/caJr/support (French)
D668-OO600A-O!
NE59J7850WS_AA_DG68-OO600A-O1_CFR.indd 84 2015-04-17 u_6:33:46
