SEARS
OWNERS
MANUAL
MODEL NO.
919.176850
IMPORTANT:
Read the Safety Guidelines
and All Instructions
Carefully Before Operating
CRAFTSMAN AIR COMPRESSOR
ASSEMBLY
OPERATION
MAINTENANCE

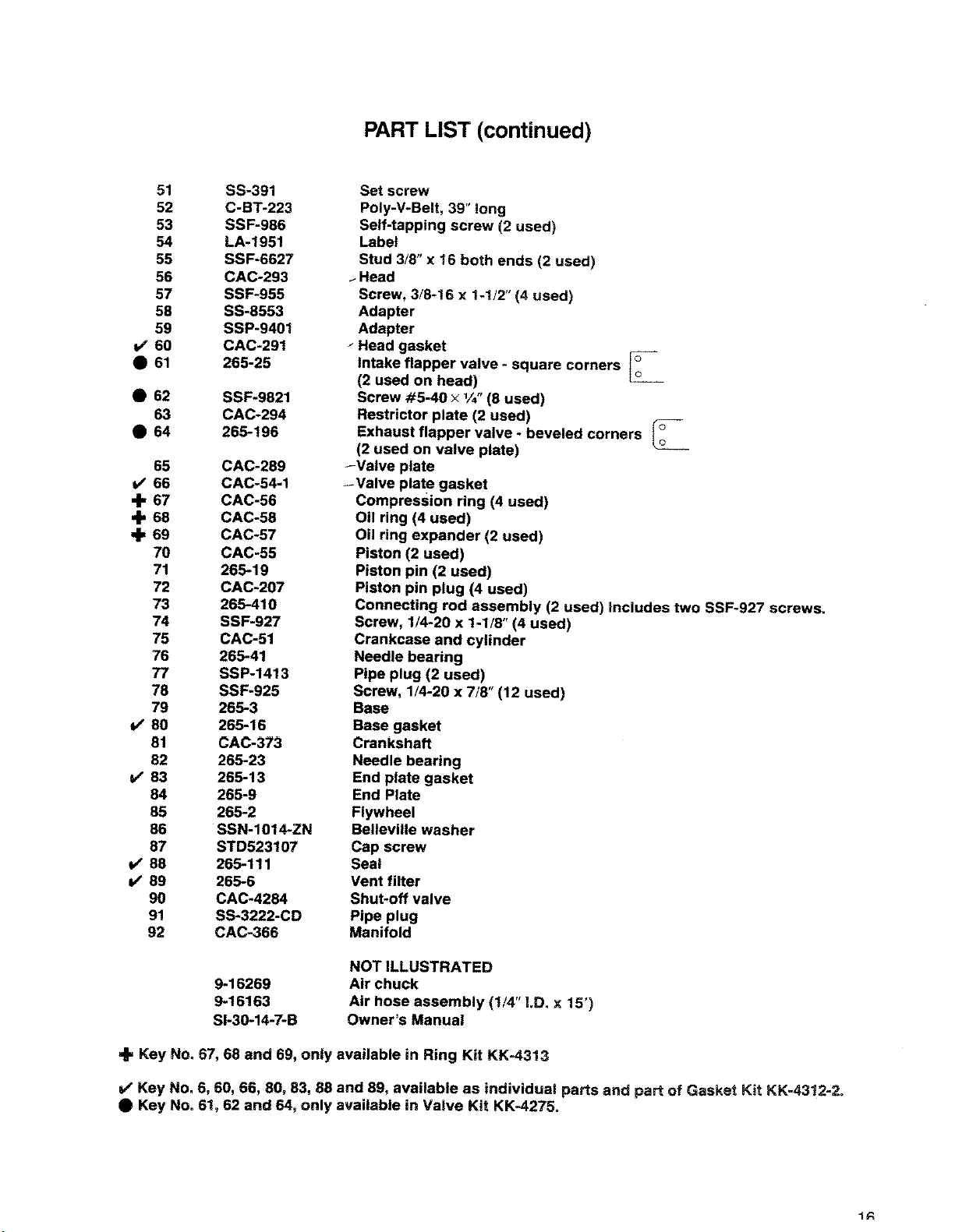

REPAIR PARTS
Record in the spaces provided,
(1) The model number which can be
found on the label on the rear of the
air tank.
(2) The code number which can be
found on the foil label on the rear of
the air tank,
(3) The Manufacturers Number (ASME
Code Compressors only) is located
on the metal data plate which is
welded onto the backside of the air
tank. (This data plate is painted the
same color as the tank.)
(4) The Motor Manufacturers name
which is located on the motor label
or specification plate.
(5) The Motor Mfg. number - also
located on the motor label or specifi-
cation plate.
Retain these numbers for future
reference,
Model No,
Code No.
Mfg. No. __
Motor Mfg, Name
Motor Mfg. No.
81-30-14-7-B 3/89
Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.
