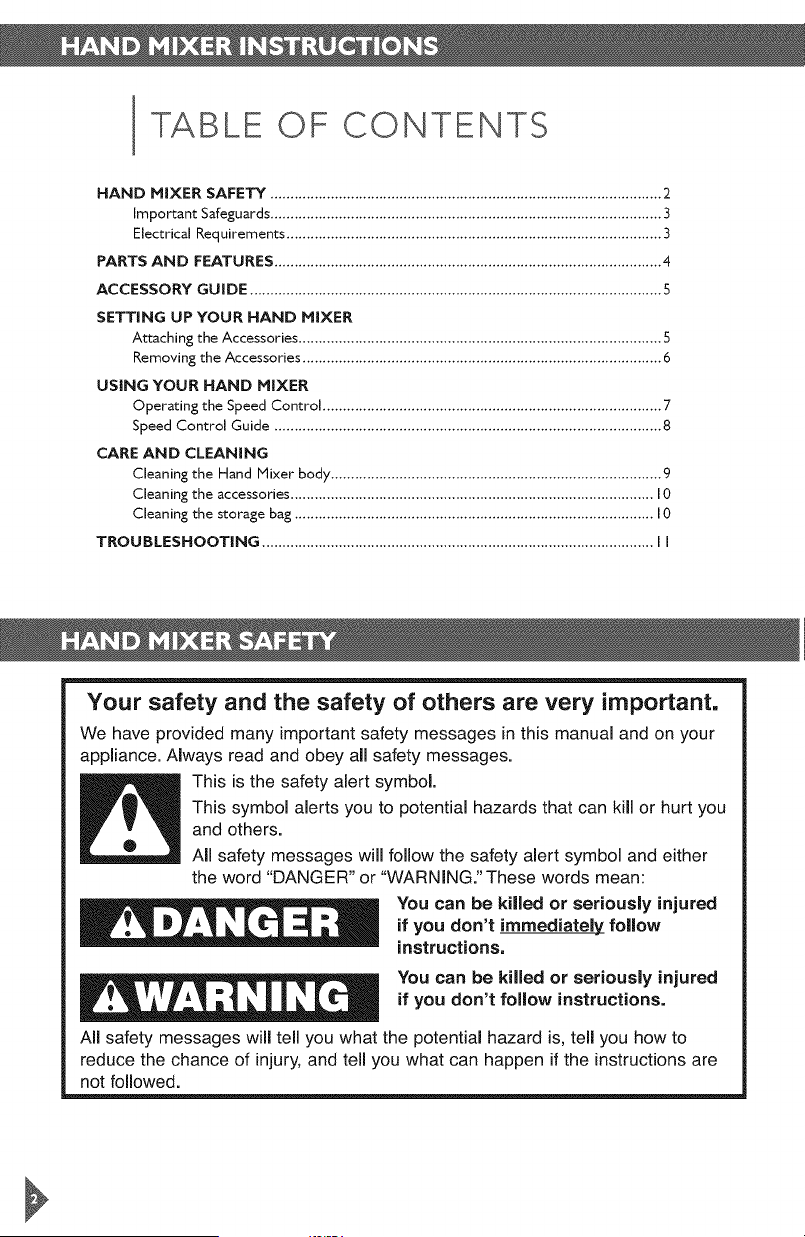

TABLE OF CONTENTS
HAND MIXER SAFETY ................................................................................................. 2
Important Safeguards ................................................................................................. 3
Electrical Requirements ............................................................................................. 3
PARTS AND FEATURES ................................................................................................ 4
ACCESSORY GUIDE ...................................................................................................... 5
SETTING UP YOUR HAND MIXER
Attaching the Accessories .......................................................................................... 5
Removing the Accessories ......................................................................................... 6
USING YOUR HAND MIXER
Operating the Speed Control .................................................................................... 7
Speed Control Guide ................................................................................................ 8
CARE AND CLEANING
Cleaning the Hand Mixer body .................................................................................. 9
Cleaning the accessories .......................................................................................... I0
Cleaning the storage bag ......................................................................................... I 0
TROUBLESHOOTING ................................................................................................. I I
Your safety and the safety of others are very important,
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you
and others.
All safety messages will follow the safety alert symbol and either
the word "DANGER" or "WARNING." These words mean:
You can be killed or seriously injured
if you don't immediately follow
instructions,
You can be killed or seriously injured
if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions are
not followed.
|HPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put Hand
Mixer in water or other liquid.
3. Unplug Hand Mixer from the outlet when not in use, before
putting on or taldng off parts, and before cleaning.
4. Avoid contacting moving parts. Keep hands, hair, clothing, as
well as spatulas and other utensils away from all accessories
during operation to reduce the risk of injury to persons and/
or damage to the Hand Mixer.
5. Do not operate the Hand Mixer with a damaged cord or
plug, or after the Hand Mixer malfunctions, or is dropped
or damaged in any manner. Return the Hand Mixer to the
nearest Authorized Service Center for examination, repair,
or electrical or mechanical adjustment.
6. The use of attachments not recommended or sold by
KitchenAid may cause fire, electric shock, or injury.
7. Do not use the Hand Mixer outdoors.
8. Do not let cord hang over edge of table or counter.
9. Do not let cord contact hot surface, including the stove.
I 0. Remove any accessories from Hand Mixer before washing.
I I. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not
play with the appliance.
13. Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
SAVE THESE INSTRUCTIONS

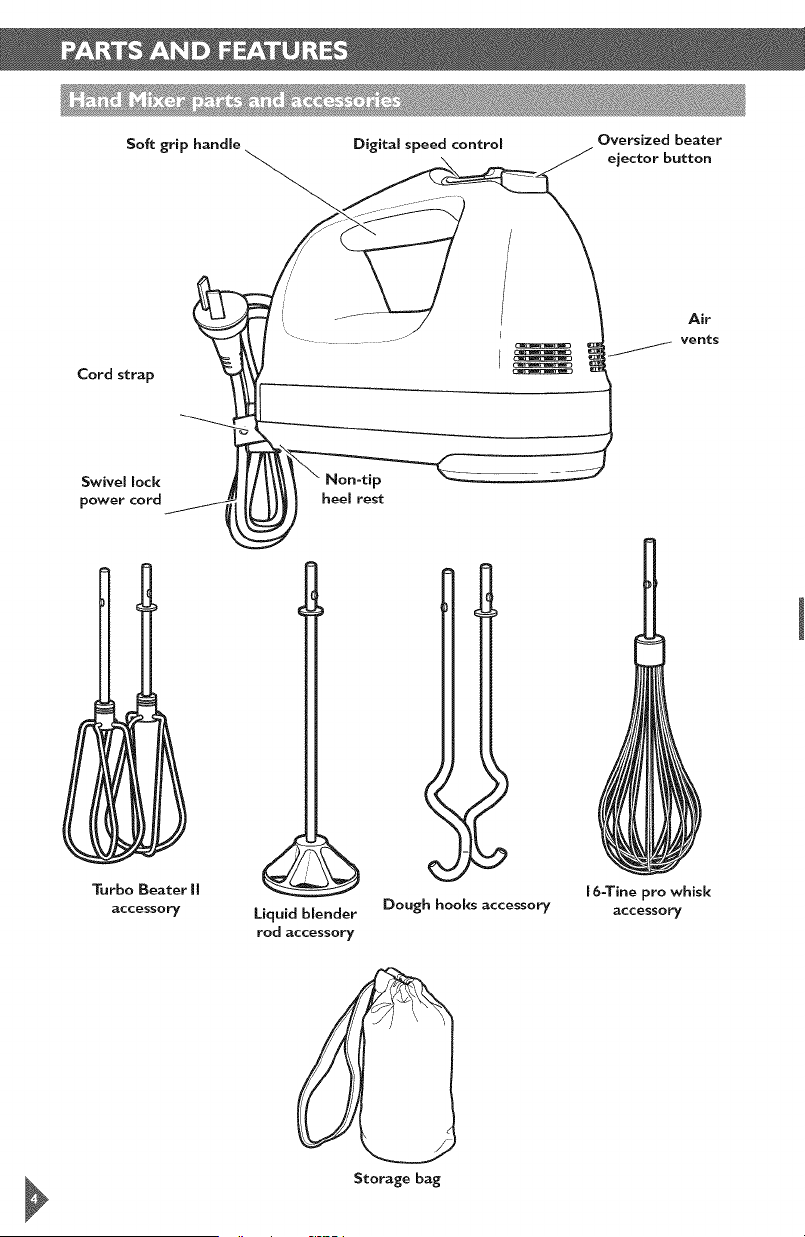

Volts: 220-240 Volts
Frequency: 50/60 Hz
Wattage: 85 W
Digital speed control
Air
vents
Swivel lock
power cord
Turbo Beater I!
accessory
Liquid blender Dough hooks accessory
rod accessory
Storage bag
16=Tine pro whisk
accessory

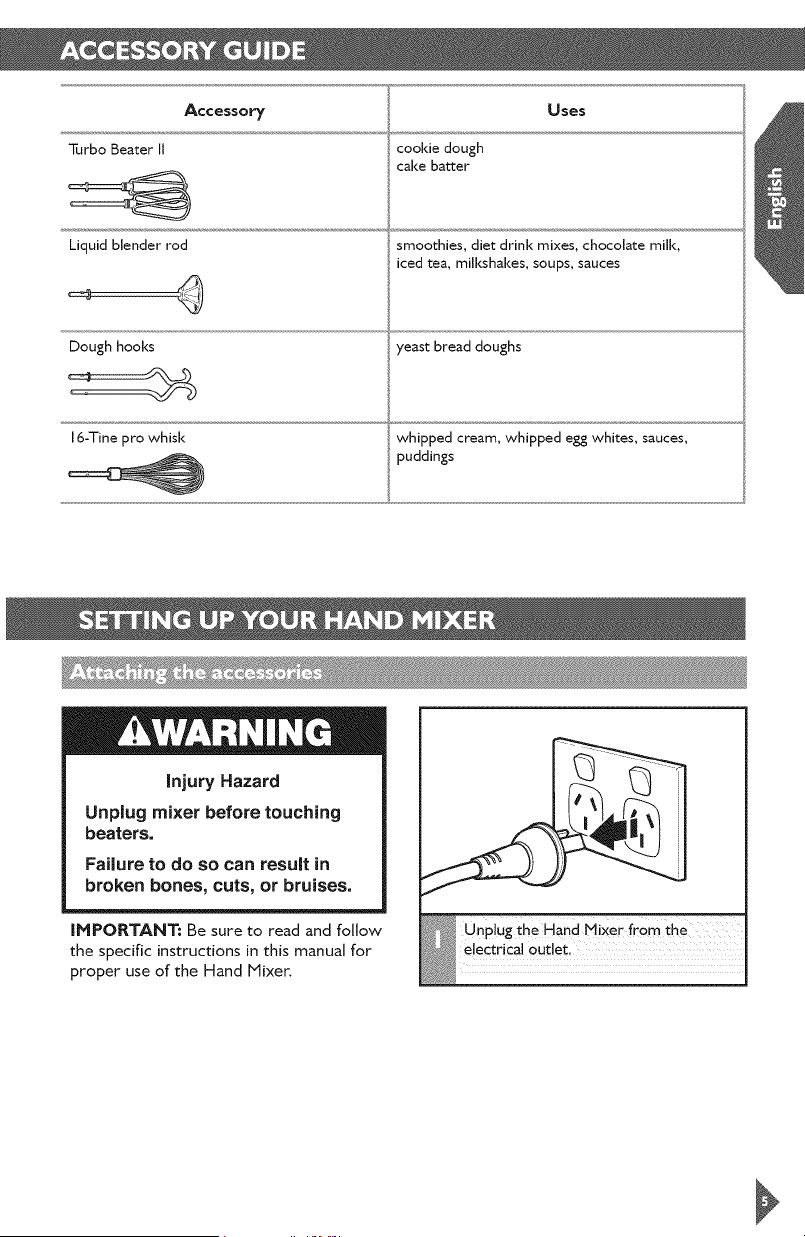

Accesso_
Turbo Beater II
Liquid blender rod
Dough hooks
16-Tine pro whisk
coolde dough
cake batter
Uses
smoothies, diet drink mixes, chocolate mill<,
iced tea, mill<shakes, soups, sauces
yeast bread doughs
whipped cream, whipped egg whites, sauces,
puddings
Injury Hazard
Unplug mixer before touching
beaters.
Failure to do so can result in
broken bones, cuts, or bruises.
IHPORTANT: Be sure to read and follow
the specific instructions in this manual for
proper use of the Hand Mixer.

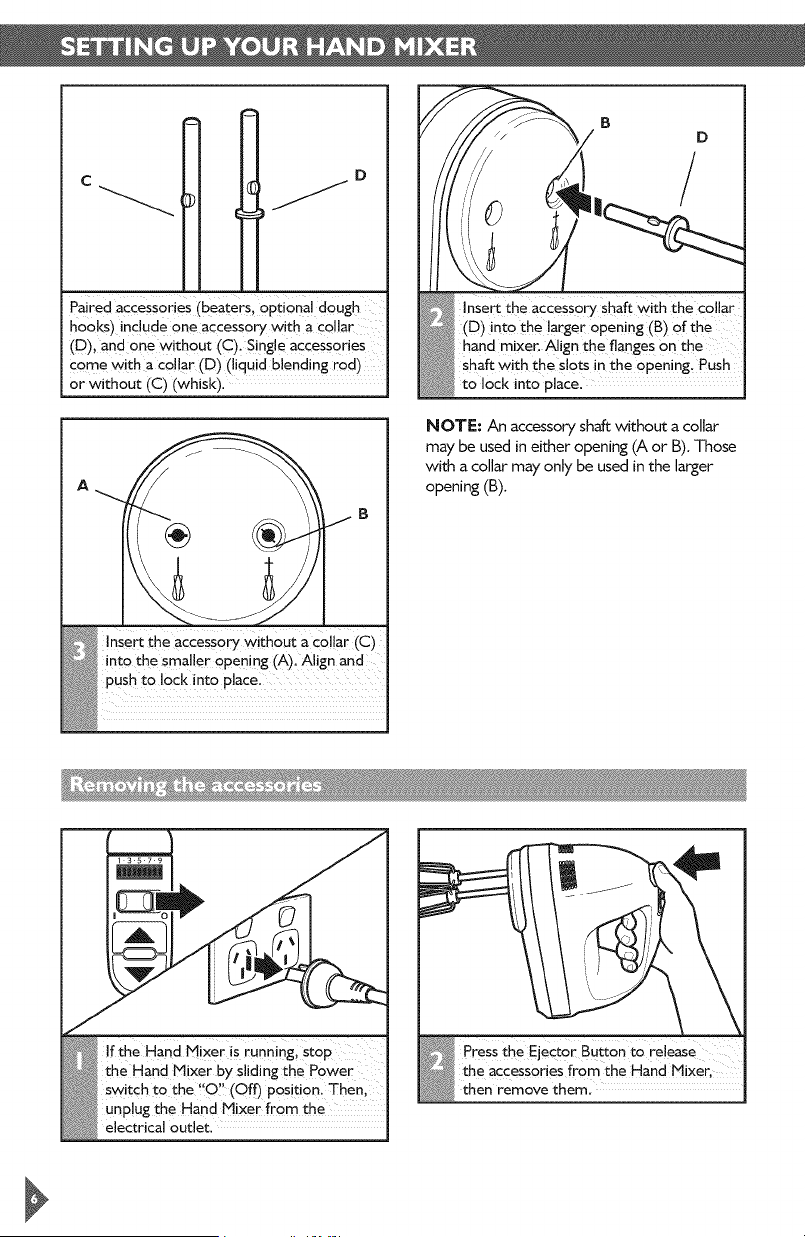

Pairedaccessories(beatersl0ptiona! dough :
hooks) includeone accessory with a Collar
(D), and one without (C): Single accessor!es
come with a co!Jar(D) (liquid b!ending rod)
or without ((3) (whis H.
!nsert the acces_0ry Without a €o!Jar (C)
nto the smaller opening (A), Align and
push to loci< into place.
to lock into place.
B
D
NOTE: An accessory shaft without a collar
may be used in either opening (A or B). Those
with a collar may only be used inthe larger
opening (B).
Ifthe Hand Mixer js running, stop
the Hand Mixer by sliding the Power
Switc h to the _'0!' (Off) position. Then,
unplug the Hand Mixer fr0m the
electrical outlet.
Press the EjeCtor Button to release
the accessories from the Hand Mixer,
then remove theml

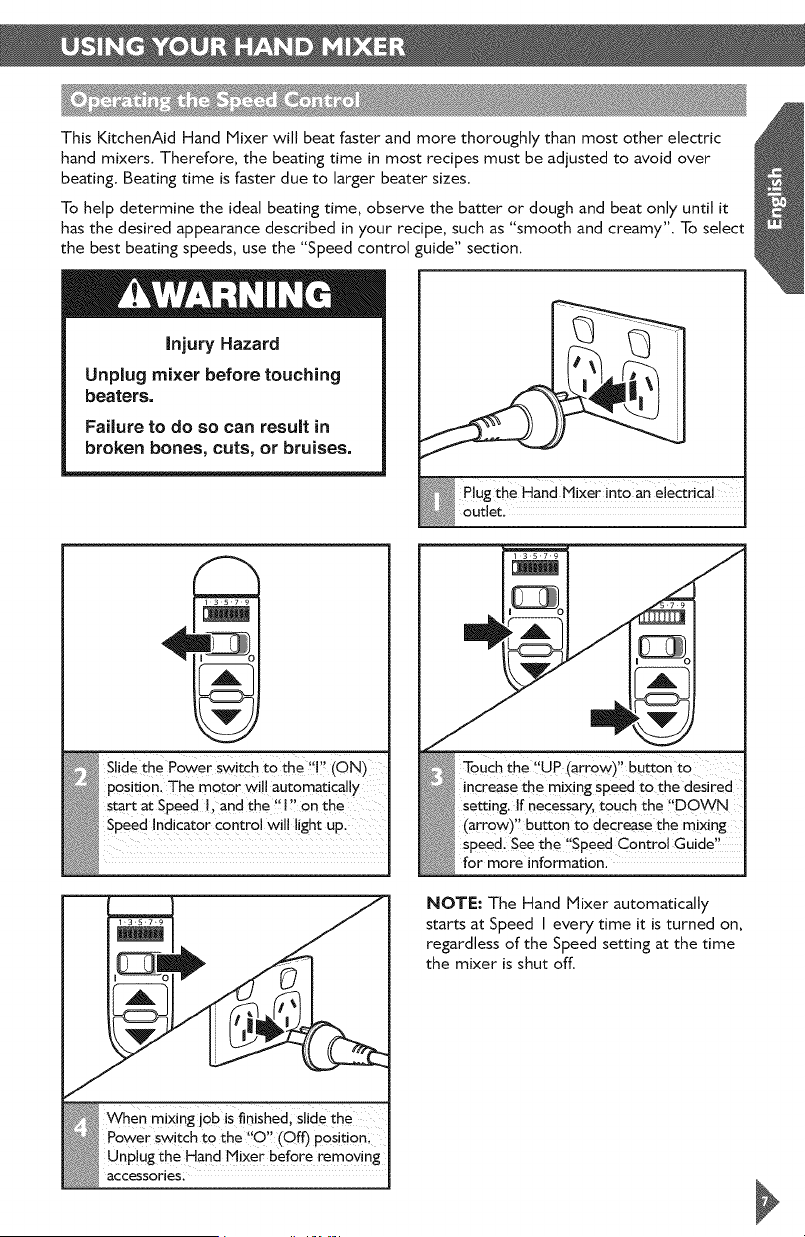

ThisKitchenAidHandMixerwillbeatfasterandmorethoroughlythanmostotherelectric
handmixers.Therefore,the beating time in most recipes must be adjusted to avoid over
beating. Beating time is faster due to larger beater sizes.
To help determine the ideal beating time, observe the batter or dough and beat only until it
has the desired appearance described in your recipe, such as "smooth and creamy". To select
the best beating speeds, use the "Speed control guide" section.
injury Hazard
Unplug mixer before touching
beaters.
Failure to do so can result in
broken bones, cuts, or bruises,
the Hand Mixer into anelectrical
S!idethe power S_itchtOthe ',F, (ON)
position. The motor wi!l automatically
start at Speed l, and the "l', on the
Speed Indicator Control wi!l !ight up,
when mixi!g job iS fmnished, Slide the
Power switch to the "0, (Off) position
Unp!ug the Han d Mixer before removing
accessories:
m
7ouchthe"UP(ari0w)',b ttOn
increase the mixing speed to the desired
Setting. If necessary,touch the I'DOW N
(arrow)" button to decrease the mixing
Speed. Seethe !'Speed Control Guidel '
for more information.
NOTE: The Hand Mixer automatically
starts at Speed I every time it is turned on,
regardless of the Speed setting at the time
the mixer is shut off.

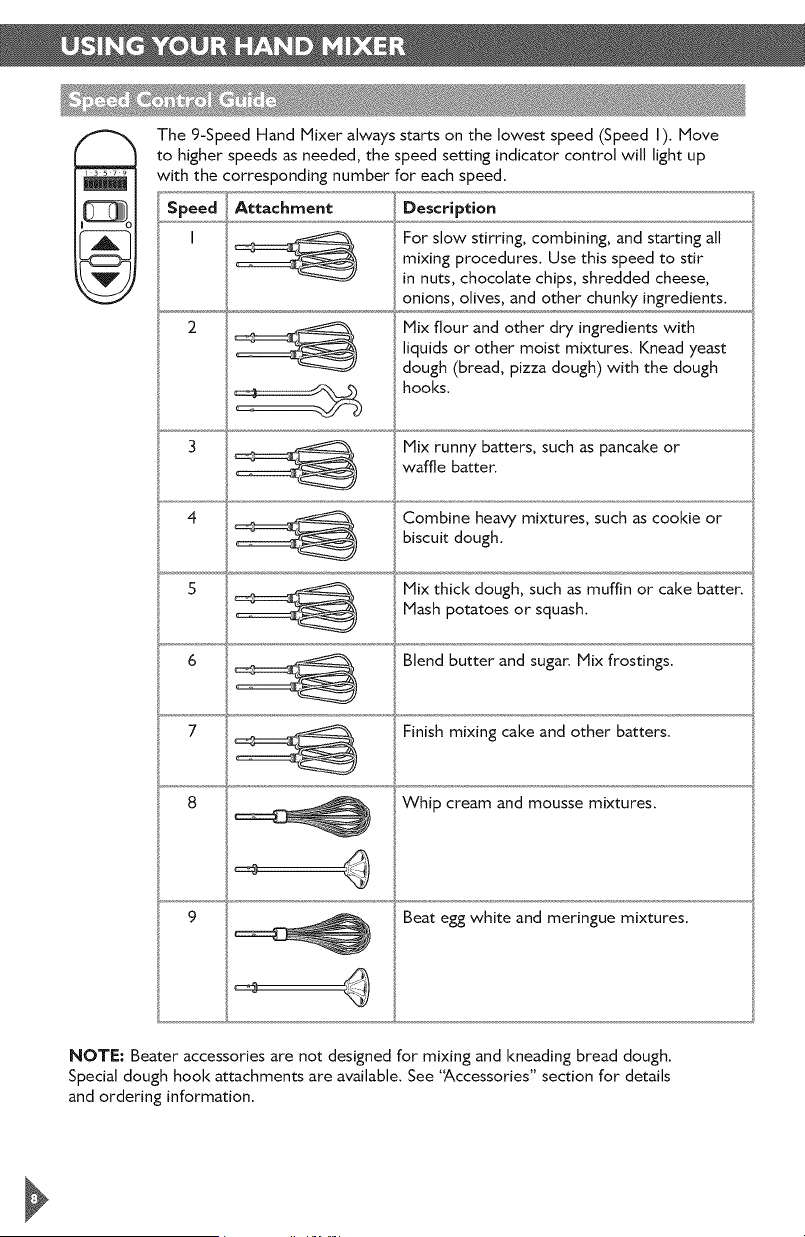

The9-SpeedHandMixeralwaysstartsonthe lowest speed (Speed I). Move
to higher speeds as needed, the speed setting indicator control will light up
with the corresponding number for each speed.
Description
For slow stirring, combining, and starting all
mixing procedures. Use this speed to stir
in nuts, chocolate chips, shredded cheese,
onions, olives, and other chunky ingredients.
Mix flour and other dry ingredients with
liquids or other moist mixtures. Knead yeast
dough (bread, pizza dough) with the dough
hooks.
Mix runny batters, such as pancake or
waffle batter.
Combine heavy mixtures, such as cookie or
biscuit dough.
Mix thick dough, such as muffin or cake batter.
Mash potatoes or squash.
Blend butter and sugar. Mix frostings.
Finish mixing cake and other batters.
Whip cream and mousse mixtures.
Beat egg white and meringue mixtures.
NOTE: Beater accessories are not designed for mixing and kneading bread dough.
Special dough hook attachments are available. See '_ccessories" section for details
and ordering information.
Electrical Shock Hazard
Do not put in water.
Doing so can result in death or
electrical shock.
injury Hazard
Unplug mixer before touching
beaters.
Failure to do so can result in
broken bones, cuts, or bruises.
NOTE: Do not immerse Hand Mixer
in water.
Sunplug Hand Mixer before
cleaning. Wipe power Cord and €ord
strap with a warm, soapy cloth; then
wipe clean with a damp cloth. Dry with
a soft cloth.
Wipe Hand Mixer with awarml Soapy
Always remove beaters from Hand Mixer before
cleaning. Wash in dishwasher, or by hand in warm,
soapy water. Rinse and wipe dry.
Wipe storage bagwith awarm, soapy cloth; then wipe clean with adamp cloth. Dry
with asoft cloth.
Firsttrythesolutions suggested here and possibly avoid the cost of service.
I. Is the Hand Mixer plugged in?
2. Is the fuse in the circuit to the Hand
Mixer in working order? If you have
a circuit breaker box, make sure the
circuit is closed.
3. Try unplugging the Hand Mixer, then
plug it back in.
If the problem cannot be fixed with the
steps provided in this section, then contact
KJtchenAid or an Authorized Service Center.
© 2013. All rights reserved.
