User Manual Dimplex DFI2309 Vent Free Electric Fireplace

Dimplex DFI2309 Vent Free Electric Fireplace - Use Manual - Use Guide PDF.
Documents: Go to donwload!
User Manual
  • Owner's manual - (English)
Other Documents
  • Troubleshooting - (English)
  • Owner's Manual - (English)
  • Brochure - (English)
  • Specification Sheet - (English)
  • Troubleshooting - (English)
  • Service Manual - (English)
  • Owner's Manual - (English)
  • Brochure - (English)
  • Specification Sheet - (English)

User manual of Dimplex DFI2309 (21 pages)
Table of contents
  • Operation: Page 3

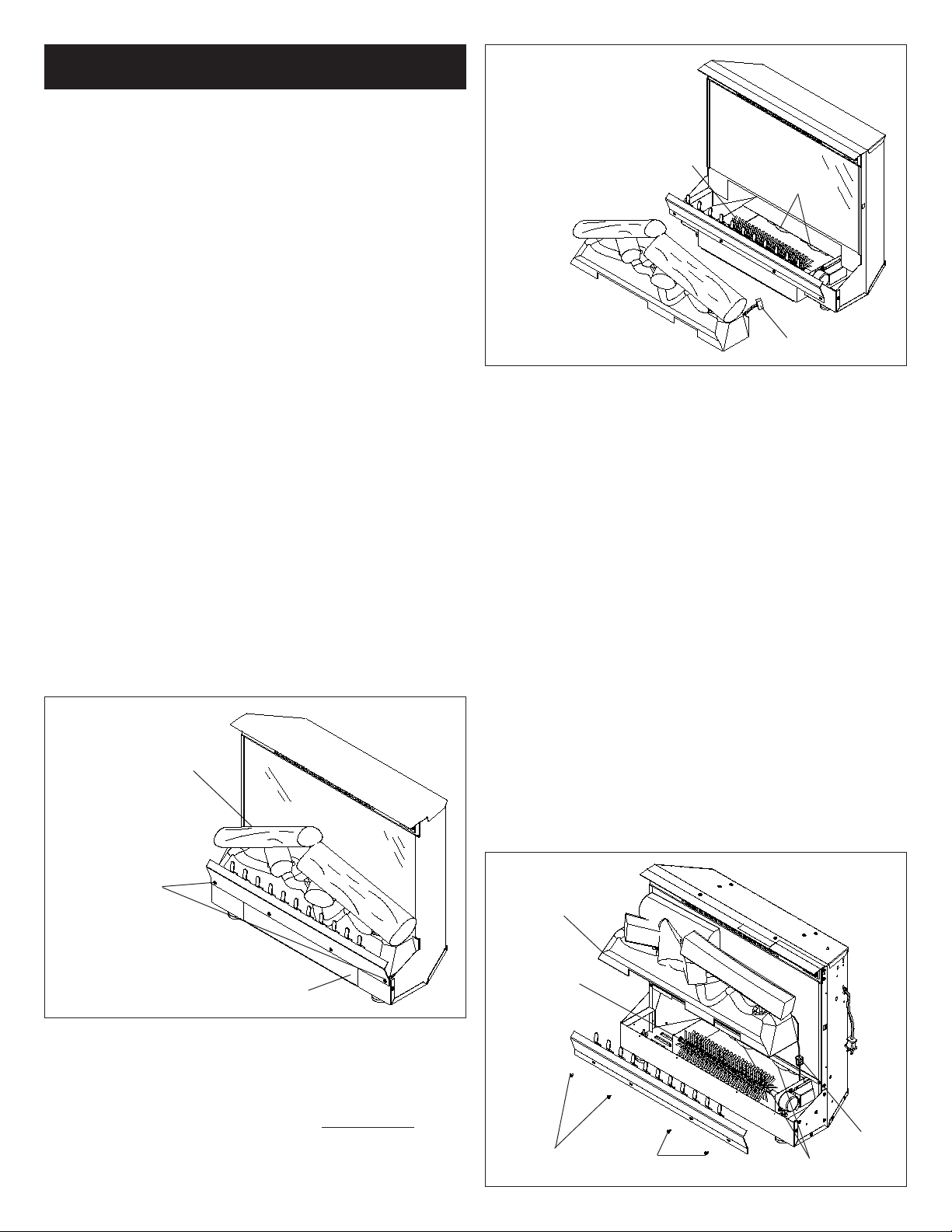

  • Exploded Parts Diagram: Page 5
  • Replacement Parts List: Page 6

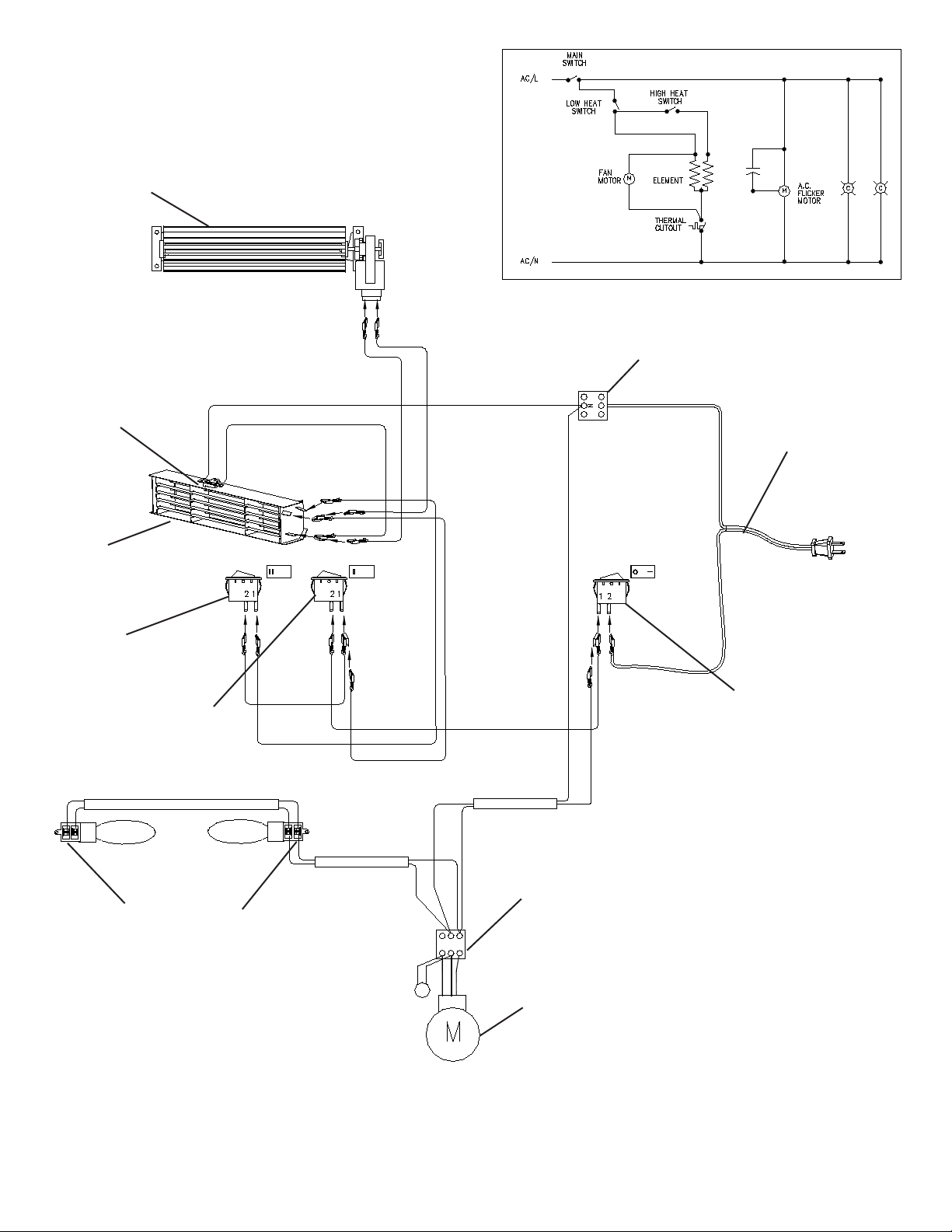

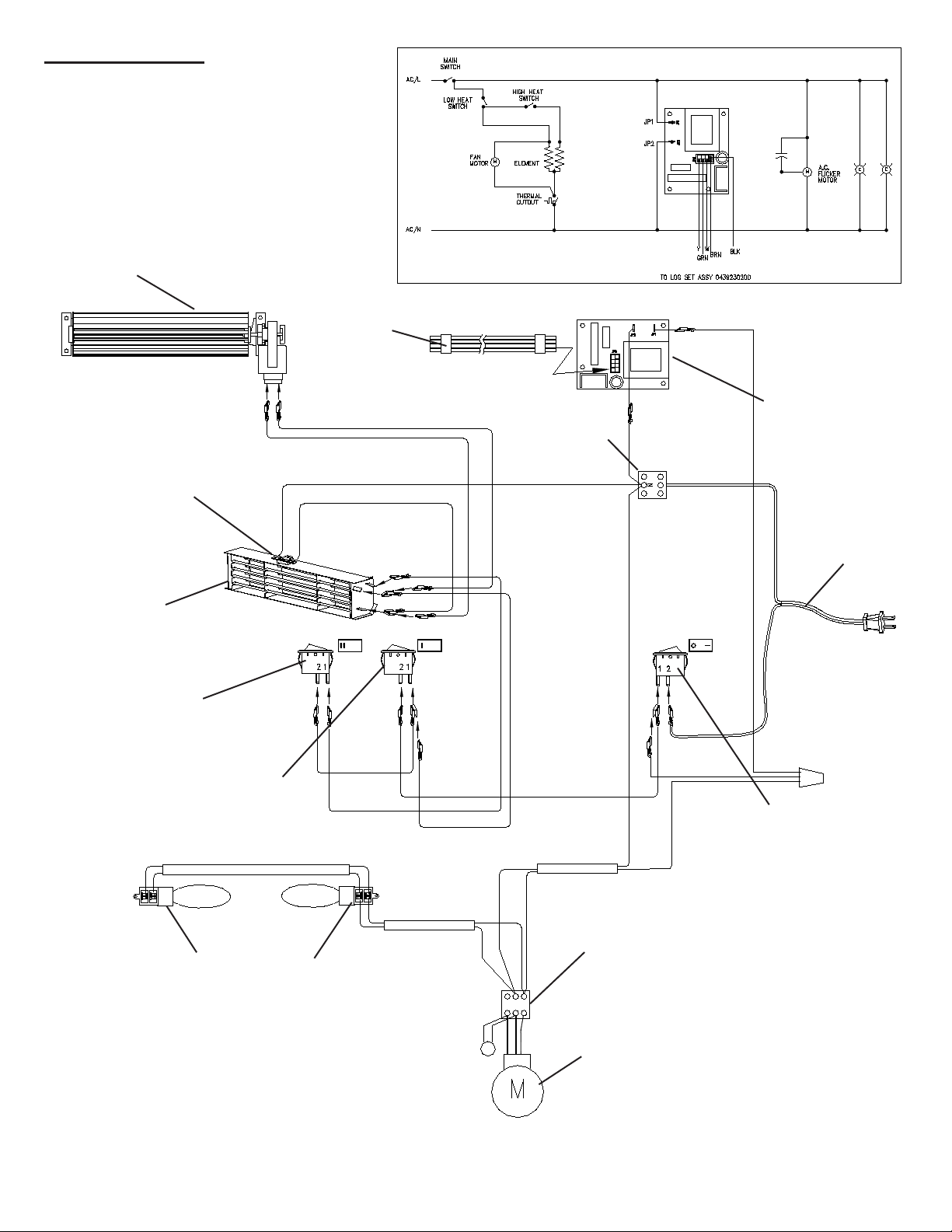

  • Wiring Diagram : Page 7
  • DFI2309 MOD ~ to B : Page 7
  • DFI2309 MOD C to D : Page 8
  • DFI2310 MOD ~ : Page 9
  • DFI2310 MOD A to D : Page 10
  • Universal Replacement Procedures: Page 11
  • Mirror Replacement: Page 11
  • Switch Replacement: Page 11

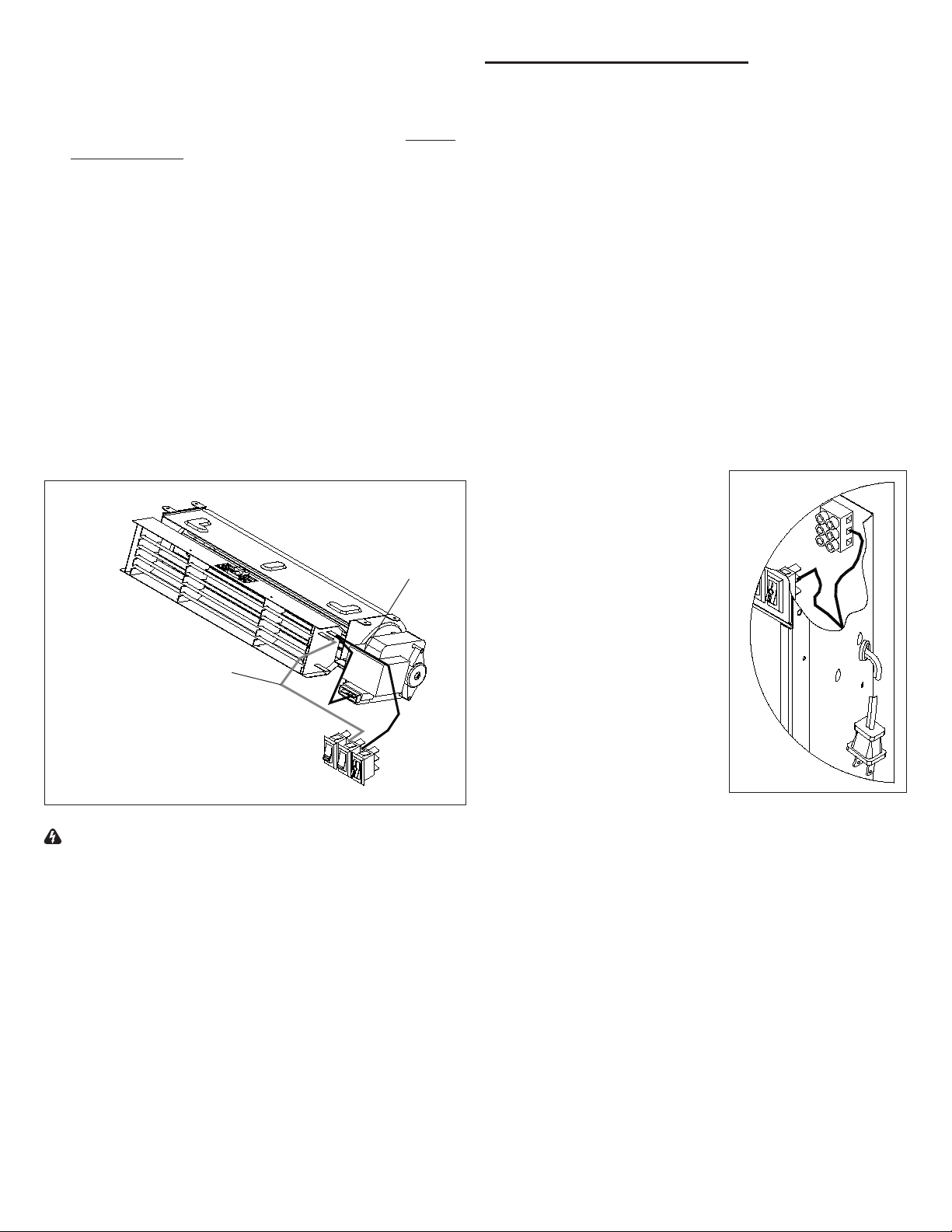

  • Heater Assembly/Cutout Replacement: Page 12
  • Heater Assembly Replacement: Page 12
  • Power Cord Replacement: Page 13
  • Model / MOD Specific Procedures: Page 14
  • Light Bulb Replacement: Page 14
  • Flicker Motor/Flicker Rod Replacement: Page 15

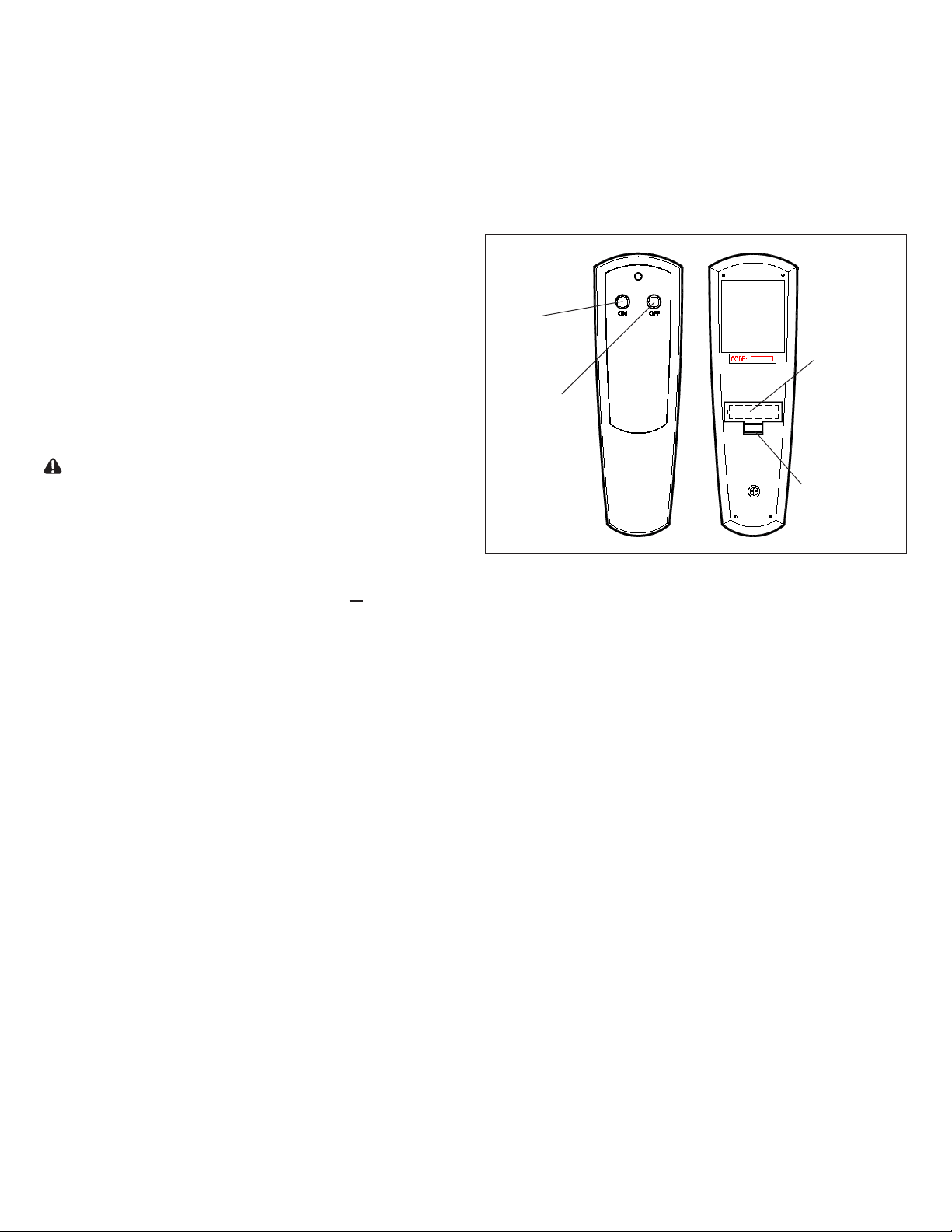

  • Remote Receiver Board Replacement: Page 16
  • Light Harness Replacement: Page 17
  • Log Driver Board Replacement: Page 18
  • Troubleshooting Guide : Page 2
