OWNER’S
MANUAL
A MAJOR CAUSE OF FIRES IS FAILURE
TO MAINTAIN REQUIRED CLEARANCES
(AIR SPACES) TO COMBUSTIBLE MATERIALS.
IT IS OF UTMOST IMPORTANCE THAT
THIS PRODUCT BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.
TFB88PUB/ZB
TFB57PUB/ZB
ITM. / ART. 833853
SAVE THESE INSTRUCTIONS
66103_PRO15_v10.indd 1 11/12/15 11:29 AM
2
• Know the symptoms of carbon monoxide poisoning:
headache, dizziness, weakness, nausea, vomiting,
sleepiness, and confusion. Carbon monoxide
reduces the blood’s ability to carry oxygen.
Low blood oxygen levels can result in loss of
consciousness and death.
• See a doctor if you or others develop cold- or u-
like symptoms while cooking or in the vicinity of this
appliance. Carbon monoxide poisoning, which can
easily be mistaken for a cold or u, is often detected
too late.
• Alcohol consumption and drug use increase the
effects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother
and child during pregnancy, infants, the elderly,
smokers, and people with blood or circulatory system
problems, such as anemia or heart disease.
• Only use your Traeger outside on a noncombustible
oor and away from combustible materials.
• Never use gasoline, gasoline-type lantern fuel,
kerosene, charcoal lighter uid, or ammable liquids
to start or “freshen up” a re in this appliance. Keep
all such liquids well away from this appliance when
in use.
Please read this entire manual before installation and use of this pellet-burning appliance. Failure to follow these
instructions could result in property damage, bodily injury, or even death. Contact local building or re ofcials
about restrictions and installation inspection requirements in your area.
Cooking with a hardwood re will bring years of enjoyment to you, your family, and those lucky friends you will
be cooking for. Your new Traeger Grill is especially designed to make cooking easier, while giving you optimal
performance with the most savory-avored food.
As with all grills and cooking appliances, anytime you burn a material (whether it be wood, gas, or charcoal),
organic gases are formed during the cooking process. One gas that can be particularly harmful in concentrated
quantities is carbon monoxide. In an outdoor, open-air environment, carbon monoxide should naturally dissipate
and not harm you.
WARNING! Follow these guidelines to prevent this colorless, odorless gas from poisoning you, your family,
or others:
IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
If you are assembling this unit for someone else, provide this manual for the owner to read and save for
future reference.
IMPORTANT SAFETY
DANGER!
• Plug into an appropriate 3-prong outlet.
• An electrical supply with GFCI protection is required.
To protect against shock hazard, locate a grounded
3-prong receptacle in reach of the 6' (1.8-m) power
cord. When installing the receptacle, follow the
National Electrical Code and local code
and ordinances.
DANGER!
• Hazardous voltage is present which can shock,
burn, or cause death. Disconnect the power cord
before servicing the grill unless otherwise noted in the
Owner’s Manual.
• Never use or store ammable liquids near
the grill.
• Never use gasoline or lighter uid to manually
light your grill. Use ONLY alcohol gel for this
procedure AND according to the instructions
in the Owner’s Manual.
READ ALL INSTRUCTIONS BEFORE INSTALLING AND
USING THE APPLIANCE
66103_PRO15_v10.indd 2 11/12/15 11:29 AM
traegergrills.com
|
3
WARNING!
Many parts of the grill will become very hot during
operation. Care must be taken to avoid burns, both
during operation and afterwards, while the grill is
still hot.
• Never leave the grill unattended when young children
are present.
• Never move the grill when it is operating.
• Let the grill cool thoroughly before moving or
attempting to transport.
WARNING!

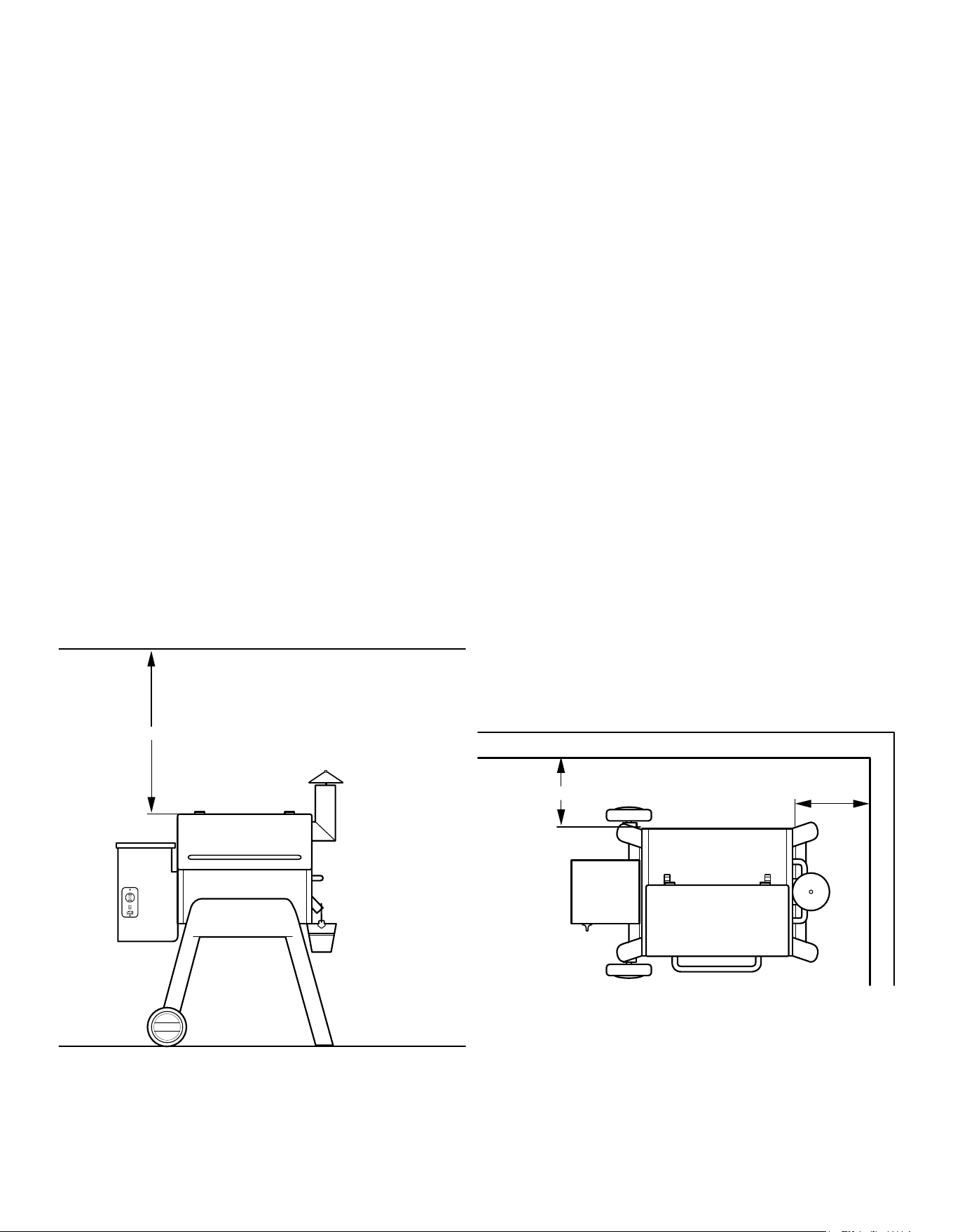

• When operating this grill, maintain a
MINIMUM distance of 12 inches from
the grill to combustibles.
• When operating this grill under overhead
combustibles, a MINIMUM of 40 inches
is required.
WARNING!
• Assemble and operate this grill ONLY per the
instructions in the Assembly Guide and the
Owner’s Manual.
• This grill is intended for OUTDOOR USE ONLY.
• Never use heating fuel pellets in the grill, due to
potential hazardous contaminants and additives that
may be present.
• For best results and avor, use genuine Traeger wood
pellets.
CAUTION!
• Always store wood pellets in a dry location, away
from heat-producing appliances and other
fuel containers.
• Keep the grill clean – See the cleaning instructions
in this Owner’s Manual.
• Do not use accessories not specied for use with
this grill.
SAVE THESE INSTRUCTIONS
40.00"
12.00"
12.00"
66103_PRO15_v10.indd 3 11/12/15 11:29 AM
4
WE’VE GOT YOU
COVERED
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
C
H
I
C
K
E
N
R
U
B
∙
T
R
A
E
G
E
R
‘
C
U
E
S
A
U
C
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
100% PURE
HARDWOOD
20 LBS NET WT
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
B
E
E
F
R
U
B
∙
C
A
R
N
E
A
S
A
D
A
M
A
R
I
N
A
D
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
PELLETS
RUBS
SAUCES
traegergrills.com/shop
66103_PRO15_v10.indd 4 11/12/15 11:29 AM
traegergrills.com
|
5
Register your grill
online
for a FREE
Traeger ebook
Go online at
traegergrills.com/register
2 2 Important Safety
8 Get to Know Your Grill
6 Grill Components
10 Initial Firing Instructions
13 Subsequent Start-Up
14 Operating Tips
16 Using the Meat Probes
17 Hopper Clean-out
18 Maintaining Your Grill
20 Reigniting Your Grill
22 Frequently Asked Questions
25 Service and Support
30 Wiring Diagram
31 Warranty
TABLE OF
CONTENTS
66103_PRO15_v10.indd 5 11/12/15 11:29 AM
6
PELLETS
Traeger makes eight different pellet types so you can serve up a feast of different avors. Clean-burning
and environmentally safe, our natural wood pellets are made from U.S. grown timber, ignite fast with low
ash residue, and are crafted in one of our three Traeger-owned mills. By making our own pellets, we can
guarantee that from mill to grill, there’s nothing but 100% pure virgin hardwood avoring your food.
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
100% PURE HARDWOOD PELLETS
S
A
L
M
O
N
S
H
A
K
E
∙
M
A
N
D
A
R
I
N
G
L
A
Z
E
∙
100% PURE HARDWOOD PELLETS
100% PURE
HARDWOOD
20 LBS NET WT
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
100% PURE HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
B
E
E
F
S
H
A
K
E
∙
H
O
N
E
Y
B
O
U
R
B
O
N
S
A
U
C
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
ALDER
PEL307
Versatile because of
its mild avor and
aroma, alder gives off
ample smoke without
overwhelming even the
most delicate avors.
HICKORY
PEL319
The most widely used
pellets in barbecue,
hickory pellets release
a strong avor and
complement most
meats.
OAK
PEL310
Stronger than cherry
or apple and lighter
than hickory, oak is
great to use with sh,
beef, or both.
PELLET GUIDE
HARD W OOD
ALDER
APPLE
CHERRY
HICKORY
MAPLE
MESQUITE
OAK
PECAN
GOOD FOR ANYTHING. GREAT FOR:
OUR HARDWOOD PELLETS COME IN
8 GREAT VARIETIES!
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
C
H
I
C
K
E
N
R
U
B
∙
T
R
A
E
G
E
R
‘
C
U
E
S
A
U
C
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
100% PURE
HARDWOOD
20 LBS NET WT

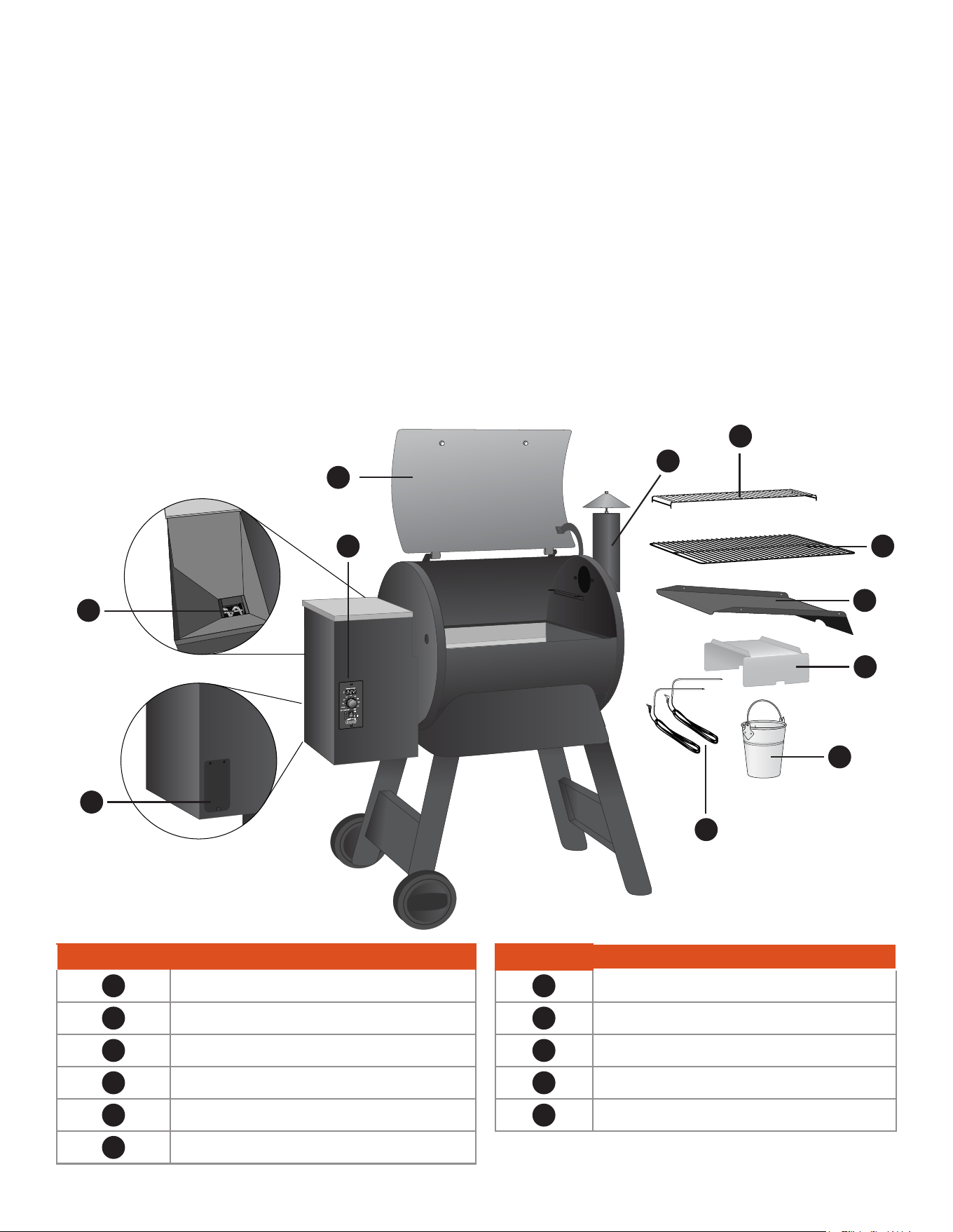

GRILL COMPONENTS
66103_PRO15_v10.indd 6 11/12/15 11:30 AM
traegergrills.com
|
7
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
P
O
R
K
&
P
O
U
L
T
R
Y
S
H
A
K
E
∙
A
P
R
I
C
O
T
S
A
U
C
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
S
W
E
E
T
R
U
B
∙
H
O
N
E
Y
B
O
U
R
B
O
N
S
A
U
C
E
∙
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
100% PURE
HARDWOOD
20 LBS NET WT
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
100% PURE HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
100% PURE
HARDWOOD
20 LBS NET WT
K
C
B
A
R
B
E
C
U
E
R
U
B
∙
T
R
A
E
G
E
R
‘
C
U
E
S
A
U
C
E
∙
APPLE
PEL318
Most often used with
poultry and pork,
apple pellets offer a
lightly sweet smoke
that helps enhance
mild avored meats.
CHERRY
PEL309
A very avorful pellet,
cherry wood lends
itself to application
where you want to add
a hearty smoke avor.
MAPLE
PEL308
Mild, with a hint of
sweetness, maple
pellets are great on
pork and especially
veggies.
MESQUITE
PEL305
A favorite of Texas
BBQ, mesquite pellets
infuse your meat with
a robust smoke avor.
PECAN
PEL314
Deliciously nutty and
even a little spicy,
pecan pellets are great
with veggies, beef,
pork, poultry, or even
baked goods.
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
B
E
E
F
R
U
B
∙
C
A
R
N
E
A
S
A
D
A
M
A
R
I
N
A
D
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
GOOD FOR ANYTHING. GREAT FOR "
SMOKE IT. GRILL IT. FLAVOR IT.
emium
100% FOOD-GRADE
HARDWOOD PELLETS
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
100% PURE HARDWOOD PELLETS
« MADE IN THE U.S.A. FOR SUPERIOR QUALITY«
P
R
I
M
E
R
I
B
R
U
B
∙
T
E
X
A
S
S
P
I
C
Y
S
A
U
C
E
∙
100% PURE
HARDWOOD
20 LBS NET WT
66103_PRO15_v10.indd 7 11/12/15 11:30 AM
8
1. Remove all items from inside the grill barrel and
pellet hopper.
2. Attach legs to grill frame assembly and braces
to legs.
3. Attach the chrome door handle and side handle.
4. Assemble smokestack: attach the ue pipe to the
grill frame assembly and mount the chimney cap
assembly.
5. Position the heat bafe over the hopper assembly.
6. Position the grease drain pan over the heat bafe.
7. Position the porcelain-coated grill grate and extra
grill rack.
8. Hang the grease bucket.
TOOLS SUPPLIED FOR ASSEMBLY
(2) Open-end wrenches
(1) Hex key (Allen wrench)
(1) Screwdriver
COMPLETE THESE STEPS TO GET TRAEGER'ING (REFER TO THE ASSEMBLY GUIDE)

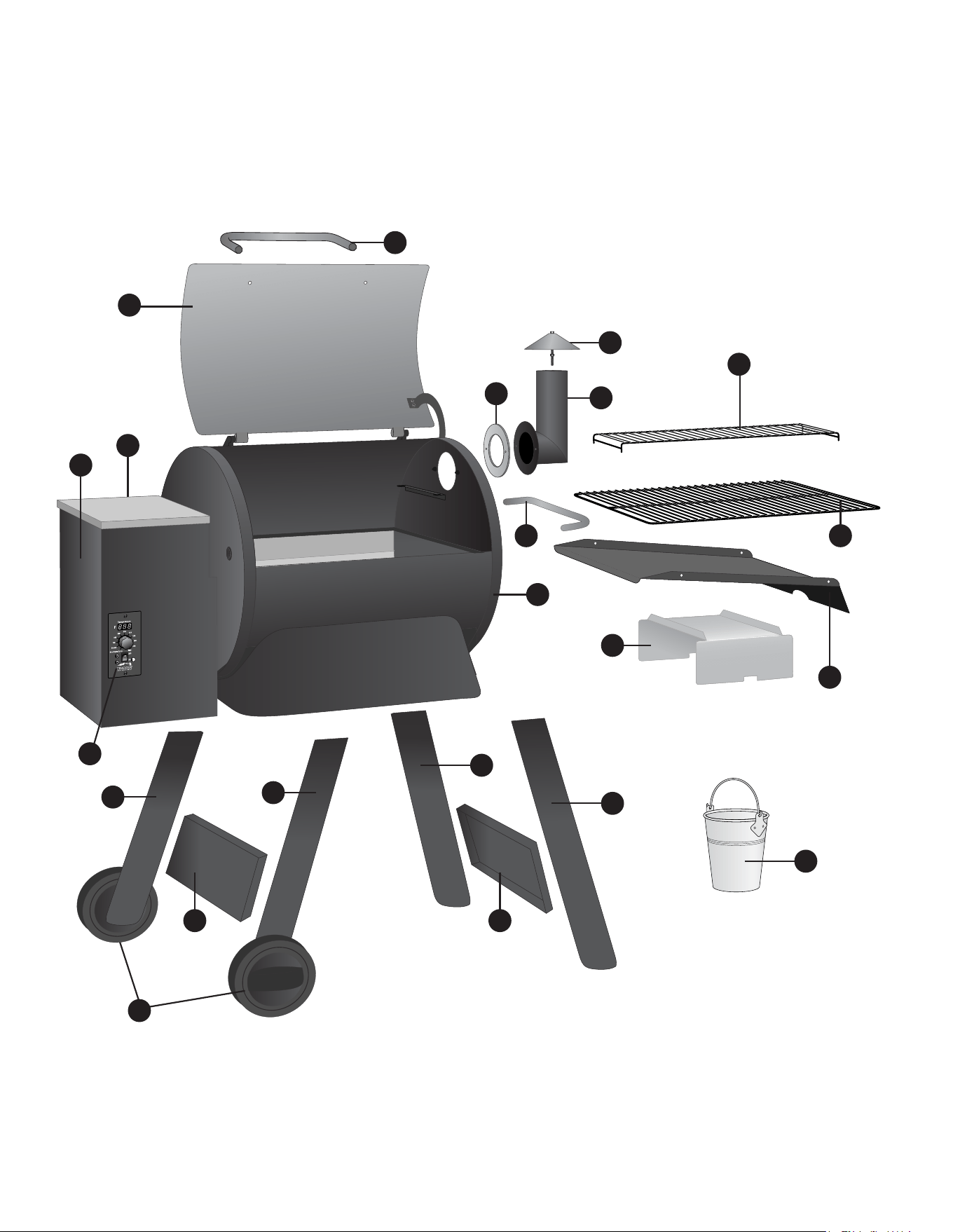

GRILL COMPONENTS
GET TO KNOW YOUR GRILL
Part Description Part Description
1 Smokestack 7 Grill Door
2 Extra Grill Rack 8 Digital Pro Controller
3 Porcelain-Coated Grill Grate 9 Auger (Pellet Hopper Interior)
4 Grease Drain Pan 10 Pellet Hopper Clean-out Door
5 Heat Bafe 11 Dual Meat Probes
6 Grease Bucket

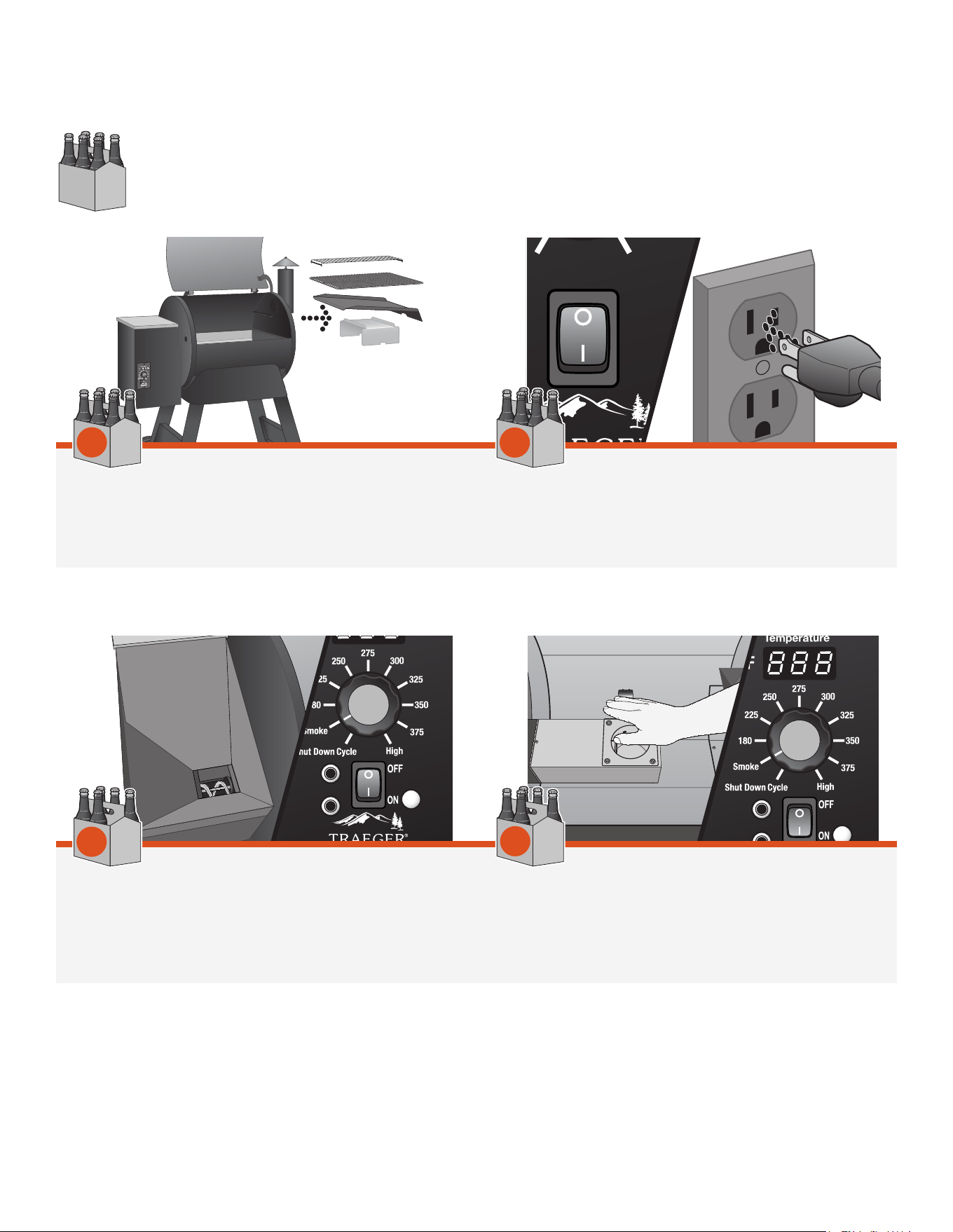

Probe
Selector
Probe 1
Probe 2
1
2
3
4
5
6
11
7
8
9
10
66103_PRO15_v10.indd 8 11/12/15 11:30 AM
traegergrills.com
|
9
An 18-pound-capacity pellet hopper will
keep you cooking for hours. Pair that with
Traeger’s Digital Pro Controller and delicious
food is just a “click” away.
Traeger’s signature barrel shape creates a
vortex of convection. It circulates hot, smoky
air around the cooking chamber, surrounding
your food with heat and cooking it evenly on
all sides.
PELLET HOPPER BARREL SHAPE
With either 884 sq. in. (Pro Series 34) or 572
sq. in. (Pro Series 22) of grilling space and
up to 76,000 BTUs of wood-red heat, your
Traeger grill has the real estate and cooking
power for party-sized orders of T-bones or
racks of ribs.
You don’t ever have to worry about drippings
aring up
*
and causing those nasty reballs
that destroy your meal, because Traeger grills
are designed to cook by using indirect heat.
All drippings are safely channeled outside
of the cooking chamber into a bucket for
easy disposal.
GRILLING SPACE NO FIREFIGHTING
*
with proper, recommended maintenance
66103_PRO15_v10.indd 9 11/12/15 11:30 AM
10
INITIAL FIRING INSTRUCTIONS
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
375
Shut Down
le
High
wer
OFF
ON
Probe
Selector
Probe 1
Probe 2

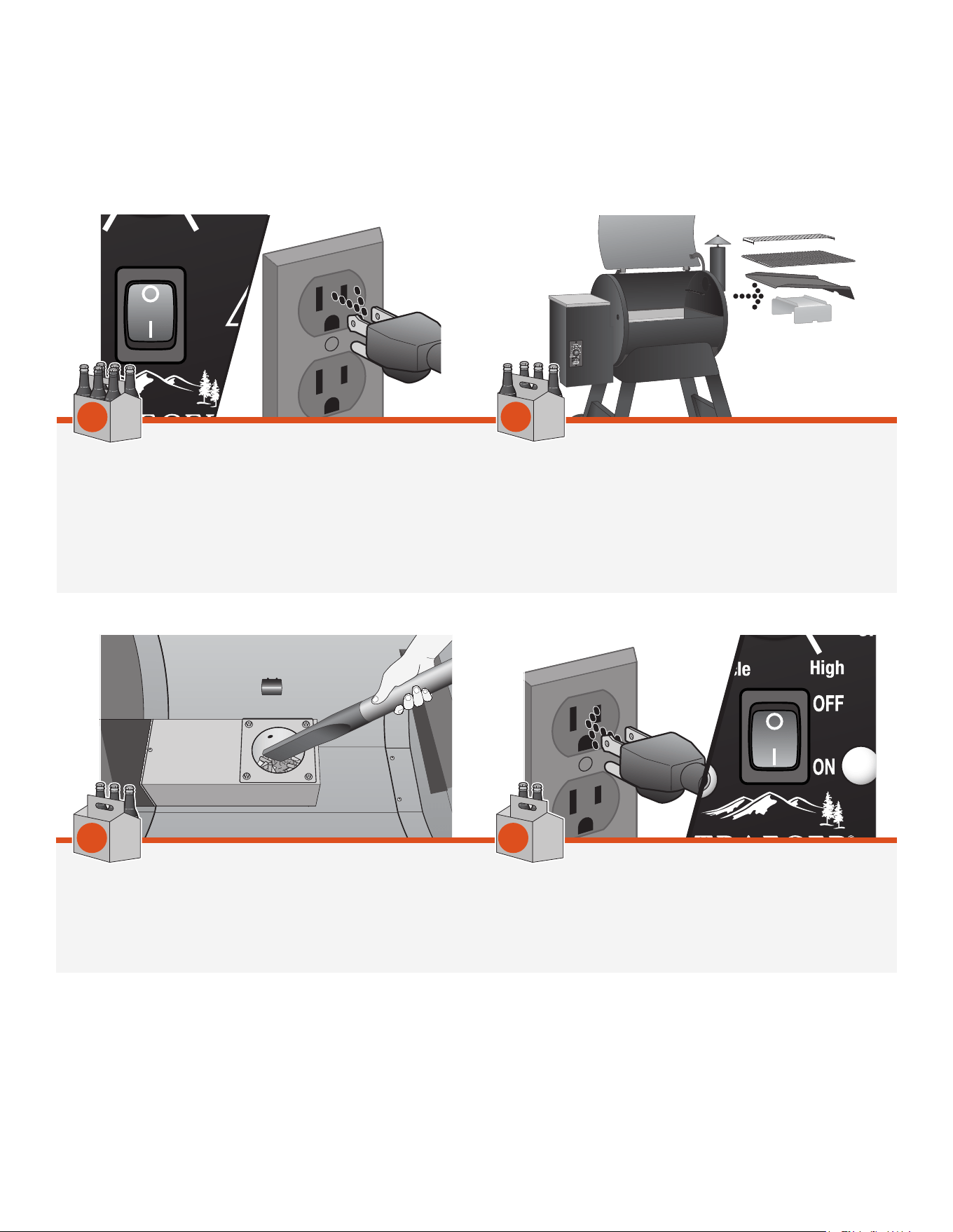

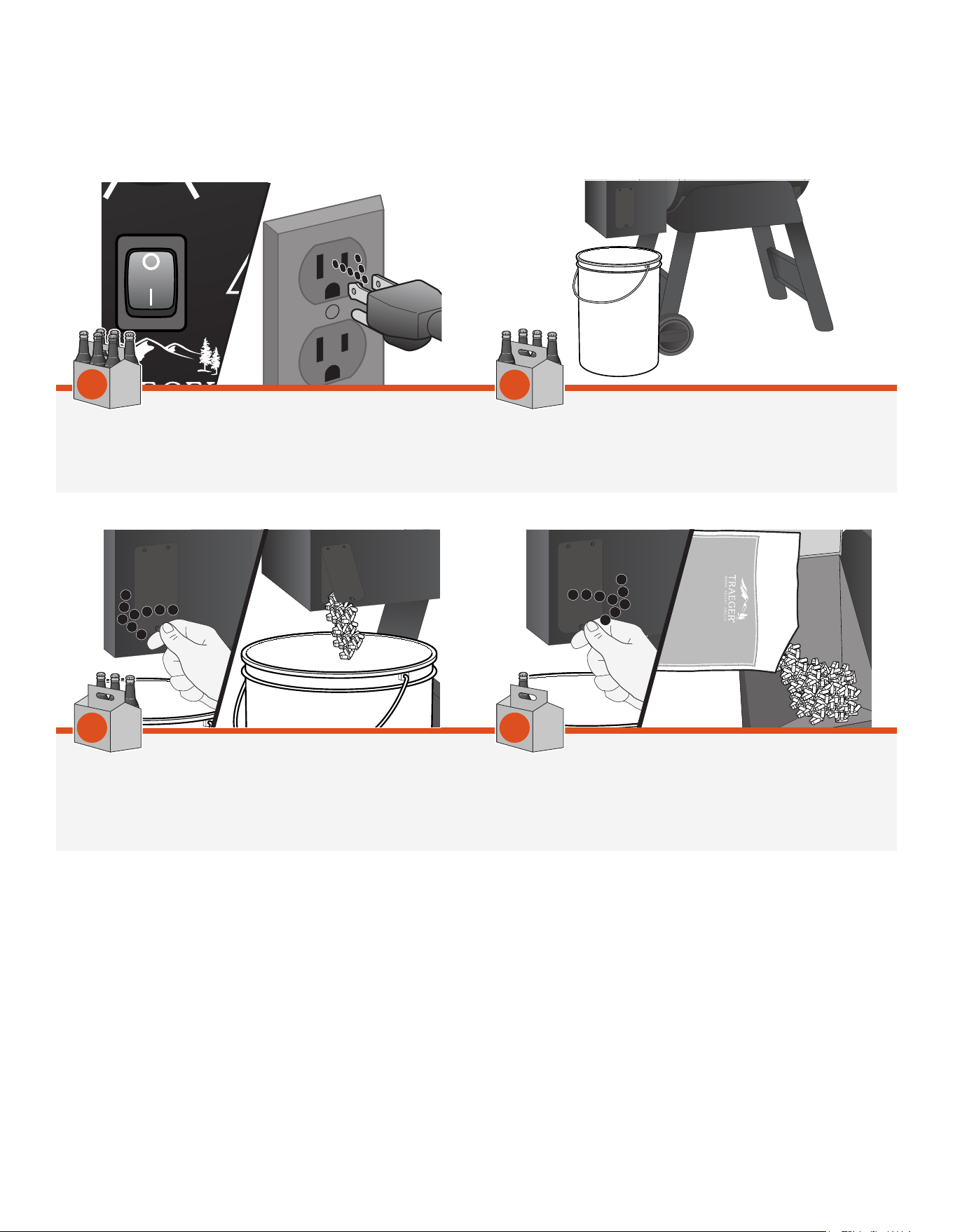

Remove the porcelain-coated grill
grates, grease drain pan, and heat
bafe from the inside of the grill.
With the switch in the OFF (O)
position, plug the power cord into an
appropriate grounded electrical outlet.
Make sure there are no foreign objects
in the auger. Turn the switch ON (I)
and the temperature dial to SMOKE.
Make sure the auger is turning (inside
the pellet hopper).
Check that there is air movement from
the draft inducer fan by placing your
ngers over the repot. If the hot rod
is getting hot, it will turn red.
CAUTION! Do not touch the hot rod.
Turn the temperature dial to
SHUT DOWN CYCLE.
To be used on initial ring or anytime the grill runs out
of pellets.
In order to ensure proper operation of the grill, you
must rst allow the auger tube to be “charged” with pellets.
Countdown
to Traeger’ing.
1
2
3
4
66103_PRO15_v10.indd 10 11/12/15 11:30 AM
traegergrills.com
|
11
Probe 1
Probe 1
Probe
Selector
Probe 1
Probe 2
Fill the hopper with Traeger Hardwood
Pellets and turn the temperature dial
to HIGH.
When the pellets begin to fall into the
repot, turn the temperature dial to
SHUT DOWN CYCLE to reset the hot
rod. Then with pellets still in the repot,
turn the temperature dial back to
SMOKE.
5
6
Probe
Selector
Probe 1
Probe 2
Probe 1

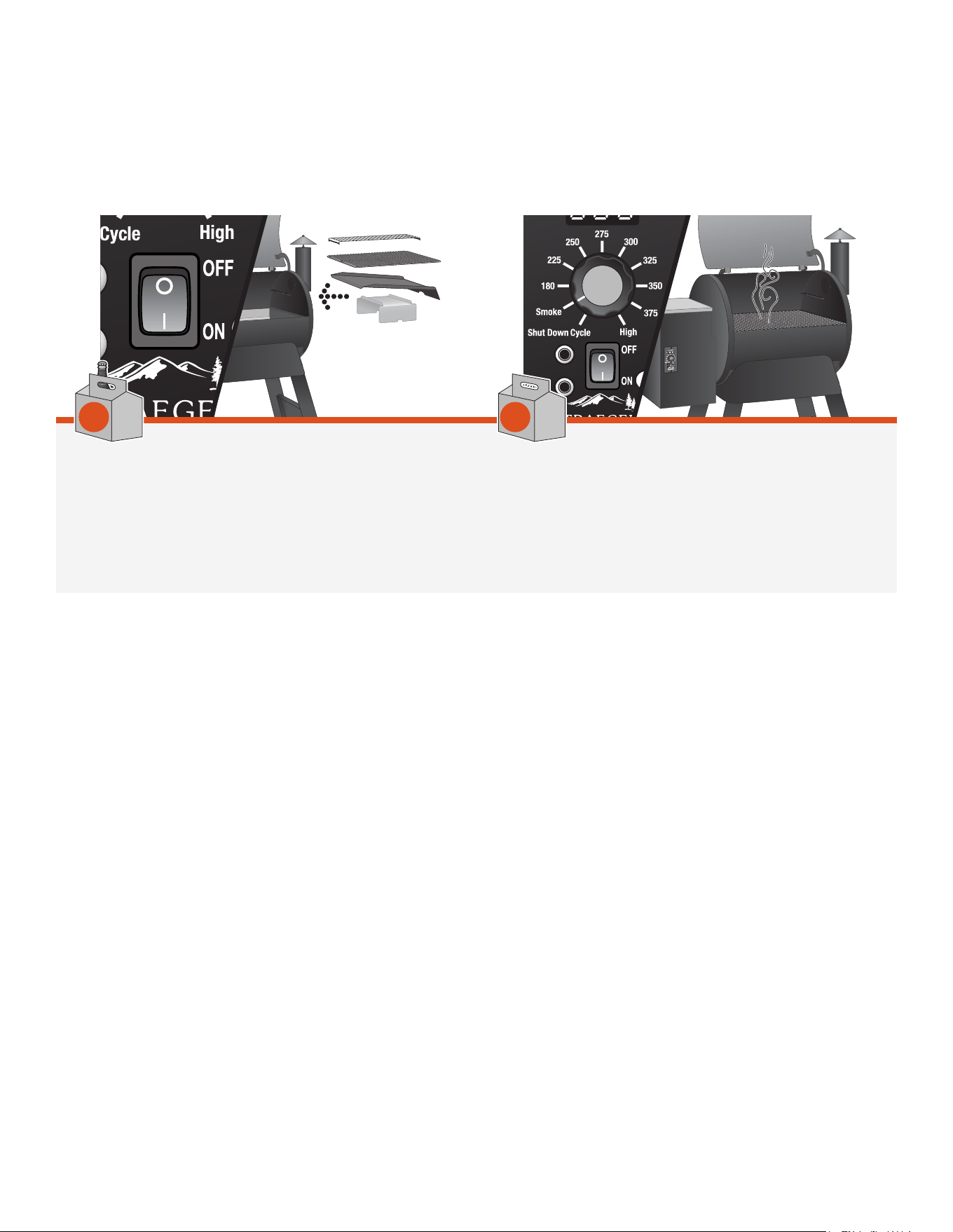

Recommendation: For easy cleanup,
line the grease drain pan with heavy-duty
aluminum foil. Be sure the edges and ends
of the foil are tight against the bottom of
the grease drain pan. Replace foil after
each cook to reduce the possibility of a
grease re. Please see page 18 for
more details.
Now you’re ready to place the
heat bafe, grease drain pan,
and porcelain-coated grill grates
back into the grill.
When ames start coming out of the
repot, turn the temperature dial to
SHUT DOWN CYCLE and switch to
OFF. Let the grill cool down.
7 8
66103_PRO15_v10.indd 11 11/12/15 11:30 AM
12
WARNING!

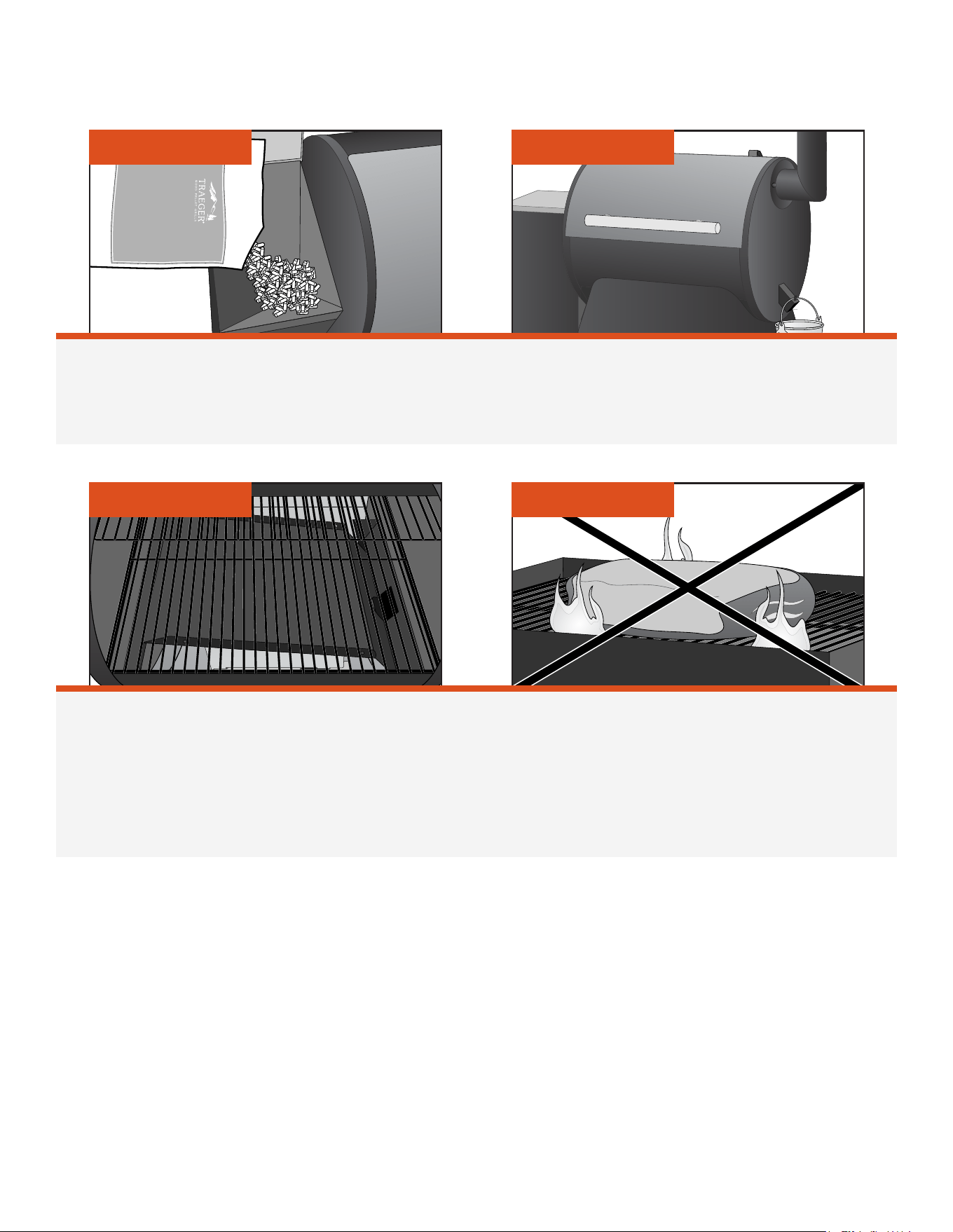

• Start the grill on smoke setting with the door open. Once the pellets are ignited, close the door and set
the temperature dial to any desired cooking temperature.
• When operating this grill, maintain a minimum clearance of 12 inches from grill to combustibles.
• For best results and avor, always use genuine Traeger Wood Pellets. Never use heating fuel pellets
in the grill.
• Clean the grease drain pan frequently to reduce the possibility of a grease re. Please see page 18 for
more details.
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2

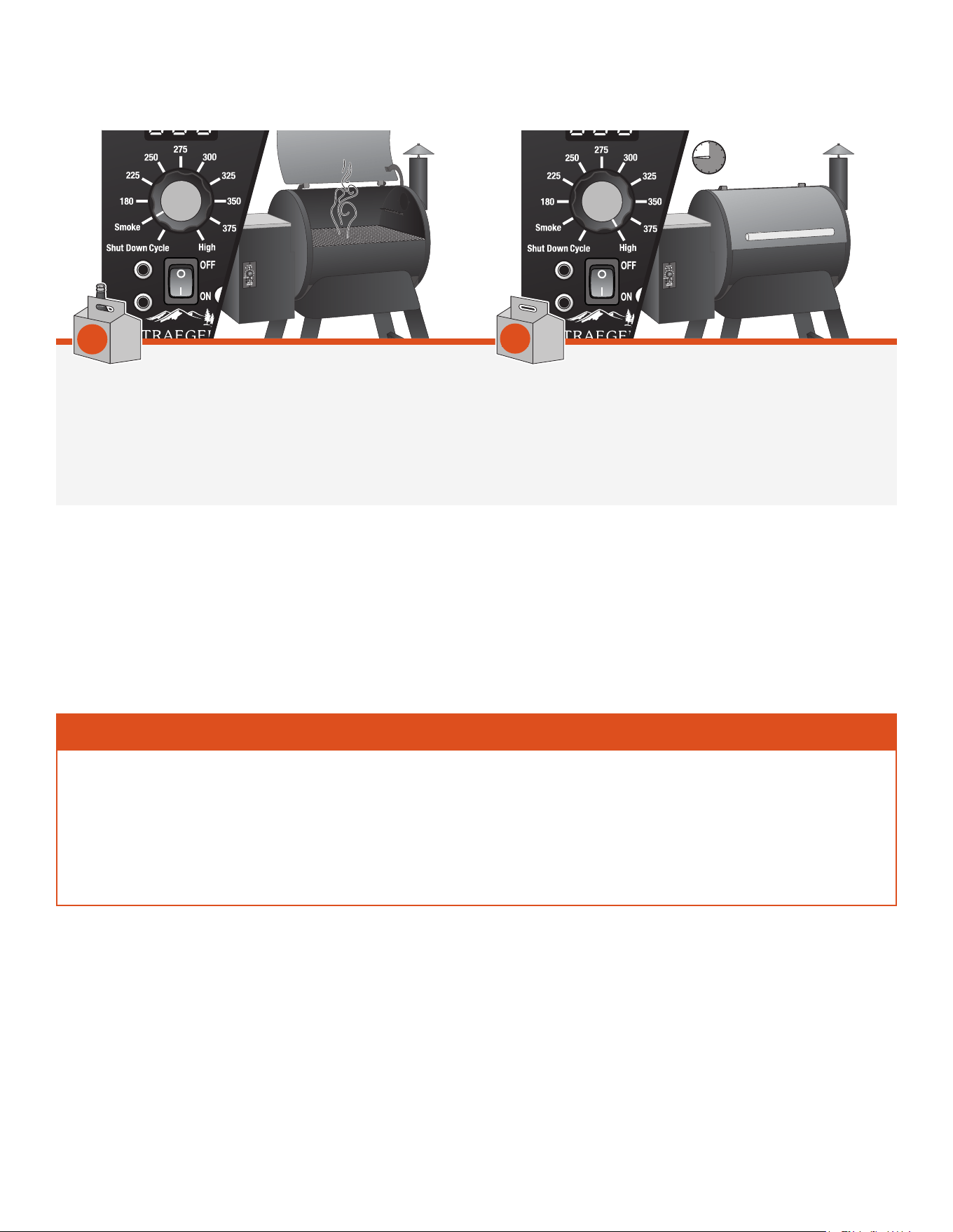

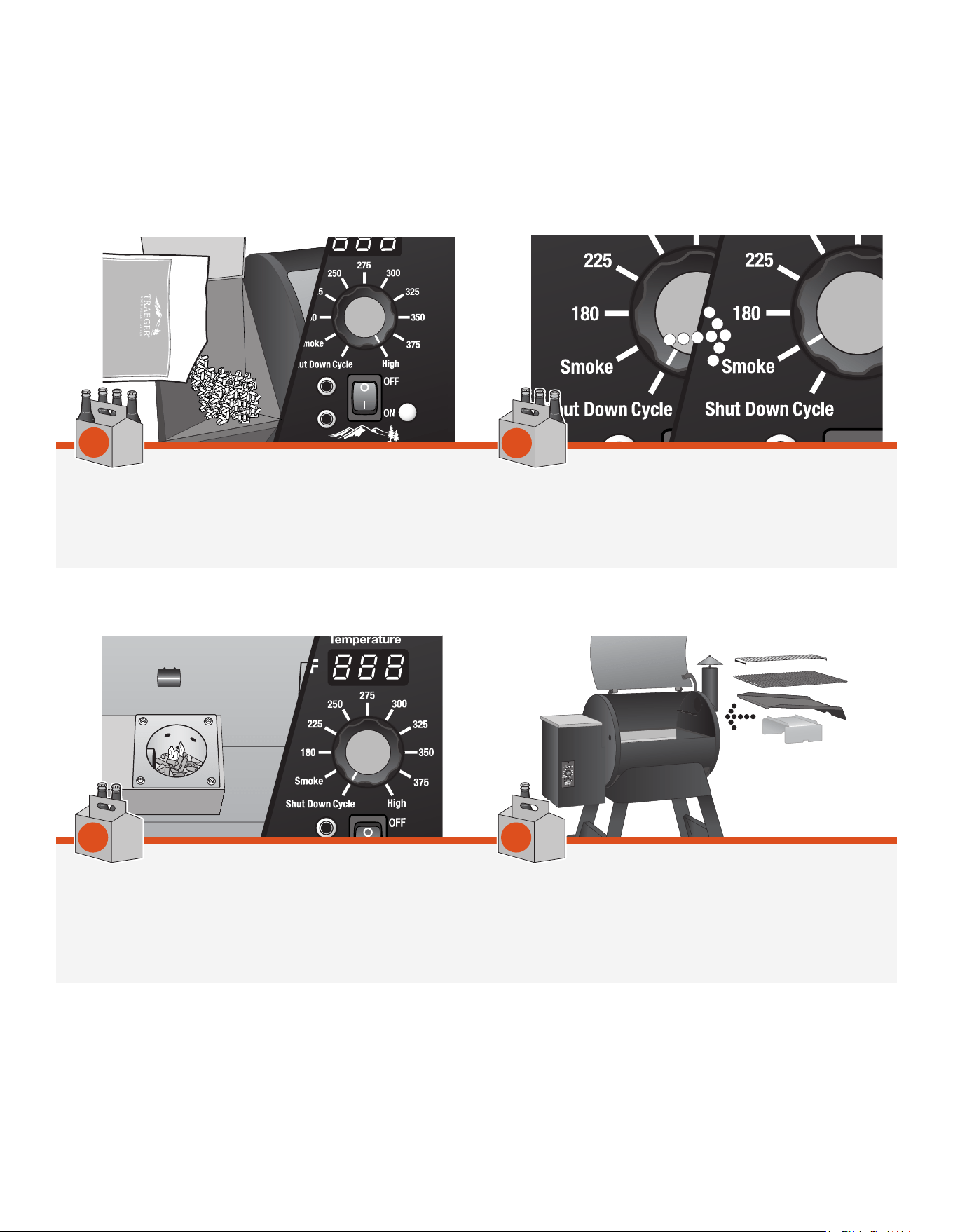

With the door open, turn the switch ON
(I) and the temperature dial to SMOKE.
In about 2 minutes, the pellets will ignite
and whitish-gray smoke will come out of
the grill. After the pellets have ignited,
close the door and turn the temperature
dial to any cooking setting desired.
Before using your grill for the rst
time, it will need to be seasoned.
Turn the temperature dial to HIGH
and let run for 45 minutes with the
door closed. This is a great time to
grab another six-pack, if you haven’t
already.
9
10
INITIAL FIRING INSTRUCTIONS (cont.)
CONTROL SHUT-DOWN CYCLE
The control for this barbecue comes with an
automatic shut-down cycle. When nished
cooking on your barbecue, set the temperature
dial to the SHUT DOWN CYCLE position. This
will leave the draft induction fan running for
10 minutes to burn any excess pellets in the
repot. After 10 minutes, the control will power
off and the fan will stop running.
DANGER! The main power switch will shut
off power to the control, and the temperature
dial switch will shut off power to the grill
components only. When servicing the control or
any other parts, ensure that the power supply is
disconnected to avoid an electrical shock hazard.
66103_PRO15_v10.indd 12 11/12/15 11:30 AM
traegergrills.com
|
13
SUBSEQUENT START-UP
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
With the door open, turn the switch
ON (I) and the temperature dial to
SMOKE. In about 2 minutes, the
pellets will ignite and whitish-gray
smoke will come out of the grill. After
the pellets have ignited, close the door
and turn the temperature dial to any
cooking setting desired.
Allow the grill to preheat for about
10 minutes with the door closed
before placing food in the grill.
1
2
NOTE: If the grill hasn't achieved the set temperature after a full 10 minute preheat, turn the dial to
SHUT DOWN CYCLE, then back to the originally selected temperature.
If this fails to achieve the selected temperature, please see Operating Tips for more information.
66103_PRO15_v10.indd 13 11/12/15 11:30 AM
14
OPERATING TIPS
1.
You can change the temperature dial at any time
during grilling to increase or decrease cooking
temperature. The HIGH temperature setting is for
grilling. The SMOKE setting is for smoking and
adding smoke avor to foods being cooked. The
SMOKE setting can also be used to “hold” foods
at about 165ºF.
2. When you change the temperature using the
temperature dial, the new temperature will
blink 5 times, then revert back to the actual grill
temperature, making it easy to know the exact
grill setting.
3. WARNING! Your Traeger Grill should never be
moved while it is hot. If you are transporting your
grill in a vehicle after cooking on it, make sure the
re is completely out and the grill is cold before
placing it in any vehicle. Never put water into the
repot; it will jam the auger.
4. Your Traeger Grill is designed to operate with the
door closed. Cooking with the door open greatly
lengthens your cooking time.
5. CAUTION! Never add pellets by hand to a hot
repot. This is dangerous and you may be
seriously burned. If you run out of pellets and lose
your re while cooking, let the grill cool completely
and start again with the “INITIAL FIRING
INSTRUCTIONS” on page 10.
6. CAUTION! Make sure the heat bafe is properly
seated on its locating brackets. The sides of the
heat bafe should be pointing down over the
repot. If not seated properly, direct heat and
ame could come up out of the repot and cause a
grease re in the grill.
7. Always take into account the outside temperature
when estimating cooking times. If it is hot outside,
it will take less time for your grill to reach the set
temperature. If it is cold, wet, or windy, it will take
longer.
8. Digital Thermostat Control Functions:
After selecting your cooking temperature, the
auger will operate continuously until the selected
temperature is reached. From that point forward,
the digital control will cycle the auger off and on
to maintain the selected temperature until the
temperature dial is changed.
WARNING! If the re in the repot goes out while
cooking and there are sufcient pellets still in the
pellet hopper, it is important to follow these
steps. Failure to do so may cause a hazardous
“over-ring” of your grill due to an excess of
unburned pellets in the repot.
a. DANGER! Turn the switch OFF (O) and
disconnect the power cord. Allow the grill to
cool thoroughly. Open the door and remove
all food, the porcelain-coated grill grates, the
grease drain pan, and the heat bafe.
b. WARNING! Remove all unburned pellets and
ash from inside and around the repot. (See
instructions for proper handling and disposal
of ash on page 19.)
c. Before replacing the heat bafe, grease drain
pan, and the porcelain-coated grill grates, plug
the power cord into an appropriate grounded
electrical outlet and turn the switch ON (I).
Pellets should fall into the repot and the hot
rod should begin to heat (it will start to turn
red). CAUTION! Do not touch the hot rod.
d. When ames start to come out of the repot,
turn the switch OFF (O). Let the grill cool
down. Now you’re ready to place the heat
bafe, grease drain pan, and porcelain-coated
grill grates back into the grill. With the door
open, turn the switch ON (I) and turn the
temperature dial to SMOKE. In about
2 minutes, the pellets will ignite and
whitish-gray smoke will come out of
the grill. After the pellets have ignited,
close the door and turn the temperature
dial to any cooking setting desired.
66103_PRO15_v10.indd 14 11/12/15 11:30 AM
traegergrills.com
|
15
9. CARBON MONOXIDE:
WARNING! Follow these guidelines to prevent this
colorless, odorless gas from poisoning you, your
family, or others.
• Know the symptoms of carbon monoxide
poisoning: headaches, dizziness, weakness,
nausea, vomiting, sleepiness, and confusion.
Carbon monoxide reduces the blood’s ability to
carry oxygen. Low blood oxygen levels can result
in loss of consciousness and death.
• See a doctor if you or others develop cold-
or u-like symptoms while cooking or in the
vicinity of this appliance. Carbon monoxide
poisoning, which can easily be mistaken for
a cold or u, is often detected too late.
• Alcohol consumption and drug use increase
the effects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother
and child during pregnancy, infants, the
elderly, smokers, and people with blood or
circulatory system problems, such as anemia
or heart disease.
10. CAUTION! Grease res are caused by not
properly maintaining the grill by failing to clean
the grease drain pan, V-shaped grease drain,
and grease drain tube on a consistent basis.
(See MAINTAINING YOUR GRILL for instructions.)
In the unlikely event of a grease re while
cooking, turn the switch OFF (O) to reduce the
amount of oxygen in the cooking chamber and
keep the door closed until the re is completely
out. Never keep the door open during a grease
re. If the re does not go out, lightly sprinkle
baking soda on the re.
CAUTION! Be careful not to burn yourself.
If this does not work, carefully remove the food
from the grill and keep the door closed until the
re is completely out. Again, be careful not
to burn yourself. When the grill is completely
cool, remove the porcelain-coated grill grate and
replace the foil on the grease drain pan. Clean
any grease accumulation from the V-shaped
grease drain and the grease drain tube. Replace
the grease drain pan and the porcelain-coated
grill grates in their proper positions, restart the
grill, and resume cooking.
66103_PRO15_v10.indd 15 11/12/15 11:30 AM
16
USING THE MEAT PROBES
Probe
Selector
Probe 1
Probe 2

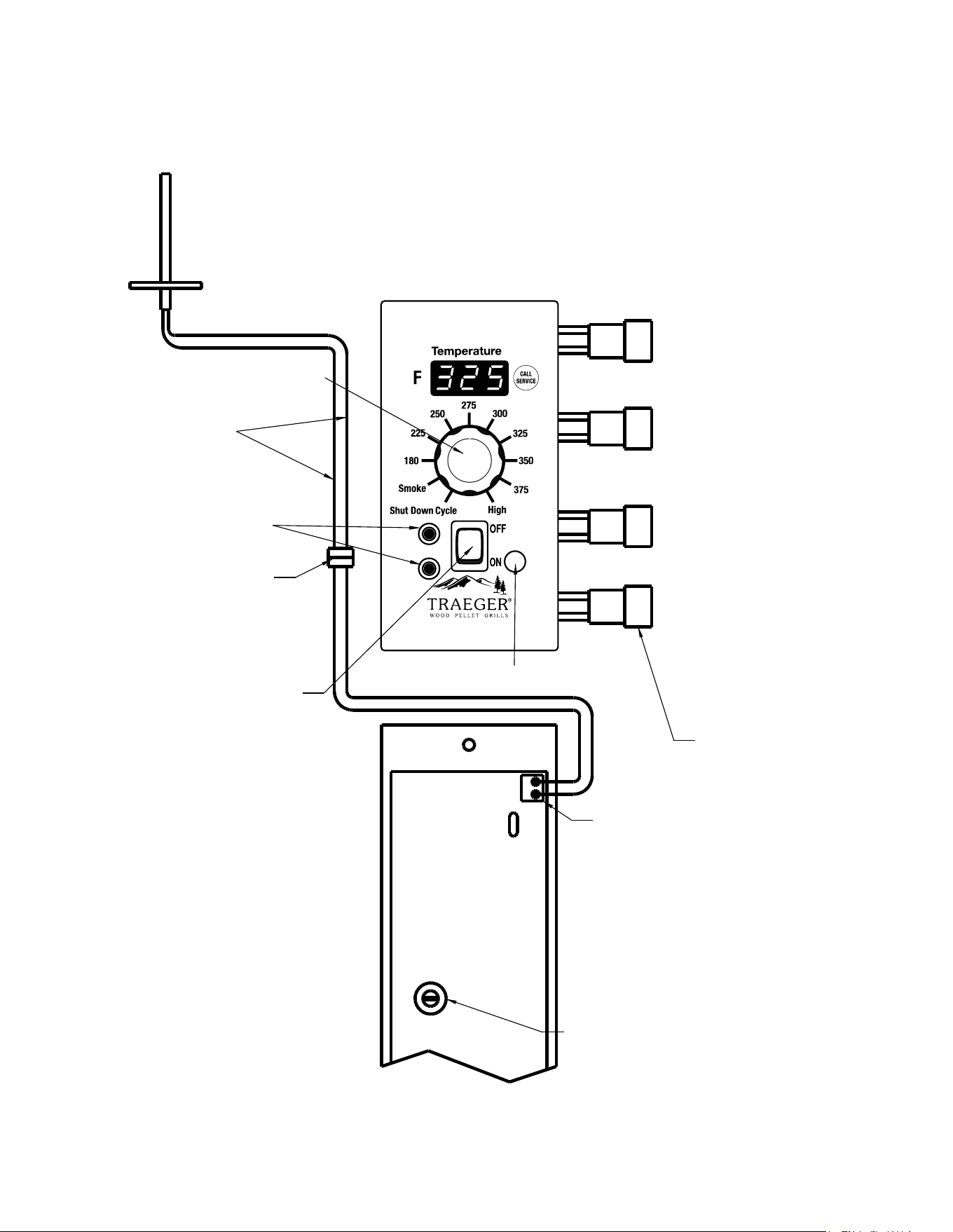

Reading the temperature: Press the
Probe selector switch on the control.
The probe temperature will display
for 5 seconds then revert back to the
temperature of the grill.
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2

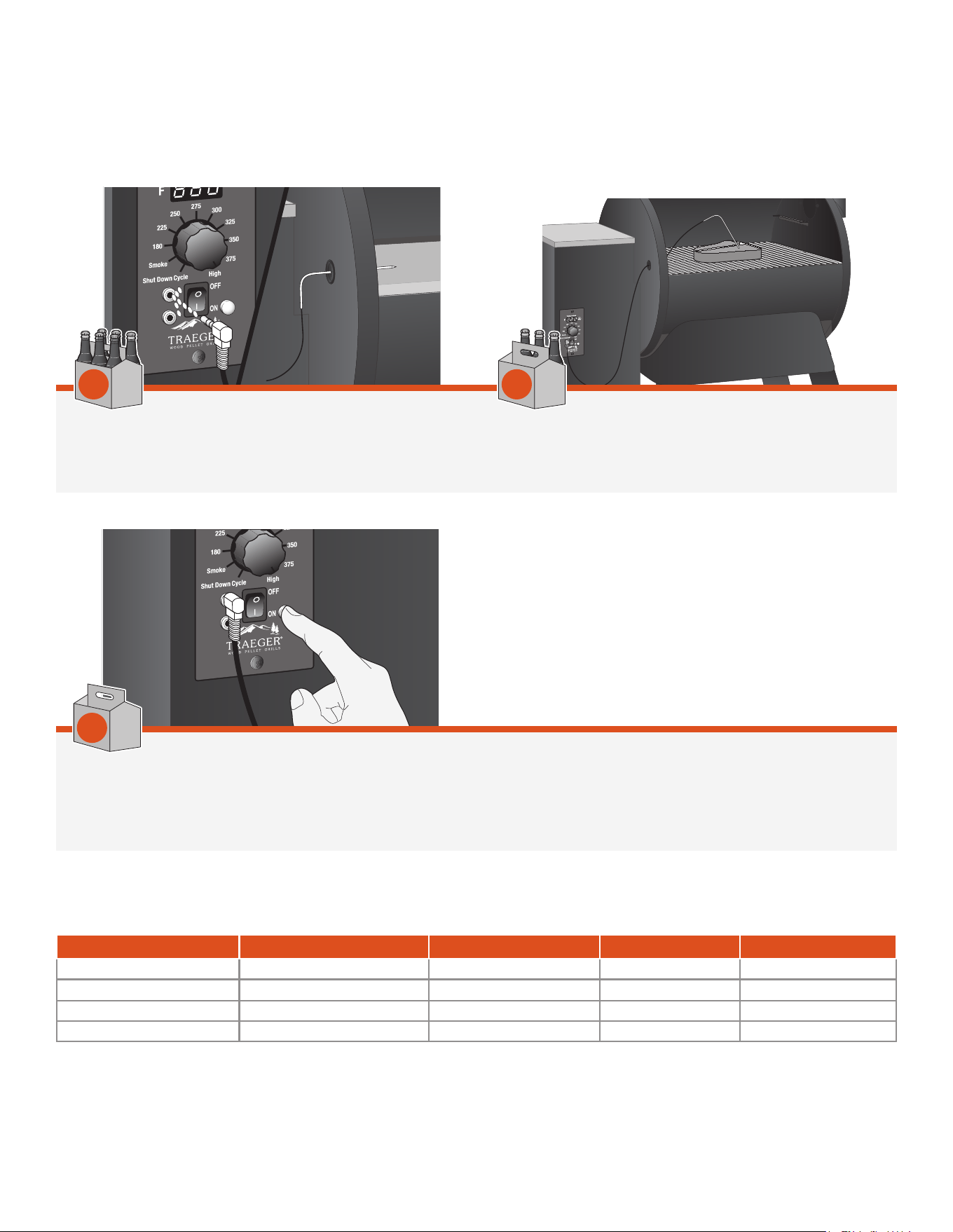

Insert 1 or 2 meat probes into the
plug-in holes on the lower left corner
of the controller, then thread probes
through the access hole grommet on
the left side of the grill barrel.
Insert probe tip into meat, making
sure it's not in the fatty portion or
touching bone, but is halfway into the
thickest part of the meat.
1
Range Beef Lamb Pork Poultry
Well 170°F 160°F 170°F 170°F
Medium 160°F 155°F
160°F
170°F
Medium Rare 145°F 145°F 170°F
Rare 135°F 170°F
MEAT TEMPERATURE RECOMMENDATIONS
2
3
66103_PRO15_v10.indd 16 11/12/15 11:30 AM
traegergrills.com
|
17
375
Shut Down
le
High
wer
OFF
ON
Unscrew the clean-out door fastener
and open, allowing the pellets to
empty into the container below it.
You might need a spatula or spoon
to push the remaining pellets out
of the hopper.
Once the hopper's empty, close the
door, replace the fastener, and rell
the hopper with a different avor of
Traeger Wood Pellets.
HOPPER CLEAN-OUT
Your Traeger Grill has a hopper clean-out system that allows you to quickly change from one pellet avor
to another without making a mess.
Turn the switch to OFF (O) and
disconnect the power cord. If the grill
is still hot, allow it to cool completely.
Place a container large enough to hold
the discarded pellets under the pellet
clean-out door. TIP: a clean 5-gallon
bucket works great!
1
2
3 4
66103_PRO15_v10.indd 17 11/12/15 11:30 AM
18
MAINTAINING YOUR GRILL
1.
CREOSOTE AND GREASE FORMATION
AND REMOVAL
When wood pellets are burned slowly, they
produce tar and other organic vapors that
combine with expelled moisture to form creosote.
The creosote vapors condense in the relatively
cool ue exhaust of a slow-burning re. As a
result, creosote accumulates on the ue lining.
When ignited, creosote makes an extremely hot
re. Airborne grease particles will travel through
the cooking chamber, and some of this airborne
grease will accumulate on the ue lining, similar
to creosote, which could be contributory to a re.
The smokestack exhaust should be inspected at
least twice a year to determine when a creosote
and/or grease buildup has occurred.
Also, grease drippings from the food will fall onto
the grease drain pan and be channeled into the
grease drain and then out of the grill through
the grease drain tube, to be collected in the
grease bucket. Grease will accumulate in all
of these locations.
The grease drain, the grease drain tube, and the
grease bucket should be inspected at least twice
a year for signs of grease buildup.
When creosote or grease has accumulated, it
should be removed to reduce the risk of re.
Cleaning the Smokestack Flue Pipe:
DANGER! Turn the switch OFF (O) and disconnect
the power cord.
CAUTION! Make sure that the grill is cold before
cleaning the ue pipe. Remove (unscrew) the
chimney cap assembly from the top of the ue
pipe. Once the chimney cap assembly has been
removed, it can be cleaned with warm, soapy
water or with a biodegradable de-greaser.
Scrape the creosote and grease accumulation from
the inside of the vertical and horizontal sections
of the ue pipe using a stiff, nonmetallic tool.
A wooden paint stir stick, for example, would work
for this task. Once the creosote and grease residue
has been loosened from the ue pipe lining,
much of it can be removed with paper towels or
disposable rags. Do not spray water or other
liquid cleaners onto the inside of your grill.
Once the ue pipe has been cleaned, replace
the chimney cap assembly.
Cleaning grease from your grill:
DANGER! Turn the switch OFF (O) and
disconnect the power cord.
CAUTION! Accumulated grease is easier to clean
off when the grill is still warm—not hot. Be careful
not to burn yourself. Gloves are recommended.
Periodically clean the grease out of the V-shaped
grease drain and grease drain tube. If too much
grease is allowed to build up in the V-shaped
grease drain or is allowed to plug the grease drain
tube, a grease re could result. We recommend
cleaning these locations regularly.
Remove the porcelain-coated grill grates and
the grease drain pan. This will provide access
to the V-shaped grease drain and grease drain
tube opening inside the grill. Scrape the grease
accumulation from inside the V-shaped grease
drain and grease drain tube using a stiff,
nonmetallic tool. Much of the loosened grease
can be pushed down through the grease drain
tube and will fall into the grease bucket. Wipe up
remaining grease residue with paper towels or
disposable rags. Paper towels or disposable rags
can also be used to wipe some of the grease off
of the interior surfaces of the grill.
Line your grease bucket with aluminum foil for
easy cleanup. Empty it occasionally, depending
on the amount of use. Change the aluminum foil
on the grease drain pan frequently (sometimes
after each use, depending upon what was cooked).
Clean foil on the grease drain pan will make
your food taste better and reduce the risk of a
grease re.
Cleaning outside surfaces:
DANGER! Turn the switch OFF (O) and
disconnect the power cord.
Use a disposable rag or cloth dampened with
warm, soapy water to wipe the grease from the
outside of the grill. DO NOT use oven cleaner,
abrasive cleansers, or abrasive cleaning pads on
the outside grill surfaces.
66103_PRO15_v10.indd 18 11/12/15 11:30 AM
traegergrills.com
|
19
Outside storage:
CAUTION! If the grill is stored outside during
the rainy season, care should be taken to ensure
that water does not get into the pellet hopper.
Wood pellets expand greatly when wet and will
jam your auger. A Traeger Grill Cover is highly
recommended to protect the grill! Covers are
available from your Traeger dealer, or log onto our
website, traegergrills.com.
Cleaning the porcelain-coated grill grates:
CAUTION! Cleaning the porcelain-coated grill
grates works best while they are still warm. Be
careful not to burn yourself. We recommend
keeping a long-handled cleaning brush near the
grill. After removing your food, give the porcelain-
coated grill grates a quick brushing. It takes only a
minute and it will be ready the next time you want
to use the grill.
2. ASH CLEANING AND REMOVAL
Cleaning the ash from inside and around
the repot:
DANGER! Turn the switch OFF (O) and disconnect
the power cord.
WARNING! Make sure that the grill is cold before
cleaning the ash.
WARNING! Disposal of ashes should be done
only according to the following instructions.
Excess ash in the repot may cause your re to go
out, especially in the SMOKE setting. The repot
should be inspected occasionally and cleaned to
remove the ash buildup. Again, cleaning the ash
from in and around the repot should be done
only when the grill is cold.
Remove the porcelain-coated grill grates, grease
drain pan, and heat bafe to provide access to the
repot and the interior of the grill. Much of the
ash outside of the repot can be removed from the
grill with a small metal replace shovel or other
similar tool.
Dispose of the ashes according to the following
instructions.
WARNING! A shop vac is the best way to remove
ashes from the repot, but this must be done
with extreme care to avoid the risk of re. Again,
cleaning the ash from the repot should be done
only when the grill is cold.
A utility-type vacuum cleaner having a metal
collection canister without a bag would be best
for this task. However, almost any vacuum
cleaner will work safely if this procedure is
properly followed.
After ensuring that the ash in the repot is cold,
vacuum the ash from the inside of the repot.
a. If your vacuum cleaner is a bagless model, empty
any previously accumulated debris from the
collection chamber. Then vacuum the ash from
the inside of the repot. Once the repot is clean,
empty the collection chamber into the metal
container described below without delay. Make
sure that there is no remaining ash residue left in
the collection chamber.
b. If your vacuum cleaner is a model that uses a
disposable bag, install an unused bag in the
machine. Then vacuum the ash from the inside of
the repot. Once the repot is clean, remove the
bag from the vacuum cleaner and place it in the
metal container described below without delay.
DISPOSAL OF ASHES:
WARNING! Ashes should be placed in a metal
container with a tight-tting lid. The closed
container of ashes should be placed on a
noncombustible oor or on the ground, well away
from all combustible materials, pending nal
disposal. Ashes are disposed of by burial in soil
or otherwise locally dispersed.
66103_PRO15_v10.indd 19 11/12/15 11:30 AM
20
Probe 2
WARNING! Remove all unburned
pellets and ash from inside and
around the repot. (See instructions
for proper handling and disposal of
ash on page 19.)
Plug power cord into an appropriate
grounded electrical outlet and restart
the grill. Pellets should fall into the
repot and the hot rod should begin
to heat (it will start to turn red).
CAUTION! Do not touch the hot rod.
3 4
Probe
Selector
Probe 1
Probe 2
375
Shut Down
le
High
wer
OFF
ON
DANGER! If the grill failed to light or
the re went out, turn the switch OFF
(O) and disconnect the power cord.
If the grill is still hot, allow it to cool
thoroughly.
Open the door and remove all food,
the porcelain-coated grill grates, the
grease drain pan, and the heat bafe.
WARNING! If at any time the grill fails to light or the re in the repot goes out while cooking or smoking
and there are sufcient pellets in the pellet hopper, it is important to follow these steps. Failure to do so may
cause a hazardous "over-ring" of your grill due to an excess of unburned pellets in the repot.
1
2
REIGNITING YOUR GRILL
66103_PRO15_v10.indd 20 11/12/15 11:30 AM
traegergrills.com
|
21
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
Probe
Selector
Probe 1
Probe 2
Probe 2
With the door open, turn the switch ON
(I) and the temperature dial to SMOKE.
In about 2 minutes, the pellets will ignite
and whitish-gray smoke will come out of
the grill. After the pellets have ignited,
close the door and turn the temperature
dial to any cooking setting desired. This
is a great time to grab another six-pack,
if you haven’t already.
When ames start to come out of the
repot, turn the switch OFF (O). Let
the grill cool down. Now you’re ready
to place the heat bafe, grease drain
pan, and porcelain-coated grill grates
back into the grill.
NOTE: If the procedure is not successful, see “FREQUENTLY ASKED QUESTIONS” on page 22 for
troubleshooting tips or contact Traeger's VIP-365 Customer Service (see page 26) to help diagnose the
problem.
5 6
66103_PRO15_v10.indd 21 11/12/15 11:30 AM
22
Question Answer
Why won’t
my grill
ignite?
Verify power at the
electrical outlet.
If the power cord is connected to a GFCI (ground fault circuit
interrupter), check and reset if necessary.
Initiate start-up. If no ignition, see next answer.
DANGER! Turn the switch
OFF (O) and disconnect
the power cord.
Remove the control and check the fuse on back. Replace the fuse
if blown. REINSTALL THE CONTROL.
Check the draft inducer fan and the auger drive motor for operation. If both are operating,
the hot rod needs to be replaced. If one or both are not operating, contact Traeger's VIP-365
Customer Service (see page 27) for additional troubleshooting help or to place an order.
Why are no
pellets being
delivered
into the
repot?
Verify that there are pellets in the pellet hopper. If this is the initial ring or the grill has run
out of pellets, allow sufcient time for the pellets to travel from the pellet hopper to the r
epot
(can take up to 7 minutes).
Initiate start-up.
See “INITIAL FIRING
INSTRUCTONS” on
page 10.
If there are still no pellets in the repot, proceed to next answer.
If the auger drive motor is operating (check the small fan blade on the back of the motor), the
problem is in the digital control, which will need to be replaced. Contact your Traeger dealer
or Traeger's VIP-365 Customer Service (see page 24) to place an order.
If the auger drive motor
is not operating but
the draft inducer fan is
operating, the problem is
in the auger system, which
will need to be checked.
With the switch OFF (O), locate the small fan blade on the back
of the auger drive motor.
CAUTION! While watching the fan blade, turn the switch ON
(I). If the fan blade does not turn, turn the switch OFF (O). This
indicates a defective auger drive motor, and it will need to be
replaced. Contact your Traeger dealer or Traeger's VIP-365
Customer Service (see page 27) to place an order.
If the fan blade turns a bit and then stops, continue watching
and turn the switch OFF (O). If the fan blade UNWINDS slightly,
this indicates a jam in the auger system which will need to be
cleared.
DANGER! Turn the switch OFF (O) and disconnect the power
cord. Remove the pellets from the pellet hopper. Check for foreign
objects and wet or decomposed pellets, both of which can cause
a jam in the auger system. The auger will need to be removed to
clear a jam in the auger system. See “How do I remove the auger
if it jams?” section on page 23.
FREQUENTLY ASKED QUESTIONS
66103_PRO15_v10.indd 22 11/12/15 11:30 AM
traegergrills.com
|
23
How do I
remove the
auger if it
jams?
DANGER! Turn the switch OFF (O) and disconnect the power cord.
CAUTION! If the grill is still hot, allow it to cool thoroughly.
Remove any covers necessary to access the auger drive motor.
Remove the screw connecting the auger drive motor shaft to the auger shaft and the screw
retaining the auger bushing into the auger tube.
With a small pipe wrench or locking pliers on the auger shaft, turn the auger
counterclockwise. It will turn hard until it breaks free; then the auger will turn freely.
Remove the auger and clean all pellets, ash, or foreign objects from the auger, auger tube,
and repot. (See instructions for proper handling and disposal of ash on page 19.)
Sand the outside surfaces of the auger with medium grit sandpaper. Check the inside of the
auger tube and sand it if needed. Vacuum the sanding grit out of the auger tube and repot
when nished. Check that the auger rotates freely.
Reattach the auger shaft to the auger drive motor shaft.
Why does
my grill
re go out
on SMOKE
setting?
There may be excess ash in the repot which needs to be cleaned.
WARNING! If the re in the repot goes out
while smoking and there are sufcient pellets
in the pellet hopper, it is important to follow
these steps. Failure to do so may cause a
hazardous “over-ring” of your grill due to an
excess of unburned pellets in the repot.
DANGER! Turn the switch OFF (O) and
disconnect the power cord. Allow the grill to
cool thoroughly. Open the door and remove
all food, the porcelain-coated grill grate, the
grease drain pan, and the heat bafe.
WARNING! Remove all unburned pellets and
ash from inside and around the repot. (See
instructions for proper handling and disposal
of ash in on page 19.)
Before replacing the heat bafe, grease drain
pan, and porcelain-coated grill grate, plug
the power cord into the appropriate grounded
electrical outlet and turn the switch ON (I).
Pellets should fall into the repot and the hot
rod should begin to heat (it will start to turn
red). CAUTION! Do not touch the hot rod.
When ames start to come out of the repot,
turn the switch off (O). Let the grill cool
down. Now you’re ready to place the heat
bafe, grease drain pan, and porcelain-
coated grill grate back into the grill. With the
door open, turn the switch ON (I) and turn
the temperature dial to SMOKE. In about 2
minutes, the pellets will ignite and whitish-
gray smoke will come out of the grill. After the
pellets have ignited, close the door and turn
the temperature dial to any cooking setting
desired.
If this does not x the problem, contact
Traeger's VIP-365 Customer Service
(see page 27) for assistance.
66103_PRO15_v10.indd 23 11/12/15 11:30 AM
24
Question Answer
With the Traeger
Digital Pro
Controller, what
dial setting is
recommended for
starting the grill?
The auto-start procedure is the same for all grill controls. With the door open, turn
the switch ON (|) and turn the temperature dial to SMOKE. In about 2 minutes, the
pellets will ignite and whitish-gray smoke will come out of the grill. After the pellets
have ignited, close the door and turn the temperature dial to any cooking setting
desired.
How do I protect
my paint nish?
Use a protective cover on the grill and touch-up paint to repair any scratches. A
Traeger Grill Cover is highly recommended to protect the grill! Covers and touch-up
paint are available from your Traeger dealer, or log onto our website, traegergrills.com.
Every 90 days, use a high-quality car wax on the outside surfaces of the grill. ONLY
APPLY WAX TO A COLD GRILL.
Where can I get a
new part for my
grill?
Check with your Traeger dealer. They may
have the part in stock or can order the part
for you.
In either case, please provide your
name, phone number, address,
model, and serial number of the grill
(located on the label inside the hopper
lid), along with the part identication
number from the component diagram
or parts list.
Contact Traeger's VIP-365 Customer Service
(see page 27) to place an order.
FREQUENTLY ASKED QUESTIONS (cont.)
66103_PRO15_v10.indd 24 11/12/15 11:30 AM
traegergrills.com
|
25
SERVICE AND SUPPORT
Parts are identied by number in the illustration below*. Use that number to look up the necessary part
information on the adjacent parts list for ordering replacement parts or service.
*TFB57PUB pictured — numbered parts present on all models
39
37
28
Probe
Selector
Probe 1
Probe 2
26
59
607
57
56
9
51
22
51
58
48
49
38
1
6
47
46
35
66103_PRO15_v10.indd 25 11/12/15 11:30 AM
26
To order parts: call, email, or write your Traeger dealer or Traeger directly. Please provide your name, phone
number, address, model, and serial number of the grill (located on the label inside the hopper lid), along with
the part identication number from the parts list above.
SERVICE AND SUPPORT (cont.)
Item Qty Description P/N Item Qty Description P/N
1 1 Grill Frame Assembly SUB951 31 1 Hopper Burner Gasket INS144
2 1 Door Assembly SUB944 32 2 Nut 8-32 K-Lock Zinc HDW108
3 1 Firepot Assembly FAB311 33 2 Screw 8-32 x .375 PPHD Zinc HDW079
4 1 Auger Assembly 075 SUB012 34 16 Screw 6-32 x .375 S-Tap HDW115
5 1 Auger Tube Bushing BRN109 35 1 Digital Pro Controller BAC288
6 1 Door Handle HDW329 36 1 RTD 7" BAC194
7 1 Side Handle HDW330 37 1 Chimney Cap Assembly Black SUB008
8 1 Auger Drive Motor BRN100 38 1 Flue Pipe Assembly FAB309
9 4 Washer .60 x .30 Flat HDW271 39 1 Flue Pipe Gasket INS145
10 4 Bolt 1/4-20 x .375 Hex HDW088 40 2 Bolt 1/4-20 x .50 Hex HDW109
11 1 Screw 6-32 x .750 Socket Hd HDW116 41 2
Nut 1/4-20 Hex
HDW109
12 1 Nut 6-32 Nylock Zinc HDW112 42 1
Draft Inducer Fan Assy
FAN209
13 1 Screw 8-32 x .375 S-tap HDW114 43 1 Hopper Burner Assembly SUB1006
14 1 Hot Rod (Ignitor) BAC199 44 4 Bolt 1/4-20 x .75 Hex HDW137
15 8 Screw #8 x .5 Hex S-Tap HDW119 45 8 Washer ¼ Flat Zinc HDW130
16 1 3/8 x 3/16 Thick Gasket BRN900 46 1
Wheel Leg Assy Front Left SUB949
17 4 Screw 1/4-20 x .50 PTHD HDW089 47 1 Wheel Leg Assy Back Left SUB950
18 1 Burner Box Assembly SUB010 48 1 Caster Leg Assy Rear Slanted SUB948
19 1 Power Cord 8' Nema 120v ELE203 49 1 Caster Leg Assy Front Slanted SUB947
20 1 Strain Relief ELE210 50 2 3" Caster W/Brake HDW302
21 2 Shoulder Bolt Axle HDW343 51 2 Leg Braces BCA821
22 2 Wheel and Hub Cap HDW332 52 16 Washer 5/16 Flat Zinc HDW120
23 2 Washer 3/8 Flat Black HDW341 53 8 Nut 5/16-20 Hex Zinc HDW006
24 2 Washer 3/8 Lock Black HDW342 54 8 Bolt 5/16-18 X 3.5 Black HDW327
25 2 Nut 3/8-16 Hex black HDW340 55 8 Washer 5/16 lock Black HDW008
26 1
Hopper Assembly
SUB946 56 1 Heat Bafe BCA012
27 1 Pellet Dump Door Assembly SUB369 57 1 Drain Pan BCA006
28 1 Hopper Lid Assembly SUB004 58 1 Grease Bucket HDW152
29 1 Left Door Hinge Assy HDW086 59 1 Warming Shelf BAC264
30 1 Right Door Hinge Assy HDW085
60 1 Porcelain Grill HDW194
PARTS LIST FOR TFB57PUB PRO SERIES 22-BLUE
66103_PRO15_v10.indd 26 11/12/15 11:30 AM
traegergrills.com
|
27
TRAEGER'S VIP-365 CUSTOMER SERVICE
Phone: 1-800-TRAEGER
Email: [email protected]
TRAEGER PELLET GRILLS LLC
1215 E. Wilmington Ave
Salt Lake City, UT 84106
Item Qty Description P/N Item Qty Description P/N
1 1 Grill Frame Assembly SUB951 31 1 Hopper Burner Gasket INS144
2 1 Door Assembly SUB1008 32 2 Nut 8-32 K-Lock Zinc HDW108
3 1 Firepot Assembly FAB311 33 2 Screw 8-32 x .375 PPHD Zinc HDW079
4 1 Auger Assembly 075 SUB012 34 16 Screw 6-32 x .375 S-Tap HDW115
5 1 Auger Tube Bushing BRN109 35 1 Digital Pro Controller BAC288
6 1 Door Handle HDW329 36 1 RTD 7" BAC194
7 1 Side Handle HDW330 37 1 Chimney Cap Assembly Black SUB008
8 1 Auger Drive Motor BRN100 38 1 Flue Pipe Assembly FAB309
9 4 Washer .60 x .30 Flat HDW271 39 1 Flue Pipe Gasket INS145
10 4 Bolt 1/4-20 x .375 Hex HDW088 40 2 Bolt 1/4-20 x .50 Hex HDW109
11 1 Screw 6-32 x .750 Socket Hd HDW116 41 2
Nut 1/4-20 Hex
HDW109
12 1 Nut 6-32 Nylock Zinc HDW112 42 1
Draft Inducer Fan Assy
FAN209
13 1 Screw 8-32 x .375 S-tap HDW114 43 1 Hopper Burner Assembly SUB1006
14 1 Hot Rod (Ignitor) BAC199 44 4 Bolt 1/4-20 x .75 Hex HDW137
15 8 Screw #8 x .5 Hex S-Tap HDW119 45 8 Washer ¼ Flat Zinc HDW130
16 1 3/8 x 3/16 Thick Gasket BRN900 46 1
Wheel Leg Assy Front Left SUB949
17 4 Screw 1/4-20 x .50 PTHD HDW089 47 1 Wheel Leg Assy Back Left SUB950
18 1 Burner Box Assembly SUB010 48 1 Caster Leg Assy Rear Slanted SUB948
19 1 Power Cord 8' Nema 120v ELE203 49 1 Caster Leg Assy Front Slanted SUB947
20 1 Strain Relief ELE210 50 2 3" Caster W/Brake HDW302
21 2 Shoulder Bolt Axle HDW343 51 2 Leg Braces BCA821
22 2 Wheel and Hub Cap HDW332 52 16 Washer 5/16 Flat Zinc HDW120
23 2 Washer 3/8 Flat Black HDW341 53 8 Nut 5/16-20 Hex Zinc HDW006
24 2 Washer 3/8 Lock Black HDW342 54 8 Bolt 5/16-18 X 3.5 Black HDW327
25 2 Nut 3/8-16 Hex black HDW340 55 8 Washer 5/16 lock Black HDW008
26 1
Hopper Assembly
SUB946 56 1 Heat Bafe BCA012
27 1 Pellet Dump Door Assembly SUB369 57 1 Drain Pan BCA006
28 1 Hopper Lid Assembly SUB004 58 1 Grease Bucket HDW152
29 1 Left Door Hinge Assy HDW086 59 1 Warming Shelf BAC264
30 1 Right Door Hinge Assy HDW085
60 1 Porcelain Grill HDW194
PARTS LIST FOR TFB57PZB PRO SERIES 22-BRONZE
66103_PRO15_v10.indd 27 11/12/15 11:30 AM
28
To order parts: call, email, or write your Traeger dealer or Traeger directly. Please provide your name, phone
number, address, model, and serial number of the grill (located on the label inside the hopper lid), along with
the part identication number from the parts list above.
SERVICE AND SUPPORT (cont.)
Item Qty Description P/N Item Qty Description P/N
1 1 Grill Frame Assembly SUB957 31 4 Nut 8-32 K-Lock Zinc HDW108
2 1 Door Assembly Blue SUB958 32 4 Screw 8-32 x .375 PPHD Zinc HDW079
3 1 Firepot Assembly FAB310 33 16 Screw 6-32 x .375 S-Tap HDW115
4 1 Auger Assembly 070 SUB005 34 1 Digital Pro Controller BAC288
5 1 Auger Tube Bushing BRN109 35 1 RTD 7" BAC194
6 1 Door Handle HDW314 36 1 Chimney Assembly Black SUB008
7 1 Side Handle HDW330 37 1 Flue Pipe Assembly FAB309
8 1 Auger Drive Motor BRN100 38 1 Flue Pipe Gasket INS145
9 4 Washer .60 x .30 Flat HDW271 39 2 Bolt 1/4-20 x .50 Hex HDW109
10 4 Bolt 1/4-20 x .375 Hex HDW088 40 2 Nut 1/4-20 Hex HDW109
11 1 Screw 6-32 x .750 Socket Hd HDW116 41 1
Draft Inducer Fan Assy
FAN209
12 1 Nut 6-32 Nylock Zinc HDW112 42 1
Pellet Dump Door Assembly
SUB369
13 1 Screw 8-32 x .375 S-tap HDW114 43 1 Hopper Burner Assembly SUB1002
14 1 Hot Rod (Ignitor) BAC199 44 4 Bolt 1/4-20 x .75 Hex HDW137
15 8 Screw #8 x .5 Hex S-Tap HDW119 45 8 Washer ¼ Flat Zinc HDW130
16 1 3/8 x 3/16 Thick Gasket BRN900 46 1
Wheel Leg Assy Front Left SUB949
17 4 Screw 1/4-20 x .50 PTHD HDW089 47 1 Wheel Leg Assy Back Left SUB950
18 1 Burner Box Assembly SUB002 48 1
Leg Assy Stationary Back Right
SUB1011
19 1 Power Cord 8' Nema 120v ELE203 49 1
Leg Assy Stationary Front Right
SUB1010
20 1 Strain Relief ELE210 50 2 Leg Braces BCA821
21 2 Shoulder Bolt Axle HDW343 51 16 Washer 5/16 Flat Zinc HDW120
22 2 Wheel and Hub Cap HDW332 52 8 Nut 5/16-20 Hex Zinc HDW006
23 2 Washer 3/8 Flat Black HDW341 53 8 Bolt 5/16-18 X 3.5 Black HDW327
24 2 Washer 3/8 Lock Black HDW342 54 8 Washer 5/16 lock Black HDW008
25 2 Nut 3/8-16 Hex black HDW340 55 1 Heat Bafe BCA012
26 1
Hopper Assembly
SUB946 56 1 Drain Pan BCA070
27 1 Hopper Lid Assembly SUB004 57 1 Grease Bucket HDW152
28 1 Left Door Hinge Assy HDW086 58 1 Warming Shelf BAC263
29 1 Right Door Hinge Assy HDW085 59 1 Porcelain Grill HDW195
30 1 Hopper Burner Gasket INS144
PARTS LIST FOR TFB88PUB PRO SERIES 34-BLUE
66103_PRO15_v10.indd 28 11/12/15 11:30 AM
traegergrills.com
|
29
TRAEGER'S VIP-365 CUSTOMER SERVICE
Phone: 1-800-TRAEGER
Email: [email protected]
TRAEGER PELLET GRILLS LLC
1215 E. Wilmington Ave
Salt Lake City, UT 84106
Item Qty Description P/N Item Qty Description P/N
1 1 Grill Frame Assembly SUB957 31 4 Nut 8-32 K-Lock Zinc HDW108
2 1 Door Assembly Bronze SUB1004 32 4 Screw 8-32 x .375 PPHD Zinc HDW079
3 1 Firepot Assembly FAB310 33 16 Screw 6-32 x .375 S-Tap HDW115
4 1 Auger Assembly 070 SUB005 34 1 Digital Pro Controller BAC288
5 1 Auger Tube Bushing BRN109 35 1 RTD 7" BAC194
6 1 Door Handle HDW314 36 1 Chimney Assembly Black SUB008
7 1 Side Handle HDW330 37 1 Flue Pipe Assembly FAB309
8 1 Auger Drive Motor BRN100 38 1 Flue Pipe Gasket INS145
9 4 Washer .60 x .30 Flat HDW271 39 2 Bolt 1/4-20 x .50 Hex HDW109
10 4 Bolt 1/4-20 x .375 Hex HDW088 40 2 Nut 1/4-20 Hex HDW109
11 1 Screw 6-32 x .750 Socket Hd HDW116 41 1
Draft Inducer Fan Assy
FAN209
12 1 Nut 6-32 Nylock Zinc HDW112 42 1
Pellet Dump Door Assembly
SUB369
13 1 Screw 8-32 x .375 S-tap HDW114 43 1 Hopper Burner Assembly SUB1002
14 1 Hot Rod (Ignitor) BAC199 44 4 Bolt 1/4-20 x .75 Hex HDW137
15 8 Screw #8 x .5 Hex S-Tap HDW119 45 8 Washer ¼ Flat Zinc HDW130
16 1 3/8 x 3/16 Thick Gasket BRN900 46 1
Wheel Leg Assy Front Left SUB949
17 4 Screw 1/4-20 x .50 PTHD HDW089 47 1 Wheel Leg Assy Back Left SUB950
18 1 Burner Box Assembly SUB002 48 1
Leg Assy Stationary Back Right
SUB1011
19 1 Power Cord 8' Nema 120v ELE203 49 1
Leg Assy Stationary Front Right
SUB1010
20 1 Strain Relief ELE210 50 2 Leg Braces BCA821
21 2 Shoulder Bolt Axle HDW343 51 16 Washer 5/16 Flat Zinc HDW120
22 2 Wheel and Hub Cap HDW332 52 8 Nut 5/16-20 Hex Zinc HDW006
23 2 Washer 3/8 Flat Black HDW341 53 8 Bolt 5/16-18 X 3.5 Black HDW327
24 2 Washer 3/8 Lock Black HDW342 54 8 Washer 5/16 lock Black HDW008
25 2 Nut 3/8-16 Hex black HDW340 55 1 Heat Bafe BCA012
26 1
Hopper Assembly
SUB946 56 1 Drain Pan BCA070
27 1 Hopper Lid Assembly SUB004 57 1 Grease Bucket HDW152
28 1 Left Door Hinge Assy HDW086 58 1 Warming Shelf BAC263
29 1 Right Door Hinge Assy HDW085 59 1 Porcelain Grill HDW195
30 1 Hopper Burner Gasket INS144
PARTS LIST FOR TFB88PZB PRO SERIES 34-BRONZE
66103_PRO15_v10.indd 29 11/12/15 11:30 AM
30
WIRING DIAGRAM
Probe
Selector
Probe 1
Probe 2
RTD SENSOR
TEMPERATURE DIAL
RTD WIRES
(FIBERGLASS
INSULATION)
RTD CONNECTOR
PROBE
RECEPTACLES
SWITCH
PROBE SELECTOR SWITCH
BACK OF CONTROL
FUSE HOLDER
GREEN TERMINAL BLOCK
FOR RTD WIRES
MOLEX CONNECTORS
TYPICAL
PURPLE/WHITE WIRES
HOT ROD
(FIBERGLASS INSULATION)
ORANGE/WHITE WIRES
DRAFT INDUCER FAN
(LARGE FAN BLADE)
RED/WHITE WIRES
AUGER DRIVE MOTOR
(SMALL FAN BLADE)
BLACK/WHITE WIRES
POWER CORD
66103_PRO15_v10.indd 30 11/12/15 11:30 AM
traegergrills.com
|
31
3-YEAR WARRANTY
Traeger Pellet Grills LLC warrants this barbecue grill against defects in
material and workmanship under normal use and maintenance for a period of
three (3) years from the date of original purchase.
Traeger Pellet Grills LLC will provide a replacement part for any part found to
be defective. Original part(s) approved for return by Traeger’s Parts Department
must be returned prepaid.
This warranty does not include labor charges connected with the
determination or replacement of defective parts, or freight charges to ship
these parts.
Traeger Pellet Grills LLC shall not be liable under this or any implied warranty
for incidental or consequential damages. This warranty gives the retail
customer specic legal rights and the customer may have other rights which
vary from state to state.
This warranty shall be void if the unit is not assembled or operated in
accordance with the operation instructions provided with this unit; the
unit is resold or traded to another owner; components, accessories, or fuels
not compatible with the unit have been used; the unit has been used in a
commercial or food service application; or the user has abused or otherwise
failed to maintain the unit.
To process a warranty claim, Traeger Pellet Grills LLC may require proof of
your date of purchase. You should retain your sales slip or invoice along with
this certicate with your valuable documents.
66103_PRO15_v10.indd 31 11/12/15 11:30 AM
11/2015
Traeger Pellet Grills LLC
1215 E. Wilmington Ave
Salt Lake City, UT 84106
traegergrills.com
66103_PRO15_v10.indd 32 11/12/15 11:30 AM
