OWNER’S
MANUAL
TFB01WLB
TFB85WLB
TFB01WLB-A/E/G/H/L
TFB85WLB-A/E/G/H/L
SAVE THESE INSTRUCTIONS
A MAJOR CAUSE OF FIRES IS FAILURE
TO MAINTAIN REQUIRED CLEARANCES
(AIR SPACES) TO COMBUSTIBLE MATERIALS.
IT IS OF UTMOST IMPORTANCE THAT
THIS PRODUCT BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.
2
• Know the symptoms of carbon monoxide poisoning:
headache, dizziness, weakness, nausea, vomiting,
sleepiness, and confusion. Carbon monoxide
reduces the blood’s ability to carry oxygen.
Low blood oxygen levels can result in loss of
consciousness and death.
• See a doctor if you or others develop cold- or
u-like symptoms while cooking or in the vicinity
of this appliance. Carbon monoxide poisoning,
which can easily be mistaken for a cold or u, is
often detected too late.
• Alcohol consumption and drug use increase the
eects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother
and child during pregnancy, infants, the elderly,
smokers, and people with blood or circulatory system
problems, such as anemia or heart disease.
• Only use your Traeger outside on a noncombustible
oor and away from combustible materials.
• Never use gasoline, gasoline-type lantern fuel,
kerosene, charcoal lighter uid, or ammable liquids
to start or “freshen up” a re in this appliance. Keep
all such liquids well away from this appliance when
in use.
Please read this entire manual before installation and use of this pellet-burning appliance. Failure to follow these
instructions could result in property damage, bodily injury, or even death. Contact local building or re ocials
about restrictions and installation inspection requirements in your area.
Cooking with a hardwood re will bring years of enjoyment to you, your family, and those lucky friends you will
be cooking for. Your new Traeger grill is specially designed to make cooking easier, while giving you optimal
performance with the most savory-avored food.
As with all grills and cooking appliances, any time you burn a material (whether it be wood, gas, or charcoal),
organic gases are formed during the cooking process. One gas that can be particularly harmful in concentrated
quantities is carbon monoxide. In an outdoor, open-air environment, carbon monoxide should naturally dissipate
and not harm you.
WARNING! Follow these guidelines to prevent this colorless, odorless gas from poisoning you, your family,
or others:
IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
If you are assembling this unit for someone else, provide this manual for the owner to read and save for
future reference.
IMPORTANT SAFETY
DANGER!
For North American Consumers:
• Plug into an appropriate 3-prong outlet.
• An electrical supply with GFCI protection is required.
To protect against shock hazard, locate a grounded
3-prong receptacle in reach of the 6' (1.8-m) power
cord. When installing the receptacle, follow the
National Electrical Code and local codes
and ordinances.
For Consumers in the European Union:
• Plug into an appropriate earthed outlet.
• Do not remove earth prong or modify plug in any
way. Do not use an adapter or extension cord.
DANGER!
• Hazardous voltage is present, which can shock,
burn, or cause death. Disconnect the power cord
before servicing the grill unless otherwise noted
in the Owner’s Manual.
• If the supply cord is damaged, it must be replaced by
the manufacturer, service agent or similarly qualied
persons in order to avoid a hazard.
• Never use or store ammable liquids near
the grill.
• Never use gasoline or lighter uid to manually
light your grill. Use ONLY alcohol gel for this
procedure AND according to the instructions
in the Owner’s Manual.
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING
THE APPLIANCE
traegergrills.com
|
3
WARNING!
Many parts of the grill will become very hot during
operation. Care must be taken to avoid burns, both
during operation and afterwards, while the grill is
still hot.
• Never leave the grill unattended when young
children are present.
• Never move the grill when it is operating.
• Let the grill cool thoroughly before moving or
attempting to transport.
WARNING!
• When operating this grill, maintain a MINIMUM
distance of 12 inches (30.5 cm) from the grill to
combustibles.
• When operating this grill under overhead
combustibles, a MINIMUM of 40 inches (1 m)
is required.
WARNING!
• Assemble and operate this grill ONLY per
the instructions in the Assembly Guide and
the Owner’s Manual.
• This grill is intended for OUTDOOR USE ONLY.
• Never use heating fuel pellets in the grill, due to
potential hazardous contaminants and additives
that may be present.
• For best results and avor, use genuine
Traeger Hardwood Pellets.
CAUTION!
• Always store wood pellets in a dry location, away
from heat-producing appliances and other
fuel containers.
• Keep the grill clean – See the cleaning instructions
in this Owner’s Manual.
• Do not use accessories not specied for use with
this grill.
SAVE THESE INSTRUCTIONS
40.00"
12.00"
12.00"
For Consumers in the European Union:
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
(30.5 cm)
(1 m)
(30.5 cm)
4
WE’VE GOT YOU
COVERED
PELLETS
RUBS
SAUCES
TraegerGrills.com/Shop
TraegerGrills.com/Dealers
traegergrills.com
|
5
Register your grill
online
for a FREE
Traeger ebook
Go online at
traegergrills.com/register
TABLE OF CONTENTS
2 2 Important Safety
6 Adding Flavor to Your Fire
8 Getting to Know Your Grill
11 Priming the Grease Trap
12 Seasoning Your Grill
14 Using Your Grill
15 Choosing a Cook Method
21 Hopper Clean-Out
22 Timberline Features
24 Operating Tips
25 Maintaining Your Grill
27 Service and Warranty
6
PELLETS
SPECIALTY SIZES
PELLET GUIDE
HARD W OOD
ALDER
APPLE
CHERRY
HICKORY
MAPLE
MESQUITE
OAK
PECAN
GOOD FOR ANYTHING. GREAT FOR:
BIG GAME BLEND
33-lb. (15-kg) bag
PEL320
Traeger and Realtree
have teamed up to bring
you an exclusive blend
of hickory and red and
white oak, with woodsy
rosemary undertones.
This avor is big enough
for big game.
ADDING FLAVOR TO YOUR FIRE
Creating 100% food-grade hardwood pellets comes naturally to Traeger
®
. Our four US mills process pure
hardwood, blended for the perfect balance of smoke to heat and superior quality you can taste every time.
Crafting the highest-quality hardwood pellets on the market starts from the ground up. We built our plants
in Oregon, Texas, and Georgia near the hardwood source, and we dedicate our manufacturing to food-grade
pellets only, maintaining the purity of our machinery.
Traeger pellets contain two natural ingredients: our signature blend of hardwoods and a simple soybean oil.
When manufacturing the premium hardwood pellets that elevate your meal to the next level, less is always
more. No additives, no llers, no binding agents — just simply natural avor.
HICKORY
10-lb. (4.5-kg) box
PEL104
Our most popular
pellet avor now
comes in an easy-to-
transport 10-lb. box.
traegergrills.com
|
7

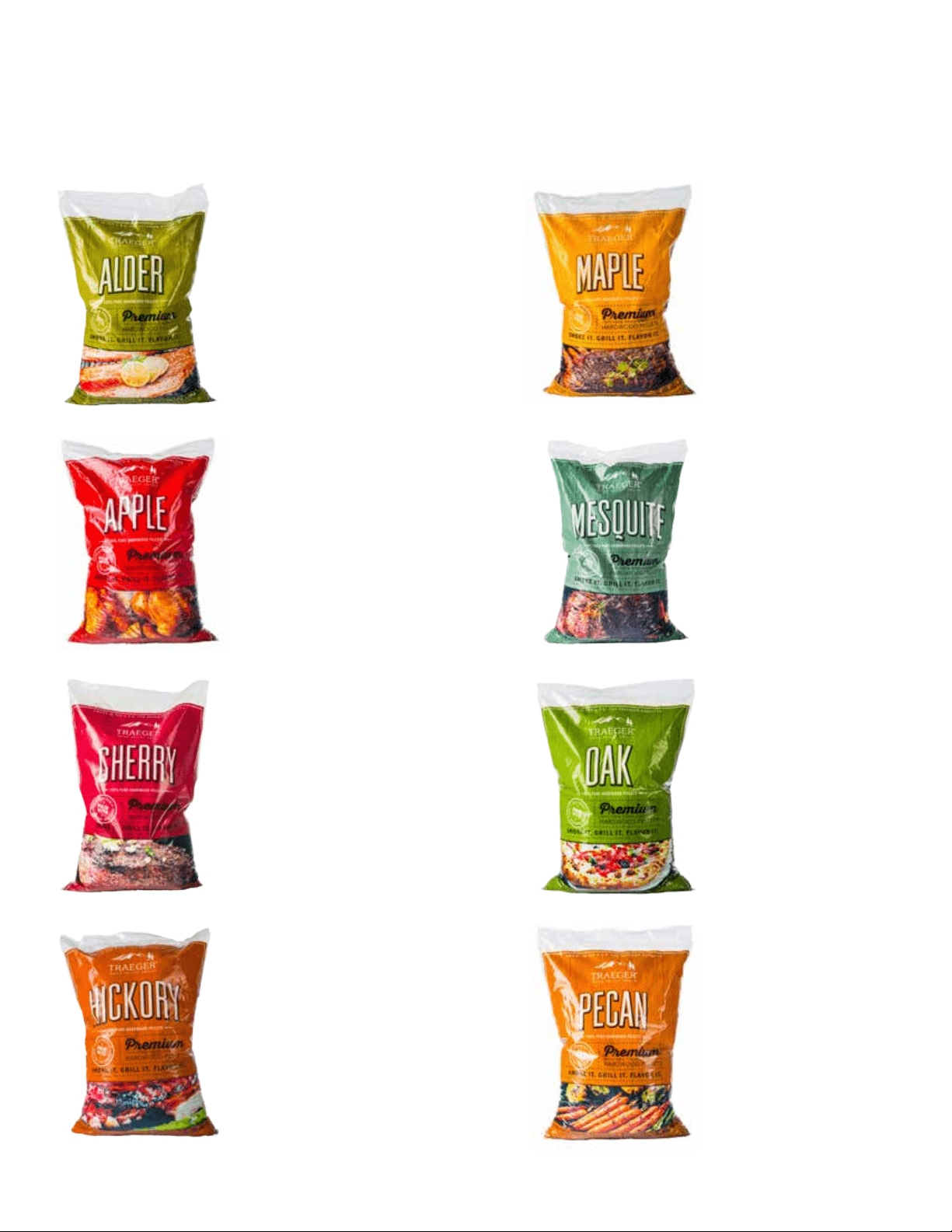

20-LB (9-KG) BAGS
HICKORY
20-lb. (9-kg) bag
PEL319
The most widely
used pellets in
barbecue, hickory
pellets release a
rich avor that
complements
most meats.
ALDER
20-lb. (9-kg) bag
PEL307
Versatile because
of its mild avor
and aroma, alder
gives off ample
smoke without
overwhelming even
the most delicate
avors.
OAK
20-lb. (9-kg) bag
PEL310
Stronger than cherry
or apple and lighter
than hickory, oak is
great to use with sh
and beef.
CHERRY
20-lb. (9-kg) bag
PEL309
A very avorful
pellet, cherry wood
lends itself to
applications where
you want to add a
hearty smoke avor.
APPLE
20-lb. (9-kg) bag
PEL318
Most often used with
poultry and pork,
apple pellets offer a
lightly sweet smoke
that helps enhance
mild-avored meats.
MAPLE
20-lb. (9-kg) bag
PEL308
Mild, with a hint of
sweetness, maple
pellets are great for
pork and especially
veggies.
PECAN
20-lb. (9-kg) bag
PEL314
Deliciously nutty
and even a little
spicy, pecan pellets
are great with
veggies, beef, pork,
poultry, or even
baked goods.
MESQUITE
20-lb. (9-kg) bag
PEL305
A favorite of Texas
BBQ, mesquite
pellets infuse your
meat with a robust
smoke avor.
8
Part Description Part Description
1 Grill Door 13 Grease Pan
2 Door Handle 14 Locking-Caster Legs
3 Top Grill Grate
15
Leg Braces
4 Middle Grill Grate 16 All-Terrain Wheel Legs
5 Bottom Grill Grate 17 Front Shelf
6 Grease Drip Tray 18 WiFIRE
®
Controller
7 Upper Heat Shield 19 Pellet Hopper
8 Lower Heat Shield 20 Hopper Clean-Out Door (back of grill)
9 Side Shelf 21 Main Power switch (back of grill)
10 Grease Trap Assembly (close-up) 22 Meat Probe
11 Black Cap for Grease Trap 23 Auger Assembly (close-up)
12 Grease Trap Screen 24 Cutting Board (placed atop hopper)
GETTING TO KNOW YOUR GRILL
GRILL PARTS AND FEATURES*
Refer to the Assembly Guide to assemble and install your Traeger Timberline Grill.
*Model TFB85WLB shown
6
1
2
3
5
4
7
8
16
18
17
19
20
21
22
23
9
12
10
15
15
11
14
24
13
traegergrills.com
|
9
ALL NATURAL
HARDWOOD
PELLET HOPPER
BARREL SHAPE
GRILLING SPACE
VERSATILITY NO FIREFIGHTING
HIGH-TECH CONTROLS
An adjustable three-tier stainless steel grate
system offers options to load up all three grill
grates for a true feast; remove the middle and
top grates for taller food like Beer Can Chicken
or a colossal turkey, or lower the bottom grate
into a sear position for perfect grill marks.
You don’t have to worry about drippings
aring up and causing those nasty reballs
that destroy your meal, because Traeger
Wood Fired Grills are designed to cook by
using indirect heat. All drippings are safely
channeled into an external grease pan for
easy disposal.
With 850–1300* in.
2
(.55–.84 m
2
) of grilling
space, your Traeger grill has the real estate for
party-sized orders of T-bones or racks of ribs,
with enough room left over to handle various
side dishes, too.
With the Traeger Timberline Grill, multi-
step cooking is as easy as pulling out your
phone. The WiFIRE remote is programmed
with custom cook cycles that can be cued up
automatically with a recipe download from our
Traeger App.
A 24-pound-capacity pellet hopper (10.8 kg) will
keep you cooking for hours, getting you away
from the grill and back to entertaining friends
and family.
Traeger’s signature barrel shape creates a
vortex of convection. It circulates hot, smoky
air around the cooking chamber, surrounding
your food with 20,000-36,000* BTUs of wood-
red heat for even cooking on all sides.
*Measurements vary according to model
10
Your Traeger Timberline Grill is equipped with a state-of-the-art electronic controller that is Wi-Fi
®
-capable.
Before you begin using the grill, it will be helpful to familiarize yourself with the different settings and
button controls.
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
1
STANDBY BUTTON
Use this button to turn on the electronic
controller once the Main Power switch has
been turned ON.
6
SUPER SMOKE
Select SUPER SMOKE at any time during
grilling when cook temperature is between
165° and 225°F (74°and107°C) to increase
the amount of smoke released for additional
smoky avor.
2
SELECTION DIAL
Rotate dial to move up and down through the
displayed menu. Press center of dial to make
a selection.
7
KEEP WARM
This feature maintains the grill temperature
at 165°F (74°C) to keep food warm without
overcooking it.
3
STATUS DISPLAY
Shows current temperature, status of cook
program, cook time remaining, etc.
8
MENU
From MENU, you can access the recipe
library, set up the probe, sync your grill with
your home’s Internet as well as your mobile
device, and change your grill’s settings.
4
MEAT PROBE
Plug the probe in where indicated for
probe cooking.
5
TIMER
The timer is for your convenience only; it does
not affect grill operation. For example, if you
need to baste your meat in 15 minutes, set
the timer for 15 minutes, and it will beep an
alert when time’s up.
9
IGNITE
Press IGNITE to start the grill.
YOUR WiFIRE® ELECTRONIC CONTROLLER
GETTING TO KNOW YOUR GRILL (cont.)
6
2
3
5
4
7
8
1
9
traegergrills.com
|
11
Before you can get started smoking up some amazingly tasty food, you will need to prime the grease trap.
The grease trap on your Traeger Timberline Grill acts as a barrier to redirect the cold smoke up towards the
heat shield/chimney. In order for it to work correctly, follow these easy steps:
NOTE: As you use your grill, the water
in the grease trap will slowly be replaced
by grease from the drip tray. If you see
smoke coming out of the bottom of the
grill, you will need to add more water
to the trap to replace what’s evaporated
during the cooking process.

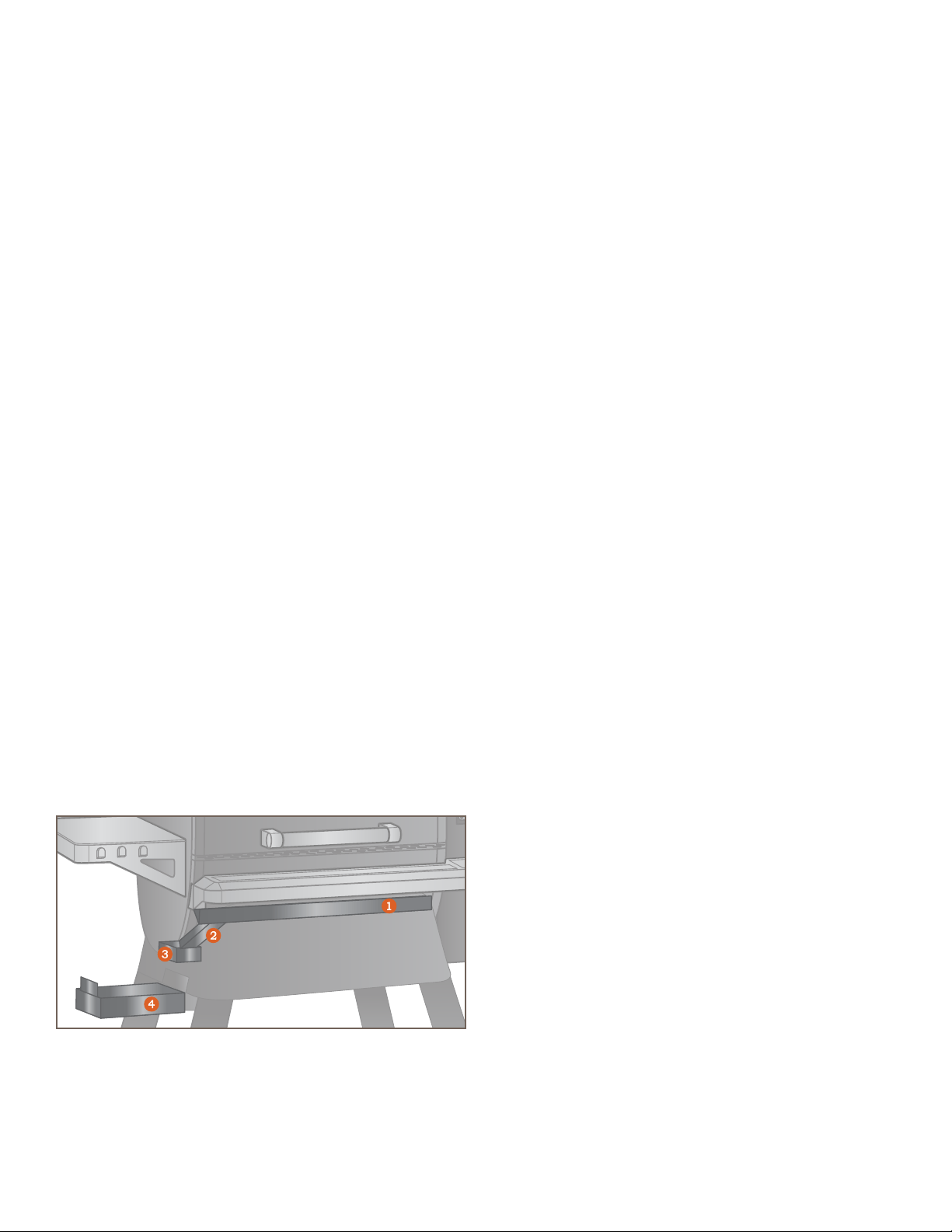

PRIMING THE GREASE TRAP
1
Remove all grill grates, grease drip
tray, and heat shields.
2
Remove black cap from grease trap.
Add about a cup of water (or ax seed
oil, if desired) to the trap. Replace cap.
3
While the grill grates, grease drip tray,
and heat shields are out of the grill, this
is a good time to prime the auger. Go
to "Seasoning Your Grill" and follow the
easy steps there to get Traeger’ing.
12
SUPER
SMOKE
NOTE: The seasoning reminder will display
the rst few times you power up the grill.
However, you only have to season your
grill once.
ALL NATURAL
HARDWOOD
SEASONING YOUR GRILL
To be used on initial ring only.
Your Timberline Grill has a Prime Auger function to prepare your grill for use. You will be
prompted to run this cycle on start-up.
1
Remove grates, grease drip tray, and
heat shields.
2
With the Main Power switch in the
OFF (O) position, plug the power cord
into an appropriate grounded/earthed
electrical outlet.
3
Make sure there are no foreign objects
in the auger before adding pellets to
the hopper.
4
Turn grill on: Flip the Main Power switch
on the back of the grill to ON (I), and
then press the now-lit Standby button
on the front control panel to activate the
controller. After a few seconds, the home
screen will display.
WARNING! Use ONLY TRAEGER BRAND
HARDWOOD PELLETS, which are specically
made to work in our grills. Never use heating
fuel pellets in the grill.
Plug appearance may vary by region.
traegergrills.com
|
13
TURN DIAL TO SET TEMP
MENU
IGNITE
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
Turn Dial
To Select Temp
500
°F
PRIME AUGER
Auger On
>Done
Turn Dial
To Select Temp
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
NOTE: Whenever you’re instructed to “select” a menu option, turn the Selection
dial to the desired option and press the center of the dial to lock in your selection.
5
Press and hold the MENU button while you
tap the KEEP WARM button. You will now
be in the PRIME AUGER menu. Pellets from
the hopper will begin to fall into the re
pot after they travel the length of the auger
tube. This might take several minutes,
depending on your grill model. Once pellets
begin to fall into the repot, select BACK
to turn off the auger. You only need a few
pellets in the repot to season your grill.
6
The home screen will display “Turn
Dial To Select Temp.” Turn the dial
right until you reach 500°F (260°C).
Press the dial center to select. Replace
the heat shields, grease drip tray, and
grill grates.
7
Press IGNITE. Your grill will immediately
begin an automatic ignition and preheat
cycle. Close grill door and allow grill to
run for 45 minutes.
8
Turn off the grill by pressing and
holding the Standby button for
3 seconds, initiating a 10-minute
shut-down cycle. Your grill is now
ready to use!
IGNITE
TURN DIAL TO SET TEMP
14
3
Once your grill is on and the home
screen is displayed, choose one of
these four options to cook your food:
Cooking at a Single Temperature,
Using a Preset Custom Cook Program,
Creating a Custom Cook Program, or
Cooking With the Probe. Each method
is fully explained in the next section,
"Choosing a Cook Method".
You will need to start with these two steps every time you use your grill.
NOTE: Whenever your grill is not in use, it should be disconnected from the electrical outlet; if left connected
to the outlet, the Main Power switch should be ipped to OFF (O).
USING YOUR GRILL
WARNING!
• When operating this grill, maintain a minimum clearance of 12 inches (30 cm) from grill to combustibles.
• Use ONLY TRAEGER BRAND HARDWOOD PELLETS, which are specically made to work in our grills.
Never use heating fuel pellets in the grill.
1
Plug power cord into an appropriate
grounded/earthed electrical outlet
and ip Main Power switch to ON (I).
2
Push Standby button to wake the grill.
NOTES:
• The Traeger App for your mobile
device makes operating your
electronic controller even easier.
For more information on downloading
the app and how to use it, refer to your
Traeger App Quick Start Guide.
• Whatever cook method you choose, once
you press IGNITE, your Timberline Grill
will always begin with an ignition and
preheat cycle and end with a 10-minute
shut-down. When creating a Custom
Cook program, those cycles will run
automatically; you will not have to
program them.
• We recommend you clean the grease drip
tray frequently to reduce the possibility of
a grease re. Please see "Maintaining Your
Grill" for more details.
Plug appearance may vary by region.
traegergrills.com
|
15
MENU
IGNITE
KEEP
WARM
Use this method for simple recipes requiring a single cook cycle at a set temperature.
CHOOSING A COOK METHOD
NOTES:
• It is recommended, but not necessary, to wait until preheat cycle is complete before loading food
into the grill.
• It is not necessary to keep grill door open at start-up; however, grill door should be closed once
preheat cycle begins so that the grill can reach the desired set temperature.
COOKING AT A SINGLE TEMPERATURE
1
After pressing the Standby button,
your grill’s home screen defaults to
the message “Turn Dial To Select
Temp”. Cooking temperature can be
set directly from this screen.
2
To select temperature, turn dial right
or left; once desired temperature is
displayed, press the center of the dial
to select.
3
Press IGNITE. The automatic ignition
and preheat cycle will begin.
NOTE: Grill door should be closed
once preheating begins.
4
Once preheating is complete, load food
into the grill and close the grill door.
Turn Dial
To Select Temp
165
°F
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
Turn Dial
To Select Temp
350
°F
MENU
IGNITE
KEEP
WARM
16
TRAEGER WiFIRE
>Cook Cycle
>Probe
>Wi-Fi Information
>Settings
>Back
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
165
°F
Turn Dial
To Select Temp
Your Timberline Grill comes with two of our favorite Custom Cook Programs already loaded: Beginner’s
Brisket and Chicken Challenge. Use your Traeger App to nd hundreds of recipes and download them
directly to your grill, once it’s connected to the Internet.
CHOOSING A COOK METHOD (cont.)
USING A PRESET CUSTOM COOK PROGRAM
Beginner’s Brisket
STEP 1
165°F | TIME: 03:30
STEP 2
225°F | PROBE: 190°F
>RUN NOW
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
VISIT TRAEGER APP
FOR MORE RECIPES
>Chicken Challenge
>Beginner’s Brisket
>NEW
>NEW
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
Beginner’s Brisket
>RUN NOW
>EDIT
>DELETE
>BACK
1
Once the home screen is displayed,
press MENU. The full menu will
now display several options.
Select Cook Cycle.
2
From the saved custom cook cycles
displayed, choose the one you want
using the Selection dial.
3
Once a custom cook cycle is selected,
you will be able to see the included
steps, or choose one of these options:
RUN NOW, EDIT, DELETE, or BACK to
return to the previous menu.
4
If you want to run the custom cook
cycle exactly as-is, select RUN NOW.
NOTE: To edit or add steps, follow
the instructions in "Creating a Cusom
Cook Program".
TIP: If you’re in the middle of programming a cook cycle and change your mind, just keep pressing MENU until
you get back to the main menu, at which point you can start over.
traegergrills.com
|
17
RUN COOK CYCLE NOW?
>YES
>NO
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
077
°F
STEP 1: 165°F | TIME: 03:30
PROBE: 072°F
Push Ignite To Start
150
BEGINNER’S BRISKET
Probe Required.
Insert Probe in Meat.
>Back
NOTES:
• If the probe is not plugged in properly, the grill will beep three times, loudly.
• It is recommended, but not necessary, to wait until preheat cycle is complete before loading food
into the grill.
• It is not necessary to keep grill door open at start-up; however, grill door should be closed once
preheat cycle begins so that the grill can reach the desired set temperature quickly.
5
You will be asked to verify if you want
to run the cook cycle now. Select YES.
6
If the probe is required, you’ll be
instructed to insert the probe into
the meat. You’ll hear a beep to
acknowledge the probe once it is
inserted into the control panel, and
you’ll again be asked if you want to
run the cook cycle now. Select YES.
7
The display will now show the rst
step of your cook program. Press
IGNITE to start.
8
The automatic ignition and preheat
cycle will begin. Once preheating is
complete, load food into the grill and
close the grill door.
18
Use this method to create your own cook program, or to edit an existing program.
CREATING A CUSTOM COOK PROGRAM
REMINDER: When using the Selection dial to choose options, remember to press in the center of the dial to
lock in your choice and move to the next menu item.
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
VISIT TRAEGER APP
FOR MORE RECIPES
>Chicken Challenge
>Beginner’s Brisket
>NEW
>NEW
My Cook Cycle 3
STEP 1
170°F> Time OR Probe
My Cook Cycle 3
STEP 1
> GRILL: 165°F
My Cook Cycle 3
STEP 1
170°F> | TIME: 00:00
HR: MIN
1
At the Cook Cycle menu, select NEW.
The Steps menu will now display.
2
At Step 1, you will be prompted to
choose a grill temperature (default
temperature is 165°F [74°C]). Turn the
Selection dial to the desired temperature
and press to select.
NOTE: Custom Cook programs require a
minimum of one step, with a maximum
of four.
3
Once temperature is selected, you
will have a choice of either Time (cook
time) or Probe (internal temperature
of meat).
4
If your recipe calls for a specic
number of hours at a set temperature,
select TIME. Use the Selection dial to
toggle between hours and minutes to
set the time.
CHOOSING A COOK METHOD (cont.)
traegergrills.com
|
19
NOTE: There are four memory slots for recipes on your grill. If you have four recipes already saved and wish
to create a new one, you will need to delete one of the current recipes to make room for the new one.
My Cook Cycle 3
STEP 1
170°F> Time OR Probe
My Cook Cycle 3
STEP 1
170°F | PROBE: 145°F
>Super Smoke: OFF
My Cook Cycle 3
>STEP 1
170°F | PROBE: 145°F
>ADD STEP
>SAVE
>DELETE
My Cook Cycle 3
>ADD STEP
>SAVE
>DELETE
>BACK
5
If your recipe calls for cooking your meat
to a specic internal temperature, choose
Probe. Use the Selection dial to select a
goal temperature.
6
The option for adding Super Smoke to your
step will display. To add Super Smoke,
use the Selection dial to toggle from OFF
(default) to ON. Otherwise, just press the
dial center to accept the default setting.
NOTE: Super Smoke can only be used
when the grill temperature is between
165 and 225°F (74 and107°C).
7
At this point you’ll be returned to the Steps
menu for your Custom Cook program.
You can add another step, save the cook
program as-is, delete the program, or
return to the Cook Cycle menu (your step
will be saved automatically).
8
Once all steps are added, select SAVE.
You will be asked if you want to RUN
COOK CYCLE NOW. If you select
YES, you'll be taken back to the home
screen and instructed to push IGNITE
to start. If you select NO, you’ll return
to the Cook Cycle menu.
20
COOKING WITH A PROBE
Use this method when your recipe species an internal goal temperature for your food.
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
275
°F
Push Ignite To Start
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
PROBE
Set Probe Alarm:
145
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
TRAEGER WiFIRE
>Cook Cycle
>Probe
>Wi- Information
>Settings
>Back
TURN DIAL TO SET TEMP
MENU
IGNITE
1
Turn grill on, and then load food into the
grill. Thread probe through the grommet
next to the control, and insert the probe
tip into the meat. Make sure it’s not in
the fatty portion or touching bone, but is
halfway into the thickest part of the meat.
2
Select cooking temperature, then plug
probe into probe receptacle on the
controller. The grill will recognize the
probe, and the probe icon will light in
the upper-right corner of the screen.
3
Press MENU, then select Probe. You will
be prompted to set a probe alarm for
the internal goal temperature. Select
SET ALARM, and at the PROBE menu,
use the selection dial to choose the
desired goal temperature for your meat.
4
Once the probe alarm is selected, the
home screen will display. Press IGNITE.
The display will change to show the
goal cook temperature, the goal probe
temperature, and indicate status
("Igniting..."). Close the grill door. You
will hear a notication beep when your
meat reaches the desired temperature.
CHOOSING A COOK METHOD (cont.)
traegergrills.com
|
21
ALL NATURAL
HARDWOOD
HOPPER CLEAN-OUT
Your Traeger Timberline Grill has a hopper clean-out system that allows you to quickly
change from one pellet avor to another without making a mess.
1
Turn the Main Power switch to
OFF (O) and disconnect the power
cord. If the grill is still hot, allow
it to cool completely.
2
Place a container large enough to hold
the discarded pellets under the pellet
clean-out door.
TIP: A clean 5-gallon bucket works great!
3
Unscrew the clean-out door fastener and
open, allowing the pellets to empty into
the container below it. You might need a
spatula or spoon to push the remaining
pellets out of the hopper.
NOTE: The pellets remaining in the auger
do not need to be removed; they will burn
through during your next warm-up cycle.
4
Once the hopper is empty, close the
door, replace the fastener, and rell
the hopper with a different avor of
Traeger Hardwood Pellets.
Plug appearance may vary by region.
22
TIMBERLINE FEATURES
TRAEGER APP
TIMER
SUPER SMOKE OPTION
KEEP WARM FUNCTION
Your Timberline Grill can be controlled remotely using
the Traeger App. To use the Traeger App and connect
your grill to your home’s Wi-Fi, refer to the Traeger App
Quick Start Guide found in your Manuals packet.
You will need a home Internet Wi-Fi connection
to connect your Timberline Grill to the Internet. A
smartphone or tablet running either iOS (8.2 and
newer) or Android (4.4 and newer) is required. If you
leave the range of your home Wi-Fi network with your
device, a data plan is required.
The Traeger App is also an easy way to search,
download, and cook new recipes on your Timberline
Grill. You can also stock up on Traeger
®
Hardwood
Pellets, or order grill accessories to optimize your
grilling experience.
You can add more smoke avor to your food by pressing
SUPER SMOKE at any time during grilling. Press it again
to cancel.
NOTE: Super Smoke can only be activated when grill
temperature is between 165° and 225°F (74 and107°C).
Keep Warm can be used to pause the cook cycle at any
time during grilling. Simply press KEEP WARM again
to resume cooking. Keep Warm maintains the grill
temperature at 165°F (74°C).
Your Timberline Grill comes equipped with a convenient timer. The Timer function does not impact grill
operation; you can use it to notify you of other needed steps during cooking, like loading vegetables into the
grill or basting your food .
To set the Timer:
a. Push and hold the TIMER button for 3 seconds.
b. Rotate dial to select hours; press dial to select and move
to minutes.
c. Rotate dial to select minutes; press dial to select.
Once the dial is pressed after choosing minutes, the home
screen will display; the timer is set.
To cancel the Timer:
a. Push and hold the TIMER button for 3 seconds
b. You will see the options to EDIT, CANCEL, or go BACK to the menu.
TIMER MENU
IGNITE
KEEP
WARM
SUPER
SMOKE
Push Ignite To Start
TIMER MENU
KEEP
WARM
SUPER
SMOKE
Push Ignite To Start
TIMER MENU
KEEP
WARM
SUPER
SMOKE
Push Ignite To Start
traegergrills.com
|
23
VERSATILE LOWER GRATE
RACK STOPS
CUTTING BOARD
GRILL COVER
You can change the placement of the bottom grill grate
for two different cooking options: Sear Position and
Smoke Position.
In Sear Position, the grill grate should be placed at the
lowest point in the grill body cavity, resting on the lowest
back brackets and the lip at the front. This ensures that
the radiant heat from the grease drip tray is maximized
and your food has sear marks.
For Smoke Position, place the grill grate on the
higher front brackets, sliding it into the channel at
the back. This will allow the smoke to fully circulate
for convection cooking.
Located at the front of the slider brackets for both the
bottom and middle grates, rack stops provide additional
stability when accessing food. Simply slide the grate out
until the crossbar catches in the rack stop, and you’ll
be able to ip burgers or baste ribs easily without the
rack tipping.
NOTE: Only move the bottom and middle grill grates; the
top grill grate should remain in place since it does not slide.
For added convenience, your Timberline Grill includes a removable bamboo cutting board. Simply set the
cutting board on top of the hopper and the magnetic base will hold it in place. For the proper maintenance
and cleaning of your cutting board, see "Maintaining Your Grill" on page 25.
IMPORTANT: Do not leave the cutting board outside in the sun or exposed to high temperatures for long
periods of time. High temperatures and sunlight may cause the board to warp.
For consumers in North America:
IMPORTANT: In accordance with guidelines from the American Heart Association, as with many products
containing magnets, it is recommended that those with implantable pacemakers/debrillators should use
care with the cutting board and keep their device 12 inches (30 cm) away from the board.
For consumers in the European Union:
IMPORTANT: In accordance with guidelines from the medical device manufacturers, as with many products
containing magnets, it is recommended that those with implantable pacemakers/debrillators should use
care with the cutting board and keep their device 30 cm away from the board.
Protect your Timberline Grill with a premium custom cover, designed to withstand the elements.
This durable grill cover is available for purchase at traegergrills.com.
24
OPERATING TIPS
1. You can change the temperature at any time
during grilling to increase or decrease cooking
temperature.
To change between Fahrenheit and Celsius:
a. Press MENU.
b. Select SETTINGS.
c. Select TEMPERATURE UNITS.
d. Choose either FAHRENHEIT (°F) or
CELSIUS (°C).
e. Select BACK.
You will now see temperatures displayed in the
format you’ve chosen.
2. WARNING! Your Traeger Timberline Grill
should never be moved while it is hot. If you
are transporting your grill in a vehicle after
cooking on it, make sure the re is completely
out and the grill is cold before placing it in any
vehicle. Never put water into the repot; it will
jam the auger.
3. Your Traeger Timberline Grill is designed to
operate with the door closed. Cooking with the
door open greatly lengthens your cooking time.
4. CAUTION! Never add pellets by hand to a hot
repot. This is dangerous and you may be
seriously burned. If you run out of pellets and
lose your re while cooking, let the grill cool
completely and start again with the “HOPPER
CLEAN-OUT" instructions on page 21.
5. CAUTION! Make sure the heat shield is properly
seated on its locating brackets. If not seated
properly, direct heat and ame could come
up out of the repot and cause a grease re
in the grill.
Always take into account the type of food you are
cooking.
• Thin foods need high heat and shorter cook
times, while thicker foods need low heat and
longer cook times.
• Vegetables take longer to cook than meats at
the same cooking temperatures.
• Always check that the internal temperature
of the meat that you are cooking reaches safe
temperatures to eat.
• The Keep Warm function is not designed to
properly cook your food.
6. WARNING! If the re in the repot goes out
while smoking and there are sufcient pellets
still in the pellet hopper, it is important to
follow these steps. Failure to do so may cause
a hazardous “overring” of your grill due to an
excess of unburned pellets in the repot.
DANGER! Turn the Main Power switch at the
back of the grill to OFF (O) and disconnect the
power cord. Allow the grill to cool thoroughly.
Open the door and remove all food, grill grates,
grease pan, grease drip tray, and heat shield.
WARNING! Remove all unburned pellets and
ash from inside and around the repot. (See
instructions for proper handling and disposal
of ash on page 26.)
Before replacing the heat shield, grease pan,
grease drip tray, and the grill grates, plug
the power cord into an appropriate grounded
electrical outlet and turn the switch ON (I). Pellets
should fall into the repot and the hot rod should
begin to heat (it will start to turn red). CAUTION!
Do not touch the hot rod.
When ames start to come out of the repot, turn
the switch OFF (O). Let the grill cool down. Now
you’re ready to place the heat shields, grease drip
tray, and grill grates back into the grill.
7. CARBON MONOXIDE:
WARNING! Follow these guidelines to prevent
this colorless, odorless gas from poisoning you,
your family, or others.
Know the symptoms of carbon monoxide
poisoning: headaches, dizziness, weakness,
nausea, vomiting, sleepiness, and confusion.
Carbon monoxide reduces the blood’s ability to
carry oxygen. Low blood oxygen levels can result
in loss of consciousness and death.
See a doctor if you or others develop cold- or
u-like symptoms while cooking or in the
vicinity of this appliance. Carbon monoxide
poisoning, which can easily be mistaken for a
cold or u, is often detected too late.
Alcohol consumption and drug use increase the
effects of carbon monoxide poisoning.
Carbon monoxide is especially toxic to
mother and child during pregnancy, infants,
the elderly, smokers, and people with blood
or circulatory system problems, such as
anemia or heart disease.
traegergrills.com
|
25
MAINTAINING YOUR GRILL
1. CREOSOTE AND GREASE FORMATION AND
REMOVAL:
When wood pellets are burned slowly, they
produce tar and other organic vapors that
combine with expelled moisture to form creosote.
The creosote vapors condense in the relatively
cool ue exhaust of a slow-burning re. As a
result, creosote accumulates on the ue lining.
When ignited, creosote makes an extremely hot
re. Airborne grease particles will travel through
the cooking chamber, and some of this airborne
grease will accumulate on the ue lining, similar
to creosote, which could be contributory to a re.
Also, grease drippings from the food will fall onto
the grease drip tray, and then into the Traeger
Grease Management System (TGMS). The TGMS
is composed of a (1) grease channel, (2) grease
chute, (3) internal grease trap, and (4) grease pan
with pan liner (see below).
Grease drippings will ow from the grease drip
tray to the grease channel, and then out of the
grill through the grease chute, to be collected in
the grease pan. Grease will accumulate in all of
these locations.
The grease drip tray, the grease channel, and
the grease chute should be inspected every eight
times that you operate your grill for signs of
grease buildup.
When creosote or grease has accumulated, it
should be removed to reduce the risk of re.
Cleaning grease from your grill:
DANGER! Turn the Main Power switch OFF (O)
and disconnect the power cord.
CAUTION! Accumulated grease is easier to
clean off when the grill is still warm—not hot.
Be careful not to burn yourself.
Gloves are recommended.
Periodically clean the grease from the TGMS. If
too much grease is allowed to build up in the
grease channel or is allowed to plug the grease
chute, a grease re could result. We recommend
cleaning these locations regularly.
Remove the grill grates and the grease drip
tray. This will provide access to the grease
channel and grease chute inside the grill.
Scrape the grease accumulation from inside
the grease channel and grease chute using a
stiff, nonmetallic tool. Much of the loosened
grease can be pushed down through the grease
chute and will fall into the grease pan. Wipe up
remaining grease residue with paper towels or
disposable rags. Paper towels or disposable rags
can also be used to wipe some of the grease off
of the interior surfaces of the grill.
The grease pan comes with a preinstalled
5-pack of disposable aluminum liners.
Replacement liner packs are available for
purchase at www.traegergrills.com. Empty the
grease pan as needed; frequency depends on
the amount of use.
8. GREASE MANAGEMENT:
CAUTION! Grease res are caused by not
properly maintaining the grill and failing to clean
the Traeger Grease Management System (TGMS)
on a consistent basis (see MAINTAINING YOUR
GRILL). In the unlikely event of a grease re
while cooking, turn the switch OFF (O) and keep
the door closed until the re is completely out.
Never keep the door open during a grease re.
If the re does not go out, lightly sprinkle baking
soda on the re.
CAUTION! Be careful not to burn yourself. If
this does not work, carefully remove the food
from the grill and keep the door closed until
the re is completely out. Again, be careful not
to burn yourself. When the grill is completely
cool, remove all internal components. Clean any
grease accumulation from the TGMS. Replace
the grease drip tray and grill grates, restart the
grill, and resume cooking.
26
2. CLEANING OUTSIDE SURFACES:
DANGER! Turn the Main Power switch OFF (O)
and disconnect the power cord.
Use a disposable rag or cloth dampened with
warm, soapy water to wipe the grease from the
outside of the grill. DO NOT use oven cleaner,
abrasive cleansers, or abrasive cleaning pads
on the outside grill surfaces.
3. OUTSIDE STORAGE:
CAUTION! If the grill is stored outside during
the rainy season, care should be taken to ensure
that water does not get into the pellet hopper.
Wood pellets expand greatly when wet and will
jam your auger. Always cover your grill when not
in use with the Traeger Grill Cover. This custom-
t cover can be purchased at traegergrills.com.
4. CLEANING THE STAINLESS STEEL GRILL
GRATES:
CAUTION! Cleaning the grill grates works best
while they are still warm. Be careful not to burn
yourself. We recommend keeping a long-handled
cleaning brush near the grill. After removing your
food, give the grill grate a quick brushing. It takes
only a minute and it will be ready the next time
you want to use the grill.
5. CLEANING THE ASH FROM INSIDE AND
AROUND THE FIREPOT:
WARNING! Make sure that the grill is COLD
before cleaning the ash.
WARNING! Disposal of ashes should be done
only according to the following instructions.
Excess ash in the repot may cause your re
to go out. The repot should be inspected
occasionally and cleaned to remove the ash
buildup. Again, cleaning the ash from in and
around the repot should be done only when
the grill is COLD.
Remove the grill grates, grease drip tray, and
heat shield to provide access to the repot and
the interior of the grill. Much of the ash outside
of the repot can be removed from the grill with a
small metal replace shovel or other similar tool.
WARNING! A vacuum cleaner is the best way to
remove ashes from the repot, but this must be
done with extreme care to avoid the risk of re.
Again, cleaning the ash from the repot should
be done only when the grill is COLD.
A utility-type vacuum cleaner having a metal
collection canister without a bag would be best
for this task. However, almost any vacuum
cleaner will work safely if this procedure is
properly followed.
After ensuring that the ash in the repot is
COLD, vacuum the ash from the inside of
the repot.
a. If your vacuum cleaner is a bagless
model, empty any previously accumulated
debris from the collection chamber. Then
vacuum the ash from the inside of the
repot. Once the repot is clean, empty the
collection chamber into the metal container
described below without delay. Make sure
that there is no remaining ash residue left
in the collection chamber.
b. If your vacuum cleaner is a model that
uses a disposable bag, install an unused
bag in the machine. Then vacuum the ash
from the inside of the repot. Once the
repot is clean, remove the bag from the
vacuum cleaner and place it in the metal
container described below without delay.
6. DISPOSAL OF ASHES:
WARNING! Ashes should be placed in a metal
container with a tight-tting lid. The closed
container of ashes should be placed on a
noncombustible oor or on the ground, well
away from all combustible materials, pending
nal disposal. When the ashes are disposed of by
burial in soil or otherwise locally dispersed, they
should be retained in the closed container until
all cinders have cooled thoroughly.
7. CLEANING THE CUTTING BOARD:
Always thoroughly wash the cutting board
after use.
To wash:
1. Hand wash only in warm, soapy water.
DO NOT SOAK.
2. Rinse with clean water.
3. Air dry.
IMPORTANT: Soaking the wooden cutting board
in water or washing it in the dishwasher can
damage the board.
NOTE: Avoid overexposure to sunlight to
prevent warping.
MAINTAINING YOUR GRILL (cont.)
traegergrills.com
|
27
TRAEGER’S LEGENDARY CUSTOMER SERVICE is the best out there. If you have any
questions about your Traeger grill or need tips on cooking your rst Thanksgiving turkey, our seasoned experts
have your back. We’re here for you 365 days a year including holidays, because we’re cooks—not bankers.
For assistance with assembly or installation, parts, and customer service (English only, please), you can phone,
e-mail, or write us at:
TRAEGER'S CUSTOMER SERVICE
Phone: 1-844-9WiFIRE
6:00 a.m. – 7:30 p.m. MT
E-mail: [email protected]
TRAEGER PELLET GRILLS LLC
1215 E. Wilmington Ave.
Salt Lake City, UT 84106
3-YEAR WARRANTY (U.S.A. ONLY)
Traeger Pellet Grills LLC warrants this barbecue grill against defects in material and workmanship
under normal use and maintenance for a period of three (3) years from the date of original
purchase.
Traeger Pellet Grills LLC will provide a replacement part for any part found to be defective. Original
part(s) approved for return by Traeger’s Parts Department must be returned prepaid.
This warranty does not include labor charges connected with the determination or replacement of
defective parts, or freight charges to ship these parts.
Traeger Pellet Grills LLC shall not be liable under this or any implied warranty for incidental
or consequential damages. This warranty gives the retail customer specic legal rights and the
customer may have other rights which vary from state to state.
This warranty shall be void if the unit is not assembled or operated in accordance with the
operation instructions provided with this unit; the unit is resold or traded to another owner;
components, accessories, or fuels not compatible with the unit have been used; the unit has been
used in a commercial or food service application; or the user has abused or otherwise failed to
maintain the unit.
To process a warranty claim, Traeger Pellet Grills LLC may require proof of your date of purchase.
You should retain your sales slip or invoice along with this certicate with your valuable
documents.
SERVICE AND WARRANTY
Traeger Pellet Grills LLC
1215 E. Wilmington Ave
Salt Lake City, UT 84106
traegergrills.com
