Craftsman 917274031 tractor User Manual

Owner's Manual

LAWN TRACTOR

21.0 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.274031

I I_ This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and followall Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

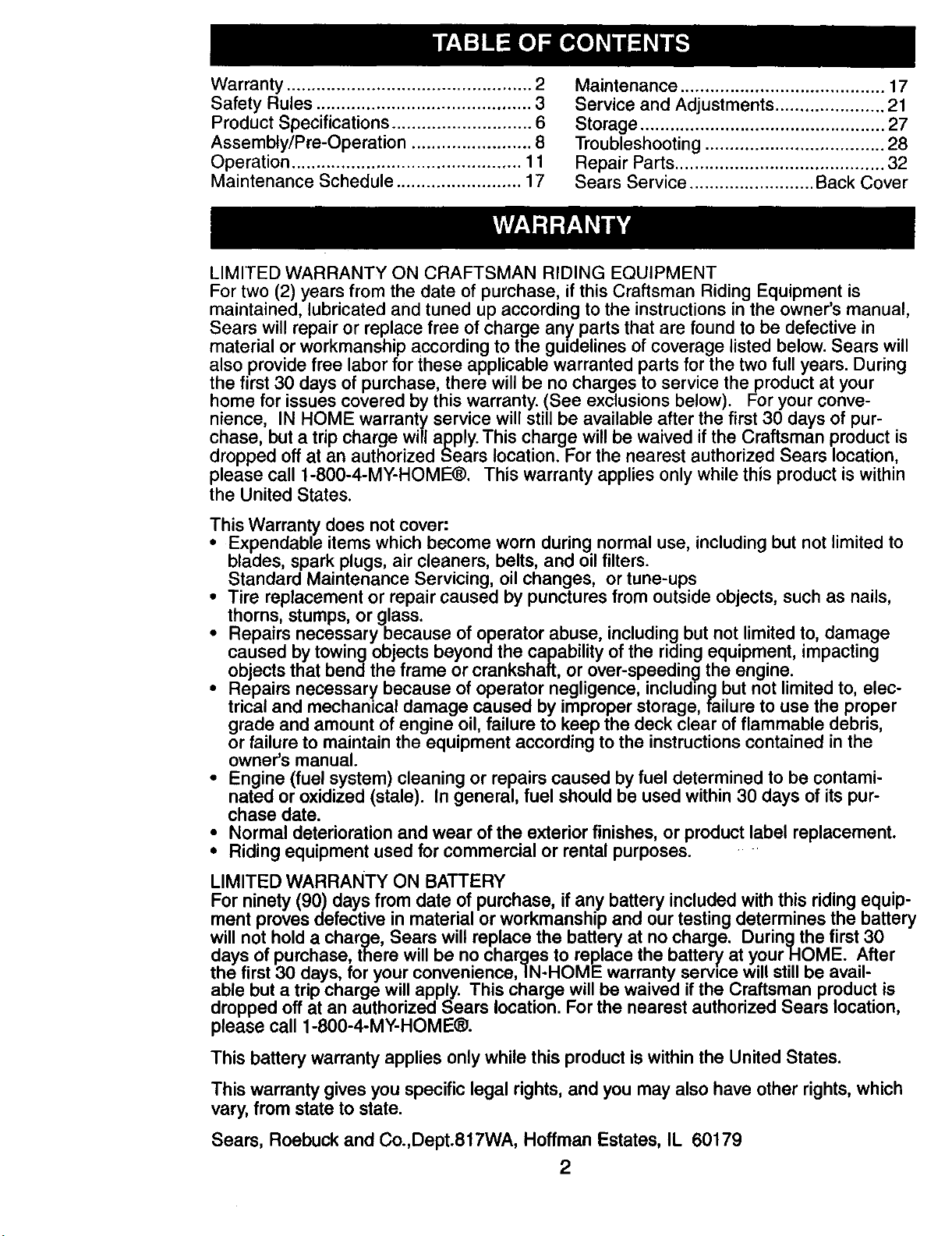

Warranty ................................................. 2

Safety Rules ........................................... 3

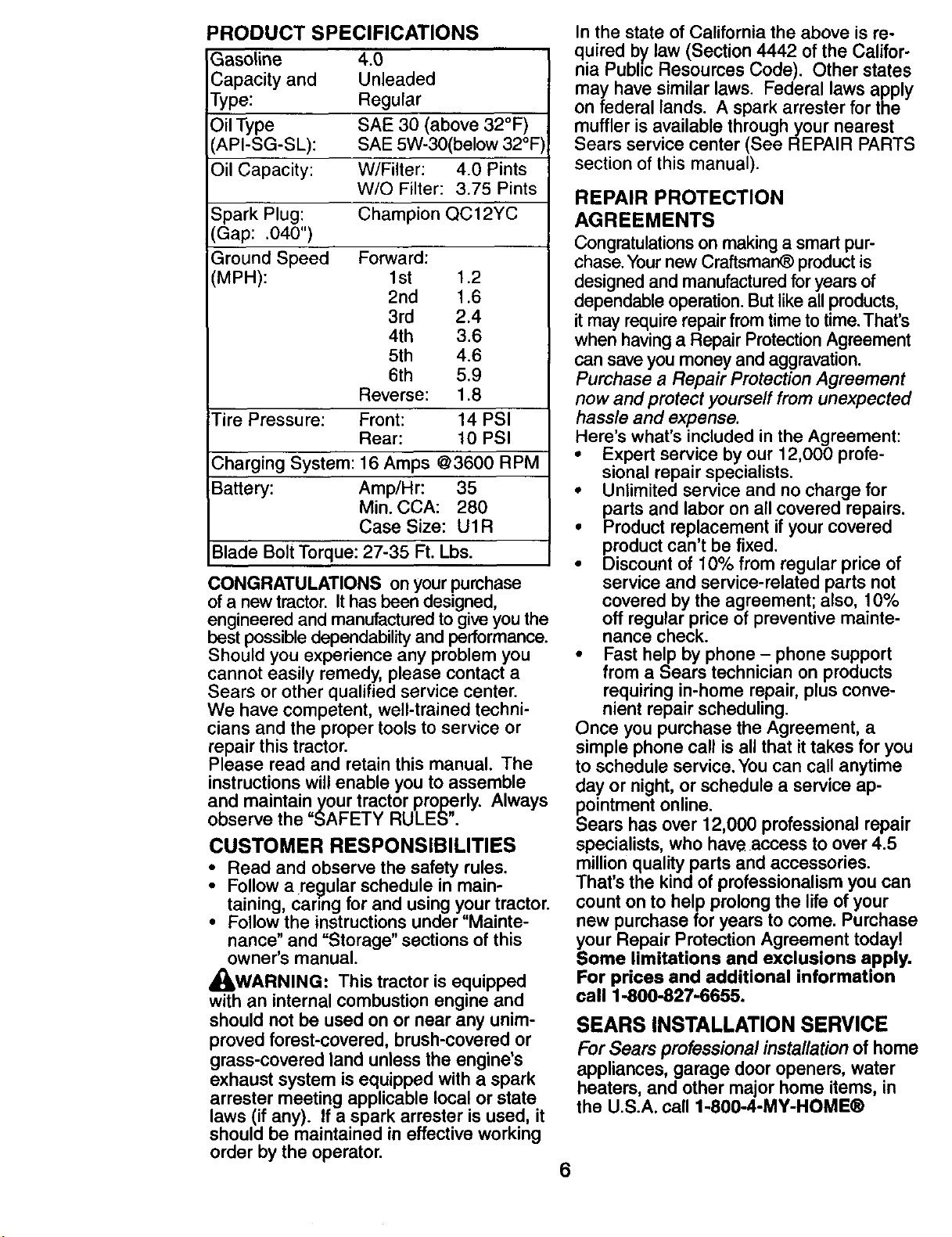

Product Specifications ............................ 6

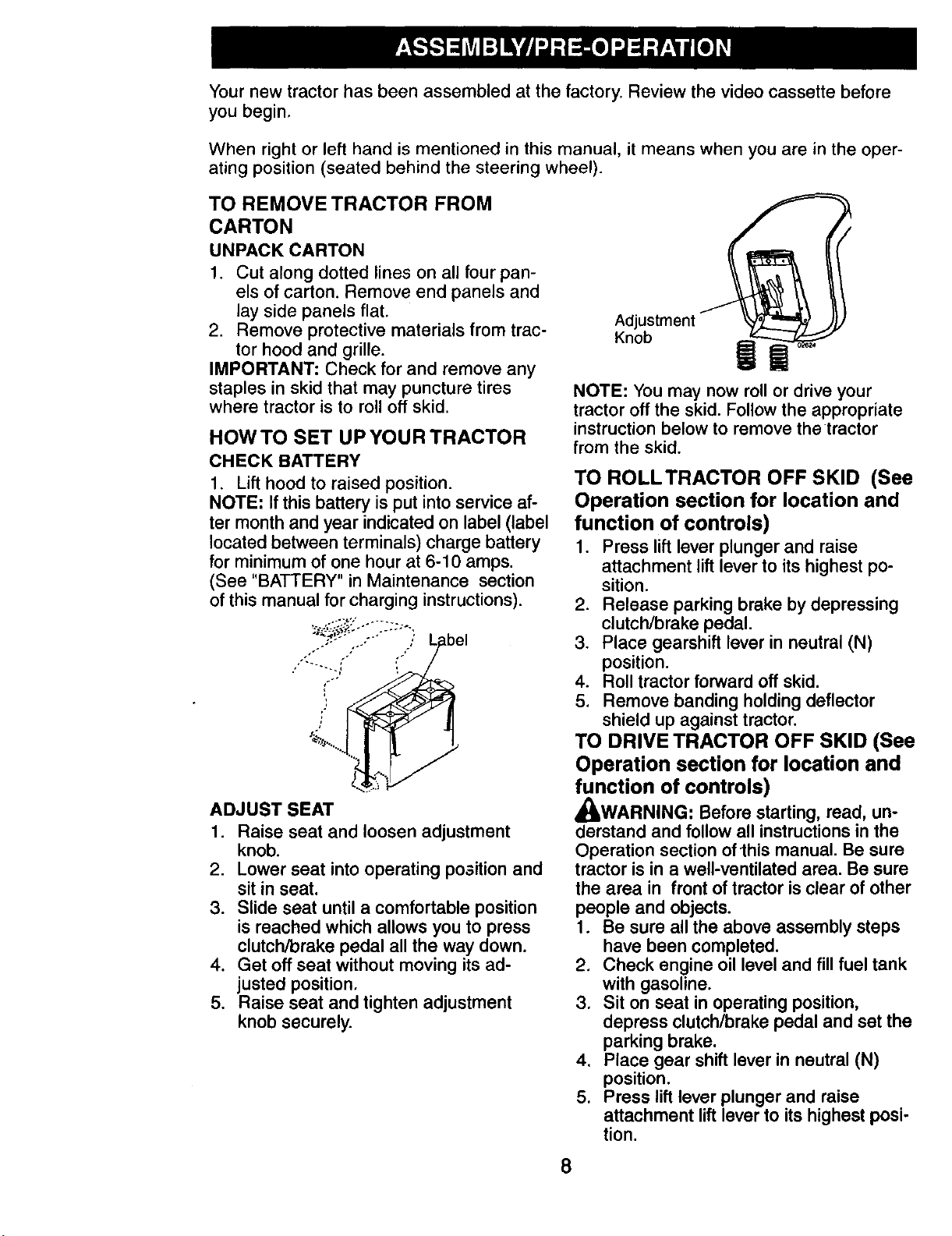

Assembty/Pre-Operation ........................ 8

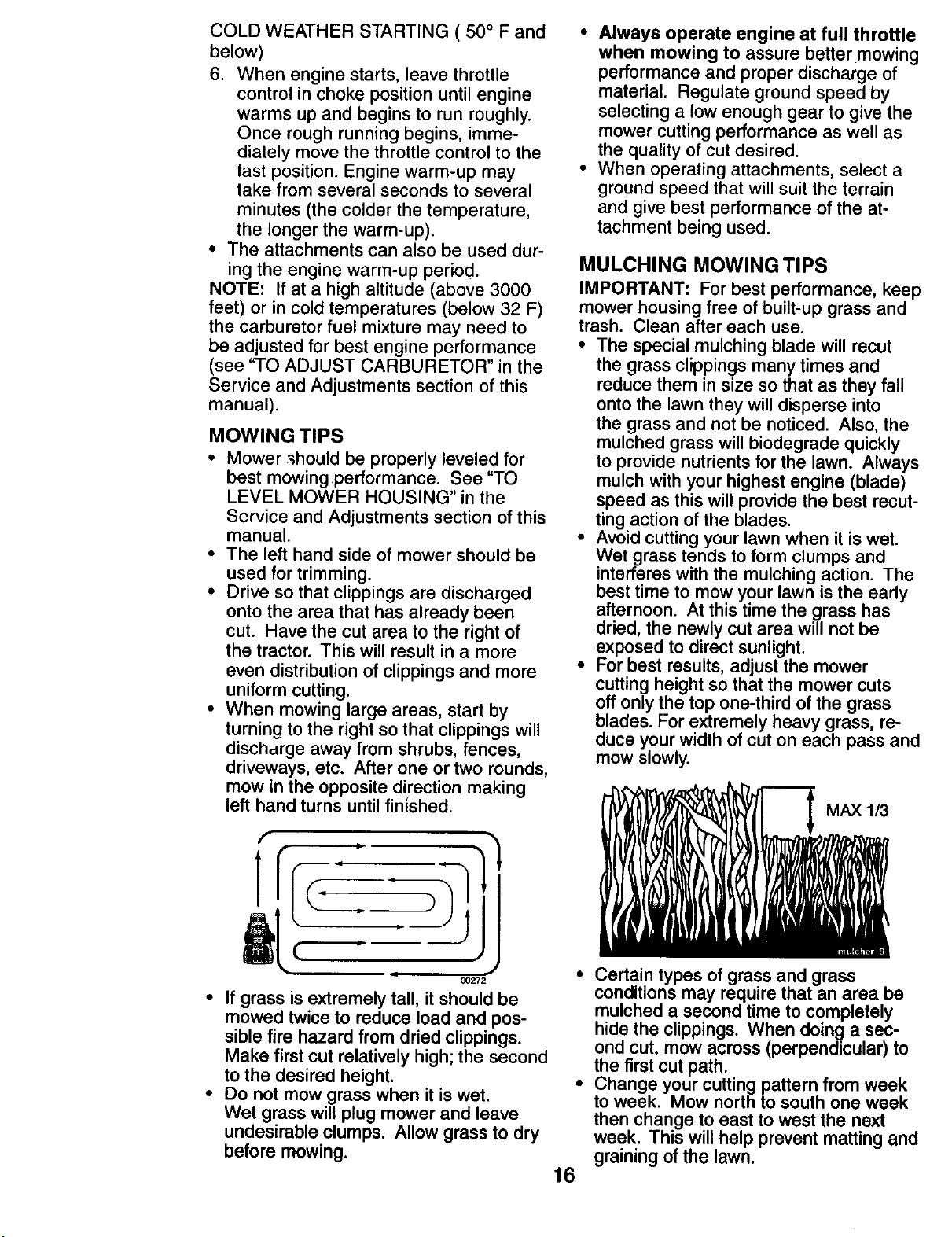

Operation .............................................. 11

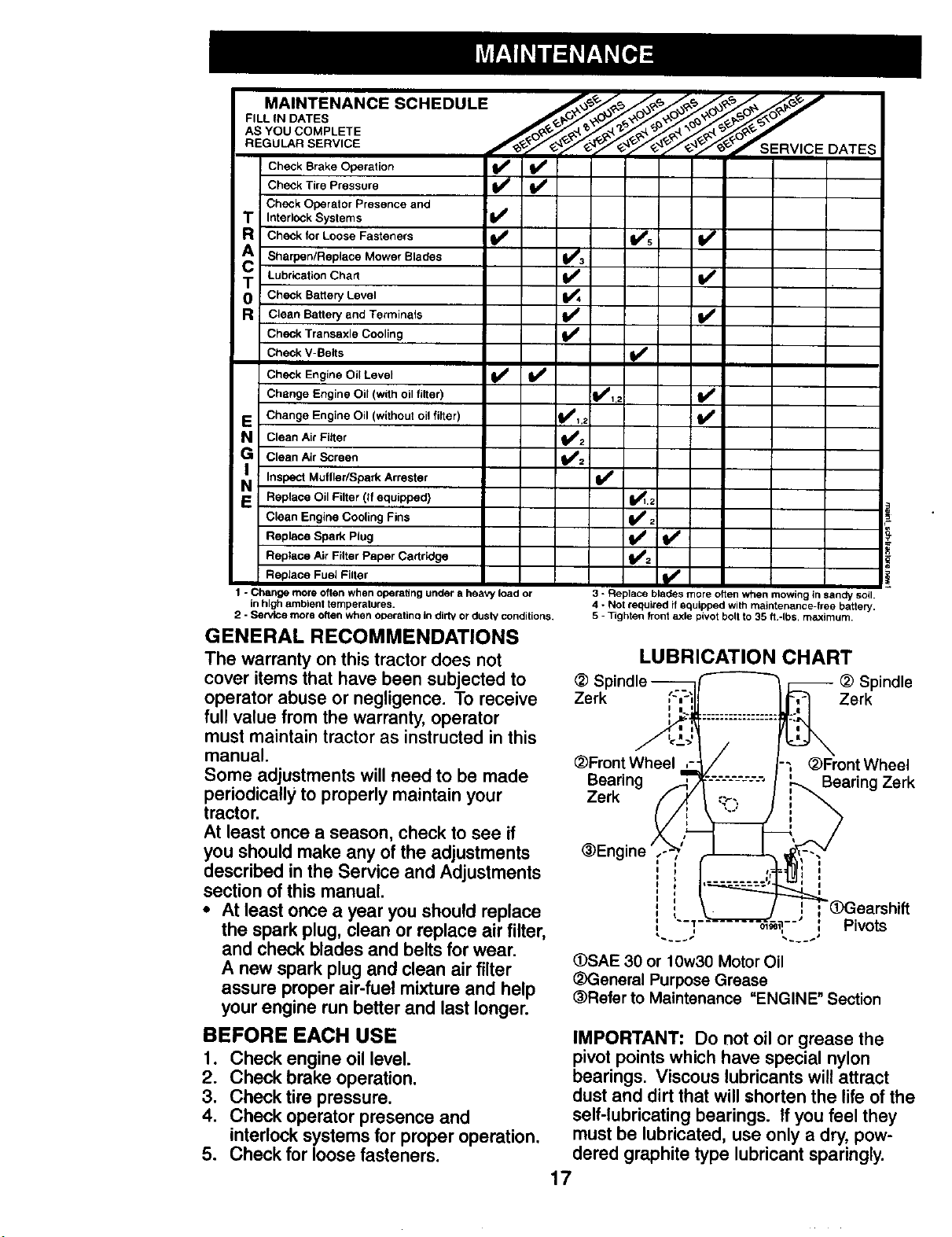

Maintenance Schedule ......................... 17

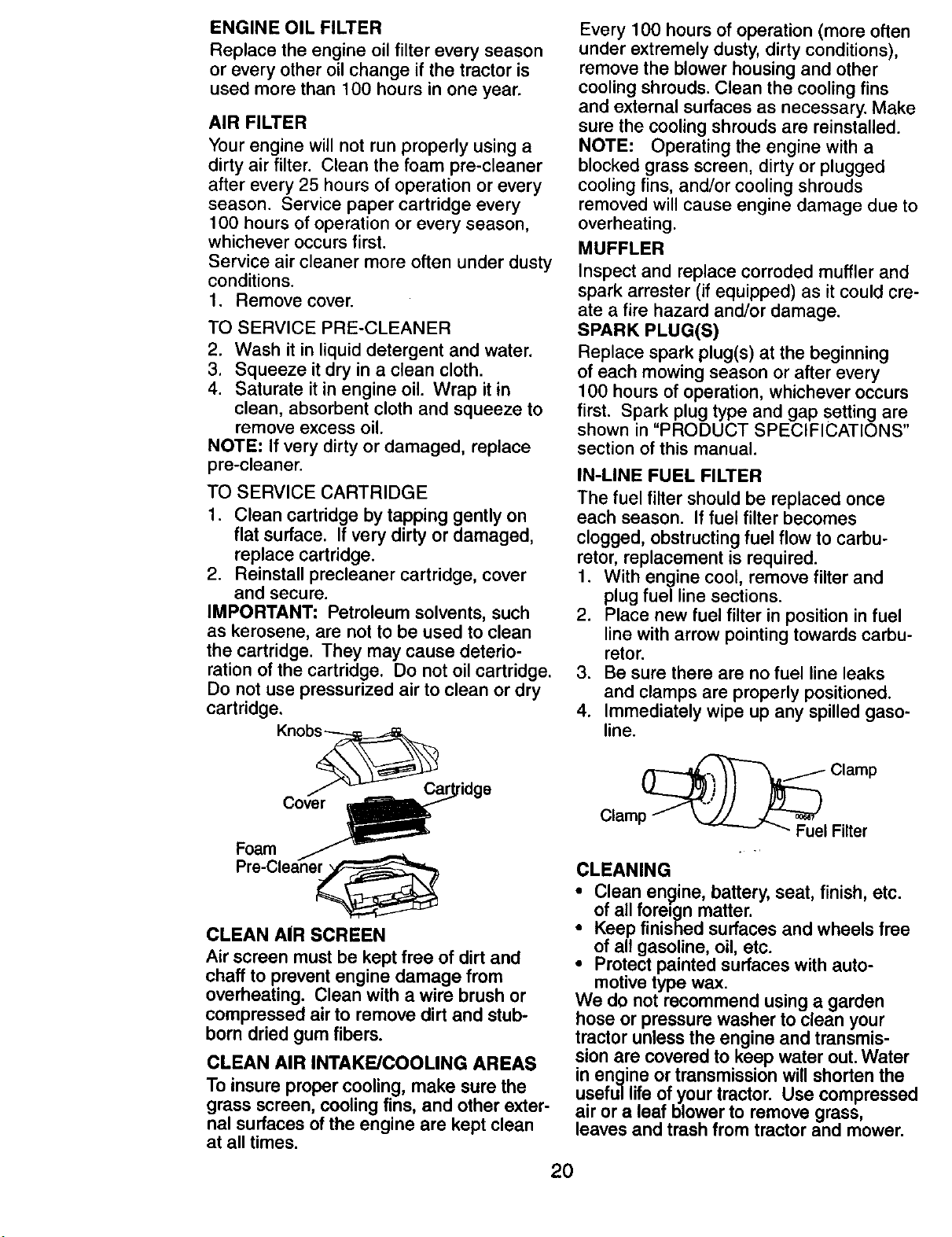

Maintenance ......................................... 17

Service and Adjustments ...................... 21

Storage ................................................. 27

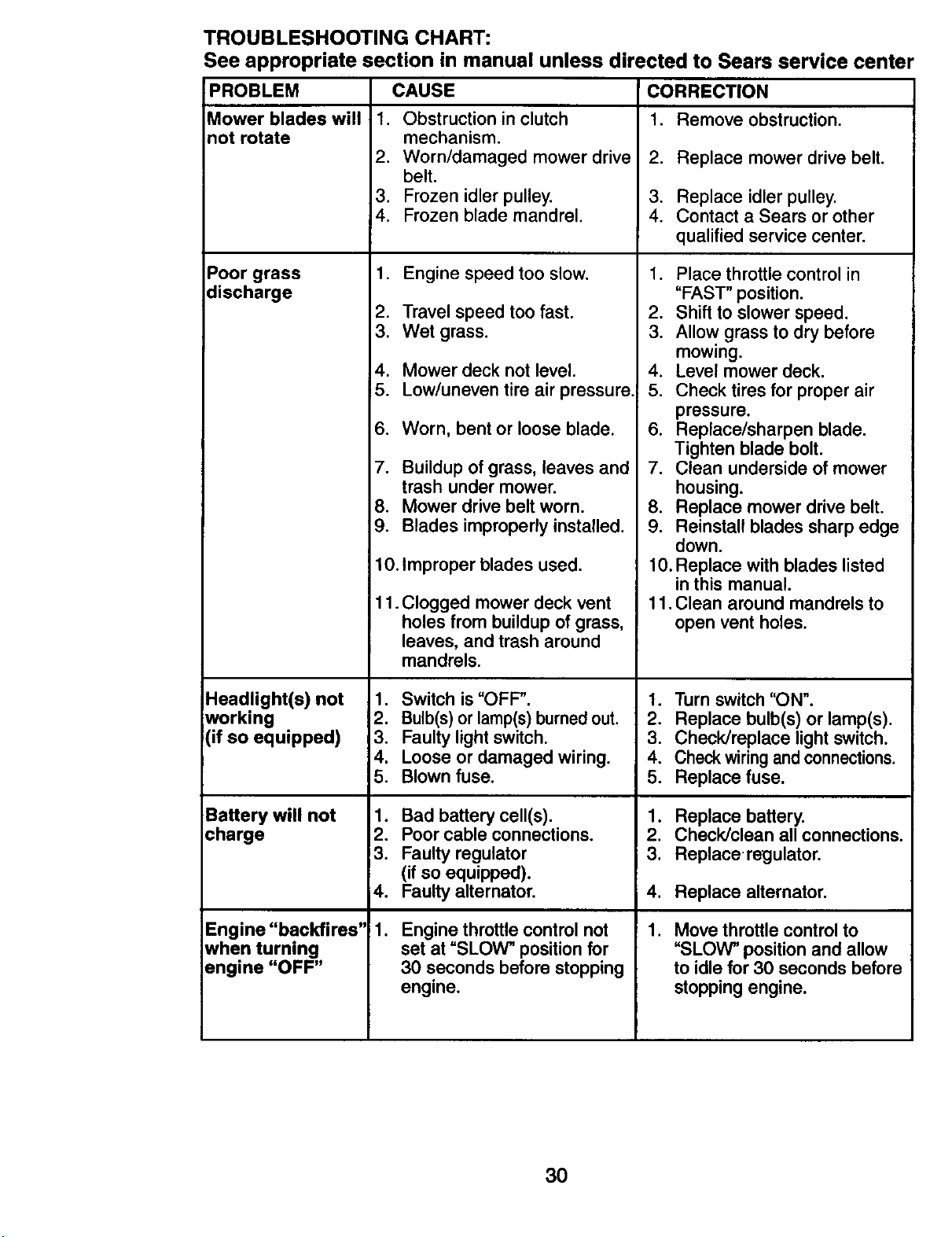

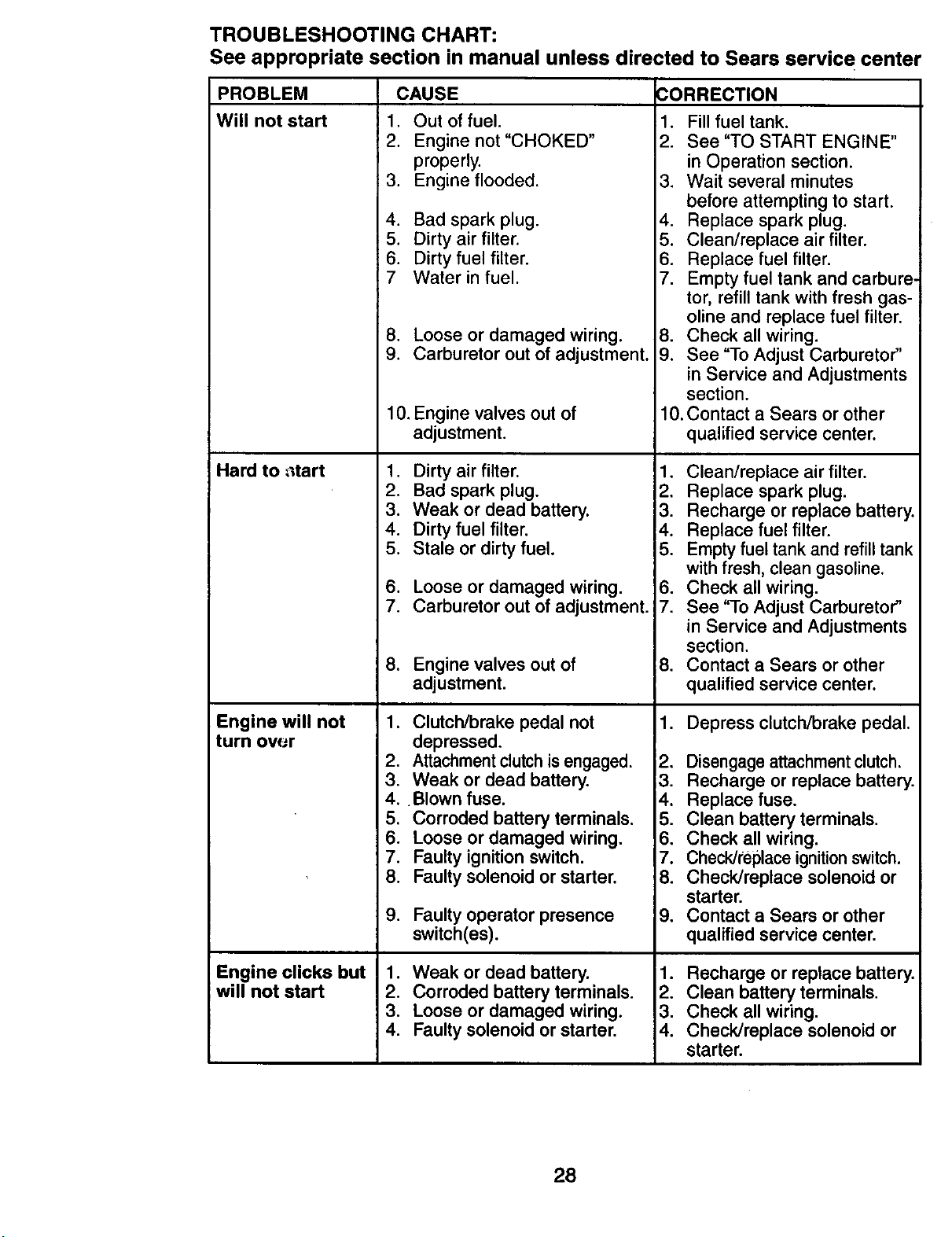

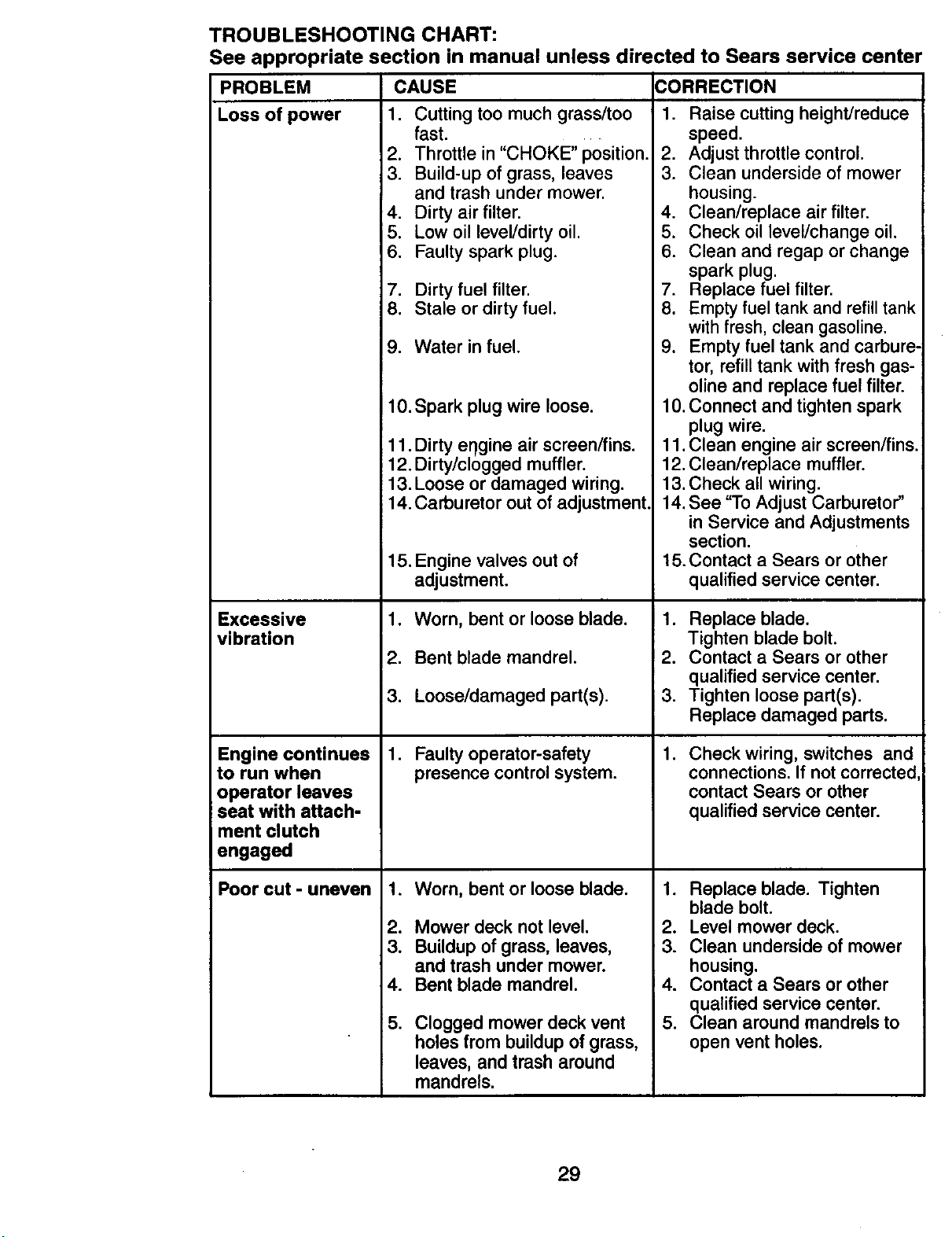

Troubleshooting .................................... 28

Repair Parts .......................................... 32

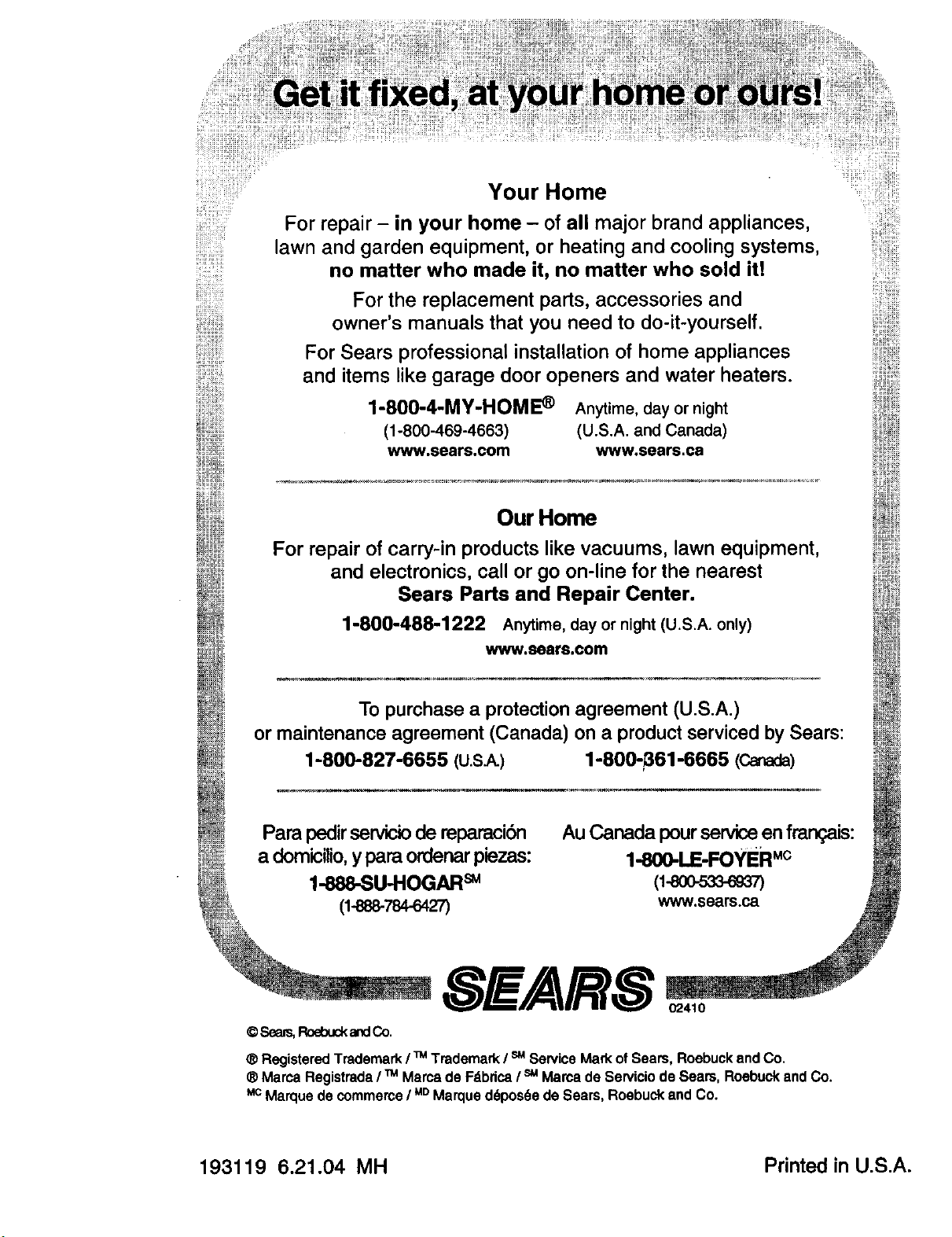

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at yourHOME. After

the first 30 days, for your convenience,IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

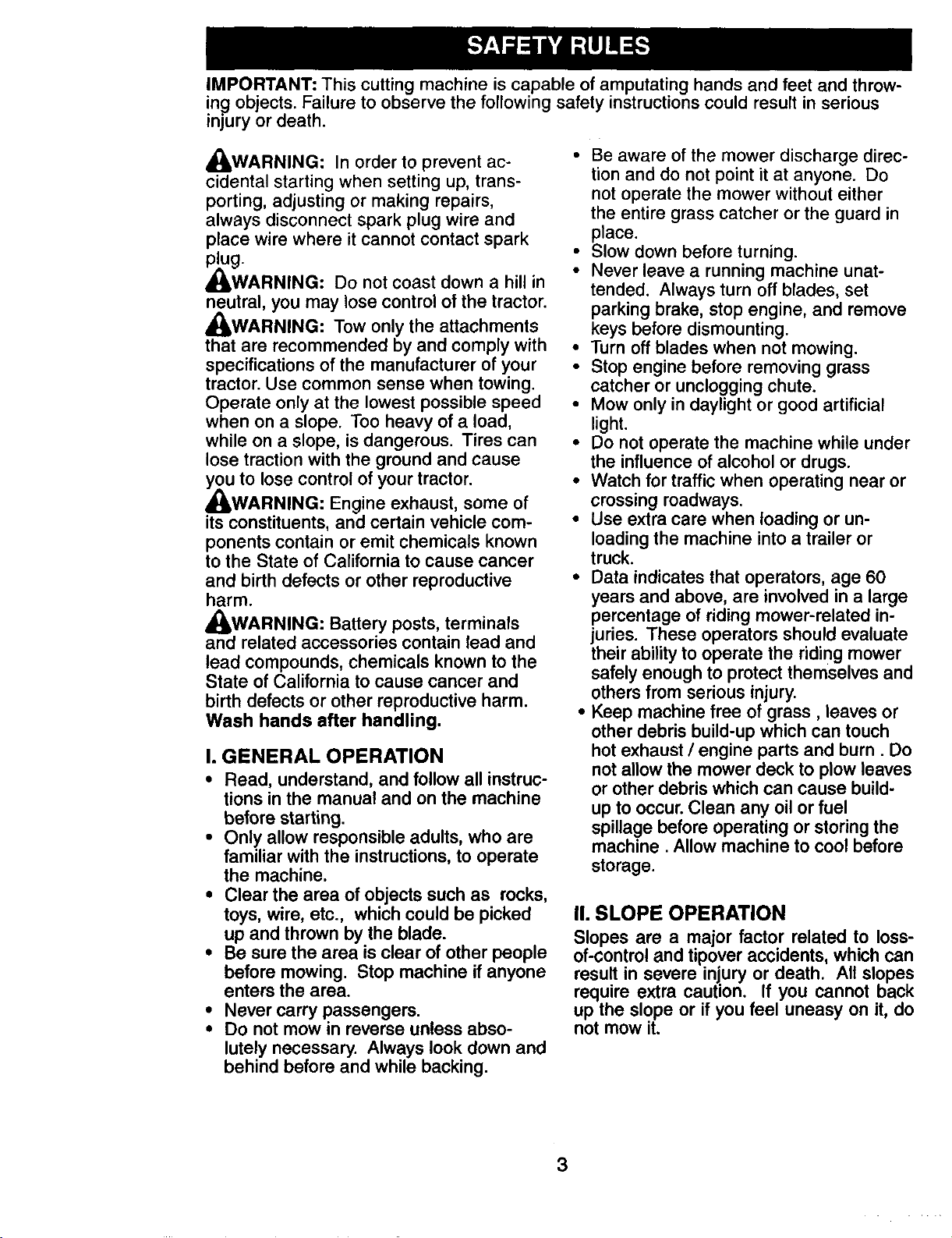

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

!n.g objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING." Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

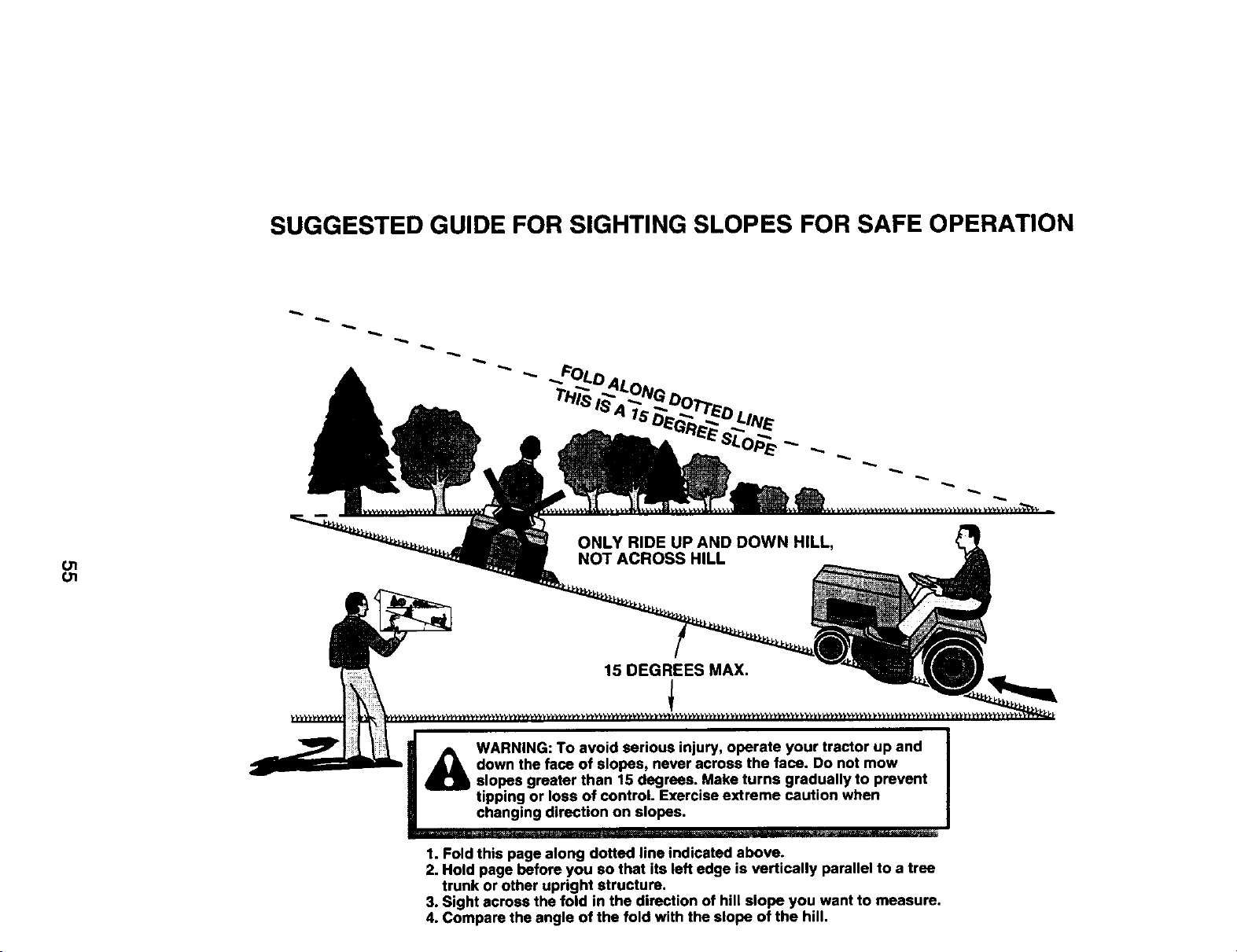

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

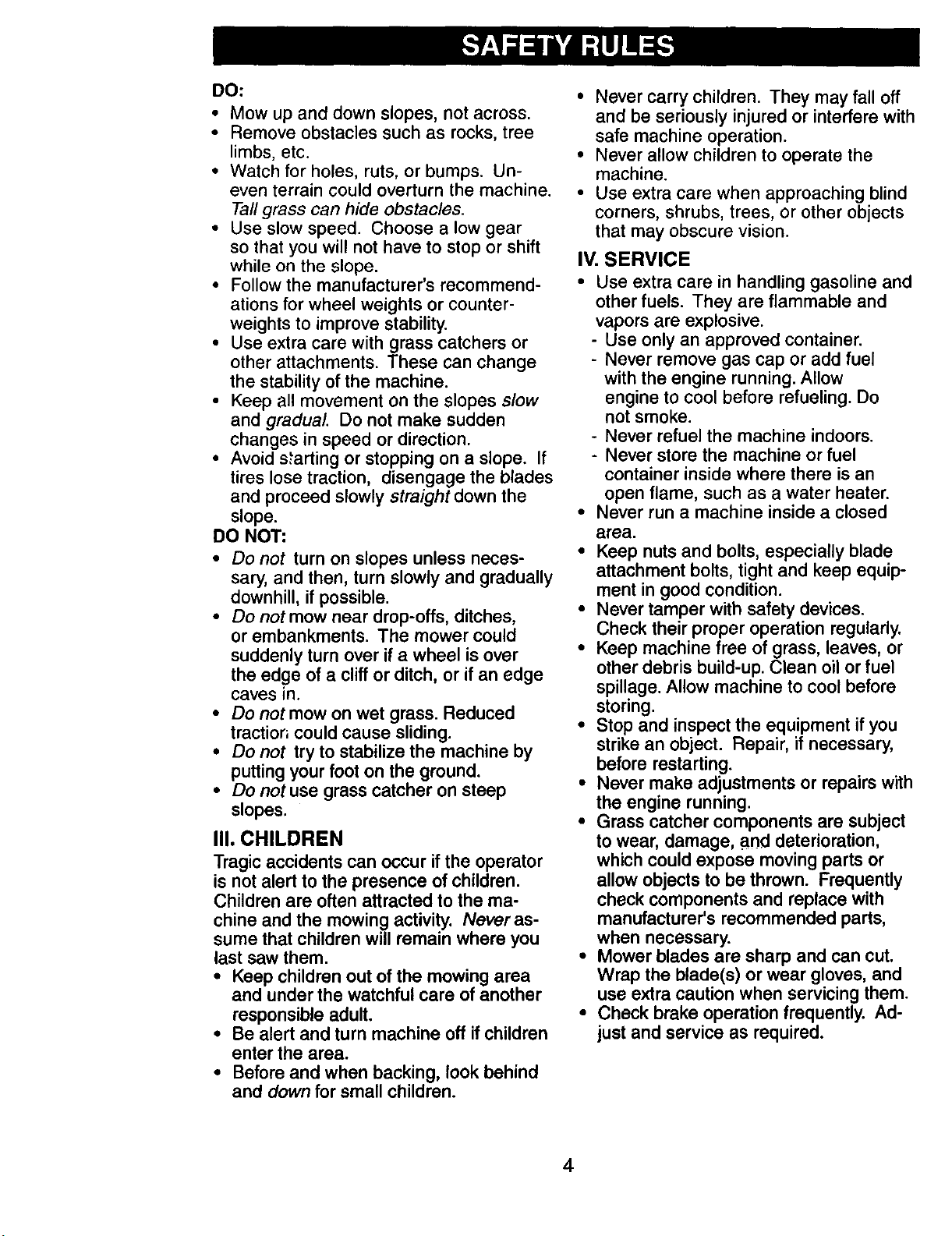

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid s_'arting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

• Do not mow on wet grass. Reduced

tractior_ could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

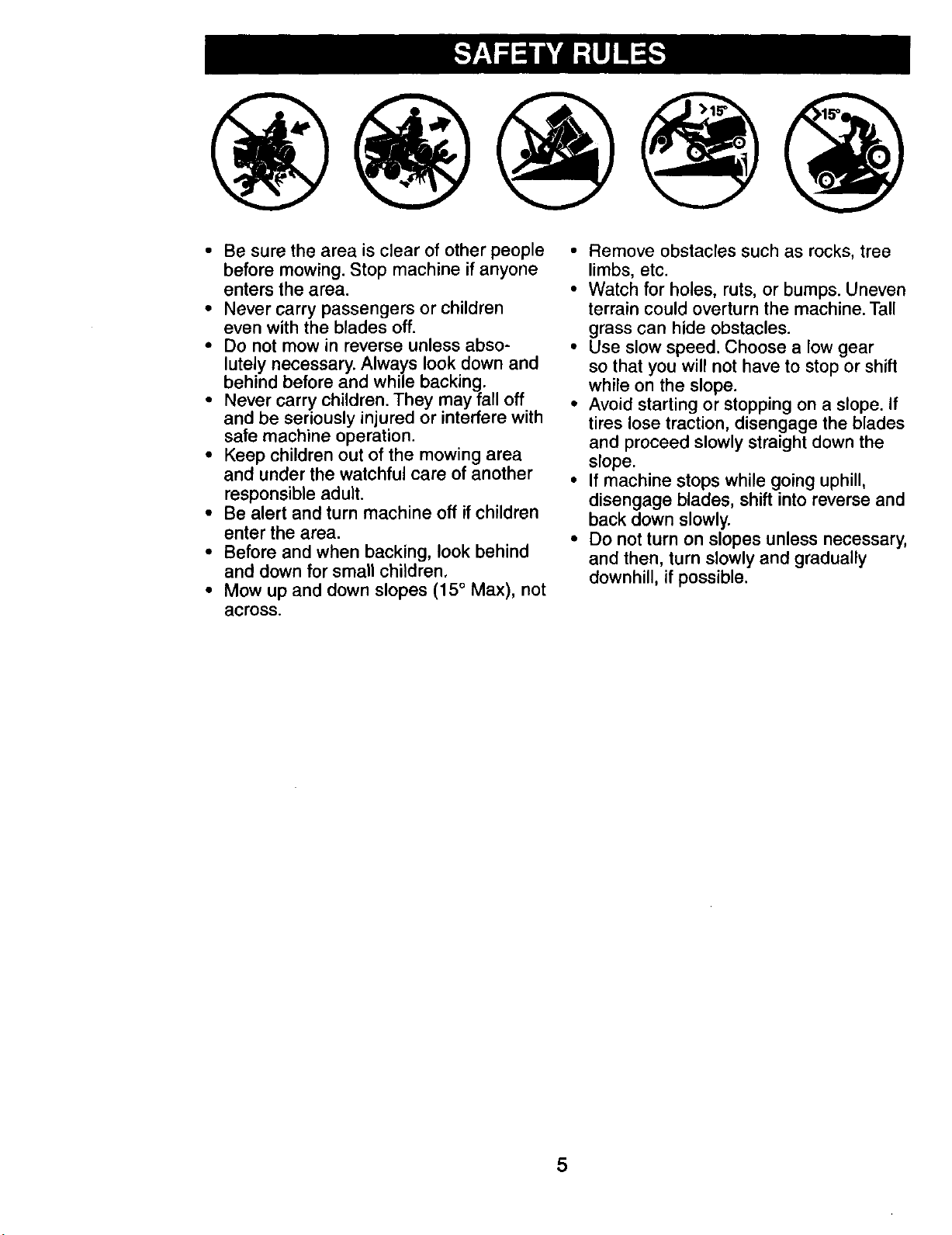

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline

Capacity and

Type:

Oil Type

API-SG-SL):

Oil Capacity:

4.0

Unleaded

Regular

SAE 30 (above 32°F)

SAE 5W-30(below 32°FI

W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Champion QC12YCSpark Plug:

(Gap: .040")

Ground Speed Forward:

MPH): 1st 1.2

2nd 1.6

3rd 2.4

4th 3.6

5th 4.6

6th 5.9

Reverse: 1.8

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 Amps @3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS onyour purchase

of a new tractor. It has been designed,

engineered and manufactured to giveyou the

best possibledependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintainyour tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

Follow a .regular schedule in main-

i taining, caring and using your tractor.

for

Follow the instructions under "Mainte-

nance" and =Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

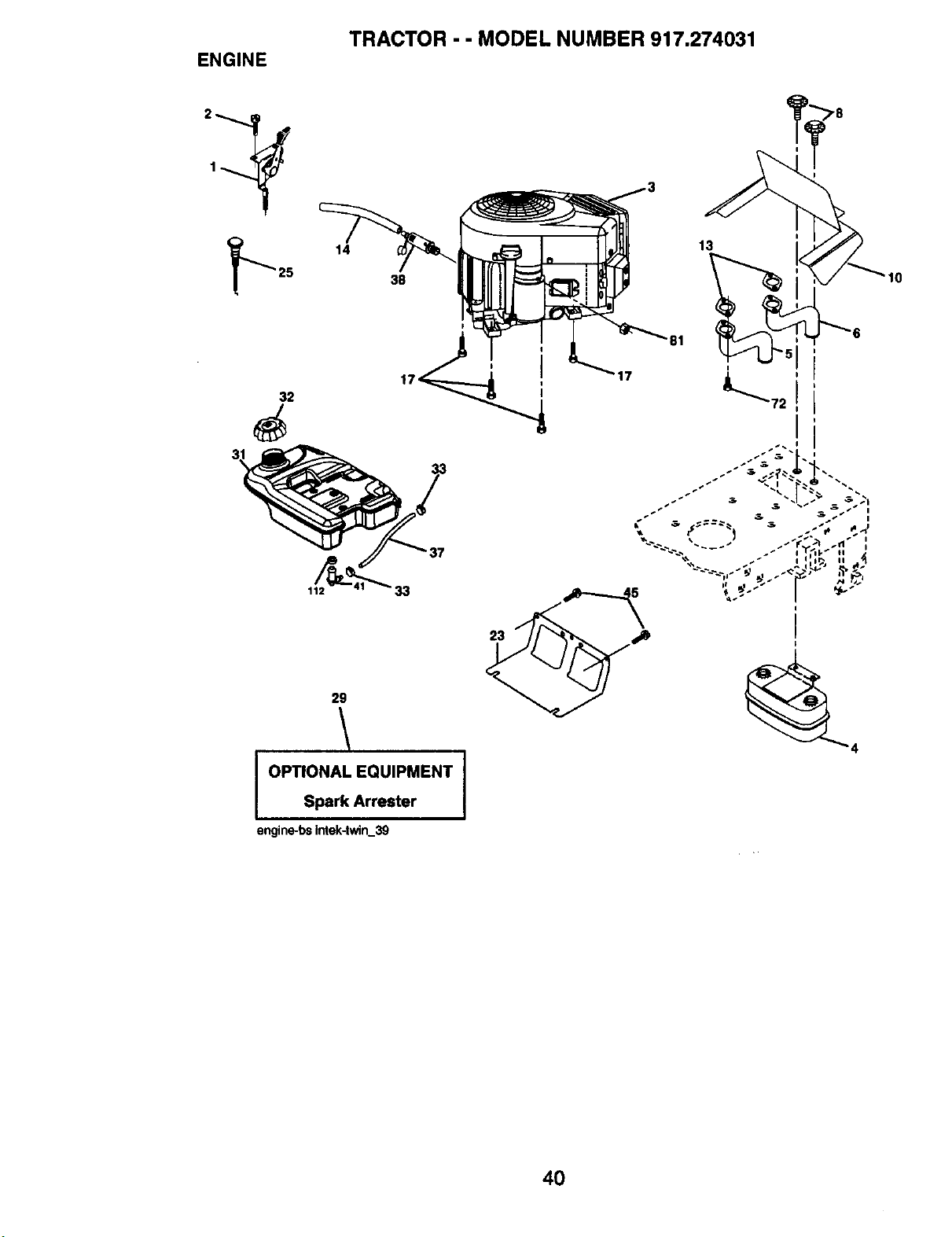

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman_ product is

designed and manufactured for years of

dependable operation. But likeall products,

itmay require repair from time to time.That's

when havinga Repair ProtectionAgreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hass/e and expense.

Hera's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professionalinstallationof home

appliances,garage dooropeners, water

heaters, and other majorhome items, in

the U.S.A. call 1-800-4-MY-HOME®

']_ ower Leveling Wrench _Bubble Level

Dr'ain T_

For Future Use

Keys Slope Sheet Video Cassette

(2) Keys

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in this manual, it means when you are in the oper-

ating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove protective materials from trac-

tor hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af-

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section

of this manual for charging instructions).

"w'c_*_1%.%

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating po3ition and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor isclear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

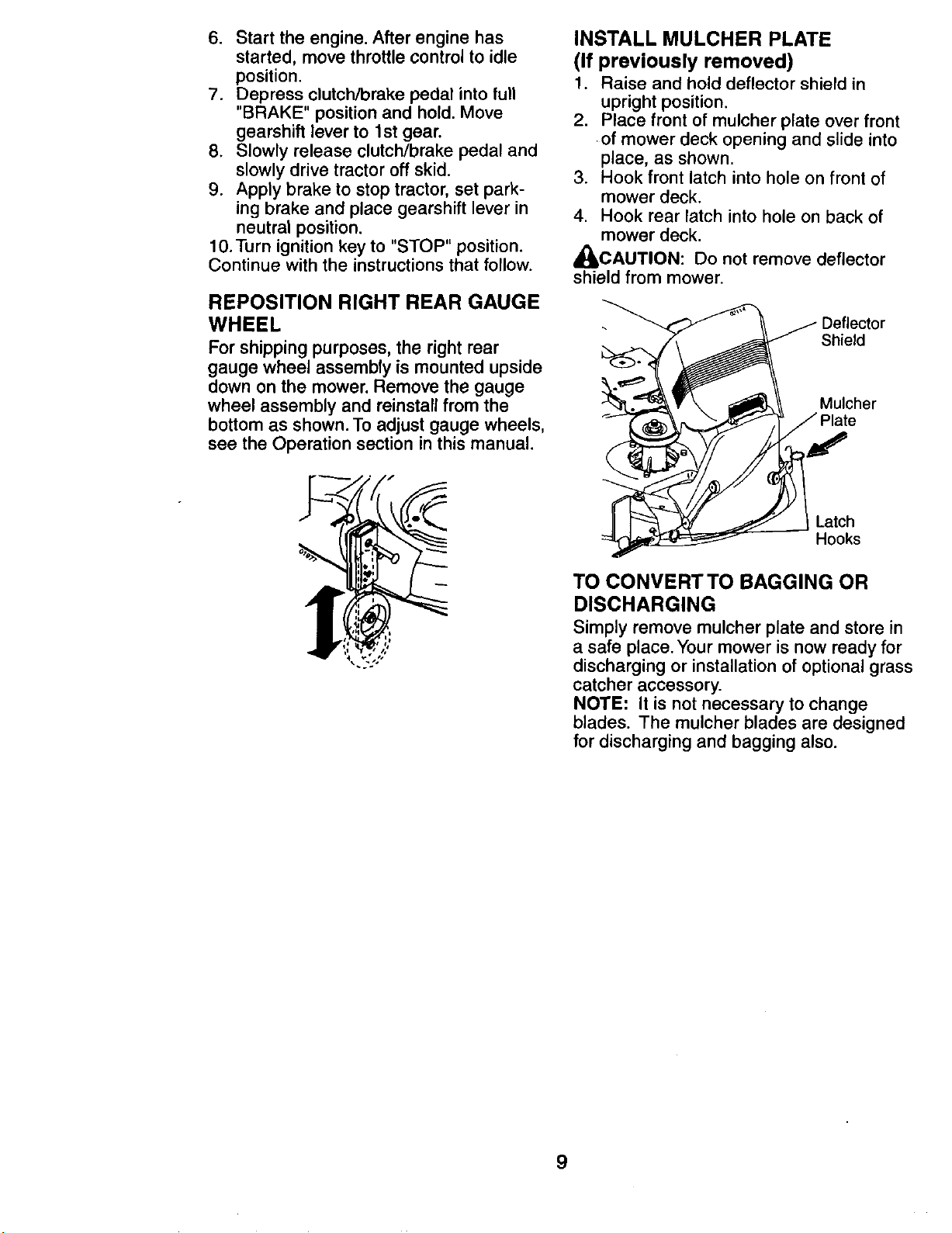

REPOSITION RIGHT REAR GAUGE

WHEEL

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_bCAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Latch

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

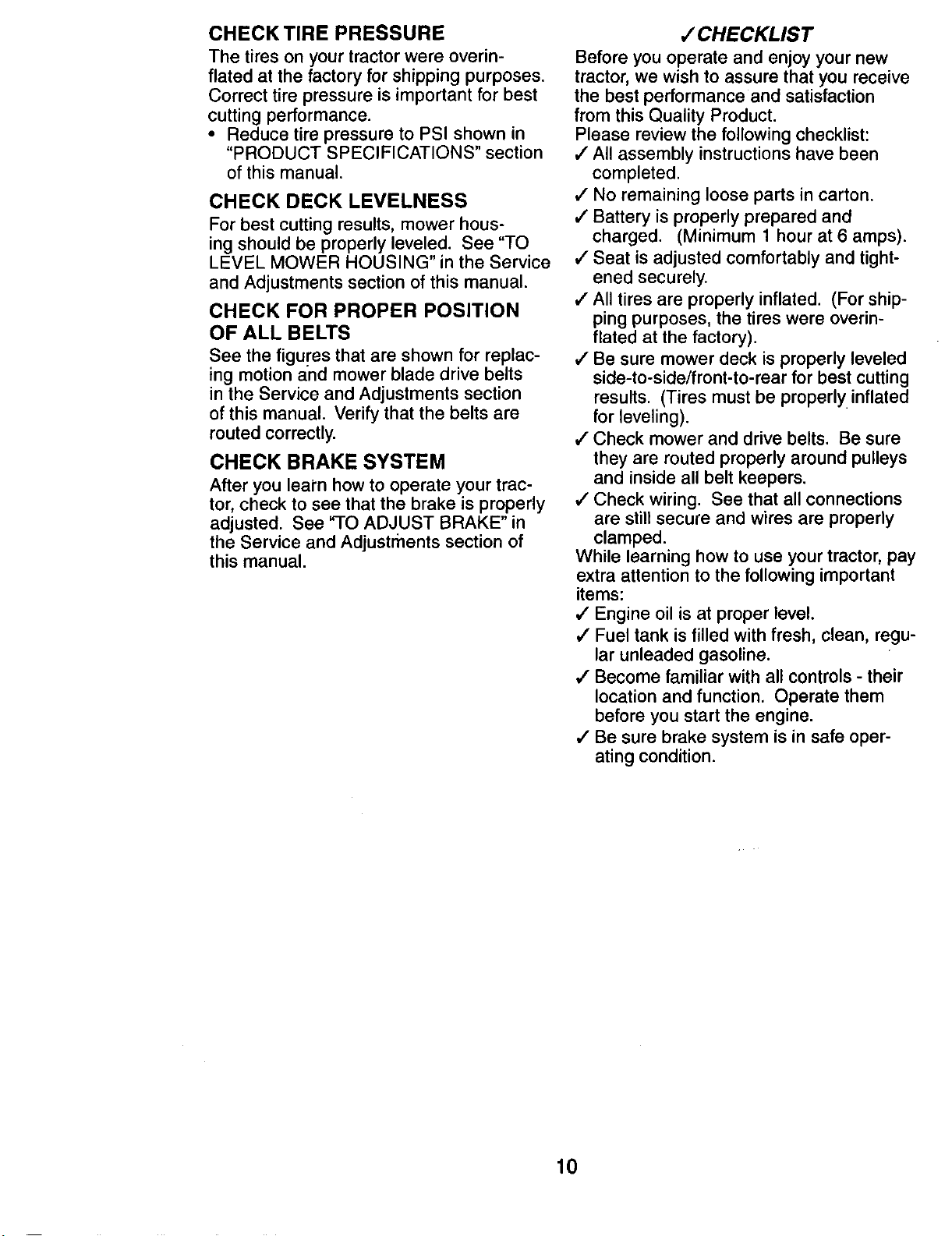

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you leam how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "-Á-ÙADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

•/ No remaining loose parts in carton.

•/ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/"Seat is adjusted comfortably and tight-

ened securely.

•/ All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flared at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

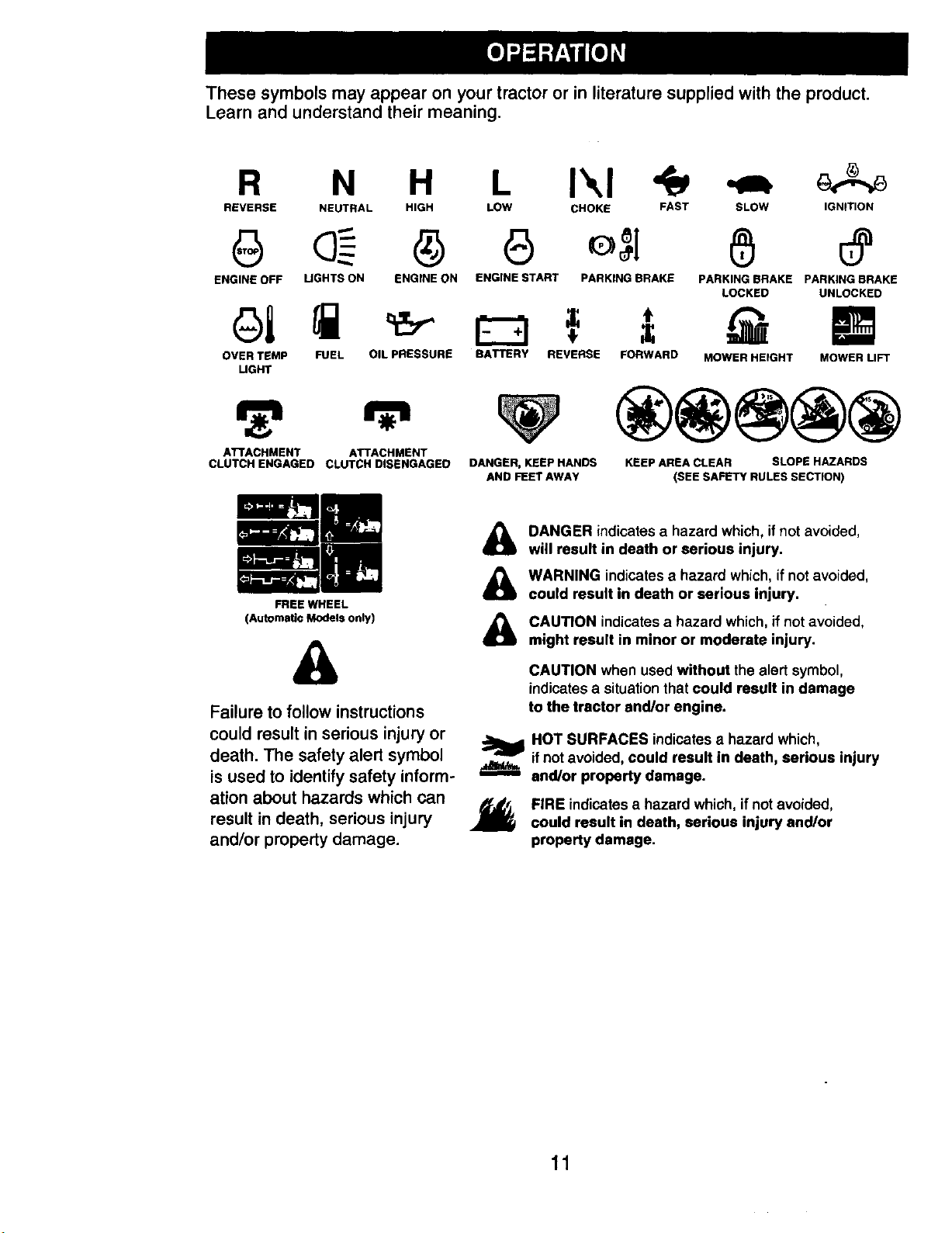

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I",1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF UGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

UGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicatesa hazard which,if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which,if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicatesa situationthat could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

ifnot avoided, could result in death, serious injury

_" and/or property damage.

FIRE indicatesa hazard which,ifnot avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Hourmeter

Ignition Switch

Switch

Position

Attachment

Clutch Lever

Lift Lever

Plunger

Throttle Control

Attachment

Lift Lever

Clutch/Brake

Pedal ", ..._ ._ _ -" , o Height

Adjustment

Lever

Choke Control

Parking Brake Lever

Gearshift Lever

Our tractorsconform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCWBRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER ° Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used for con-

trolling engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

HOURMETER - Indicates hours of op-

eration.

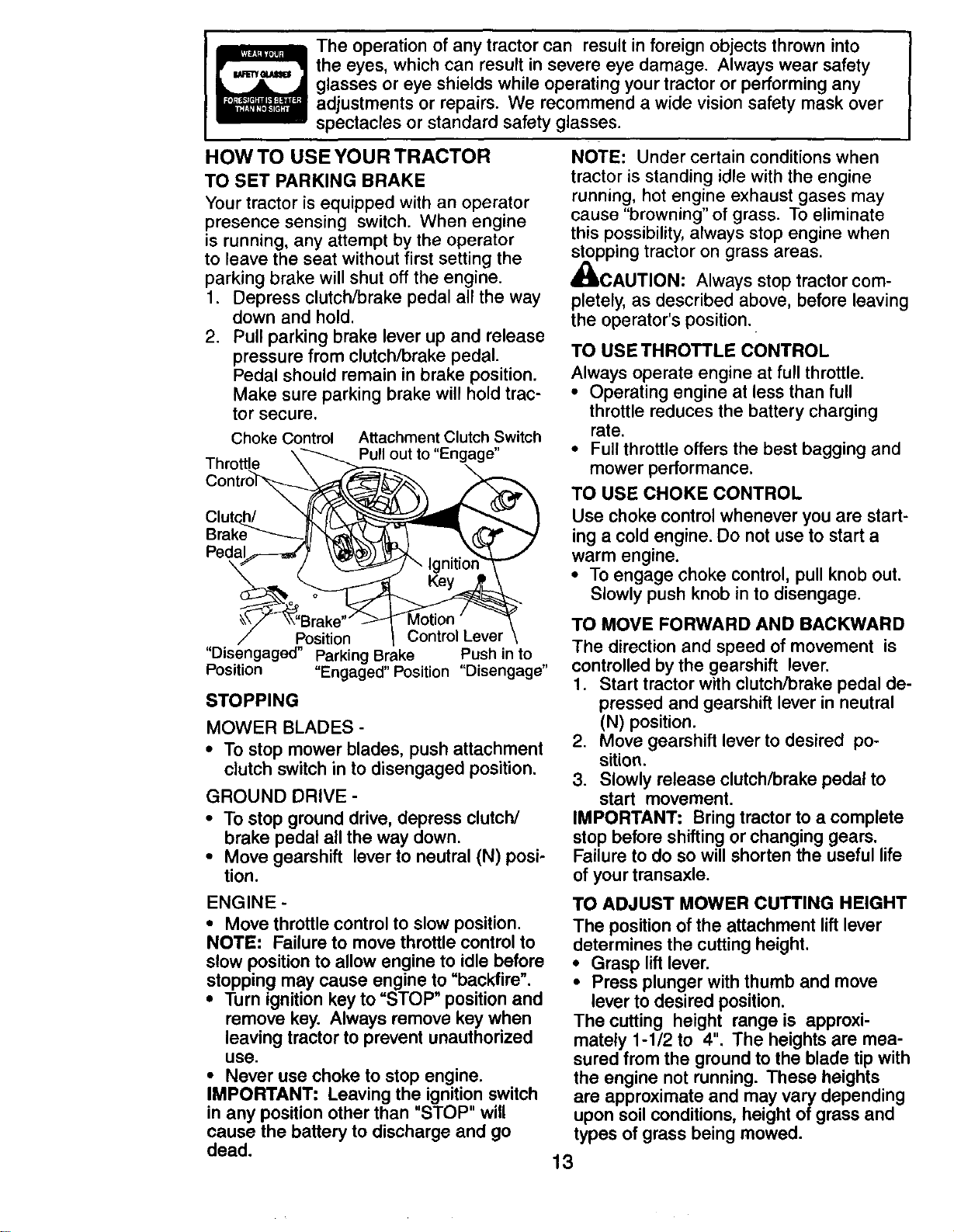

The operation of any tractor can result in foreign objects thrown into 1

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position,

Make sure parking brake will hold trac-

tor secure.

Choke Control Attachment Clutch Switch

Pull out to "Engage"

Pedal

Position Control Lever

"Disengaged" Parking Brake Push in to

Position "Engaged" Position "Disengage"

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N) posi-

tion.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_I_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle before

stopping may cause engine to "backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead,

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

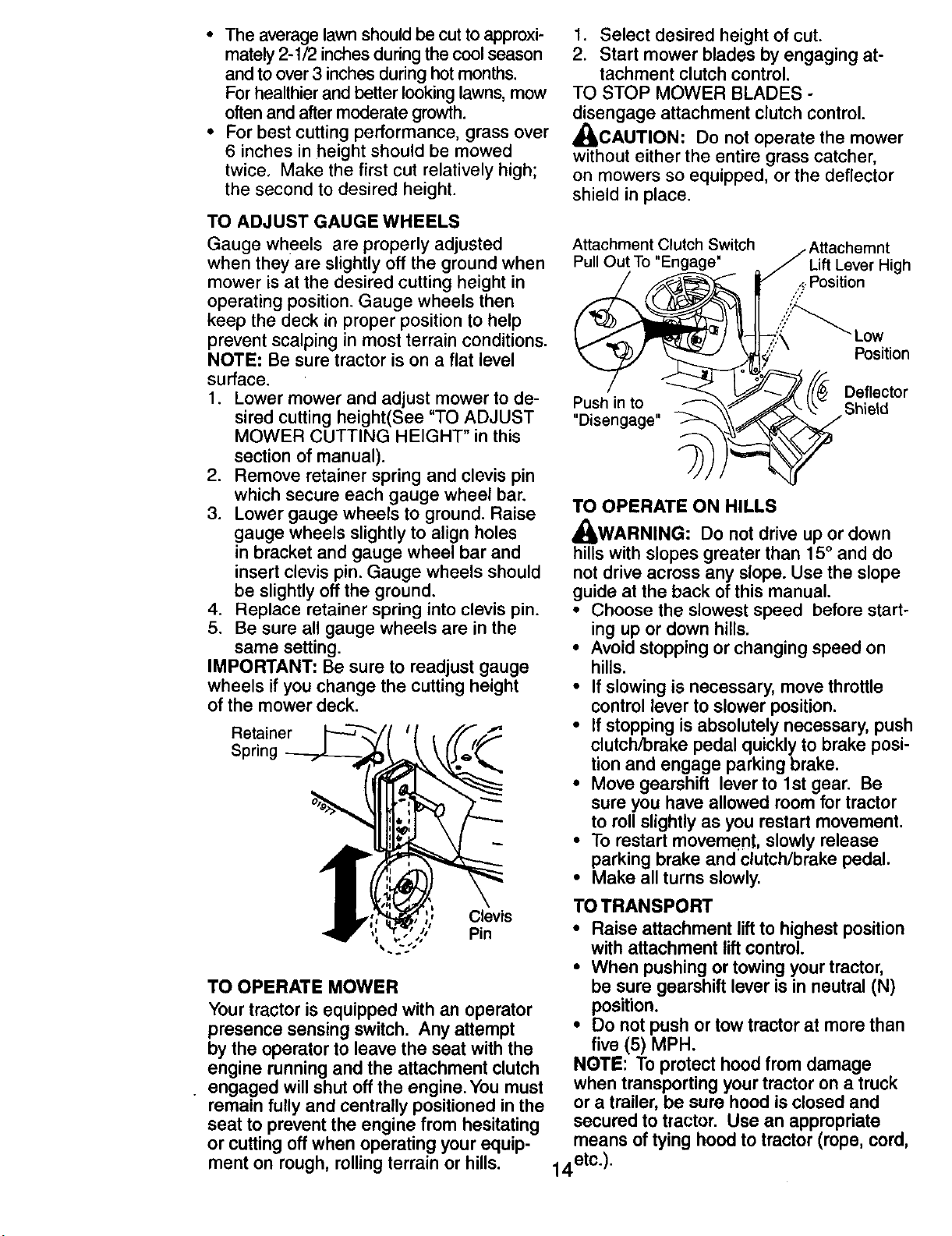

• The average lawn should be cut to approxi-

mately 2-t/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

often and after moderate growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice, Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

• engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION" Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Clutch Switch

Pull Out To "Engage"

Push in to

"Disengage"

Lift Lever High

.,_.Position

":":(_'_" Low

Position

Deflector

Shield

TO OPERATE ON HILLS

A(_WARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift leverto 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment liftto highest position

with attachment liftcontrol.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

14 etc')"

TOWINGCARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULI_' mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage,

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, itwill

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50° F and

above)

6. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

COLD WEATHER STARTING ( 50° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

° The attachments can also be used dur-

ing the engine warm-up period.

NOTE- {f at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

MOWING TIPS

• Mower _hould be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area thai has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendqcular) to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

"SYOOCOMPLETE,'/ RV'OEOA,ES

REGULAR SERVICE

Check Brake Operation

Check Tire Pressure _

Check Operator Presence and

T Interlock Systems If

g Check for Loose Fasteners V' I_s V'

CA Sharpen/Replace Mower Blades _

T Lubrication Chart I_

0 Check Battery Level

R Clean Battery and Terminala V'

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level V _ I_

Change Engine Oil (with oil filter) 11_,2 V'

E Change Engine Oil (without oil filter) _1,2 V _

N CleanAirFilter _#2

G Clean Air Screen

I_1 Inspect Muffler/Spark If

Arrester

E Replace Oil Filter (If equipped)

Clean Engine Cooling Fins ;;

Replace Spark Plug _1

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operaUna in dirty or duslv conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft-lbs, maximum.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

LUBRICATION CHART

_) Spindle

Zerk _'--_1

(_Front Wheel ,_

Bearing _

Zerk

(_Engine ";-_.,'

I t

1_- (_ Spindle

:::::::::::::::_ Zerk

-_ _)Front Wheel

..... --'----" ,_ Bearing Zerk

%" i

t- I 1

t / I i-(_3earshift

o1_ , PIvots

(DSAE 30 or 10w30 Motor Oil

_)General Purpose Grease

(_Refer to Maintenance "ENGINE" Section

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

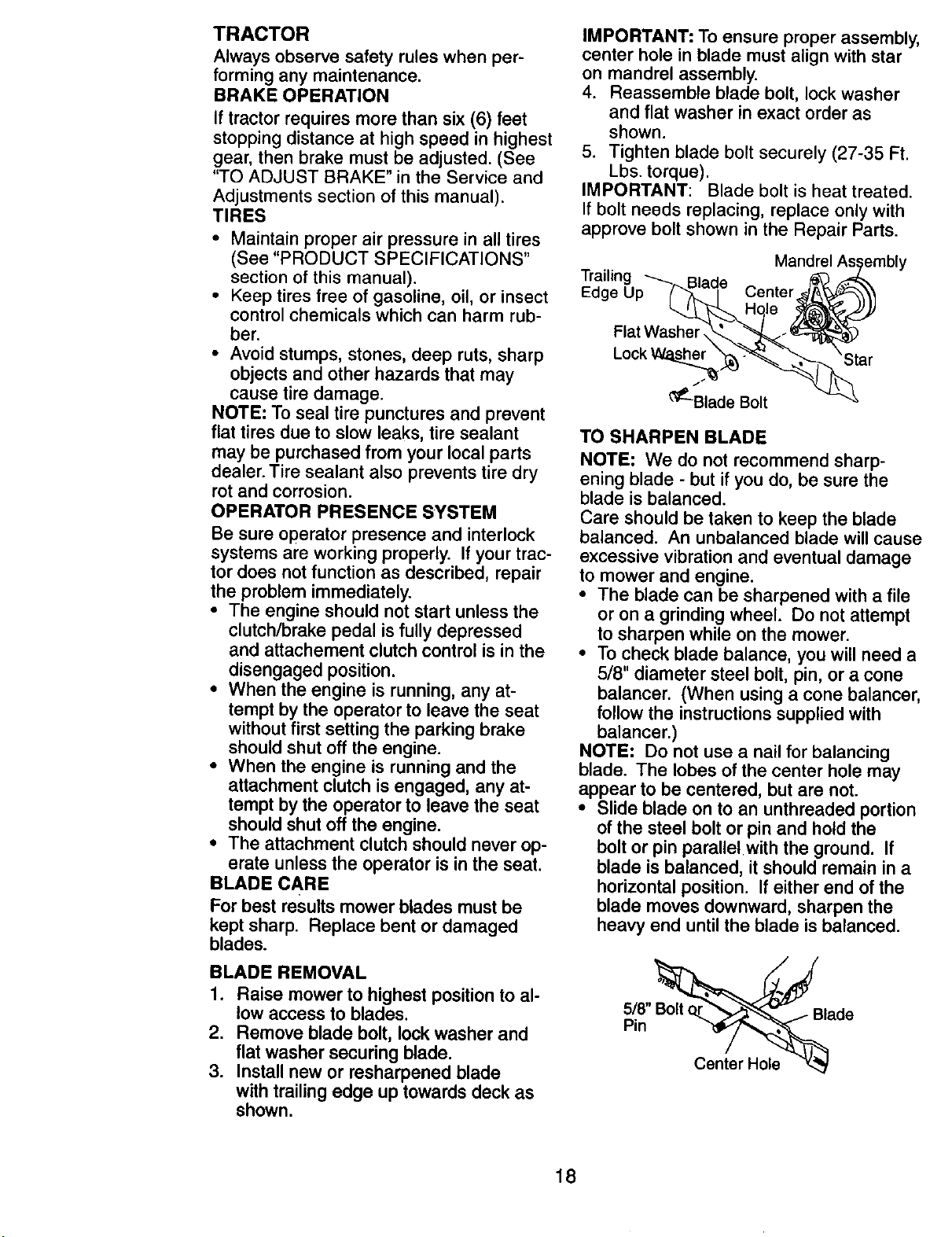

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

= The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel As§embly

Trailing _ _j_

Edge Up /_'_'_'_'_ Center ._ /_

FlatWasher \_. _:. _ _._--

Lock_%_ \Star

O'S-BladeBolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallelwith the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" _Blade

Pin C_

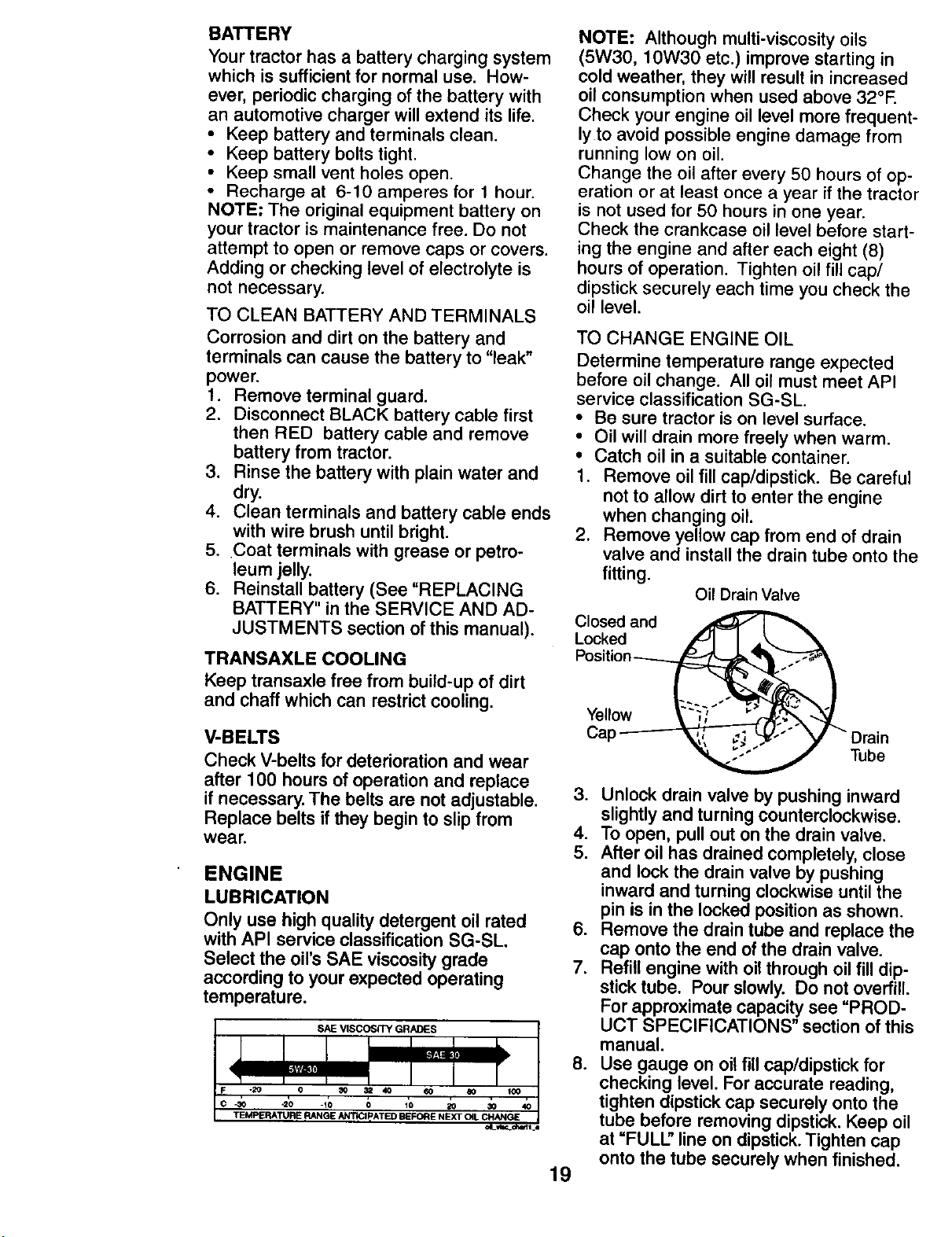

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

*20

-30 -20 .IO o 1o 213

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°F.

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed and

Locked

Position_

) Drain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Foam

CLEAN AiR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as itcould cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

_ Clamp

Clamp / _1 Filter

CLEANING

i lean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

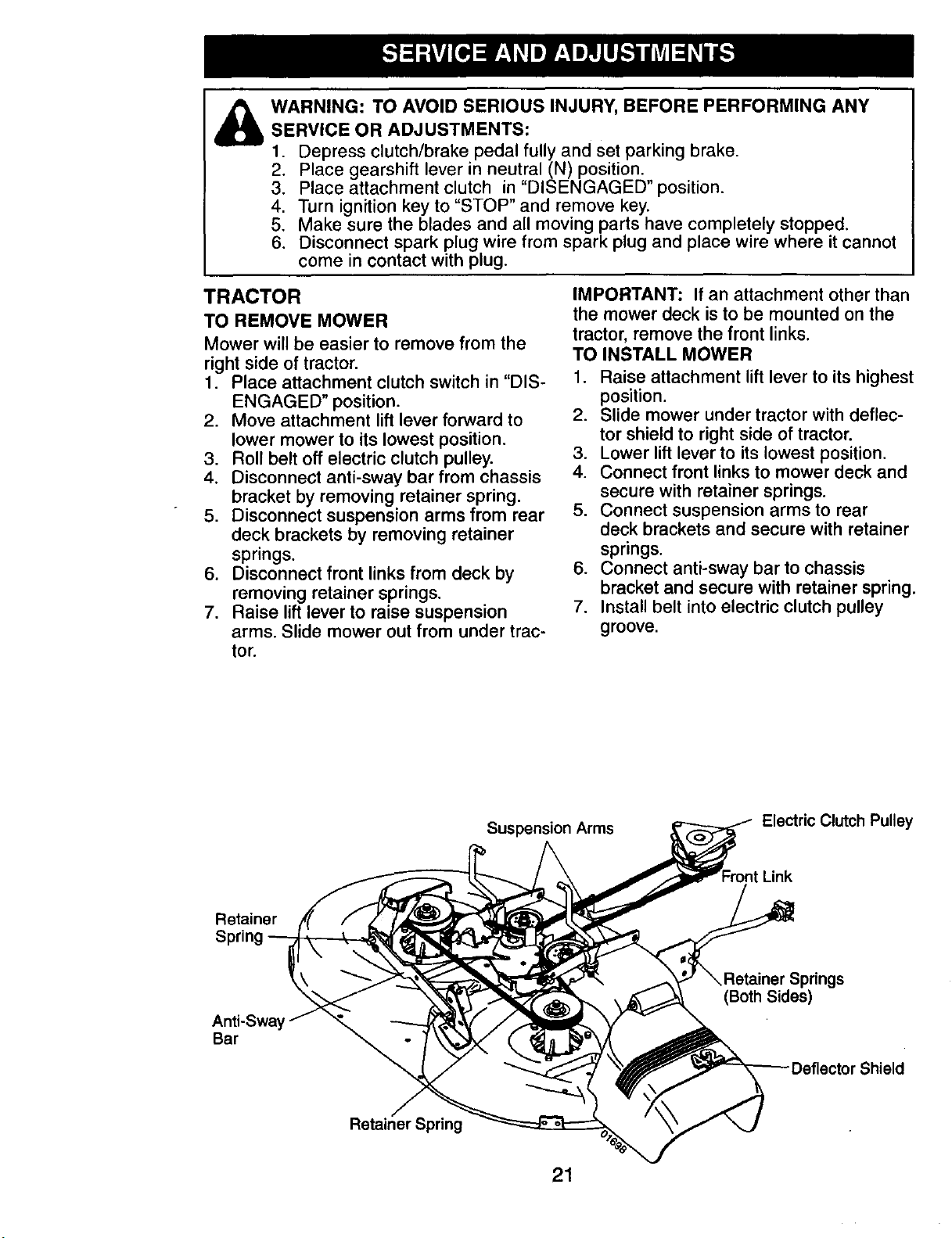

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1, Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch switch in "DIS-

ENGAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off electric clutch pulley.

4. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

5. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

6. Disconnect front links from deck by

removing retainer springs.

7. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Install belt into electric clutch pulley

groove.

Suspension Arms

Electric Clutch Pulley

-'rontLink

Retainer

Anti-Sway

Bar

Retainer Spring

Retainer Springs

(BothSides)

;hield

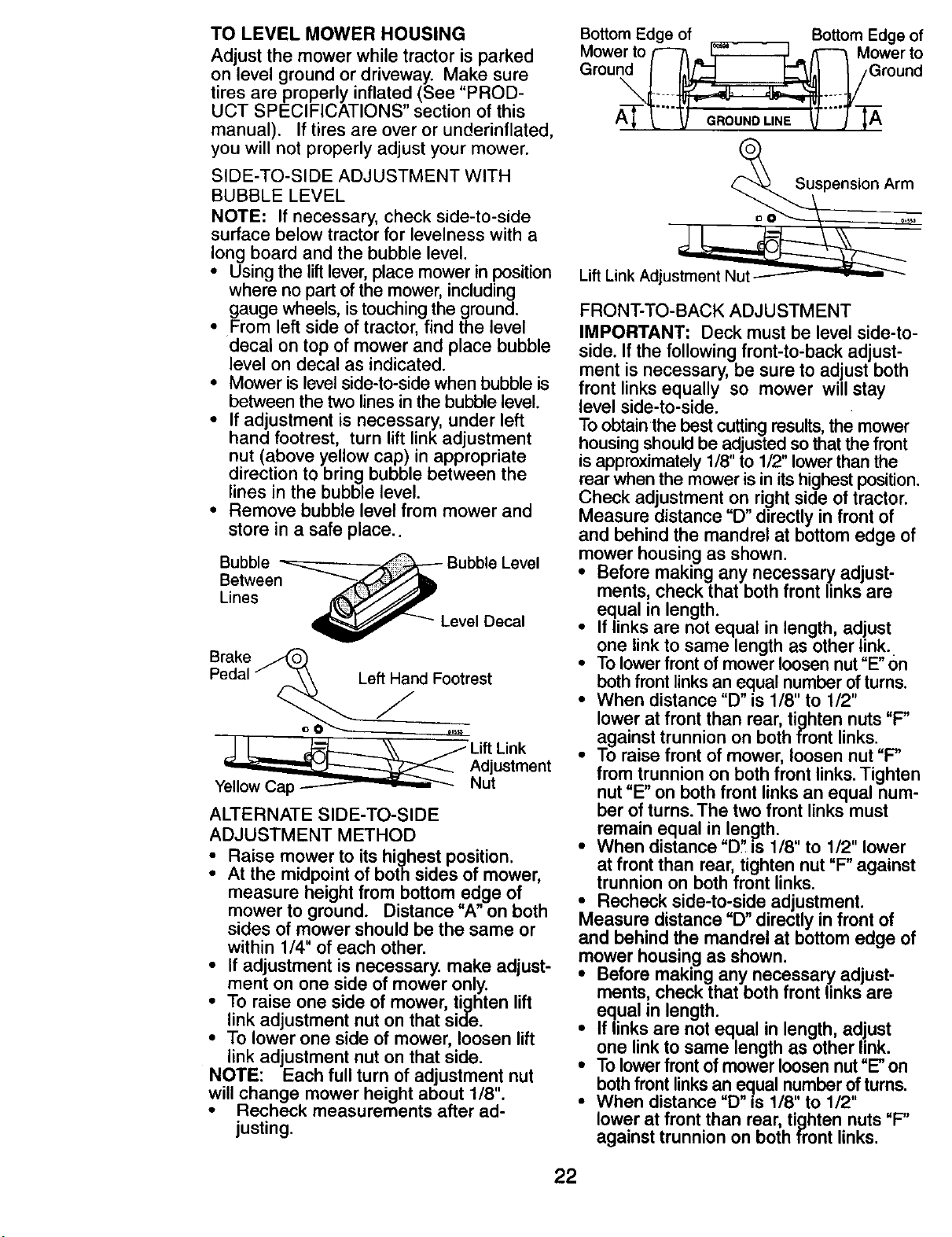

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the liftlever, place mower in position

where no part of the mower, including

gauge wheels, is touching the ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble is

between the two lines in the bubble level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction tO bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place..

Bubble _ -. _ Bubble Level

Between _.,,t_z_j_.,/"_b

Lines _JJ/

__ Level Decal

Brake

Pedal Left Hand Footrest

y_ Lift Link

Adjustment

Nut

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after ad-

justing.

Bottom Edge of BottomEdge of

Mower to_ .. _ = _ Mower to

Gr°un'__ _.__l.___._1//G r°und

o.o..e...E "TTA

Suspension Arm

Lift Link Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT" Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtainthe best cutting results, the mower

housing should be adjusted so that the front

is approximately 1/8" to 1/2" lower than the

rear when the mower is in its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link..

• To lower front of mower loosen nut "E" on

both front links an equal number of turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D_ is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

i lf linksare not equal in length, adjust

one linkto same lengthas other link.

Tolowerfront ofmowerloosennut"E"on

both front links an equal number of turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

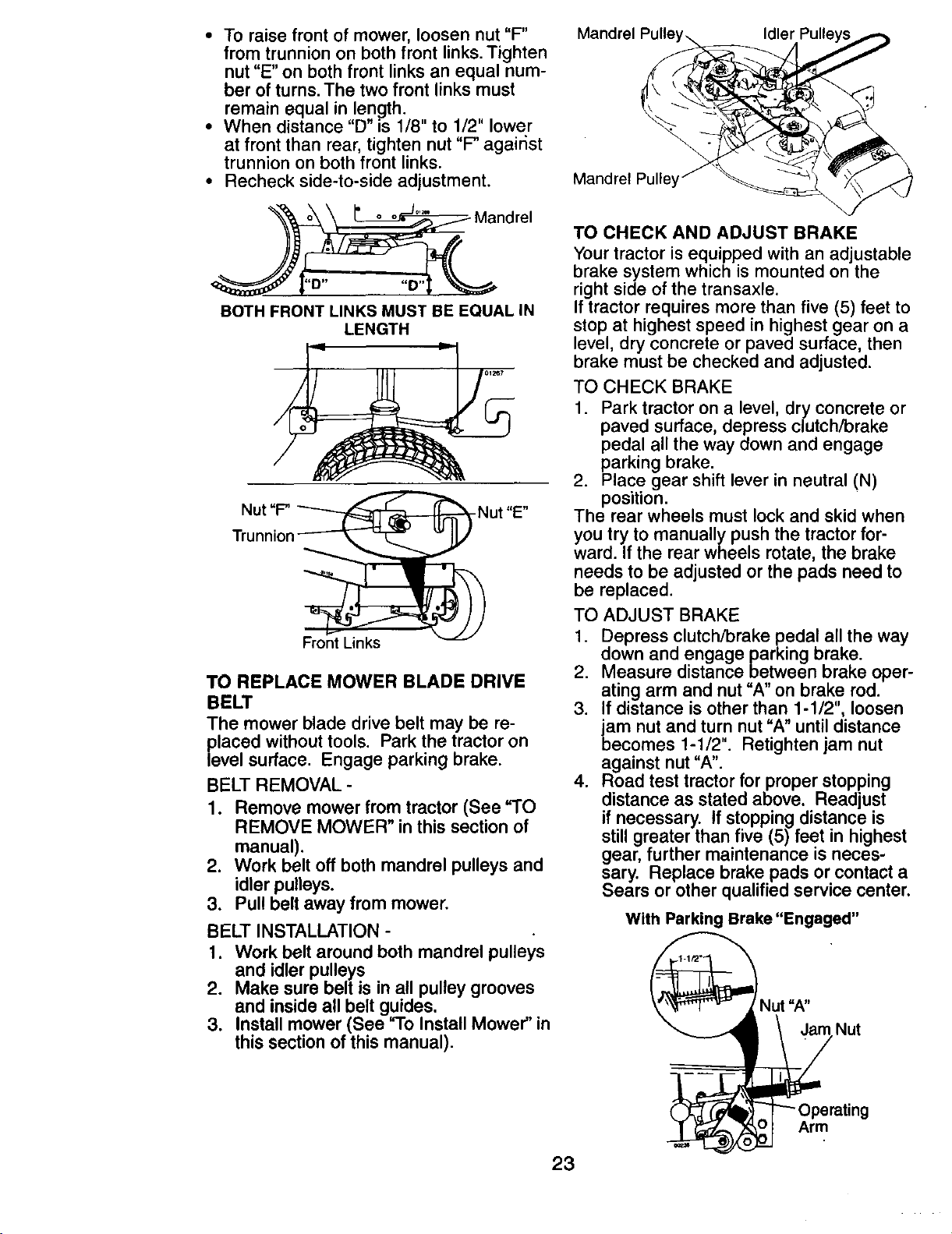

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" agaidst

trunnion on both front links.

• Recheck side-to-side adjustment.

'____ Mandrel

BOTH FRONT LINKS MUST BE EQUAL iN

LENGTH

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "3"0

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandr, Idler Pulle

Mandrel Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With Parking Brake "Engaged"

Nut "A"

J?Nut

_Operating

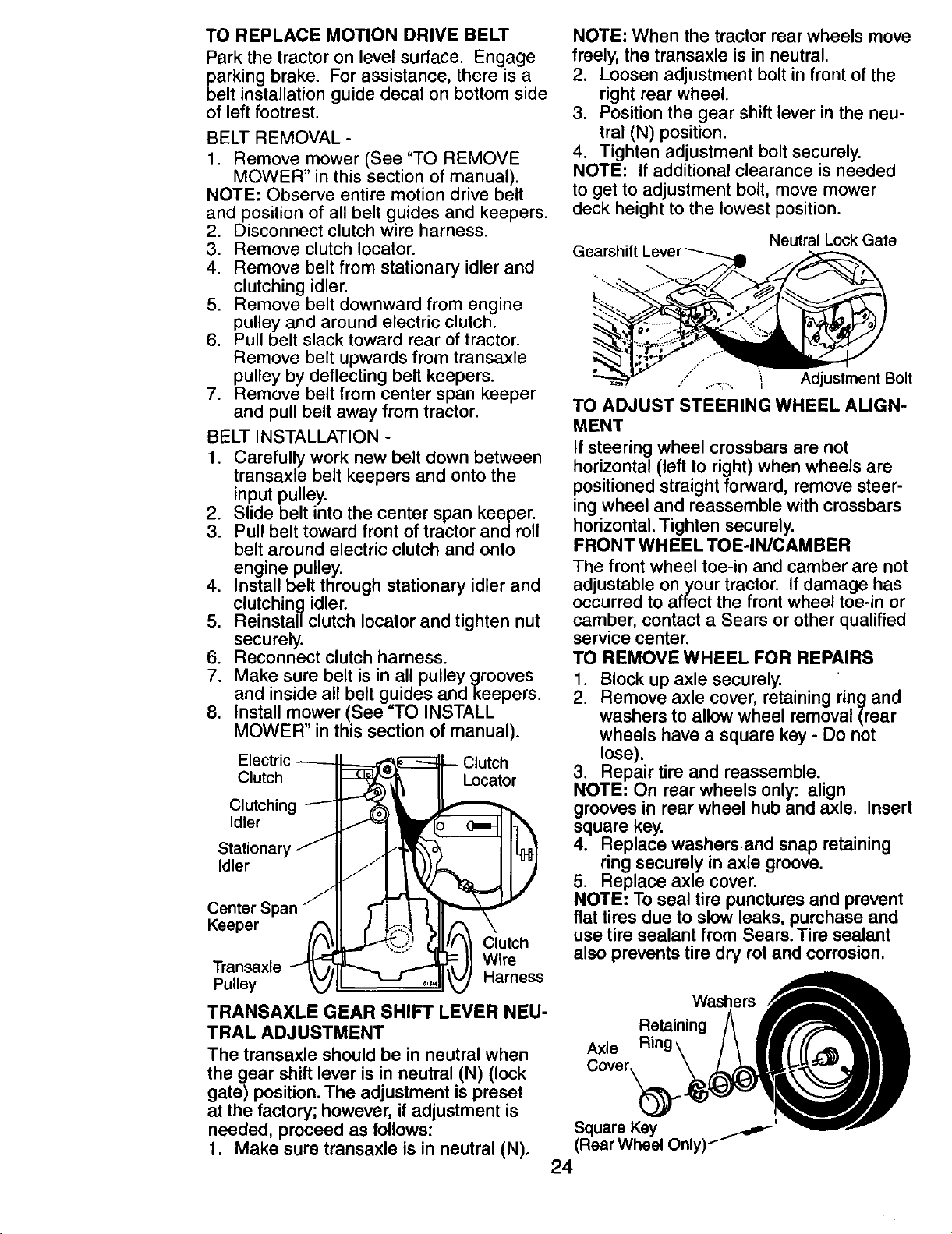

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

_arking brake. For assistance, there is a

eli installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch Iocator and tighten nut

securely.

6. Reconnect clutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

8. Install mower (See 'q'O INSTALL

MOWER" in this section of manual).

Electric __._. Clutch

Locator

C,utch II

Clutching _ _ • _,.,,_

Idler _ __

Statildleronary-___

Center Span.__! _

Keeper

Clutch

Transaxle Wire

Pulley JJ[[_'__l _ Harness

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever

Neutral Lock Gate

/ i Adjustment Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable onyour tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washersand snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Axle

Cover

Square Key /._ _'

(Rear Wheel Only)f-

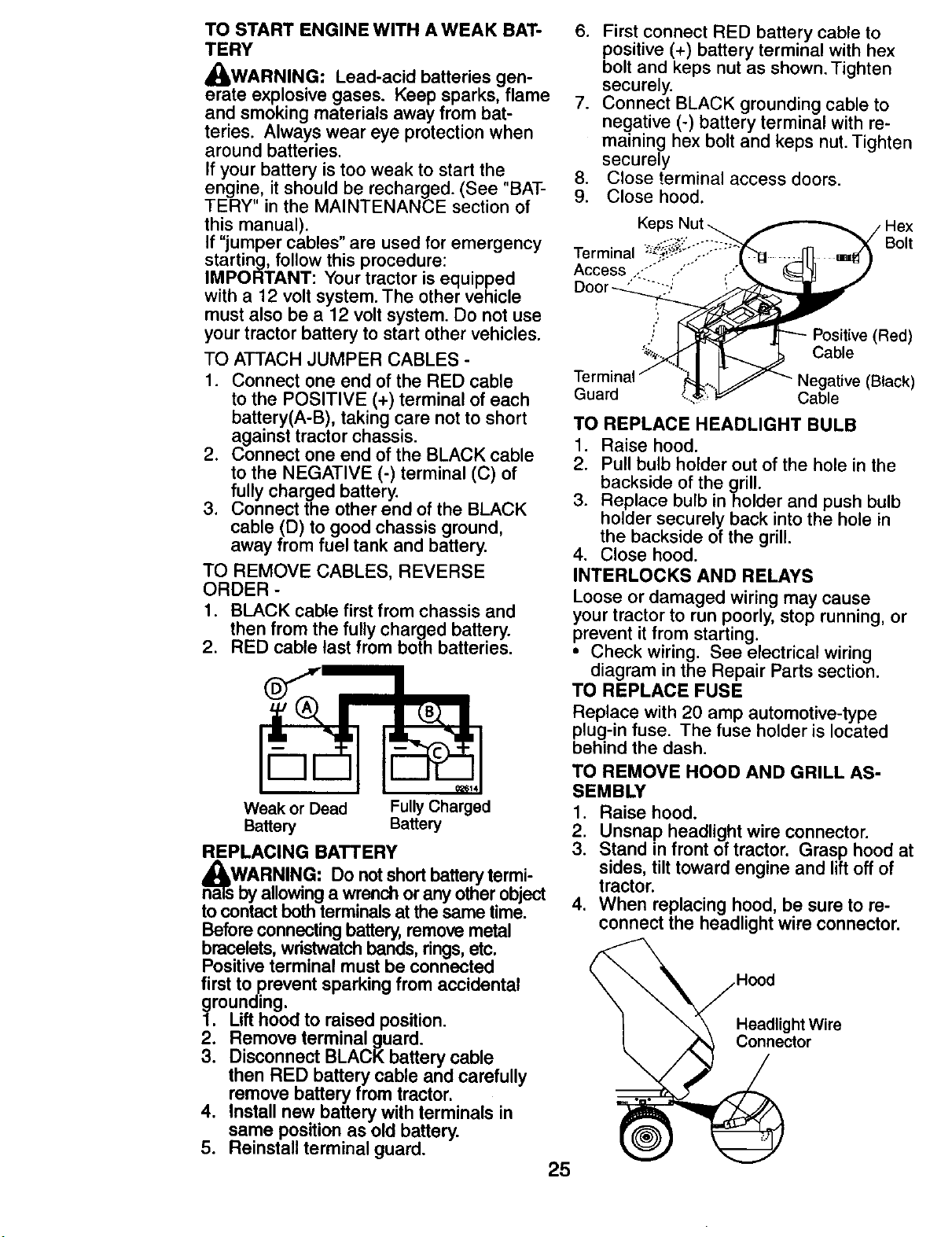

TO START ENGINE WITH AWEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, itshould be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

n_as_RNING: Do notshort battery termi-

allowing a wrench or any other object

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

KepsNut_ _ /Hex

Term na _:'_°:_::::::"_ _ =_ Bolt

Access ,..°f .,,.... :.,"_. _ _ J

Door _

.,i_ [_j_3_T_" Positive (Red)

'_1 _ Cable

Term_al _ j_._egative (Black)

_uare "_-..'_:_" Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb inholder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and liftoff of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

¸Hood

Headlight Wire

Connector

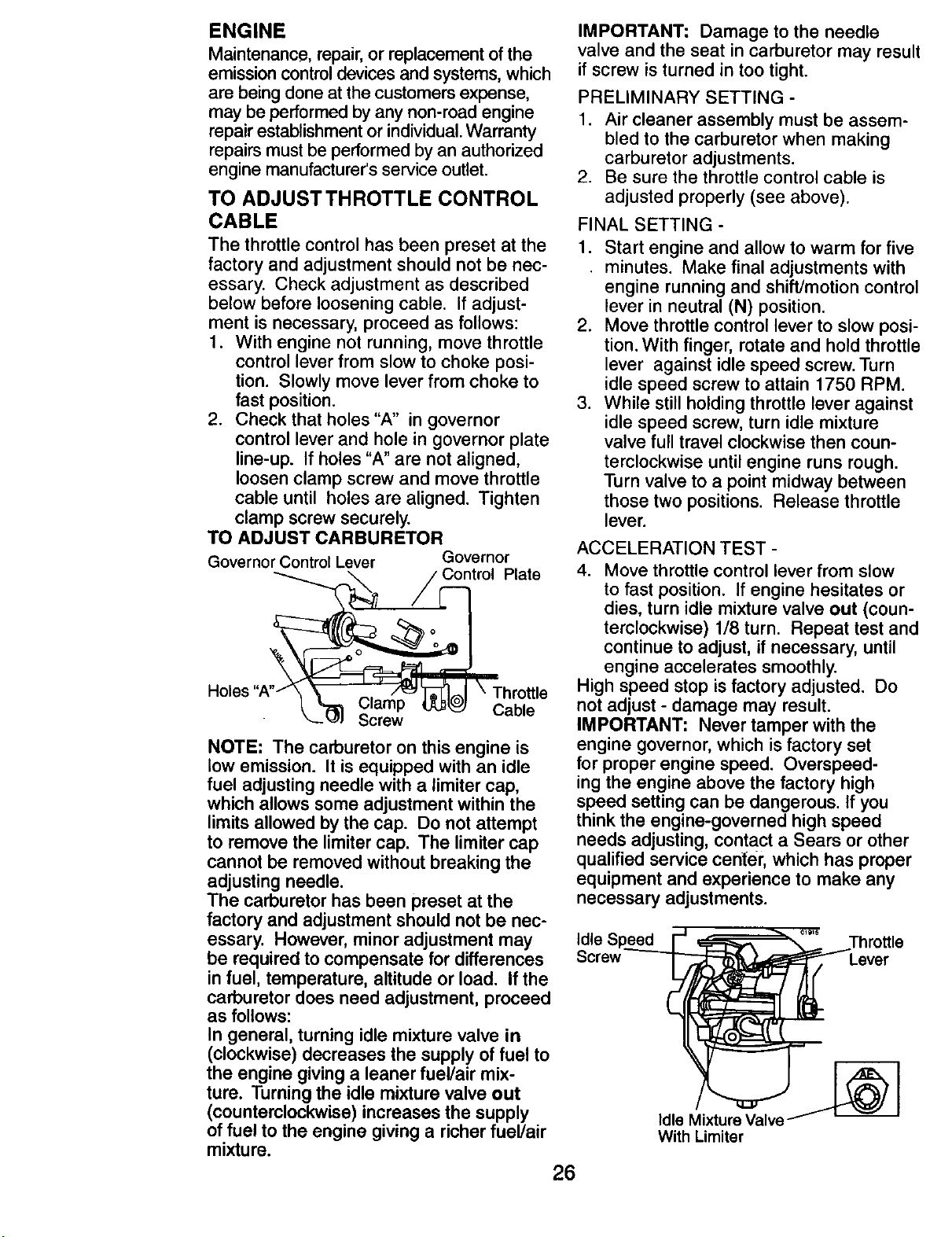

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-read engine

repair establishment or individual•Warranty

repairs mustbe performed by an authorized

engine manufactureCs service outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes"A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

TO ADJUST CARBURETOR

Governor Control Lever

Holes

Clamp

Screw

Governor

Control Plate

Cable

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

• minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Throttle

Screw

Idle Mixture Valve-'f _

With Limiter

Immediately prepare your tractor for stor- blended fuels (called gasohol or using

age at the end of the season or if the trac- ethanol or methanol) can attract moisture

for will not be used for 30 days or more ............ to separation and formation of

_CAUTION: Never store the tractor acids during storage. Acidic gas can dam-

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to =_tart

Engine will not

turn ow_r

Engine clicks but

will not start

CAUSE CORRECTION

1. Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded.

Bad spark plug.

Dirty air filter.

Dirty fuel filter.

Water in fuel.

Loose or damaged wiring.

Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutchis engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure,

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2, Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachmentclutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Checldreplace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE ;ORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

Poor cut - uneven

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty eqgine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deckvent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is"OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

CORRECTION

t. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replaceregulator,

4. Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

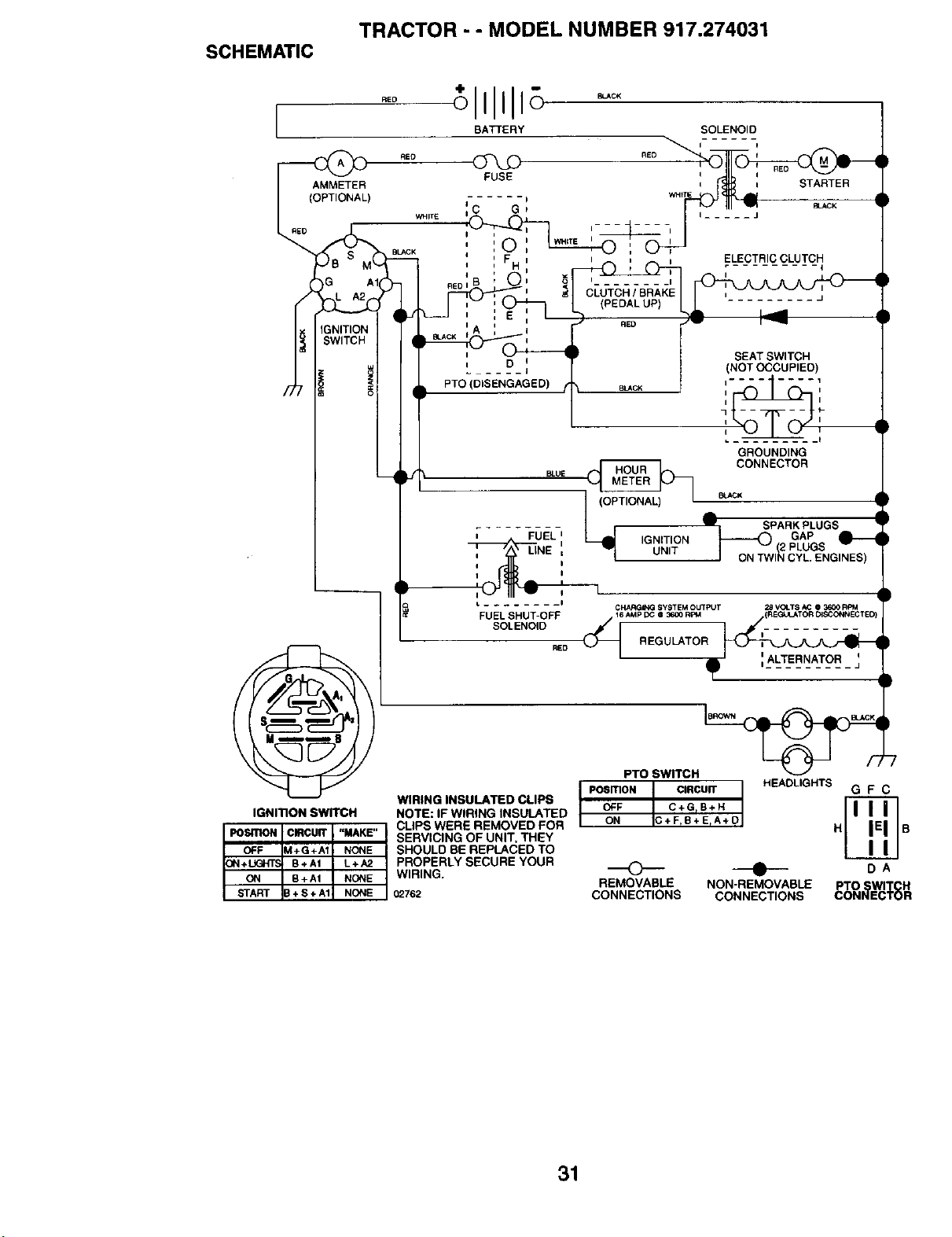

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.274031

AMMETER

(OPTIONAL)

RED

BATTERY

FUSE

...... )

WHITE

BLACK

I ___1

CLUTCH / BRAKE

(PEDAL UP)

RED

SOLENOID

I p

STARTER

BJ_K

I ..... J

ELECTRIC CLUTCH

D I

.... J

PTO (DISENGAGED) B_CK

SEAT SWITCH

(NOT OCCUPIED)

7tll_lII -- ...... ---- 1#-ii

GROUNDING

• SPARK PLUGS

FUEL ', _ GAP

= I ON TWIN CYL. ENGINES)

WIRING INSULATED CLIPS

IGNIllON SWITCH NOTE: IF WIRING INSULATED

I PosmoN I CIRCUIT[ "MAKE" J CLIPS WERE REMOVED FOR

........... SERVICING OF UNIT, THEY

I OFF IM+G*Aq NONEI SHOULDBEREPLACEDTO

_ON,tJGHTSIS+AI I L+A2 _ PROPERLY SECURE YOUR

I I_"+_A'.lI WIR'NG

I S_AH_lU+_*A11 N_'NE102762

PTO SWITCH ]__

pOSiTION CIRCUIT HEADLIGHTS G F C

OFF C+GrB+R

ON C+FIB+ErA+D H B

_ DA

REMOVABLE NON-REMOVABLE O Wl R

CONNECTIONS CONNECTIONS C_NI_EVCtSR

TRACTOR - - MODEL NUMBER 917,274031

ELECTRICAL

r t I

II I

I "--j

1 i]_ _¸

8--

i I

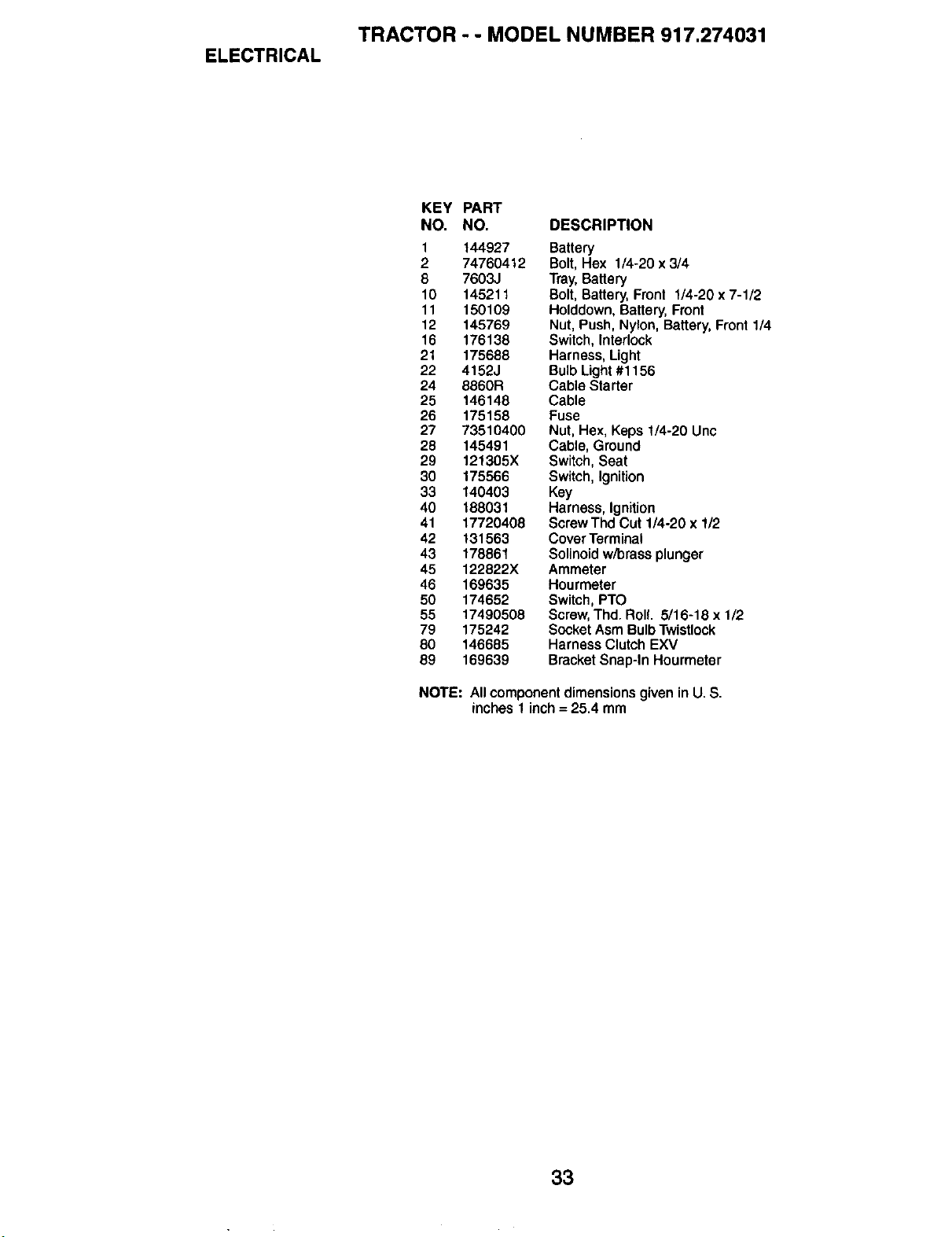

TRACTOR - - MODEL NUMBER 917.274031

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 14521 t Bolt, Battery, Fronl 1/4-20 x 7-1/2

11 150109 Holddown, Battery, Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, Interlock

21 175688 Harness, Light

22 4152J Bulb Light #1156

24 8860R Cable Starter

25 146148 Cable

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4-20 Unc

28 145491 Cable, Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key

40 188031 Harness, Ignition

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover Terminal

43 178861 Solinoid w/brass plunger

45 122822X Ammeter

46 169635 Hourmeter

50 174652 Switch, PTO

55 17490508 Screw, Thd. Roll. 5/16-18 x 112

79 175242 Socket Asm Bulb Twistlock

80 146685 Harness Clutch EXV

89 169639 Bracket Snap-In Hourmeter

NOTE: All componentdimensions given in U. S.

inches1 inch= 25.4 mm

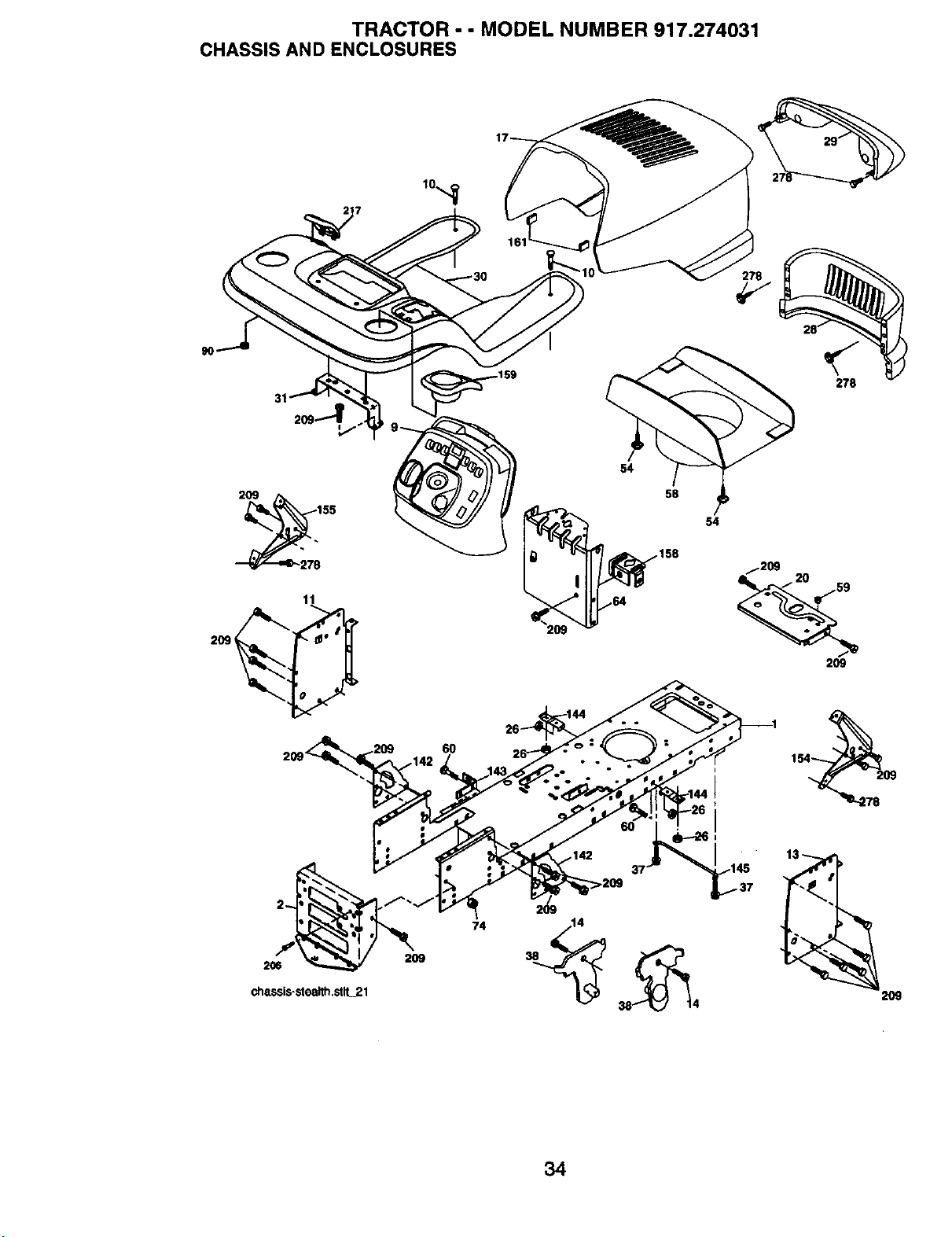

TRACTOR - - MODEL NUMBER 917.274031

CHASSIS AND ENCLOSURES

278

2O6

chassis-stealth.stlL21

209

2O9

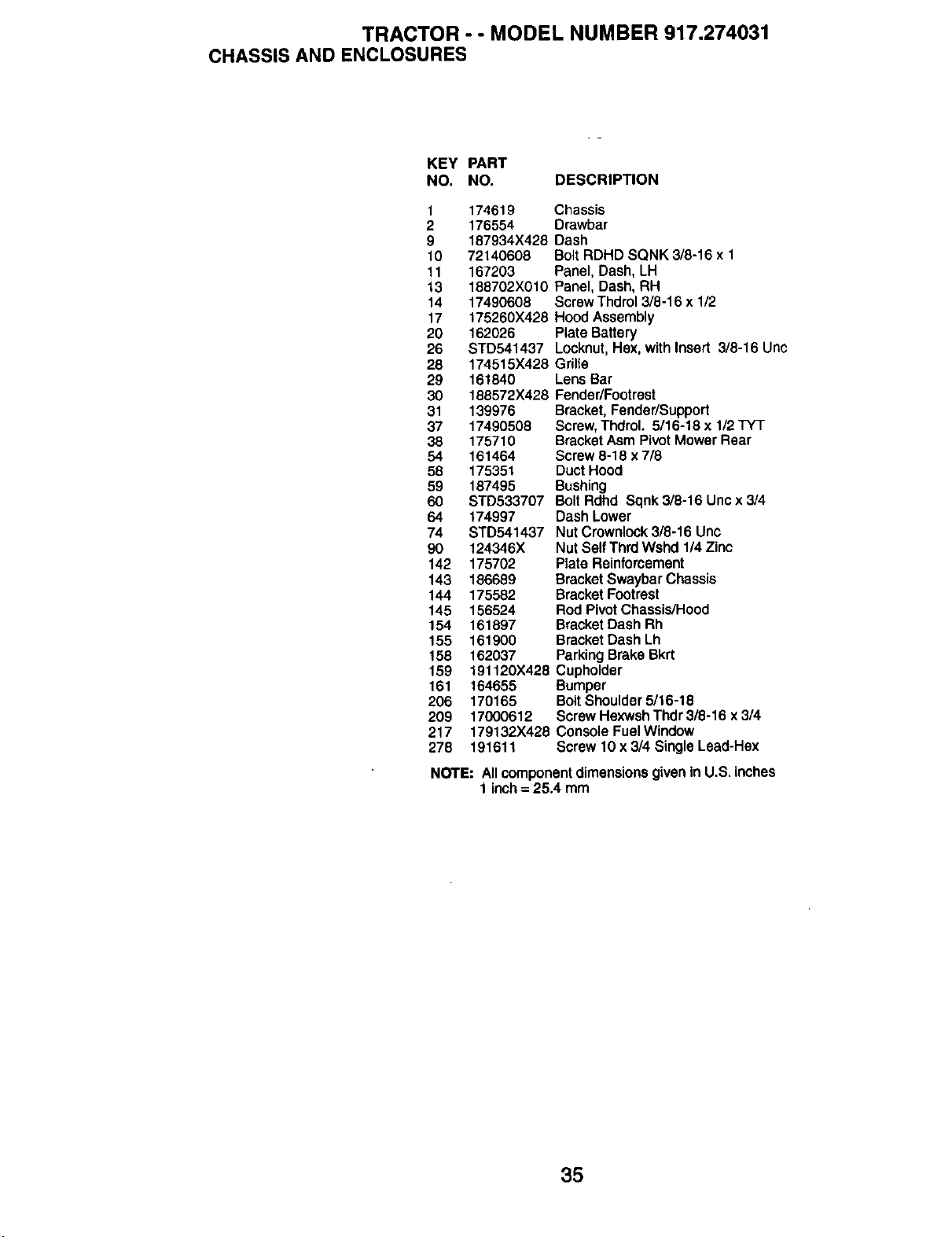

TRACTOR - - MODEL NUMBER 917.274031

CHASSISAND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

9 187934X428

10 72140608

11 167203

13 188702X010

14 17490608

17 175260X428

20 162026

26 STD541437

28 174515X428

29 161840

30 188572X428

31 139976

37 17490508

38 175710

54 161464

58 175351

59 187495

60 STD533707

64 174997

74 STD541437

90 124346X

142 175702

143 186689

144 175582

145 156524

154 161897

155 161900

158 162037

159

161

206

209

217

278

Chassis

Drawbar

Dash

BoltRDHD SQNK 3/8-16 x 1

Panel,Dash,LH

Panel,Dash,RH

ScrewThdrol3/8-16 x 1/2

HoodAssembly

PlateBattery

Locknut, Hex, with Insert 3/8-16 Unc

Grille

Lens Bar

Fender/Footrest

Bracket, Fender/Support

Screw,Thdrol. 5/16-18x I/2TYT

BracketAsm Pivot Mower Rear

Screw 8-18 x 7/8

Duct Hood

Bushing

Bolt Rdhd Sqnk 3/8-16 Unc x 3/4

Dash Lower

Nut Crownlock 3/8-16 Unc

Nut Self Thrd Wshd 1/4Zinc

Plate Reinforcement

BracketSwaybar Chassis

BracketFootrest

RodPivotChassis/Hood

BracketDash Rh

BracketDash Lh

ParkingBrakeBkrt

191120X428 Cupholder

164655 Bumper

170165 Bolt Shoulder 5/16-18

17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

179132X428 Console Fuel Window

191611 Screw 10 x 3/4 Single Lead-Hex

NOTE: Allcomponentdimensions giveninU.S.inches

1 inch= 25.4 mm

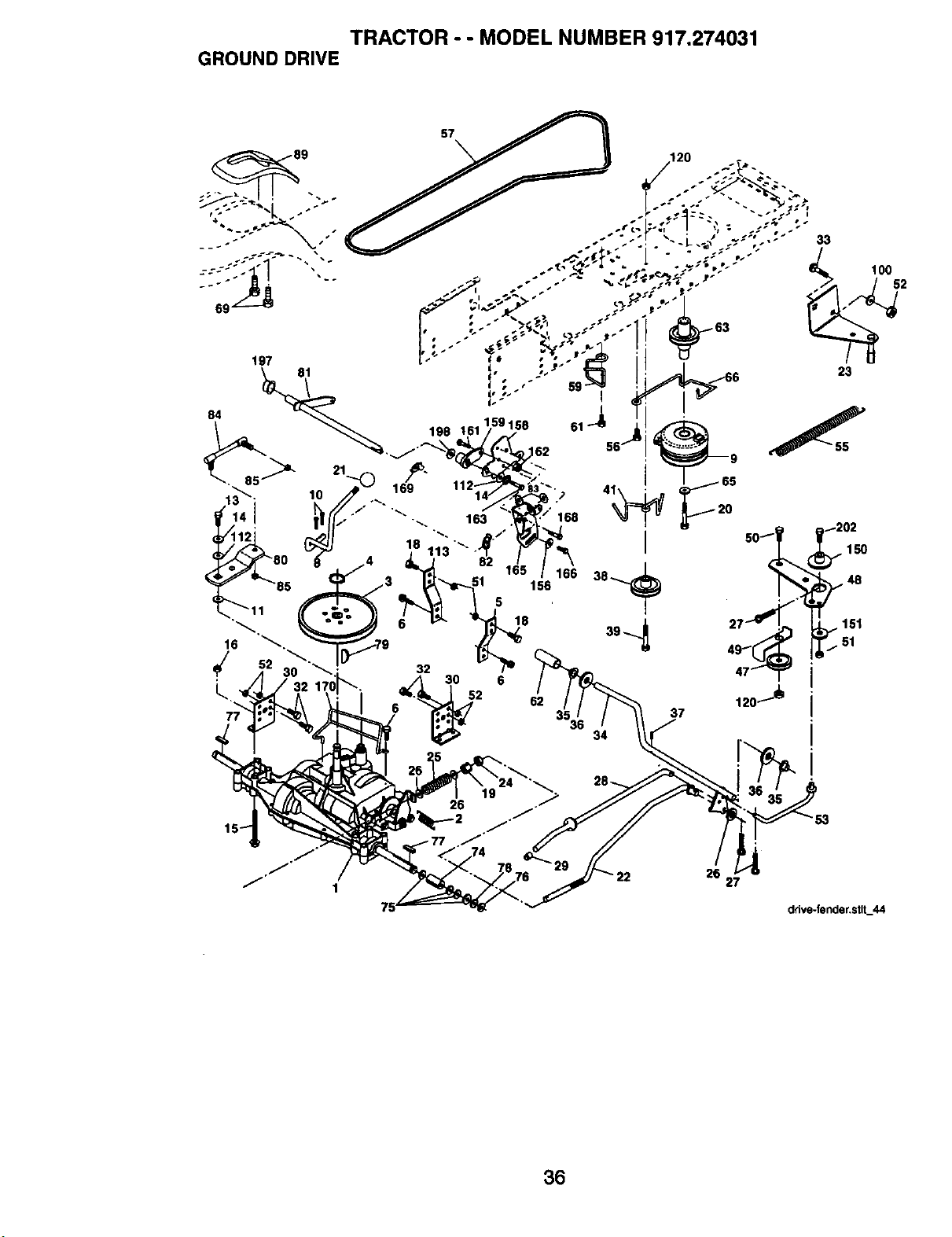

TRACTOR - - MODEL NUMBER 917.274031

GROUNDDRIVE

1oo

ddve-fender,stlL44

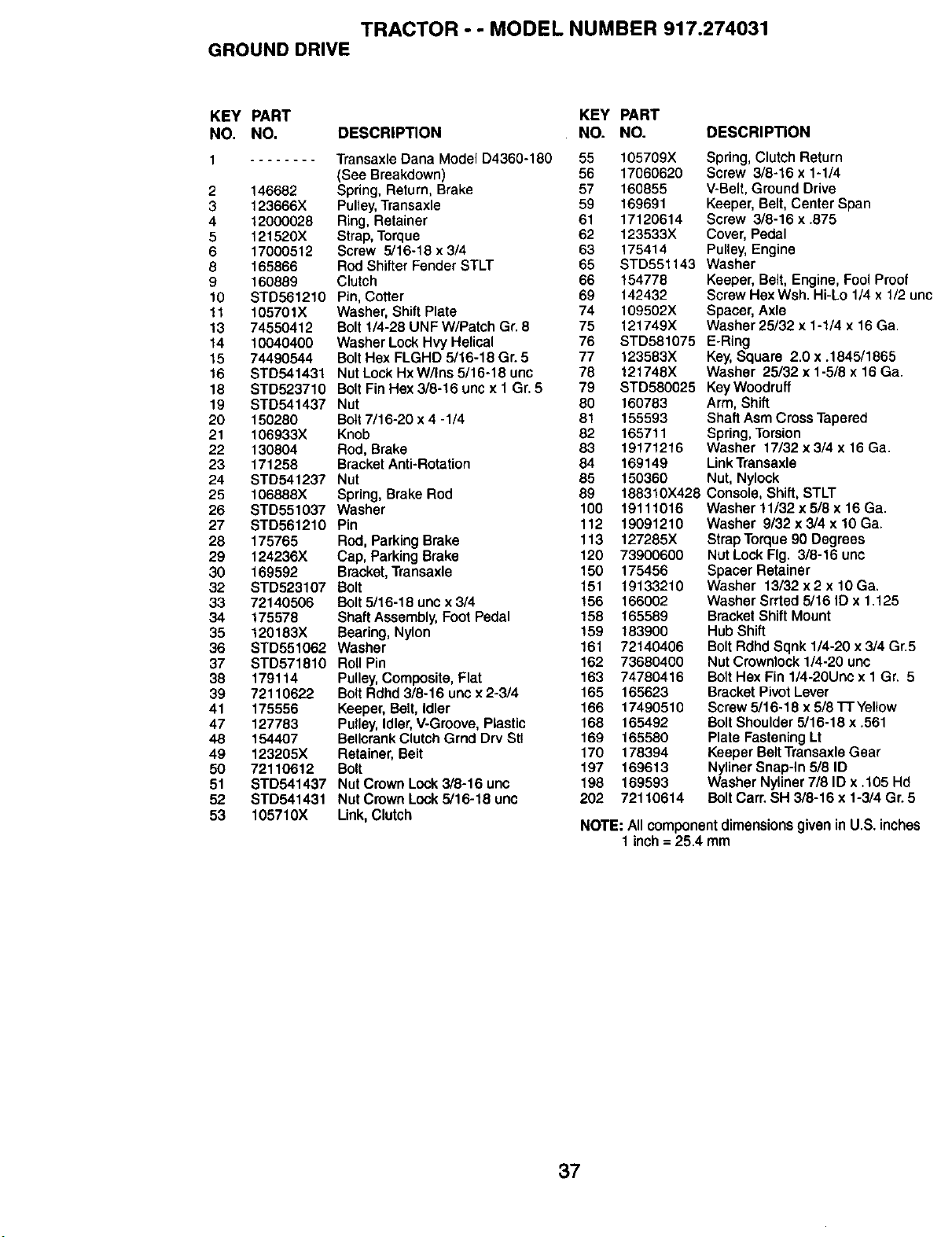

TRACTOR - - MODEL NUMBER 917.274031

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle Dana Model D4360-180 55 105709X

(See Breakdown) 56 17060620

2 146682 Spring, Return, Brake 57 160855

3 123666X Pulley, Transaxle 59 169691

4 12000028 Ring, Retainer 61 17120614

5 121520X Strap, Torque 62 123533X

6 17000512 Screw 5/16-18 x 3/4 63 175414

8 165866 Rod Shifter Fender STLT 65 STD551143

9 160889 Clutch 66 154778

10 STD561210 Pin, Cotter 69 142432

11 105701X Washer, Shift Plate 74 109502X

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 75 121749X

14 10040400 Washer Lock Hvy Helical 76 STD581075

15 74490544 Bolt Hex FLGHD 3/16-18 Gr. 5 77 123583X

16 STD541431 Nut Lock Hx W/Ins 5/16-18 unc 78 121748X

18 STD523710 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 79 STD580025

19 STD541437 Nut 80 160783

20 150280 Bolt 7/16-20 x 4 -1/4 81 155593

21 106933X Knob 82 165711

22 130804 Rod, Brake 83 19171216

23 171258 Bracket Anti-Rotation 84 169149

24 STD541237 Nut 85 150360

25 106888X Spring, Brake Rod 89 188310X428

26 STD551037 Washer 100 19111016

27 STD561210 Pin 112 19091210

28 175765 Rod, Parking Brake 113 127285X

29 124236X Cap, Parking Brake 120 73900600

30 169592 Bracket, Transaxle 150 175456

32 STD523107 Bolt 151 19133210

33 72140506 Bolt 5/16-18 unc x 3/4 !56 166002

34 175578 Shaft Assembly, Foot Pedal 158 165589

35 120183X Bearing, Nylon 159 183900

36 STD551062 Washer 161 72140406

37 STD571810 Roll Pin 162 73680400

38 179114 Pulley, Composite, Flat 163 74780416

39 72110622 Bolt Rdhd 3/8-16 uric x 2-3/4 165 165623

41 175556 Keeper, Belt, Idler 166 17490510

47 127783 Pulley, Idler, V-Groove, Plastic 168 165492

48 154407 Bellcrank Clutch Grnd Dry Stl 169 165580

49 123205X Retainer, Belt 170 178394

50 72110612 Bolt 197 169613

51 STD541437 Nut Crown Lock 3/8-16 unc 198 169593

52 STD541431 Nut Crown Lock 5/16-18 unc 202 72110614

53 105710X Link, Clutch

Spring, Clutch Return

Screw 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, Center Span

Screw 3/8-16 x .875

Cover, Pedal

Pulley, Engine

Washer

Keeper, Belt, Engine, Fool Proof

Screw Hex Wsh. Hi-Lo 1/4 x 1/2 unc

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square 2.0 x .1845/1865

Washer 25/32 x 1-5/8 x 16 Ga.

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

LinkTransaxle

Nut, Nylock

Console, Shift, STLT

Washer 11/32 x 5/8 x 16 Ga.

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Nut Lock Fig. 3/8-16 unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 114-20 unc

Bolt Hex Fin 1/4-20Unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8 I-I-Yellow

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

NyUnerSnap-In 5/8 ID

Washer NyUner7/8 ID x .105 Hd

Bolt Cam SH 3/8-16 x 1-3/4 Gr. 5

NOTE:AllcomponentdimensionsgiveninU.S.inches

1 inch= 25,4 mm

TRACTOR - - MODEL NUMBER 917.274031

STEERING

,_-'F-----68

...... -l.___, t

_'-"_ 42

3,----_o_.t-_3,

steedng_ste alth_orem 7

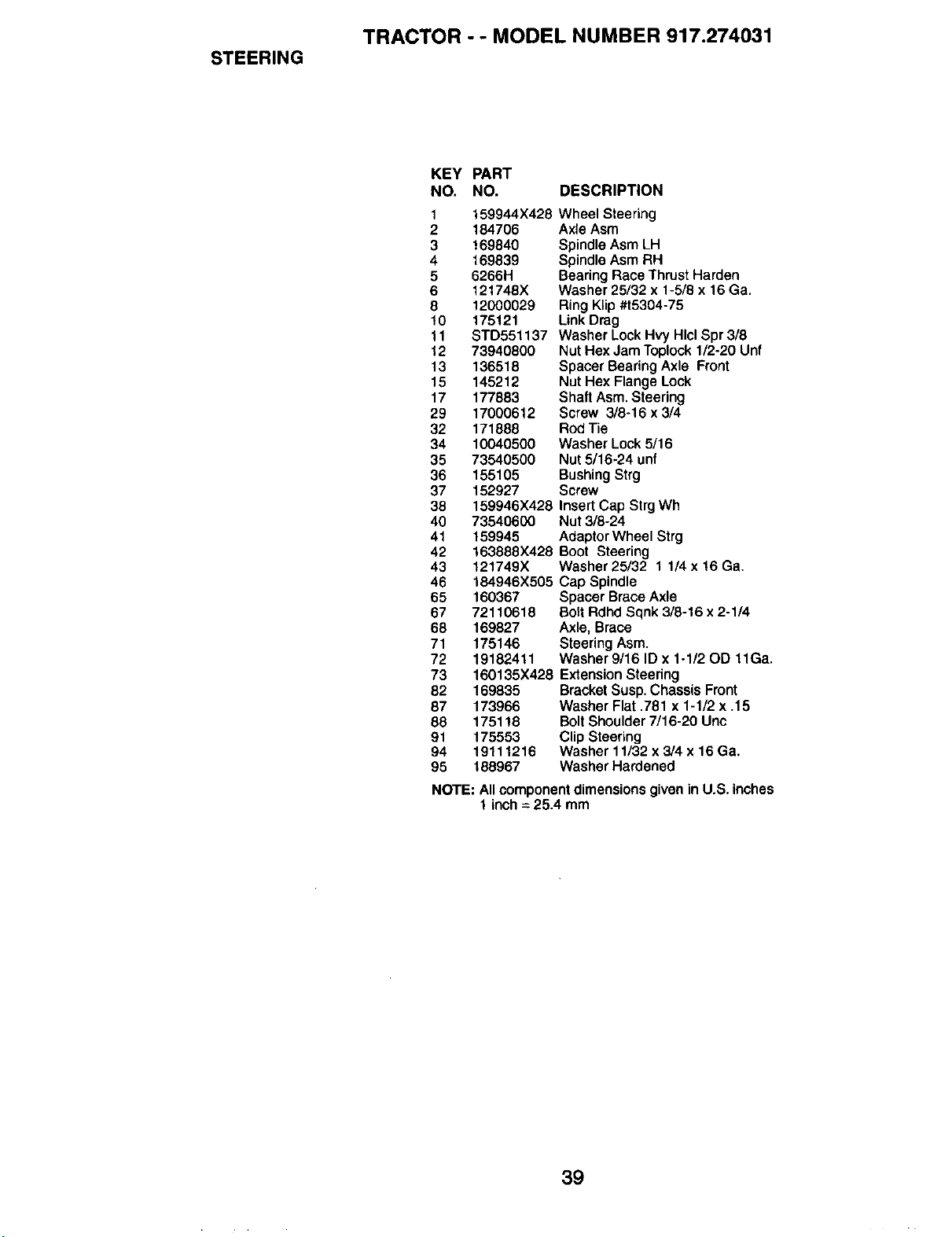

STEERING

TRACTOR - - MODEL NUMBER 917.274031

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 184706

3 169840

4 169839

5 6266H

6 121748X

8 12000029

!0 175121

11 STD551137

12 73940800

13 136518

15 145212

17 177883

29 17000612

32 171888

34 10040500

35 73540500

36 155105

37 152927

38 159946X428

40 73540600

41 159945

42 163888X428

43 121749X

46 184946)(505

65 160367

67 72110618

68 169827

71 175146

72 19182411

WheelSteering

AxleAsm

SpindleAsm LH

Spindle AsmRH

Bearing Race Thrust Harden

Washer 25/32 x 1-5/8x 16 Ge.

Ring Klip #t5304-75

Link Drag

Washer Lock Hvy Hlcl Spr 3/8

Nut Hex Jam Toplock 1/2-20Unt

Spacer Bearing Axle Front

Nut Hex FlangeLock

Shaft Asm. Steering

Screw 3/8-16 x 3/4

RodTie

Washer Lock 5/16

Nut 5/16-24 unf

Bushing Strg

Screw

Insert Cap Strg Wh

Nut 3/8-24

AdaptorWheel Strg

Boot Steering

Washer25/32 1 1/4 x 16 Ga.

Cap Spindle

Spacer BraceAxle

BoltRdhdSqnk 3/8-16 x 2-1/4

Axle,Brace

SteeringAsm.

Washer9/16 ID x 1-1/20D 11Ga.

160135X428 Extension Steedng

169835 Bracket Susp. Chassis Front

173966 Washer Flat .781 x 1-1/2 x .15

1751 !8 Bolt Shoulder 7/16-20 Unc

175553 Clip Steering

19111216 Washer 11/32 x 3/4 x 16 Ga.

188967 Washer Hardened

NOTE; All component dimensions given in U.S. inches

1 inch = 25.4 mrn

TRACTOR - - MODEL NUMBER 917.274031

ENGINE

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs intek-twin_39

ENGINE

TRACTOR - - MODEL NUMBER 917.274031

KEY PART

NO. NO. DESCRIPTION

1 175437X505 Control Throttle

2 191611 Screw 10 x 3/4 Single Lead-Hex

3 Engine, Briggs Model 407577-0284-E1

(See Breakdown)

4 149723 Muffler

5 159955 Exhaust Tube LH

6 160589 Exhaust Tube RH

8 171877 Bolt 5/19-18 uric x 314 w/sems

10 162797 Shield Browing

13 165391 Muffler Gasket

14 148456 Tube Drain oil

17 17060624 Screw 3/8-16 x 1-1/2

23 169837 Shield Heat

25 1r87767X505 Control Choke

29 137180 Kit Spark Arrestor (Flat Scrn)

31 179022 Tank Fuel 4.0 Rear

32 179124X428 Cap Asm Fuel

33 123487X Clamp Hose Black

37 8543R Line Fuel

38 181654 Plug Drain Oil Easy

41 139277 Stem Tank Fuel

45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

72 183906 Screw 5/16-18 x 1

81 73510400 Nut Keps Hex 1/4-20 uric

112 3645J Bushing

NOTE: Allcomponentdimensions given

1 inch= 25.4 mm

in U.S.inches

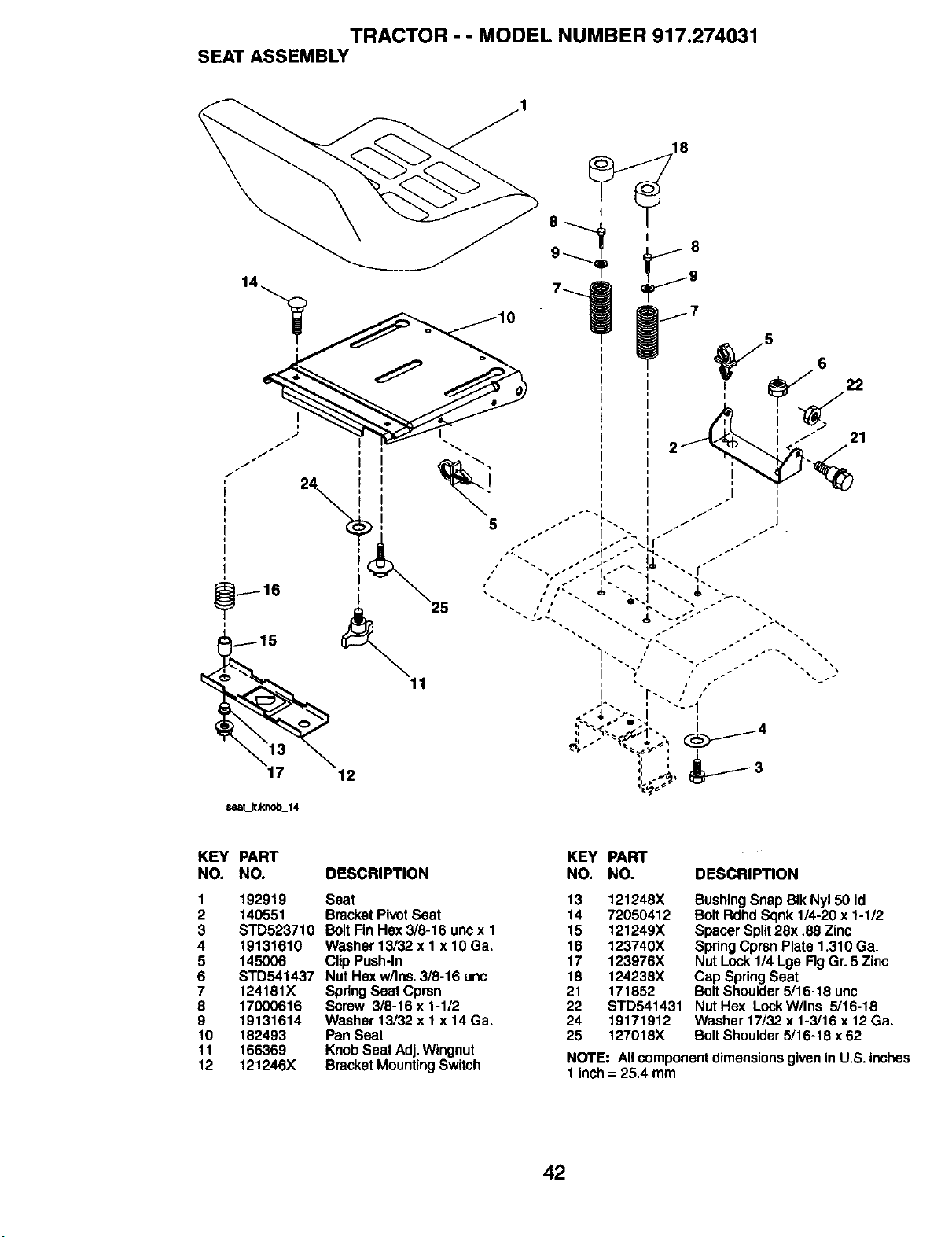

TRACTOR - - MODEL NUMBER 917.274031

SEAT ASSEMBLY

seaLIt.knob_14

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 192919 Seat 13

2 140551 Bracket Pivot Seat 14

3 STD523710 Bolt Rn Hex 3/8-16 unc x 1 15

4 19131610 Washer 13/32 x I x 10 Ga, 16

5 145006 Clip Push-In 17

6 STD541437 Nut Hex w/Ins, 3/8-16 unc 18

7 124181X Spring Seat Cprsn 21

8 17000616 Screw 3/8-16 x 1-1/2 22

9 19131614 Washer 13/32 x 1 x 14 Ga, 24

10 182493 Pan Seat 25

11 166369 Knob Seat Adj, Wingnut

12 121246X Bracket Mounting Switch

121248X

72050412

121249X

123740X

123976X

124238X

171852

BushingSnap BIkNyl50 Id

BoltRdhdSqnk 1/4-20x 1-112

Spacer Split28x .88 Zinc

Spring Cprsn Plate 1.316Ga.

Nut Lock 1/4 Lge FigGr.5 Zinc

Cap SpringSeat

Bolt Shoulder 5/16-18 uno

STD541431 Nut Hex LockW/Ins 5/16-18

19171912 Washer 17/32 x 1-3/16 x 12 Ga.

127018X BOlt Shoulder 5/16-18 x 62

NOTE: AllcomponentdimensionsgiveninU.S.inches

1 inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.274031

DECALS

16 3 13 21 4 11

KEY PART

NO. NO.

1 187407

2 138047

3 192963

4 192964

5 160396

6 146046

7 179128

9 193123

10 156439

11 192966

12 172331

13 133644

15 187408

DESCRIPTION

Reflector, LH

Decal, Battery, Diehard, Sears

Decal, Hood RH

Decal, Hood LH

Decal, Deck BCH 42"

Decal, V-Belt, Drive Schematic

Decal, Deck "B""42"

Decal, Replacement Hood

Decal, Fender, Danger

Decal, Panel, Dash

Decal, Mower, Heavy-Duty

Decal, Replacement Parts

Decal, Reflector, RH

KEY PART

NO. NO.

16 192965

17 156368

18 192962

20 149516

21 192967

23 189622

24 189087

26 181470

-- 184310x428

-- 184311X428

-- 193119

-* 193120

DESCRIPTION

Decal,Steedng Wheel

Decal, Fender, Operator Inst.

Decal, Fender

Decal,Battery

Decal,Hood, Side Panel

Decal, Engine

Decal, Dash

Decal, Deck level

Pad,Footrest, STILT,LH

Pad,Footrest, STILT,RH

Manual, Owner's,English

Manual,Owner's,Spanish

WHEELS &TIRES

2 _ 0,0

4,10

wheeL1

KEY PART

NO. NO. DESCRIPTION

59192

65139

106222X

599O4

106732)(417

278H

9040H

8 106108X417

9 122082X

10 7152J

11 104757X428

- - 144334

Cap ValveTire

StemValve

TireFTs 15 x6 0 - 6 Service

TubeFront(Service ItemOnly)

RimAsm6"front Service

FittingGrease(FrontWheelOnly)

BearingFlange(FrontWheel

Only)

Rim Asm8" rear Service

Tire RTs20 x 10-8 C Service

TubeRear (Service ItemOnly)

Cap Axle

Sealant,Tire (10 oz.Tube)

NOTE: Allcomponent dimensionsgivenin U.S.inches

1 inch = 25.4 mm

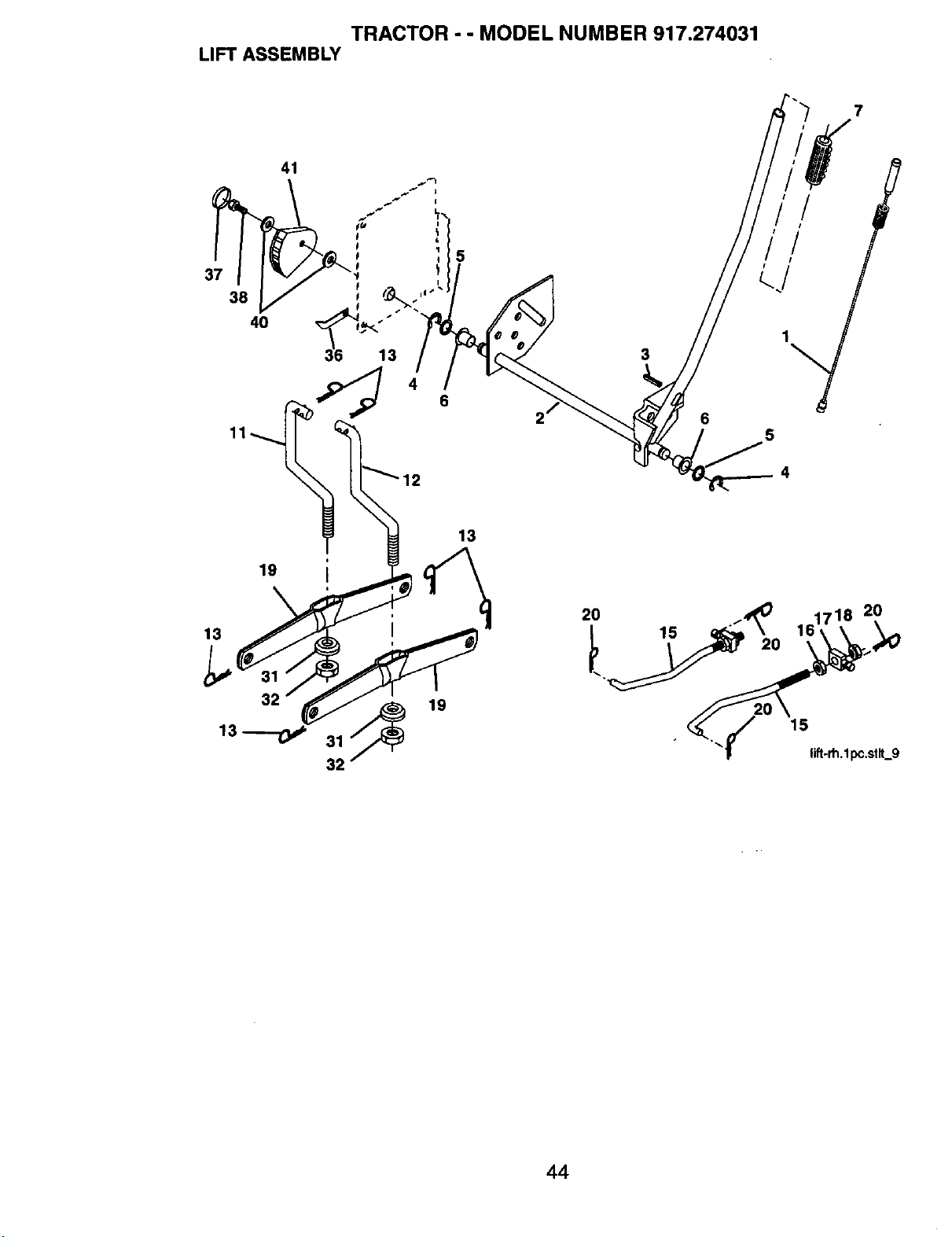

TRACTOR - - MODEL NUMBER 917.274031

LIFT ASSEMBLY

19 I

32 _ 19

13 _ 31

• _,_ lS,_.rh.lpc.st,_9

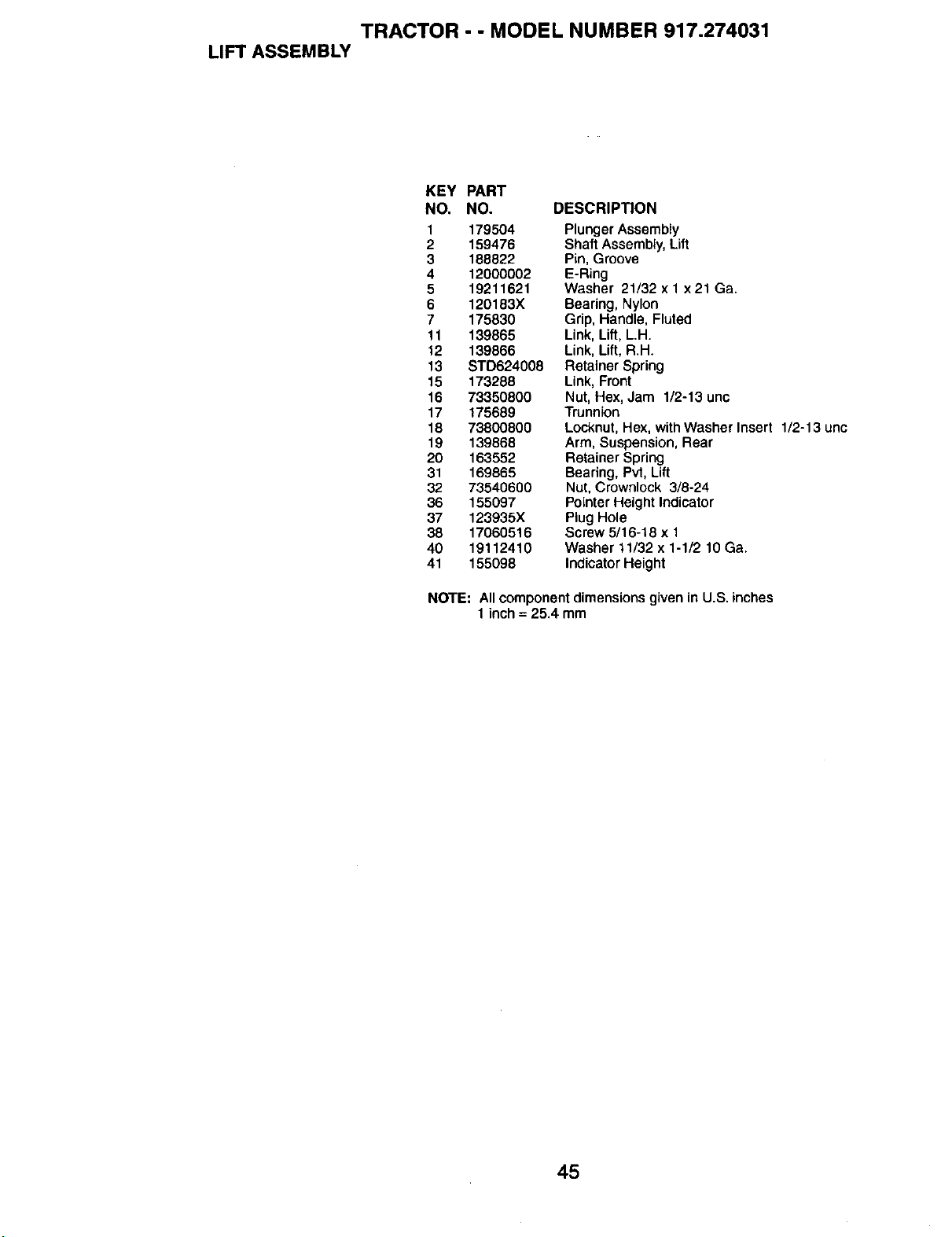

TRACTOR - - MODEL NUMBER 917.274031

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 179504 Plunger Assembly

2 159476 Shaft Assembly, Lift

3 188822 Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x 21 Ga.

6 120183X Bearing, Nylon

7 175830 Grip, Handle, Fluted

11 139865 Link, Lift, LH.

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 unc

17 175689 Trunnion

18 73800800 Locknut, Hex, with Washer Insert 1/2-13 unc

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

36 155097 Pointer Height Indicator

37 123935X Plug Hole

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer t 1/32 x 1-1/2 10 Ga.

41 155098 Indicator Height

NOTE: Allcomponentdimensions given inU.S.inches

1 inch= 25.4 mm

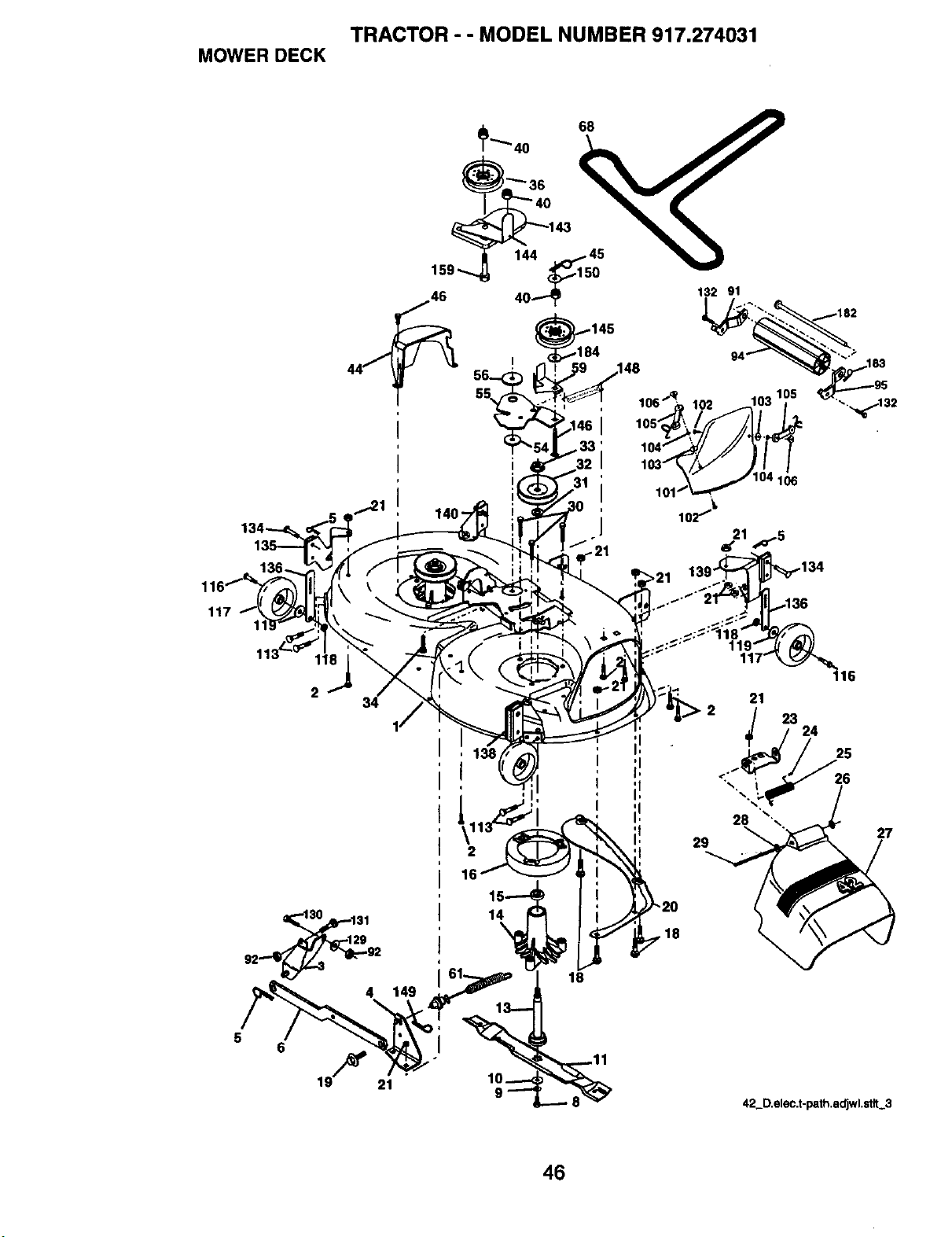

TRACTOR - - MODEL NUMBER 917.274031

MOWER DECK

117

28 ""

149

19F 21

42_D.elec.t-path.adjwLstft 3

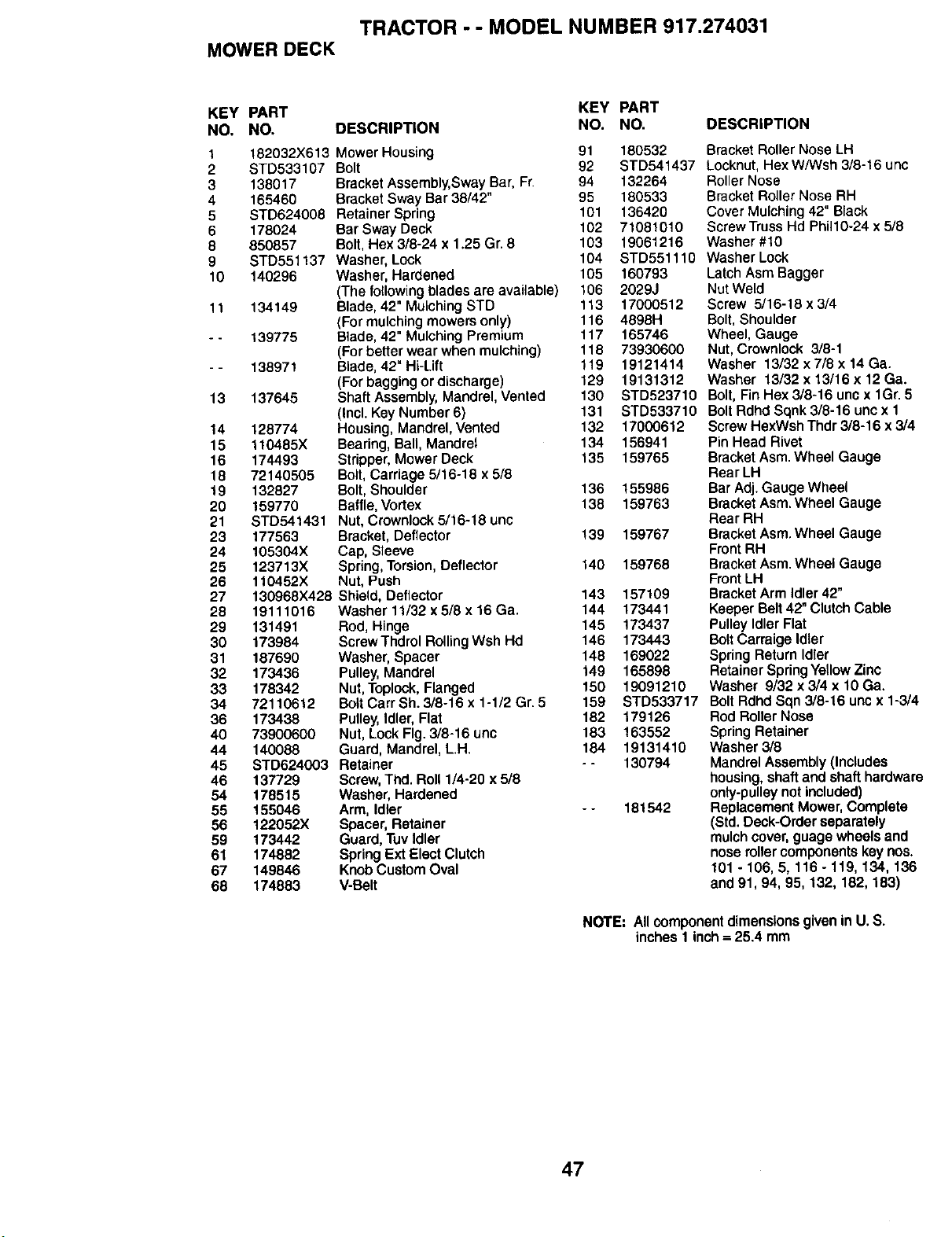

TRACTOR - - MODEL NUMBER 917.274031

MOWER DECK

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 182032X613

2 STD533107

3 138017

4 165460

5 STD624008

6 178024

8 650857

9 STD551137

10 140296

11 134149

139775

138971

13 137645

128774

110485X

174493

72140505

132827

159770

STD541431

177563

105304X

123713X

110452X

Mower Housing 91 180532

Bolt 92 STD541437

Bracket Assembly,Sway Bar, Ft. 94 132264

Bracket Sway Bar 38/42" 95 180533

Retainer Spring 101 136420

Bar Sway Deck 102 71081010

Bolt, Hex 3/8-24 x 1.25 Gr. 8 103 19061216

Washer, Lock 104 STD551110

Washer, Hardened 105 160793

(The following blades are available) 106 2029J

Blade, 42" Mulching STD 113 17000512

(For mulching mowers only) 116 4898H

Blade, 42" Mulching Premium 117 165746

(For better wear when mulching) 118 73930600

Blade, 42" Hi-Lift 119 19121414

(For bagging or discharge) 129 19131312

Shaft Assembly, Mandrel, Vented 130 STD523710

(Incl. Key Number 6) 131 STD533710

Housing, Mandrel, Vented 132 17000612

Bearing, Ball, Mandrel 134 156941

Stripper, Mower Deck 135 159765

Bolt, Carriage 5/16-18 x 5/8

Bolt, Shoulder 136 155986

Baffle, Vortex 138 159763

Nut, Crownlock 5/16-18 unc

Bracket, Deflector 139 159767

Cap, Sleeve

Spring, Torsion, Deflector 140 159768

Nut, Push

19111016

131491

173984

187690

173436

178342

72110612

173436

73900600

140088

STD624003

137729

178515

155046

122052X

173442

174882

149846

174883

130968X428 Shield, Deflector 143 157109

Washer 11/32 x 5/8 x 16 Ga. 144 173441

Rod, Hinge 145 173437

ScrewThdrol RollingWsh Hd 146 173443

Washer, Spacer 148 169022

Pulley, Mandrel 149 165898

Nut, Toplock, Flanged 150 19091210

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 159 STD533717

Pulley, Idler, Flat 182 179126

Nut, Lock Fig. 3/8-16 uric 183 163552

Guard, Mandrel, L.H. 184 19131410

Retainer - - 130794

Screw, Thd. Roll 1/4-26 x 5/8

Washer, Hardened

Arm, Idler - - 181542

Spacer, Retainer

Guard, Tuv Idler

Spring Ext Elect Clutch

Knob Custom Oval

V-Belt

Bracket Roller Nose LH

Locknut, Hex W/Wsh 3/8-16 unc

Roller Nose

Bracket Roller Nose RH

Cover Mulching 42" Black

Screw Truss Hd Phil10-24 x 5/8

Washer #10

Washer Lock

Latch Asm Bagger

Nut Weld

Screw 5/16-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1Gr. 5

Bolt Rdhd Sqnk 3/8-16 unc x 1

Screw HexWsh Thdr 3/8-16 x 3/4

Pin Head Rivet

Bracket Asm. Wheel Gauge

Rear LH

Bar Adj. Gauge Wheel

Bracket Asm. Wheel Gauge

Rear RH

Bracket Asm. Wheel Gauge

Front RH

Bracket Asm. Wheel Gauge

Front LH

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bo_tCarraige Idler

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Rod Roller Nose

Spring Retainer

Washer 3/8

Mandrel Assembly (Includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulch cover, guage wheels and

nose roller components key nos.

101 - 106, 5, 116 - 119, 134, 136

and 91, 94, 95, 132, 182, 183)

NOTE: Allcomponentdimensions givenin U.S.

inches I inch= 25.4 mm

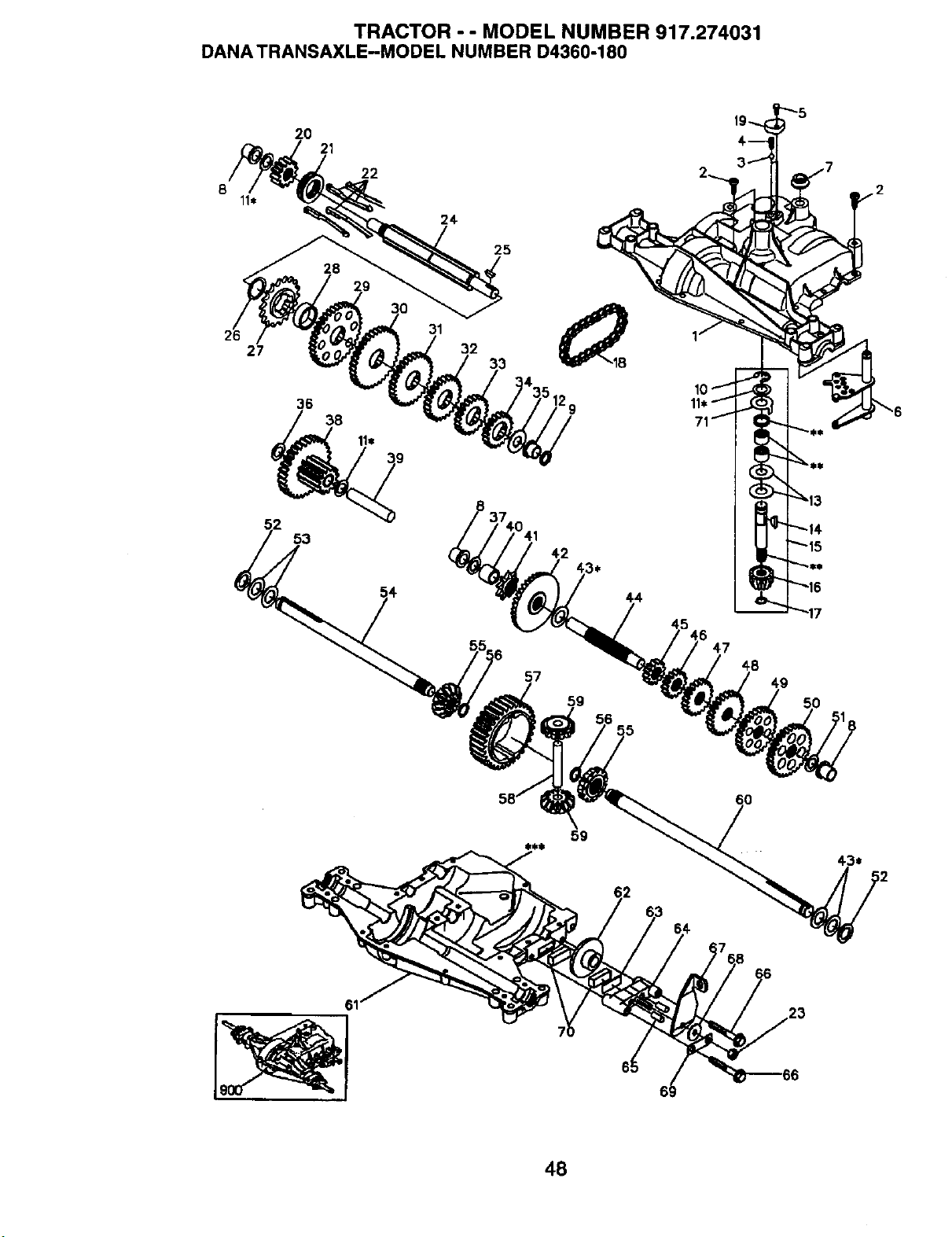

TRACTOR - - MODEL NUMBER 917.274031

DANATRANSAXLE-MODEL NUMBER D4360-180

16 47

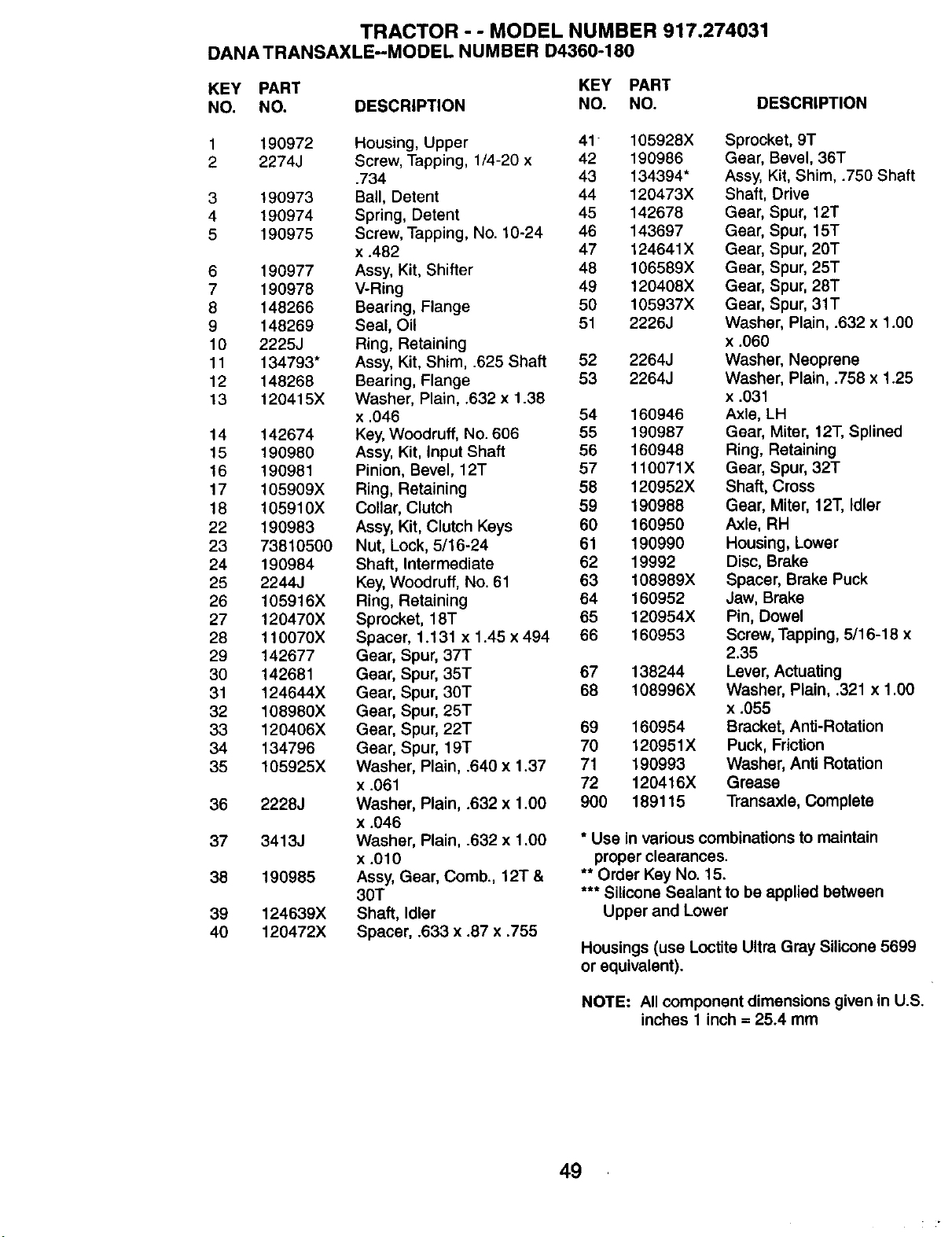

TRACTOR - - MODEL NUMBER 917.274031

DANA TRANSAXLE--MODEL NUMBER D4360-180

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

DESCRIPTION

1 190972 Housing, Upper 41 105928X

2 2274J Screw, Tapping, 1/4-20 x 42 190986

.734 43 134394*

3 !90973 Ball, Detent 44 120473X

4 190974 Spring, Detent 45 142678

5 190975 Screw, Tapping, No. 10-24 46 143697

x .482 47 124641X

6 190977 Assy, Kit, Shifter 48 106589X

7 190978 V-Ring 49 120408X

8 148266 Bearing, Flange 50 105937X

9 148269 Seal, Oil 51 2226J

10 2225J Ring, Retaining

11 134793" Assy, Kit, Shim, .625 Shaft 52 2264J

12 148268 Bearing, Flange 53 2264J

13 120415X Washer, Plain, .632 x 1.38

x .046 54 160946

14 142674 Key, Woodruff, No. 606 55 190987

15 190980 Assy, Kit, Input Shaft 56 160948

16 190981 Pinion, Bevel, 12T 57 110071X

17 105909X Ring, Retaining 58 120952X

18 105910X Collar, Clutch 59 190988

22 190983 Assy, Kit, Clutch Keys 60 160950

23 73810500 Nut, Lock, 5/16-24 61 190990

24 190984 Shaft, Intermediate 62 19992

25 2244J Key, Woodruff, No. 61 63 108989X

26 105916X Ring, Retaining 64 160952

27 120470X Sprocket, 18T 65 120954X

28 110070X Spacer, 1.131 x 1.45 x 494 66 160953

29 142677 Gear, Spur, 37T

30 142681 Gear, Spur, 35T 67 138244

31 124644X Gear, Spur, 30T 68 108996X

32 108980X Gear, Spur, 25T

33 120406X Gear, Spur, 22T 69 160954

34 134796 Gear, Spur, 19T 70 120951X

35 105925X Washer, Plain, .640 x 1.37 71 190993

x .061 72 120416X

36 2228J Washer, Plain, .632 x 1.00 900 189115

x .046

37 3413J Washer, Plain, .632 x 1.00

x .010

38 190985 Assy, Gear, Comb., 12T &

30T

39 124639X Shaft, Idler

40 120472X Spacer, .633 x .87 x .755

Sprocket, 9T

Gear, Bevel, 36T

Assy, Kit, Shim, .750 Shaft

Shaft, Drive

Gear, Spur, 12T

Gear, Spur, 15T

Gear, Spur, 20T

Gear, Spur, 25T

Gear, Spur, 28T

Gear, Spur, 31T

Washer, Plain, .632 x 1.00

x .060

Washer, Neoprene

Washer, Plain, .758 x 1.25

x .031

Axle, LH

Gear, Miter, 12T, Splined

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 12T, Idler

Axle, RH

Housing, Lower

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 x

2.35

Lever, Actuating

Washer, Plain, .321 x 1.00

x .055

Bracket, Anti-Rotation

Puck, Friction

Washer, Anti Rotation

Grease

Transaxle, Complete

* Use in various combinations to maintain

proper clearances.

** Order Key No. 15.

*** Silicone Sealant to be applied between

Upper and Lower

Housings (use Loctite Ultra Gray Silicone 5699

or equivalent).

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.274031

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407577,TYPE NUMBER 0284-E1

213_

216 _- 188A I

_13,?.9REPLACEMENT ENGINE_

445

3O5

I 1019 LABELKIT I 304

[ 1058 OWNER'S MANUAL ]

I lo_ EMisSIONLABELI

447A

51A_

212

1_7 _

89 0

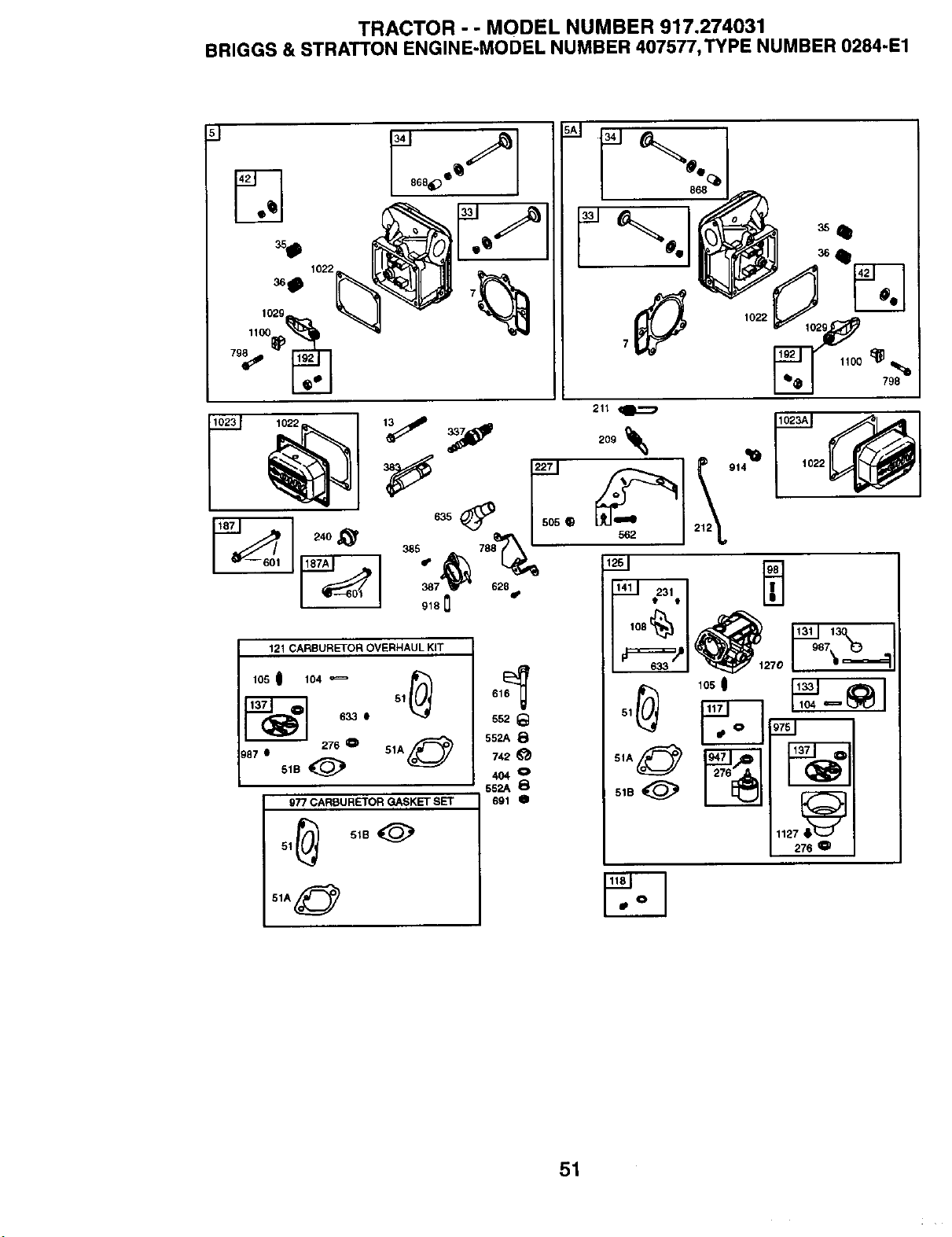

TRACTOR - - MODEL NUMBER 917.274031

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407577,TYPE NUMBER 0284-E1

1029

1100

1022

798

1022

211

209 _

t 14

121 CARBURETOR OVERHAUL KIT

lOG O 104 _

633 •

987 • 276 O 51A

51B

877 CARBURETOR GASKET SET

51A _

552A8

742

6G2A

691 •

lO5O

OlA

51B _

1127@

276 Ct

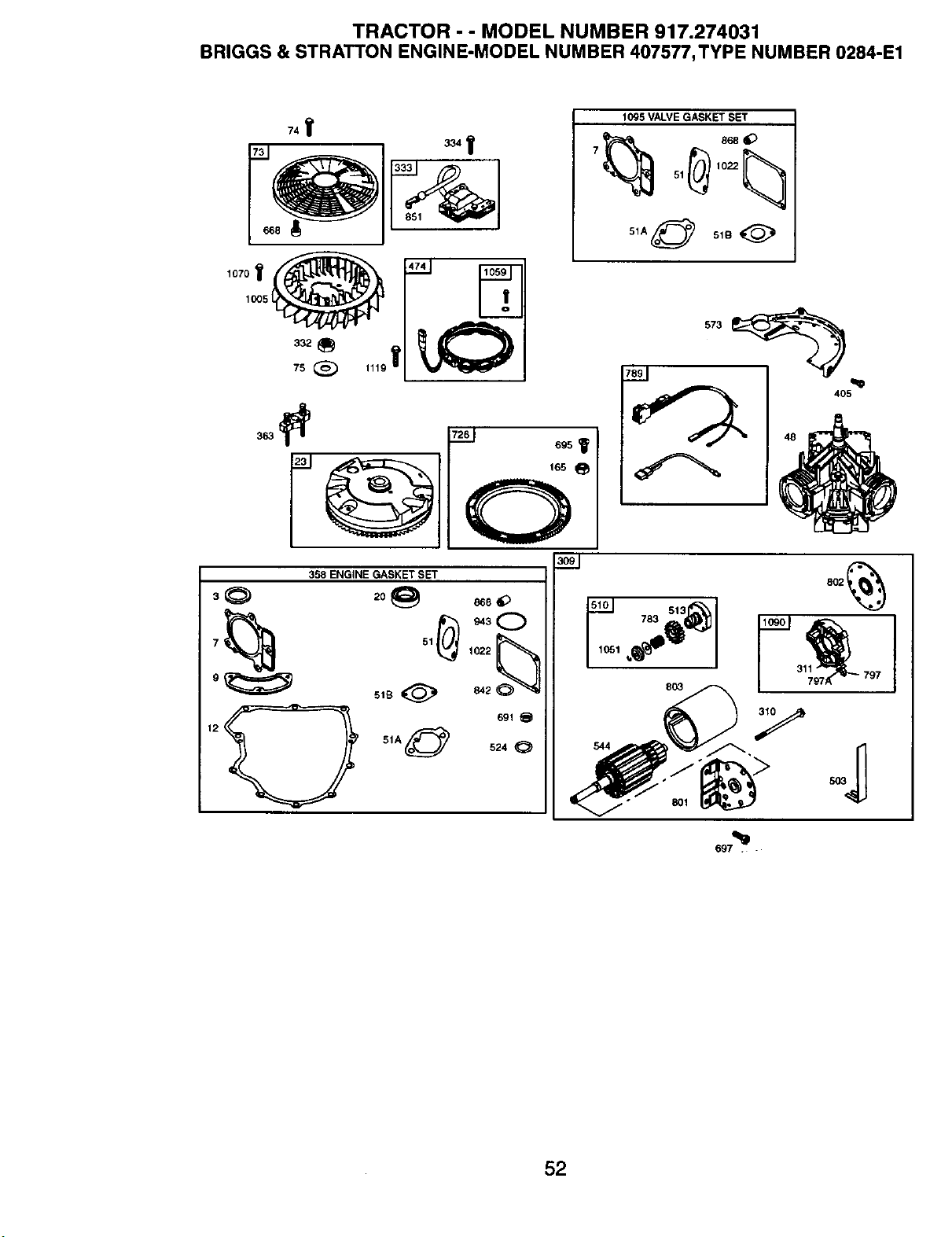

TRACTOR - - MODEL NUMBER 917.274031

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407577,TYPE NUMBER 0284-E1

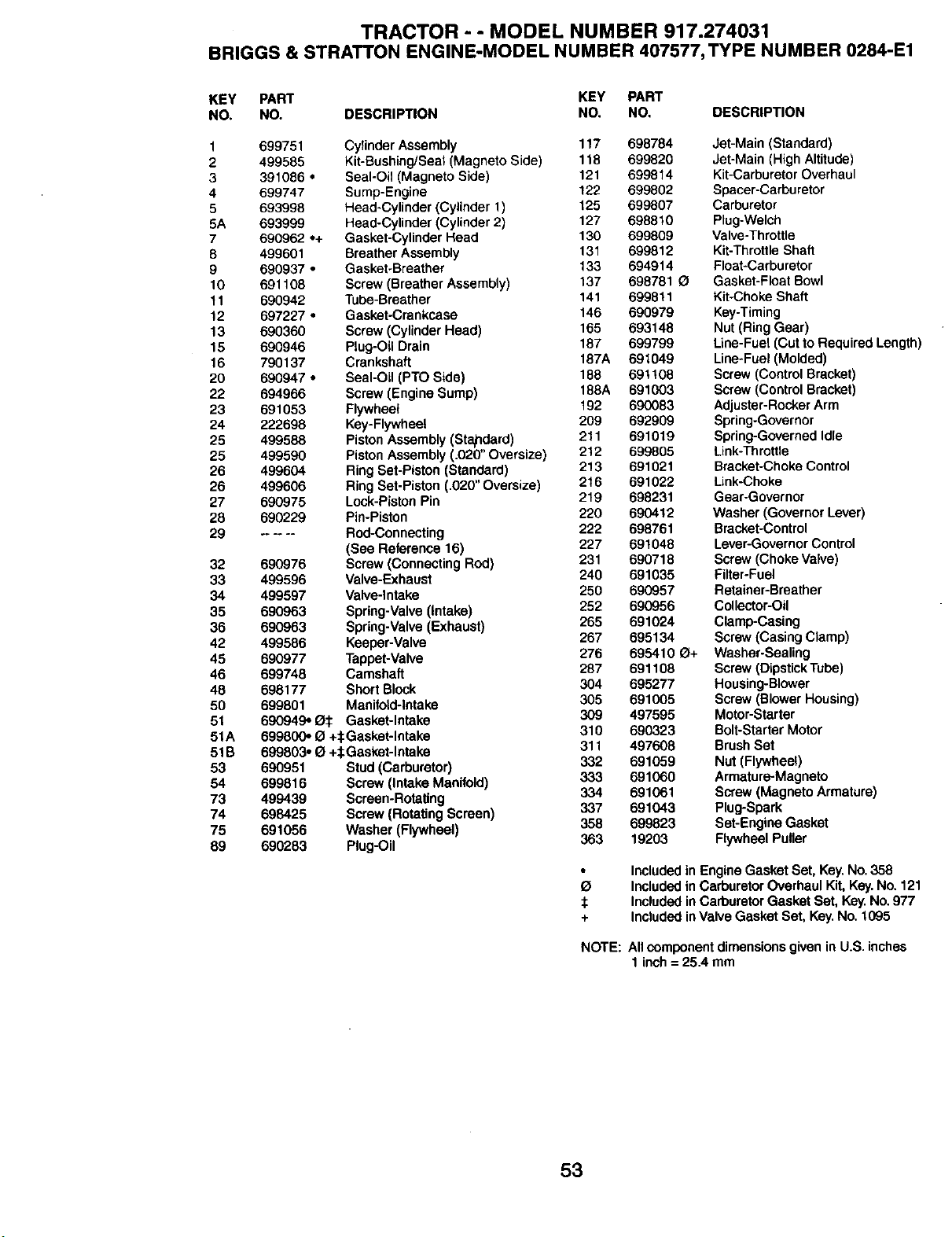

TRACTOR - - MODEL NUMBER 917.274031

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407577, TYPE NUMBER 0284-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 699751 Cylinder Assembly 117 698784

2 499585 Kit-Bushing/Seat (Magneto Side) 118 699820

3 391086 • Seal-Oil (Magneto Side) 121 699814

4 699747 Sump-Engine 122 699802

5 693998 Head*Cylinder (Cylinder 1) 125 699807

5A 693999 Head-Cylinder (Cylinder 2) 127 698810

7 690962 °+ Gasket-Cylinder Head 130 699809

8 499601 Breather Assembly 131 699812

9 690937 • Gasket-Breather 133 694914

10 691108 Screw (Breather Assembly) 137 698781 O

t 1 690942 Tube-Breather 141 699811

12 697227 " Gasket-Crankcase 146 690979

13 690360 Screw (Cylinder Head) 165 693148

15 690946 Plug-Oil Drain 187 699799

16 790137 Crankshaft 187A 691049

20 690947 ,, Seal-Oil (PTO Side) 188 691108

22 694966 Screw (Engine Sump) 188A 691003

23 691053 Flywheel 192 690083

24 222698 Key-Flywheel 209 692909

25 499588 Piston Assembly (Sta_ldard) 211 691019

25 499590 Piston Assembly (.020" Oversize) 212 699805

26 499604 Ring Set-Piston (Standard) 213 691021

26 499606 Ring Set-Piston (.020" Oversize) 216 691022

27 690975 Lock-Piston Pin 219 698231

28 690229 Pin-Piston 220 690412

29 ...... Rod-Connecting 222 698761

(See Reference 16) 227 691048

32 690976 Screw (Connecting Rod) 231 690718

33 499596 Valve-Exhaust 240 691035

34 499597 Valve-Intake 250 690957

35 690963 Spring-Valve (intake) 252 690956

36 690963 Spring-Valve (Exhaust) 265 691024

42 499586 Keeper-Valve 267 695134

45 690977 Tappet-Valve 276 695410 O+

46 699748 Camshaft 287 691108

48 698177 Short Block 304 695277

50 699801 Manifold-Intake 305 691005

51 690949 • I_:1: Gasket-Intake 309 497595

51A 699800* Q +_Gasket-lntake 310 690323

51B 699603, _ +:l:Gasket-lntake 311 497608

53 690951 Stud (Carburetor) 332 691059

54 699816 Screw (Intake Manifold) 333 691060

73 499439 Screen-Rotating 334 691061

74 698426 Screw (Rotating Screen) 337 691043

75 691056 Washer (Flywheel) 358 699823

89 690283 Plug-Oil 363 19203

NOTE:

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Spacer-Carburetor

Carburetor

Plug-Welch

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Gasket-Float Bowl

Kit-Choke Shaft

Key-Timing

Nut (Ring Gear)

Line-Fuel (Cut to Required Length)

Line-Fuel (Molded)

Screw (Control Bracket)

Adjuster-Rocker Arm

Spring-Governor

Spring-Governed Idle

Link-Throttle

Bracket-ChokeControl

Link-Choke

Gear-Governor

Washer (Governor Lever)

Bracket-Control

Lever-GovernorControl

Screw (Choke Valve)

Filter-Fuel

Retainer-Breather

Collector-Oil

Clamp-Casing

Screw (Casing Clamp)

Washer-Sealing

Screw (DipstickTube)

Housing-Blower

Screw (Blower Housing)

Motor-Startar

Bolt-Starter Motor

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Set-Engine Gasket

Flywheel Puller

Included in Engine Gasket Set, Key.No. 358

Includedin Carburetor Overhaul Kit, Key.No. 121

Includedin Carburetor Gasket Set, Key.No. 977

Includedin Valve Gasket Set, Key.No. 1095

All component dimensionsgiven in U.S.inches

1 inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.274031

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407577,TYPE NUMBER 0284-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

383 19374 Wrench-Spark Plug 842 691031 • SeaI-Dipstick.f'rube

385 691108 Screw (Fuel Pump) 847 499602 Dipstick/Tube Assembly

387 808656 Pump-Fuel 851 493880 Terminal-Spark Plug

404 690442 Washer (Governor Crank) 855 691011 Adapter-Air Cleaner

405 697820 Screw (Back Plate) 865 691012 Cover-Air Guide

445 499486 Filter-Air Cleaner Cartridge 865A 691014 Cover-Air Guide

447 691003 Screw (Air Guide Cover) 865B 691015 Cover-Air Guide

447A 691108 Screw (Air Guide Cover) 868 690968 ,+ Seal-Valve

467 691008 Knob-Air Cleaner 914 691127 Screw (Rocker Cover)

474 696458 Alternator 918 694000 Rose-Vacuum

501 691185 Regulator 943 690589 ° SeaI-O Ring (Oil Pump Cover)

503 691532 Strap-Ground 947 699728 Solenoid-Fuel

505 691029 Nut (Governor Control Lever) 965 499613 Cover-Oil Pump

510 497606 Drive-Starter 967 273638 Filter-Pre Cleaner

513 692024 Clutch-Drive 968 790095 Cover-Air Cleaner

523 691036 Dipstick 975 699502 Bowl-Float

524 691032 • Seal-Dipstick Tube 977 699815 Gasket Set-Carburetor

525 691037 Tube-Dipstick 987 699813 8 Seal-Throttle Shaft

526 691108 Screw(Regulator) 1005 499603 Fan-Flywheel

544 692034 Armature-Starter 1013 690954 Nipple-Oil Filter

552 690552 Bushing-Governor Crank 1017 690770 Screen-Oil Pump

552A 690553 Bushing-Governor Crank 1019 790094 Kit-Label

562 690311 Bolt (Governor Control Lever) 1022 690971 °+ Gasket-Rocker Cover

573 691009 Plate-Back 1023 499599 Cover-Rocker (Cylinder 1)

601 691038 Clamp-Hose 1023A 499600 Cover-Rocker (Cylinder 2)

615 698290 Retainer-Governor Shaft 1024 499054 Pump-Oil

616 691045 Crank-Governor 1026 690981 Rod-Push (Steel)

628 691108 Screw (Fuel Pump Bracket) 1026A 690982 Rod-Push (Aluminum)

633 695414 8 Seal-Choke/Throttle Shaft 1027 492932 Filter-Oil

635 66538 Boot-Spark Plug 1029 690972 Arm-Rocker

654 690958 Nut (Carburetor) 1035 691042 Shaft-Pump

668 691215 Spacer 1036 695704 Label-Emission

691 690657 • SeaI-GovernorShaft • 1051 691265 Ring-Retaining

695 693149 Screw (Ring Gear) 1054 280275 Tie-Cable

697 690372 Screw (Drive Cap) 1058 275475 Owner's Manual

703 691010 Clip 1059 698516 Kit-Screw/Washer

718 690959 Pin-Locating 1090 691293 Retainer-Brush

726 499612 Gear-Ring 1095 699822 Kit-Valve Overhaul

741 690980 Gear-Timing 1100 690973 Pivot-Rocker Arm

742 690328 Retainer-E Ring 1119 691183 Screw (Alternator)

750 696999 Screw (Oil Pump Cover) 1127 690992 Screw (Float Bowl)

783 693058 Gear-Pinion 1329 407577-0027 Replacement Engine

788 691039 Bracket-Fuel Pump 1330 273521 Repair Manual

789 698330 Harness-Wiring

797 691029 Nut (Brush Retainer) ° Included In Engine Gasket Set, Key. No. 368

797A 693167 Nut (Brush Retainer) Q Included in Carburetor Overhaul Kit, Key. No.

121

:1: Included In Carburetor Gasket Set, Key. No.

977

+ Included in Valve Gasket Set, Key.No. 1095

NOTE: Allcomponentdimensionsgiven inU.S.

inches1 inch= 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along doffed line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-80O-4-MY-HOM_ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www,sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u.sJk) 1-800-361-6665 (Cma_)

Parapedirserviciode reparaci6n

a domicilio,y paraordenarpiezas:

1-888-SU-HOGARs_

(1-eee-_

Au Canada pourserviceen franP_,,ais:

1-800-LE-FOYER "c

(t-eoo-s33-693_

www.sears.ca

8E/ARS

02410

]]M SM

® RegisteredTrademark/ Trademark/ ServiceMarkofSears, RoebuckandCo.

® Marca Registrada/ TMMamade Fdbdca/ SMMarcade ServiciodeSears, RoebuckandCo.

ac Marquede commerce/ MDMarqued6pos6edeSears, Roebuckand Co.

_ i;_i_ ¸

iiii_i!i!i_!i!iii!

;i:;,i!!il

193119 6.21.04 MH Printed in U.S.A.

Craftsman 917274031 tractor

Product's Documents

User Manual

Specifications

Craftsman 917274031 Questions and Answers

Related Products

Craftsman 917273631 tractor

Craftsman 917258661 tractor

Craftsman 917252714 Tractor

Craftsman 247273270 tractor

Craftsman 917255981 Tractor

Craftsman 917256710 Tractor
