1 Instructions 4
1.1 General safety instructions 4
1.2 Manufacturer liability 7
1.3 Appliance purpose 7
1.4 Identification plate 7
1.5 This user manual 7
1.6 Disposal 8
1.7 How to read the user manual 9
2 Description 10
2.1 General Description 10
2.2 Symbols 10
2.3 Available accessories 11
3 Use 12
3.1 Instructions 12
3.2 First use 12
3.3 Using the cooktop 12
4 Cleaning and maintenance 15
4.1 Instructions 15
4.2 Cleaning the appliance 15
5 Installation 17
5.1 Clearances above and around domestic appliances 17
5.2 Safety instructions 18
5.3 Positioning in the counter top 19
5.4 Mounting 23
5.5 Gas connection 24
5.6 Adaptation to different types of gas 27
5.7 Electrical connection 29
5.8 Instructions for the installer 30
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
These instructions apply only for the destination countries listed on the appliance's data plate.
This is a class 3 built in cooktop.
Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, as long they
are supervised or instructed by
adults who are responsible for
their safety.
• Children must not be allowed to
play with the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Make sure that the flame-spreader
crowns are correctly positioned in
their housings with their respective
burner caps.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• The cooking process must always
be monitored. Short cooking
processes must be monitored
continuously.
• When in use, do not place metal
objects, such as dishes or cutlery,
on the surface of the cooktop as
they may overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
Instructions
5
EN
• DO NOT SPRAY AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN
OPERATION.
• DO NOT USE FLAMMABLE
MATERIALS NEAR THIS
APPLIANCE.
• Switch the appliance off
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal
protective equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful
• Never leave objects on the
cooking surface.
• DO NOT USE THIS APPLIANCE
AS A SPACE HEATER.
• DO NOT PLACE ARTICLES ON
OR AGAINST THIS APPLIANCE.
• Do not use plastic kitchenware or
containers when cooking food.
• The cooking vessels or griddle
plates should be placed inside the
perimeter of the cooktop.
• All cookware must have smooth,
flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the
cooktop.
• Take care not to spill acidic
substances such as lemon juice or
vinegar onto the cooktop.
Instructions
6
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromium-
plating).
• Do not wash the removable
components such as the cooktop
trivets, flame-spreader crowns
and burner caps in a dishwasher.
• All servicing and maintenance are
to be completed by the
manufacturer’s authorised
persons only.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a stand.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• The gas connection should be
carried out by authorised persons.
• Installation with flexible hose must
be carried out so that the length of
the piping does not exceed 2
metres when fully extended as
regards flexible steel hoses and
1.5 metres in case of rubber
hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between 10 Nm
and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
Instructions
7
EN
• In case of service, contact your
nearest service agent distributor
listed in the warranty card or
www.smeg.au | 02 8667 4888
| Annual service is
recommended.
For this appliance
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Do not use the appliance to heat
rooms for any reason.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
the one envisaged,
• non-observance of the user
manual provisions,
• tampering with any part of the
appliance,
• the use of non-original spare
parts.
1.3 Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and in an
accessible place for the whole
working life of the appliance.
Read this user manual carefully
before using the appliance.
Instructions
8
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling facility for
electrical and electronic
equipment waste, or deliver it
back to the retailer when
purchasing an equivalent product,
on a one for one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling facility.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the power cable from the
socket.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
9
EN
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
Safety instructions
Information
Advice
Description
10
2 Description

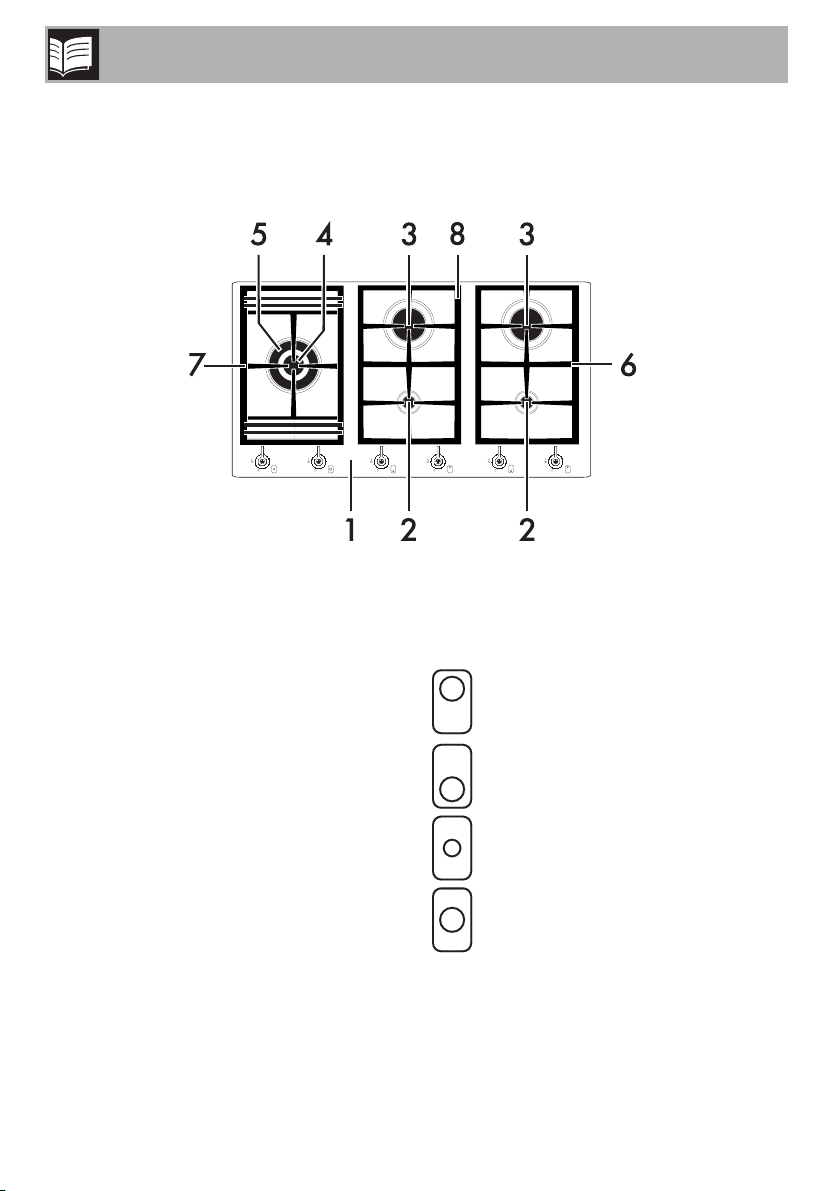

2.1 General Description
1. Control panel
2. Auxiliary Burner (AUX)
3. Reduced Rapid Burner (RR)
4. Ultra-rapid burner, internal crown (UR2 int.)
5. Ultra-rapid burner, external crown (UR2 ext.)
8. Right side trivet
7. Left side trivet
8. Central trivet
2.2 Symbols
Cooking zones
Rear
Front
Central internal
Central external
Description
11
EN
Burner knobs
Useful for lighting and adjusting the cooktop
burners. Press and turn the knobs anti-
clockwise to the value to light the
relative burners. Turn the knobs to the zone
between the maximum and minimum
setting to adjust the flame. Return the knobs
to the position to turn off the burners.
2.3 Available accessories
Raised trivet
In order to prevent worktop damage and
wear, a raised trivet is available to position
underneath pans which exceed the
diameters indicated in the “Cookware
diameters” table in section “3.3 Using the
cooktop”.
The ring reducer must be positioned above
the cooktop trivet as shown in the figure
above.
In any case, pans with a diameter greater
than 28 cm must be used only on the Ultra-
rapid burner (UR2).
This trivet can also be used with woks.
Use
12
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from accessories.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
3.3 Using the cooktop
All the appliance's control and monitoring
devices are located together on the front
panel. The appliance is equipped with an
electronic ignition device. Simply press the
knob and turn it anti-clockwise to the
maximum flame symbol, until the burner
lights. If the burner does not light in the first
15 seconds, turn the knob to and wait
60 seconds before trying again. After
lighting, keep the knob pressed in for a few
seconds to allow the thermocouple to heat
up. The burner may go out when the knob is
released: in this case, the thermocouple has
not heated up sufficiently. Wait a few
moments and repeat the operation. Keep
the knob pressed in longer.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fat could catch fire if
overheated. Be very careful.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Do not spray any spray products near
the appliance.
• Do not touch the appliance's heating
elements when it is running. Leave them
to cool before cleaning.
• Do not allow children younger than 8
years old to come near the appliance
when in operation.
Improper use
Risk of damage to surfaces
• Do not use aluminium foil to cover the
burners or cooktop body.
• Cookware should be placed inside the
perimeter of the cooktop.
• All cookware must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the cooktop.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas valve is open. Return the
knob to and wait at least 60
seconds before lighting it again.
Use
13
EN

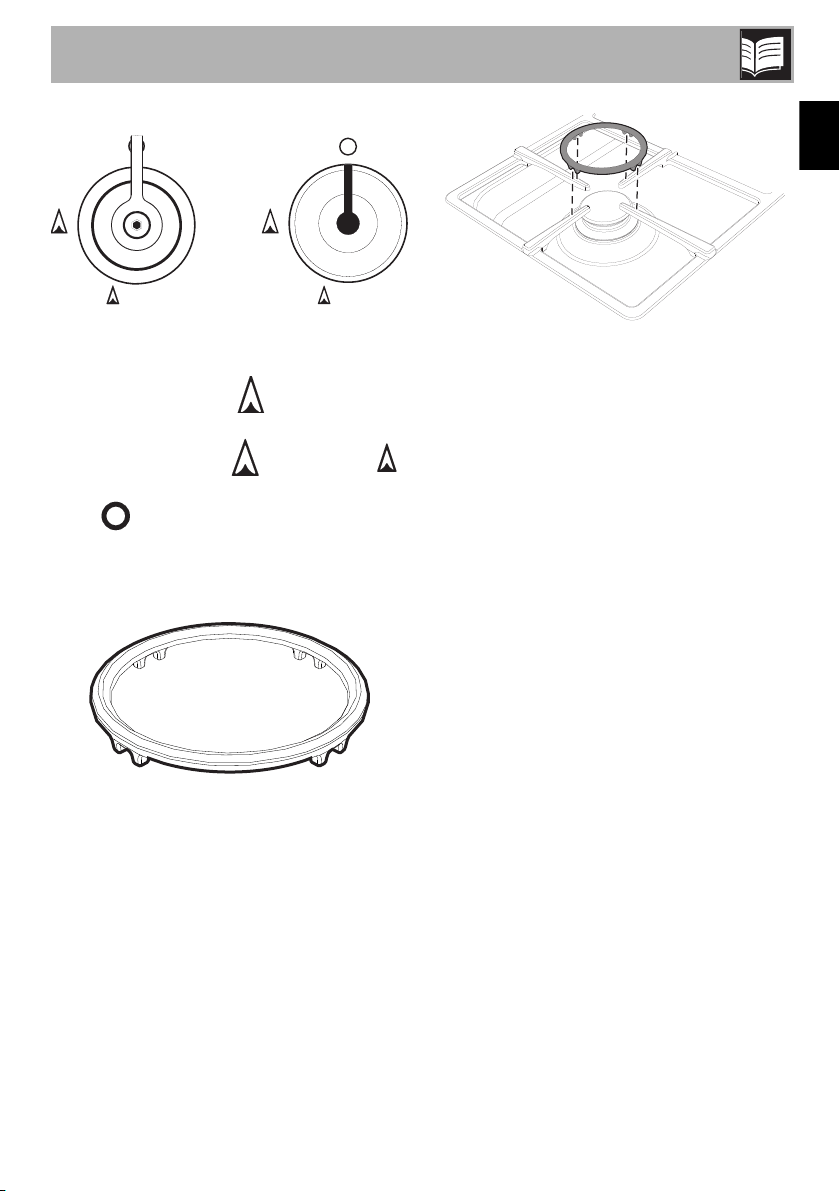

Positioning the trivets
The trivets are provided unassembled on
the cooktop. Follow the instructions as
shown in the figure for correct trivet
positioning.
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the cooktop burners, check
that the flame-spreader crowns are
correctly in place with their respective
burner caps, making sure that the holes (A)
in the burner are aligned with the plugs and
thermocouples (B).
Practical tips for using the cooktop
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that flames
do not reach up the sides of the pan. Once
the contents come to the boil, turn down the
flame far enough to ensure that the liquid
does not boil over.
To prevent burns or damage to the cooktop
or the counter top during cooking, all pans
or griddles must be placed inside the
perimeter of the cooktop.
Cookware diameters:
• AUX: 12 - 16 cm.
• RR: 18 - 26 cm.
• UR2 int. + ext.: 18 - 26 cm.
Cookware diameters with raised
trivet:
• AUX: 16 - 24 cm.
• R: 26 - 28 cm.
Always check that the control
knobs are in the (off) position
when you finish using the cooktop.
Use
14
Limitations on griddle use
A few precautions are necessary if you wish
to use a griddle:
• Griddles must not protrude beyond the
perimeter of the cooktop
• Aluminium griddles with Teflon anti-stick
coating should be pre-heated for a
maximum of 5 minutes in order to avoid
damage to the appliance and the Teflon
coating. After pre-heating, place the
foodstuffs on the griddle to cook them;
do not exceed 40 minutes of total use for
the griddle
• Do not use griddles or plates to cook or
heat food on the ultra-rapid burner (UR2)
• if one of the burners close to the wooden
rear wall is an ultra-rapid burner (UR2),
leave a gap of at least 160 mm between
this wall and the edge of the griddle
• Do not allow the burner flames to extend
beyond the edge of the griddle
• Leave a gap of at least 160 mm
between the edge of the griddle and the
side wall
• Do not place the griddle over more than
one burner at the same time
• Never use the griddle for more than 40
minutes.
Cleaning and maintenance
15
EN
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges or sharp scrapers
as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfibre cloth.
Cooktop trivets
Remove the trivets and clean them with
lukewarm water and non-abrasive
detergent. Make sure to remove any
encrustations. Dry them thoroughly and
return them to the cooktop.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic surface
finishes (e.g. anodizing, nickel- or
chromium-plating).
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the cooktop trivets,
flame-spreader crowns and burner caps
in a dishwasher.
Continuous contact between the
trivets and the flame can cause
modifications to the enamel over
time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect
on the operation of this
component.
Cleaning and maintenance
16
Flame-spreader crowns and burner caps
For easier cleaning, the flame-spreader
crowns and the burner caps can be
removed. Wash them in hot water and non-
abrasive detergent. Carefully remove any
encrustation, then wait until they are
perfectly dry. Refit the flame-spreader
crowns making sure that they are correctly
positioned in their housings with their
respective burner caps.
Knobs
The knobs should be cleaned with a soft
cloth dampened with warm water, then
dried carefully. They can easily be removed
by pulling them upwards.
Igniters and thermocouples
For correct operation the igniters and
thermocouples must always be perfectly
clean. Check them frequently and clean
them with a damp cloth if necessary.
Remove any dry residues with a wooden
toothpick or a needle.
Do not use aggressive products
containing alcohol or products for
cleaning steel and glass when
cleaning the knobs, as these
products could cause permanent
damage.
After cleaning, dry the appliance
thoroughly to prevent water or
detergent drips from interfering
with its operation or creating
unsightly marks.
Installation
17
EN
5 Installation
5.1 Clearances above and around domestic appliances
This appliance must be installed by an
authorised person in accordance with this
instruction manual, AS/NZS 5601.1 –
Gas installations (installation and pipe
sizing), local gas fitting regulations, local
electrical regulations, Building Code of
Australia and any other government
authority.
Requirements

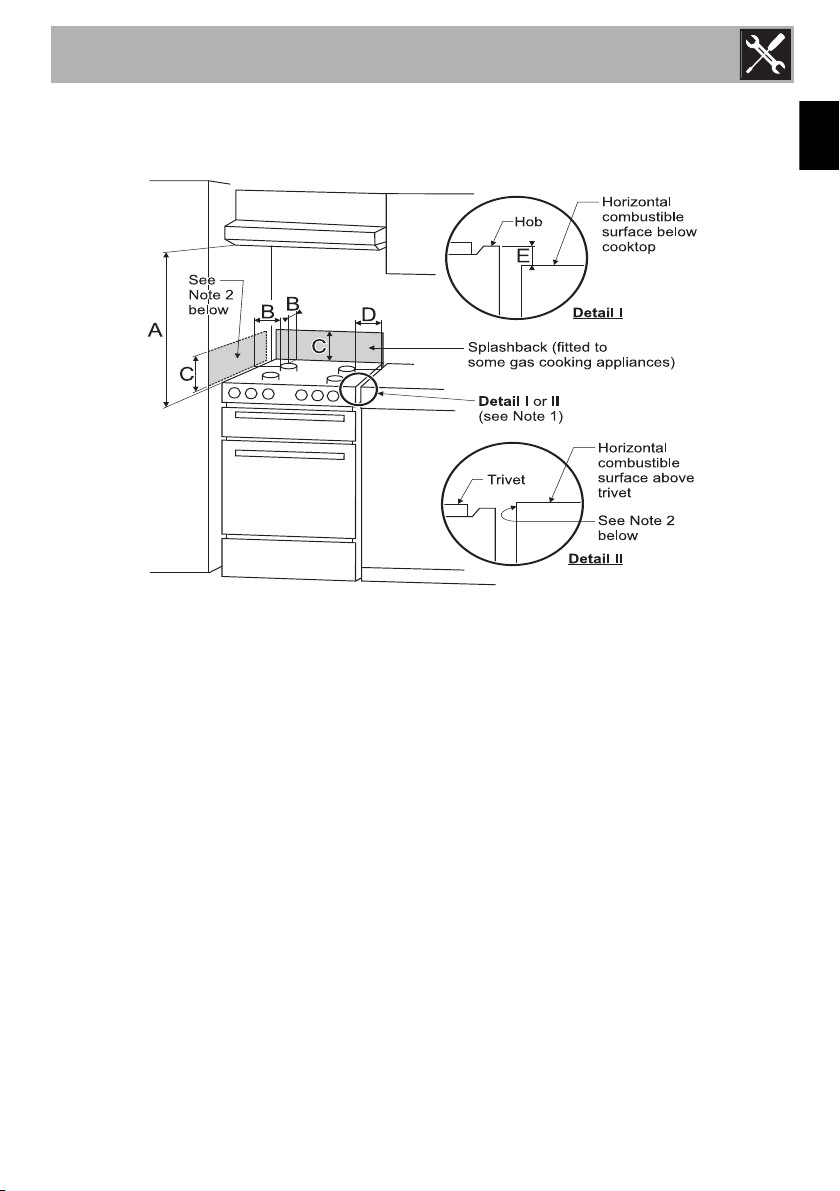

1. Overhead clearances –
(Measurement A) Range hoods and
exhaust fans shall be installed in
accordance with the manufacturer’s
instructions. However, in no case shall
the clearance between the highest part
of the cooktop of the cooking appliance
and a range hood be less than 600 or,
for an overhead exhaust fan, 750. Any
other downward facing combustible
surface less than 600 above the highest
part of the cooktop shall be protected for
the full width and depth of the cooking
surface area in accordance with Clause
5.12.1.2. However, in no case shall this
clearance to any surface be less than
450.
2. Side clearances – (Measurements B &
C) Where B, measured from the
periphery of the nearest burner to any
vertical combustible surface, is less than
200, the surface shall be protected in
accordance with Clause 5.12.1.2 to a
height C of not less than 150 above the
cooktop for the full dimension (width or
depth) of the cooking surface area.
Where the cooking appliance is fitted
with a ‘splashback’, protection of the
rear wall is not required.
Installation
18
3. Additional requirements for
Freestanding and Elevated Cooking
Appliances – (Measurements D & E)
Where D, the distance from the
periphery of the nearest burner to a
horizontal combustible surface is less
than 200, then E shall be 10 or more, or
the horizontal surface shall be above the
trivet. See insets above.
Notes
1. Requirement 3 does not apply to a
freestanding or elevated cooking
appliance which is designed to prevent
flames or the cooking vessels from
extending beyond the periphery of the
appliance.
2. The ‘cooking surface area’ is defined as
that part of the appliance where cooking
normally takes place and does not
include those parts of the appliance
containing control knobs.
3. For definition of cooktop, see Clause
1.4.64.
4. For definition of trivet, see Clause
1.4.109.
5. Consideration is to be given to window
treatments when located near cooking
appliances. See Clause 5.3.4.
5.2 Safety instructions
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
The minimum distances must also be
respected for the edges of the cooktop on
the back as indicated in the mounting
illustrations.
The appliance connection point
shall be accessible with the
appliance installed.
Heat production during appliance
operation
Risk of fire
• Check that the piece of furniture material
is heat resistant.
• Check that the piece of furniture has the
required slots.
The minimum distance between a
ventilation hood and the cooking
surface must be at least the
distance indicated in the ventilation
hood installation instructions.
Installation
19
EN
5.3 Positioning in the counter top
Fixing to the traditional built-in model
support structure
Create an opening in the unit worktop with
the dimensions shown in the figure.
To prevent leakage of liquid between the
frame of the cooktop and the worktop,
carefully position the insulating seal
provided before assembly (E).
1. Use light pressure to make the seal stick
to the edge around the hole cut in the
worktop.
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
L (mm) X (mm) Y (mm)
899 878 490
A (mm) B (mm) C (mm) D (mm) E (mm)
min 110 min 460 min 750 20 - 50 min 50
Installation
20
2. Place the cooktop on the insulating seal
and fix it to the supporting structure using
the supplied screws and fastening
brackets (A) so that the cooktop is
perfectly flat.
3. Carefully trim the surplus seal (B).

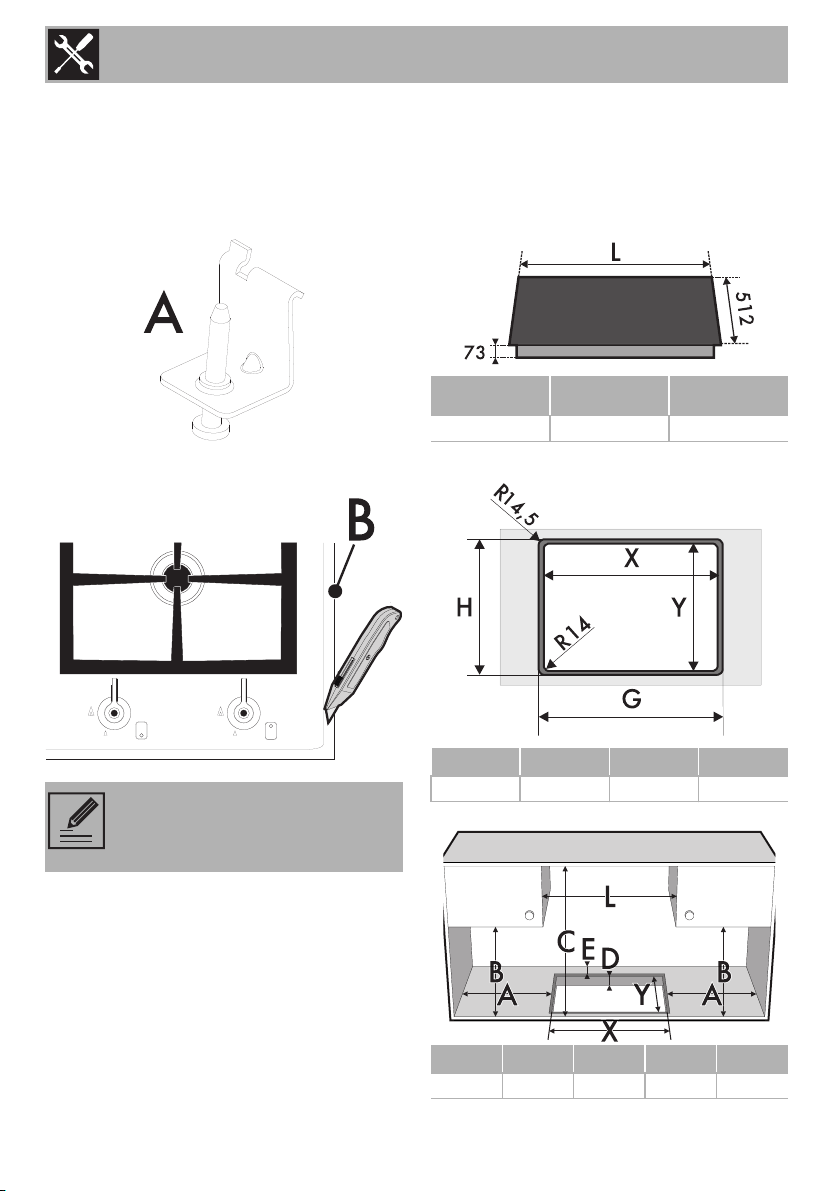

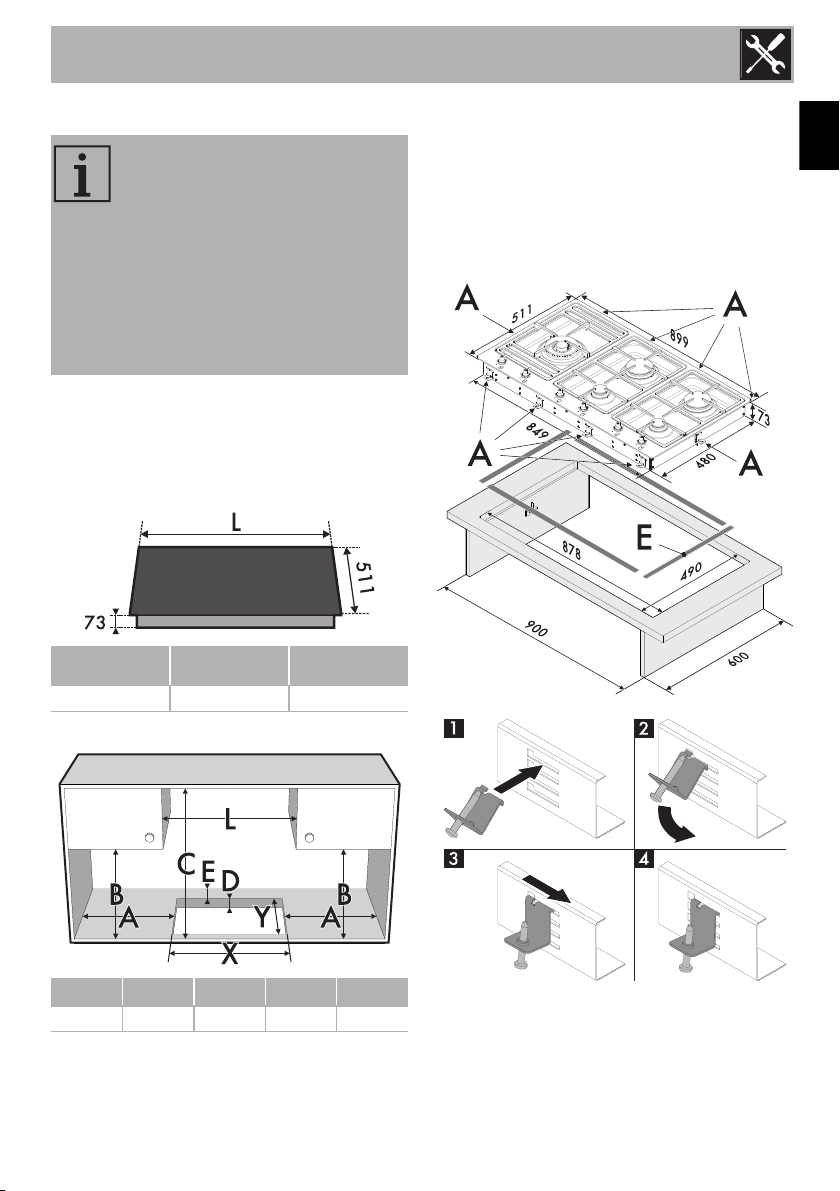

Fixing to the flush built-in model support
structure
Create an opening with the dimensions
shown in the figure in the work surface of
the piece of furniture.
The brackets must be positioned
only after placing the cooktop on
the seal.
L (mm) X (mm) Y (mm)
900 490 878
X (mm) Y (mm) G (mm) H (mm)
490 878 901 513
A (mm) B (mm) C (mm) D (mm) E (mm)
min 110 min 460 min 750 20 - 40 min 50
Installation
21
EN

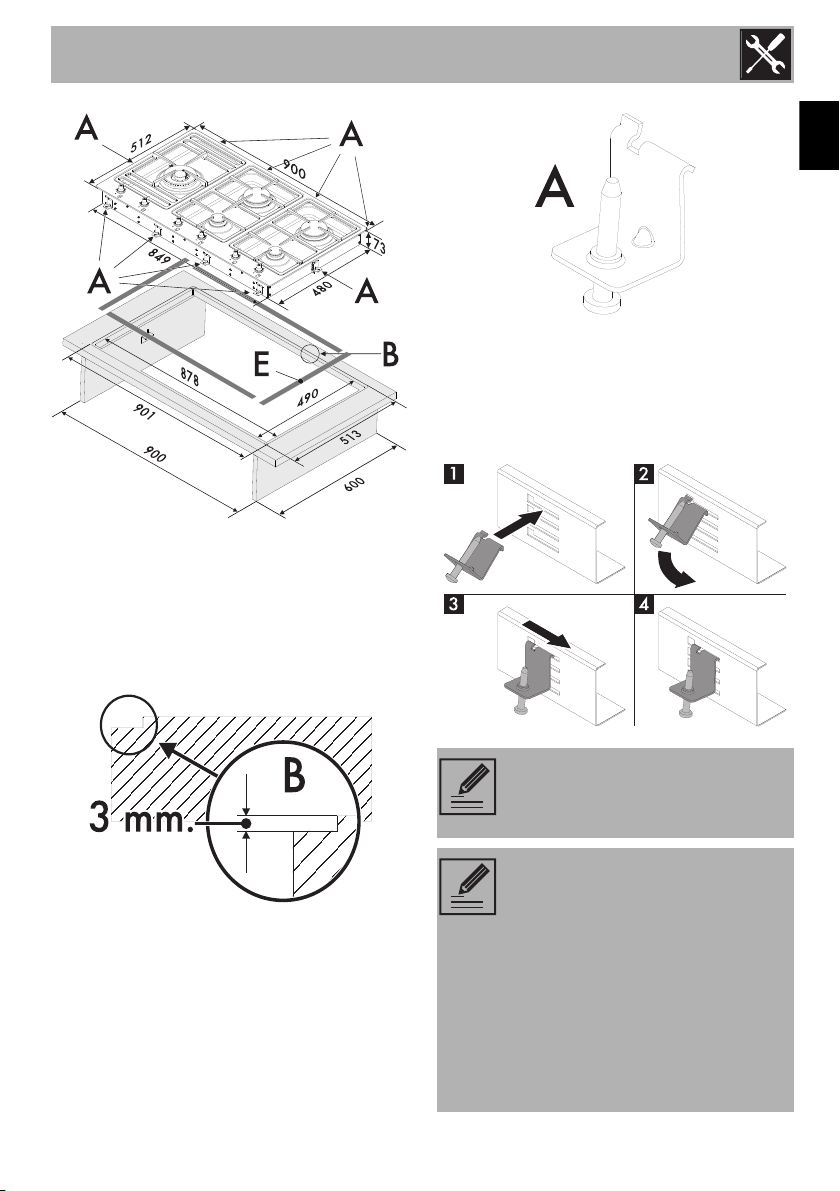

This built-in model requires a 3 mm deep
section to be routed out of the worktop
(detail “B” in the figure above).
Before positioning the appliance, the
insulating seal provided must be placed on
the routed section (E).
After performing these operations, fasten
the appliance in place with the dedicated
brackets supplied (A) in order to achieve a
perfectly flush mount, per the instructions
shown in the figure.
The brackets must be positioned
only after placing the cooktop on
the seal.
• Do not attach the cooktop with
silicone sealant, as this would
not allow subsequent removal
without damaging the
appliance.
• If using a laminate worktop, it is
advisable to prime the routed
groove with a suitable
proprietary product to protect
against water ingress.
Installation
22

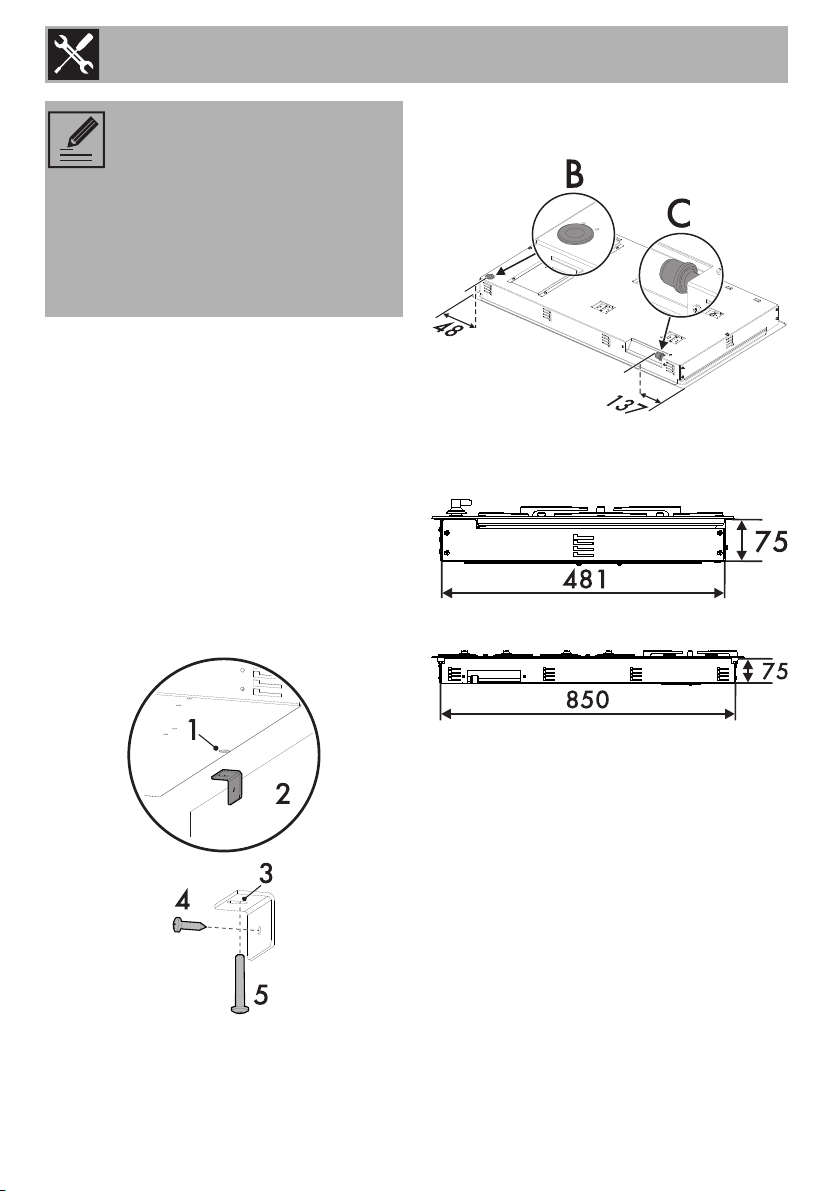

This appliance can also be installed in a
90 cm base.
To fit the brackets the appliance must be
inserted into the opening made in the
counter top, with the edge resting on the
actual top.
To bracket the cooktop laterally, just fix the
two “L” brackets to the sides of the unit (2)
using the supplied screws (4) making sure
to align the slot (3) on the bracket with the
rivet (1) on the bottom of the product.
Stabilise the fixing of the cooktop by
tightening the screw (5) in the rivet (1).
Dimensions: gas and electrical connection
location (measurements in mm)
B Electrical connection
C Gas line connection
View from right
View from rear
• For fixing this product to the
support structure, you are
advised not to use mechanical
or electrical screwdrivers and to
exert moderate manual pressure
on the fastening elements.
• It is advisable to use the supplied
brackets in all the fixing points.
Installation
23
EN

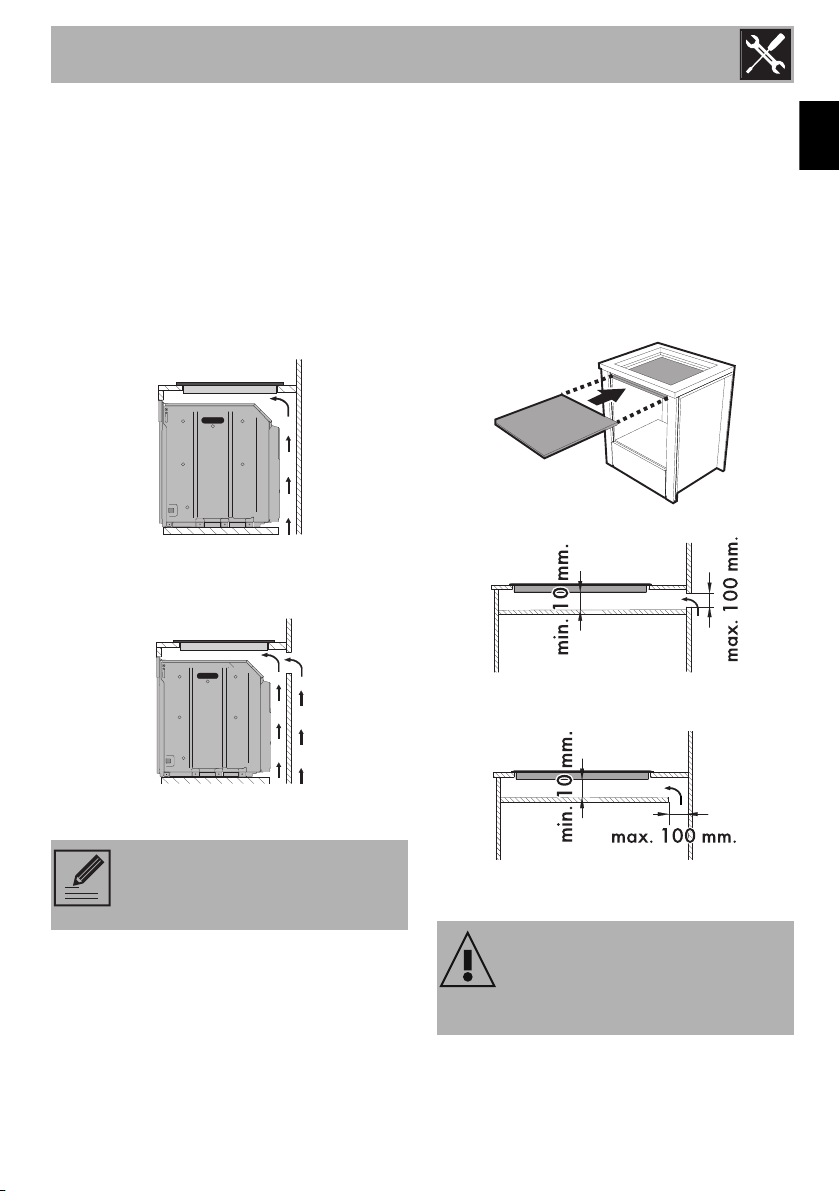

5.4 Mounting
Over built-in oven
The distance between the cooktop and the
kitchen furniture or other installed
appliances must be enough to ensure
sufficient ventilation and air discharge.
If installed above an oven, a space must be
left between the bottom of the cooktop and
the top of the appliance installed below.
opens on bottom
Opens on bottom and on rear
Over empty kitchen unit or drawers
If there are other pieces of furniture (side
walls, drawers etc.), dishwashers or fridges
under the cooktop, a double-layer wooden
base must be installed at least 10 mm from
the bottom of the cooktop to avoid any
accidental contact. It must only be possible
to remove the double-layer base using
suitable equipment.
Opens on rear
Opens on bottom
If installed on top of an oven, the
oven must be equipped with a
cooling fan.
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
Installation
24
5.5 Gas connection
General information
This appliance is suitable for installation with
Natural Gas or ULPG (propane/butane).
Refer to “Burner and injector characteristics
tables” paragraph for the relevant burner
pressure and appropriate injector sizes.
When the appliance is to be connected to
Natural Gas then the pressure regulator
must be fitted to the gas inlet. A test point
(for checking the gas pressure) is supplied
either with the regulator or as a separate
fitting in the case of ULPG (propane)
appliances.
Connection of the appliance to the gas
supply must be in accordance with the
requirements of AS5601. A ½” BSP
connector at the inlet is recommended and
the gas supply line to the appliance must be
of adequate length to allow sufficient
withdrawal of appliance for service or
disconnection and be:
1. annealed copper pipe or;
2. flexible hose according to AS/NZ1869
& be at least Class “B”, 10 mm diameter.
The appliance must be installed with
provision to allow the gas to be turned off
and disconnected for servicing and removal
of the appliance as required from the gas
supply. Before the appliance is operated
make certain all relevant parts are placed in
the correct position.
On completion of the installation, the
installer MUST check for gas leaks and test
each burner individually for the correct
flame. Once all burners have been tested
individually, turn all burners on together.
Warranty service calls do not cover these
adjustments!
Gas leak
Danger of explosion
• After carrying out any operation, check
that the tightening torque of gas
connections is between 10 Nm and
15 Nm.
• If required, use a pressure regulator that
complies with current regulations.
• At the end of the installation, check for
any leaks with a soapy solution, never
with a flame.
• Installation with flexible hose must be
carried out so that the length of the
piping does not exceed 1,2 metres
when fully extended; make sure that the
hoses do not come into contact with
moving parts and that they are not
crushed in any way.
• The hoses should not come into contact
with moving parts and should not be
crushed in any way.
Installation
25
EN
To check the operating pressure of the
appliance it is recommended at least 2
large size burners are used. Ensure
appliance is secured to wall when
installation is completed.
N.G. The regulator must be fitted to the
appliance inlet connection. Gas pressure
must be adjusted to 1.0 kPa when
approximately 50% of the burners are on
high flame, the appliance test point is
located on the regulator.
1 Test Point location
2 Gas inlet pipe
3 Elbow
4 Regulator
U.L.P.G. Gas pressure must be checked to
confirm the appliance operating pressure is
2.75 kPa, the appliance test point is the
Rapid burner injector as shown below.
1. Disconnect the power.
2. Light the auxiliary burner and set to high
flame. Ensure all other burners are off.
3. Zero manometer, then apply flexible
tubing to seal over the Rapid burner
injector, hold securely in place and
check the gas pressure by pressing in the
corresponding burner control knob in,
then turning to high flame position.
4. If the pressure is 2.75 kPa, reassemble
the burner and perform the final checks
as per this instruction manual.
5. If the pressure is not 2.75 kPa,
disconnect the appliance and check/
adjust/replace the LPG cylinder
regulator(s) as appropriate in
accordance with AS/NZS 5601.
Patent 2015101170. For enquires contact
Gas Approval Consulting Pty Ltd Smeg
licence 033 for SAI-400046 only
Installation
26
Connection to LPG
Use a pressure regulator and make the
connection on the gas cylinder following
the guidelines set out in the regulations in
force.
The supply pressure must comply with the
values indicated in the “Gas types and
Countries” table.
Room ventilation
The appliance should be installed in rooms
that have a permanent air supply in
accordance with the standards in force. The
room where the appliance is installed must
have enough air flow needed for the
regular combustion of gas and the
necessary air change in the room itself. The
air vents, protected by grilles, must be the
right size to comply with current regulations
and positioned so that no part of them is
obstructed, not even partially.
The room must be kept adequately
ventilated in order to eliminate the heat and
humidity produced by cooking: in
particular, after prolonged use, you are
recommended to open a window or to
increase the speed of any fans.
1 Extraction using a hood
2 Extraction without a hood
A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-
mounted extractor fan
D Directly outdoors through wall
Air
Combustion products
Extractor fan
Extraction of the combustion products
The combustion products may be extracted
by means of hoods connected to a natural
draught chimney whose efficiency is certain
or via forced extraction. An efficient
extraction system requires precision
planning by a specialist qualified in this
area and must comply with the positions
and distances indicated by the applicable
standards.
When the job is complete, the installer must
issue a certificate of conformity.
Installation
27
EN
5.6 Adaptation to different types of
gas
In case of operation with other types of gas,
the burner injectors must be changed and
the minimum flame adjusted on the gas
taps.

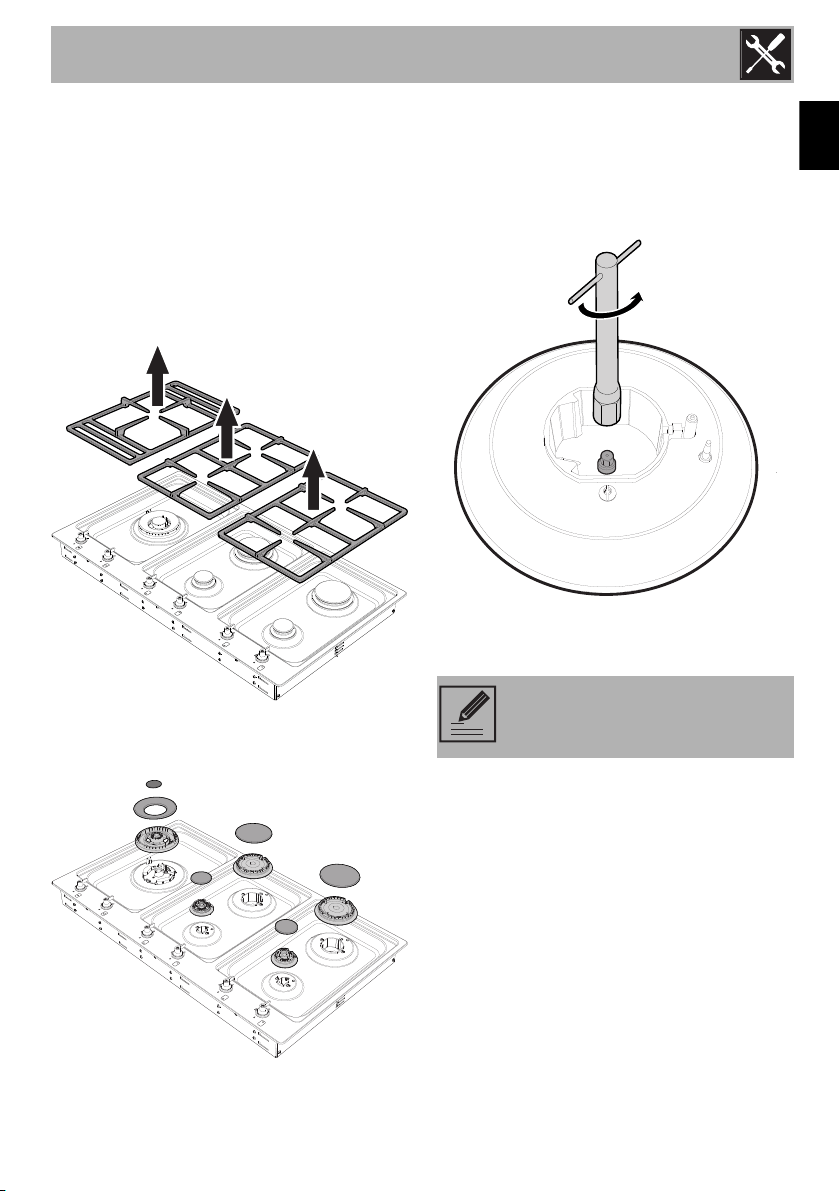

Changing the injectors
1. Remove the trivets from the cooktop.
2. Remove the flame-spreader crowns and
relative burner caps.
3. Use a 7 mm socket wrench to unscrew
the burner injectors, then replace them
with a new injector suitable for the type
of gas to be used (see “Burner and
injector characteristics table”).
4. Replace the burners in the correct
position.
The injector tightening torque must
be no more than 3 Nm.
Installation
28

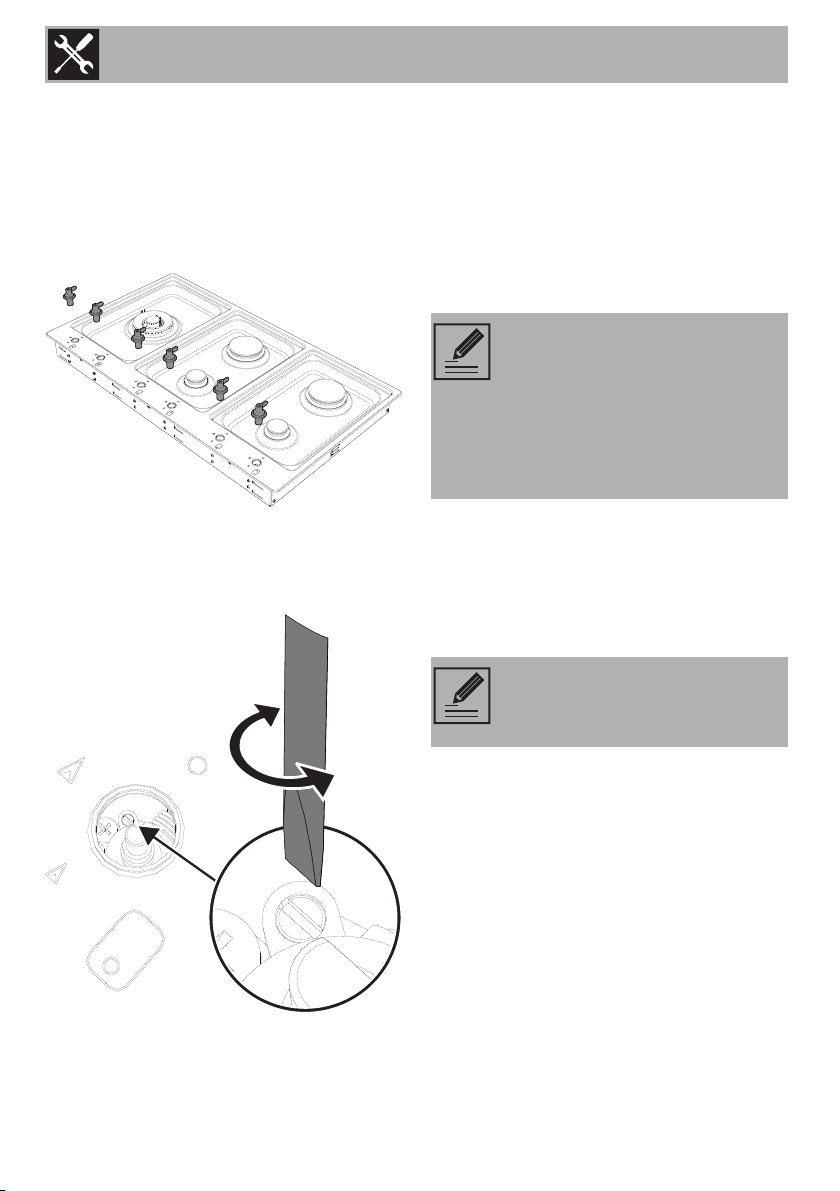

Adjusting the minimum setting for natural
or city gas
1. Light the burner and turn it to the minimum
position.
2. Remove the knobs by pulling them
upwards.
3. Turn the regulating screw on the side of
the valve spindle until a steady minimum
flame is achieved.
4. Refit the knob and verify that the burner
flame is stable.
5. Turn the knob rapidly from the maximum
to the minimum setting: the flame should
not go out. Repeat the operation on all
gas valves
Adjusting the minimum setting for LPG
Tighten the screw located at the side of the
valve spindle clockwise all the way.

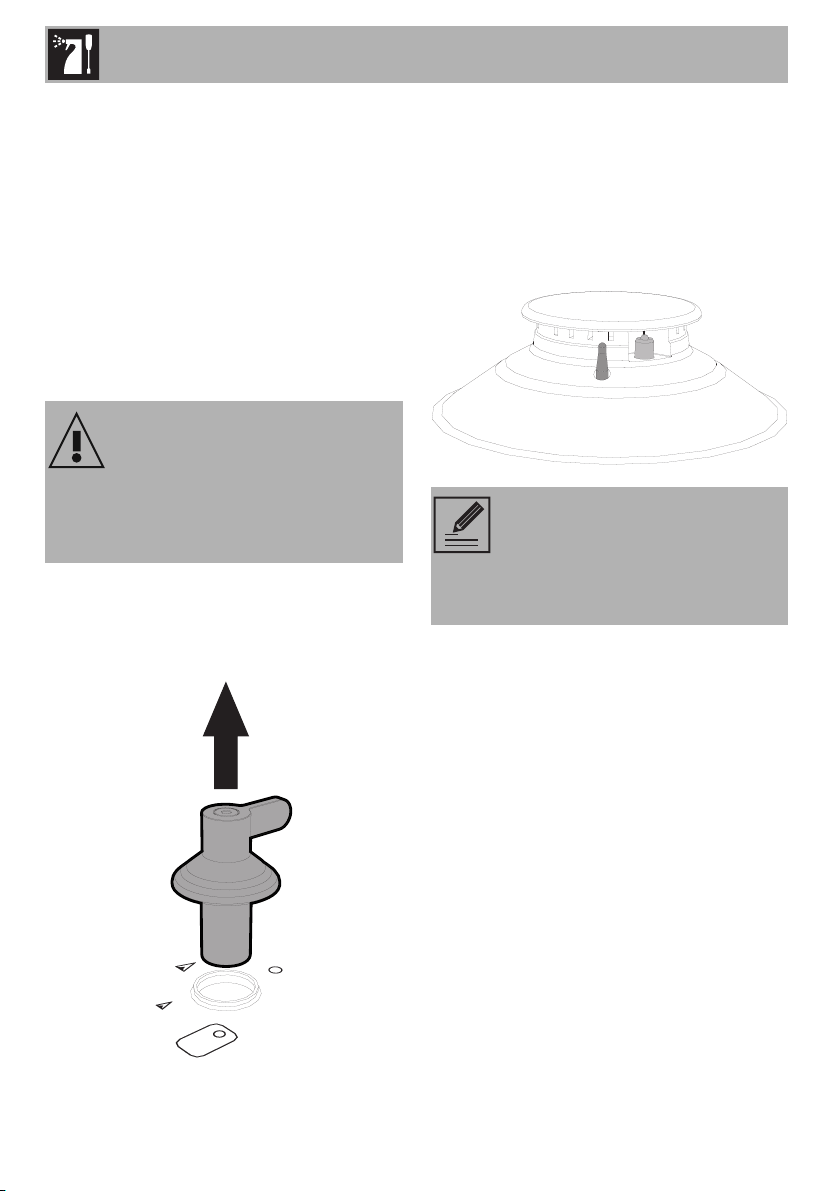

Lubricating the gas valves
Over time, the gas valves may become
difficult to turn and become seized. Clean
them internally and replace the lubrication
grease.
Following adjustment to a gas
other than the one originally set in
the factory, replace the gas setting
label fixed to the appliance with
the one corresponding to the new
gas. The label is inserted inside the
injector pack (where present).
Lubrication of the gas valves
should be performed by
authorised persons.
Installation
29
EN
Burner and injector characteristics tables
5.7 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
NG 1.0 kPA AUX RR UR2 Int. UR2 Ext.
Nominal gas consumption (MJ/h)
3.9 9.6 18.3
Injector (1/100 mm)
90 140 90 175
ULPG 2.75 kPa AUX RR UR2 Int. UR2 Ext.
Nominal gas consumption (MJ/h)
3.9 .9.6 16.8
Injector (1/100 mm)
54 85 50 100
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised persons.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the
plug.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of
the terminal supply wires must be 1.5 -
2 Nm.
Pass the power supply cable
through the back of the unit, taking
care that it does not touch the
bottom casing of the cooktop or
the oven (if any) installed
underneath it.
Installation
30
The appliance can work in the following
modes:
• 220-240 V 1N~
Use a 3 x 0.75 mm² three-core cable.
Fixed connection
Fit the power line with an omnipolar circuit
breaker, with contact separation of at least
3 mm, in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters, gang sockets or
extensions as these could cause
overheating and a risk of burns.
Testing
At the end of installation, carry out a brief
inspection test. If the cooktop fails to
operate, after checking that you have
carried out the instructions correctly,
disconnect the appliance from the power
supply and contact Technical Support.
5.8 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
electrical power cable.
• The appliance must be installed
according to the installation diagrams.
• Do not try to unscrew or force the
threaded elbow of the fitting. You may
damage this part of the appliance, which
may void the manufacturer’s warranty.
• Use soap and water to check for gas
leaks on all connections. DO NOT use
naked flames when looking for leaks.
• Turn on all the burners separately and at
then all together to make sure that the
gas valve, burner and ignition are
working properly.
• Turn the burner knobs to the minimum
position and check that the flame is
stable for each individual burner and all
the burners together.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
The values indicated above refer
to the cross-section of the internal
conductor.
