Behavior During Setup After Setup
Pulsing Hotspot active • Calling
• Resetting
Solid Power on Talking
Flashing Ready for setup Network issues
Safety Precautions
FCC Notice
LNWDB1_QSG_EN_R3
HD Video Doorbell
(x1)
• TURN OFF THE POWER RUNNING TO YOUR EXISTING
DOORBELL AND CHIME BOX AT THE BREAKER. Test that
power has been disconnected for both the doorbell and chime
box power by pressing the doorbell. There should be no chime
sound.
• Remove your existing doorbell and disconnect wiring.
• Remove the metal mounting plate from the back of the doorbell.
Microphone
Call button
Speaker
IR LEDs
Camera
PIR sensor
Power ports
Front Panel
Status indicator
Quick Start Guide
LNWDB1 Series
lorex.com
HD Video Doorbell
Product Overview STEP 1: Preparation
Back Panel
Need Help?
For up-to-date information and resources:
Register your product
Please see our full Terms of Service and
Limited Hardware Warranty Policy at
Click on the Downloads tab
4
Visit help.lorex.com
Search for the model
number of your product
Click on your product
in the search results
3
2
1
lorex.com/warranty
Copyright © 2021 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to
modify product design, specications and prices, without notice and without incurring any
obligation. E&OE. All rights reserved.
Screwdriver
(x1)
Mounting Screws & Anchors
(x4)
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Use the product within given temperature, humidity and voltage levels noted in the
product’s specications.
• Do not disassemble the doorbell.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh,
chemical-based cleaners.
• Not intended for submersion in
water. Installation in a sheltered
location recommended.
• This doorbell includes an Auto
Mechanical IR Cut Filter. When
the camera changes between
Day/Night viewing modes, an
audible clicking noise may be
heard from the doorbell. This
clicking is normal, and indicates
that the camera lter is working.
• Audio recording without consent
is illegal in certain jurisdictions.
Lorex Corporation assumes no
liability for use of its products
that does not conform with local
laws.
Disclaimers

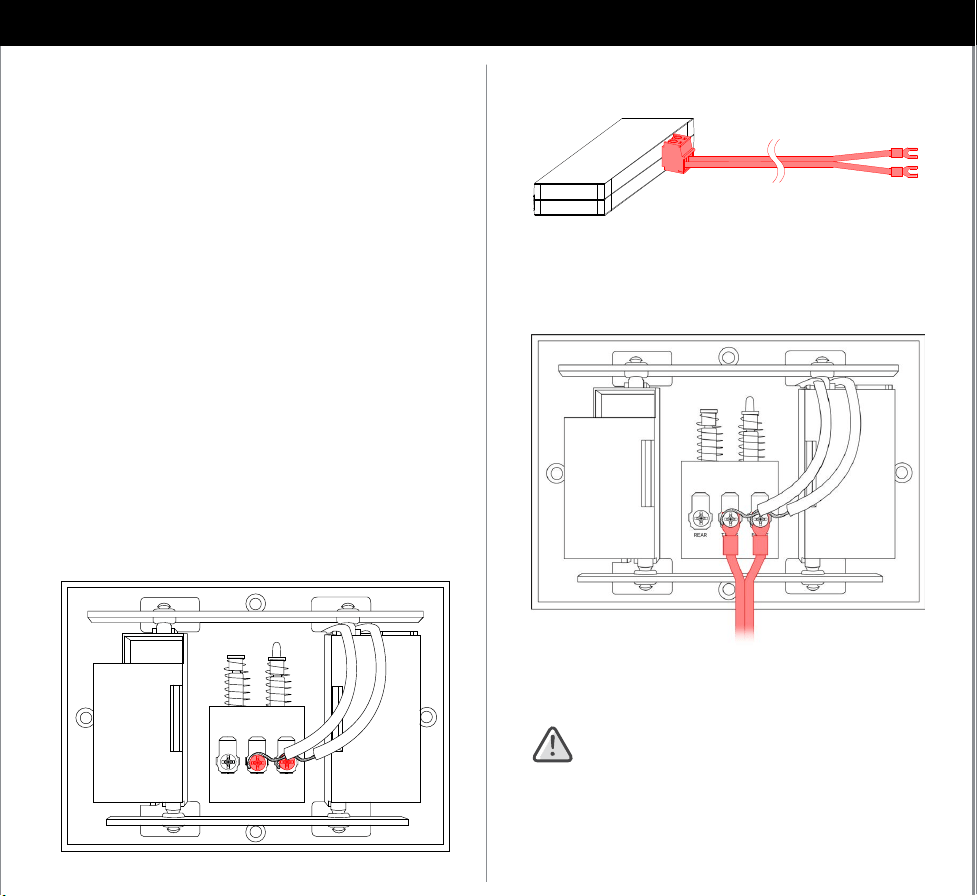

Chime Kit (x1)
Reset button
MicroSD slot
Wire Caps (x3)
Chime Cable (x1)
Extension Power Cables (x2)
Extra Chime Cable (x1)
Door Frame Screws (x3)
Security Screw (x1)

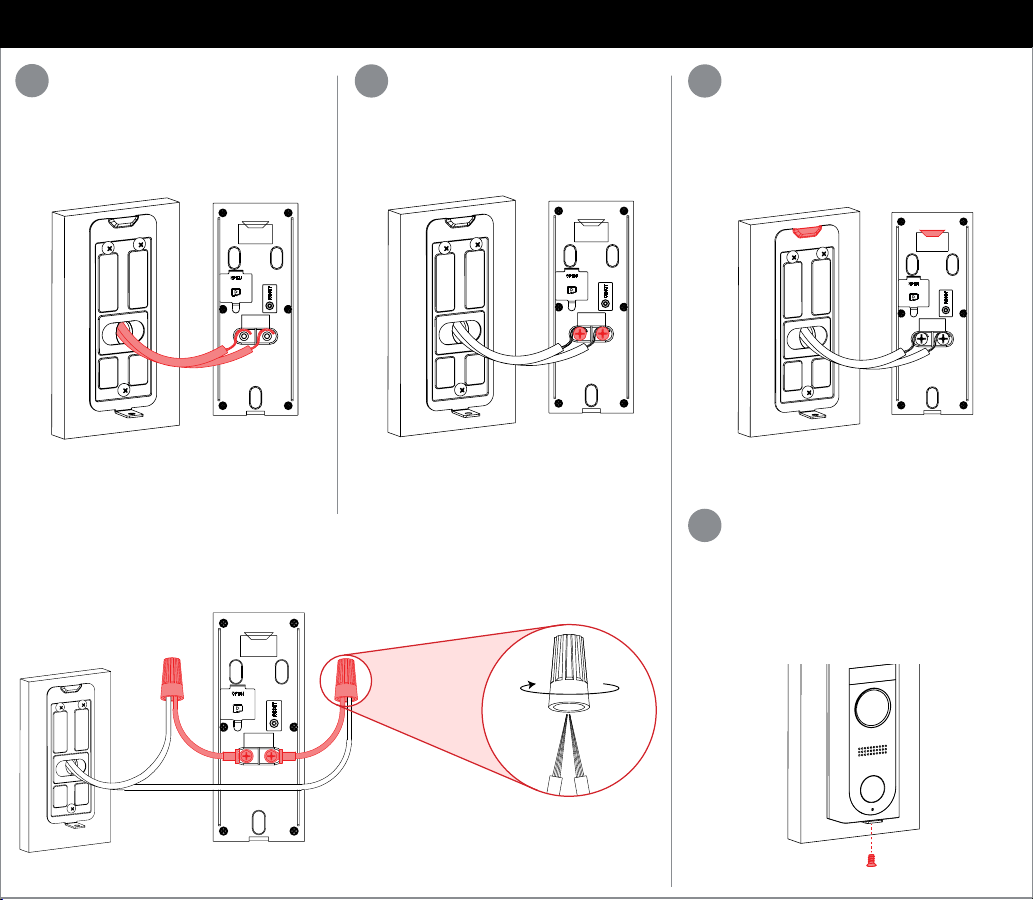

Tip: Bend the power cables so they do not fall through the hole in
the wall.

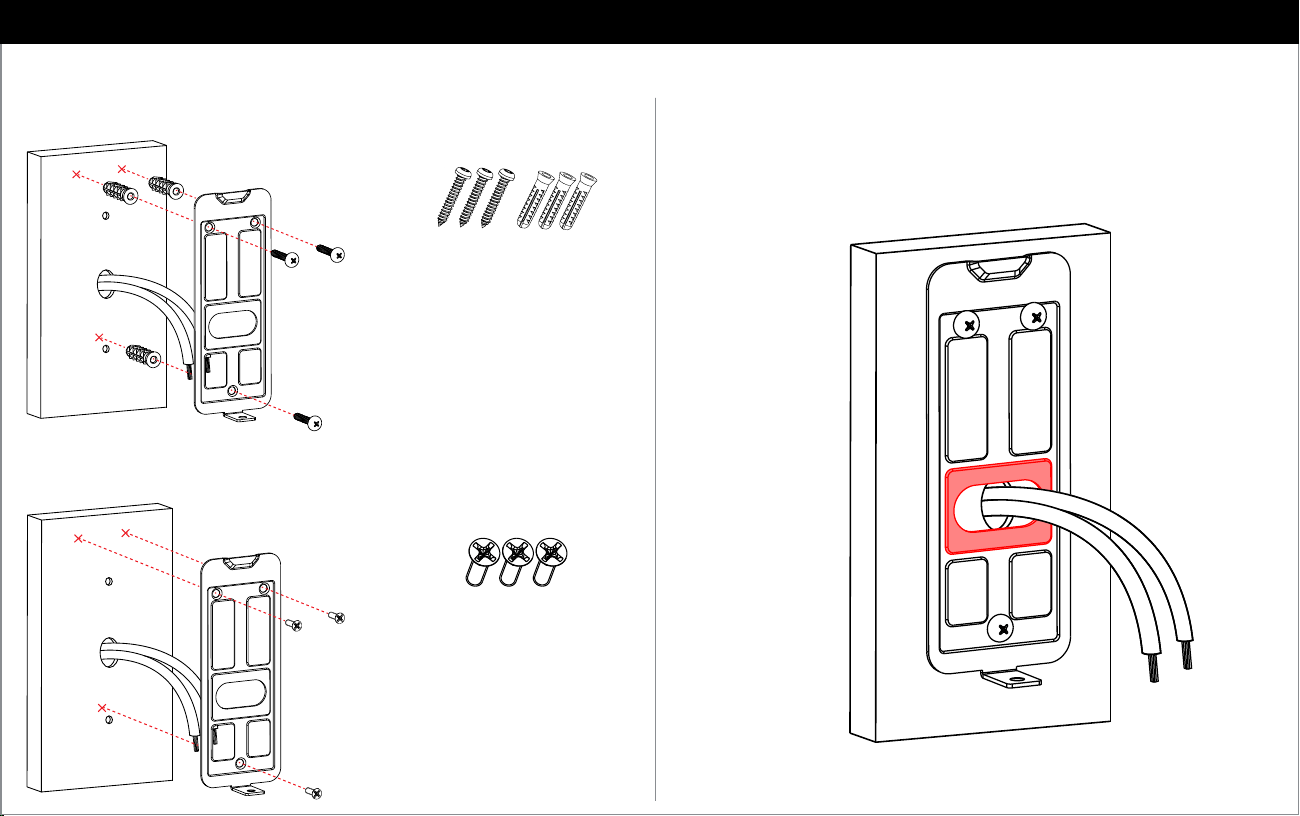

Use the mounting bracket to mark holes for mounting. Use the mounting accessories specied below depending on mounting location.
STEP 2: Secure the Mounting Bracket
For installing on brick, stucco, or siding:
For installing on a metal door frame:
1”
25mm
4.7”
120mm
1.7”
45mm
Dimensions
Use a 15/64” (6mm) drill bit
to drill holes where marked.
Use the included mounting
screws and plastic anchors
to secure the mounting
bracket to the wall.
Use a 3/32” drillbit to drill
holes where marked. Use
the included door frame
screws to secure the
mounting bracket to the
door frame.
Note: For both installations, ensure the power cables from the wall t
comfortably through the hole in the mounting bracket.
Power Port Screws (x2)
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
Package Contents
Before You Start
Make sure your transformer has a voltage between 16-24 VAC.
If your house does not have this voltage, you will need a 16-24 VAC
doorbell transformer or you can consult with a licensed electrician.
