Samsung Series 11 Dw60a8050u1/eu Built Under 60cm User Manual

Dishwasher

User manual

DW60A807*/DW60A806*/DW60A805*/

DW60A804* Series

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 1DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 1 2021-03-24 ฀฀ 1:25:192021-03-24 ฀฀ 1:25:19

English2

Contents

Safety information 4

What you need to know about safety instructions 4

Important safety symbols 4

Instructions about the WEEE 5

Important safety precautions 6

Instructions when using your dishwasher 8

Instructions for protecting your children 9

Instructions for installing your dishwasher 10

Installation 13

What’s included 13

Installation requirements 16

Step-by-step installation 18

Skirting board 33

Info Light 35

Kick plate (DW60A80**U* Series) 36

SmartThings (Applicable models only) 37

Open Source Announcement 41

Before you start 42

Dishwasher at a glance 42

Unsuitable items for the dishwasher 44

Basic use of racks 45

Detergent compartment 50

Rinse aid reservoir 52

Salt storage 53

Touchpad responsiveness 54

Setting mode 55

Operations 57

Control panel 57

Cycle overview 59

Simple steps to start 61

Salt storage 62

Delay Start 64

Control Lock 64

Maintenance 65

Cleaning 65

Long-term care 68

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 2DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 2 2021-03-24 ฀฀ 1:25:192021-03-24 ฀฀ 1:25:19

English 3

Contents

Troubleshooting 69

Checkpoints 69

Information codes 72

Cycle chart 73

Appendix 77

Transportation/relocation 77

Protection against frost 77

Disposing the dishwasher and helping the environment 77

For more ecodesign information 77

Specications 78

For standard test 79

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 3DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 3 2021-03-24 ฀฀ 1:25:192021-03-24 ฀฀ 1:25:19

English4

Safety information

Congratulations on your new Samsung dishwasher. This manual contains important

information on the installation, use and care of your appliance. Please take time to read

this manual to take full advantage of your dishwasher’s many benets and features.

What you need to know about safety instructions

Please read this manual thoroughly to ensure that you know how to safely and efciently

operate the extensive features and functions of your new appliance and retain it at a safe

place near the appliance for your future reference. Use this appliance only for its intended

purpose as described in this user manual.

Warning and important safety instructions in this manual do not cover all possible

conditions and situations that may occur. It is your responsibility to use common sense,

caution, and care when installing, maintaining, and operating your dishwasher.

Because the following operating instructions cover various models, the characteristics

of your dishwasher may differ slightly from those described in this manual and not all

warning signs may be applicable. If you have any questions or concerns, contact your

nearest service center or nd help and information online at www.samsung.com.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or

property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Indicates that a risk of personal injury or material damage exists.

These warning symbols are here to prevent injury to you and others. Please follow them

explicitly.

Keep these instructions in a safe place and ensure that new users are familiar with the

content. Pass them on to any future owner.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 4DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 4 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English 5

Safety information

Instructions about the WEEE

Correct Disposal of This Product (Waste Electrical & Electronic

Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that

the product and its electronic accessories (e.g. charger, headset, USB

cable) should not be disposed of with other household waste at the

end of their working life. To prevent possible harm to the environment

or human health from uncontrolled waste disposal, please separate

these items from other types of waste and recycle them responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they

purchased this product, or their local government ofce, for details of

where and how they can take these items for environmentally safe

recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for

disposal.

For information on Samsung’s environmental commitments and product specic regulatory

obligations e.g. REACH, WEEE, Batteries, visit our sustainability page available via

Samsung.com

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 5DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 5 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English6

Safety information

Important safety precautions

To reduce the risk of re, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. This appliance is not to be used by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge,

unless they have been given supervision or

instruction concerning use of the appliance by a

person responsible for their safety.

2. This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision

or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children

without supervision.

3. Children should be supervised to ensure that they do

not play with the appliance.

4. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualied persons in order to avoid a hazard.

5. The new hose-sets supplied with the appliance are to

be used and old hose-sets should not be reused.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 6DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 6 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English 7

Safety information

6. For appliances with ventilation openings in the base,

a carpet must not obstruct the openings.

7. Children of less than 3 years should be kept away

unless continuously supervised.

8. CAUTION: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out, this

appliance must not be supplied through an external

switching device, such as a timer, or connected to a

circuit that is regularly switched on and off by the

utility.

9. WARNING: Knives and other utensils with sharp

points must be loaded in the basket with their points

down or placed in a horizontal position.

This appliance is intended to be used in household and

similar applications such as:

• staff kitchen areas in shops, ofces and other working

environments;

• farm houses;

• by clients in hotels, motels and other residential type

environments;

• bed and breakfast type environments.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 7DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 7 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English8

Safety information

Instructions when using your dishwasher

This dishwasher is not designed for commercial use. It is intended for use in domestic

households and in similar working and residential environments such as:

• Shops

• Ofces and showrooms

and by residents in establishments such as:

• Hostels and guest houses.

It must only be used as a domestic appliance as specied in this user manual, for cleaning

domestic crockery and cutlery. Any other usage is not supported by the manufacturer and

could be dangerous.

The manufacturer cannot be held liable for damage resulting from incorrect or improper

use or operation.

Do not use solvents in the dishwasher. Danger of explosion.

Do not inhale or ingest dishwasher detergent. Dishwasher detergents contain irritant or

corrosive ingredients which can cause burning in the nose, mouth and throat if swallowed,

or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or

inhaled.

Avoid leaving the door open unnecessarily, as you could trip over it.

Do not sit or lean on the opened door. This could cause the dishwasher to tip and be

damaged, and you could get injured.

Only use detergent and rinse aid formulated for domestic dishwashers. Do not use

washing-up liquid.

Do not use any strong acid cleaning agent.

Do not ll the rinse aid reservoir with powder or liquid detergent. This will cause serious

damage to the reservoir.

Inadvertently lling the salt reservoir with powder or liquid dishwasher detergent

will damage the water softener. Make sure you have picked up the correct packet of

dishwasher salt before lling the salt reservoir.

Please only use special coarse grained dishwasher salt for reactivation, as other salts may

contain insoluble additives which can impair the functioning of the softener.

In an appliance with a cutlery basket (depending on model), cutlery is cleaned and dried

more if placed in efciently the basket with the handles downwards. However, to avoid the

risk of injury, place knives and forks etc. with the handles upwards.

Plastic items which cannot withstand being washed in hot water, such as disposable plastic

containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The

high temperatures in the dishwasher may cause them to melt or lose shape.

On models with Delay Start function, make sure that the dispenser is dry before adding

detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and

may not be thoroughly dispersed.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 8DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 8 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English 9

Safety information

Knives and other utensils with sharp points must be loaded in the basket with their points

down or placed in a horizontal position.

Instructions for protecting your children

This appliance is not a toy! To avoid the risk of injury, keep children well away and do

not allow them to play in or around the dishwasher or to use the controls. They will not

understand the potential dangers posed by it. They should be supervised whenever

you are working in the kitchen. There is also a danger that children playing might shut

themselves in the dishwasher.

This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Older children may only use the dishwasher when its operation has been clearly explained

to them and they are able to use it safely, recognising the dangers of misuse.

KEEP CHILDREN AWAY FROM DETERGENTS!

Dishwasher detergents contain irritant and corrosive ingredients which can cause burning

in the mouth, nose and throat if swallowed, or inhibit breathing.

Keep children away from the dishwasher when the door is open. There could still be

detergent residues in the cabinet.

Consult a doctor immediately if your child has swallowed or inhaled detergent.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 9DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 9 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English10

Safety information

Instructions for installing your dishwasher

Before setting up the appliance, check it for any externally visible damage. Under no

circumstances should you use a damaged appliance. A damaged appliance could be

dangerous.

The dishwasher must only be plugged into the electricity supply via a suitable switched

socket. The electrical socket must be easily accessible after the dishwasher is installed

so that it can be disconnected from the electricity supply at any time. (Refer to the

“Dishwasher at a glance” section on page 42.)

There must be no electrical sockets behind the dishwasher. Danger of overheating and re

risk if the dishwasher were to be pushed up against a plug.

The dishwasher must not be installed under a hob. The high radiant temperatures which

are sometimes generated by a hob could damage the dishwasher. For the same reason it

should not be installed next to open res or other appliances which give off heat, such as

heaters etc.

Do not connect the dishwasher to the mains supply until it has been fully installed and any

adjustment has been made to the door springs.

Before connecting the appliance, check that the connection data on the data plate (voltage

and connected load) match the mains electricity supply. If in any doubt, consult a qualied

electrician.

The electrical safety of this appliance can only be guaranteed when continuity is complete

between it and an effective grounding system. It is most important that this basic safety

requirement is present and regularly tested and where there is any doubt the electrical

system in the house should be checked by a qualied electrician.

The manufacturer cannot be held liable for the consequences of an inadequate grounding

system (e.g. electric shock).

Do not connect the appliance to the mains electricity supply by a multi-socket unit or an

extension lead. These do not guarantee the required safety of the appliance (e.g. danger of

overheating).

This appliance may only be installed in mobile installations such as ships if a risk

assessment of the installation has been carried out by a suitably qualied engineer.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 10DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 10 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English 11

Safety information

The plastic housing of the water connection contains an electrical component. The housing

must not be submerged in water.

There are electrical wires in the hose of Aqua-Stop. Never cut the water inlet hose, even if

it is too long.

Installation, maintenance and repairs may only be carried out by a suitably qualied and

competent person in strict accordance with current national and local safety regulations.

Repairs and other work by unqualied persons can be dangerous. The manufacturer cannot

be held liable for unauthorised work.

The integrated waterproof system offers protection from water damage, provided the

following conditions are met:

• The dishwasher is correctly installed and plumbed in.

• The dishwasher is properly maintained and parts are replaced where it can be seen that

this is necessary.

• The stopcock has been turned off when the appliance is not used for a longer period of

time (e.g. during holidays).

• The waterproof system will work even if the appliance is switched off. However, the

appliance must remain connected to the electricity supply.

A damaged appliance can be dangerous. If the dishwasher gets damaged, switch it off at

the mains and call your dealer or the service department.

Unauthorised repairs could result in unforeseen dangers for the user, for which the

manufacturer cannot accept liability. Repairs should only be undertaken by an approved

service technician.

Faulty components must only be replaced by original spare parts. Only when these parts

are tted can the safety of the appliance can be guaranteed.

Always disconnect the dishwasher from the electrical supply for maintenance work (switch

off at the wall socket and remove the plug).

If the connection cable is damaged it must be replaced with a special cable, available from

the manufacturer. For safety reasons, this must only be tted by the service department or

an authorised service technician.

In countries where there are areas which may be subject to infestation by cockroaches or

other vermin, pay particular attention to keeping the appliance and its surroundings in a

clean condition at all times. Any damage which may be caused by cockroaches or other

vermin will not be covered by the guarantee.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 11DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 11 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English12

Safety information

In the event of a fault or for cleaning purposes, the appliance is only completely isolated

from the electricity supply when:

• it is switched off at the wall socket and the plug is withdrawn, or

• it is switched off at the mains, or

• the mains fuse is disconnected, or

• the screw-out fuse is removed (in countries where this is applicable).

Do not make any alterations to the appliance, unless authorised to do so by the

manufacturer.

Never open the casing/housing of the appliance. Tempering with electrical connections or

components and mechanical parts is highly dangerous and can cause operational faults or

electric shock.

While the appliance is under guarantee, repairs should only be undertaken by a service

technician authorised by the manufacturer. Otherwise the guarantee will be invalidated.

When installing the product, make sure there is space at the top, left, right and back of the

product to ensure proper ventilation. If there is insufcient space between the product and

the sink, it may damage the sink or allow mold to grow.

Make sure that your dishwasher’s hardness level setting is correct as your area. (Refer to

the “Salt storage” section on page 53.)

Please consult www.samsung.com/support for more information about materials and

repair.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 12DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 12 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English 13

Installation

What’s included

Make sure all the parts are included in the product package. If you have a question about

the dishwasher or the parts, contact a local Samsung customer centre or your retailer. The

actual appearance of the dishwasher may differ, depending on your model and country.

CAUTION

After unpacking the dishwasher, keep packaging materials out of children’s reach to ensure

their safety.

FBI (Fully Built-In, DW60A80**BB) models

Top bracket (2) Ø4 X 14 screw (10) Protective

condensation

sticker (1)

Plastic cap (2)

Ø3.5 X 45 screw (4) Ø3.5 X 16 screw (2) Door bracket (2) Sub foot (3)

Custom panel

xer (wood panel

holders, 2)

Ø3.5 X 25 screw (2) Ø3.9 X 13 screw (4) Upper side trim (1)

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 13DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 13 2021-03-24 ฀฀ 1:25:202021-03-24 ฀฀ 1:25:20

English14

Installation

FBI (Sliding, DW60A80**IB) models

Top bracket (2) Ø4 X 14 screw (14) Protective

condensation

sticker (1)

Plastic cap (2)

Custom panel xer

(2)

Ø3.5 X 16 screw (2) Sub foot (3) Custom panel xer

(2)

Ø3.9 X 13 screw (4) Upper side trim (1)

BU (Built Under, DW60A80**U*) models

Top brackets (2) Ø4 X 14 screws (2) Sub foot (3) Ø3.5 X 16 screws

(2)

Kick plate brackets

(2)

Kick plate Plastic cap (2) Kick plate bolt (4)

Kick plate nut (4) Protective sticker

(1)

Ø3.9 X 13 screw (4) Upper side trim (1)

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 14DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 14 2021-03-24 ฀฀ 1:25:212021-03-24 ฀฀ 1:25:21

English 15

Installation

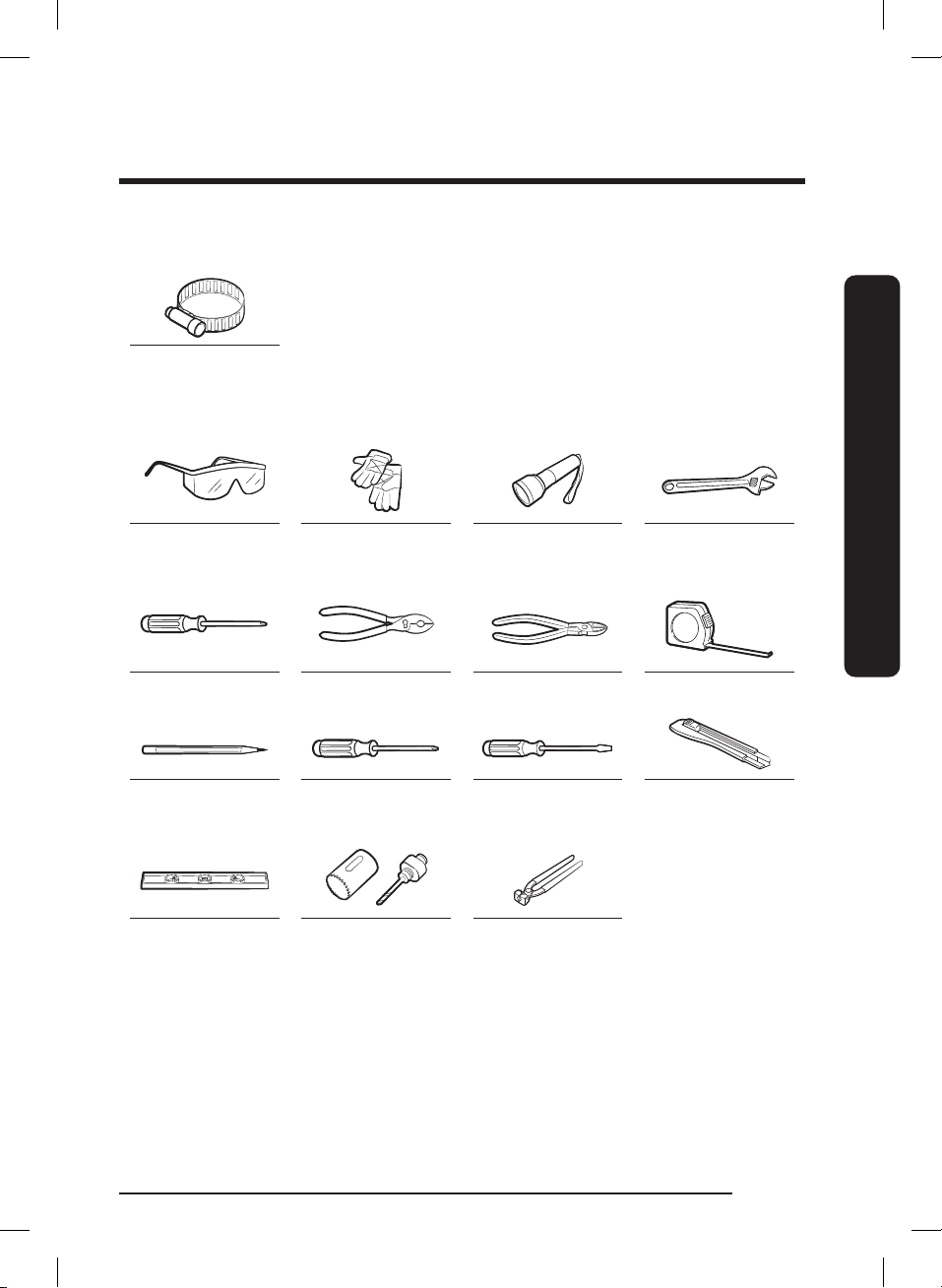

Installation kit (not provided)

Hose clamp

Tools required (not provided)

Safety glasses Gloves Flashlight Wrench (22 mm)

for the front foot

Torx T15 Pliers Nipper Tape measure

Pencil Phillips screwdriver Flat head

screwdriver

Cutting knife

Level Hole saw

(80-100 mm)

Ear clamp plier

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 15DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 15 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English16

Installation

Installation requirements

To prevent a risk of re, electric shock, or

personal injury, all wiring and grounding

must be done by a qualied technician.

Power supply

• An individual 220-240 V

, 50 Hz

branch circuit that is dedicated to the

dishwasher.

• Power outlet with a maximum allowable

current of 16 A (maximum 11 A for the

dishwasher)

WARNING

• Do not use an extension cord.

• Use only the power plug that comes

with the dishwasher.

• After installation is complete, make sure

the power plug is not bent or damaged.

Grounding

For permanent grounding, the dishwasher

must be properly grounded to a grounded

metal or permanent wiring system. The

grounding conductor must be run with

the circuit conductors and then connected

to the grounding terminal or lead on the

dishwasher.

WARNING

• Do not connect the ground wire to

plastic plumbing, gas lines, or hot water

pipes. Improperly connected grounding

conductors may cause electric shock.

• Do not modify the power plug of the

dishwasher. If the power plug does

not t the outlet, have a proper outlet

installed by a qualied electrician.

Water supply

• The water supply line must support

water pressures between 0.04 and

1 MPa.

• Water temperatures must be lower than

60 °C.

• A stopcock with a 3/4” male thread must

be installed on the water tap.

To reduce a risk of leaks:

• Make sure water taps are easily

accessible.

• Turn the water tap off when the

dishwasher is not in use.

• Check for any leaks at the water hose

ttings on a regular basis.

• To stop any leak, seal the water line

connections and joints using Teon tape

or sealing compound.

Aqua Stop

The Aqua Stop is an electrical component

that is designed to prevent water leaks. The

Aqua Stop is attached to the water hose

and automatically cuts off the water ow in

the event of damage to the hose.

CAUTION

• Handle the Aqua Stop with care.

• Do not kink or twist the water hose

connected to the Aqua Stop. If the Aqua

Stop is damaged, shut off the water taps

and unplug the power plug immediately.

Then, contact a local Samsung customer

centre or a qualied technician.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 16DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 16 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English 17

Installation

Drain

If you are using a drain system dedicated

to the dishwasher, connect the drain hose

to a drain system that is between 30 cm

and 70 cm off the ground. Connecting the

drain hose to a drain system more than

80 cm off the ground can cause the drained

water to ow backward.

Flooring

For safety, the dishwasher must be

installed on a solidly constructed oor.

Wooden oors may need to be reinforced

to minimise vibrations. Avoid installing

on carpet or soft tile. Carpeting and soft

tile may cause vibrations and may cause

your dishwasher to move slightly while

operating.

WARNING

Do not install the dishwasher on a poorly

supported structure.

Ambient temperature

Do not install the dishwasher in an area

exposed to freezing temperatures. The

dishwasher always retains some water in

the water valve, pump, and hose. If the

water freezes in the dishwasher or hoses,

it may damage the dishwasher and its

components.

Test run

After installing the dishwasher, run the

Quick cycle to make sure the dishwasher is

installed correctly.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 17DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 17 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English18

Installation

Step-by-step installation

The installation procedure may differ depending on the model.

STEP 1 Select a location

Select a location that meets the following

conditions.

• The location must have a solid oor that

can support the weight of the dishwasher.

• The location must be near a sink with easy

access to the water supply, drain system,

and electrical outlet.

• The location must let you load dishes into

the dishwasher easily.

• The location must have sufcient space

for the dishwasher door to open easily

and provide enough space between the

dishwasher and the cabinet sides.

• The rear wall must be free of obstructions.

Installation in a new location

If you install the dishwasher in a new

location, follow these instructions before

installing the dishwasher.

1. Using a hole saw, cut a hole into the side

of the cabinet that holds the sink (A).

2. If the base inside the sink cabinet is raised

above the kitchen oor and is higher than

the connections on the dishwasher, make a

hole in the base inside the cabinet and in

the cabinet side (B).

NOTE

• If you are replacing an old dishwasher, check the existing connections for compatibility

with the new dishwasher and replace the connections as needed.

• You may need to cut a hole in the opposite side of the cabinet according to the location

of the electrical outlet.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 18DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 18 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English 19

Installation

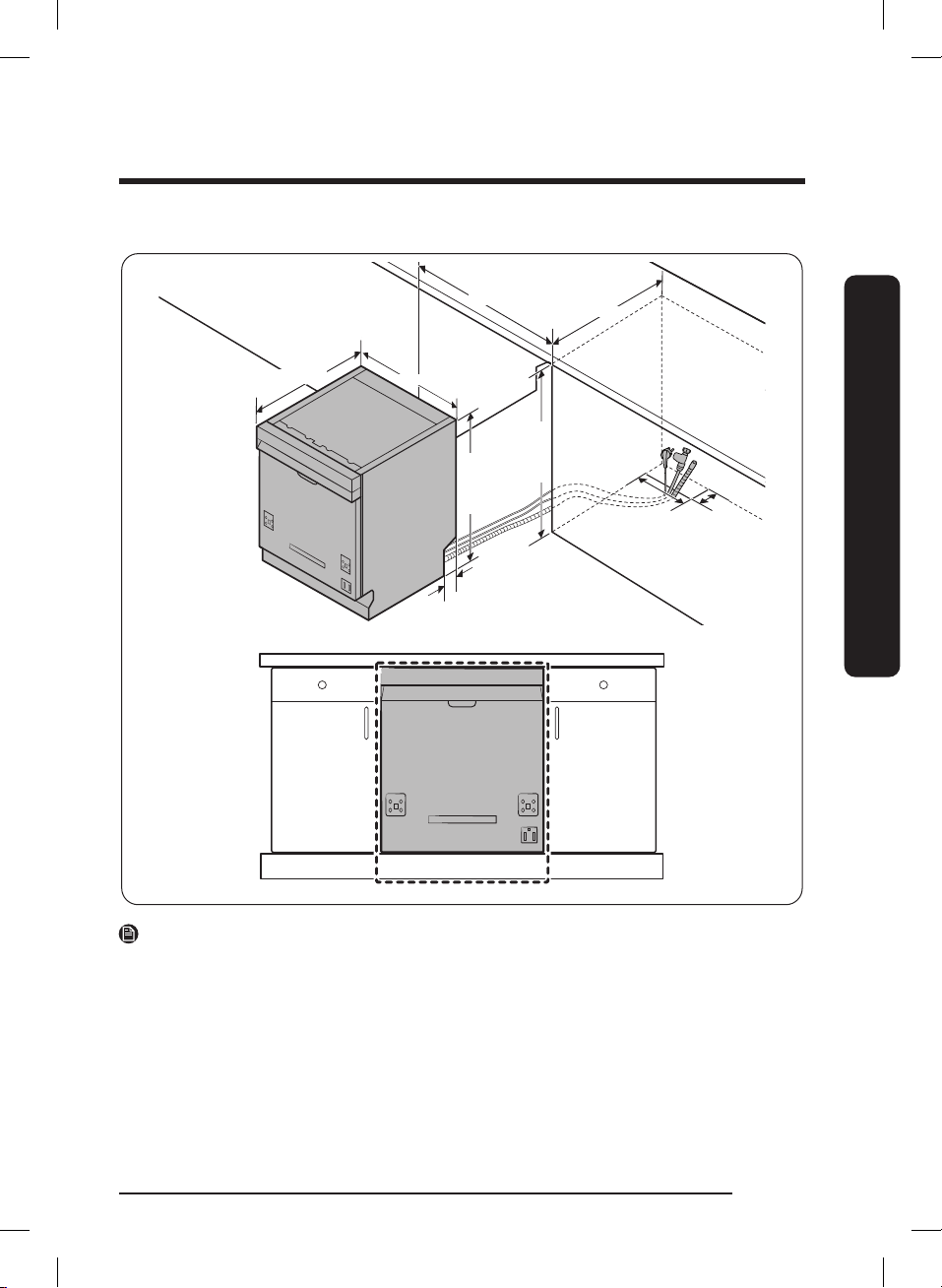

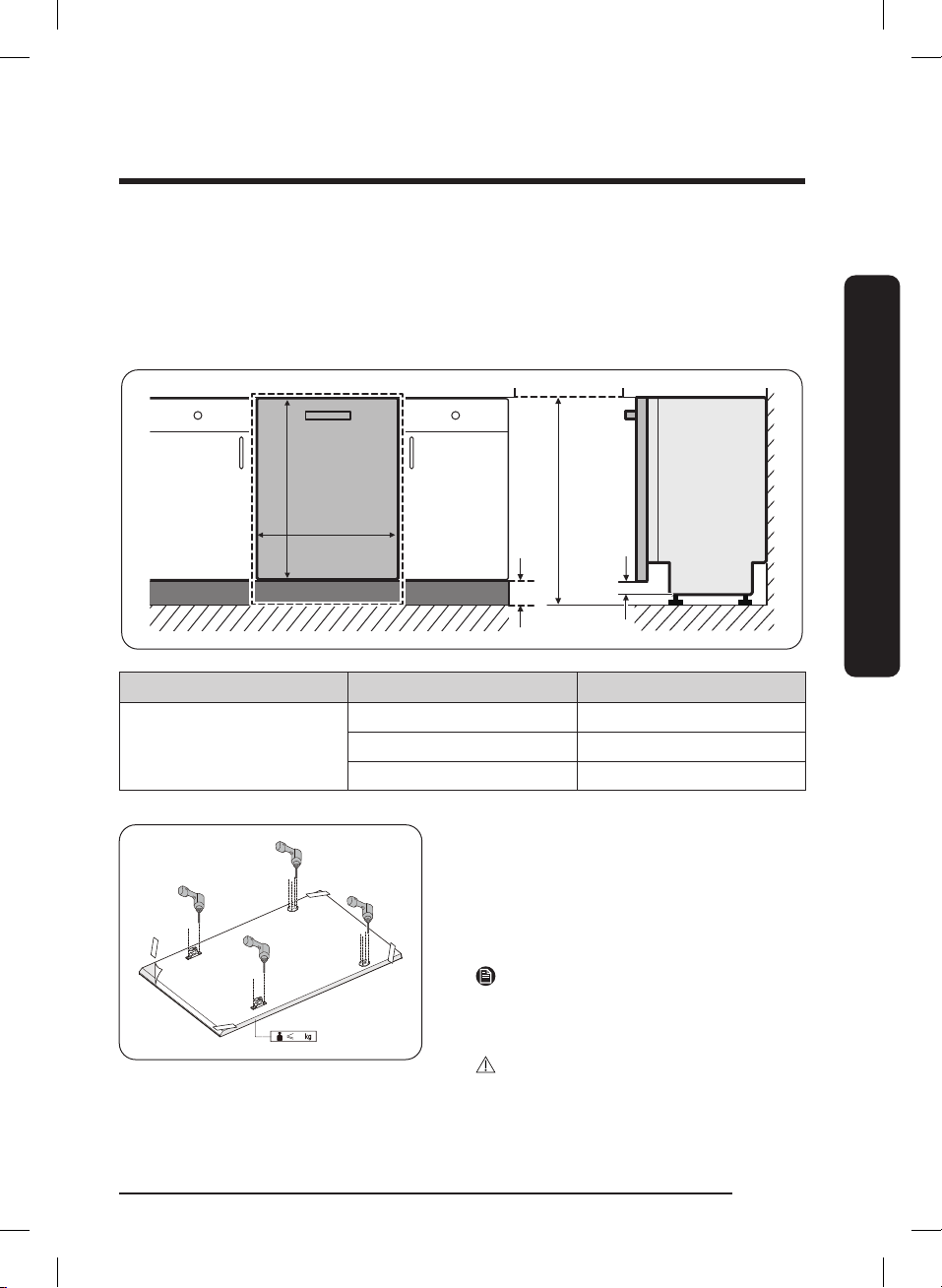

Cabinet dimensions

575

600

598

550 (Fully Built-in model)

815 - 845

820 - 880

100

NOTE

Check if the distance between the oor and the bottom of the worktop is more than

850 mm. If so, insert the sub foot included in the installation kit. For details, see the next

section. If the distance is less than 850 mm, skip to STEP 3.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 19DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 19 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English20

Installation

STEP 2 To insert the sub foot (Except Free Standing model)

If the distance between the oor and the bottom of the worktop is more than 850 mm,

insert the sub foot into the hole on the bottom of the dishwasher before you start the

installation.

850

1. Lay the dishwasher on its back.

CAUTION

Do not lay down the dishwasher on its side.

Water may leak.

2. Find the sub foot in the installation kit,

and then insert the sub foot into the

hole on the bottom of the dishwasher as

shown in the gure.

STEP 3 Check the water line

• The water line pressure must be between 0.04 and 1.0 MPa.

• Make sure that the water temperature does not exceed 60 °C. Hot water over 60 °C may

cause the dishwasher to malfunction.

• Make sure that the water supply valve is turned off before connecting the water supply

line to the dishwasher.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 20DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 20 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English 21

Installation

STEP 4 Arrange the hoses

1. Clean the bottom of the countertop.

2. Attach the protective sticker as shown.

3. Pull the power plug, the water hose, and

the drain hose through the sink hole.

CAUTION

• Use caution not to kink or step on the

power plug or the hoses.

• Do not remove the brown paper on the

back of the dishwasher. The paper is

used to keep the rear side clean against

the wall.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 21DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 21 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English22

Installation

STEP 5 Install the custom panel (For Fully Built-In models)

FBI (Fully Built-In, DW60A80**BB) models

Ø2

1. Put the installation template on the

back of the custom panel and x it

temporarily using transparent tape. Note

that the rear of the custom panel will be

attached to the dishwasher door.

CAUTION

• The top end of the custom panel must

be aligned with the top end of the

installation template.

• Use a custom panel between 3 kg and

7 kg.

2. Mark 14 points guided on the

installation template.

3. Remove the installation template, and

then tighten the custom panel xers (A)

with 2 screws (B, Ø3.5 X 25) as shown in

the gure.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 22DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 22 2021-03-24 ฀฀ 1:25:222021-03-24 ฀฀ 1:25:22

English 23

Installation

4. Tighten the door bracket (C) with

8 screws (D, Ø4 X 14) as shown in the

gure.

30 mm

5. Insert the door brackets (C) on the

custom panel to the holes (E) on the

dishwasher door to x the custom panel.

6. While holding the custom panel, attach

it to the door and insert the custom

panel xers (A) into the holes (F) as

shown in the gure.

7. Push the custom panel downward to x.

CAUTION

Do not let the custom panel extend

more than 30 mm from the top of the

dishwasher.

30°

8. Adjust the spring level while the door

is approximately opened at 30 degrees.

The door should hold its position, and

should not fall open.

CAUTION

• Do not adjust the spring level while the

door is completely opened.

• If the custom panel weighs more than

7 kg, the door may fall open.

• Custom panels weighing more than 7 kg

are not recommended.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 23DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 23 2021-03-24 ฀฀ 1:25:232021-03-24 ฀฀ 1:25:23

English24

Installation

9. Open the dishwasher door and remove

the 4 screws.

CAUTION

Use caution when opening the door. The

door might open or close unexpectedly

if the spring level is not adjusted

appropriately, resulting in physical injury.

10. Secure the custom panel to the door by

fastening the 4 screws (3.5 X 45).

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 24DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 24 2021-03-24 ฀฀ 1:25:232021-03-24 ฀฀ 1:25:23

English 25

Installation

FBI (FBI Sliding, DW60A80**IB) models

This dishwasher model is equipped with an auto-balancing system in the door. It has a

sliding hinge, which is perfect for plinth-less kitchens or for installation above a small

cupboard. Custom panel’s height (A) can be between minimum 670 mm to maximum

800 mm depending on the installation environment. Custom panel’s weight must not

exceed 10 kg. Refer to the table for the height (C) in relation to the cabinet’s height (B), and

then determine the height of the custom panel.

598 mm

Min. 20

A B C

670-800 mm

820 mm 20-150 mm

850 mm 50-180 mm

880 mm 80-210 mm

1. Put the installation template on the

back of the custom panel and x it

temporarily using transparent tape. Note

that the rear of the custom panel will be

attached to the dishwasher door.

2. Mark 4 points guided on the installation

template.

NOTE

Custom panel’s height can be between

minimum 670 mm to 800 mm depending

on the installation environment.

CAUTION

Custom panel’s weight must not exceed

10 kg.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 25DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 25 2021-03-24 ฀฀ 1:25:232021-03-24 ฀฀ 1:25:23

English26

Installation

3. Remove the installation template, and

then tighten the Custom panel xers (B),

gure.

4. While holding the custom panel, attach

it to the door and insert the Custom

panel xers into the corresponding

holes at the door.

CAUTION

Use a custom panel between 4-10kg. Make

sure the skirting board does not interfere

with the dishwasher’s door fully opening

and closing.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 26DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 26 2021-03-24 ฀฀ 1:25:232021-03-24 ฀฀ 1:25:23

English 27

Installation

STEP 6 Install the trim

You can use the trim to reduce the noise

level.

1. To install the upper side trim, remove

the protective vinyl of double-side

adhesive tape on the back of the trim.

2. Insert the Hook shape of the trim to the

rear side of tub top bracket.

3. Fasten the provided screws to the four

holes.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 27DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 27 2021-03-24 ฀฀ 1:25:252021-03-24 ฀฀ 1:25:25

English28

Installation

STEP 7 Level the dishwasher

0-30 mm

0-60 mm

Normal Tall-kitchen (Insert the

sub foot)

You can adjust the height of the dishwasher

to level it. Note that in these steps, the

dishwasher is currently inserted halfway.

1. Use the level to check if the dishwasher

is level.

2. To adjust the front height, use a at

head(-) screwdriver.

• To lower the height, turn the foot

counterclockwise.

• To raise the height, turn the foot

clockwise.

UĮǮĘ

Ƹť

UĮǮĘ

Check level front to back

Check level

side to side

3. To adjust the rear height, insert a cross

head(+) screwdriver in the bottom

centre of the dishwasher.

• To lower the height, turn the

screwdriver clockwise.

• To raise the height, turn the screwdriver

counterclockwise.

• Place a spirit level on door and rack

track inside the tub as shown to check

that the dishwasher is level.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 28DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 28 2021-03-24 ฀฀ 1:25:262021-03-24 ฀฀ 1:25:26

English 29

Installation

Min.

(5 mm)

4. Leave at least a 5 mm space between

the top of the dishwasher and the

bottom of the countertop.

5. When levelling is complete, check if the

door opens and closes properly.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 29DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 29 2021-03-24 ฀฀ 1:25:262021-03-24 ฀฀ 1:25:26

English30

Installation

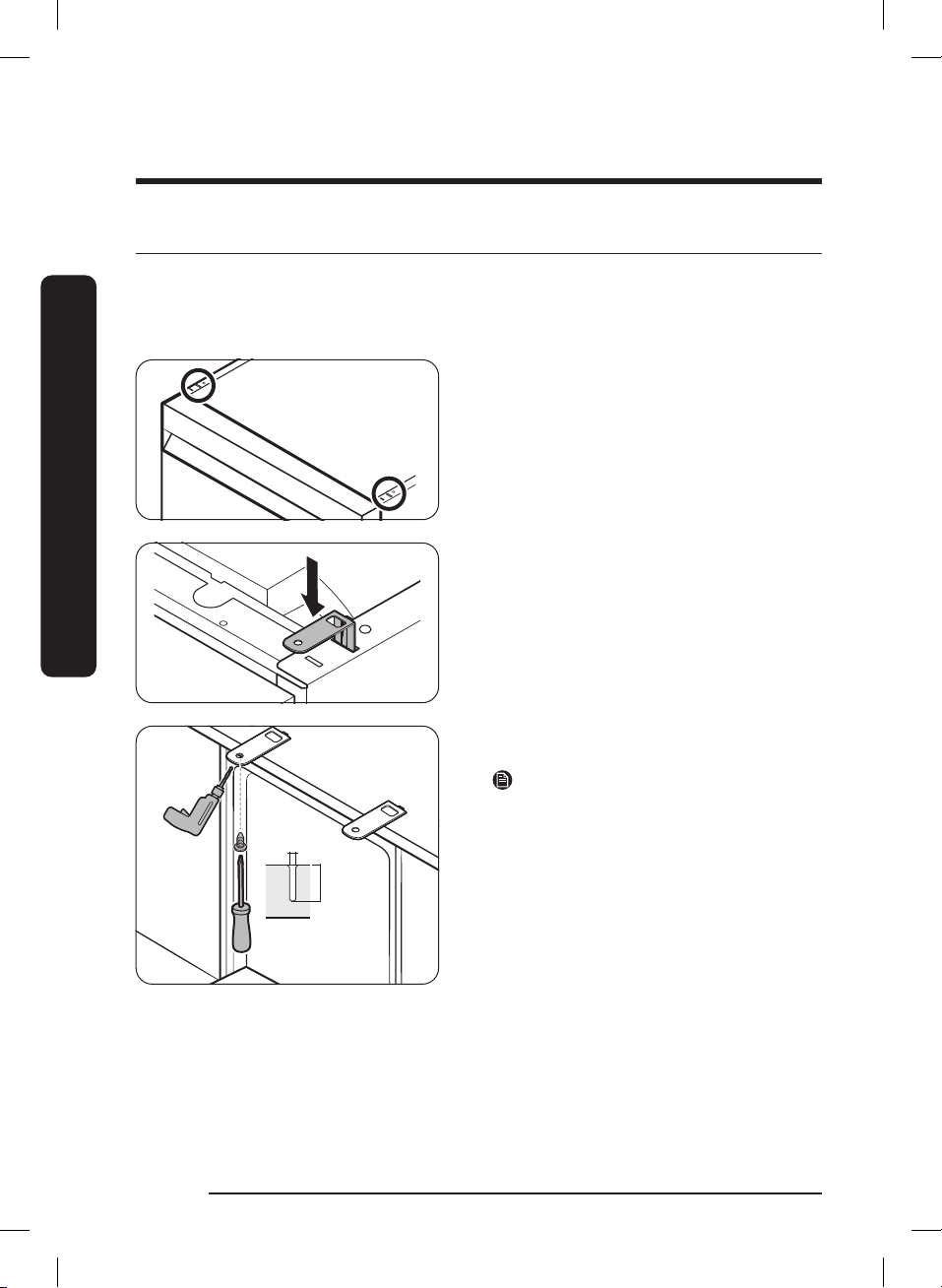

STEP 8 Secure the dishwasher

You can use the brackets to secure the dishwasher to the countertop. Alternatively, you can

drill the side holes to secure the dishwasher to the cabinet sides.

To the countertop using the brackets

1. Insert the provided brackets into the top

front holes of the dishwasher as shown.

2. Insert the dishwasher fully into place

under the countertop.

Ø 2

3. Tighten the 2 screws (Ø4 X 14) to x the

brackets.

NOTE

After xing the dishwasher to the

countertop, some screws remain. You can

simply discard these screws, or use them

to x the sides of the dishwasher to the

cabinet if you want to.

4. Connect the water hose, but do not

open the water tap until installation is

complete.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 30DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 30 2021-03-24 ฀฀ 1:25:262021-03-24 ฀฀ 1:25:26

English 31

Installation

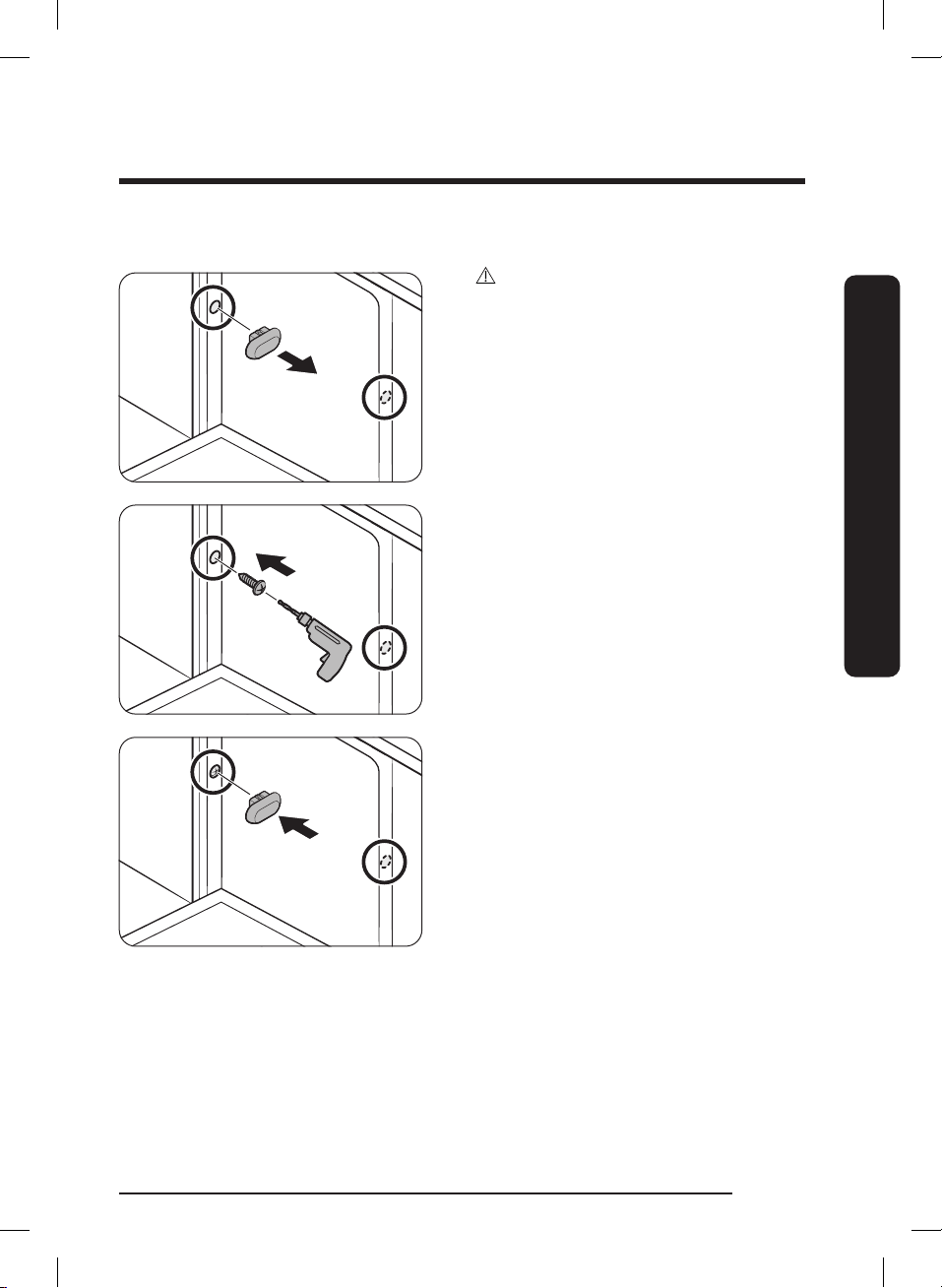

To the sides

CAUTION

If the plastic caps are not assembled, water

may leak and cause a re or electric shock.

1. Remove the plastic caps.

2. Tighten the 2 screws (Ø3.5 X 16) to the

2 places (marked on the illustration).

3. Insert the provided plastic caps to the

2 places where screws are fastened.

4. Connect the water hose, but do not

open the water tap until installation is

complete.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 31DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 31 2021-03-24 ฀฀ 1:25:272021-03-24 ฀฀ 1:25:27

English32

Installation

STEP 9 Connect the drain hose

Max. 80 cm

Min. 30 cm

1. Connect the drain hose to the drain

outlet.

CAUTION

• Install the drain system properly so that

the drain hose does not come out of the

drain outlet in the draining process.

• Make sure that the drain hose, supply

hose, and power cord is not kinked or

folded.

STEP 10 Final check

1. Remove all foam, paper packaging, and unnecessary parts from inside the dishwasher.

2. Turn the circuit breaker on.

3. Open the water supply valve to supply water to the dishwasher.

4. Plug in and turn the dishwasher on. Then, select and run the Quick cycle.

5. Check if the dishwasher turns on normally and if there are any water leaks while the

dishwasher is operating. Make sure to check for water leaks on both ends of the water

line and the drain hose connector.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 32DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 32 2021-03-24 ฀฀ 1:25:272021-03-24 ฀฀ 1:25:27

English 33

Installation

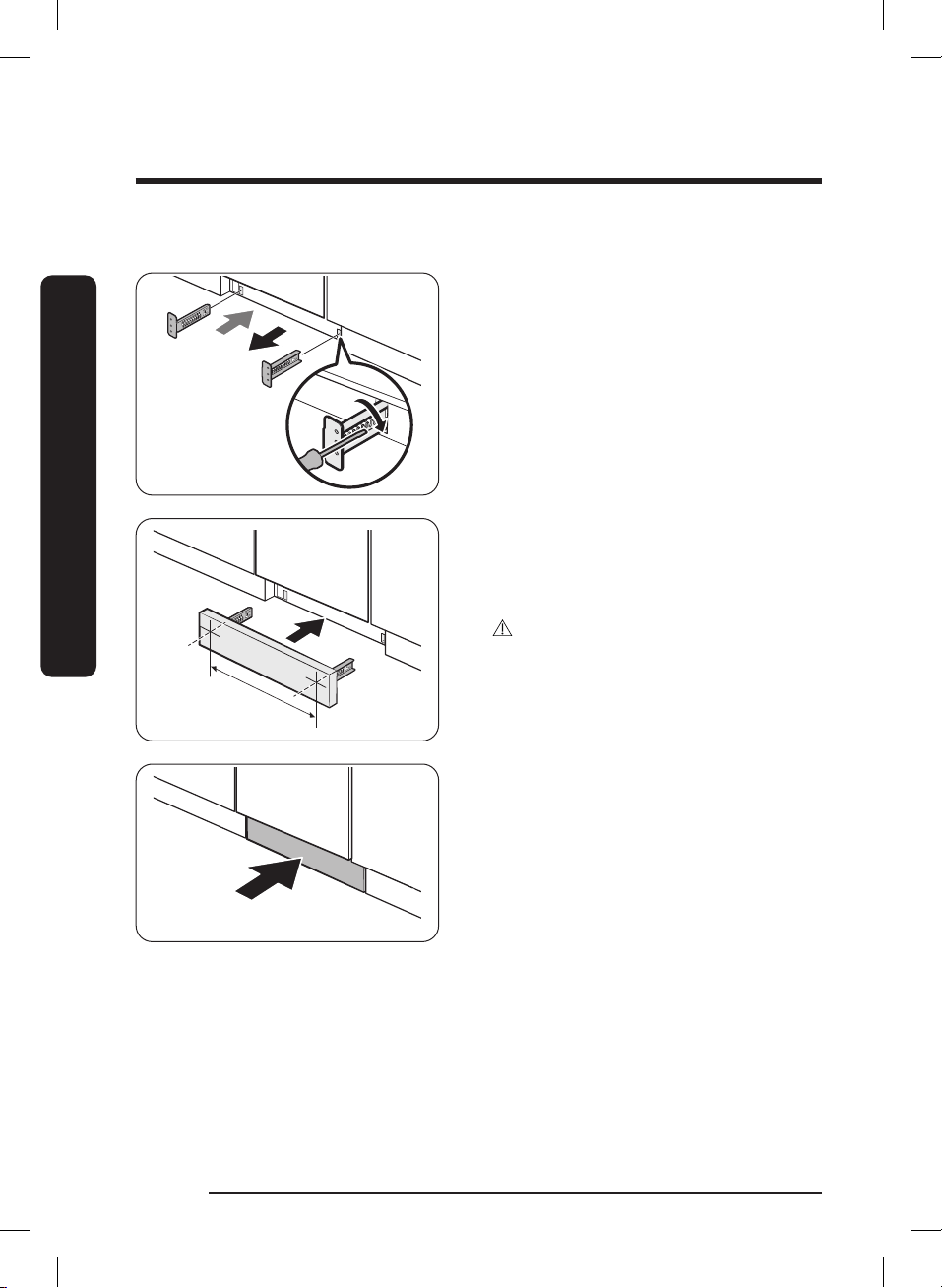

Skirting board

You can attach the skirting board according to the model or installation conditions.

Skirting board

1. Put the skirting board on the bottom of

the dishwasher.

2. Open the door of the dishwasher, and

draw a baseline on the skirting board

where it interferes with the door.

3. Follow the baseline and cut the skirting

board using a saw.

4. Attach the cut skirting board to the

bottom of the dishwasher. Make sure the

board does not interfere with the door

of the dishwasher.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 33DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 33 2021-03-24 ฀฀ 1:25:272021-03-24 ฀฀ 1:25:27

English34

Installation

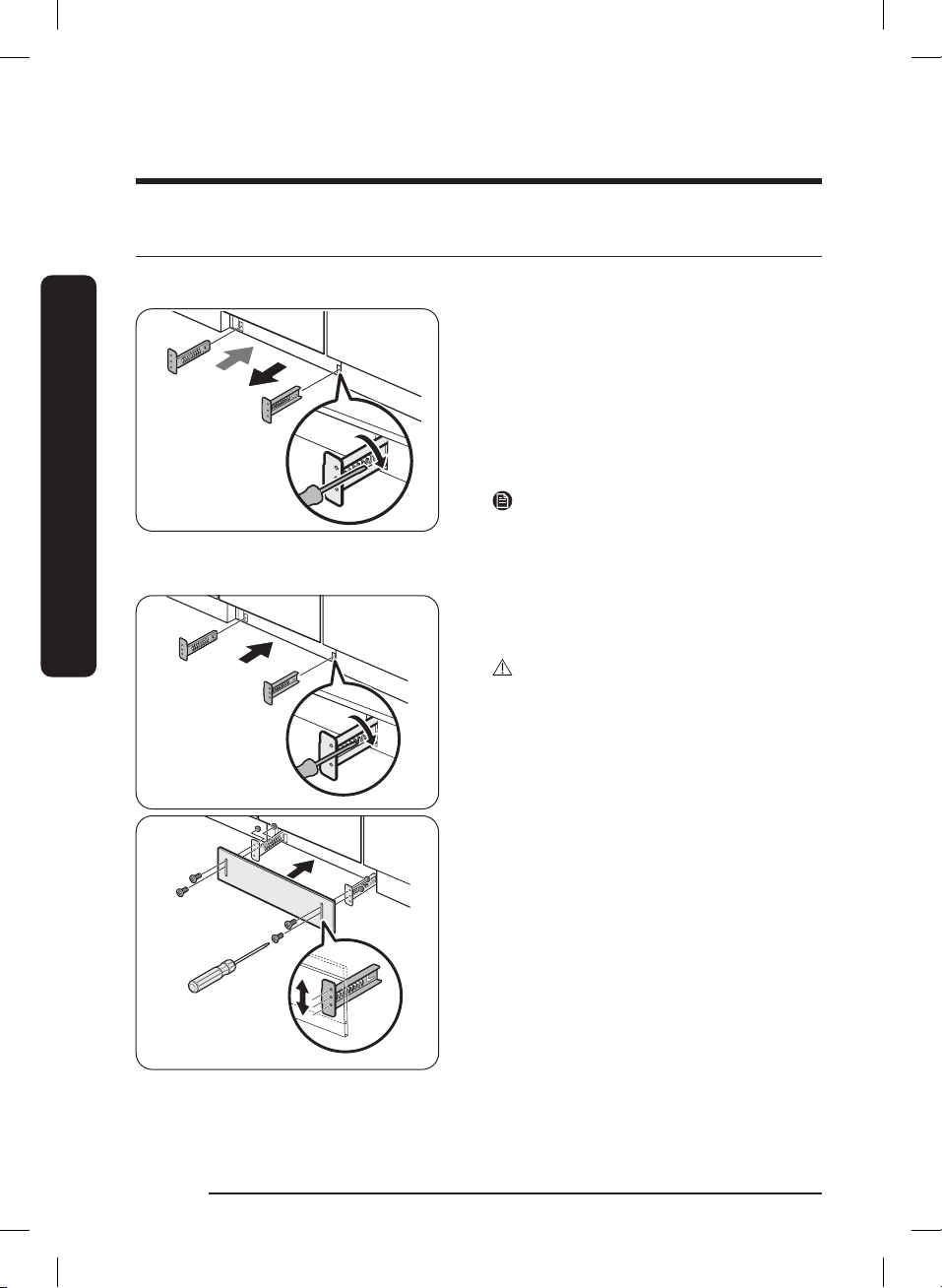

Pre-cut skirting board (DW60A80**U* Series)

1. Insert the provided brackets to the

bottom of the dishwasher. Turn them

into position.

• See the gure on the left for the correct

attaching sequence and place of the

brackets.

545.4

2. Insert the pre-cut skirting board into

the brackets rst, and then tighten the

screws to x the board. See the gure

on the left and make sure the brackets

are positioned in the correct place.

CAUTION

Make sure the skirting board does not

interfere with the dishwasher’s door

opening and closing.

3. Push the skirting board with the

brackets into the bottom of the

dishwasher as shown.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 34DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 34 2021-03-24 ฀฀ 1:25:272021-03-24 ฀฀ 1:25:27

English 35

Installation

Info Light

You can see the dishwasher’s operating status by checking the info light.

Info Light

When the dishwasher has operated, the

info light is on and shining toward the oor.

This tells you the dishwasher’s operating

status.

NOTE

Check whether the info light is covered by

the rubber skirt.

• The info light must be between the

rubber skirt and outer door.

• If the rubber skirt is covering the info

light, the info light will not be visible.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 35DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 35 2021-03-24 ฀฀ 1:25:272021-03-24 ฀฀ 1:25:27

English36

Installation

Kick plate (DW60A80**U* Series)

If you want to install the kick plate, follow these steps.

1. Insert the provided brackets to the

bottom of the dishwasher. Turn them

into position.

• See the gure on the left for the correct

attaching sequence and place of the

brackets.

2. Insert the kick plate into the brackets

rst, and then tighten the 4 kick plate

bolts and nuts to x the kick plate.

NOTE

If the dishwasher is raised by levelling the

foot, move kick plate down so that the kick

plate ts in bottom.

3. Push the kick plate with the brackets

into the bottom of the dishwasher as

shown.

CAUTION

Make sure the kick plate does not interfere

with the dishwasher’s door opening and

closing.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 36DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 36 2021-03-24 ฀฀ 1:25:272021-03-24 ฀฀ 1:25:27

English 37

Installation

SmartThings (Applicable models only)

Wi-Fi connection

On your smartphone, go to Settings and connect to your home Wi-Fi network.

Download

On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), nd the

SmartThings app with a search term of “SmartThings”. Download and install the app on

your device.

You must rst log into SmartThings with your Samsung account. To create a new Samsung

account, follow the instructions on the app. You don’t need a separate app to create your

account.

NOTE

If you have a Samsung account, use the account to log in. A registered Samsung

smartphone user automatically logs in.

Wi-Fi Off

To manually turn the Wi-Fi off, press and hold ‘Speed boosting button’ and ‘Smart control

button’ for 3 seconds at same time.

To register your device to SmartThings

1. Make sure your smartphone is connected to a wireless network.

2. Select to run SmartThings on your smartphone.

3. When a message of “A new device is found.”, select Add.

4. If no message appears, select + and select your dishwasher in a list of devices available.

If your dishwasher is not listed, select Device Type > Specic Device Model, and then

add your dishwasher manually.

5. Follow the onscreen instructions to complete the connection process for your

dishwasher.

6. When the process is complete, your dishwasher will appear in the list of devices on

your SmartThings App.

7. For iPhone users to access the SmartThings app, they need to scan the QR code or enter

the serial number provided below the QR code.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 37DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 37 2021-03-24 ฀฀ 1:25:282021-03-24 ฀฀ 1:25:28

English38

Installation

Dishwasher app

Integrated control: You can monitor and control your dishwasher both at home and on the

go.

• Select the dishwasher icon on SmartThings. The dishwasher page appears.

• Check the operation status or notications related to your dishwasher, and change

options or settings if necessary.

NOTE

• This device is designed for household use only (Class B), and can be used in all

residential areas.

• This device may cause wireless interference, and neither the manufacturer or the

installer of this device can provide a safety measure of any kind.

• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed

Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.

• The reception sensitivity of a wireless network may be affected by surrounding wireless

environments.

• If your Internet provider has registered the MAC address of your PC or the modem

module for permanent use, your Samsung dishwasher fails to connect to the Internet. If

this is the case, contact your Internet provider.

• The Internet rewall may interrupt your Internet connection. If this happens, contact

your Internet provider.

• If Internet failure continues after following the measurement of your Internet provider,

contact a local Samsung retailer or service centre.

• For installing wired and wireless routers, refer to the user manual of the router you use.

• Samsung dishwasher supports the Wi-Fi 2.4 GHz protocols.

• Samsung dishwasher supports the IEEE802.11 b/g/n (2.4 GHz), Soft-AP protocols.

(IEEE802.11n is recommended)

• An unapproved wired/wireless router may fail to connect to Samsung dishwasher.

• The SmartThings app is available on third-party devices with Android OS 6.0

(Marshmallow) or higher, Samsung devices with Android OS 5.0 (Lollipop) or higher, and

iOS devices with iOS 10.0 or higher (For iPhones, it must be iPhone 6 or higher).

The app is optimised for Samsung smartphones (Galaxy S and Note series).

• Some functions of the app may operate differently on third-party devices.

• The app is subject to change without notice for improved performance.

• In addition, further updates on the app or the function in the app may stop due to

usability and security reasons, even if updates are currently supported on your OS.

• Your device uses non-harmonised frequency and is intended for use in all European

countries. The WLAN can be operated in the EU without restriction indoors, but cannot

be operated outdoors in France.

• You can easily install the SmartThings app or use the product with your smartphone by

scanning the QR code on the attached label.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 38DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 38 2021-03-24 ฀฀ 1:25:282021-03-24 ฀฀ 1:25:28

English 39

Installation

• Hereby, Samsung Electronics, declares that the radio equipment type appliance is in

compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity

is available at the following internet address: The ofcial Declaration of conformity may

be found at http://www.samsung.com, go to Support > Search Product Support and enter

the model name.

• The overall standby power consumption is 2.0 W in which all network ports stay in “on”

condition.

- Data determined according to standard EN 50564 and Regulation (EC) No

1275/2008

Wi-Fi

Frequuency range Transmitter power (Max)

2412 MHz - 2472 MHz 20 dBm

SmartThings

Category Checkpoint Description

Monitoring

Washing status

You can check the current cycle and

its options, and the remaining cycle

time.

Smart Control

The Smart Control status is shown for

the dishwasher.

Energy monitoring

Use this to monitor the energy

consumption status.

Control

Start/Pause/Cancel

Select a cycle and necessary options,

and then select Start/Pause/ Cancel

to start an operation, to stop

temporarily, or to cancel the current

operation.

My Favorite

Add frequently used cycles and

options to My Favorite for later use.

Delay Start

Set Delay Start to start the cycle at a

scheduled time (up to 24 hours).

Notication

Cycle completed

Noties you the current cycle is

complete.

Detergent

Noties you if the dishwasher is out

of salt or rinse aid.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 39DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 39 2021-03-24 ฀฀ 1:25:282021-03-24 ฀฀ 1:25:28

English40

Installation

WSN

1. How to access: press and hold the Start button in AP mode. (To enter the AP mode, press

and hold the Smart Control button for 3 seconds.)

2. Display format

- After receiving WSN data from WiFi module, “-” + rst 2 digits are diplayed and next

3 digits are diplayed by every “start” button pressing.

- Beep is generated when the “start” button is pressed for displaying digits.

- Display example : “-” for the starting display

ex) WSN : “01234567897835”

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 40DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 40 2021-03-24 ฀฀ 1:25:282021-03-24 ฀฀ 1:25:28

English 41

Installation

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/seq/0 leads

to open source license information as related to this product.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 41DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 41 2021-03-24 ฀฀ 1:25:282021-03-24 ฀฀ 1:25:28

English42

Before you start

Follow these instructions carefully to ensure proper installation of the dishwasher and to

prevent accidents when washing dishes.

Dishwasher at a glance

DW60A807*/DW60A806*/DW60A805* models

01 Cutlery rack 02 Upper rack 03 Salt storage

04 Lower rack 05 Dispenser 06 Glass support

07 Door 08 Base 09 Inlet hose

10 Drain hose

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 42DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 42 2021-03-24 ฀฀ 1:25:302021-03-24 ฀฀ 1:25:30

English 43

Before you start

DW60A804* models

01 Knife rack 02 Upper rack 03 Salt storage

04 Lower rack 05 Dispenser 06 Cutlery basket

07 Door 08 Base 09 Inlet hose

10 Drain hose 11 Glass support

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 43DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 43 2021-03-24 ฀฀ 1:25:322021-03-24 ฀฀ 1:25:32

English44

Before you start

CAUTION

• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint.

These materials will damage the dishwasher. Ash does not dissolve and will spread

inside the dishwasher.

• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks,

paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the

dishwasher to malfunction, and damage your dishes and dishwasher.

Unsuitable items for the dishwasher

WARNING

Wash only items such as glass, porcelain, and cutlery which the manufacturer declares as

dishwasher safe. Do not wash aluminium (e.g. grease lters). The dishwasher may damage

aluminium, or in extreme cases, cause a severe chemical reaction.

Do not wash the following items in the dishwasher.

• Copper, brass, tin, ivory, and aluminium items or items with adhesive

• Non-heat resistant plastics

• Craft items, antiques, valuable vases, and decorative glassware

• Pottery or glazed-ceramic items

• Wooden cutlery and crockery or items with wooden parts

• Delicate glassware or glassware containing lead crystal. Clouding may occur on the

glassware after frequent washing.

NOTE

Silverware that has contacted foods containing sulphur may become discoloured. Food

with sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine, and

marinades.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 44DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 44 2021-03-24 ฀฀ 1:25:322021-03-24 ฀฀ 1:25:32

English 45

Before you start

Basic use of racks

Height adjustment

You can adjust the height of the upper rack so that the lower rack can accommodate larger

sized dishes. Depending on the height of the upper rack, the lower rack can accommodate

plates up to 30 cm in diameter, and the upper rack can accommodate plates up to 18 cm

(with Cutlery rack) or 25 cm (without Cutlery rack) in diameter.

CAUTION

• Adjust the height of the upper rack before loading dishes into the rack. Adjusting the

rack after loading the dishes may damage the dishes.

• Make sure to hold both handles when adjusting, or the dishwasher door may not close

properly.

• To raise the upper rack, pull the upper

rack upwards. The adjustable handle will

latch, and the upper rack will raise.

• To lower the upper rack, hold both the

adjustable handles located at the left

and right sides of the upper rack, and

then evenly press down.

Upper rack removal

CAUTION

• Do not operate the dishwasher without the upper rack. Otherwise, noises occur and the

dishwasher does not operate properly.

• Because the upper rack is removable, insert the upper rack properly to ensure the

dishwasher operates normally.

Pull the upper rack to the front until it is fully extended, and then lift it slightly to remove.

See the following gures.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 45DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 45 2021-03-24 ฀฀ 1:25:322021-03-24 ฀฀ 1:25:32

English46

Before you start

Loading dishes

Lower rack

We recommend that you place large items, that are difcult to clean (such as pots, pans,

lids, serving dishes and bowls), in to the lower rack.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid

blocking the rotation of the upper nozzle. Pots, serving bowls, etc. must always be placed

top down.

Deep pots should be slanted to allow water to ow out.

The lower rack features folding tines to easily load larger pots and pans.

DW60A807*/DW60A806*/DW60A805*

models

DW60A804* models

NOTE

Long items, serving cutlery, salad servers and big knives should be placed on the shelf so

that they do not obstruct the rotation of the nozzles.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 46DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 46 2021-03-24 ฀฀ 1:25:322021-03-24 ฀฀ 1:25:32

English 47

Before you start

Using the folding tines

For better stacking of pots and pans, the tines can be folded down as show in the gure.

Upper rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses,

coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as

they are not too dirty). Position the dishes and cookware so that they will not get moved

by the spray of water. Always place glasses, cups & bowls upside down.

DW60A807*/DW60A806*/DW60A805*

models

DW60A804* models

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 47DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 47 2021-03-24 ฀฀ 1:25:332021-03-24 ฀฀ 1:25:33

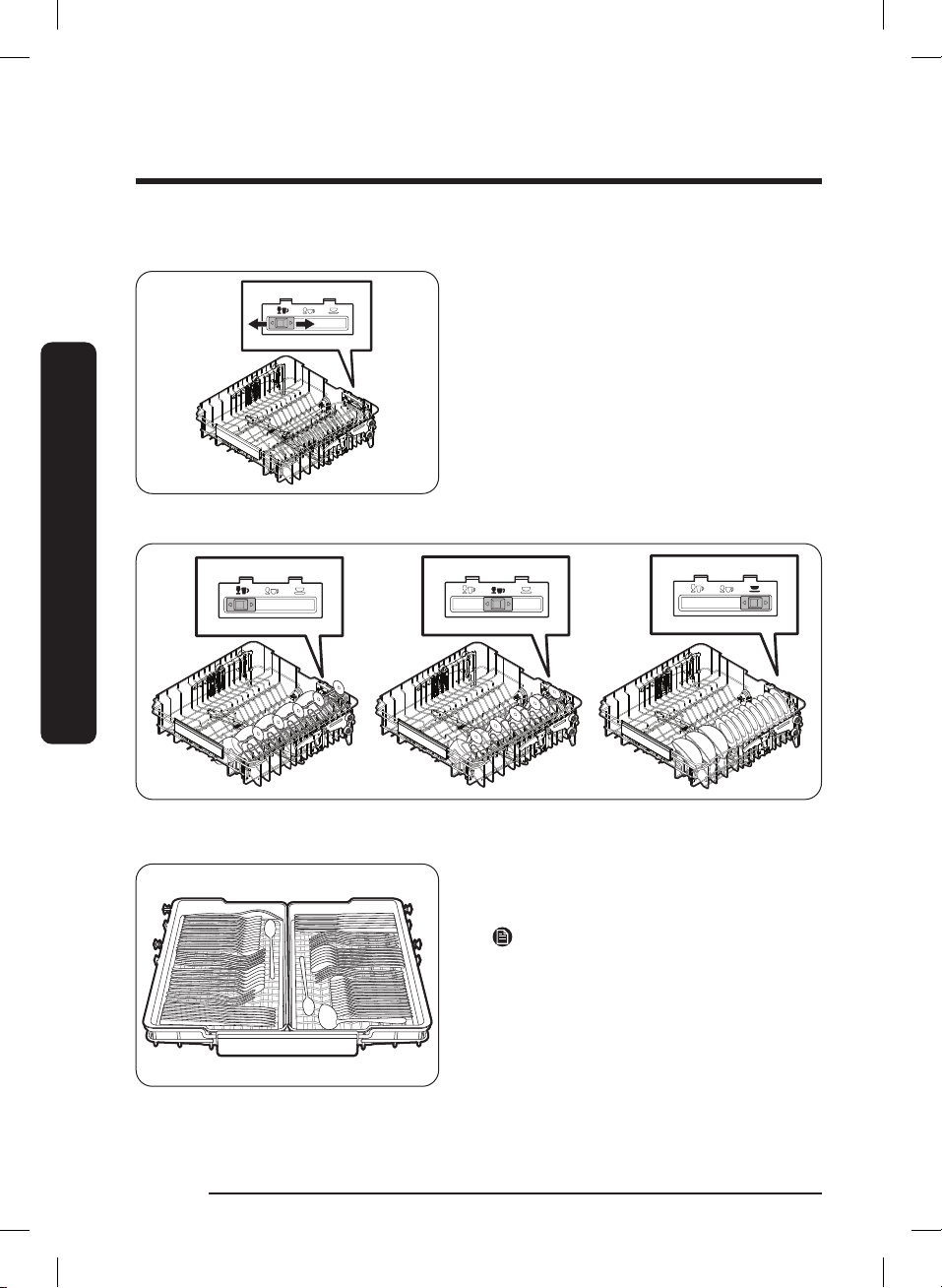

English48

Before you start

Guide Tines

You can load dishes into the central rack in

various ways by changing the guide tines.

If the guide button is moved to the left,

you can load standard wine glasses. If the

guide button is in the middle, you can load

shorter wine or brandy glasses. If the guide

button is on the right, you can load bowls

and plates.

Upper rack

Cutlery rack (DW60A807*/DW60A806*/DW60A805* models)

The cutlery rack is best for atware and

cooking or serving utensils. Use the cutlery

rack to organize atware or utensils.

NOTE

The cutlery rack can be removed if you

need more space on the upper rack to clean

larger items.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 48DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 48 2021-03-24 ฀฀ 1:25:352021-03-24 ฀฀ 1:25:35

English 49

Before you start

Rack Tray

You can easily unload cutlery from a removable tray in the upper rack. You can also

remove the left or right tray to load relatively larger utensils. Both trays are removable.

Cutlery rack

Using the glass support

The glass support is especially suited for

wine glasses. Hang wine glasses onto the

pegs of the glass support. Fold the glass

support back when it is not being used.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 49DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 49 2021-03-24 ฀฀ 1:25:362021-03-24 ฀฀ 1:25:36

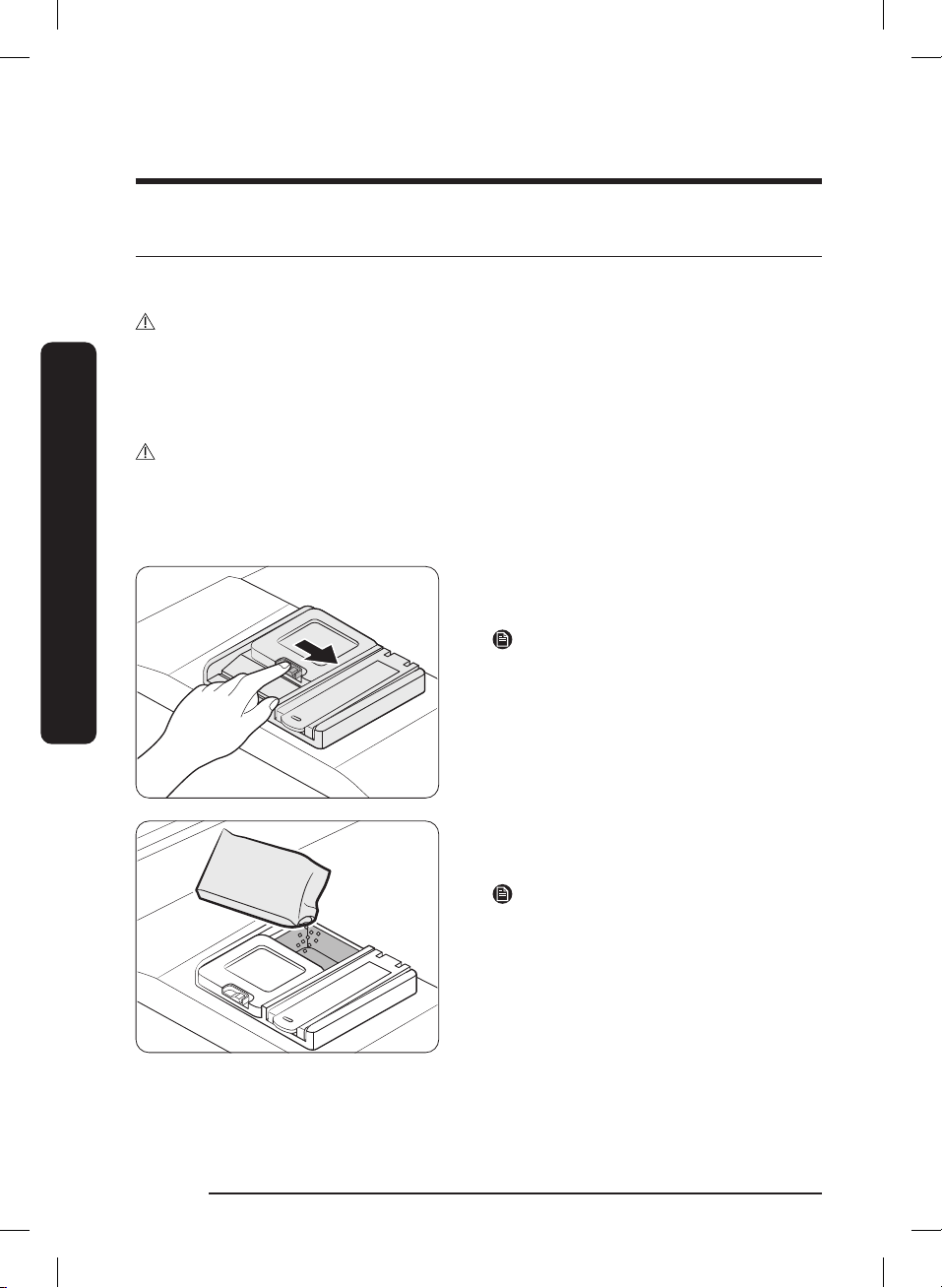

English50

Before you start

Detergent compartment

All dishwasher cycles require detergent in the detergent compartment. Apply detergent as

recommended for the selected cycle to ensure best performance.

WARNING

• Do not place dishwasher detergent in your mouth. Avoid breathing in detergent

fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce

respiratory conditions. If you have consumed dishwasher detergent or inhaled

detergent fumes, seek medical attention immediately.

• Keep dishwasher detergent out of children’s reach.

CAUTION

Use dishwasher detergent only. Other types of detergent produce excessive foam, which

may decrease the dishwasher’s performance or cause it to malfunction.

Filling the detergent

1. Open the detergent dispenser cap by

pushing the detergent dispenser catch

to the right.

NOTE

The cap remains open at the end of a cycle.

2. Add the recommended amount of

detergent to the main wash detergent

compartment.

NOTE

There is no separate button that is specic

to using tablet detergents.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 50DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 50 2021-03-24 ฀฀ 1:25:362021-03-24 ฀฀ 1:25:36

English 51

Before you start

3. Close the lid by sliding it up.

4. If the items are heavily soiled, pour a

small amount of detergent onto the door

for better cleaning results.

NOTE

The additional detergent will activate

during the pre-wash process.

The cover opens automatically to dispense the detergent during the wash.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 51DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 51 2021-03-24 ฀฀ 1:25:362021-03-24 ฀฀ 1:25:36

English52

Before you start

Rinse aid reservoir

Rinse aid improves the drying performance of the dishwasher. When the Rinse Rell

indicator lights up on the control panel, rell with rinse aid. Only use liquid rinse aid.

Powdered rinse aid will clog the reservoir opening and cause the dishwasher to

malfunction.

CAUTION

• Do not apply any type of detergent to the rinse aid reservoir.

• Do not excessively ll the reservoir. Excessive rinse aid may overow during a cycle.

Filling the rinse aid

1. Open the rinse aid reservoir cap.

2. Fill the rinse aid reservoir with rinse aid.

CAUTION

Do not ll the reservoir above the full level

indicator. Excess rinse aid can overow

during the wash cycle.

3. Close the rinse aid reservoir cap.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 52DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 52 2021-03-24 ฀฀ 1:25:372021-03-24 ฀฀ 1:25:37

English 53

Before you start

Salt storage

CAUTION

• Use dishwasher-specic salt only. Do not use any other type of salt or solvent. This may

damage the salt storage and the water softening system.

• To prevent corrosion due to an excessive amount of salt or salty water, always ll the

salt storage before a washing cycle gets started.

Filling the salt storage

1. Open the door.

2. Turn the cap counterclockwise to open.

NOTE

When you open the softener lid, clean

water stored for about one minute may run

out. Add salt to stop the water from leaking

out.

3. Fill the salt storage with water (only

required when using the dishwasher for

the rst time).

4. Apply dishwasher salt.

CAUTION

• The maximum capacity is about 1 kg. Do

not exceed the capacity.

• Exceeding the capacity may affect the

dishwasher performance.

5. Turn the cap clockwise to close.

NOTE

• To clean salt or salt water from

dishwasher, run the Quick cycle.

• Depending on the size of the salt grains,

it may take a while for the salt to

dissolve and the indicator (

) to turn

off.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 53DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 53 2021-03-24 ฀฀ 1:25:372021-03-24 ฀฀ 1:25:37

English54

Before you start

Salt indicator

The indicator (

) turns on if there is not enough salt for the next several cycles.

Touchpad responsiveness

To prevent the touch-enabled controls from losing responsiveness, follow these

instructions.

• Touch the centre of each button with

one nger.

• Do not touch more than one button at a

time, except as directed.

• Clean the surface of the control panel

regularly with a soft, damp cloth.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 54DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 54 2021-03-24 ฀฀ 1:25:372021-03-24 ฀฀ 1:25:37

English 55

Before you start

Setting mode

You can change the sound, auto door open function, rinse aid level, and water hardness

settings to your preference.

Entering the Setting mode

1. Turn the dishwasher on.

2. Press and hold the AUTO cycle button for ve seconds within 60 seconds from turning

on the dishwasher.

- When you entered the Setting mode, the display will show “0:00”.

Sound setting

You can turn the sound on or off.

1. Press the Lower rack only button to select the sound setting menu.

- The display shows the current setting. (Default setting: “U1”)

2. Press the AUTO cycle button to change the setting.

- U0: Sound off

- U1: Sound on

3. Wait 5 seconds to save the setting.

Auto door open function setting

You can set the dishwasher to automatically open the door after each cycle for better

drying results.

1. Press the Speed Booster button to select the auto door open function setting menu.

- The display shows the current setting. (Default setting: “A1”)

2. Press the AUTO cycle button to change the setting.

- A0: Function disabled

- A1: Function enabled

3. Wait 5 seconds to save the setting.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 55DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 55 2021-03-24 ฀฀ 1:25:372021-03-24 ฀฀ 1:25:37

English56

Before you start

Rinse aid level setting

You can change the amount of rinse aid applied during a cycle.

1. To select the rinse aid level setting menu. Select the “AUTO” key for 5 seconds, after the

beep followed by the reset of the “0:00” display, press the “Sanitize” key.

- The display shows the current setting. (Default setting: “F4”)

2. Press the AUTO cycle button to change the setting.

- You can select from F1 - F5 (minimum – maximum).

3. Wait 5 seconds to save the setting.

Water hardness level setting

You can change the water hardness level according to water hardness in your local area.

Changing this setting will have effect on the salt consumption in the dishwasher’s salt

storage.

1. To select the water hardness level setting menu. Select the “AUTO” button for 5 seconds,

after the beep followed by the display reset: “0:00”, press the “Delay Start” button.

- The display shows the current setting. (Default setting: “H3”)

2. Press the AUTO cycle button to change the setting.

- You can select from H1 – H6 (soft – hard).

3. Wait 5 seconds to save the setting.

NOTE

• Change the setting according to the table in the “Adjusting salt consumption” section on

page 62.

• Default Setting: H3

• The dishwasher regenerates the water softener once every 3–4 cycles depending on the

setting. However, the dishwasher will regenerate the water softener on the rst cycle

after you change the setting.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 56DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 56 2021-03-24 ฀฀ 1:25:372021-03-24 ฀฀ 1:25:37

English 57

Operations

Control panel

DW60A807*/DW60A806*/DW60A805* models

01 02 0403 05 06 0807

DW60A804* models

01 02 0403 05 06 08

01 POWER Press to turn the dishwasher on or off.

02 Cycle

Press to select a desired wash cycle. For more information,

see the “Cycle overview” section on page 59.

03 Lower rack only Press to wash items using only the lower rack.

04 Speed Booster

Select this option to reduce the cycle time. This is available

only with the AUTO, ECO, Intensive, and Delicate cycles.

05 Sanitize

Press to increase the water temperature up to 70 °C in the

nal rinse process for high temperature sanitization.

This option is not available with Delicate and Pre Wash.

To activate Control Lock, press and hold Sanitize for

3 seconds. (DW60A807*/DW60A806*/DW60A805* models)

06 Smart Control

(DW60A807*/

DW60A806*/

DW60A805* models)

Control Lock

(DW60A804* models)

You can check product operation remotely by using

Smart Control. For more details, see the separate manual

included with the product.

Control lock allows you to lock the buttons on the control

panel except for the POWER button. For more information,

see the “Control Lock” section on page 64.

07 Delay Start

You can delay the cycle starting time up to 24 hours. For

more information, see the “Delay Start” section on page 64.

08 START

(Cancel & Drain)

Press

START to start operation. Make sure the door is closed.

Cancel & Drain: To cancel the current cycle and drain the

dishwasher, press and hold START for 3 seconds.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 57DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 57 2021-03-24 ฀฀ 1:25:372021-03-24 ฀฀ 1:25:37

English58

Operations

Indicators

DW60A807*/DW60A806*/DW60A805* models

DW60A804* models

No Salt indicator Lights up when the salt storage runs out of salt.

Rinse Rell indicator

Lights up when the dishwasher runs out of rinse aid.

Control Lock indicator

(DW60A807*/

DW60A806*/

DW60A805* models)

Lights up if Control Lock is activated.

Self Clean indicator

(DW60A804* models)

Lights up if Self Clean is activated.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 58DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 58 2021-03-24 ฀฀ 1:25:382021-03-24 ฀฀ 1:25:38

English 59

Operations

Cycle overview

DW60A807*/DW60A806*/DW60A805* models

01 02 04 05 06 07 08 09

DW60A804* models

01 02 03 04 05 06 07 08

01 AUTO

This cycle detects the level of soil and automatically initiates

the optimal cycle, which is appropriate for all levels of soiled

items.

02 ECO

This cycle reduces power and water consumption, which is

appropriate for normally soiled items.

03 Extra Silence

(DW60A804* models)

Select this cycle for more smooth and quiet washing. This

cycle washes a little bit slower, but creates 2 decibels less

noise than the ECO program.

04 Intensive Select this cycle for heavily soiled items.

05 Delicate

Select this cycle for lightly soiled, fragile items such as

glasses. Sanitize option is not available in this cycle.

06 Express 60 Normally soiled daily using items, with short cycle time.

07 Pre Wash

Cold water rinse for removing dirt before running another

program.

08 Self Clean

Select this cycle to clean the inside of the dishwasher. Make

sure the dishwasher is empty. This cycle requires detergent

for proper operation.

09 Download Course

(DW60A807*/

DW60A806*/

DW60A805* models)

Based on the Extra Silence course, you can download the

following additional courses:

• Extra Silence, Baby Care, Plastic, and Pots and Pans

courses

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 59DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 59 2021-03-24 ฀฀ 1:25:382021-03-24 ฀฀ 1:25:38

English60

Operations

Download Course (DW60A807*/DW60A806*/DW60A805* models)

You can download and use courses other than those provided by default through your

smartphone.

1. Press the POWER button.

2. Select Download Course.

3. Select the downloadable course you want to use in your smartphone app.

Extra Silence, Pots and Pans, Plastic, and Baby Care courses are available.

- The default download course is the Extra Silence course.

- When you download via the smartphone app, you can keep using your saved

courses.

4. Press the START button and close the dishwasher door.

Extra Silence

This course is used to quietly clean dishes after a typical

meal. It is longer but quieter than a standard course.

Pots and Pans

Choose to wash pots and pans. This course uses hotter

water and higher pressure than a standard course for

focused cleaning of pot and pans.

Plastic

This course is used when washing plastic dishes. It

washes plastic at a safer temperature (60 °C) and dries

them better.

Baby Care

Suitable for rinsing/drying dishes at a high temperature

of 70 °C. Do not add detergent or rinse.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 60DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 60 2021-03-24 ฀฀ 1:25:382021-03-24 ฀฀ 1:25:38

English 61

Operations

Simple steps to start

1. Open the door, and then load the dishwasher. Make sure to remove food remains and

waste on the dishes.

2. Apply detergent to the detergent dispenser. For better results, add rinse aids.

3. Press POWER, and then select a cycle with necessary options (Lower rack only,

Speed Booster, Sanitize, and Delay Start). Some options may not be available depends

on the cycle.

NOTE

If you select Lower rack only, make sure the dishes are loaded in the lower rack.

4. Press START, and then close the door. The dishwasher starts the cycle after draining for

a few seconds.

NOTE

• To change the cycle after it has started, press and hold START for 3 seconds to cancel

the cycle. Then, select a new cycle.

• The default cycle is ECO.

• To resume after you have opened the door to stop the dishwasher while operating,

simply close the door.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 61DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 61 2021-03-24 ฀฀ 1:25:382021-03-24 ฀฀ 1:25:38

English62

Operations

Salt storage

The water softener is designed to remove minerals and salts from the water, which would

have a detrimental or adverse effect on the operation of the appliance. The higher the

content of these minerals and salts, the harder your water is. The softener should be

adjusted according to the hardness of the water in your area.

Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjusting the amount of salt consumed based on

the hardness of the water used. This is intended to optimise and customise the level of salt

consumption so that the salt consumption could be set proceed as follows:

1. Turn the dishwasher on.

2. Press and hold the AUTO cycle button for ve seconds within 60 seconds from turning

on the dishwasher.

- When you entered the Setting mode, the display will show “0:00”.

3. Press the Delay Start button to select the water hardness level setting menu.

- The display shows the current setting. (Default setting: “H3”)

4. Press the AUTO cycle button to change the setting.

- You can select from H1 – H6 (soft – hard).

5. Wait 5 seconds to save the setting.

NOTE

• It is recommended that adjustments should be made in accordance with the following

(or Manual) table.

• Default Setting: H3

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 62DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 62 2021-03-24 ฀฀ 1:25:382021-03-24 ฀฀ 1:25:38

English 63

Operations

Water hardness

Water

hardness

setting

Salt

consumption

(gram/cycle)

Autonomy

(cycles/1 kgs)

°dH °fH °Clark mmol/l

0-5 0-9 0-6 0-0.94 H1 0 /

6-11 10-20 7-14 1.0-2.0 H2 20 60

12-17 21-30 15-21 2.1-3.0 H3 30 50

18-22 31-40 22-28 3.1-4.0 H4 40 40

23-34 41-60 29-42 4.1-6.0 H5 50 30

35-55 61-98 43-69 6.1-9.8 H6 60 20

NOTE

• 1 dH (German degree) = 0.178 mmol/l

• 1 Clark (British degree) = 0.143 mmol/l

• 1 fH (French degree) = 0.1 mmol/l

• Contact your local water board for information on the hardness of your water supply.

• WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the

dishwasher, deposits may form on dishes and utensils. The appliance is equipped with

a special softener that uses a salt specically designed to eliminate lime and minerals

from the water.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 63DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 63 2021-03-24 ฀฀ 1:25:382021-03-24 ฀฀ 1:25:38

English64

Operations

Delay Start

You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the

delay time, press

Delay Start. The hour displayed indicates the time at which the cycle will

start.

1. Open the door, and then load the dishwasher.

2. Press Delay Start to change the time in 1-hour increments.

- If you press and hold the button, the time will increase until you release the button.

3. Press START, and then close the door.

NOTE

To change the delay time once the dishwasher has started, press POWER and restart the

dishwasher.

Control Lock

To prevent children from playing with the dishwasher, Control Lock locks all button

controls except for

POWER.

• To activate Control Lock, press and hold Control Lock for 3 seconds. With Control Lock

activated, you cannot select a cycle or option, or start an operation.

• To deactivate Control Lock, press and hold Control Lock again for 3 seconds.

• Control Lock remains active after the dishwasher restarts. To cancel Control Lock, you

must deactivate it rst.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 64DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 64 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 65

Maintenance

Cleaning

Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and

lengthen the lifecycle.

Exterior

Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the

control panel to gently wipe away spills and dust.

CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances.

These materials may discolour the surface of the dishwasher and cause stains.

• The dishwasher has electric parts inside. Do not spray water directly onto the

dishwasher. Protect electrical components from water.

• For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a

clean, soft cloth.

Interior

Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles.

Wipe inside the dishwasher and inside the door with a wet dishcloth.

CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the

dishwasher). The seal keeps the inner side of the dishwasher sealed.

• Use a damp cloth to remove lime scale or grease deposits inside the dishwasher.

Alternatively, apply some detergent, and then run an empty cycle using the highest

rinse temperature.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 65DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 65 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English66

Maintenance

Nozzles

To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean

each nozzle. Use caution when removing the nozzles as they may break.

Upper nozzle

1. Open the door, and then pull out the

upper rack to reveal the upper nozzle.

2. Loosen and remove the nut, and then

remove the nozzle.

3. Unclog and clean the nozzle.

4. Reinsert the nozzle, and then tighten the

nut by hand.

5. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly.

Lower nozzle

1. Open the door, and then pull out the

lower rack. The lower nozzle is visible

on the bottom.

2. Unclog and clean the nozzle.

3. Reinsert the nozzle.

4. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 66DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 66 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 67

Maintenance

Filter

We recommend cleaning the lter every month.

1. Open the door, and then remove the

lower rack rst.

2. Turn the lter handle counterclockwise

to unlock the Coarse lter.

3. Remove the Coarse lter, and then the

cylindrical micro lter underneath.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 67DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 67 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English68

Maintenance

4. Remove any dirt and impurities from

the micro lter and the Coarse lter.

5. Rinse them with running water, and then

dry well.

6. Reinsert the lter, and then the Coarse

lter.

7. Turn the lter handle clockwise to lock.

CAUTION

Make sure the Coarse lter is closed properly. A loose cover can reduce the ltering

performance.

Long-term care

If you will not use the dishwasher for an extended period of time, rst drain the unit

completely, and then disconnect the water hose. Shut off the water supply valve and the

circuit breaker. Water remaining in the hoses or the internal components can damage the

dishwasher.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 68DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 68 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 69

Troubleshooting

Checkpoints

If you encounter an issue with the dishwasher, rst check the table below and try the

suggestions.

Symptom Possible cause Action

The dishwasher does

not start.

The door is not completely

closed.

• Make sure the door is

latched and completely

closed.

• Make sure the upper rack

is properly joined with the

nozzle.

• Make sure the upper rack is

properly assembled.

The power cord is not

connected.

• Connect the power cord.

Water is not being supplied.

• Make sure the water supply

valve is open.

The control panel is locked. • Deactivate the Control Lock.

The dishwasher has

bad odours.

Water remains from the

previous cycle.

• With the dishwasher empty,

add detergent, and then

run the Quick cycle. This is

available only on applicable

models.

Water remains in the

dishwasher after a

cycle has nished.

The drain hose is folded or

clogged.

• Straighten and unclog the

hose.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 69DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 69 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English70

Troubleshooting

Symptom Possible cause Action

Food remains on

dishes.

An incorrect cycle was

selected.

• Select a cycle according to

the soil level of the dishes

as instructed in this manual.

The lters are clogged or not

correctly fastened.

• Clean the lters.

• Make sure the lters are

correctly fastened.

An insufcient amount of

detergent was used.

• Use the correct amount of

detergent for each load.

The water pressure is low.

• Make sure the pressure is

between 0.04-1.0 Mpa.

The nozzles are clogged.

• Clean and unclog the

nozzles.

Dishes improperly loaded or

overloaded.

• Arrange the dishes so

they do not interfere with

the nozzles and/or the

detergent dispenser.

The water is too hard.

• Check the salt rell

indicator, and rell with

dishwasher salt.

Dishes are not dried

well.

There is no rinse aid in the

dispenser, or not enough rinse

aid was used.

• Add rinse aid.

• Check the rinse aid settings.

Too many dishes are loaded.

• Overloading may reduce

the drying performance.

Load your dishes as

recommended.

Glasses and cups spilled water

onto other dishes while being

unloaded.

• Empty the lower rack

rst, and then the upper

rack. This will avoid water

dripping from the upper

rack onto the dishes in the

lower rack.

Multiple detergent tablets were

used without selecting the

Sanitize option.

• Select the Sanitize option or

use rinse aid.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 70DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 70 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 71

Troubleshooting

Symptom Possible cause Action

The dishwasher is

too noisy.

The dishwasher makes a sound

when the dispenser cover is

open and the drain pump is

operating.

• This is normal.

The dishwasher is not level.

• Make sure the dishwasher

is level.

The nozzle bumps against the

dishes, creating a chopping

sound.

• Rearrange the dishes.

Yellow or brown lm

remains on dishes.

Coffee and tea soils.

• Use a cycle with a higher

temperature.

Indicators do not

light up.

The power cord is not

connected.

• Check power supply is

present.

The nozzles do not

rotate smoothly.

The nozzles are clogged with

food particles.

• Clean the nozzles.

A white coating

remains on dishes.

The water is too hard.

• Make sure the salt ll

indicator and softener

settings are correct

according to the water

hardness of your area.

• Make sure the salt storage

cap is correctly fastened.

Air bubbles and

scratch marks are on

the control panel.

Air gets into the protective

lm, causing EPS marks to

remain.

• Remove the protective lm

from the control panel.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 71DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 71 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English72

Troubleshooting

Information codes

If the dishwasher fails to operate, you may see an information code on the display. Check

the table below and try the suggestions.

Code Action

Leakage check

• Close the water supply valve. Go to your home’s circuit breaker panel,

and set the dishwasher’s circuit breaker switch to off. Then, contact the

installer to repair. If the issue continues, contact a local Samsung service

center.

Water supply check

• Check if the water supply valve is closed, if the water supply is

suspended, or if the water inlet valve or line is frozen or clogged by

foreign particles. If the issue continues, contact a local Samsung service

center.

PCB communication check

• Abnormal communication between the main PCB and the sub PCB.

• If the problem continues, contact an authorised Samsung service center.

High temperature heating check

• Functional check. With the dishwasher empty, add detergent, and then

run a cycle. If the issue continues, go to your home’s circuit breaker

panel, and set the dishwasher’s circuit breaker switch to off. Then,

contact a Samsung service center.

Thermistor check

• Temperature sensor is broken (short or open circuit). If the problem

continues, contact an authorised Samsung service center.

Washing pump check

• Abnormal working with washing pump. If the issue continues, contact a

local Samsung service center.

Distribution motor check

• Abnormal working with distribution motor assembly, or main PCB. If the

issue continues, contact a local Samsung service center.

Check lter and drain pipe. If it is jammed, clean it. If the issue continues,

contact a local Samsung service center.

If any information code keeps appearing on the screen, contact a local Samsung service

centre.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 72DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 72 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 73

Cycle chart

8500AM – B grade (DW60A807*, DW60A806*)

Cycle AUTO ECO Intensive

Cycle sequence

Pre wash (45 °C) 

Main wash (55 °C-

65 °C)  Rinse 

Hot rinse (50 °C -

55 °C)  Dry  End

Pre wash 

Main wash (48 °C) 

Rinse 

Hot rinse (41 °C) 

Dry  End

Pre wash (50 °C) 

Main wash (65 °C)

 Rinse 

Hot rinse (58 °C) 

Dry  End

Water consumption

(L)

6.5-16.8 8.5 15.6

Energy consumption

(kWh)

0.650-1.500 0.644 1.330

Cycle time (min.) 149 230 238

Cycle Delicate Express 60 * Pre Wash

Cycle sequence

Pre wash (40 °C) 

Main wash (50 °C) 

Rinse 

Hot rinse (50 °C) 

Dry  End

Pre wash (35 °C) 

Main wash (60 °C) 

Rinse (50 °C) 

Hot rinse (50 °C) 

Dry  End

Pre wash  End

Water consumption

(L)

12 14.4 4.1

Energy consumption

(kWh)

0.880 0.855 0.02

Cycle time (min.) 149 60 15

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 73DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 73 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English74

Cycle chart

Cycle Self Clean

Download cycle

Extra Silence Pots and Pans

Cycle sequence

Pre wash 

Main wash (70 °C) 

Rinse 

Hot rinse (70 °C) 

Dry  End

Pre wash (35 °C) 

Main wash (60 °C) 

Rinse 

Hot rinse (55 °C) 

Dry  End

Pre wash (50 °C) 

Main wash (68 °C) 

Rinse 

Hot rinse (70 °C) 

Dry  End

Water consumption

(L)

13 11.8 20.5

Energy consumption

(kWh)

1.200 1.220 1.840

Cycle time (min.) 162 294 202

Cycle

Download cycle

Baby Care Plastic

Cycle sequence

Hot rinse (70 °C) 

Dry  End

Pre wash 

Main wash (60 °C) 

Rinse 

Hot rinse (60 °C) 

Dry  End

Water consumption

(L)

6.2 13.1

Energy consumption

(kWh)

0.855 1.110

Cycle time (min.) 70 155

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 74DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 74 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 75

Cycle chart

8500AM – C grade (DW60A805*, DW60A804*)

Cycle AUTO ECO Intensive

Cycle sequence

Pre wash (45 °C) 

Main wash (55 °C-

65 °C)  Rinse 

Hot rinse (50 °C -

55 °C)  Dry  End

Pre wash 

Main wash (50 °C) 

Rinse 

Hot rinse (45 °C) 

Dry  End

Pre wash (50 °C) 

Main wash (65 °C)

 Rinse 

Hot rinse (58 °C) 

Dry  End

Water consumption

(L)

8.5-18 9.8 16.6

Energy consumption

(kWh)

0.850-1.550

0.746 (14 settings)/

0.735 (13 settings)

1.500

Cycle time (min.) 149 210 205

Cycle Delicate Express 60 * Pre Wash

Cycle sequence

Pre wash (40 °C) 

Main wash (50 °C) 

Rinse (50 °C) 

Hot rinse (50 °C) 

Dry  End

Pre wash (35 °C) 

Main wash (60 °C) 

Rinse (50 °C) 

Hot rinse (50 °C) 

Dry  End

Pre wash  End

Water consumption

(L)

13.5 15 4.1

Energy consumption

(kWh)

0.950 0.950 0.020

Cycle time (min.) 120 60 15

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 75DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 75 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English76

Cycle chart

Cycle Extra Silence Self Clean

Download cycle

Pots and Pans

Cycle sequence

Pre wash (35 °C) 

Main wash (60 °C) 

Rinse 

Hot rinse (55 °C) 

Dry  End

Pre wash 

Main wash (70 °C) 

Rinse 

Hot rinse (70 °C) 

Dry  End

Pre wash (50 °C) 

Main wash (68 °C) 

Rinse (50 °C) 

Hot rinse (70 °C) 

Dry  End

Water consumption

(L)

13 15 21.8

Energy consumption

(kWh)

1.200 1.250 1.860

Cycle time (min.) 270 145 172

Cycle

Download cycle

Baby Care Plastic

Cycle sequence

Hot rinse (70 °C) 

Dry  End

Pre wash 

Main wash (60 °C) 

Rinse 

Hot rinse (60 °C) 

Dry  End

Water consumption

(L)

3.8 14.4

Energy consumption

(kWh)

0.855 1.125

Cycle time (min.) 71 129

* Pre Wash: This cycle does not activate the Auto Door function nor the drying process.

Continuous use of the Pre Wash cycle for an extended time is not recommended. This

may reduce the performance of the water softener.

NOTE

• The cycle time depends on the options you have added, and the pressure and

temperature of the supplied water.

• The dishwasher drains the remaining water inside automatically if it has not been used

for the last 5 days.

• The power consumption depends on the water temperature and/or load. When the rinse

aid reservoir is empty, time and temperature can increase a little.

• If no rinse aid is used, the cycle time and temperature may increase slightly.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 76DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 76 2021-03-24 ฀฀ 1:25:392021-03-24 ฀฀ 1:25:39

English 77

Appendix

Transportation/relocation

Make sure the dishwasher is empty with no loose parts. First, drain the dishwasher as

follows.

1. Open the door, and then turn the dishwasher on.

2. Select and run the ECO cycle.

3. Press START, and then close the door.

4. When the cycle is nished, open the door after 5 seconds.

5. Press and hold START for 3 seconds to drain water.

6. Close the door.

7. When the draining process is complete, open the door.

8. Turn the dishwasher off, and then shut the water valve off.

9. Disconnect the both the water hose and the drain hose.

CAUTION

Do not shake or sway the dishwasher while moving it. Residual water may drip from the

dishwasher.

Protection against frost

If you leave the dishwasher in a place with a risk of frost for an extended time, make sure

to empty the dishwasher. For details, see the “Transportation/relocation” section.

Disposing the dishwasher and helping the environment

Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it,

please observe your local waste disposal regulations. Cut off the power cord so that the

appliance cannot be connected to a power source.

Remove the door so that animals and children cannot get trapped inside the appliance.

For more ecodesign information

Ecodesign inforamtion can be found by going to user manual at www.samsung.com/

support.

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 77DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 77 2021-03-24 ฀฀ 1:25:402021-03-24 ฀฀ 1:25:40

English78

Appendix

Specications

MODEL

DW60A807*F*

DW60A806*F*

DW60A805*F*

DW60A804*F*

DW60A807*U*

DW60A806*U*

DW60A805*U*

DW60A804*U*

DW60A807*BB

DW60A806*BB

DW60A805*BB

DW60A804*BB

DW60A807*IB

DW60A806*IB

DW60A805*IB

DW60A804*IB

Type Free Standing Built Under Fully Built-in

Fully Built-in

(Sliding)

Power 220-240 V

, 50 Hz

Water pressure 0.04-1.0 Mpa

Wash

capacity

DW60A807* 14 Place settings

DW60A806* 14 Place settings

DW60A805* 14 Place settings

DW60A804* 13 Place settings

Rated power 1760-2100 W

Dimension

(Width x Depth x Height)

598×600×845 mm 598×570×815 mm 598×550×815 mm

Weight (Unpacked)

56 kg

(806* models)

53 kg

(805* models)

51 kg

(804* models)

48.5 kg

(807* models)

44.5 kg

(805* models)

47 kg

(807* models)

47 kg

(806* models)

43 kg

(805* models)

42 kg

(804* models)

46.5 kg

(806* models)

41 kg

(804* models)

Weight (Packed)

61 kg

(806* models)

58 kg

(805* models)

56.5 kg

(804* models)

55 kg

(807* models)

51 kg

(805* models)

53.5 kg

(807* models)

53.5 kg

(806* models)

49.5 kg

(805* models)

48.5 kg

(804* models)

53 kg

(806* models)

47.5 kg

(804* models)

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 78DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 78 2021-03-24 ฀฀ 1:25:402021-03-24 ฀฀ 1:25:40

English 79

For standard test

NOTE

The information for comparability test as follows.

DW60A807*/DW60A806*/DW60A805* models

• Washing capacity: 14 place settings

• Test standard: EN 60436

• Position of upper rack: lower position

• Wash cycle: ECO

• Additional options: None

• Rinse aid level setting: F4

• Water hardness level setting: H3

• Dosage of the standard detergent: main-wash 22 g

• For the arrangement of the items, refer to the below gures

1. Cups

2. Saucers

3. Glasses

4. Mug cups

5. Glass bowls

6. Small serving

bowls

7. Dessert plates

8. Dinner plates

9. Soup plates

10. Oval platter

11. Melamine

dessert

12. Melamine bowl

13. Small pot

14. Oven pot

Upper rack

Lower rack

1. Soup spoons 2. Forks

3. Knives 4. Tea spoons

5. Dessert spoons 6. Serving spoons

7. Serving forks 8. Gravy ladles

Cutlery rack

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 79DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 79 2021-03-24 ฀฀ 1:25:402021-03-24 ฀฀ 1:25:40

English80

For standard test

DW60A804* models

• Washing capacity: 13 place settings

• Test standard: EN 60436

• Position of upper rack: lower position

• Wash cycle: ECO

• Additional options: None

• Rinse aid level setting: F4

• Water hardness level setting: H3

• Dosage of the standard detergent: main-wash 21 g

• For the arrangement of the items, refer below gures

1. Cups

2. Saucers

3. Glasses

4. Mug cups

5. Oven pot

6. Small pot

7. Dessert plates

8. Dinner plates

9. Soup plates

10. Oval platter

11. Melamine

dessert

12. Melamine bowl

13. Glass bowls

14. Dessert bowls

15. Cutlery basket

Upper rack

3 4 1

Lower rack

11 7 7 815

9712

1. Soup spoons 2. Forks

3. Knives 4. Tea spoons

5. Dessert spoons 6. Serving spoons

7. Serving forks 8. Gravy ladles

Cutlery rack

1414 141 8

5 1 5 2 2 2

7 5 5 1 3 3 3

5 5 5

5 5 5 5 5 5

4 1 4 1 4 1 4 4

4 1 4 1 4 1 4 1 4

Cutlery basket

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 80DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 80 2021-03-24 ฀฀ 1:25:422021-03-24 ฀฀ 1:25:42

Memo

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 81DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 81 2021-03-24 ฀฀ 1:25:422021-03-24 ฀฀ 1:25:42

Memo

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 82DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 82 2021-03-24 ฀฀ 1:25:422021-03-24 ฀฀ 1:25:42

Memo

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 83DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 83 2021-03-24 ฀฀ 1:25:422021-03-24 ฀฀ 1:25:42

DD81-03206B-01

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT

AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support

BELGIUM 02-201-24-18

www.samsung.com/be/support (Dutch)

www.samsung.com/be_fr/support (French)

DENMARK 707 019 70 www.samsung.com/dk/support

FINLAND 030-6227 515 www.samsung.com//support

FRANCE 01 48 63 00 00 www.samsung.com/fr/support

GERMANY 06196 77 555 77 www.samsung.com/de/support

ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support

CYPRUS 8009 4000 only from landline, toll free www.samsung.com/gr/support

GREECE

80111-SAMSUNG (80111 726 7864) only

from land line

(+30) 210 6897691 from mobile and land line

www.samsung.com/gr/support

LUXEMBURG 261 03 710 www.samsung.com/be_fr/support

NETHERLANDS 088 90 90 100 www.samsung.com/nl/support

NORWAY 21629099 www.samsung.com/no/support

PORTUGAL 808 207 267 www.samsung.com/pt/support

SPAIN 91 175 00 15 www.samsung.com/es/support

SWEDEN 0771 726 786 www.samsung.com/se/support

SWITZERLAND 0800 726 786

www.samsung.com/ch/support (German)

www.samsung.com/ch_fr/support (French)

UK 0333 000 0333 www.samsung.com/uk/support

IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support

DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 84DW8500AM_DW60A8070BB_EU_DD81-03206B-01_EN.indd 84 2021-03-24 ฀฀ 1:25:422021-03-24 ฀฀ 1:25:42

Samsung Series 11 Dw60a8050u1/eu Built Under 60cm Dishwasher With Auto Door & Smartthings, 14 Place Setting

Product's Documents

User Manual

Specifications

Samsung DW60A8050U1/EU Questions and Answers
