USER MANUAL

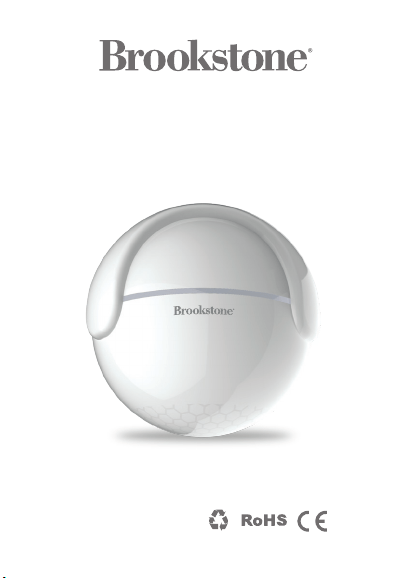

Smart Motion Sensor
For more products please visit www.brookstone.com
FCC Statement:
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
2. This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between
the radiator and any part of your body.
For more products please visit www.brookstone.com
Model: BKSSMS
Battery: CR123A-3V X 1
Standby current: 26uA
Working current: 120mA-130mA
Standby time: 5 Years
Working time: 1 year (7 times/day);
2 years (3 times/day)
Wi-Fi Standard: 2.4GHz 802.11b/g/n
Wireless range: 147 ft
Sensitive distance: 13-20 ft
Operating temperature: 32°F - 104°F
Operating humidity: 20% - 85%
Storage temperature: 32°F - 140°F
Storage humidity: 0% - 90%
System Support: Android/iOS
Size: 48mm x 47mm x 47mm
SPECIFICATIONS
FEATURES
• Wi-Fi connected
• Sends alerts to your phone whenever motion
is detected
• Long battery life
WARRANTY INFORMATION
One Year Limited Warranty.
Customer Service: [email protected]
The BROOKSTONE trademark. names and logos are owned by
BKST Brand Holdings LLC ©2020. All rights reserved
Manufactured, marketed and distributed by Smartpoint LLC, under license
Google and Google Play are trademarks of Google LLC.
App Store
®
is a registered trademark of Apple, Inc
All trademarks and registered trademarks are property of their respective owners.
Made in China
©Smartpoint LLC,
250 Liberty Street, Suite 1A
Metuchen, NJ 08840
PRODUCT CONFIGURATION
Reset process:
(See ADD DEVICE section for reset button location)
(1) Press the reset button for 6 seconds, then release, the
indicator light will flash rapidly. The device will then be in
wi-fi connectmode.(This way is recommended)
(2) Press the reset button again for 6 seconds, then release,
the indicator light will flash slowly. The device will then be
in AP mode.
Holder
Sticker
Screw
Anchor
Reset button
Sensor area
Battery
LED light
Holder
DEVICE MODES
Definition
Wi-Fi Connect Mode
(When sensor is ready
to connect to Wi-Fi)
AP mode
(Connects phone’s Wi-Fi
to sensor’s hotspot)
Triggered mode
(When the sensor
detects motion)
Stand by mode
(Sensor is waiting to
detect motion)
Indicator LED light
flashes quickly
Status of LED Light
Indicator LED light
flashes slowly
Indicator LED light
flashes for a few seconds
Indicator LED light is off
DOWNLOAD APP
Brookstone Smart
1. Android: download “Brookstone Smart” app
on GooglePlay.
2. iPhone: download “Brookstone Smart” app
from the App Store.
REGISTRATION AND LOGIN
1. Run the “Brookstone Smart” app from your
smart phone.
2. Register and login.
Place holder in an area where you would like to get
notified of motion. Then use the enclosed sticker or
screw to mount the holder. Snap the motion sensor
into the holder and direct it at the area you would
like to detect motion.
PLACEMENT OF DEVICE
Place holder in an area where you would like to get
notified of motion. Then use the enclosed sticker or
screw to mount the holder. Snap the motion sensor
into the holder and direct it at the area you would
like to detect motion.
ADD DEVICE
1. Twist device to remove cover. Once
cover is removed pull the tab from between
the battery and the metal connector. If the
light is already blinking rapidly, begin the
set up process. If not, then press and hold
the reset button for 6 seconds, until the
indicator light blinks rapidly. The device is
now ready to link to your account via the
Brookstone Smart app.
Reset Button
1. Twist device to remove cover. Once
cover is removed pull the tab from between
the battery and the metal connector. If the
light is already blinking rapidly, begin the
set up process. If not, then press and hold
the reset button for 6 seconds, until the
indicator light blinks rapidly. The device is
now ready to link to your account via the
Brookstone Smart app.
2. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
3. Press the (+) symbol in the top right corner of
the app and select the Motion Sensor
from the list of devices to add.
2. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
3. Press the (+) symbol in the top right corner of
the app and select the Motion Sensor
from the list of devices to add.
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
4. Confirm indicator light is blinking and press
the “confirm indicator rapidly blinks” button
to connect in Smart WiFi Mode.
CONNECTING TO YOUR WIFI NETWORK
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
6. Connecting process will begin. Do not turn off
Smart Motion Sensor or phone while connecting.
Wait for connection process to complete.
7. Once device has been successfully added, name
the device what you would like it to be called in
the app. The Smart Motion Sensor is ready
for use.
4. Confirm indicator light is blinking and press
the “confirm indicator rapidly blinks” button
to connect in Smart WiFi Mode.

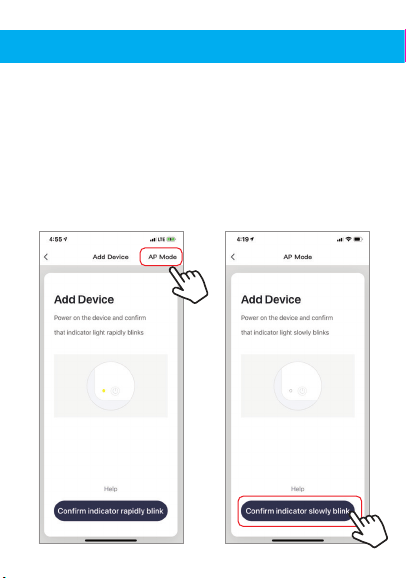

8. Notice: Only follow steps 8-11 if connecting
in AP mode. From the wi-fi connect connect page
click on “AP Mode” in the top right corner.
9. When light is blinking rapidly hold reset button
for 6 seconds and the light should now blink
slowly. Click on the “
confirm indicator slowly
blinks” button.
8. Notice: Only follow steps 8-11 if connecting
in AP mode. From the wi-fi connect connect page
click on “AP Mode” in the top right corner.
9. When light is blinking rapidly hold reset button
for 6 seconds and the light should now blink
slowly. Click on the “
confirm indicator slowly
blinks” button.
10.
Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
11. Follow the on screen instructions. Connecting
process will begin. Do not turn off Motion
Sensor or phone while connecting. Wait for
connection process to complete.
MAIN FUNCTIONS

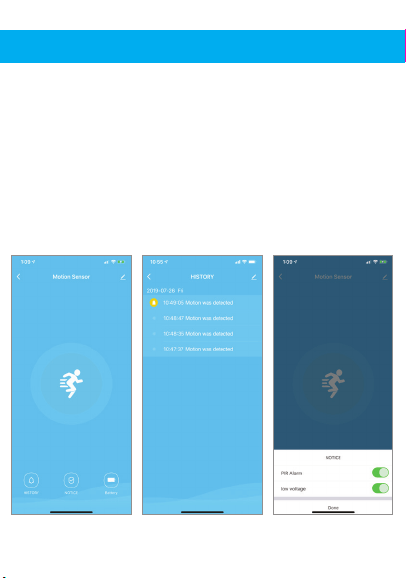

1. The Smart Motion Sensor will detect when motion is
detected. It will send an alert 3-5 seconds after sensor is
triggered.
2. To view alarm recording history click the “HISTORY”
button.
3. To turn off/on push notifications click the “NOTICE”
button. From here you are able to turn on/off
notifications for motion detection and low battery.
1. The Smart Motion Sensor will detect when motion is
detected. It will send an alert 3-5 seconds after sensor is
triggered.
2. To view alarm recording history click the “HISTORY”
button.
3. To turn off/on push notifications click the “NOTICE”
button. From here you are able to turn on/off
notifications for motion detection and low battery.

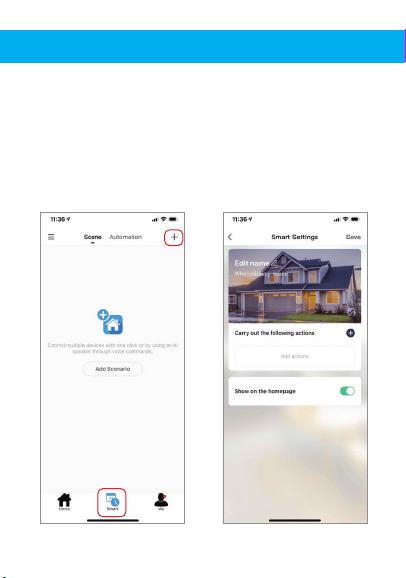

4. To connect two devices via scene click on “Smart” button
on the bottom center of the home screen. Then click the
(+) symbol at the top right of the screen and follow the
onscreen instructions.
5. Now you can have certain devices carry out actions
based on notifications of other devices.
DEVICE SHARING

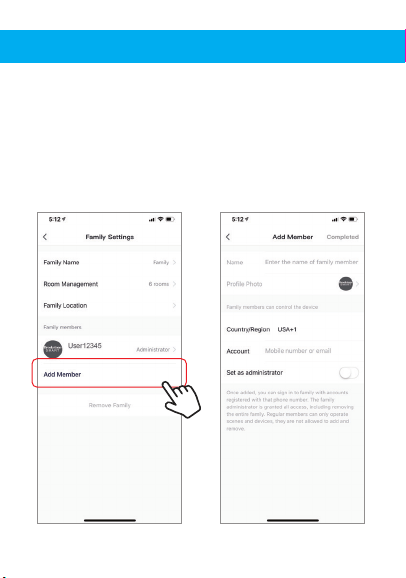

1. You can allow others in your family to have access to
the Smart Motion Sensor to receive alerts.
2. Click on the “Me” button at the bottom right of the
home screen. Then click on “Home Management”. Then
click on “Family” at the top. (If you changed the name of
your family in the app it will appear as what you
changed it to here).
3. Click on “Add Member”.
4. On this screen fill out the information of the family
member you would like to give access to. Make sure to
use the phone number or email that your family
member set up their Brookstone Smart account with.
PUSH NOTIFICATIONS
1. You can turn on/off notifications for all devices
connected to app by clicking on the “Me” button at the
bottom right of the screen.
2. Then click on ”Settings” button. From there you can turn
on/off all notifications.

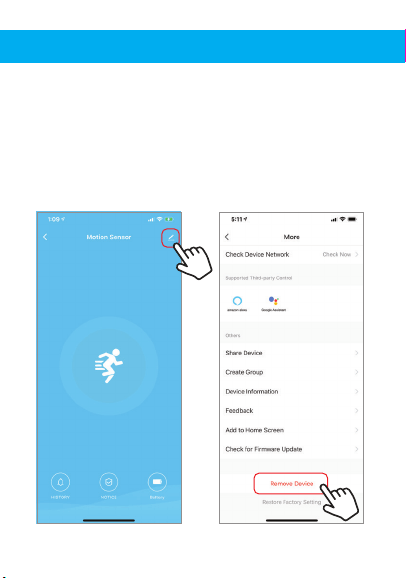

REMOVE A DEVICE
1. From the home screen, click on the device you would like
to remove.
2. Then click on the edit symbol on the top right of the
screen.
3. From there you would then click the “Remove Device”
button at the bottom of the screen.
