IVDFS645
To r e v ie w t h e se c t i o n o n Tr o u b l es h o o t i n g Ti p s
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully reading it before using the dishwasher
will help you to use and maintain the dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections of Safety Instructions,
Operating Instructions, Installation Instructions and
Trou bles hooti ng Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Keep it to refer to at a later date.
If you can not resolve the troubles by yourself ,
please ask for the help of professional technicians.
Dishwasher Features.................................... ...3
Attention before or after loading the Dishwasher
Baskets..........................................................7
Filtering System.............................................13

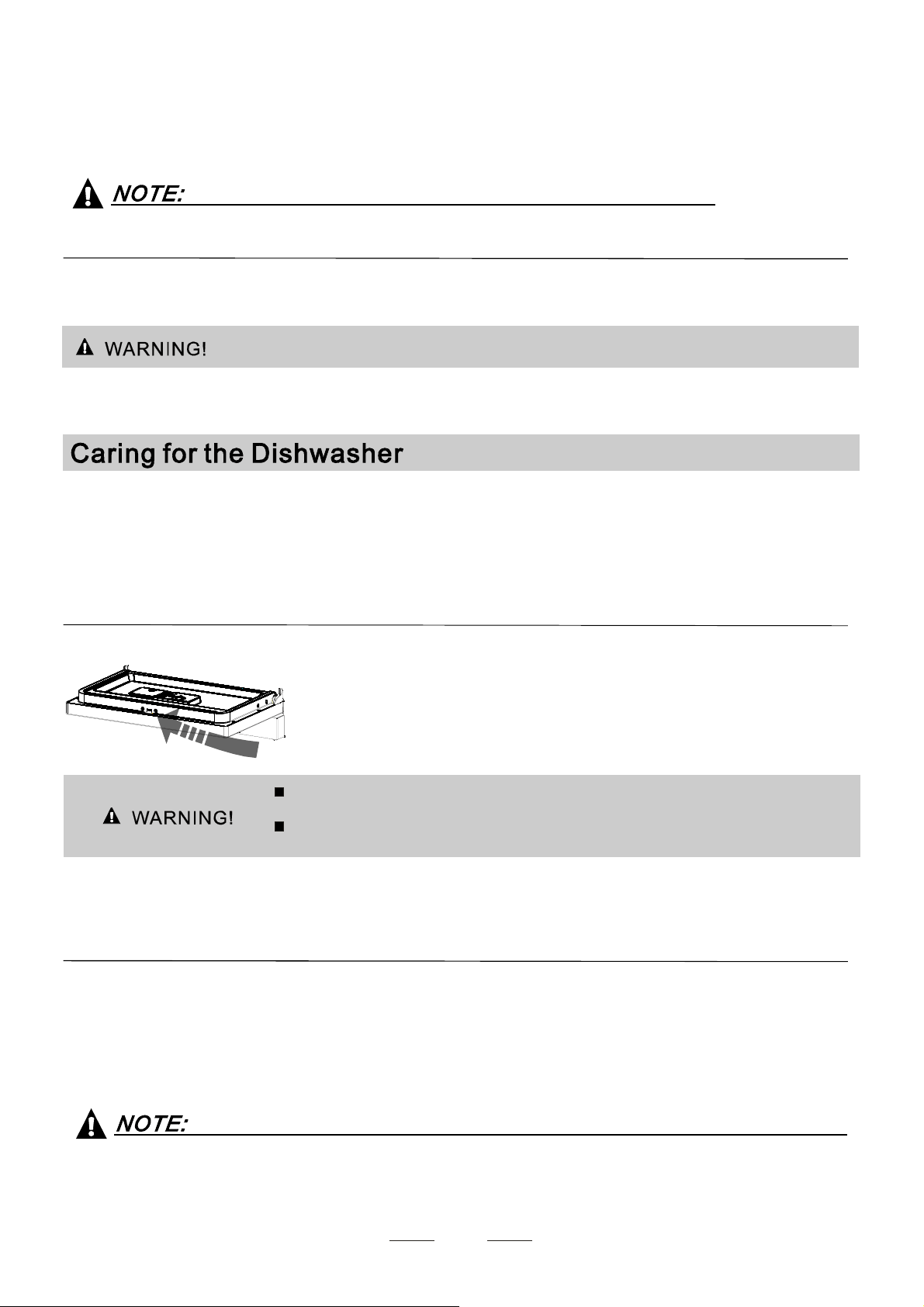

Caring for the Dishwasher..................... .........14.
AFilltheRinseAidDispenser.........................4ʙ
BFunctionofDetergent.................................5ʙ

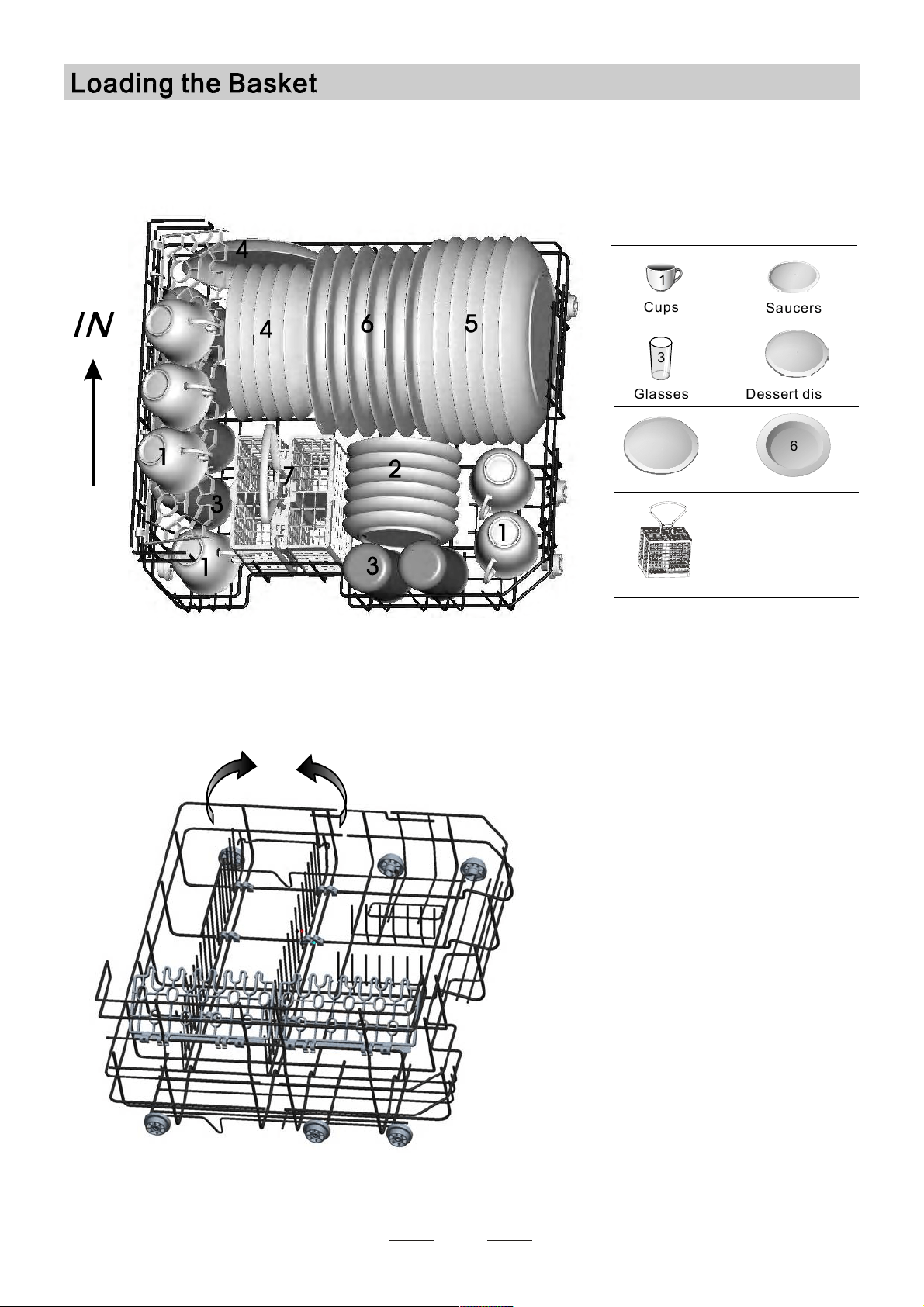

Loading the Basket...........................................8

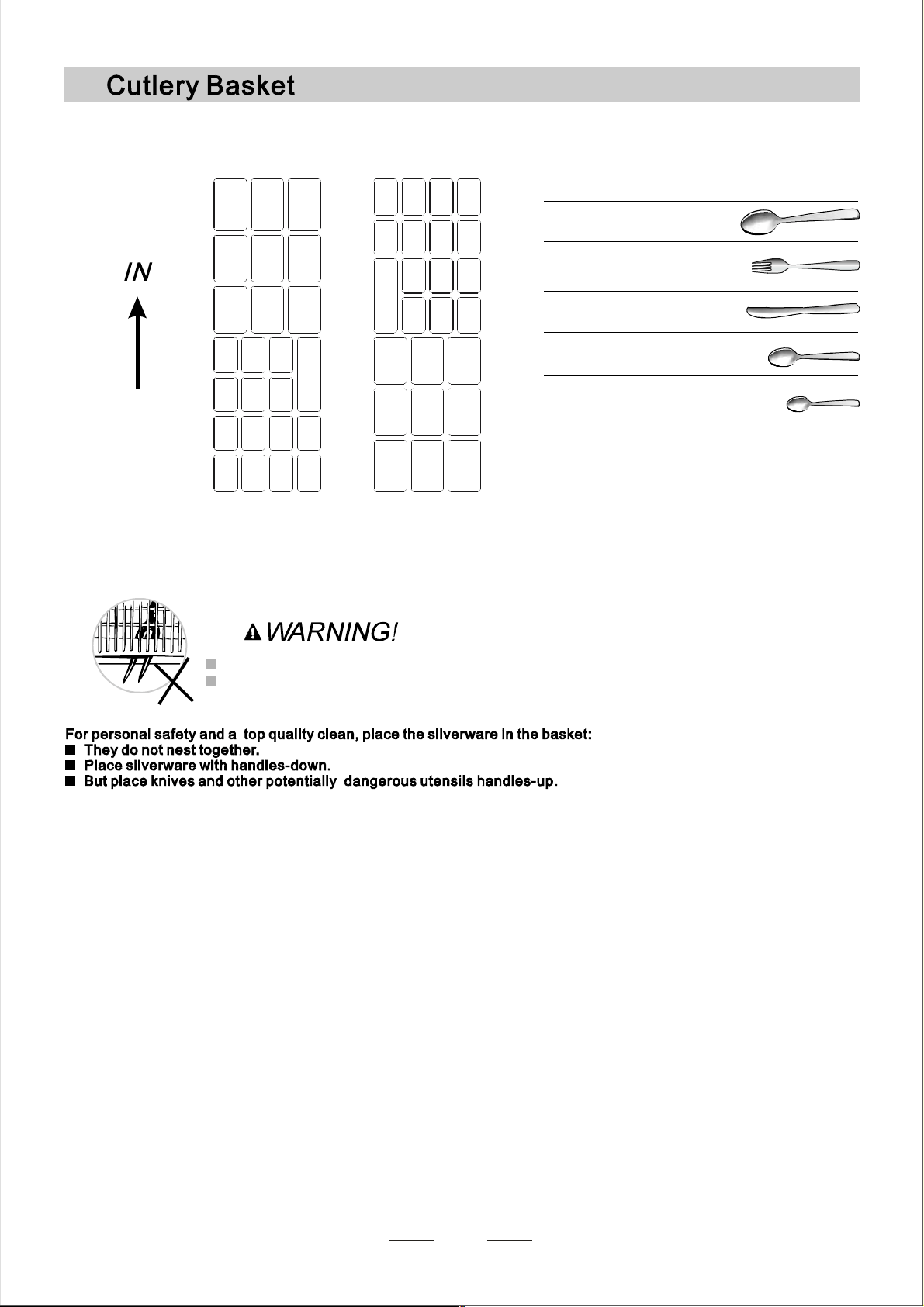

Cutlery Basket................................................9
Wash Cycle Table...........................................11
Turning on the Appliance................................11
Change the Programme.............. ................12....
At the End of the Wash Cycle...........................12
Positioning the Appliance................... ..........16..
Water Connection.................................. .......16.
About Power Connection........................ .......16.

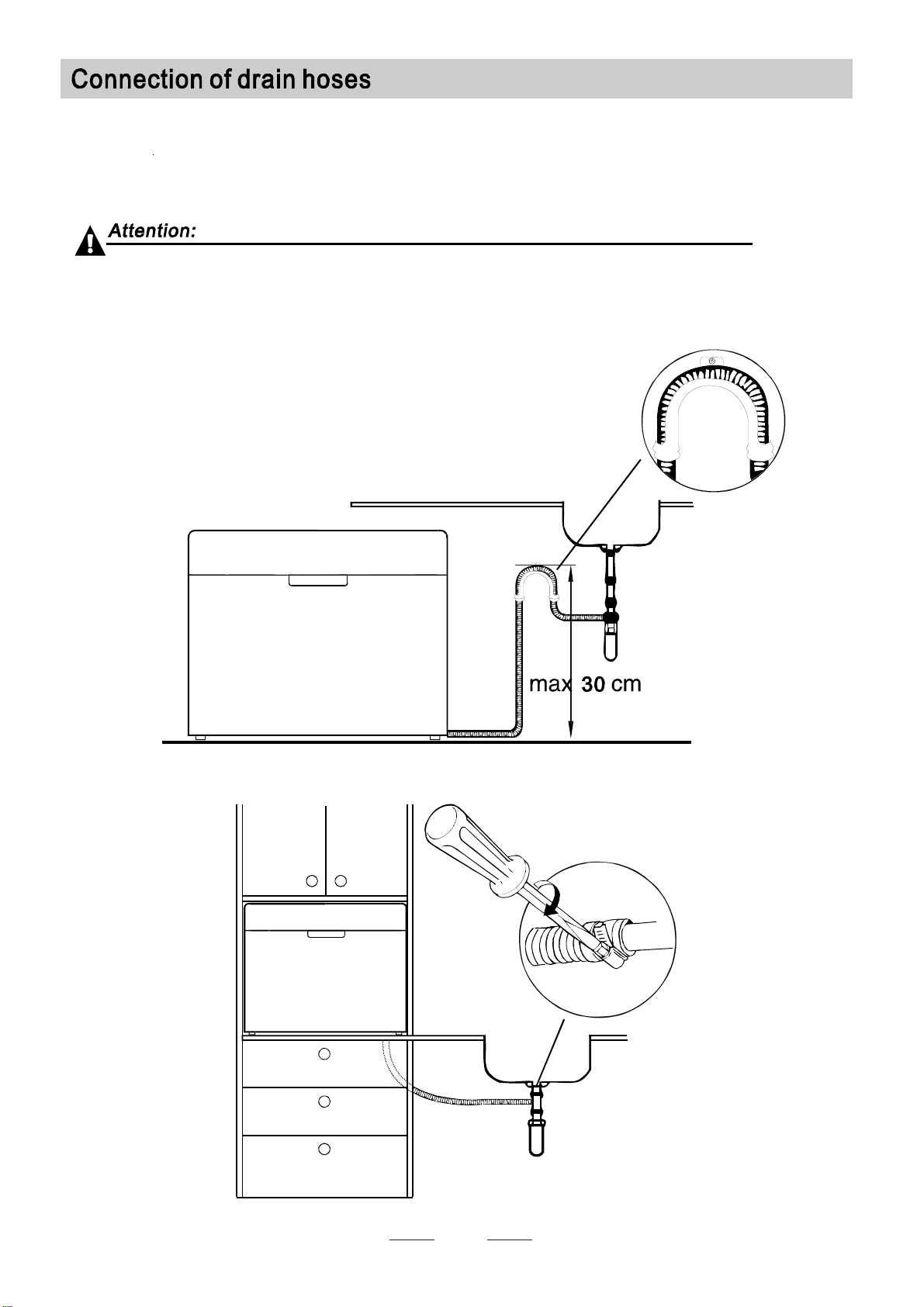

Connection of Drain Hoses..................... .......17.
Start of dishwasher............................. .. ......18.. ..

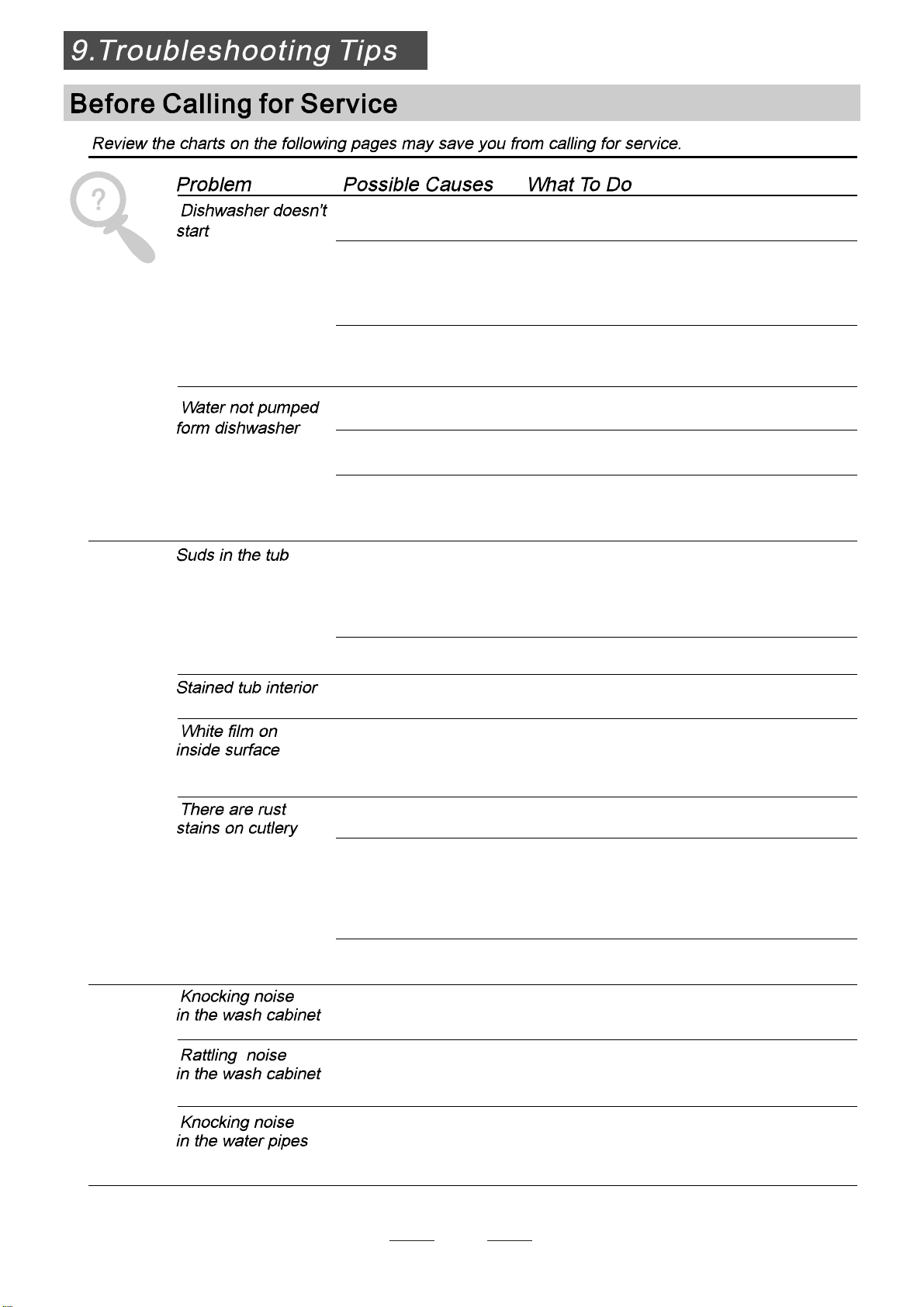

Before calling for service........................... .....19.
Error codes.................................... ..............20.

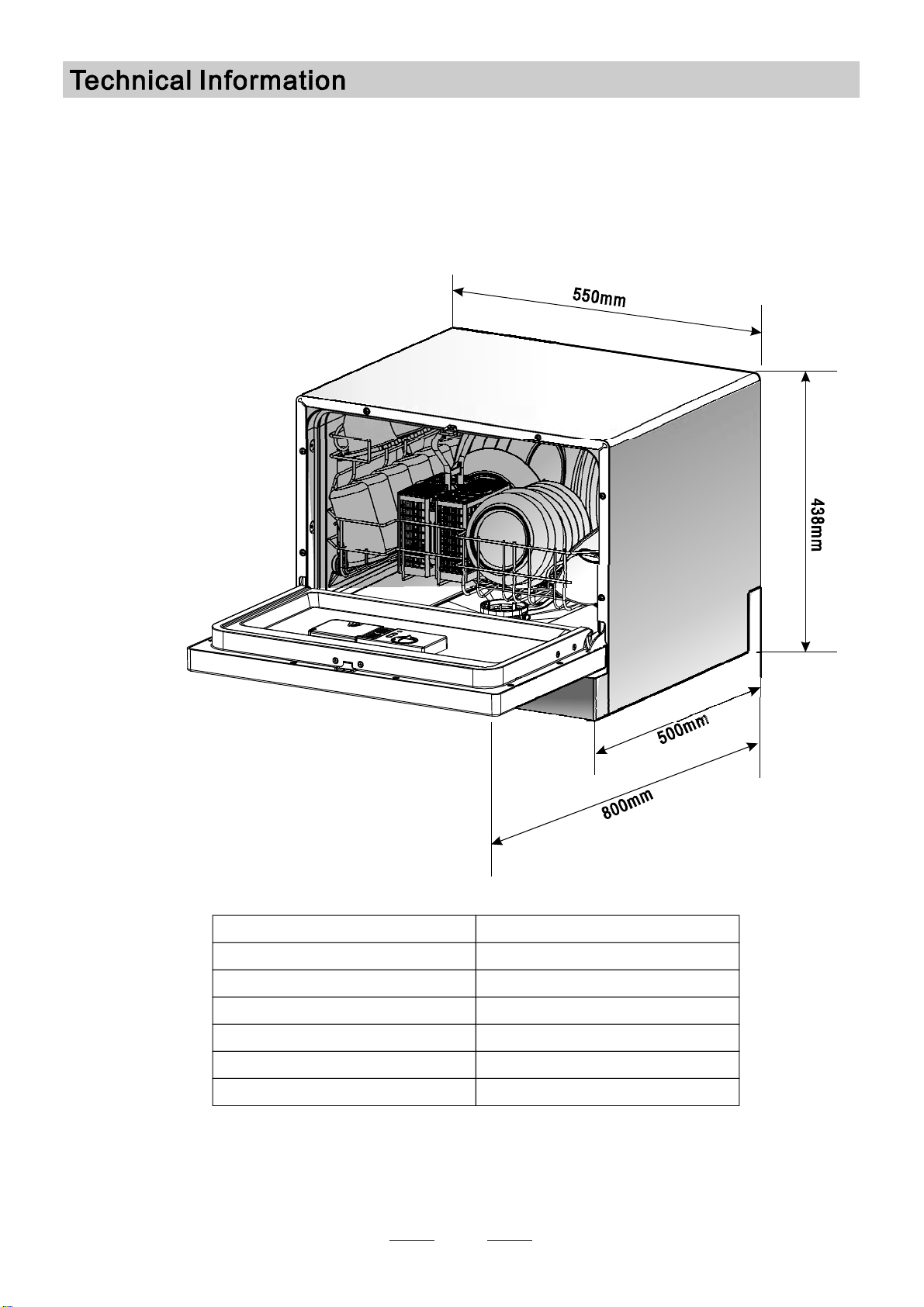

Tech n ic al in f o rm at i on . . . . .. . . . . .. . .. . . .. ... ..... . . . . . . . . 21..
Control Panel...................................................3

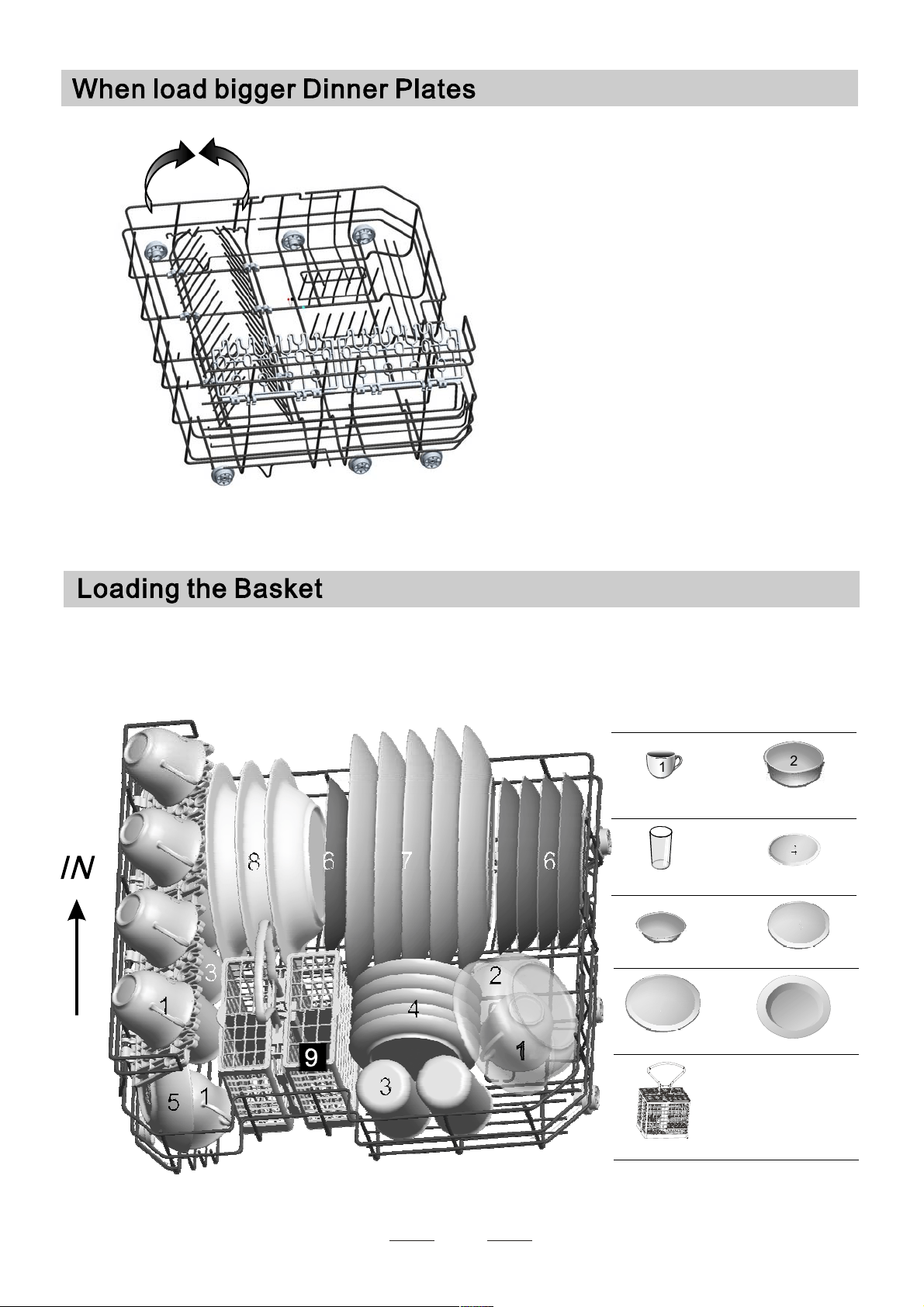

When load bigger Dinner Plates .................... 10
This appliance is intended to be used in household and
similar applications such as:
staff kitchen areas in shops, offices and other working
environments;
farm houses;
by clients in hotels, motels and other residential type
environments;
bed and breakfast type environments.
1
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
n
ot so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
The door should not be left in the open position
since this could present a tripping hazards.
Do not tamper with controls.
Do not place any heavy objects of stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2Warning:Knivesandotherutensilswith
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
)
When using your dishwasher, you should
prevent plastic items from coming into contact
with heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding
it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent receptible is empty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 6.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it is not fit for
the outlet. Have a proper outlet installed by a
qualified electrician.
2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut
off the power supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
3
before using it for the first time.
To g e t th e be st p e r for m ance f r om y o u r d i s h w a s he r, r e a d all o p er a t i n g in s t r u ct i o n s
'SPOU WJFX
#BDL 7JFX
Filter assemblyDetergent Dispenser
Cup Shelf
Cutlery Basket
Rinse Aid Dispenser
Inlet pipe connector
Drain pipe connector
Spray Arms
Basket
1
Salt Container
5
6
7
8
9
10
3
2 4
3
2
6
4
7 8
9 10
5
1
PROG.
5
2
3
4
6
7
1
2

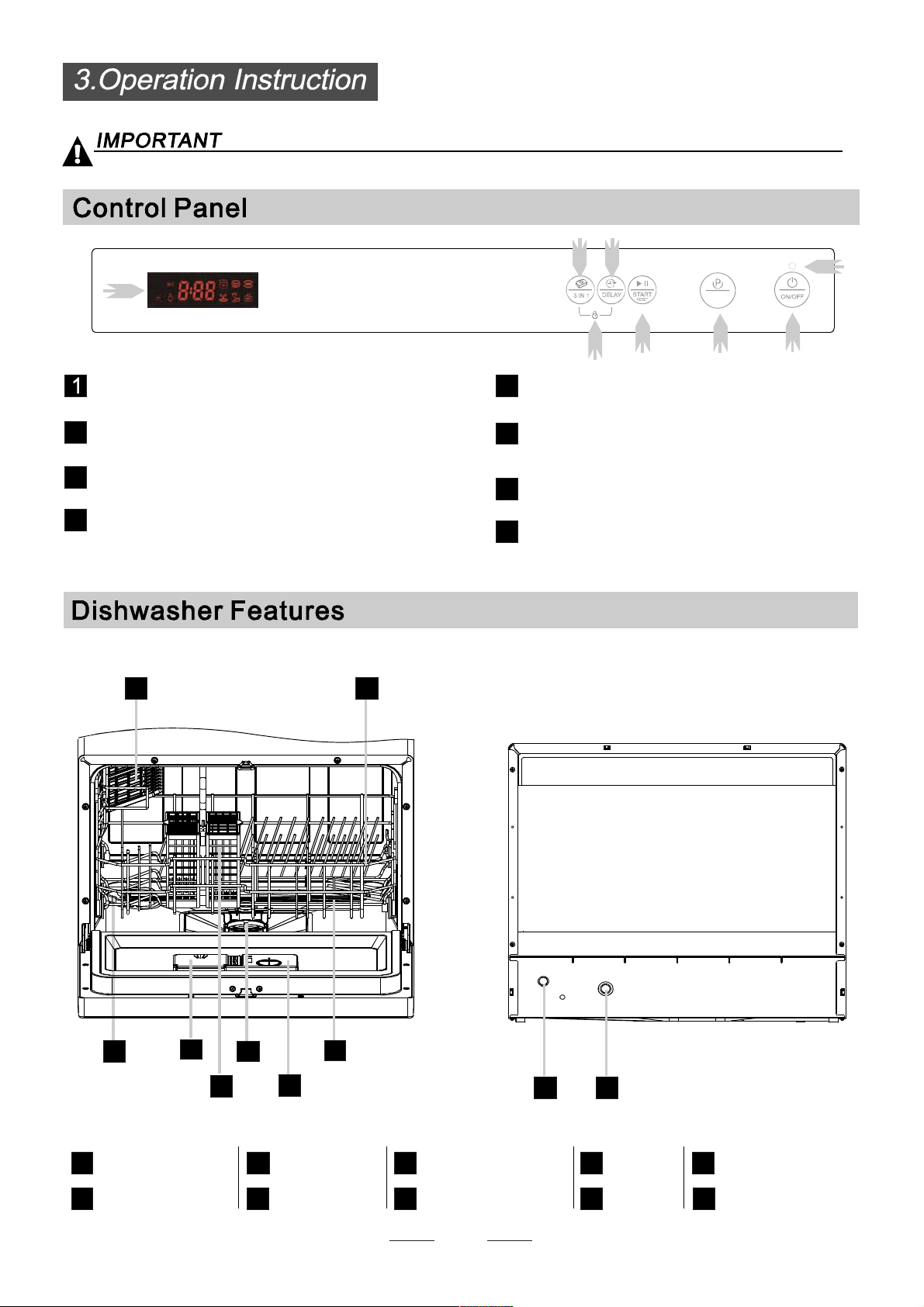

Power Button: To turn on/off the power supply.
Power Light : To be on when the ON/OFF Button is
Pressed down.
Washing Program Selector: To press the button to
select wash cycles.
Start/Reset Button: Press this button to start or
pause the dishwasher.
3in1 function Button: To press the button When
you need no salt and rinse aid but 3in1 tablet.
(Only for program: Intensive/Heavy/Normal.)
Delay Button To press the button to delay time
(0~24hours)
⩤
Child lock function: To press 3in1 function
button and delay button at the same time.
8
8
Display: To show delay time, rinse-aid warming,
countdown of washing cycle's time, program
what you selected, child lock function, 3in1
function and so on.
4

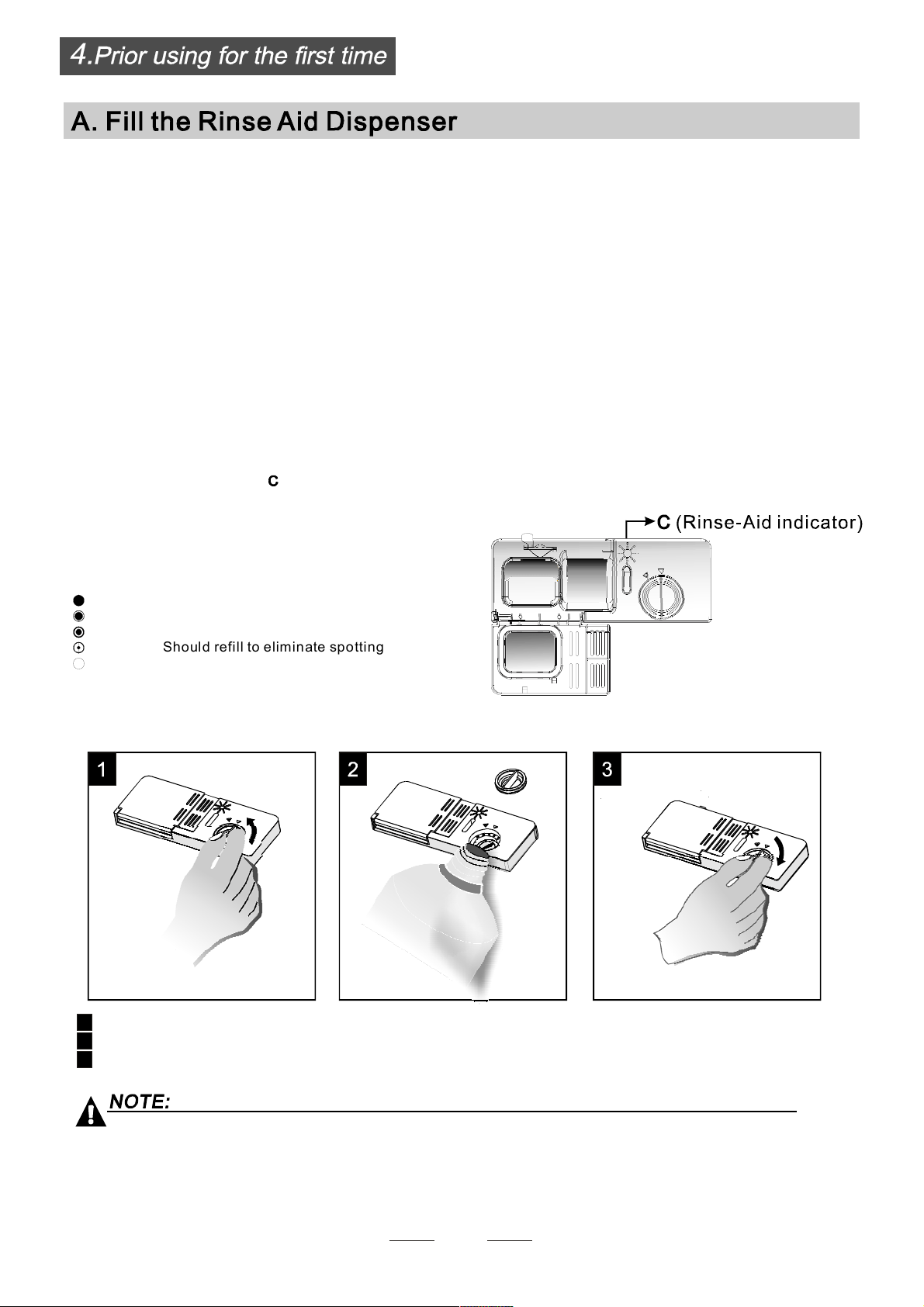

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave
spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to
use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the
dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.
The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color
of the optical level indicator located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid get below 1 / 4 full.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
To op e n t he d i sp e n ser, t ur n t he ca p t o the " o p e n" ( le ft ) arr ow an d l if t i t o u t .
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
during the next wash.
Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming

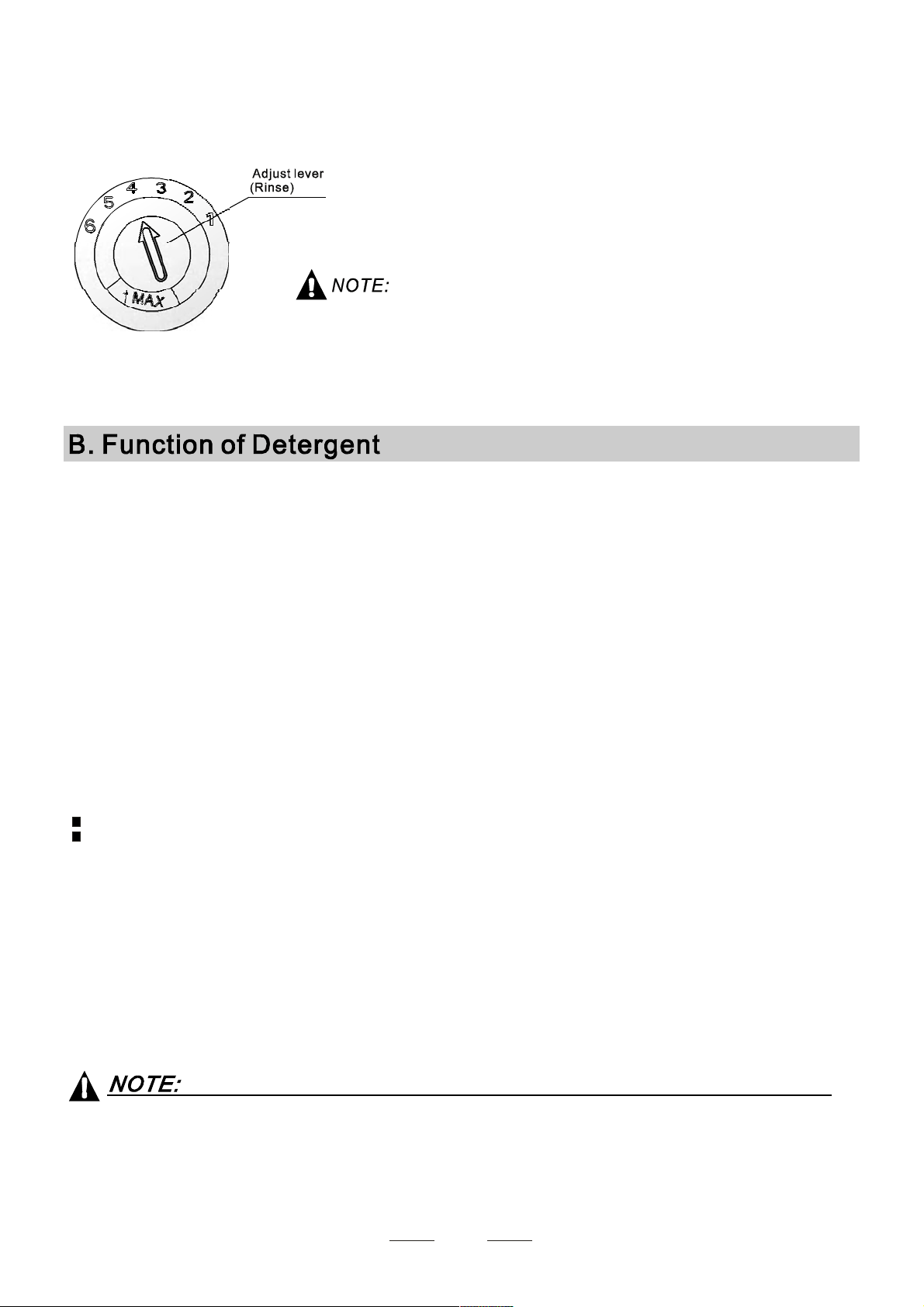

Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are problems, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are spotted, adjust the dial to the next
higher number until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
5
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of commercial quality detergents are suitable for this purpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride
Based on their chemical composition, dishwasher can be split in two basic types:
The use of normal washing programmes in conjunction with concentrated detergents
reduces pollution and is good for your dishes; these wash programmes are specially matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programmes in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using intensive programmes.
Ŷŷ
Ŷŷ
Ŷŷ
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programmes. Therefore please use long programmes when using detergent tablets, to
ensure the complete removal of detergent residuals.
Concentrated Detergent
Detergent Tablets
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. The water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
removed completely. In this case please choose a programme with higher Temperature.
Detergent tablets are only for the models with 3 in 1 function or 3 in 1 program.
Amount of Detergent to Use
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table . Your dishwasher uses less detergent and rinse aid then
conventional dishwasher. Generally, only one tablespoon of detergent is needed for
anormalwashload.Also,moreheavilysoileditemsneedmoredetergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.

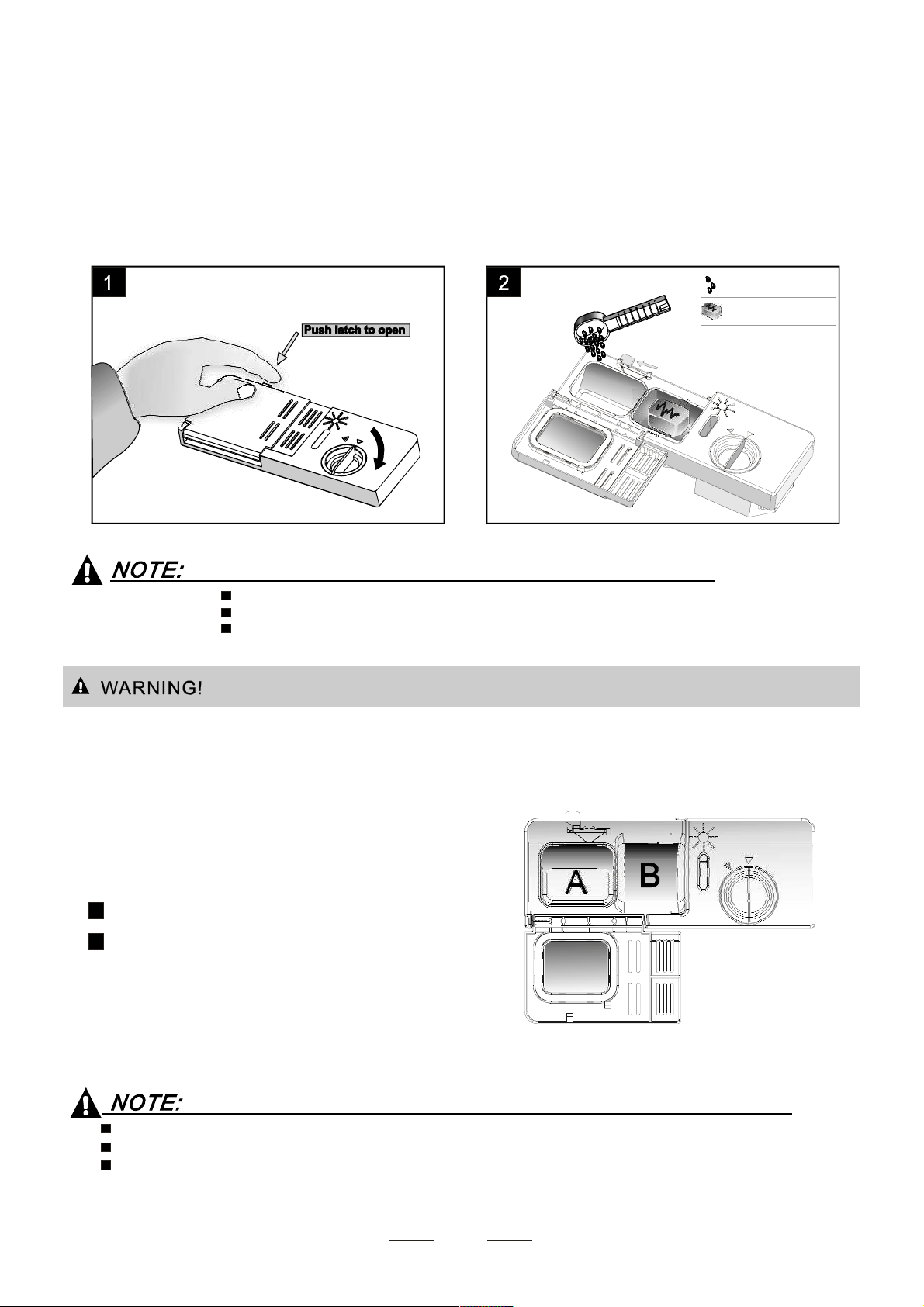

Detergent Dispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid springs open.
6
Detergent tablet
Detergent powder
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on right:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in detergent
You find information about the amount o f detergent for the single programme on the last page .
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Proper Use of Detergent
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
7
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
heat resistant
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable
Are of limited suitability
Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a programme with as low a temperature.
To prevent da mage, do not take gla ss a nd c utlery out of the dishwasher immediately
after the programme has ended.
Consider buying utensils which are identified as dishwasher-proof.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoi d damage to gl asse s, th ey m us t not touc h.
Load large items which are most difficult to clean into the basket.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable energy consume.
Load hollow items such as cups, glasses, pans etc. With the opening downwards so that
water cannot collect in the container or a deep base.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are face down.
2.Curved items, or those with recesses, should be loaded at a slant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotated freely during washing.
Very sm al l it ems should n ot b e washed i n the dish washe r as they could easily fall out of the basket.
8
Position the dishes and cookware so that they will not get moved by the spray of water.
Saucers
2
3
Glasses
1
Cups
5
Dinner plates
6
Soup plates
Dessert dishes
4
Cutlery basket
7
Plate racks of Basket
The basket is fitted with plate racks which
can be stowed horizontal if required.
9
Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon
should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal
position at the front of the upper basket as shown.
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
3
33
1
2
1
3
4
5
1
1
3
1
3
5
1
5
5
4
4
2
2
4
2
2
5
5
4
4
2
Te a s p o o n s
4
Soup spoons
2
Forks
1
Knives
5
3
Dessert spoons
10
Plate racks of Basket
When load bigger Dinner plates,
please fold the rack to left picture
showed location.
The maximum plate can be loaded
is 270mm(10 inches) diameter.
Position the dishes and cookware so that they will not get moved by the spray of water.
Saucers
4
Large serving bowl
3
Glasses
1
Cups
6
7
Dinner plates
8
Soup plates
Dessert dishes
9
Dish
5
Cutlery basket
2
11
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
*:Thisprogramisthetestcycle,therinse-aiddispenser
setting is recommended to Position 6.
AS/NZS 2007. 1
Starting a wash cycle...
1.Draw out the basket(see the section entitled Loading the Dishwasher ).
2. Pour in the detergent (see the section entitled Detergent and Rinse Aid ).
3. Insert the plug into the socket. The power supply is 220-240
VAC 50 HZ , the specific a tion of the s ock e t is 10 A 250 VAC.
4. Make sure that the water supply is turned on to full pressure.
Āā
Āā
5.Close the door, press the power button.
6.Press the program button to select the desired program, If a program is selected, the program icon will
display in the LED display.
7.Then press the Start/Reset button, the dishwasher begins to start.
When you press the Start/Reset button to pause during washing,
the program light will stop blinking and the dishwasher will mooing
every minute unless you press the Start/Reset button to start.
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
Ashorterwashforlightly
soiled loads that do not
need drying.
For lightly soiled loads,
such as glasses, crystal and
fine china.
15 g.
120
105
140
30
80
0.70
0.48
0.94
0.30
0.48
7.7
8.7
9.7
5.8
4.0
Pre-wash
Wash (60 )
Rinse
Rinse (70 )
Drying
ć
ć
Wash (55 )
Rinse
Rinse
Rinse (50 )
Drying
ć
ć
Wash(40 )
Rinse
Rinse(70 )
ć
ć
Drying
/
14
2.1
0.01
Pre-wash
Wash (40 )
Rinse
ć
Rinse
Intensive
Pre-wash 50
Wash (70 )
Rinse
Rinse
Rinse (70 )
Drying
ć
ć
ć
()
Rinse
Rapid
To ri n se d i sh e s t ha t y o u
plan to wash later that day.
Heavy
*
AS/NZS 2007.1
Normal
Soak
4/18.5g
4/18.5g
4/18.5g
/PUF 8F SFDPNNFOE ZPV PQFO UIF EPPS TMJHIUMZ NN UP BTTJTU JO ESZJOH PG UIF EJTIFT
/PUF
5FTUQSPHSBNGPSTUBOEBSE"4/;4UIF3JOTF"JETFUPO
For heavy soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For normal soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
/
It is dangerous to open the door when washing, because the hot water may scald you.
When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
In the digital display appears 0 (remaining programme time), only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
will keep on working after 10 seconds.
If you open the door when washing, the machine will pause. When you close the door , the machine
12
Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the
door completely.
2
3
Open the door a little to stop the washing.
1
4
5
6
Premise:
Otherwise, the detergent may have already been
released, and the appliance may have already drained the wash water. If this
is the case, the detergent dispenser must be refilled (see the section entitled
"LoadingtheDetergent").
Press Start/Reset Button more than three seconds the machine will be in stand
by state ,then you can change the program to the desired cycle setting (see
the section entitled " Starting a wash cycle. . ." ).
NOTE: If you open the door during washing, the machine will pause. When you
close the door, the machine will keep on working after 10 seconds.
The LED display shows the state of the dishwasher:
display
display
display
a) The LED off----------------------------------------On stand by
b) The LED on--------------------------------------Being paused
c) Colon icon in the LED blinking----------------------Running
You c an modi fy the wa s h ing pro g ra m, W h en t he d i shwas h er just
runs for a short time.
Press the start/reset button
Press the start/reset button, the dishwasher will run
after 10 seconds.
The filter prevent larger remnants of food or other objects from getting inside the pump.
The filter system consists of a coarse filter, a flat (Main filter)
and a micro filter (fine filter).
Food and soil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain.
Main filter
1
Larger items, such as pieces of bone or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
Coarse filter
3
This filter holds soil and food residue in the sump area and
prevents it from being redeposit on the dishes during wash cycle.
Fine filter
2
2
3
1
Filter assembly
The filter efficiently
For best performance and results, the filter assembly must be regularly. this reason, it is a good idea to
remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under
running water. To remove the filter assembly, pull on the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be re-cyclated during the cycle.
For
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
the filter system will be installed.
If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1,
13
6WHS᧭᧶FRQWUDURWDWH WKH )LQH
OLIW LW XS6WHS
ILOWHU
6WHS᧶OLIW WKH 0DLQ ILOWHU XS
The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.
The exterior use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to use up water in sump.
please take frost protection measures on dishwasher in winter. E fter washing cycles,
please operate as follows
ach time a
˖
-Inspectthefiltersforblockingeverytimethedishwasherhasbeenused.
-Byunscrewingthecoarsefilter.youcanremovethefiltersystem.Removeanyfoodremnantsand
clean the filters under running water.
Remarks:
Cleaning The Filter
Cleaning The Door
To cl e an the c o a r s e fi lter a nd the f ine f i l te r, use a c l ea n i n g b ru s h. R eass emb le th e fi lter p arts as s how n in th e fi gu r es
in the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.
The entire filter assembly should be cleaned once a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of dishwasher could be debased.
To c l e a n th e e d g e a r o u n d t h e d o or, y o u s h o u l d u s e o n l y a so f t wa r m ,
damp cloth. To avoid penetration of water into the door lock and
electrical components, do not use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agent or some paper towel should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
14
If your dishwasher cannot work because of the ice, please contact professional service persons.
How to Keep Your Dishwasher in Shape
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to ast longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
8.Installation instruction8.Installation instruction
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water with a little
vinegar, or a cleaning product made specifically for
dishwashers.
After Every Wash
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
When it is not in need for a long time
15
The installation of the pipes
and electrical equipments
should be done by professionals.
Warning
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death
or electrical shock.
Attention:
The installation position of dishwasher should be near the existing inlet and drain
hoses and power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain
hoses of the dishwasher.
Installation preparationInstallation preparation

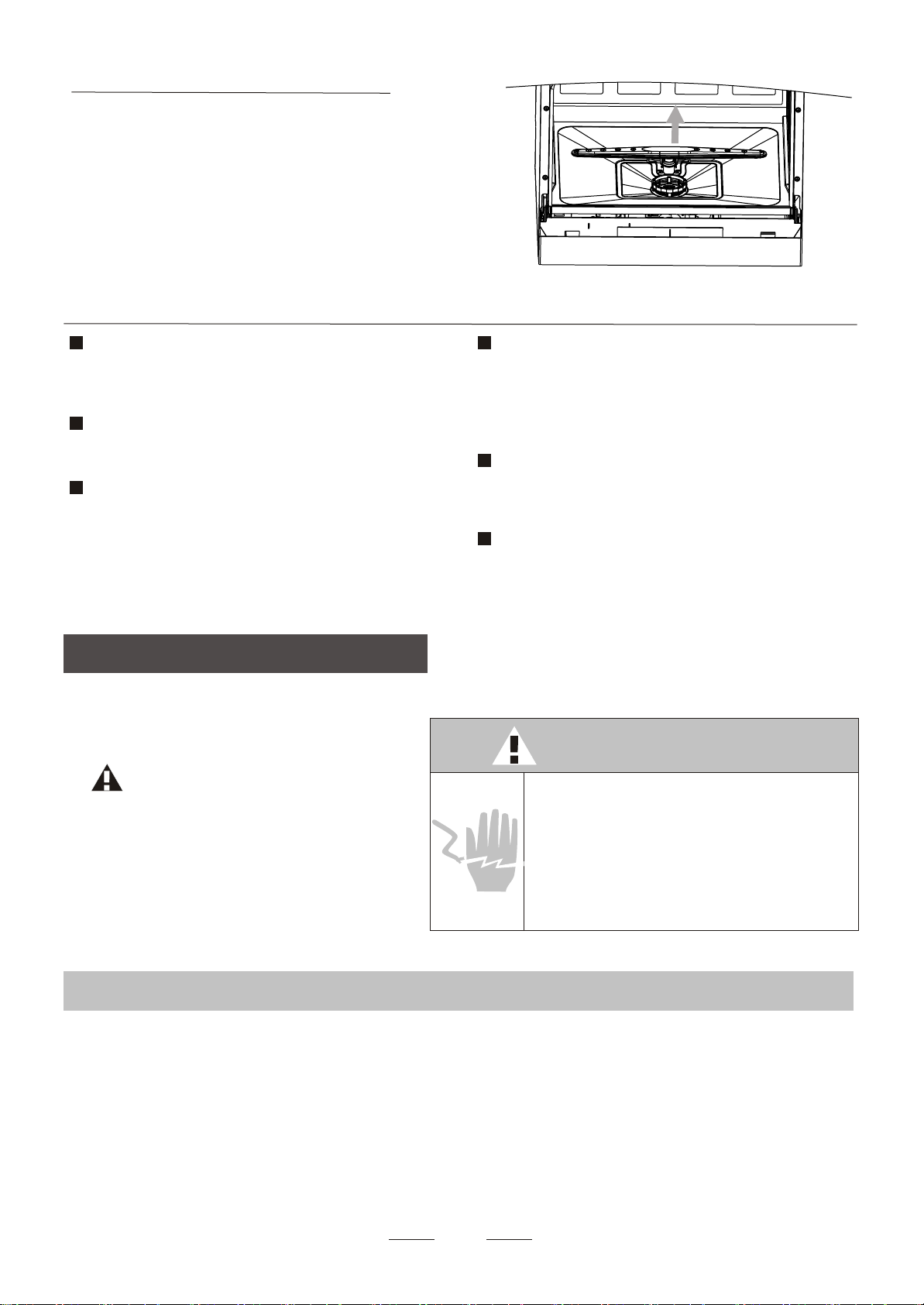

Cleaning the Spray Arms
The spray arms can be easily removed for periodic cleaning
of the nozzles, to prevent possible clogging. Wash them
under running water and carefully replace them in their seats,
checking that their rotary movement is in no way impeded.
Grasp the middle of the spray arm, pull it upwards to remove
it. Wash the arms under a jet of running water and return them
carefully to their seat. After reassembly, check that the spray
arms turn freely. Otherwise, check that they have been
installed correctly.
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with
acordhavingan equipment-earthingconductorandanearthingplug.Theplugmustbepluggedintoan
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
16
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD.
EARTHING
CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply
Position the appliance in the desired location. The back should rest against the wall behind it,
and drain hoses that can be positioned to the right or the left to facilitate proper installation.
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place. If the water pipes are new or have not been used for
an extended period of time, let the water run to make sure that the water is clear and
free of impurities. If this precaution is not taken, there is a risk that the water inlet can
get blocked and damage the appliance.
Please close the hydrant after using.
17
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. Use the spe ial
plastic support that comes with the appliance. The free end of the hose must be
at a height lower than 30cm and must not be immersed in water to avoid the back
flow of it.
c
The special plastic hose support must be solidly fastened to the wall to
prevent the drain hose from moving and allowing water to spill outside
the drain.
18
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
If you need a drain hose extension, observe to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Water Outlet
Extension Hose
How to Drain Excess Water From Hoses
The following things should be checked before starting the dishwasher.
1
The dishwasher is level and fixed properly
2
The inlet valve is open
3
There is a leakage at the connections of the conducts
4
The wires are tightly connected
5
The power is switched on
6
The inlet and drain hoses are knotted
7
All packing materials and printings should be taken out from the dishwasher
The content of this manual is very helpful to the users.
After installation, please make sure to keep this manual.
Fuse blown, or the
circuit breaker tripped.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
The lid of softer
is loose.
The sp ay arm is
knocking against
an item in a basket.
r
Item of crockery
are insecure
in the wash cabinet.
This may be caused
by on-site installation
or the cross-section of
the piping.
Aprogrammewasnot
run after dishwasher
salt was added.
Traces of salt have
got into the wash cy le.c
To c lea n the i nte r i o r, u s e a da m p sp o nge wi t h
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the Quick wash programme .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Check the lip .Ensure the fix is fine.
Interrupt the programme, and rearrange the items
which are obstructing the sp ay arm.r
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used.
Make sure that the detergent is the one without
colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Closed dishwasher making sure that door latches.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on.
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged.
Kitchen sink clogged.
Check drain hose.
Check coarse the filter.
(see section titled )"CleaningTheFilter"
Check kitchen sink to make sure it is draining well.
If problem is kitchen sink not draining ,you may need
aplumberratherthanaservicemanfordishwasher.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "soak" wash
cycle to drain out the water . Repeat if necessary.
19
Techn ica l
problems
General
problems
Noise
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Select a more intensive programme.
See" Wash Cycle Table ."
Use more detergent, or change your detergent.
Rearrange the items so that the sp ay can rotate freely.r
Clean and/or fit the filter combination correctly.
Clean the sp ay arm jets. See "Cleaning the Spray
Arms".
r
Use less detergent if you have soft water and select
ashortestcycletowashtheglasswareandtoget
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/Refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short programmes the washing temperature is lower.
This also lowers cleaning performance. Choose a
programme with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The programme was
not powerful enough.
Not enough detergent
was dispensed.
Item are blocking
the path of sp ay arms.r
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the sp ay arm jets
to get blocked.
r
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-a id
Dishes are removed
too soon.
Wrong programme
selection
Using cutlery with
alow-qualitycoating
When some malfunctions come on, the appliance will display error codes to warn you:
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
20
Unsatis
-factory
washing
result
Unsatis
-factory
drying
result
Longer inlet time.
Faucets is not opened, or water intake is restricted,
or water pressure is too low.
Some element of dishwasher leaks .
Overflow.
)FJHIU NN
8JEUI NN
%FQUI NN
7PMUBHF DPOOFDUFE -PBE TFF SBUJOH MBCFM
8BUFS QSFTTVSF .1B
1PXFS TVQQMZ TFF SBUJOH MBCFM
$BQBDJUZ 1MBDF TFUUJOHT
21
Warranty Card
Eurolinx Pty Limited A.B.N. 50 001 473 347
trading as ILVE (“ILVE”)
6MÄJL!
4VVYL:[YLL[3LPJOOHYK[5:>
7VZ[!
3VJRLK)HN(UUHUKHSL5:>
7!
WARRANTY REGISTRATION
Your ongoing satisfaction with your ILVE product
is important to us. We ask that you complete the
enclosed Warranty Registration Card and return
it to us so that we have a record of the ILVE
product purchased by you.
PRIVACY
ILVE respects your privacy and is committed
to handling your personal information in
accordance with the National Privacy Principles
and the Privacy Act 1988 (Cth). A copy of the
ILVE Privacy Policy is available at www.ilve.
com.au. ILVE will not disclose any personal
information set out in the Warranty Registration
Card (“Personal Information”) without your
consent unless required by:
1. law;
2. any ILVE related company;
3. any service provider which provide services
to ILVE or assist ILVE in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is
to keep a record of the ILVE product purchased
by you, in order to provide a better warranty
service to you in the unlikely event that there
is a problem with your ILVE product. ILVE may
contact you at any one or more of the address,
email address or telephone numbers set out in
the Warranty Registration Card. Please contact
ILVE on 1300 694 583 should you not wish to be
contacted by ILVE.
WARRANTY
1. Warranty
ILVE warrants that each ILVE product will
remain, for a period of twenty four (24) months
computed from the date of purchase of the
ILVE product, free from defects arising in the
manufacture of the ILVE product (“Warranty”).
Except for consumer guarantees set
out in the Competition and Consumer Act 2010
(Cth) (“Act”), ILVE does not make any further
warranties or representations in relation to ILVE
products.
2. What is not Covered by the Warranty.
The Warranty does not apply if an ILVE product
is defective by a factor other than a defect
arising in the manufacture of the ILVE product,
ilve.com.au
including but not limited to:
(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the ILVE product
was not sold or designed;
(c) use or installation which is not in accordance
^P[OHU`ZWLJPÄLKPUZ[Y\J[PVUZMVY\ZLVY
installation;
(d) use or operation after a defect has occurred or
been discovered;
(e) damage through freight, transportation or
handling in transit (other than when ILVE is
responsible);
(f) damage through exposure to chemicals, dusts,
residues, excessive voltage, heat, atmospheric
conditions or other forces or environmental
factors outside the control or ILVE;
NYLWHPYTVKPÄJH[PVUVY[HTWLYPUNI`[OL
purchaser or any person other than ILVE, an
employee of ILVE or an authorised ILVE service
contractor*;
(h) use of parts, components or accessories
^OPJOOH]LUV[ILLUZ\WWSPLKVYZWLJPÄJHSS`
approved by ILVE.
(i) damage to surface coatings caused by cleaning
or maintenance using products not recommended
in the ILVE product handbook provided to the
purchaser upon purchase of the ILVE product;
(j) damage to the base of an electric oven due to
items having been placed on the base of the oven
cavity or covering the base, such as aluminium
foil (this impedes the transfer of heat from the
element to the oven cavity and can result in
irreparable damage); or
(k) damages, dents or other cosmetic
imperfections not affecting the performance of the
ILVE in respect of an ILVE product purchased as a
“factory second” or from display
The Warranty does not extend to light globes
used in ILVE products.
3. Domestic Use
Each ILVE product is made for domestic use. This
Warranty may not extend to ILVE products used
for commercial purposes.
4. Time for Claim under the Warranty
You must make any claim under this Warranty
within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.
Continued over...
62 ILVE Operating Manual
5. Proof of Purchase
Customers must retain proof of purchase in order
to be eligible to make a warranty claim in respect
of an ILVE product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under this
Warranty unless ILVE determines the expenses
are reasonable, in which case the customer
must claim those expenses by providing written
evidence of each expense to ILVE at the address
on the Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not affect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction;
or
(ii) cause any part of the Warranty to be void.
(c) ILVE excludes indirect or consequential loss
of any kind (including, without limitation, loss of
use of the ILVE product) and (other than expressly
provided for in these terms and conditions)
subject to all terms,
conditions and warranties implied by custom, the
general law, the Act or other statute.
(d) The liability of ILVE to you for a breach of any
express or non-excludable implied term, condition
or warranty is limited at the option of ILVE to:
(i) replacing or repairing the defective part of the
ILVE product;
(ii) paying the cost of replacing or repairing the
defective part of the ILVE product;
(iii) replacing the ILVE product; or
(iv) paying the cost of replacing the ILVE product.
(e) Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
8. Defects
Any part of an ILVE product deemed to be
defective and replaced by ILVE is the property of
ILVE. ILVE reserves the right to inspect and test
ILVE products in order to determine the extent of
any defect and the validity of a claim under the
Warranty.
*To locate your closest ILVE authorised service
agent please contact ILVE on 1300 856 411 or
visit http://support.ilve.com.au/
ALL SERVICE CALLS MUST BE BOOKED
THROUGH THE ILVE SERVICE AND
>(99(5;@+,7(9;4,5;65
Warranty Card JVU[PU\LK
ilve.com.au
63ILVE Operating Manual
Please complete and send to ILVE at: REPLY PAID 83617
LEICHHARDT NSW 2040
Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / /
(Please attach proof of purchase to validate warranty)
MODEL NUMBER
SERIAL NUMBER
(if you cannot locate the serial number please call ILVE on 1300 85 64 11)
1
2
3
4
WARRANTY REGISTRATION CARD
01012013
01012013
Warranty Card tear off
