User’s Guide
IRX108-BT IRX112-BT
2
CONTENTS
Safety Instructions .................................................................................................................................. 3
Declaration of Conformity ......................................................................................................................... 6
Quick Setup Guide .................................................................................................................................. 7
Back Panel .............................................................................................................................................. 9
Overview - IRX100 Series Family ........................................................................................................... 10

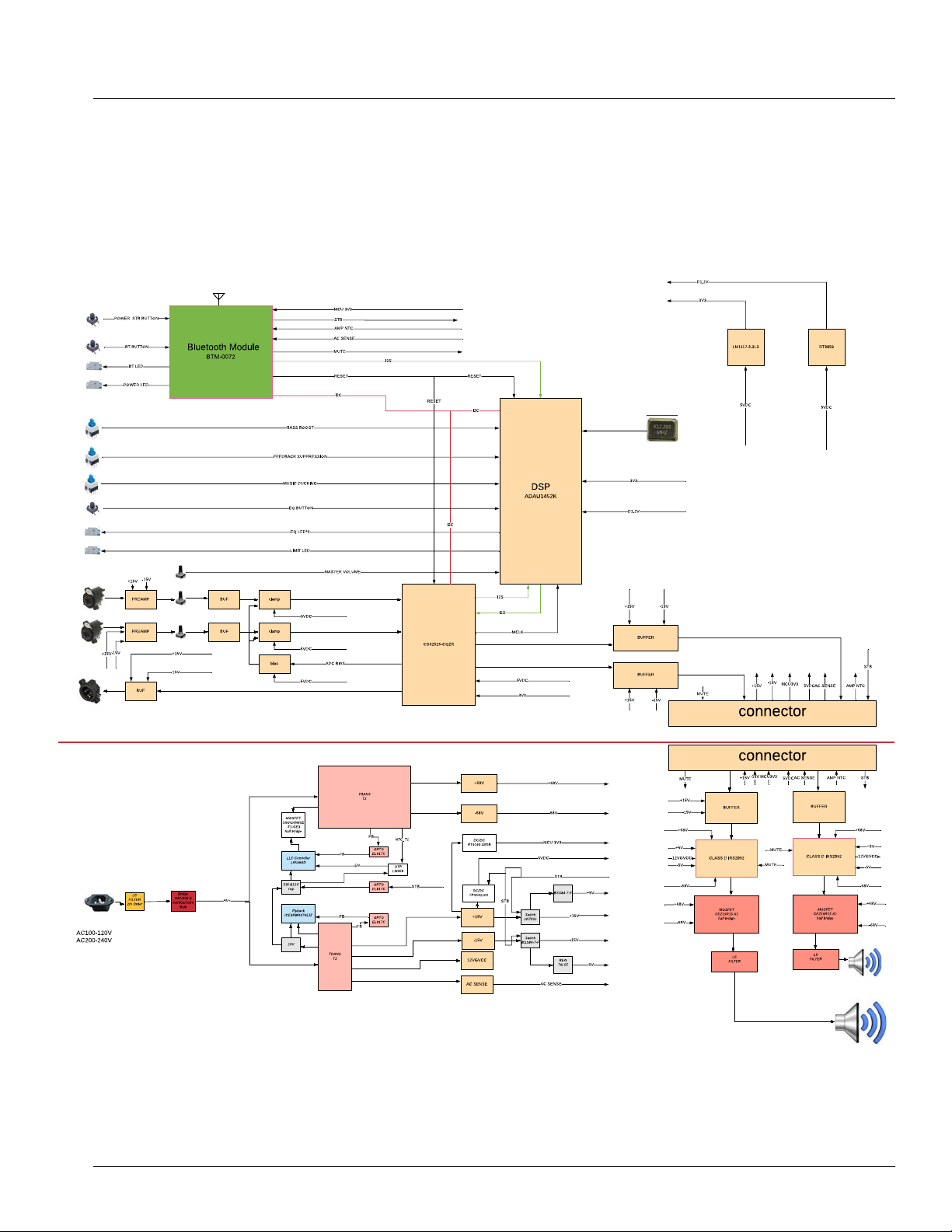

IRX108/112BT - Block Diagram ............................................................................................................. 11
IRX108BT Specifications ....................................................................................................................... 12
IRX112BT Specifications ....................................................................................................................... 13
Applications / Features ........................................................................................................................... 14
Music Ducking / Automatic Feedback Suppression ................................................................................ 15

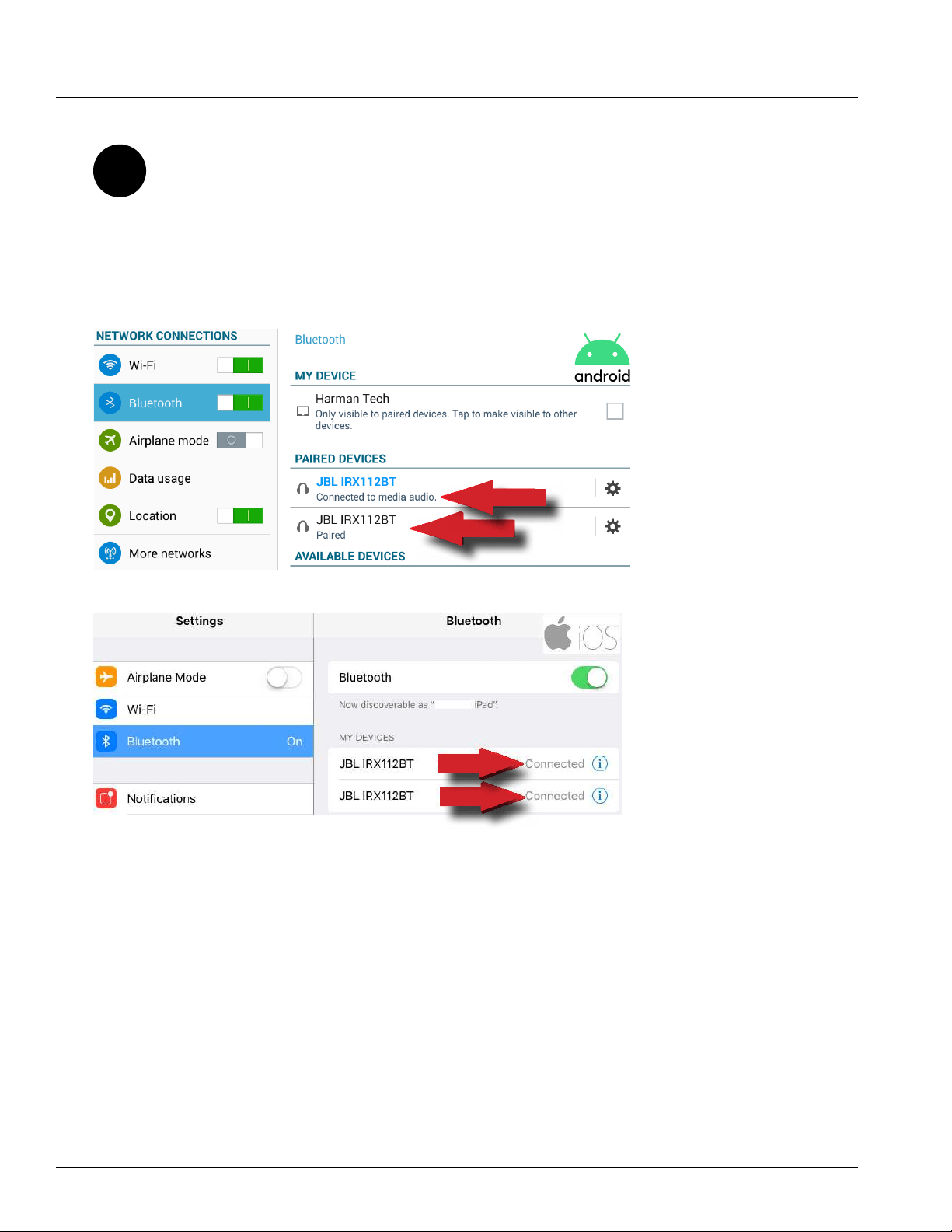

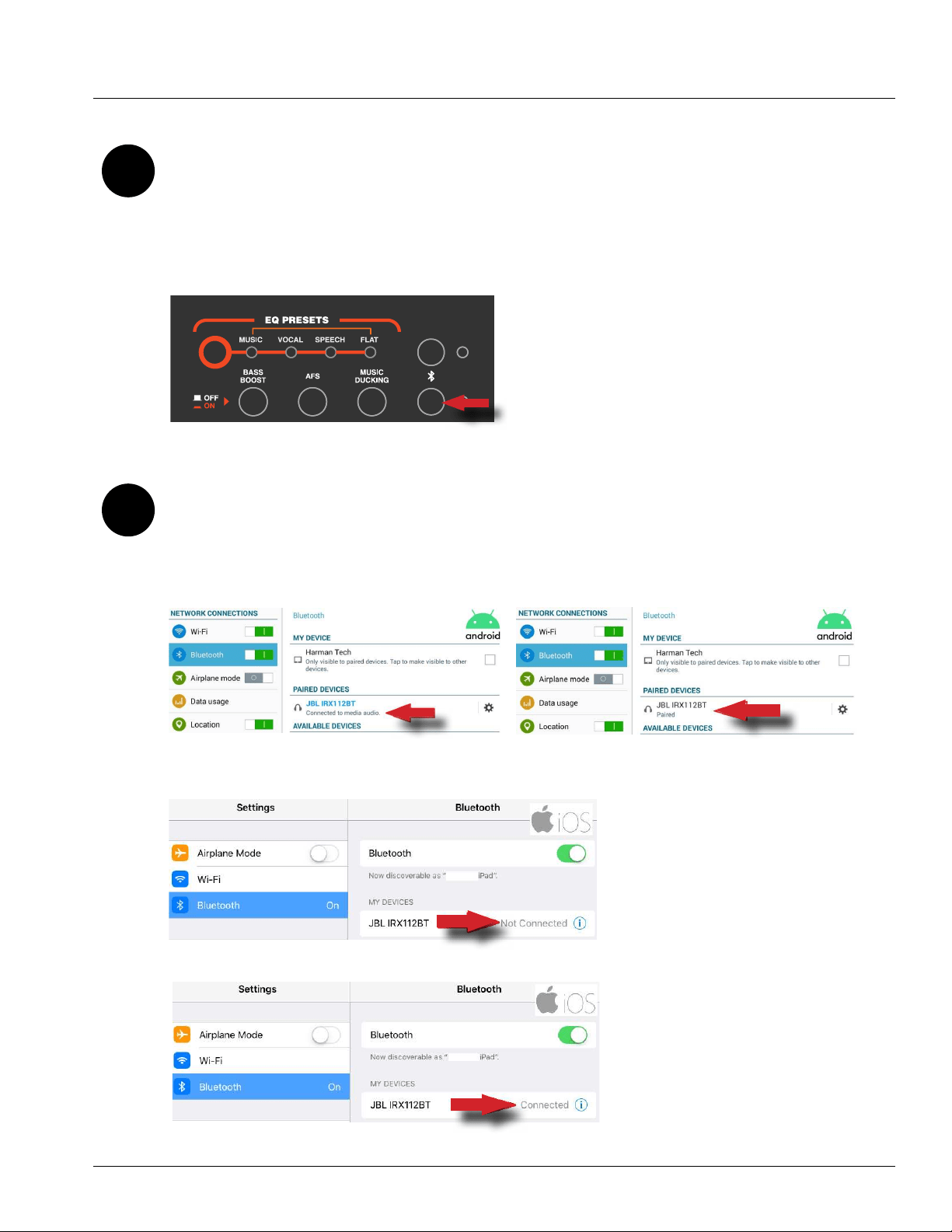

Bluetooth Integration .............................................................................................................................. 16
Loudspeaker Placement and Suspension ............................................................................................... 19
Cables & Connectors .............................................................................................................................. 20
Application Examples ............................................................................................................................ 21
Troubleshooting .................................................................................................................................... 23
Warranty Information ............................................................................................................................. 24
Contact Information .............................................................................................................................. 25
3
The IRX100 Series covered by this manual is not intended for use in high moisture environments. Moisture can damage
the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers
to direct moisture.
Keep speakers out of extended or intense direct sunlight. The driver suspension will prematurely dry out and finished
surfaces may be degraded by long-term exposure to intense ultra-violet (UV) light. The IRX100 Series can generate
considerable energy. When placed on a slippery surface such as polished wood or linoleum, the speaker may move due
to its acoustical energy output. Precautions should be taken to assure that the speaker does not fall off a stage or table
on which it is placed.
HEARING DAMAGE, PROLONGED EXPOSURE TO EXCESSIVE SPL
The IRX100 Series is capable of generating sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers,
production crew, and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 85 dB.
CARE & CLEANING
IRX100 Series may be cleaned with a dry cloth. Do not allow moisture into any of the openings in the system. Ensure that the system is
unplugged from the AC outlet before cleaning.
THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS,
MIXER MODULE, OR AC INPUT COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WEEE Notice
The Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law
on 14/02/2014, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive
is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such
wastes so as to reduce disposal. The WEEE logo on the product or on its box indicating collection for electrical and electronic
equipment consists of the crossed-out wheeled bin, as shown below. 15.
This product must not be disposed of or dumped with your other household waste. You are liable of dispose of all your electronic or electrical
waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper
recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources.
Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment. For more
information about electronica and electrical waste equipment disposal, recovery, and collection points, please contact your local city center,
household waste disposal service, shop from where you purchased the equipment, or manufacturer of the equipment.
RoHS Compliance
This product is in compliance with Directive 2011/65/EU and (EU) 2015/863 of the European Parliament and of the Council of 19.
31/03/2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
REACH
REACH (Regulation No 1907/2006) addresses the production and use of chemical substances and their potential impacts on human health
and the environment. Article 33 (1) of REACH Regulation requires suppliers to inform the recipients if an article contains more than 0.1%
(per weight per article) of any substance(s) on the Substances of Very High Concern (SVHC) Candidate List (‘REACH candidate list’).
This product contains the substance ‘’lead’’ (CAS-No. 7439-92-1) in a concentration of more than 0.1% per weight.
At the time of release of this product, except for the lead substance, no other substances of REACH candidate list are contained in a
concentration of more than 0.1% per weight in this product.
Note: on June 27, 2018, lead was added to the REACH candidate list. The indusion of lead in the REACH candidate list does not mean that
lead-containing materials pose an immediate risk or results in a restriction of permissibility of its use.
SAFETY INSTRUCTIONS
4
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wider blade or the third prong are outlet.
10. PROTECT the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the
manufacturer.
12.
USE ONLY with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus.When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from
tip-over.
13. UNPLUG this apparatus during lightning storms or when unused
for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. DO NOT expose this apparatus to dripping or splashing and
ensure that no objects filled with liquids, such as vases, are
placed on the appratus.
16. To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from the AC receptacle.
17. Where the mains plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
18. DO NOT overload wall outlets or extension cords beyond their
rated capacity as this can cause electric shock or fire.
19. For adequate ventilation, do not install this equipment in a
confined or enclosed space, such as a book case or similar unit.
20. Product ventilation should not be impeded by covering the
ventilation openings with items such as newspaper, tablecloths,
curtains, etc.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.
WARNING: No naked flame sources – such as lighted candles –
should be placed on the product.
WARNING: Equipment shall be connected to a MAINS socket outlet
with a protective earthing connection.
WARNING: This product is intended to be operated ONLY from
the voltages listed on the back panel. Operation from other voltages
other than those indicated may cause irreversible damage to the
product and void the products warranty. The use of AC Plug Adapters
is cautioned because it can allow the product to be plugged into
voltages in which the product was not designed to operate. If you
are unsure of the correct operational voltage, please contact your
local distributor and/or retailer. If the product is equipped with a
detachable power cord, use only the type provided, or specified, by
the manufacturer or your local distributor.
OPERATING TEMPERATURE RANGE:
-20°C- 40°C (-4°F -104°F)
WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
Place the equipment near a main power supply outlet and make sure
that you can easily access the power breaker switch.
FCC AND CANADA EMC COMPLIANCE INFORMATION:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions
1. This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this device.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: Reorient or
relocate the receiving antenna. Increase the separation between the
equipment and receiver. Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. Consult
the dealer or an experienced radio/TV technician for help.
SAFETY INSTRUCTIONS
5
CAUTION: This product is for non-residential use only.
WARNING: This equipment is compliant with Class B of CISPR
32. In a residential environment this equipment may cause radio
interference.
CAN ICES-3 (B)/NMB-3(B)
Protective earthing terminal. The apparatus should
be connected to a mains socket outlet with a
protective earthing connection.
WIRELESS TRANSMITTER COMPLIANCE INFORMATION:
The term “IC:” before the radio certification number only signifies
that Industry Canada technical specifications were met.
Le terme «IC:» avant le numero de certification radio signifie
seulement que les specifications techniques d’lndustrie Canada ont
ete respectees.
This device contains licence-exempt transmitter(s)/receiver(s) that
comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions (1) this device may not cause harmful
interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the
device.
Cet appareil contient des émetteurs / récepteurs exemptés de
licence conformes aux RSS (RSS) d’Innovation, Sciences et
Développement économique Canada. L’exploitation est autorisee aux
deux conditions suivantes : (1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioelectrique subi, meme si le brouillage est susceptible
d’en compromettre le fonctionnement.
This equipment complies with FCC and IC radiation exposure limits
set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the
radiator and your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme a FCC et IC !’exposition aux rayonnements
limites fixees pour un environnement non controle. Cet appareil
doit etre installe et utilize avec une distance minimale de 20cm entre
le radiateur et votre corps. Cet transmetteur ne doit pas etre cositue
ou operant en liaison avec toute autre antenne ou transmetteur.
EU COMPLIANCE INFORMATION:
Hereby, HARMAN Professional, Inc., declares that the equipment type
IRX100 Series is in compliance to the following:
European Union Restriction of Hazardous Substances Recast (RoHS2)
Directive 2011/65/EU; European Union WEEE (recast)
Directive 2012/19/EU; European Union Registration, Evaluation,
Authorization and Restriction of Chemicals (REACH) Directive
1907/2006; European Radio Equipment Directive (RED) 2014/53/EU
You may obtain a free copy of the full Declaration of Conformity by
visiting:
http://www.jblpro.com/www/product-support/downloads
This product contains batteries that are covered under the 2006/66/
EC European Directive, which cannot be disposed of with normal
household waste. Please follow local regulations.
WIRELESS FREQUENCY RANGE AND WIRELESS OUTPUT POWER:
2402MHz - 2480MHz
4.00mW
Prevention of hearing loss
Caution: Permanent hearing loss may occure if
earphones or headphones are used at high volume
for prolonged periods of time.
Note: To prevent possible hearing damage, do not
listen at high volume levels for long periods.
CLASS B PRODUCT:
ENVIRONMENTAL:
此标识适用于在中华人民共和国销售的电子信息产品 . 标
识中间的数字为环保实用期限的年数 .
SAFETY INSTRUCTIONS
6
DECLARATION OF CONFORMITY
EN 60065:2014 8th Ed.
Audio, video and similar electronic apparatus – Safety requirements
EN 62368-1:2014+A11:2017
Audio/video, information and communication technology equipment - Part 1: Safety requirements
EN 301489-1 V2.1.1
Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements; Harmonized Standard covering the essential requirements of article 3.1(b) of Directive
2014/53/EU and the essential requirements of article 6 of Directive 2014/30/EU
EN 301489-17 V3.1.1
Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for Broadband Data
Transmission Systems; Harmonized Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU
EN 300328 V2.1.1
Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band
modulation techniques; Harmonized Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
EN62479:2010
Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions related to human
exposure to electromagnetic fields (10MHz to 300GHz)
EN 55032: 2015
Electromagnetic compatibility of multimedia equipment – Emission requirements, Class B
EN 55035:2017
Electromagnetic compatibility of multimedia equipment – Immunity requirements
EN 61000-3-2: 2014
Electromagnetic Compatibility Part 3. Limits Section 2. Limits for harmonic current emissions (equipment input current ≤16A per
phase)
EN 61000-3-3: 2013
Electromagnetic Compatibility Part 3. Limits Section 3. Limits for voltage fluctuations and flicker in low-voltage supply systems for
equipment with rated current ≤16A
7
QUICK SETUP GUIDE
Congratulations on your purchase of JBL Professional IRX100 Series loudspeakers! We know you are anxious to get up and
running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible.
Packaging Contents
Your IRX100 system should include the following:
1 x IRX100 speaker
1 x 2M (6.5ft) IEC Power Cable
1 x Quick Start Guide
Unbox it
Open the top of the box. Turn box upside down, then lift box up to reveal speaker.Lay box on its side.
Configuration Options
Floor Standing Monitor Position Pole Mounted Subwoofer Mounted
1
1
2
2
3 4
3
8
POWER IT ON
1. Connect the power cord to the Power Receptacle (L).
2. Press the Power Standby [H] switch for .5 of a second to
engage power.
PLUG IN THE INPUTS
1. Turn the Master Volume Control (J) all the way to the left
before connecting any inputs.
2. Connect your devices to the Input Jacks (E).
SET UP THE CHANNELS
1. Select a Preset using the EQ Preset Selection Button (B).
2. Determine the CH1 & CH2 Gain (D] source. For
microphone set to 3 o’clock. For line source set to 9
o’clock.
3. Slowly turn the Master Volume (J) to the right until the
desired volume is reached.
PAIR BLUETOOTH
™
AUDIO
This device supports Bluetooth audio streaming.
To connect your device:
1. Turn on Bluetooth on your source device.
2. Hold the Bluetooth (I) button for 2 seconds. The LED will
blink when the IRX Speaker is in pairing mode.
3. Find the desired IRX speaker on your device and select.
QUICK SETUP GUIDE
POWER
C
B
D
F
A
G
E
H
I
K
J
Bluetooth
®
Power Standby
Automatic Feedback
Supression
Music Ducking
EQ Preset
LED Indicators
XLR-1/4” Combo
Inputs
XLR Male Loop Thru
CH1 & CH2 Gain
Bass Boost
EQ Preset Selection
Button
Master Volume
L
Power Receptacle
9
BACK PANEL
A. EQ Preset Selection Button
Use this button to toggle through the four different settings.
B. EQ Preset LED Indicators
MUSIC:
This is the default setting for the IRX loudspeakers. Use this setting
when your IRX loudspeaker is being used either on a tripod or pole
and facing towards your audience.
VOCAL:
Use this setting when your IRX loudspeaker is being used in
conjunction with a separate subwoofer. This preset enables a High
Pass Filter (HPF) set at 100Hz.
SPEECH:
Use this setting when your IRX loudspeaker is being used for
Speech only or Spoken Word only applications and is facing towards
the audience.
NORMAL:
Use this setting when your IRX loudspeaker is being used as a stage
monitor facing towards you.
C. Bass Boost
Increase the Bass volume.
D. CH1 & CH2 Gain
Controls the gain of CH1 & CH2 respectively. By turning the signal counter-
clockwise you will be lowering the gain of your source material. By turning
the control clockwise you will be increasing the gain.
E. XLR-1/4” Combo Inputs
These balanced inputs accepts a standard XLR (female) connector and
also a 1/4” TRS phone plug. A broad range of signals from microphones,
audio mixing consoles and electronic musical instruments may be
connected here. The sensitivity of these inputs are controlled by the MIC/
LINE SWITCHES.
F. Automatic Feedback Supression
dbx AFS stops feedback before it starts.
G. Music Ducking
One-touch ducking automatically lowers music volume when speech input
is detected.
H. Power Standby
I. Bluetooth Indicator
This LED will illuminate blue to indicate that your Bluetooth
connection is established.
J. Master Volume
Controls the master volume of the unit. By turning the knob counter-
clockwise you will be lowering the overall volume of the speaker. By
turning the control clockwise you will be increasing the overall volume
of the speaker.
K. XLR Male Loop Thru
This XLR (male) output connector provides a method of sending audio
out to an external source. If signal is present on both inputs, the inputs will
be summed and sent out as a 50/50 mix.
L. Power Receptacle
Connect the supplied power cord to the power receptacle
on the rear of the speaker. Connect the power cord to an available power outlet.
10
OVERVIEW - IRX100 SERIES FAMILY
Thank you for purchasing the new JBL IRX100 Series!
More than just another great JBL sound system, the new IRX100 Series is a true step forward in technology developed
specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable
self-contained, portable PA system can be, JBL engineers purposely designed and built the IRX100 Series from the ground up
featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers.
This total redesign of the IRX100 Series platform leverages the latest technologies in cabinet materials, acoustic science,
transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional,
highly flexible, easy to use, portable system for today’s working musicians and sound providers.
With proper care your IRX100 Series speakers should provide you with many years of flawless performance, and are flexible
enough to be a part of your sound reinforcement system even as it grows in scope.
Powered 8” Portable
Speaker with Bluetooth®
• 1300 Watt
• 17.4 lb (7.9 kg)
• 90º (horizontal) x 60º
(vertical) nominal
Powered 12” Portable
Speaker with Bluetooth®
• 1300 Watt
• 27.3 lb (12.4 kg)
• 90º (horizontal) x 60º
(vertical) nominal
IRX108-BT IRX112-BT
11
IRX108/112BT - BLOCK DIAGRAM
12
IRX108BT SPECIFICATIONS
Bottom View Front View Left View Rear View
486
313
258
IRX108BT
TECHNICAL SPECIFICATIONS
SYSTEM TYPE: Powered 8” two-way
CABINET: Polypropylene with full grille
SENSITIVITY (SPL): 124 dB peak
FREQUENCY RESPONSE (±3 dB): 54 Hz – 20 kHz
POWER RATING: 1300 watts peak
INPUT IMPEDANCE: 10k ohm balanced
COVERAGE PATTERN: 90º (horizontal) x 60º (vertical) nominal
BLUETOOTH: Audio streaming, Bluetooth version 5.0
DSP: 4 presets, feedback suppression, ducking
I/O: 2 XLR/TRS combo mic/line inputs, 1 XLR pass-thru output 35
mm pole socket
MOUNTING: 17.4 lb (7.9 kg)
NET WEIGHT: 10.15 x 12.32 x 19.15 in
DIMENSIONS (D x W x H): (258 x 313 x 486 mm)
ORDER SPECIFICATIONS
SHIPPING CARTON (L x W x H): 10.87 x 13.35 x 20.35 in
(276 x 339 x 517 mm)
SHIPPING WEIGHT: 20.5 lb (9.3 kg)
UPC COD 691991033506
13
IRX112BT SPECIFICATIONS
Bottom View Front View Left View Rear View
618
400
299
IRX112BT
TECHNICAL SPECIFICATIONS
SYSTEM TYPE: Powered 12” two-way
CABINET: Polypropylene with full grille
SENSITIVITY (SPL): 127 dB peak
FREQUENCY RESPONSE (±3 dB): 53 Hz – 20 kHz
POWER RATING: 1300 watts peak
INPUT IMPEDANCE: 10k ohm balanced
COVERAGE PATTERN: 90º (horizontal) x 60º (vertical) nominal
BLUETOOTH: Audio streaming, Bluetooth version 5.0
DSP: 4 presets, feedback suppression, ducking
I/O: 2 XLR/TRS combo mic/line inputs, 1 XLR pass-thru output 35
mm pole socket
MOUNTING: 27.3 lb (12.4 kg)
NET WEIGHT: 11.77 x 15.75 x 24.35 in
DIMENSIONS (D x W x H): (299 x 400 x 618.4 mm)
ORDER SPECIFICATIONS
SHIPPING CARTON (L x W x H): 12.64 x 16.61 x 25.59 in
(321 x 422 x 650 mm)
SHIPPING WEIGHT: 32 lb (14.51 kg)
UPC COD 691991033544
14
MUSICIANS/PERFORMERS
Musicians and performers looking for a great-sounding, easy-to-use sound reinforcement speaker in a portable, affordable
package.
PRESENTERS/INSTRUCTORS
Mobile presenters and fitness instructors looking for an easy-to-use, compact PA solution with Bluetooth audio and built-in
music ducking.
HOSPITALITY/GOVERNMENT INSTALLATIONS
Hospitality/government installations requiring professional sound quality with ease of use and minimal setup time.
FEATURES
• Four real-world EQ presets take the guesswork out
• dbx AFS stops feedback before it starts
• Bluetooth integration allows stereo streaming of music, soundtracks and backing tracks
• One-touch ducking automatically lowers music volume when speech input is detected
• Wide frequency response: 53 Hz – 20 kHz
• Lightweight design
• Wattage: 1300W
• 2 XLR/TRS combo input jacks and 1 XLR out offer a range of connectivity choices
• Input accepts mic or line source to enhance versatility
• Ergonomic handles make transport quick and easy
• Durable honeycomb steel grille is road-tested for reliability
• Built-in pole mount expands system set-up options
APPLICATIONS / FEATURES
15
MUSIC DUCKING / AUTOMATIC FEEDBACK SUPPRESSION
Music Ducking
Soundcraft®-designed ducking automatically attenuates music when speech is detected.
•
Press the “Music Ducking button.”
• Plug a microphone into the desired Channel output.
• Pair a BT device to the speaker.
• Turn the microphone gain up to the desired level.
• Ducking will now happen automatically.
Automatic Feedback Suppression
dbx® Automatic Feedback Suppression for trouble-free operation.
•
To activate AFS (automatic feedback suppression), simply press the AFS button.
To clear AFS notch filters
• With the AFS button pressed to ON, press and hold the Power button for 3 seconds. The EQ Preset LEDs for Vocal and Speech will
light 3 times, indicating your filters have been reset.
POWER
Automatic Feedback
Supression
Music Ducking
16
Streaming Bluetooth Audio
To pair a device to a single IRX speaker:
• Press the Bluetooth button for 2s until the light blinks slowly.
• Navigate to the Bluetooth settings of your device.
• Select the IRX speaker you wish to stream to.
• You will hear a connection tone when connection is successful.
BLUETOOTH INTEGRATION
To pair a device to two IRX speakers for true stereo operation:
1
• If previously paired, remove and forget both speakers from your device.
• On the first speaker, press and hold the Bluetooth button until all lights turn off and the Power light
flashes (~10 seconds).
Note: After resetting, the EQ Preset will be set to “FLAT.”
• Repeat for the second speaker.
A fresh start
2
• Go to the speaker to be designated as the Right speaker, then pair your device to this speaker by
shortly pressing the Bluetooth button until the light flashes.
Pair the Right Speaker
• On your device, find the IRX speaker under available Bluetooth devices and pair to it.
POWER
POWER
17
BLUETOOTH INTEGRATION
3
• On the Right speaker, press and hold the Bluetooth button until both the Power LED and
the Bluetooth LED blink. An audio cue will be heard.
• Repeat the process on the Left speaker.
• Both Bluetooth and Power lights will continue to blink. After ~30 seconds, the speakers
will pair to each other and an audio cue will be heard.
Link the Left speaker to the Right speaker
• ...simply tap/select the speaker to reconnect.
• For iOS devices, the status changed from “Connected” to “Not Connected,” so we
must reconnect before continuing to step 5...
4
• Notice on your device, under Bluetooth, the (Right) speaker paired status has changed:
Verify paired status
POWER
• On Android devices, the status changed from “Connected to media audio” to “Paired.”
• NO action is required, continue to step 5.
18
Note: On your device under Bluetooth you will see both speakers:
BLUETOOTH INTEGRATION
5
• Link the Left speaker to your device by shortly pressing the Bluetooth button, the light should flash.
• On your device, find the speaker under available Bluetooth devices and pair to it.
• Done! You now have true stereo sound.
The final link
• Press and hold the BT button for 5 seconds until both the power LED and Bluetooth LED blink.
• Press the BT button again.
• The speakers are now unpaired.
To exit true stereo Bluetooth streaming mode:
•
On iOS, both are displayed as “Connected”
• On Android, one displays as “Connected to media audio” and the other as “Paired”
19
Floor Monitor Floor Standing Tripod Stand
Stacking
Pole Mount
LOUDSPEAKER PLACEMENT AND SUSPENSION
The following guidelines will help you achieve optimum sound wherever you use your IRX100 Series ® loudspeakers:
Raise the speakers as high as possible.
For best results try to get the high frequency horn at least 2 to 4 feet above the heads of the audience. If the speakers are too
low, the people in the back of the audience will not receive the best quality sound.
Place the speakers between the microphones and the audience.
Feedback occurs when the microphones pick up sound from the speakers and “feed” the sound back through the sound
system. If space is limited, point the speakers away from the microphones to reduce feedback.
Locate the speakers away from turntables.
Low-frequency feedback occurs when the output of the speaker is picked up by the tone arm of the turntable and is re-
amplified. A heavy, solid turntable base and shock mounting can also reduce this type of feedback in DJ applications.
Use more speakers in large or highly reverberant spaces.
Spreading speakers throughout these spaces will produce much better sound than trying to compensate with loudness level or
equalization. For very long distances, the use of another set of speakers with time delay is recommended.
Stand speakers upright for PA - Tilt the speakers back on the side for stage monitoring. Upright stance provides even coverage
over a wide area. IRX Series speakers are also designed with two slanted positions for stage monitoring applications.
20
XLT/F to XLR/M Audio Groud Lift
(no connection)
XLR/F to XLR/M Microphone Cable
The standard cable for interconnection of microphone and
line level signal in professional audio systems.
• Microphone to mixer
TRS (balanced) 1/4 inch phone jack to XLR/M
For connecting balanced devices with 1/4 inch phone and
maybe used interchangeably.
TRS (unbalanced) 1/4 inch phone jack to XLR/M
For connections of instruments with unbalanced outputs
to balanced XLR inputs.
TS (unbalanced) 1/4 inch phone jack to XLR/M
This cable is electrically identical to "TRS" (unbalanced)
1/4 inch phone and may be used interchangeably.
XLR/M to RCA (phono) cable
Connects consumer audio products and some DJ mixer
outputs to professional audio equipment inputs
TRS 1/4 inch Phone jack to dual 1/4 inch Phone jack
Splits a stereo output into separate left/right signals.
TRS 1/4 inch Phone jack to dual 1/4 inch Phone jack
Change to a TRS mini-phone jack to connect to the output
of a portable. MP3/CD – player and computer sound cards
to a mixer.
XLR/F to XLR/M audio ground lift Only with balanced in - and outputs
CABLES & CONNECTORS
21
APPLICATION EXAMPLES
SMALL PA USING BOTH INPUTS AND THRU FUNCTION
CH1 input set to “Mic” CH2 input set to “Line”
Main Speaker Position
22
APPLICATION EXAMPLES
SMALL PA USING TWO SYSTEMS AS MONITORS
CH1 input set to “Mic” CH2 input set to “Line”
Monitor Speaker Position
23
Symptom Likely Cause What to do
No sound
Speaker not connected
to active AC power
Verify that speaker is connected and that the circuit is on
Power not switched on Switch on power and verify that power LED is on
Speaker in bypass mode Twist any knob or press the bypass button to wake the speaker.
No sound, speaker is connected
to working AC power but won’t
come on.
Speaker power cable is faulty
or improperly connected.
• Re-seat the power cable at both ends.
• Substitute a known-good power cable
No sound. Speaker comes on.
Signal source
(mixer, instrument, etc.)
is not sending.
• Check VU meters on the source mixer
• Verify that the tape or CD is playing.
• Use headphones to verify that the instrument is actually
sending an audio signal
Faulty cables and
connections
• Disconnect and re-seat signal cables.
• Replace suspected cable with a known-good cable
No sound with microphone
connected directly to the
MIC/ LINE input.
Microphone requires
phantom power
The VE does not supply phantom power. Switch to a dynamic
microphone, use a battery powered microphone (if possible),
use an external phantom power supply for condenser type microphones.
Signal sounds distorted and
very loud, PEAK light is lit
most of the time.
Excessive input signal, trying
to exceed the capabilities of
the speakers
• Reduce the output level of the source.
• Turn down the level controls on the speaker.
• Use additional VE speakers.
Signal sounds distorted even at
moderate volumes, LIMIT light
is not lit.
Mixer or other source
is overdriven
Review the Owner’s Manual for your mixer and adjust controls as needed.
• Input sensitivity (gain)
• Channel faders
• Master faders Once this is done, review the instructions in the Quick
Start section of this guide.
Lots of hiss in the sound,
the mixer controls are at
very low settings.
Improper gain structure
• Make sure that the MIC/LINE switch is in the LINE (disengaged) position.
• Mic/Line switch operation will be a little different.
• Reduce the level settings at speaker. Review the Owner’s Manual for
your mixer and adjust controls as needed.
• Input sensitivity (gain)
• Channel faders
• Master faders
Noise or hiss heard at output. Noisy source device
Disconnect the devices that are connected to your speaker one at a time.
If the noise goes away, the problem is with the source or the
connecting cable.
Hum or Buzz that increases or
decreases when the mixer level
controls are moved.
Improper A/C ground or
faulty equipment connected
to mixer input
Disconnect or mute channels one at a time to isolate the problem. Refer to
the owner’s manual of the faulty equipment for troubleshooting help.
Faulty cable between source
equipment and mixer
Substitute a known-good cable for the suspected faulty cable.
Hum or Buzz
Improper A/C grounding,
ground loops
• ‘Lift’ the audio ground by using an XLR/F to XLR/M adapter on one end.
• Re-route audio cables away from AC power and lighting cables.
Excessively long
unbalanced cable run
• Use the balanced outputs (if available) of your mixer or source
equipment to drive your IRX100 Series.
• Use a “DI” (direct injection) box to convert your unbalanced equipment
output to a balanced output.
Improper system gain
structure
Reduce the INPUT level controls and increase the output level of your
source devices.
TROUBLESHOOTING
24
The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the
date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures
and all other JBL products are warranted for two years from the date of original purchase.
Who Is Protected By This Warranty?
Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product has been purchased
in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL products purchased elsewhere except
for purchases by military outlets. Other purchasers should contact the local JBL distributor for warranty information.); and B.)
The original dated bill of sale is presented whenever warranty service is required.
What Does The JBL Warranty Cover?
Except as specified below, your JBL Warranty covers all defects in material and workmanship. The following are not covered:
Damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage
resulting from failure to follow instructions contained in your Instruction Manual; damage resulting from the performance of
repairs by someone not authorized by JBL; claims based upon any misrepresentations by the seller; any JBL product on which
the serial number has been defaced, modified or removed.
Who Pays For What?
JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save the original shipping
cartons because a charge will be made if replacement cartons are requested. Payment of shipping charges is discussed in the
next section of this warranty.
How To Obtain Warranty Performance
If your JBL product ever needs service, write or telephone us at JBL Incorporated (Attn: Customer Service Department), 8500
Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411). We may direct you to an authorized JBL
Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to
establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization. If transportation
of your JBL product presents any unusual difficulties, please advise us and we may make special arrangements with you.
Otherwise, you are responsible for transporting your product for repair or arranging for its transportation and for payment of any
initial shipping charges. However, we will pay the return shipping charges if repairs are covered by the warranty.
Limitation of Implied Warranties
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.
EXCLUSION OF CERTAIN DAMAGES
JBL’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF ANY DEFECTIVE PRODUCT AND SHALL
NOT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO STATE.
JBL Professional
8500 Balboa Blvd. Northridge, CA 91329 USA
WARRANTY INFORMATION
25
Mailing Address:
JBL Professional
8500 Balboa Blvd.
Northridge, CA 91329
Shipping Address:
JBL Professional
8500 Balboa Blvd., Dock 1
Northridge, CA 91329
(Do not return product to this address without first obtaining prior authorization from JBL)
Customer Service:
Monday through Friday
8:00am -5:00pm
Pacific Coast Time in the U.S.A.
844.776.4899
www.jblproservice.com
On The World Wide Web:
www.jblpro.com
Professional Contacts, Outside the USA:
Contact the JBL Professional Distributor in your area.
A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com
