thank you for choosing JBL. For over 50 years, JBL has
been involved in every aspect of musical and film recording and
reproduction, from live performances to monitoring the recordings
you play in your home, car or office.
We’re confident that the JBL loudspeakers you have
chosen will provide every note of enjoyment that you expected –
and that when you think about purchasing additional audio equip-
ment for your home, car or office, you will once again choose JBL.
Please take a moment to complete the enclosed profile card. It
enables us to keep you posted on our latest advancements, and
helps us to better understand our customers and to build products
that meet their needs and expectations.
JBL Consumer Products
Media100/200 OM (230V) 7/23/98 10:33 AM Page 2
Media100/200 OM (230V) 7/23/98 10:33 AM Page 3
1. Placement
For optimum performance
and stereo imaging, slightly
angle the speakers toward
the listening position.
Media100/200 OM (230V) 7/23/98 10:33 AM Page 4

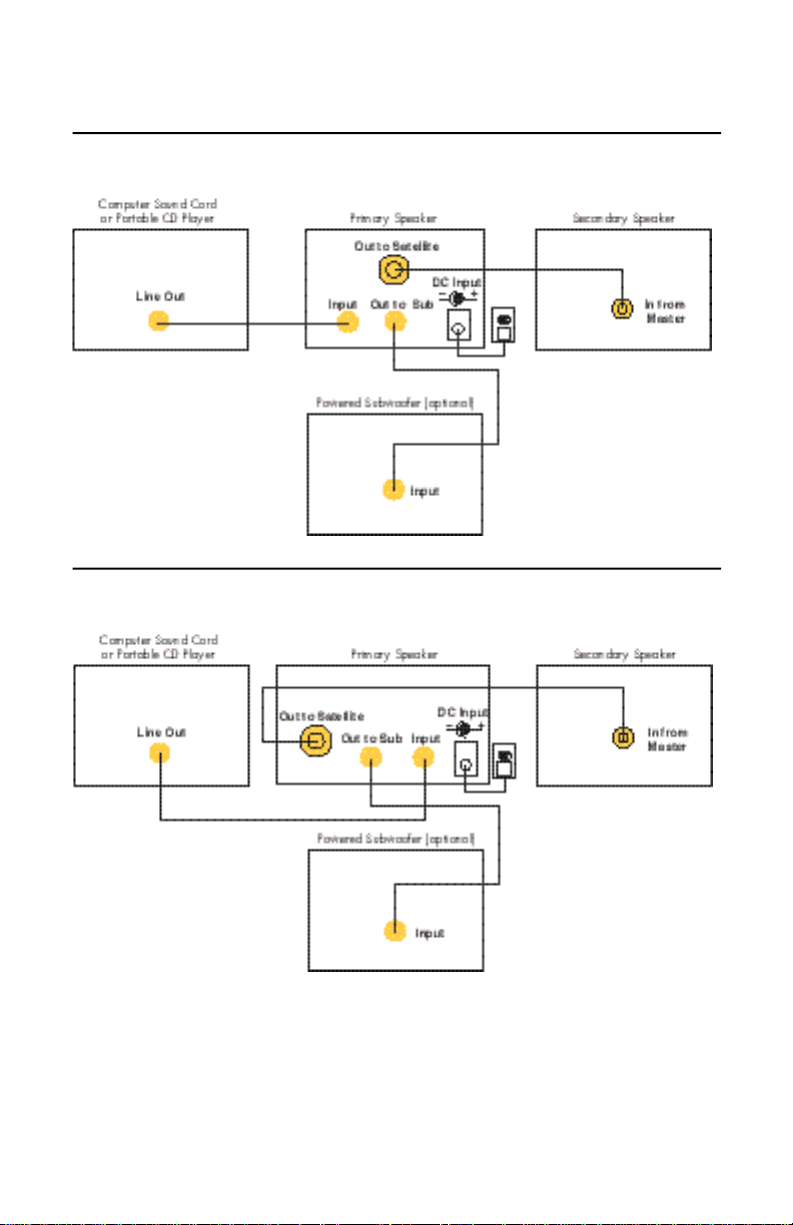

2. Connections
Media 100
Media 200
2. Connections
Media100/200 OM (230V) 7/23/98 10:33 AM Page 5

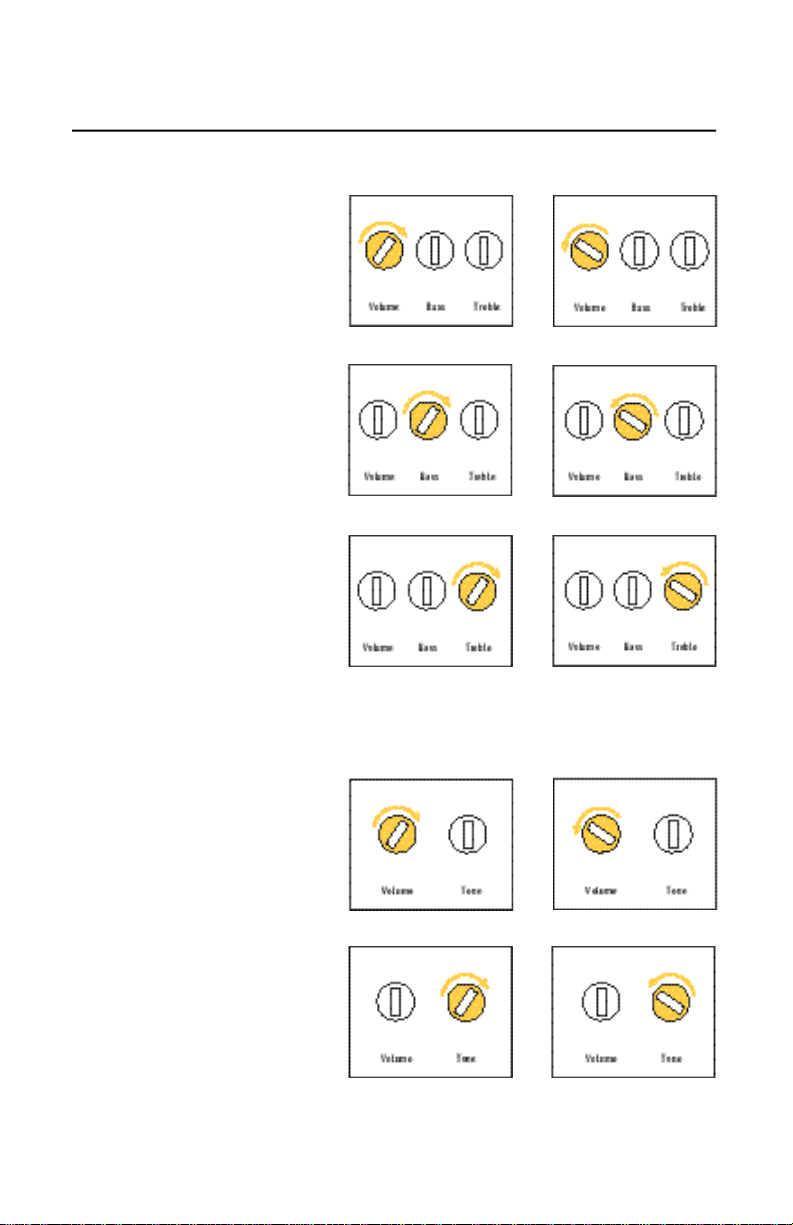

3. Operation
Media 200
Treble:
To raise the treble level,
rotate the treble knob
clockwise.
To lower the treble level,
rotate the treble knob
counterclockwise.
Bass:
To raise the bass level,
rotate the bass knob
clockwise.
To lower the bass level,
rotate the bass knob
counterclockwise.
Media 100
Volume:
To raise the volume level,
rotate the volume knob
clockwise.
To lower the volume level,
rotate the volume knob
counterclockwise.
Volume:
To raise the volume level,
rotate the volume knob
clockwise.
To lower the volume level,
rotate the volume knob
counterclockwise.
Tone:
Turning the tone control
clockwise will slightly
increase the bass sounds
while slightly decreasing
the high-frequency sounds.
Turning the tone control
counterclockwise will
slightly increase the
high-frequency sounds
while slightly decreasing
the bass sounds.
Media100/200 OM (230V) 7/23/98 10:33 AM Page 6
4. Specifications
Maximum Amplifier Output:
6 watts/channel @ 1% THD
Frequency Response:
75Hz – 20kHz
Input Sensitivity: 3V maximum
Input Impedance: 2.5k ohms
Signal Input Jack:
Stereo mini-connector (1/8")
Subwoofer Output Jack:
Stereo mini-connector (1/8")
Low-Frequency Driver: 3"
High-Frequency Driver: 1"
Dimensions (H x W x D):
7-5/8 x 3-1/2 x 5-3/4"
194 x 89 x 146mm
Weight:
0.75 lbs/0.34 kgs – main
0.65 lbs/0.30 kgs – secondary
Maximum Amplifier Output:
10 watts @ 1% THD
Frequency Response:
60Hz – 20kHz
Input Sensitivity: 3V maximum
Input Impedance: 5k ohms
Signal Input Jack:
Stereo mini-connector (1/8")
Subwoofer Output Jack:
Stereo mini-connector (1/8")
Low-Frequency Driver: 4"
High-Frequency Driver: 1"
Dimensions (H x W x D):
10-1/2 x 5-1/4 x 8"
267 x 133 x 203mm
Weight:
1.5 lbs/0.68 kgs – main
0.82 lbs/0.37 kgs – secondary
Media 100
Media 200
Auto turn-on/turn-off
Media 100 and Media
200 feature an automatic
turn-on/turn-off feature.
They will turn off when the
source equipment (comput-
er or CD player) has no
sound output for approxi-
mately twenty minutes and
immediately turn back on
when
a signal is present.
Media100/200 OM (230V) 7/23/98 10:33 AM Page 7
JBL Consumer Products
80 Crossways Park West, Wo o d b u ry, NY 11797
8500 Balboa Boulevard, No r thridge, CA 91329
©
1997 JBL, Incorporated. JBL is a registered trademark of JBL, Incorporated.
Printed in USA 11/97 P a rt No. MED100/200230VOM
