Washer
User manual
WA54M8750A*
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 1 2017-04-18 9:59:41
2 English
Contents
SAVE THESE INSTRUCTIONS
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Installation 16
Unpacking your washer 16

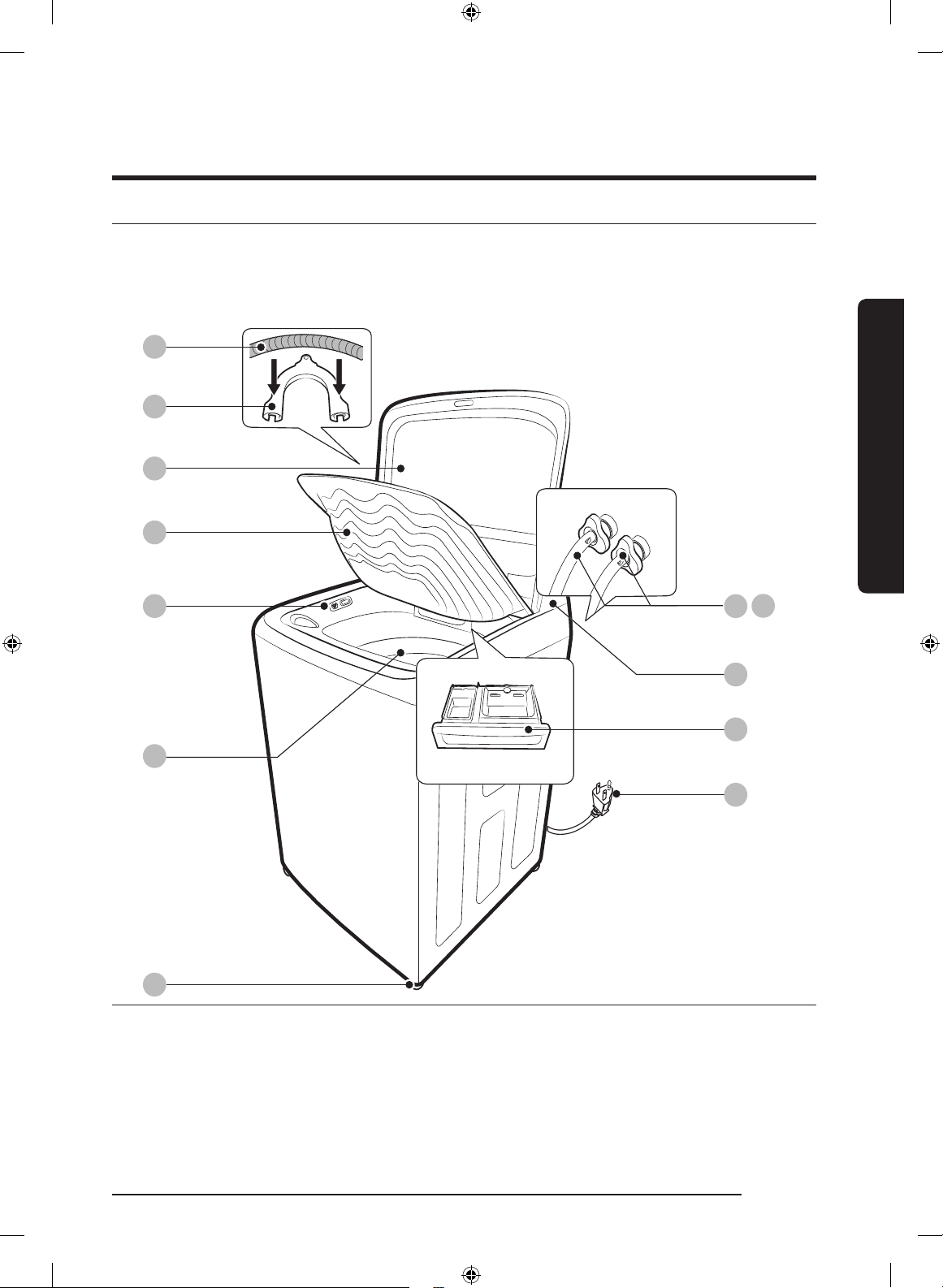

Overview of your washer 17
Basic location requirements 19
Important note to installer 23
Step-by-step installation 23
Operating instructions 31
Loading your washer 31
Getting started 32
Washing a load of laundry 33

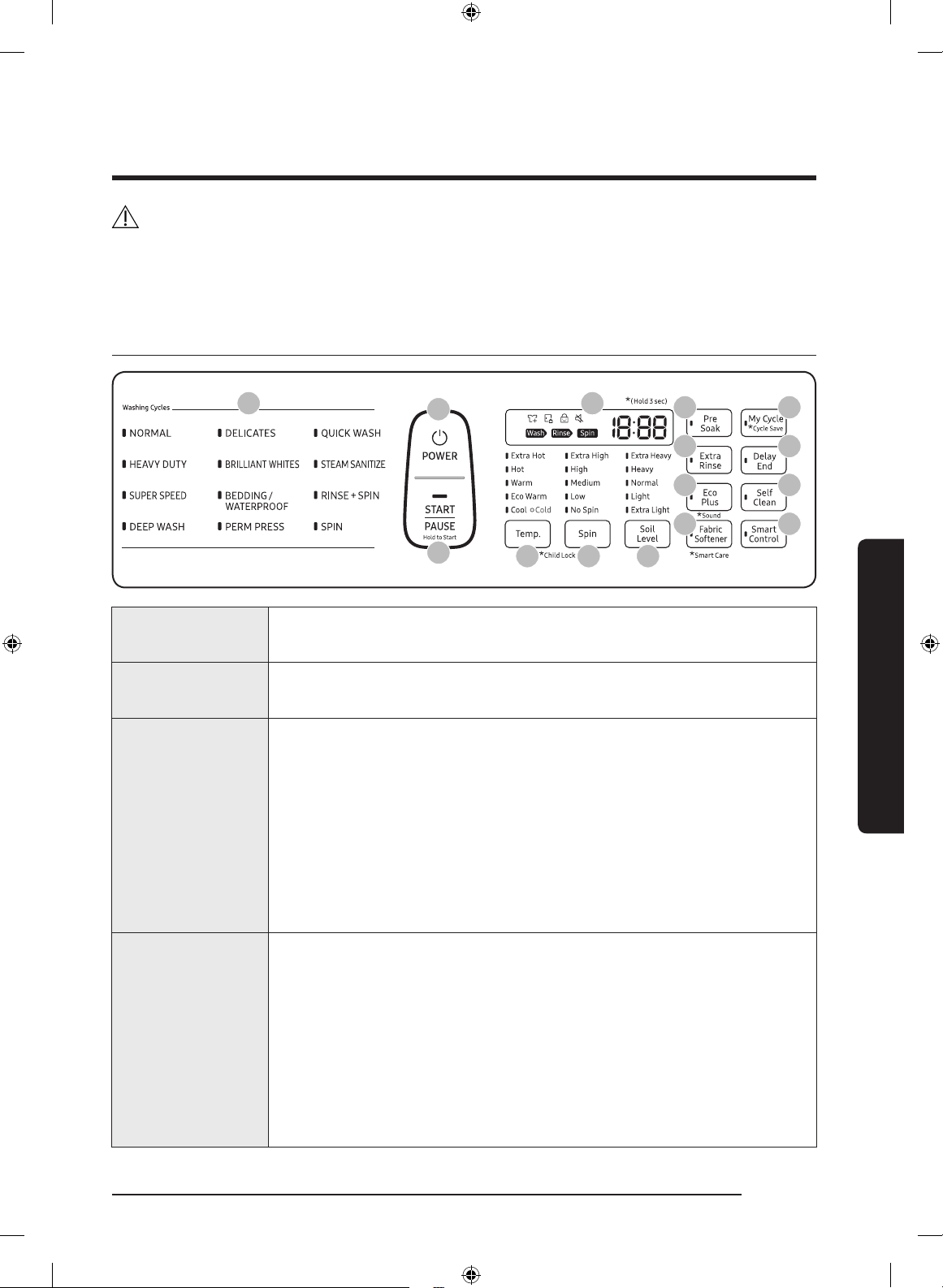

Control panel 33
Cycle overview 35
Options 37
Samsung Smart Home 41
Washing clothes using the option button 43
ATC (Auto Temperature Control) 44
The basics 45
Detergent use 47
Features 48
Maintaining your washer 52
Cleaning the exterior 52
Cleaning the interior 52
Storing your washer 52
Protecting the top cover and the front frame 53
Cleaning mesh lter 53
Cleaning the dispensers 53

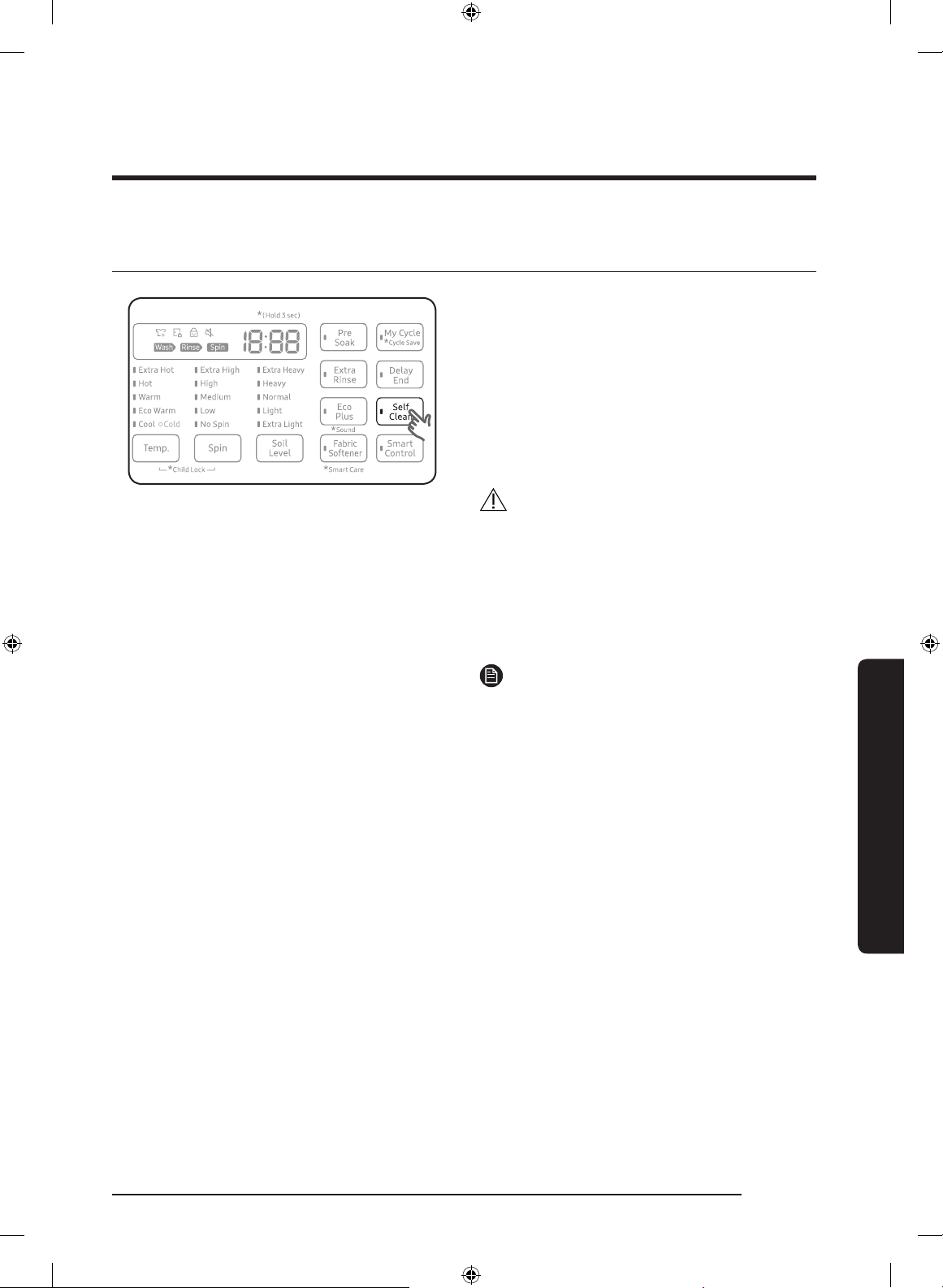

Self Clean 55
Troubleshooting 56
Checkpoints 56
Information codes 60
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 2 2017-04-18 9:59:41
4 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Congratulations on your new Samsung washer. This manual contains important information
on the installation, use, and care of your appliance. Please take some time to read this manual
to take full advantage of your washer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the manual
in a safe location close to the appliance for future reference. Use this appliance only for its
intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your washer.
Because the following operating instructions cover various models, the characteristics of your
washer may differ slightly from those described in this manual and not all warning signs may
be applicable. If you have any questions or concerns, contact your nearest Samsung service
center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death, and/or property
damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 4 2017-04-18 9:59:42
English 5
Safety information
SAVE THESE INSTRUCTIONS
These warning signs are here to prevent injury to yourself and others. Please follow them
explicitly. After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To
safely operate this appliance, familiarize yourself with its operation and exercise care when
using it.
WARNING
State of California Proposition 65 Warning (US only)
This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other ammable or explosive substances as
they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the lid of the washing
or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless it is
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances to
the wash water. These substances give off vapors that could ignite or explode.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 5 2017-04-18 9:59:42
6 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
10. Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for 2 weeks or more, before using a washer or combination
washer-dryer, turn on all hot water faucets and let the water ow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is ammable, do not
smoke or use an open ame during this time.
Critical installation warnings
WARNING
Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use
the socket for this appliance only. In addition, do not use an extension cord.
• Sharing a wall socket with other appliances, using a power strip, or extending the power
cord may result in electric shock or re.
• Do not use an electric transformer. It may result in electric shock or re.
• Ensure that the power voltage, frequency, and current match the product’s specications.
Failing to do so may result in electric shock or re.
Have this appliance installed by a qualied technician or service company.
• Failing to do so may result in electric shock, re, an explosion, problems with the product,
or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or re.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the oor.
• If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or re.
This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic
water pipe, or telephone line.
• Improper grounding may result in electric shock, re, an explosion, or problems with the
product.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 6 2017-04-18 9:59:42
English 7
Safety information
SAVE THESE INSTRUCTIONS
• Never plug the power cord into a socket that is not grounded correctly. Make sure the
socket you use is grounded in accordance with local and national codes.
Do not install this appliance near a heater or ammable material.
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to
direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
• This may result in electric shock or re.
Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged
power cord, or loose wall socket.
• This may result in electric shock or re.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or re.
Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by pulling the plug.
• Failing to do so may result in electric shock or re.
If the power plug or power cord are damaged, contact your nearest Samsung service center.
Installation cautions
CAUTION
Position the appliance so that the power plug is easily accessible.
• Failing to do so may result in electric shock or re due to electric leakage.
Install your appliance on a level and hard oor that can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
• Failing to do so may result in electric shock or re.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 7 2017-04-18 9:59:42
8 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Critical usage warnings
WARNING
If the appliance is ooded, cut the power immediately and contact your nearest Samsung
service center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug
immediately and contact your nearest Samsung service center.
• Failing to do so may result in electric shock or re.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately.
Do not turn any appliance or light on or off.
• Do not use a ventilating fan.
• A spark may result in an explosion or re.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol, or
other ammable or explosive substances.
• This may result in electric shock, re, or an explosion.
Do not force the washer lid open while the washer is operating (high-temperature washing/
drying/spinning).
• Water owing out of the washer may cause burns or cause the oor to be slippery. This
may result in injury.
• Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
• This may result in injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the washer is in operation.
• Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can be
dangerous to children.
• If a child places a plastic bag over his or her head, the child may suffocate.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 8 2017-04-18 9:59:42
English 9
Safety information
SAVE THESE INSTRUCTIONS
Do not let children or inrm persons use this washer unsupervised.
• Failing to do so may result in electric shock, burns, or injury.
Do not insert your hand or a metal object under the washer while it is operating.
• This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• If you need to repair or reinstall the appliance, contact your nearest Samsung service
center.
• Failing to do so may result in electric shock, re, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub,
unplug the power plug and contact your nearest Samsung service center.
• Failing to do so may result in electric shock or re.
If the water supply hose comes loose from the faucet and oods the appliance, unplug the
power plug.
• Failing to do so may result in electric shock or re.
Usage cautions
CAUTION
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc.,
unplug the power plug and clean the washer using a damp, soft cloth.
• Failing to do so may result in discoloration, deformation, damage, or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the
washer.
• If the clear portion is cracked or broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
• The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 9 2017-04-18 9:59:42
10 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
If a drain error occurs during an operation, check if there is a draining problem.
• If the washer is used when it is ooded because of a draining problem, it may result in
electric shock or re due to electric leakage.
Do not insert your hand under the washer.
• This may result in injury.
Insert the laundry into the washer completely so that laundry does not get caught in the lid.
• If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or
result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
• Ensure that the water supply hose connectors are properly tightened.
• Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is rmly tightened and that
there is no water leaking before using the product.
• If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, re, or problems
with the product.
Do not place an object that generates an electromagnetic eld near the washer.
• This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
• This may result in burns or injury.
For waterproof fabrics, only use the WATERPROOF cycle.
• Do not use other cycles for waterproof fabrics. This may result in injury or damage to the
washer, walls, oor, or clothing due to abnormal vibrations.
• Set the temperature and spin according to the attached care label.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 10 2017-04-18 9:59:42
English 11
Safety information
SAVE THESE INSTRUCTIONS
Do not operate the washer if the detergent dispenser is removed.
• This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
• This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer.
• This can cause abnormal vibrations that can damage the washer, and, in the case of pets,
cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare shops
or massage clinics.
• This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of
time.
• This may cause the tub to rust.
• If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent in the tub and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
• This may result in spontaneous combustion or ignition due to heat from the oxidation of
the oil.
Do not use hot water from water cooling/heating devices.
• This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
• If it hardens and accumulates inside the washer, it may cause problems with the product,
discoloration, rust, or bad odors.
Do not wash large laundry items such as bedding in the washing net.
• Failing to do so may result in injury due to abnormal vibrations.
• Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
• If it accumulates inside the washer, it may result in water leakage.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 11 2017-04-18 9:59:42
12 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Do not wash throw rugs or doormats in the washer.
• If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use a strong acid cleaning agent.
Do not use benzene, paint thinner, or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock, or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in electric shock or re.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 12 2017-04-18 9:59:42
English 13
Safety information
SAVE THESE INSTRUCTIONS
Regulatory notice
FCC Notice
CAUTION
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause
undesired operation.
For products sold in the US and Canadian markets, only channels 1–11 are available. You
cannot select any other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV
• Consulting the dealer or an experienced radio/TV technician for help.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 13 2017-04-18 9:59:42
14 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated so there is at least 8 inches
(20 cm) between the radiator and your body. This device and its antenna(s) must not be co-
located or operated in conjunction with any other antenna or transmitter.
IC Notice
The term “IC” before the radio certication number only signies that Industry Canada technical
specications were met. Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
classe B est conforme á la norme NMB-003 du Canada.
For products sold in the US and Canadian markets, only channels 1–11 are available. You
cannot select any other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there is at
least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s)
must not be co-located or operated in conjunction with any other antenna or transmitter.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 14 2017-04-18 9:59:42
English 15
Safety information
SAVE THESE INSTRUCTIONS
Open Source License Notice
The software included in this product contains open source software. You may obtain the
complete corresponding source code for a period of three years after the last shipment of
this product by sending an email to mailto:oss.reques[email protected].
It is also possible to obtain the complete corresponding source code in a physical medium
such as a CD-ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SimpleConnectTP/seq/0 leads
to the download page of the source code made available and open source license information
as related to this product. This offer is valid to anyone in receipt of this information.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 15 2017-04-18 9:59:42
16 English
Installation
Installation
Follow these instructions carefully to ensure proper installation of the washer and to prevent
accidents when using it.
WARNING
Control board, heat sink, motor, inlet valve, and pump are intentionally not grounded and
may present a risk of electric shock only during servicing.
Unpacking your washer
Unpack your washer and inspect it for shipping damage. Make sure you have received all the
items shown below. If your washer was damaged during shipping, or you do not have all of
the items, contact 1-800-SAMSUNG (1-800-726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the
unit.
WARNING
Packing materials can be dangerous to children; Keep all packing material (plastic bags,
polystyrene, etc.) well out of children’s reach.
CAUTION
When unpacking the washer, a 2 person
collaboration is needed. To remove the
cushion bottom of the packing materials, do
not tip the washer over on its front side.
the carton base, protect the side of the
washer and lay it down on its side carefully.
Never lay your washer on its back or front.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 16 2017-04-18 9:59:43
English 17
Installation
Overview of your washer
Make sure all the parts are included in the product package. If you have a problem with
the washer or the parts, contact the Samsung customer care center or your retailer.
MAX
MAX
09
08
01
02
03
04
05
07
06
10
11
12
01 Drain hose 02 Hose guide 03 Lid
04 Built-in sink 05 Water Jet 06 Tub
07 Leveling feet 08 Water hose (Cold) 09 Water hose (Hot)
10 Control panel 11 Detergent drawer 12 Power cord
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 17 2017-04-18 9:59:43
18 English
Installation
Installation
Parts supplied
Hose guide User manual Plastic zip hose tie Water intake cap
Parts not supplied
Water hoses
Tools needed for installation
Wrench Philips screwdriver Level
Adjustable Plier Measuring tape
NOTE
• If you lose an accessory and want to purchase a replacement, contact the the Samsung
customer care center (1-800-SAMSUNG (1-800-726-7864)).
• The design of the parts and accessories may differ from the pictures above. Their design
is subject to change without notice for product improvement.

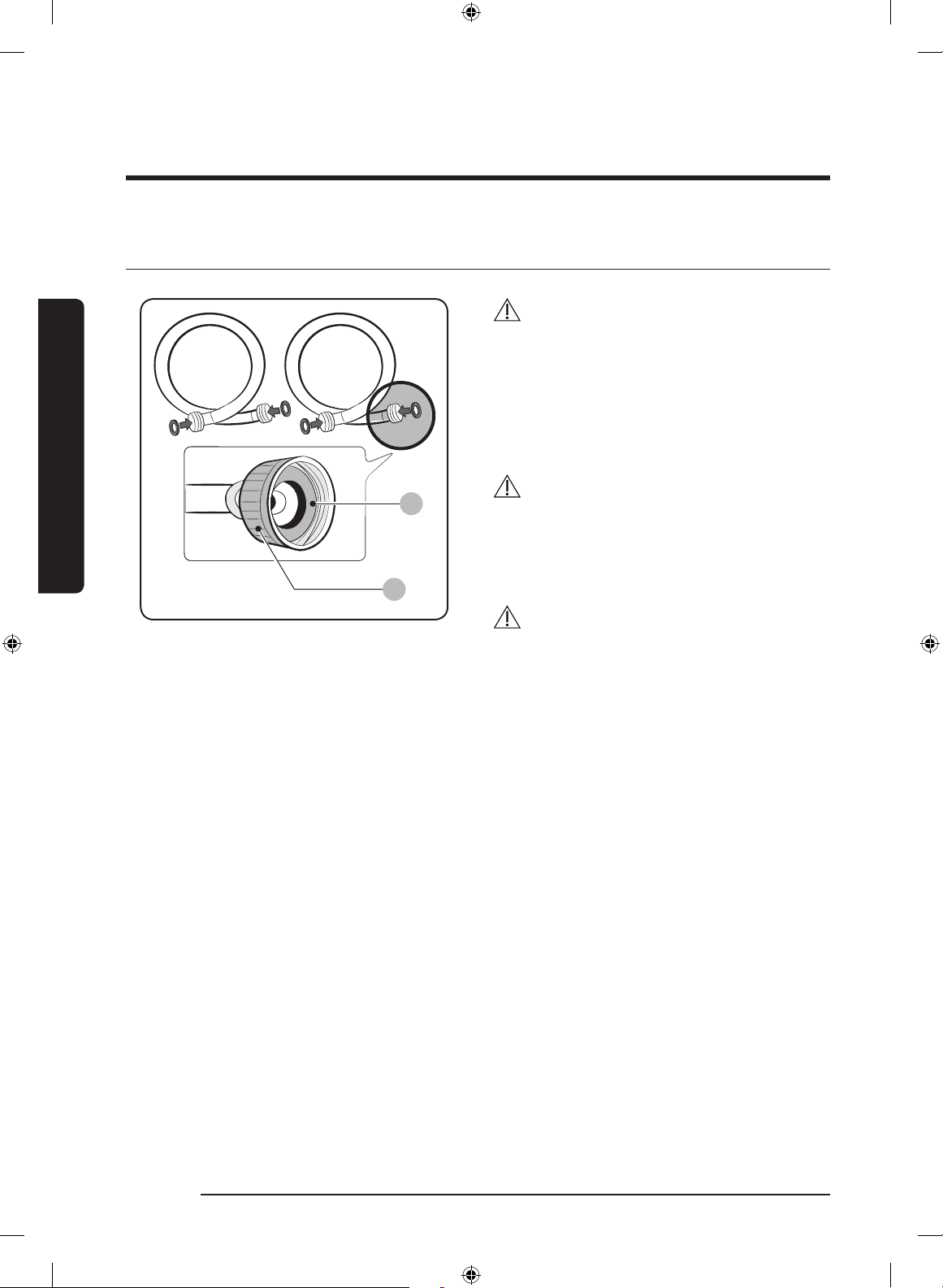

• Do not reuse old hoses. Only use new water supply hoses when you install the washer.
Old water supply hoses can leak or burst causing ooding and property damage.
• Conrm that there are rubber washers inside the couplings of each water supply hose.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 18 2017-04-18 9:59:44
English 19
Installation
Basic location requirements
Electrical
• 120 Volt 60 Hz 15 AMP fuse or circuit
breaker.
• Individual branch circuit serving only
your Washer is recommended.
• Your washer is equipped with a power
cord.
CAUTION
Never use an extension cord.
Grounding
Electrical grounding is required for this
appliance.
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
for electric current.
This appliance is equipped with a power
cord having a three-prong grounding plug
for use in a properly installed and grounded
outlet.
The plug must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING
An improperly connected equipment-
grounding conductor can increase the risk
of electrical shock. Check with a qualied
electrician or serviceman if you are not sure
whether the appliance is properly grounded.
Do not modify the plug provided with the
appliance – if it does not t the outlet, have
a proper outlet installed by a qualied
electrician.
Important safety precautions
To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with the National Electrical Code
ANSI/FNPA, No.70 Latest Revision and local
codes and ordinances. It is the personal
responsibility of the appliance owner to
provide adequate electrical service for this
appliance.
CAUTION
Never connect the ground wire to plastic
plumbing lines, gas lines, or hot water pipes.
Water
To correctly ll your washer in the proper
amount of time, water pressure of 20 to
116 psi (137 to 800 kPa) is required.
Water pressure less than 20 psi may cause
water valve failure, or may not allow the
water valve to shut off completely, or may
extend the ll time beyond what your
washer controls allow, causing your washer
to turn off. A time limit is built into the
controls to prevent ooding in your home if
a hose becomes loose.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 19 2017-04-18 9:59:44
20 English
Installation
Installation
The water faucets must be within 4 feet
(122 cm) of the back of your washer to
match the inlet hoses provided with your
washer.
NOTE
Accessory inlet hoses are available in
various lengths up to 10 feet (275 cm) for
faucets that are further away from the back
of your washer.
To avoid the possibility of water damage:
• Have water faucets easily accessible.
• Turn off faucets when the washer is not
in use.
• Periodically check that there is no
leakage from the water inlet hose
ttings.
WARNING
Check all connections at the water valve and
faucet for leaks
Drain facility
The recommended height of the standpipe
is 39 in (99 cm). The drain hose must be
routed through the drain hose clip to the
standpipe. The standpipe must be large
enough to accept the outside diameter of
the drain hose. The drain hose is attached to
the washer at the factory.
Flooring
For best performance, you must install
your washer on a solidly constructed oor.
Wood oors may need to be reinforced to
minimize vibration and/or unbalanced load
situations. Carpeting and soft tile surfaces
are contributing factors to vibration which
can cause your washer to move slightly
during the spin cycle.
Never install your washer on a platform or
weakly supported structure.
Location considerations
Do not install your washer in areas where
water may freeze, since your washer will
always retain some water in its water valve,
pump, and hose areas. Frozen water can
damage the belts, the pump, hoses, and
other components.
Alcove or closet installation
Minimum clearances for closet and alcove
installations:
Sides
1 in /
25 mm
Closet
front
2 in /
51 mm
Rear
6 in /
152 mm
Top
21 in /
533 mm
If the washer and dryer are installed
together, the closet front must have at least
a 72 in² (465 cm²) unobstructed air opening.
Your washer alone does not require a
specic air opening.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 20 2017-04-18 9:59:44
English 21
Installation
Recessed area
A A
A
B B
A 1 in (2.5 cm)
B 27.0 in (68.6 cm)
Side view - closet or conned area
A
B
C
D
E
A 21 in (53.3 cm)
B 2 in (5.1 cm)
C 29 7/16 in (74.4 cm)
D 6 in (15.2 cm)
E
Gap between end of water
valve and the wall
• Case 1. Assemble supply
hose after installing : Over
4 in (10 cm).
• Case 2. Assemble supply
hose before installing :
Over 3 in (8 cm).
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 21 2017-04-18 9:59:44
22 English
Installation
Installation
Required dimensions for Installation
A
C
B
A 27.0 in (68.6 cm)
B 39.2 in (99.5 cm)
C 42.4 in (107.7 cm)
B
A
A 29.3 in (74.4 cm)
B 42.4 in (107.7 cm)
A
A 61.0 in (155.0 cm)
B
A
C
C
A* 48.0 in
2
(310.0 cm
2
)
B* 24.0 in
2
(155.0 cm
2
)
C 3.0 in (7.6 cm)
NOTE
* Required spacing
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 22 2017-04-18 9:59:44
English 23
Installation
Important note to installer
Please read the following instructions carefully before installing your washer.
These instructions should be retained for future reference.
We recommend you hire a professional to install this washer.
Installation ow chart
Removing the
shipping bolts
(Front loading
washers only)
Connecting the
water and drain
Adjusting the
leveling feet
Selecting a
location
Powering your
washing machine
Running a test cycle
Run RINSE+SPIN
with small amount of
laundry (about 4-5
towels) as a test cycle
Running
Calibration Mode
Finishing the
installation
Does your washer
vibrate?
NO
YES
Check again before steps.
Step-by-step installation
STEP 1 Selecting a location
NOTE
Before you install the washer, make sure the location:
• Has a hard, level surface without carpeting or ooring that may obstruct ventilation.
• Is away from direct sunlight.
• Has adequate ventilation.
• Is not exposed to freezing temperatures (temperatures under 32 °F or 0 °C).
• Is away from heat sources such as oil or gas.
• Has enough space so that the washer doesn’t rest on its power cord.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 23 2017-04-18 9:59:44
24 English
Installation
Installation
STEP 2 Connecting the water supply hoses
B
A
CAUTION
Before installing the water supply hoses,
make sure there are rubber gaskets (B)
inside the couplings (A) at both ends of each
new water hose. Installing the water supply
hoses without rubber gaskets can cause
water leakage.
CAUTION
When you initially install the washer, be
sure to use new hoses. Failing to do so may
result in a water leakage or overow and
may damage your property.
CAUTION
Do not connect multiple water supply hoses
together to increase the length of the supply
hose. Hoses connected this way can leak
and the leakage can cause electrical shock. If
a hose is too short, replace the hose with a
longer, high pressure hose.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 24 2017-04-18 9:59:45
English 25
Installation
1. Connect the ends of the water supply
hoses to the hot and cold faucets.
2. Tighten the ttings by hand until they
are snug, and then tighten them an
additional two-thirds of a turn with
pliers.
CAUTION
When you fasten the ttings, do not fasten
them too tightly or apply tape or sealant to
the faucets or water supply intakes. This can
damage the ttings.
NOTE
After you have connected the water supply
hoses to the faucets, ensure that they are
connected correctly by pulling the water
supply hoses downwards.
3. Place the unconnected ends of the hoses
into a bucket and open the faucets
connected to the two water supply hoses
for 10 or 15 seconds to remove any
foreign substances from the hoses. Close
the faucets before continuing.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 25 2017-04-18 9:59:45
26 English
Installation
Installation

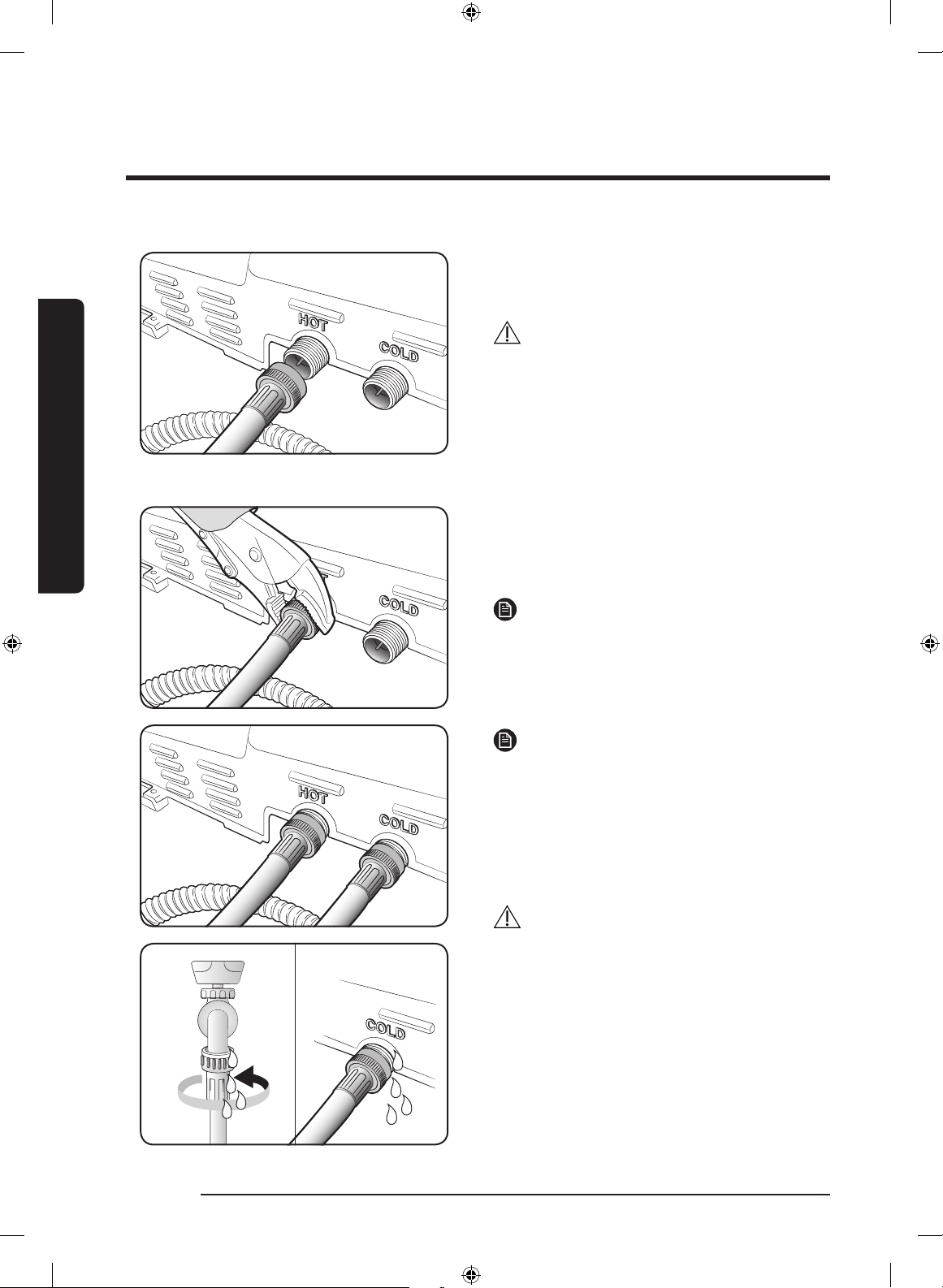

4. Connect the ends of the water supply
hoses to the water supply intake
connections at the back of the washer.
CAUTION
The water supply hose connected to the hot
faucet must be connected to the hot water
supply intake and the water hose connected
to the cold faucet must be connected to the
cold water supply intake.
5. Tighten the ttings by hand until they
are snug, and then tighten them an
additional two-thirds of a turn with a
plier.
NOTE
To ensure the correct water usage, connect
both the hot and cold water faucets. If either
or both are not connected, the washer will
display a “4C” (no ll) code when you run it.
NOTE
If you do not want to use the hot water
supply hose, insert the water intake cap
onto the hot water supply intake. Then,
select Tap Cold for the water temperature.
If you select Tap Cold, all water temperature
options are turned off.
CAUTION
Conrm that the water supply hoses are not
twisted or bent. If the hoses are twisted or
bent, the hoses can leak and cause electric
shock due to water leakage.
6. Turn on the hot and cold water supplies
and check the water supply intake
connections and the faucets for water
leaks.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 26 2017-04-18 9:59:46
English 27
Installation

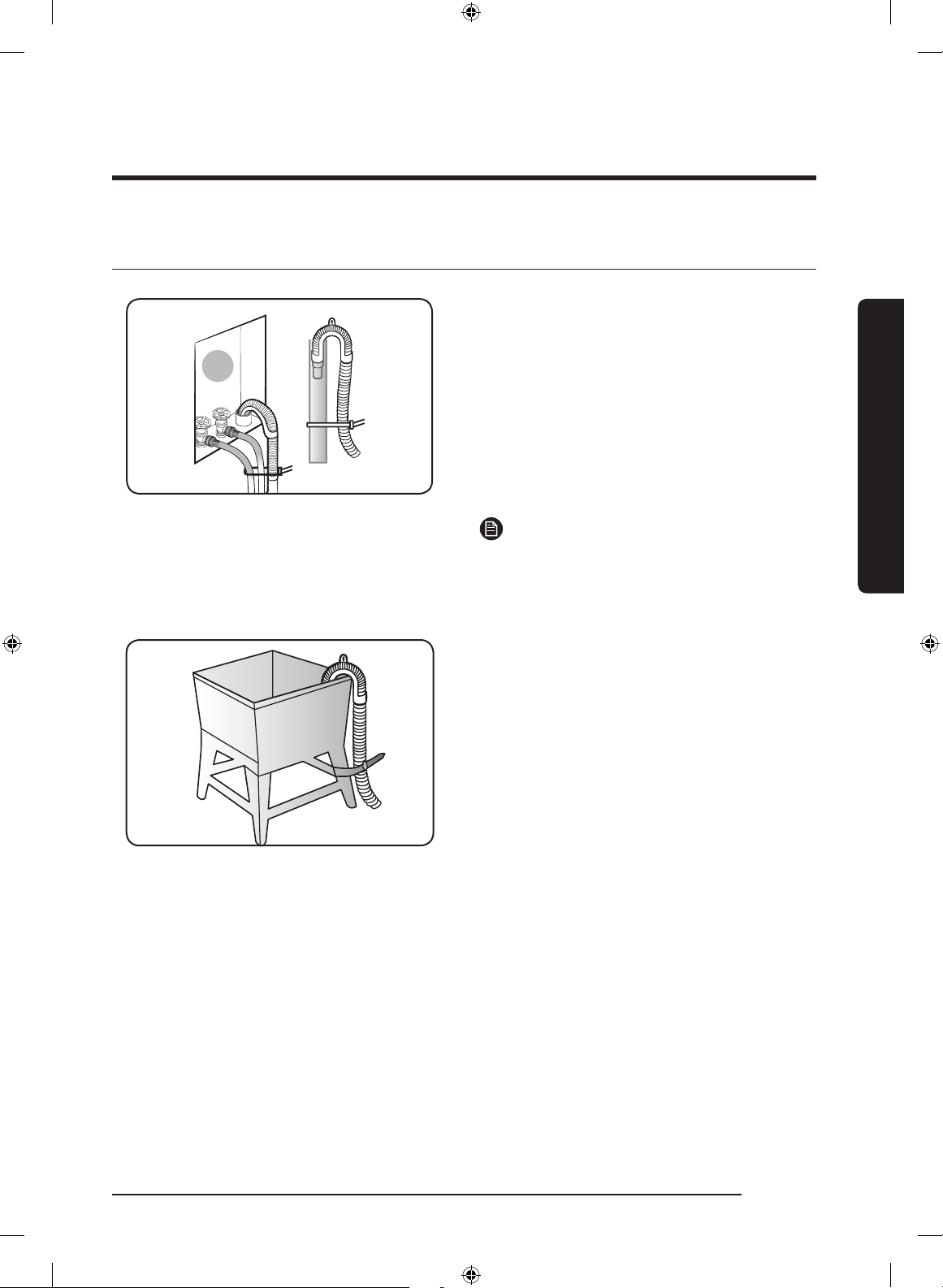

STEP 3 Connecting the drain hose
A
The end of the drain hose can be positioned
in three ways:
In a wall standpipe or oor standpipe
The standpipe must be no lower than 39 in
(99 cm) and no higher than 96 in (245 cm)
If the drain pipe is built into the wall along
side of the water faucets (A), fasten the
drain hose to the water hoses using a plastic
zip hose tie.
NOTE
• Make sure that the connection between
the drain hose and the standpipe is not
airtight.
In a laundry tub
The tub must be no lower than 39 in (99 cm)
and no higher than 96 in (245 cm).
Assemble the supplied Hose guide at the
end of the drain hose, attach the hanger
to laundry tub as shown, and then fasten
the hose to a leg of the laundry tub using a
plastic zip hose tie.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 27 2017-04-18 9:59:47
28 English
Installation
Installation
*
A
NOTE
Connect the hose guide (A) within 3-5 in
(7.6-12.7 cm)* from the end of the drain
hose. If the drain hose is extended beyond
the end of the hose guide, mold or
microorganisms could spread inside the
washer.
NOTE
The drain hose can be installed to a
maximum height of 96 in (245 cm), but the
draining capability can be reduced at this
height. It can cause the washer to have an
odor because of water remaining in the
drain system.
NOTE
If the drain hose is installed below 39 in (99
cm), water can be drained in cycles due to a
siphon phenomenon. It causes the washer to
display a “4C”.
STEP 4 Leveling your washer
A
Level Not Level
See if the washer is level by checking the
position of the tub:
1. Slide the washer into position.
2. Open the lid of the washer, and pour
water into the tub to just below the
pulsator level.
NOTE
WA54M8750A* models have a built-in sink
over the pulsator level. Open a built-in sink
and check the level visually.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 28 2017-04-18 9:59:47
English 29
Installation
B C

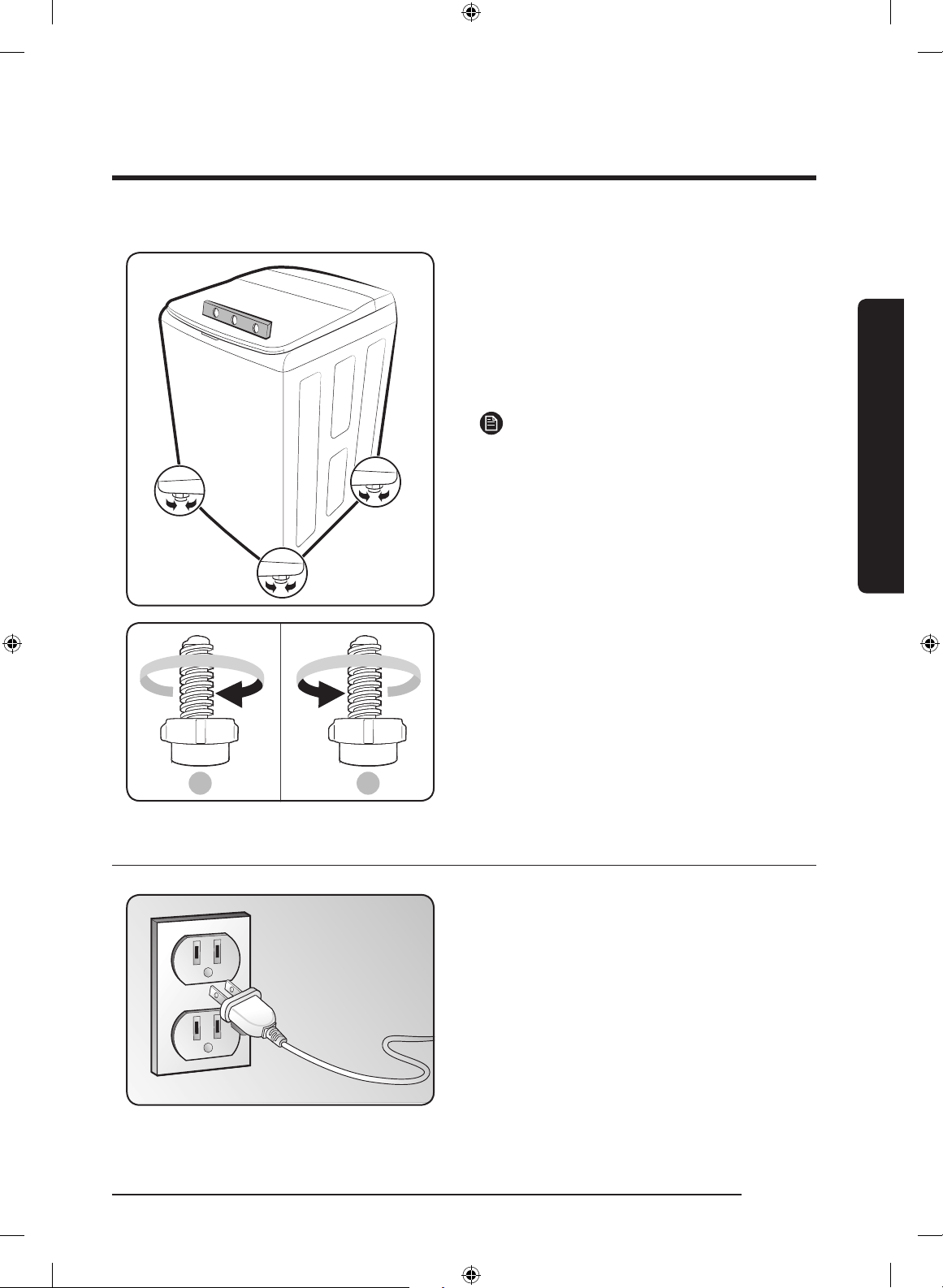

3. If the washer is level, the pulsator
(A) will be positioned at the center of
the tub as shown in the gure on the
previous page. If it isn't, level your
washer by turning the front leveling
feet clockwise or counterclockwise as
necessary.
NOTE
Turn the front leveling feet clockwise (B) to
lower the washer, and counterclockwise (C)
to raise the washer.
STEP 5 Powering your washer
Plug the power cord into a 3-prong, well
grounded, 120 volt 60 Hz, approved
electrical outlet protected by a 15-amp fuse
or comparable circuit breaker.
Your washer is grounded through the third
prong of the power cord when plugged into
a three-prong grounded electrical outlet.
Test run
Make sure that you installed your washer
correctly by running the RINSE+SPIN after
the installation is complete. See Step 6 on
the next page.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 29 2017-04-18 9:59:47
30 English
Installation
Installation
STEP 6 Running a test cycle
Run a test cycle as follows to check if your washer is properly installed.
1. Load about 6 pounds of laundry into the tub.
2. Press POWER to turn on your washer.
3. Select RINSE+SPIN by pressing the Cycle Selector.
4. Press and hold START/PAUSE to start the test cycle.
5. The washer should not rock or vibrate excessively when water is supplied or when
washing or spinning, and should drain well during the spin cycle.
NOTE
If water leaks while water is being supplied or drained, check the water connections. Refer to
the “STEP 2 Connecting the water supply hoses” section on page 24 for instructions.
NOTE
If the washer rocks and vibrates excessively, level your washer again. Refer to the “STEP
4 Leveling your washer” section on page 28 for instructions.
STEP 7 Calibration Mode
Your Samsung washer detects laundry weight automatically.
For more accurate weight detection, please run Calibration Mode after installation is
complete.
To run Calibration Mode, follow these steps:
1. Remove laundry or any contents from the washer, and then turn it on.
2. Press and hold Temp. and Delay End simultaneously for at least 3 seconds.
3. Press and hold START/PAUSE to activate Calibration Mode.
4. The pulsator rotates clockwise and counterclockwise for approximately 1 minute.
5. When Calibration Mode is nished, “0” appears in the display, and the washer
automatically turns off. The washer is now ready for use.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 30 2017-04-18 9:59:48
English 31
Operating instructions
Operating instructions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
Loading your washer
• Fill the tub with dry, unfolded clothes.
• Space the clothes evenly to enhance washing efciency and performance and prevent
excess wear or wrinkling of the clothes.
• Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with
similar lightweight items.
• When washing big bulky items or a few smaller items that don’t ll the tub completely
– a rug, a pillow, stuffed toys, or one or two sweaters, for example – add a few towels to
improve spin performance.
• Wash bulky items (comforters, blankets, etc.) in the Bedding/Waterproof cycle only. Do
not wash bulky items using any other cycle.
NOTE
During the spin cycle, the washer may add additional water to redistribute the clothes and
correct an imbalance inside the drum.
• When washing heavily soiled loads, do not overload your washer to ensure good cleaning results.
CAUTION
• Inatable items may cause damage to the laundry or the machine during the washing or
drying process.
• Regardless of their size,it is safer and more effective to wash blankets or quilts one
item at a time. Two different-sized blankets in the same load may compromise drying
performance because the load is unbalanced.
To insert a blanket
Fold the blanket into the blanket-specic
net as shown, and then insert it into the tub
below the plastic area of the tub.
CAUTION
Make sure the laundry is inserted completely.
• Laundry that is not completely inserted
into the tub may cause damage to the
washer or the laundry itself, or cause a
water leak.
• Do not overload the tub. Make sure no
laundry is left outside of the tub.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 31 2017-04-18 9:59:48
32 English
Operating instructions
Operating instructions
To add a forgotten item:
1. Press START/PAUSE to pause the washer.
2. Wait for the door to unlock automatically, and then open the door.
3. Add the item, close the door, and then press and hold START/PAUSE. The cycle will
resume.
Getting started
1. Load your washer.
2. Add liquid (or powdered) detergent and additives to the dispenser (see the "Detergent
use" section on page 47).
3. Select the appropriate cycle and options for the load (see the "Washing a load of laundry"
section page 33).
4. Close the lid.
5. Press and hold START/PAUSE.
6. The Wash Indicator illuminates.
7. The estimated cycle time will appear in the display. The time may uctuate to indicate the
time remaining in the cycle.
NOTE
The actual time required for a cycle may differ from the estimated time in the display
depending on the water pressure, water temperature, detergent, and laundry.
8. Before your washer starts to ll, it will make a series of clicking noises to check the door
lock and do a quick drain.
NOTE
• When the cycle is complete, the Door Lock indicator will go out and “0” will appear in
the display.
• Pressing POWER cancels the cycle and stops your washer.
• The Wash, Rinse, and Spin indicators will illuminate during those portions of the cycle.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 32 2017-04-18 9:59:48
English 33
Washing a load of laundry
Washing a load of laundry
WARNING
To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
Control panel
01
03 04
02
06
07
08
09
10
11
12
13
05
14
15
01 Cycle Selector
Press to select a desired cycle in the left-most portion of the panel.
When a cycle is selected, the cycle indicator lights up.
02 Display
Provides instructions and diagnostics while keeping you updated on
the cycle status and time remaining.
03 Temp.
Press this button repeatedly to cycle through the different water
temperature options.
• Extra Hot - Heavily soiled, colorfast items.
• Hot - Whites and heavily soiled, colorfast items.
• Warm - Colorfast items.
• Eco Warm - Moderately soiled, colorfast items; most wrinkle-free
items.
• Cool - Brightly colored, very lightly soiled items.
• Cold - Cold water with no warm water added.
04 Spin
Press this button repeatedly to cycle through the different spin speed
options.
• Extra High - Removes more water from loads during spin.
• High - Use for underwear, t-shirts, jeans, and sturdy cottons.
• Medium - Use for jeans, wrinkle-free or wash-and-wear items, and
synthetics.
• Low - Use for delicate items needing a slow spin speed.
• No Spin - Drains your washer without spinning. Use for extremely
delicate items that cannot tolerate any spin.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 33 2017-04-18 9:59:48
34 English
Washing a load of laundry
Washing a load of laundry
05 Soil Level
Press this button to select the soil level/washing time.
• Extra Heavy - For heavily soiled loads.
• Heavy - For heavily soiled loads.
• Normal - For moderately soiled loads. This setting is best for most loads.
• Light - For lightly soiled loads.
• Extra Light - For lightly soiled loads.
06 Pre Soak
Adds 18 minutes soaking time at the start of the wash cycle for better
stain removal.
07 Extra Rinse
Add an additional rinse at the end of the cycle to more thoroughly
remove laundry additives and perfumes.
08 Eco Plus
Press to increase your energy savings on your wash cycles. (Less hot
water consumption)
09 Fabric
Softener
Adds an additional rinse at the end of the cycle to more thoroughly
remove laundry additives and perfumes.
10 My ycle
Press and hold for 3 seconds to save your own cycle.
Create and/or use a cycle you have customized with cycle, temperature,
spin speed, soil level, and option settings you have selected.
11 Delay End
Delay the end of any cycle for up to 24 hours in one-hour increments.
Displayed hour indicates the time the wash will be ended.
12 Self Clean
Use to clean dirt and bacteria from the drum. Regular use (after every
20 washes) is recommended. No detergent or bleach is needed.
13 Smart Control
After connecting the washer to your home network using the
Samsung Smart Home app, you can control the washer remotely.
When you start Smart Control, the Smart Control indicator blinks and
the front door locks. The washer enters waiting mode and waits for
remote commands.
14 POWER
Press once to turn your washer on. Press again to turn your washer
off. If the washer is left on for more than 10 minutes without any
buttons being pressed, the power automatically turns off.
15 START/PAUSE
(Hold To Start)
Press and hold to start operation or press to stop operation.
NOTE
We recommend that you untangle the items before washing.
Do not put objects on the washer, especially on the feature panel.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 34 2017-04-18 9:59:48
English 35
Washing a load of laundry
Cycle overview
NOTE
To minimize wrinkling of laundry, select PERM PRESS.
Cycle Description
NORMAL
For most fabrics including cottons, linens, and normally soiled
garments.
HEAVY DUTY For sturdy, colorfast fabrics, heavily soiled garments.
DELICATES
For sheer fabrics, bras, lingerie, silks, and other handwash-only
fabrics. For best results, use liquid detergent.
DEEP WASH To use more water in washing and rinsing.
SUPER SPEED For normally soiled loads (up to 8 lb).
STEAM SANITIZE
For heavily soiled, colorfast garments. (less than 14lbs)
NOTE
If you select pause during the heating portion of the Sanitize Cycle,
your Washer door will remain locked for your safety.
BEDDING/
WATERPROOF
For bulky and large items, such as comforters, blankets, and sheets,
and waterproof or water resistant items. When washing comforters,
use liquid detergent.
CAUTION
※ Do not wash waterproof items and non-waterproof items together.
※ Check the specication label on each item to see if the item is
waterproof.
※ Use the BEDDING/WATERPROOF cycle for waterproof or water-
resistant items such as plastic mats, ski pants, raincoats, and
comforters which hardly absorb water.
PERM PRESS
For wash-and-wear, synthetic fabrics, and lightly to normally soiled
garments.
BRILLIANT
WHITES
For white fabrics with or without bleach.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 35 2017-04-18 9:59:49
36 English
Washing a load of laundry
Washing a load of laundry
Cycle Description
QUICK WASH For lightly soiled garments needed quickly.
RINSE + SPIN
Use for loads that need rinsing only or to add rinse-added
fabric softener to a load.
SPIN Drains the water and spins at a high speed.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 36 2017-04-18 9:59:49
English 37
Washing a load of laundry
Options
Child Lock
To prevent children or infants from
accidently starting or setting the washer,
Child Lock locks all buttons except for the
POWER button.
Activating the Child Lock function
Press and hold Temp. and Spin
simultaneously for approximately 3 seconds.
• When you activate the Child Lock
function, the
Child Lock indicator
blinks.
Using the Child Lock function
If the lid is opened when the Child Lock
function is on, “dC” is displayed and an
alarm sounds.
• If the water level in the tub is above the
safe water level, “dC” is displayed on the
LED display and the washer starts to
drain water by force after 30 seconds.
• If the water level in the tub is above
the safe water level and the Child Lock
function is turned on while the lid is
open, “CL” is displayed on the LED
display even if the washer is turned off
and the washer drains water by force.
• When Child Lock is on and the washer is
off, if the water in the tub is above the
Reset water level and the lid is opened,
“CL” is displayed on the LED display.
No alarm sounds, but the washer drains
the water. When the draining operation
nishes, the power automatically turns
off again.
• If you activate the Child Lock function
while the washer is running, the START/
PAUSE button will not work.
• After the compulsory drain, the “CL”
blinks at 1 second intervals and the
washer enters the “CL” mode. (When
the washer is in the “CL” mode, only the
POWER button works.)
• To cancel the “CL” mode, turn the power
off and then on again.
• To cancel the “dC” mode, deactivate
the Child Lock function. To deactivate
the Child Lock function, press and hold
Temp. and Spin simultaneously for at
least 3 seconds.
NOTE
Adding laundry when Child Lock is on
To add laundry, deactivate the Child Lock
function. To deactivate the Child Lock
function, press and hold Temp. and Spin
simultaneously for at least 3 seconds. See
the “Pause Option” section on page 43 for
additional details.
Deactivating the Child Lock function
Press and hold both Temp. and Spin
simultaneously for approximately 3 seconds.
• When you deactivate the Child Lock
function, the
Child Lock indicator is
turned off.
• The Child Lock function prevents
children or the inrm from accidently
operating the washer and injuring
themselves.
WARNING
If a child enters the washer, the child may
become trapped and suffocate.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 37 2017-04-18 9:59:49
38 English
Washing a load of laundry
Washing a load of laundry
CAUTION
• Once you have activated the Child Lock
function, it continues working even if
the power is turned off.
• Forcing the lid open can result in injury
or damage to the product.
NOTE
To add laundry after you have activated
the Child Lock function, you must rst
deactivate the Child Lock function.
Sound
The Sound Off function can be selected
during all cycles.
Garment Plus
You can add or take out laundry items even
after the wash has started, as long as the
Garment Plus indicator is on. Pressing
START/PAUSE unlocks the lid. If you open
the lid and want to continue the wash cycle,
close the lid, and then press START/PAUSE.
NOTE
If you have activated the Child Lock, you
must deactivate it rst. See page 37.
My Cycle
Lets you save a custom wash cycle
(temperature, spin, soil level, etc.) and
then recall and use it with one button
convenience.
To save a cycle and selected options as your
My Cycle, follow these steps:
1. Press POWER.
2. Select a cycle using the Cycle Selector.
3. After cycle selection, set each option.
NOTE
See the “Cycle chart” section on page 67 for
available option settings with each cycle.
4. You can then store the selected cycle
and options by pressing and holding
My Cycle for longer than 3 seconds.
The cycle and options you select will be
displayed the next time you choose the
My Cycle function.
5. Press My Cycle to load and use the
saved My Cycle options. The “My Cycle”
LED lights up indicating activation and
the chosen cycle and option lights blink.
NOTE
You can change the My Cycle settings by
repeating the process above.
The last saved settings will be displayed the
next time you choose the My Cycle function.
NOTE
If you press My Cycle and release it within
3 seconds, the previously saved cycle and
options appear. If you press and hold My
Cycle for 3 seconds or longer, the currently
set cycle and options are saved and the LED
blinks for 3 seconds.
Delay End
You can set the washer to start your wash
automatically at a later time by choosing a
delay time.
The hour displayed indicates the time at
which the wash will be ended.
1. Set your wash cycle.
2. Press Delay End repeatedly until the
delay time is set.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 38 2017-04-18 9:59:49
English 39
Washing a load of laundry
3. Press START/PAUSE. The “Delay End”
indicator will be lit, and the clock will
begin counting down until it reaches the
set time.
4. To cancel a Delay End function, press the
POWER button and then turn the washer
on again.
Pre Soak
Use this function when the laundry is
heavily contaminated or stained. This
function improves the wash performance by
adding a Pre Soak cycle.
• If you select this function, the total cycle
time is increased by 18 minutes.
• When the Pre Soak cycle starts, the
washer repeats a wash cycle after
supplying water and then performs a
18-minute soak cycle.
• When the Pre Soak cycle is complete,
the congured wash cycle starts without
draining water.
Eco Plus
This function sets the temperature
somewhat lower than the typical washing
cycle and extends the wash time slightly.
With laundry time slightly extended, it’s
possible to keep the same level of washing
performance with cooler water. This function
reduces energy consumption and maintains
the quality of the wash.
Mist Shower
Mist Shower sprays water from a nozzle
that is independent of the main water
supply system. The water soaks the laundry
with additional water from the beginning
of the rinse cycle and provides a more
effective rinse. (The Mist Shower function
may not work if there is too large of a load
in the machine.)
Smart Care
If your washer displays an error code, this
function lets see the meaning of the code
and the countermeasures you can take on a
smartphone.
1. To enable the Smart Care function, press
and hold Fabric Softener for 3 seconds
after turning the power on or when an
error occurs.
NOTE
The error code history is deleted after you
use this function.
2. The Smart Care indicator is lit on the
display.
3. Run the Smart Care app on your smart
phone.
• Android: Galaxy S series, Galaxy
Note series. (Other devices may not
run the app properly.)
Supported OS : Android 2.2 or higher
• iOS: iPhone series
Supported OS : iOS 4.3 or higher
4. Focus your smart phone’s camera on the
display panel of the washer.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 39 2017-04-18 9:59:49
40 English
Washing a load of laundry
Washing a load of laundry
5. If the smart phone’s camera is focused
on the display panel of the washer,
the panel and error message are
automatically recognized and the error
type and countermeasures are displayed
on the smart phone.
6. If the smartphone fails to recognize
the error code more than twice, enter
the error code displayed on the display
panel of the washer manually into the
Smart Care app.
NOTE
Downloading the Smart Care app
• Download the Samsung Laundry App
into your mobile phone from the
Android market or Apple App store.
(Search word : Samsung Smart Washer/
Dryer)
NOTE
Precautions when using Smart Care
• If light from a light bulb, uorescent
bulb, or lamp is reected on the display
panel of the washer, the smartphone
may not be able to recognize the panel
or error message easily.
• If you hold the smartphone at too
large an angle relative to the front of
the display panel, it may not be able
to recognize the error code. For best
results, hold the smartphone so that the
front of the panel and the smartphone
are parallel or nearly parallel.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 40 2017-04-18 9:59:50
English 41
Washing a load of laundry
Samsung Smart Home
This product is a smart washer that supports the Samsung Smart
Home service.
The amount of time the EZ setup function (for connecting the
washer to your network) can take to complete the network
connection varies, depending on your network conditions.
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung
Smart Home”. Download and install the Samsung Smart Home app provided by Samsung
Electronics to your smart device.
NOTE
• The Samsung Smart Home app is designed for Android 4.0 (ICS) or higher, or iOS 8.0 or
higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• On other devices, some functions may operate differently.
• For improved performance, the Samsung Smart Home app is subject to change without
notice.
Registering a Samsung account
To use the Samsung Smart Home app, you must rst sign in to your Samsung account. If
you don’t have a Samsung account, select Register in the app, and then follow the on-
screen instructions to create an account.
NOTE
• If you have a registered Samsung account, log into your Samsung account. If you have
a Samsung smartphone, you can go to the Settings menu on your smartphone, select
Accounts, and then sign in to your Samsung account. This will allow you to log in
without additional authentication.
• For third-party smart phones, the app account must be the same as the EZ Setup
account.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 41 2017-04-18 9:59:50
42 English
Washing a load of laundry
Washing a load of laundry
Getting started
Using Samsung Smart Home, you can control your washer from your smart device
remotely. For improved performance, the content and design of the app is subject to
change without notice.
1. Launch the Samsung Smart Home App on your smartphone.
2. If ‘Washer’ is not listed, tap Add Device > Select other device > Washer on the app
screen.
3. Press and hold Smart Control on your washer’s control panel for more than 5 seconds
until the ‘AP’ message appears on the display.
4. When the device registration is complete, turn on the Smart Control function on your
washer and control your washer remotely.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 42 2017-04-18 9:59:50
English 43
Washing a load of laundry
Washing clothes using the option button
Your new washer makes washing clothes
easy, using Samsung’s “Fuzzy Control”
automatic control system. When you select
a wash program, the machine will set the
correct temperature, washing time, and
washing speed.
1. Press POWER.
2. Open the lid.
3. Load the articles of clothing one at a
time loosely into the drum, without
overlling it.
4. Add liquid (or powdered) detergent,
softener, and/or bleach (if necessary) to
the appropriate compartments. See the
"Detergent use" section on page 47.
5. Close the lid.
6. Use the option button to select the
appropriate cycle according to the type
of material: NORMAL, HEAVY DUTY,
DELICATES, DEEP WASH, SUPER SPEED,
BEDDING/WATERPROOF, PERM PRESS,
BRILLIANT WHITES, QUICK WASH,
RINSE+SPIN, and SPIN. The relevant
indicators will illuminate on the control
panel.
7. At this time, you can control the wash
temperature, the number of rinse cycles,
the spinning speed, and the delay time
by pressing the appropriate option
button.
8. Press and hold START/PAUSE and the
wash will begin. The process indicator
will light up and the remaining time for
the cycle will appear in the display.
Pause Option
To remove or add laundry items, follow
these steps:
1. Press START/PAUSE to unlock the lid.
NOTE
The lid cannot be opened when the water is
too HOT.
2. Remove or add laundry items.
3. Close the lid, and then press and hold
START/PAUSE to restart the wash.
NOTE
If you have Child Lock on, you must
deactivate it rst. See page 37.
When the cycle is nished:
After the total cycle has nished, the power
will turn off automatically.
1. Open the lid.
2. Remove laundry.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 43 2017-04-18 9:59:50
44 English
Washing a load of laundry
Washing a load of laundry
ATC (Auto Temperature Control)
The ATC function controls wash water
temperature using the washer's built-in
temperature sensor (thermistor).
NOTE
By reacting to changes in external and
internal temperatures, the ATC function
maintains the correct wash temperature
for each cycle, providing the best washing
performance while using the least amount
of energy.
NOTE
New washers must reduce the amount of
energy usage as a rst priority. When you
use the most commonly used wash cycle,
Normal (which is the regulation and UL
cycle), you will notice more cold water
entering the washer as an energy saving
step. This is normal.
In the Normal cycle, the hot water
temperature is similar to acceptable adult
bath water temperature and warm water
temperature is similar to comfortable
swimming-pool water temperature.
NOTE
If you want to wash clothes at different
water temperatures, you should choose a
different cycle, and then choose a specic
temperature (Hot/Warm/Eco Warm).
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 44 2017-04-18 9:59:50
English 45
Washing a load of laundry
The basics
Prewash (Water Jet & Built-in sink)
Water Jet function and the Built-in sink let you
hand-wash items before you place them in
the washing machine. The Water Jet function
is available only when the lid is open and the
water level is set to less than High. To hand-
wash, use the Built-in sink that is designed to
facilitate hand-washing.
1. With the lid open, lower the Built-in sink .
To open only the lid, press and release the
front middle of the lid. To close and lock
both the lid and the Built-in sink, press
down on the lid until you hear a click.
2. Put the clothes you want to hand-wash into
the sink.
3. Press Water Jet to supply water to the
Built-in sink, and then hand-wash.
4. When done, gently lift up the Built-in sink
to drain water into the tub.
NOTE
• If you want to hand-wash while the washer
is operating, press START/PAUSE to stop
operation, and then follow steps 1-4 above.
• If you open both the lid and the Built-in
sink, lower the Built-in sink manually for
hand-washing.
[The Water Jet stops]
• The Water Jet function stops operating
automatically when the washing machine
detects the maximum water level.
• The Water Jet function stops operating
automatically 5 minutes after it begins. To
add more water, press Water Jet again to
resupply water.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 45 2017-04-18 9:59:50
46 English
Washing a load of laundry
Washing a load of laundry
[Draining water added by the Water Jet
function]
• Select a cycle and press START/PAUSE.
The washer drains the water.
• If the washer is off before it starts the
wash cycle, it drains the water added by
the Water Jet function. However, if you
turn the washer off during a wash cycle
to use the Water Jet function, and then
turn the washer back on, it does not
drain the water.
NOTE
• The Water Jet function supplies water
through the Mist Shower nozzle for 1
second when it is rst activated after
the washing machine turns on, and then
through the Water Jet nozzle.
CAUTION
• Do not over-use the Water Jet
function. Excessive use increases water
consumption.
• When pouring water from the Built-in
sink into the tub, do it gently. Otherwise,
water may overow and spill out of the
tub.
• Use caution when removing laundry
from the tub. You may bump your head
on the Built-in sink.
• Do not block the Water Jet outlet with
hands. Water may leak outside the tub,
causing a system failure.
• Put only clothes to prewash in the Built-
in sink. Do not clean shoes, wash food,
or wash pets in the Built-in sink.
• Do not open the Built-in sink quickly.
Water remaining in the sink may splash
on the lid or control panel.
• Due to differences in air pressure, water
coming from the Water Jet outlet may
splatter when you rst activate it.
• Make sure the lid is closed tightly before
you start a load of laundry.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 46 2017-04-18 9:59:51
English 47
Washing a load of laundry
Detergent use
Your washer is designed to use high
efciency (HE) detergents.
• For the best cleaning results, use a high
efciency detergent such as Tide HE,
Wisk HE, Cheer HE or Gain HE*. High
efciency detergents contain suds
suppressors that reduce or eliminate
suds. When fewer suds are produced,
the load tumbles more efciently and
cleaning is maximized. (* Brand names
are trademarks of their respective
manufacturers.)
WARNING
Regular detergent is not recommended. Use
HE detergents only.
NOTE
Reducing the amount of detergent
may reduce the quality of cleaning. It
is important to pre–treat stains, sort
carefully by color and soil level, and avoid
overloading.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 47 2017-04-18 9:59:51
48 English
Washing a load of laundry
Washing a load of laundry
Features
Automatic dispenser
Your washer has separate compartments for dispensing detergent and color-safe bleach and
fabric softener. Add all laundry additives to their respective compartments before starting
your washer.
The automatic dispenser must always be in place before you start your washer.
DO NOT open the automatic dispenser when your washer is running.
NOTE
• Never exceed the manufacturer’s recommendations when adding detergent.
• This compartment holds liquid detergent for the main wash cycle, which is added to the
load at the beginning of the cycle.
• When using powdered detergent, remove the liquid detergent compartment from the
detergent drawer. The washer will not dispense powdered detergent from the liquid
detergent compartment.

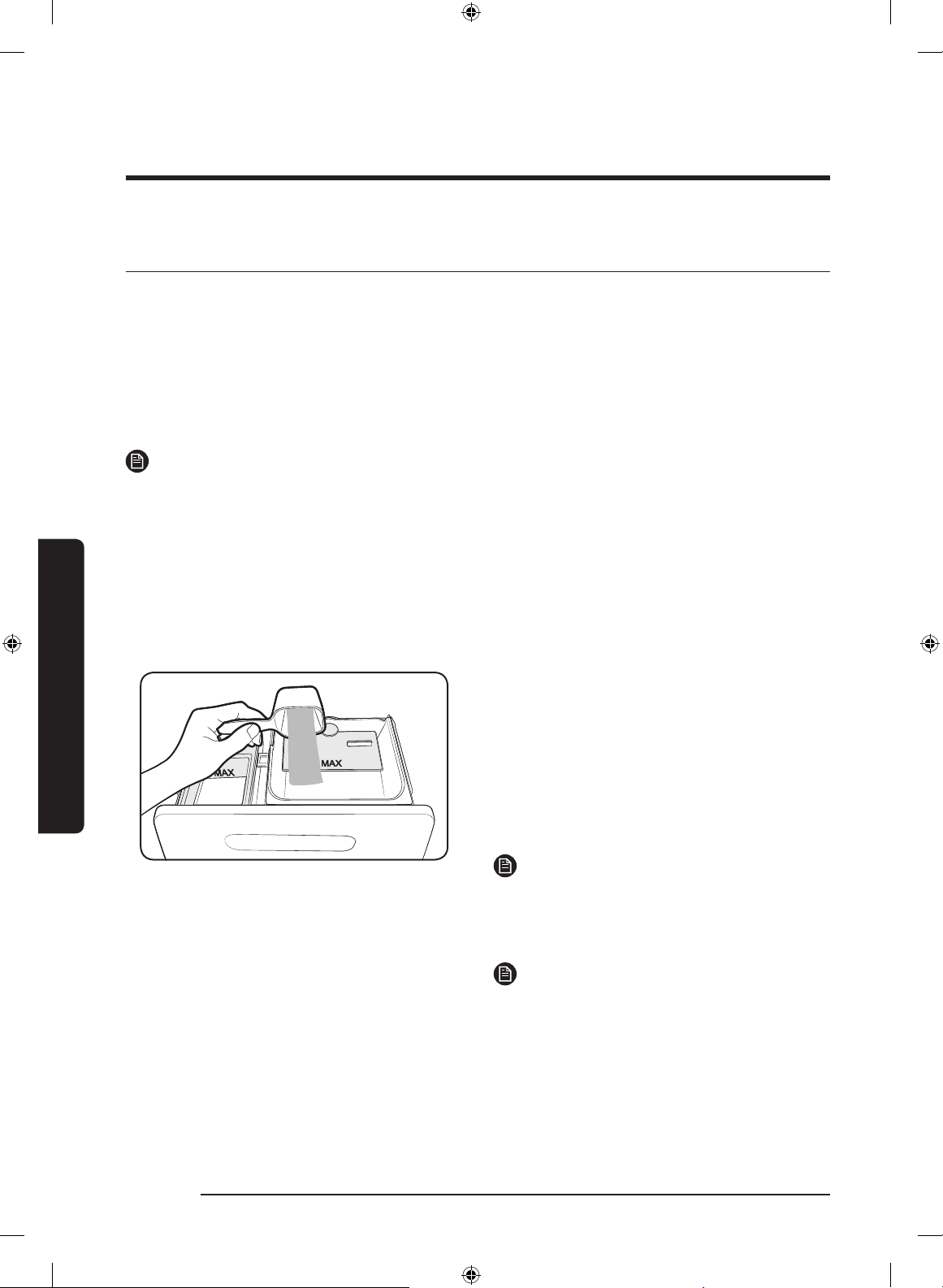

To add detergent to the automatic dispenser:
1. Open the dispenser drawer.
2. Load the recommended amount of liquid
(or powder) detergent into the detergent
compartment before you start your
wash.
3. Close the drawer slowly and smoothly
to avoid spilling, splashing, or premature
dispensing of the contents.
NOTE
It is normal for a small amount of water to
remain in the dispenser compartments at
the end of the cycle.
NOTE
Do not put chlorine bleach in the dispenser
drawer.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 48 2017-04-18 9:59:51
English 49
Washing a load of laundry
Loading the Liquid (or Powered) detergent compartment
A
1. Pour the recommended amount of
laundry detergent directly into the
detergent compartment before starting
your washer.
2. If you are using color-safe bleach, add
it with the detergent to the detergent
compartment.
NOTE
When adding color-safe bleach with
detergent, it is best if both laundry products
are in the same form – liquid.
NOTE
When using powdered detergent, remove
the liquid detergent compartment (A) from
the detergent drawer. The washer will not
dispense powdered detergent from the
liquid detergent compartment.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 49 2017-04-18 9:59:51
50 English
Washing a load of laundry
Washing a load of laundry
Loading the Bleach compartment
B
CAUTION
Use liquid chlorine bleach only.
1. Add chlorine bleach to the bleach
compartment (B). DO NOT overll the
bleach compartment.
NOTE
• Avoid splashing or over–lling the
compartment.
• Never pour undiluted liquid chlorine
bleach directly onto the load or into the
tub. It is a powerful chemical and can
cause fabric damage, such as weakening
of the bers or color loss, if not used
properly.
• If you prefer to use color–safe, non–
chlorine bleach, add it to the appropriate
detergent compartment.
DO NOT pour color–safe bleach into the
Bleach compartment.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 50 2017-04-18 9:59:51
English 51
Washing a load of laundry
Loading the fabric softener compartment
C
1. Pour the recommended amount of
liquid fabric softener into the softener
compartment (C). For smaller loads, use
less than one capful.
2. Dilute the fabric softener with water
until it reaches MAX FILL in the
compartment.
3. The dispenser automatically releases
liquid fabric softener at the proper time
during the rinse cycle.
NOTE
• Use the softener compartment ONLY for
liquid fabric softeners.
• DO NOT use the Downy Ball* in the
fabric softener compartment with this
washer. It will not add fabric softener
at the appropriate time. Use the
detergent compartment. (* Brand names
are trademarks of their respective
manufacturers.)
• Do not use liquid fabric softener that is
too thick or sticky. It may not mix with
the water sufciently.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 51 2017-04-18 9:59:51
52 English
Maintaining your washer
Maintaining your washer
WARNING
The control board, heat sink, motor, inlet valve and pump are intentionally not grounded and
may present a risk of electric shock only during servicing.
Cleaning the exterior
1. Turn off the water faucets after nishing
the day’s washing. This will shut off
the water supply to your washer and
prevent the unlikely possibility of
damage from escaping water. Leave
the lid open to allow the inside of your
washer to dry out.
2. Use a soft cloth to wipe up all detergent,
bleach, or other spills as they occur.
3. Clean the control panel with a soft, damp
cloth. Do not use abrasive powders or
cleaning pads. Do not spray cleaners
directly on the panel.
Cleaning the interior
Clean the interior of your washer
periodically to remove any dirt, soil, odor,
mold, mildew, or bacterial residue that
may remain in your washer as a result of
washing clothes.
Failure to follow these instructions may
result in unpleasant conditions, including
odors and/or permanent stains on your
washer or laundry.
Hard water deposits may be removed, if
needed. Use cleaners labeled “Washer safe”.
Storing your washer
Washers can be damaged if water is
not removed from hoses and internal
components before storage. Prepare your
washer for storage as follows:
1. Select the Quick Wash cycle and add
bleach to the automatic dispenser. Run
your washer through the cycle without
a load.
2. Turn the water faucets off and
disconnect the inlet hoses.
3. Unplug your washer from the electrical
outlet and leave your washer lid open
to let air circulate inside the drum. If
your washer has been stored in below–
freezing temperatures, allow time for
any leftover water in your washer to
thaw out before use.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 52 2017-04-18 9:59:52
English 53
Maintaining your washer
Protecting the top cover and the front frame
Do not place any heavy or sharp objects or
a detergent box on the washer. They can
scratch or damage the top cover of the unit.
NOTE
Since the entire washer has a high-gloss nish,
the surface can be scratched or damaged.
Avoid scratching or damaging the surface
when using the washer.

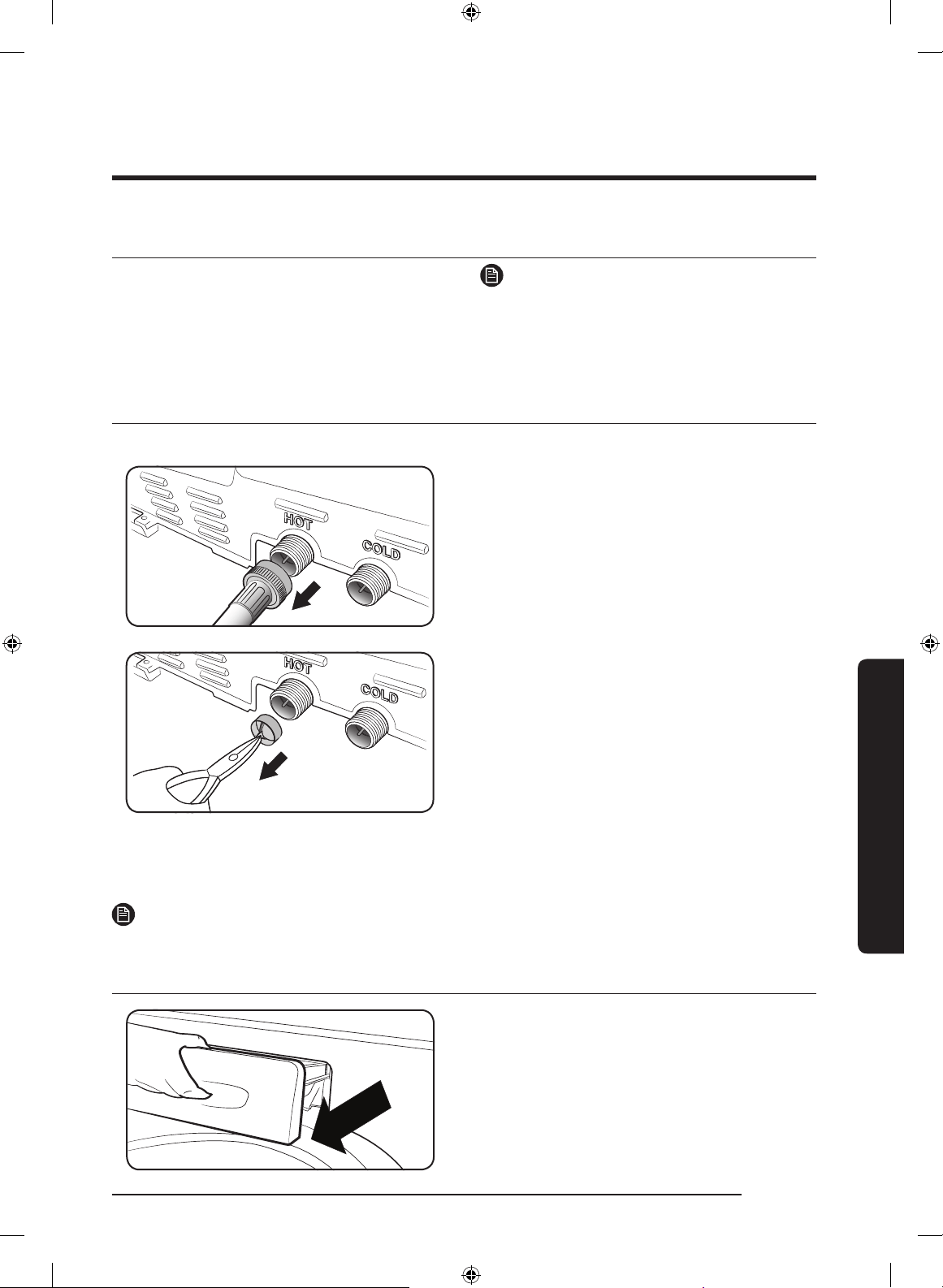

Cleaning mesh lter
Clean the mesh lters in the water inlets once or twice a year.
1. Turn off the washer, and then unplug the
power cord.
2. Close the faucet.
3. Loosen and disconnect the water hoses
from the back of the washer. Cover the
hoses with a cloth or towel to prevent
water from gushing out.
4. Use pliers to pull out the mesh lter from the
inlet valve.
5. Submerge the mesh lter deeply in water
so that the threaded connector is also
submerged. Carefully remove any debris
from the lter.
6. Dry the mesh lter completely in a
shaded area.
7. Reinsert the mesh lter into the inlet valve,
and reconnect the water hose to the inlet
valve.
8. Open the faucet.
NOTE
If the mesh lter is clogged, the “4C” information code appears on the the washer’s display screen.
Cleaning the dispensers
The automatic dispenser may need to be
cleaned periodically due to laundry additive
buildup.
1. Pull the dispenser drawer straight back
until it stops.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 53 2017-04-18 9:59:52
54 English
Maintaining your washer
Maintaining your washer
2. Push in both sides of the drawer at the
back simultaneously. When you feel
the sides move inward, pull out the
dispenser drawer.
3. Remove the inserts from the 3
compartments. Rinse the inserts and
the drawer with warm water to remove
traces of accumulated laundry products.
4. Use a small, non-metal brush (for
example, a toothbrush) to clean the
drawer opening and the recess. Remove
all residue from the upper and lower
parts of the recess.
B
A
5. Return the inserts to their proper
compartments, and then replace the
drawer by placing the dispenser drawer
rail (B) on top of the compartment rail
(A)
(To make this easier, tilt the dispenser
drawer downward and insert it).
Then
push the drawer in rmly and slowly.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 54 2017-04-18 9:59:52
English 55
Maintaining your washer
Self Clean
Self Clean is a self-cleaning cycle that removes
mold that may occur inside the washer.
1. Press POWER.
2. Select Self Clean. Once Self Clean is
selected, the only function that can be
set is Delay End.
3. Press and hold START/PAUSE. The Self
Clean cycle starts.
CAUTION
• Using Self Clean, you can clean the drum
without using a cleansing agent.
• Never use Self Clean when laundry is
in the washer. This may cause damage
to the laundry or a problem with the
washer.
NOTE
The Self Clean Auto Led Function
• If the “Self Clean” LED is lit after a wash,
it means that tub (drum) cleaning is
required. Remove the laundry from the
washing machine, turn the power on, and
clean the drum by running Self Clean.
• If you do not run Self Clean, the “Self
Clean” LED turns off. However, the “Self
Clean” LED will light again after ve
washes. Not running Self Clean at this
point will not cause a problem with the
washing machine. However, we strongly
recommend you run a Self Clean cycle
as soon as possible to remove mold and
prevent unpleasant odors.
• Although the Self Clean Auto LED lights
once a month or so, the frequency may
differ depending on the number of times
the washing machine is used.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 55 2017-04-18 9:59:52
56 English
Troubleshooting
Troubleshooting
Checkpoints
If you encounter a problem with the washer, rst check the table below and try the
suggestions.
Problem Action
Does not turn on.
• Make sure your home electrical system is providing electrical
power that matches the requirements of the washer. See page 19.
• Make sure the power cord is completely plugged in.
• Check the fuse or reset the circuit breaker.
Does not start.
• Make sure the door is closed.
• Make sure the water taps are open.
• Make sure to press or tap START/PAUSE to start the washing
machine.
• Make sure Child Lock is not activated.
• Before the washing machine starts to ll, it will make a series of
clicking noises to check the door lock, and then does a quick drain.
• Was the door opened during the spinning cycle? Close the door,
and then press or tap START/PAUSE to resume.
• The machine enters Standby or is in a soaking cycle. Please wait.
• Check the fuse or reset the circuit breaker
Water is not supplied.
• Make sure you press or tap START/PAUSE after selecting the cycle
and options.
• Make sure the water taps are open.
• Are the mesh lters in the water inlets clogged? Clean the mesh
lters by brushing with a toothbrush. See page 53.
• Is the water supply cut off? If the water supply is cut off, close the
tap and power off.
• Straighten the water supply hoses.
• Open and close the door, and then press or tap START/PAUSE.
• If the water pressure is low, it takes longer to start washing.
• If the water level is not as high as necessary or lower than
expected, use the level selector to adjust the water level.
After a cycle, detergent
remains in the
automatic dispenser.
• Make sure the washing machine is running with sufcient water
pressure.
• Make sure the detergent drawer is properly inserted.
• Remove and clean the detergent drawer, and then try again.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 56 2017-04-18 9:59:52
English 57
Troubleshooting
Problem Action
Vibrates excessively or
makes noise.
• Make sure the washing machine is on a level oor. If the oor is
not level, use the levelling feet to adjust the washing machine.
• Make sure the washing machine is not contacting any other object.
• Make sure the laundry load is balanced.
• Make sure the laundry is spread evenly in the washing machine.
Spread out the laundry evenly and start again.
• Make sure the space around the washing machine is free of
objects.
• Humming is produced normally during operation.
• Objects such as coins can cause noise. Remove these objects from
the washing machine after washing is complete.
Stops.
• Plug the power cord into a live electrical outlet.
• Check the fuse or reset the circuit breaker.
• Close the door, and then press or tap START/PAUSE to start the
washing machine. For your safety, the washing machine will not
spin unless the door is closed.
• Before the washing machine starts to ll, it will make a series of
clicking noises to check the door lock, and then does a quick drain.
• There may be a pause or soak period in the cycle. Wait briey and
the washing machine may start.
• Make sure the inlet hose lters at the taps are not clogged.
Periodically clean the lters. See page 53.
• This problem can occur temporarily due to low voltage in your
household electrical system. It will be resolved when the voltage
returns to normal.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 57 2017-04-18 9:59:53
58 English
Troubleshooting
Troubleshooting
Problem Action
Fills with the wrong
temperature water.
• Fully open both water taps.
• Make sure the temperature selection is correct.
• Make sure the hoses are connected to the correct water taps. Flush
water lines.
• Disconnect the hoses and clean the mesh lters. The water inlet
mesh lters may be clogged. See page 53.
• While the washing machine lls, the water temperature may
change as the automatic temperature control feature checks
incoming water temperature. This is normal.
• While the washing machine lls, you may notice just hot and/or
just cold water going through the dispenser when cold or warm
temperatures are selected.
This is a normal function of the automatic temperature
control feature as the washing machine determines the water
temperature.
Door (Lid) locked or will
not open.
• While the washing machine is operating, press or tap START/
PAUSE to stop the washing machine.
• It may take a few moments for the door lock mechanism to
disengage.
Does not drain and/or
spin.
• Check the fuse or reset the circuit breaker.
• Make sure the electrical voltage is normal.
• Make sure the washing machine is plugged in.
• Make sure the drain hose is pointed downward. (Natural drain
models only)
• Make sure the drain hose is not clogged.
• Make sure the drain hose is not kinked.
• Straighten the drain hose. If there is a drain restriction, call for
service.
• Close the door, and then press or tap START/PAUSE. For your
safety, the washing machine will not spin unless the door is closed.
Load is wet at the end
of the cycle.
• Use the High or Extra High spin speed cycle. (Applicable model only)
• Use high efciency (HE) detergent to reduce oversudsing.
• The load is too small. Small loads (one or two items) may become
unbalanced and not spin completely.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 58 2017-04-18 9:59:53
English 59
Troubleshooting
Problem Action
Leaks water.
• Make sure all hose connections are tight.
• Make sure the water supply hoses' rubber washers are in the
correct position. Screw tightly again.
• Make sure the end of the drain hose is correctly inserted and
secured to the drain system.
• Avoid overloading.
• Use high efciency (HE) detergent to prevent oversudsing.
• Make sure the water supply hose is not kinked.
• If the water supply pressure is too strong, water may leak. Close
the water tap a little.
• Make sure water is not leaking from the water tap. If it is, repair
the water tap.
Excessive suds.
• Use high efciency (HE) detergent to prevent oversudsing.
• Reduce the detergent amount for soft water, small loads, or lightly
soiled loads.
• Non-HE detergent is not recommended.
The spin basket or
drain/supply hose is
frozen.
• Use warm water to disconnect the water supply hose and drain
hose. Soak them in warm water.
• Fill the spin basket with warm water, and then wait for about 10
minutes.
• Put a hot towel on the drain hose connector.
• Reconnect the water supply hose and drain hose, and then check if
water is supplied properly.
Water drains out
immediately.
• Make sure the drain hose is not clogged, and is hung over the
drain hose hook. Fill the spin basket halfway with water, and try
spinning again.
• Lift the end of the drain hose to prevent water from draining. Fill
the spin basket halfway with water, and then run the Spin cycle
after releasing the drain hose.
• Make sure the drain hose is installed correctly. See the installation
section of this user manual and adjust the position of the drain
hose as instructed.
Stains on clothes.
• Select an appropriate cycle for the laundry. Use the Heavy Duty cycle
for stained clothes.
• Apply a recommended amount of detergent as instructed by the
detergent manufacturer.
• Clean the magic lter (if it comes with your washer) on a regular basis.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 59 2017-04-18 9:59:53
60 English
Troubleshooting
Troubleshooting
Problem Action
Has odors.
• Excessive suds collect in recesses and can cause foul odors.
• Run a Self Clean cycle to sanitize periodically.
• Dry the washing machine interior after a cycle has nished.
If a problem persists, contact a local Samsung service center.
Information codes
The washer may display information codes to help you understand what is occurring with
your washer better.
No Code Meaning
1 1C
The Water Level sensor is not working properly.
• Turn off the washer, unplug it, wait 30 seconds, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
NOTE
If the washer displays “1C”, the washer will automatically drain
for 3 minutes. During this time, the POWER button is inoperative.
2 3C
Check the motor for operation.
• Try restarting the cycle.
• If the problem continues, call for service.
3 4C
Water is not supplied.
• Make sure the water taps are open.
• Make sure the water hoses are not clogged.
• Make sure the water taps are not frozen.
• Make sure the washing machine is operating with sufcient
water pressure.
• Make sure that the cold water tap and the hot water tap are
properly connected.
• Clean the mesh lter as it may be clogged.
NOTE
If the washer displays “4C”, the washer will automatically drain
for 3 minutes. During this time, the POWER button is inoperative.
4 4C2
• Make sure the cold water supply hose is rmly connected
to the cold water tap. If it is connected to the hot water tap,
laundry may be damaged when some cycles are run.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 60 2017-04-18 9:59:53
English 61
Troubleshooting
No Code Meaning
5 5C
Water is not draining.
• Make sure the drain hose is not frozen or clogged.
• Make sure the drain hose is positioned correctly, depending
on the connection type.
• Clean the mesh debris lter as it may be clogged.
• Make sure the drain hose is straight all the way to the drain
system.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
6 9C1
The electronic control needs to be checked (Over Voltage Error).
• Check if power is supplied properly.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
7 9C2
Low voltage detected.
• Check if the power cord is plugged in.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
8 AC6
Inverter Communication problem.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
9 dC
Operating the washer with the door open.
• Make sure the door is properly closed.
• Make sure laundry is not caught in the door.
10 HC
High temperature heating check.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 61 2017-04-18 9:59:53
62 English
Troubleshooting
Troubleshooting
No Code Meaning
11 LC
Check the drain hose.
• Make sure the end of the drain hose is positioned correctly.
• Make sure the drain hose is not clogged.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
NOTE
When the washer displays “LC”, the washer do draining for 3
minutes. During this time, the POWER button is inoperative.
12 OC
Water overowed.
• Restart after spinning.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
13 PC
When position of the clutch can't be detected.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
14 PC1
After position of the clutch is detected, if the signal from the hall
clutch hall is incorrect.
• Turn off the washer, unplug it, wait one minute, and then plug
the washer in again. If the information code remains, contact
a Samsung customer service center.
15 Ub
Spinning does not work.
• Make sure laundry is spread out evenly.
• Make sure the washing machine is on a at, stable surface.
• Redistribute the load. If only one item of clothing needs
washing, such as a bathrobe or pair of jeans, the nal spin
result might be unsatisfactory, and an “Ub” check message
will appear in the display.
16 Ur
Display for additional rinsing.
• Show additional rinsing in sensing unbalance.
• Method of releasing the display.
• Any key input.
For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG).
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 62 2017-04-18 9:59:53
English 63
Specications
Specications
Fabric care chart
The following symbols provide garment care
direction. The clothing care labels include
symbols for drying, bleaching, drying and
ironing, or dry cleaning when necessary. The
use of symbols ensures consistency among
garment manufacturers of domestic and
imported items. Follow care label directions
to optimize garment life and reduce
laundering problems.
Wash cycle
Normal
Permanent press/Wrinkle
resistant/Wrinkle control
Gentle/Delicates
Hand wash
Water temperature
Hot
Warm
Cold
NOTE
This represents appropriate wash water
temperatures for various items. The
temperature range for Hot is 105° - 125 °F
/ 41° - 52 °C, for Warm 85° - 105 °F / 29°
- 41 °C, and for Cold 60° - 85 °F / 16° -
29 °C. (Wash water temperature must be
a minimum of 60 °F / 16 °C for detergent
activation and effective cleaning.)
The clothes washer can not ensure
these temperatures because the actual
temperature of the water entering your
washer depends on water heater settings
and regional water supply temperatures. For
example, cold water entering the home in
the northern states during winter may be
40 °F / 4 °C which is too cold for effective
cleaning. In this situation, you will need to
adjust the water temperature by selecting
a warm setting, adding some hot water to
the MAX FILL line, or using your washer’s
heating option, if available.
Bleach
Any bleach (when needed)
Only non-chlorine (color-safe)
bleach (when needed)
Tumble dry
Normal
Permanent press/Wrinkle
resistant/Wrinkle control
Gentle/Delicates
Special instructions
Line dry/Hang to dry
Drip dry
Dry at
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 63 2017-04-18 9:59:54
64 English
Specications
Specications
Heat setting
High
Medium
Low
Any heat
No heat / Air
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do not wash
Do not wring
Do not bleach
Do not tumble dry
No steam (added to iron)
Do not iron
Dry-clean
Dry-clean
Do not dry-clean
Line dry / Hang to dry
Drip dry
Dry at
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 64 2017-04-18 9:59:56
English 65
Specications
Helping the environment
• Your washer is manufactured from
recyclable materials. If you decide to
dispose of it, please observe local waste
disposal regulations. Cut off the power
cord so that the appliance cannot be
connected to a power source. Remove
the lid so that animals and small children
cannot get trapped inside the appliance.
• Do not exceed the detergent quantities
recommended in the detergent
manufacturers’ instructions.
• Use stain removal products and bleaches
before the wash cycle only when
necessary.
• Save water and electricity by only
washing full loads (the exact amount
depends upon the program used).
Declaration of conformity
This appliance complies with UL2157.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 65 2017-04-18 9:59:56
66 English
Specications
Specications

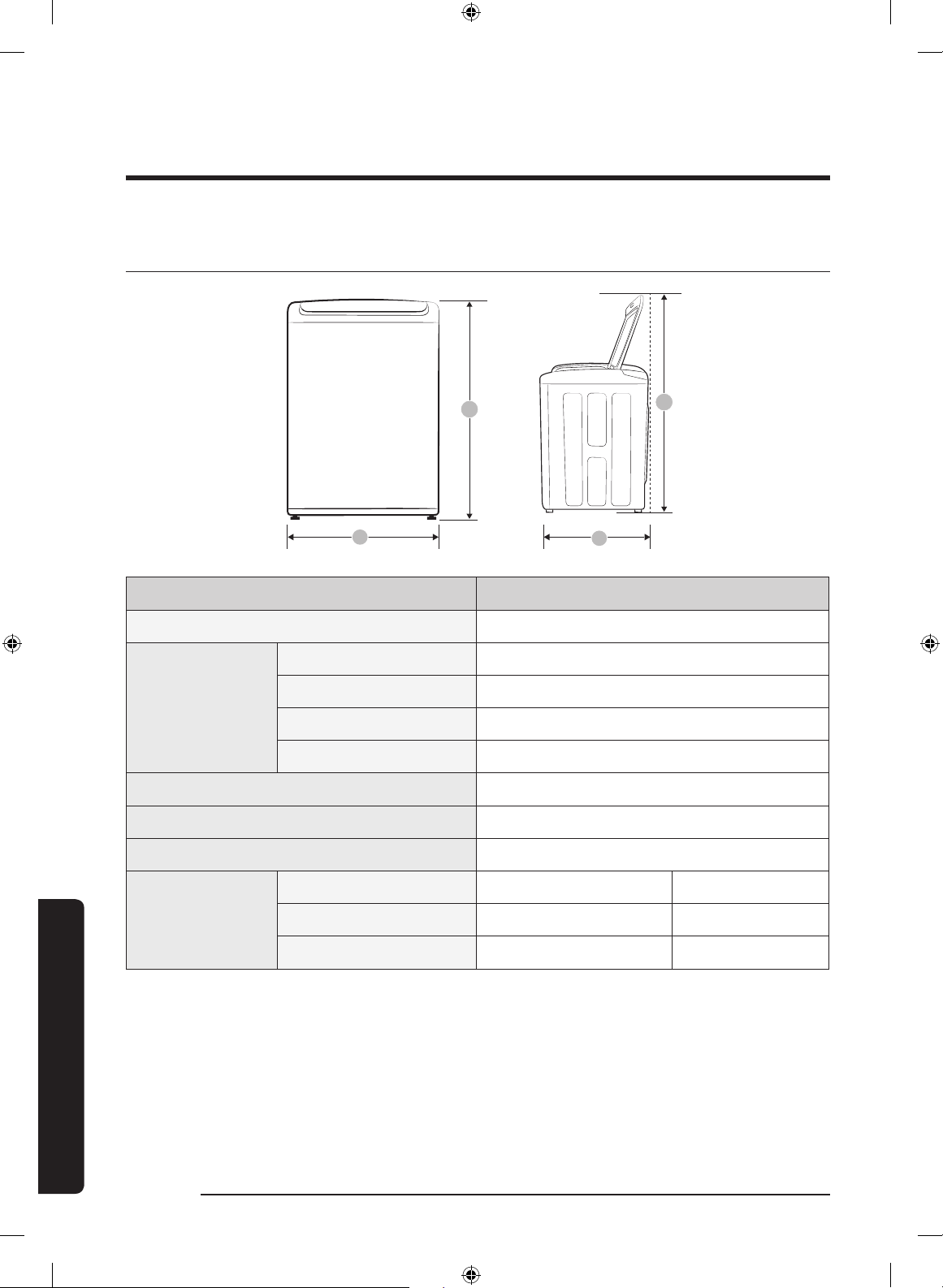

Specication sheet
C
B
A
D
Type Top loading washer
Model name
WA54M8750A*
Dimensions
(inches (cm))
A. Height 42.4 (107.7)
B. Width 27.0 (68.6)
C. Height with lid open 61.0 (155.0)
D. Depth 29.3 (74.4)
Water pressure (psi (kPa)) 20 - 116 (137 - 800)
Spin revolution 800 rpm
NET weight (kg (lb)) 62 (137.0)
Heater rating
Washing 120 V 700 W
Spin 120 V 400 W
Drain 120 V 80 W
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 66 2017-04-18 9:59:56
English 67
Specications
Cycle chart
Use this chart to set the best cycle and options for you laundry.
NOTE
Setting Temp. Spin Soil Level
: factory setting EH: Extra Hot EH: Extra High EH: Extra Heavy
: can be selected H: Hot H: High H: Heavy
W: Warm M: Medium N: Normal
EW: Eco warm L: Low L: Light
C: Cool NS: No Spin EL: Extra Light
CD: Cold
Cycle
Temp. Spin Soil Level
EH H W EW C CD EH H M L NS EH H N L EL
NORMAL
-
HEAVY DUTY
-
SUPER SPEED
-
DEEP WASH
-
DELICATES
- -
- -
- - - -
BRILLIANT WHITES
-
BEDDING/
WATERPROOF
-
-
PERM PRESS
-
QUICK WASH
-
STEAM SANITIZE
- - - - -
RINSE+SPIN
- - - - - -
- - - - -
SPIN
- - - - - -
- - - - -
SELF CLEAN
-
- - - - - -
- - - - - - -
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 67 2017-04-18 9:59:56
68 English
Specications
Specications
Cycle
Options
Pre Soak Extra Rinse Eco Plus Fabric Softener
NORMAL
HEAVY DUTY
SUPER SPEED
-
-
DEEP WASH
DELICATES
-
-
BRILLIANT WHITES
BEDDING/
WATERPROOF
-
PERM PRESS
QUICK WASH
-
-
STEAM SANITIZE
-
RINSE+SPIN
-
-
SPIN
- - - -
SELF CLEAN
- - - -
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 68 2017-04-18 9:59:56
English 69
Warranty (U.S.A)
SAMSUNG WASHER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) year part and labor, Three (3) years stainless tub part (Part Only), Ten (10) years
washing DD motor part (Part Only).
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the United States. To receive warranty service, the purchaser must
contact SAMSUNG for problem determination and service procedures. Warranty service can
only be performed by a SAMSUNG authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized
service center. SAMSUNG will provide in-home service during the warranty period at no
charge, subject to availability within the contiguous United States. In-home service is not
available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent. If service is not available, SAMSUNG may elect to provide transportation of the
product to and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective during
the limited warranty period specied above. All replaced parts and products become the
property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited
warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that
occurs in shipment; delivery and installation; applications and uses for which this product
was not intended; altered product or serial numbers; cosmetic damage or exterior nish;
accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products,
equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage
this product or result in service problems; incorrect electrical line voltage, uctuations and
surges; customer adjustments and failure to follow operating instructions, maintenance and
environmental instructions that are covered and prescribed in the instruction book; product
removal and reinstallation; problems caused by pest infestations.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 69 2017-04-18 9:59:57
70 English
Warranty (U.S.A)
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions,
or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation
of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS
FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER
BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY
ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specic rights, and you may also have other
rights, which vary from state to state.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 70 2017-04-18 9:59:57
English 71
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Visits by a Service Engineer to explain functions, maintenance or installation are not
covered by warranty.
Please contact your Samsung call agent for help with any of these issues.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 71 2017-04-18 9:59:57
72 English
Warranty (CANADA)
SAMSUNG WASHER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) year part and labor, Ten (10) years washing DD motor (Part only).
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the Canada. To receive warranty service, the purchaser must contact
SAMSUNG for problem determination and service procedures. Warranty service can only be
performed by a SAMSUNG authorized service center. The original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service
center. SAMSUNG will provide in-home service during the warranty period at no charge,
subject to availability within the Canada. In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent. If service is not available, SAMSUNG may elect to provide transportation of the
product to and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective during
the limited warranty period specied above. All replaced parts and products become the
property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited
warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that
occurs in shipment; delivery and installation; applications and uses for which this product
was not intended; altered product or serial numbers; cosmetic damage or exterior nish;
accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products,
equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage
this product or result in service problems; incorrect electrical line voltage, uctuations and
surges; customer adjustments and failure to follow operating instructions, maintenance and
environmental instructions that are covered and prescribed in the instruction book; product
removal and reinstallation; problems caused by pest infestations.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 72 2017-04-18 9:59:57
English 73
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions,
or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation
of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS
FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER
BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY
ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND
LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY
AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO
USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some provinces do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specic rights, and you may also
have other rights, which vary from province to province.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 73 2017-04-18 9:59:57
74 English
Warranty (CANADA)
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9 Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Visits by a Service Engineer to explain functions, maintenance or installation are not
covered by warranty.
Please contact your Samsung call agent for help with any of these issues.
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 74 2017-04-18 9:59:57
Memo
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 75 2017-04-18 9:59:57
Scan this with your smartphone
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
- Consumer
Electronics
- Mobile
Phones
1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/us/support
CANADA
1-800-SAMSUNG(726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DC68-03774B-02
WA8700M_WA54M8750A_DC68-03774B-02_EN.indd 76 2017-04-18 9:59:57
