Use & Care Guide
Model: 415.16135110
® ® ®
P/N G524-001-010801
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www,sears,com
Model 464224411 ° Oct_20_10

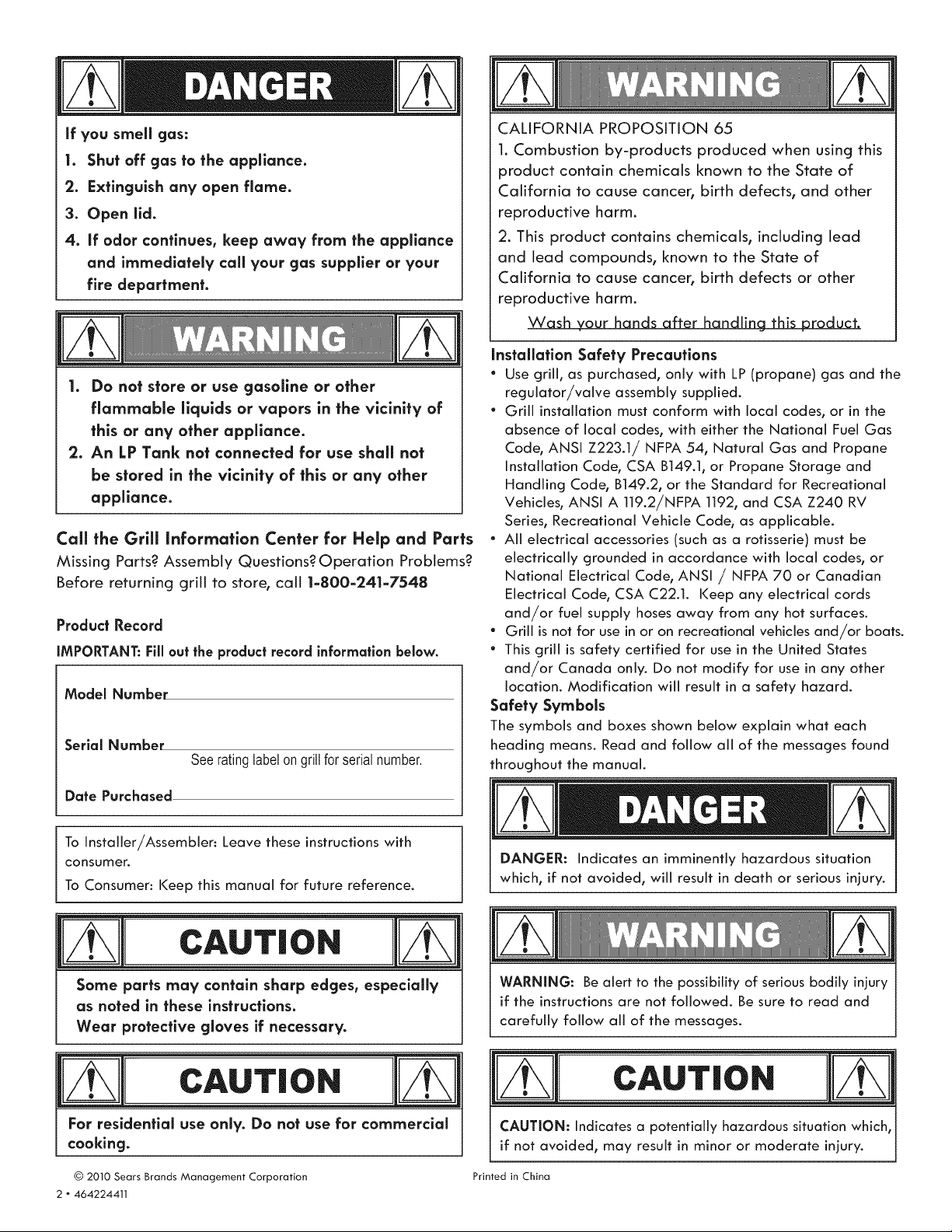

If you smell gas:
|. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lld.
4. If odor continues, keep away from the appliance
and immediately call your gas supplier or your
fire department.
|. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP Tank not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Call the Grill Information Center for Help and Paris
Missing Parts? Assembly Questions?Operation Problems?
Before returning grill to store, call 1-800-241-7548
Product Record
iMPORTANT: Fillout the product record informationbelow.
Model Number
Serial Number
Date Purchased
Seeratinglabelon grillfor serialnumber.
To Installer/Assembler: Leave these instructions with
consumer.
To Consumer: Keep this manual for future reference.
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
Installation Safety Precautions
* Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.
" Grill installation must conform with local codes, or in the
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA !192, and CSA Z240 RV
Series, Recreational Vehicle Code, as applicable.
" All electrical accessories (such as a rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords
and/or fuel supply hoses away from any hot surfaces.
" Grill is not for use in or on recreational vehicles and/or boats.
" This grill is safety certified for use in the United States
and/or Canada only. Do not modify for use in any other
location. Modification will result in a safety hazard.
Safety Symbols
The symbols and boxes shown below explain what each
heading means. Read and follow all of the messages found
throughout the manual.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
CAUTION
Some parts may contain sharp edges, especially
as noted in these instructions.
Wear protective gloves if necessar%
CAUT'O.
For resldentlal use only. Do not use for commercial
cooking.
© 2010 Sears Brands Management Corporation
2 ° 464224411
WARNING: Be alert to the possibility of serious bodily injury
if the instructions are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION
CAUTION: Indicates a potentially hazardous situation which
if not avoided, may result in minor or moderate injury.
Printed in China
For Your Safety ...................................... 2
Grill Information Center .............................. 2
Product Record Information........................... 2
Safety Symbols ...................................... 2
InstallationSafety Precautions......................... 2
l<enmore GrillWarranty .............................. 3
Use and Care .................................... 4-10

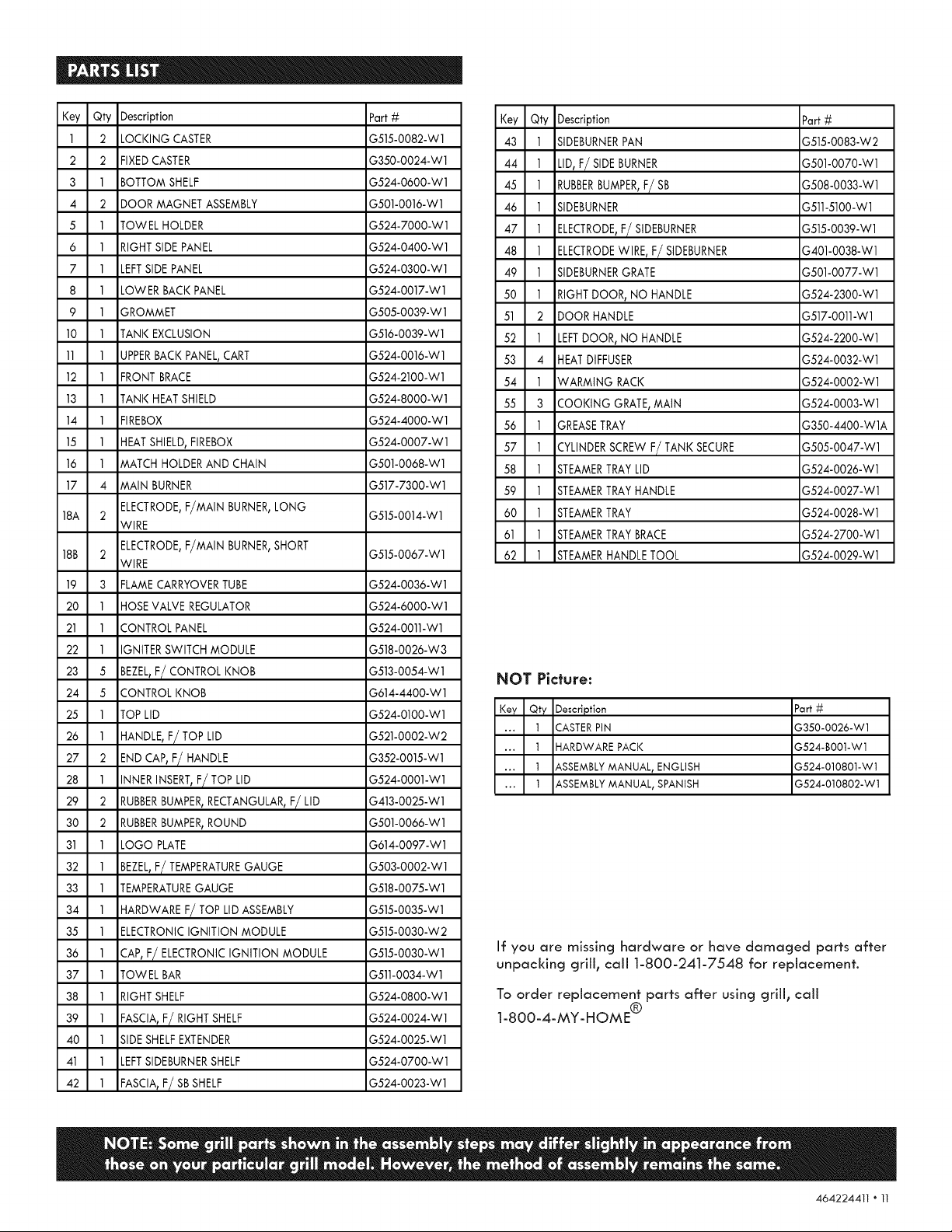

Parts List........................................... 11

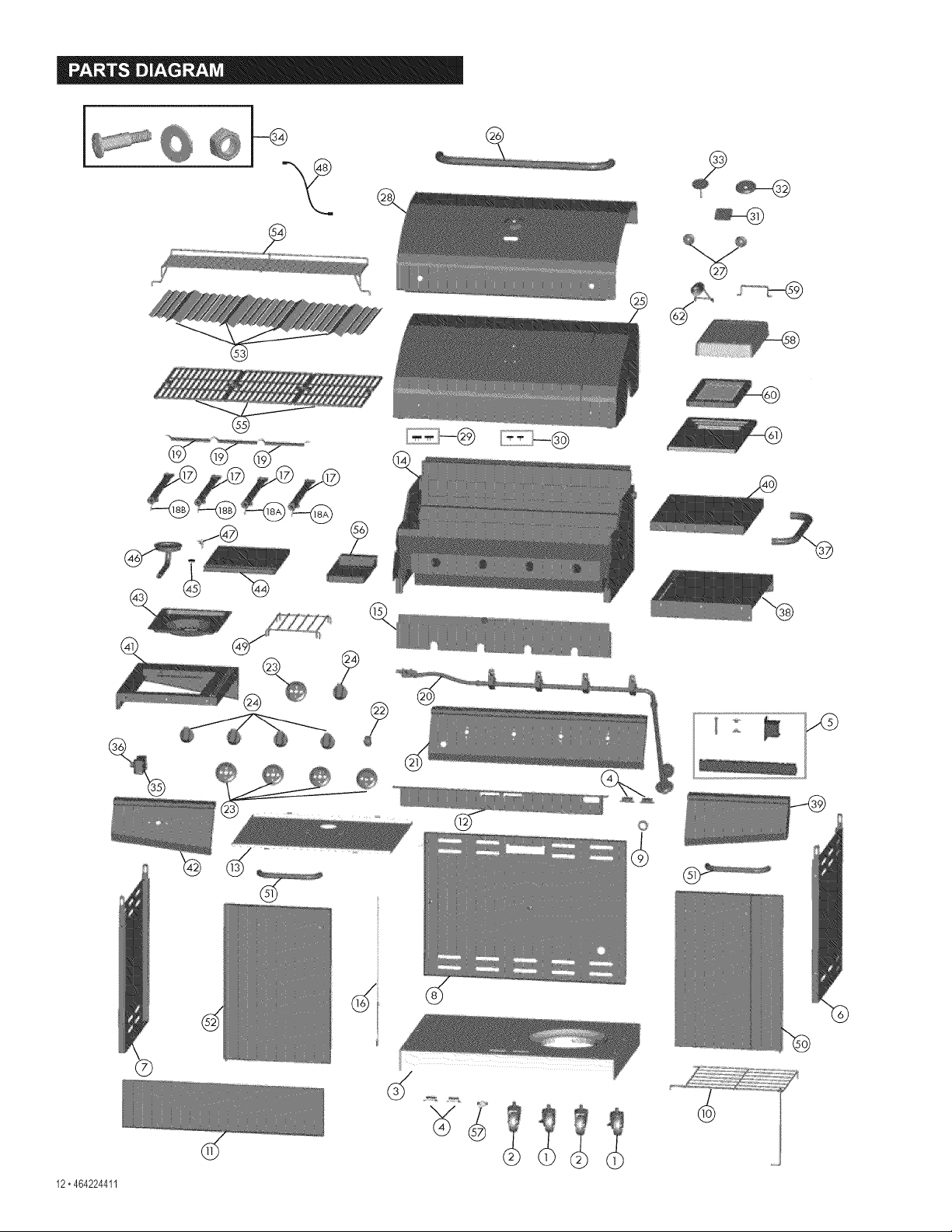

Parts Diagram ...................................... 12
Assembly ....................................... 18-29

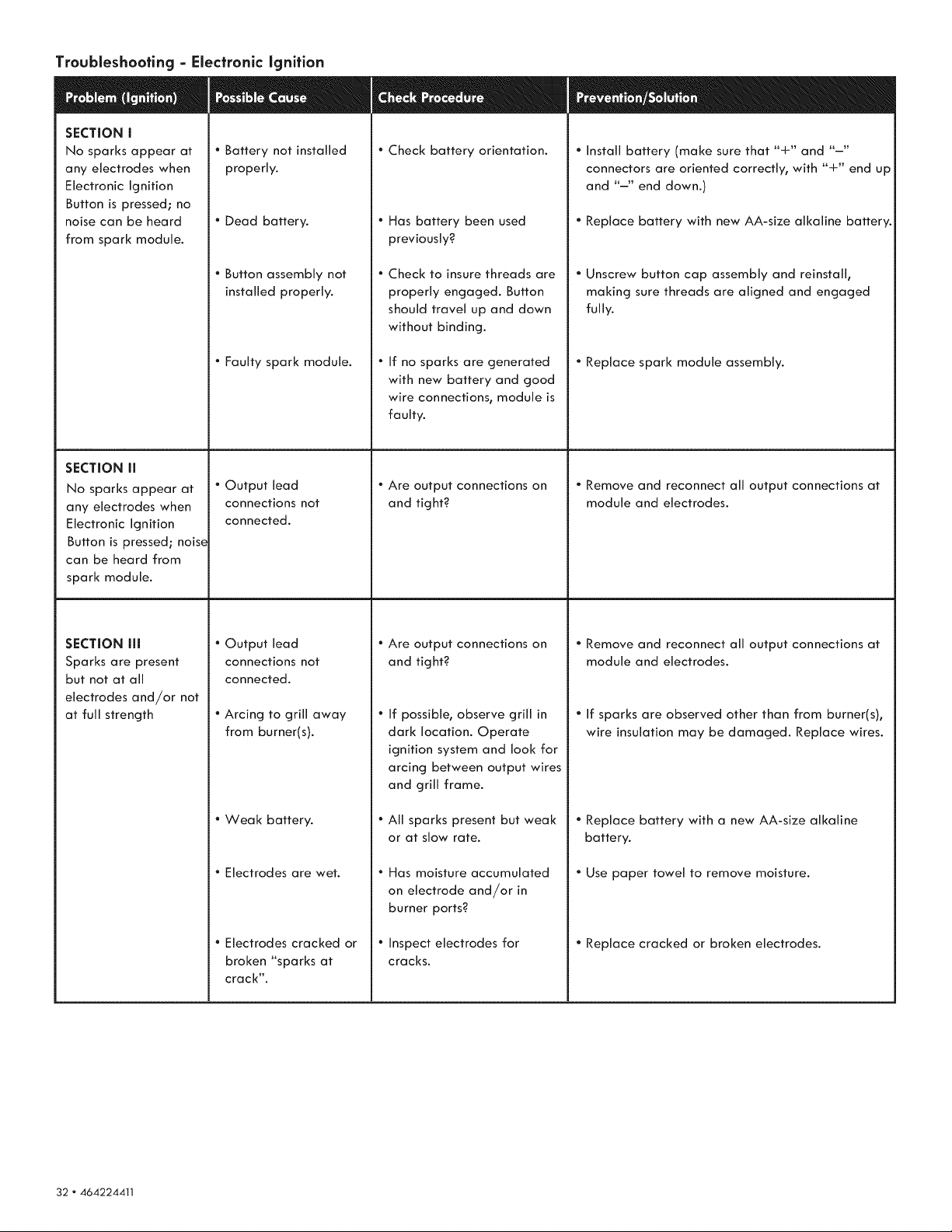

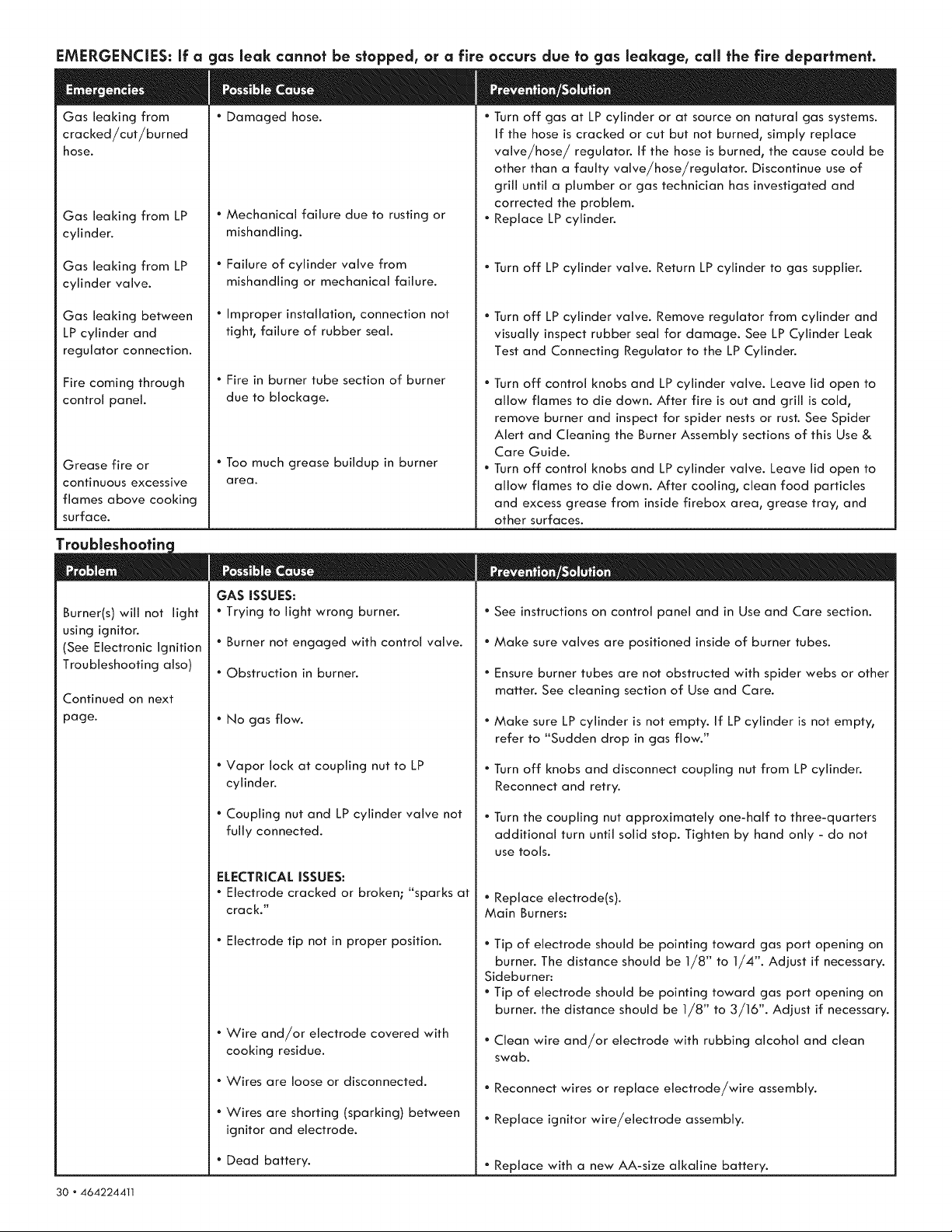

Troubleshooting................................. 80-82
Repair Protection Agreements
Congratulations on making a smart purchase. Your new
I<enmore product is designed and manufactured for years of
dependable operation. But like all products, it may require
repair from time to time. That's when having a Repair Protection
Agreement can save you money and aggravation.
Here's what the Repair Protection Agreement _ includes:
[] Expert service by our 10,000 professional repair specialists
[] Unlimited service and no charge for parts and labor on all
covered repairs
[] Product replacement up to $1500 if your covered product
can't be fixed
[] Discount of 10% from regular price of service and related
installed parts not covered by the agreement; also, 10% off
regular price of preventive maintenance check
[] Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative. Think of us
as a "talking owner's manual."
Once you purchase the Repair Protection Agreement, a
simple phone call is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a service
appointment online.
The Repair Protection Agreement is a risk-free purchase. If
you cancel for any reason during the product warranty period,
we will provide a full refund. Or, a prorated refund anytime after
the product warranty period expires. Purchase your Repair
Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
_Coverage in Canada varies on some items. For full details
call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
KENMORE GRILL WARRANTY
One Year Full Warranty on Kenmore Grill
If this grill fails due to a defect in material or workmanship
within 9_e year from the date of purchase, carl 1-800-4-MY-
HOME- to arrange for free repair (or replacement if repair
proves impossible).
Ten=Year Limited Warranty on Burners
For ten years from the date of purchase, any burner that
rusts through will be replaced free of charge. After the first
year from the date of purchase, you pay for labor if you wish
to have it installed.
All warranty coverage excludes ignitor batteries and grill part
paint loss, discoloration or surface rusting, which are either
expendable parts that can wear out from normal use within
the warranty period, or are conditions that can be the result
of normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in the
United States.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Sears Brands Management Corp.
Hoffman Estates, IL 60179
• Read and follow all Safety, Assembly,
and Use and Care instructions in this
Guide before assembling and cooking
with this grillo
• Failure to follow aft instructions in this
Use and Care Guide may lead to fire or
exploslon, which could resuff in property
damage, personal injury or death.
This Grill is for Outdoor Use Only
Tools needed for assembly:
Adjustable wrench (not provided)
Screwdriver (not provided)
7/16" Combination wrench (not provided)
CONVERSION READY
This grill easily converts from LP liquid
propane to NG natural gas.
Contact 1-800-4-MY-HOME ® or
door openers, water heaters, and other major home items, in the www'sears'c°m to purchase a natural gas
U.S.A.or Canada call 1-800=4-MY-HOME®. conversion kit, part number 415.7116572.
Dual Fuel TM is a registered trademarks of
the W. C. Bradley Company and used,
with permission, by Sears Holdings
Corporation. All rights reserved.
464224411 " 3

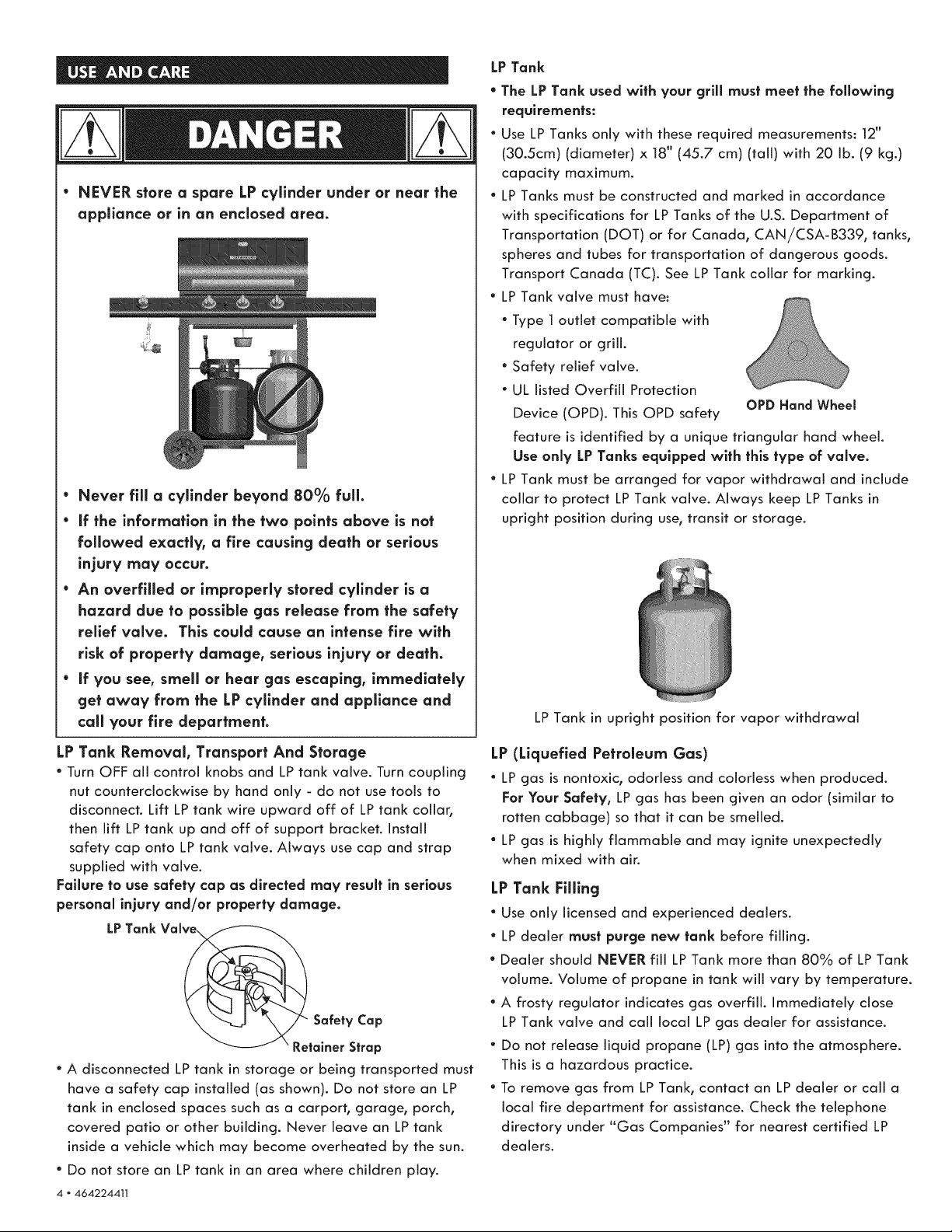

LP Tank
f x, II _I
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cyllnder beyond 80°/0 full.
• if the information in the two points above is not
followed exactly, a fire causing death or serious
injury may occur.
• An overfilled or improperly stored cyllnder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.
• if you see, smell or hear gas escaping, immediately
get away from the LP cylinder and appllance and
call your fire department.
LP Tank Removal, Transport And Storage
- Turn OFF all control knobs and LP tank valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar,
then lift LP tank up and off of support bracket. Install
safety cap onto LP tank valve. Always use cap and strap
supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LP
Safety Cap
Retainer Strap
" A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP
tank in enclosed spaces such as a carport, garage, porch,
covered patio or other building. Never leave an LP tank
inside a vehicle which may become overheated by the sun.
* Do not store an LP tank in an area where children play.
4 ° 464224411
* The LP Tank used with your grill must meet the following
requirements:
* Use LP Tanks only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
* LP Tanks must be constructed and marked in accordance
with specifications for LP Tanks of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339, tanks,
spheres and tubes for transportation of dangerous goods.
Transport Canada (TC). See LP Tank collar for marking.
* LP Tank valve must have:
* Type 1 outlet compatible with
regulator or grill.
* Safety relief valve.
UL listed Overfill Protection
Device (OPD). This OPD safety OPD Hand Wheel
feature is identified by a unique triangular hand wheel.
Use only LP Tanks equipped with this type of valve.
* LP Tank must be arranged for vapor withdrawal and include
collar to protect LP Tank valve. Always keep LP Tanks in
upright position during use, transit or storage.
LP Tank in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
* LP gas is nontoxic, odorless and colorless when produced.
For Your Safety, LP gas has been given an odor (similar to
rotten cabbage) so that it can be smelled.
* LP gas is highly flammable and may ignite unexpectedly
when mixed with air.
LP Tank Filllng
* Use only licensed and experienced dealers.
* LP dealer must purge new tank before filling.
" Dealer should NEVER fill LP Tank more than 80% of LP Tank
volume. Volume of propane in tank will vary by temperature.
* A frosty regulator indicates gas overfill. Immediately close
LP Tank valve and call local LP gas dealer for assistance.
* Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
* To remove gas from LP Tank, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under "Gas Companies" for nearest certified LP
dealers.

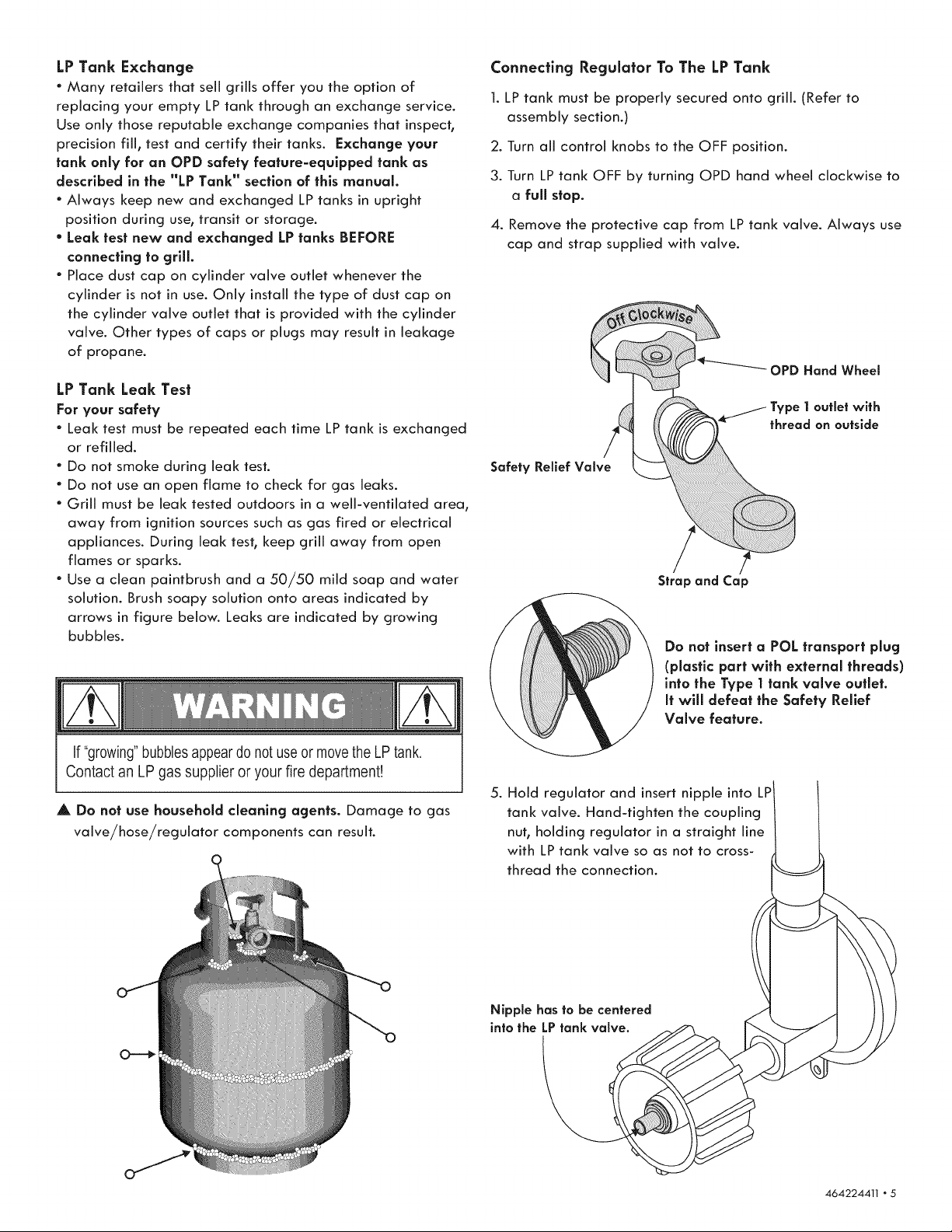

LP Tank Exchange
* Many retailers that sell grills offer you the option of
replacing your empty LP tank through an exchange service.
Use only those reputable exchange companies that inspect,
precision fill, test and certify their tanks. Exchange your
tank only for an OPD safety feature-equlpped tank as
described in the "LP Tank" section of this manual.
* Always keep new and exchanged LP tanks in upright
position during use, transit or storage.
* Leak test new and exchanged LP tanks BEFORE
connecting to grill.
* Place dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage
of propane.
LP Tank Leak Test
For your safety
* Leak test must be repeated each time LP tank is exchanged
or refilled.
" Do not smoke during leak test.
" Do not use an open flame to check for gas leaks.
" Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open
flames or sparks.
" Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by
arrows in figure below. Leaks are indicated by growing
bubbles.
If "growing"bubblesappeardo not useor movethe LP tank,
Contact an LP gas supplier or your fire department!
A Do not use household cleaning agents. Damage to gas
valve/hose/regulator components can result.
Connecting Regulator To The LP Tank
l. LP tank must be properly secured onto grill. (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP tank OFF by turning OPD hand wheel clockwise to
a full stop.
4. Remove the protective cap from LP tank valve. Always use
cap and strap supplied with valve.
OPD Hand Wheel
j Type I outlet with
thread on outside
Do not insert a POL transport plug
(plastic part with external threads)
into the Type 1 tank valve outlet.
It will defeat the Safety Relief
Valve feature.
5. Hold regulator and insert nipple into LP!
tank valve. Hand-tighten the coupling
nut, holding regulator in a straight line
with LP tank valve so as not to cross-
thread the connection.
464224411 ° 5

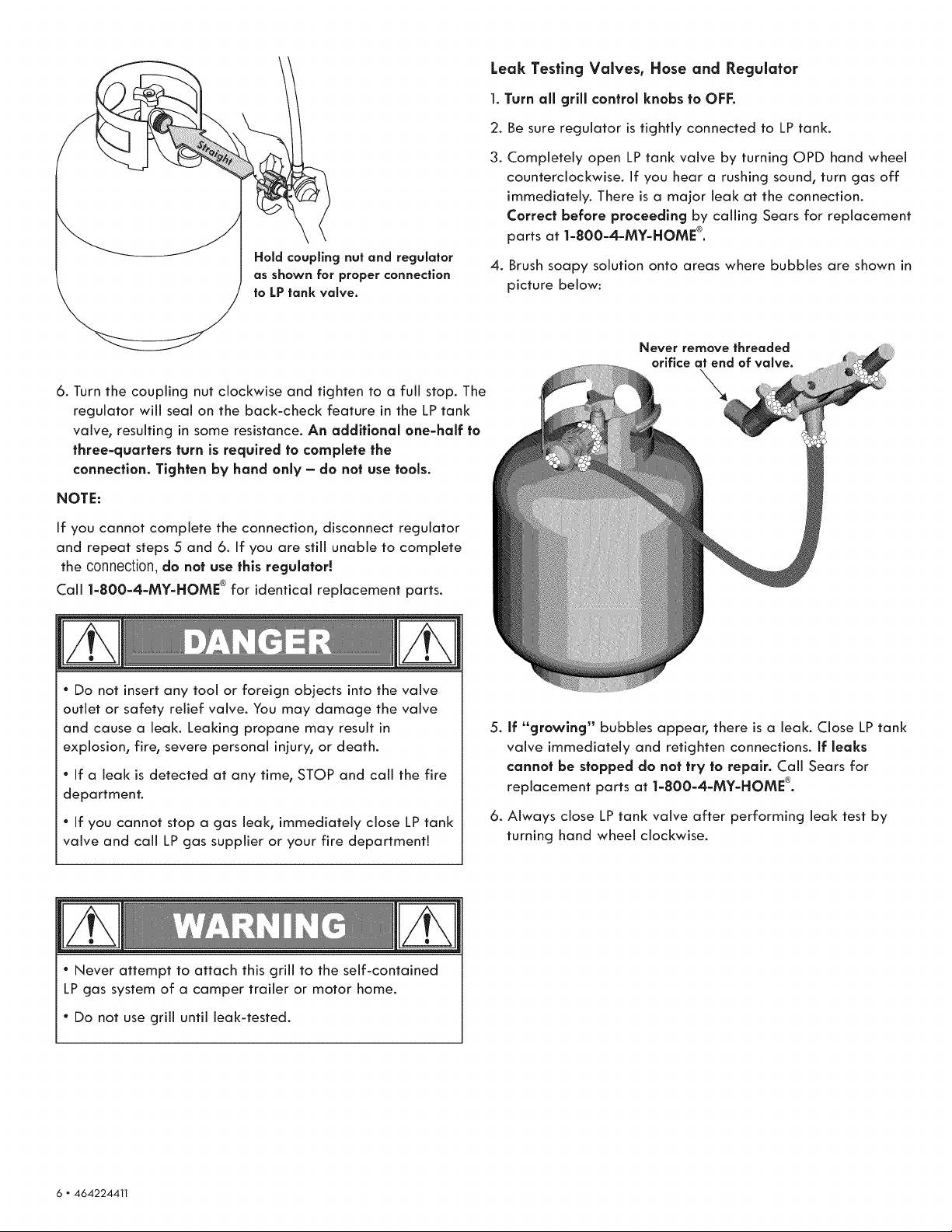

Hold coupllncj nut and regulator
as shown for proper connection
to LP tank valve.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP tank.
3. Completely open LP tank valve by turning OPD hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection.
Correct before proceeding by calling Sears for replacement
parts at 1-800-4-MY-HOME ®.
4. Brush soapy solution onto areas where bubbles are shown in
picture below:
6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP tank
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator
and repeat steps 5 and 6. If you are still unable to complete
the connection, do not use this regulator!
Call 1-800-4-MY-HOME ® for identical replacement parts.
/k /k
* Do not insert any tool or foreign objects into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
* If a leak is detected at any time, STOP and call the fire
department.
* If you cannot stop a gas leak, immediately close LP tank
valve and call LP gas supplier or your fire department!
* Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
Never remove threaded
orifice at end of valve.
5. If "growing" bubbles appear, there is a leak. Close LP tank
valve immediately and retighten connections. If leaks
cannot be stopped do nat try to repair. Call Sears for
replacement parts at 1-800-4-MY-HOME ®.
6. Always close LP tank valve after performing leak test by
turning hand wheel clockwise.
* Do not use grill until leak-tested.
6 ° 464224411

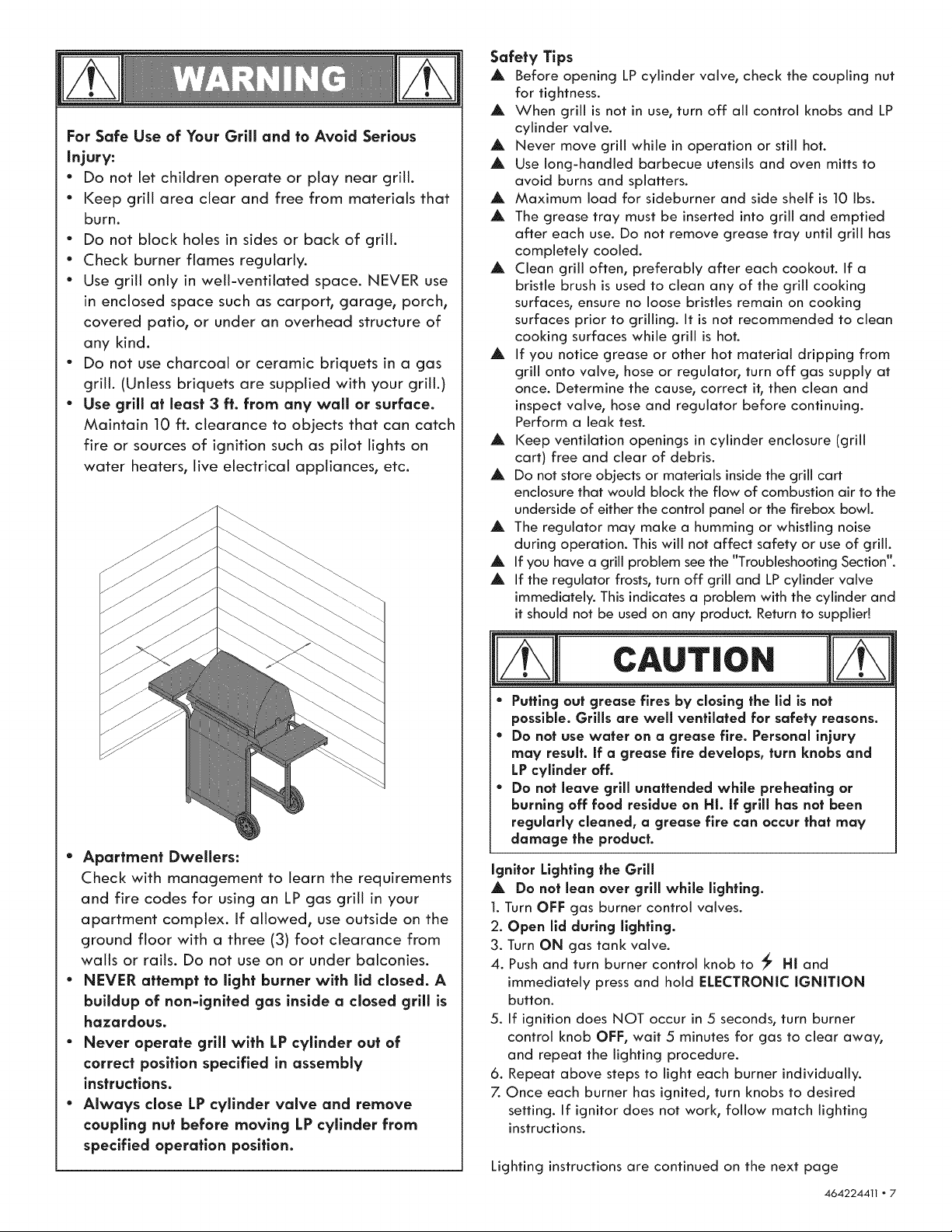

For Safe Use of Your Grill and to Avoid Serious
Injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that
burn.
• Do not block holes in sides or back of grill.
• Check burner flames regularly.
• Use grill only in welt-ventilated space. NEVER use
in enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of
any kind.
• Do not use charcoal or ceramic briquets in a gas
grill. (Unless briquets are supplied with your grill.)
• Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch
fire or sources of ignition such as pilot lights on
water heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from
walls or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lld closed. A
buildup of non-ignlted gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of
correct position specified in assembly
instructions.
• Always dose LP cylinder valve and remove
coupllng nut before moving LP cylinder from
specified operation position.
Safety Tips
A Before opening
A
A
A
A
A
A
A
A
A
A
A
A
LPcylinder valve, check the coupling nut
for tightness.
When grill is not in use, turn off all control knobs and LP
cylinder valve.
Never move grill while in operation or still hot.
Use long-handled barbecue utensils and oven mitts to
avoid burns and splatters.
Maximum load for sideburner and side shelf is 10 Ibs.
The grease tray must be inserted into grill and emptied
after each use. Do not remove grease tray until grill has
completely cooled.
Clean grill often, preferably after each cookout. If a
bristle brush is used to dean any of the grill cooking
surfaces, ensure no loose bristles remain on cooking
surfaces prior to grilling. It is not recommended to clean
cooking surfaces while grill is hot.
If you notice grease or other hot material dripping from
grill onto valve, hose or regulator, turn off gas supply at
once. Determine the cause, correct it, then clean and
inspect valve, hose and regulator before continuing.
Perform a leak test.
Keep ventilation openings in cylinder enclosure (grill
cart) free and clear of debris.
Do not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
The regulator may make a humming or whistling noise
during operation. This will not affect safety or use of grill.
If you have a grill problem seethe "Troubleshooting Section".
If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and
it should not be used on any product. Return to supplier!
CAUTION
* Putting out grease fires by closing the lld is not
possible. Grills are well ventilated for safety reasons.
* Do not use water on a grease fire. Personal injury
may result. If a grease fire develops, turn knobs and
LPcylinder off.
* Do not leave grill unattended while preheating or
burning off food residue on Hi. If grill has not been
regularly cleaned, a grease fire can occur that may
damage the product.
Ignitor Lighting the Grill
A Do not lean over grill while lighting.
1. Turn OFF gas burner control valves.
2. Open lid during lighting.
3. Turn ON gas tank valve.
4. Push and turn burner control knob to _" HI and
immediately press and hold ELECTRONIC IGNiTiON
button.
5. If ignition does NOT occur in 5 seconds, turn burner
control knob OFF, wait 5 minutes for gas to clear away,
and repeat the lighting procedure.
6. Repeat above steps to light each burner individually.
7. Once each burner has ignited, turn knobs to desired
setting. If ignitor does not work, follow match lighting
instructions.
Lighting instructions are continued on the next page
464224411 ° 7
Turn controls and gas source or tank OFF when not
In use.
if ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure, if the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accldentlv ignite with risk of
injury.
Match-Lighting
A Do not lean over grill while lighting.
1. Open lld. Turn ON gas at LP cylinder.
2. Place match into match holder (hanging from side panel
of grill). Light match; then light burner by placing match
through the match light hole on right or left side of grill.
3. Push in and turn far right or far left burner knob to the Hi
position, depending on match light hole selected. Be sure
burner lights and stays lit.
4. Light adjacent burners in sequence by pushing knobs in
and turning to the HI position.
Sideburner ignitor Lighting
A Do not lean over grill while lighting.
1. Open sldeburner lld. Turn ON gas at LP cylinder.
2. Turn sideburner knob to the HI position, push and hold
ELECTRONIC IGNITION button.
3. If sideburner does NOT light within 5 seconds, turn knob
to OFF, wait 5 minutes, then repeat lighting procedure.
Sideburner Match Lighting
1. Open sldeburner lld. Turn ON gas
at LP cylinder.
2. Place lit match near burner.
3. Turn sideburner knob to the Hi
position. Be sure burner lights and
stays lit.
8 ° 464224411
Burner Flame Check
" Remove cooking grates and flame tamers. Light burners,
rotate knobs from Hi to LOW. You should see a smaller
flame in LOW position than seen on Hi. Perform burner
flame check on sideburner, also. Always check flame prior
to each use. If only low flame is seen refer to "Sudden
drop or low flame" in the Troubleshooting Section.
--HI
Turning Grill Off
" Turn all knobs to the OFF position. Turn LP cylinder OFF by
turning hand-wheel clockwise to a full stop.
Ignffor Check
" Turn gas off at LP cyffnder. Press and hold electronic
ignitor button. "Click" should be heard and spark seen
each time between each collector box or burner and
electrode. See "Troubleshooting" if no click or spark.
Valve Check
"Irnportant: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in OFF position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn
back to OFF position. Valves should turn smoothly.
Hose Check
* Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only
identical replacement part valve/hose/regulator as
specified in the Parts List of this Use and Care Guide.
General Grill Cleanlng
" Do not mistake brown or black accumulation of grease
and smoke for paint. Interiors of gas grills are not painted
at the factory (and should never be painted). Apply a
strong solution of detergent and water or use a grill
cleaner with scrub brush on insides of grill lid and bottom.
Rinse and allow to completely air dry. Do not apply a
caustic griff/oven cleaner to painted surfaces.
" Plastic parts: Wash with warm soapy water and wipe dry.
A Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to
and failure of parts can result.
" Porcelain surfaces: Because of glass-like composition,
most residue can be wiped away with baking soda/water
solution or specially formulated cleaner. Use nonabrasive
scouring powder for stubborn stains.
" Painted surfaces: Wash with mild detergent or
nonabrasive cleaner and warm soapy water. Wipe dry
with a soft nonabrasive cloth.
" Stainless steel surfaces: To maintain your grill's high
quality appearance, wash with mild detergent and warm
soapy water and wipe dry with a soft cloth after each
use. Baked-on grease deposits may require the use of an
abrasive plastic cleaning pad. Use only in direction of
brushed finish to avoid damage. Do not use abrasive pad
on areas with graphics.
" Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain
on cooking surfaces prior to grilling. It is not
recommended to clean cooking surfaces while grill is hot.
f

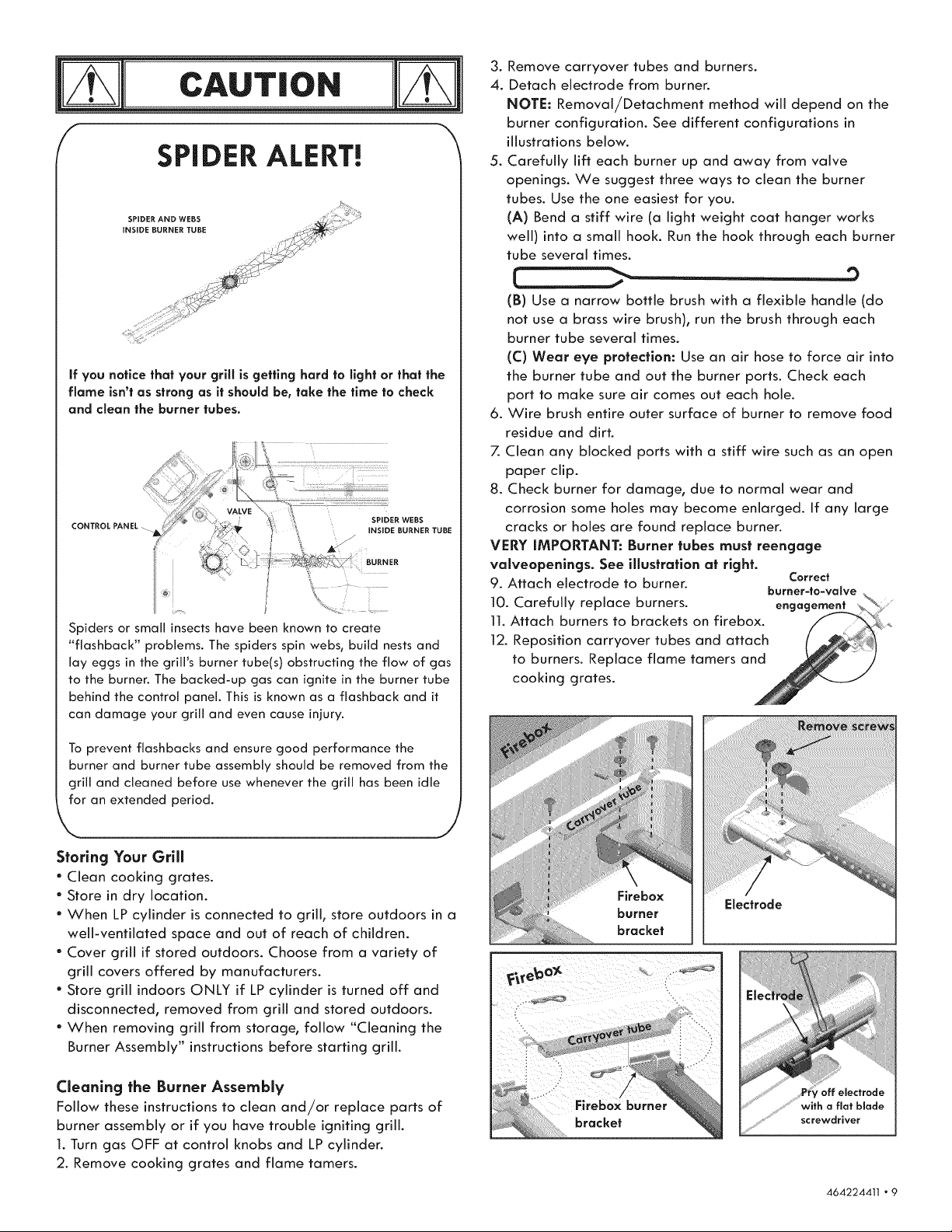

CAUTION
SPIDER ALERT!
if you notice that your griIt is getting hard to light or that the
flame isn't as strong as it should be, take the time to check
and dean the burner tubes.
SPIDER WEBS
CONTROL PANEL INSIDE BURNER TUBE
BURNER
Spiders or small insects have been known to create
"flashback" problems. The spiders spin webs, buiJd nests and
Jay eggs in the griIVs burner tube(s) obstructing the flow of gas
to the burner. The backed-up gas can ignite in the burner tube
behind the controJ paneJ. This is known as a flashback and it
can damage your grill and even cause injury.
To prevent flashbacks and ensure good performance the
burner and burner tube assembly should be removed from the
grill and cleaned before use whenever the grill has been idle
r an extended period, j
Storing Your Grill
" Clean cooking grates.
" Store in dry location.
" When LP cylinder is connected to grill, store outdoors in a
well-ventilated space and out of reach of children.
" Cover grill if stored outdoors. Choose from a variety of
grill covers offered by manufacturers.
" Store grill indoors ONLY if LP cylinder is turned off and
disconnected, removed from grill and stored outdoors.
" When removing grill from storage, follow "Cleaning the
Burner Assembly" instructions before starting grill.
Cleanlng the Burner Assembly
Follow these instructions to clean and/or replace parts of
burner assembly or if you have trouble igniting grill.
1. Turn gas OFF at control knobs and LP cylinder.
2. Remove cooking grates and flame tamers.
3. Remove carryover tubes and burners.
4. Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the
burner configuration. See different configurations in
illustrations below.
5. Carefully lift each burner up and away from valve
openings. We suggest three ways to clean the burner
tubes. Use the one easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works
well) into a small hook. Run the hook through each burner
tube several times.
(g) Use a narrow bottle brush with a flexible handle (do
not use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eve protectlan: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food
residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open
paper clip.
8. Check burner for damage, due to normal wear and
corrosion some holes may become enlarged. If any large
cracks or holes are found replace burner.
VERY iMPORTANT: Burner tubes must reengage
valveopenlngs. See illustration at right.
9. Attach electrode to burner. Correct
burner-to-vaSve
10. Carefully replace burners, engogemei
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
Firebox
burner
bracket
Electrode
screwdriver
464224411 ° 9
Indirect Cooking
Poultry and large cuts of meat cook slowly to perfection on
the grill by indirect heat. Place food over unlit burner(s); the
heat from lit burners circulates gently throughout the grill,
cooking meat or poultry without the touch of a direct flame.
This method greatly reduces flare-ups when cooking extra
fatty cuts because there is no direct flame to ignite the fats
and juices that drip during cooking.
I Burner Cooking
Cook with direct or indirect heat.
Best for smaller meals or foods.
Consumes less fuel.
Indirect Cooking Instructions
" Always cook with the lid dosed.
" Due to weather conditions, cooking times may vary.
During cold and windy conditions the temperature setting
may need to be increased to insure sufficient cooking
temperatures.
" Place food over the unlit burner(s).
2 Burner Cooking
Great indirect cooking on low.
Produces slow, even heating.
ideal for slow roasting and baking.
Food Safety
Food safety is a very important part of enjoying the
outdoor cooking experience. To keep food safe from
harmful bacteria, follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy
water before and after handling raw meat and poultry.
Separate- Separate raw meats and poultry from ready-to-
eat foods to avoid cross contamination. Use a clean
platter and utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria.
Use a thermometer to ensure proper internal food
temperatures.
Chlll: Refrigerate prepared foods and leftovers promptly.
For more information call: USDA Meat and Poultry Hotllne
at 1-800-535-4555 (In Washington, DC (202) 720-3333,
10:00 am-4:00 pm EST).
How To Tell If Meat Is Grilled Thoroughly
" Meat and poultry cooked on a grill often browns very fast
on the outside. Use a meat thermometer to be sure food
has reached a safe internal temperature, and cut into
food to check for visual signs of doneness.
" Whole poultry should reach 165 ° F.Juices should run clear
and flesh should not be pink.
" Hamburgers made of any ground meat or poultry should
reach 160 ° F, and be brown in the middle with no pink
juices. Beef, veal and lamb steaks, roasts and chops can
be cooked to 145 ° FoAll cuts of pork should reach 160 ° Fo
" NEVER partially grill meat or poultry and finish cooking
later. Cook food completely to destroy harmful bacteria.
" When reheating takeout foods or fully cooked meats like
hot dogs, grill to 165 ° F, or until steaming hot.
WARNING: To ensure that it is safe to eat, food must be
cooked to the minimum internal temperatures listed in the
table below.
USDA* Safe Minimum internal Temperatures
Fish 145°F
Pork 160°F
Egg Dishes 160°F
Steaks and Roasts of Beef,
Veal or Lamb 145°F
Ground Beef, Veal or Lamb 160°F
Whole Poultry (Turkey,
Chicken, Duck, etc.) 165°F
Ground or Pieces Poultry 165°F
(Chicken Breast, etc.)
_United States Department of Agriculture
10 ° 464224411
Key Qty Description Part #
1 2 LOCKING CASTER G515-OO82-W1
2 2 FIXEDCASTER G350-OO24-W1
3 1 BOTTOM SHELF G524-O600-W1
4 2 DOOR MAGNET ASSEMBLY G501-OO16-W1
5 1 TOWEL HOLDER G524-7000-W1
6 1 RIGHTSIDEPANEL G524-O400-W1
7 1 LEFTSIDEPANEL G524-O300-W1
8 1 LOWER BACK PANEL G524-OO17-W1
9 1 GROMMET G505-OO39-W1
10 1 TANK EXCLUSION G516-OO39-W1
11 1 UPPERBACK PANEL,CART G524-OO16-W1
12 1 FRONT BRACE G524-2100-W1
13 1 TANK HEATSHIELD G524-8000-W1
14 1 FIREBOX G524-4000-W1
15 1 HEATSHIELD,FIREBOX G524-OOO7-W1
16 1 MATCH HOLDERAND CHAIN G501-OO68-W1
17 4 MAIN BURNER G517-7300-W1
18A 2 ELECTRODE,F/MAIN BURNER,LONG G515-OO14-W1
WIRE
18B 2 ELECTRODE,F/MAIN BURNER,SHORT G515-OO67-W1
WIRE
19 3 FLAME CARRYOVERTUBE G524-OO36-W1
20 1 HOSEVALVE REGULATOR G524-6000-W1
21 1 CONTROL PANEL G524-OOll-W1
22 1 IGNITERSWITCH MODULE G518-OO26-W3
23 5 BEZEL,F/CONTROL KNOB G513-0054-W1
24 5 CONTROL KNOB G614-4400-W1
25 1 TOP LID G524-0100-W1
26 1 HANDLE, F/TOP LID G521-0002-W2
27 2 END CAP,F/HANDLE G352-0015-W1
28 1 INNER INSERT,F/TOP LID G524-0001-W1
29 2 RUBBERBUMPER,RECTANGULAR,F/LID G413-0025-W1
30 2 RUBBERBUMPER,ROUND G501-0066-W1
31 1 LOGO PLATE G614-0097-W1
32 1 BEZEL,F/TEMPERATUREGAUGE G503-0002-W1
33 1 TEMPERATUREGAUGE G518-0075-W1
34 1 HARDWARE F/TOP LIDASSEMBLY G515-0035-W1
35 1 ELECTRONICIGNITION MODULE G515-0030-W2
36 1 CAP, F/ELECTRONIC IGNITION MODULE G515-0030-W1
37 1 TOWEL BAR G511-0034-W1
38 1 RIGHTSHELF G524-0800-W1
39 1 FASCIA,F/RIGHT SHELF G524-0024-W1
40 1 SIDESHELFEXTENDER G524-0025-W1
41 1 LEFTSIDEBURNERSHELF G524-0700-W1
42 1 FASCIA,F/SB SHELF G524-0023-W1
Key Qty Description
43 1 SIDEBURNERPAN
44 1 LID, F/SIDE BURNER
45 1 RUBBERBUMPER,F/SB
46 1 SIDEBURNER
47 1 ELECTRODE,F/SIDEBURNER
48 1 ELECTRODEWIRE, F/SIDEBURNER
49 1 SIDEBURNERGRATE
50 1 RIGHTDOOR, NO HANDLE
51 2 DOOR HANDLE
52 1 LEFTDOOR, NO HANDLE
53 4 HEATDIFFUSER
54 1 WARMING RACK
55 3 COOKING GRATE,MAIN
56 1 GREASETRAY
57 1 CYLINDERSCREW F/TANK SECURE
58 1 STEAMERTRAYLID
59 1 STEAMERTRAYHANDLE
60 1 STEAMERTRAY
61 1 STEAMERTRAYBRACE
62 1 STEAMERHANDLETOOL
Part#
G515-0083-W2
G501-0070-W1
G508-0033-W1
G511-5100-W1
G515-0039-W1
G401-0038-W1
G501-0077-W1
G524-2300-W1
G517-0011-W1
G524-2200-W1
G524-0032-W1
G524-0002-W1
G524-0003-W1
G350-4400-W1A
G505-0047-W1
G524-0026-W1
G524-0027-W1
G524-0028-W1
G524-2700-W1
G524-0029-W1
NOT Picture:
Key Qty Description Part #
... 1 CASTER PIN G350-OO26-W1
... 1 HARDWARE PACK G524-BOO1-W1
... 1 ASSEMBLYMANUAL, ENGLISH G524-O10801-W1
... 1 ASSEMBLY MANUAL, SPANISH G524-O10802-W1
If you are missing hardware or have damaged parts after
unpacking grill° call 1-800-241-7548 for replacement.
To order replacement parts after using grill, carl
1-800-4-MY-HOME ®
464224411 ° 11
0_
12,464224411
@

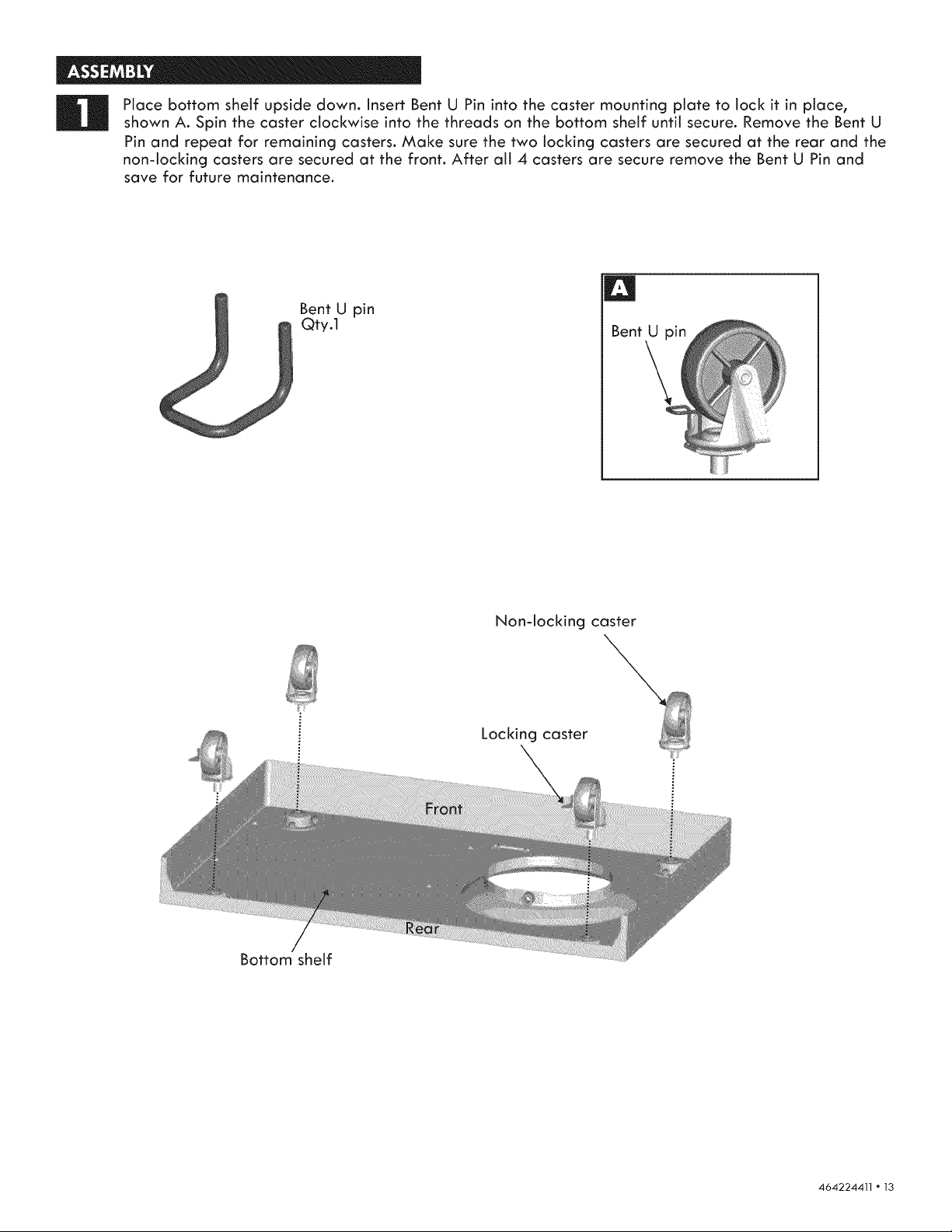

Place bottom shelf upside down. Insert Bent U Pin into the caster mounting plate to lock it in place,
shown A. Spin the caster clockwise into the threads on the bottom shelf until secure. Remove the Bent U
Pin and repeat for remaining casters. Make sure the two locking casters are secured at the rear and the
nondocking casters are secured at the front. After all 4 casters are secure remove the Bent U Pin and
save for future maintenance.
Bent U pin
Qty.1
Bent U pin
Non-locking caster
Locking caster
Bottom shelf
464224411 ° 13

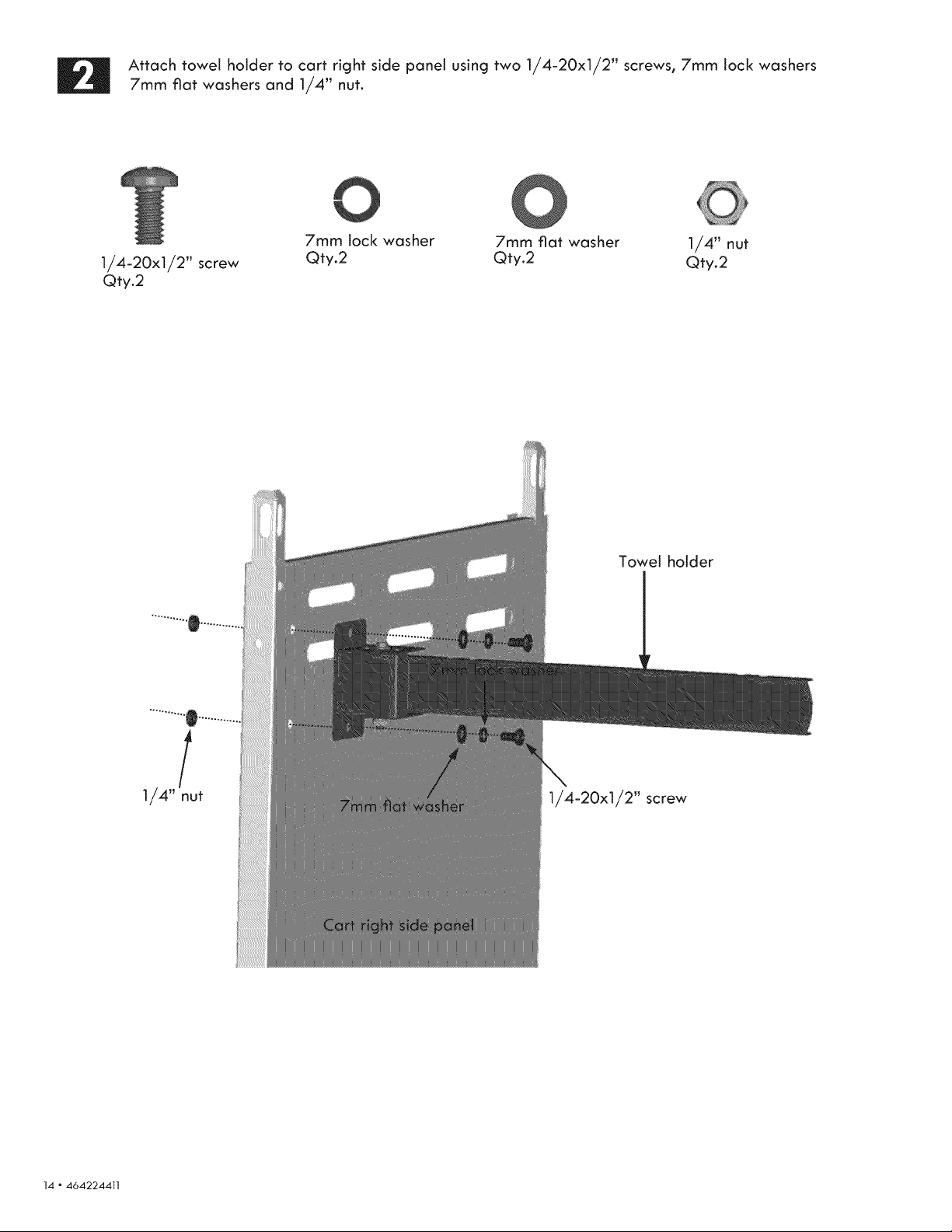

U Attach towel holder to cart right side panel using two 1/4-20xl/2 _' screws, 7mm lock washers
7ram fiat washers and 1/4 _' nut.
1/4-20xl/2 _' screw
Qty.2
0
7mm lock washer 7mm fiat washer 1/4 _' nut
Qty.2 Qty.2 Qty.2
Towel holder
1/4-20xl/2 _' screw
14 °464224411

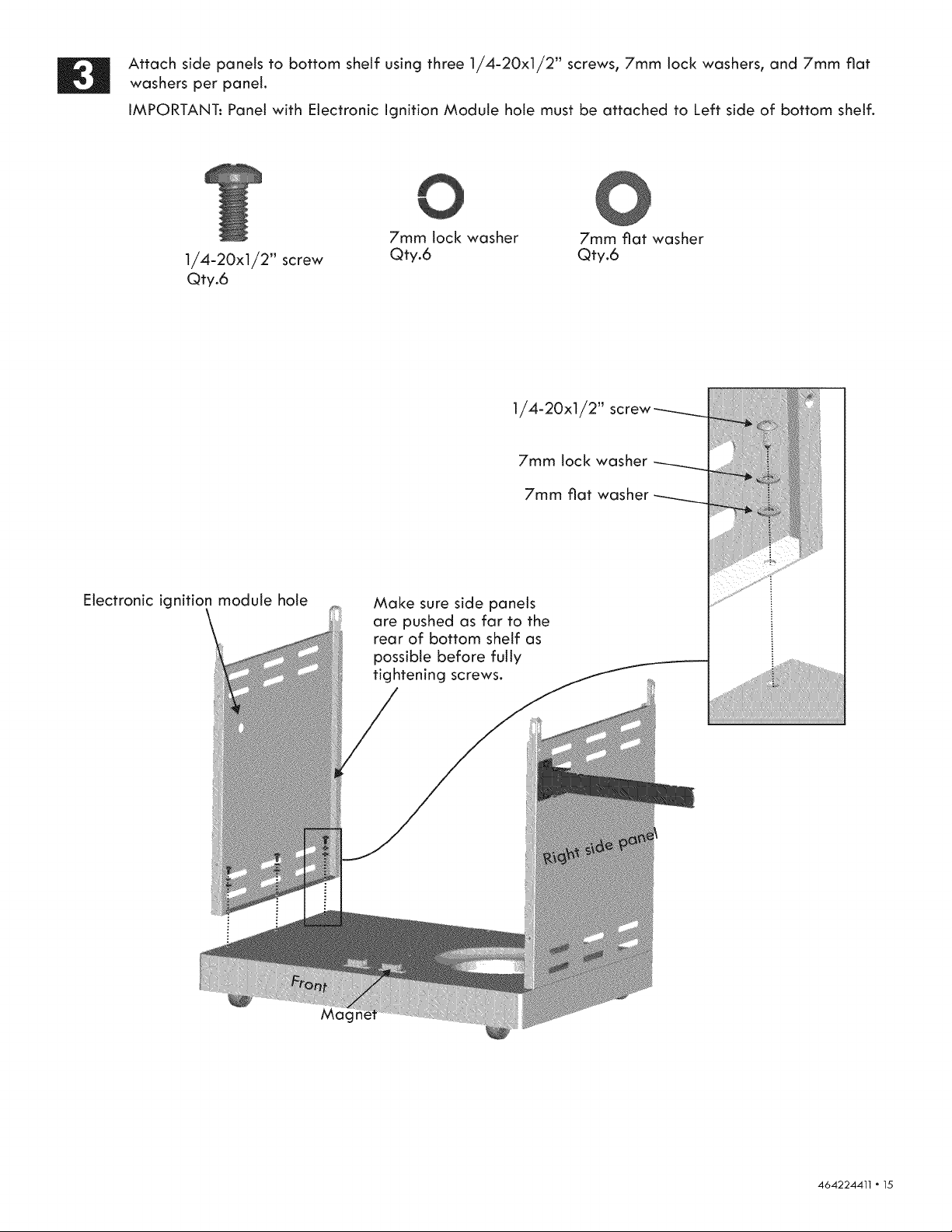

Attach side panels to bottom shelf using three 1/4-20xl/2" screws, 7mm lock washers, and 7mm fiat
washers per panel.
IMPORTANT: Panel with Electronic Ignition Module hole must be attached to Left side of bottom shelf.
1/4-20xl/2" screw
Qty.6
0
7mm lock washer 7mm fiat washer
Qty.6 Qty.6
Electronic ignition module hole
1/4-20xl/2" screw ....
7mm lock washer ....
7ram fiat washer ---_..._.
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
iliit_Itli?_!ilii_i_it!
iiililii!iiiiiiiiiiiii_i_
ii_ i_iii!iii!iiiiiiHi!i!iit
iii!iii iii_i_ii!iiiiiiii!!ii!_iiii!ii
_)i..............
464224411 ° 15

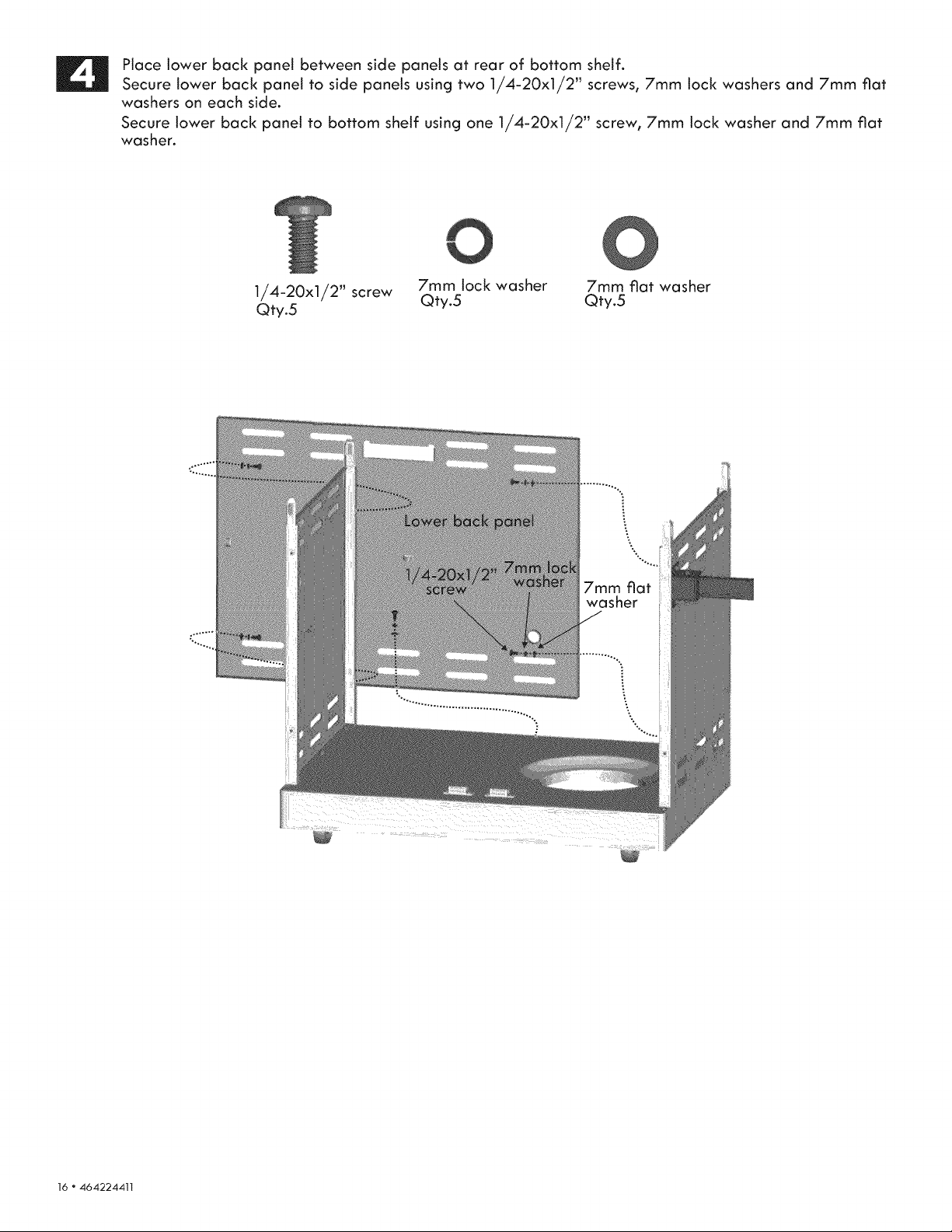

Place lower back panel between side panels at rear of bottom shelf.
Secure lower back panel to side panels using two 1/4-20xl/2 _ screws, 7mm lock washers and 7mm fiat
washers on each side.
Secure lower back panel to bottom shelf using one 1/4-20xl/2 _ screw, 7mm lock washer and 7mm fiat
washer.
0
7mm lock washer 7mm fiat washer
1/4-20xl/2" screw
Qty.5 Qty.5 Qty.5
16 ° 464224411

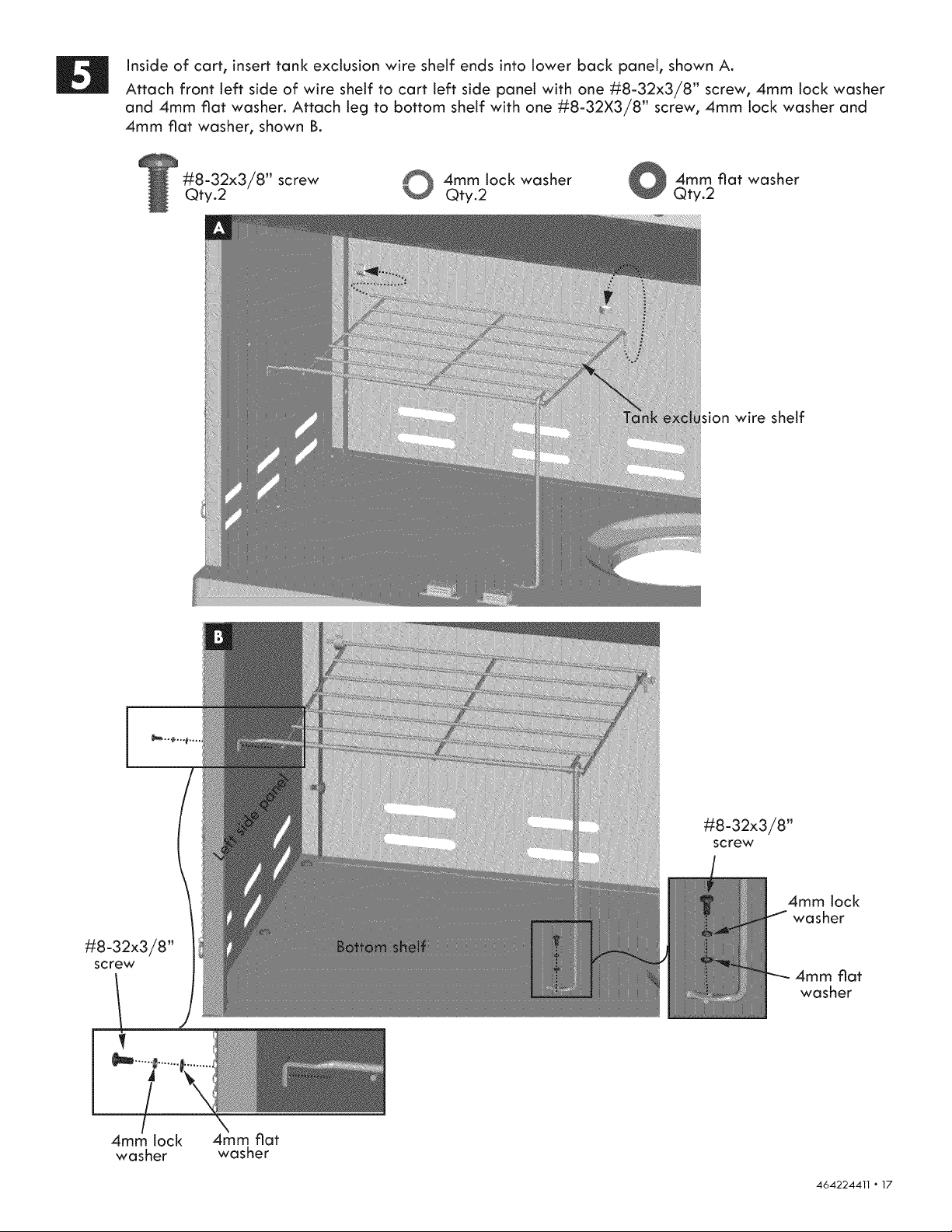

inside of cart, insert tank exclusion wire shelf ends into lower back panel, shown A.
Attach front left side of wire shelf to cart left side panel with one #8-32x3/8" screw, 4mm lock washer
and 4mm fiat washer. Attach leg to bottom shelf with one #8-32X3/8" screw, 4mm lock washer and
4ram fiat washer, shown B.
#8-32x3/8" screw
Qtyo2
O mm lock washer
Qty.2
4mm fiat washer
Qtyo2
sion wire shelf
#8-32x3/8"
screw
#8-32x3/8"
screw
4mm lock
washer
4mm fiat
washer
1
/
4mm lock
washer
4mm fiat
washer
464224411 ° 17

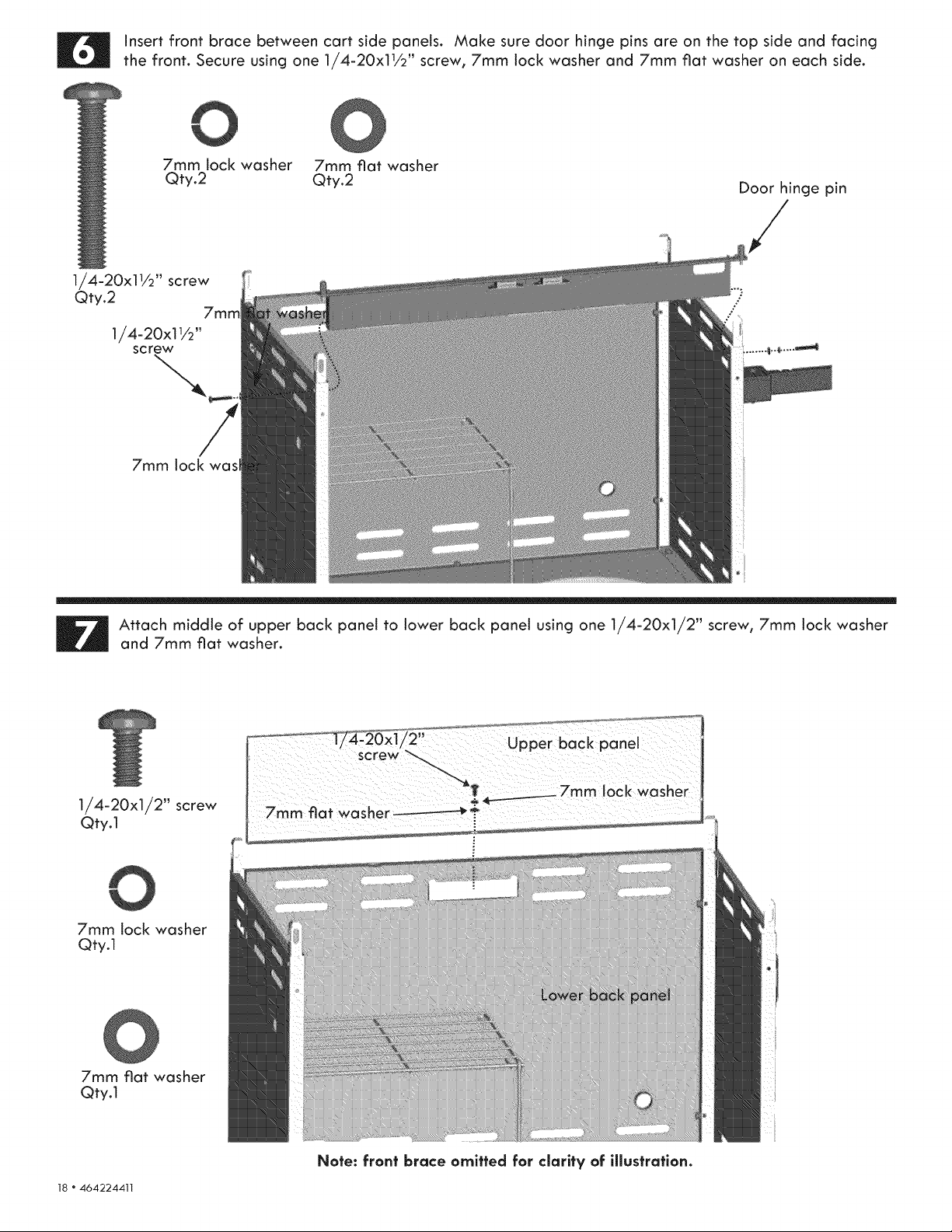

Insert front brace between cart side panels. Make sure door hinge pins are on the top side and facing
the front. Secure using one 1/4-20x11/2 '' screw, 7mm lock washer and 7mm fiat washer on each side.
7mm lock washer
Qty.2
0
7mm fiat washer
Qty.2
Door hinge pin
1/4-20x11/2 '' screw
Qty.2
1/4-20x11/2"
screw
7mm lock was
Attach middle of upper back panel to lower back panel using one 1/4-20xl/2" screw, 7mm lock washer
and 7mm fiat washer.
1/4-20xl/2" screw
Qty.1
7mm tack washer
Qty.1
0
7mm fiat washer
Qty.1
18 ° 464224411
Note: front brace omitted for clarity of illustration.
insert tank heat shield tabs(without holes) into slots between upper back panel and lower back panel,
shown A.
Attach tank heat shield front tabs(with hotes) under front brace using two #8x3/8" self-tapping screws,
shown B.
#8x3/8" self-tapping screw
Qty.2
464224411 ° 19

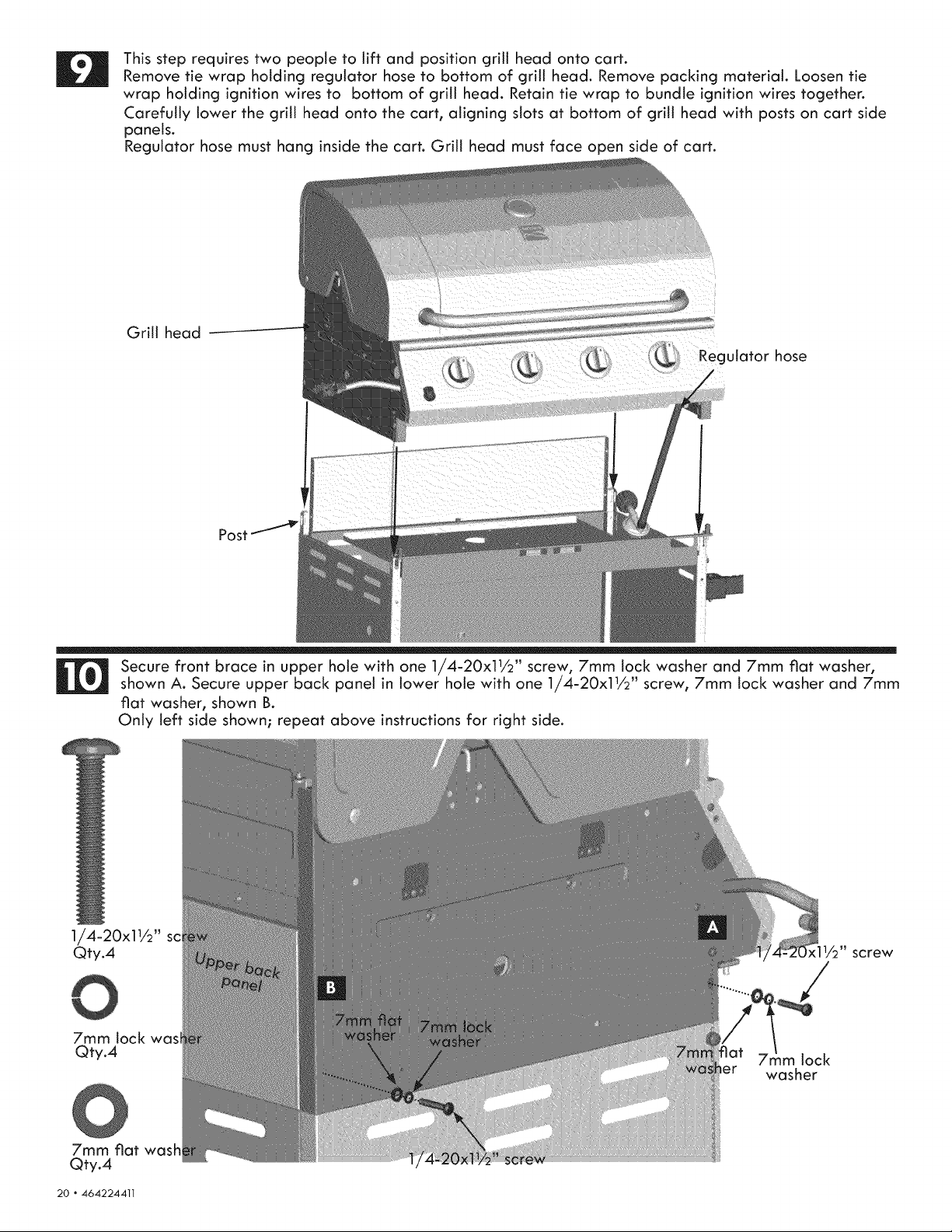

This step requires two people to lift and position grill head onto cart.
Remove tie wrap holding regulator hose to bottom of grill head. Remove packing material. Loosen tie
wrap holding ignition wires to bottom of grill head. Retain tie wrap to bundle ignition wires together.
Carefully lower the grill head onto the cart, aligning slots at bottom of grill head with posts on cart side
panels.
Regulator hose must hang inside the cart. Grill head must face open side of cart.
Grill head
Regulator hose
Post
Secure front brace in upper hole with one 1/4-20x11/2 '' screw, 7mm lock washer and 7mm fiat washer,
shown A. Secure upper back panel in lower hole with one 1/4-20x11/2 '' screw, 7mm lock washer and 7mm
fiat washer, shown B.
Only left side shown; repeat above instructions for right side.
1/4-20x11/2 '' sc
Qty.4
7mm lock wasl
Qty.4
O
7mm fiat wash
Qty.4
20 ° 464224411
11/2'_
/
lock
washer
screw

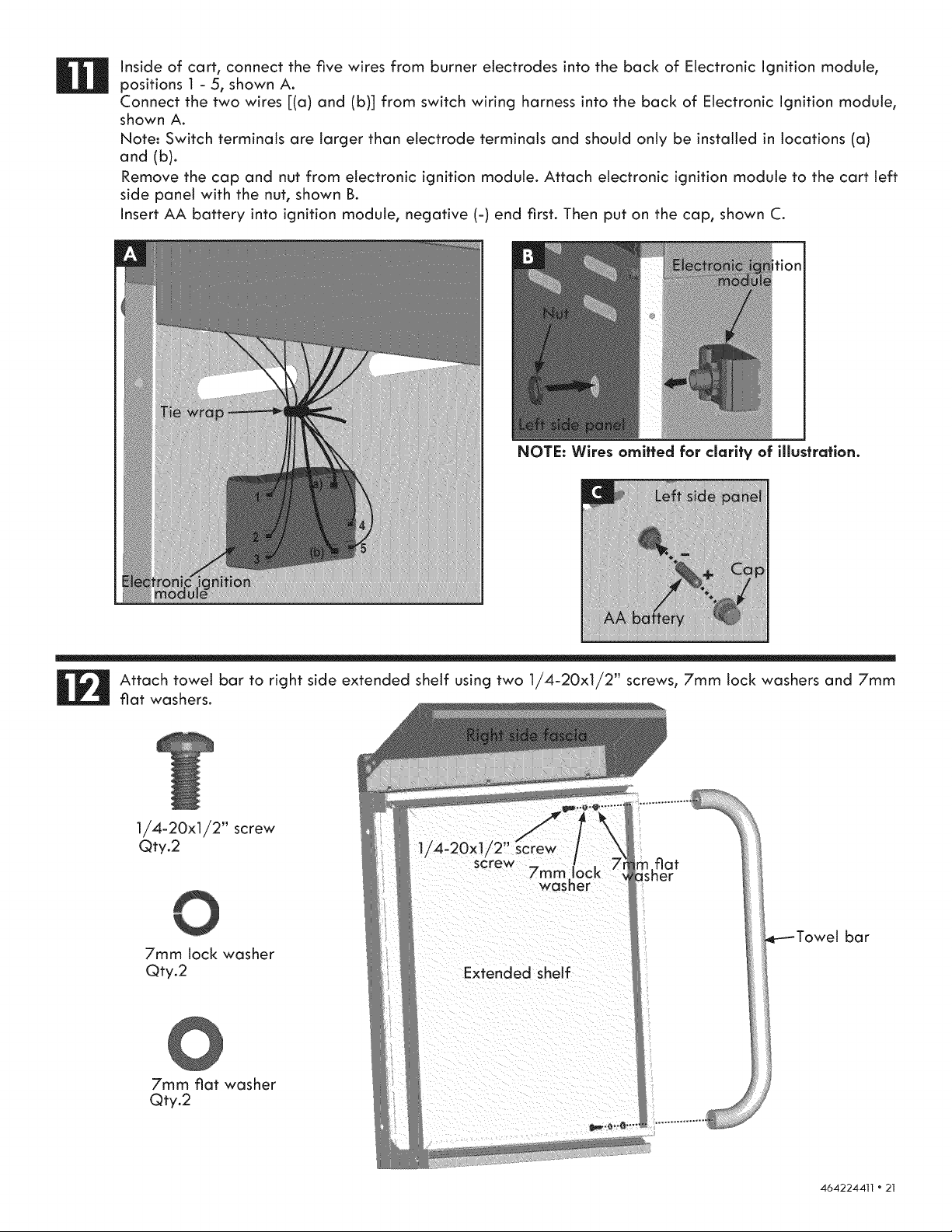

Inside of cart, connect the five wires from burner electrodes into the back of Electronic Ignition module,
positions 1 - 5, shown A.
Connect the two wires [(a) and (b)] from switch wiring harness into the back of Electronic Ignition module,
shown A.
Note: Switch terminals are larger than electrode terminals and should only be installed in locations (a)
and (b).
Remove the cap and nut from electronic ignition module. Attach electronic ignition module to the cart left
side panel with the nut, shown B.
Insert AA battery into ignition module, negative (-) end flrst. Then put on the cap, shown C.
tion
NOTE: Wires omitted for clarlty of illustration.
Attach towel bar to right side extended shelf using two 1/4-20xl/2" screws, 7mm lock washers and 7mm
fiat washers.
1/4-20xl/2" screw
Qty.2
7mm lock washer
Qty.2
O
7mm fiat washer
Qty.2
washer
Extended shelf
bar
464224411 ° 21

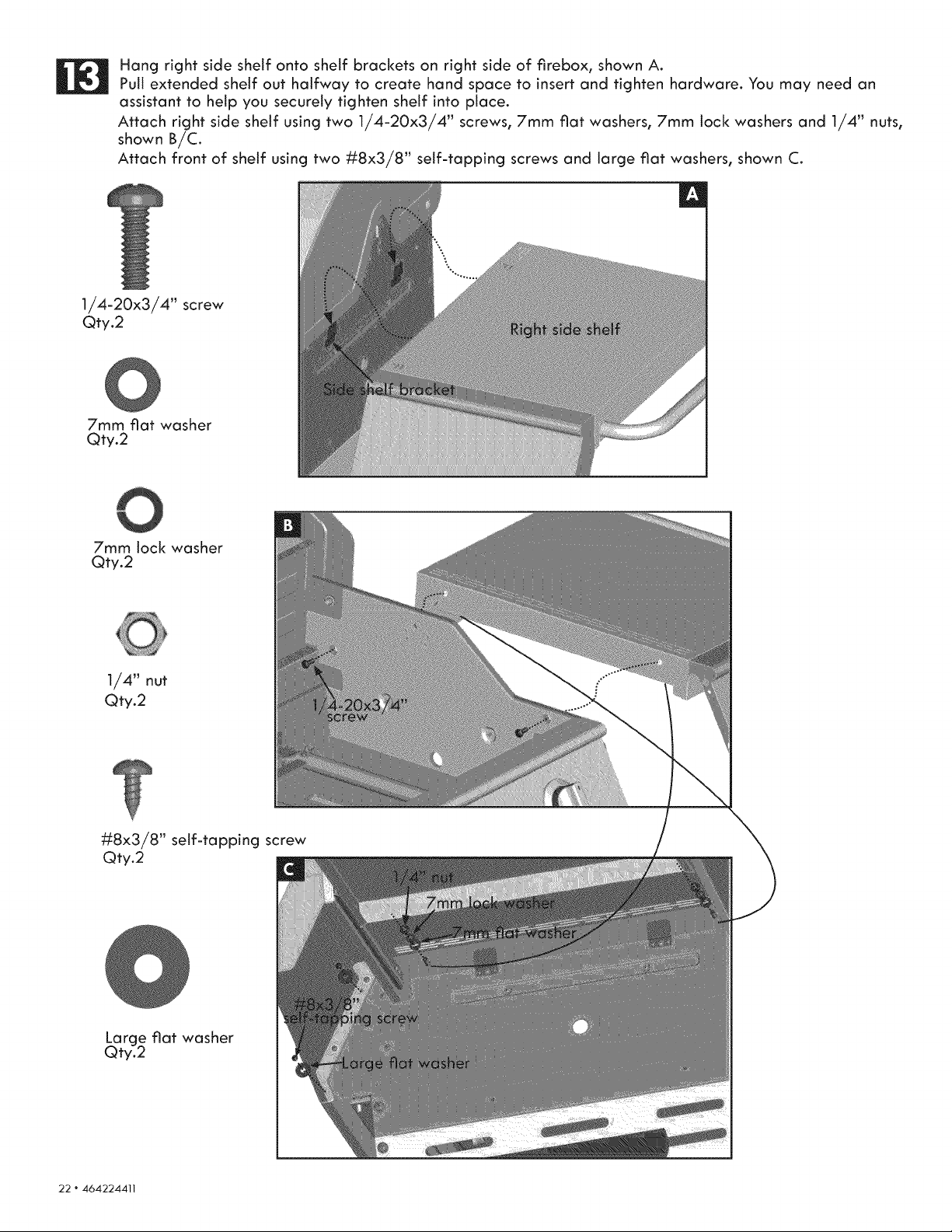

Hang right side shelf onto shelf brackets on right side of firebox, shown A.
Putt extended shelf out halfway to create hand space to insert and tighten hardware. You may need an
assistant to help you securely tighten shelf into place°
Attach right side shelf using two 1/4-20x3/4" screws, 7mm fiat washers, 7mm lock washers and 1/4" nuts,
shown B/Co
Attach front of shelf using two #8x3/8" self-tapping screws and large fiat washers, shown C.
1/4-20x3/4" screw
Qty.2
O
7ram fiat washer
Qty.2
7mm lock washer
Qty.2
1/4" nut
Qty.2
#8x3/8" self-tapping screw
Qty.2
@
Large fiat washer
Qty.2
22°464224411

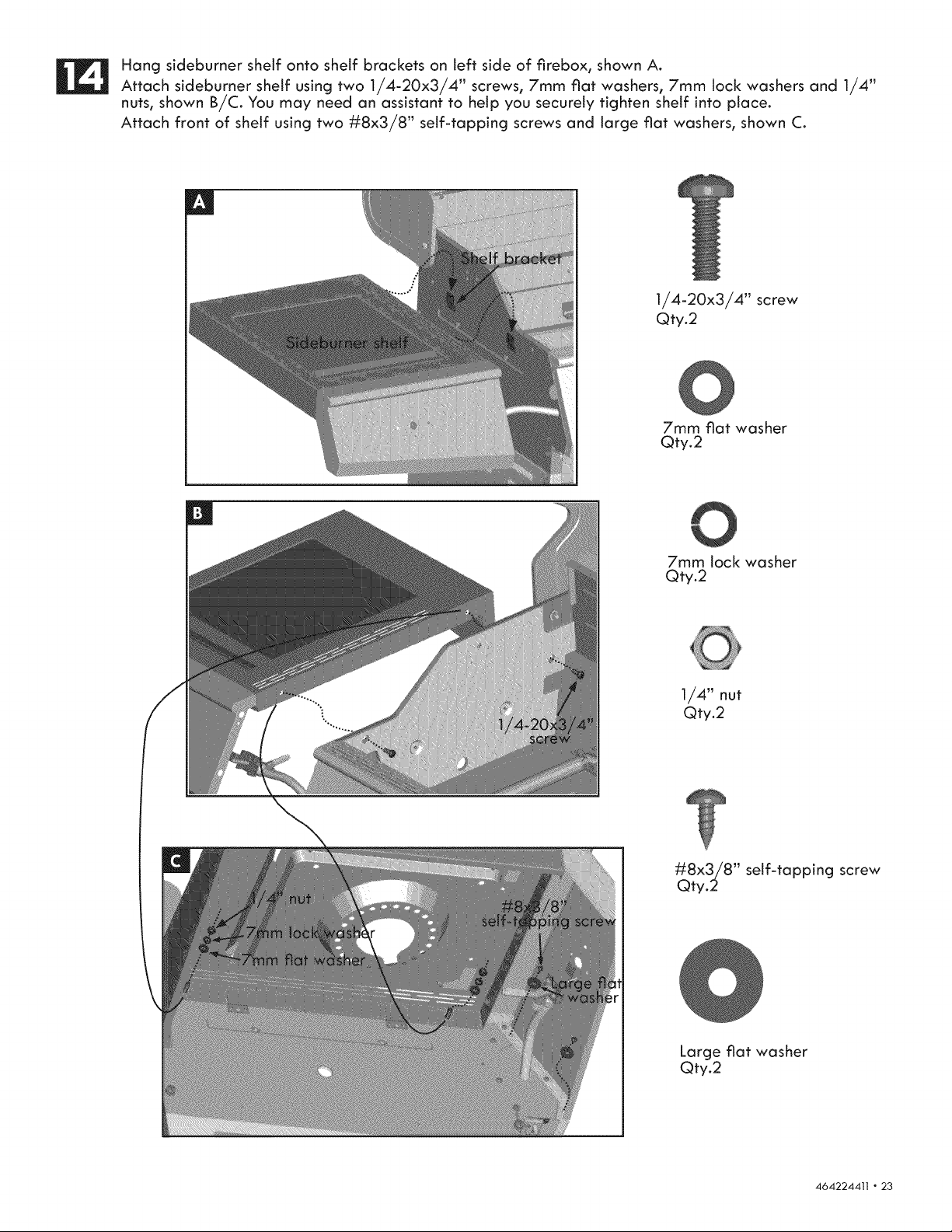

Hang sideburner shelf onto shelf brackets on left side of firebox, shown Ao
Attach sideburner shelf using two 1/4-20x3/4" screws, 7mm fiat washers, 7mm lock washers and 1/4"
nuts, shown B/C. You may need an assistant to help you securely tighten shelf into place.
Attach front of shelf using two #8x3/8" self-tapping screws and large fiat washers, shown C.
1/4-20x3/4" screw
Qty.2
7ram fiat washer
Qty.2
7mm lock washer
Qty.2
1/4" nut
Qty.2
#8x3/8" self-tapping screw
Qty.2
@
Large fiat washer
Qty.2
464224411°23
First, remove the two screws and lock washers attached to the sideburner valve bracket. Position
sideburner valve bracket beneath sideburner shelf fascia so that valve stem comes through larger center
hole in fascia. Align the holes on valve bracket with left and right holes on fascia. Attach using lock
washers and screws that were removed from bracket.
Next, place sideburner bezel over valve stem on front side of fascia. Align small holes on bezel with
upper and lower holes on fascia, so that valve stem is centered in the large hole. Attach using two
#8-32x3/8" screws and 4mm lock washers. Press sideburner control knob onto valve stem.
Note: Use left and right
haJes an fascia to
attach vaJve bracket
Screws and Washers
removed from valve bracket
Valve stem
valve bracket
#8-32x3/8" screw _ 4mm lock washer
Qty.2 _ Qty.2
Control knob
\
Note:Useupper and lower
holes onfascia to
attachbezel
bezel
Insert sideburner tube through hole in bottom of sideburner shelf. The stud on bottom of burner fits into
small hole at rear of sideburner drip pan, shown A.
Under sideburner shelf, secure burner to sideburner drip pan with one Wing nut. Untie sideburner ignitor
wire which was tied to metal hose. Attach this wire to electrode. Make sure burner tube engages
sideburner valve, shown B.
Wing nut
Qty.1
sideburner
24 ° 464224411

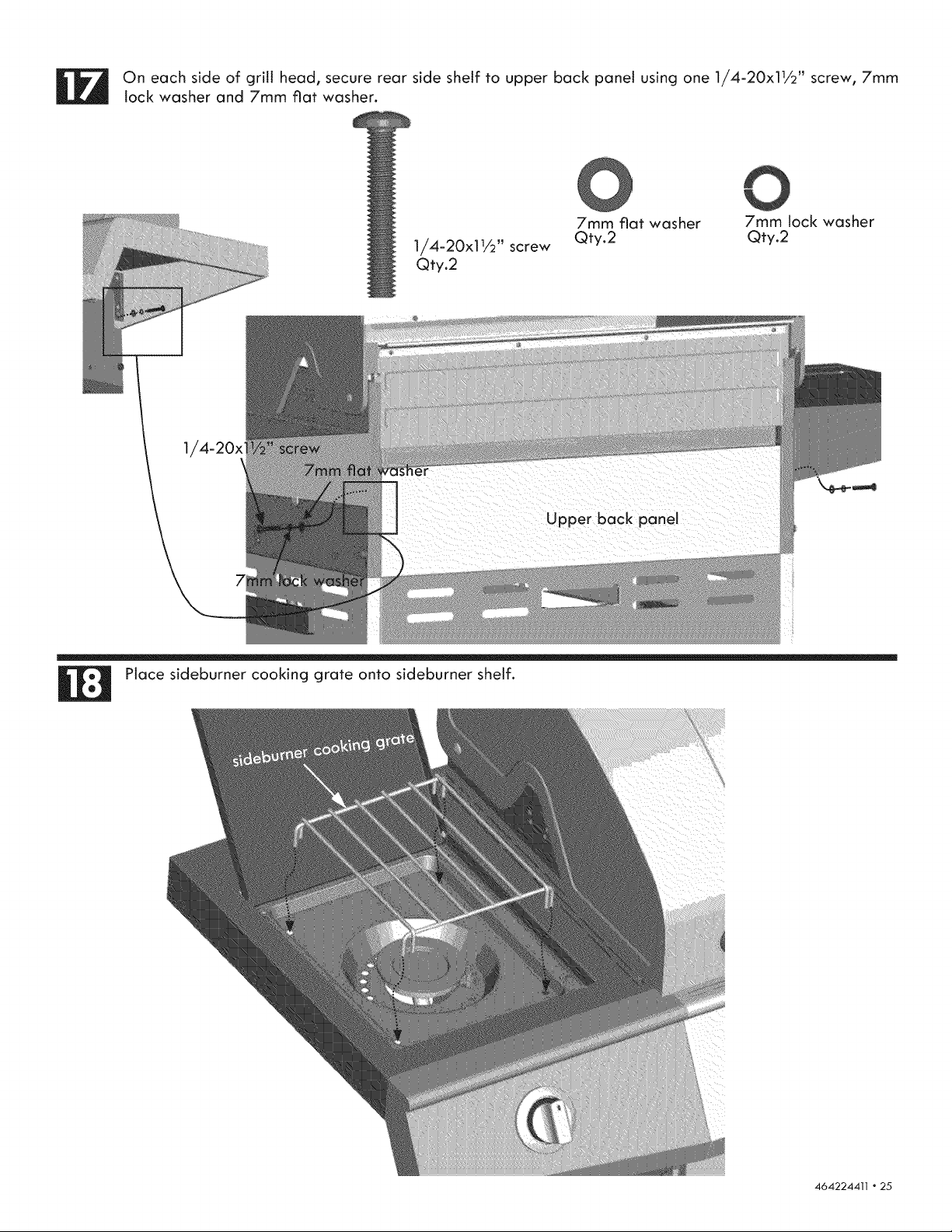

On each side of grill head, secure rear side shelf to upper back panel using one 1/4-20x11/2 '' screw, 7mm
lock washer and 7mm fiat washer.
1/4-20xl 1/2" screw
Qty.2
0
7mm flat washer 7mm lock washer
Qty.2 Qty.2
1/4-20x
Upper back panel
Place sideburner cooking grate onto sideburner shelf.
464224411°25
Insert the pin on bottom of right door into hole in bottom shelf. Press upper hinge pin in front brace, align
hinge hole on top of the door, and release hinge pin into the door.
Repeat for left door assembly.
...............: pin
on bottom
of door
Install heat diffusers by sliding one end of each heat diffuser into slots at front of firebox and resting
opposite end on pins at back of firebox.
Heat diffusers
26 ° 464224411
Place cooking grates onto the flrebox as shown. To obtain sear marks in cooked meat, be sure to insert
grates so that side with four corner feet faces down.
Insert the two wire ends at rear of warming rack into holes in back of fire box. Front wires of warming
rack rest on sides of flrebox.
Assembled
warming rack
On back of grill, slide grease tray into opening in upper back panel.
/k tAuT,oN/k
Failure to install grease tray will
cause hot grease to drip from
bottom of grill with risk of fire or
property damage.
tray
464224411 ° 27
LP CYLINDER IS SOLD SEPARATELY. Fill and leak check the cylinder before attaching to grill and
regulator (see Use & Care section). Once cylinder has been filled and checked for leaks, place cylinder
into hole in bottom shelf. Make sure cylinder valve is facing front of grill. Secure cylinder with cylinder
screw under bottom shelf. See Use & Care section of this manual to perform the _'Burner Flame Check"
and for important safety instructions before using.
_ u
tAuT,oN
Cylinder valve must face to front of cart
once tank is attached. Failure to install
cylinder correctly may allow gas hose to
be damaged in operation, resulting in the
risk of fire.
Always keep LP cylinders in upright position during use,
transport, and storage.
28 • 464224411
Steamer Tray Use
I. Remove one grate from grin and replace with steamer tray accessory.
2. Do not fin water above water fin line,
3. Always use Steamer Handle Tool to move Steamer Basket or Steamer Cover when grin is hot. Never move
the Steamer Water Tray when grill is hot.
Steamer
Cover
m m
cAuT,o.!±!
Do nat move tray with water until
water has coaled.
Stea mer
Basket
Steamer
Handle Toot
Steamer
Water Tray
464224411°29
EMERGENCIES: Jf a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
Gas leaking from
cracked/cut/burned
hose.
Gas leaking from LP
cylinder.
Gas leaking from LP
cylinder valve.
Gas leaking between
LP cylinder and
regulator connection.
Fire coming through
control panel.
Grease fire or
continuous excessive
flames above cooking
surface.
• Damaged hose.
• Mechanical failure due to rusting or
mishandling.
• Failure of cylinder valve from
mishandling or mechanical failure.
• Improper installation, connection not
tight, failure of rubber seal.
• Fire in burner tube section of burner
due to blockage.
• Too much grease buildup in burner
area.
• Turn off gas at LP cylinder or at source on natural gas systems.
If the hose is cracked or cut but not burned, simply replace
valve!hose/regulator. If the hose is burned, the cause could be
other than a faulty valve!hose!regulator. Discontinue use of
grill until a plumber or gas technician has investigated and
corrected the problem.
• Replace LP cylinder.
• Turn off LP cylinder valve. Return LP cylinder to gas supplier.
• Turn off LP cylinder valve. Remove regulator from cylinder and
visually inspect rubber seal for damage. See LP Cylinder Leak
Test and Connecting Regulator to the LP Cylinder.
• Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After fire is out and grill is cold,
remove burner and inspect for spider nests or rust. See Spider
Alert and Cleaning the Burner Assembly sections of this Use &
Care Guide.
• Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After cooling, clean food particles
and excess grease from inside firebox area, grease tray, and
other surfaces.
Troubleshootinc
Burner(s) will not light
using ignitor.
(See Electronic Ignition
Troubleshooting also)
Continued on next
page.
30 ° 464224411
GAS ISSUES:
" Trying to light wrong burner.
• Burner not engaged with control valve.
• Obstruction in burner.
• No gas flow.
• Vapor lock at coupling nut to LP
cylinder.
• Coupling nut and LP cylinder valve not
fully connected.
ELECTRICAL ISSUES:
• Electrode cracked or broken; %parks at
crack."
• Electrode tip not in proper position.
• Wire and!or electrode covered with
cooking residue.
• Wires are loose or disconnected.
• Wires are shorting (sparking) between
ignitor and electrode.
• Dead battery.
• See instructions on control panel and in Use and Care section.
• Make sure valves are positioned inside of burner tubes.
• Ensure burner tubes are not obstructed with spider webs or other
matter. See cleaning section of Use and Care.
• Make sure LP cylinder is not empty. If LP cylinder is not empty,
refer to _Sudden drop in gas flow."
• Turn off knobs and disconnect coupling nut from LP cylinder.
Reconnect and retry.
• Turn the coupling nut approximately one-half to three-quarters
additional turn until solid stop. Tighten by hand only - do not
use tools.
• Replace electrode(s).
Main Burners:
• Tip of electrode should be pointing toward gas port opening on
burner. The distance should be 1/8" to 1/4". Adjust if necessary.
Sideburner:
• Tip of electrode should be pointing toward gas port opening on
burner, the distance should be 1/8" to 3/16". Adjust if necessary.
• Clean wire and/or electrode with rubbing alcohol and clean
swab.
• Reconnect wires or replace electrode/wire assembly.
• Replace ignitor wire/electrode assembly.
• Replace with a new AA-size alkaline battery.
Troubleshootlng (continued)
Burner(s) will not light
using ignitor.
(See Electronic Ignition
Troubleshooting also)
Burner(s) will not
match light.
Sudden drop in gas
flow or low flame.
Flames blow out.
Flare-up.
ELECTRONIC IGNMON:
No spark, no ignition noise.
No spark, some ignition noise.
Sparks, but not at electrode or at full
strength.
See _GAS ISSUES:" on previous page.
Match will not reach.
Improper method of match-lighting.
Out of gas.
Excess flow valve tripped.
Vapor lock at coupling nut/LP cylinder
connection.
High or gusting winds.
Low on LP gas.
Excess flow valve tripped.
Grease buildup.
Excessive fat in meat.
Excessive cooking temperature.
Grease trapped by food buildup
around burner system.
Burner and/or burner tubes are
blocked.
Some dealers have older fill nozzles
with worn threads.
Grease buildup or food particles in
end(s) of carryover tube(s).
See Section I of Electronic Ignition System.
See Section II of Electronic Ignition System.
See Section III of Electronic Ignition System.
Use long-stem match (fireplace match).
See _Match-Lighting" section of Use and Care.
Check for gas in LP cylinder.
Turn off knobs, wait 30 seconds and light grill. If flames are still
low, turn off knobs and LP cylinder valve. Disconnect regulator.
Reconnect regulator and leak-test. Turn on LP cylinder valve,
wait 30 seconds and then light grill.
Turn off knobs and LP cylinder valve. Disconnect coupling nut
from cylinder. Reconnect and retry.
Turn front of grill to face wind or increase flame height.
Refill LP cylinder.
• Refer to _Sudden drop in gas flow" above.
• Clean burners and inside of grill/firebox.
• Trim fat from meat before grilling.
• Adjust (lower) temperature accordingly.
Persistent grease fire. • Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in
position and let fire burn out. After grill cools, remove and clean
all parts.
Flashback... • Turn knobs to OFF. Clean burner and!or burner tubes. See
(fire in burner tube(s)), burner cleaning section of Use and Care.
Unable to fill LP • The worn nozzles don't have enough _bite" to engage the valve.
cylinder. Try a second LP dealer.
One burner does not • Clean carry-over tube(s) with wire brush.
light from other
burner(s).
464224411 ° 31
Troubleshooting - Electronic Ignltion
SECTION I
No sparks appear at
any electrodes when
Electronic Ignition
Button is pressed; no
noise can be heard
from spark module.
SECTION II
No sparks appear at
any electrodes when
Electronic Ignition
Button is pressed; noise
can be heard from
spark module.
• Battery not installed
properly.
• Dead battery.
• Button assembly not
installed properly.
• Faulty spark module.
• Output lead
connections not
connected.
• Output lead
connections not
connected.
• Arcing to grill away
from burner(s).
• Weak battery.
• Electrodes are wet.
• Electrodes cracked or
broken "sparks at
crack".
SECTION Ill
Sparks are present
but not at all
electrodes and!or not
at full strength
• Check battery orientation.
Has battery been used
previously?
Check to insure threads are
properly engaged. Button
should travel up and down
without binding.
If no sparks are generated
with new battery and good
wire connections, module is
faulty.
• Are output connections on
• Install battery (make sure that "+" and "-"
connectors are oriented correctly, with "÷'_ end up
and "-" end down.)
• Replace battery with new AA-size alkaline battery.
• Unscrew button cap assembly and reinstall,
making sure threads are aligned and engaged
fully.
• Replace spark module assembly.
• Remove and reconnect all output connections at
and tight?
module and electrodes.
• Are output connections on
and tight?
If possible, observe grill in
dark location. Operate
ignition system and look for
arcing between output wires
and grill frame.
All sparks present but weak
or at slow rate.
Has moisture accumulated
on electrode and/or in
burner ports?
Inspect electrodes for
cracks.
• Remove and reconnect all output connections at
module and electrodes.
• If sparks are observed other than from burner(s),
wire insulation may be damaged. Replace wires.
• Replace battery with a new AA-size alkaline
battery.
" Use paper towel to remove moisture.
• Replace cracked or broken electrodes.
32 ° 464224411
464224411o33
34 ° 464224411
464224411 o 35
iiiiiiiiiiiiiiiiiiiiii!ii_Y
iiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiii
Your Home
For troubleshooting, product manuals and expert advice:
managemylife
wv, rw.managemylife.com
%:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸:¸::¸
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiii
TM
® Registered Trademark / ' Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Reg]strada / TMMarca de F_brica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
_4cMarque de commerce ! MOMarque deposee de Sears Brands, LLC
