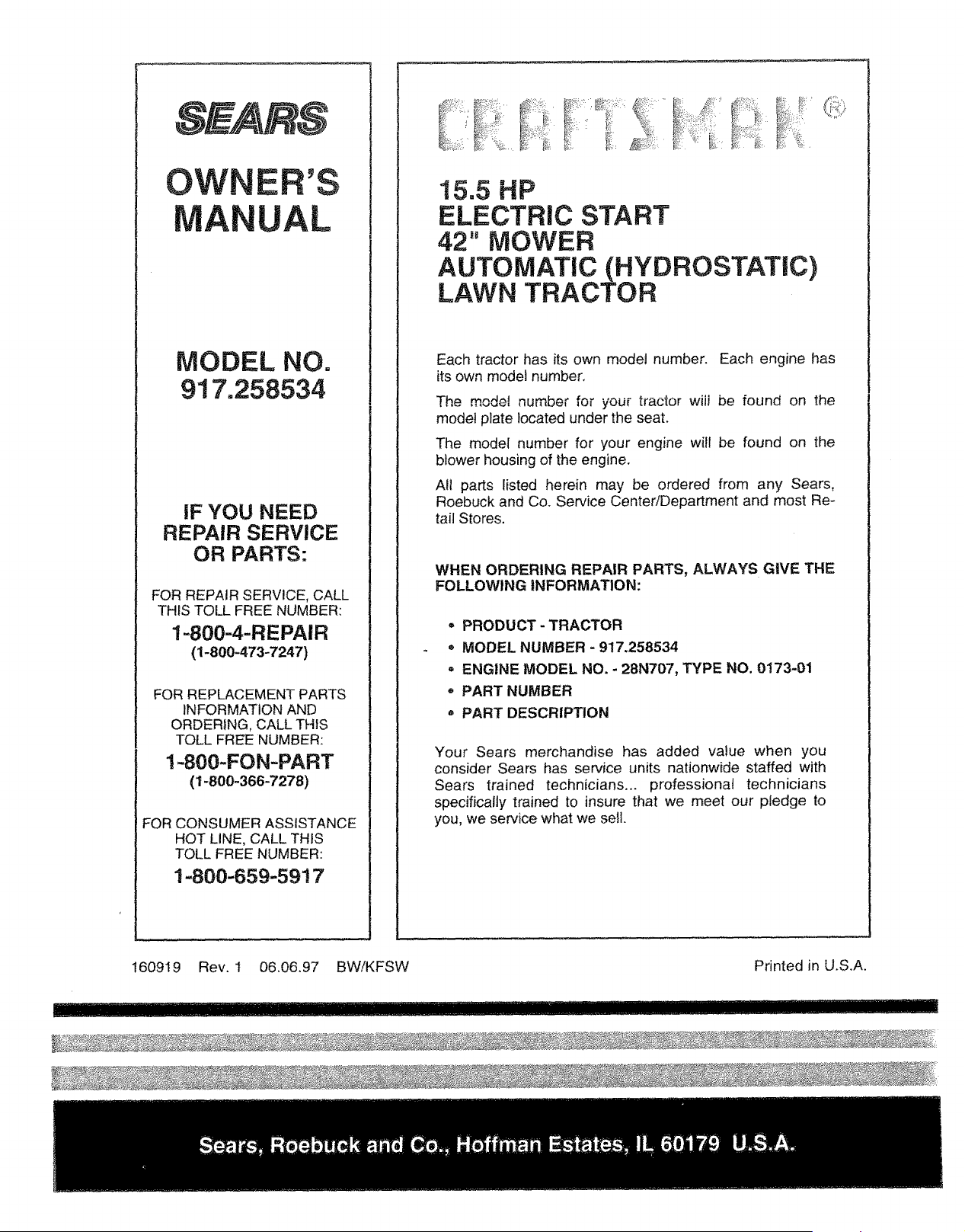

Craftsman 917258534 tractor User Manual

MODEL

OWNER'S MANUAL

Assembly

_ Operation

_ Customer Responsibilities

o Service and Adjustments

_ Repair Parts

G_L_T_O!_: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

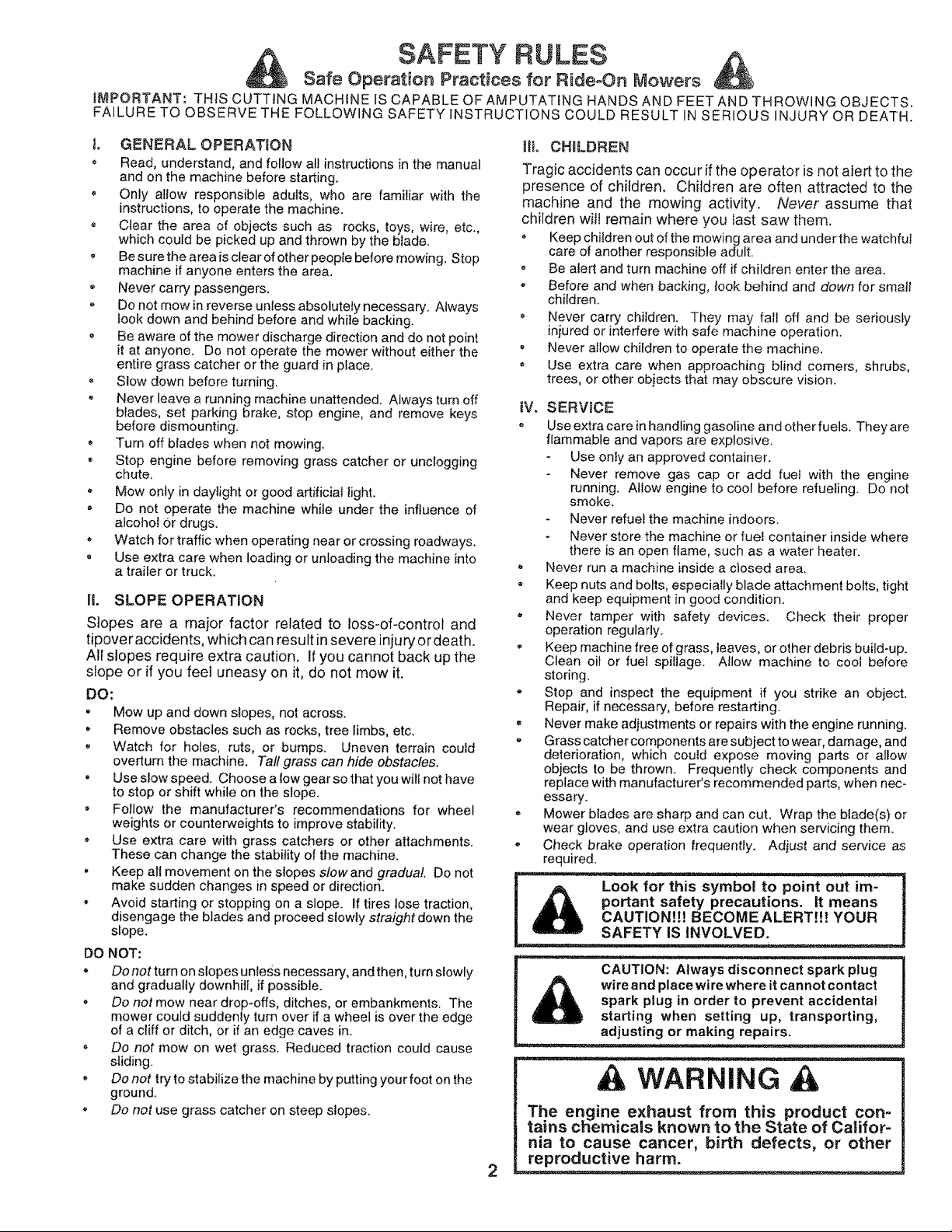

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

iMPORTANT: THiS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

L GENERAL OPERATION

o Read, understand, and follow all instructions in the manual

and on the machine before starting.

, Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely necessary. Always

took down and behind before and while backing.

, Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

Slow down before turning.

Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

Turn off blades when not mowing.

, Stop engine before removing grass catcher or unclogging

chute.

Mow only in daylight or good artificial light.

Do not operate the machine while under the influence of

alcohol or drugs.

* Watch for traffic when operating near or crossing roadways.

Use extra care when loading or unloading the machine into

a trailer or truck.

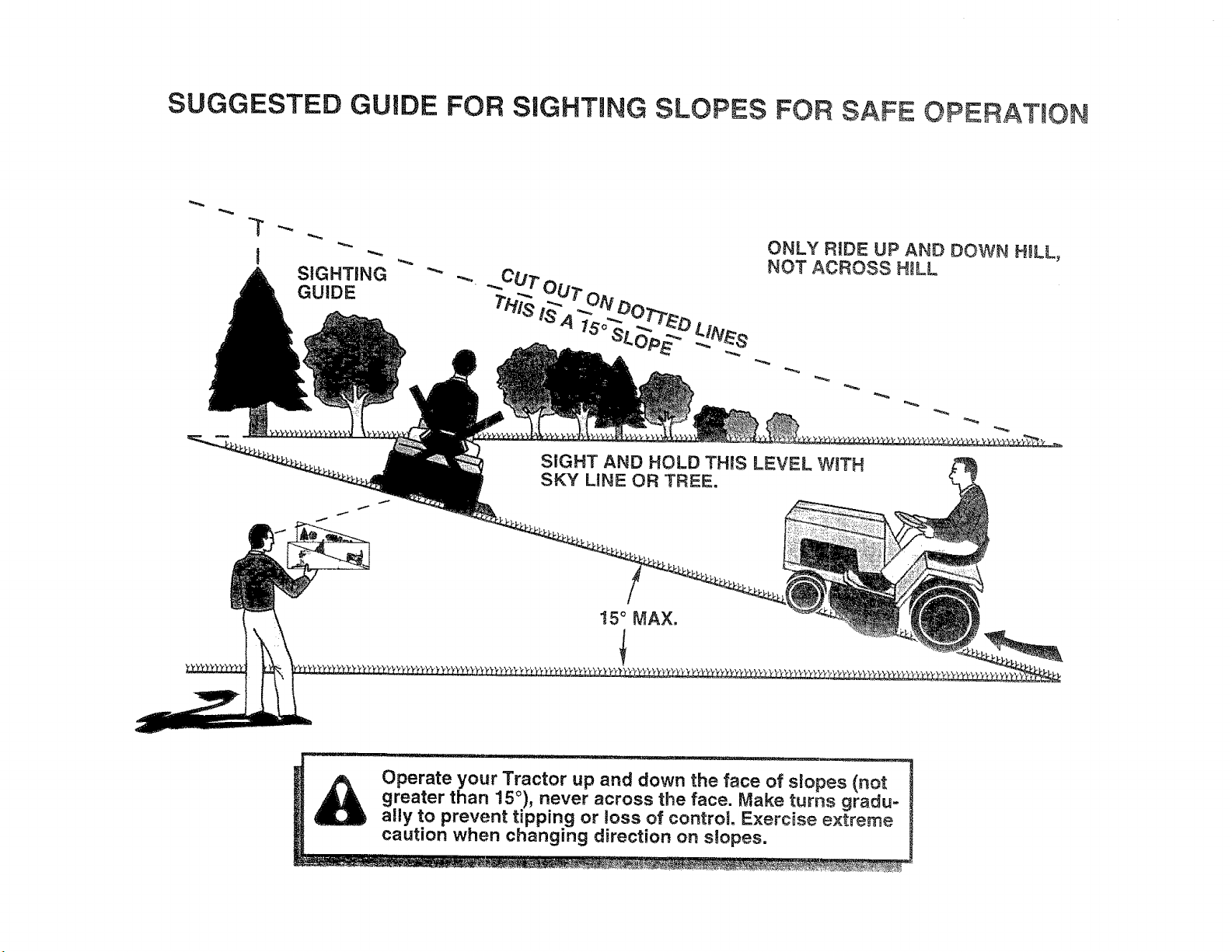

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipove r accidents, which can result in severe injury or death.

AI! slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it,

DO:

, Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

o Use slow speed. Choose a low gear so that you wilt not have

to stop or shift while on the slope.

Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual Do not

make sudden changes in speed or direction.

Avoid starting or stopping on a slope, if tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOT:

, Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

, Do not mow on wet grass. Reduced traction could cause

sliding.

o Do not try to stabilize the machine by putting your foot on the

ground.

Do not use grass catcher on steep slopes.

ill CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children wit! remain where you last saw them.

Keep children out of the mowing area and under the watchfuI

care of another responsible adult.

Be alert and turn machine off if children enter the area.

= Before and when backing, took behind and down for small

children.

Never carry children. They may fall off and be seriously

iniured or interfere with safe machine operation.

Never allow children to operate the machine.

Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

iV. SERVICE

o Use extra care in handling gasoline and other fuels. Theyare

flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fue! container inside where

there is an open flame, such as a water heater.

- Never run a machine inside a ciosed area.

- Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

° Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running.

o Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufactureCs recommended parts, when nec-

essary.

- Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

° Check brake operation frequently. Adjust and service as

required.

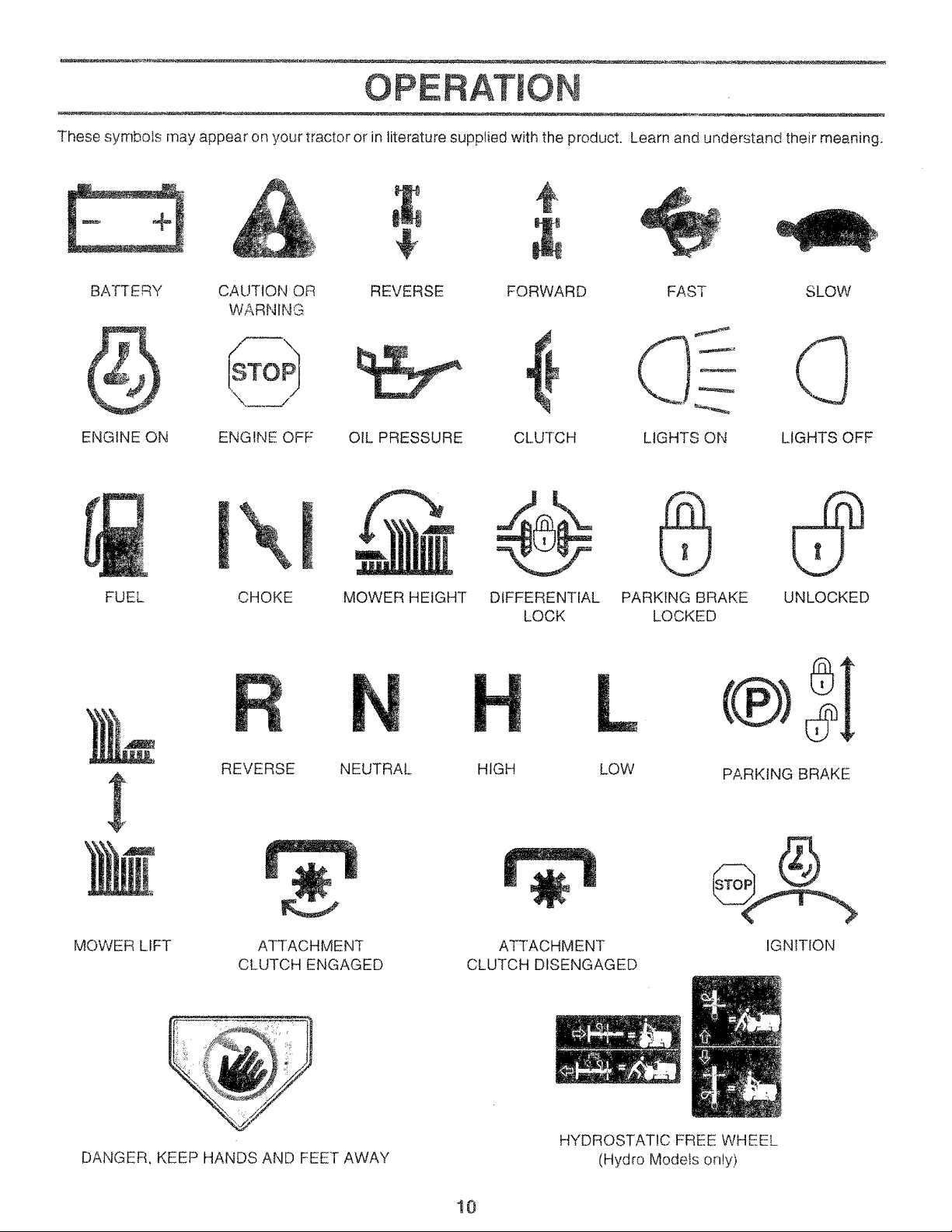

Look for this symbo! to point out im-

portant safety precautions. It means

CAUTION!!t BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: Always disconnect spark plug

_ wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

A WARNING A

The engine exhaust from this product con-

tains c_emicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

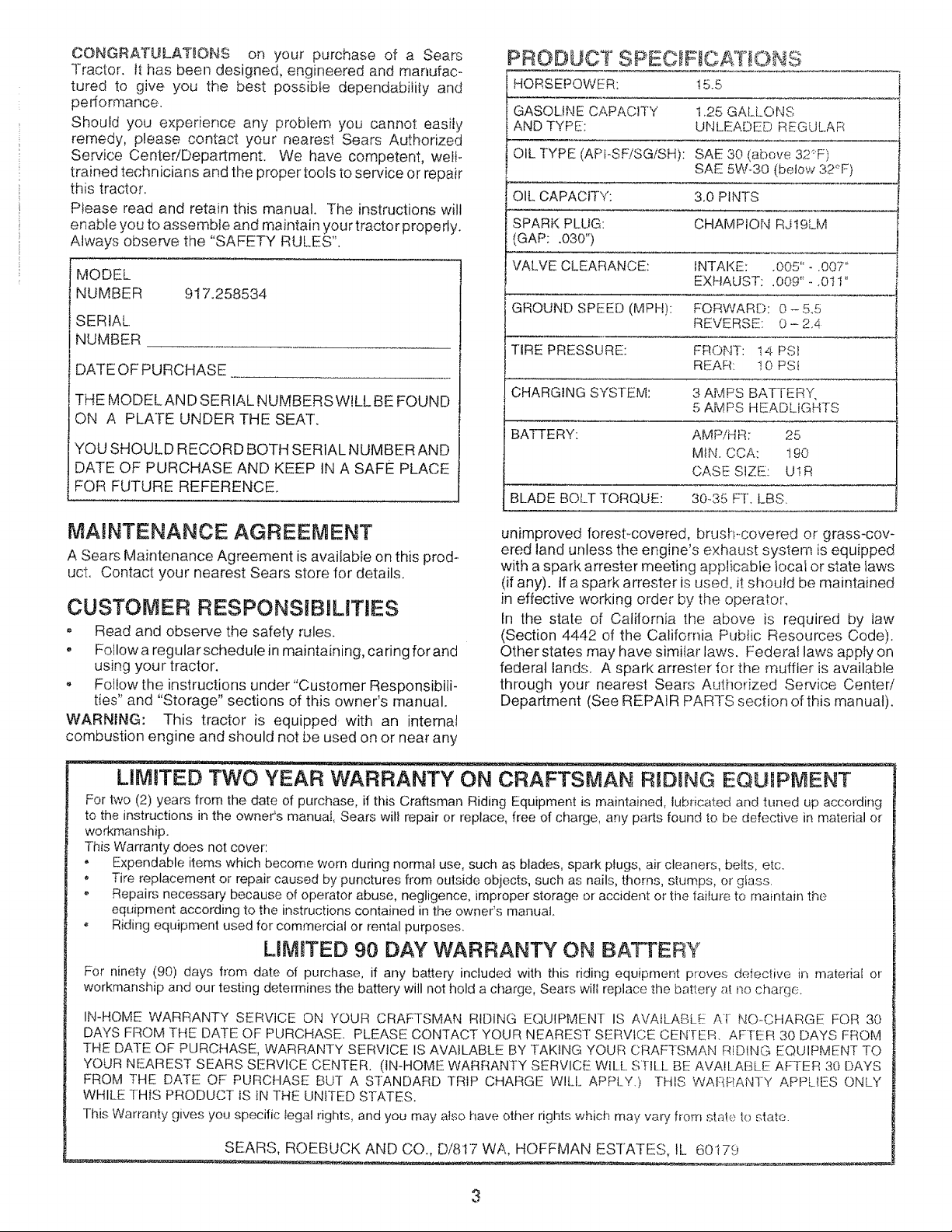

CONGRATULATIONS on your purchase of a Sears

Tractor. it has been designed, engineered and manufac-

tured to give you the best possibfe dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service Center/Department. We have competent, wetF

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the °'SAFETY RULES".

MODEL

NUMBER 917.258534

SERIAL

NUMBER

DATEOFPURCHASE

THE MODELAND SERIAL NUMBERS W!LL BE FOUND

ON A PLATE UNDER THE SEAT.

YOUSHOULDRECORDBOTHSER1ALNUMBERAND

DATE OF PURCHASEAND KEEPtN A SAFE PLACE

FOR FUTURE REFERENCE,

PRODUCT ¢ ,ore °° .... c,

i HORSEPQWFR: 15.5

GASOLINE CAPACFt'Y 1.25 GALLONS

tANDTYPE: UNLEADEDREGU .AR

P--'--lOlLTYT'E ('APi-S FiSGiSH):' SAE 30 (above 32°F)

[ SAE 5W-30 (below 32°F}

OIL CAPACITY: 3,0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: ,030")

VALVE CLEARANCE: INTAKE: ,005" _ .007"

EXHAUST: ,009 '_- ,011"

GROUND SPEED (MPH): FORWARD: 0 - 5,5

REVERSE: 0-2,4

TIRE PRESSURE: FRONT: 14 PSi

REAR: !0 PSI

CHARGING SYSTEM: 3 AMPS BATTERY,

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

M_N. CCA: I90

CASE SIZE: U1R

BLADE BOLT TORQUE: 30,,35 FT. LBS.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct. Contact your nearest Sears store for details.

CUSTOMER RESPONSBJLmES

o Read and observe the safety rules.

- FoJlow a regularschedule in maintaining, caring for and

using your tractor.

Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or neat any

unimproved foresbcovered, brush--covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state iaws

(if any). tf a spark arrester is used, it shoutd be maintained

in effective working order by the operator.

In the state of California the above is required by taw

(Section 4442 of the California Pubiic Resources Code).

Other states may have similar laws. Federal laws apply on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual).

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Sears will repair or replace, free of charge, any pads found to be defective in material or

workmanship.

This Warranty does not cover:

. Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc.

o Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

- Repairs necessary because of operator abuse, negligence, improper storage or accident or ti_e failure to maintain the

equipment according to the instructions contained in the owner's manual.

Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in rnatedal or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO*CFtARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER, AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO

YOUR NEAREST SEARS SERVICE CENTER. (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE AFI'-ER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY,) THIS WAF_RANTY APPLIES ONLY

WHILE THiS PRODUCT IS IN THE UNH-ED STATES,

This Warranty gives you specific legal rights, and you may atso have other rights which may vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

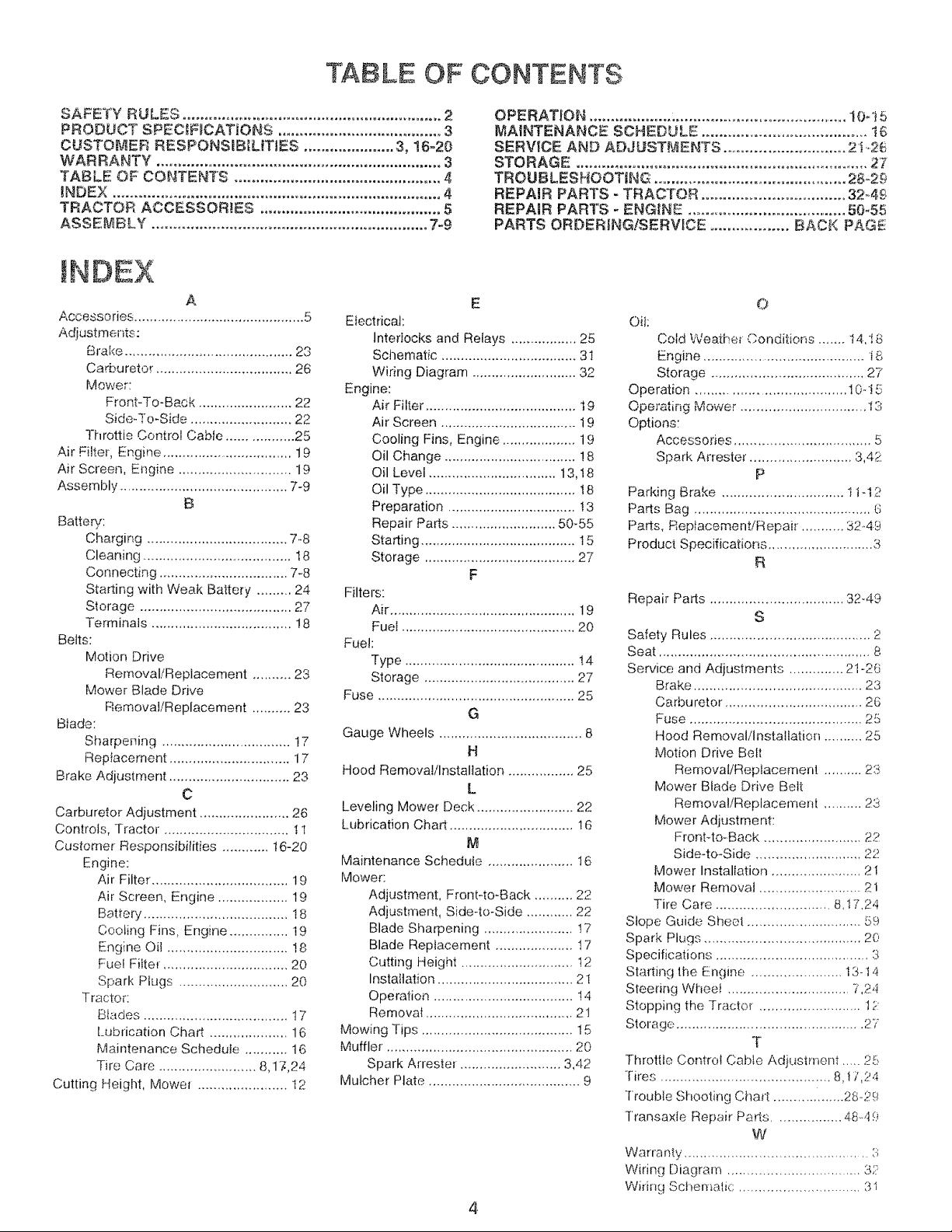

TABLE OF CONTENTS

SAFE'_"Y RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, !6-20

WARRANTY .................................................................. 3

TABLE OF CONTENTS ................................................ 4

_NDEX ............................................................................ 4

TRACTOR ACCESSOR!ES .......................................... 5

ASSEMBLY ................................................................ 7-9

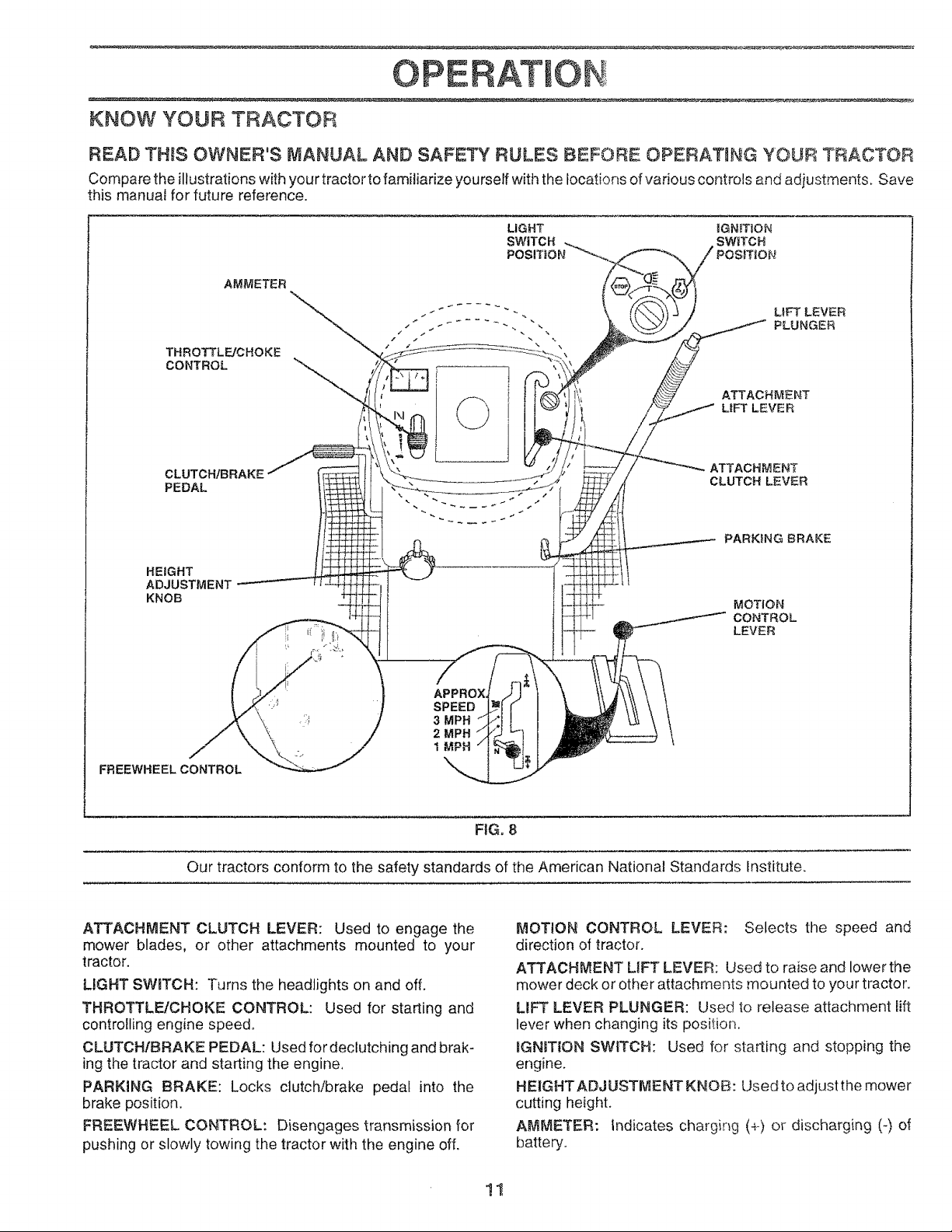

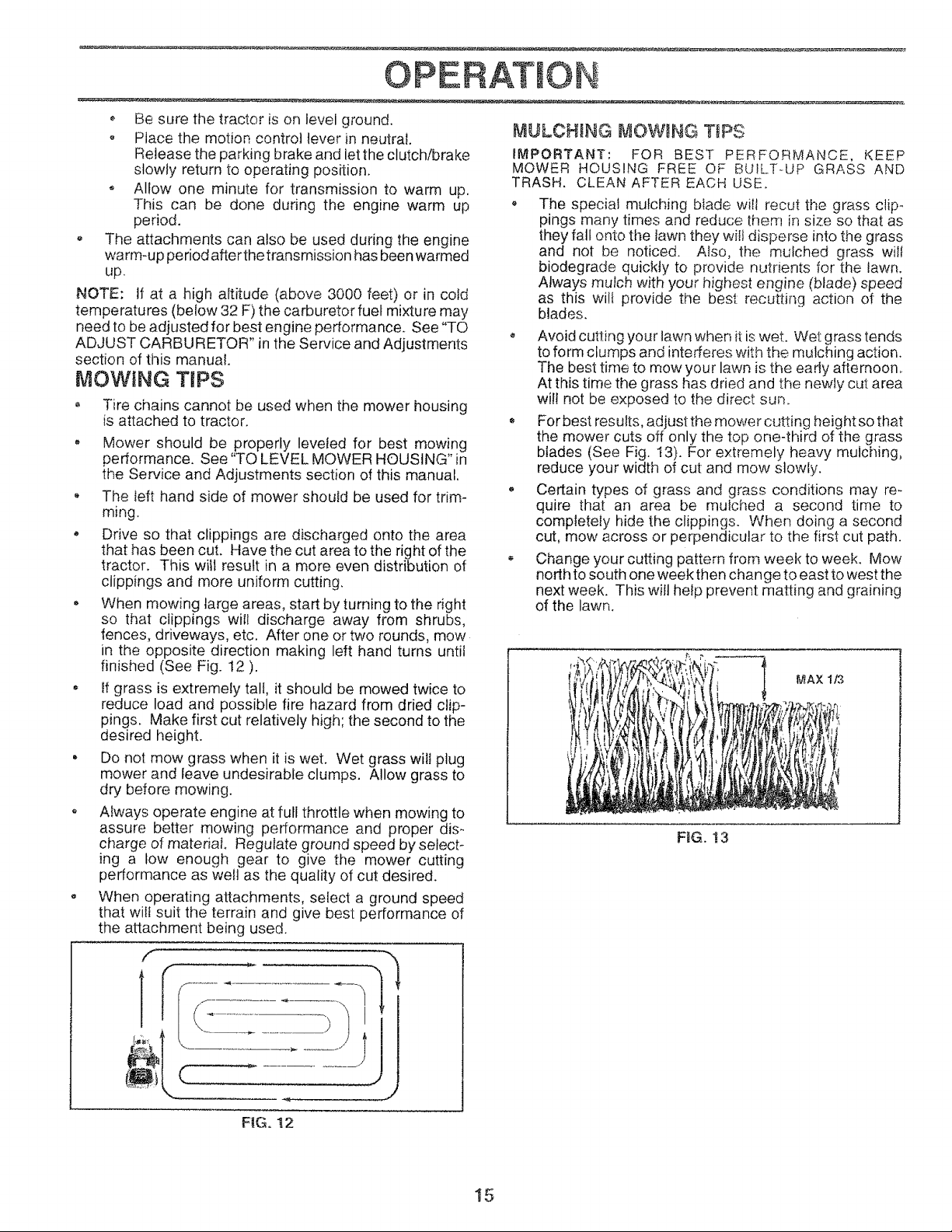

OPERATION ................... :........................................ I0_t5

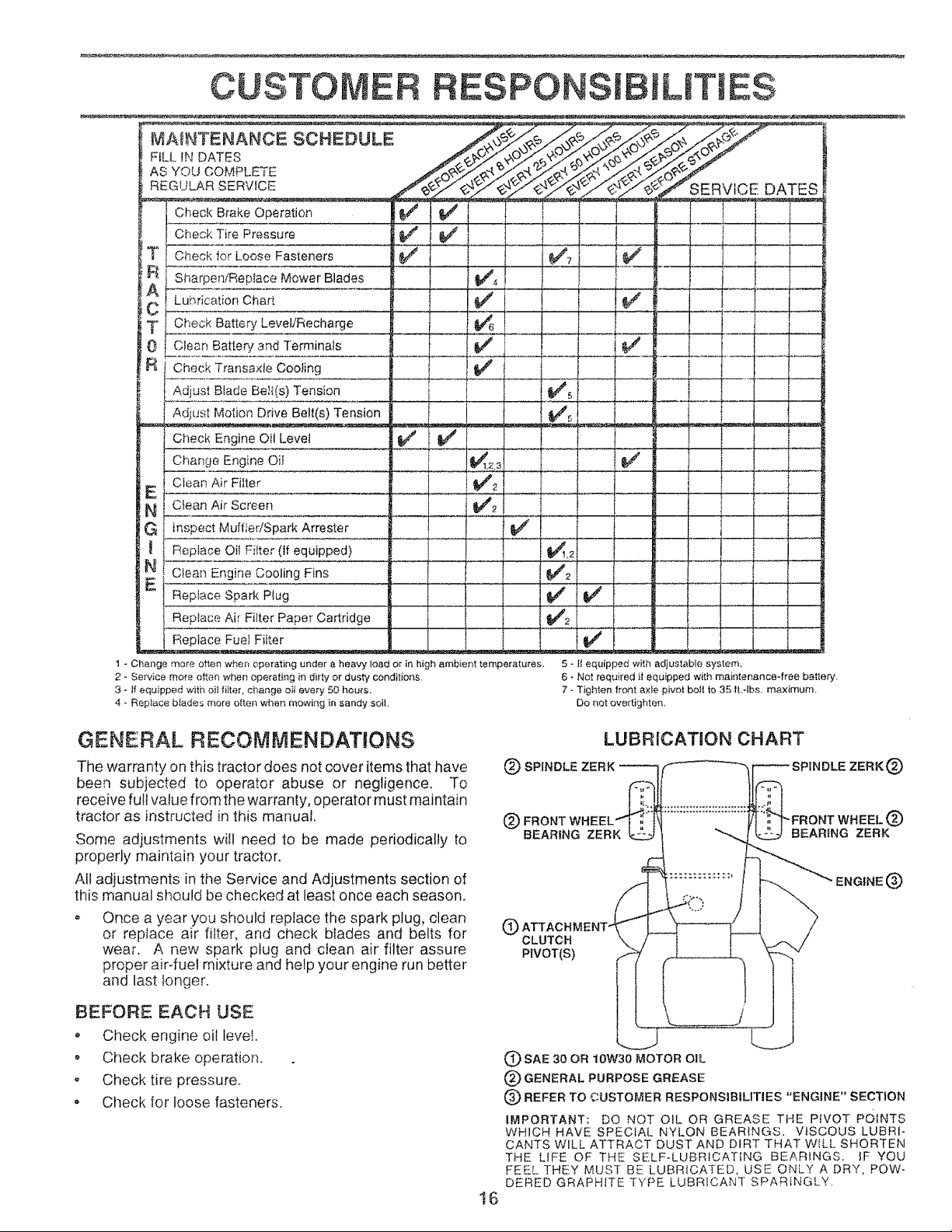

MAINTENANCE SCHEDULE ...................................... t6

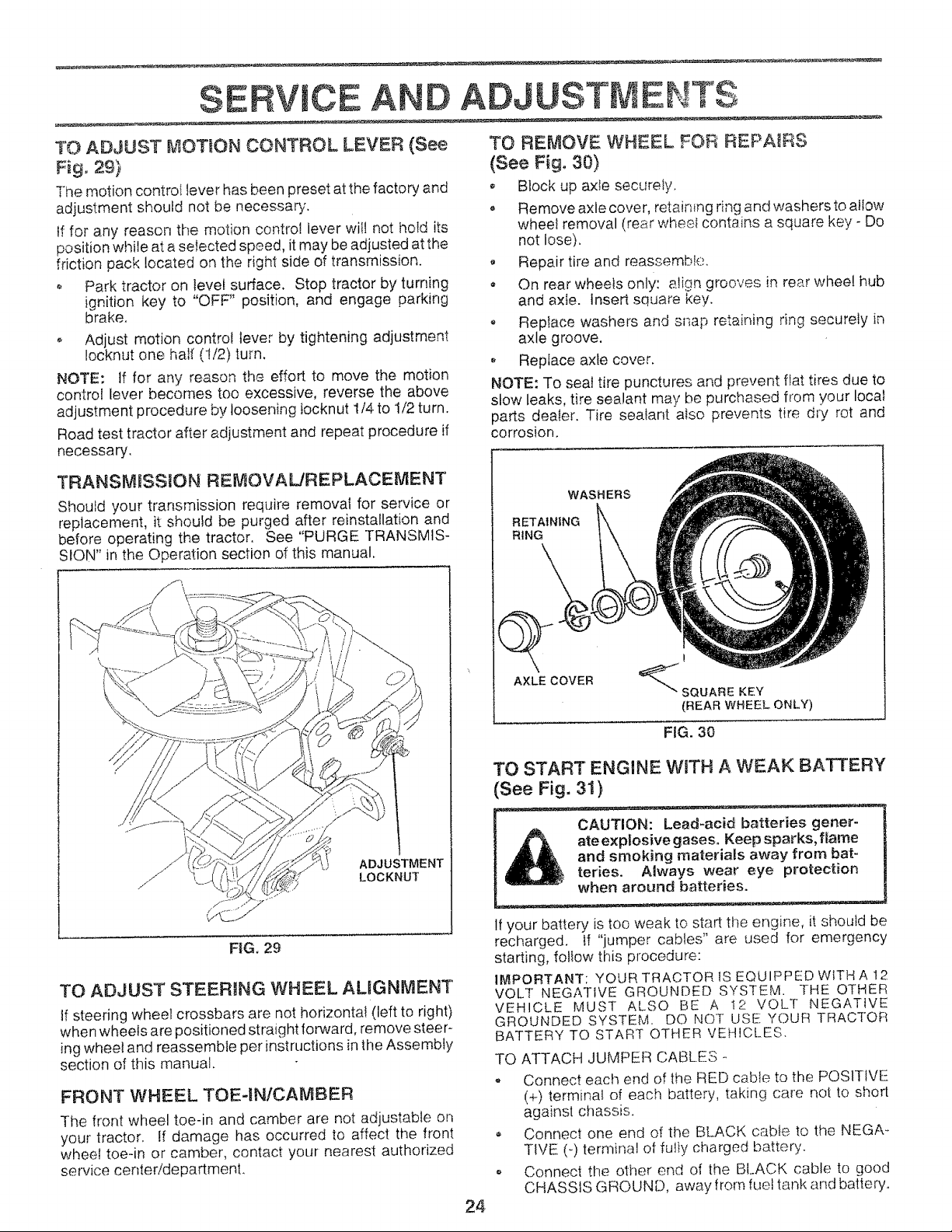

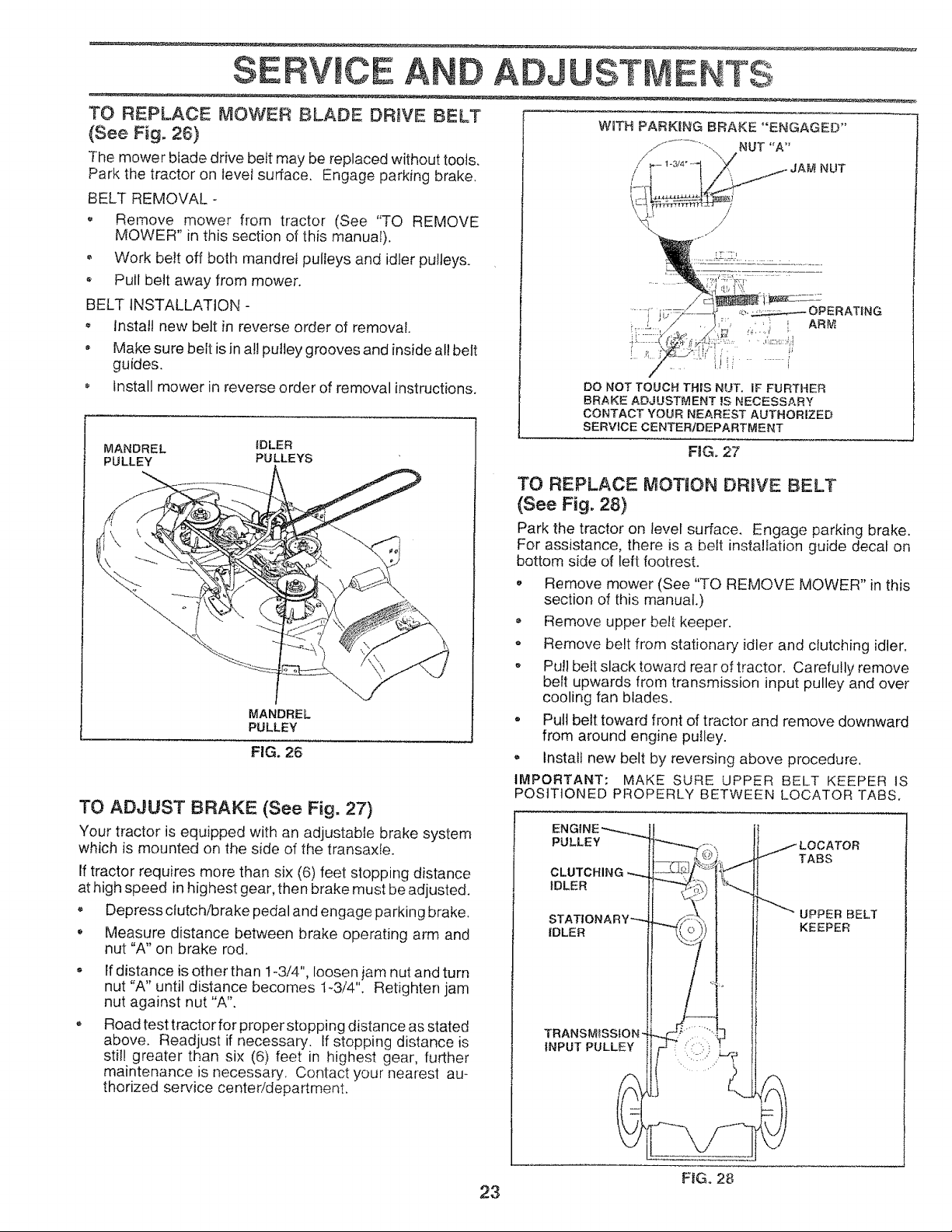

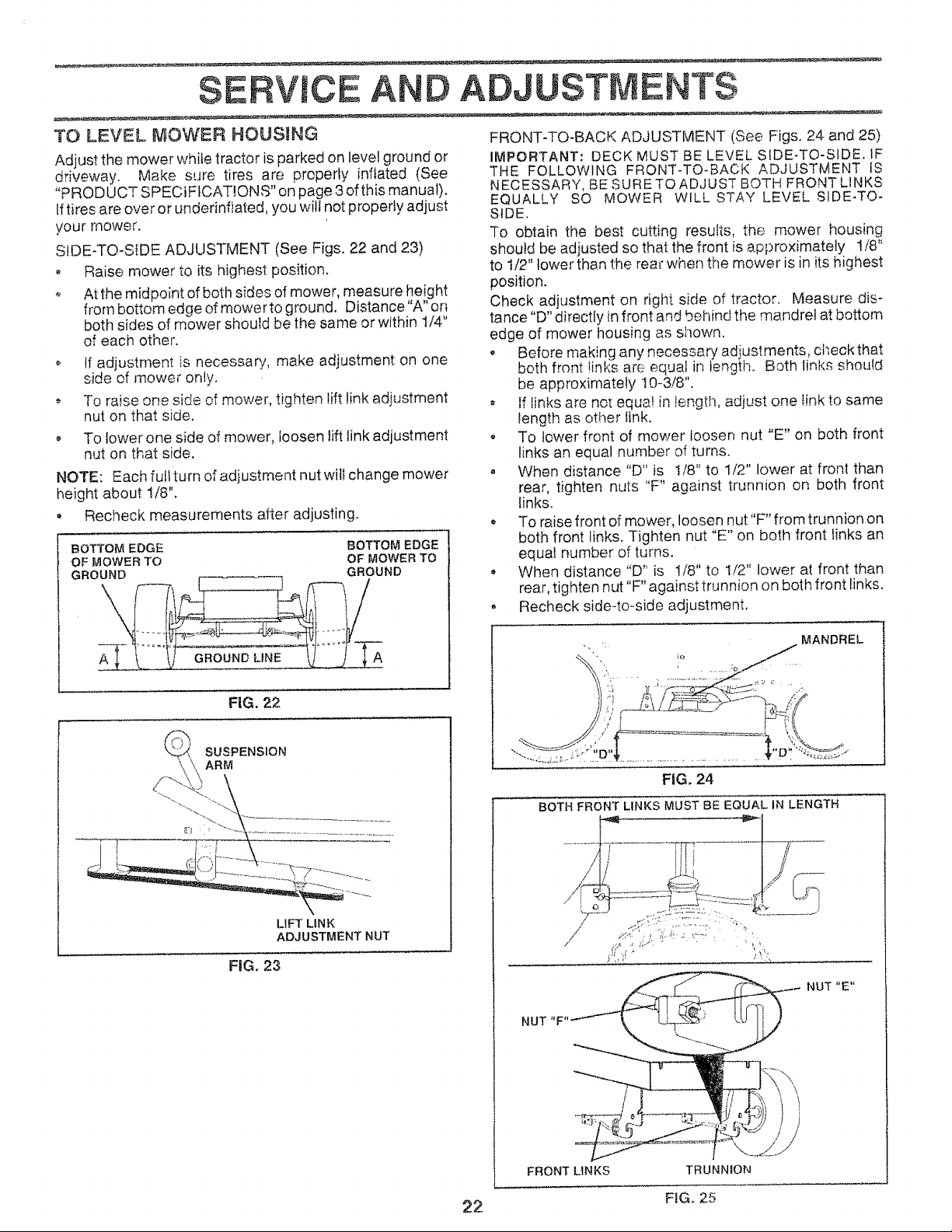

SERVICE AND ADJUST_o_ENTS .............................. 2I .2_:_

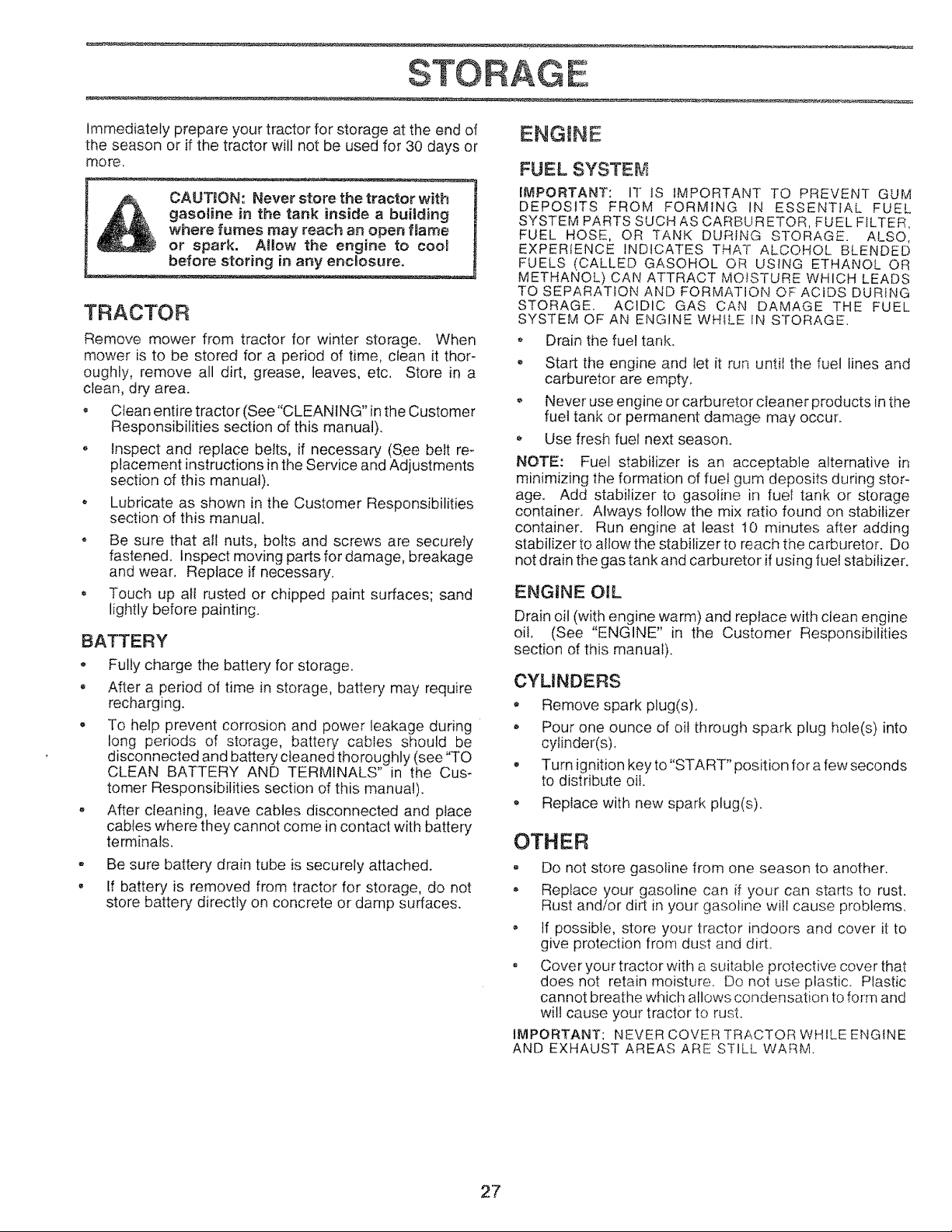

STORAGE ................................................................... 2'7

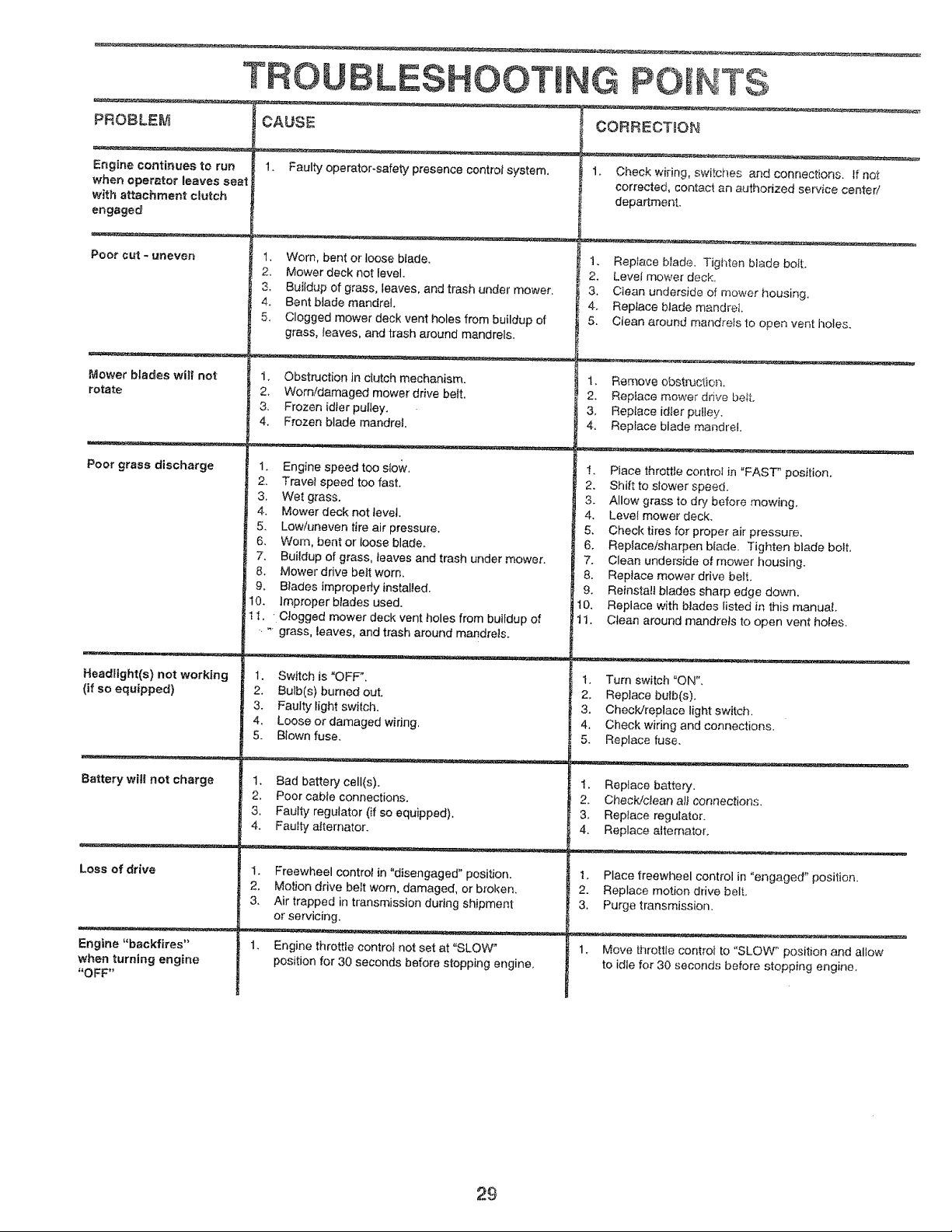

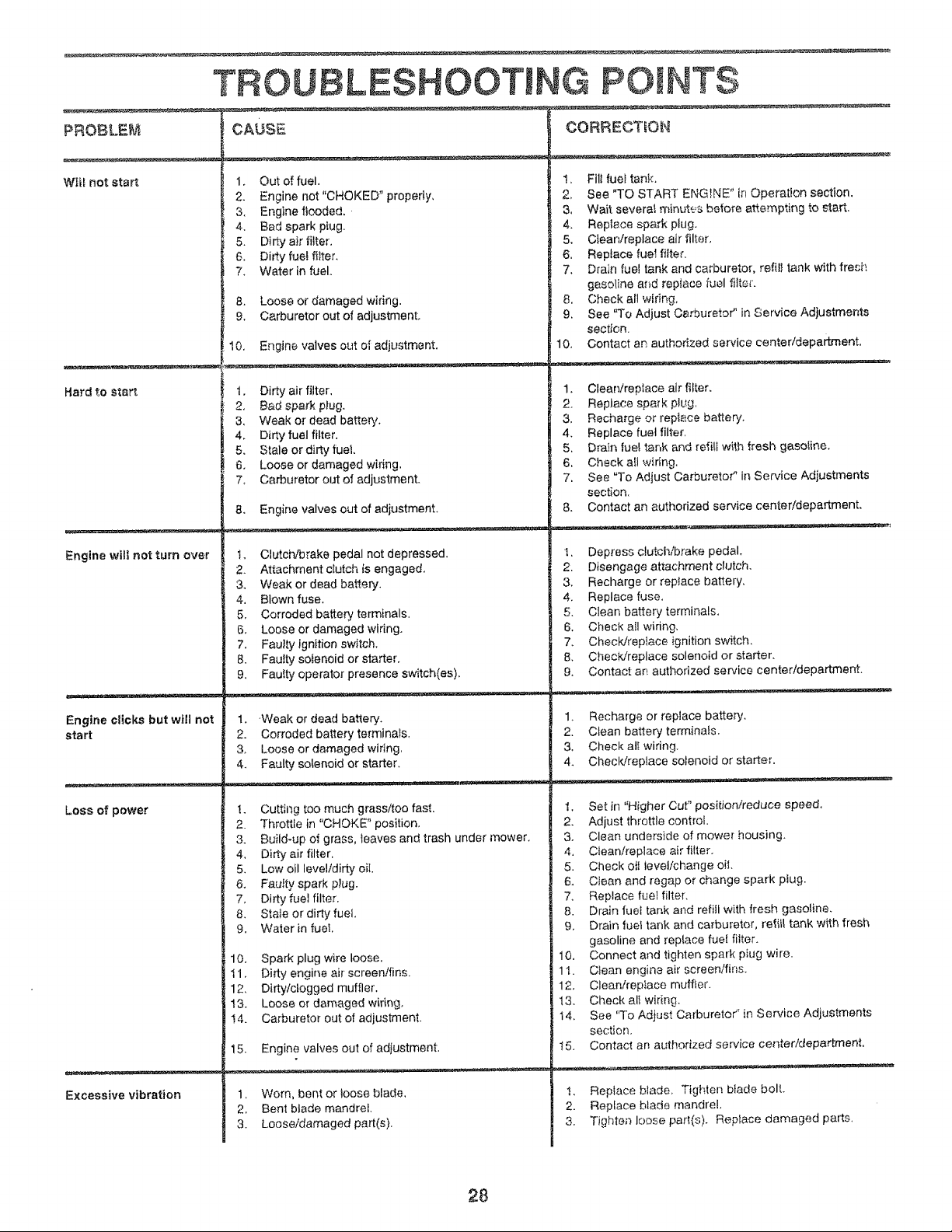

TROUBLES['{OOTING ............................................. 28.-29

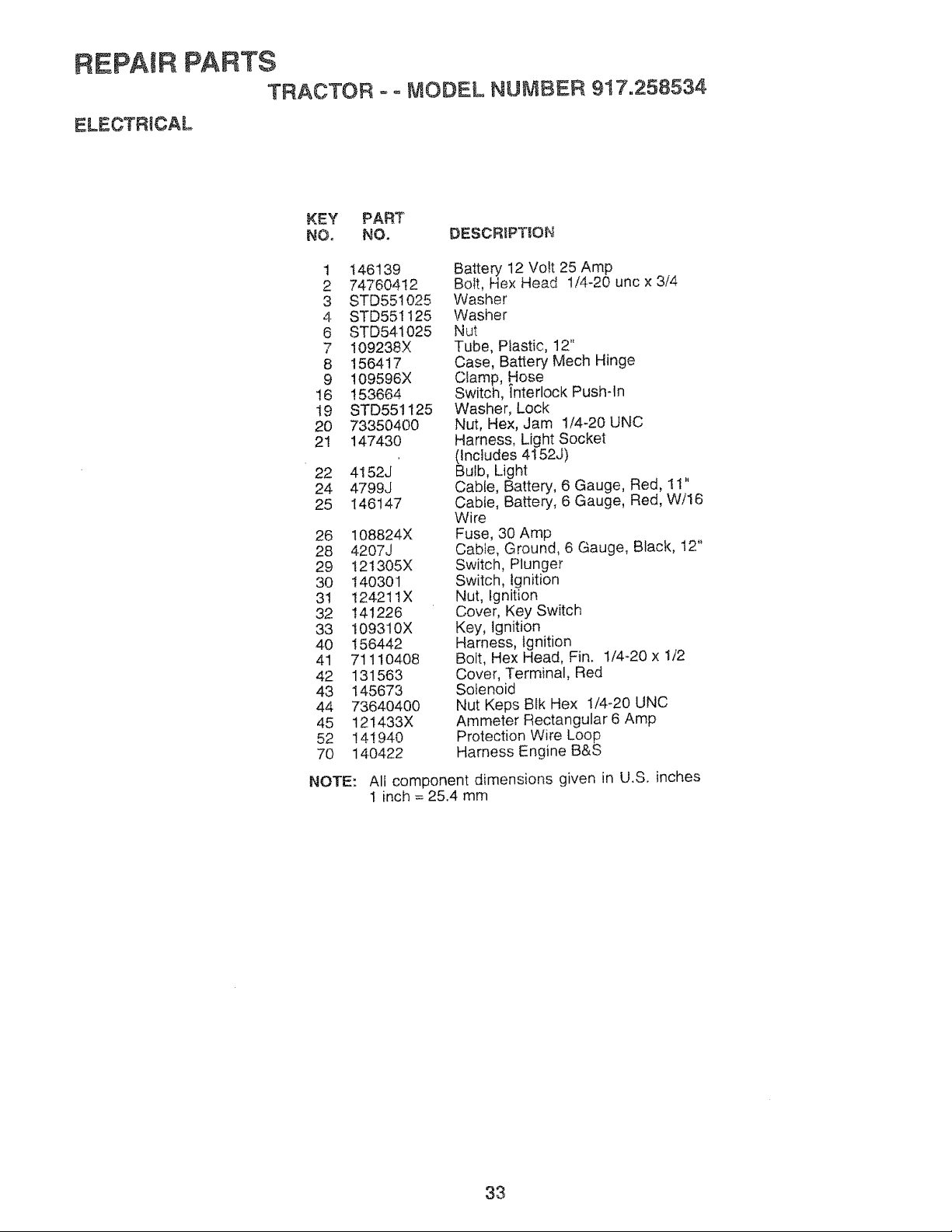

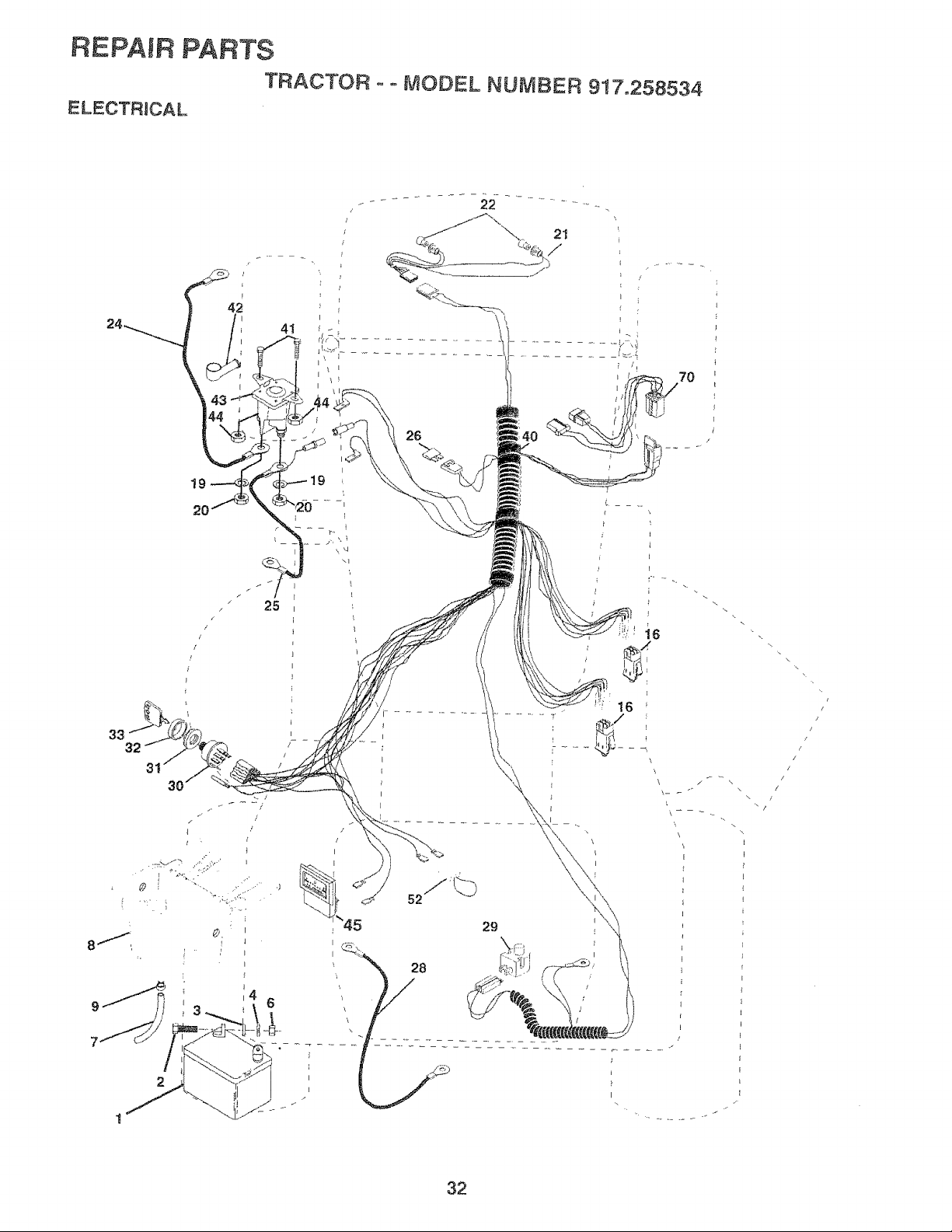

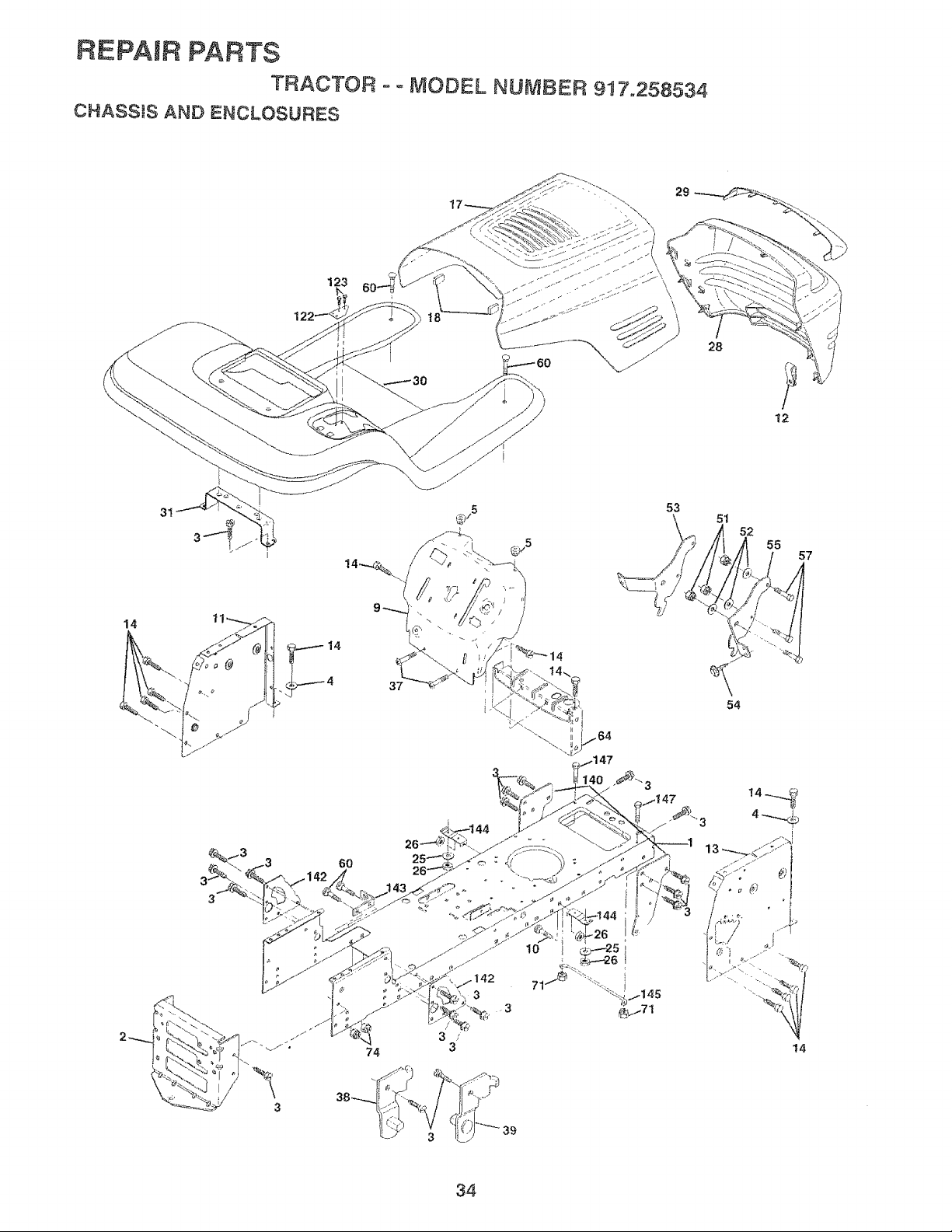

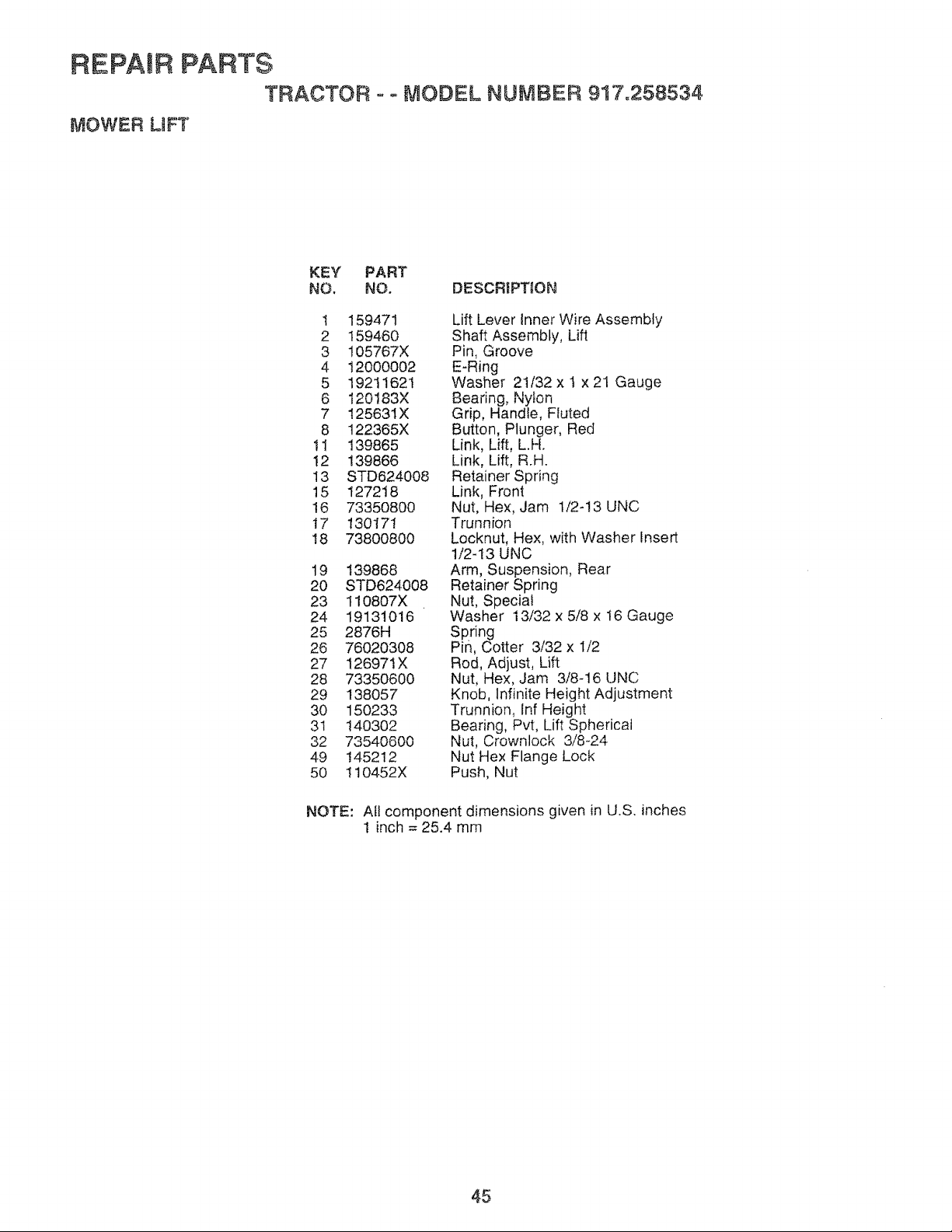

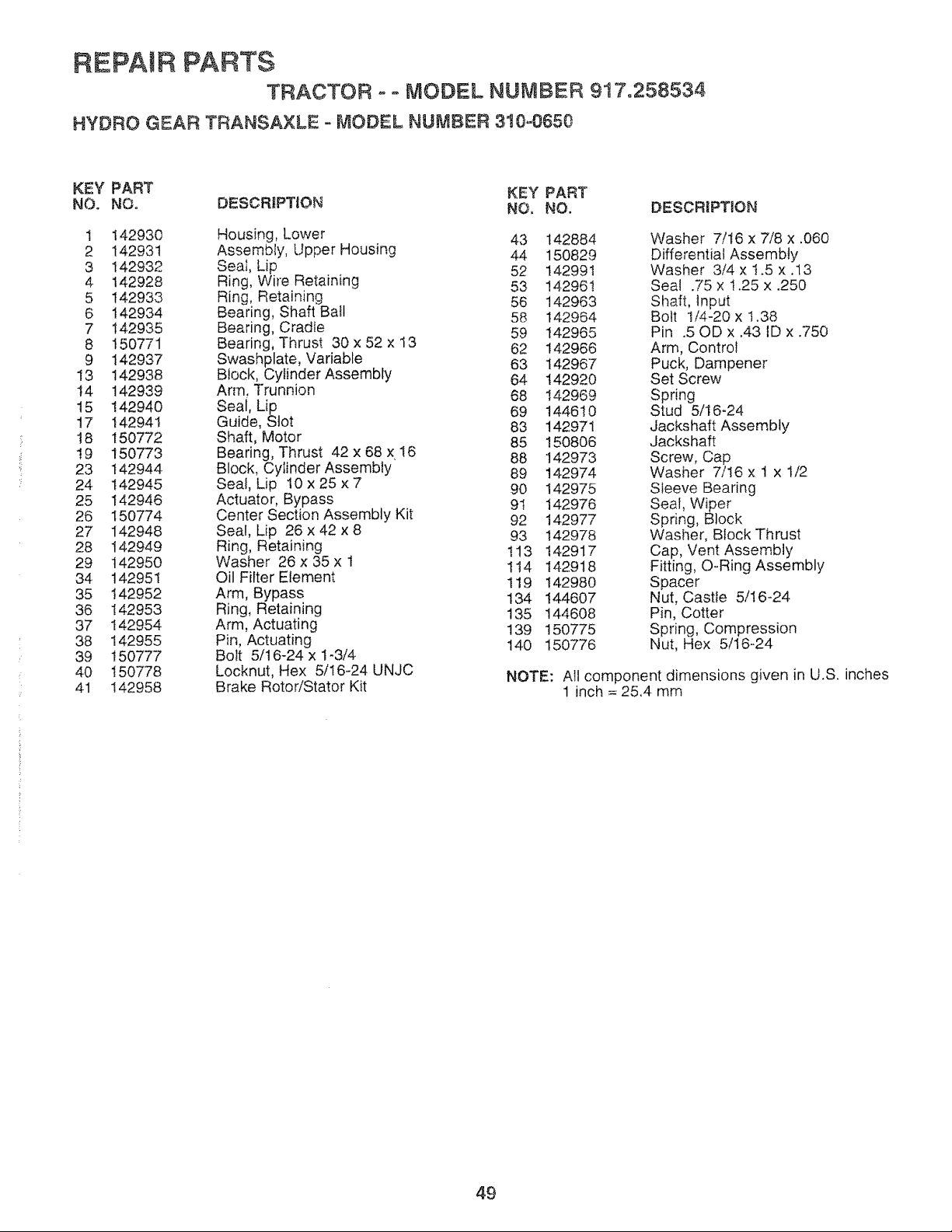

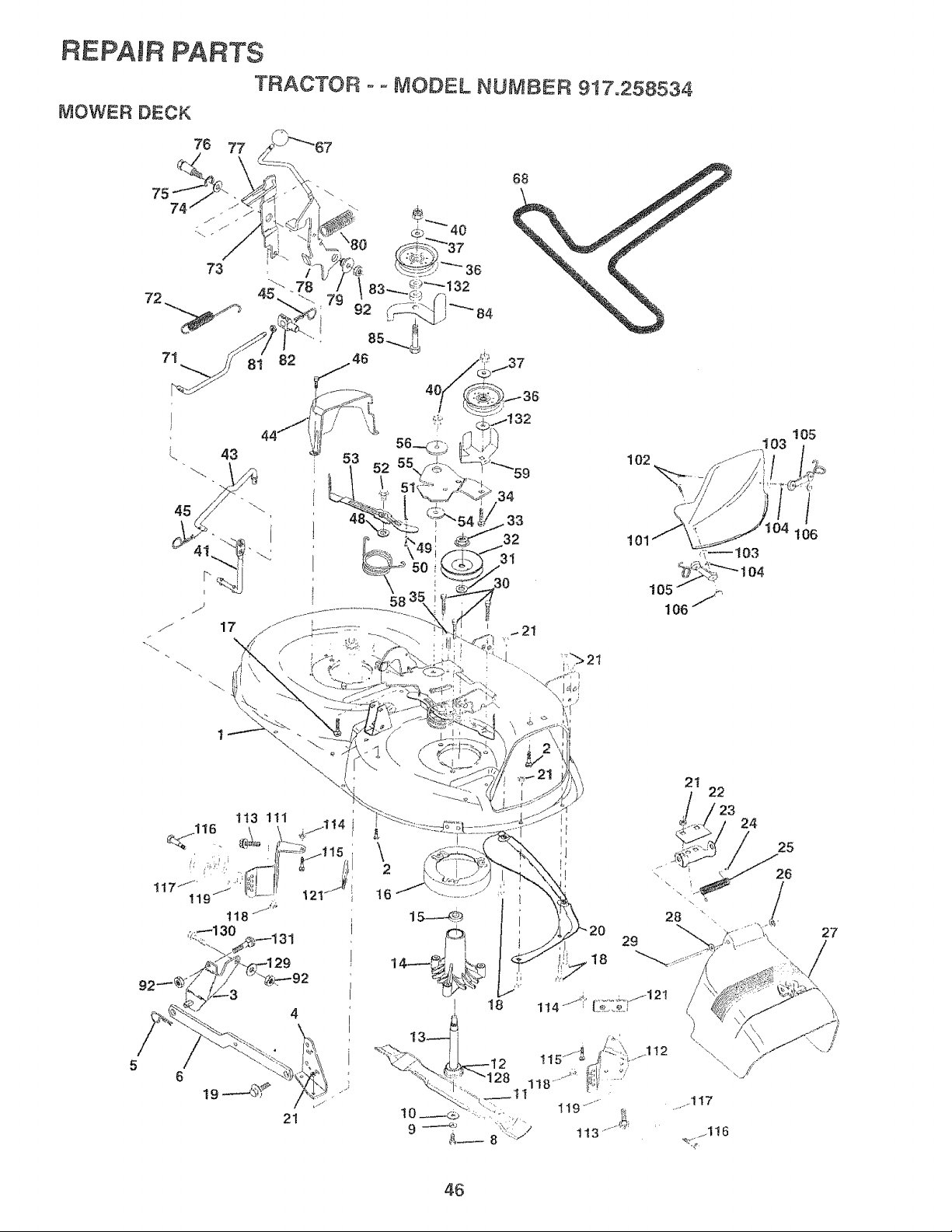

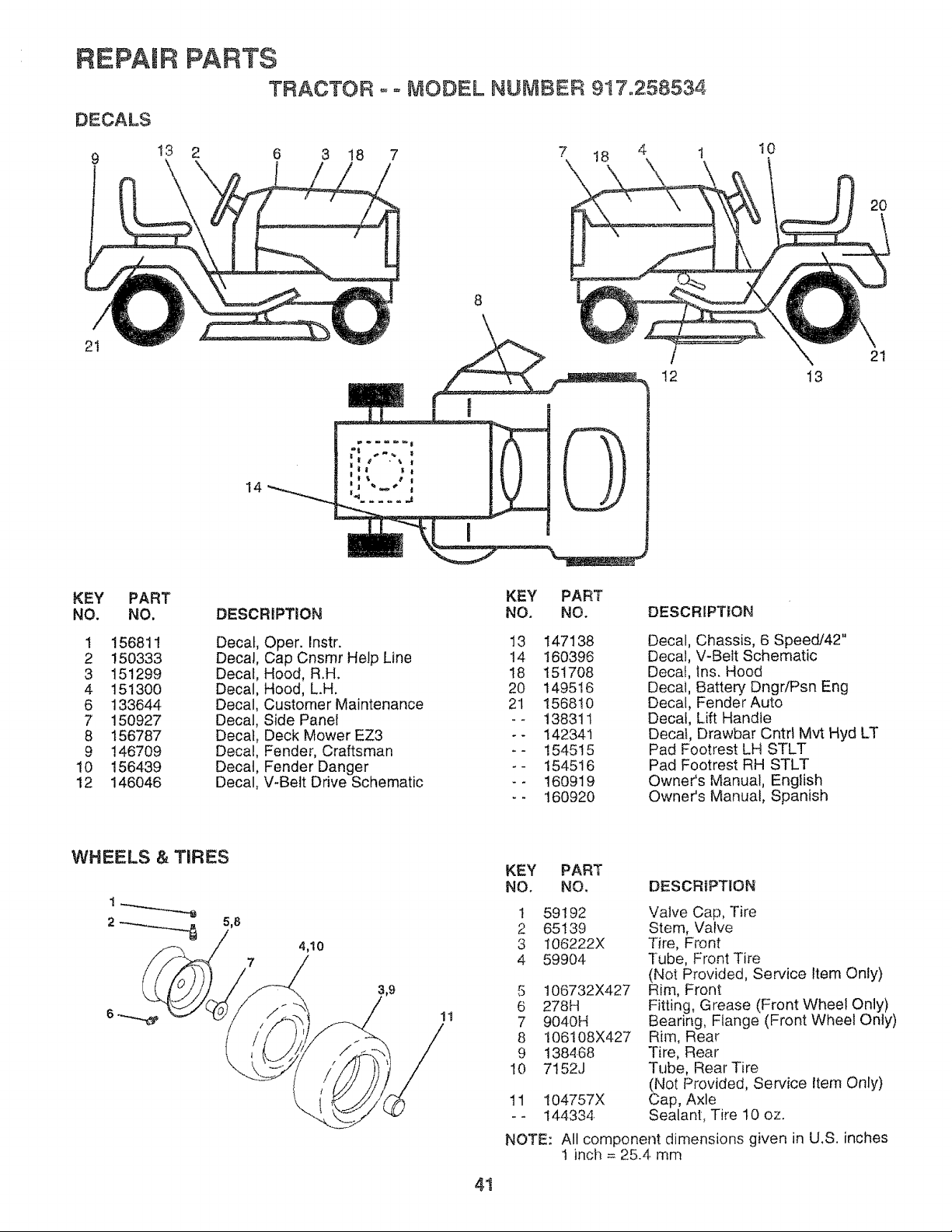

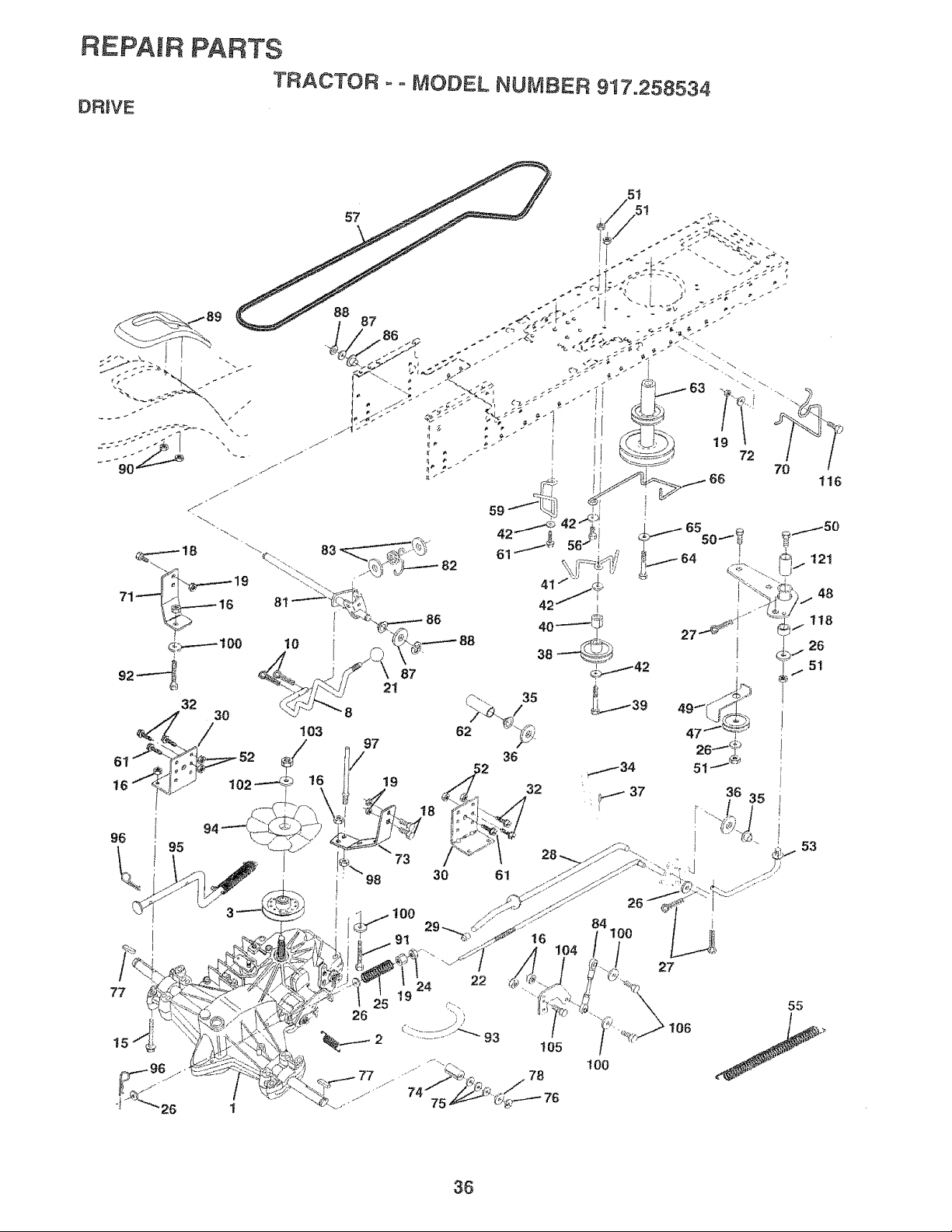

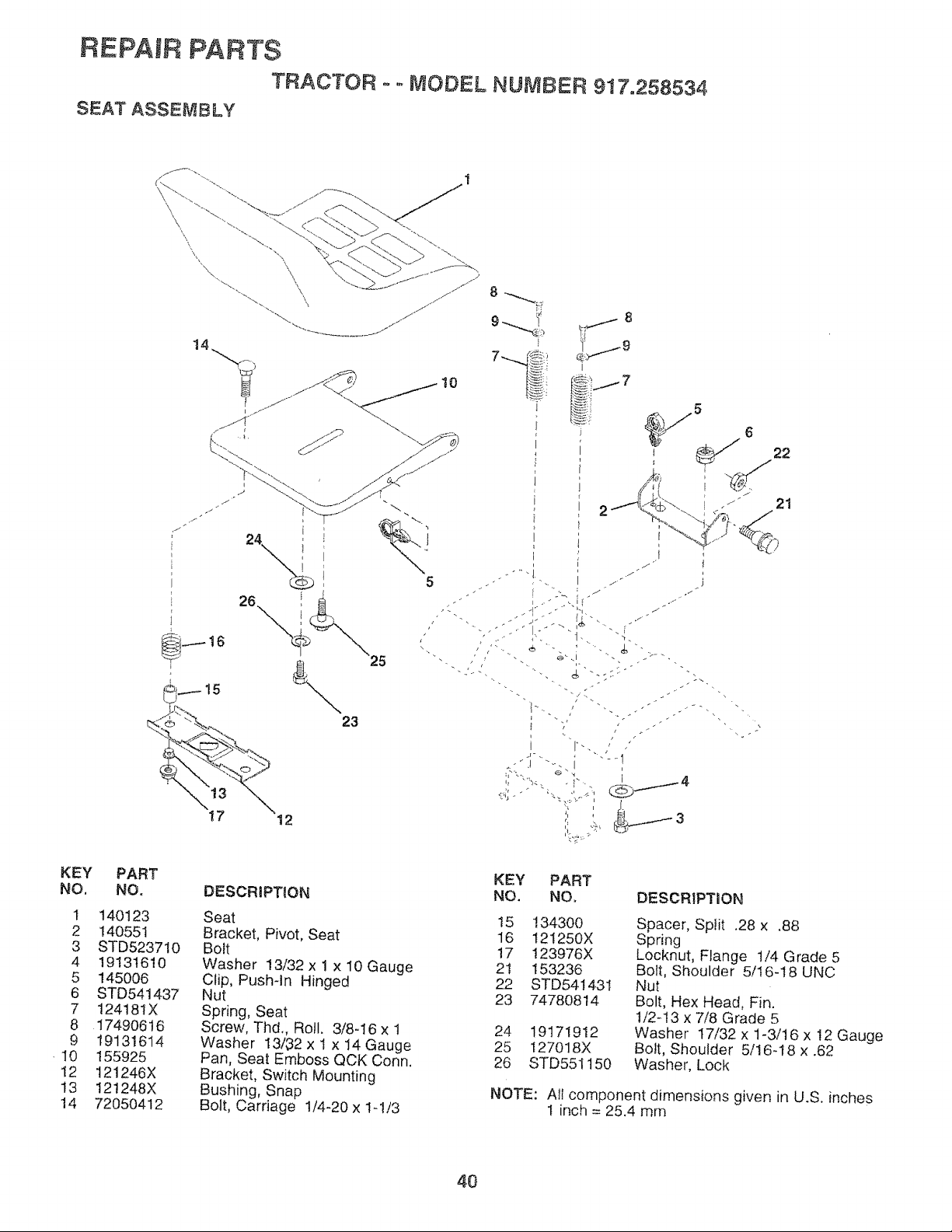

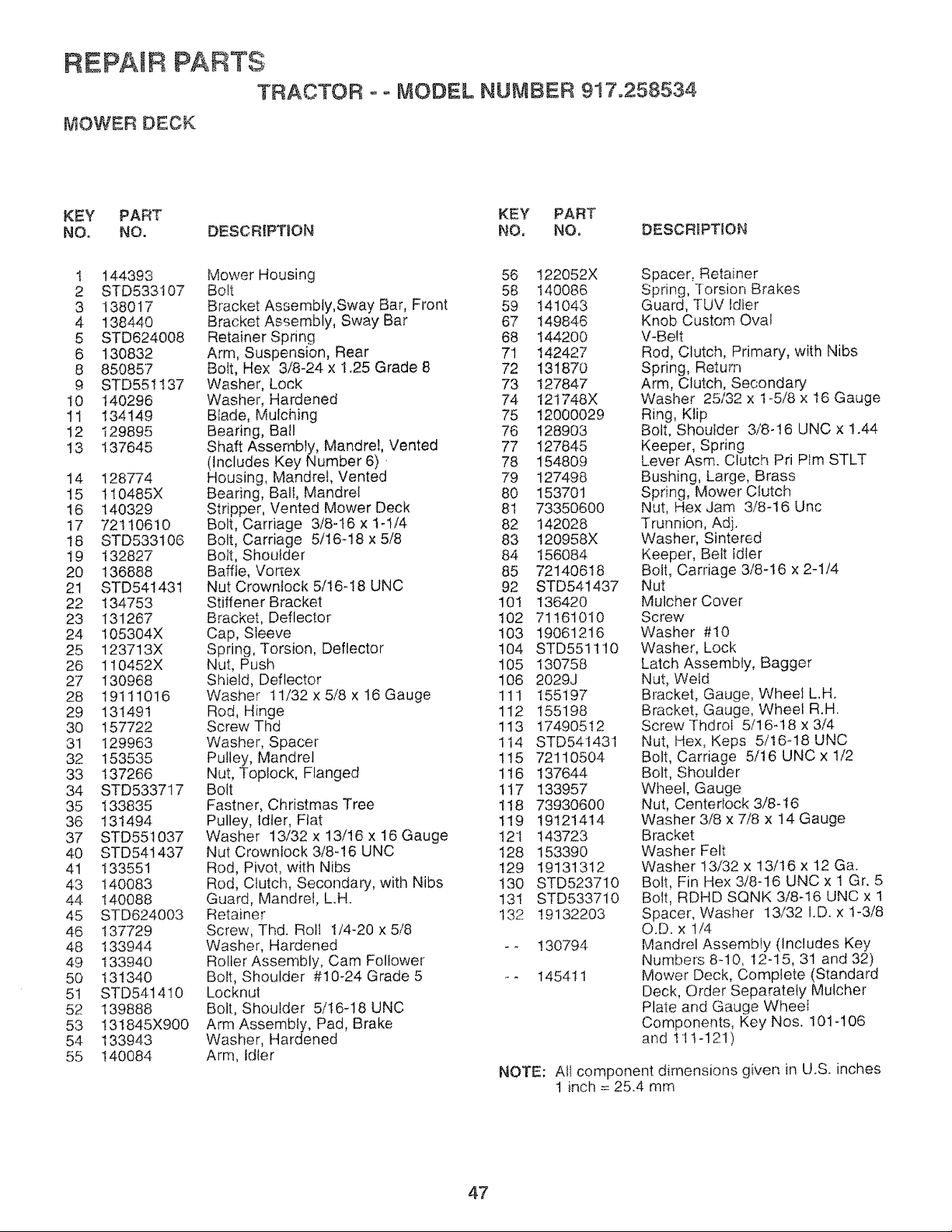

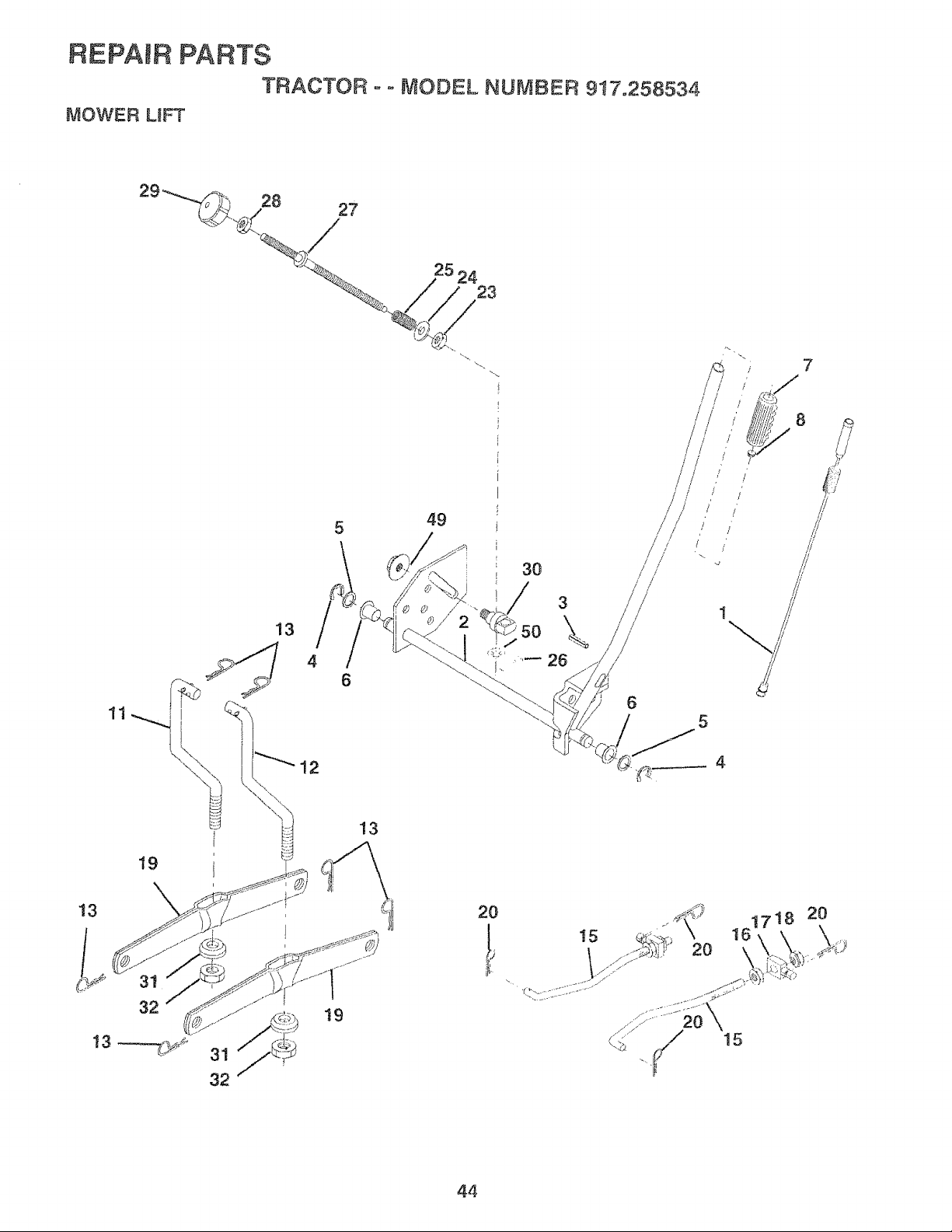

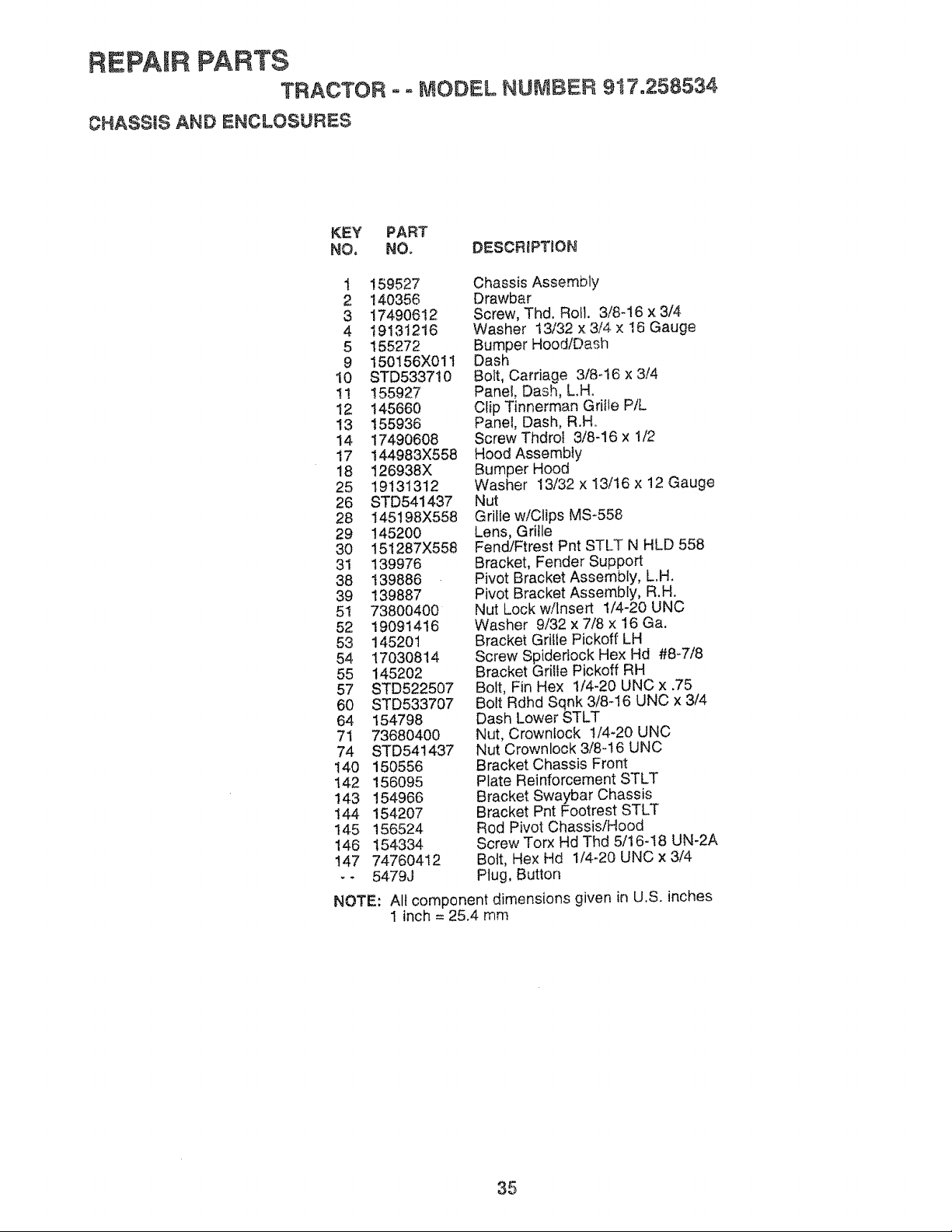

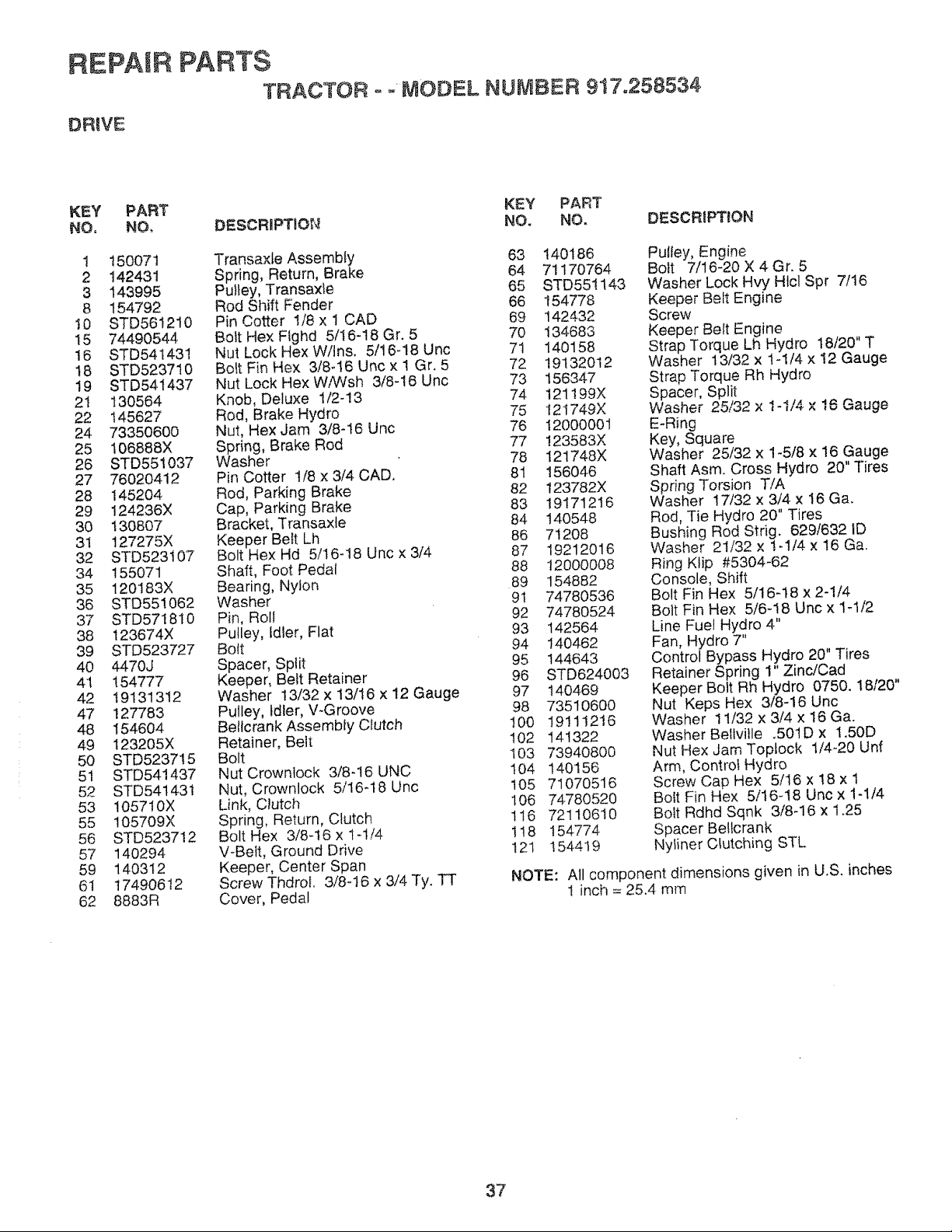

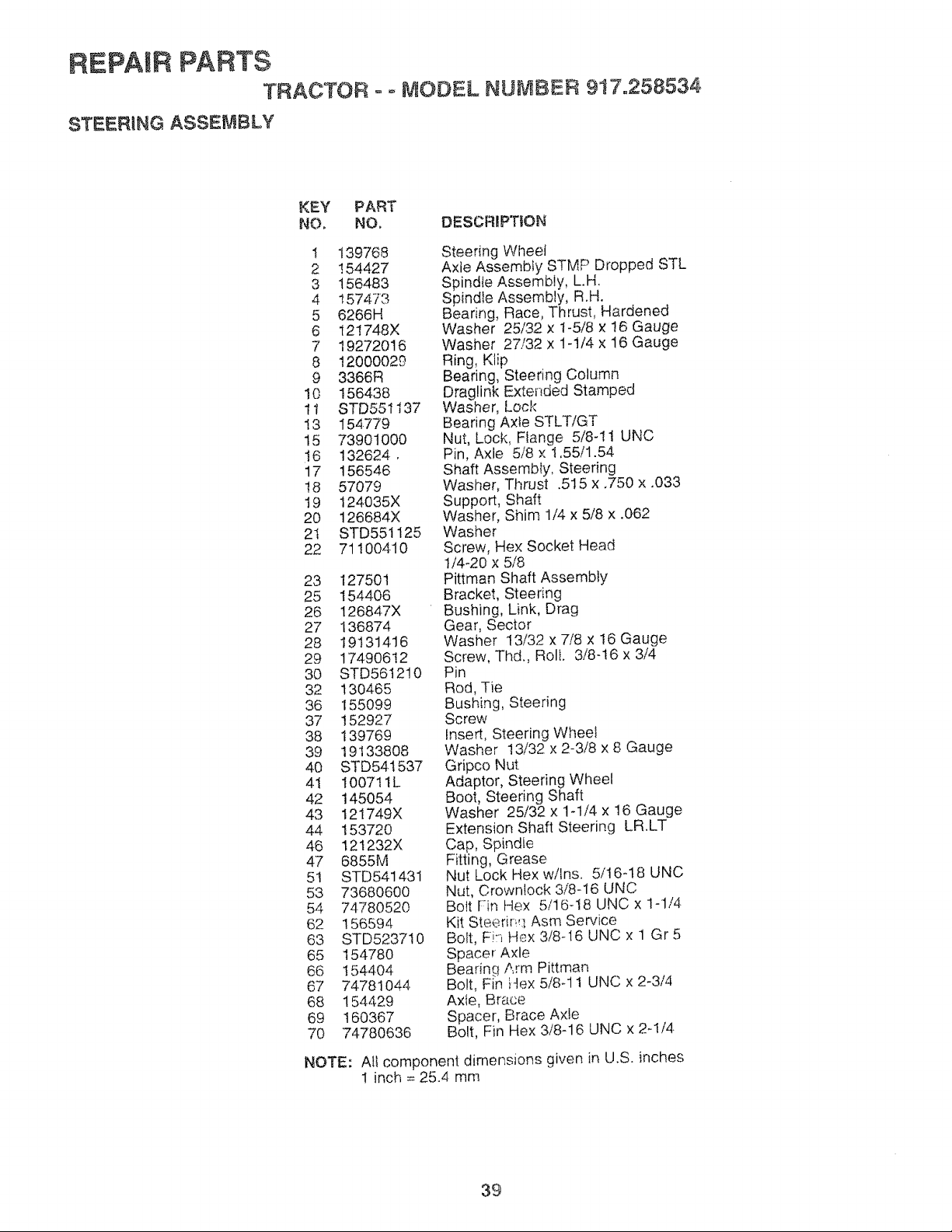

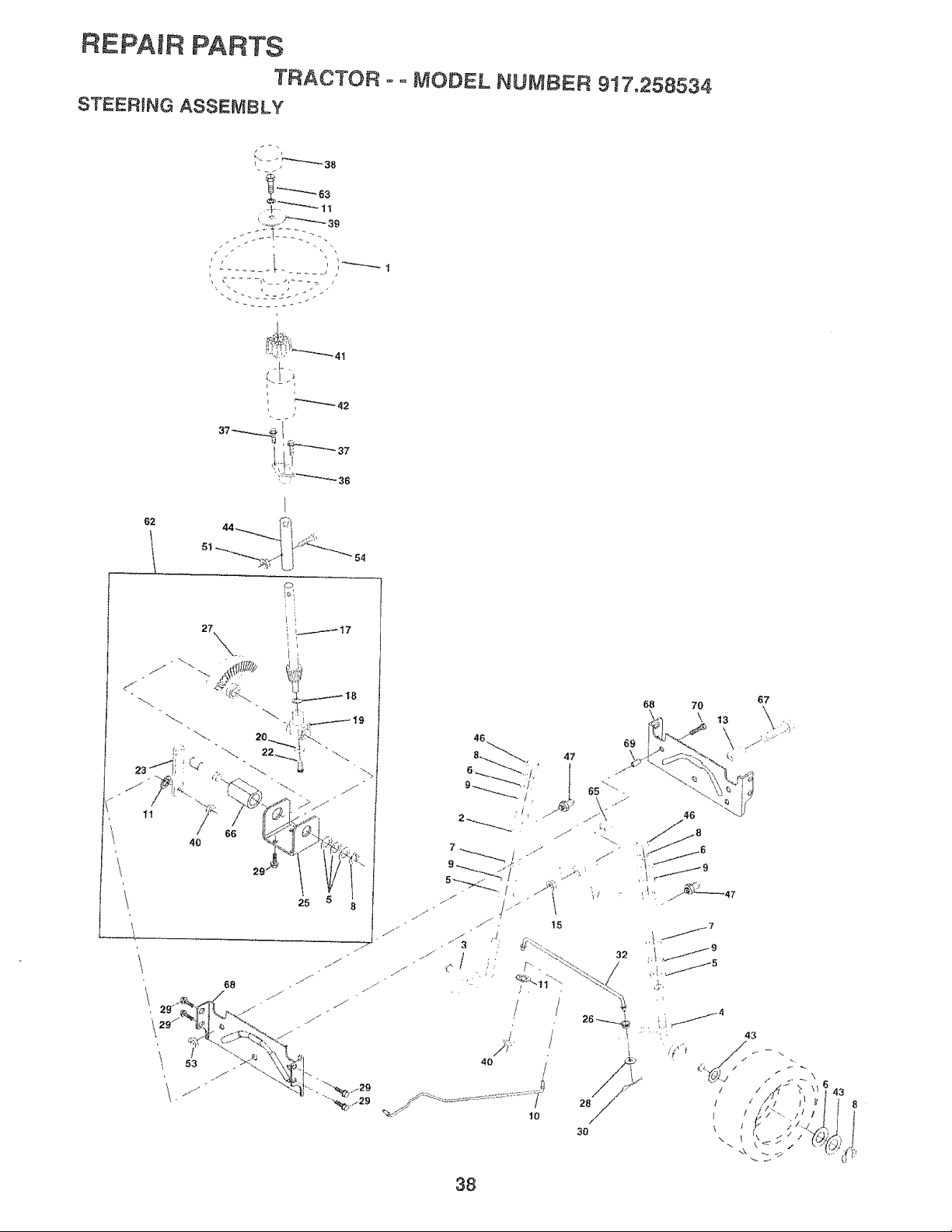

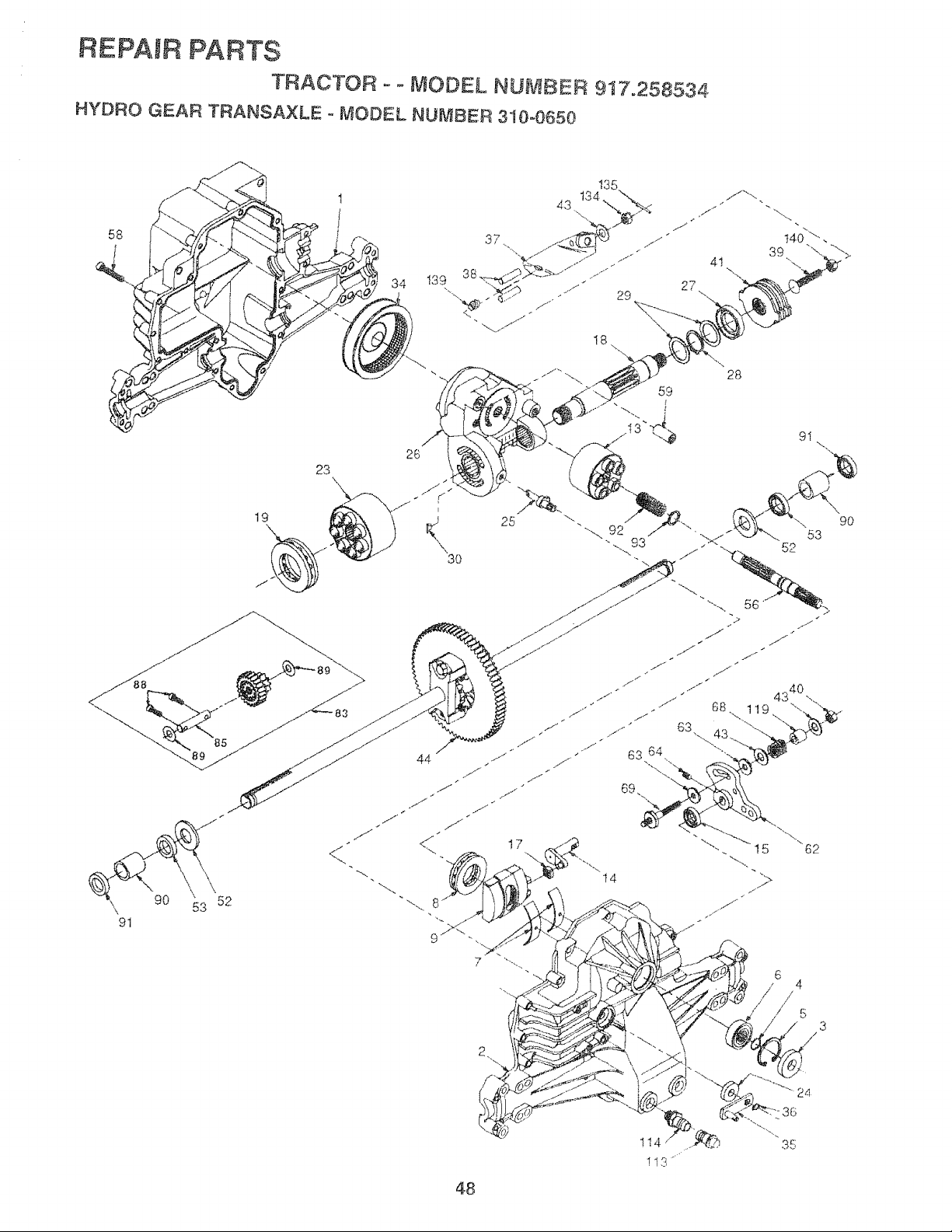

REPAIR PARTS - TRACTO.R ................................. 32--4_

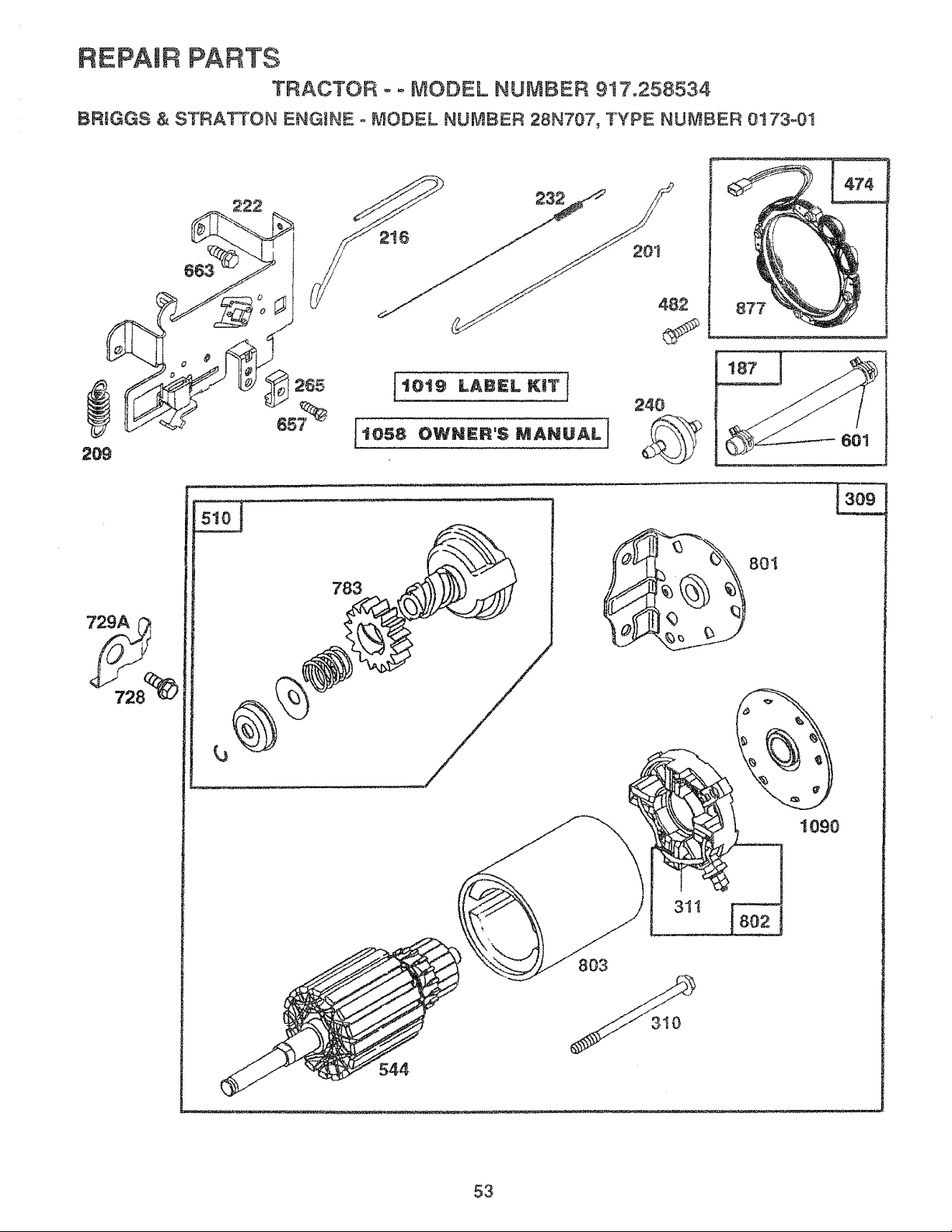

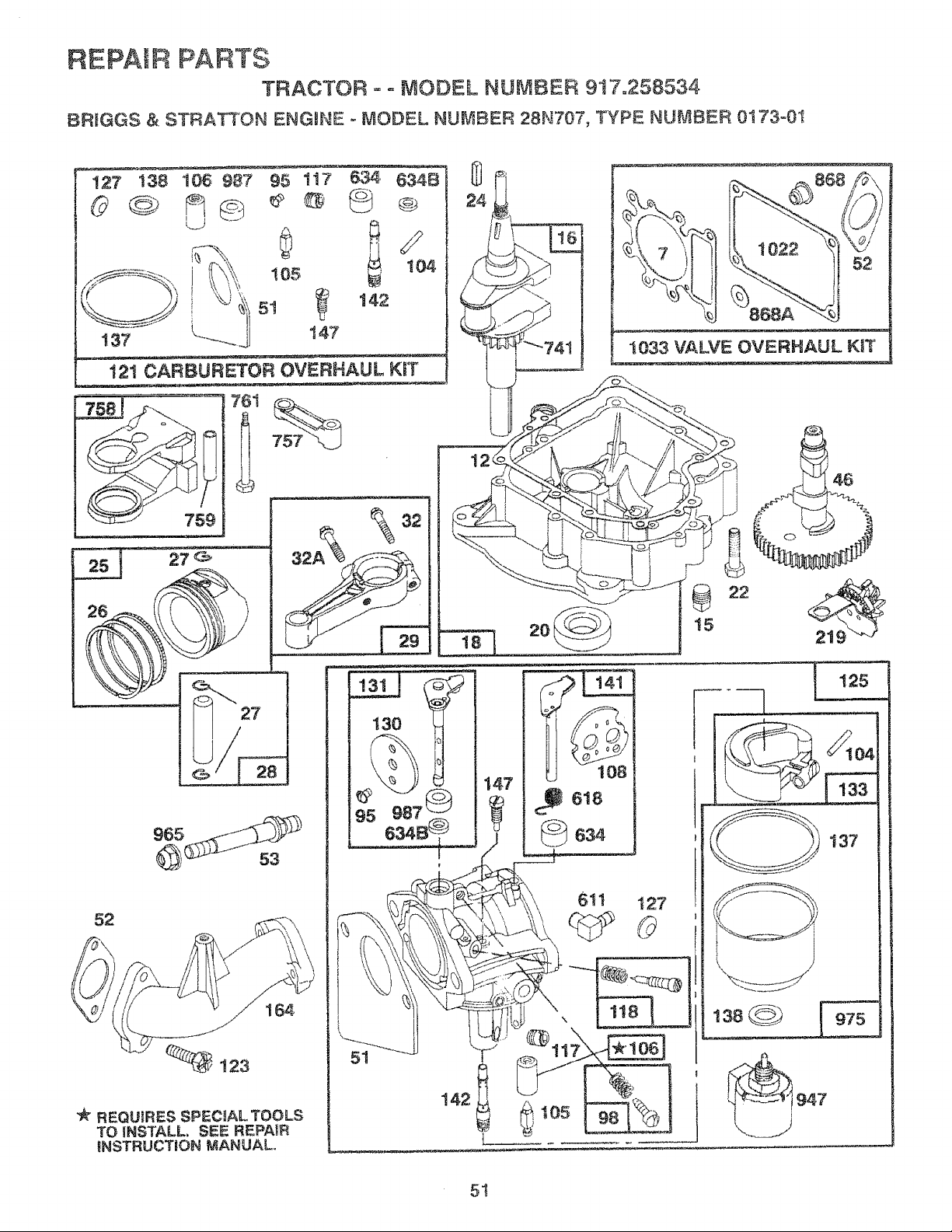

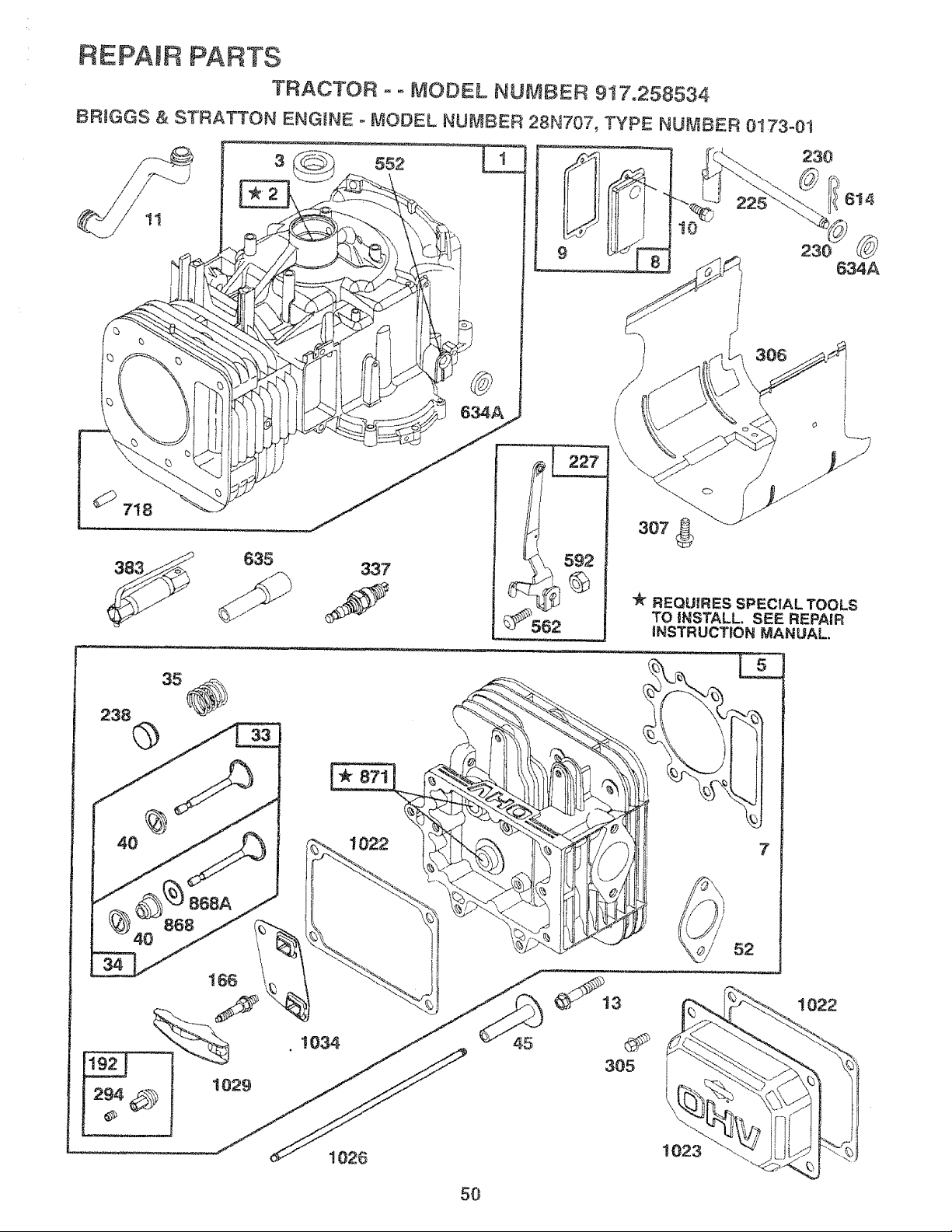

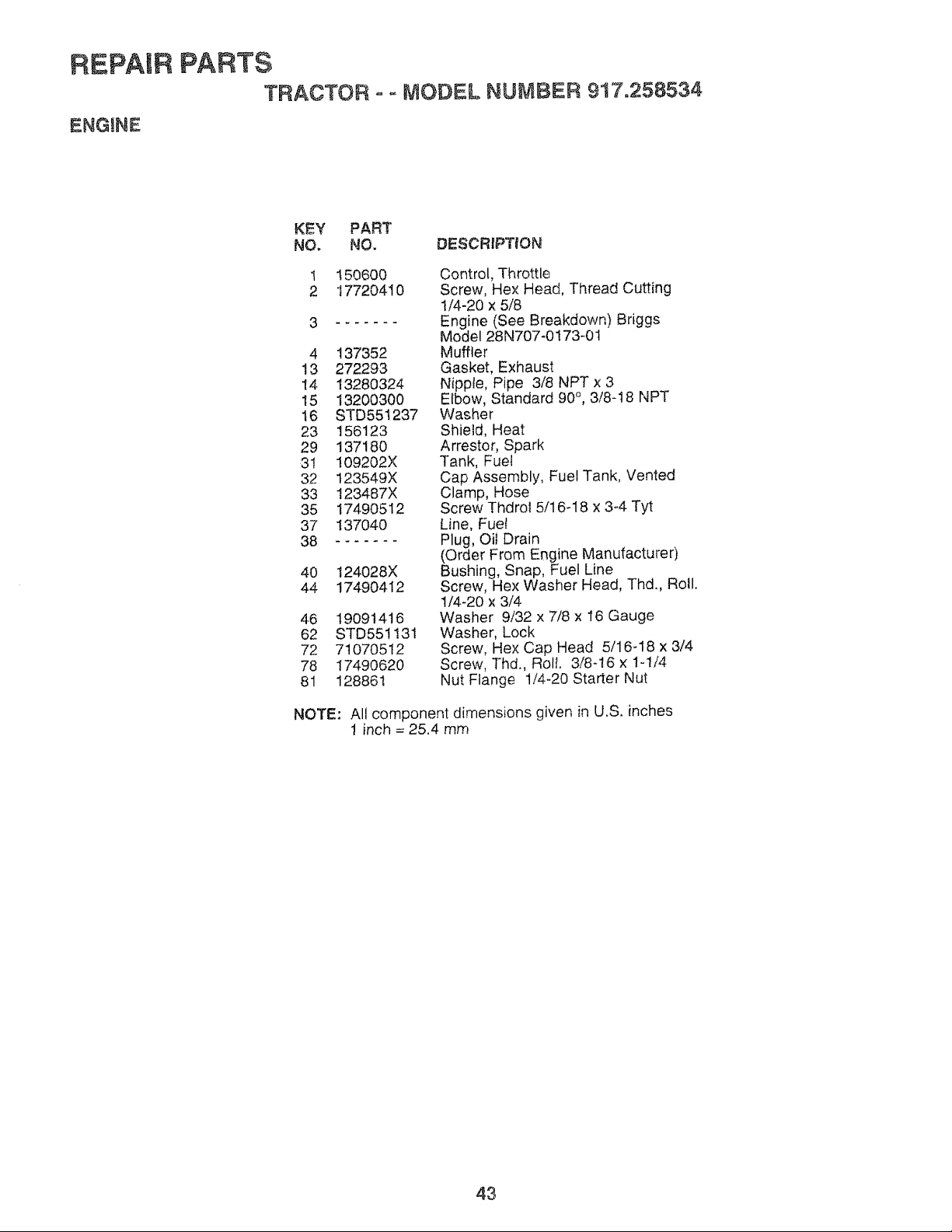

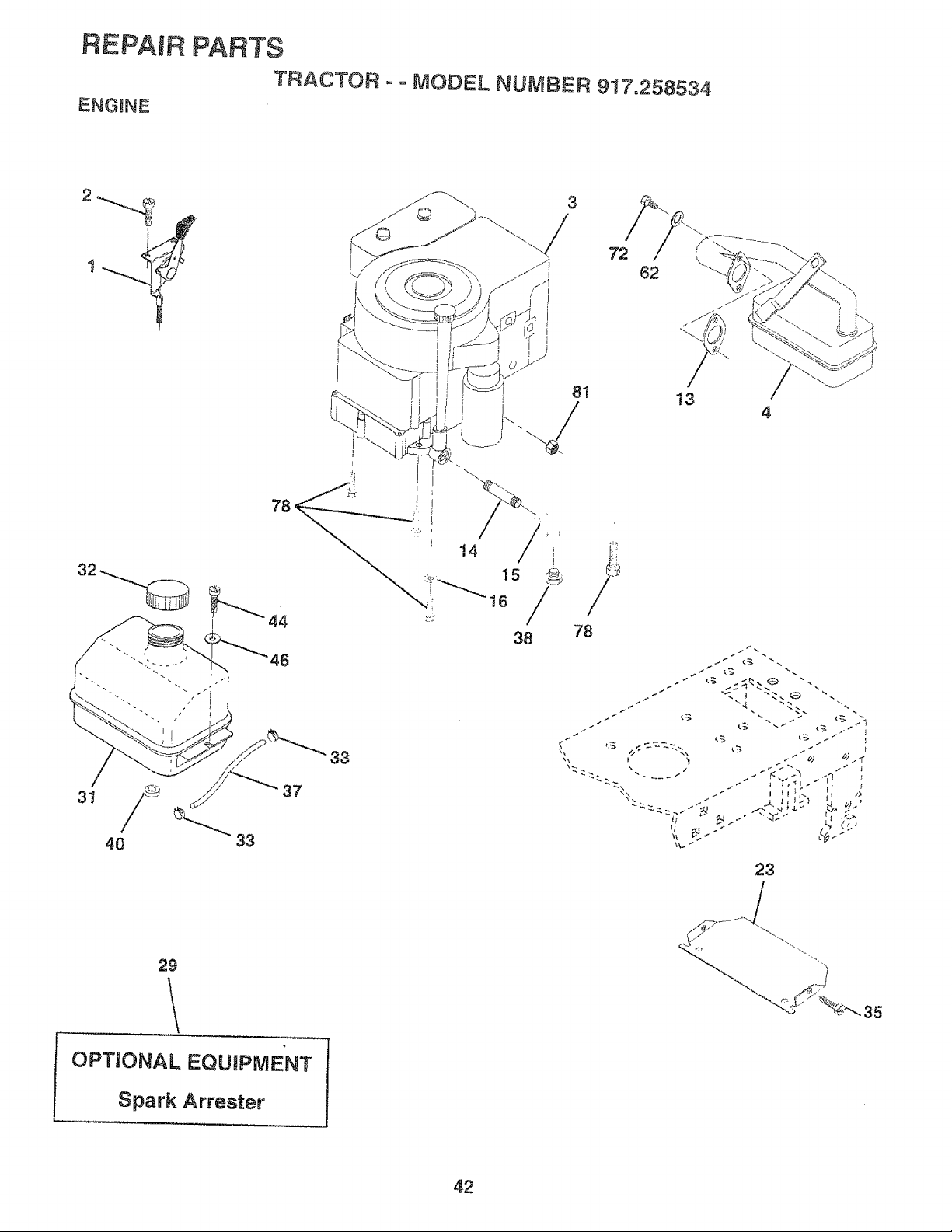

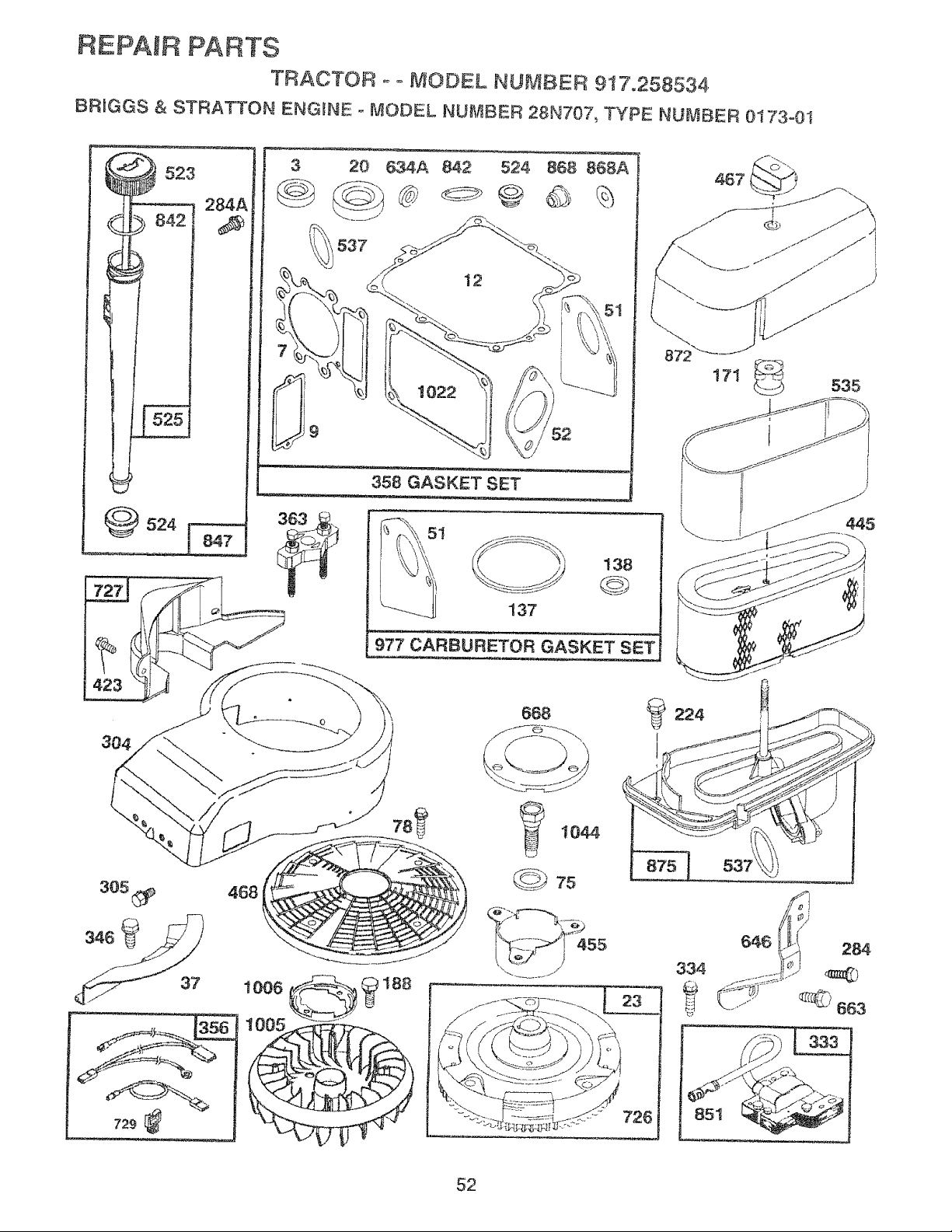

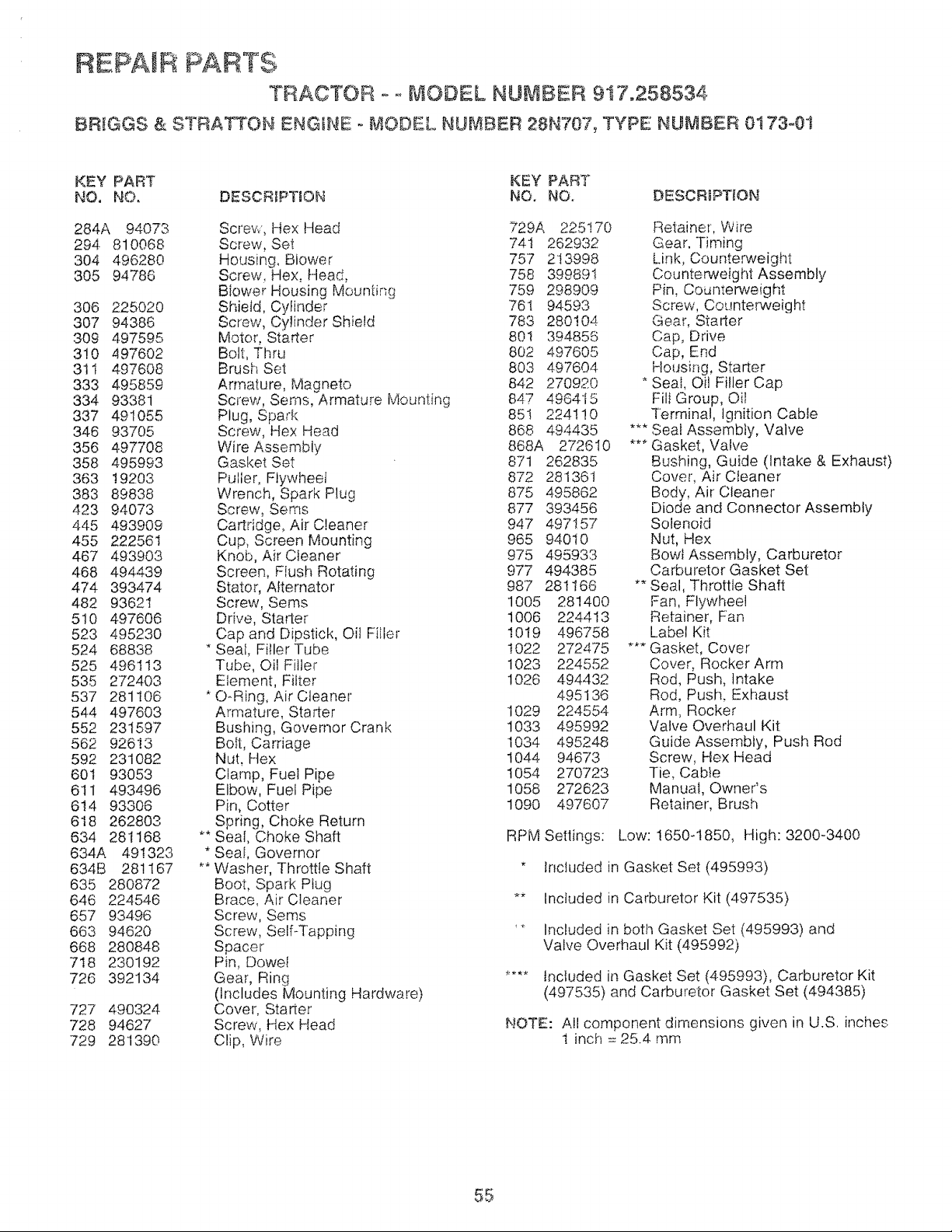

REPAIR PARTS - ENGINE ........................................ 50-55

PARTS ORDERSNG!SERV_CE .................. BACK PAGE

INDEX

Accessories ............................................ 5

Adjustments:

Brake ........................................... 23

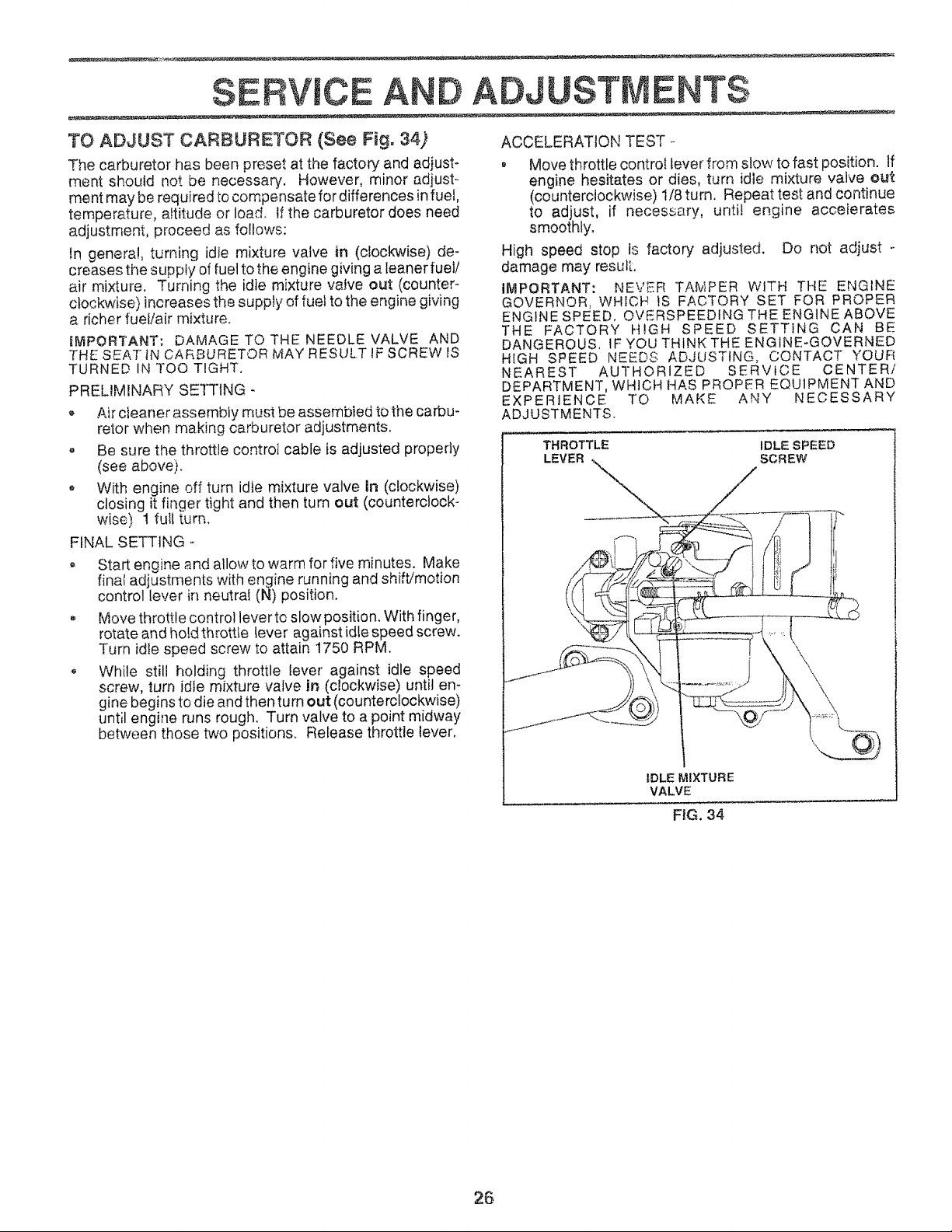

Carburetor ................................... 26

Mower:

Front-To-Back ........................ 22

Side-To-Side .......................... 22

Throttie Control Cable ................. 25

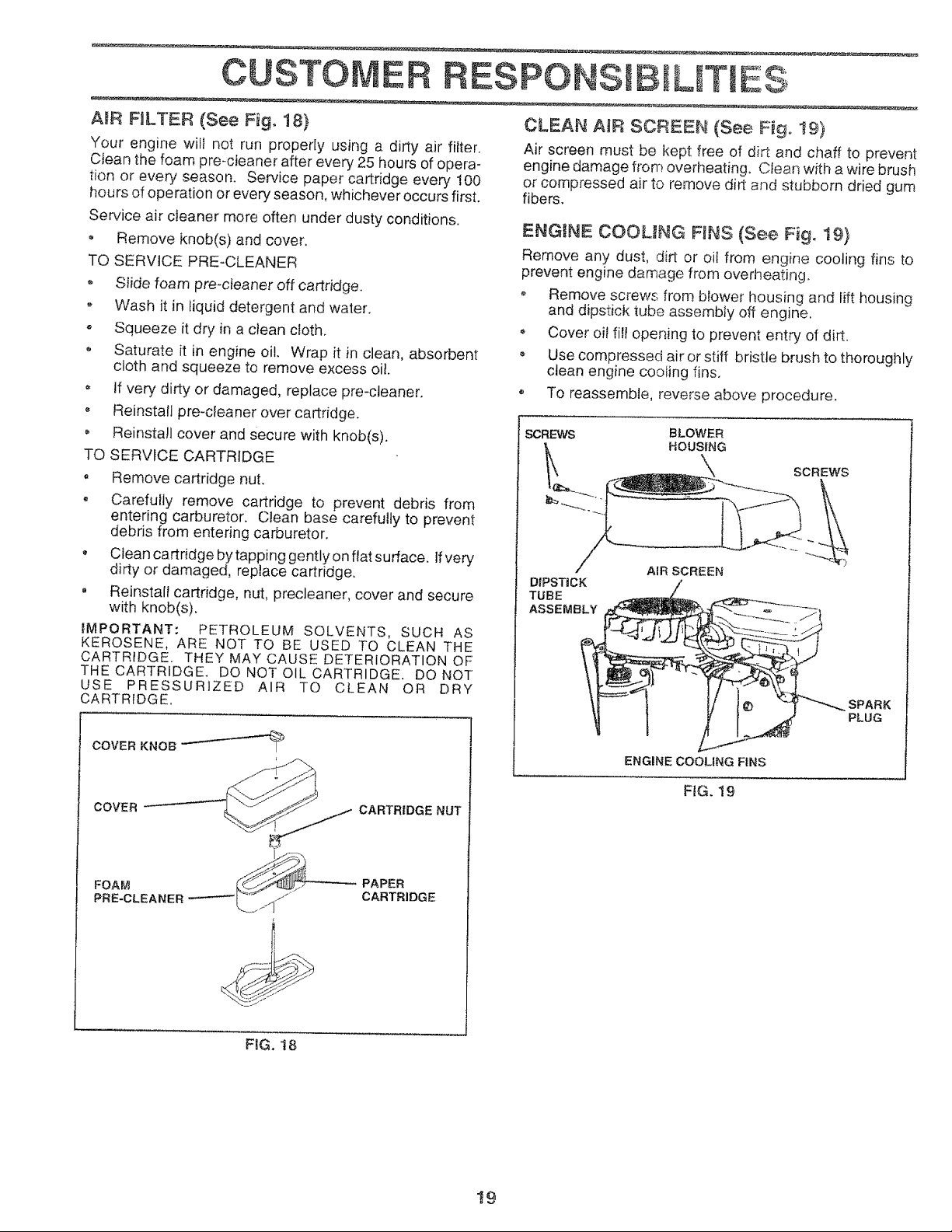

Air Filter, Engine .................................. 19

Air Screen, Engine ............................. 19

Assembly ........................................... 7-9

Batte_:

Charging .................................... 7°8

Cleaning ...................................... t8

Connecting ................................. 7-8

Starting with Weak Batte[y .......... 24

Storage ....................................... 27

Terminals .................................... !8

Belts:

Motion Drive

Removal/Replacement .......... 23

Mower Blade Drive

Removal/Replacement .......... 23

Blade:

Sharpening ................................. 17

Rep_acernent ............................... 17

Brake Adjustment ............................... 23

Carburetor Ad}ustment ....................... 26

Controls, Tractor. ............................... 11

Customer Responsibilities ............ 16-20

Engine:

Air Filter ................................... 19

Air Screen, Engine .................. 19

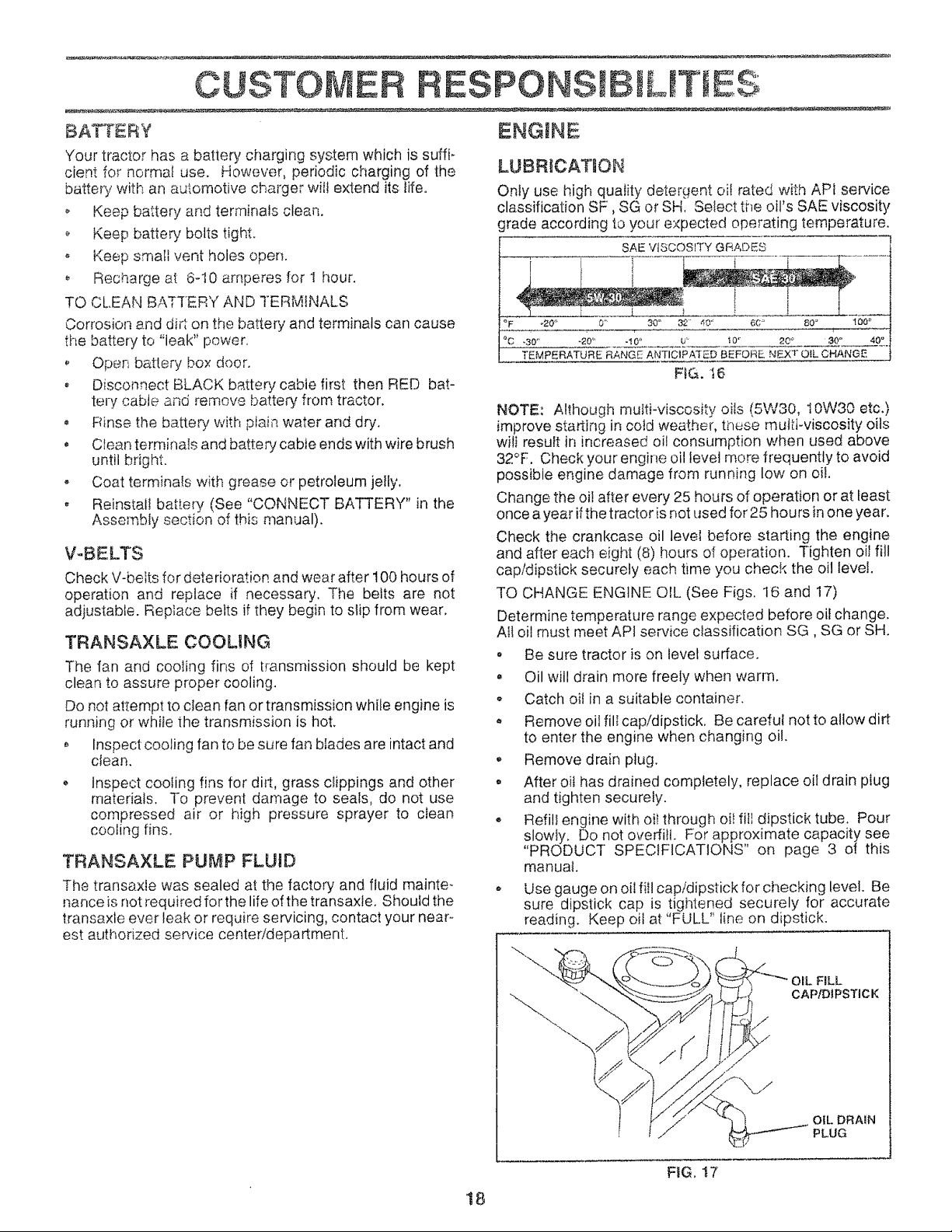

Battery ..................................... 18

Cooling Fins_ Engine ............... t9

Engine Oil ............................... !8

Fuel Fitter. ............................... 20

Spark Piugs ............................ 20

Tractor:

Bfades ..................................... 17

Lubrication Chart .................... 16

Maintenance Schedule ........... t6

Tire Care ......................... 8,1_,24

Cutting Height, Mower ....................... t2

Electrical:

Interlocks and Relays ................. 25

Schematic ................................... 31

Wiring Diagram ........................... 32

Engine:

Air Filter ....................................... 19

Air Screen ................................... 19

Cooling Fins, Engine ................... 19

Oil Change .................................. ! 8

Oil Level ................................. 13,18

Oil Type ....................................... t 8

Preparation ................................. ! 3

Repair Parts ........................... 50_55

Starting ........................................ 15

Storage ....................................... 27

Filters:

Air ................................................ 19

Fuel ............................................. 20

Fue!:

Type ............................................ 14

Storage ....................................... 27

Fuse ................................................... 25

Gauge Wheels ..................................... 8

Hood Removal/Installation ................. 25

Leveling Mower Deck ......................... 22

Lubrication Chart ................................ 16

Maintenance Schedule ...................... ! 6

Mower:

Adjustment, Front-to-Back .......... 22

Adjustment, Side-to-Side ............ 22

Blade Sharpening ....................... 17

Blade Replacement .................... t 7

Cutting Height ............................. 12

Installation ................................... 21

Operation .................................... 14

Removat ...................................... 2t

Mowing Tips ....................................... 15

Muffler, ............................................... 20

Spark Arrester. ......................... 3,42

Mulcher Plate ....................................... 9

Oil:

Cold Weather Conditions ....... 14,18

Engine .......................................... t 8

Storage ....................................... 27

Operation ...................................... I0of5

Operating Mower ................................ 13

Options:

Accessories ................................... 5

Spark Arrester .......................... 3,42

Parking Brake ............................... 11-12

Parts Bag ............................................. 6

Parts, Replacement/Repair. .......... 32..49

Product Specifications ........................... 3

Repair Parts .................................. 32_49

Safety Rules ......................................... 2

Seat ...................................................... 8

Service and Adjustments .............. 21-26

Brake ........................................... 23

Carburetor ................................... 26

Fuse ............................................ 25

Hood Removal/Installation .......... 25

Motion Drive Belt

Removal/Replacement .......... 2:_

Mower Blade Drive Belt

Remova!/Replacement .......... 23

Mower Adjustment:

Front-to-Back ......................... 22

Side_to_Side ........................... 22

Mower Installation ....................... 21

Mower Removal ........................... 2!

Tire Care ............................. 8,17,24

Slope Guide Sheet ............................. 59

Spark Plugs ........................................ 20

Specifications ....................................... 3

Starting the Engine ....................... 13-1 _

Steering Wheel ............................... 7,24

Stopping the Tractor .......................... t _-

Storage ............................................... 27

Throttle Control Cable Adjustrner_t ..... 25

[ires ........................................... 8, I 7,24

Trouble Shoetinq Chart __' __'*

Transaxle Repair Parts ................. 48..4!)

Warranty ............................................. s

Wiring Diagram ................................. 3;[:

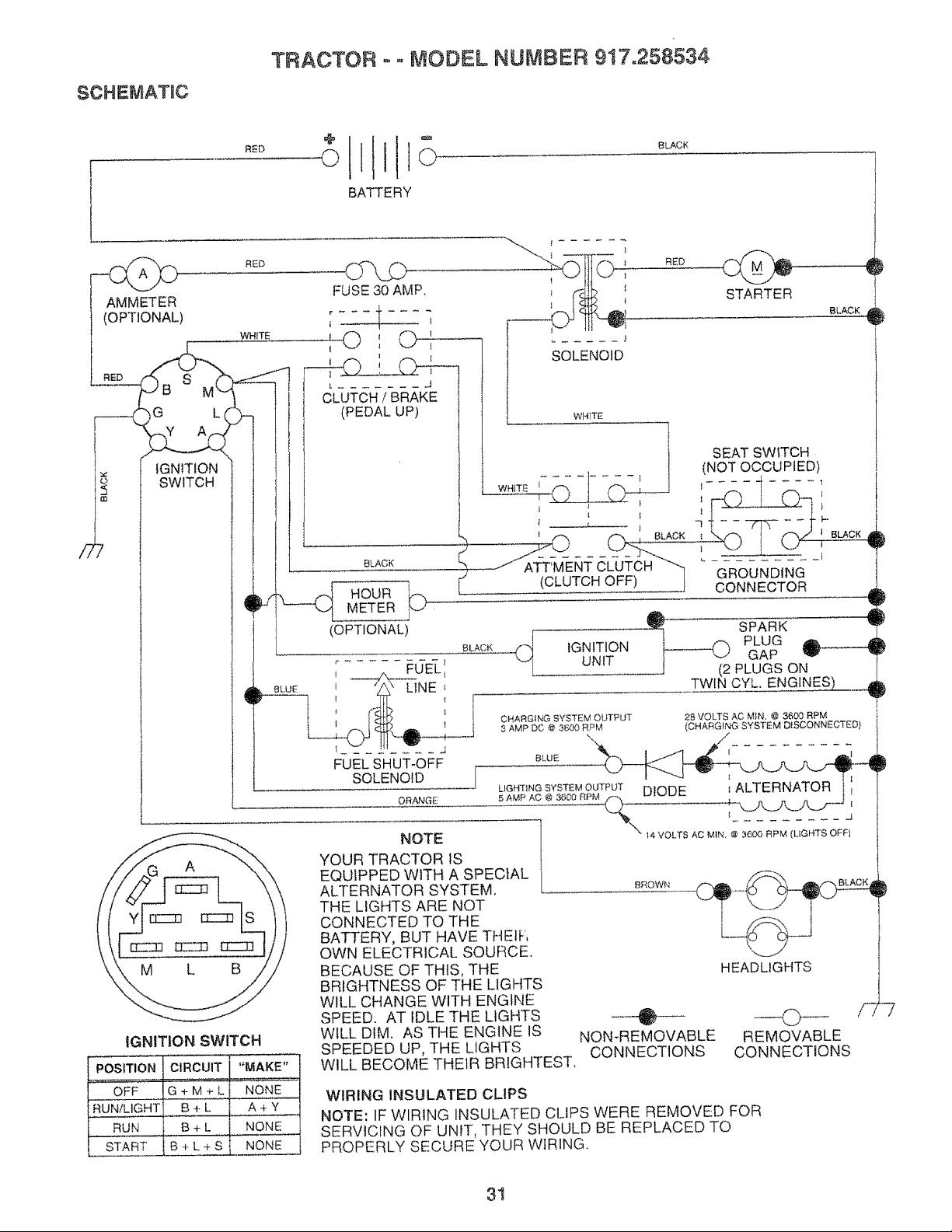

Wiring Schematic ............................... 31

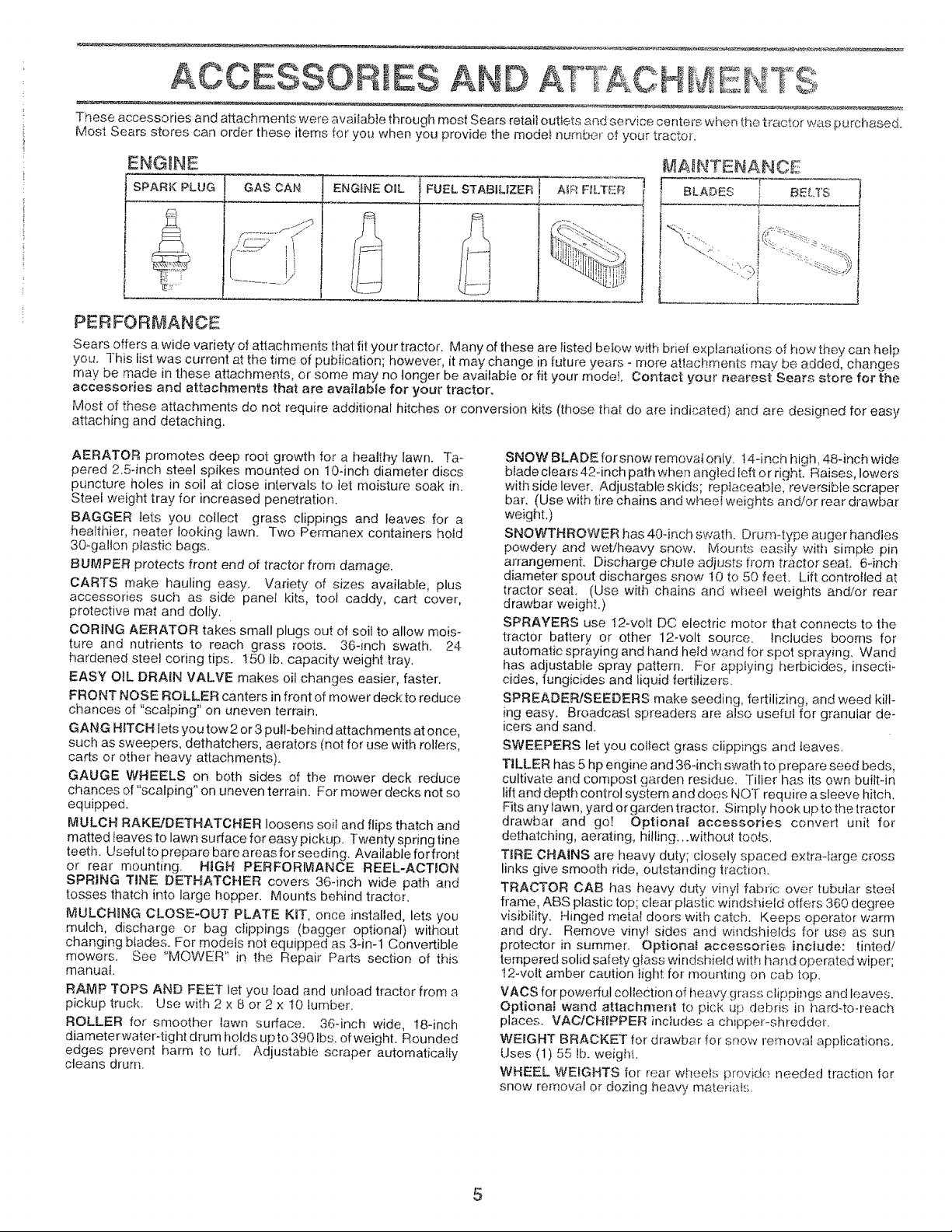

ACCE

D AT AC

MEN

These accessories and attachments were available through_most Sears retaiI outlet-oo,_d _',o6rv.,.e_.,"_en_ei_ ' "_',.when the tractor was purchased.

Most Sears stores can order these items for you when you provide the mode_ number of your tractoL

ENGINE

SPARK PLUG

]

GAS CAN ENGINE O_L

FUEL STABILIZER A_R Ffi,.TEF_

PERFORMANCE

Sears offers a wide variety of attachrnents that fit your tractor. Many of these are listed below with brief explanations of how they can help

you. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your mode!. Contact your neares{ Sears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching,

AERATOR promotes deep root growth for a healthy fawn_ Ta-

pered 2.5oinch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to tet moisture soak in.

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

heattl3ier, neater looking lawn. Two Permanex containers hold

30*gallon plastic bags.

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, too! caddy, cart cover,

protective mat and dolly.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots. 36-inch swath. 24

hardened steel coring tips. !50 Ib. capacity weight tray.

EASY O_L DRAIN VALVE makes oil changes easier, faster.

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain.

GANG HITCH lets you tow2 or 3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain. For mower decks not so

equipped.

MULCH RAKEiDETHATCHER loosens soil and flips thatch and

matted leaves to lawn surface for easy pickup. Twenty spring tine

teeth. Usefultoprepare bareareasforseeding. Availableforfront

or rear mounting, HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper. Mounts behind tractor,

MULCHING CLOSE-OUT PLATE KiT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing b_ades. For models not equipped as 3-in-1 Convertible

mowers. See "MOWER" in the Repair Parts section of this

manuat.

RAMP TOPS AND FEET let you load and unload tractor from, a

pickup truck. Use with 2 x 8 or 2 x 10 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameter ware r-tight drum holds up to 390 Ibs. of weight. Rounded

edges prevent harm to turf, Adjustable scraper automatically

cleans drum.

SNOW BLADE for snow removat only. !4-inch high, 48-inch wide

blade clears 42qnch path when angled left or right. Raises, lowers

with side lever. Adjustable skids; replaceable, reversible scraper

bar. (Use with tire chains and wheeI weights and/or rear drawbar

weight.)

SNOWTHROWER has 40qnch swath. Drum*type auger handles

powdery and wet/heavy snow, Mounts easily with simple pin

arrangement. Discharge chute adjusts from tractor seat. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor fi_at connects to the

tractor battery or other 12-volt source. Includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern. For applying herbicides, insecti-

cides, l"ungicides and liquid fertilizers.

SPREADER/SEEDERS make seeding, fertilizing, and weed kilt-

ing easy. Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass ciippfngs and leaves.

TILLER has 5 hp engine and 364nch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built-in

lift and depth control system and does NOT require a sleeve hitch.

Fits any lawn, yard or garden tractor. Simply hook up to the tractor

drawbar and go! Optiona$ accessories convert unit for

dethatching, aerating, hi!ling...without toots,

TIRE CHAINS are heavy duty; closely spaced extraqarge cross

links give smooth ride, outstanding traction.

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator _arm

and dry. Remove vinyl sides and windsMelds for use as sun

protector in summer, Optional accessories inctude: tinted/

tempered solid safety glass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top.

VAOS for powerful collection of heavy grass clippings and leaves.

Optional wand attachment te pick up debns in hard-to-reach

places. VACiOHIPPER includes a chipper_shreddeL

WEIGHT BRACKET for drawbar for snow removal applications.

Uses (1) 55 lb. weighL

WHEEL WERGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

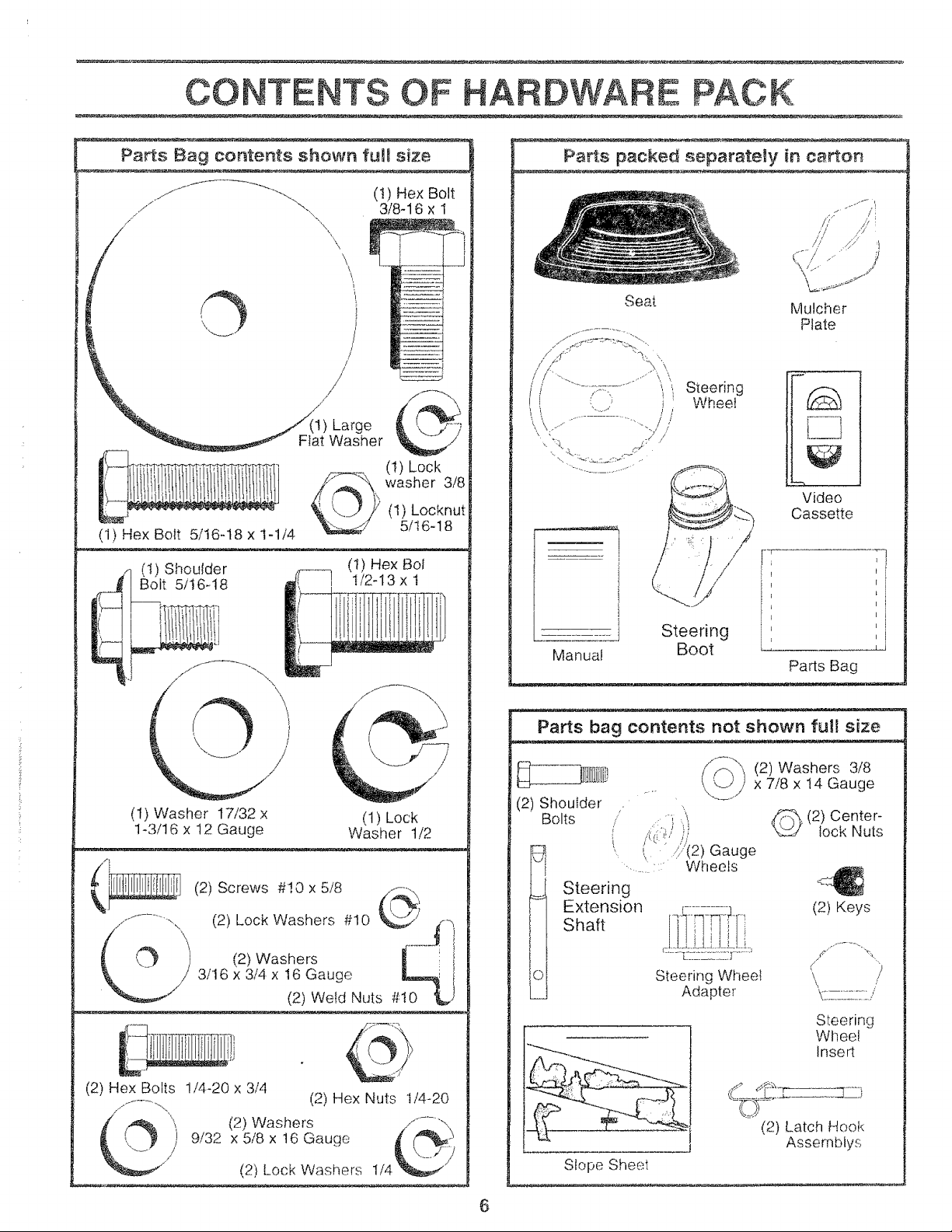

CONTENTS OF HARDWA £ PACK

Parts Bag contents shown full size

-/1 (t) Hex Bolt

,-" " 3/8-16 x 1

(1) Hex Bolt 5/16-18 x 1-1/4

Flat Washer _/

(1) Lock

%}} washer 3/8

(t) Locknut

_' 5/16-18

(t) Hex Boi

1/2-13 x t

11 (t) Shoulder ----

,_l _it 5/t6N8 ]

i '!i

(I) Washer 17/32 x (1) Lock

1-3/16 x 12 Gauge Washer t/2

-- (2) Lock Washers #I0 _;_z' --]

O " (2) Washers i ..... ': i

3/16 x 3/4 x 16 Gauge _ i

(2) Wetd Nuts #t0 _./

Parts packed separately in carton

Seat

l/ //

/'/ /t/ 'I

Mulcher

Plate

Steering

Wheel

............ Steering

Manua! Boot

--m

Video

Cassette

Pads Bag

Parts bag contents not shown full size

(2) Shoulder .

Bolts /'

Steering

Extension

i_j Shaft

(2) Washers 3/8

x 7/8 x 14 Gauge

/ .. _ 'ti

,i 4 J"/ / _'

j k , / /

t.... (2) Gauge

.....Wheels

(2) Center-

lock Nuts

(2) Keys

Steering Wheel

Adapter

.\ ,'

Slope Sheet

Steering

Wheel

Insert

(2) Latch Hook

Assembiys

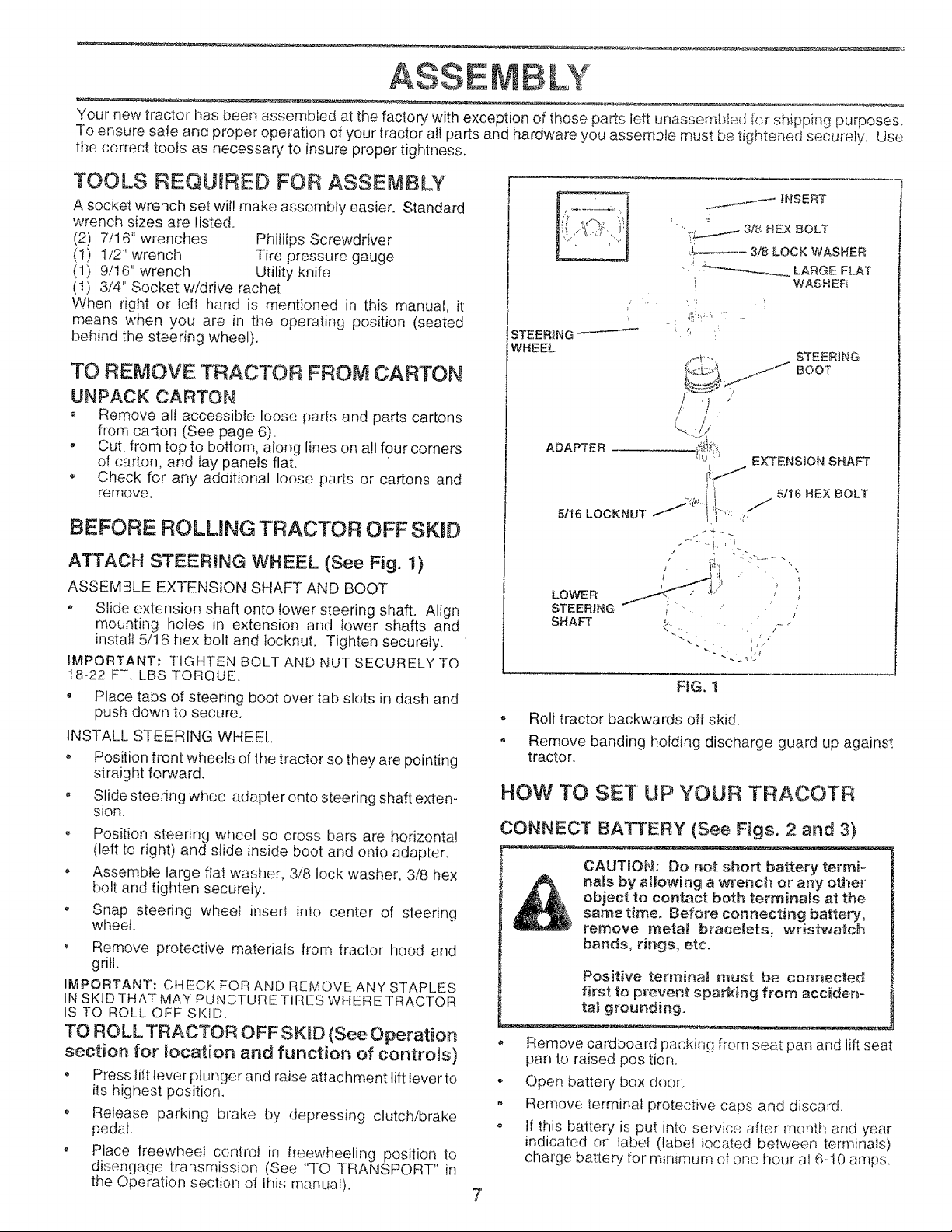

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts loft unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary' to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set wil! make assembly easier. Standard

wrench sizes are listed.

(2) 7/16" wrenches PhiIlips Screwdriver

(t) I/2" wrench Tire pressure gauge

(1) 9/t6" wrench Utility knife

(t) 3/4" Socket w/drive rachet

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

o Remove alt accessible loose parts and parts car[ons

from carton (See page 6).

* Cut, from top to bottom, along lines on a!l four corners

of carton, and tay panels flat.

, Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKID

ATTACH STEERING WHEEL (See Fig. t)

ASSEMBLE EXTENSION SHAFT AND BOOT

* Slide extension shaft onto lower steering shaft. Align

mounting holes in extension and lower shafts and

install 5/16 hex bolt and locknut. Tighten securely.

IMPORTANT; TIGHTEN BOLT AND NUT SECURELY "IO

18-22 FT. LBS TORQUE.

, Place tabs of steering boot over tab slots in dash and

push down to secure.

INSTALL STEERING WHEEL

o Position front wheels of the tractor so they are pointing

straight forward.

o Slide steering wheel adapter onto steering shaft exten-

sion.

Position steering wheel so cross bars are horizontal

(left to right) and slide inside boot and onto adapter.

• Assemble large fiat washer, 3/8 lock washer, 3/8 hex

bolt and tighten securely.

Snap steering wheel insert into center of steering

wheet.

, Remove protective materials from tractor hood and

griN.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURETIRES WHERETRACTOR

IS TO ROLL OFF SKID.

TO ROLL TRACTOR OFF S KID (See Operatior_

section for location and function of controls)

• Press lift lever plunger and raise attachment lift lever to

its highest position.

• Release parking brake by depressing clutch/brake

pedat.

o Place freewheel control in freewheeling position to

disengage transrnission (See "TO TRANSPORT" in

the Operation section of this manual).

STEERING

WHEEL

ADAPTER

_,,__,-.---_ INSERT

'-,i:___._...-.; 3/8 HEX BOLT

_--_--*_ 3/8 LOCK WASHER

.... _ LARGE FLAT

i WASHER

STEERING

BOOT

EXTENSION SHAFT

i l 5116 HEX BOLT

5116 LOCKNUT J_;_' I"': ,t/'f

ir!! ",

LOWER '/ _

STEERING _ ....... /

SHAFT _,, .. .

\, t "-z

" - L..L, _,i'/"

FIG, 1

,, Roll tractor backwards off skid.

o Remove banding holding discharge guard up against

tractor.

FIOW TO SET UP YOUR TRACOTR

CONNECT BATTERY (See Figs. 2 and 3)

CAUTION: Do not short battery fermi°

rials by allowing a wrench or any other

object to contact both terminals at the

same time, Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prever_t sparking f_'orn acciden-

tal grounding.

Remove cardboard packing from seat pan and lift seat

pan to raised position.

Open battery box door.

Remove termir]al protective caps and discard.

If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for mmirnurn of one ttour at 6-10 arnps.

ASSEMBLY

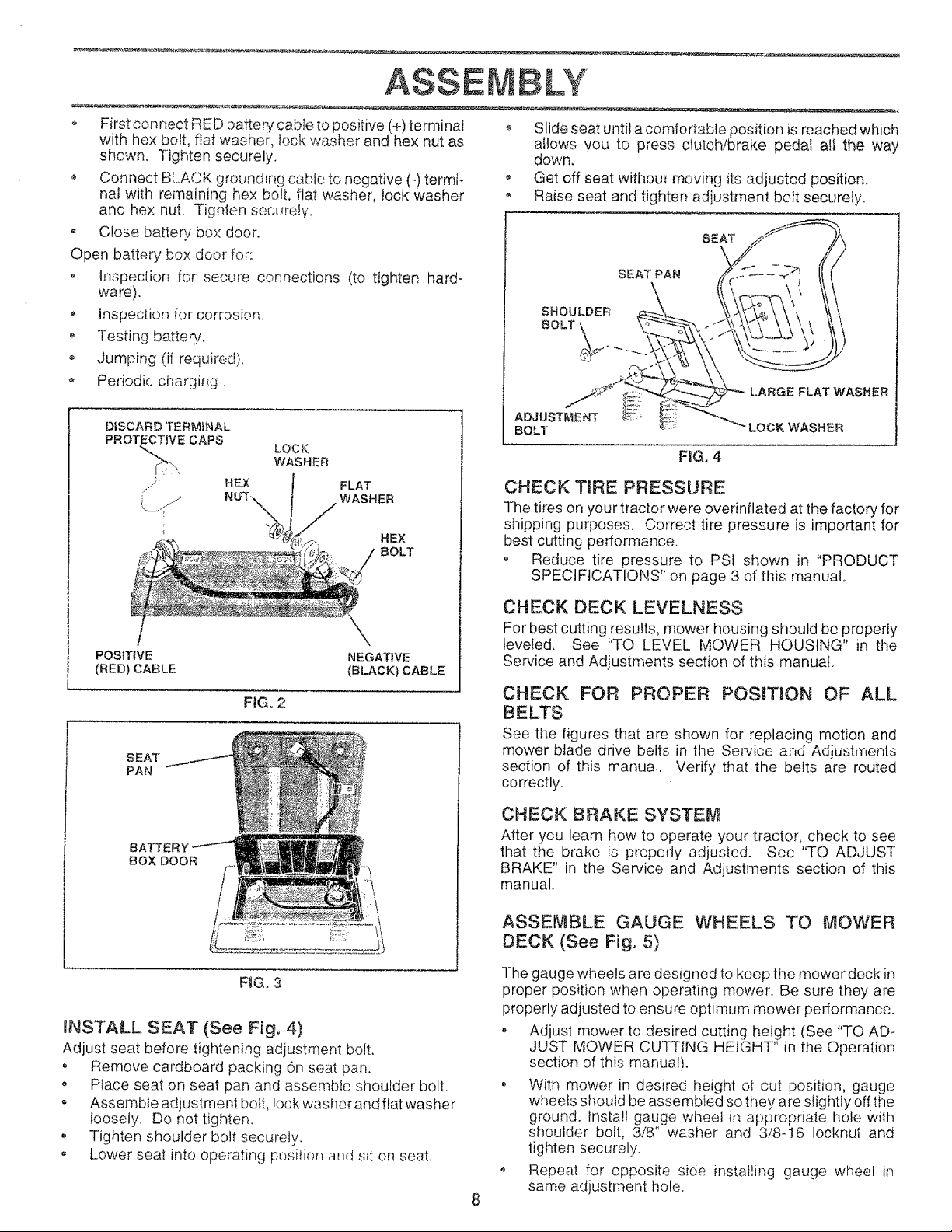

o First connect RED battery cable to positive (+) terminal

with hex bolt, fiat washer, lock washer and hex nut as

shown, Tighten securely.

Connect BLACK grounding cable to negative (-) termi-

nal with remaining hex bolt, fiat washer, lock washer

and hex nut, Tigr_ten secure!y.

o Close batteBr box door.

Open battery box door for:

° Inspection for secure connections (to tighten hard-

ware).

* inspection for corrosion.

Testing battery.

o ,Jumping (if requii'ed).

* Periodic charging.

DISCARD TERMINAL

PROTECTIVE CAPS

LOCI(

WASHER

FLAT

WASHER

HEX

BOLT

POSITIVE NEGATIVE

(RED) CABLE (BLACK) CABLE

FIG,, 2

SEAT

PAN

BATTERY

BOX DOOR

Slide seat until a comfortable position is reached which

al!ows you to press clutch/brake pedal all the way

down.

, Get off seat without moving its adjusted position,

• Raise seat and tighten adjustment bolt securely°

SEAT'

BEAT PAN

SHOULDER

BOLT

ADJUSTMENT

BOLT

LARGE FLAT WASHER

"LOCK WASHER

FIG. 4

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

- Reduce tire pressure to PSt shown in "PRODUCT

SPECIFICATIONS" on page 3 of this" manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

ieveted. See "TO LEVEL MOWER HOUSING" in the

Sen'ice and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual.

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 5}

F_G. 3

INSTALL SEAT (See Fig, 4)

Adjust seat before tightening adjustment bolt.

o Remove cardboard packing 6n seat pan.

o Place seat on seat pan and assemble shoulder bolt.

o Assemble adjustment bolt, lock washer and fiat washer

loosely. Do not tighten_

, Tighten shoulder bolt securely.

o Lower sea! into operating position and sit on seat.

The gauge wheels are designed to keep the mower deck in

proper position when operating mower. Be sure they are

properly adjusted to ensure optimum mower performance.

• Adjust mower to desired cutting height (See "TO AD_

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

• With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground, install gauge wheel in appropriate hole with

shoulder bolt, 3/8" washer and 3/8-!6 Iocknut and

tighten securely.

Repeat for opposite side installing gauge wheel in

same adjustment hole.

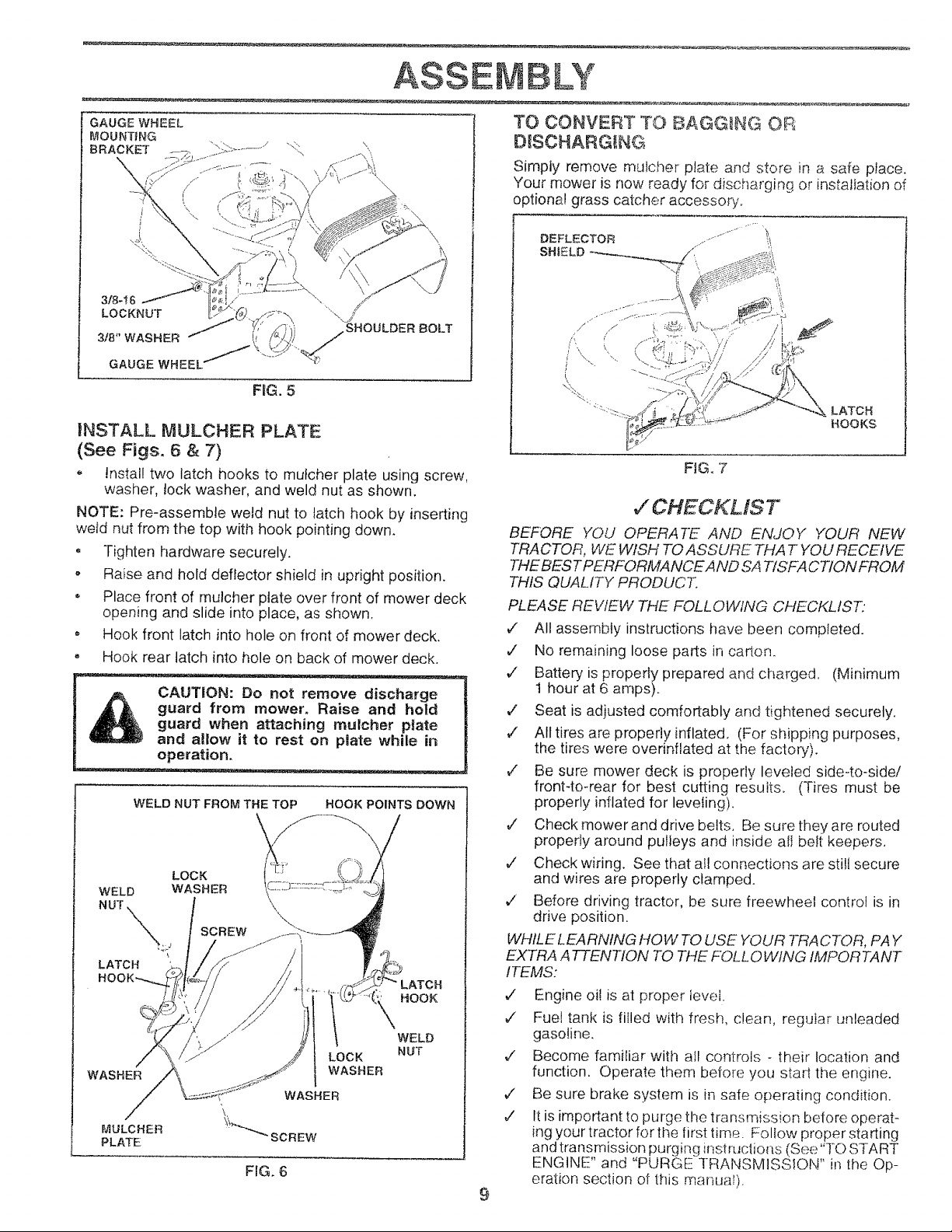

ASSE BLY

GAUGE WHEEL

MOUNTING

,f" /.

3/8-I 6 /'

LOCKNUT

3/8" WASHER !!

GAUGE WHEEL.

FIG. 5

INSTALL MULCHER PLATE

(See Figs. 6 & 7)

, tnstai! two latch hooks to mutcher plate using screw,

washer, lock washer, and weld nut as shown.

NOTE: Pre-assembte wetd nut to latch hook by inserting

weld nut from the top with hook pointing down.

. Tighten hardware securely.

- Raise and hold deflector shield in upright position.

o Place front of mulcher ptate over front of mower deck

opening and slide into place, as shown.

° Hook front latch into hole on front of mower deck.

- Hook rear latch into hole on back of mower deck.

WELD NUT FROM THE TOP HOOK POINTS DOWN

WELD

NUT.

LATCH

WASHER

LOCK

WASHER

SCREW \\\_'_-.

MULCHER

PLATE

LOCK

WASHER

LATCH

HOOK

WELD

NUT

FIG. 6

TO CONVERT TO BAGGING O!:)

D_SCHARG_NG

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory..

DEFLECTOR ................. ',

FiG. 7

,/ CHECKMST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THEBES TPERFORMANCE AND SA TISFA C TION FROM

THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

¢" No remaining loose parts in carton.

v" Battery is properly prepared and charged. (Minimum

1 hour at 6 arnps).

v" Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

v" Be sure mower deck is properly leveled side-to-side/

front4o-rear for best cutting resuits. (Tires must be

properly inflated for leveling).

v" Check rnower and drive belts. Be sure they are routed

properly around pulleys and inside alt belt keepers.

,/ Check wiring. See that at1connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PA Y

EXTRA A7_ENTtON TO THE FOLLO WfNG IMPORTANT

ITEMS:

,/ Engine oi! is at proper level.

/ Fuel tank is filled with fresh, clean, regular unleaded

gasoiine.

v" Become famitiar with all controls - their location and

function. Operate them before you start the engine.

v" Be sure brake system is in safe operating condition.

,/ It is important to purge the transmission before operat-

ing your tractor for the first time. Follow proper starting

and transmission purging instructions (See "TO START

ENGINE" and "PURGE TRANSMISSION" in the Op-

eration section of this manual).

OPERATION

These symbob may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY

ENGINE ON

CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON LIGHTS OFF

FUEL CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

MOWER LIFT

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

HIGH

LOW PARKING BRAKE

ATTACHMENT

CLUTCH DISENGAGED

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERAT O

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourself with the locations of various controls and adiustment& Save

this manual for future reference.

LIGHT IGN_TiON

SWITCH SWITCH

POSITION

AMMETER

THROTTLE/CHOKE

CONTROL

CLUTCH/BF

PEDAL

UFT LEVER

PLUNGER

ATTACHMENT

LEFT LEVER

ATTACHMENT

CLUTCH LEVER

PARKING BRAKE

HEIGHT

ADJUSTMENT

KNOB

' i

FREEWHEEL CONTROL

APPROX,

SPEED

3 MPH

2 MPH

1 MPH

MOTION

CONTROL

LEVER

FIG= 8

Our tractors conform to the safety standards of the American National Standards lnstkute.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE/CHOKE CONTROL: Used for starting and

controlling engine speed,

CLUTCHIBRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine,

PARKING BRAKE: Locks clutch/brake pedal into the

brake position,

FREEWHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off.

MOTION CONTROL LEVER: Selects the speed and

direction of tractor.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

tGNmON SWITCH: Used for starting and stopping the

engine.

HEIGHTADJUSTMENT KNOB: Used to adjust the mower

cutting height.

AMMETER: Indicates charging (+) or discharging (-) of

battery.

OPERATION

__ over the spectacles or standard safety glasses.

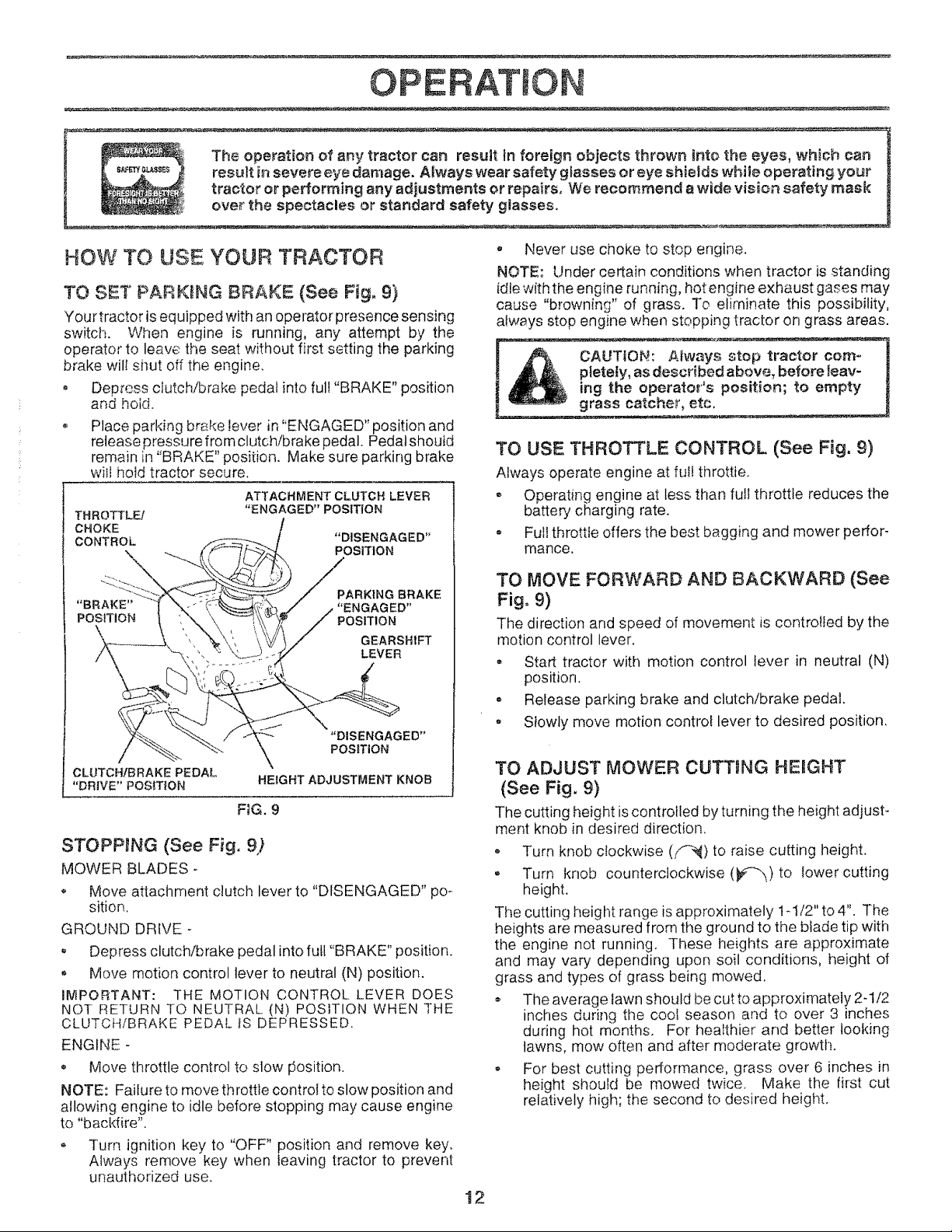

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

° Depress clutch/brake pedal into full "BRAKE" position

and hold.

Place parking br_.ke lever in "ENGAGED" position and

release pressure from clutch!brake pedal. Pedal shouid

remain in "BRAKE" position. Make sure parking brake

wifi hold tractor secure.

THROTTLE/

CHOKE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED'POSITION

"DISENGAGED"

POSITION

"BRAKE"

POSITION

PARKING BRAKE

"ENGAGED"

POSITION

GEARSHIFT

LEVER

CLUTCNIBRAKE PEDAL

"DRIVE" POSITtON

"DISENGAGED"

POSITION

HEIGHT ADJUSTMENT KNOB

F_G. 9

STOPPING (See Fig. 9)

MOWER BLADES -

Move attachment clutch lever to "DISENGAGED" po-

sition,

GROUND DRIVE -

, Depress clutch/brake pedal into full "BRAKE" position.

, Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL tS DEPRESSED.

ENGINE -

• Move throttle control to slow [Josition.

NOTE: Failure to move throttle control to slow position and

allowing engine to idle before stopping may cause engine

to "backfire".

o Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

, Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Aiways stop tractor com-

p|etely, as described above, before Jeav-

ing the operator's position; to empty

Ca ...... _ etc,

grass ,,-h__,,

TO USE THROTTLE CONTROL (See Fig. 9)

Always operate engine at full throttle,

- Operating engine at less than full throttle reduces the

battery charging rate.

• Fuli throttle offers the best bagging and mower perfor-

mance.

TO MOVE FORWARD AND BACKWARD (See

Fig. 9)

The direction and speed of movement is controlled by the

motion control lever.

• Start tractor with motion control lever in neutral (N)

position.

= Release parking brake and clutch/brake pedal.

o Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 9)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction.

• Turn knob clockwise (/"_) to raise cutting height.

• Turn knob counterclockwise (p:-"_.)to lower cutting

height.

The cutting height range is approximately 1N/2" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

o The average lawn should be cut to approximately 2-1/2

inches during the cooI season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

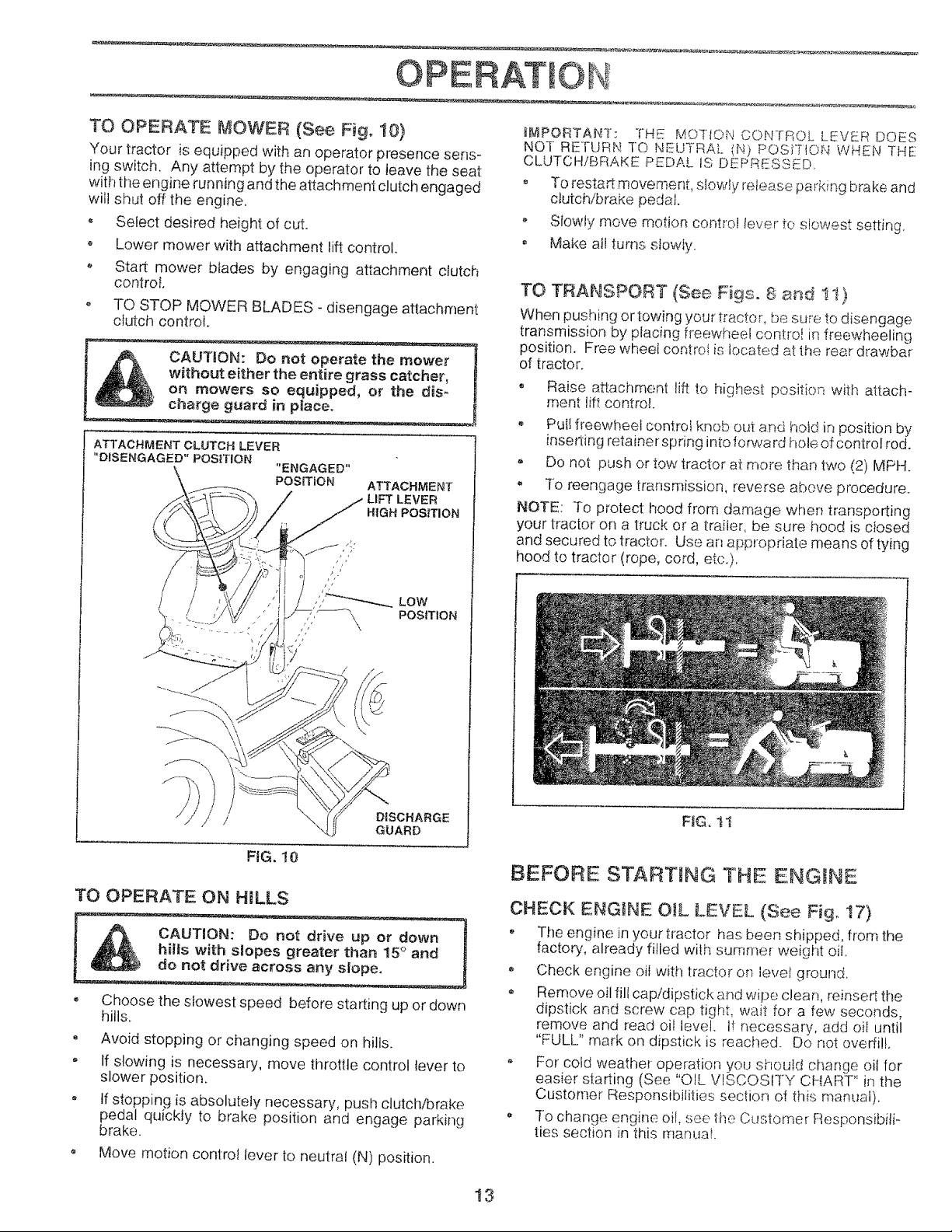

OPERATION

TO OPERATE MOWER (See Fig° 10)

Your tractor is equipped with an operator presence sens-

ing switch. Any attempt by the operator to leave the seat

with the engine running and the attachment clutch engaged

will shut off the engine.

• Select desired height of cut.

• Lower mower with attachment lift control,

• Start mower blades by engaging attachment clutch

controt.

o TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis_

charge guard in place,

ATTACHMENT CLUTCH LEVER

"D_SENGAGED" POSITION

"ENGAGED"

POSiTiON

ATTACHMENT

LIFT LEVER

HiGH POSITION

.",'_ LOW

POSITION

DISCHARGE

GUARD

I_PORTAN'_': THE MOTION COHTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCHIBRAKE PEDAL I,.:<_DEPRESSED,

o To resta,_ movement, slowly release parking brake and

clutch/brake pedal.

- Slowly move motion control lever to slowest setting,

• Make all turns slowty.

TO TRANSPORT (See Figs. 8 _nd 11)

When pushingortowingyour_ractor,be sur'etodisengage

transmissionby placingfreewheelcontro!infreewheeling

position. Free wheel contro! is located at the rear drawbar

of tractor.

o Raise attachment lift to highest positk)n with attach-

ment lift control

Puit freewheel contro_ knob out and hold in position by

inse_ting retainer spring into forward hole of control rod.

= Do not push or tow tractor a_ more than two (2) MPH.

o To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is ciosed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

F_G. t t

FiG. ! 0

TO OPERATE ON HILLS

Choose the slowest speed before starting up or down

hills.

= Avoid stopping or changing speed on hills.

If slowing is necessary, move throttle control lever to

slower position.

- tf stopping is absolutely necessary, push clutchlbrake

pedal quickly to brake position and engage parking

brake.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig,, 17)

, The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

Check engine oil with tractor on level ground.

o Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level, it necessary, add oil until

"FULL" mark on dipstick is reached. Do not overfill.

o For cold weather operation you should change oil for

easier starting (See "O!L V!SCOSITY CHART" in the

Customer Responsibilities section of this manual),

To change engine oil, see 1heCustomer Responsibili _

ties section in this manuat.

o Move motion control lever to neutral (N) position.

OPERATIO

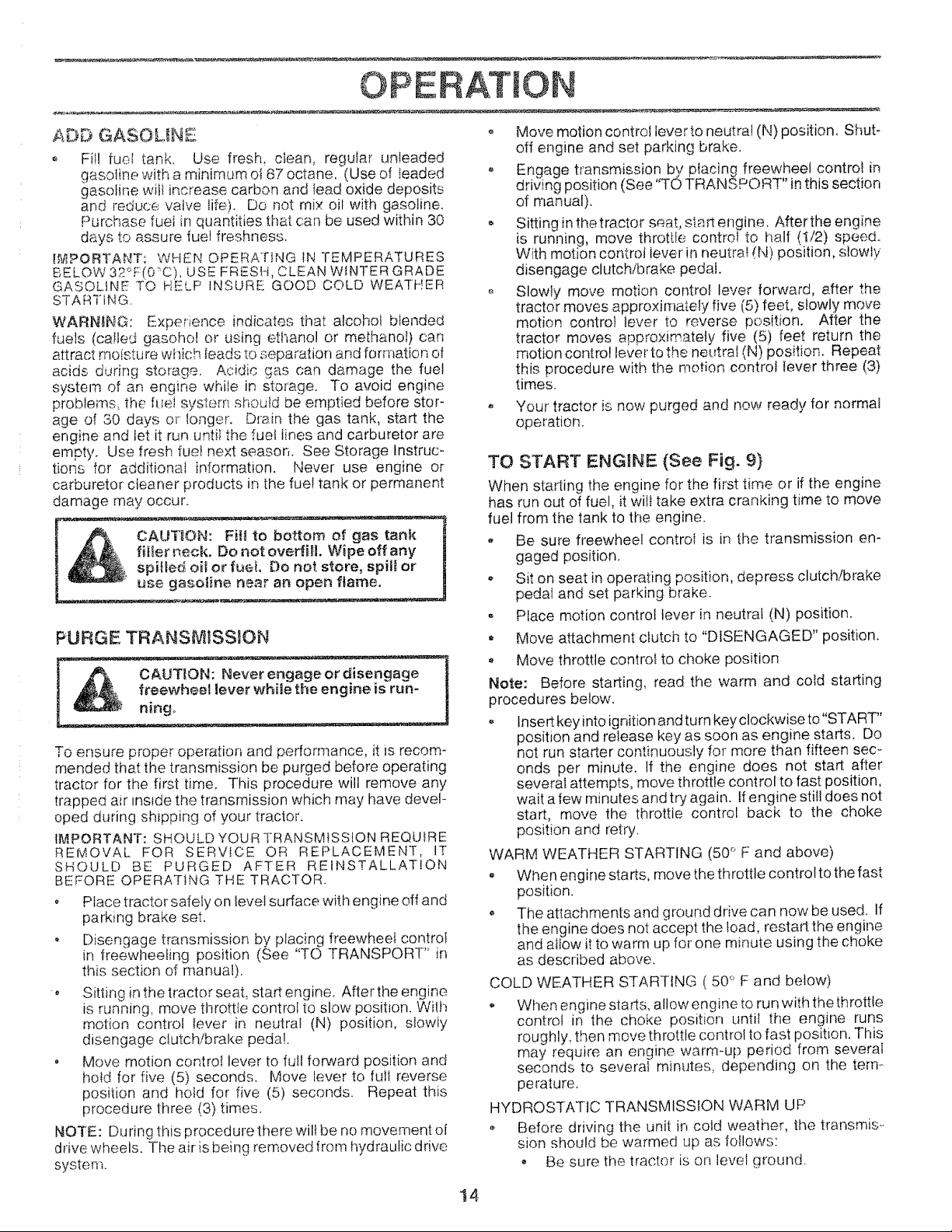

ADD GASOMN£

o Fill fuel tank. Use fresh, clean, regular unleaded

gasotine with a minimum oi 87 octane. (Use of ieaded

gasoline wii_increase carbon and tead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

_.aPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0_C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING; Experience indicates that alcohol blended

fuels (ca!led gasohol or using ethanol or methanol) can

attract rnoisture wifich leads to separation and formation of

acids during storage° Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fl!el system shoutd be emptied before stor-

age of S0 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fue! next season. See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in the fuet tank or permanent

damage may occur.

CAUTION: FiJ_to bottom of gas tank

fillet Reck. Do not overfill. Wipe off any

spilled oi_ or fuel, Do not store, spill or

' use gasoline near an open flame.

PURGE TRANS_'_SSJON

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air reside the transmission which may have devel-

oped during shipping of your tractor.

IB,IPORTANT: SHOULD YOURTRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLATION

BEFORE OPERATING THE TRACTOR.

• Place tractor safely on level surface with engine off and

parking brake set.

• Disengage transmission by placing freewheel controt

in freewheeling position (See "TO TRANSPORT" in

this section of manual).

o Sitting in the tractor seat, start engine. After the engine

is running, move throttte control to slow position. With

motion control lever in neutral (N) position, sIowty

disengage clutch/brake pedal.

, Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to futl reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: During this procedure there wilt be no movement of

drive wheels. The air is being removed from hydraulic drive

system.

Move motion control lever to neutral (N) position. Shut-

off engine and set parking brake,

Engage transmission bv placing freewheel control in

driving position (See "TO TRANSPORT" in this section

of manual).

Sitting in the tractor seat, start engine. After the engine

is running move throtde control to half (t/2) speed.

With motion control lever i_lneutraf £q) position, slow y

disengage clutch/brake pedal.

Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the

tractor moves approximately five (5) feet return the

motion control lever to the neutral (N) position. Repeat

this procedure with the motion control lever three (3)

times.

• You; tractor is now purged and now ready for normal

operation.

TO START ENGINE (See Fig. 9)

When starting the engine for the first time or if the engine

has run out of fuel, it wili take extra cranking time to move

fuel from the tank to the engine.

* Be sure freewheel control is in the transmission en-

gaged position.

Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

, Place motion control lever in neutral (N) position.

* Move attachment clutch to "DISENGAGED" position.

Move throttle controI to choke position

Note: Before starting, read the warm and cold starting

procedures below.

* Insert key into ignition and turn key clockwise to"START"

position and release key as soon as engine starts. Do

not run starter continuously for more than fifteen sec-

onds per minute. If the engine does not start after

several attempts, move throttle control to fast position,

wait afew minutes and try again. If engine still does not

start, move the throttle control back to the choke

position and retry.

WARM WEATHER STARTING (50'_F and above)

, When engine starts, move the throttle control to the fast

position.

° The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING ( 50° F and below)

When engine starts, allow engine to run with the throttle

control in the choke position until the engine runs

roughly, then move throttle control to fast position. This

may require an engine warm-up period from severai

seconds to severai minutes, depending on the tern _

perature.

HYDROSTATIC TRANSMISSION WARM UP

o Before driving the unit in cold weather, the transmis -.

sign should be warmed up as follows:

® Be sure the tractor is on level ground

OPERATION

Be sure the tractor is on level ground.

Place the motion control lever in neutral.

Release the parking brake and let the clutch/brake

slowly return to operating position.

Allow one minute for transmission to warm up.

This can be done during the engine warm up

period.

The attachments can also be used during the engine

wa rm-up period after the transmission has been warmed

up.

NOTE: tf at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

MOWR G TraPS

Tire chains cannot be used when the mower housing

is attached to tractor.

, Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

The teft hand side of mower should be used for trim-

ming.

Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

tractor. This will result in a more even distribution of

clippings and more uniform cutting.

When mowing large areas, start by turning to the right

so that clippings wiiI discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 12 ).

= If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass wili plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis_

charge of material. Regulate ground speed by select_

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

- When operating attachments, select a ground speed

that wilI suit the terrain and give best performance of

the attachment being used.

MULCHBNG MOWtNG TiPS

iMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT--UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

The special mulching blade will recur the grass clip_

pings many times and reduce them in size so that as

they fall onto the lawn they wilt disperse into the grass

and not be noticed. Also, the mulched grass wilt

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this wilt provide the best recutting action of the

blades.

Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon_

At this time the grass has dried and the newly cut area

wi!! not be exposed to the direct sun.

® For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. !3). For extremely heavy mulching,

reduce your width of cut and mow slowly.

Certain types of grass and grass conditions may re_

quire that an area be mulched a second time to

completely hide the clippings. When doing a second

cut, mow across or perpendicular to the first cut path.

Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

F_G. ! 3

FiG. 12

CUSTO ESPONSl mLITIES

MAINTENANCE SCHEDULE

FiLL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

SERVICE DATES

Check Brake Operation

Check Tire Pressure

Check for Loose Fasteners

sharpeniRepiace Mower Blades _'4

Check Bat!erY Lev!!iRecharge ...... ] ........ t_1 ....... 1.......... l._._

Check Transaxle Cooling t_

Adjust Blade Belt(s) Tension _5

Adiust Motion Drive Belt(s) Tension _##_,

Check Engine Oil Level ....._#' if I

Change Engine Oil ............... _it, z,s .... _'

Ciean Air Filter ................_i/_ ................................

Ctean Air Screen _#'_

inspect MuffiedSpark Arrester ....

1 - Change more often whe_ operating under a heavy load or in high ambient temperatures,

2 - Service more often when operating in dirty or dust,/conditions.

3 - t{ equipped witi_ oil filler, ct_ange oit every 50 hours.

4 _ Reptace blades more o,'ten when mowing in sandy soil.

Reptace Oil Filter (if equipped)

Ciean Engine Cooling Fins

Replace Spark Pfug

Replace Air Filter Paper Cartridge _

, Repla Fuel Filter

5 - tt equipped with adjustable system,

6 - Not required it equipped with maintenance-free battery'.

7 oTighten front axie pivot bolt to 35 ft,-ibs, maximum,

Do not overtighte_,

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

Check tire pressure.

° Check for loose fasteners.

LUBRICATION CHART

(_ SPINDLE ZERK _ =INDLE ZERK(_)

@ ®

BEARING ZERK BEARING ZERK

ENGINE (_)

CLUTCH

PIVOT(S)

(_ SAE 30 OR 10W30 MOTOR OiL

(_) GENERAL PURPOSE GREASE

(_) REFER TO _:;USTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS, VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LiFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL "]'HEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY,

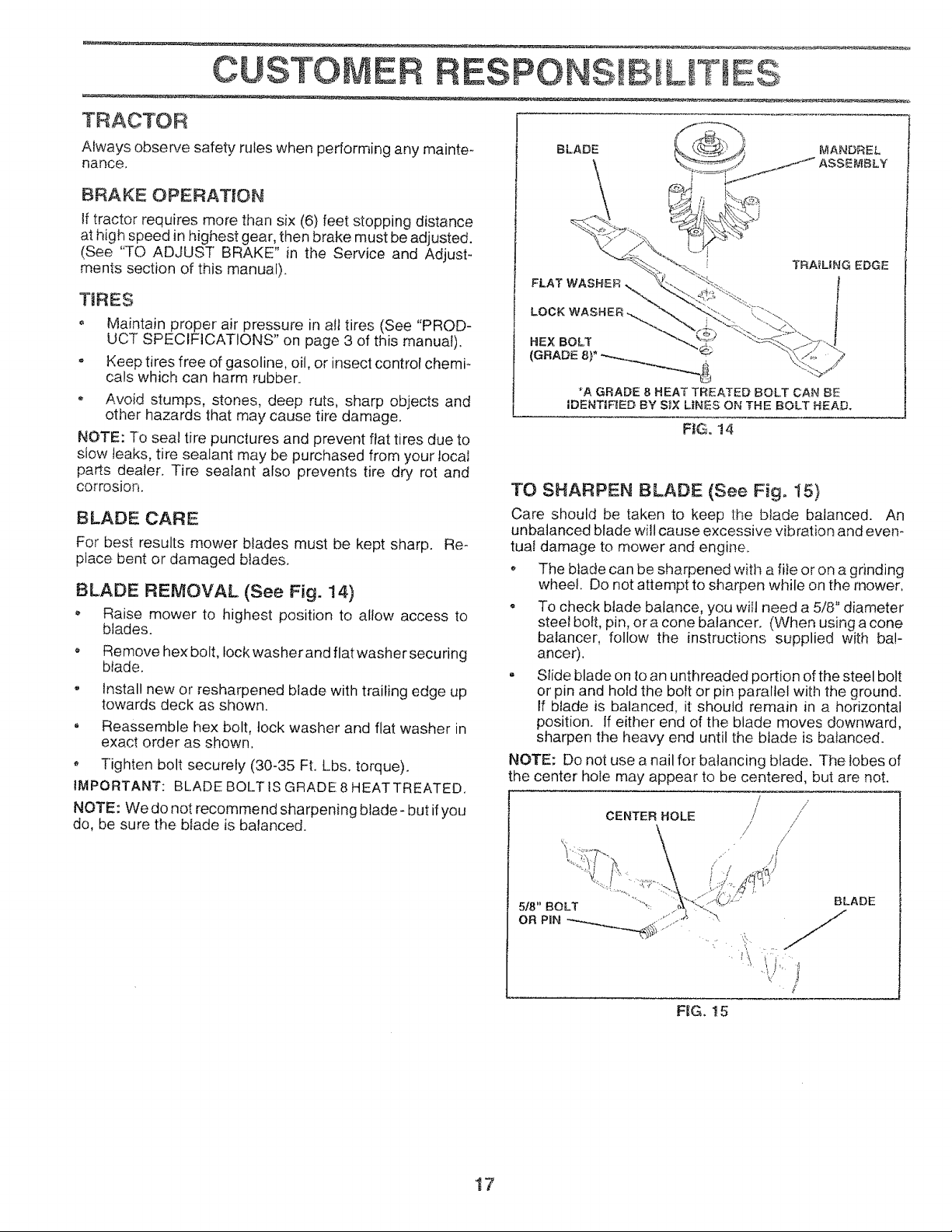

CUSTO ER ESPONS B ! ES

TRACTOR

Always observe safety rules when performing any mainte_

nance,

BRAKE OPERATION

tf tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this manual).

TIRES

o Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual).

o Keep tires free of gasoline, oil, or insect control chemi _

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your locaI

parts dealer. Tire sealant also prevents tire dry rot and

corrosior_.

BLADE CARE

For best results mower blades must be kept sharp. Re_

place bent or damaged blades.

BLADE REMOVAL (See Fig. !4)

Raise mower to highest position to allow access to

blades.

• Remove hex bolt, lockwasher and flat washer securing

blade.

Install new or"resharpened blade with trailing edge up

towards deck as shown.

Reassemble hex bolt, lock washer and flat washer in

exact order as shown,

BLADE MANDREL

ASSEMBLY

TRA_LING EDGE

FLAT WASHER

LOCK WASHER

HEX BOLT

(GRADE 8}* "_,,---..,_..,_,...___...__._

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTiFiED BY SIX LINES ON THE BOLT HEAD.

FIG, 14

TO SHARPEN BLADE (See Fig, 15)

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower,

To check blade balance, you win need a 5/8" diameter

steel bolt, pin, ora cone batancer. (When using a cone

balancer, follow the instructions supplied with ba!-

ancer).

= Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

CENTER HOLE /

/" /

//:

f , ,/

BLADE

o Tighten bolt securely (30-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT lS GRADE 8 HEATTREATED,

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced.

F_Go 15

CUSTO ER ESPONSJ JLWT ES

BATTERY

Your tractor has a battery charging system which is suffF

cient for normal use. However, periodic charging of the

battery with an automotive charger wilt extend its tifeo

o Keep battery and terminals clean.

,, Keep battery bolts tight.

o Keep small vent holes open°

o Recharge at 8-10 amperes for 1 hour.

TO CLEAN BAT'fERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

,, Open battery box door.

Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

Rinse the battery with piahqwater and dry.

, Ctean ter.minaIs and battery cable ends with wire brush

until bright.

o Coat terminals with grease or petroleum jelly.

Reinstall bat!.ery (See "CONNECT BATTERY" in the

Assembly section of this manual).

V-BIELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOUNG

The fan and cooting fins of transmission should be kept

clean to assure proper cooling.

Do net attempt to clean fan or transmission while engine is

running or while the transmission is hot.

o Inspect cooling fan to be sure fan blades are intact and

clean.

Inspect cooling fins for did, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte _

nance is not required for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact your near _

est authorized service center/department.

ENGINE

LUBR_CATmON

Only use high quality detergent oi! rated with API service

classification SF, SG or SH, Seiect the oil's SAE viscosity

grade according to your expected operating temperature.

SAE VISCOSITY G[_,ADES

°F _20 _' 0_ 30" 32 40': 6C" 80 _ 100 _

°c .30" -2'0" 4O" U" _0" 2O_ 30" 40°

TEMPERATURE RANGE ANTICtPA3ED BEFORE ,NEXT OIL CHANGE_

F_G. 16

NOTE: Although multi-viscosity oils (5W30, IOW30 etc.)

improve starting in cold weather, ttlese mukl-viscosity oils

wilt result in increased oi! consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oi!.

Change the oil after every 25 hours of operation or at least

once a year if the tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

capldipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 16 and t7)

Determine temperature range expected before oil change.

All oil must meet API service classification SG, SG or SH.

Be sure tractor is on level surface.

• Oil will drain more freely when warm.

o Catch ell in a suitable container.

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

Remove drain plug.

• After oit has drained completely, replace oil drain plug

and tighten securely.

Refill engine with oil through oii fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual.

• Use gauge on oil filI cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

OIL F_LL

CAPIDIPSTICK

FiG, t7

CUSTOME ESPONSIBt

AIR FILTER (See Fig. 18)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

o Slide foam pre-cteaner off cartridge.

o Wash it in liquid detergent and water.

o Squeeze it dry in a clean cloth.

o Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

, tf very dirty or damaged, replace pre-cteaner.

Reinstall pre-cleaner over cartridge.

, Reinstall cover and Secure with knob(s).

TO SERVICE CARTRIDGE

, Remove cartridge nut.

= Carefully remove cartridge to prevent debris from

entering carburetor'. Clean base carefully to prevent

debris from entering carburetor.

• Clean cartridge by tapping gently on flat su flace, Ifvery

dirty or damaged, replace cartridge,

• Reinstall cartridge, nut, precleaner, cover and secure

with knob(s).

iMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE, DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE.

COVER KNOB--"--

COVER CARTRIDGE NUT

FOAM

PRE-CLEANERdz

PAPER

CARTRIDGE

CLEAN AIR SCREEN (See_ Fig° 19)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overtteating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

ENGINE COOLING FINS (See Fig. lg)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating.

,, Remove screws from blower' housing and iift housing

and dipstick tube assembly off engine.

,, Cover oil fill opening to prevent entry of dirt.

Use compressed air or stiff bristle brush to thoroughly

clean engine cooling fins.

, To reassemble, reverse above procedure.

SCREWS

BLOWER

HOUSING

DIPSTICK

TUBE

ASSEMBLY

AIR SCREEN

ENGINE COOLING FINS

FIG. 1£

FIG. t 8

!£

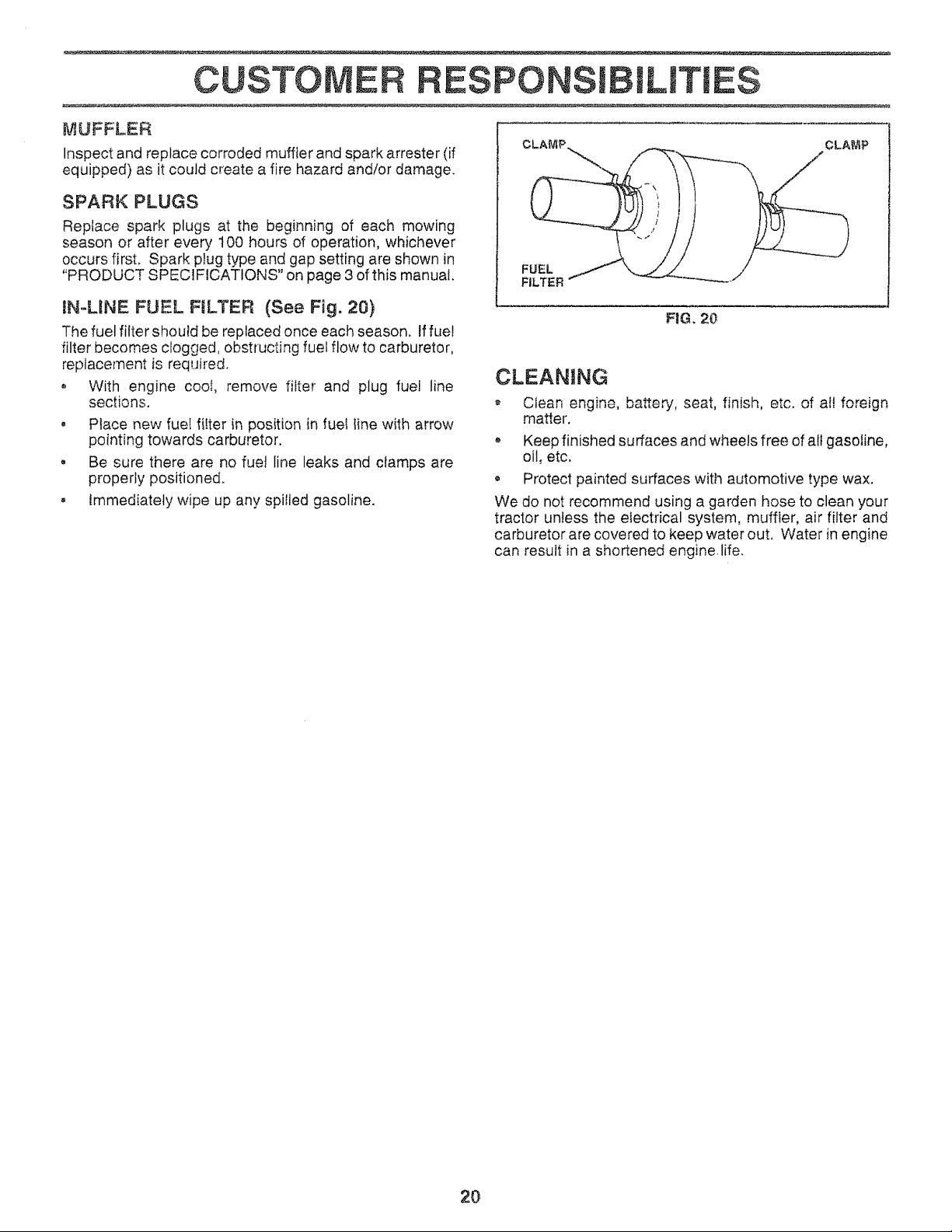

CUSTOMER ESPONSm ILITIES

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every t00 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual.

tN_LINE FUEL FILTER (See Fig, 20)

The fuel filter should be replaced once each season. If fuet

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

o With engine cool, remove filter and plug fuel line

sections,

, Place new fuel fifter in position in fuei line with arrow

pointing towards carburetor.

, Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP CLAMP

FUEL

FILTER

FIG, 20

CLEANING

-" Clean engine, "'_*+.......... y, seat, finish, ÷,- ,-,fe..... all foreign

matter.

* Keep finished surfaces and wheels free of all gasoline,

oil, etc.

, Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened enginelife.

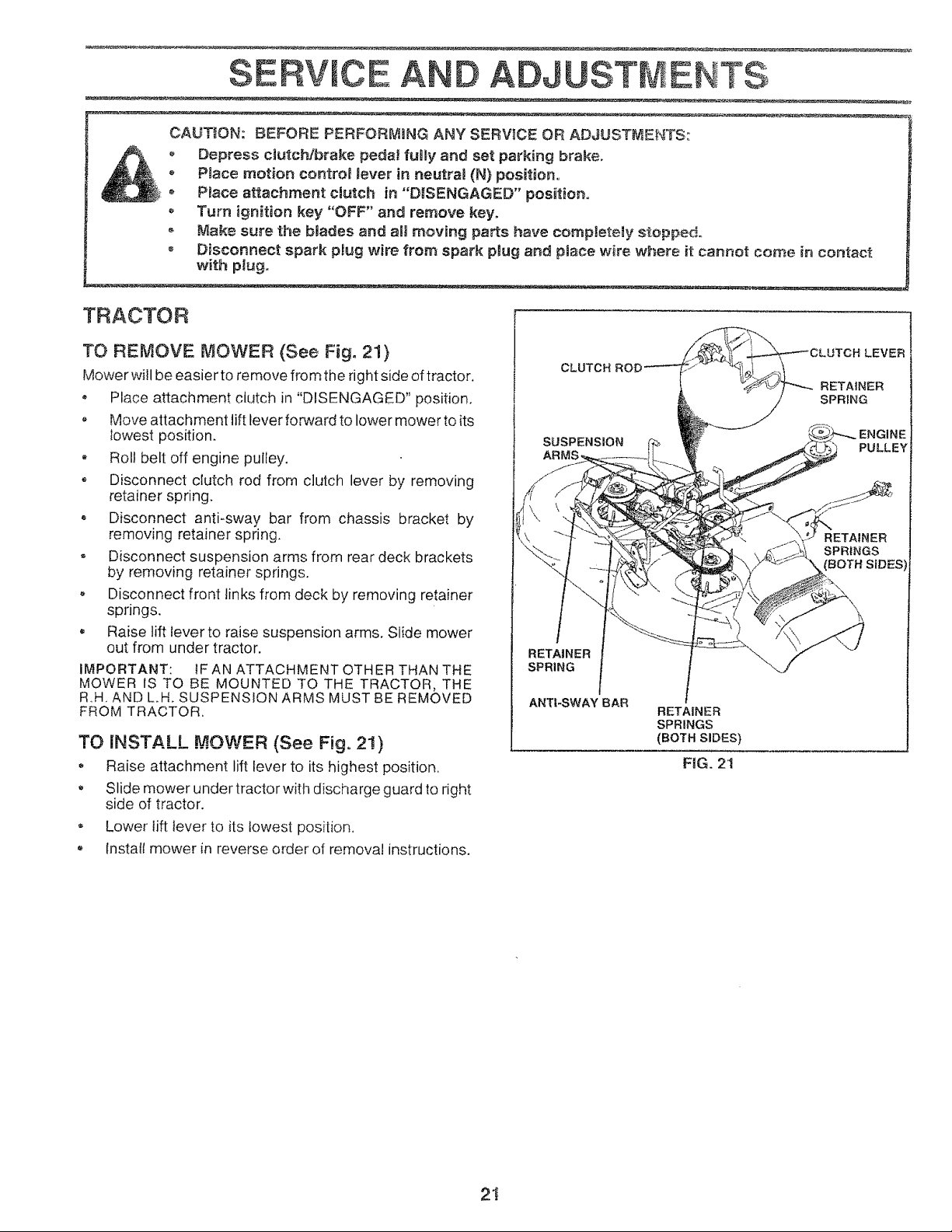

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMmNG ANY SERVICE OR ADJUSTMENTS:

A o Depress clutch/brake pedal fuJ_y and set parking brake,

o Ptace motion contro_ _ever in neutral (N) position,

PJace attachment clutch in "DISENGAGED" position.

o Turn i£_nition key "OFF" and remove key.

, Make sure the blades and all moving parts have compJete_y stopped.

, Disconnect spark pBug wire from spark plug and ptace wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig, 21)

Mower will be easier to remove from the right side of tractor,

® Place attachment clutch in "DISENGAGED" position.

Move attachment lift lever forward to lower mower to its

lowest position.

* Roll belt off engine pulley.

o Disconnect clutch rod from clutch lever by removing

retainer spring.

o Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

° Disconnect suspension arms from rear deck brackets

by removing retainer springs.

o Disconnect front links from deck by removing retainer

springs.

, Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: 1FAN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR, THE

R.H. AND L.H. SUSPENSION ARMS MUST BE REMOVED

FROM TRACTOR.

TO iNSTALL MOWER (See Fig. 2!)

* Raise attachment lift Feverto its highest position.

, Slide mower under tractor with discharge guard to right

side of tractor.

, Lower tift tever to its towest position.

- fnstatt mower in reverse order of removal instructions.

SUSPENSION

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FiG. 21

SERVmCE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPECtFtCAT!ONS" on page 3 of this manual).

if tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SiDE ADJUSTMENT (See Figs. 22 and 23)

o Raise mower to its highest position.

* At the midpoint of both sides of mower, measure height

from bottom edge of mowerto ground, Distance "A" on

both sides of mower should be the same or within 1/4"

of each other.

o tf adjustment is necessary, make adjustment on one

side of mower only.

To raise one side of mower, tighten !ift !ink adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each fultturn of adjustment nut wilt change mower

height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

GROUND LINE

FIG. 22

LIFT LINK

ADJUSTMENT NUT

SUSPENSION

ARM

FIG. 23

FRONT-TO-BACK ADJUSTMENT (See Figs. 24 and 25)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT UNKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/8"

to 1/2" lower than the rear when the mower is in its highest

position,

Check adjustment on rigtX side of tractor. Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

• Before making any necessary adjustments, cl_eck that

both front !inks are equal in length. Both links should

be approximately I0-318".

• If links are not equa! in length, adjust one !ink to same

tength as other link.

• To lower front of mower loosen nut "E" on both front

links an equal number of turns.

o When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nuts "F" against trunnion on both front

links.

To raise front of mower, loosen n ut"F" from trunnion on

both front links. Tighten nut "E" on both front links an

equal number of turns.

When distance "D" is !/8" to t/2" lower at front than

rear, tighten nut"F"against trunnion on both front links.

Recheck side-to-side adjustment.

MANDREL

FIG, 24

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

"F"_'- NUT "E"

NUT

FRONT LINKS TRUNNION

22 F1G. 25

SERVmCE AND ADJUSTMENT

TO REPLACE MOWER BLADE DR_VE BELT

(See Fig. 26)

The mower blade drive beit may be replaced without tools.

Park the tractor on levei surface. Engage parking brake.

BELT REMOVAL -

, Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual).

o Work belt off both mandrel pulleys and idler putleys.

o Pull belt away from mower.

BELT INSTALLATION -

o Install new belt in reverse order of removal.

- Make sure belt is in a!t pulley grooves and inside al! belt

guides.

* install mower in reverse order of removal instructions.

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FiG. 26

TO ADJUST BRAKE (See Fig, 27)

Your tractor is equipped with an adjustable brake system

which is mounted on the side of the transaxte.

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and

nut "A" on brake rod.

If distance is other than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1_3/4". Retighten jam

nut against nut "A'.

Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

stil! greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department.

j ....: ARM

DO NOT TOUCH THIS NUT. IF FURTHER

BRAKE ADJUSTMENT !S NECESSARY

CONTACT YOUR NEAREST AUTHORIZED

SERVICE CENTERfDEPARTMENT

FIG. 27

TO REPLACE MOTION DRIVE BELT

(See Fig, 28)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

o Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

Remove upper belt keeper.

Remove belt from stationary idler and clutching idler°

- Pu!l belt slack toward rear of tractor, Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades.

o Pull belt toward front of tractor and remove downward

from around engine pulley.

o install new belt by reversing above procedure.

IMPORTANT: MAKE SURE UPPER BELT KEEPER tS

POSITIONED PROPERLY BETWEEN LOCATOR TABS.

ENGINE "-.---___.._II

PULL E Y__"_'_--_<:_ ,, _._ LOCATOR

TRANSM_ "_.......

• " )

F_G. 28

SERVICE AND ADJUSTMENTS

TO ADJUST MOT1ON CONTROL LEVER (See

Fig.291

The motion control lever has been preset at the factory and

adjustment should not be necessary.

{f for any reason the motion control lever witl not hold its

position while at a setected speed, it may be adjusted at the

friction pack located on the right side of transmission.

o Park tractor on level surface. Stop tractor by turning

ignition key to "OFF" position, and engage parking

brake.

• Adjust motion control lever by tightening adjustment

Iocknut one half (!/2) turn.

NOTE: If for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening iocknut 1/4 to t/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary.

TO REMOVE WHEEL FOR REPAIRS

(See Fig, 30)

o Block up axle securely.

, Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

Repair tire and reassembk,,

o On rear wheets only: atign grooves in rear whee! hub

and axle. insert square key.

Reptace washers and snap retaining ring securely in

axle groove.

o Replace axle cover.

NOTE: To seat tire punctures and prevent flat tires due to

stow leaks, tire sealant may be purchased from your local

parts deaier. Tire sealant also prevents tire dry rot and

corrosion.

TRANSMISSION REMOVAL!REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See "PURGE TRANSMIS-

SION" in the Operation section of this manual.

ADJUSTMENT

LOCKNUT

FIG. 29

TO ADJUST STEERING WHEEL AUGNMENT

if steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheei and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

WASHERS

RETAINING

R_NG

AXLE COVER

_"" SQUARE KEY

(REAR WHEEL ONLY)

FIG. 30

TO START ENGINE W_TN A WEAK BATTERY

See Fig. 31)

If your battery is too weak to start the engine, it should be

recharged, tf "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRAOTOR 1SEQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO STAR'r OTHER VEHICLES.

TO ATTACH JUMPER CABLES

, Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

o Connect one end of the BLACK cable to the NEGA_

T!VE (-) terminal of fully charged battery.

o Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

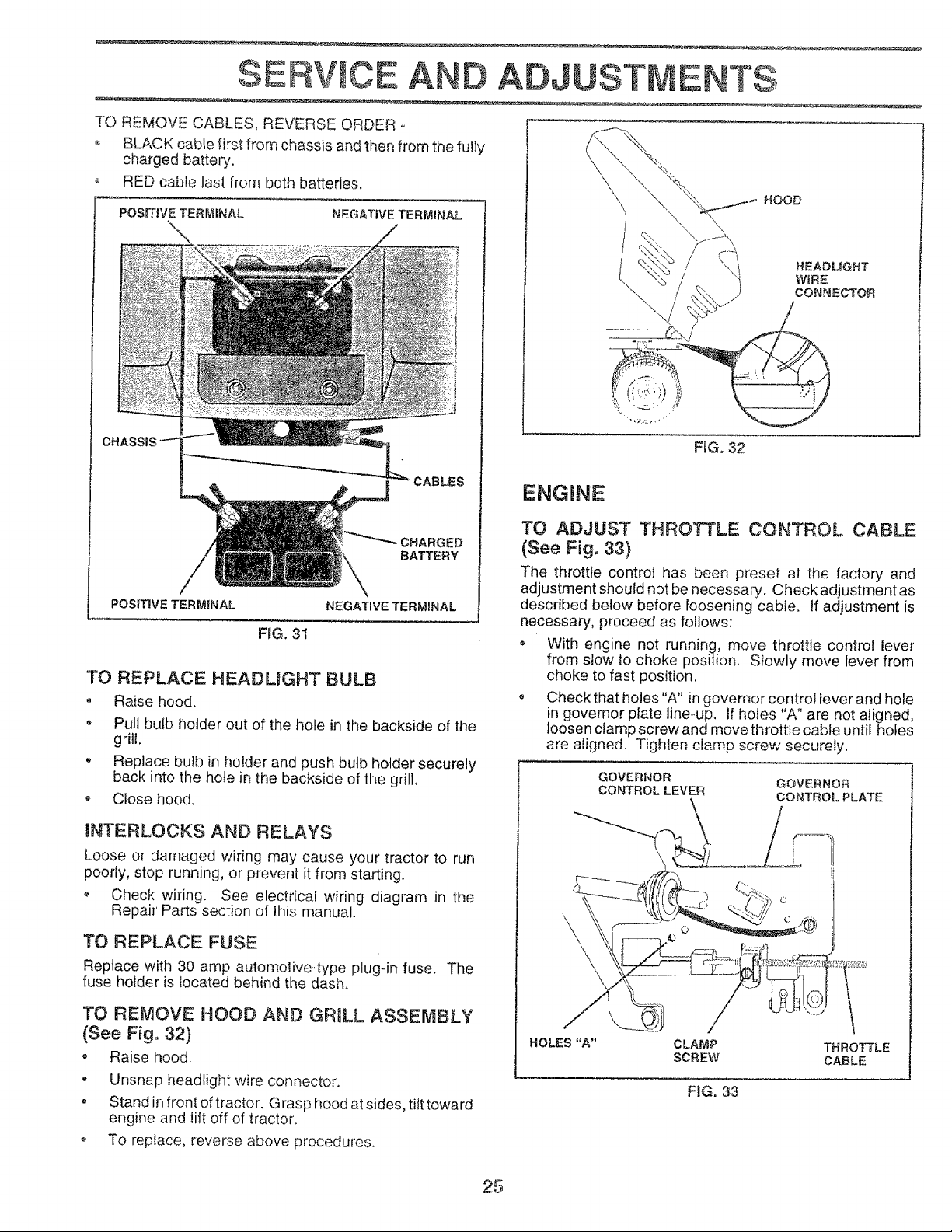

SERVICE AND ADJUSTMENTS

TO REMOVE CABLES, REVERSE ORDER o

• BLACK cable first from chassis and then from the futiy

charged battery.

RED cable last from both batteries.

POS_TIVE TERMINAL NEGATIVE TERMINAL

RGED

BATTERY

POSITIVE TERMINAL NEGATIVE TERMINAL

F_G.31

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Puit bulb holder out of the hole in the backside of the

grill,

. Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill,

, Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

Check wiring. See electrical wiring diagram in the

Repair' Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive4ype plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

- Raise hood.

, Unsnap headlight wire connector.

o Stand in lront of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor_

o To replace, reverse above procedures.

HOOD

HEADLIGHT

WiRE

CONNECTOR

FiG° 32

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig, 33)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

,, With engine not running, move throttle control lever

from stow to choke position, Slowly move lever from

choke to fast position.

- Check that holes "A" in governor control lever and hole

in governor plate line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle cable until holes

are aligned. Tighten clamp screw securely.

GOVERNOR

CONTROL LEVER

GOVERNOR

CONTROLPLATE

HOLES "A"

CLAMP THROTTLE

SCREW CABLE

FIG. 33

SERVmCE AND ADJUSTMENTS

TO ADJUST CARBURETOR (See Fig. 34)

The carburetor has been preset at the factory and adjust-

ment should not be necessary, However, minor adjust.-

ment may be required to compensate for differences in fuel,

temperature, altitude or loa',! tf the carburetor does need

adjustment, proceed as follows:

tn general, turning idle mixture valve in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the idte mixture valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel/air mixture.

iMPORTANT: DAMAGE TO THE NEEDLE VALVE AND

THE SEATIN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

Air c}eaner assembiy must be assembied to the carbu-

retor when making carburetor adjustments.

• Be sure the throttle control cable is adjusted properly

(see above).

o With engine off turn idte mixture valve in (clockwise)

closing it finger tight and then turn out (counterctock-

wise_ 1 full turn.

FINAL SETTING -

- Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutrat (N) position.

• Move throttle control tever to slow position. With finger,

rotate and hold throttle tever against idle speed screw.

Turn idle speed screw to attain 1750 RPM.

While still holding throttle lever against idle speed

screw, turn idle mixture valve in (clockwise) until en-

gine begins to die and then turn out (counterclockwise)

until engine runs rough. Turn valve to a point midway

between those two positions. Release throttle lever.

ACCELERATION TEST -

, Move throttle control lever from stow to fast position. If

engine hesitates or dies, turn idle mixture valve out

(counterclockwise) 118 turn. Repeat test and continue

to adjust, if necessary, untii engine accelerates

smoothly.

High speed stop is factory adjusted. Do not adjust

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH iS FACTORY SET FOR PROPER

ENGtNE SPEED, OVERSPEEDfNG THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS, tF YOU THINKTHE ENGINE-GOVERNED

HiGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

THROTTLE IDLE SPEED

LEVER SCREW

IDLE MIXTURE

VALVE

FIG. 34

STORAGE

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cooB

before storing in any enclosure°

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry. area.

• Clean entire tractor (See "CLEANING" inthe Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions inthe Service and Adjustments

section of this manual).

Lubricate as shown in the Customer Responsibilities

section of this manual.

o Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

= Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

After a period of time in storage, battery may require

recharging.

- To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

Be sure battery drain tube is securely attached.

, tf battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: I1" IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

Drain the fuel tank.

Start the engine and let it run until the fuel lines and

carburetor are empty°

Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least t0 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OiL

Drain oil (with engine warm) and replace with clean engine

oit. (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to "START" position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

- Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline wilt cause problems.

tf possible, store your tractor indoors and cover it to

give protection from dust and dirt.

Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROU LESHOO NG POINTS

PROBLE_ CAUSE CORRECTION

Wiif not start

1. Out of fuel.

2. Engine not "CHOKED" properly,

3, Engine flooded.

4. Bed spark piug.

5. Dirty air filter,

6, Dirty fue! filter,

7, Water in fuel,

8, Loose or damaged wiring.

9. Carburetor out of adjustment,

Hard to start

Engine will not turn over

I0. Engine valves out of adjustment.

1. Dirty air filter,

2, Bad spark p!ug.

3, Weak or dead battery.

4, Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7, Carburetor out of adjustment.

1. FilI fuel tank.

2, See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5, Clean/replace air filter.

6, Repface rue! filter.

7, Drain fue! tank and carburetor, refil_ tank with fresh

gasoline and repiace fuel fiffe_.

8. Checkal! wiring,

9. See "To Adjust Carburetor" in Service Adjustments

section.

10, Contact an authorized service center/department.

Engine clicks but will not

start

Loss of power

8, Engine valves out of adjustment.

t, Clutch/brake pedal not depressed.

2. Attachment clutchis engaged,

3, Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6, Loose or damaged wiring.

7. FauRy ignition switch,

8. Fautty sofenoid or starter.

9, Faulty operator presence switch(es).

1, ,Weak or dead battery.

2. Corroded batteryterminais,

3, Loose or damaged wiring,

4, Faulty so{enoid or starter.

1, Clean/replace air filter,

2. Replace spa_kplug,

3. Recharge or replace battery.

4, Replace fuel filter,

5, Drain fuel tank and refil} with fresh gasoline,

6, Checkali wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section,

8, Contact an authorized service center/department.

!. Cutting too much grass/too fast,

2. Throttle in"CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4, Dirty air filter.

1, Depress clutch/brake pedal,

2. Disengage attachment clutch,

3, Recharge or replace battery,

4. Replace fuse.

5, Clean battery terminals.

6. Check ail wiring,

7. Check/replace ignition switch,

8, ChecWreplace solenoid or starter.

9. Contact an authorized service center/department,

Excessive vibration

5. Low oil ievelldirty oil.

6. Faulty spark plug.

7, Dirty fuel filter.

8. State or dirty fuel.

9. Water in fuel.

10, Spark plug wire loose.

11, Dirty engine air screen/fins,

12, Dirty/clogged muffler.

13. Loose or damaged wiring,

t4. Carburetor out of adjustment,

1, Recharge or replace battery,

2, Clean battery terminals.

3, Check alt wiring.

4. Checldreplace solenoid or starter.

1. Set in "Higher Cut" posRionireduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4, Clean/replace air filter.

15. Engine valves out of adjustment.

1, Worn, bent or loose blade,

2. Bent blade mandrel,

3. Loose/damaged part(s).

5. Check oil level/change oii.

6, Clean and regap or change spark ptug.

7. Replace fuel filter,

8. Drain fuei tank and refill with fresh gasoline,

9, Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark pfug wire.

11. Clean engine air screen/fins.

12, Clean/replace muffler.

13. Check all wiring.

14, See "3"o Adjust Carburetor'' in Service Adjustments

section.

t5. Contact an authorized service center/department,

1. Replace blade. Tighten blade bolt.

2. Replace blada mandrel,

3. Tighten loose part(s}. Replace damaged parts,

TROUBLESHOOTING

•

PROBLEM

__ =

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor CUt - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires"

when turning engine

"OFF"

CAUSE

I. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2, Mowerdeck notlevel,

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandre!.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive be_t.

3. Frozen idier pulley,

4. Frozen blade mandrel.

1. Engine speedtoo slow.

2. Travet speed too fast.

3, Wet grass.

4. Mower deck not level,

5, Low/uneven tire air pressure,

6, Worn. bent or loose blade,

7, Buildup of grass, leaves and trash under mower.

8. Mowerdrive bettworn,

9, Blades improperty instaI_ed.

10, Improper blades used.

11. Clogged mower deck vent holes from buildup of

.... grass, leaves, and trash around mandrels,

1, Switch is "OFF",

2. Bulb(s) burned out.

3. Faulty light switch,

4. Loose or damaged widng.

5. Blown fuse,

1, Bad battery cell(s),

2. Poor came connections.

3. Faulty regulator (if so equipped).

4. FauI_ alternator.

1. Freewheel control in "disengaged" position.

2. Motion drive belt worn. damaged, or broken.

3, Air trapped in transmission dudng shipment

or servicing,

1. Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine.

CORRECTION

1, Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1, Reptace b_ade, Tighten blade boil.

2. Level mower deck,

3. Ciean underside of mower housing,

4, Reptace blade mandrel.

5. Clean around mandrels to open vent holes,

1. Remove obstruction.

2, Replace mower drive be_t,

3, Replace idler pulley.

4. Replace blade ma_drel.

!. Place throttle control in "FAST" position,

2. Shift to slower speed,

3. Allow grass to dry before mowing.

4, Level mower deck.

5. Check tires for proper air pressure,

6, Replace/sharpen blade. Tighten blade bolt,

7. Clean underside of mower housing.

8. Reptace mower drive belt.

9. Reinsta_! blades sharp edge down.

10. Replace with blades listed in this manual

tl. Clean around mandrels to open vent botes.

t, Turn switch =ON",

2. Replace bulb(s),

3. Check/replace light switch,

4. Check wiring and connections.

5, Replace fuse,

1. Replace battery.

2. Ct_eckiclean all connection, s.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in "engaged" position.

2. RepIace motion drive belt.

3. Purge transmission.

1. Move throtlle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

SERVnCE NOTES

SCHEMATIC

TRACTOR - = NIODEL NUMBER 917.258534

AMMETER

(OPTIONAL)

/77

RED

tGN!TtON

SWITCH

BATTERY

REO

WHITE

iGNITION SWITCH

POSITION CIRCUIT "MAKE"

.......o_.........G,M_:'_..........NONE....

RUN/LIGHT B + L A + Y

RUN B + L NONE

START B + L + S NONE

FUSE 30 AMP,

i f

i0:0:

L A

CLUTCH / BRAKE

(PEDAL UP)

BLACK

HOUR

METER

(OPTIONAL)

BLACK

r ......... [

I _ FUELI

BLUE '-_i_LtNE L

FUEL SHUT-OFF

SOLENOID [

..... ORANGE

..... }

SOLENOID

BLACK

WHITE

RED

STARTER

BLACK

i SEATS,,',,TO.

) (NOT OCCUPIED)

,,,,.,TEl ,I_"

I ,,,I - 1 "] F

O f--_ _ BLACK I I BLACK

_7_ZE_If_LUTCH ._q _ -t

[" (CLUTCH OFF) t GROUNDING

CONNECTOR

NOTE

l _ SPARK I

q IGNITION _ PLUG

GAP

UNIT I (2 PLUGS ON

TWIN CYL ENGINES)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

BLUE

'ql

2B VOLTS AC M_N. @ 3600 RPM

(CHARGING SYSTEM D_SCONNECTED)

LIGHT,_NG SYSTEM OUTPUT DIODE _ALTERNATOR

6 AMP AC @ 3600 RPM _ 4---

..j

"" 14 VOLTS AC MtN. @ 3600 RPM (LIGHTS OFFI

YOUR TRACTOR 1S

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEtF,

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE 1S

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

--O-- /-7

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

REPAIR PARTS

TRACTOR o .- MODEL NUMBER 917.258534

ELECTRICAL

26 40

\ t

\ ;

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917.258534

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 146139 Battery 12 Voit 25 Amp

2 74760412 BoIt, Hex Head t/4-20 uric x 3/4

3 STD55t025 Washer

4 STD551125 Washer

6 STD54t025 Nut

7 109238X Tube, Plastic, t2"

8 156417 Case, Battery Mech Hinge

9 109596X Clamp, Hose

!6 !53664 Switch, interlock Push-In

t9 STD551125 Washer, Lock

20 73350400 Nut, Hex, Jam 1/4-20 UNC

21 147430 Harness, Light Socket

(Includes 4t52J)

22 4152J Bulb, Light

24 4799J Cable, Battery, 6 Gauge, Red, !1"

25 146147 Cable, Battery, 6 Gauge, Red, W/16

Wire

26 108824X Fuse, 30Amp

28 4207J Cable, Ground, 6 Gauge, Black, 12"

29 t21305X Switch, Plunger

30 140301 Switch, Ignition

31 t24211X Nut, Ignition

32 141226 Cover, Key Switch

33 109310X Key, Ignition

40 156442 Harness, Ignition

41 71t10408 Bolt, Hex Head, Fin. 1/4-20 x 1/2

42 131563 Cover, Terminal, Red

43 145673 Solenoid

44 73640400 Nut Keps Blk Hex 1/4-20 UNC

45 t2t433X Ammeter Rectangular 6 Amp

52 14!940 Protection Wire Loop

70 140422 Harness Engine B&S

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR ° _ MODEL NUMBER 917.258534

CNASSlS AND ENCLOSURES

31 53

3 \\ 52

3 /

REPAIR PARTS

TRACTOR oo MODEL NUMBER 9t7o258534

_HAS$1$ AND 5NCLOSURES

KEY PART

NO, NOo DESCR1PT!ON

! 159527

2 140356

3 1749O612

4 19131216

5 155272

9 150!56X011

10 STD533710

!! 155927

12 145660

13 155936

14 17490608

17 144983X558

18 126938X

25 19131312

26 STD541437

28 145!98X558

29 145200

30 !51287X558

31 139976

38 139886

39 139887

51 73800400

52 19091416

53 145201

54 17030814

55 145202

57 STD522507

6O STD533707

64 154798

71 73680400

74 STD54!437

140 150556

142 156095

143 154966

144 1542O7

145 156524

146 154334

t47 74760412

-- 5479J

Chassis Assembly

Drawbar

Screw, Thd. Roll. 3/8-16 x 3/4

Washer 13/32 × 3/4 × 16 Gauge

Bumper Hood/Dash

Dash

Bott, Carriage 3/8-16 x 3/4

Panel, Dash, L.H.

Clip Tinnerman Grille PiL

Panel, Dash, R.H.

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

Bumper Hood

Washer 13/32 x 13/16 x 12 Gauge

Nut

Grille wlOlips MS-558

Lens, Grille

Fend/Ftrest Pnt STLT N HLD 558

Bracket, Fender Support

Pivot Bracket Assembly, L.H.

Pivot Bracket Assembly, R.H.

Nut Lock w/Insert 1/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga,

Bracket Grille Pickoff LH

Screw Spideriock Hex Hd #8-7/8

Bracket Grille Pickoff RH

Bolt, Fin Hex 1/4_20 UNC x .75

Bolt Rdhd Sqnk 3/8_16 UNC x 3/4

Dash Lower STLT

Nut, Crownlock t/4_20 UNC

Nut Crownlock 3/8-16 UNC

Bracket Chassis Front

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Screw Torx Hd Thd 5/16-18 UN-2A

Bolt, Hex Hd 1/4-20 UNC x 3/4

Plug, Button

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR o o MODEL NUMBER £17.258534

DRIVE

84100

100

REPAIR PARTS

TRACTOR o -MODEL NUtvIBER 917.258534

DRIVE

KEY PART KEY PART

NO, NO, DESCRIPTION NO. NO. DESCRIPT{ON

1 150071 Transa×le Assembly 63 140186

2 142431 Spring, Return, Brake 64 71t70764

3 143995 Pulley, Transaxle 65 STD551 !43

8 154792 Rod Shift Fender 66 154778

10 STD561210 Pin Cotter 1/8 x 1 CAD 69 142432

15 74490544 Bott Hex Ffghd 5/16-18 Gr. 5 70 134683

16 STD54143t Nut Lock Hex W/tns. 5/16-18 Unc 7t 140158

18 STD523710 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 72 19132012

19 STD541437 Nut Lock Hex WANsh 3/8-16 Uric 73 156347

2I 130564 Knob, Deluxe 1/2-13 74 121!99X

22 145627 Rod, Brake Hydro 75 12t749X

24 73350600 Nut, Hex Jam 3/8-16 Unc 76 12000001

25 106888X Spring, Brake Rod 77 !23583X

26 STD551037 Washer 78 121748X

27 76020412 Pin Cotter 1/8 x 3/4 CAD. 81 156046

28 145204 Rod, Parking Brake 82 123782X

29 124236X Cap, Parking Brake 83 19171216

30 !30807 Bracket, Transaxte 84 t40548

31 127275X Keeper Belt Lh 86 71208

32 STD523t07 Bolt Hex Hd 5/16-18 Unc x 3/4 87 19212016

34 t55071 Shaft, Foot Pedal 88 12000008

35 120183X Bearing, Nyton 89 154882

36 STD551062 Washer 9t 74780536

37 STD571810 Pin, Roll 92 74780524

38 t23674X Pulley, Idler, Flat 93 142564

39 STD523727 Bolt 94 140462

40 4470J Spacer, Sptit 95 144643

4t 154777 Keeper, Belt Retainer 96 STD624003

42 19131312 Washer 13/32 x 13/16 x 12 Gauge 97 140469

47 127783 Pulley, Idler, V-Groove 98 73510600

48 154604 Belfcrank Assembly Clutch 100 19111216

49 123205X Retainer, Belt 102 141322

50 STD523715 Bolt 103 73940800

5t STD541437 Nut Crownlock 3/8-16 UNC 104 140156

52 STD541431 Nut, Crownlock 5/16-18 Unc t05 71070516

53 1057!0X Link, Clutch 106 74780520

55 t05709X Spring, Return, Clutch 116 72110610

56 STD523712 Bolt Hex 3/8-!6 x 1-1/4 t18 154774

57 140294. V-Belt, Ground Drive t2t 154419

59 140312 Keeper, Center Span

61 17490612 Screw Thdrol. 3/8q6 x 3/4 Ty. TT

62 8883R Cover, Pedal

Pulley, Engine

Bolt 7/16-20 X 4 Gr. 5

Washer Lock Hvy Hlcl Spr 7/16

Keeper Belt Engine

Screw

Keeper Bett Engine

Strap Torque Lh Hydro 18/20" T

Washer t3/32 x 1-1/4 x 12 Gauge

Strap Torque Rh Hydro

Spacer, Split

Washer 25/32 x 1-I/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x !-5/8 x 16 Gauge

Shaft Asm. Cross Hydro 20" Tires

Spring Torsion T!A

Washer 17132 x 3/4 x t6 Ga.

Rod, Tie Hydro 20" Tires

Bushing Rod Strig. 629/632 ID

Washer 21/32 x 1-1/4 x 16 Ga.

Ring Klip #5304-62

Console, Shift

Bolt Fin Hex 5/16-18 x 2-1/4

Bolt Fin Hex 5/6-18 Uric x 1-1/2

Line Fuel Hydro 4"

Fan, Hydro 7"

Control Bypass Hydro 20" Tires

Retainer Spring 1" Zinc/Cad

Keeper Bolt Rh Hydro 0750. 18/20"

Nut Keps Hex 3/8-16 Unc

Washer 11/32 x 3/4 x 16 Ga.

Washer Beltville .501D x 1.50D

Nut Hex Jam Toptock 1/4-20 Unf

Arm, ControI Hydro

Screw Cap Hex 5/16 x 18 x 1

Bolt Fin Hex 5/16-18 Unc x 1-1/4

Bolt Rdhd Sqnk 3/8-16 x 1.25

Spacer Beltcrank

Nyliner Clutching STL

NOTE: All component dimensions given in U.S. inches

t inch = 25.4 mm

REPAIR PARTS

TRACTOR o oMODEL NUMBER 917.258534

STEERING ASSEMBLY

LI _,

i -

,_Ti.!

/ /

I /

REPAIR PARTS

TRACTOR o° MODEL NUMBEF 917o258534

STEEIRING ASSEMBLY

KEY PART

NO. NO. DESCFtIPT1ON

! 139768

2 154427

3 156483

4 157473

5 6266H

6 t21748X

7 19272016

8 12000029

9 3366R

10 156438

11 STD551137

13 154779

15 73901000

t6 132624.

17 156546

t8 57079

t9 124035X

20 126684X

2t STD551125

22 71100410

23 127501

25 154406

26 126847X

27 136874

28 19131416

29 17490612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

40 STD54t537

41 100711L

42 145054

43 121749X

44 153720

46 12!232X

47 6855M

5t STD541431

53 73680600

54 74780520

62 156594,

63 STD523710

65 154780

66 154,404

67 74781044

68 154429

69 160367

70 '74780636

NOTE:

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L.H,

Spindle Assembly, R°H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 × t6 Gauge

Washer 27/32 x !-1/4 x t6 Gauge

Ring, Klip

Bearing, Steering Column

Draglink Extended Stamped

Washer, Lock

Bearing Axte STLT/GT

Nut, Lock, Flange 5/8-!1 UNC

Pin, Axle 5/8 x !.55/1.54

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Washer

Screw, Hex Socket Head

1/4-20 x 5/8

Pittman Shaft Assembly

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, Thd., RolL 3/8-t6 x 3/4

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheet

Washer 13/32 x 2-3/8 x 8 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-I/4 x 16 Gauge

Extension Shaft Steering LR.LT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/Ins. 5/16-18 UNC

Nut, Crownlock 3/8-16 UNC

Bolt Fin Hex 5/16-18 UNC x 1-1/4

Kit Steerinq Asm Service

Bolt, Fi:_ Hex 3/8-I6 UNC x 1 Gr 5

Spacer Axle

Bearing Arm Pittman

Bolt, Fin }.-lax5/8-11 UNC x 2-3/4

Axle, Brace

Spacer, Brace Axle

Bolt, Fin Hex 3/8-16 UNC x 2-1/4

All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

"TRACTOR - o MODEL NUMBER 917.258534

SEAT ASSEMBLY

\ \

17 12

KEY

NO.

.10

PART

NO,

140123

140551

STD523710

19131610

145006

STD541437

124181X

17490616

19131614

155925

121246X

12!248X

72050412

KEY PART

DESCRiPTiON NO. NO, DESCR_PTION

Seat 15 134300

Bracket, Pivot, Seat 16 121250X

Bolt !7 123976X

Washer 13/32 x 1 x 10 Gauge 2t 153236

Clip, Push-In Hinged 22 STD541431

Nut 23 74780814

Spring, Seat

Screw, Thd., Roll. 3/8-16 x 1 24 19171912

Washer 13/32 x 1 x 14 Gauge 25 127018X

Pan, Seat Emboss QCK Conn. 26 STD55I 150

Bracket, Switch Mounting

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/3

Spacer, SpIit ,28 x .88

Spring

Locknut, Flange 1/4 Grade 5

Bolt, Shoulder 5/I6-18 UNC

Nut

Bolt, Hex Head, Fin.

1/2-13 x 7/8 Grade 5

Washer 17/32 x 1-3/16 x !2 Gauge

Bolt, Shoulder 5/!6-18 x .62

Washer, Lock

NOTE: Ali component dimensions given in U.S. inches

I inch = 25.4 mm

REPARR PARTS

TRACTOR o- MODEL NUMBER 917,258534

DECALS

13 2 6 3 !8 7 7 18 4

t2 13

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 156811 Decal, Oper. Instr. 13 147138

2 150333 Decal, Cap Cnsmr Help Line 14 160396

3 151299 Decal, Hood, R.H. 18 151708

4 151300 Decal, Hood, L.H. 20 149516

6 133644 Decal, Customer Maintenance 21 1568!0

7 150927 Decal, Side Panel - - 138311

8 156787 Decal, Deck Mower EZ3 -- 142341

9 !46709 Decal, Fender, Craftsman - - !54515

10 156439 Decal, Fender Danger - - 1545t6

12 146046 Decal, V-Belt Drive Schematic - - 160919

- - 160920

Decal, Chassis, 6 Speed/42"

Decal, V-Belt Schematic

Decaf, Ins. Hood

Decal, Battery DngriPsn Eng

Decal, Fender Auto

Decal, Lift Handle

Decal, Drawbar Cntd M'_ Hyd LT

Pad Footrest LH STLT

Pad Footrest RH STLT

OwneCs Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

KEY PART

NO. NO,

1____._ ! 59192

5,8 2 65139

4,10 3 106222X

7 4 59904

DESCRIPTION

5 !06732X427

6 278H

7 9040H

8 106108X427

9 1384.68

10 7152J

11 104757X

-- 144334

NOTE:

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Real" Tire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire 10 oz.

All component dimensions given in U,S. inches

t inch = 25.4. mm

REPAIR PARTS

TRACTOR - ° MODEL NUMBER 917o258534

ENGINE

OPTIONAL EQUIPMENT

Spark Attester

REPAIR PARTS

TRACTOR o MODEL NUMBER 917o258534

ENGUNE

KEY PART

NO, NO. DESCRIPTION

I 150600

2 17720410

4 137352

13 272293

14 13280324

15 13200300

16 STD55t237

23 156123

29 137180

3t 109202X

32 123549X

33 123487X

35 17490512

37 137040

38 .......

40 124028X

44 17490412

46 19091416

62 STD55tI3t

72 71070512

78 17490620

81 128861

Control, Throttle

Screw, Hex Head, Thread Cutting

t/4-20 x 5/8

Engine (See Breakdown) Briggs

Model 28N707-0173-01

Muffler

Gasket, Exhaust

Nipple, Pipe 3/8 NPT x 3

Elbow, Standard 90°, 3/8-18 NPT

Washer

Shield, Heat

Arrestor, Spark

Tank, Fuet

Cap Assembly, Fuel Tank, Vented

Clamp, Hose

Screw Thdrol 5/16-18 x 3-4 Tyt

Line, Fuel

Plug, Oit Drain

(Order From Engine Manufacturer)

Bushing, Snap, Fuel Line

Screw, Hex Washer Head, Thd., Roll.

I/4-20 x 3/4

Washer 9/32 x 7/8 x 16 Gauge

Washer, Lock

Screw, Hex Cap Head 5/16-18 x 3/4

Screw, Thd., Rolt. 3/8-16 x 1-!/4

Nut Flange t/4-20 Starter Nut

NOTE: All component dimensions given in U.S, inches

1 inch = 25.4 mm

REPAtR PARTS

TRACTOR o o MODEL NUMBER 9t7.258534

MOWER LIFT

28 27

25 24

/ 23

"/ /'

/ /

///

i 7

/ /

/ /' _!/

t ................;;-;;::;:,t;•,"" ........._LL._,T;_"+_7'_'

4-4

REPAIR PARTS

TRACTOR == MODEL NUMBER 917,2585:34

MOWER LIFT

KEY PART

NO. NO. DESCRtPTaON

1 159471

2 159460

3 t05767X

4 12000002

5 19211621

7 125631×

8 122365X

11 139865

12 139866

13 STD624008

15 127218

!6 7335O800

17 130171

18 73800800

19 139868

2O STD624008

23 I10807X

24 19131016

25 2876H

26 76020308

27 126971X

28 73350600

29 138057

30 150233

31 140302

32 73540800

49 145212

50 t!0452X

Lift Lever Inner Wire Assembly

Shaft Assembly, Lift

Pin, Groove

E-Ring

Washer 21t32 x t x 21 Gauge

D_fdl II ILj_ t_ytUI I

Grip, Handle, Fluted

Button, Plunger, Red

Link, Lift, L.H.

Link, Lift, R.H.

Retainer Spring

Link, Front

Nut, Hex, Jam 1/2-13 UNC

Trunnion

Locknut, Hex, with Washer Insert

1/2-13 UNC

Arm, Suspension, Rear

Retainer Spring

Nut, Special

Washer 13/32 x 5/8 x 16 Gauge

Spring

Pin, Cotter 3/32 x I/2

Rod, Adjust, Lift

Nut, Hex, Jam 3/8-16 UNC

Knob, Infinite Height Adjustment

Trunnion, lnf Height

Bearing, Pvt, Lift Spherical

Nut, Crownlock 3/8-24

Nut Hex Flange Lock

Push, Nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 9! 7.258534

MOWER DECK

c:_ 54,_/34

102

101

105

106

-3

........1 17

REPAIR PARTS

TRACTOR ,- o MODEL NUMBER 9t7.258534

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DEESCRtPTION

I 144393 Mower Housing 56 I22052X

2 STD533107 Bolt 58 140086

3 138017 Bracket Assembly,Sway Bar, Front 59 141043

4 138440 Bracket Assembly, Sway Bar 67 t49846

5 STD624008 Retainer Spring 68 144200

6 130832 Arm, Suspension, Rear 71 t42427

8 85085'7 Bolt, Hex 3/8-24 x 1.25 Grade 8 72 131870

9 STD551137 Washer, Lock 73 127847

10 140296 Washer, Hardened 74. 121748X

I1 134149 Blade, Mulching 75 12000029

12 129895 Bearing, Bai! 76 128903

13 137645 Shaft Assembly, Mandrel, Vented 77 I27845

(includes Key Number 6). 78 154809

14 128774. Housing, Mandre!, Vented 79 t27498

15 t10485X Bearing, Bali, Mandrel 80 153701

16 140329 Stripper, Vented Mower Deck 8t 73350600

t7 72110610 Bolt, Carriage 3/8-t6x 1-1/4 82 142028

t8 STD533t06 Bolt, Carriage 5/t6-18 x 5/8 83 120958X

i9 132827 Bolt, Shoulder 84 156084

20 136888 Baffle, Vortex 85 72140618

21 STD541431 Nut Crowntock 5/I6-18 UNC 92 STD541437

22 I34753 Stiffener Bracket t0t 136420

23 131267 Bracket, Deflector t02 71161010

24 105304X Cap, Sleeve 103 19061216

25 123713X Spring, Torsion, Deflector t04 STD551 ! t0

26 110452X Nut, Push t05 130758

27 130968 Shield, Deflector 106 2029J

28 19111016 Washer 11i32x5i8x16Gauge 11I 155197

29 131491 Rod, Hinge 112 155198

30 157722 ScrewThd 113 17490512

31 129963 Washer, Spacer 114 STD541431

32 153535 Pulley, Mandrel 1t5 72110504

33 137266 Nut, Toplock, Flanged tt6 137644

34 STD533717 Bott tt7 133957

35 133835 Fastner, Christmas Tree 118 73930600

36 131494 Pulley, Idler, Flat 1!9 19121414

37 STD551037 Washer 13/32 x t3/16 x t6 Gauge !21 143723

40 STD54t437 Nut Crownlock 3/8-!6 UNC I28 153390

41 133551 Rod, Pivot, with Nibs 129 19131312

43 140083 Rod, Clutch, Secondary, with Nibs t30 STD523710

44 140088 Guard, Mandrel, L.H. 131 STD533710

45 STD624003 Retainer 132 19132203

46 137729 Screw, Thd. Rotl 1/4-20 x 5/8

48 t33944 Washer, Hardened - _ t30794

49 133940 Roller Assembly, Cam Follower

50 131340 Bolt, Shoulder #10-24 Grade 5 - _ 145411

51 STD541410 Locknut

52 139888 Bolt, Shoulder 5/16-18 UNC

53 I31845X900 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened

55 140084 Arm, Idler

NOTE:

Spacer, Retainer

Spring, Torsion Brakes

Guard, TUV Idler

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x 1-5/8 x 16 "^'

,._uge

Ring, Klip

Bolt, Shoulder 3/8-!6 UNC x 1.44

Keeper, Spring

Lever Asm. Clutch Pri PIm STLT

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion, Adj.

Washer, Sintered

Keeper, Belt idler

Bolt, Carriage 3/8-16 x 2-1/4

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel LH.

Bracket, Gauge, Wheel R.H.

Screw Thdrol 5/16-18 x 3/4

Nut, Hex, Keps 5/16q8 UNC

Bolt, Carriage 5/!6 UNC x t/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer t3/32 x 13/t6 x 12 Gao

Bolt, Fin Hex 318-16 UNC x 1 Gr. 5

Bolt, RDHD SQNK 3/8-16 UNC x 1

Spacer, Washer 13/32 I.D. x 1-3/8

O.D. x 1/4

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Whee{

Components, Key Nos. 101-106

and111-121)

Aft component dimensions given in U.S. inches

t inch = 25.4 mm

REPAHR PARTS

TRACTOR _ o MODEL NUMBER 917.258534

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0650

34 139

" 30

90 _3 s2

6 4

114 ..... .,,

!13 "

BEPAnR PARTS

TRACTOR ,- o MODEL NUMBER 917.258534

HYDRO GEAR TBANSAXLE = MODEL NUMBER 3t0-0650

KEY PART KEY PART

NO, NO, DESCRIPTION NO, NO. DESCRiPTiON

1 142930 Housing, Lower 43 142884 Washer 7/t6 x 7/8 x .060

2 142931 Assembly, Upper Housing 44 150829 Differential Assembly

3 142932 Seal, Lip 52 142991 Washer 3/4 x t.5 x .13

4 142928 Ring, Wire Retaining 53 142961 Seal .75 x t.25 x .250

5 142933 Ring, Retaining 56 142963 Shaft, Input

6 142934 Bearing, Shaft Ball 58 142964 Bolt t/4-20 x 1.38

7 142935 Bearing, Cradle 59 142965 Pin .5 QD x .43 ID x .750

8 150771 Bearing, Thrust 30 x 52 x 13 62 142966 Arm, Control

9 142937 Swashplate, Variable 63 142967 Puck, Dampener

13 142938 Block, Cylinder Assembly 64 142920 Set Screw

14 142939 Arm, Trunnion 68 142969 Spring

15 142940 Seal, Lip 69 144610 Stud 5/16-24

17 142941 Guide, Slot 83 142971 Jackshaft Assembly

18 150772 Shaft, Motor 85 t50806 Jackshaft

19 150773 Bearing, Thrust 42 x 68 x I6 88 t42973 Screw, Cap

23 t42944 Block, Cylinder Assembly 89 142974 Washer 7/16 x t x t/2

24 142945 Seal, Lip 10 x 25 x 7 90 142975 Sleeve Bearing

25 142946 Actuator, Bypass 91 142976 Seal, Wiper

26 150774 Center Section Assembly Kit 92 142977 Spring, Block

27 142948 Seal, Lip 26 x 42 x 8 93 142978 Washer, Block Thrust

28 142949 Ring, Retaining t13 142917 Cap, Vent Assembly

29 t42950 Washer 26 x 35 x t 1t4 142918 Fitting, Q-Ring Assembly

34 142951 Oil Filter Element 119 142980 Spacer

35 142952 Arm, Bypass t34 144607 Nut, Castle 5/I6-24

36 142953 Ring, Retaining 135 144608 Pin, Cotter

37 142954 Arm, Actuating t39 150775 Spring, Compression

38 142955 Pin, Actuating t40 150776 Nut, Hex 5116-24

39 t50777 Bolt 5/t6-24 x 1-3/4

40 150778 Locknut, Hex 5/16-24 UNJC NOTE: All component dimensions given in U.S. inches

41 142958 Brake RotoriStator Kit 1 inch = 25.4 mm

REPAIR PARTS

TRACTOR o o MODEL NUMBER 9t7.258534

BRIGGS & STRATTON ENGWNE = !ViODEL NUMBER 28N707, TYPE NUMBER 0173-01

7t8

634A

_i_ REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

1034

1026

REPAIR PARTS

TRACTOR - ° MODEL NUMBER 9"17o258534

BR_GG$ & $TRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-0I

1022

1033 VALVE OVERHAUL K1T

REPAmR PARTS

TRACTOR - - MODEl° NUMBER £17.258534

BRmGGS & STRATTON ENGINE - MODEL NUMBER 28N707_ TYPE NUMBER 0173-01

284A

3 20 634A 84,2 524 868 868A

@ C3 %

872

138

137

CARBURETOR GASKET SET

445

304

3o5_

346

468

729 [_

1006

668

f.._.--_ -.

_ 1044

d_2_7s

224

537

334

726

REPAIR PARTS

TRACTOR ° o MODEL NUMBER 917.258534

BRtGGS & STRATTON ENGINE o MODEL NUMBER 28N707, TYPE NUMBER 0t73-01

482

783

t090

311

8O3

310

544

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258534

BR_GGS & STRAT'FON ENGINE o MODEL NUMBER 28N707_ TYPE NUMBER 0!'73-0!

KEY PART KEY PART

NO. NO. DESCRtPT1ON NO. NO, DESCRIPTION

1 496412

2 399265

3 391086

5 495858

7 272614

8 495735

9 27803

10 94621

tl 281246

12 271916

271997

271996

13 94728

15 94239

16 495162

94196

t8 494238

20 291675

22 94624

23 492326

32A

222698

495860

495977

495978

495979

495854

495852

495851

495855

260924

299691

391286

494504

495490

94695

94648

4.95856

495857

262811

224502

224641

262411

496884

272465

272569

94637

224061

94832

Cylinder Assembly 95

Bearing, Cylinder 98

* Seal, Oil 104

Head, Cylinder 105

*** Gasket, Cylinder Head 106

Breather Assembly I08

* Gasket, Valve Cover t 17

Screw, Seres 118

Tube, Breather 121

* Gasket, Crankcase Cover, .015" t23

* Gasket, Crankcase Cover, .005" t25

* Gasket, Crankcase Cover, .009" t27

Screw, Cylinder Head !30

Plug, Oil Drain 13t

Crankshaft 133

Timing Gear Key 137

Base, Engine 138

* Seal, Oit 141

Screw, Sems, Base Mounting 142

Flywheei and Ring Gear Assembly, t47

Magneto 164

Key, Flywheei 166

Piston Assembly, Standard Size I7t

Piston Assembly, .010" Oversize t87

Piston Assembly, .020" Oversize !88

Piston Assembly, .030" Oversize 192

Ring Set, Piston, Standard Size 201

Ring Set, Piston, .010" Oversize 209

Ring Set, Piston, .020" Oversize 2t6

Ring Set, Piston, ,030" Oversize 219

Lock, Piston Pin 222

Pin Assy., Piston, Standard Size 224

Pin Assy., Piston, .005" Oversize 225

Rod Assembly, Connecting 227

Rod Assembly, Connecting, 230

.020" Undersize Crankpin Bore 232

Screw, Hex Washer Head, 1-57/64 238

Screw, Hex Washer Head, t-5/8 240

Valve, Exhaust 265

Valve, Intake 284

Spring, Valve

Guard, Flywheel

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

Gasket, Carburetor (Carburetor to

Elbow) (Also IncJuded in Gasket

Set, Part Number 495993)

*** Gasket, Carburetor

(EIbow to Cylinder)

Stud, Carburetor Mounting

Washer, Spring

Screw, Pan Head

94098 ** Screw, Throttle

495800 Screw, Idle Speed

231789 ** Pin, Float Hinge

231855 ** Valve Float

231854 ** Seat, Inlet Valve

224540 Valve, Choke

231858 ** Jet, Needle Va}ve

495932 Valve, Needle

4981 t 6 Carburetor Overhaui Kit

946t6 Screw, Elbow Mounting

498051 Carburetor Assembly

- - - ** Plug, Welch (Sold in Kit On!y)

224539 Valve, Throttle

494379 Shaft and Lever, Throttte

494381 Float, Carburetor

281165 .... Gasket, Float Bow_

281164 .... Washer, Bowt

495931 Shaft and Lever, Choke

231859 ** Nozzle, Carburetor

497472 ** Pilot, Jet

214047 EIbow, Carburetor

94555 Stud, Rocker Arm

281051 Nut, Air Cleaner Mounting

393815 Line, Fuel (1 t" Long, Cut to Suit)

94627 Screw, Sems

492I 60 Screw Assembly, Rocker Arm

262767 Link, Governor

260695 Spring, Governor

262766 Link, Choke

490815 Gear, Governor

495611 Plate, Governor Control

94729 Screw, Sems, Air Cleaner

4.95t 57 Crank, Governor

493935 Lever Assembly, Governor

94742 Washer, Governor Crank

262785 Spring, Governor Link

262836 Cap, Valve

394358 Filter, Fuet (In Fuel Line)

22! 535 Clamp, Casing

94704 Screw, Hex Head

* included in Gasket Set (495993)

** Included in Carburetor Kit (497535)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (4.95992)

.... Included in Gasket Set (495993), Carburetor Kit

(4975357 and Carburetor Gasket Set (494.385)

NOTE: All component dimensions given in U.S. inches

I inch = 25.4 mm

REPAIR PARTS

TRACTOR o o MODEL NUMBER 917,258534

BR_GGS & STRATTON ENGINE o MODEL NU[_BER 28N707, TYPE NUMBER 0173_01

KEY PART KEY PART

NO, NO, DESCRIPTION NO. NO. DESCRIPTION

284A 94073 Screw, Hex Head 729A 225!70 Retainer, Wire

294 810068 Screw, Set 741 262932 Gear. Timing

304 496280 Housing, Biower 757 213998 Link, Counterweight

305 94786 Screw, Hex, Head, 758 399891 Counterweight Assembly

Biower Housing Mountir_ 759 298909 Pin, Counterweight

306 225020 Shield, Cylinder 76I 94593 Screw, Counterweight

307 94386 Screw, Cy!inder Shield 783 280104 Gear, Starter

309 497595 Motor, Starter 80! 394856 Cap, Drive

3!0 497602 Bolt, Thru 802 497605 Cap, End

311 497608 Brush Set 803 497604 Housing, Starter

333 495859 Armature, Magneto 842 270920 *SeaI, Oil Filler Cap

334 93381 Sc:'ew, Seres, Armature Mounting 847 496415 Flit Group, Oil

337 49t055 Plug, Spark 85t 2241!0 Terminal, Ignition Cable

346 93705 Screw, Hex Head 868 494435 *** Seat Assembly, Valve

356 497708 Wire Assembly 868A 272610 *** Gasket, Valve

358 495993 Gasket Set 871 262835 Bushing, Guide (Intake & Exhaust)

363 19203 Puller, Flywheel 872 281361 Cover, Air Cleaner

383 89838 Wrench, Spark Plug 875 495862 Body, Air Cleaner

423 94073 Screw, Seres 877 393456 Diode and Connector Assembly

445 493909 Cartridge, Air !leaner 947 497157 Solenoid

455 222561 Cup, Screen Mounting 965 94010 Nut, Hex

467 493903 Knob, Air Cleaner 975 495933 Bowl Assembly, Carburetor

468 494439 Screen, FIush Rotating 977 494385 Carburetor Gasket Set

474 393474 Stator, Alternator 98'7 281166 ** Seal, Throttle Shaft

482 93621 Screw, Sems 1005 281400 Fan, Flywheel

510 497606 Drive, Starter 1006 2244.13 Retainer, Fan

523 495230 Cap and Dipstick, Oil F:lter t019 496758 Label Kit

524 68838 * Seal, FiIlerTube t022 272475 *** Gasket, Cover

525 496113 Tube, Oil Filler 1023 224552 Cover, Rocker Arm

535 272403 Element, Filter 1026 494432 Rod, Push, Intake

537 281 t06 * O_Ring, Air Cleaner 495136 Rod, Push, Exhaust

544 497603 Armature, Starter 1029 224554 Arm_ Rocker

552 231597 Bushing, Governor Crank 1033 495992 Valve Overhaul Kit

562 92613 Bolt, Carriage 1034 495248 Guide Assembly, Push Rod

592 231082 Nut, Hex t044 94673 Screw, Hex Head

60t 93053 Clamp, Fuel Pipe 1054 270723 Tie, Cabie

61I 493496 Elbow, Fuel Pipe 1058 272623 Manual, Owner's

6t4 93306 Pin, Cotter 1090 497607 Retainer, Brush

618 262803 Spring, Choke Return

634 28t168 ** Seal, Choke Shaft RPM Settings: Low: 1650-1850, High: 3200-3400

634A 491323 * Seal, Governor

634B 28!167 ** Washer, Throttle Shaft " Included in Gasket Set (495993)

635 280872 Boot, Spark Plug

646 224.546 Brace, Air Cleaner ** Included in Carburetor Kit (497535)

657 934.96 Screw, Seres

663 94620 Screw, Self-Tapping '* Included in both Gasket Set (495993) and

668 280848 Spacer Valve Overhaul Kit (495992)

718 230192 Pin, Dowel

726 392134 Gear, Ring .... included in Gasket Set (495993), Carburetor Kit

(Includes Mounting Hardware) (497535) and Carburetor Gasket Set (494385)

727 490324 Cover, Starter'

728 94627 Screw, Hex Head NOTE: All component dimensions given in U.S, inches

729 281390 Clip, Wire t inch = 25.4 mm

SERVICE NOTES

SERVMCE NOTES

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPEFi_ATmON

SIGHTING

_IDE

ONLY RiDE UP AND DOWN H_LL,

NOT ACROSS HgLL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

'11

A Operate your Tractor up and down the face of slopes (not

8 _ greater than 15°), never across the face. Make turns gradu-

_1_ ally to prevent tipping or loss of controto Exercise extreme

caution when changing direction on s_opes.

OWNE 'S

UAL

MODEL NO.

917.258534

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(I -800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

15.5 HP

ELECTRIC START

42" MOWER

AUTOMATIC (HYDROSTATIC}

LAWN TRACTOR

Each tractor has its own modet number. Each engine has

its own model number.

The model number for your tractor wiii be found on the

model plate located under the seat.

The model number for your engine will be found on the

blower housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most Re-

tail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING iNFORMATION:

- PRODUCT - TRACTOR

* MODEL NUMBER - 917.258534

,= ENGINE MODEL NO. - 28N707, TYPE NO. 0173-01

= PART NUMBER

=, PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians.., professiona! technicians

specifically trained to insure that we meet our piedge to

you, we service what we sell.

t60919 Rev, 1 06,06.97 BW!KFSW

Printed in U.S.A.

Craftsman 917258534 tractor

Product's Documents

User Manual

Specifications

Craftsman 917258534 Questions and Answers
